User’s Manual

Hardware Description

Revision 1.2, 1-Feb-2013

eUniStone

BlueMoon™ Universal Platform Embedded

PBA 31309 Version 1.x

Intel Public

The template (FrameMaker) of this document has been formally released by DOC department (IMC-DOC@intel.com).

Template data: T_TechDoc.fm, Rev. 2.00, 2012-04-01.

User’s Manual Intel Public 2

Hardware Description Revision 1.0, 1-Feb-2013

legal lines and disclaimers

Information in this document related to the Intel product or, if any, related to its use is provided in connection with Intel products. no license, express or

implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. except as provided in agreements concluded

individually or Intel’s terms and conditions of sale for such products, Intel assumes no liability whatsoever and Intel disclaims any express or implied

warranty, relating to sale and/or use of Intel products including liability or warranties relating to fitness for a particular purpose, merchantability, or

infringement of any patent, copyright or other intellectual property right.

Unless otherwise agreed in writing by Intel, the Intel products are not designed nor intended for any application in which the failure of the Intel product

could create a situation where personal injury or death may occur.

Unless otherwise agreed upon, Intel may make changes to specifications and product descriptions at any time, without notice. Designers must not rely

on the absence or characteristics of any features or instructions marked “reserved” or “undefined”. Intel reserves these for future definition and shall

have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them. Unless otherwise agreed, the information here is

subject to change without notice. Do not finalize a design with this information.

Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.

Copies of documents which have an order number and are referenced in this document, or other Intel literature, may be obtained by calling 1-800-548-

4725, or go to: http://www.intel.com/#/en_US_01.

Any software source code reprinted in this document is furnished under a software license and may only be used or copied in accordance with the terms

of that license.

This document may contain information on products in the design phase of development.

Intel product numbers are not a measure of performance. Product numbers differentiate features within each product family, not across different product

families.

Code Names are only for use by Intel to identify products, platforms, programs, services, etc. (“products”) in development by Intel that have not been

made commercially available to the public, i.e., announced, launched or shipped. They are never to be used as “commercial” names for products. Also,

they are not intended to function as trademarks.

SMARTI, SMARTi & Device, BlueMoon, Comneon, Comneon & Device, M-GOLD, S-GOLD, E-GOLD, A-GOLD, X-GOLD, XMM, X-PMU, XPOSYS are

trademarks of Intel Corporation and related companies.

*Other names and brands may be claimed as the property of others.

eUniStone

PBA 31309

User’s Manual Intel Public 3

Hardware Description Revision 1.0, 1-Feb-2013

Revision History

Page or Item Subjects (major changes since previous revision)

Revision 1.0, 1-Feb-2013

eUniStone

PBA 31309

User’s Manual Intel Public 4

Hardware Description Revision 1.0, 1-Feb-2013

1.0 General Device Overview........................................................................................... 8

1.1 Features ............................................................................................................ 8

1.2 Block Diagram .................................................................................................... 9

1.3 Pin Configuration LGA........................................................................................ 10

1.4 Pin Description ................................................................................................. 11

1.5 System Integration ........................................................................................... 13

1.6 SW Patch in EEPROM ......................................................................................... 14

2.0 Basic Operating Information ................................................................................... 15

2.1 Power Supply ................................................................................................... 15

2.2 Clocking........................................................................................................... 15

2.3 Low Power Modes.............................................................................................. 15

2.3.1 Low Power Mode .................................................................................... 15

2.3.2 Complete Power Down............................................................................ 15

2.3.3 ON/OFF ................................................................................................ 15

3.0 eUniStone Interfaces............................................................................................... 16

3.1 UART Interface ................................................................................................. 16

3.1.1 UART.................................................................................................... 16

3.1.1.1 Baud Rates .............................................................................. 16

3.1.1.2 Detailed UART Behavior............................................................. 17

3.1.1.3 UARTCTS Response Time........................................................... 18

3.2 Low Power Control ............................................................................................ 18

4.0 General Device Capabilities ..................................................................................... 19

4.1 RF Test Application............................................................................................ 19

4.2 Firmware ROM Patching ..................................................................................... 19

4.2.1 Patch Support........................................................................................ 19

5.0 Bluetooth Capabilities ............................................................................................. 20

5.1 Supported Features........................................................................................... 20

5.2 eUniStone Bluetooth Features............................................................................. 20

5.2.1 Secure Simple Paining ............................................................................ 20

5.2.2 Role Switch ........................................................................................... 20

5.2.3 Sniff Mode ............................................................................................ 21

5.2.4 Sniff Subrating ...................................................................................... 21

5.2.5 Enhanced Power Control ......................................................................... 21

5.2.6 Encryption Pause and Resume ................................................................. 21

6.0 Electrical Characteristics ......................................................................................... 22

6.1 Absolute Maximum Ratings................................................................................. 22

6.2 Operating Conditions ......................................................................................... 22

6.3 DC Characteristics............................................................................................. 23

6.3.1 Pad Driver and Input Stages.................................................................... 23

6.3.2 Pull-ups and Pull-downs .......................................................................... 25

6.3.3 Protection Circuits .................................................................................. 25

6.3.4 System Power Consumption .................................................................... 26

6.4 RF Part ............................................................................................................ 26

6.4.1 Characteristics RF Part............................................................................ 26

6.4.1.1 Bluetooth Related Specifications ................................................. 26

7.0 Package Information............................................................................................... 29

7.1 Package Marking............................................................................................... 29

7.2 Production Package ........................................................................................... 30

7.2.1 Pin Mark ............................................................................................... 30

8.0 Bluetooth Qualification and Regulatory Certification ............................................... 31

Contents

eUniStone

PBA 31309

User’s Manual Intel Public 5

Hardware Description Revision 1.0, 1-Feb-2013

8.1 Reference Design .............................................................................................. 31

8.2 FCC Class B Digital Devices Regulatory Notice....................................................... 32

8.3 FCC Wireless Notice........................................................................................... 32

8.4 FCC Interference Statement ............................................................................... 33

8.5 FCC Identifier ................................................................................................... 33

8.6 European R&TTE Declaration of Conformity........................................................... 34

8.7 Bluetooth Qualified Design ID ............................................................................. 36

8.8 Industry Canada Certification.............................................................................. 36

8.9 Label Design of the Host Product......................................................................... 36

8.10 Regulatory Test House....................................................................................... 36

9.0 Assembly Guidelines ............................................................................................... 37

9.1 General Description of the Module ....................................................................... 37

9.2 Printed Circuit Board Design ............................................................................... 38

9.3 Solder Paste Printing ......................................................................................... 39

9.4 Assembly ......................................................................................................... 39

9.4.1 Component Placement ............................................................................ 39

9.4.2 Pin Mark ............................................................................................... 39

9.4.3 Package................................................................................................ 40

9.5 Soldering Profile................................................................................................ 41

9.6 Rework........................................................................................................... 42

9.6.1 Removal Procedure ............................................................................... 42

9.6.2 Replacement Procedure .......................................................................... 42

9.6.2.1 Alternative 1: Dispensing Solder................................................. 42

9.6.2.2 Alternative 2: Printing Solder ..................................................... 43

9.7 Inspection........................................................................................................ 43

9.8 Component Salvage .......................................................................................... 44

9.9 Voids in the Solder Joints ................................................................................... 44

9.9.1 Expected Void Content and Reliability ....................................................... 44

9.9.2 Parameters with an Impact on Voiding ...................................................... 45

eUniStone

PBA 31309

User’s Manual Intel Public 6

Hardware Description Revision 1.0, 1-Feb-2013

1 Simplified Block Diagram of eUniStone ......................................................................... 9

2 Pin Configuration for eUniStone in Top View (footprint) ................................................. 10

3 System Architecture Example with eUniStone .............................................................. 13

4 UART Interface........................................................................................................ 16

5 UARTCTS Response Time .......................................................................................... 18

6 Package Marking...................................................................................................... 29

7 Production Package.................................................................................................. 30

8 Top View and Bottom View........................................................................................ 30

9 Reference Design Schematics .................................................................................... 31

10 Cutout Drawing ....................................................................................................... 33

11 Equipment Label...................................................................................................... 34

12 Declaration of Conformity ......................................................................................... 35

13 Pad Layout on the Module (top view).......................................................................... 37

14 Cutout Drawing ....................................................................................................... 38

15 Pin Marking............................................................................................................. 39

16 Tape on Reel........................................................................................................... 40

17 Eutectic Lead-Solder Profile....................................................................................... 41

18 Eutectic Leadfree-Solder Profile ................................................................................. 41

19 Solder Printing ........................................................................................................ 43

20 X-ray Picture Showing Voids Conforming to IPC-A-610D................................................ 44

Figures

eUniStone

PBA 31309

User’s Manual Intel Public 7

Hardware Description Revision 1.0, 1-Feb-2013

1 Pin Description ....................................................................................................... 11

2 UART Baud Rates .................................................................................................... 17

3 Default (non-inverted) behavior of UART signals ......................................................... 17

4 Absolute Maximum Ratings ...................................................................................... 22

5 Operating Conditions ............................................................................................... 22

6 Internal1 (1.5 V) Supplied Pins ................................................................................. 23

7 Internal2 (2.5 V) Supplied Pins ................................................................................. 23

8 VDDUART Supplied Pins ........................................................................................... 24

9 VDD1 Supplied Pins ................................................................................................. 24

10 ONOFF PIN ............................................................................................................ 24

11 Pull-up and Pull-down Currents ................................................................................. 25

12 Max. Load at the Different Supply Voltages ................................................................ 26

13 BDR - Transmitter Part ............................................................................................ 26

14 BDR -Receiver Part ................................................................................................. 27

15 EDR - Transmitter Part ............................................................................................ 27

16 EDR -Receiver Part .................................................................................................. 28

Tables

eUniStone

PBA 31309

General Device Overview

User’s Manual Intel Public 8

Hardware Description Revision 1.0, 1-Feb-2013

1.0 General Device Overview

1.1 Features

General

• Complete Bluetooth 2.1 + EDR solution

• Implements a single point-to-point data link to other SPP capable

Bluetooth devices

• Ultra low power design in 0.13 µm CMOS

• Temperature range from -40°C to +85°C

• Integrates ARM7TDMI, RAM and patchable ROM

• On-module voltage regulators. External supply 2.9 - 4.1 V

• On-module EEPROM with configuration data

• On-module tuned reference clock

• Module can enter low power mode in idle state and during sniff intervals

Interfaces

• AT command interface over UART with HW flow control

• Default UART baudrate 115200 bit/s

• Module configuration reprogrammable for 9600 bit/s up to 3.25 Mbit/s UART

baudrate

• JTAG for boundary scan in production test

• Class 2 device up to +4 dBm

• Receiver sensitivity typ. -86 dBm

• Integrated antenna, balun and ISM band filter

• Integrated LNA with excellent blocking and intermodulation performance

• Digital demodulation for optimum sensitivity and co-/adjacent channel performance

eUniStone

PBA 31309

General Device Overview

User’s Manual Intel Public 9

Hardware Description Revision 1.0, 1-Feb-2013

Bluetooth

• Bluetooth V2.1 + EDR compliant

• Secure Simple Pairing

• Device A (initiating link) or Device B (accepting link) role supported

• Single point-to-point data link, role switch supported

• Packet data mode and stream data mode supported

• Sniff mode and Sniff Subrating is supported with above capabilities

• 5 trusted devices stored in EEPROM

• SW version available to configure specific RF certification tests

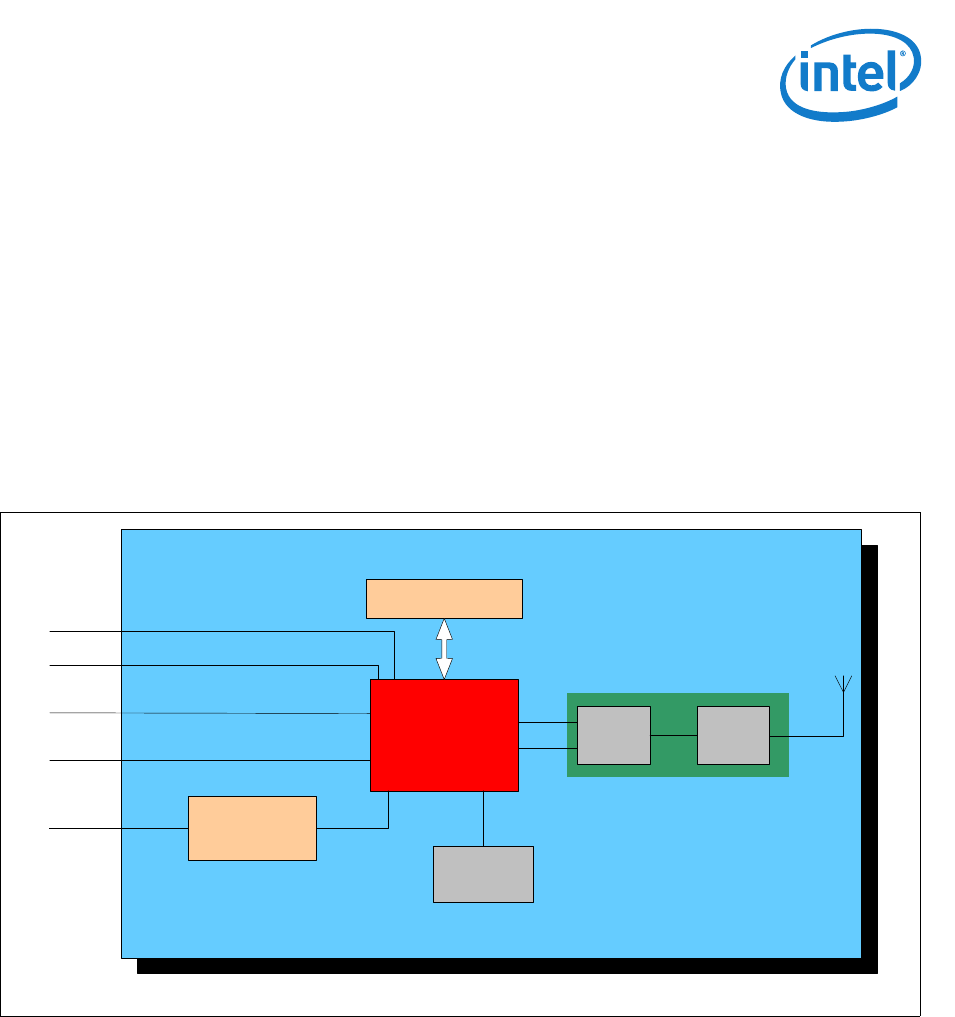

1.2 Block Diagram

Figure 1. Simplified Block Diagram of eUniStone

eUnistone_ Block_ Diagram.vsd

eUniStone

PMB8754

BlueMoon

UniCellular

EEPROM

Voltage

Regulator

Crystal

26 MHz

Balun Filter

supply

GPIO

UART

VDD_UART

VDD1

eUniStone

PBA 31309

General Device Overview

User’s Manual Intel Public 10

Hardware Description Revision 1.0, 1-Feb-2013

1.3 Pin Configuration LGA

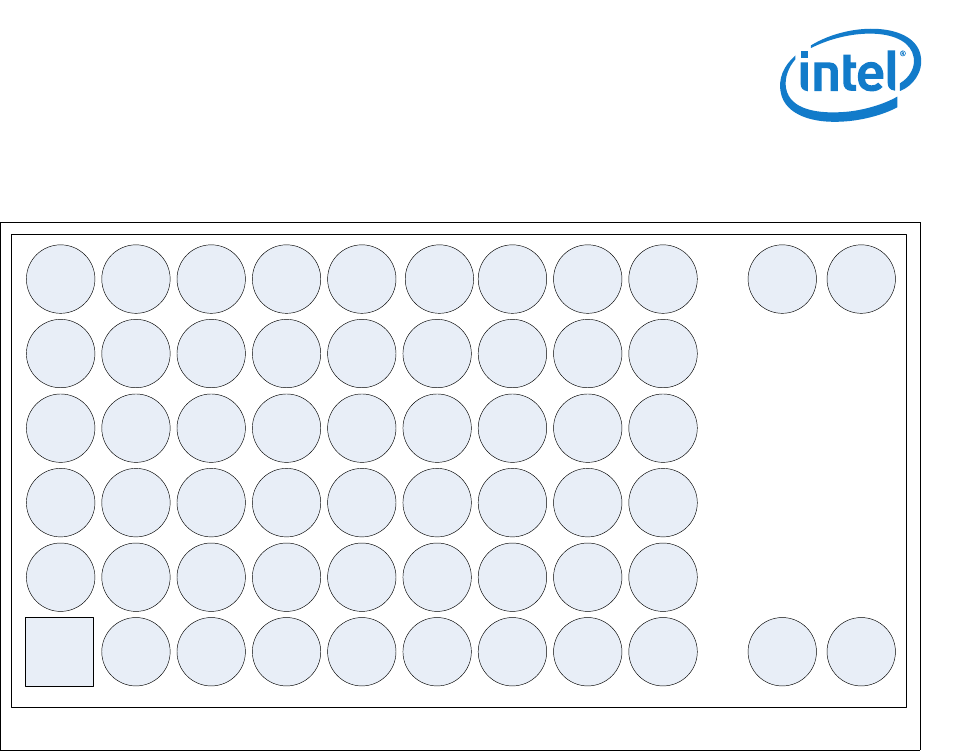

Figure 2. Pin Configuration for eUniStone in Top View (footprint)

PBA31309_Pinout.vsd

VSS

P1.2

TDI

P0.11

LPMin

P0.14

UARTCTS

VDDUART

UARTTXD

UARTRTS

VSS F11

VSS

F12

VSS

P0.12

SDA0

P013

SCL0

P1.3

TDO

LPMout

P0.0

P0.1

UARTRXD

(NC)

VSS

P0.10

P0.8

P1.1

TCK

P0.3

P0.2

(NC)

VSS

(NC)

VREG

P0.9

JTAG #

TRST#

VDD1

(NC)

VSS

P1.7

P1.8

P1.0

TMS

P1.4

RTCK

ONOFF

(NC)

P0.15

P1.6

RESET#

VSUPPLY

VSS

P1.5

VSS A11

VSS

A12

VSS

Top View

VSUPPLY

eUniStone

PBA 31309

General Device Overview

User’s Manual Intel Public 11

Hardware Description Revision 1.0, 1-Feb-2013

1.4 Pin Description

The non-shaded cells indicate pins that will be fixed for the product lifetime. Shaded

cells indicate that the pin might be removed/changed in future variants. Pins not listed

below shall not be connected.

Table 1. Pin Description

No. Symbol Input /

Output Supply Voltage During

Reset After

Reset Function

A2 P1.6 I/O/OD Internal1 Z Z Port 1.6

A3 RESET# AI Internal1 Input Input Hardware Reset

A8 P1.5 I/O/OD Internal1 Input Input Port 1.5

B1 P1.7 I/O/OD Internal1 PD/ Input PD/ Input Port 1.7

B2 P1.8 I/O/OD Internal1 PD PD Port 1.8

B3 P1.0 /

TMS I/O/OD Internal2 PU1PU1. Port 1.0 or

JTAG interface

B4 P1.4 /

RTCK I/O/OD Internal2 ZZPort 1.4 or

JTAG interface

B5 ONOFF I --Turns off module completely

B9 P0.15 I/O VDDUART PD H Port 0.15

C2 P0.9 I/O/OD Internal2 ZZPort 0.9

C3 JTAG# IInternal2 PU PU Mode selection Port 1:

0: JTAG

1: Port

C4 TRST# IInternal2 PD PD JTAG interface

D1 P0.10 I/O/OD Internal2 ZZPort 0.10

D2 P0.8 I/O/OD Internal2 PD PD Port 0.8

D3 P1.1 /

TCK I/O/OD Internal2 PU1. PU1. Port 1.1 or

JTAG interface

D4 P0.3 I/O/OD VDD1 Conf.

PD def. Conf.

PD def. Port 0.3

D5 P0.2 I/O/OD VDD1 Z Z Port 0.2

E1 P0.12 / SDA0 I/O/OD Internal2 PU PU I2C data signal

E2 P0.13 / SCL0 I/O/OD Internal2 PU PU I2C clock signal

E3 P1.3 /

TDO I/O/OD Internal2 Z Z Port 1.3 or

JTAG interface

E4 P0.0 LPMout I/O/OD VDD1 PD PD Port 0.0

LPM wakeup output

E5 P0.1 I/O/OD VDD1 PD PD Port 0.1

E6 P0.5 /

UARTRXD I/O/OD VDDUART Z Z Port 0.5 or

UART receive data

F2 P1.2 /

TDI I/O/OD Internal2 PU1. PU1. Port 1.2 or

JTAG interface

F3 P0.11 I/O/OD Internal2 Z Z Port 0.11

F4 P0.14 LPMin I/O VDDUART ZZPort 0.14

LPM wakup input

F5 P0.7 /

UARTCTS I/O/OD VDDUART Z Z Port 0.7 or

UART CTS flow control

F7 P0.4 /

UARTTXD I/O/OD VDDUART PU PU Port 0.4 or

UART transmit data

F8 P0.6 /

UARTRTS I/O/OD VDDUART PU PU Port 0.6 or

UART RTS flow control

A4,

A5,

VSUPPLY SI - - Power supply

C1VREG SO --Regulated Power supply

F6 VDDUART SI - - UART interface Power supply

C5 VDD1 SI - - Power supply

eUniStone

PBA 31309

General Device Overview

User’s Manual Intel Public 12

Hardware Description Revision 1.0, 1-Feb-2013

Descriptions of acronyms used in the pin list:

A1,

A7,

A9,

A11,

A12,

C8,

C9,

D7,

D8,

E8,

E9,

F1,

F9,

F11,

F12

VSS --Ground

B6,

B7,

B8,

C6,

C7,

D6,

D9,

NC - - - - No connection

1. Fixed pull-up/pull-down if JTAG interface is selected, not affected by any chip reset. If JTAG interface is not selected the port is

tristate.

Table 1. Pin Description (Continued)

No. Symbol Input /

Output Supply Voltage During

Reset After

Reset Function

Acronym Description

I Input

OOutput

OD Output with open drain capability

ZTristate

PU Pull-up

PD Pull-down

A Analog (e.g. AI means analog input)

S Supply (e.g. SO means supply output)

eUniStone

PBA 31309

General Device Overview

User’s Manual Intel Public 13

Hardware Description Revision 1.0, 1-Feb-2013

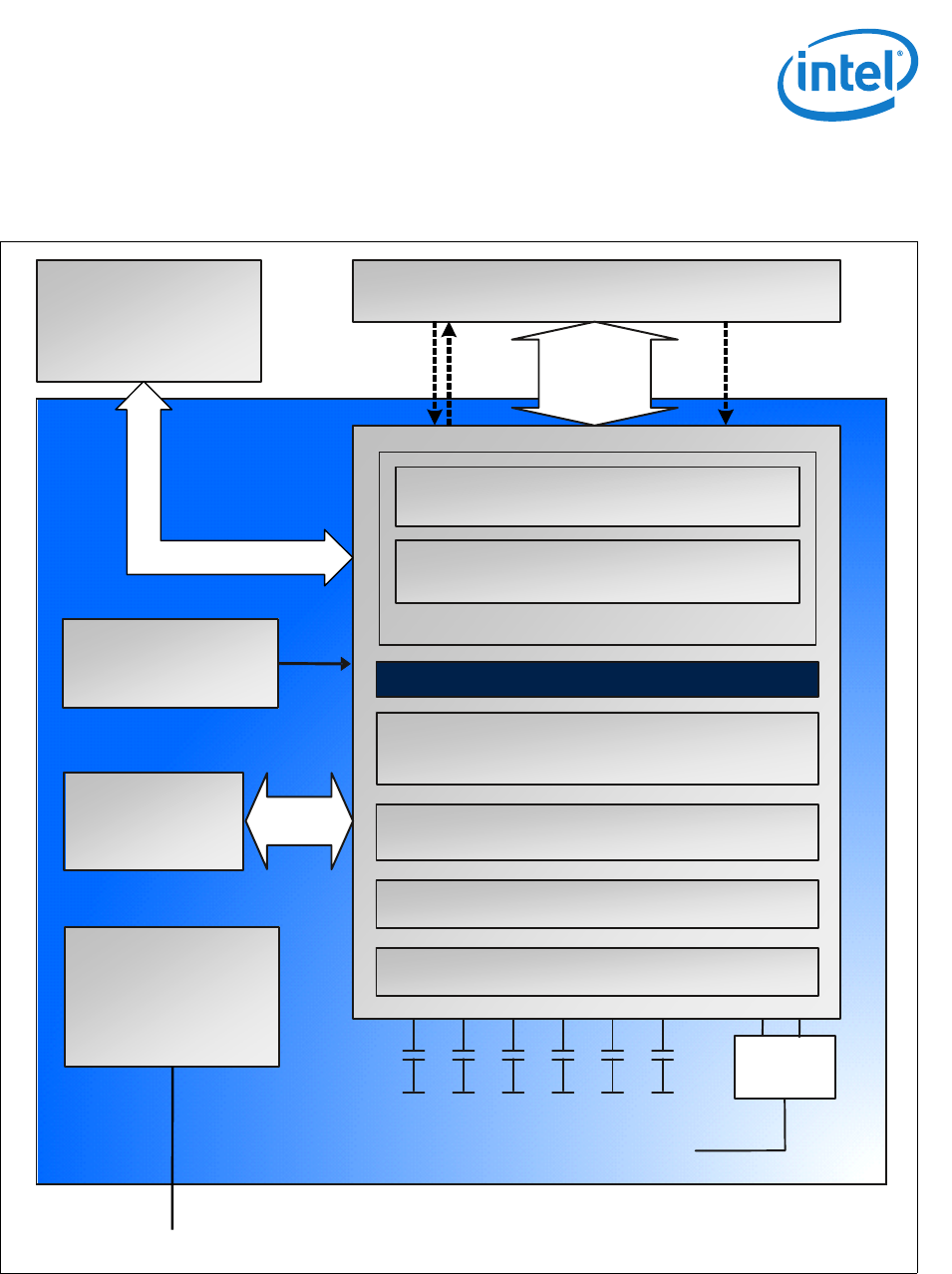

1.5 System Integration

eUniStone is optimized for a low bill of material (BOM) and a small PCB size. Figure 3

shows a typical application example.

Figure 3. System Architecture Example with eUniStone

System_Architecture.vsd

BT Baseband

BT Stack

RFCOMM

API

BT RF

Oscillator

HOST

BALUN

RESET

Antenna

SPP(Serial Port Profile)

AT interface

UART

command

Buttons,

Leds

EEPROM

Voltage

Regulator

VSUPPLY

GPIO

Configuration ,

SW patch

LPM

eUniStone

PBA 31309

General Device Overview

User’s Manual Intel Public 14

Hardware Description Revision 1.0, 1-Feb-2013

The UART interface is used for communication between the host and eUniStone. The

lines UARTTXD and UARTRXD are used for commands, events and data. The lines

UARTRTS and UARTCTS are used for hardware flow control.

Low power mode control of eUniStone and the host can be implemented in by using the

pins P0.14 and P0.0. P0.14 is used by the host to allow eUniStone to enter low power

mode and P0.0 is used by eUniStone to wake-up the host when attention is required. To

save current in idle mode, the host could hardware reset the module using the RESET#.

Power is supplied to a single VSUPPLY input from which internal regulators can generate

all required voltages. The UART and the GPIO’s interfaces have separate supply

voltages so that they can comply with host signaling.

1.6 SW Patch in EEPROM

Bugfixes for the SW in ROM are downloaded from the EEPROM. Intel may include new

bugfixes in EEPROM during product lifetime..

eUniStone

PBA 31309

Basic Operating Information

User’s Manual Intel Public 15

Hardware Description Revision 1.0, 1-Feb-2013

2.0 Basic Operating Information

2.1 Power Supply

eUniStone is supplied from a single supply voltage VSUPPLY. This supply voltage must

always be present. The Bluetooth chip is supplied from an internally generated 2.5 V

supply voltage. This voltage can be accessed from the VREG pin. This voltage shall not

be used for supplying other components in the host system but can be used for

referencing the host interfaces.

The GPIO’s and the UART interface are supplied with dedicated, independent, reference

levels via the VDD1 and VDDUART pins. All other digital I/O pins are supplied internally

by either 2.5 V (Internal2) or 1.5 V (Internal1). Section 1.4 provides a mapping

between pins and supply voltages.

The I/O power domains (VDD1 and VDDUART) are completely separated from the other

power domains and can stay present also in low power modes.

2.2 Clocking

eUniStone contains a crystal from which the internal 26 MHz system clock is generated.

Also, the low power mode clock of 32.768 kHz is generated internally, which means

that no external clock is needed.

2.3 Low Power Modes

To minimize current consumption, eUniStone automatically switches between different

low power modes. The major modes are described below.

2.3.1 Low Power Mode

In Low Power Mode (LPM) most parts of eUniStone are powered down. This is done

automatically in idle mode or if the link is in Sniff mode and the host allows LPM with

the pin P0.14.

2.3.2 Complete Power Down

If Bluetooth functionality is not needed at all, VSUPPLY should be grounded to minimize

power consumption. In this state there is no activity in eUniStone and the Bluetooth

state (native clock, etc.) is not updated.

2.3.3 ON/OFF

eUniStone provides an alternative way to power down using the ONOFF logic input.

When the ONOFF is low, the internal regulator on the module is turned OFF. The

intention with the signal is to have the possibility to turn off the module without having

to turn off the supply voltage. In the OFF state, the module will consume less than 1

mA excluding the interface currents that is mainly set by the external load.

If this signal isn’t used then it should be connected to VSUPPLY on the host PCB.

eUniStone

PBA 31309

eUniStone Interfaces

User’s Manual Intel Public 16

Hardware Description Revision 1.0, 1-Feb-2013

3.0 eUniStone Interfaces

3.1 UART Interface

The UART interface is the main communication interface between the host and

eUniStone. AT commands are described in detail in the AT Commands specification [1].

The interface consists of four UART signals and two LPM control signals as shown in

Figure 4.

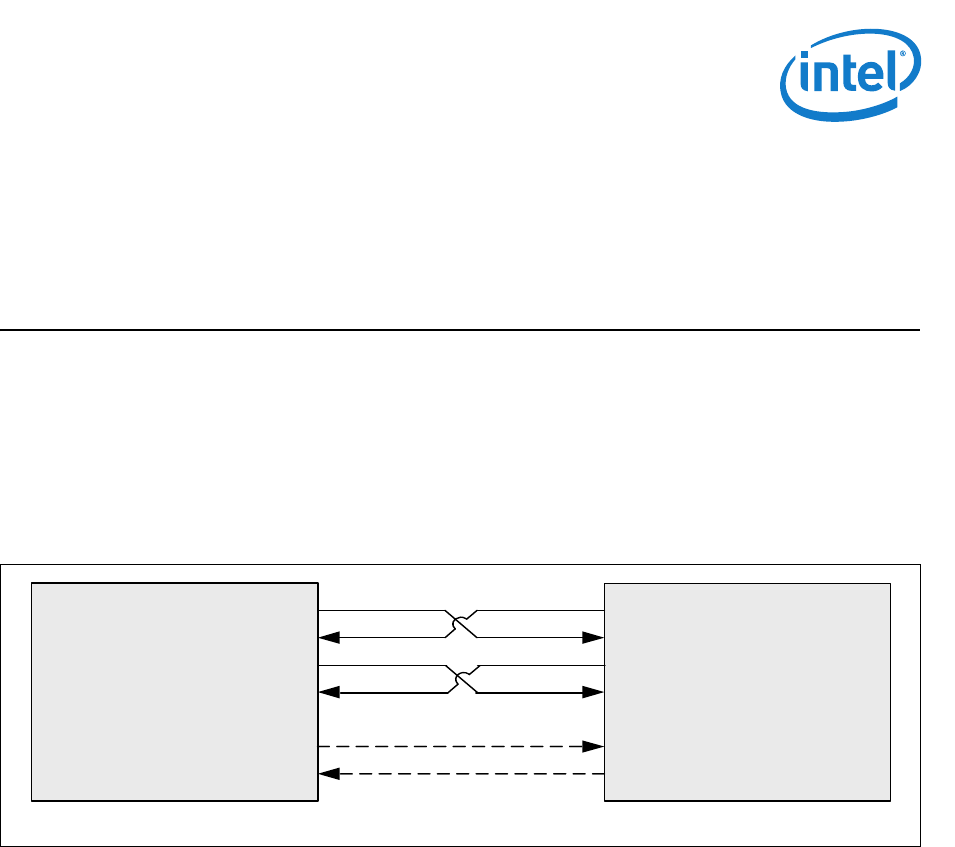

Figure 4. UART Interface

3.1.1 UART

The lines UARTTXD and UARTRXD are used for commands, responses and data. The

lines UARTRTS and UARTCTS are used for hardware flow control. A separate supply

voltage, VDDUART, defines the UART reference levels to fit any system requirements.

3.1.1.1 Baud Rates

The UART baud rate can be configured with the BD_DATA parameter UART_Baudrate.

The module is programmed for a default baudrate of 115200 baud. Reprogramming of

the EEPROM configuration is possible by AT commands at manufacturing time of the

end product. The baudrate written to EEPROM will be used each time eUniStone starts

or, HW or SW reset is done.

The host is also able to change the baudrate temporarily with an AT command. This

baudrate is used by eUniStone until a HW or SW reset is done, when it will change back

to the baudrate stored in the EEPROM.

eUnistone_UART_Interface.vsd

UARTTXD

UARTRXD

UARTRTS

UARTCTS

WAKEUP_BT

WAKEUP_HOST

UARTTXD

UARTRXD

UARTRTS

UARTCTS

P0.14 input

P0.0 output

Host eUniStone

eUniStone

PBA 31309

eUniStone Interfaces

User’s Manual Intel Public 17

Hardware Description Revision 1.0, 1-Feb-2013

Table 2 shows the UART baudrates supported.

3.1.1.2 Detailed UART Behavior

After reset the UART interface is configured with one start bit, eight data bits, no parity

bit and one stop bit. The least significant bit is transmitted first.

The polarity of the UART signals can be changed with the BD_DATA parameter

UART_Invert. The default (non-inverted) behavior is shown in Table 3

Table 2. UART Baud Rates

Standard Baud Rate Module Baud Rate Deviation in %

9600 9615 0.16

19200 19230 0.16

38400 38461 0.16

57600 57522 -0.14

115200 115044 -0.14

230400 230088 -0.14

460800 464285 0.76

921600 928571 0.76

1843200 1857142 0.76

3250000 3250000 0

Table 3. Default (non-inverted) behavior of UART signals

Signal Level Meaning

UARTTXD / UARTRXD 0 Start bit, ’0’ bit in character.

1 Idle level, stop bit

UARTRTS / UARTCTS 0 Flow on

1Flow stopped

eUniStone

PBA 31309

eUniStone Interfaces

User’s Manual Intel Public 18

Hardware Description Revision 1.0, 1-Feb-2013

3.1.1.3 UARTCTS Response Time

Figure 5 shows the UARTCTS response time. Assuming non-inverted UART signals, the

data flow stops within the “flow off response time” after UARTCTS has been set to high.

If UARTCTS goes high during the transmission of a byte (phase 1 in the figure) this byte

will be completely transmitted. While UARTCTS is high, no data will be transmitted

(phase 2). When UARTCTS goes low again, data transmission will continue (phase 3).

The maximum flow off response time is 10 UART bits (including start and stop bits). As

an example, if the UART baud rate is 115200 Baud, the maximum flow off response

time is 10 x 1/115200 s = 87 µs.

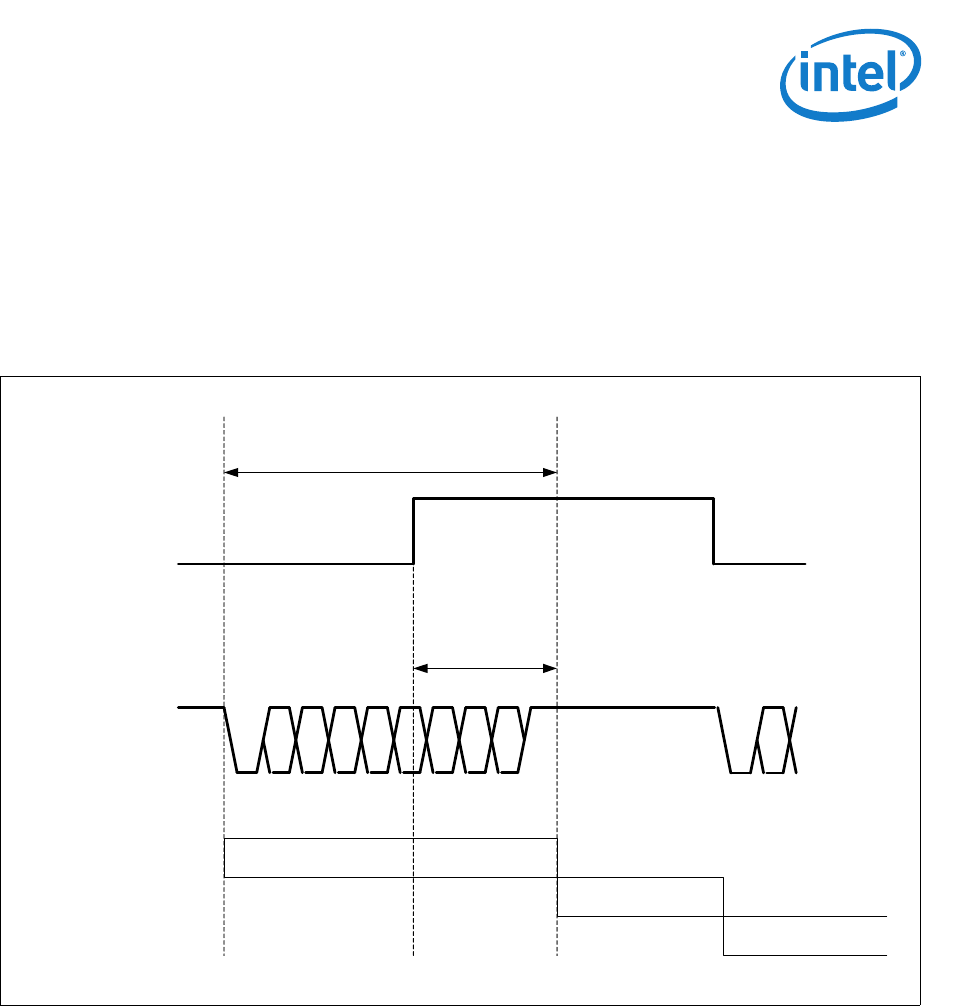

Figure 5. UARTCTS Response Time

3.2 Low Power Control

Pin P0.14 and P0.0 are optional, but strongly recommended to be used. P0.14 is used

to allow eUniStone to enter Low Power Mode (LPM). P0.0 is used by eUniStone when in

LPM to wake up the host.

HCI_UARTCTS_Response_Time.vsd

UARTCTS

UARTTXD

bit0

bit1

bit2

bit3

bit4

bit5

bit6

bit7

start

stop

bit0

start

...

phase 1

phase 2

phase 3

flow off

response

time

max. flow off response

time

eUniStone

PBA 31309

General Device Capabilities

User’s Manual Intel Public 19

Hardware Description Revision 1.0, 1-Feb-2013

4.0 General Device Capabilities

This chapter describes features available in the eUniStone (PBA 31309).

Actual feature set and how to access the features can be found in the AT Command

document [1]. Release specific performance characteristics, data throughput and

current consumption are listed in the SW Release Notes [2].

4.1 RF Test Application

The eUniStone module can be programmed over UART with a specific application for RF

test purposes, e.g. TX continuous or TX burst mode. This test application is controlled

over the UART through Intel specific HCI commands. The commands supported by this

test application are described in the document

“T8753-2-Intel_Specific_HCI_Commands-7600.pdf”.

4.2 Firmware ROM Patching

In any chip with complex firmware in ROM it is wise to support patching. The risk of

project delay is significantly reduced when problems can be solved without hardware

changes. Enhancements, adaptations and bug fixes can be handled very late during

design-in, even after the chip has been soldered in the final product.

The well-proven patch concept used in BlueMoon UniCellular is described below.

4.2.1 Patch Support

The Bluetooth chip contains dedicated hardware that makes it possible to apply patches

to the code and data in the firmware ROM. The hardware is capable of replacing up to

32 blocks of 16 bytes each with new content. This area can be filled with any

combination of code and data. The firmware patch is stored in EEPROM and

automatically loaded after startup. This provides a flexible bugfix solution for the

software in ROM.

eUniStone

PBA 31309

Bluetooth Capabilities

User’s Manual Intel Public 20

Hardware Description Revision 1.0, 1-Feb-2013

5.0 Bluetooth Capabilities

5.1 Supported Features

• Bluetooth V2.1 + EDR compliant

• Enhanced Data Rate 2 and 3 Mbit/s symbol rate on the air

• Secure Simple Pairing

• Device A (initiating link) or Device B (accepting link) role supported

• Single point-to-point data link, role switch supported

• Packet data mode and stream data mode supported

• Link in sniff mode supported. Device enters Low Power Mode in sniff intervals if

permitted by the host.

• Sniff Subrating

• 5 trusted devices stored in EEPROM

• Connection to a Bluetooth Tester

5.2 eUniStone Bluetooth Features

5.2.1 Secure Simple Paining

The device implements Secure Simple Pairing with the following association models

according to BT2.1 core specification:

• Numeric Comparisoon

•Just Works

• Passkey Entry

Also pairing with legacy (BT2.0 and older) devices is supported.

5.2.2 Role Switch

The initiating device (devA) starts as Bluetooth master of the link, the accepting device

starts as Bluetooth slave of the link. The remote device can request a role change to

accomodate with other Bluetooth links. If that happens, the module will send an event

to the host. Also if the eUniStone start as slave, (Device B), the other device can

change it's own role making eUniStone master. The host controlling eUniStone will be

notified with the same event.

eUniStone

PBA 31309

Bluetooth Capabilities

User’s Manual Intel Public 21

Hardware Description Revision 1.0, 1-Feb-2013

5.2.3 Sniff Mode

The local host or the remote device can request sniff mode for the link. During sniff

mode, the devices synchronize on sniff instants only. The module will enter low power

mode in the sniff intervals, if allowed by the host LPM control signals. Data packets can

be exchanged at the sniff instants only, so the data rate is reduced in sniff mode. The

module will wake up the host when data is received or other responses need to be

transmitted.

5.2.4 Sniff Subrating

The local host or the remote device can request Sniff Subrating for the link. When in

sniff mode, the device will automatically switch between Sniff Mode and Sniff Subrating

Mode making it possible to stay longer in Low Power Mode when there is no data

transmitted or received.

5.2.5 Enhanced Power Control

eUniStone support Enhanced Power Control according to Bluetooth specification 3.0.

The Enhanced Power Control is handled automatically to make different modulations

modes transmit on optimal levels.

5.2.6 Encryption Pause and Resume

Encryption Pause Resume is supported making it possible to change connection link key

on an encrypted link, pause the encryption and resume it with the new link key. This is

handled automatically by eUniStone to make the link more secure.

eUniStone

PBA 31309

Electrical Characteristics

User’s Manual Intel Public 22

Hardware Description Revision 1.0, 1-Feb-2013

6.0 Electrical Characteristics

6.1 Absolute Maximum Ratings

Note: Stresses above those listed here are likely to cause permanent damage to the device.

Exposure to absolute maximum rating conditions for extended periods may affect

device reliability.

Maximum ratings are absolute ratings; exceeding only one of these values may cause

irreversible damage to the integrated circuit.

Maximum ratings are not operating conditions.

6.2 Operating Conditions

Table 4. Absolute Maximum Ratings

Parameter Symbol Values Unit Note / Test Condition

Min. Typ. Max.

Storage temperature -40 – 125 °C –

VSUPPLY supply voltage -0.3 – 6.0 V –

VDDUART supply voltage -0.9 – 4.0 V –

VDD1 supply voltage -0.9 – 4.0 V –

VREG -0.3 – 4.0 V VSUPPLY > 4 V

VREG -0.3 – VSUPPLY V VSUPPLY < 4 V

ONOFF -0.3 – VSUPPLY+0.3 V

Input voltage range -0.9 – 4.0 V –

Output voltage range -0.9 – 4.0 V -9

ESD – – 1.0 kV According to MIL-STD883D method

3015.7

Table 5. Operating Conditions

Parameter Symbol Values Unit Note / Test Condition

Min. Typ. Max.

Operating temperature -40 – 85 °C –

Main supply voltage (Vsupply) 2.9 – 4.11

1. At ambient temperatures above 65oC the maximum allowed power dissipation in the module is limited to 200 mW

V–

VDDUART 1.35 – 3.6 V –

VDD1 1.35 – 3.6 V –

eUniStone

PBA 31309

Electrical Characteristics

User’s Manual Intel Public 23

Hardware Description Revision 1.0, 1-Feb-2013

6.3 DC Characteristics

6.3.1 Pad Driver and Input Stages

For more information, see Chapter 1.4.

Table 6. Internal1 (1.5 V) Supplied Pins

Parameter Symbol Values Unit Note / Test Condition

Min. Typ. Max.

Input low voltage -0.3 – 0.27 V –

Input high voltage 1.15 – 3.6 V –

Output low voltage – – 0.25 V IOL = 1 mA

Output high voltage 1.1 – – V IOH = -1 mA

Continuous Load1

1. The total continuous load for all Internal1 supplied pins shall not exceed 2 mA at the same time

––1mA–

Pin Capacitance – – 10 pF –

Magnitude Pin Leakage – 0.01 1 µA Input and output drivers

disabled

Table 7. Internal2 (2.5 V) Supplied Pins

Parameter Symbol Values Unit Note / Test Condition

Min. Typ. Max.

Input low voltage -0.3 – 0.45 V –

Input high voltage 1.93 – 2.8 V P0.10

Input high voltage 1.93 – 3.6 V Other pins

Output low voltage – – 0.25 V IOL = 5 mA

Output low voltage – – 0.15 V IOL = 2 mA

Output high voltage 2.0 – – V IOH = -5 mA

Output high voltage 2.1 – – V IOH = -2 mA

Continuous Load1

1. The total continuous load for all Internal2 supplied pins shall not exceed 35 mA at the same time

––5mA–

Pin Capacitance – – 10 pF –

Magnitude Pin Leakage – 0.01 1 µA Input and output drivers

disabled

eUniStone

PBA 31309

Electrical Characteristics

User’s Manual Intel Public 24

Hardware Description Revision 1.0, 1-Feb-2013

Table 8. VDDUART Supplied Pins

Parameter Symbol Values Unit Note / Test Condition

Min. Typ. Max.

Input low voltage -0.3 – 0.2*VDDUART V –

Input high voltage 0.7*VDDUART – VDDUART+0.3 V P0.5/UARTRXD

Input high voltage 0.7*VDDUART – 3.6 V Other pins

Output low voltage – – 0.25 V IOL = 5 mA

VDDUART = 2.5 V

Output low voltage – – 0.15 V IOL = 2 mA

VDDUART = 2.5 V

Output high voltage VDDUART

-0.25 –– VIOH=-5mA

VDDUART = 2.5 V

Output high voltage VDDUART

-0.15 –– VIOH=-2mA

VDDUART = 2.5 V

Continuous Load1

1. The total continuous load for all VDDUART supplied pins shall not exceed 35 mA at the same time

––5 mA–

Pin Capacitance – – 10 pF –

Magnitude Pin Leakage – 0.01 1 µA Input and output drivers

disabled

Table 9. VDD1 Supplied Pins

Parameter Symbol Values Unit Note / Test Condition

Min. Typ. Max.

Input low voltage -0.3 – 0.2*VDD1 V –

Input high voltage 0.7*VDD1 – 3.6 V –

Output low voltage – – 0.25 V IOL = 5 mA

VDD1 = 2.5 V

Output low voltage – – 0.15 V IOL = 2 mA

VDD1 = 2.5 V

Output high voltage VDD1

-0.25 –– VIOH=-5mA

VDD1 = 2.5 V

Output high voltage VDD1

-0.15 –– VIOH=-2mA

VDD1 = 2.5 V

Continuous Load1

1. The total continuous load for all VDD1 supplied pins shall not exceed 35 mA at the same time

––5 mA–

Pin Capacitance – – 10 pF –

Magnitude Pin Leakage – 0.01 1 µA Input and output drivers

disabled

Table 10. ONOFF PIN

Parameter Symbol Values Unit Note / Test Condition

Min. Typ. Max.

Input low voltage – – 0.7 V –

Input high voltage 1.7 – VSUPPLY V –

Input current -1 0.01 1 µA ONOFF = 0 V

eUniStone

PBA 31309

Electrical Characteristics

User’s Manual Intel Public 25

Hardware Description Revision 1.0, 1-Feb-2013

6.3.2 Pull-ups and Pull-downs

6.3.3 Protection Circuits

All pins have an inverse protection diode against VSS.

P0.10 has an inverse diode against Internal2.

P0.5/UARTRXD has an inverse diode against VDDUART.

All other pins have no diode against their supply.

Table 11. Pull-up and Pull-down Currents

Pin Pull Up Current Pull Down Current Unit Conditions

Min. Typ. Max. Min. Typ. Max.

P0.12

P0.13 260 740 1300 N/A N/A N/A µA Pull-up current measured

with pin voltage = 0 V

Pull-down current measured

with pin voltage =

supply voltage

Min measured at 125°C with

supply = 1.35 V

Typ. measured at 27°C with

supply = 2.5V

Max measured at -40°C with

supply = 3.63 V

P0.0

P0.1

P0.2

P0.3

22 130 350 23 150 380 µA

P0.4

P0.5

P0.6

P0.7

P0.10

P0.8

P0.9

P0.11

P0.14

P0.15

4.2 24 68 3.0 20 55 µA

P1.0

P1.1

P1.2

P1.3

P1.4

P1.5

P1.6

P1.7

P1.8

1.1 6.0 17 0.75 5.0 14 µA

eUniStone

PBA 31309

Electrical Characteristics

User’s Manual Intel Public 26

Hardware Description Revision 1.0, 1-Feb-2013

6.3.4 System Power Consumption

Note: I/O currents are not included since they depend mainly on external loads. For more

details see [2].

6.4 RF Part

6.4.1 Characteristics RF Part

The characteristics involve the spread of values to be within the specific temperature

range. Typical characteristics are the median of the production.

All values refers to Intel reference design.

6.4.1.1 Bluetooth Related Specifications

Table 12. Max. Load at the Different Supply Voltages

Parameter Symbol Values Unit Note / Test Condition

Min. Typ. Max.

Vsupply – – 100 mA Peak current

Table 13. BDR - Transmitter Part

Parameter Symbol Values Unit Note / Test Condition

Min. Typ. Max.

Output power (high gain) 0.5 2.5 4.5 dBm Default settings

Output power (highest gain) – 4.5 – dBm Maximum settings

Power control step size 4 6 8 dB –

Frequency range fL 2400 2401.3 – MHz –

Frequency range fH – 2480.7 2483.5 MHz –

20 dB bandwidth – 0.930 1 MHz –

2nd adjacent channel power – -40 -20 dBm –

3rd adjacent channel power – -60 -40 dBm –

>3rd adjacent channel power – -64 -40 dBm Max. 2 of 3 exceptions @ 52 MHz

offset might be used

Average modulation deviation for

00001111 sequence 140 156 175 kHz –

Minimum modulation deviation for

01010101 sequence 115 145 – kHz –

Ratio Deviation 01010101 /

Deviation 00001111 0.8 1 – –

Initial carrier frequency tolerance

|foffset| –– 75 kHz –

Carrier frequency drift

(one slot) |fdrift| –1025 kHz –

Carrier frequency drift

(three slots) |fdrift| –1040 kHz –

Carrier frequency drift

(five slots) |fdrift| –1040 kHz –

Carrier frequency driftrate

(one slot) |fdriftrate| – 5 20 kHz/50 ms –

eUniStone

PBA 31309

Electrical Characteristics

User’s Manual Intel Public 27

Hardware Description Revision 1.0, 1-Feb-2013

Carrier frequency driftrate (three

slots) |fdriftrate| – 5 20 kHz/50 ms –

Carrier frequency driftrate

(five slots) |fdriftrate| – 5 20 kHz/50 ms –

Table 14. BDR -Receiver Part

Parameter Symbol Values Unit Note / Test Condition

Min. Typ. Max.

Sensitivity – -86 -81 dBm Ideal wanted signal

C/I-performance:

-4th adjacent channel –-51-40dB –

C/I-performance:

-3rd adjacent channel

(1st adj. of image)

–-46-20dB –

C/I-performance:

-2nd adjacent channel (image) –-35-9 dB –

C/I-performance:

-1st adjacent channel –-40 dB –

C/I-performance: co. channel – 9 11 dB –

C/I-performance:

+1st adjacent channel –-40 dB –

C/I-performance:

+2nd adjacent channel –-40-30dB –

C/I-performance:

+3rd adjacent channel –-50-40dB –

Blocking performance

30 MHz - 2 GHz 10 – – dBm Some spurious responses, but according to

BT-specification

Blocking performance

2GHz-2.4GHz -27 – – dBm –

Blocking performance

2.5 GHz - 3 GHz -27 – – dBm –

Blocking performance

3 GHz - 12.75 GHz 10 – – dBm Some spurious responses, but according to

BT-specification

Intermodulation performance -39 -34 – dBm Valid for all intermodulation tests

Maximum input level -20 – – dBm –

Table 15. EDR - Transmitter Part

Parameter Symbol Values Unit Note / Test Condition

Min. Typ. Max.

Output power (high gain) -2.5 – 2 dBm

Relative transmit power:

PxPSK - PGFSK -4 -0.6 1 dB

Carrier frequency stability |ωi| – – 75 kHz –

Carrier frequency stability |ωi+ω0| – – 75 kHz –

Carrier frequency stability |ω0| – 2 10 kHz –

DPSK - RMS DEVM – 10 20 % –

8DPSK - RMS DEVM – 10 13 % –

DPSK - Peak DEVM – 20 35 % –

8DPSK - Peak DEVM – 20 25 % –

DPSK - 99% DEVM – – 30 % –

8DPSK - 99% DEVM – – 20 % –

Differential phase encoding 99 100 – % –

Table 13. BDR - Transmitter Part (Continued)

Parameter Symbol Values Unit Note / Test Condition

Min. Typ. Max.

eUniStone

PBA 31309

Electrical Characteristics

User’s Manual Intel Public 28

Hardware Description Revision 1.0, 1-Feb-2013

1st adjacent channel power – -40 -26 dBc –

2nd adjacent channel power – – -20 dBm Carrier power measured at basic rate

3rd adjacent channel power – – -40 dBm Carrier power measured at basic rate

Table 16. EDR -Receiver Part

Parameter Symbol Values Unit Note / Test Condition

Min. Typ. Max.

DQPSK-Sensitivity – -88 -83 dBm Ideal wanted signal

8DPSK-Sensitivityl – -83 -77 dBm Ideal wanted signal

DQPSK - BER Floor Sensitivity – -84 -60 dBm –

8DPSK - BER Floor Sensitivity – -79 -60 dBm –

DQPSK - C/I-performance:

-4th adjacent channel –-53-40dB –

DQPSK - C/I-performance:

-3rd adjacent channel (1st adj. of image) –-47-20dB –

DQPSK - C/I-performance:

-2nd adjacent channel (image) –-31-7 dB –

DQPSK - C/I-performance:

-1st adjacent channel –-70 dB –

DQPSK - C/I-performance:

co. channel –1113 dB –

DQPSK - C/I-performance:

+1st adjacent channel –-90 dB –

DQPSK - C/I-performance:

+2nd adjacent channel –-44-30dB –

DQPSK - C/I-performance:

+3rd adjacent channel –-50-40dB –

8DPSK - C/I-performance:

-4th adjacent channel –-48-33dB –

8DPSK - C/I-performance:

-3rd adjacent channel (1st adj. of image) –-44-13dB –

8DPSK - C/I-performance:

-2nd adjacent channel (image) –-250 dB –

8DPSK - C/I-performance:

-1st adjacent channel –-55 dB –

8DPSK - C/I-performance:

co. channel –1721 dB –

8DPSK - C/I-performance:

+1st adjacent channel –-55 dB –

8DPSK - C/I-performance:

+2nd adjacent channel –-36-25dB –

8DPSK - C/I-performance:

+3rd adjacent channel –-46-33dB –

Maximum input level -20 – – dBm –

Table 15. EDR - Transmitter Part (Continued)

Parameter Symbol Values Unit Note / Test Condition

Min. Typ. Max.

eUniStone

PBA 31309

Package Information

User’s Manual Intel Public 29

Hardware Description Revision 1.0, 1-Feb-2013

7.0 Package Information

7.1 Package Marking

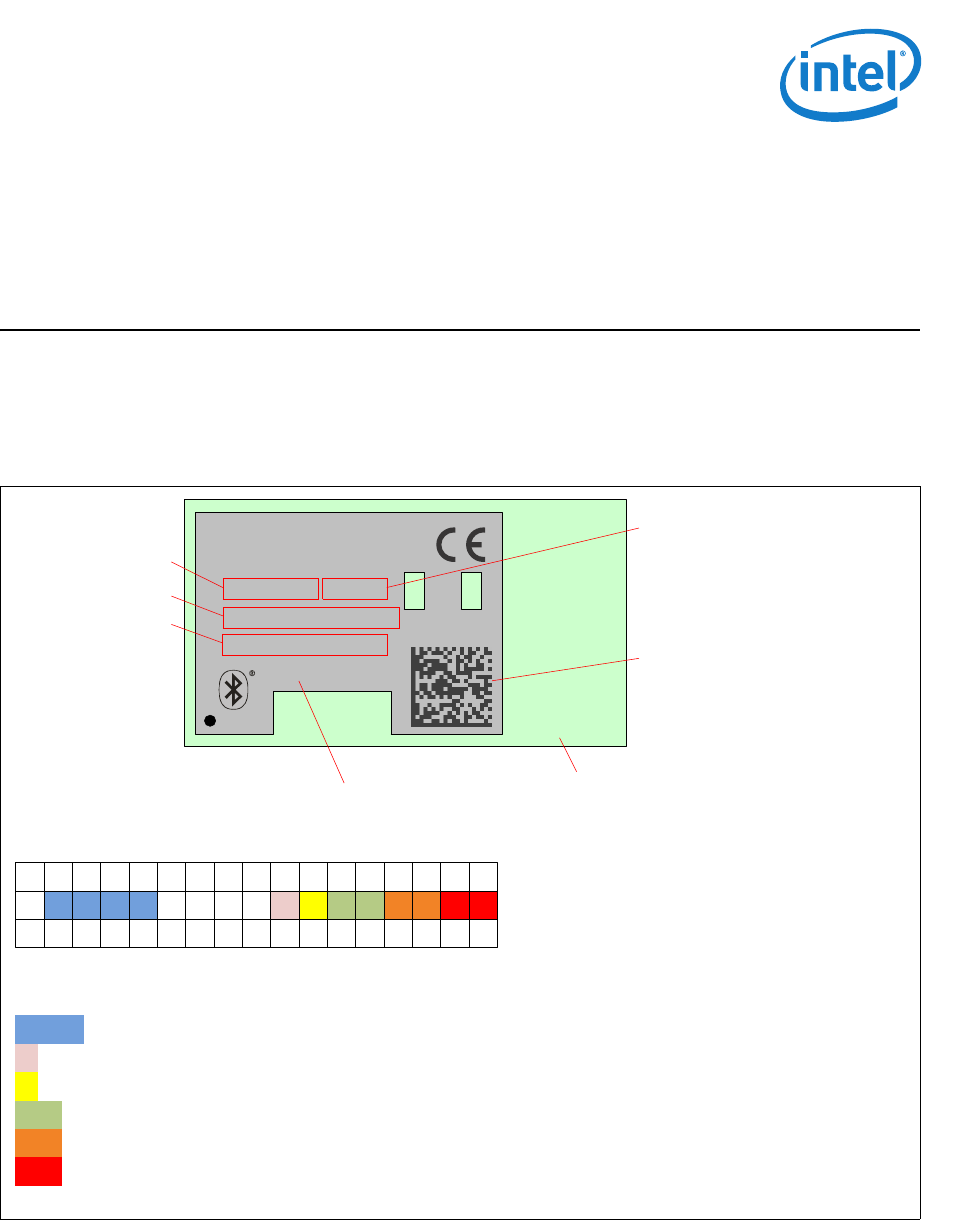

Figure 6. Package Marking

Package_Marking.vsd

Version

Product ID

FCC ID Machine readable

2D bar code

Intel usage only , could be

changed without any notice

Case PCB

i intelC

GYYWW/DFYWW9EXX

PD9PBA313309

PBA31309 V1.00

Date code

YYWW

- calendar Year (2digits) + calendar week (2digits) of production

- lot code starts with F

- last digit of assembly year (2013)

- assembly week = calendar week + 1

- final test ID + assembly site ID

- unique lot sequential number 00-09,0A-0Z,10, …, ZZ

P B A 3 1 3 0 9 V 1 . 0 0

G Y Y W W / D F Y W W 9 E X X

F C C I D : Q 2 3 3 1 3 0 8

Example of marking

Marking definition

eUniStone

PBA 31309

Package Information

User’s Manual Intel Public 30

Hardware Description Revision 1.0, 1-Feb-2013

7.2 Production Package

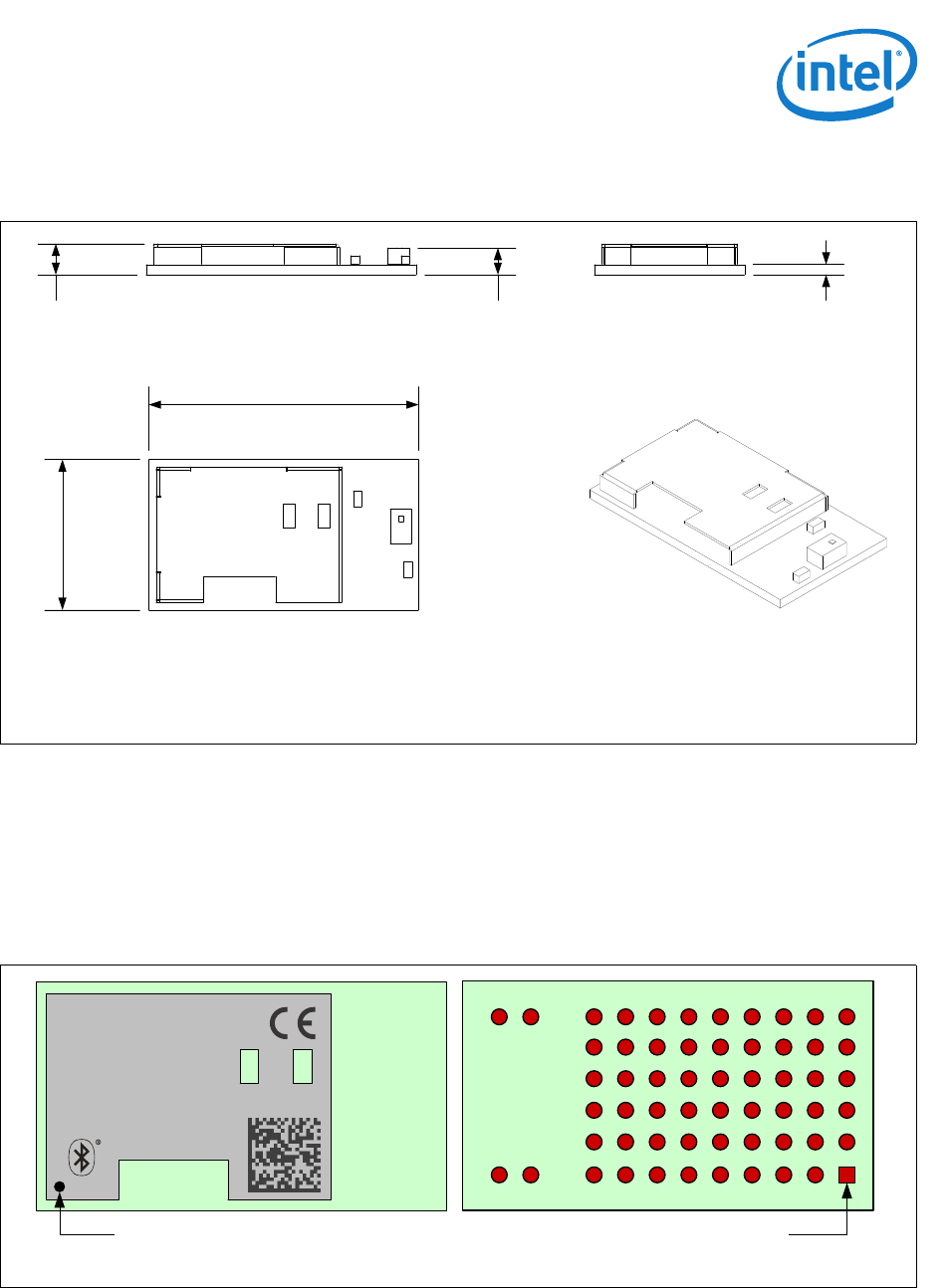

Figure 7. Production Package

All dimensions are in mm.

Tolerances on all outer dimensions, height, width and length, are +/- 0.2 mm.

7.2.1 Pin Mark

Pin 1 (A1) is marked on bottom footprint and on the top of the shield on the module

according to Figure 8. Diameter of pin 1 mark on the shield is 0.40 mm.

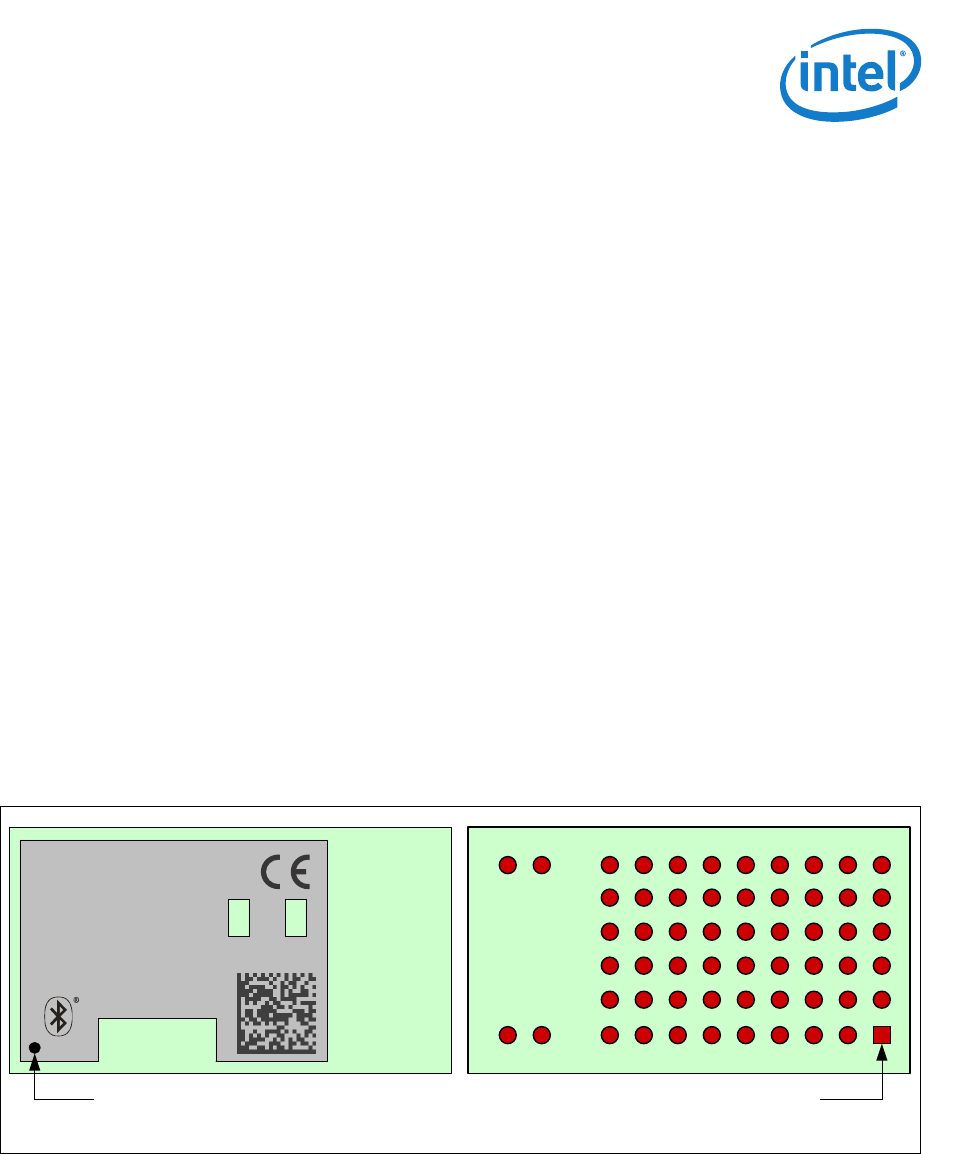

Figure 8. Top View and Bottom View

121011_ PAN1322_V1.0.vsd

1,56

1,80

0,60

15,60

8,70

To l era nce s: + -0. 2mm

i intel

GYYWW /D FYWW9EXX

PD9PBA31309

PBA31309 V1.00

Top_and_Bottom_Views.vsd

Pin 1 marking bottom side

F2F3F4F5F6

E1E2E3E4E5E6E7E8E9

D1D2D3D4D5D6D7D8

C1C2C3C4C5C6C7C8

B1B2B3B4B5B6B7B8B9

A2A3A4A5A6A7A8 A1

F9 F7 F1F8

Pin 1 marking top side

A11

F12 F11

A12

eUniStone

PBA 31309

Bluetooth Qualification and Regulatory Certification

User’s Manual Intel Public 31

Hardware Description Revision 1.0, 1-Feb-2013

8.0 Bluetooth Qualification and Regulatory

Certification

8.1 Reference Design

Figure 9. Reference Design Schematics





























































 

 



 







!









!



"



!







!



"

# 

# 

$#%$#%

$# 

 

"

$#%$#%















#



#





! 



$# 

"# 

"# 

& 

& 

#& 

#&

##& 

& 

 

 

 

 

 





&



$#



$# !

 

$# 





 















#



 #









!

!









# #

 

$#



$#



$#



$#

!

$#



$# #

$# #!

$# !

$#! 

$# 

$# 

'$&







() #

() #

() 

()* 

()"# 

()"# 

() !

() 

(! #

(



( #

()" 

()# 

() 

()" 

()



()* #

()#) 

()#) 

()*



()*

!

(



()+*



(!)+*,



&



"



&



##



## 

$



-



-



-



$#



$#

 $# 

$# 



"

"





$

+

*

+

(

(

(

(!

(  

(  

#./0123)45678

//9:9;65.:07:<97

(





$#

eUniStone

PBA 31309

Bluetooth Qualification and Regulatory Certification

User’s Manual Intel Public 32

Hardware Description Revision 1.0, 1-Feb-2013

PBA 31309 is intended to be installed inside end user equipment. PBA 31309 is

Bluetoooth-qualified and also FCC-certified, and

conforms to R&TTE (European) requirements and directives with the reference design

described in Figure 9.

Manufacturers of mobile, fixed or portable devices incorporating this device are advised

to clarify any regulatory questions and to have their complete product tested and

approved for compliance (FCC or other when applicable).

There are no parts in PBA 31309 that can be modified by the user except modifications

of the device BD data and loading of SW patches. Any changes or modifications made

to this device that are not expressly approved by Intel, may void the user’s authority to

operate the equipment.

8.2 FCC Class B Digital Devices Regulatory Notice

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by 1 or more of the following

measures:

• Reorient or relocate the antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected

• Consult the dealer or an experienced radio or television technician for help

8.3 FCC Wireless Notice

This product emits radio frequency energy, but the radiated output power of this device

is far below the FCC radio frequency exposure limits. Nevertheless, the device should

be used in such a manner that the potential for human contact with the antenna during

normal operation is minimized.

To meet the FCC's RF exposure rules and regulations:

• The system antenna used for this transmitter must not be co-located or operating

in conjunction with any other antenna or transmitter.

• The on-board antenna used must not be altered.

• Users and installers must be provided with antenna installation instructions and

transmitter operating conditions for satisfying RF exposure compliance. See

Figure 10.

eUniStone

PBA 31309

Bluetooth Qualification and Regulatory Certification

User’s Manual Intel Public 33

Hardware Description Revision 1.0, 1-Feb-2013

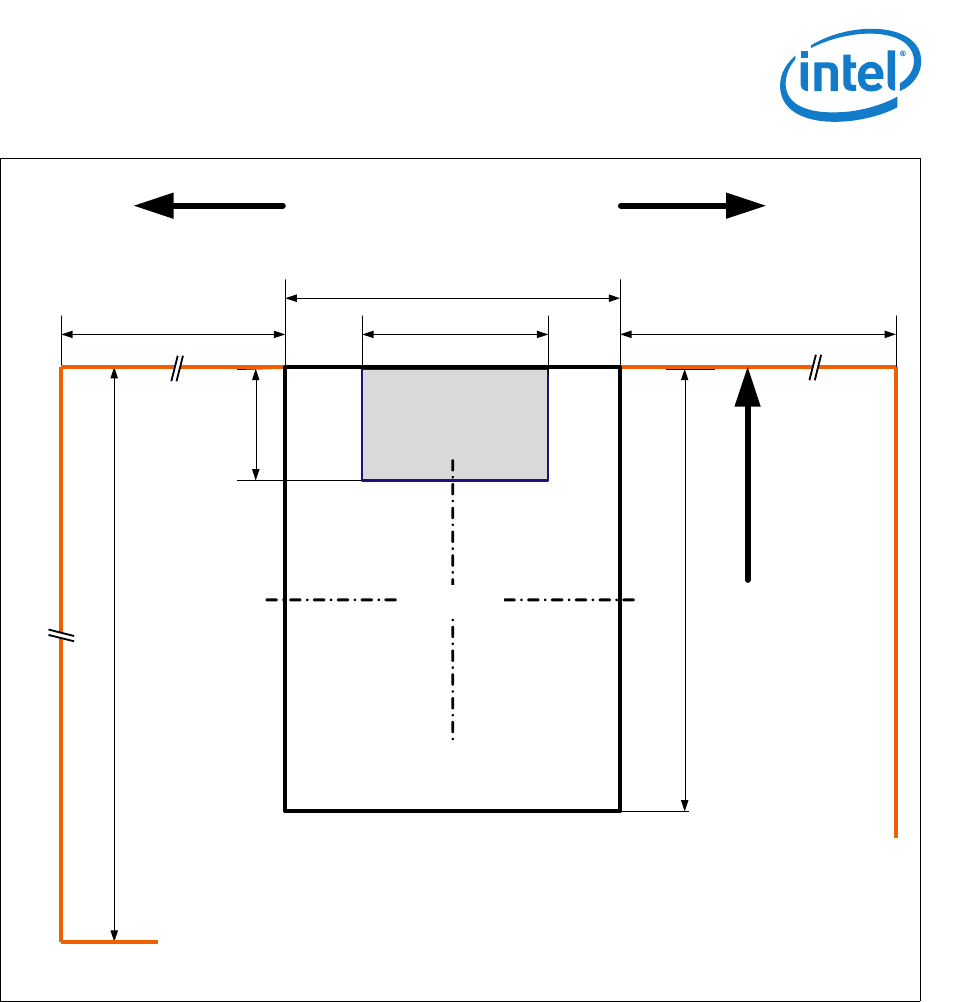

Figure 10. Cutout Drawing

Manufacturers of mobile, fixed or portable devices incorporating this module are

advised to clarify any regulatory questions and to have their complete product tested

and approved for FCC compliance.

8.4 FCC Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

1. This device may not cause harmful interference

2. This device must accept any interference received, including interference that may

cause undesired operation.

8.5 FCC Identifier

FCC ID: PD9PBA31309

Min. 40mm

15.6

3.00

8.7

Min. 15mmMin. 15mm

Visio-Source-PAN1322.vsd

Restricted Area

No copper in any layer

5.00

Dimensions are in mm.

Use a Ground plane in the area

surrounding the PBA31309 module

wherever possible.

If possible place PBA31309in the

center of the main PCB.

Place PBA31309 at the

edge of the main PCB.

Top View

eUniStone

PBA 31309

Bluetooth Qualification and Regulatory Certification

User’s Manual Intel Public 34

Hardware Description Revision 1.0, 1-Feb-2013

8.6 European R&TTE Declaration of Conformity

Hereby, Intel declares that the Bluetooth module PBA 31309 is in compliance with the

essential requirements and other relevant provisions of Directive 1999/5/EC.

As a result of the conformity assessment procedure described in Annex III of the

Directive 1999/5/EC, the end-customer equipment should be labelled as follows:

Figure 11. Equipment Label

eUniStone in the specified reference design can be used in the following countries:

Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,

Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,

Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, The Netherlands, the United

Kingdom, Switzerland, and Norway.

eUniStone

PBA 31309

Bluetooth Qualification and Regulatory Certification

User’s Manual Intel Public 35

Hardware Description Revision 1.0, 1-Feb-2013

Figure 12. Declaration of Conformity

The product will be compliant to R&TTE Directive 1999/5/EC: EN 60950-1 2006, EN

50371: 2002 Health and Safety of the User EN301 489-1, v1.8.1, EN301 489-17 v2.1.1

Electromagnetic Compatibility EN300 328 v1.8.1 Effective use of spectrum allocated.

eUniStone

PBA 31309

Bluetooth Qualification and Regulatory Certification

User’s Manual Intel Public 36

Hardware Description Revision 1.0, 1-Feb-2013

8.7 Bluetooth Qualified Design ID

Intel has submitted End Product Listings (EPL) for eUniStone and eBMU in the Qualified

Product List of the Bluetooth SIG. These EPLs are referencing the Bluetooth

qualification of the SPP-AT application running on the eBMU chip under QD ID t.b.d.

Manufacturers of Bluetooth devices incorporating eUniStone or eBMU can reference the

same QD ID number.

Bluetooth QD ID: B021246

8.9 Label Design of the Host Product

It is recommended to include the following information on the host product label:

Contains transmitter Module FCC ID: PD9PBA31309

8.10 Regulatory Test House

The test house used by Intel in the Bluetooth and Regulatory approvals for the module

PBA 31309:

AT4wireless

Parque Tecnologico de Andalucia

c/ Severo Ochoa 2

E-29590 - Malaga

SPAIN

Tel: (34) 95 261 91 00

Fax: (34) 95 261 91 13

www.at4wireless.com

eUniStone

PBA 31309

Assembly Guidelines

User’s Manual Intel Public 37

Hardware Description Revision 1.0, 1-Feb-2013

9.0 Assembly Guidelines

The target of this chapter is to provide guidelines for customers to successfully

introduce the eUniStone module in production. This includes general description, PCB-

design, solder printing process, assembly, soldering process, rework and inspection.

9.1 General Description of the Module

eUniStone is a Land Grid Array (LGA 6x12) module made for surface mounting. The

pad diameter is 0.6 mm and the pitch 1.2 mm.

All solder joints on the module will reflow during soldering on the mother board. All

components and shield will stay in place due to wetting force. Wave soldering is not

possible.

Surface treatment on the module pads is Nickel (5-8 µm)/Gold (0.04 - 0.10 µm).

Figure 13 shows the pad layout on the module, seen from the component side.

Figure 13. Pad Layout on the Module (top view)

F2 F3 F4 F5

E1 E2 E3 E4 E5 E6 E7 E8 E9

D1 D2 D3 D4 D5 D6 D7 D8

C1 C2 C3 C4 C5 C6 C7 C8

B1 B2 B3 B4 B5 B6 B7 B8 B9

A2 A3 A4 A5 A6 A7 A8A1

1.0

8.70 mm

0.6

5.0

0. 6

1. 35 1.351.2

1.2

F7F1 F8

15.6 mm

F6 F11

A11

F1 2

A12

2.4

eUniStone

PBA 31309

Assembly Guidelines

User’s Manual Intel Public 38

Hardware Description Revision 1.0, 1-Feb-2013

9.2 Printed Circuit Board Design

The land pattern on the PCB shall be according to the land pattern on the module,

which means that the diameter of the LGA pads on the PCB shall be 0.6 mm. It is

recommended that each pad on the PCB shall be surrounded by a solder mask

clearance of about 75 µm to avoid overlapping solder mask and pad.

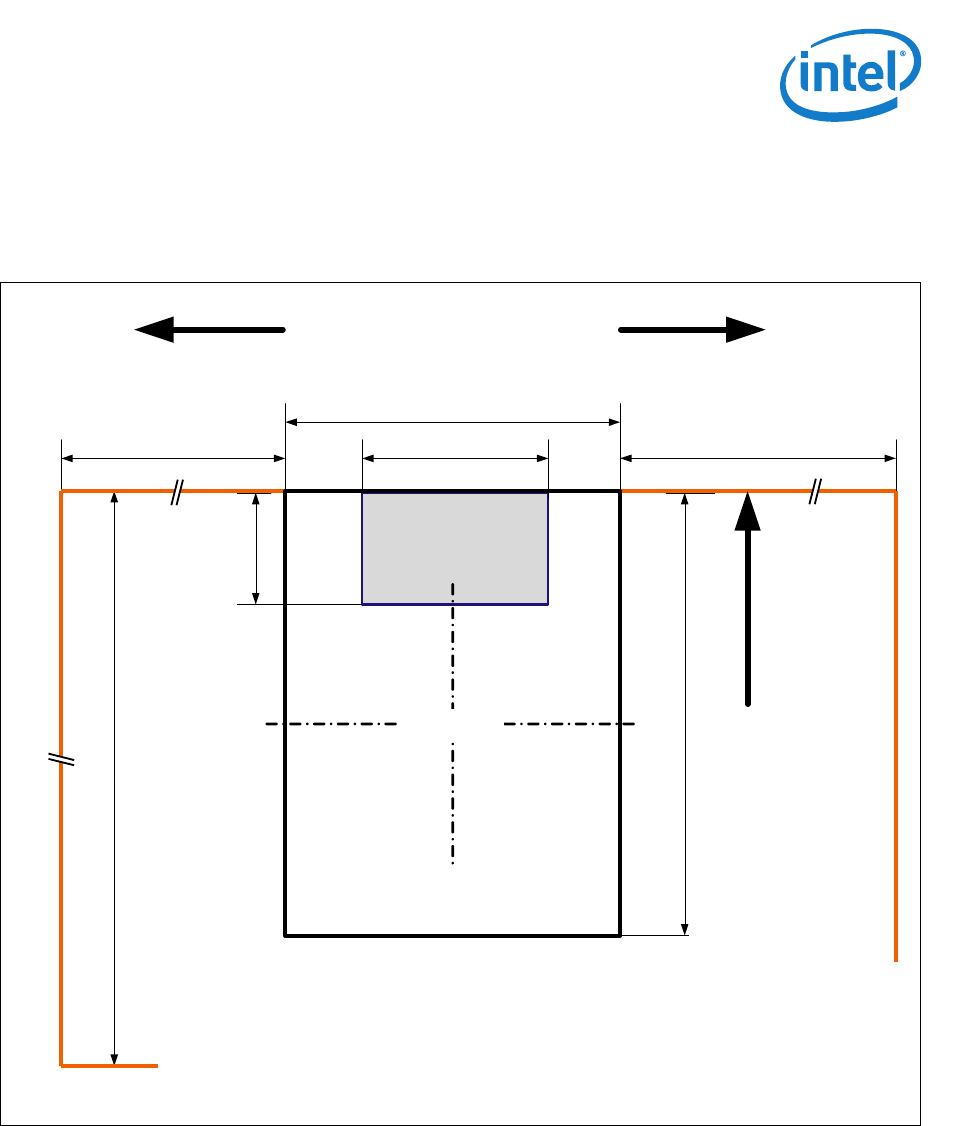

Figure 14. Cutout Drawing

In order to preserve the characteristics of the embedded antenna, a cutout must be

respected under the antenna through all metal layers of the PCB, as shown in drawing

Figure 14.

Placing the module inside a metal housing or close to metal parts like fasteners,

shielding cages, washers, etc. can significantly affect the antenna characteristics.

Min. 40mm

15.6

3.00

8.7

Min. 15mmMin. 15mm

Visio-Source-PAN1322.vsd

Restricted Area

No copper in any layer

5.00

Dimensions are in mm.

Use a Ground plane in the area

surrounding the PBA31309 module

wherever possible.

If possible place PBA31309in the

center of the main PCB.

Place PBA31309 at the

edge of the main PCB.

Top View

eUniStone

PBA 31309

Assembly Guidelines

User’s Manual Intel Public 39

Hardware Description Revision 1.0, 1-Feb-2013

9.3 Solder Paste Printing

The solder paste deposited on the PCB by stencil printing has to be of eutectic or near

eutectic tin leadfree / lead composition. A no-clean solder paste is preferred, since

cleaning of the solder joints is difficult because of the small gap between the module

and the PCB.

Preferred thickness of the solder paste stencil is 100 - 127 µmm (4 - 5 mils). The

apertures on the solder paste stencil shall be of the same size as the pads, 0.6 mm.

9.4 Assembly

9.4.1 Component Placement

In order to assure a high yield, good placement on the PCB is necessary. As a rule of

thumb the tolerable misplacement is 150 µmm. This means that the eUniStone module

can be assembled with a variety of placement systems.

It is recommended to use a vision system capable of package pad recognition and

alignment that evaluates the pad locations on the package (in contrast to outline

centring). This eliminates the pad to package edge tolerance.

The recommendation is to pick and place the module with a nozzle in the centre of the

shield. The nozzle diameter shall not be bigger than 4 mm.

9.4.2 Pin Mark

Pin 1 (A1) is marked on bottom footprint and on the top of the shield on the module

according to Figure 15. Diameter of pin 1 mark on the shield is 0.40 mm.

Figure 15. Pin Marking

i intel

GYYWW/DFYWW9EXX

FCCID:

QG2331308

PBA31309 V1.00

Top_and_Bottom_Views.vsd

Pin 1 marking bottom side

F2F3F4F5F6

E1E2E3E4E5E6E7E8E9

D1D2D3D4D5D6D7D8

C1C2C3C4C5C6C7C8

B1B2B3B4B5B6B7B8B9

A2A3A4A5A6A7A8 A1

F9 F7 F1F8

Pin 1 marking top side

A11

F12 F11

A12

eUniStone

PBA 31309

Assembly Guidelines

User’s Manual Intel Public 40

Hardware Description Revision 1.0, 1-Feb-2013

9.4.3 Package

eUniStone is packed in tape on reel according to Figure 16.

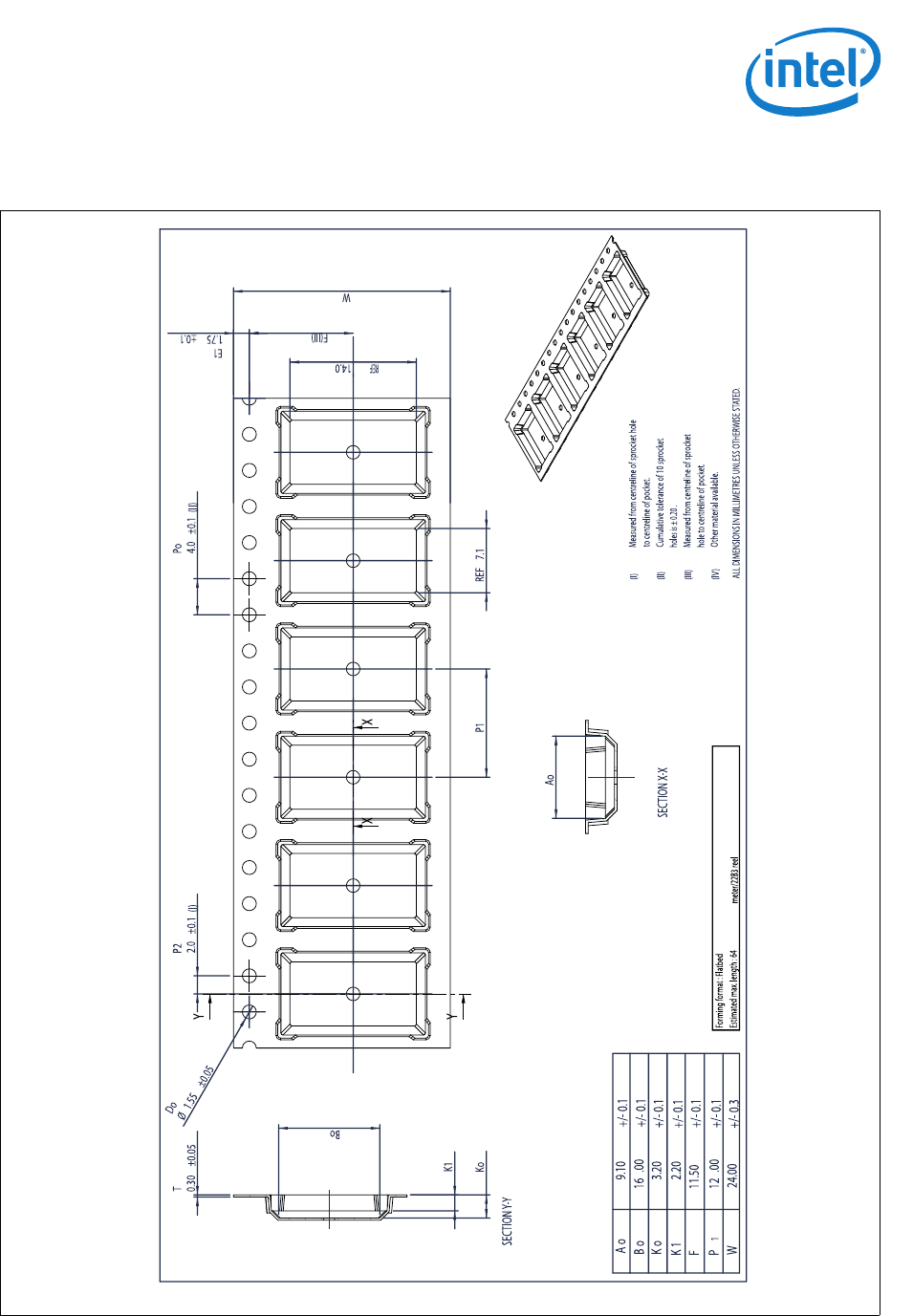

Figure 16. Tape on Reel

eUniStone

PBA 31309

Assembly Guidelines

User’s Manual Intel Public 41

Hardware Description Revision 1.0, 1-Feb-2013

9.5 Soldering Profile

Generally all standard reflow soldering processes (vapour phase, convection, infrared)

and typical temperature profiles used for surface mount devices are suitable for the

eUniStone module. Wave soldering is not possible.

Figure 17 and Figure 18 shows example of a suitable solder reflow profile. One for

leaded and one for leadfree solder.

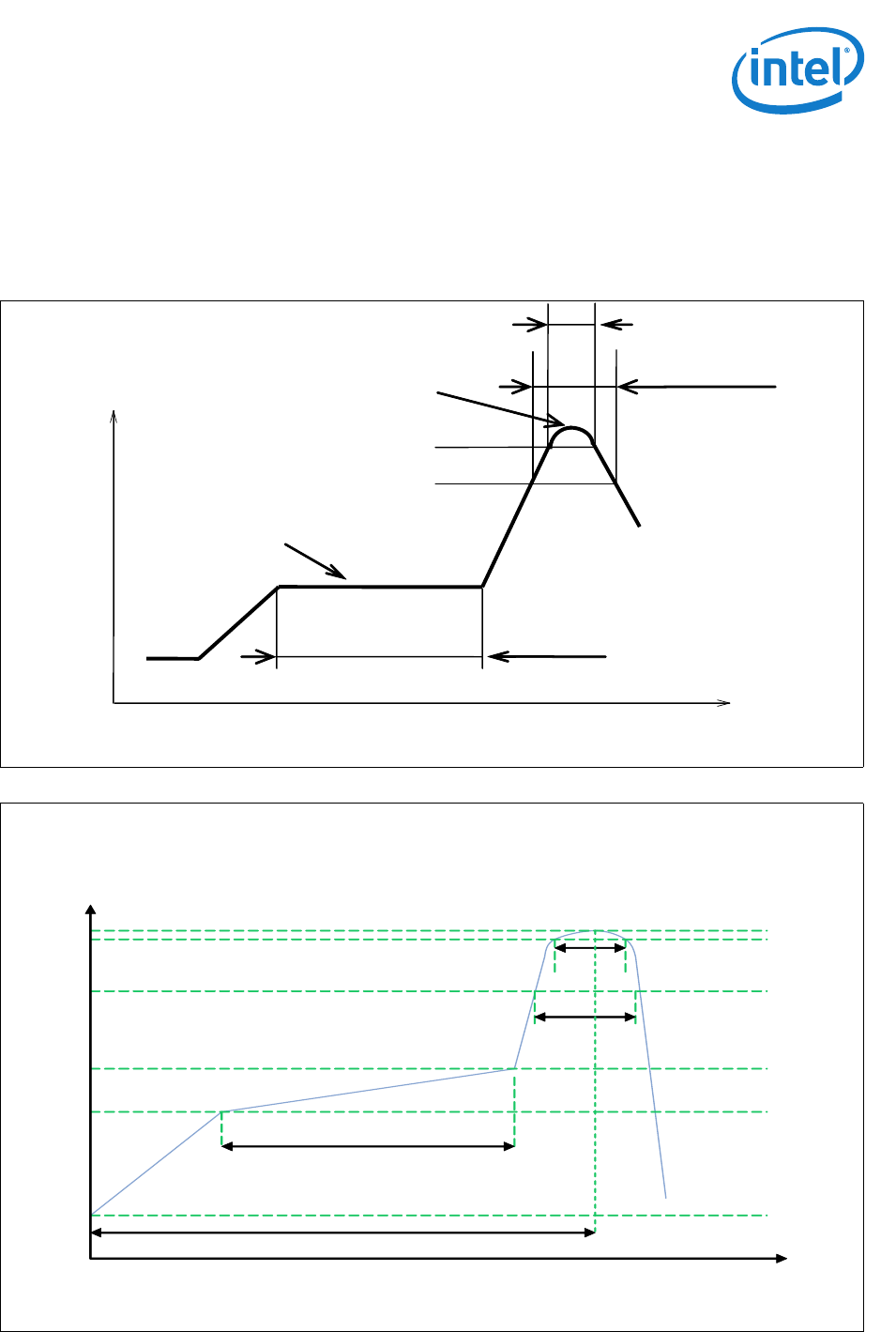

Figure 17. Eutectic Lead-Solder Profile

Figure 18. Eutectic Leadfree-Solder Profile

Lead_Solder_Profile .vsd

Recommended temp. profile

for reflow soldering

Tem

[

°C

]

Time [s]

235°C max.

220



5°C

200°C

150



10°C



30s



30 +20/-10s

LeadFree_Solder_Profile.vsd

25°C

150°C

200°C

217°C

255°C

260°C

60 ~ 120 sec @ 3’C/sec max

60 ~ 150 sec

30 sec

max

6’C/sec

max

8 minutes max

Temp.[°C]

Time [s]

Recommended temp. profile

for reflow soldering (J-STD-020C)

eUniStone

PBA 31309

Assembly Guidelines

User’s Manual Intel Public 42

Hardware Description Revision 1.0, 1-Feb-2013

At the reflow process each solder joint has to be exposed to temperatures above solder

liquids for a sufficient time to get the optimum solder joint quality, whereas overheating

the board with its components has to be avoided. Using infrared ovens without

convection special care may be necessary to assure a sufficiently homogeneous

temperature profile for all solder joints on the PCB (especially on large, complex boards

with different thermal masses of the components). The most recommended types are

therefore forced convection or vapour phase reflow. Nitrogen atmosphere can generally

improve solder joint quality, but is normally not necessary.

The reflow profiles and other reflow parameters are dependent on the used solder

paste. The paste manufacturer provides a reflow profile recommendation for this

product.

Additionally it is important not to overheat the eUniStone module by a too large reflow

peak temperature. eUniStone contain several plastic packages and is there by sensitive

of the moisture content level at the time of board assembly.

Overheating in combination with excessive moisture content could result in package

delaminations or cracks (popcorn effect). The heating rate should not exceed 3°C/s and

max sloping rate should not exceed 4°C/s.

eUniStone shall be handled according to MSL3, which means a floor life of 168 h in

30°C/60% r.h.

The eUniStone module can be soldered according to max. J-STD-020C curve, assuming

that all other conditions are followed stated in Product Specification, Qualification

Report and in Application Note. Restriction is that PBA 31309 can be soldered two

times, since one time is already consumed when soldering devices on Module.

9.6 Rework

9.6.1 Removal Procedure

1. Heat the module with an appropriate heating nozzle according to the instruction of

the equipment or on a hot plate (about 225°C dependent on the board). Hot plate

can only be used if the board is single side assembled. The temperature of the

module shall be 200-220°C.

2. Use grippers or a pair of tweezers to remove the module. The module has to be

gripped on two opposite edges of the module (not on the shield).

3. Remove excess solder by using solder sucker, suction soldering irons or solder wick.

9.6.2 Replacement Procedure

Replacement can be done in two ways, dependent of how the solder is applied. Solder

can be applied either by dispensing on the mother board or by printing the solder paste

directly on the module.

9.6.2.1 Alternative 1: Dispensing Solder

A dispenser with controlled volume must be used to assure the same volume on every

pad. The volume on each pad shall be about 0.04 mm3.

1. Dispense 0.04 mm3 on each LGA pad

2. Pick the module by a nozzle and place in the right position on the board

3. Reflow the solder.

eUniStone

PBA 31309

Assembly Guidelines

User’s Manual Intel Public 43

Hardware Description Revision 1.0, 1-Feb-2013

9.6.2.2 Alternative 2: Printing Solder

To print solder on the module a fixture must be used. The purpose of the fixture is to

get a flat surface and fix the stencil and module for printing. An example of how this

fixture can be designed is shown in Figure 19.

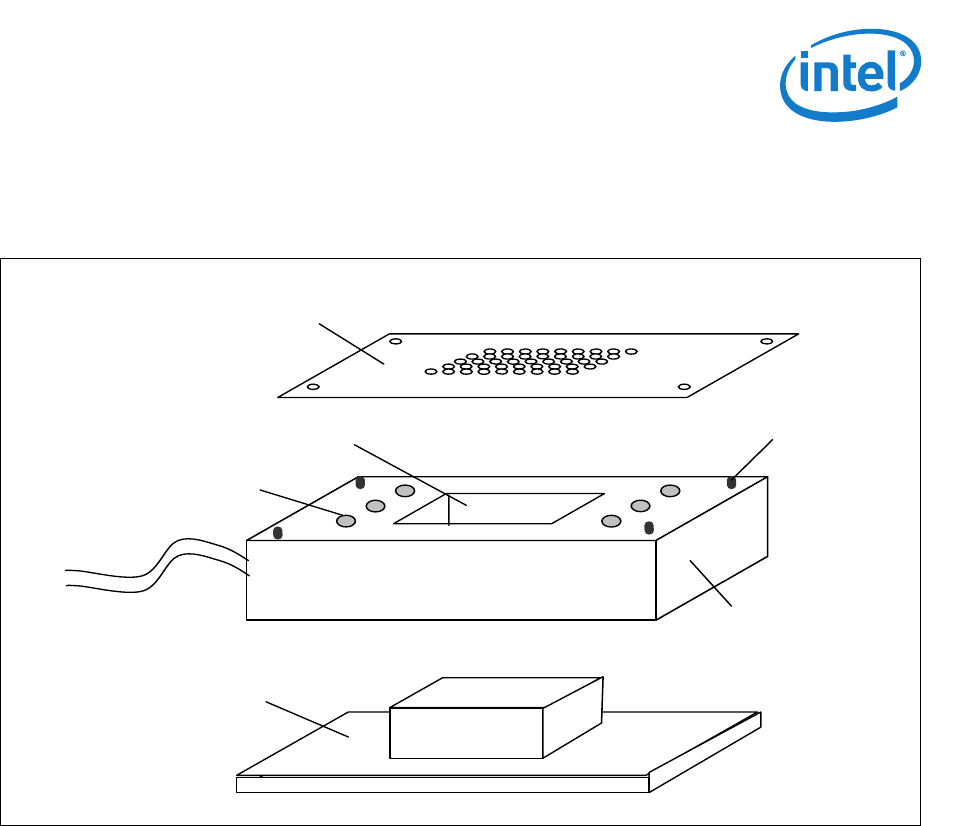

Figure 19. Solder Printing

1. Assemble the fixture to the bottom

2. Place the module in the cavity with the LGA pads upwards

3. Place the solder paste stencil on the fixture and make sure it fits to the tooling pins

and the module

4. Apply vacuum to fix the solder paste stencil

5. Apply solder paste on the stencil and print by using a blade

6. Turn everything (bottom, fixture and stencil) upside down.

7. Separate carefully the bottom from the fixture

8. Pick the module by a nozzle and place in the right position on the board

9. Reflow the solder.

9.7 Inspection

Automatic inspection of the solder paste printing before assembly is highly

recommended to ensure high yield and good long term reliability.

Solder_Printing.vsd

Vacuum hol es

Solder paste stencil

Cavity of the module Tooling pins

Bottom

Fixture

eUniStone

PBA 31309

Assembly Guidelines

User’s Manual Intel Public 44

Hardware Description Revision 1.0, 1-Feb-2013

9.8 Component Salvage

If it is intended to send a defect eUniStone module back to the supplier for failure

analysis, please note that during the removal of this component no further defects

must be introduced to the device, because this may hinder the failure analysis at the

supplier. This includes ESD precautions, not to apply high mechanical force for

component removal, and to prevent excess moisture content in the package during

salvage (risk of pop corning failures). Therefore if the maximum storage time out of the

dry pack (see label on packing material) is exceeded after board assembly, the PCB has

to be dried 24h at 125°C before soldering off the defect component, because otherwise

too much moisture may have been accumulated.

9.9 Voids in the Solder Joints

9.9.1 Expected Void Content and Reliability

The content of voids is larger on LGA modules than for modules with BGA or leads. At a

LGA solder joint the outgassing flux has a longer way to the surface of the solder and it

has a relatively small surface to the air.

The void content of the eUniStone module conforms to IPC-A-610D (25% or less

voiding area/area).

Figure 20 shows an example of void-content at a module assembled at production site.

Normally you can see the whole spectra of void content variation within the same lot

and occasion of assembly.

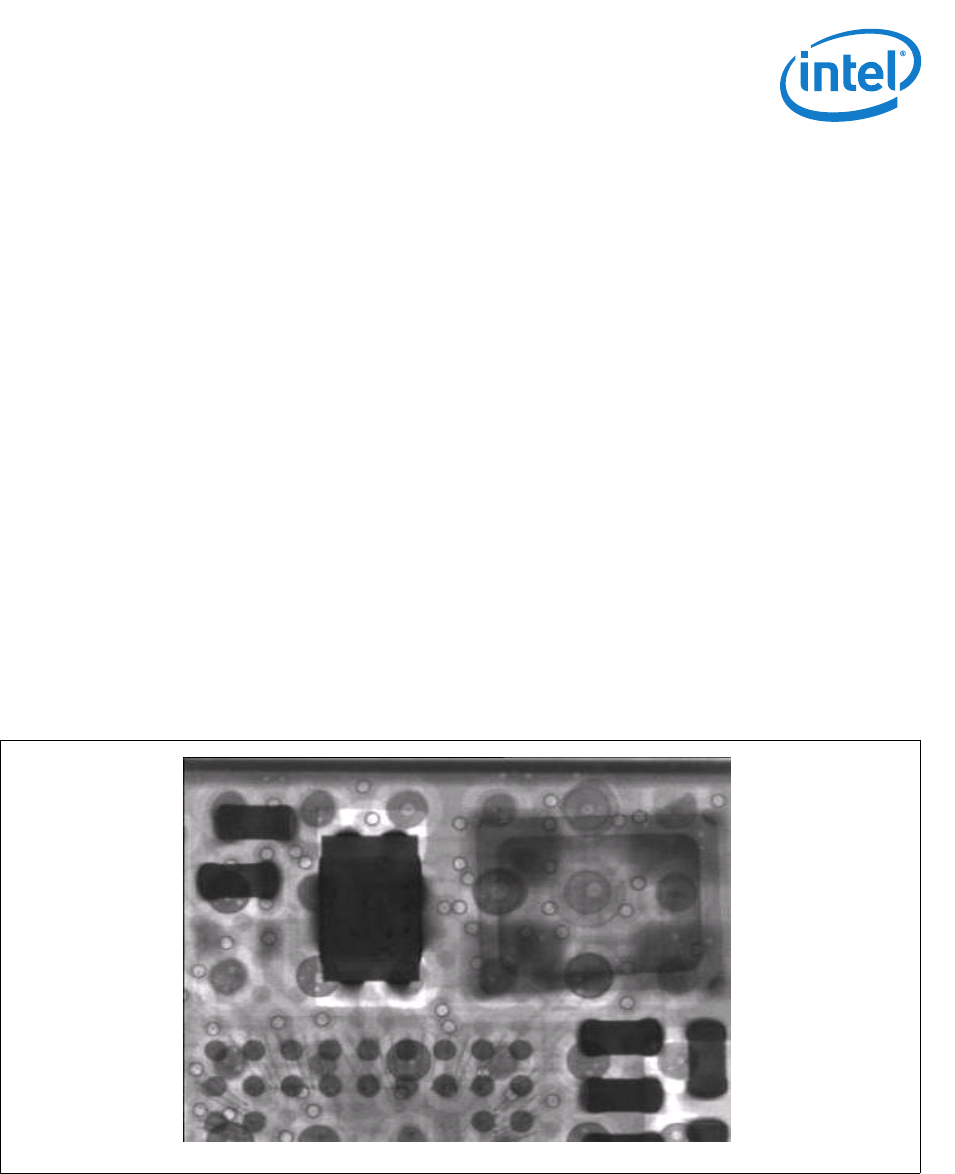

Figure 20. X-ray Picture Showing Voids Conforming to IPC-A-610D

Voids_IPC_A_610D.vsd

eUniStone

PBA 31309

Assembly Guidelines

User’s Manual Intel Public 45

Hardware Description Revision 1.0, 1-Feb-2013

9.9.2 Parameters with an Impact on Voiding

If the void content has to be reduced following parameters have an impact.

Solderability on module and PCB

Bad solderability is often connected to oxidation and has therefore a major impact on

voiding. Flux will get entrapped on oxidized surfaces. In general, Ni/Au pads show

fewer voids than HASL and OSP.

Solder paste

Higher activity of the flux will remove oxide rapidly and less flux will get entrapped.

Voiding increases with increasing solder paste exposure time, since long exposure time

will result in more oxidation and moisture pickup.

Pad size

A large soldering pad means that the outgassing flux has a longer way to the surface of

the solder, and will thereby create more voids.

Solder paste

Smaller powder size and higher metal load means more metal surface to deoxidize and

thereby more entrapped flux and voiding. Higher metal load does also mean higher

viscosity and more difficult for outgassed flux to remove from the solder.

Stencil thickness

A thick solder paste stencil means more surface area to the air and thereby easier for

the outgassing flux to leave the solder.

Temperature soldering profile

Too short preheat time means that the flux does not get enough time to react and flux

get entrapped in the solder and create voids.

Too long reflow time gives larger voids

Too short reflow time gives a fraction of voids

eUniStone

PBA 31309

User’s Manual Intel Public 46

Hardware Description Revision 1.0, 1-Feb-2013

References

[1] Intel AT Command Specification

(eUniStone_1.00_UM_SD.pdf)

[2] Release Notes for SPP AT application SW version 1.1

(eUniStone_1.00_SW_3.1_RN.pdf)

eUniStone

PBA 31309

User’s Manual Intel Public 47

Hardware Description Revision 1.0, 1-Feb-2013

Terminology

ACK Acknowledgement

ACL Asynchronous Connection-oriented (logical transport)

AFH Adaptive Frequency Hopping

AHS Adaptive Hop Sequence

ARQ Automatic Repeat reQuest

b bit/bits (e.g. kb/s)

B Byte/Bytes (e.g. kB/s)

BALUN BALanced UNbalanced

BD_ADDR Bluetooth Device Address

BER Bit Error Rate

BMU BlueMoon Universal

BOM Bill Of Material

BT Bluetooth

BW Bandwidth

CDCT Clock Drift Compensation Task

CMOS Complementary Metal Oxide Semiconductor

COD Class Of Device

CODEC COder/DECoder

CPU Central Processing Unit

CQDDR Channel Quality Driven Data Rate

CRC Cyclic Redundancy Check

CTS Clear To Send (UART flow control signal)

CVSD Continuous Variable Slope Delta (modulation)

DC Direct Current

DDC Device Data Control

DM Data Medium-Rate (packet type)

DMA Direct Memory Access

DH Data High-Rate (packet type)

DPSK Differential Phase Shift Keying (modulation)

DQPSK Differential Quaternary Phase Shift Keying (modulation)

DSP Digital Signal Processor

DUT Device Under Test

EDR Enhanced Data Rate

EEPROM Electrically Erasable Programmable Read Only Memory

eSCO Extended Synchronous Connection-Oriented (logical transport)

EV Extended Voice (packet type)

FEC Forward Error Correction

eUniStone

PBA 31309

User’s Manual Intel Public 48

Hardware Description Revision 1.0, 1-Feb-2013

FHS Frequency Hop Synchronization (packet)

FIFO First In First Out (buffer)

FM Frequency Modulation

FW Firmware

GFSK Gaussian Frequency Shift Keying (modulation)

GPIO General Purpose Input/Output

GSM Global System for Mobile communication

HCI Host Controller Interface

HCI+ Intel Specific HCI command set

HEC Header Error Check

HV High quality Voice (packet type)

HW Hardware

I2C Inter-IC Control (bus)

I2S Inter-IC Sound (bus)

IAC Inquiry Access Code

ID IDentifier

IEEE Institute of Electrical and Electronics Engineers

IF Intermediate Frequency

ISM Industrial Scientific & Medical (frequency band)

JTAG Joint Test Action Group

LAN Local Area Network

LAP Lower Address Part

LM Link Manager

LMP Link Manager Protocol

LNA Low Noise Amplifier

LO Local Oscillator

LPM Low Power Mode(s)

LPO Low Power Oscillator

LSB Least Significant Bit/Byte

LT_ADDR Logical Transport Address

MSB Most Significant Bit/Byte

MSRS Master-Slave Role Switch

NC No Connection

NOP No OPeration

NVM Non-Volatile Memory

OCF Opcode Command Field

OGF Opcode Group Field

PA Power Amplifier

PCB Printed Circuit Board

PCM Pulse Coded Modulation

PDU Protocol Data Unit

PER Packet Error Rate

PIN Personal Identification Number

This document has been formally released by DOC department (IMC-DOC@intel.com) on February 16, 2013

eUniStone

PBA 31309

User’s Manual Intel Public 49

Hardware Description Revision 1.0, 1-Feb-2013

PLC Packet Loss Concealment

PLL Phase Locked Loop

PMU Power Management Unit

POR Power-On Reset

PTA Packet Traffic Arbitration

PTT Packet Type Table

QoS Quality Of Service

RAM Random Access Memory

RF Radio Frequency

ROM Read Only Memory

RSSI Received Signal Strength Indication

RTS Request To Send (UART flow control signal)

RX Receive

RXD Receive Data (UART signal)

SCO Synchronous Connection-Oriented (logical transport)

SIG Special Interest Group (Bluetooth SIG)

SW Software

SYRI Synthesizer Reference Input

TBD To Be Determined

TCK Test Clock (JTAG signal)

TDI Test Data In (JTAG signal)

TDO Test Data Out (JTAG signal)

TL Transport Layer

TMS Test Mode Select (JTAG signal)

TX Transmit

TXD Transmit Data (UART signal)

UART Universal Asynchronous Receiver & Transmitter

ULPM Ultra Low Power Mode

VCO Voltage Controlled Oscillator

WLAN Wireless LAN (Local Area Network)

Intel PBA31309 Bluetooth Wireless Adapter User Manual

Intel Mobile Communications Bluetooth Wireless Adapter

User Manual

Navigation menu

Namespaces

Views

Navigation
