Intellian Technologies M121STM 12.1" Shelf Player User Manual
Intellian Technologies, Inc. 12.1" Shelf Player
User manual
M121STM/M156STM
User Manual
Rev 1.0
M12STM and M15STM is the network based LCD media player having HD quality video. At the
commercial site, school, hospital, restaurant and government building, it can be displayed HD quality
contents through the wireless network. It is connected by wireless network, and all contents are stored
at the Internet Server, and download contents.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, (example -use only shielded interface cables when
connecting to computer or peripheral devices).
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause
undesired operation.
IMPORTANT NOTE :
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Intellian Technologies, Inc.
ii
Notice
Any and all parts of this manual shall not be reproduced and distributed in any form without written prior
consent by Intellian Technologies, Inc. The information contained in this manual shall be subject to
change at any time without notice due to the functional upgrade of the product.
M121STM/M156STM User Manual
Ver 1.0
© 2009 Intellian Technologies, Inc.
Intellian® are the registered trademarks of Intellian Technologies, Inc., and should not be
appropriated without permission by Intellian Technologies, Inc., and the information contained
in this manual is the property of Intellian Technologies, Inc.
Version Information
Date Description
2009. 11. 05 1st
Intellian Technologies, Inc.
SK Ventium 104-601, 522 Dangjeong-Dong Gunpo-Si,
Gyeonggi-Do 435-776, Korea
Tel: 031-436-2280
Fax: 031-436-1569
Homepage: http://www.intelliantech.com
iii
[ Index ]
1. Introduction..................................................................................................... 4
1.1 Introduction.......................................................................................... 4
1.1.1 General....................................................................................... 4
1.1.2 Specification................................................................................ 4
1.1.3 Package...................................................................................... 4
1.1.4 Product Architecture.................................................................... 5
1.1.5 Installation................................................................................... 5
1.2 Working Mode...................................................................................... 5
1.2.1 Stand-alone Mode....................................................................... 5
1.2.2 Network Mode............................................................................. 5
1.3 System Requirement ........................................................................... 6
1.3.1 Internet Server ............................................................................ 6
1.3.2 Internal Storage........................................................................... 6
1.4 Remote Control.................................................................................... 7
2. System Configuration ..................................................................................... 9
2.1 Video/Audio.......................................................................................... 9
2.1.1 Video........................................................................................... 9
2.2 Network Server .................................................................................. 10
2.3 Wireless Network............................................................................... 12
2.4 Screen ............................................................................................... 13
2.5 Time................................................................................................... 14
M121STM / M156STM User Manual
4
1. Introduction
1.1 Introduction
1.1.1 General
M12STM and M15STM is the network based LCD media player having HD quality video.
At the commercial site, school, hospital, restaurant and government building, it can be
displayed HD quality contents through the wireless network. It is connected by wireless
network, and all contents are stored at the Internet Server, and download contents.
1.1.2 Specification
Storage CF Memory 2GB
USB Host USB 2.0, Player Control
Video Output 1280x800(M121STM) / 1366x768(M156STM)
Audio Stereo 3W Speaker
Frequency 2412 ㎒ ~ 2462 ㎒ Wireless LAN
(802.11b/g) Channels 11 ch
IR Sensor Remote Control
LED Wireless LED, Power LED
Power DC 12V
Power Consumption 0.39A 12V (12”)
Size (mm) 308x199x29 (12”)
Wight (Kg) 1.2 (12”)
Picture JPG
Movie MPEG 1/2/4, AVI, DivX, Xvid, WMV9
Supported
Media
Music MP3
1.1.3 Package
1. Player : M121STM / M156STM
2. Remote Control : 33 Buttons, Use for control
3. Power Adaptor : AC Input - 100~240V, 50 ~ 60Hz, DC Output - 12V/3A
M121STM / M156STM User Manual
5
1.1.4 Product Architecture
The image of M121STM / M156STM is as below. DC Power and CF Card Slot is located at the
back side of the player. At first, remove the Sub Cover of the back side, and connect the power
and insert the CF card. At last, assemble the Sub Cover again. And, the USB port is used only at
the upgrade of firmware and copy of the contents.

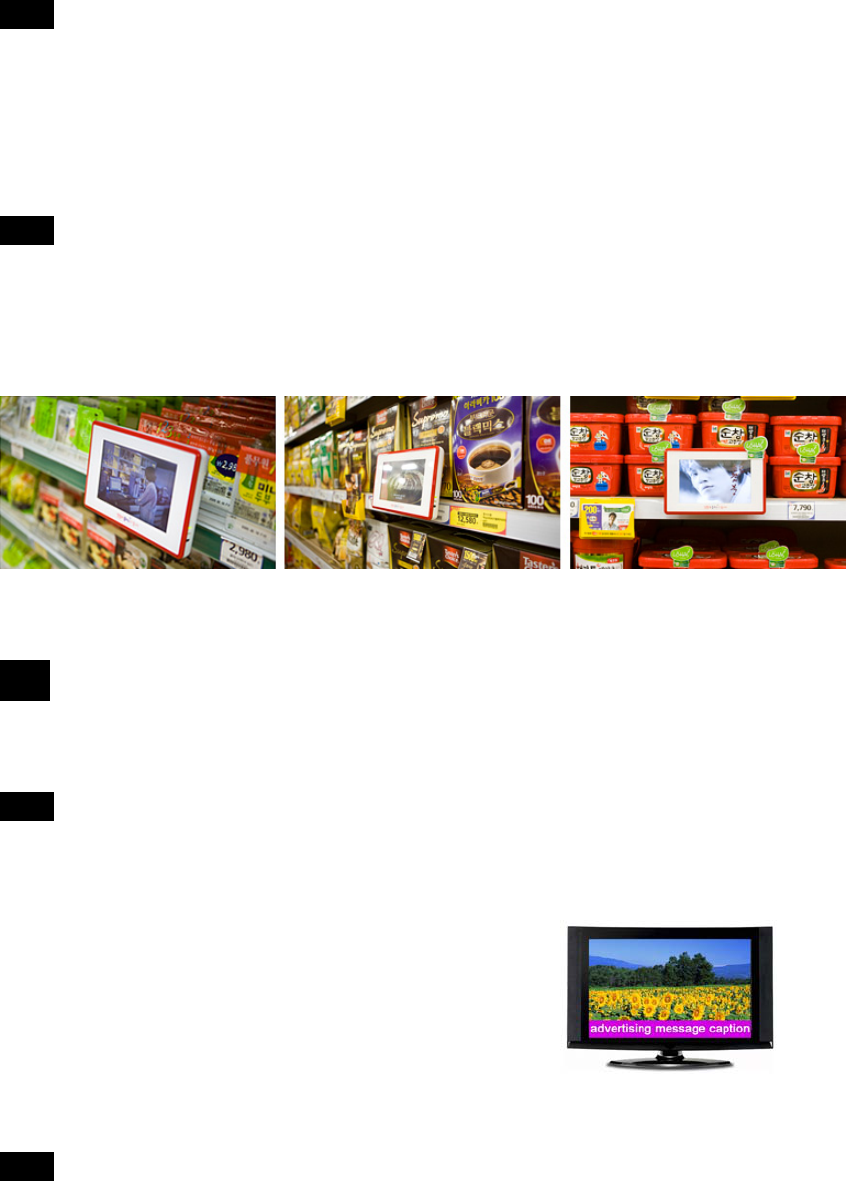

1.1.5 Installation
The M121STM / M156STM are installed on the shelf to play the advertisements. Using the bracket
which is included in the package, the player should be installed tightly on the shelf. The DC
power jack is placed on the back side of the player.
1.2 Working Mode
The player can be worked as Stand-alone Mode or Network Mode seperately.
1.2.1 Stand-alone Mode
This mode don’t use the network connection. Only store the contents in the CF card, and play.
All controls and effects are controlled by Remote Controller directly.
z Application
Small Office, Restaurant, Store, Hospital, School
z Contents Storage
Use internal storage like CF Card or USB Memory.
1.2.2 Network Mode
All contents are stored at the Internet Server. To play the contents, the player should be
download the contents through the wireless network and store it at the internal storage. And
then play the contents. All control information is downloaded from the Server.
M121STM / M156STM User Manual
6
z Application
Large Office, Restaurant, Market, Mall, Hospital, Museum, School
z Contents Storage
Internet Server.

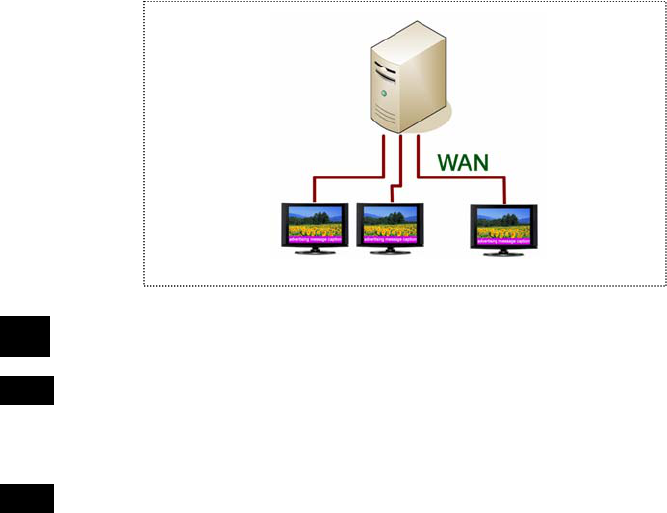

z System Diagram
1.3 System Requirement
1.3.1 Internet Server
Run Server Program
- Run Web Server. Need server application.
1.3.2 Internal Storage
Internal Storage
CF Card
Supported File System
- FAT32
M121STM / M156STM User Manual
7
1.4 Remote Control
1. POWER 2. AUTO
3. #1, FILE INFO 4. #2, CAPTION ON/OFF 5. #3, CAPTION SYNC
8. #6, SCR SIZE
6. #4, ZOOM
9. #7
7. #5
10. #8 11. #9
12. #0
13. A.MODE 14. V.MODE
15. MENU 16. MUTE
17. UP
19. LEFT
18. RIGHT
20. OK
21. VIDEO
23. AUDIO
26. PHOTO
24. SETUP
25. VOL DOWN
28. VOL UP
27. REW
33. PLAY/PAUSE
29. PREV 30. FF
31. STOP 32. NEXT
22. DOWN
M121STM / M156STM User Manual
8
No Button Menu On Playing
1 POWER Power On/Off Power On/Off
2 AUTO Auto Start N/A
3 #1, FILE INFO 1 N/A
4 #2, CAPTION ON/OFF 2 N/A
5 #3, CAPTION SYNC 3 N/A
6 #4, ZOOM 4 N/A
7 #5 5 N/A
8 #6, SCR SIZE 6 N/A
9 #7 7 N/A
10 #8 8 N/A
11 #9 9 N/A
12 #0 0 N/A
15 MENU N/A N/A
16 MUTE N/A Mute
17 UP Up N/A
18 RIGHT Right N/A
19 LEFT Left N/A
20 OK Enter or Select N/A
21 VIDEO N/A N/A
22 DOWN Down N/A
23 AUDIO N/A N/A
24 SETUP Go to Setup Menu Go to Setup Menu
25 VOL DOWN N/A Volume Down
26 PHOTO N/A N/A
27 REW N/A N/A
28 VOL UP N/A Volume Up
29 PREV N/A N/A
30 FF N/A N/A
31 STOP N/A Go to Setup Menu
32 NEXT N/A N/A
33 PLAY/PAUSE Play N/A
[표] Remote Control Button
M121STM / M156STM User Manual
9
2. System Configuration
2.1 Video/Audio

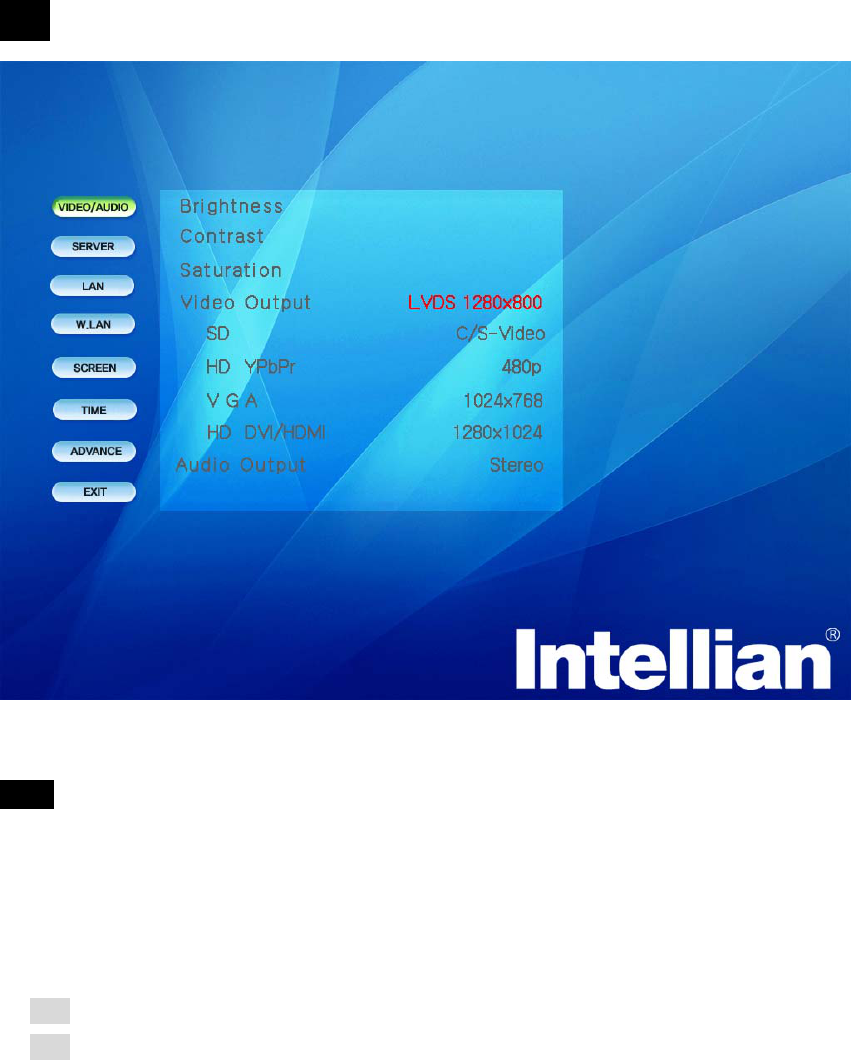

2.1.1 Video
You can set up the brightness, contrast, and saturation. Using the remote control,
you can set up using ◀, ▶, +, - button.
(In Network Mode, this menu is disabled)
M121STM is connected directly at the LCD. The video output is“LVDS 1280x800”. And
it can’t changeable. (M156STM :“LVDS 1366x768”)
- LVDS : 1280x800
- LVDS : 1366x768
M121STM / M156STM User Manual
10

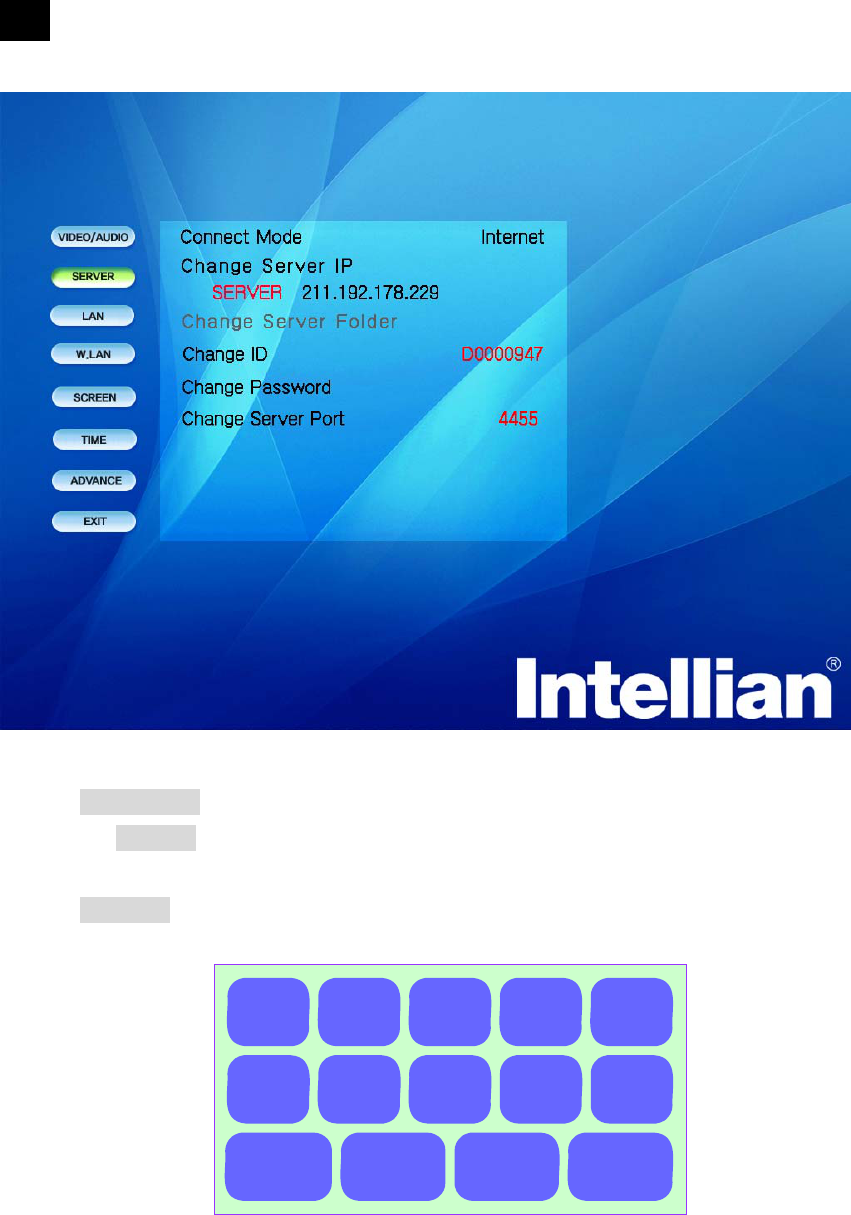

2.2 Network Server
This menu is only available at Network Mode.
Connect Mode
- Internet
.
Server IP
You can change the IP address.
[그림] Virtual Keyboard
1 2345
.
78 9 10
6
CancelDelete OK
M121STM / M156STM User Manual
11
Media ID
Media ID is the unique ID of the media. It should be need to connect the
Internet Server.

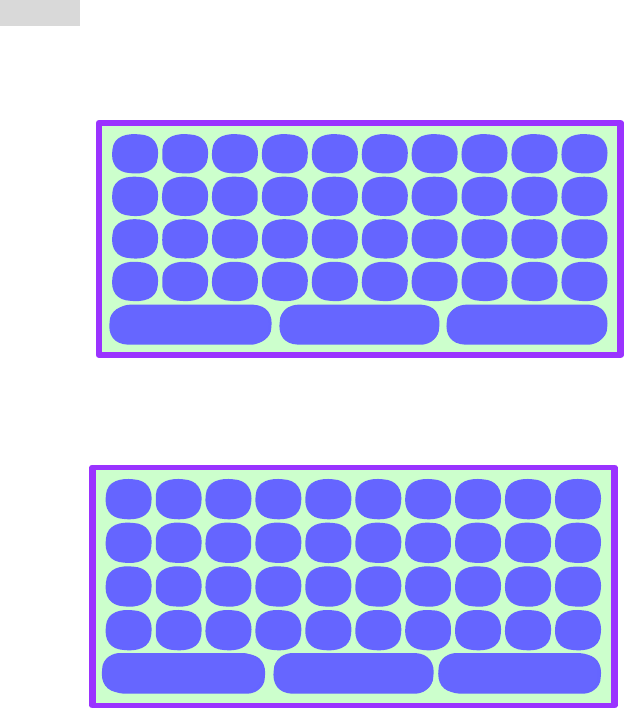

[그림] Virtual Keyboard
[그림] Virtual Keyboard(After Sh key is pressed)
1234567890
a b c d e f g g i j
k l m n o p q r s t
u v w x y z _ / ~ Sh
삭제 취소 확인
Delete Cancel OK
1234567890
A B C D E F G H I J
K L M N O P Q R S T
U V W X Y Z - . ~ Sh
삭제 취소 확인
Delete Cancel OK
M121STM / M156STM User Manual
12

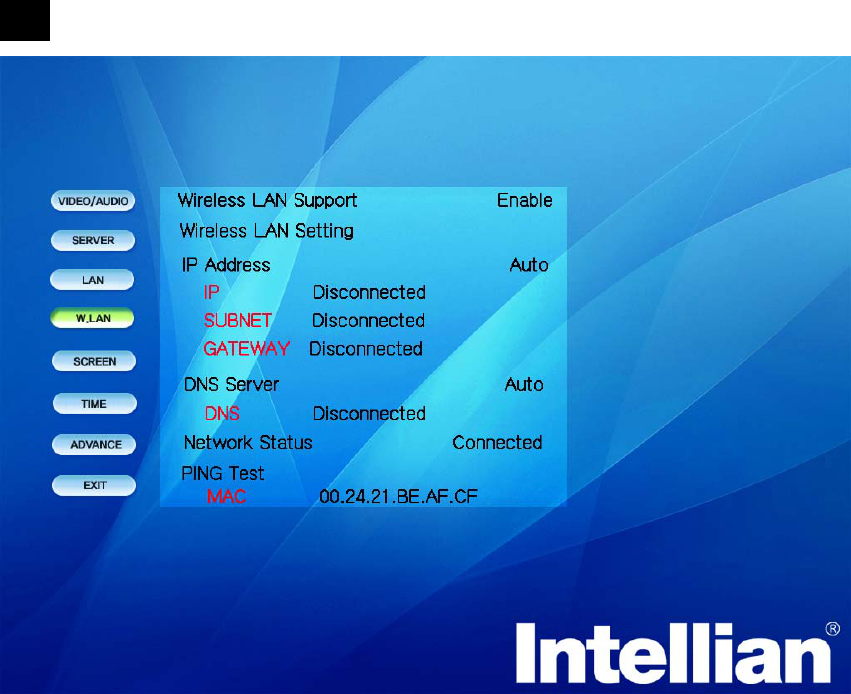

2.3 Wireless Network
M121STM / M156STM User Manual
13
2.4 Screen
M121STM / M156STM User Manual
14
2.5 Time
M121STM / M156STM User Manual
Ver 1.0
Publish No. : DS-0909-56
Intellian Technologies, Inc.
SK Ventium 104-601, 522 Dangjeong-Dong Gunpo-Si,
Gyeonggi-Do 435-776, Korea
Tel: 031-436-2280
Fax: 031-436-1569
Homepage: http://www.intelliantech.com
