Intelyt orporated ICHIME-M10 Wireless Data Communication Module User Manual

iControl Incorporated Wireless Data Communication Module

User Manual

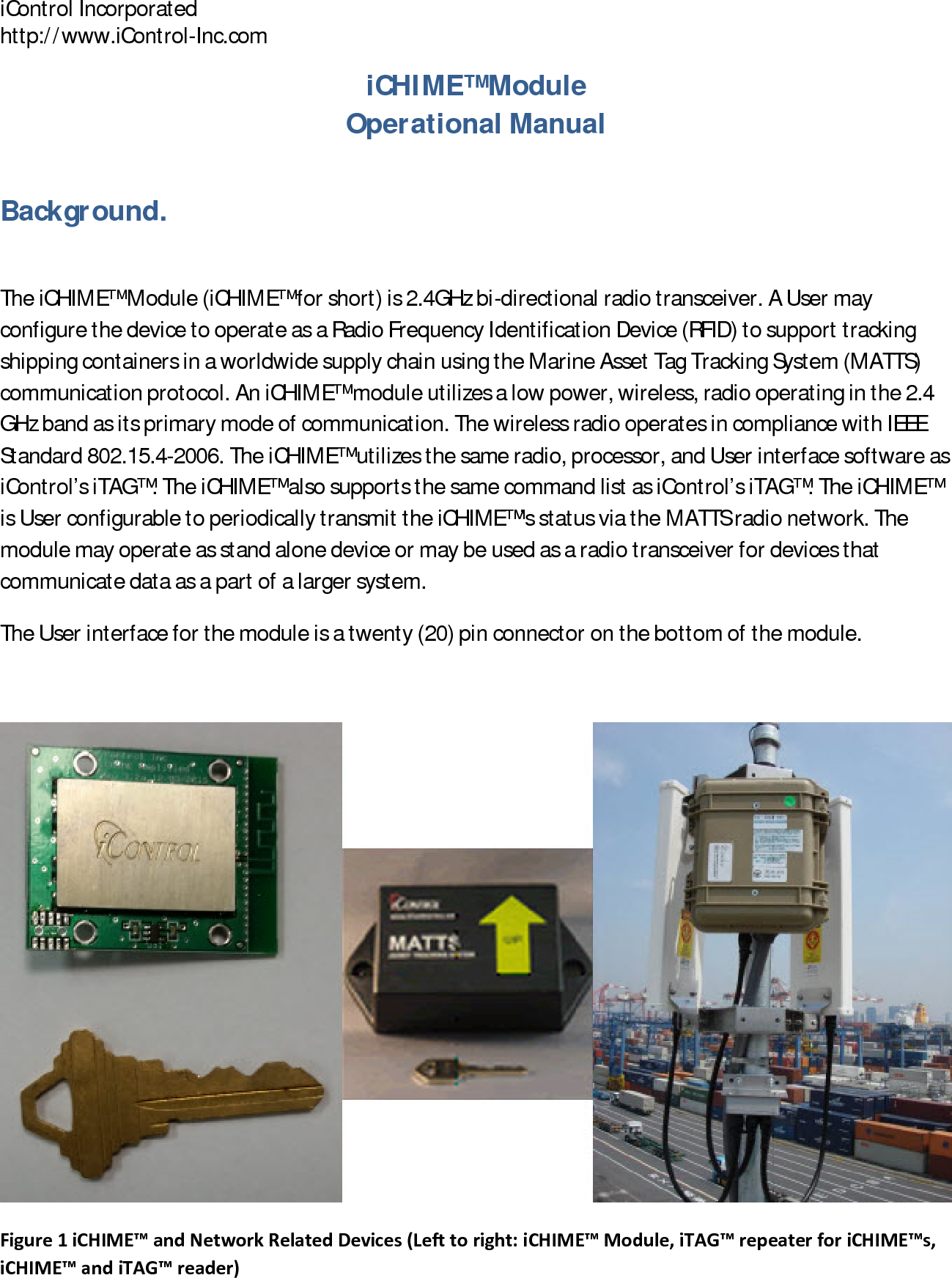

iControl Incorporated http://www.iControl-Inc.com iCHIME™ Module Operational Manual Background.  The iCHIME™ Module (iCHIME™ for short) is 2.4GHz bi-directional radio transceiver. A User may configure the device to operate as a Radio Frequency Identification Device (RFID) to support tracking shipping containers in a worldwide supply chain using the Marine Asset Tag Tracking System (MATTS) communication protocol. An iCHIME™ module utilizes a low power, wireless, radio operating in the 2.4 GHz band as its primary mode of communication. The wireless radio operates in compliance with IEEE Standard 802.15.4-2006. The iCHIME™ utilizes the same radio, processor, and User interface software as iControl’s iTAG™. The iCHIME™ also supports the same command list as iControl’s iTAG™. The iCHIME™ is User configurable to periodically transmit the iCHIME™’s status via the MATTS radio network. The module may operate as stand alone device or may be used as a radio transceiver for devices that communicate data as a part of a larger system. The User interface for the module is a twenty (20) pin connector on the bottom of the module.    Figure 1 iCHIME™ and Network Related Devices (Left to right: iCHIME™ Module, iTAG™ repeater for iCHIME™s, iCHIME™ and iTAG™ reader)
