NS3500-24T-4C Managed
Switch Command Guide
P/N 1073459-EN • REV A • ISS 06MAR18
Copyright
©
2018 United Technologies Corporation.
Interlogix is part of UTC
Climate, Controls & Security, a unit of United Technologies
Corporation
. All rights reserved.
Trademarks and patents
Trade names used in this document may be trademarks or registered trademarks of the
manufacturers or vendors of the respective products.
Manufacturer
Interlogix
2955 Red Hill Avenue, Costa Mesa, CA 92626
-5923, USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands
Version
This document applies to
NS3500-24T-4C.
FCC compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful
interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
FCC compliance
Class A:
This equipment has been tested and found to comply with the limits for a Class
A digital device, p
ursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy
and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be requi
red to correct the interference at his own expense.
Canada
This Class A digital apparatus complies with CAN ICES
-003 (A)/NMB-3 (A).
Cet appareil numérique de la classe A est conforme à la norme CAN ICES
-003
(A)/NMB
-3 (A).
ACMA compliance
Notice!
This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate measures.
Certification
EU directives
This product and
- if applicable - the supplied accessories too are marked with "CE" and
comply therefore with the applicable harmonized European standards listed under the
EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.
2012/19
/EU (WEEE directive): Products marked with this symbol cannot be disposed
of
as unsorted municipal waste in the European Union. For proper recycling, return this
product to your local supplier upon the purchase of equivalent new equipment, or
dispose of it at designated collection points. For more information see:
www.recyclethi
s.info.
Product warnings and
disclaimers
THESE PRODUCTS ARE INTENDED FOR SALE TO AND INSTALLATION BY
QUALIFIED PROFESSIONALS. UTC FIRE & SECURITY CANNOT PROVIDE ANY
ASSURANCE THAT ANY PERSON OR ENTITY BUYING ITS PRODUCTS,
INCLUDING ANY “AUTHORIZED
DEALER” OR “AUTHORIZED RESELLER”, IS
PROPERLY TRAINED OR EXPERIENCED TO CORRECTLY INSTALL FIRE AND
SECURITY RELATED PRODUCTS
.
For more information on warranty disclaimers and product safety information, please
check
www.firesecurityproducts.com/policy/product-warning/ or scan the QR code:
Contact information and
manuals
For contact information go to:
www.interlogix.com or www.firesecurityproducts.com.
To get translations for this and other product manuals go to:
www.firesecurityproducts.com
.
Content
Chapter 1 Command line interface 2
Accessing the CLI 2
Command line modes 2
Requirements 4
Chapter 2 Console CLI management 5
Terminal setup 5
Log on to the console 6
Configuring the IP address 7
Chapter 3 Telnet CLI management 10
Telnet login 10
Chapter 4 Commands for CLI configuration 11
clear 11
configure terminal 29
copy 241
debug 241
delete 242
dir 242
disable 243
do 243
dot1x 244
enable 244
erps 245
exit 245
firmware 246
ip 247
logout 247
more 248
no 248
ping 249
reload 250
send 251
show 252
terminal 322
NS3500-24T-4C Managed Switch Command Guide 1
Chapter 1
Command line interface
Accessing the CLI
When accessing the management interface for the switch over a direct connection to
the server’s console port or via a Telnet connection, the switch can be managed by
entering command keywords and parameters at the prompt. Using the switch's
command-line interface (CLI) is very similar to entering commands on a UNIX system.
This chapter describes how to use the Command Line Interface (CLI).
Command line modes
The CLI groups all the commands in appropriate modes according to the nature of the
command. A sample of the CLI command modes are described below. Each of the
command modes supports specific software commands.
Mode-based command hierarchy
The Command Line Interface (CLI) groups all the commands in appropriate modes by
the nature of the commands. Examples of the CLI command modes are described
below. Each of the command modes supports specific switch commands.
The CLI Command Modes table captures the command modes, the prompts visible in
that mode, and the exit method from that mode.
Command Mode
Access Method Prompt Exit or Access Previous
Mode
User mode
This is the first level of
access. Perform basic
tasks and list system
information.
COMMAND> Enter Logout command
Priveleged mode
From the User Mode, enter
the enable command. Switch# To exit to the User Mode,
enter exit or Logout.
Global
config mode From the Privileged Mode,
enter the configuration
command.
Switch (Config)# To exit to the Privileged
Mode, enter the exit
command.
2 NS3500-24T-4C Managed Switch Command Guide
Chapter 1: Command line interface
Command Mode
Access Method Prompt Exit or Access Previous
Mode
Interface config mode
From the Global Config
mode, enter the interface
<port#> command.
Switch (interface
<port#>)# To exit to the Global
Config mode, enter exit.
The CLI is divided into various modes. The commands in one mode are not available
until the operator switches to that particular mode. The commands available to the
operator at any point in time depend upon the mode. Entering a question mark (?) at
the CLI prompt displays a list of the available commands and descriptions of the
commands.
The CLI provides the following modes:
User mode
When the operator logs into the CLI, the User Mode is the initial mode. The User Mode
contains a limited set of commands. The command prompt shown at this level is:
Command Prompt: switch>
Privileged mode
To have access to the full suite of commands, the operator must enter the Privileged
Mode. The Privileged Mode requires password authentication. From Privileged Mode,
the operator can issue any Exec command to enter the Global Configuration mode. The
command prompt shown at this level is:
Command Prompt: switch#
Global config mode
This mode permits the operator to make modifications to the running configuration.
General setup commands are grouped in this mode. From the Global Configuration
mode, the operator can enter the Interface Configuration mode. The command prompt
at this level is:
Command prompt: switch(Config)#
From the Global Config mode, the operator may enter the following configuration
modes:
Interface config mode
Many features are enabled for a particular interface. The Interface commands enable or
modify the operation of an interface. In this mode, a physical port is set up for a specific
logical connection operation. The command prompt at this level is:
Command prompt: Switch(Interface <port#>)#
NS3500-24T-4C Managed Switch Command Guide 3
Chapter 1: Command line interface
Requirements
• Workstations running Windows XP/Vista/7/8/10, Windows 2003/2008, MAC OS X or
later, Linux, UNIX, or other platforms are compatible with TCP/IP protocols.
• Workstations are installed with Ethernet NIC (Network Interface Card).
• Serial Port Connection (Terminal)
• The above Workstations come with COM Port (DB9) or USB-to-RS-232
converter.
• The above Workstations have been installed with terminal emulator, such as
Hyper Terminal included in Windows XP/2003.
• Serial cable -- one end is attached to the RS-232 serial port, while the other end
to the console port of the Managed Switch.
• Ethernet Port Connection
• Network cables -- Use standard network (UTP) cables with RJ-45 connectors.
• The above PC is installed with Web Browser and JAVA runtime environment
plug-in.
4 NS3500-24T-4C Managed Switch Command Guide
Chapter 2
Console CLI management
Terminal setup

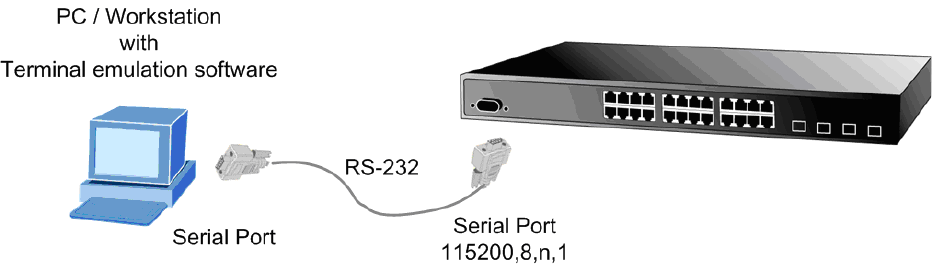

To configure the system, connect a serial cable to a COM port on a PC or notebook
computer and to a RS232 type of serial port on the managed switch.
A terminal program is required to make the software connection to the managed switch.
Windows' Hyper Terminal program may be a good choice. The Hyper Terminal can be
accessed from the Start menu.
1. Click Start > Programs > Accessories, and then click Hyper Terminal.

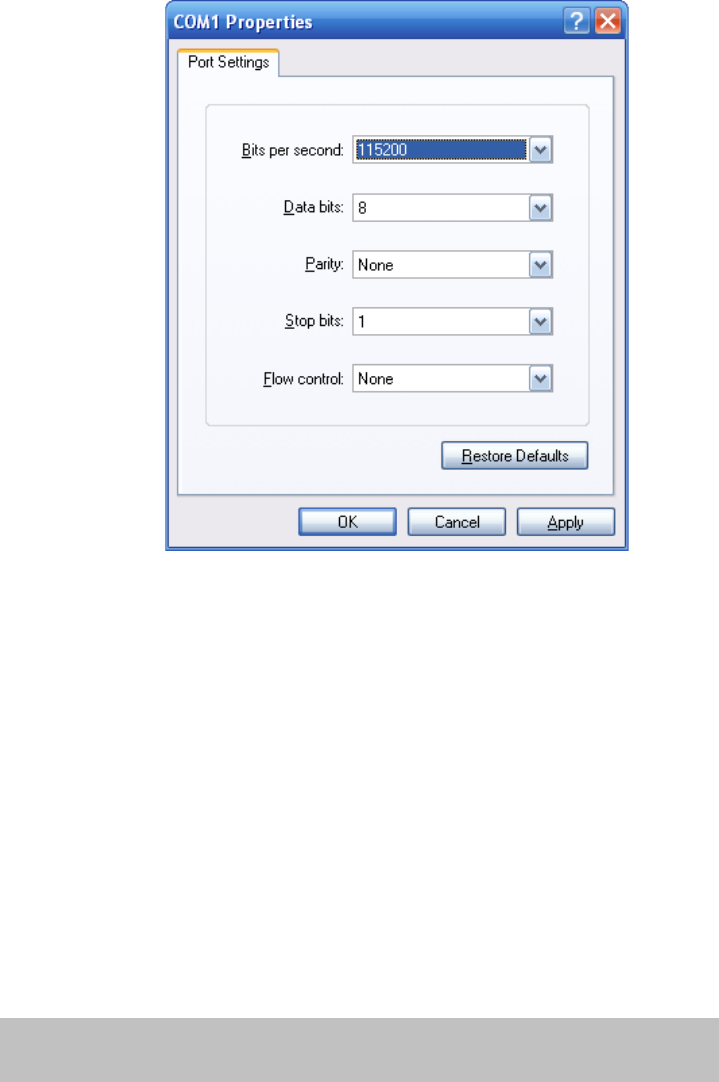

2. When the following screen appears, make sure that the COM port is configured as
shown:
5 NS3500-24T-4C Managed Switch Command Guide
Chapter 2: Console CLI management
If required, you can change these settings after logging on. This management method
is often preferred because you can remain connected and monitor the system during
system reboots. Also, certain error messages are sent to the serial port, regardless of
the interface through which the associated action was initiated. A Macintosh or PC
attachment can use any terminal-emulation program for connecting to the terminal
serial port. A workstation attachment under UNIX can use an emulator such as TIP.
Log on to the console

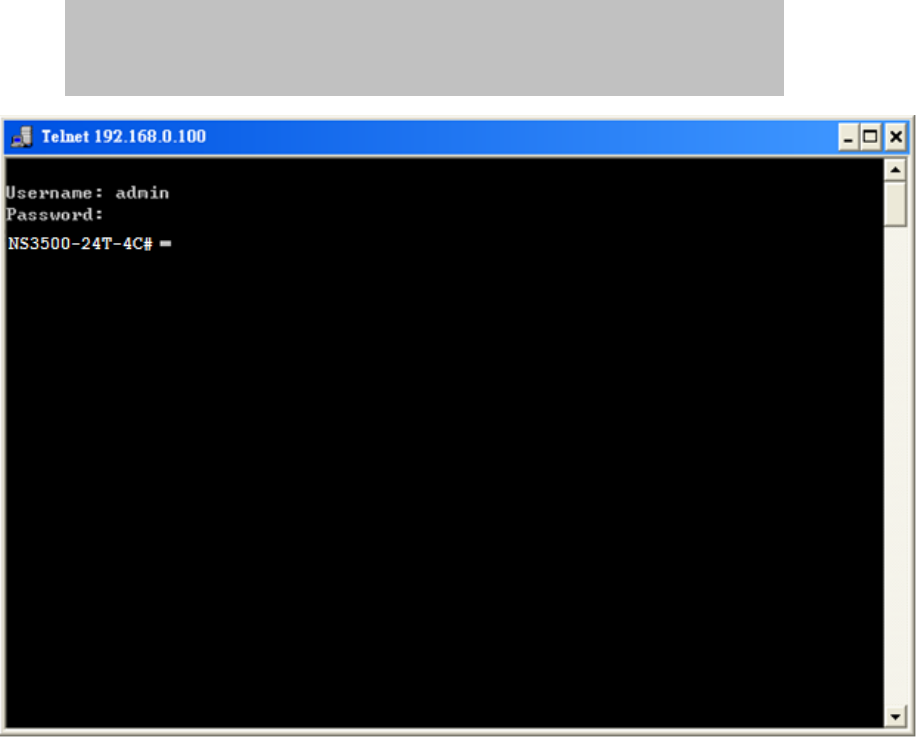

Once the terminal is connected to the device, power on the managed switch, and the
terminal will display “running testing procedures”. Then, the following message asks to
log-in user name and password. The factory default user name and password are
shown as follows and the login screen appears.
Username: admin
Password: admin
6 NS3500-24T-4C Managed Switch Command Guide
Chapter 2: Console CLI management

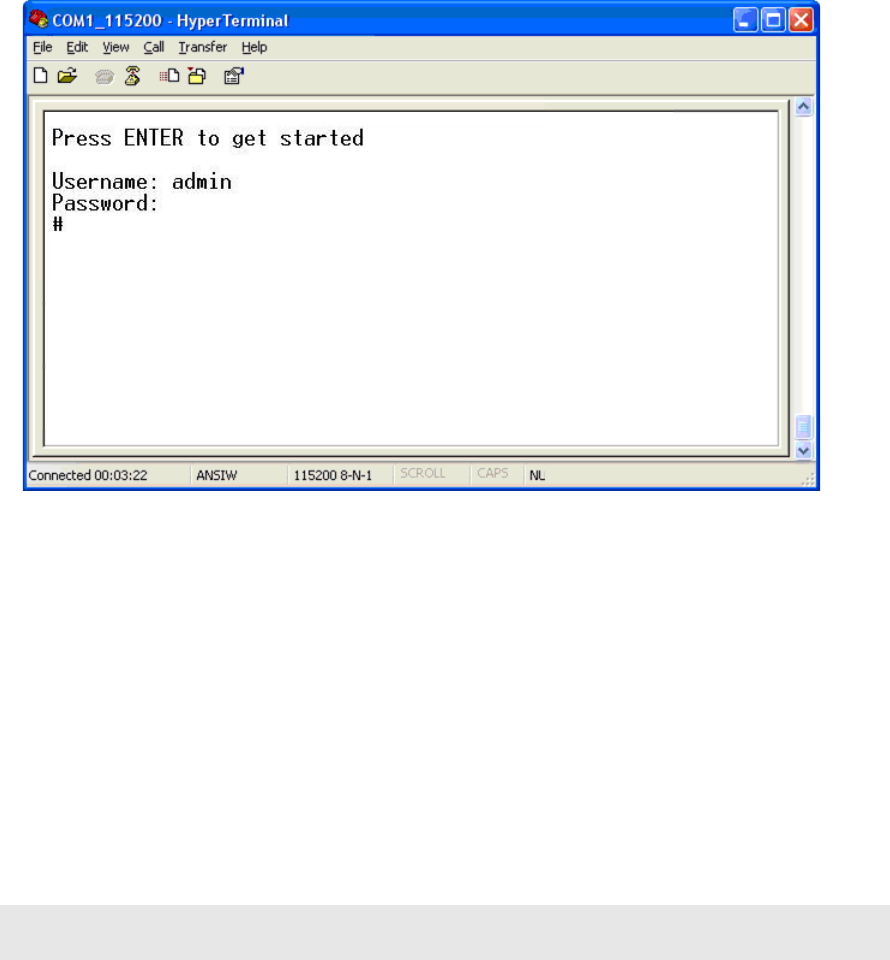

The user can now enter commands to manage the managed switch. For a detailed
description of the commands, refer to the following chapters.
Note:
1. For security purposes, change and memorize the new password after this first
setup.
2. Only accept commands in lowercase letters under the console interface.
Configuring the IP address
The Managed Switch is shipped with the default IP address shown below.
IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or modify a new IP address for the switch, follow these
procedures:
Show the current IP address
At the “#” prompt, enter “show ip interface brief”. The screen displays the current IP
address and Subnet Mask as shown:

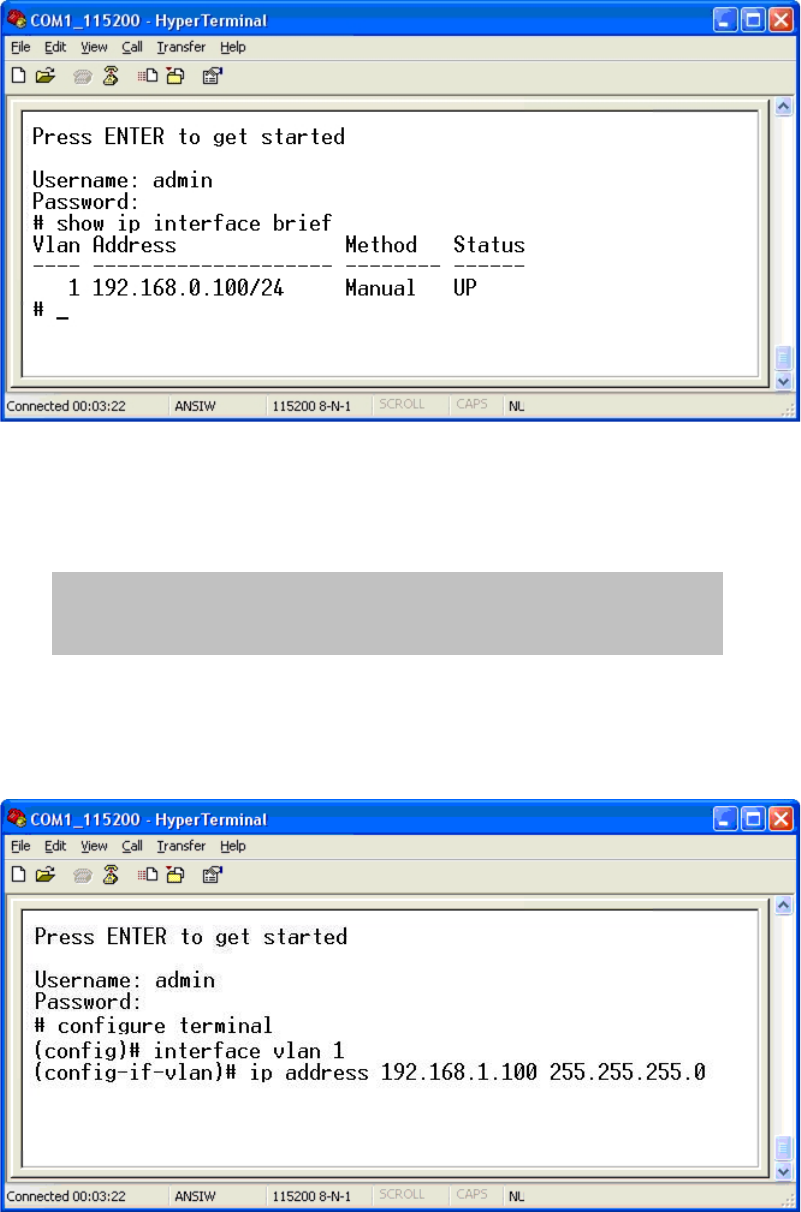

NS3500-24T-4C Managed Switch Command Guide 7
Chapter 2: Console CLI management
Configure the IP address
At the “#” prompt, enter the following command and press Enter.
# configure terminal
(config)# interface vlan 1
(config-if-vlan)# ip address 192.168.1.100 255.255.255.0
The previous command would apply the following settings for the managed switch.
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
At the “#” prompt, enter “show ip interface brief” to check if the IP address has
changed.
8 NS3500-24T-4C Managed Switch Command Guide
Chapter 2: Console CLI management
Store the current switch configuration
At the “#” prompt, enter the following command and press Enter.
# copy running-config startup-config

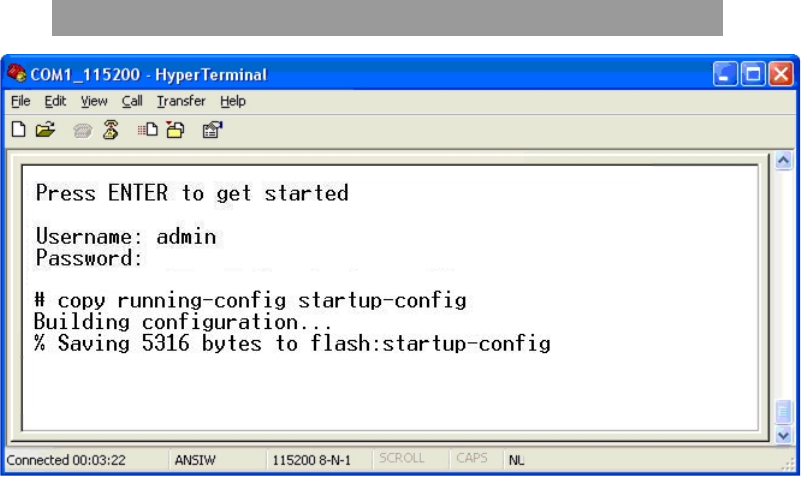

If the IP is successfully configured, the managed switch will apply the new IP address
setting immediately. You can access the web interface of the managed switch through
the new IP address.
Note: If you are not familiar with the console command or the related parameter, enter “
?” at any time in the console to get the help description.
.
NS3500-24T-4C Managed Switch Command Guide 9
Chapter 3
Telnet CLI management
Telnet login
The managed switch also supports telnet for remote management. The switch asks for
a user name and password for remote login when using telnet. Use “admin” for the
both the username and password.
Default IP address: 192.168.0.100
Username: admin
Password: admin
NS3500-24T-4C Managed Switch Command Guide 10
Chapter 4
Commands for CLI
configuration
clear
clear access management statistics
Command:
clear access management statistics
Default:
N/A
Usage Guide:
To clear the access management statistics.
Example:
To clear the Switch’s access management statistics.
Switch# clear access management statistics
clear access-list ace statistics
Command:
clear access-list ace statistics
Default:
N/A
Usage Guide:
To clear the Access list entry statistics.
Example:
To clear the Switch’s Access list entry statistics.
Switch# clear access-list ace statistics
NS3500-24T-4C Managed Switch Command Guide 11
Chapter 4: Commands for CLI configuration
clear dot1x statistics interface
Command:
clear dot1x statistics interface GigabitEthernet |
10GigabitEthernet
Default:
N/A
Usage Guide:
To clear the dot1x statistics.
Example:
To clear the Switch’s GigabitEthernet 1/25 dot1x statistics.
Switch# clear dot1x statistics interface GigabitEthernet 1/25
clear eps
Command:
clear eps <Inst : uint>
<Inst : uint> The EPS instance number.
Default:
N/A
Usage Guide:
To clear the EPS instance number.
clear erps
Command:
clear erps < ERPS group numbers > statistics
Default:
N/A
Usage Guide:
To clear the ERPS group numbers statistics.
Example:
To clear the Switch’s ERPS group 1 statistics.
Switch# # clear erps 1 statistics
clear erps statistics
Command:
clear erps statistics
12 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Default:
N/A
Usage Guide:
To clear the ERPS statistics.
Example:
To clear the Switch’s ERPS statistics.
Switch# clear erps statistics
clear evc statistics
Command:
clear evc statistics
Default:
N/A
Usage Guide:
To clear the Ethernet Virtual Connections statistics.
Example:
To clear the Switch’s Ethernet Virtual Connections statistics.
Switch# clear evc statistics
clear ip arp
Command:
clear ip arp
Default:
N/A
Usage Guide:
To clear the ARP cache.
Example:
To clear the Switch’s ARP cache.
Switch# clear ip arp
clear ip dhcp detailed statistics all
Command:
clear ip dhcp detailed statistics all
Default:
N/A
Usage Guide:
NS3500-24T-4C Managed Switch Command Guide 13
Chapter 4: Commands for CLI configuration
To clear the DHCP detailed statistics for all.
Example:
To clear the Switch’s DHCP detailed statistics for all.
Switch# clear ip dhcp detailed statistics all
clear ip dhcp detailed statistics client
Command:
clear ip dhcp detailed statistics client
Default:
N/A
Usage Guide:
To clear the DHCP client statistics.
Example:
To clear the Switch’s DHCP client statistics.
Switch# clear ip dhcp detailed statistics client
clear ip dhcp detailed statistics helper
Command:
clear ip dhcp detailed statistics helper
Default:
N/A
Usage Guide:
To clear the DHCP normal L2 or L3 forward statistics.
Example:
To clear the Switch’s DHCP normal L2 or L3 forward statistics.
Switch# clear ip dhcp detailed statistics helper
clear ip dhcp detailed statistics server
Command:
clear ip dhcp detailed statistics server
Default:
N/A
Usage Guide:
To clear the DHCP server statistics.
Example:
To clear the Switch’s DHCP server statistics.
14 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# clear ip dhcp detailed statistics server
clear ip dhcp detailed statistics snooping
Command:
clear ip dhcp detailed statistics snooping
Default:
N/A
Usage Guide:
To clear the DHCP snooping statistics.
Example:
To clear the Switch’s DHCP normal L2 or L3 forward statistics.
Switch# clear ip dhcp detailed statistics snooping
clear ip dhcp relay statistics
Command:
clear ip dhcp relay statistics
Default:
N/A
Usage Guide:
To clear the DHCP relay statistics.
Example:
To clear the Switch’s DHCP relay statistics.
Switch# clear ip dhcp relay statistics
clear ip dhcp server binding
Command:
clear ip dhcp server binding <IP>
<IP> A.B.C.D
Default:
N/A
Usage Guide:
To clear the DHCP server binding cache.
Example:
To clear the Switch’s DHCP server(192.168.0.100) binding cache.
NS3500-24T-4C Managed Switch Command Guide 15
Chapter 4: Commands for CLI configuration
Switch# clear ip dhcp server binding 192.168.0.100
clear ip dhcp server binding automatic
Command:
clear ip dhcp server binding automatic
Default:
N/A
Usage Guide:
To clear the DHCP automatic bindings cache.
Example:
To clear the Switch’s DHCP automatic bindings cache.
Switch# clear ip dhcp server binding automatic
clear ip dhcp server binding expired
Command:
clear ip dhcp server binding expired
Default:
N/A
Usage Guide:
To clear the DHCP expired bindings for free.
Example:
To clear the Switch’s DHCP expired bindings for free.
Switch# clear ip dhcp server binding expired
clear ip dhcp server binding manual
Command:
clear ip dhcp server binding manual
Default:
N/A
Usage Guide:
To clear the DHCP server manual binding cache.
Example:
To clear the Switch’s DHCP server manual binding cache.
Switch# clear ip dhcp server binding manual
16 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
clear ip igmp snooping statistics
Command:
clear ip igmp snooping statistics
Default:
N/A
Usage Guide:
To clear the IGMP snooping statistics.
Example:
To clear the Switch’s IGMP snooping statistics.
Switch# clear ip igmp snooping statistics
clear ip igmp snooping vlan
Command:
clear ip igmp snooping vlan < vlan_list> statistics
<vlan_list> VLAN identifier(s): VID
Default:
N/A
Usage Guide:
To clear the IGMP snooping vlan < vlan_list> statistics.
Example:
To clear the Switch’s IGMP snooping vlan 1 statistics.
Switch# clear ip igmp snooping vlan 1 statistics
clear ip statistics icmp icmp-msg
Command:
clear ip statistics icmp icmp-msg <Type : 0~255>
<Type : 0~255> ICMP message type ranges from 0 to 255
Default:
N/A
Usage Guide:
To clear the IPv4 ICMP traffic for designated message type.
Example:
To clear the Switch’s IPv4 ICMP traffic for designated message type 0.
Switch# clear ip statistics icmp icmp-msg 0
NS3500-24T-4C Managed Switch Command Guide 17
Chapter 4: Commands for CLI configuration
clear ip statistics icmp interface vlan
Command:
clear ip statistics icmp interface vlan <vlan_list>
<vlan_list> VLAN identifier(s): VID
Default:
N/A
Usage Guide:
To clear the IPv4 interface/ICMP statistics for specific VLAN.
Example:
To clear the Switch’s IP interface/ICMP statistics for specific VLAN 1.
Switch# clear ip statistics icmp interface vlan 1
clear ip statistics system icmp icmp-msg
Command:
clear ip statistics system icmp icmp-msg <Type : 0~255>
<Type : 0~255> ICMP message type ranges from 0 to 255
Default:
N/A
Usage Guide:
To clear the IPv4 ICMP statistics for specific ICMP message type.
Example:
To clear the Switch’s IPv4 ICMP statistics for specific ICMP message type 0.
Switch# clear ip statistics system icmp icmp-msg 0
clear ip statistics system icmp interface vlan
Command:
clear ip statistics system icmp interface vlan
<vlan_list> VLAN identifier(s): VID
Default:
N/A
Usage Guide:
To clear the IPv4 ICMP interface statistics for specific VLAN.
Example:
To clear the Switch’s IPv4 ICMP interface statistics for specific VLAN 1.
Switch# clear ip statistics system icmp interface vlan 1
18 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
clear ipv6 mld snooping statistics
Command:
clear ipv6 mld snooping statistics
Default:
N/A
Usage Guide:
To clear the ipv6 mld snooping statistics.
Example:
To clear the Switch’s ipv6 mld snooping statistics.
Switch# clear ipv6 mld snooping statistics
clear ipv6 mld snooping vlan
Command:
clear ipv6 mld snooping vlan <vlan_list> statistics
<vlan_list> VLAN identifier(s): VID
Default:
N/A
Usage Guide:
To clear the ipv6 mld snooping statistics for specific VLAN.
Example:
To clear the Switch’s ipv6 mld snooping statistics for specific VLAN 1.
Switch# clear ipv6 mld snooping vlan 1 statistics
clear ipv6 neighbors
Command:
clear ipv6 neighbors
Default:
N/A
Usage Guide:
To clear the ipv6 neighbors.
Example:
To clear the Switch’s ipv6 neighbors.
Switch# clear ipv6 neighbors
NS3500-24T-4C Managed Switch Command Guide 19
Chapter 4: Commands for CLI configuration
clear ipv6 statistics icmp icmp-msg
Command:
clear ipv6 statistics icmp icmp-msg <Type : 0~255>
<Type : 0~255> ICMP message type ranges from 0 to 255
Default:
N/A
Usage Guide:
To clear the IPv6 ICMP traffic for designated message type.
Example:
To clear the Switch’s IPv6 ICMP traffic for designated message type 0.
Switch# clear ipv6 statistics icmp icmp-msg 0
clear ipv6 statistics icmp interface vlan
Command:
clear ipv6 statistics icmp interface vlan <vlan_list>
<vlan_list> VLAN identifier(s): VID
Default:
N/A
Usage Guide:
To clear the IPv6 interface/ICMP statistics for specific VLAN.
Example:
To clear the Switch’s IPv6 interface/ICMP statistics for specific VLAN 1.
Switch# clear ipv6 statistics icmp interface vlan 1
clear ipv6 statistics system icmp icmp-msg
Command:
clear ipv6 statistics system icmp icmp-msg <Type : 0~255>
<Type : 0~255> ICMP message type ranges from 0 to 255
Default:
N/A
Usage Guide:
To clear the IPv6 ICMP statistics for specific ICMP message type.
Example:
To clear the Switch’s IPv6 ICMP statistics for specific ICMP message type 0.
Switch# clear ipv6 statistics system icmp icmp-msg 0
20 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
clear ipv6 statistics system icmp interface vlan
Command:
clear ipv6 statistics system icmp interface vlan
<vlan_list> VLAN identifier(s): VID
Default:
N/A
Usage Guide:
To clear the IPv6 ICMP interface statistics for specific VLAN.
Example:
To clear the Switch’s IPv6 ICMP interface statistics for specific VLAN 1.
Switch# clear ipv6 statistics system icmp interface vlan 1
clear lacp statistics
Command:
clear lacp statistics
Default:
N/A
Usage Guide:
To clear the lacp statistics.
Example:
To clear the Switch’s lacp statistics.
Switch# clear lacp statistics
clear lldp statistics
Command:
clear lldp statistics
Default:
N/A
Usage Guide:
To clear the lldp statistics.
Example:
To clear the Switch’s lldp statistics.
Switch# clear lldp statistics
NS3500-24T-4C Managed Switch Command Guide 21
Chapter 4: Commands for CLI configuration
clear logging error info
Command:
clear logging error info
Default:
N/A
Usage Guide:
To clear the logging error info.
Example:
To clear the Switch’s logging error info.
Switch# clear logging error info
clear logging error warning
Command:
clear logging error warning
Default:
N/A
Usage Guide:
To clear the logging error warning.
Example:
To clear the Switch’s logging error warning.
Switch# clear logging error warning
clear logging info error
Command:
clear logging info error
Default:
N/A
Usage Guide:
To clear the logging info error.
Example:
To clear the Switch’s logging info error.
Switch# clear logging info error
22 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
clear logging info warning
Command:
clear logging info warning
Default:
N/A
Usage Guide:
To clear the logging info warning.
Example:
To clear the Switch’s logging info warning.
Switch# clear logging info warning
clear logging warning error
Command:
clear logging warning error
Default:
N/A
Usage Guide:
To clear the logging warning error.
Example:
To clear the Switch’s logging warning error.
Switch# clear logging warning error
clear logging warning info
Command:
clear logging warning info
Default:
N/A
Usage Guide:
To clear the logging warning info.
Example:
To clear the Switch’s logging warning info.
Switch# clear logging warning info
NS3500-24T-4C Managed Switch Command Guide 23
Chapter 4: Commands for CLI configuration
clear mac address-table
Command:
clear mac address-table
Default:
N/A
Usage Guide:
To clear the mac address-table.
Example:
To clear the Switch’s mac address-table.
Switch# clear mac address-table

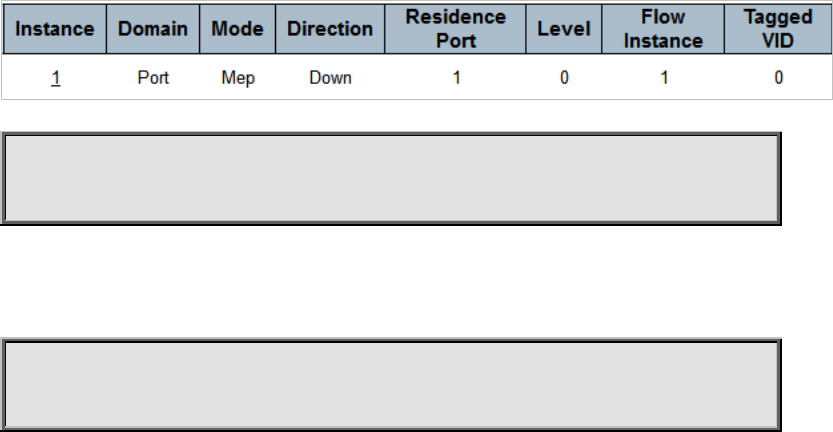

clear mep
Command:
clear mep <Inst : uint>
<Inst : uint> The MEP instance.
Default:
N/A
Usage Guide:
To clear the MEP instance profiles.
clear mvr name
Command:
clear mvr name <MvrName : word16>
<MvrName : word16> MVR multicast VLAN name
Default:
N/A
Usage Guide:
To clear the mvr name profiles.
clear mvr statistics
Command:
clear mvr statistics
Default:
N/A
Usage Guide:
To clear the mvr statistics.
Example:
To clear the Switch’s mvr statistics.
24 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# clear mvr statistics
clear mvr vlan
Command:
clear mvr vlan <vlan_list> statistics
<vlan_list> MVR multicast VLAN list
Default:
N/A
Usage Guide:
To clear the mvr vlan statistics for specific VLAN.
Example:
To clear the Switch’s mvr vlan statistics for specific VLAN 1.
Switch# clear mvr vlan 1 statistics
clear network-clock clk-source
Command:
clear network-clock clk-source <clk-source : 1-2>
<clk-source : 1-2> Clock source number
Default:
N/A
Usage Guide:
To clear the ERPS WTR timer for a specific profile.
Example:
To clear the Switch’s ERPS WTR timer for a specific profile 1.
Switch# clear network-clock clk-source 1
clear spanning-tree detected-protocols interface *
Command:
clear spanning-tree detected-protocols interface *
Default:
N/A
Usage Guide:
To clear the spanning-tree detected-protocols for all.
Example:
To clear the Switch’s spanning-tree detected-protocols for all.
NS3500-24T-4C Managed Switch Command Guide 25
Chapter 4: Commands for CLI configuration
Switch# clear spanning-tree detected-protocols interface *
clear spanning-tree detected-protocols interface *
Command:
clear spanning-tree detected-protocols interface *
Default:
N/A
Usage Guide:
To clear the spanning-tree detected-protocols for all.
Example:
To clear the Switch’s spanning-tree detected-protocols for all.
Switch# clear spanning-tree detected-protocols interface *
clear spanning-tree detected-protocols interface
GigabitEthernet
Command:
clear spanning-tree detected-protocols interface
GigabitEthernet <PORT_LIST>
<PORT_LIST> Port list in X/X-XX
Default:
N/A
Usage Guide:
To clear the spanning-tree detected-protocols for specific GigabitEthernet port.
Example:
To clear the Switch’s spanning-tree detected-protocols for specific GigabitEthernet
1/1.
Switch# clear spanning-tree detected-protocols interface
GigabitEthernet 1/1
clear spanning-tree detected-protocols interface
10GigabitEthernet
Command:
clear spanning-tree detected-protocols interface
10GigabitEthernet <PORT_LIST>
<PORT_LIST> Port list in X/X-XX
Default:
N/A
Usage Guide:
26 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
To clear the spanning-tree detected-protocols for specific 10GigabitEthernet port.
Example:
To clear the Switch’s spanning-tree detected-protocols for specific
10GigabitEthernet 1/1.
Switch# clear spanning-tree detected-protocols interface
10GigabitEthernet 1/1
clear spanning-tree statistics interface *
Command:
clear spanning-tree statistics interface *
Default:
N/A
Usage Guide:
To clear the spanning-tree statistics for all.
Example:
To clear the Switch’s spanning-tree statistics for all.
Switch# clear spanning-tree statistics interface *
clear spanning-tree statistics interface GigabitEthernet
Command:
clear spanning-tree statistics interface GigabitEthernet
<PORT_LIST>
<PORT_LIST> Port list in X/X-XX
Default:
N/A
Usage Guide:
To clear the spanning-tree statistics for specific GigabitEthernet port.
Example:
To clear the Switch’s spanning-tree statistics for specific GigabitEthernet 1/1.
Switch# clear spanning-tree statistics interface GigabitEthernet
1/1
clear spanning-tree statistics interface 10GigabitEthernet
Command:
clear spanning-tree statistics interface 10GigabitEthernet
<PORT_LIST>
<PORT_LIST> Port list in X/X-XX
Default:
NS3500-24T-4C Managed Switch Command Guide 27
Chapter 4: Commands for CLI configuration
N/A
Usage Guide:
To clear the spanning-tree statistics for specific 10GigabitEthernet port.
Example:
To clear the Switch’s spanning-tree statistics for specific 10GigabitEthernet 1/1.
Switch# clear spanning-tree statistics interface 10GigabitEthernet
1/1
clear statistics *
Command:
clear statistics *
Default:
N/A
Usage Guide:
To clear the statistics for all.
Example:
To clear the Switch’s statistics for all.
Switch# clear statistics *
clear statistics GigabitEthernet
Command:
clear statistics GigabitEthernet <PORT_LIST>
<PORT_LIST> Port list in X/X-XX
Default:
N/A
Usage Guide:
To clear the statistics for specific GigabitEthernet port.
Example:
To clear the Switch’s statistics for specific GigabitEthernet 1/1.
Switch# clear statistics GigabitEthernet 1/1
clear statistics 10GigabitEthernet
Command:
clear statistics 10GigabitEthernet <PORT_LIST>
<PORT_LIST> Port list in X/X-XX
Default:
N/A
28 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Usage Guide:
To clear the statistics for specific 10GigabitEthernet port.
Example:
To clear the Switch’s statistics for specific 10GigabitEthernet 1/1.
Switch# clear statistics 10GigabitEthernet 1/1
configure terminal
aaa authentication login console local
Command:
aaa authentication login console local
Default:
console : local
Usage Guide:
To authenticate the local account via console only.
Example:
To authenticate the local account via console.
Switch# configure terminal
Switch (config)# aaa authentication login console local
aaa authentication login console radius
Command:
aaa authentication login console radius
Default:
console : local
Usage Guide:
To authenticate the radius account via console only.
Example:
To authenticate the local and radius account via console.
Switch# configure terminal
Switch (config)# aaa authentication login console local radius
aaa authentication login console tacacs
Command:
aaa authentication login console tacacs
NS3500-24T-4C Managed Switch Command Guide 29
Chapter 4: Commands for CLI configuration
Default:
console : local
Usage Guide:
To authenticate the tacacs account via console only.
Example:
To authenticate the local and radius and tacacs account via console.
Switch# configure terminal
Switch (config)# aaa authentication login console local radius
tacacs
aaa authentication login http local
Command:
aaa authentication login http local
Default:
http : local
Usage Guide:
To authenticate the local account via http only.
Example:
To authenticate the local account via http.
Switch# configure terminal
Switch (config)# aaa authentication login http local
aaa authentication login http radius
Command:
aaa authentication login http radius
Default:
http : local
Usage Guide:
To authenticate the radius account via http only.
Example:
To authenticate the local and radius account via http.
Switch# configure terminal
Switch (config)# aaa authentication login http local radius
aaa authentication login http tacacs
Command:
aaa authentication login http tacacs
30 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Default:
http : local
Usage Guide:
To authenticate the tacacs account via http only.
Example:
To authenticate the local and radius and tacacs account via http.
Switch# configure terminal
Switch (config)# aaa authentication login http local radius tacacs
aaa authentication login ssh local
Command:
aaa authentication login ssh local
Default:
ssh : local
Usage Guide:
To authenticate the local account via ssh only.
Example:
To authenticate the local account via ssh.
Switch# configure terminal
Switch (config)# aaa authentication login ssh local
aaa authentication login ssh radius
Command:
aaa authentication login ssh radius
Default:
ssh : local
Usage Guide:
To authenticate the radius account via ssh only.
Example:
To authenticate the local and radius account via ssh.
Switch# configure terminal
Switch (config)# aaa authentication login ssh local radius
aaa authentication login ssh tacacs
Command:
aaa authentication login ssh tacacs
NS3500-24T-4C Managed Switch Command Guide 31
Chapter 4: Commands for CLI configuration
Default:
ssh : local
Usage Guide:
To authenticate the tacacs account via ssh only.
Example:
To authenticate the local and radius and tacacs account via console.
Switch# configure terminal
Switch (config)# aaa authentication login ssh local radius tacacs
aaa authentication login telnet local
Command:
aaa authentication login telnet local
Default:
telnet : local
Usage Guide:
To authenticate the local account via telnet only.
Example:
To authenticate the local account via telnet.
Switch# configure terminal
Switch (config)# aaa authentication login telnet local
aaa authentication login telnet radius
Command:
aaa authentication login telnet radius
Default:
telnet : local
Usage Guide:
To authenticate the radius account via telnet only.
Example:
To authenticate the local and radius account via telnet.
Switch# configure terminal
Switch (config)# aaa authentication login telnet local radius
aaa authentication login telnet tacacs
Command:
aaa authentication login telnet tacacs
32 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Default:
telnet : local
Usage Guide:
To authenticate the tacacs account via telnet only.
Example:
To authenticate the local and radius and tacacs account via telnet.
Switch# configure terminal
Switch (config)# aaa authentication login telnet local radius tacacs
access management
Command:
access management <AccessId : 1-16> <AccessVid : 1-4095>
<AddrRangeStart : ipv4_addr | ipv6_addr> all | snmp | telnet |
to | Web
<AccessId : 1-16> ID of access management entry
<AccessVid : 1-4095> The VLAN ID for the access management entry
<AddrRangeStart : ipv4_addr> Start IPv4 address
<AddrRangeStart : ipv6_addr> Start IPv6 address
all All services
snmp SNMP service
telnet TELNET/SSH service
to End address of the range
web Web service
Default:
access management : disable
Usage Guide:
To enable the access management profile to allow SNMP / Telnet / HTTP
services.
Example:
To create a Profile 1 enabling all services for VLAN 1 (IPv6 address 2001::7788) .
Switch# configure terminal
Switch (config)# access management 1 1 2001::7788 all
NS3500-24T-4C Managed Switch Command Guide 33
Chapter 4: Commands for CLI configuration
access-list ace
Command:
access-list ace <AceId : 1-512> action {deny, permit} | dmac-
type {any, broadcast, multicast, unicast} | frametype {any,
arp, etype, ipv4, ipv4-icmp, ipv4-tcp, ipv4-udp, ipv6, ipv6-
icmp, ipv6-tcp, ipv6-udp} | ingress {any, interface
10GigabitEthernet | GigabitEthernet <PORT_ID>} | logging
{disable, next, policy, rate-limiter, shutdown, tag-priority, vid}
| next {<AceId : 1-512>, last}| policy <PolicyId : 0-255> | rate-
limiter {<RateLimiterId : 1-16>, disable} | redirect {disable,
interface 10GigabitEthernet | GigabitEthernet <PORT_ID>} |
tag-priority {0-1, 0-3, 2-3, 4-5, 4-7, 6-7, <TagPriority : 0-7>, any}
| vid {<Vid : 1-4095>, any}
<AceId : 1-512> ACE ID
action Access list action
dmac-type The type of destination MAC address
frametype Frame type
ingress Ingress
logging Logging frame information. Note: The logging feature only
works when the packet length is less than 1518 (without
VLAN tags) and the System Log memory size and logging rate
are limited.
next Insert the current ACE before the next ACE ID
policy Policy
rate-limiter Rate limiter
redirect Redirect frame to specific port
shutdown Shutdown incoming port. The shutdown feature only works
when the packet length is less than 1518 (without VLAN
tags).
tag-priority Tag priority
vid VID field
Default:
N/A
Usage Guide:
To create and set up a profile for the access list.
Example:
To set a Profile 1 up (action: permit, dmac-type: unicast, frametype: ipv4-icmp,
ingress: any, logging: disable, policy: 1, rate-limiter: 1, tag-priority: 1. vid: 1).
Switch# configure terminal
Switch (config)# access-list ace 1 action permit dmac-type unicast
frametype ipv4-icmp ingress any logging disable policy 1 rate-
limiter 1 tag-priority 1 vid 1
34 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
access-list ace update
Command:
access-list ace update <AceId : 1-512> action {deny, permit} |
dmac-type {any, broadcast, multicast, unicast} | frametype
{any, arp, etype, ipv4, ipv4-icmp, ipv4-tcp, ipv4-udp, ipv6,
ipv6-icmp, ipv6-tcp, ipv6-udp} | ingress {any, interface
10GigabitEthernet | GigabitEthernet <PORT_ID>} | logging
{disable, next, policy, rate-limiter, shutdown, tag-priority, vid}
| next {<AceId : 1-512>, last}| policy <PolicyId : 0-255> | rate-
limiter {<RateLimiterId : 1-16>, disable} | redirect {disable,
interface 10GigabitEthernet | GigabitEthernet <PORT_ID>} |
tag-priority {0-1, 0-3, 2-3, 4-5, 4-7, 6-7, <TagPriority : 0-7>, any}
| vid {<Vid : 1-4095>, any}
<AceId : 1-512> ACE ID
action Access list action
dmac-type The type of destination MAC address
frametype Frame type
ingress Ingress
logging Logging frame information. Note: The logging feature only
works when the packet length is less than 1518 (without
VLAN tags) and the System Log memory size and logging rate
are limited.
next Insert the current ACE before the next ACE ID
policy Policy
rate-limiter Rate limiter
redirect Redirect frame to specific port
shutdown Shutdown incoming port. The shutdown feature only works
when the packet length is less than 1518 (without VLAN
tags).
tag-priority Tag priority
vid VID field
Default:
N/A
Usage Guide:
To update the specific profile for the access list.
Example:
Original:
Profile 1 (action: permit, dmac-type: unicast, frametype: ipv4-icmp, ingress: any,
logging: disable, policy: 1, rate-limiter: 1, tag-priority: 1. vid: 1).
Updated:
Profile 1 (action: deny, dmac-type: any, frametype: ipv4-icmp, ingress: any,
logging: disable, policy: 1, rate-limiter: 1, tag-priority: 1. vid: 1).
Switch# configure terminal
Switch (config)# access-list ace update 1 action deny dmac-type
any
NS3500-24T-4C Managed Switch Command Guide 35
Chapter 4: Commands for CLI configuration
access-list rate-limiter
Command:
access-list rate-limiter <RateLimiterList : 1~16> pps
<PpsRate : 0-131071>
<RateLimiterList : 1~16> Rate limiter ID
<PpsRate : 0-131071> Rate value
Default:
0
Usage Guide:
To set pps rate for specific rate-limiter ID.
Example:
To set pps rate(10000 pps) for specific rate-limiter ID 1.
Switch# configure terminal
Switch (config)# access-list rate-limiter 1 pps 10000
access-list rate-limiter pps
Command:
access-list rate-limiter pps <PpsRate : 0-131071>
<PpsRate : 0-131071> Rate value
Default:
0
Usage Guide:
To set pps rate for all rate-limiter ID.
Example:
To set pps rate(10000 pps) for all rate-limiter ID.
Switch# configure terminal
Switch (config)# access-list rate-limiter pps 100
aggregation mode
Command:
aggregation mode dmac | ip | port | smac
dmac Destination MAC affects the distribution
ip IP address affects the distribution
port IP port affects the distribution
smac Source MAC affects the distribution
Default:
SMAC : Enabled
DMAC : Disabled
IP : Enabled
Port : Enabled
36 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Usage Guide:
To configure static aggregation mode type.
Example:
To configure static aggregation mode type with Destination MAC affects the
distribution and Source MAC affects the distribution only.
Switch# configure terminal
Switch (config)# access-list rate-limiter pps 100
aggregation mode
Command:
aggregation mode dmac | ip | port | smac
dmac Destination MAC affects the distribution
ip IP address affects the distribution
port IP port affects the distribution
smac Source MAC affects the distribution
Default:
SMAC : Enabled
DMAC : Disabled
IP : Enabled
Port : Enabled
Usage Guide:
To configure static aggregation mode type.
Example:
To configure static aggregation mode type with Destination MAC affects the
distribution and Source MAC affects the distribution only.
Switch# configure terminal
Switch (config)# access-list rate-limiter pps 100
banner
Command:
banner <LINE>
<LINE> c banner-text c, where 'c' is a delimiting character
Default:
N/A
Usage Guide:
To configure banner-text.
Example:
To configure banner-text with word “ddddd”.
Switch# configure terminal
Switch (config)# banner 1
Enter TEXT message. End with the character '1'.
NS3500-24T-4C Managed Switch Command Guide 37
Chapter 4: Commands for CLI configuration
ddddd
1
Telnet 192.168.0.100
ddddd
Username:
banner exec
Command:
banner login <LINE>
<LINE> c banner-text c, where 'c' is a delimiting character
Default:
N/A
Usage Guide:
To configure login banner-text.
Example:
To configure login banner-text with word “wwwwwwwwww”.
Switch# configure terminal
Switch (config)# banner exec 1
Enter TEXT message. End with the character '1'.
gggggg
1
Telnet 192.168.0.100:
Username: admin
Password:
gggggg
#
banner login
Command:
banner login <LINE>
<LINE> c banner-text c, where 'c' is a delimiting character
Default:
N/A
Usage Guide:
To configure login banner-text.
Example:
38 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
To configure login banner-text with word “wwwwwwwwww”.
Switch# configure terminal
Switch (config)# banner login 1
Enter TEXT message. End with the character '1'.
wwwwwwwwww
1
Console:
Press ENTER to get started
wwwwwwwwww
Username: admin
Password:
banner motd
Command:
banner motd <LINE>
<LINE> c banner-text c, where 'c' is a delimiting character
Default:
N/A
Usage Guide:
To configure motd banner-text.
Example:
To configure motd banner-text with word “ffffff”.
Switch# configure terminal
Switch (config)# banner motd 1
Enter TEXT message. End with the character '1'.
ffffff
1
Console:
ffffff
Press ENTER to get started
Username:
NS3500-24T-4C Managed Switch Command Guide 39
Chapter 4: Commands for CLI configuration
clock summer-time
Command:
clock summer-time <WORD> date <Monthstart: 1-12>
<Daystart: 1-31> <Yearstart: 1-12> <Timestart: hh:mm >
<Monthend: 1-12> <Dayend: 1-31> <Yearend: 1-12>
<Timeend: hh:mm > <Offset minutes: 1-1440 >
Default:
N/A
Usage Guide:
To set daylight saving.
Example:
To set daylight saving (Started time: Feb, 3. 2013 8:8AM, End time: Dec, 31. 2013
8:8AM, Offset time: 60 minutes).
Switch# configure terminal
Switch (config)# clock summer-time 1 date 2 3 2013 8:8 12 31
2013 8:8 60
clock timezone
Command:
clock timezone <WORD> <timezone: -23-23>
<WORD> name of time zone
Default:
0
Usage Guide:
To set timezone.
Example:
To set timezone (GMT -15) with profile 1.
Switch# configure terminal
Switch (config)# clock timezone 1 -15
default access-list rate-limiter
Command:
default access-list rate-limiter <RateLimiterId : 1-16>
<RateLimiterId : 1-16> Rate limiter ID
Default:
0
Usage Guide:
To default the Rate limiter.
Example:
To default the Rate limiter ID 1.
40 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# default access-list rate-limiter 1
dot1x authentication timer inactivity
Command:
dot1x authentication timer inactivity <10-1000000>
Default:
Aging period: 300
Usage Guide:
To set the Aging period for Network Access Server.
Example:
To set the Aging period (147 seconds).
Switch# configure terminal
Switch (config)# dot1x authentication timer inactivity 147
dot1x authentication timer re-authenticate
Command:
dot1x authentication timer re-authenticate <1-3600>
Default:
Re-authenticated Period: 3600
Usage Guide:
To set the Re-authenticated Period for Network Access Server.
Example:
To set the Re-authenticated Period (777 seconds).
Switch# configure terminal
Switch (config)# dot1x authentication timer re-authenticate 777
dot1x feature
Command:
dot1x feature guest-vlan | radius-qos | radius-vlan
Default:
Disable
Usage Guide:
To enable the guest-vlan, radius-qos, radius-vlan for Network Access Server
Example:
To enable the guest-vlan, radius-qos, radius-vlan for Network Access Server.
NS3500-24T-4C Managed Switch Command Guide 41
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# dot1x authentication timer re-authenticate 777
dot1x guest-vlan
Command:
dot1x guest-vlan <1-4095>
<1-4095> Guest VLAN ID used when entering the Guest VLAN.
Default:
1
Usage Guide:
To set the value of guest-vlan for Network Access Server
Example:
To set the value of guest-vlan(2) for Network Access Server
Switch# configure terminal
Switch (config)# dot1x guest-vlan 2
dot1x guest-vlan supplicant
Command:
dot1x guest-vlan supplicant
supplicant The switch remembers if an EAPOL frame has been received on the port
for the life-time of the port. Once the switch considers whether to enter
the Guest VLAN, it will first check if this option is enabled or disabled.
Default:
Disable
Usage Guide:
To allow all frames automatically entering guest-vlan for Network Access Server
Example:
To allow all frames automatically entering guest-vlan for Network Access Server
Switch# configure terminal
Switch (config)# dot1x guest-vlan supplicant
dot1x max-reauth-req
Command:
dot1x max-reauth-req <1-255>
Default:
2
Usage Guide:
42 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
To define 802.1X re-authentication frequency for Network Access Server
Example:
To define 802.1X re-authentication frequency with 78 times for Network Access
Server
Switch# configure terminal
Switch (config)# dot1x max-reauth-req 78
dot1x system-auth-control
Command:
dot1x system-auth-control
Default:
Disable
Usage Guide:
To enable 802.1X service for Network Access Server
Example:
To enable 802.1X service for Network Access Server
Switch# configure terminal
Switch (config)# dot1x system-auth-control
dot1x timeout quiet-period
Command:
dot1x timeout quiet-period <10-1000000>
quiet-period Time in seconds before a MAC-address that failed authentication
gets a new authentication chance.
Default:
10
Usage Guide:
To configure 802.1X hold time for Network Access Server
Example:
To configure 802.1X hold time(12 seconds) for Network Access Server
Switch# configure terminal
Switch (config)# dot1x timeout quiet-period 12
dot1x timeout tx-period
Command:
dot1x timeout tx-period <1-65535>
tx-period The time between EAPOL retransmissions.
Default:
30
NS3500-24T-4C Managed Switch Command Guide 43
Chapter 4: Commands for CLI configuration
Usage Guide:
To configure 802.1X EPOAL timeout for Network Access Server
Example:
To configure 802.1X EPOAL timeout (45 seconds) for Network Access Server
Switch# configure terminal
Switch (config)# dot1x timeout tx-period 45
enable password
Command:
enable password <WORD>
<WORD> The UNENCRYPTED (cleartext) password.
Default:
Disable
Usage Guide:
To configure enable password for user
Example:
To configure enable password(admin) for user
Switch# configure terminal
Switch (config)# enable password admin
Press ENTER to get started
Username:
Password:
> enable
Password: *****
#
enable password level
Command:
enable password level <1-15> <WORD>
<1-15> Level number
<WORD> The UNENCRYPTED (cleartext) password.
Default:
Disable
Usage Guide:
To configure enable password and specific level for user
44 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Example:
To configure enable password(admin) and specific level(15) for user
Switch# configure terminal
Switch (config)# enable password level 15 admin
Press ENTER to get started
Username:
Password:
> enable
Password: admin
#
enable secret
Command:
enable secret 0 | 5 level <1-15> <WORD>
0 Specifies an UNENCRYPTED password will follow
5 Specifies an ENCRYPTED secret will follow
<1-15> Level number
<WORD> The UNENCRYPTED (cleartext) / ENCRYPTED(MD5) password.
Default:
Disable
Usage Guide:
To configure enable password to encrypted secret in the system configurations
and specific level for user
Example:
To configure enable password(cisco) to encrypted secret in the system
configurations and specific level(15) for user
Switch# configure terminal
Switch (config)# enable secret 0 level 15 cisco
# show running-config
Building configuration...
enable secret 5 level 15
FC89368B9513DE0760290BCE9A1DA90A
……………
Press ENTER to get started
Username:
Password:
> enable
Password: cisco
#
NS3500-24T-4C Managed Switch Command Guide 45
Chapter 4: Commands for CLI configuration
end
Command:
end
Default:
N/A
Usage Guide:
To level the configure terminal mode
Example:
To level the configure terminal mode
Switch# configure terminal
Switch (config)# end
#
erps <1-64> guard
Command:
erps <1-64> guard <10-2000>
<1-64> ERPS group number
<10-2000> Guard time in ms
Default:
500
Usage Guide:
To configure the Guard Time for ERPS.
Example:
To configure the Guard Time(178 ms) for ERPS(Profile 1)
Switch# configure terminal
Switch (config)# erps 1 guard 178
erps <1-64> holdoff
Command:
erps <1-64> holdoff < 0-10000>
<1-64> ERPS group number
< 0-10000> Holdoff time in ms
Default:
0
Usage Guide:
To configure the Hold Off Time for ERPS
Example:
To configure the Hold Off Time (178 ms) for ERPS(Profile 1)
46 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# erps 1 holdoff 900
erps <1-64> major
Command:
erps <1-64> major port0 interface {10GigabitEthernet,
GigabitEthernet} <PORT0_ID> port1 interface
{10GigabitEthernet, GigabitEthernet} <PORT1_ID>
[ interconnect ]
<1-64> ERPS group number
interconnect Major ring is interconnected
Default:
0
Usage Guide:
To create a profile and configure the Major ERPS interface port 0, port 1.
Example:
To create a profile 1 and configure the Major ERPS interface port
0(GigabitEthernet 1/1), port 1(GigabitEthernet 1/2) without interconnected
mode
Switch# configure terminal
Switch (config)# erps 1 major port0 interface GigabitEthernet
1/1 port1 interface GigabitEthernet 1/2

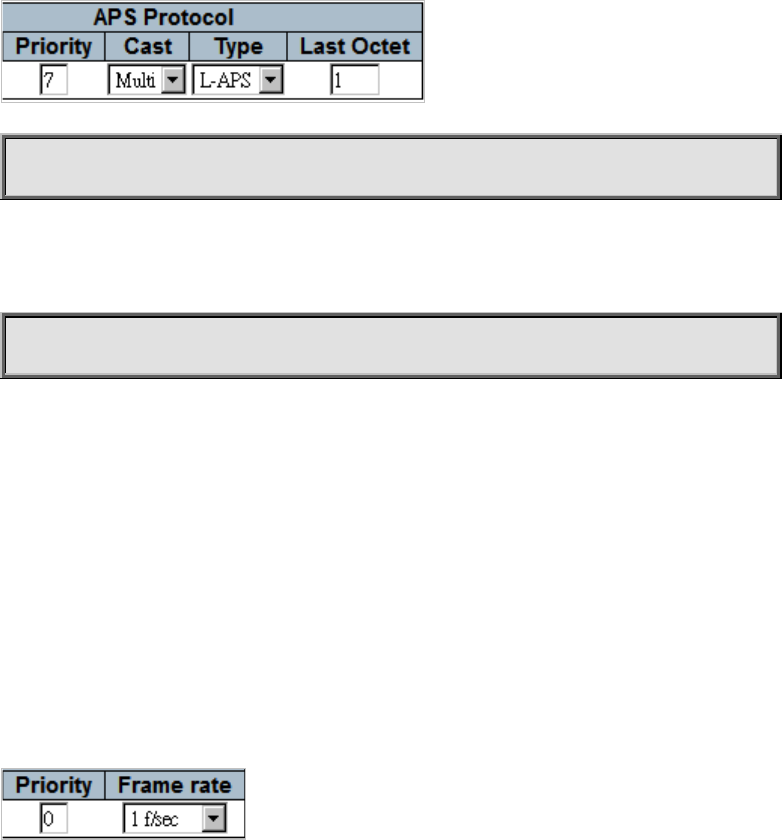

erps <1-64> mep
Command:
erps <1-64> mep port0 sf <p0_sf: 1-100> aps <p0_aps: 1-100>
port1 sf <p1_sf: 1-100> aps <p1_aps: 1-100>
<1-64> ERPS group number
<p0_sf: 1-100> Index of Port 0 SignalFail MEP
<p0_aps: 1-100> Index of Port 0 APS MEP
<p1_sf: 1-100> Index of Port 1 SignalFail MEP
<p1_aps: 1-100> Index of Port 1 APS MEP
Default:
0
Usage Guide:
To configure ERPS Instance Data for specific ERPS profile.
Example:
To configure ERPS Instance Data(Port0: SF MEP = 2, APS MEP = 1. Port1: SF
MEP = 4, APS MEP = 3) for specific ERPS profile(1).
Switch# configure terminal
Switch (config)# erps 1 mep port0 sf 2 aps 1 port1 sf 4 aps 3
NS3500-24T-4C Managed Switch Command Guide 47
Chapter 4: Commands for CLI configuration
erps <1-64> mep
Command:
erps <1-64> revertive <wtr_time_minutes: 1-12>
<1-64> ERPS group number
<wtr_time_minutes: 1-12> Wait-to-restore time in minutes
Default:
0
Usage Guide:
To configure WTR time for specific ERPS profile.
Example:
To configure WTR time(5 minuites) for specific ERPS profile 1.
Switch# configure terminal
Switch (config)# erps 1 revertive 5
erps <1-64> rpl neighbor
Command:
erps <1-64> rpl neighbor { port0 | port1 }
port0 ERPS Port 0 interface
port1 ERPS Port 1 interface
Default:
N/A
Usage Guide:
To configure Ring Protection Link Neighbor Role for specific ERPS interface.
Example:
To configure Ring Protection Link Neighbor Role for specific ERPS interface..
Switch# configure terminal
Switch (config)# erps 1 rpl neighbor port0
erps <1-64> rpl owner
Command:
erps <1-64> rpl owner { port0 | port1 }
port0 ERPS Port 0 interface
port1 ERPS Port 1 interface
Default:
N/A
Usage Guide:
To configure Ring Protection Link Owner Role for specific ERPS interface.
Example:
To configure Ring Protection Link Owner Role for specific ERPS interface..
48 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# erps 1 rpl owner port0
erps <1-64> sub
Command:
erps <1-64> sub port0 interface {10GigabitEthernet,
GigabitEthernet} <PORT0_ID> { { port0 interface
{10GigabitEthernet, GigabitEthernet} <PORT1_ID> },
{interconnect <major_ring_id: 1-64> [ virtual-channel ] } }
<1-64> ERPS group number
interconnect Sub ring is interconnected
<major_ring_id: 1-64> Major ring group number
virtual-channel Enable virtual channel for sub-ring
Default:
0
Usage Guide:
To create a profile and configure the Sub ERPS interface port 0, port 1.
Example 1:
To create a profile 3 and configure the Sub ERPS interface port
0(GigabitEthernet 1/5), port 1(GigabitEthernet 1/6) without interconnected
mode and Major RIng group and virtual-channel
Switch# configure terminal
Switch (config)# erps 3 sub port0 interface GigabitEthernet 1/5
port1 interface GigabitEthernet 1/6
Example 2:
To create a profile 2 and configure the Sub ERPS interface port
0(GigabitEthernet 1/3), port 1(GigabitEthernet 1/4) with interconnected mode
and Major RIng group 1 and virtual-channel
Switch# configure terminal
Switch (config)# erps 1 sub port0 interface GigabitEthernet 1/3
interconnect 1 virtual-channel
erps <1-64> topology-change propagate
Command:
erps <1-64> topology-change propagate
<1-64> ERPS group number
topology-change Topology Change
propagate Propagate
Default:
N/A
NS3500-24T-4C Managed Switch Command Guide 49
Chapter 4: Commands for CLI configuration
Usage Guide:
To configure topology change notification (TCN) propagation for the specific
profile.
Example:
To configure topology change notification (TCN) propagation for the specific
profile 1
Switch# configure terminal
Switch (config)# erps 1 topology-change propagate
erps <1-64> topology-change propagate
Command:
erps <1-64> version 1 | 2
<1-64> ERPS group number
version Version
Default:
V2
Usage Guide:
To configure ERPS version number for the specific profile.
Example:
To configure ERPS version 1 for the specific profile 1.
Switch# configure terminal
Switch (config)# erps 1 version 1
erps <1-64> vlan
Command:
erps <1-64> vlan { none | [ add | remove ] <vlans> }
<1-64> ERPS group number
<vlan_list> List of VLANs
add Add to set of included VLANs
none Do not include any VLANs
remove Remove from set of included VLANs
Default:
V2
Usage Guide:
To configure ERPS VLANs for the specific profile.
Example:
To configure ERPS VLANs(VLAN5 - VLAN8) for the specific profile 1.
Switch# configure terminal
Switch (config)# erps 1 vlan add 5-8
50 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
evc
Command:
evc <EvcId : 1-4096> vid <evc_vid> ivid <ivid> interface ( * |
10GigabitEthernet | GigabitEthernet [ <port_list> ] ) learning
[ disable ] policer { <PolicerId : 1-2048> | none | discard }
<EvcId : 1-4096> EVC identifier
vid Setup EVC VLAN ID
<EvcVid : 1-4095> EVC VLAN ID
ivid Setup internal EVC VLAN ID
<Ivid : vlan_id> Internal VLAN ID
interface Setup NNI
learning Setup learning
policer Policer (ingress bandwidth profile)
<PolicerId : 1-2048> Policer ID
<vlan_list> List of VLANs
discard Map to policer discarding all frames
none Map to policer allowing all frames
Default:
0
Usage Guide:
To configure Ethernet Virtual Circuits (EVC).
Example:
To configure Ethernet Virtual Circuits (EVC identifier: 1, EVC VLAN ID: 2,
GigabitEthernet Port: 1/1, 1/2, Internal VLAN ID: 3, Disable learning, Policer
ID: 4).
Switch# configure terminal
Switch (config)# evc 1 vid 2 interface GigabitEthernet 1/1-2 ivid
3 learning disable policer 4
evc ece
Command:
evc ece <EceId : 1-4096> direction {both | nni-to-uni | uni-to-
nni} evc {<EvcId : 1-4096> | none} frame-type {any | ipv4 |
ipv6} inner-tag { add {dei <AddDei : 0-1> | pcp <AddPcp : 0-7>
| preserve | type [c-tag | none | s-custom-tag | s-tag] | vid
<AddVid : vlan_id>}, match {dei [<MatchDei : 0-1> | any]| pcp
[<MatchPcp : pcp> | any] | type [any | c-tagged | s-tagged |
tagged | untagged] | vid [<Vid : 0-4095> | any]} } interface [* |
10GigabitEthernet | GigabitEthernet] <PORT_ID> next
[<EceId : 1-4096> | last] outer-tag { add {dei <AddDei : 0-1> |
pcp <AddPcp : 0-7> | preserve | type [c-tag | none | s-custom-
tag | s-tag] | vid <AddVid : vlan_id>}, match {dei [<MatchDei :
0-1> | any]| pcp [<MatchPcp : pcp> | any] | mode [disable |
enable] | vid [<Vid : 0-4095> | any] } policer {<PolicerId : 1-
2048> | discard | evc | none} policy <PolicyNo : 0-255> pop
<Pop : 0-2>
NS3500-24T-4C Managed Switch Command Guide 51
Chapter 4: Commands for CLI configuration
<EceId : 1-4096> ECE identifier
direction Setup ECE direction
both Bidirectional traffic flow
nni-to-uni NNI-to-UNI traffic flow
uni-to-nni UNI-to-NNI traffic flow
evc EVC mapping
<EvcId : 1-4096> EVC identifier
none Map to no EVC ID
frame-type Setup matched frame type
any Match any frame type
ipv4 Match IPv4 frames
ipv6 Match IPv6 frames
inner-tag Setup inner tag options
add Setup inner tag add properties.
dei Setup added tag DEI
<AddDei : 0-1> Added tag DEI
pcp Setup added tag PCP
<AddPcp : 0-7> Added tag PCP
preserve Setup tag PCP/DEI preservation
type Setup added tag type
c-tag Add C-tag
none No tag added
s-custom-tag Add custom S-tag
s-tag Add S-tag
vid Setup added tag VLAN ID
<AddVid : vlan_id> Added tag VLAN ID
match Setup inner tag match properties
dei Setup matched DEI
<MatchDei : 0-1> Matched DEI
any Match any DEI
pcp Setup matched PCP
<MatchPcp : pcp> Matched PCP value/range
any Match any PCP
type Setup matched tag type
any Match tagged and untagged frames
c-tagged Match C-tagged frames
s-tagged Match S-tagged frames
tagged Match tagged frames
untagged Match untagged frames
vid Setup matched VLAN ID
<Vid : 0-4095> Matched VLAN ID value/range
any Match any VLAN ID
interface Setup UNI
next Setup the ECE ID of the next entry
<EceId : 1-4096> Select ECE ID of an existing entry
52 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
last Make the ECE the last entry
outer-tag Setup outer tag options
add Setup outer tag add properties
dei Setup added tag DEI
<AddDei : 0-1> Added tag DEI
mode Setup NNI-to-UNI outer tag add mode
disable No tag added when forwarding to UNI
enable Add tag when forwarding to UNI
pcp Setup added tag PCP
<AddPcp : 0-7> Added tag PCP
preserve Setup tag PCP/DEI preservation
vid Setup added tag VLAN ID
<AddVid : vlan_id> Added tag VLAN ID
match Setup outer tag match properties
policer Policer (ingress bandwidth profile)
<PolicerId : 1-2048> Policer ID
discard Map to policer discarding all frames
evc Use policer setup for EVC
none Map to policer allowing all frames
policy Setup ACL policy
<PolicyNo : 0-255> ACL policy
pop Setup tag popping
<Pop : 0-2> Number of tags popped
Default:
N/A
Usage Guide:
To configure EVC Control Entry.
Example:
To configure EVC Control Entry as tabled below.

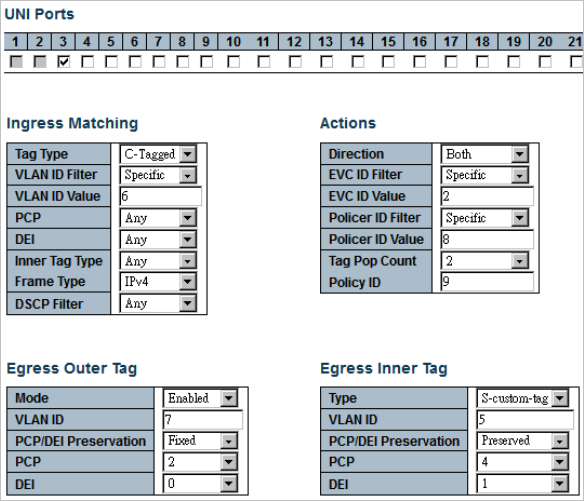

NS3500-24T-4C Managed Switch Command Guide 53
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# evc ece 1 direction both evc 2 frame-type ipv4
inner-tag add dei 1 pcp 4 preserve type s-custom-tag vid 5
interface GigabitEthernet 1/3 outer-tag add dei 0 mode enable
pcp 2 vid 7 match dei any pcp any type c-tagged vid 6 policer
8 policy 9 pop 2
evc ece update
Command:
evc ece update <EceId : 1-4096> direction {both | nni-to-uni |
uni-to-nni} evc {<EvcId : 1-4096> | none} frame-type {any |
ipv4 | ipv6} inner-tag { add {dei <AddDei : 0-1> | pcp
<AddPcp : 0-7> | preserve | type [c-tag | none | s-custom-tag |
s-tag] | vid <AddVid : vlan_id>}, match {dei [<MatchDei : 0-1> |
any]| pcp [<MatchPcp : pcp> | any] | type [any | c-tagged | s-
tagged | tagged | untagged] | vid [<Vid : 0-4095> | any]} }
interface [* | 10GigabitEthernet | GigabitEthernet] <PORT_ID>
next [<EceId : 1-4096> | last] outer-tag { add {dei <AddDei : 0-
1> | pcp <AddPcp : 0-7> | preserve | type [c-tag | none | s-
custom-tag | s-tag] | vid <AddVid : vlan_id>}, match {dei
[<MatchDei : 0-1> | any]| pcp [<MatchPcp : pcp> | any] | mode
[disable | enable] | vid [<Vid : 0-4095> | any] } policer
{<PolicerId : 1-2048> | discard | evc | none} policy <PolicyNo :
0-255> pop <Pop : 0-2>
<EceId : 1-4096> ECE identifier
direction Setup ECE direction
both Bidirectional traffic flow
nni-to-uni NNI-to-UNI traffic flow
uni-to-nni UNI-to-NNI traffic flow
evc EVC mapping
<EvcId : 1-4096> EVC identifier
none Map to no EVC ID
frame-type Setup matched frame type
any Match any frame type
ipv4 Match IPv4 frames
ipv6 Match IPv6 frames
inner-tag Setup inner tag options
add Setup inner tag add properties.
dei Setup added tag DEI
<AddDei : 0-1> Added tag DEI
pcp Setup added tag PCP
<AddPcp : 0-7> Added tag PCP
preserve Setup tag PCP/DEI preservation
type Setup added tag type
54 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
c-tag Add C-tag
none No tag added
s-custom-tag Add custom S-tag
s-tag Add S-tag
vid Setup added tag VLAN ID
<AddVid : vlan_id> Added tag VLAN ID
match Setup inner tag match properties
dei Setup matched DEI
<MatchDei : 0-1> Matched DEI
any Match any DEI
pcp Setup matched PCP
<MatchPcp : pcp> Matched PCP value/range
any Match any PCP
type Setup matched tag type
any Match tagged and untagged frames
c-tagged Match C-tagged frames
s-tagged Match S-tagged frames
tagged Match tagged frames
untagged Match untagged frames
vid Setup matched VLAN ID
<Vid : 0-4095> Matched VLAN ID value/range
any Match any VLAN ID
interface Setup UNI
next Setup the ECE ID of the next entry
<EceId : 1-4096> Select ECE ID of an existing entry
last Make the ECE the last entry
outer-tag Setup outer tag options
add Setup outer tag add properties
dei Setup added tag DEI
<AddDei : 0-1> Added tag DEI
mode Setup NNI-to-UNI outer tag add mode
disable No tag added when forwarding to UNI
enable Add tag when forwarding to UNI
pcp Setup added tag PCP
<AddPcp : 0-7> Added tag PCP
preserve Setup tag PCP/DEI preservation
vid Setup added tag VLAN ID
<AddVid : vlan_id> Added tag VLAN ID
match Setup outer tag match properties
policer Policer (ingress bandwidth profile)
<PolicerId : 1-2048> Policer ID
discard Map to policer discarding all frames
evc Use policer setup for EVC
none Map to policer allowing all frames
policy Setup ACL policy
<PolicyNo : 0-255> ACL policy
NS3500-24T-4C Managed Switch Command Guide 55
Chapter 4: Commands for CLI configuration
pop Setup tag popping
<Pop : 0-2> Number of tags popped
Default:
N/A
Usage Guide:
To update EVC Control Entry for specific ECE profile.
Example 1:
To update “direction nni-to-uni” for ECE profile 1.
Switch# configure terminal
Switch (config)# evc ece 1 direction nni-to-uni
evc policer
Command:
evc policer <PolicerId : 1-2048> [enable | disable] cbs <Cbs :
0-100000> cir <Cir : 0-10000000> ebs <Ebs : 0-100000> eir
<Eir : 0-10000000> mode [aware | blind | coupled] rate-type
[data | line] type [mef | single]
<PolicerId : 1-2048> Policer ID
cbs Setup CBS
<Cbs : 0-100000> Committed Burst Size [bytes]
cir Setup CIR
<Cir : 0-10000000> Committed Information Rate [kbps]
disable Disable policer
ebs Setup EBS for MEF policer
<Ebs : 0-100000> Excess Burst Size [bytes]
eir Setup EIR for MEF policer
<Eir : 0-10000000> Excess Information Rate [kbps]
enable Enable policer
mode Setup policer mode
aware Color-aware mode
blind Color-blind mode
coupled Coupling mode
rate-type Setup rate type
data Data rate policing
line Line rate policing
type Setup policer type
mef MEF ingress bandwidth profile
single Single bucket policer
Default:
N/A
Usage Guide:
To configure a profile for EVC Policer (Ingress Bandwidth Profile) .
Example:

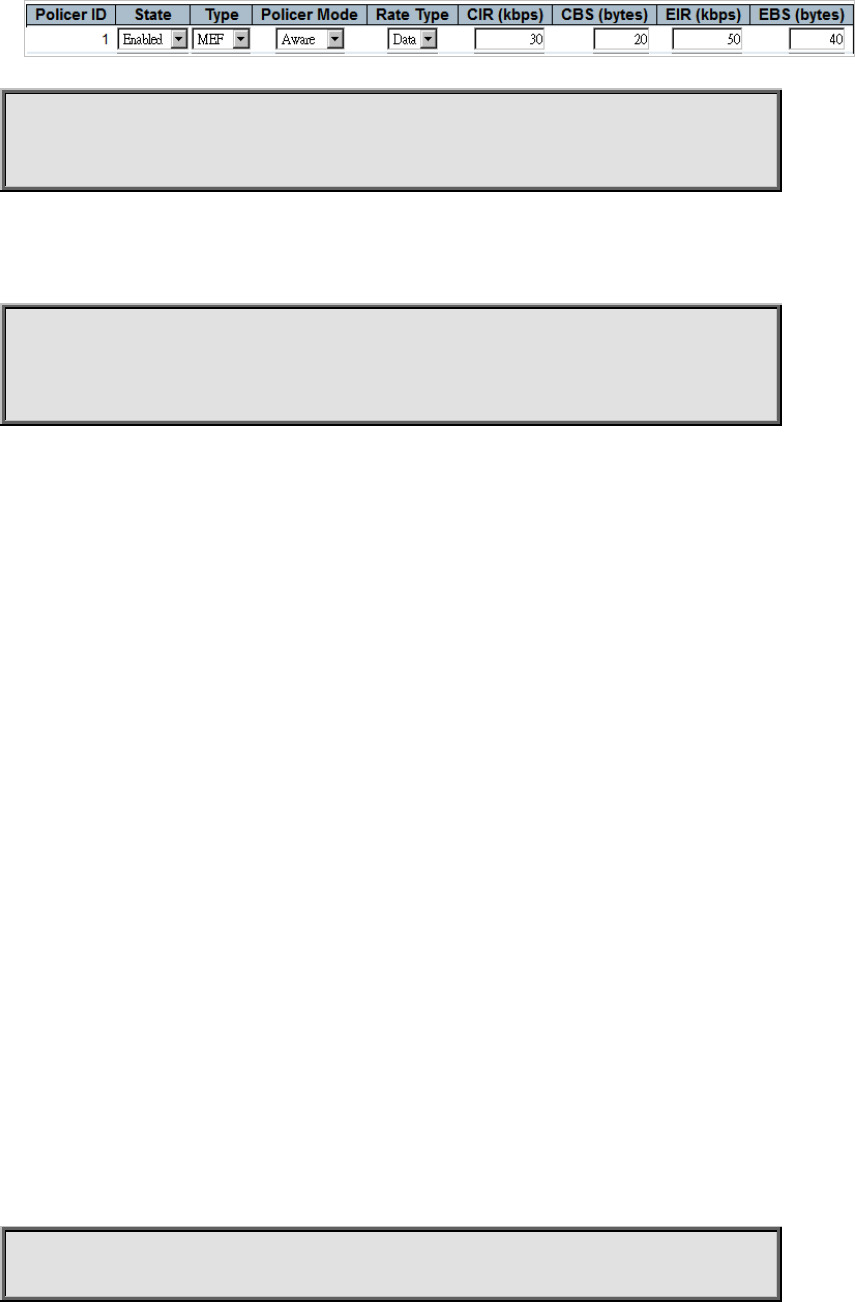

To configure EVC Policer (Ingress Bandwidth Profile) as tabled below.
56 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# evc policer 1 enable cbs 20 cir 30 ebs 40 eir
50 mode aware rate-type data type mef
evc policer update
Command:
evc policer update <PolicerId : 1-2048> [enable | disable] cbs
<Cbs : 0-100000> cir <Cir : 0-10000000> ebs <Ebs : 0-100000>
eir <Eir : 0-10000000> mode [aware | blind | coupled] rate-type
[data | line] type [mef | single]
<PolicerId : 1-2048> Policer ID
cbs Setup CBS
<Cbs : 0-100000> Committed Burst Size [bytes]
cir Setup CIR
<Cir : 0-10000000> Committed Information Rate [kbps]
disable Disable policer
ebs Setup EBS for MEF policer
<Ebs : 0-100000> Excess Burst Size [bytes]
eir Setup EIR for MEF policer
<Eir : 0-10000000> Excess Information Rate [kbps]
enable Enable policer
mode Setup policer mode
aware Color-aware mode
blind Color-blind mode
coupled Coupling mode
rate-type Setup rate type
data Data rate policing
line Line rate policing
type Setup policer type
mef MEF ingress bandwidth profile
single Single bucket policer
Default:
N/A
Usage Guide:
To update a profile for EVC Policer (Ingress Bandwidth Profile).
Example:
To update EVC Policer (Ingress Bandwidth Profile) with EIR 1000 for policer 1
Switch# configure terminal
Switch (config)# evc policer update 1 eir 1000
NS3500-24T-4C Managed Switch Command Guide 57
Chapter 4: Commands for CLI configuration
evc update
Command:
evc update <EvcId : 1-4096> vid <evc_vid> ivid <ivid>
interface ( * | 10GigabitEthernet | GigabitEthernet
[ <port_list> ] ) learning [ disable ] policer { <PolicerId : 1-
2048> | none | discard }
<EvcId : 1-4096> EVC identifier
vid Setup EVC VLAN ID
<EvcVid : 1-4095> EVC VLAN ID
ivid Setup internal EVC VLAN ID
<Ivid : vlan_id> Internal VLAN ID
interface Setup NNI
learning Setup learning
policer Policer (ingress bandwidth profile)
<PolicerId : 1-2048> Policer ID
<vlan_list> List of VLANs
discard Map to policer discarding all frames
none Map to policer allowing all frames
Default:
0
Usage Guide:
To update an ID for Ethernet Virtual Circuits (EVC).
Example:
To update Ethernet Virtual Circuits (EVC identifier: 1, EVC VLAN ID: 10).
Switch# configure terminal
Switch (config)# evc update 1 vid 10
exit
Command:
exit
Default:
N/A
Usage Guide:
To exit configure terminal mode.
Example:
To exit configure terminal mode.
Switch# configure terminal
Switch (config)# exit
#
58 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
green-ethernet led interval
Command:
green-ethernet led interval <0~24> intensity <0-100>
<0~24> Interval from 00.00 to 24.00 (00 is used to start at midnight,
while 24 is used to stop at midnight).
intensity LEDs intensity.
<0-100> Intensity from 0% (LEDs OFF) to 100%
Default:
N/A
Usage Guide:
To configure LED Power reduction for interval time.
Example:

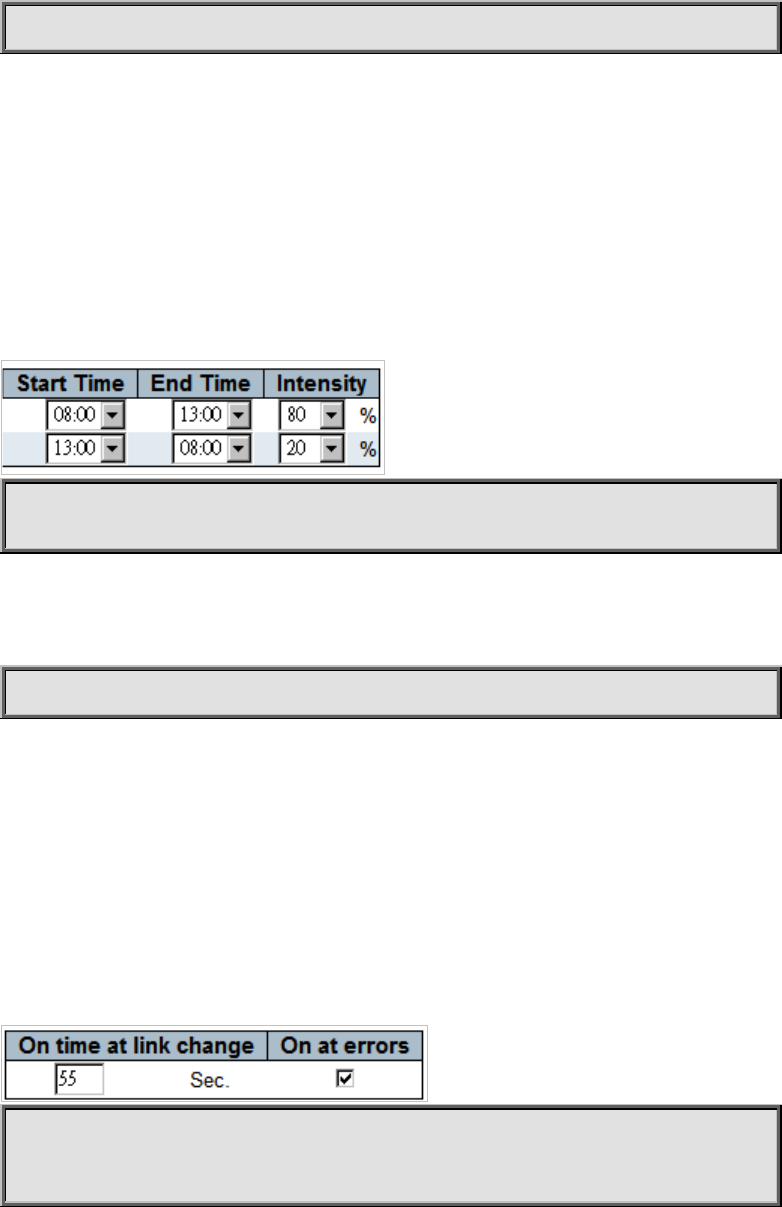

To configure LED Power reduction as tabled below.
Switch# configure terminal
Switch (config)# green-ethernet led interval 8-13 intensity 80
green-ethernet led on-event
Command:
green-ethernet led on-event error | link-change <0-65535>
error Set LEDs intensity to 100% if an error occurs.
link-change Specifies how long to turn LEDs intensity into 100%, when a link
changes state.
<0-65535> Number of seconds to set LEDs intensity at 100% at link change.
Default:
N/A
Usage Guide:
To configure LED Power on-event to trigger LED light
Example:
To configure LED Power on-event as tabled below:
Switch# configure terminal
Switch (config)# green-ethernet led on-event error link-change
55
NS3500-24T-4C Managed Switch Command Guide 59
Chapter 4: Commands for CLI configuration
gvrp
Command:
gvrp
Default:
Disable
Usage Guide:
To enable GVRP.
Example:
To enable GVRP.
Switch# configure terminal
Switch (config)# gvrp
gvrp max-vlans
Command:
gvrp max-vlans <1-4095>
Default:
20
Usage Guide:
To configure how many VLANs will be in GVRP.
Example:
To configure 200 VLANs in GVRP.
Switch# configure terminal
Switch (config)# gvrp max-vlans 200
gvrp time
Command:
gvrp time join-time <Jointime : 1-20> leave-all-time
<Leavealltime : 1000-5000> leave-time <Leavetime : 60-300>
join-time Set GARP protocol parameter JoinTime. See IEEE 802.1D-2004,
clause 12.11
<Jointime : 1-20> join-time in units of centi seconds. Range is 1-20. Default is 20.
leave-all-time Set GARP protocol parameter LeaveAllTime. See IEEE 802.1D-
2004, clause 12.11
<Leavealltime : 1000-5000> leave-all-time in units of centi seconds Range is
1000-5000. Default is 1000.
leave-time Set GARP protocol parameter LeaveTime. See IEEE 802.1D-2004,
clause 12.11
<Leavetime : 60-300> leave-time in units of centi seconds. Range is 60-300.
Default is 60.
Default:
60 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Usage Guide:
To configure Join-time, Leave-time, Leave all-time for GVRP.
Example:
To configure Join-time, Leave-time, Leave all-time for GVRP as tabled below.

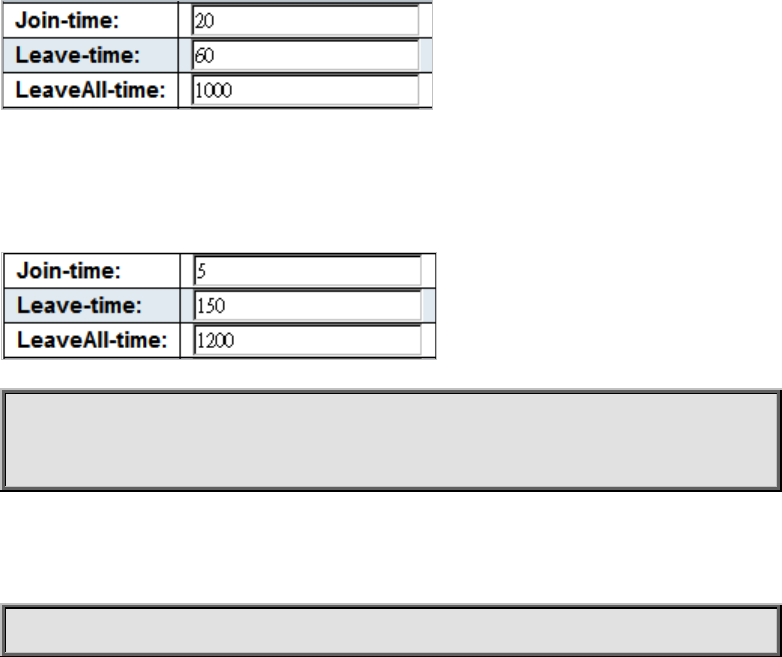

Switch# configure terminal
Switch (config)# gvrp time join-time 5 leave-all-time 1200 leave-
time 150
help
Command:
help
Default:
N/A
Usage Guide:
To explain how to use commands.
NS3500-24T-4C Managed Switch Command Guide 61
Chapter 4: Commands for CLI configuration
Example:
To explain how to use commands.
Switch# configure terminal
Switch (config)# help
Help may be requested at any point in a command by entering
a question mark '?'. If nothing matches, the help list will
be empty and you must back up until entering a '?' showing the
available options.
Two styles of help are provided:
1. Full help is available when you are ready to enter a
command argument (e.g. 'show ?') and describes each possible
argument.
2. Partial help is provided when an abbreviated argument is
entered and you want to know what arguments match the input
(e.g. 'show pr?'.)
hostname
Command:
hostname < WORD >
< WORD > This system's network name
Default:
N/A
Usage Guide:
To configure switch’s hostname.
Example:
To configure switch’s hostname with “IFSbestswitch”
Switch# configure terminal
Switch (config)# hostname IFSbestswitch
IFSbestswitch(config)#
interface * | 10GigabitEthernet | GigabitEthernet
Command:
interface * | 10GigabitEthernet <port_type_list> |
GigabitEthernet <port_type_list>
* All switches or All ports
GigabitEthernet 1 Gigabit Ethernet Port
10GigabitEthernet 10 Gigabit Ethernet Port
Default:
N/A
62 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Usage Guide:
To enter the interface mode.
Example:
To enter the interface 10GigabitEthernet 1/2
Switch# configure terminal
Switch (config)# interface 10GigabitEthernet 1/2
Switch (config-if) #
access-list action permit
Command:
access-list action permit
action Access list action
Default:
Permit
Usage Guide:
To configure Permit for the ACL action.
Example:
To configure Permit ACL action for the GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # access-list action permit
access-list action deny
Command:
access-list action deny
action Access list action
Default:
Deny
Usage Guide:
To configure Deny for the ACL action.
Example:
To configure Deny ACL action for the GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # access-list action deny
access-list logging
Command:
access-list logging
logging Logging frame information. Note: The logging feature only works when
the packet length is less than 1518 (without VLAN tags) and the
NS3500-24T-4C Managed Switch Command Guide 63
Chapter 4: Commands for CLI configuration
System Log memory size and logging rate is limited.
Default:
Disable
Usage Guide:
To enable Logging function for the ACL.
Example:
To enable ACL Logging function for the GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # access-list logging
access-list policy
Command:
access-list policy <PolicyId : 0-255>
policy Policy
<PolicyId : 0-255> Policy ID
Default:
Policy ID: 0
Usage Guide:
To configure Policy ID for the ACL.
Example:
To configure ACL Policy ID 1 for the GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # access-list policy 1
access-list port-state
Command:
access-list port-state
port-state Re-enable shutdown port that was shutdown by access-list module
Default:
Enable
Usage Guide:
To enable Port-state function for the ACL.
Example:
To configure ACL Port-state function for the GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # access-list port-state
64 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
access-list rate-limiter
Command:
access-list rate-limiter <RateLimiterId : 1-16>
rate-limiter Rate limiter
<RateLimiterId : 1-16> Rate limiter ID
Default:
Disable
Usage Guide:
To apply Rate Limiter ID for the ACL.
Example:
To apply ACL Rate Limiter ID 1 for the GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # access-list rate-limiter 1
access-list redirect interface
Command:
access-list redirect interface 10GigabitEthernet
<port_type_list> | GigabitEthernet <port_type_list>
redirect Redirect frame to specific port
Default:
Disable
Usage Guide:
To redirect frames to specific Port.
Example:
To redirect GigabitEthernet X/X frames to GigabitEthernet 1/2.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # access-list redirect interface
GigabitEthernet 1/2
access-list shutdown
Command:
access-list shutdown
shutdown Shut down incoming port. The shutdown feature only works when the
packet length is less than 1518 (without VLAN tags).
Default:
Disable
Usage Guide:
To enable Shutdown function for the ACL.
Example:
To enable ACL Shutdown function for the GigabitEthernet X/X.
NS3500-24T-4C Managed Switch Command Guide 65
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # access-list shutdown
aggregation group
Command:
aggregation group <uint>
aggregation Create an aggregation
group Create an aggregation group
<uint> The aggregation group id
Default:
N/A
Usage Guide:
To configure aggregation group.
Example:
To configure aggregation group 7 for the GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # aggregation group 7
description
Command:
description <string>
description Port description
<string> specifies a comment or a description of the port to assist the user.
(Length: 1-12 characters)
Default:
N/A
Usage Guide:
To configure port description.
Example:
To configure port description (IPTV_Port) for the GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # description IPTV_Port
do
Command:
do < exec commands >
do To run exec commands in config mode
66 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Default:
N/A
Usage Guide:
To run exec commands in configure terminal mode
Example:
To run “show aaa” in configure terminal mode.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # do show aaa
console : local
telnet : local
ssh : local
http : local
dot1x guest-vlan
Command:
dot1x guest-vlan
dot1x IEEE Standard for port-based Network Access Control
guest-vlan Enables/disables guest VLAN
Default:
Disable
Usage Guide:
To enable Guest VLAN
Example:
To enable Guest VLAN for GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # dot1x guest-vlan
dot1x port-control
Command:
dot1x port-control auto | force-authorized | force-
unauthorized | mac-based | multi | single
dot1x IEEE Standard for port-based Network Access Control
port-control Sets the port security state.
auto Port-based 802.1X Authentication
force-authorized Port access is allowed
force-unauthorized Port access is not allowed
mac-based Switch authenticates on behalf of the client
multi Multiple Host 802.1X Authentication
single Single Host 802.1X Authentication
Default:
Force-authorized
Usage Guide:
NS3500-24T-4C Managed Switch Command Guide 67
Chapter 4: Commands for CLI configuration
To configure Port-control mode for 802.1X
Example:
To configure Port-Based 802.1X(Auto) mode for GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # dot1x port-control auto
dot1x radius-qos
Command:
dot1x radius-qos
dot1x IEEE Standard for port-based Network Access Control
radius-qos Enables/disables per-port state of RADIUS-assigned QoS.
Default:
Disable
Usage Guide:
To enable RADIUS-assigned QoS for 802.1X
Example:
To enable RADIUS-assigned QoS for GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # dot1x radius-qos
dot1x radius-vlan
Command:
dot1x radius-vlan
dot1x IEEE Standard for port-based Network Access Control
radius-vlan Enables/disables per-port state of RADIUS-assigned VLAN.
Default:
Disable
Usage Guide:
To enable RADIUS-assigned VLAN for 802.1X
Example:
To enable RADIUS-assigned VLAN for GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # dot1x radius-vlan
dot1x re-authenticate
Command:
dot1x re-authenticate
dot1x IEEE Standard for port-based Network Access Control
re-authenticate Refresh (restart) 802.1X authentication process.
68 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Default:
N/A
Usage Guide:
To restart 802.1X authentication process.
Example:
To restart 802.1X authentication process for GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # dot1x re-authenticate
duplex
Command:
duplex auto | full | half
duplex Interface duplex
auto Auto negotiation of duplex mode.
full Forced full duplex.
half Forced half duplex.
Default:
Auto
Usage Guide:
To configure duplex mode for interface.
Example:
To configure auto duplex mode for GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # duplex auto
end
Command:
end
end Go back to EXEC mode
Default:
Auto
Usage Guide:
To back to EXEC mode
Example:
To back to EXEC mode
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # end
Switch#
NS3500-24T-4C Managed Switch Command Guide 69
Chapter 4: Commands for CLI configuration
excessive-restart
Command:
excessive-restart
excessive-restart Restart backoff algorithm after 16 collisions (No excessive-
restart means discard frame after 16 collisions)
Default:
Discard
Usage Guide:
To enable Backoff Algorithm for the specific interface
Example:
To enable Backoff Algorithm for the GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # excessive-restart
exit
Command:
exit
exit Exit from current mode
Default:
None
Usage Guide:
To exit current mode
Example:
To exit current mode.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # exit
Switch (config)#
flowcontrol
Command:
flowcontrol off | on
flowcontrol Traffic flow control.
off Disable flow control.
on Enable flow control.
Default:
Disable
Usage Guide:
To enable Flow-control for specific interface
Example:
To enable Flow-control for GigabitEthernet X/X
70 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # flowcontrol on
ip arp inspection check-vlan
Command:
ip arp inspection check-vlan
arp Address Resolution Protocol
inspection ARP inspection
check-vlan ARP inspection VLAN mode config
Default:
Disable
Usage Guide:
To configure Check-VLAN mode into ARP inspection for specific interface
Example:
To configure Check-VLAN mode (Enabled) into ARP inspection for
GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # ip arp inspection check-vlan
ip arp inspection logging
Command:
ip arp inspection logging all | deny | permit
arp Address Resolution Protocol
inspection ARP inspection
logging ARP inspection logging mode config
all log all entries
deny log denied entries
permit log permitted entries
Default:
None
Usage Guide:
To configure Logging type into ARP inspection for specific interface
Example:
To configure Logging type (All) into ARP inspection for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # ip arp inspection logging all
NS3500-24T-4C Managed Switch Command Guide 71
Chapter 4: Commands for CLI configuration
ip arp inspection trust
Command:
ip arp inspection trust
arp Address Resolution Protocol
inspection ARP inspection
trust ARP inspection trust config
Default:
Trusted
Usage Guide:
To configure Trusted into ARP inspection for specific interface
Example:
To configure Trusted into ARP inspection for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # ip arp inspection trust
ip dhcp snooping trust
Command:
ip dhcp snooping trust
Default:
Trusted
Usage Guide:
To configure Trusted into DHCP Snooping for specific interface
Example:
To configure Trusted into DHCP Snooping for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # ip dhcp snooping trust
ip igmp snooping filter
Command:
ip igmp snooping filter <ProfileName : word16>
<ProfileName : word16> Profile name in 16 words
Default:
N/A
Usage Guide:
To apply the IGMP Snooping filter ID for specific interface
72 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Example:
To apply the IGMP Snooping filter ID 1 for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # ip igmp snooping filter 1
ip igmp snooping immediate-leave
Command:
ip igmp snooping immediate-leave
Default:
Disabled
Usage Guide:
To enable IGMP Snooping Immediate-leave (Fast Leave) for specific interface
Example:
To enable IGMP Snooping Immediate-leave (Fast Leave) for GigabitEthernet
X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # ip igmp snooping immediate-leave
ip igmp snooping max-groups
Command:
ip igmp snooping max-groups <Throttling : 1-10>
max-groups IGMP group throttling configuration
<Throttling : 1-10> Maximum number of IGMP group registration
Default:
Unlimited
Usage Guide:
To limit maximum number of IGMP group for specific interface
Example:
To limit 5 groups of IGMP for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # ip igmp snooping max-groups 5
ip igmp snooping mrouter
Command:
ip igmp snooping mrouter [ automatic | fix | none ]
mrouter Multicast router port configuration
automatic auto mode
fix fix mode
NS3500-24T-4C Managed Switch Command Guide 73
Chapter 4: Commands for CLI configuration
none none mode
Default:
Auto
Usage Guide:
To configure Multicast router port mode for specific interface
Example:
To configure Multicast router port mode (fix) for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # ip igmp snooping mrouter fix
ip verify source
Command:
ip verify source
Default:
Disabled
Usage Guide:
To enable IP Source Guard for specific interface
Example:
To enable IP Source Guard for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # ip verify source
ip verify source limit
Command:
ip verify source limit <0-2>
<0-2> the number of limit
Default:
Unlimited
Usage Guide:
To limit numbers of Dynamic Client for specific interface
Example:
To limit 2 numbers of Dynamic Client for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # ip verify source limit 2
74 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
ipv6 mld snooping filter
Command:
ipv6 mld snooping filter <ProfileName : word16>
filter Access control on MLD multicast group registration
<ProfileName : word16> Profile name in 16 words
Default:
N/A
Usage Guide:
To apply the MLD Snooping filter ID for specific interface
Example:
To apply the MLD Snooping filter ID 1 for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # ipv6 mld snooping filter 1
ipv6 mld snooping immediate-leave
Command:
ipv6 mld snooping immediate-leave
Default:
Disabled
Usage Guide:
To enable MLD Snooping Immediate-leave (Fast Leave) for specific interface
Example:
To enable MLD Snooping Immediate-leave (Fast Leave) for GigabitEthernet
X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # ipv6 mld snooping immediate-leave
ipv6 mld snooping max-groups
Command:
ipv6 mld snooping max-groups <Throttling : 1-10>
max-groups IGMP group throttling configuration
<Throttling : 1-10> Maximum number of IGMP group registration
Default:
Unlimited
Usage Guide:
To limit maximum number of MLD group for specific interface
Example:
To limit 5 groups of MLD for GigabitEthernet X/X
NS3500-24T-4C Managed Switch Command Guide 75
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # ipv6 mld snooping max-groups 5
ipv6 mld snooping mrouter
Command:
ipv6 mld snooping mrouter [ automatic | fix | none]
mrouter Multicast router port configuration
automatic auto mode
fix fix mode
none none mode
Default:
Auto
Usage Guide:
To configure MLD router port mode for specific interface
Example:
To configure MLD router port mode (fix) for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # ipv6 mld snooping mrouter fix
lacp
Command:
lacp
lacp Enable LACP on this interface
Default:
Disabled
Usage Guide:
To enable LACP for specific interface
Example:
To enable LACP for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # lacp
lacp key
Command:
lacp key <1-65535> | auto
lacp Enable LACP on this interface
key Key of the LACP aggregation
<1-65535> Key value
auto Choose a key based on port speed
76 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Default:
Auto
Usage Guide:
To configure LACP key for specific interface
Example:
To configure LACP key (555) for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # lacp key 555
lacp port-priority
Command:
lacp port-priority <1-65535>
lacp Enable LACP on this interface
port-priority LACP priority of the port
<1-65535> Priority value, lower means higher priority
Default:
32768
Usage Guide:
To configure LACP port-priority for specific interface
Example:
To configure LACP port-priority (555) for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # lacp port-priority 555
lacp role
Command:
lacp role active | passive
lacp Enable LACP on this interface
role Active / Passive (speak if spoken to) role
active Transmit LACP BPDUs continously
passive Wait for neighbour LACP BPDUs before transmitting
Default:
Active
Usage Guide:
To configure LACP role for specific interface
NS3500-24T-4C Managed Switch Command Guide 77
Chapter 4: Commands for CLI configuration
Example:
To configure LACP role (passive) for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # lacp role passive
lacp timeout
Command:
lacp timeout fast | slow
lacp Enable LACP on this interface
timeout The period between BPDU transmissions
fast Transmit BPDU each second (fast timeout)
slow Transmit BPDU each 30th second (slow timeout)
Default:
Fast
Usage Guide:
To configure LACP timeout type for specific interface
Example:
To enable LACP timeout type (slow) for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # lacp timeout slow
lldp cdp-aware
Command:
lldp cdp-aware
lldp LLDP configurations
cdp-aware Configures if the interface shall be CDP aware (CDP discovery
information is added to the LLDP neighbor table)
Default:
Passive
Usage Guide:
To configure MIB variable retrieve local info or remote info of LLDP for specific
interface
Example:
To configure MIB variable retrieve (local info) of LLDP for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # lldp cdp-aware
78 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
lldp med media-vlan policy-list
Command:
lldp med media-vlan policy-list <v_range_list>
lldp LLDP configurations
med Media Endpoint Discovery
media-vlan Media VLAN assignment
policy-list Assignment of policies
<v_range_list> Policies to assign to the interface
Default:
N/A
Usage Guide:
To apply MED Media-VLAN policy of LLDP for specific interface
Example:
To apply MED Media-VLAN policy 2 of LLDPfor GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # lldp med media-vlan policy-list 2
lldp med transmit-tlv
Command:
lldp med transmit-tlv [ capabilities ] [ location ] [ network-
policy ]
lldp LLDP configurations
med Media Endpoint Discovery
transmit-tlv LLDP-MED Location Type Length Value parameter.
capabilities Enable transmission of the optional capabilities TLV.
location Enable transmission of the optional location TLV.
network-policy Enable transmission of the optional network-policy TLV.
Default:
N/A
Usage Guide:
To configure LLDP-MED TLV Type for specific interface
Example:
To enable LLDP-MED TLV (capabilities and location) for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # lldp med transmit-tlv capabilities location
lldp receive
Command:
lldp receive
lldp LLDP configurations
receive Enable/Disable decoding of received LLDP frames.
NS3500-24T-4C Managed Switch Command Guide 79
Chapter 4: Commands for CLI configuration
Default:
Both (Tx +Rx)
Usage Guide:
To configure LLDP Rx only mode for specific interface
Example:
To configure LLDP Rx only mode for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # lldp receive
lldp tlv-select management-address
Command:
lldp tlv-select management-address
lldp LLDP configurations
tlv-select To transmit which optional TLVs.
management-address Enable/Disable transmission of management address.
Default:
Enabled
Usage Guide:
To enable management address of LLDP TLV for specific interface
Example:
To enable management address of LLDP TLV for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # lldp tlv-select management-address
lldp tlv-select port-description
Command:
lldp tlv-select port-description
lldp LLDP configurations
tlv-select To transmit which optional TLVs.
port-description Enable/Disable transmission of port description.
Default:
Enabled
Usage Guide:
To enable port-description of LLDP TLV for specific interface
Example:
To enable port-description of LLDP TLV for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # lldp tlv-select port-description
80 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
lldp tlv-select system-capabilities
Command:
lldp tlv-select system-capabilities
lldp LLDP configurations
tlv-select To transmit which optional TLVs.
system-capabilities Enable/Disable transmission of system capabilities.
Default:
Enabled
Usage Guide:
To enable system-capabilities of LLDP TLV for specific interface
Example:
To enable system-capabilities of LLDP TLV for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # lldp tlv-select system-capabilities
lldp tlv-select system-description
Command:
lldp tlv-select system-description
lldp LLDP configurations
tlv-select To transmit which optional TLVs.
system-description Enable/Disable transmission of system description.
Default:
Enabled
Usage Guide:
To enable system-description of LLDP TLV for specific interface
Example:
To enable system-description of LLDP TLV for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # lldp tlv-select system-description
lldp tlv-select system-name
Command:
lldp tlv-select system-name
lldp LLDP configurations
tlv-select To transmit which optional TLVs.
system-name Enable/Disable transmission of system name.
Default:
Enabled
Usage Guide:
To enable system-name of LLDP TLV for specific interface
Example:
NS3500-24T-4C Managed Switch Command Guide 81
Chapter 4: Commands for CLI configuration
To enable system-name of LLDP TLV for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # lldp tlv-select system-name
lldp transmit
Command:
lldp transmit
lldp LLDP configurations
transmit Enable/Disabled transmision of LLDP frames.
Default:
Both (Tx +Rx)
Usage Guide:
To configure LLDP Tx only mode for specific interface
Example:
To configure LLDP Tx only mode for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # lldp transmit
loop-protect
Command:
loop-protect
loop-protect Loop protection configuration
Default:
Enabled
Usage Guide:
To enable loop-protect for specific interface
Example:
To enable loop-protect for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # loop-protect
loop-protect action
Command:
loop-protect action [log] [shutdown]
loop-protect Loop protection configuration
action Action if loop detected
log Generate log
shutdown Shutdown port
82 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Default:
Shutdown
Usage Guide:
To configure action mode of Loop protection for specific interface
Example:
To configure action mode (log and shutdown) of Loop protection for
GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # loop-protect action shutdown log
loop-protect tx-mode
Command:
loop-protect tx-mode
loop-protect Loop protection configuration
tx-mode Actively generate PDUs
Default:
Enabled
Usage Guide:
To enable tx-mode of Loop protection for specific interface
Example:
To enable tx-mode of Loop protection for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # loop-protect tx-mode
loop-protect tx-mode
Command:
loop-protect tx-mode
loop-protect Loop protection configuration
tx-mode Actively generate PDUs
Default:
Enabled
Usage Guide:
To enable tx-mode of Loop protection for specific interface
Example:
To enable tx-mode of Loop protection for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # loop-protect tx-mode
mac address-table learning
Command:
NS3500-24T-4C Managed Switch Command Guide 83
Chapter 4: Commands for CLI configuration
mac address-table learning [secure]
mac MAC keyword
address-table MAC table configuration
learning Port learning mode
secure Port Secure mode
Default:
Enabled (Auto)
Usage Guide:
To enable learning of MAC address table for specific interface
Example:
To enable learning of MAC address table for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # mac address-table learning
media-type
Command:
media-type dual | rj45 | sfp
media-type Media type.
dual Dual media interface (copper & fiber interface).
rj45 rj45 interface (copper interface).
sfp sfp interface (fiber interface).
Default:
N/A
Usage Guide:
To configure Copper or Fiber mode of media type for specific interface
Example:
To configure Copper mode of media type for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # media-type rj45
mtu
Command:
mtu <1518-10056>
mtu Maximum transmission unit
<1518-10056> Maximum frame size in bytes.
Default:
10056
Usage Guide:
To configure MTU sizes for specific interface
Example:
To configure MTU sizes (9000) for GigabitEthernet X/X
84 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # mtu 9000
mvr immediate-leave
Command:
mvr immediate-leave
mvr Multicast VLAN Registration configuration
immediate-leave Immediate leave configuration
Default:
Disabled
Usage Guide:
To enable Immediate-leave of MVR for specific interface
Example:
To enable Immediate-leave of MVR for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # mvr immediate-leave
mvr name
Command:
mvr name <MvrName : word16> type [receiver | source]
mvr Multicast VLAN Registration configuration
name MVR multicast name
<MvrName : word16> MVR multicast VLAN name
type MVR port role configuration
receiver MVR receiver port
source MVR source port
Default:
Inactive
Usage Guide:
To configure port role of specific MVR profile for specific interface
Example:
To configure port role (source) of MVR profiles (111) for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # mvr name 111 type source
mvr vlan
Command:
mvr vlan <v_vlan_list> type [source | receiver ]
mvr Multicast VLAN Registration configuration
vlan MVR multicast vlan
NS3500-24T-4C Managed Switch Command Guide 85
Chapter 4: Commands for CLI configuration
<vlan_list> MVR multicast VLAN list
type MVR port role configuration
receiver MVR receiver port
source MVR source port
Default:
Inactive
Usage Guide:
To configure port role of specific MVR VLAN ID for specific interface
Example:
To configure port role (source) of MVR VLAN ID (111) for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # mvr name 111 type source
network-clock synchronization ssm
Command:
network-clock synchronization ssm
network-clock network-clock
synchronization SSM enable/disable.
ssm SSM enable/disable.
Default:
Disable
Usage Guide:
To enable SSM of SyncE for specific interface
Example:
To enable SSM of SyncE for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # network-clock synchronization ssm
no
Command:
no
no Negate a command or set its defaults
Default:
N/A
Usage Guide:
To default the function for specific interface
86 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Example:
To enable the function (network-clock synchronization ssm) for
GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # no network-clock synchronization ssm
ping ip
Command:
ping ip <ipv4_addr> size <size: 2-1452>
ping The ping command allows you to test connectivity to a network host from the
appliance
ip ip
<ipv4_addr> IP address
size size
<size: 2-1452> Default is 56 (excluding MAC, IP and ICMP headers)
Default:
N/A
Usage Guide:
To run Ping function for specific interface
Example:
To run Ping function (IP address: 10.10.10.10 with size 88 bytes) for
GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # ping ip 10.10.10.10 size 88
poe mode
Command:
poe mode { standard | plus }
poe Power Over Ethernet.
mode PoE mode.
plus Set mode to PoE+ (Maximum power 30.0 W)
standard Set mode to PoE (Maximum power 15.4 W)
Default:
N/A
Usage Guide:
To configure 802.3at/af mode for specific interface
Example:
To configure 802.3at mode for GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # poe mode plus
NS3500-24T-4C Managed Switch Command Guide 87
Chapter 4: Commands for CLI configuration
poe pdcheck IP
Command:
poe pdcheck IP <ipv4_addr>
poe Power Over Ethernet.
pdcheck Allows user to enable or disable per port PD Alive Check function.
IP To set PoE device IP address here for system making ping to the PoE
device.
<ipv4_addr> <ipv4_addr>
Default:
N/A
Usage Guide:
To configure Ping PD IP Address of PoE for specific interface
Example:
To configure Ping PD IP Address (10.101.10.10) of PoE for GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # poe pdcheck IP 10.101.10.10
poe pdcheck action
Command:
poe pdcheck action { reboot | alarm | reboot-alarm }
poe Power Over Ethernet.
pdcheck Allows user to enable or disable per port PD Alive Check function.
action Allows user to set which action will be applied if the
PD is without any response
alarm It means system will issue an alarm message via Syslog, SMTP.
reboot It means system will reset the PoE port that is connected to the PD.
reboot-alarm It means system will reset the PoE port and issue an alarm
message via Syslog, SMTP.
Default:
N/A
Usage Guide:
To configure PD Ping Alive Check Action of PoE for specific interface
Example:
To configure PD Ping Alive Check Action (Alarm) of PoE for GigabitEthernet
X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # poe pdcheck action alarm
poe pdcheck enable
Command:
poe pdcheck enable
poe Power Over Ethernet.
88 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
pdcheck Allows user to enable or disable per port PD Alive Check function.
enable PD alive check enable.
Default:
Disabled
Usage Guide:
To enable PD Ping Alive Check function of PoE for specific interface.
Example:
To enable PD Ping Alive Check function of PoE for GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # poe pdcheck enable
poe pdcheck interval
Command:
poe pdcheck interval <10-300>
poe Power Over Ethernet.
pdcheck Allows user to enable or disable per port PD Alive Check function.
interval set how long system should be issue a ping request to PD for detecting
whether PD is alive or dead.
<10-300> interval <10~300>
Default:
30
Usage Guide:
To configure PD Ping Alive Check interval of PoE for specific interface.
Example:
To configure PD Ping Alive Check interval (100 seconds) of PoE for
GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # poe pdcheck interval 100
poe pdcheck reboot-time
Command:
poe pdcheck reboot-time <30-180>
poe Power Over Ethernet.
pdcheck Allows user to enable or disable per port PD Alive Check function.
reboot-time set the PoE device rebooting time.
<30-180> reboot-time <30-180>
Default:
90
Usage Guide:
To configure PD Ping Alive Check rebooting time of PoE for specific interface.
Example:
To configure PD Ping Alive Check rebooting time (100 seconds) of PoE for
NS3500-24T-4C Managed Switch Command Guide 89
Chapter 4: Commands for CLI configuration
GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # poe pdcheck reboot-time 100
poe pdcheck retry-count
Command:
poe pdcheck retry-count <1-5>
poe Power Over Ethernet.
pdcheck Allows user to enable or disable per port PD Alive Check function.
retry-count set how many times system retry ping to PD.
<1-5> retry-count <1-5>
Default:
2
Usage Guide:
To configure PD Ping Alive Check retry count of PoE for specific interface.
Example:
To configure PD Ping Alive Check retry count (5) of PoE for GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # poe pdcheck retry-count 5
poe power limit
Command:
poe power limit { <Power in watts>}
poe Power Over Ethernet.
power Setting maximum power for port in allocation mode.
limit The maximum power.
<Power in watts : option> Maximum power for the interface (0-15.4 Watt
for PoE standard mode, 0-30.0 Watt for PoE plus
mode)
Default:
2
Usage Guide:
To configure maximum power of PoE for specific interface.
Example:
To configure maximum power (29 watts) of PoE for GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # poe power limit 29
90 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
poe priority
Command:
poe priority { low | high | critical }
poe Power Over Ethernet.
priority Interface priority.
critical Set priority to critical.
high Set priority to high.
low Set priority to low.
Default:
2
Usage Guide:
To configure interface priority of PoE for specific interface.
Example:
To configure interface priority (low) of PoE for GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # poe priority low
poe time-range
Command:
poe time-range { profile1 | profile2 | profile3 | profile4 }
poe Power Over Ethernet.
time-range To bind a PoE time-range to the corresponding port.
profile1 The profile name of the PoE time-range to be bound to the port.
profile2 The profile name of the PoE time-range to be bound to the port.
profile3 The profile name of the PoE time-range to be bound to the port.
profile4 The profile name of the PoE time-range to be bound to the port.
Default:
Profile 1
Usage Guide:
To configure time-range profile of PoE for specific interface.
Example:
To configure time-range profile (Profile 3) of PoE for GigabitEthernet X/X.
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # poe time-range profile3
port-security
Command:
port-security
port-security Enable/disable port security per interface.
Default:
Disabled
Usage Guide:
NS3500-24T-4C Managed Switch Command Guide 91
Chapter 4: Commands for CLI configuration
To enable Port-security for specific interface
Example:
To enable Port-security for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # port-security
port-security maximum
Command:
port-security maximum <Number of addresses : 1-1024>
port-security Enable/disable port security per interface.
maximum Maximum number of MAC addresses that can be learned on this set
of interfaces.
<Number of addresses : 1-1024> Number of addresses
Default:
None
Usage Guide:
To configure number of Port-security addresses for specific interface
Example:
To configure 100 Port-security addresses for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # port-security maximum 100
port-security violation
Command:
port-security violation [protect | shutdown | trap | trap-
shutdown]
port-security Enable/disable port security per interface.
violation The action involved with exceeding the limit.
protect Don't do anything
shutdown Shut down the port
trap Send an SNMP trap
trap-shutdown Send an SNMP trap and shut down the port
Default:
None (Protected)
Usage Guide:
To configure protected mode of Port-security for specific interface
Example:
To configure protected mode (trap-shutdown) of Port-security for
GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # port-security violation trap-shutdown
92 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
port-security violation
Command:
port-security violation [protect | shutdown | trap | trap-
shutdown]
port-security Enable/disable port security per interface.
violation The action involved with exceeding the limit.
protect Don't do anything
shutdown Shutdown the port
trap Send an SNMP trap
trap-shutdown Send an SNMP trap and shut down the port
Default:
None (Protected)
Usage Guide:
To configure protected mode of Port-security for specific interface
Example:
To configure protected mode (trap-shutdown) of Port-security for
GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # port-security violation trap-shutdown
pvlan
Command:
pvlan <range_list>
pvlan Private VLAN
<range_list> list of PVLANs. Range is from 1 to number of ports.
Default:
None
Usage Guide:
To create PVLAN ID for specific interface
Example:
To create PVLAN ID (5) for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # pvlan 5
pvlan isolation
Command:
pvlan isolation
pvlan Private VLAN
isolation Port isolation
Default:
None
NS3500-24T-4C Managed Switch Command Guide 93
Chapter 4: Commands for CLI configuration
Usage Guide:
To enable PVLAN isolation for specific interface
Example:
To enable PVLAN isolation for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # pvlan isolation
qos cos
Command:
qos cos <Cos : 0-7>
qos Quality of Service
cos Class of service configuration
<Cos : 0-7> Specific class of service
Default:
0
Usage Guide:
To configure CoS of QoS for specific interface
Example:
To configure CoS (4) of QoS for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos cos 4
qos dei
Command:
qos dei <Dei : 0-1>
qos Quality of Service
dei Drop Eligible Indicator configuration
<Dei : 0-1> Specific Drop Eligible Indicator
Default:
0
Usage Guide:
To configure DEI of QoS for specific interface
Example:
To configure DEI (1) of QoS for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos dei 1
qos dpl
Command:
qos dpl <Dei : 0-1>
94 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
qos Quality of Service
dpl Drop precedence level configuration
<Dpl : dpl> Specific drop precedence level
Default:
0
Usage Guide:
To configure DPL of QoS for specific interface
Example:
To configure DPL (1) of QoS for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos dpl 1
qos dscp-classify
Command:
qos dscp-classify any | selected | zero
qos Quality of Service
dscp-classify DSCP ingress classification
any Classify to new DSCP always
selected Classify to new DSCP if classify is enabled for specific DSCP value in
global dscp-classify map
zero Classify to new DSCP if DSCP is 0
Default:
Disabled
Usage Guide:
To configure DSCP Classify of QoS for specific interface
Example:
To configure DSCP Classify (Any) of QoS for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos dscp-classify any
qos dscp-remark
Command:
qos dscp-remark remap | rewrite
qos Quality of Service
dscp-remark DSCP egress remarking
remap Rewrite DSCP field using classified DSCP remapped through global
dscp-egress-translation map
rewrite Rewrite DSCP field with classified DSCP value (no translation)
Default:
Disabled
Usage Guide:
To configure DSCP egress remarking of QoS for specific interface
NS3500-24T-4C Managed Switch Command Guide 95
Chapter 4: Commands for CLI configuration
Example:
To configure DSCP egress remarking (Remap) of QoS for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos dscp-remark remap
qos dscp-translate
Command:
qos dscp-translate
qos Quality of Service
dscp-translate DSCP ingress translation
Default:
Disabled
Usage Guide:
To configure DSCP ingress translation of QoS for specific interface
Example:
To configure DSCP ingress translation of QoS for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos dscp-translate
qos map cos-tag
Command:
qos map cos-tag cos <Cos : 0~7> dpl <Dpl : 0~1> pcp <Pcp :
0-7> dei <Dei : 0-1>
qos Quality of Service
map QoS Map/Table configuration
cos-tag Map for cos to tag configuration
cos Specify class of service
<Cos : 0~7> Specific class of service or range
dpl Specify drop precedence level
<Dpl : 0~1> Specific drop precedence level or range
pcp Specify PCP (Priority Code Point)
<Pcp : 0-7> Specific PCP
dei Specify DEI (Drop Eligible Indicator)
<Dei : 0-1> Specific DEI
Default:
Disabled
Usage Guide:
To configure (QoS class, DP level) to (PCP, DEI) Mapping of QoS for specific
interface
Example:
To configure (QoS class, DP level) to (PCP, DEI) Mapping of QoS as below table
for GigabitEthernet X/X
96 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration

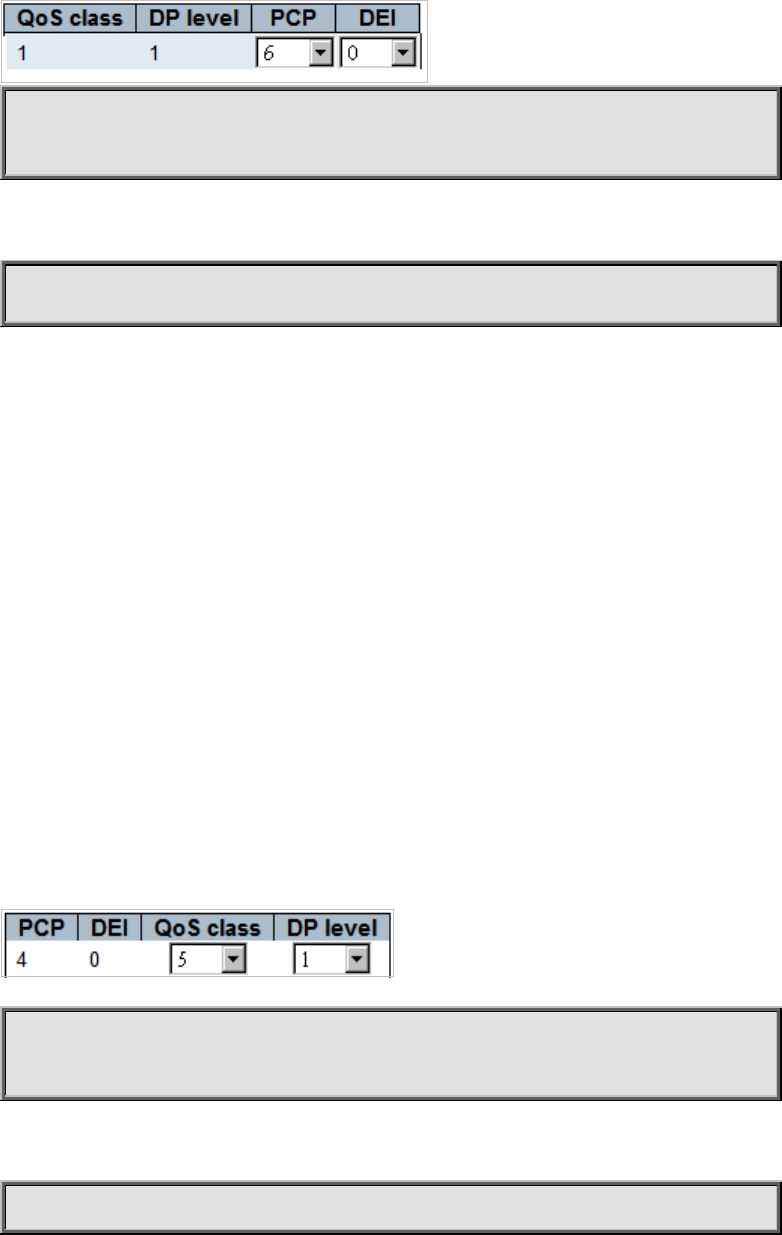

Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos map cos-tag cos 1 dpl 1 pcp 6 dei 0
qos map tag-cos
Command:
qos map tag-cos pcp <Pcp : 0-7> dei <Dei : 0-1> cos <Cos :
0~7> dpl <Dpl : 0~1>
qos Quality of Service
map QoS Map/Table configuration
tag-cos Map for tag to cos configuration
pcp Specify PCP (Priority Code Point)
<Pcp : 0-7> Specific PCP
dei Specify DEI (Drop Eligible Indicator)
<Dei : 0-1> Specific DEI
cos Specify class of service
<Cos : 0~7> Specific class of service or range
dpl Specify drop precedence level
<Dpl : 0~1> Specific drop precedence level or range
Default:
Disabled
Usage Guide:
To configure (PCP, DEI) to (QoS class, DP level) Mapping of QoS for specific
interface
Example:
To configure (PCP, DEI) to (QoS class, DP level) Mapping of QoS as below table
for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos map tag-cos pcp 4 dei 0 cos 5 dpl 1
qos pcp
Command:
qos pcp <Pcp : 0-7>
qos Quality of Service
pcp Priority Code Point configuration
<Pcp : 0-7> Specific Priority Code Point
Default:
NS3500-24T-4C Managed Switch Command Guide 97
Chapter 4: Commands for CLI configuration
0
Usage Guide:
To configure PCP of QoS for specific interface
Example:
To configure PCP (6) of QoS for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos pcp 6
qos policer
Command:
qos policer <Rate : 100-13200000>
qos Quality of Service
policer Policer configuration
<Rate : 100-13200000> Policer rate (default kbps)
Default:
0
Usage Guide:
To configure Ingress Port Policers Rate of QoS for specific interface
Example:
To configure Ingress Port Policers Rate (9999 Kbps) of QoS for GigabitEthernet
X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos policer 9999
qos queue-policer queue
Command:
qos queue-policer queue <Queue : 0~7> <Rate : 100-
13200000>
qos Quality of Service
queue-policer Queue policer configuration
queue Specify queue
<Queue : 0~7> Specific queue or range
<Rate : 100-13200000> Policer rate in kbps
Default:
0
Usage Guide:
To configure Ingress Queue Policers Rate of QoS for specific interface
Example:
To configure Ingress Queue (4) Policers Rate (9999 Kbps) of QoS for
GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
98 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch (config-if) # qos queue-policer queue 4 9999
qos queue-shaper queue
Command:
qos queue-shaper queue <Queue : 0~7> <Rate : 100-
13200000>
qos Quality of Service
queue-shaper Queue shaper configuration
queue Specify queue
<Queue : 0~7> Specific queue or range
<Rate : 100-13200000> Policer rate in kbps
Default:
0
Usage Guide:
To configure Egress Queue Shapers Rate of QoS for specific interface
Example:
To configure Egress Queue (4) Shapers Rate (9999 Kbps) of QoS for
GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos queue-shaper queue 4 9999
qos shaper
Command:
qos shaper <Rate : 100-13200000>
qos Quality of Service
shaper Shaper configuration
<Rate : 100-13200000> Shaper rate in kbps
Default:
0
Usage Guide:
To configure Egress Port Shapers Rate of QoS for specific interface
Example:
To configure Egress Port (4) Shapers Rate (9999 Kbps) of QoS for
GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos queue-shaper queue 4 9999
qos storm broadcast
Command:
qos storm broadcast <Rate : 100-13200000> [fps]
NS3500-24T-4C Managed Switch Command Guide 99
Chapter 4: Commands for CLI configuration
qos Quality of Service
storm Storm policer
broadcast Police broadcast frames
<Rate : 100-13200000> Policer rate (default kbps)
fps Rate is fps
Default:
500
Usage Guide:
To configure Broadcast Frames Storm Control Rate of QoS for specific interface
Example:
To configure Broadcast Frames Storm Control Rate (999 fps) of QoS for
GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos storm broadcast 999 fps
qos storm unicast
Command:
qos storm unicast <Rate : 100-13200000> [fps]
qos Quality of Service
storm Storm policer
unicast Police unicast frames
<Rate : 100-13200000> Policer rate (default kbps)
fps Rate is fps
Default:
500
Usage Guide:
To configure Unicast Frames Storm Control Rate of QoS for specific interface
Example:
To configure Unicast Frames Storm Control Rate (999 Kbps) of QoS for
GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos storm unicast 999
qos storm unknown
Command:
qos storm unknown <Rate : 100-13200000> [fps]
qos Quality of Service
storm Storm policer
unknown Police unknown (flooded) frames
<Rate : 100-13200000> Policer rate (default kbps)
fps Rate is fps
Default:
500
100 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Usage Guide:
To configure Unknown Frames Storm Control Rate of QoS for specific interface
Example:
To configure Unknown Frames Storm Control Rate (999 fps) of QoS for
GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos storm unicast 999 fps
qos tag-remark
Command:
qos tag-remark pcp <Pcp : 0-7> dei <Dei : 0-1>
qos Quality of Service
tag-remark Tag remarking configuration
pcp Specify default PCP
<Pcp : 0-7> Specific PCP
dei Specify default DEI
<Dei : 0-1> Specific DEI
Default:
0
Usage Guide:
To enable Tag-remark default mode of QoS for specific interface
Example:
To enable Tag-remark default mode (PCP:1 , DEI:1) of QoS for GigabitEthernet
X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos tag-remark pcp 1 dei 1
qos tag-remark mapped
Command:
qos tag-remark mapped
qos Quality of Service
tag-remark Tag remarking configuration
mapped Used mapped values (cos,dpl -> pcp,dei)
Default:
Classified
Usage Guide:
To enable Tag-remark mapped mode of QoS for specific interface
NS3500-24T-4C Managed Switch Command Guide 101
Chapter 4: Commands for CLI configuration
Example:
To enable Tag-remark mapped mode of QoS for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos tag-remark mapped
qos trust dscp
Command:
qos trust dscp
qos Quality of Service
trust Trust configuration
dscp DSCP value
Default:
Disabled
Usage Guide:
To enable DSCP Classification of QoS for specific interface
Example:
To enable DSCP Classification of QoS for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos trust dscp
qos trust tag
Command:
qos trust tag
qos Quality of Service
trust Trust configuration
tag VLAN tag
Default:
Disabled
Usage Guide:
To enable VLAN tag Classification of QoS for specific interface
Example:
To enable VLAN tag Classification of QoS for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # qos trust tag
rmon collection history
Command:
rmon collection history <1-65535> buckets <1-65535> interval
<1-3600>
rmon Configure Remote Monitoring on an interface
102 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
collection Configure Remote Monitoring Collection on an interface
history Configure history
buckets Requested buckets of intervals. Default is 50 buckets
interval Interval to sample data for each bucket. Default is 1800 seconds
Default:
N/A
Usage Guide:
To configure RMON History Configuration for specific interface
Example:

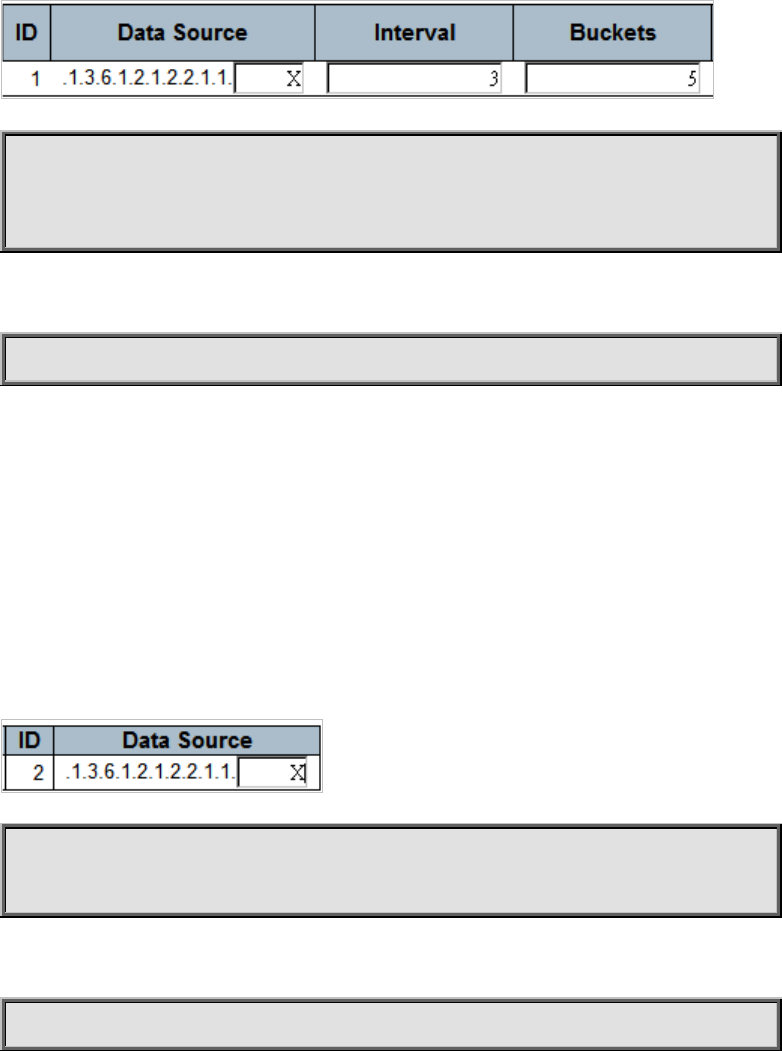

To configure RMON History Configuration as below table for GigabitEthernet
X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # rmon collection history 1 buckets 5 interval
3
rmon collection stats
Command:
rmon collection stats <1-65535>
rmon Configure Remote Monitoring on an interface
collection Configure Remote Monitoring Collection on an interface
stats Configure statistics
Default:
0
Usage Guide:
To configure RMON Statistics Configuration for specific interface
Example:
To configure RMON Statistics Configuration (2) as below table for
GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # rmon collection stats 2
shutdown
Command:
shutdown
NS3500-24T-4C Managed Switch Command Guide 103
Chapter 4: Commands for CLI configuration
shutdown Shutdown of the interface.
Default:
No shutdown
Usage Guide:
To shut down specific interface
Example:
To shut down GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # shutdown
spanning-tree
Command:
spanning-tree
spanning-tree Spanning Tree protocol
Default:
Disabled
Usage Guide:
To enable STP for specific interface
Example:
To enable STP for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # spanning-tree
spanning-tree auto-edge
Command:
spanning-tree auto-edge
spanning-tree Spanning Tree protocol
auto-edge Auto detects edge status
Default:
Enabled
Usage Guide:
To enable Auto Edge of CIST Normal Port Configuration for specific interface
Example:
To enable Auto Edge of CIST Normal Port Configuration for GigabitEthernet
X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # spanning-tree auto-edge
104 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
spanning-tree bpdu-guard
Command:
spanning-tree bpdu-guard
spanning-tree Spanning Tree protocol
auto-edge Auto detects edge status
Default:
Disabled
Usage Guide:
To enable BPDU Guard of CIST Normal Port Configuration for specific interface
Example:
To enable BPDU Guard of CIST Normal Port Configuration for GigabitEthernet
X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # spanning-tree bpdu-guard
spanning-tree edge
Command:
spanning-tree edge
spanning-tree Spanning Tree protocol
edge Edge port
Default:
Non-Edge
Usage Guide:
To enable edge port of CIST Normal Port Configuration for specific interface
Example:
To enable edge port of CIST Normal Port Configuration for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # spanning-tree edge
spanning-tree link-type
Command:
spanning-tree link-type auto | point-to-point | shared
spanning-tree Spanning Tree protocol
link-type Port link-type
auto Auto detect
point-to-point Forced to point-to-point
shared Forced to Shared
Default:
Auto
Usage Guide:
To configure point to point mode of CIST Normal Port Configuration for specific
NS3500-24T-4C Managed Switch Command Guide 105
Chapter 4: Commands for CLI configuration
interface
Example:
To enable point to point mode (shared) of CIST Normal Port Configuration for
GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # spanning-tree edge
spanning-tree mst <Instance : 0-7> cost
Command:
spanning-tree mst <Instance : 0-7> cost <Cost : 1-200000000>
| auto
spanning-tree Spanning Tree protocol
mst STP bridge instance
<Instance : 0-7> instance 0-7 (CIST=0, MST2=1...)
cost STP Cost of this port
<Cost : 1-200000000> Cost range
auto Use auto cost
Default:
Auto
Usage Guide:
To configure Path Cost of CIST / MST Normal Port Configuration for specific
interface
Example:
To enable Path Cost (100) of CIST / MST Normal Port Configuration (CIST) for
GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # spanning-tree mst 0 cost 100
spanning-tree mst <Instance : 0-7> cost
Command:
spanning-tree mst <Instance : 0-7> port-priority <Prio : 0-
240>
spanning-tree Spanning Tree protocol
mst STP bridge instance
<Instance : 0-7> instance 0-7 (CIST=0, MST2=1...)
port-priority STP priority of this port
<Prio : 0-240> Range (lower higher priority)
auto Use auto cost
Default:
Auto
Usage Guide:
To configure Path Cost of CIST / MST Normal Port Configuration for specific
interface
Example:
106 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
To enable Path Cost (32) of CIST / MST Normal Port Configuration (CIST) for
GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # spanning-tree mst 0 port-priority 32
spanning-tree restricted-role
Command:
spanning-tree restricted-role
spanning-tree Spanning Tree protocol
restricted-role Port role is restricted (never root port)
Default:
Disabled
Usage Guide:
To enable Restricted-role of CIST Normal Port Configuration for specific
interface
Example:
To enable Restricted-role of CIST Normal Port Configuration for
GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # spanning-tree restricted-role
spanning-tree restricted-tcn
Command:
spanning-tree restricted-tcn
spanning-tree Spanning Tree protocol
restricted-tcn Restrict topology change notifications
Default:
Disabled
Usage Guide:
To enable Restrict topology change notifications of CIST Normal Port
Configuration for specific interface
Example:
To enable Restrict topology change notifications of CIST Normal Port
Configuration for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # spanning-tree restricted-tcn
speed
Command:
NS3500-24T-4C Managed Switch Command Guide 107
Chapter 4: Commands for CLI configuration
speed [10 | 100 | 1000 | 10g | auto]
speed Configures interface speed. If you use 10, 100, or 1000 keywords with
the auto keyword the port will only advertise the specified speeds.
10 10Mbps
100 100Mbps
1000 1Gbps
10g 10Gbps
auto Auto negotiation
Default:
Auto
Usage Guide:
To configure line speed for specific interface
Example:
To configure line speed (1Gbps) for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # speed 1000
switchport access vlan
Command:
switchport access vlan <vlan_id>
switchport Switching mode characteristics
access Set access mode characteristics of the interface
vlan Set VLAN when interface is in access mode
<vlan_id> VLAN ID of the VLAN when this port is in access mode
Default:
1
Usage Guide:
To configure access VLAN ID for specific interface
Example:
To configure access VLAN ID (5) for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # switchport access vlan 5
switchport forbidden vlan add
Command:
switchport forbidden vlan add <vlan_list>
switchport Switching mode characteristics
forbidden Adds or removes forbidden VLANs from the current list of forbidden
VLANs
vlan Add or modify VLAN entry in forbidden table.
add Add to existing list.
<vlan_list> VLAN IDs
108 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Default:
1
Usage Guide:
To add forbidden VLAN ID for specific interface
Example:
To add forbidden VLAN ID (5) for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # switchport forbidden vlan add 5
switchport forbidden vlan remove
Command:
switchport forbidden vlan remove <vlan_list>
switchport Switching mode characteristics
forbidden Adds or removes forbidden VLANs from the current list of forbidden
VLANs
vlan Add or modify VLAN entry in forbidden table.
remove Remove from existing list.
<vlan_list> VLAN IDs
Default:
1
Usage Guide:
To remove forbidden VLAN ID for specific interface
Example:
To remove forbidden VLAN ID (5) for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # switchport forbidden vlan remove 5
switchport hybrid acceptable-frame-type
Command:
switchport hybrid acceptable-frame-type all | tagged |
untagged
switchport Switching mode characteristics
hybrid Change PVID for hybrid port
acceptable-frame-type Set acceptable frame type on a port.
all Allow all frames
tagged Allow only tagged frames
untagged Allow only untagged frames
Default:
All
Usage Guide:
To configure acceptable-frame-type of Hybrid VLAN for specific interface
NS3500-24T-4C Managed Switch Command Guide 109
Chapter 4: Commands for CLI configuration
Example:
To configure acceptable-frame-type (tagged) of Hybrid VLAN for
GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # switchport hybrid acceptable-frame-type
tagged
switchport hybrid allowed vlan
Command:
switchport hybrid allowed vlan [all | none | add <vlan_list> |
remove <vlan_list> | except <vlan_list>]
switchport Switching mode characteristics
hybrid Change PVID for hybrid port
allowed Set allowed VLAN characteristics when interface is in hybrid mode
<vlan_list> VLAN IDs of the allowed VLANs when this port is in hybrid mode
add Add VLANs to the current list
all All VLANs
except All VLANs except the following
none No VLANs
remove Remove VLANs from the current list
Default:
All
Usage Guide:
To configure VLAN list of Hybrid VLAN for specific interface
Example:
To configure VLAN list (None) of Hybrid VLAN for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # switchport hybrid allowed vlan none
switchport hybrid egress-tag
Command:
switchport hybrid egress-tag [none | all | all except-native]
switchport Switching mode characteristics
hybrid Change PVID for hybrid port
egress-tag Egress VLAN tagging configuration
all Tag all frames
none No egress tagging
except-native Tag all frames except frames classified to native VLAN of the
hybrid port
Default:
Untagged Port VLAN
Usage Guide:
To configure Egress Tagging VLAN mode for specific interface
110 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Example:
To configure Egress Tagging VLAN mode (None) for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # switchport hybrid egress-tag none
switchport hybrid ingress-filtering
Command:
switchport hybrid ingress-filtering
switchport Switching mode characteristics
hybrid Change PVID for hybrid port
ingress-filtering VLAN Ingress filter configuration
Default:
Enabled
Usage Guide:
To enable Ingress-filtering with Hybrid VLAN mode for specific interface
Example:
To enable Ingress-filtering with Hybrid VLAN mode for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # switchport hybrid ingress-filtering
switchport hybrid native vlan
Command:
switchport hybrid native vlan <vlan_id>
switchport Switching mode characteristics
hybrid Change PVID for hybrid port
native Set native VLAN
vlan Set native VLAN when interface is in hybrid mode
<vlan_id> VLAN ID of the native VLAN when this port is in hybrid mode
Default:
1
Usage Guide:
To configure PVID in Hybrid VLAN mode for specific interface
Example:
To enable PVID (5) in Hybrid VLAN mode for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # switchport hybrid native vlan 5
NS3500-24T-4C Managed Switch Command Guide 111
Chapter 4: Commands for CLI configuration
switchport hybrid port-type
Command:
switchport hybrid port-type c-port | s-custom-port | s-port |
unaware
switchport Switching mode characteristics
hybrid Change PVID for hybrid port
port-type Set port type
c-port Customer port
s-custom-port Custom Provider port
s-port Provider port
unaware Port in not aware of VLAN tags.
Default:
C-port
Usage Guide:
To configure Port type in Hybrid VLAN mode for specific interface
Example:
To enable Port type (Unaware) in Hybrid VLAN mode for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # switchport hybrid port-type unaware
switchport mode
Command:
switchport mode c-port | s-custom-port | s-port | unaware
switchport Switching mode characteristics
mode Set mode of the interface
port-type Set port type
c-port Customer port
s-custom-port Custom Provider port
s-port Provider port
unaware Port in not aware of VLAN tags.
Default:
unaware
Usage Guide:
To configure VLAN mode for specific interface
Example:
To configure VLAN mode (trunk) for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # switchport mode trunk
switchport vlan ip-subnet
Command:
switchport vlan ip-subnet id <1-128> <ipv4_subnet> vlan
<vlan_id>
112 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
switchport Switching mode characteristics
vlan VLAN commands
ip-subnet VCL IP Subnet-based VLAN configuration.
id id keyword
<1-128> Unique VCE ID for each VCL entry (1-128)
<ipv4_subnet> Source IP address and mask (Format:
xx.xx.xx.xx/mm.mm.mm.mm).
vlan vlan keyword
<vlan_id> VLAN ID required for the group to VLAN mapping (Range: 1-4095)
Default:
None
Usage Guide:
To configure IP Subnet-based VLAN for specific interface
Example:
To configure IP Subnet-based VLAN as below table for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # switchport vlan ip-subnet id 1
192.168.1.0/255.255.255.0 vlan 5
switchport vlan mac
Command:
switchport vlan mac <mac_ucast> vlan <vlan_id>
switchport Switching mode characteristics
vlan VLAN commands
mac MAC-based VLAN commands
<mac_ucast> 48 bit unicast MAC address: xx:xx:xx:xx:xx:xx
vlan vlan keyword
<vlan_id> VLAN ID required for the group to VLAN mapping (Range: 1-4095)
Default:
None
Usage Guide:
To configure MAC-based VLAN for specific interface
Example:
To configure MAC-based VLAN as below table for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # switchport vlan mac 00:55:44:33:22:11 vlan 5
NS3500-24T-4C Managed Switch Command Guide 113
Chapter 4: Commands for CLI configuration

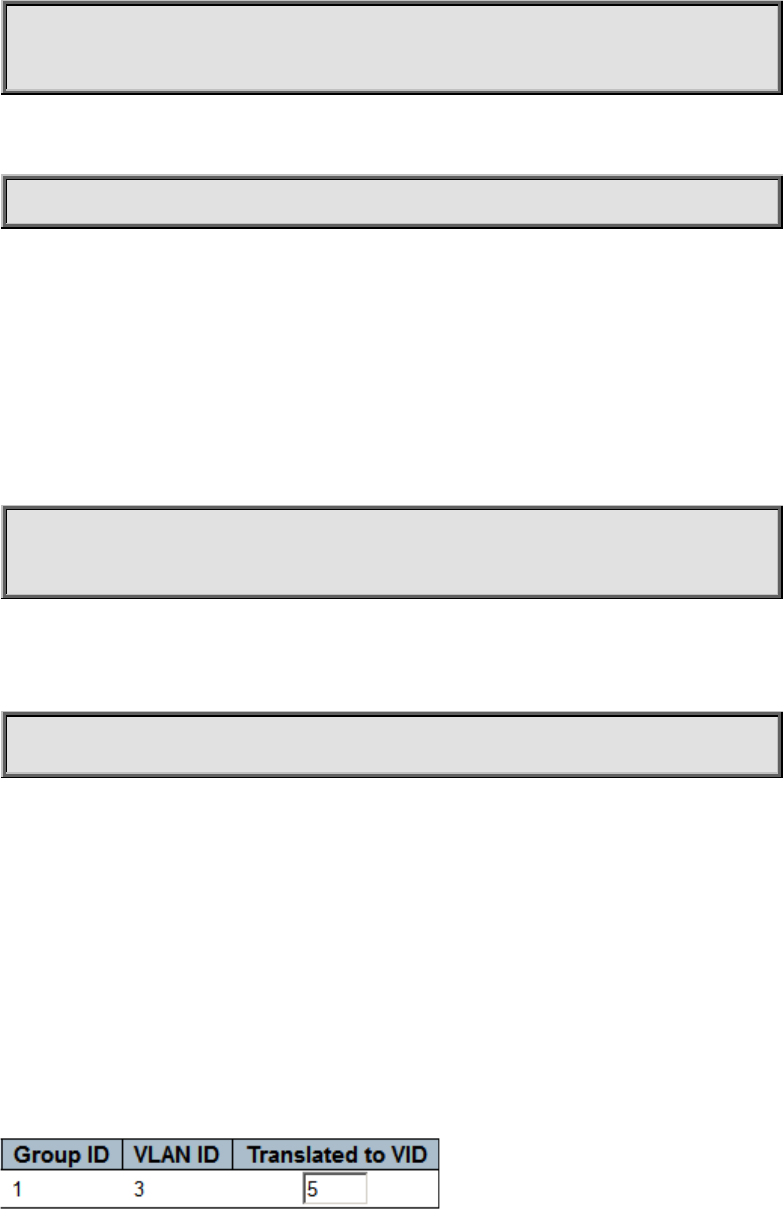

switchport vlan mapping
Command:
switchport vlan mapping <group id : 1-29>
switchport Switching mode characteristics
vlan VLAN commands
mapping Maps an interface to a VLAN translation group.
<group id : 1-29> Group id
Default:
None
Usage Guide:
To configure Group mapping Table for specific interface
Example:
To configure Group mapping (Group 25) for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # switchport vlan mapping 25

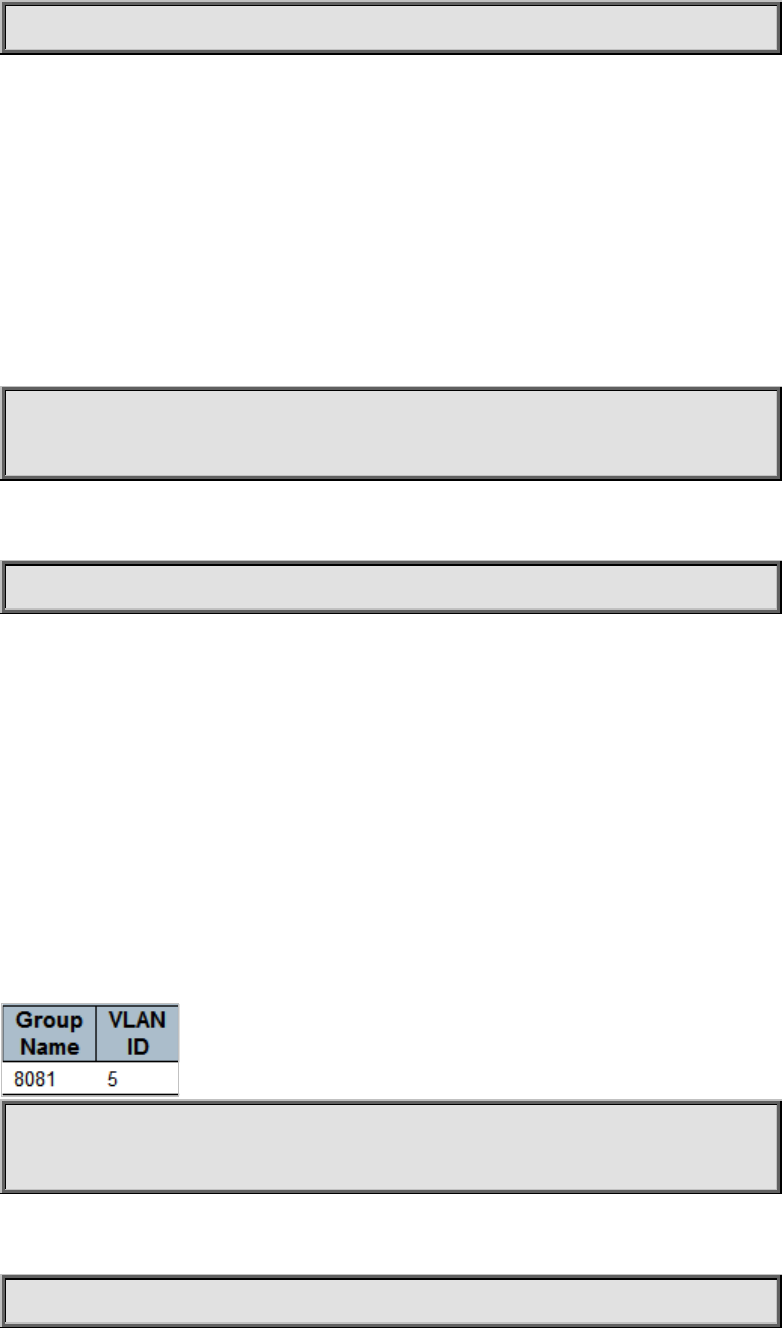

switchport vlan protocol group
Command:
switchport vlan protocol group <word16> vlan <vlan_id>
switchport Switching mode characteristics
vlan VLAN commands
protocol Protocol-based VLAN commands
group Protocol-based VLAN group commands
<word16> Group Name (Range: 1 - 16 characters)
vlan vlan keyword
<vlan_id> VLAN ID required for the group to VLAN mapping (Range: 1-4095)
Default:
None
Usage Guide:
To configure VLAN protocol group for specific interface
Example:

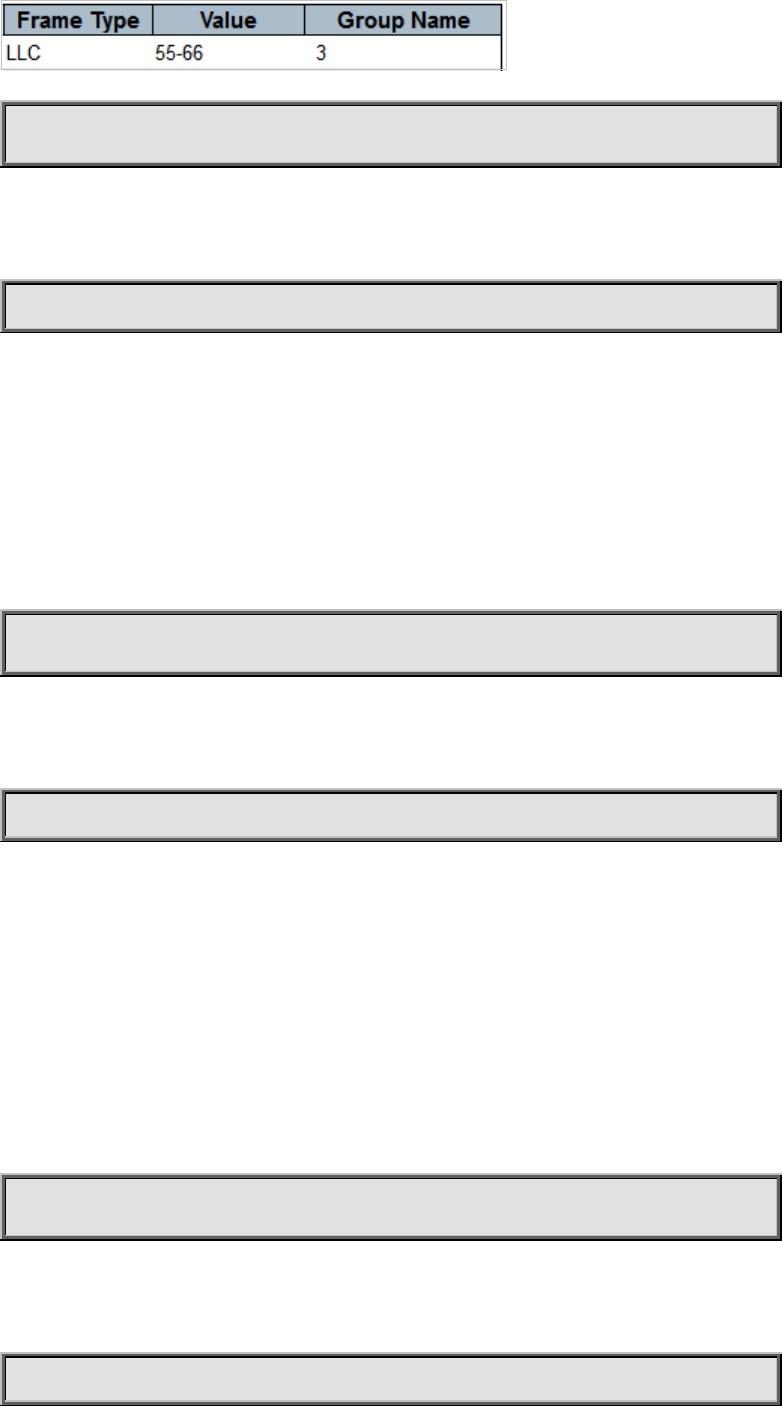

To configure VLAN protocol group as tabled below for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # switchport vlan protocol group 8081 vlan 5
switchport voice vlan discovery-protocol
Command:
switchport voice vlan discovery-protocol both | lldp | oui
switchport Switching mode characteristics
114 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
voice Voice appliance attributes
vlan Vlan for voice traffic
discovery-protocol Set Voice VLAN port discovery protocol
both Detect telephony device by OUI address and LLDP
lldp Detect telephony device by LLDP
oui Detect telephony device by OUI address
Default:
OUI
Usage Guide:
To configure Discovery-protocol in the Voice VLAN for specific interface
Example: To configure Discovery-protocol (LLDP) in the Voice VLAN for
GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # switchport voice vlan discovery-protocol
lldp
switchport voice vlan mode
Command:
switchport voice vlan mode auto | disable | force
switchport Switching mode characteristics
voice Voice appliance attributes
vlan Vlan for voice traffic
mode Set Voice VLAN port mode
auto Enable auto detect mode
disable disjoin Voice VLAN
force Force to join Voice VLAN
Default:
Disabled
Usage Guide:
To configure Voice VLAN mode for specific interface
Example:
To configure Voice VLAN mode (Auto) for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # switchport voice vlan mode auto
switchport voice vlan security
Command:
switchport voice vlan security
switchport Switching mode characteristics
voice Voice appliance attributes
vlan Vlan for voice traffic
security Enable Voice VLAN port security mode
NS3500-24T-4C Managed Switch Command Guide 115
Chapter 4: Commands for CLI configuration
Default:
Disabled
Usage Guide:
To enable Voice VLAN security for specific interface
Example:
To enable Voice VLAN security for GigabitEthernet X/X
Switch# configure terminal
Switch (config)# interface GigabitEthernet X/X
Switch (config-if) # switchport voice vlan security
interface vlan
Command:
interface vlan <vlan_list>
vlan VLAN interface configurations
<vlan_list> List of VLAN interface numbers, 1~4095
Default:
N/A
Usage Guide:
To enter the VLAN interface mode.
Example:
To enter the VLAN 1 interface mode
Switch# configure terminal
Switch (config)# interface vlan 1
Switch (config-if-vlan)#
do
Command:
do < exec commands >
do To run exec commands in config mode
Default:
N/A
Usage Guide:
To run exec commands in configure terminal mode
Example:
To run “show aaa” in configure terminal mode.
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# do show aaa
console : local
telnet : local
ssh : local
116 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
http : local
end
Command:
end
end Go back to EXEC mode
Default:
Auto
Usage Guide:
To back to EXEC mode
Example:
To back to EXEC mode
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# end
Switch#
exit
Command:
exit
exit Exit from current mode
Default:
None
Usage Guide:
To exit current mode
Example:
To exit current mode.
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# exit
Switch (config)#
ip address
Command:
ip address <ipv4_addr> <ipv4_netmask>
ip Interface Internet Protocol config commands
address Address configuraton
<ipv4_addr> IP address
<ipv4_netmask> IP netmask
Default:
None
NS3500-24T-4C Managed Switch Command Guide 117
Chapter 4: Commands for CLI configuration
Usage Guide:
To configure IP address mode for specific VLAN
Example:
To configure IP address mode (192.168.1.10/24) for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ip address 192.168.1.10 255.255.255.0
ip address dhcp
Command:
ip address dhcp
ip Interface Internet Protocol config commands
address Address configuraton
dhcp Enable DHCP
Default:
None
Usage Guide:
To configure IP address mode for specific VLAN
Example:
To configure IP address mode (DHCP) for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ip address dhcp
ip address dhcp fallback
Command:
ip address dhcp fallback <ipv4_addr> <ipv4_netmask>
ip Interface Internet Protocol config commands
address Address configuraton
dhcp Enable DHCP
<ipv4_addr> DHCP fallback address
<ipv4_netmask> DHCP fallback netmask
Default:
None
Usage Guide:
To configure DHCP fallback IP address for specific VLAN
Example:
To configure DHCP fallback IP address (192.168.1.10/24) for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ip address dhcp fallback 192.168.1.10
118 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
255.255.255.0
ip dhcp server
Command:
ip dhcp server
ip Interface Internet Protocol config commands
dhcp Configure DHCP server parameters
server Enable DHCP server per VLAN
Default:
None
Usage Guide:
To enable IPv4 DHCP Server for specific VLAN
Example:
To enable IPv4 DHCP Server for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ip dhcp server
ip igmp snooping
Command:
ip igmp snooping
ip Interface Internet Protocol config commands
igmp Internet Group Management Protocol
snooping Snooping IGMP
Default:
Disabled
Usage Guide:
To enable IGMP snooping for specific VLAN
Example:
To enable IGMP snooping for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ip igmp snooping
ip igmp snooping compatibility
Command:
ip igmp snooping compatibility auto | v1 | v2 | v3
ip Interface Internet Protocol config commands
igmp Internet Group Management Protocol
NS3500-24T-4C Managed Switch Command Guide 119
Chapter 4: Commands for CLI configuration
snooping Snooping IGMP
compatibility Interface compatibility
auto Compatible with IGMPv1/IGMPv2/IGMPv3
v1 Forced IGMPv1
v2 Forced IGMPv2
v3 Forced IGMPv3
Default:
Auto
Usage Guide:
To configure IGMP snooping version for specific VLAN
Example:
To configure IGMP snooping V2 for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ip igmp snooping compatibility v2
ip igmp snooping last-member-query-interval
Command:
ip igmp snooping last-member-query-interval <IpmcLmqi : 0-
31744>
ip Interface Internet Protocol config commands
igmp Internet Group Management Protocol
snooping Snooping IGMP
last-member-query-interval Last Member Query Interval in tenths of seconds
<IpmcLmqi : 0-31744> 0 - 31744 tenths of seconds
Default:
10
Usage Guide:
To configure Last-member-query-interval of IGMP snooping for specific VLAN
Example:
To configure Last-member-query-interval (100 seconds) of IGMP snooping for
VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ip igmp snooping last-member-query-
interval 1000
ip igmp snooping priority
Command:
ip igmp snooping priority <CosPriority : 0-7>
ip Interface Internet Protocol config commands
igmp Internet Group Management Protocol
snooping Snooping IGMP
120 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
priority Interface CoS priority
<CosPriority : 0-7> CoS priority ranges from 0 to 7
Default:
0
Usage Guide:
To configure CoS priority of IGMP snooping for specific VLAN
Example:
To configure CoS priority (5) of IGMP snooping for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ip igmp snooping priority 5
ip igmp snooping querier address
Command:
ip igmp snooping querier address <ipv4_ucast>
ip Interface Internet Protocol config commands
igmp Internet Group Management Protocol
snooping Snooping IGMP
querier IGMP Querier configuration
address IGMP Querier address configuration
<ipv4_ucast> A valid IPv4 unicast address
Default:
0.0.0.0
Usage Guide:
To configure Querier address of IGMP snooping for specific VLAN
Example:
To configure Querier address (192.168.1.15) of IGMP snooping for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ip igmp snooping querier address
192.168.1.15
ip igmp snooping querier election
Command:
ip igmp snooping querier election
ip Interface Internet Protocol config commands
igmp Internet Group Management Protocol
snooping Snooping IGMP
querier IGMP Querier configuration
election Act as an IGMP Querier to join Querier-Election
Default:
Enabled
Usage Guide:
NS3500-24T-4C Managed Switch Command Guide 121
Chapter 4: Commands for CLI configuration
To enable Querier-election of IGMP snooping for specific VLAN
Example:
To enable Querier-election of IGMP snooping for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ip igmp snooping querier election
ip igmp snooping query-interval
Command:
ip igmp snooping query-interval <IpmcQi : 1-31744>
ip Interface Internet Protocol config commands
igmp Internet Group Management Protocol
snooping Snooping IGMP
query-interval Query Interval in seconds
<IpmcQi : 1-31744> 1 - 31744 seconds
Default:
125
Usage Guide:
To configure Querier-interval of IGMP snooping for specific VLAN
Example:
To configure Querier-interval (600 seconds) of IGMP snooping for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ip igmp snooping query-interval 600
ip igmp snooping query-max-response-time
Command:
ip igmp snooping query-max-response-time <IpmcQi : 1-
31744>
ip Interface Internet Protocol config commands
igmp Internet Group Management Protocol
snooping Snooping IGMP
query-max-response-time Query Response Interval in tenths of seconds
<IpmcQri : 0-31744> 0 - 31744 tenths of seconds
Default:
125
Usage Guide:
To configure Querier-interval of IGMP snooping for specific VLAN
Example:
To configure Querier-interval (60 seconds) of IGMP snooping for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ip igmp snooping query-max-response-time 600
122 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
ip igmp snooping robustness-variable
Command:
ip igmp snooping robustness-variable <IpmcRv : 1-255>
ip Interface Internet Protocol config commands
igmp Internet Group Management Protocol
snooping Snooping IGMP
robustness-variable Robustness Variable
<IpmcRv : 1-255> Packet loss tolerance count from 1 to 255
Default:
2
Usage Guide:
To configure Robustness Variable of IGMP snooping for specific VLAN
Example:
To configure Robustness Variable (88) of IGMP snooping for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ip igmp snooping robustness-variable
88
ip igmp snooping unsolicited-report-interval
Command:
ip igmp snooping unsolicited-report-interval <IpmcUri : 0-31744>
ip Interface Internet Protocol config commands
igmp Internet Group Management Protocol
snooping Snooping IGMP
robustness-variable Robustness Variable
<IpmcUri : 0-31744> 0 - 31744 seconds
Default:
1
Usage Guide:
To configure Unsolicited-Report-Interval of IGMP snooping for specific VLAN
Example:
To configure Unsolicited-Report-Interval (99 seconds) of IGMP snooping for
VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ip igmp snooping unsolicited-report-
interval 99
ipv6 address
Command:
Ipv6 address X:X:X:X::X/<0-128>
ipv6 IPv6 configuration commands
NS3500-24T-4C Managed Switch Command Guide 123
Chapter 4: Commands for CLI configuration
address Configure the IPv6 address of an interface
X:X:X:X::X/<0-128> IPv6 prefix x:x::y/z
Default:
None
Usage Guide:
To configure IPv6 address for specific VLAN
Example:
To configure IPv6 address (2001::7788/64) for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ipv6 address 2001::7788/64
ipv6 mld snooping
Command:
ipv6 mld snooping
ipv6 IPv6 configuration commands
mld Multicast Listener Discovery
snooping Snooping MLD
Default:
Disabled
Usage Guide:
To enable MLD snooping for specific VLAN
Example:
To enable MLD snooping for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ipv6 mld snooping
ipv6 mld snooping compatibility
Command:
ipv6 mld snooping compatibility auto | v1 | v2
ipv6 IPv6 configuration commands
mld Multicast Listener Discovery
snooping Snooping MLD
compatibility Interface compatibility
auto Compatible with MLDv1/MLDv2
v1 Forced MLDv1
v2 Forced MLDv2
Default:
Auto
Usage Guide:
To configure MLD snooping version for specific VLAN
Example:
124 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
To configure MLD snooping V2 for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ipv6 mld snooping compatibility v2
ipv6 mld snooping last-member-query-interval
Command:
ipv6 mld snooping last-member-query-interval <IpmcLmqi : 0-
31744>
ipv6 IPv6 configuration commands
mld Multicast Listener Discovery
snooping Snooping MLD
last-member-query-interval Last Member Query Interval in tenths of seconds
<IpmcLmqi : 0-31744> 0 - 31744 tenths of seconds
Default:
10
Usage Guide:
To configure Last-member-query-interval of MLD snooping for specific VLAN
Example:
To configure Last-member-query-interval (100 seconds) of MLD snooping for
VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ipv6 mld snooping last-member-query-
interval 1000
ipv6 mld snooping priority
Command:
ipv6 mld snooping priority <CosPriority : 0-7>
ipv6 IPv6 configuration commands
mld Multicast Listener Discovery
snooping Snooping MLD
priority Interface CoS priority
<CosPriority : 0-7> CoS priority ranges from 0 to 7
Default:
0
Usage Guide:
To configure CoS priority of MLD snooping for specific VLAN
NS3500-24T-4C Managed Switch Command Guide 125
Chapter 4: Commands for CLI configuration
Example:
To configure CoS priority (5) of MLD snooping for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ipv6 mld snooping priority 5
ipv6 mld snooping querier election
Command:
ipv6 mld snooping querier election
ipv6 IPv6 configuration commands
mld Multicast Listener Discovery
snooping Snooping MLD
querier MLD Querier configuration
election Act as an MLD Querier to join Querier-Election
Default:
Enabled
Usage Guide:
To enable Querier-election of MLD snooping for specific VLAN
Example:
To enable Querier-election of MLD snooping for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ipv6 mld snooping querier election
ipv6 mld snooping query-interval
Command:
ipv6 mld snooping query-interval <IpmcQi : 1-31744>
ipv6 IPv6 configuration commands
mld Multicast Listener Discovery
snooping Snooping MLD
query-interval Query Interval in seconds
<IpmcQi : 1-31744> 1 - 31744 seconds
Default:
125
Usage Guide:
To configure Querier-interval of MLD snooping for specific VLAN
Example:
To configure Querier-interval (600 seconds) of MLD snooping for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ipv6 mld snooping query-interval 600
126 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
ipv6 mld snooping query-max-response-time
Command:
ipv6 mld snooping query-max-response-time <IpmcQi : 1-31744>
ipv6 IPv6 configuration commands
mld Multicast Listener Discovery
snooping Snooping MLD
query-max-response-time Query Response Interval in tenths of seconds
<IpmcQri : 0-31744> 0 - 31744 tenths of seconds
Default:
125
Usage Guide:
To configure Querier-interval of MLD snooping for specific VLAN
Example:
To configure Querier-interval (60 seconds) of MLD snooping for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ipv6 mld snooping query-max-
response-time 600
ipv6 mld snooping robustness-variable
Command:
ipv6 mld snooping robustness-variable <IpmcRv : 1-255>
ipv6 IPv6 configuration commands
mld Multicast Listener Discovery
snooping Snooping MLD
robustness-variable Robustness Variable
<IpmcRv : 1-255> Packet loss tolerance count from 1 to 255
Default:
2
Usage Guide:
To configure Robustness Variable of MLD snooping for specific VLAN
Example:
To configure Robustness Variable (88) of MLD snooping for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ipv6 mld snooping robustness-variable
88
ipv6 mld snooping unsolicited-report-interval
Command:
ipv6 mld snooping unsolicited-report-interval <IpmcUri : 0-31744>
ipv6 IPv6 configuration commands
mld Multicast Listener Discovery
NS3500-24T-4C Managed Switch Command Guide 127
Chapter 4: Commands for CLI configuration
snooping Snooping MLD
robustness-variable Robustness Variable
<IpmcUri : 0-31744> 0 - 31744 seconds
Default:
1
Usage Guide:
To configure Unsolicited-Report-Interval of MLD snooping for specific VLAN
Example:
To configure Unsolicited-Report-Interval (99 seconds) of MLD snooping for
VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# ipv6 mld snooping unsolicited-report-
interval 99
no
Command:
no
no Negate a command or set its defaults
Default:
N/A
Usage Guide:
To default the function for specific interface
Example:
To disable the function (ip address dhcp) for VLAN X
Switch# configure terminal
Switch (config)# interface vlan X
Switch (config-if-vlan)# no ip address dhcp
ip arp inspection
Command:
ip arp inspection
ip Internet Protocol
arp Address Resolution Protocol
inspection ARP inspection
Default:
N/A
Usage Guide:
To enable ARP inspection
Example:
To enable ARP inspection
128 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# ip arp inspection
ip arp inspection entry interface
Command:
ip arp inspection entry interface [10GigabitEthernet |
GigabitEthernet] <vlan_id> <mac_ucast> <ipv4_ucast>
ip Internet Protocol
arp Address Resolution Protocol
inspection ARP inspection
entry arp inspection entry
interface arp inspection entry interface config
GigabitEthernet 1 Gigabit Ethernet Port
10GigabitEthernet 10 Gigabit Ethernet Port
<vlan_id> Select a VLAN id to configure
<mac_ucast> Select a MAC address to configure
<ipv4_ucast> Select an IP Address to configure
Default:
N/A
Usage Guide:
To configure Static ARP Inspection Table.
Example:
To configure Static ARP Inspection Table as below table.

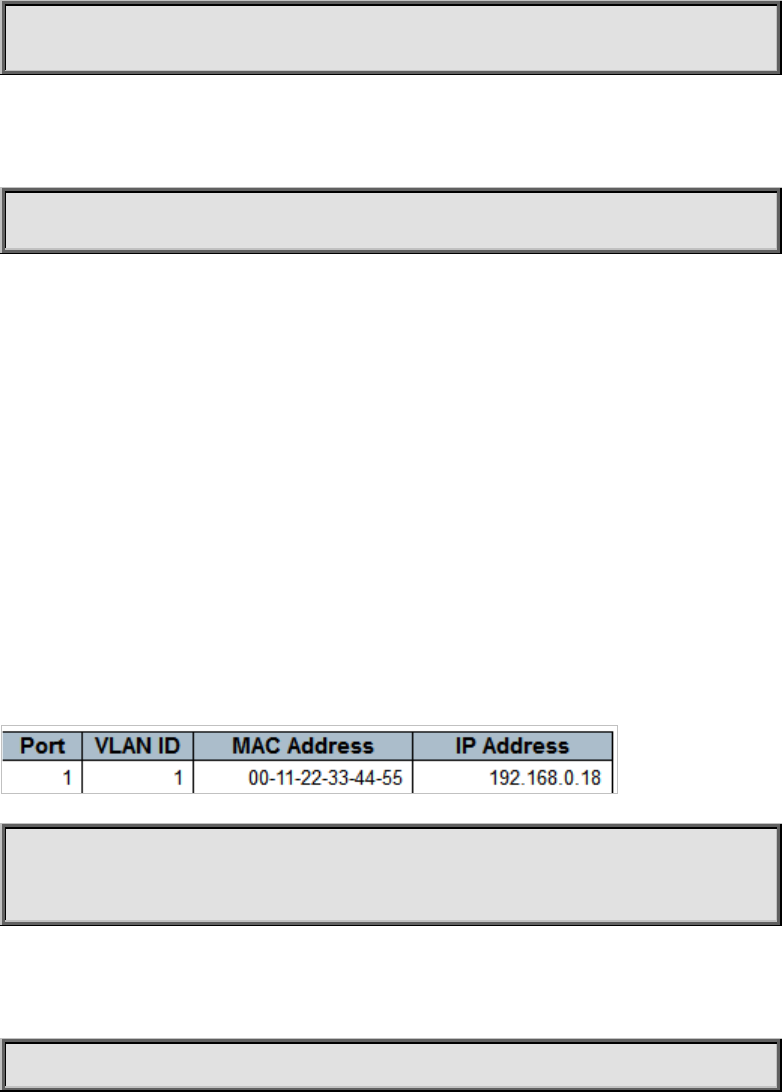

Switch# configure terminal
Switch (config)# ip arp inspection entry interface
GigabitEthernet 1/1 1 00:11:22:33:44:55 192.168.0.18
ip arp inspection translate
Command:
ip arp inspection translate
ip Internet Protocol
arp Address Resolution Protocol
inspection ARP inspection
translate arp inspection translate all entries
Default:
N/A
Usage Guide:
To translate dynamic entries into static ARP inspection table.
Example:
To translate dynamic entries into static ARP inspection table.
NS3500-24T-4C Managed Switch Command Guide 129
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# ip arp inspection translate
ARP Inspection:
Translate 1 dynamic entries into static entries.
ip arp inspection translate interface
Command:
ip arp inspection translate interface [10GigabitEthernet |
GigabitEthernet] <vlan_id> <mac_ucast> <ipv4_ucast>
ip Internet Protocol
arp Address Resolution Protocol
inspection ARP inspection
translate arp inspection translate all entries
interface arp inspection entry interface config
GigabitEthernet 1 Gigabit Ethernet Port
10GigabitEthernet 10 Gigabit Ethernet Port
<vlan_id> Select a VLAN id to configure
<mac_ucast> Select a MAC address to configure
<ipv4_ucast> Select an IP Address to configure
Default:
N/A
Usage Guide:
To translate dynamic entries into static ARP inspection table for specific
interface.
Example:
To translate below dynamic entries into static ARP inspection table for
GigabitEthernet 1/1.

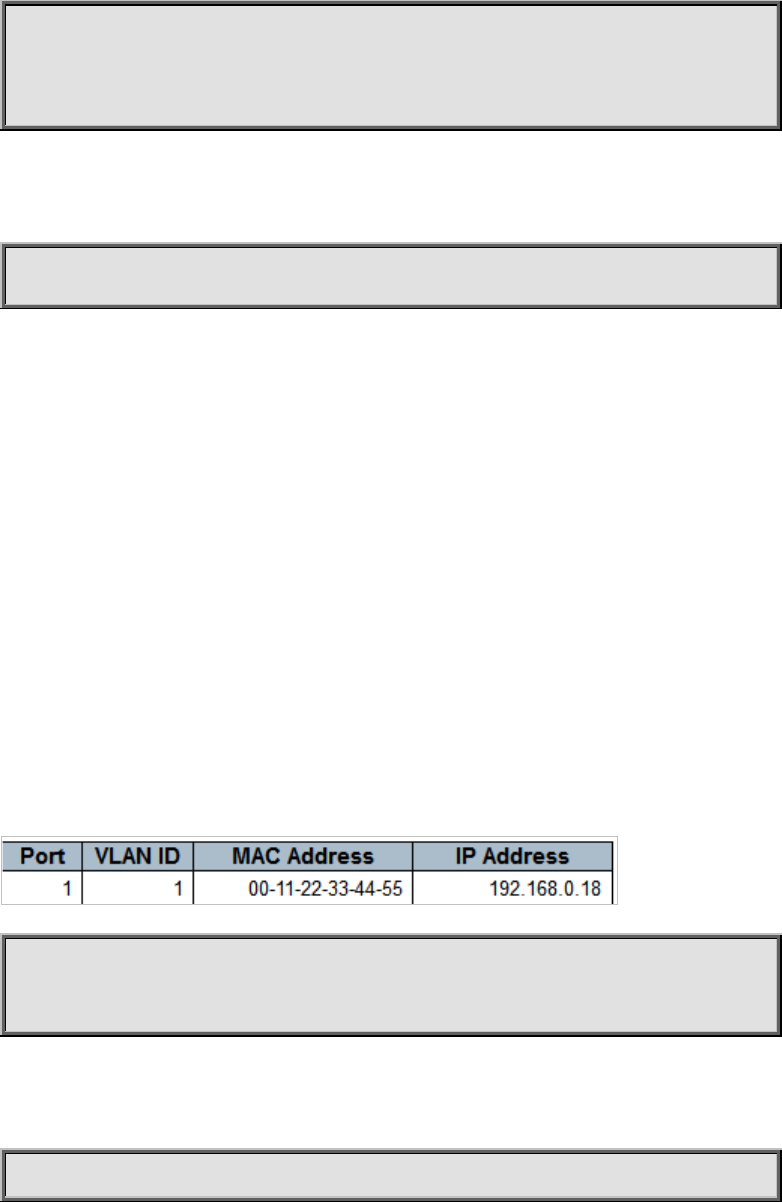

Switch# configure terminal
Switch (config)# ip arp inspection translate interface
GigabitEthernet 1/1 1 00:11:22:33:44:55 192.168.0.18
ip arp inspection vlan
Command:
ip arp inspection vlan <vlan_list> logging all | deny | permit
ip Internet Protocol
arp Address Resolution Protocol
inspection ARP inspection
vlan arp inspection vlan setting
<vlan_list> arp inspection vlan list
logging ARP inspection vlan logging mode config
all log all entries
deny log denied entries
130 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
permit log permitted entries
Default:
N/A
Usage Guide:
To configure VLAN mode of ARP inspection.
Example:
To configure VLAN mode (VLAN 1, Log type: Permit) of ARP inspection.
Switch# configure terminal
Switch (config)# ip arp inspection vlan 1 logging permit
ip dhcp excluded-address
Command:
ip dhcp excluded-address <A.B.C.D>
ip Internet Protocol
dhcp Dynamic Host Configuration Protocol
excluded-address Prevent DHCP from assigning certain addresses
<A.B.C.D> Low IP address
Default:
N/A
Usage Guide:
To configure excluded IP range of DHCP Server.
Example:
To configure excluded IP range (192.168.0.100~192.168.0.101) of DHCP Server.
Switch# configure terminal
Switch (config)# ip dhcp excluded-address 192.168.0.100
192.168.0.101
ip dhcp pool
Command:
ip dhcp pool <WORD>
ip Internet Protocol
dhcp Dynamic Host Configuration Protocol
pool Configure DHCP address pools
<WORD> Pool name in 32 characters
Default:
N/A
Usage Guide:
To create a DHCP pool.
Example:
To create a DHCP pool (Name: IFSbestswitch).
NS3500-24T-4C Managed Switch Command Guide 131
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)#
broadcast
Command:
broadcast <A.B.C.D>
broadcast Broadcast address in use on the client's subnet
<A.B.C.D> Broadcast IP address
Default:
None
Usage Guide:
To configure Broadcast IP address (DHCP option 28) of DHCP Server
Example:
To configure Broadcast IP address (192.168.0.66) of DHCP Server for pool
“IFSbestswitch”
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# broadcast 192.168.0.66
client-identifier fqdn
Command:
client-identifier fqdn <LINE>
client-identifier Client identifier
fqdn FQDN type of client identifier
<LINE> FQDN in 128 characters
Default:
None
Usage Guide:
To configure FQDN of DHCP Server
Example:
To configure FQDN (123) of DHCP Server for pool “IFSbestswitch”
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# client-identifier fqdn 123
client-identifier mac-address
Command:
client-identifier mac-address <MAC>
client-identifier Client identifier
mac-address MAC address type of client identifier
<MAC> MAC address of client
132 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Default:
None
Usage Guide:
To configure Bind IP to MAC of DHCP Server
Example:
To configure Bind IP to MAC (00:11:22:33:44:55) of DHCP Server for pool
“IFSbestswitch”
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# client-identifier mac-address
00:11:22:33:44:55
client-name
Command:
client-name
client-name Client host name
Default:
None
Usage Guide:
To configure Client-name of DHCP Server
Example:
To configure Client-name (555) of DHCP Server for pool “IFSbestswitch”
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# client-name 555
default-router
Command:
default-router <A.B.C.D>
default-router Default routers
<A.B.C.D> Router's IP address
Default:
None
Usage Guide:
To configure Default Gateway of DHCP Server
Example:
To configure Default Gateway (192.168.0.1) of DHCP Server for pool
“IFSbestswitch”
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# default-router 192.168.0.1
NS3500-24T-4C Managed Switch Command Guide 133
Chapter 4: Commands for CLI configuration
dns-server
Command:
dns-server <A.B.C.D>
dns-server DNS servers
<A.B.C.D> Server's IP address
Default:
None
Usage Guide:
To configure DNS Server of DHCP Server
Example:
To configure DNS Server (168.95.1.1, 8.8.8.8) of DHCP Server for pool
“IFSbestswitch”
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# dns-server 168.95.1.1 8.8.8.8
do
Command:
do < exec commands >
do To run exec commands in config mode
Default:
N/A
Usage Guide:
To run exec commands
Example:
To run “show aaa”.
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# do show aaa
console : local
telnet : local
ssh : local
http : local
domain-name
Command:
domain-name <word128>
domain-name Domain name
<word128> Domain name
Default:
None
Usage Guide:
134 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
To configure Domain Name of DHCP Server
Example:
To configure Domain Name (interlogix.com) of DHCP Server for pool
“IFSbestswitch”
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# domain-name interlogix.com
end
Command:
end
end Go back to EXEC mode
Default:
Auto
Usage Guide:
To back to EXEC mode
Example:
To back to EXEC mode
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# end
Switch#
exit
Command:
exit
exit Exit from current mode
Default:
None
Usage Guide:
To exit current mode
Example:
To exit current mode.
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# exit
Switch (config)#
hardware-address
Command:
hardware-address <MAC>
NS3500-24T-4C Managed Switch Command Guide 135
Chapter 4: Commands for CLI configuration
hardware-address Client hardware address
<MAC> Client MAC address
Default:
None
Usage Guide:
To configure MAC address of DHCP Server while the pool is in the host type.
Example:
To configure MAC address (00:11:22:33:44:55) of DHCP Server for pool
“IFSbestswitch” while the pool is in the host type.
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# hardware-address 00:11:22:33:44:55
host
Command:
host <IP: A.B.C.D> <Subnet: A.B.C.D>
host Client IP address and mask
<IP: A.B.C.D> Network number
<Subnet: A.B.C.D> Network mask in dotted-decimal notation, excluding
255.255.255.255
Default:
None
Usage Guide:
To configure Host IP address of DHCP Server.
Example:
To configure Host IP address (192.168.1.10/24) of DHCP Server for pool
“IFSbestswitch”.
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# host 192.168.1.10 255.255.255.0
lease
Command:
lease <0-365> <0-23> <0-59> | infinite
lease Address lease time
<0-365> Days
<0-23> Hours
<0-59> Minutes
infinite Infinite lease
Default:
1 day
Usage Guide:
To configure Lease Time of DHCP Server.
136 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Example:
To configure Lease Time (119 minutes) of DHCP Server for pool “IFSbestswitch”.
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# lease 0 1 59
netbios-name-server
Command:
netbios-name-server <A.B.C.D>
netbios-name-server NetBIOS (WINS) name servers
<A.B.C.D> Server's IP address
Default:
None
Usage Guide:
To configure NetBIOS Name Server of DHCP Server.
Example:
To configure NetBIOS Name Server (192.168.1.10) of DHCP Server for pool
“IFSbestswitch”.
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# netbios-name-server 192.168.1.10
netbios-node-type
Command:
netbios-node-type b-node | h-node | m-node | p-node
netbios-node-type NetBIOS node type
b-node Broadcast node
h-node Hybrid node
m-node Mixed node
p-node Peer-to-peer node
Default:
None
Usage Guide:
To configure NetBIOS node type of DHCP Server.
Example:
To configure NetBIOS node type (B-node) of DHCP Server for pool
“IFSbestswitch”.
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# netbios-node-type b-node
NS3500-24T-4C Managed Switch Command Guide 137
Chapter 4: Commands for CLI configuration
netbios-scope
Command:
netbios-scope <LINE>
netbios-scope NetBIOS scope
<LINE> Netbios scope identifier, in 128 characters
Default:
None
Usage Guide:
To configure NetBIOS scope of DHCP Server.
Example:
To configure NetBIOS scope (IFS) of DHCP Server for pool “IFSbestswitch”.
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# netbios-scope IFS
network
Command:
network <IP: A.B.C.D> <Subnet: A.B.C.D>
network Network number and mask
<IP: A.B.C.D> Network number
<Subnet: A.B.C.D> Network mask in dotted-decimal notation, excluding
255.255.255.255
Default:
None
Usage Guide:
To configure Network IP address of DHCP Server.
Example:
To configure Network IP address (192.168.1.11/24) of DHCP Server for pool
“IFSbestswitch”.
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# network 192.168.0.11 255.255.255.0
nis-domain-name
Command:
nis-domain-name <word128>
nis-domain-name NIS domain name
<word128> Domain name
Default:
None
138 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Usage Guide:
To configure NIS Domain Name of DHCP Server
Example:
To configure NIS Domain Name (interlogix.com) of DHCP Server for pool
“IFSbestswitch”
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# nis-domain-name interlogix.com
nis-server
Command:
nis-server <A.B.C.D>
nis-server Network information servers
<A.B.C.D> Server's IP address
Default:
None
Usage Guide:
To configure NIS Server of DHCP Server
Example:
To configure NIS Server (1.1.1.1) of DHCP Server for pool “IFSbestswitch”
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# nis-server 1.1.1.1
no
Command:
no
no Negate a command or set its defaults
Default:
N/A
Usage Guide:
To default the function
Example:
To disable the function (nis-domain-name interlogix.com) for pool
“IFSbestswitch”
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# no nis-domain-name interlogix.com
ntp-server
Command:
ntp-server <A.B.C.D>
NS3500-24T-4C Managed Switch Command Guide 139
Chapter 4: Commands for CLI configuration
ntp-server NTP servers
<A.B.C.D> Server's IP address
Default:
None
Usage Guide:
To configure NTP Server of DHCP Server
Example:
To configure NTP Server (1.1.1.1) of DHCP Server for pool “IFSbestswitch”
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# ntp-server 1.1.1.1
vendor
Command:
vendor class-identifier <”0x “> specific-info <HEX-VALUE>
vendor Vendor configuration
class-identifier Vendor class identifier
"<0x >" Class identifier in 64 characters
specific-info Vendor specific information
<HEX-VALUE> Hex values in 64 octets
Default:
None
Usage Guide:
To configure Vendor ID and info of DHCP Server
Example:
To configure Vendor ID and info as below table of DHCP Server for pool
“IFSbestswitch”
Switch# configure terminal
Switch (config)# ip dhcp pool IFSbestswitch
Switch (config-dhcp-pool)# vendor class-identifier "0x8"
specific-info 0x8
ip dns proxy
Command:
ip dns proxy
ip Internet Protocol
dns Domain Name System
proxy DNS proxy service
Default:
Disabled
140 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Usage Guide:
To enable DNS proxy.
Example:
To enable DNS proxy.
Switch# configure terminal
Switch (config)# ip dns proxy
ip helper-address
Command:
ip helper-address <Ip : ipv4_ucast>
ip Internet Protocol
helper-address DHCP relay server
<Ip : ipv4_ucast> IP address of the DHCP relay server
Default:
None
Usage Guide:
To configure IP address of DHCP.
Example:
To configure IP address (1.1.1.1) of DHCP.
Switch# configure terminal
Switch (config)# ip helper-address 1.1.1.1
ip http secure-redirect
Command:
ip http secure-redirect
ip Internet Protocol
http Hypertext Transfer Protocol
secure-redirect Secure HTTP web redirection
Default:
Disabled
Usage Guide:
To redirect WebUI from HTTP to HTTPs
Example:
To redirect WebUI from HTTP to HTTPs
Switch# configure terminal
Switch (config)# ip http secure-redirect
NS3500-24T-4C Managed Switch Command Guide 141
Chapter 4: Commands for CLI configuration
ip http secure-server
Command:
ip http secure-server
ip Internet Protocol
http Hypertext Transfer Protocol
secure-server Secure HTTP web server
Default:
Disabled
Usage Guide:
To enable HTTPs WebUI.
Example:
To enable HTTPs WebUI.
Switch# configure terminal
Switch (config)# ip http secure-server
ip igmp host-proxy
Command:
ip igmp host-proxy
ip Internet Protocol
igmp Internet Group Management Protocol
host-proxy IGMP proxy configuration
Default:
Disabled
Usage Guide:
To enable IGMP Proxy
Example:
To enable IGMP Proxy.
Switch# configure terminal
Switch (config)# ip igmp host-proxy
ip igmp host-proxy leave-proxy
Command:
ip igmp host-proxy leave-proxy
ip Internet Protocol
igmp Internet Group Management Protocol
host-proxy IGMP proxy configuration
leave-proxy IGMP proxy for leave configuration
Default:
142 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Disabled
Usage Guide:
To enable IGMP leave-proxy
Example:
To enable IGMP leave-proxy.
Switch# configure terminal
Switch (config)# ip igmp host-proxy leave-proxy
ip igmp snooping
Command:
ip igmp snooping
ip Internet Protocol
igmp Internet Group Management Protocol
snooping Snooping IGMP
Default:
Disabled
Usage Guide:
To enable IGMP Snooping.
Example:
To enable IGMP Snooping.
Switch# configure terminal
Switch (config)# ip igmp snooping
ip igmp snooping vlan
Command:
ip igmp snooping vlan <vlan_list>
ip Internet Protocol
igmp Internet Group Management Protocol
snooping Snooping IGMP
vlan IGMP VLAN
<vlan_list> VLAN identifier(s): VID
Default:
Disabled
Usage Guide:
To enable IGMP Snooping for specific VLAN.
Example:
To enable IGMP Snooping for VLAN 1.
Switch# configure terminal
Switch (config)# ip igmp snooping vlan 1
NS3500-24T-4C Managed Switch Command Guide 143
Chapter 4: Commands for CLI configuration
ip igmp ssm-range
Command:
ip igmp ssm-range <ipv4_mcast> <Ipv4PrefixLength : 4-32>
ip Internet Protocol
igmp Internet Group Management Protocol
ssm-range IPv4 address range of Source Specific Multicast
<ipv4_mcast> Valid IPv4 multicast address
<vlan_list> VLAN identifier(s): VID
<Ipv4PrefixLength : 4-32> Prefix length ranges from 4 to 32
Default:
232.0.0.0/8
Usage Guide:
To enable SSM Range of IGMP.
Example:
To enable SSM Range (239.239.239.239/32) of IGMP.
Switch# configure terminal
Switch (config)# ip igmp ssm-range 239.239.239.239 32
ip igmp unknown-flooding
Command:
ip igmp unknown-flooding
ip Internet Protocol
igmp Internet Group Management Protocol
unknown-flooding Flooding unregistered IPv4 multicast traffic
Default:
Enabled
Usage Guide:
To flood unregistered IPv4 multicast traffic.
Example:
To flood unregistered IPv4 multicast traffic.
Switch# configure terminal
Switch (config)# ip igmp unknown-flooding
ip name-server
Command:
ip name-server <ipv4_ucast>
ip Internet Protocol
name-server Domain Name System
<ipv4_ucast> A valid IPv4 unicast address
Default:
144 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Enabled
Usage Guide:
To configure DNS server IP address.
Example:
To configure DNS server IP address (8.8.8.8).
Switch# configure terminal
Switch (config)# ip name-server 8.8.8.8
ip name-server dhcp
Command:
ip name-server dhcp
ip Internet Protocol
name-server Domain Name System
dhcp Dynamic Host Configuration Protocol
Default:
None
Usage Guide:
To configure DNS IP address via DHCP Server.
Example:
To configure DNS IP address via DHCP Server.
Switch# configure terminal
Switch (config)# ip name-server 8.8.8.8
ip name-server dhcp interface vlan
Command:
ip name-server dhcp interface vlan <vlan_id>
ip Internet Protocol
name-server Domain Name System
dhcp Dynamic Host Configuration Protocol
vlan VLAN Interface
<vlan_id> VLAN identifier(s): VID
Default:
None
Usage Guide:
To configure DNS IP address via specific VLAN DHCP Server.
Example:
To configure DNS IP address via specific VLAN 5 DHCP Server.
Switch# configure terminal
Switch (config)# ip name-server dhcp interface vlan 5
NS3500-24T-4C Managed Switch Command Guide 145
Chapter 4: Commands for CLI configuration

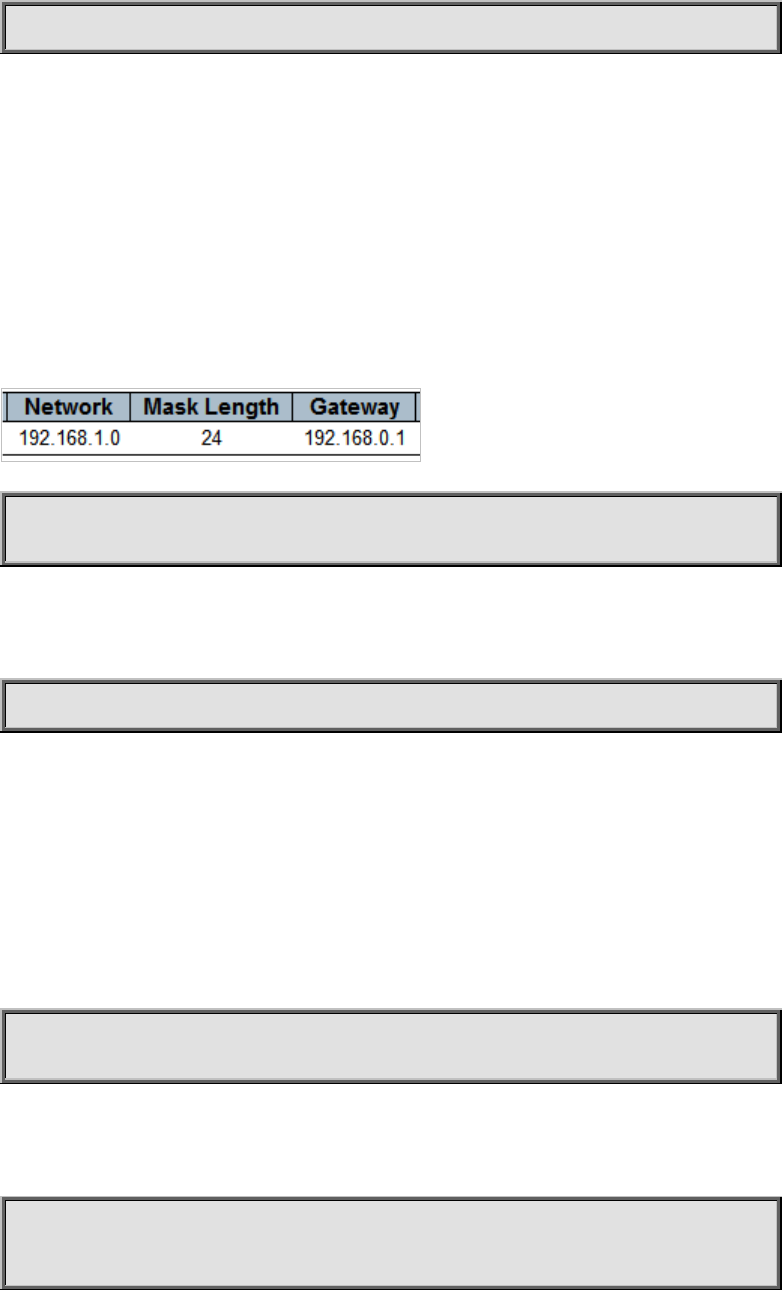

ip route
Command:
ip route <ipv4_addr> <ipv4_netmask> <ipv4_gateway>
ip Internet Protocol
route Add IP route
<ipv4_addr> Network
<ipv4_netmask> Netmask
<ipv4_gateway> Gateway
Default:
None
Usage Guide:
To configure static route
Example:
To configure static route as below table.
Switch# configure terminal
Switch (config)# ip route 192.168.1.0 255.255.255.0 192.168.0.1
ip routing
Command:
ip routing
ip Internet Protocol
routing Enable routing for IPv4 and IPv6
Default:
None
Usage Guide:
To enable IP routing
Example:
To enable IP routing
Switch# configure terminal
Switch (config)# ip routing
ip source binding interface
Command:
ip source binding interface 10GigabitEthernet |
GigabitEthernet <port_type_id> <ipv4_ucast>
<ipv4_netmask>
ip Internet Protocol
source source command
146 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
binding ip source binding
interface ip source binding entry interface config
<ipv4_ucast> Select an IP Address to configure
<ipv4_netmask> Select a subnet mask to configure
Default:
None
Usage Guide:
To enable Static IP Source Guard Table for specific interface

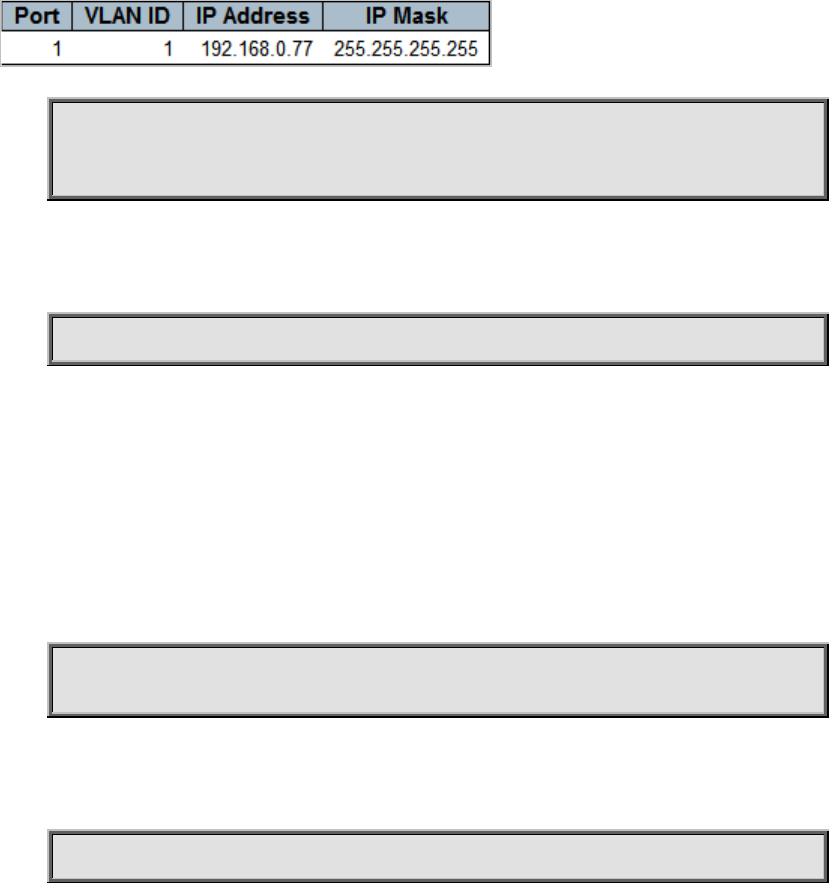

Example:
To enable Static IP Source Guard Table as below table for GigabitEthernet 1/1
Switch# configure terminal
Switch (config)# ip source binding interface GigabitEthernet
1/1 1 192.168.0.77 255.255.255.255
ip ssh
Command:
ip ssh
ip Internet Protocol
ssh Secure Shell
Default:
None
Usage Guide:
To enable SSH service
Example:
To enable SSH service
Switch# configure terminal
Switch (config)# ip ssh
ip verify source
Command:
ip verify source
ip Internet Protocol
verify verify command
source verify source
Default:
Disabled
Usage Guide:
To enable IP Source Guard
Example:
NS3500-24T-4C Managed Switch Command Guide 147
Chapter 4: Commands for CLI configuration
To enable IP Source Guard
Switch# configure terminal
Switch (config)# ip verify source
ip verify source translate
Command:
ip verify source translate
ip Internet Protocol
verify verify command
source verify source
translate ip verify source translate all entries
Default:
Disabled
Usage Guide:
To translate dynamic entries to IP Source Guard table
Example:
To translate dynamic entries to IP Source Guard table
Switch# configure terminal
Switch (config)# ip verify source translate
ipmc profile
Command:
ipmc profile
ipmc IPv4/IPv6 multicast configuration
profile IPMC profile configuration
Default:
Disabled
Usage Guide:
To enable IPMC profile
Example:
To enable IPMC profile
Switch# configure terminal
Switch (config)# ipmc profile
ipmc profile <word16>
Command:
ipmc profile <word16>
ipmc IPv4/IPv6 multicast configuration
148 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
profile IPMC profile configuration
<word16> Profile name
Default:
Disabled
Usage Guide:
To enter IPMC profile mode
Example:
To enter IPMC profile mode (IFS)
Switch# configure terminal
Switch (config)# ipmc profile IFS
Switch (config-ipmc-profile)#
default range
Command:
default range <EntryName : word16>
default Set a command to its defaults
range A range of IPv4/IPv6 multicast addresses for the profile
<EntryName : word16> Range entry name
Default:
None
Usage Guide:
To default IPMC Profile Rule for specific IPMC Profile
Example:
To default IPMC Profile Rule (Entry 1) for specific IPMC Profile (IFS)
Switch# configure terminal
Switch (config)# ipmc profile IFS
Switch (config-ipmc-profile)# default range 1
description
Command:
description <ProfileDesc : line64>
description Additional description about the profile
<ProfileDesc : line64> Description for the designated IPMC filtering profile
Default:
None
Usage Guide:
To configure description for specific IPMC Profile
Example:
To configure description (999) for specific IPMC Profile (IFS)
Switch# configure terminal
Switch (config)# ipmc profile IFS
Switch (config-ipmc-profile)# description 999
NS3500-24T-4C Managed Switch Command Guide 149
Chapter 4: Commands for CLI configuration
do
Command:
do < exec commands >
do To run exec commands in config mode
Default:
N/A
Usage Guide:
To run exec commands
Example:
To run “show aaa”.
Switch# configure terminal
Switch (config)# ipmc profile IFS
Switch (config-ipmc-profile)# do show aaa
console : local
telnet : local
ssh : local
http : local
end
Command:
end
end Go back to EXEC mode
Default:
Auto
Usage Guide:
To back to EXEC mode
Example:
To back to EXEC mode
Switch# configure terminal
Switch (config)# ipmc profile IFS
Switch (config-ipmc-profile)#end
Switch#
exit
Command:
exit
exit Exit from current mode
Default:
None
Usage Guide:
To exit current mode
Example:
150 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
To exit current mode.
Switch# configure terminal
Switch (config)# ipmc profile IFS
Switch (config-ipmc-profile)# exit
Switch (config)#
no
Command:
no
no Negate a command or set its defaults
Default:
N/A
Usage Guide:
To default the function.
Example:
To enable the function (description 999).
Switch# configure terminal
Switch (config)# ipmc profile IFS
Switch (config-ipmc-profile)# no description 999
range
Command:
range <EntryName : word16> deny | permit
description Additional description about the profile
<EntryName : word16> Range entry name
deny Deny matching addresses
permit Permit matching addresses
Default:
Deny
Usage Guide:
To configure action of entry for specific IPMC Profile
Example:
To configure action (permit) of entry (1) for specific IPMC Profile (IFS)
Switch# configure terminal
Switch (config)# ipmc profile IFS
Switch (config-ipmc-profile)# range 1 permit
ipv6 mld host-proxy
Command:
ipv6 mld host-proxy
ipv6 IPv6 configuration commands
NS3500-24T-4C Managed Switch Command Guide 151
Chapter 4: Commands for CLI configuration
mld Multicast Listener Discovery
host-proxy MLD proxy configuration
Default:
Disabled
Usage Guide:
To enable MLD Proxy
Example:
To enable MLD Proxy.
Switch# configure terminal
Switch (config)# ipv6 mld host-proxy
ipv6 mld host-proxy leave-proxy
Command:
ipv6 mld host-proxy leave-proxy
ipv6 IPv6 configuration commands
mld Multicast Listener Discovery
host-proxy MLD proxy configuration
leave-proxy MLD proxy for leave configuration
Default:
Disabled
Usage Guide:
To enable MLD leave-proxy
Example:
To enable MLD leave-proxy.
Switch# configure terminal
Switch (config)# ipv6 mld host-proxy leave-proxy
ipv6 mld snooping
Command:
ipv6 mld snooping
ipv6 IPv6 configuration commands
mld Multicast Listener Discovery
snooping Snooping MLD
Default:
Disabled
Usage Guide:
To enable MLD Snooping.
Example:
To enable MLD Snooping.
152 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# ipv6 mld snooping
ipv6 mld snooping vlan
Command:
ipv6 mld snooping vlan <vlan_list>
ipv6 IPv6 configuration commands
mld Multicast Listener Discovery
snooping Snooping MLD
vlan MLD VLAN
<vlan_list> VLAN identifier(s): VID
Default:
Disabled
Usage Guide:
To enable MLD Snooping for specific VLAN.
Example:
To enable MLD Snooping for VLAN 1.
Switch# configure terminal
Switch (config)# ipv6 mld snooping vlan 1
ipv6 mld ssm-range
Command:
ipv6 mld ssm-range <ipv6_mcast> <Ipv6PrefixLength : 8-128>
ipv6 IPv6 configuration commands
mld Multicast Listener Discovery
ssm-range IPv6 address range of Source Specific Multicast
<ipv6_mcast> Valid IPv6 multicast address
<Ipv6PrefixLength : 8-128> Prefix length ranges from 8 to 128
Default:
ff3e:: /96
Usage Guide:
To enable SSM Range of MLD.
Example:
To enable SSM Range (ff3e::7788/128) of MLD.
Switch# configure terminal
Switch (config)# ipv6 mld ssm-range ff3e::7788 128
NS3500-24T-4C Managed Switch Command Guide 153
Chapter 4: Commands for CLI configuration
ipv6 mld unknown-flooding
Command:
ipv6 mld unknown-flooding
ipv6 IPv6 configuration commands
mld Multicast Listener Discovery
unknown-flooding Flooding unregistered IPv6 multicast traffic
Default:
Enabled
Usage Guide:
To flood unregistered IPv6 multicast traffic.
Example:
To flood unregistered IPv6 multicast traffic.
Switch# configure terminal
Switch (config)# ipv6 mld unknown-flooding
ipv6 route
Command:
Ipv6 route <X:X:X:X::X/<0-128>> {<X:X:X:X::X>, interface vlan
<vlan_id> <FE80::X:X:X >}
ipv6 IPv6 configuration commands
route Add IP route
<X:X:X:X::X/<0-128>> IPv6 prefix x:x::y/z
<X:X:X:X::X> IPv6 unicast address (except link-local address) of next-hop
interface Select an interface to configure
vlan VLAN Interface
<vlan_id> VLAN identifier(s): VID
<FE80::X:X:X> IPv6 link-local address of next-hop
Default:
None
Usage Guide:
To configure static route for IPv6

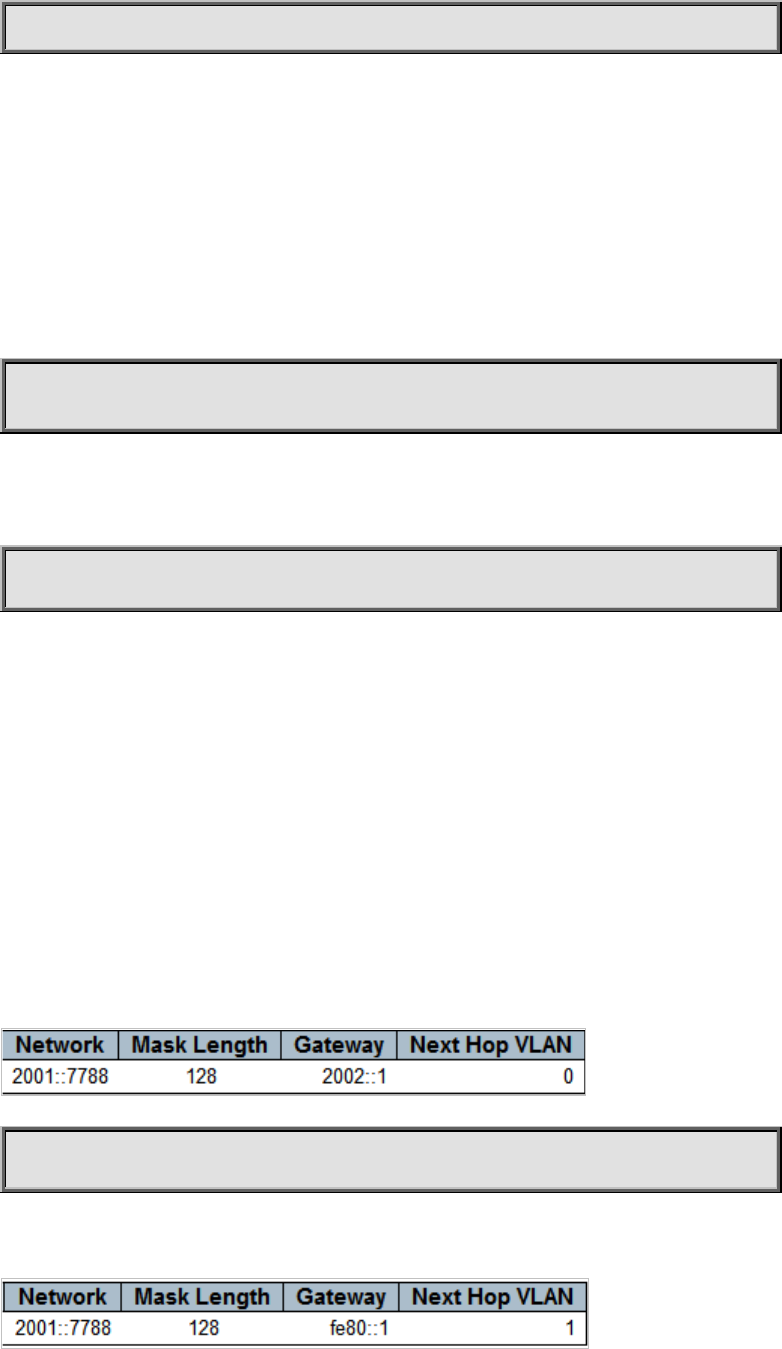

Example 1:
To configure static route as below table for IPv6.
Switch# configure terminal
Switch (config)# ipv6 route 2001::7788/128 2002::1
Example 2:
To configure static route as below table for IPv6.
154 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# ipv6 route 2001::7788/128 interface vlan 1
fe80::1
lacp system-priority
Command:
lacp system-priority <1-65535>
lacp LACP settings
system-priority System priority
<1-65535> Priority value, lower means higher priority
Default:
32768
Usage Guide:
To configure LACP system-priority.
Example:
To configure LACP system-priority (99).
Switch# configure terminal
Switch (config)# lacp system-priority 99
line
Command:
line { <0~16> | console 0 | vty <0~15> }
line Configure a terminal line
<0~16> List of line numbers
console Console terminal line
vty Virtual terminal
Default:
N/A
Usage Guide:
To enter line mode
Example:
To enter line mode (vty 1)
Switch# configure terminal
Switch (config)# line vty 1
Switch (config-line)#
do
Command:
do < exec commands >
do To run exec commands.
NS3500-24T-4C Managed Switch Command Guide 155
Chapter 4: Commands for CLI configuration
Default:
N/A
Usage Guide:
To run exec commands.
Example:
To run “show aaa”.
Switch# configure terminal
Switch (config)# line vty 1
Switch (config-line)# do show aaa
console : local
telnet : local
ssh : local
http : local
editing
Command:
editing
editing Enable command line editing
Default:
Enabled
Usage Guide:
To allow user editing command line.
Example:
To allow user editing command line.
Switch# configure terminal
Switch (config)# line vty 1
Switch (config-line)# editing
end
Command:
end
end Go back to EXEC mode
Default:
None
Usage Guide:
To back to EXEC mode
Example:
To back to EXEC mode
Switch# configure terminal
Switch (config)# line vty 1
Switch (config-line)#end
Switch#
156 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
exec-banner
Command:
exec-banner
exec-banner Enable the display of the EXEC banner
Default:
Enabled
Usage Guide:
To enable the display of the EXEC banner
Example:
To enable the display of the EXEC banner
Switch# configure terminal
Switch (config)# line vty 1
Switch (config-line)# exec-banner
exec-timeout
Command:
exec-timeout <0-1440>
exec-timeout Set the EXEC timeout
<0-1440> Timeout in minutes
Default:
N/A
Usage Guide:
To configure EXEC timeout
Example:
To configure EXEC timeout (10 minutes)
Switch# configure terminal
Switch (config)# line vty 1
Switch (config-line)# exec-timeout 10
exec-timeout
Command:
exec-timeout <0-1440>
exec-timeout Set the EXEC timeout
<0-1440> Timeout in minutes
Default:
N/A
Usage Guide:
To configure EXEC timeout
Example:
To configure EXEC timeout (10 minutes)
Switch# configure terminal
NS3500-24T-4C Managed Switch Command Guide 157
Chapter 4: Commands for CLI configuration
Switch (config)# line vty 1
Switch (config-line)# exec-timeout 10
exit
Command:
exit
exit Exit from current mode
Default:
None
Usage Guide:
To exit current mode
Example:
To exit current mode.
Switch# configure terminal
Switch (config)# line vty 1
Switch (config-line)# exit
Switch (config)#
history size
Command:
history size <0-32>
history Control the command history function
size Set history buffer size
<0-32> Number of history commands, 0 means disable
Default:
None
Usage Guide:
To exit current mode
Example:
To exit current mode.
Switch# configure terminal
Switch (config)# line vty 1
Switch (config-line)# history size 1
length
Command:
length <0 or 3-512>
length Set number of lines on a screen
<0 or 3-512> Number of lines on screen (0 for no pausing)
Default:
None
158 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Usage Guide:
To configure displayed lines on a screen.
Example:
To configure displayed lines on a screen.
Switch# configure terminal
Switch (config)# line vty 1
Switch (config-line)# length 10
location
Command:
location <LINE>
location Enter terminal location description
<LINE> One text line describing the terminal's location
Default:
None
Usage Guide:
To configure description of location.
Example:
To configure description (taiwan) of location.
Switch# configure terminal
Switch (config)# line vty 1
Switch (config-line)# location taiwan
motd-banner
Command:
motd-banner
motd-banner Enable the display of the MOTD banner
Default:
Enabled
Usage Guide:
To enable MOTD banner.
Example:
To enable MOTD banner..
Switch# configure terminal
Switch (config)# line vty 1
Switch (config-line)# motd-banner
no
Command:
no
no Negate a command or set its defaults
NS3500-24T-4C Managed Switch Command Guide 159
Chapter 4: Commands for CLI configuration
Default:
N/A
Usage Guide:
To default the function
Example:
To disable the function (motd-banner) for vty 1
Switch# configure terminal
Switch (config)# line vty 1
Switch (config-line)# no motd-banner
privilege level
Command:
privilege level <0-15>
privilege Change privilege level for line
level Assign default privilege level for line
<0-15> Default privilege level for line
Default:
15
Usage Guide:
To configure privilege level
Example:
To configure privilege level (5) for vty 1.
Switch# configure terminal
Switch (config)# line vty 1
Switch (config-line)# privilege level 5
width
Command:
width <0 or 40-512>
width Set width of the display terminal
<0 or 40-512> Number of characters on a screen line (0 for unlimited width)
Default:
0
Usage Guide:
To configure width of the display terminal.
Example:
To configure width (50) of the display terminal for vty 1.
Switch# configure terminal
Switch (config)# line vty 1
Switch (config-line)# width 50
160 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
lldp holdtime
Command:
lldp holdtime <2-10>
lldp LLDP configurations.
holdtime Sets LLDP hold time (The neighbor switch will discarded the LLDP
information after "hold time" multiplied with "timer" seconds ).
<2-10> 2-10 seconds
Default:
4
Usage Guide:
To enable LLDP hold time
Example:
To enable LLDP hold time (5)
Switch# configure terminal
Switch (config)# lldp holdtime 5
lldp med datum
Command:
lldp med datum nad83-mllw | nad83-navd88 | wgs84
lldp LLDP configurations.
med Media Endpoint Discovery
datum Datum (geodetic system) type
nad83-mllw Mean lower low water datum 1983
nad83-navd88 North American vertical datum 1983
wgs84 World Geodetic System 1984
Default:
WGS84
Usage Guide:
To configure Datum type of LLDP
Example:
To configure Datum type (nad83-mllw) of LLDP
Switch# configure terminal
Switch (config)# lldp med datum nad83-mllw
lldp med fast
Command:
lldp med fast <1-10>
lldp LLDP configurations.
med Media Endpoint Discovery
fast Number of times to repeat LLDP frame transmission at fast start.
NS3500-24T-4C Managed Switch Command Guide 161
Chapter 4: Commands for CLI configuration
Default:
4
Usage Guide:
To configure frame transmission time of LLDP
Example:
To configure frame transmission time (6) of LLDP
Switch# configure terminal
Switch (config)# lldp med fast 6
lldp med location-tlv altitude
Command:
lldp med location-tlv altitude [floors <Meters or floors>] |
[meters <Meters or floors>]
lldp LLDP configurations.
med Media Endpoint Discovery
location-tlv LLDP-MED Location Type Length Value parameter
altitude Altitude parameter
floors Specify the altitude in floor.
<Meters or floors> Altitude value.
meters Specify the altitude in meters.
Default:
0
Usage Guide:
To configure altitude of LLDP-MED
Example:
To configure altitude (Floors 5) of LLDP-MED
Switch# configure terminal
Switch (config)# lldp med location-tlv altitude floors 5
lldp med location-tlv elin-addr
Command:
lldp med location-tlv elin-addr <ELIN number>
lldp LLDP configurations.
med Media Endpoint Discovery
location-tlv LLDP-MED Location Type Length Value parameter
elin-addr Emergency Location Identification Number, (e.g. E911 and others),
such as defined by TIA or NENA.
<ELIN number> ELIN value
Default:
0
Usage Guide:
To configure Emergency Location Identification Number of LLDP-MED
162 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Example:
To configure Emergency Location Identification Number (911) of LLDP-MED
Switch# configure terminal
Switch (config)# lldp med location-tlv elin-addr 911
lldp med location-tlv latitude
Command:
lldp med location-tlv latitude north <Degrees> | south
<Degrees>
lldp LLDP configurations.
med Media Endpoint Discovery
location-tlv LLDP-MED Location Type Length Value parameter
latitude Latitude parameter
north Setting latitude direction to north.
south Setting latitude direction to south
<Degrees> Latitude degrees (0.0000-90.0000)
Default:
North, 0
Usage Guide:
To configure latitude direction of LLDP-MED
Example:
To configure latitude direction (south, 5) of LLDP-MED
Switch# configure terminal
Switch (config)# lldp med location-tlv latitude south 5
lldp med location-tlv longitude
Command:
lldp med location-tlv longitude east <Degrees> | west
<Degrees>
lldp LLDP configurations.
med Media Endpoint Discovery
location-tlv LLDP-MED Location Type Length Value parameter
longitude Longitude parameter
east Setting longitude direction to east.
west Setting longitude direction to west.
<Degrees> Longitude degrees (0.0000-180.0000)
Default:
North, 0
Usage Guide:
To configure longitude direction of LLDP-MED
Example:
To configure longitude direction (east, 5) of LLDP-MED
Switch# configure terminal
Switch (config)# lldp med location-tlv longitude east 5
NS3500-24T-4C Managed Switch Command Guide 163
Chapter 4: Commands for CLI configuration
lldp med media-vlan-policy
Command:
lldp med media-vlan-policy <Index : 0-31> {guest-voice |
guest-voice-signaling softphone-voice | streaming-video |
video-conferencing | video-signaling | voice | voice-signaling}
{tagged | untagged} <vlan_id> dscp <0-63> l2-priority <0-7>
lldp LLDP configurations.
med Media Endpoint Discovery
media-vlan-policy Use the media-vlan-policy to create a policy, which can be
assigned to an interface.
<Index : 0-31> Policy id for the policy which is created.
guest-voice Create a guest voice policy.
guest-voice-signaling Create a guest voice signaling policy.
softphone-voice Create a softphone voice policy.
streaming-video Create a streaming video policy.
video-conferencing Create a video conferencing policy.
video-signaling Create a video signaling policy.
voice Create a voice policy.
voice-signaling Create a voice signaling policy.
tagged The policy uses tagged frames.
untagged The policy uses un-tagged frames.
<vlan_id> The VLAN the policy uses tagged frames.
dscp Differentiated Services Code Point.
<0-63> DSCP value 0-63
l2-priority Layer 2 priority.
<0-7> Priority 0-7
Default:
0
Usage Guide:
To configure media-VLAN-policy of LLDP-MED
Example:
To configure media-VLAN-policy as below table of LLDP-MED
Switch# configure terminal
Switch (config)# lldp med media-vlan-policy 1 guest-voice
tagged 1 dscp 45 l2-priority 5
lldp reinit
Command:
lldp reinit <1-10>
lldp LLDP configurations.
reinit LLDP tx reinitialization delay in seconds
<1-10> 1-10 seconds.
164 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Default:
2
Usage Guide:
To configure Tx re-initialization delay time of LLDP
Example:
To configure Tx re-initialization delay time (5) of LLDP
Switch# configure terminal
Switch (config)# lldp reinit 5
lldp timer
Command:
lldp timer <5-32768>
lldp LLDP configurations.
timer Sets LLDP TX interval (The time between each LLDP frame transmitted
in seconds)
<5-32768> 5-32768 seconds.
Default:
30
Usage Guide:
To configure Tx interval time of LLDP
Example:
To configure Tx interval time (555) of LLDP
Switch# configure terminal
Switch (config)# lldp timer 555
lldp transmission-delay
Command:
lldp transmission-delay <1-8192>
lldp LLDP configurations.
transmission-delay Sets LLDP transmision-delay. LLDP transmission delay
(the amount of time that the transmission of LLDP frames
will delayed after LLDP configuration has changed) in
seconds.)
<1-8192> 1-8192 seconds.
Default:
2
Usage Guide:
To configure Tx transmission-delay time of LLDP
Example:
To configure Tx transmission-delay time (88) of LLDP
NS3500-24T-4C Managed Switch Command Guide 165
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# lldp transmission-delay 88
logging host
Command:
logging host <hostname> | <ipv4_ucast>
logging Syslog
host host
<hostname> Domain name of the log server
<ipv4_ucast> IP address of the log server
Default:
0
Usage Guide:
To configure address of log server
Example:
To configure address of log server
Switch# configure terminal
Switch (config)# logging host 192.168.5.5
logging level
Command:
logging level error | info | warning
logging Syslog
level level
error Error
info Information
warning Warning
Default:
Info
Usage Guide:
To configure level of log server
Example:
To configure level of log server
Switch# configure terminal
Switch (config)# logging level error
logging on
Command:
logging on
logging Syslog
166 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
on Enable syslog server
Default:
Disabled
Usage Guide:
To enable log server
Example:
To enable log server
Switch# configure terminal
Switch (config)# logging on
loop-protect
Command:
loop-protect
loop-protect Loop protection configuration
Default:
Disabled
Usage Guide:
To enable Loop Protection
Example:
To enable Loop Protection
Switch# configure terminal
Switch (config)# loop-protect
loop-protect shutdown-time
Command:
loop-protect shutdown-time <0-604800>
loop-protect Loop protection configuration
shutdown-time Loop protection shutdown time interval
<0-604800> Shutdown time in second
Default:
180
Usage Guide:
To configure shutdown time interval of Loop Protection
Example:
To configure shutdown time interval (888) of Loop Protection
Switch# configure terminal
Switch (config)# loop-protect shutdown-time 888
NS3500-24T-4C Managed Switch Command Guide 167
Chapter 4: Commands for CLI configuration
loop-protect transmit-time
Command:
loop-protect transmit-time <0-10>
loop-protect Loop protection configuration
transmit-time Loop protection transmit time interval
<1-10> Transmit time in second
Default:
5
Usage Guide:
To configure Transmission Time of Loop Protection
Example:
To configure Transmission Time (8) of Loop Protection
Switch# configure terminal
Switch (config)# loop-protect transmit-time 8
mac address-table aging-time
Command:
mac address-table aging-time <0,10-1000000>
mac MAC table entries/configuration
address-table MAC table entries/configuration
<0,10-1000000> Aging time in seconds, 0 disables aging
Default:
300
Usage Guide:
To configure Aging Time of MAC Address Table
Example:
To configure Aging Time (888) of MAC Address Table
Switch# configure terminal
Switch (config)# mac address-table aging-time 888
mac address-table static
Command:
mac address-table static <mac_addr> vlan <vlan_id>
interface * | 10GigabitEthernet <port_type_list> |
GigabitEthernet <port_type_list>
mac MAC table entries/configuration
address-table MAC table entries/configuration
static Static MAC address
<mac_addr> 48 bit MAC address: xx:xx:xx:xx:xx:xx
vlan VLAN keyword
<vlan_id> VLAN IDs 1-4095
168 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
interface Select an interface to configure
* All switches or All ports
GigabitEthernet 1 Gigabit Ethernet Port
10GigabitEthernet 10 Gigabit Ethernet Port
Default:
300
Usage Guide:
To configure Static MAC Address Table
Example:
To configure Static MAC Address Table as below table
Switch# configure terminal
Switch (config)# mac address-table static 00:11:22:33:44:55
vlan 1 interface GigabitEthernet 1/1
mep <Instance> ais
Command:
mep <Instance> ais [ fr1m | fr1s ] [ protect ]
mep Maintenance Entity Point
<Instance> The MEP instance number.
ais Alarm Indication Signal
fr1m Frame rate is 1 f/min.
fr1s Frame rate is 1 f/s.
protect The AIS can be used for protection. At the point of state change three
AIS PDU is transmitted as fast as possible.
Default:
None
Usage Guide:
To configure AIS of MEP
Example:
To configure AIS of MEP 1 as below table
Switch# configure terminal
Switch (config)# mep 1 ais fr1s
mep <Instance> aps
Command:
mep <Instance> aps <prio> [ multi | uni ] { laps | { raps [ octet
<octet> ] } }
mep Maintenance Entity Point
NS3500-24T-4C Managed Switch Command Guide 169
Chapter 4: Commands for CLI configuration
<Instance> The MEP instance number.
aps Automatic Protection Switching protocol
laps Linear Automatic Protection Switching protocol.
multi OAM PDU is transmitted with multicast MAC. Must me 'multi' in case of
RAPS.
uni OAM PDU is transmitted with unicast MAC. The MAC is taken from peer
MEP MAC database. Only possible in case of LAPS.
raps Ring Automatic Protection Switching protocol.
octet Then last OCTET in the multicast MAC. Only possible in case of RAPS.
<Octet : uint> Last OCTET value
uni OAM PDU is transmitted with unicast MAC. The MAC is taken from peer
MEP MAC database. Only possible in case of LAPS.
Default:
None
Usage Guide:
To configure APS of MEP
Example:
To configure APS of MEP 1 as below table
Switch# configure terminal
Switch (config)# mep 1 aps 7 laps
mep <Instance> cc
Command:
mep <Instance> cc <Prio : 0-7> fr100s | fr10s | fr1m | fr1s |
fr300s | fr6h | fr6m
mep Maintenance Entity Point
<Instance> The MEP instance number.
cc Continuity Check
<Prio : 0-7> Priority in case of tagged OAM. In the EVC domain this is the COS-
ID.
fr100s Frame rate is 100 f/s.
fr10s Frame rate is 10 f/s.
fr1m Frame rate is 1 f/min.
fr1s Frame rate is 1 f/s.
fr300s Frame rate is 300 f/s.
fr6h Frame rate is 6 f/hour.
fr6m Frame rate is 6 f/min.
Default:
Usage Guide:
To configure CC of MEP
170 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Example:
To configure CC of MEP 1 as below table
Switch# configure terminal
Switch (config)# mep 1 cc 2 fr10s
mep <Instance> client domain
Command:
mep <Instance> client domain { evc | vlan }
mep Maintenance Entity Point
<Instance> The MEP instance number.
client Transport layer Client
evc EVC Domain.
vlan Vlan Domain
Default:
EVC
Usage Guide:
To configure Client Domain of MEP
Example:
To configure Client Domain (EVC) of MEP 1
Switch# configure terminal
Switch (config)# mep 1 client domain evc
mep <Instance> client flow
Command:
mep <Instance> client flow <cflow> level <level> [ ais-prio
[ <aisprio> | ais-highest ] ] [ lck-prio [ <lckprio> | lck-
highest ] ]
mep Maintenance Entity Point
<Instance> The MEP instance number.
level The MEG level on the client layer
<Level : 0-7> The MEG level value
ais-prio AIS injection priority
<Aisprio : 0-7> AIS injection priority value
ais-highest Request the highest possible AIS priority
lck-prio LCK injection priority
<Lckprio : 0-7> LCK injection priority value.
lck-highest Request the highest possible LCK priority.
Default:
0
Usage Guide:
NS3500-24T-4C Managed Switch Command Guide 171
Chapter 4: Commands for CLI configuration
To configure Client Flow of MEP
Example:
To configure Client Flow of MEP 1 as below table.
Switch# configure terminal
Switch (config)# mep 1 client flow 5 level 4 ais-prio ais-highest
lck-prio 3
mep <Instance> dm
Command:
mep <Instance> dm <prio> [ multi | { uni mep-id <mepid> } ]
[ single | dual ] [ rdtrp | flow ] interval <interval> last-n <lastn>
mep Maintenance Entity Point
<Instance> The MEP instance number.
dm Delay Measurement
<Prio : 0-7> Priority in case of tagged OAM. In the EVC domain this is the
COS-ID
dual Delay Measurement based on 1DM PDU transmission.
flow The two way delay is calculated as round trip symmetrical flow delay. The
far end residence time is subtracted.
interval Interval between PDU transmission in 10ms. Min value is 10.
<Interval : uint> Interval value
multi OAM PDU is transmitted with multicast MAC.
rdtrp The two way delay is calculated as round trip delay. The far end residence
time is not subtracted.
single Delay Measurement based on DMM/DMR PDU.
uni OAM PDU is transmitted with unicast MAC. The MAC is taken from peer
MEP MAC database.
mep-id Peer MEP-ID for unicast DM. The MAC is taken from peer MEP MAC
database.
<Mepid : uint> Peer MEP-ID value
last-n The last N dalays used for average last N calculation. Min value is 10.
<Lastn : uint> The last N value
Default:
0
Usage Guide:
To configure Delay Measurement of MEP
Example:
To configure Delay Measurement of MEP 1 as below table.
172 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# mep 1 dm 5 rdtrp interval 10 last-n 10
mep <Instance> dm ns
Command:
mep <Instance> dm ns
mep Maintenance Entity Point
<Instance> The MEP instance number.
dm Delay Measurement
ns Nano Seconds
Default:
us
Usage Guide:
To configure Delay Measurement of MEP
Example:
To configure Delay Measurement unit (ns) of MEP 1 as below table.
Switch# configure terminal
Switch (config)# mep 1 dm ns
mep <Instance> dm overflow-reset
Command:
mep <Instance> dm overflow-reset
mep Maintenance Entity Point
<Instance> The MEP instance number.
dm Delay Measurement
overflow-reset Reset all Delay Measurement results on total delay counter
overflow.
Default:
Keep
Usage Guide:
To reset Delay Measurement of MEP while overflowing
Example:
To reset Delay Measurement of MEP 1 while overflowing
NS3500-24T-4C Managed Switch Command Guide 173
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# mep 1 dm overflow-reset
mep <Instance> dm proprietary
Command:
mep <Instance> dm proprietary
mep Maintenance Entity Point
<Instance> The MEP instance number.
dm Delay Measurement
proprietary Proprietary Delay Measurement
Default:
Standard
Usage Guide:
To configure Tx mode (proprietary) of MEP.
Example:
To configure Tx mode (proprietary) of MEP 1
Switch# configure terminal
Switch (config)# mep 1 dm proprietary
mep <Instance> dm syncronized
Command:
mep <Instance> dm syncronized
mep Maintenance Entity Point
<Instance> The MEP instance number.
dm Delay Measurement
syncronized Near enad and far end is real time syncronized.
Default:
Enabled
Usage Guide:
To configure Time Sync of MEP.
Example:
To configure Time Sync of MEP 1
Switch# configure terminal
Switch (config)# mep 1 dm syncronized
mep <Instance> down
Command:
mep <Instance> [ mip ] down domain { port | evc | vlan } [ vid
<vid> ] flow <flow> level <level> interface <port_type> <port>
mep Maintenance Entity Point
174 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
mip This MEP instance is a half-MIP
<Instance> The MEP instance number.
down This MEP is a Down-MEP
domain The domain of the MEP
evc This MEP is a EVC domain MEP.
port This MEP is a Port domain MEP.
vlan This MEP is a VLAN domain MEP.
flow The flow instance that the MEP is related to.
<flow > The flow instance number when not in the port domain.
vid In case the MEP is a port Up-MEP or a EVC customer MIP the VID must be
given.
<Vid : vlan_id> The port Domain MEP VID. This is required for a Port Up-MEP.
Default:
None
Usage Guide:
To configure Down-MEP of MEP.
Example:
To configure Down-MEP of MEP 1 as below table
Switch# configure terminal
Switch (config)# mep 1 down domain port flow 1 level 0
interface GigabitEthernet 1/1
mep <Instance> lb
Command:
mep <Instance> lb <prio> [ dei ] [ multi | { uni { { mep-id
<mepid> } | { mac <mac> } } } ] count <count> size <size>
interval <interval>
mep Maintenance Entity Point
<Instance> The MEP instance number.
lb Loop Back
<Prio : 0-7> Priority in case of tagged OAM. In the EVC domain this is the COS-
ID.
count The number of LBM PDU to send in one loop test. The value 0 indicate
infinite transmission (test behavior). This is HW based LBM/LBR and
Requires VOE.
<Count : uint> Number of LBM PDU to send value
size The number of bytes in the LBM PDU Data Pattern TLV
<size> The LBM frame size. This is entered as the wanted size (in bytes) of a
un-tagged frame containing LBM OAM PDU - including CRC (four
bytes). Example when 'Size' = 64 => Un-tagged frame size = DMAC(6)
+ SMAC(6) + TYPE(2) + LBM PDU LENGTH(46) + CRC(4) = 64
interval The number of bytes in the LBM PDU Data Pattern TLV
<interval> The interval between transmitting LBM PDU. in case 'count' != 0 this
NS3500-24T-4C Managed Switch Command Guide 175
Chapter 4: Commands for CLI configuration
is in 10ms and max is 100. In case 'count' == 0 this is in 1us and
max is 10.000.
dei Drop Eligible Indicator in case of tagged OAM.
multi OAM PDU is transmitted with multicast MAC.
uni OAM PDU is transmitted with unicast MAC. The MAC is taken from
peer MEP MAC database.
mac Loop Back unicast MAC to be used in case of LB against MIP.
<Mac : mac_addr> Loop Back target unicast MAC value
mep-id Peer MEP-ID for unicast LB. The MAC is taken from peer MEP MAC
database.
<Mepid : uint> Peer MEP-ID value
Default:
None
Usage Guide:
To configure Loop Back of MEP.
Example:
To configure Loop Back of MEP 2 as below table
Switch# configure terminal
Switch (config)# mep 2 lb 1 dei count 10 size 64 interval 100
mep <Instance> lck
Command:
mep <Instance> lck fr1m | fr1s
mep Maintenance Entity Point
<Instance> The MEP instance number.
lck Locked Signal
fr1m Frame rate is 1 f/min.
fr1s Frame rate is 1 f/s.
Default:
1 frame/sec
Usage Guide:
To configure Locked Frame Rate of MEP.
Example:
To configure Locked Frame Rate (1 frame/sec) of MEP 2.
Switch# configure terminal
Switch (config)# mep 2 lck
Switch (config)# mep 2 lck fr1s
176 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
mep <Instance> level
Command:
mep <Instance> level <Level : 0-7>
mep Maintenance Entity Point
<Instance> The MEP instance number.
level The MEG level of the MEP
<Level : 0-7> The MEG level value
Default:
0
Usage Guide:
To configure MEG level of MEP.
Example:
To configure MEG level (2) of MEP 2.
Switch# configure terminal
Switch (config)# mep 2 level 2
mep <Instance> lm
Command:
mep <Instance> lm <prio> [ multi | uni ] [ single | dual ] [ fr10s
| fr1s | fr6m | fr1m | fr6h ] [ flr <flr> ]
mep Maintenance Entity Point
<Instance> The MEP instance number.
lm Loss Measurement
<Prio : 0-7> Priority in case of tagged OAM. In the EVC domain this is the COS-
ID.
fr10s Frame rate is 10 f/s.
fr1m Frame rate is 1 f/min.
fr1s Frame rate is 1 f/s.
fr6h Frame rate is 6 f/hour.
fr6m Frame rate is 6 f/min.
dual Dual ended LM is based on CCM PDU.
single Single ended LM is based on LMM/LMR PDU.
multi OAM PDU is transmitted with multicast MAC.
uni OAM PDU is transmitted with unicast MAC. The MAC is taken from peer
MEP MAC database. In case of LM there is only one peer MEP.
flr The Frame Loss Ratio interval.
<Flr : uint> The Frame Loss Ratio interval value.
Default:
Usage Guide:
To configure Loss Measurement of MEP.
Example:
To configure Loss Measurement of MEP 2 as below table
NS3500-24T-4C Managed Switch Command Guide 177
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# mep 2 lm 5 uni flr 4
mep <Instance> lt
Command:
mep <Instance> lt <prio> { { mep-id <mepid> } | { mac
<mac> } } ttl <ttl>
mep Maintenance Entity Point
<Instance> The MEP instance number.
lt Link Trace
<Prio : 0-7> Priority in case of tagged OAM. In the EVC domain this is the COS-
ID. mac Link Trace target unicast MAC to be used in case of LT against MIP.
<Mac : mac_addr> Link Trace target unicast MAC value.
mep-id Peer MEP-ID for Link Trace target unicast MAC. The MAC is taken from
peer MEP MAC database.
<Mepid : uint> Peer MEP-ID value.
ttl Time To Live.
<Ttl : uint> Time To Live value
Default:
Usage Guide:
To configure Link Trace of MEP.
Example:
To configure Link Trace of MEP 1 as below table
Switch# configure terminal
Switch (config)# mep 1 lt 4 mac 11-3A-15-A3-53-44
mep <Instance> meg-id
Command:
mep <Instance> meg-id <megid> { itu | itu-cc | { ieee [ name
<name> ] } }
mep Maintenance Entity Point
<Instance> The MEP instance number.
meg-id The ITU/IEEE MEG-ID
<Megid : word> The MEG-ID string. This is either the ITU MEG-ID or the IEEE
Short MA, depending on the selected MEG-ID format. The
ITU max. is 13 characters. The ITU-CC max. is 15
178 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
NS3500-24T-4C Managed Switch Command Guide 179
characters. The IEEE max. is 16 characters..
ieee The MEG-ID (Short MA Name) has IEEE Character String format. The meg-id
max. is 16 characters.
itu The MEG-ID has ITU format (ICC - UMC). The meg-id max. is 13 characters.
itu-cc The MEG-ID has ITU Country Code format (CC - ICC - UMC). The meg-id
max. is 15 characters
name Only relevant for IEEE. The MAID is with Maintenance Domain Name
<Name : word> Maintenance Domain Name string. The max is 16 characters
Default:
Usage Guide:
To configure MEG-ID of MEP.
Example:
To configure MEG-ID of MEP 1 as below table
Switch# configure terminal
Switch (config)# mep 1 meg-id ICC000MEG0000 ieee name
interlogix.com
mep <Instance> mep-id
Command:
mep <Instance> mep-id <mepid>
mep Maintenance Entity Point
<Instance> The MEP instance number.
mep-id The MEP-ID
<Mepid : uint> The MEP-ID value.
Default:
None
Usage Guide:
To configure MEP-ID of MEP.
Example:
To configure MEP-ID (5) of MEP 1.
Switch# configure terminal
Switch (config)# mep 1 mep-id 5
Chapter 4: Commands for CLI configuration
mep <Instance> peer-mep-id
Command:
mep <Instance> peer-mep-id <mepid> [ mac <mac> ]
mep Maintenance Entity Point
<Instance> The MEP instance number.
peer-mep-id The peer MEP-ID
<Mepid : uint> The peer MEP-ID value
mac The peer MAC. this will be overwritten by any learned MAC – through CCM
reception.
<Mac : mac_addr> The peer MAC string
Default:
None
Usage Guide:
To configure Peer MEP-ID of MEP.
Example:
To configure Peer MEP-ID of MEP 1 as below table
Switch# configure terminal
Switch (config)# mep 1 peer-mep-id 0 mac 11-3A-05-A1-53-11
mep <Instance> performance-monitoring
Command:
mep <Instance> performance-monitoring
mep Maintenance Entity Point
<Instance> The MEP instance number.
performance-monitoring Performance monitoring Data Set collection (MEF35)
Default:
Disabled
Usage Guide:
To enable Performance Monitoring of MEP.
Example:
To enable Performance Monitoring of MEP 1
Switch# configure terminal
Switch (config)# mep 1 performance-monitoring
mep <Instance> tst
Command:
mep <Instance> tst <prio> [ dei ] mep-id <mepid> [ sequence ]
[ all-zero | all-one | one-zero ] rate <rate> size <size>
mep Maintenance Entity Point
180 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
<Instance> The MEP instance number.
tst Test Signal
<Prio : 0-7> Priority in case of tagged OAM. In the EVC domain this is the COS-
ID.
dei Drop Eligible Indicator in case of tagged OAM.
mep-id Peer MEP-ID for unicast TST. The MAC is taken from peer MEP MAC
database.
<Mepid : uint> Peer MEP-ID value
sequence Enable sequence number in TST PDU
all-one Test pattern is set to all one.
all-zero Test pattern is set to all zero.
one-zero Test pattern is set to 10101010.
rate The TST frame transmission bit rate - in Mega bits pr. second. Limit on
Caracal is 400 Mbps. Limit on Serval is 1Gbps. This is the bit rate of
a standard frame without any encapsulation. If 1 Mbps rate is
selected in a EVC MEP, the added tag will give a hi
<Rate : uint> Transmission rate value
size The TST frame size. This is entered as the wanted size (in bytes) of a un-
tagged frame containing TST OAM PDU - including CRC (four bytes).
Example when 'Size' = 64 => Un-tagged frame size = DMAC(6) +
SMAC(6) + TYPE(2) + TST PDU LENGTH(46) + CRC(4) = 64
<Size : uint> Frame size value
Default:
Usage Guide:
To enable Test Signal of MEP.
Example:
To enable Test Signal of MEP 1 as below table
Switch# configure terminal
Switch (config)# mep 1 tst 3 dei mep-id 2 sequence one-zero
rate 10 size 68
mep <Instance> up
Command:
mep <Instance> [mip] up domain { port | evc | vlan } [ vid
<vid> ] flow <flow> level <level> interface <port_type> <port>
mep Maintenance Entity Point
<Instance> The MEP instance number.
mip This MEP instance is a half-MIP
up This MEP is a Up-MEP
domain The domain of the MEP
evc This MEP is a EVC domain MEP.
port This MEP is a Port domain MEP.
NS3500-24T-4C Managed Switch Command Guide 181
Chapter 4: Commands for CLI configuration
vlan This MEP is a VLAN domain MEP.
flow The flow instance that the MEP is related to.
<flow > The flow instance number when not in the port domain.
vid In case the MEP is a port Up-MEP or a EVC customer MIP the VID must be
given.
<Vid : vlan_id> The port Domain MEP VID. This is required for a Port Up-MEP.
Default:
None
Usage Guide:
To configure Up-MEP of MEP.
Example:
To configure Up-MEP of MEP 2 as below table
Switch# configure terminal
Switch (config)# mep 2 up domain port vid 1 flow 1 level 2
interface GigabitEthernet 1/1
mep <Instance> vid
Command:
mep <Instance> vid <vid>
mep Maintenance Entity Point
<Instance> The MEP instance number.
vid The MEP VID
<Vid : vlan_id> The MEP VID value
Default:
0
Usage Guide:
To set VID of MEP.
Example:
To set VID (8) of MEP 1.
Switch# configure terminal
Switch (config)# mep 1 vid 8
mep <Instance> voe
Command:
mep <Instance> voe
mep Maintenance Entity Point
<Instance> The MEP instance number.
voe MEP is VOE based
182 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Default:
0
Usage Guide:
To set VOE of MEP.
Example:
To set VOE (8) of MEP 1
Switch# configure terminal
Switch (config)# mep 1 voe
monitor destination
Command:
monitor destination interface 10GigabitEthernet
<port_type_list> | GigabitEthernet <port_type_list>
monitor Set monitor configuration
destination The destination port. That is the port that trafficed should be
mirrored to
Default:
Disabled
Usage Guide:
To configure Mirroring Port
Example:
To set Mirroring Port (GigabitEthernet 1/2)
Switch# configure terminal
Switch (config)# monitor destination interface GigabitEthernet
1/2
monitor source
Command:
monitor source interface * | 10GigabitEthernet
<port_type_list> | GigabitEthernet <port_type_list> { both | rx
| tx }
monitor Set monitor configuration
source The source port(s). That is the ports to be mirrored to the destination
port.
Default:
Disabled
Usage Guide:
To configure Mirrored Port
Example:
To set Mirrored Port (GigabitEthernet 1/1, Tx + Rx)
Switch# configure terminal
Switch (config)# monitor source interface GigabitEthernet 1/1 both
NS3500-24T-4C Managed Switch Command Guide 183
Chapter 4: Commands for CLI configuration
mvr
Command:
mvr
mvr Multicast VLAN Registration configuration
Default:
Disabled
Usage Guide:
To enable MVR
Example:
To enable MVR
Switch# configure terminal
Switch (config)# mvr
mvr name <mvr_name> channel
Command:
mvr name <mvr_name> channel <ProfileName : word16>
mvr Multicast VLAN Registration configuration
name MVR multicast name
<MvrName : word16> MVR multicast VLAN name
channel MVR channel configuration
<ProfileName : word16> Profile name
Default:
None
Usage Guide:
To configure channel interface of MVR profile
Example:
To configure channel interface (1) of MVR profile (123)
Switch# configure terminal
Switch (config)# mvr name 123 channel 1
mvr name <mvr_name> frame priority
Command:
mvr name <mvr_name> frame priority <CosPriority : 0-7>
mvr Multicast VLAN Registration configuration
name MVR multicast name
<MvrName : word16> MVR multicast VLAN name
frame MVR control frame in TX
priority Interface CoS priority
<CosPriority : 0-7> CoS priority ranges from 0 to 7
Default:
184 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
0
Usage Guide:
To configure frame priority of MVR profile
Example:
To configure frame priority (5) of MVR profile (123)
Switch# configure terminal
Switch (config)# mvr name 123 frame priority 5
mvr name <mvr_name> frame tagged
Command:
mvr name <mvr_name> frame tagged
mvr Multicast VLAN Registration configuration
name MVR multicast name
<MvrName : word16> MVR multicast VLAN name
frame MVR control frame in TX
tagged Tagged IGMP/MLD frames will be sent
Default:
None
Usage Guide:
To configure frame tagged of MVR profile
Example:
To configure frame tagged (frame tagged) of MVR profile (123)
Switch# configure terminal
Switch (config)# mvr name 123 frame tagged
mvr name <mvr_name> igmp-address
Command:
mvr name <mvr_name> igmp-address <ipv4_ucast>
mvr Multicast VLAN Registration configuration
name MVR multicast name
<MvrName : word16> MVR multicast VLAN name
igmp-address MVR address configuration used in IGMP
<ipv4_ucast> A valid IPv4 unicast address
Default:
0.0.0.0
Usage Guide:
To configure the MVR address of MVR profile
Example:
To configure the MVR address (192.168.0.55) of MVR profile (123)
Switch# configure terminal
Switch (config)# mvr name 123 igmp-address 192.168.0.55
NS3500-24T-4C Managed Switch Command Guide 185
Chapter 4: Commands for CLI configuration
mvr name <mvr_name> last-member-query-interval
Command:
mvr name <mvr_name> last-member-query-interval
<IpmcLmqi : 0-31744>
mvr Multicast VLAN Registration configuration
name MVR multicast name
<MvrName : word16> MVR multicast VLAN name
last-member-query-interval Last Member Query Interval in tenths of seconds
<IpmcLmqi : 0-31744> 0 - 31744 tenths of seconds
Default:
5
Usage Guide:
To configure the Last Member Query Interval of MVR profile
Example:
To configure the Last Member Query Interval (50 seconds) of MVR profile (123)
Switch# configure terminal
Switch (config)# mvr name 123 last-member-query-interval 500
mvr name <mvr_name> mode
Command:
mvr name <mvr_name> mode { compatible | dynamic }
mvr Multicast VLAN Registration configuration
name MVR multicast name
<MvrName : word16> MVR multicast VLAN name
mode MVR mode of operation
compatible Compatible MVR operation mode
dynamic Dynamic MVR operation mode
Default:
Dynamic
Usage Guide:
To configure the mode of MVR profile
Example:
To configure the mode (compatible) of MVR profile (123)
Switch# configure terminal
Switch (config)# mvr name 123 mode compatible
mvr vlan <vlan_list>
Command:
mvr vlan <vlan_list>
mvr Multicast VLAN Registration configuration
vlan MVR multicast vlan
<vlan_list> MVR multicast VLAN list
186 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Default:
None
Usage Guide:
To create a profile of MVR VLAN
Example:
To create a profile of MVR VLAN (5)
Switch# configure terminal
Switch (config)# mvr vlan 5
mvr vlan <vlan_list> channel
Command:
mvr vlan <vlan_list> channel <ProfileName : word16>
mvr Multicast VLAN Registration configuration
vlan MVR multicast vlan
<vlan_list> MVR multicast VLAN list
channel MVR channel configuration
<ProfileName : word16> Profile name
Default:
0
Usage Guide:
To configure the channel of MVR profile
Example:
To configure the channel (1) of MVR VLAN (5)
Switch# configure terminal
Switch (config)# mvr vlan 5 channel 1
mvr vlan <vlan_list> frame priority
Command:
mvr vlan <vlan_list> frame priority <CosPriority : 0-7>
mvr Multicast VLAN Registration configuration
vlan MVR multicast vlan
<vlan_list> MVR multicast VLAN list
frame MVR control frame in TX
priority Interface CoS priority
<CosPriority : 0-7> CoS priority ranges from 0 to 7
Default:
0
Usage Guide:
To configure the frame priority of MVR VLAN
Example:
To configure the frame priority (5) of MVR VLAN (123)
NS3500-24T-4C Managed Switch Command Guide 187
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# mvr vlan 123 frame priority 5
mvr vlan <vlan_list> tagged
Command:
mvr vlan <vlan_list> tagged
mvr Multicast VLAN Registration configuration
vlan MVR multicast vlan
<vlan_list> MVR multicast VLAN list
tagged Tagged IGMP/MLD frames will be sent
Default:
Enabled
Usage Guide:
To enable the IGMP/MLD frame tagged of MVR VLAN
Example:
To enable the IGMP/MLD frame tagged of MVR VLAN (123)
Switch# configure terminal
Switch (config)# mvr vlan 123 tagged
mvr vlan <vlan_list> igmp-address
Command:
mvr vlan <vlan_list> igmp-address <ipv4_ucast>
mvr Multicast VLAN Registration configuration
vlan MVR multicast vlan
<vlan_list> MVR multicast VLAN list
igmp-address MVR address configuration used in IGMP
<ipv4_ucast> A valid IPv4 unicast address
Default:
0.0.0.0
Usage Guide:
To configure the MVR address of MVR VLAN
Example:
To configure the MVR address (192.168.0.55) of of MVR VLAN (123)
Switch# configure terminal
Switch (config)# mvr vlan 123 igmp-address 192.168.0.55
188 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
mvr vlan <vlan_list> last-member-query-interval
Command:
mvr vlan <vlan_list> last-member-query-interval <IpmcLmqi :
0-31744>
mvr Multicast VLAN Registration configuration
vlan MVR multicast vlan
<vlan_list> MVR multicast VLAN list
last-member-query-interval Last Member Query Interval in tenths of seconds
<IpmcLmqi : 0-31744> 0 - 31744 tenths of seconds
Default:
5
Usage Guide:
To configure the Last Member Query Interval of MVR VLAN
Example:
To configure the Last Member Query Interval (50 seconds) of MVR VLAN (123)
Switch# configure terminal
Switch (config)# mvr vlan 123 last-member-query-interval 500
mvr vlan <vlan_list> mode
Command:
mvr vlan <vlan_list> mode [ compatible | dynamic ]
mvr Multicast VLAN Registration configuration
vlan MVR multicast vlan
<vlan_list> MVR multicast VLAN list
mode MVR mode of operation
compatible Compatible MVR operation mode
dynamic Dynamic MVR operation mode
Default:
Dynamic
Usage Guide:
To configure the mode of MVR VLAN
Example:
To configure the mode (compatible) of MVR VLAN (123)
Switch# configure terminal
Switch (config)# mvr vlan 123 mode compatible
mvr vlan <vlan_list> name
Command:
mvr vlan <vlan_list> name
mvr Multicast VLAN Registration configuration
vlan MVR multicast vlan
NS3500-24T-4C Managed Switch Command Guide 189
Chapter 4: Commands for CLI configuration
<vlan_list> MVR multicast VLAN list
name MVR multicast name
Default:
None
Usage Guide:
To configure profile name of MVR VLAN
Example:
To configure profile name (6) of MVR VLAN (5)
Switch# configure terminal
Switch (config)# mvr vlan 5 name 6
network-clock clk-source <clk-source> aneg-mode
Command:
network-clock clk-source <clk-source> aneg-mode { master |
slave | forced }
network-clock network-clock
clk-source clk-source - commands related to a specific clock source.
<clk-source : 1-2> Clock source number
aneg-mode Sets the preferred negotiation.
forced Activate forced slave negotiation
master Activate prefer master negotiation
slave Activate prefer slave negotiation
Default:
None
Usage Guide:
To configure preferred negotiation of network-clock
Example:
To configure preferred negotiation (slave) of network-clock (source 1)
Switch# configure terminal
Switch (config)# network-clock clk-source 1 aneg-mode slave
no
Command:
no
no Negate a command or set its defaults
Default:
N/A
Usage Guide:
To default the function
Example:
To disable the function (loop-protect)
190 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# no loop-protect
ntp
Command:
ntp
ntp Configure NTP
Default:
Disabled
Usage Guide:
To enable the NTP service
Example:
To enable the NTP service
Switch# configure terminal
Switch (config)# ntp
ntp server
Command:
ntp server <1-5> ip-address { <ipv4_var> | <ipv6_var> |
<name_var> }
ntp Configure NTP
server Configure NTP server
<1-5> index number
<hostname> domain name
<ipv4_ucast> ipv4 address
<ipv6_ucast> ipv6 address
Default:
None
Usage Guide:
To configure the IP addresses of NTP Server
Example:
To configure the IP address (9.9.9.9) of NTP Server for index 1
Switch# configure terminal
Switch (config)# ntp server 1 ip-address 9.9.9.9
poe admin-mode enable
Command:
poe admin-mode enable
poe Power Over Ethernet
admin-mode Enable or disable global PoE management function.
NS3500-24T-4C Managed Switch Command Guide 191
Chapter 4: Commands for CLI configuration
enable poe admin-mode enable
Default:
Enabled
Usage Guide:
To enable System PoE Admin Mode.
Example:
To enable System PoE Admin Mode.
Switch# configure terminal
Switch (config)# poe admin-mode enable
poe management mode
Command:
poe management mode { class-consumption | class-reserved-
power | allocation-consumption | allocation-reserved-power |
lldp-consumption | lldp-reserved-power }
poe Power Over Ethernet
management Use management mode to configure PoE power management
method.
mode mode
allocation-consumption Max. port power determined by allocated, and power
is managed according to power consumption.
allocation-reserved-power Max. port power determined by alocated, and is
managed according to reserved power.
class-consumption Max. port power determined by class, and power is
managed according to power consumption.
class-reserved-power Max. port power determined by class, and power
managed according to reserved power.
lldp-consumption Max. port power determined by LLDP Media protocol, and
power is managed according to consumption.
lldp-reserved-power Max. port power determined by LLDP Media protocol, and
power is managed according to reserved power.
Default:
Allocation-consumption
Usage Guide:
To configure PoE Management Mode.
Example:
To configure PoE Management Mode as LLDP-consumption mode.
Switch# configure terminal
Switch (config)# poe management mode lldp-consumption
poe sequential enable
Command:
poe sequential enable
192 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
poe Power Over Ethernet
sequential PoE sequential is to delay power feeding when the switch is
completely booted.
enable poe sequential enable
Default:
Enabled
Usage Guide:
To enable Sequential Power up Option.
Example:
To enable Sequential Power up Option.
Switch# configure terminal
Switch (config)# poe sequential enable
poe sequential interval
Command:
poe sequential interval <1-30>
poe Power Over Ethernet
sequential PoE sequential is to delay power feeding when the switch is
completely booted.
interval Set how long system should feeding power to next PoE interface <1-30>
<1-30> poe sequential enable
Default:
5
Usage Guide:
To configure Sequential Power up Interval.
Example:
To configure Sequential Power up Interval (30 seconds per port).
Switch# configure terminal
Switch (config)# poe sequential interval 30
poe sequential rule
Command:
poe sequential rule { port | priority }
poe Power Over Ethernet
sequential rule PoE sequential is to delay power feeding when the switch is
completely booted.
port System sequential feeding power the PoE interfaces based port number.
priority Use priority command to configure sequential feeding power to PoE
interfaces based on port PoE priority.
Default:
Port
NS3500-24T-4C Managed Switch Command Guide 193
Chapter 4: Commands for CLI configuration
Usage Guide:
To configure Sequential Power up Port Option.
Example:
To configure Sequential Power up Port Option (Priority).
Switch# configure terminal
Switch (config)# poe sequential rule priority
poe supply
Command:
poe supply <1-XXX>
poe Power Over Ethernet
supply Use poe supply to specify the maximum power the power supply can
deliver.
<1-XXX> Maximum power the power supply can deliver.
Default:
Maximum
Usage Guide:
To configure Power Supply Budget.
Example:
To configure Power Supply Budget (200 watts).
Switch# configure terminal
Switch (config)# poe supply 200
poe temperature-protection enable
Command:
poe temperature-protection enable
poe Power Over Ethernet
temperature-protection Configure PoE over temperature protection to enable or
disable.
enable poe temperature-protection enable
Default:
Enabled
Usage Guide:
To enable PoE Temperature Protection.
Example:
To enable PoE Temperature Protection.
Switch# configure terminal
Switch (config)# poe temperature-protection enable
194 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
poe temperature-threshold
Command:
poe temperature-threshold <0-100>
poe Power Over Ethernet
temperature-threshold Set a lower high temperature threshold for the
secondary temperature alarm in degrees C.
<0-100> Specifies the new threshold temperature.
Default:
80
Usage Guide:
To enable PoE Temperature Protection.
Example:
To enable PoE Temperature Protection (70 degrees C).
Switch# configure terminal
Switch (config)# poe temperature-threshold 70
poe usage-threshold
Command:
poe usage-threshold <1-99>
poe Power Over Ethernet
usage-threshold The poe usage-threshold command sets a percentage
threshold above which the system sends a log or SNMP
trap.<1-99>: The -threshold percentage configured with
this command.
<1-99> The usage-threshold percentage configured with this command.
Default:
85
Usage Guide:
To configure PoE Usage Threshold.
Example:
To configure PoE Usage Threshold (90 %).
Switch# configure terminal
Switch (config)# poe usage-threshold 90
poe-time-range
Command:
poe-time-range {profile1 | profile2 | profile3 | profile4}
poe-time-range Used to create PoE time-range for the switch and enter Power
Time-range Create Configuration Mode.
profile1 The PoE time-range profile name, ranging from Profile 1
profile2 The PoE time-range profile name, ranging from Profile 2
NS3500-24T-4C Managed Switch Command Guide 195
Chapter 4: Commands for CLI configuration
profile3 The PoE time-range profile name, ranging from Profile 3
profile4 The PoE time-range profile name, ranging from Profile 4
Default:
N/A
Usage Guide:
To enter PoE time-range profile mode.
Example:
To enter PoE time-range profile 1 mode
Switch# configure terminal
Switch (config)# poe-time-range profile1
Switch (config-poe-time-range)#
do
Command:
do < exec commands >
do To run exec commands
Default:
N/A
Usage Guide:
To run exec commands
Example:
To run “show aaa”.
Switch# configure terminal
Switch (config)# poe-time-range profile1
Switch (config-poe-time-range)#do show aaa
console : local
telnet : local
ssh : local
http : local
end
Command:
end
end Go back to EXEC mode
Default:
Auto
Usage Guide:
To back to EXEC mode
196 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Example:
To back to EXEC mode
Switch# configure terminal
Switch (config)# poe-time-range profile1
Switch (config-poe-time-range)#end
Switch#
exit
Command:
exit
exit Exit from current mode
Default:
None
Usage Guide:
To exit current mode
Example:
To exit current mode.
Switch# configure terminal
Switch (config)# poe-time-range profile1
Switch (config-poe-time-range)#exit
Switch (config)#
no
Command:
no
no Negate a command or set its defaults
Default:
N/A
Usage Guide:
To default the function.
Example:
To enable the function (description 999).
Switch# configure terminal
Switch (config)# poe-time-range profile1
Switch (config-poe-time-range)#no description 999
periodic
Command:
periodic { Mon | Tue | Wed | Thu | Fri | Sat | Sun } <start_h>
<start_m> to <end_h> <end_m> [ reboot <reboot_h>
<reboot_m> ]
periodic To create a periodic mode time-range for the PoE time-range of the
switch.
Fri Periodic Mode, with Friday.
NS3500-24T-4C Managed Switch Command Guide 197
Chapter 4: Commands for CLI configuration
Mon Periodic Mode, with Monday.
Sat Periodic Mode, with Saturday.
Sun Periodic Mode, with Sunday.
Thu Periodic Mode, with Thursday.
Tue Periodic Mode, with Tuesday.
Wed Periodic Mode, with Wednesday.
< start_h: 0-23> <0-23> start hour
< start_m: 0-59> <0-59> start minute
to start to end
< end_h: 0-23> <0-23> end hour
< end_m: 0-59> <0-59> end minute
reboot Enable reboot function
< reboot_h: 0-23> <0-23> reboot hour
< reboot_m:0-59> <0-59> reboot minute
Default:
N/A
Usage Guide:
To configure the Power Over Ethernet Schedule for specific profile.
Example:
To configure the Power Over Ethernet Schedule (below table) for specific profile
1.
Switch# configure terminal
Switch (config)# poe-time-range profile1
Switch (config-poe-time-range)# periodic Mon 11 59 to 22 50
reboot 11 44
reboot-only
Command:
reboot-only { Mon | Tue | Wed | Thu | Fri | Sat | Sun }
<reboot_h> <reboot_m>
reboot-only To create a periodic mode time-range for the PoE time-range of the
switch.
Fri Periodic Mode, with Friday.
Mon Periodic Mode, with Monday.
Sat Periodic Mode, with Saturday.
Sun Periodic Mode, with Sunday.
Thu Periodic Mode, with Thursday.
Tue Periodic Mode, with Tuesday.
Wed Periodic Mode, with Wednesday.
< reboot_h: 0-23> <0-23> reboot hour
< reboot_m:0-59> <0-59> reboot minute
Default:
N/A
198 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Usage Guide:
To configure the Power Over Ethernet Reboot Schedule for specific profile.
Example:
To configure the Power Over Ethernet Reboot Schedule (below table) for specific
profile.
Switch# configure terminal
Switch (config)# poe-time-range profile1
Switch (config-poe-time-range)# reboot Mon 0 0
port-security
Command:
port-security
port-security Enable/disable port security globally
Default:
Disabled
Usage Guide:
To enable the Port Security
Example:
To enable the Port Security
Switch# configure terminal
Switch (config)# port-security
port-security aging
Command:
port-security aging
port-security Enable/disable port security globally
aging Enable/disable port security aging
Default:
Disabled
Usage Guide:
To enable the Port Aging
Example:
To enable the Port Aging
Switch# configure terminal
Switch (config)# port-security port-security aging
NS3500-24T-4C Managed Switch Command Guide 199
Chapter 4: Commands for CLI configuration
port-security aging time
Command:
port-security aging time <10-10000000>
port-security Enable/disable port security globally
aging Enable/disable port security aging
time Time in seconds between check for activity on learned MAC addresses
<10-10000000> seconds
Default:
3600
Usage Guide:
To configure the Aging Period of Port Security
Example:
To configure the Aging Period (159) of Port Security
Switch# configure terminal
Switch (config)# port-security aging time 159
privilege
Command:
privilege { exec | configure | config-vlan | line | interface | if-
vlan | ipmc-profile | snmps-host | stp-aggr | dhcp-pool |
rfc2544-profile } level <privilege> <cmd>
privilege Command privilege parameters
config-vlan VLAN Configuration Mode
configure Global configuration mode
dhcp-pool DHCP Pool Configuration Mode
exec Exec mode
if-vlan VLAN Interface Mode
interface Port List Interface Mode
ipmc-profile IPMC Profile Mode
line Line configuration mode
rfc2544-profile RFC2544 Profile Mode
snmps-host SNMP Server Host Mode
stp-aggr STP Aggregation Mode
level Set privilege level of command
<0-15> Privilege level
<cmd> Initial valid words and literals of the command to modify
Default:
None
Usage Guide:
To configure the Privilege Level for Command Line
Example:
To configure the Privilege Level (DHCP Pool mode, Level 12, Command: host) for
Command Line
200 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# privilege dhcp-pool level 12 host
qos map cos-dscp
Command:
qos map cos-dscp <cos> dpl <dpl> dscp { <dscp_num> | { be
| af11 | af12 | af13 | af21 | af22 | af23 | af31 | af32 | af33 | af41 |
af42 | af43 | cs1 | cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } }
qos Quality of Service
map Global QoS Map/Table
cos-dscp Map for cos to dscp
<Cos : 0~7> Specific class of service or range
dscp Specify DSCP
<DscpNum : 0-63> Specific DSCP
af11 Assured Forwarding PHB AF11(DSCP 10)
af12 Assured Forwarding PHB AF12(DSCP 12)
af13 Assured Forwarding PHB AF13(DSCP 14)
af21 Assured Forwarding PHB AF21(DSCP 18)
af22 Assured Forwarding PHB AF22(DSCP 20)
af23 Assured Forwarding PHB AF23(DSCP 22)
af31 Assured Forwarding PHB AF31(DSCP 26)
af32 Assured Forwarding PHB AF32(DSCP 28)
af33 Assured Forwarding PHB AF33(DSCP 30)
af41 Assured Forwarding PHB AF41(DSCP 34)
af42 Assured Forwarding PHB AF42(DSCP 36)
af43 Assured Forwarding PHB AF43(DSCP 38)
be Default PHB(DSCP 0) for best effort traffic
cs1 Class Selector PHB CS1 precedence 1(DSCP 8)
cs2 Class Selector PHB CS2 precedence 2(DSCP 16)
cs3 Class Selector PHB CS3 precedence 3(DSCP 24)
cs4 Class Selector PHB CS4 precedence 4(DSCP 32)
cs5 Class Selector PHB CS5 precedence 5(DSCP 40)
cs6 Class Selector PHB CS6 precedence 6(DSCP 48)
cs7 Class Selector PHB CS7 precedence 7(DSCP 56)
ef Expedited Forwarding PHB(DSCP 46)
va Voice Admit PHB(DSCP 44)
Default:
0
Usage Guide:
To configure the DSCP Classification
Example:
To configure the DSCP Classification (QoS Class 3: DSCP CS1)
Switch# configure terminal
Switch (config)# qos map cos-dscp 3 dscp cs1
NS3500-24T-4C Managed Switch Command Guide 201
Chapter 4: Commands for CLI configuration
qos map dscp-classify
Command:
qos map dscp-classify { <dscp_num> | { be | af11 | af12 | af13
| af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 |
cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } }
qos Quality of Service
map Global QoS Map/Table
dscp-classify Map for dscp classify enable
<DscpNum : 0-63> Specific DSCP
af11 Assured Forwarding PHB AF11(DSCP 10)
af12 Assured Forwarding PHB AF12(DSCP 12)
af13 Assured Forwarding PHB AF13(DSCP 14)
af21 Assured Forwarding PHB AF21(DSCP 18)
af22 Assured Forwarding PHB AF22(DSCP 20)
af23 Assured Forwarding PHB AF23(DSCP 22)
af31 Assured Forwarding PHB AF31(DSCP 26)
af32 Assured Forwarding PHB AF32(DSCP 28)
af33 Assured Forwarding PHB AF33(DSCP 30)
af41 Assured Forwarding PHB AF41(DSCP 34)
af42 Assured Forwarding PHB AF42(DSCP 36)
af43 Assured Forwarding PHB AF43(DSCP 38)
be Default PHB(DSCP 0) for best effort traffic
cs1 Class Selector PHB CS1 precedence 1(DSCP 8)
cs2 Class Selector PHB CS2 precedence 2(DSCP 16)
cs3 Class Selector PHB CS3 precedence 3(DSCP 24)
cs4 Class Selector PHB CS4 precedence 4(DSCP 32)
cs5 Class Selector PHB CS5 precedence 5(DSCP 40)
cs6 Class Selector PHB CS6 precedence 6(DSCP 48)
cs7 Class Selector PHB CS7 precedence 7(DSCP 56)
ef Expedited Forwarding PHB(DSCP 46)
va Voice Admit PHB(DSCP 44)
Default:
Disabled
Usage Guide:
To enabled the DSCP Ingress Classification
Example:
To configure the DSCP Ingress Classification (DSCP 36)
Switch# configure terminal
Switch (config)# qos map dscp-classify af42
qos map dscp-cos
Command:
qos map dscp-cos { <dscp_num> | { be | af11 | af12 | af13 |
af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 |
cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } } cos <cos> dpl <dpl>
qos Quality of Service
202 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
map Global QoS Map/Table
dscp-cos Map for dscp to cos
<DscpNum : 0-63> Specific DSCP
af11 Assured Forwarding PHB AF11(DSCP 10)
af12 Assured Forwarding PHB AF12(DSCP 12)
af13 Assured Forwarding PHB AF13(DSCP 14)
af21 Assured Forwarding PHB AF21(DSCP 18)
af22 Assured Forwarding PHB AF22(DSCP 20)
af23 Assured Forwarding PHB AF23(DSCP 22)
af31 Assured Forwarding PHB AF31(DSCP 26)
af32 Assured Forwarding PHB AF32(DSCP 28)
af33 Assured Forwarding PHB AF33(DSCP 30)
af41 Assured Forwarding PHB AF41(DSCP 34)
af42 Assured Forwarding PHB AF42(DSCP 36)
af43 Assured Forwarding PHB AF43(DSCP 38)
be Default PHB(DSCP 0) for best effort traffic
cs1 Class Selector PHB CS1 precedence 1(DSCP 8)
cs2 Class Selector PHB CS2 precedence 2(DSCP 16)
cs3 Class Selector PHB CS3 precedence 3(DSCP 24)
cs4 Class Selector PHB CS4 precedence 4(DSCP 32)
cs5 Class Selector PHB CS5 precedence 5(DSCP 40)
cs6 Class Selector PHB CS6 precedence 6(DSCP 48)
cs7 Class Selector PHB CS7 precedence 7(DSCP 56)
ef Expedited Forwarding PHB(DSCP 46)
va Voice Admit PHB(DSCP 44)
cos Specify class of service
<Cos : 0-7> Specific class of service
dpl Specify drop precedence level
<Dpl : dpl> Specific drop precedence level
Default:
0
Usage Guide:
To configure the DSCP-Based QoS Ingress Classification
Example:
To configure the DSCP-Based QoS Ingress Classification (DSCP: 44, QoS
Class: 6, DPL: 2)
Switch# configure terminal
Switch (config)# qos map dscp-cos va cos 6 dpl 2
qos map dscp-egress-translation
Command:
qos map dscp-egress-translation { <dscp_num> | { be | af11 |
af12 | af13 | af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 |
af43 | cs1 | cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } } to
{ <dscp_num_tr> | { be | af11 | af12 | af13 | af21 | af22 | af23 |
af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 | cs4 | cs5 |
cs6 | cs7 | ef | va } }
NS3500-24T-4C Managed Switch Command Guide 203
Chapter 4: Commands for CLI configuration
qos Quality of Service
map Global QoS Map/Table
dscp-egress-translation Map for dscp egress translation
<DscpNum : 0-63> Specific DSCP
af11 Assured Forwarding PHB AF11(DSCP 10)
af12 Assured Forwarding PHB AF12(DSCP 12)
af13 Assured Forwarding PHB AF13(DSCP 14)
af21 Assured Forwarding PHB AF21(DSCP 18)
af22 Assured Forwarding PHB AF22(DSCP 20)
af23 Assured Forwarding PHB AF23(DSCP 22)
af31 Assured Forwarding PHB AF31(DSCP 26)
af32 Assured Forwarding PHB AF32(DSCP 28)
af33 Assured Forwarding PHB AF33(DSCP 30)
af41 Assured Forwarding PHB AF41(DSCP 34)
af42 Assured Forwarding PHB AF42(DSCP 36)
af43 Assured Forwarding PHB AF43(DSCP 38)
be Default PHB(DSCP 0) for best effort traffic
cs1 Class Selector PHB CS1 precedence 1(DSCP 8)
cs2 Class Selector PHB CS2 precedence 2(DSCP 16)
cs3 Class Selector PHB CS3 precedence 3(DSCP 24)
cs4 Class Selector PHB CS4 precedence 4(DSCP 32)
cs5 Class Selector PHB CS5 precedence 5(DSCP 40)
cs6 Class Selector PHB CS6 precedence 6(DSCP 48)
cs7 Class Selector PHB CS7 precedence 7(DSCP 56)
ef Expedited Forwarding PHB(DSCP 46)
va Voice Admit PHB(DSCP 44)
Default:
None
Usage Guide:
To configure the DSCP Egress Translation
Example:
To configure the DSCP Egress Translation (AF11 to AF12)
Switch# configure terminal
Switch (config)# qos map dscp-egress-translation af11 to af12
qos map dscp-ingress-translation
Command:
qos map dscp-ingress-translation { <dscp_num> | { be | af11 |
af12 | af13 | af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 |
af43 | cs1 | cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } } to
{ <dscp_num_tr> | { be | af11 | af12 | af13 | af21 | af22 | af23 |
af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 | cs4 | cs5 |
cs6 | cs7 | ef | va } }
qos Quality of Service
map Global QoS Map/Table
dscp-ingress-translation Map for dscp ingress translation
<DscpNum : 0-63> Specific DSCP
204 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
af11 Assured Forwarding PHB AF11(DSCP 10)
af12 Assured Forwarding PHB AF12(DSCP 12)
af13 Assured Forwarding PHB AF13(DSCP 14)
af21 Assured Forwarding PHB AF21(DSCP 18)
af22 Assured Forwarding PHB AF22(DSCP 20)
af23 Assured Forwarding PHB AF23(DSCP 22)
af31 Assured Forwarding PHB AF31(DSCP 26)
af32 Assured Forwarding PHB AF32(DSCP 28)
af33 Assured Forwarding PHB AF33(DSCP 30)
af41 Assured Forwarding PHB AF41(DSCP 34)
af42 Assured Forwarding PHB AF42(DSCP 36)
af43 Assured Forwarding PHB AF43(DSCP 38)
be Default PHB(DSCP 0) for best effort traffic
cs1 Class Selector PHB CS1 precedence 1(DSCP 8)
cs2 Class Selector PHB CS2 precedence 2(DSCP 16)
cs3 Class Selector PHB CS3 precedence 3(DSCP 24)
cs4 Class Selector PHB CS4 precedence 4(DSCP 32)
cs5 Class Selector PHB CS5 precedence 5(DSCP 40)
cs6 Class Selector PHB CS6 precedence 6(DSCP 48)
cs7 Class Selector PHB CS7 precedence 7(DSCP 56)
ef Expedited Forwarding PHB(DSCP 46)
va Voice Admit PHB(DSCP 44)
Default:
None
Usage Guide:
To configure the DSCP Ingress Translation
Example:
To configure the DSCP Ingress Translation (AF11 to AF12)
Switch# configure terminal
Switch (config)# qos map dscp-ingress-translation af11 to af12
NS3500-24T-4C Managed Switch Command Guide 205
Chapter 4: Commands for CLI configuration
qos qce
Command:
qos qce <qce_id> [ { next <qce_id_next> } | last ] [ interface
( <port_type> [ <port_list> ] ) ] [ smac { <smac> | <smac_24> |
any } ] [ dmac { <dmac> | unicast | multicast | broadcast |
any } ] [ tag { [ type { untagged | tagged | c-tagged | s-tagged |
any } ] [ vid { <ot_vid> | any } ] [ pcp { <ot_pcp> | any } ] [ dei
{ <ot_dei> | any } ] } ] [ inner-tag { [ type { untagged | tagged |
c-tagged | s-tagged | any } ] [ vid { <it_vid> | any } ] [ pcp
{ <it_pcp> | any } ] [ dei { <it_dei> | any } ] } ] [ frame-type
{ any | { etype [ { <etype_type> | any } ] } | { llc [ dsap
{ <llc_dsap> | any } ] [ ssap { <llc_ssap> | any } ] [ control
{ <llc_control> | any } ] } | { snap [ { <snap_data> | any } ] } |
{ ipv4 [ proto { <pr4> | tcp | udp | any } ] [ sip { <sip4> | any } ]
[ dip { <dip4> | any } ] [ dscp { <dscp4> | { be | af11 | af12 |
af13 | af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 | af43 |
cs1 | cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } | any } ]
[ fragment { yes | no | any } ] [ sport { <sp4> | any } ] [ dport
{ <dp4> | any } ] } | { ipv6 [ proto { <pr6> | tcp | udp | any } ]
[ sip { <sip6> | any } ] [ dip { <dip6> | any } ] [ dscp { <dscp6> |
{ be | af11 | af12 | af13 | af21 | af22 | af23 | af31 | af32 | af33 |
af41 | af42 | af43 | cs1 | cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef |
va } | any } ] [ sport { <sp6> | any } ] [ dport { <dp6> |
any } ] } } ] [ action { [ cos { <action_cos> | default } ] [ dpl
{ <action_dpl> | default } ] [ pcp-dei { <action_pcp>
<action_dei> | default } ] [ dscp { <action_dscp_dscp> | { be |
af11 | af12 | af13 | af21 | af22 | af23 | af31 | af32 | af33 | af41 |
af42 | af43 | cs1 | cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } |
default } ] [ policy { <action_policy> | default } ] } ]
qos Quality of Service
qce QoS Control Entry
action Setup action
dmac Setup matched DMAC
frame-type Setup matched frame type
interface Interfaces
last Place QCE at the end
next Place QCE before the next QCE ID
smac Setup matched SMAC
tag Setup tag options
Default:
None
Usage Guide:
To configure the QCE
Example:
To configure the QCE 1 (below table) for interface GigabitEthernet 1/1-2
206 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# qos qce 1 interface GigabitEthernet 1/1-2 tag
type tagged vid 5 pcp 3 dei 1 dmac unicast frame-type ipv4
proto udp dscp 19 frag no sport 55 action cos 0 dpl 1 dscp 4
NS3500-24T-4C Managed Switch Command Guide 207
Chapter 4: Commands for CLI configuration
qos qce update
Command:
qos qce update <qce_id> [ { next <qce_id_next> } | last ]
[ interface ( <port_type> [ <port_list> ] ) ] [ smac { <smac> |
<smac_24> | any } ] [ dmac { <dmac> | unicast | multicast |
broadcast | any } ] [ tag { [ type { untagged | tagged | c-tagged
| s-tagged | any } ] [ vid { <ot_vid> | any } ] [ pcp { <ot_pcp> |
any } ] [ dei { <ot_dei> | any } ] } ] [ inner-tag { [ type
{ untagged | tagged | c-tagged | s-tagged | any } ] [ vid
{ <it_vid> | any } ] [ pcp { <it_pcp> | any } ] [ dei { <it_dei> |
any } ] } ] [ frame-type { any | { etype [ { <etype_type> |
any } ] } | { llc [ dsap { <llc_dsap> | any } ] [ ssap { <llc_ssap> |
any } ] [ control { <llc_control> | any } ] } | { snap
[ { <snap_data> | any } ] } | { ipv4 [ proto { <pr4> | tcp | udp |
any } ] [ sip { <sip4> | any } ] [ dip { <dip4> | any } ] [ dscp
{ <dscp4> | { be | af11 | af12 | af13 | af21 | af22 | af23 | af31 |
af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 | cs4 | cs5 | cs6 |
cs7 | ef | va } | any } ] [ fragment { yes | no | any } ] [ sport
{ <sp4> | any } ] [ dport { <dp4> | any } ] } | { ipv6 [ proto
{ <pr6> | tcp | udp | any } ] [ sip { <sip6> | any } ] [ dip { <dip6>
| any } ] [ dscp { <dscp6> | { be | af11 | af12 | af13 | af21 | af22 |
af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 | cs4
| cs5 | cs6 | cs7 | ef | va } | any } ] [ sport { <sp6> | any } ]
[ dport { <dp6> | any } ] } } ] [ action { [ cos { <action_cos> |
default } ] [ dpl { <action_dpl> | default } ] [ pcp-dei
{ <action_pcp> <action_dei> | default } ] [ dscp
{ <action_dscp_dscp> | { be | af11 | af12 | af13 | af21 | af22 |
af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 | cs4
| cs5 | cs6 | cs7 | ef | va } | default } ] [ policy { <action_policy>
| default } ] } ]
qos Quality of Service
qce QoS Control Entry
update Update an existing QCE
action Setup action
dmac Setup matched DMAC
frame-type Setup matched frame type
interface Interfaces
last Place QCE at the end
next Place QCE before the next QCE ID
smac Setup matched SMAC
tag Setup tag options
Default:
None
Usage Guide:
To update the QCE
Example:
To update the QCE 1 (DMAC: Unicast, Action: Cos 0).
208 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# qos qce update 1 dmac unicast action cos 0
qos qce refresh
Command:
qos qce refresh
qos Quality of Service
qce QoS Control Entry
refresh Refresh QCE tables in hardware
Default:
None
Usage Guide:
To refresh the QCE
Example:
To refresh the QCE.
Switch# configure terminal
Switch (config)# qos qce refresh
qos wred
Command:
qos wred queue <queue> min-th <min_th> mdp-1 <mdp_1>
mdp-2 <mdp_2> mdp-3 <mdp_3>
qos Quality of Service
wred Weighted Random Early Discard
queue Specify queue
<Queue : 0~5> Specific queue or range
min-th Specify minimum threshold
<MinTh : 0-100> Specific minimum threshold in percent
mdp-1 Specify drop probability for drop precedence level 1
<Mdp1 : 0-100> Specific drop probability in percent
mdp-2 Specify drop probability for drop precedence level 2
<Mdp2 : 0-100> Specific drop probability in percent
mdp-3 Specify drop probability for drop precedence level 3
<Mdp3 : 0-100> Specific drop probability in percent
Default:
NS3500-24T-4C Managed Switch Command Guide 209
Chapter 4: Commands for CLI configuration
Usage Guide:
To configure the Weighted Random Early Detection
Example:
To configure the Weighted Random Early Detection (below table)
Switch# configure terminal
Switch (config)# qos wred queue 1 min-th 2 mdp-1 3 mdp-2 4
mdp-3 5
radius-server attribute 32
Command:
radius-server attribute 32 <Id : line1-253>
radius-server Configure RADIUS
32 NAS-Identifier
Default:
None
Usage Guide:
To configure the NAS-Identifier
Example:
To configure the NAS-Identifier (IFS)
Switch# configure terminal
Switch (config)# radius-server attribute 32 IFS
radius-server attribute 4
Command:
radius-server attribute 4 <Ipv4 : ipv4_ucast>
radius-server Configure RADIUS
4 NAS-IP-Address
Default:
None
Usage Guide:
To configure the NAS-IP-Address
Example:
To configure the NAS-IP-Address (7.7.7.7)
210 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# radius-server attribute 4 7.7.7.7
radius-server attribute 95
Command:
radius-server attribute 95 <Ipv6 : ipv6_ucast>
radius-server Configure RADIUS
95 NAS-IPv6-Address
Default:
None
Usage Guide:
To configure the NAS-IPv6-Address
Example:
To configure the NAS-IPv6-Address (2001::7788)
Switch# configure terminal
Switch (config)# radius-server attribute 95 2001::7788
radius-server deadtime
Command:
radius-server deadtime <Minutes : 1-1440>
radius-server Configure RADIUS
deadtime Time to stop using a RADIUS server that doesn't respond
<Minutes : 1-1440> Time in minutes
Default:
0
Usage Guide:
To configure the Deadtime of Radius-Server
Example:
To configure the Deadtime (15) of Radius-Server
Switch# configure terminal
Switch (config)# radius-server deadtime 15
radius-server host
Command:
radius-server host <host_name> [ auth-port <auth_port> ]
[ acct-port <acct_port> ] [ timeout <seconds> ] [ retransmit
<retries> ] [ key <key> ]
radius-server Configure RADIUS
host Specify a RADIUS server
NS3500-24T-4C Managed Switch Command Guide 211
Chapter 4: Commands for CLI configuration
<HostName : word1-255> Hostname or IP address
acct-port UDP port for RADIUS accounting server
<AcctPort : 0-65535> UDP port number
auth-port UDP port for RADIUS authentication server
<AuthPort : 0-65535> UDP port number
key Server specific key (overrides default)
<Key : line1-63> The shared key
retransmit Specify the number of retries to active server (overrides default)
<Retries : 1-1000> Number of retries for a transaction
timeout Time to wait for this RADIUS server to reply (overrides default)
<Seconds : 1-1000> Wait time in seconds
Default:
None
Usage Guide:
To configure the Host of Radius-Server
Example:
To configure the Host (below table) of Radius-Server
Switch# configure terminal
Switch (config)# radius-server host interlogix.com timeout 10
retransmit 6 key 123456789
radius-server key
Command:
radius-server key <Key : line1-63>
radius-server Configure RADIUS
key Set RADIUS encryption key
<Key : line1-63> The shared key
Default:
None
Usage Guide:
To configure the Key of Radius-Server
Example:
To configure the Key (123456789) of Radius-Server
Switch# configure terminal
Switch (config)# radius radius-server key 123456789
radius-server retransmit
Command:
radius-server retransmit <Retries : 1-1000>
radius-server Configure RADIUS
212 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
retransmit Specify the number of retries to active server
<Retries : 1-1000> Number of retries for a transaction
Default:
3
Usage Guide:
To configure the retransmitted time of Radius-Server
Example:
To configure the retransmitted time (5) of Radius-Server
Switch# configure terminal
Switch (config)# radius-server retransmit 5
radius-server timeout
Command:
radius-server timeout <Seconds : 1-1000>
radius-server Configure RADIUS
timeout Time to wait for a RADIUS server to reply
<Seconds : 1-1000> Wait time in seconds
Default:
5
Usage Guide:
To configure the timeout of Radius-Server
Example:
To configure the timeout (10) of Radius-Server
Switch# configure terminal
Switch (config)# radius-server timeout 10
rmon alarm
Command:
rmon alarm <id> {<oid_str> | {{ ifInOctets | ifInUcastPkts |
ifInNUcastPkts | ifInDiscards | ifInErrors | ifInUnknownProtos
| ifOutOctets | ifOutUcastPkts | ifOutNUcastPkts |
ifOutDiscards | ifOutErrors } <ifIndex>}} <interval: 1-
2147483647> { absolute | delta } rising-threshold
<rising_threshold: -2147483648-2147483647>
[<rising_event_id: 0-65535>] falling-threshold
<falling_threshold: -2147483648-2147483647>
[ <falling_event_id: 0-65535> ] { [ rising | falling | both ] }
rmon Remote Monitoring
alarm Configure an RMON alarm
<oid_str> MIB object to monitor
ifInDiscards The number of inbound packets that are discarded even the packets
are normal
ifInErrors The number of inbound packets that contained errors preventing
NS3500-24T-4C Managed Switch Command Guide 213
Chapter 4: Commands for CLI configuration
them from being deliverable to a higher-layer protocol
ifInNUcastPkts The number of broad-cast and multi-cast packets delivered to a
higher-layer protocol
ifInOctets The total number of octets received on the interface, including framing
characters
ifInUcastPkts The number of uni-cast packets delivered to a higher-layer protocol
ifInUnknownProtos The number of the inbound packets that were discarded
because of the unknown or un-support protocol
ifOutDiscards The number of outbound packets that are discarded event the
packets is normal
ifOutErrors The The number of outbound packets that could not be transmitted
because of errors
ifOutNUcastPkts The number of broad-cast and multi-cast packets that request to
transmit
ifOutOctets The number of octets transmitted out of the interface, including
framing characters
<uint> ifIndex
<interval: 1-2147483647> Sample interval
absolute Test each sample directly
delta Test delta between samples
rising-threshold Configure the rising threshold
<rising_threshold: -2147483648-2147483647> rising threshold value
<rising_event_id: 0-65535> Event to fire on rising threshold crossing
falling-threshold Configure the falling threshold
<falling_threshold: -2147483648-2147483647> falling threshold value
<falling_event_id: 0-65535> Event to fire on falling threshold crossing
both Trigger alarm when the first value is larger than the rising threshold or less
than the falling threshold (default)
falling Trigger alarm when the first value is less than the falling threshold
rising Trigger alarm when the first value is larger than the rising threshold
Default:
None
Usage Guide:
To configure the Alarm of RMON
Example:
To configure the Alarm (below table) of RMON
Switch# configure terminal
Switch (config)# rmon alarm 1 .1.3.6.1.2.1.2.2.1.10.15 50
absolute rising-threshold 1000 1 falling-threshold 520 1
falling
rmon event
Command:
rmon event <id: 1-65535> [ log ] [ trap <community> ]
{ [ description <description> ] }
214 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
rmon Remote Monitoring
event Configure an RMON event
<id: 1-65535> Event entry ID
description Specify a description of the event
<description> Event description
log Generate RMON log when the event fires
trap Generate SNMP trap when the event fires
<community> SNMP community string
Default:
None
Usage Guide:
To configure the Event of RMON
Example:
To configure the Event (below table) of RMON
Switch# configure terminal
Switch (config)# rmon event 1 log trap IFS description error
sflow agent-ip
Command:
sflow agent-ip { ipv4 <v_ipv4_addr> | ipv6 <v_ipv6_addr> }
sflow Statistics flow
agent-ip The agent IP address used as agent-address in UDP datagrams. Defaults
to IPv4 loopback address.
Default:
None
Usage Guide:
To configure the agent IP address of sFlow
Example:
To configure the agent IP address (10.10.10.10) of sFlow
Switch# configure terminal
Switch (config)# sflow agent-ip ipv4 10.10.10.10
sflow collector-address
Command:
sflow collector-address <hostname>
sflow Statistics flow
collector-address Collector address
<hostname> IPv4 address or IPv6 address or hostname identifying the collector
receiver
NS3500-24T-4C Managed Switch Command Guide 215
Chapter 4: Commands for CLI configuration
Default:
None
Usage Guide:
To configure the Collector address of sFlow
Example:
To configure the Collector address (10.10.10.10) of sFlow
Switch# configure terminal
Switch (config)# sflow collector-address 10.10.10.10
sflow collector-port
Command:
sflow collector-port <collector_port>
sflow Statistics flow
collector-port Collector UDP port
<Collector Port : 1-65535> Port number
Default:
None
Usage Guide:
To configure the Collector port number of sFlow
Example:
To configure the Collector port number (555) of sFlow
Switch# configure terminal
Switch (config)# sflow collector-port 555
sflow max-datagram-size
Command:
sflow max-datagram-size <datagram_size>
sflow Statistics flow
max-datagram-size Maximum datagram size
<DatagramSize : 200-1468> bytes
Default:
None
Usage Guide:
To configure the Collector Maximum datagram size of sFlow
Example:
To configure the Collector Maximum datagram size (555 bytes) of sFlow
Switch# configure terminal
Switch (config)# sflow max-datagram-size 555
216 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
sflow timeout
Command:
sflow timeout <timeout>
sflow Statistics flow
timeout Receiver timeout measured in seconds. The switch decrements the
timeout once per second, and as long as it is non-zero, the receiver
receives samples. Once the timeout reaches 0, the receiver and all its
configuration is reset to defaults.
<timeout: 0-2147483647> Number of seconds
Default:
None
Usage Guide:
To configure the Collector timeout of sFlow
Example:
To configure the Collector timeout (555 seconds) of sFlow
Switch# configure terminal
Switch (config)# sflow timeout 555
sfp temperature-threshold
Command:
sfp temperature-threshold <0-100>
sfp temperature-threshold Set a lower high temperature threshold for the
secondary temperature alarm in
degrees C.
<0-100> Specifies the new threshold temperature.
Default:
None
Usage Guide:
To configure the SFP temperature-threshold of sFlow
Example:
To configure the SFP temperature-threshold (55 degrees C) of sFlow
Switch# configure terminal
Switch (config)# sfp temperature-threshold 55
snmp-server
Command:
snmp-server
snmp-server Set SNMP server's configurations
Default:
Enabled
NS3500-24T-4C Managed Switch Command Guide 217
Chapter 4: Commands for CLI configuration
Usage Guide:
To enable the SNMP Service
Example:
To enable the SNMP Service
Switch# configure terminal
Switch (config)# snmp-server
snmp-server access
Command:
snmp-server access <group_name> model { v1 | v2c | v3 |
any } level { auth | noauth | priv } [ read <view_name> ] [ write
<write_name> ]
snmp-server Set SNMP server's configurations
access access configuration
<GroupName : word32> group name
model security model
any any security model
v1 v1 security model
v2c v2c security model
v3 v3 security model
level security level
auth authNoPriv Security Level
noauth noAuthNoPriv Security Level
priv authPriv Security Level
read specify a read view for the group
<ViewName : word255> read view name
write specify a write view for the group
<WriteName : word255> write view name
Default:
None
Usage Guide:
To configure the Access of SNMP
Example:
To configure the Access (below table) of SNMP
Switch# configure terminal
Switch (config)# snmp-server access default_rw_group model
v2c level priv read default_view write default_view
snmp-server community
Command:
snmp-server community { v2c <comm> [ ro | rw ] | v3
<v3_comm> [ <v_ipv4_addr> <v_ipv4_netmask> ] }
218 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
snmp-server Set SNMP server's configurations
community Set the SNMP community
v2c SNMPv2c
<comm> Community word
ro Read only
rw Read write
v3 SNMPv3
<V3Comm : word127> Community word
<ipv4_addr> IPv4 address
<ipv4_netmask> IPv4 netmask
Default:
None
Usage Guide:
To configure the Read / Write / Source network Community of SNMP
Example:
To configure the Read / Write / Source network Community (below table) of
SNMP
Switch# configure terminal
Switch (config)# snmp-server community v3 public
192.168.0.15 255.255.255.0
snmp-server contact
Command:
snmp-server contact <line255>
snmp-server Set SNMP server's configurations
contact Set the SNMP server's contact string
<line255> contact string
Default:
None
Usage Guide:
To configure the sysContact string of SNMP
Example:
To configure the sysContact string (Server123) of SNMP
Switch# configure terminal
Switch (config)# snmp-server contact Server123
snmp-server engine-id
Command:
NS3500-24T-4C Managed Switch Command Guide 219
Chapter 4: Commands for CLI configuration
snmp-server engine-id local <Engineid : word10-32>
snmp-server Set SNMP server's configurations
engine-id Set SNMP engine ID
local Set SNMP local engine ID
<Engineid : word10-32> local engine ID
Default:
None
Usage Guide:
To configure the Engine IDof SNMP
Example:
To configure the Engine ID (1234567890) of SNMP
Switch# configure terminal
Switch (config)# snmp-server engine-id local 1234567890
snmp-server host
Command:
snmp-server host <conf_name>
snmp-server Set SNMP server's configurations
host Set SNMP host's configurations
<conf_name> Name of the host configuration
Default:
None
Usage Guide:
To enter the SNMP host mode
Example:
To enter the SNMP host mode (IFS)
Switch# configure terminal
Switch (config)# snmp-server host IFS
Switch (config-snmps-host)#
do
Command:
do < exec commands >
do To run exec commands.
Default:
N/A
Usage Guide:
To run exec commands.
Example:
To run “show aaa”.
220 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# snmp-server host IFS
Switch (config-snmps-host)#do show aaa
console : local
telnet : local
ssh : local
http : local
end
Command:
end
end Go back to EXEC mode
Default:
Auto
Usage Guide:
To back to EXEC mode
Example:
To back to EXEC mode
Switch# configure terminal
Switch (config)# snmp-server host IFS
Switch (config-snmps-host)#end
Switch#
exit
Command:
exit
exit Exit from current mode
Default:
None
Usage Guide:
To exit current mode
Example:
To exit current mode.
Switch# configure terminal
Switch (config)# snmp-server host IFS
Switch (config-snmps-host)#exit
Switch (config)#
host
Command:
host [<hostname> | <ipv4_ucast> | <ipv6_ucast>] <UdpPort :
1-65535> { informs | traps }
host host configuration
<hostname> hostname of SNMP trap host
NS3500-24T-4C Managed Switch Command Guide 221
Chapter 4: Commands for CLI configuration
<ipv4_ucast> IP address of SNMP trap host
<ipv6_ucast> IP address of SNMP trap host
<UdpPort : 1-65535> UDP port of the trap messages
informs Send Inform messages to this host
traps Send Trap messages to this host
Default:
None
Usage Guide:
To configure Trap Host of SNMP
Example:
To configure Trap Host (below table) of SNMP
Switch# configure terminal
Switch (config)# snmp-server host IFS
Switch (config-snmps-host)# host interlogix.com 66 informs
no
Command:
no
no Negate a command or set its defaults
Default:
N/A
Usage Guide:
To default the function
Example:
To disable the function (host interlogix.com 66 informs)
Switch# configure terminal
Switch (config)# snmp-server host IFS
Switch (config-snmps-host)# no ip address dhcp
informs
Command:
informs retries <retries> timeout <timeout>
informs Send Inform messages to this host
retries retires inform messages
<Retries : 0-255> retires times
timeout timeout parmater
<Timeout : 0-2147> timeout interval
Default:
None
Usage Guide:
To configure Trap Inform time of SNMP
222 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Example:
To configure Trap Inform time (below table) of SNMP
Switch# configure terminal
Switch (config)# snmp-server host IFS
Switch (config-snmps-host)# informs retries 2 timeout 55
shutdown
Command:
shutdown
shutdown Disable the trap configuration
Default:
Disabled
Usage Guide:
To disable Trap mode of SNMP
Example:
To disable Trap mode of SNMP
Switch# configure terminal
Switch (config)# snmp-server host IFS
Switch (config-snmps-host)# shutdown
traps
Command:
traps [ aaa authentication ] [ system [ coldstart ]
[ warmstart ] ] [ switch [ stp ] [ rmon ] ]
traps trap event configuration
aaa AAA event group
authentication Authentication fail event
switch Switch event group
system System event group
coldstart Cold start event
warmstart Warm start event
rmon RMON event
stp STP event
Default:
Disabled
Usage Guide:
To configure Trap event of SNMP
Example:
To configure Trap event (STP, RMON) of SNMP
NS3500-24T-4C Managed Switch Command Guide 223
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# snmp-server host IFS
Switch (config-snmps-host)# traps switch rmon stp
version
Command:
version { v1 [ <v1_comm> ] | v2 [ <v2_comm> ] | v3 [ probe |
engineID <v_word10_to_32> ] [ <securtyname> ] }
version Set SNMP trap version
v1 SNMP trap version 1
<V1Comm : word127> SNMP trap community
v2 SNMP trap version 2
<V2comm : word127> SNMP trap community
v3 SNMP trap version 3
<Securtyname : word32> seucrity name
engineID Configure trap server's engine ID
probe Probe trap server's engine ID
Default:
Disabled
Usage Guide:
To configure Version of SNMP
Example:
To configure Version (below table) of SNMP
Switch# configure terminal
Switch (config)# snmp-server host IFS
Switch (config-snmps-host)# version v2 IFS
spanning-tree aggregation
Command:
spanning-tree aggregation
spanning-tree Spanning Tree protocol
aggregation Aggregation mode
Default:
None
Usage Guide:
To enter aggregation mode of STP
Example:
To enter aggregation mode of STP
Switch# configure terminal
Switch (config)# spanning-tree aggregation
Switch (config-stp-aggr)#
224 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
do
Command:
do < exec commands >
do To run exec commands.
Default:
N/A
Usage Guide:
To run exec commands.
Example:
To run “show aaa”.
Switch# configure terminal
Switch (config)# spanning-tree aggregation
Switch (config-stp-aggr)#do show aaa
console : local
telnet : local
ssh : local
http : local
end
Command:
end
end Go back to EXEC mode
Default:
Auto
Usage Guide:
To back to EXEC mode
Example:
To back to EXEC mode
Switch# configure terminal
Switch (config)# spanning-tree aggregation
Switch (config-stp-aggr)#end
Switch#
exit
Command:
exit
exit Exit from current mode
Default:
None
Usage Guide:
To exit current mode
Example:
To exit current mode.
NS3500-24T-4C Managed Switch Command Guide 225
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# spanning-tree aggregation
Switch (config-stp-aggr)#exit
Switch (config)#
no
Command:
no
no Negate a command or set its defaults
Default:
N/A
Usage Guide:
To default the function
Example:
To disable the function (spanning-tree auto-edge)
Switch# configure terminal
Switch (config)# snmp-server host IFS
Switch (config-snmps-host)# no spanning-tree auto-edge
spanning-tree auto-edge
Command:
spanning-tree auto-edge
spanning-tree Spanning Tree protocol
auto-edge Auto detect edge status
Default:
Enabled
Usage Guide:
To enable the Auto Edge of CIST Aggregated Port
Example:
To enable the Auto Edge of CIST Aggregated Port
Switch# configure terminal
Switch (config)# snmp-server host IFS
Switch (config-snmps-host)# spanning-tree auto-edge
spanning-tree bpdu-guard
Command:
spanning-tree bpdu-guard
spanning-tree Spanning Tree protocol
bpdu-guard Enable/disable BPDU guard
Default:
Disabled
226 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Usage Guide:
To enable the BPDU Guard of CIST Aggregated Port
Example:
To enable the BPDU Guard of CIST Aggregated Port
Switch# configure terminal
Switch (config)# snmp-server host IFS
Switch (config-snmps-host)# spanning-tree bpdu-guard
spanning-tree edge
Command:
spanning-tree edge
spanning-tree Spanning Tree protocol
edge Edge port
Default:
Disabled
Usage Guide:
To enable the Admin Edge of CIST Aggregated Port
Example:
To enable the Admin Edge of CIST Aggregated Port
Switch# configure terminal
Switch (config)# snmp-server host IFS
Switch (config-snmps-host)# spanning-tree edge
spanning-tree link-type
Command:
spanning-tree link-type link-type { point-to-point | shared |
auto }
spanning-tree Spanning Tree protocol
link-type Port link-type
auto Auto detect
point-to-point Forced to point-to-point
shared Forced to Shared
Default:
Point to Point
Usage Guide:
To configure the Point to Point mode (Shared) of CIST Aggregated Port
Example:
To configure the Point to Point mode (Shared) of CIST Aggregated Port
Switch# configure terminal
Switch (config)# snmp-server host IFS
Switch (config-snmps-host)# spanning-tree link-type shared
NS3500-24T-4C Managed Switch Command Guide 227
Chapter 4: Commands for CLI configuration
spanning-tree mst <instance> cost
Command:
spanning-tree mst <instance> cost { <cost> | auto }
spanning-tree Spanning Tree protocol
mst STP bridge instance
<Instance : 0-7> instance 0-7 (CIST=0, MST1=1...)
cost STP Cost of this port
<Cost : 1-200000000> Cost range
auto Use auto cost
Default:
Auto
Usage Guide:
To configure the Path Cost of MSTI Port
Example:
To configure the Path Cost (321) of MSTI Port (MST 2)
Switch# configure terminal
Switch (config)# snmp-server host IFS
Switch (config-snmps-host)# spanning-tree mst 2 cost 321
spanning-tree mst <instance> port-priority
Command:
spanning-tree mst <instance> port-priority <prio>
spanning-tree Spanning Tree protocol
mst STP bridge instance
<Instance : 0-7> instance 0-7 (CIST=0, MST1=1...)
port-priority STP priority of this port
<Prio : 0-240> Range (lower higher priority)
Default:
Auto
Usage Guide:
To configure the Port Priority of MSTI Port
Example:
To configure the Port Priority (96) of MSTI Port (MST 2)
Switch# configure terminal
Switch (config)# snmp-server host IFS
Switch (config-snmps-host)# spanning-tree mst 2 port-priority
96
spanning-tree restricted-role
Command:
spanning-tree restricted-role
spanning-tree Spanning Tree protocol
restricted-role Port role is restricted (never root port)
228 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Default:
Disabled
Usage Guide:
To enable the Restricted Role of CIST
Example:
To enable the Restricted Role of CIST
Switch# configure terminal
Switch (config)# snmp-server host IFS
Switch (config-snmps-host)# spanning-tree restricted-role
spanning-tree restricted-tcn
Command:
spanning-tree restricted-tcn
spanning-tree Spanning Tree protocol
restricted-tcn Restrict topology change notifications
Default:
Disabled
Usage Guide:
To enable the Restricted TCN of CIST
Example:
To enable the Restricted TCN of CIST
Switch# configure terminal
(config)# spanning-tree aggregation
(config-stp-aggr)# spanning-tree restricted-tcn
switchport vlan mapping
Command:
switchport vlan mapping <group> <vlan_list>
<translation_vlan>
switchport Set switching mode characteristics
vlan vlan - Vlan translation
mapping Add VLAN translation entry into a group
<group id : 1-29> Group id
<vlan_list> VLAN list
< translation_vlan > translation VLAN ID
Default:
None
Usage Guide:
To configure the VLAN Translation
Example:
To enable the VLAN Translation (below table)
NS3500-24T-4C Managed Switch Command Guide 229
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# switchport vlan mapping 1 3 5
tacacs-server deadtime
Command:
tacacs-server deadtime <minutes>
tacacs-server Configure TACACS+
deadtime Time to stop using a TACACS+ server that doesn't respond
<Minutes : 1-1440> Time in minutes
Default:
0
Usage Guide:
To configure the Deadtime of TACACS+ Server
Example:
To enable the Deadtime (6) of TACACS+ Server
Switch# configure terminal
Switch (config)# tacacs-server deadtime 6
tacacs-server host
Command:
tacacs-server host <host_name> [ port <port> ] [ timeout
<seconds> ] [ key <key> ]
tacacs-server Configure TACACS+
host Specify a TACACS+ server
<HostName : word1-255> Hostname or IP address
key Server specific key (overrides default)
port TCP port for TACACS+ server
<Port : 0-65535> TCP port number
timeout Time to wait for this TACACS+ server to reply (overrides default)
<Seconds : 1-1000> Wait time in seconds
<Key : line1-63> The shared key
Default:
None
Usage Guide:
To configure the Host of TACACS+ Server
Example:
To enable the Host (below table) of TACACS+ Server
Switch# configure terminal
Switch (config)# tacacs-server host interlogix.com port 55
timeout 6 key 7788
230 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
transport email authentication
Command:
transport email authentication username <username>
password <password>
transport Enable or disable transport email function.
email Enable or disable transport email function.
authentication configure SMTP authentication's username and password
<Username> User name allows letters, numbers and underscores
<Password> The ENCRYPTED (hidden) user password. Notice the
ENCRYPTED password will be decoded by system internally.
You cannot directly use it as same as the Plain Text and it is not
human-readable text normally.
Default:
N/A
Usage Guide:
To configure SMTP authentication's username and password
Example:
To configure SMTP authentication's username (123@interlogix.com) and password
(456)
Switch# configure terminal
Switch (config)# transport email authentication username
123@interlogix.com password 456
transport email from
Command:
transport email from <mail_addr> subject <title>
transport Enable or disable transport email function.
email Enable or disable transport email function.
from sender's email address
<mail_addr> mail address
subject subject/title of the email
<title> email title
Default:
N/A
Usage Guide:
To configure SMTP sender's email address and title of the email
Example:
To configure SMTP sender's email address (sys@interlogix.com) and title of the
email (syserror)
Switch# configure terminal
Switch (config)# transport email from sys@interlogix.com
subject syserror
NS3500-24T-4C Managed Switch Command Guide 231
Chapter 4: Commands for CLI configuration
transport email smtp-server
Command:
transport email smtp-server { <ipv4_addr> | <server> } port
<1_to_65535>
transport Enable or disable transport email function.
email Enable or disable transport email function.
smtp-server Set the SMTP server name or IP address of the SMTP server
<ipv4_ucast> <ipv4_addr>: IP address
<server> hostname
port port
<1-65535> port_number: Specifies the port number. The range is from 1 to
65535. The default port number is 25.
Default:
N/A
Usage Guide:
To configure SMTP Server address and port number.
Example:
To configure SMTP Server address (mail.interlogix.com) and port number (123)
Switch# configure terminal
Switch (config)# transport email smtp-server
mail.interlogix.com port 123
transport email to
Command:
transport email to <1 | 2> <mail_addr>
transport Enable or disable transport email function.
email Enable or disable transport email function.
to receiver's email
<1|2> 1: mail address 1 2: mail address 2
<mail_addr> mail address
Default:
N/A
Usage Guide:
To configure SMTP destination mail address.
Example:
To configure SMTP destination mail address 1 (ss@interlogix.com).
Switch# configure terminal
Switch (config)# transport email to 1 ss@interlogix.com
upnp
Command:
upnp
232 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
upnp Set UPnP's configurations
Default:
Disabled
Usage Guide:
To enable the UPnP service
Example:
To enable the UPnP service
Switch# configure terminal
Switch (config)# upnp
upnp advertising-duration
Command:
upnp advertising-duration <100-86400>
upnp Set UPnP's configurations
advertising-duration Set advertising duration
<100-86400> advertising duration
Default:
100
Usage Guide:
To configure the Advertising Duration of UPnP
Example:
To configure the Advertising Duration (123) of UPnP
Switch# configure terminal
Switch (config)# upnp advertising-duration 123
upnp ttl
Command:
upnp ttl <1-255>
upnp Set UPnP's configurations
ttl Set TTL value
<1-255> TTL value
Default:
4
Usage Guide:
To configure the TTL of UPnP
Example:
To configure the TTL (8) of UPnP
Switch# configure terminal
Switch (config)# upnp ttl 8
NS3500-24T-4C Managed Switch Command Guide 233
Chapter 4: Commands for CLI configuration
username
Command:
username <username> privilege <priv> password { encrypted
<encry_password> | none | unencrypted <password> }
username Establish User Name Authentication
<Username : word31> User name allows letters, numbers and underscores
privilege Set user privilege level
<privilegeLevel : 0-15> User privilege level
password Specify the password for the user
encrypted Specifies an ENCRYPTED password will follow
none NULL password
unencrypted Specifies an UNENCRYPTED password will follow
<Password : word4-44> The ENCRYPTED (hidden) user
password. Notice the
ENCRYPTED password will be decoded by system
internally. You cannot directly use it as same as the
Plain Text and it is not human-readable text
Default:
None
Usage Guide:
To configure the Profiles of Username
Example:
To configure the Profiles of Username (Username: 1234, Password: 1234,
Privilege Level: 15)
Switch# configure terminal
Switch (config)# username 1234 privilege 15 password
unencrypted 1234
Press ENTER to get started
Username: 1234
Password: 1234
#
vlan
Command:
vlan <vlist>
vlan VLAN commands
<vlan_list> VLAN IDs 1~4095
Default:
None
Usage Guide:
To create the VLAN Profiles
Example:
To create the VLAN Profiles (VLAN 5)
234 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# vlan 5
Switch (config-vlan)#
do
Command:
do < exec commands >
do To run exec commands.
Default:
N/A
Usage Guide:
To run exec commands.
Example:
To run “show aaa”.
Switch# configure terminal
Switch (config)# vlan 5
Switch (config-vlan)#do show aaa
console : local
telnet : local
ssh : local
http : local
end
Command:
end
end Go back to EXEC mode
Default:
Auto
Usage Guide:
To back to EXEC mode
Example:
To back to EXEC mode
Switch# configure terminal
Switch (config)# vlan 5
Switch (config-vlan)#end
Switch#
exit
Command:
exit
exit Exit from current mode
NS3500-24T-4C Managed Switch Command Guide 235
Chapter 4: Commands for CLI configuration
Default:
None
Usage Guide:
To exit current mode
Example:
To exit current mode
Switch# configure terminal
Switch (config)# vlan 5
Switch (config-vlan)# exit
Switch (config)#
name
Command:
name <vlan_name>
name ASCII name of the VLAN
<vword32> The ASCII name for the VLAN
Default:
None
Usage Guide:
To configure description of VLAN
Example:
To configure description (FAE) of VLAN
Switch# configure terminal
Switch (config)# vlan 5
Switch (config-vlan)# name FAE
no
Command:
no
no Negate a command or set its defaults
Default:
N/A
Usage Guide:
To default the function
Example:
To disable the function (name FAE)
Switch# configure terminal
Switch (config)# vlan 5
Switch (config-vlan)# no name FAE
236 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
vlan ethertype s-custom-port
Command:
vlan ethertype s-custom-port <etype>
vlan VLAN commands
ethertype Ether type for Custom S-ports
s-custom-port Custom S-ports configuration
<etype> Ethertype (Range: 0x0600-0xffff)
Default:
0x88A8
Usage Guide:
To create the Ethernet type of Custom S-ports
Example:
To create the Ethernet type (0x88A9) of Custom S-ports
Switch# configure terminal
Switch (config)# vlan ethertype s-custom-port 0x88a9
vlan protocol
Command:
vlan protocol { { eth2 { <etype> | arp | ip | ipx | at } } | { snap
{ <oui> | rfc-1042 | snap-8021h } <pid> } | { llc <dsap>
<ssap> } } group <grp_id>
vlan VLAN commands
protocol Protocol-based VLAN commands
eth2 Ethernet-based VLAN commands
<0x600-0xffff> Ether Type(Range: 0x600 - 0xFFFF)
arp Ether Type is ARP
at Ether Type is AppleTalk
ip Ether Type is IP
ipx Ether Type is IPX
llc LLC-based VLAN group
<0x0-0xff> DSAP (Range: 0x00 - 0xFF)
<0x0-0xff> SSAP (Range: 0x00 - 0xFF)
snap SNAP-based VLAN group
<0x0-0xffffff> SNAP OUI (Range 0x000000 - 0XFFFFFF)
rfc-1042 SNAP OUI is rfc-1042
snap-8021h SNAP OUI is 8021h
group Protocol-based VLAN group commands
<grp_id> Group Name (Range: 1 - 16 characters)
Default:
None
Usage Guide:
To configure the Protocol-based VLAN
Example:
To configure the Protocol-based VLAN (below table)
NS3500-24T-4C Managed Switch Command Guide 237
Chapter 4: Commands for CLI configuration
Switch# configure terminal
Switch (config)# vlan protocol llc 0x55 0x66 group 3
voice vlan
Command:
voice vlan
voice Voice appliance attributes
vlan Vlan for voice traffic
Default:
Disabled
Usage Guide:
To enable the Voice VLAN service
Example:
To enable the Voice VLAN service
Switch# configure terminal
Switch (config)# voice vlan
voice vlan aging-time
Command:
voice vlan aging-time <aging_time>
voice Voice appliance attributes
vlan Vlan for voice traffic
aging-time Set secure learning aging time
<AgingTime : 10-10000000> Aging time, 10-10000000 seconds
Default:
86400
Usage Guide:
To configure the Aging Time of Voice VLAN
Example:
To configure the Aging Time of Voice VLAN
Switch# configure terminal
Switch (config)# voice vlan aging-time 8888
voice vlan class
Command:
voice vlan class <traffic_class>
238 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
voice Voice appliance attributes
vlan Vlan for voice traffic
class Set traffic class
< traffic_class : 0-7> Traffic class value
Default:
7
Usage Guide:
To configure the Traffic Class of Voice VLAN
Example:
To configure the Traffic Class (5) of Voice VLAN
Switch# configure terminal
Switch (config)# voice vlan class 5
voice vlan oui
Command:
voice vlan oui <oui> [ description <description> ]
voice Voice appliance attributes
vlan Vlan for voice traffic
oui OUI configuration
<oui> OUI value
description Set description for the OUI
<Description : line32> Description line
Default:
None
Usage Guide:
To configure the OUI of Voice VLAN
Example:
To configure the OUI (OUI: 00:45:89, Description: qwe ) of Voice VLAN
Switch# configure terminal
Switch (config)# voice vlan oui 00:45:89 description qwe
voice vlan vid
Command:
voice vlan vid <vlan_id>
voice Voice appliance attributes
vlan Vlan for voice traffic
vid Set VLAN ID
<vlan_id> VLAN ID, 1-4095
Default:
1000
NS3500-24T-4C Managed Switch Command Guide 239
Chapter 4: Commands for CLI configuration
Usage Guide:
To configure the VID of Voice VLAN
Example:
To configure the VID (66 ) of Voice VLAN
Switch# configure terminal
Switch (config)# voice vlan vid 66
web privilege group
Command:
web privilege group <group_name> level { [ cro <cro: 0-15> ]
[ crw <crw: 0-15> ] [ sro <sro: 0-15> ] [ srw <srw: 0-15> ] }
web Web
privilege Web privilege
group Web privilege group
<vlan_id> VLAN ID, 1-4095
<group_name> Valid words are 'Aggregation' 'DHCP' 'Debug' 'Dhcp_Client'
'Diagnostics' 'EPS' 'ERPS' 'ETH_LINK_OAM' 'EVC'
'Green_Ethernet' 'IP2' 'IPMC_Snooping' 'LACP' 'LLDP'
'Loop_Protect' 'MAC_Table' 'MEP' 'MVR' 'Maintenance'
'Mirroring' 'NTP' 'POE' 'PTP' 'Ports' 'Private_VLANs' 'QoS'
'RPC' 'Security' 'Spanning_Tree' 'System' 'Timer' 'UPnP'
'VCL' 'VLAN_Translation' 'VLANs' 'Voice_VLAN' 'XXRP'
'ZL_3034X_API'
level Web privilege group level
cro Configuration Read-only level
crw Configuration Read-write level
sro Status/Statistics Read-only level
srw Status/Statistics Read-write level
Default:
N/A
Usage Guide:
To configure the Privilege Level
Example:
To configure the Privilege Level (below table)
Switch# configure terminal
Switch (config)# web privilege group Aggregation level cro 3 crw
4 sro 3 srw 5
240 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
copy
copy
Command:
copy { startup-config | running-config | <source_path> }
{ startup-config | running-config | <destination_path> }
[ syntax-check ]
copy Copy from source to destination
flash:filename | tftp://server/path-and-filename File in FLASH or on TFTP server
running-config Currently running configuration
startup-config Startup configuration Output modifiers
syntax-check Perform syntax check on source configuration
Default:
None
Usage Guide:
To copy configuration from source to destination
Example:
To copy configuration from source (running-config) to destination (startup-
config)
Switch# copy running-config startup-config
debug
debug
Command:
debug prompt <debug_prompt>
debug Debugging functions
prompt Set prompt for testing
<debug_prompt> Word for prompt
Default:
None
Usage Guide:
To configure Description of Debug Prompt
Example:
To configure Description (1233) of Debug Prompt
Switch # debug prompt 1233
1233#
NS3500-24T-4C Managed Switch Command Guide 241
Chapter 4: Commands for CLI configuration
delete
delete
Command:
delete <path>
delete Delete one file in flash: file system
<Path : word> Name of file to delete
Default:
None
Usage Guide:
To delete Configuration File of Flash
Example:
To delete Configuration File (222) of Flash
Switch # copy running-config flash:222
Building configuration...
% Saving 1833 bytes to flash:222
Switch # dir
Directory of flash:
r- 1970-01-01 00:00:00 648 default-config
rw 1970-01-01 07:26:26 1833 startup-config
rw 1970-01-01 00:18:40 1833 222
3 files, 4314 bytes total.
Switch # delete flash:222
Switch # dir
Directory of flash:
r- 1970-01-01 00:00:00 648 default-config
rw 1970-01-01 07:26:26 1833 startup-config
2 files, 2481 bytes total.
dir
dir
Command:
dir
dir Directory of all files in flash: file system
Default:
None
242 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Usage Guide:
To list directory of file system
Example:
To list directory of file system
Switch # dir
Directory of flash:
r- 1970-01-01 00:00:00 648 default-config
rw 1970-01-01 07:26:26 1833 startup-config
2 files, 2481 bytes total.
disable
disable
Command:
disable
disable Turn off privileged commands
Default:
None
Usage Guide:
To exit enable mode
Example:
To exit enable mode
Switch # disable
Switch >
do
do
Command:
do < exec commands >
do To run exec commands.
Default:
N/A
Usage Guide:
To run exec commands.
Example:
To run “show aaa”.
NS3500-24T-4C Managed Switch Command Guide 243
Chapter 4: Commands for CLI configuration
Switch# do show aaa
console : local
telnet : local
ssh : local
http : local
dot1x
dot1x initialize
Command:
dot1x initialize [ interface ( <port_type> [ <plist> ] ) ]
dot1x IEEE Standard for port-based Network Access Control
initialize Force re-authentication immediately
Default:
N/A
Usage Guide:
To re-authenticate specific interface immediately.
Example:
To re-authenticate specific interface (GigabitEthernet 1/1) immediately.
Switch# dot1x initialize interface GigabitEthernet 1/1
enable
enable
Command:
enable
enable Turn on privileged commands
Default:
None
Usage Guide:
To enter enable mode
Example:
To enter enable mode
Switch > enable
Switch #
244 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
erps
erps
Command:
erps <group> command { force | manual | clear } { port0 |
port1 }
erps Ethernet Ring Protection Switching
1-64 ERPS group number
command Administrative Command
clear Clear command
force Force command
manual Manual command
port0 ERPS Port 0 interface
port1 ERPS Port 1 interface
Default:
None
Usage Guide:
To configure Instance Command of Group
Example:
To configure Instance Command (below table) of Group (1)
Switch # erps 1 command force port0
exit
exit
Command:
exit
exit Exit from EXEC mode
Default:
None
Usage Guide:
To exit EXEC mode
NS3500-24T-4C Managed Switch Command Guide 245
Chapter 4: Commands for CLI configuration
Example:
To exit EXEC mode
Switch # disable
Switch > exit
Press ENTER to get started
firmware
firmware swap
Command:
firmware swap
firmware Firmware upgrade/swap
swap Swap between Active and Alternate firmware image
Default:
None
Usage Guide:
To swap Active and Alternate firmware image
Example:
To swap Active and Alternate firmware image
Switch # firmware swap
firmware upgrade
Command:
firmware upgrade <tftpserver_path_file>
firmware Firmware upgrade/swap
upgrade Firmware upgrade
<TFTPServer_path_file : word> TFTP Server IP address, path and file name for
the server containing the new image.
Default:
None
Usage Guide:
To upgrade firmware via TFTP Server
Example:
To upgrade firmware via TFTP Server (File: tftp://192.168.0.11/switch.bin)
Switch # firmware upgrade tftp://192.168.0.11/switch.bin
246 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
ip
ip dhcp retry interface vlan
Command:
ip dhcp retry interface vlan <vlan_id>
ip IPv4 commands
dhcp Dhcp commands
retry Restart the DHCP query process
interface Interface
vlan Vlan interface
<vlan_id> Vlan ID
Default:
None
Usage Guide:
To do DHCP renew for specific VLAN
Example:
To do DHCP renew for specific VLAN (6)
Switch # ip dhcp retry interface vlan 6
logout
logout
Command:
logout
logout Exit from EXEC mode
Default:
None
Usage Guide:
To exit EXEC mode
Example:
To exit EXEC mode
Switch # logout
Press ENTER to get started
NS3500-24T-4C Managed Switch Command Guide 247
Chapter 4: Commands for CLI configuration
more
more
Command:
more <path>
more Display file
<Path> File in FLASH or on TFTP server
Default:
None
Usage Guide:
To view the file
Example:
To view the file (222)
Switch # copy running-config flash:222
Building configuration...
% Saving 2038 bytes to flash:222
Switch # more flash:222
hostname Switch
username admin privilege 15 password none
!
vlan 1
!
vlan 5
!
!
!
no
no
Command:
no
no Negate a command or set its defaults
Default:
N/A
Usage Guide:
To default the function
Example:
To disable the function (erps 1 command force port0)
248 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch# no erps 1 command force port0
ping
ping ip
Command:
ping ip <v_ip_addr> [ repeat <count> ] [ size <size> ] [ interval
<seconds> ]
ping Send ICMP echo messages
ip IP (ICMP) echo
<v_ip_addr> ICMP destination address
interval Specify repeat interval
<Seconds : 0-30> 0-30; Default is 0
repeat Specify repeat count
<Count : 1-60> 1-60; Default is 5
size Specify datagram size
<Size : 2-1452> 2-1452; Default is 56 (excluding MAC, IP and ICMP headers)
Default:
N/A
Usage Guide:
To run the IPv4 Ping function
Example:
To run the IPv4 Ping (192.168.0.78) function
Switch# ping ip 192.168.0.78
PING server 192.168.0.78, 56 bytes of data.
64 bytes from 192.168.0.78: icmp_seq=0, time=0ms
64 bytes from 192.168.0.78: icmp_seq=1, time=0ms
64 bytes from 192.168.0.78: icmp_seq=2, time=0ms
64 bytes from 192.168.0.78: icmp_seq=3, time=0ms
64 bytes from 192.168.0.78: icmp_seq=4, time=0ms
Sent 5 packets, received 5 OK, 0 bad
ping ipv6
Command:
ping ipv6 <v_ipv6_addr> [ repeat <count> ] [ size <size> ]
[ interval <seconds> ] [ interface vlan <v_vlan_id> ]
ping Send ICMP echo messages
ipv6 IPv6 (ICMPv6) echo
interface Select an interface to configure
vlan VLAN Interface
<v_vlan_id> VLAN identifier(s): VID
interval Specify repeat interval
NS3500-24T-4C Managed Switch Command Guide 249
Chapter 4: Commands for CLI configuration
<Seconds : 0-30> 0-30; Default is 0
repeat Specify repeat count
<Count : 1-60> 1-60; Default is 5
size Specify datagram size
<Size : 2-1452> 2-1452; Default is 56 (excluding MAC, IP and ICMP headers)
Default:
N/A
Usage Guide:
To run the IPv6 Ping function
Example:
To run the IPv6 Ping (2001::7788) function
Switch# ping ipv6 2001::7788
PING6 server 2001::7788, 56 bytes of data.
recvfrom: Operation timed out
recvfrom: Operation timed out
recvfrom: Operation timed out
recvfrom: Operation timed out
recvfrom: Operation timed out
Sent 5 packets, received 0 OK, 0 bad
reload
reload cold
Command:
reload cold
reload Reload system
cold Reload cold.
Default:
N/A
Usage Guide:
To restart the device.
Example:
To restart the device.
Switch# reload cold
reload defaults
Command:
reload defaults [ keep-ip ]
reload Reload system
defaults Reload defaults without rebooting.
250 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
keep-ip Attempt to keep VLAN1 IP setup.
Default:
N/A
Usage Guide:
To store the device factory default settings.
Example:
To store the device factory default settings.
Switch# reload defaults
send
send
Command:
send { * | console 0 | vty <vty_list> } <message>
reload Reload system
* All tty lines
console Primary terminal line
vty Virtual terminal
Default:
N/A
Usage Guide:
To send message for command line user.
Example:
To send message ( hi, I will upgrade the firmware, OK? ) for command line user
(All).
Switch # send * 1
Enter TEXT message. End with the character '1'.
hi, I will upgrade the firmware, OK?
1
-----------------------------------------
*** Message from line 0:
hi, I will upgrade the firmware, OK?
-----------------------------------------
NS3500-24T-4C Managed Switch Command Guide 251
Chapter 4: Commands for CLI configuration
show
show aaa
Command:
show aaa
show Show running system information
aaa Login methods
Default:
N/A
Usage Guide:
To display the AAA services.
Example:
To display the AAA services
Switch # show aaa
console : local
telnet : local
ssh : local
http : local
show access management
Command:
show access management [ statistics | <access_id_list> ]
show Show running system information
access Access management
management Access management configuration
<AccessIdList : 1~16> ID of access management entry
Statistics Statistics data
Default:
N/A
Usage Guide:
To display Access Management Statistics.
Example:
To display Access Management Statistics.
Switch # show access management statistics
Access Management Statistics:
-----------------------------
HTTP Receive: 0 Allow: 0 Discard: 0
HTTPS Receive: 0 Allow: 0 Discard: 0
SNMP Receive: 0 Allow: 0 Discard: 0
TELNET Receive: 0 Allow: 0 Discard: 0
SSH Receive: 0 Allow: 0 Discard: 0
252 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
show access-list
Command:
show access-list [ interface [ ( <port_type>
[ <v_port_type_list> ] ) ] ] [ rate-limiter [ <rate_limiter_list> ] ]
[ ace statistics [ <ace_list> ] ]
show Show running system information
access Access management
management Access management configuration
<AccessIdList : 1~16> ID of access management entry
statistics Statistics data
Default:
N/A
Usage Guide:
To display ACL Statistics, Rate Limiter List, ACE Statistics.
Example:
To display ACL Statistics, Rate Limiter List, ACE Statistics for interface
GigabitEthernet 1/1.
Switch # show access-list interface GigabitEthernet 1/1 ace
statistics rate-limiter
Switch access-list ace number: 0
Switch access-list rate limiter ID 1 is 1 pps
Switch access-list rate limiter ID 2 is 1 pps
Switch access-list rate limiter ID 3 is 1 pps
Switch access-list rate limiter ID 4 is 1 pps
Switch access-list rate limiter ID 5 is 1 pps
Switch access-list rate limiter ID 6 is 1 pps
Switch access-list rate limiter ID 7 is 1 pps
Switch access-list rate limiter ID 8 is 1 pps
Switch access-list rate limiter ID 9 is 1 pps
Switch access-list rate limiter ID 10 is 1 pps
Switch access-list rate limiter ID 11 is 1 pps
Switch access-list rate limiter ID 12 is 1 pps
Switch access-list rate limiter ID 13 is 1 pps
Switch access-list rate limiter ID 14 is 1 pps
Switch access-list rate limiter ID 15 is 1 pps
Switch access-list rate limiter ID 16 is 1 pps
GigabitEthernet 1/1 :
---------------------
GigabitEthernet 1/1 access-list action is permit
GigabitEthernet 1/1 access-list policy ID is 0
GigabitEthernet 1/1 access-list rate limiter ID is disabled
GigabitEthernet 1/1 access-list redirect is disabled
GigabitEthernet 1/1 access-list logging is disabled
GigabitEthernet 1/1 access-list shutdown is disabled
GigabitEthernet 1/1 access-list port-state is enabled
GigabitEthernet 1/1 access-list counter is 0
NS3500-24T-4C Managed Switch Command Guide 253
Chapter 4: Commands for CLI configuration
show access-list
Command:
show access-list [ interface [ ( <port_type>
[ <v_port_type_list> ] ) ] ] [ rate-limiter [ <rate_limiter_list> ] ]
[ ace statistics [ <ace_list> ] ]
show Show running system information
access-list Access list
ace Access list entry
statistics Traffic statistics
interface Select an interface to configure
rate-limiter Rate limiter
Default:
N/A
Usage Guide:
To display the ACL Statistics, Rate Limiter List, ACE Statistics.
Example:
To display the ACL Statistics, Rate Limiter List, ACE Statistics for interface
GigabitEthernet 1/1.
Switch # show access-list interface GigabitEthernet 1/1
ace statistics rate-limiter
Switch access-list ace number: 0
Switch access-list rate limiter ID 1 is 1 pps
Switch access-list rate limiter ID 2 is 1 pps
Switch access-list rate limiter ID 3 is 1 pps
Switch access-list rate limiter ID 4 is 1 pps
Switch access-list rate limiter ID 5 is 1 pps
Switch access-list rate limiter ID 6 is 1 pps
Switch access-list rate limiter ID 7 is 1 pps
Switch access-list rate limiter ID 8 is 1 pps
Switch access-list rate limiter ID 9 is 1 pps
Switch access-list rate limiter ID 10 is 1 pps
Switch access-list rate limiter ID 11 is 1 pps
Switch access-list rate limiter ID 12 is 1 pps
Switch access-list rate limiter ID 13 is 1 pps
Switch access-list rate limiter ID 14 is 1 pps
Switch access-list rate limiter ID 15 is 1 pps
Switch access-list rate limiter ID 16 is 1 pps
GigabitEthernet 1/1 :
GigabitEthernet 1/1 access-list action is permit
GigabitEthernet 1/1 access-list policy ID is 0
GigabitEthernet 1/1 access-list rate limiter ID is disabled
GigabitEthernet 1/1 access-list redirect is disabled
GigabitEthernet 1/1 access-list logging is disabled
GigabitEthernet 1/1 access-list shutdown is disabled
GigabitEthernet 1/1 access-list port-state is enabled
GigabitEthernet 1/1 access-list counter is 0
254 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
show access-list ace-status
Command:
show access-list ace-status [ static ] [ link-oam ] [ loop-
protect ] [ dhcp ] [ ptp ] [ upnp ] [ arp-inspection ] [ mep ]
[ ipmc ] [ ip-source-guard ] [ ip-mgmt ] [ conflicts ] [ switch
<switch_list> ]
show Show running system information
access-list Access list
arp-inspection The ACEs that are configured by ARP Inspection module
conflicts The ACEs that did not get applied to the hardware due to hardware
limitations
dhcp The ACEs that are configured by DHCP module
ip-source-guard The ACEs that are configured by IP Source Guard module
ipmc The ACEs that are configured by IPMC module
link-oam The ACEs that are configured by Link OAM module
loop-protect The ACEs that are configured by Loop Protect module
mep The ACEs that are configured by MEP module
ptp The ACEs that are configured by PTP module
static The ACEs that are configured by users manually
upnp The ACEs that are configured by UPnP module
Default:
N/A
Usage Guide:
To display the ACE Status.
Example:
To display the ACE Status.
Switch # show access-list ace-status
User
----
S : Static
IPSG: IP Source Guard
IPMC: IPMC
MEP : MEP
ARPI: ARP Inspection
UPnP: UPnP
PTP : PTP
DHCP: DHCP
LOOP: Loop Protect
LOAM: Link OAM
User ID Frame Action Rate L. CPU Counter Conflict
---- -- ----- ------ -------- ------ ------- --------
DHCP 1 UDP Deny Disabled Yes 0 No
DHCP 2 UDP Deny Disabled Yes 0 No
PTP 1 EType Deny Disabled Yes 0 No
PTP 2 EType Deny Disabled Yes 0 No
Switch 1 access-list ace number: 4
NS3500-24T-4C Managed Switch Command Guide 255
Chapter 4: Commands for CLI configuration
show aggregation
Command:
show aggregation [ mode ]
show Show running system information
aggregation Aggregation port configuration
mode Traffic distribution mode
Default:
N/A
Usage Guide:
To display the Aggregation status.
Example:
To display the Aggregation status.
Switch # show aggregation
AggrID Name Type Speed Configured Ports Aggregated Ports
------------------------------------------------------------------------------------------------------
---------
show aggregation mode
Command:
show aggregation [ mode ]
show Show running system information
aggregation Aggregation port configuration
mode Traffic distribution mode
Default:
N/A
Usage Guide:
To display the Aggregation mode status.
Example:
To display the Aggregation mode status.
Switch # show aggregation mode
Aggregation Mode:
SMAC : Enabled
DMAC : Disabled
IP : Enabled
Port : Enabled
show clock
Command:
show clock
show Show running system information
256 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
clock Configure time-of-day clock
Default:
N/A
Usage Guide:
To display the system time.
Example:
To display the system time.
Switch # show clock
System Time : 2014-01-01T00:25:51+00:00
show clock detail
Command:
show clock detail
show Show running system information
clock Configure time-of-day clock
detail Display detailed information
Default:
N/A
Usage Guide:
To display the detailed system time.
Example:
To display the detailed system time.
Switch # show clock detail
System Time : 1970-01-01T00:29:25+00:00
Timezone : Timezone Offset : 0 ( 0 minutes)
Timezone Acronym :
Daylight Saving Time Mode : Disabled.
Daylight Saving Time Start Time Settings :
Week: 0
Day: 0
Month: 0
Date: 0
Year: 0
Hour: 0
Minute: 0
Daylight Saving Time End Time Settings :
Week: 0
Day: 0
Month: 0
Date: 0
Year: 0
Hour: 0
NS3500-24T-4C Managed Switch Command Guide 257
Chapter 4: Commands for CLI configuration
Minute: 0
Daylight Saving Time Offset : 1 (minutes)
show dot1x statistics
Command:
show dot1x statistics
show Show running system information
dot1x IEEE Standard for port-based Network Access Control
statistics Shows statistics for either eapol or radius
all Show all dot1x statistics
eapol Show EAPOL statistics
radius Show Backend Server statistics
interface Interface
Default:
N/A
Usage Guide:
To display the IEEE 802.1X statistics.
Example:
To display the All of IEEE 802.1X statistics for interface GigabitEthernet 1/1.
Switch # show dot1x statistics all interface GigabitEthernet
1/1
GigabitEthernet 1/1 EAPOL Statistics:
Rx Total: 0
Tx Total: 0
Rx Response/Id: 0
Tx Request/Id: 0
Rx Response: 0
Tx Request: 0
Rx Start: 0
Rx Logoff: 0
Rx Invalid Type: 0
Rx Invalid Length: 0
GigabitEthernet 1/1 Backend Server Statistics:
Rx Access Challenges: 0
Tx Responses: 0
Rx Other Requests: 0
Rx Auth. Successes: 0
Rx Auth. Failures: 0
258 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
show dot1x status
Command:
show dot1x status [ interface ( <port_type>
[ <v_port_type_list> ] ) ] [ brief ]
show Show running system information
dot1x IEEE Standard for port-based Network Access Control
status Shows dot1x status, such as admin state, port state and last source.
interface Interface
brief Show status in a brief format
Default:
N/A
Usage Guide:
To display the IEEE 802.1X status.
Example:
To display the All of IEEE 802.1X status for brief.
Switch # show dot1x status
GigabitEthernet 1/1 :
---------------------
Admin State Port State Last Source Last ID
------------------ --------------------- ----------------- ------------
-
Force Authorized Globally Disabled - -
Current Radius QOS Current Radius VLAN Current Guest
VLAN
-------------------- -------------------- --------------------
- - -
GigabitEthernet 1/2 :
---------------------
Admin State Port State Last Source Last ID
------------------ --------------------- ----------------- ------------
-
Force Authorized Globally Disabled - -
Current Radius QOS Current Radius VLAN Current Guest
VLAN
-------------------- -------------------- --------------------
- - -
show eps
Command:
show eps [ <inst> ] [ detail ]
show Show running system information
eps Ethernet Protection Switching
NS3500-24T-4C Managed Switch Command Guide 259
Chapter 4: Commands for CLI configuration
<Inst : range_list> The range of EPS instances
detail Show detailed state including configuration information
Default:
N/A
Usage Guide:
To display the EPS instance information.
Example:
To display the EPS instance 1 detailed information.
Switch # show eps 1 detail
EPS state is:
Inst State Wstate Pstate TxAps r b
1 Disable Ok Ok NR 0 0
RxAps r b FopPm FopCm FopNr FopNoAps
NR 0 0 False False False False
EPS Configuration is:
Inst Dom Archi Wflow Pflow Wmep Pmep
1 Port 1plus1 1 2 3 4
APSmep Direct Revert Wtr Hold Aps
5 xxx xxx xxx xxx xxx
show erps
Command:
show erps [ <groups> ] [ detail | statistics ]
show Show running system information
erps Ethernet Ring Protection Switching
<groups> Zero or more ERPS group numbers
detail Show detailed information
statistics Show statistics
Default:
N/A
Usage Guide:
To display the ERPS group information.
260 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Example:
To display the ERPS group 1 detailed information.
Switch # show erps 1 detail
Grp# Port 0 Port 1 RPL:Role Port Blocking
1 Gi 1/1 Gi 1/2 - - -
Protected VLANS:
None
Protection Group State :Active
Port 0 SF MEP :1
Port 1 SF MEP :2
Port 0 APS MEP :1
Port 1 APS MEP :2
WTR Timeout :1
WTB Timeout :5500
Hold-Off Timeout :0
Guard Timeout :500
Node Type :Major
Reversion :Revertive
Version :2
ERPSv2 Administrative Command :None
FSM State :PENDING
Port 0 Link Status :Link Up
Port 1 Link Status :Link Up
Port 0 Block Status :BLOCKED
Port 1 Block Status :BLOCKED
R-APS Transmission :STOPPED
R-APS Port 0 Reception :NONE
R-APS Port 1 Reception :NONE
FOP Alarm :OFF
show evc
Command:
show evc { [ <evc_id> | all ] } [ ece [ <ece_id> ] ]
show Show running system information
evc Ethernet Virtual Connections
<EvcId : 1-4096> EVC identifier
all Process all EVCs
ece EVC Control Entry
<EceId : 1-4096> ECE idenfifier
Default:
N/A
Usage Guide:
To display the EVC status.
Example:
To display the All of EVC status.
NS3500-24T-4C Managed Switch Command Guide 261
Chapter 4: Commands for CLI configuration
Switch # show evc all
EVC ID Status
------ ------
1 Active
show evc statistics
Command:
show green-ethernet [ interface ( <port_type> [ <port_list> ] ) ]
show Show running system information
green-ethernet Green ethernet (Power reduction)
Default:
N/A
Usage Guide:
To display the EVC statistics.
Example:
To display the EVC Red Frames statistics for all.
Switch # show evc statistics all red
EVC ID Interface Rx Red Frames
------ ----------------------- --------------------
1 GigabitEthernet 1/1 0
1 GigabitEthernet 1/2 0
show green-ethernet
Command:
show green-ethernet [ interface ( <port_type> [ <port_list> ] ) ]
show Show running system information
green-ethernet Green ethernet (Power reduction)
interface Shows green ethernet status for a specific port or ports.
Default:
N/A
Usage Guide:
To display the Green Ethernet status.
Example:
To display the Green Ethernet status for all.
Switch # show green-ethernet interface *
262 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
show green-ethernet energy-detect
Command:
show green-ethernet energy-detect [ interface ( <port_type>
[ <port_list> ] ) ]
show Show running system information
green-ethernet Green ethernet (Power reduction)
energy-detect Shows green ethernet energy-detect status for a specific port or
ports.
interface Shows green ethernet status for a specific port or ports.
Default:
N/A
Usage Guide:
To display the energy-detect of Green Ethernet.
Example:
To display the energy-detect of Green Ethernet for all.
Switch # show green-ethernet energy-detect interface *
show green-ethernet short-reach
Command:
show green-ethernet short-reach [ interface ( <port_type>
[ <port_list> ] ) ]
show Show running system information
green-ethernet Green ethernet (Power reduction)
short-reach Shows green ethernet short-reach status for a specific or ports
interface Shows green ethernet status for a specific port or ports.
Default:
N/A
Usage Guide:
To display the short-reach of Green Ethernet.
Example:
To display the short-reach of Green Ethernet for all.
Switch # show green-ethernet short-reach interface *
show history
Command:
show history
show Show running system information
history Display the session command history
Default:
N/A
Usage Guide:
NS3500-24T-4C Managed Switch Command Guide 263
Chapter 4: Commands for CLI configuration
To display the command history.
Example:
To display the command history.
Switch # show history
show green-ethernet interface GigabitEthernet 1/1
show green-ethernet interface R
show green-ethernet interface *
show green-ethernet energy-detect interface *
show green-ethernet energy-detect
show green-ethernet
show green-ethernet short-reach interface *
show history
show interface <port_type> <port_type_list> capabilities
Command:
show interface ( <port_type> [ <port_type_list> ] ) capabilities
show Show running system information
interface Interface status and configuration
switchport Show interface switchport information
capabilities Display capabilities
Default:
N/A
Usage Guide:
To display the SFP Transceiver information.
Example:
To display the SFP Transceiver information for interface GigabitEthernet 1/1.
Switch # show interface GigabitEthernet 1/1 capabilities
GigabitEthernet 1/1 Capabilities:
SFP Type: None
SFP Vendor name:
SFP Vendor PN:
SFP Vendor revision:
show interface <port_type> <port_type_list> statistics
Command:
show interface <port_type> <port_type_list> statistics
[ { packets | bytes | errors | discards | filtered | { priority
[ <priority_v_0_to_7> ] } } ] [ { up | down } ]
show Show running system information
interface Interface status and configuration
statistics Display statistics counters
bytes Show byte statistics.
discards Show discard statistics.
264 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
down Show ports which are down
errors Show error statistics.
filtered Show filtered statistics.
packets Show packet statistics.
priority Queue number
up Show ports which are up
Default:
N/A
Usage Guide:
To display the port statistics information.
Example:
To display the port statistics information (Byte statistics) for interface
GigabitEthernet 1/1.
Switch # show interface GigabitEthernet 1/1 statistics bytes
Interface Rx Octets Tx Octets
---------------------- ------------------ ------------------
GigabitEthernet 1/1 0 0
show interface <port_type> <port_type_list> status
Command:
show interface <port_type> <port_type_list> status
show Show running system information
interface Interface status and configuration
status Display status
Default:
N/A
Usage Guide:
To display the port status.
Example:
To display the port status for interface GigabitEthernet 1/1.
Switch # show interface GigabitEthernet 1/1 status
Interface Mode Speed & Duplex Max Frame
Excessive Link
---------------------- ------- --------------- --------- --------- ---
-----
GigabitEthernet 1/1 enabled Auto 10056 Discard
Down
show interface <port_type> <port_list> switchport
Command:
show interface <port_type> <port_list> switchport [ access |
trunk | hybrid ]
show Show running system information
NS3500-24T-4C Managed Switch Command Guide 265
Chapter 4: Commands for CLI configuration
interface Interface status and configuration
switchport Show interface switchport information
access Show access ports status
hybrid Show hybrid ports status
trunk Show trunk ports status
Default:
N/A
Usage Guide:
To display the VLAN mode.
Example:
To display the VLAN mode for interface GigabitEthernet 1/1.
Switch # show interface GigabitEthernet 1/1 switchport
Name: GigabitEthernet 1/1
Administrative mode: access
Access Mode VLAN: 1
Trunk Native Mode VLAN: 1
Administrative Native VLAN tagging: disabled
Allowed VLANs: 1-4095
Hybrid port configuration
-------------------------
Port Type: C-Port
Acceptable Frame Type: All
Ingress filter: Disabled
Egress tagging: All except-native
Hybrid Native Mode VLAN: 1
Hybrid VLANs Enabled: 1-4095
show interface <port_type> <port_type_list> veriphy
Command:
show interface <port_type> <port_type_list> veriphy
show Show running system information
interface Interface status and configuration
veriphy Run cable diagnostics and show result.
Default:
N/A
Usage Guide:
To display the result of Cable Diagnostics.
266 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Example:
To display the result of Cable Diagnostics for interface GigabitEthernet 1/1.
Switch # show interface GigabitEthernet 1/1 veriphy
Starting VeriPHY - Please wait
Interface Pair A Length Pair B, Length
---------------------- ------ ------ ------- -------
GigabitEthernet 1/1 OK 3 OK 3
Pair C Length Pair D Length
------ ------ ------ -------
OK 3 OK 3
show interface <port_type> <port_type_list> veriphy
Command:
show interface <port_type> <port_type_list> veriphy
show Show running system information
interface Interface status and configuration
veriphy Run cable diagnostics and show result.
Default:
N/A
Usage Guide:
To display the result of Cable Diagnostics.
Example:
To display the result of Cable Diagnostics for interface GigabitEthernet 1/1.
Switch # show interface GigabitEthernet 1/1 veriphy
Starting VeriPHY - Please wait
Interface Pair A Length Pair B, Length
---------------------- ------ ------ ------- -------
GigabitEthernet 1/1 OK 3 OK 3
Pair C Length Pair D Length
------ ------ ------ -------
OK 3 OK 3
show interface vlan
Command:
show interface vlan [ <vlist> ]
show Show running system information
interface Interface status and configuration
vlan VLAN status
Default:
N/A
NS3500-24T-4C Managed Switch Command Guide 267
Chapter 4: Commands for CLI configuration
Usage Guide:
To display the MAC address and IP address of specific VLAN.
Example:
To display the MAC address and IP address for all VLANs.
Switch # show interface vlan
VLAN1
LINK: 00-30-4F-00-99-00 Mtu:1500 <UP BROADCAST
RUNNING MULTICAST>
IPv4: 192.168.0.100/24 192.168.0.255
IPv6: fe80:2::201:c1ff:fe00:9900/64 <ANYCAST TENTATIVE
AUTOCONF>
show ip arp
Command:
show ip arp
show Show running system information
ip Internet Protocol
arp Address Resolution Protocol
Default:
N/A
Usage Guide:
To display the ARP table.
Example:
To display the ARP table for all.
Switch # show ip arp
192.168.0.45 via VLAN1:d4-3d-7e-fd-e3-ac
192.168.0.78 via VLAN1:00-30-4f-97-72-2d
show ip arp inspection
Command:
show ip arp inspection
show Show running system information
ip Internet Protocol
arp Address Resolution Protocol
inspection ARP inspection
Default:
N/A
Usage Guide:
To display the ARP Inspection Configuration.
Example:
To display the ARP Inspection Configuration.
268 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch # show ip arp inspection
ARP Inspection Mode : disabled
Port Port Mode Check VLAN Log Type
---- --------- ---------- --------
GigabitEthernet 1/1 disabled disabled NONE
GigabitEthernet 1/2 disabled disabled NONE
show ip arp inspection
Command:
show ip arp inspection [ interface <port_type>
<port_type_list> ] | vlan <vlan_list> ]
show Show running system information
ip Internet Protocol
arp Address Resolution Protocol
inspection ARP inspection
interface Interface status and configuration
vlan VLAN status
Default:
N/A
Usage Guide:
To display the ARP Inspection Configuration.
Example:
To display the ARP Inspection Configuration.
Switch # show ip arp inspection
ARP Inspection Mode : disabled
Port Port Mode Check VLAN Log Type
---- --------- ---------- --------
GigabitEthernet 1/1 disabled disabled NONE
GigabitEthernet 1/2 disabled disabled NONE
show ip arp inspection entry
Command:
show ip arp inspection entry [ dhcp-snooping | static ]
[ interface ( <port_type> [ <port_type_list> ] ) ]
show Show running system information
ip Internet Protocol
arp Address Resolution Protocol
inspection ARP inspection
entry arp inspection entries
dhcp-snooping learn from dhcp snooping
static setting from static entries
interface arp inspection entry interface config
NS3500-24T-4C Managed Switch Command Guide 269
Chapter 4: Commands for CLI configuration
Default:
N/A
Usage Guide:
To display the ARP Inspection entry.
Example:
To display the ARP Inspection entry.
Switch # show ip arp inspection entry
show ip dhcp detailed statistics
Command:
show ip dhcp detailed statistics { server | client | snooping |
relay | normal-forward | combined } [ interface ( <port_type>
[ <port_list> ] ) ]
show Show running system information
ip Internet Protocol
dhcp Dynamic Host Configuration Protocol
detailed DHCP server
statistics Traffic statistics
client DHCP client
combined Show all DHCP related statistics
normal-forward DHCP normal L2 or L3 forward
relay DHCP relay
server DHCP server
snooping DHCP snooping
interface arp inspection entry interface config
Default:
N/A
Usage Guide:
To display the DHCP detailed statistics.
Example:
To display the DHCP detailed statistics (Client) for GigabitEthernet 1/1.
Switch # show ip dhcp detailed statistics client interface
GigabitEthernet 1/1
GigabitEthernet 1/1 Statistics:
-------------------------------
Rx Discover: 0
Tx Discover: 0
Rx Offer: 0
Tx Offer: 0
Rx Request: 0
Tx Request: 0
Rx Decline: 0
Tx Decline: 0
Rx ACK: 0
Tx ACK: 0
270 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Rx NAK: 0
Tx NAK: 0
Rx Release: 0
Tx Release: 0
Rx Inform: 0
Tx Inform: 0
Rx Lease Query: 0
Tx Lease Query: 0
Rx Lease Unassigned: 0
Tx Lease Unassigned: 0
Rx Lease Unknown: 0
Tx Lease Unknown: 0
Rx Lease Active: 0
Tx Lease Active: 0
Rx Lease Active: 0
Tx Lease Active: 0
Rx Discarded checksum error: 0
show ip dhcp excluded-address
Command:
show ip dhcp excluded-address
show Show running system information
ip Internet Protocol
dhcp Dynamic Host Configuration Protocol
excluded-address Excluded IP database
Default:
N/A
Usage Guide:
To display the excluded IP range.
Example:
To display the excluded IP range.
Switch # show ip dhcp excluded-address
Low Address High Address
--------------- ---------------
01 192.168.0.100 192.168.0.101
show ip dhcp pool
Command:
show ip dhcp pool [ <pool_name> ]
show Show running system information
ip Internet Protocol
dhcp Dynamic Host Configuration Protocol
pool DHCP pools information
NS3500-24T-4C Managed Switch Command Guide 271
Chapter 4: Commands for CLI configuration
Default:
N/A
Usage Guide:
To display the DHCP pools information.
Example:
To display the DHCP pools information.
Switch # show ip dhcp pool
Pool Name: test
----------------------------------------------
Type is network
IP is 192.168.1.100
Subnet mask is 255.255.255.0
Subnet broadcast address is -
Lease time is 1 days 0 hours 0 minutes
Default router is 192.168.1.1
Domain name is -
DNS servers are 168.95.1.1 8.8.8.8
NTP server is -
Netbios name server is -
Netbios node type is -
Netbios scope identifier is -
NIS domain name is -
NIS server is -
Vendor class information is -
Client identifer is -
Hardware address is -
Client name is -
show ip dhcp relay
Command:
show ip dhcp relay [ statistics ]
show Show running system information
ip Internet Protocol
dhcp Dynamic Host Configuration Protocol
relay DHCP relay agent configuration
statistics Traffic statistics
Default:
N/A
Usage Guide:
To display the DHCP relay information.
272 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Example:
To display the DHCP relay information.
Switch # show ip dhcp relay
Switch DHCP relay mode is enabled
Switch DHCP relay server address is 192.168.0.76
Switch DHCP relay information option is enabled
Switch DHCP relay information policy is keep
show ip dhcp server
Command:
show ip dhcp server
show Show running system information
ip Internet Protocol
dhcp Dynamic Host Configuration Protocol
server DHCP server information
Default:
N/A
Usage Guide:
To display the DHCP Server Mode Configuration.
Example:
To display the DHCP Server Mode Configuration.
Switch # show ip dhcp server
DHCP server is globally disabled.
All VLANs are disabled.
show ip dhcp server binding (GG)
Command:
show ip dhcp server binding [ state { allocated | committed |
expired } ] [ type { automatic | manual | expired } ] [ <ip> ]
show Show running system information
ip Internet Protocol
dhcp Dynamic Host Configuration Protocol
server DHCP server information
binding DHCP address bindings
state State of binding
allocated Allocated state
committed Committed state
expired Expired state
type Type of binding
automatic Automatic binding with infinite lease time
expired Expired binding that is aged out
manual Manual binding for a specific host
<ip> IP address in dotted-decimal notation
NS3500-24T-4C Managed Switch Command Guide 273
Chapter 4: Commands for CLI configuration
Default:
N/A
Usage Guide:
To display the DHCP Server binding configuration.
Example:
To display the DHCP Server binding configuration.
Switch # show ip dhcp server binding
show ip dhcp server declined-ip (GG)
Command:
show ip dhcp server declined-ip
show Show running system information
ip Internet Protocol
dhcp Dynamic Host Configuration Protocol
server DHCP server information
declined-ip Declined IP address
Default:
N/A
Usage Guide:
To display the DHCP Decline information.
Example:
To display the DHCP Decline information.
Switch # show ip dhcp server declined-ip
show ip dhcp server statistics
Command:
show ip dhcp server statistics
show Show running system information
ip Internet Protocol
dhcp Dynamic Host Configuration Protocol
server DHCP server information
statistics DHCP server statistics
Default:
N/A
Usage Guide:
To display the DHCP Server statistics.
274 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Example:
To display the DHCP Server statistics.
Switch # show ip dhcp server statistics
Database Counters
=========================
POOL 2
Excluded IP 1
Declined IP 0
=========================
Binding Counters
=========================
Automatic 0
Manual 0
Expired 0
=========================
Message Received Counters
=========================
DISCOVER 0
REQUEST 0
DECLINE 0
RELEASE 0
INFORM 0
=========================
Message Sent Counters
=========================
OFFER 0
ACK 0
NAK 0
=========================
show ip dhcp snooping
Command:
show ip dhcp snooping [interface ( <port_type>
[ <port_list> ] )]
show Show running system information
ip Internet Protocol
dhcp Dynamic Host Configuration Protocol
snooping DHCP snooping
interface Select an interface to configure
Default:
N/A
Usage Guide:
To display the DHCP Snooping configuration.
NS3500-24T-4C Managed Switch Command Guide 275
Chapter 4: Commands for CLI configuration
Example:
To display the DHCP Snooping configuration for GigabitEthernet 1/1.
Switch # show ip dhcp snooping interface GigabitEthernet 1/1
GigabitEthernet 1/1 untrusted
show ip dhcp snooping table
Command:
show ip dhcp snooping table
show Show running system information
ip Internet Protocol
dhcp Dynamic Host Configuration Protocol
snooping DHCP snooping
table show ip dhcp snooping table
Default:
N/A
Usage Guide:
To display the DHCP Snooping table.
Example:
To display the DHCP Snooping table.
Switch # show ip dhcp snooping table
show ip http server secure status
Command:
show ip http server secure status
show Show running system information
ip Internet Protocol
http Hypertext Transfer Protocol
server HTTP web server
secure Secure
status Status
Default:
N/A
Usage Guide:
To display the DHCP Snooping table.
Example:
To display the DHCP Snooping table.
Switch # show ip http server secure status
Switch secure HTTP web server is disabled
Switch secure HTTP web redirection is disabled
276 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
show ip igmp snooping
Command:
show ip igmp snooping [ vlan <vlan_list> ] [ group-database
[ interface ( <port_type> [ <port_type_list> ] ) ] [ sfm-
information ] ] [ detail ]
show Show running system information
ip Internet Protocol
igmp Internet Group Management Protocol
snooping Snooping IGMP
vlan Search by VLAN
group-database Multicast group database from IGMP
interface Search by port
sfm-information Including source filter multicast information from IGMP
detail Detail running information/statistics of IGMP snooping
Default:
N/A
Usage Guide:
To display the IGMP Snooping information.
Example:
To display the IGMP Snooping information (Detail).
Switch # show ip igmp snooping detail
IGMP Snooping is disabled to stop snooping IGMP control plane.
Multicast streams destined to unregistered IGMP groups will be
flooding.
show ip igmp snooping mrouter
Command:
show ip igmp snooping mrouter [ detail ]
show Show running system information
ip Internet Protocol
igmp Internet Group Management Protocol
snooping Snooping IGMP
mrouter Multicast router port status in IGMP
detail Detail running information/statistics of IGMP snooping
Default:
N/A
Usage Guide:
To display the IGMP Router Port information.
Example:
To display the IGMP Router Port information.
Switch # show ip igmp snooping mrouter
IGMP Snooping is disabled to stop snooping IGMP control plane.
NS3500-24T-4C Managed Switch Command Guide 277
Chapter 4: Commands for CLI configuration
Switch-1 IGMP Router Port Status
Gi 1/1: Static and Dynamic Router Port
show ip interface brief
Command:
show ip interface brief
show Show running system information
ip Internet Protocol
interface IP interface status and configuration
brief Brief IP interface status
Default:
N/A
Usage Guide:
To display the IP interface status.
Example:
To display the IP interface status.
Switch # show ip interface brief
Vlan Address Method Status
---- -------------------- -------- ------
1 192.168.0.100/24 Manual UP
show ip name-server
Command:
show ip name-server
show Show running system information
ip Internet Protocol
name-server Domain Name System
Default:
N/A
Usage Guide:
To display the DNS Server information.
Example:
To display the DNS Server information.
Switch # show ip name-server
Current DNS server is 8.8.8.8 set by STATIC.
278 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
show ip route
Command:
show ip route
show Show running system information
ip Internet Protocol
route Display the current ip routing table
Default:
N/A
Usage Guide:
To display the IP Routing table.
Example:
To display the IP Routing table.
Switch # show ip route
11.11.11.0/24 via 192.168.0.14 <UP GATEWAY HW_RT>
127.0.0.1/32 via 127.0.0.1 <UP HOST>
192.168.0.0/24 via VLAN1 <UP HW_RT>
224.0.0.0/4 via 127.0.0.1 <UP>
show ip source binding
Command:
show ip source binding [ dhcp-snooping | static ] [ interface
( <port_type> [ <port_type_list> ] ) ]
show Show running system information
ip Internet Protocol
source source command
binding ip source binding
dhcp-snooping learn from dhcp snooping
interface ip source binding interface config
static setting from static entries
Default:
N/A
Usage Guide:
To display the Static IP Source Guard Table.
Example:
To display the Static IP Source Guard Table.
Switch # show ip source binding interface GigabitEthernet 1/1
Type Port VLAN IP Address IP Mask
---- ---- ---- ---------- -------
Static GigabitEthernet 1/1 1 192.168.0.22
255.255.255.0
NS3500-24T-4C Managed Switch Command Guide 279
Chapter 4: Commands for CLI configuration
show ip ssh
Command:
show ip ssh
show Show running system information
ip Internet Protocol
ssh Secure Shell
Default:
N/A
Usage Guide:
To display the SSH Management status.
Example:
To display the SSH Management status.
Switch # show ip ssh
Switch SSH is enabled
show ip statistics
Command:
show ip statistics
show Show running system information
ip Internet Protocol
statistics Traffic statistics
Default:
N/A
Usage Guide:
To display the IP statistics.
Example:
To display the IP statistics.
Switch # show ip statistics
IPv4 statistics:
Rcvd: 9751 total in 1454882 bytes
9606 local destination, 0 forwarding
0 header error, 0 address error, 0 unknown protocol
0 no route, 0 truncated, 145 discarded
Sent: 8087 total in 2703484 bytes
8087 generated, 0 forwarded
0 no route, 0 discarded
Frags: 0 reassemble (0 reassembled, 0 couldn't reassemble)
0 fragment (0 fragmented, 0 couldn't fragment)
0 fragment created
Mcast: 913 received in 99661 bytes
0 sent in 0 byte
280 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Bcast: 768 received, 0 sent
IP interface statistics:
IPv4 Statistics on Interface VLAN: 1
Rcvd: 9751 total in 1454882 bytes
9606 local destination, 0 forwarding
0 header error, 0 address error, 0 unknown protocol
0 no route, 0 truncated, 145 discarded
Sent: 8087 total in 2703484 bytes
8087 generated, 0 forwarded
0 discarded
Frags: 0 reassemble (0 reassembled, 0 couldn't reassemble)
0 fragment (0 fragmented, 0 couldn't fragment)
0 fragment created
Mcast: 913 received in 99661 bytes
0 sent in 0 byte
Bcast: 768 received, 0 sent
IPv4 ICMP statistics:
Rcvd: 2618 Messages, 0 Error
Sent: 2618 Messages, 0 Error
ICMP message statistics:
IPv4 ICMP Message: Echo Reply
Rcvd: 0 Packet
Sent: 2618 Packets
IPv4 ICMP Message: Echo
Rcvd: 2618 Packets
Sent: 0 Packet
show ip verify source
Command:
show ip verify source [ interface ( <port_type>
[ <port_type_list> ] ) ]
show Show running system information
ip Internet Protocol
verify verify command
source verify source
interface ip verify source interface config
Default:
N/A
Usage Guide:
To display the IP Source Guard configuration.
Example:
To display the IP Source Guard configuration for GigabitEthernet 1/1.
NS3500-24T-4C Managed Switch Command Guide 281
Chapter 4: Commands for CLI configuration
Switch # show ip verify source interface GigabitEthernet 1/1
Port Port Mode Dynamic Entry Limit
---- --------- -------------------
GigabitEthernet 1/1 enabled 1
show ipmc profile
Command:
show ipmc profile [ <profile_name> ] [ detail ]
show Show running system information
ipmc IPv4/IPv6 multicast configuration
profile IPMC profile configuration
<ProfileName : word16> Profile name
detail Detail information of a profile
Default:
N/A
Usage Guide:
To display the IP Multicast Profile.
Example:
To display the IP Multicast Profile.
Switch # show ipmc profile
IPMC Profile is now enabled to start filtering.
Profile: 1 (In VER-INI Mode)
Description: test
show ipmc range
Command:
show ipmc range [ <entry_name> ]
show Show running system information
ipmc IPv4/IPv6 multicast configuration
range A range of IPv4/IPv6 multicast addresses for the profile
<EntryName : word16> Range entry name
Default:
N/A
Usage Guide:
To display the IP Multicast Range.
Example:
To display the IP Multicast Range.
282 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch # show ipmc range
Range Name : 1
Start Address: 224.24.24.24
End Address : 224.24.24.25
show ipv6 interface
Command:
show ipv6 interface [ vlan <vlan_list> { brief | statistics } ]
show Show running system information
ipv6 IPv6 configuration commands
vlan VLAN of IPv6 interface
brief Brief summary of IPv6 status and configuration
statistics Traffic statistics
Default:
N/A
Usage Guide:
To display the IPv6 configuration.
Example:
To display the IPv6 configuration.
Switch # show ipv6 interface
IPv6 Vlan1 interface is up.
Internet address is 2001::7766
Internet address is fe80::201:c1ff:fe00:9900
Static address is 2001::7766/64
IP stack index (IFID) is 2
Routing is enabled on this interface
MTU is 1500 bytes
IPv6 Statistics on Interface VLAN: 1
Rcvd: 3 total in 168 bytes
3 local destination, 0 forwarding
0 header error, 0 address error, 0 unknown protocol
0 no route, 0 truncated, 0 discarded
Sent: 17 total in 1104 bytes
17 generated, 0 forwarded
0 discarded
Frags: 0 reassemble (0 reassembled, 0 couldn't reassemble)
0 fragment (0 fragmented, 0 couldn't fragment)
0 fragment created
Mcast: 3 received in 168 bytes
17 sent in 1104 bytes
Bcast: 0 received, 0 sent
NS3500-24T-4C Managed Switch Command Guide 283
Chapter 4: Commands for CLI configuration
show ipv6 mld snooping
Command:
show ipv6 mld snooping [ vlan <vlan_list> ] [ group-database
[ interface ( <port_type> [ <port_type_list> ] ) ] [ sfm-
information ] ] [ detail ]
show Show running system information
ipv6 IPv6 configuration commands
mld Multicast Listener Discovery
snooping Snooping MLD
vlan Search by VLAN
group-database Multicast group database from MLD
interface Search by port
sfm-information Including source filter multicast information from MLD
detail Detail running information/statistics of MLD snooping
Default:
N/A
Usage Guide:
To display the MLD Snooping information.
Example:
To display the MLD Snooping information (Detail).
Switch # show ipv6 mld snooping detail
MLD Snooping is disabled to stop snooping MLD control plane.
Multicast streams destined to unregistered MLD groups will be
flooding.
show ipv6 mld snooping mrouter
Command:
show ip igmp snooping mrouter [ detail ]
show Show running system information
ipv6 IPv6 configuration commands
mld Multicast Listener Discovery
snooping Snooping MLD
mrouter Multicast router port status in MLD
detail Detail running information/statistics of MLD snooping
Default:
N/A
Usage Guide:
To display the MLD Router Port information.
Example:
To display the MLD Router Port information.
Switch # show ipv6 mld snooping mrouter
MLD Snooping is enabled to start snooping MLD control plane.
284 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Switch-1 MLD Router Port Status
Gi 1/1: Static and Dynamic Router Port
show ipv6 neighbor
Command:
show ipv6 neighbor [ interface vlan <vlan_list> ]
show Show running system information
ipv6 IPv6 configuration commands
neighbor IPv6 neighbors
interface Select an interface to configure
vlan VLAN of IPv6 interface
Default:
N/A
Usage Guide:
To display the IPv6 neighbor information.
Example:
To display the IPv6 neighbor information.
Switch # show ipv6 neighbor
2001::7766 via VLAN1: 00-30-4F-00-99-00
Permanent/REACHABLE
fe80::201:c1ff:fe00:9900 via VLAN1: 00-30-4F-00-99-00
Permanent/REACHABLE
show ipv6 route
Command:
show ipv6 route [ interface vlan <vlan_list> ]
show Show running system information
ipv6 IPv6 configuration commands
route IPv6 routes
interface Select an interface to configure
vlan VLAN of IPv6 interface
Default:
N/A
Usage Guide:
To display the IPv6 Routing table.
NS3500-24T-4C Managed Switch Command Guide 285
Chapter 4: Commands for CLI configuration
Example:
To display the IPv6 Routing table.
Switch # show ipv6 route
::1/128 via ::1 <UP HOST>
2001::/64 via VLAN1 <UP HW_RT>
2001::7766/128 via 1:c100:9900:: <UP HOST>
2002::/64 via 2001::7788 <UP GATEWAY HW_RT>
show ipv6 statistics
Command:
show ipv6 statistics [ system ] [ interface vlan <vlan_list> ]
[ icmp ] [ icmp-msg <type> ]
show Show running system information
ipv6 IPv6 configuration commands
statistics Traffic statistics
icmp IPv6 ICMP traffic
icmp-msg IPv6 ICMP traffic for designated message type
<Type : 0~255> ICMP message type ranges from 0 to 255
interface Select an interface to configure
vlan IPv6 interface traffic
system IPv6 system traffic
Default:
N/A
Usage Guide:
To display the IPv6 statistics.
Example:
To display the IPv6 statistics.
Switch # show ipv6 statistics
IPv6 statistics:
Rcvd: 24 total in 2064 bytes
6 local destination, 0 forwarding
0 header error, 0 address error, 0 unknown protocol
0 no route, 0 truncated, 18 discarded
Sent: 34 total in 2208 bytes
38 generated, 0 forwarded
0 no route, 0 discarded
Frags: 0 reassemble (0 reassembled, 0 couldn't reassemble)
0 fragment (0 fragmented, 0 couldn't fragment)
0 fragment created
Mcast: 24 received in 2064 bytes
34 sent in 2208 bytes
Bcast: 0 received, 0 sent
IP interface statistics:
286 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
IPv6 Statistics on Interface VLAN: 1
Rcvd: 12 total in 1032 bytes
3 local destination, 0 forwarding
0 header error, 0 address error, 0 unknown protocol
0 no route, 0 truncated, 9 discarded
Sent: 17 total in 1104 bytes
17 generated, 0 forwarded
0 discarded
Frags: 0 reassemble (0 reassembled, 0 couldn't reassemble)
0 fragment (0 fragmented, 0 couldn't fragment)
0 fragment created
Mcast: 12 received in 1032 bytes
17 sent in 1104 bytes
Bcast: 0 received, 0 sent
IPv6 ICMP statistics:
Rcvd: 3 Messages, 0 Error
Sent: 19 Messages, 0 Error
ICMP message statistics:
IPv6 ICMP Message: Multicast Listener Report
Rcvd: 0 Packet
Sent: 10 Packets
IPv6 ICMP Message: Router Solicitation (NDP)
Rcvd: 3 Packets
Sent: 6 Packets
IPv6 ICMP Message: Neighbor Solicitation (NDP)
Rcvd: 0 Packet
Sent: 3 Packets
show lacp
Command:
show lacp { internal | statistics | system-id | neighbour }
show Show running system information
lacp LACP configuration/status
internal Internal LACP configuration
neighbour Neighbour LACP status
statistics Internal LACP statistics
system-id LACP system id
Default:
N/A
Usage Guide:
To display the LACP mode information.
Example:
To display the LACP mode information.
NS3500-24T-4C Managed Switch Command Guide 287
Chapter 4: Commands for CLI configuration
Switch # show lacp internal
Port Mode Key Role Timeout Priority
-------------------- -------- ---- ------ ------- --------
Gi 1/1 Enabled Auto Active Fast 32768
Gi 1/2 Enabled Auto Active Fast 32768
Gi 1/3 Disabled Auto Active Fast 32768
show line
Command:
show line [ alive ]
show Show running system information
line TTY line information
alive Display information about alive lines
Default:
N/A
Usage Guide:
To display the VTY information.
Example:
To display the VTY information.
Switch # show line alive
Line is con 0.
* You are at this line now.
Alive from Console.
Default privileged level is 2.
Command line editing is enabled
Display EXEC banner is enabled.
Display Day banner is enabled.
Terminal width is 80.
length is 24.
history size is 32.
exec-timeout is 10 min 0 second.
Current session privilege is 15.
Elapsed time is 0 day 0 hour 17 min 20 sec.
Idle time is 0 day 0 hour 0 min 0 sec.
show lldp med media-vlan-policy
Command:
show lldp med media-vlan-policy [<0~31>]
show Show running system information
lldp Display LLDP neighbors information
med Display LLDP-MED neighbors information
media-vlan-policy Display media vlan policies
288 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
<0~31> List of policies
Default:
N/A
Usage Guide:
To display the LLDP-MED policy information.
Example:
To display the LLDP-MED policy information.
Switch # show lldp med media-vlan-policy
Policy Id Application Type Tag Vlan ID L2 Priority DSCP
0 Voice Tagged 1 0 0
show lldp med remote-device
Command:
show lldp med remote-device [ interface ( <port_type>
[ <port_list> ] ) ]
show Show running system information
lldp Display LLDP neighbors information
med Display LLDP-MED neighbors information
remote-device Display remote device LLDP-MED neighbors information
interface Interface to display
Default:
N/A
Usage Guide:
To display the LLDP-MED entries information.
Example:
To display the LLDP-MED entries information.
Switch # show lldp med remote-device
No LLDP-MED entries found
show lldp neighbors
Command:
show lldp neighbors [ interface ( <port_type>
[ <port_type_list> ] ) ]
show Show running system information
lldp Display LLDP neighbors information
neighbors Display LLDP neighbors information
interface Interface to display
Default:
N/A
Usage Guide:
To display the LLDP neighbors information.
Example:
NS3500-24T-4C Managed Switch Command Guide 289
Chapter 4: Commands for CLI configuration
To display the LLDP neighbors information.
Switch # show lldp neighbors
No LLDP entries found
show lldp statistics
Command:
show lldp statistics [ interface ( <port_type>
[ <port_type_list> ] ) ]
show Show running system information
lldp Display LLDP neighbors information
statistics Display LLDP statistics information
interface Interface to display
Default:
N/A
Usage Guide:
To display the LLDP statistics information.
Example:
To display the LLDP statistics information for GigabitEthernet 1/1.
Switch # show lldp statistics interface GigabitEthernet 1/1
Rx Tx Rx
Interface Frames Frames Errors
--------- ------ ------ ------
GigabitEthernet 1/1 0 3030 0
Rx Rx TLV Rx TLV Rx TLV
Discards Errors Unknown Organiz. Aged
-------- ------ ------- -------- ----
0 0 0 0 0
show logging
Command:
show logging {<log_id> | error | info | warning } [ switch
<switch_list> ]
show Show running system information
logging Syslog
<logging_id: 1-4294967295> Logging ID
switch Switch
<switch_list> Switch ID list in 1
Default:
N/A
Usage Guide:
To display the Syslog information.
Example:
290 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
To display the Syslog information with Log ID 235861.
Switch # show logging 235861
Switch : 1
ID : 235861
Level : Warning
Time : 1970-01-01T13:33:57+00:00
Message:
Loop Detected: Port 5 shut down
show loop-protect
Command:
show loop-protect [ interface ( <port_type> [ <port_list> ] ) ]
show Show running system information
loop-protect Loop protection configuration
interface Interface status and configuration
Default:
N/A
Usage Guide:
To display the Loop protection information.
Example:
To display the Loop protection information for GigabitEthernet 1/1.
Switch # show loop-protect interface GigabitEthernet 1/1
Loop Protection Configuration
======================================
Loop Protection : Enable
Transmission Time : 2 sec
Shutdown Time : 2 sec
GigabitEthernet 1/1
------------------------------
Loop protect mode is enabled.
Actions are both of shutdown and log.
Transmit mode is enabled.
No loop.
The number of loops is 12390.
Time of last loop is at 1970-01-01T14:58:28+00:00
Status is down.
NS3500-24T-4C Managed Switch Command Guide 291
Chapter 4: Commands for CLI configuration
show mac address-table
Command:
show mac address-table [ conf | static | aging-time |
{ { learning | count } [ interface ( <port_type>
[ <port_type_list> ] ) ] } | { address <mac_addr> [ vlan
<vlan_id> ] } | vlan <vlan_id_1> | interface ( <port_type>
[ <port_type_list> ] ) ]
show Show running system information
mac MAC Address Table information
address-table MAC Address Table
address MAC address lookup
aging-time Aging time
conf User added static MAC addresses
count Total number of MAC addresses
interface Select an interface to configure
learning Learn/disable/secure state
static All static MAC addresses
vlan Addresses in this VLAN
Default:
N/A
Usage Guide:
To display the MAC address table.
Example:
To display the MAC address table for VLAN 1.
Switch # show mac address-table vlan 1
Type VID MAC Address Ports
Static 1 33:33:00:00:00:01 GigabitEthernet 1/1-25
10GigabitEthernet 1/1-4 CPU
Static 1 33:33:00:00:00:02 GigabitEthernet 1/1-25
10GigabitEthernet 1/1-4 CPU
Static 1 33:33:ff:00:99:00 GigabitEthernet 1/1-25
10GigabitEthernet 1/1-4 CPU
Dynamic 1 d4:3d:7e:fd:e3:ac GigabitEthernet 1/21
Static 1 ff:ff:ff:ff:ff:ff GigabitEthernet 1/1-25 10GigabitEthernet
1/1-4 CPU
show mep
Command:
show mep [ <instance> ] [ peer | cc | lm | dm | lt | lb | tst | aps |
client | ais | lck ] [ detail ]
show Show running system information
mep Maintenance Entity Point
<instance> The range of MEP instances
ais Show AIS state
aps Show APS state
cc Show CC state
292 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
client Show Client state
detail Show detailed state including configuration information.
dm Show DM state
lb Show LB state
lck Show LCK state
lm Show LM state
lt Show LT state
peer Show peer mep state
tst Show TST state
Default:
N/A
Usage Guide:
To display the MEP information.
Example:
To display the MEP instance 1 information.
Switch # show mep 1
MEP state is:
Inst cLevel cMeg cMep cAis cLck cSsf aBlk aTsf
1 False False False False False True False True
show mvr
Command:
show mvr [ vlan <vlan_list> | name <mvr_name> ] [ group-
database [ interface ( <port_type> [ <port_type_list> ] ) ]
[ sfm-information ] ] [ detail ]
show Show running system information
mvr Multicast VLAN Registration configuration
name Search by MVR name
vlan Search by VLAN
group-database Multicast group database from MVR
interface Search by port
sfm-information Including source filter multicast information from MVR
detail Detail information/statistics of MVR group database
Default:
N/A
Usage Guide:
To display the MVR information.
Example:
To display the MVR information.
Switch # show mvr
MVR is now enabled to start group registration.
Switch-1 MVR-IGMP Interface Status
NS3500-24T-4C Managed Switch Command Guide 293
Chapter 4: Commands for CLI configuration
IGMP MVR VLAN 1 (Name is 1) interface is enabled.
Querier status is IDLE
RX IGMP Query:0 V1Join:0 V2Join:0 V3Join:0 V2Leave:0
TX IGMP Query:0 / (Source) Specific Query:0
Interface Channel Profile: <No Associated Profile>
Switch-1 MVR-MLD Interface Status
MLD MVR VLAN 1 (Name is 1) interface is enabled.
Querier status is IDLE
RX MLD Query:0 V1Report:0 V2Report:0 V1Done:0
TX MLD Query:0 / (Source) Specific Query:0
Interface Channel Profile: <No Associated Profile>
show network-clock
Command:
show network-clock
show Show running system information
network-clock Show selector state
Default:
N/A
Usage Guide:
To display the SyncE information.
Example:
To display the SyncE information.
Switch # show network-clock
Selector State is: Free Run
Alarm State is:
Clk: 1 2
LOCS: FALSE FALSE
SSM: FALSE FALSE
WTR: FALSE FALSE
LOL: FALSE
DHOLD: TRUE
SSM State is:
Interface Tx SSM Rx SSM Mode
GigabitEthernet 1/1 QL_NONE QL_LINK Master
294 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
show ntp status
Command:
show ntp status
show Show running system information
ntp Configure NTP
status status
Default:
N/A
Usage Guide:
To display the NTP Server information.
Example:
To display the NTP Server information.
Switch # show ntp status
NTP Mode : enabled
Idx Server IP host address (a.b.c.d) or a host name string
--- ------------------------------------------------------
1 192.168.0.44
2
3
4
5
show platform phy
Command:
show platform phy [ interface ( <port_type>
[ <port_type_list> ] ) ]
show Show running system information
platform Platform specific information
phy PHYs' information
interface Search by port
Default:
N/A
Usage Guide:
To display the PHY information.
Example:
To display the PHY information for GigabitEthernet 1/1.
Switch # show platform phy interface GigabitEthernet 1/1
Port API Inst WAN/LAN/1G Mode Duplex Speed Link
---- --------- --------- ---- ------ ----- ----
1 Default 1G ANEG - - No
NS3500-24T-4C Managed Switch Command Guide 295
Chapter 4: Commands for CLI configuration
show platform phy failover
Command:
show platform phy failover
show Show running system information
platform Platform specific information
phy PHYs' information
failover Failover status
Default:
N/A
Usage Guide:
To display the PHY failover status.
Example:
To display the PHY failover status.
Switch # show platform phy failover
Port Active Channel Broadcast After reset
---- ------ ------- --------- ------------
show platform phy id
Command:
show platform phy id [ interface ( <port_type>
[ <port_type_list> ] ) ]
show Show running system information
platform Platform specific information
phy PHYs' information
id id
interface Search by port
Default:
N/A
Usage Guide:
To display the PHY ID.
Example:
To display the PHY ID for GigabitEthernet 1/1.
Switch # show platform phy id interface GigabitEthernet 1/1
Port Channel API Base Phy Id Phy Rev.
---- ------- -------- ------- ------
1 0 0 (1g) 8634 0
show platform phy status
Command:
show platform phy status [ interface ( <port_type>
[ <v_port_type_list> ] ) ]
show Show running system information
296 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
platform Platform specific information
phy PHYs' information
status status
interface Search by port
Default:
N/A
Usage Guide:
To display the PHY status.
Example:
To display the PHY status.
Switch # show platform phy status interface GigabitEthernet
1/1
Port Issues seen during 1G PHY warmstart Issues during 10G
PHY WS
---- ----------------------------------- ------------------------
1 No No
show port-security port
Command:
show port-security port [ interface ( <port_type>
[ <port_type_list> ] ) ]
show Show running system information
port-security port-security
port Show MAC Addresses learned by Port Security
interface Search by port
Default:
N/A
Usage Guide:
To display the MAC Addresses of Port Security.
Example:
To display the MAC Addresses of Port Security.
Switch # show port-security port interface GigabitEthernet 1/1
GigabitEthernet 1/1
-------------------
MAC Address VID State Added Age/Hold
Time
----------------- ---- ---------- ------------------------- ------
-------
<none>
NS3500-24T-4C Managed Switch Command Guide 297
Chapter 4: Commands for CLI configuration
show port-security switch
Command:
show port-security switch [ interface ( <port_type>
[ <port_type_list> ] ) ]
show Show running system information
port-security port-security
switch Show Port Security status
interface Search by port
Default:
N/A
Usage Guide:
To display the status of Port Security.
Example:
To display the status of Port Security.
Switch # show port-security switch interface GigabitEthernet
1/1
Users:
L = Limit Control
8 = 802.1X
D = DHCP Snooping
V = Voice VLAN
Interface Users State MAC Cnt
----------------------- ----- ------------- -------
GigabitEthernet 1/1 ---- No users 0
show privilege
Command:
show privilege
show Show running system information
privilege Display command privilege
Default:
N/A
Usage Guide:
To display the Privilege information.
Example:
To display the Privilege information.
Switch # show privilege
show pvlan
Command:
show pvlan [ <pvlan_list> ]
298 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
show Show running system information
pvlan PVLAN configuration
Default:
N/A
Usage Guide:
To display the Private VLAN membership configuration.
Example:
To display the Private VLAN membership configuration for all VLANs.
Switch # show pvlan
PVLAN ID Ports
-------- ----------------------------------------------------------------------------
-
1 GigabitEthernet 1/1, GigabitEthernet 1/2, GigabitEthernet
1/3,
show pvlan isolation
Command:
show pvlan isolation [ interface ( <port_type> [ <port_list> ] ) ]
show Show running system information
pvlan PVLAN configuration
isolation show isolation configuration
interface Search by port
Default:
N/A
Usage Guide:
To display the port isolation configuration.
Example:
To display the port isolation configuration.
Switch # show pvlan isolation
Port Isolation
-------------------------------- ---------
GigabitEthernet 1/1 Disabled
GigabitEthernet 1/2 Disabled
GigabitEthernet 1/3 Disabled
show qos
Command:
show qos [ { interface [ ( <port_type> [ <port> ] ) ] } | wred |
{ maps [ dscp-cos ] [ dscp-ingress-translation ] [ dscp-
classify ] [ cos-dscp ] [ dscp-egress-translation ] } | { qce
[ <qce> ] } ]
show Show running system information
qos Quality of Service
NS3500-24T-4C Managed Switch Command Guide 299
Chapter 4: Commands for CLI configuration
interface Interface
maps Global QoS Maps/Tables
cos-dscp Map for cos to dscp
dscp-classify Map for dscp classify enable
dscp-cos Map for dscp to cos
dscp-egress-translation Map for dscp egress translation
dscp-ingress-translation Map for dscp ingress translation
qce QoS Control Entry
<qce> QCE ID
wred Weighted Random Early Discard
Default:
N/A
Usage Guide:
To display the QoS configuration.
Example:
To display the QoS configuration for GigabitEthernet 1/1.
Switch # show qos interface GigabitEthernet 1/1
interface GigabitEthernet 1/1
qos cos 0
qos pcp 0
qos dpl 0
qos dei 0
qos trust tag disabled
qos map tag-cos pcp 0 dei 0 cos 1 dpl 0
qos map tag-cos pcp 0 dei 1 cos 1 dpl 1
qos map tag-cos pcp 1 dei 0 cos 0 dpl 0
qos map tag-cos pcp 1 dei 1 cos 0 dpl 1
qos map tag-cos pcp 2 dei 0 cos 2 dpl 0
qos map tag-cos pcp 2 dei 1 cos 2 dpl 1
qos map tag-cos pcp 3 dei 0 cos 3 dpl 0
qos map tag-cos pcp 3 dei 1 cos 3 dpl 1
qos map tag-cos pcp 4 dei 0 cos 4 dpl 0
qos map tag-cos pcp 4 dei 1 cos 4 dpl 1
qos map tag-cos pcp 5 dei 0 cos 5 dpl 0
qos map tag-cos pcp 5 dei 1 cos 5 dpl 1
qos map tag-cos pcp 6 dei 0 cos 6 dpl 0
qos map tag-cos pcp 6 dei 1 cos 6 dpl 1
qos map tag-cos pcp 7 dei 0 cos 7 dpl 0
qos map tag-cos pcp 7 dei 1 cos 7 dpl 1
qos trust dscp disabled
qos policer mode: disabled, rate: 500 kbps
qos queue-policer queue 0 mode: disabled, rate: 500 kbps
qos queue-policer queue 1 mode: disabled, rate: 500 kbps
qos queue-policer queue 2 mode: disabled, rate: 500 kbps
qos queue-policer queue 3 mode: disabled, rate: 500 kbps
qos queue-policer queue 4 mode: disabled, rate: 500 kbps
qos queue-policer queue 5 mode: disabled, rate: 500 kbps
qos queue-policer queue 6 mode: disabled, rate: 500 kbps
qos queue-policer queue 7 mode: disabled, rate: 500 kbps
qos shaper mode: disabled, rate: 500 kbps
300 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
qos queue-shaper queue 0 mode: disabled, rate: 500 kbps,
excess: disabled
qos queue-shaper queue 1 mode: disabled, rate: 500 kbps,
excess: disabled
qos queue-shaper queue 2 mode: disabled, rate: 500 kbps,
excess: disabled
qos queue-shaper queue 3 mode: disabled, rate: 500 kbps,
excess: disabled
qos queue-shaper queue 4 mode: disabled, rate: 500 kbps,
excess: disabled
qos queue-shaper queue 5 mode: disabled, rate: 500 kbps,
excess: disabled
qos queue-shaper queue 6 mode: disabled, rate: 500 kbps,
excess: disabled
qos queue-shaper queue 7 mode: disabled, rate: 500 kbps,
excess: disabled
qos wrr mode: disabled, weight: q0:17 q1:17 q2:17 q3:17 q4:17
q5:17
qos tag-remark classified
qos map cos-tag cos 0 dpl 0 pcp 1 dei 0
qos map cos-tag cos 0 dpl 1 pcp 1 dei 1
qos map cos-tag cos 1 dpl 0 pcp 0 dei 0
qos map cos-tag cos 1 dpl 1 pcp 0 dei 1
qos map cos-tag cos 2 dpl 0 pcp 2 dei 0
qos map cos-tag cos 2 dpl 1 pcp 2 dei 1
qos map cos-tag cos 3 dpl 0 pcp 3 dei 0
qos map cos-tag cos 3 dpl 1 pcp 3 dei 1
qos map cos-tag cos 4 dpl 0 pcp 4 dei 0
qos map cos-tag cos 4 dpl 1 pcp 4 dei 1
qos map cos-tag cos 5 dpl 0 pcp 5 dei 0
qos map cos-tag cos 5 dpl 1 pcp 5 dei 1
qos map cos-tag cos 6 dpl 0 pcp 6 dei 0
qos map cos-tag cos 6 dpl 1 pcp 6 dei 1
qos map cos-tag cos 7 dpl 0 pcp 7 dei 0
qos map cos-tag cos 7 dpl 1 pcp 7 dei 1
qos dscp-translate disabled
qos dscp-classify disabled
qos dscp-remark disabled
qos storm unicast mode: disabled, rate: 500 kbps
qos storm broadcast mode: disabled, rate: 500 kbps
qos storm unknown mode: disabled, rate: 500 kbps
show radius-server
Command:
show radius-server [ statistics ]
show Show running system information
radius-server RADIUS configuration
statistics RADIUS statistics
NS3500-24T-4C Managed Switch Command Guide 301
Chapter 4: Commands for CLI configuration
Default:
N/A
Usage Guide:
To display the RADIUS Server configuration.
Example:
To display the RADIUS Server configuration.
Switch # show radius-server
Global RADIUS Server Timeout : 5 seconds
Global RADIUS Server Retransmit : 3 times
Global RADIUS Server Deadtime : 0 minutes
Global RADIUS Server Key :
Global RADIUS Server Attribute 4 :
Global RADIUS Server Attribute 95 :
Global RADIUS Server Attribute 32 :
No hosts configured!
show rmon alarm
Command:
show rmon alarm [ <id_list> ]
show Show running system information
rmon RMON statistics
alarm Display the RMON alarm table
Default:
N/A
Usage Guide:
To display the RMON Alarm configuration.
Example:
To display the RMON Alarm ID 1 configuration.
Switch # show rmon alarm 1
Alarm ID : 1
----------------
Interval : 30
Variable : .1.3.6.1.2.1.2.2.1.20.1
SampleType : deltaValue
Value : 0
Startup : risingOrFallingAlarm
RisingThrld : 2
FallingThrld : 1
RisingEventIndex : 2
FallingEventIndex : 1
302 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
show rmon event
Command:
show rmon event [ <id_list> ]
show Show running system information
rmon RMON statistics
event Display the RMON event table
Default:
N/A
Usage Guide:
To display the RMON Event configuration.
Example:
To display the RMON Event ID 1 configuration.
Switch # show rmon event 1
Event ID : 1
----------------
Description : 2
Type : none
Community : public
LastSent : Never
show rmon history
Command:
show rmon history [ <id_list> ]
show Show running system information
rmon RMON statistics
history Display the RMON history table
Default:
N/A
Usage Guide:
To display the RMON History configuration.
Example:
To display the RMON History ID 1 configuration.
Switch # show rmon history 1
History ID : 1
------------------
Data Source : .1.3.6.1.2.1.2.2.1.1.5
Data Bucket Request : 50
Data Bucket Granted : 50
Data Interval : 1800
NS3500-24T-4C Managed Switch Command Guide 303
Chapter 4: Commands for CLI configuration
show rmon statistics
Command:
show rmon statistics [ <id_list> ]
show Show running system information
rmon RMON statistics
statistics Display the RMON statistics table
Default:
N/A
Usage Guide:
To display the RMON Statistics configuration.
Example:
To display the RMON Statistics ID 1 configuration.
Switch # show rmon statistics 1
Statistics ID : 1
---------------------
Data Source : .1.3.6.1.2.1.2.2.1.1.5
etherStatsDropEvents : 3
etherStatsOctets : 10221727
etherStatsPkts : 127086
etherStatsBroadcastPkts : 45280
etherStatsMulticastPkts : 70008
etherStatsCRCAlignErrors : 0
etherStatsUndersizePkts : 0
etherStatsOversizePkts : 0
etherStatsFragments : 0
etherStatsJabbers : 0
etherStatsCollisions : 0
etherStatsPkts64Octets : 26017
etherStatsPkts65to127Octets : 101063
etherStatsPkts128to255Octets : 5
etherStatsPkts256to511Octets : 1
etherStatsPkts512to1023Octets : 0
etherStatsPkts1024to1518Octets: 0
show running-config
Command:
show running-config [ all-defaults ] [feature <feature_name>
[ all-defaults ]] [interface vlan <list> [ all-defaults ] ] [line
{ console | vty } <list> [ all-defaults ]] [vlan <list> [ all-
defaults ]]
show Show running system information
running-config Show running system information
all-defaults Include most/all default values
feature Show configuration for specific feature
<feature_name> Valid words are 'GVRP' 'access' 'access-list' 'aggregation' 'arp-
304 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
inspection' 'auth' 'clock' 'dhcp' 'dhcp-snooping''dhcp_server'
'dns' 'dot1x' 'eps' 'erps' 'evc' 'green-ethernet' 'http' 'icli' 'ip-
igmp-snooping' 'ip-igmp-snooping-port' 'ip-igmp-snooping-
vlan' 'ipmc-profile' 'ipmc-profile-range' 'ipv4' 'ipv6' 'ipv6-mld-
snooping' 'ipv6-mld-snooping-port' 'ipv6-mld-snooping-vlan'
'lacp' 'link-oam' 'lldp' 'logging' 'loop-protect' 'mac' 'mep'
'monitor' 'mstp' 'mvr' 'mvr-port' 'network-clock' 'ntp' 'phy'
'poe' 'port' 'port-security' 'ptp' 'pvlan' 'qos' 'rmon' 'snmp'
'source-guard' 'ssh' 'upnp' 'user' 'vlan' 'voice-vlan' 'web-
privilege-group-level'
all-defaults Include most/all default values
interface Show specific interface(s)
vlan VLAN
line Show line settings
console Console
vty VTY
Default:
N/A
Usage Guide:
To display the running-config.
Example 1:
To display the running-config.
Switch # show running-config
Building configuration...
username admin privilege 15 password none
loop-protect
loop-protect transmit-time 2
loop-protect shutdown-time 2
!
vlan 1
!
!
!
Example 2:
To display the running-config with filtered MVR function
Switch # show running-config feature mvr
Building configuration...
!
vlan 1
!
!
!
mvr
mvr vlan 1 name 1
NS3500-24T-4C Managed Switch Command Guide 305
Chapter 4: Commands for CLI configuration
show snmp
Command:
show snmp
show Show running system information
snmp Display SNMP configurations
Default:
N/A
Usage Guide:
To display the SNMP information.
Example:
To display the SNMP information
Switch # show snmp
SNMP Configuration
SNMP Mode : enabled
SNMP Version : 2c
Read Community : public
Write Community : private
Trap Mode : disabled
Trap Version : 1
SNMPv3 Communities Table:
Community : public
Source IP : 0.0.0.0
Source Mask : 0.0.0.0
Community : private
Source IP : 0.0.0.0
Source Mask : 0.0.0.0
SNMPv3 Users Table:
User Name : default_user
Engine ID : 800007e5017f000001
Security Level : NoAuth, NoPriv
Authentication Protocol : None
Privacy Protocol : None
SNMPv3 Groups Table;
Security Model : v1
Security Name : public
Group Name : default_ro_group
Security Model : v1
Security Name : private
Group Name : default_rw_group
306 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Security Model : v2c
Security Name : public
Group Name : default_ro_group
Security Model : v2c
Security Name : private
Group Name : default_rw_group
Security Model : v3
Security Name : default_user
Group Name : default_rw_group
SNMPv3 Accesses Table:
Group Name : default_ro_group
Security Model : any
Security Level : NoAuth, NoPriv
Read View Name : default_view
Write View Name : <no writeview specified>
Group Name : default_rw_group
Security Model : any
Security Level : NoAuth, NoPriv
Read View Name : default_view
Write View Name : default_view
SNMPv3 Views Table:
View Name : default_view
OID Subtree : .1
View Type : included
show snmp access
Command:
show snmp access [ <group_name> { v1 | v2c | v3 | any }
{ auth | noauth | priv } ]
show Show running system information
snmp Display SNMP configurations
access access configuration
<GroupName : word32> group name
any any security model
v1 v1 security model
v2c v2c security model
v3 v3 security model
auth authNoPriv Security Level
noauth noAuthNoPriv Security Level
priv authPriv Security Level
NS3500-24T-4C Managed Switch Command Guide 307
Chapter 4: Commands for CLI configuration
Default:
N/A
Usage Guide:
To display the SNMP Access information.
Example:
To display the SNMP Access information
Switch # show snmp access
Group Name : default_ro_group
Security Model : any
Security Level : NoAuth, NoPriv
Read View Name : default_view
Write View Name : <no writeview specified>
Group Name : default_rw_group
Security Model : any
Security Level : NoAuth, NoPriv
Read View Name : default_view
Write View Name : default_view
show snmp community v3
Command:
show snmp community v3 [ <community> ]
show Show running system information
snmp Display SNMP configurations
community Community
v3 SNMPv3
<Community : word127> Specify community name
Default:
N/A
Usage Guide:
To display the SNMPv3 Community information.
Example:
To display the SNMPv3 Community information
Switch # show snmp community v3
Community : public
Source IP : 0.0.0.0
Source Mask : 0.0.0.0
Community : private
Source IP : 0.0.0.0
Source Mask : 0.0.0.0
308 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
show snmp host
Command:
show snmp host [ <conf_name> ] [ system ] [ switch ]
[ interface ] [ aaa ]
show Show running system information
snmp Display SNMP configurations
host Set SNMP host's configurations
<ConfName : word32> Name of the host configuration
aaa AAA event group
interface Interface event group
switch Switch event group
system System event group
Default:
N/A
Usage Guide:
To display the SNMP Host information.
Example:
To display the SNMP Host information
Switch # show snmp host
Trap Global Mode: Disabled
show snmp mib context
Command:
show snmp mib context
show Show running system information
snmp Display SNMP configurations
mib MIB(Management Information Base)
context MIB context
Default:
N/A
Usage Guide:
To display the SNMP MIB contexts.
Example:
To display the SNMP MIB contexts.
Switch # show snmp mib context
BRIDGE-MIB :
- dot1dBase (.1.3.6.1.2.1.17.1)
- dot1dTp (.1.3.6.1.2.1.17.4)
Dot3-OAM-MIB :
- dot3OamMIB (.1.3.6.1.2.1.158)
ENTITY-MIB :
- entityMIBObjects (.1.3.6.1.2.1.47.1)
EtherLike-MIB :
- transmission (.1.3.6.1.2.1.10)
NS3500-24T-4C Managed Switch Command Guide 309
Chapter 4: Commands for CLI configuration
IEEE8021-MSTP-MIB :
- ieee8021MstpMib (.1.3.111.2.802.1.1.6)
IEEE8021-PAE-MIB :
- ieee8021paeMIB (.1.0.8802.1.1.1.1)
IEEE8023-LAG-MIB :
- lagMIBObjects (.1.2.840.10006.300.43.1)
IF-MIB :
- ifMIB (.1.3.6.1.2.1.31)
IP-FORWARD-MIB :
- ipForward (.1.3.6.1.2.1.4.24)
IP-MIB :
- ipv4InterfaceTable (.1.3.6.1.2.1.4.28)
- ipv6InterfaceTable (.1.3.6.1.2.1.4.30)
- ipTrafficStats (.1.3.6.1.2.1.4.31)
- ipAddressTable (.1.3.6.1.2.1.4.34)
- ipNetToPhysicalTable (.1.3.6.1.2.1.4.35)
- ipv6ScopeZoneIndexTable (.1.3.6.1.2.1.4.36)
- ipDefaultRouterTable (.1.3.6.1.2.1.4.37)
- icmpStatsTable (.1.3.6.1.2.1.5.29)
- icmpMsgStatsTable (.1.3.6.1.2.1.5.30)
LLDP-EXT-MED-MIB :
- lldpXMedMIB (.1.0.8802.1.1.2.1.5.4795.1)
LLDP-MIB :
- lldpObjects (.1.0.8802.1.1.2.1)
MAU-MIB :
- snmpDot3MauMgt (.1.3.6.1.2.1.26)
MGMD-MIB :
- mgmdMIBObjects (.1.3.6.1.2.1.185.1)
P-BRIDGE-MIB :
- pBridgeMIB (.1.3.6.1.2.1.17.6)
POWER-ETHERNET-MIB :
- powerEthernetMIB (.1.3.6.1.2.1.105)
Q-BRIDGE-MIB :
- qBridgeMIB (.1.3.6.1.2.1.17.7)
RADIUS-ACC-CLIENT-MIB :
- radiusAccClientMIBObjects (.1.3.6.1.2.1.67.2.2.1)
RADIUS-AUTH-CLIENT-MIB :
- radiusAuthClientMIBObjects (.1.3.6.1.2.1.67.1.2.1)
RFC1213-MIB :
- system (.1.3.6.1.2.1.1)
- interfaces (.1.3.6.1.2.1.2)
- ip (.1.3.6.1.2.1.4)
- snmp (.1.3.6.1.2.1.5)
- tcp (.1.3.6.1.2.1.6)
- udp (.1.3.6.1.2.1.7)
RMON-MIB :
- statistics (.1.3.6.1.2.1.16.1)
- history (.1.3.6.1.2.1.16.2)
- alarm (.1.3.6.1.2.1.16.3)
- event (.1.3.6.1.2.1.16.9)
SMON-MIB :
310 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
- switchRMON (.1.3.6.1.2.1.16.22)
SNMP-FRAMEWORK-MIB :
- snmpEngine (.1.3.6.1.6.3.10.2.1)
SNMP-MPD-MIB :
- dot1dTpHCPortTable (.1.3.6.1.2.1.17.4.5)
- snmpMPDStats (.1.3.6.1.6.3.11.2.1)
SNMP-USER-BASED-SM-MIB :
- usmStats (.1.3.6.1.6.3.15.1.1)
- usmUserTable (.1.3.6.1.6.3.15.1.2)
SNMP-VIEW-BASED-ACM-MIB :
- vacmContextTable (.1.3.6.1.6.3.16.1.1)
- vacmSecurityToGroupTable (.1.3.6.1.6.3.16.1.2)
- vacmAccessTable (.1.3.6.1.6.3.16.1.4)
- vacmMIBViews (.1.3.6.1.6.3.16.1.5)
show snmp mib ifmib ifIndex
Command:
show snmp mib ifmib ifIndex
show Show running system information
snmp Display SNMP configurations
mib MIB(Management Information Base)
ifmib IF-MIB
ifIndex The IfIndex that is defined in IF-MIB
Default:
N/A
Usage Guide:
To display the SNMP MIB ifIndex contexts.
Example:
To display the SNMP MIB ifIndex contexts.
Switch # show snmp mib ifmib ifIndex
ifIndex ifDescr Interface
---------- ------------------------------------- ---------
1 Switch 1 - Port 1 GigabitEthernet 1/1
2 Switch 1 - Port 2 GigabitEthernet 1/2
3 Switch 1 - Port 3 GigabitEthernet 1/3
4 Switch 1 - Port 4 GigabitEthernet 1/4
5 Switch 1 - Port 5 GigabitEthernet 1/5
6 Switch 1 - Port 6 GigabitEthernet 1/6
7 Switch 1 - Port 7 GigabitEthernet 1/7
8 Switch 1 - Port 8 GigabitEthernet 1/8
9 Switch 1 - Port 9 GigabitEthernet 1/9
10 Switch 1 - Port 10 GigabitEthernet 1/10
11 Switch 1 - Port 11 GigabitEthernet 1/11
12 Switch 1 - Port 12 GigabitEthernet 1/12
13 Switch 1 - Port 13 GigabitEthernet 1/13
14 Switch 1 - Port 14 GigabitEthernet 1/14
NS3500-24T-4C Managed Switch Command Guide 311
Chapter 4: Commands for CLI configuration
15 Switch 1 - Port 15 GigabitEthernet 1/15
16 Switch 1 - Port 16 GigabitEthernet 1/16
17 Switch 1 - Port 17 GigabitEthernet 1/17
18 Switch 1 - Port 18 GigabitEthernet 1/18
19 Switch 1 - Port 19 GigabitEthernet 1/19
20 Switch 1 - Port 20 GigabitEthernet 1/20
21 Switch 1 - Port 21 GigabitEthernet 1/21
22 Switch 1 - Port 22 GigabitEthernet 1/22
23 Switch 1 - Port 23 GigabitEthernet 1/23
24 Switch 1 - Port 24 GigabitEthernet 1/24
25 Switch 1 - Port 25 10GigabitEthernet 1/1
26 Switch 1 - Port 26 10GigabitEthernet 1/2
27 Switch 1 - Port 27 10GigabitEthernet 1/3
28 Switch 1 - Port 28 10GigabitEthernet 1/4
29 Switch 1 - Port 29 GigabitEthernet 1/25
50001 VLAN 1 vlan 1
60001 IP Interface 1 vlan 1
show snmp security-to-group
Command:
show snmp security-to-group [ { v1 | v2c | v3 }
<security_name> ]
show Show running system information
snmp Display SNMP configurations
security-to-group security-to-group configuration
v1 v1 security model
v2c v2c security model
v3 v3 security model
<SecurityName : word32> security group name
Default:
N/A
Usage Guide:
To display the SNMP Group information.
Example:
To display the SNMP Group information.
Switch # show snmp security-to-group
Security Model : v1
Security Name : public
Group Name : default_ro_group
Security Model : v1
Security Name : private
Group Name : default_rw_group
Security Model : v2c
Security Name : public
Group Name : default_ro_group
312 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Security Model : v2c
Security Name : private
Group Name : default_rw_group
Security Model : v3
Security Name : default_user
Group Name : default_rw_group
show snmp user
Command:
show snmp user [ <username> <engineID> ]
show Show running system information
snmp Display SNMP configurations
user User
<Username : word32> Security user name
<Engiedid : word10-32> Security Engine ID
Default:
N/A
Usage Guide:
To display the SNMP User information.
Example:
To display the SNMP User information.
Switch # show snmp user
User Name : default_user
Engine ID : 800007e5017f000001
Security Level : NoAuth, NoPriv
Authentication Protocol : None
Privacy Protocol : None
show snmp view
Command:
show snmp view [ <view_name> <oid_subtree> ]
show Show running system information
snmp Display SNMP configurations
view MIB view configuration
<ViewName : word32> MIB view name
<OidSubtree : word255> MIB view OID
Default:
N/A
Usage Guide:
To display the SNMP viewer information.
Example:
NS3500-24T-4C Managed Switch Command Guide 313
Chapter 4: Commands for CLI configuration
To display the SNMP viewer information.
Switch # show snmp view
View Name : default_view
OID Subtree : .1
View Type : included
show spanning-tree
Command:
show spanning-tree [ summary | active | { interface
( <port_type> [ <port_type_list> ] ) } | { detailed [ interface
( <port_type> [ <port_type_list> ] ) ] } | { mst [ configuration |
{ <instance> [ interface ( <port_type>
[ <port_type_list> ] ) ] } ] } ]
show Show running system information
spanning-tree STP Bridge
active STP active interfaces
detailed STP statistics
interface Choose port
summary STP summary
mst Configuration
configuration STP bridge instance no (0-7, CIST=0, MST1=1...)
<Instance : 0-7> Choose port
Default:
N/A
Usage Guide:
To display the STP information.
Example:
To display the STP information.
Switch # show spanning-tree
CIST Bridge STP Status
Bridge ID : 32768.00-30-4F-00-99-00
Root ID : 32768. 00-30-4F-00-99-00
Root Port : -
Root PathCost: 0
Regional Root: 32768. 00-30-4F-00-99-00
Int. PathCost: 0
Max Hops : 20
TC Flag : Steady
TC Count : 0
TC Last : -
Port Port Role State Pri PathCost Edge P2P Uptime
--------- -------------- ---------- --- -------- ---- --- -------------
314 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
show switchport forbidden
Command:
show switchport forbidden [ { vlan <vid> } | { name <name> } ]
show Show running system information
switchport Display switching mode characteristics
forbidden Lookup VLAN Forbidden port entry
name name - Show forbidden access for specific VLAN name
vlan vid - Show forbidden access for specific VLAN id
Default:
N/A
Usage Guide:
To display the VLAN Forbidden port entry.
Example:
To display the VLAN Forbidden port entry.
Switch # show switchport forbidden
VID Interfaces
---- ----------
2 1
show tacacs-server
Command:
show tacacs-server
show Show running system information
tacacs-server TACACS+ configuration
Default:
N/A
Usage Guide:
To display the TACACS+ Server configuration.
Example:
To display the TACACS+ Server configuration.
Switch # show tacacs-server
Global TACACS+ Server Timeout : 5 seconds
Global TACACS+ Server Deadtime : 0 minutes
Global TACACS+ Server Key :
No hosts configured!
show terminal
Command:
show terminal
show Show running system information
terminal Display terminal configuration parameters
NS3500-24T-4C Managed Switch Command Guide 315
Chapter 4: Commands for CLI configuration
Default:
N/A
Usage Guide:
To display the your login information.
Example:
To display the your login information.
Switch # show terminal
Line is con 0.
* You are at this line now.
Alive from Console.
Default privileged level is 2.
Command line editing is enabled
Display EXEC banner is enabled.
Display Day banner is enabled.
Terminal width is 80.
length is 24.
history size is 32.
exec-timeout is 10 min 0 second.
Current session privilege is 15.
Elapsed time is 0 day 1 hour 12 min 15 sec.
Idle time is 0 day 0 hour 0 min 0 sec.
show upnp
Command:
show upnp
show Show running system information
upnp Display UPnP configurations
Default:
N/A
Usage Guide:
To display the UPnP information.
Example:
To display the UPnP information.
Switch # show upnp
UPnP Mode : Disabled
UPnP TTL : 4
UPnP Advertising Duration : 100
show users
Command:
show users [ myself ]
316 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
show Show running system information
users Display information about terminal lines
myself Display information about mine
Default:
N/A
Usage Guide:
To display the user status.
Example:
To display the user status for all.
Switch # show users
Line is con 0.
* You are at this line now.
Connection is from Console.
User name is admin.
Privilege is 15.
Elapsed time is 0 day 1 hour 20 min 49 sec.
Idle time is 0 day 0 hour 0 min 0 sec.
Line is vty 0.
Connection is from 192.168.0.45:49527 by Telnet.
User name is admin.
Privilege is 15.
Elapsed time is 0 day 0 hour 8 min 46 sec.
Idle time is 0 day 0 hour 8 min 42 sec.
show version
Command:
show version
show Show running system information
version System hardware and software status
Default:
N/A
Usage Guide:
To display the software and system information.
Example:
To display the software and system information.
Switch # show verison
MAC Address : 00-30-4f-00-99-00
System Contact :
System Name :
System Location :
System Time : 1970-01-01T22:56:08+00:00
System Uptime : 22:56:08
NS3500-24T-4C Managed Switch Command Guide 317
Chapter 4: Commands for CLI configuration
Active Image
------------
Image : managed
Version : 000
Date : 2013-12-06T15:22:03+01:00
Alternate Image
---------------
Image : managed.bk
Version : 000
Date : 2013-10-02T15:15:04+02:00
Product : IFS Best Switch
Software Version : 000
Build Date : 2013-12-06T15:22:03+01:00
show vlan
Command:
show vlan [ id <vlan_list> | name <name> | brief ]
show Show running system information
vlan VLAN status
id VLAN status by VLAN id
name VLAN status by VLAN name
brief VLAN summary information
Default:
N/A
Usage Guide:
To display the VLAN information.
Example:
To display the VLAN information.
Switch # show vlan
VLAN Name Interfaces
---- -------------------------------- ----------
1 default Gi 1/1-25 10G 1/1-4
show vlan ip-subnet
Command:
show vlan ip-subnet [ id <subnet_id> ]
show Show running system information
vlan VLAN status
318 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
ip-subnet Show VLAN ip-subnet entries
id Show a specific ip-subnet entry
Default:
N/A
Usage Guide:
To display the IP-based VLAN information.
Example:
To display the IP-based VLAN information.
Switch # show vlan ip-subnet
VCE ID IP Address Mask Length VID Interfaces
------ --------------- ----------- ---- ----------
1 192.168.78.0 24 5 GigabitEthernet 1/1
show vlan mac
Command:
show vlan mac [ address <mac_addr> ]
show Show running system information
vlan VLAN status
mac Show VLAN MAC entries
address Show a specific MAC entry
Default:
N/A
Usage Guide:
To display the MAC-based VLAN information.
Example:
To display the MAC-based VLAN information.
Switch # show vlan mac
MAC Address VID Interfaces
----------- --- ----------
00-40-55-00-00-00 1 GigabitEthernet 1/1
show vlan protocol
Command:
show vlan protocol [ eth2 { <etype> | arp | ip | ipx | at } ] [ snap
{ <oui> | rfc-1042 | snap-8021h } <pid> ] [ llc <dsap> <ssap> ]
show Show running system information
vlan VLAN status
protocol Protocol-based VLAN status
eth2 Ethernet protocol based VLAN status
<etype> Ether Type(Range: 0x600 - 0xFFFF)
arp Ether Type is ARP
at Ether Type is AppleTalk
ip Ether Type is IP
ipx Ether Type is IPX
NS3500-24T-4C Managed Switch Command Guide 319
Chapter 4: Commands for CLI configuration
llc LLC-based VLAN status
<dsap> DSAP (Range: 0x00 - 0xFF)
<ssap> SSAP (Range: 0x00 - 0xFF)
snap SNAP-based VLAN status
<oui> SNAP OUI (Range 0x000000 - 0XFFFFFF)
rfc-1042 SNAP OUI is rfc-1042
snap-8021h SNAP OUI is 8021h
<pid> PID (Range: 0x0 - 0xFFFF)
Default:
N/A
Usage Guide:
To display the Protocol-based VLAN information.
Example:
To display the Protocol-based VLAN information.
Switch # show vlan protocol
Protocol Type Protocol (Value) Group ID
------------- ------------------------ --------
LLC_SNAP OUI-00:e0:2b; PID:0x1 q
Switch 1
---------
Group ID VID Ports
---------------- ---- -----
q 2 GigabitEthernet 1/1
show voice vlan
Command:
show voice vlan [ oui <oui> | interface ( <port_type>
[ <port_list> ] ) ]
show Show running system information
voice Voice appliance attributes
vlan Vlan for voice traffic
interface Select an interface to configure
oui OUI configuration
<oui> OUI value
Default:
N/A
Usage Guide:
To display the Voice VLAN information.
320 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
Example:
To display the Voice VLAN information for GigabitEthernet 1/1
Switch # show voice vlan interface GigabitEthernet 1/1
GigabitEthernet 1/1 :
---------------------
GigabitEthernet 1/1 switchport voice vlan mode is auto
GigabitEthernet 1/1 switchport voice security is disabled
GigabitEthernet 1/1 switchport voice discovery protocol is oui
show web privilege group
Command:
show web privilege group [ <group_name> ] level
show Show running system information
web Web
privilege Web privilege
group Web privilege group
<group_name> Valid words are 'Aggregation' 'DHCP' 'Debug' 'Dhcp_Client'
'Diagnostics' 'EPS' 'ERPS' 'ETH_LINK_OAM' 'EVC'
'Green_Ethernet' 'IP2' 'IPMC_Snooping' 'LACP' 'LLDP'
'Loop_Protect' 'MAC_Table' 'MEP' 'MVR' 'Maintenance'
'Mirroring' 'NTP' 'POE' 'PTP' 'Ports' 'Private_VLANs'
'QoS' 'RPC' 'Security' 'Spanning_Tree' 'System' 'Timer'
'UPnP' 'VCL' 'VLAN_Translation' 'VLANs' 'Voice_VLAN'
'XXRP' 'ZL_3034X_API'
level Web privilege group level
Default:
N/A
Usage Guide:
To display the Web privilege group.
Example:
To display the Web privilege group
Switch # show web privilege group level
Group Name Privilege Level
CRO CRW SRO SRW
Aggregation
6 10 5 10
Debug
15 15 15 15
DHCP
5 10 5 10
Dhcp_Client
5 10 5 10
Diagnostics
5 10 5 10
EPS
5 10 5 10
ERPS
5 10 5 10
ETH_LINK_OAM
5 10 5 10
EVC
5 10 5 10
Green_Ethernet
5 10 5 10
NS3500-24T-4C Managed Switch Command Guide 321
Chapter 4: Commands for CLI configuration
IP2
5 10 5 10
IPMC_Snooping
5 10 5 10
LACP
5 10 5 10
LLDP
5 10 5 10
Loop_Protect
5 10 5 10
MAC_Table
5 10 5 10
Maintenance
15 15 15 15
MEP
5 10 5 10
Mirroring
5 10 5 10
MVR
5 10 5 10
NTP
5 10 5 10
POE
5 10 5 10
Ports
5 10 1 10
Private_VLANs
5 10 5 10
PTP
5 10 5 10
QoS
5 10 5 10
RPC
5 10 5 10
Security
5 10 5 10
Spanning_Tree
5 10 5 10
System
5 10 1 10
Timer
5 10 5 10
UPnP
5 10 5 10
VCL
5 10 5 10
VLAN_Translation
5 10 5 10
VLANs
5 10 5 10
Voice_VLAN
5 10 5 10
XXRP
5 10 5 10
ZL_3034X_API
5 10 5 10
terminal
terminal editing
Command:
terminal editing
terminal Set terminal line parameters
editing Enable command line editing
Default:
Enabled
Usage Guide:
To enable editing mode for current terminal session.
Example:
To enable editing mode for current terminal session.
Switch # terminal editing
322 NS3500-24T-4C Managed Switch Command Guide
Chapter 4: Commands for CLI configuration
terminal exec-timeout
Command:
terminal exec-timeout <min> [ <sec> ]
terminal Set terminal line parameters
exec-timeout Set the EXEC timeout
<min> Timeout in minutes
<sec> Timeout in seconds
Default:
N/A
Usage Guide:
To configure idle timeout of EXEC mode for current terminal session.
Example:
To configure idle timeout with 500 minutes of EXEC mode for current terminal
session.
Switch # terminal exec-timeout 500
terminal history size
Command:
terminal history size <history_size>
terminal Set terminal line parameters
history Control the command history function
size Set history buffer size
<history_size> Number of history commands, 0 means disable
Default:
N/A
Usage Guide:
To configure history buffer side for current terminal session.
Example:
To configure history buffer side with 20 lines for current terminal session.
Switch # terminal history size 20
terminal length
Command:
terminal length <lines>
terminal Set terminal line parameters
length Set number of lines on a screen
<lines: 0 or 3-512> Number of lines on screen (0 for no pausing)
Default:
N/A
Usage Guide:
NS3500-24T-4C Managed Switch Command Guide 323
Chapter 4: Commands for CLI configuration
To configure length of command display for current terminal session.
Example:
To configure length of command display with 5 lines for current terminal session.
Switch # terminal length 5
Switch # show run
Building configuration...
username admin privilege 15 password none
loop-protect
-- more --, next page: Space, continue: g, quit: ^C
terminal width
Command:
terminal width <lines>
terminal Set terminal line parameters
width Set width of the display terminal
<lines:0 or 40-512> Number of characters on a screen line (0 for unlimited width)
Default:
N/A
Usage Guide:
To configure width of command display for current terminal session.
Example:
To configure width of command display with 40 characters per line for current
terminal session.
Switch # terminal width 40
324 NS3500-24T-4C Managed Switch Command Guide

Navigation menu
