Intermec Technologies 1555-2450 Hand Held Tag Reader User Manual 2

Intermec Technologies Corporation Hand Held Tag Reader 2

Revsied user manual

P/N 3-740049-01
Sabre 1555 Laser Scanner
& RFID Reader/Programmer
Getting Started Guide
Anleitung für Einsteiger
Guia de IniciaçãoGuide de Démarrage
Guida IntroduttivaGuía de Iniciación
Untitled-2 4/30/01, 1:30 PM1
2
Introduction
Use this Getting Started Guide to set up the Sabre 1555 Laser Scanner and RFID
Reader/Programmer for most terminal connections and symbologies. If necessary, use
the EasySet setup software for additional configuration possibilities and terminal con-
nections.
Basic setup
Configuración básica
Configuration de base
Grundkonfiguration
Configurazione di base
Getting Started Guide
EasySet
Full setup
Configuración completa
Configuration complète
Vollständige Konfiguration
Configurazione completa
Configuração completa
EasySet setup software
Operating
Uso
Utilisation
Betrieb
Utilizzazione
Operator’s Guide
Interactive Programming
Guide
Interactive Programming
Untitled-2 4/30/01, 1:30 PM2
3

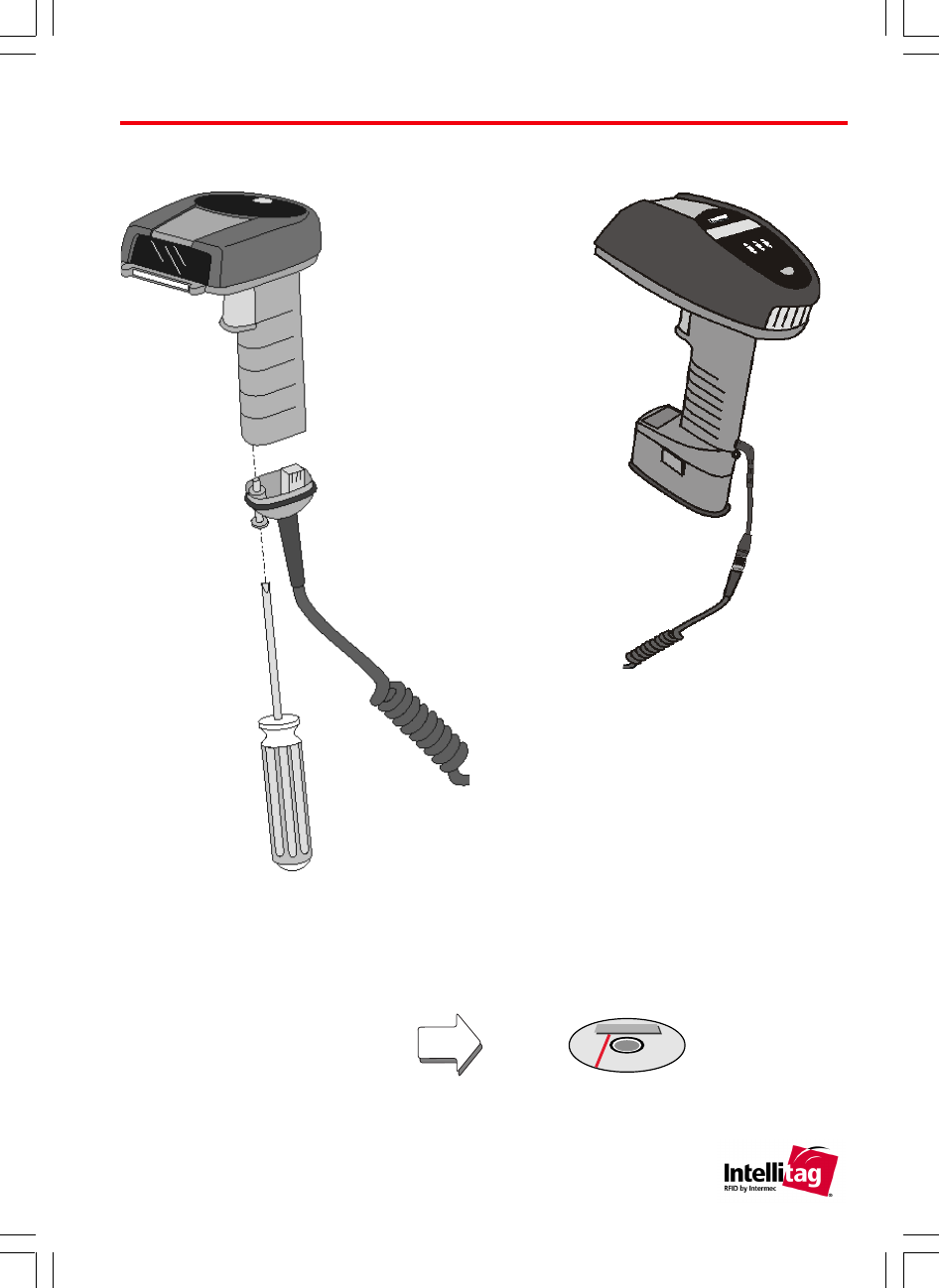

Connect scanner cable
Scanner cable depends
on your terminal
Cables
Accessories
Standard
Version
PDT
Version
Untitled-2 4/30/01, 1:30 PM3
4

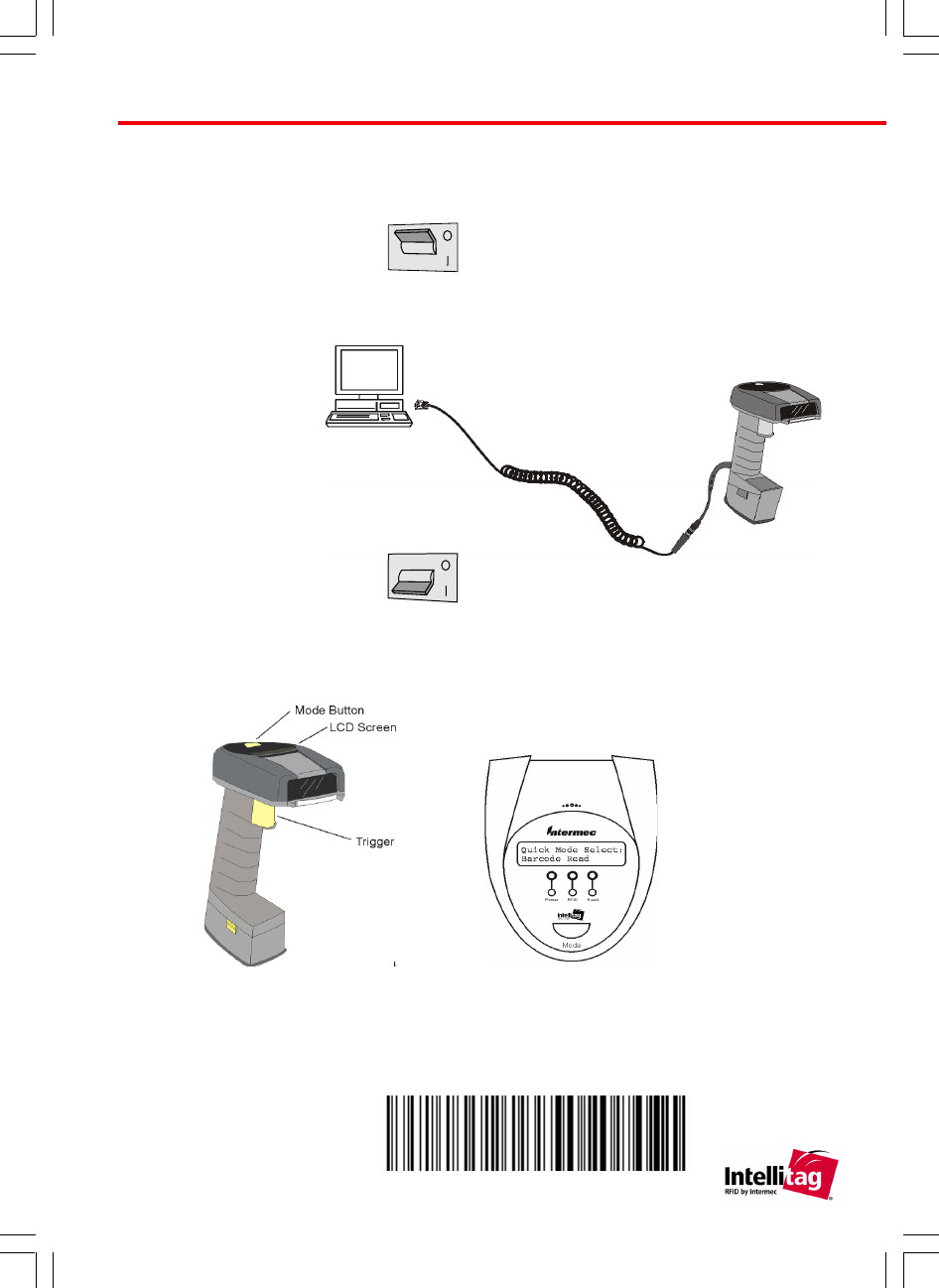

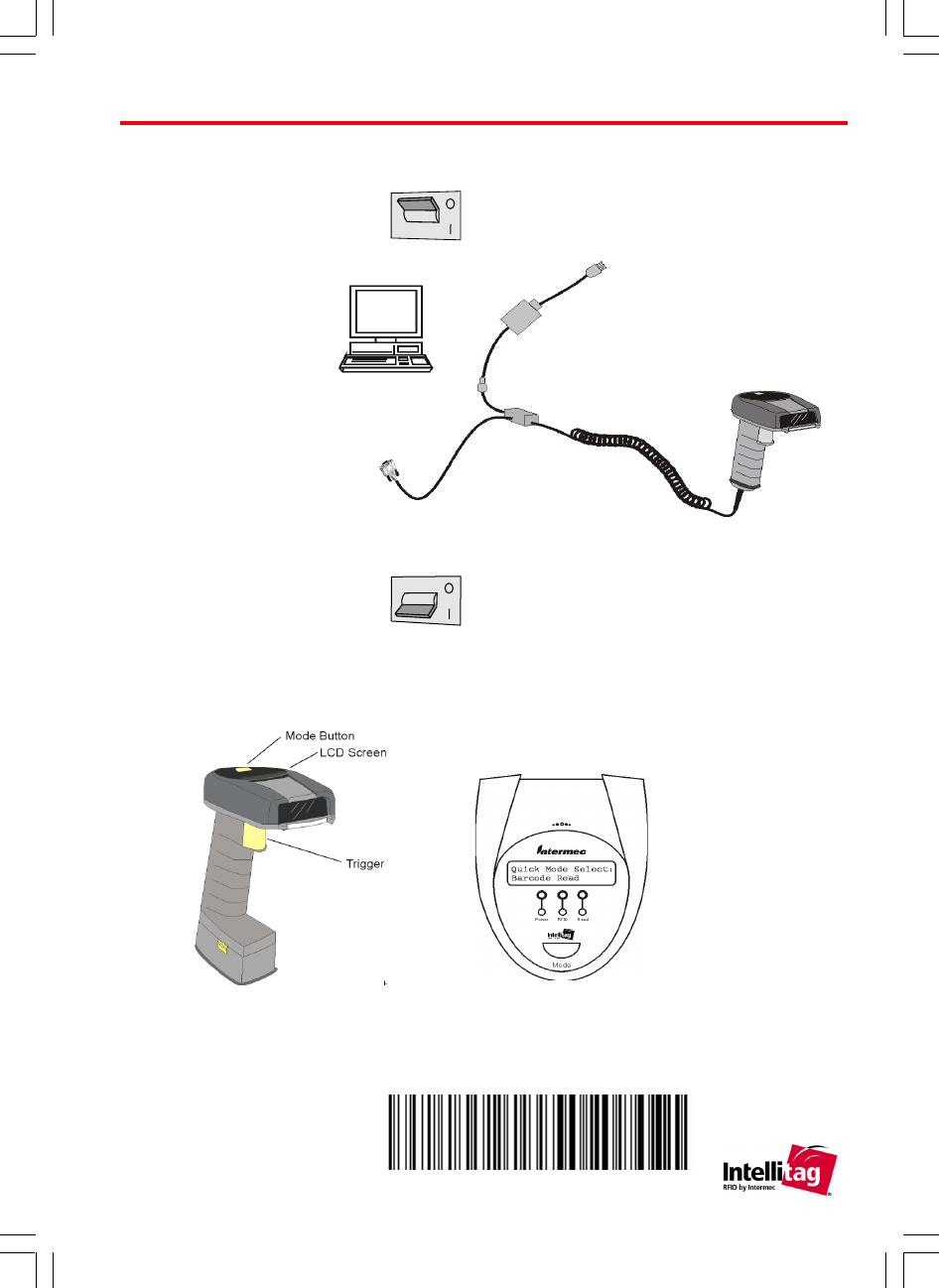

RS-232 C
Connect cable
Scanner power ON
Direct RS-232 C cable
(1555 57D)
P/N 3-614032-00
System power OFF
System power ON
Select standard RS-232 C
(PC serial port compatible)
19200 baud, 7 data bits, even parity, 2 stop
bits, postamble = carriage return + line feed
Power supply
P/N 070826
Switch to Barcode Read Mode (PDT version shown)
Standard version -- press mode button, read display
PDT version -- press mode button + pull trigger, read display
Untitled-2 4/30/01, 1:30 PM4
5

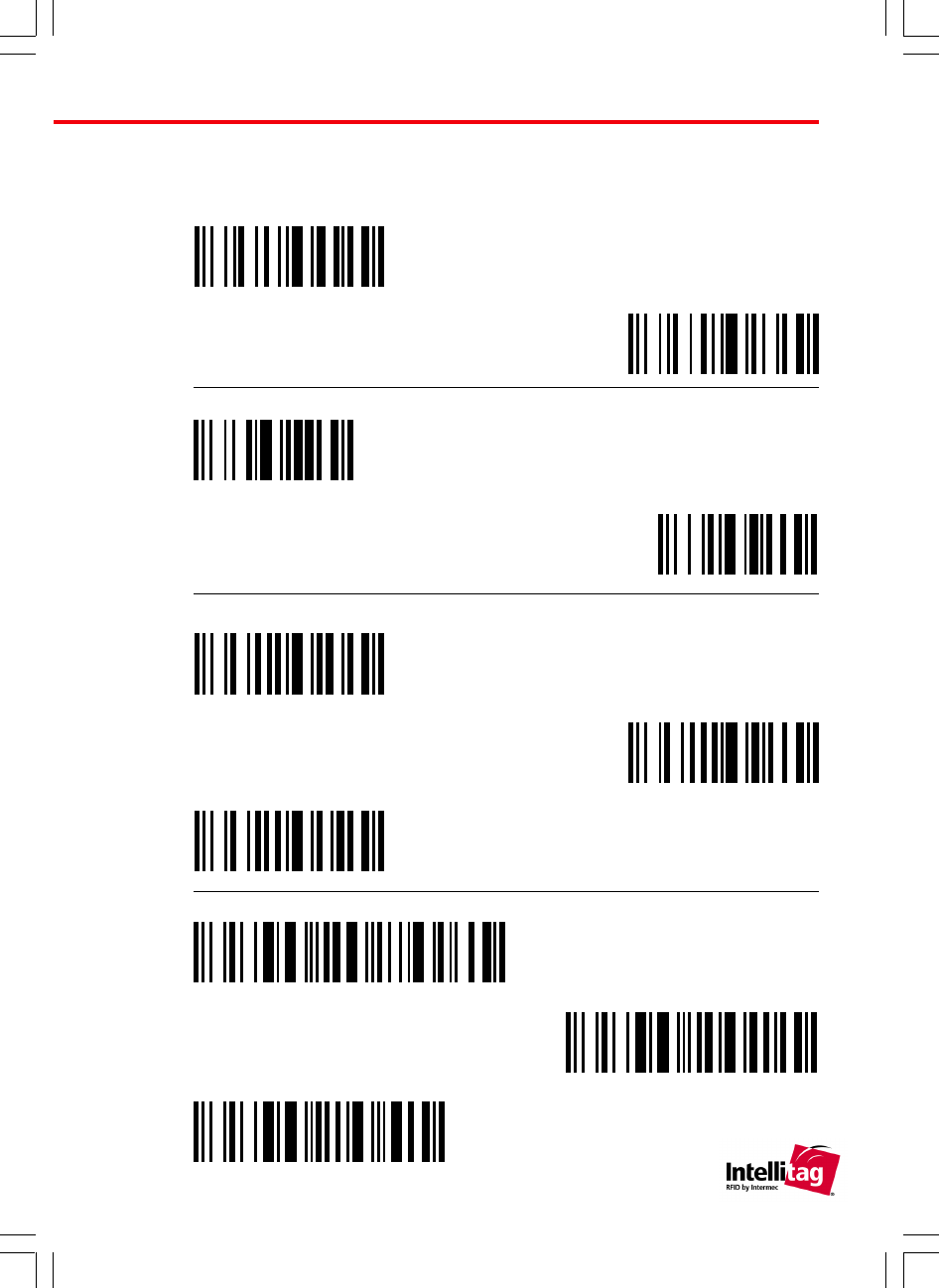

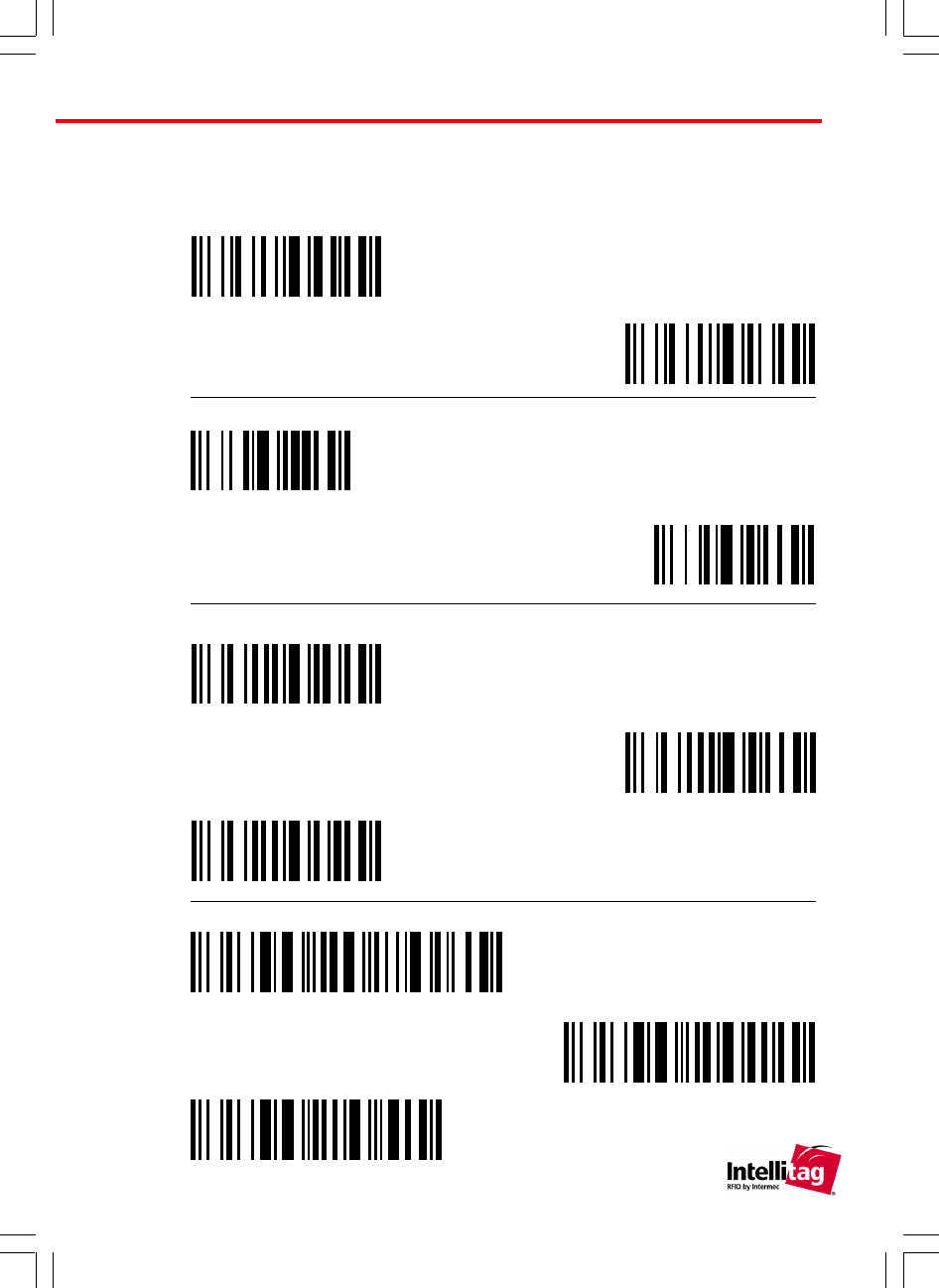

Customize parameters (optional)
(*) = default value
9600 baud
19200 baud (*)
7 data bits (*)
8 data bits
No parity
Postamble = Carriage Return
Postamble = none
Even parity (*)
Odd parity
Postamble = Carriage Return + Line Feed (*)
Untitled-2 4/30/01, 1:30 PM5
6
RS-232 TTL
Connect cable
System power OFF
System power ON
Select RS-232 TTL
Direct RS-232 TTL cable
P/N 3634032-01
Scanner power ON
19200 baud, 7 data bits, even parity, 2 stop
bits, postamble = carriage return + line feed
Switch to Barcode Read Mode (PDT version shown)
Standard version -- press mode button, read display
PDT version -- press mode button + pull trigger, read display
Untitled-2 4/30/01, 1:30 PM6
7
Customize parameters (optional)
(*) = default value
9600 baud
19200 baud (*)
7 data bits (*)
8 data bits
No parity
Postamble = Carriage Return
Postamble = none
Even parity (*)
Odd parity
Postamble = Carriage Return + Line Feed (*)
Untitled-2 4/30/01, 1:30 PM7
8

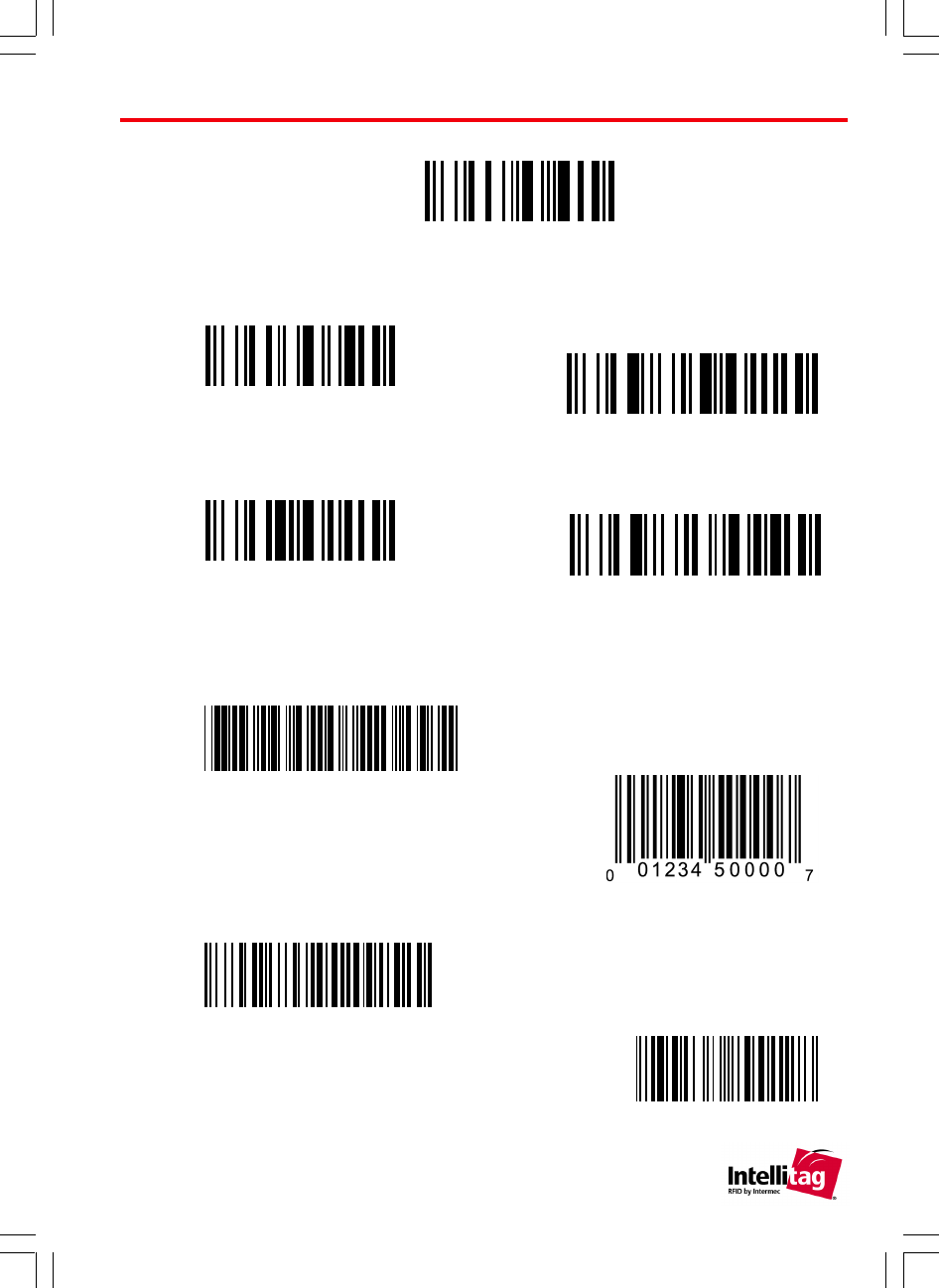

EAN 13
1234567890128
Code 128
CODE-128
Code 39
CODE-39
UPC-A, UPC-E, EAN-8, EAN-13
(UPC-A -> EAN-13)
UPC-A, UPC-E, EAN-8, EAN-13
(UPC-A -> UPC-A)
Code 39
Code 128 / EAN 128
Symbology
Disable all symbologies
Select symbology
Test
UPC-A
Untitled-2 4/30/01, 1:31 PM8
9

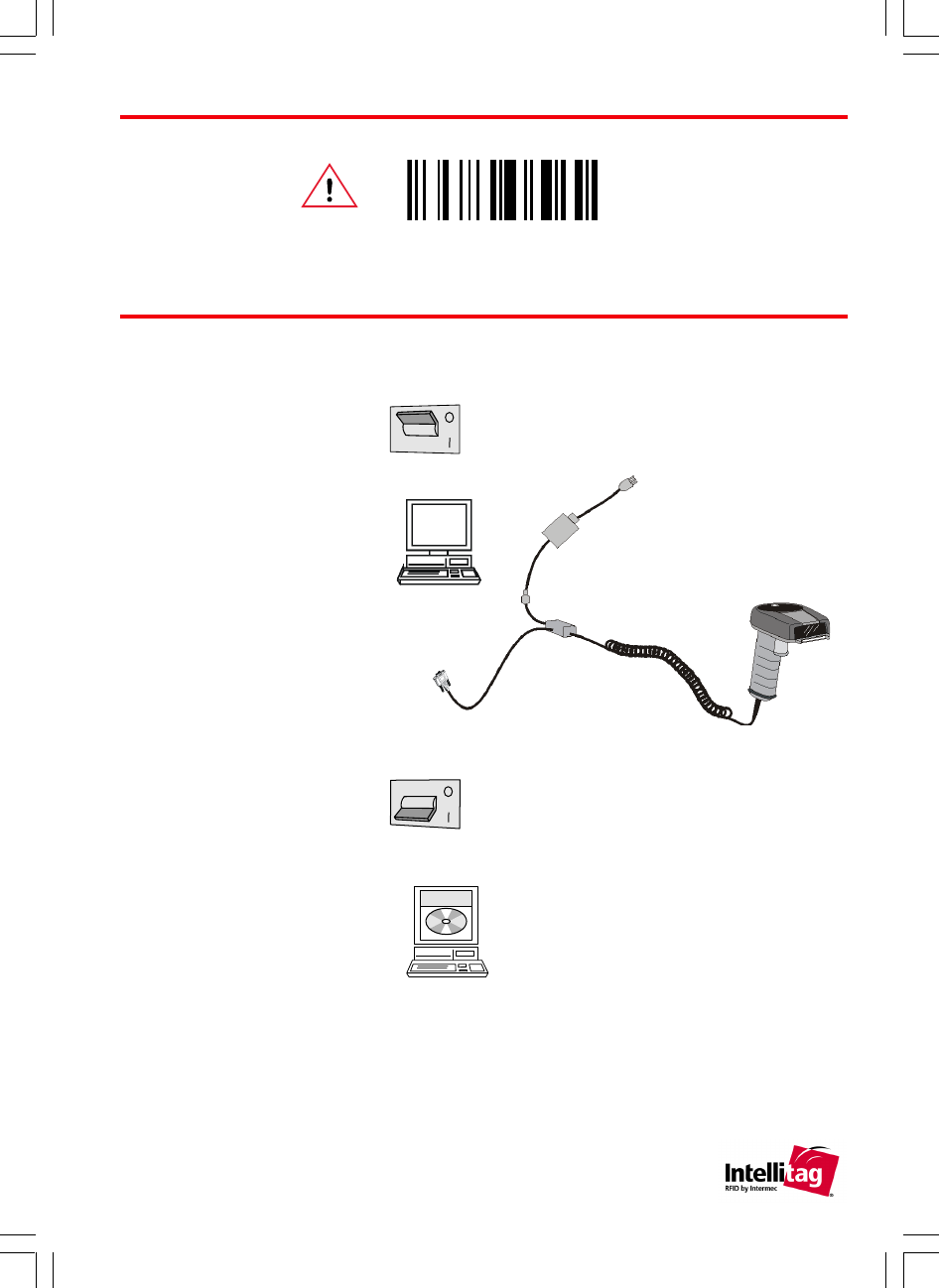

EasySet
Direct RS-232 C cable
(1555 57D)
P/N 3-614032-00
Power supply
P/N 070826
Online setup
Reset
Connect RS-232 C cable
Scanner power ON
System power OFF
System power ON
Start EasySet software
Untitled-2 4/30/01, 1:31 PM9
10
CAUTION – Use of controls or adjustments or performance of procedures other than those specified herein result in
hazardous laser light.
VORSICHT – Bei einer anders als hier beschriebenen Verwendung der Bedienelemente oder Veränderungen oder
einer anderen Ausführung der Arbeitsabläufe entsteht gefährliches Laserlicht.
ATTENTION – L’utilisation de contrôles/commandes ou de réglages ou l’exécution de procédures autres que ceux
précisés par le présent document provoquent une lumière laser dangereuse.

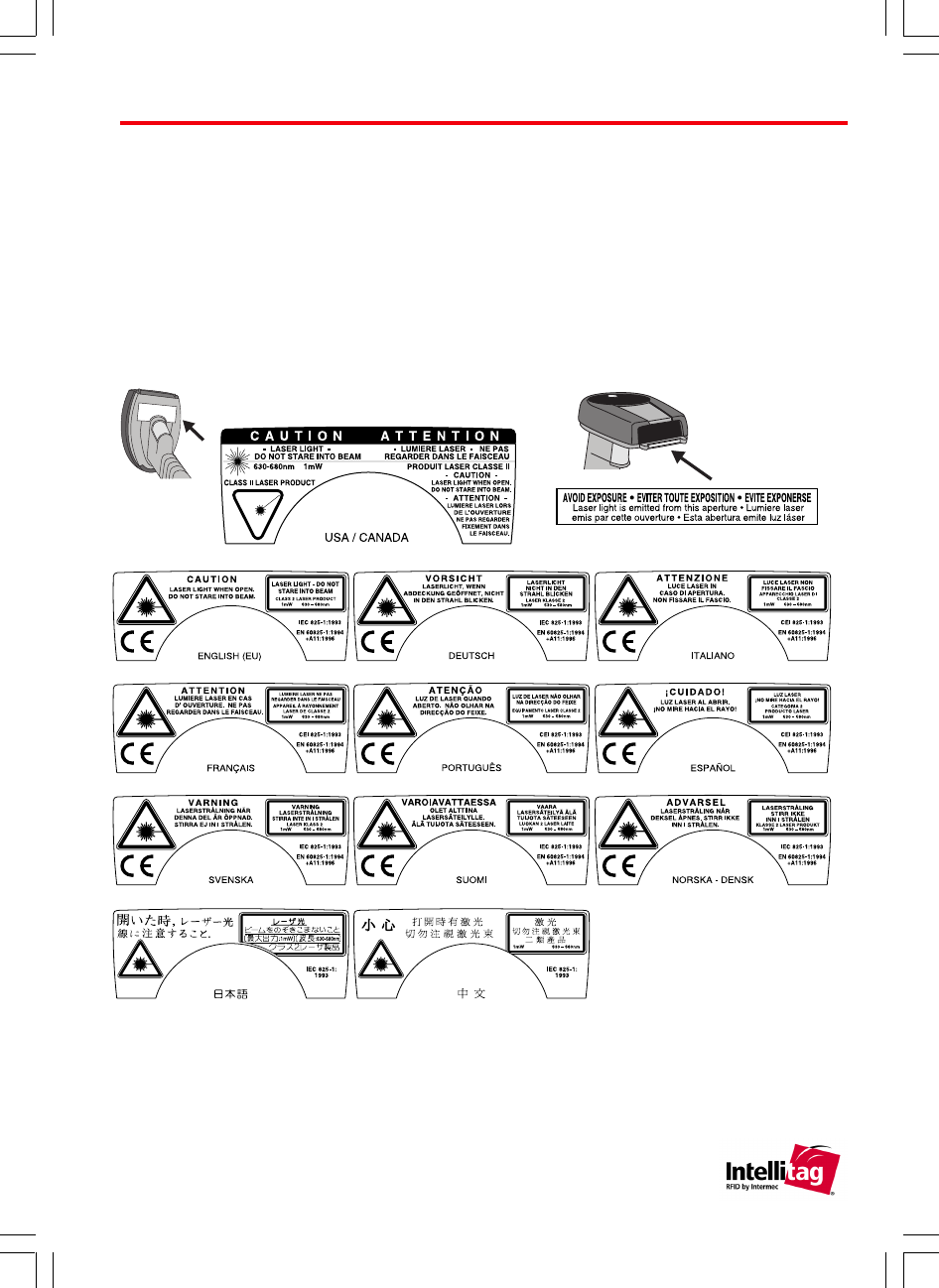

Laser warnings
Fix these warning labels onto the product if they are not already present.
The Sabre 1555 has a maximum laser output of 1mW at 630-680 nm and complies with the following safety
standards:
USA: CDRH - Class II Laser Product (CFR 21 Subpart J)
IEC 825-1 EN 60825-1 - Class 2 Laser Product
Cole as etiquetas de precaução no equipamento.
Un’etichetta di avviso per il laser è da applicare sul prodotto.
Collez les étiquettes d’avertissement sur votre produit.
Bringen Sie Warnetiketten auf dem Produkt an.
Fije la etiqueta de advertencia en el producto.
Untitled-2 4/30/01, 1:31 PM10
11
N309
Regulatory statements
USA & Canada: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. This
device requires a radio license, unless it it used totally inside a building. (The user must obtain this license.)
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Cet appareil exige une
license radio à moins d’être entièrement installé dans un bâtiment. (L’utilisateur doit obtenir cette license.)
To prevent radio interference to the licensed service, this device is intended to be operated indoors only and should be kept away from windows
to provide maximum shielding.
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
This equipment is intended for operation in a commercial environment, in compliance with the requirements for a Class A digital device, pursuant
to part 15 of the FCC Rules and it must not be used in a residential environment; however, it has also been tested and found to comply with the more
stringent requirements for a class B device, pursuant to Part 15 of the FCC rules. It generates, uses, and can radiate radio frequency energy. If
not installed and used in accordance with the instructions, it may cause interference to radio communications. If this equipment causes interference,
the user will be required to correct the interference at the user’s own expense.
To maintain compliance with the FCC Rules, the I/O cables that interconnect between the device and any peripheral (such as a reader) must be
as specified by Intermec.
This product complies with the American National Standards Institute NCIT 256-1999 standard for RFID Item Management.
Operator Warning: FCC regulations limit exposure to radio frequency (RF) radiation. To comply with these regulations, the operator of this
device must maintain a distance of at least 5 cm (2 inches) from the front part of the device to any bystanders under normal operating conditions.
While the device is on, the operator’s body and parts of the body, such as eyes, hands, or head, must be 4 cm (2 inches) or farther
from the front of the device.
This device is UL listed (UL 1950/C22.2 No. 950) for safety when powered by a host system or by one of the following external Intermec
power supplies: Catalog No. and P/N 043230 ~100V, 50/60 Hz or Catalog No. and P/N 047793 ~120V, 60 Hz. This device is CSA
certified.
Intermec hereby declares that the Sabre 1555 has been tested and found compliant with the below listed standards as required by the EMC Directive
89/336/EEC as amended by 92/31/EEC and by the Low Voltage Directive 73/23/EEC as amended by 93/68/EEC: EN55022, EN50082-2, EN60950
This device is TÜV GS licensed (EN 60950 and EN 60825-1) for safety when powered by a host system or by the following external Intermec power
supply: Catalog No. and P/N 047795 ~230V, 50 Hz. For 240V applications use the power supply: Catalog No. 047794 (P/N 5014UK) ~240V, 50
Hz. The device is CSA certified.
Australia-New Zealand: This equipment has been tested and found to conform to the Australian EMC framework
concerning Class B digital devices, prescribed by the Australian and New-Zealand
standard AS/NZS 3548.
Mexico: Este equipo cumple con la certificatión NOM.
The information contained in this document is for informational purposes only and is subject to change without notice. No part of this document
may be copied or reproduced in any manner without the prior written permission of Intermec Technologies Corporation.
Sabre products are covered by patents issued or pending in the USA and other countries.
The word Intermec, the Intermec logo, Sabre and EasySet are either trademarks or registered trademarks of Intermec.
Throughout this document, trademarked names may be used. Rather than put a trademark (™ or ®) symbol in every occurrence of a trademarked
name, we state that we are using the names only in an editorial fashion, and to the benefit of the trademark owner, with no intention of infringement.
To comply with RF exposure limits, bystanders should stay away from the front of this product, at least 5 cm (2 in) for
the 2450 MHz version and 4 cm (1.5 in) for the 915-MHz version, when
it is in operation. This product complies with all other RF exposure requirements while the unit is in operations,
including specific absorption rate (SAR) limits for the user's hand.
Changes or modifications not expressly approved by Intermec could void the user's authority to operate this equipment.
Untitled-2 4/30/01, 1:31 PM11
© 04/01 Intermec Technologies Corporation. 1.0EditionEditionAll rights reserved.
North America / Asia Pacific / Latin America • 6001 36th Avenue West, PO Box 4280, Everett, WA 98203-9280
Tel: +1 425 348 2600 • Fax: +1 425 348 2833 • U.S. service and technical support, tel: 1.800.755.5505 • Canadian
service and technical support, tel: 1.800.688.7043
Europe / Middle East / Africa • Sovereign House, Vastern Road, Reading RG1 8BT, England
Tel: +44 118 987 9420 • Fax: +44 118 987 9416
Internet: http://www.intermec.com
E-mail: info@intermec.com
Support: http://datacapture.intermec.com
Untitled-2 4/30/01, 1:31 PM12
