Yes, you can. ™
Tarsys®
Tilt Only (2GT™)
Recline Only (2GR™)
Tilt and Recline (2GTR™)
For
Storm Series® TDX®
Powered Wheelchairs
Parts Catalog Issued: Jun 25, 2008
The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 03-026. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples:
= Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
©2008 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., the Blue Medallion Design, SureStep, Storm Series, TDX, Tarsys, Silhouette, Contour U
are registered trademarks and 2GT, 2GR, 2GTR, MKIV, MK5, Personal Back, and Infinity are trademarks of Invacare Corporation.
Otto Bock is a registered trademark owned by Otto Bock Orthopaedische Industrie GMBH & Co.. JAY Back is a registered trademark of Sunrise Medical
HHG, Inc. Corporation
Parts Catalog Usage Guide
1
Form No. 03-026
To order call toll free 1-800-333-6900, or www.invacare.com
Accessories, Arm Pads - Otto Bock ......................................................................................... 145

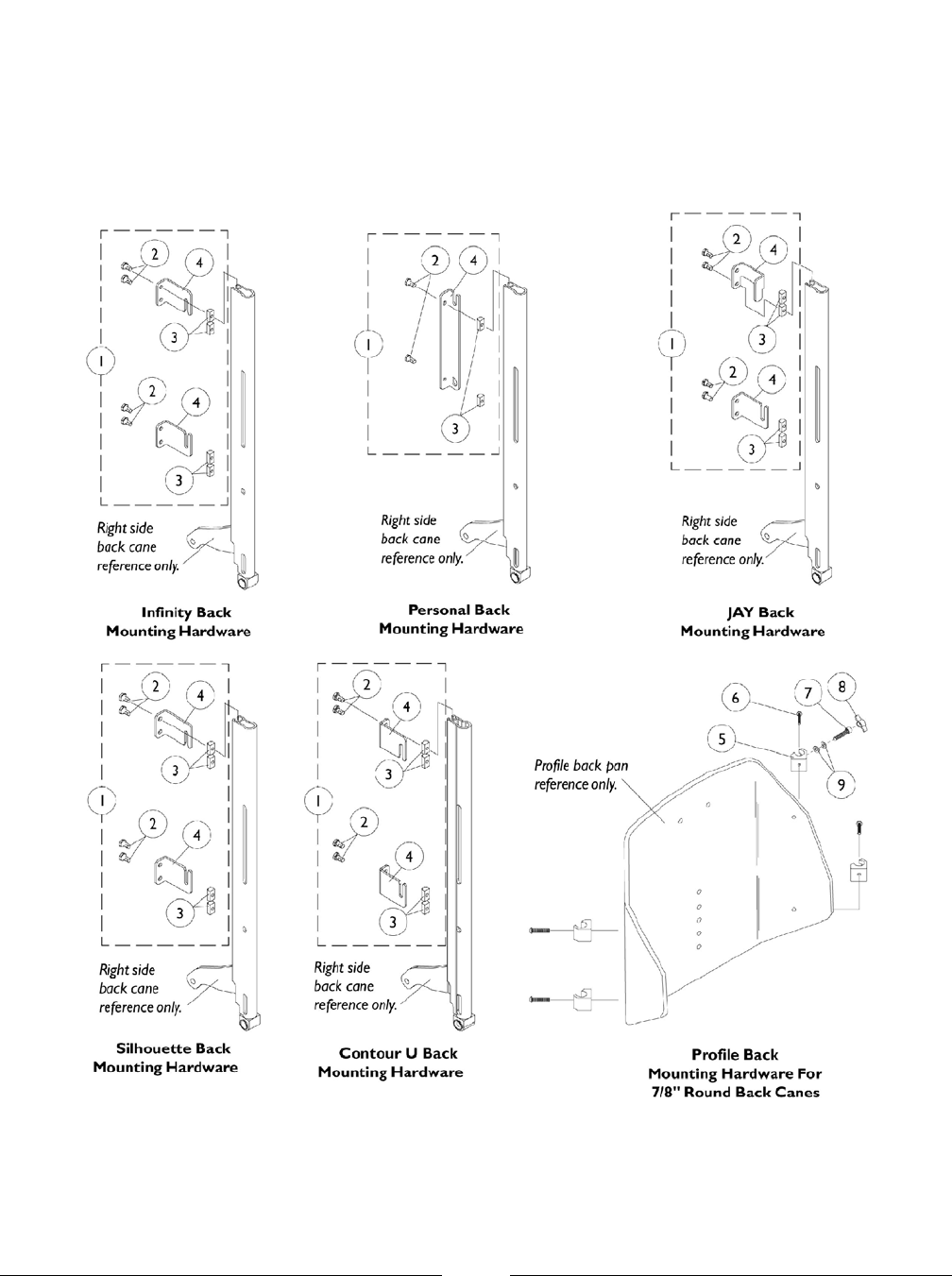

Accessories, Back Mtg. Hardware (Infinity, Personal, JAY, Silhouette, Contour U Backs w/
Extruded Canes) (Profile Back w/ 7/8" Round Canes)
154
Accessories, Headrest Support Assembly - A.B.S. Curved and Profile Back .......................... 147
Accessories, Lateral Support Assembly - (Clamp-On) For Round Canes ............................... 151
Accessories, Lateral Support Assembly - For Extruded Canes ............................................... 149
Accessories, Miscellaneous .................................................................................................... 168
Accessories, Power Wheelchair Tool Kit .................................................................................. 166
Accessories, Vent Tray Assembly without Mounting Hardware ............................................... 157
Accessories, Vent Tray Kit For Extruded & Round Back Canes .............................................. 163
Accessories, Vent Tray Mounting Hardware For Extruded Back Canes .................................. 159
Accessories, Vent Tray Mounting Hardware For Round Back Canes ...................................... 161
Armrest Assembly - 2GR and 2GTR ........................................................................................ 65
Armrest Assembly - 2GT .......................................................................................................... 62

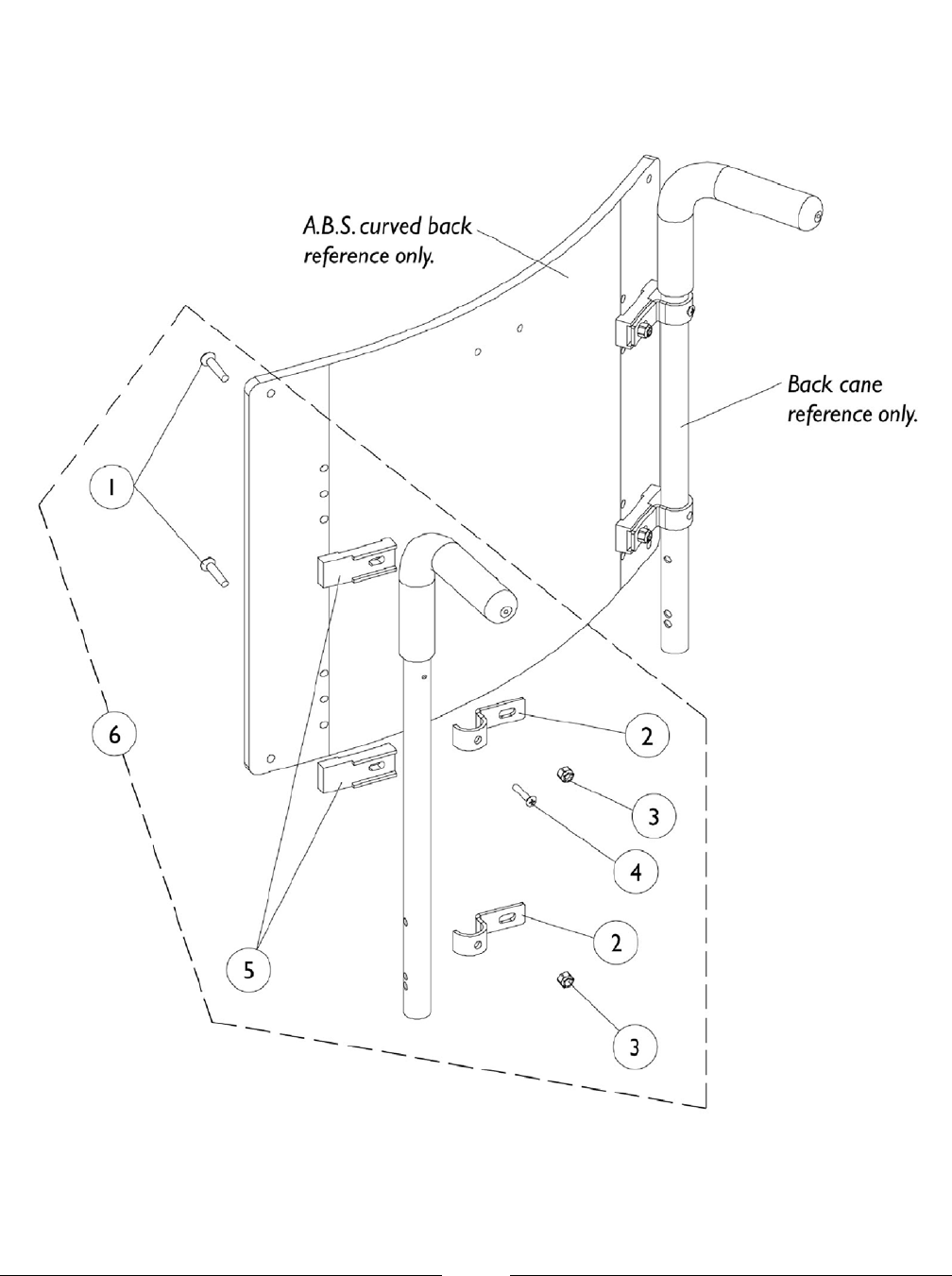

Back Assembly Mounting Hardware - A.B.S. Curved and Profile ............................................ 55
Back Assembly Mounting Hardware - A.B.S. Curved Back For (7/8" Round) Back Canes ..... 58
Back Assembly V.S.R. Actuator Motor and Mounting Hardware - 2GR and 2GTR ................. 60
Back Cane (7/8" Round-Optional) and Spreader Bar Assembly - 2GR and 2GTR .................. 37
Back Cane (7/8" Round-Optional) and Spreader Bar Assembly - 2GT .................................... 35
Back Cane and Spreader Bar Assembly - 2GR and 2GTR ...................................................... 39
Back Cane and Spreader Bar Assembly - 2GT ........................................................................ 33
Back, A.B.S. Curved without Mounting Hardware - 2GR and 2GTR with V.S.R. ..................... 47
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Back, A.B.S. Curved without Mounting Hardware - 2GT .......................................................... 41
Back, Profile without Mounting Hardware ................................................................................ 53
Battery Box Hardware and Door Assembly .............................................................................. 10
Battery Support Bracket Assembly TRBKTS Option ................................................................ 12
Battery Tray Asbly. and Wire Harnesses For Vent Tray (3) 22NF Batteries ............................ 14
Conversion Kit - 2GR To 2GTR For TDX ................................................................................. 170

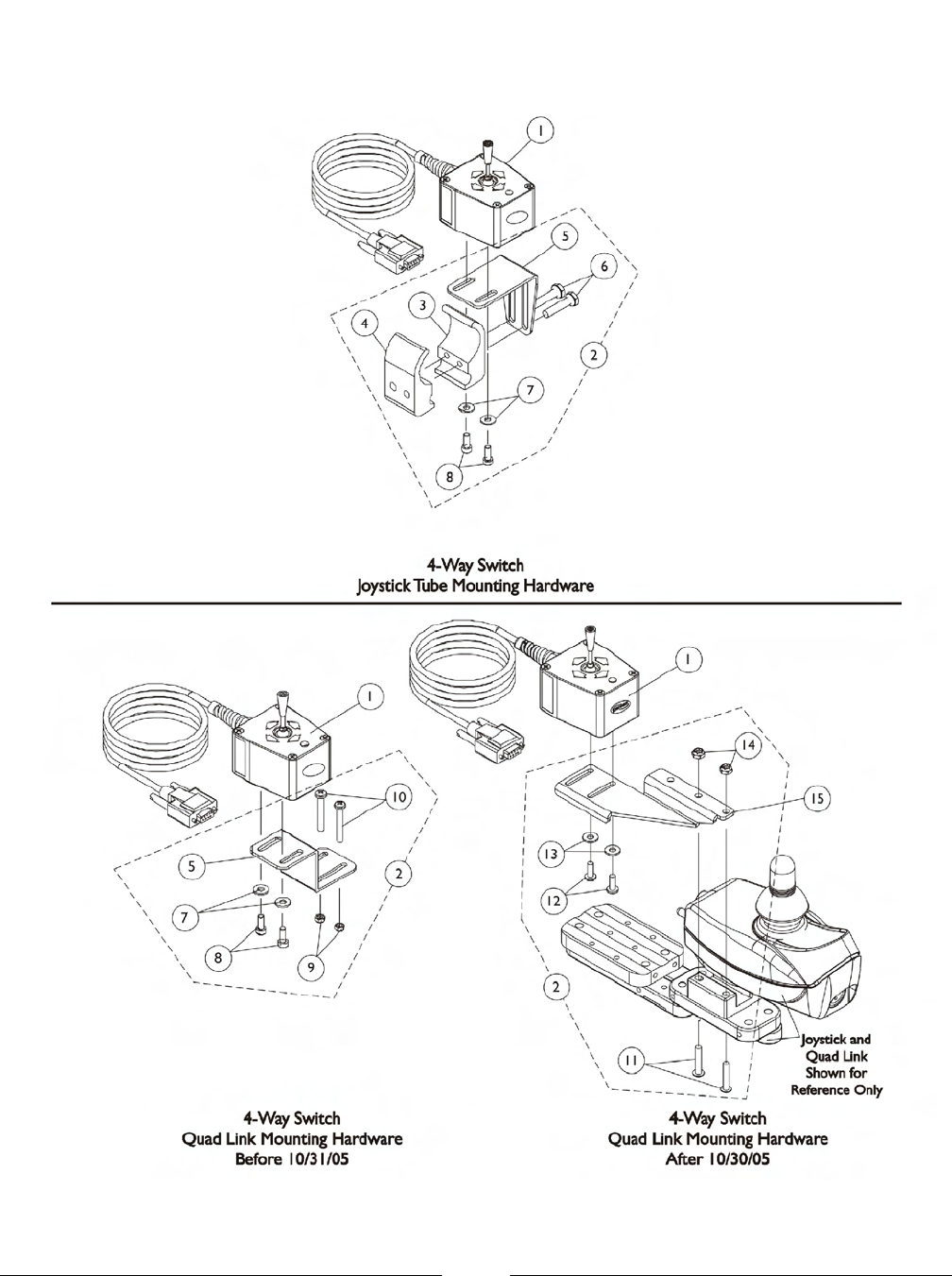

Electronics - 4-Way Switch and Mounting Hardware ............................................................... 120
Electronics - MK5 SAC and Mounting Hardware ..................................................................... 122
Electronics - MK5 TAC/TRCM and Mounting Hardware For Extruded Back Canes ................ 124
Electronics - MK5 TAC/TRCM and Mounting Hardware For Round Back Canes .................... 126
Electronics - Quad Link (QLA) After 10/30/05 .......................................................................... 143
Electronics - Quad Link 1/13/04 Thru 10/30/05 ........................................................................ 139
Electronics - Quad Link 10/9/03 Thru 1/12/04 For 1556 Heavy Duty Joystick ......................... 137
Electronics - Quad Link 10/9/03 Thru 1/12/04 For MK5 DPJ Joystick ..................................... 133
Electronics - Quad Link 10/9/03 Thru 1/12/04 For MK5 MPJ Joystick ..................................... 135
Electronics - Quad Link Before 10/9/03 .................................................................................... 130
Electronics - Tilt Recline Single Switch (TRSS) ....................................................................... 118
Electronics - Tilt/ Recline Potentiometers and Hardware ......................................................... 128
Frame, Center Seat Assembly - 2GR (Recline Actuator Included) .......................................... 24
Frame, Center Seat Assembly - 2GT ....................................................................................... 22
Frame, Center Seat Assembly - 2GTR (Recline Actuator Included) ........................................ 26
TABLE of CONTENTS
Description
Page
Number
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Frame, Center Seat Mounting Hardware ................................................................................. 28
Frames, Side ............................................................................................................................ 20
Front Rigging - Adjustable Angle Footplates - AT5543 ............................................................ 98
Front Rigging - Calf Pads and Mounting Hardware .................................................................. 93
Front Rigging - Center Mount Rigging KIT (CTMT-T/CTMT-TL) .............................................. 108
Front Rigging - Center Mount Rigging Mounting Hardware (CTMT-T/CTMT-TL) .................... 106
Front Rigging - Center Mount Riggings (CTMT-T/CTMT-TL) ................................................... 103
Front Rigging - Footrest and Legrest Accessories ................................................................... 100
Front Rigging - Footrest Supports - 70 Degree Non-Tapered and Tapered ............................ 76
Front Rigging - Footrest Supports, (Hemi) - PHW93 ................................................................ 78
Front Rigging - Front Rigging Hanger Assembly - Pin, Sector and Genius Style .................... 73
Front Rigging - Legrest Support Push Rod Assembly .............................................................. 91
Front Rigging - Legrest Supports - AT5544 ............................................................................. 83
Front Rigging - Legrest Supports, (Mechanical) - AT5544P ................................................... 85
Front Rigging - Legrest Supports, Articulating (Hemi) - PHAL4A ............................................. 80
Front Rigging - Legrest, Genius (Mechanical) .......................................................................... 87
Front Rigging - Pivot/Slide Tube and 1650, 1350 Aluminum Footplates .................................. 97
Front Rigging - Pivot/Slide Tube and 1651 Composite Footplates .......................................... 95
Front Rigging - Power Articulating Legrest Harnesses and Hardware ..................................... 116
Front Rigging - Power Articulating Legrest, ELRPW/ELRPW22 After 7/26/04 ........................ 113
Front Rigging - Power Articulating Legrest, ELRPW/ELRPW22 Before 7/27/04 ..................... 110
TABLE of CONTENTS
Description
Page
Number
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Front Rigging - Reference Chart - 70ST TAPER ..................................................................... 72
Front Rigging - Reference Chart - AT5544, 70NHD, PHW93 .................................................. 70
Front Rigging - Reference Chart - PHAL4A ............................................................................. 71
Interface Hardware - Attach 2GR To Battery Box .................................................................... 18
Interface Hardware & Tilt Actuator - Attach 2GT, 2GTR To Battery Box ................................. 16
Label Locations For TRBKTS Option ....................................................................................... 8
Packaging and Literature ......................................................................................................... 6
Seat Pan ................................................................................................................................... 30
Seat Pan Mounting Hardware ................................................................................................. 31
Shroud Covers, Rear, Side, Lower Seat and V.S.R. Actuator ................................................. 68
TRBKTS Option Clarification Reference .................................................................................. 9
TABLE of CONTENTS
Description
Page
Number
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

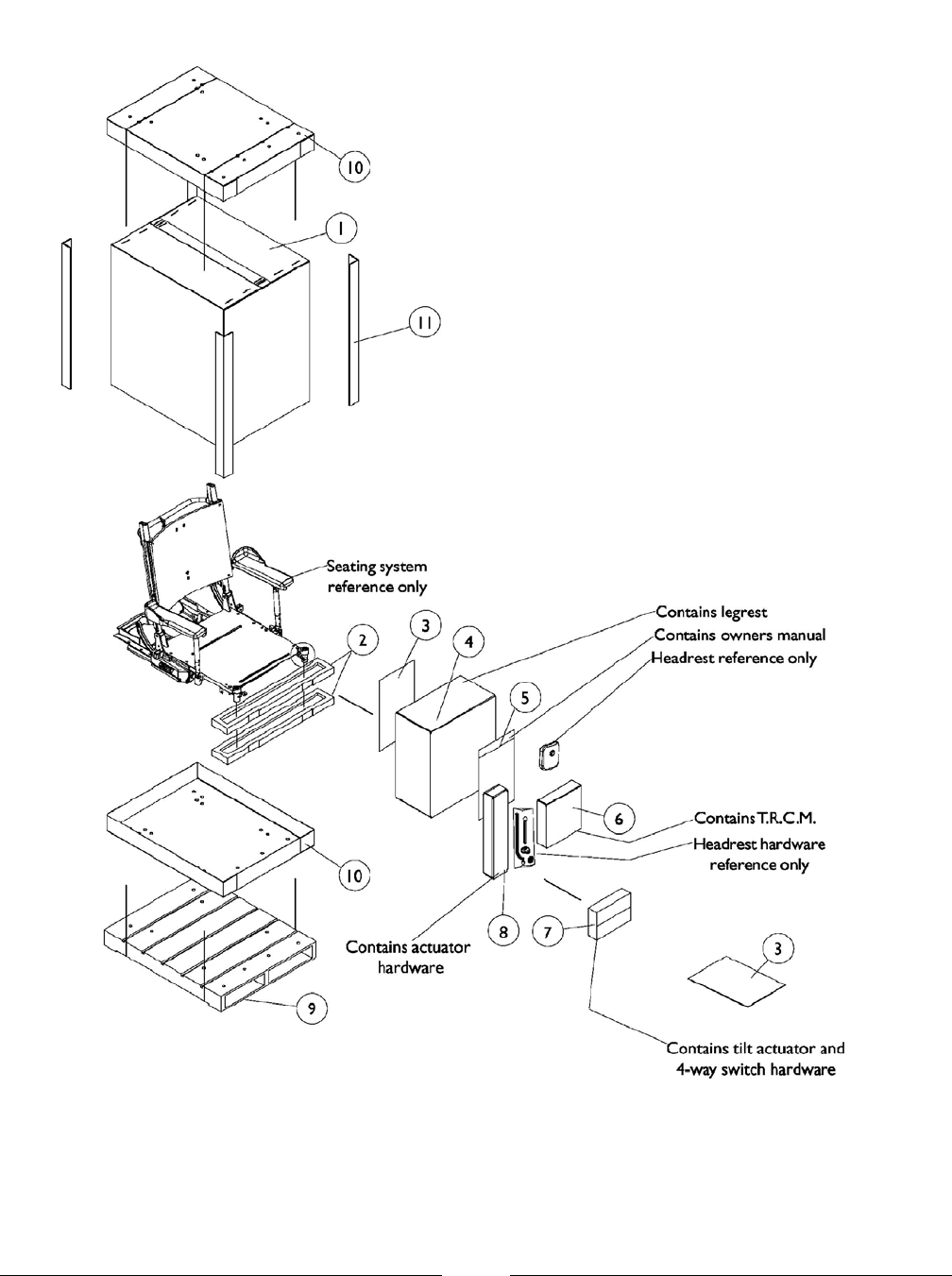

Packaging and Literature
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Packaging and Literature
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1030364 Carton, Cover 1 11 B
1091514 Insert, Carton 1 12
40131X161 Insert, Plain Pad 1 23
1106472 Carton 1 14
1021149 Bag, Poly Zip-Lip (13" Long x 9" Wide) 1 15
1080876 Carton 1 16
40131X045 Carton 1 17
1091517 Carton 1 18
See Note See Footnote 1 19 D
1030362 Carton, Tray 1 210
1115174 Carton, Corner Reinforcement 1 411
1114809 Manual, Owner's TDX w/ MK5 Electronics 1 1A
00077X031 Warranty Card 1 1A
1031682 Carton, Cover 1 1A,C
1030362 Carton, Tray 1 1A,C
A - Not Shown
B - All Systems
C - Complete Seating Systems with Chair Base
D - Wood skid not supplied
NOTE:
When adjusting or replacing parts, please refer to you Owner's Manual for assistance.
NOTE:
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

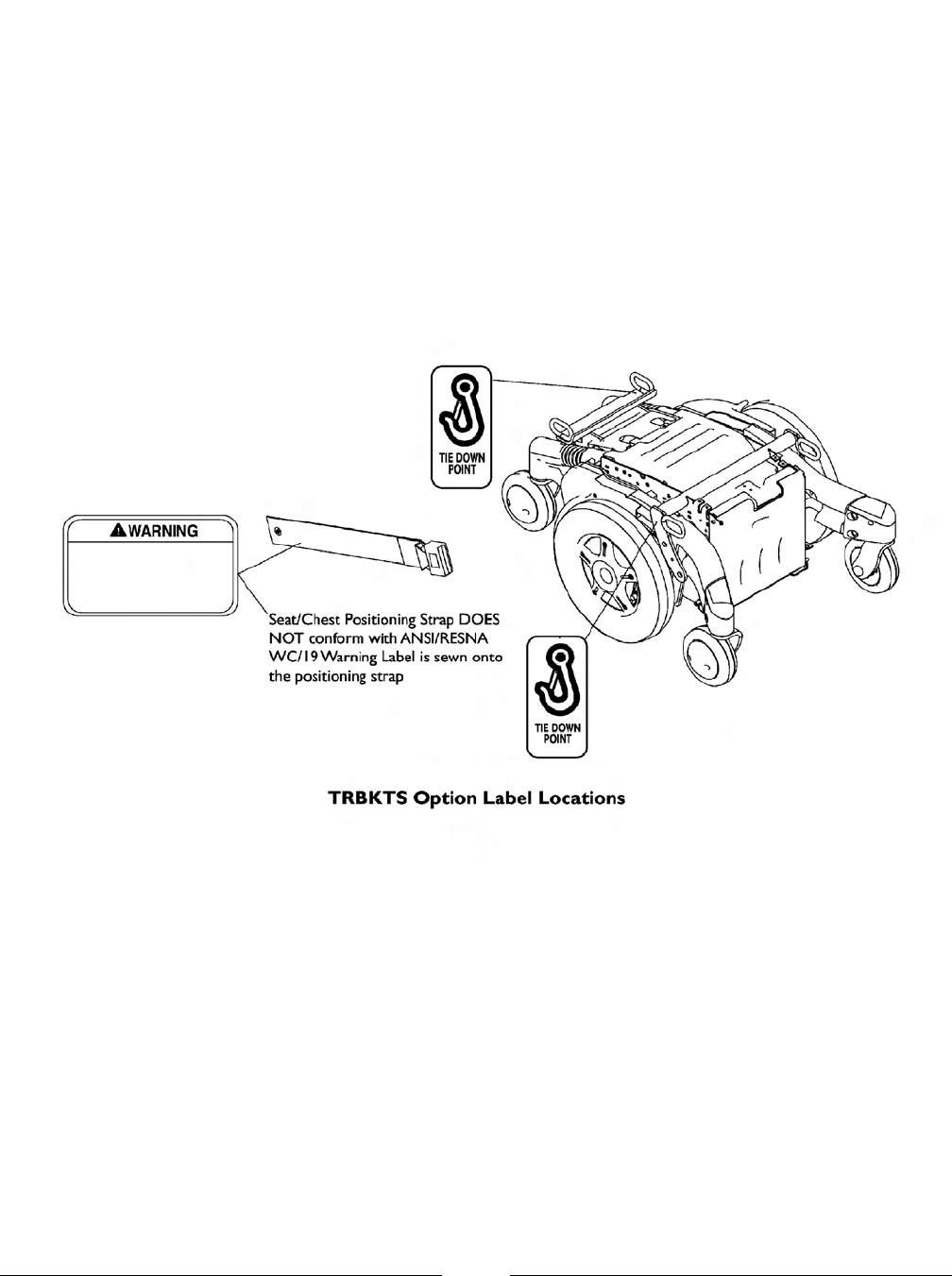

Label Locations For TRBKTS Option
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
TRBKTS Option Clarification Reference
TRBKTS Option was introduced 12/19/05 as an On-Chair option only.
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

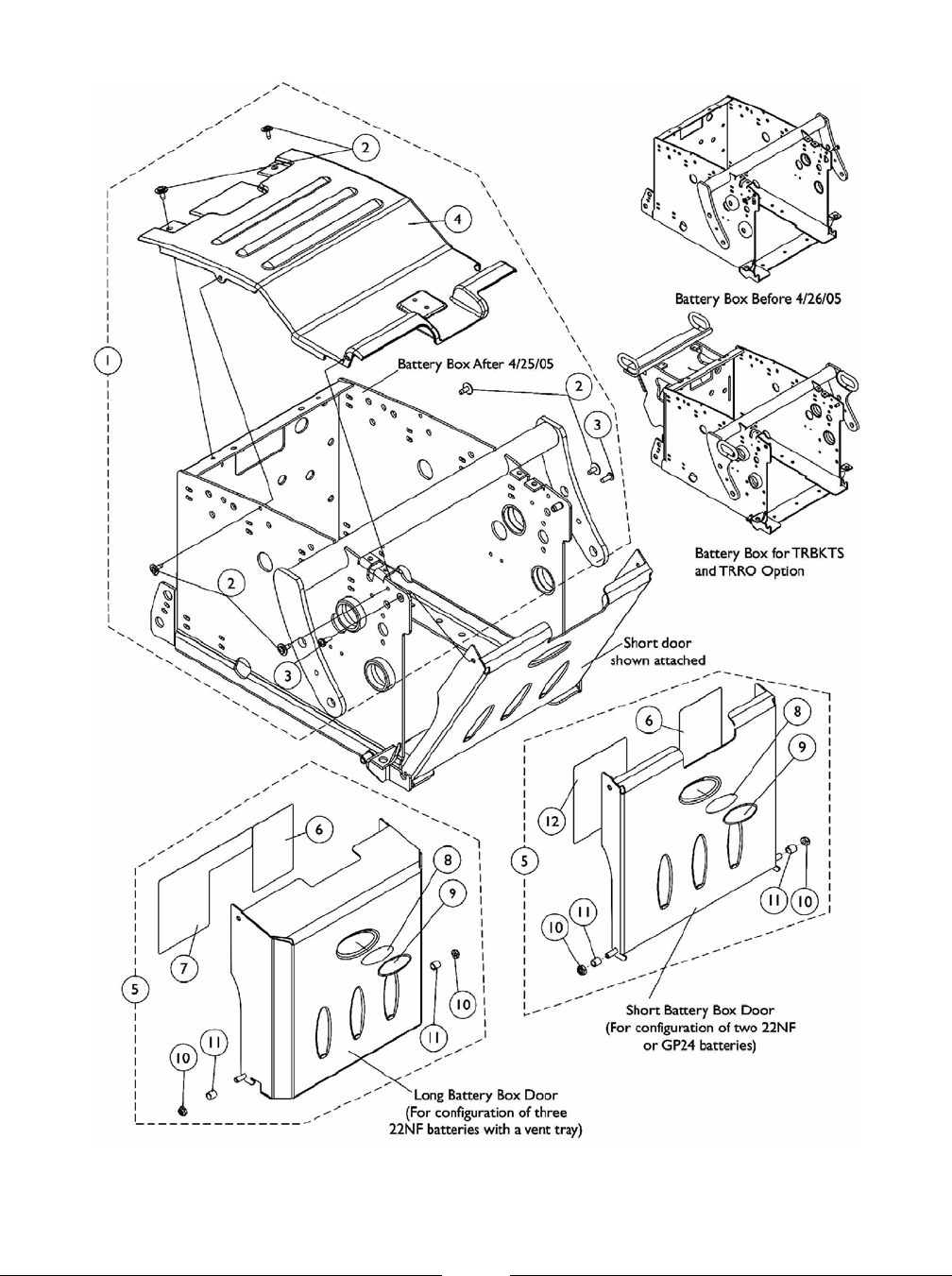

Battery Box Hardware and Door Assembly
The Battery Boxes are non-serviceable parts. Call Technical Services for assistance (1-800-832-4707)
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Battery Box Hardware and Door Assembly
The Battery Boxes are non-serviceable parts. Call Technical Services for assistance (1-800-832-4707)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1133026 Kit, Battery Box Hardware 1 11 A
Screw, Phillips Pan Head Tap (#10-32 x 1/2") 1 62
Screw, Socket Head Cap (#10-32 x 1/2") 1 23
Cover, Battery Box Shroud 1 14
1113357 Kit, Battery Box Door Assembly, 22NF Short 1 15 B,D
Label, 22NF Terminal Configuration Warning 1 16
Decal, Blank Logo 1 18
Decal, Invacare Medallion - Large 1 19
Locknut (1/4-20) 1 210
Sleeve, Door Pivot 1 211
Label, 22NF Battery Install/Remove 1 112
1113127 Kit, Battery Box Door Assembly, GP24 Short 1 15 B,D
Label, GP24 Terminal Configuration Warning 1 16
Decal, Blank Logo 1 18
Decal, Invacare Medallion - Large 1 19
Locknut (1/4-20) 1 210
Sleeve, Door Pivot 1 211
Label, GP24 Battery Install/Remove 1 112
1121072 Kit, Battery Box Door Assembly, 22NF Long (For
Vent) 1 15 C,D
Label, 22NF Terminal Configuration Warning 1 16
Label, 3 Battery Configuration Warning 1 17
Decal, Blank Logo 1 18
Decal, Invacare Medallion - Large 1 19
Locknut (1/4-20) 1 210
Sleeve, Door Pivot 1 211
A - Includes items 2-4
B - Includes items 6 and 8-12
C - Includes items 6-11
D - Blank Logo Decal is no longer available and no longer required for item number 9 Invacare Medallion Decal.
NOTE:
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

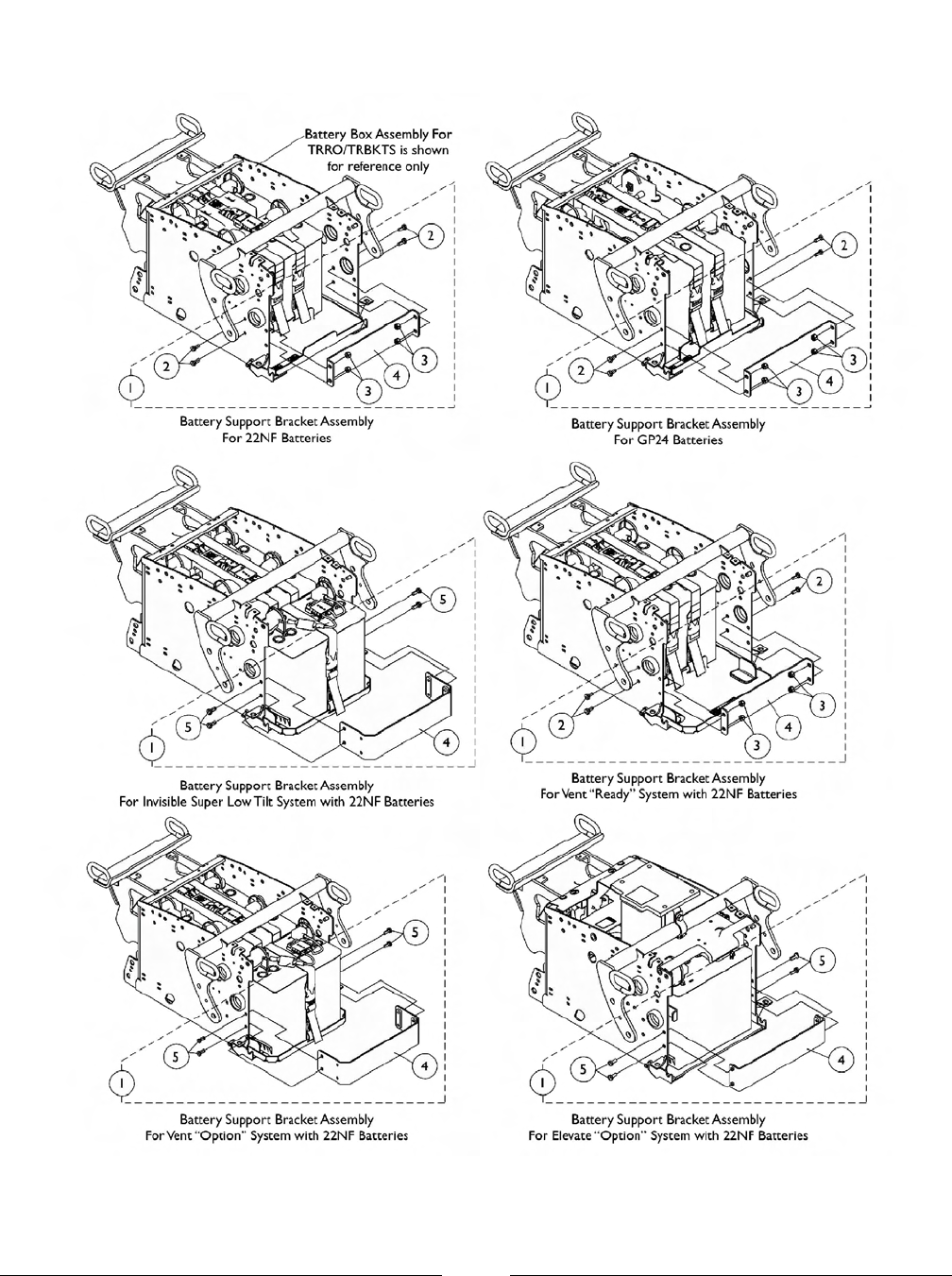

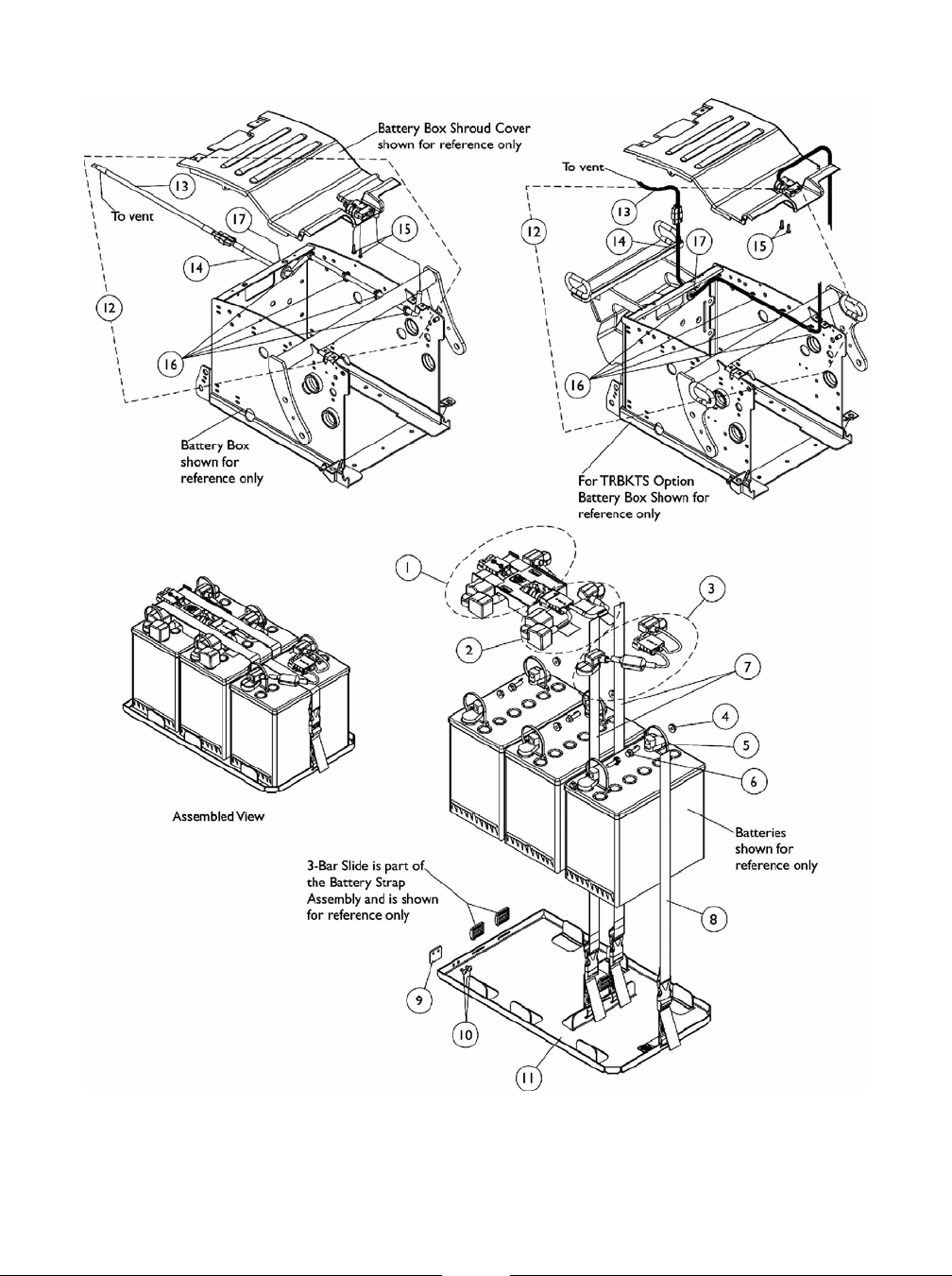

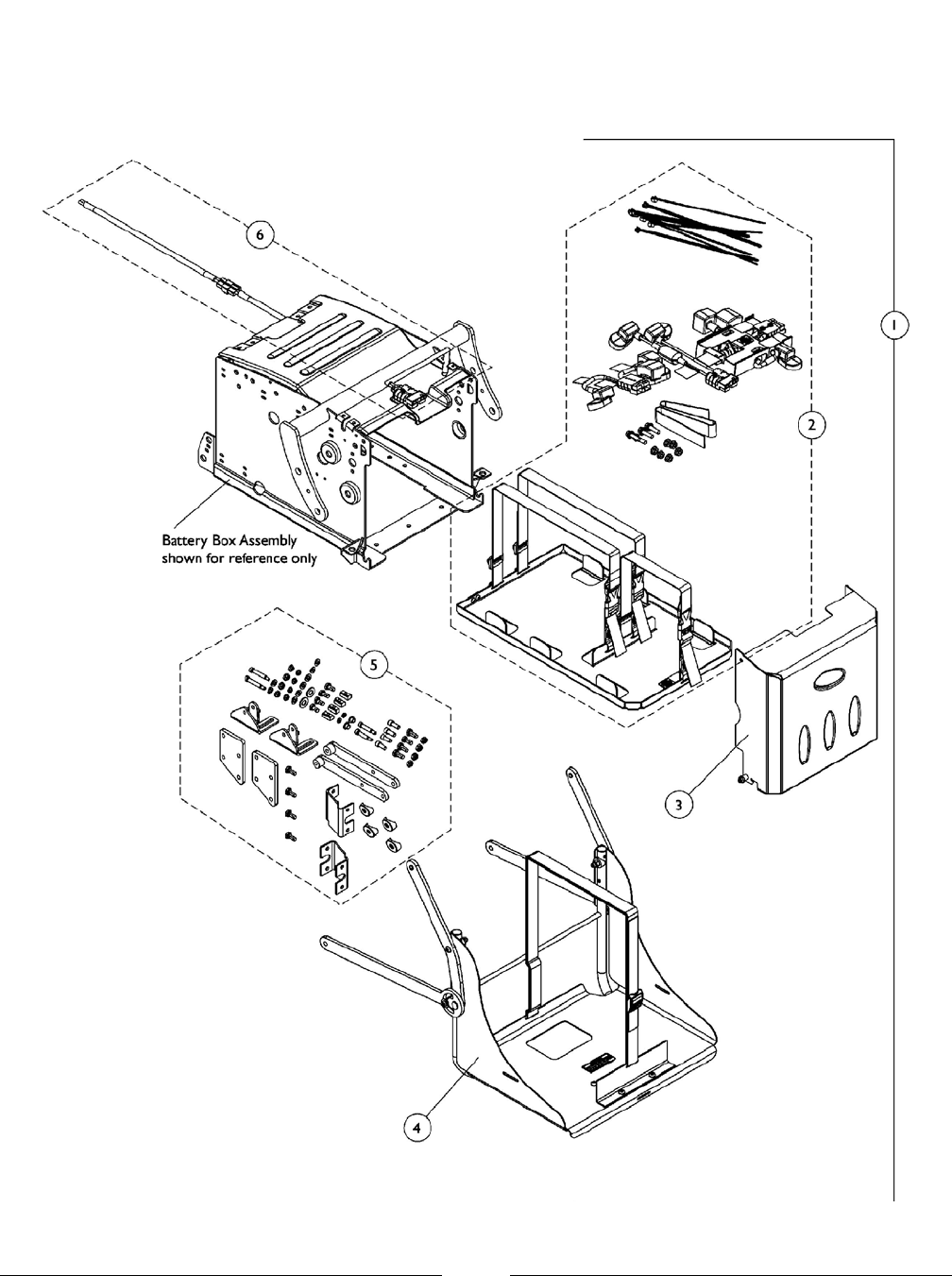

Battery Support Bracket Assembly
For TRBKTS Option
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Battery Support Bracket Assembly
For TRBKTS Option
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1139537 Kit, Battery Support Bracket Assembly - For 22NF
Batteries 1 11 A
Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 42
Locknut (1/4-20) 1 43
Bracket, Battery Support, Black 1 14
1139538 Kit, Battery Support Bracket Assembly - For GP24
Batteries 1 11 A
Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 42
Locknut (1/4-20) 1 43
Bracket, Battery Support, Black 1 14
1139539 Kit, Battery Support Bracket Assembly - For
Invisible Super Low Tilt System w/ 22NF Batteries 1 11 B
Bracket, Battery Support, Black 1 14
Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 45
1139540 Kit, Battery Support Bracket Assembly - For Vent
"Ready" System w/ 22NF Batteries 1 11 A
Screw, Hex Head Cap with Patch (1/4-20 x 5/8") 1 42
Locknut (1/4-20) 1 43
Bracket, Battery Support, Black 1 14
1139541 Kit, Battery Support Bracket Assembly - For Vent
"Option" System w/ 22NF Batteries 1 11 B
Bracket, Battery Support, Black 1 14
Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 45
1139867 Kit, Battery Support Bracket Assembly - For Elevate
"Option" System w/ 22NF Batteries 1 11 B
Bracket, Battery Support, Black 1 14
Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 45
A - Includes items 2-4
B - Includes items 4 and 5
NOTE:
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Battery Tray Assembly and Wire Harnesses For Vent Tray
(3) 22NF Batteries
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Battery Tray Assembly and Wire Harnesses For Vent Tray
(3) 22NF Batteries
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1120363 Kit, Battery Wire Harness with Terminal Hardware,
22NF - Rear 1 11 B,A
1120362 Kit, Battery Wire Harness with Terminal Hardware,
22NF - Front 1 12 B,A
1121143 Battery Wire Harness with Terminal Hardware,
22NF Vent 1 13 B,A
16721X000 Locknut (1/4-20) 1 64
1095502 Package, Cable Ties (11-1/2") 10 15
1096799 Screw, Hex Flange Whiz Lock (1/4-20 x 7/8") 1 46
1121124 Battery Strap Assembly, 22NF and GP24 1 27
1121125 Battery Strap Assembly For Vent, 22NF 1 18
1117186 Bracket, Battery Tray Stop, Black 1 19
90017X000 Screw, Phillips Pan Head (#10-32 x 5/16") 1 210
1121142 Battery Tray Assembly, TDX 22NF For Vent 1 111 C
1121029 Kit, Vent Battery Harness Assembly with Hardware 1 112 D
Vent Battery Harness 1 113
Vent Battery Extension Harness 1 114
Screw, Phillips Pan Head (#8-16 x 5/8") 1 215
Cable Tie (5-5/8" Long) 1 416
Grommet, Rubber 1 117
1139531 Kit, Vent Battery Harness Assembly with Hardware
For TRBKTS Option 1 112 D
Vent Battery Harness 1 113
Vent Battery Extension Harness For TRBKTS
Option 1 114
Screw, Phillips Pan Head (#8-16 x 5/8") 1 215
Cable Tie (5-5/8" Long) 1 416
Grommet, Rubber For TRBKTS Option 1 117
1095503 Package, Cable Ties (5-5/8" Long) 10 116
1055747 Grommet, Rubber 1 117
1137236 Grommet, Rubber For TRBKTS Option 1 117
A - Individual components are not available for the battery wire harnesses
B - Includes items 4-6
C - Includes items 7-10
D - Includes items 13-17
NOTE:
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

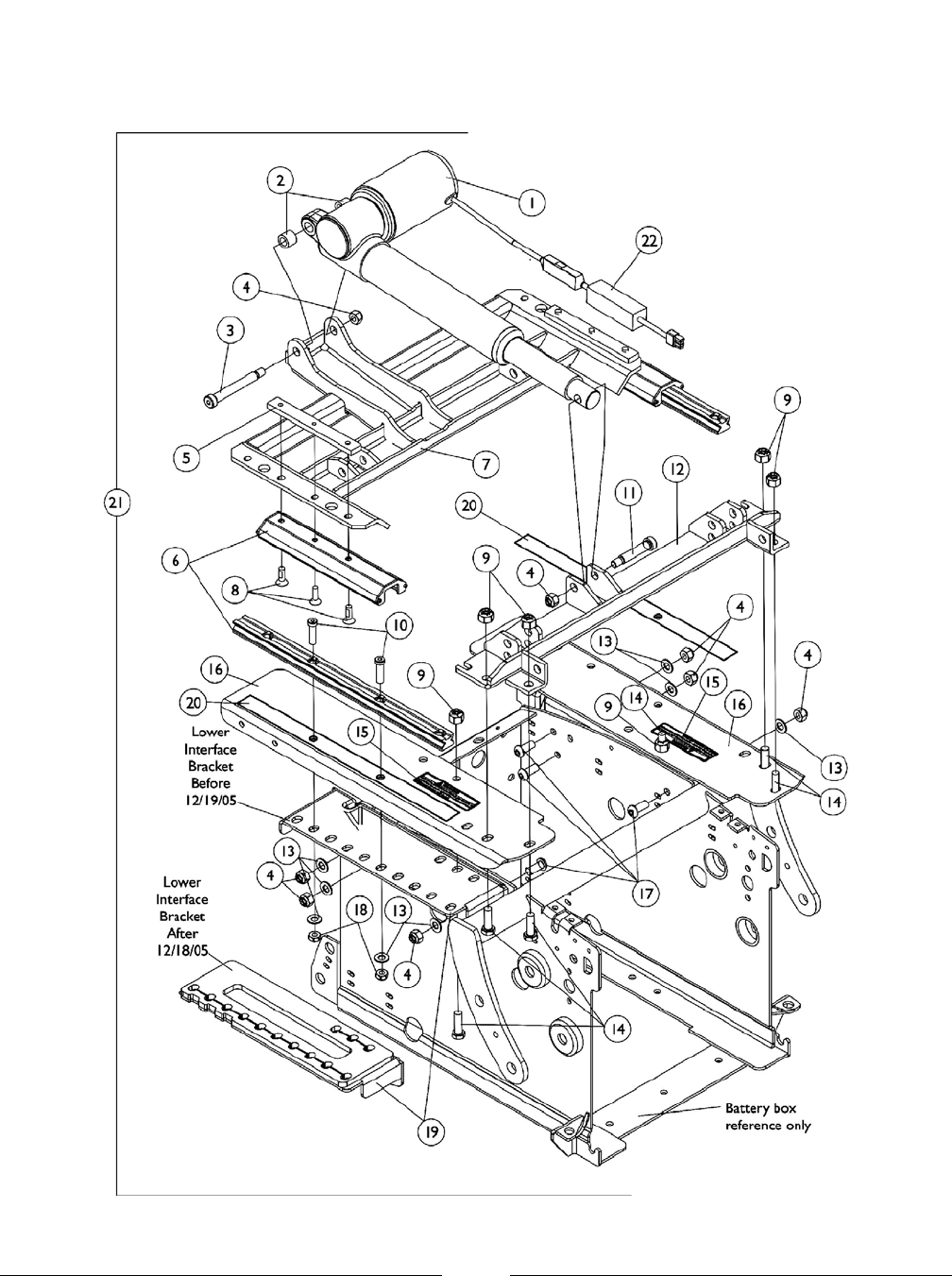

Interface Hardware and Tilt Actuator
(To Attach 2GT, 2GTR To The Battery Box)
Tilt Only (2GT) and Tilt/Recline (2GTR)
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Interface Hardware and Tilt Actuator
(To Attach 2GT, 2GTR To The Battery Box)
Tilt Only (2GT) and Tilt/Recline (2GTR)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1082778 Actuator, Tilt - For All User Weight Limits 1 11 E
1105039 Bushing (3/8 x 5/8 x 1/2") 1 22
1070411 Bolt, Shoulder (3/8 x 2-1/2") 1 13
1026158 Locknut (5/16-18) 1 84
1082877 Bar, Clamp, Black 1 25
1113618 Guide, Short Linear 1 26
1113594 Pivot Assembly, Rear 1 17
1091869 Screw, Socket Flat Head C'sunk with Patch (1/4-20
x 3/4") 1 68
1064267 Locknut (5/16-18) 1 69
1114962 Screw, Socket Head Cap (5/16-18 x 1") 1 410 B
1108429 Screw, Socket Head Cap with Patch (5/16-18 x
1-1/4") 1 410 C
1031665 Screw, Socket Head Shoulder (3/8 x 1-1/2") 1 111
1113604 Pivot Assembly, Front 1 112
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 1013
1043629 Screw, Hex Head Cap with Patch (5/16-18 x 1-1/4") 1 614
1118370 Decal, 2GTR Seat Repositioning Warning 1 215
1120348 Kit, Bracket w/ Decal, Black - Right (2GTR) 1 116
1120349 Kit, Bracket w/ Decal, Black - Left (2GTR) 1 116
1071955 Screw, Socket Button Head (5/16-18 x 3/4") 1 617
1028769 Locknut (5/16-18) 1 418
1114964 Bracket, Lower Interface, Black - Right 1 119 B
1114965 Bracket, Lower Interface, Black - Left 1 119 B
1140829 Bracket, Lower Interface, Black - Right 1 119 C
1140830 Bracket, Lower Interface, Black - Left 1 119 C
1121117-NLA Shim, Short Seat Guide Slide 1 220 D
1113602 2GT/ 2GTR Interface Hardware 1 121 A
1140059 Kit, Actuator Braking Module w/ Instruction Sheet 1 122 F
1141508 Instruction Sheet, Actuator Braking Module 1 1G
A - Includes items 1-20 and used to attach a 2GT or 2GTR to the battery box. When item 21 is ordered, item19 Lower
Interface Bracket made after 12/18/05 will be shipped. The seat to floor height will be raised 1/4".
B - Before 12/19/05
C - After 12/18/05
D - Item 20 is no longer used after 12/18/05
E - Actuator Braking Module added to Tilt Actuator and is backward compatible to all systems manufactured before 5/18/06.
The addition of the braking module eliminated the requirement of a Heavy Duty Tilt Actuator.
F - Actuator Braking Module can be assembled in the field on seating systems manufactured before 5/18/06 as well. Must
verify with an Invacare Technician when a kit is required.
G - Not Shown
NOTE:
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

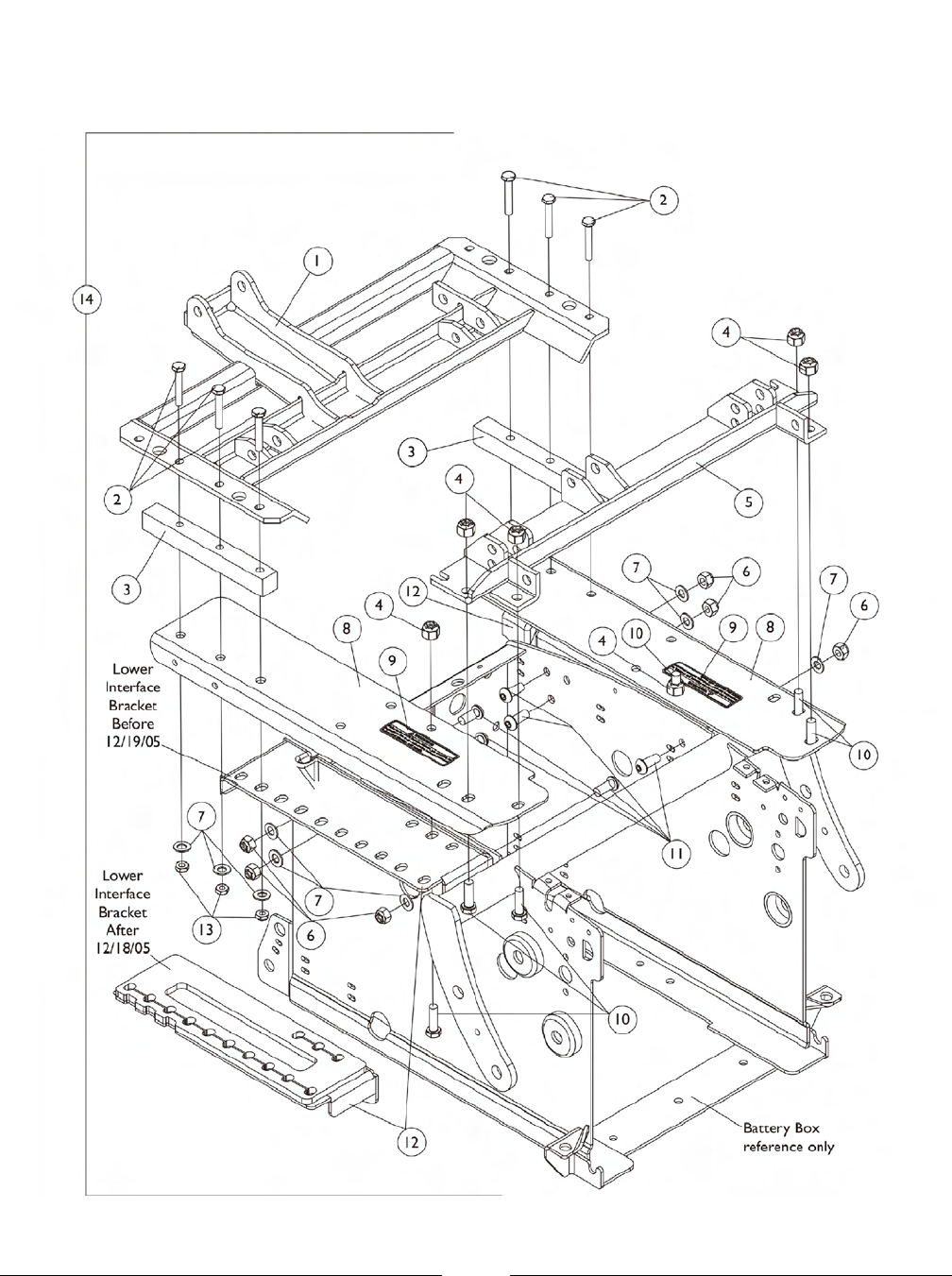

Interface Hardware
(To Attach 2GR To The Battery Box)
Recline Only (2GR)
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Interface Hardware
(To Attach 2GR To The Battery Box)
Recline Only (2GR)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1113594 Pivot Assembly, Rear 1 11
1030949 Screw, Hex Head (1/4-20 x 1-1/2") 1 62 B
1024793 Screw, Hex Head (1/4-20 x 1-3/4") 1 62 C
1086943 Bar, Spacer, Black 1 23
1064267 Locknut (5/16-18) 1 64
1113604 Pivot Assembly, Front 1 15
1026158 Locknut (5/16-18) 1 66
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 127
1120348 Kit, Bracket w/ Decal, Black - Right (2GTR) 1 18
1120349 Kit, Bracket w/ Decal, Black - Left (2GTR) 1 18
1118370 Decal, 2GTR Seat Repositioning Warning 1 29
1043629 Screw, Hex Head Cap with Patch (5/16-18 x 1-1/4") 1 610
1071955 Screw, Socket Button Head (5/16-18 x 3/4") 1 611
1114964 Bracket, Lower Interface, Black - Right 1 112 B
1114965 Bracket, Lower Interface, Black - Left 1 112 B
1140829 Bracket, Lower Interface, Black - Right 1 112 C
1140830 Bracket, Lower Interface, Black - Left 1 112 C
1025195 Locknut (1/4-20) 1 613
1113603 2GR Interface Hardware 1 114 A
A - Includes items 1-13 and used to attach a 2GR to the battery box. When item 14 is ordered, item12 Lower Interface Bracket
made after 12/18/05 will be shipped. The seat to floor height will be raised 1/4".
B - Before 12/19/05
C - After 12/18/05
NOTE:
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Side Frames

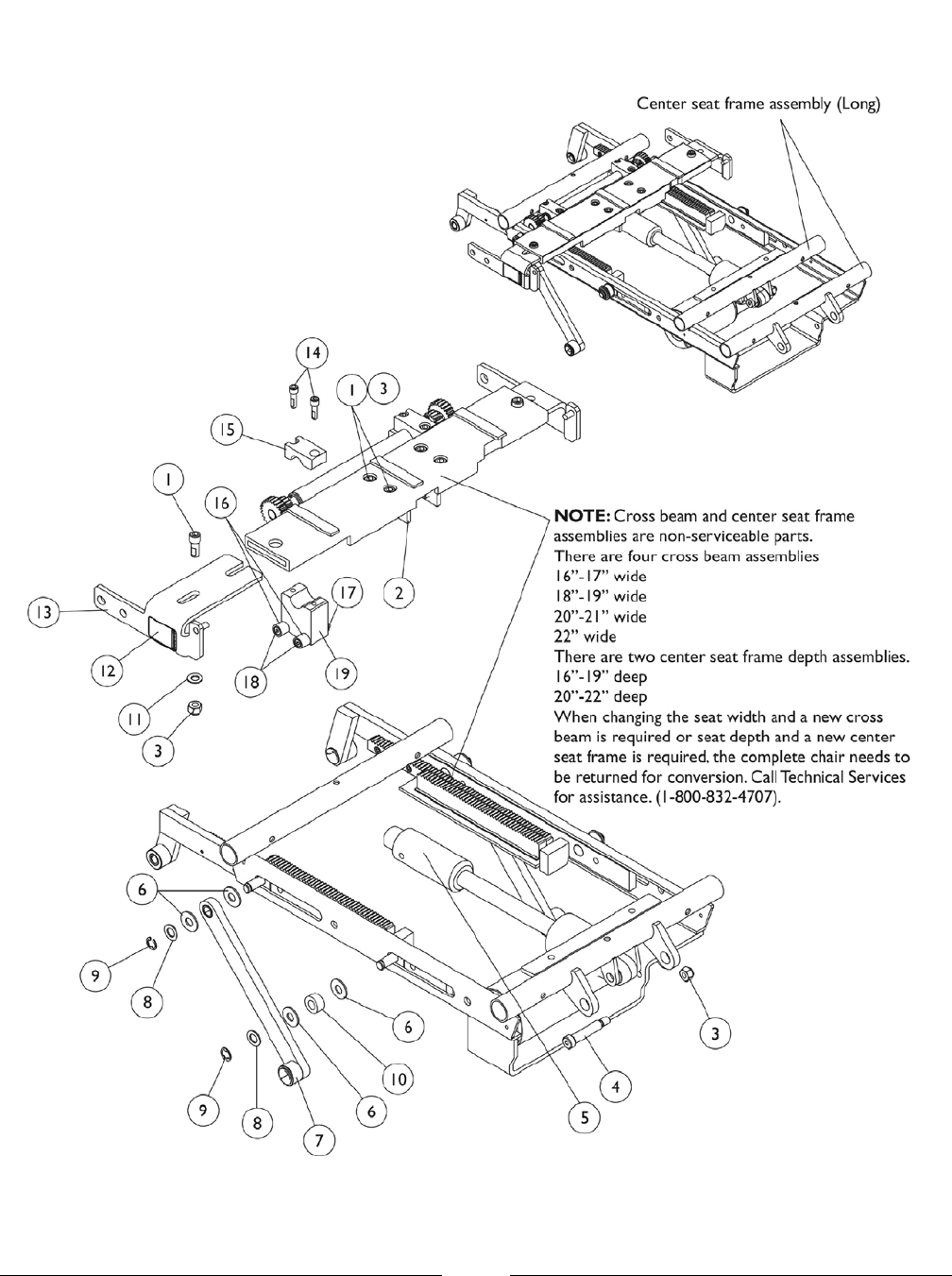

NOTE: A new cross beam may be required when changing seat width for a Recline Only or Tilt/Recline
system. See Center Seat Frame Assembly page.
20
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Side Frames
NOTE: A new cross beam may be required when changing seat width for a Recline Only or Tilt/Recline
system. See Center Seat Frame Assembly page.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1087002 Hardware, Side Frame Mounting 1 11 A
7930333 Locknut (1/4-20) 25 42
1047449 Spacer (1/4 x 3/8 x 3/16") 1 43
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 44
1037610 Screw, Hex Head (1/4-20 x 1-5/8") 1 45
1086976 Side Frame w/ Arm Lock Assembly, 16"-17" Deep,
Right 1 16
1086977 Side Frame w/ Arm Lock Assembly, 16"-17" Deep,
Left 1 16
1086978 Side Frame w/ Arm Lock Assembly, 18"-19" Deep,
Right 1 16
1086979 Side Frame w/ Arm Lock Assembly, 18"-19" Deep,
Left 1 16
1086980 Side Frame w/ Arm Lock Assembly, 20"-21" Deep,
Right 1 16
1086981 Side Frame w/ Arm Lock Assembly, 20"-21" Deep,
Left 1 16
1086982 Side Frame w/ Arm Lock Assembly, 22" Deep, Right 1 16
1086983 Side Frame w/ Arm Lock Assembly, 22" Deep, Left 1 16
7930347 Pin Roll (5/64 x 5/8") 25 27 B
47471X074 Spring, Arm Lock 1 27 B
1028594 Pin, Arm Lock 1 27 B
1090768 Kit, Lock Handle w/Rivets (both LT & RT side) 1 17 B
A - Includes Items 2-5
B - Arm Lock Assembly
NOTE:
21
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

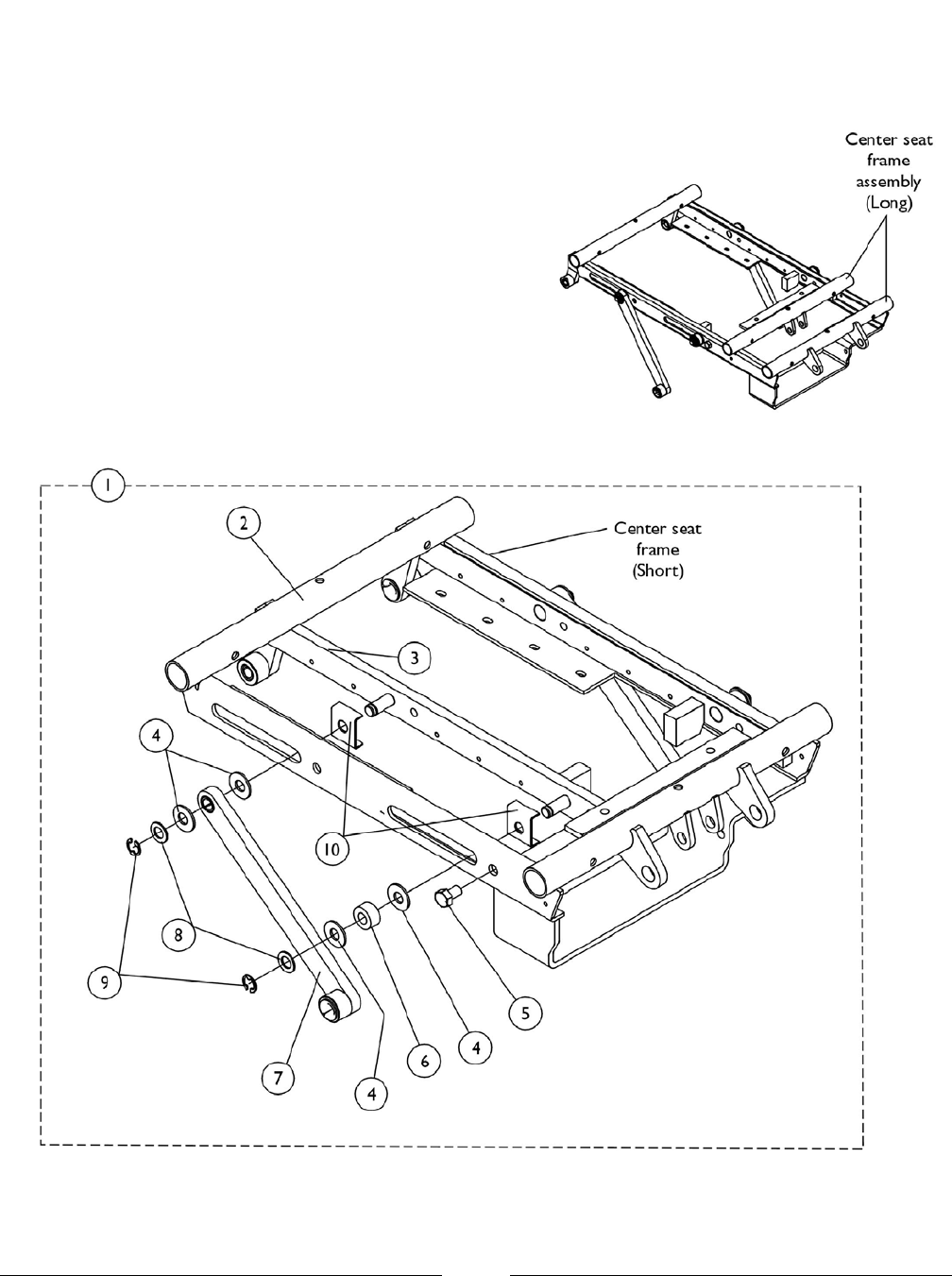

Center Seat Frame Assembly
Tilt Only (2GT)
22
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Center Seat Frame Assembly
Tilt Only (2GT)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1115859 Center Seat Frame Assembly, Short (16"-19" Deep) 1 11 A
1115858 Center Seat Frame Assembly, Long (20"- 22" Deep) 1 11 A
1113613 Center Seat Frame, Short (16"-19" Deep) 1 12
1113614 Center Seat Frame, Long (20"- 22" Deep) 1 12
1086590 Tilt Pivot Assembly, Right 1 13
1086591 Tilt Pivot Assembly, Left 1 13
1012371 Washer, Nylon (3/8 x 7/8 x 1/16") 1 84
1061922 Screw, Hex Head Cap w/ Patch (5/16-18 x 1/2") 1 25
1082876 Spacer (3/8 x 3/4 x 3/8") 1 26
1086595 Link, Tilt 1 27
1065214 Washer, Flat (3/8 x 11/16 x 1/16") 1 48
1086930 Ring, Retaining (3/8") 1 49
1091502 Guide, Tilt Rail 1 410
A - Includes Items 2-10
NOTE:
23
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Center Seat Frame Assembly
Recline Only (2GR)
24
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Center Seat Frame Assembly
Recline Only (2GR)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1086944 Screw, Socket Head Cap (5/16-18 x 3/4") 1 61
1082878 Bracket, Screw Support Acutator, Right 1 12
1082879 Bracket, Screw Support Acturator, Left 1 12
1026158 Locknut (5/16-18) 1 73
1031665 Screw, Socket Head Shoulder (3/8 x 1-1/2") 1 14
1082750 Actuator, Recline 1 15
1012371 Washer, Nylon (3/8 x 7/8 x 1/16") 1 146
1110497 Link, Recline 0 and 5 Degree Seat Tilt, Right 1 17
1110498 Link, Recline 0 and 5 Degree Seat Tilt, Left 1 17
1110499 Link, Recline 10 and 15 Degree Seat Tilt, Right 1 17
1110500 Link, Recline 10 and 15 Degree Seat Tilt, Left 1 17
1065214 Washer, Flat (3/8 x 11/16 x 1/16") 1 48
1086930 Ring, Retaining (3/8") 1 49
1082876 Spacer (3/8 x 3/4 x 3/8") 1 210
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 211
1079203 Decal, Warning Pinch Point 1 212
1091500 Kit, Connecting Slide Bracket w/ Decal, Black -
Right 1 113
1091501 Kit, Connecting Slide Bracket w/ Decal, Black - Left 1 113
1098944 Screw, Socket Head Cap w/ Patch (1/4-20 x 3/4") 1 414
1095352 Block, Gear Hold Down Upper 1 215
1091503 Bushing (1/4 x 1/2 x 7/16") 1 416
1026035 Locknut (#10-24) 1 417
1000212 Screw, Shoulder (1/4 x 1-1/4") 1 418
1095476 Assembly, Dual Roller Right 1 119 A
1095477 Assembly, Dual Roller Left 1 119 A
A - Includes 2 each of items 16-18
NOTE:
25
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Center Seat Frame Assembly
Tilt/Recline (2GTR)
26
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Center Seat Frame Assembly
Tilt/Recline (2GTR)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1086944 Screw, Socket Head Cap (5/16-18 x 3/4") 1 61
1082878 Bracket, Screw Support Acutator, Right 1 12
1082879 Bracket, Screw Support Acturator, Left 1 12
1026158 Locknut (5/16-18) 1 73
1031665 Screw, Socket Head Shoulder (3/8 x 1-1/2") 1 14
1082750 Actuator, Recline 1 15
1012371 Washer, Nylon (3/8 x 7/8 x 1/16") 1 86
1086595 Link, Tilt 1 27
1065214 Washer, Flat (3/8 x 11/16 x 1/16") 1 48
1086930 Ring, Retaining (3/8") 1 49
1082876 Spacer (3/8 x 3/4 x 3/8") 1 210
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 211
1079203 Decal, Warning Pinch Point 1 212
1091500 Kit, Connecting Slide Bracket w/ Decal, Black -
Right 1 113
1091501 Kit, Connecting Slide Bracket w/ Decal, Black - Left 1 113
1098944 Screw, Socket Head Cap w/ Patch (1/4-20 x 3/4") 1 414
1095352 Block, Gear Hold Down Upper 1 215
1091503 Bushing (1/4 x 1/2 x 7/16") 1 416
1026035 Locknut (#10-24) 1 417
1000212 Screw, Shoulder (1/4 x 1-1/4") 1 418
1095476 Assembly, Dual Roller Right 1 119 A
1095477 Assembly, Dual Roller Left 1 119 A
A - Includes 2 each of items 16-18
NOTE:
27
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

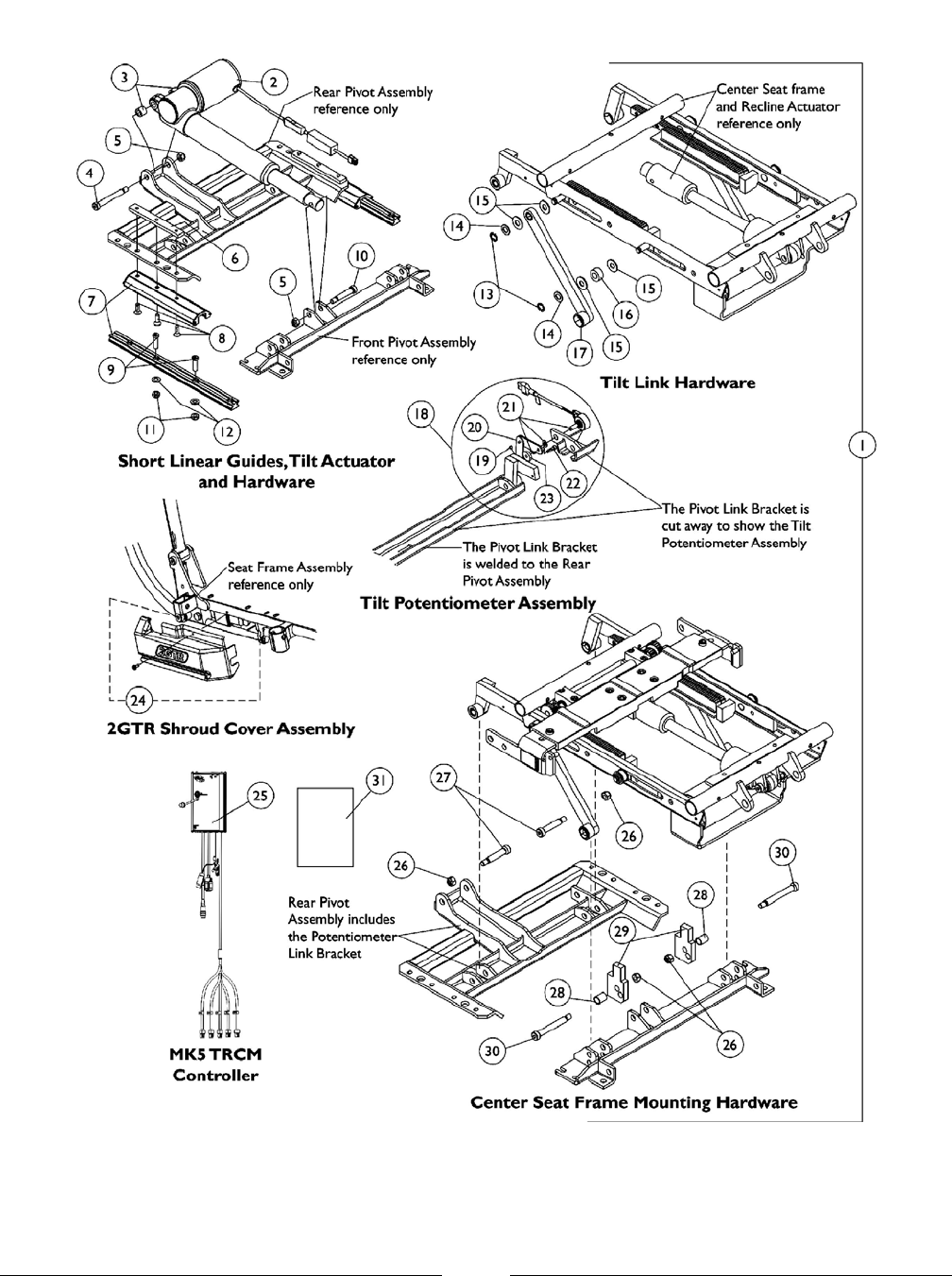

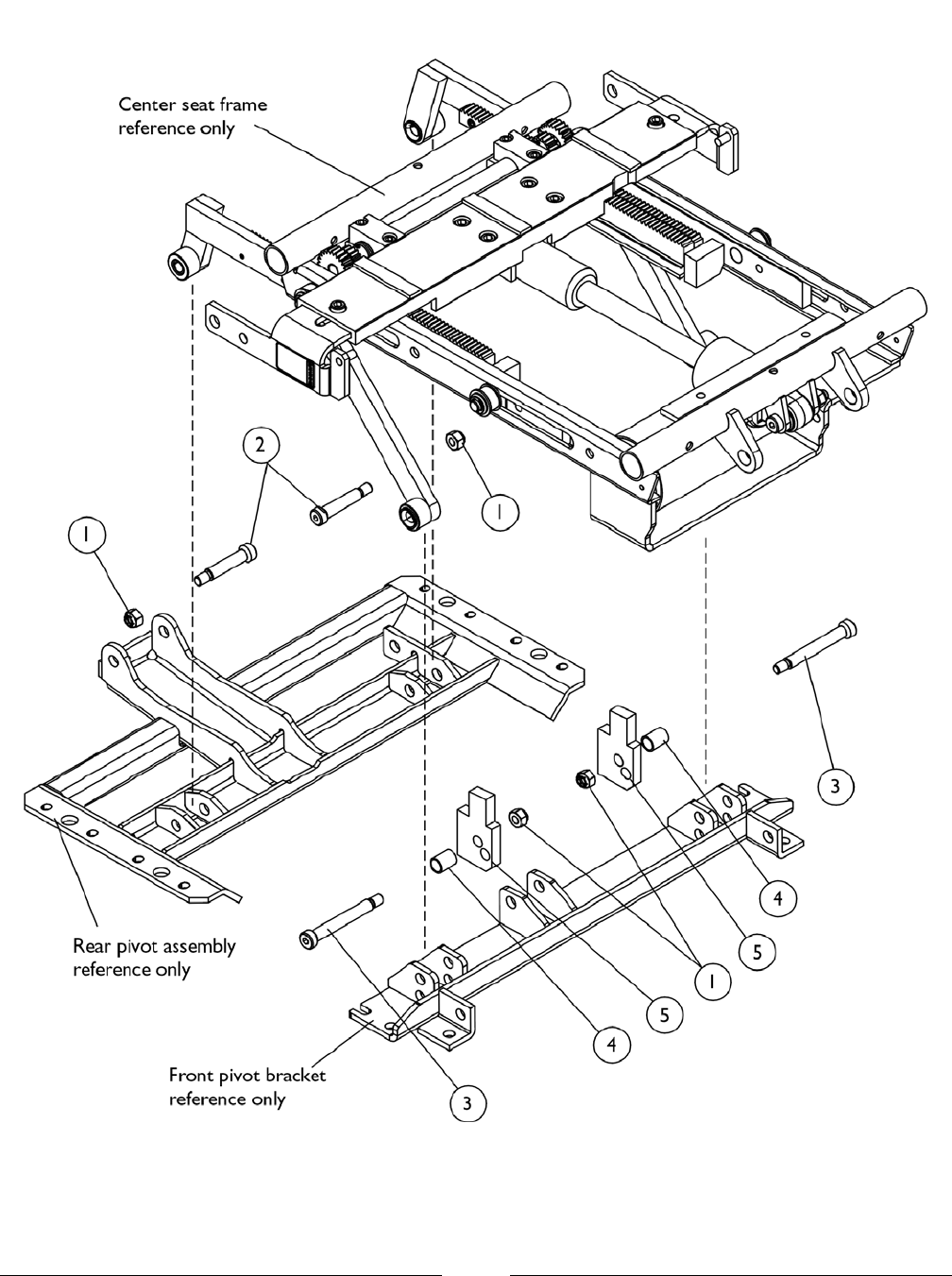

Center Seat Frame Mounting Hardware
28
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Center Seat Frame Mounting Hardware
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1026158 Locknut (5/16-18) 1 41
1031665 Screw, Socket Head Shoulder (3/8 x 1-1/2") 1 42
1070411 Bolt, Shoulder (3/8 x 2-1/2") 1 23
1098646 Bushing, Black (7/16 x 1/2 x 11/16") 1 24
1098645 Block, Black Tilt Angle 1 25
29
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

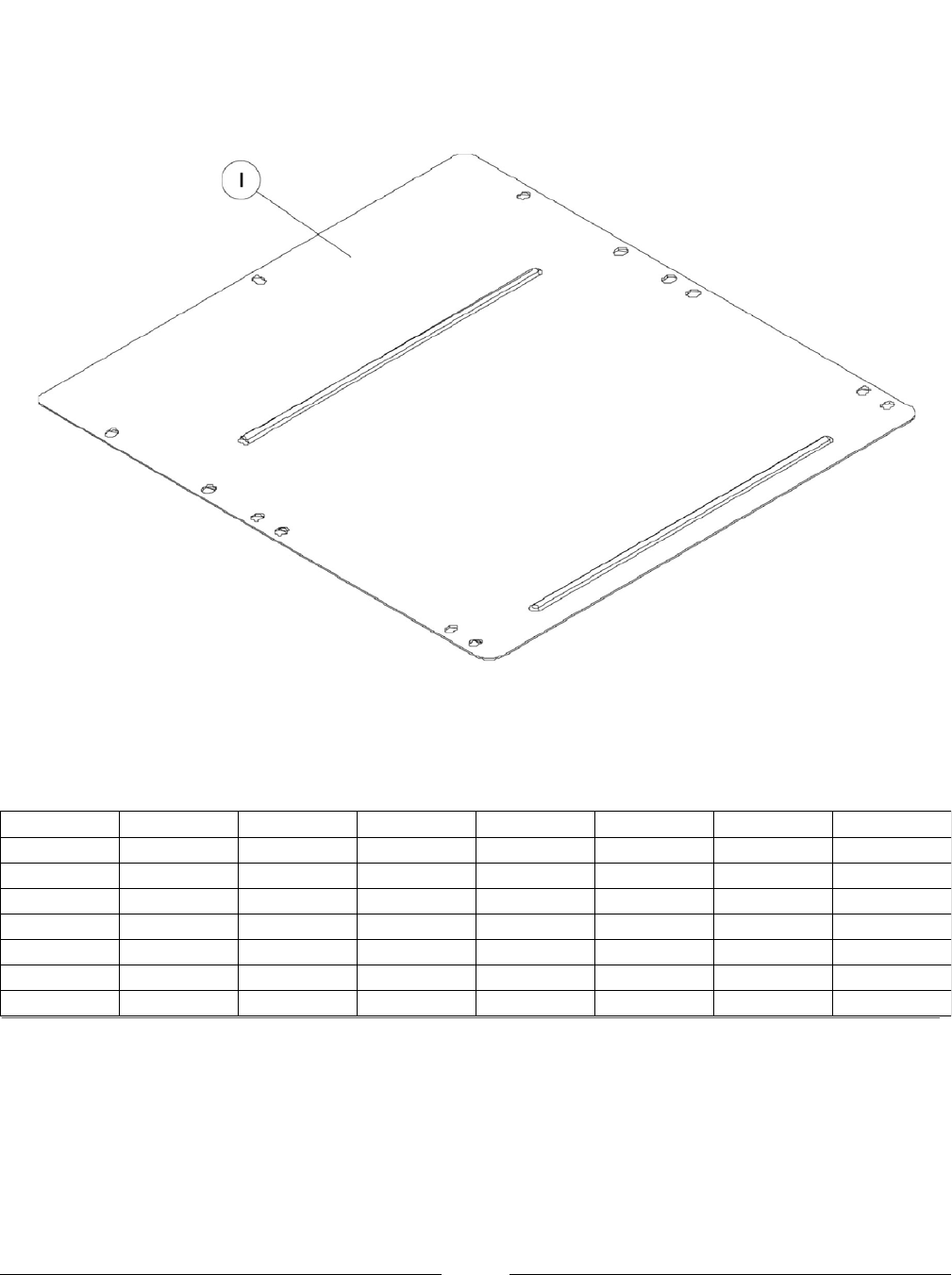

Item #1 Seat Pan
Chair Width 21" Deep 22" Deep16" Deep 17" Deep 18" Deep 19" Deep 20" Deep
106606810660571066046106603510660241066013109008316" Wide
106606910660581066047106603610660251066014109008417" Wide
106607010660591066048106603710660261066015109008518" Wide
106607110660601066049106603810660271066016109008619" Wide
106607210660611066050106603910660281066017109008720" Wide
106607310660621066051106604010660291066018109008821" Wide
106607410660631066052106604110660301066019109008922" Wide
Seat Pan
30
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

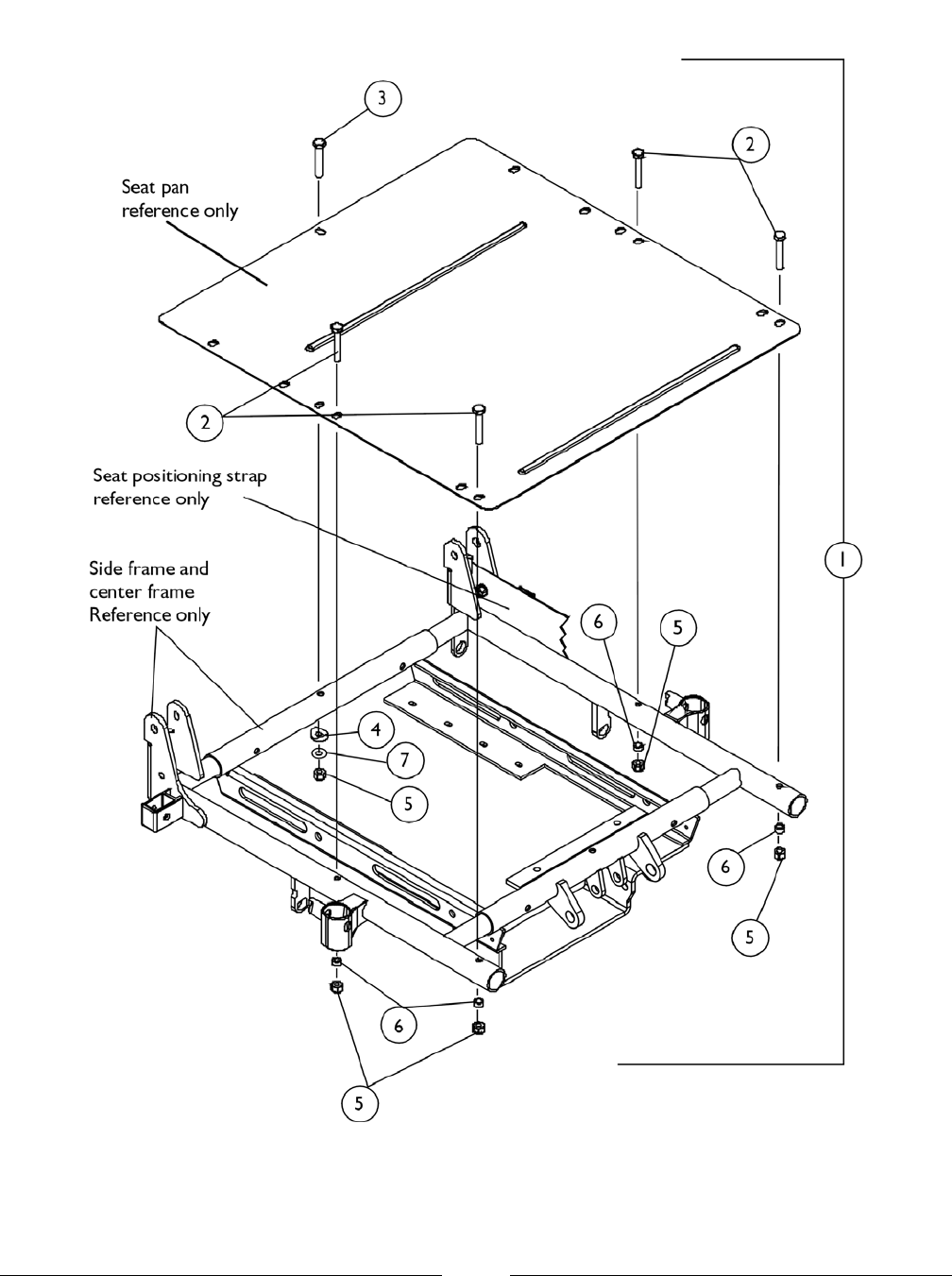

Seat Pan Mounting Hardware
31
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Seat Pan Mounting Hardware
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1092303 Hardware, Seat Pan Mounting 1 11 A
1030949 Screw, Hex Head (1/4-20 x 1-1/2") 1 42
1037610 Screw, Hex Head (1/4-20 x 1-5/8") 1 13
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 14
7930333 Locknut (1/4-20) 25 55
1047449 Spacer (1/4 x 3/8 x 3/16") 1 46
1026907 Washer (1/4 x 1/2 x 1/16") 1 17
A - Includes Items 2-7
NOTE:
32
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

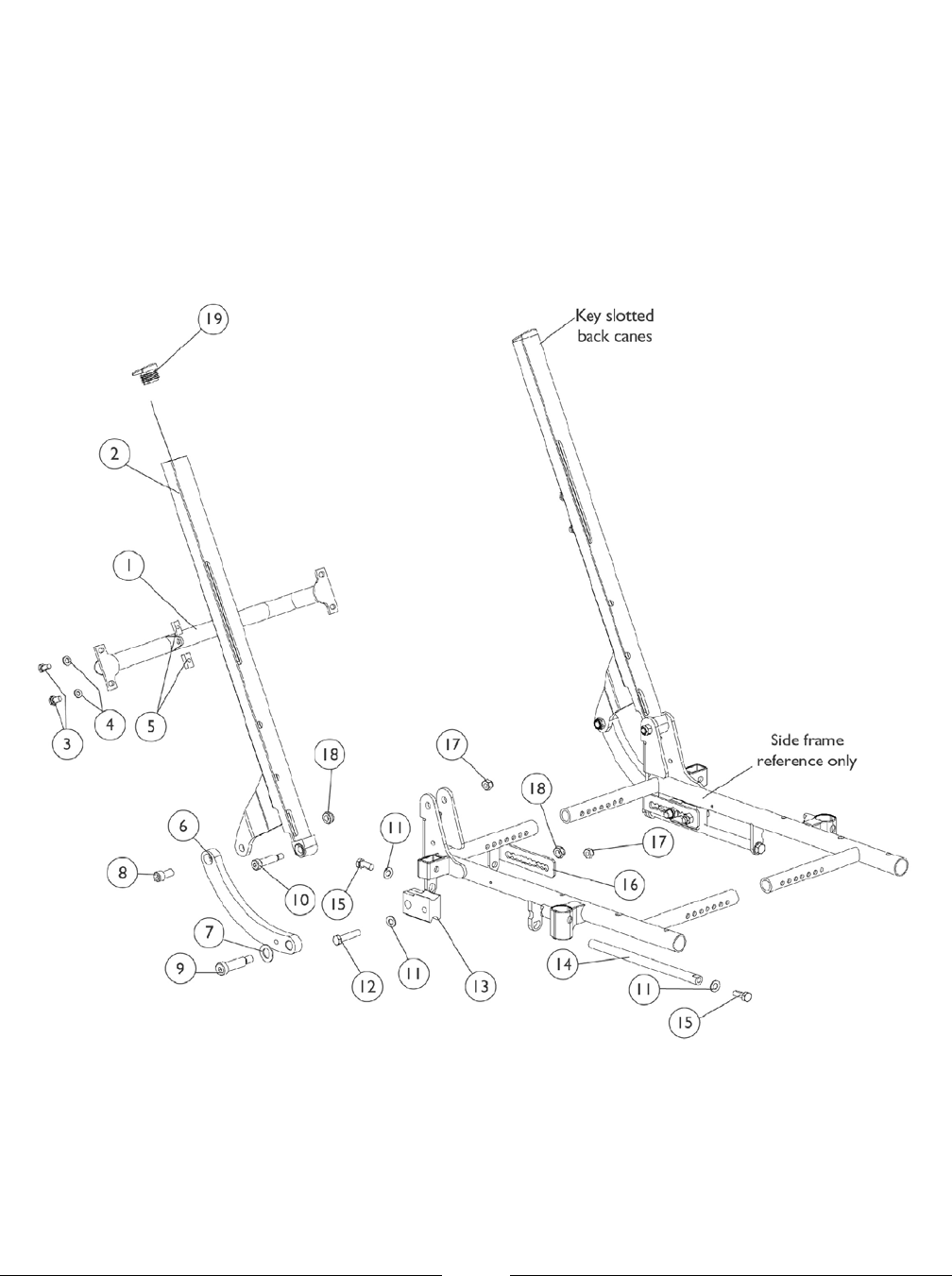

Back Cane and Spreader Bar Assembly
Tilt Only (2GT)
NOTE: When changing back cane heights, new Back Assembly Mounting Hardware may be required. See
Back Assembly Mounting Hardware page
33
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Back Cane and Spreader Bar Assembly
Tilt Only (2GT)
NOTE: When changing back cane heights, new Back Assembly Mounting Hardware may be required. See
Back Assembly Mounting Hardware page
Item #1 Spreader Bar
16" Wide 22" Wide17" Wide 18" Wide 19" Wide 20" Wide 21" Wide
1086107108610610861051086104108610310861021086101
Item #2 Back Canes
Back Height
Side 20-21" High 22-23" High 24-25" High
108695210869501086948Right
108695310869511086949Left
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Spreader Bar 1 11
See Chart #2 Back Canes 1 22
1078214 Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 43
1026907 Washer (1/4 x 1/2 x 1/16") 1 44
1082699 T-Nut (1/4-20) 1 45
1099540 Link, Curve Tilt, Right 1 16
1099541 Link, Curved Tilt, Left 1 16
1031673 Washer, Nylon (35/64 x 1 x 1/16") 1 27
1099527 Screw, Socket Head Cap (3/8-16 x 3/4") 1 28
1021851 Screw, Socket Head Shoulder (1/2 x 1-1/2") 1 29
1062604 Screw, Shoulder Socket Head (3/8 x 1-1/4") 1 210
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 611
1070398 Screw, Hex Head (5/16-18 x 1-1/2") 1 212
1082725 Block, Slide 1 213
1082724 Rod, Slide 1 214
1039860 Screw, Hex Head Cap with Patch (5/16-18 x 3/4") 1 215
1087014 Bracket, Connecting, Black - Right 1 116
1087015 Bracket, Connecting, Black - Left 1 116
1026158 Locknut (5/16-18) 1 417
40363X000 Hex Nut (3/8"-16) 1 418
1082829 Cap, Back Cane End 1 219
34
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Back Cane (7/8" Round-Optional) and Spreader Bar
Assembly
Tilt Only (2GT)
35
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Back Cane (7/8" Round-Optional) and Spreader Bar
Assembly
Tilt Only (2GT)
Item #1 Spreader Bar
16" Wide 22" Wide17" Wide 18" Wide 19" Wide 20" Wide 21" Wide
0014202001410200140020013902001380200137020013602
Item #2 Back Cane with Grip
Back Height
Side 20-21" High 22-23" High 24-25" High
110472811047261103008Right
110472911047271103009Left
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Spreader Bar 1 11
See Chart #2 Back Canes 1 22
1086460 Foam Hand Grip (4-1/2" Long) 1 23
0190722 Half Clamp, Un-Threaded Holes
(7/8" Dia. Back Canes) 1 24
0190822 Half Clamp, Threaded Holes
(7/8" Dia. Back Canes) 1 25
1007219 Screw, Socket Head Cap (1/4-20 x 3/4") 1 66
1099540 Link, Curve Tilt, Right 1 17
1099541 Link, Curved Tilt, Left 1 17
1031673 Washer, Nylon (35/64 x 1 x 1/16") 1 28
1099527 Screw, Socket Head Cap (3/8-16 x 3/4") 1 29
1021851 Screw, Socket Head Shoulder (1/2 x 1-1/2") 1 210
1062604 Screw, Shoulder Socket Head (3/8 x 1-1/4") 1 211
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 612
1070398 Screw, Hex Head (5/16-18 x 1-1/2") 1 213
1082725 Block, Slide 1 214
1082724 Rod, Slide 1 215
1039860 Screw, Hex Head Cap with Patch (5/16-18 x 3/4") 1 216
1087014 Bracket, Connecting, Black - Right 1 117
1087015 Bracket, Connecting, Black - Left 1 117
1026158 Locknut (5/16-18) 1 418
40363X000 Hex Nut (3/8"-16) 1 419
36
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Back Cane (7/8" Round-Optional) and Spreader Bar
Assembly
Recline Only (2GR) and Tilt/Recline (2GTR)
37
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Back Cane (7/8" Round-Optional) and Spreader Bar
Assembly
Recline Only (2GR) and Tilt/Recline (2GTR)
Item #1 Spreader Bar
16" Wide 22" Wide17" Wide 18" Wide 19" Wide 20" Wide 21" Wide
0014202001410200140020013902001380200137020013602
Item #2 Back Cane with Grip
Back Height
Side 20-21" High 22-23" High 24-25" High 26" High
1104730110472811047261103008Right
1104731110472911047271103009Left
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Spreader Bar 1 11
See Chart #2 Back Canes 1 22
1086460 Foam Hand Grip (4-1/2" Long) 1 23
0190722 Half Clamp, Un-Threaded Holes
(7/8" Dia. Back Canes) 1 24
0190822 Half Clamp, Threaded Holes
(7/8" Dia. Back Canes) 1 25
1007219 Screw, Socket Head Cap (1/4-20 x 3/4") 1 66
1086587 Link, Curved 1 27
1031673 Washer, Nylon (35/64 x 1 x 1/16") 1 48
1086323 Screw, Socket Head Shoulder (1/2 x 5/8") 1 29
1021851 Screw, Socket Head Shoulder (1/2 x 1-1/2") 1 210
1062604 Screw, Shoulder Socket Head (3/8 x 1-1/4") 1 211
1039860 Screw, Hex Head Cap with Patch (5/16-18 x 3/4") 1 412
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 613
1070398 Screw, Hex Head (5/16-18 x 1-1/2") 1 214
1065214 Washer, Flat (3/8 x 11/16 x 1/16") 1 215
40363X000 Hex Nut (3/8"-16) 1 416
1026158 Locknut (5/16-18) 1 417
1082725 Block, Slide 1 218
38
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

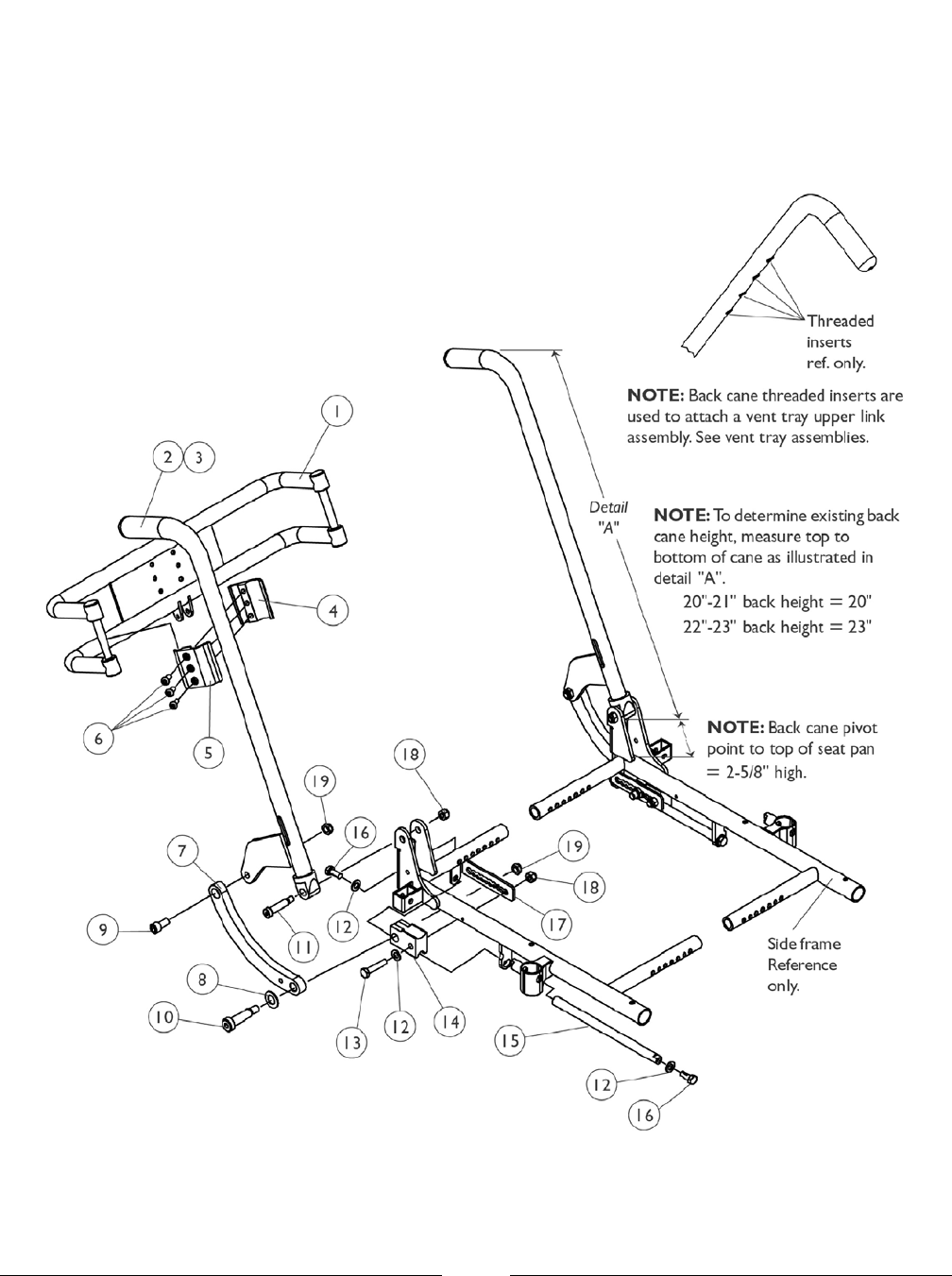

Back Cane and Spreader Bar Assembly
Recline Only (2GR) and Tilt/ Recline (2GTR)
NOTE: When changing back cane heights, new Back Assembly Mounting Hardware may be required. See
Back Assembly Mounting Hardware page
39
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Back Cane and Spreader Bar Assembly
Recline Only (2GR) and Tilt/ Recline (2GTR)
NOTE: When changing back cane heights, new Back Assembly Mounting Hardware may be required. See
Back Assembly Mounting Hardware page
Item #1 Spreader Bar
16" Wide 22" Wide17" Wide 18" Wide 19" Wide 20" Wide 21" Wide
1086107108610610861051086104108610310861021086101
Item #2 Back Canes
Back Height
Side 20-21" High 22-23" High 24-25" High 26" High
1086954108695210869501086948Right
1086955108695310869511086949Left
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Spreader Bar 1 11
See Chart #2 Back Canes 1 22
1078214 Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 43
1026907 Washer (1/4 x 1/2 x 1/16") 1 44
1082699 T-Nut (1/4-20) 1 45
1086587 Link, Curved 1 26
1031673 Washer, Nylon (35/64 x 1 x 1/16") 1 47
1086323 Screw, Socket Head Shoulder (1/2 x 5/8") 1 28
1021851 Screw, Socket Head Shoulder (1/2 x 1-1/2") 1 29
1062604 Screw, Shoulder Socket Head (3/8 x 1-1/4") 1 210
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 611
1070398 Screw, Hex Head (5/16-18 x 1-1/2") 1 212
1082725 Block, Slide 1 213
1082724 Rod, Slide 1 214
1039860 Screw, Hex Head Cap with Patch (5/16-18 x 3/4") 1 215
1026158 Locknut (5/16-18) 1 416
40363X000 Hex Nut (3/8"-16) 1 417
1065214 Washer, Flat (3/8 x 11/16 x 1/16") 1 218
1082829 Cap, Back Cane End 1 219
1087001 Kit, Back Cane and Spreader Bar Mounting
Hardware 2 120 A
A - Includes items 3-19
NOTE:
40
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

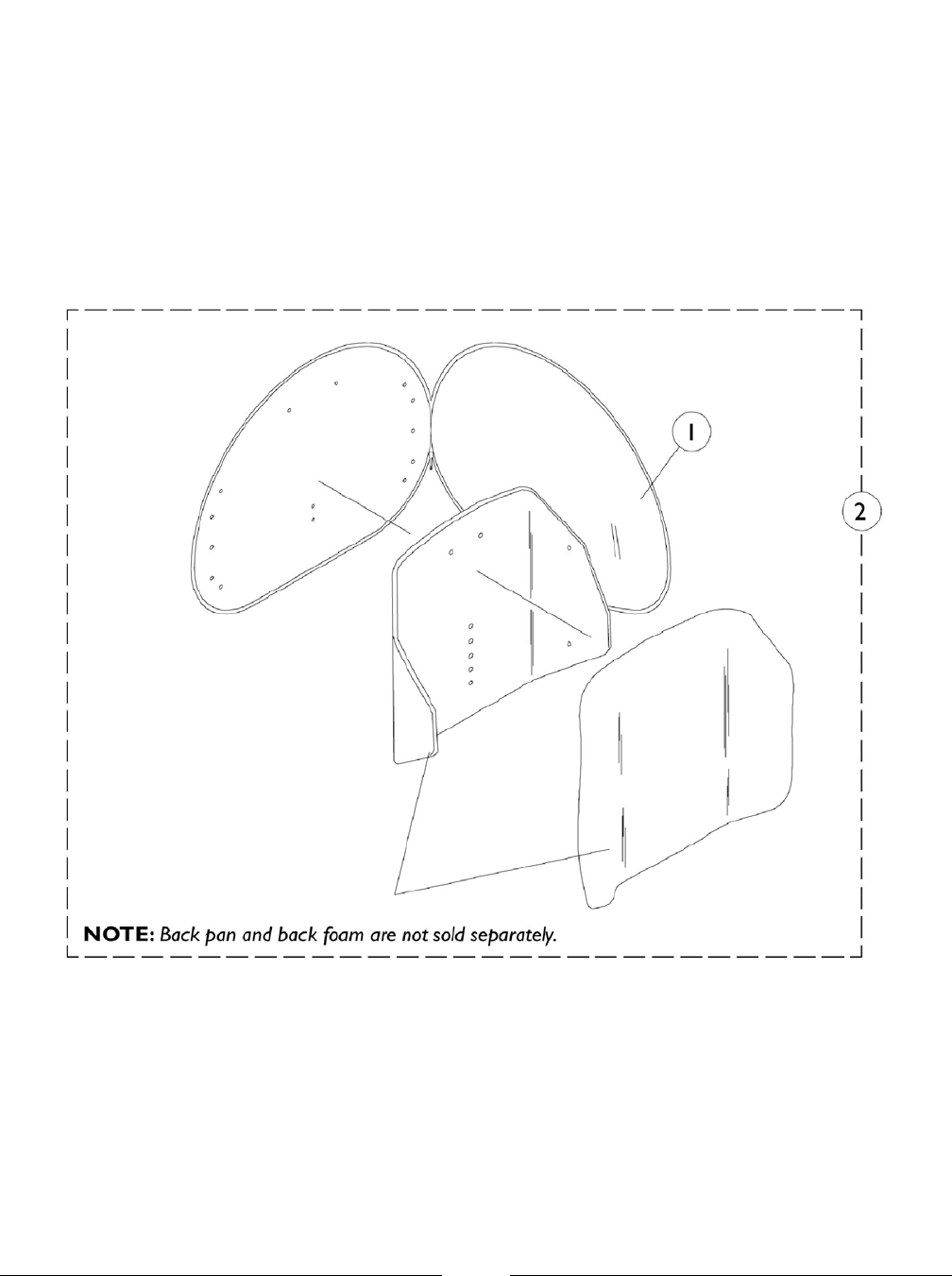

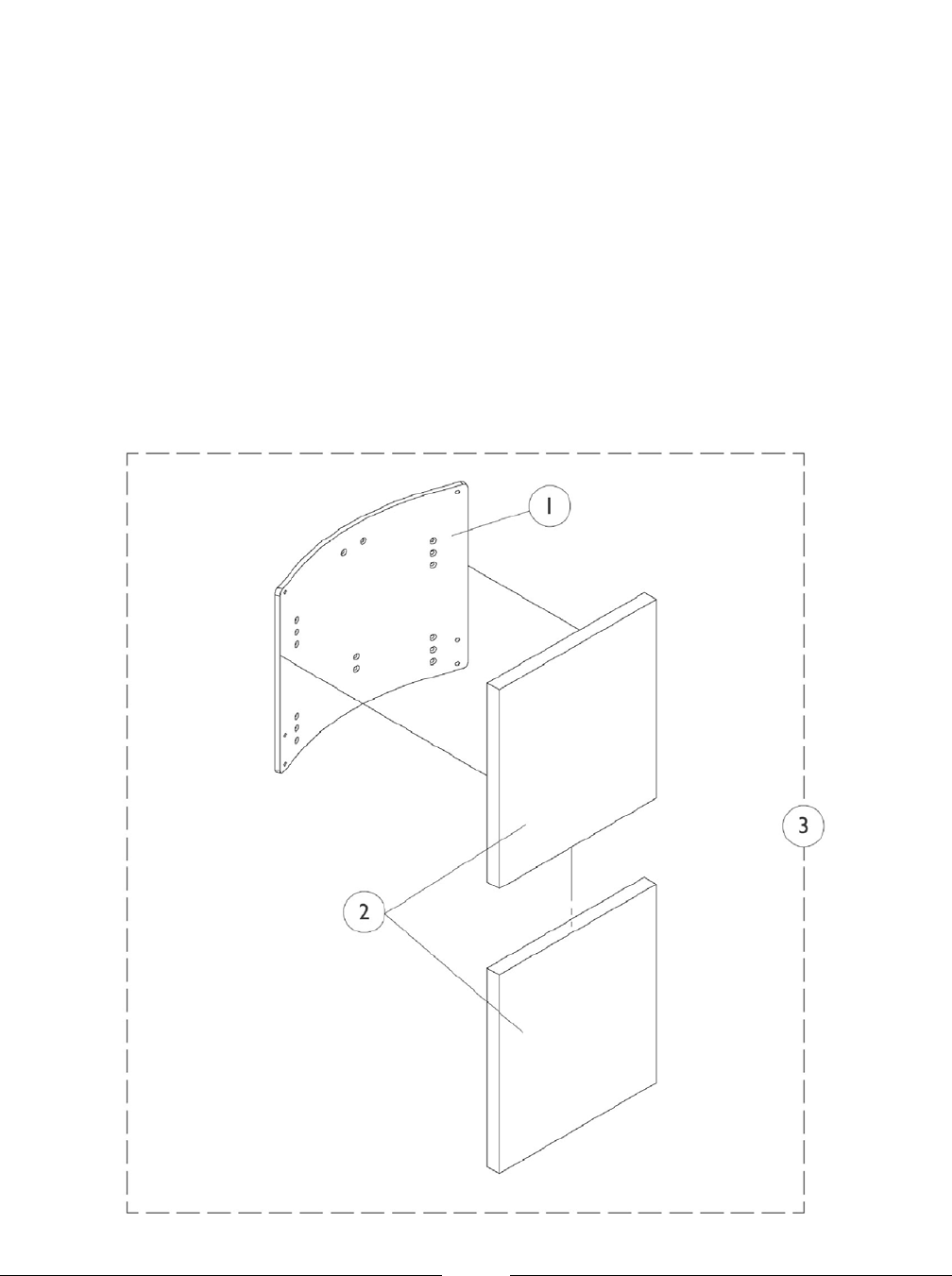

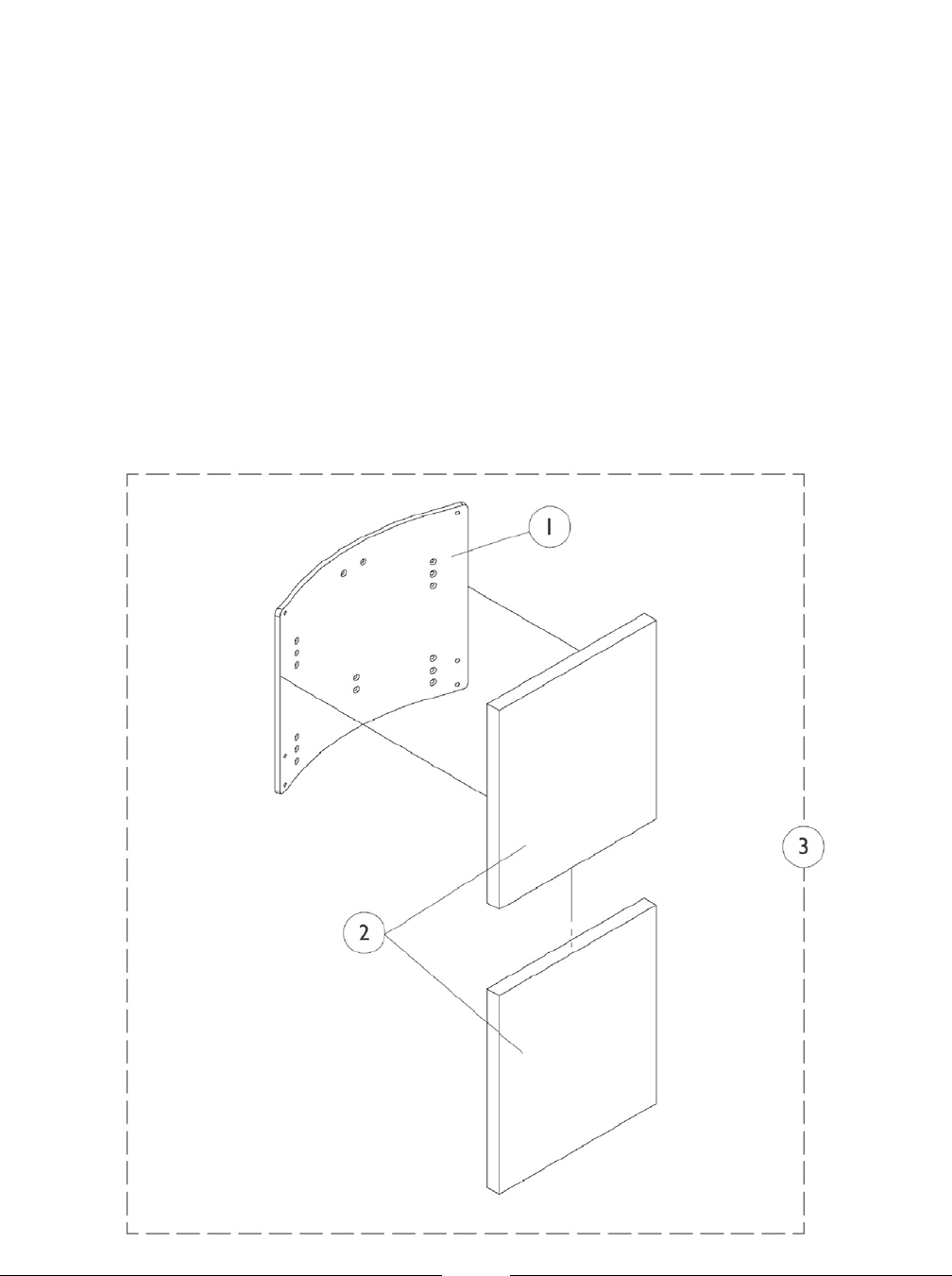

A.B.S. Curved Back without Mounting Hardware
Tilt Only (2GT)
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 3-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
41
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
A.B.S. Curved Back without Mounting Hardware
Tilt Only (2GT)
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 3-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
42
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
A.B.S. Curved Back without Mounting Hardware
Tilt Only (2GT)
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 3-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
#1 Back Pan 16"-19" Wide
Overall
Back
Height
Material
Back
Height 16" Wide 17" Wide 18" Wide 19" Wide
108605210860511086050108604916"20"
108605910860581086057108605617"21"
108606610860651086064108606318"22"
108607310860721086071108607019"23"
108608010860791086078108607720"24"
108608710860861086085108608421"25"
#1 Back Pan 20"-22" Wide
Overall
Back
Height
Material
Back
Height 20" Wide 21" Wide 22" Wide
10860551086054108605316"20"
10860621086061108606017"21"
10860691086068108606718"22"
10860761086075108607419"23"
10860831086082108608120"24"
10860901086089108608821"25"
43
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
A.B.S. Curved Back without Mounting Hardware
Tilt Only (2GT)
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 3-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
#2 Back Cushion Assembly 16"-19" Wide
Overall
Back
Height
Material
Back
Height 16" Wide 17" Wide 18" Wide 19" Wide
109740610974051097404109740316"20"
109741310974121097411109741017"21"
109742010974191097418109741718"22"
109742710974261097425109742419"23"
109743410974331097432109743120"24"
109744110974401097439109743821"25"
Back cover and foam are sold as a back cushion assembly only.
#2 Back Cushion Assembly 20"-22" Wide
Overall
Back
Height
Material
Back
Height 20" Wide 21" Wide 22" Wide
10974091097408109740716"20"
10974161097415109741417"21"
10974231097422109742118"22"
10974301097429109742819"23"
10974371097436109743520"24"
10974441097443109744221"25"
44
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
A.B.S. Curved Back without Mounting Hardware
Tilt Only (2GT)
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 3-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
#3 Back Assembly without Hardware 16"-19" Wide
Overall
Back
Height
Material
Back
Height 16" Wide 17" Wide 18" Wide 19" Wide
109059910905981090597109059616"20"
109060610906051090604109060317"21"
109061310906121090611109061018"22"
109062010906191090618109061719"23"
109062710906261090625109062420"24"
109063410906331090632109063121"25"
#3 Back Assembly without Hardware 20"-22" Wide
Overall
Back
Height
Material
Back
Height 20" Wide 21" Wide 22" Wide
10906021090601109060016"20"
10906091090608109060717"21"
10906161090615109061418"22"
10906231090622109062119"23"
10906301090629109062820"24"
10906371090636109063521"25"
45
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
A.B.S. Curved Back without Mounting Hardware
Tilt Only (2GT)
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 3-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Back Pan 16"-19" Wide 1 11
See Chart #1 Back Pan 20"-22" Wide 1 11
See Chart #2 Back Cushion Assembly 16"-19" Wide 1 12
See Chart #2 Back Cushion Assembly 20"-22" Wide 1 12
See Chart #3 Back Assembly without Hardware 16"-19" Wide 1 13
See Chart #3 Back Assembly without Hardware 20"-22" Wide 1 13
1125723 Kit, Hook Fastener w/ Adhesive Back 1 1A
A - Not Shown. Hook Fastener Adhesive Kit is used to attach the Back Cover to the Back Pan and must be ordered when a
new Back Pan or Back Assembly is requested
NOTE:
46
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
A.B.S. Curved Back without Mounting Hardware
Recline Only (2GR) and Tilt/Recline (2GTR) with V.S.R.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 4-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 3-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
47
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
A.B.S. Curved Back without Mounting Hardware
Recline Only (2GR) and Tilt/Recline (2GTR) with V.S.R.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 4-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 3-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
48
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
A.B.S. Curved Back without Mounting Hardware
Recline Only (2GR) and Tilt/Recline (2GTR) with V.S.R.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 4-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 3-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
#1 Back Pan 16"-19" Wide
Overall
Back
Height
Material
Back
Height 16" Wide 17" Wide 18" Wide 19" Wide
108604510860441086043108604215"20"
108605210860511086050108604916"21"
108605910860581086057108605617"22"
108606610860651086064108606318"23"
108607310860721086071108607019"24"
108608010860791086078108607720"25"
108608710860861086085108608421"26"
#1 Back Pan 20"-22" Wide
Overall
Back
Height
Material
Back
Height 20" Wide 21" Wide 22" Wide
10860481086047108604615"20"
10860551086054108605316"21"
10860621086061108606017"22"
10860691086068108606718"23"
10860761086075108607419"24"
10860831086082108608120"25"
10860901086089108608821"26"
49
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
A.B.S. Curved Back without Mounting Hardware
Recline Only (2GR) and Tilt/Recline (2GTR) with V.S.R.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 4-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 3-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
#2 Back Cushion Assembly 16"-19" Wide
Overall
Back
Height
Material
Back
Height 16" Wide 17" Wide 18" Wide 19" Wide
109739910973981097397109739615"20"
109740610974051097404109740316"21"
109741310974121097411109741017"22"
109742010974191097418109741718"23"
109742710974261097425109742419"24"
109743410974331097432109743120"25"
109744110974401097439109743821"26"
Back cover and foam are sold as a back cushion assembly only.
#2 Back Cushion Assembly 20"-22" Wide
Overall
Back
Height
Material
Back
Height 20" Wide 21" Wide 22" Wide
10974021097401109740015"20"
10974091097408109740716"21"
10974161097415109741417"22"
10974231097422109742118"23"
10974301097429109742819"24"
10974371097436109743520"25"
10974441097443109744221"26"
50
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
A.B.S. Curved Back without Mounting Hardware
Recline Only (2GR) and Tilt/Recline (2GTR) with V.S.R.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 4-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 3-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
#3 Back Assembly without Hardware 16"-19" Wide
Overall
Back
Height
Material
Back
Height 16" Wide 17" Wide 18" Wide 19" Wide
109059210905911090590109058915"20"
109059910905981090597109059616"21"
109060610906051090604109060317"22"
109061310906121090611109061018"23"
109062010906191090618109061719"24"
109062710906261090625109062420"25"
109063410906331090632109063121"26"
#3 Back Assembly without Hardware 20"-22" Wide
Overall
Back
Height
Material
Back
Height 20" Wide 21" Wide 22" Wide
10905951090594109059315"20"
10906021090601109060016"21"
10906091090608109060717"22"
10906161090615109061418"23"
10906231090622109062119"24"
10906301090629109062820"25"
10906371090636109063521"26"
51
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
A.B.S. Curved Back without Mounting Hardware
Recline Only (2GR) and Tilt/Recline (2GTR) with V.S.R.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 4-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Overall back height is calculated by measuring from the seat pan surface to the top of the back
pan. Back pan material height can be calculated by subtracting 3-3/4" from the overall back height listed.
Material height listed is rounded off to the nearest whole number.
NOTE: Hook Fastener Adhesive Kit must be ordered when a Back Pan or Back Assembly is requested.
This will allow the Loop Fastener Adhesive on the Back Cover to attach properly.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Back Pan 16"-19" Wide 1 11
See Chart #1 Back Pan 20"-22" Wide 1 11
See Chart #2 Back Cushion Assembly 16"-19" Wide 1 12
See Chart #2 Back Cushion Assembly 20"-22" Wide 1 12
See Chart #3 Back Assembly without Hardware 16"-19" Wide 1 13
See Chart #3 Back Assembly without Hardware 20"-22" Wide 1 13
1125723 Kit, Hook Fastener w/ Adhesive Back 1 1A
A - Not Shown. Hook Fastener Adhesive Kit is used to attach the Back Cover to the Back Pan and must be ordered when a
new Back Pan or Back Assembly is requested.
NOTE:
52
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Profile Back without Mounting Hardware
NOTE: See back mounting hardware under accessories when attaching a profile back to 7/8" round
canes.
53
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Profile Back without Mounting Hardware
NOTE: See back mounting hardware under accessories when attaching a profile back to 7/8" round
canes.
Back Material
Width x Height Overall Back
Height - Tilt Overall Back
Height - VSR Item #1
Back Cover
Item #2
Back Assembly
w/o Sliding
Hardware
10918770276800-NLA25" 23" 16" x 16"
10918770276800-NLA25" 23" 17" x 16"
10918760276900-NLA25" 23" 18" x 16"
10918760276900-NLA25" 23" 19" x 16"
1091878027700025" 23" 20" x 16"
1091878027700025" 23" 21" x 16"
1091875027710026" 24" 16" x 18"
1091875027710026" 24" 17" x 18"
1091874027720026" 24" 18" x 18"
1091874027720026" 24" 19" x 18"
1091873027730026" 24" 20" x 18"
1091873027730026" 24" 21" x 18"
54
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Back Assembly Mounting Hardware
A.B.S. Curved and Profile
NOTE: Items 1, 2 and attaching hardware may be required when changing back styles or back cane
heights.
NOTE: See back mounting hardware under accessories when attaching a profile back to 7/8" round
canes.
55
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Back Assembly Mounting Hardware
A.B.S. Curved and Profile
NOTE: Items 1, 2 and attaching hardware may be required when changing back styles or back cane
heights.
NOTE: See back mounting hardware under accessories when attaching a profile back to 7/8" round
canes.
Item #1 Back Slide Block (Tilt Only A.B.S. Curved)
Seating System Back Type 20"
Back Height 21"-22"
Back Height 23"-24"
Back Height 25"
Back Height
1082919108291810829171082916CurvedTilt Only
Item #1 Back Slide Block
Seating System Back Type 20"-21"
Back Height 22"-23"
Back Height 24"-25"
Back Height 26"
Back Height
1082915108291510829151082915ProfileTilt Only
1082918108291710829161082915Curved
Recline Only
and Tilt/Recline
w/VSR
1082915108291510829151082915Profile
Recline Only
and Tilt/Recline
w/VSR
Item #2 Back Slide Sleeve (Tilt Only A.B.S. Curved)
Seating System Back Type 20"
Back Height 21"-22"
Back Height 23"-24"
Back Height 25"
Back Height
1082947108294610829451082944CurvedTilt Only
56
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Back Assembly Mounting Hardware
A.B.S. Curved and Profile
NOTE: Items 1, 2 and attaching hardware may be required when changing back styles or back cane
heights.
NOTE: See back mounting hardware under accessories when attaching a profile back to 7/8" round
canes.
Item #2 Back Slide Sleeve
Seating System Back Type 20"-21"
Back Height 22"-23"
Back Height 24"-25"
Back Height 26"
Back Height
1082943108294310829431082943ProfileTilt Only
1082946108294510829441082943Curved
Recline Only
and Tilt/Recline
w/ VSR
1082943108294310829431082943Profile
Recline Only
and Tilt/Recline
w/ VSR
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Back Slide Block (Tilt Only A.B.S. Curved) 1 21
See Chart #1 Back Slide Block 1 21
See Chart #2 Back Slide Sleeve (Tilt Only A.B.S. Curved) 1 22
See Chart #2 Back Slide Sleeve 1 22
1026907 Washer (1/4 x 1/2 x 1/16") 1 23
1000212 Screw, Shoulder (1/4 x 1-1/4") 1 24
1091870 Screw, Socket Button Head w/ Patch
(1/4-20 x 3/4") 1 45
1008432 Screw, Socket Button Head (1/4-20 x 1-1/4") 1 46 B
1091870 Screw, Socket Button Head w/ Patch
(1/4-20 x 3/4") 1 46 F
1090131 Spacer, Black (1/4 x 3/4 x 5/8") 1 47
1086994 Hardware, Attaching, A.B.S. Curved Back 1 1A,C
1086996 Hardware, Attaching, Profile Back (17",19",21"
Wide) 1 1A,D
1086995 Hardware, Attaching, Profile Back (16",18",20",22"
Wide) 1 1A,E
A - Not Shown
B - 17",19" and 21" Wide
C - Includes Items 3-5
D - Includes Items 3,4,6 and 7
E - Includes Items 3,4 and 6
F - 16",18", 20" and 22" Wide
NOTE:
57
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
A.B.S. Curved Back Mounting Hardware
For (7/8" Round) Back Canes
58
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
A.B.S. Curved Back Mounting Hardware
For (7/8" Round) Back Canes
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1106395 Kit, Back, A.B.S. Curved Mounting Hardware 1 16 A
Screw, Socket Flat C'sunk Head (1/4-20 x 1-1/4") 1 41
Hook, Back Assembly Mounting 1 42
Locknut (1/4-20) 1 43
Screw, Phillips Oval Head Countersunk (#10-16 x
7/8") 1 24
Spacer, Back Pan 1 45
A - Includes items 1-5
NOTE:
59
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

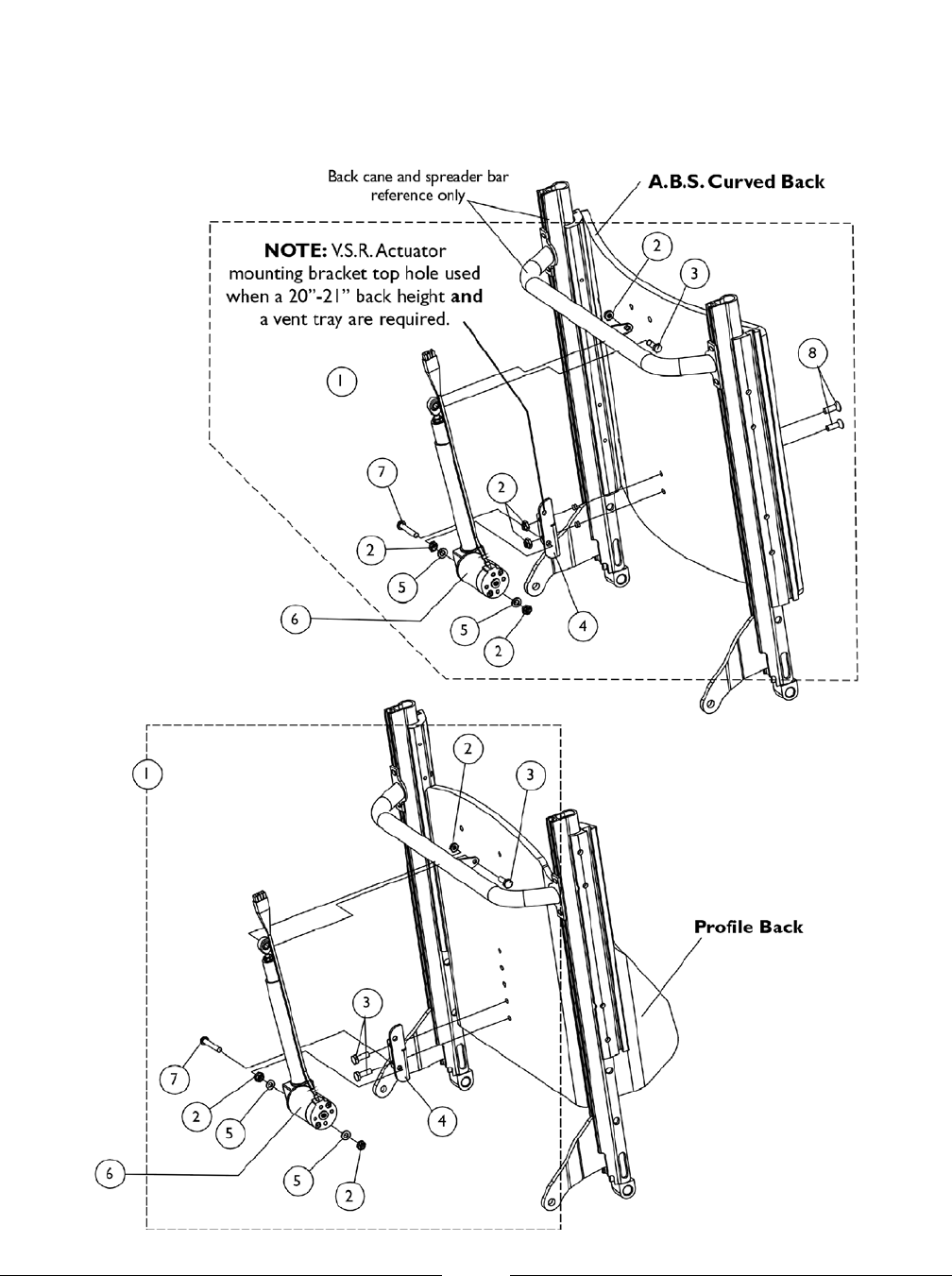

Back Assembly V.S.R. Actuator Motor and Mounting
Hardware
Recline Only (2GR) and Tilt/Recline (2GTR)
60
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Back Assembly V.S.R. Actuator Motor and Mounting
Hardware
Recline Only (2GR) and Tilt/Recline (2GTR)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1121051 V.S.R. Actuator Mounting Hardware,
A.B.S. Curved Back 1 11 A
1121052 V.S.R. Actuator Mounting Hardware,
Profile Back 1 11 B
7930323 Package, Locknut (1/4-20) 25 52 C
7930326 Screw, Hex Head (1/4-20 x 3/4") 25 13 C
1121023 Bracket, V.S.R. Actuator Mounting 1 14
1026907 Washer (1/4 x 1/2 x 1/16") 1 25
0001100 Actuator Assembly, 5" Stroke 1 16 D
1113627 Actuator Assembly, 3" Stroke 1 16 E
1008495 Screw, Socket Button Head (1/4-20 x 1-1/2") 1 17
1091869 Screw, Socket Flat Head C'sunk with Patch (1/4-20
x 3/4") 1 28
A - Includes Items 2-5, 7 and 8
B - Includes Items 2-5 and 7
C - Profile Backs Use Quantity of 3 Only
D - For Profile backs
E - For A.B.S. curved backs
NOTE:
61
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

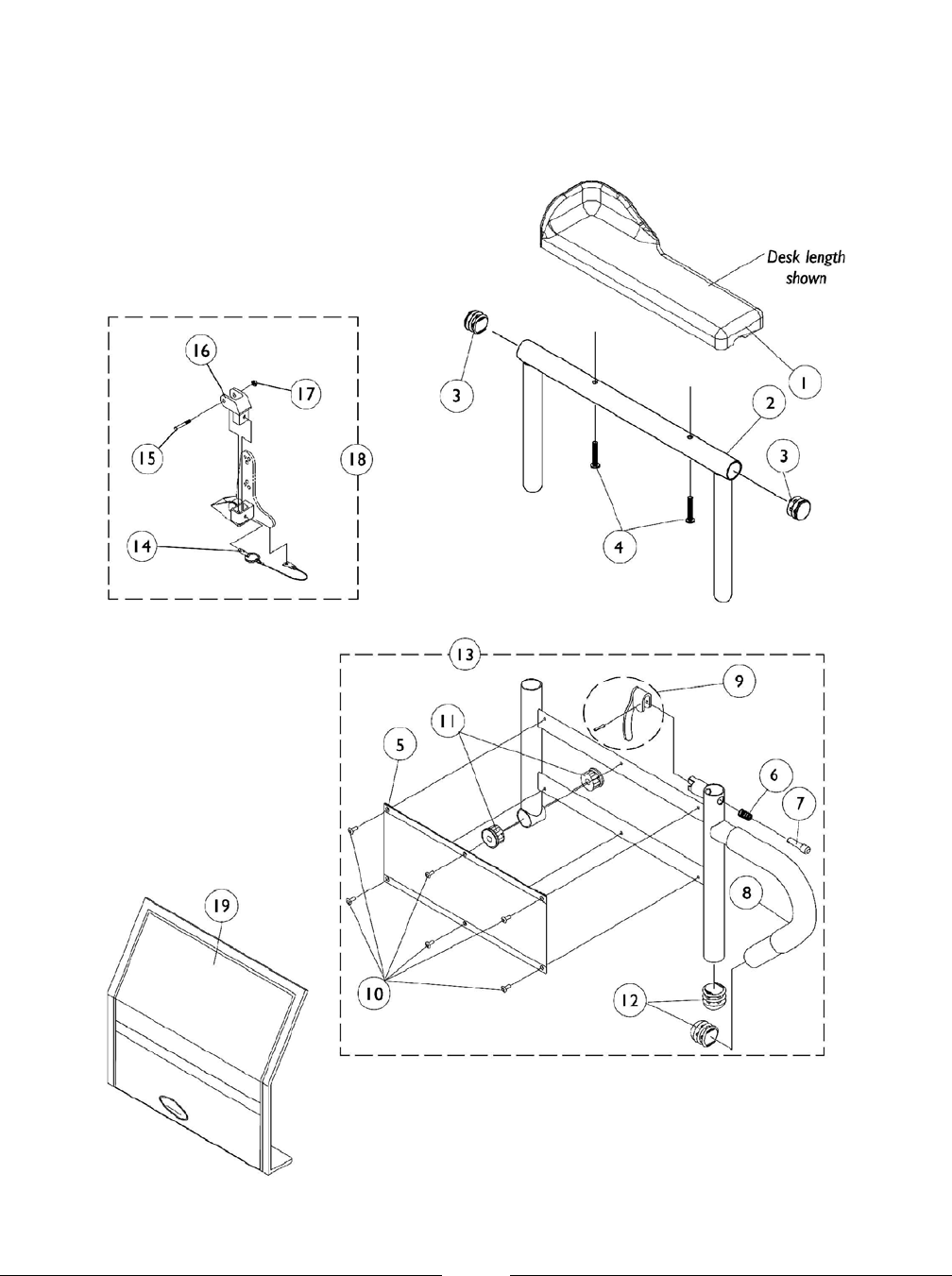

Armrest Assembly
Tilt Only (2GT)
62
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Armrest Assembly
Tilt Only (2GT)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1082910 Arm Pad w/ Elbow Stop, Desk, Black Urethane (13"
L x 3" W) - Right 1 11
1082911 Arm Pad w/ Elbow Stop, Desk, Black Urethane (13"
L x 3" W) - Left 1 11
1090190 Arm Pad w/ Elbow Stop, Desk, Black Urethane (13"
L x 3" W) - Pair w/ Screws 2 11
1082912 Arm Pad w/ Elbow Stop, Full, Black Urethane (17" L
x 3" W) - Right 1 11
1082913 Arm Pad w/ Elbow Stop, Full, Black Urethane (17" L
x 3" W) - Left 1 11
1090191 Arm Pad w/ Elbow Stop, Full, Black Urethane (17" L
x 3" W) -Pair w/ Screws 2 11
1071253 Arm Top, Adjustable Height with Plug Buttons - Full
Length (Black) 1 12
1070859 Arm Tube, Upper with Plug Buttons (Black) - Desk
Length 1 12
1027095 Plug Button, Black (7/8") 1 23
1107155 Screw, Phillips Pan Head Tap (#10-32 x 1-1/4") 1 24
1064130 Clothing Guard 1 15
47471X074 Spring, Arm Lock 1 16
1028594 Pin, Arm Lock 1 17
1032244 Grip, Foam Hand (9" Long) 1 18
1090768 Kit, Lock Handle w/Rivets (both LT & RT side) 2 19
1028645 Rivet 1 610
1065936 Plug, Pivot 1 211
1067734 Plug Button, Black (5/8") 1 212
1068416 Arm Base, Adjustable Height
16-19" Deep - Right (Black) 1 113
1068417 Arm Base, Adjustable Height
16-19" Deep - Left (Black) 1 113
1068418 Arm Base, Adjustable Height
20" and Deeper - Right (Black) 1 113
1068419 Arm Base, Adjustable Height
20" and Deeper - Left (Black) 1 113
1067761 Arm Base, 1" Lower, Adjustable Height
16-19" Deep - Right (Black) 1 113
1067762 Arm Base, 1" Lower, Adjustable Height
16-19" Deep - Left (Black) 1 113
1067755 Arm Base, 1" Lower, Adjustable Height
20" and Deeper - Right (Black) 1 113
1067756 Arm Base, 1" Lower, Adjustable Height
20" and Deeper - Left (Black) 1 113
1068039 Pin, Pull 1 114
1030949 Screw, Hex Head (1/4-20 x 1-1/2") 1 115
1068025 Clevis, Pivot 1 116
63
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Armrest Assembly
Tilt Only (2GT)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
7930323 Package, Locknut (1/4-20) 25 117
1068488 Kit, Swingaway Armrest Mounting Hardware 1 118
1035065 Cover, Clothing Guard with Pocket - For Fixed
Height Desk Length & Adjustable Height Full/Desk
Length
1 119
64
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

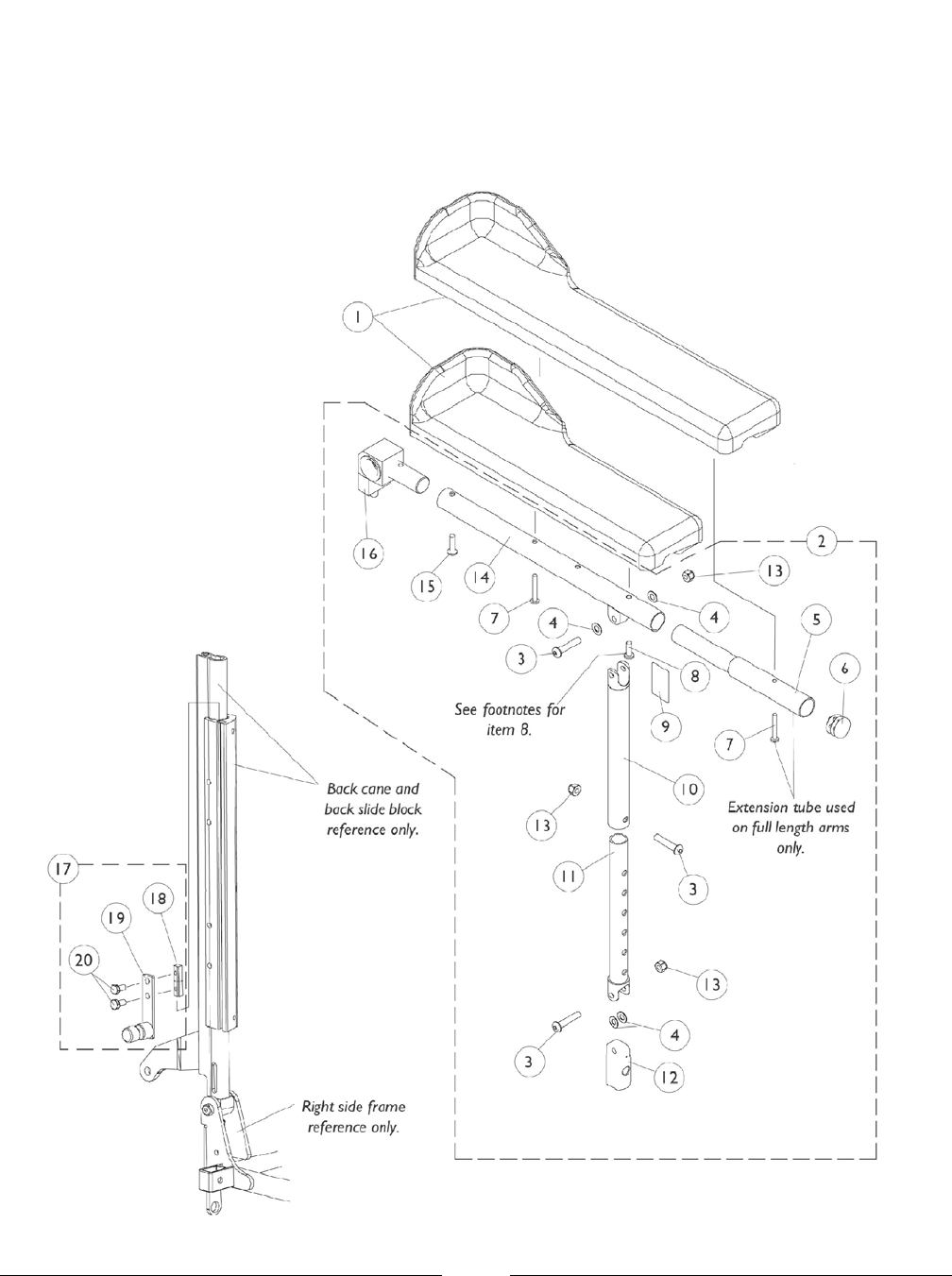

Armrest Assembly
Recline Only (2GR) and Tilt/Recline (2GTR)
65
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Armrest Assembly
Recline Only (2GR) and Tilt/Recline (2GTR)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1082910 Arm Pad w/ Elbow Stop, Desk, Black Urethane (13"
L x 3" W) - Right 1 11
1082911 Arm Pad w/ Elbow Stop, Desk, Black Urethane (13"
L x 3" W) - Left 1 11
1090190 Arm Pad w/ Elbow Stop, Desk, Black Urethane (13"
L x 3" W) - Pair w/ Screws 2 11
1082912 Arm Pad w/ Elbow Stop, Full, Black Urethane (17" L
x 3" W) - Right 1 11
1082913 Arm Pad w/ Elbow Stop, Full, Black Urethane (17" L
x 3" W) - Left 1 11
1090191 Arm Pad w/ Elbow Stop, Full, Black Urethane (17" L
x 3" W) -Pair w/ Screws 2 11
1086992 Arm Assembly w/o Arm Pad, Desk Length - Right 1 12 A,G
1086993 Arm Assembly w/o Arm Pad, Desk Length - Left 1 12 A,G
1087012 Arm Assembly w/o Arm Pad, Full Length - Right 1 12 B,G
1087013 Arm Assembly w/o Arm Pad, Full Length - Left 1 12 B,G
1008432 Screw, Socket Button Head (1/4-20 x 1-1/4") 1 33
1026103 Washer, Nylon (1/4 x 1/2 x 1/32") 1 44
0028202 Extension Tube, Full Length 1 15
1027095 Plug Button, Black (7/8") 1 16
1107155 Screw, Phillips Pan Head Tap (#10-32 x 1-1/4") 1 27
1028755 Screw, Phillips Pan Head (#10-32 x 5/8") 1 18 D
1107155 Screw, Phillips Pan Head Tap (#10-32 x 1-1/4") 1 18 E
1079203 Decal, Warning Pinch Point 1 19
1115392 Support Tube w/ Warning Decal, Arm 1 110
1115393 Slide Tube, Adjustable 1 111
1082842 Plug, Arm, Black 1 112
7930333 Locknut (1/4-20) 25 313
1082927 Arm Tube 1 114
1009838 Screw, Socket Head (1/4-20 x 3/4") 1 115
1095437 Arm Pivot Assembly 1 116 H
1086990 Hardware, Arm Attaching 1 117 C
1082699 T-Nut (1/4-20) 1 218
1086932 Pivot, Back Arm 1 119
1078214 Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 220
1119268 Slide Tube/Arm Support Assembly (Pair) 2 1F
66
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Armrest Assembly
Recline Only (2GR) and Tilt/Recline (2GTR)
A - Includes Items 3,4,6, and 9-16
B - Includes Items 3-6 and 8-16
C - Includes Items 18-20
D - Used for full length arms only
E - Used for desk length arms only
F - Not Shown. Assembly includes 2 ea. of item numbers 9, 10 and 11
G - When placing an order for item 2, you must specify as a note "For Tarsys 2GTR seating" or "For Formula TRE seating"
because item 16 Arm Pivot Assembly Pin faces down for the Tarsys 2GTR and faces up for the Formula TRE powered
seating.
H - The Arm Pivot Assembly Pin faces down for the Tarsys 2GTR and faces up for the Formula TRE powered seating
NOTE:
67
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

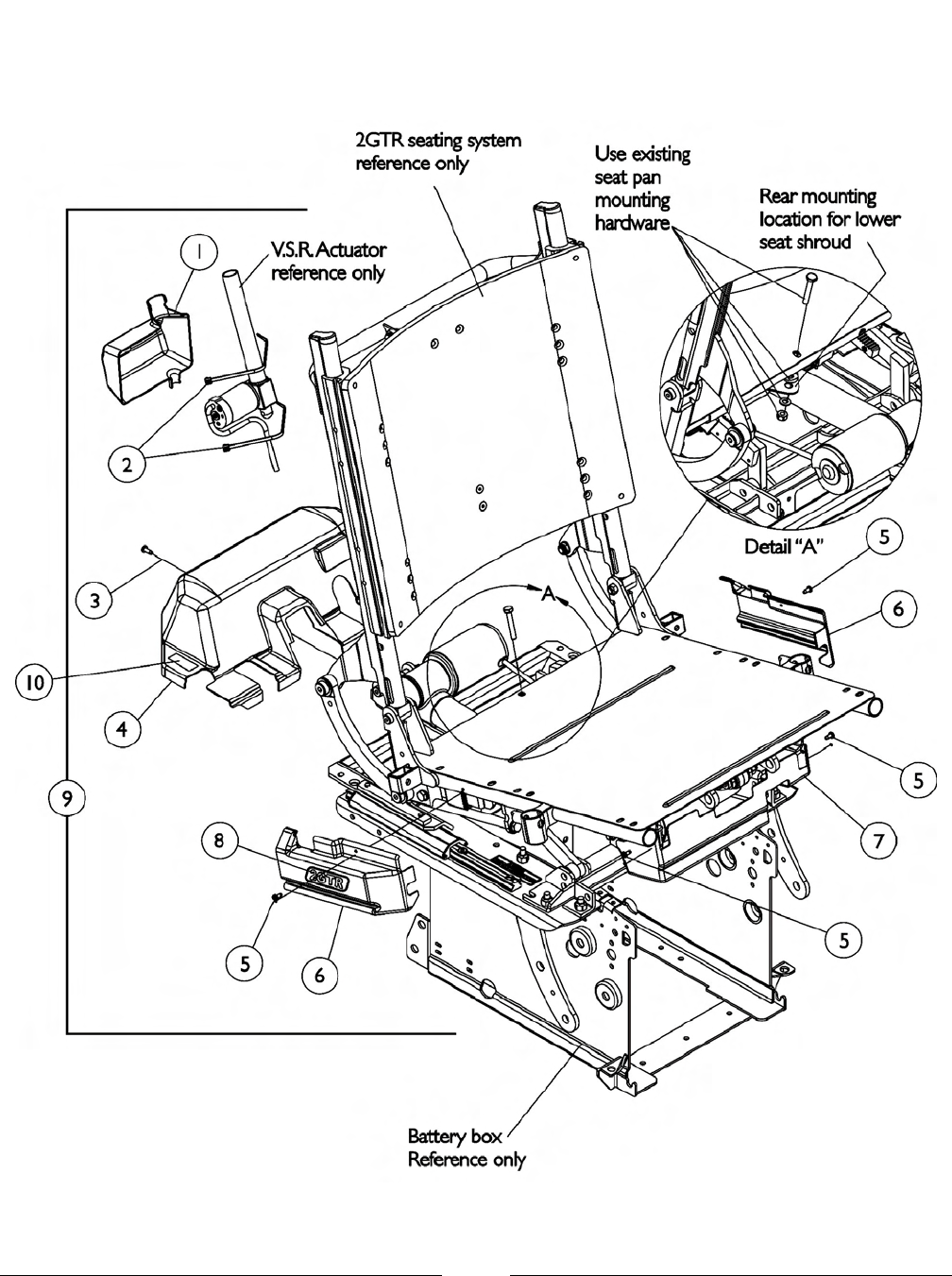

Shroud Covers
Rear, Side, Lower Seat and V.S.R. Actuator
68
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Shroud Covers
Rear, Side, Lower Seat and V.S.R. Actuator
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1115839 Shroud Cover, V.S.R. Actuator 1 11
1104253 Cable Tie, 8" Long 10 22
1028484 Screw, Phillips Pan Head Tap (#10-32 x 1/2") 1 13
1115818 Shroud Cover, Rear 1 14 C
1025729 Screw, Self Tapping Pan Head (#8-32 x 3/8") 1 45
1115832 Shroud Cover Assembly with Decal, 2GT Right 1 16
1115833 Shroud Cover Assembly with Decal, 2GT Left 1 16
1115834 Shroud Cover Assembly with Decal, 2GR Right 1 16
1115835 Shroud Cover Assembly with Decal, 2GR Left 1 16
1115836 Shroud Cover Assembly with Decal, 2GTR Right 1 16
1115837 Shroud Cover Assembly with Decal, 2GTR Left 1 16
1117234 Shroud Cover, Lower Seat 1 17
1087033 Decal, Side Shroud Cover, Tilt Only 1 28
1087034 Decal, Side Shroud Cover, Recline Only 1 28
1087032 Decal, Side Shroud Cover, Tilt/ Recline 1 28
1113623 Shroud Assembly with Hardware, 2GT 1 19
1115843 Shroud Assembly with Hardware, 2GR w/o V.S.R. 1 19 A
1115842 Shroud Assembly with Hardware, 2GR with V.S.R. 1 19 B
1115841 Shroud Assembly with Hardware, 2GTR w/o V.S.R. 1 19 A
1115840 Shroud Assembly with Hardware, 2GTR with V.S.R. 1 19 B
1079203 Decal, Warning Pinch Point 1 210
A - Includes items 3-8
B - Includes items 1-8
C - When TRBKTS option is used and a replacement Rear Shroud Cover is required, item 10 Pinch Point Decal must be
ordered as well
NOTE:
69
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
NOTE: Calf pads with attaching hardware is not included on legrest.
NOTE: Pivot/ Slide tube attaching hardware is not included.
NOTE: Pivot/Slide tube and footplates do not include heel loops. See footrest and legrest accessories.
1651 = Composite footplate with 9-7/8" curved pivot/ slide tube.
AT5543 = Adjustable angle footplate with 9-7/8" straight pivot/ slide tube.
1350 = Extra large footplate with "L" style pivot/ slide tube.
Support Assemblies - AT5544, 70NHD, PHW93
Rigging
Type AT5544 AT5544P 70NHD PHW93
8881126089
8881053149
1087050
8881045291
Right
See Note(s) B, A See Note(s) A See Note(s) B See Note(s) A See Note(s) A
8881126090
8881053148
1087051
8881045292
Left
See Note(s) A See Note(s) B See Note(s) A See Note(s) A
A - Specify frame color when ordering, see page titled "Frame Finishes and Touch-Up Paints".
B - 1651 Composite footplates are not available for AT5544P support assemblies
NOTE:

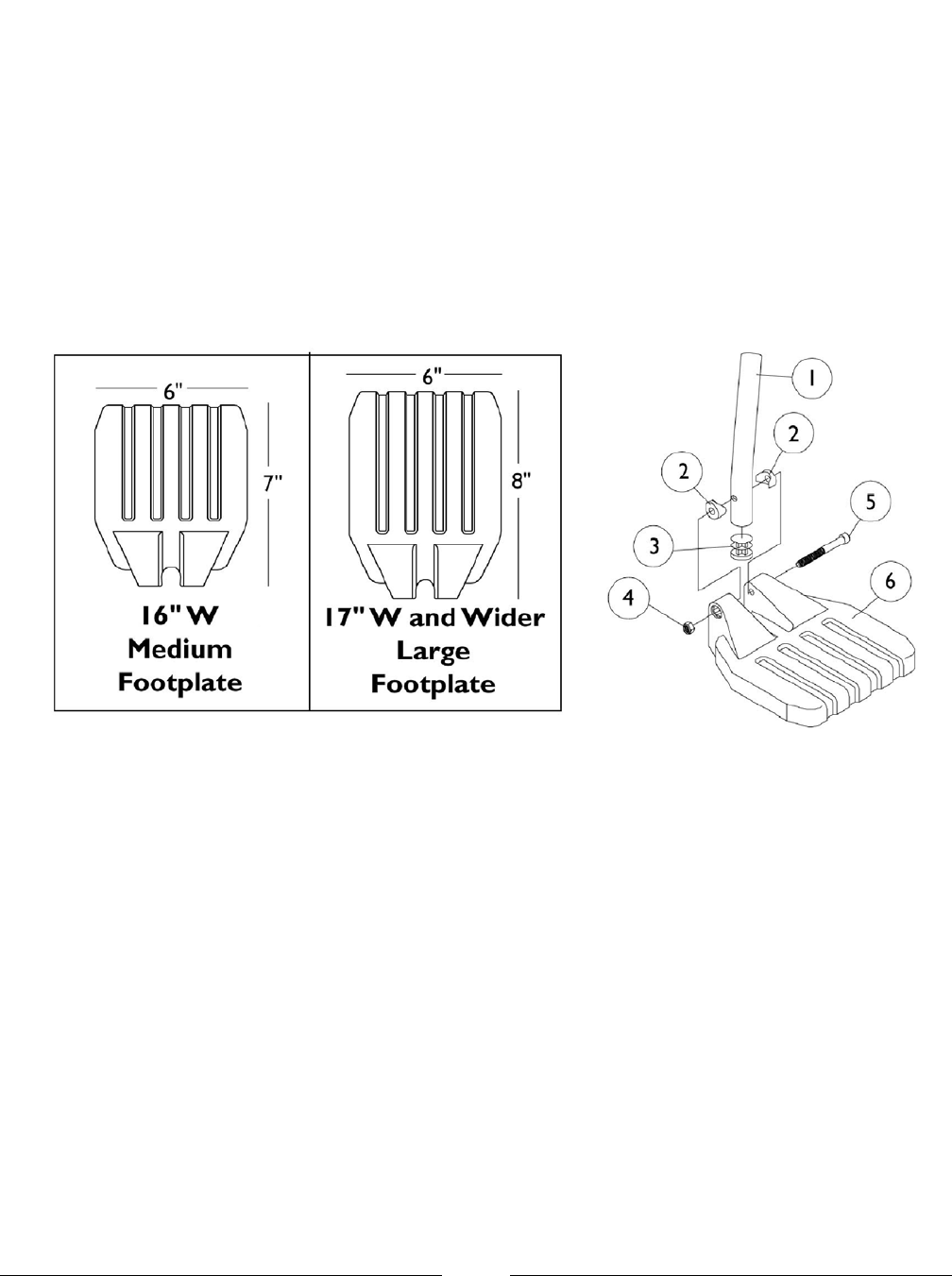

Pivot/ Slide Tube and Footplates For AT5544, 70NHD, PHW93
Footplate
Type 1651
16" W 1651
17-22" W 1350
17-22" W AT5543
16-22" W
1062756102639510578791057869Right
1062757102639610578801057870Left
1062760108651510578811057871Right 2" Longer
1062761108651710578821057872Left 2" Longer
1121140108651610584231058421Right 4" Longer
1121141108651810584241058422Left 4" Longer
Front Riggings Reference Chart
For AT5544, 70NHD, PHW93
70
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
NOTE: Calf pads with attaching hardware is not included on legrest.
NOTE: Pivot/Slide tube attaching hardware is not included.
NOTE: Pivot/Slide tube and footplates do not include heel loops. See footrest and legrest accessories.
1650 = Aluminum footplate with "L" style pivot/slide tube.
1350 = Extra large footplate with "L" style pivot/slide tube.
Support Assembly - PHAL4A
Rigging
Type PHAL4A (Chrome Only)
1114761Right
1114762Left

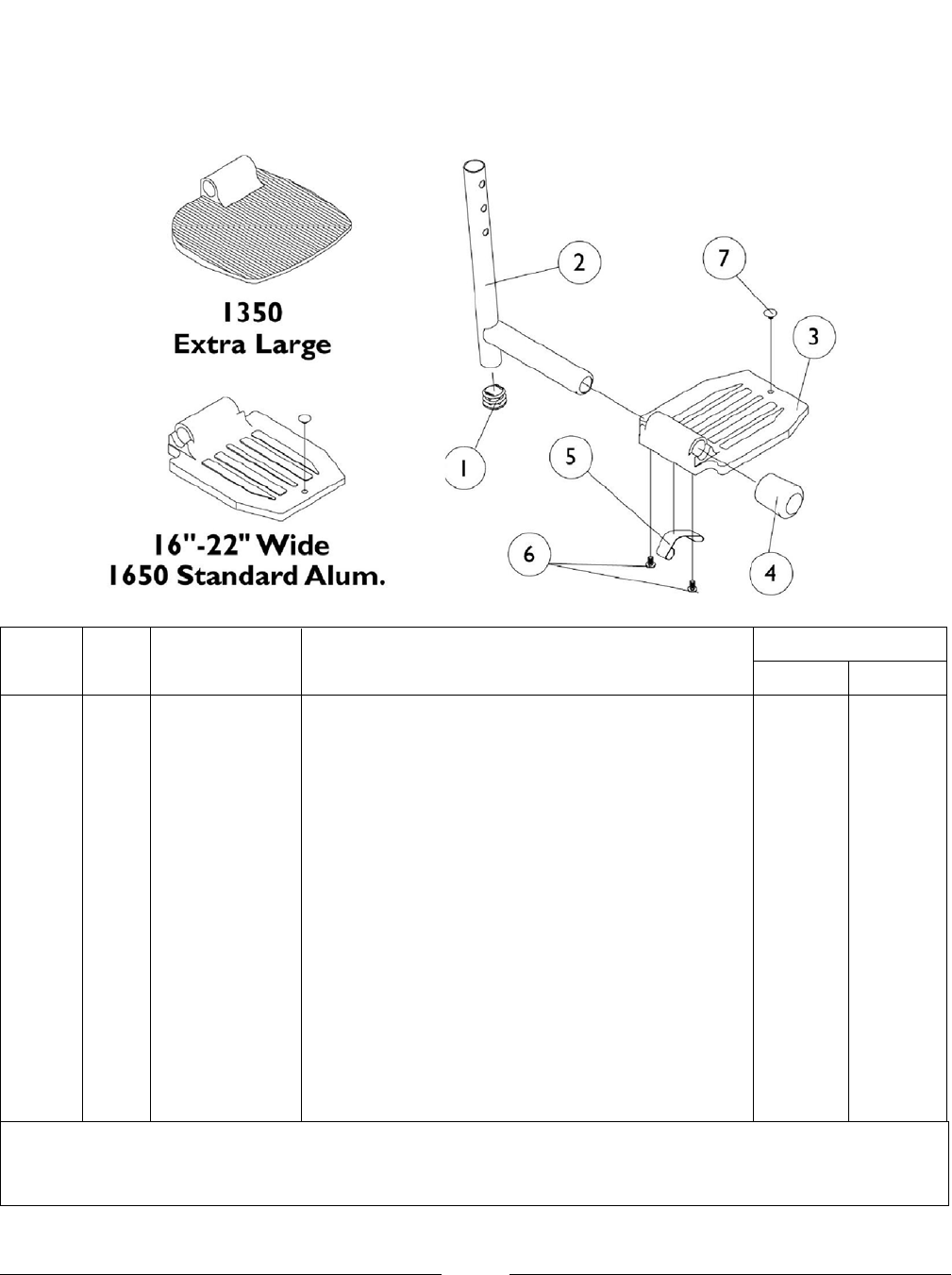

Pivot/Slide Tube and Footplates For PHAL4A
Footplate
Type 1650
16-22" W 1350
17-22" W
10354561023907Right
10354571023908Left
Front Riggings Reference Chart
For PHAL4A
71
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
NOTE: Pivot/Slide tube attaching hardware is not included.
NOTE: Pivot/Slide tube and footplates do not include heel loops. See footrest and legrest accessories.
1651 = Composite footplate with 9-7/8" curved pivot/slide tube.
Support Assemblies - 70ST TAPER
Rigging
Type 70ST TAPER
8881026996
Right
See Note(s) A
8881026997
Left
See Note(s) A
A - Specify frame color when ordering, see page titled "Frame Finishes and Touch-Up Paints". NOTE:
Pivot/Slide Tube and Footplates For 70ST TAPER
Footplate
Type 1651
16-17" W 1651
18-19" W 1651
20-22" W
105787910578691057859Right
105788010578701057860Left
105788110578711057861
Right
2" Longer
105788210578721057862
Left
2" Longer
Front Riggings Reference Chart
70ST TAPER
72
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

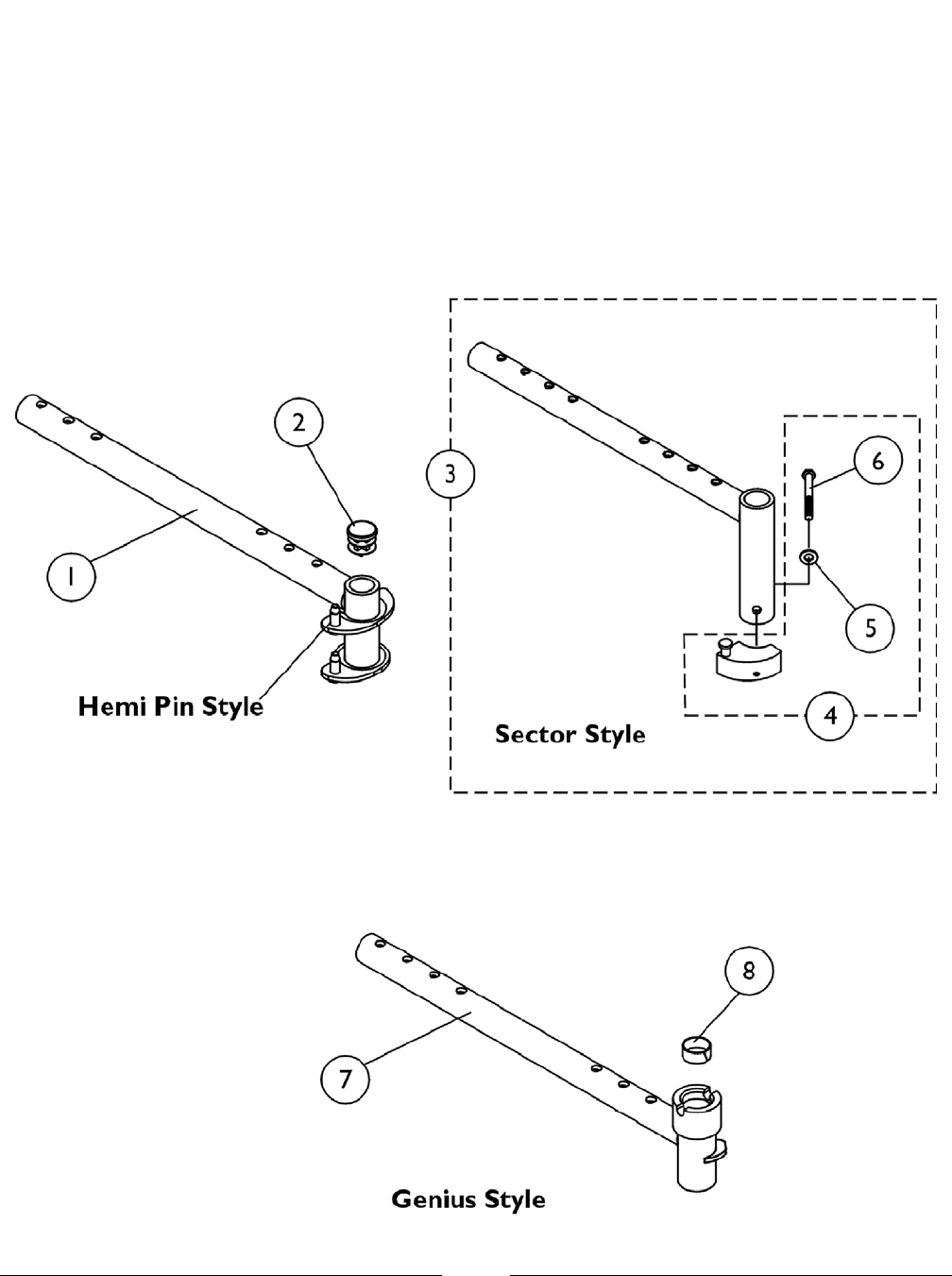

Front Rigging Hanger Assembly
Pin, Sector and Genius Style
NOTE: Front rigging hangers and seat pans share the same mounting hardware, see Seat Pan and
Mounting Hardware page.
73
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Front Rigging Hanger Assembly
Pin, Sector and Genius Style
NOTE: Front rigging hangers and seat pans share the same mounting hardware, see Seat Pan and
Mounting Hardware page.
74
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Front Rigging Hanger Assembly
Pin, Sector and Genius Style
NOTE: Front rigging hangers and seat pans share the same mounting hardware, see Seat Pan and
Mounting Hardware page.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1114766 Front Rigging Hanger Pin Style with Plug Button
(Hemi) (12-21" Deep) - Right 1 11 A
1114767 Front Rigging Hanger Pin Style with Plug Button
(Hemi) (12-21" Deep) - Left 1 11 A
1132339 Front Rigging Hanger
Pin Style with Plug Button (Hemi) 22" Deep - Right 1 11 A
1132340 Front Rigging Hanger
Pin Style with Plug Button (Hemi) 22" Deep - Left 1 11 A
1027097 Plug Button, Black (3/4") 1 12
1068435 Front Rigging Hanger Assembly,
Sector Style (12-21" Deep) - Right 1 13 B
1068436 Front Rigging Hanger Assembly,
Sector Style (12-21" Deep) - Left 1 13 B
1068437 Front Rigging Hanger Assembly,
Sector Style (22" Deep) - Right 1 13 B
1068438 Front Rigging Hanger Assembly,
Sector Style (22" Deep) - Left 1 13 B
1054571 Kit, Sector Block - Right 1 14 C
1054572 Kit, Sector Block - Left 1 14 C
1026907 Washer (1/4 x 1/2 x 1/16") 1 15
1052957 Screw, Hex Head (1/4-20 x 2") 1 16
1087076 Front Rigging Hanger Assembly, Genius Style with
Nylon Liner - Short (16"-21" Deep), Right 1 17 D
1087077 Front Rigging Hanger Assembly, Genius Style with
Nylon Liner - Short (16"-21" Deep), Left, 1 17 D
1087078 Front Rigging Hanger Assembly, Genius Style with
Nylon Liner - Long (22" Deep), Right 1 17 D
1087079 Front Rigging Hanger Assembly, Genius Style with
Nylon Liner - Long (22" Deep), Left 1 17 D
0181000 Liner, Nylon (3/4") 1 18
A - Includes front rigging hanger and item 2
B - Includes front rigging hanger and item 4
C - Includes sector block assembly and items 5 and 6
D - Includes front rigging hanger and item 8
NOTE:
75
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

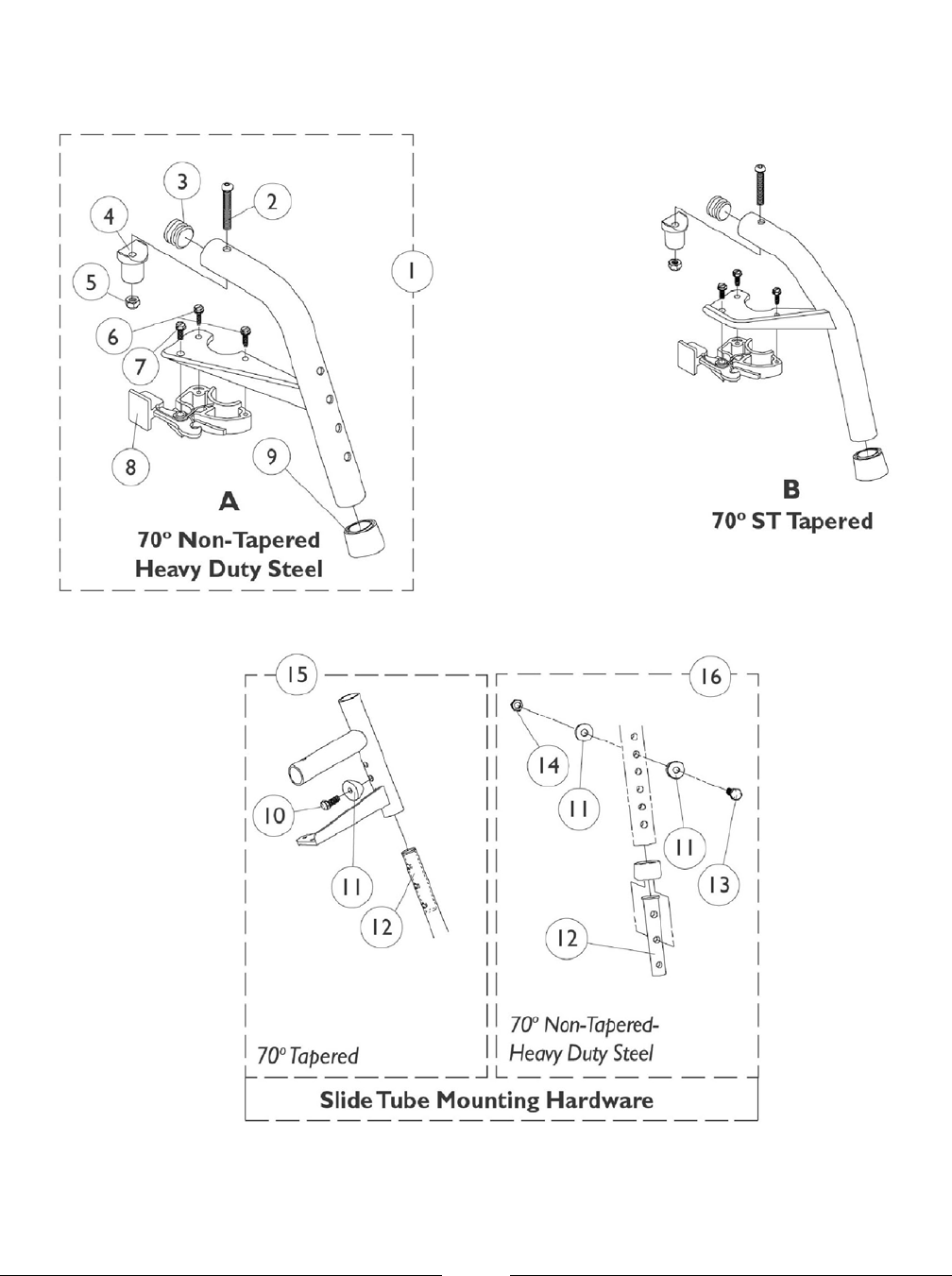

Footrest Support Assemblies
Sector Style
76
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Footrest Support Assemblies
Sector Style
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
8881053149 Footrest Support Assembly, 70° Non-Tapered
Heavy Duty, Sector, Color - Right 1 11 A,C
8881053148 Footrest Support Assembly, 70° Non-Tapered
Heavy Duty, Sector, Color - Left 1 11 A,C
8881026996 Footrest Support Assembly, 70° Tapered, Sector,
Color - Right 1 11 A,D
8881026997 Footrest Support Assembly, 70° Tapered, Sector,
Color - Left 1 11 A,D
7930321 Screw, Socket Button Head (1/4-20 x 1-7/8") 25 12
1029501 Plug Button, Black (1") 1 13
1017148 Plug, Pivot 1 14
7930333 Locknut (1/4-20) 25 15
1025451 Screw, Slotted Hex Washer Head (#10-32 x 5/8") 1 26
7930314 Screw, Slotted Hex Head (#10-32 x 1/2") 25 17
1025454 Latch Housing - Right 1 18
1025455 Latch Housing - Left 1 18
1026124 Anti-Rattle Collar 1 19
1045267 Screw, Hex Head (1/4-20 x 3/4") 1 110
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 211 B
1020534 Insert, Threaded 1 112
1070759 Screw, Hex Head (1/4-20 x 1-1/2") 1 113
7930338 Nut, Acorn (1/4-20) 25 114
1026703 Kit, Pivot/Slide Tube Mounting Hardware (Pair) 2 115
1057846 Kit, Pivot/Slide Tube Mounting Hardware (Pair) 2 116
1026987 Impact Guard, 8" Long 1 1E
A - Specify frame color when ordering. See page titled "Frame Finishes and Touch-Up Paints."
B - Item 16 takes quantity of 4
C - See Image "A"
D - See Image "B"
E - Not Shown
NOTE:
77
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

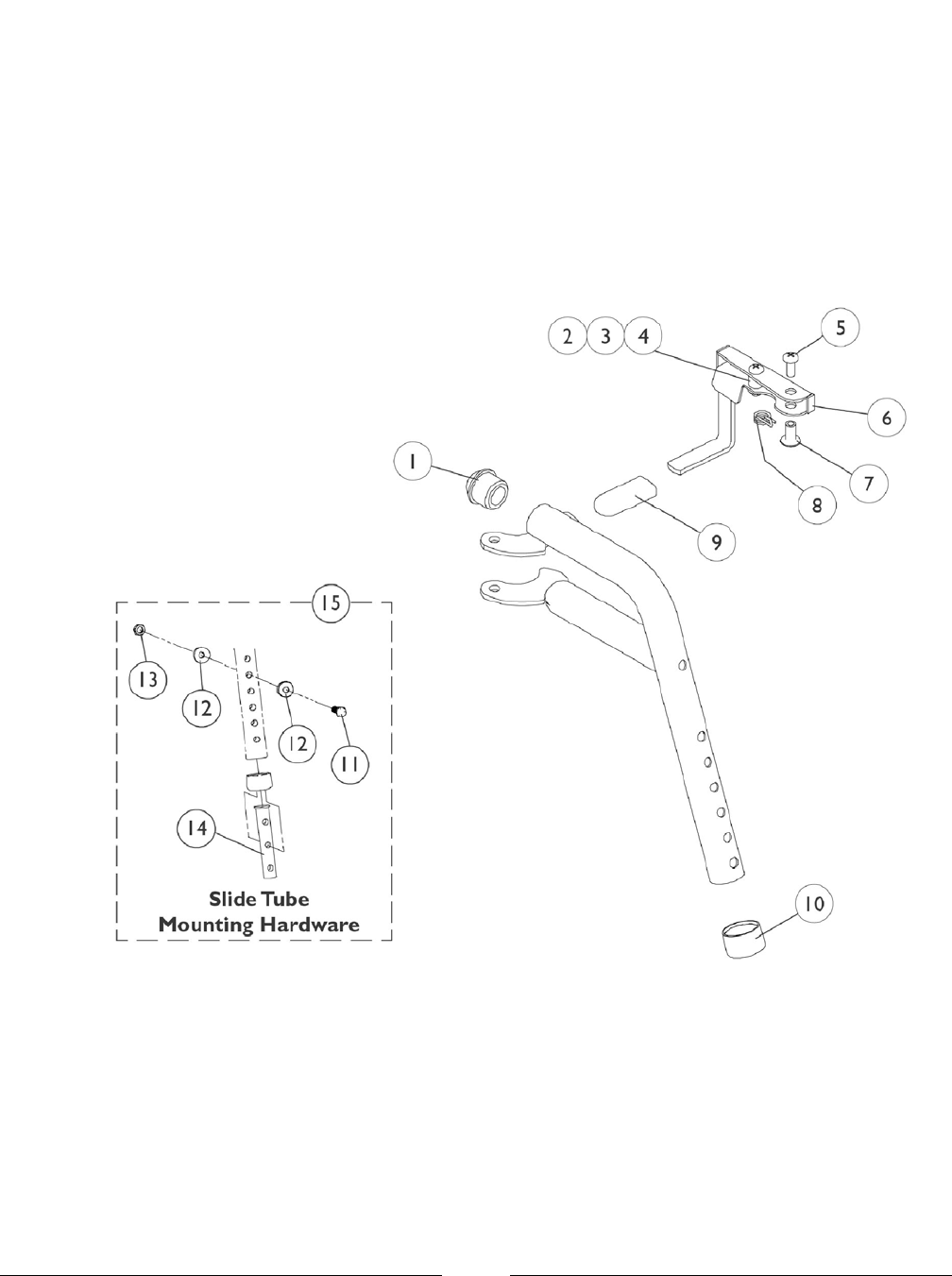

PHW93 (Hemi) Footrest Supports
Color (Pin Style)
78
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
PHW93 (Hemi) Footrest Supports
Color (Pin Style)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1020719 Anti-Rattle, Black 1 11
1025716 Screw, Phillips Pan Head (#10-32 x 11/16") 1 12
47565X057 Bushing (7/32 x 3/8 x 11/32") 1 13
1025735 Locknut (#10-32) 1 14
1026114 Screw, Phillips Pan Head (#10-32 x 1/2") 1 15
1114749 Release Handle (Black) - Right 1 16 A
1114750 Release Handle (Black) - Left 1 16 A
1028846 Rivnut (#10-32) 1 17
1028707 Spring, Release - Right 1 18
1028708 Spring, Release - Left 1 18
1006490 Tip, Plastic, Black 1 19
15680X012 Collar, Anti-Rattle (7/8") 1 110
1070759 Screw, Hex Head (1/4-20 x 1-1/2") 1 111
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 212
1044214 Nut, Hex with Nylon Cap (1/4-20) 1 113
1020534 Insert, Threaded 1 114
1074143 Kit, Slide Tube Mounting Hardware 1 115
8881126089 Footrest Support Assembly, Hemi, Color - Right 1 1B
8881126090 Footrest Support Assembly, Hemi, Color - Left 1 1B
A - Includes items 2-4
B - Specify frame color when ordering, see page titled "Frame Finishes and Touch-Up Paints".
NOTE:
79
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

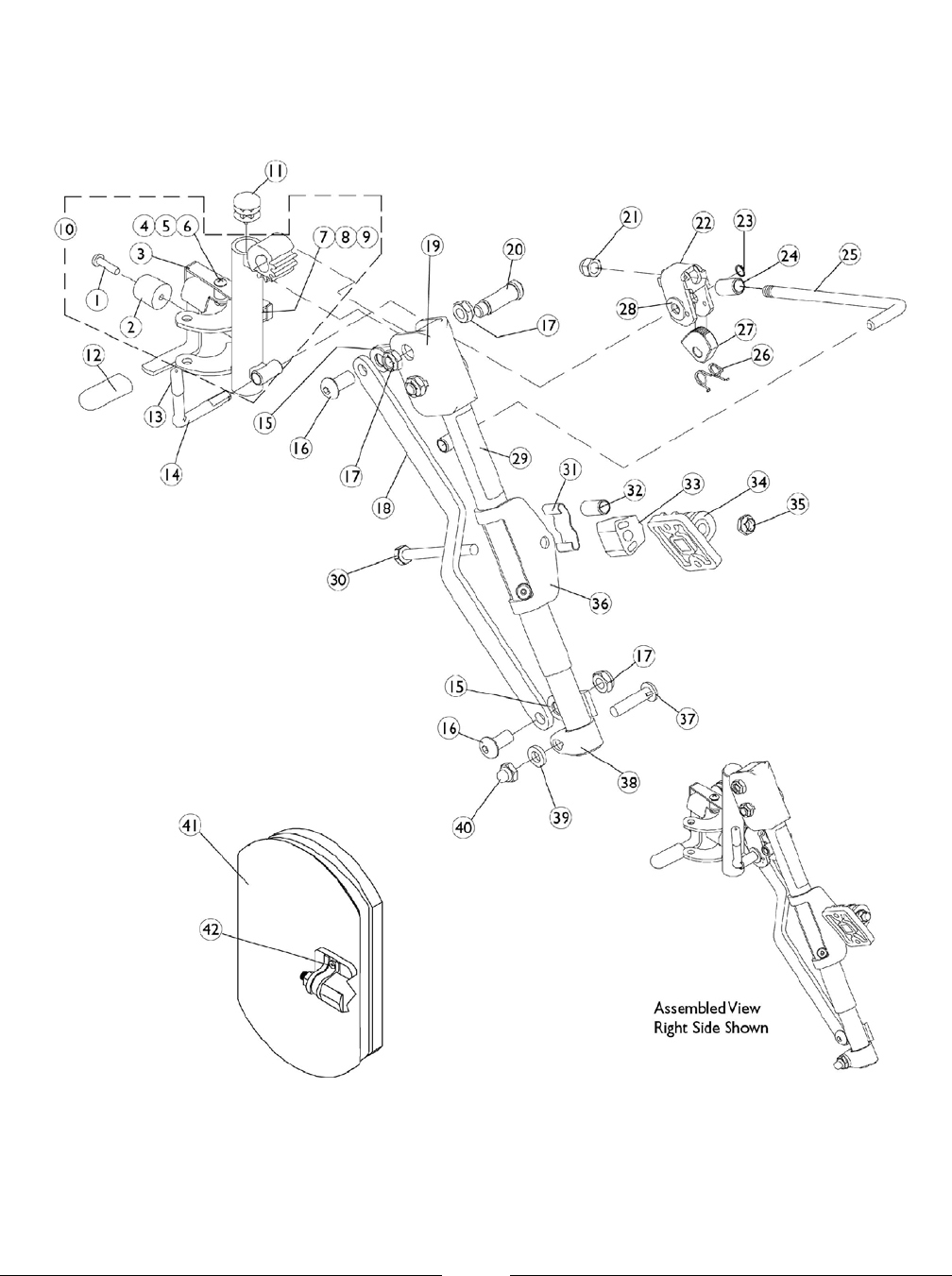

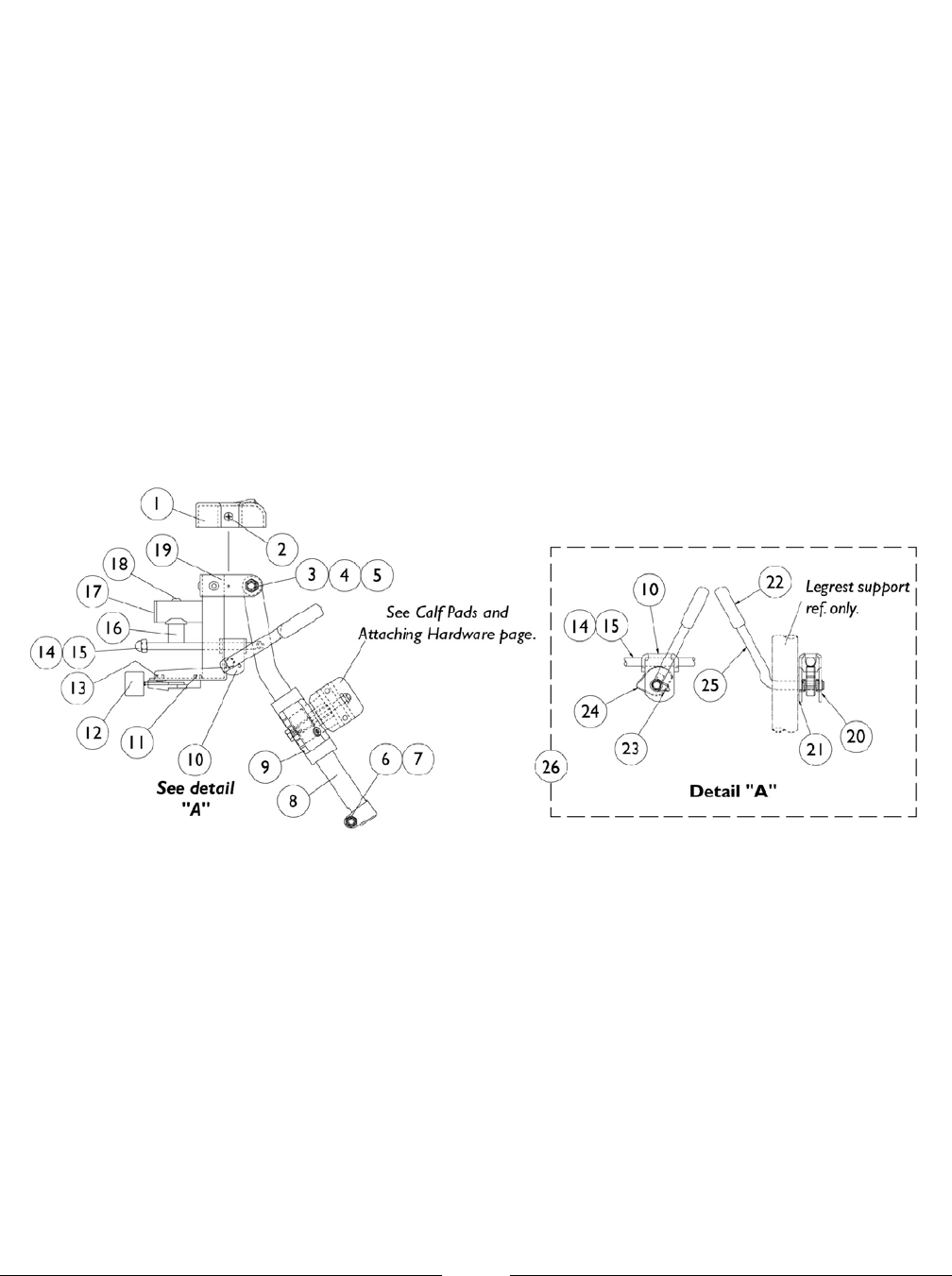

PHAL4A (Hemi) Articulating Legrest Supports
Chrome 16"-22" Wide Chairs (Pin Style)
80
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
PHAL4A (Hemi) Articulating Legrest Supports
Chrome 16"-22" Wide Chairs (Pin Style)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1030979 Screw, Phillips Pan Head Tap (#10-32 x 3/4") 1 11
1022874 Bumper 1 12
1114751 Release Handle (Chrome) - Right 1 13 C
1114752 Release Handle (Chrome) - Left 1 13 C
47565X057 Bushing (7/32 x 3/8 x 11/32") 1 14
60279X003 Locknut (#10-32) 1 15
40163X008 Screw, Phillips Pan Head (#10-32 x 11/16") 1 16
1008935 Spring, Release - Right 1 17
1008936 Spring, Release - Left 1 17
67005X000 Rivnut (#10-32) 1 18
40163X002 Screw, Phillips Round Head (#10-32 x 1/2") 1 19
1114759 Tube, Legrest Support (Chrome) Hemi - Right 1 110 D
1114760 Tube, Legrest Support (Chrome) Hemi - Left 1 110 D
1027097 Plug Button, Black (3/4") 1 111
1006490 Tip, Plastic, Black 1 112
1040060 Tip, Black Plastic 1 113
1037126 Handle, Release 1 114
1049527 Washer, Nylon (3/8 x 3/4 x 1/16") 1 215
1022866 Screw, Socket Button Head (3/8-16 x 3/4") 1 216
40363X000 Hex Nut (3/8"-16) 1 317
1022846 Bar, Link, Chrome 1 118
1022877 Tube Support and Drive Link - Right 1 119
1022878 Tube Support and Drive Link - Left 1 119
1022854 Screw, Slotted Head Shoulder (1/2 x 1-1/8") 1 120
10261X000 Acorn Nut (5/16"-24) 1 121
04528X002 Bracket, Release (Chrome) 1 122
1040831 Snap Ring 1 123
47328X003 Bushing, Pivot (5/16 x 7/16 x 7/8") 1 124
42326X004 Bar, Ratchet - Right/Left 1 125
1037485 Spring, Release 1 126
1037125 Cam, Legrest 1 127
1013519 Washer, Nylon (5/16 x 11/16 x 1/16") 1 128
1024911 Decal, Smartleg 1 129
1014807 Screw, Hex Head (5/16-24 x 3-1/4") 1 130
48823X008 Spring, Leaf 1 131
47328X003 Bushing, Pivot (5/16 x 7/16 x 7/8") 1 132
1025133 Spacer, Legrest Pad 1 133
04526X019 Plate, Legrest Pad 1 134
60264X001 Locknut (5/16-24) 1 135
1025104 Bracket, Legrest, Chrome 1 136
11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 137
1022848 Slide Tube, Articulating (Chrome) - Right 1 138
1022849 Slide Tube, Articulating (Chrome) - Left 1 138
81
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
PHAL4A (Hemi) Articulating Legrest Supports
Chrome 16"-22" Wide Chairs (Pin Style)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1027377 Washer (#20) 1 139
1107321 Nut, Low Cap (5/16"-24) 1 140
8881091764 Pad, Legrest Vinyl - Right/Left 1 141 A
1068649 Screws, Phillips Head (#10-32 x 11/16") 2 142
1114761 Legrest Support Assembly, Articulating, Hemi,
Chrome - Right 1 1B
1114762 Legrest Support Assembly, Articulating, Hemi,
Chrome - Left 1 1B
A - Specify upholstery color U67 black when ordering.
B - Not Shown
C - Includes items 4-6
D - Includes items 1-9
NOTE:
82
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
AT5544 Legrest Supports
(Sector Style)
16"-22" Wide Chairs
83
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
AT5544 Legrest Supports
(Sector Style)
16"-22" Wide Chairs
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1017187 Cover, Top 1 11
1028529 Screw, Phillips Pan Head (#8-32 x 3/8") 1 22
40363X000 Hex Nut (3/8"-16) 1 13
1058636 Washer, Nylon (25/64 x 7/8 x 1/32") 1 24
11919X000 Screw, Truss Head (3/8-16 x 1-1/2") 1 15
7930330 Locknut (5/16-24) 25 36
1026030 Screw, Lug (5/16-24 x 1-3/8") 1 17
1043556 Tube, Elevating Support (Black) - Right 1 18
1043557 Tube, Elevating Support (Black) - Left 1 18
8881048851 Tube, Elevating Support (Color) - Right 1 18 A
8881048852 Tube, Elevating Support (Color) - Left 1 18 A
1032266 Bracket, Legrest Pad Mounting, Black 1 19
04528X002 Bracket, Release (Chrome) 1 110
1025451 Screw, Slotted Hex Washer Head (#10-32 x 5/8") 1 211
1025454 Latch Housing - Right 1 112
1025455 Latch Housing - Left 1 112
7930314 Screw, Slotted Hex Head (#10-32 x 1/2") 25 113
42326X001 Bar, Ratchet 1 114
7930336 Nut, Acorn (5/16-24) 25 115
1017148 Plug, Pivot 1 116
1029501 Plug Button, Black (1") 1 117
7930301 Package, Button Head Cap Screws (1/4-20 x 1-3/4") 25 118
8881045289 Bracket, Legrest Support, Color - Right 1 119 A
8881045290 Bracket, Legrest Support, Color - Left 1 119 A
1040831 Snap Ring 1 120
7930310 Washer, Nylon (5/16 x 11/16 x 1/16") 25 121
1040060 Tip, Black Plastic 1 122
1037485 Spring, Release 1 123
1037125 Cam, Legrest 1 124
1037126 Handle, Release 1 125
1096974 Kit, Ratchet Elevating Legrest 2 126 B
1096943 Instruction Sheet, Ratchet Kit 1 1C
8881045291 Legrest Support Assembly, Sector, Color - Right 1 1A,C
8881045292 Legrest Support Assembly, Sector, Color - Left 1 1A,C
A - Specify frame color when ordering. See page titled "Frame Finishes and Touch-Up Paints".
B - Includes items 10, 14, 15 and 20-25
C - Not Shown
NOTE:
84
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
AT5544P Legrest Supports (Mechanical)
(Sector Style)
16"-22" Wide Chairs
85
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
AT5544P Legrest Supports (Mechanical)
(Sector Style)
16"-22" Wide Chairs
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1087050 Legrest Support Assembly, Sector, Black - Right 1 11 A
1087051 Legrest Support Assembly, Sector, Black - Left 1 11 A
1094266 Support, Black Legrest, Right 1 12
1094267 Support, Black Legrest, Left 1 12
7930301 Package, Button Head Cap Screws (1/4-20 x 1-3/4") 25 13
1029501 Plug Button, Black (1") 1 14
1017148 Plug, Pivot 1 15
7930333 Locknut (1/4-20) 25 16
7930314 Screw, Slotted Hex Head (#10-32 x 1/2") 25 17
1025451 Screw, Slotted Hex Washer Head (#10-32 x 5/8") 1 28
1025454 Latch Housing - Right 1 19
1025455 Latch Housing - Left 1 19
1026158 Locknut (5/16-18) 1 110
1094268 Tube, Elevating Support (Black) Right 1 111
1094269 Tube, Elevating Support (Black) Left 1 111
1026030 Screw, Lug (5/16-24 x 1-3/8") 1 112
1025730 Locknut (5/16-24) 1 213
1082908 Spacer, Coved (5/16 x 29/32 x 7/16") 1 214
11919X000 Screw, Truss Head (3/8-16 x 1-1/2") 1 115
40363X000 Hex Nut (3/8"-16) 1 116
1058636 Washer, Nylon (25/64 x 7/8 x 1/32") 1 217
1025729 Screw, Self Tapping Pan Head (#8-32 x 3/8") 1 218
1017187 Cover, Top 1 119
1092666 Rod, Legrest Elevating, Right 1 120
1092667 Rod, Legrest Elevating, Left 1 120
1025133 Spacer, Legrest Pad 1 121
1032267 Spacer, Legrest Pad Mounting 1 122
1037110 Screw, Hex Head (5/16-24 x 3-1/2") 1 123
1028514 Screw, Hex Head (5/16-24 x 1-1/2") 1 124
1032266 Bracket, Legrest Pad Mounting, Black 1 125
8881091759 Pad w/Cover and Screws, Legrest Vinyl (Pair) 2 126 B
8881091764 Pad, Legrest Vinyl - Right/Left 1 126 B
01415X000-NLA Cover, Legrest Pad 1 126
1066591 Screws, Phillips Head (#10-32 x 11/16") 2 127
04526X019 Plate, Legrest Pad 1 128
1107321 Nut, Low Cap (5/16"-24) 1 129
A - Includes Items 2-25 and 29
B - Specify U67 black upholstery when ordering
NOTE:
86
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Genius Legrest (Mechanical)
87
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Genius Legrest (Mechanical)
Right, Left and Pair Assembly Part Numbers For Genius Legrest
Description Standard
Footplate X-Large Footplate Standard Footplate X-Large Footplate
20"20" 18" 18" Legrest Tube Length
16"-22" Wide16"-22" Wide16"-22" Wide16"-22" WideWidth Range
1072597026400010725950196600Right Assembly
1072596026390010725940196500Left Assembly
1072905026380010729040138100Legrest Pair
88
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Genius Legrest (Mechanical)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1023966 Screw, Socket Head (#10-32 x 1-3/4") 1 11
0060000 Rubber Bumper 1 12
0140406 Screw, Socket Head Cap (5/16-18 x 1-1/2) 1 13
0061400 Decal, Warning Label Tie Down 1 14
0289824 Legrest Hanger Receptical w/ Dowel Pin 1 15
1096649 Guide Square w/ Brass Barb Insert 1 16
0176700 Bushing, Coved Latch Legrest Genius 1 17
0050100 Washer, Nylon Flat (1/4 x 1/2 x 1/16") 1 108
0051606 Screw, Socket Head Cap (1/4-20 x 1") 1 29
0052906 Screw, Socket Button Head (1/4-20 x 3/4") 1 310
0177802 Link, Rear 1 111
1086987 Plate, Push Pin 1 112
0179202 Link Plate 1 113
7930323 Package, Locknut (1/4-20) 25 414
7930333 Locknut (1/4-20) 25 115
0223506 Screw, Socket Head (1/4-20 x 1/2") 1 116
0180506 Screw, Support Bushing 1 117
0054700 Washer, Nylon (5/16 x 1/2 x 1/16") 1 218
0177702 Link, Front 1 119
0182406 Push Pin 1 120
1028486 Locknut, Low Profile (3/8-16) 1 121
0175600 Spacer, Coved (5/16 x 3/4 x 3/8") 1 222
0055206 Screw, Socket Head (5/16-18 x 1-3/4") 1 123
1072692 Lockwasher, Split (5/16") 1 124
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 125
0176422 Spacer, Coved 1 226
0055006 Locknut, Low Profile (5/16-18) 1 227
0176200 Bushing, Nylon Guide 1 228
0177100 Bushing, Legrest Support 1 129
0178224 Bar, Insert, Black 1 130
0175800 Bushing, Guide 1 131
0224600 Screw, Socket Head Cap (#10-32 x 3/4") 1 132
1105474 Screw, Hex Head (5/16-18 x 3-1/2) 1 133
1068159 Clamp, Calf Pad 1 134
1068160 Block, Legrest Pad Mount 1 135
1025716 Screw, Phillips Pan Head (#10-32 x 11/16") 1 236
04526X019 Plate, Legrest Pad 1 137
1068161 Block, Mounting 1 138
1109613 Hardware, Calf Pad 1 139 A
8881091811 Calf Pad (Left or Right) 1 140
0238124 Tube, Legrest 18" 1 141
0232424 Tube, Legrest 20" 1 141
0177022 Half Clamp 1 242
89
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Genius Legrest (Mechanical)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
0177602 Plate, Adjustment 1 243
1024793 Screw, Hex Head (1/4-20 x 1-3/4") 1 344
1096664 Plug Button, Black (1") 1 145
0177222 Pivot, Footplate 1 146
1027097 Plug Button, Black (3/4") 1 147
0194906 Screw, Phillips Pan Head Tap (#8 x 1/2") 1 148
0176022 Spacer 1 249 B
0186000 Spacer, Wheel 1 249 C
0179824 Tube, Footplate 1 150 B
0288824 Tube, Footplate 1 150 C
1036120 Spring 1 251 B
1036123 Spring, Leaf 1 251 C
1043659 Footplate, Aluminum - Deluxe (8" W x 5-3/4" L) -
Right 1 152 B
1043660 Footplate, Aluminum - Deluxe (8" W x 5-3/4" L) -
Left 1 152 B
44200X025 Footplate, Aluminum - Extra Large (8" W x 8-1/2" L)
- Right 1 152
44200X026 Footplate, Aluminum - Extra Large (8" W x 8-1/2" L)
- Left 1 152
See Chart Genuis Legrest Assembly 1 1D
A - Includes Items 27 and 33-38 (Per Side)
B - Standard Footplate with Rubber Edge
C - X-Large Footplate
D - Not Shown
NOTE:
90
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

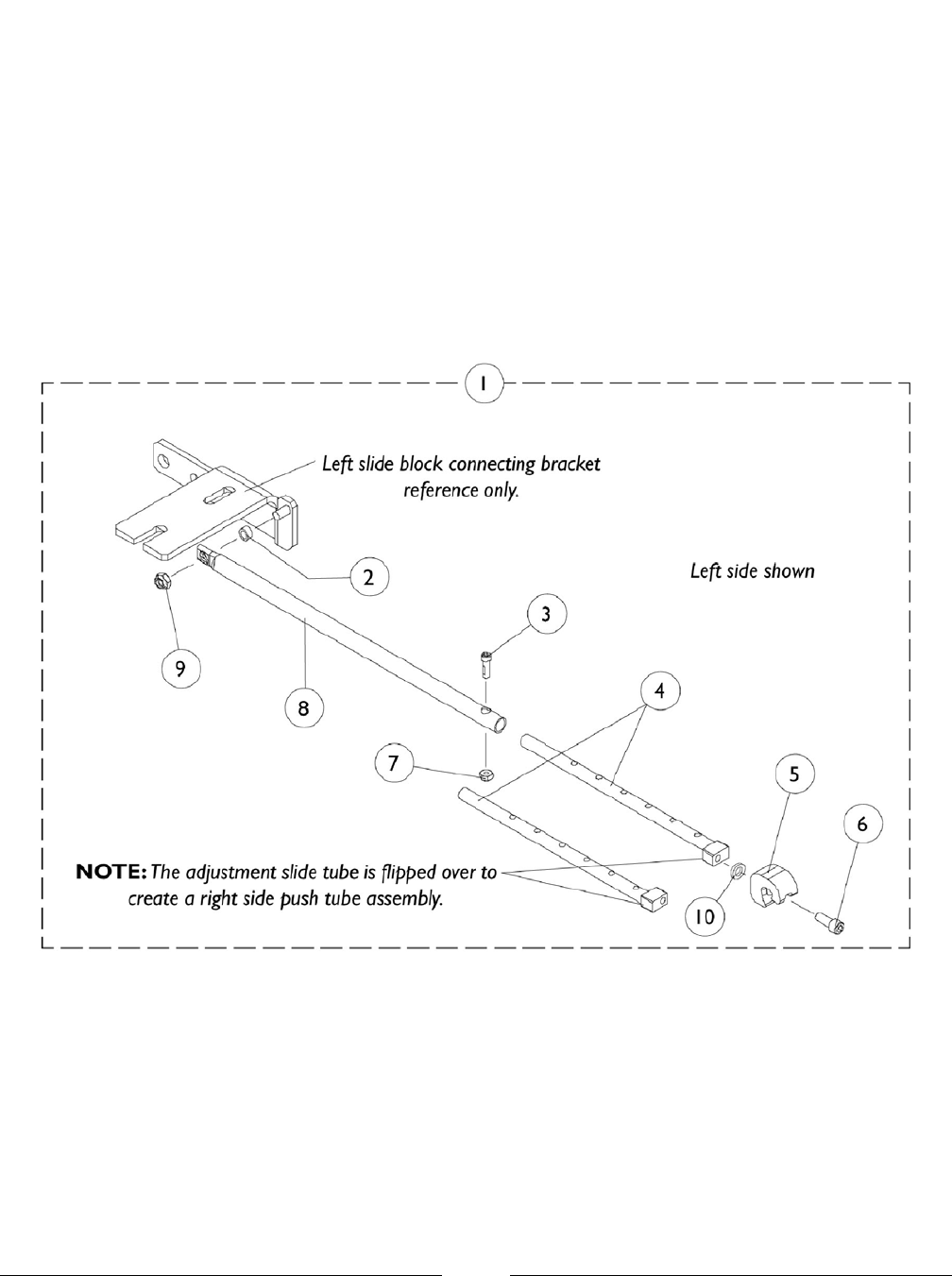

Legrest Support Push Rod Assembly
AT5544P and Genius
91
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Legrest Support Push Rod Assembly
AT5544P and Genius
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1086966 Push Rod Assembly, Legrest Support (16"-19"
Deep), Right 1 11
1086967 Push Rod Assembly, Legrest Support (16"-19"
Deep), Left 1 11
1086968 Push Rod Assembly, Legrest Support (20"-22"
Deep), Right 1 11
1086969 Push Rod Assembly, Legrest Support (20"-22"
Deep), Left 1 11
1047449 Spacer (1/4 x 3/8 x 3/16") 1 12
1091871 Screw, Socket Head Cap (#8-32 x 5/8") 1 13
1086958 Tube, Adjustable Slide 1 14
1082922 Receptacle, Legrest 1 15
1007219 Screw, Socket Head Cap (1/4-20 x 3/4") 1 16
1056098 Locknut (#8-32) 1 17
1086962 Push Rod, Legrest Support (16"-19" Deep) 1 18
1086963 Push Rod, Legrest Support (20"-22" Deep) 1 18
7930323 Package, Locknut (1/4-20) 25 19
1013971 Washer, Nylon (1/4 x 7/16 x 5/64") 1 110
92
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

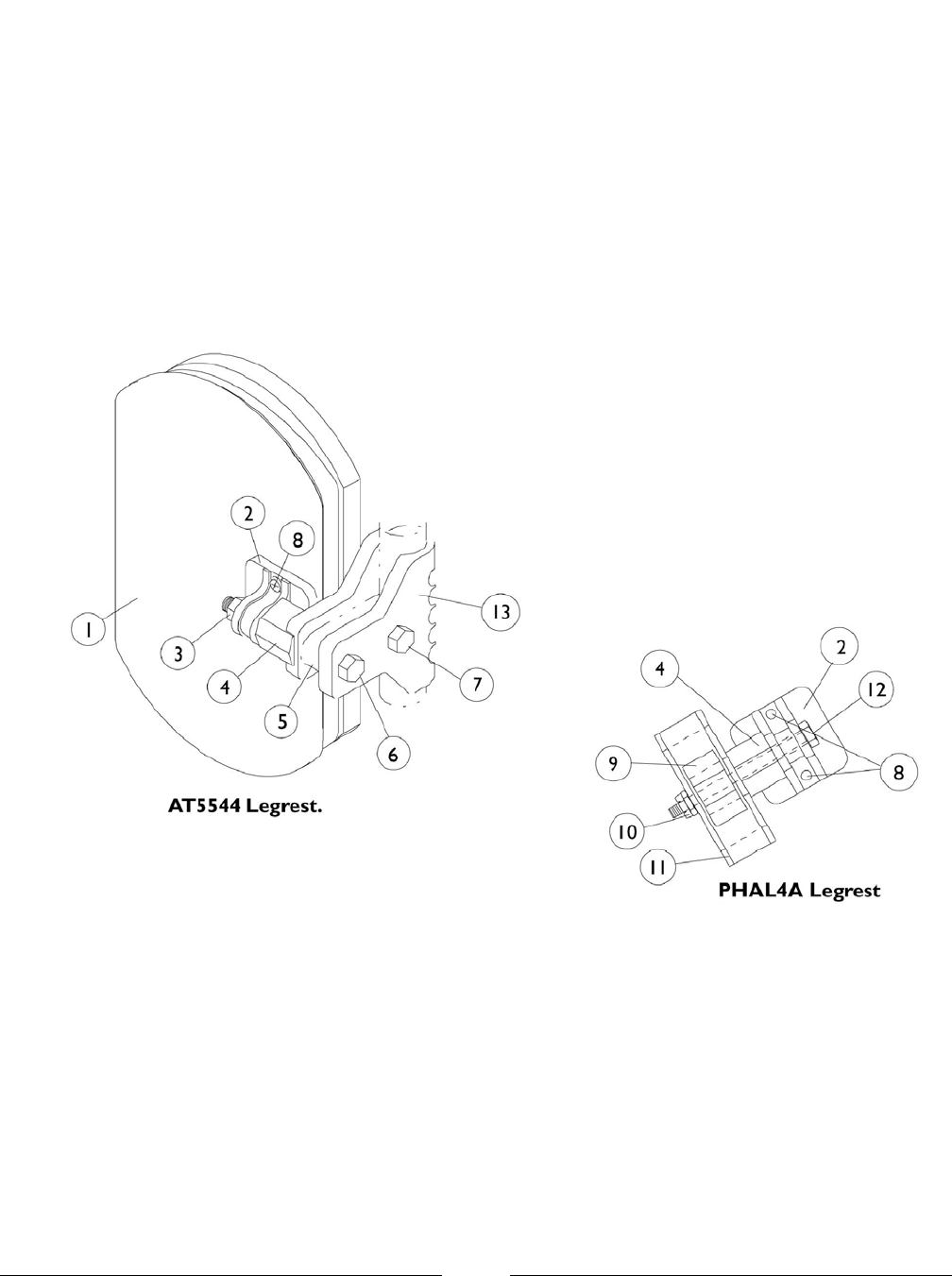

Calf Pads and Mounting Hardware
NOTE: For replacement calf pads for Power Articulating Legrest, see Power Articulating Legrest page.
93
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Calf Pads and Mounting Hardware
NOTE: For replacement calf pads for Power Articulating Legrest, see Power Articulating Legrest page.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
8881091759 Pad w/Cover and Screws, Legrest Vinyl (Pair) 2 11 A
8881091764 Pad, Legrest Vinyl - Right/Left 1 11 A
04526X019 Plate, Legrest Pad 1 12
7930330 Locknut (5/16-24) 25 13
1025133 Spacer, Legrest Pad 1 14
1032267 Spacer, Legrest Pad Mounting 1 15
1037110 Screw, Hex Head (5/16-24 x 3-1/2") 1 16
1028514 Screw, Hex Head (5/16-24 x 1-1/2") 1 17
1066591 Screws, Phillips Head (#10-32 x 11/16") 2 18
48823X008 Spring, Leaf 1 19
7930363 Package, Locknut (5/16"-24) 25 210
1025104 Bracket, Legrest, Chrome 1 111
1014807 Screw, Hex Head (5/16-24 x 3-1/4") 1 112
1032266 Bracket, Legrest Pad Mounting, Black 1 113
A - Specify upholstery color. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Options".
NOTE:
94
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Pivot/Slide Tube and 1651 Composite Footplates
NOTE: Heel Loops are not included. See Footrest and Legrest Accessories.
NOTE: For complete pivot/slide tube and footplate assemblies, see Front Riggings Reference Charts
95
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Pivot/Slide Tube and 1651 Composite Footplates
NOTE: Heel Loops are not included. See Footrest and Legrest Accessories.
NOTE: For complete pivot/slide tube and footplate assemblies, see Front Riggings Reference Charts
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1057852 Pivot/Slide Tube, Curved End (9-7/8") (Steel) 1 11
1057854 Pivot/Slide Tube, Curved End 2" Longer (Steel) 1 11
1058418 Pivot/Slide Tube, Curved End 4" Longer (Steel) 1 11
1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 22
1027097 Plug Button, Black (3/4") 1 13
7930323 Package, Locknut (1/4-20) 25 14
7930366 Screw, Socket Head Cap (1/4-20 x 2-1/4") 25 15
1026880 Footplate, Composite - Medium (7" W x 6" L) 1 16 A
1026881 Footplate, Composite - Large (8" W x 6" L) 1 16 B
1026879 Footplate, Composite - Small (6" W x 6" L) 1 16 C
1026880 Footplate, Composite - Medium (7" W x 6" L) 1 16 D
1026881 Footplate, Composite - Large (8" W x 6" L) 1 16 E
A - 16" Wide
B - 17" and Wider
C - 16"-17" Wide Tapered
D - 18"-19" Wide Tapered
E - 20" and Wider Tapered
NOTE:
96
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1027097 Plug Button, Black (3/4") 1 11
1048834 Pivot/Slide Tube with Plug Button 1 12 A
1098906 Pivot/Slide Tube with Plug Button - 2" Longer 1 12 A
1086482 Pivot/Slide Tube with Plug Button - 4" Longer 1 12 A
1041526 Pivot/Slide Tube with Plug Button (Steel) 1 12 B
1041526 Pivot/Slide Tube with Plug Button (Steel) 1 12 C
44200X027 Footplate, Aluminum - Medium (7-3/4" W x 6" L) 1 13
44200X025 Footplate, Aluminum - Extra Large (8" W x 8-1/2" L)
- Right 1 13
44200X026 Footplate, Aluminum - Extra Large (8" W x 8-1/2" L)
- Left 1 13
1016346 Cap, Tube End (7/8") 1 14 D
1027095 Plug Button, Black (7/8") 1 14 E
1006981 Spring, Leaf 1 25 D
1036123 Spring, Leaf 1 15 E
7930354 Package, Phillips Head Screw (#8-32 x 3/8") 25 26
1070168 Push Plug, Footplate 1 17
A - Extra Large footplate for AT5544, 70, PHW93,
B - Extra Large footplate for PHAL4A
C - Standard Aluminum footplate for PHAL4
D - For Standard Aluminum footplate
E - For Extra Large footplate
NOTE:
Pivot/Slide Tube and 1650, 1350 Aluminum Footplates
NOTE: Heel Loops are not included. See Footrest and Legrest Accessories
NOTE: For complete pivot/slide tube and footplate assemblies, see Front Riggings Reference Charts.
97
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

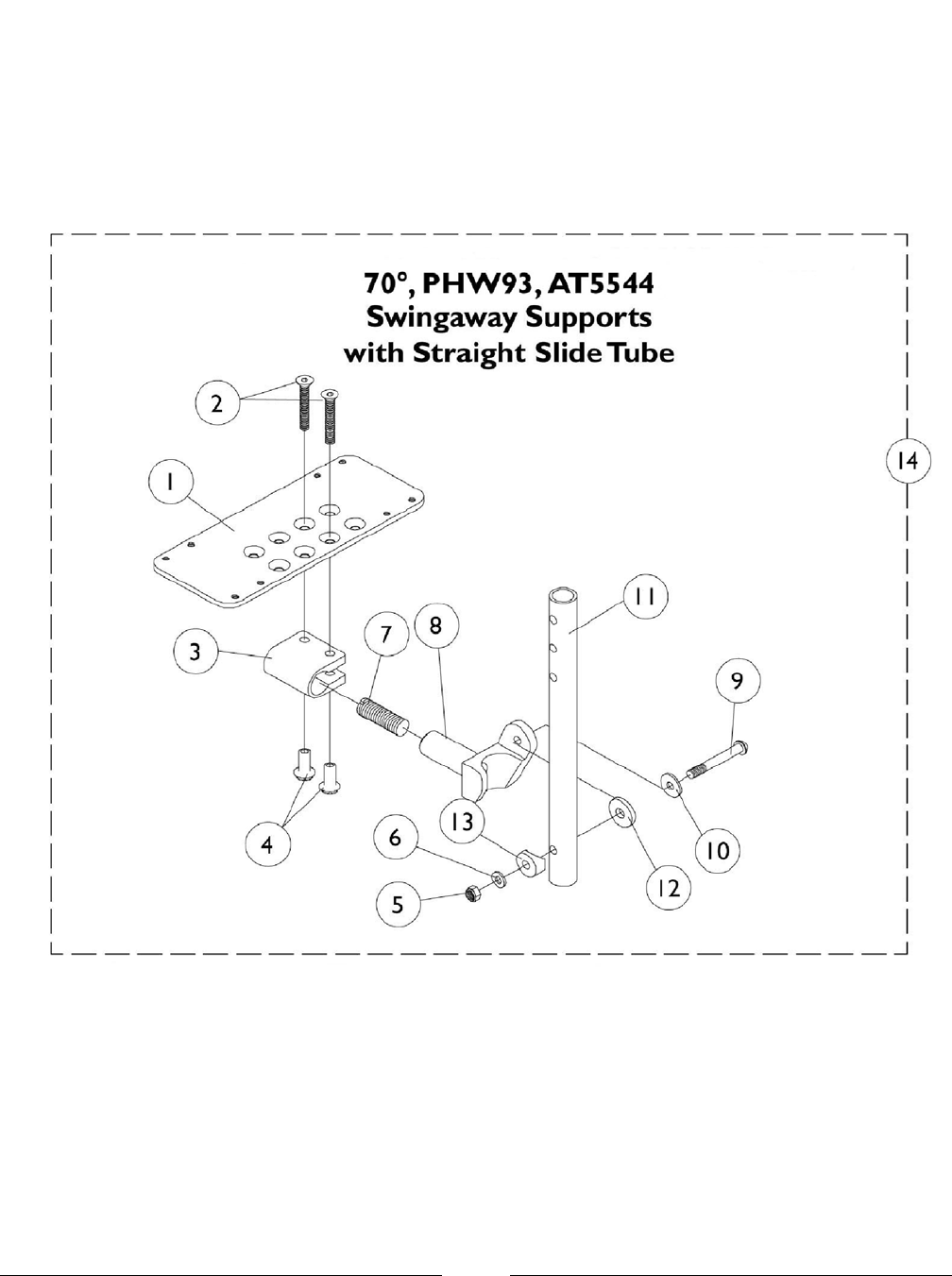

AT5543 Adjustable Angle Footplates
70 deg, PHW93, AT5544, AT5544P Swingaway Supports
NOTE: Heel loops are not included. See Footrest and Legrest Accessories.
98
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
AT5543 Adjustable Angle Footplates
70 deg, PHW93, AT5544, AT5544P Swingaway Supports
NOTE: Heel loops are not included. See Footrest and Legrest Accessories.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1062569 Footplate, Adjustable Angle - X-Large
(6-1/4" W x 8" L) 1 11
1029545 Screw, Socket Head Cap (1/4-20 x 3/4") 1 22
1058517 Clamp, Footplate 1 13
1082686 Nut, Hex Head (1/4-20 x 11/16") 1 24
7930333 Locknut (1/4-20) 25 15
1026907 Washer (1/4 x 1/2 x 1/16") 1 16
1048816 Screw, Nylon Adjustment (1/2-13 x 7/8") 1 17
1052102 Hinge, Footplate - Right 1 18
1052103 Hinge, Footplate - Left 1 18
7930321 Screw, Socket Button Head (1/4-20 x 1-7/8") 25 19
1026900 Washer (1/4 x 23/32 x 1/16") 1 110
1057855 Pivot/Slide Tube, Straight (9-7/8" Long - Steel) 1 111
1057856 Pivot/Slide Tube, Straight (11-7/8" Long - Steel) 1 111
1121135 Pivot/Slide Tube, Straight (13-7/8" Long - Steel) 1 111
7930313 Washer, Nylon (5/16 x 7/8 x 1/8") 25 112
1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 113
See Chart #14 Pivot/Slide Tubes with Footplates 1 114
Item #14 Pivot Slide Tube with Footplate Assemblies
Rigging Type Side 16" and Wider
X- Large Footplate
1062756Right70, PHW93, AT5544, AT5544P
1062757Left
1062760Right
70, PHW93, AT5544, AT5544P
2" Longer Slide Tube
1062761Left
1121140Right
70, PHW93, AT5544, AT5544P
4" Longer Slide Tube
1121141Left
99
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Footplate
Type
Heel Loop w/
Ankle Strap
Pair #
Attaching
Hardware
Pair #
Chair
Width Heel Loop
Single # Heel Loop
Pair #
Heel Loop w/
Ankle Strap
Single # Rt.
Heel Loop w/
Ankle Strap
Single # Lt.
103593110359061035909103590810359121028412
16-17" W
Tapered
Composite
Small
(1651)
103593110359181035920103591910359171017621
16" W
or
18-19" W
Tapered
Composite
Medium
(1651)
103593110359301035933103593210359171017621
17-22" W
or
20-22" W
Tapered
Composite
Large
(1651)
10359071035918103592010359191035917101762116-22" W
Standard
Aluminum
(1650)
10552411035918103592010359191035917101762116-22" W
X-Large
Aluminum
(1350)
Attaching Hardware Part Numbers (Less AT5543)
Footplate Type Part Number Part Number
Consists of
2 each Screw, PPH
(1/4-20 x 2-1/4")
2 each Spacer
(1/4 x 11/32 x 1-3/4")
2 each Locknut (1/4-20)
1035931Composite (1651)
2 each Screw, PPH
(1/4-20 x 2-1/2")
2 each Spacer
(1/4 x 11/32 x 1-3/4")
2 each Locknut (1/4-20)
1035907Standard Aluminum (1650)
2 each Screw, PPH
(1/4-20 x 2-1/4")
2 each Spacer
(1/4 x 11/32 x 1-3/4")
2 each Locknut (1/4-20)
1055241X-Large Aluminum (1350)
Footrest and Legrest Accessories
NOTE: Heel loop replacements for Power Articulating Legrest are found on the Power Articulating Legrest
page.
100
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Footrest and Legrest Accessories
NOTE: Heel loop replacements for Power Articulating Legrest are found on the Power Articulating Legrest
page.
Heel Loops/Heel Loops w/ Ankle Straps and Hardware (For AT5543)
Footplate
Type Part
Number
Part
Number
Consists of
2 each Heel Loops
4 each Screw, SHC
(10-32 x 1-1/2")
4 each Spacer
(1/4 x 5/16 x 1-3/32")
4 each Washer
(3/16 x 7/16 x 1/16")
1038245
Heel Loops w/ Hardware
Adjustable Angle Footplate (Pair)
AT5543 Adj. Angle
2 each Heel Loops
w/ Ankle Straps
4 each Screw, SHC
(10-32 x 1-1/2")
4 each Spacer
(1/4 x 5/16 x 1-3/32")
4 each Washer
(3/16 x 7/16 x 1/16")
1038246
Heel Loops w/ Ankle Straps &
Hardware
Adjustable Angle Footplate (Pair)
AT5543 Adj. Angle
Toe Loops (1345) and Attaching Hardware
Footplate
Type
Toe Loop
w/o Hardware
Single #
Toe Loop
w/o Hardware
Pair #
Attaching
Hardware
Part Number
Attaching
Hardware
Consists of
4 each Screw, PPH
(10-32 x 7/8")
4 each Washer
(1/4 x 3/4 x 3/32")
4 each Locknut
(10-32)
1037089103708704572X025
1651,
1650,
1350,
Footplates
4 each Screw, PPH
(10-32 x 1/2")
4 each Washer
(1/4 x 3/4 x 3/32")
1104749103708704572X025
AT5543
Footplates
101
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Footrest and Legrest Accessories
NOTE: Heel loop replacements for Power Articulating Legrest are found on the Power Articulating Legrest
page.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1032243 Calf Strap w/ Hook and Loop (36" Long) 1 1A
1032215 H-Strap, 26" Long 1 1A,B
1032216 H-Strap, 31" Long 1 1A,C
1026987 Impact Guard, 8" Long 1 2A
See Chart Attaching Hardware Part Numbers 1 1A
See Chart Heel Loops and Hardware (Less AT5543) 1 1A
See Chart Heel Loops/Heel Loops w/ Ankle Straps and
Hardware AT5543 1 1A
See Chart Toe Loops and Hardware 1 1A
A - Not Shown
B - 16" Wide
C - 17"-22" Wide
NOTE:
102
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

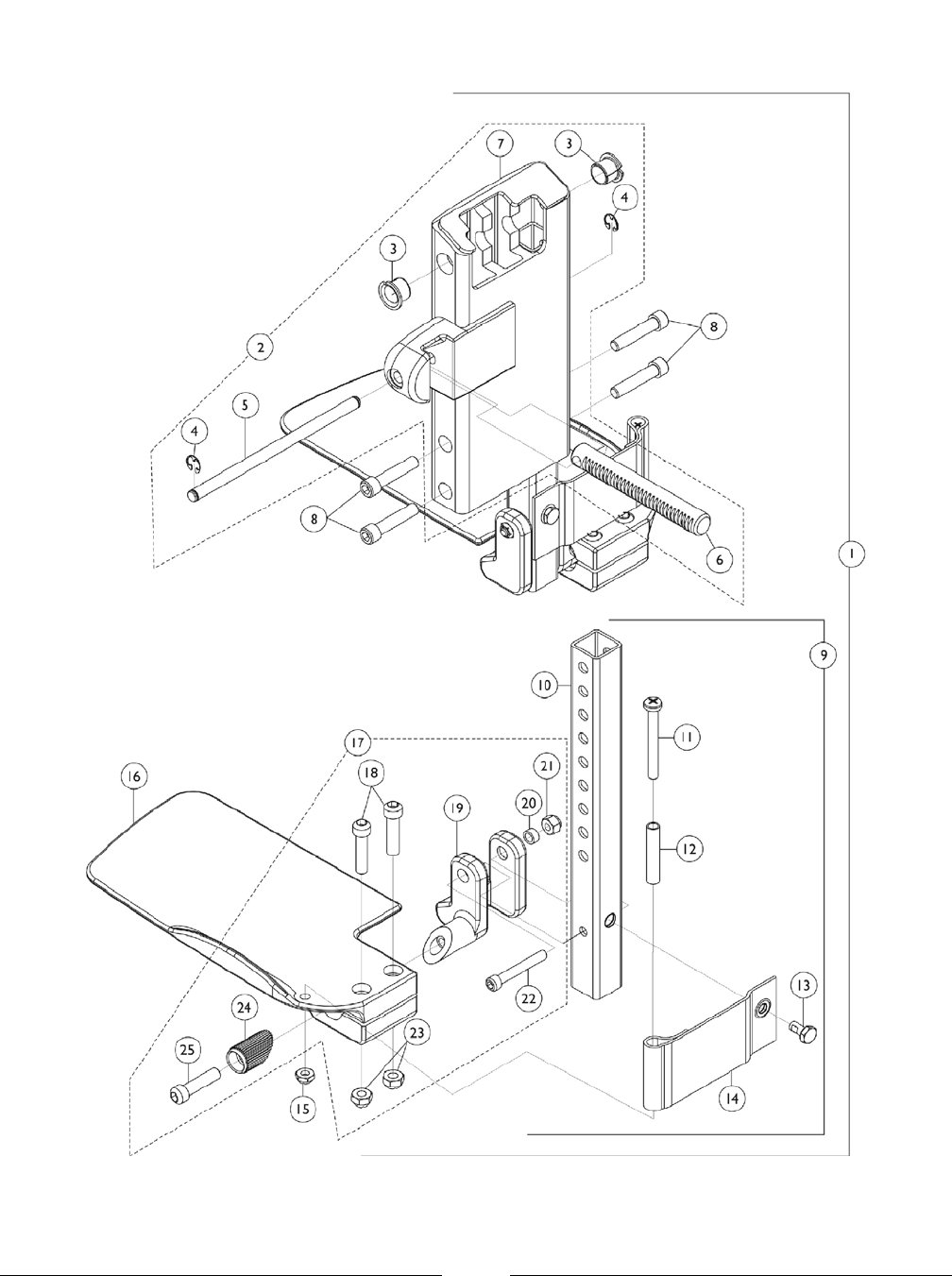

Front Rigging - Center Mount Riggings (CTMT-T/CTMT-TL)
(CTMT-T = 12-1/4" - 16-1/2" Range) & (CTMT-TL = 17-1/4" - 21-3/4" Range)
103
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Front Rigging - Center Mount Riggings (CTMT-T/CTMT-TL)
(CTMT-T = 12-1/4" - 16-1/2" Range) & (CTMT-TL = 17-1/4" - 21-3/4" Range)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1117260 Center Mount Rigging, 2GTR
(12-1/4" - 16-1/2" Range) 1 11 A
1117261 Center Mount Rigging, 2GTR
(17-1/4" - 21-3/4" Range) 1 11 A
1120347 Legrest Support Assembly, Center Mount Rigging,
2GTR 1 12
1110669 Bearing, Flanged (1/2 x 13/16 x 1/2") 1 23
1113376 Ring, Retainer (1/4 x 1/2 x 1/64") 1 24
1113373 Pin, Angle Adjustable A.S.B.A. 1 15
1113372 Rack, Center Mount Rigging Angle Adjustable 1 16
1117238 Support, 2GTR Legrest Center Mount 1 17
1021344 Screw, Socket Head Cap (5/16-18 x 1-1/2") 1 48
1123038 Extension Tube and Footplate Assembly
with Heel Loop, Short Right 1 19 B
1123039 Extension Tube and Footplate Assembly
with Heel Loop, Short Left 1 19 B
1123040 Extension Tube and Footplate Assembly
with Heel Loop, Long Right 1 19 B
1123041 Extension Tube and Footplate Assembly
with Heel Loop, Long Left 1 19 B
1123046 Extension Tube, Footrest Short
(12-1/4" - 16-1/2" Range) 1 110
1123047 Extension Tube, Footrest Long
(17-1/4" - 21-3/4" Range) 1 110
1021421 Screw, Phillips Pan Head (1/4-20 x 2-1/4") 1 211
1006477 Spacer (1/4 x 11/32 x 1-3/4") 1 212
1078214 Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 213
1121996 Heel Loop, Center Mount Rigging 1 214
1025195 Locknut (1/4-20) 1 215
1113606 Footplate, Center Mount Rigging - Right
(5-1/4" W x 9-5/8" L) 1 116 D
1113607 Footplate, Center Mount Rigging - Left
(5-1/4" W x 9-5/8" L) 1 116 D
1120345 Center Mount Rigging Footplate Mounting Hardware
- Right 1 117 C
1121123 Center Mount Rigging Footplate Mounting Hardware
- Left 1 117 C
1021343 Screw, Socket Head Cap (5/16-18 x 1-1/4") 1 218
1113384 Hinge, Adjustable Angle - Right 1 119
1113385 Hinge, Adjustable Angle - Left 1 119
1047449 Spacer (1/4 x 3/8 x 3/16") 1 120
1065362 Locknut (1/4-28) 1 121
1096810 Screw, Socket Head (1/4-28 x 1-3/4") 1 122
1108122 Locknut (5/16-18) 1 223
1113530 Hinge Attachment 1 124
1021343 Screw, Socket Head Cap (5/16-18 x 1-1/4") 1 125
104
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Front Rigging - Center Mount Riggings (CTMT-T/CTMT-TL)
(CTMT-T = 12-1/4" - 16-1/2" Range) & (CTMT-TL = 17-1/4" - 21-3/4" Range)
A - Includes items 2, 8 & 9
B - Includes items 16, 17 & 10-14
C - Includes items 18-25
D - Item #16 - Footplate design revised 2/28/07 to accommodate items 18 & 23. Replace footplates in pairs and order new
footplate hardware for chairs mfg. before 2/28/07.
NOTE:
105
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

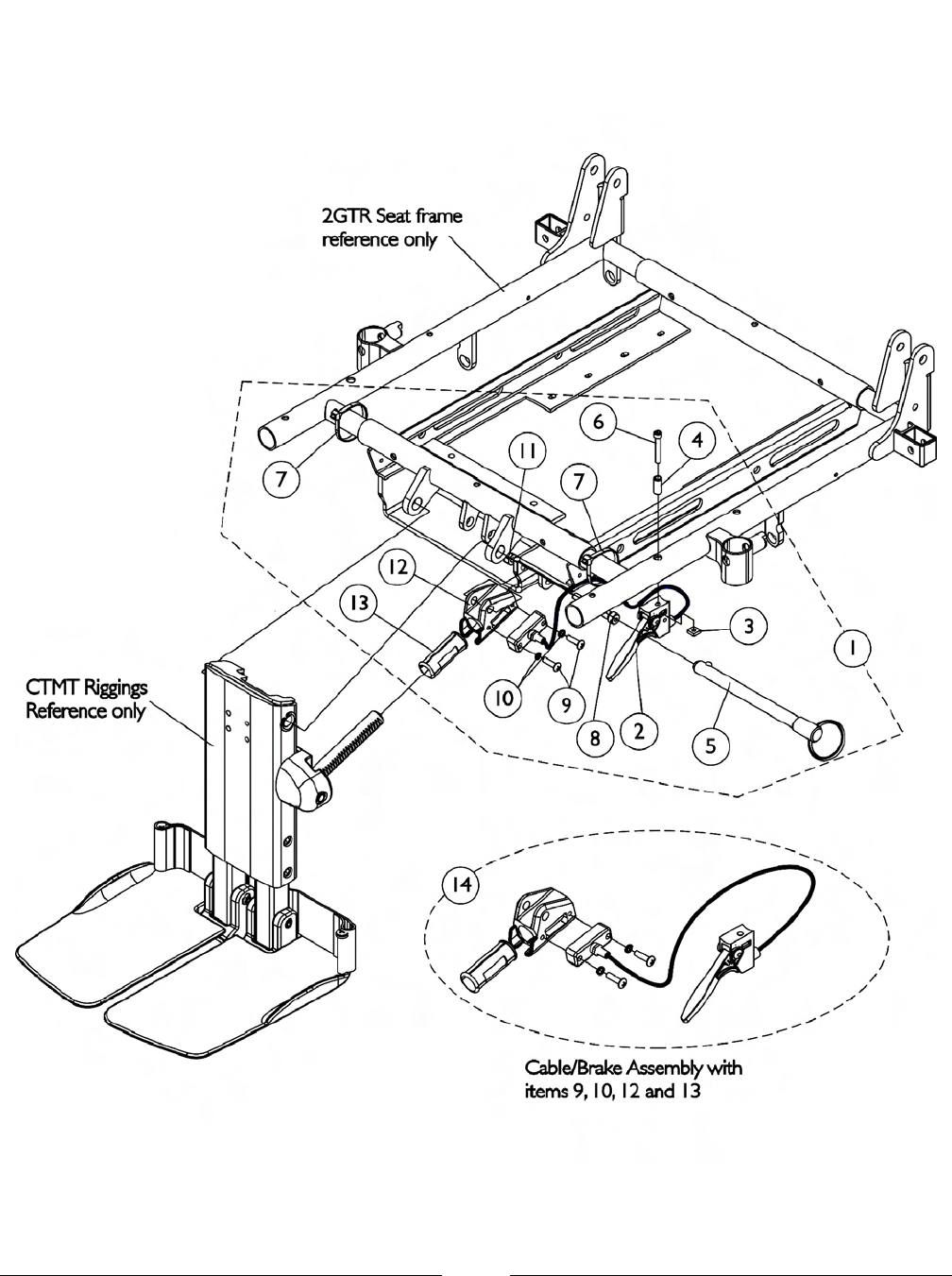

Center Mount Rigging Mounting Hardware
(CTMT-T/CTMT-TL)
106
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Center Mount Rigging Mounting Hardware
(CTMT-T/CTMT-TL)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1117264 Kit, Center Mount Rigging Mounting Hardware 1 11 A
Cable/Brake Assembly 1 12
Nut, Square (#10-32) 1 13
Spacer (5/16 x 3/16 x 3/4") 1 14
Pin, Quick Release (5" Long) 1 15
Screw, Socket Head (#10-32 x 1-1/4") 1 16
Cable Tie (11-1/2" Long) 1 27
Screw, Socket Head Shoulder (5/16 x 1-5/8") 1 18
Screw, Phillips Pan Head (#10-32 x 11/16") 1 29
Washer, Lock (3/16 x 5/16 x 1/16") 1 210
Locknut (1/4-20) 1 111
Housing, Ratchet 1 112
Bearing, Glide 1 213
1121079 Cable/Brake Assembly with Ratchet Housing and
Glide Bearing 1 114 B
A - Includes items 2-13
B - Includes items 2, 9, 10, 12 and 13
NOTE:
107
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

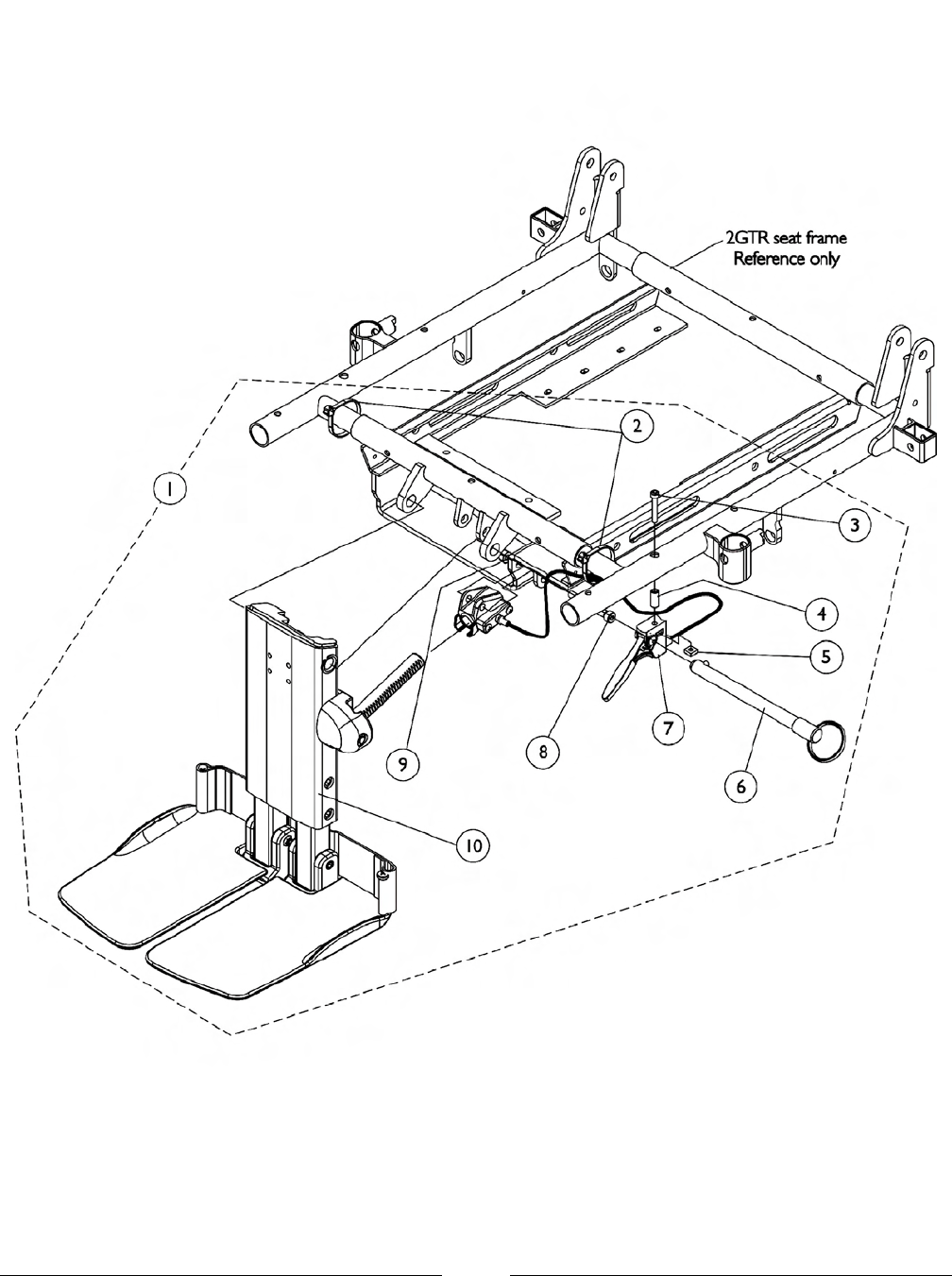

Center Mount Rigging KIT (CTMT-T/CTMT-TL)
108
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Center Mount Rigging KIT (CTMT-T/CTMT-TL)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1121011 Kit, Adjustable Length Center Mount Rigging
2GTR Short (12-1/4" - 16-1/2") 1 11 A
1121012 Kit, Adjustable Length Center Mount Rigging
2GTR Long (17-1/4" - 21-3/4") 1 11 B
1095502 Package, Cable Ties (11-1/2") 10 22
1028513 Screw, Socket Head (#10-32 x 1-1/4") 1 13
1113236 Spacer (5/16 x 3/16 x 3/4") 1 14
1086207 Nut, Square (#10-32) 1 15
1113375 Pin, Quick Release (5" Long) 1 16
1121079 Cable/Brake Assembly with Ratchet Housing and
Glide Bearing 1 17
1071736 Screw, Socket Head Shoulder (5/16 x 1-5/8") 1 18
1025736 Locknut (1/4-20) 1 19
1117260 Center Mount Rigging, 2GTR
(12-1/4" - 16-1/2" Range) 1 110
1117261 Center Mount Rigging, 2GTR
(17-1/4" - 21-3/4" Range) 1 110
1118368 Instruction Sheet, Center Mount Rigging Kit 1 1C
A - Compatible with 16"-17" and 20"-21" seat depths
B - Compatible with 18"-19" and 22" seat depths
C - Instruction Sheet is Not Shown.
NOTE:
109
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

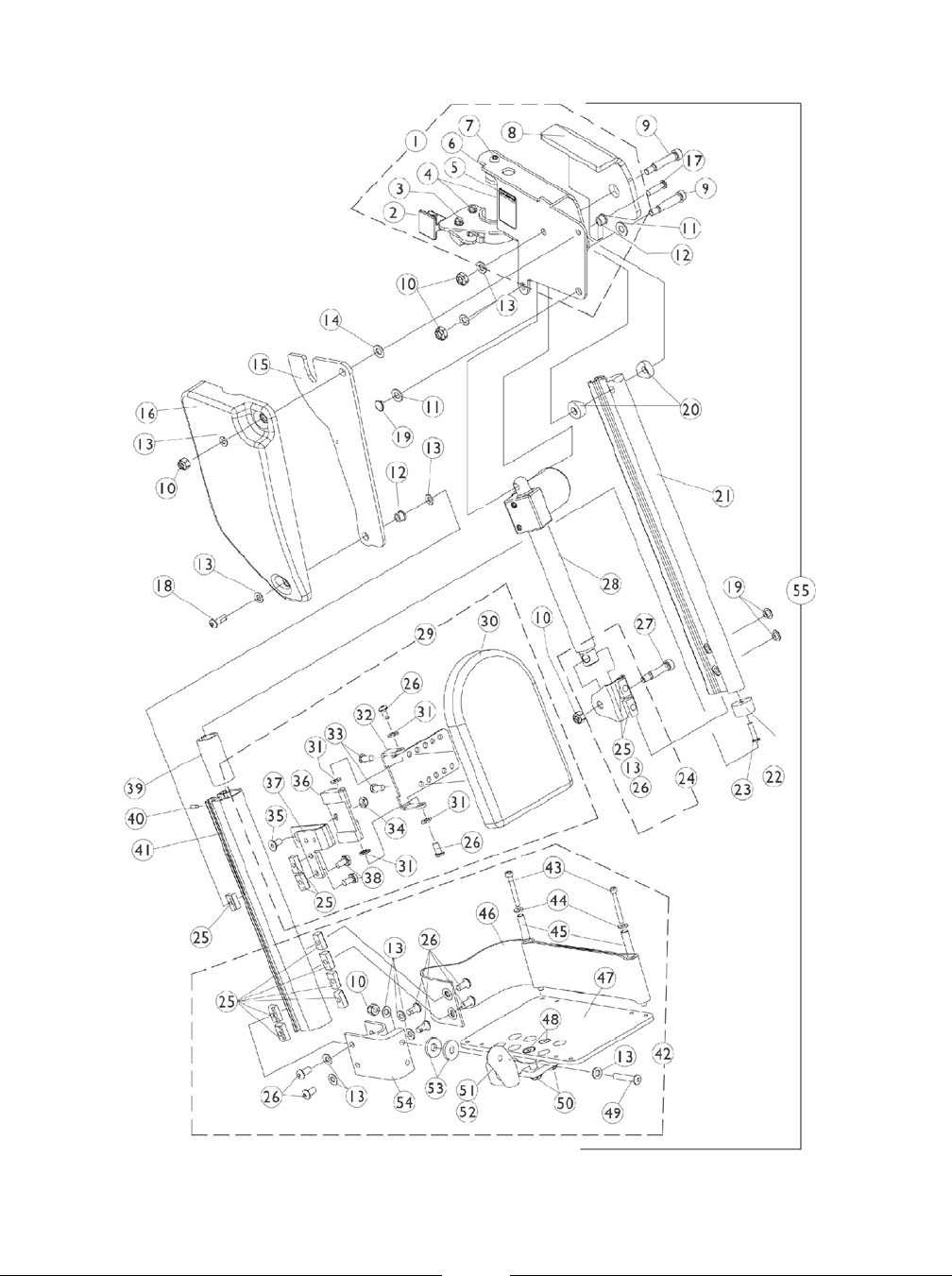

Power Articulating Legrest ELRPW/ELRPW22
Before 7/27/04
110
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Power Articulating Legrest ELRPW/ELRPW22
Before 7/27/04
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1111720 Legrest Support Assembly, Sector, Black - Right 1 11 A
1111721 Legrest Support Assembly, Sector, Black - Left 1 11 A
1025454 Latch Housing - Right 1 12
1025455 Latch Housing - Left 1 12
1017423 Screw, Slotted Hex Washer Head (#10-32 x 1/2") 1 13
1025451 Screw, Slotted Hex Washer Head (#10-32 x 5/8") 1 24
1079203 Decal, Warning Pinch Point 1 15
1099685 Plug, Pivot 1 16
1091870 Screw, Socket Button Head w/ Patch
(1/4-20 x 3/4") 1 17
1110968 Cushion Pad -Right 1 18
1110969 Cushion Pad -Left 1 18
1025351 Screw, Socket Head Shoulder (5/16 x 1-1/4") 1 29
1025736 Locknut (1/4-20) 1 510
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 211
1099671 Bearing, Flange (1/4 x 5/16" Long) 1 212
1026907 Washer (1/4 x 1/2 x 1/16") 1 1213
1012371 Washer, Nylon (3/8 x 7/8 x 1/16") 1 114
1110745 Plate, Pivot 1 115
1110746 Cover, Legrest Support - Right 1 116
1110747 Cover, Legrest Support - Left 1 116
1009837 Screw, Socket Button Head (1/4-20 x 1") 1 117
1091870 Screw, Socket Button Head w/ Patch
(1/4-20 x 3/4") 1 118
1101883 Glide 1 319
0175600 Spacer, Coved (5/16 x 3/4 x 3/8") 1 220
1110741 Extrusion, Internal Slide (14-1/4" Long) 1 121
1099702 Glide, Internal 1 122
1018846 Screw, Socket Button Head (#10-24 x 3/4") 1 123
1110972 Actuator Bracket Assembly 1 124 B
1082699 T-Nut (1/4-20) 1 1125
1100023 Screw, Button Head w/Patch (1/4-20 x 1/2") 1 1026
1087417 Screw, Socket Head Shoulder (5/16 x 1") 1 127
1110724 Motor, Actuator - Right 1 128
1110725 Motor, Actuator - Left 1 128
8881110977 Calf Pad Assembly with Mounting Hardware - Right 1 129 C
8881111715 Calf Pad Assembly with Mounting Hardware - Left 1 129 C
88804529X003 Pad, Legrest Vinyl - Right 1 130
88804529X004 Pad, Legrest Vinyl - Left 1 130
1110748 Hardware, Calf Pad Bracket 1 1D,F
1026033 Washer, Nylon (1/4 x 1/2 x 1/16") 1 431
1099700 Bracket, Calf Pad Mounting, Black 1 132
1026114 Screw, Phillips Pan Head (#10-32 x 1/2") 1 233
1025765 Locknut (1/4-28) 1 134
111
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Power Articulating Legrest ELRPW/ELRPW22
Before 7/27/04
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1074191 Screw, Socket Countersunk Head (1/4-28 x 1/2") 1 135
1099690 Block, Calf Pad 1 136
1111716 Bracket, Calf Pad Mounting, Black - Right 1 137
1111717 Bracket, Calf Pad Mounting, Black - Left 1 137
1078214 Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 238
1110742 Bushing, Sleeve 1 139
1079151 Pin, Roll (5/64 x 5/8") 1 140
1110734 Extrusion, External (10-1/2" Long) ELRPW 1 141
1121026 Extrusion, External (12-1/2" Long)
(ELRPW22 Before 7/22/04) and (ELRPW20 After
7/21/04)
1 141
1101114 Footplate Assembly - Right 1 142 E
1101115 Footplate Assembly - Left 1 142 E
1023965 Screw, Socket Head Cap (#10-32 x 1-1/2") 1 243
1028516 Washer (3/16 x 7/16 x 1/16") 1 244
1015629 Bushing 1 245
1101268 Heel Loop Assembly - Right 1 146
1101269 Heel Loop Assembly - Left 1 146
1060427 Footplate, Adjustable Angle - Large
(5-1/4" W x 8" L) 1 147
1029545 Screw, Socket Head Cap (1/4-20 x 3/4") 1 248
1008495 Screw, Socket Button Head (1/4-20 x 1-1/2") 1 149
1082686 Nut, Hex Head (1/4-20 x 11/16") 1 250
1052102 Hinge, Footplate - Right 1 151
1052103 Hinge, Footplate - Left 1 151
1048816 Screw, Nylon Adjustment (1/2-13 x 7/8") 1 152
1016301 Washer, Nylon (5/16 x 7/8 x 1/8") 1 253
1099678 Extrusion, Footplate Adapter 1 154
1110743-NLA Legrest Assembly, Power Articulating, Sector, Black
(13"-20" Range) - Right 1 155 G
1110744-NLA Legrest Assembly, Power Articulating, Sector, Black
(13"-20" Range) - Left 1 155 G
1121027-NLA Legrest Assembly, Power Articulating, Sector, Black
(15"-22" Range) - Right 1 155 G
1121028-NLA Legrest Assembly, Power Articulating, Sector, Black
(15"-22" Range) - Left 1 155 G
A - Includes items 2-8
B - Includes items 13, 25 and 26
C - Includes Items 25, 26 and 30-38
D - Includes Items 25, 26, 31-36, 38
E - Includes Items 10, 13, 25, 26 and 43-54
F - Not Shown
G - Due to a product enhancement that provides a higher pivot point at the knee, a customer must order a complete right and
left side legrest assembly. See page titled "Power Articulating Legrest After 7/26/04".
NOTE:
112
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

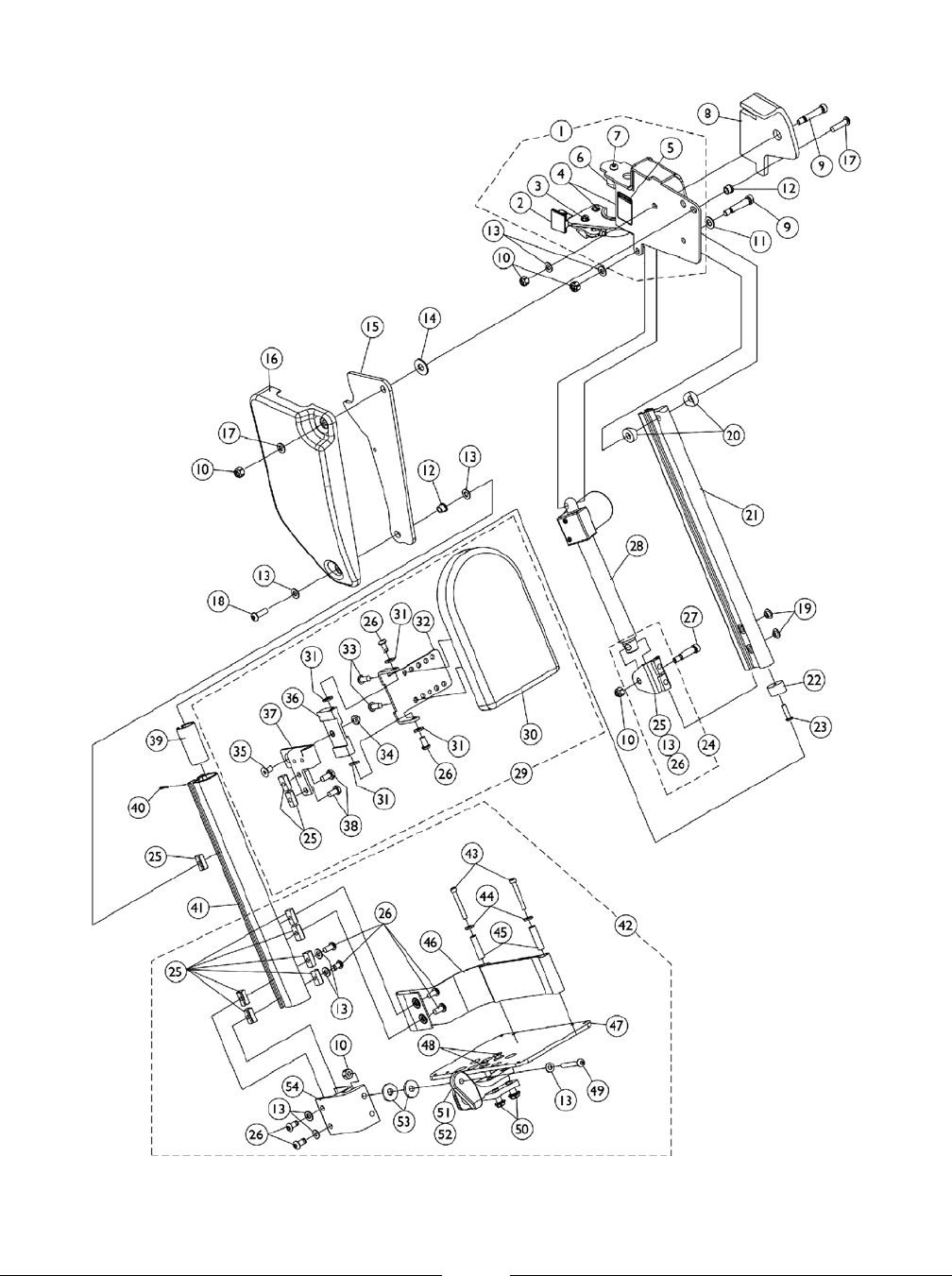

Power Articulating Legrest ELRPW/ELRPW22
After 7/26/04
113
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Power Articulating Legrest ELRPW/ELRPW22
After 7/26/04
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1125436 Legrest Support Assembly, Sector, Black - Right 1 11 A
1125437 Legrest Support Assembly, Sector, Black - Left 1 11 A
1025454 Latch Housing - Right 1 12
1025455 Latch Housing - Left 1 12
1017423 Screw, Slotted Hex Washer Head (#10-32 x 1/2") 1 13
1025451 Screw, Slotted Hex Washer Head (#10-32 x 5/8") 1 24
1079203 Decal, Warning Pinch Point 1 15
1099685 Plug, Pivot 1 16
1091870 Screw, Socket Button Head w/ Patch
(1/4-20 x 3/4") 1 17
1125433 Cushion Pad - Right 1 18
1125434 Cushion Pad - Left 1 18
1025351 Screw, Socket Head Shoulder (5/16 x 1-1/4") 1 29
1025736 Locknut (1/4-20) 1 510
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 111
1099671 Bearing, Flange (1/4 x 5/16" Long) 1 212
1026907 Washer (1/4 x 1/2 x 1/16") 1 1213
1012371 Washer, Nylon (3/8 x 7/8 x 1/16") 1 114
1125424 Plate, Pivot 1 115
1110746 Cover, Legrest Support - Right 1 116
1110747 Cover, Legrest Support - Left 1 116
1009837 Screw, Socket Button Head (1/4-20 x 1") 1 117
1091870 Screw, Socket Button Head w/ Patch
(1/4-20 x 3/4") 1 118
1101883 Glide 1 219
0175600 Spacer, Coved (5/16 x 3/4 x 3/8") 1 220
1110741 Extrusion, Internal Slide (14-1/4" Long) 1 121
1099702 Glide, Internal 1 122
1018846 Screw, Socket Button Head (#10-24 x 3/4") 1 123
1110972 Actuator Bracket Assembly 1 124 B
1082699 T-Nut (1/4-20) 1 1125
1100023 Screw, Button Head w/Patch (1/4-20 x 1/2") 1 1026
1087417 Screw, Socket Head Shoulder (5/16 x 1") 1 127
1110724 Motor, Actuator - Right 1 128
1110725 Motor, Actuator - Left 1 128
8881110977 Calf Pad Assembly with Mounting Hardware - Right 1 129 C
8881111715 Calf Pad Assembly with Mounting Hardware - Left 1 129 C
88804529X003 Pad, Legrest Vinyl - Right 1 130
88804529X004 Pad, Legrest Vinyl - Left 1 130
1110748 Hardware, Calf Pad Bracket 1 1D,F
1026033 Washer, Nylon (1/4 x 1/2 x 1/16") 1 431
1099700 Bracket, Calf Pad Mounting, Black 1 132
1026114 Screw, Phillips Pan Head (#10-32 x 1/2") 1 233
1025765 Locknut (1/4-28) 1 134
114
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Power Articulating Legrest ELRPW/ELRPW22
After 7/26/04
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1074191 Screw, Socket Countersunk Head (1/4-28 x 1/2") 1 135
1099690 Block, Calf Pad 1 136
1111716 Bracket, Calf Pad Mounting, Black - Right 1 137
1111717 Bracket, Calf Pad Mounting, Black - Left 1 137
1078214 Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 238
1110742 Bushing, Sleeve 1 139
1079151 Pin, Roll (5/64 x 5/8") 1 140
1121026 Extrusion, External (12-1/2" Long)
(ELRPW22 Before 7/22/04) and (ELRPW20 After
7/21/04)
1 141
1125435 Extrusion, External (14-1/2" Long) ELRPW22 1 141
1101114 Footplate Assembly - Right 1 142 E
1101115 Footplate Assembly - Left 1 142 E
1023965 Screw, Socket Head Cap (#10-32 x 1-1/2") 1 243
1028516 Washer (3/16 x 7/16 x 1/16") 1 244
1015629 Bushing 1 245
1101268 Heel Loop Assembly - Right 1 146
1101269 Heel Loop Assembly - Left 1 146
1060427 Footplate, Adjustable Angle - Large
(5-1/4" W x 8" L) 1 147
1029545 Screw, Socket Head Cap (1/4-20 x 3/4") 1 248
1008495 Screw, Socket Button Head (1/4-20 x 1-1/2") 1 149
1082686 Nut, Hex Head (1/4-20 x 11/16") 1 250
1052102 Hinge, Footplate - Right 1 151
1052103 Hinge, Footplate - Left 1 151
1048816 Screw, Nylon Adjustment (1/2-13 x 7/8") 1 152
1016301 Washer, Nylon (5/16 x 7/8 x 1/8") 1 253
1099678 Extrusion, Footplate Adapter 1 154
1126091 Legrest Assembly, Power Articulating, Sector, Black
(13"-20" Range) - Right 1 155
1126092 Legrest Assembly, Power Articulating, Sector, Black
(13"-20" Range) - Left 1 155
1126093 Legrest Assembly, Power Articulating, Sector, Black
(15"-22" Range) - Right 1 155
1126094 Legrest Assembly, Power Articulating, Sector, Black
(15"-22" Range) - Left 1 155
A - Includes items 2-7
B - Includes items 13, 25 and 26
C - Includes Items 25, 26 and 30-38
D - Includes Items 25, 26, 31-36, 38
E - Includes Items 10, 13, 25, 26 and 43-54
F - Not Shown
NOTE:
115
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

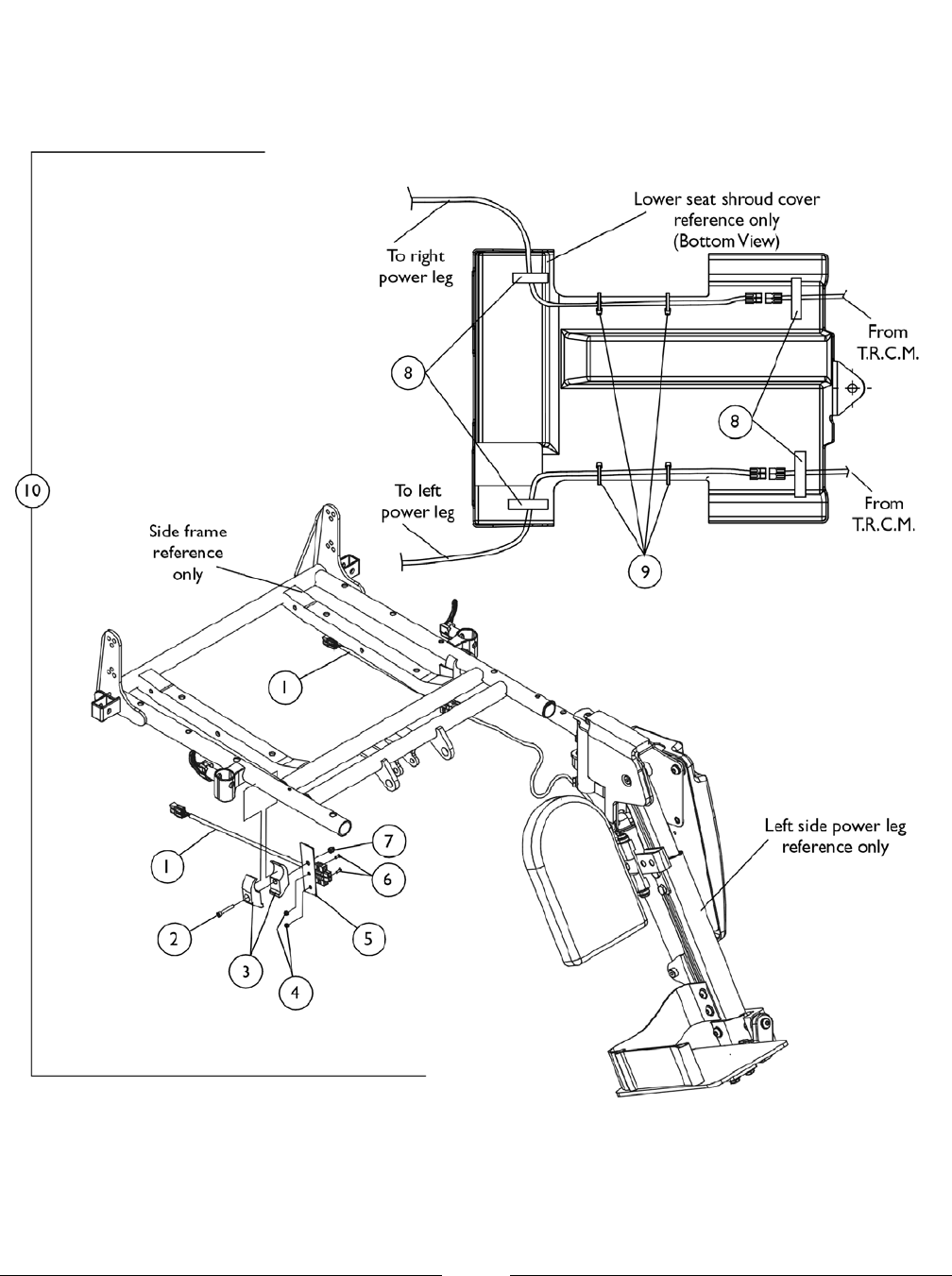

Power Articulating Legrest Harnesses and Hardware
ELRPW
116
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Power Articulating Legrest Harnesses and Hardware
ELRPW
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1101400 Harness, ELRPW Power Legrest - Right 1 11
1101401 Harness, ELRPW Power Legrest - Left 1 11
1003424 Screw, Socket Head (1/4-20 x 1-3/4") 1 22
1018692 Clamp, Half (Non-Threaded) 1 43
1056098 Locknut (#8-32) 1 44
1102022 Bracket, Harness Wire, Black 1 25
1091871 Screw, Socket Head Cap (#8-32 x 5/8") 1 46
7930338 Nut, Acorn (1/4-20) 25 27
1070509 Fastener, Loop with Adhesive Back
(1" Wide x 2" Long) 1 48
2001682 Wrap, Tie (8") 1 49
1101520 Kit, Power Leg Harness and Mounting Hardware 2 110 A
A - Includes Items 1-9
NOTE:
117
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

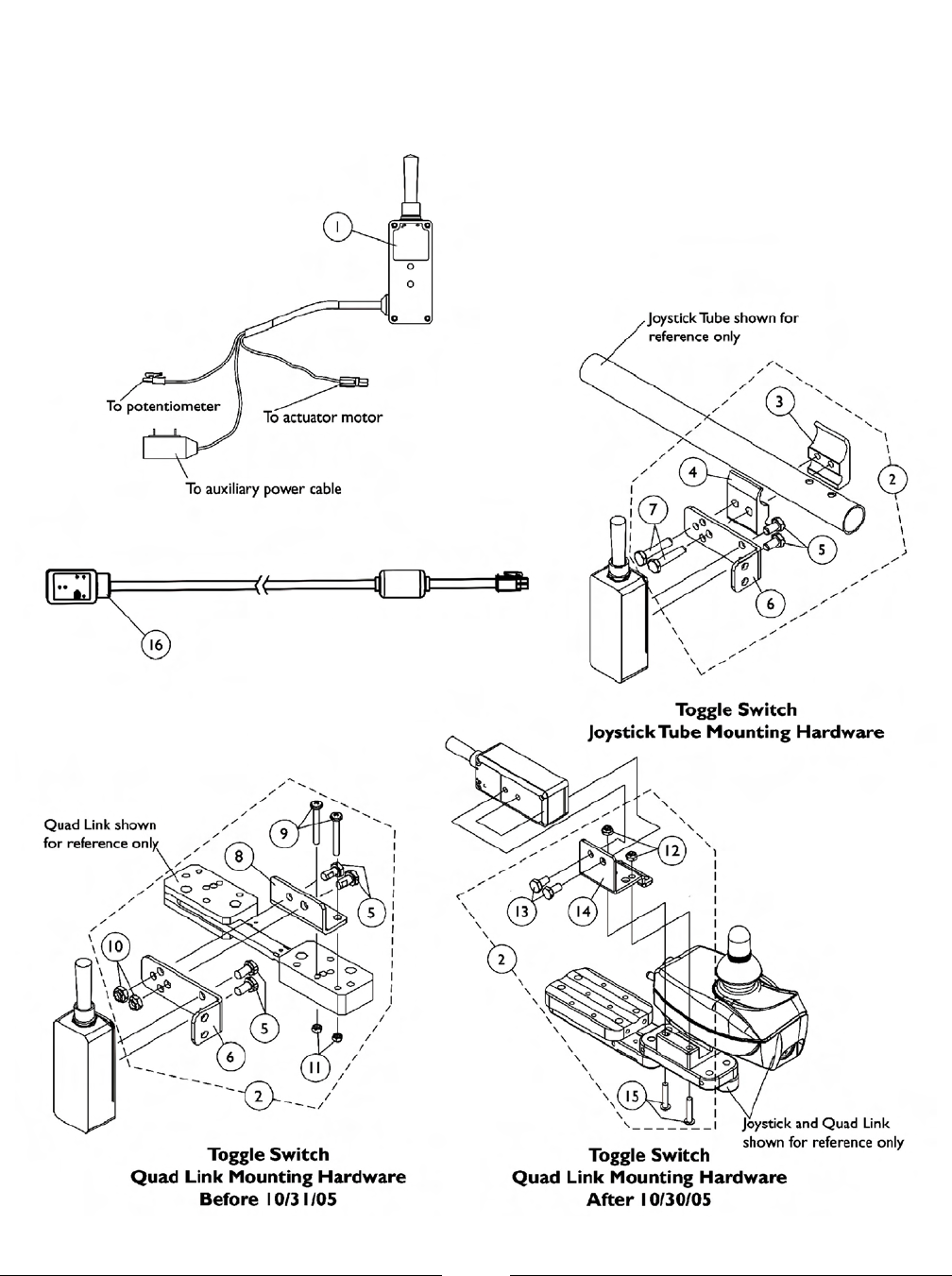

Electronics
Tilt Recline Single Switch (TRSS)
118
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Electronics
Tilt Recline Single Switch (TRSS)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1089384 Switch, Toggle Tilt Recline Single (TRSS) 1 11 C
1091496 Kit, Joystick Tube Toggle Switch Mounting
Hardware 1 12 A
Half Clamp, Threaded Holes 1 13
Half Clamp, Non-Threaded Holes 1 14
Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 25
Bracket, Toggle Switch Mounting 1 16
Screw, Hex Head (1/4-20 x 1-1/8") 1 27
1091497 Kit, Quad Link Toggle Switch Mounting Hardware 1 12 B
Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 45
Bracket, Toggle Switch Mounting 1 16
Bracket, Quad Link Toggle Switch Mounting 1 18
Screw, Phillips Pan Head (#10-32 x 1-3/8") 1 29
Locknut (1/4-20) 1 210
Locknut (#10-32) 1 211
1139684 Kit, Quad Link Toggle Switch Mounting Hardware 1 12 D
Locknut (#10-32) 1 212
Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 213
Bracket, Toggle Switch Mounting 1 114
Screw, Phillips Pan Head w/Patch (#10-32 x 7/8") 1 215
1119418 Cable, Auxiliary Power 1 116
A - Includes Items 3-7
B - Before 10/31/05 and Includes Items 5, 6, and 8-11
C - The TRSS switch was revised 5/15/03 starting with serial number 03C154725 to function with MK5 electronics. TRSS
switches with serial numbers before 03C154725 are not compatible with MK5 electronics.
D - After 10/30/05 and includes items 12-15
NOTE:
119
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Electronics
4-Way Switch and Mounting Hardware
NOTE: 4-way switch is used with a MK5 TAC or MK5 TRCM controller
120
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Electronics
4-Way Switch and Mounting Hardware
NOTE: 4-way switch is used with a MK5 TAC or MK5 TRCM controller
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1080116 Switch, 4-Way (FWT) 1 11
1077519 Kit, 4-Way Switch Joystick Tube Mounting
Hardware 1 12 A
Half Clamp, Threaded Holes 1 13
Half Clamp, Non-Threaded Holes 1 14
Bracket, Joystick Mounting 1 15
Screw, Hex Head (1/4-20 x 1-1/8") 1 26
Washer (#10 Flat) 1 27
Screw, Phillips Pan Head (#10-32 x 1/2") 1 28
1077520 Kit, 4-Way Switch Quad Link Mounting Hardware 1 12 B
Bracket, Quad Link Mounting 1 15
Washer (#10 Flat) 1 27
Screw, Phillips Pan Head (#10-32 x 1/2") 1 28
Locknut (#10-32) 1 29
Screw, Phillips Pan Head (#10-32 x 1-3/8") 1 210
1139418 Kit, 4-Way Switch Quad Link Mounting Hardware 1 12 C
Screw, Phillips Pan Head w/Patch (#10-32 x 7/8") 1 211
Screw, Phillips Pan Head (#10-32 x 1/2") 1 212
Washer, Nylon (#10) 1 213
Locknut (#10-32) 1 214
1134132 Bracket, 4-Way Switch Quad Link, Black - Right 1 115
1134133 Bracket, 4-Way Switch Quad Link, Black - Left 1 115
A - Includes items 3-8
B - Before 10/31/05. Includes items 5 and 7-10
C - After 10/30/05. Includes items 11-14.
NOTE:
121
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

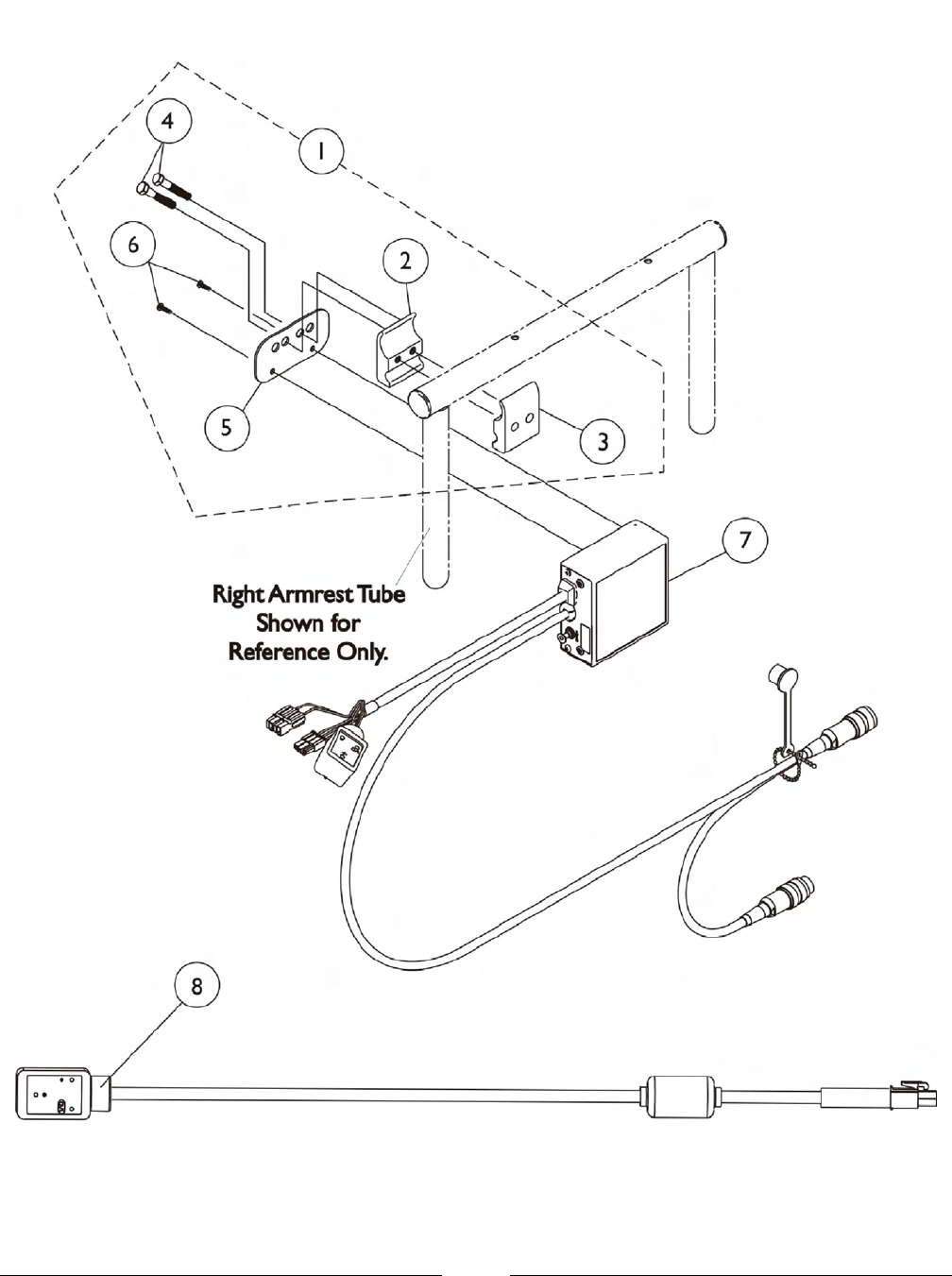

MK5 SAC and Mounting Hardware
122
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
MK5 SAC and Mounting Hardware
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1049593 Kit, SNP/DI, MK5 SAC, 4WSB, S4WSB, GTAM,
AUX12M6, AUX34M6 Mtg. Hdwr. 1 11 A,C
Half Clamp, Threaded Holes 1 12
Half Clamp, Non-Threaded Holes 1 13
Screw, Hex Head (1/4-20 x 1-1/8") 1 24
Plate, Mounting 1 15
Screw, Phillips Pan Head (#4-40 x 3/8") 1 26
1119458-NLA Control, MK5 SAC 1 17 B
1119418 Cable, Auxiliary Power 1 18
A - Includes items 2-6
B - MK5 SAC was discontinued 1/6/06 and replaced with a MK5 TAC. See page titled " MK5 TAC/TRCM and Mounting
Hardware" for Round or Extruded canes, depending on the chair configuration
C - As of 5/22/07 the Mounting Plate holes and the orientation of the Hardware was revised to attach the electronics closer to
the chair. The Mounting Hardware Kit is backward compatible.
NOTE:
123
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
MK5 TAC/TRCM and Mounting Hardware
For Extruded Back Canes
124
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
MK5 TAC/TRCM and Mounting Hardware
For Extruded Back Canes
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1121180 T.A.C./T.R.C.M. Mounting Hardware For Extruded
Back Canes 1 11 A
1082699 T-Nut (1/4-20) 1 22
1079316 Screw, Phillips Pan Head (#10-32 x 3/8") 1 23
1113601 Bracket, Controller Mounting, Black 1 14
1026907 Washer (1/4 x 1/2 x 1/16") 1 25
1078214 Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 26
1118728 Controller, MK5 TAC 1 17 B
1118729 Controller, MK5 T.R.C.M. 1 17
1119418 Cable, Auxiliary Power 1 18
1142595 Kit, MK5 SAC To MK5 TAC Conversion For Tarsys
2GT w/ Extruded Back Canes on TDX 1 1C
T-Nut (1/4-20) 1 22
Screw, Phillips Pan Head (#10-32 x 3/8") 1 23
Bracket, Controller Mounting, Black 1 14
Washer (1/4 x 1/2 x 1/16") 1 25
Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 26
Controller, MK5 TAC 1 17
Cable Tie (11-1/2" Long) 1 10
Cable Tie (5-5/8" Long) 1 10
Instruction Sheet, MK5 SAC To MK5 TAC
Conversion For Tarsys 2GT w/ Round & Extruded
Back Canes on TDX
1 1
1095503 Package, Cable Ties (5-5/8" Long) 10 1D
1095502 Package, Cable Ties (11-1/2") 10 1D
1141485 Instruction Sheet, MK5 SAC To MK5 TAC
Conversion For Tarsys 2GT w/ Round & Extruded
Back Canes on TDX
1 1D
A - Includes items 2-6
B - When converting a MK5 SAC to a MK5 TAC, refer to the Conversion Kit part # 1142595. Convertion Kit includes all parts
needed to convert a (Tarsys 2GT w/ Extruded Canes on TDX)
C - Not Shown. Kit components for a Tarsys 2GT w/ Extruded Canes on TDX uses items 2-7, Cable Ties and Instruction
Sheet
D - Not Shown
NOTE:
125
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

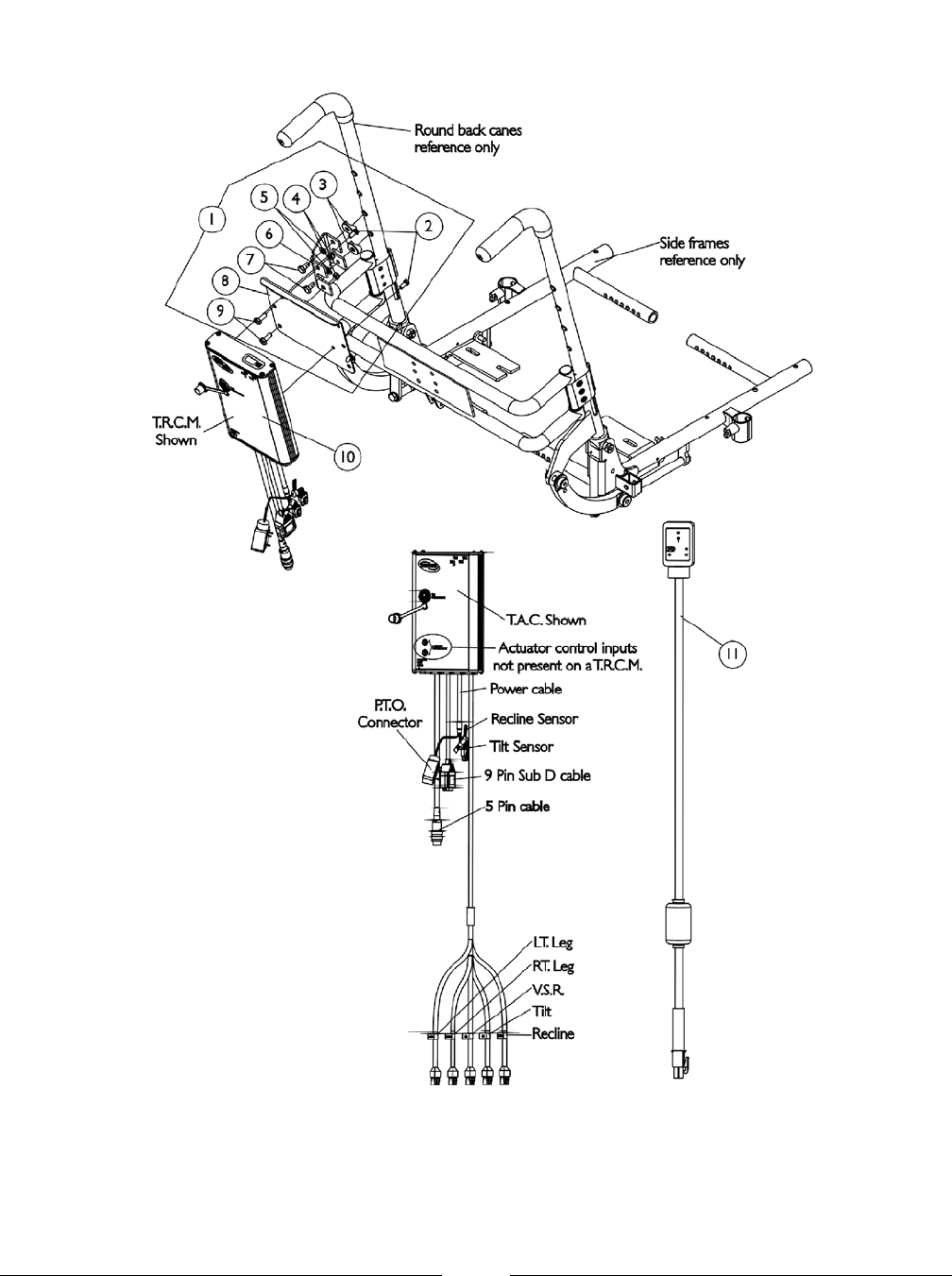

MK5 TAC/TRCM and Mounting Hardware
For Round Back Canes
126
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
MK5 TAC/TRCM and Mounting Hardware
For Round Back Canes
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1121181 T.A.C./T.R.C.M. Mounting Hardware For Round
Back Canes 1 11 A
1079316 Screw, Phillips Pan Head (#10-32 x 3/8") 1 22
1082908 Spacer, Coved (5/16 x 29/32 x 7/16") 1 23
60275X000 Locknut (1/4-20) 1 24
1026907 Washer (1/4 x 1/2 x 1/16") 1 25
1113638 Bracket, Vent-Connect Upper Right 1 16 B
1078214 Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 27
1113601 Bracket, Controller Mounting, Black 1 18
1121024 Screw, Hex Head Cap with Patch (1/4-20 x 5/8") 1 29
1118728 Controller, MK5 TAC 1 110 C
1118729 Controller, MK5 T.R.C.M. 1 110
1119418 Cable, Auxiliary Power 1 111
1142593 Kit, MK5 SAC To MK5 TAC Conversion For Tarsys
2GT w/ Round Back Canes on TDX 1 1D
Screw, Phillips Pan Head (#10-32 x 3/8") 1 22
Spacer, Coved (5/16 x 29/32 x 7/16") 1 23
Locknut (1/4-20) 1 24
Washer (1/4 x 1/2 x 1/16") 1 25
Bracket, Vent-Connect Upper Right 1 16
Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 27
Bracket, Controller Mounting, Black 1 18
Screw, Hex Head Cap with Patch (1/4-20 x 5/8") 1 29
Controller, MK5 TAC 1 110
Cable Tie (11-1/2" Long) 1 10
Cable Tie (5-5/8" Long) 1 10
Instruction Sheet, MK5 SAC To MK5 TAC
Conversion For Tarsys 2GT w/ Round & Extruded
Back Canes on TDX
1 1
1095503 Package, Cable Ties (5-5/8" Long) 10 1E
1095502 Package, Cable Ties (11-1/2") 10 1E
1141485 Instruction Sheet, MK5 SAC To MK5 TAC
Conversion For Tarsys 2GT w/ Round & Extruded
Back Canes on TDX
1 1E
A - Includes items 2-9
B - Vent-connect upper right bracket used on the left side when mounting a MK5 TAC or TRCM
C - When converting a MK5 SAC to a MK5 TAC, refer to the Conversion Kit part # 1142593. Convertion Kit includes all parts
needed to convert a (Tarsys 2GT w/ Round Canes on TDX)
D - Not Shown. Kit components for a Tarsys 2GT w/ Round Canes on TDX uses items 2-10, Cable Ties and Instruction Sheet
E - Not Shown
NOTE:
127
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

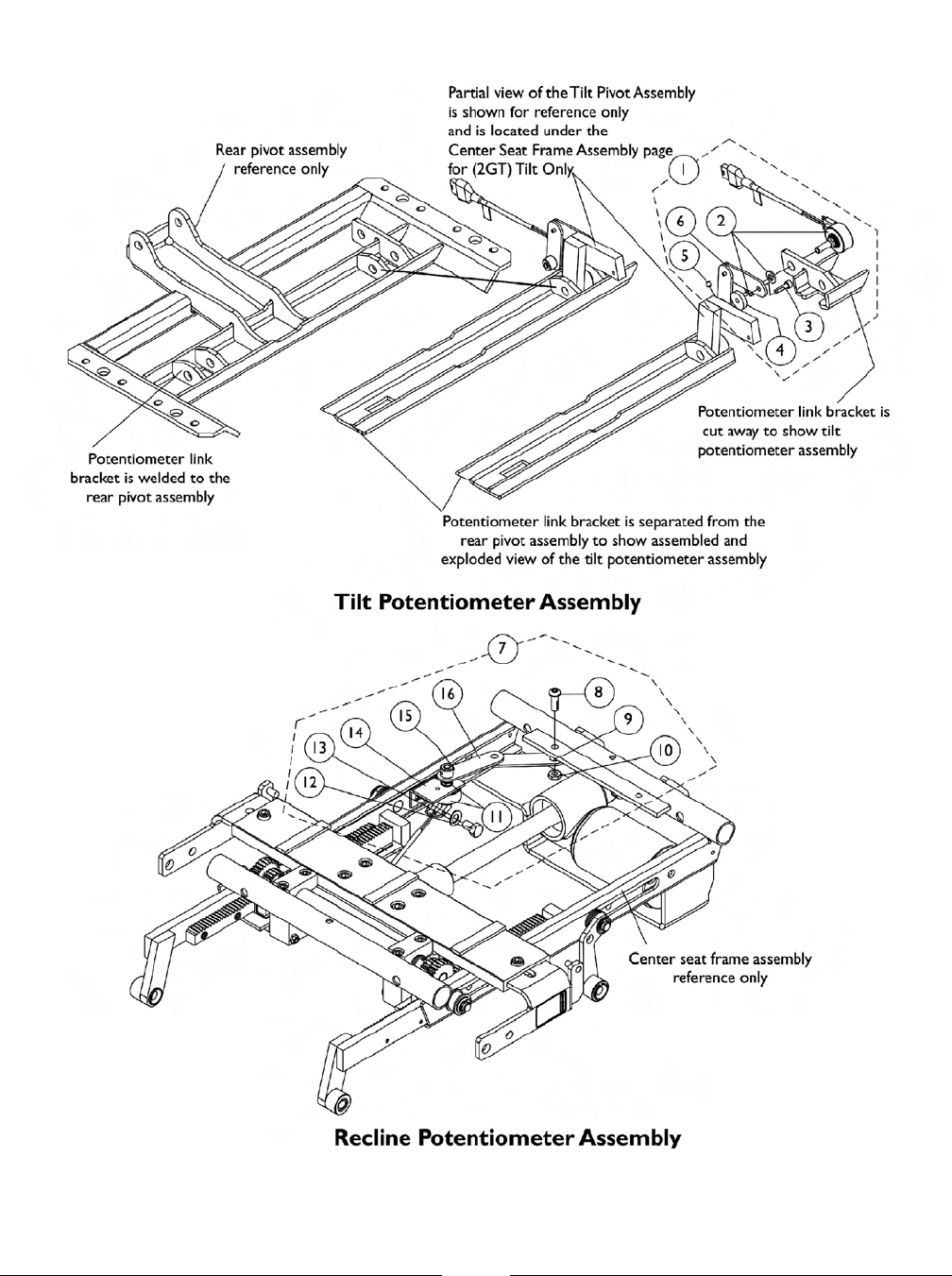

Tilt/ Recline Potentiometers and Hardware
128
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Tilt/ Recline Potentiometers and Hardware
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1117258 Tilt Potentiometer Assembly 1 11 A
1117256 Harness, Tilt Potentiometer with Nut and Washer 1 12
1091871 Screw, Socket Head Cap (#8-32 x 5/8") 1 13
1029454 Washer, Nylon (3/16 x 3/4 x 5/32") 1 14
1008438 Screw, Set (#8-32 x 3/16") 1 15
1087037 Linkage, Tilt Potentiometer 1 16
1094264 Recline Potentiometer Assembly 1 17 B
1091870 Screw, Socket Button Head w/ Patch
(1/4-20 x 3/4") 1 18
1031884 Bushing (9/32 x 3/8 x 11/32")
Black or Color Chairs 1 19
1025195 Locknut (1/4-20) 1 110
1079991 Recline Potentiometer w/ Harness, Nut and Washer 1 111
1061922 Screw, Hex Head Cap w/ Patch (5/16-18 x 1/2") 1 112
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 113
1115825 Bracket, Fixed Recline Potentiometer, Black 1 114
1008438 Screw, Set (#8-32 x 3/16") 1 115
1094263 Linkage, Recline Potentiometer 1 116
A - Includes items 2-6
B - Includes items 8-16
NOTE:
129
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

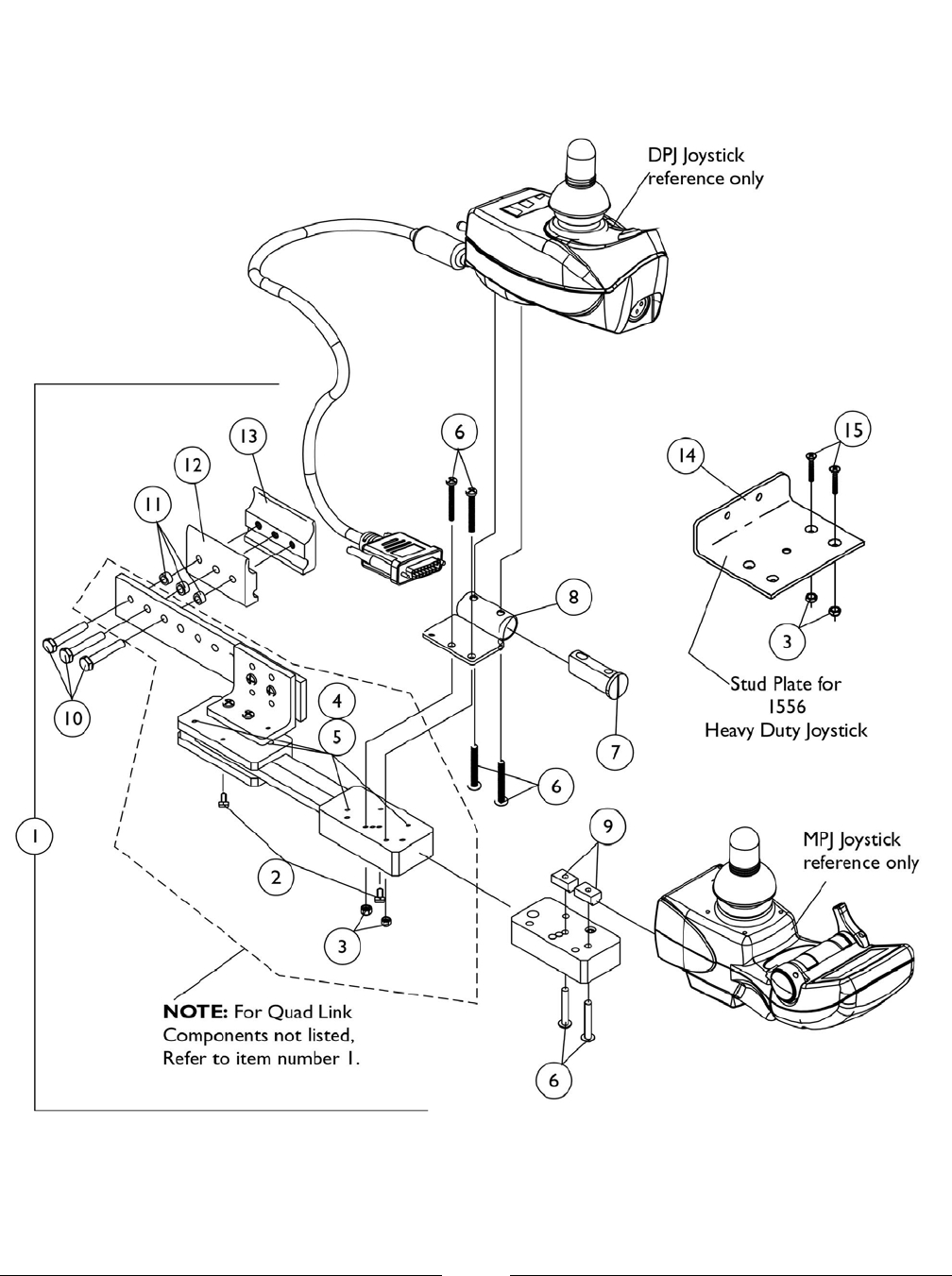

Quad Link
Before 10/9/03
130
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Quad Link
Before 10/9/03
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1052402 Kit, Quad Link Assembly - Right 1 11 A
Ball Plunger with Lock Washer Assembly 2 12
Locknut (#10-32) 1 23
Screw, Socket Head (#10-32 x 1/2") 1 44
Bushing, Bronze (3/16 x 1/4 x 1/4") 1 45
Screw, Phillips Pan Head (#10-32 x 1-1/8") 1 46
Spacer, Joystick Tube 1 17
Stud Plate, Quad Link 1 18
Screw, Hex Head (1/4-20 x 1-1/2") 1 310
Spacer (1/4 x 3/8 x 3/16") 1 311
Half Clamp, Non-Threaded Holes 1 112
Half Clamp, Threaded Holes 1 113
1115372 Kit, Quad Link Assembly - Left 1 11 A
Ball Plunger with Lock Washer Assembly 2 12
Locknut (#10-32) 1 23
Screw, Socket Head (#10-32 x 1/2") 1 44
Bushing, Bronze (3/16 x 1/4 x 1/4") 1 45
Screw, Phillips Pan Head (#10-32 x 1-1/8") 1 46
Spacer, Joystick Tube 1 17
Stud Plate, Quad Link 1 18
Screw, Hex Head (1/4-20 x 1-1/2") 1 310
Spacer (1/4 x 3/8 x 3/16") 1 311
Half Clamp, Non-Threaded Holes 1 112
Half Clamp, Threaded Holes 1 113
1117278 Kit, Quad Link Assembly - Right 1 11 B
Ball Plunger with Lock Washer Assembly 2 12
Locknut (#10-32) 1 23
Screw, Socket Head (#10-32 x 1/2") 1 44
Bushing, Bronze (3/16 x 1/4 x 1/4") 1 45
Screw, Phillips Pan Head (#10-32 x 1-1/8") 1 26
T-Nut (#10-32) 1 29
Screw, Hex Head (1/4-20 x 1-1/2") 1 310
Spacer (1/4 x 3/8 x 3/16") 1 311
Half Clamp, Non-Threaded Holes 1 112
Half Clamp, Threaded Holes 1 113
1117239 Kit, Quad Link Assembly - Left 1 11 B
Ball Plunger with Lock Washer Assembly 2 12
Locknut (#10-32) 1 23
Screw, Socket Head (#10-32 x 1/2") 1 44
Bushing, Bronze (3/16 x 1/4 x 1/4") 1 45
Screw, Phillips Pan Head (#10-32 x 1-1/8") 1 26
T-Nut (#10-32) 1 29
Screw, Hex Head (1/4-20 x 1-1/2") 1 310
131
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Quad Link
Before 10/9/03
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
Spacer (1/4 x 3/8 x 3/16") 1 311
Half Clamp, Non-Threaded Holes 1 112
Half Clamp, Threaded Holes 1 113
1034703-NLA Kit, Quad Link Assembly - Right 1 11 C,D
Ball Plunger with Lock Washer Assembly 2 12
Locknut (#10-32) 1 23
Screw, Socket Head (#10-32 x 1/2") 1 44
Bushing, Bronze (3/16 x 1/4 x 1/4") 1 45
Screw, Hex Head (1/4-20 x 1-1/2") 1 310
Spacer (1/4 x 3/8 x 3/16") 1 311
Half Clamp, Non-Threaded Holes 1 112
Half Clamp, Threaded Holes 1 113
Stud Plate, Quad Link For 1556 Heavy Duty
Joystick 1 114
Screw, Phillips Flat Head Countersunk (#10-32 x
1-1/8") 1 215
1114866 Kit, Quad Link Assembly - Left 1 11 C
Ball Plunger with Lock Washer Assembly 2 12
Locknut (#10-32) 1 23
Screw, Socket Head (#10-32 x 1/2") 1 44
Bushing, Bronze (3/16 x 1/4 x 1/4") 1 45
Screw, Hex Head (1/4-20 x 1-1/2") 1 310
Spacer (1/4 x 3/8 x 3/16") 1 311
Half Clamp, Non-Threaded Holes 1 112
Half Clamp, Threaded Holes 1 113
Stud Plate, Quad Link For 1556 Heavy Duty
Joystick 1 114
Screw, Phillips Flat Head Countersunk (#10-32 x
1-1/8") 1 215
1114863 Ball Plunger with Lock Washer Assembly 2 12
A - Includes the Quad Link, items 2-8, 10-13 and used with a DPJ joystick
B - Includes the Quad Link, items 2-6, 9-13 and used with a MPJ joystick
C - includes the Quad Link, items 2-5, 10-15 and used with a 1556 Heavy Duty joystick
D - Quad Link Assembly is no longer available. Please see Quad Link Assembly (After 10/30/06) category and use new Quad
LInk design as a replacement.
NOTE:
132
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Quad Link For MK5 DPJ Joystick
10/9/03 Thru 1/12/04
133
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Quad Link For MK5 DPJ Joystick
10/9/03 Thru 1/12/04
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1025714 Screw, Phillips Pan Head (#10-32 x 1-1/8") 1 21
1093063 Spacer, Joystick Tube 1 12
1123005-NLA Quad Link Hardware
Consists Of:
4 each Screw, Socket Head Shoulder (1/4 x 1/4")
4 each Washer, Spring (1/4 x 1/2 x 1/32")
8 each Spacer, Flanged (1/4 x 9/16 x 1/8")
1 13
1123010 Screw, Socket Head Set with Patch (1/4-20 x 3/4") 1 14
1027095 Plug Button, Black (7/8") 1 15
1121120-NLA Quad Link Assembly -Right 1 16 A,C
1123004-NLA Quad Link Assembly -Left 1 16 A,C
1093506 Tube, Joystick 1/2" Offset 1 17
1093071 Clamp, Fixed Height Joystick Tube 1 18
1121100 Mount, Joystick Quad Link 1 19
1121101 Mount, Joystick Spin 1 110
1102546 Screw, Phillips Pan Head (#10-32 x 7/8") 1 211
1123010 Screw, Socket Head Set with Patch (1/4-20 x 3/4") 1 212
1095502 Package, Cable Ties (11-1/2") 10 213
1121113-NLA Quad Link Joystick Mounting Hardware 1 114 B,C
A - Includes items 1-5. When ordering a Quad Link Assembly for the first time, item 14 must be ordered as well. When
replacing an existing Quad Link made before 10/9/03, items 6, 7, 8 and 14 must be ordered.
B - Includes items 9-13 and used for MK5 DPJ joystick.
C - No Longer available, see Quad Link dated after 1/12/04
NOTE:
134
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Quad Link For MK5 MPJ Joystick
10/9/03 Thru 1/12/04
135
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Quad Link For MK5 MPJ Joystick
10/9/03 Thru 1/12/04
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1025714 Screw, Phillips Pan Head (#10-32 x 1-1/8") 1 21
1093063 Spacer, Joystick Tube 1 12
1123005-NLA Quad Link Hardware
Consists Of:
4 each Screw, Socket Head Shoulder (1/4 x 1/4")
4 each Washer, Spring (1/4 x 1/2 x 1/32")
8 each Spacer, Flanged (1/4 x 9/16 x 1/8")
1 13
1123010 Screw, Socket Head Set with Patch (1/4-20 x 3/4") 1 14
1027095 Plug Button, Black (7/8") 1 15
1121120-NLA Quad Link Assembly -Right 1 16 A,C
1123004-NLA Quad Link Assembly -Left 1 16 A,C
1093506 Tube, Joystick 1/2" Offset 1 17
1093071 Clamp, Fixed Height Joystick Tube 1 18
1117216 T-Nut (#10-32) 1 29
1121101 Mount, Joystick Spin 1 110
1134086 Screw, Socket Button Head w/ Patch (#10-32 x
1/2") 1 211
1123010 Screw, Socket Head Set with Patch (1/4-20 x 3/4") 1 212
1095502 Package, Cable Ties (11-1/2") 10 213
1121114-NLA Quad Link Joystick Mounting Hardware 1 114 B,C
A - Includes items 1-5. When ordering a Quad Link Assembly for the first time, item 14 must be ordered as well. When
replacing an existing Quad Link made before 10/9/03, items 6, 7, 8 and 14 must be ordered.
B - Includes items 9-13 and used for MK5 MPJ joystick.
C - No Longer available, see Quad Link dated after 1/12/04
NOTE:
136
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

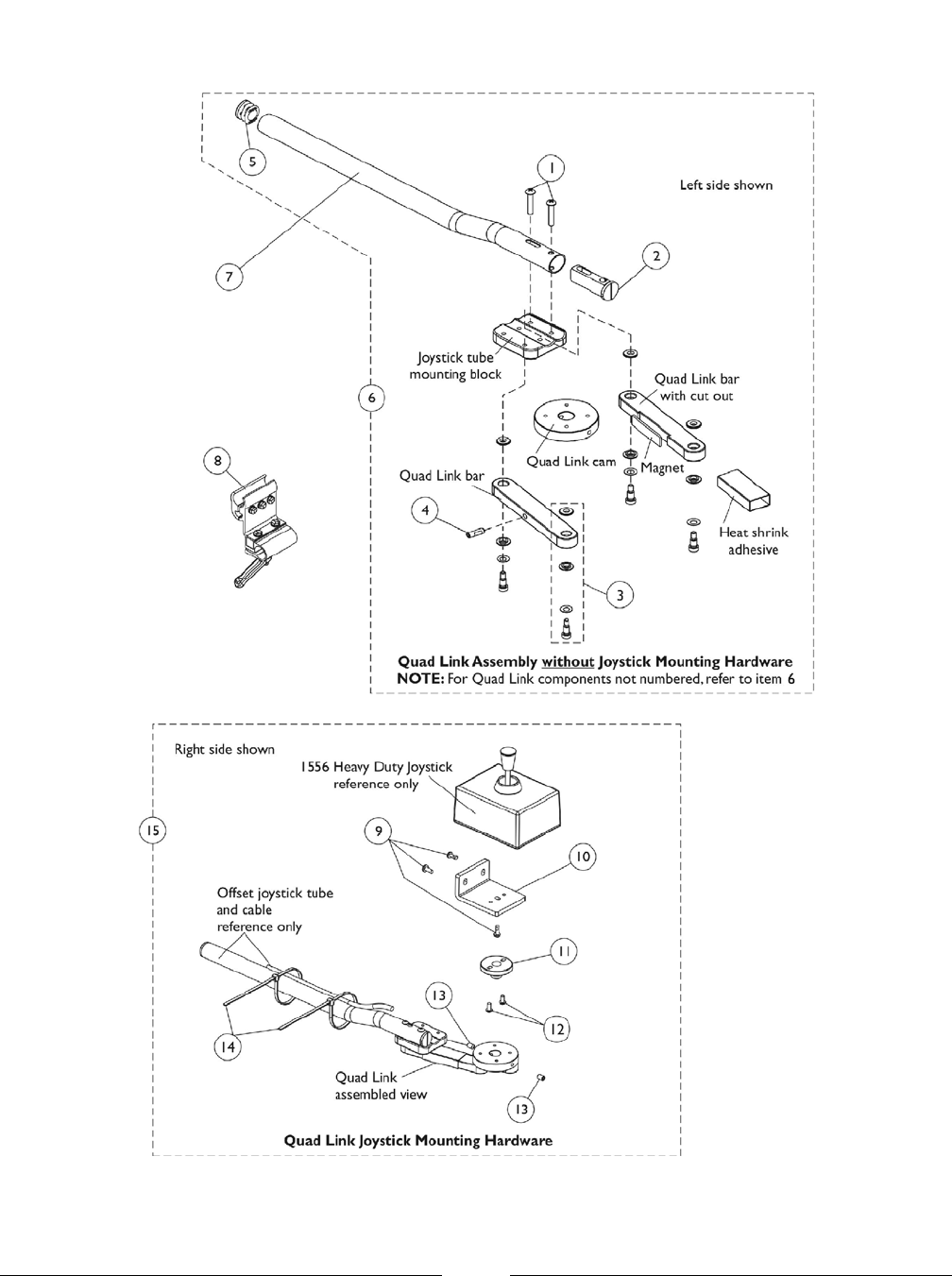

Quad Link For 1556 Heavy Duty Joystick
10/9/03 Thru 1/12/04
137
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Quad Link For 1556 Heavy Duty Joystick
10/9/03 Thru 1/12/04
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1025714 Screw, Phillips Pan Head (#10-32 x 1-1/8") 1 21
1093063 Spacer, Joystick Tube 1 12
1123005-NLA Quad Link Hardware
Consists Of:
4 each Screw, Socket Head Shoulder (1/4 x 1/4")
4 each Washer, Spring (1/4 x 1/2 x 1/32")
8 each Spacer, Flanged (1/4 x 9/16 x 1/8")
1 13
1123010 Screw, Socket Head Set with Patch (1/4-20 x 3/4") 1 14
1027095 Plug Button, Black (7/8") 1 15
1121120-NLA Quad Link Assembly -Right 1 16 A,C
1123004-NLA Quad Link Assembly -Left 1 16 A,C
1093506 Tube, Joystick 1/2" Offset 1 17
1093071 Clamp, Fixed Height Joystick Tube 1 18
1134086 Screw, Socket Button Head w/ Patch (#10-32 x
1/2") 1 39
1121111 Plate, 1556 Heavy Duty Joystick Quad Link 1 110
1121101 Mount, Joystick Spin 1 111
1016401 Screw, Phillips Round Head (#10-32 x 3/8") 1 212
1123010 Screw, Socket Head Set with Patch (1/4-20 x 3/4") 1 213
1095502 Package, Cable Ties (11-1/2") 10 214
1121115-NLA Quad Link Joystick Mounting Hardware 1 115 B,C
A - Includes items 1-5. When ordering a Quad Link Assembly for the first time, item 15 must be ordered as well. When
replacing an existing Quad Link made before 10/9/03, items 6, 7, 8 and 15 must be ordered.
B - Includes items 9-14 and used for 1556 Heavy Duty Joystick.
C - No Longer available, see Quad Link dated after 1/12/04
NOTE:
138
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

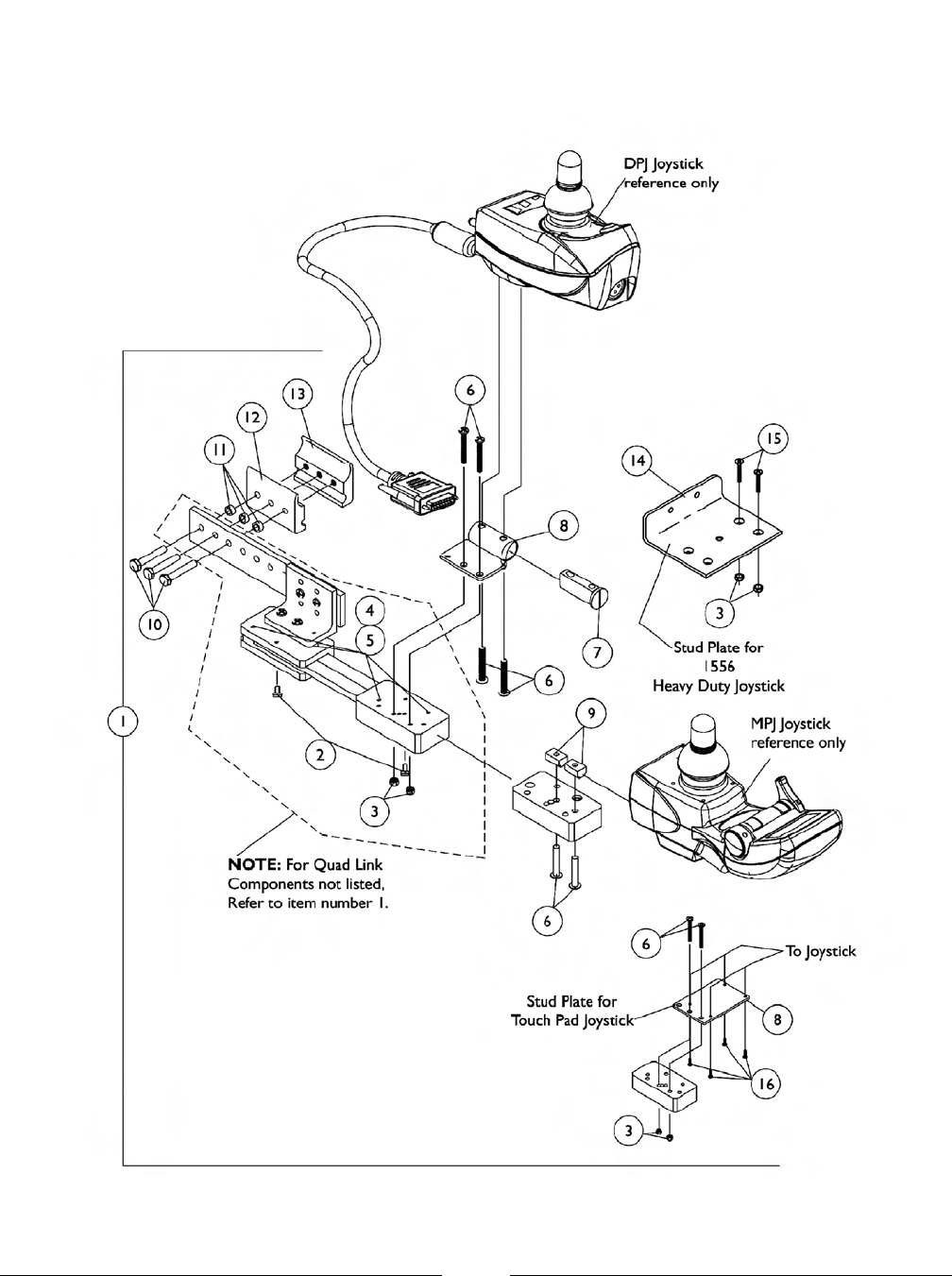

Electronics
Quad Link
1/13/04 Thru 10/30/05
139
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Electronics
Quad Link
1/13/04 Thru 10/30/05
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1052402 Kit, Quad Link Assembly - Right 1 11 A
Ball Plunger with Lock Washer Assembly 2 12
Locknut (#10-32) 1 23
Screw, Socket Head (#10-32 x 1/2") 1 44
Bushing, Bronze (3/16 x 1/4 x 1/4") 1 45
Screw, Phillips Pan Head (#10-32 x 1-1/8") 1 46
Spacer, Joystick Tube 1 17
Stud Plate, Quad Link 1 18
Screw, Hex Head (1/4-20 x 1-1/2") 1 310
Spacer (1/4 x 3/8 x 3/16") 1 311
Half Clamp, Non-Threaded Holes 1 112
Half Clamp, Threaded Holes 1 113
1115372 Kit, Quad Link Assembly - Left 1 11 A
Ball Plunger with Lock Washer Assembly 2 12
Locknut (#10-32) 1 23
Screw, Socket Head (#10-32 x 1/2") 1 44
Bushing, Bronze (3/16 x 1/4 x 1/4") 1 45
Screw, Phillips Pan Head (#10-32 x 1-1/8") 1 46
Spacer, Joystick Tube 1 17
Stud Plate, Quad Link 1 18
Screw, Hex Head (1/4-20 x 1-1/2") 1 310
Spacer (1/4 x 3/8 x 3/16") 1 311
Half Clamp, Non-Threaded Holes 1 112
Half Clamp, Threaded Holes 1 113
1117278 Kit, Quad Link Assembly - Right 1 11 B
Ball Plunger with Lock Washer Assembly 2 12
Locknut (#10-32) 1 23
Screw, Socket Head (#10-32 x 1/2") 1 44
Bushing, Bronze (3/16 x 1/4 x 1/4") 1 45
Screw, Phillips Pan Head (#10-32 x 1-1/8") 1 26
T-Nut (#10-32) 1 29
Screw, Hex Head (1/4-20 x 1-1/2") 1 310
Spacer (1/4 x 3/8 x 3/16") 1 311
Half Clamp, Non-Threaded Holes 1 112
Half Clamp, Threaded Holes 1 113
1117239 Kit, Quad Link Assembly - Left 1 11 B
Ball Plunger with Lock Washer Assembly 2 12
Locknut (#10-32) 1 23
Screw, Socket Head (#10-32 x 1/2") 1 44
Bushing, Bronze (3/16 x 1/4 x 1/4") 1 45
Screw, Phillips Pan Head (#10-32 x 1-1/8") 1 26
T-Nut (#10-32) 1 29
140
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Electronics
Quad Link
1/13/04 Thru 10/30/05
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
Screw, Hex Head (1/4-20 x 1-1/2") 1 310
Spacer (1/4 x 3/8 x 3/16") 1 311
Half Clamp, Non-Threaded Holes 1 112
Half Clamp, Threaded Holes 1 113
1034703-NLA Kit, Quad Link Assembly - Right 1 11 C,E
Ball Plunger with Lock Washer Assembly 2 12
Locknut (#10-32) 1 23
Screw, Socket Head (#10-32 x 1/2") 1 44
Bushing, Bronze (3/16 x 1/4 x 1/4") 1 45
Screw, Hex Head (1/4-20 x 1-1/2") 1 310
Spacer (1/4 x 3/8 x 3/16") 1 311
Half Clamp, Non-Threaded Holes 1 112
Half Clamp, Threaded Holes 1 113
Stud Plate, Quad Link For 1556 Heavy Duty
Joystick 1 114
Screw, Phillips Flat Head Countersunk (#10-32 x
1-1/8") 1 215
1114866 Kit, Quad Link Assembly - Left 1 11 C
Ball Plunger with Lock Washer Assembly 2 12
Locknut (#10-32) 1 23
Screw, Socket Head (#10-32 x 1/2") 1 44
Bushing, Bronze (3/16 x 1/4 x 1/4") 1 45
Screw, Hex Head (1/4-20 x 1-1/2") 1 310
Spacer (1/4 x 3/8 x 3/16") 1 311
Half Clamp, Non-Threaded Holes 1 112
Half Clamp, Threaded Holes 1 113
Stud Plate, Quad Link For 1556 Heavy Duty
Joystick 1 114
Screw, Phillips Flat Head Countersunk (#10-32 x
1-1/8") 1 215
1102027 Kit, Quad Link Assembly - Right
For TCHJOY/TCPDM4 Touchpad 1 11 D
Ball Plunger with Lock Washer Assembly 2 12
Locknut (#10-32) 1 23
Screw, Socket Head (#10-32 x 1/2") 1 44
Bushing, Bronze (3/16 x 1/4 x 1/4") 1 45
Screw, Phillips Pan Head (#10-32 x 1-1/8") 1 26
Stud Plate, Quad Link
MKIV TCHJOY/TCPDM4 1 18
Screw, Hex Head (1/4-20 x 1-1/2") 1 310
Spacer (1/4 x 3/8 x 3/16") 1 311
Half Clamp, Non-Threaded Holes 1 112
Half Clamp, Threaded Holes 1 113
141
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Electronics
Quad Link
1/13/04 Thru 10/30/05
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
Screw, Phillips Flat Head Countersunk (#4-40 x
3/8") 1 416
1114863 Ball Plunger with Lock Washer Assembly 2 12
A - Includes the Quad Link, items 2-8, 10-13 and used with an DPJ joystick
B - Includes the Quad Link, items 2-6, 9-13 and used with a MPJ joystick
C - Includes the Quad Link, items 2-5, 10-15 and used with a 1556 Heavy Duty joystick
D - Includes the Quad Link, items 2-6, 8, 10-12 and 16. Used with a Touch Pad joystick. Left side mounted Quad Link must be
requested as a "special" order
E - Quad Link Assembly is no longer available. Please see Quad Link Assembly (After 10/30/05) category and use new Quad
LInk design as a replacement.
NOTE:
142
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Electronics

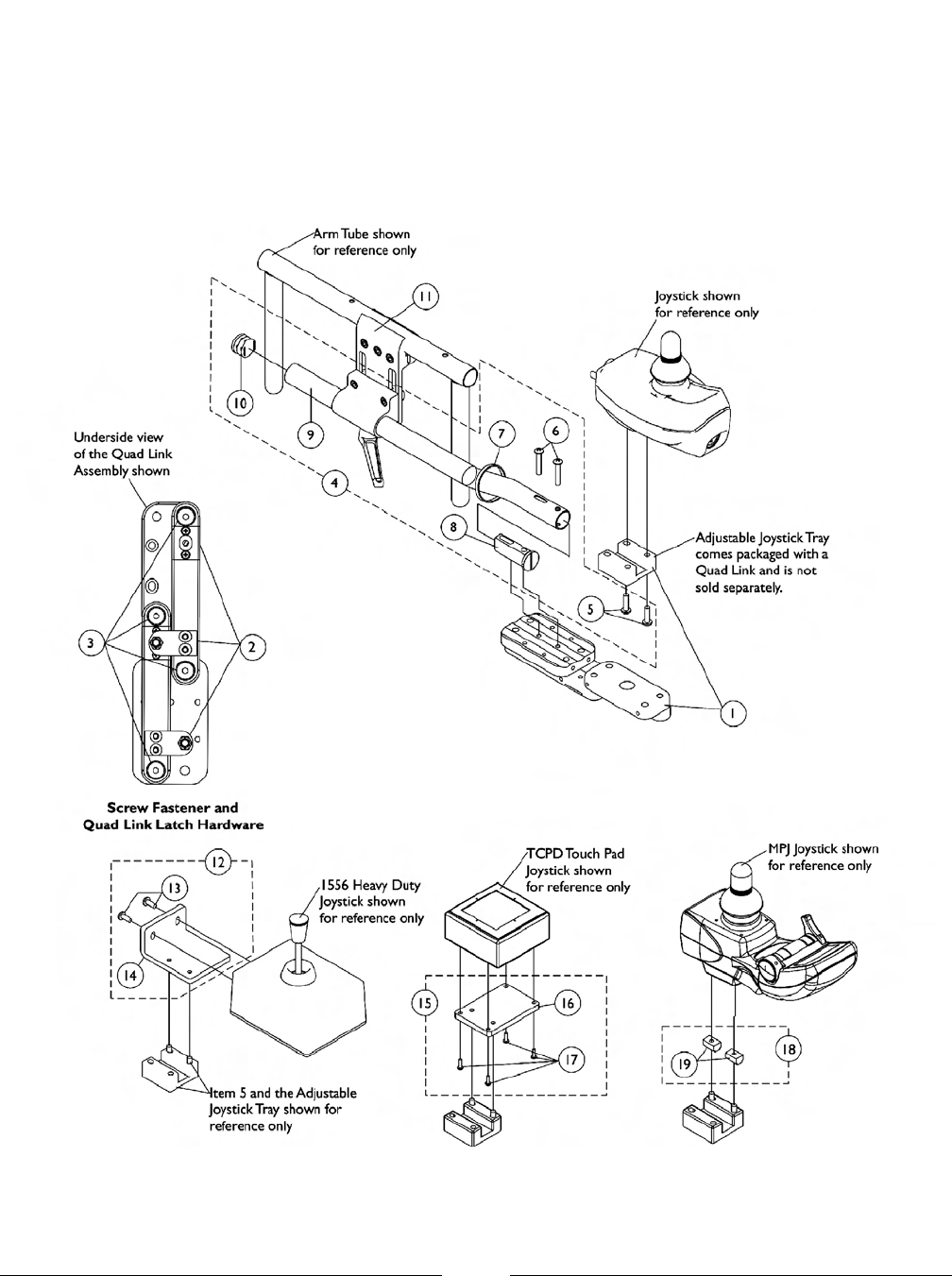

Quad Link (QLA) After 10/30/05
When converting an old style Quad Link that attaches to a mounting plate or (a Flex Tube or Touch Pad
Joystick Tube) is currently on the chair then order the following:
Quad Link Mtg. Hdwr. (item 4), Quad Link (item 1) & Ht. Adj. Joystick Tube Clamp (item 11)
NOTE: Substitute (item 4) with 2 ea. of the PPH Screws (item 5) when an offset joystick tube is currently
on the chair. Additional Joystick Mtg. Hdwr. must be ordered when a 1556 Heavy Duty, TCPD Touch Pad
or MPJ joystick are used.
143
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Electronics
Quad Link (QLA) After 10/30/05
When converting an old style Quad Link that attaches to a mounting plate or (a Flex Tube or Touch Pad
Joystick Tube) is currently on the chair then order the following:
Quad Link Mtg. Hdwr. (item 4), Quad Link (item 1) & Ht. Adj. Joystick Tube Clamp (item 11)
NOTE: Substitute (item 4) with 2 ea. of the PPH Screws (item 5) when an offset joystick tube is currently
on the chair. Additional Joystick Mtg. Hdwr. must be ordered when a 1556 Heavy Duty, TCPD Touch Pad
or MPJ joystick are used.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1140896 Quad Link with Adjustable Joystick Tray (QLA) and
Instruction Sheet - Right 1 11 G
1140897 Quad Link with Adjustable Joystick Tray (QLA) and
Instruction Sheet - Left 1 11 G
1140425 Kit, Quad Link Latch Hardware 1 12 A
1140424 Kit, Quad Link Screw Fastener Hardware 1 13 B
1139416 Kit, ASBA/ADJASBA Quad Link Mounting Hardware 1 14 C,C1
Screw, Phillips Pan Head w/ Patch (10-32 x 3/4") 1 25
Screw, Phillips Pan Head (#10-32 x 1-1/8") 1 26
Cable Tie (11-1/2" Long) 1 17
Spacer, Joystick Tube 1 18
Tube, Joystick 1/2" Offset 1 19
Plug Button, Black (7/8") 1 110
1105414 Screw, Phillips Pan Head w/ Patch (10-32 x 3/4") 1 25
1139422 Clamp, Height Adjustable Joystick Tube (ARM250) 1 111 I
1139925-NLA Kit, 1556 Heavy Duty Joystick To Quad Link
Mounting Hardware 1 112 D
Screw, Phillips Pan Head (#10-32 x 1/2") 1 213
Plate, 1556 HD Joystick Quad Link 1 114
1139683 Kit, TCPD Touch Pad To Quad Link Mounting
Hardware 1 115 E
Plate, TCPD Touch Pad Quad Link 1 116
Screw, Phillips Pan Head (#4-40 x 3/8") 1 417
1139682 Kit, MPJ Joystick To Quad Link Mounting Hardware 1 118 F
T-Nut (#10-32) 1 219
1134844 Instruction Sheet, Quad Link 1 1H
A - Latch Kit includes 4 ea. Button Head Cap Screws (10-32 x 3/8"), 2 ea. Latch Spring Assembly, 4 ea. Phillips Flat C'Sunk
Head Screws, 2 ea. Spring Catch Plates, 2 ea. Socket Head Set Screws (10-32 x 3/8")
B - Screw Fastener Kit includes 4 ea. Socket Head Shoulder Screws (3/8 x 3/8"), 2 ea. Socket Head Cap Screws (1/4-20 x
3/8"), 2 ea. Socket Head Set Screws (1/4-20 x 1/2"), 4 ea. Socket Head Set Screws (10-32 x 1/8")
C - Includes items 5-10. The Quad Link Mounting Hardware accommodates MK5 SPJ-80, DPJ, MPJ, and PSF/PSR joysticks.
C1 - When ordering the Quad Link for the first time, Additional hardware is required for 1556 Heavy Duty, TCPD Touch Pad
joysticks and (MPJ joysticks if the T-nuts are missing). See pictorial for reference.
D - Includes items 13 and 14
E - Includes items 16 and 17
F - Includes 2 ea. of item 19
G - The 4-Way Switch and Single Function Toggle Switch (TRSS) Mounting Plate has changed and may be required when
converting a Quad Link assembled to a mounting plate over to a Quad Link introduced after 10/30/05
H - Not Shown
I - Individual components are non-saleable
NOTE:
144
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

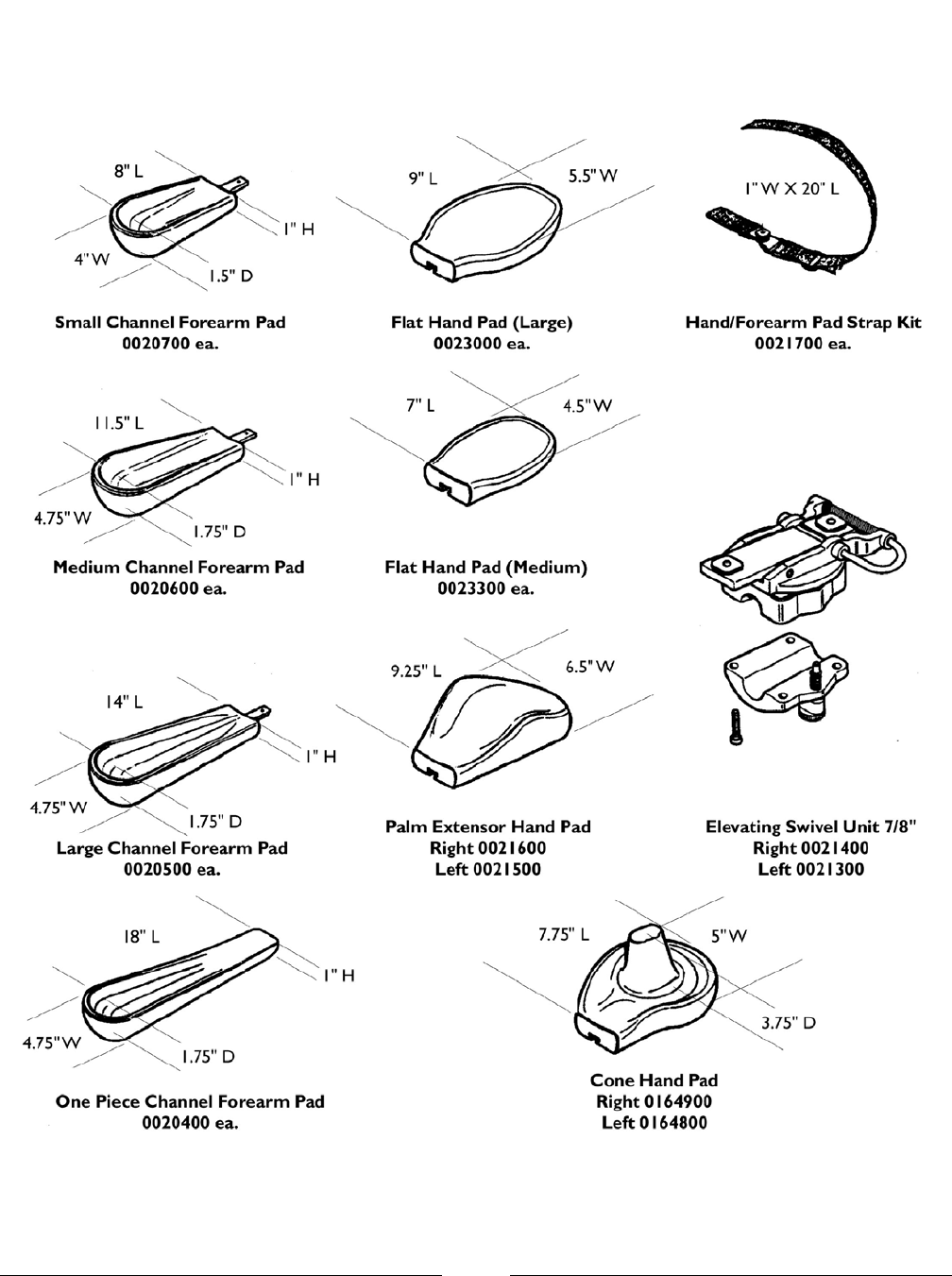

Arm Pads
Otto Bock
145
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Arm Pads
Otto Bock
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
0020700 Pad, Small Channel Forearm 1 1A
0023000 Pad, Flat Hand (Large) 1 1A
0021700 Kit, Hand/ Forearm Pad Strap 1 1A
0020600 Pad, Medium Channel Forearm 1 1A
0023300 Pad, Flat Hand (Medium) 1 1A
0020500 Pad, Large Channel Forearm 1 1A
0021600 Pad, Palm Extensor Hand - Right 1 1A
0021500 Pad, Palm Extensor Hand - Left 1 1A
0021400 Elevating Swivel Unit 7/8" - Right 1 1A
0021300 Elevating Swivel Unit 7/8" - Left 1 1A
0020400 Pad, One Piece Channel Forearm 1 1A
0164900 Pad, Cone Hand - Right 1 1A
0164800 Pad, Cone Hand - Left 1 1A
A - See pictorial for reference
NOTE:
146
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

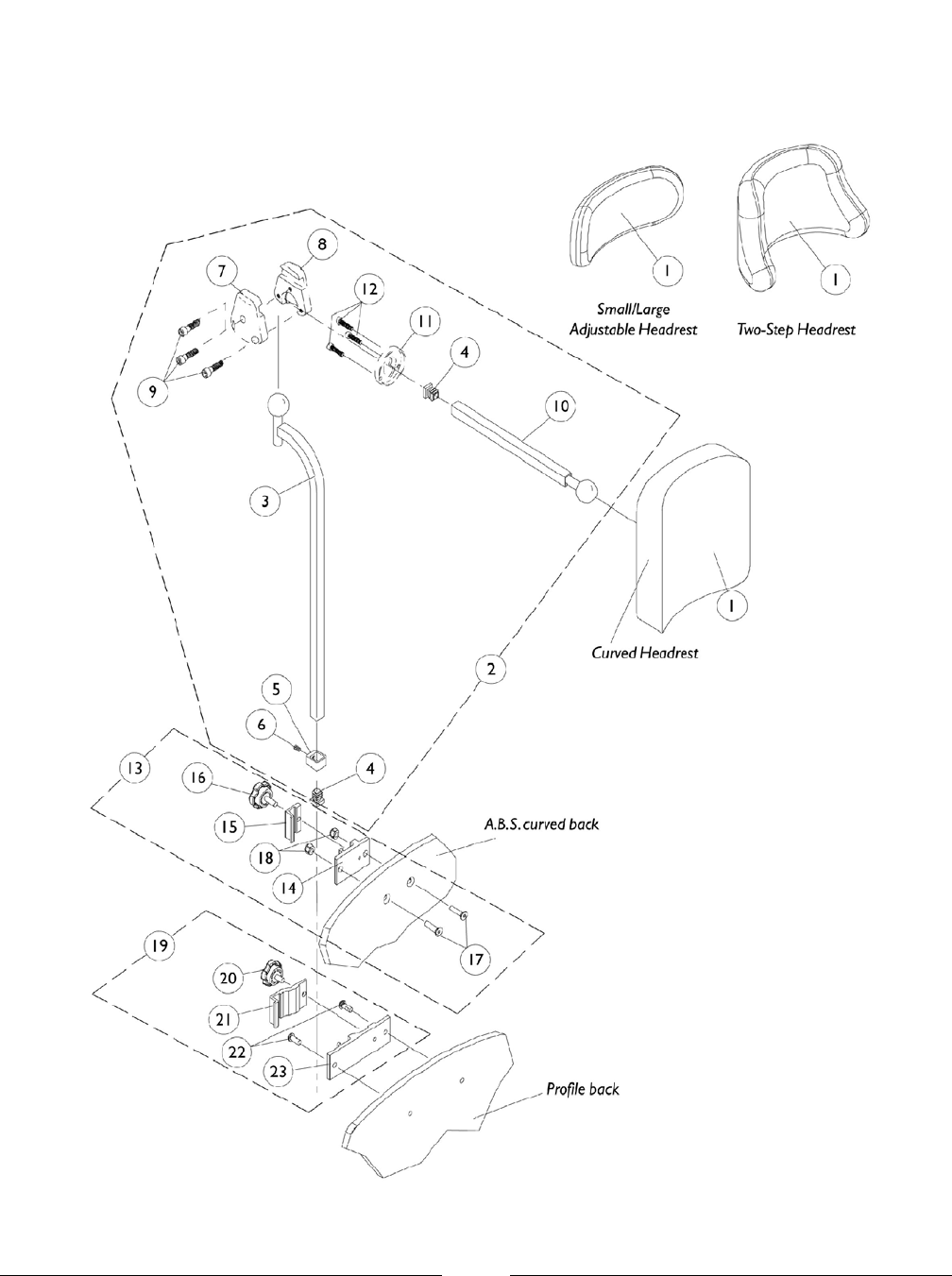

Headrest Support Assembly
A.B.S. Curved and Profile Back
147
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Headrest Support Assembly
A.B.S. Curved and Profile Back
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
0127700 Headrest, Curved (6"W x 7"H) 1 11
0128000 Headrest, Two-Step (8-1/2"W x 5-1/2"H) 1 11
0022600 Headrest, Small Adjustable, Otto Bock
(9"W x 3-1/2"H) 1 11
0022400 Headrest, Large Adjustable, Otto Bock (12"W x 6"H) 1 11
0197024 Fixture Assembly, Offset Support 1 12 A
0271524 Tube, Offset Fixture 1 13
1077076 Plug Button, Square (1/2") 1 24
0271124 Collar, Offset Fixture Tube 1 15
0288606 Set Screw, Socket Head (#10-24 x 3/16") 1 16
0271224 Half Clamp, Non-Threaded Holes 1 17
0271324 Half Clamp, Threaded Holes 1 18
1027268 Screw, Allen Head (1/4-20 x 1") 1 39
0271424 Tube, Fixture Adjustment 1 110
0283724 Ring, Fixture Clamp 1 111
0067006 Screw, Socket Head (#10-32 x 1/2") 1 312
0273100 Kit, Headrest Clamp 1 113 B
0237422-NLA Clamp, Small Bottom Half 1 114 D
0237522-NLA Clamp, Small Top Half 1 115 D
1072439 Knob, Adjustment (1-3/8" Dia., 3/4" Long Threads) 1 116
0288706 Screw, Socket Head (1/4-20 x 1") 1 217
7930333 Locknut (1/4-20) 25 218
1090196 Assembly, Headrest Clamp 1 119 C
1072440 Knob, Adjustment (1-3/8" Dia., 1/2"Long Threads) 1 120
0235322 Clamp, Large Top Half 1 121
0258006 Screw, Socket Head (1/4-20 x 5/8") 1 222
0235222 Clamp, Large Bottom Half 1 123
A - Includes Items 3-12
B - Includes Items 14-18
C - Includes Items 20-23
D - Clamp is no longer available individually. See item 13 Clamp Assembly part number 0273100
NOTE:
148
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

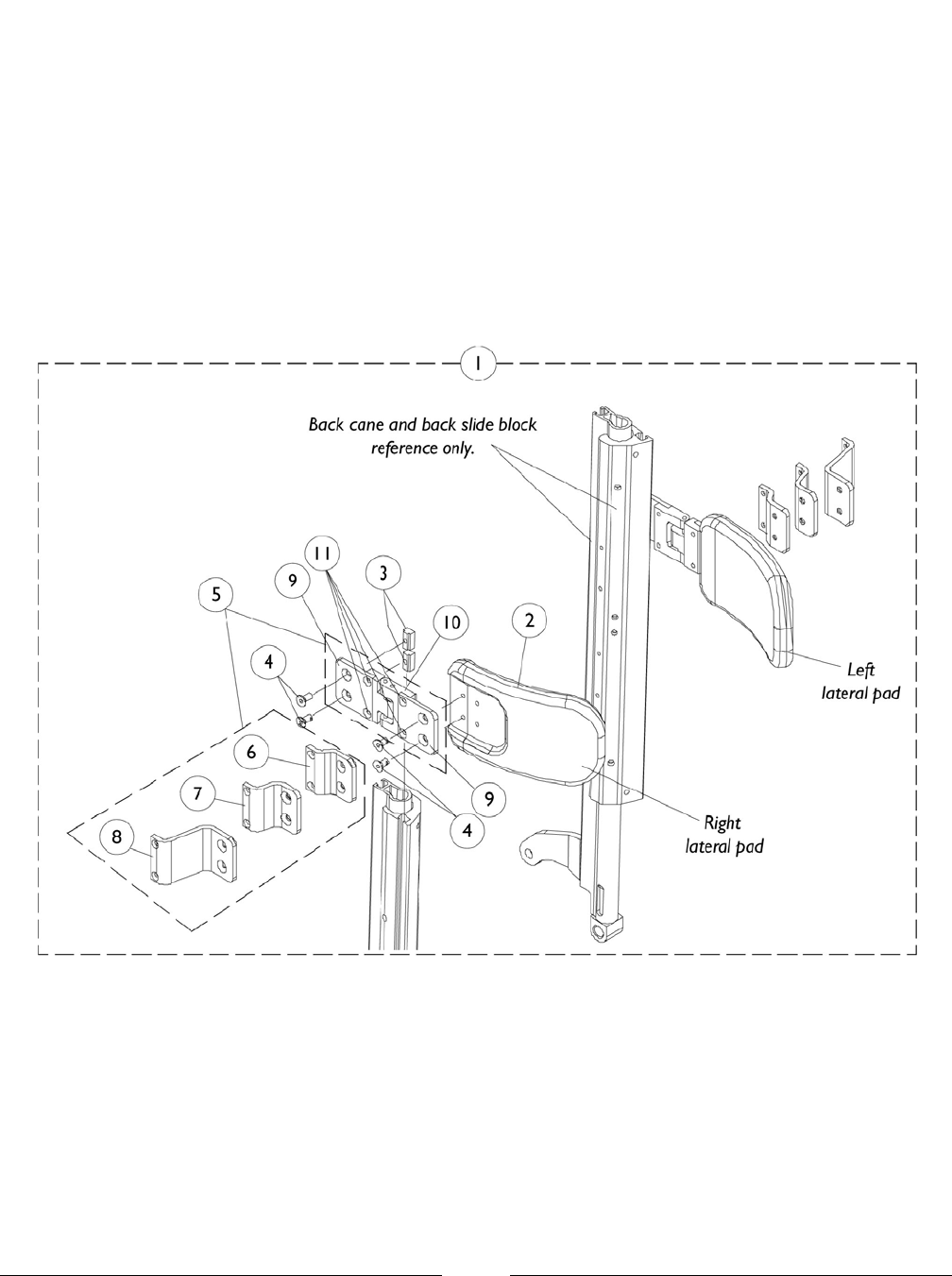

Lateral Support Assembly
For Extruded Canes
149
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Lateral Support Assembly
For Extruded Canes
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1090200 Kit, Swingaway Lateral Support Assembly w/
Medium Pads 2 11 A
Pad, Lateral Support, Medium (6" Wide x 4" High) 1 22
T-Nut (1/4-20) 1 43
Screw, Socket Flat Head C'Sunk (1/4-20 x 1/2") 1 84
Bracket, Extension Offset, Black (1/2") 1 26
Bracket, Extension Offset, Black (1") 1 27
Bracket, Extension Offset, Black (2") 1 28
Bracket, Flush Mount, Black 1 49
Swingaway Bracket - Right 1 110
Swingaway Bracket - Left 1 110
Screw, Socket Flat Head C'Sunk (#10-32 x 1/2") 1 811
1090201 Kit, Swingaway Lateral Support Assembly w/ Large
Pads 2 11 A
Pad, Lateral Support, Large (6" Wide x 5" High) 1 22
T-Nut (1/4-20) 1 43
Screw, Socket Flat Head C'Sunk (1/4-20 x 1/2") 1 84
Bracket, Extension Offset, Black (1/2") 1 26
Bracket, Extension Offset, Black (1") 1 27
Bracket, Extension Offset, Black (2") 1 28
Bracket, Flush Mount, Black 1 49
Swingaway Bracket - Right 1 110
Swingaway Bracket - Left 1 110
Screw, Socket Flat Head C'Sunk (#10-32 x 1/2") 1 811
1090198 Kit, Swingaway Bracket Assembly w/ Offset
Brackets - Right 1 15 B
Bracket, Extension Offset, Black (1/2") 1 16
Bracket, Extension Offset, Black (1") 1 17
Bracket, Extension Offset, Black (2") 1 18
Bracket, Flush Mount, Black 1 29
Swingaway Bracket - Right 1 110
Screw, Socket Flat Head C'Sunk (#10-32 x 1/2") 1 411
1090199 Kit, Swingaway Bracket Assembly w/ Offset
Brackets - Left 1 15 B
Bracket, Extension Offset, Black (1/2") 1 16
Bracket, Extension Offset, Black (1") 1 17
Bracket, Extension Offset, Black (2") 1 18
Bracket, Flush Mount, Black 1 29
Swingaway Bracket - Left 1 110
Screw, Socket Flat Head C'Sunk (#10-32 x 1/2") 1 411
A - Includes items 2-4 and 6-11
B - Includes items 6-11
NOTE:
150
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

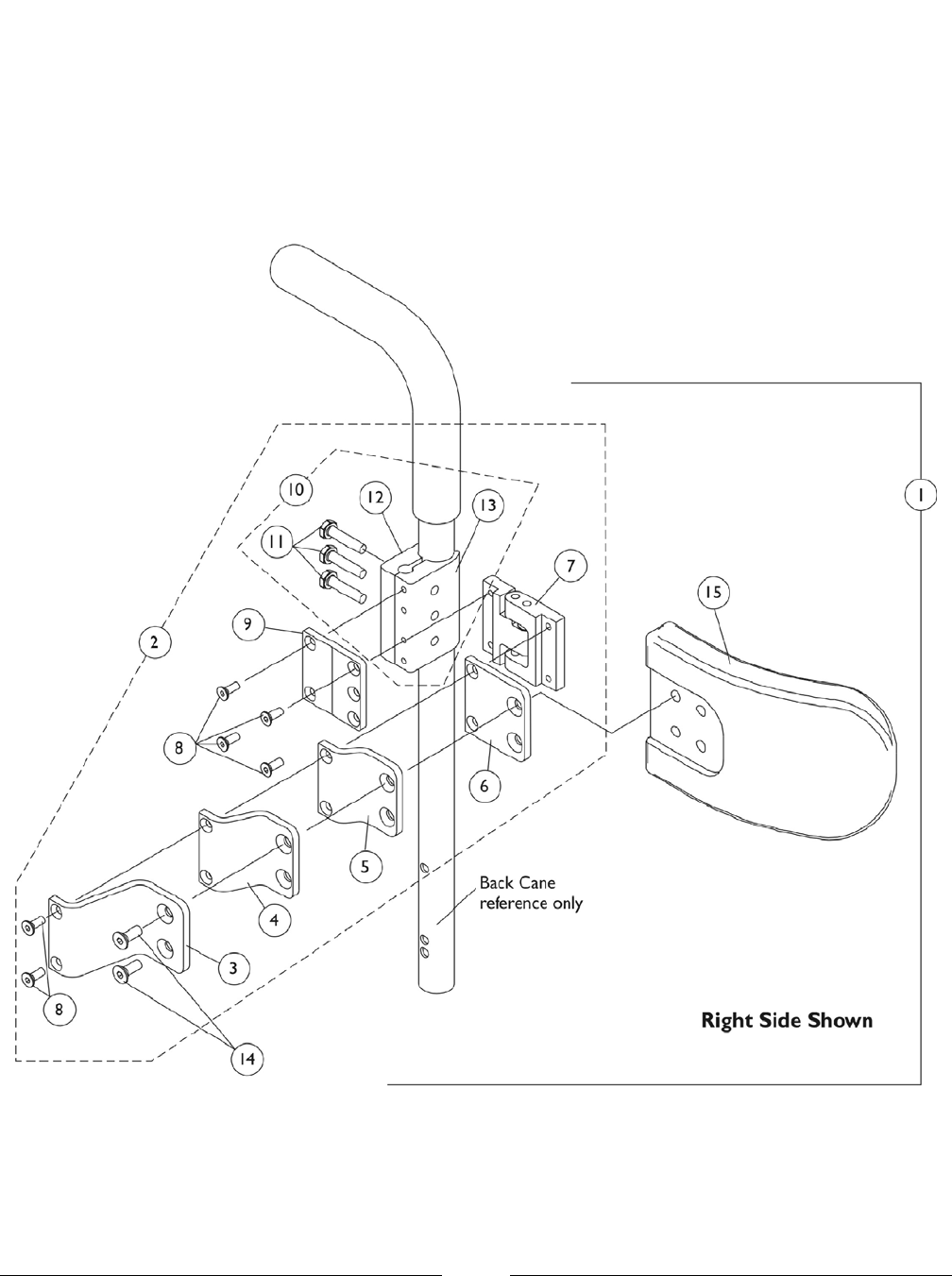

Lateral Support Assembly
(Clamp-On) For Round Canes
Tarsys
151
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Lateral Support Assembly
(Clamp-On) For Round Canes
Tarsys
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1107298 Kit, Swingaway Lateral Support Assemblies w/
Medium Pads (Pair) 1 11 A
Bracket, Extension Offset, Black (2") 1 23
Bracket, Extension Offset, Black (1") 1 24
Bracket, Extension Offset, Black (1/2") 1 25
Bracket, Flush Mount, Black 1 26
Bracket, Swingaway, Cane Clamp - Right 1 17
Bracket, Swingaway, Cane Clamp - Left 1 17
Screw, Socket Flat Head C'Sunk (#10-32 x 1/2") 1 128
Bracket, Mounting, Black 1 29
Screw, Hex Head (1/4-20 x 1-1/8") 1 611
Half Clamp, Non-Threaded Holes 1 212
Half Clamp, Threaded Holes 1 213
Screw, Socket Flat Head C'Sunk (1/4-20 x 1/2") 1 414
Pad, Lateral Support, Medium (6" Wide x 4" High) 1 215
1107299 Kit, Swingaway Lateral Support Assembies w/ Large
Pads (Pair) 1 11 A
Bracket, Extension Offset, Black (2") 1 23
Bracket, Extension Offset, Black (1") 1 24
Bracket, Extension Offset, Black (1/2") 1 25
Bracket, Flush Mount, Black 1 26
Bracket, Swingaway, Cane Clamp - Right 1 17
Bracket, Swingaway, Cane Clamp - Left 1 17
Screw, Socket Flat Head C'Sunk (#10-32 x 1/2") 1 128
Bracket, Mounting, Black 1 29
Screw, Hex Head (1/4-20 x 1-1/8") 1 611
Half Clamp, Non-Threaded Holes 1 212
Half Clamp, Threaded Holes 1 213
Screw, Socket Flat Head C'Sunk (1/4-20 x 1/2") 1 414
Pad, Lateral Support, Large (6" Wide x 5" High) 1 215
1107245 Kit, Swingaway Bracket Assembly with Offset
Brackets, Cane Clamp - Right 1 12 B
Bracket, Extension Offset, Black (2") 1 13
Bracket, Extension Offset, Black (1") 1 14
Bracket, Extension Offset, Black (1/2") 1 15
Bracket, Flush Mount, Black 1 16
Bracket, Swingaway, Cane Clamp - Right 1 17
Screw, Socket Flat Head C'Sunk (#10-32 x 1/2") 1 68
Bracket, Mounting, Black 1 19
Screw, Hex Head (1/4-20 x 1-1/8") 1 311
Half Clamp, Non-Threaded Holes 1 112
Half Clamp, Threaded Holes 1 113
152
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Lateral Support Assembly
(Clamp-On) For Round Canes
Tarsys
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1107246 Kit, Swingaway Bracket Assembly with Offset
Brackets, Cane Clamp - Left 1 12 B
Bracket, Extension Offset, Black (2") 1 13
Bracket, Extension Offset, Black (1") 1 14
Bracket, Extension Offset, Black (1/2") 1 15
Bracket, Flush Mount, Black 1 16
Bracket, Swingaway, Cane Clamp - Left 1 17
Screw, Socket Flat Head C'Sunk (#10-32 x 1/2") 1 68
Bracket, Mounting, Black 1 19
Screw, Hex Head (1/4-20 x 1-1/8") 1 311
Half Clamp, Non-Threaded Holes 1 112
Half Clamp, Threaded Holes 1 113
1107117 Kit, Lateral Support Mounting Hardware 1 110 C
Screw, Hex Head (1/4-20 x 1-1/8") 1 311
Half Clamp, Non-Threaded Holes 1 112
Half Clamp, Threaded Holes 1 113
A - Includes items 3-9 and 11-15
B - Includes items 3-9 and 11-13
C - Includes items 11-13
NOTE:
153
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Back Mounting Hardware
(Infinity, Personal, JAY, Silhouette, Contour U Backs w/ Extruded Canes)
(Profile Back w/ 7/8" Round Canes)
NOTE: V.S.R. is eliminated when back mounting hardware listed below is attached to Recline Only (2GR)
and Tilt/Recline (2GTR) seating systems.
154
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Back Mounting Hardware
(Infinity, Personal, JAY, Silhouette, Contour U Backs w/ Extruded Canes)
(Profile Back w/ 7/8" Round Canes)
NOTE: V.S.R. is eliminated when back mounting hardware listed below is attached to Recline Only (2GR)
and Tilt/Recline (2GTR) seating systems.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1099776 Hardware, Infinity Back Mounting (Pair) 2 11 A,M
1099778 Hardware, Personal Back Mounting (Pair) 2 11 A,M,Q
1099777 Hardware, JAY Back Mounting (Pair) 2 11 A,M
1102697 Hardware, Contour U and Silhouette Back Mounting
(Pair) 2 11 A,M
1028481 Screw, Socket Head (1/4-20 x 1/2") 1 82 L
1028481 Screw, Socket Head (1/4-20 x 1/2") 1 42 L
1082699 T-Nut (1/4-20) 1 83 L
1082699 T-Nut (1/4-20) 1 43 L
1099654 Brackets, Back Mounting 1 24 B
1099655 Brackets, Back Mounting 1 24 C
1099656 Brackets, Back Mounting 1 14 D
1099657 Brackets, Back Mounting 1 14 E
1099650 Brackets, Back Mounting 1 14 F
1099651 Brackets, Back Mounting 1 14 G
1099652 Brackets, Back Mounting 1 14 H
1099653 Brackets, Back Mounting 1 14 I
0190500-NLA Block, Glide (16", 18" and 20" Wide) 1 45 K,P
0190600 Block, Glide (17" and 19" Wide) 1 45 K,P
0052906 Screw, Socket Button Head (1/4-20 x 3/4") 1 46 N,P
0051206 Screw, Socket Head (1/4-20 x 1-1/4) 1 46 O,P
1003545 Screw, Socket Head (1/4-20 x 1-1/4") 1 27 P
0226500-NLA Knob, Tee 1 28 P
0050100 Washer, Nylon Flat (1/4 x 1/2 x 1/16") 1 49 P
1086460 Foam Hand Grip (4-1/2" Long) 1 2J
155
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Back Mounting Hardware
(Infinity, Personal, JAY, Silhouette, Contour U Backs w/ Extruded Canes)
(Profile Back w/ 7/8" Round Canes)
NOTE: V.S.R. is eliminated when back mounting hardware listed below is attached to Recline Only (2GR)
and Tilt/Recline (2GTR) seating systems.
A - Includes Items 2-4
B - Infinity Back - Upper Left or Lower Right
C - Infinity Back - Upper Right or Lower Left
D - Personal Back - Right
E - Personal Back - Left
F - JAY Back - Upper Right
G - JAY Back - Upper Left
H - JAY Back - Lower Right, Contour U Back - Upper Right or Lower Left (2 each assembly), Silhouette Back - Upper Left or
Lower Right (2 each assembly)
I - JAY Back - Lower Left, Contour U Back - Upper Left or Lower Right (2 each assembly), Silhouette Back - Upper Right or
Lower Left (2 each assembly)
J - Not Shown
K - New foam grips are required when mounting sliding glide blocks onto the 7/8" round back canes. Existing foam grips will
need to be replaced.
L - Infinity, JAY, Contour U and Silhouette Backs have 8 ea. assembly where as Personal Back has 4 ea. assembly.
M - V.S.R. is eliminated when back mounting hardware is attached to recline only (2GR) and tilt/recline (2GTR) seating
systems.
N - 16, 18, 20 Wide
O - 17 and 19 Wide
P - Profile Back Mounting Hardware for 7/8" round canes consist of the following: 4 each of (#0190500 and #0052906 for 16",
18", 20" wide or #0190600 and #0050100 for 17", 19" wide) and 2 each of #1003545, #1056269, #1086460.
Q - Personal Back mounting hardware part number 1099778 is not compatible with the new Personal Back 10 and Personal
Back 10 Plus models.
NOTE:
156
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

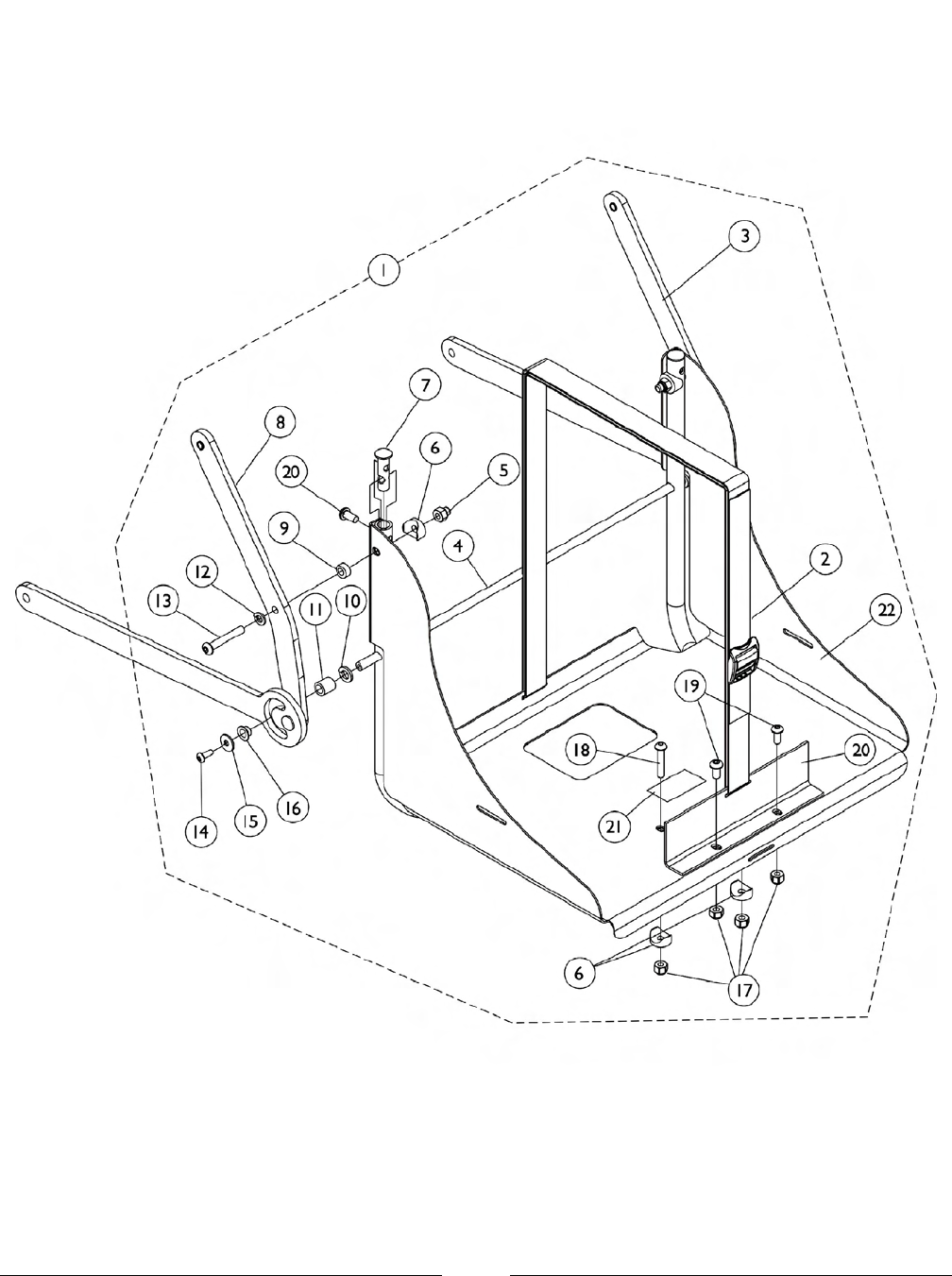

Vent Tray Assembly without Mounting Hardware
157
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Vent Tray Assembly without Mounting Hardware
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1115816 Vent Tray Assembly 1 11 A,B
1113258 Strap with Buckle 1 12
1113256 Vent Tray Linkage Assembly, Right 1 13
1113636 Tube, Vent Tray Support 1 14
1044214 Nut, Hex with Nylon Cap (1/4-20) 1 25
1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 46
1115813 Plug, Slide Tube 1 27
1113257 Vent Tray Linkage Assembly, Left 1 18
1026104 Spacer 1 29
1072692 Lockwasher, Split (5/16") 1 210
1115822 Spacer, Vent 1 211
1007453 Lockwasher, Split (1/4") 1 212
1019590 Screw, Socket Button Head (1/4-20 x 1-5/8") 1 213
1072319 Screw, Socket Button Head (#10-32 x 1/2") 1 214
1070587 Washer, Flat (3/16 x 5/8 x 1/16") 1 215
1079635 Bushing, Flange 1 216
1025736 Locknut (1/4-20) 1 417
1008432 Screw, Socket Button Head (1/4-20 x 1-1/4") 1 218
1006773 Screw, Socket Head (1/4-20 x 1/2") 1 419
1115820 Bracket, Vent Tray 1 120
1118361 Decal, Approved Charger and Harness Warning 1 121
1114968 Tray, Vent 1 122
1125645 Spring, Yellow; EXTRA Heavy Duty 1 2C
A - Includes items 2-22 and used for 2GT, 2GR and 2GTR systems. When adding a vent tray assembly to extruded back
canes for the first time, see page titled "Vent Tray Kit For Extruded Back Canes" and order item number 1
B - When Center Mount Riggings are present and a customer is adding a Vent Tray for the first time in the field, additional
Invacare Technical Assistance may be required. Call 1-800-832-4707 for instructions.
C - Not Shown. EXTRA Heavy Duty Springs must be ordered as well when a vent tray assembly is requested for the first time.
NOTE:
158
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

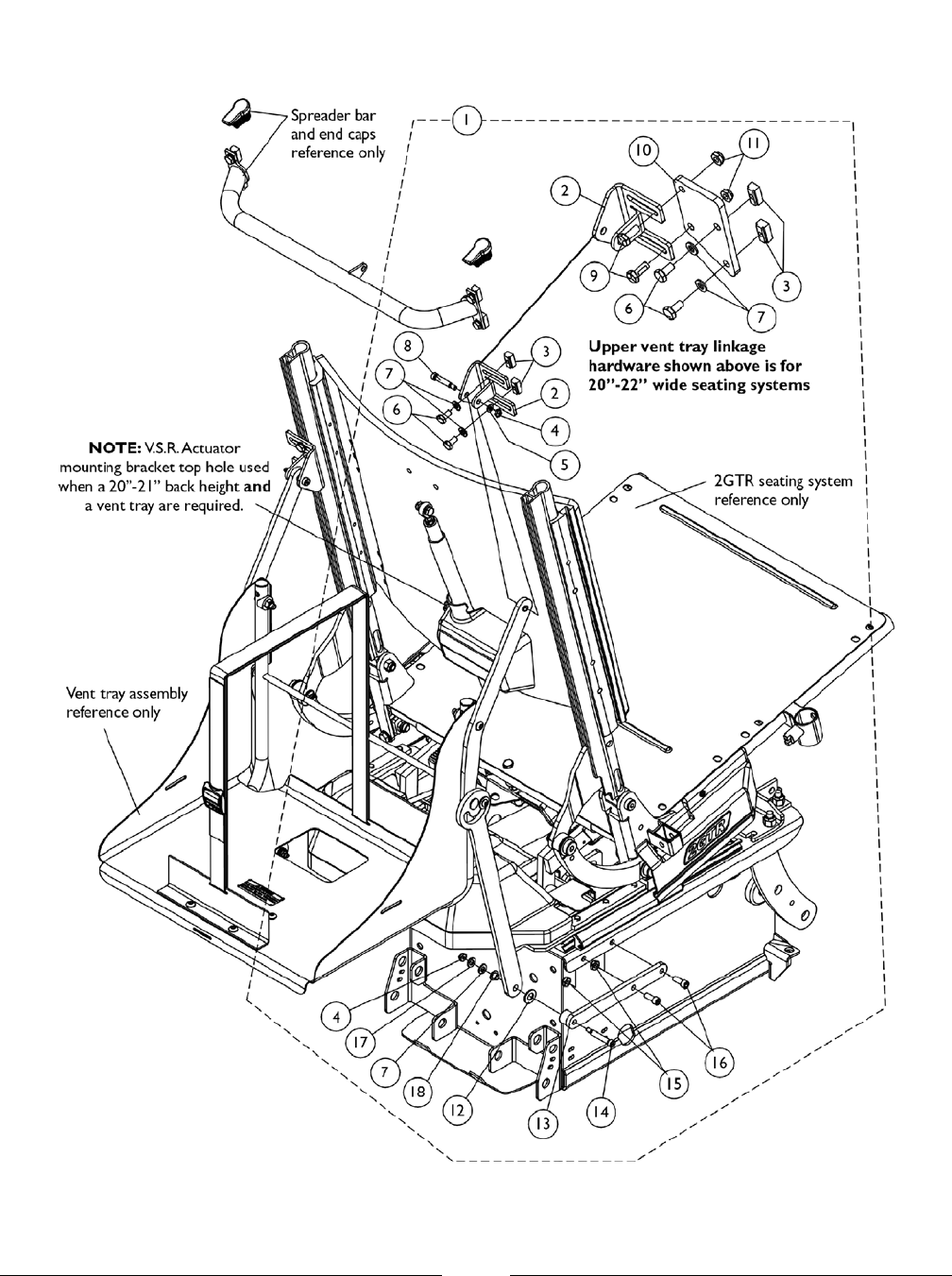

Vent Tray Mounting Hardware
For Extruded Back Canes
159
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Vent Tray Mounting Hardware
For Extruded Back Canes
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1121260 Vent Tray Mounting Hardware,
16"-19" Wide Seats with Extruded Canes 2 11 A
1121261 Vent Tray Mounting Hardware,
20"-22" Wide Seats with Extruded Canes 2 11 B
1097191 Bracket, Upper Link 1 22
1082699 T-Nut (1/4-20) 1 43
1026035 Locknut (#10-24) 1 44
1095360 Washer, Steel (7/8 x 3/8 x 1/16") 1 25
1078214 Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 46
1026907 Washer (1/4 x 1/2 x 1/16") 1 67
1098289 Screw, Socket Head Shoulder (1/4 x 1") 1 28
1078214 Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 49
1121021 Bracket, Seat Vent, Black (20"-22" Wide) 1 210
1025195 Locknut (1/4-20) 1 411
1049527 Washer, Nylon (3/8 x 3/4 x 1/16") 1 212
1115815 Bracket, Vent Tray Attachment 1 213
1000212 Screw, Shoulder (1/4 x 1-1/4") 1 214
60275X000 Locknut (1/4-20) 1 415
1110468 Screw, Socket Head Cap (1/4-20 x 5/8") 1 416
1007453 Lockwasher, Split (1/4") 1 217
1097179 Bushing, Flanged 1 218
A - Includes items 2-8 and 12-18
B - Includes items 2-18
NOTE:
160
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Vent Tray Mounting Hardware
For Round Back Canes
161
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Vent Tray Mounting Hardware
For Round Back Canes
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1121258 Vent Tray Mounting Hardware,
16"-19" Wide Seats with Round Canes 2 11 A
1121259 Vent Tray Mounting Hardware,
20"-22" Wide Seats with Round Canes 2 11 B
1097191 Bracket, Upper Link 1 22
1121024 Screw, Hex Head Cap with Patch (1/4-20 x 5/8") 1 43 C
1078214 Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 44
1026907 Washer (1/4 x 1/2 x 1/16") 1 65
1113638 Bracket, Vent-Connect Upper Right 1 16
1121097 Bracket, Vent-Connect Upper Left 1 16
1025195 Locknut (1/4-20) 1 47 C
1082908 Spacer, Coved (5/16 x 29/32 x 7/16") 1 48
1121021 Bracket, Seat Vent, Black (20"-22" Wide) 1 29
1098289 Screw, Socket Head Shoulder (1/4 x 1") 1 210
1095360 Washer, Steel (7/8 x 3/8 x 1/16") 1 211
1026035 Locknut (#10-24) 1 412
1007453 Lockwasher, Split (1/4") 1 213
1097179 Bushing, Flanged 1 214
1049527 Washer, Nylon (3/8 x 3/4 x 1/16") 1 215
1115815 Bracket, Vent Tray Attachment 1 216
1000212 Screw, Shoulder (1/4 x 1-1/4") 1 217
60275X000 Locknut (1/4-20) 1 418
1110468 Screw, Socket Head Cap (1/4-20 x 5/8") 1 419
A - Includes items 2-8 and 10-19
B - Includes items 2-19
C - Quantity of 8 are used for 20"-22" wide seats
NOTE:
162
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Vent Tray Kit For Extruded & Round Back Canes
16"-22" Wide Seating Systems
A Battery Support Bracket Assembly for Vent must be ordered when a chair is equipped with a TRBKTS
option
163
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Vent Tray Kit For Extruded & Round Back Canes
16"-22" Wide Seating Systems
A Battery Support Bracket Assembly for Vent must be ordered when a chair is equipped with a TRBKTS
option
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1123841 Kit, Vent Tray Assembly For 16"-22" Wide Systems 1 11 A,B,C,
D
Kit, Battery Wire Harness with Terminal Hardware,
22NF - Rear 1 12
Kit, Battery Wire Harness with Terminal Hardware,
22NF - Front 1 12
Battery Wire Harness with Terminal Hardware,
22NF Vent 1 12
Battery Tray Assembly, TDX 22NF For Vent 1 12
Label, 22NF Terminal Configuration Warning 1 13
Label, 3 Battery Configuration Warning 1 13
Decal, Blank Logo 1 13
Decal, Invacare Medallion - Large 1 13
Locknut (1/4-20) 1 23
Sleeve, Door Pivot 1 23
Tray, Vent 1 14
Strap with Buckle 1 14
Vent Tray Linkage Assembly, Right 1 14
Tube, Vent Tray Support 1 14
Nut, Hex with Nylon Cap (1/4-20) 1 24
Spacer, Coved (1/4 x 3/4 x 11/32") 1 44
Plug, Slide Tube 1 24
Vent Tray Linkage Assembly, Left 1 14
Spacer 1 24
Lockwasher, Split (5/16") 1 24
Spacer, Vent 1 24
Lockwasher, Split (1/4") 1 24
Screw, Socket Button Head (1/4-20 x 1-5/8") 1 24
Screw, Socket Button Head (#10-32 x 1/2") 1 24
Washer, Flat (3/16 x 5/8 x 1/16") 1 24
Bushing, Flange 1 24
Locknut (1/4-20) 1 44
Screw, Socket Button Head (1/4-20 x 1-1/4") 1 24
Screw, Socket Head (1/4-20 x 1/2") 1 44
Bracket, Vent Tray 1 14
Decal, Approved Charger and Harness Warning 1 14
Bracket, Upper Link 1 25
T-Nut (1/4-20) 1 45
Locknut (#10-24) 1 45
Washer, Steel (7/8 x 3/8 x 1/16") 1 25
Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 45
Washer (1/4 x 1/2 x 1/16") 1 65
164
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Vent Tray Kit For Extruded & Round Back Canes
16"-22" Wide Seating Systems
A Battery Support Bracket Assembly for Vent must be ordered when a chair is equipped with a TRBKTS
option
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
Screw, Socket Head Shoulder (1/4 x 1") 1 25
Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 45
Bracket, Seat Vent, Black (20"-22" Wide) 1 25
Locknut (1/4-20) 1 45
Washer, Nylon (3/8 x 3/4 x 1/16") 1 25
Bracket, Vent Tray Attachment 1 25
Screw, Shoulder (1/4 x 1-1/4") 1 25
Locknut (1/4-20) 1 45
Screw, Socket Head Cap (1/4-20 x 5/8") 1 45
Lockwasher, Split (1/4") 1 25
Bushing, Flanged 1 25
Screw, Hex Head Cap with Patch (1/4-20 x 5/8") 1 45
Bracket, Vent-Connect Upper Right 1 15
Bracket, Vent-Connect Upper Left 1 15
Spacer, Coved (5/16 x 29/32 x 7/16") 1 45
Vent Battery Harness 1 16
Vent Battery Extension Harness 1 16
Vent Battery Extension Harness For TRBKTS
Option 1 16
Screw, Phillips Pan Head (#8-16 x 5/8") 1 26
Cable Tie (5-5/8" Long) 1 46
Instruction Sheet, Vent Tray Assembly For 16"-22"
Wide Systems with Extruded Back Canes
Installation
1 1
Spring, Yellow; EXTRA Heavy Duty 1 2
1139541 Kit, Battery Support Bracket Assembly - For Vent
"Option" System w/ 22NF Batteries 1 1E
Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 4
Bracket, Battery Support, Black 1 1
A - To view location of individual components for items 2, 3 and 6, see page titled "Battery Tray Assembly, Door and Wire
Harnesses For Vent Tray (3) 22NF Batteries"
B - To view location of individual components for item 4, see page titled "Vent Tray Assembly without Mounting Hardware"
C - To view location of individual components for item 5, see pages titled "Vent Tray Mounting Hardware For Extruded or
Round Back Canes"
D - Instruction Sheet & HD Springs are Not Shown.
E - Not Shown. To view location of individual components, see page titled "Battery Support Bracket Assembly TRBKTS
Option"
NOTE:
165
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

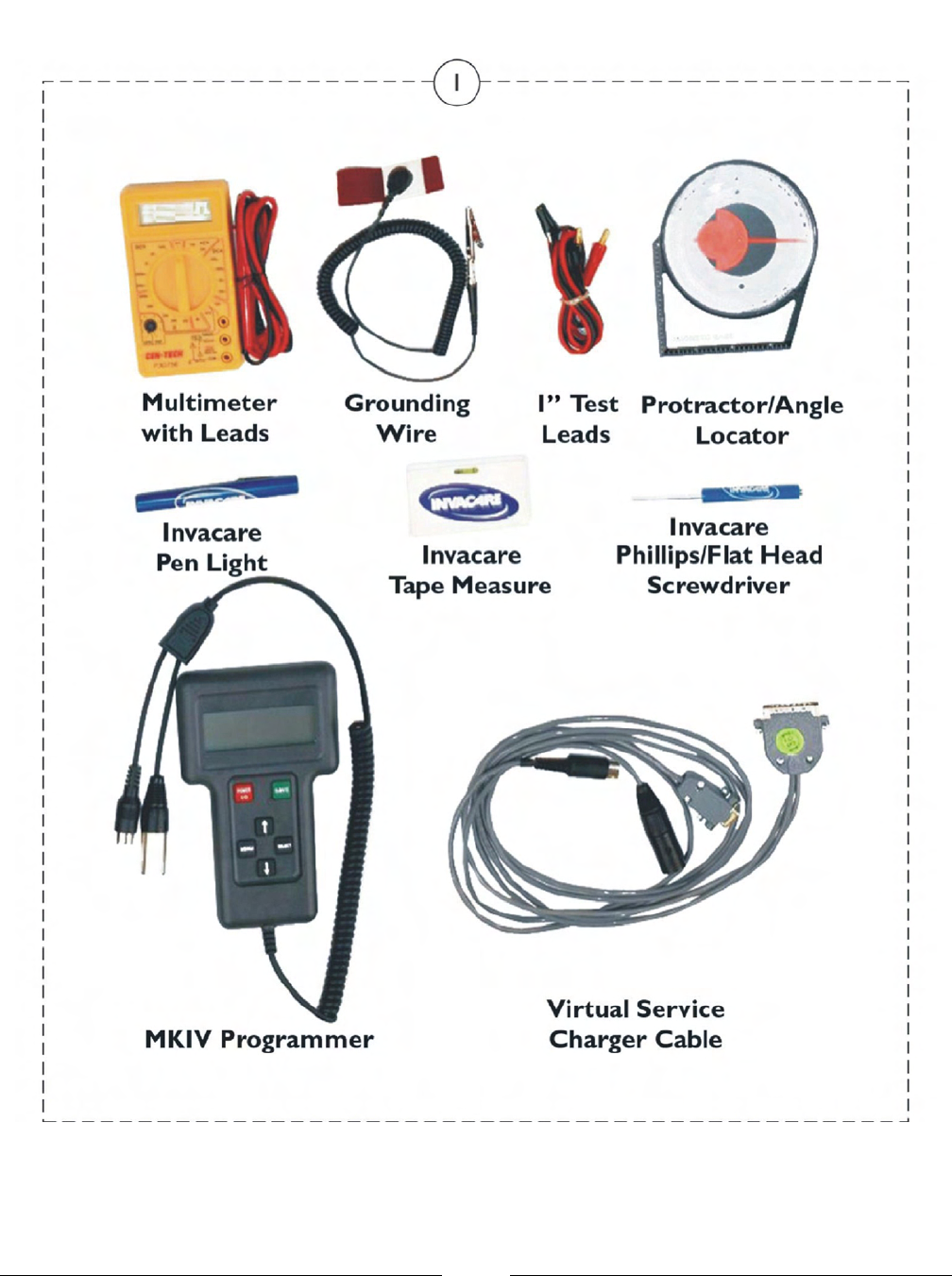

Power Wheelchair Tool Kit
166
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Power Wheelchair Tool Kit
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1125222 Kit, Power Wheelchair Tool
Includes:
1 ea. Multimeter with Leads
1 ea. Locator, Protractor/Angle Magnetic Base
1 ea. Instructions, MKIV Programmer
1 ea. Wire, Grounding with Hand Strap and Clip
1 ea. Leads, 1" Test
1 ea. Light, Pen with Invacare Logo
1 ea. Tape Measure, Compact with Invacare Logo
1 ea. Screwdriver, Pen-Size Phillips/Flat Head
1 ea. Cable, Virtual Service Charger/Modem
1 11
167
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026

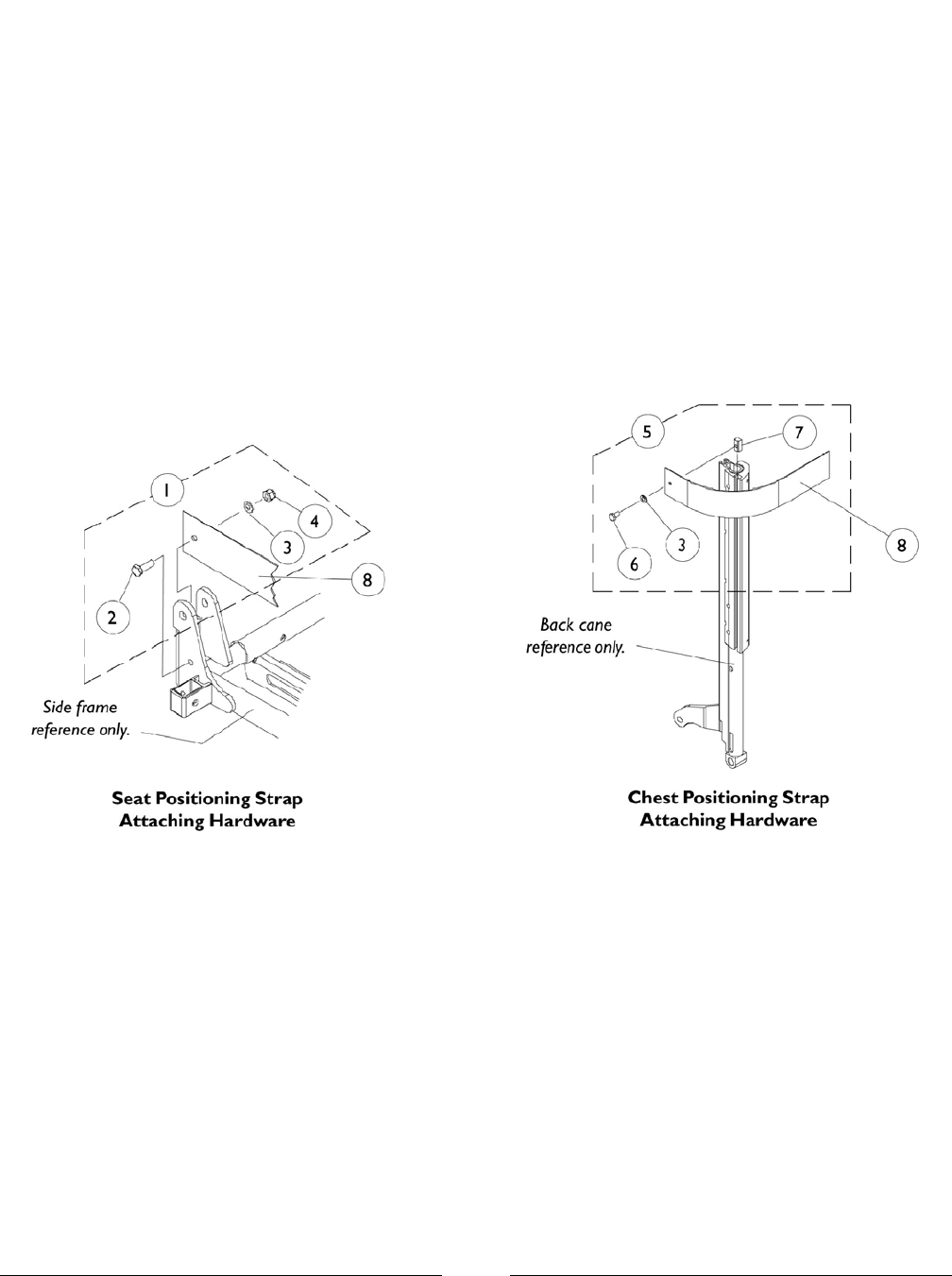

Miscellaneous Accessories
168
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Miscellaneous Accessories
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1091505 Hardware, Seat Positioning Strap Attaching (Pair) 2 11 B
1091870 Screw, Socket Button Head w/ Patch
(1/4-20 x 3/4") 1 22
1026900 Washer (1/4 x 23/32 x 1/16") 1 23
7930333 Locknut (1/4-20) 25 24
1090212 Kit, Chest Positioning Strap Mounting Hardware For
Conventional Seating 2 15 C
Washer (1/4 x 23/32 x 1/16") 1 23
Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 26
T-Nut (1/4-20) 1 27
1004310 Positioning Strap, Seat/Chest w/ Auto Style Push
Button Buckle
(Eyelet to Eyelet Length 48")
1 18 E,F
1034625 Positioning Strap, Seat/Chest w/ Auto Style Push
Button Buckle
(Eyelet to Eyelet Length 61")
1 18 E,G
1034625. 0 1 18 E,F
1034752 Positioning Strap, Seat/Chest w/ Airline Style Buckle
(Eyelet to Eyelet Length 61") 1 18 E,G
1034745 Positioning Strap, Seat/Chest w/ Hook and Loop
Style Buckle
(Eyelet to Eyelet Length 61")
1 18 D,E
0020200 Legrest Pad w/ Screws, Otto Bock (6" Wide x 9"
High) 1 1A
0020300 Adapter Plate, Otto Bock Legrest Pad 1 1A
0143900 Flap, Back Pan Tarsys 1 1A,I
0144000 Flap, Back Pan Tarsys 1 1A,J
0144100 Flap, Back Pan Tarsys 1 1A,G
A - Not Shown
B - Includes Items 2-4
C - Includes Items 3, 6, and 7
D - Chest Only
E - Positioning strap attaching hardware not included.
F - 16-19" Wide
G - 20-22' Wide
I - 16-17" Wide
J - 18-19" Wide
NOTE:
169
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Conversion Kit - 2GR To 2GTR For TDX
170
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Conversion Kit - 2GR To 2GTR For TDX
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1140348 Kit, Conversion - 2GR To 2GTR On TDX For All
User Weight Limits 1 11 A,C
Actuator, Tilt - For All User Weight Limits 1 12
Bushing (3/8 x 5/8 x 1/2") 1 23
Bolt, Shoulder (3/8 x 2-1/2") 1 14
Locknut (5/16-18) 1 25
Bar, Clamp, Black 1 26
Guide, Short Linear 1 27
Screw, Socket Flat Head C'sunk with Patch (1/4-20
x 3/4") 1 68
Screw, Socket Head Cap (5/16-18 x 1") 1 49
Screw, Socket Head Cap with Patch (5/16-18 x
1-1/4") 1 49
Screw, Socket Head Shoulder (3/8 x 1-1/2") 1 110
Locknut (5/16-18) 1 411
Washer, Flat (5/16 x 5/8 x 1/16") 1 412
Ring, Retaining (3/8") 1 413
Washer, Flat (3/8 x 11/16 x 1/16") 1 414
Washer, Nylon (3/8 x 7/8 x 1/16") 1 815
Spacer (3/8 x 3/4 x 3/8") 1 216
Link, Tilt 1 217
Screw, Set (#8-32 x 3/16") 1 119
Linkage, Tilt Potentiometer 1 120
Harness, Tilt Potentiometer with Nut and Washer 1 121
Screw, Socket Head Cap (#8-32 x 5/8") 1 122
Washer, Nylon (3/16 x 3/4 x 5/32") 1 123
Shroud Cover Assembly with Decal, 2GTR Right 1 124
Shroud Cover Assembly with Decal, 2GTR Left 1 124
Controller, MK5 T.R.C.M. 1 125
Locknut (5/16-18) 1 426
Screw, Socket Head Shoulder (3/8 x 1-1/2") 1 427
Bushing, Black (7/16 x 1/2 x 11/16") 1 228
Block, Black Tilt Angle 1 229
Bolt, Shoulder (3/8 x 2-1/2") 1 230
Instruction Sheet, Conversion Kit - 2GR To 2GTR 1 131
1117258 Tilt Potentiometer Assembly 1 118 B
A - Includes items 2-17, 19-31 and used for all user weight limits
B - Includes items 19-23
C - Item number 9 part #1114962 was used before 12/19/05 and part #1108429 is used after 12/18/05
NOTE:
171
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-026
Yes, you can. ™
Invacare Corporation www.invacare.com
One Invacare Way
Elyria, Oh USA
44036-2125
800-333-6900
Technical Support
800-832-4707
Florida Technical Support
407-321-5630
Customer Service
800-333-6900
Form No.
03-026
©2008 Invacare Corporation. Elyria, Ohio.
All rights reserved. Trademarks are
identified by the symbols ™ and ®. All
trademarks are owned by or licensed to
Invacare Corporation unless otherwise
noted. Otto Bock is a registered trademark
owned by Otto Bock Orthopaedische
Industrie GMBH & Co.. JAY Back is a
registered trademark of Sunrise Medical
HHG, Inc. Corporation (Revised 6/25/08)
