Inventec Appliances JGW200001 GSM/GPRS 1900 module User Manual UPMJGW200001 Rev2
Inventec Appliances (Jiangning) Corporation GSM/GPRS 1900 module UPMJGW200001 Rev2
User manual
CM-G100 Usermanual/Datasheet
Jun 08, 2009 Confidential Page 1 of 10
GSM/GPRS DATA MODULE
CM-G100 Useramnual/Datasheet
CM-G100 Usermanual/Datasheet
Jun 08, 2009 Confidential Page 2 of 10
Contents
DOCUMENT HISTORY ...................................................................................................................................................3
1. OVERVIEW................................................................................................................................................................4
1.1 ABOUT THE PRODUCT...........................................................................................................................................4
1.2 ABOUT SAFETY .....................................................................................................................................................5
1.3 ABOUT OPERATION ...............................................................................................................................................5
2. TECHNICAL SPECIFICATIONS............................................................................................................................6
2.1 GENERAL SPECIFICATIONS ...................................................................................................................................6
2.2 RECEIVE SPECIFICATIONS ....................................................................................................................................6
2.3 TRANSMIT SPECIFICATIONS ..................................................................................................................................7
2.4 COMPLIANCE WITH STANANDARDS.......................................................................................................................8
2.5 CONNECTIVITY ......................................................................................................................................................8
3. PIN ASSIGNMENT....................................................................................................................................................8
4. OUTLINE & DIMENSION .......................................................................................................................................9
4.1 CM-G100 OUTLINE ..............................................................................................................................................9
4.2 DISASSEMBLY VIEW ............................................................................................................错误！未定义书签。
4.3 RF CONNECTOR .................................................................................................................................................10
CM-G100 Usermanual/Datasheet
Jun 08, 2009 Confidential Page 3 of 10
Document History
Version Date Author Comments
Draft 2009/06/08 Fan Cros New Issue.
CM-G100 Usermanual/Datasheet
Jun 08, 2009 Confidential Page 4 of 10
1. Overview
Thank you very much for choosing this product. Please carefully read this Operation Manual before use
CM-G100. Please keep the Operation Manual well after reading.
1.1 About the Product
z It is GSM-SIM card and it is an independent miniature module of GSM’s wireless communication part.
z The operation method is different from the corresponding products. So please refer to the Operation
Manual of every product.
z This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
z Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
z Some electronic devices are susceptible to electromagnetic interference sent by this equipment if
inadequately shielded. Please use this equipment at least 20cm or as far as you can from TV set, radio and
other automated office equipment so as to avoid interference.
z This device is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for
exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the
U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF
energy for the general population. The guidelines are based on standards that were developed by
independent scientific organizations through periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure the safety of all persons, regardless of
age or health.
z The maximum antenna gain which is allowed for use with the device for mobile or fixed operating
conditions should not exceed 5dBi.
z This device is to be used only for fixed and mobile applications. If the final product after integration is
intended for portable use, a new application and FCC is required. The antenna(s) used for this transmitter
must be installed to provide a separation distance of at least 20cm from all persons and must not be
co-located or operating in conjunction with any other antenna or transmitter.
z This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/ TV technician for help.
CM-G100 Usermanual/Datasheet
Jun 08, 2009 Confidential Page 5 of 10
z When the module is installed into a host device, the FCC ID label must be visible through a window on the
final device or it must be visible when an access panel, door or cover is easily removed. If not, a second
label must be placed on the outside of the final device that contains the following text: "Contains FCC ID:
UPMJGW200001"
1.2 About Safety
z Do not disassemble or reconstruct or repair the card.
z Do not drop or strongly impact the card.
z Do not bend or press it.
z Do not wet it or touch it with wet hand.
z Do not touch the terminal part or score it.
z Do not conserve it in a direct sun light or a high temperature place.
z Do not conserve it in a damp or dirty place.
z Please conserve it in a place where children can not touch to avoid them putting the card in their mouths
accidentally.
z Please teach the content of this operation manual to your children when they use. And, please make sure
that they comply with the indication when using.
1.3 About Operation
z Please insert the card in proper strength.
z The product will be a little heating-up when using. It’s not an abnormal phenomenon.
z If a malfunction appears because of inserting the card into an uncorresponding product, our company
won’t be in charge of it.
z Please notice the static.
z Please clean with dry soft cloth when the card is dirty.
z Lost or Damage and so on will get a reimbursable service.
z There may be a modification of specification or function without a notification.
z Please conserve your information which inputted into the card in another memory. If the information
disappears unfortunately, our company won’t be in charge of it.
CM-G100 Usermanual/Datasheet
Jun 08, 2009 Confidential Page 6 of 10
2. Technical Specifications
2.1 General Specifications
items Descriptions
Access Mode Global System for Mobile communication(GSM) , General Packet
Radio Service(GPRS)
Protocol 3GPP TS 51.010-1 (GSM/GPRS)
Date Rate(Max.) GPRS multi slot class 12 : 48Kbps (up link), 48Kbps (down link)
GSM/GPRS 900 45MHz
GSM/GPRS1800 95MHz Transmit/Receive Frequency Interval
GSM/GPRS 1900 80MHz
GSM/GPRS 900 33dBm (Power class : 4)
GSM/GPRS 1800 30dBm (Power class : 1)
Max Output Power
GSM/GPRS 1900 30dBm (Power class : 1)
Operation Voltage 3.4V~4.2V
Idle 3mA
Voice Communication 170mA
Current Consumption (Typical)
Data Communication 200mA
Frequency Stability ±0.1ppm (at carrier frequency)
(W) 25.6 mm ± 0.10 mm
(D) 42.0 mm ± 0.20 mm
Size
(H) 4.0 mm ± 0.15mm
Weight Approximately below 10g
Operation Temperature 0ºC ~ +50ºC
Storage Temperature -10°C ~ + 60°C
2.2 Receive Specifications
items Descriptions
GSM/GPRS 900 925 ~ 960MHz
GSM/GPRS1800 1805 ~ 1880MHz Frequency Range
GSM/GPRS 1900 1930 ~ 1990MHz
Type of Channel
Propagation condition :
Static, BLER : 10%
under
PDTCH/CS-1 (dBm) -104
PDTCH/CS-2(dBm) -104
PDTCH/CS-3(dBm) -104
Minimum Input level for Reference
Performance
GSM/GPRS
900/1800/1900
PDTCH/CS 4(dBm) -101
CM-G100 Usermanual/Datasheet
Jun 08, 2009 Confidential Page 7 of 10
2.3 Transmit Specifications
items Descriptions
GSM/GPRS 900 880 ~ 915MHz
GSM/GPRS1800 1710 ~ 1785MHz Frequency Range
GSM/GPRS 1900 1850 ~ 1910MHz
Frequency Error ±0.1ppm (at carrier frequency)
Peak phase error 20 Degree
Phase Error RMS phase error 5 Degree
Power Level Output Power (dBm) Tolerence (dBm)
5 33 ±2
6 31 ±3
GSM/GPRS 900
7 29 ±3
0 30 ±2
Transmit Output Power
GSM/GPRS
1800/1900 1 28 ±3
Frequency
offset
(KHz)
0 ~
±100 ±200 ±250 ±400
±600~
<±180
0
Relative
(dB) +0.5 -30 -33 -60 -60
GSM/GPRS 900
Absolute
(dBm) -36 -51
Frequency
offset
(KHz)
0 ~
±100 ±200 ±250 ±400
±600~
<±180
0
Relative
(dB) +0.5 -30 -33 -60 -60
ORFS@Spectrum due
to modulation
GSM/GPRS
1800/1900
Absolute
(dBm) -36 -56
Frequency offset (KHz) Power
(dBm) ±400 ±600 ±1200 ±1800
33 -19 -21 -21 -24
31 -21 -23 -23 -26
29 -23 -25 -25 -28
27 -23 -26 -27 -30
25 -23 -26 -29 -32
23 -23 -26 -31 -34
GSM/GPRS 900
≤21 -23 -26 -32 -36
Frequency offset (KHz) Power
(dBm) ±400 ±600 ±1200 ±1800
30 -22 -24 -24 -27
28 -23 -25 -26 -29
26 -23 -26 -28 -31
24 -23 -26 -30 -33
22 -23 -26 -31 -35
ORFS@Spectrum due
to switching transient
GSM/GPRS
1800/1900
≤20 -23 -26 -32 -36
CM-G100 Usermanual/Datasheet
Jun 08, 2009 Confidential Page 8 of 10
2.4 Compliance with Stanandards
z 3GPP TS 51.010-1 (GSM/GPRS)
z GPRS/EGPRS Multislot Class 12, Phase 2+
2.5 Connectivity
z UART in dedicated socket
3. PIN Assignment
Plug number Name of signal Direction Content
1 TXD J→C UART sends serial data
2 RXD J←C UART receives serial data
3 RTS* J→C UART send data ready (L: ON, H: OFF)
4 CTS* J←C UART ready (L: ON, H: OFF)
5 DTR*/INTM J→C UART receive data ready (L: ON, H: OFF)
or host unit wake up G-SIM (L: OFF, H: ON)
6 DCD*/INTH J←C UART data carrier detect (L: ON, H: OFF)
or G-SIM wake up host unit (L: OFF, H: ON)
7 POWER ON J→C G-SIM power control (L: OFF, H: ON)
8 INS* J←C G-SIM detection signal (L: plugged in, H: not plugged in)
9 Vcc Vcc Power
10 GND GND Grounding
11 REC+ J←C Signal of receiving unit, analogue differential input.
12 REC- J←C Signal of receiving unit, analogue differential input.
13 SIMVCC J←C Supply power for external SIM
14 MIC+ J→C Signal of microphone, analogue differential input.
15 MIC- J→C Signal of microphone, analogue differential input.
16 SIMRST J←C SIM reset
17 SIMDATA JC SIM data
18 SIMCLK J←C SIM clock
CM-G100 Usermanual/Datasheet
Jun 08, 2009 Confidential Page 9 of 10
4. Outline & Dimension

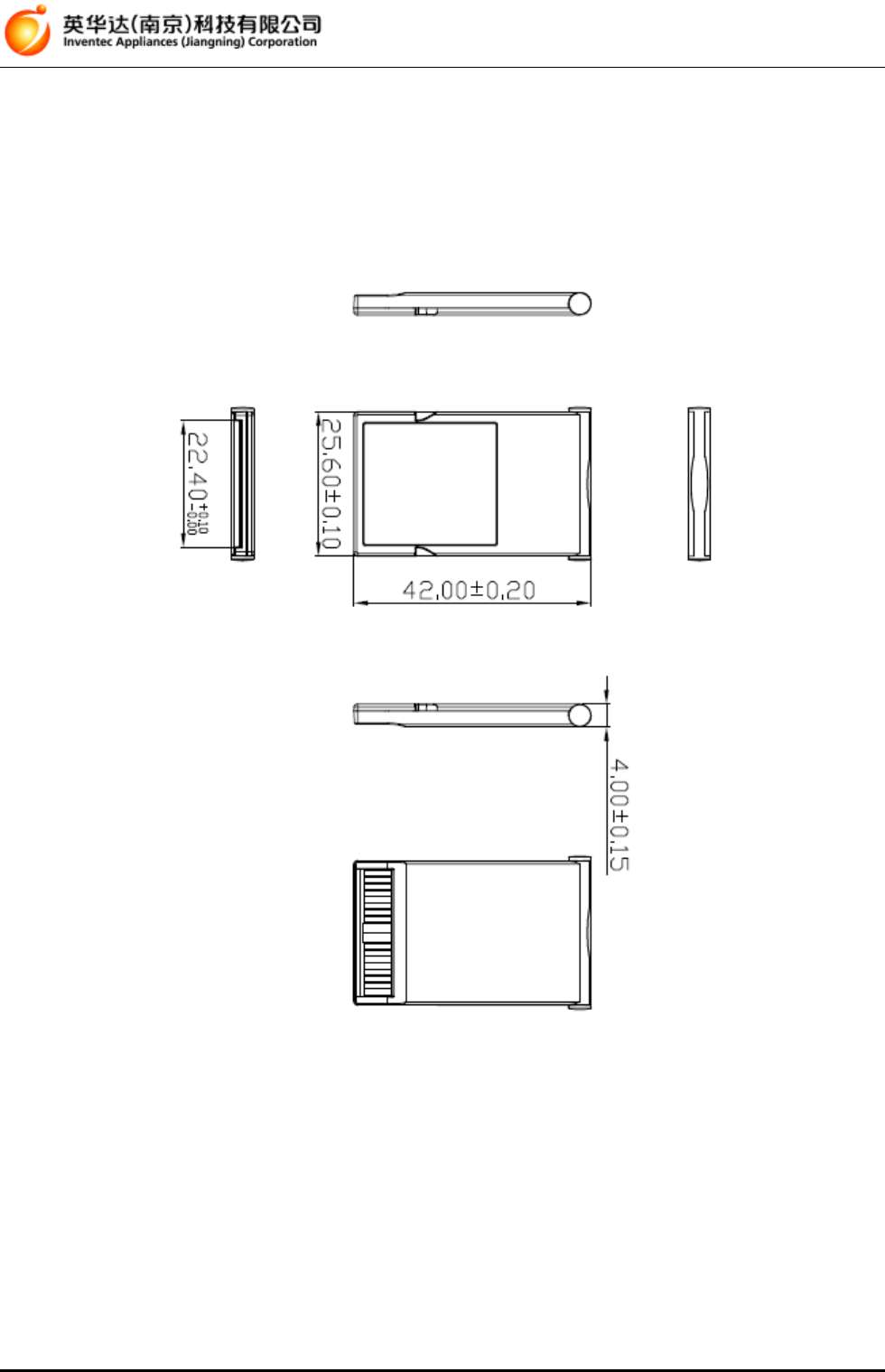

4.1 CM-G100 Outline
CM-G100 Usermanual/Datasheet
Jun 08, 2009 Confidential Page 10 of 10

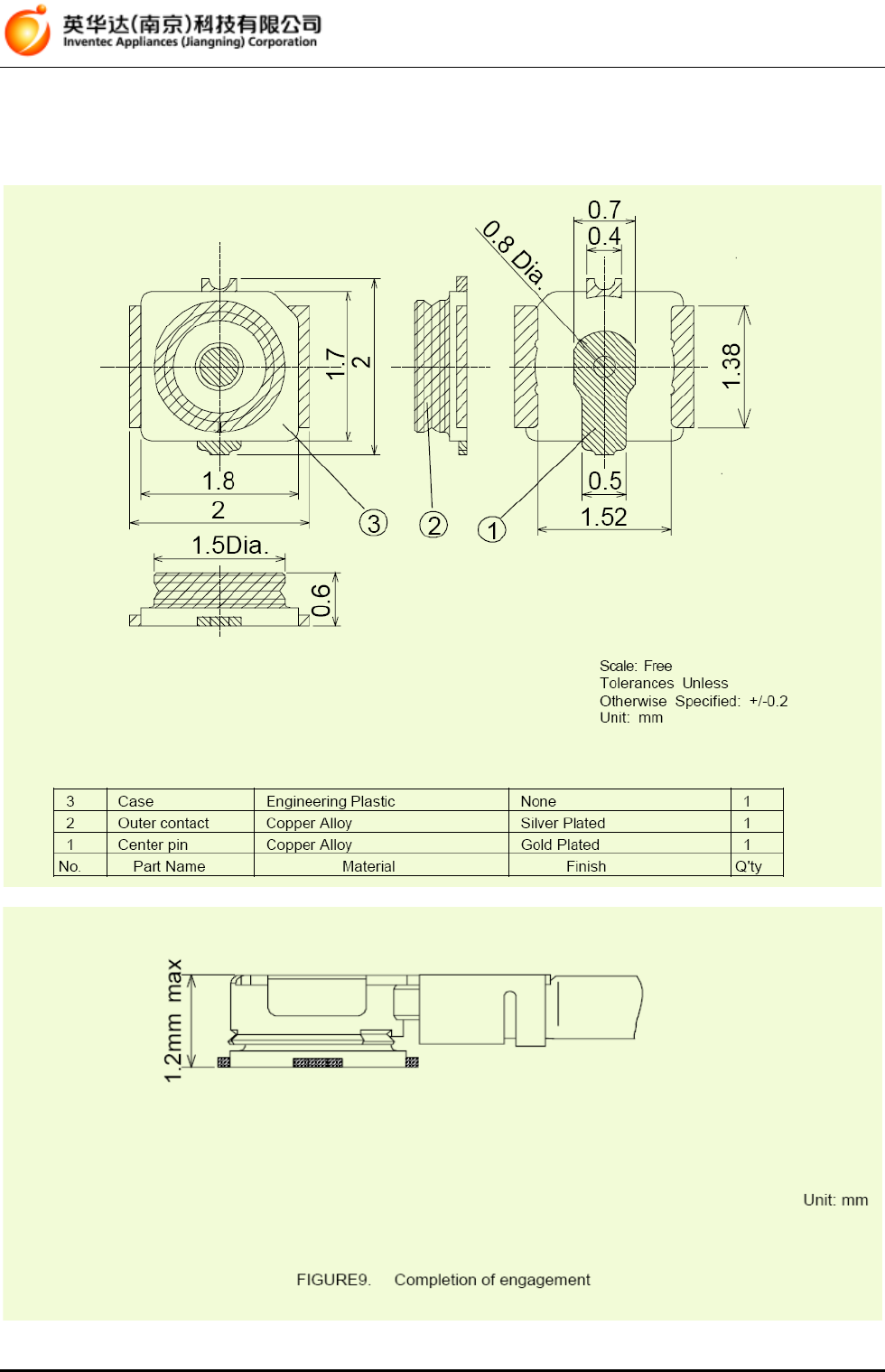

4.2 RF Connector
