Iolan Systems LA-XXWPRXKYMX Security Badge Reader User Manual II

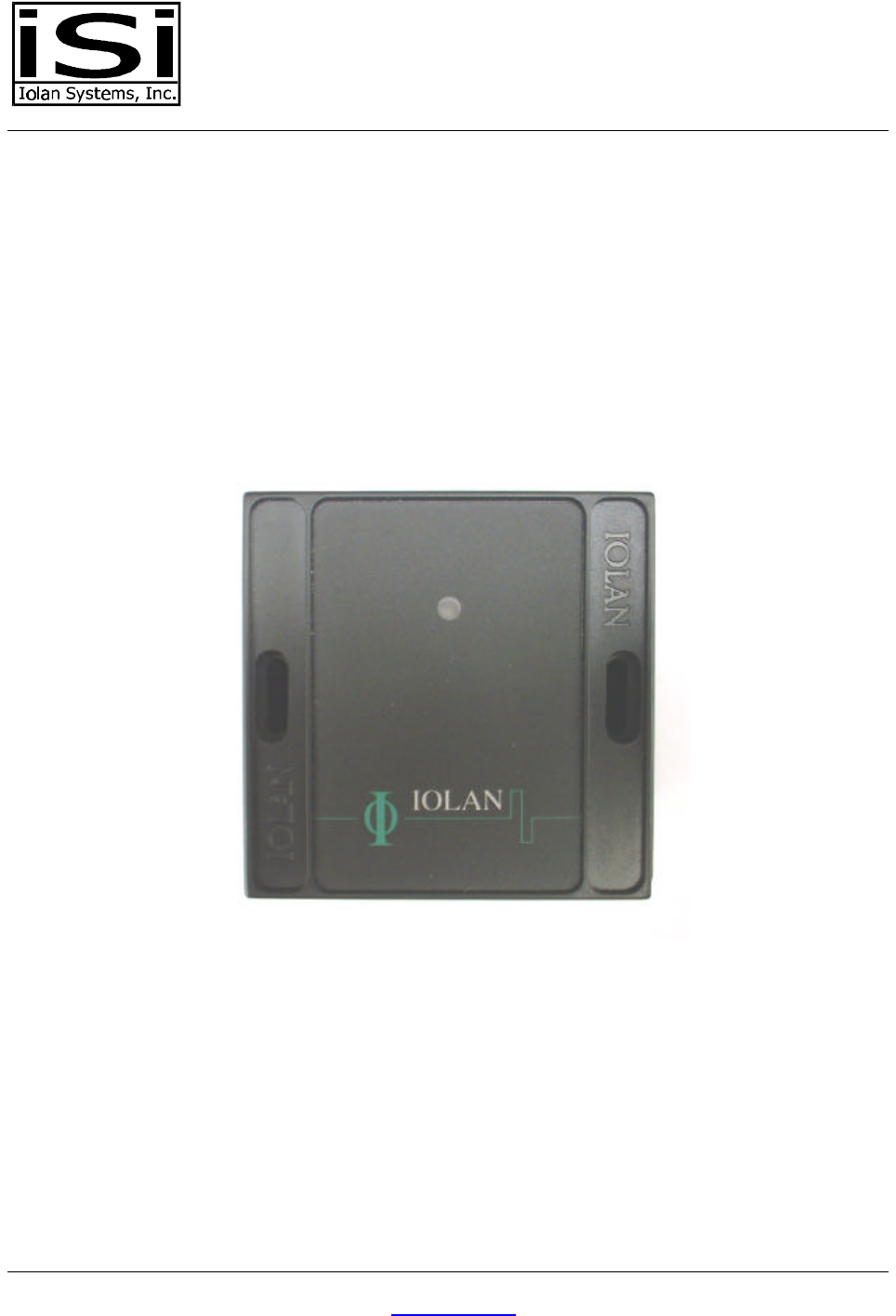

Iolan Systems Inc. Security Badge Reader II
Users manual
December 12, 2000 www.iolan.com Page: 1
Iolan Systems, Inc.
912 ½ E 37TH ST
Austin TX 78705-1808
Tel: (512) 708 10 71
Fax: (512) 708 10 91
CONCEPT
SALES SPECIFICATIONS LA-XXW-PRXKY-MX
This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
The user is warned that any changes or
modifications not expressly approved by Iolan
Systems, Inc. could void the user’s authority to
operate the LA-XXW-PRXKY-Mx Badge reader.
LA-XXW-PRXKY- Mx
ISI Mifare Reader XXW Wiegand II.doc www.iolan.com Page: 2
1. Contents
1. CONTENTS ...................................................................................................................................................2
2. PURPOSE OF THIS DOCUMENT...............................................................................................................3
3. DESCRIPTION OF THE READER..............................................................................................................3
4. DATA AND RELATION WITH TC NETWORK........................................................................................3
5. TECHNICAL DATA .....................................................................................................................................4
6. PARAMETERS OF THE MODULE ............................................................................................................5
7. DIMENSIONS OF THE MODULE: .............................................................................................................5
8. CONNECTING..............................................................................................................................................6
9. WIEGAND PROTOCOL ..............................................................................................................................6
9. WIEGAND PROTOCOL ..............................................................................................................................7
10. CHARACTER COMPOSITION.............................................................................................................7
11. METHOD OF SENDING AND TIMING ...............................................................................................8
LA-XXW-PRXKY- Mx
ISI Mifare Reader XXW Wiegand II.doc www.iolan.com Page: 3
2. Purpose of this document
This document gives a full explanation of the possibilities of the LA-XXW-PROXKEY-MC. This information
can be used, for example, in sales documentation.
3. Description of the reader
The LA-XXW-PROXKEY-MC is a ‘wallmount-module,’ a reader for MIFARE® tags. The module is
designed for identification purposes. It uses a Wiegand data-interface to read a card number, or any other
kind of data, and to send it to the connecting unit. There are three indicators: red, green and yellow. The
yellow lamp blinks when the card is successfully read. A buzzer is available to give signals as
programmed
4. Data and Relation with TC Network

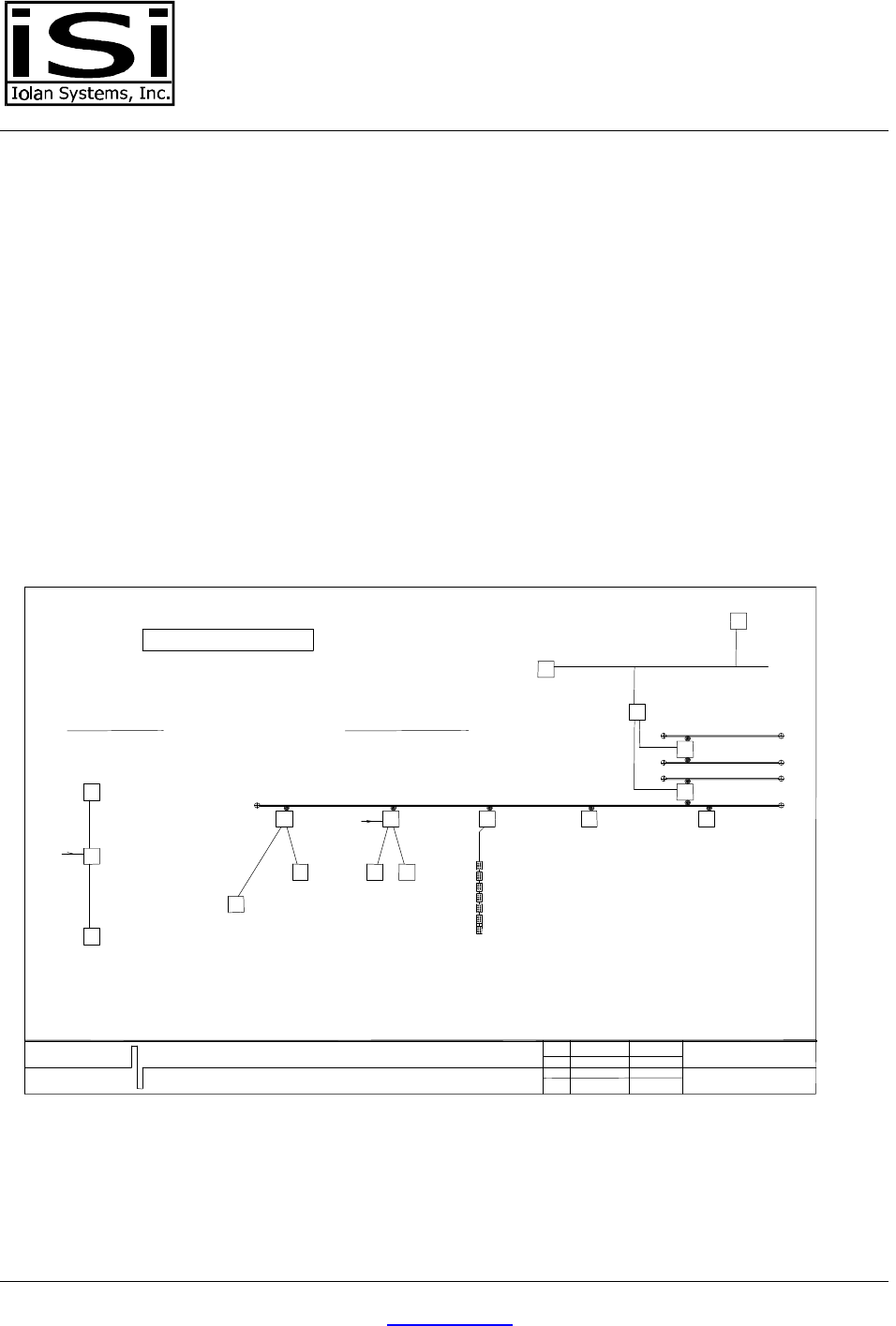

The reader can be connected to a network as shown in this scheme:
PC MET
IOLAN_TC
BEHEER
NETWORKITEM :
LA-WIW-PROXKEY-B
SERVER
NETWERK
MET DATABASE PC MET
IOLAN_TC
PC-LAN
SPANT 3
SPANT 4
LA-TCR-RSOMZ-B
SYSTEEM MET MEERDERE MODULEN
KANAALNUMMERS DIENEN ALS
VOORBEELD
EENVOUDIGSTE OPSTELLING
RS232-KABEL
PC MET
IOLAN_TC
LA-TCB-2WI-2I-2R
K8
LA-TCK-2WI-4I-2Y
K9220Vac
LA-TCB-PANEL
K10
LA-TCX-DISPLAY
K11
LA-TCR-RSOMZ-B
LA-TCB-8AN
SPANT 1
SPANT 2
K12
ANALOGE INPUTSDISPLAY MODULE
LA-CHP-8A-8S-H
LA-CHP-8A-8S-V
LA-CHP-8A-8S-R2X
LA-WIW-PROXKEY-B
LA-WIW-PROXKEY-B
LA-TCK-2WI-4I-2Y
&
LA-TCI-RSOMZ-A
220Vac
LA-WIW-PROXKEY-B
LA-WIX-PROXKEY-M
LA-CHR-8I-8Y
LA-CHR-16I-16Q
LA-CHP-8A-8S-G
DIGITALE INPUT EN OUTPUT
IOLAN
GEBOUWAUTOMATISERING
PROJECTNAAM
ONDERWERP
:
:
STANDAARDISERING IOLAN NETWERK
LA-WIW-PROXKEY-B DEEL : NETWERKSYMBOLIEK
GET.
GEW.
GEW.
GEW.
E.LEMM PROJECTNR.
TEKENING NR.
13-10-1997 R086
E003
LA-XXW-PRXKY- Mx
ISI Mifare Reader XXW Wiegand II.doc www.iolan.com Page: 4
5. Technical data
Input
Input • 4.5 to 24 Volt +/- 10%. The power input is included in a 6 pin connector.
In cooperation with IOLAN-modules the power is supplied.
• 100 - 150 mA. (rest – reading / writing tag)
Technical data
WI interface • 6 pins connector with:
• 2x power supply
• 2x lamp switcher
• 2x data. Wiegand ‘clock-data’
• Data structure according to ISO 7811/2-1986 TRACK 2
Reading distance • 25mm typical, min 10mm max 35mm met transponder types : MF1-
S50, MF1-P60 en MF1-L10
Operating frequency • 13,56 Mhz.
Data-transport transmitting
speed • 106kBd
FCC ID • OCQLA-XXWPRXKYMX
Security • Data encrypted, protected against recording and ‘replay-attack’.
Possibilities
Transponders • Can read from MIFARE® card types 1, 2, and 3.
• Reader can hold one key (A or B) and one read location for
transponder-identification.
• Flexible transponder-code length.
Indicators • One LED with options: Red, Green. For logistic matters. E.g.: red: no
access; green: access allowed.
• Panel can turn LED’s on or off.
Mechanical aspects
Material housing • Typical W-housing
• Black plastic housing, ABS plastic house.
• Dimensions (without connectors; HxBxL mm ) 21x71x71mm. See
drawing R086EF02.
Connection to wall • 2x 3mm opening on 60mm distance. See drawing R086EF02.
Cable connectors • Max. diameter 1.5 mm2
• Connectors 1x6 pins
Protection • When connector-protected IP66.
Temperature • Stock -10..70 o Celsius; 14..158 Fahrenheit
• Operating temp -10..50 o Celsius; 14..122 Fahrenheit
Installation
Connectors 6 Pins or 9 Pins , Ordernumber: EC220004 !
Mounting place • When mounting, outside connector must be protected with lacquer, or
the edges must be made watertight.
Ordering information
Type LA-XXW-PRXKY-MX
Order number LA140110
LA-XXW-PRXKY- Mx
ISI Mifare Reader XXW Wiegand II.doc www.iolan.com Page: 5
6. Parameters of the module
There are no switches on the module; however, according to the MIFARE protocol the readers must be
personalized. There is a procedure available which accomplishes this.
During this personalization-procedure, the key and pointers are downloaded. The key is necessary to gain
access to an application on the transponder. The pointers determine where the information is located.
The reader is constructed in such a way that downloaded keys can never be read from the reader; reading
from the reader is physically impossible; encryption also negates this possibility.

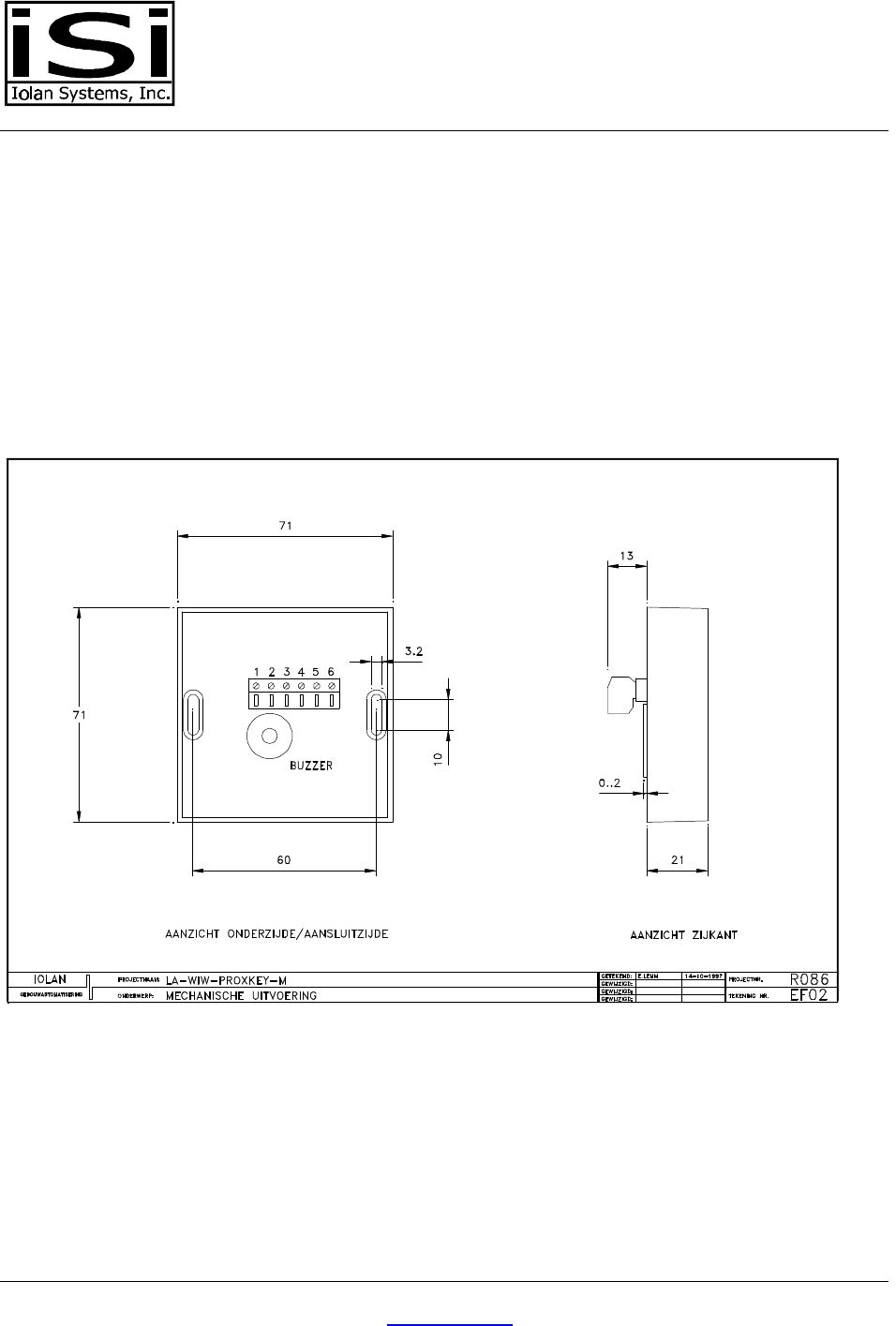

7. Dimensions of the module:
* For XXW 6 pin connector will be replaced by 9 pin connector !
LA-XXW-PRXKY- Mx
ISI Mifare Reader XXW Wiegand II.doc www.iolan.com Page: 6

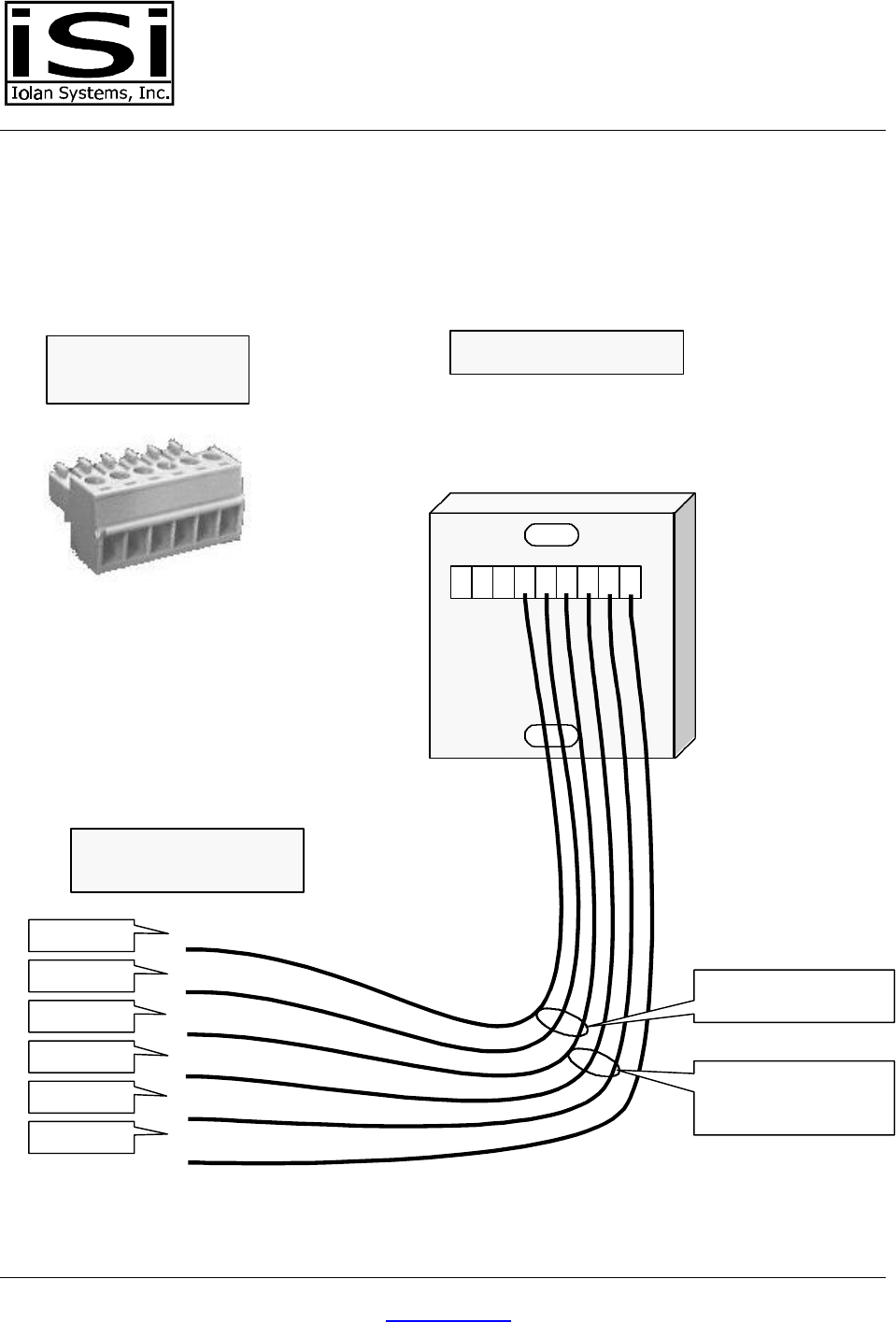

8. Connecting
1
2
3
4
5
6
7
8
9
+12Volt
0 Volt
Back of BadgeReader
Connections to
Panel
Clock/data
data
Lamp Green
Lamp Red
Internal pull-up to 5 volt.
‘Pull down’ → LED: on
No Internal pull-up
Open collector output.
Pull down → data active
6 PIN CONNECTOR
FOR PIN 4 TO 9
LA-XXW-PRXKY- Mx
ISI Mifare Reader XXW Wiegand II.doc www.iolan.com Page: 7
9. Wiegand protocol
This version of the IOLAN mifare readers sends out data according to the Wiegand protocol. Sending a
string of digits with a maximum length of 16 is possible.
10. Character composition
Immediately after reading a card the reader sends out a string. This string is composed according to ISO
1711/2 track 2:
CONFIDENTIAL
CHARACTER DEFINITIONITEM :
*ALL CHARACTERS ACCORDING TO ISO 7811/2-1986 TRACK 2
*LIST : CHARACTER
TEXT IN DRAWINGS DISCRIPTION
BITSTREAM
INCLUDING PARITY*
LSB
*
MSB PARITY
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
11
1
2
3
DIGIT
DIGIT
DIGIT
0DIGIT
0
1
2
3
4
5
6
7
4
5
6
7
DIGIT
DIGIT
DIGIT
DIGIT
0
0
0
0
0
0
0
0
1
1
1
111
1
1
1
1
0
0
1
0
0
0
0
0
0
0
0
0
0
0
1
1
11
1
1
1
1
START SENTINEL
UNUSED CHARACTER
8
9
DIGIT
DIGIT
8
9
START
UNUSED
*FIELD IS THE ABREVIATION
FOR 'FIELD SEPARATOR'
STOP
FIELD
UNUSED
UNUSED
END SENTINEL
FIELD SEPARATOR
UNUSED CHARACTER
UNUSED CHARACTER 0
0
0
0
1
1
1
111
1
1
1
1
1
1
1
1
0
0
00000000000000000
EDGE
<STOP> <LRC>
11111 01101
<FIELD> <"3">
10110 11001
<"1"> <"2">
01000
<START>
11010 10000
TWO FIELDS : FIELD 2 = "3"
FIELD 1 = "12"
:
EDGE
MESSAGE IS :
*EXAMPLE
00000000000000000
IOLAN
GEBOUWAUTOMATISERING
PROJECTNAAM
ONDERWERP
:
:
STANDAARDISERING IOLAN NETWERK
LA-IOB-PROXKEY
START SENTINEL
DEEL : MAGSTRIPE INTERFACE DATA
CHARACTER DEFINITION
FIELD SEPARATOR
GET.
GEW.
GEW.
GEW.
E.LEMM
END SENTINEL
PROJECTNR.
TEKENING NR.
28-08-1995 S041
E102
The string forwarded by the LA-WIW-PROXKEY-M is default:
(edge) <START> <D0> <D1> <D2> <D3> <D4> <D5> <D6> <D7> <D8> <D9> <END><LRC> (edge)
• The length of the string is defined in the EEPROM and is variable. Standard the length is set to 10
digits.
• The LRC is the XOR of all data characters.
• The ‘edge’ is 2 characters long.
• There is no ‘Card-load’ signal.
LA-XXW-PRXKY- Mx
ISI Mifare Reader XXW Wiegand II.doc www.iolan.com Page: 8
• D0 ..D9 is the card identification - number.
11. Method of sending and timing
The to be transmitted data is split up into characters and they are send out one by one Each character
gets its own paritybit. The string as a whole gets an extra parity-character. The character structure is
explained later in this document.
A character consists of 5 bits. 4 databits and 1 paritybit. These are transmitted 1 by 1:
1. Dataline setup
2. clockline goes low.
3. clockline goes up

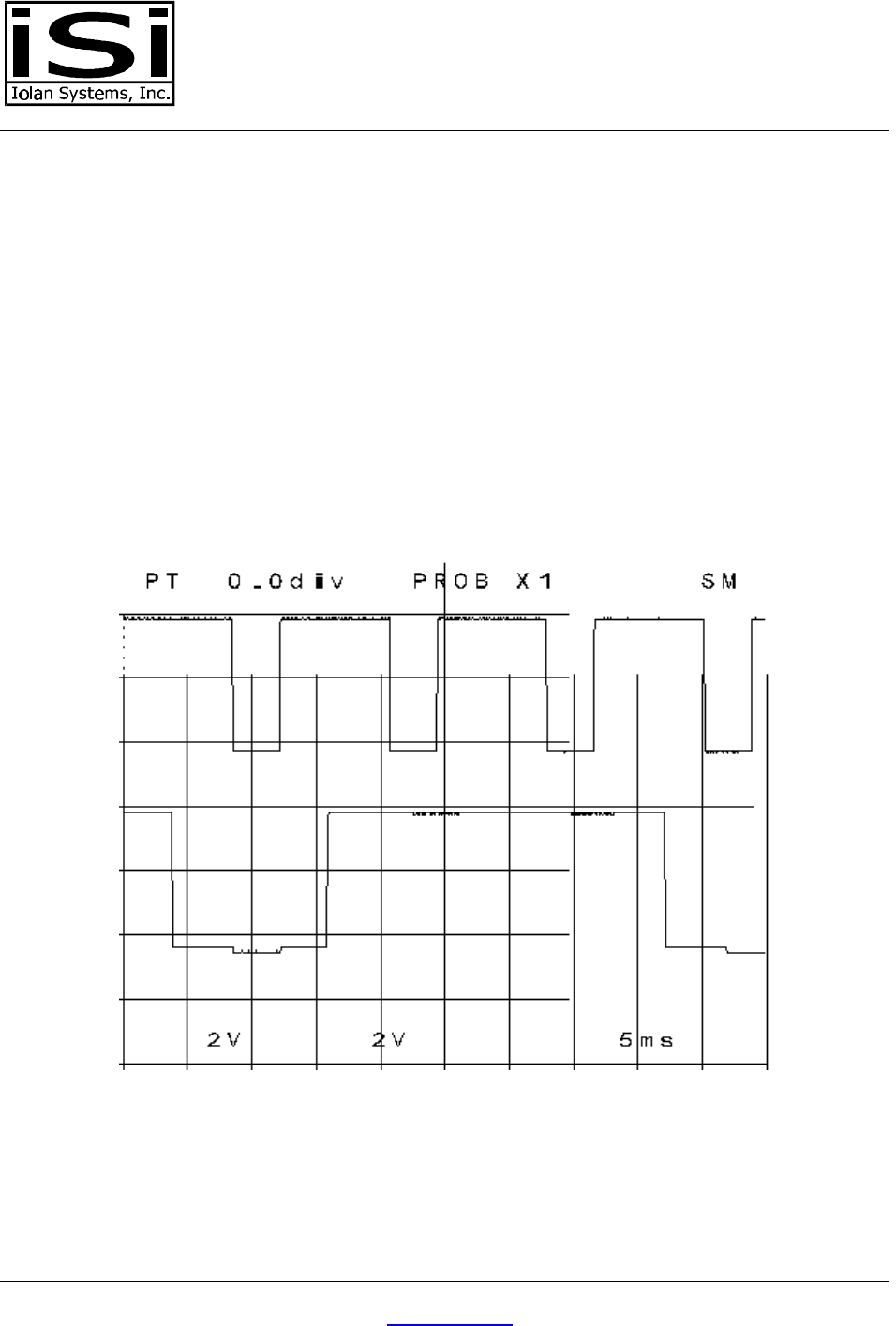

This gives the following pattern:
• The upper signal line is the clockline. (connector 2)
• The lower signal line is the dataline. (connector 3)
• The setuptime for data 3..5 mS.
• The clock low period is 3..5 mS
• The timelap the data remains up after going up of the clock is 3mS
LA-XXW-PRXKY- Mx
ISI Mifare Reader XXW Wiegand II.doc www.iolan.com Page: 9

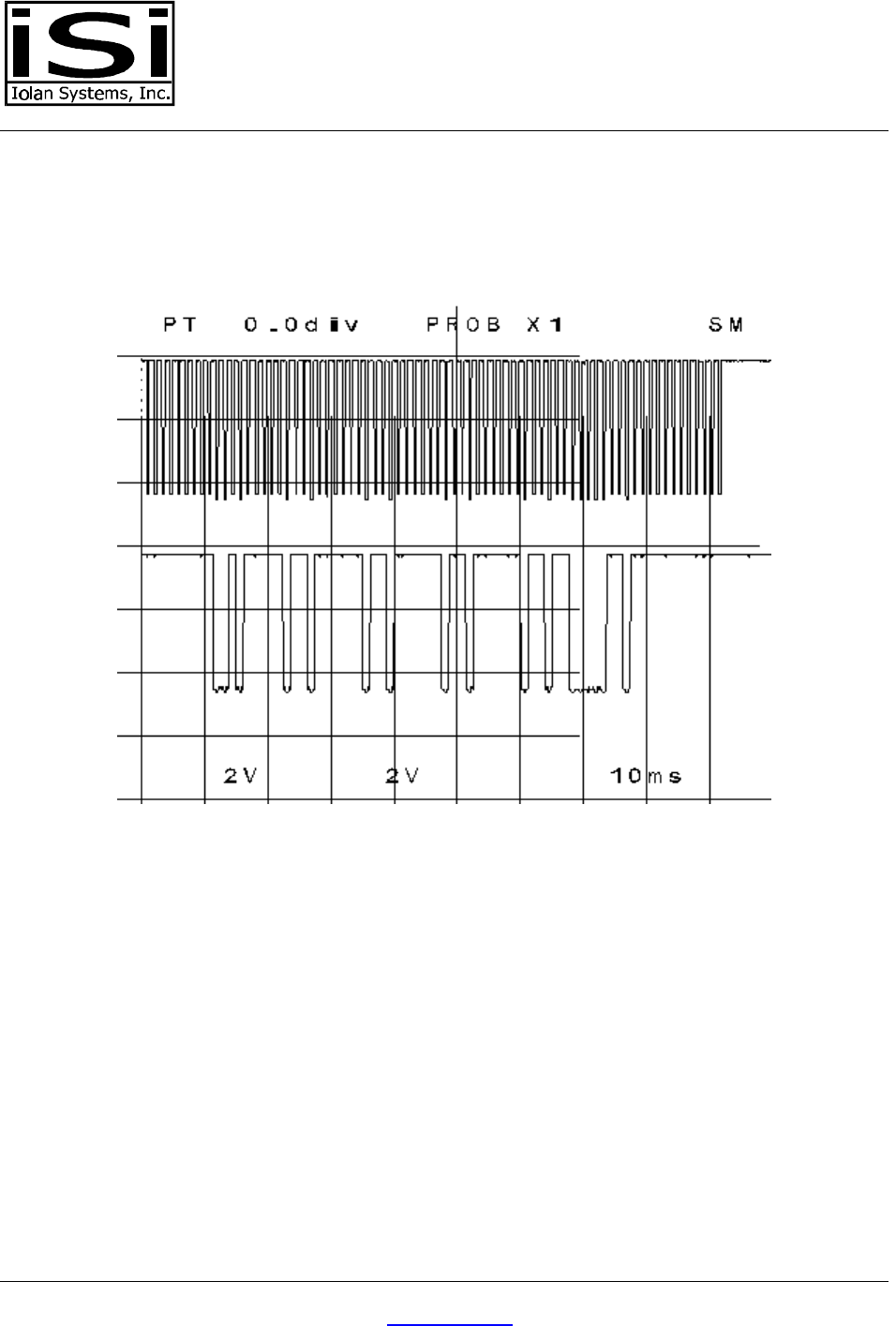

A whole string of 10 characters would look like this:
In this case card number 0404040400 is send.
• The upper signal line is the clockline. (connector 2)
• The lower signal line is the data line. (connector 3)
