Iridium Satellite LLC Iridium 9522B L-Band Transceiver Manual
Manual
Iridium Satellite LLC
9522B L-Band Transceiver Product Information Guide
Contents
Revision History ............................................................................................................................. 3
1.0 Product Overview ............................................................................................................... 4
2.0 Standards Compliance ........................................................................................................ 5
2.1 FCC Compliance............................................................................................................. 5
2.2 CE Compliance............................................................................................................... 5
3.0 Physical Specifications ....................................................................................................... 6
3.1 Environmental................................................................................................................. 6
3.2 Dimensions ..................................................................................................................... 6
3.3 Interface Connectors....................................................................................................... 8
3.3.1 Multi-Interface Connector ...................................................................................... 9
3.3.2 Antenna Connector ............................................................................................... 10
3.3.3 GPS Feed-thru Connector..................................................................................... 10
3.3.4 SIM Chip Reader .................................................................................................. 10
3.4 Mounting....................................................................................................................... 10
3.5 Mounting in Harsh Environments................................................................................. 11
4.0 Electrical Interfaces .......................................................................................................... 12
4.1 DC Power Interface....................................................................................................... 12
4.1.1 DC Power Interface Signal Descriptions.............................................................. 12
4.1.2 DC Power Input Specifications............................................................................. 12
4.2 Control/Digital Audio (DPL bus) Interface.................................................................. 12
4.2.1 Control/Digital Audio Interface Signal Descriptions ........................................... 12
4.3 RS232 Data Interface.................................................................................................... 13
4.3.1 RS232 Data Signal Descriptions........................................................................... 13
4.3.2 Autobaud............................................................................................................... 13
4.4 Analog Audio Interface................................................................................................. 13
4.4.1 Analog Audio Interface Signal Descriptions........................................................ 13
4.5 SIM Interface................................................................................................................ 13
4.6 RF Interface .................................................................................................................. 14
4.6.1 RF Interface Specifications.......................................................................... 14
4.6.2 GPS Feed Thru Specifications................................................................... 14
4.6.3 Radio Characteristics ..................................................................................... 14
5.0 Instructions for the safe Installation and use of the 9522B LBT .................... 15
5.1 Instructions for the Integrator................................................................................. 15
5.2 Instructions from the integrator to the user................................................................... 15
6.0 Modem Commands and Configuration............................................................................. 15
7.0 Installation of the 9522B in place of a 9522A.................................................................. 16
7.1 Physical characteristics................................................................................................. 16
7.2 Power Supply................................................................................................................ 17
2
Iridium Satellite LLC
9522B L-Band Transceiver Product Information Guide
Revision History
Revision Date Comment
V0.1 First revision based on 9522A product information guide
V0.2 17 April 2008 Updated mechanical drawings, mass and power.
V0.3 22 May 2008 Updated Header and DC Power Input Specification
V0.4 16 Jun 2008 Added 9522A adapter information. Updated DC Power Input Specification
V1.0 30 June 2008 Initial Release
Export Compliance Information
This product is controlled by the export laws and regulations of the United States of America. The U.S.
Government may restrict the export or re-export of this product to certain individuals and/or destinations.
For further information, contact the U.S. Department of Commerce, Bureau of Industry and Security or
visit www.bis.doc.gov.
3
Iridium Satellite LLC
9522B L-Band Transceiver Product Information Guide

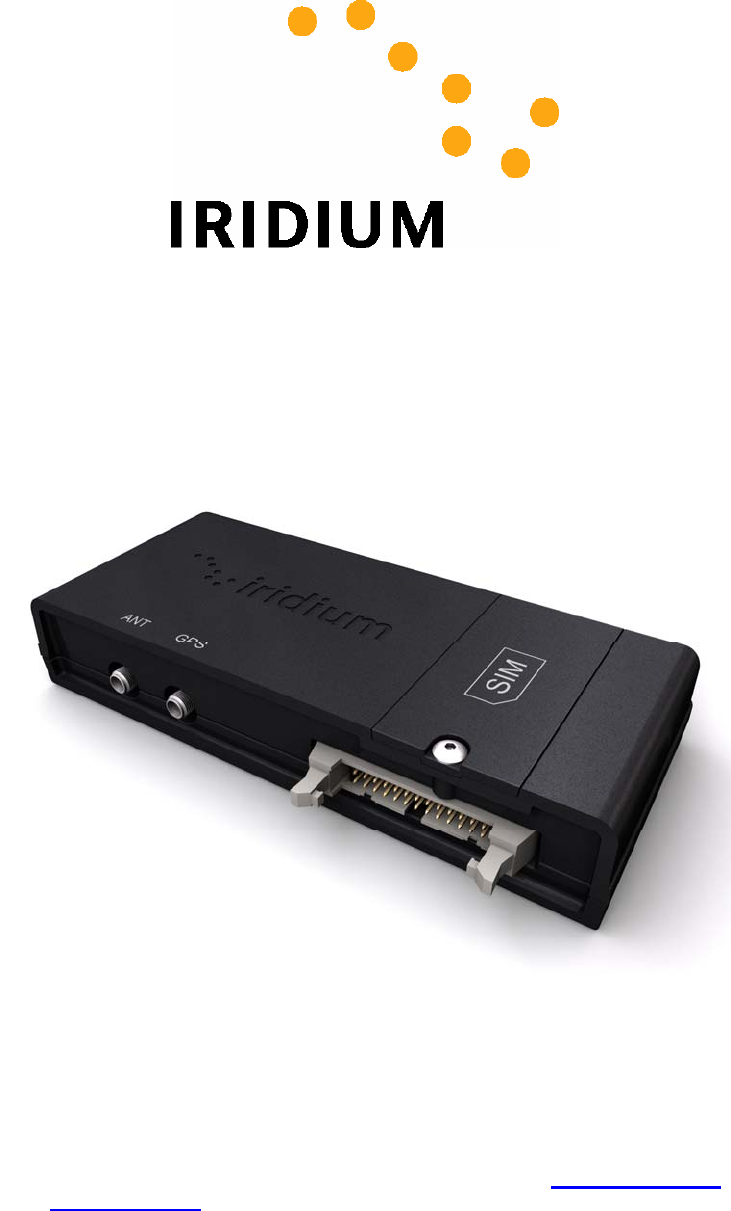

1.0 Product Overview
The 9522B L-Band Transceiver (LBT) is designed to be integrated into a specific application with other
hardware and software to produce a solution designed for a specific application or vertical market. Some
examples of these solutions include a maritime voice telephony terminal or a vehicle tracking solution.
The LBT functionally supports all of Iridium’s voice and data services. Applications can be built to use one
or multiple services using the voice and data interfaces. The 9522B is a functional replacement to the
9522A LBT, although the mechanical design and the electrical connectors differ. Connection adaptors are
available to enable the 9522B to be used in place of the 9522A.
A pass thru connector is provided to allow a GPS receiver to share the same antenna as the 9522B LBT.
The 9522B is regulatory approved for FCC, Canada, and CE assuming an antenna with a gain of ~3dBi.
This allows the LBT to be integrated into a variety of subscriber products, or retrofitted into existing LBT-
based products. These products, when integrated together will require regulatory testing to be conducted
by the integrator.
The LBT is essentially provided as a ‘black box’ with all interfaces provided via a 26-way 0.1” pitch
connector. The product provides the core transceiver module and SIM card reader. All other functions and
hardware such as keypad, display, power supply, antenna etc. must be provided by the solution developer.
The connector provides the following interfaces and connections:
• Analog Audio
• Control / Digital Audio
• RS232
• Power Input
• On / Off
4
Iridium Satellite LLC
9522B L-Band Transceiver Product Information Guide
2.0 Standards Compliance
The 9522B is designed to comply with the standards for Radio Emissions Compliance, Electromagnetic
Compatibility, and AC Safety in the United States, European Union and Canada.
2.1 FCC Compliance
The 9522B is certified under 47 CFR Part 25 as FCC ID: Q639522B. It also complies with Part 15 of the
FCC Regulations. Operation is subject to the condition that this device does not cause harmful interference.
Any changes or modifications, including the use of a non-standard antenna, not expressly approved by the
party responsible for compliance could void the user's authority to operate the equipment.
IMPORTANT: To comply with FCC RF exposure requirements, a minimum separation of 20 cm is
required between the antenna and all persons.
2.2 CE Compliance
This product, when marked with the CE symbol, complies with the European Community Council Directive
for R&TTE, 99/5/EC, provided that the integrator/user adheres to the instructions detailed in this LBT
Interface Specification. This product is in compliance with applicable ETSI standards. Compliance with the
requirements of ETSI EN 301 489 requires the use of a shielded digital data interface cable.
5
Iridium Satellite LLC
9522B L-Band Transceiver Product Information Guide
3.0 Physical Specifications
The 9522B is depicted in Figure 1 below.

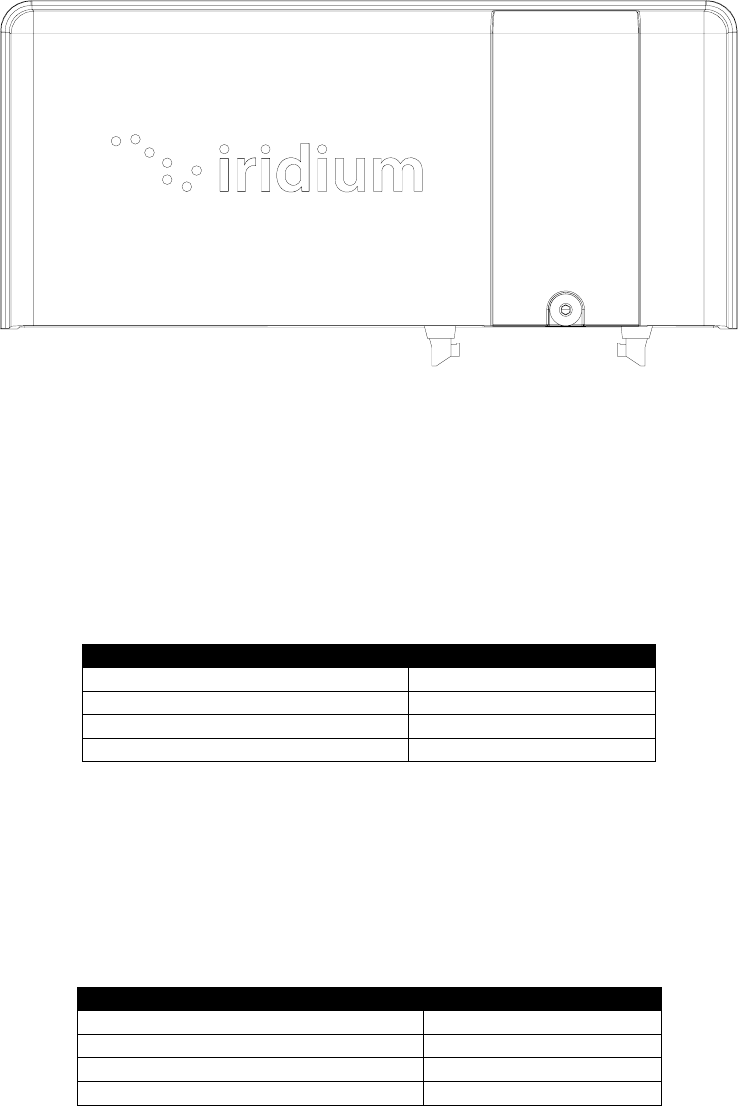

Figure 1: Top View of 9522B
3.1 Environmental
The environmental specifications of the 9522B LBT are summarized in Table 1 below.
Table 1: Environmental Specifications
Parameter Value
Operating Temperature Range -30ºC to + 70ºC
Operating Humidity Range 25 to 75% RH
Storage Temperature Range -40ºC to + 85ºC
Storage Humidity Range ≤ 93% RH
3.2 Dimensions
The overall dimensions of the 9522B LBT and its weight are summarized in Table 2 below. Dimensioned
views of the 9522B LBT are shown in Figures 2-5 which follow. All dimensions are in mm unless
otherwise stated.
Table 2: Mechanical Dimensions
Parameter Value
Length 162 mm (6.38”)
Width 81 mm (3.16”)
Depth 28 mm (1.10”)
Weight (approximate) 420 g
6
Iridium Satellite LLC
9522B L-Band Transceiver Product Information Guide

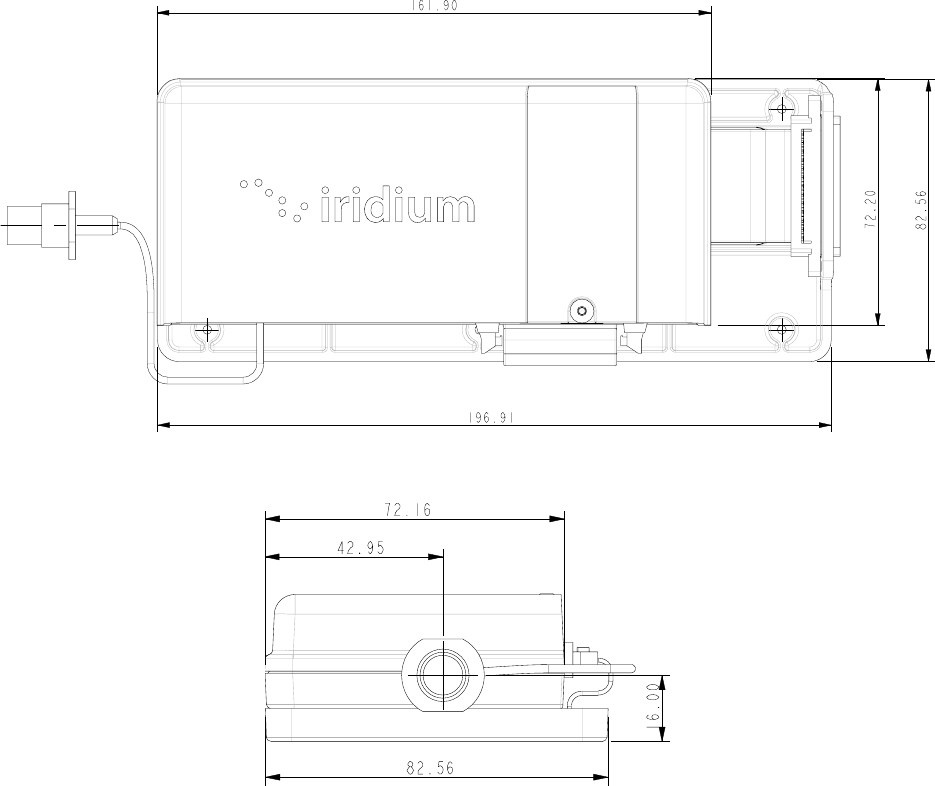

Figure 2: Bottom (connector) View

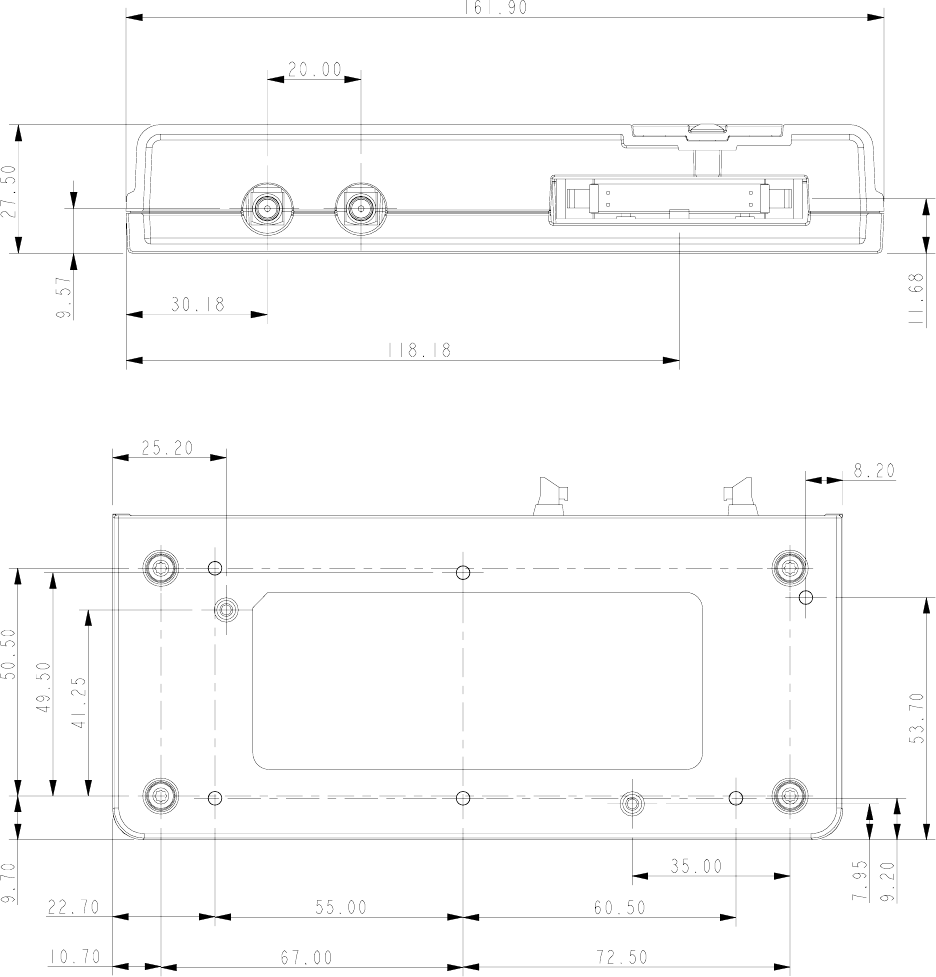

Figure 3: Back (mounting) View
7
Iridium Satellite LLC
9522B L-Band Transceiver Product Information Guide

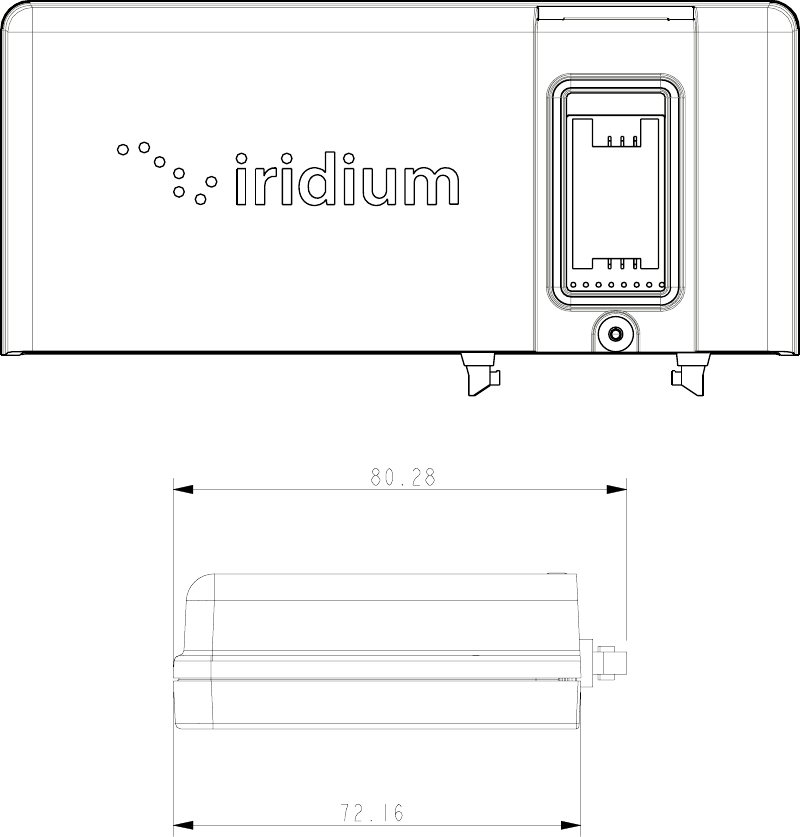

Figure 4: Front (SIM access) View
Figure 5: End View
3.3 Interface Connectors
The 9522B LBT incorporates four interface connectors:
• Multi-Interface Connector (located at the right-hand end of the bottom of the 9522B LBT)
• Antenna Connector (located at the left-hand end of the bottom of the 9522B LBT)
• GPS pass-thru Connector (located in the middle of the bottom of the 9522B LBT)
• Subscriber Identity Module (SIM) Chip Connector (located beneath a cover plate on the front of the
9522B LBT)
8
Iridium Satellite LLC
9522B L-Band Transceiver Product Information Guide
3.3.1 Multi-Interface Connector
The multi-interface connector is a standard 26-pin 0.1” pitch short latch IDC header with pins in two rows
of 13. Connection to this is made using a 26-way IDC without strain relief (such as AVX/Kyocera 00 8290
026 000 0X 1 or Harting 09 18 526 7803). To support legacy applications, a cable is available that
converts its pin-out to a DB25 connector with the same pin-out as the 9522A. The connector includes
four interfaces:
• DC Power
• Control/Digital Audio (DPL bus)
• RS232 Data
• Analog Audio
The pin out information for this connector is given in Table 3 below. The pin out from the DB25 adapter is
given in Table 4 below.
Table 3: 26-way connector pin-out
Contact Signal Description
1 EXT_ON_OFF External connection for On / Off key input to LBT
2 0V Signal ground, 0V signal reference and return
3 EXT_11HZ 90ms “frame sync” signal (used in testing)
4 MIC_AUD Microphone audio input to LBT
5 EXT_GND Power Ground input to LBT
6 EXT_PWR Power input to LBT
7 EXT_PWR Power input to LBT
8 EXT_GND Power Ground input to LBT
9 SPKR_AUD Speaker audio output from LBT
10 DPL_TX Digital Peripheral Link (UART) data output from LBT
11 DA_TX PCM digital audio output from LBT
12 DF_DTR Data / Fax Data Terminal Ready input to LBT
13 DF_RI Data / Fax Ring Indication output from LBT
14 DPL_RX Digital Peripheral Link (UART) data input to LBT
15 DF_RTS Data / Fax Request to Send input to LBT
16 DF_DSR Data / Fax Data Set Ready output from LBT
17 DF_S_TX Data / Fax (UART) data input to LBT
18 DF_CTS Data / Fax Clear to Send output from LBT
19 DF_DCD Data / Fax Data Carrier Detect output from LBT
20 0V Signal ground, 0V signal reference and return
21 DA_FS PCM digital audio frame sync output from LBT
22 DA_RX PCM digital audio input to LBT
23 DA_CLK PCM digital 2.048MHz audio clock output from LBT
24 0V Signal ground, 0V signal reference and return
25 DF_S_RX Data / Fax data (UART) output from LBT
26 NETWORK_
AVAILABLE Network available output from LBT
Table 4: 25-way D connector pin-out
9
Iridium Satellite LLC
9522B L-Band Transceiver Product Information Guide
Contact Signal Description
1 EXT_ON_OFF External connection for On / Off key input to LBT
2 EXT_11HZ 90ms “frame sync” signal (used in testing)
3 EXT_GND Power Ground input to LBT
4 EXT_PWR Power input to LBT
5 SPKR_AUD Speaker audio output from LBT
6 DA_TX PCM digital audio output from LBT
7 DF_RI Data / Fax Ring Indication output from LBT
8 DF_RTS Data / Fax Request to Send input to LBT
9 DF_S_TX Data / Fax (UART) data input to LBT
10 DF_DCD Data / Fax Data Carrier Detect output from LBT
11 DA_FS PCM digital audio frame sync output from LBT
12 DA_CLK PCM digital 2.048MHz audio clock output from LBT
13 DF_S_RX Data / Fax data (UART) output from LBT
14 0V Signal ground, 0V signal reference and return
15 MIC_AUD Microphone audio input to LBT
16 EXT_PWR Power input to LBT
17 EXT_GND Power Ground input to LBT
18 DPL_TX Digital Peripheral Link (UART) data output from LBT
19 DF_DTR Data / Fax Data Terminal Ready input to LBT
20 DPL_RX Digital Peripheral Link (UART) data input to LBT
21 DF_DSR Data / Fax Data Set Ready output from LBT
22 DF_CTS Data / Fax Clear to Send output from LBT
23 0V Signal ground, 0V signal reference and return
24 DA_RX PCM digital audio input to LBT
25 0V Signal ground, 0V signal reference and return
3.3.2 Antenna Connector
The 9522B LBT provides a single 50 Ω, SMA type antenna connector both transmit and receive. An
adaptor is available to convert this connector to TNC to enable the 9522B to be used as a replacement
for a 9522A.
3.3.3 GPS Feed-thru Connector
To enable a GPS receiver to share the antenna, the 9522B LBT passes the received signal through to a
50 Ω, SMA type connector. It is intended that this be connected to a GPS receiver. Note that this signal
will not be usable during a call.
3.3.4 SIM Chip Reader
An integrated SIM chip reader is provided on the 9522B LBT. This connector allows installation of the
chip form of the SIM beneath a cover plate on the 9522B LBT housing.

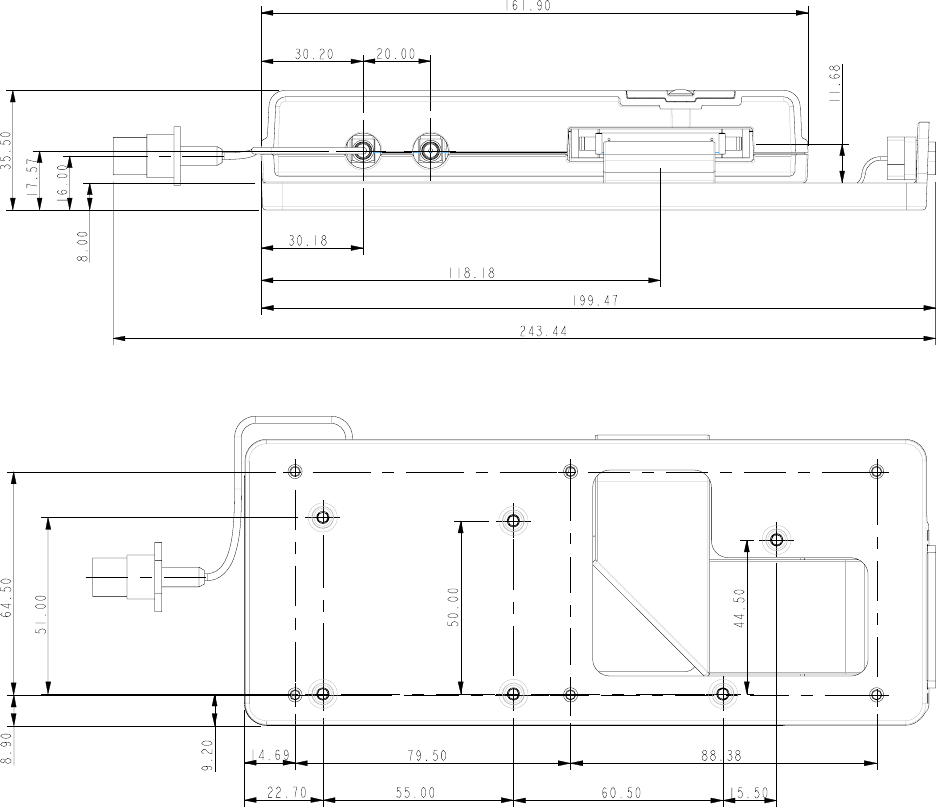

3.4 Mounting
The 9522B LBT incorporates (6) mounting holes on its bottom surface that can aid in its mounting. See
Figure 3 for locations of these features. It is recommended that a thread-forming screw be used to mount
the 9522B LBT via these features. Particularly, a Textron Camcar® Taptite® II Thread-Rolling Fastener of
M3.5x0.6 thread type is recommended. This fastener has a 15IP Torx Plus® pan head and is available in
lengths of 6, 8, 12, 16, and 20 mm as part number 3BE-P802-00, 3BE-P803-00, 3BE-P8185-00, 3BE-
P804-00, 3BEP8186-00, and 3BE-P8187-00 respectively. Length should be chosen to ensure that
penetration into the 9522B LBT housing does not exceed 11 mm. If a 6-32 thread type is desired, a
10
Iridium Satellite LLC
9522B L-Band Transceiver Product Information Guide
Textron Camcar® Taptite® II Thread-Rolling Fastener with a 15IP Torx Plus® pan head is available in
lengths of 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, and 1 inch as part number 3BE-P814-00, 3BE-P8123-00, 3BE-
P815-00, 3BE-P816-00, 3BE-P8124-00, 3BE-P817-00, and 3BE-P818-00 respectively. A 10IP Torx Plus®
flat head version is also available in a single length of 1/2 inch as part number 3BE-P801-00. Another 6-32
thread type option is to insert a helical coil insert with a 6-32 internal thread into these features thus
accommodating 6-32 threaded fasteners as mounting hardware for the 9522B LBT. National Aerospace
Standard NASM122238 serves as a technical reference for the recommended helical coil insert.
3.5 Mounting in Harsh Environments
If the 9522B LBT is to be used in a harsh environment with exposure to high humidity, water or dust, the
LBT must be installed in the correct orientation, with all connectors facing downwards.
11
Iridium Satellite LLC
9522B L-Band Transceiver Product Information Guide
4.0 Electrical Interfaces
The subsections to follow contain interface information for the electrical interfaces of the 9522B LBT.
4.1 DC Power Interface
4.1.1 DC Power Interface Signal Descriptions
The DC power interface is comprised of the DC power inputs and a control signal as summarized in Table
5 below. The EXT_PWR and GND inputs are used to supply DC power to the 9522B LBT. The
EXT_ON_OFF control input is pulled to a GND level to toggle the 9522B LBT on and off. Note that both
pairs of pins should be connected for EXT PWR and EXT GND.
Table 5: Control/Audio Interface Signal Descriptions
Signal Name Signal Description
EXT_PWR (pin 6 and 7) External power input
EXT_GND (pin 5 and 8) External power GND input
EXT_ON_OFF (pin 1) Power on/off control input
4.1.2 DC Power Input Specifications
The DC power requirements for the 9522B LBT are summarized in Table 5 below. Note that these
requirements apply to DC power measured at the 9522B LBT multi-interface connector input.
Table 5: DC Power Input Specifications
Parameter Value
Main Input Voltage Range +4.0 VDC to +32 VDC
Main Input Voltage - Nominal 5VDC, 12VDC or 24VDC
Main Input Voltage – Ripple 40 mV peak to peak
Consumption at +5 VDC Value
Input Standby Current (average) 250mA
Max current during call 2.5A
Typical current during call (see note) 800mA
Power Average – Voice/Data Call (see note) 4W
Note: The average power consumption depends on the view of the satellite constellation from the
antenna.
4.2 Control/Digital Audio (DPL bus) Interface
4.2.1 Control/Digital Audio Interface Signal Descriptions
The control/digital audio interface enables peripherals such as handsets and SIM card readers to be
interfaced to the 9522B LBT. The interface utilizes an Iridium Proprietary communication bus not detailed
in this fact sheet. Details can be made available after appropriate Non-Disclosure and/or License
Agreements are executed.
12
Iridium Satellite LLC
9522B L-Band Transceiver Product Information Guide
4.3 RS232 Data Interface
4.3.1 RS232 Data Signal Descriptions
The RS232 data interface is comprised of eight standard RS232 data, control, and status signals plus a
ground level signal reference. This interface allows a connected Data Terminal Equipment (DTE) to utilize
the 9522B LBT’s modem functionality via AT command control. A 3-wire RS232 Data minimal interface
may also be implemented however the 9 wire interface offers better control and is the recommended
implementation.
4.3.2 Autobaud
Autobaud is enabled by default. Autobaud will occur on the following characters ‘a’, ‘A’, or CR (carriage
return). Autobaud will also occur on the escape sequence character, provided this is an odd number
character. Normally this is set to ‘+’ in register S2. See the AT Command Reference for details.
4.4 Analog Audio Interface
4.4.1 Analog Audio Interface Signal Descriptions
The analog audio interface is comprised of the analog audio input and output signals referenced to the 0V
signal ground as summarized in Table 6 below.
Table 6: Analog Audio Interface Signal Descriptions
Signal Name Signal Description
MIC_AUD (pin 4) Analogue audio input to LBT
SPKR_AUD (pin 9) Analogue audio output from
LBT
0V (pins 2, 20, 24) Signal ground
4.5 SIM Interface
An integrated SIM chip reader is provided on the 9522B LBT. An external SIM card reader may also be
interfaced as a peripheral to the 9522B LBT via the DPL bus (control/audio interface). A SIM card in the
external reader will take precedence over the SIM chip in the integrated connector when both are present.
13
Iridium Satellite LLC
9522B L-Band Transceiver Product Information Guide
4.6 RF Interface
4.6.1 RF Interface Specifications
The RF interface requirements for the 9522B LBT are summarized in Table 7 below.
Table 7: General RF Parameters
Parameter Value
Frequency Range 1616 MHz to 1626.5 MHz
Duplexing Method TDD (Time Domain Duplex)
Oscillator Stability ± 1.5 ppm
Input/Output Impedance 50Ω
Multiplexing Method TDMA/FDMA
4.6.2 GPS Feed Thru Specifications
The RF interface of the GPS feed thru connector are summarized in below.
Table 8: General RF Parameters
Parameter Value
Frequency Range 1575 MHz
Input/Output Impedance 50Ω
Insertion Loss ≤3dB
Noise Figure ≤7dB
4.6.3 Radio Characteristics
The tables within this section contain radio characteristics of the 9522B LBT.
Table 9: In-Band Characteristics
Parameter Value
Average Power during a transmit slot (max) 7 W
Average Power during a frame (typical) 0.6 W
Receiver Sensitivity at 50Ω (typical) -118.5 dBm
Receiver Spurious Rejection at offsets > 1 MHz (typical) 60 dB
Table 10: Link Margin
Configuration Cable Loss Link Margin
9522B LBT with accessory antennas (Note 1) 2 dB (Note 2) 13.1 dB (Note 3)
Note 1: Other antenna options are available
Note 2: Cable losses should be minimized
Note 3: Link Margin given for free space
14
Iridium Satellite LLC
9522B L-Band Transceiver Product Information Guide
5.0 Instructions for the safe Installation and use of the
9522B LBT
The 9522B LBT is intended for integration into a finished product. The integrator of the 9522B LBT is
required to connect a power supply, antenna, and user interface to the 9522B LBT. To ensure that the
9522B LBT is correctly installed the following general instructions (sub-section 5.1) are provided for the
installer.
The integrator will be required to supply the end user of the integrated product, incorporating the 9522B
LBT, with operating instructions and any other information relating to the maintenance and safety of the
equipment (sub-section 5.2).
5.1 Instructions for the Integrator
• The 9522B LBT must be installed by an appropriately qualified installer and mounted securely
as described in section 3.4 of this document.
• The power supply used to power the 9522B LBT must be checked to ensure it meets the
requirements of sub-section 4.1.2 of this document.
• Electrical connections to the 9522B LBT multi-interface connector shall be as designated in Table
3 of sub-section 3.3.1of this document.
• The current and voltage rating of the multi-interface connector cable shall meet the requirements of
the LBT DC power input.
• The electrical characteristics of the multi-interface connector cable shall not degrade the 9522B LBT
digital communications and analog audio signals.
• The multi-interface connector cable will provide adequate screening from external electromagnetic
interference.
• The 9522B LBT shall not be located in close proximity to sources of extreme temperature which will
cause it to be operated outside of its temperature specification.
• The 9522B LBT shall not be operated without an appropriate antenna connected to its Antenna
connector via a suitable 50 Ohm coaxial cable. This antenna shall be sited at least 20cm away from
any person.
5.2 Instructions from the integrator to the user
To comply with the requirements of sub-clause 1.7.2 (Safety instructions) of the European Information
technology equipment safety standard EN60950-1:2002 the integrator must ensure that:
‘Sufficient information shall be provided to the USER concerning any condition necessary to ensure that,
when used as prescribed by the manufacturer, the equipment is unlikely to present a hazard within the
meaning of this standard. If it is necessary to take special precautions to avoid the introduction of hazards
when operating, installing, servicing, transporting or storing equipment, the necessary instructions shall be
made available.’
As part of these instructions the installer should inform the user that they should not service the 9522B LBT.
6.0 Modem Commands and Configuration
The 9522B is configured through the use of AT commands. A full listing of the supported AT commands can
be found in the AT Command Reference document.
15
Iridium Satellite LLC
9522B L-Band Transceiver Product Information Guide
7.0 Installation of the 9522B in place of a 9522A
The 9522B is designed to replace the 9522A with the assistance of an optional adapter plate and cables.
An adapter plate is mounted onto the 9522B and provides mounting points similar to those of the 9522A.
The antenna cable adapter provides a cable-mounted TNC connector similar to the 9522A. The Multi-
interface adapter cable provides a mechanical and electrical interface similar to the 9522A (although please
see the note in section 7.2 below)
7.1 Physical characteristics
The physical design of the 9522B adapter is given in Figures 7-10 which follow. All dimensions are in mm
unless otherwise stated. The TNC adapter is cable-mounted to allow flexibility in the routing of the
antenna cable.
Figure 6: Bottom (connector) View
Figure 7: Back (mounting) View
16
Iridium Satellite LLC
9522B L-Band Transceiver Product Information Guide
Figure 8: Front (SIM access) View
Figure 9: End View
7.2 Power Supply
With the adapter cables in use, the requirements for the signals to and from the 9522B are as given in
section 3.3. Note that it is important to ensure that the power supply voltage measured at the 9522B
multi-way connector does not fall below 4.0v. In order to allow for the voltage drop due to the resistance
of the adapter cable and connectors, it is recommended that the voltage at the 25-way D-type connector
should be 4.2v minimum. If it is possible to change the supply voltage in the application, it is
recommended that 5v, 12v or 24v is used, as the effect of voltage drop will be reduced and the 9522B
operates more efficiently.
17
