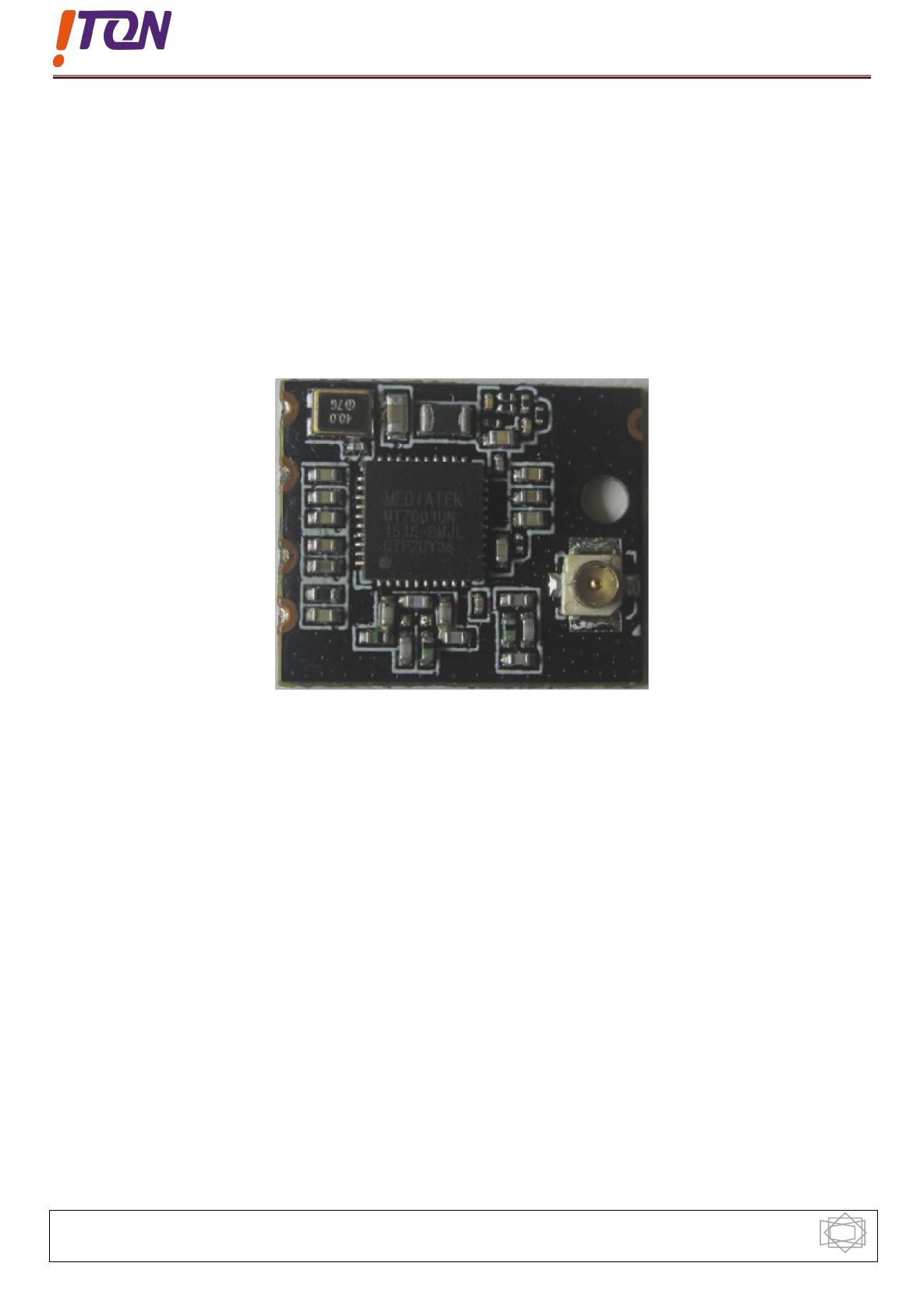

1.Overview
The MW1601-5P is a highly integrated Wi-Fi single chip which support 150 Mbps PHY
rate. It fully complies with IEEE 802.11n and IEEE 802.11b/g standards ,offering
feature-rich wireless connectivity at high standards and delivering and baseband algorithms
provide superb performance and low power consumption .intelligent MAC design deploys a
high efficient DMA engine and hardware data processing accelerators which offloads the
host processor .
The MW1601-5P is designed to support standard based features in the areas of security ,
quality of service and international regulations , giving end users the greatest performance
any time and in any circumstance.
Applications:
*Desk-Top PC
*Note-book
*Blue –ray Disk
*Table PC
*Set-top box
Our Focus , Your Legend 802.11 b/g/n single chip
Iton Technology Corp www.sziton.com
5

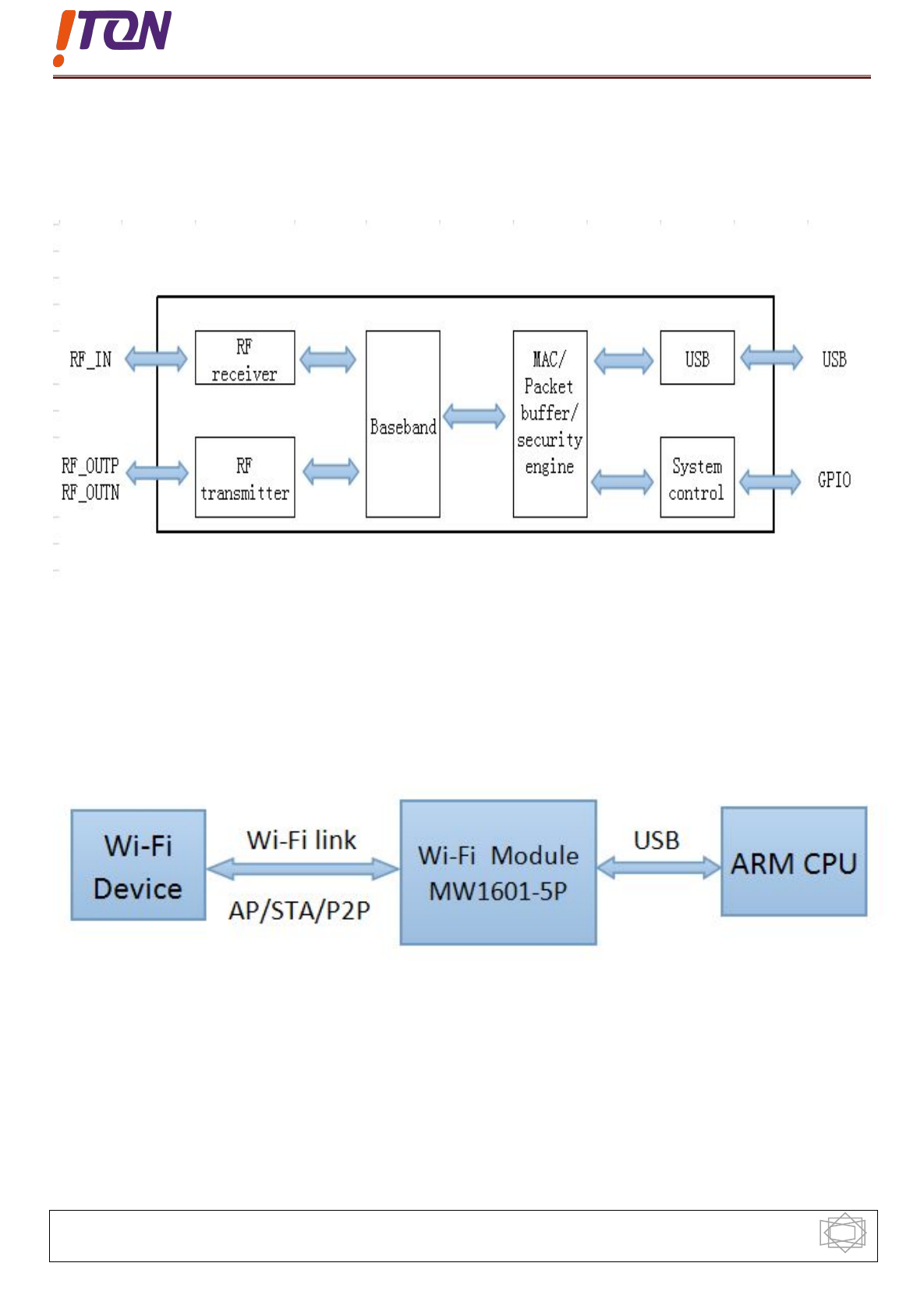

2.Block Diagram
3.Application Diagram
Our Focus , Your Legend 802.11 b/g/n single chip
Iton Technology Corp www.sziton.com
6
4.FEATURE
WLAN
■ IEEE 802.11 b/g/n client
■ Embedded high-performance 32-bit PISC microprocessor
■Highly integrated RF with55nm CMOS technology
■1T1R mode with support of 150Mbps PHY rate
■ Integrate high efficiency switching regulator
■ Beat-in-class power consumption performance
■ 802.11d/h/k compliant
■ Security support for WFA WPA/WPA2 personal ‘ WPS2.0 ,WAPI
■ Supports 802.11w protected managed frames
■ QOS support of WFA WMM, WMM PS
■ Supports Wi-Fi Direct
■ Fully compliance with USB V2.0 High-speed mode
■ Per packet transmit power control
■ Antenna diversity
■Auto-calibration
Our Focus , Your Legend 802.11 b/g/n single chip
Iton Technology Corp www.sziton.com
7
5.WLAN Product Specification
Dimension 15.7mm*13.0mm*2.0mm
Chip-set MT76
Standard IEEE802.11n;IEEE802.11g; IEEE802.11b;
Modulation Type OFDM(CCK/16-QAM/64-QAM/ 256 QAM)
Frequency Band 2412-2462MHz
Interface USB2.0
Spread Spectrum DSSS
Transmission Distance
Indoor up to 100m, outdoor up to 300m(limited in an
environment)
Data Security
64/128 bit WEP, WPA/WPA2,
WPA-PSK/WPA2-PSK(TKIP/AES)
Transmit Power
2.4G[11g: 15±2dBm, 11b:17±2dBm,
11n HT20 :14±2dBm,11n HT40 :13±2dBm]
Rx Sensitivity
135M:-64dBm@10% PER
54M:-68dBm@10% PER
11M:-80dBm@8% PER
Data Rate
802.11b[11,5.5,2 and 1Mbps]
802.11n(20MHz):up to 65Mbps
802.11n(40MHz):up to 135
Operating Temperature -10℃~70℃
01
