Gas Solutions
100G Datalogging Installation Guide - Direct
Mount
TDC-0823-005
Identification
100G Datalogging Installation Guide - Direct Mount
07/28/2010 TDC-0823-005
Endpoint part numbers: 100G Endpoint: ERG-5000-001, ERG-5000-002, ERG-5000-003, ERG-5000-004, ERG-5000-005, ERG-5000-006, ERG-5000-007, ERG-5000-008
100G Datalogging Endpoint: ERG-5002-001, ERG-5002-002, ERG-5002-003, ERG-5002-004, ERG-5002-007, ERG-5002-008
Copyright
© 2009 - 2010 Itron, Inc. All rights reserved.
Confidentiality Notice
The information contained herein is proprietary and confidential and is provided subject to the condition that (i) it be held in confidence except to the extent required otherwise by law and (ii) it
is used only for the purposes described herein. Any third party given access to this information shall be similarly bound in writing.
Trademark Notice
Itron is a registered trademark of Itron, Inc.
All other product names and logos in this documentation are used for identification purposes only and may be trademarks or registered trademarks of their respective companies.
Applicable Patents
U.S. Patent Numbers: 4,614,945; 4,753,169; 4,768,903; 4,799,059; 4,867,700
Canadian Patent Numbers: 1,254,949; 1,267,936; 1,282,118
Compliance Statement
This device complies with Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Operation is subject to
the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference that may cause undesirable operation.
This device must be permanently mounted such that it retains a distance of 20 centimeters (7.9 inches) from all persons in order to comply with FCC RF exposure levels.
Compliance Statement
This equipment has been tested and found to comply with the limits, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. Operation is subject to the following conditions:
• This device may not cause interference.
• This device must accept any interference that may cause undesired operation of the device.
Compliance Statement
This equipment complies with policies RSS-210 and RSS-GEN of the Industry Canada rules.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Transportation Classification
The Federal Aviation Administration prohibits operating transmitters and receivers on all commercial aircraft. When powered, the 100G Datalogging Endpoint is considered an operating
transmitter and receiver and cannot be shipped by air. All product returns must be shipped by ground transportation.
Modifications and Repairs
To ensure system performance, this device and antenna shall not be changed or modified without the expressed approval of Itron. Any unauthorized modification will void the user's authority to
operate the equipment.
Meter Installation/Removal
In the event of malfunction, all repairs should be performed by Itron. It is the responsibility of users requiring service to report the need for service to Itron.
Warning Follow these procedures to avoid injury to yourself or others:
The lithium battery may cause a fire or chemical burn if it is not disposed of
properly.
Do not recharge, disassemble, heat above 100º Celsius (212º Fahrenheit), or
incinerate the lithium battery.
Keep the lithium battery away from children.
Replace the lithium battery only with batteries meeting Itron specifications. Any
other battery may cause a fire or explosion.
Warning Only authorized Itron personnel should attempt repairs on Itron equipment.
Attempts to do so by others might void any maintenance contract with your company.
Unauthorized service personnel might also be subject to shock hazard on some Itron
equipment if removal of protective covers is attempted.
Warning To prevent ignition of flammable or combustible atmospheres, disconnect power
before servicing.
Warning Substitution of components may impair intrinsic safety.
Suggestions
If you have comments or suggestions on how we may improve this documentation, send them to TechnicalCommunicationsManager@itron.com
If you have questions or comments about the software or hardware product, contact Itron Technical Support:
Contact
Internet: www.itron.com
E-mail: support@itron.com
Phone: 1 877 487 6602
Document Conventions
The following documentation conventions are used in this installation guide:
Caution A Caution warns the user that failure to follow the information in the note
could result in loss of data. Be sure to carefully read a Caution note and follow the
advice/instructions.
Warning A Warning alerts you about potential physical harm to the user or
hardware. It is critical that you pay strict attention to Warning notes, read the
information carefully, and follow the advice, instructions.
Tip A Tip provides the user with extra hints/suggestions to make a task easier to
perform or a concept easier to understand.
Note A Note supplies generic information to the user. The user can ignore the
information and continue a task without suffering any adverse consequences.
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount v
Proprietary and Confidential
Chapter 1 100G Datalogging Gas Endpoint ............................................................... 1
Transmission Modes ........................................................................................................................... 1
Specifications ...................................................................................................................................... 2
Related Documents .................................................................................................................. 2
Meter Compatibility List ....................................................................................................................... 2
Installation Prerequisites ..................................................................................................................... 7
Installation Overview ................................................................................................................. 9
Chapter 2 Elster American Meter Installation .......................................................... 10
Programming the 100G Datalogging Gas Endpoint Assembly ......................................................... 15
Attaching the 100G Datalogging Gas Endpoint Assembly to the Meter ........................................... 16
Chapter 3 Sensus/Rockwell Meter Installation ........................................................ 19
Programming the 100G Datalogging Gas Endpoint Assembly ......................................................... 23
Attaching the 100G Datalogging Gas Endpoint Assembly to the Sensus Meter .............................. 25
Chapter 4 Itron/Sprague Meter Installation .............................................................. 28
Programming the 100G Datalogging Gas Endpoint Assembly ......................................................... 31
Attaching the 100G Datalogging Gas Endpoint Assembly to the Meter .......................................... 32
Attaching the 100G Datalogging Gas Endpoint Assembly to Flat-faced Sprague Meters ..... 35
Securing Brass Meter Tags to Flat-faced Meters ................................................................... 39
Chapter 5 National/Lancaster Meter Installation ...................................................... 42
Programming the 100G Datalogging Gas Endpoint Assembly ......................................................... 48
Attaching the 100G Datalogging Gas Endpoint Assembly to the Meter ........................................... 49
Chapter 6 Elster American and Itron Actaris Commercial Meter Installation ........ 52
Removing the Index/ Index Assembly from the Meter ...................................................................... 52
Programming the 100G Datalogging Commercial Gas Endpoint ..................................................... 55
Installing the 100G Datalogging Commercial Gas Endpoint on an Itron/Actaris
Commercial Meter ............................................................................................................................. 62
Chapter 7 Sensus/Rockwell Commercial Meter Installation ................................... 68
Removing the Index/ Index Assembly from the Meter ...................................................................... 68
Programming the 100G Datalogging Gas Endpoint .......................................................................... 70
Attaching the 100G Datalogging Commercial Endpoint to a Sensus/Rockwell Commercial Diaphram
Meter ................................................................................................................................................. 71
Mounting a on a Rockwell 750 meter with an Aluminum BOX Direct Reading (VDR) .................... 75
Contents
Contents
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount vi
Proprietary and Confidential
Chapter 8 Dresser ROOTS® Commercial Rotary Meter Installation ....................... 80
Installation Prerequisites ......................................................................................................... 80
Installation Examples ........................................................................................................................ 81
Programming the 100G Datalogging Gas Endpoint Assembly ......................................................... 82
B3, LMMA, and S3A CTR/TC Dresser ROOTS® Series Register Settings and Direct Drive
Programming Information .................................................................................................................. 83
B3, LMMA and S3A CTR/TC Meter Drive Rates: Residential Direct Drive Programming* ... 84
Installing the Residential 100G Datalogging Gas Endpoint Assembly to the Dresser ROOTS®
Rotary Meter ...................................................................................................................................... 85
Installing the 100G Datalogging Commercial Gas Endpoint on a Dresser ROOTRotary Meter
with an Instrument Drive .................................................................................................................... 86
Programming the 100G Datalogging Commercial Gas Endpoint Assembly .......................... 88
B3, LMMA, and S3A CD/TD Dresser ROOTS® Series Meter Drive Rates ............................. 90
To attach the 100G Datalogging commercial gas endpoint to the meter ............................... 91
Completed Installation Examples ............................................................................................ 94
Index ............................................................................................................................. 95
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 1 1
Proprietary and Confidential
Itron 100G Datalogging gas endpoints are radio-frequency (RF) devices designed to transmit meter data to an
RF meter reading device within transmission distance of the endpoint. 100G Datalogging gas endpoints have
the same increased output power as the first generation 100G gas endpoints for greater RF transmission
distance. The 100G direct-mount endpoint reads and transmits a Standard Consumption Message (SCM) with
magnetic-tamper and tilt-tamper data. The Itron 100G Datalogging gas endpoint adds functionality by storing
up to 40 days of hourly data.
This installation guide provides step-by-step instructions for installing the 100G gas endpoint and the 100G
Datalogging gas endpoint on a wide variety of meters. This installation guide refers to both 100G endpoint
versions as the 100G Datalogging gas endpoint. Mechanical installation procedures are identical for both
modules. 100G Datalogging gas endpoint compatible meters are listed in the Meter Compatibility List.
Transmission Modes
The 100G Datalogging gas endpoint can be set to transmit in Fixed Network, Mobile and Handheld, or Hard
to Read Mobile and Handheld Mode.
Fixed Network Mode The 100G Datalogging gas endpoint transmits a high-powered RF message every
60 seconds. Output power in this mode is 250 milliwatts or +24 dBm; expected battery life is 20 years.
Mobile and Handheld Mode The 100G Datalogging gas endpoint transmits a medium-powered RF
message every 15 seconds. Output power in this mode is 10 milliwatts or +10dBm; expected battery life is
20 years.
(Optional) Hard to Read Mobile and Handheld Mode The 100G Datalogging gas endpoint transmits a
high-powered RF message every 30 seconds. Output power in this mode is 250 milliwatts or +24dBm;
expected battery life decreases to 15 years in this mode. The Hard to Read Mobile and Handheld Mode
should only be used for exceptionally hard-to-read applications (such as meters installed on roof tops or in
sub-basements).
An FCC license is not required to read 100G Datalogging gas endpoint.
CH A P T E R 1
100G Datalogging Gas Endpoint
100G Datalogging Gas Endpoint
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 2
Proprietary and Confidential
Specifications
Functional Specifications
Description
Power Source
100G
100G Datalogging
Two "A" cell lithium batteries
One "A" cell lithium battery
Tamper Detection
Tilt tamper and magnetic tamper
FCC Compliance
Part 15 certified
Industry Canada Compliance
RSS-210 certified
Intrinsically Safe per
UL Class I, Division 1, Groups C and D
Product Identification
Numeric and barcoded endpoint type and serial number
Construction Materials
Gray polycarbonate housing and back plate with encapsulated
electronics
Operational Specifications
Description
Operating Temperatures
-40° to 158° F (-40° to +70° C)
Operating Humidity
5 to 95 percent relative humidity
Program Frequency
908 MHz
Transmit Frequency
Spread spectrum 908 to 924 MHz ISM band
Data Integrity
Verified in every data message
Related Documents
Document Title
Document Part Number
Gas Endpoint Meter Compatibility List
PUB-0117-002
Gas Endpoint Ordering Guide
PUB-0117-001
100G Datalogging Specification Sheet
Publication 100941SP-XX
Endpoint Link® Programming Guide
TDC-0744
Meter Compatibility List
This table lists meters compatible with the 100G Datalogging gas endpoint. Due to continuous research,
product improvements, and enhancements, Itron reserves the right to change this list without notice.
Note On rare occasions the location of endpoint-to-meter mounting holes on older
diaphragm gas meters might not match up with the mounting holes on the 100G
Datalogging gas endpoint. This can prevent the 100G Datalogging gas endpoint from
properly mounting to the meter.
100G Datalogging Gas Endpoint
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 3
Proprietary and Confidential
100G Series Meter Compatibility List
Mfg.
Model
Description
Class
Comments
Endpoint Type
Endpoint Part
No.
Elster American/ Canadian
W75AL
Residential
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-001
ERG-5002-001
Elster American/ Canadian
AL-175
Residential
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-001
ERG-5002-001
Elster American/ Canadian
AC-175
Residential
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-001
ERG-5002-001
Elster American/ Canadian
AT-175
Residential
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-001
ERG-5002-001
Elster American/ Canadian
ALC-175
Residential
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-001
ERG-5002-001
Elster American/ Canadian
AT-210
Residential
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-001
ERG-5002-001
Elster American/ Canadian
AL-225
Canada only
Residential
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-001
ERG-5002-001
Elster American/ Canadian
AC-250
Residential
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-001
ERG-5002-001
Elster American/ Canadian
AL-250
Residential
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-001
ERG-5002-001
Elster American/ Canadian
AM-250
Residential
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-001
ERG-5002-001
Elster American/ Canadian
AR-250
Residential
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-001
ERG-5002-001
Elster American/ Canadian
AT-250
Residential
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-001
ERG-5002-001
Elster American/ Canadian
AL-310
Residential
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-001
ERG-5002-001
Elster American/ Canadian
AL-350
Residential
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-001
ERG-5002-001
Elster American/ Canadian
AT-350
Residential
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-001
ERG-5002-001
Elster American/ Canadian
AL-425
Residential
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-001
ERG-5002-001
Elster American/ Canadian
AC-630
Residential
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-001
ERG-5002-001
Elster American/ Canadian
5B 225
Aluminum case
Residential
100G
100G Datalogging
ERG-5000-001
ERG-5002-001
Elster American/ Canadian
35B
Iron case
Commercial
100G
100G Datalogging
ERG-5000-007
ERG-5002-007
Elster American/ Canadian
60B
Iron case
Commercial
100G
100G Datalogging
ERG-5000-007
ERG-5002-007
Elster American/ Canadian
80B
Iron case
Commercial
Must have front reading
index.
100G
100G Datalogging
ERG-5000-007
ERG-5002-007
Elster American/ Canadian
250B
Iron case
Commercial
100G
100G Datalogging
ERG-5000-007
ERG-5002-007
Elster American/ Canadian
500B
Iron case
Commercial
100G
100G Datalogging
ERG-5000-007
ERG-5002-007
Elster American/ Canadian
AL800
Commercial
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-007
ERG-5002-007
100G Datalogging Gas Endpoint
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 4
Proprietary and Confidential
Mfg.
Model
Description
Class
Comments
Endpoint Type
Endpoint Part
No.
Elster American/ Canadian
AL1000
Commercial
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-007
ERG-5002-007
Elster American/ Canadian
AL1400
Commercial
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-007
ERG-5002-007
Elster American/ Canadian
AL2300
Commercial
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-007
ERG-5002-007
Elster American/ Canadian
AL3000
Commercial
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-007
ERG-5002-007
Elster American/ Canadian
AL5000
Commercial
Aluminum case meters
only
100G
100G Datalogging
ERG-5000-007
ERG-5002-007
Sensus/Invensys/
Equimeter/Rockwell
R-175
11-tooth
Residential
24- and 30-tooth gears are
not compatible.
100G
100G Datalogging
ERG-5000-002
ERG-5002-002
Sensus/Invensys/
Equimeter/Rockwell
R-200
11-tooth
Residential
100G
100G Datalogging
ERG-5000-002
ERG-5002-002
Sensus/Invensys/
Equimeter/Rockwell
RT-200
11-tooth
Residential
100G
100G Datalogging
ERG-5000-002
ERG-5002-002
Sensus/Invensys/
Equimeter/Rockwell
RC-225
11-tooth (Canada only)
Residential
24- and 30-tooth gears are
not compatible.
100G
100G Datalogging
ERG-5000-002
ERG-5002-002
Sensus/Invensys/
Equimeter/Rockwell
RT-225
11-tooth
Residential
24- and 30-tooth gears are
not compatible.
100G
100G Datalogging
ERG-5000-002
ERG-5002-002
Sensus/Invensys/
Equimeter/Rockwell
RC-230
11-tooth
Residential
24- and 30-tooth gears are
not compatible.
100G
100G Datalogging
ERG-5000-002
ERG-5002-002
Sensus/Invensys/
Equimeter/Rockwell
RCM-230
(RC-230 Metric)
16-tooth
Residential
24- and 30-tooth gears are
not compatible.
100G
100G Datalogging
ERG-5000-003
ERG-5002-003
Sensus/Invensys/
Equimeter/Rockwell
RT-230
11-tooth
Residential
100G
100G Datalogging
ERG-5000-002
ERG-5002-002
Sensus/Invensys/
Equimeter/Rockwell
R-275
11-tooth
Residential
24- and 30-tooth gears are
not compatible.
100G
100G Datalogging
ERG-5000-002
ERG-5002-002
Sensus/Invensys/
Equimeter/Rockwell
RT-275
11-tooth
Residential
100G
100G Datalogging
ERG-5000-002
ERG-5002-002
Sensus/Invensys/
Equimeter/Rockwell
S-275
(side connection)
11-tooth
Residential
24- and 30-tooth gears are
not compatible.
100G
100G Datalogging
ERG-5000-002
ERG-5002-002
Sensus/Invensys/
Equimeter/Rockwell
R-315
11-tooth
Residential
24- and 30-tooth gears are
not compatible.
100G
100G Datalogging
ERG-5000-002
ERG-5002-002
Sensus/Invensys/
Equimeter/Rockwell
250
11-tooth
Residential
24- and 30-tooth gears are
not compatible.
100G
100G Datalogging
ERG-5000-002
ERG-5002-002
Sensus/Invensys/
Equimeter/Rockwell
310
11-tooth
Residential
100G
100G Datalogging
ERG-5000-002
ERG-5002-002
Sensus/Invensys/
Equimeter/Rockwell
S-110
11-tooth
Residential
100G
100G Datalogging
ERG-5000-002
ERG-5002-002
Sensus/Invensys/
Equimeter/Rockwell
S-200
11-tooth
Residential
100G
100G Datalogging
ERG-5000-002
ERG-5002-002
Sensus/Invensys/
Equimeter/Rockwell
S-175
18-tooth
Residential
24- and 30-tooth gears are
not compatible.
100G
100G Datalogging
ERG-5000-004
ERG-5002-004
Sensus/Invensys/
Equimeter/Rockwell
RT-100
18-tooth
Residential
24- and 30-tooth gears are
not compatible
100G
100G Datalogging
ERG-5000-004
ERG-5002-004
Sensus/Invensys/
Equimeter/Rockwell
S-190
18-tooth
Residential
24- and 30-tooth gears are
not compatible.
100G
100G Datalogging
ERG-5000-004
ERG-5002-004
Sensus/Invensys/
Equimeter/Rockwell
S-120
11-tooth
Residential
100G
100G Datalogging
ERG-5000-002
ERG-5002-002
100G Datalogging Gas Endpoint
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 5
Proprietary and Confidential
Mfg.
Model
Description
Class
Comments
Endpoint Type
Endpoint Part
No.
Sensus/Invensys/
Equimeter/Rockwell
T-120
11-tooth
Residential
100G
100G Datalogging
ERG-5000-002
ERG-5002-002
Sensus/Invensys/
Equimeter/Rockwell
T-110
11-tooth
Residential
100G
100G Datalogging
ERG-5000-002
ERG-5002-002
Sensus/Invensys/
Equimeter/Rockwell
415
18-tooth
Residential
Older meters may have
endpoint-to-meter
mounting hole variations
that can make them
incompatible.
100G
100G Datalogging
ERG-5000-004
ERG-5002-004
Sensus/Invensys/
Equimeter/Rockwell
RT-360
18-tooth
Residential
100G
100G Datalogging
ERG-5000-004
ERG-5002-004
Sensus/Invensys/
Equimeter/Rockwell
MR-5
(S-275 Metric)
16-tooth
Residential
24- and 30-tooth gears are
not compatible.
100G
100G Datalogging
ERG-5000-003
ERG-5002-003
Sensus/Invensys/
Equimeter/Rockwell
MR-8
(R-275 Metric)
16-tooth
Residential
100G
100G Datalogging
ERG-5000-003
ERG-5002-003
Sensus/Invensys/
Equimeter/Rockwell
MR-9
(R-315 Metric)
16-tooth
Residential
24- and 30-tooth gears are
not compatible.
100G
100G Datalogging
ERG-5000-003
ERG-5002-003
Sensus/Invensys/
Equimeter/Rockwell
MR-12
(415 Metric)
16-tooth
Residential
100G
100G Datalogging
ERG-5000-003
ERG-5002-003
Sensus/Invensys/
Equimeter/Rockwell
750
Commercial
Vertical index only.
100G
100G Datalogging
ERG-5000-008
ERG-5002-008
Sensus/Invensys/
Equimeter/Rockwell
1000
Commercial
Vertical index only
100G
100G Datalogging
ERG-5000-008
ERG-5002-008
Sensus/Invensys/
Equimeter/Rockwell
1600
Commercial
Vertical index only
100G
100G Datalogging
ERG-5000-008
ERG-5002-008
Sensus/Invensys/
Equimeter/Rockwell
3000
Commercial
Vertical index only
100G
100G Datalogging
ERG-5000-008
ERG-5002-008
Sensus/Invensys/
Equimeter/Rockwell
5000
Commercial
Vertical index only
100G
100G Datalogging
ERG-5000-008
ERG-5002-008
Sensus/Invensys/
Equimeter/Rockwell
10000
Commercial
Vertical index only
100G
100G Datalogging
ERG-5000-008
ERG-5002-008
Sensus/Invensys/
Equimeter/Rockwell
750, 1000, 1600,
3000, 5000, 10000
Aluminum Box Direct
Reading (VDR) Index
Commercial
Requires SCR-0062-001
mounting screws (to be
purchased separately).
100G
100G Datalogging
ERG-5000-008
ERG-5002-008
National/ Lancaster
175
Residential
Itron/Srague/
Schlumberger/
Actaris direct-read
(odometer) indexes cannot
be used. National indexes
with bow-tie shaped
wriggler cannot be used.
100G
100G Datalogging
ERG-5000-006
ERG-5002-006
National/ Lancaster
U175/ UL175
Residential
Itron/Srague/
Schlumberger/
Actaris direct-read
(odometer) indexes cannot
be used. National indexes
with bow-tie shaped
wriggler cannot be used.
100G
100G Datalogging
ERG-5000-006
ERG-5002-006
National/ Lancaster
250
Residential
Itron/Srague/
Schlumberger/
Actaris direct-read
(odometer) indexes cannot
be used. National indexes
with bow-tie shaped
wriggler cannot be used.
100G
100G Datalogging
ERG-5000-006
ERG-5002-006
100G Datalogging Gas Endpoint
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 6
Proprietary and Confidential
Mfg.
Model
Description
Class
Comments
Endpoint Type
Endpoint Part
No.
Itron/Actaris/
Schlumberger/ Sprague
175
3-hole index cover
2-hole index cover
Residential
Index covers with 3
mounting holes
100G
100G Datalogging
ERG-5000-005
ERG-5002-005
Itron/Actaris/
Schlumberger/ Sprague
175 WC
3-hole index cover
Residential
Index boxes with 3
mounting holes
100G
100G Datalogging
ERG-5000-005
ERG-5002-005
Itron/Actaris/
Schlumberger/ Sprague
175
Combination
3-hole index cover
Integrated regulator
Residential
Index boxes with 3
mounting holes
100G
100G Datalogging
ERG-5000-005
ERG-5002-005
Itron/Actaris/
Schlumberger/ Sprague
210
Residential
100G
100G Datalogging
ERG-5000-005
ERG-5002-005
Itron/Actaris/
Schlumberger/ Sprague
240
Canadian Version of
250
Residential
100G
100G Datalogging
ERG-5000-005
ERG-5002-005
Itron/Actaris/
Schlumberger/ Sprague
240
Combination
Integrated regulator
Residential
100G
100G Datalogging
ERG-5000-005
ERG-5002-005
Itron/Actaris/
Schlumberger/ Sprague
240
Residential
100G
100G Datalogging
ERG-5000-005
ERG-5002-005
Itron/Actaris/
Schlumberger/ Sprague
240
1-hole index cover flat
face meter
Residential
Requires Itron 1A Adapter
Kit, CFG-0015-001 Kit
100G
100G Datalogging
ERG-5000-005
+ CFG-0015-001
ERG-5002-005
CFG-0015-001
Itron/Actaris/
Schlumberger/ Sprague
240
2-hole index cover
Residential
100G
100G Datalogging
ERG-5000-005
ERG-5002-005
Itron/Actaris/
Schlumberger/ Sprague
250
Residential
100G
100G Datalogging
ERG-5000-005
ERG-5002-005
Itron/Actaris/
Schlumberger/ Sprague
250 WC
Residential
100G
100G Datalogging
ERG-5000-005
ERG-5002-005
Itron/Actaris/
Schlumberger/ Sprague
250
Combination
Integrated regulator
Residential
100G
100G Datalogging
ERG-5000-005
ERG-5002-005
Itron/Actaris/
Schlumberger/ Sprague
1A
Flat face meter,
Includes 3-dial, 2cf
indexes.
Residential
Requires Itron 1A Adapter
Kit,
CFG-0015-001
100G
100G Datalogging
ERG-5000-005 +CFG-
0015-001
ERG-5002-005
+CFG-0015-001
Itron/Actaris/
Schlumberger/ Sprague
METRIS 250
Slant-face meter
Residential
100G
100G Datalogging
ERG-5000-005
ERG-5002-005
Itron/Actaris/
Schlumberger/ Sprague
305
Combination
Integrated regulator
Residential
100G
100G Datalogging
ERG-5000-005
ERG-5002-005
Itron/Actaris/
Schlumberger/ Sprague
400
Slant-face meter
Residential
100G
100G Datalogging
ERG-5000-005
ERG-5002-005
Itron/Actaris/
Schlumberger/ Sprague
400A
Slant-face meter
Residential
100G
100G Datalogging
ERG-5000-005
ERG-5002-005
Itron/Actaris/
Schlumberger/ Sprague
675A
Top-mount index
Commercial
Requires Itron/Actaris
adapter p/n 80005901-001;
purchase from
Itron/Actaris
100G
100G Datalogging
ERG-5000-007
ERG-5002-007
Itron/Actaris/
Schlumberger/ Sprague
800A
Top-mount index
Commercial
Requires Itron/Actaris
adapter p/n 80005901-001;
purchase from
Itron/Actaris
100G
100G Datalogging
ERG-5000-007
ERG-5002-007
Itron/Actaris/
Schlumberger/ Sprague
1000A
Top-mount index
Commercial
Requires Itron/Actaris
adapter p/n 80005901-001;
purchase from
Itron/Actaris
100G
100G Datalogging
ERG-5000-007
ERG-5002-007
100G Datalogging Gas Endpoint
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 7
Proprietary and Confidential
Mfg.
Model
Description
Class
Comments
Endpoint Type
Endpoint Part
No.
EMCO
#2 ½
Commercial
100G
100G Datalogging
ERG-5000-008
ERG-5002-008
EMCO
#3
Commercial
100G
100G Datalogging
ERG-5000-008
ERG-5002-008
EMCO
#4
Commercial
100G
100G Datalogging
ERG-5000-008
ERG-5002-008
EMCO
#4 ½
Commercial
100G
100G Datalogging
ERG-5000-008
ERG-5002-008
EMCO
#5
Commercial
100G
100G Datalogging
ERG-5000-008
ERG-5002-008
Dresser ROOTS
Series B3
8C - 56M
8C - 16M
CTR
TC
(No pulser
No instrument drive)
Commercial
To attach an Elster
American endpoint, install
Dresser's Elster American
AMR adapter kit.
100G
100G Datalogging Dresser
adapter P/N 059599-000
ERG-5000-001
ERG-5002-001
Dresser ROOTS
Series A1
(LMMA)
1.5M - 5M
CTR
(No pulser
No instrument drive)
Commercial
To attach an Elster
American endpoint, install
Dresser's Elster American
AMR adapter kit.
100G
100G Datalogging
Dresser adapter P/N
058530-610
ERG-5000-001
ERG-5002-001
Dresser ROOTS
Series A1
(LMMA)
7M - 16M
CTR
(No pulser
No instrument drive)
Commercial
To attach an Elster
American endpoint, install
Dresser's Elster American
adapter kit.
100G
100G Datalogging Dresser
adapter P/N 058531-610
ERG-5000-001
ERG-5002-001
Dresser ROOTS
Series A1
(LMMA)
1.5M - 16M
TC
(No pulser
No instrument drive)
Commercial
To attach an Elster
American endpoint, install
Dresser's Elster American
AMR adapter kit.
100G
100G Datalogging
Dresser adapter P/N
058224-641
ERG-5000-001
ERG-5002-001
Dresser ROOTS
5C/8C15
Series Z compact meter
Commercial
To attach an Elster
American endpoint, install
Dresser's Elster American
adapter kit.
100G
100G Datalogging Dresser
adapter P/N 059847-000
ERG-5000-001
ERG-5002-001
Dresser ROOTS
B3/LMMA
Instrument drive
Commercial
Standard index drive and
no instrument.
100G
100G Datalogging
ERG-5000-007
ERG-5002-007
Installation Prerequisites
Prior to installation, verify you have the following items:
100G Datalogging gas endpoints designed for your specific brand of residential or commercial gas meters
(endpoints include new tamper seals).
A compatible meter (see the Meter Compatibility List on page 2).
A compatible index. Itron 100G Datalogging gas endpoints are compatible with standard dial and direct-
read (odometer) indexes. Exceptions are noted on the Meter Compatibility List on page 2.
Installation tools (provided by installer or customer)
Small and medium flat-blade or Phillips screwdrivers - to remove and tighten index and index-cover
screws.
Side-cutting plier/wire snips - to cut wire seals, if applicable.
100G Datalogging Gas Endpoint
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 8
Proprietary and Confidential
Small putty knife - residential meters.
Meter seals, wire seal, and seal press - to protect the meter from tampering, if applicable.
11/32-inch nut driver or other blunt tool - to securely seat new tamper plugs over screw holes.

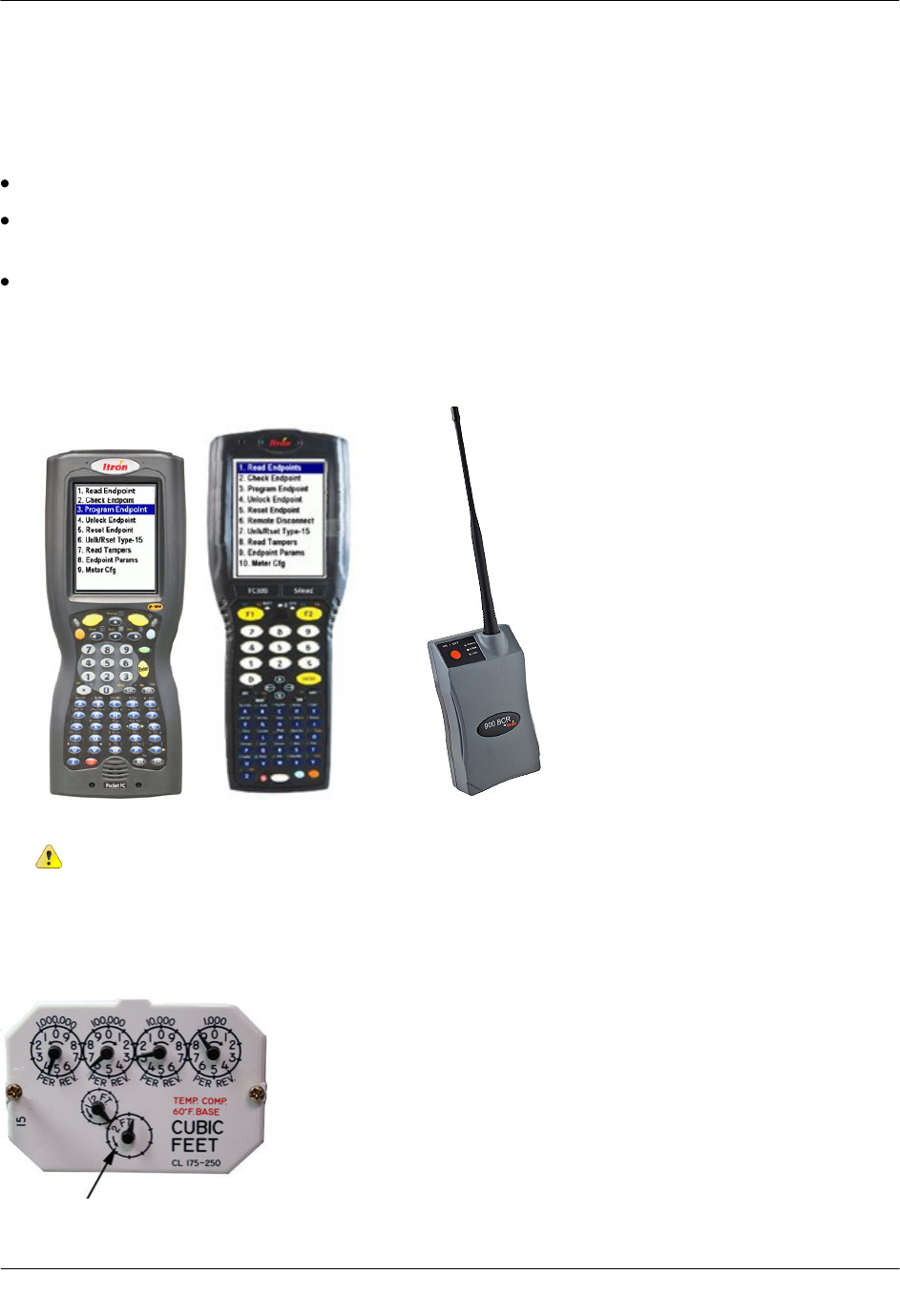

Itron programming device to program and check 100G Datalogging gas endpoint installation and
operation:
o FC200SR handheld computer with Endpoint-Link or Endpoint-Link Pro software version 5.3
or higher or
o FC300 with SRead with Endpoint-Link or Endpoint Link Pro version 5.5 or higher or
o 900 MHz Belt Clip Radio with Endpoint-Link version 5.5 or higher and a customer-supplied
laptop
Replacement screws - to mount the 100G Datalogging gas endpoint assembly to the meter and the
index to the endpoint housing:
Replacement Screws
Meter
To mount the 100G
Datalogging gas
endpoint on the meter:
Itron Part
Number
To mount the index on the
100G Datalogging gas
endpoint housing:
Itron Part
Number
Elster American
1/4 - 20 x 5/8" slotted, Fillister
head
8 - 32 x 3/16" slotted, Fillister
head
Sensus/Rockwell
10 - 24 x 5/8" slotted, Fillister
head
6 - 32 x 5/8" slotted, Fillister head
Itron/Sprague
10 - 24 x 5/8" slotted, Fillister
head
10 - 24 x 1/4" slotted, Fillister
head
National/Lancaster
10 - 24 x 3/4" Phillips, flat-
head, stainless steel
SCR-0014-004
10 - 24 x 3/8" thread-forming,
Phillips pan-head to mount
indexes with legs
6 - 19 x 3/8" thread-forming,
Phillips, Fillister head to mount
indexes with screw holes
SCR-0017-001
SCR-0037-001
Commercial
Meter
To mount the 100G
Datalogging commercial
endpoint on the meter:
Itron Part
Number
To mount the index (and
index assembly, if
applicable) on the 100G
Datalogging commercial
endpoint housing:
Itron Part
Number
Elster American
2A x 3.25" length, slotted
round-head drilled to accept
utility-approved wire seals
SCR-0062-001
12 - 24 x 1/2" slotted, Fillister
head machine screws, drilled to
accept utility-approved wire seals
Sensus/Rockwell
2A x 3.63" length, slotted
round-head drilled to accept
utility-approved wire seals
SCR-0062-002
2A x 2.94" length, slotted round-
head
SCR-0062-003
Sensus/Rockwell
For Aluminum Box Direct
Reading (VDR) index only
100G Datalogging Gas Endpoint
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 9
Proprietary and Confidential
Installation Overview
Installing the 100G Datalogging gas endpoint on a meter involves four tasks:
1. Removing the index cover and index from the 100G Datalogging gas endpoint.
2. Assembling the 100G Datalogging gas endpoint and index.
3. Programming the 100G Datalogging gas endpoint assembly.
4. Attaching the 100G Datalogging gas endpoint to the meter.
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 10
Proprietary and Confidential
This chapter provides the instructions to install the 100G Datalogging gas endpoint on an Elster American
Meter.
Note Properly dispose all unused screws, old index covers, gaskets, tamper seals, and other
leftover materials. Do not leave materials on customer premises.

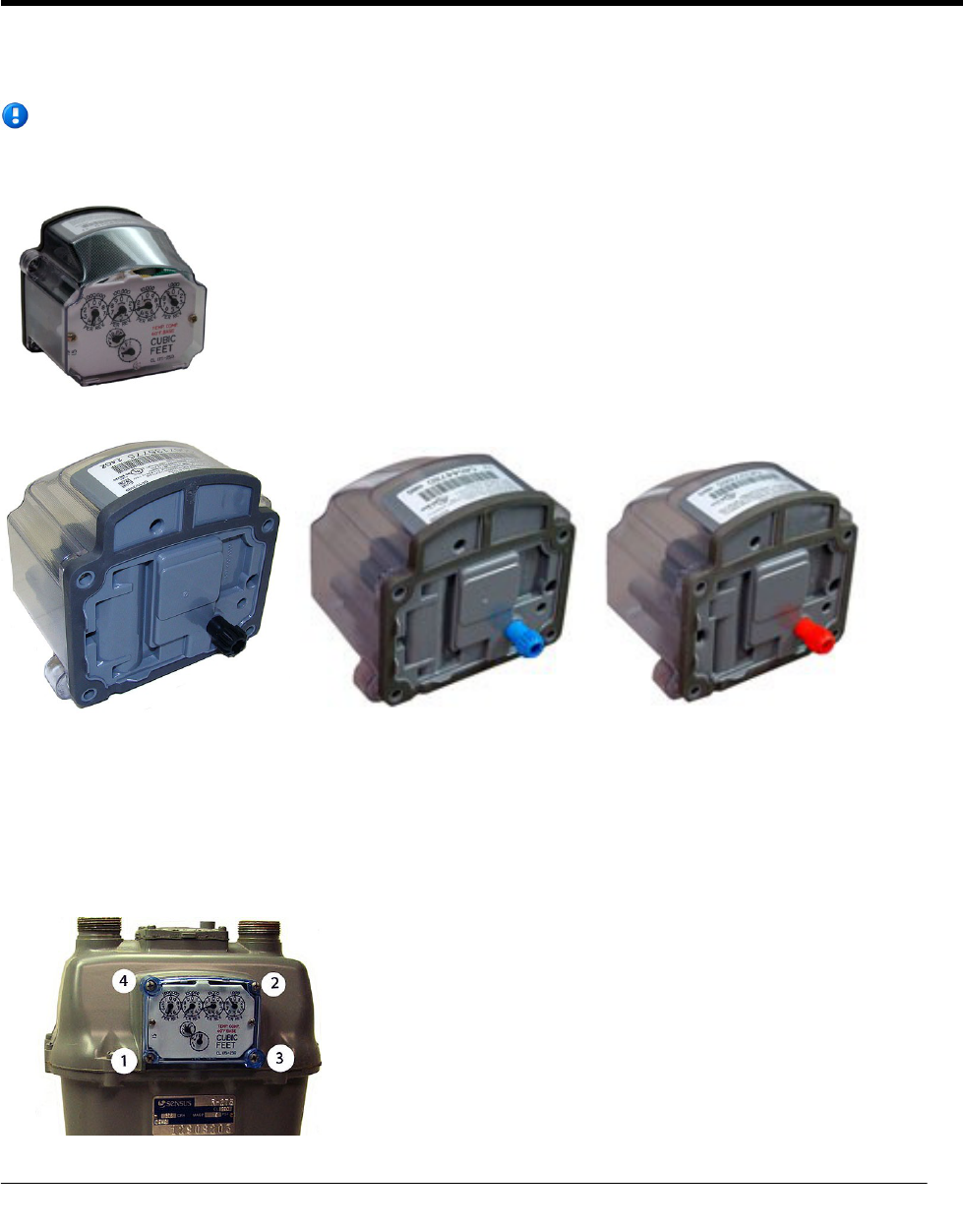

To remove the index from the meter

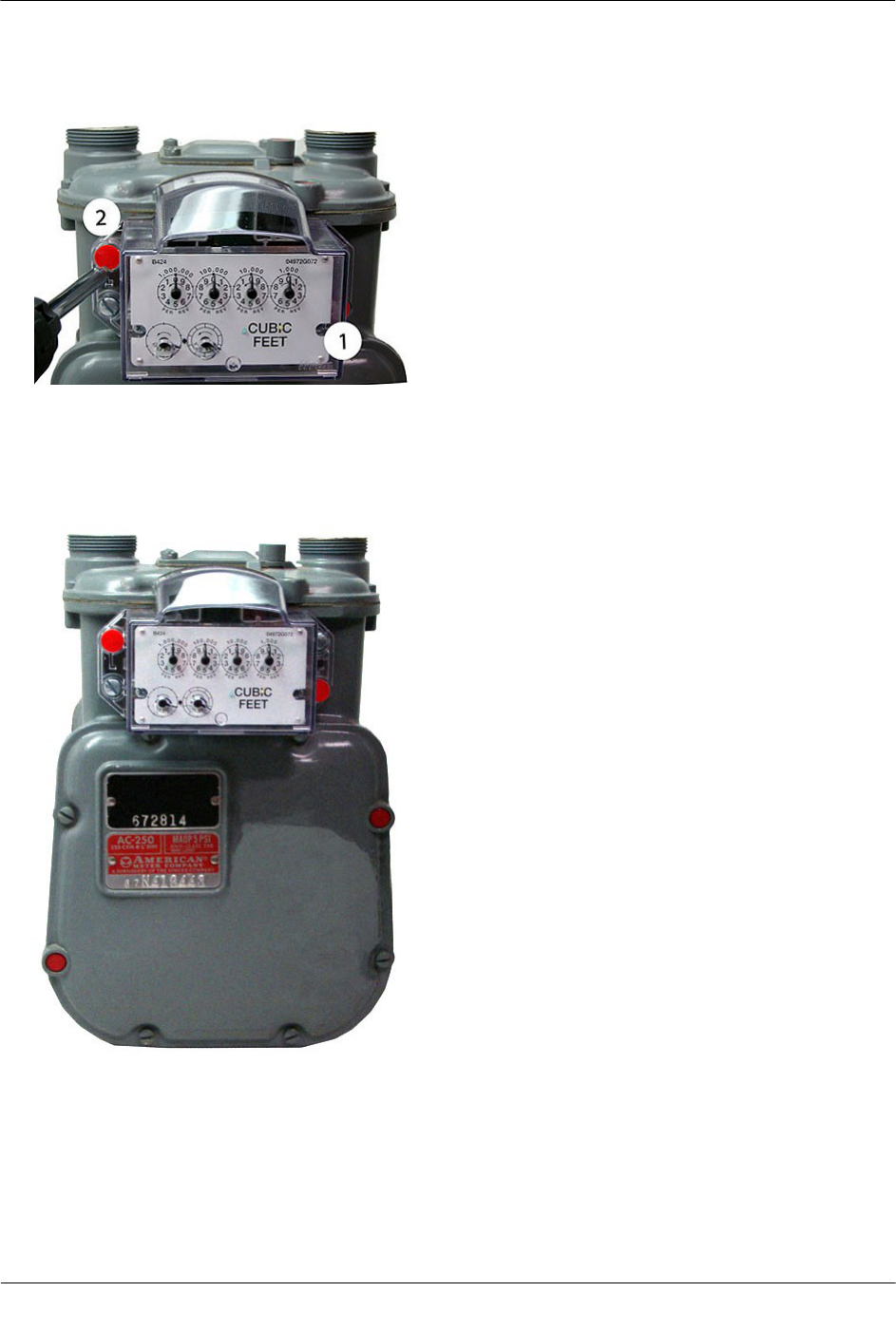

1. Remove the four index cover screws and the index cover from the Elster American meter. Alternate screw
removal following the numbered pattern in the photo.
2. Examine the mounting screws. If they are 5/8" long and not corroded, keep them to re-attach the 100G
Datalogging gas endpoint assembly. If the screws are not the correct length or if the screws are corroded,
discard.
Note You may use the removed index cover as a temporary storage container for
screws. Properly dispose all unused screws, old index covers, gaskets, tamper seals, and
other leftover materials. Do not leave materials on customer premises.
CH A P T E R 2
Elster American Meter Installation
Elster American Meter Installation
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 11
Proprietary and Confidential

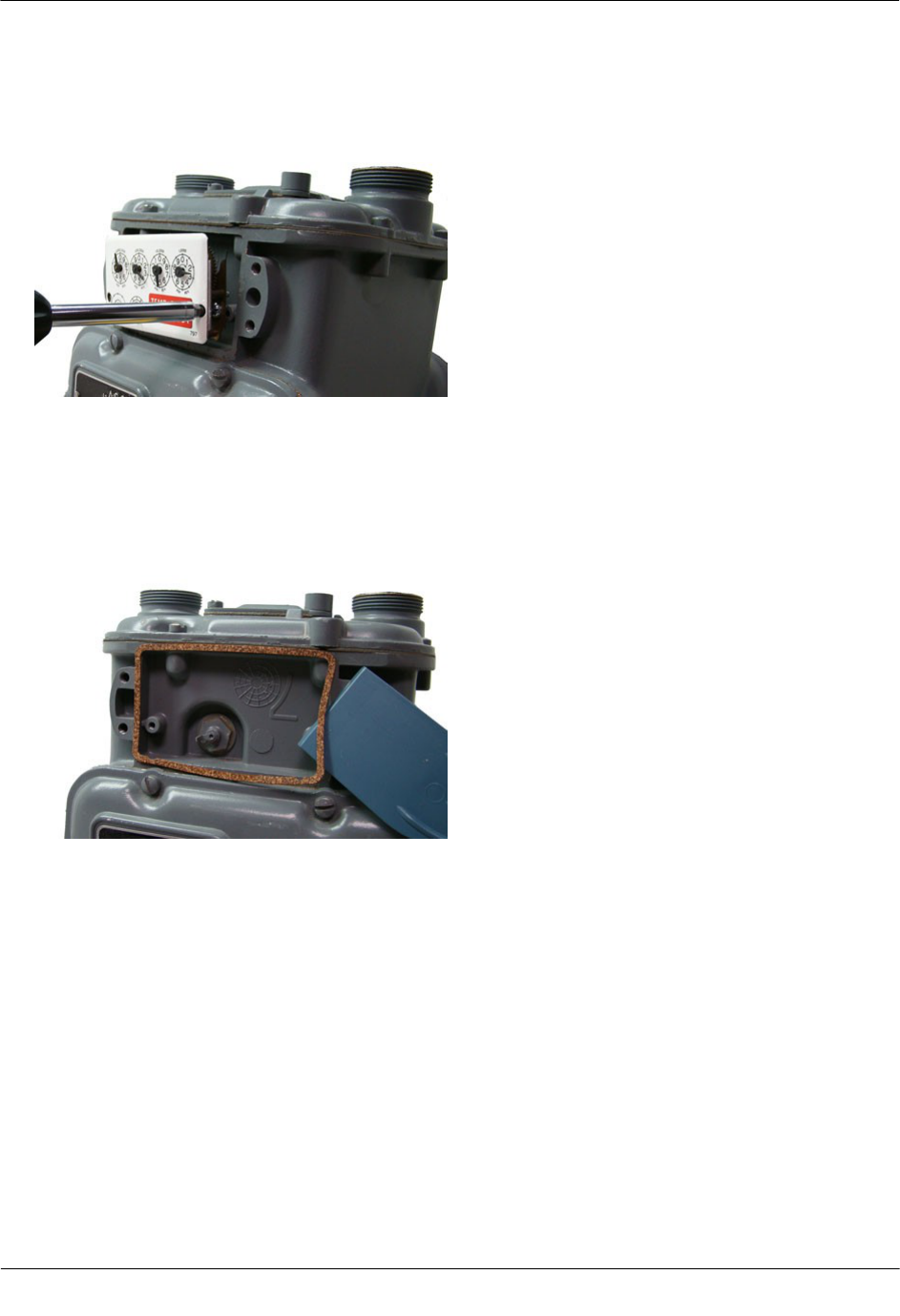

3. Unscrew one index mounting screw completely. Hold one hand under the index to catch the screw. While
removing the other mounting screw, pull the index away from the meter to keep the index backplate
against the back of the screw. Remove the screw completely after the index is free of the meter.
Set the index aside where it will not be damaged or fill with dirt, rain or snow. The index will be mounted
to the endpoint later in this procedure. Verify the index mounting screws are 3/16" long and not corroded.
If the screws are the correct length and not corroded, retain for later use. If the original screws were
discarded, use the correct replacement screws (see Installation Prerequisites on page 7.)
4. Remove the old gasket, gasket residue and dirt from the meter (if applicable). The meter face must be free
of gasket residue before you install the 100G Datalogging gas endpoint.
Elster American Meter Installation
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 12
Proprietary and Confidential

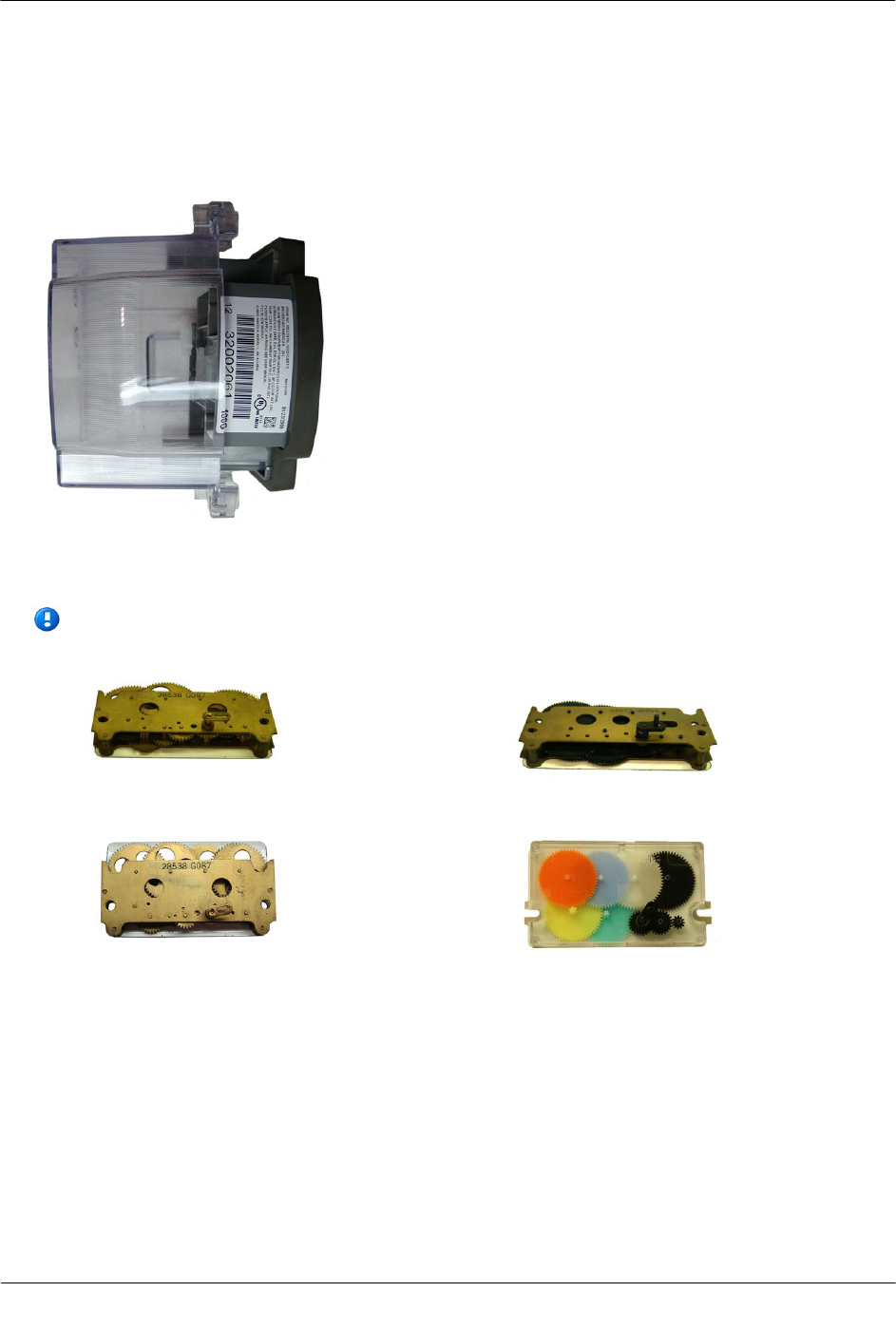

To assemble the 100G Datalogging gas endpoint and index
1. Separate the 100G Datalogging gas endpoint housing from the cover by pulling the cover straight out from
the housing.
2. Set the endpoint cover aside where it will not be damaged or fill with rain, dirt or snow. The cover will be
used later in this installation procedure.
Note Elster American Meter indexes are available in different models:
Index wrigglers on one-foot meters with drive slots Index meters on two-foot meters with drive posts
An Elster American index with mounting screw holes An Elster American index with mounting slots
Elster American Meter Installation
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 13
Proprietary and Confidential
If your index has mounting screw slots, skip steps 3 and 4. If your index has mounting screw holes,
perform steps 3 and 4, and skip steps 5 and 6.

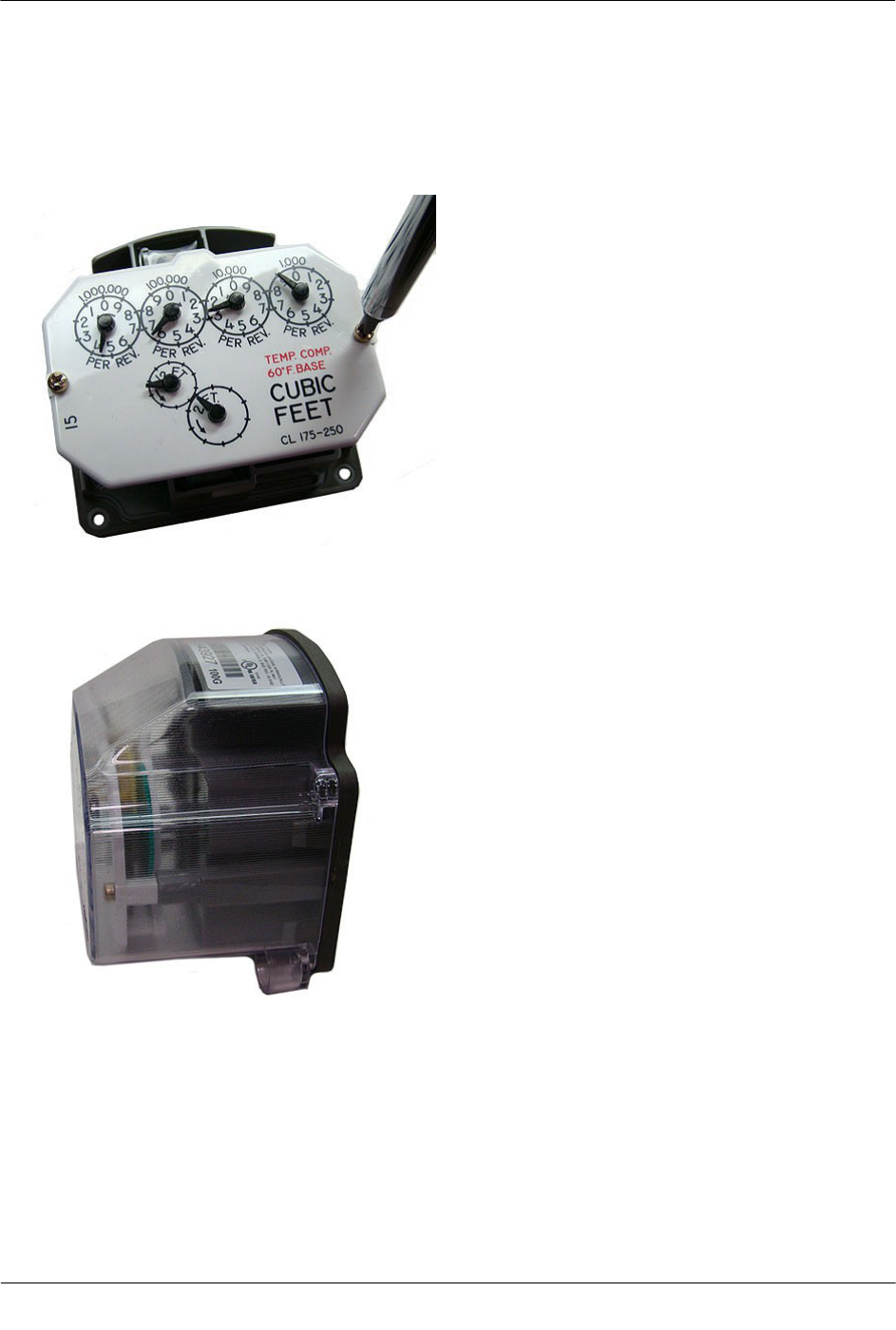

3. Using the original index mounting screw or a replacement screw, if necessary, place one 8 - 32 3/16"
screw into the index's right-hand mounting screw hole.
4. Attach the screw to the endpoint housing's right-index mounting post just enough to hold the screw and
the right end of the index in place.

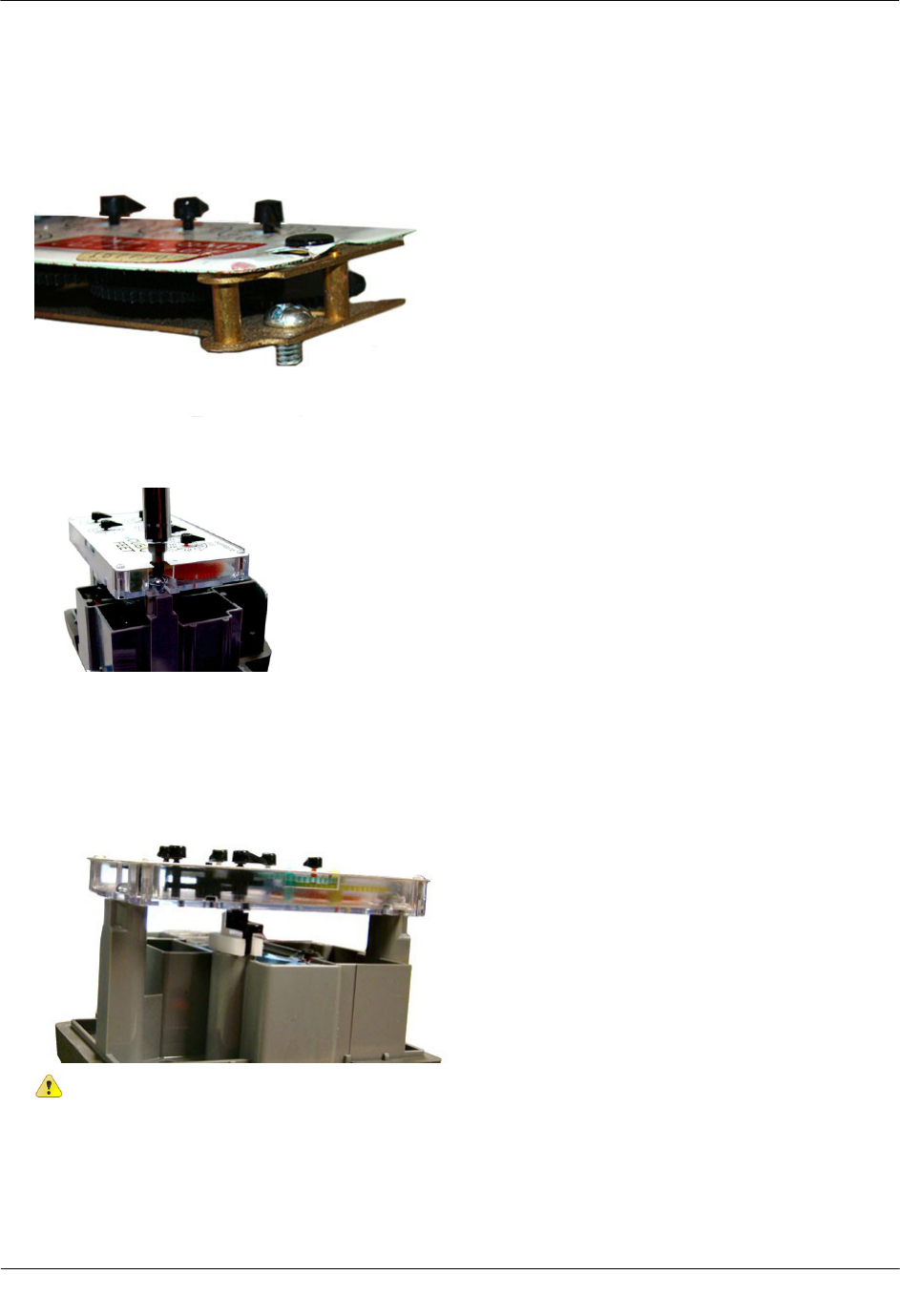

5. Screw one 8 - 32 x 3/16" screw into the right index mounting post one or two turns. Do not tighten the
screw.
6. Place the right index mounting screw slot under the screw head. Do not tighten the screw.
7. Slide the index drive post into the endpoint wriggler. Verify positive engagement.

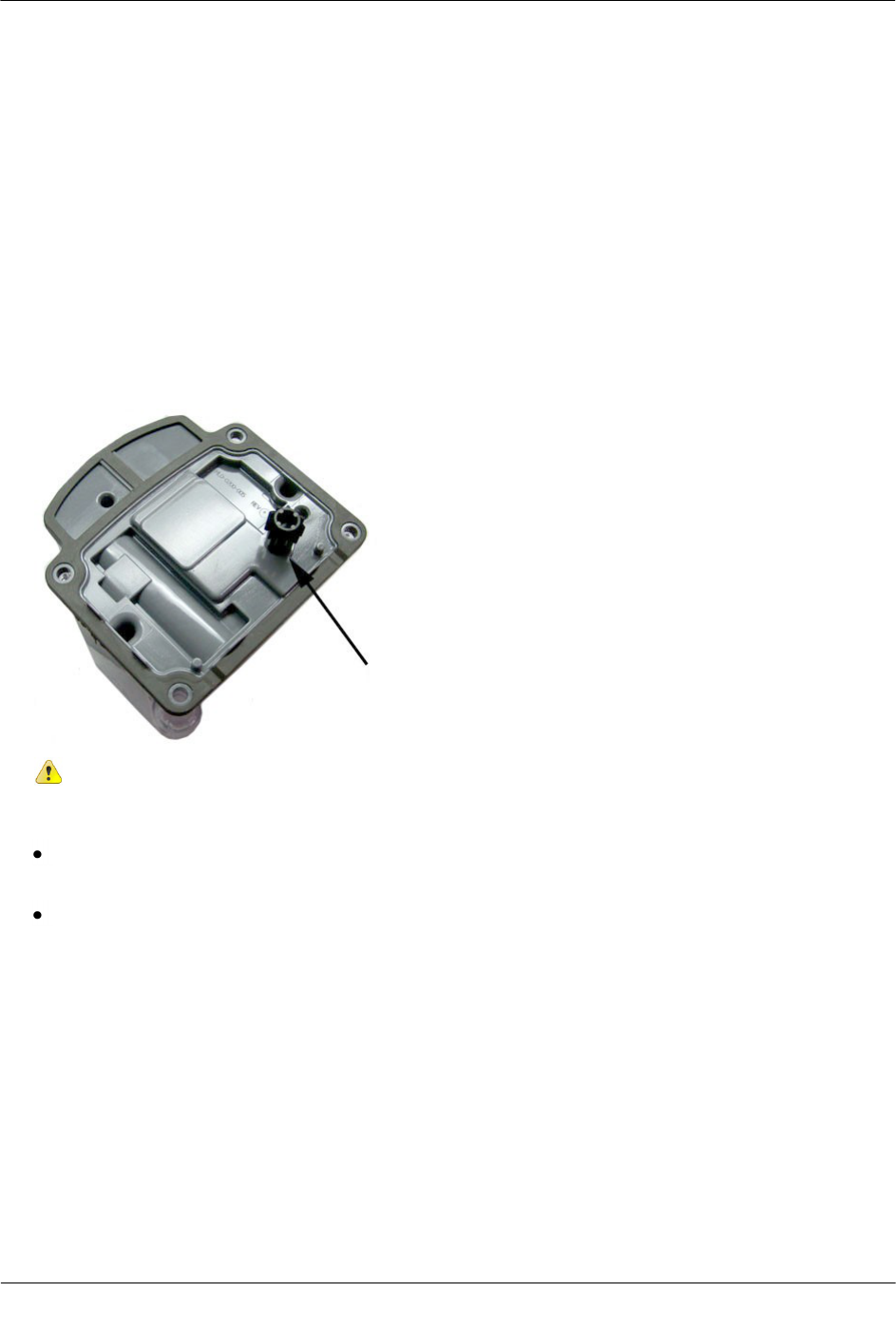

Caution If the index wriggler has a drive slot, place the endpoint wriggler's drive post into
the index drive slot. Failure to mate the endpoint wriggler with the index drive post (or slot)
can cause binding and lead to poor registration or meter failure.
Elster American Meter Installation
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 14
Proprietary and Confidential
8. Install and tighten the left index mounting screw (for indexes with either mounting screw slots or holes).
Tighten the right index mounting screw. Install and tighten index mounting screws evenly.
9. Slide the endpoint cover over the index and housing. The endpoint label should be clearly visible and
easily read.
Elster American Meter Installation
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 15
Proprietary and Confidential
Programming the 100G Datalogging Gas Endpoint Assembly
Program the 100G Datalogging gas endpoints using:
A FC200SR handheld computer with Endpoint-Link® or Endpoint-Link Pro version 5.3 or higher or
A FC300 with SRead handheld computer with Endpoint-Link or Endpoint-Link Pro version 5.5 or higher
or
A 900MHz Belt Clip Radio with Endpoint-Link version 5.5 or higher and a customer-supplied laptop. The
Belt Clip Radio connects to the user-supplied laptop using a USB cable or Bluetooth.
See the Endpoint-Link v5.3 (or higher) Endpoint Programming Guide (TDC-0744) for more complete
programming information.
FC200SR FC300 with SRead 900MHz Belt Clip Radio
Caution The 100G Datalogging gas endpoint must be programmed before use.
Follow the steps in this section to properly program the endpoint.
The endpoint is programmed based on the meter's drive rate. Take note of the index drive rate shown on a
lower left dial on the index. The endpoint is programmed based on the drive rate. Elster American meter index
drive rates are either 1-cubic foot, 2-cubic feet or 0.05 cubic meters (not shown below).
Elster American Meter Installation
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 16
Proprietary and Confidential
To program the 100G Datalogging gas endpoint
1. Program the meter drive rate into the 100G Datalogging gas endpoint using the endpoint programming
device. For all programming and "Check Endpoint" operations, hold the handheld programmer as close to
vertical as possible. For best success, keep the handheld programmer within 6 feet of the target endpoint.
Verify you have the correct programming mode (Fixed Network Mode, Mobile/Handheld Mode, or Hard
to Read Mobile/Handheld Mode) for your application. Programming parameters are based on the
configuration file loaded into the endpoint programming device.
During programming, the 100G Datalogging gas endpoint is set to the nearest 100 cubic feet; the last two
digits (tens and units) are programmed as zeros (0). After programming is complete, the endpoint
assembly will read to the nearest cubic foot.
2. Slowly turn the endpoint's drive wriggler two turns in the direction shown on the index drive rate. This
verifies the endpoint is counting properly after assembly.
Caution Do not turn the drive wriggler faster than one turn per second.
3. Read or Check the 100G Datalogging gas endpoint using the endpoint programming device.
If the read result is higher than the number programmed in Step 1, the 100G Datalogging gas endpoint
is counting correctly.
If the read result is not higher than the number programmed in Step 1, replace the 100G Datalogging
gas endpoint.
Attaching the 100G Datalogging Gas Endpoint Assembly to the
Meter
After programming the 100G Datalogging gas endpoint, attach the endpoint assembly to the Elster American
Meter.

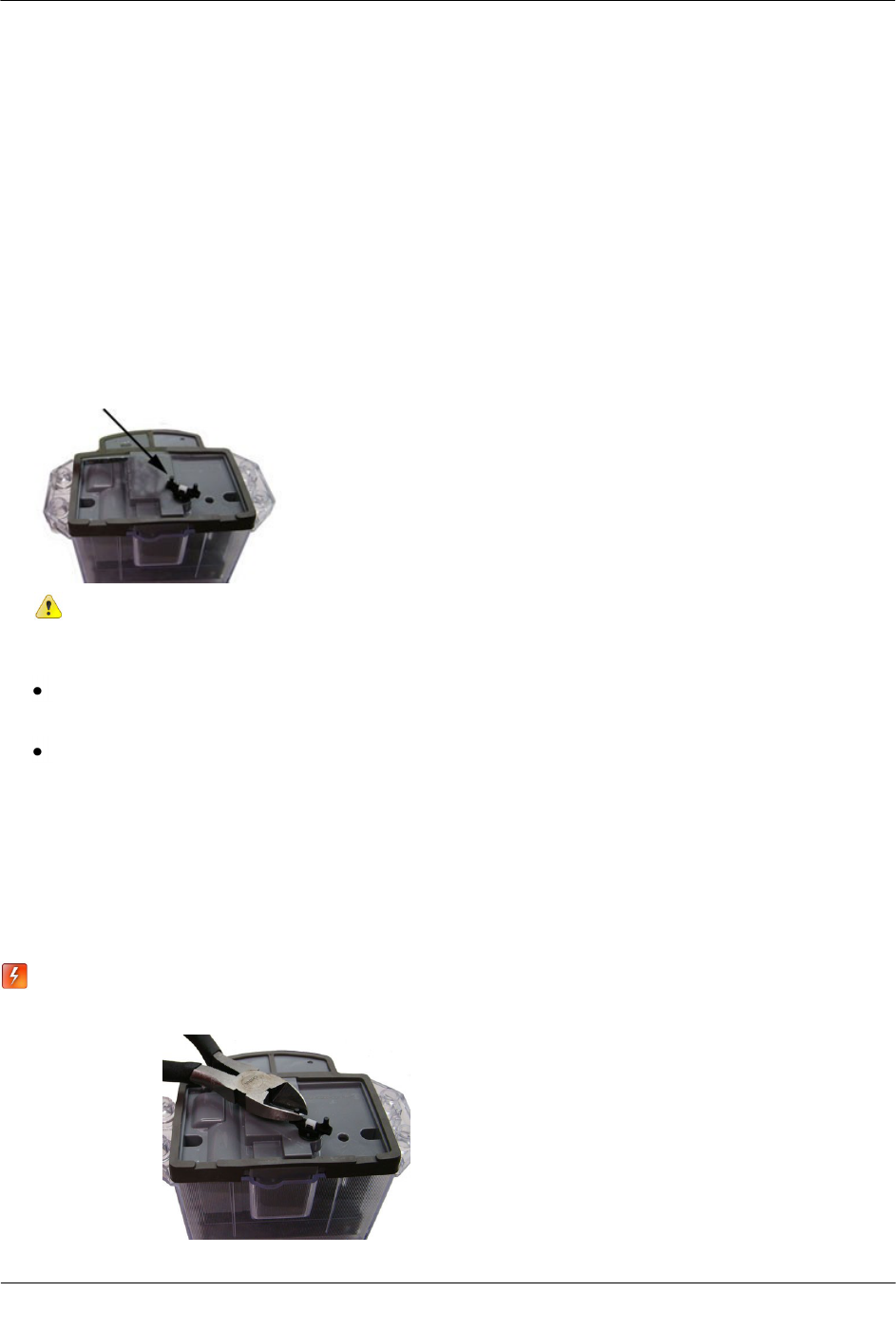

Warning For 5B Meters only: If the 100G Datalogging gas endpoint will be installed
on a 5B-225 aluminum meter, cut 1/16" off each endpoint wriggler post to prevent
the wriggler from rubbing on the face of the nut holding the meter drive dog in place.
Elster American Meter Installation
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 17
Proprietary and Confidential
To attach the 100G Datalogging gas endpoint to the meter

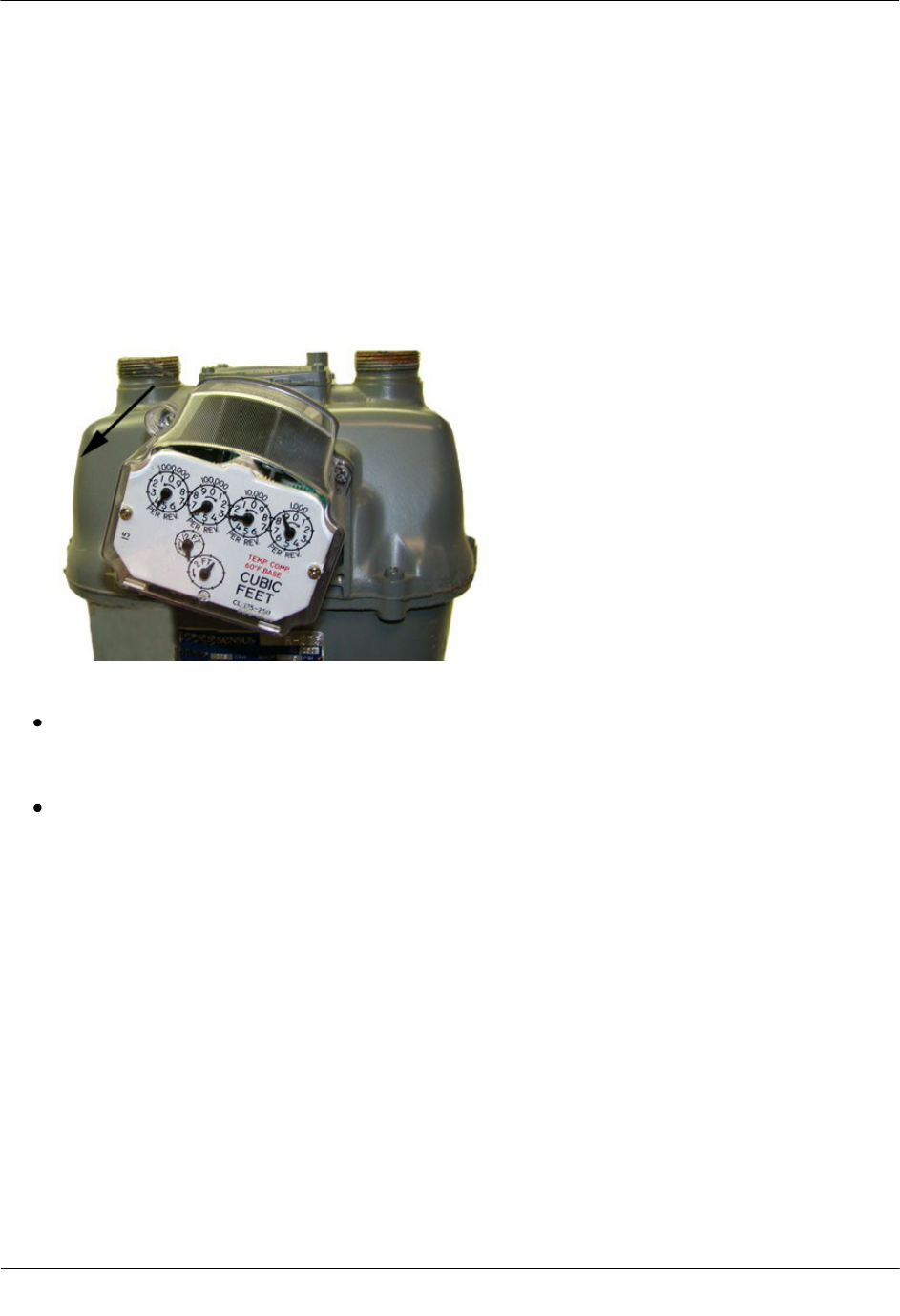

1. Align the endpoint wriggler to connect with the drive post (or slot) of the meter.
For one-foot meters: Align the endpoint assembly wriggler perpendicular to the meter drive post.
For two-foot meters: Align the endpoint assembly wriggler perpendicular to the meter drive slot. The
pin on the endpoint wriggler may be installed inside or outside the meter drive slot. For easy assembly,
Itron recommends installing the pin on the 100G Datalogging gas endpoint wriggler outside the meter
drive slot.
2. Carefully align the endpoint's four screw holes with the holes on the meter. Attach using the original
mounting screws if they are the correct size and are not corroded (1/4 - 20 x 5/8" screws.) If the original
screws were discarded, use the correct replacement screws (see Installation Prerequisites on page 7).

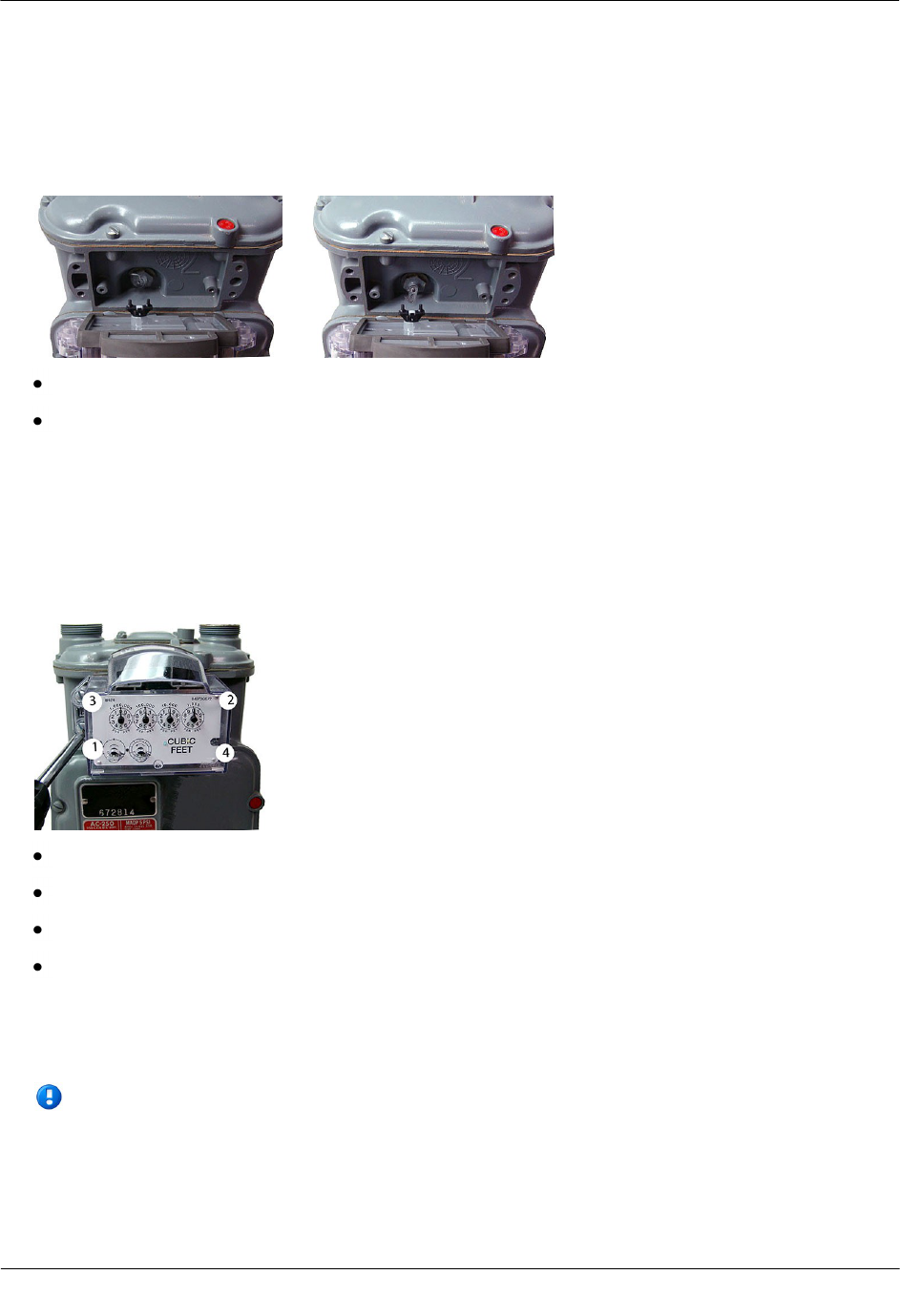

Tighten in an alternating, diagonal pattern as shown in the photo:
Insert first screw and tighten 1/4 to 1/2 turn after the screw contacts the meter connection.
Insert the second screw and tighten 1/4 to 1/2 turn after contact with the meter connection.
Insert the third screw and tighten 1/4 to 1/2 turn after contact with the meter connection.
Insert the last screw and tighten 1/4 to 1/2 turn after contact with the meter connection.
Return to the first screw and tighten. Continue with the second, third and last screws until all screws are
tight. Use equal screw tension to tighten each screw.
Note Meter manufacturers: torque the mounting screws 15 to 20 inch-pounds.
Elster American Meter Installation
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 18
Proprietary and Confidential
3. Place new tamper seals over the two screws with tamper seal mounts. Press tamper seals into place using
an 11/32" nut driver or similar blunt tool.
4. Complete necessary paperwork and verify all excess materials are removed from the customer's premises.
100G Datalogging gas endpoint installation on the Elster American meter is complete.
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 19
Proprietary and Confidential
This chapter provides the instructions to install the 100G Datalogging gas endpoint on a Sensus/Rockwell
Meter. These instructions apply to 11-tooth, 16-tooth, and 18-tooth Sensus 100G Datalogging gas endpoints.
Note Sensus meters are also known as Invensys, Equimeter, and Rockwell. For these
instructions, all meter types are referred to as Sensus meters.

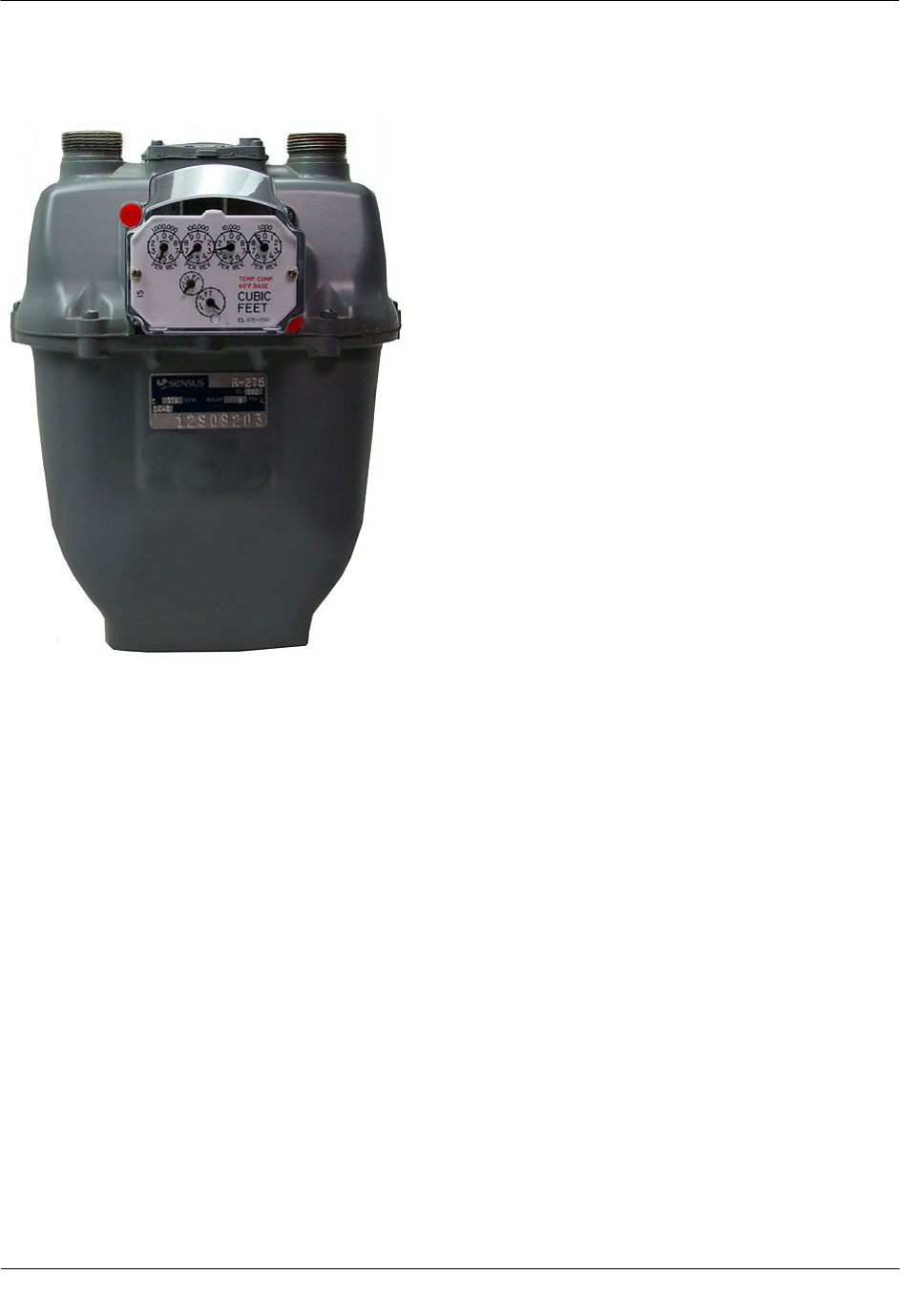

100G Datalogging gas endpoint
Sensus 11-tooth
Sensus 16-tooth
Sensus 18-tooth
To remove the index from the meter
1. Remove the four index cover screws and the index cover from the Sensus meter. Alternate screw removal
following the numbered pattern as shown in the photo.
CH A P T E R 3
Sensus/Rockwell Meter Installation
Sensus/Rockwell Meter Installation
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 20
Proprietary and Confidential
2. Examine the mounting screws. If they are 5/8" long and not corroded, keep them to attach the 100G
Datalogging gas endpoint assembly. If the screws are not the correct length or if the screws are corroded,
discard.
Note You may use the removed index cover as a temporary storage container for
screws. Properly dispose all unused screws, old index covers, gaskets, tamper seals, and other
leftover materials. Do not leave materials on customer premises.
3. Unscrew one index mounting screw completely. Hold one hand under the index to catch the screw. While
removing the other mounting screw, pull the index away from the meter to keep the index backplate
against the back of the screw. Remove the screw completely after the index is free of the meter.
4. Set the index aside where it will not be damaged or fill with dirt, rain or snow. The index will be mounted
in the endpoint later in this procedure. Verify the index mounting screws are 5/8" long and not corroded.
If the screws are the correct length and not corroded, retain for later use. If the original screws are
discarded, use the correct replacement screws (see Installation Prerequisites on page 7.)
5. Remove the old gasket, gasket residue, and dirt from the meter (if applicable). The meter face must be free
of gasket residue or dirt before you install the 100G Datalogging gas endpoint.
Sensus/Rockwell Meter Installation
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 21
Proprietary and Confidential
To assemble the 100G Datalogging gas endpoint and index
1. Separate the 100G Datalogging gas endpoint housing from the cover by pulling the cover straight out from
the housing. Set the endpoint cover aside where it will not be damaged or fill with rain, dirt or snow. The
cover is used later in this installation procedure.

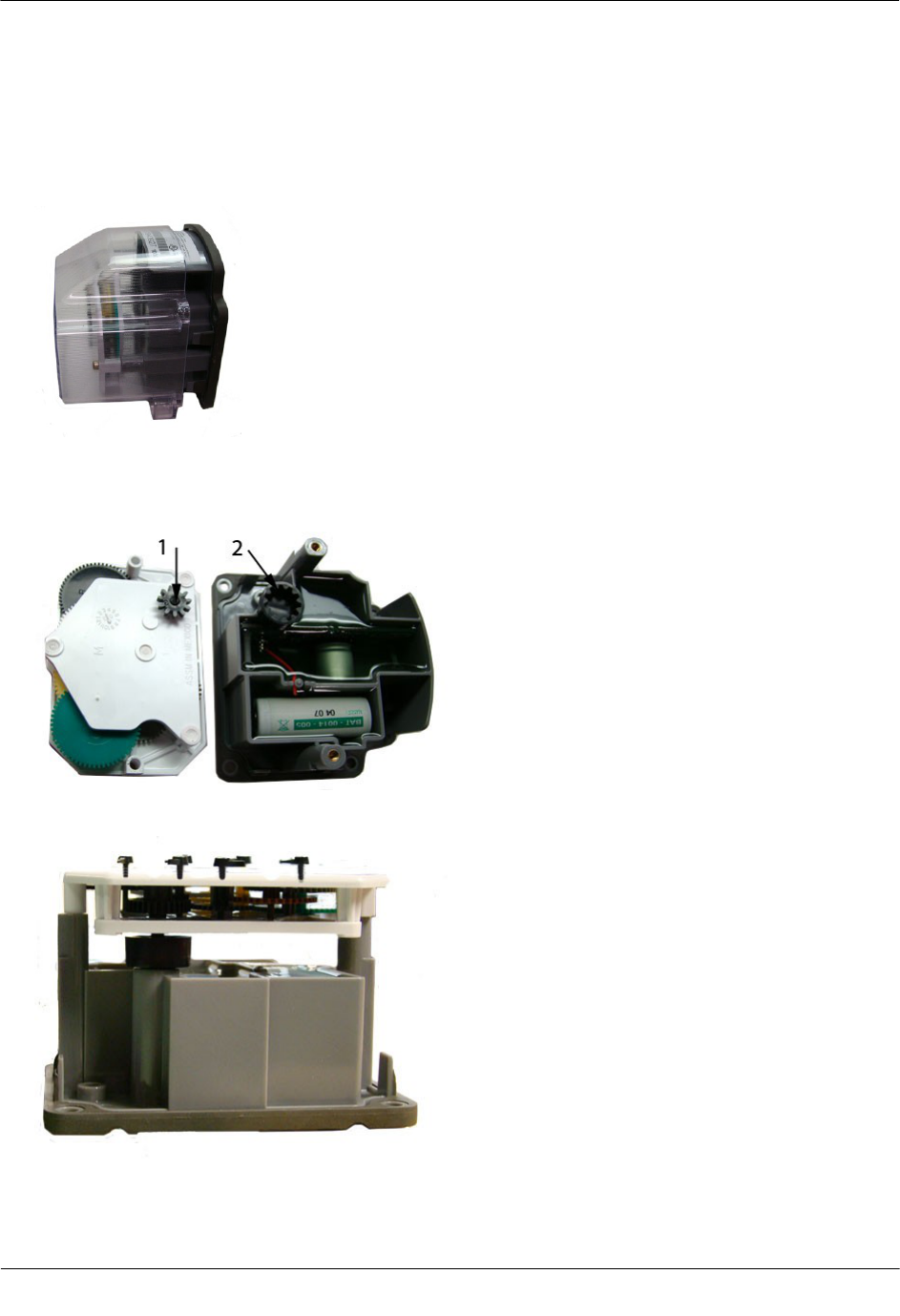

2. Place the index drive gear (1) in the housing wriggler gear cup (2) of the endpoint. The example shows an
11-tooth drive gear. Your index may be a 16- or 18-tooth gear. Use the appropriate 100G Datalogging gas
endpoint for your specific meter. See the Meter Compatibility List on page 2 for more information.
3. After the drive gear aligns with the wriggler gear, the mounting holes line up.
Sensus/Rockwell Meter Installation
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 22
Proprietary and Confidential

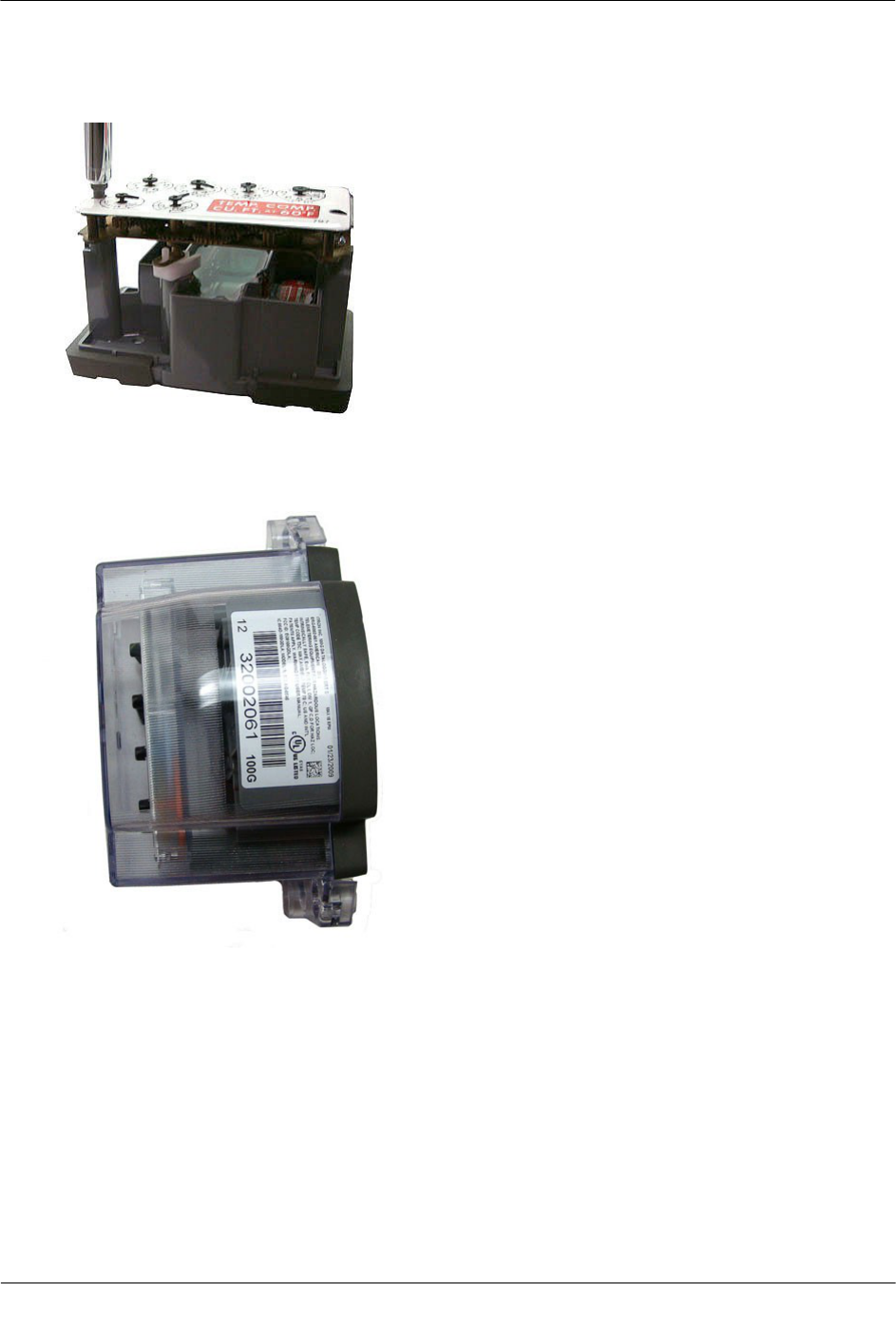

4. Using the original index mounting screw or a replacement screw (if necessary), place one 6 - 32 5/8"
screw into the index's right mounting screw hole. Attach the screw to the endpoint housing's right-index
mounting post just enough to hold the screw and the right end of the index in place. Install and tighten the
left index mounting screw. Tighten the right index mounting screw completely. Install and tighten index
mounting screws evenly.
5. Slide the endpoint cover over the index and housing. Verify the cover is installed correctly. The endpoint
label should be clearly visible and easily read.
Sensus/Rockwell Meter Installation
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 23
Proprietary and Confidential
Programming the 100G Datalogging Gas Endpoint Assembly
100G Datalogging gas endpoint s can be programmed using:
A FC200SR handheld computer with Endpoint-Link® or Endpoint-Link Pro version 5.3 or higher or
A FC300 with SRead handheld computer with Endpoint-Link or Endpoint-Link Pro version 5.5 or higher
or
A 900MHz Belt Clip Radio with Endpoint-Link version 5.5 or higher and a customer-supplied laptop. The
Belt Clip Radio connects to the user-supplied laptop using a USB cable or Bluetooth.
See the Endpoint-Link v5.3 (or higher) Endpoint Programming Guide (TDC-0744) for more complete
programming information.
FC200SR FC300 with SRead 900MHz Belt Clip Radio
Caution The 100G Datalogging gas endpoint must be programmed before use. Follow
the steps in this section to properly program the endpoint.
Take note of the index drive rate shown on a lower left dial on the index. The endpoint is programmed based
on the drive rate. Sensus meter index drive rates are 2-cubic feet or 0.05 cubic meters.
Sensus/Rockwell Meter Installation
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 24
Proprietary and Confidential
To program the 100G Datalogging gas endpoint
1. Program the index drive rate into the 100G Datalogging gas endpoint using the endpoint programming
device. For all programming and "Check Endpoint" operations, hold the handheld programmer as close to
vertical as possible. For best success, keep the handheld programmer within 6 feet of the target endpoint.
Verify you have the correct programming mode (Fixed Network Mode, Mobile/Handheld Mode, or Hard
to Read Mobile/Handheld Mode) for your application. Programming parameters are based on the
configuration file loaded into the endpoint programming device.
During programming, the 100G Datalogging gas endpoint is set to the nearest 100 cubic feet; the last two
digits (tens and units) are programmed as zeros (0). After programming is complete, the endpoint
assembly will read to the nearest cubic foot.
2. Slowly turn the endpoint's drive wriggler two turns in the direction shown on the index drive rate. This
verifies the endpoint is counting properly after assembly.
Caution Do not turn the drive wriggler faster than one turn per second.
3. Read or Check the 100G Datalogging gas endpoint using the endpoint programming device.
If the read result is higher than the number programmed in Step 1, the 100G Datalogging gas endpoint
is counting correctly.
If the read result is not higher than the number programmed in Step 1, replace the 100G Datalogging
gas endpoint.
Sensus/Rockwell Meter Installation
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 25
Proprietary and Confidential
Attaching the 100G Datalogging Gas Endpoint Assembly to the
Sensus Meter
After 100G Datalogging gas endpoint programming is complete, attach the endpoint assembly to the Sensus
meter.
To attach the 100G Datalogging gas endpoint to the meter
1. Gently place the endpoint assembly against the front of the meter at angle.
2. Install and tighten endpoint-to-meter mounting screws in an alternating fashion.
Align the top right mounting screw-hole on the meter with the top right screw-hole on the endpoint.
Insert the top-right cover mounting screw and tighten the screw enough to hold it in place. Do not
completely tighten.
Rotate the endpoint assembly counterclockwise until the remaining three endpoint screw holes line up
with the holes in the meter. Use the original mounting screws if they were the correct size and not
corroded. If the original screws were discarded, use the correct replacement screws (see Installation
Prerequisites on page 7).
Sensus/Rockwell Meter Installation
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 26
Proprietary and Confidential
Install the remaining three mounting screws and tighten in the pattern shown in the photo.
a. Insert lower left mounting screw and tighten to snug position.
b. Tighten upper right mounting screw to snug position.
c. Insert upper left mounting screw and tighten to snug position.
d. Insert lower right mounting screw and tighten to snug position.
Tighten each mounting screw evenly.
Important Meter manufacturers: torque the mounting screws 15 to 20 inch-pounds.
3. Place a new tamper seal over the two screws with tamper seal cups. Press the new tamper seals into place
using an 11/32-inch nut driver (or similar blunt tool).
4. Complete any necessary paperwork and properly dispose excess installation materials and scrap from the
customer premises.
Sensus/Rockwell Meter Installation
TDC-0823-005 100G Datalogging Installation Guide - Direct Mount 27
Proprietary and Confidential
100G Datalogging gas endpoint installation on the Sensus Meter is complete.

Navigation menu
