Contents

Users Manual Section 3

100G Datalogging Installation Guide - Direct Mount 57
This chapter provides instructions to install the 100G Datalogging Gas Endpoint on Elster
American and Itron/Actaris Commercial Meters.

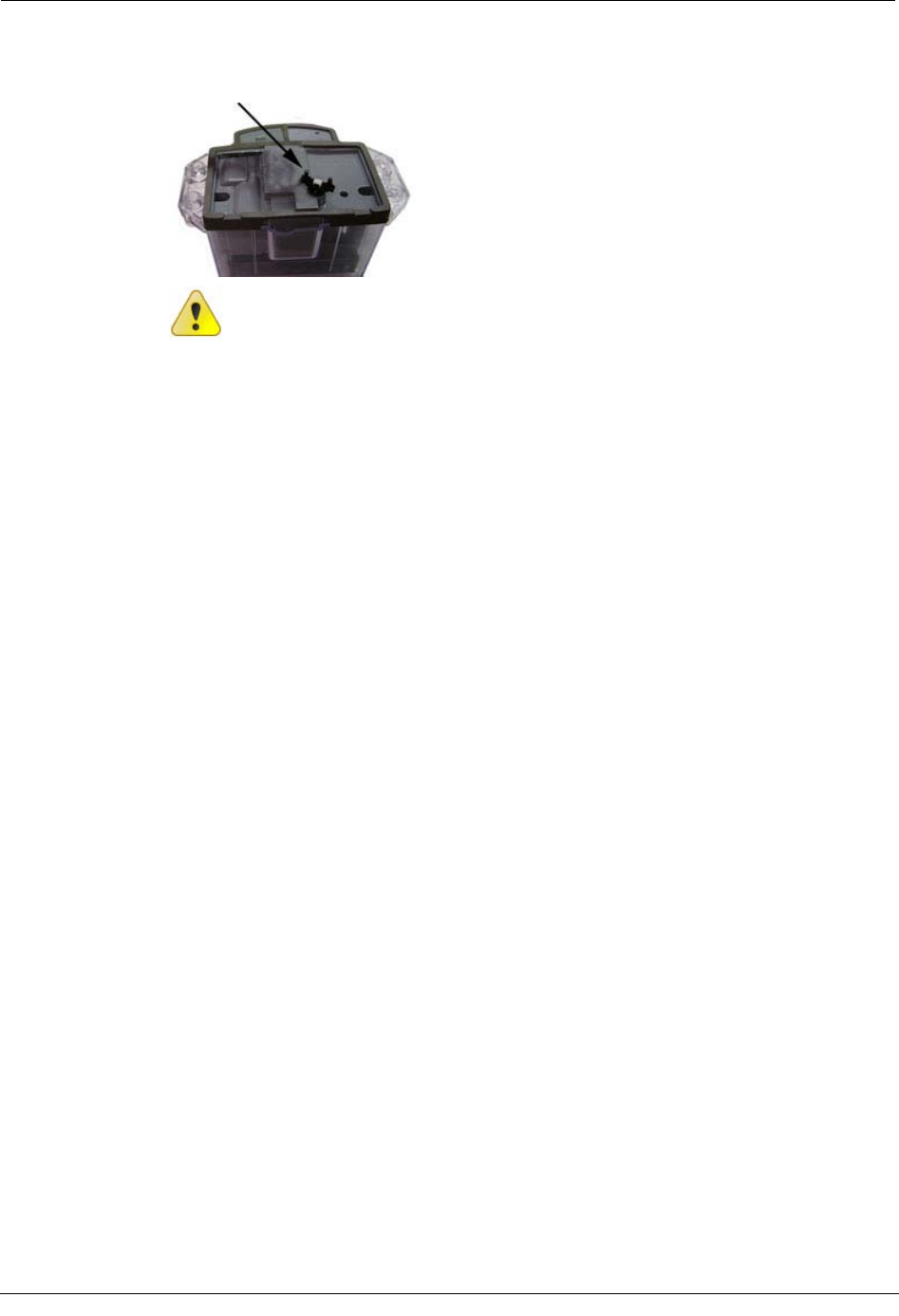

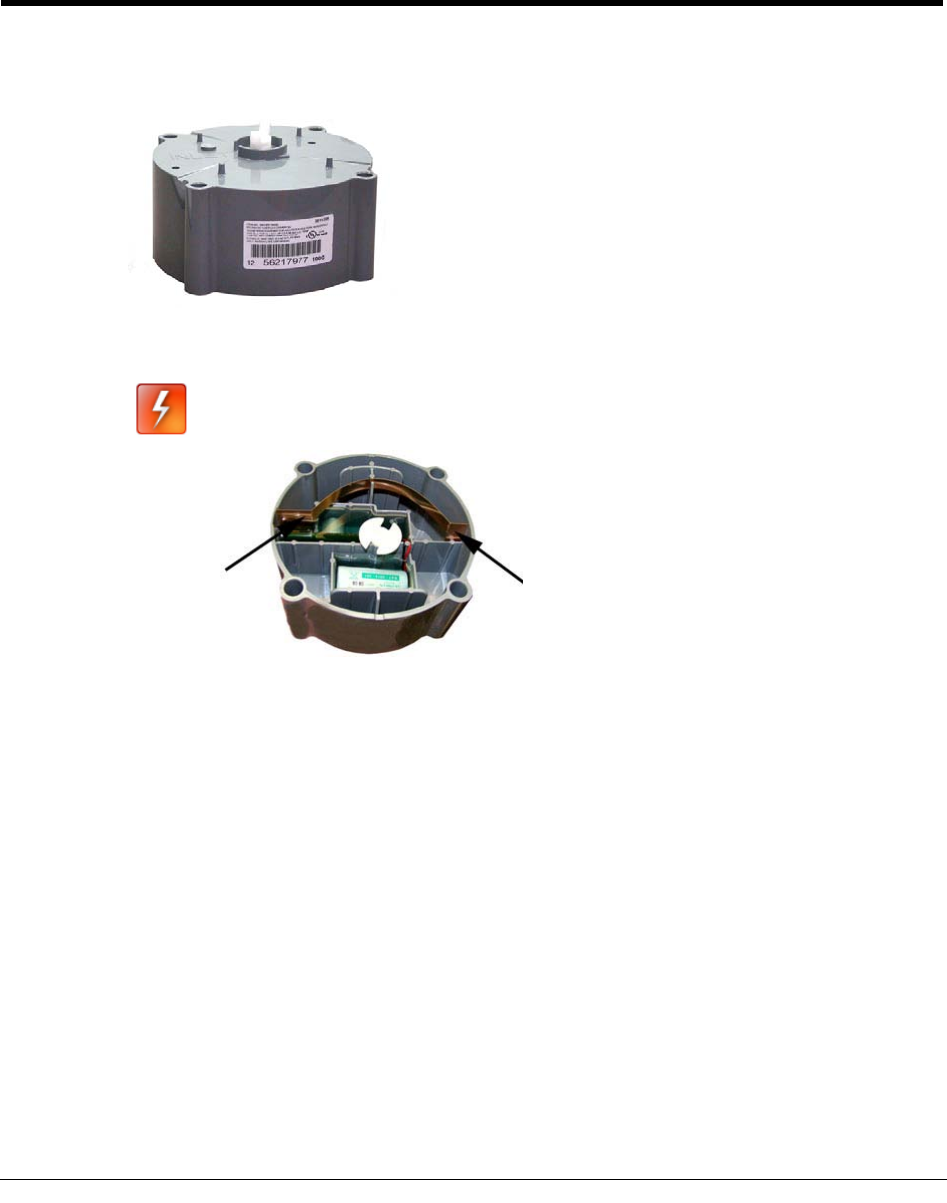

Warning Handle the commercial 100G Datalogging Gas Endpoint
carefully so the metal passive radiator antenna is not damaged.
C
HAPTER
6

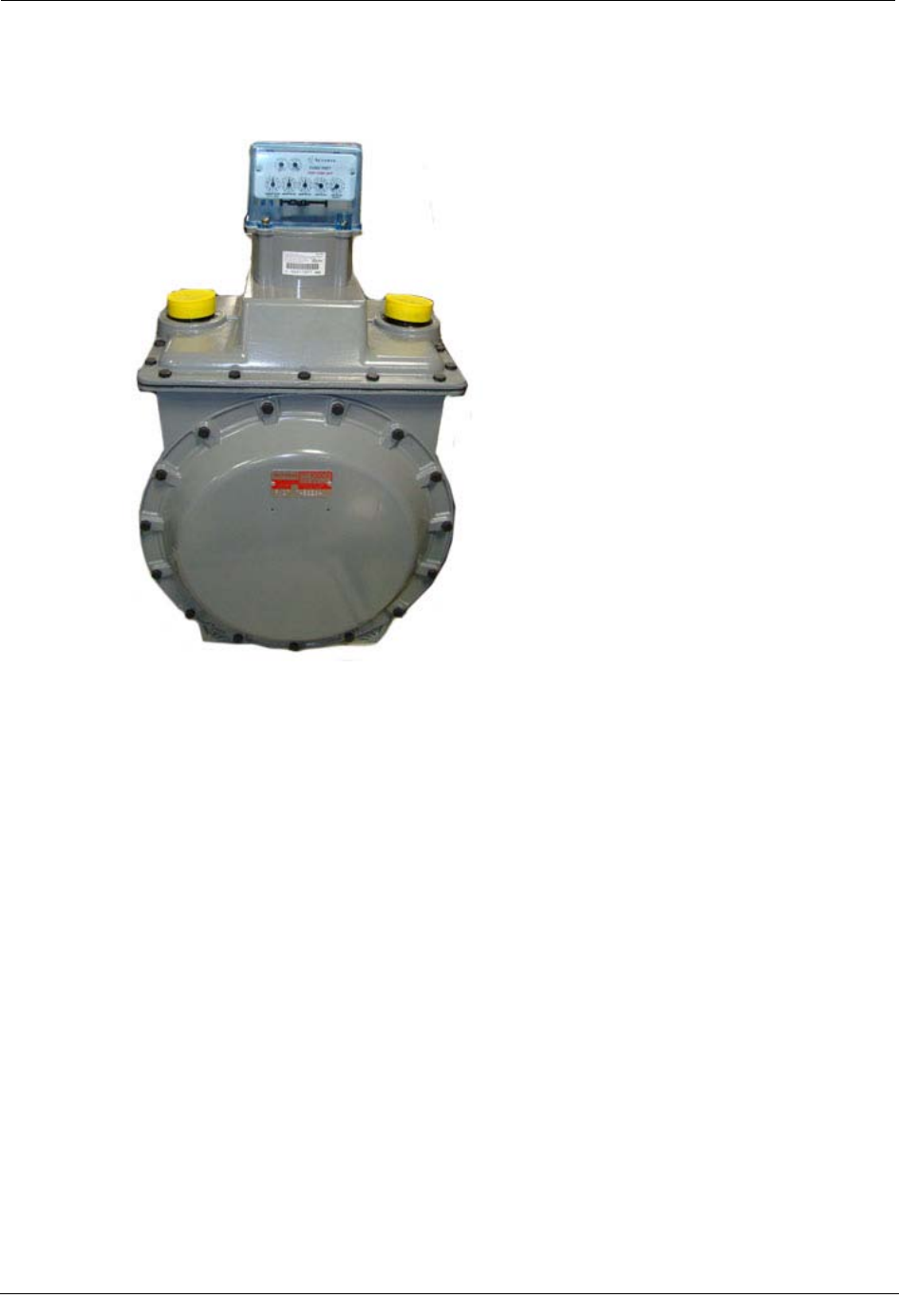

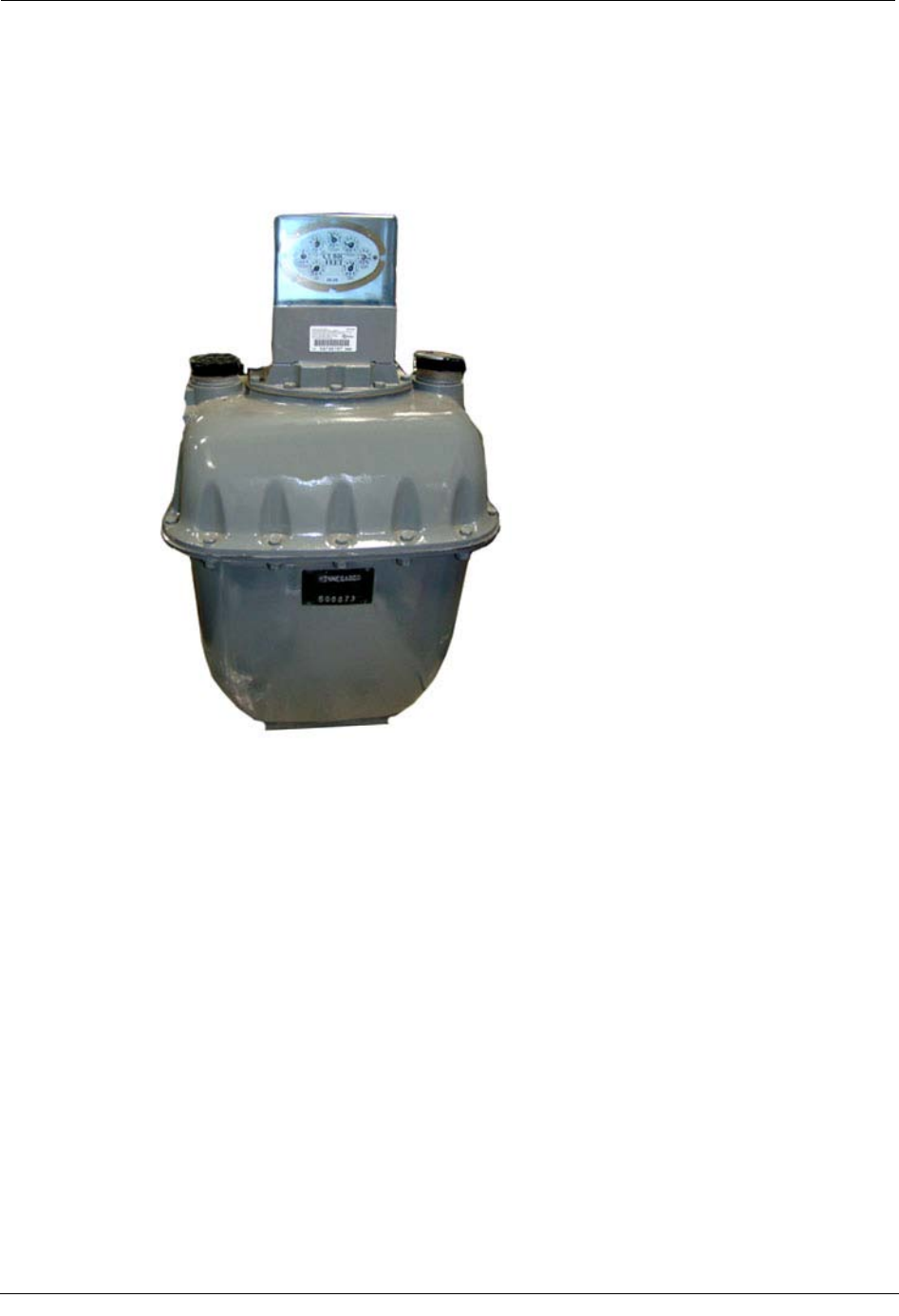

Elster American and Itron Actaris Commercial Meter
Installation
Chapter 6 Elster American and Itron Actaris Commercial Meter Installation
58 100G Datalogging Installation Guide - Direct Mount
Removing the Index/ Index Assembly from the Meter

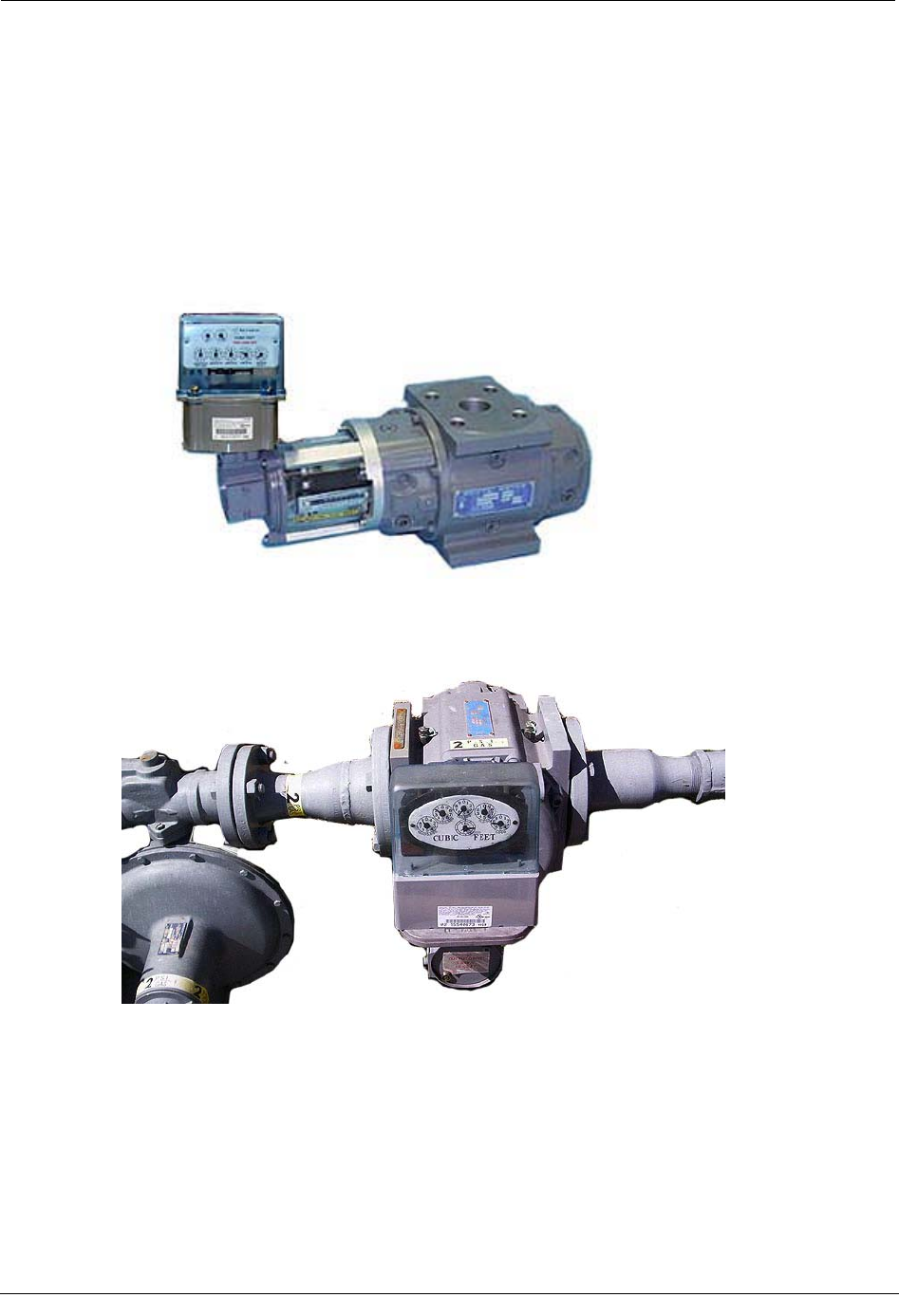

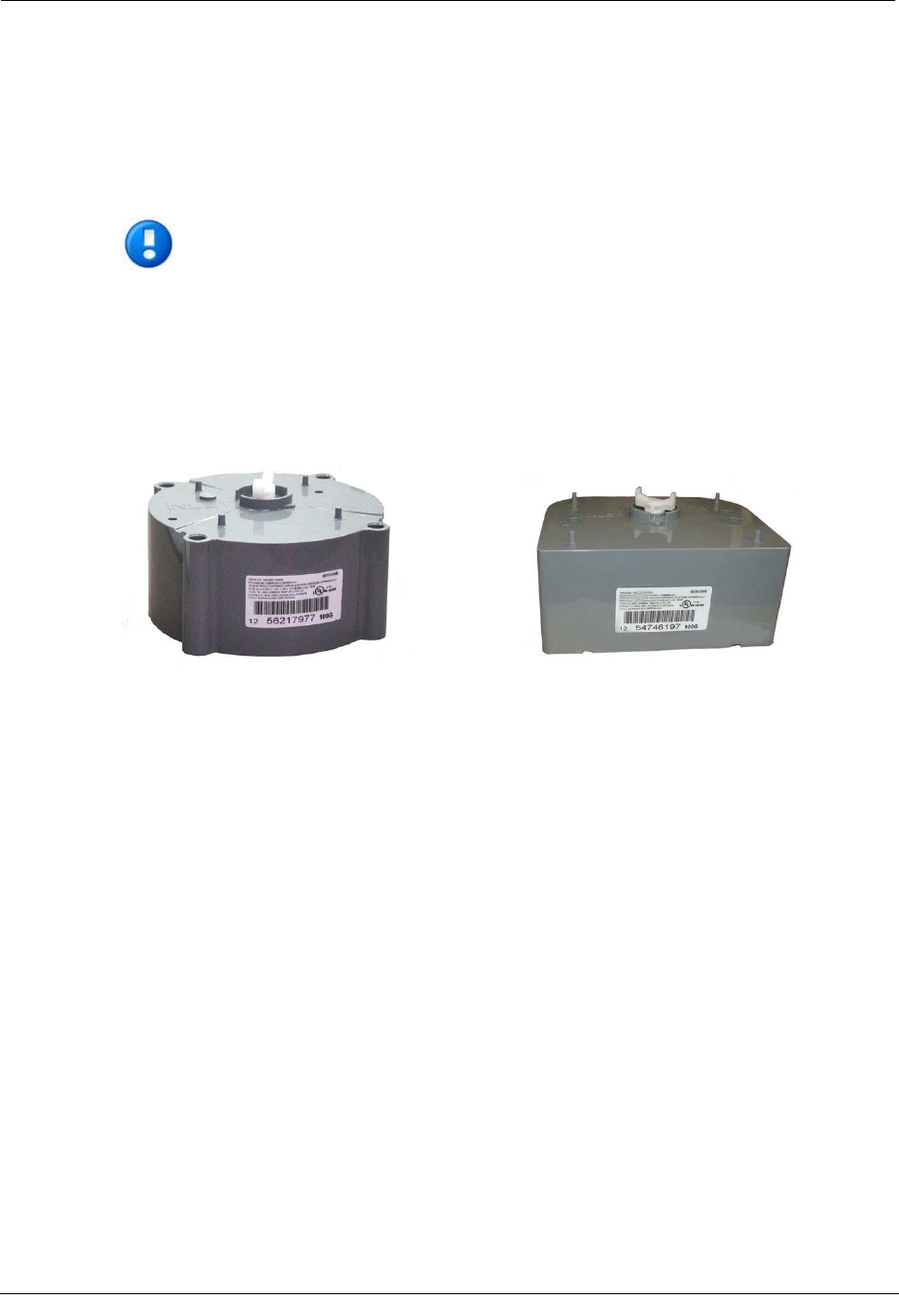

Commercial 100G Datalogging Gas Endpoints can be mounted on Elster American Meters
in various configurations. These instructions show metal mounting plates without tamper
seal cups and plastic mounting plates with tamper seal cups to represent mounting plate
options.

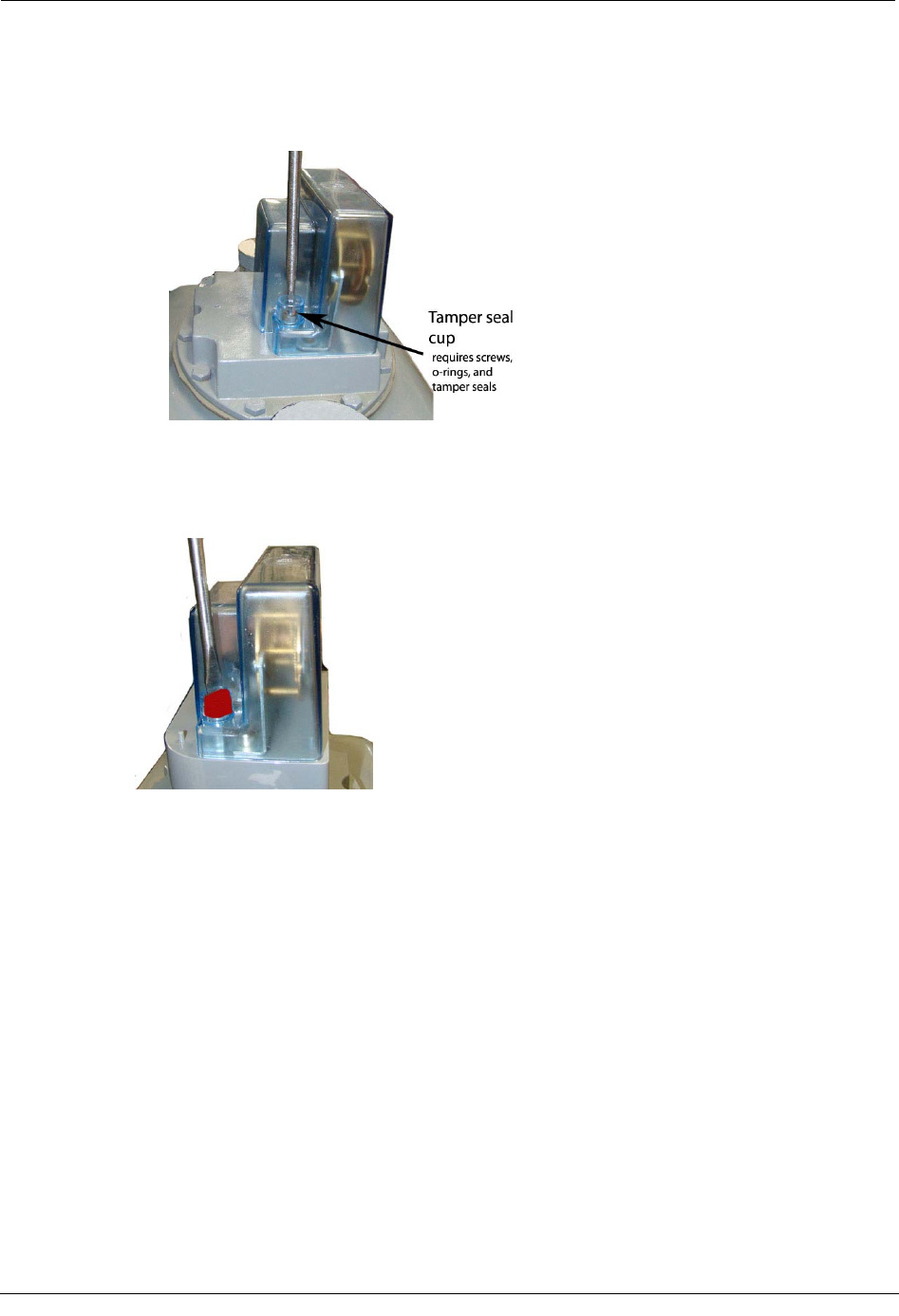

Mounting plate with tamper seal cups Mounting plate without tamper seal cups

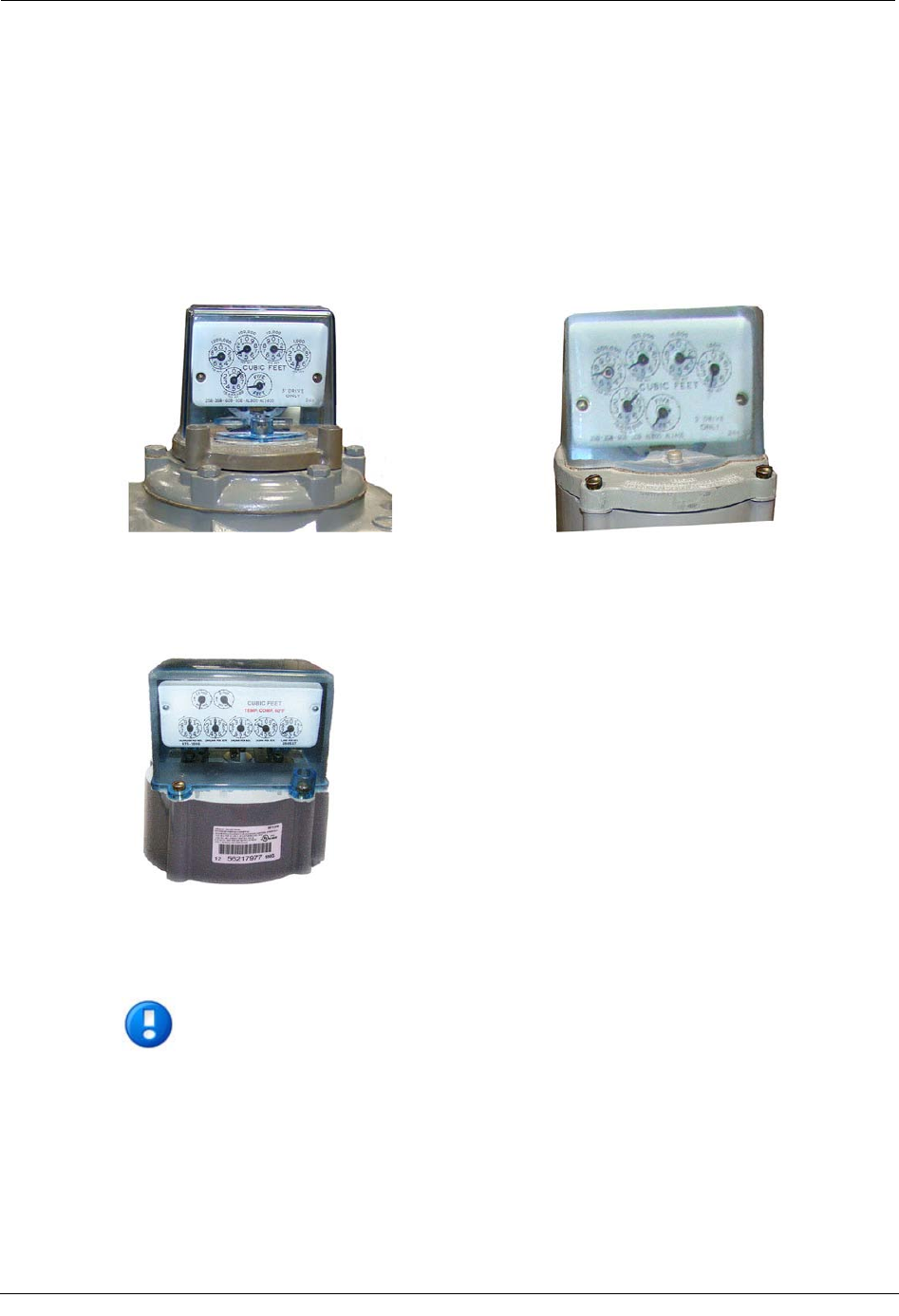

Indexes may be mounted on the 100G Datalogging Commercial Elster American Gas
Endpoint without mounting plates.
Index covers may (or may not) have tamper seal cups (on the back of the cover) for added
security. Index removal assumes the installer will remove any tamper seals or wires before
continuing with these instructions.
Note It may not be necessary to dismantle your commercial index assembly (index and
cover). These instructions do not include index/cover assembly for those applications.

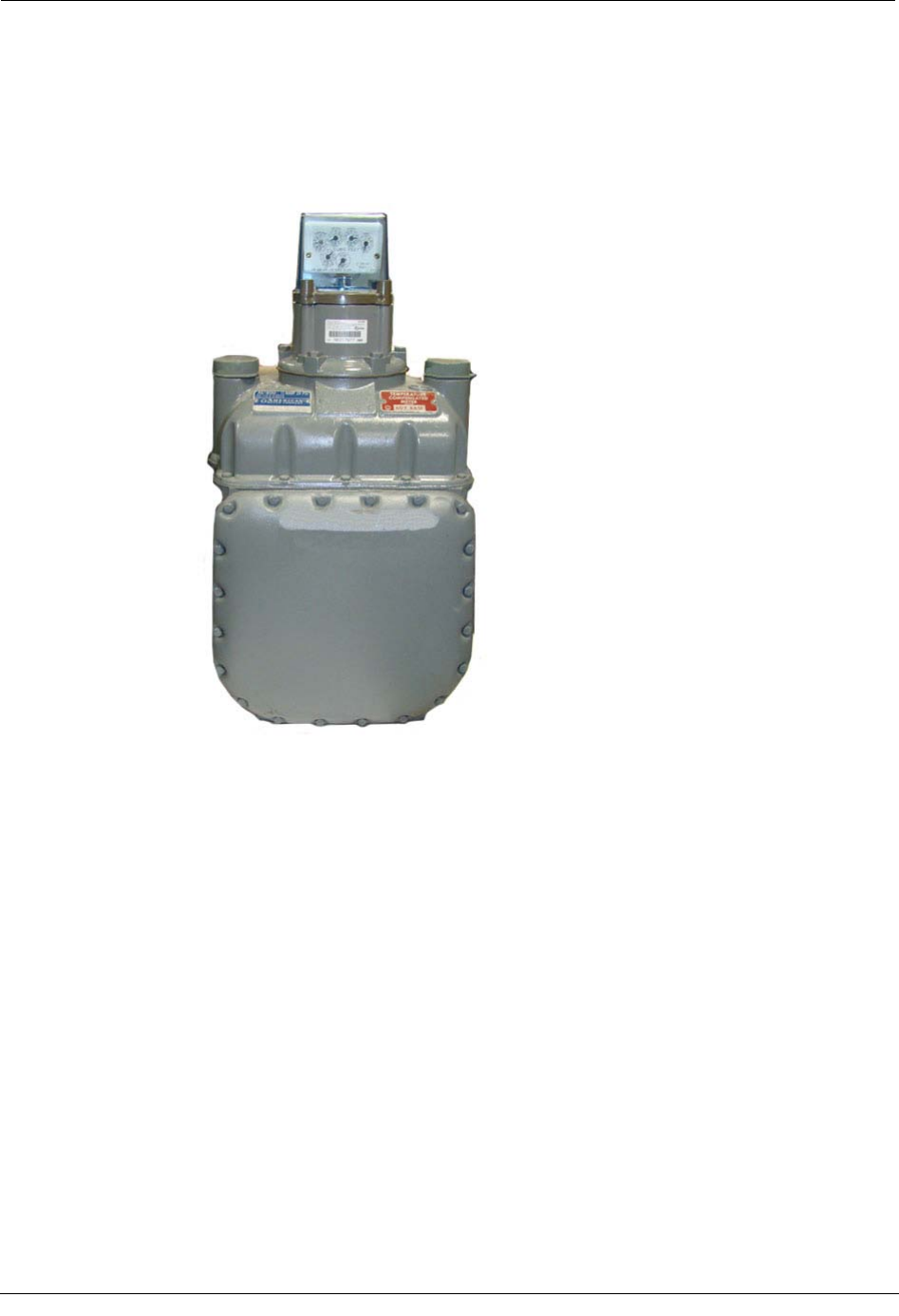

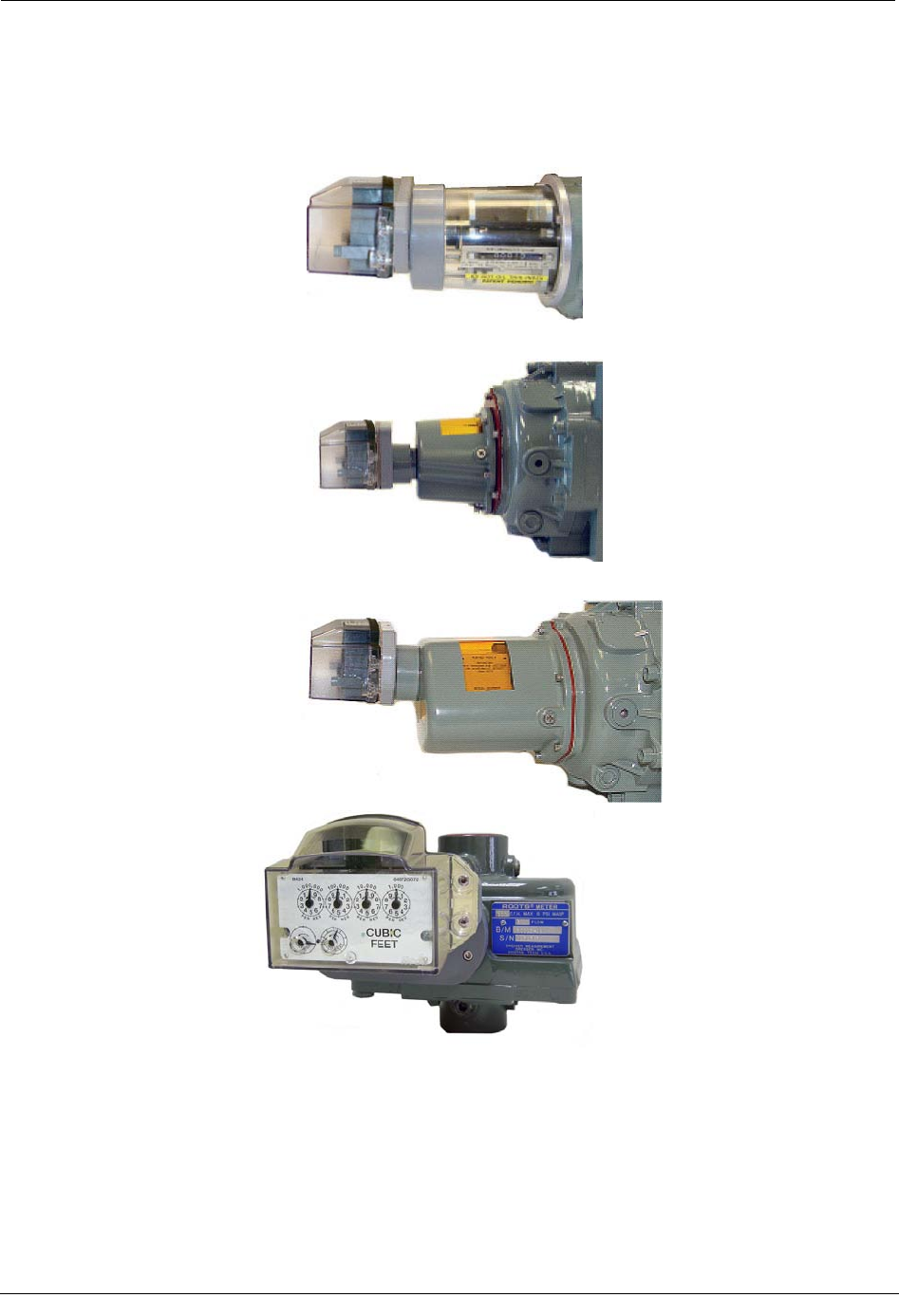

Some diaphragm commercial meters do not require an index assembly mounting plate.
Indexes can be mounted directly to the endpoint.
Removing the Index/ Index Assembly from the Meter
100G Datalogging Installation Guide - Direct Mount 59

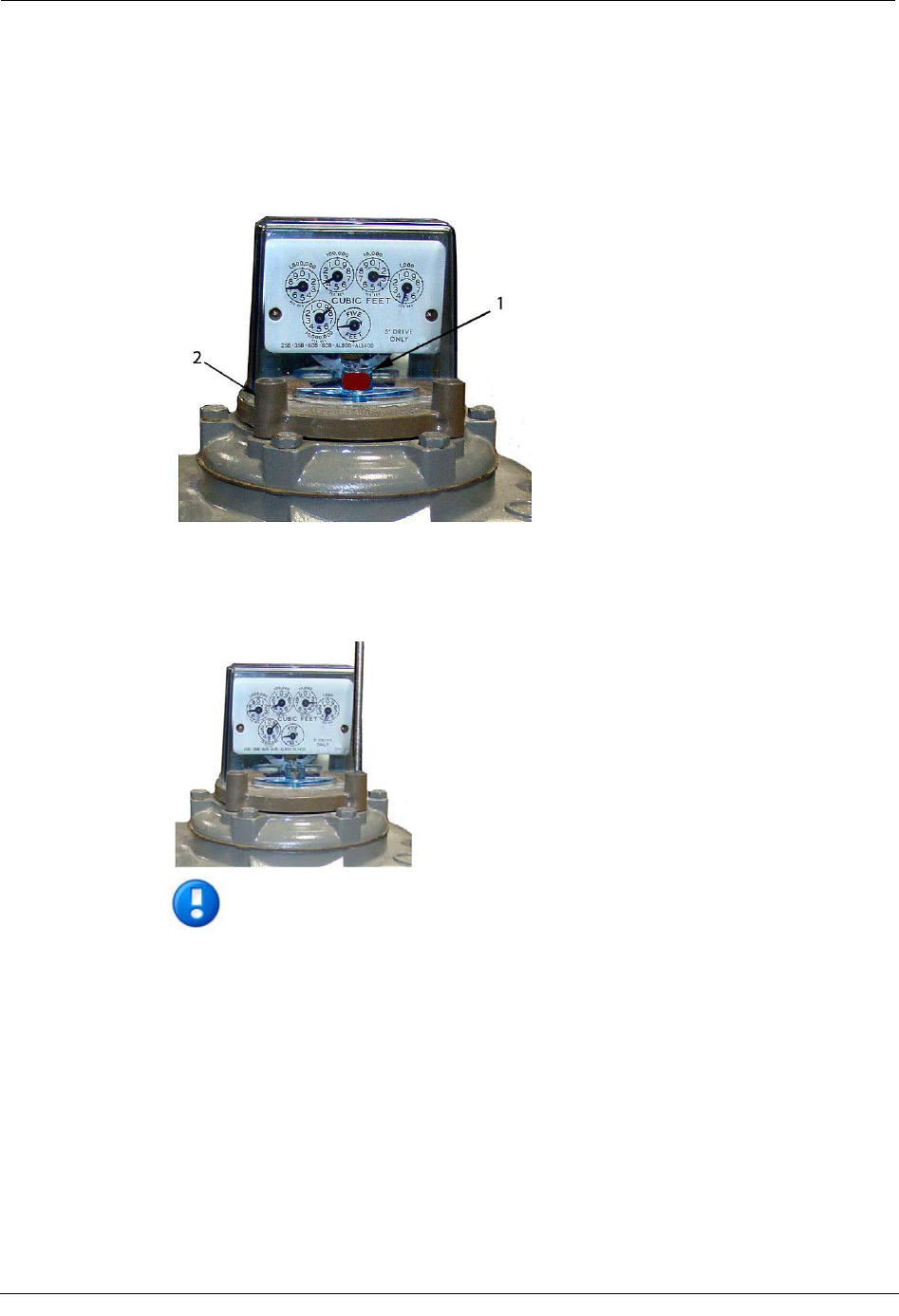

To Remove the Index Assembly
1. Remove any tamper seals (1) (or wire seals) from the index cover and mounting plate
screws (2). Set the index/cover assembly aside. You will re-install it later in these
instructions.

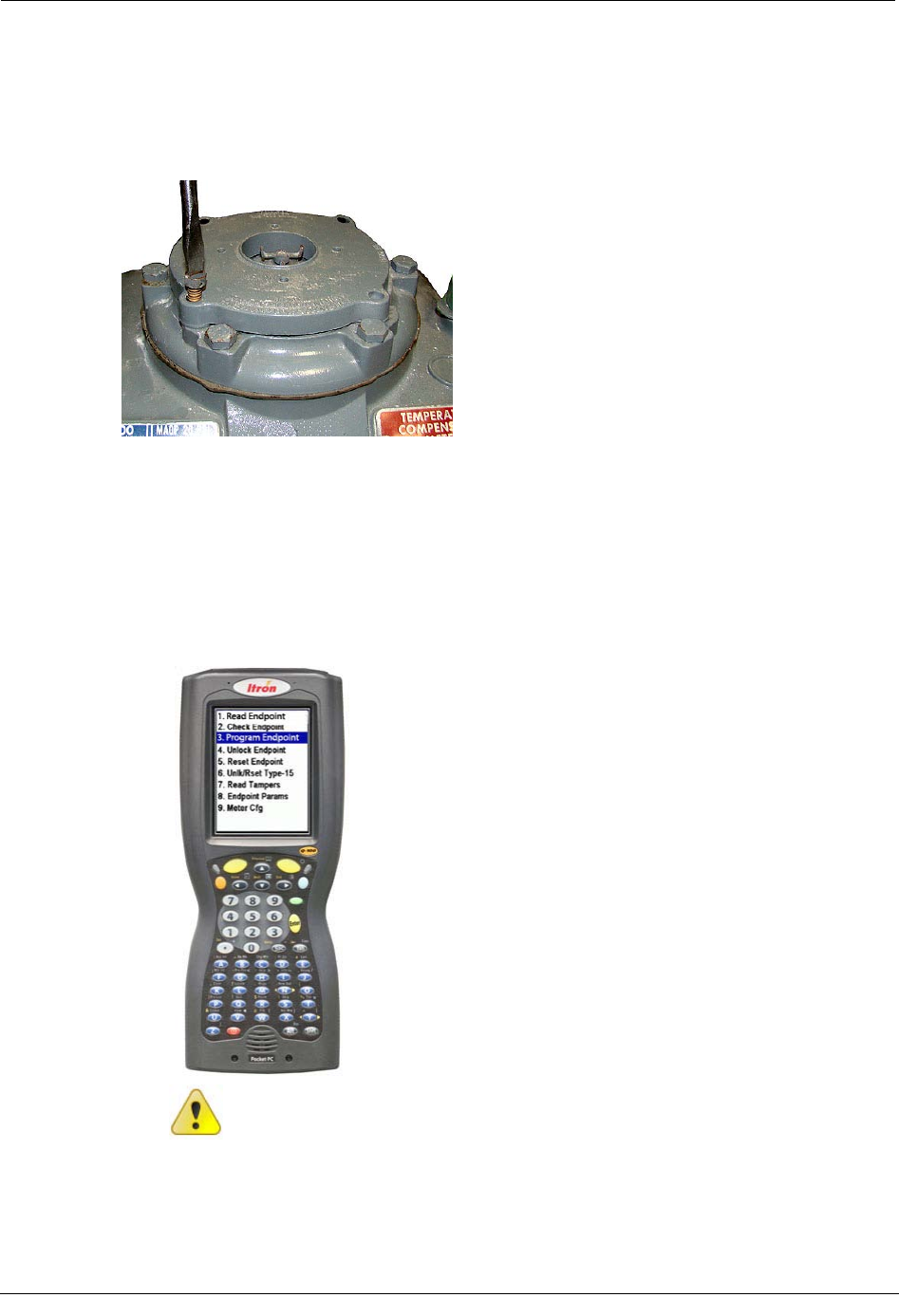

2. Remove the index cover screws from the meter. Verify screws are 1/2" long and are
not corroded. If the screws are the correct length and are not corroded, keep them to
re-install the 100G Datalogging Gas Endpoint assembly later in this procedure. If the
screws are damaged or not the correct length, discard.
Note Properly dispose all unused screws, old index covers, gaskets, tamper seals,
and other leftover materials. Do not leave materials on customer premises.
Chapter 6 Elster American and Itron Actaris Commercial Meter Installation
60 100G Datalogging Installation Guide - Direct Mount

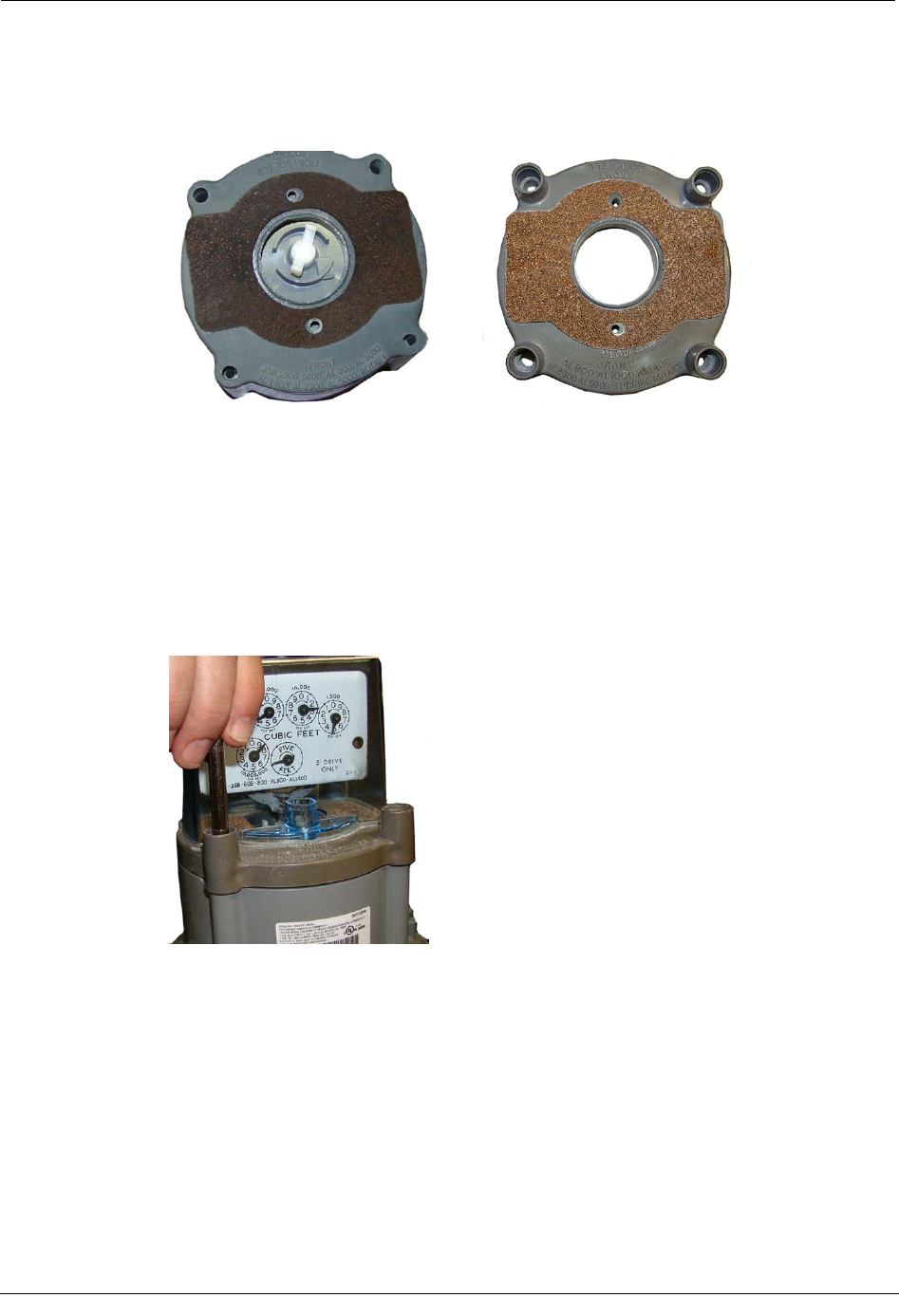

3. Remove the gasket from the index cover mounting plate (if applicable). Set it aside
where it will not be damaged. Remove the tamper seals from the mounting plate.
Remove the mounting plate screws and separate the mounting plate from the meter.
Place the mounting plate where it will not be damaged. You will use it later in this
installation.
Programming the 100G Datalogging Commercial Gas
Endpoint

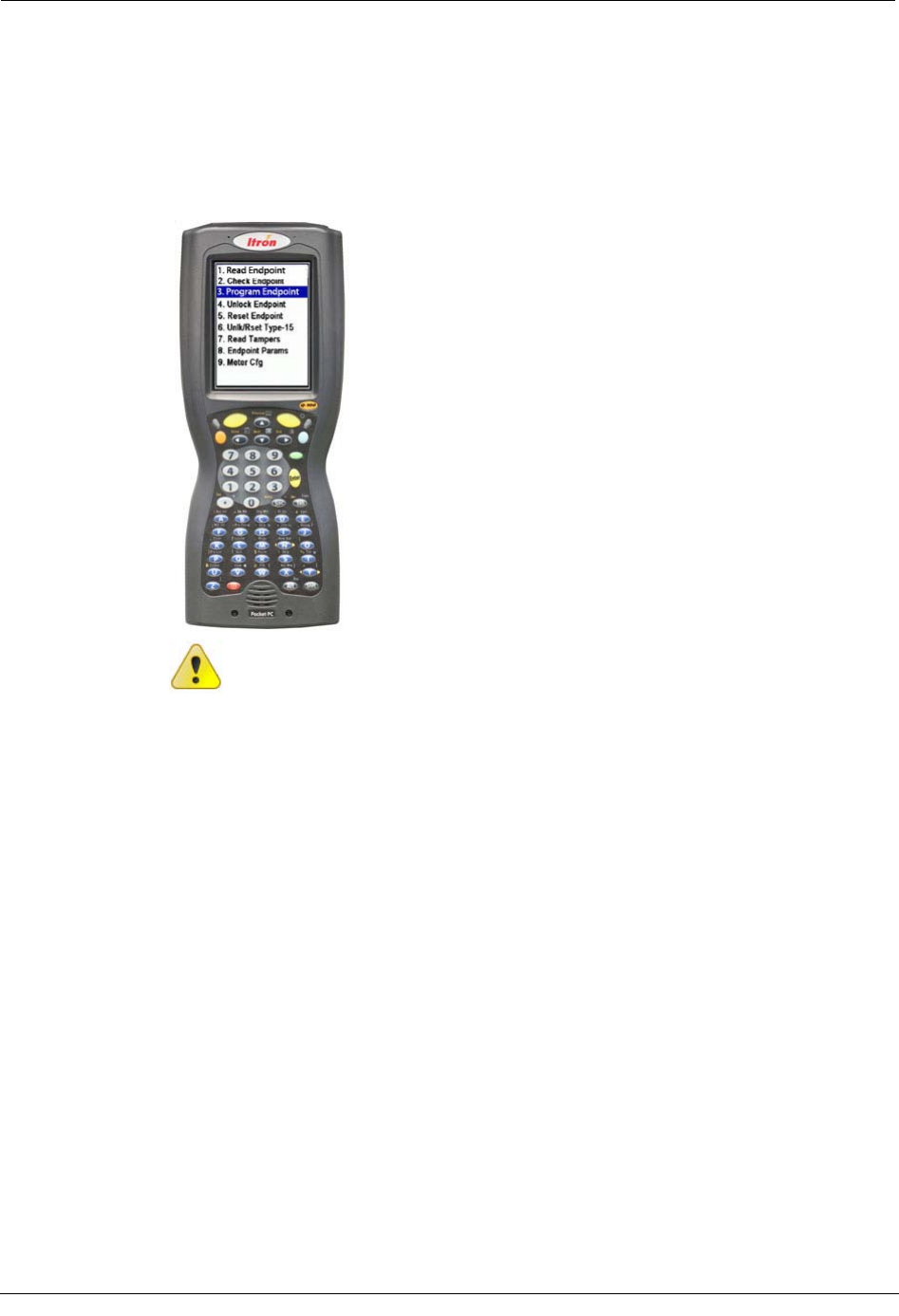

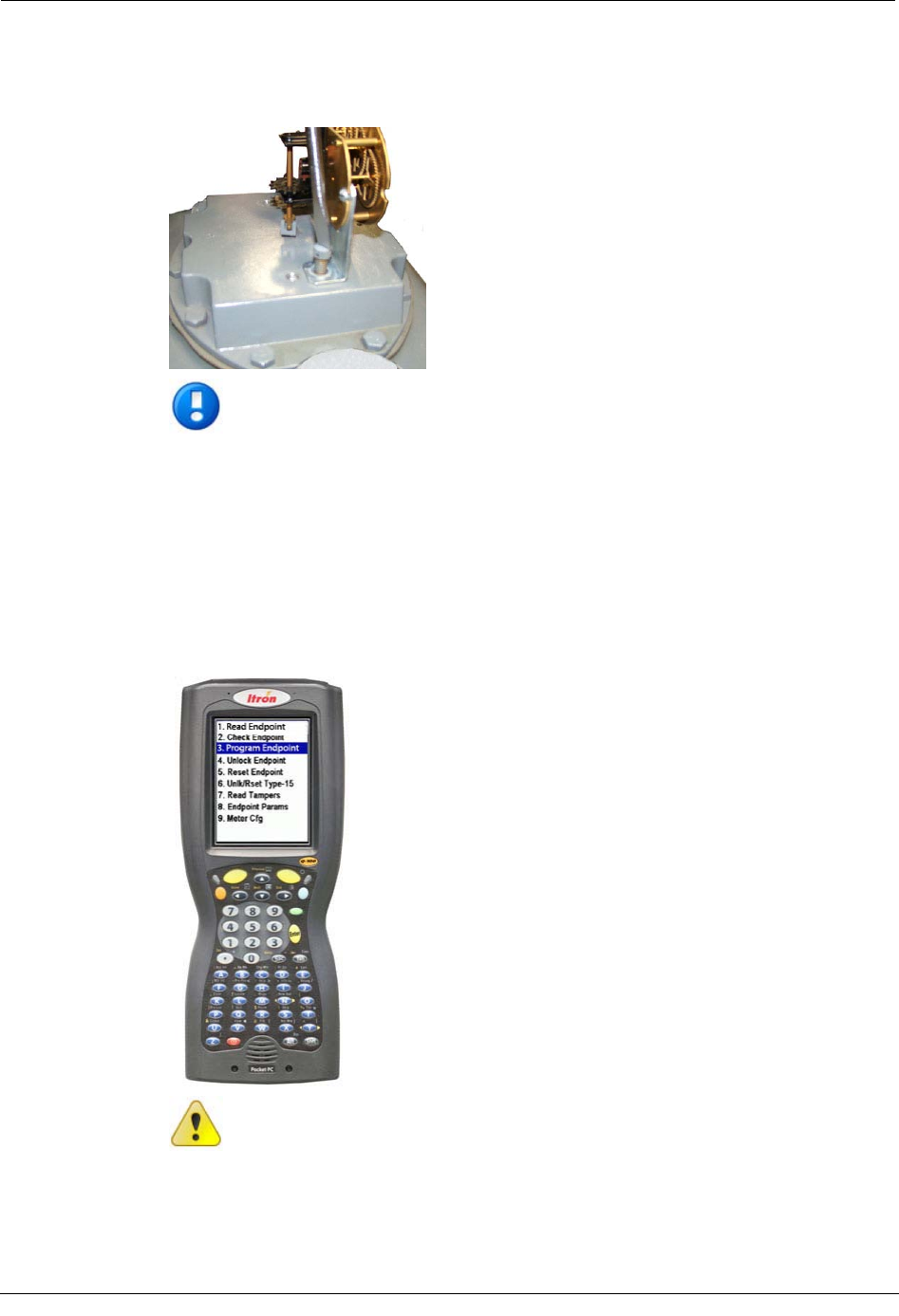

The 100G Datalogging Gas Endpoint must be programmed with the FC200SR
handheld computer loaded with EndPoint-Link® or Point-Link Pro® software version
5.3 or later. See the Endpoint-Link v5.3 (or later) Endpoint Programming Guide
(TDC-0744) for more complete programming information.
Caution The 100G Datalogging Commercial Endpoint must be programmed
before use. Follow the steps in this section to properly program the endpoint.
Progra
mming the 100G Datalogging Commercial Gas Endpoint
100G Datalogging Installation Guide - Direct Mount 61

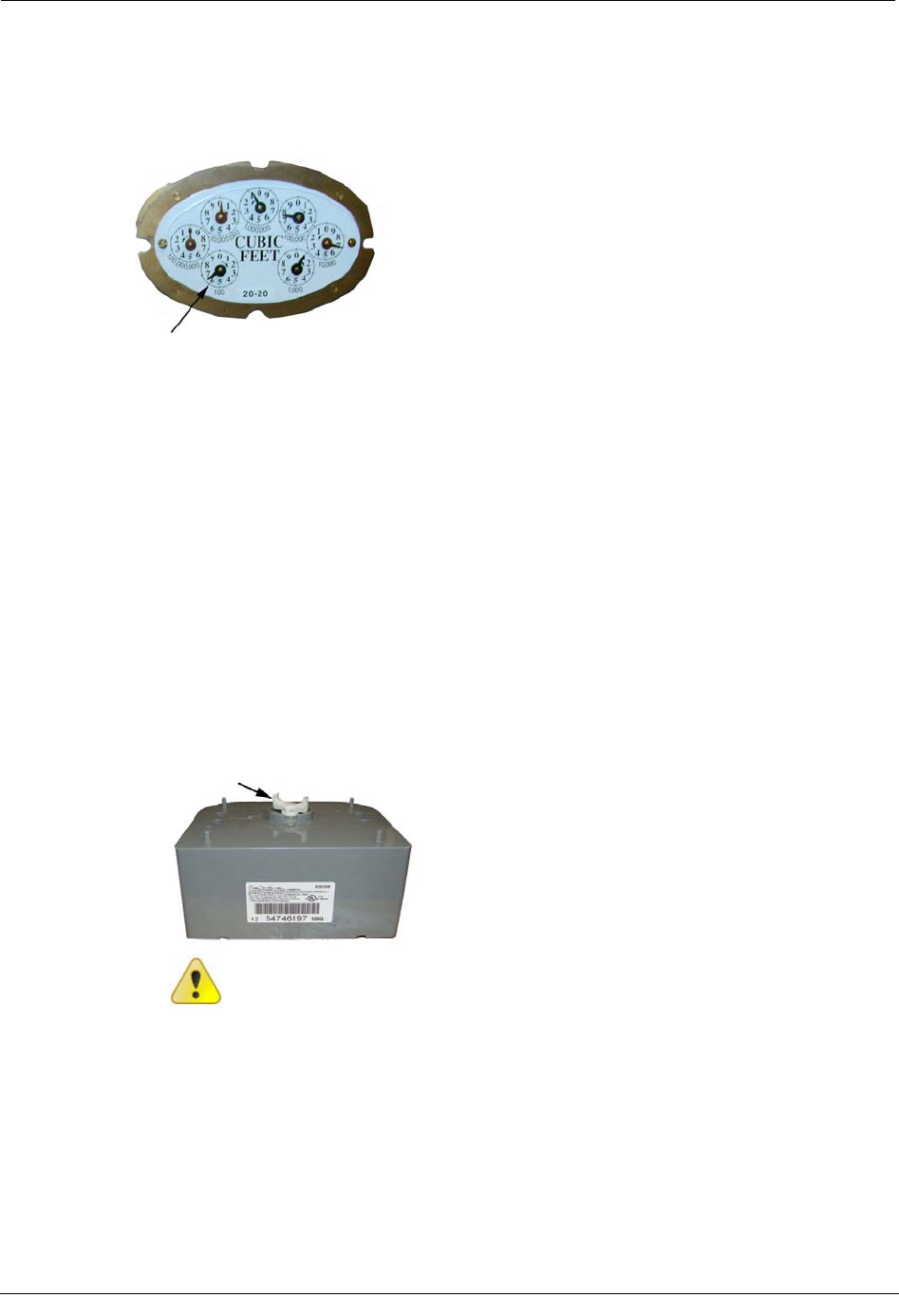

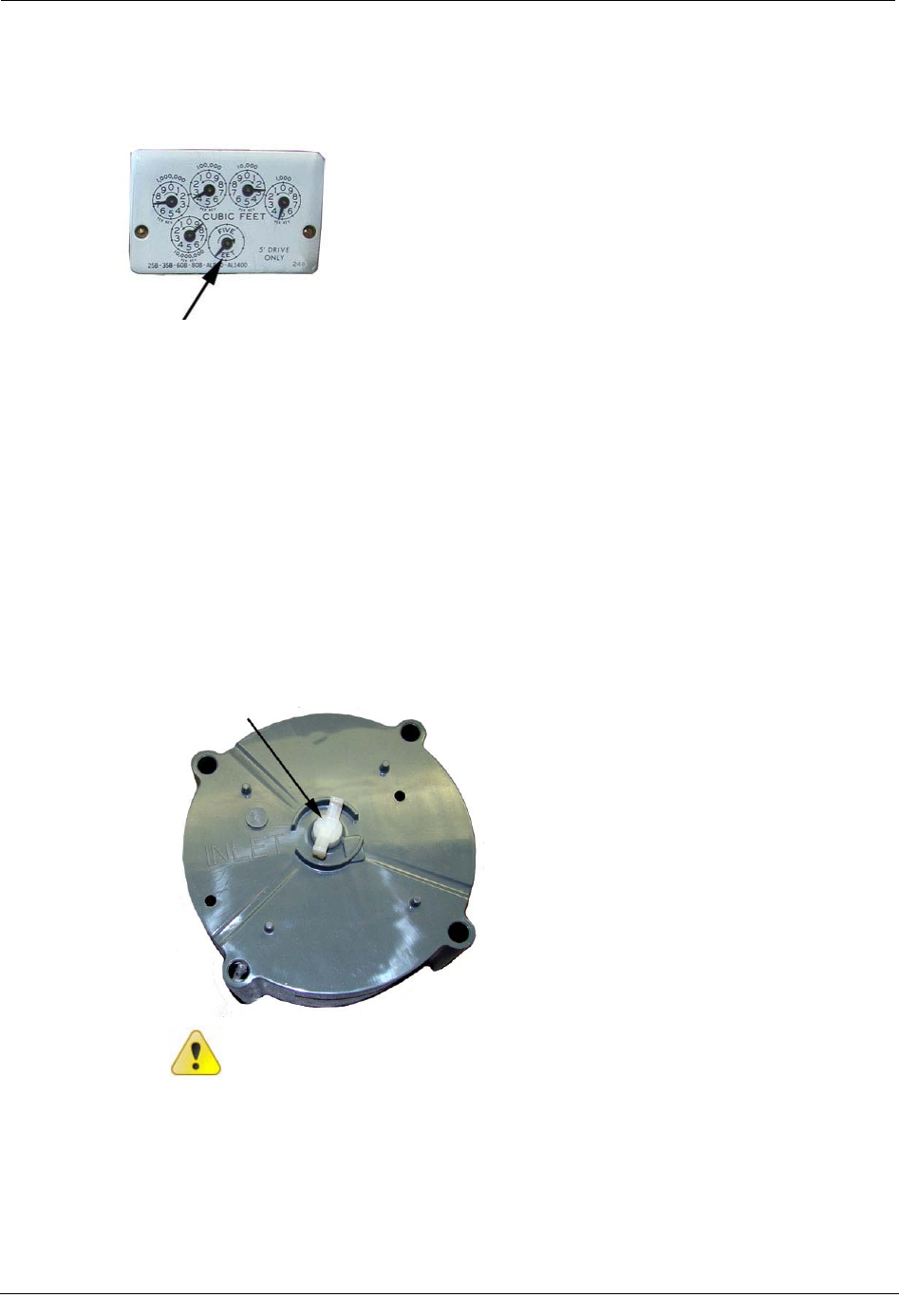

Take note of the index drive rate shown on the index. The endpoint is programmed based on
the drive rate. Elster American commercial meter index drive rates may be 5-, 10- or 100
cubic feet.

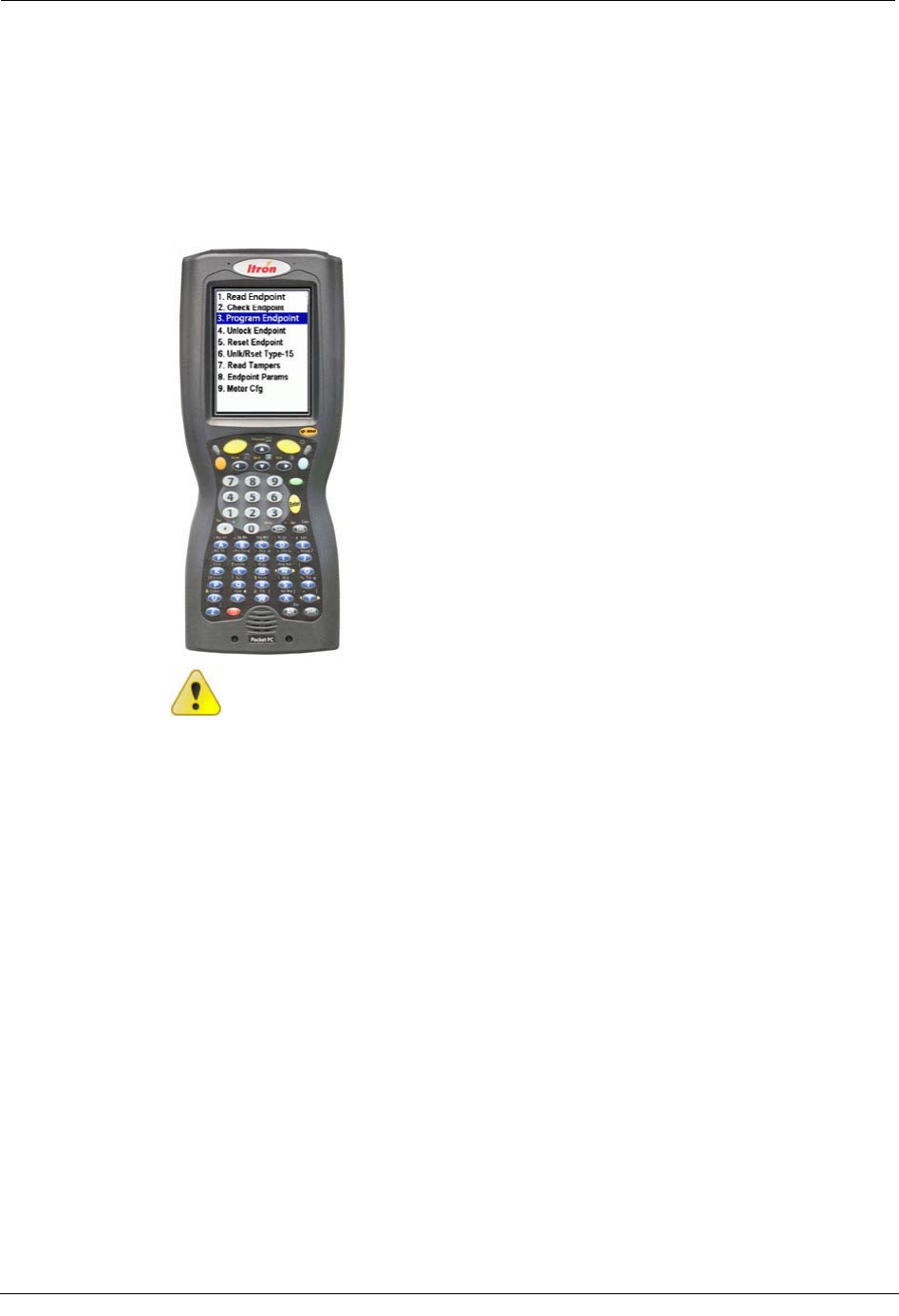

To Program the 100G Datalogging Commercial Gas Endpoint
1. Program the index drive rate into the 100G Datalogging Gas Endpoint using the
FC200SR. For all programming and "Check Endpoint" operations, hold the FC200SR
as close to vertical as possible. For best success, keep the FC200SR within 6 feet of
the target endpoint. Verify you have the correct programming mode (Fixed Network
Mode, Mobile/Handheld Mode, or Hard to Read Mobile/Handheld Mode) for your
application. Programming parameters are based on the mode defined by your system
administrator.
During programming, the 100G Datalogging Gas Endpoint is set to the nearest 100
cubic feet; the last two digits (tens and units) are programmed as zeros (0). After
programming is complete, the endpoint assembly will read to the nearest cubic foot.
2. Slowly turn the endpoint's drive wriggler two turns in the direction shown on the
index drive rate. This verifies the endpoint is counting properly.
Caution Do not turn the drive wriggler faster than one turn per second.
Chapter 6 Elster American and Itron Actaris Commercial Meter Installation
62 100G Datalogging Installation Guide - Direct Mount
3. Read the 100G Datalogging Gas Endpoint using the FC200SR.
• If the read result is higher than the number programmed in Step 1, the 100G
Datalogging Gas Endpoint is counting correctly.
• If the read result is not higher than the number programmed in Step 1, replace
the 100G Datalogging Gas Endpoint.
To Attach the 100G Datalogging Commercial Gas Endpoint to the Elster
American Commercial Meter

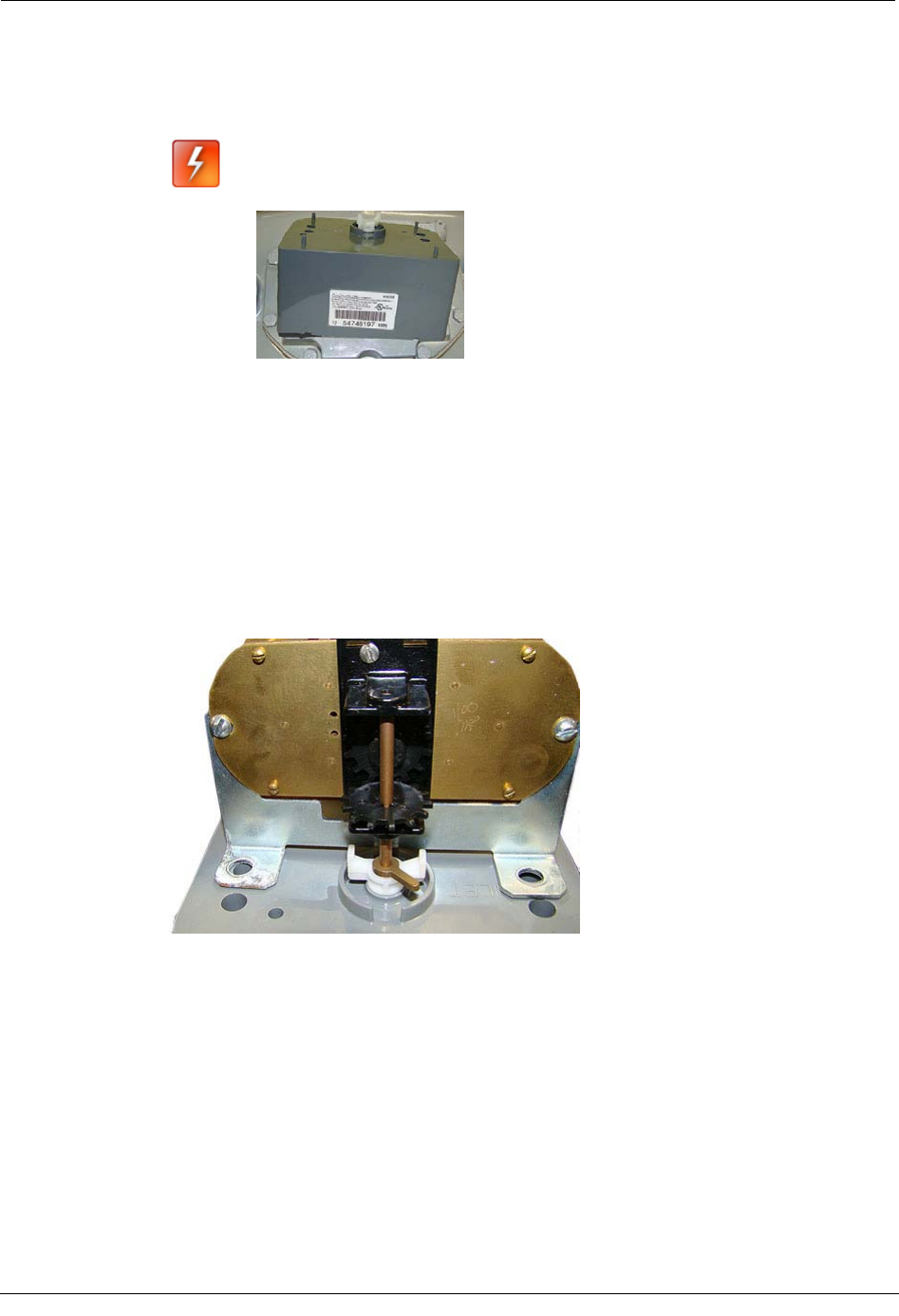

Warning Handle the 100G Datalogging Commercial Gas Endpoint carefully so
the metal passive radiator antenna is not damaged.

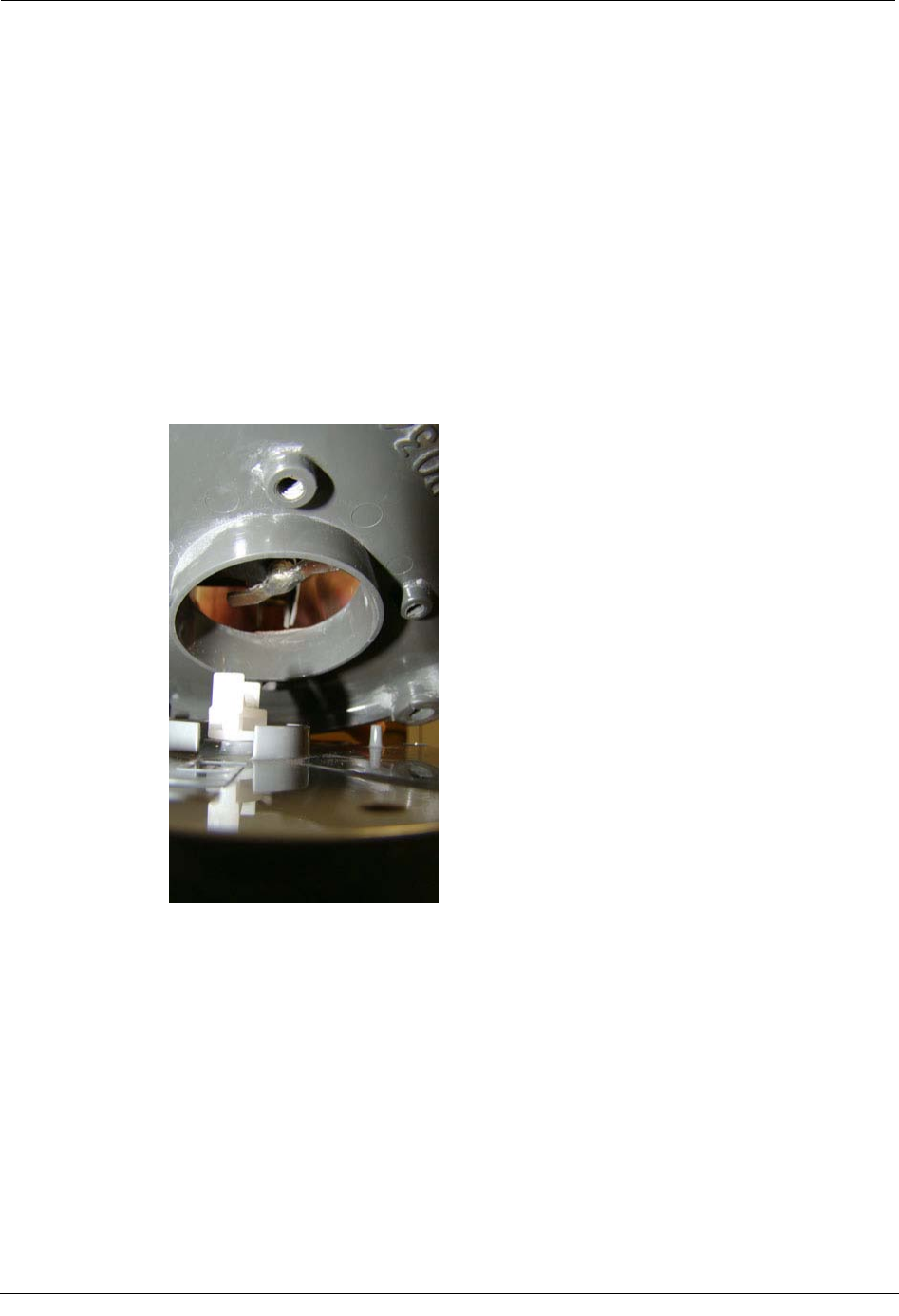

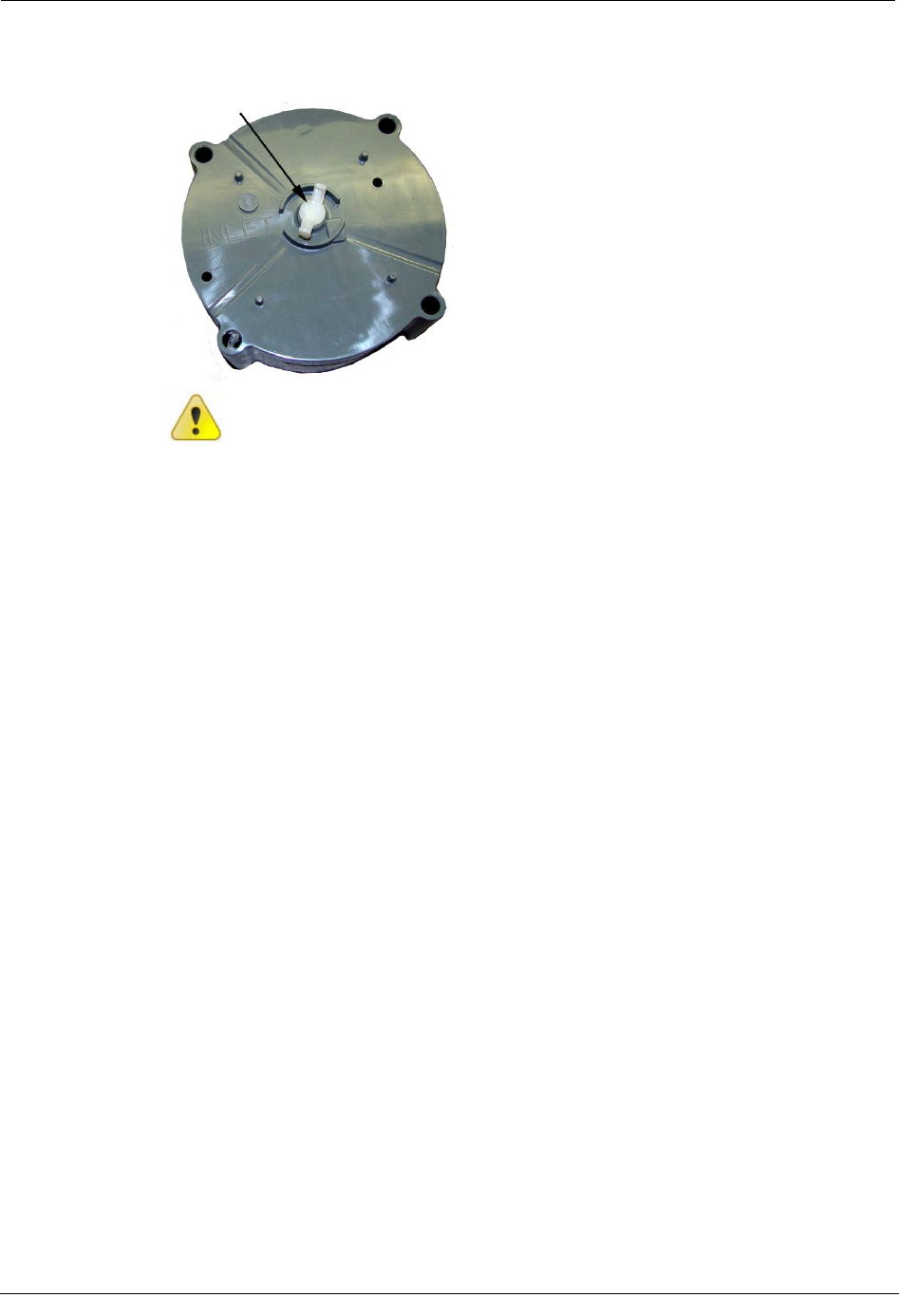

1. Tilt the 100G Datalogging Commercial Gas Endpoint at an angle and turn the
wriggler until the drive notches line up with the meter wriggler's drive teeth.
Programming the 100G Datalogging Commercial Gas Endpoint
100G Datalogging Installation Guide - Direct Mount 63

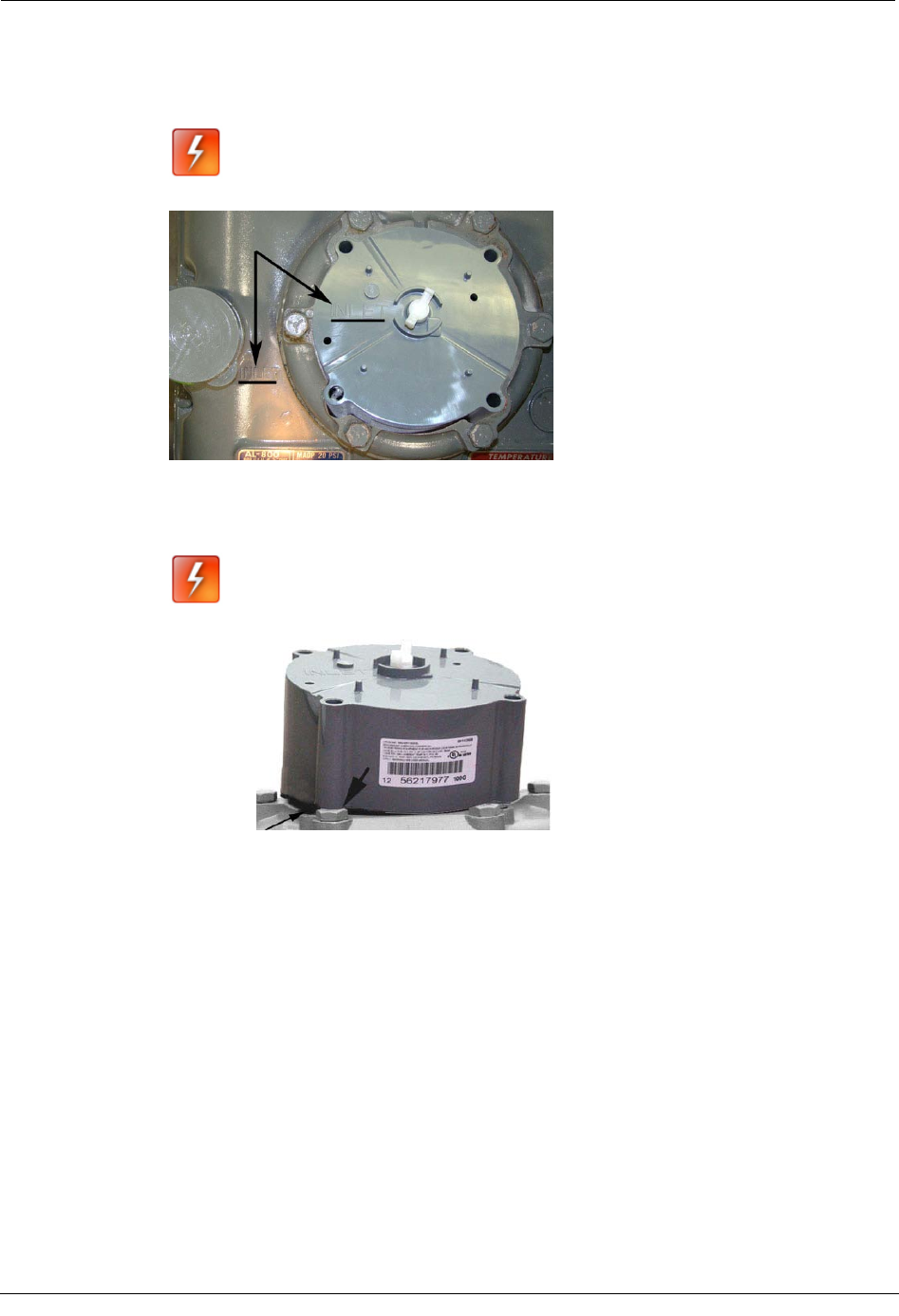

2. Align the endpoint so the screw holes line up with the meter's top screw holes.
Carefully lower the endpoint on the meter with the wriggler notches lining up with the
meter's wriggler teeth.
Warning The INLET label on the 100G Datalogging Commercial Gas Endpoint
must line up with the INLET label on the meter case.

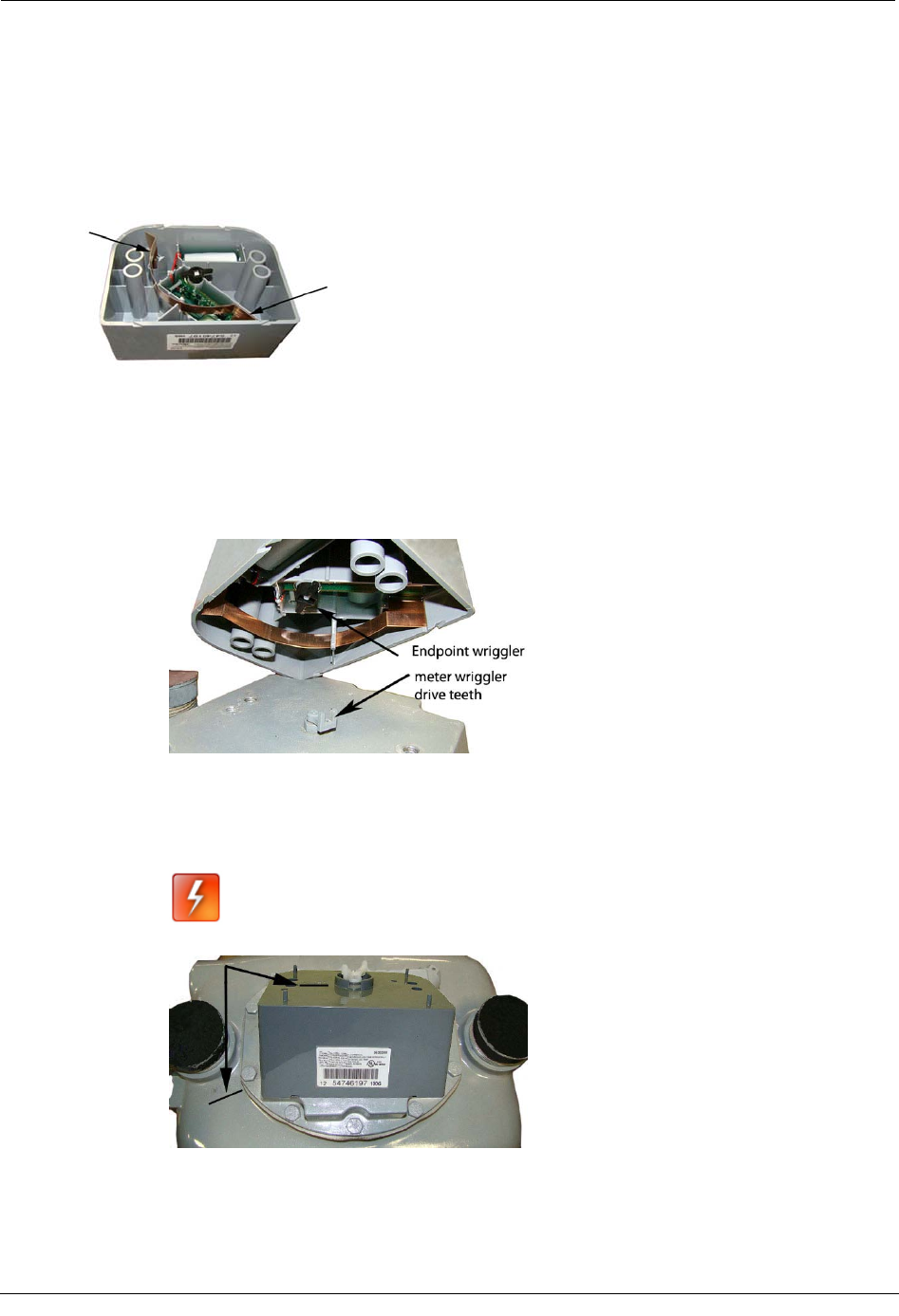

3. Verify the bottom of the endpoint and the top of the meter meet. The endpoint housing
should rest on top of the meter without gaps.
Warning Do not press down on the 100G Datalogging Commercial Gas
Endpoint if a gap exists between the endpoint and the meter.
A gap may be caused by misalignment of the endpoint wriggler and meter
wriggler's drive teeth. Pushing down on the endpoint could damage the
endpoint wriggler or meter drive teeth. To eliminate a gap, slowly turn the
endpoint's upper wriggler back and forth until the endpoint aligns with the
meter's drive teeth.
Chapter 6 Elster American and Itron Actaris Commercial Meter Installation
64 100G Datalogging Installation Guide - Direct Mount

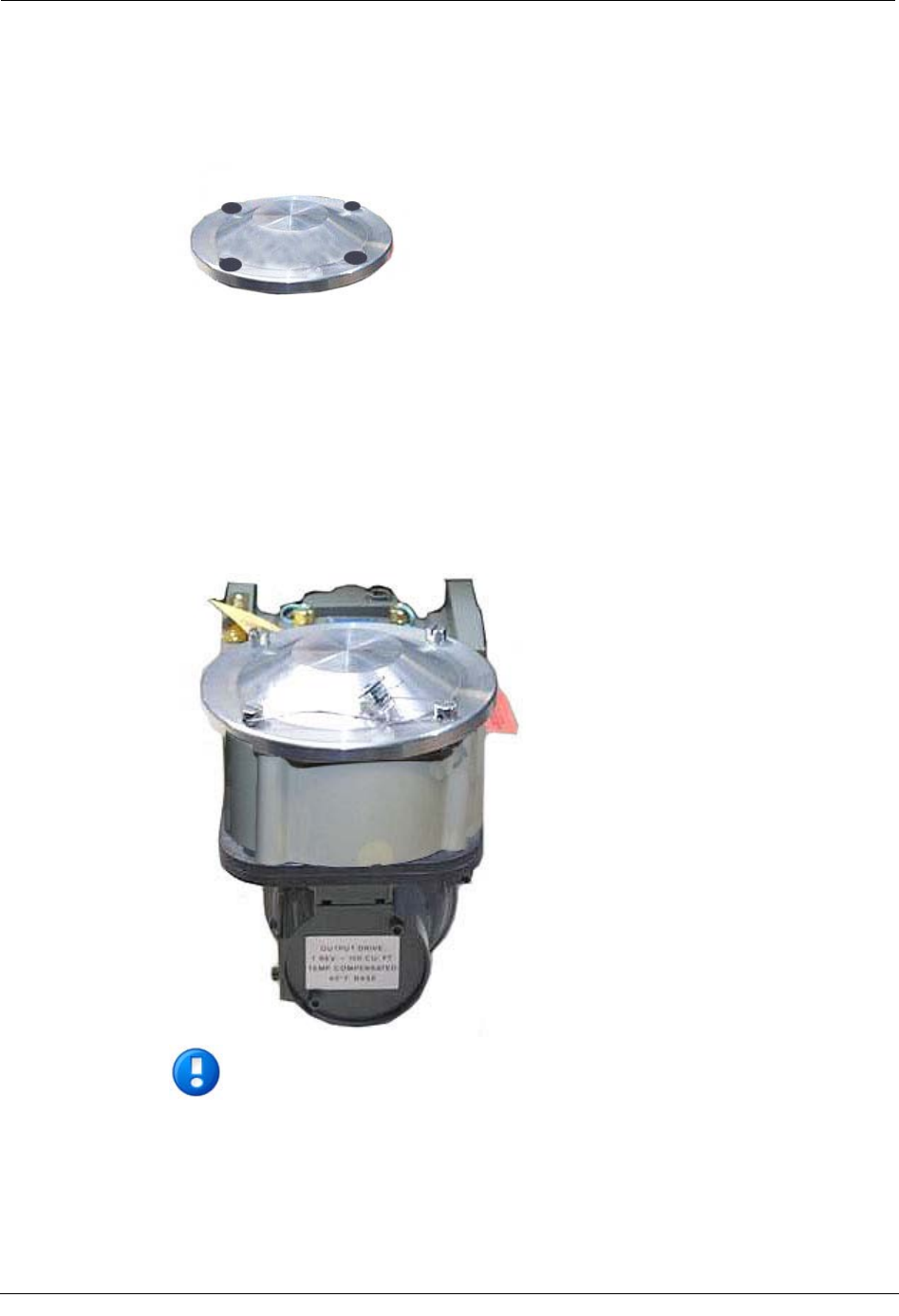

4. Place the index cover mounting plate on the commercial 100G Datalogging Gas
Endpoint so the printing "FLOW FRONT AL800 AL1000 AL1400 AL2300 AL5000
TURBINE ROTARY" stamped on the plate is toward the front of the meter. (A gap
between the mounting plate and meter at the screw locations is normal.)
5. Install four mounting screws (SCR-0062-001 - see Installation Prerequisites on page 8
for screw information) and tighten them in an alternating diagonal sequence. For
metal mounting plates with a flat screw surface, use endpoint mounting screws with
internal tooth washers. For plastic mounting plates with tamper screw cups, use
endpoint mounting screws (AS-568A-011, 5/16" ID x 7/16" OD o-rings may be used
for a maximum moisture seal). Turn each screw 1/4 to 1/2 turn after it contacts the
mounting plate. If you have access to a torque driver, tighten mounting screws to 72
inch-pounds.
6. Place new tamper seals over screws (if mounting plate has tamper seal cups) and press
into place with an 11/32" nut driver or similar blunt tool.
Programming the 100G Datalogging Commercial Gas Endpoint
100G Datalogging Installation Guide - Direct Mount 65

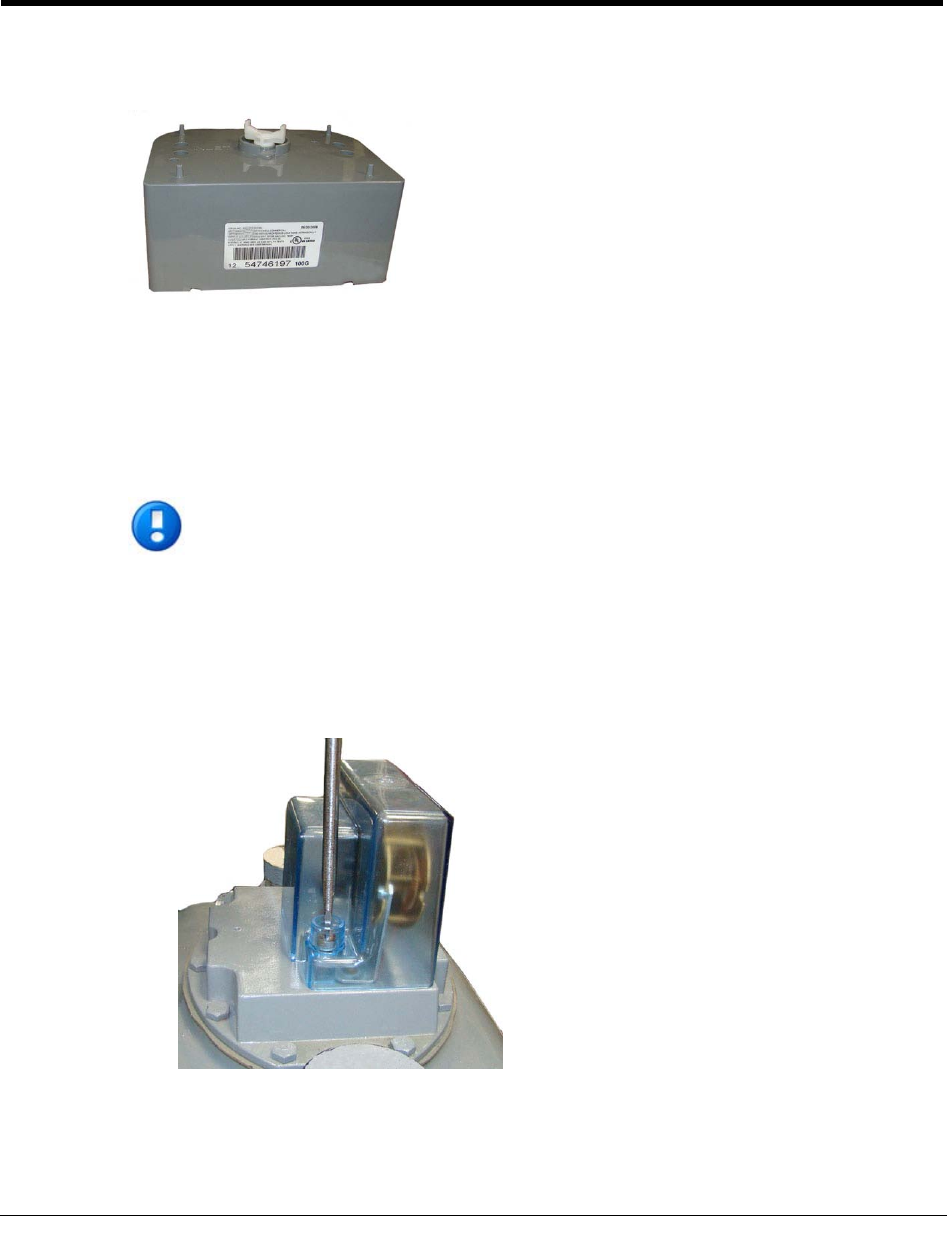

To Attach the Index/Cover Assembly on the Elster American Commercial
Meter
1. Place the mounting plate gasket (previously removed) on the index cover mounting
plate. Align the gasket and index cover mounting plate screw holes.
2. Place the index/cover assembly on the index mounting plate. (The index must face the
direction it faced before removal.) Attach the index/cover assembly on the mounting
plate using original index screws. Insert one screw and tighten two turns to hold it in
place on the mounting plate. Insert the second mounting screw and tighten until
secure. Completely tighten the first mounting screw. Each index cover mounting
screw must be tightened evenly.

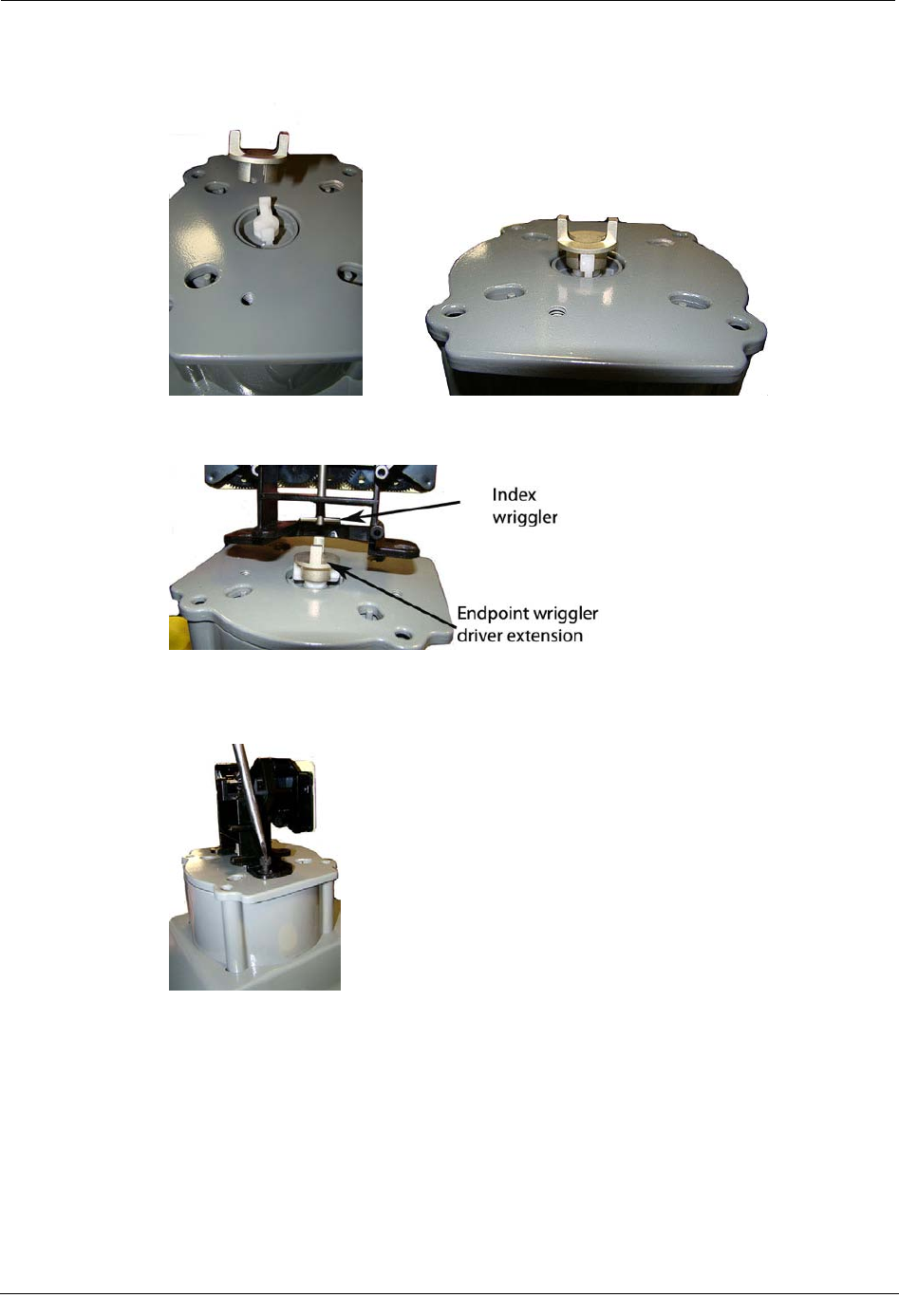

3. Turn the commercial 100G Datalogging Gas Endpoint wriggler so it intersects with
the index wriggler. Carefully lower the index-cover mounting plate assembly onto the
100G Datalogging Gas Endpoint.
4. Install four endpoint mounting screws (SCR-0062-001, see Installation Prerequisites
on page 8). Tighten screws in an alternating diagonal pattern.
• Insert the first screw and tighten enough to hold index assembly in place.
• Insert the second screw diagonal to first screw and tighten two to three turns.
• Insert the third screw, tightening two or three turns.
• Insert the fourth screw and tighten until secure.
• Tighten the first, 2nd, and third screw until secure. Turn each screw 1/4 to 1/2
turn after it contacts the cover.
Each endpoint mounting screw must be tightened evenly. If you have access to a
torque-driver, tighten mounting screws to 72-inch pounds.
Chapter 6 Elster American and Itron Actaris Commercial Meter Installation
66 100G Datalogging Installation Guide - Direct Mount

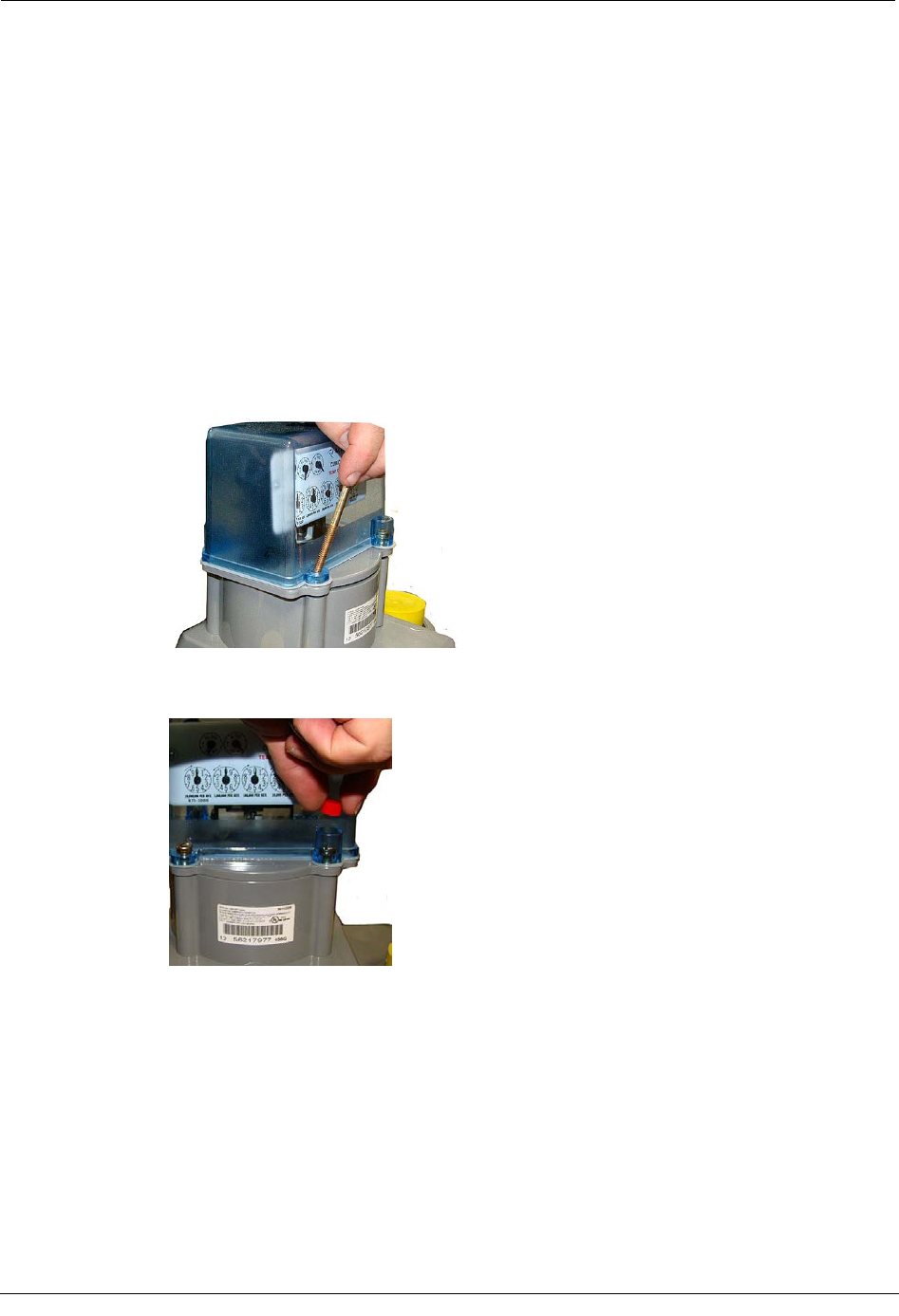

5. Install new tamper or wire seals. If tamper seals are installed, press into place with an
11/32 nut driver or similar blunt tool. Crimp the seal if utility-approved wire seals are
installed.
This completes installation of the 100G Datalogging Commercial Gas Endpoint on an Elster
American Commercial meter.
Installing the 100G Datalogging Commercial Gas Endpoint on an Itron/Actaris Commercial Meter
100G Datalogging Installation Guide - Direct Mount 67
Installing the 100G Datalogging Commercial Gas Endpoint on
an Itron/Actaris Commercial Meter
This section provides instructions for installing the 100G Datalogging Commercial Gas
Endpoint on Itron/Actaris 675A, 800A, and 1000A commercial meters. Installation requires
an Itron/Actaris adapter kit from Itron/Actaris.

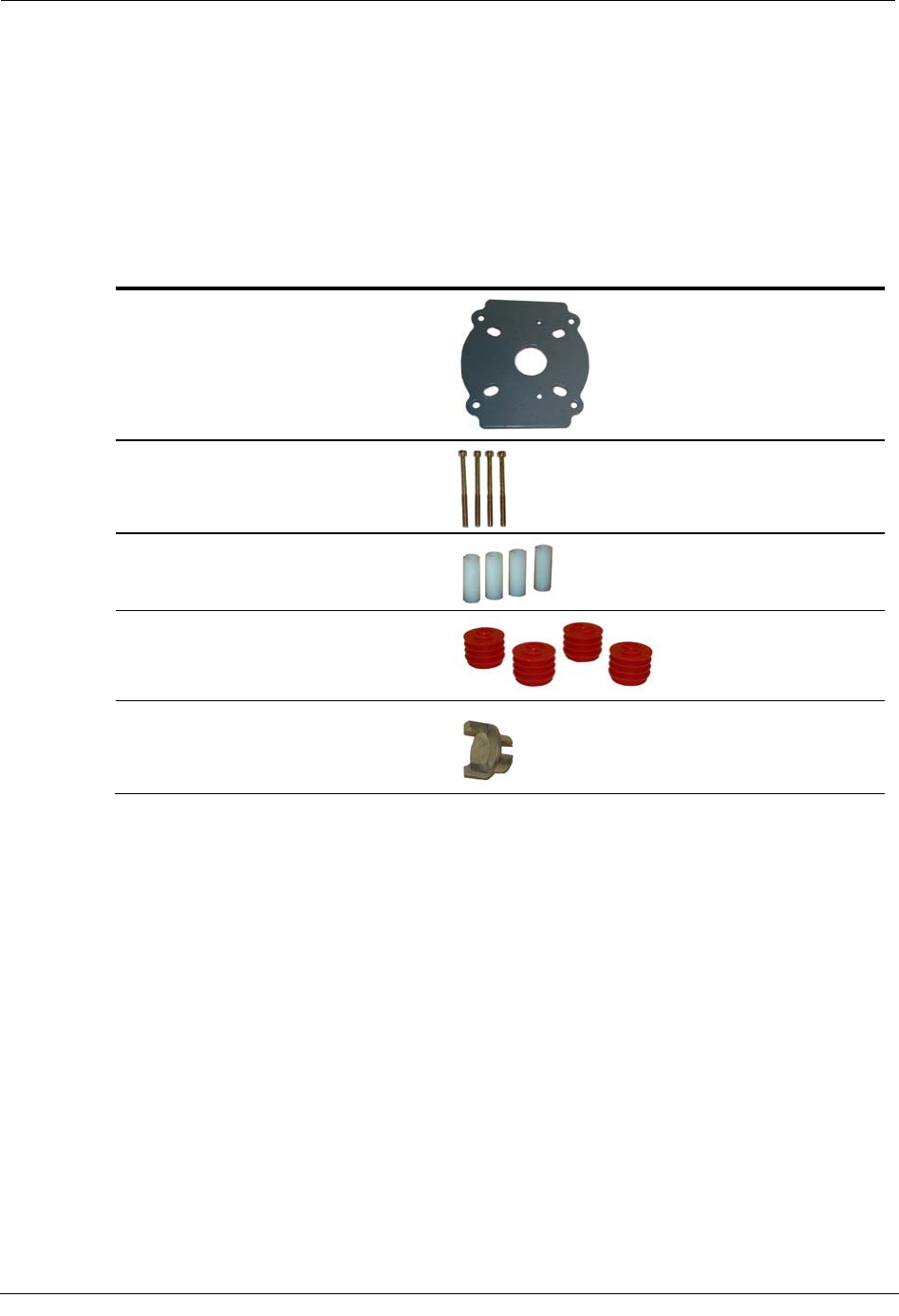

Itron/Actaris Adapter Kit (Part Number 80005901-01)
Adapter plate
Endpoint mounting screws (4)
Screw bushings (4)
Tamper seals
Extension driver
Before You Begin
Follow To Remove the Index/Index Assembly from the Meter on page 57 to prepare the
Itron-Actaris meter for installation. Program the Commercial 100G Datalogging Gas
Endpoint (see Programming the 100G Datalogging Gas Endpoint Assembly on page 60)
prior to installation.
Chapter 6 Elster American and Itron Actaris Commercial Meter Installation
68 100G Datalogging Installation Guide - Direct Mount

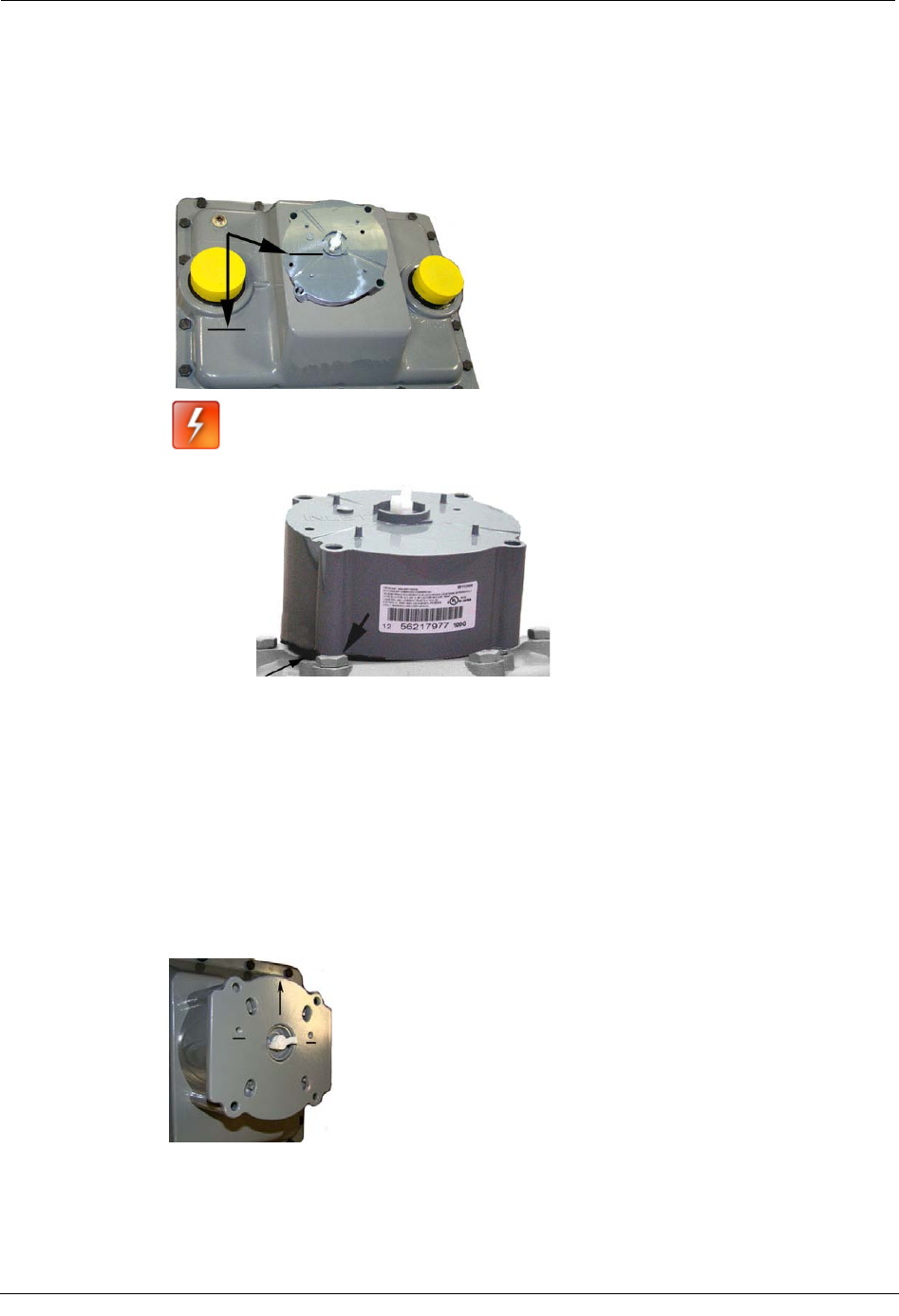

To Attach the 100G Datalogging Commercial Gas Endpoint to the Meter

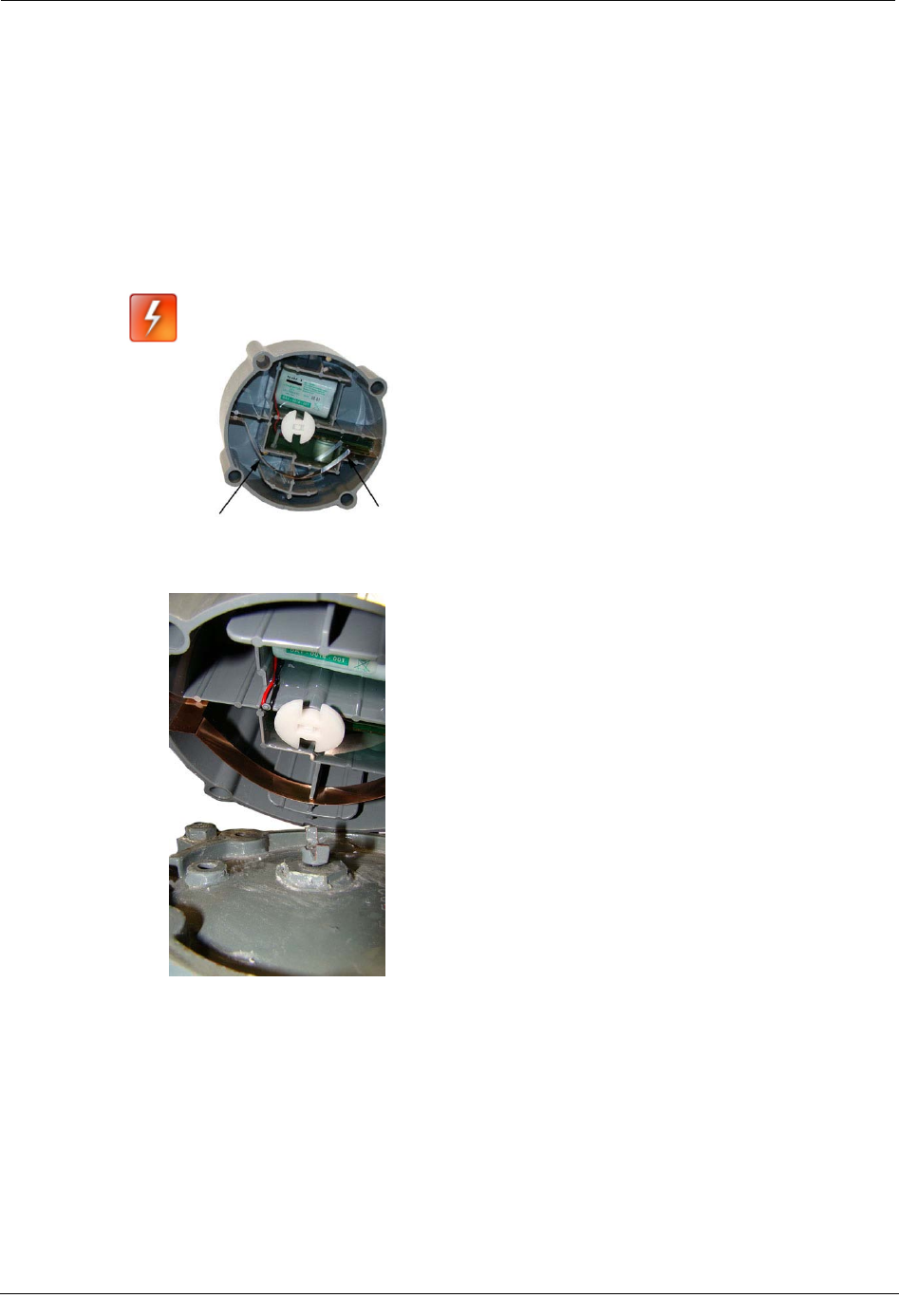

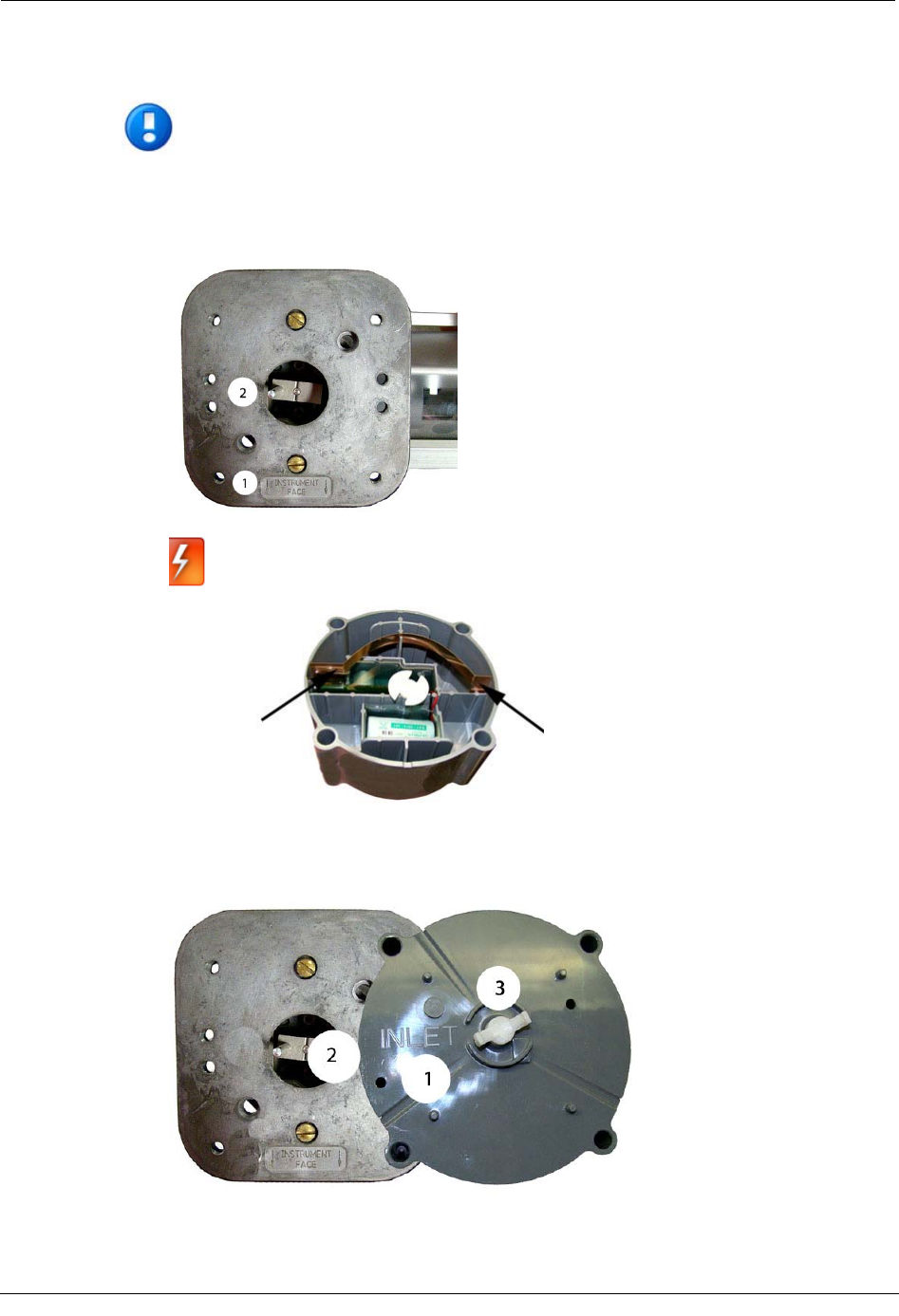

1. Turn the 100G Datalogging Commercial Gas Endpoint over and place the four
mounting screw bushings into the screw holes on the endpoint.

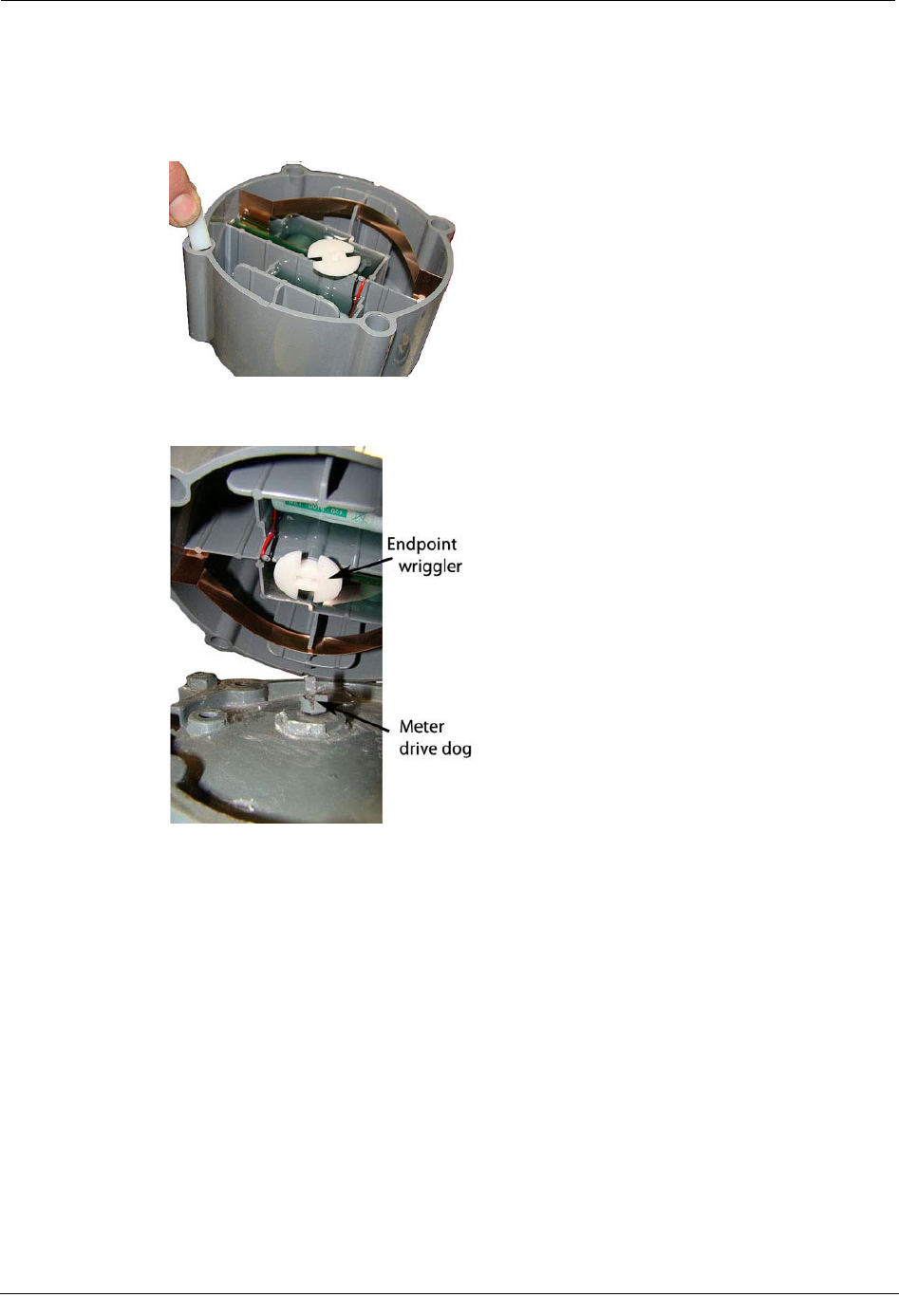

2. Turn the 100G Datalogging Commercial Gas Endpoint on its side and align the
wriggler with the Itron-Actaris Commercial meter's drive dog.
Installing the 100G Datalogging Commercial Gas Endpoint on an Itron/Actaris Commercial Meter
100G Datalogging Installation Guide - Direct Mount 69
3. Inlet lettering on the 100G Datalogging Commercial Gas Endpoint must line up with
Inlet lettering on the meter. Slowly lower the endpoint on the Itron-Actaris
Commercial meter aligning the drive dog and wriggler. The endpoint housing should
rest on the top of the meter without gaps.
Warning Do not press down on the 100G Datalogging Gas Endpoint if a gap
exists between the endpoint and the meter.
A gap may be caused by misalignment of the endpoint wriggler and meter
wriggler's drive teeth. Pushing down on the endpoint could damage the
endpoint wriggler or meter drive teeth. To eliminate a gap, remove the 100G
Datalogging Gas Endpoint and repeat steps 2 and 3.
To Attach the Index on the Itron-Actaris Commercial Meter
1. Place the Itron-Actaris adapter plate on the 100G Datalogging Commercial Gas
Endpoint with the two small screw holes in the adapter plate to the back of the meter.
Meter Front
Chapter 6 Elster American and Itron Actaris Commercial Meter Installation
70 100G Datalogging Installation Guide - Direct Mount
2. Place the extension driver on the 100G Datalogging Commercial Gas Endpoint
wriggler.
3. Align the index wriggler with the commercial 100G Datalogging Commercial Gas
Endpoint wriggler driver extension.
4. Install the two index mounting screws. Tighten the first screw two or three turns.
Install second screw and tighten to secure. Tighten the first screw to a snug fit. Each
index mounting screw must be tightened evenly.
Installing the 100G Datalogging Commercial Gas Endpoint on an
Itron/Actaris Commercial Meter
100G Datalogging Installation Guide - Direct Mount 71
5. Place the index cover over the index with the clear side covering the index dials for
easy reading. Align the holes in the index cover with the endpoint adapter plate
mounting holes. Secure with the four mounting screws from the adapter kit. Tighten
the mounting screws in a diagonal alternating pattern.
• Insert the first screw and tighten enough to hold the index in place.
• Insert the second screw and tighten two to three turns.
• Insert the third mounting screw and tighten two to three turns.
• Insert the fourth mounting screw and tighten.
Tighten the first, third and second screw. Turn each screw 1/4 to 1/2 turn after the
screw contacts the index cover. Each index mounting screw must be tightened evenly.
If you have access to a torque-driver, tighten mounting screws to 72-inch pounds.
6. Insert tamper seals in the tamper seal cups on the index cover and press into place
with an 11/32 nut driver or similar blunt tool.
Chapter 6 Elster American and Itron Actaris Commercial Meter Installation
72 100G Datalogging Installation Guide - Direct Mount
This completes installation of the commercial 100G Datalogging Gas Endpoint on the Itron-
Actaris Commercial meter.
100G Datalogging Installation Guide - Direct Mount 73
This chapter provides instructions to install the 100G Datalogging Commercial Gas
Endpoint on a Commercial Sensus/Rockwell diaphragm meter.
Removing the Index/ Index Assembly from the Meter
100G Datalogging Commercial Gas Endpoints can be mounted on Sensus/Rockwell
Commercial Meters in various configurations. These instructions show the index assembly
mounted without a mounting plate.
Note Sensus/Rockwell diaphragm commercial meters do not require an index
assembly mounting plate. Indexes can be mounted directly to the endpoint.
To Remove the Index/Index Assembly from the Meter
1. Remove any tamper seals (or wire seals) from the index cover and remove the index
cover mounting screws. You will re-install it later in these instructions.
C
HAPTER
7
Sensus/Rockwell Commercial Meter Installation
Chapter 7 Sensus/Rockwell Commercial Meter Installation
74 100G Datalogging Installation Guide - Direct Mount
2. Remove the index screws from the meter. Set the index cover aside where it will not
be damaged or fill with dirt, rain or snow. You will re-install the index later in this
procedure.
Note Properly dispose all unused screws, old index covers, gaskets, tamper seals,
and other leftover materials. Do not leave materials on customer premises.
Programming the 100G Datalogging Gas Endpoint
The 100G Datalogging Commercial Endpoint must be programmed with the
FC200SR handheld computer loaded with EndPoint-Link® or Point-Link Pro®
software version 5.3 or later. See the Endpoint-Link v5.3 (or later) Endpoint
Programming Guide (TDC-0744) for more complete programming information.
Caution The 100G Datalogging Commercial Sensus/Rockwell Endpoint must be
programmed before use. Follow the steps in this section to properly program the
endpoint.
Programming the 100G Data
logging Gas Endpoint
100G Datalogging Installation Guide - Direct Mount 75
Take note of the index drive rate shown on the index. The endpoint is programmed based on
the drive rate. Sensus/Rockwell commercial meter index drive rates may be 5-, 10- or 100-
cubic feet. The seven-dial index shown is a 100-cubic feet drive rate.
To Program the 100G Datalogging Commercial Gas Endpoint
1. Program the index drive rate into the commercial endpoint using the FC200SR. For all
programming and "Check Endpoint" operations, hold the FC200SR as close to vertical
as possible. For best success, keep the FC200SR within 6 feet of the target endpoint.
Verify you have the correct programming mode (Fixed Network Mode,
Mobile/Handheld Mode, or Hard to Read Mobile/Handheld Mode) for your
application. Programming parameters are based on the mode defined by your system
administrator.
During programming, the 100G Datalogging Gas Endpoint is set to the nearest 100
cubic feet; the last two digits (tens and units) are programmed as zeros (0). After
programming is complete, the endpoint assembly will read to the nearest cubic foot.
2. Slowly turn the endpoint's drive wriggler two turns in the direction shown on the
index drive rate. This verifies the endpoint is counting properly.
Caution Do not turn the drive wriggler faster than one turn per second.
3. Read the 100G Datalogging Gas Endpoint using the FC200SR.
• If the read result is higher than the number programmed in Step 1, the 100G
Datalogging Gas Endpoint is counting correctly.
• If the read result is not higher than the number programmed in Step 1, replace
the 100G Datalogging Gas Endpoint.
Chapter 7 Sensus/Rockwell Commercial Meter Installation
76 100G Datalogging Installation Guide - Direct Mount
Attaching the 100G Datalogging Commercial Endpoint to a
Sensus/Rockwell Commercial Diaphragm Meter
Warning Handle the 100G Datalogging Commercial Gas Endpoint carefully so
the metal passive radiator antenna is not damaged.
To Attach the 100G Datalogging Commercial Endpoint
1. Tilt the 100G Datalogging Commercial Gas Endpoint at an angle and turn the
wriggler until the drive notches line up with the meter wriggler's drive teeth.
2. Align the 100G Datalogging Commercial Gas Endpoint so the screw holes line up
with the meter's top screw holes. Carefully lower the endpoint on the meter so the
wriggler's bars line up with the meter drive dog. Itron recommends installation with
one bar inserted into the meter drive dog's u-shaped gear.
Warning The INLET label on the 100G Datalogging Commercial Gas Endpoint
must line up with the INLET label on the Sensus/Rockwell meter case.
Attaching the 100G Datalogging Commercial Endpoint to a Sensus/Rockwell Commer
cial Diaphragm Meter
100G Datalogging Installation Guide - Direct Mount 77
3. Verify the bottom of the 100G Datalogging Commercial Gas Endpoint and the top of
the meter meet. The endpoint housing should rest on top of the meter without gaps.
Warning Do not press down on the 100G Datalogging Commercial Gas
Endpoint if a gap exists between the endpoint and the meter.
A gap may be caused by misalignment of the endpoint wriggler and meter
wriggler's drive teeth. Pushing down on the endpoint could damage the
endpoint wriggler or meter drive teeth. To eliminate a gap, slowly turn the 100G
Datalogging Commercial Gas Endpoint's upper wriggler back and forth until the
endpoint aligns with the meter's drive teeth.
4. Align the 100G Datalogging Commercial Gas Endpoint with the index mounting
holes. Verify the index drive dog intersects with the endpoint's wriggler. Install the
endpoint mounting screws (SCR-0062-003 see Installation Prerequisites on page 8 for
screw information). Turn each screw 1/4 to 1/2 turn after it contacts the
index/endpoint assembly.
Chapter 7 Sensus/Rockwell Commercial Meter Installation
78 100G Datalogging Installation Guide - Direct Mount
5. Install the index cover. For index covers with flat-surface screw holes, use screws
(SCR-0062-002), flat washers (WSH-0020-005), and cork washers (WSH-0032-001).
For index covers with tamper seal cups, use screws, (AS-568A-011, 5/16" ID x 7/16
OD) o-rings, and tamper seals.
6. Place new tamper seals over screws (if mounting plate has tamper seal cups) and press
into place with an 11/32" nut driver or similar blunt tool. If your mounting assembly
requires a utility-approved wire seal, pass wires through holes in the screw heads and
crimp the approved wire seal.
Attaching the 100G Datalogging Commercial Endpoint to a Sensus/Rockwell Commer
cial Diaphragm Meter
100G Datalogging Installation Guide - Direct Mount 79
This completes installation of the 100G Datalogging Gas Endpoint on the Sensus/Rockwell
Commercial Diaphragm meter.
Chapter 7 Sensus/Rockwell Commercial Meter Installation
80 100G Datalogging Installation Guide - Direct Mount
100G Datalogging Installation Guide - Direct Mount 81
This chapter provides the instructions to mount 100G Datalogging Gas Endpoints
(residential and commercial) on Dresser ROOTs Commercial Rotary Meters.
Some commercial AMR applications require a Dresser ROOTS Rotary Meter with a
residential 100G Datalogging Gas Endpoint. Only Elster American version residential 100G
Datalogging Gas Endpoints are compatible with Dresser ROOTS series rotary gas meters.
This chapter provides the instructions to mount an Elster American residential 100G
Datalogging Gas Endpoint on Dresser ROOTS AMR-ready Rotary Commercial Meters.
Installation requires an AMR adapter kit supplied by Dresser. Refer to the Meter
Compatibility List on page 2 for Dresser AMR adapter kit part numbers.
Installation Prerequisites
Materials Supplied By Itron
• 100G Datalogging Gas Endpoint
• New tamper seals - if applicable
Materials Supplied by You
• AMR-ready Dresser ROOTS Rotary Meter
• Adapter Kit from Dresser
Note Follow the Dresser Field Installation Instructions to modify the AMR-ready
Dresser ROOTS Meter for 100G Datalogging Gas Endpoint installation. Contact
Dresser distributor or Dresser representativ
e for installation instructions specific to
the required AMR adapter kit.
C
HAPTER
8
Dresser ROOTS Commercial Rotary Meter Installation
Chapter 8 Dresser ROOTS Commercial Rotary Meter Installation
82 100G Datalogging Installation Guide - Direct Mount

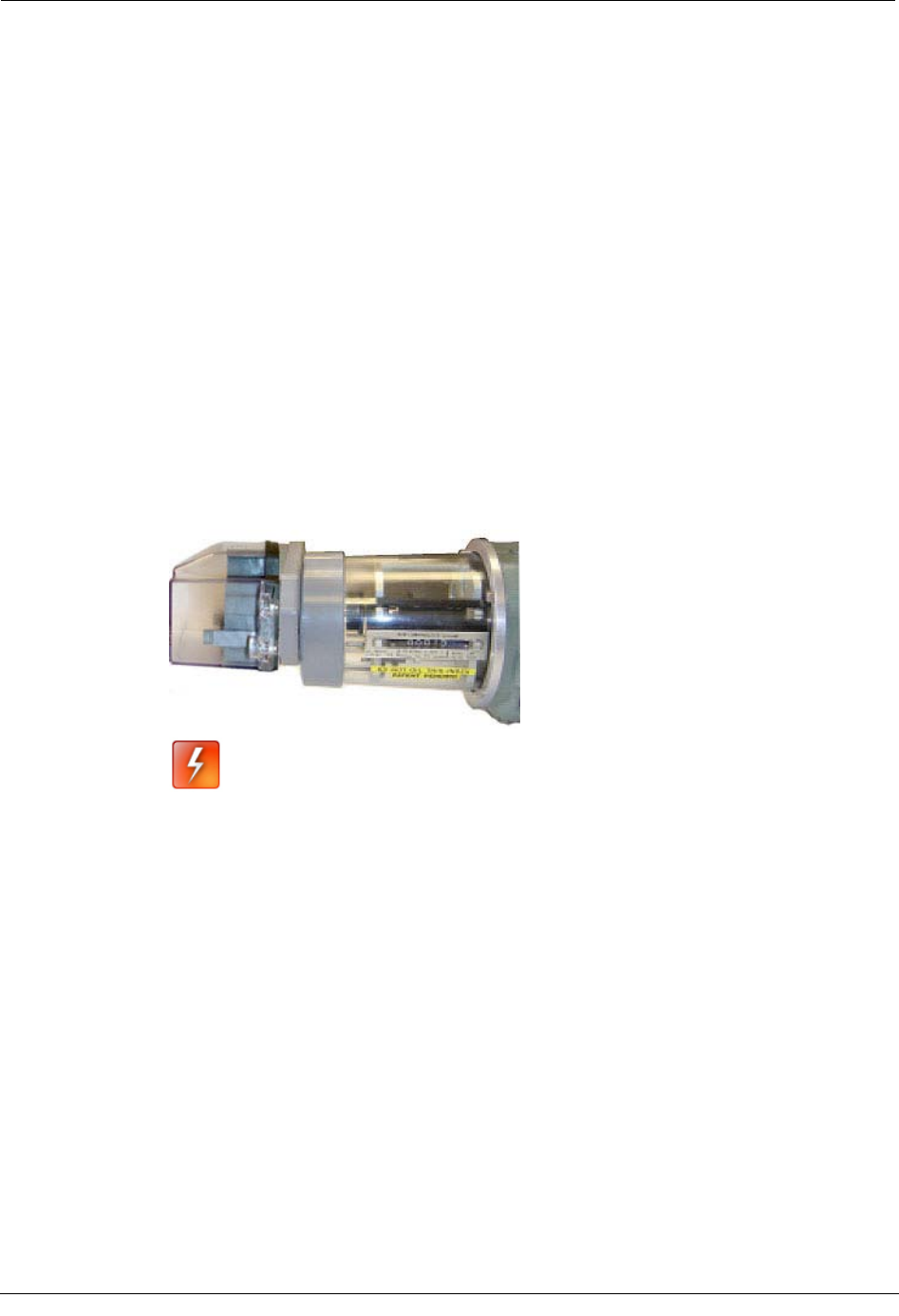

Installation Examples
The following pictures show typical installations.
Dresser B3 CTR/TC
Dresser LMMA CTR
Dresser LMMA TC
Dresser 8C15
Programming the 100G Datalogging Gas Endpoint Assembly
100G Datalogging Installation Guide - Direct Mount 83
Programming the 100G Datalogging Gas Endpoint Assembly
The 100G Datalogging Gas Endpoint must be programmed with the FC200SR
handheld computer loaded with EndPoint-Link® or Point-Link Pro® software version
5.3 or later. See the Endpoint-Link v5.3 (or later) Endpoint Programming Guide
(TDC-0744) for more complete programming information.
Caution The 100G Datalogging Gas Endpoint must be programmed before use.
Follow the steps in this section to properly program the endpoint.
The endpoint is programmed based on the meter's drive rate. See B3, LMMA, and S3A
CTR/TC Dresser ROOTS Series Register Settings and Direct Drive Programming
Information on page 85.
To Program the 100G Datalogging Gas Endpoint
1. Program the meter drive rate into the 100G Datalogging Gas Endpoint using the
FC200SR. For all programming and "Check Endpoint" operations, hold the FC200SR
as close to vertical as possible. For best success, keep the FC200SR within 6 feet of
the target endpoint. Verify you have the correct programming mode (Fixed Network
Mode, Mobile/Handheld Mode, or Hard to Read Mobile/Handheld Mode) for your
application. Programming parameters are based on the mode defined by your system
administrator.
During programming, the 100G Datalogging Gas Endpoint is set to the nearest 100
cubic feet; the last two digits (tens and units) are programmed as zeros (0). After
programming is complete, the endpoint assembly will read to the nearest cubic foot.
Chapter 8 Dresser ROOTS Commercial Rotary Meter Installation
84 100G Datalogging Installation Guide - Direct Mount
2. Slowly turn the endpoint's drive wriggler two turns in the direction shown on the
index drive rate. This verifies the endpoint is counting properly after assembly.
Caution Do not turn the drive wriggler faster than one turn per second.
3. Read the 100G Datalogging Gas Endpoint using the FC200SR.
• If the read result is higher than the number programmed in Step 1, the 100G
Datalogging Gas Endpoint is counting correctly.
• If the read result is not higher than the number programmed in Step 1, replace
the 100G Datalogging Gas Endpoint.
B3, LMMA, and S3A CTR/TC Dresser ROOTS Series Register Settings and Direct Drive
Programming Information
100G Datalogging Installation Guide - Direct Mount 85
B3, LMMA, and S3A CTR/TC Dresser ROOTS Series Register
Settings and Direct Drive Programming Information
Use the information in the following tables to program Dresser Roots Series B3, LMMA,
and S3A Non-compensated Counter (CTR) and Temperature Compensated Counter (TC)
registers. Reference the Meter Compatibility List on page 2 to confirm compatibility.
Settings for Series B3 Registers
Model Meter size Settings
CTR 8C-15C and 2M-11M
16M-56M
Number of dials: 5
Drive rate: 10
PCOMP factor: NONE
Number of dials: 6
Drive rate: 100
PCOMP factor: NONE
TC 8C-15C and 2M-11M
16M
Number of dials: 5
Drive rate: 100
PCOMP factor: NONE
Number of dials: 6
Drive rate: 1000
PCOMP factor: NONE
Chapter 8 Dresser ROOTS Commercial Rotary Meter Installation
86 100G Datalogging Installation Guide - Direct Mount
Settings for LMMA Registers
Model Meter size Settings
CTR 1.5M-11M
16M
Number of dials: 5
Drive rate: 10
PCOMP factor: NONE
Number of dials: 6
Drive rate: 100
PCOMP factor: NONE
TC 1.5M-11M
16M
Number of dials: 5
Drive rate: 50
PCOMP factor: NONE
Number of dials: 6
Drive rate: 500
PCOMP factor: NONE
Settings for Series S3A Registers
Model
Meter Size
CTR 1.5M - 11M
16M
Number of dials: 5
Drive rate: 10
PCOMP factor: NONE
Number of dials: 6
Drive rate: 100
PCOMP factor: NONE
TC 1.5M - 11M
16M
Number of dials: 5
Drive rate: 100
PCOMP factor: NONE
Number of dials: 6
Drive rate: 1000
PCOMP factor: NONE
B3, LMMA, and S3A CTR/TC Dresser ROOTS Series Register Set
tings and Direct Drive Programming Information
100G Datalogging Installation Guide - Direct Mount 87
B3, LMMA and S3A CTR/TC Meter Drive Rates:
Residential Direct Drive Programming*
B3 CTR Meter Size B3 CTR Meter Drive Rate
8C 10
11C 10
15C 10
2M 10
3M 10
5M 10
7M 10
11M 10
16M 100
23M 100
38M 100
56M 100
Drive rates in this table are for direct-mount residential style endpoints only
(NOT commercial or remote endpoints).
B3 TC Meter Size B3 TC Meter Drive Rate
8C 100
11C 100
15C 100
2M 100
3M 100
5M 100
7M 100
11M 100
16M 1000
LMMA CTR Meter
Size
LMMA CTR Meter Drive Rate
1.5M 10
3M 10
5M 10
7M 10
11M 10
16M 100
Chapter 8 Dresser ROOTS Commercial Rotary Meter Installation
88 100G Datalogging Installation Guide - Direct Mount
LMMA TC Meter Size LMMA TC Meter Drive Rate
1.5M 50
3M 50
5M 50
7M 50
11M 50
16M 500
S3A CTR Meter Size S3A CTR Meter Drive Rate
1.5M 10
3M 10
5M 10
7M 10
11M 10
16M 100
S3A TC Meter Size S3A TC Meter Drive Rate
1.5M 100
3M 100
5M 100
7M 100
11M 100
16M 1000
Note S3A rotary meters are LMMA meters retrofitted with Series 3 End Bell
Adapter.
Installing the Residential 100G Datalogging Gas Endpoint Assembly to the Dresser ROOTS Rotary Meter
100G Datalogging Installation Guide - Direct Mount 89
Installing the Residential 100G Datalogging Gas Endpoint
Assembly to the Dresser ROOTS Rotary Meter
After 100G Datalogging Gas Endpoint programming is complete, attach the 100G
Datalogging residential endpoint assembly to the Dresser ROOTS Rotary Meter. This
mounting procedure applies to B3 CTR/TC, LMMA CTR/TC, and 8C15 series Dresser
ROOTS Meters.
To Attach the 100G Datalogging Gas Endpoint
1. The 100G Datalogging Gas Endpoint must be mounted on the adapter plate in an
upright position. Align the 100G Datalogging Gas Endpoint wriggler with the opening
between the tabs of the adapter's drive dog. Insert one endpoint mounting screw and
tighten enough to hold the endpoint. Do not completely tighten. Insert the second
mounting screw and tighten two turns. Insert the third mounting screw and tighten two
turns. Insert the last mounting screw and tighten until snug. Tighten the remaining
mounting screws in an alternating, diagonal pattern until snug. All mounting screws
must be tightened evenly.
Warning A gap may be caused by misalignment of the endpoint wriggler and
meter wriggler's drive teeth. Pushing down on the endpoint could damage the
endpoint wriggler or meter drive teeth. To eliminate a gap, remove the endpoint
assembly and re-align the endpoint wriggler with the meter drive dog.
2. Complete necessary paperwork and verify all excess materials are removed from the
customer's premises.
100G Datalogging Residential Gas Endpoint installation on the Dresser ROOTS Rotary
Meter is complete.
Chapter 8 Dresser ROOTS Commercial Rotary Meter Installation
90 100G Datalogging Installation Guide - Direct Mount
Installing the 100G Datalogging Commercial Gas Endpoint on
a Dresser ROOTS Rotary Meter
The information in this section guides you through the installation of the 100G Datalogging
Commercial Gas Endpoint on Dresser ROOTS rotary meters.
Note A Dresser ROOTS rotary gas meter with an instrument drive is required for
this installation procedure. These instructions show an Elster American 100G
Datalogging Commercial Gas Endpoint. The installation procedure is the same
for
the Sensus/Rockwell 100G Datalogging Commercial Gas Endpoint.
100G Datalogging Elster American 100G Datalogging Sensus/Rockwell
Commercial Gas Endpoint Commercial Gas Endpoint
Installation Requisites
Installation requires the following items:
• Drive cover kit
• 100G Datalogging Commercial Gas Endpoint
• A flat, slot-drive screwdriver
Installing the 100G Datalogging Commercial Gas Endpoint on a Dresser ROOTS Rotary Meter
100G Datalogging Installation Guide - Direct Mount 91
Programming the 100G Datalogging Commercial Gas
Endpoint Assembly
The 100G Datalogging Commercial Gas Endpoint must be programmed with the
FC200SR handheld computer loaded with EndPoint-Link® or Point-Link Pro® software
version 5.3 or later. See the Endpoint-Link v5.3 (or later) Endpoint Programming
Guide (TDC-0744) for more complete programming information.
Caution The 100G Datalogging Commercial Gas Endpoint must be programmed
before use. Follow the steps in this section to properly program the endpoint.
The endpoint is programmed based on the meter's drive rate. See B3, LMMA, and S3A
CTR/TC Dresser ROOTS Series Register Settings and Direct Drive Programming
Information on page 93.
To Program the 100G Datalogging Commercial Gas Endpoint
1. Program the meter drive rate into the 100G Datalogging Commercial Gas Endpoint
using the FC200SR. For all programming and "Check Endpoint" operations, hold the
FC200SR as close to vertical as possible. For best success, keep the FC200SR within
6 feet of the target endpoint. Verify you have the correct programming mode (Fixed
Network Mode, Mobile/Handheld Mode, or Hard to Read Mobile/Handheld Mode)
for your application. Programming parameters are based on the mode defined by your
system administrator.
During programming, the 100G Datalogging Commercial Gas Endpoint is set to the
nearest 100 cubic feet; the last two digits (tens and units) are programmed as zeros
(0). After programming is complete, the endpoint assembly will read to the nearest
cubic foot.
Chapter 8 Dresser ROOTS Commercial Rotary Meter Installation
92 100G Datalogging Installation Guide - Direct Mount
2. Slowly turn the endpoint's drive wriggler two turns in the direction shown on the
index drive rate. This verifies the endpoint is counting properly after assembly.
Caution Do not turn the drive wriggler faster than one turn per second.
3. Read the 100G Datalogging Commercial Gas Endpoint using the FC200SR.
• If the read result is higher than the number programmed in Step 1, the 100G
Datalogging Commercial Gas Endpoint is counting correctly.
• If the read result is not higher than the number programmed in Step 1, replace
the 100G Datalogging Commercial Gas Endpoint.
Installing t
he 100G Datalogging Commercial Gas Endpoint on a Dresser ROOTS Rotary Meter
100G Datalogging Installation Guide - Direct Mount 93
B3, LMMA, and S3A CD/TD Dresser ROOTS Series Meter
Drive Rates
Use the information in the following tables to program 100G Datalogging Commercial
Endpoints installed on Dresser Roots Series B3, LMMA, and S3A Non-compensated
Counter with Instrument Drive (CD) and Temperature Compensated Counter with
Instrument Drive (TD) registers. Reference the Meter Compatibility List on page 2 to
confirm compatibility.
Warning Drive rates listed in the following tables are for commercial endpoint
programming. Do not use these settings to program residential or remote
endpoints.
B3 CD
Meter Size B3 CD Meter
Drive Rates
8C 10
11C 10
15C 10
2M 10
3M 10
5M 10
7M 10
11M 10
16M 100
23M 100
38M 100
56M 100
B3 TD
Meter Size B3 TD Meter
Drive Rate
8C 100
11C 100
15C 100
2M 100
3M 100
5M 100
7M 100
11M 100
16M 1000
Chapter 8 Dresser ROOTS Commercial Rotary Meter Installation
94 100G Datalogging Installation Guide - Direct Mount
LMMA CD
Meter Size LMMA CD
Meter Drive
Rate
1.5M 10
3M 10
5M 10
7M 10
11M 10
16M 100
LMMA TD
Meter Size LMMA TD
Meter Drive
Rate
1.5M 100
3M 100
5M 100
7M 100
11M 100
16M 1000
S3A CD
Meter Size S3A CD
Meter Drive
Rate
1.5M 100
3M 100
5M 100
7M 1000
11M 100
16M 1000
S3A TD
Meter Size S3A TD
Meter Drive
Rate
1.5M 100
3M 100
5M 100
7M 100
11M 100
16M 1000
Note S3A rotary meters are LMMA meters retrofitted with Series 3 End Bell
Adapter.
Installing the 100G Data
logging Commercial Gas Endpoint on a Dresser ROOTS Rotary Meter
100G Datalogging Installation Guide - Direct Mount 95
To Attach the 100G Datalogging Commercial Gas Endpoint to the Meter
Note A cover is installed on the 100G Datalogging Commercial Gas Endpoint
mounted to a Dresser ROOTS Meter with S3A LMMA Accessory Units (or other
Dresser ROOTs adapters with odometer gauges).
1. Locate the INSTRUMENT FACE stamp (2) and position the meter with the drive dog
(1) aligned (as shown).
Warning Handle the commercial 100G Datalogging Commercial Gas
Endpoint carefully so the metal passive radiator antenna is not damaged.
2. Locate the INLET (1) stamp on the endpoint and position the endpoint as shown.
Verify the 100G Datalogging Commercial Gas Endpoint wriggler (3) and drive dog
shaft (2) are aligned.
Chapter 8 Dresser ROOTS Commercial Rotary Meter Installation
96 100G Datalogging Installation Guide - Direct Mount
3. Verify the endpoint wriggler and drive dog shaft are engaged by turning the
commercial endpoint wriggler. When properly engaged, you will feel resistance.
4. Place the index mounting plate on the endpoint and install the four mounting screws.
Do not disturb the shaft alignment.
5. Install the four 100G Datalogging Commercial Gas Endpoint mounting screws
(supplied with the commercial endpoint). Tighten mounting screws in an alternating,
diagonal sequence.
• Turn each screw 1/4 to 1/2 turn after it contacts the cover.
• If you can utilize a torque wrench, tighten to 72 inch-pounds.
Each endpoint mounting screw must be tightened evenly.
6. Insert new utility-approved wire seals and crimp (if required).
Note To mount an index and index cover on a rotary meter without an accessory
odometer unit, remove the domed cover and reference To Attach the Index on the
Itron-Actaris Commercial Meter on page 69.
Installing the 100G Datalogging Comm
ercial Gas Endpoint on a Dresser ROOTS Rotary Meter
100G Datalogging Installation Guide - Direct Mount 97
Completed Installation Examples
100G Datalogging Elster American Commercial
Gas Endpoint mounted on a Dresser ROOTS Meter
100G Datalogging Sensus/Rockwell Commercial Gas
Endpoint mounted on a Dresser ROOTS Meter

Navigation menu
