Itron MLOG01 MLOG User Manual MLOG Logger Installation Guide
Itron, Inc. MLOG MLOG Logger Installation Guide
Itron >
Users Manual
MLOG Logger Installation Guide
Flow Metrix, Inc.
Revision 0.1
October 28, 2003
FCC ID: RIC-MLOG01
Flow Metrix, Inc.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Note: Changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the device.
MLOG loggers are installed on water service pipes, typically near the meter on the side
of the water main, not the consumer. The logger is housed in a plastic waterproof
enclosure. All electronics, including the vibration sensor, processor, timer, digital radio,
and antenna are sealed inside the unit. Permanent installation requires no tools and takes
less than a minute.

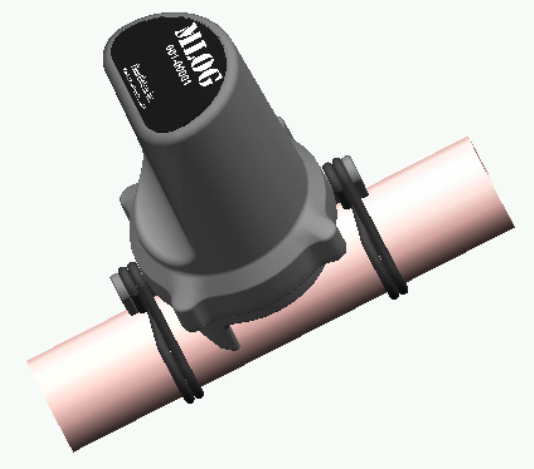

The MLOG logger is attached
directly to the pipe using two (2)
#047 buna O-rings, as shown to
the right.

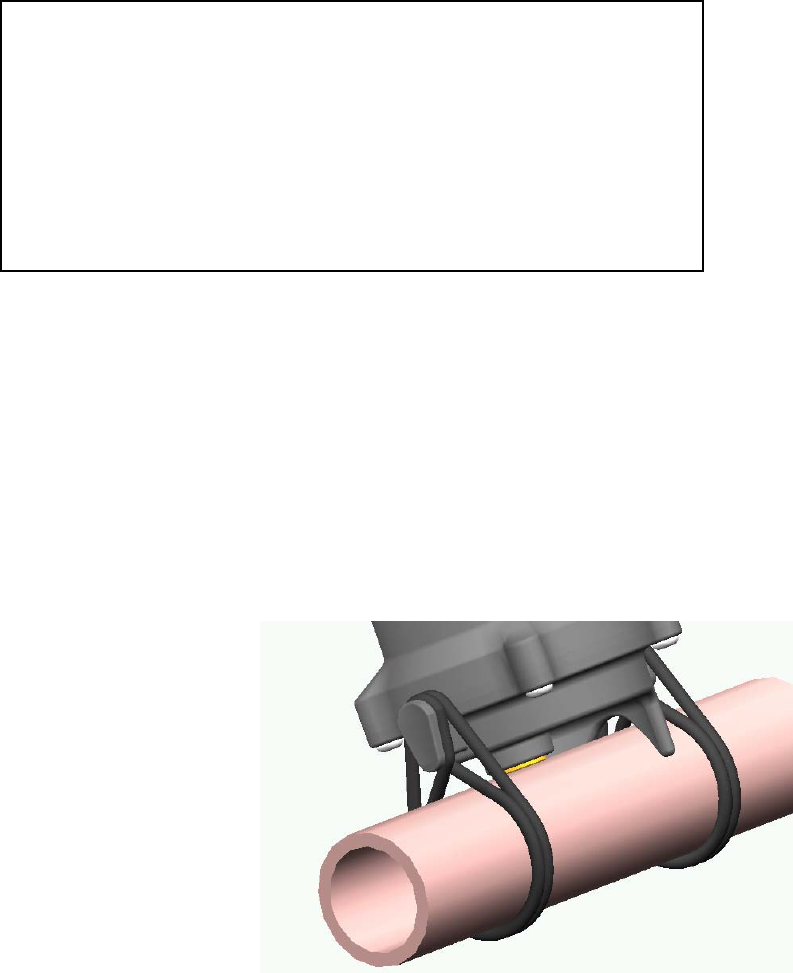

An O-ring is looped around
each of the O-ring tags molded
onto the side of the unit. The
O-ring is passed under the pipe
and looped again around the
molded tag.
Once the MLOG logger has been
mounted to the pipe it is ready to
begin recording and will respond to
transponder radio messages. No
initialization of the logger is needed.
Note: Each MLOG logger has a 10-
digit ID on the top label. The lower 5
digits uniquely identify the logger a
must match the ID on the instal
work order for the service address.
nd
lation
