S8658WPR S8658WPL
Circular Polarity Wide Band RFID Panel Antenna
global solutions:
local support
TM
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +1.32.80.7866.12
IAS-EUSales@lairdtech.com
Asia: +1.65.6.243.8022
IAS-AsiaSales@lairdtech.com
www.lairdtech.com
FEATURES
• Low profile
• Extremely low VSWR and axial ratio
• Wide band
• Weather and UV resistant radome
• Wide range of connector and cable options
• Left hand and right hand CP versions
APPLICATIONS
• Warehouse
• Distribution center
• Airports and hospitals
• Transit terminals
• Conveyer belt
865-960 MHz 8.5 dBic CIRCULAR POLARITY PANEL

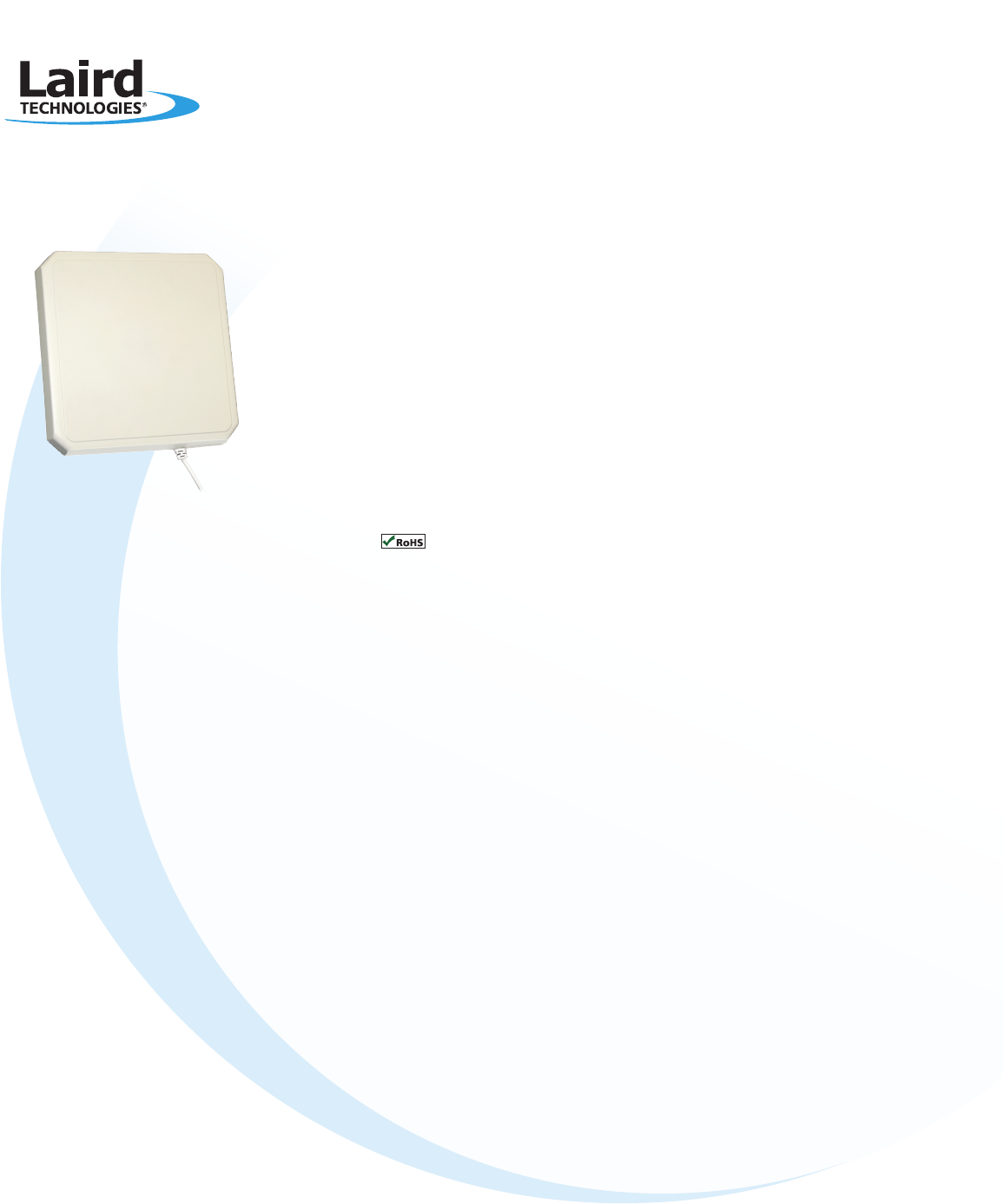

The Laird Technologies’ S8658WPR antenna is a circularly polarized panel antenna that provides
reception and transmission of signals in the 865-960 MHz frequency band. Laird Technologies’
industry renowned design methodology achieves maximum efficiency and performance across
the entire frequency band.
Both VSWR and axial ratios are both excellent and allow the user to achieve the maximum
performance for an antenna of this type. The antenna is housed in a heavy duty radome
enclosure that can be directly wall mounted. An optional articulating mount allows either wall
or mast mounting.
The antenna is offered with an integrated coax pigtail and a variety of connector types
are available.
SPECIFICATIONS
Antenna Part Number S8658WPR and S8658WPL
Frequency Range 865 - 960 MHz
Gain 8.5 dBic
Maxium VSWR 1.4:1
3 dB Beamwidth - Azimuth 65°
Front to Back Ratio 20 dB
Polarization Circular Right-hand or circular Left-hand
Maxium Input Power 3 Watts
Input Impedence 50 Ohms
Axial Ratio 1dB
Weight (Kg) 2.5 lbs (1.13)
Mechanical Size 10.2” x 10.2” x 1.32”
Antenna Connection Coax Pigtail, Rev TNC Male (others available)
Radome High Strength PC
Mount Style Threaded Stud
Temperature Operational -25°C to +70°C
Lightning Protection DC Grounded
Environmental Rating IP 54

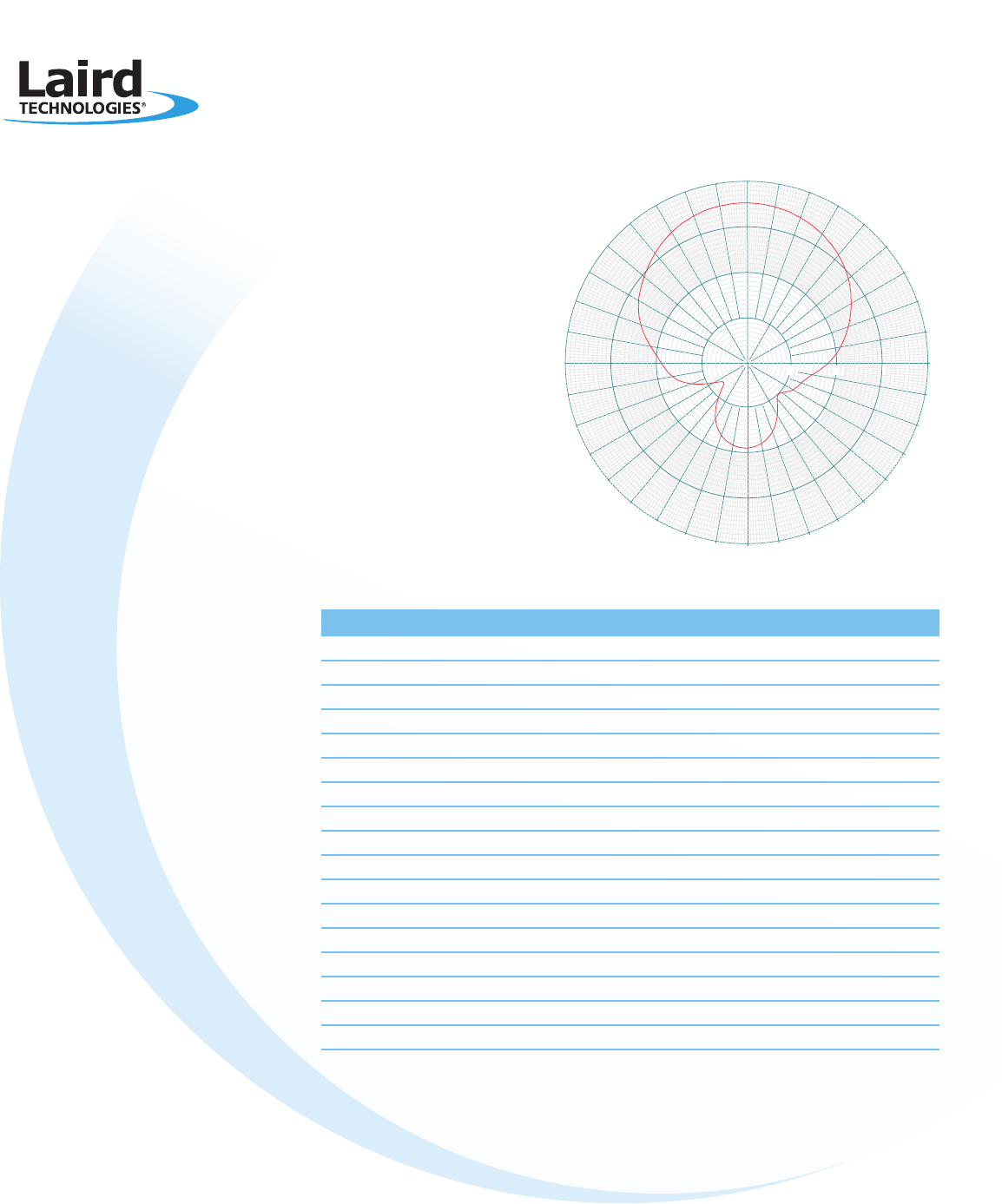

0
350
340
330
320
310
300
290
280
270
260
250
240
230
220
210
200
190180170
160
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
-20-10 0
dB
Innovative Technology
for a Connected World
S8658WPR S8658WPL
Circular Polarity Wide Band RFID Panel Antenna
ANT-DS-S8658WPR S8658WPL 0409
Any information furnished by Laird Technologies and its agents is believed to be accurate and reliable. Responsibility for the use and application of Laird Technologies materials rests with the end user since Laird Technologies and its
agents cannot be aware of all potential uses. Laird Technologies makes no warranties as to the fitness, merchantability, or suitability of any Laird Technologies materials or products for any specific or general uses. Laird Technologies shall
not be liable for incidental or consequential damages of any kind. All Laird Technologies products are sold pursuant to the Laird Technologies terms and conditions of sale in effect from time to time, a copy of which will be furnished upon
request. All Laird Technologies’ products are sold pursuant to the Laird Technologies’ domestic terms and conditions of sale in effect from time to time, a copy of which will be furnished upon request.
© 2009 All Rights Reserved
Laird Technologies is a registered trademark of Laird Technologies, Inc
902 MHz
