Specifications
Frequency:
US GSM 824-894 & 1850-1990 MHz
DCS-1800 1710-1880 MHz
Low SMR (Nextel) 806-870 MHz
High SMR/GSM/ISM 870-960 MHz
Cellular / PCS Gain: Unity or better
VSWR: 2:1 max over range
Operating Temp: -40o to +85o C
Impedance: 50 ohms
Maximum Power: 10 Watts
Cable: RG-58, 15 ft (4.5 meters)
Low loss RF-195 optional
Case Material: Polycarbonate
Case Size: 4.5"D x .95"H
(114 mm x 24 mm)
Mounting Stud: 5/8"D (16 mm)
Mounting Depth: Mount up to 7/32"
(5.3 mm) surface
Connector: Specify at time of order, typically
TNC, SMA
Option: Integral GPS Antenna with
amplifier
Other cable lengths and connectors are available, consult
factory for details

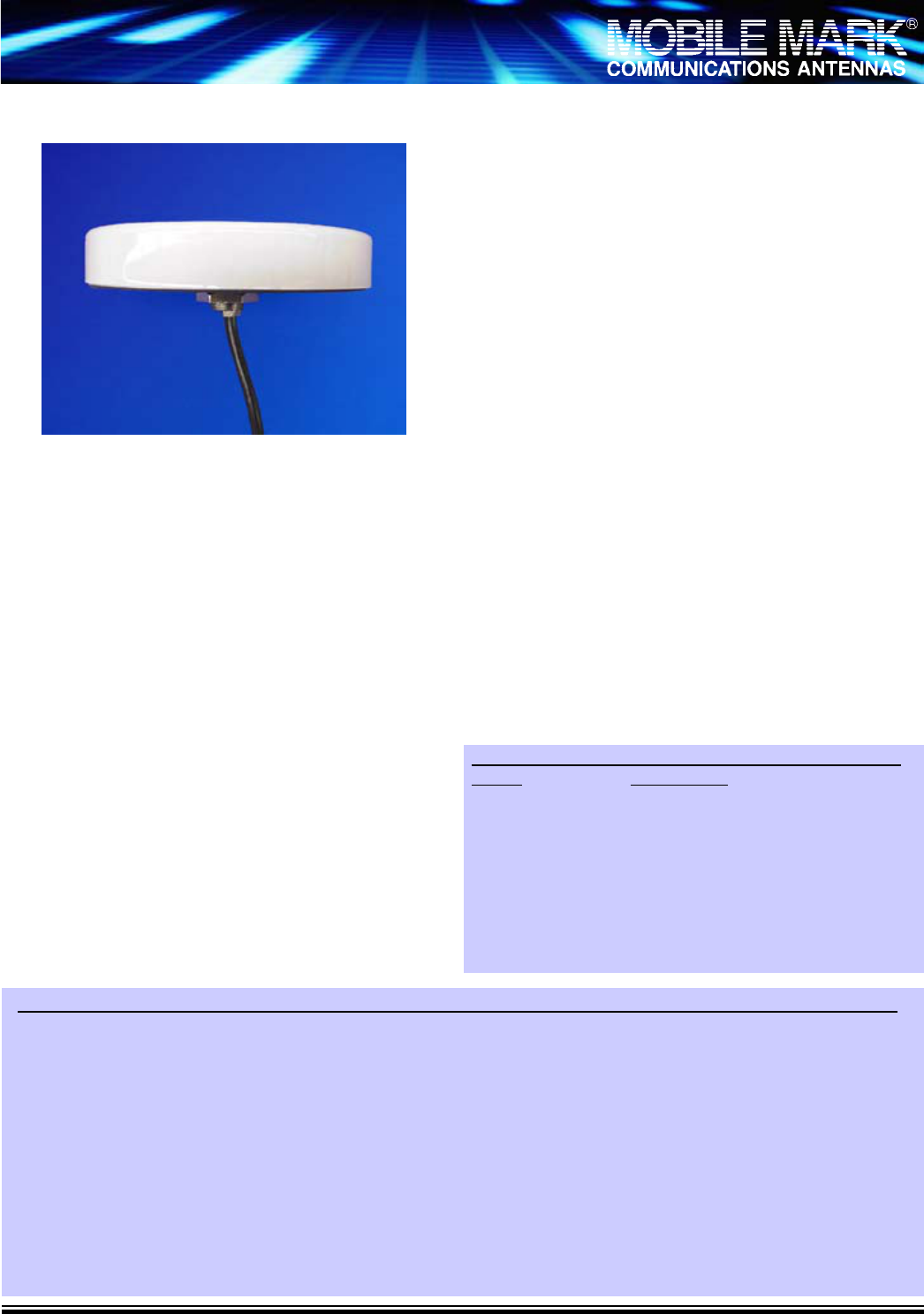

The Dual band antenna provides operation on a variety
of network formats. The low profile surface mount style
antennas can be mounted to any metal structure, vehicle,
cargo container, trailer or ceiling.
These designs use a 5/8" feed thru (16 mm) for secur-
ing to the vehicle. Access to the underside of the body
surface is required to aid the installation. The antennas
are outfitted with 15 feet (4.5 meters) of cable and choice
of RF connector (TNC and SMA are typical). Other cable
lengths and connectors are available, please consult fac-
tory for details.
Electrical operation is provided by a low profile, yet high
efficiency air dielectric radiating element. This maintains
effective radiation across the desired frequency range,
with omnidirectional coverage. Unity gain performance is
maintained.
The antennas are enclosed in a weatherproof polycar-
bonate radome, and supplied with all mounting hardware
and sealing gasket. The dual band series has a height of
only 0.95 " (24 mm). The standard color is white. The Dual
Band SM series can also be provided in black or grey
radome.
These models are additionally available with a built-in
active GPS antenna & 26 dB amplifier. A separate GPS
receiver would be required for operation.
Model Numbers
Model Description
SM-900/1900 Surface mount US GSM/CDMA
SM-837/1900 Surface mount Nextel & 1.9 PCS
SM-925/1800 Surface mount EU GSM & DCS
SM-925/1900 Surface mount ISM/Mobitex & PCS
Please specify desired connectors at time of order.
Special configurations available, please consult factory for
details.
Surface Mount Antenna (Pat.Pnd.)
For GSM/CDMA
Dual-Band Surface Mount
US Office & Headquarters: 3900-B River Road, Schiller Park, IL 60176 Tel: 800-648-2800 or 847-671-6690 Fax: 847-671-6715
UK Office: 106 Anglesey Business Park, Hednesford, Staffs. WS12 1NR UK Tel: (+44) 1543-878343 Fax: (+44) 1543-871714
Visit our web page at www.mobilemark.com. Specifications subject to change without notice (4/2008).
■Mounts easily to roof, trunk or any bulkhead
■Low Profile dual band combines popular
GSM, EV-DO, GPRS, 1xRTT
■Models also available for Nextel & ISM 915
■Requires 5/8" (16 mm) mounting hole, nut
and weather seal gasket provided
