Exhibit 8b
![](/img.php?id=948006&img=bg1.png)
Chapter 8 Station Equipment
247

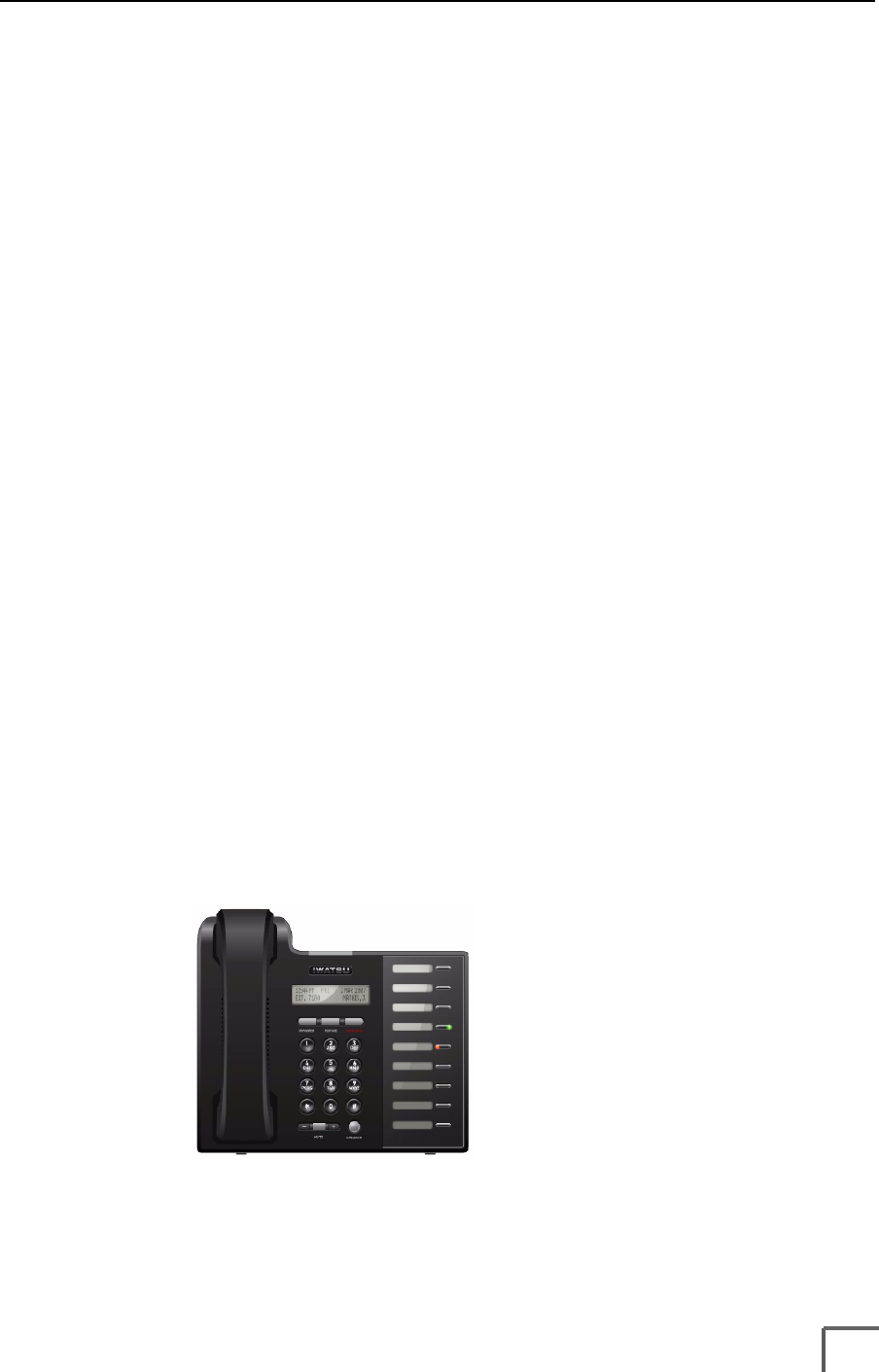

IX-5800 Digital Key Telephone
The IX-5800 is equipped with a two-line, 16-character LCD display, and nine
multipurpose keys. The IX-5800 has a large incoming call / MSG indication LED on
the top of the telephone.
Ringer, Handset, and Speaker volume for the IX-5800 is controlled by using the - and
+ keys and changes based on the state of the telephone. The IX-5800 includes a three-
position integrated pedestal and a wall-mount option that simplifies installation. An
IX-58EXTENDER Loop Limit Extender and an IX-ELK9 Line Key Expansion are
optional units available for the IX-5800.
Technical Specifications
IX-5800
Model: IX-5800 Part Numbers: 505800
Pedestal: 3-position Integrated Pedestal
with two wall-mount options
Multipurpose
Keys:
9 Multipurpose keys or
18 with the IX-ELK9
Connection: Digital star-wired key telephone
using one or two pair telephone
wire.
Connectors: Handset cord connector;
Headset cord connector;
Line connector
[IX-16PSUB-2]
Volume Level
Adjustment:
Ringer: 1-4
Receiver: 1-3
Speaker: 1-11
Size:
Weight:
7.5”W x 3.5”H x 11.3”D
2.65 lbs
Display:
Viewability:
2 Lines x 16 Characters Operating
Conditions:
32° to 104°F (0 to 40°C)
10 to 90% Humidity
(non-condensing)
Software
Version:
ECS version 5.0 or higher Storage
Temperature:
14° to 122°F (-10 to 50°C)
![](/img.php?id=948006&img=bg2.png)
Iwatsu Enterprise-CS Component Description
248

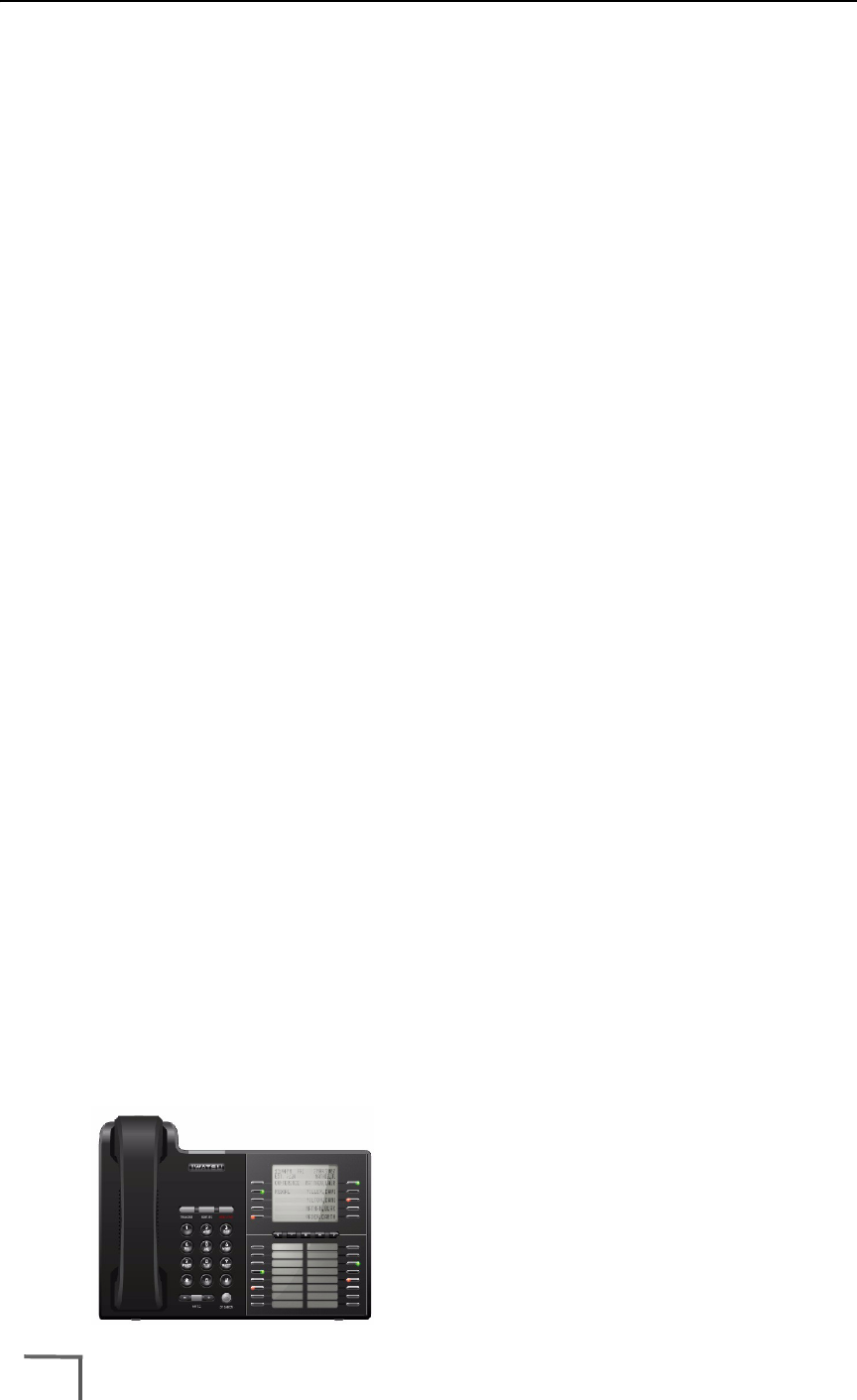

IX-5810 Digital Key Telephone
The IX-5810 is equipped with a seven-line, 24-character LCD display, 16
multipurpose keys, and 10 Self-Labeling menu keys. Many features that often
required a specialized key on the telephone or a series of feature access codes are
accessed using the Self-Labeling menu keys. The Self-Labeling menu display offers
easy-to-read, clear text that assists you through the process of using system features.
The IX-5810 is equipped with a seven-line, 24-character backlit LCD display, and 10
menu keys. The IX-5810 has a large incoming call / MSG indication LED on the top
of the telephone. The Setup menu allows the user to configure a Bluetooth headset,
change the display contrast, and choose up to five different Ticker displays.
The IX-5810 includes a three position integrated pedestal and a wall-mount option
that simplifies installation. A Bluetooth adapter (IX-58BTINF), Loop Limit Extender
(IX-58EXTENDER), and a Line Key Expansion (IX-ELK8) are optional units
available for the IX-5810.
Technical Specifications
IX-5810
Model: IX-5810 Part Numbers: 505810
Pedestal: 3-position Integrated Pedestal
and two wall-mount options
Self-Labeling
Menu Keys:
10 keys that support 20
feature keys
Connection: Digital star-wired key telephone
using one or two pair telephone
wire.
Multipurpose
Keys:
16 Multipurpose keys or
24 with the IX-ELK8
Connectors: Handset cord connector;
Headset cord connector; Line
connector [IX-16PSUB-2]
Volume Level
Adjustment:
Ringer: 1-4
Receiver: 1-3
Speaker: 1-11
Size:
Weight:
7.5”W x 3.5”H x 11.3”D
2.65 lbs
Display:
Viewability:
Built-in Backlit LCD
7 Lines x 24 Characters
Operating
Conditions:
32° to 104°F (0 to 40°C)
10 to 90% Humidity
(non-condensing)
Software
Version:
ECS version 5.0 or higher Storage
Temperature:
14° to 122°F (-10 to 50°C)
![](/img.php?id=948006&img=bg3.png)
Chapter 8 Station Equipment
249
IX-58BTINF Bluetooth Interface
The IX-58BTINF Bluetooth Interface module is available for the IX-5810 Digital
Telephone. This is a Class 2 version 2.0 + EDR Bluetooth module. This optional
module attaches to the IX-5810 circuit board and can be installed by the Iwatsu
Authorized installer.
Technical Specifications
IX-BTINF (Top and Bottom)
Caution! Changes or modifications not expressly approved by Iwatsu Voice Networks
could void the user’s authority to operate this equipment.
Model: IX-58BTINF Part Number: 505058
KT Compatability: IX-5810 Digital KT Connectors: CN901 - to the KT CN-BT
CN-GND - to the CN-BTGND
Bluetooth Class:
Bluetooth Version:
Class 2
V2.0 + EDR
Line
Condition:
300 m or less.
40 Ohm DC resistance or less
(power supplied by KSU)
Memory:
Operation Clock:
Flash ROM = 256KB
SRAM = 64KB
30MHz
Size:
Weight:
2.2”W x 3.4”D x .16”H
3.53 oz.
Voice Packets: HV1, HV2, HV3, EV3,
EV4, EV5, 2-EV3, 3-
EV3, 2-EV5, 3-EV5
Operating
Temperature:
32° to 104°F (0 to 40°C)
10 to 90% Humidity
(non-condensing
Power: +3.3 V from KT
Idle = .07 W
Max = .36 W
Storage
Temperature:
14° to 122°F (-10 to 50°C)
Line Coding: Mu-Law
MADE IN
REV
LOT
IX- BTINF (US)
IWATSU AMERICA, INC.
JAPAN
01
08.01
58
CN901
MADE IN
REV
LOT
IX- BTINF (US)
IWATSU AMERICA, INC.
JAPAN
01
08.01
58
CN901
ANT1
CN-GND
CN-BTPRG
ANT1
CN-GND
CN-BTPRG
Bottom
Top
![](/img.php?id=948006&img=bg4.png)
Iwatsu Enterprise-CS Component Description
250

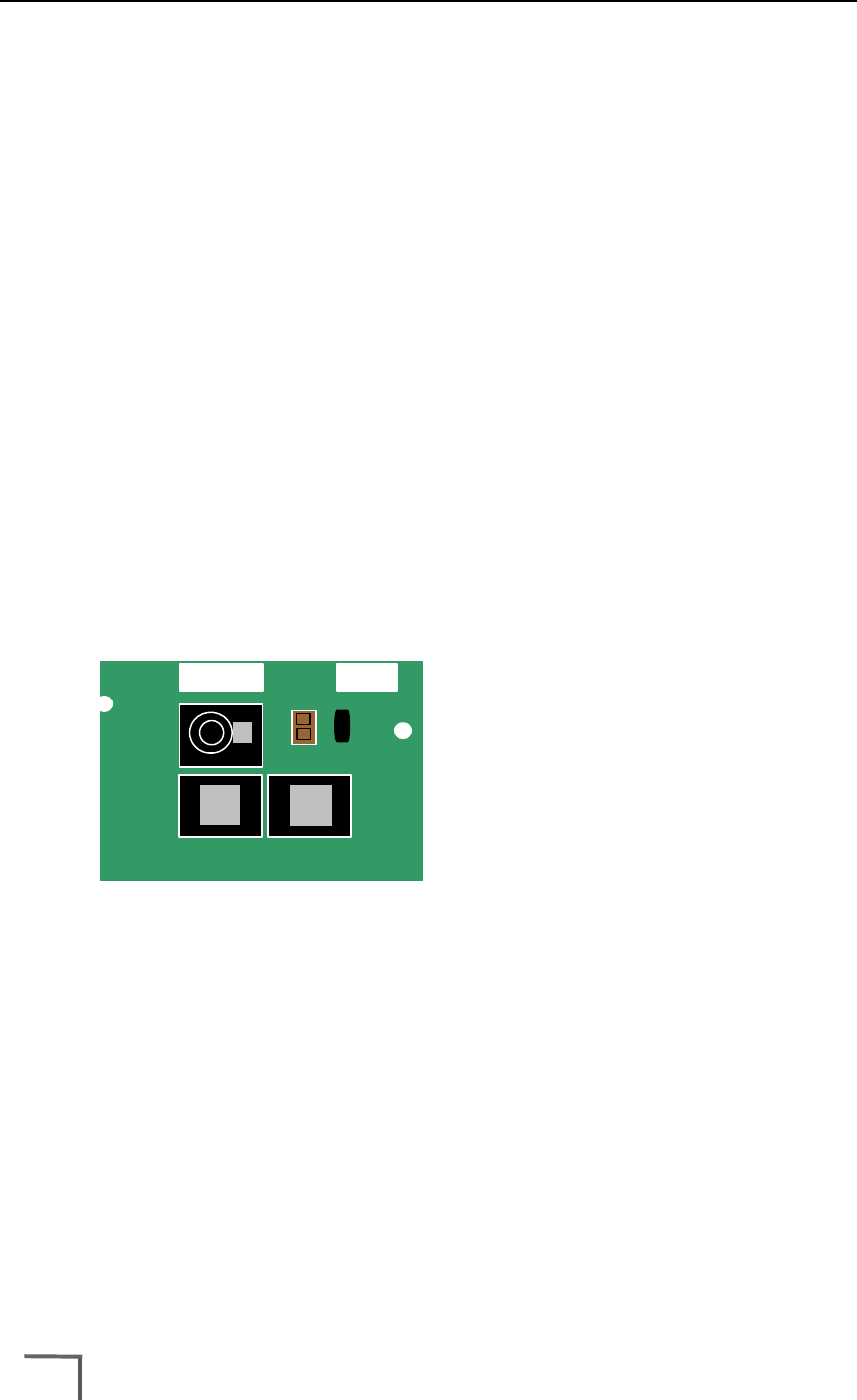

IX-58EXTENDER
The IX-58EXTENDER provides the interface for the IX-5800 and IX-5810 Digital
Telephones to increase the loop limit distance for the telephone up to a maximum of
2,100 feet.
Technical Specifications
Model: IX-58EXTENDER Part Number: 505098
Key Telephone
Compatability:
IX-5800 / IX-5810 Connectors:
Internal -
External -
2-pin harnes connector (CN-DC1)
EIAJ Class 5 Jack (CN-ADP1)
Size:
Weight:
1.1”W x 1.67”D x .67”H
1.76 oz.
Power Supply:
Input:
Output:
IX-59AC
100-240V , 1.0A
50/60 Hz
16.5 V 0.37A
Operating
Temperature:
32° to 104°F (0 to 40°C)
10 to 90% Humidity
(non-condensing)
Line Condition: AWG 22, 24 Twisted-
pair cable 2,100 feet
or less
Storage
Temperature:
14° to 122°F (-10 to 50°C)
LOT REV
IWATSU AMERICA, INC.
IX-58EXTENDER (US)
01
08.01
IWATSU
CN-DC1
L1
L2
CN-ADP1
