J Three Holding BT1010 Low Power Bluetooth Class II Module User Manual BT 1010user revised p3
J-Three International Holding Co., Ltd Low Power Bluetooth Class II Module BT 1010user revised p3
Revised Manual
Bluetooth Class 2 Module
(BT-1010)
USER GUIDE
DEPARTMENT: WIRELESS BU
COMPANY: J-3 INTERNATIONAL HOLDING
DATE: 05-01-03
VERSION: 1.0
J-3 Wireless BU
TABLE OF CONTENTS
I. General Specifications Page 1
II. Mechanical Specifications Page 2
III. Electrical Specifications Page 3
BLUETOOTH CLASS 2 MODULE
Version 1.0 Page-1-
J-3 Wireless BU
FCC STATEMENT
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy. If not installed and
used in accordance with the instructions, it may cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try and correct the interference by on or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the distance between the equipment and the receiver.
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This device must not be co-located or operating in conjunction with any other
antenna or transmitter.
Information to user
The users manual or instruction manual for an intentional or unintentional radiator shall caution
the user that changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
BLUETOOTH CLASS 2 MODULE
Version 1.0 Page-2-
J-3 Wireless BU
I. FEATURES
Bluetooth Plug-n-play class 2 module.
Small Dimension (15mmx23mmx4mm)
Fully compliant to Bluetooth V1.1 standard
High sensitivity (typical -80 dBm)
II. APPLICATION
Personal digital assistants
Laptop computers
Bluetooth devices
Bluetooth enabled consumer appliances.
III. Description
BT-1010 Bluetooth class 2 module is a short-range radio transceiver operating in the
unlicensed 2.4 GHz ISM band. BT-1010 fully complies with Bluetooth V 1.1 standard, and it
is usually applied in design-in scenarios to provide Bluetooth capabilities. Currently, BT-1010
has been applied in the design of Bluetooth mouse, Bluetooth keyboard, Bluetooth access
point, and personal digital assistant (PDA).
BLUETOOTH CLASS 2 MODULE
Version 1.0 Page-3-
J-3 Wireless BU
I. GENERAL SPECIFICATIONS
Product Description Bluetooth Class 2 Module
Product Model No. BT-1010
Standard Bluetooth V1.1
Frequency Band 2.400GHz ~ 2.480GHz unlicensed ISM band
Spread Spectrum FHSS (Frequency Hopping Spread Spectrum)
Modulation method GFSK (Gaussian Frequency Shift Keying)
RF output power Class II, -6 dBm ~ 4 dBm
Working distance Max. 10 m in free space
Sensitivity < 0.1% BER at –80dBm
Power consumption Tx Typical : 65 mA
Rx Typical : 45 mA
BLUETOOTH CLASS 2 MODULE
Version 1.0 Page-4-
J-3 Wireless BU

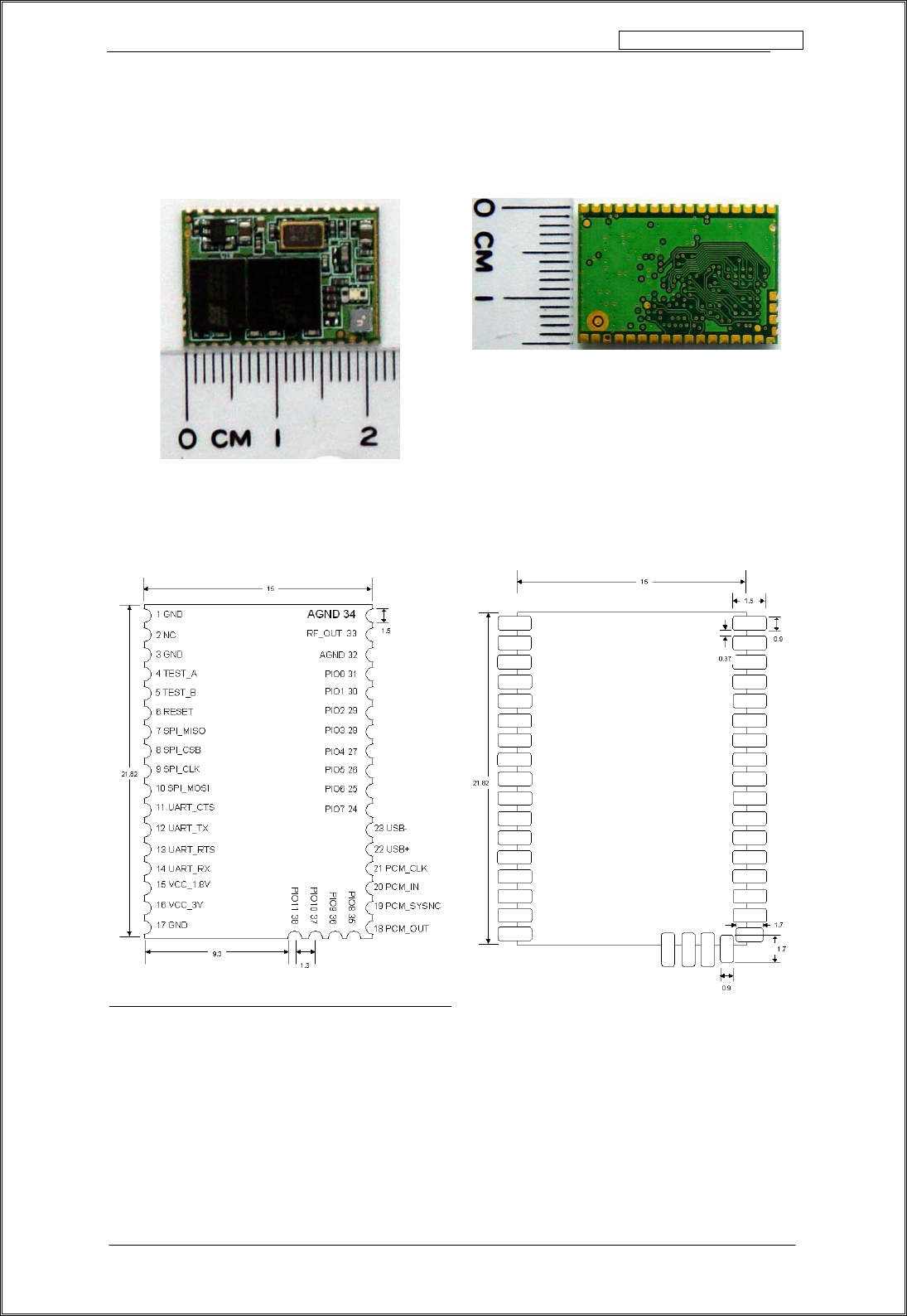

II. MECHANICAL SPECIFICATIONS
Figure 1: BT-1010 Picture
Figure 2: Pad Dimension and Pin Assignment
BLUETOOTH CLASS 2 MODULE
Version 1.0 Page-5-
J-3 Wireless BU
III. Electrical Characteristics
Absolute Extreme Ratings
Supply Voltage Unit
Max. 3.5 V
Typical 3.3 V
Min. 2.8 V
Storage Temperature Unit
Max. 85 oC
Min -40 oC
Recommended Operation Conditions
Supply Voltage Unit
Max. 3.5 V
Typical 3.3 V
Min. 2.8 V
Max. Operating
Temperature
70 oC
Min. Operating
Temperature
0oC
