J and M >
user manual
#CFRG-BT01
Bluetooth®
Adapter
For J&M CFRG Units
Installation and
Operation
Instructions
© 2006 J&M Corporation. All rights reserved. 6/06

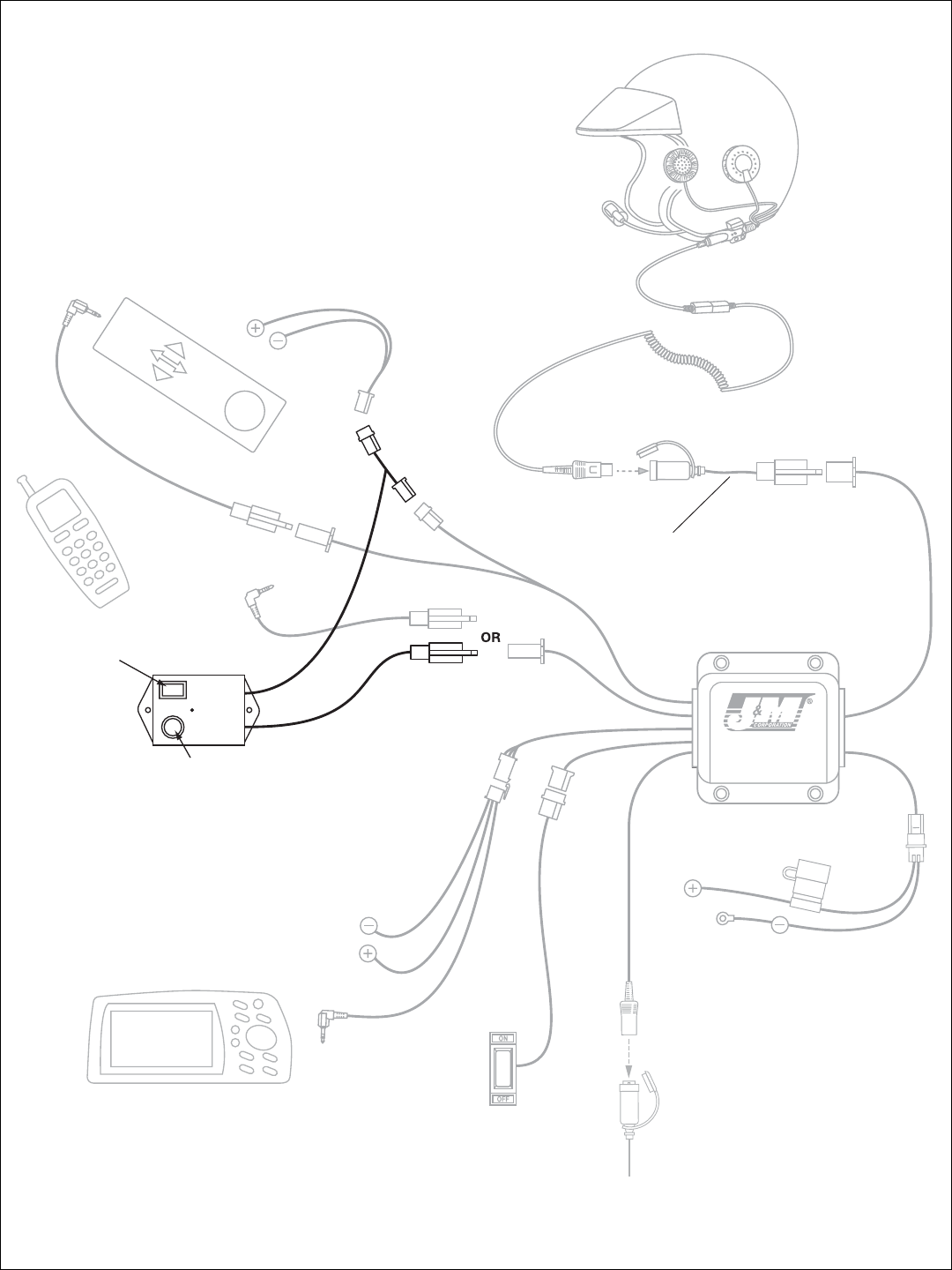

Universal Cellular
Telephone/GPS/Radar
Detector Audio
Integration Terminal
Cell Phone
GPS
right-angle plug to the
GPS audio output
(GPS not included)
CFRG-Module
black
2-pin
plug
black
2-pin
plug
black wire—ground
connection
black wire—ground connection
red wire—power connection for radar detector
red wire—power connection for GPS
driver's
helmet headset
(not included)
5-pin din
red
6-pin plug
cell phone
rocker control switch
factory-installed headset lead
white
3-pin
plug black
3-pin
plug
Radar Detector
black
2-pin plug
5-pin headset lead from
stock audio system
5-pin din
fuse
holder
ground to frame—black wire
12v swithable
—red wire
volume
multifunction
button
red 4-pin
plug
CFRG-BT01
Diagram A
Thank you for the confidence you have shown by purchasing one
of J&M’s innovative products. If you have any questions during the
installation, or require further assistance, you may call us at
1-800-358-0881 from 8:00 a.m. to 5:00 p.m. Mountain Standard
Time, Monday through Friday.
Tucson, Arizona U.S.A.
Tel (800) 358-0881
Website: http://www.jmcorp.com
E-mail: audio@jmcorp.com
Installation
1. Mount the CFRG-BT01 where desired, taking into consideration
the wire lengths going to the CFRG unit to allow easy access to
the control buttons.
2. Connect the 4-pin red plug from the CFRG-BT01 to the 4-pin red
plug on the CFRG unit.
3. Connect the black 2-pin plugs in series between the CFRG unit
and the radar detector. (See Diagram A)
Operation
1. Turn on the motorcycle ignition and then depress and hold the
multifunction button located on the top of the CFRG-BT01 until the
blue LED stops flashing then release the button.
2. Now depress and hold the button on the CFRG-BT01 for 10
seconds. The LED should now be flashing rapidly to indicate pair-
ing mode.
3. Enable the Bluetooth mode on your cell phone and perform a
device discovery from the phone. (Refer to your cell phone’s user
guide)
4. Select the J & M Cell/Nav from the list of devices.
5. When prompted by the phone, enter passkey 0000 and confirm
to pair your cell phone to the CFRG-BT01.
6. The CFRG-BT01 is paired with your phone when the LED goes
from rapidly flashing to a slower flash.
7. The multifunction switch allows you to answer incoming cell
phone calls (if not in auto answer mode), voice command dialing
feature along with pairing the CFRG-BT01 to a Bluetooth enabled
cell phone or Bluetooth enabled navigation device.
8. To answer an incoming call briefly depress the multifunction
button (if not in auto answer mode) and switch the on/off rocker
control switch from the CFRG to the on position.
9. To activate the voice command dialing function of the phone —
“turn on”, the on/off rocker switch from the CFRG and briefly
depress the multifunction button on the CFRG-BT01.
10. Once enabled and linked, the CFRG-BT01 will turn off and on
automatically with the motorcycle ignition switch.
Noise and Interference
Motorcycle audio systems by their very nature are noisy. While we
do not guarantee this system to be completely free from electrical
noises and interference, we have taken many steps to achieve
that goal: the power supply system is well filtered, the unit is
shielded in its metal container, and the cables associated with the
unit are shielded.
Power requirements: 11-16 volts DC negative ground
Minimum speaker impedance: 32
Typical current draw: 1.5 amps
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
FCC Regulations
This device complies with 15 of the FCC Rules. Operation is sub-
ject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Industry Canada Notice to Users
Operation is subject to the following two conditions: (1) This
device may not cause interference and (2) This device must
accept any interference, including interference that may cause
undesired operation of the device Ref IC RSS 210 Sec. 5.11.
The term”IC:” before the certification/registration number only
signifies that registration was performed based on a Declaration
of Conformity indicating that Industry Canada technical specifica-
tions were met. It does not imply that Industry Canada approved
the equipment.
