ThingMagic IZAR User Guide
THINGMAGIC IZAR USER GUIDE
For Firmware version 5.3.0 and later
ThingMagic IZAR User Guide
COPYRIGHT INFORMATION:
Copyright 2018 Novanta Corporation. All rights reserved.
Version 04182018
This product or document is protected by copyright and distributed under licenses restricting its use,
copying, distribution, and decompilation. No part of this product or document may be reproduced in
any form by any means without prior written authorization of Novanta Corporation and its licensors, if
any.
CryptoRF is a registered trademark of Atmel Corporation.
MIFARE and NXP is a registered trademark of Royal Philips Electronics.
Tag-it is a trademark of Texas Instruments, Incorporated.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
TECHNICAL SUPPORT AND CONTACT
INFORMATION:
TELEPHONE: 315.701.0678
www.jadaktech.com
Email: RFID-support@jadaktech.com
TABLE OF CONTENTS
1
Revision History 8
2
Introduction 9
3
Development Kit Quick Start Guide 11
4
Hardware Overview 15
4.1
P
ORTS
A
ND
C
ONNECTORS
15
5
Programming Interfaces 19
5.1
M
ERCURY
A
PI
19
5.2
D
EMO
A
PPLICATIONS
19
5.3
L
LRP
19
5.4
O
N
-R
EADER
A
PPLICATIONS
19
6
Setting Up The Reader 20
6.1
E
QUIPMENT
R
EQUIRED
20
6.2
S
ETUP
P
ROCEDURE
20
7
Network Settings 25
7.1
S
ETTING
U
P
T
HE
N
ETWORK
H
ARDWARE
26
7.2
U
SING
D
HCP
26
8
Connecting To The Usb Console Port 30
8.1.1
U
SB
S
ERIAL
D
RIVER
31
9
Using Gpio 34
9.1
C
ONNECTOR
P
INOUT
35
9.2
E
LECTRICAL
S
PECIFICATIONS
36
9.3
I
NPUTS
36
9.4
O
UTPUTS
36
10
Controlling The Reader 39
10.1
U
SING
T
HE
B
ROWSER
-B
ASED
I
NTERFACE
39
10.2
P
ROTOCOL
S
UPPORT
48
10.3
I
SO
18000-6
B
49
10.4
T
AG
R
EAD
M
ETA
D
ATA
49
11
Reader Rf Power 51
11.1
S
ETTING
T
HE
R
EADER
R
F
P
OWER
51
12
Thermal Considerations 52
13
Mounting The Reader 52
13.1
C
EILING
O
R
W
ALL
52
ThingMagic IZAR User Guide
|
5
13.2
V
ARIABLES
A
FFECTING
P
ERFORMANCE
52
13.3
E
NVIRONMENTAL
52
13.4
T
AG
C
ONSIDERATIONS
53
13.5
M
ULTIPLE
R
EADERS
53
14
Izar Specifications 54
14.1
U
HF
R
FID
A
NTENNA
I
NTERFACE
54
14.2
P
OWER
54
14.3
E
NVIRONMENTAL
55
14.4
P
HYSICAL
D
IMENSIONS
55
14.5
S
UPPORTED
U
HF
T
AG
P
ROTOCOLS
55
14.6
D
ATA
/C
ONTROL
I
NTERFACES
55
14.7
P
ERFORMANCE
55
14.8
R
EGULATORY
&
S
AFETY
56
14.9
P
ROCESSOR
56
14.10
U
SER
M
EMORY
56
14.11
R
EAL
T
IME
C
LOCK
56
14.12
O
PERATING
S
YSTEM
56
15
Compliance And Ip Notices 57
15.1
R
EGULATORY
C
OMPLIANCE
57
15.2
E
U
R
ED
D
ECLARATION
O
F
C
ONFORMITY
59
16
Appendix A: Izar Antenna And Cable Information 60
16.1
A
UTHORIZED
A
NTENNAS
60
16.1.1
A
UTHORIZED
A
NTENNAS
60
16.2
A
UTHORIZED
C
ABLES
60
17
Appendix B: Izar Dimensions 61
18
Appendix C: Advanced Administration 62
18.1
C
HANGING
C
ONSOLE
/R
OOT
P
ASSWORD
: 62
19
Appendix D: Troubleshooting 62
19.1
T
ROUBLESHOOTING
T
ABLE
62
19.2
R
ESET
T
O
T
HE
D
EFAULT
C
ONFIGURATION
63
19.3
S
AFE
M
ODE
63
20
Collecting Diagnostic Data For Support 64
ThingMagic IZAR User Guide
|
6
LIST OF TABLES
Table 1: Revision History ................................................................................................................................... 8
Table 2: Reader Power Settings ....................................................................................................................... 42
Table 3: Gen2 Protocol Settings ....................................................................................................................... 43
Table 4: General Network Settings ................................................................................................................... 44
Table 5: Ethernet Interface Settings ................................................................................................................. 45
Table 6: Boot Option Settings ........................................................................................................................... 46
Table 7: Authorized Antennas .......................................................................................................................... 60
Table 8: Common Problems and Solutions ..................................................................................................... 62
LIST OF FIGURES
Figure 1: Assembled Development Kit and Reader ........................................................................................ 11
Figure 2: Power, LAN, and RF Connections to the Reader ............................................................................ 12
Figure 3: Green Status LED .............................................................................................................................. 12
Figure 4: Disabling Proxy Settings in Computerʼs IP Profile ........................................................................... 12
Figure 5: Host Name on Reader ....................................................................................................................... 13

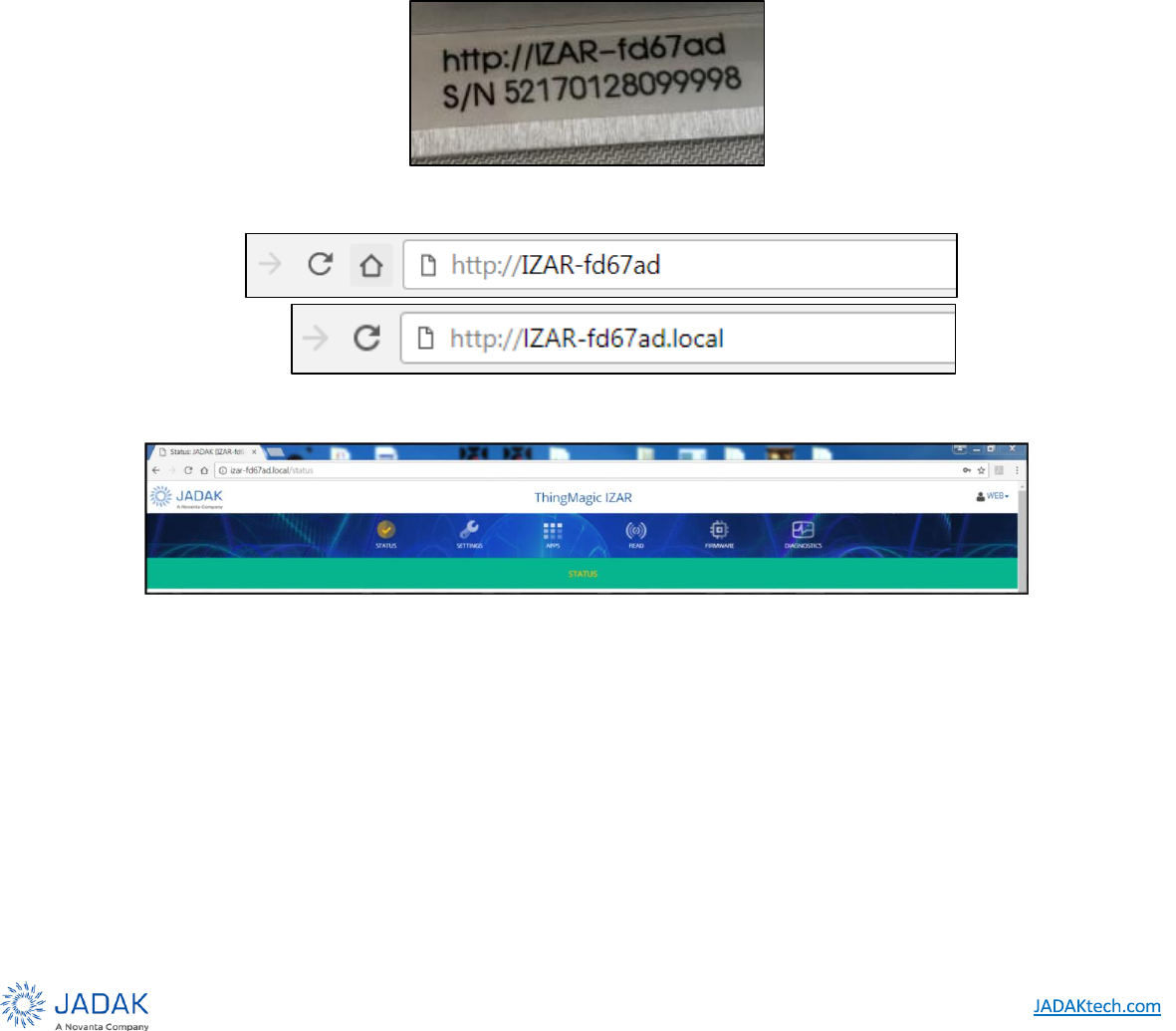

Figure 6: Entering Host Name as URL ............................................................................................................. 13

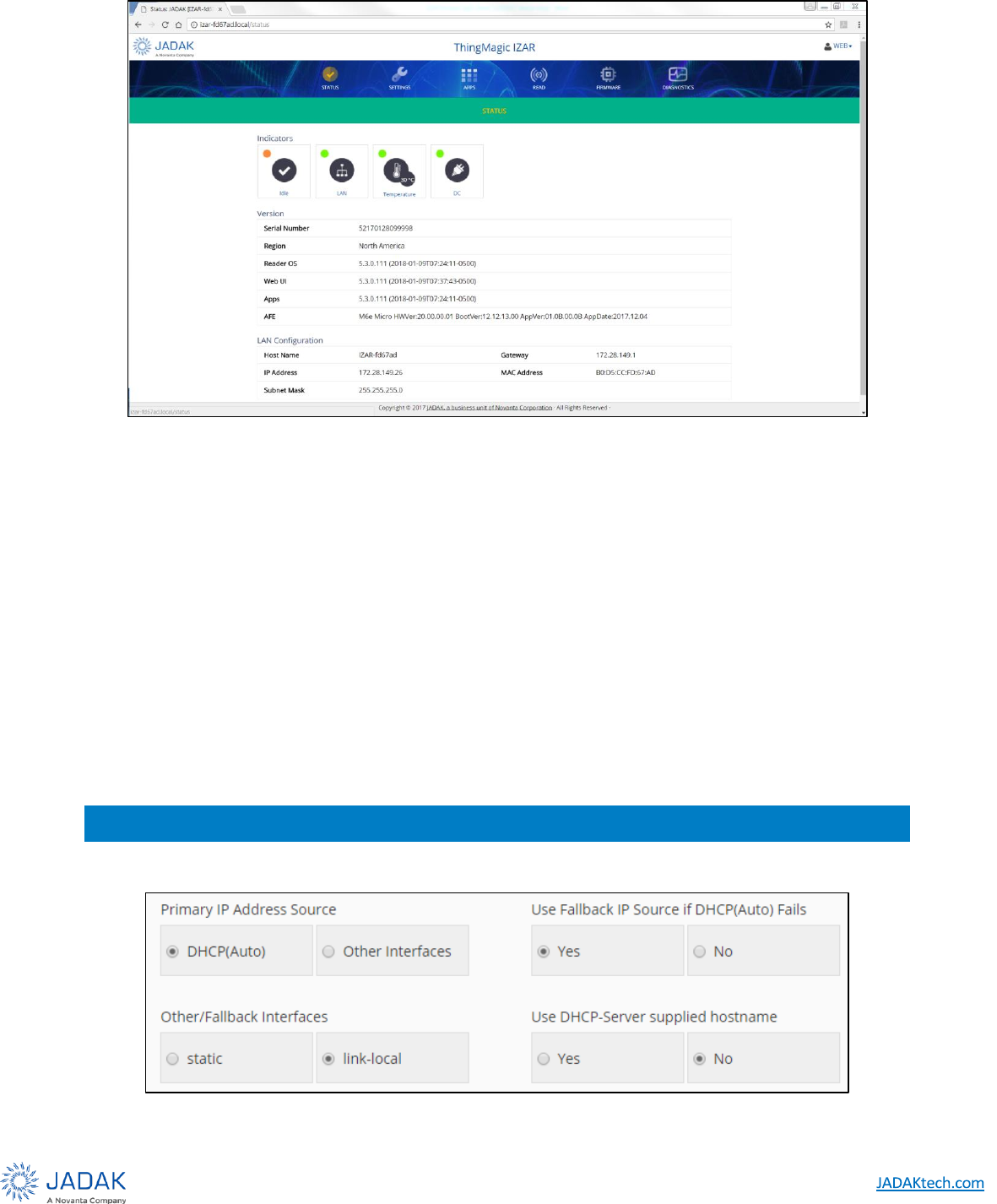

Figure 7: Initial Web Interface Screen .............................................................................................................. 13
Figure 8: Selecting the Active Antenna Port .................................................................................................... 14

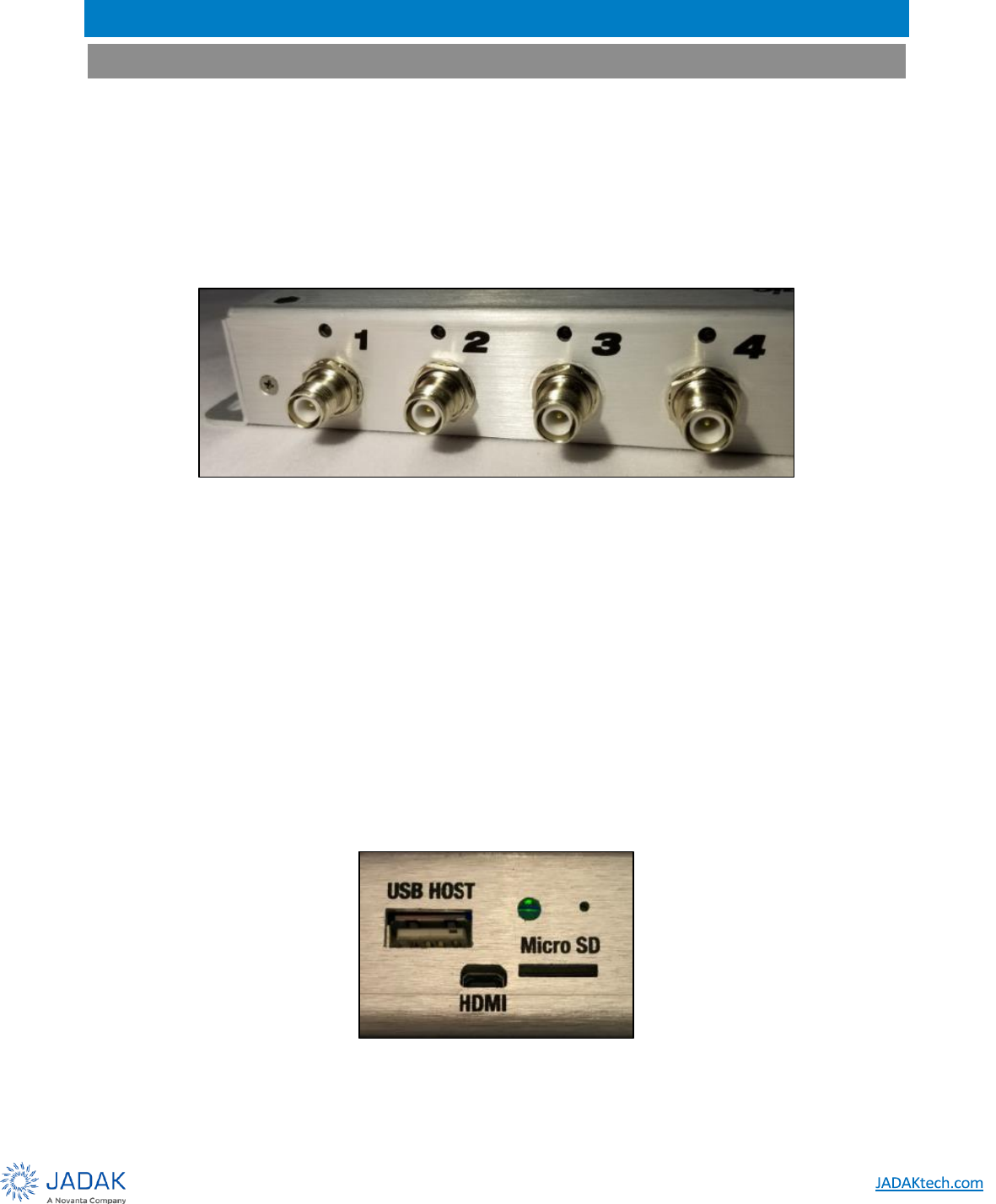

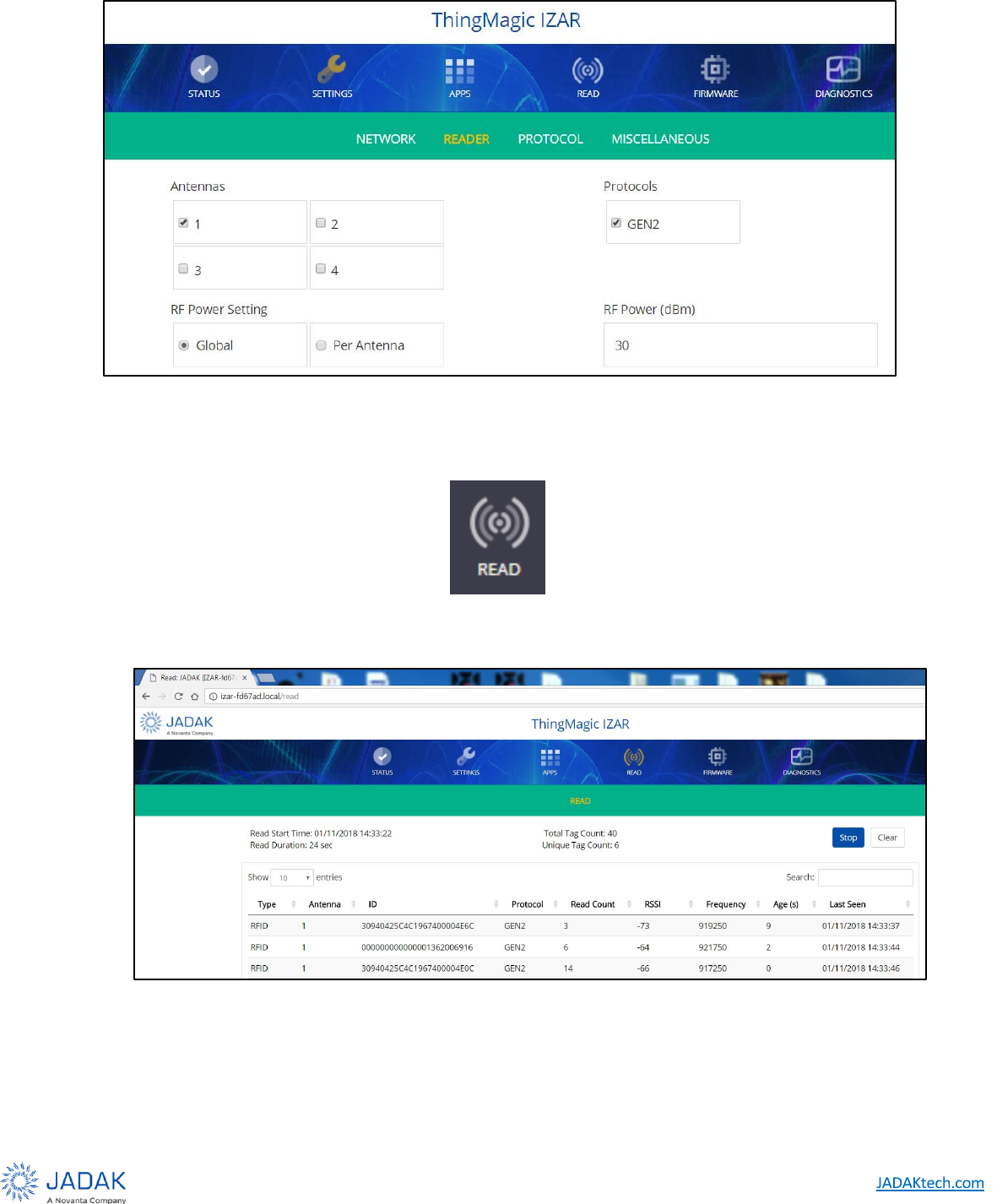

Figure 9: IZAR RFID Antenna Ports ................................................................................................................. 15
Figure 10: IZAR Power and LAN connection ................................................................................................... 16

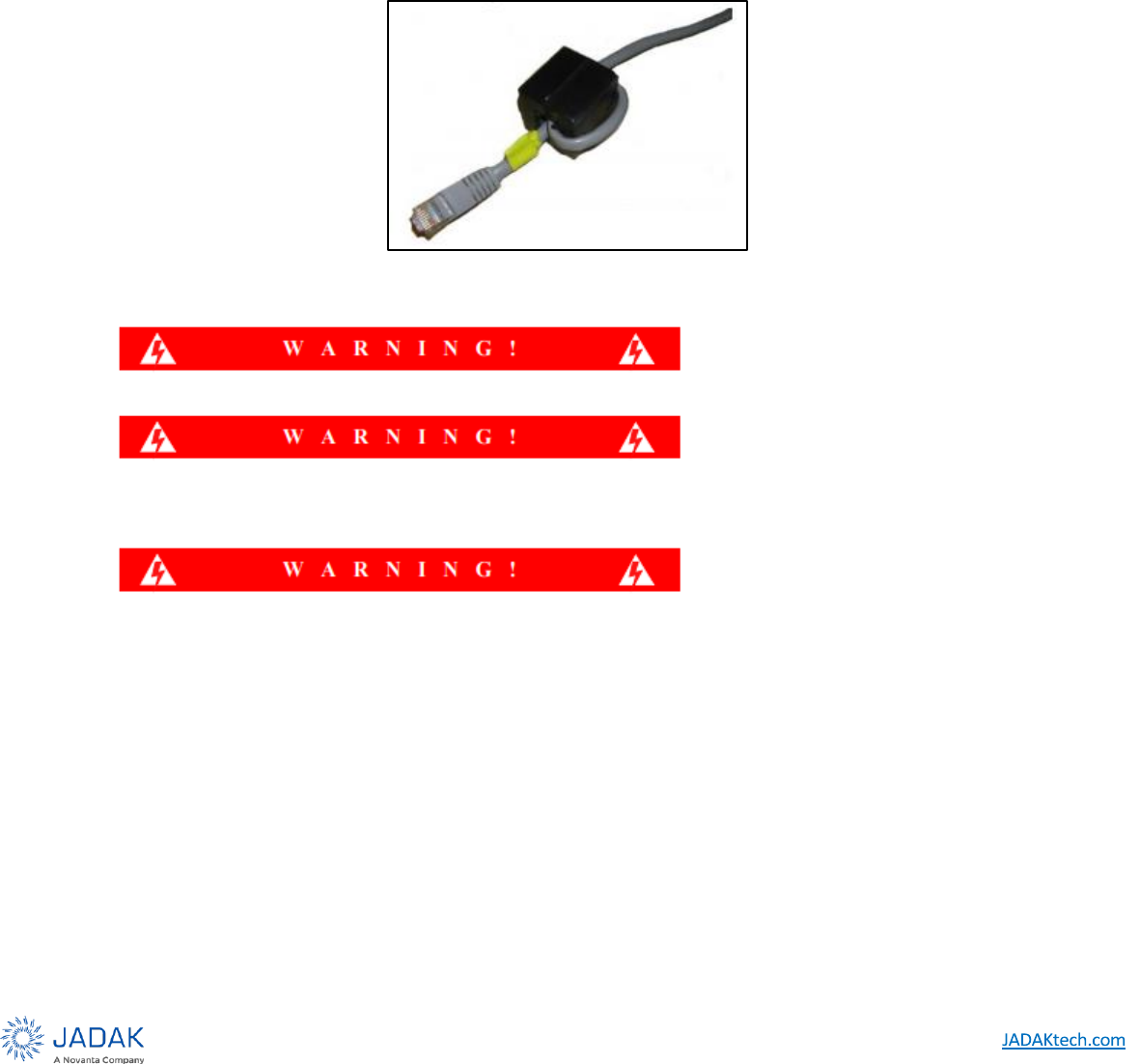

Figure 11: Ferrite Bead ...................................................................................................................................... 17

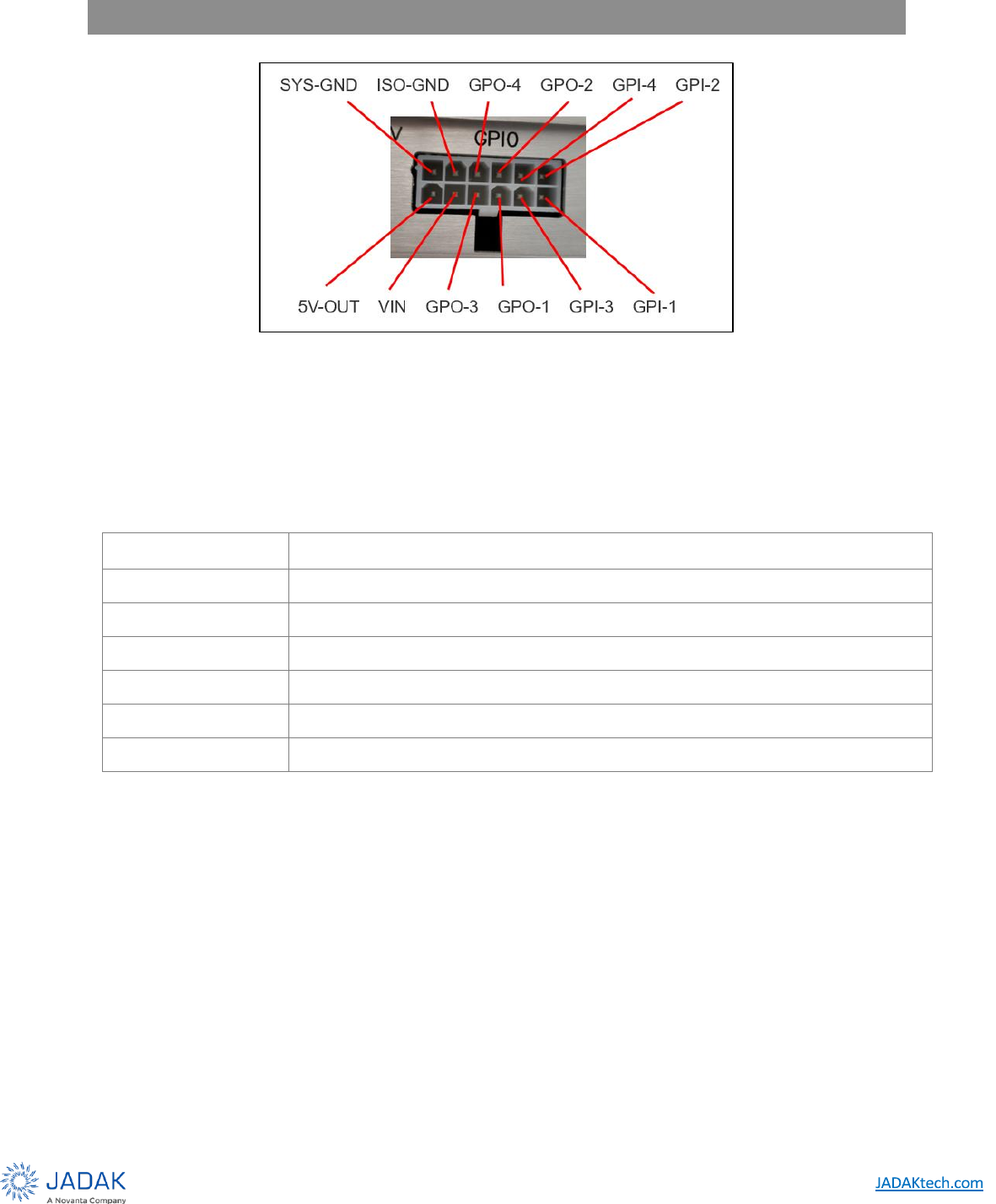

Figure 12: GPIO connector ............................................................................................................................... 18
Figure 13: IZAR Reader Interfaces ................................................................................................................... 20

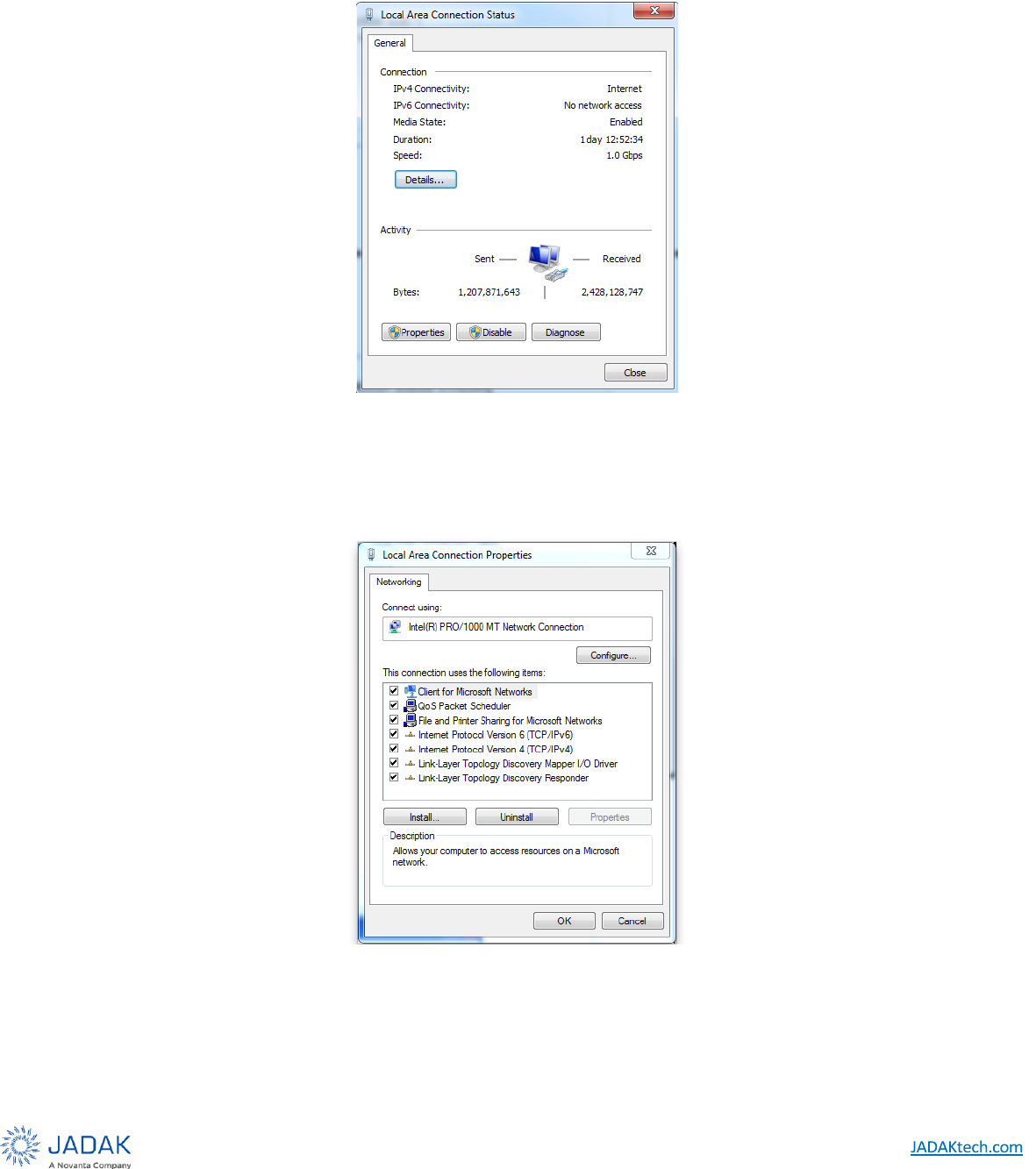

Figure 14: Local Area Connection Status Window .......................................................................................... 22
Figure 15: Local Area Connection Properties Window ................................................................................... 22
Figure 16: Internet Protocol TCP/IP Properties Window ................................................................................. 23

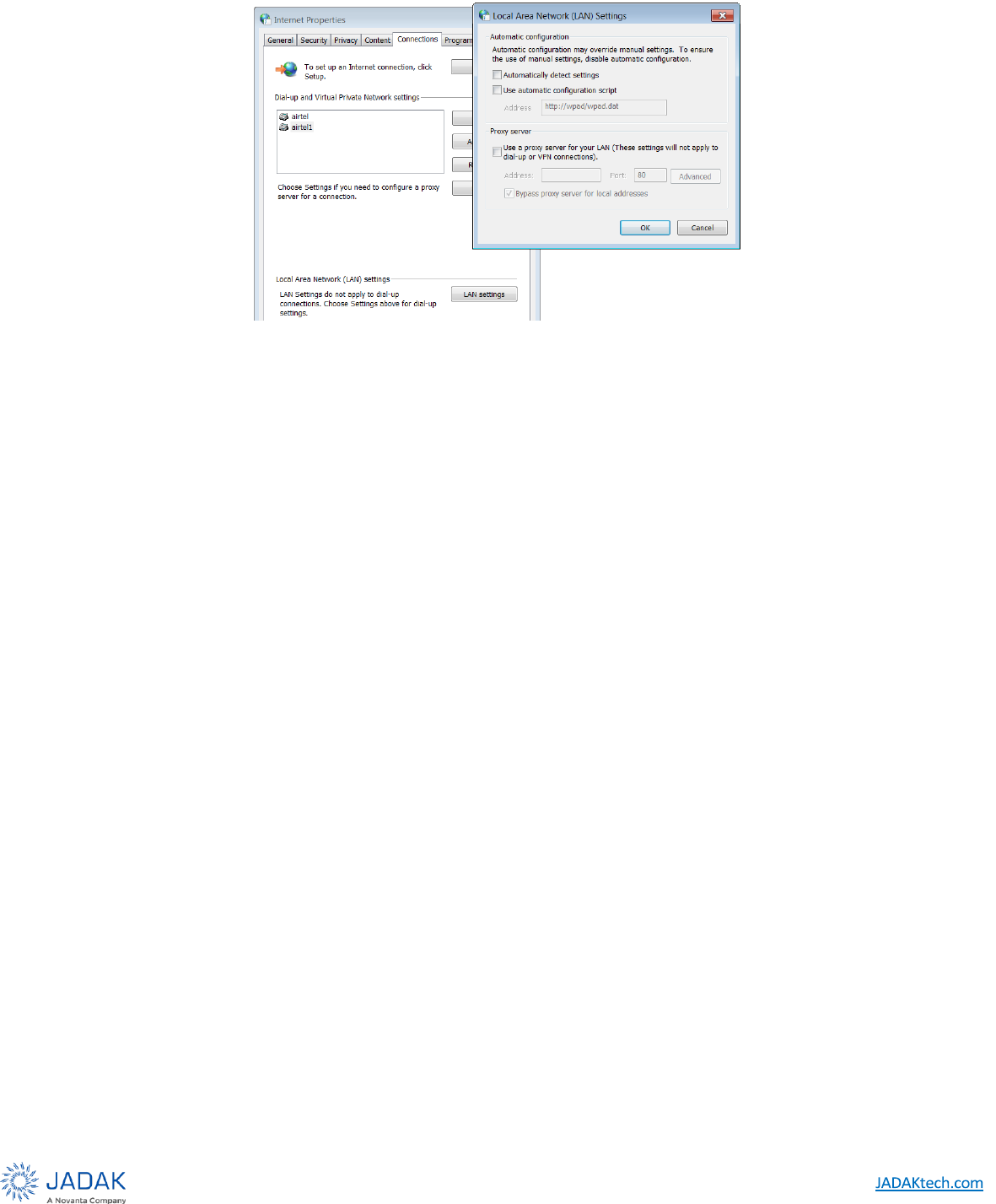

Figure 17: Typical Browser Proxy Settings ...................................................................................................... 24

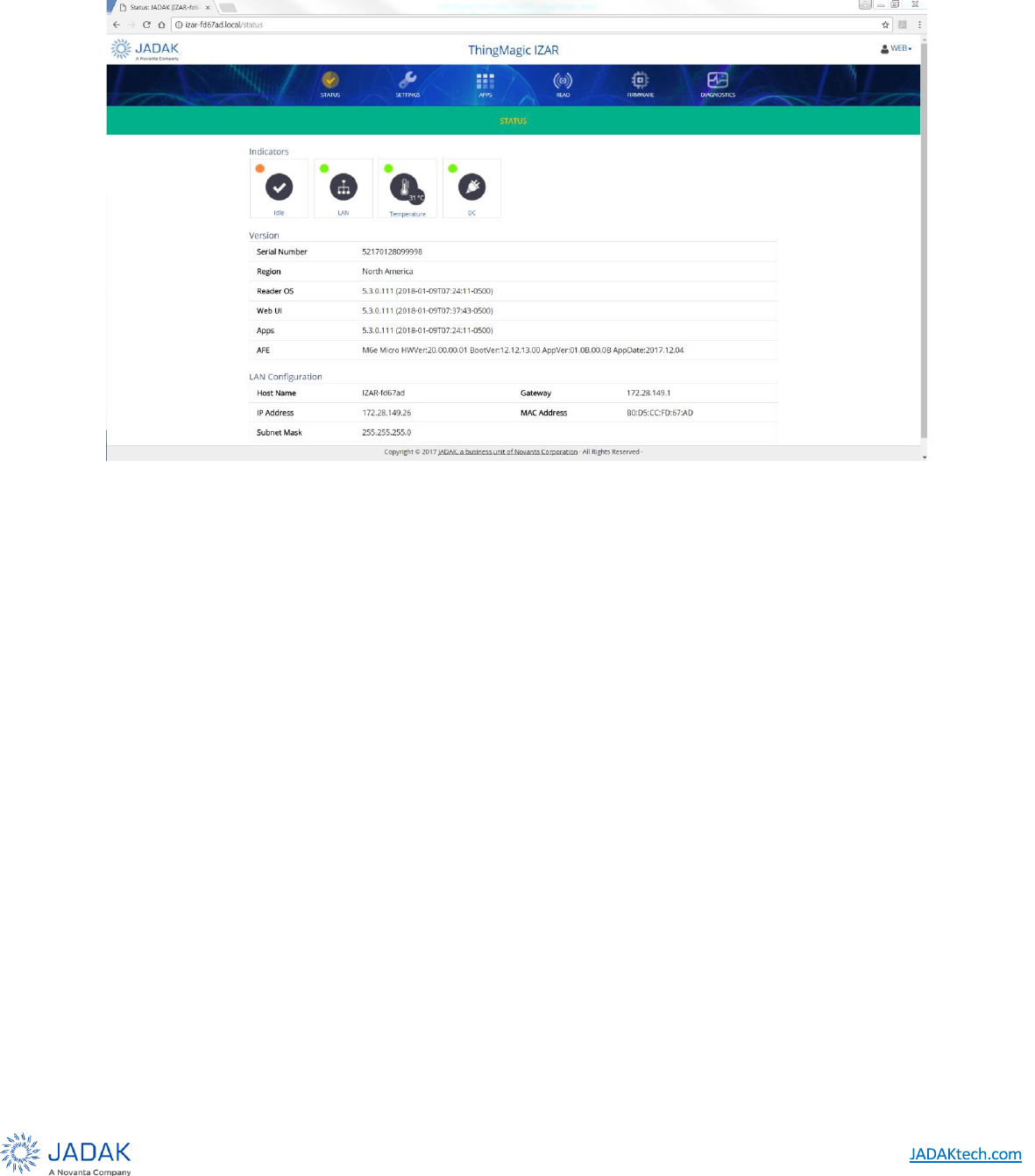

Figure 18: IZAR Status Page ............................................................................................................................ 25

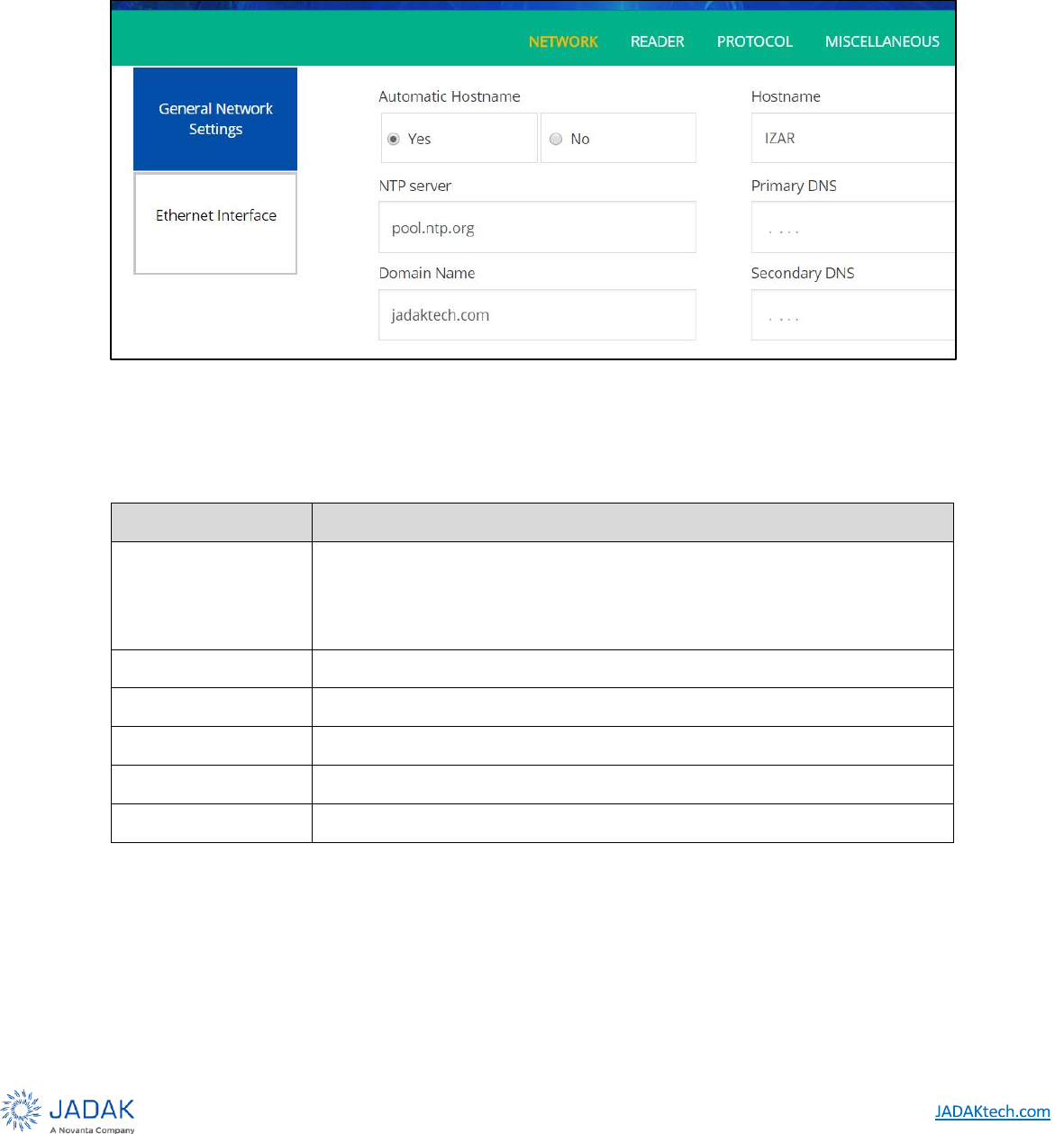

Figure 19: Network Settings .............................................................................................................................. 27

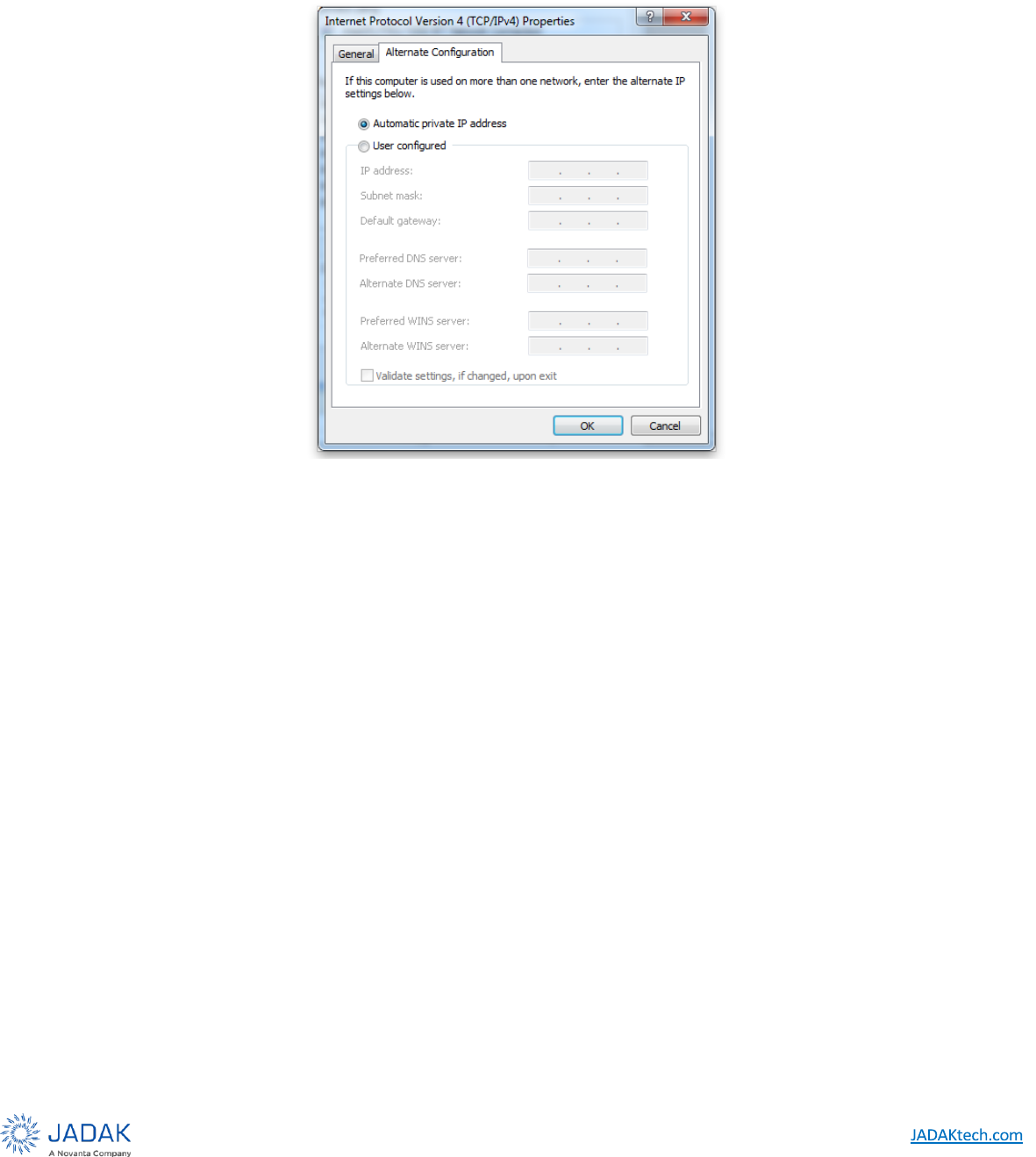

Figure 20: Internet Protocol (TCP/IP) Properties Window .............................................................................. 28

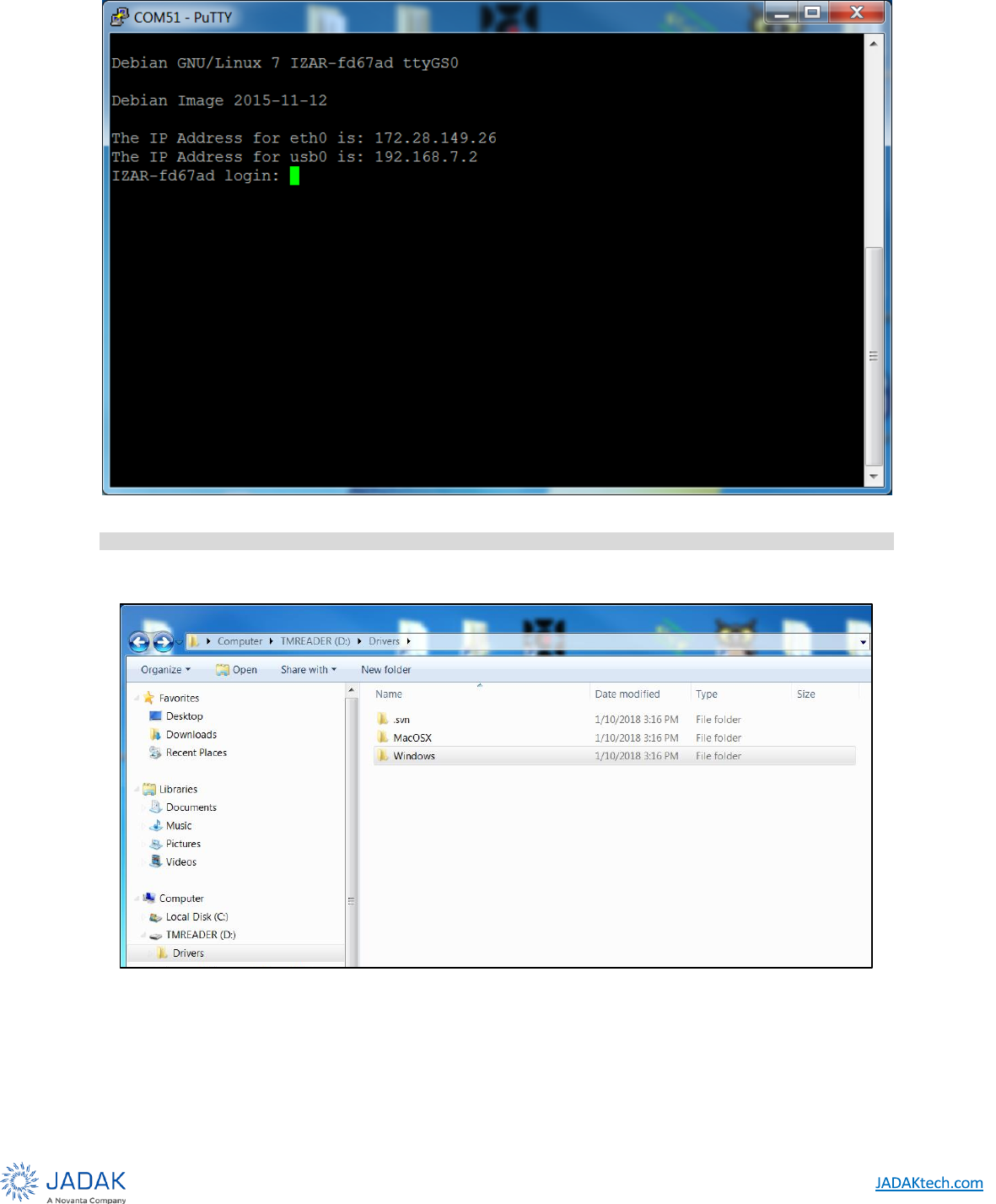

Figure 21: IZAR Console Login Prompt ........................................................................................................... 31
Figure 22: IZAR connector ................................................................................................................................ 35

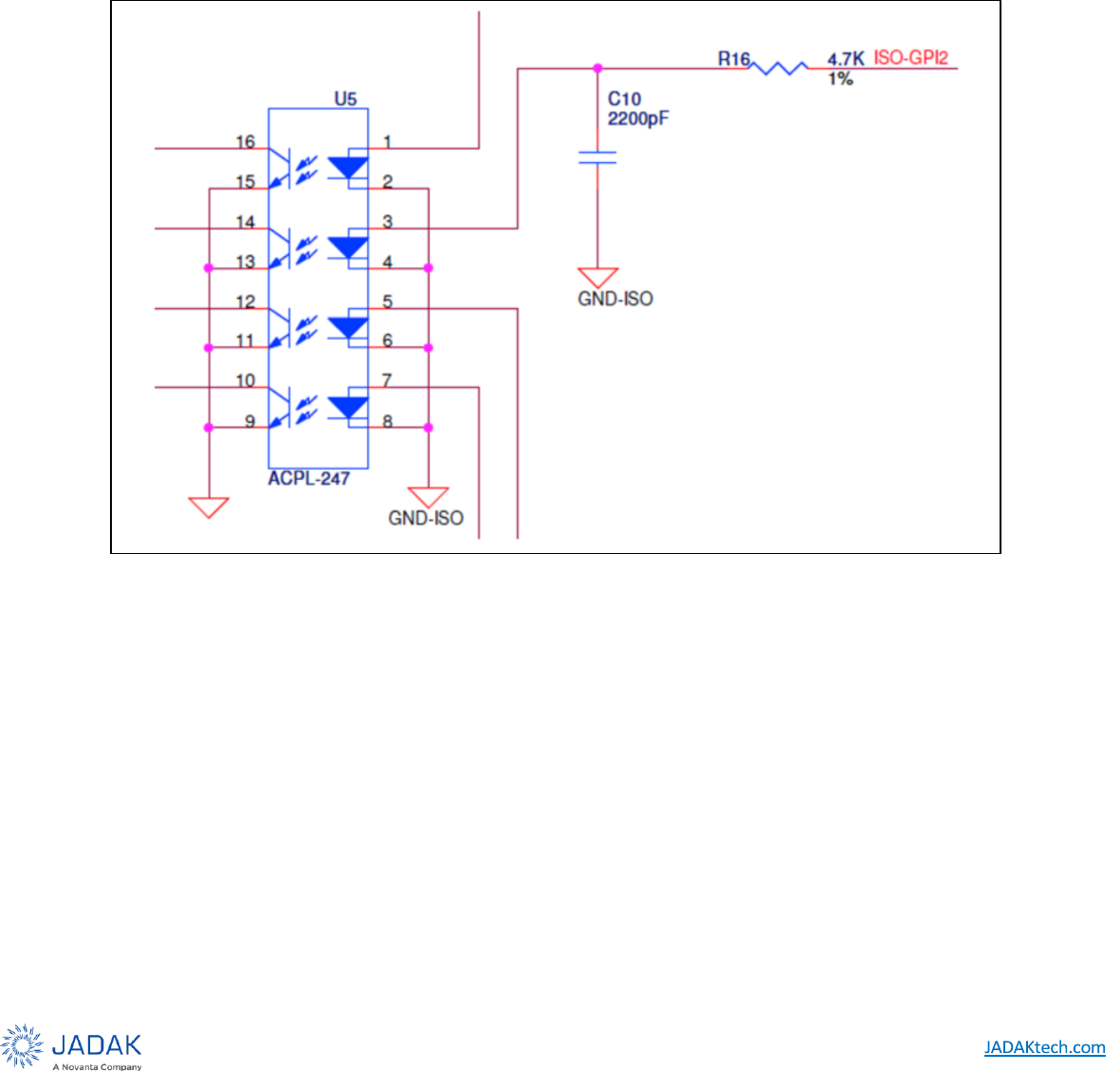

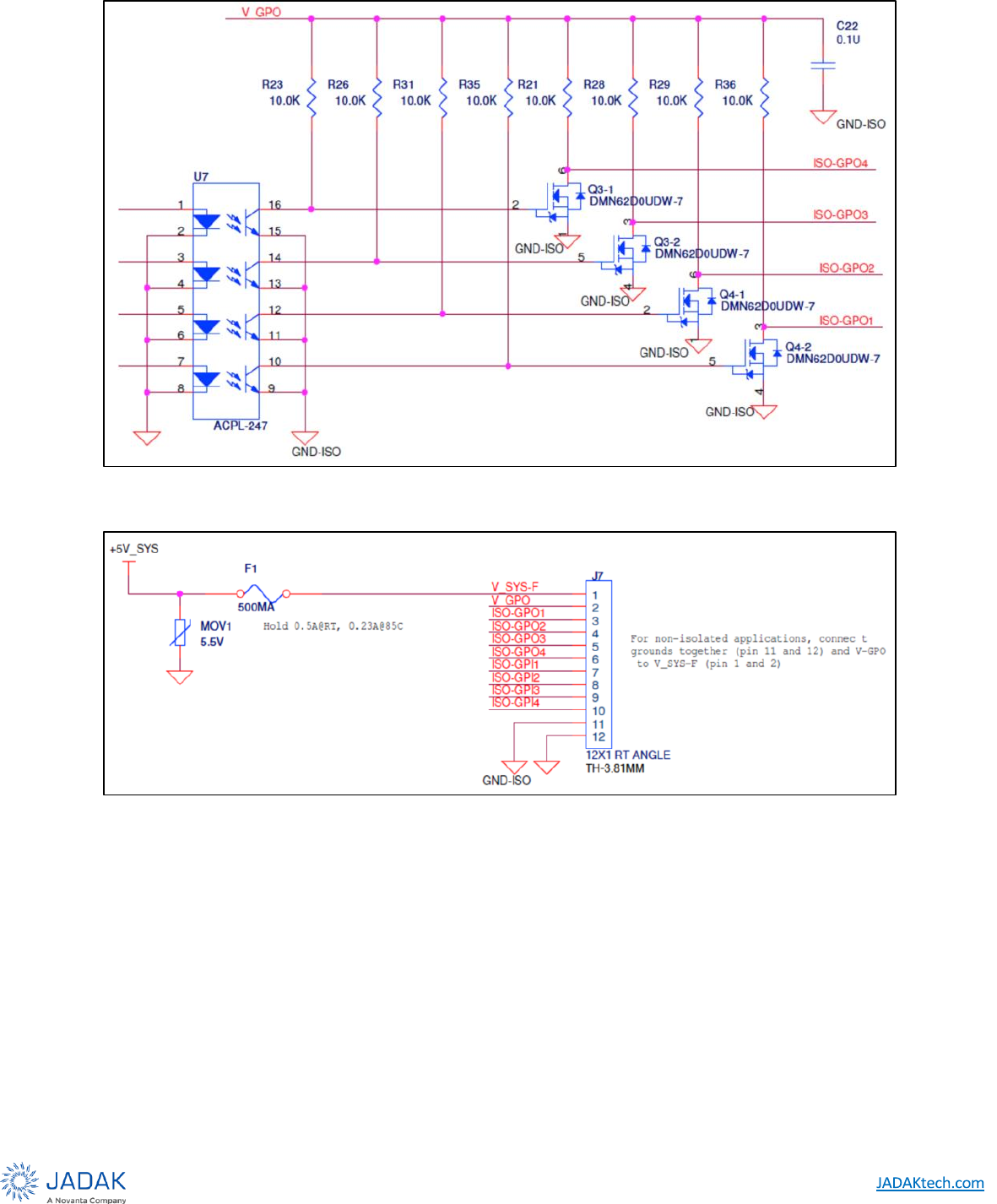

Figure 23: Schematic Diagram of GPI Circuitry (only 1 input shown) ............................................................ 37
Figure 24: Schematic Diagram of GPO Circuitry ............................................................................................. 38
Figure 25: Schematic Diagram of Connector and 5V source ......................................................................... 38
Figure 26: Status Page ...................................................................................................................................... 40
Figure 27: Settings Page ................................................................................................................................... 41
Figure 28: Reader Power, Antenna, and Protocol Settings ............................................................................ 41
ThingMagic IZAR User Guide
|
7
Figure 29: Miscellaneous Screen ..................................................................................................................... 45
Figure 30: Diagnostics Page ............................................................................................................................. 46

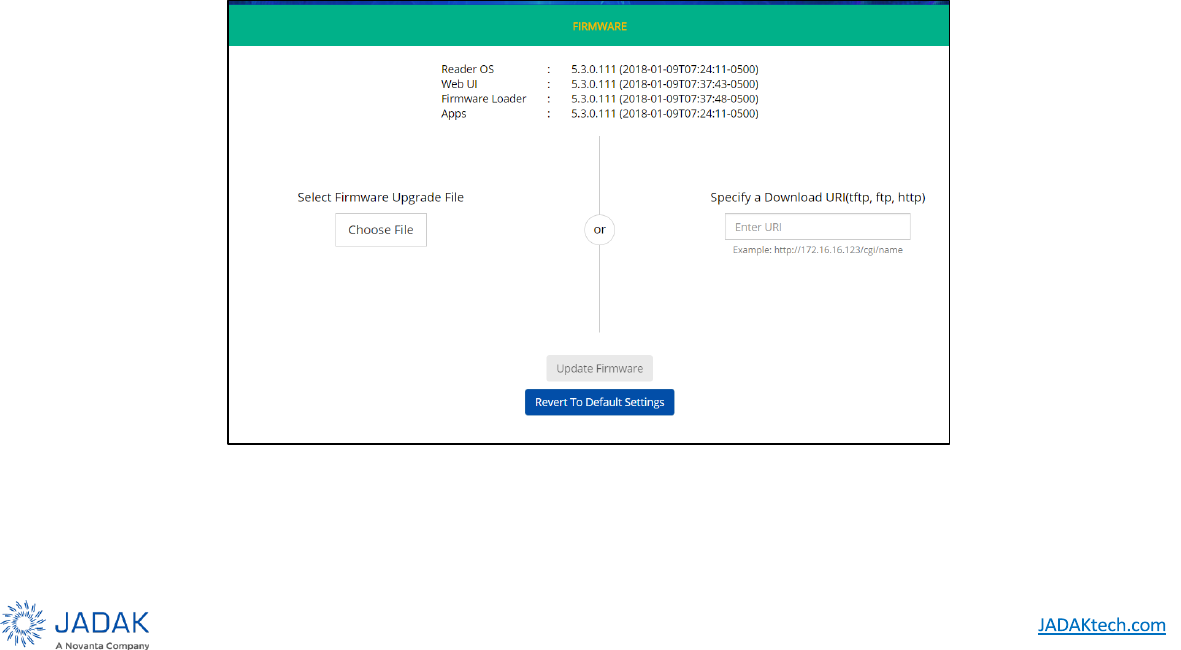

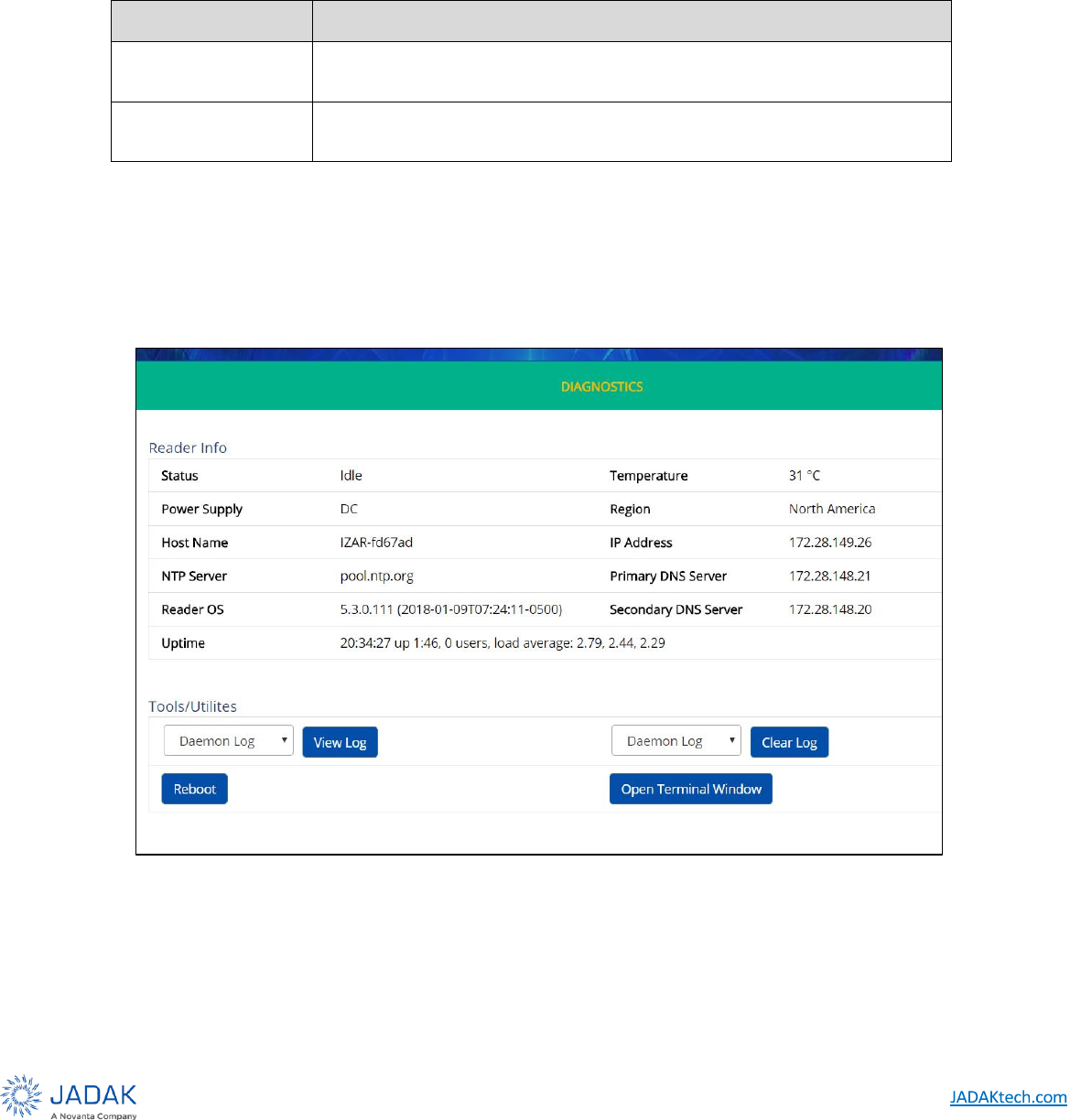

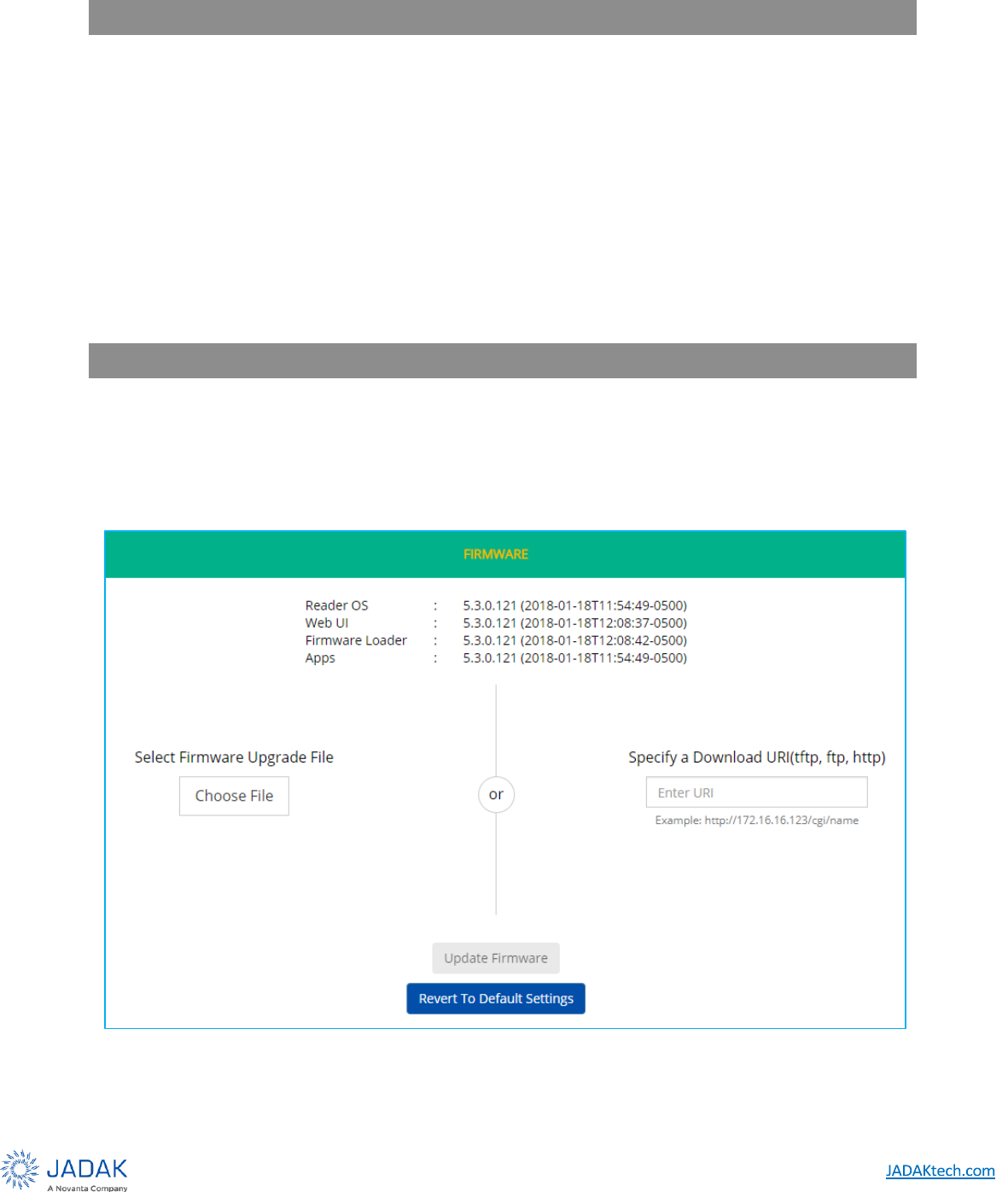

Figure 31: IZAR Firmware Update Page .......................................................................................................... 47

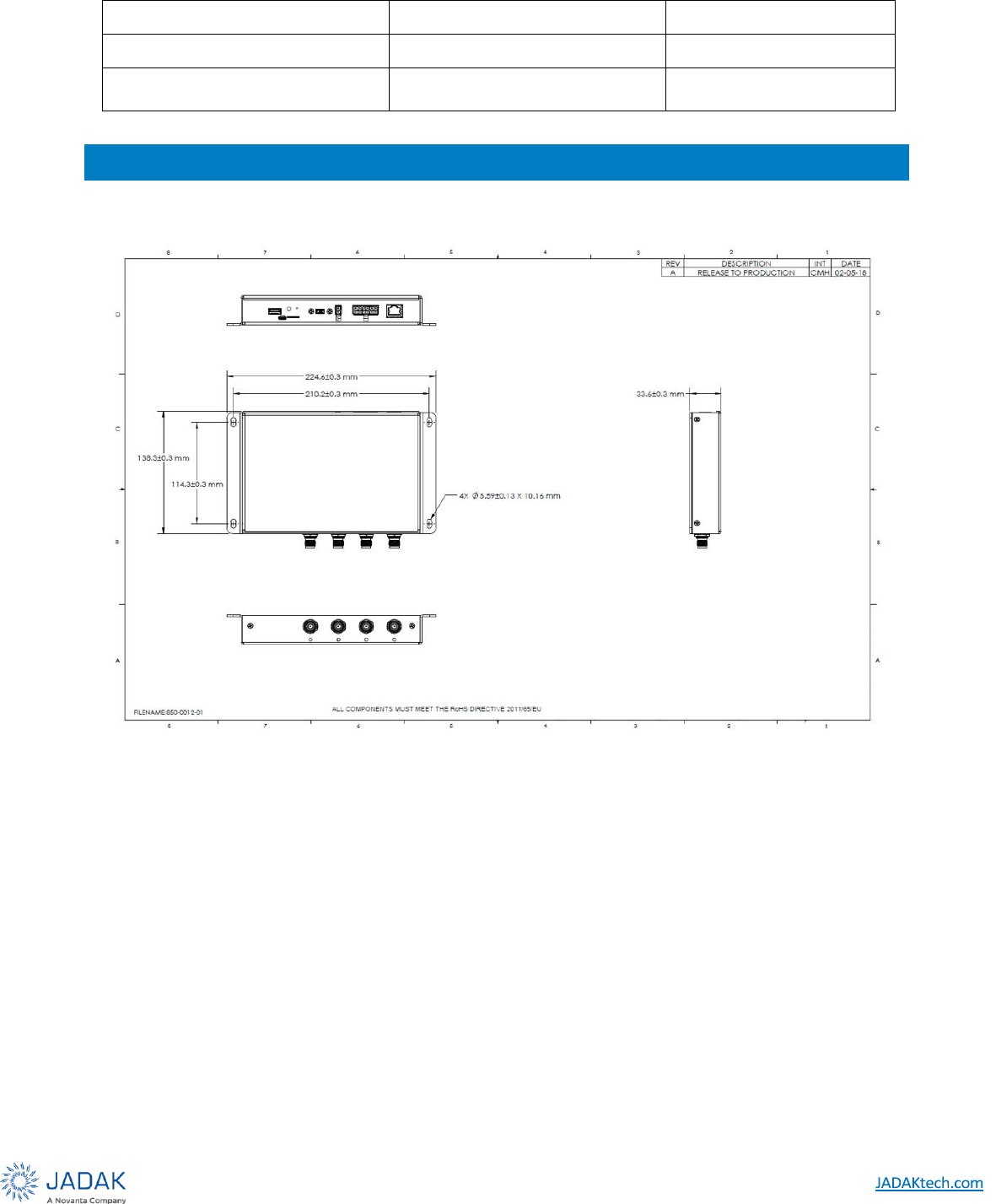

Figure 32: IZAR Product Dimensions ............................................................................................................... 61
ThingMagic IZAR User Guide
|
9

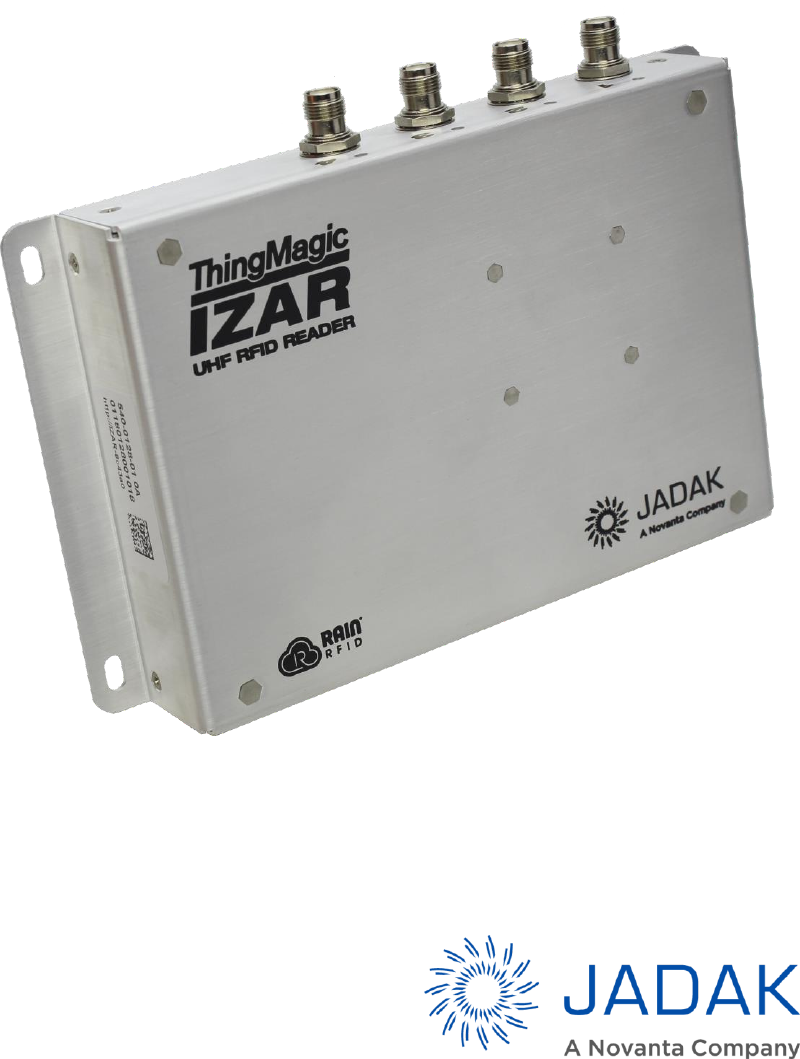

2 Introduction
This document applies to IZAR Readers with firmware version 5.3.0 or later, used in conjunction with API
version 1.31.1 or later. It explains how to set up the IZAR Readers, how to configure them for network operation,
and how to use the browser-based interface. See the corresponding IZAR Firmware Release Notes for
operational differences from what is in this User Guide specific to a firmware version.
Any new features or known issues that are not reflected in this User Guide will be found in the Release
Notes for the version of firmware you are using. Release notes are downloaded from the same web site
where you obtained this document.
Separate appendices contain specifications and antenna information that are specific to the IZAR Reader.
Applications to control the IZAR from an external host can be written using the high level MercuryAPI. The
MercuryAPI supports Java, .NET and C programming environments. Applications to control the IZAR using its
internal processor can be written via the C programming environment. The MercuryAPI Software Development
Kit (SDK) contains sample applications and source code to help developers get started demonstrating and
developing functionality. For more information on the MercuryAPI see the MercuryAPI Programmers Guide and
the MercuryAPI SDK, available on the JADAK website (www.jadaktech.com).
This document is broken down into the following sections:
Development Kit Quick Start Guide - Provides the minimal number of steps to begin
reading tags using the Web
User Interface and IZAR Reader with an IZAR Development Kit.
Hardware Overview - Provides detailed specifications of the IZAR hardware and physical interfaces.
Programming Interfaces - Describes the programming interfaces, including on-reader applications, where to find
code samples, and the LLRP interface.
The following sections explain the methods available for connecting to the IZAR over the Ethernet, and
USB interfaces:
Setting Up the Reader - Connect using a direct Ethernet connection from a Host PC to the IZAR.
Networking Settings - Connect over Ethernet LAN using DHCP, self-allocated, or static IP settings.
Connecting to the USB Console Port - Connect to the IZAR console for command-line interface access and
troubleshooting.
Using GPIO - Details the GPIO physical interface specs and how to control it via the MercuryAPI.
Controlling the Reader - Describes the browser-based interface and the configuration and testing options
available through it.
Protocol Support - Provides descriptions of the IZAR advanced protocol specific configuration options that are
supported through the use of the MercuryAPI
Reader RF Power - Provides guidelines and limitations for setting the RF Power of the IZAR.
ThingMagic IZAR User Guide
|
10
IZAR Specifications - Table of IZAR specifications.
Compliance and IP Notices - Regulator notices.
Appendix A: IZAR Antenna and Cable Information - Lists the authorized antennas and cables which can be
used with the IZAR in FCC regions.
Mounting the Reader and Appendix B: IZAR Dimensions - Provides details of the physical dimensions of the
IZAR.
Appendix C: Advanced Administration - Provides the steps for some advanced administration settings, such as
changing reader passwords.
Appendix D: Troubleshooting - Provides recommended debugging steps for common problems and instructions
for gathering log data when submitting a problem case to RFID support.
ThingMagic IZAR User Guide
|
11

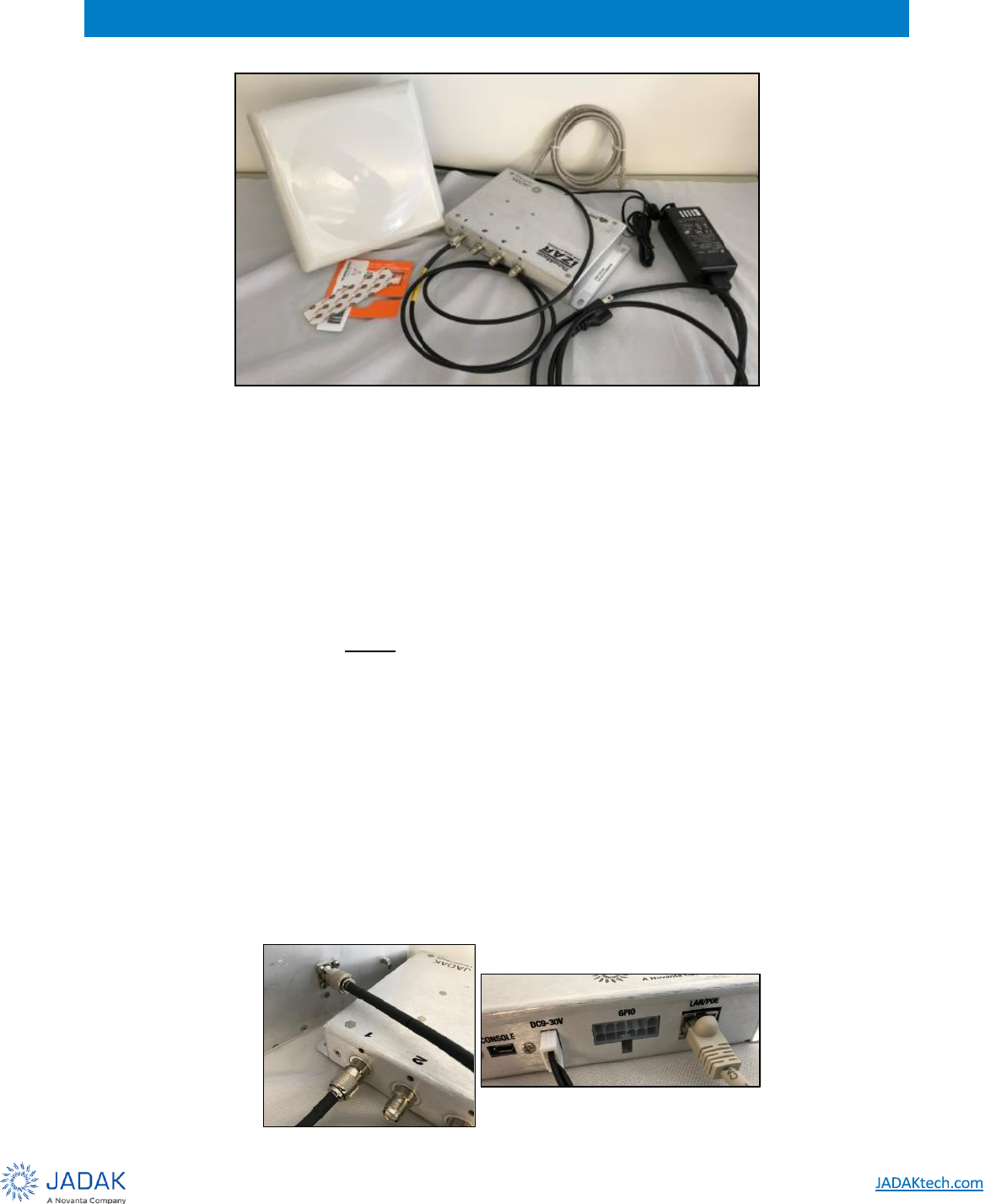

Figure 1: Assembled Development Kit and Reader
3 Development Kit Quick Start Guide
If you have purchased an IZAR Development Kit with your IZAR Reader, you will have received the following
accessories listed below. NOTE: The numbers following the descriptions are the SKU numbers, should you
wish to purchase additional units.
Development kit part number PLT-RFID-IZ6-DEVKIT contains:
RP-TNC to RP-TNC RF Cable (CBL-P6)
RFID Antenna (ANT-WB-6-2025)
LAN cross-over Cable
Sample Tag Pack
**Note: Some of these parts cannot be ordered separately.
If you are not using Power Over Ethernet, you must also purchase one of these power adapters:
24V Power Adapter.
o
PLT-RFID-PWRADP-IZ6-NA (North America plug)
o
PLT-RFID-PWRADP-IZ6-EU (EU Plug)
To make the required physical connections to the reader (8 steps):
1.
Attach RF cable to the “1” port of the reader, and to the antenna as shown in Figure 2.
2.
Attach the LAN cable to the reader LAN/POE connector and to your network or directly to your PC.
Note that a cross-over cable is not needed. Either the IZAR LAN interface or your PC will adjust their
polarity to compensate for the other side.
ThingMagic IZAR User Guide
|
12

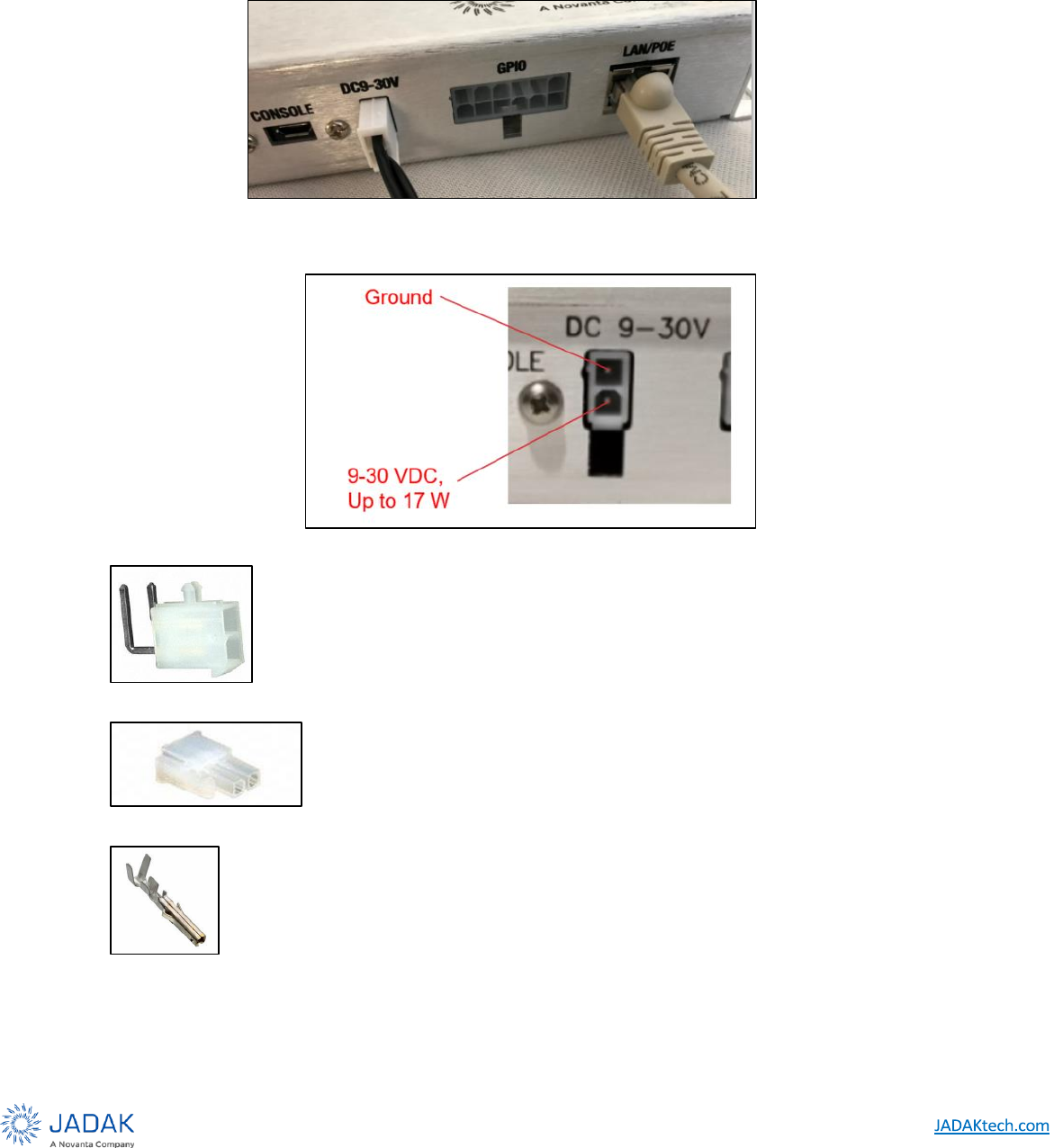

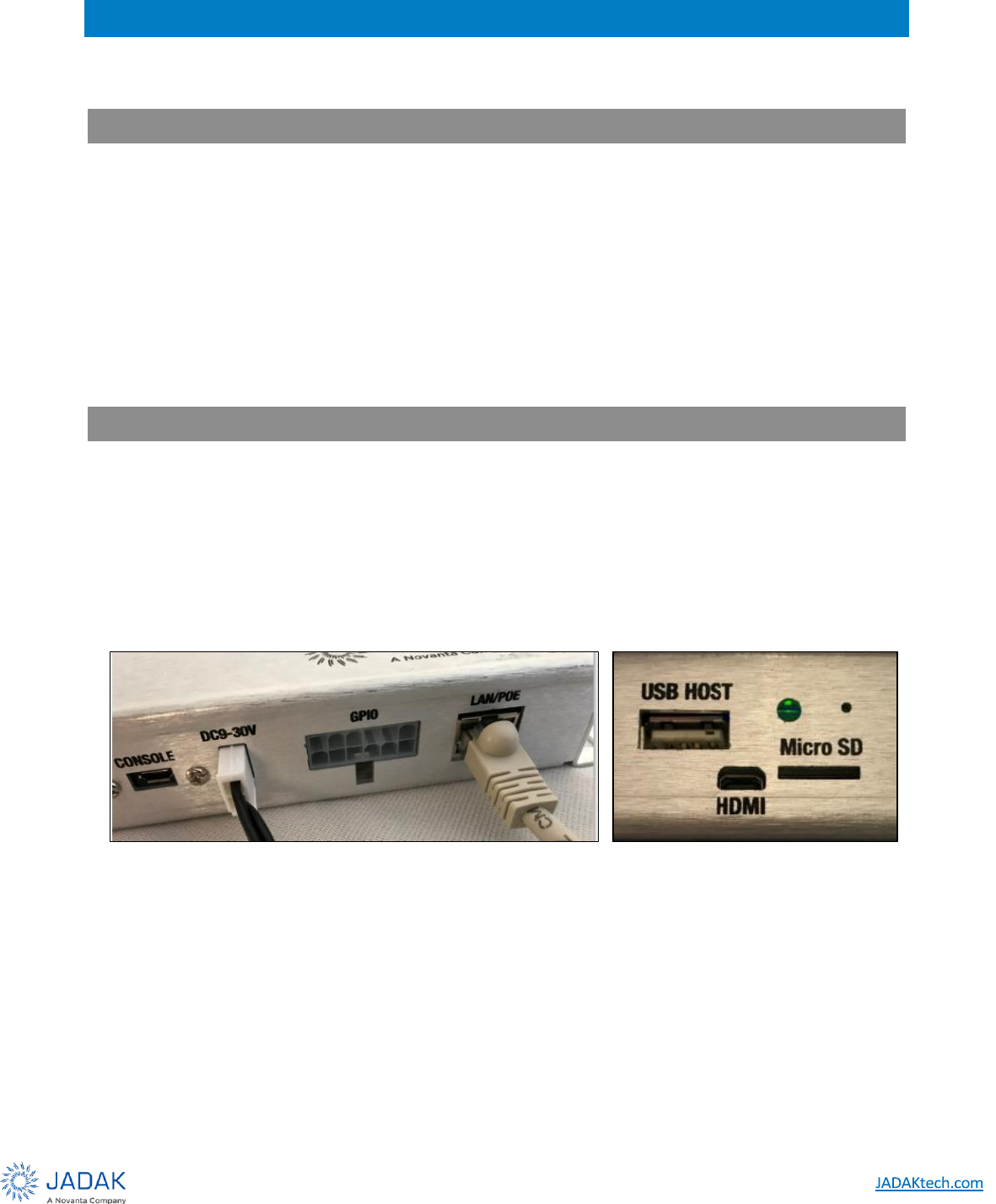

Figure 2: Power, LAN, and RF Connections to the Reader

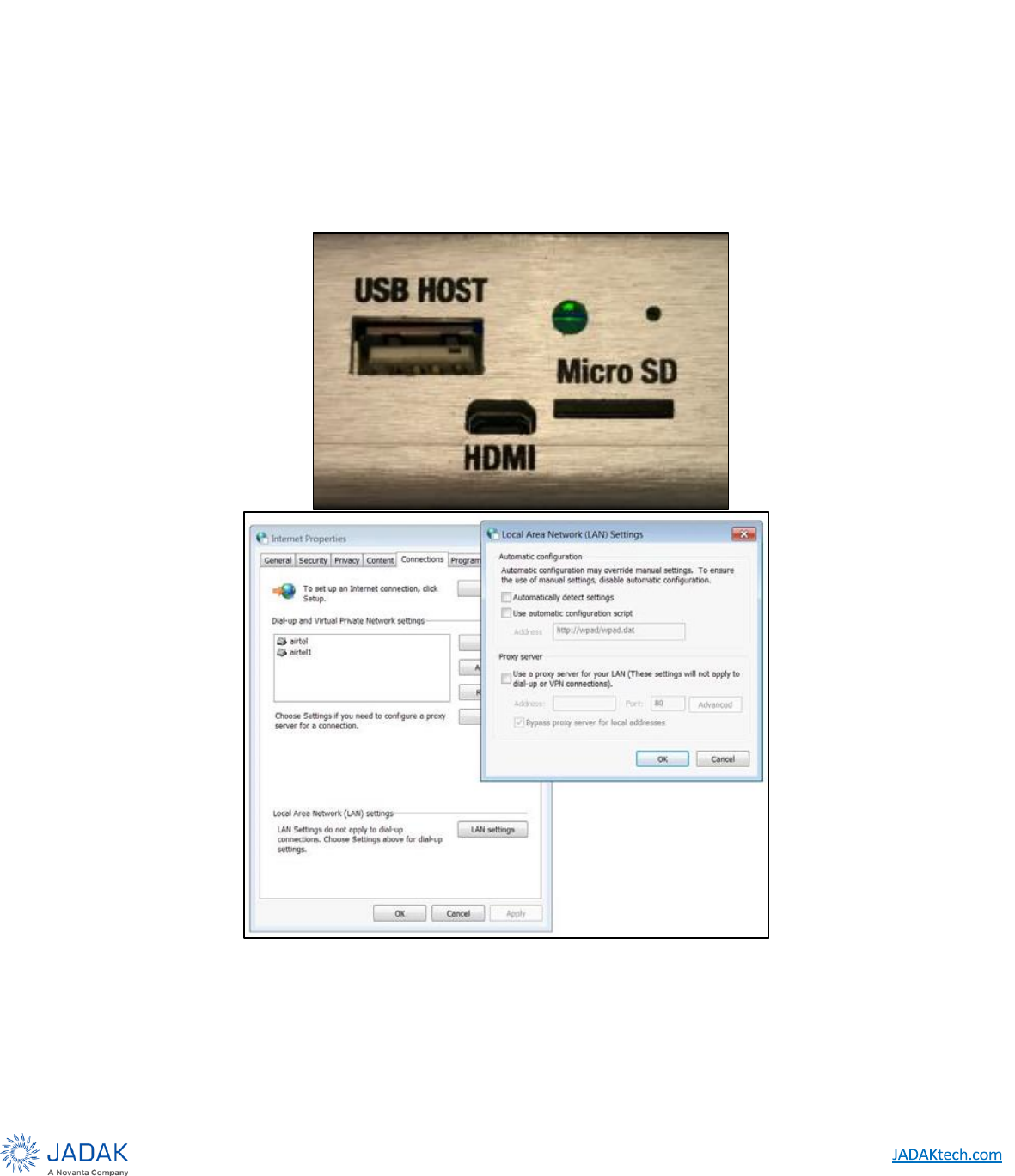

Figure 3: Green Status LED
3.
Connect the 24V DC power adapter to the IZAR Reader DC9-30V connector. Install the correct prong
assembly for your AC service onto the adapter and plug it into an AC outlet.
WARNING - Powering the reader with a USB cable is not supported.
When the multicolor LED to the right of the USB HOST connector turns green (Figure 3), the reader
has obtained a network address from the network's DHCP server, or negotiated one with your PC. This
can take several minutes.
4.
Disable any proxy
settings on your
computerʼs IP
profile. In your browser
LAN settings, disable
both automatic
configuration
and proxy server.
See Figure 4.

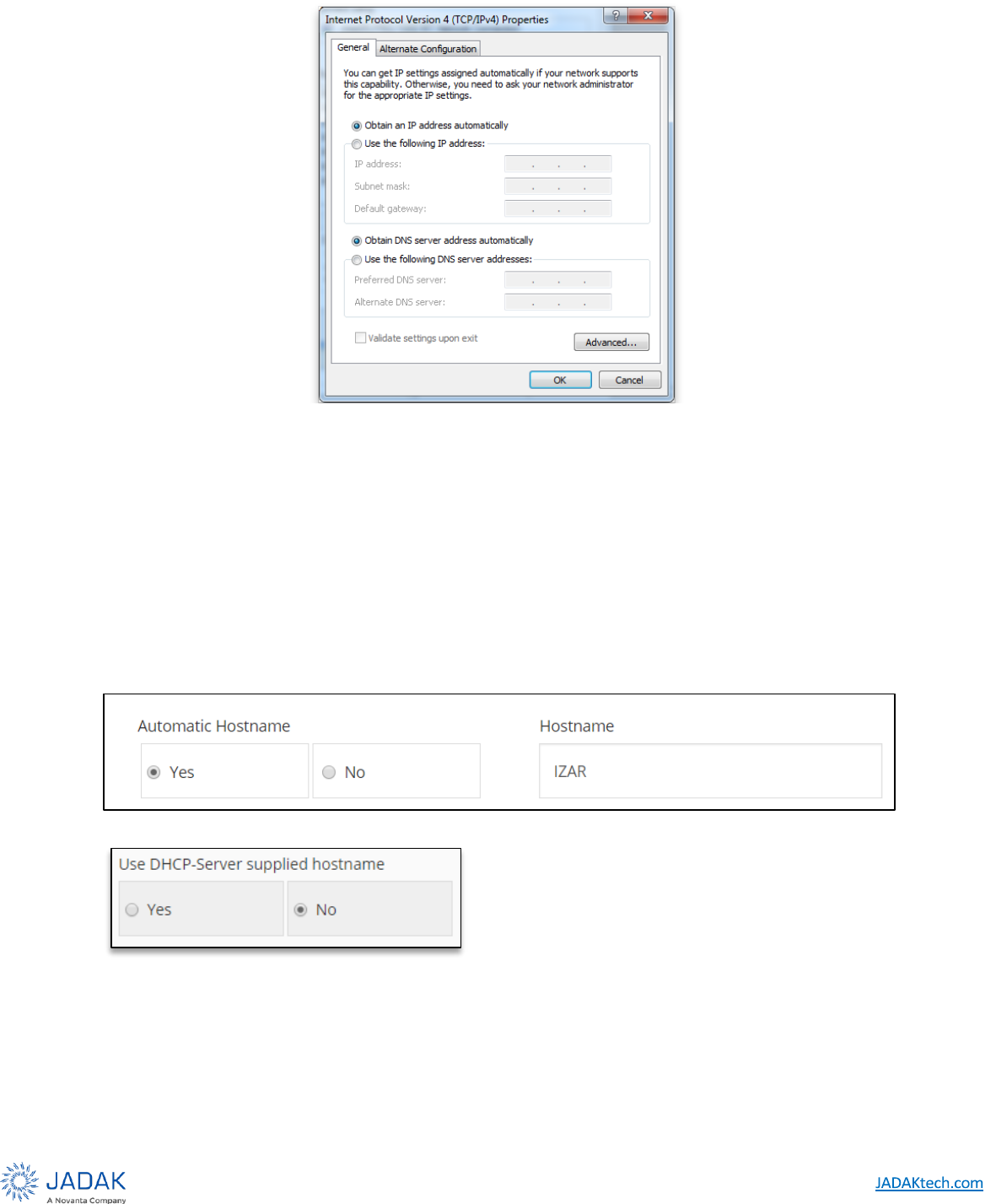

Figure 4: Disabling Proxy Settings in Computerʼs IP Profile
ThingMagic IZAR User Guide
|
13
Figure 5: Host Name on Reader
Figure 6: Entering Host Name as URL
5.
Enter the URL of the reader, printed on a label as shown in Figure 5 into your web browser (Figure 6).
If the IZAR Reader is directly connected to a PC, append “.local” to the URL. When prompted,
enter “web” as the username and “radio” as the password.
After a few moments, you will be connected
to the IZAR status screen.
Figure 7: Initial Web Interface Screen

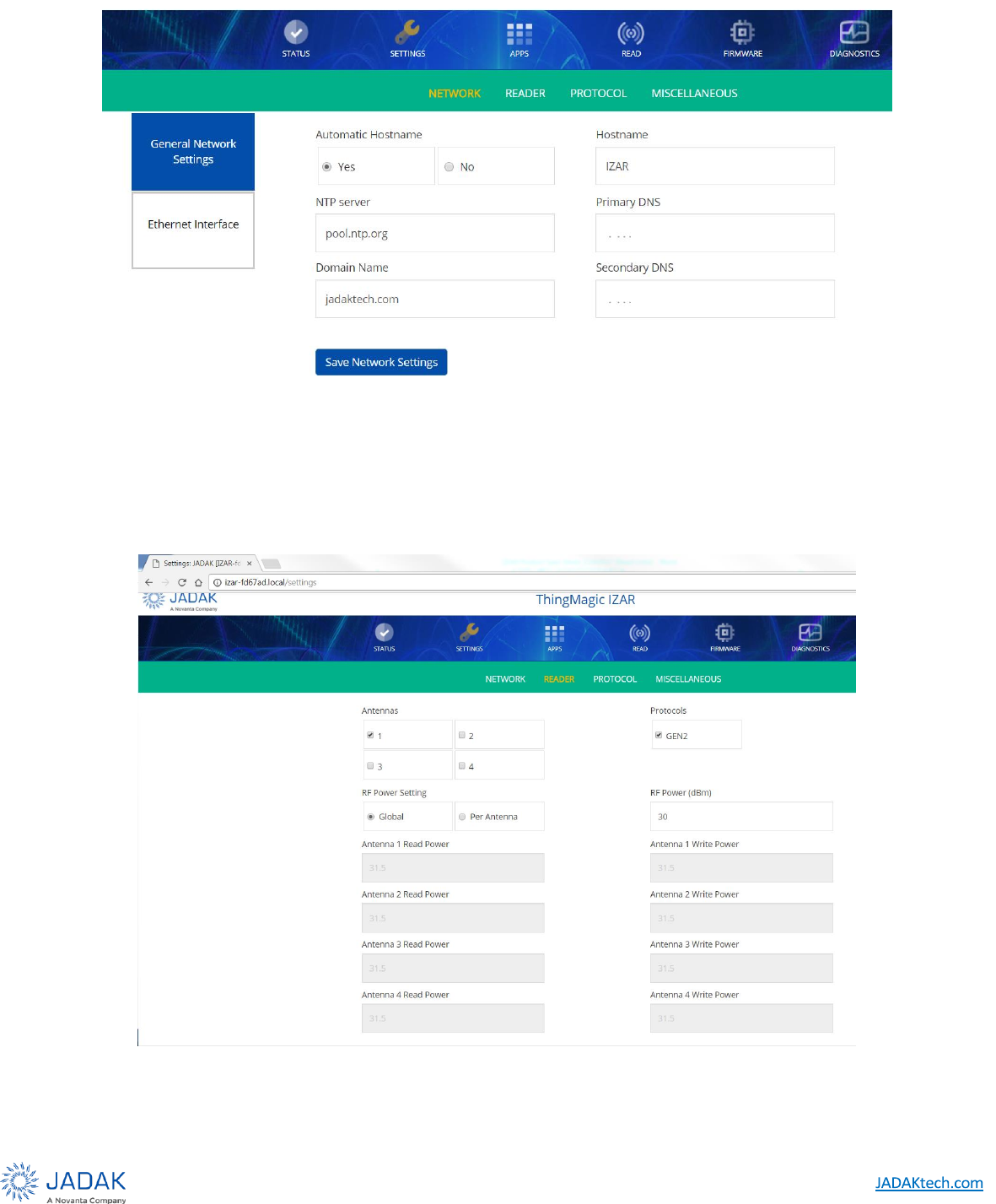

6. Navigate to the Settings-->Reader screen. Select “Antenna 1", de-select all other antennas
(Figure 8). Press “Save Reader Settings”.
ThingMagic IZAR User Guide
|
14
Figure 8: Selecting the Active Antenna Port
7.
Click on the “READ” icon at the top of the screen (pictured below).
8.
In the READ screen, click on the “Start” button at the upper right. Tag reading result will appear on the
main screen.
To suspend reading, click on the “Stop” button.
At this stage, you may want to explore the other screens in the web interface or use Universal Reader
Assistant to show more advanced features of the reader.
ThingMagic IZAR User Guide
|
15
4 Hardware Overview
4.1
Ports and Connectors
4.1.1.1 Antenna Connections
The IZAR supports four monostatic bidirectional RF antennas through four Reverse Polarity TNC (abbreviated
to “RP-TNC”) connectors: labeled 1 through 4 on the IZAR (Figure 9).
The maximum RF power that can be delivered to a 50 ohm load from the external port is 1.4 Watts, (+31.5
dBm). Depending on the antenna used and the local regulations for your region of operation, the maximum
permitted level may be lower than this.
The RF ports can only be energized one at a time, but the reader can be configured to alternate between
antennas many times per second, often resulting in the appearance of continuous reading on all antennas.
Figure 9: IZAR RFID Antenna Ports
Antenna Requirements
The performance of the IZAR is affected by antenna quality. Antennas perform best if they provide good 50 ohm
match at the operating frequency band. The degree of antenna match is measured as a return loss, in negative
dBm units, with a higher numerical (more negative) value being a better match. Specified sensitivity
performance is achieved with antennas providing -17 dB return loss or better across the operating band.
Damage to the reader will not occur for any return loss of -1 dB or greater.
WARNING –
Damage may occur if antennas are disconnected during operation or if the IZAR sees
an open or short circuit at its antenna port.
WARNING – To comply with FCC’s RF radiation exposure requirements, the antenna(s) used for this
transmitter must be installed such that a minimum separation distance of 23 cm is maintained between
the radiator (antenna) and people in front of the antenna at all times and must not be co-located or
operating in conjunction with any other antenna or transmitter unless appropriate additional proximity
restrictions are imposed.
ThingMagic IZAR User Guide
|
16
4.1.1.2 DC 9 - 30V Power
See
Figure 10: IZAR Power and LAN connection
The DC 9 - 30V input connector has the following specifications:
Accommodates a power adapter with 2 row receptacle for DC 9-30V
Adapter should be capable of suppying 17W of power. See the section,
Power
, for DC Power supply
If you wish to create your own DC supply cable, the DC connector pin-out is shown here:
The connector on the reader is a Molex 0039301021:
The mating connector is a Molex 0039012025:
Crimp Pins:
The crimp pins you wll need for the mating connector are Molex 0039000073 (for 18-24AWG wire). Make sure
your wire guage can handle the current generated by 17 W at your input voltage..
Figure 10: IZAR Power and LAN connection
ThingMagic IZAR User Guide
|
17
4.1.1.3 Using Power over Ethernet (POE)
Another way of powering up the IZAR Reader is to use a single Ethernet cable that is connected to a
Power over Ethernet (PoE) network. In this configuration a power converter is not used.
To power up the IZAR Reader over a PoE network:
1. Connect one end of an Ethernet cable to the IZAR Reader
2. Connect the other end to a certified IEEE 802.3af compliant PoE port.
Note: For operation in the EU region, you must use the Ferrite Bead included with the IZAR Reader when
powering-up the Reader over a PoE network, in order to meet ETSI regulatory requirements. For the
Ferrite Bead to be effective, you must install the Ferrite Bead on the Ethernet cable at the end closest to
the IZAR Reader. Ideally, the Ferrite Bead should not be more than two inches away from the connector,
as shown in Figure below.
Figure 11: Ferrite Bead
When using PoE as a power source, the PoE must be supplied by a UL Listed ITE device.
When using PoE as a power source the unit cannot be connected to an Ethernet network with
outside plant routing, including a campus environment. The network must be contained within a
single building.
Do not use POE and DC power at the same time. If making a change, always disconnect one
before introducing the other.
4.1.1.4 Ethernet (“LAN/POE”)
The LAN interface is a 10/100 RJ45 jack with 2 indicator LEDs.
4.1.1.5 Micro USB (“Console”)
The USB 2.0 micro-USB client port looks like 3 interfaces to connected hosts:
1.
A serial “Gadget” port that provides access to the console interface
2.
A USB “thumb drive” interface that provides access to internal memory on which the USB drivers for
the console and USB LAN interfaces are stored
3.
A USB LAN interface (RNDIS). To connect to the USB console port, see Connecting to the USB
Console Port.
ThingMagic IZAR User Guide
|
18
4.1.1.6 External Memory (“Micro SD”)
A Micro SD, 3.3 V, interface available for various standard and custom purposes. Future firmware versions are
anticipated to use this interface as a source of new firmware and for portable tag data storage.
4.1.1.7 Control and Indicator Interfaces (“GPIO”)
Four (4) Input and four 4 output opto-isolated GPIO lines, are available for customizing reader control and result
indication. The GPIO available consists of 4 lines of general purpose output, and 4 lines of general purpose
input. These lines are writeable and readable by user programs running on the reader. This is a 12-pin
connector. There is also supporting power and grounds to convert them into TTL level logic, in and out. See
Section 9:
Using GPIO
.
Figure 12: GPIO connector
4.1.1.8 Video Output Interface (“HDMI”)
The HDMI interface is not active at this time as we have been unable to find cables (with or without ferrite
beads) which will prevent RF radiation from the cables at levels higher than allowed by many regional
authorities.
4.1.1.9 USB Host
A USB 2.0 host interface provides host-USB connectivity (with 5V power) for various standard and custom
purposes. This interface will support a variety of accessories, such as wireless LAN interfaces, and adapters
that support other RFID technologies, such as Bluetooth Low Energy (BLE).
ThingMagic IZAR User Guide
|
19
5 Programming Interfaces
5.1 Mercury API
Applications to control the IZAR Reader, and all ThingMagic reader products, can be written using the high level
MercuryAPI. The MercuryAPI supports Java, .NET and C (for on-reader applications) programming
environments. The MercuryAPI Software Development Kit (SDK) contains sample applications and source code
to help developers get started demonstrating and developing functionality. For more information on the
MercuryAPI see the MercuryAPI Programmers Guide and the MercuryAPI SDK, available on the ThingMagic
website.
5.2 Demo Applications
As the starting point for learning the capabilities of the IZAR Reader, and also a starting place for building
custom applications, a demo application is provided in the MercuryAPI SDK package. The executable for this
example is included in the MercuryAPI SDK package (available on jadaktech.com website) See the Universal-
Reader- Assistant User Guide (available on jadaktech.com website) for usage details.
5.3 LLRP
LLRP is the EPCglobal standard (http://www.gs1.org/epcrfid/epc-rfid-llrp/latest) used for communication
between the IZAR and a client application. The IZAR should be “drop-in compatible” with systems supporting
the standard LLRP protocol. Middleware such as BizTalk and WebSphere have standard LLRP adapters that
can work with the IZAR. We have also extended LLRP through custom extensions to support non-standard
configuration options and commands, which are supported by ThingMagic readers. We offer a package for
LLRP Commander which includes these extensions in XML format.
For more information on direct use of LLRP, the ThingMagic custom extensions and the open source LLRP
Toolkit please contact support (RFID-support@jadaktech.com).
5.4 On-Reader Applications
The IZAR supports running custom applications on the reader, built using the MercuryAPI C Language
interface. Most programs written using the C API can be compiled to run as a client application or run on the
reader. An application note explaining how to develop and distribute on-reader programs may be downloaded
from www.jadaktech.com.
ThingMagic IZAR User Guide
|
20
Figure 13: IZAR Reader Interfaces
6 Setting Up the Reader
This section describes the steps necessary to setup all the necessary components and connect to the Reader’s
browser-based interface.
6.1 Equipment Required
To set up Single Reader Operation, you need the reader and some additional hardware. The additional
hardware required includes:
A computer with a web browser
Ethernet cable (CAT5e; shielded is recommended)
Antenna(s) which are tuned for the frequency range of operation.
Coax cable(s) (RP-TNC connectors)
Optionally, you should have a USB cable (PC type A connector to IZAR micro-USB connector)
in case console access is required.
Note: To initiate tag reading with the IZAR Reader, no host software is required aside from a browser. To set up
the Reader as part of a larger scale deployment that uses a LAN connection, refer to Networking Settings.
6.2 Setup Procedure
The steps required to set up and run the IZAR Reader are contained in the following sections:
Connecting Antenna(s) to the Reader
Powering Up the Reader
Connecting Your PC to the Reader
Communicating with the Reader using a Link-local Address
Logging On to the Reader
In this procedure, various interfaces will be described. They are shown in thre Figure below.
6.2.1.1 Connecting Antenna(s) to the Reader
The IZAR Reader supports up to four monostatic antennas. The default power setting is a convenient way to set
the power of the antennas, although per-antenna settings are supported. See Settings page for configuration
options. Before you apply power to the Reader, you must connect at least one antenna to an RFID antenna
port.
NOTE: Authorized antennas and cables have been certified for use with this reader are recommended. Local
regulations may permit antennas of the same type, but lower gain, to be used. See Appendix A: IZAR Antenna
and Cable Information.
ThingMagic IZAR User Guide
|
21
6.2.1.2 Powering Up the Reader
Power up the IZAR using a DC power supply.
NOTE: Sold separately to power up the IZAR Reader using a DC power supply:
1.
Plug the power supply into the Reader's DC 9 – 30V power input connector.
2.
Connect the extension cord to the power supply and plug it into a 100-240VAC power outlet.
The Reader immediately begins to power up. There is no on/off switch on the Reader. While the Reader is
powering up, the red RFID status LED, adjacent to the USB HOST connection, will be on. The Reader is ready
for operation after approximately 60 seconds when the LED is illuminated green.
Powering up using POE is supported. See 4.1.1.4
Ethernet (“LAN/POE”)
.
Do not use POE and DC power at the same time. If making a change, always disconnect one
before introducing the other.
6.2.1.3 Interpreting the Reader Indicator LEDs
The IZAR Reader has an operational status LED, near the USB HOST connector, which allow you to determine
the current operational readiness and activity of the IZAR Reader.
The colors displayed by the LED include:
Red LED on: Reader is starting up.
Red LED blinking: Reader is attempting to obtain an IP address using the default or configured
methods. (Reader can be accessed through the USB interface when in this state.)
Green LED on: Reader has a valid IP address and is ready for operation.
Green LED blinking: RF field is ON and the unit is attempting to read tags.
Alternate Red and Green LED blinking: Reader is being accessed through USB port and is actively
reading.
6.2.1.4 Connecting Your PC to the Reader
Network connectivity to the IZAR Reader is provided via its LAN/POE port. For instructions on connecting the
Reader to a network, see the section Networking Settings.
When connected directly to a computer, with default/factory configuration the reader will use Zero Configuration
networking (also referred to as Link Local or Automatic Private IP Addressing on Windows) to negotiate a valid
IP address.
To connect your Reader directly to your PC:
1.
Connect an Ethernet cable to your PC.
2.
Connect the other end of the Ethernet cable to the Reader’s LAN/POE port.
6.2.1.5 Communicating with the Reader using a Link-local Address
If you are using an operating system other than Windows 7, consult your network administrator regarding how
to set up your PCʼs TCP/IP connection.
If you are using Windows 7, perform the following steps to set up (or verify) your PC's TCP/IP connection. On
most PCs this is the default configuration:
1.
Select Start from the Start bar, and then select Control Panel.
2.
Under Network and Internet, select “View network status and tasks”.
3.
In the left menu select “Change adapter settings”.
4.
The Local Area Connection Status window appears, as shown in Figure 12.
NOTE: Link-local addressing is the default fallback method if no DHCP server is present. If this is your preferred
IP addressing method, obtaining a Link Local IP address will occur much more quickly if it is made the primary
IP address source in instead of a fallback method. See Section 7: Network Settings.
ThingMagic IZAR User Guide
|
22
Figure 14: Local Area Connection Status Window
5.
Click the Properties button. The Local Area Connections Properties window appears, as shown in
Figure 13.
Figure 15: Local Area Connection Properties Window
6.
Scroll down and select the Internet Protocol (TCP/IP) version you’re using. If you don’t know which,
change both.
ThingMagic IZAR User Guide
|
23
7.
Click on the Properties button.
The Internet Protocol (TCP/IP) Properties window appears. The General tab should have both “Obtain an IP
Address automatically” and “Obtain DNS server address automatically” selected. On the Alternate Configuration
tab “Automatic private IP address” should be selected, as shown in Figure 14.
Figure 16: Internet Protocol TCP/IP Properties Window
8.
Click OK to save and exit the window.
9.
Click OK in the Local Area Connection Properties window.
6.2.1.6 Logging On to the Reader
You may use any web browser to log on to the Reader. Before logging into the reader, ensure that all proxy
settings are disabled in your browser
ThingMagic IZAR User Guide
|
24
Figure 17: Typical Browser Proxy Settings
To log on to the Reader:
1.
Launch your web browser and log on to the Reader by entering the Reader's URL address in the
browser address bar. This URL will be displayed on a label on the reader, for example, “http://IZAR-
b65b2f”. If your reader is directly connected to the computer, then append the suffix “.local” to the URL,
for example: “http://IZAR-b65b2f.local”
2.
Press Enter. The Login dialog box appears.
3.
Enter the following:
Default user name: “web”
Password: “radio” (all lower-case).
4.
Click OK. The Reader displays its browser-based interface. The initial page that appears is the Status
page, as shown in Figure 16.
NOTE: On some systems, especially when communicating with the Reader using a Linklocal Address, the
hostname must end in “.local” for the connection to succeed. i.e. http://IZAR-21071f.local
ThingMagic IZAR User Guide
|
25
Figure 18: IZAR Status Page
5.
The next step will be to ensure that your settings are correct. The “Settings” icon at the top of the web
page allows you to make changes to the reader configuration. If you are configuring from the web site,
any changes will be used as your operational configuration and as the default for next time the reader
reboots. If you are configuring from an external host with an application such as Universal Reader
Assistant, the changes will become effective immediately, but will revert to the default settings if the
reader is rebooted.
The following outline shows the hierarchy of setting screens within the IZAR Settings page.
Network
o
General Network Settings
o
Ethernet Interface
Reader
Protocol
o
Tag Reader Protocol
o
Tag Population
o
Tag Repeat Rate
Miscellaneous
7
Network Settings
You can set up the IZAR Reader to use a DHCP server, Link Local peer negotiation, or manual entry as an IP
address source. By default, the Reader boots up looking for a DHCP server. If no DHCP server is found it will
ThingMagic IZAR User Guide
|
26
negotiate a Link-local address with your PC and any other devices on the network. Optionally, you can have the
rea
der use a static a
ddress as a primary or fallback instead of a link-local address.
DHCP will automatically provide the Reader's IP address, subnet mask, default gateway, NTP Server, and DNS
(Domain Name Service)
server. It will also establish a hostname and provide it to the DNS Server. During the
initial boot sequence, if the Reader does not get a DHCP-assigned IP address, a link-local address will be
negotiated with any connected device(s). However, the Reader will periodically check to see if a DHCP server is
available. See the “Troubleshooting Table” for assistance determining the IP address if you cannot access the
reader using the URL hostname.
The following section explains how to set up your PC and Reader on a network.
7.1 Setting Up the Network Hardware
Whether you use DHCP, link-local, or static network addressing, make sure that the network is connected
before powering up the Reader. With default settings, if the Reader does not automatically get the address from
a DHCP server, a link-local address will be negotiated with the local network. DHCP addressing can only be
used as a primary method. Either static or link-local addressing can be used as a primary method or as a
fallback method if DHCP address assignment is unavailable. Neither static nor Link-local addressing can be
used as a fallback method for the other.
Before setting up your network:
Connect one end of an Ethernet cable to the Reader and the other end to an Ethernet switch or
hub.
Check that all antennas are securely connected, and then power-up the Reader.
Connect your PC to the same network as that of the Reader.
NOTE: Some older 10baseT network hubs may not work properly with the Reader. If you encounter
connectivity problems, we recommend using nothing below 10/100baseT hubs/switches.
7.1.1.1 Using Power over Ethernet (PoE)
Another desirable way of powering up the IZAR Reader is to use a single Ethernet cable that is both a
communication link and a power source, called Power over Ethernet (POE).
Power must either be input with
the Ethernet signal compliant with IEEE 802.11AF (POE or POEplus), or via a dedicated DC input port
that accepts 9 to 30 VDC input.
Contact RFID-support@jadaktech for recommendations of PoE adapters that
we have tested successfully with the IZAR Reader.
Do not use POE and DC power at the same time. If making a change, always disconnect one
before introducing the other.
7.2 Using DHCP
7.2.1.1 IZAR Setup
DHCP addressing can be used with any LAN interface. To enable DHCP, follow these steps:
1.
Click on Settings icon at the top of the Web Interface navigation menu to access the Settings Page.
2.
Select Use DHCP = Yes radio button under the General Network Settings section of the Settings
screen.
3.
Click the Save Network Settings button at the bottom of the page.
ThingMagic IZAR User Guide
|
27

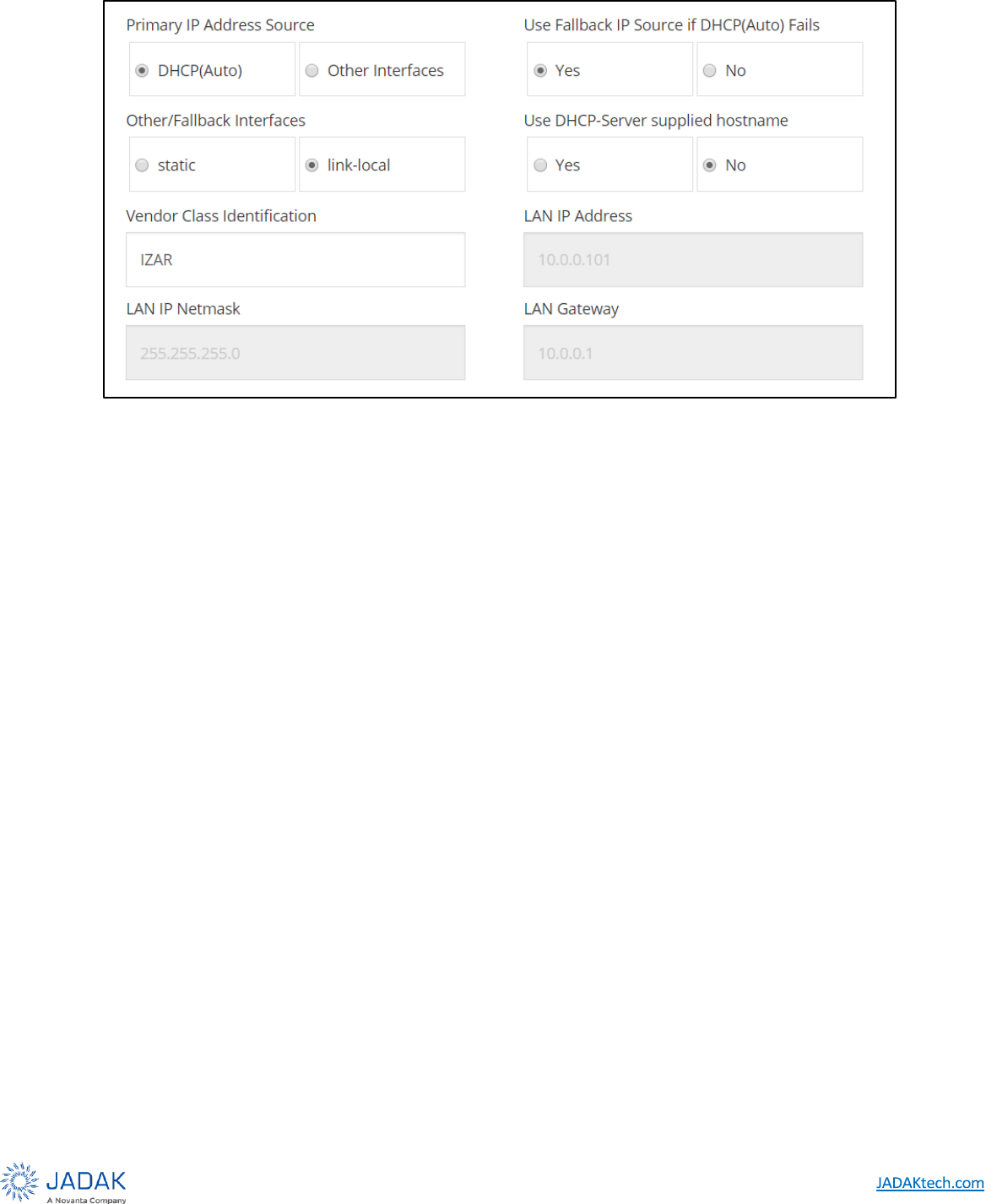

Figure 19: Network Settings
WARNING – No changes take effect until you click on the “Save Settings” button at the bottom of any
configuration screen or “Save All Settings” at the upper right of the screen.
7.2.1.2 PC Setup
To use DHCP to automatically assign your PC's IP address to insure common configuration with the IZAR, do
the following:
1.
Select Start from the Start bar, and then select Control Panel.
2.
Double click the Network Connections icon.
3.
Disable your PC's wireless connection, if one exists.
4.
Double click the Local Area Connection icon. The local area Connection Status window appears, as
shown in Figure 12.
5.
Click the Properties button. The Local Area Connection Properties window appears, as shown in Figure
13.
6.
Scroll down to the bottom of the list and select Internet Protocol (TCP/IP).
7.
Click on the Properties button. The Internet Protocol (TCP/IP) Properties window appears, as shown in
Figure 17.
ThingMagic IZAR User Guide
|
28
Figure 20: Internet Protocol (TCP/IP) Properties Window
8.
Select the Obtain an IP address automatically button.
9.
Click OK to save and exit the window.
10.
Click OK, in the Local Area Connection Properties window.
11.
Click OK, in the Local Area Connection Status window. The PC may take few minutes to save the new
network settings.
Automatic Hostname: IZAR-xxxxxx
At startup, the Reader, by default, generates an 'automatic hostname' by appending the last three bytes of its
MAC address to its hostname, such as IZAR-210027. (A label on the IZAR Reader will also provide this default
hostname.)
(From Ethernet Interface page)
Your network must have properly configured DNS servers if you are accessing the reader via its hostname.
When using DHCP, the DHCP server automatically adds the hostname to the DNS server's database.
ThingMagic IZAR User Guide
|
29
NOTE: The hostname can also become known to your PC via MDNS. If you cannot reach the reader via the
hostname alone, append “.local” to the end for the connection to succeed. i.e. IZAR-21071f.local. This is typical
when Link Local addressing is being used.
7.2.1.3 Accessing the Reader via Hostname
The first six characters of the MAC address are the manufacturer's code. The last six characters of the MAC
address are specific to the Reader and are used for automatic hostname addressing.
To log on to the Reader using the Hostname:
Obtain the Reader's hostname, launch your web browser, and then log on to the Reader by entering its
hostname in the address bar, such as http://IZAR-xxxxxx (the last six characters of the Reader's MAC address).
1.
Press Enter. The Reader's Login dialog box appears.
2.
Enter the following:
User name: web
Password: radio
3.
Click OK. The Reader displays the IZAR Status Page.
ThingMagic IZAR User Guide
|
30

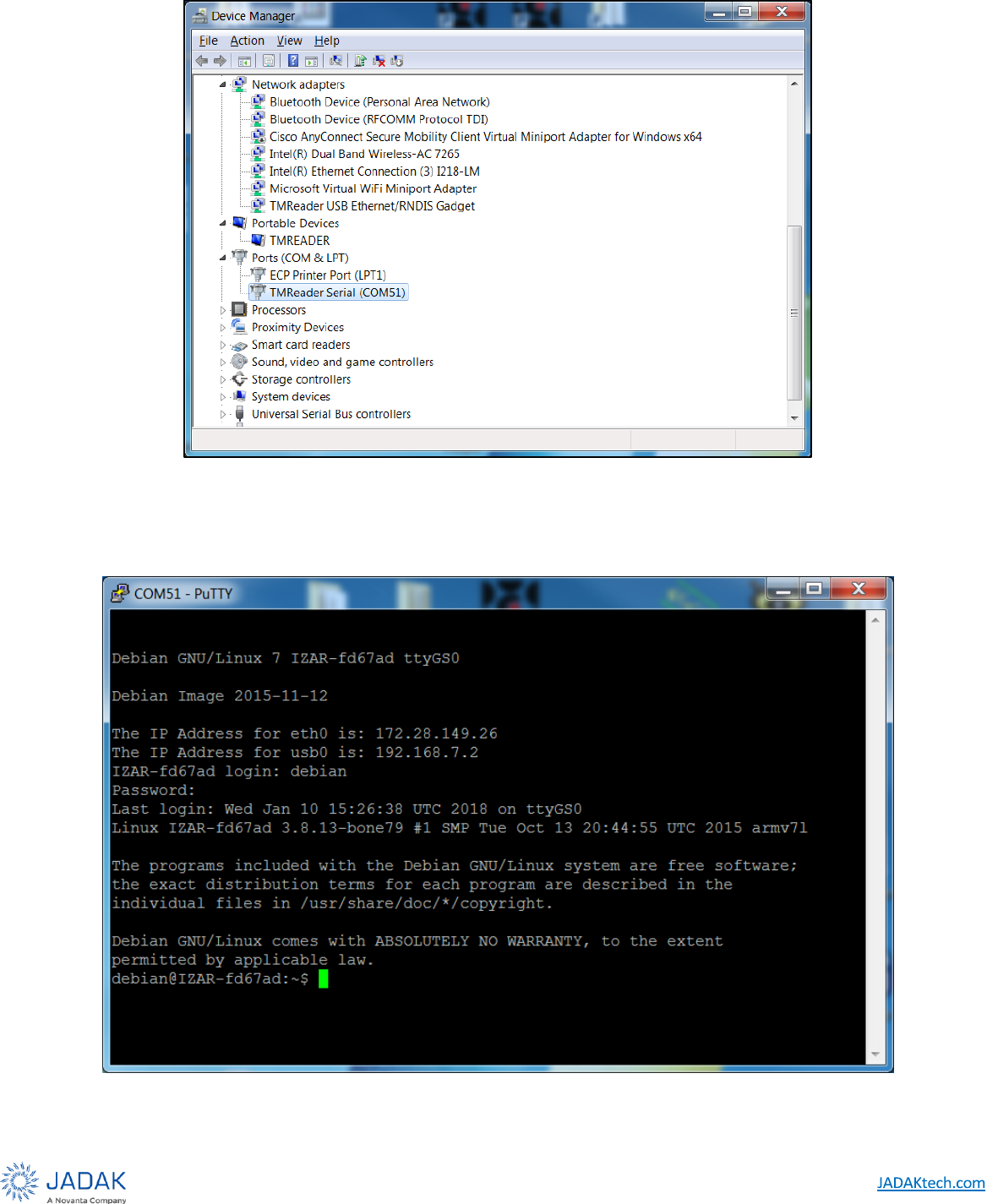

8 Connecting to the USB Console Port
IZAR supports communication over its USB Console as a serial TTY port to enable you to accomplish the
following:
Access the boot logs as files
Access the console for emergency recovery
Learn the IP addresses of all LAN interfaces
Unlike previous generations of ThingMagic readers, the IZAR console is not active from the beginning of
boot-up. It is only active after boot-up. The boot-up messages may be obtained from log files at that time.
Before you connect to the USB Console port, ensure that you have:
A PC with a USB port
A serial terminal program (such as PuTTY for Windows or CoolTerm for the Mac)
A USB cable (with USB Mini-B plug)
USB Serial Driver. See Section 8.1.1 USB Serial Driver
To address the port correctly, you must determine the port name used by the host OS. On Windows it will be
assigned “COM” followed by a number. For a MacOSX system, the port name will be
“/dev/tty.usbmodem1a123” or similar. For Linux based systems will see it as “/dev/ttyACM0” or similar.
When you have completed setting up the serial port, you must set the following four parameters to allow the
terminal program to talk to the Reader:
Data Rate: 115200
Parity: None
Data Bits: 8
Stop Bits: 1
The procedure for connecting to a specific port is different for each terminal emulation program. Check the
documentation for your program for information on setting these parameters.
Once you have set up the USB connection, press <Enter> to send a carriage return character to the reader.
You should see a printout of the IP addresses, followed by a login prompt.
ThingMagic IZAR User Guide
|
31
Figure 21: IZAR Console Login Prompt
8.1.1
USB Serial Driver
The console port requires the host have a Gadget serial virtual COM port drivers installed. When the USB port
is connected to a PC, it appears to the PC as a USB memory device with the name, “TMREADER”.
The Gadget serial virtual COM port drivers are in this directory. If signed drivers are needed, they will be in the
new “Windows 10_1607” directory. When the Gadget driver is installed, the USB port will appear
ThingMagic IZAR User Guide
|
33
NOTE: Typing “help” will show you many of the supported Linux commands. One useful command not listed is
“ifconfig”. It will display the current network settings for all interfaces and is very useful for determining the
reader’s IP address if you cannot access it by host name.
ThingMagic IZAR User Guide
|
34
9 Using GPIO
The IZAR Reader includes a 12-pin terminal block connector for GPIO access.

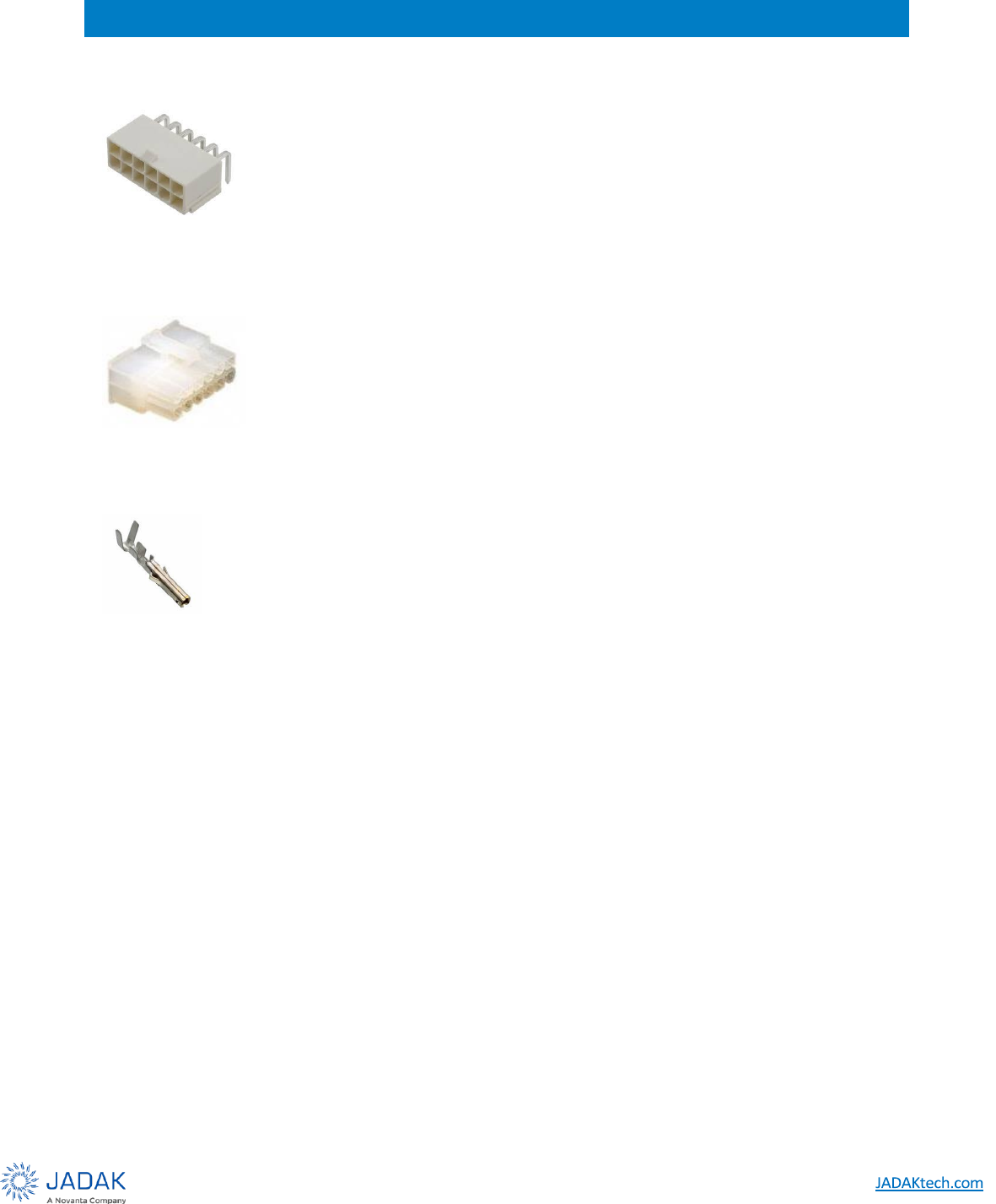

GPIO Connector on the reader:
Molex 0039301120
Mating Connector
Molex 0039012125
Crimp Pins
The crimp pins you wll need for the mating connector are Molex 0039000073 (for 18-24AWG wire), or
equivalent that is appropriate for your wire size.
The GPIO consists of 4 lines of general purpose output, and 4 lines of general purpose input. These lines are
writeable and readable by user programs running on the IZAR. This is a 12-pin connector. The values of the
GPIO lines can be Get and Set using the MercuryAPI. See the respective guide for more details on software
control of these signals.
ThingMagic IZAR User Guide
|
35
9.1 Connector Pinout
Figure 22: IZAR connector
The diagram (Figure 22: IZAR connector) shows the pinout of the connector.
The table below gives the characteristics of the pins
Table 1: Connector Pin Characteristics
I/O Name
I/O Function
+5V Supply
Reader supplied (not isolated) power source
VIN
Power input for isolated outputs
GPO-x
Isolated output (active pull down to V-)
GPI-x
Isolated input
ISO-GND
Return for isolated inputs and outputs
SYS-GND
System (Reader) ground, not isolated
ThingMagic IZAR User Guide
|
36
9.2 Electrical Specifications
The electrical specifications are as follows:
Pin
Parameter
Description
Min
Max
Unit
Conditions
+5V Supply
IO
Output current
200
mA
GPI
VIH
HIGH level input
3
30
V
voltage
GPI
VIL
LOW level input
0
0.8
V
voltage
GPI
ILI
Input current
5
mA
24V input
GPI
VI
Input voltage range
0
30
V
No damage
GPO
VOH
Output high voltage
V+*
V
10k pull up
GPO
VOL
Output low voltage
(V-)+0.5
V
100mA load
GPO
VI
Supply voltage range
30
V
(V+) - (V-)
*User-supplied voltage
9.3 Inputs
The four opto-isolated inputs support the following input levels:
V-low (Logic 0) = 0-0.8V
V-high (Logic 1) = 3-30V
5mA max current with 24V input
It is recommended that external devices guarantee a minimum pulse width of at least 100ms.
9.4 Outputs
The four opto-isolated outputs support power sourcing, up to +30V with current sink up to 200mA,
through an external power supply connected between V-GPO and ISO-GND (pins 2 and 7).
Using the MercuryAPI the output signals (see note under Connector Pinout for enumeration values) can
be set as follows:
gpoSet(GPIO_#, 0) sets pin corresponding to GPIO enumeration to Vhigh through 10kohm pull
up resistor to V-GPO.
gpoSet(GPIO_#, 1) sets pin corresponding to GPIO enumeration to Vlow through effective short
(through isolated FET switch) to ISO-GND.
ThingMagic IZAR User Guide
|
37
All outputs have an active pull down to ISO-GND.
NOTE: For non-isolated applications connect grounds together (pin 7 and 8) and V -GPO to IZAR +5V
(pins 2 and 1). With this configuration the reader provides the +5V supply and can sink up to 200mA, total.
For convenience, the schematic diagram of the GPIO circuits of the IZAR Reader are shown in Figure 23
through Figure 25 so you can more easily determine the external connections that will work for your
application.
Figure 23: Schematic Diagram of GPI Circuitry (only 1 input shown)
ThingMagic IZAR User Guide
|
39
10 Controlling the Reader
The Reader uses RFID (Radio Frequency Identification) technology to read and write data stored on RFID
Tag(s). The IZAR Reader provides three levels of access to control read/write operations of RFID tag(s):
1.
Using the Browser-Based Interface:
A web browser controls high-level Reader operations. See Status Page for information about how to
access the browser-based interface.
2.
An application accessing the reader via MercuryAPI on a host, such as Universal Reader Assistant for
Windows PCs:
See the MercuryAPI Programmers Guide and the Universal Reader Assistant User Guide at
www.jadaktech.com.
3.
Directly address the reader from a host application via its LLRP protocol.
EPC global ratified protocol used for communication between the IZAR and a client application. The
IZAR should be “drop-in compatible” with systems supporting the standard LLRP protocol.
10.1 Using the Browser-Based Interface
The IZAR Reader browser-based interface communicates directly with the RFID Reader. It includes several
tools that enable you to monitor Reader performance, change Reader settings, and upgrade Reader firmware.
You can run the browser-based interface from any PC on the network. Carefully configure the PC with an IP
address and subnet mask compatible with the current operational settings of the Reader.
The Reader navigation menu provides access to the following pages:
Status Page – Displays the current operational settings
Settings Page – Allows the user to modify Reader configuration and network settings
Read Page – Allows the user to read on all configured antennas using the configured setting
Firmware Upgrade Utility – Upgrades the tag Reader with new firmware images provided by JADAK
Diagnostics Page – Provides current operating settings and access to the log files kept by the Reader
To start the browser-based interface:
1.
Exit all Reader applications on the network.
WARNING – Only one application may actively control the reader at any time. If a host is
already connected to the reader, you may view status and change configurations values, but
not read tags. Configuration changes made through one interface may not be displayed on the
other interface. A good rule of thumb is that the saved web interface changes become default
values that are used on start-up and, at the time the change is made, the current value.
Changes made through the LLRP interface override the values in current use, but are
temporary and only last until the reader is rebooted.
2.
Type the host name or IP address of the Reader to which you want to communicate in the address field
of the browser. The log-in dialog appears.
3.
Enter the following:
User name: “web”
Password: “radio” (all lower-case).
4.
Click OK. A navigation menu and the Status page appear in the browser, as shown in the Figure 16.
ThingMagic IZAR User Guide
|
40
10.1.1.1 Status Page
The IZAR Status Page, as shown in
Figure 26: Status Page
, indicates the reader status, reader version and
current LAN configuration parameters.
Figure 26: Status Page
10.1.1.2 Settings Page
The IZAR Settings Page (
Figure 27: Settings Page
) enables you to change network, performance and security
settings. The page is divided into four main sections:
Reader (Power) Settings
(Gen2) Protocol Settings
Network Settings
Miscellaneous Settings
Changing these parameters may change the settings the Reader uses on startup. Be careful to use correct
values or you may not be able to connect to the Reader without reconfiguring the reader via the console
interface.
NOTE: All settings set through the Web UI | Settings pages are persistent, they are retained across reboots and
become the default settings of the reader for client applications. The values shown on these pages do not
necessarily reflect the active settings of the Reader if configuration parameters are transiently changed through
the MercuryAPI or LLRP. All changes made through MercuryAPI or LLRP client applications are transient. The
reader will return to its last saved persistent settings (“default settings”) if rebooted.
NOTE: Do not disconnect power until the save process is complete. Unless stated otherwise in the release
notes, all new RFID, network and security settings take effect after saving.
ThingMagic IZAR User Guide
|
41
Figure 27: Settings Page
10.1.1.3 Reader (Power) Settings
The Reader Power Settings (
Figure 28: Reader Power, Antenna, and Protocol Settings
) are used to control
the amount of RF Power transmitted by the reader when active. The RF power directly relates to the range at
which the reader can “see” tags, the higher the power, the longer the range.
Figure 28: Reader Power, Antenna, and Protocol Settings
ThingMagic IZAR User Guide
|
42
Table 2: Reader Power Settings
WARNING: Antenna detection is currently not supported in IZAR. If no antennas are selected in the
“Settings Reader screen”, no tags will be read.
10.1.1.4 (Gen2) Protocol Settings
The Gen2 Protocol Settings allow for optimization of the Reader's performance based on real world use case
requirements. In addition, for advanced users, direct setting of low level Gen2 protocol parameters are available
using the Customize option of each section.
Setting
Description
Antennas
Select the antennas over which you would like to read. There is currently no automatic
antenna detection support in IZAR Readers.
RF Power
Setting
Controls the method used for setting power:
•
Global
- all antennas will use the same power setting, the value of RF Power.
•
Per Antenna
- power for each antenna must be set individually for each and
antenna and both read and write power settings, the value of Antenna # Read Write
Power.
Antenna # Read
Power (dBm)
The power setting used for Read operations on antenna #. This setting is only used when
RF Power Setting is set to Per Antenna.
Antenna # Write
Power (dBm)
The power setting used for Write operations on antenna #. This setting is only used when
RF Power Setting is set to Per Antenna.
ThingMagic IZAR User Guide
|
43
Table 3: Gen2 Protocol Settings
Setting
Description
Tag Reader
Protocol Setting
•
Maximum tag read rate
- Performance is optimized for maximizing the speed of
communications between the tag and reader, which results in more tags being read faster.
•
Maximum receive sensitivity
- Performance is optimized for reading weaker, harder to
read tags.
Note: Maximum receive sensitivity is only relevant when using Battery Assisted Passive
Tags. Most Passive Tag applications are range limited by the tag’s ability to power up, not
the reader's ability to hear a tag's response.
•
Customize
- Set low level Gen2 parameters related to tag to reader communication
speed vs sensitivity. See the Mercury API Programmers Guide |
Performance Tuning section for more details on these setting
Tag Population
Size Settings
•
Automatically adjust settings as tag population changes
– Reader dynamically
adjusts optimization setting depending on the tag population it detects in the field.
•
Adjust settings for an approximate population of X
- If the tag population size is
relatively well known and consistent, performance can be increased by optimizing for that
size. In this case enter the approximate population size for increased performance. NOT
IMPLEMENTED IN FIRST RELEASE
•
Customize
- Set low level Gen2 parameters related to tag population size. See the
MercuryAPI Programmers Guide | Performance Tuning section for more details on these
settings.
Tag Repeat
Rate
•
Best Choice for Tag Population
•
Tags repeat as often as possible
- Tags will re-respond to an on-going inventory
operation as quickly as possible.
•
Tags wait 0.5 seconds to repeat
- Tags will sleep for their “flag persistence” period,
typically 0.5 to 2.0 seconds. This is preferred when trying to inventory large populations of
tags as it allows “weaker” tags a chance to respond.
•
Customize
- Set low level Gen2 parameters related to tag response rate and session
usage. See the MercuryAPI Programmers Guide | Performance Tuning section for more
details on these settings.
ThingMagic IZAR User Guide
|
44
10.1.1.5 Network Settings
Static network settings are ignored when in DHCP mode, and DHCP-related settings are ignored when in static
IP mode. Please note that your network needs to have properly configured DNS servers, to connect to the
Reader through its hostname. Typically, when using DHCP, the DHCP server will add the hostname to the DNS
server's database.
10.1.1.6 Network Settings: General Network Settings
Table 4: General Network Settings
Setting
Description
Automatic
Hostname
Turning on automatic hostname will append the last six numbers (3 bytes) of the
Readers address to the text in the hostname field.
For example, given a hostname of IZAR and a MAC Address of 00:12:A4:
13:47:AC, the automatic hostname would be IZAR-1347ac.
Hostname
This field contains the name of the Reader.
NTP Server
This field contains the address of any network time protocol server(s) (Optional).
Domain Name
This field contains the network domain name.
Primary DNS
Server
This field allows the IZAR Reader to resolve host names to IP addresses.
Secondary DNS Server
This field allows the IZAR Reader to resolve host names to IP addresses.
ThingMagic IZAR User Guide
|
45
10.1.1.7 Ethernet Interface Settings
Table 5: Ethernet Interface Settings

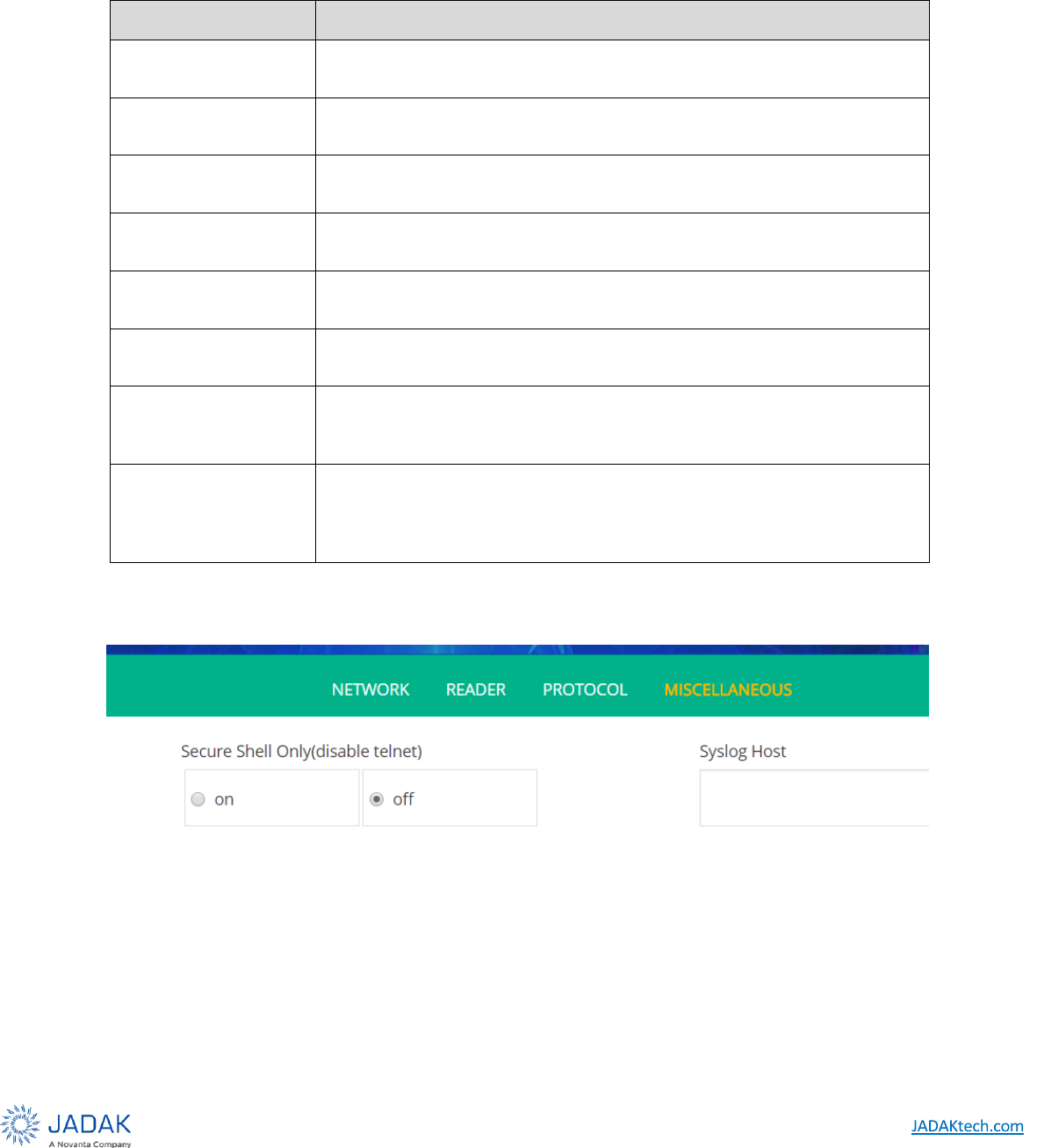

10.1.1.8 Miscellaneous Settings
Figure 29: Miscellaneous Screen
Setting
Description
Primary IP Address
Source
If set to “DHCP”, the Reader will automatically obtain its LAN IP, Netmask, and
Gateway addresses from a DHCP Server.
Use Fallback IP
source if
DHCP
Fails
If set to Yes, the reader will use either a static or link-local address if the IP
address cannot be obtained through DHCP.
Other/Fallback
Interface
Selects whether a static address or link-local address is used either as a
primary IP address source or if DHCP fails.
Use DHCP-
Server
supplied
hostname
If set to Yes, the manually supplied hostname (see Hostname) will be
overridden by the hostname supplied by the DHCP Server.
Vendor Class
Identification
Fill this in if your DHCP server needs this information to select which IP address to assign
the reader.
LAN IP Address
If a static IP address is configured as either a primary or fallback method, you
should manually enter the LAN address.
LAN Gateway
Unless all devices are on a local network, you must enter the IP address of an
IP router on your local network (is address must be within the same network as
all other local devices.
LAN IP Netmask
This is the subnet mask IP address used to determine to which TCP/IP subnet
the Reader belongs. Devices in the same subnet can communicate locally
without going through a router. Conversely, if two devices are configured for
different subnets, they will seek a router even if on the same physical network.
ThingMagic IZAR User Guide
|
46
10.1.1.9 Security Settings
The security settings specify whether insecure protocols may be used to access the console and specifies
the location of a syslog server to which all Reader events may be sent.
Table 6: Boot Option Settings
10.1.1.10 Diagnostics Page
The Diagnostics page (Figure 24) provides information that is most beneficial for troubleshooting. The Log
files may be viewed (which allows them to be copied) or cleared via this screen. There is also a button
which allows the user to reboot the module. The web link will be broken while the reader reboots, but will
automatically get reestablished unless the IP address of the reader changes with the reboot.
Figure 30: Diagnostics Page
Setting
Description
Secure Shell Only
Turn on if you want remote console access over the network to only be done
over a secure link provided by the SSH protocol. (Rather than telnet).
Syslog Host
This is the hostname of the server used for remote logging. All log levels in
syslog are sent to this host.
ThingMagic IZAR User Guide
|
47
10.1.1.11 Firmware Upgrade Utility
IZAR provides the Firmware Upgrade Utility for loading new firmware onto the reader. A single ".tmfw"
upload file will have name such as:
tmreader-5.3.0.126.tmfw
Reboot the reader after installing this file. (Your previous firmware will remain active until you do.)
In some cases, firmware might be distributed as several ".deb" files. Here are the typical files that
comprise a complete set:
tmapp-5.3.0.126.deb
tmreader-core-5.3.0.126.deb
tmrfid-5.3.0.126.deb
tmsafe-5.3.0.126.deb
tmweb-5.3.0.126.deb
Usually order of installation of the individual files does not matter and the reader need only be rebooted
after all files are uploaded. (Not all individually updated file versions will appear in the Status screen until
the reader is rebooted.)
NOTE –
The “Revert to default settings” button on this browser page can also be used to reset the reader
without upgrading firmware
To upgrade firmware:
1. Click the Firmware link on the navigation menu. The Firmware Update page appears, as shown in
Figure 25.
Figure 31: IZAR Firmware Update Page
ThingMagic IZAR User Guide
|
48
2. Do one of the following:
a.
In the File upload field, enter the complete URL network pathname of the firmware file, or
b.
Click Browse to locate the firmware file.
CAUTION:
If you select “Revert to default settings”, you will erase any changes made to
the reader's configuration settings and revert to factory default settings. If you select this
option, the reader's current configuration settings will be erased. DO NOT select this
option if you wish to preserve the reader's current configuration settings.
3. Click the Update button to download the new firmware to the reader.
The status frame at the
bottom of the page displays the progress of the update.
4. Restart the reader to activate the new firmware.
The old firmware remains active until the Reader is restarted.
10.2 Protocol Support
Using the MercuryAPI ReadPlan classes the IZAR can be configured to perform various Read operations.
The following describes protocol specific configuration options supported on the IZAR. See the
MercuryAPI Programmers Guide and language specific reference guides for details on supported Gen2
command functionality.
ISO 18000-6C (Gen2)
Protocol Configuration Options
The IZAR supports multiple ISO-18000-6C profiles including the ability to specify the Link Frequency,
encoding schemes, Tari value and modulation scheme. The protocol options are set in the MercuryAPI
Reader Configuration Parameters (/reader/gen2/*). The following table shows the supported
combinations:
ISO-18000-6C Protocol Options
Backscatter
Link Frequency
(kHz)
Encoding
Tari
(usec)
Modulation
Scheme
250
Miller (M=8)
12.5
PR-ASK
250
Miller (M=4)
12.5
PR-ASK
250
Miller (M=2)
12.5
PR-ASK
250
FM0
12.5
PR-ASK
250
Miller (M=8)
25
PR-ASK
250
Miller (M=4)
25
PR-ASK
250
Miller (M=2)
25
PR-ASK
ThingMagic IZAR User Guide
|
49
10.3 ISO 18000-6B
10.3.1.1 Protocol Configuration Options
The IZAR, with appropriate license purchase, supports multiple ISO-18000-63 (Gen2v2) profiles including
the ability to specify the Return Link Frequency, encoding, Forward Link Rate and modulation scheme.
The protocol options are set in the MercuryAPI Reader Configuration Parameters (/reader/iso18000-6b/*).
The following table shows the supported combinations:
ISO-18000-6B Protocol Options
Return Link
Freq (kHz)
Return
Encoding
Forward Link
Freq (kHz)
Forward
Encoding
40
FM0
10
Manchester
40
FM0
10
Manchester
160
FM0
40
Manchester
160
FM0
40
Manchester
10.3.1.2 AEI ATA
Support for AEI ATA protocol is enabled by installing an optional license key. There are currently no
unique settings associated with AEI ATA protocol. Licenses may be installed using the Universal Reader
Assistant utility. This is available on the JADAK support web site.
https://www.jadaktech.com/documentation/rfid/universal-reader-assistant-utility/
10.4 Tag Read Meta Data
When tags are being inventoried by the IZAR, the tag read results may incorporate information other than
the Tag ID. This information can be the data contained in another tag memory location or information
about the conditions at the time the tag was read. The specific meta data available for each tag ID is given
in the following table.
Tag Read Meta Data
Meta Data Field
Description
Antenna ID
The antenna on which the tag was read. If the same tag is read on more than one
antenna there will be a tag object returned for each antenna on which the tag was
read.
250
FM0
25
PR-ASK
250
Miller (M=8)
25
PR-ASK
640
FM0
6.25
PR-ASK
ThingMagic IZAR User Guide
|
50
Read Count
The number of times the tag was read on [Antenna ID].
Timestamp
The time the tag was read. For accurate time an NTP server should be configured.
Tag Data
When reading an embedded TagOp is specified for a Read- Plan the TagReadData
can contain up to 128 bytes of data
returned for each tag.
Note: Tags with the same TagID but different Tag Data can be considered unique and
each get a Tag Buffer entry if set in the reader configuration parameter
/reader/tagReadData/ uniqueByData. By default it is not.
Frequency
The frequency on which the tag was read
Tag Phase
Average phase of tag response in degrees (0
°
-180
°
)
LQI/RSSI
The receive signal strength of the tag response in dBm.
For timed (synchronous or pseudo-asynchronous) reads, the information will apply to the first time this tag
was read (or optionally, for the read with the highest RSSI) with a tag count that represents the number of
times this tag responded during the read cycle.
For asynchronous (continuous) reading, a new record with appropriate meta data will be generated each
time the tag responds so the read count will always be ʻ1”.
ThingMagic IZAR User Guide
|
51
11 Reader RF Power
During initial installation, the reader must be properly configured to use the correct RF power to comply
with FCC or other regional regulations. DO NOT increase the power beyond this level.
The IZAR supports separate read and write power level which are command adjustable via the
MercuryAPI. Power levels must be between:
Minimum RF Power = 0 dBm
Maximum RF Power = +31.5 dBm
Power Settings for Authorized Antennas and Cables
This device has been designed to operate with the antennas listed in Authorized Antennas list using the
cables in the Authorized Cables list. For any combination of antenna and cable the maximum RF power is
determined from antenna gain (Max Linear Gain value from antenna list) and antenna cable loss (Insertion
Loss value from cable list) using the formula:
Pmax = 36 dBm - Antenna Gain + Cable Loss
For more information about setting the RF power, refer to Setting the Reader RF Power.
NOTE: Be sure to read Compliance and IP Notices to maintain compliance with FCC or other applicable
regional regulations.
11.1 Setting the Reader RF Power
To set the Reader RF power:
1.
Log on to the Reader using your browser.
2.
The IZAR Status Page appears, as shown in the Figure 16.
3.
Click on the Settings icon. Click on the “Reader” header. By default, the value for RF output power
is 31.5 dBm for all functions, on all antennas.
4.
Enter the maximum setting based on your cable type, length, and antenna type.
5.
Scroll down to the bottom of the screen and click Save changes button.
The Settings Page will reload automatically after the settings have been saved.
Optionally, the RF power may be set at a different level for read operations than for write operations or at a
different level per antenna.
ThingMagic IZAR User Guide
|
52
12 Thermal Considerations
When transmitting at its highest RF power levels, the enclosure temperature of the IZAR Reader will rise.
Industry guidelines do not consider any surfaces whose temperature is above 70 C to be safe to touch. If
the IZAR Reader is operated at elevated ambient temperatures, care should be taken that it is mounted to
conductive material to limit how high the temperature of the enclosure rises.
13 Mounting the Reader
See Appendix B: IZAR Dimensions for mounting hole locations and dimensions.
CAUTION!
If there is any chance of dust or water exposure, the IZAR should be
mounted in an appropriate water-tight enclosure.
13.1 Ceiling or Wall
Follow these steps to mount the reader on a ceiling or wall:
1.
Hold the reader in its mounting location and mark the position of the four mounting screws.
2.
Drill holes for the screws and install wall or ceiling anchors if required. For ceiling mount, use only
anchors specifically designed for ceilings.
3.
Hold reader over holes and insert the screws and tighten until almost flush with the wall.
4.
Tighten the screws.
13.2 Variables Affecting Performance
Reader performance may be affected by the following variables, depending on the site where your Reader
is being deployed:
Environmental
Tag Considerations
Multiple Readers
13.3 Environmental
Reader performance may be affected by the following environmental conditions:
Metal surfaces such as desks, filing cabinets, bookshelves, and wastebaskets may
enhance or degrade Reader performance.
Antennas should be mounted far away from metal surfaces that may adversely affect the
system performance.
Devices that operate at 900 MHz, such as cordless phones and wireless LANs, can
degrade Reader performance. The Reader may also adversely affect the performance of
these 900 MHz devices.
ThingMagic IZAR User Guide
|
53
Moving machinery can interfere the Reader performance. Test Reader performance with
moving machinery turned off.
Fluorescent lighting fixtures are a source of strong electromagnetic interference and if
possible should be replaced. If fluorescent lights cannot be replaced, then keep the
Reader cables and antennas away from them.
Coaxial cables leading from the Reader to antennas can be a strong source of
electromagnetic radiation. These cables should be laid flat and not coiled up.
WARNING!
The IZAR antenna ports may be susceptible to damage from Electrostatic
Discharge (ESD). Equipment failure can result if the antenna or
communication ports are subjected to ESD. Standard ESD precautions
should be taken during installation to avoid static discharge when handling
or making connections to the IZAR Reader antenna or communication ports.
Environmental analysis should also be performed to ensure static is not
building up on and around the antennas, possibly causing discharges during
operation.
13.4 Tag Considerations
There are several variables associated with tags that can affect Reader performance:
Application Surface: Some materials, including metal and moisture, interfere with
tag
performance. Tags applied to items made from or containing these materials may not
perform as expected.
Tag Orientation: Reader performance is affected by the orientation of the tag in
the
antenna field. The antenna is circularly polarized, so it reads face-to but not edge-to.
Tag Model: Many tag models are available. Each model has its own
performance
characteristics.
13.5 Multiple Readers
The Reader adversely affect performance of 900 MHz devices. These devices also may degrade
performance of the Reader.
Antennas on other Readers operating in close proximity may interfere with one another, thus degrading
performance of the Readers.
Interference from other antennas may be eliminated or reduced by using either one or both of the following
strategies:
Affected antennas may be synchronized by a separate user application using a time-multiplexing strategy.
Antenna power can be reduced by reconfiguring the RF Transmit Power setting for the Reader.
Low read rate settings (high Tari value, low BLF value, high “M” value) will reduce channel-to-channel
interference
NOTE:
Performance tests conducted under typical operating conditions at your site are recommended to
help optimize system performance.
ThingMagic IZAR User Guide
|
54
14 IZAR Specifications
The following are the specifications for the IZAR Reader.
14.1 UHF RFID Antenna Interface
Interface: Four RP-TNC Connectors
RF Power Output: Separate read and write levels, adjustable from 0 dBm to 31.5 dBm (1.4 W)
Frequency: Hop table with up to 62 entries, configurable in 50KHz steps, accommodating the following
ranges (hardware dependent):
– 902-928 MHz (FCC; NA, SA)
– 865.6-867.6 MHz (ETSI; EU)
– 865-867 MHz (MCIT; India)
14.2 Power
If designing a power source for the IZAR Reader, use the worst-case maximum power consumption
figures. If estimating battery life for a power source connected to the IZAR Reader, use the typical figures.
Both are provided below. Note that external devices connected to the IZAR Reader can impact the power
consumption
External DC Power: 9 to 30 VDC supply voltage. Maximum DC power under all worst case conditions: 17
W. This is based on 13 W being consumed by the IZAR Reader itself and 5 W being supplied to external
peripherals that are connected to the IZAR Reader. It is recommended that DC supplies connected to the
IZAR Reader be capable of supplying 17 W to avoid a brown-out condition under any circumstances.
Neglecting external peripheral circuitry being powered by the IZAR Reader, typical maximum DC power
consumption when transmitting at +31.5 dBm is 13.0 W into an approved antenna.
If power is being drawn from the host USB port, add as much as 2.5 W to the typical power consumption
when transmitting or at idle. If power is being supplied by the 5V GPIO power source, add as much as 2.5
W to the typical power consumption to account for this. Therefore, the typical power consumption when
transmitting will vary between 13 and 17 W depending on how the IZAR Reader is used.
NOTE:
If a third-party DC Power supply is used it must meet the following criteria:
Be UL Listed
Meet the above operating specs
The output must comply with SELV and LPS characteristics
Have a maximum operating ambient temperature that meets or exceeds the intended IZAR operating
temperatures as covered under the UL Listing of the power supply.
ThingMagic IZAR User Guide
|
55
14.3 Environmental
Operating Temperature: -40°C to +60°C
NOTE:
If an external DC power supply with a lower operating ambient temperature, as covered under the
UL Listing of the power supply, is used then the operating ambient temperature of the IZAR would be
reduced accordingly.
Storage Temperature: -40°C to +85°C
Altitude: Less than 200 meters
14.4 Physical Dimensions
194 mm L x 138 mm W x 33 mm H
(7.6 in L x 5.5 in W x 1.3 in H)
0.7 kg (1.51 lbs)
See Appendix B: IZAR Dimensions for exact dimensions.
14.5 Supported UHF Tag Protocols
EPC Class 1 GEN2v2 (ISO 18000-63) with DRM
ISO 18000-6B (Optional)
IP-X (Optional)
AEI ATA (Optional)
14.6 Data/Control Interfaces
Connectors:
– RJ45 (10/100 Base-T Ethernet)
– USB Type B (console port)
– USB Type A (accessory port)
– 12-pin terminal block (GPIO interface)
– 2-pin terminal block (DC power)
– Micro SD card interface (has been tested with cards of up to 128 GB capacity)
– HDMI video port
Indicators, switches, and GPIOs:
– One two-color status LED
– Four antenna status LEDs
– Two LAN status LEDs
– Isolated GPIOs: 4 Inputs & 4 Outputs plus +5 VDC and ground references
14.7 Performance
Read Rate: Over 750 tags/second
ThingMagic IZAR User Guide
|
56
Read Distance: Over 30 ft (9m) read distance with a 6dBi antenna (emitting 36
dBm EIRP) with a tag
which has at least -15 dBm receive sensitivity. Typically, antenna can be up to 4 meters from the reader
as well if the RF output power is set to +31.5 dBm.
14.8 Regulatory & Safety
FCC 47 CFR Ch. 1 Part 15
Industrie Canada RSS-21 0
ETSI EN 302 208 V1.1.1 and V1.2.1 (with corresponding PLT-RFID-IZ6-EU hardware)
ROHS Compliant, UL Listed
14.9 Processor
1 GHz TI ARM Cortex AB (AM335x)
14.10 User Memory
4GB Flash
512MB DD RAM
14.11 Real Time Clock
Backup time: 1 week at room temperature
14.12 Operating System
Debian Linux kernel version 7.9
ThingMagic IZAR User Guide
|
57
15 Compliance and IP Notices
15.1 Regulatory Compliance
EMC FCC 47 CFR, Part 15
Industrie Canada RSS-210
15.1.1.1 Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
Operation of the IZAR reader requires professional installation to
correctly set the transmit power for the RF cable and antenna
selected.
15.1.1.2 Industrie Canada (IC)
Under Industrie Canada (IC) regulations, this radio transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmitter by IC. To reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
ThingMagic IZAR User Guide
|
58
This radio transmitter (identify the device by certification number, or model number if Category II) has been
approved by IC to operate with the antenna types listed in Authorized Antennas and Authorized Cables
tables with the maximum permissible gain and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated
for that type, are strictly prohibited for use with this device
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the
device.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen
that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful
communication.
This device has been designed to operate with the antennas and cables listed in Authorized Antennas and
Authorized Cables tables. Antennas or cables not included in these lists are strictly prohibited for use with
this device.
To comply with IC’s RF radiation exposure requirements, the antenna(s) used for this transmitter must be
installed such that a minimum separation distance of 34 cm is maintained between the radiator (antenna)
& people in front of the antenna at all times and must not be co-located or operating in conjunction with
any other antenna or transmitter unless appropriate additional proximity restrictions are imposed.
15.1.1.3 Industrie Canada
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec
une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada.
Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut
choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne
dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de modèle
s'il fait partie du matériel de catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les
types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour
chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au
gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur
Le fonctionnement de lʼ appareil est soumis aux deux conditions suivantes:
1. Cet appareil ne doit pas perturber les communications radio, et
2. Cet appareil doit supporter toute perturbation, y compris les perturbations qui pourraient
provoquer son dysfonctionnement.
Pour réduire le risque d'interférence aux autres utilisateurs, le type d'antenne et son gain doivent
être choisis de façon que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas
celle nécessaire pour une communication réussie.
Au but de conformer aux limites d'exposition RF pour la population générale (exposition non-
contrôlée), les antennes utilisés doivent être installés à une distance d'au moins 34 cm de toute
personne et ne doivent pas être installé en proximité ou utilisé en conjonction avec un autre
antenne ou transmetteur.
ThingMagic IZAR User Guide
|
60

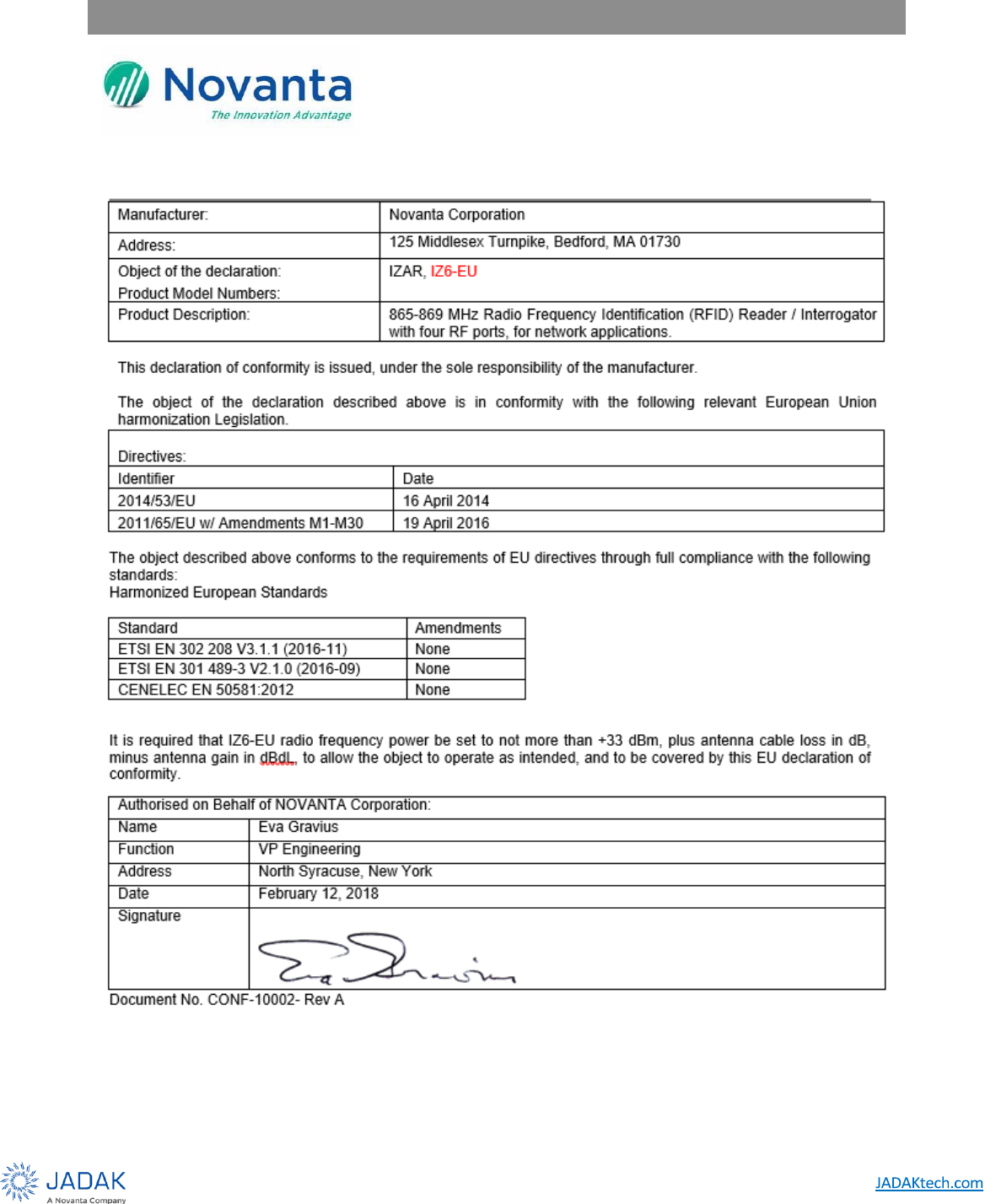

16 Appendix A: IZAR Antenna and Cable Information
16.1 Authorized Antennas
To comply with FCC’s RF radiation exposure requirements, the antenna(s) used for this transmitter must
be installed such that a minimum separation distance of 23 cm is maintained between the radiator
(antenna) & people in front of the antenna at all times and must not be co-located or operating in
conjunction with any other antenna or transmitter unless appropriate additional proximity restrictions are
imposed. You must also provide strain relief for all Reader connections.
IZAR is capable of up to +31.5 dBm conducted power on the housing RF connector and requires
professional installation. IZAR can only be operated with JADAK-approved antennas and can radiate no
more than 36 dBm EIRP per FCC Part 15.247 regulations. The IZAR output power can be increased to
provide the maximum allowable EIRP subject to a maximum conducted power allowance of 30 dBm at the
antenna connector. The maximum allowable output power of the Reader can be set to satisfy both the
conductor and radiated maximum criteria.
The only antennas authorized by the FCC for use with the IZAR Reader are listed in the table below. FCC
permits using antennas of a similar type as long as their maximum linear gain in any orientation is equal to
or less than that given for the authorized antennas in the chart below. Detailed information on each
antenna is available from their respective manufacturers. Antennas having a linear gain greater than 6
dBiL are strictly prohibited for use with this device. The required antenna impedance is 50 ohms.
16.1.1 Authorized Antennas
Table 7: Authorized Antennas
Manufacturer
Type
Manufacturer Part
Number
Max. Linear Gain
(dBiL)
Laird
Patch
S9025P
4.3
Laird
Patch
S8658WPL
6.0
MTI
Patch
MT-262013
6.0
MTI
Patch
MT-242043
6.0
MTI
Patch
MT-242025
5.1
Axiom Wireless Tech
Ceramic Patch
MPAC29SE921P-TA
-3.0
Laird
Dipole
FG9026
6.0
NOTE: Only similar antennas with the same or lower gain may be used with the IZAR Reader without
violating FCC regulations. It is the responsibility of the user to comply with this requirement.
16.2 Authorized Cables
The following table contains the cable loss values for authorized shielded coaxial cables provided by
JADAK.
Cable Description
ThingMagic Part Number
Insertion Loss
6' RTNC to RTNC Cable
CBL-P6
0.8 dB
ThingMagic IZAR User Guide
|
62
18 Appendix C: Advanced Administration
18.1 Changing console/root password:
To change the root password, used by the command-line interface and console access, use standard
Linux "passwd [userid]" command.
debian@IZAR-c8b641:~$ passwd
Changing password for debian.
(current) UNIX password:
Enter new UNIX password:
Retype new UNIX password:
passwd: password updated successfully
19 Appendix D: Troubleshooting
19.1 Troubleshooting Table
Table 8: Common Problems and Solutions
Problem
Path to Solution
Cannot connect to reader over
network
• Check your network settings to make sure you’re trying the correct
IP address. The easiest way to do this is to connect to the console
port with a USB cable. The login prompt is preceded by the current
IP addresses that the reader recognizes, for convenience.
• If the settings are wrong, try to
Using Safe Mode
to get a known
network configuration, or
Reset to the Default Configuration
and
start the configuration over.
• The MercuryAPI and Query applet communicate using the LLRP
interface which uses network port 5084. Verify 5084 is not being
blocked by the network fire wall.
Reader is not reading tags
• Verify LEDs are blinking according to Interpreting the Reader
Indicator LEDs
If they are, indicating active RF, make sure tags are
in range.
• Check antenna cables
• Try known good Gen2 tags
• Increase
Reader RF Power
Reader error LED stays on
Following
Collecting Diagnostic Data for Support
and send
to support.
Read “Performance” is slow
Performance, as it relates to tag reading, is very use case dependent.
Typically, it comes down to whether you are trying to read lots of tags
once or a few tags repeatedly. If the reader settings aren’t correct for
your use case the performance will appear poor.
• See the MercuryAPI Programmer’s Guide | Performance Tuning
section for details about settings.
• Use the Universal Reader Assistant | Options | Advanced... |
Gen2 Settings to modify the settings for your use case.
Errors after a Firmware
Upgrade
Try reinstalling the firmware with “Revert to default settings” Selected.
ThingMagic IZAR User Guide
|
63
19.2 Reset to the Default Configuration
If you are experiencing a problem with the reader and are having difficulty pinpointing the cause, it is
useful to return the reader to a known state. The easiest method of doing this is to navigate to the
Firmware screen and press the button labeled, “Revert to default settings”, shown in Figure 25.
To reboot, hold for ~1 second, then release
To reboot to safe mode, hold for ~5 seconds, then release
Note on SafeMode
:
The IZAR status LED also toggles red/green every 250ms while in safe mode
IZAR safe mode causes the “safe web page” to run on the normal web port (80), as well as its
usual 8888. The idea is that if the regular web interface is damaged, this allows the “safe” one to
take over.
19.3 Safe Mode
If the standard web interface should become corrupted such that the reader firmware cannot be updated,
a backup web page is available. It is accessed the same as the standard web page, but with a port
number of “8888”. To do this, you add “:8888” after the IZAR host name or IP address of the URL you are
accessing. For example, http://10.8.80.61:8888/firmware or http://IZAR-b65b2f:8888/firmware. You will be
presented with the login prompt again. The only screen available will be the one for updating firmware.
ThingMagic IZAR User Guide
|
64
Collecting Diagnostic Data for Support
When experiencing problems connecting to the IZAR or performing RF (reading, writing) operations, it will
be necessary to gather the following information to help diagnose the problem. This information will often
be the first thing requested when reporting a problem to technical support.
Collect the following:
1. Diagnostics Status and Logs
: Save the contents of the
Diagnostics Page
and
the output from
the Diagnostics Page | View Log button.
2. IZAR Serial Number
: See the 2d barcode label.
3. Controlling software
: any details about the software used to control the reader.
LLRP based
middleware, MercuryAPI app (what version and language), platform, etc.
4. Physical Configuration
: any details available about the number and types of
antennas
connected, cables used, power supply, etc.
5. Environment
: any details about the physical environment the IZAR is being
used/tested in.
Temperature, humidity, vehicle mounted, office, etc.
