CBT 70J-1 and CBT 70JE-1 Bracket Installation Guide Rev B – For Swivel/Tilt Wall Bracket Included: SWIVEL-TILT SPEAKER BRACKET WALL BRACKETCOUPLER PLATE M6-60L M6-15L Pan head SS Flat washers M6-nuts SS Lock washers switch covers M6-20L Flat head SS Lock washers SS Flat washers

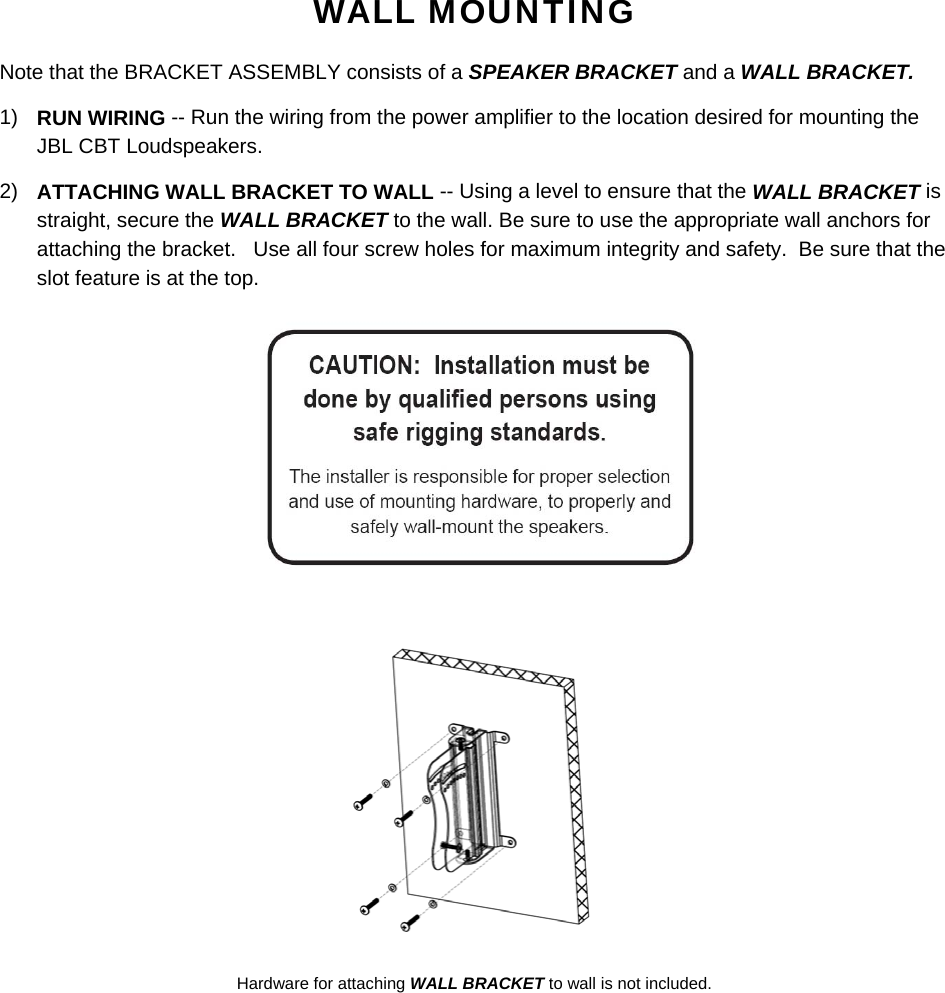

WALL MOUNTING Note that the BRACKET ASSEMBLY consists of a SPEAKER BRACKET and a WALL BRACKET. 1) RUN WIRING -- Run the wiring from the power amplifier to the location desired for mounting the JBL CBT Loudspeakers. 2) ATTACHING WALL BRACKET TO WALL -- Using a level to ensure that the WALL BRACKET is straight, secure the WALL BRACKET to the wall. Be sure to use the appropriate wall anchors for attaching the bracket. Use all four screw holes for maximum integrity and safety. Be sure that the slot feature is at the top. Hardware for attaching WALL BRACKET to wall is not included.
