JBT Smart Lighting SPKDL6RGBTWWH LED down light User Manual 15 PK DL6 RGBTW WH UserMan r1
Shenzhen JBT Smart Lighting Co.,LTD LED down light 15 PK DL6 RGBTW WH UserMan r1
15_PK-DL6-RGBTW-WH UserMan, r1
Installation Instructions
This retrofit kit includes an LED lamp and Installation instructions. Please check these items when unpackaging.
The units covered in this report are intended to retrofit Type IC or Non-IC covered ceiling recessed luminaire with through-branch wiring
marked “Max. 8 of 12 AWG conductors” with instructions to remove the existing trim and diffuser.
WARNING
Risk of fire or electric shock. LED Retrofit Kit installation requires knowledge of
luminaires electrical systems. If not qualified, do not attempt installation. Contact
a qualified electrician.
WARNING
Risk of fire or electric shock. Install this kit only in luminaires that have the construction
features and dimensions shown in the photographs and/or drawings and where the input
rating of the retrofit kit does not exceed the input rating of the luminaire.
WARNING
To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or
other sharp objects.Do not make or alter any open holes in an enclosure of wiring or
electrical components during kit installation.
Electrical parameters:
Model No.
Input
voltage,
Vac
Input
Current ,Ma
Input
wattage ,W
SPK-DL6-RGBTW-WH
100-130V
210
13W
Product size:
Unit: inches
INSTALLATIONS:
STEP1:
Turn off the power before installation, Remove the diffuser or existing bulb, if necessary and remove the existing trim. Attach
the relamping label to the inside of recessed luminaire housing.
STEP2:

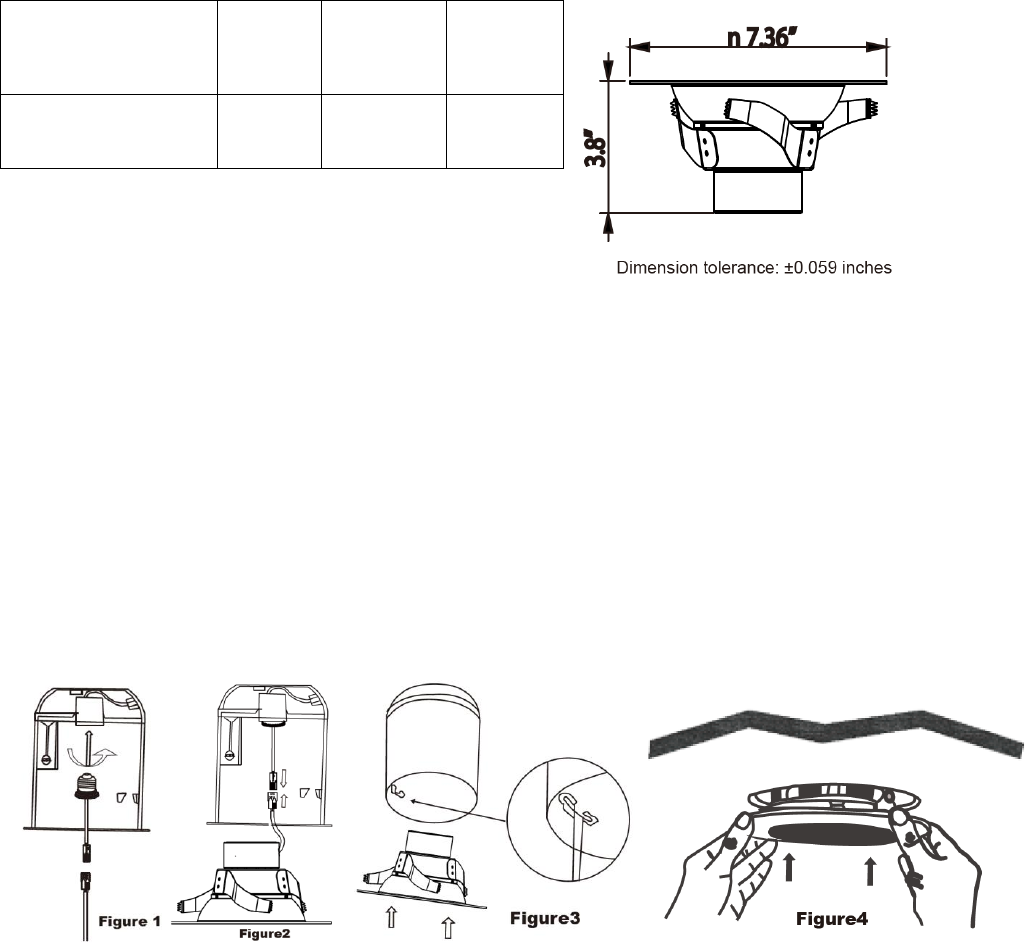

As shown in Figure 1 Twist the lamp base into the lamp holder.
STEP3:
As shown in Figure 2 Connected the lamp connector with lamp
base connector.
STEP4:
As shown in Figure 4 Push the LED retrofit trim into the recessed
light fixture, allowing the torsion springs to pull the LED trim up into the recessed light fixture. Continue to push the LED trim
until its outer edge is flush against the ceiling
