ATK2010
Rear Seat Entertainment
System
Owners Manual
ATK2010 Owners Manual
English
English
2
2015 Atom Enterprises, Inc. All rights
reserved. This manual, or any portion thereof,
may not be reproduced without the express
written consent of Atom Enterprises, Inc.
For any questions, please call customer
service (855) 574-2866
www.atomenterprisesinc.com
ATK2010 Owners Manual
Table of Contents
English
3
General information 4
Safety instructions 4
General Characteristics 4
Cleaning and care 4
Supported media 5
Country codes 5
Front panel control buttons 6
Inputs/outputs 7
Remote control 8-9
Wireless IR headphones 10
How to identify Monitor A/B 10
Operation
Playing a disc 11
Playing media via wireless display (miracast/DLNA) 11
Playing media via AUX input 11
Playing media via USB 11
Playing media via HDMI/MHL input 11
FM Transmitter function 11
Sharing media between monitors 12
Setup
Main menus 13
Troubleshooting 14
Compliance information 14-16
Specifications 16
English
4
General Information
Please read this instruction manual
carefully.
Poor road conditions can cause
problems with some media playback.
In cold environments, the screen may
sometimes display distortion. This is
normal.
Safety Information
For safety reasons, it is recommended
that media is only changed when
vehicle is stationary. Children should
not be permitted to unfasten their
seatbelt to function the
system/change media. System can be
functioned using the remote control
with seatbelts fastened.
The use of headphones at high volume
can cause permanent damage to
hearing. To avoid hearing damage, set
the volume to low before using them.
It is unlawful, in most jurisdictions,
and unsafe to drive a motor vehicle
which is equipped with a video display
that is visible, directly or indirectly, by
the driver while moving. This system
should never be installed where visible
by the driver.
General Characteristics
•10.1” LED LCD display
•1024 x 600 Resolution
•Slot load DVD player
•USB 2.0/2 amp charge
•Miracast/DLNA (wireless
connection to smartphone, etc)
•Front capacitive touch controls
•Support IR headphones/remote
control
•Analog A/V input-1/8” Jack
•Stereo headphone output-1/8” Jack
•FM Transmitter (88.5-107.5 MHZ)
Caution
Do not operate the system without
the vehicle running, as it may cause
the battery to drain. Please make sure
the system is turned off when the
vehicle is not running.
Cleaning and Care
Clean your rear seat entertainment
system with a soft, dry cloth. For
stubborn deposits, a mild cleaning
agent may be used. Wipe off and finish
with a dry cloth.
Please note that strong cleaning
agents, such as alcohol, thinners,
benzene, insecticides, may cause
damage to the system and should
never be used.
English
5

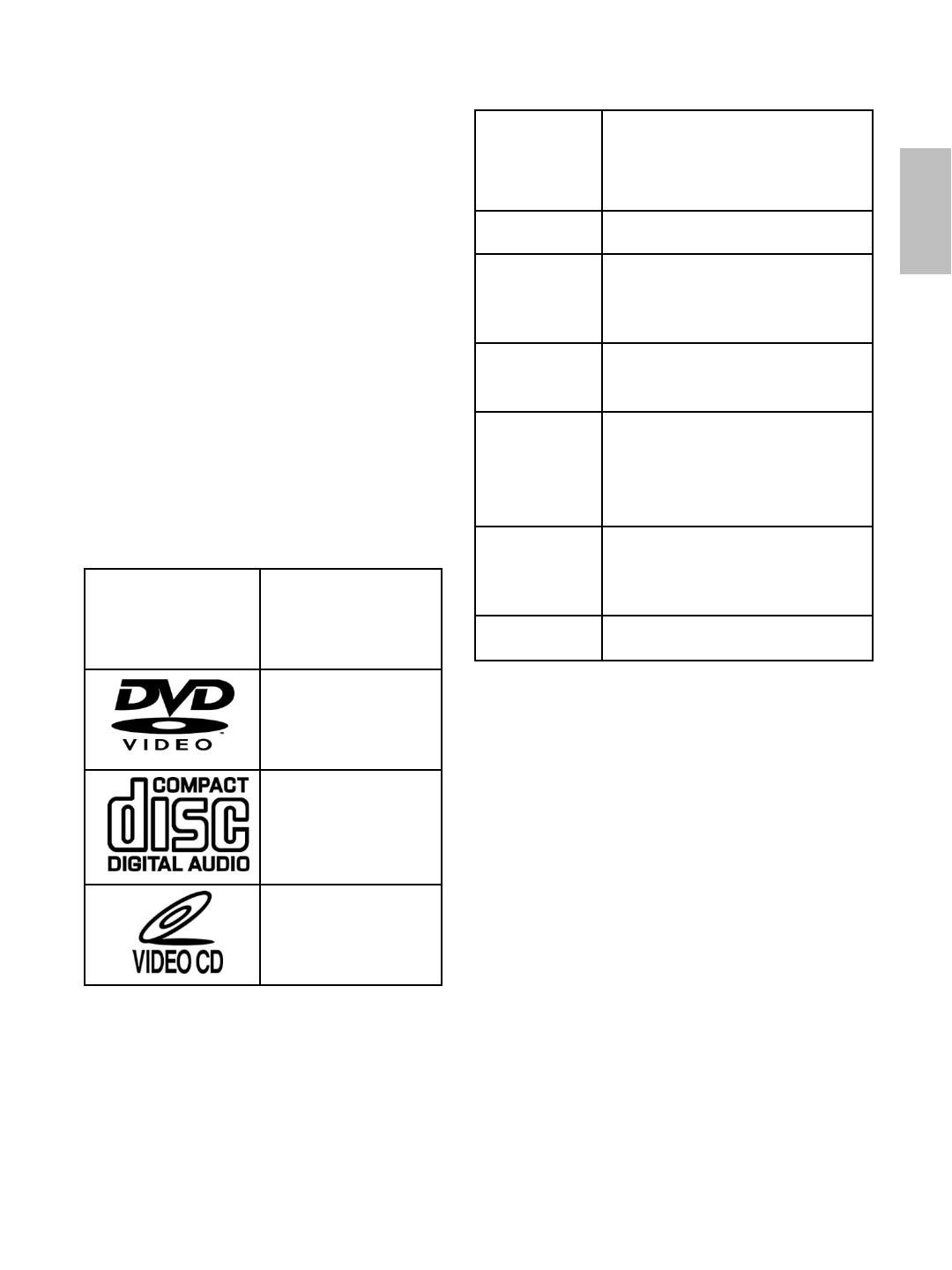

Supported Media
Supported disc media
Before inserting media, ensure that it
is compatible with the system. Please
note that the following data media is
NOT compatible with the system:
•Optical data media (CD-1, CD-ROM,
DVD-ROM)
•Mini disc
Disc types that are
compatible
Supported USB media
files
MP3,WMA,OGG,MPE,MPG,MPEG,AVI,
DIV,VID,VOB,JPG,JPEG, AAC, M1V,
M2V, OGM.
Supported HDMI/MHL
input
•HDMI media from any HDMI output
Device
•HDMI media from MHL compatible
device (ie: MHL compatible
smartphone, MHL compatible
tablet, etc) NOTE: only certain
devices are MHL compatible and
may require special cables/adapters
(please check with the device
manufacturer)
Symbol Disc Type
Video DVD
Audio CD (ie: CD-
R with MP3,
MPEG, WMA, or
JPG files)
Video CD
Region Countries in this
region
1 Canada, USA, US territories
2 Japan, Europe, South Africa,
Middle East (including
Egypt)
3 South East Asia, East Asia
(including Hong Kong)
4 Australia, New Zealand,
Pacific Islands, Central
America, Mexico, South
America, Carribean
5 Former Soviet Union, (also
North Korea, Mongolia),
Indian subcontinent, Africa
6 China
Country code restrictions
If the country code on a DVD disc does
not match the system country code,
the DVD cannot be played.
Panel Control Buttons/Disc slot
English
6
2 34 1

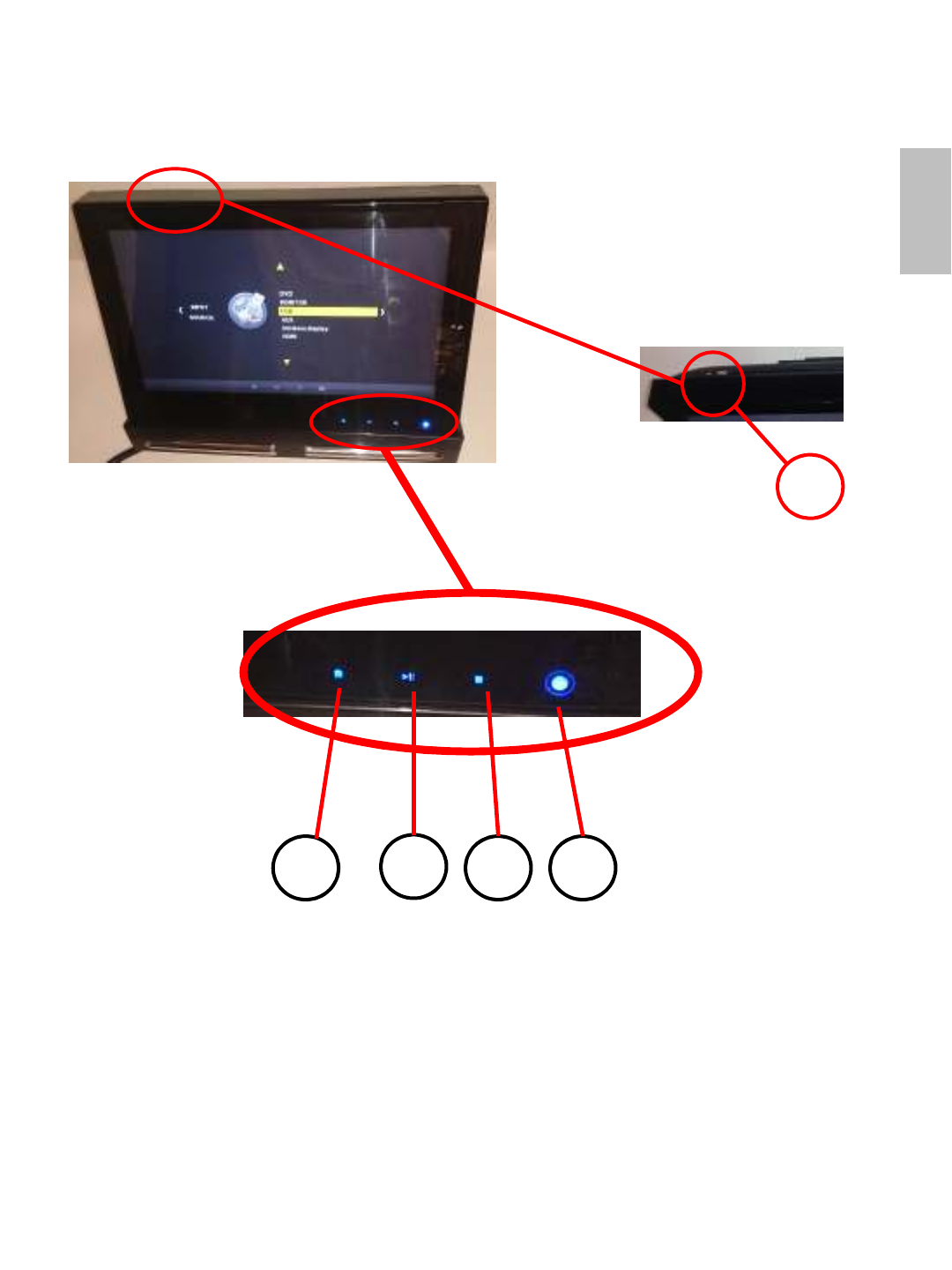

1. Power button-turns system power on/off.
2. Source button-select media source for playing media (ie:DVD, AV
input, MHL/HDMI, Wireless screen mirroring, USB)
3. Play/Pause-starts/pauses media source selected.
4. Stop-stops media that is playing.
5. Eject-ejects disc
5
English
7
Inputs/Outputs
1
5
3
4

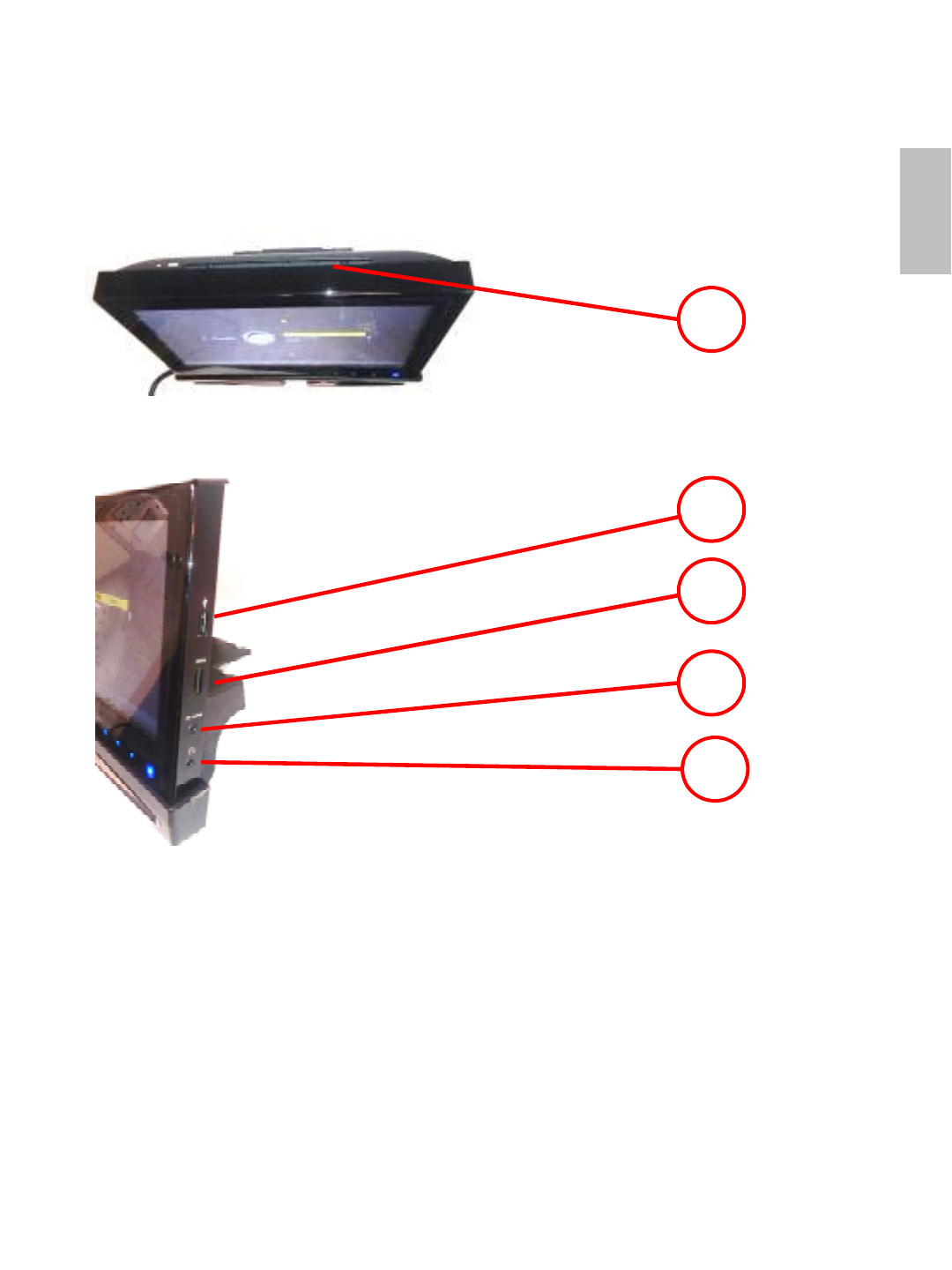

1. HDMI input (MHL compatible)
2. USB 2.0 input (2 amp charging)
3. Headphone jack output (wired)
4. A/V input jack (analog 3.5MM)
5. Disc slot
2

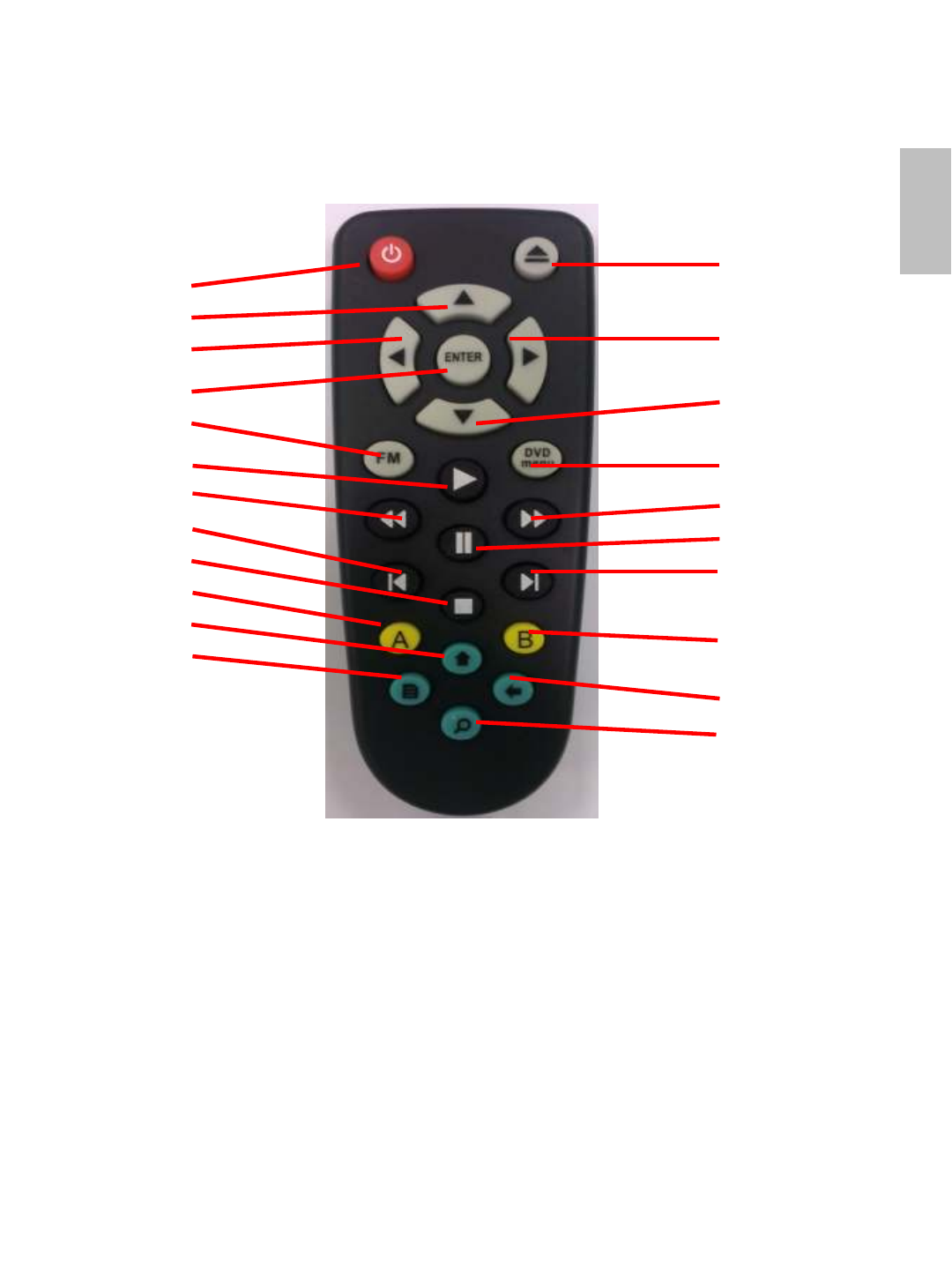

Remote Control
Buttons/Functions
To control monitor A, press the A button first. To
control monitor B, press the B button first.
(SEE WIRELESS HEADPHONE DETAIL PAGE FOR MORE INFO)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1. POWER - turns power on/off
2. UP - navigate selection up
3. LEFT - navigate selection left
4. ENTER - accepts selection
5. FM - turns FM transmitter on/off
(station can also be changed when
button is depressed) **Function is for
Monitor A only.
6. PLAY - select to play media
7. REVERSE - reverses play (fast)
8. PREVIOUS - selects previous track
9. STOP - stops media from playing
10. A- depress to control A monitor
11. HOME – back to home page
12. MENU – back to home page
13. EJECT - ejects disc
14. RIGHT - navigate selection right
15. DOWN - navigate selection down
16. DVD MENU - displays DVD “ROOT
MENU”
17. FORWARD - plays media fast
forward
18. PAUSE - pauses media being played
19. NEXT - selects next track
20. B- depress to control B monitor
21. BACK – back to previous page
22. SEARCH – back to home page
8
English
Remote Control Battery
Installation/Operation
English
9
TAB

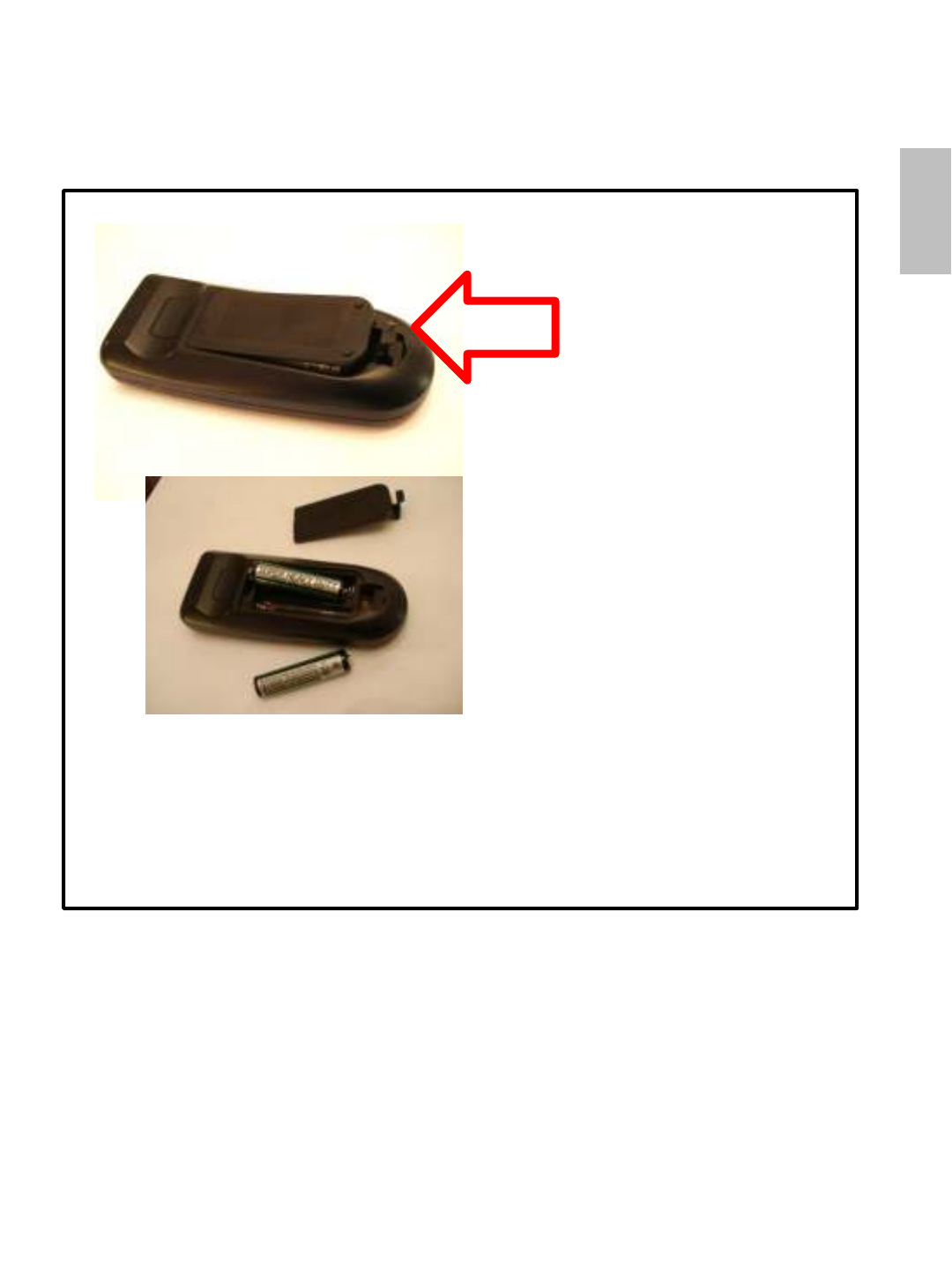

1. Remove battery cover by
depressing tab (in direction
of arrow) then lifting cover.
2. Insert 2 AAA batteries (make
sure batteries are installed
with correct polarity (+/-)
3. Reinstall battery cover
! NOTE: There is risk of fire if
batteries are not handled correctly.
Do NOT recharge batteries. Do
NOT intermix different battery
types, or batteries not charged the
same amount.
Please dispose of batteries per
local laws.
Please keep batteries out of reach
of children.
Operation
To control monitor A, press the A button first. To control monitor B, press
the B button first (SEE HEADPHONE DETAIL PAGE FOR MORE INFO)
Remote control has an infrared beam, which must be aimed towards the
lower area of the display monitor being controlled.
Monitor will not receive remote signal if beam is blocked.

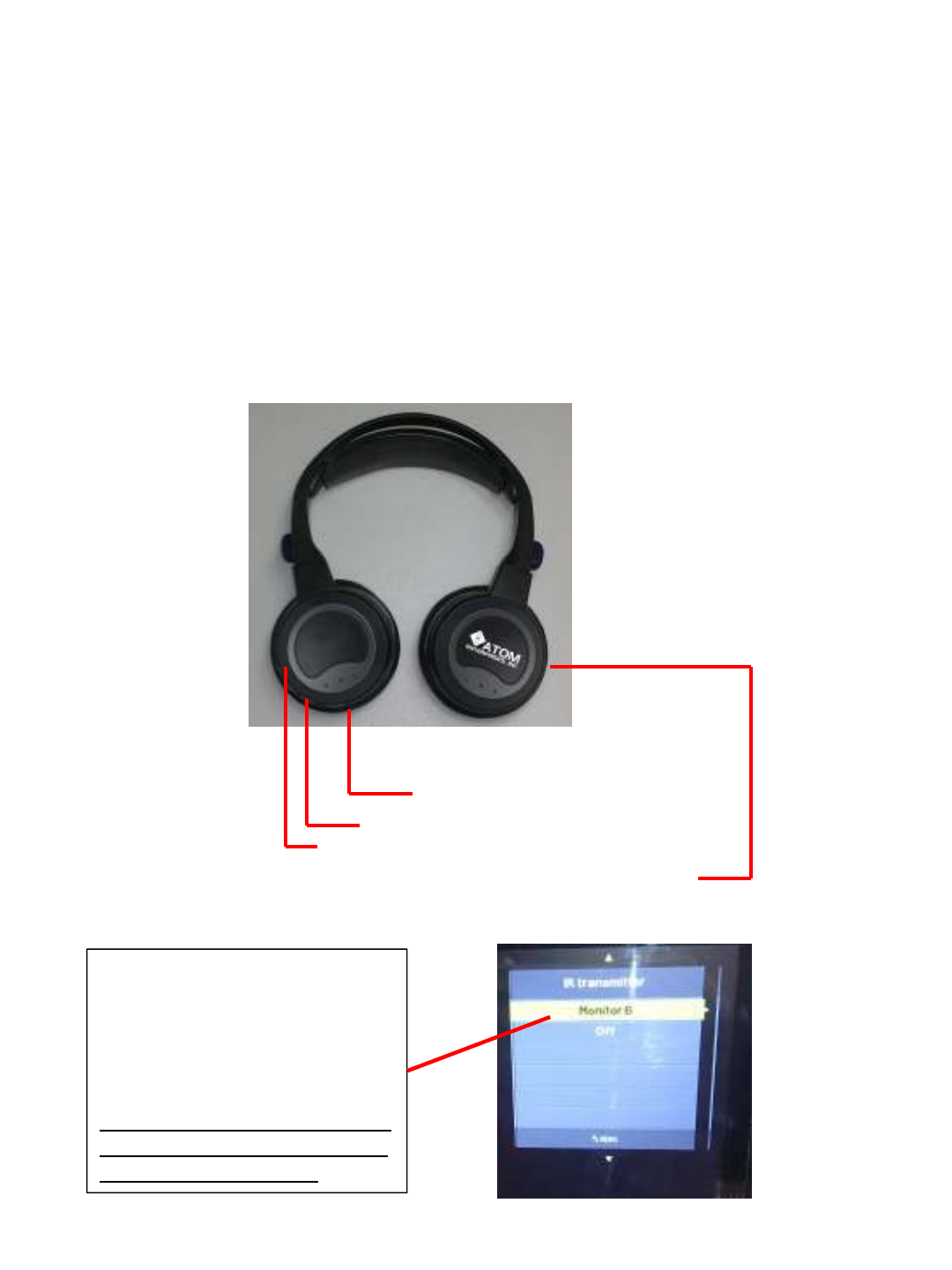

Wireless Headphones
10
Headphones are dual channel (A and B channel) infrared wireless.
Channel must be selected to match the display monitor being viewed (see
below)
Headphones must be in line of sight of display monitor to receive audio signal
Headphones require (2) AAA batteries.
NOTE: Please make sure volume control is set to low for the safety of the next
user (excessive volume can cause permanent damage)
Please note: headphones will power off automatically if no audio is played for
more than 3 minutes. This is so the batteries aren’t drained. In the event this
happens, just turn the switch off then on.
Volume control
Power on/off switch
Channel A/B selection switch
Battery cover (depress and slide down to remove)
Monitor “A/B”
identification location
Follow menu sequence below:
Audio>IR transmitter (Monitor “A”
or “B” will be shown)
NOTE: BE CAREFUL, AS MONITOR
CAN BE CHANGED IN THIS MENU
IF MONITOR IS SELECTED
11
Operating
Instructions
Turning power on
Turn vehicle ignition “ON/ACC”.
Press power button on RSE front panel
or remote control.
Playing a Disc
Insert a disc (label side facing towards
you)
Make sure DVD –Disc is the selected
source.
Press play to start media.
Playing media from USB
Insert USB device into USB slot on
right side of unit.
Make sure USB is the selected source.
Use navigation buttons on remote to
control media files.
Playing media from AUX
input
Plug small male end of AV cable in to
3.5mm AV input on right side of unit
Plug other jack ends (RCA type) into
device to be played.
Make sure AUX is the selected source.
Play device per device instructions.
Playing media from
Wireless Display-may be
optional (screen mirroring
from smartphone, etc)
Select “Wireless Display” from source
menu. Follow screen mirroring
instructions on smartphone/device to
play media from.
Playing media from
HDMI/MHL input
Plug HDMI cable connector into HDMI
jack on right side of unit.
Plug other end of cable into device to
be played.
Make sure MHL/HDMI is selected
source.
Play device per device instructions.
NOTE: only devices with MHL or
HDMI output capability can be used.
Playing audio through
vehicle radio system (only
plays from Monitor A)
Depress FM on the remote control (if
FM button is depressed again, it will
turn off the FM transmitted)
Use the left/right navigation buttons
to select desired radio station to play
audio (88.5MHZ ~ 107.5MHZ )
Tune vehicle radio to station selected
on unit.
NOTE: Quality of audio may be
affected by station selected. Certain
radio stations may not be clearly
audible when FM transmitter is
turned on.
12
Sharing media from
monitor A to monitor B
Make sure media is playing on monitor
A, then follow the menu sequence
below on monitor B:

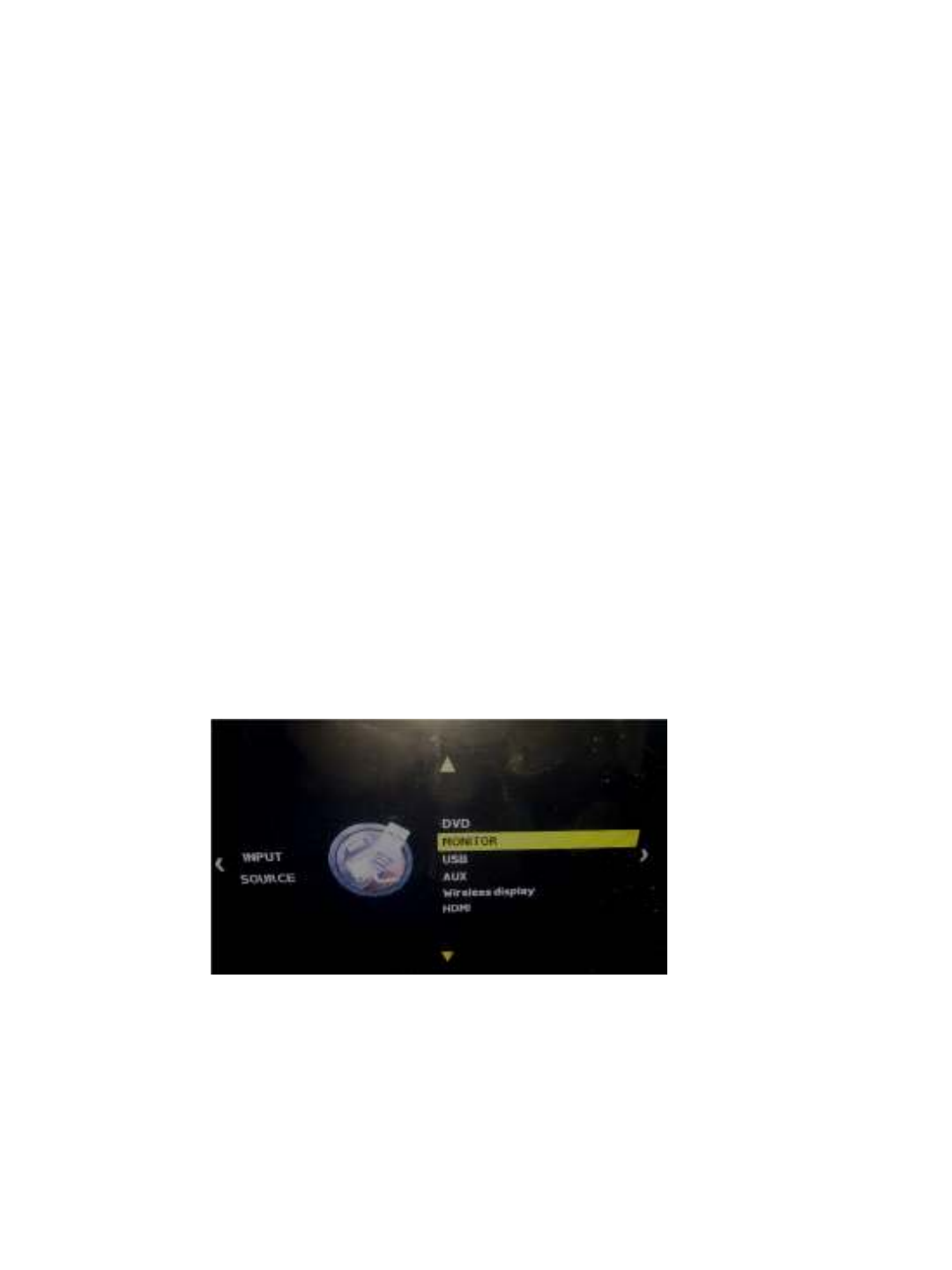

Input source>Monitor
Monitor B will display whatever is
playing on monitor A
Sharing media from
monitor B to monitor A
Make sure media is playing on monitor
B, then follow menu sequence below
on monitor A:
Input source>Monitor
13

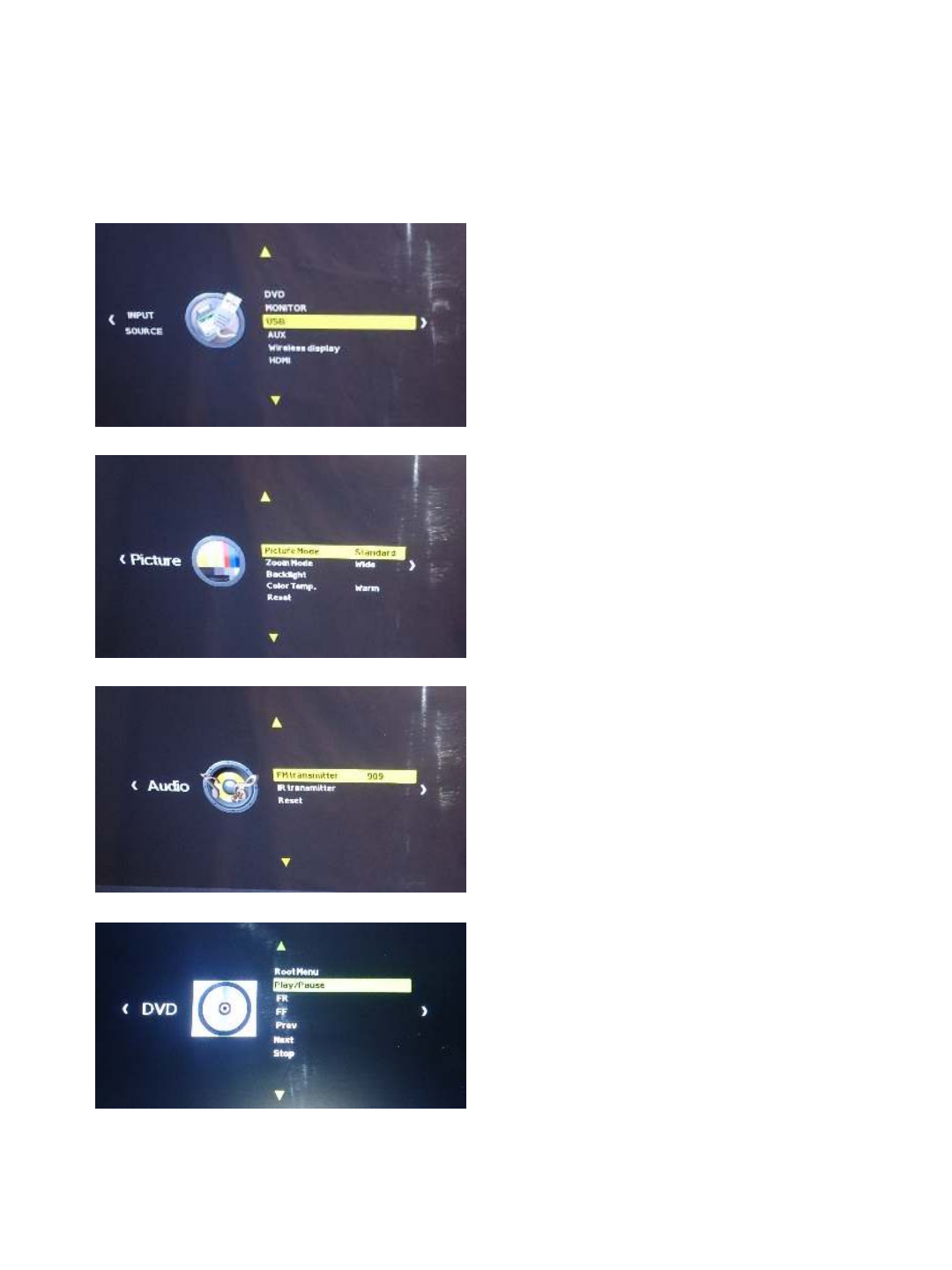

Main Menus
Below are all the main menus. Menus can be
found by selecting the “source” button, on
remote, then use the left/right navigation
buttons to locate desired menu.
Input source Menu (default
home page)
Contains list of sources for playing
media (note: wireless display may be
optional)
Picture Menu
Contains list of controls for picture
settings
Audio Menu
Contains list of controls for audio
settings, including FM Transmitter (to
play audio through vehicle FM radio)
DVD Menu
Contains list of controls for disc player
(note: disc must be inserted for menu to
appear)
English
14
Trouble shooting
Unit will not power on
1. Be sure vehicle is turned on
Remote control not
working
1. Check batteries for correct
installation and make sure they
have plenty of charge left.
2. Make sure correct monitor is
selected on the remote for the
monitor desired to be controlled
(monitor A/B)
3. Be sure remote is aimed directly
towards top of monitor being
controlled with no obstructions.
No picture
1. Ensure correct source is selected
(ie: DVD, USB, etc)
2. Ensure any external devices are
correctly connected (ie: cable/s for
AUX input , USB, etc)
No sound through IR
headphones
1. Check batteries for correct
installation and make sure they
have plenty of charge left.
2. Check to make sure channel
selected on headphones matches
the monitor being watched (A or B.
see headphone instruction page
for more details)
3. Be sure headphones are in line of
sight of display monitor being
watched with no obstructions.
FCC declaration
This system complies with FCC
directive, section 15. System is subject
to the following 2 conditions:
1. This system must not cause any
harmful interference
2. This system may be subject to
interference which may cause
unwanted operation.
FCC warning
1. In order to ensure ongoing FCC
compliance, the system must be
connected and operated with the
supplied cables only.
2. Unauthorized modifications or
alterations to the system may void
this operating permit.
FCC notice
Notice : The changes or modifications
not expressly approved by the party
responsible for compliance could void
the user’s authority to operate the
equipment.
To comply with the FCC RF exposure
compliance requirements, no change
to the antenna or the device is
permitted. Any change to the antenna
or the device could result in the device
exceeding the RF exposure
requirements and void user’s authority
to operate the device.
English
15
WEEE directive
Disposal of old electrical and
electronic equipment (applicable in
the European Union and other
European countries with separate
collection systems)
This symbol on the product or it’s
packaging indicates that the device
must not be treated as household
waste. Instead, it must be handed over
at the relevant collection point for the
recycling of old electrical and
electronic equipment. With correct
disposal of the device, you are helping
to avoid any negative effects on the
environment and human health which
might otherwise be caused by the
incorrect disposal and treatment of
waste. The recycling of materials helps
preserve natural resources. You can
obtain more information about
recycling this device from your city
council, your disposal company for
household waste, or from the store in
which you bought it. Applicable
accessories: remote control,
headphones.
Specifications
Panel size 10.1”
Resolution 1024 x 600
Backlight LED
Ratio 16:9
Luminance 500 NIT (typ.)
Expected
backlight life
20k hours Min.
Operation
temperature
-20~70 degrees C
Storage
temperature
-30~80 degrees C
Video display
system
NTSC
Input voltage 10-16VDC
I/O ports USB 2.0, HDMI, 3.5mm
AV, 3.5mm earphone
IR Channels A monitor: 2.3/2.8mhz
B monitor:
3.2/3.8mhz
Supported
formats
MP3,WMA,OGG,MPE,
MPG,MPEG,AVI,
DIV,VID,VOB,JPG,JPEG
AAC, M1V, M2V,OGM
Part# ATMAN2010A
