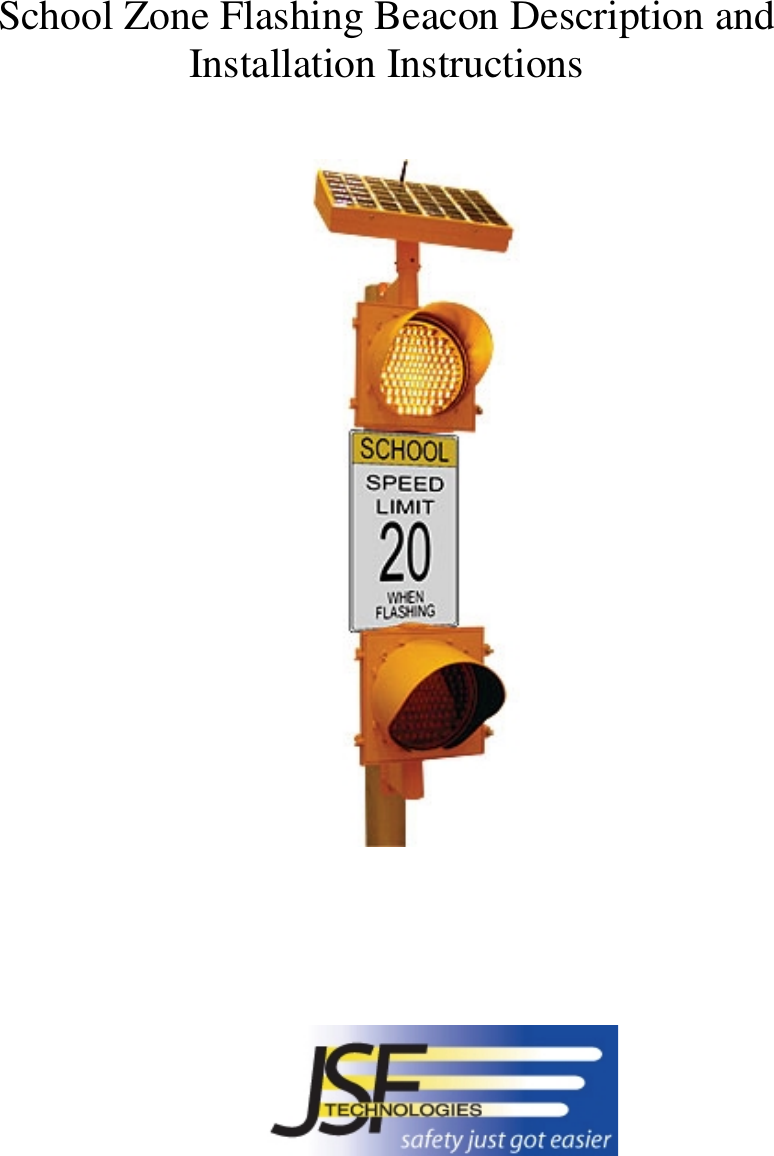

School Zone Flashing Beacon Description and Installation Instructions

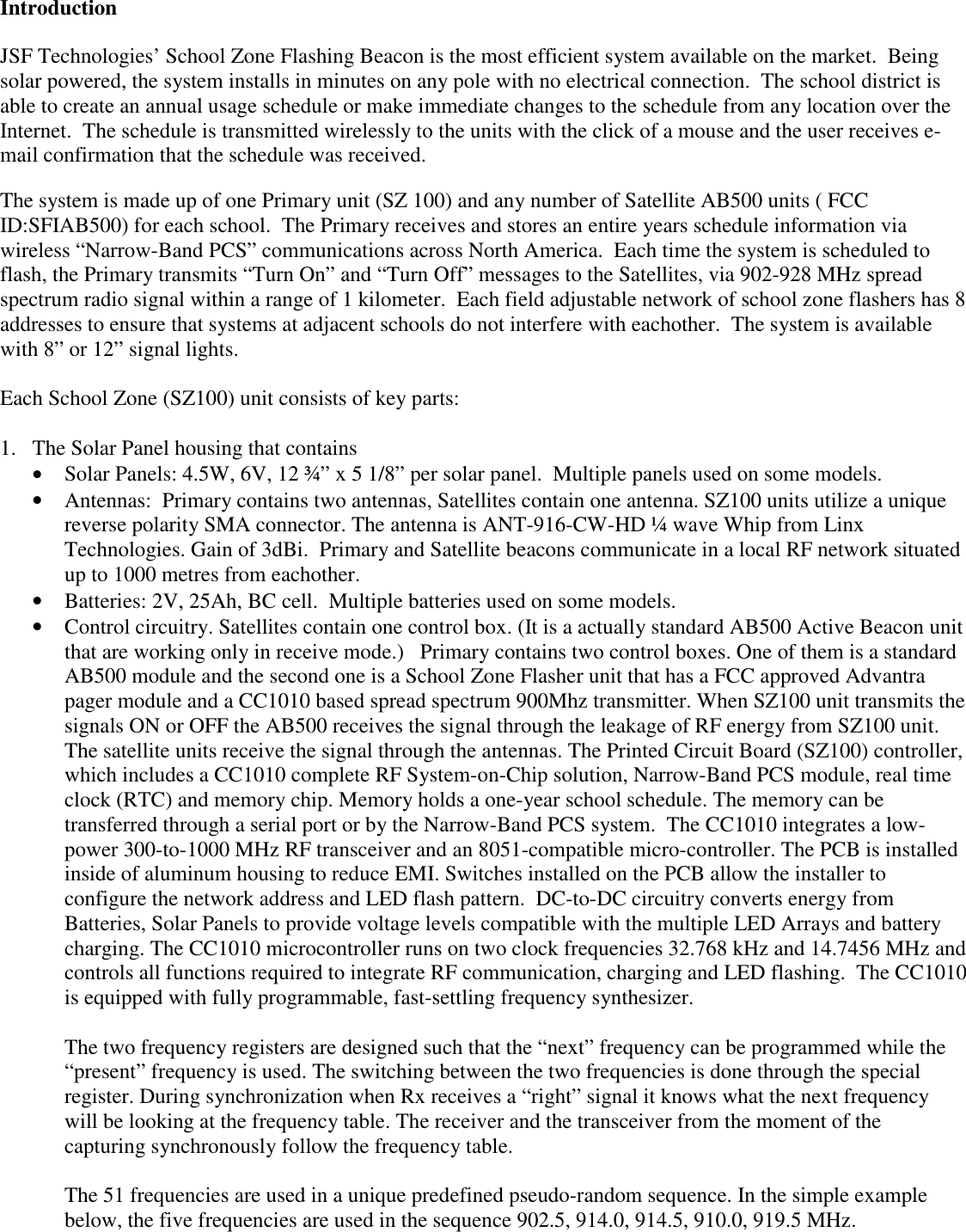

Introduction JSF Technologies’ School Zone Flashing Beacon is the most efficient system available on the market. Being solar powered, the system installs in minutes on any pole with no electrical connection. The school district is able to create an annual usage schedule or make immediate changes to the schedule from any location over the Internet. The schedule is transmitted wirelessly to the units with the click of a mouse and the user receives e-mail confirmation that the schedule was received. The system is made up of one Primary unit (SZ 100) and any number of Satellite AB500 units ( FCC ID:SFIAB500) for each school. The Primary receives and stores an entire years schedule information via wireless “Narrow-Band PCS” communications across North America. Each time the system is scheduled to flash, the Primary transmits “Turn On” and “Turn Off” messages to the Satellites, via 902-928 MHz spread spectrum radio signal within a range of 1 kilometer. Each field adjustable network of school zone flashers has 8 addresses to ensure that systems at adjacent schools do not interfere with eachother. The system is available with 8” or 12” signal lights. Each School Zone (SZ100) unit consists of key parts: 1. The Solar Panel housing that contains • Solar Panels: 4.5W, 6V, 12 ¾” x 5 1/8” per solar panel. Multiple panels used on some models. • Antennas: Primary contains two antennas, Satellites contain one antenna. SZ100 units utilize a unique reverse polarity SMA connector. The antenna is ANT-916-CW-HD ¼ wave Whip from Linx Technologies. Gain of 3dBi. Primary and Satellite beacons communicate in a local RF network situated up to 1000 metres from eachother. • Batteries: 2V, 25Ah, BC cell. Multiple batteries used on some models. • Control circuitry. Satellites contain one control box. (It is a actually standard AB500 Active Beacon unit that are working only in receive mode.) Primary contains two control boxes. One of them is a standard AB500 module and the second one is a School Zone Flasher unit that has a FCC approved Advantra pager module and a CC1010 based spread spectrum 900Mhz transmitter. When SZ100 unit transmits the signals ON or OFF the AB500 receives the signal through the leakage of RF energy from SZ100 unit. The satellite units receive the signal through the antennas. The Printed Circuit Board (SZ100) controller, which includes a CC1010 complete RF System-on-Chip solution, Narrow-Band PCS module, real time clock (RTC) and memory chip. Memory holds a one-year school schedule. The memory can be transferred through a serial port or by the Narrow-Band PCS system. The CC1010 integrates a low-power 300-to-1000 MHz RF transceiver and an 8051-compatible micro-controller. The PCB is installed inside of aluminum housing to reduce EMI. Switches installed on the PCB allow the installer to configure the network address and LED flash pattern. DC-to-DC circuitry converts energy from Batteries, Solar Panels to provide voltage levels compatible with the multiple LED Arrays and battery charging. The CC1010 microcontroller runs on two clock frequencies 32.768 kHz and 14.7456 MHz and controls all functions required to integrate RF communication, charging and LED flashing. The CC1010 is equipped with fully programmable, fast-settling frequency synthesizer. The two frequency registers are designed such that the “next” frequency can be programmed while the “present” frequency is used. The switching between the two frequencies is done through the special register. During synchronization when Rx receives a “right” signal it knows what the next frequency will be looking at the frequency table. The receiver and the transceiver from the moment of the capturing synchronously follow the frequency table. The 51 frequencies are used in a unique predefined pseudo-random sequence. In the simple example below, the five frequencies are used in the sequence 902.5, 914.0, 914.5, 910.0, 919.5 MHz.

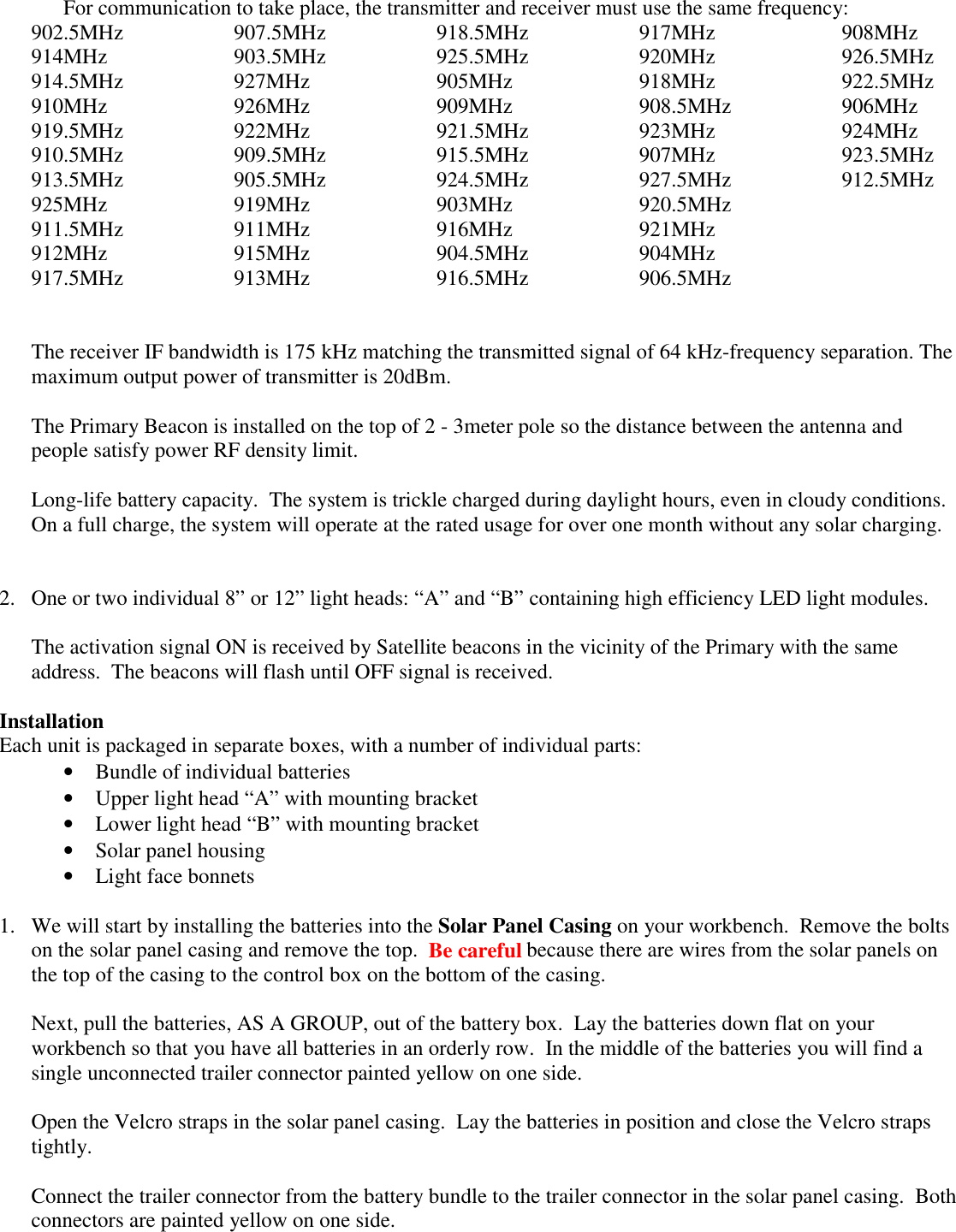

For communication to take place, the transmitter and receiver must use the same frequency: 902.5MHz 914MHz 914.5MHz 910MHz 919.5MHz 910.5MHz 913.5MHz 925MHz 911.5MHz 912MHz 917.5MHz 907.5MHz 903.5MHz 927MHz 926MHz 922MHz 909.5MHz 905.5MHz 919MHz 911MHz 915MHz 913MHz 918.5MHz 925.5MHz 905MHz 909MHz 921.5MHz 915.5MHz 924.5MHz 903MHz 916MHz 904.5MHz 916.5MHz 917MHz 920MHz 918MHz 908.5MHz 923MHz 907MHz 927.5MHz 920.5MHz 921MHz 904MHz 906.5MHz 908MHz 926.5MHz 922.5MHz 906MHz 924MHz 923.5MHz 912.5MHz The receiver IF bandwidth is 175 kHz matching the transmitted signal of 64 kHz-frequency separation. The maximum output power of transmitter is 20dBm. The Primary Beacon is installed on the top of 2 - 3meter pole so the distance between the antenna and people satisfy power RF density limit. Long-life battery capacity. The system is trickle charged during daylight hours, even in cloudy conditions. On a full charge, the system will operate at the rated usage for over one month without any solar charging. 2. One or two individual 8” or 12” light heads: “A” and “B” containing high efficiency LED light modules. The activation signal ON is received by Satellite beacons in the vicinity of the Primary with the same address. The beacons will flash until OFF signal is received. Installation Each unit is packaged in separate boxes, with a number of individual parts: • Bundle of individual batteries • Upper light head “A” with mounting bracket • Lower light head “B” with mounting bracket • Solar panel housing • Light face bonnets 1. We will start by installing the batteries into the Solar Panel Casing on your workbench. Remove the bolts on the solar panel casing and remove the top. Be careful because there are wires from the solar panels on the top of the casing to the control box on the bottom of the casing. Next, pull the batteries, AS A GROUP, out of the battery box. Lay the batteries down flat on your workbench so that you have all batteries in an orderly row. In the middle of the batteries you will find a single unconnected trailer connector painted yellow on one side. Open the Velcro straps in the solar panel casing. Lay the batteries in position and close the Velcro straps tightly. Connect the trailer connector from the battery bundle to the trailer connector in the solar panel casing. Both connectors are painted yellow on one side.

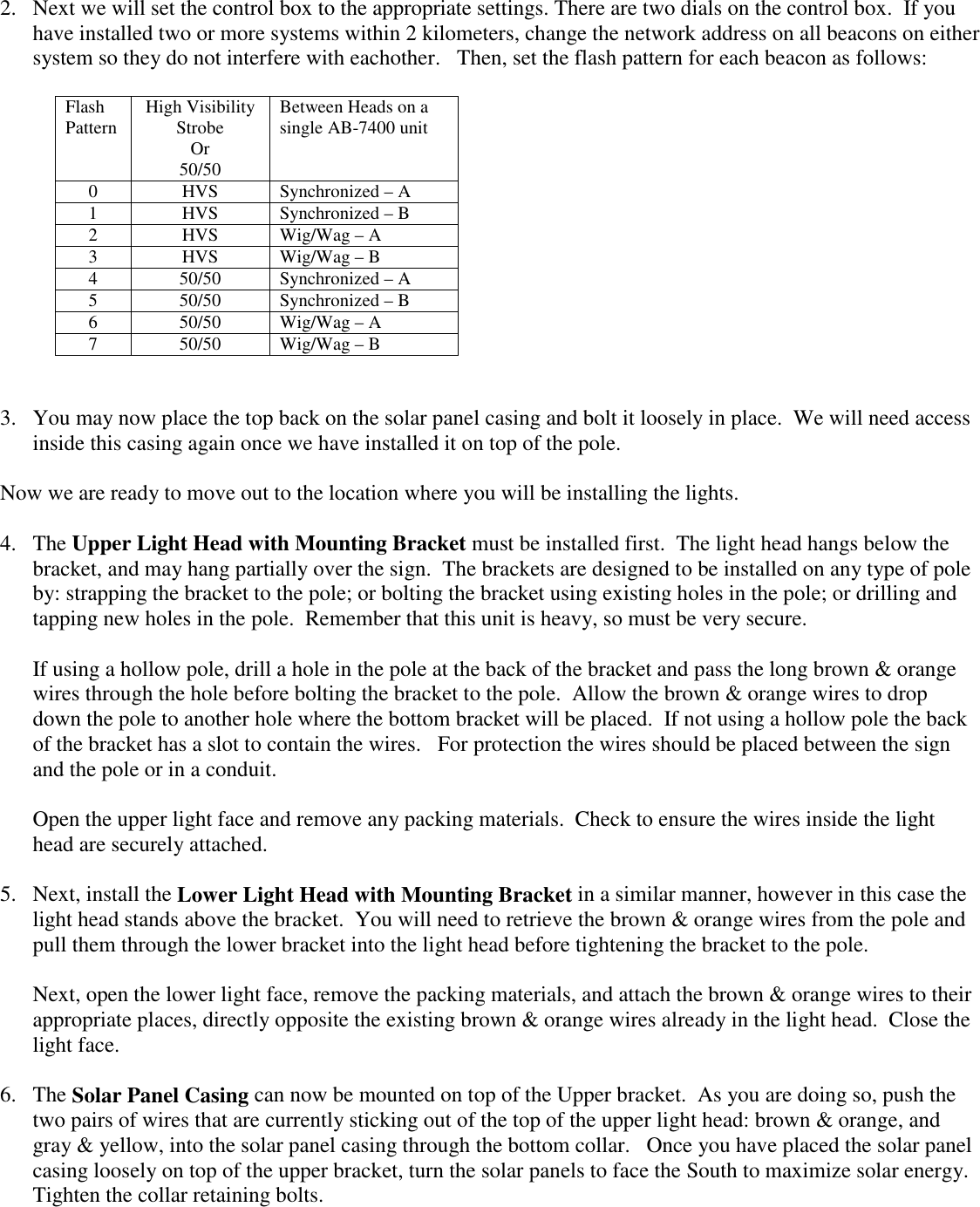

2. Next we will set the control box to the appropriate settings. There are two dials on the control box. If you have installed two or more systems within 2 kilometers, change the network address on all beacons on either system so they do not interfere with eachother. Then, set the flash pattern for each beacon as follows: Flash Pattern High Visibility Strobe Or 50/50 Between Heads on a single AB-7400 unit 0 HVS Synchronized – A 1 HVS Synchronized – B 2 HVS Wig/Wag – A 3 HVS Wig/Wag – B 4 50/50 Synchronized – A 5 50/50 Synchronized – B 6 50/50 Wig/Wag – A 7 50/50 Wig/Wag – B 3. You may now place the top back on the solar panel casing and bolt it loosely in place. We will need access inside this casing again once we have installed it on top of the pole. Now we are ready to move out to the location where you will be installing the lights. 4. The Upper Light Head with Mounting Bracket must be installed first. The light head hangs below the bracket, and may hang partially over the sign. The brackets are designed to be installed on any type of pole by: strapping the bracket to the pole; or bolting the bracket using existing holes in the pole; or drilling and tapping new holes in the pole. Remember that this unit is heavy, so must be very secure. If using a hollow pole, drill a hole in the pole at the back of the bracket and pass the long brown & orange wires through the hole before bolting the bracket to the pole. Allow the brown & orange wires to drop down the pole to another hole where the bottom bracket will be placed. If not using a hollow pole the back of the bracket has a slot to contain the wires. For protection the wires should be placed between the sign and the pole or in a conduit. Open the upper light face and remove any packing materials. Check to ensure the wires inside the light head are securely attached. 5. Next, install the Lower Light Head with Mounting Bracket in a similar manner, however in this case the light head stands above the bracket. You will need to retrieve the brown & orange wires from the pole and pull them through the lower bracket into the light head before tightening the bracket to the pole. Next, open the lower light face, remove the packing materials, and attach the brown & orange wires to their appropriate places, directly opposite the existing brown & orange wires already in the light head. Close the light face. 6. The Solar Panel Casing can now be mounted on top of the Upper bracket. As you are doing so, push the two pairs of wires that are currently sticking out of the top of the upper light head: brown & orange, and gray & yellow, into the solar panel casing through the bottom collar. Once you have placed the solar panel casing loosely on top of the upper bracket, turn the solar panels to face the South to maximize solar energy. Tighten the collar retaining bolts.

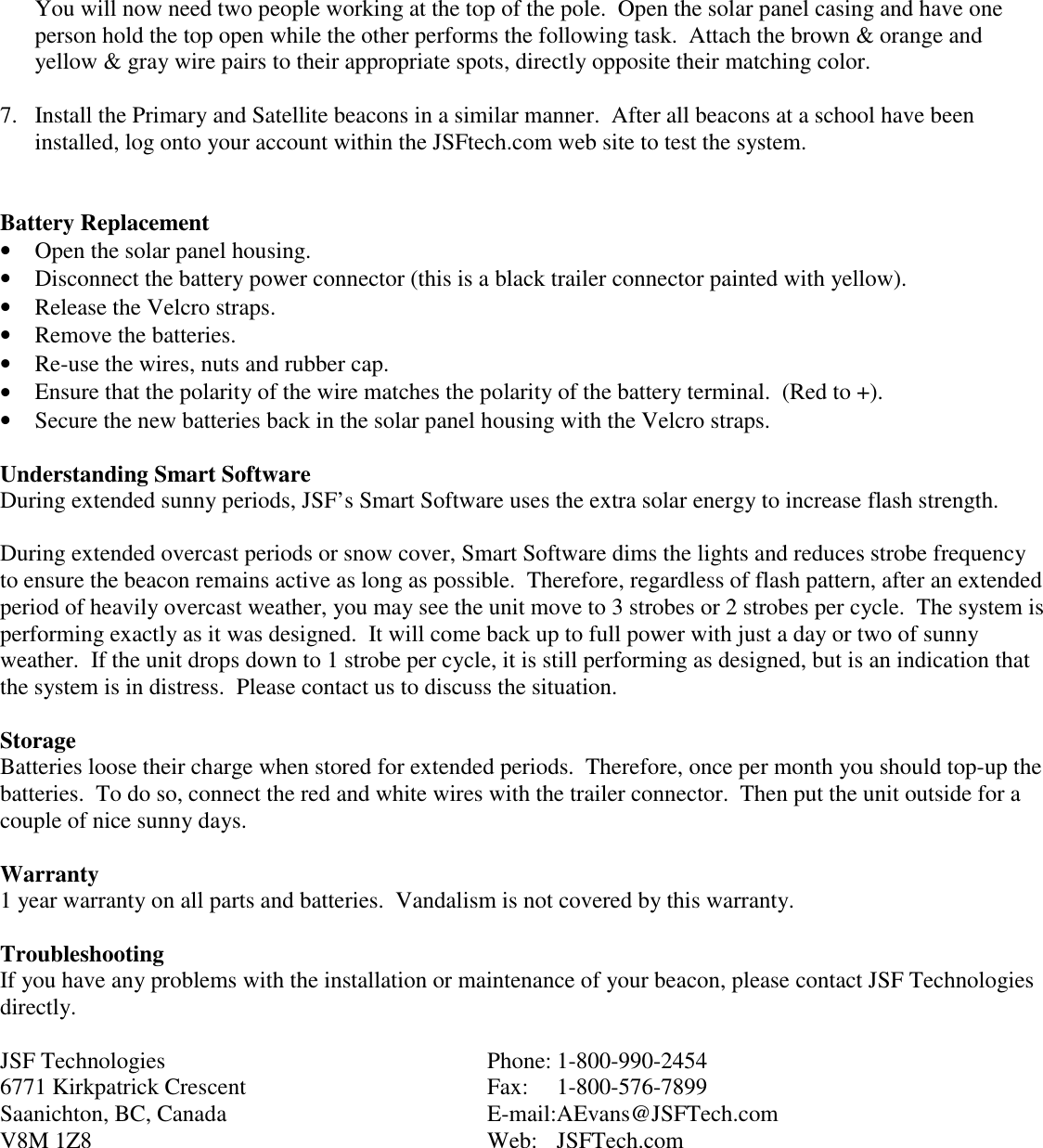

You will now need two people working at the top of the pole. Open the solar panel casing and have one person hold the top open while the other performs the following task. Attach the brown & orange and yellow & gray wire pairs to their appropriate spots, directly opposite their matching color. 7. Install the Primary and Satellite beacons in a similar manner. After all beacons at a school have been installed, log onto your account within the JSFtech.com web site to test the system. Battery Replacement • Open the solar panel housing. • Disconnect the battery power connector (this is a black trailer connector painted with yellow). • Release the Velcro straps. • Remove the batteries. • Re-use the wires, nuts and rubber cap. • Ensure that the polarity of the wire matches the polarity of the battery terminal. (Red to +). • Secure the new batteries back in the solar panel housing with the Velcro straps. Understanding Smart Software During extended sunny periods, JSF’s Smart Software uses the extra solar energy to increase flash strength. During extended overcast periods or snow cover, Smart Software dims the lights and reduces strobe frequency to ensure the beacon remains active as long as possible. Therefore, regardless of flash pattern, after an extended period of heavily overcast weather, you may see the unit move to 3 strobes or 2 strobes per cycle. The system is performing exactly as it was designed. It will come back up to full power with just a day or two of sunny weather. If the unit drops down to 1 strobe per cycle, it is still performing as designed, but is an indication that the system is in distress. Please contact us to discuss the situation. Storage Batteries loose their charge when stored for extended periods. Therefore, once per month you should top-up the batteries. To do so, connect the red and white wires with the trailer connector. Then put the unit outside for a couple of nice sunny days. Warranty 1 year warranty on all parts and batteries. Vandalism is not covered by this warranty. Troubleshooting If you have any problems with the installation or maintenance of your beacon, please contact JSF Technologies directly. JSF Technologies Phone: 1-800-990-2454 6771 Kirkpatrick Crescent Fax: 1-800-576-7899 Saanichton, BC, Canada E-mail:AEvans@JSFTech.com V8M 1Z8 Web: JSFTech.com
