JUMO and KG WTRANST01 Wireless temperature probe User Manual B90 2930 0gb
JUMO GmbH & Co. KG Wireless temperature probe B90 2930 0gb
User Manual
JUMO Wtrans RF-Series
Wireless temperature probe T01.G1
B 90.2930.0
Operating Instructions
04.08/00489934
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasona-
ble protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause harmful in-
terference to radio communications. Operation of this equipment in a residential area is li-
kely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
This Class A digital apparatus complies with Canadian ICES-003.
Changes or modifications made to this equipment not expressly approved by
JUMO GmbH & Co. KG may void the FCC authorization to operate this equipment.
USA FCC ID VT4-Wtrans T01
Canada IC 7472A-Wtrans T01
Contents
1 Introduction ...................................................................................................5
1.1 Safety Advice .........................................................................................................................5
1.2 Description ............................................................................................................................5
1.3 Block structure ......................................................................................................................6
1.4 Dimensions ............................................................................................................................6
2 Identification of the Device Version .............................................................7
2.1 Type details ...........................................................................................................................7
2.2 Serial accessories ..................................................................................................................7
2.3 Accessories ...........................................................................................................................7
2.4 Order details ..........................................................................................................................8
3 Prepare Probe ................................................................................................9
3.1 Insert battery ..........................................................................................................................9
3.2 Safety advice for lithium batteries .......................................................................................10
3.3 Disposal of lithium batteries ................................................................................................10
3.4 Apply colour code of the probe ...........................................................................................10
4 Range of Transmission ...............................................................................11
4.1 General remarks on wireless transmission ..........................................................................11
4.2 Impairment of the range of wireless transmission ...............................................................11
5 Setup-Program ............................................................................................15
5.1 General remarks on the setup program ...............................................................................15
5.2 Establishing of a connection between PC and probe .........................................................16
5.3 Enter customised parameters via the setup program ........................................................18
6 Appendix ......................................................................................................21
6.1 Technical data .....................................................................................................................21
5
1 Introduction
1.1 Safety Advice
This instructions manual contains advice that you should consider for your own safe-
ty as well as for the prevention of material damage. The individual items of advice are
supported by signs and are utilised in this manual as indicated.
Please read this instructions manual carefully before you put the probe into operation.
Please keep this manual in a place that is accessible for all users of the probe.
In the event that problems occur on starting up the probe, we expressively ask you
not to carry out any manipulations, as these could endanger your warranty claim!
Warning signs
Note signs
1.2 Description
In connection with suitable Wtrans receivers, the Wtrans probe is used for the mobile
and stationary measurement of temperatures within the range of -30 to +260 °C. The
ambient temperature of the electronic components in the handle may be -30 to +85
°C. The measured temperature value is transmitted wireless to the receiver of the
Wtrans system. The radio frequency within the ISM band is 868.4 MHz or 915 MHz.
These frequencies are largely insensitive with regard to external perturbations and
enable transmissions in crude industrial conditions. If the recommended antenna wall
mounting is used, the maximum open air range is 300 m.
The handle contains the transmitter unit of the resistance thermometer. The unit is de-
signed to be resistant against vibrations, oils and acids.
The protection class is IP67. The stainless steel thermowell is available with a flat,
concentric or oblique insertion tip. The fitting length extends from 50 to 1000 mm.
The measuring insert contains a serial Pt 1000 temperature sensor to EN 60 751,
Class A in 3-wire-circuit.
CAUTION!
This symbol in combination with the signal word indicates that a material damage or a loss
of data might occur if the appropriate precautious measures are not taken.
NOTE!
This symbol is an indication for an important piece of information about the product and/or
its handling or possible additional advantage.
REFERENCE!
This symbol refers to further information in other sections, chapters or manuals.
?
1 Introduction
6

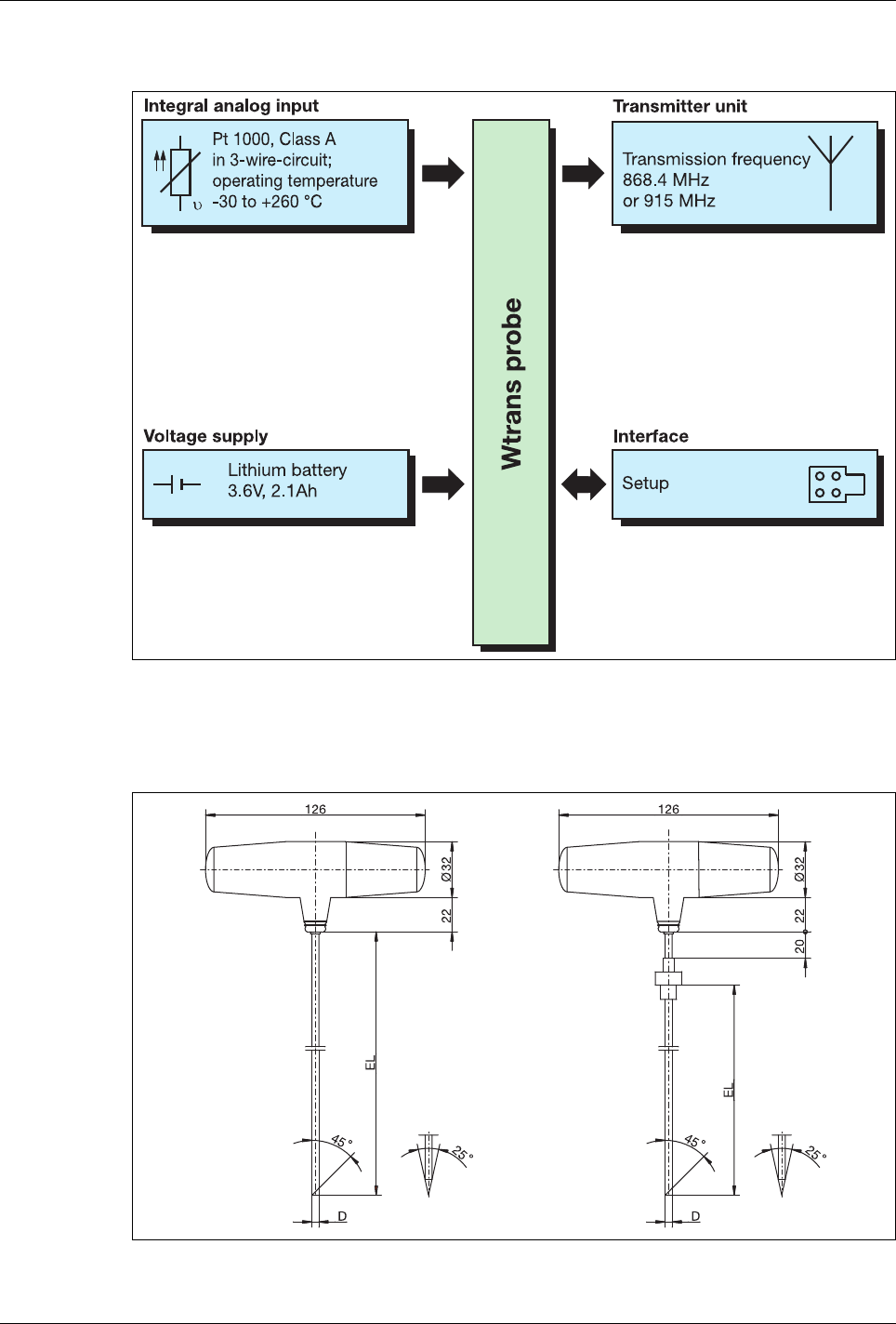

1.3 Block structure
Figure 1: Block structure of the probe
1.4 Dimensions
Figure 2: Type 202930/10 ... (left),
Type 202930/10 ... with process connection (right)
7
2 Identification of the Device Version
2.1 Type details
Position
The type details are embossed by laser onto the protective tube.
Content
These details include important information, which, among others, incorporates the
following:
F-No
By means of the fabrication number the device can be identified by the manufacturer.
From the fabrication number, the date of production can be gathered (year/week). In
this number the date is represented by the positions 12, 13, 14, 15.
Example: F-No = 0070033801207430006
This device was manufactured in calendar week 43. in 2007.
Probe Identification (probe-ID)
Probe identification is provided by the factory. It must be entered or activated at the
receiver unit, in order to obtain a connection between the probe and the receiver. The
probe identification can be modified and customised by means of the setup program.
Transmission Frequency
Transmission frequency indicates the frequency or the frequency band range with
which the device transmits information. Up to 10 different frequencies can be config-
ured in the 915 MHz band.
2.2 Serial accessories
• Operating instructions B 90.2930.0
• Lithium battery 3.6V, 2.1Ah
• Four colour rings from silicone (white, green, red, blue) for visual identification of
the probe
2.3 Accessories
Description Example
Fabrication-Number (F-No) 0070033801207430006
Probe Identification (probe-ID) 123
Transmission Frequency 868.4 or 915
Article Sales No.
Setup program on CD-ROM, multilingual 90/00488887
Lithium battery 3.6 V, 2.1 Ah 90/00489044
Four colour rings from silicone (white, green, red, blue)
for visual identification of the probe
90/00489047
PC interface with USB/TTL converter, adapter (socket) and adapter (pins) 70/00456352
PC interface with TTL/RS232 converter and adapter (socket) 70/00350260
2 Identification of the Device Version
8
2.4 Order details
(1) Basic type
902930/10 JUMO Wtrans RF-Series
wireless temperature probe T01.G1
(2) Operating temperature in °C
x 596 -30 to +260°C
(3) Measuring insert
x 1006 1x Pt 1000 in 3-wire circuit
(4) Tolerance class to EN 60 751
x 2 class A
(5) Thermowell diameter D in mm
x4Ø4mm
x4,5Ø4.5mm
x6Ø6mm
(6) Fitting length EL in mm (50 ≥EL ≤1000)
x100100mm
x150150mm
x200200mm
x ... please specify in plain text (50mm steps)
(7) Insertion tip
x1flat
x 2 concentric, angled at 25°
x 3 oblique, angled at 45°
(8) Transmission frequency
x 10 ISM band 868.4 MHz (Europe)
x 20 915 MHz (America, Australia, Canada and New Zealand)
(9) Process connection
000 none
103 Screw connection G 3/8
104 Screw connection G 1/2
(10) Extra codes
x 000 none
x 778 customer-specific transmission interval, factory setting 10 s
(please specify in plain text between 1 to 3600 s)
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10)
Order code -- ------/
Order example 902930/10 - 596 - 1006 - 2 - 4 - 100 - 1 - 10 - 000 / 000
9
3 Prepare Probe
3.1 Insert battery
For the energy supply of the probe, a lithium battery 3.6V, 2.1Ah is provided as a stan-
dard. The service expectancy of the battery depends on the transmission interval and
the ambient temperature and will be approx. one year for the settings made in the fac-
tory (transmission interval 10 sec and room temperature).

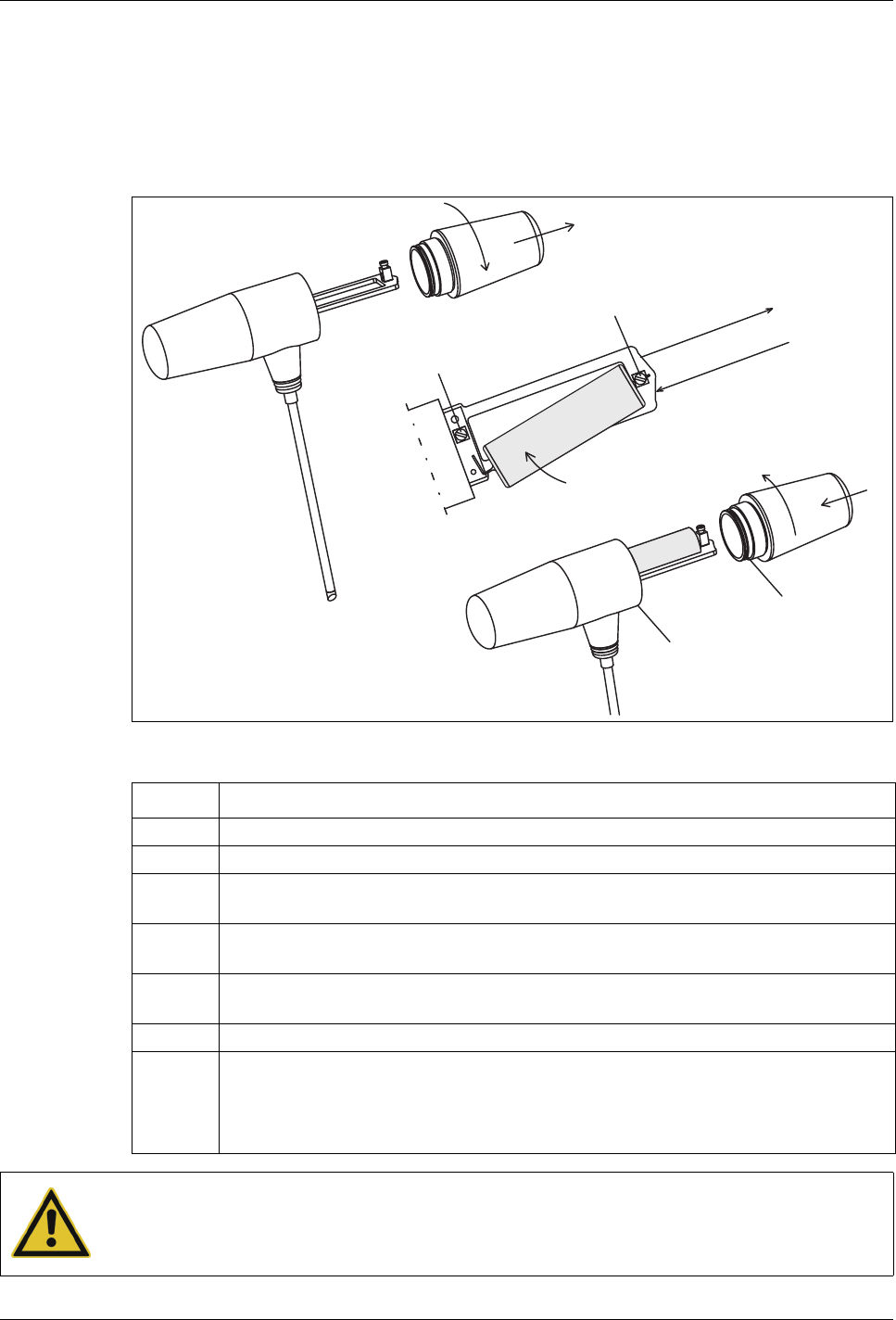

Figure 3: Insert battery
Step What to do:
1 Screw open the handle counter-clockwise and withdraw one half of the handle.
2 Pull out the circuit board from the handle by approx. 25 mm.
3 Loosen the screwed clamps of the minus pole and the plus pole by means of a
screw driver.
4 Insert the plus pole of the battery into the screwed clamp indicated by (+). Tilt the
battery and insert its minus pole into the screwed clamp indicated by (-).
5 Re-fasten the screwed clamps of the minus and plus poles by means of a screw
driver.
6 Slide the circuit board back into the handle to the stop.
7 Screw together the handle and the half of the handle in clockwise direction.
In doing this, please ensure the correct position of the two black gaskets 7.1 and
7.2 at the two halves of the handle! When replacing the battery, please also
replace the two gaskets by those provided with the new battery.
3(5)
3(5)
6
2
7.1
7.2
1
7
4
ca. 25mm
+
-
+
CAUTION!
On incorrect polarisation, the probe will not function.
Both the battery and the electronics of the probe can be damaged.
Please ensure correct polarisation of the battery.
3 Prepare Probe
10
3.2 Safety advice for lithium batteries
Öwww.tadironbatteries.de
3.3 Disposal of lithium batteries
Please only replace a lithium battery by an identical type.
Please dispose of all batteries in accordance with the statutory regulations according
to the Circular Economy Act and the Waste Act as well as the local provisions.
The contact points of batteries that have not completely been electrically discharged
must be insulated. Disposal together with domestic waste is expressively prohibited.
You can deliver them cost-free at local collection points or in retail shops in your prox-
imity.
3.4 Apply colour code of the probe

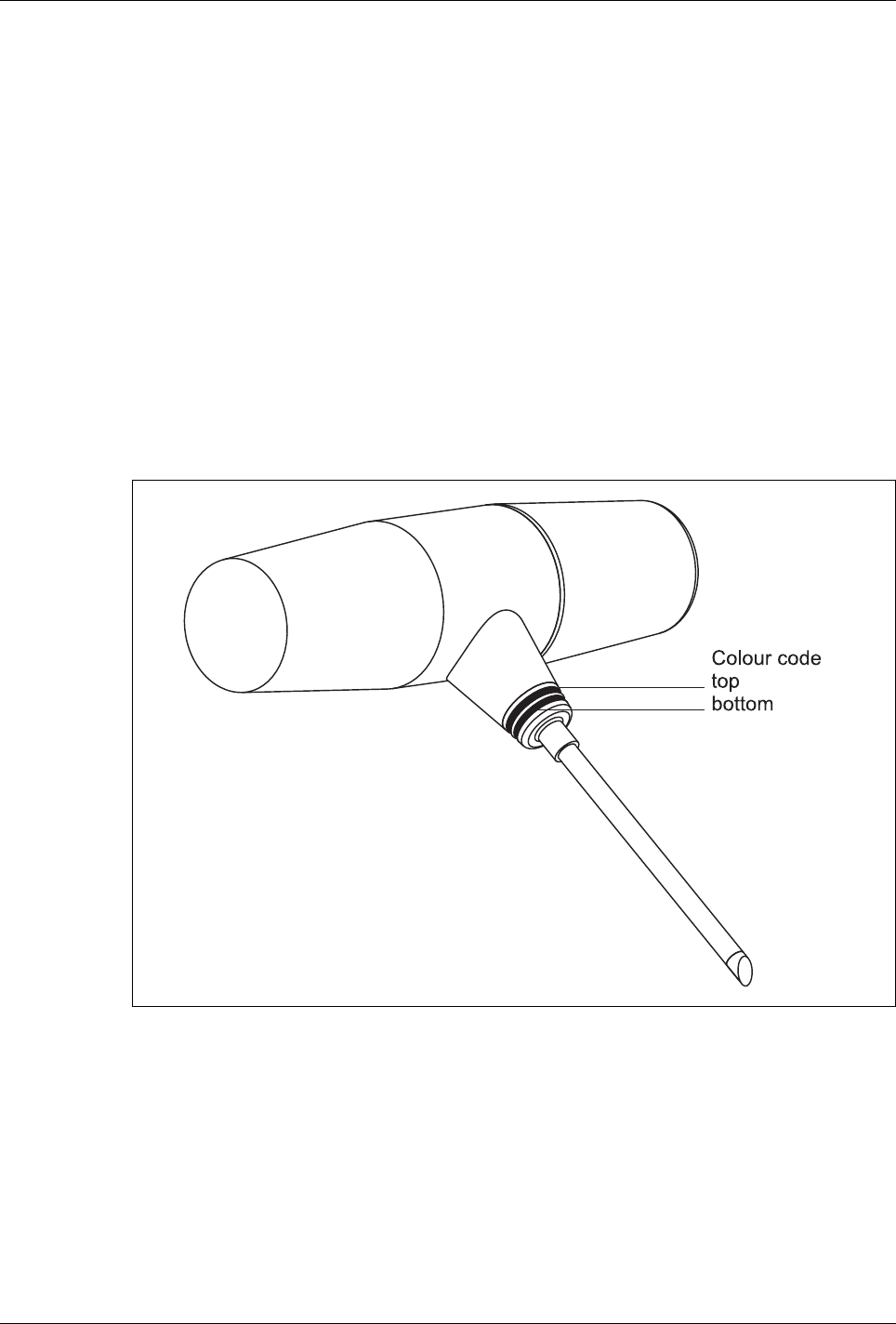

Figure 4: Apply colour code onto the probe
In the factory, the probe is provided with four coloured silicone rings (white, green,
red and blue), by means of which the probe can unambiguously be optically classi-
fied.
These rings can be individually combined and are slid onto the shaft of the probe. In
total, 25 options of colour combination coding can be obtained through this.
11
4 Range of Transmission
4.1 General remarks on wireless transmission
Radio signals are magnetic waves with their signal becoming weaker on their path
from the probe to the receiver (this phenomenon is referred to as loss). Both the elec-
tric and the magnetic field strength are decreased inversely proportional to the
squared distance between the probe and the receiver.
In addition to this natural limitation of the range of transmission, a reduced transmis-
sion range can also occur due to other circumstances:
• Reinforced concrete walls, metal devices or surfaces, heat insulation or metal
evaporated heat protection glass reflect electro-magnetic waves and therefore a
so-named radio shadow or blind spot occurs behind such objects.
• Radio shadows within the transmission link
• The antenna is installed in too low a position, therefore mount antenna in as high
a position as possible above the floor within a visual range between probe and
receiver.
A few guiding values on penetration by radio signals:
The maximum transmission range between the probeprobe and the receiver is 300
meters in a free field. Ideal reception can be obtained if visual contact can be main-
tained between the receiver and the probe.
In case the receiver is installed in a switching cabinet, behind concrete walls or con-
crete ceilings, it is indispensable for the antenna to be installed in a wall-mount fash-
ion and including an antenna conduit.
4.2 Impairment of the range of wireless transmission
Collision due to prevalence of too many probes
For a comparatively large number of probes, the transmission interval should not be
set too short, as otherwise the transmission frequency will superfluously be occu-
pied. A short interval means a higher volume of data on the selected frequency, which
can lead to collisions with other probes. Through such collisions telegrams might be
destroyed during radio transmission.
Materials Penetration
wood, gypsum, non-laminated glass 90 to 100%
walling/brickwork, chipboards/fibreboards 65 to 95%
glass-fibre reinforced concrete 10 to 90%
metal, aluminium casings 0 to 10%
4 Range of Transmission
12

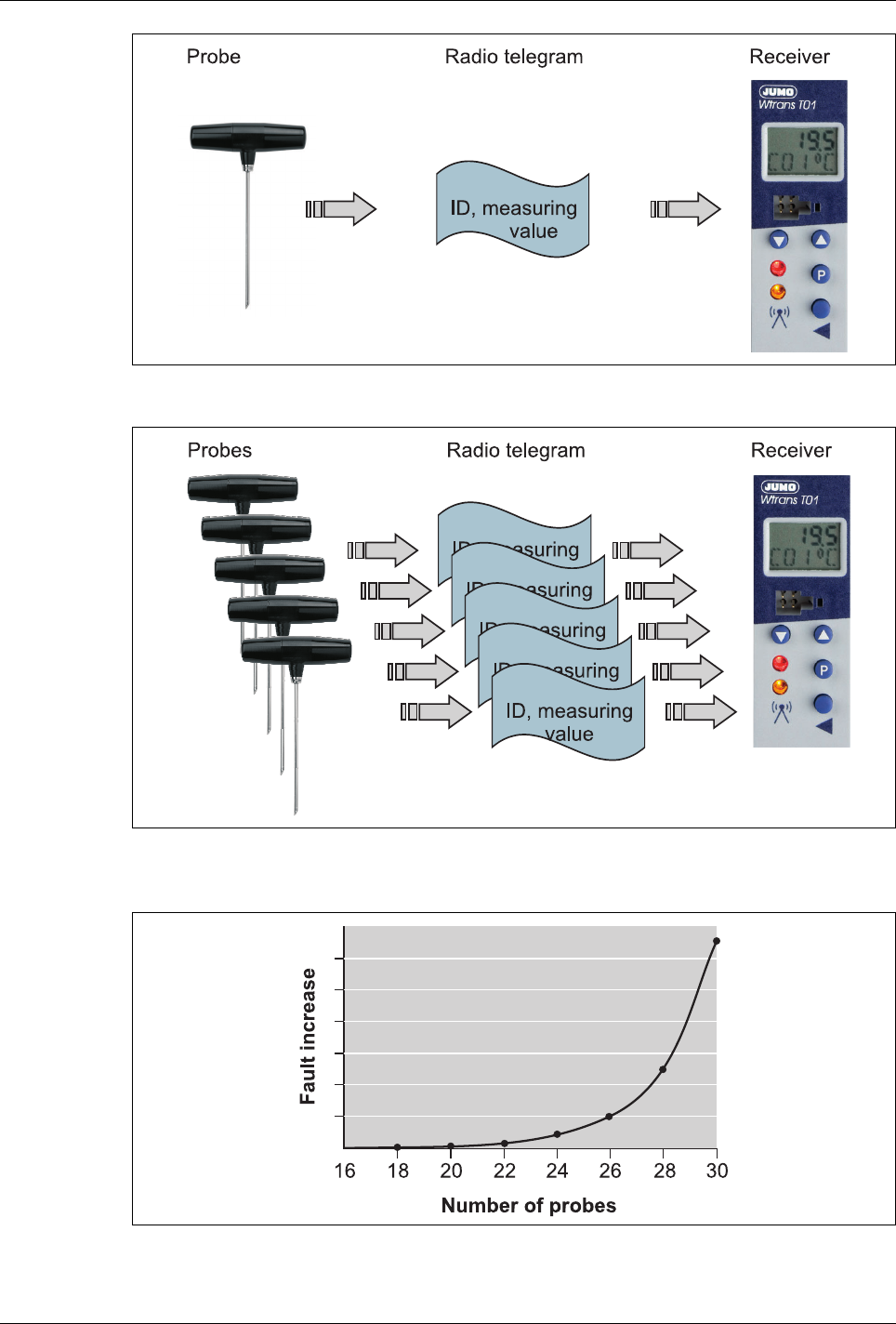

Figure 5: Telegrams of one probe are transmitted to the receiver collision-free.
Figure 6: Telegrams of various probes increasingly collide in the air as the transmis-
sion medium.
Figure 7: Increase of faults in dependency of the number of probes
(Interval of transmission 1 s)
13
4 Range of Transmission
As illustrated in figure 7, the fault curve climbs steeply, if a critical number of probes
is reached, as the air, functioning as the transmission medium, is increasingly occu-
pied.
Even with as few as two probes, faults cannot be excluded to 100%.
For this reason, limitation to a maximum number of 16 probes is recommended for
the shortest transmission interval of 1 second, as the fault ratio already strongly in-
creases from 24 probes.
External probes
However, faults can also arise for a small number of probes; they may be caused by
other influences from the environment.
External probes might also use the same frequency. In the event that they operate
without the „Listen before Talk“ function, they arbitrariliy transmit information on the
same frequency without observing the operations and priorities of the other probes.
Hence, if for example a probe transmits its radio telegram, and an external probe is
simultaneously doing the same, the radio telegram will be destroyed. As the probes
are not able to check their own transmission while transmitting, a fault will not be de-
tected.
Electrical equipment
In crude industrial environment radio telegrams can be destroyed for example
through frequency converters, electric welding equipment or insuficiently shielded
PCs, audio-visual equipment, electronic transformers, ballasts, etc. Other compo-
nents may also generate bursts that are located on the same frequency.
Determination of the maximum number of probes
In the event that for a transmission interval of 1sec a number of more than 16 probes
is to be installed, a longer transmission interval must be set, in order for the fault rate
not to increase further.
Example:
For an even further increase of the number of probes, the following example illus-
trates the calculation below.
Example:
From a transmission interval of ≥3 sec the telegram will be sent twice. As a conse-
quence, the number of applicable probes is reduced by half.
The same phenomenon re-occurs for a transmission interval of ≥60 sec. From this
transmission interval, the telegram will be sent three times.
Elimination of Faults
At the receiving end, fault arising through lost telegrams - regardless whether through
external sources of interferrence or through collisions due to a large number of
probes - can be bypassed by means of the parameter „radio-timeout“. The value last
16 probes wiht 1 sec transmission interval ־ 32 probes with 2 sec transmission interval
16 probes with 1 sec transmission interval ־ 48 probes with 3 sec transmission interval
(theoretically)
16 probes with 1 sec transmission interval ־ 24 probes with 3 sec transmission interval
(effectively)
4 Range of Transmission
14
received will then be maintained over 2 … 10 transmission intervals and only then the
alarm radio-timeout will be activated (display „----“).
Through this function short-term faults or interferrences will be bridged and to do not
lead to an error.
NOTE!
For collisions due to too large a number of probes, the factors „number of probes“, „trans-
mission intervals“ and at the receiving end „radio-timeout“ must be observed and modified,
if applicable.
15
5 Setup-Program
5.1 General remarks on the setup program
This setup program may be used to configure probes and receivers with a PC. The
configuration data can be stored on data carriers and printed out.
Configurable parameters are:
•Probe ID
• Transmission interval
• Transmission frequencies (only at 915 MHz)
The factory settings are:
• Probe ID (continuous)
• Transmission interval 10 s
• Transmission frequency 868.4 MHz or 915.4 MHz
The setup program allows to overwrite modified parameters with the factory setting
at any time.
The connection between the probe and the PC is estabilshed using a PC interface
(USB/TTL or TTL/RS232 converter).

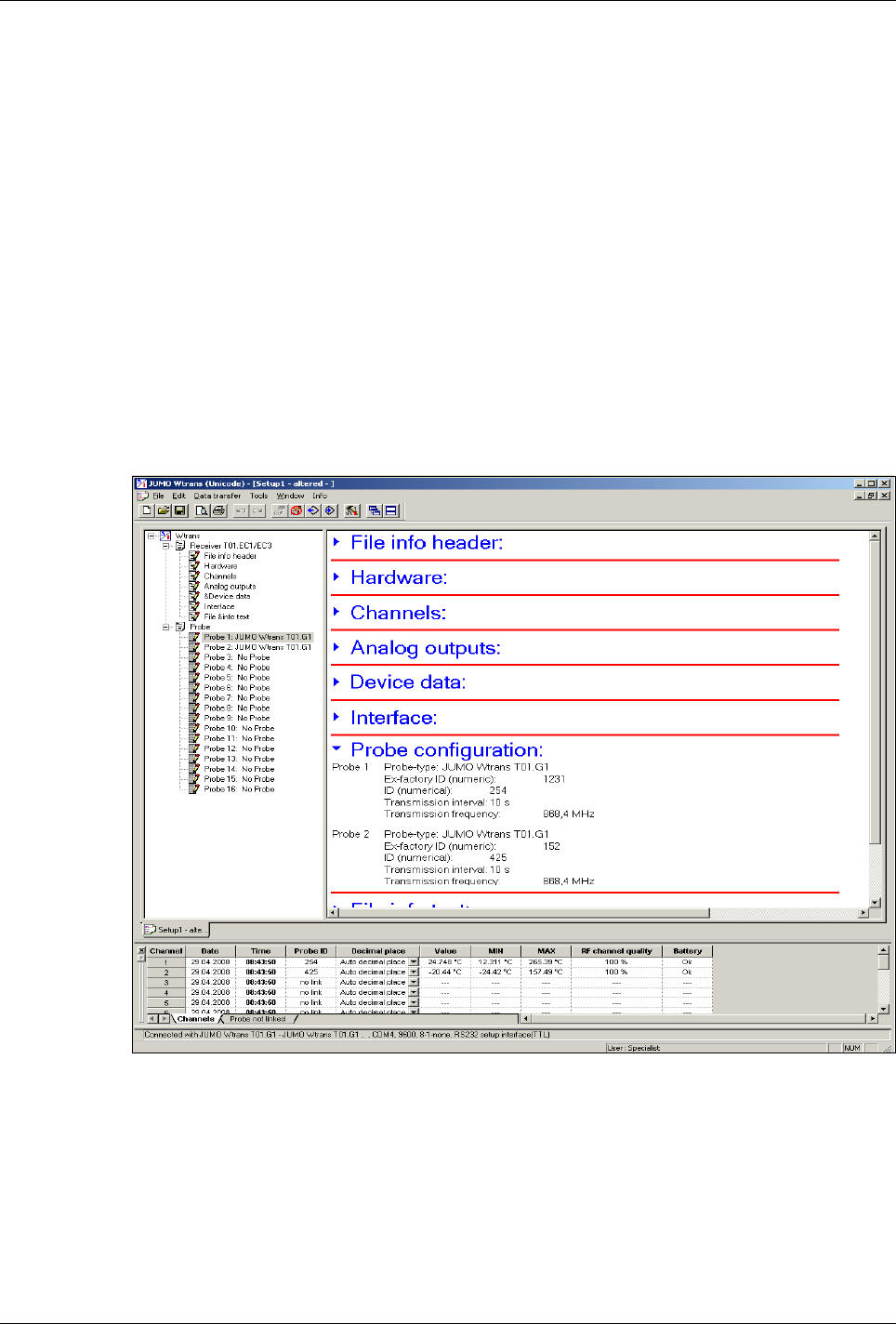

Abbildung 8: Setup program of the probe
5 Setup-Program
16
5.2 Establishing of a connection between PC and probe
The connection between the probe and a PC is established by means of a PC inter-
face TTL/RS232-translator and adapter (socket) or USB/TTL-translator and adapter
(socket).
TTL/RS232

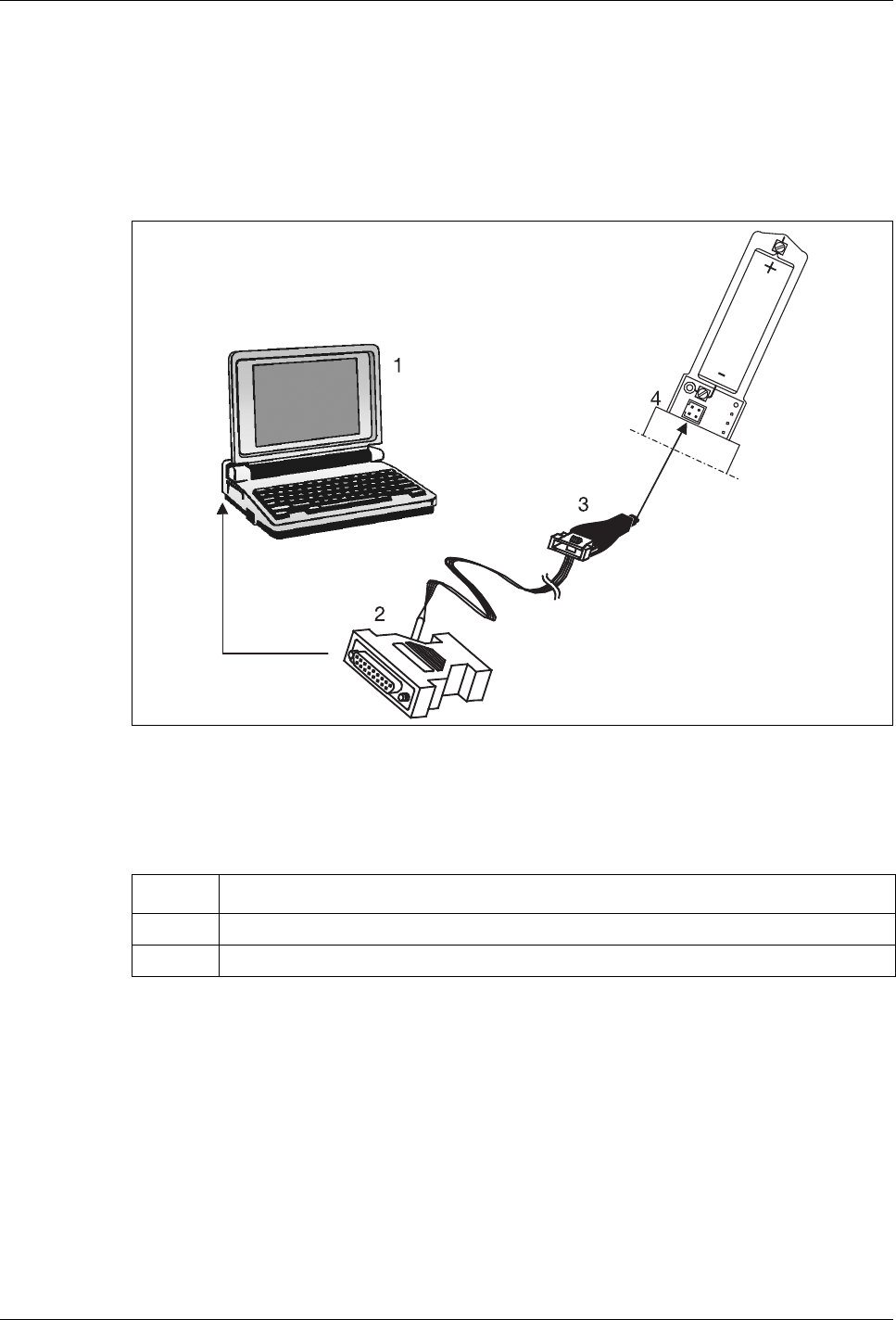

Abbildung 9: Connection between PC and probe
established via TTL/RS232-translator and adapter-socket
1 Laptop/PC 3 adapter-socket 4-pole
2 RS232-jack 4 probe interface
Step What to do:
1 Plug RS232-jack (2) into the Laptop/PC (1).
2 Plug adapter-socket, 4-pole (3), onto the interface of the probe (4).
17
5 Setup-Program
USB/TTL

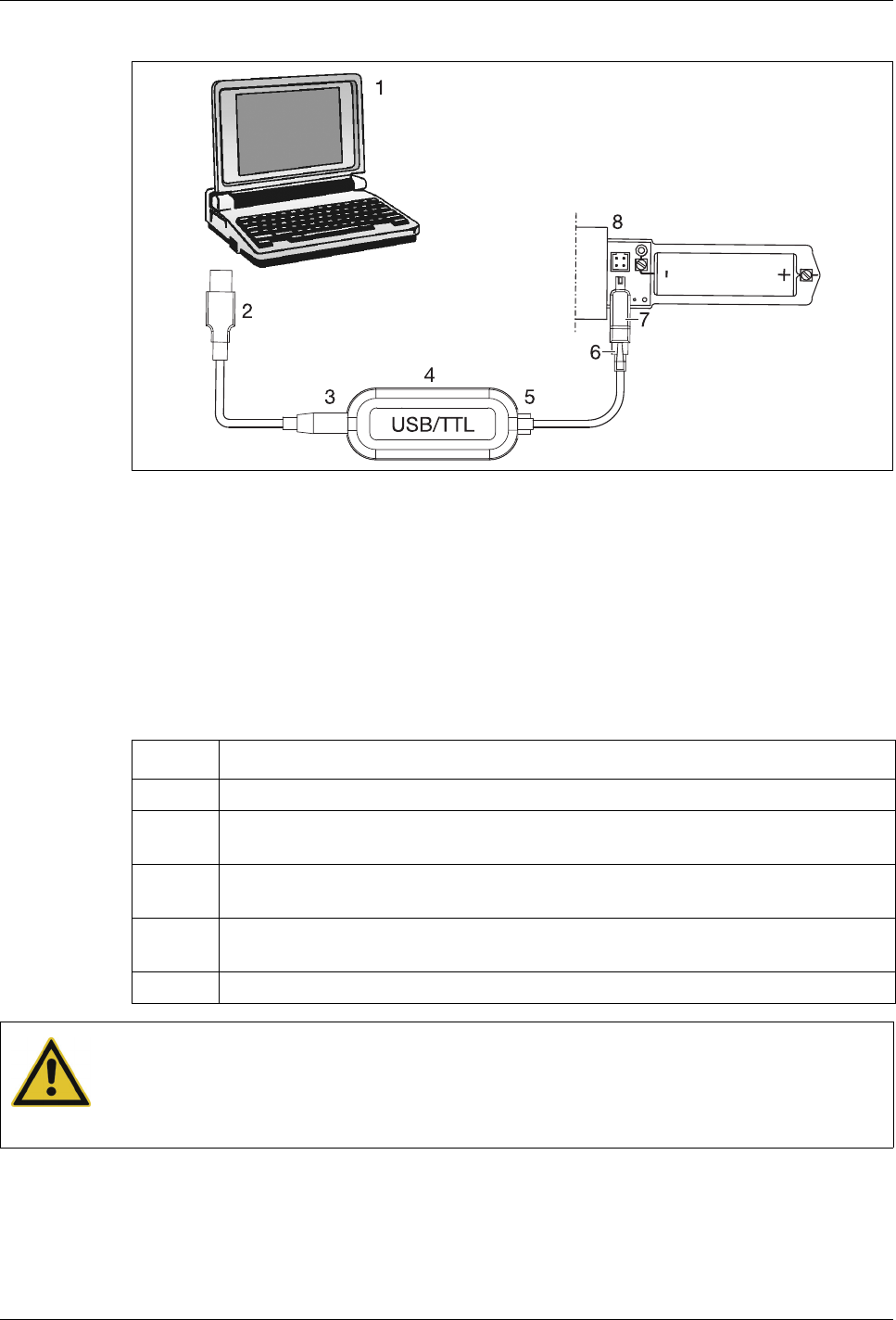

Abbildung 10: Connection between PC and probe
established via USB/TTL-translator and adapter-socket
Please establish the following connections for the setup of the USB/TTL-translator:
1 Laptop/PC 6 Post-type adapter for modular lines
2 USB-jack 7 Adapter-socket, 4-pole
3 USB-socket 8 Probe interface
4 USB/TTL-translator
5 Western plug RJ-45
Step What to do:
1 Plug the USB-jack of the USB-line (2) into the Laptop/PC (1).
2 Plug the USB-socket of the USB-line (3) into the jack of the USB/TTL-translator
(4).
3 Plug the Western plug RJ-45 (5) of the modular line into the socket RJ-45
of the USB/TTL-translator (4).
4 Plug the adapter-socket, 4-pole (7), onto the post-type adapter of the modular
line (6).
5 Plug the adapter-socket, 4-pole (7), onto the interface of the probe (8).
CAUTION!
Please ensure that at any time for the connection between PC and probe a battery is used
that is not in the state „low battery“.
With low batteries, interface problems might occur, which in turn may lead to incorrecti con-
figurations or a loss of data.
5 Setup-Program
18
5.3 Enter customised parameters via the setup program
Explications
Probe identification (probe-ID)
The probe identification (probe-ID) is an unambiguous number with a maximum of 5
positions, that is recognised by the receiver. The ID can individually be modified, e.g.
in order to obtain a better overview for a machine. However, it must be observed that
one ID is only allocated once within a company, as probes with the same ID cannot
be distinguished by a receiver, even for large distances.
Transmission interval
This parameter defines, in what interval data will be sent to a receiver. The setting of
the parameters „transmission interval“ has an effect on the service life of the battery.
Therefore, the selection should be made with caution and not exclusively in conside-
ration of the transmission quality.
Transmission frequency
The transmission frequency determins the frequency band, in which the data will be
transmitted to a receiver. In Europe, the transmission frequency has been set to
868.4 MHz, as special regulations have been determined for the ISM band (industrial-
scientific-medical) with regard to transmission interval and transmission power.
In the 915 MHz-frequency band ten frequencies may be configured.
Parameters As of factory Value range / selection
Identification of the
probe
(probe-ID)
deactivated 1to 99999
transmission interval 10s 1 to 3600sec
transmission fre-
quency
868,4 MHz
915 MHz
868.4 MHz for 868 MHz-hardware
912.6 MHz for 915 MHz-hardware
913.0 MHz
913.6 MHz
914.0 MHz
914.6 MHz
915.4 MHz
916.0 MHz
916.4 MHz
917.0 MHz
917.4 MHz
NOTE!
For a transmisison interval of > 10 sec, a so-named link telegram will be transmitted by the
probe, i.e. for a period of 30 minutes, telegrams will be transmitted in the 10 sec interval as
set by the manufacturer, only after this period, telegrams will be sent in the set interval.
NOTE!
As soon as the setup plug is plugged in, the probe automatically transmits telegrams in a
transmission interval of 1 sec, in order for the receiver to immediately recognised the modi-
fications. After disconnecting the setup plug, the telegrams will be sent in the set transmis-
sion interval.
19
5 Setup-Program
5 Setup-Program
20
21
6 Appendix
6.1 Technical data
Analog input
Measuring input Pt 1000 to EN 60 751, Class A in 3-wire circuit
Operating temperature range -30 to +260°C (relating to the thermowell unit,
approx. 22 mm below the handle)
Accuracy
of the temperature sensor
≤±0.15K ±0.002K * t
Output (radio transmission)
Probe ID max. 5-digit ID, factory setting,
can be configured by the customer
Transmission interval configurable from 1 to 3600 s (factory setting 10 s)
Transmission frequency ISM band 868.4 MHz (Europe) or
915 MHz (America, Australia, Canada and New Zealand);
within the frequency band 915 MHz, ten frequencies may
be configured
Transmission power +10 dBm
Open-air range max. 300 m, if the antenna wall mounting
and 3 m antenna cable are used on the receiver side
Output signal 882.2 to 1977.1Ohm ־ -30 to +260°C (resolution 17 bit)
Response time t0.9 ≤ 10s
Calibration accuracy
of the electronic components
≤±0.05%a
aAll accuracy details in % from the measuring range of 290°C.
Configuration with setup program
Configurable parameters Probe ID (max. 5-digit ID), transmission interval
Voltage supply
Lithium battery Voltage: 3.6V, nominal capacity: 2.1Ah
Service life approx. 1 year with factory setting and at room temperature
(short transmission intervals and high or low ambient tem-
perature reduce the service life of the battery)
Battery replacement only use Lithium batteries in original packaging
6 Appendix
22
Ambient factors
Ambient temperature range -30 to +85°C (handle including electronic components)
Storage temperature range -40 to +85°C (handle including electronic components)
Storage humidity relative humidity ≤ 95%, without condensation
Temperature influence ≤±0.0025%a/K;
per K deviation from the reference temperature 22°C (±3K)
Climatic conditions relative humidity 95%,
without condensation according to IEC 68-2-30
Vibration resistance max. 2g at 10 to 2000Hz (relating to handle with electronic
components) according to IEC 60 068-2-6
Permitted mechanical
shock resistance
25g/6ms (relating to handle with electronic components)
IEC 68-2.29 per 1000 cycles
EMC
- interference emission
- Immunity to interference
- radio frequency range
EN 61 326
Class A
Industrial requirement
ETSI EN 300 220-1, V 1.3.1
Housing
Material PEI (Polyetherimide)
Flammability class UL 94 HB
Dimensions Diameter Ø approx. 32mm, length approx. 126mm,
Installation length of the thermowell 50 to 1000mm
IP-protection IP67 to EN 60 529
Mounting position any
Weight approx. 120g
JUMO GmbH & Co. KG JUMO Instrument Co. Ltd. JUMO Process Control, Inc.
Street address:
Moltkestraße 13 - 31
36039 Fulda, Germany
Delivery address:
Mackenrodtstraße 14
36039 Fulda, Germany
Postal address:
36035 Fulda, Germany
Phone: +49 661 6003-0
Fax: +49 661 6003-607
e-mail: mail@jumo.net
Internet: www.jumo.net
JUMO House
Temple Bank, Riverway
Harlow, Essex CM 20 2 TT, UK
Phone: +44 1279 635533
Fax: +44 1279 635262
e-mail: sales@jumo.co.uk
Internet: www.jumo.co.uk
8 Technology Boulevard
Canastota, NY 13032, USA
Phone: 315-697-JUMO
1-800-554-JUMO
Fax: 315-697-5867
e-mail: info@jumo.us
Internet: www.jumo.us
