INSTRUCTIONS

CA-HXZ9V/CA-HXZ98V

CA-HXZ7V

For Customer Use:

Enter below the Model No. and Serial No.

which are located either on the rear, bot-

tom or side of the cabinet. Retain this

information for future reference.

Model No.

Serial No.

COMPACT COMPONENT SYSTEM

COMPACT

DIGITAL VIDEO

SELECT

CA-HXZ9V

CA-HXZ98V

COMPACT

DIGITAL VIDEO

COMPACT

DIGITAL VIDEO

SELECT

CA-HXZ7V

English

Cover.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 10:56 AM1

Caution— (STANDBY/ON) button!

Disconnect the mains plug to shut the power off

completely. The (standby/on) button in any position

does not disconnect the mains line. The power can be

remote controlled.

– G-1 –

Warnings, Cautions and Others

Safety.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:06 PM1

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or

moisture.

CAUTION

• Do not block the ventilation openings or holes.

(If the ventilation openings or holes are blocked by a

newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted

candles, on the apparatus.

• When discarding batteries, environmental problems must be

considered and local rules or laws governing the disposal of

these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or

splashing and that no objects filled with liquids, such as

vases, shall be placed on the apparatus.

– G-2 –

Safety.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:06 PM2

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1 Front: No obstructions and open spacing.

2 Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.

3 Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a

stand with a height of 10 cm or more.

– G-3 –

Front view Side view

15 cm 1 cm

15 cm

1 cm 15 cm

10 cm

15 cm

CA-HXZ9V

CA-HXZ98V

CA-HXZ7V

CA-HXZ9V

CA-HXZ98V

CA-HXZ7V

Safety.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:06 PM3

IMPORTANT FOR LASER PRODUCTS

REPRODUCTION OF LABELS / /

1CLASSIFICATION LABEL ON EXTERIOR

SURFACE

2WARNING LABEL INSIDE THE UNIT

1. CLASS 1 LASER PRODUCT

2. DANGER: Invisible laser radiation when open and interlock

failed or defeated. Avoid direct exposure to beam.

3. CAUTION: Do not open the top cover. There are no user

serviceable parts inside the Unit; leave all servicing to

qualified service personnel.

– G-4 –

Safety.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:07 PM4

– 1 –

English

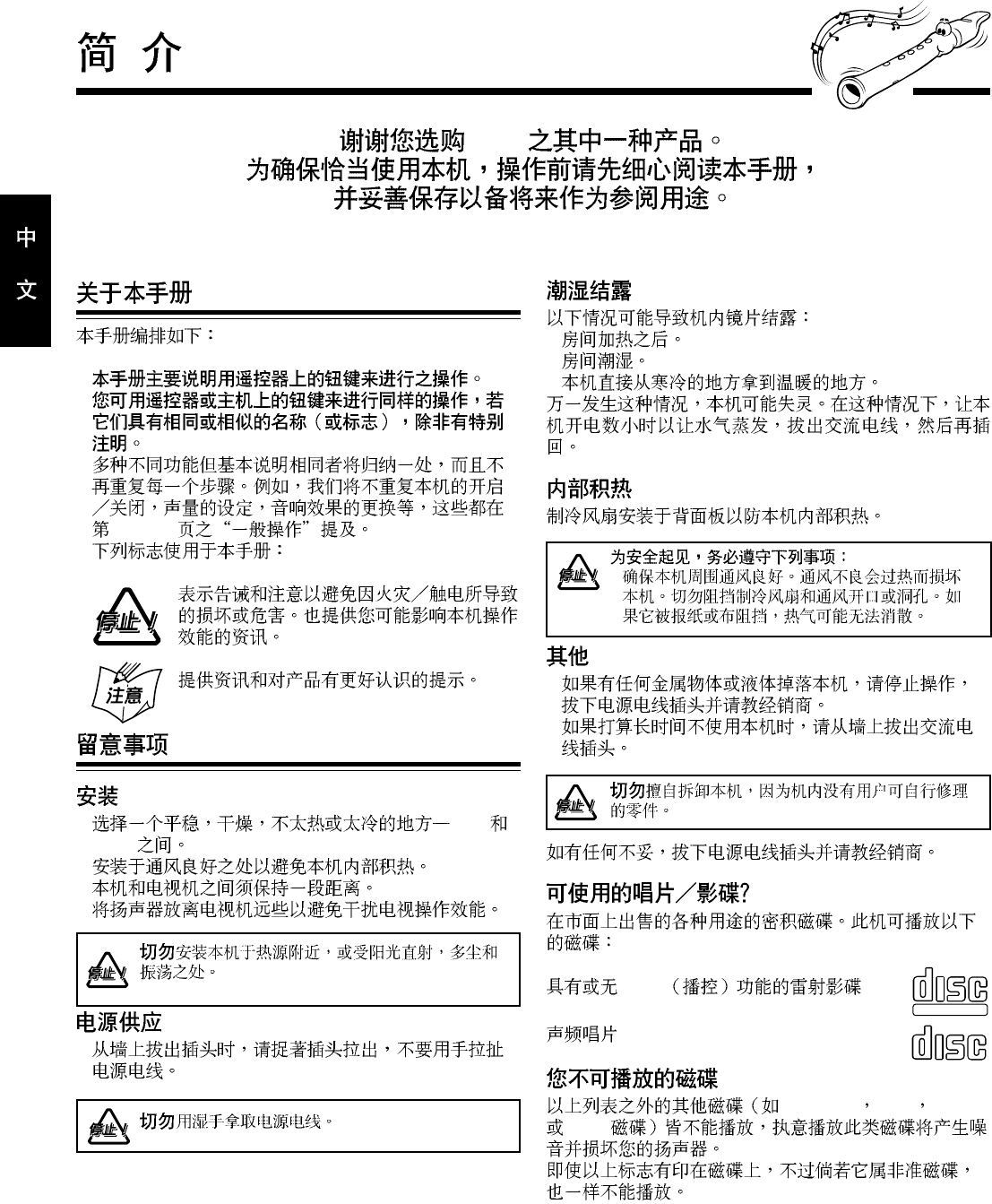

Introduction

About This Manual

This manual is organized as follows:

•The manual mainly explains operations using the

buttons and controls on the unit. You can also use the

buttons on the remote control if they have the same or

similar names (or marks) as those on the unit.

If operation using the remote control is different from

that using the unit, it is then explained.

• Basic and common information that is the same for many

functions is grouped in one place, and is not repeated in

each procedure. For instance, we do not repeat the

information about turning on/off the unit, setting the

volume, changing the sound effects, and others, which are

explained in the section “Common Operations” on pages 9

to 12.

• The following marks are used in this manual:

Gives you warnings and cautions to prevent

from damage or risk of fire/electric shock.

Also gives you information which is not good

for obtaining the best possible performance

from the unit.

Gives you information and hints you had better

know.

Precautions

Installation

• Install in a place which is level, dry and neither too hot nor

too cold—between 5˚C and 35˚C.

• Install the unit in a location with adequate ventilation to

prevent internal heat buildup in the unit.

• Leave sufficient distance between the unit and the TV.

• Keep the speakers away from the TV to avoid interference

with TV.

DO NOT install the unit in a location near heat

sources, or in a place subject to direct sunlight,

excessive dust or vibration.

Power sources

• When unplugging from the wall outlet, always pull the

plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

We would like to thank you for purchasing one of our JVC products.

Before operating this unit, read this manual carefully and thoroughly to

obtain the best possible performance from your unit, and retain this manual

for future reference.

Moisture condensation

Moisture may condense on the lens inside the unit in the

following cases:

• After heating starts in the room

• In a damp room

• If the unit is brought directly from a cold to a warm place

Should this occur, the unit may malfunction. In this case, leave

the unit turned on for a few hours until the moisture evaporates,

unplug the AC power cord, and then plug it in again.

Internal heat

A cooling fan is mounted on the rear panel to prevent heat

buildup inside the unit.

For safety, observe the following carefully:

• Make sure there is good ventilation around the

unit. Poor ventilation could overheat and damage

the unit.

• DO NOT block the cooling fan and the ventilation

openings or holes. If they are blocked by a

newspaper or cloth, etc., the heat may not be

able to get out.

Others

• Should any metallic object or liquid fall into the unit,

unplug the unit and consult your dealer before operating

any further.

• If you are not going to operate the unit for an extended

period of time, unplug the AC power cord from the wall

outlet.

DO NOT disassemble the unit since there are no

user serviceable parts inside.

If anything goes wrong, unplug the AC power cord and

consult your dealer.

Which compact discs can be used?

Many types of compact discs are sold for a variety of uses.

The player can play the following compact discs:

Video CD discs both with and without PBC

Audio CD discs

Discs you cannot playback

Any other discs than listed above (such as CD-ROM, DVD,

CD-G or CD-I Discs) cannot be played. Playing back such

discs may generate noise and damage your speakers.

Even though a logo listed above is printed on the disc, it may

not be played if it is a non-standard disc.

COMPACT

DIGITAL VIDEO

COMPACT

DIGITAL AUDIO

EN01-08.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:42 PM1

– 2 –

English

Contents

Location of the Buttons and Controls....................... 3

Front Panel ................................................................. 3

Remote Control .......................................................... 5

Getting Started............................................................ 6

Supplied Accessories.................................................. 6

Putting the Batteries into the Remote Control ........... 6

Connecting Antennas ................................................. 6

Connecting Speakers .................................................. 7

Connecting Other Equipment..................................... 8

Adjusting the Voltage Selector ................................... 8

Canceling the Demonstration ..................................... 8

Common Operations .................................................. 9

Turning On or Off the Power ..................................... 9

Turning On or Off the Key-touch Tone ...................... 9

Saving the Power Consumption while on Standby

—Ecology Mode .................................................. 9

Selecting the Sources................................................... 9

Setting the Clock ...................................................... 10

Adjusting the Volume ............................................... 10

Reinforcing the Bass Sound ..................................... 11

Selecting the Sound TURBO Mode ......................... 11

Selecting the Sound Modes ...................................... 11

Creating Your Own Sound Mode—User Mode ....... 12

Setting the AM Tuner Interval Spacing .................... 12

Setting the display brightness................................... 12

Listening to FM and AM Broadcasts ...................... 13

Tuning in to a Station ............................................... 13

Presetting Stations .................................................... 13

Tuning in to a Preset Station .................................... 13

Disc Play Introduction.............................................. 14

MP3 Introduction ..................................................... 14

Playing Back Discs.................................................... 16

Loading Discs........................................................... 16

Playing Back the Entire Discs—Continuous Play ... 16

Basic Disc Operations .............................................. 17

Programming the Playing Order of the Tracks

—Program Play .................................................. 18

Playing at Random—Random Play ......................... 19

Repeating Tracks or Discs—Repeat Play ................ 20

Prohibiting Disc Ejection—Tray Lock .................... 20

Playing Back Video CDs........................................... 21

Selecting Video Output (PAL, MULTI, NTSC) ....... 21

Loading Discs........................................................... 21

Playing a Video CD .................................................. 21

Playing Video CDs with PBC Function —

Menu Play........................................................... 22

Basic Concept of the PBC function ......................... 22

Playing Video CDs without PBC —

Continuous Play.................................................. 23

Resuming Play ......................................................... 23

Special Plays for a Video CD ................................... 23

Playing a Multiplex Sound CD ................................ 24

Playing Back Tapes ................................................... 25

Playing Back a Tape ................................................. 25

Locating the Beginning of a Song—Music Scan ..... 25

Recording .................................................................. 26

Recording on a Tape ................................................. 26

Synchronized Recording .......................................... 27

7 Direct Recording............................................. 27

Using the Microphones............................................. 28

Singing Along—Karaoke ......................................... 28

7 Vocal Masking ................................................ 28

Singing Along with Multiplex Karaoke

Discs (MPX) ....................................................... 28

Adjust the Music Key Control (for CD play only)... 29

Using the Timers ....................................................... 30

Using Daily Timer .................................................... 30

Using Recording Timer ............................................ 32

Using Sleep Timer .................................................... 33

Timer Priority ........................................................... 33

Maintenance .............................................................. 34

Troubleshooting ........................................................ 35

Specifications............................................................. 36

EN01-08.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 10:26 AM2

– 3 –

English

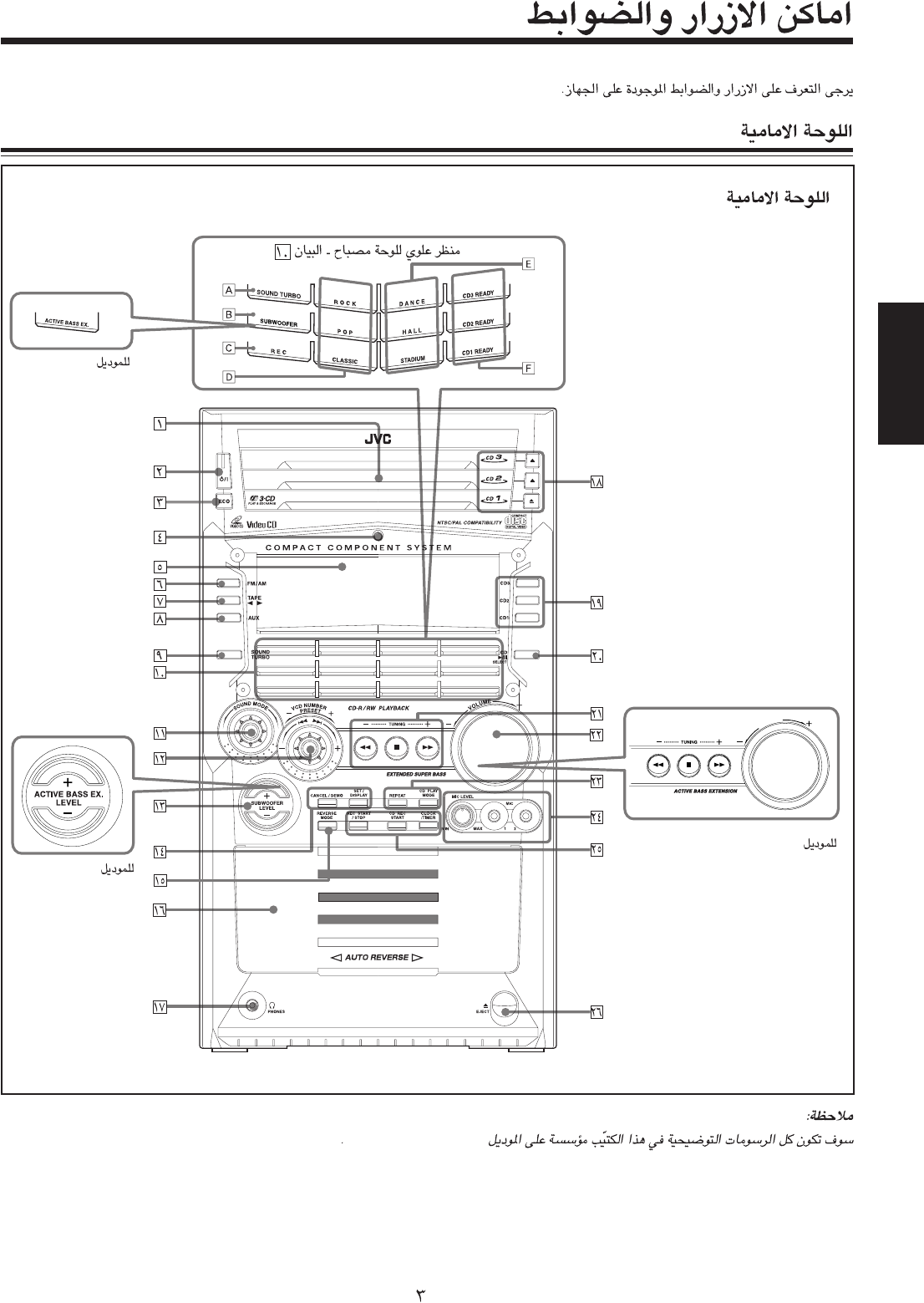

Location of the Buttons and Controls

Become familiar with the buttons and controls on your unit.

Front Panel

Top view of Indication-lamp panel p

Note:

All illustrations in this manual will be based on CA-HXZ9V/CA-HXZ98V.

For model CA-HXZ7V

EN01-08.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:42 PM3

– 4 –

English

Continued

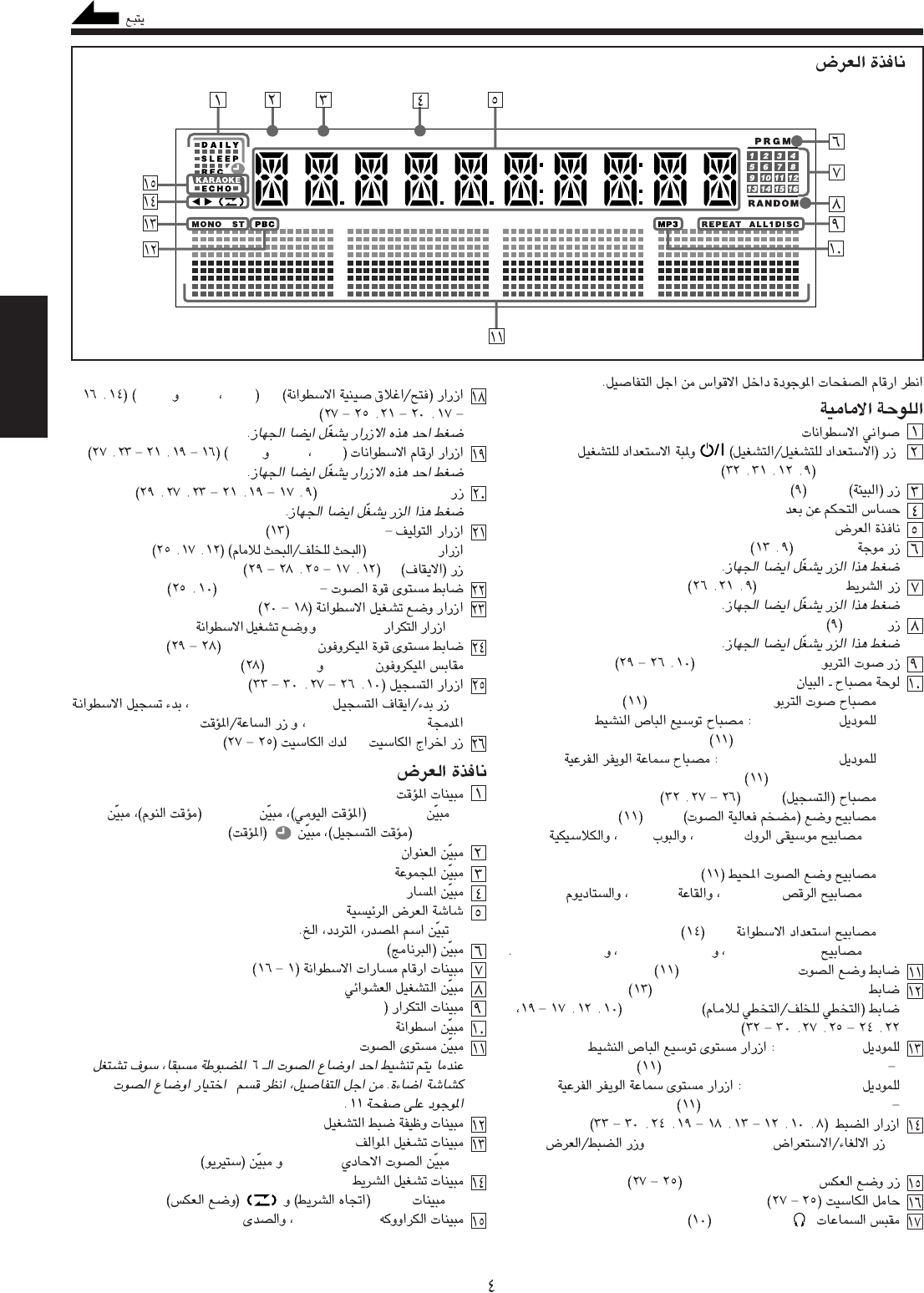

Display Window

See pages in the parentheses for details.

Front Panel

1Disc trays

2 (standby/on) button and lamp (9, 12, 31, 32)

3ECO (Ecology) button (9)

4Remote sensor

5Display window

6FM/AM button (9, 13)

Pressing this button also turns on the unit.

7TAPE 2 3 button (9, 21, 26)

Pressing this button also turns on the unit.

8AUX button (9)

Pressing this button also turns on the unit.

9SOUND TURBO button (10, 26 – 29)

pIndication-lamp panel

ÅSOUND TURBO lamp (11)

ıFor CA-HXZ7V: ACTIVE BASS EX. lamp (11)

For CA-HXZ9V/98V: SUBWOOFER lamp (11)

ÇREC (recording) lamp (26 – 27, 32)

ÎSEA (Sound Effect Amplifier) mode lamps (11)

• ROCK, POP, and CLASSIC lamps

‰Surround mode lamps (11)

• DANCE, HALL, and STADIUM lamps

ÏCD ready lamps (14)

• CD1 READY, CD2 READY, and CD3 READY lamps

qSOUND MODE control (11)

wVCD NUMBER PRESET + / – control (13)

4 / ¢ (reverse skip/forward skip) control

(10, 12, 17 – 19, 22, 24 – 25, 27, 30 – 32)

For CA-HXZ7V: ACTIVE BASS EX. LEVEL + / – buttons (11)

For CA-HXZ9V/98V: SUBWOOFER LEVEL + / – buttons (11)

rSetting buttons (8, 10, 12 – 13, 18 – 19, 24, 30 – 33)

• CANCEL/DEMO and SET/DISPLAY buttons

tREVERSE MODE button (25 – 27)

yCassette holder (25 – 27)

uPHONES ( ) jack (10)

i0 (Disc tray open/close) (CD1, CD2, and CD3) buttons

(14, 16 – 17, 20 – 21, 25 – 27)

Pressing one of these buttons also turns on the unit.

oDisc number (CD1, CD2, and CD3) buttons (16 – 19, 21 – 23,

27)

Pressing one of these buttons also turns on the unit.

;CD 3/8 SELECT button (9, 17 – 19, 21 – 23, 27, 29)

Pressing this button also turns on the unit.

aTUNING + / – buttons (13)

1 / ¡ (reverse search/forward search) buttons (12, 17, 25)

7 (stop) button (12, 17 – 25, 28 – 29)

sVOLUME + / – control (10, 25)

dDisc play mode buttons (18 – 20)

• REPEAT and CD PLAY MODE buttons

fMIC LEVEL control (28 – 29)

MIC 1 and MIC 2 jacks (28)

gRecording buttons (10, 26 – 27, 30 – 33)

• REC START/STOP, CD REC START, and

CLOCK/TIMER buttons

h0 EJECT button for cassette deck (25 – 27)

Display Window

1Timer indicators

• DAILY (Daily Timer), SLEEP (Sleep Timer),

REC (Recording Timer), and (Timer) indicators

2TITLE indicator

3GROUP indicator

4TRACK indicator

5Main display

• Shows the source name, frequency, etc.

6PRGM (program) indicator

7Disc track number (1 – 16) indicators

8RANDOM indicator

9REPEAT (ALL/1/DISC) indicators

pMP3 indicator

qAudio level indicator

When one of the 6 preset sound modes is activated, these

will function as illumination display. For details, see

“Selecting the Sound Modes” on page 11.

wPBC indicators

eTuner operation indicators

• MONO and ST (stereo) indicators

rTape operation indicators

•2 3 (tape direction) and (reverse mode) indicators

tKARAOKE and ECHO indicators

TITLE GROUP TRACK

EN01-08.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:42 PM4

– 5 –

English

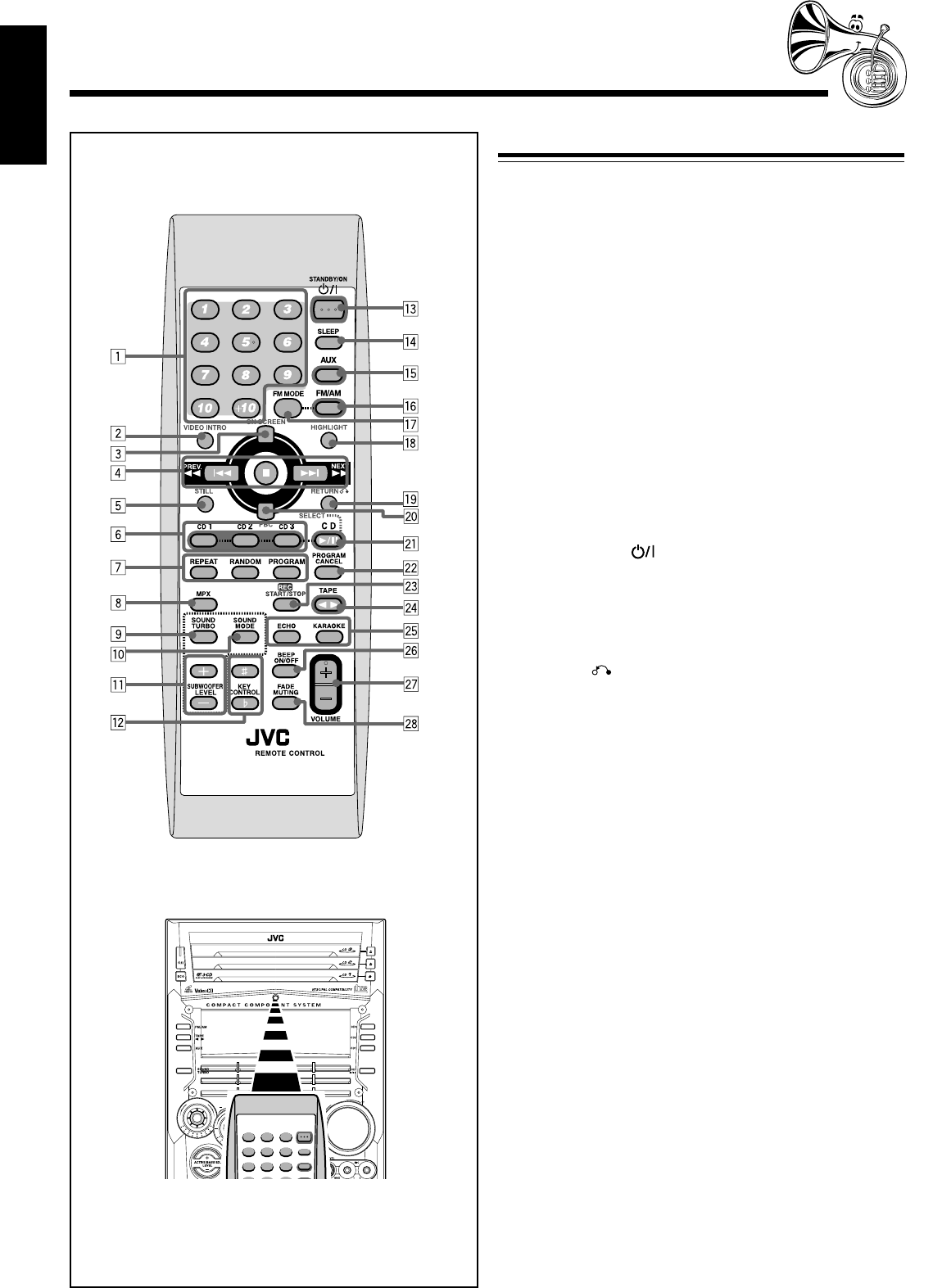

When using the remote control, point it

at the remote sensor on the front panel.

Remote Control Remote Control

1Number buttons (13, 17 – 18, 22, 24)

2VIDEO INTRO button (24)

3ON SCREEN button (23)

4PREV. 4 (1) (reverse skip/reverse search) button

(13, 17, 19, 21, 22, 24)

7 (stop) button (17 – 19, 21 – 26, 29)

NEXT ¢ (¡) (forward skip/forward search) button

(13, 19, 21 – 22, 24)

5STILL button (23, 25, 28)

6Disc number (CD1, CD2, and CD3) buttons (16 – 19)

7Disc play mode buttons (18 – 20)

• REPEAT, RANDOM, and PROGRAM buttons

8MPX button (24, 28)

9SOUND TURBO button (11)

pSOUND MODE button (11)

For CA-HXZ7V: ACTIVE BASS EX. LEVEL buttons (11)

For CA-HXZ9V/98V: SUBWOOFER LEVEL + / – buttons

(11)

wKEY CONTROL i, I button (29)

eSTANDBY/ON button (9)

rSLEEP button (33)

tAUX button (9, 26)

yFM/AM button (9, 26)

uFM MODE button (13)

iHIGHLIGHT button (24)

oRETURN button (22)

;PBC button (22, 23)

aSELECT CD 3¥8 button (9, 17 – 19, 22)

sPROGRAM CANCEL button (19)

dREC START/STOP button (26, 29)

fTAPE 2 3 button (9, 25 – 26)

gECHO button (28)

KARAOKE button (28)

hBEEP ON/OFF button (8, 9)

jVOLUME + / – button (10)

kFADE MUTING button (10)

COMPACT

DIGITAL VIDEO

SELECT

EN01-08.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:42 PM5

– 6 –

English

Getting Started

Supplied Accessories

Make sure that you have all the following items.

The number in the parentheses indicates the quantity of the

pieces supplied.

• AM loop antenna (1)

• FM antenna (1)

• Remote control (1)

• Batteries (2)

• AC plug adaptor (1)

• Video Cord (1)

If anything is missing, consult your dealer immediately.

Putting the Batteries into the Remote Control

Insert the batteries—R6(SUM-3)/AA(15F)—into the remote

control, by matching the polarity (+ and –) on the batteries

with the + and – markings on the battery compartment.

When the remote control can no longer operate the unit,

replace both batteries at the same time.

Continued

Connecting Antennas

FM antenna

1Attach the FM antenna to the FM 75 Ω

COAXIAL terminal.

2Extend the FM antenna.

3Fasten it up in the position which gives you

the best reception, then fix it on the wall, etc.

About the supplied FM antenna

The FM antenna supplied with this unit can be used as temporary

measure. If reception is poor, you can connect an outdoor FM

antenna.

To connect an outdoor FM antenna

Before connecting it, disconnect the supplied FM antenna.

Outdoor FM antenna

(not supplied)

A 75 Ω antenna with coaxial type connector (IEC or

DIN 45325) should be used.

R6(SUM-3)/AA(15F)

• DO NOT use an old battery together with a new

one.

• DO NOT use different types of batteries together.

• DO NOT expose batteries to heat or flame.

• DO NOT leave the batteries in the battery

compartment when you are not going to use the

remote control for an extended period of time.

Otherwise, it will be damaged from battery

leakage.

FM antenna (supplied)

FM 75

COAXIAL

LOOP

AM EXT

ANTENNA

FM 75

COAXIAL

LOOP

AM EXT

ANTENNA

EN01-08.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:43 PM6

– 7 –

English

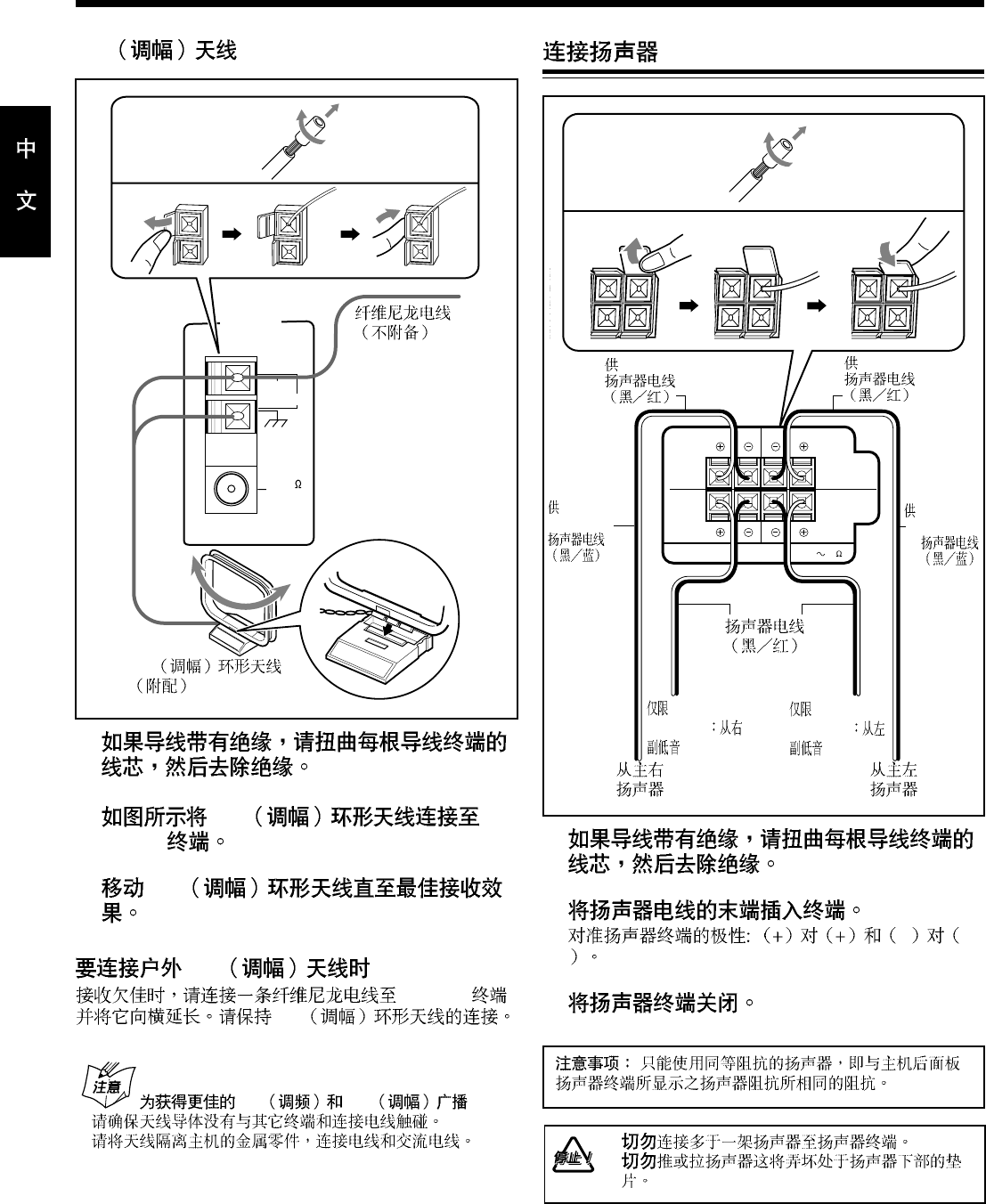

1If cords are covered with insulation, twist the

core of the cord at the end of each cord, then

remove the insulation.

2Connect the AM loop antenna to the AM LOOP

terminals as illustrated.

3Turn the AM loop antenna until you have the

best reception.

To connect an outdoor AM antenna

When reception is poor, connect a single vinyl-covered wire

to the AM EXT terminal and extend it horizontally. The AM

loop antenna must remain connected.

For better reception of both FM and AM

• Make sure the antenna conductors do not touch any other terminals

and connecting cords.

• Keep the antennas away from metallic parts of the unit, connecting

cords, and the AC power cord.

AM antenna

Vinyl-covered wire

(not supplied)

AM loop antenna

(supplied)

Connecting Speakers

1If cords are covered with insulation, twist the

core of the cord at the end of each cord, then

remove the insulation.

2Insert the end of the speaker cord into the

terminal as illustrated.

Match the same polarity: (+) to (+) and (–) to (–).

3Close the speaker terminals.

IMPORTANT: Use only speakers with the same speaker

impedance as indicated by the speaker terminals on the

rear of the unit.

• DO NOT connect more than one speaker to each

speaker terminal.

• DO NOT push or pull the speakers as this will

damage the foot spacers at the bottom of the

speakers.

For model CA-HXZ7V

Speaker cords (black/red)

For model CA-HXZ7V

Speaker cords (black/red)

Speaker cords

(black/red)

From main

right speaker

From main

left speaker

Only for CA-HXZ9V/

CA-HXZ98V: From right

subwoofer

COAXIAL

ANTENNA

AM LOOP

FM 75

AM EXT

LEFTRIGHT

MAIN

SPEAKERS

SUBWOOFERS

CAUTION: SPEAKER IMPEDANCE

6 16

Only for CA-HXZ9V/

CA-HXZ98V: From left

subwoofer

For model

CA-HXZ9V/

CA-HXZ98V

Speaker cords

(black/blue)

For model

CA-HXZ9V/

CA-HXZ98V

Speaker cords

(black/blue)

EN01-08.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:43 PM7

– 8 –

English

To connect surround speakers

By connecting surround speakers to the SURROUND

SPEAKERS jacks you can enjoy surround effect.

• Connect the right surround speaker to the RIGHT jack.

• Connect the left surround speaker to the LEFT jack.

Connecting Other Equipment

You can connect both analog and digital equipment.

• DO NOT connect any equipment while the power

is on.

• DO NOT plug in any equipment until all connections

are complete.

To connect an analog component

Be sure that the plugs of the audio cords are colored: White

plugs and jacks are for left audio signals, and red ones for

right audio signals.

For playing the other equipment through this unit,

connect between the audio output jacks on the other

equipment and AUX jacks by using an audio cord (not

supplied).

To connect a TV set

You can connet a TV with a video input jack: used as a

monitor for video CD playback.

Audio equipment

To audio output

Adjusting the Voltage Selector

Before plugging in the unit, set the correct voltage for your

area with the voltage selector on the rear of the unit.

Use a screwdriver to rotate the voltage selector so that the

voltage number and the voltage mark is pointing at the same

voltage as where you are plugging in the unit. (See the back

cover page.)

DO NOT plug in before setting the voltage selector

on the rear of the unit and all connection

procedures are complete.

Now, you can plug the AC power cord.

• If the wall outlet does not match the AC plug, use the

supplied AC plug adaptor.

IMPORTANT: Be sure to check all connections to be done

before plugging the AC power cord into a wall outlet.

Canceling the Demonstration

When connecting the AC power cord into a wall outlet, the

unit automatically starts the demonstration.

To cancel the demonstration, press and hold

CANCEL/DEMO until “DEMO OFF” appears

on the display.

• To cancel only beep sounds during the

demonstration, press BEEP ON/OFF on

the remote control.

When you press other buttons

The demonstration stops temporarily. It will start automatically

again (if no operation is done for 2 minutes) unless you cancel it by

pressing CANCEL/DEMO.

To start the demonstration manually

Press and hold CANCEL/DEMO again until “DEMO START”

appears on the display.

CANCEL / DEMO

AUX

RIGHT LEFT

Voltage mark

BEEP

ON/OFF

To video input

Left

surround

speaker

Right

surround

speaker

EN01-08.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:43 PM8

– 9 –

English

Common Operations

Turning On or Off the Power

To turn on the unit, press (or

STANDBY/ON on the remote control)

so that the lamp on the button goes off.

To turn off the unit (on standby), press

(or STANDBY/ON on the remote control)

again so that the lamp on the button lights up.

• A little power is always consumed even while

the unit is on standby.

To switch off the power supply completely, unplug the AC

power cord from the AC outlet.

When you unplug the AC power cord or if a power

failure occurs

The clock is reset to “0:00” right away, while the tuner preset

stations (see page 13) will be erased in a few days.

Turning On or Off the Key-touch Tone

If you do not want the key-touch tone to beep each time you

press a button, you can deactivate it.

On the remote control ONLY:

Press BEEP ON/OFF.

• Each time you press the button, the key-touch tone turns on

(“BEEP ON”) and off (“BEEP OFF”) alternately.

ECO

BEEP

ON/OFF

Saving the Power Consumption while on Standby

—Ecology Mode

You can save the power consumption while the unit is turned

off (on standby).

• You can set Ecology Mode whether the unit is on or off.

On the unit ONLY:

To activate the Ecology Mode, press ECO.

“ECO” appears on the display for 2 seconds

(and the demonstration is canceled if you have

pressed the button while the unit is off).

To deactivate the Ecology Mode, press ECO again.

“NORMAL” appears (and the demonstration starts if the unit

is turned off).

• Each time you press the button, “ECO” and “NORMAL”

appear alternately on the display.

When you turn off the unit with Ecology Mode activated

“ECO” flashes on the display, and the clock time will not be shown

while the unit is turned off.

Selecting the Sources

To listen to the FM/AM broadcasts, press FM/AM.

(See page 13.)

To play back discs, press CD 3¥8 SELECT. (See pages 16 –

20.)

To play back tapes, press TAPE 2 3. (See page 25.)

To select the external equipment as the source, press AUX.

When you press the play button for a particular source

(FM/AM, CD 3/8 SELECT, TAPE 2 3, and AUX), the unit

turns on and the unit starts playing the source if it is ready.

BEEP OFF BEEP ON

FM / AM

TAPE

SELECT

AUX

EN09-13.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:43 PM9

– 10 –

English

Continued

FADE

MUTING

VOLUME

Adjusting the Volume

You can adjust the volume level only while the unit is turned

on. The volume level can be adjusted in 32 steps (VOLUME

MIN, VOLUME 1 – VOLUME 30, and VOLUME MAX).

Turn VOLUME + / – clockwise (+)

to increase the volume or

counterclockwise (–) to decrease it.

When using the remote control, press

VOLUME + to increase the volume or

VOLUME – to decrease it.

For private listening

Connect a pair of headphones to the PHONES ( ) jack. No sound

comes out of the speakers. Be sure to turn down the volume before

connecting or putting on headphones.

DO NOT turn off (on standby) the unit with the

volume set to an extremely high level; otherwise, a

sudden blast of sound can damage your hearing,

speakers and/or headphones when you turn on the

unit or start playing any source next time.

REMEMBER, you cannot adjust the volume level

while the unit is off (on standby).

To turn down the volume level temporarily

On the remote control ONLY:

Press FADE MUTING.

The volume level gradually decreases to

“VOLUME MIN.”

To restore the sound, press the button again.

Setting the Clock

You can set the clock whether the unit is on or off; however,

if Ecology Mode is activated, you cannot set the clock while

the unit is off (on standby).

If Ecology Mode is not in use while the unit is turned off (on

standby), “0:00” flashes on the display until you set the clock.

On the unit ONLY:

Press CLOCK/TIMER.

The hour digits start flashing on the display.

Turn 4 / ¢ to adjust the

hour, then press SET/DISPLAY.

The minute digits start flashing on the

display.

If you want to correct the hour

after pressing SET/DISPLAY,

press CANCEL/DEMO.

The hour digits start flashing again.

Turn 4 / ¢ to adjust the minute, then

press SET/DISPLAY.

To check the clock time while playing a source

Press and hold SET/DISPLAY.

• Each time you press and hold the button, the source

indication and the clock time alternate on the display.

To adjust the clock again

If you have set the clock before, press CLOCK/TIMER

repeatedly until the clock setting mode is selected.

• Each time you press the button, the clock/timer setting

modes change as follows:

When you unplug the AC power cord or if a power

failure occurs

The clock loses the setting and is reset to “0:00.” If this happens, set

the clock again.

CLOCK

/ TIMER

SET /

DISPLAY

CANCEL / DEMO

DAILY

Canceled

TIMER

(Daily Timer setting)

TIMER

(Recording Timer setting)

REC

Clock

setting

(The hour digits start flashing.)

EN09-13.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:44 PM10

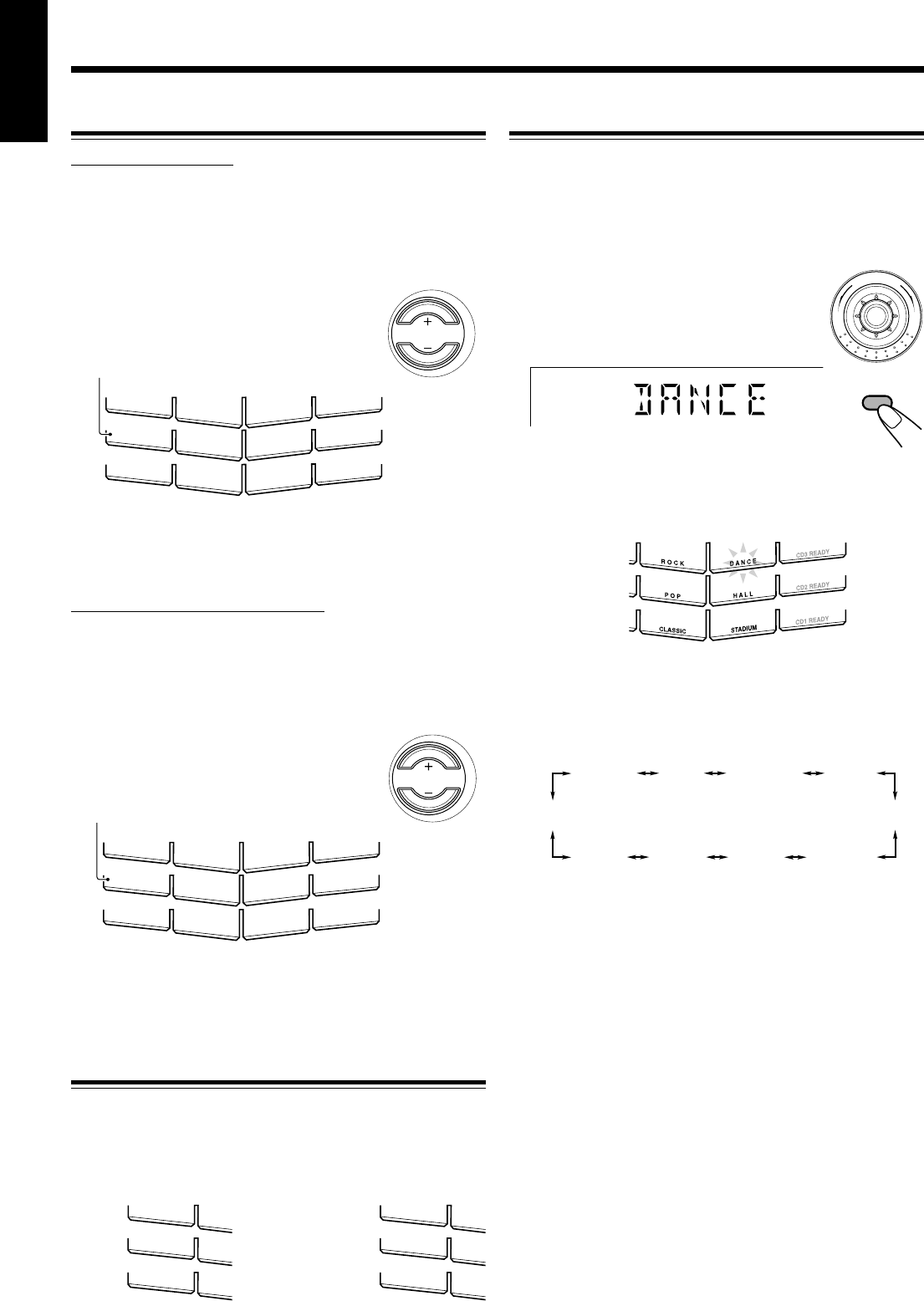

– 11 –

English

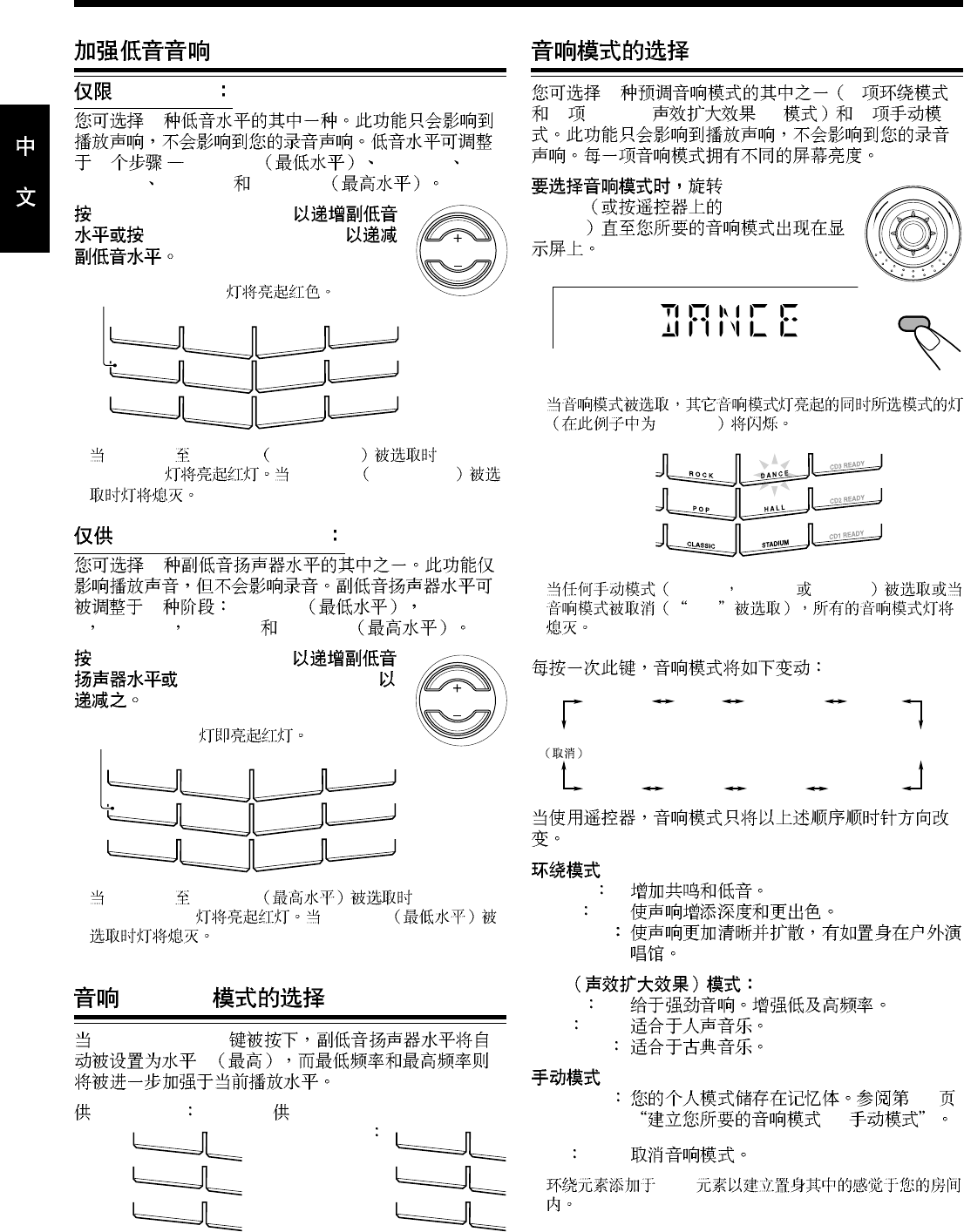

Selecting the Sound Modes

You can select one of the 6 preset sound modes (3 surround

modes and 3 SEA—Sound Effect Amplifier—modes) and 3

user modes. This function only affects the playback sound,

but does not affect your recording. Each Sound Mode has its

own illumination display.

To select the sound modes, turn

SOUND MODE (or press SOUND MODE

on the remote control) until the sound mode

you want appears on the display.

• When a sound mode is selected, the lamp for the selected sound

mode (in this example, DANCE) flashes while the other sound mode

lamps light up.

• When any of the user modes (USER1, USER2 or USER3) is

selected or when the sound mode is cancelled (“OFF” is selected),

all sound mode lamps go off.

The sound modes change as follows:

When using the remote control, the sound mode changes only

clockwise in the above sequence.

Surround modes*

DANCE: Increases resonance and bass.

HALL: Adds depth and brilliance to the sound.

STADIUM: Adds clarity and spreads the sound, like in an

outdoor stadium.

SEA (Sound Effect Amplifier) modes

ROCK: Boosts low and high frequency. Good for acoustic

music.

POP: Good for vocal music.

CLASSIC: Good for classical music.

User Modes

USER 1/2/3: Your individual mode stored in memory. See

“Creating Your Own Sound Mode—User

Mode” on page 12.

OFF: The sound mode is canceled.

* Surround elements are added to the SEA elements to create a

being-there feeling in your room.

DANCE

OFF

(Canceled)

HALL STADIUM ROCK

POP

CLASSICUSER 1USER 2

USER 3

Reinforcing the Bass Sound

ONLY FOR CA-HXZ7V:

You can select one of the 4 bass levels. This function only

affects the playback sound, but does not affect your

recording. The bass level can be adjusted in 4 steps—LEVEL

0 (BASS OFF), LEVEL 1, LEVEL 2, LEVEL 3 and LEVEL

4 (MAX LEVEL).

Press ACTIVE BASS EX. LEVEL + to

increase the subwoofer level or ACTIVE

BASS EX. LEVEL – to decrease it.

• The ACTIVE BASS EX. lamp lights up in red when LEVEL 1 to

LEVEL 4 (MAX LEVEL) is selected. The lamp turns off when

LEVEL 0 (MIN LEVEL) is selected.

ONLY FOR CA-HXZ9V/CA-HXZ98V:

You can select one of the 4 subwoofer levels. This function

only affects the playback sound, but does not affect your

recording. The subwoofer level can be adjusted in 4 steps—

LEVEL 0 (MIN LEVEL), LEVEL 1, LEVEL 2, LEVEL 3,

and LEVEL 4 (MAX LEVEL).

Press SUBWOOFER LEVEL + to

increase the subwoofer level or

SUBWOOFER LEVEL – to decrease it.

• The SUBWOOFER lamp lights up in red when LEVEL 1 to

LEVEL 4 (MAX LEVEL) is selected. The lamp turns off when

LEVEL 0 (MIN LEVEL) is selected.

Selecting the Sound Turbo Mode

When SOUND TURBO button is activated, subwoofer level

is automatically set to level 4 (max), and the lowest

frequencies and the highest frequencies will be enhanced

further than the currently played level.

SOUND

MODE

SUBWOOFER lamp lights up in red.

SUBWOOFER

LEVEL

R E C CLASSIC

CD1 READY

STADIUM

P O P

CD2 READY

H A L L

SOUND TURBOR O C K

D A N C E CD3 READY

SUBWOOFER

ACTIVE BASS EX. lamp lights up in red.

ACTIVE BASS EX.

LEVEL

R E C CLASSIC

CD1 READY

STADIUM

P O P

CD2 READY

H A L L

SOUND TURBOR O C K

D A N C E CD3 READY

ACTIVE BASS EX.

R E C CLA

SOUND TURBO R O

SUBWOOFER

R E C CLA

SOUND TURBO R O

ACTIVE BASS EX.

For CA-HXZ7V: For CA-HXZ9V/

CA-HXZ98V:

EN09-13.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:44 PM11

– 12 –

English

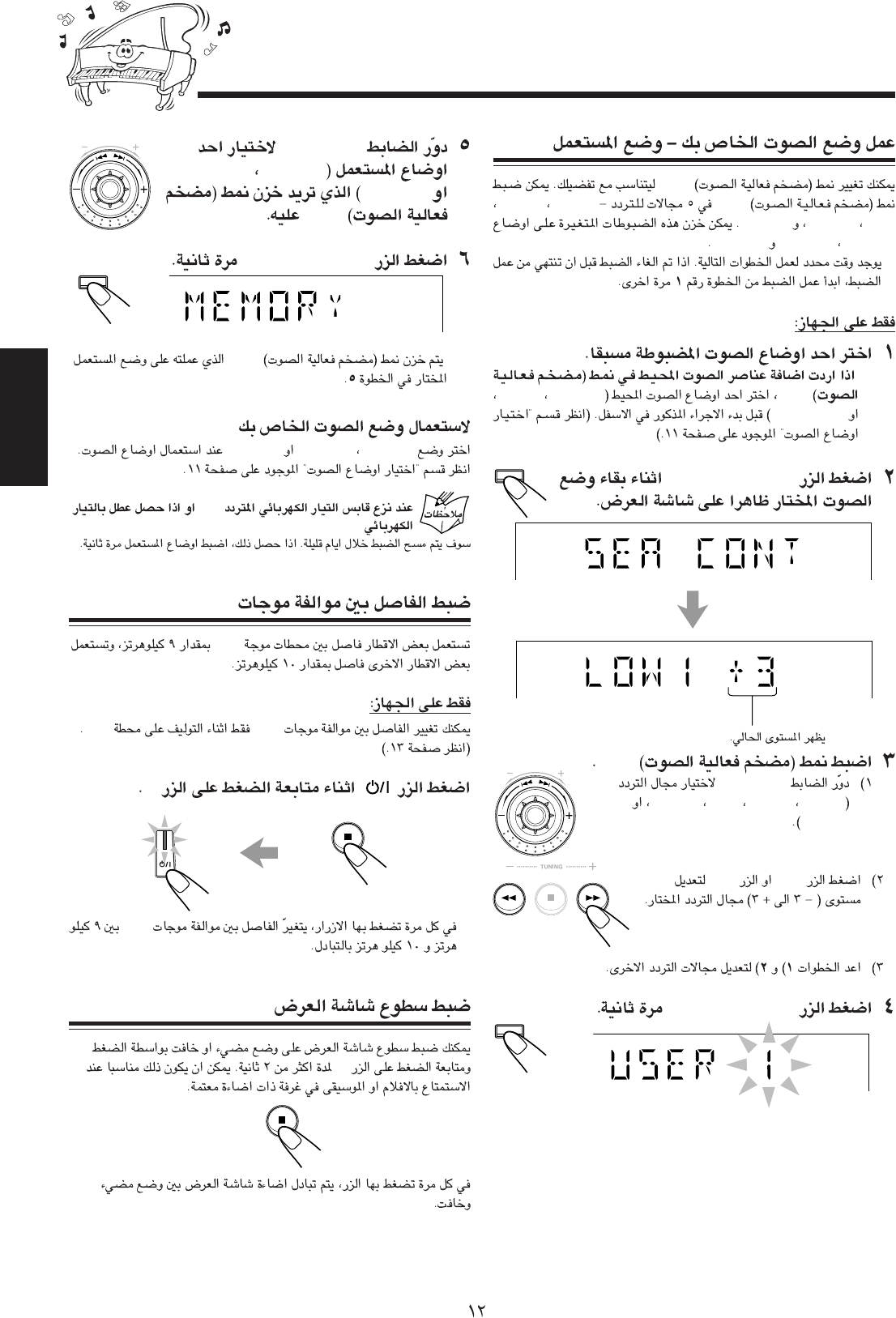

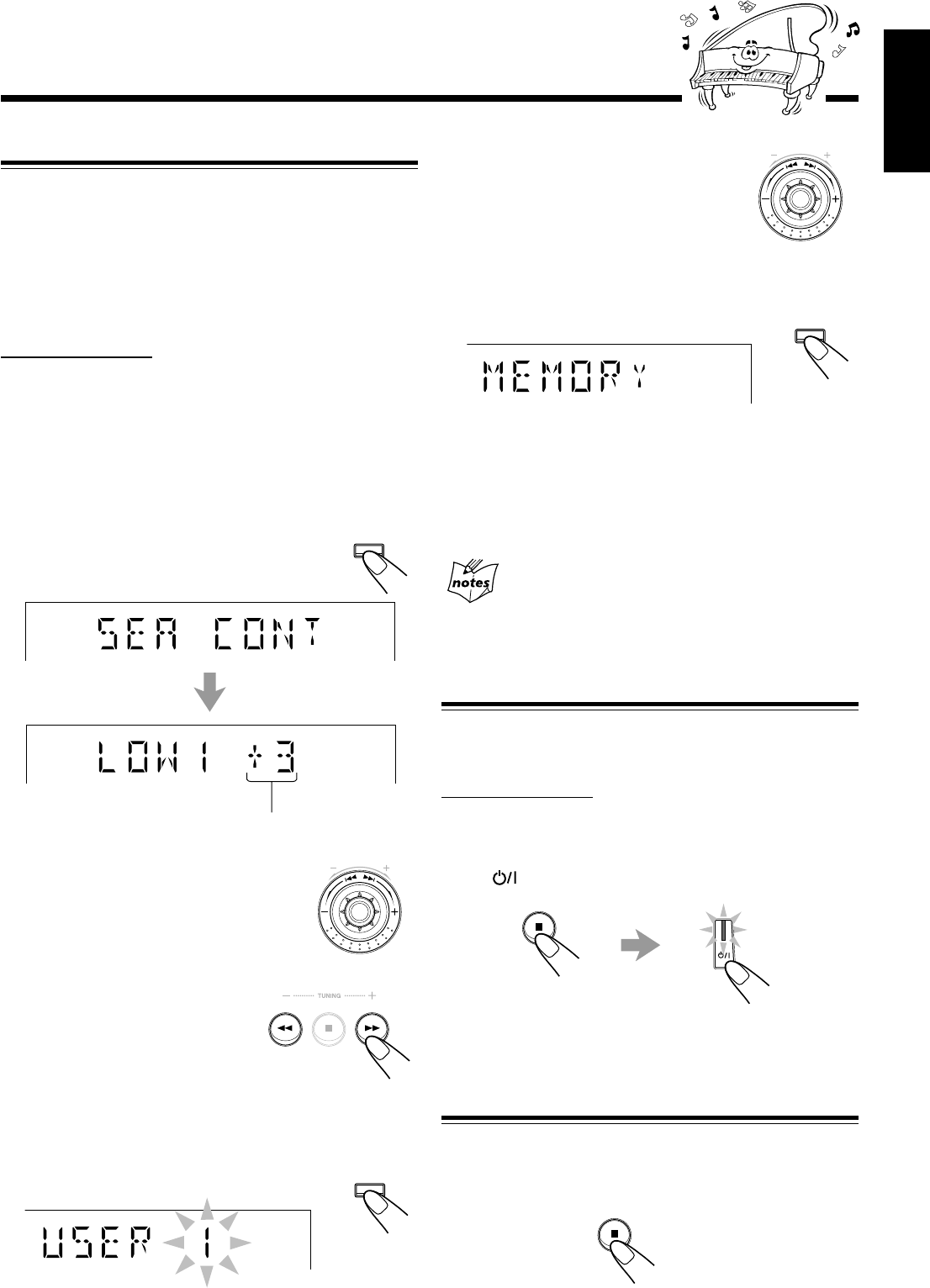

Creating Your Own Sound Mode—User Mode

You can change SEA (Sound Effect Amplifier) pattern to suit

your preference. The SEA (Sound Effect Amplifier) pattern can

be adjusted into 5 frequency ranges—LOW1, LOW2, MID,

HIGH1, and HIGH2. These changed settings can be stored in

the USER 1, USER 2, and USER 3 modes.

• There is a time limit in doing the following steps. If the setting

is canceled before you finish, start from step

again.

On the unit ONLY:

Select one of the preset sound modes.

•If you want to add the surround elements in your SEA

(Sound Effect Amplifier) pattern, select one of the

surround modes (DANCE, HALL, or STADIUM) before

starting the procedure below. (See “Selecting the Sound

Modes” on page 11.)

Press SET/DISPLAY while the

selected sound mode is still shown

on the display.

Adjust the SEA (Sound Effect

Amplifier) pattern.

1) Turn 4 / ¢ to select the

frequency range (LOW1, LOW2,

MID, HIGH1, or HIGH2).

2) Press 1 or ¡ to adjust the

level (–3 to +3) of the selected

frequency range.

3) Repeat steps 1) and 2) to adjust

the level of the other frequency

ranges.

Press SET/DISPLAY again.

SET /

DISPLAY

Current level appears.

Turn 4 / ¢ to select one

of the user modes (USER 1,

USER 2, or USER 3) in which

you want to store your SEA

(Sound Effect Amplifier)

pattern.

Press SET/DISPLAY again.

The SEA (Sound Effect Amplifier) pattern you have

created are stored into the user mode selected in step

To use your own sound mode

Select USER 1, USER 2, or USER 3 mode when using the

sound modes. See “Selecting the Sound Modes” on page 11.

When you unplug the AC power cord or if a power

failure occurs

The setting will be erased in a few days. If this happens, set the user

modes again.

Setting the AM Tuner Interval Spacing

Some countries space AM stations 9 kHz apart, and some

countries use 10 kHz spacing.

On the unit ONLY:

You can only change the AM tuner interval spacing while

tuning in to an AM station. (See page 13.)

Press while holding down 7.

• Each time you press these buttons, the AM tuner interval

spacing alternates between 9 kHz and 10 kHz.

Setting the display brightness

You can set the display brightness to either bright or dim by

pressing and holding 7 button for more than 2 seconds. You

might find this convenient when you are enjoying movies or

music in a darkly lit room.

Each time you press the button, the displays alternates

between bright and dim.

SET /

DISPLAY

SET /

DISPLAY

EN09-13.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:44 PM12

– 13 –

English

Listening to FM and AM Broadcasts

Tuning in to a Station

Press FM/AM.

The unit automatically turns on and tunes

in to the previously received station (either

FM or AM).

• Each time you press the button, the band

alternates between FM and AM.

2 Start searching for stations.

On the unit:

Press and hold TUNING +

or TUNING – for more

than 1 second.

On the remote control:

Press and hold NEXT ¢

(¡) or PREV. 4 (1)

for more than 1 second.

The unit starts searching for

stations and stops when a station of sufficient signal

strength is tuned in.

• If a program is broadcast in stereo, the ST (stereo) indicator

lights up.

To stop searching, press TUNING + or TUNING – (or

NEXT ¢ (¡) / PREV. 4 (1) on the remote control).

When you press TUNING + or TUNING – (or NEXT ¢

(¡) / PREV. 4 (1) on the remote control) briefly

and repeatedly

The frequency changes step by step.

To change the FM reception mode

On the remote control ONLY:

When an FM stereo broadcast is hard to receive

or noisy, press FM MODE so that the MONO

indicator lights up on the display. Reception

improves.

To restore the stereo effect, press FM MODE again so that

the MONO indicator goes off. In this stereo mode, you can

hear stereo sounds when a program is broadcasted.

Presetting Stations

You can preset 30 FM and 15 AM stations.

In some cases, test frequencies have been already memorized

for the tuner since the factory examined the tuner preset

function before shipment. This is not a malfunction. You can

preset the stations you want into memory by following the

presetting method.

• There is a time limit in doing the following steps. If the setting

is canceled before you finish, start from step

again.

On the unit ONLY:

Tune in to the station you want to preset.

• See “Tuning in to a Station.”

Press SET/DISPLAY.

Turn PRESET + / – to select a

preset number.

Press SET/DISPLAY again.

The tuned station in step

is stored in the preset number

selected in step

• Storing a new station on a used number erases the

previously stored one.

When you unplug the AC power cord or if a power

failure occurs

The preset stations will be erased in a few days. If this happens,

preset the stations again.

Tuning in to a Preset Station

Press FM/AM.

The unit automatically turns on and tunes

in to the previously received station (either

FM or AM).

• Each time you press the button, the band

alternates between FM and AM.

Select a preset number.

On the unit:

Turn PRESET + / –.

On the remote control:

Press the number buttons.

Ex.: For preset number 5, press 5.

For preset number 15, press

+10, then 5.

For preset number 25, press

+10, +10, then 5.

For preset number 30, press

+10, +10, then 10.

FM MODE

SET /

DISPLAY

SET /

DISPLAY

FM / AM

EN09-13.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:44 PM13

– 14 –

English

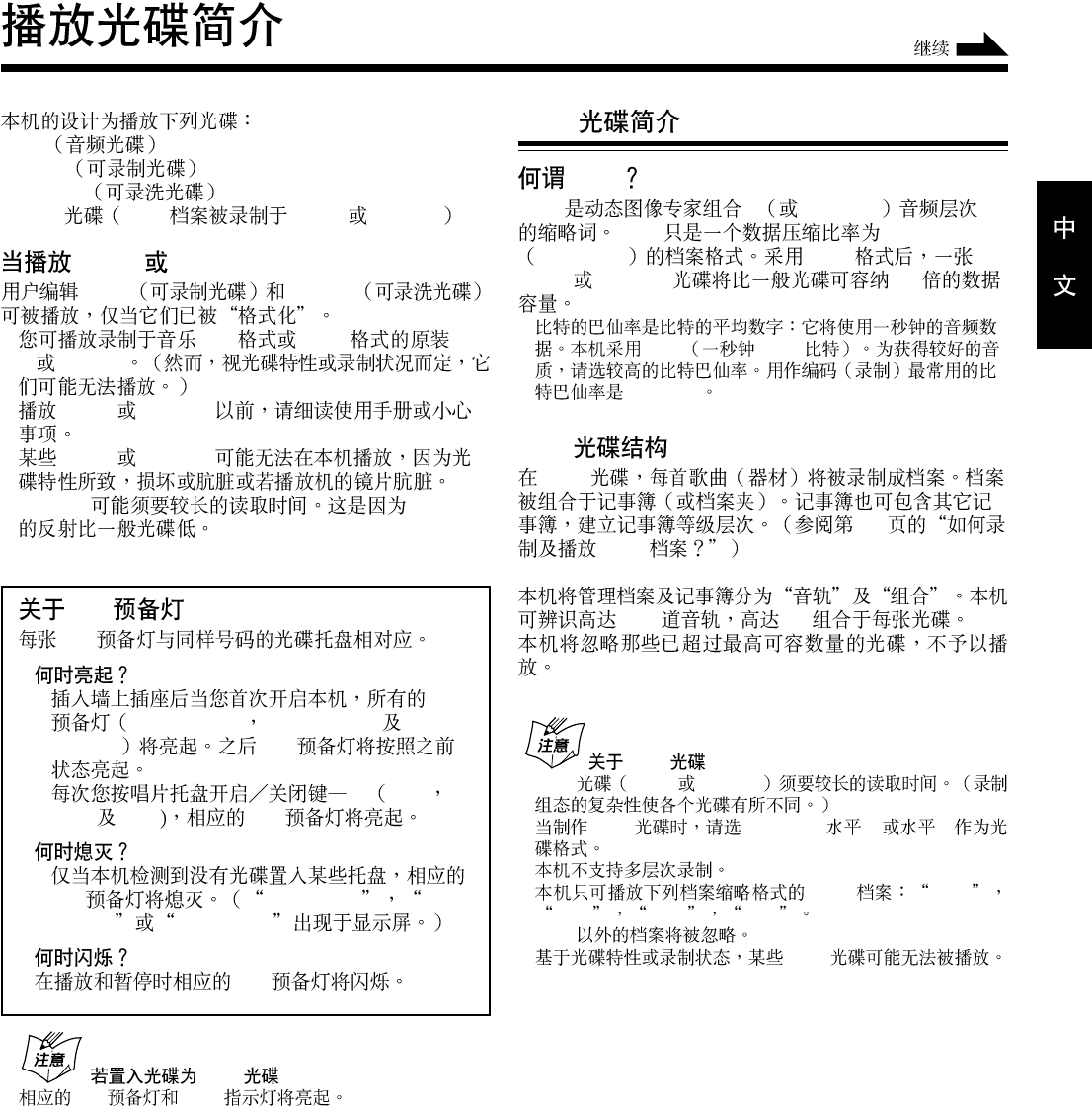

This unit has been designed to play back the following discs:

• CD (Audio CD)

• CD-R (CD-Recordable)

• CD-RW (CD-ReWritable)

• MP3 disc (MP3 files recorded on a CD-R or CD-RW)

When playing a CD-R or CD-RW

User-edited CD-Rs (CD-Recordable) and CD-RWs

(CD-ReWritable) can be played back only if they are already

“finalized.”

• You can play back your original CD-Rs or CD-RWs recorded

in music CD format or in MP3 format. (However, they may

not be played back depending on their characteristics or

recording conditions.)

• Before playing back CD-Rs or CD-RWs, read their

instructions or cautions carefully.

• Some CD-Rs or CD-RWs may not be played back on this

unit because of their disc characteristics, damage or stain

on them, or if the player’s lens is dirty.

• CD-RWs may require a longer readout time. This is caused

by the fact that the reflectance of CD-RWs is lower than for

regular discs.

About the CD ready lamps

Each CD ready lamp corresponds to the disc tray of the

same number.

• When they light up?

– When you turn on the unit for the first time after

plugging into a wall outlet, all CD ready lamps (CD1

READY, CD2 READY, and CD3 READY) light up.

From the next time on, CD ready lamp(s) light(s) up

according to the previous condition.

– Each time you press the disc tray open/close buttons

—0 (CD1, CD2, and CD3), the corresponding CD

ready lamp lights up.

• When they go off?

Only when the unit detects there is no disc loaded on a

certain tray, the corresponding CD ready lamp goes off.

(“NO DISC 1,” “NO DISC 2,” or “NO DISC 3”

appears on the display.)

• When they flash?

The corresponding CD ready lamp flashes during

playback and pause.

If the loaded disc is an MP3 disc

The corresponding CD ready lamp and the MP3 indicator will

light up.

Disc Play Introduction

MP3 Introduction

What is MP3?

MP3 is an abbreviation of Motion Picture Experts Group 1

(or MPEG-1) Audio Layer 3. MP3 is simply a file format

with a data compression ratio of 1:10 (128 kbps*). By using

MP3 format, one CD-R or CD-RW can contains 10 times as

much data volume as a regular CD can.

* Bit rate is the average number of bits that one second of audio

data will consume. The unit uses kbps (1,000 bits per second). To

get a better audio quality, choose a higher bit rate. The most

popular bit rate for encoding (recording) is 128 kbps.

MP3 disc structure

On an MP3 disc, each song (material) is recorded as a file.

Files are grouped into a directory (or folder). Directories can

also include other directories, creating hierarchical directory

layers. (See “How are MP3 files recorded and played back?”

on page 15.)

This unit manages files and directories as “tracks” and “groups.”

This unit can recognize up to 255 tracks per disc, up to 64 groups

per disc. The unit ignores those exceeding the maximum

numbers and cannot play them back.

About MP3 discs

• MP3 discs (either CD-R or CD-RW) require a longer readout time.

(It varies due to the complexity of the recording configuration.)

• When making an MP3 disc, select ISO 9660 Level 1 or Level 2 as

the disc format.

• This unit does not support multisession recording.

• This unit can play MP3 files only with the following file extensions—

“.MP3,” “.Mp3,” “.mP3,” and “.mp3.”

• Files other than MP3 are ignored.

• Some MP3 discs may not be played back because of their disc

characteristics or recording conditions.

Continued

EN14-25.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:49 PM14

– 15 –

English

How are MP3 files recorded and played back?

MP3 “tracks (files)” can be recorded in “group”—folders or

directories, in PC terminology.

During recording, the tracks and groups can be arranged

similarly to the tracks and folders/directories of computer

data. “Root” is similar to the root of a tree. Every track and

group can be linked to the root.

In compliance with ISO 9660, the maximum allowable depth

of nested directories—so called “hierarchy”—is eight

(inclusive of the root).

Playback order, track search order, and group search order of

the MP3 tracks recorded on a disc are determined by the

writing (or encoding) application; therefore, playback order

may be different from the one you have intended while

recording the groups and the tracks.

The illustration shows an ordinary example of how MP3

tracks are recorded on a CD-R or CD-RW, how they are

played back and how they are searched for on this unit.

• The numbers in circles next to the MP3 tracks ( ) indicate

the playback order and search order of the MP3 tracks.

Normally this unit plays back MP3 tracks in the recorded

order.

• The numbers inside the groups indicate the playback order

and search order of the groups on an MP3 disc. Normally

this unit plays back MP3 tracks in the groups in the

recorded order.

The groups marked with asterisk (*) will be skipped since

they do not include any MP3 tracks.

MP3 group/track configuration:

Root

Hierarchy

Groups

MP3 tracks

EN14-25.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:49 PM15

– 16 –

English

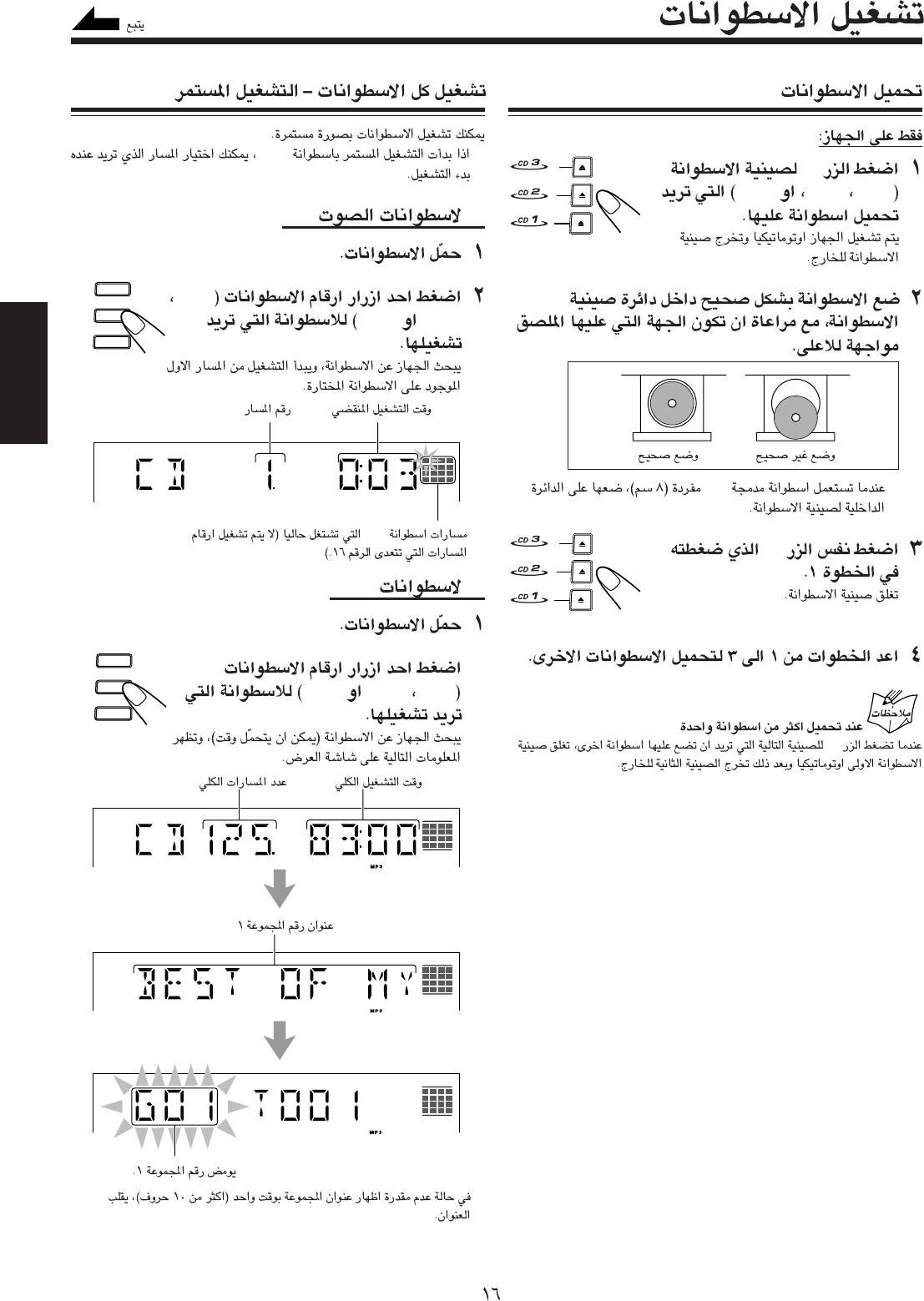

Playing Back Discs

Loading Discs

On the unit ONLY:

Press 0 for the disc tray

(CD1, CD2, or CD3) you

want to load a disc onto.

The unit automatically turns on

and the disc tray comes out.

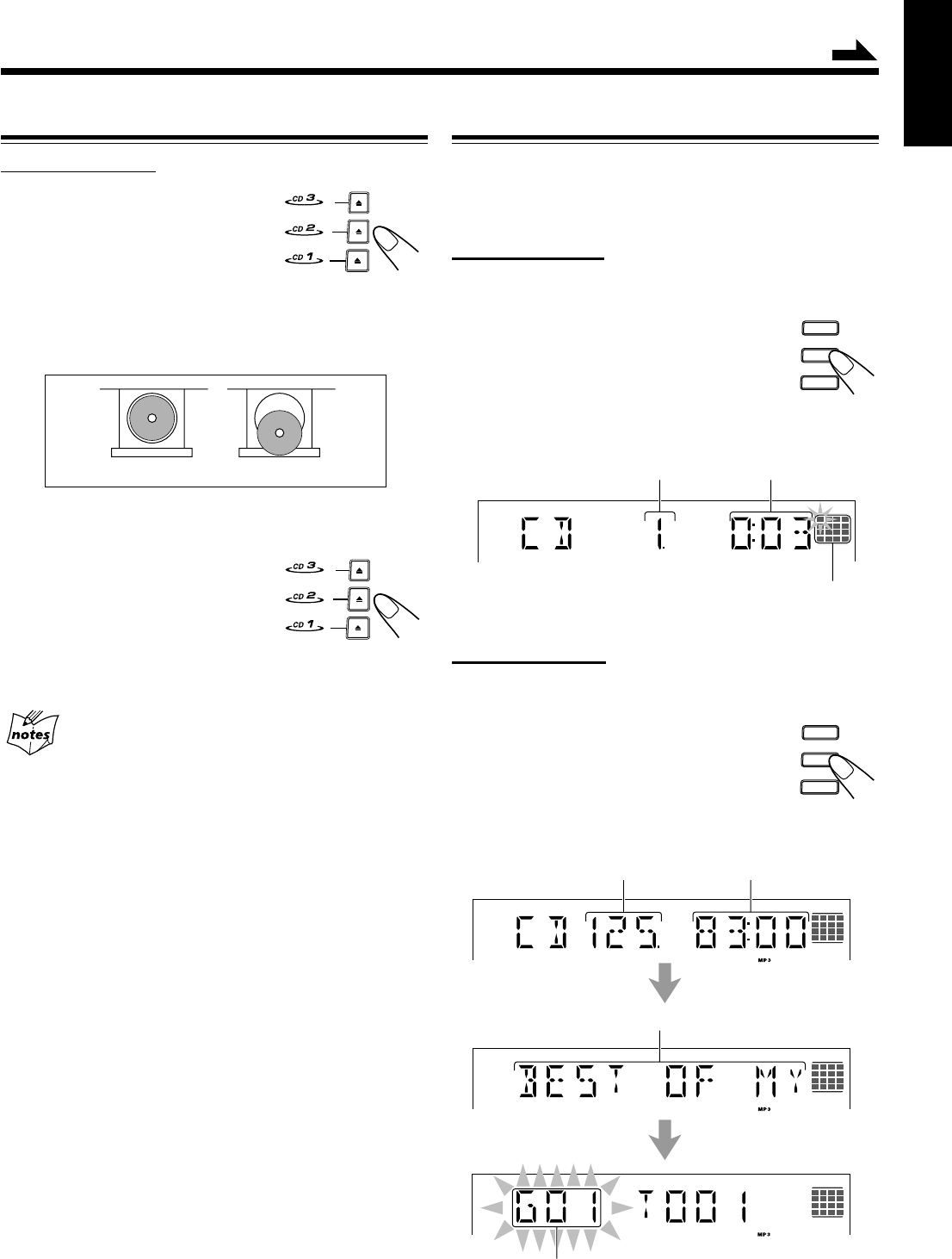

Place a disc correctly on the circle of the disc

tray, with its label side up.

• When using a CD single (8 cm), place it on the inner

circle of the disc tray.

Press the same 0 you have

pressed in step

The disc tray closes.

Repeat steps

to place other discs.

When loading more than one disc

When you press 0 for the next tray you want to place another disc

onto, the first disc tray automatically closes and then the next tray

comes out.

CORRECT INCORRECT Track number Elapsed playing time

Tracks of the currently playing CD (Track

numbers exceeding 16 are not displayed.)

CD3

CD2

CD1

Playing Back the Entire Discs—Continuous Play

You can play discs continuously.

• If you start Continuous Play with an MP3 disc, you can

select a track you want to start playback with.

7For audio CDs

Load discs.

Press one of the disc number

(CD1, CD2, or CD3) buttons

for the disc you want to play.

The unit searches for the disc, and

starts playing with the first track of the

selected disc.

7For MP3 discs

Load discs.

Press one of the disc number

(CD1, CD2, or CD3) buttons

for the disc you want to play.

The unit searches for the disc (it may take

time), and the following information

appears on the display.

* If the group title cannot be shown at a time (exceeding

10 characters), the title scrolls.

Total playing time

Total track number

Group number 1 flashes.

CD3

CD2

CD1

TRACK

1 2 3 4

5 6 7 8

910 11 12

13 14 15 16

TRACK

1 2 3 4

5 6 7 8

910 11 12

13 14 15 16

TITLE

1 2 3 4

5 6 7 8

910 11 12

13 14 15 16

Title of group number 1*

1 2 3 4

5 6 7 8

910 11 12

13 14 15 16

Continued

EN14-25.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:50 PM16

– 17 –

English

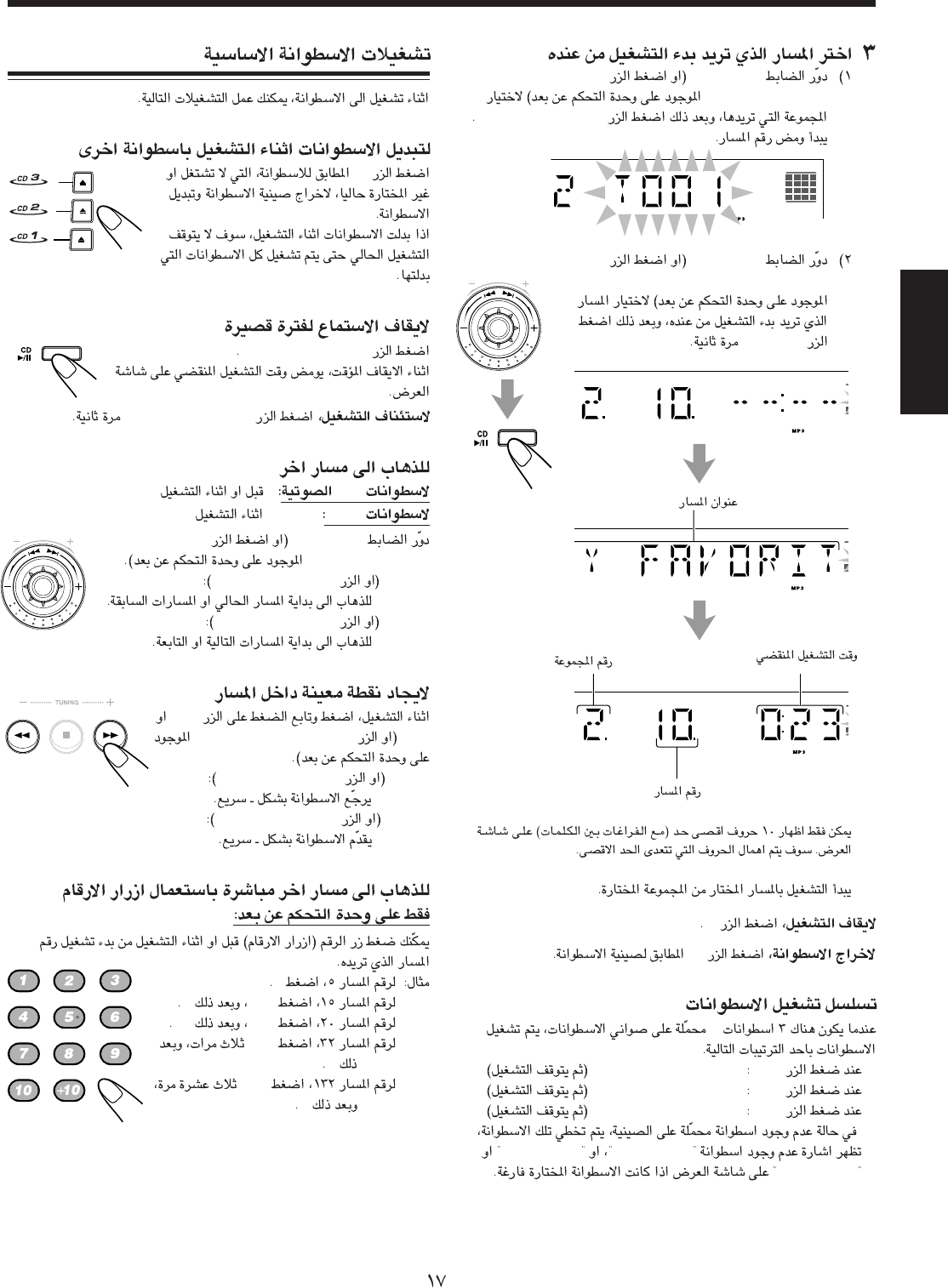

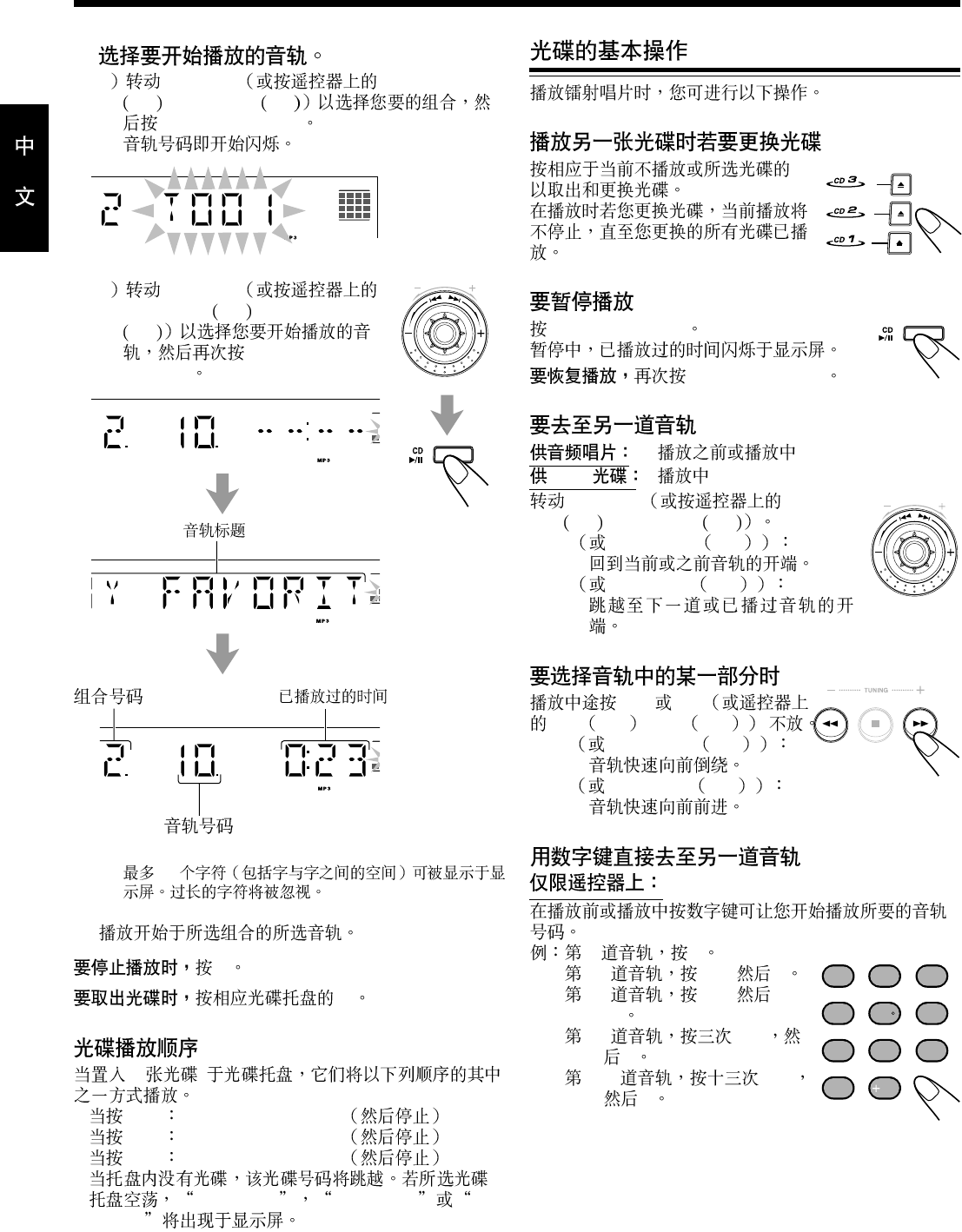

Select a track to start playing with.

1) Turn 4 / ¢ (or press PREV. 4 (1) / NEXT

¢ (¡) on the remote control) to select a group

you want, then press CD 3/8 SELECT.

The track number starts flashing.

2) Turn 4 / ¢ (or press PREV. 4

(1) / NEXT ¢ (¡) on the remote

control) to select a track you want to

start playback with, then press CD 3¥8

again.

** Only a maximum of 10 characters (including spaces between

words) can be shown on the display. The exceeding characters

will be ignored.

Playback starts with the selected track of the selected group.

To stop playing, press 7.

To remove the disc, press 0 for the corresponding disc tray.

Disc playback sequence

When 3 discs* are loaded on the disc trays, they are played in

one of the following sequences.

• When CD1 is pressed: CD1 ] CD2 ] CD3 (then stops)

• When CD2 is pressed: CD2 ] CD3 ] CD1 (then stops)

• When CD3 is pressed: CD3 ] CD1 ] CD2 (then stops)

* When no disc is loaded on the tray, that disc number is

skipped. “NO DISC 1,” “NO DISC 2,” or “NO DISC 3”

appears on the display if the selected disc tray is empty.

Track title**

Track number

Group number Elapsed playing time

GROUP TRACK

Basic Disc Operations

While playing a disc, you can do the following operations.

To exchange discs during playback of another

Press 0 corresponding to a disc, not

playing or selected currently, to eject

and exchange the disc.

If you exchange discs during play, the

current play will not stop until all discs

you have exchanged are played.

To stop play for a moment

Press CD 3¥8 SELECT.

While pausing, the elapsed playing time

flashes on the display.

To resume playing, press CD 3¥8 SELECT again.

To go to another track

For audio CDs: Before or during play

For MP3 discs: During play

Turn 4 / ¢ (or press PREV. 4 (1) /

NEXT ¢ (¡) on the remote control).

•4 (or PREV. 4 (1)):

Goes back to the beginning of the

current or previous tracks.

•¢ (or NEXT ¢ (¡)):

Skips to the beginning of the next or succeeding tracks.

To locate a particular point in a track

During play, press and hold 1 or

¡ (or 4 (1) / ¢ (¡) on

the remote control).

•1 (or PREV. 4 (1)):

Fast-reverses the disc.

•¡ (or NEXT ¢ (¡)):

Fast-forwards the disc.

To go to another track directly using the number

buttons

On the remote control ONLY:

Pressing the number button(s) before

or during play allows you to start

playing the track number you want.

Ex.: For track number 5, press 5.

For track number 15, press +10,

then 5.

For track number 20, press +10,

then 10.

For track number 32, press +10 three times, then 2.

For track number 132, press +10 thirteen times, then 2.

SELECT

1 2 3 4

5 6 7 8

910 11 12

13 14 15 16

EN14-25.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:50 PM17

– 18 –

English

Select a track from the selected

disc in step

On the unit:

Turn 4 / ¢ to select the

track number, then press

SET/DISPLAY.

On the remote control:

Press the number buttons.

• For how to use the number

buttons, see “To go to another

track directly using the number

buttons” on page 17.

Program other tracks you want.

• To program tracks from the same disc, repeat step

• To program tracks from a different disc, repeat steps

and

Press CD 3¥8 SELECT.

The tracks are played in the order you

have programed.

• If the playing disc is an MP3 disc, the

MP3 indicator lights up.

To stop playing, press 7.

To exit from Program Play mode, press CD PLAY MODE

repeatedly until the PRGM (program) indicator goes off (or press

PROGRAM on the remote control) after playback stops.

• If you try to program the 51st track, “CD FULL” will be flashing

on the display.

• If you have tried to program a track from an empty tray, “NO

DISC 1,” “NO DISC 2,” or “NO DISC 3” will appear on the

display for 2 seconds.

• If the track number you have programed does not exist on the

disc, it will be skipped during play.

Track number

CD3

CD2

CD1

PRGM

Disc number Program step number

SET /

DISPLAY

SELECT

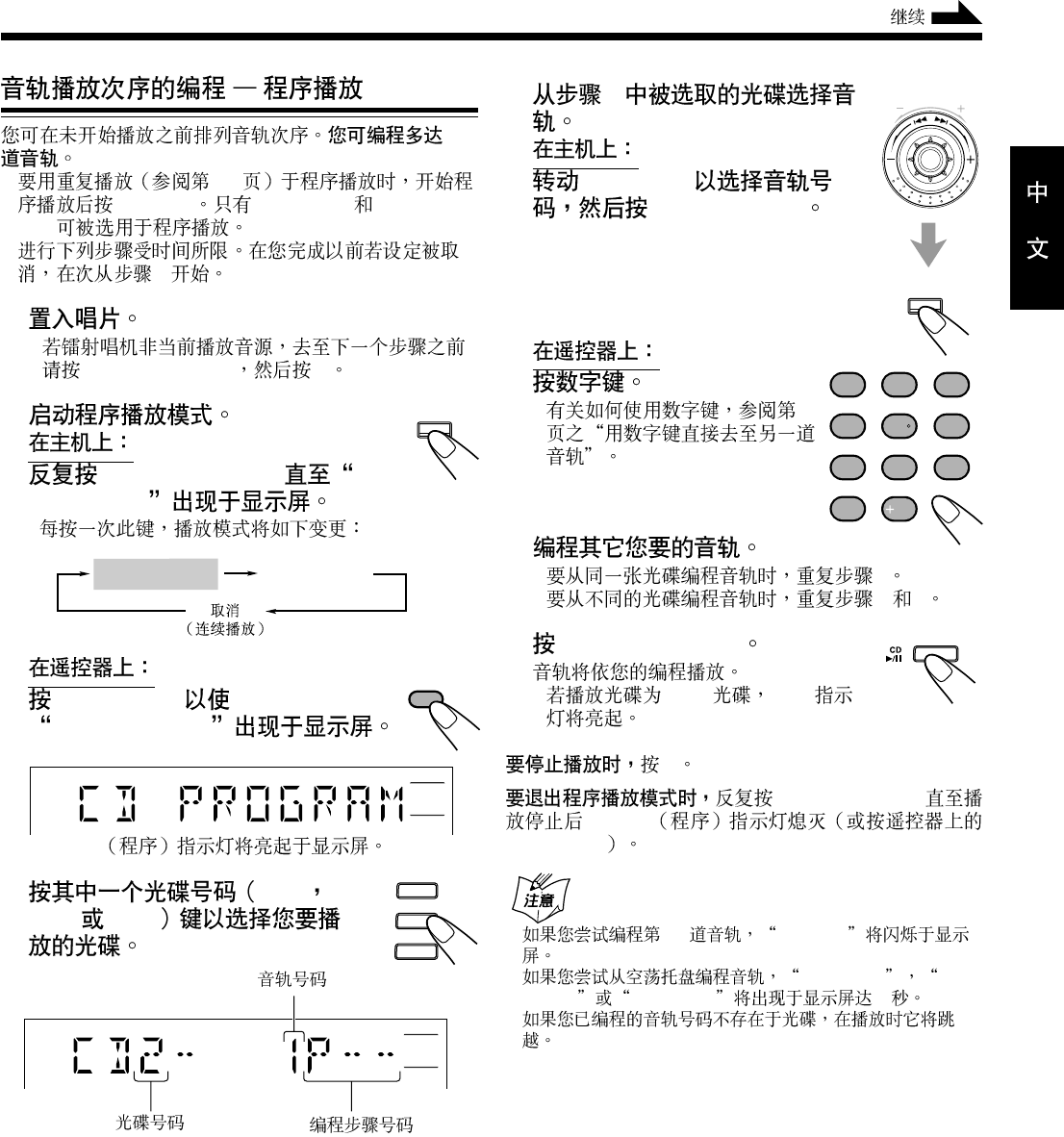

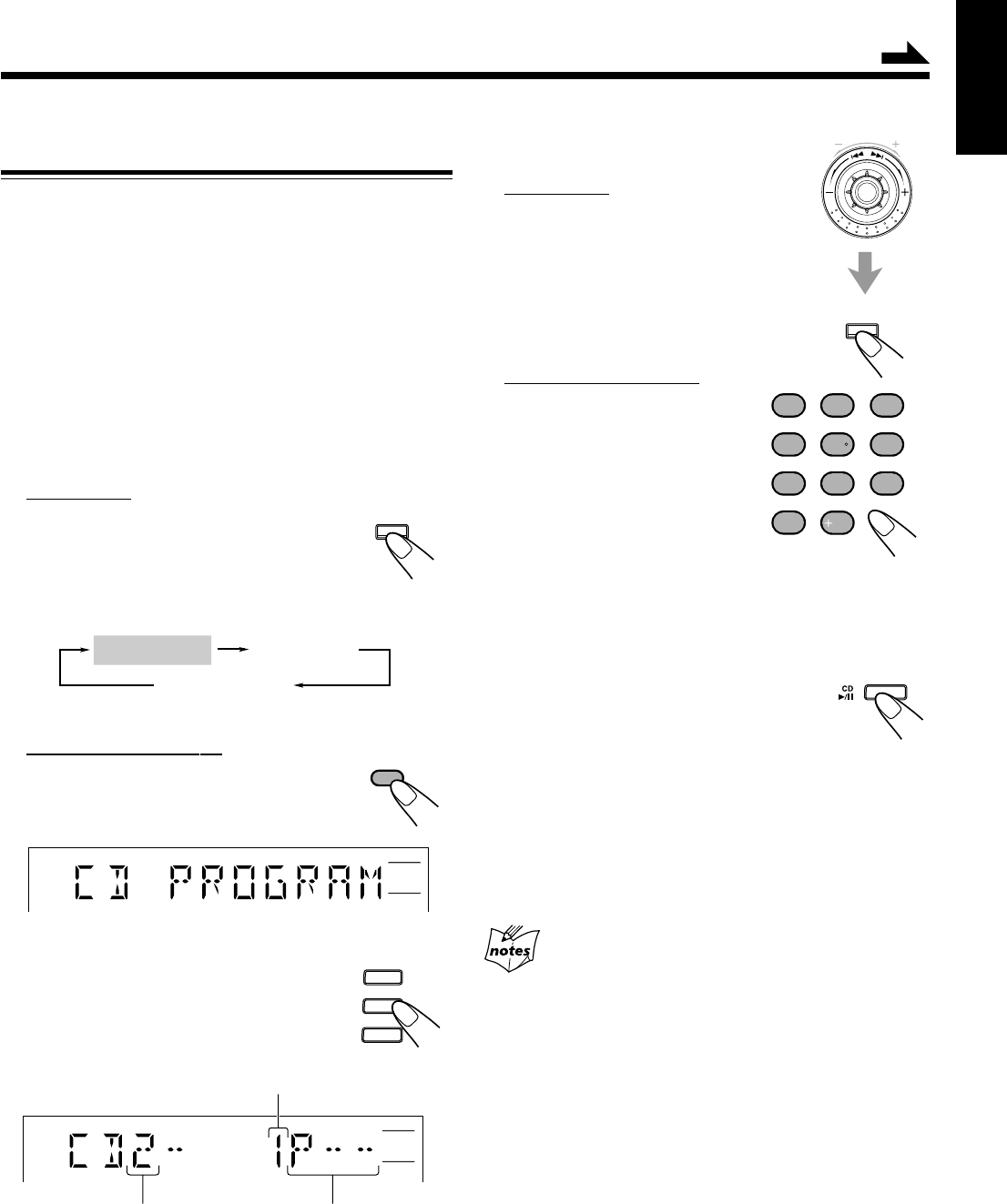

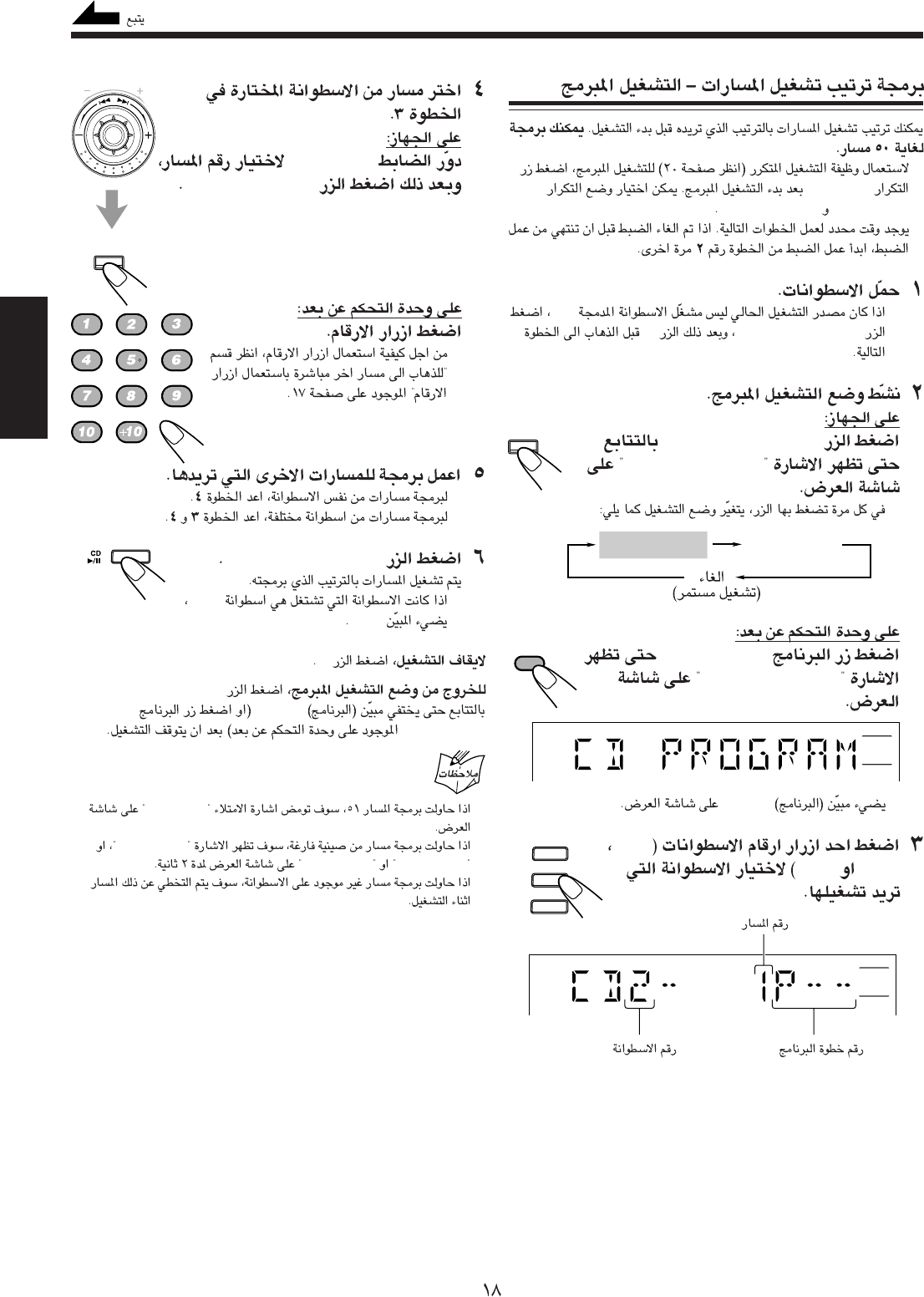

Programming the Playing Order of the Tracks

—Program Play

You can arrange the playing order of the tracks before you

start playing. You can program up to 50 tracks.

• To use Repeat Play (see page 20) for Program Play, press

REPEAT after starting Program Play. Only REPEAT 1 and

REPEAT ALL can be selected for Program Play.

• There is a time limit in doing the following steps. If the setting

is canceled before you finish, start from step

again.

Load discs.

• If the current playing source is not the CD player, press

CD 3¥8 SELECT, then 7 before going to the next step.

Activate the Program Play mode.

On the unit:

Press CD PLAY MODE repeatedly

until “CD PROGRAM” appears on

the display.

• Each time you press the button, the play

mode changes as follows:

On the remote control:

Press PROGRAM so that

“CD PROGRAM” appears

on the display.

• The PRGM (program) indicator lights up on the display.

Press one of the disc number

(CD1, CD2, or CD3) buttons

to select the disc you want to

play.

CD PLAY

MODE

PROGRAM

CD PROGRAM

Canceled

(Continuous Play)

CD RANDOM

PRGM

Continued

EN14-25.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:50 PM18

– 19 –

English

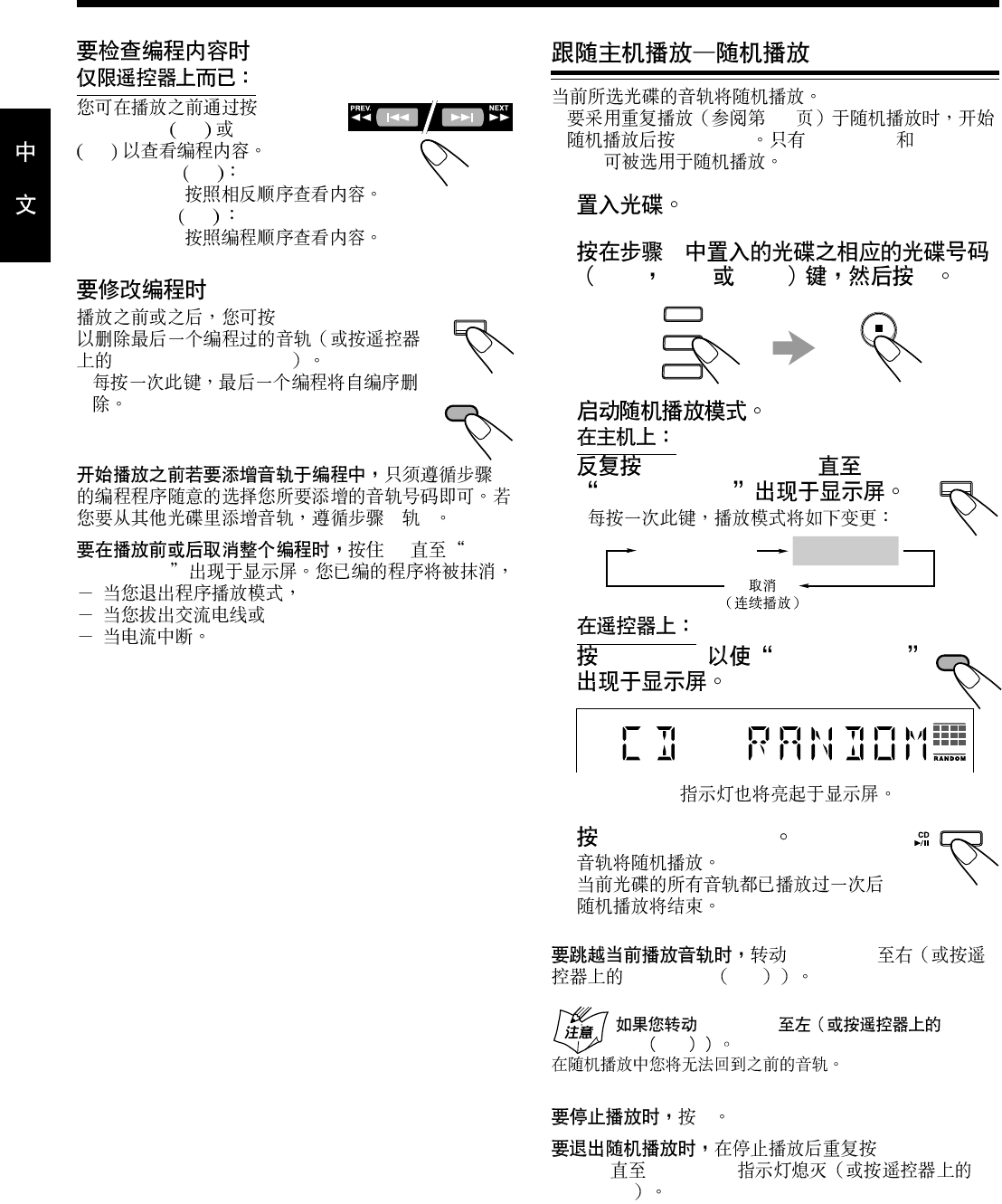

Playing at Random—Random Play

The tracks of the currently selected disc will be played at

random.

• To use Repeat Play (see page 20) for Random Play, press

REPEAT after starting Random Play. Only REPEAT 1 and

REPEAT ALL can be selected for Random Play.

Load a disc.

Press the corresponding disc number (CD1,

CD2, or CD3) button where the disc is loaded

in step

, then press 7.

Activate the Random Play mode.

On the unit:

Press CD PLAY MODE repeatedly

until “CD RANDOM” appears on

the display.

• Each time you press the button, the play

mode changes as follows:

On the remote control:

Press RANDOM so that

“CD RANDOM” appears

on the display.

• The RANDOM indicator also lights up on the display.

Press CD 3¥8 SELECT.

The tracks are randomly played.

Random Play ends when all the tracks

of the current disc are played once.

To skip the currently playing track, turn 4 / ¢ to the

right (or press NEXT ¢ (¡) on the remote control).

If you turn 4 / ¢ to the left (or press PREV. 4

(1) on the remote control)

You cannot go back to the previous tracks during Random Play.

To stop playing, press 7.

To exit from Random Play mode, press CD PLAY MODE

repeatedly until the RANDOM indicator goes off (or press

RANDOM on the remote control) after playback stops.

CD PLAY

MODE

RANDOM

SELECT

CD PROGRAM

Canceled

(Continuous Play)

CD RANDOM

1 2 3 4

5 6 7 8

910 11 12

CD3

CD2

CD1

To check the program contents

On the remote control ONLY:

Before playing, you can check the

program contents by pressing

PREV. 4 (1) or NEXT ¢ (¡).

• PREV. 4 (1) :

Shows the programed tracks in the

reverse order.

• NEXT ¢ (¡) :

Shows them in the programed order.

To modify the program

Before or after playing, you can erase the last

programed tracks by pressing CANCEL/DEMO

(or press PROGRAM CANCEL on the remote

control).

• Each time you press the button, the last

programed track is erased from the program.

To add tracks in the program before playing, simply select

the track numbers you want to add by following step

of the

programming procedure. If you want to add tracks from

another disc, follow steps

and

To erase the entire program before or after playing, press

and hold 7 until “CD PROGRAM” appears on the display.

• The program you have made will be erased,

– when you exit from Program Play mode,

– when you unplug the AC power cord, or

– when a power failure occurs.

PROGRAM

CANCEL

CANCEL / DEMO

EN14-25.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:50 PM19

– 20 –

English

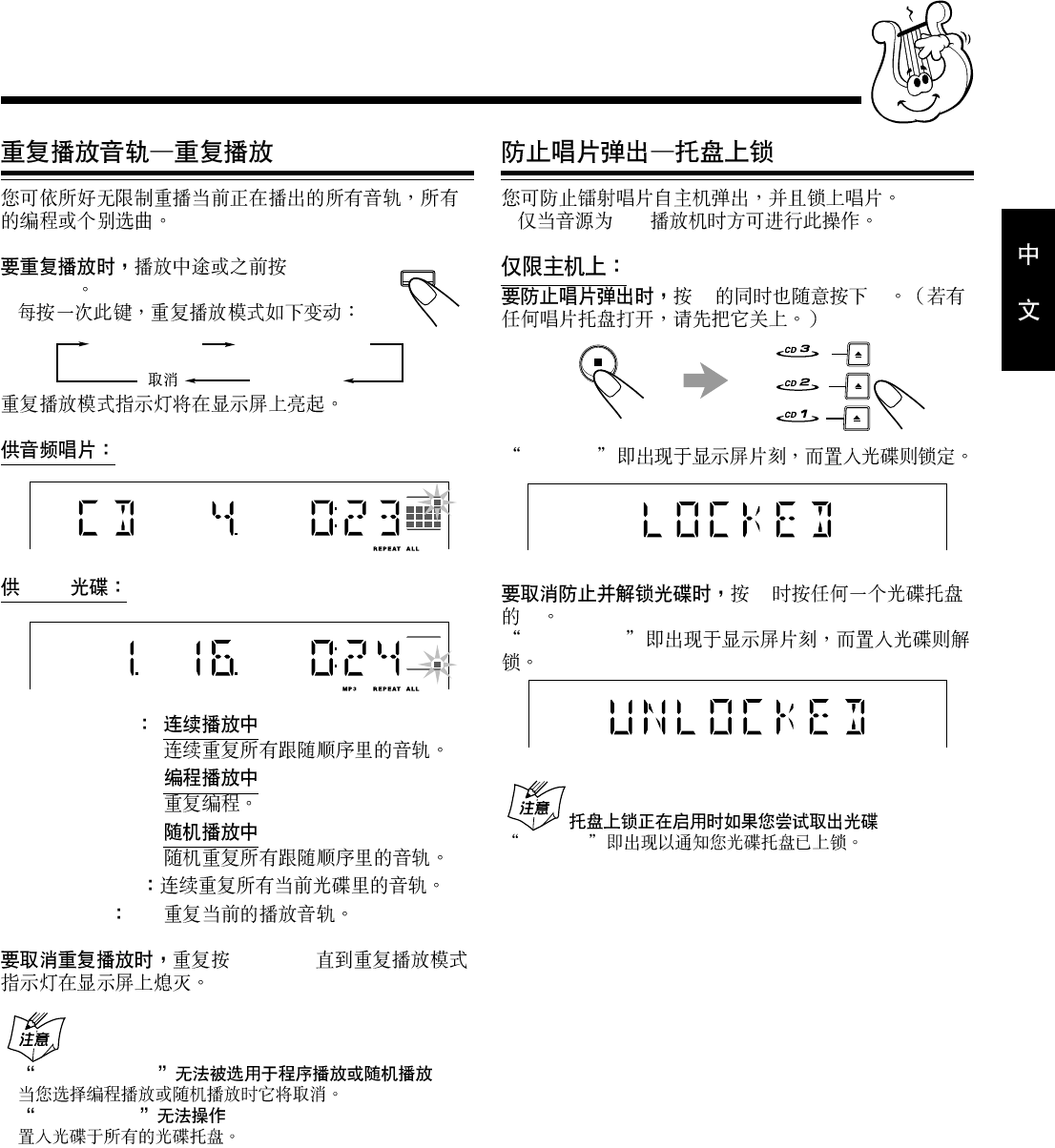

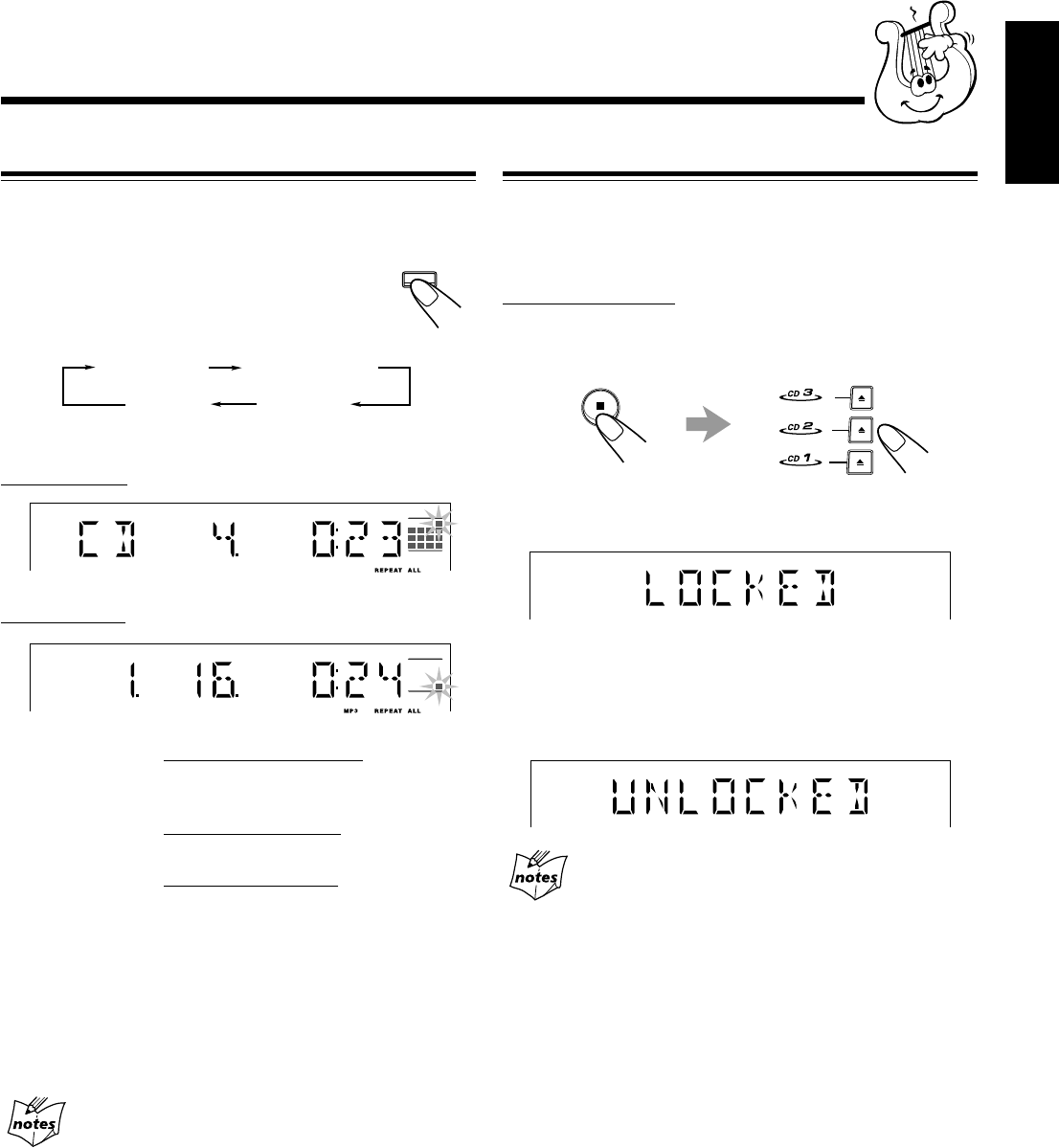

Prohibiting Disc Ejection—Tray Lock

You can prohibit disc ejection from the unit and lock discs.

• This operation is possible only when the source is the CD

player.

On the unit ONLY:

To prohibit disc ejection, press 0 for any disc tray while

holding down 7. (If there is any disc tray opened, close it

first.)

“LOCKED” appears for a while on the display, and the loaded

discs are locked.

To cancel the prohibition and unlock the discs, press 0 for

any disc tray while holding down 7.

“UNLOCKED” appears for a while on the display, and the

loaded discs are unlocked.

If you try to eject discs while Tray Lock is in use

“LOCKED” appears to inform you that the disc trays are locked.

REPEAT

REPEAT ALL REPEAT 1DISC

REPEAT 1Canceled

TRACK

5 6 7 8

910 11 12

13 14 15 16

Repeating Tracks or Discs—Repeat Play

You can have all the discs, the program or the individual track

currently playing repeat as many times as you like.

To repeat playing, press REPEAT during or

before play.

• Each time you press the button, Repeat Play mode

changes as follows:

The Repeat Play mode indicator lights up on the display.

For audio CDs:

For MP3 discs:

REPEAT ALL:During Continuous Play

Repeats all the tracks on all the loaded

discs continuously.

During Program Play

Repeats the program.

During Random Play

Repeats all the tracks on all the loaded

discs randomly.

REPEAT 1DISC: Repeats all the tracks on the current disc

continuously.

REPEAT 1: Repeats the currently playing track.

To cancel Repeat Play, press REPEAT repeatedly until the

Repeat Play mode indicators go off from the display.

•“REPEAT 1DISC” cannot be selected for Program Play or

Random Play

It is canceled when you select Program Play or Random Play.

•“REPEAT ALL” cannot function

Place discs on all disc trays.

GROUP TRACK

EN14-25.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:50 PM20

– 21 –

English

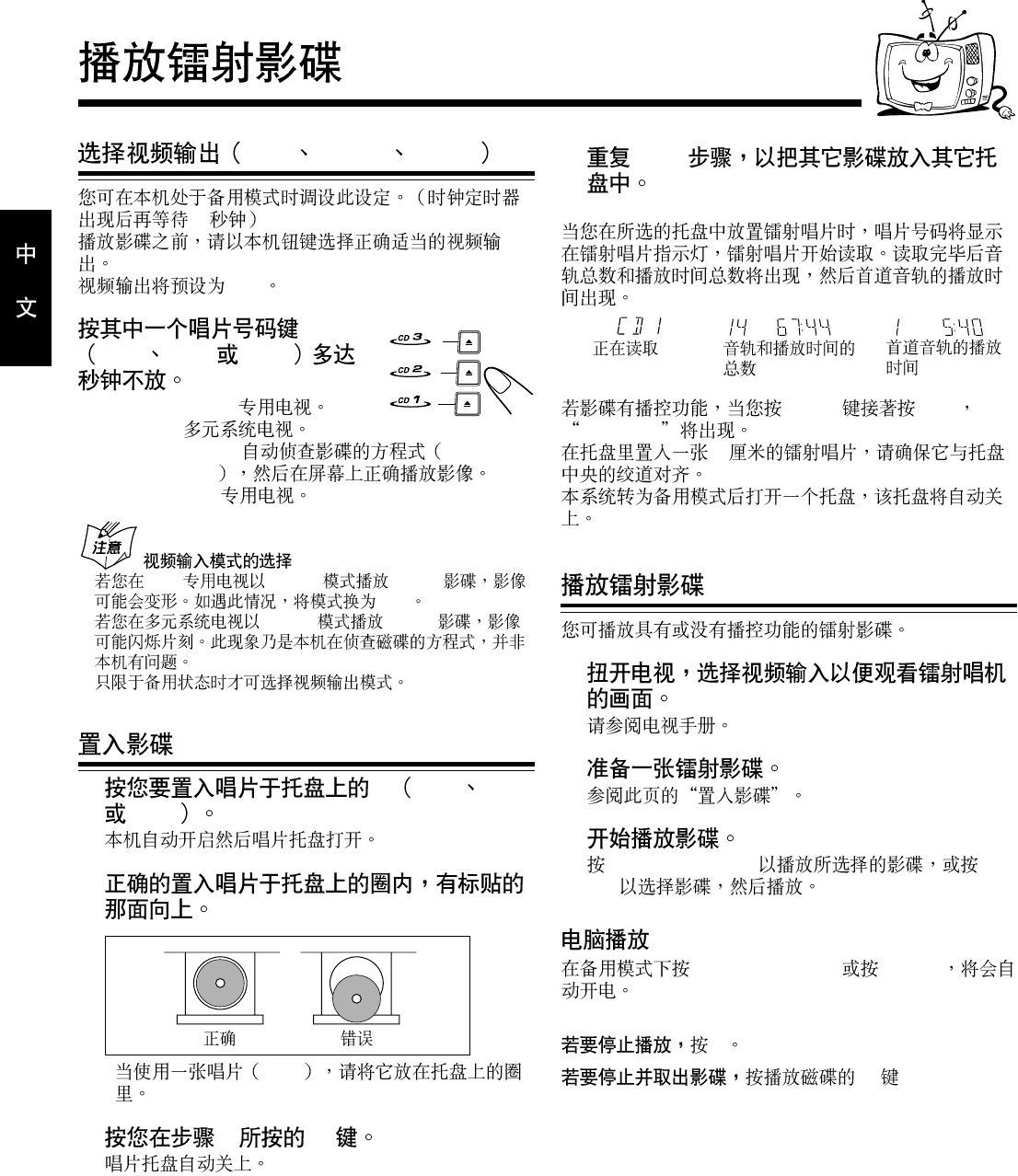

Playing Back Video CDs

Selecting Video Output (PAL, MULTI, NTSC)

You can set this setting in Standby mode. (Wait for 2 second

after the clock timer appear.)

Before playing a VCD, use the buttons on the unit to select a

video output mode to match your TV system.

Video output is preset for PAL.

Press and hold one of the disc

number buttons (CD1, CD2 or

CD3) for more than 2 second.

CD3 ............. for NTSC exclusive TV.

CD2 ............. for Multisystem TV.

Multi detects the formula of the disc (NTSC/

PAL) automatically and displays the image on

the screen correctly.

CD1 ............. for PAL exclusive TV.

Selection of Video Output Mode

• When you play an NTSC disc in MULTI mode on a PAL

exclusive TV, the image may be distorted. If this happens, change

the mode to PAL.

• When you play an NTSC disc in MULTI mode on a Multisystem

TV, the image may blink for a moment. This symptom is caused

by the Unit detecting the formula of the disc, not by a malfunction

of the unit.

• Selection of video output mode works only in standby mode.

Loading Discs

Press 0 for the disc tray (CD1, CD2 or CD3)

you want to load a CD onto.

The unit automatically turns on and the disc tray comes

out.

Place a disc correctly within the circle of the

disc tray, with its label side up.

• When using a CD single (8 cm), place it within the inner

circle of the disc tray.

Press the same 0 you have pressed in step 1.

The disc tray automatically closes.

CORRECT INCORRECT

Repeat steps 1 to 3 to place other CDs.

When you place a CD onto the currently selected tray, whose

disc number shown on the CD indicator, reading of the CD

starts. After the reading is completed, the total number of

tracks and total playing time will appear, then the playing

time of the first track.

If the video CD has the Playback Control function, “VCD

PBC” will appear when you press STOP followed by PBC.

To put an 8 cm CD onto a tray, insert it so that it is aligned

with the groove in the trays center.

If a tray is open when the System switches to the standby

mode, the tray will close automatically.

Playing a Video CD

You can play video CDs either with or without the PBC

function.

Turn on the TV and select the video input so

that you can view the pictures from the CD

player.

Refer to the manual supplied for your TV.

Prepare a CD.

Refer to “Loading Discs” on this page.

Start playback of the CD.

Press CD 3/8 SELECT, to start playback of the currently

selected CD, or press CD 1-3 to select the disc and start

play.

Compu Play

When CD 3/8 SELECT or CD 1-3 is pressed while the

system is on standby, the power is automatically turned on.

To stop during play, press 7.

To stop play and remove the disc, press 0 for the disc being

played.

CD READING Total number of tracks

and playing time

Playing time of the

1st track

EN14-25.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:50 PM21

– 22 –

English

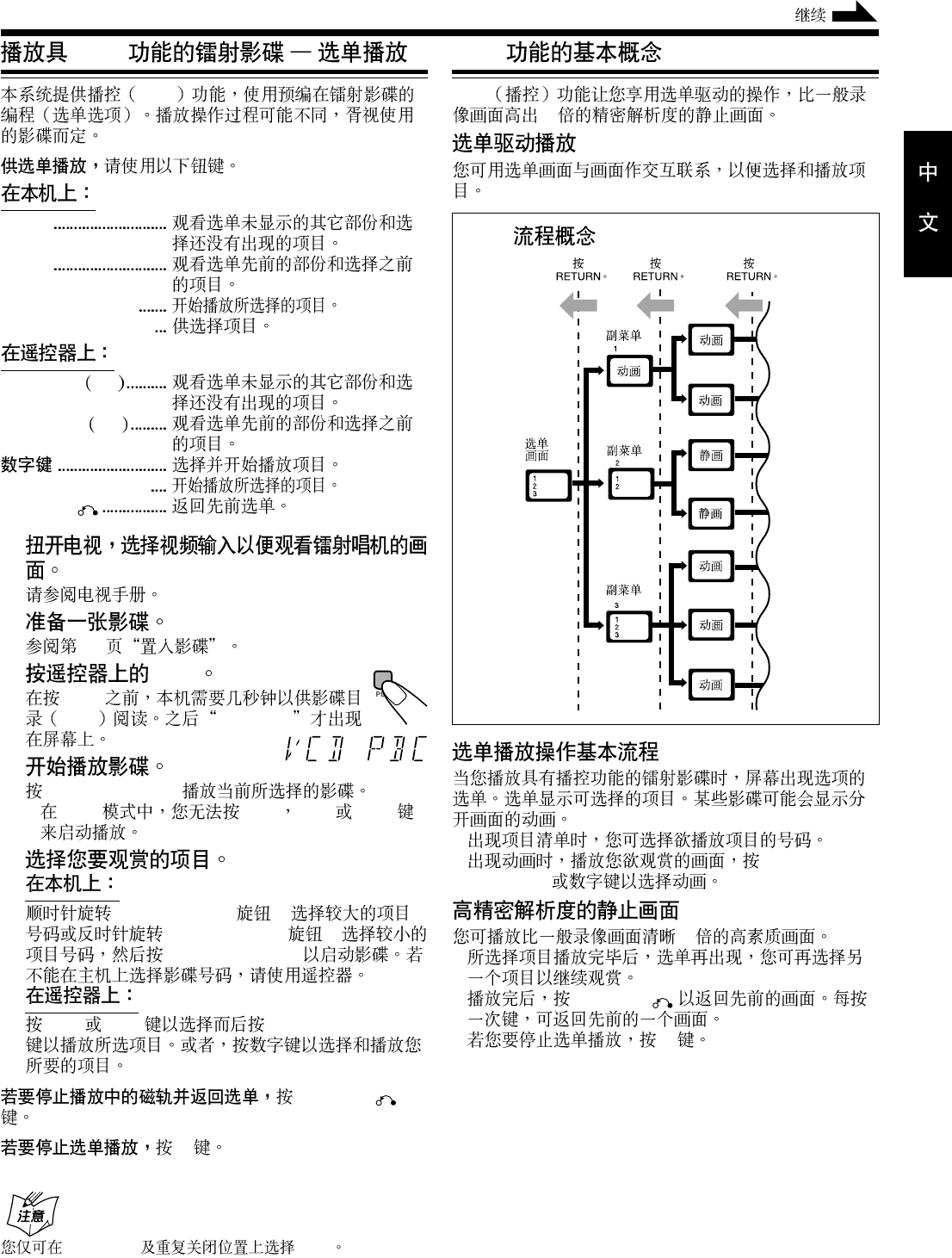

Playing Video CDs with PBC Function — Menu

Play

This System provides Playback Control (PBC) which utilizes

a procedure (menu selection) programmed in a video CD.

The playback operation procedure may differ depending on

the disc you use.

For Menu Play, use the following buttons:

On the unit:

¢+ ...........................for viewing the unshown portion of

the menu and for selecting an

upcoming item.

4– ........................... for viewing the previously shown

portion of the menu and selecting a

previous item.

CD 3/8 SELECT .......

for starting playback of the selected item

VCD NUMBER +, –...for selecting an item

On the remote control:

NEXT ¢ (¡) ......... for viewing the unshown portion of

the menu and for selecting an

upcoming item.

PREV. 4 (1) ......... for viewing the previously shown

portion of the menu and selecting a

previous item.

Number Buttons.......... for selecting and starting playback of

an item

(SELECT) CD 3/8.....

for starting playback of the selected item

RETURN ............... for returning to the previous menu

Continued

Turn on the TV and select the video input so that

you can view the pictures from the CD Player.

Refer to the manual supplied for your TV.

Prepare a CD.

Refer to “Loading Discs” on page 21.

Press PBC on the remote control.

Allow several seconds for the discs table of

contents (TOC) to be read before pressing PBC.

“VCD PBC” appears on the display.

Start playback of the CD.

Press CD 3/8 SELECT, to start play of the currently selected CD.

• In PBC mode, playback cannot be activated by pressing

CD1, CD2 or CD3 buttons.

Select the item you want to view.

On the unit:

Turn the VCD NUMBER knob + clockwise to select ascending

item number, or VCD NUMBER knob – anticlockwise to select

decending item number. Then press SELECT CD 3/8 button to

start the disc. In case VCD number cannot be selected from the

unit, please use the remote control.

On the remote control:

Press the

button to select and then press SELECT

CD 3/8 button to play the selected item. Alternatively, press the

number button to select and play the item you desire.

To stop the track being played and return to the menu,

press RETURN button.

Basic Concept of the PBC Function

PBC (Playback Control) allows you to enjoy menu–driven

operation and high resolution still images having a resolution

four times greater than video pictures.

Menu-driven playback

You can interact with the screen using a menu display to

select and play an entry.

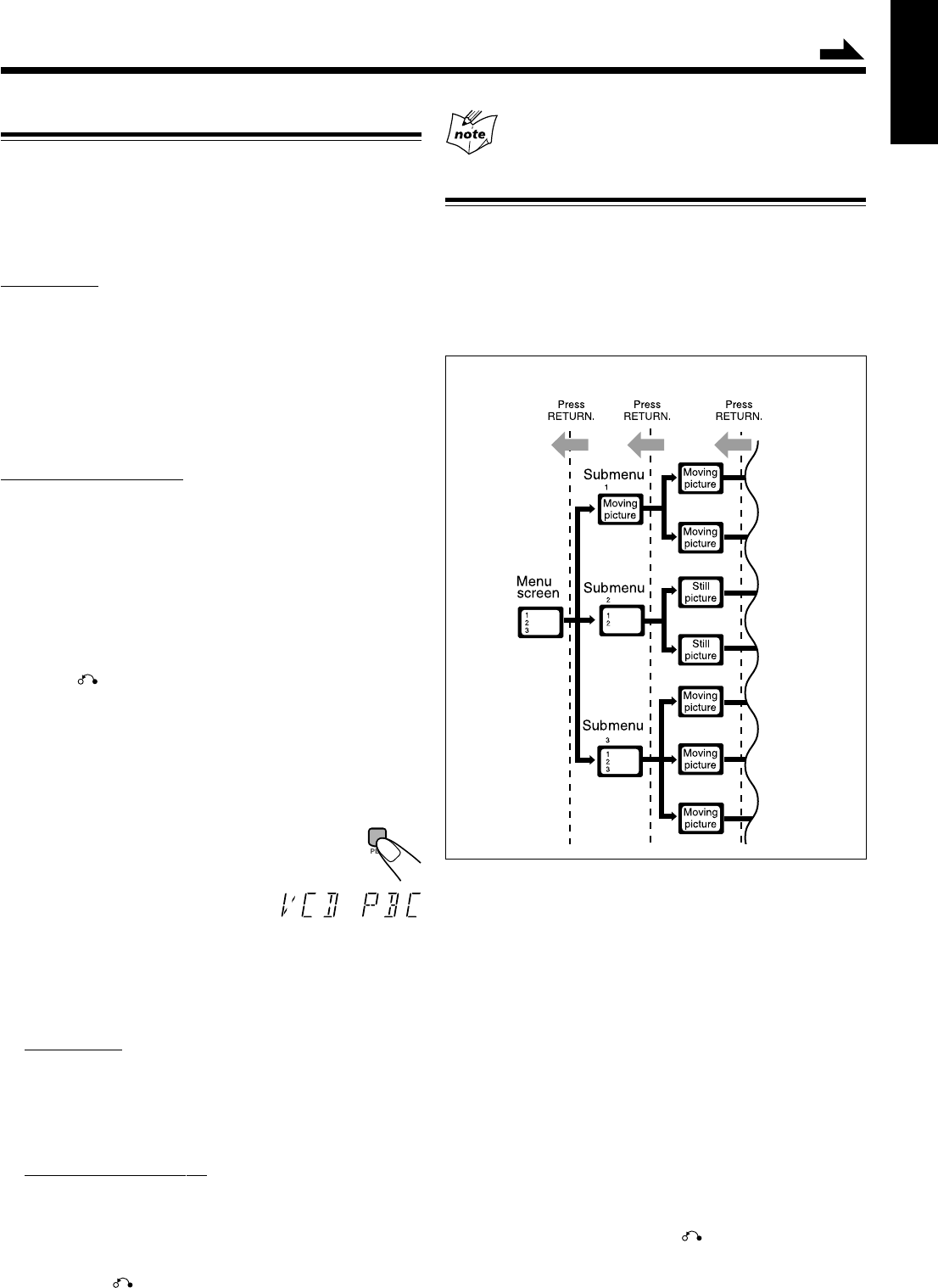

Concept of PBC Flow

Basic flow of Menu Play Operation

A selection menu is shown when you start playing a video

CD with PBC. The menu shows a list of items to select. Some

discs may show moving pictures or a divided screen.

• When a list of items appears, you can select the number of

the item you want to playback.

• When moving pictures appear, you can select a moving

picture by pressing 4 PREV / ¢ NEXT or number

buttons while the moving picture you want to view is being

played back.

High-resolution still image display

You can display high-quality images four times clearer than

video pictures.

• When the menu appears after the item you have selected

finishes playing, you can select another item that you want

to view next.

• After playback, press RETURN , to go back to the

previous screen. Each time you press the button, you will

go back by one screen.

• If you want to stop Menu Play, press 7.

To stop Menu Play, press 7.

You can only select PBC in CD STOP and repeat off position.

EN14-25.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:50 PM22

– 23 –

English

Screen-saver

• When a menu screen of a karaoke disc is displayed for a few

minutes without any selection being made, it automatically starts

from the first song.

Do not paused Video CD for more then 10 minutes to prevent screen

burns.

Playing Video CDs without PBC — Continuous

Play

Even if a video CD has PBC, you can cancel PBC and play

the disc without using the menu screen.

Turn on the TV and select the video input so that

you can view the pictures from the CD Player.

Refer to the manual supplied for your TV.

Prepare a CD.

Refer to “Loading Discs” on page 21.

Start playback of the CD.

On the unit:

Press CD 3/8 SELECT or CD 1-3 of the

tray you want to play from. The selected

video CD starts playback from the first

track if you pressed CD 1-3.

On the remote control:

Press the number button of the track you want to start

playing. The playback starts from the selected track of the

currently selected disc.

To stop during play, press 7.

To restore PBC, press the PBC button again, then press CD

3/8 SELECT to play VCD with PBC.

Cancelling PBC

• After cancelling PBC, you can Continuously Play more than one

video CD without PBC.

• When PBC is cancelled, some images such as still play pictures

may not be played back.

• You cannot change from PBC OFF to PBC ON while CD is

playing.

Resuming Play

If you stop a video CD directly, you can continue viewing

from the scene where you last stopped.

During playing of a VCD, press 7 button to stop

playing (refer to page 21).

Press CD 3/8 SELECT button to continue playback

from the last scene that you stopped at.

1 Resume play will not work when the CD tray has been opened.

2 It is advisable to turn off PBC to use resume play otherwise it will

resume at PBC menu.

3 Resume Play will not function on VCD version 1.1.

Special Plays for a Video CD

You can use the following special play modes for video CDs

both with and without PBC. The following functions can only

be executed with the buttons on the remote control.

Frame-by-Frame Playback

Press the STILL button during playback. Then each

time you press the button, still pictures advance by

one frame. During frame-by-frame playback, no

sound is emitted.

To resume normal playback, press CD 3/8 SELECT.

Viewing Operating Status

Usually, the following information of the track being played

is shown on the TV screen during playback : the disc number,

the track number, and the playing time.

Press ON SCREEN.

This button shows the display of operation status.

When the display of operation status turns on, the

following information of the track being played

appear on the TV screen: Disc number, track number/

total number of tracks and the current tracks elapsed time.

Continued

CD3

CD2

CD1

To cancel the display of operation status, press ON SCREEN.

Viewing the Video Intro of the Video CD

You can view the contents of a video CD, watching for about 7

seconds of each track on the video CD. Video intro does not

work with PBC. For a video CD with PBC, cancel the PBC

function referring to “Playing Video CDs without PBC” above.

Press CD 1-3, to select the disc you

want to view the video intro.

Playback starts.

D3 01/20 2:31

CD3

CD2

CD1

Disc Number

Track number/total number of track

Current tracks elapsed time

EN14-25.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:50 PM23

– 24 –

English

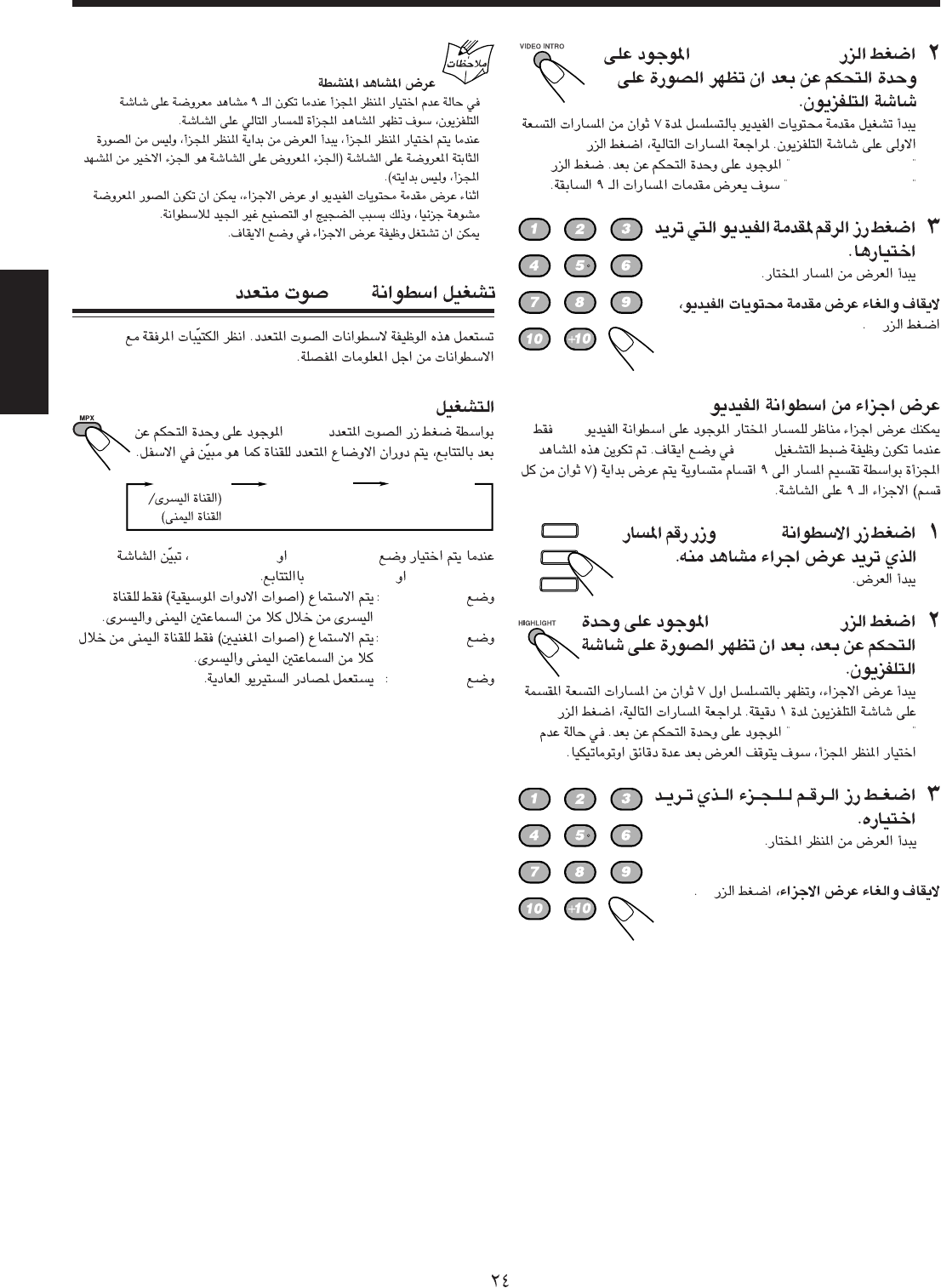

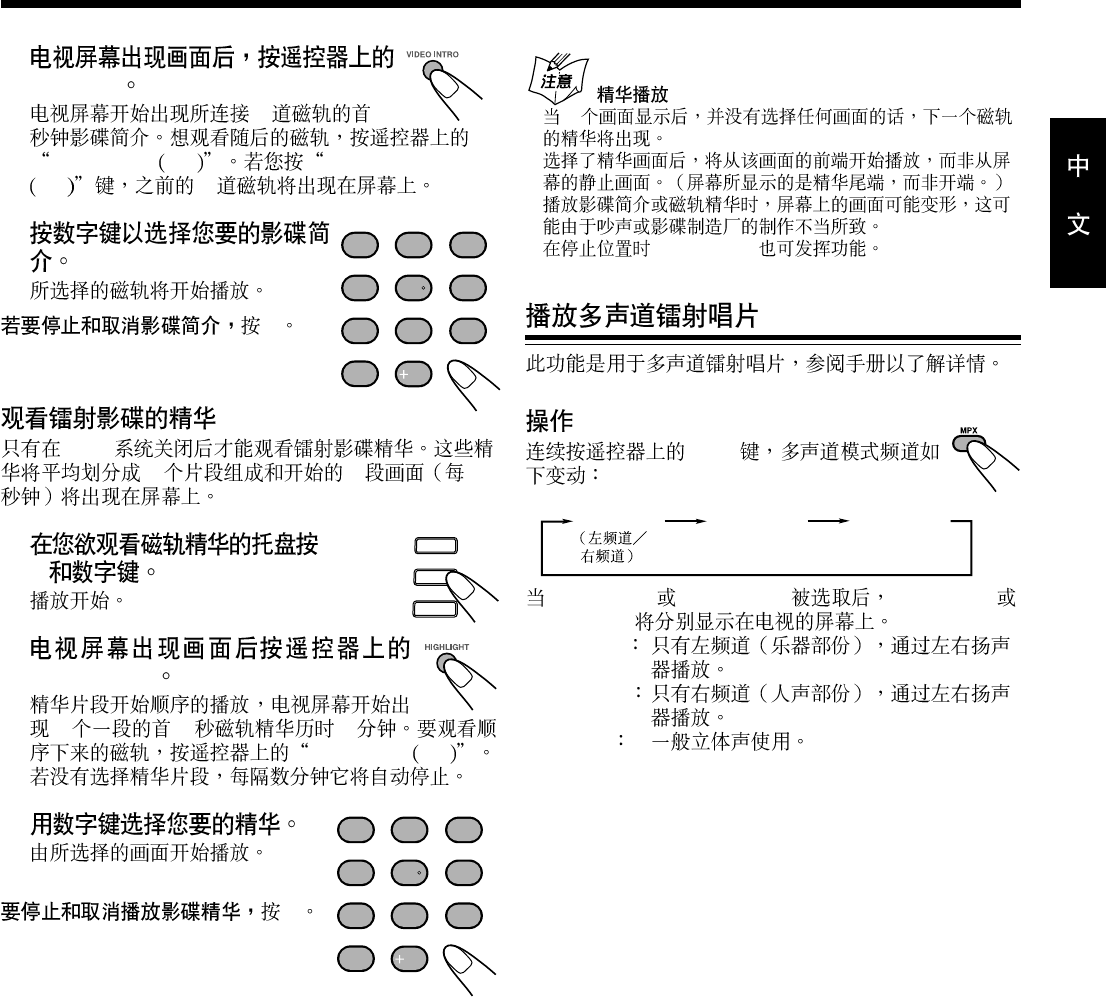

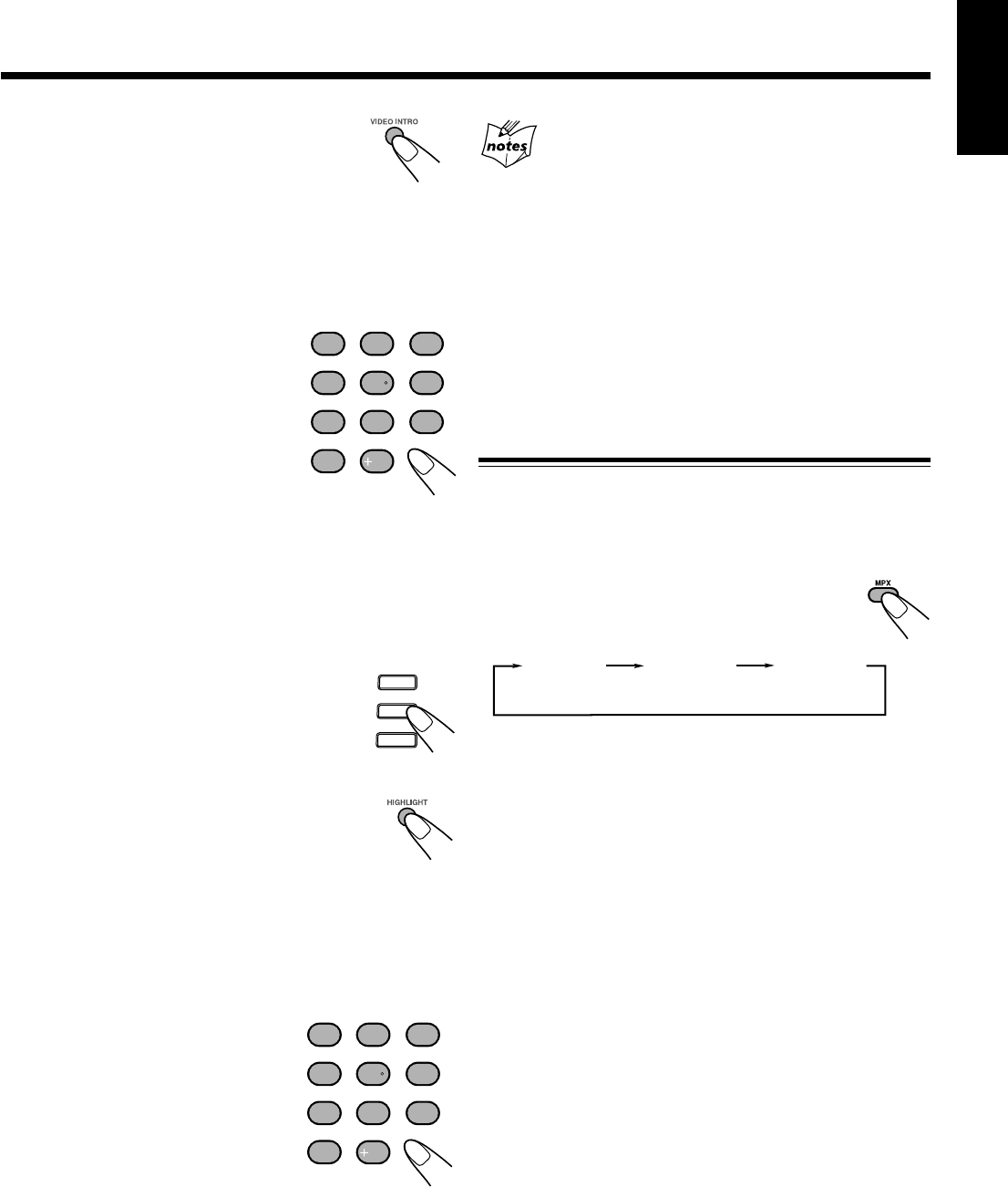

Press VIDEO INTRO on the remote

control after a picture appears on the

TV screen.

The video intro play starts and shows in sequence for

about 7 seconds of the first nine tracks on the TV screen.

To preview subsequent tracks, press “NEXT ¢ (¡)”

on the remote control. Pressing “PREV. 4 (1)” will

display the previous 9 track intros.

Press the number button for the

video intro you want to select.

Playback starts from the selected

track.

To stop and cancel the video intro

play, press 7.

Viewing the Highlights of a Video CD

You can view highlight scenes of the selected track on a

video CD only when PBC is off. These highlight scenes are

created by dividing the track equally into 9 portions and the

beginning scenes (7 seconds each) of those 9 portions are

shown on the display.

Press CD 1-3 and the number button

for the track you want to view the

highlights of.

Playback starts.

Press HIGHLIGHT on the remote

control after a picture appears on the TV

screen.

The highlight play starts and shows in

sequence, the first 7 seconds of nine track divisions on the

TV screen for 1 minute. To preview subsequent tracks,

press “NEXT ¢ (¡)” on the remote control. If a

highlight scene is not selected, it will automatically stop

after a few minutes.

Press the number button for the

highlight you want to select.

Playback starts from the selected

scene.

To stop and cancel the highlight play,

press 7.

Viewing highlights

• If a highlight scene is not selected while 9 scenes are shown on

the TV, highlight scenes of the next track will appear on the

display.

• When a highlight scene is selected, playback starts from the

beginning of the highlight scene, but not from the still image

shown on the display (the part shown is the last part of the

highlight scene, not its beginning)

• During the video intro or highlight play, images shown on the

display may be partially distorted, resulting from noise or

incorrect manufacturing of the disc.

• Highlight also can function in stop position.

Playing a Multiplex Sound CD

This function is used for multiplex sound discs. See manuals

attached to discs for detailed information.

Operation

By pressing the MPX button on the remote control

consecutively, channel multiplexing modes are

cycled as shown below.

When Lch MONO or Rch MONO is selected, display

indicates Lch MONO or Rch MONO respectively.

Lch MONO: Only the left channel (instrumental parts) is

played back through both right and left

speakers.

Rch MONO: Only the right channel (vocal parts) is played

back through both right and left speakers.

NORMAL: Used for conventional stereo sources.

Lch MONONORMAL Rch MONO

(Left channel/

Right channel)

CD3

CD2

CD1

EN14-25.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:50 PM24

– 25 –

English

You can play back type I tapes without changing any settings.

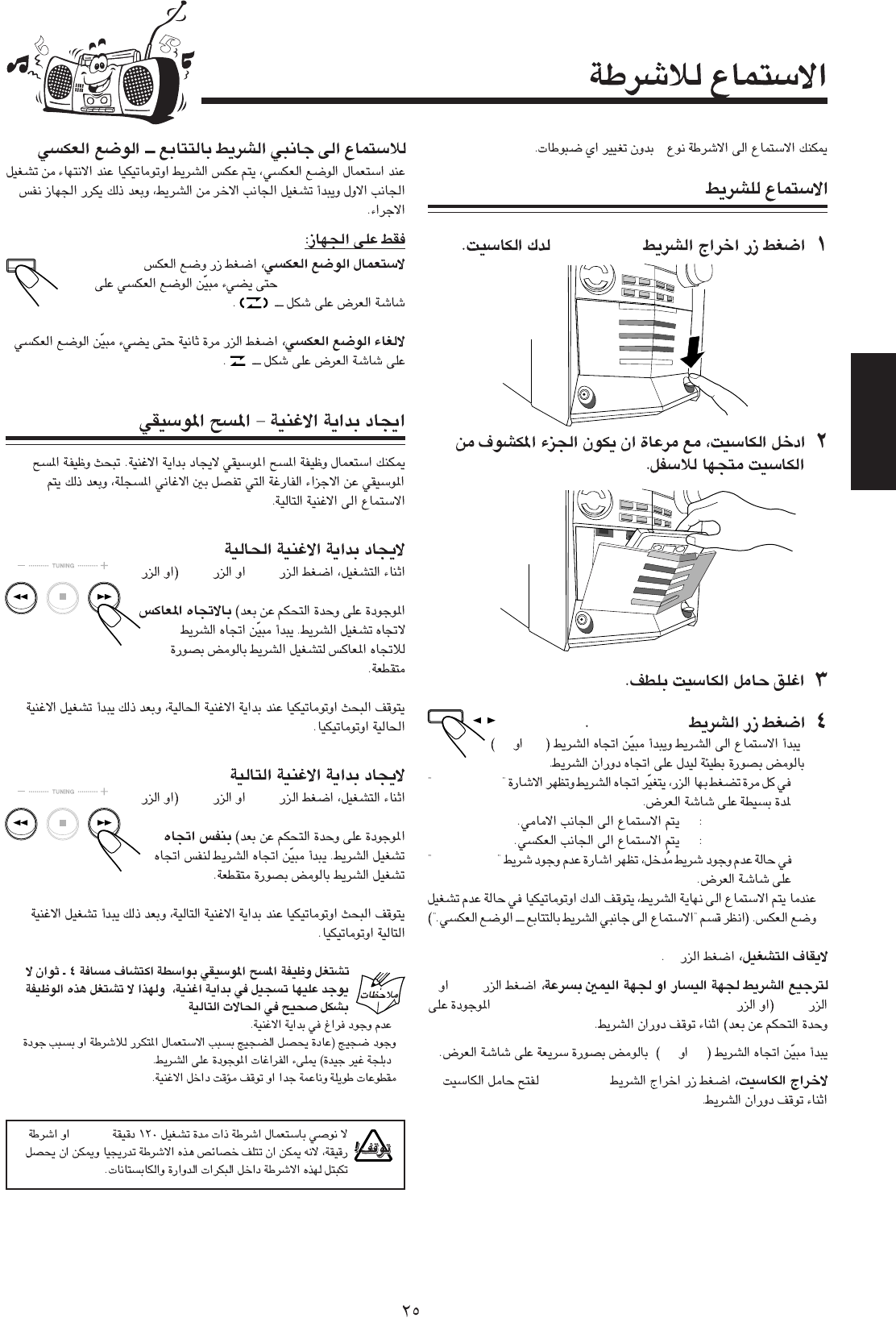

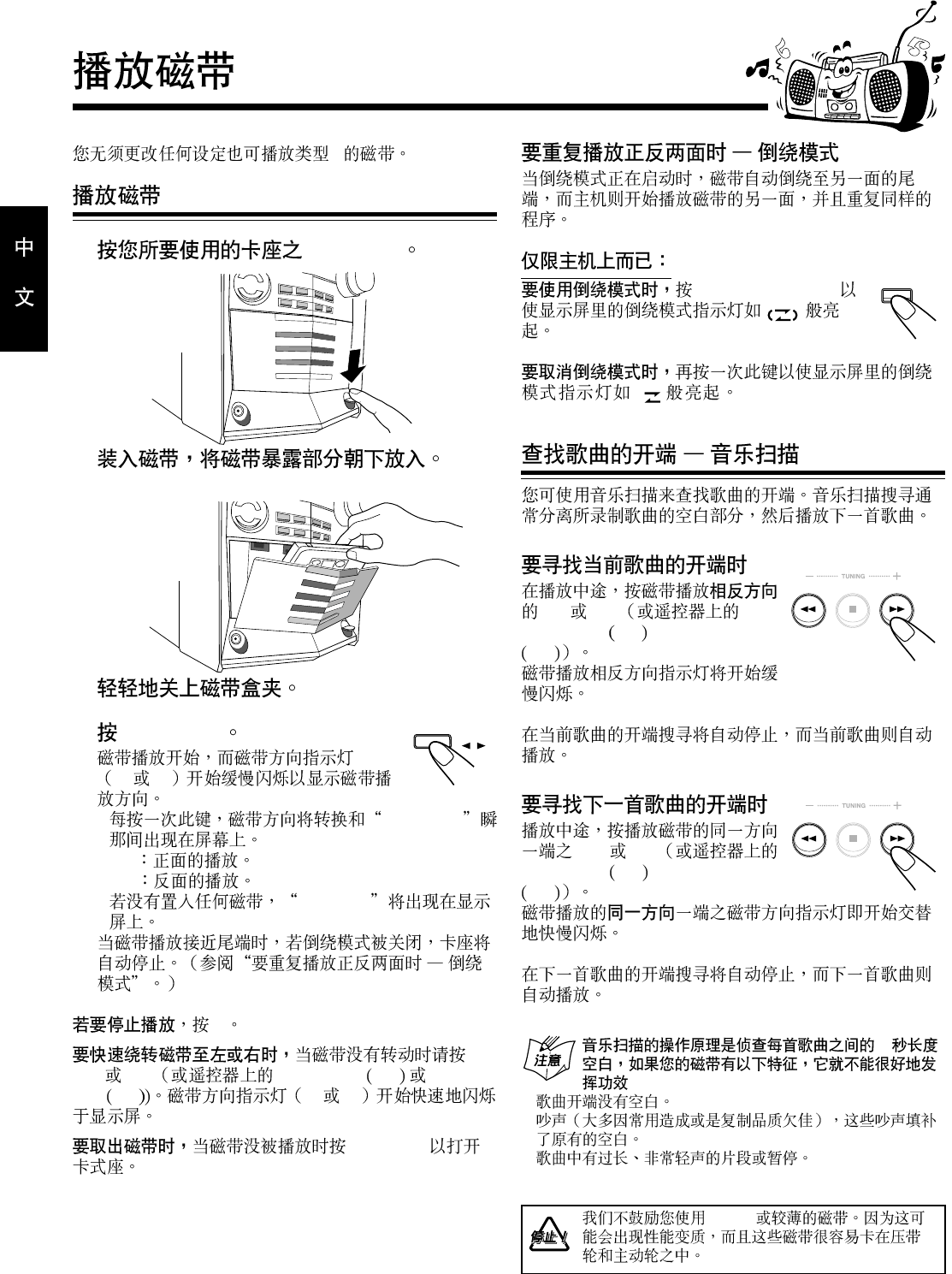

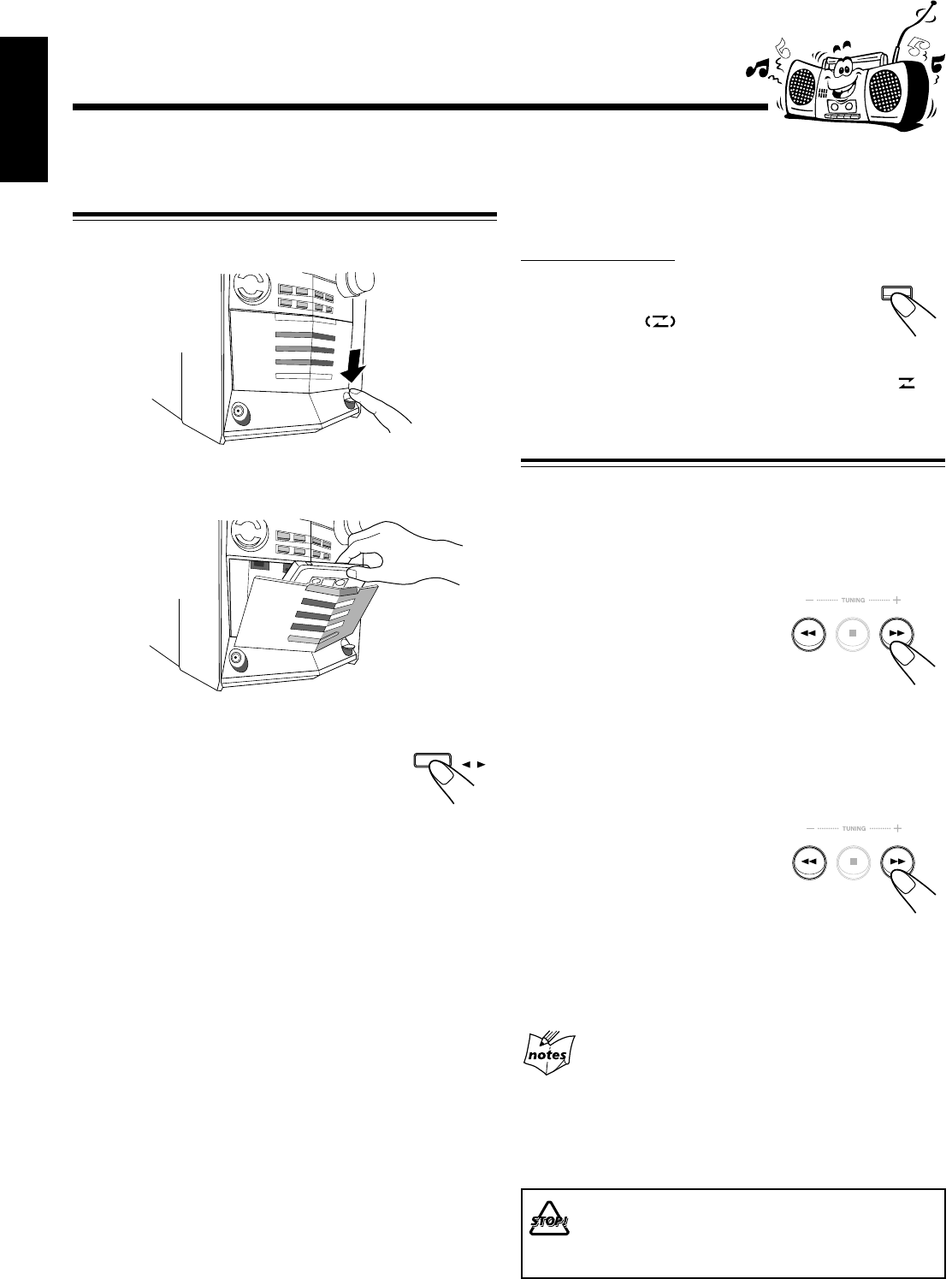

Playing Back a Tape

Press 0 EJECT for the cassette deck.

Insert a cassette with the exposed part of the

tape down.

Close the cassette holder gently.

Press TAPE 2 3.

The tape play starts and the tape direction

indicator (3 or 2) starts flashing slowly

to indicate the tape running direction.

• Each time you press the button, the tape direction changes

and “REVERSE” appears for a while on the display.

3 : plays the front side.

2 : plays the reverse side.

• If no cassette is inserted, “NO TAPE” appears on the

display.

When the tape plays to the end, the deck automatically

stops if the Reverse Mode is off. (See “To play both sides

repeatedly—Reverse Mode.”)

To stop playing, press 7.

To fast-wind to the left or to the right, press 1 or ¡ (or

PREV. 4 (1) / NEXT ¢ (¡) on the remote control)

while the tape is not running.

The tape direction indicator (3 or 2) starts flashing quickly

on the display.

To remove the cassette, press 0 EJECT to open the cassette

holder while the tape is not running.

Playing Back Tapes

To play both sides repeatedly—Reverse Mode

When using Reverse Mode, the tape automatically reverses at

the end of one side, starts playing the other side of the tape,

and repeats the same process.

On the unit ONLY:

To use Reverse Mode, press REVERSE MODE

so that the Reverse Mode indicator lights up on

the display like— .

To cancel Reverse Mode, press the button again so that the

Reverse Mode indicator lights up on the display like— .

Locating the Beginning of a Song—Music Scan

You can use Music Scan to locate the beginning of a song.

Music Scan searches for blank portions that usually separate

recorded songs, then plays the next song.

To find the beginning of the current song

During play, press 1 or ¡

(or PREV. 4 (1) /NEXT ¢

(¡) on the remote control) in the

opposite direction to the tape play.

The tape direction indicator of the

opposite direction to the tape play starts flashing intermittently.

Searching stops automatically at the beginning of the current

song, and it starts automatically.

To find the beginning of the next song

During play, press 1 or ¡

(or PREV. 4 (1) / NEXT ¢

(¡) on the remote control) in the

same direction as the tape play.

The tape direction indicator of the

same direction as the tape play starts flashing intermittently.

Searching stops automatically at the beginning of the next

song, and it starts automatically.

Music Scan works by detecting a 4-second long blank

between each song, so it will not work well in the

following cases

• No blank at the beginning of a song.

• Noise (often caused by much use or poor quality dubbing) which

fills the blank.

• Long, very soft passages or pauses in a song.

The use of the C-120 or thinner tape is not

recommended, since characteristic deterioration

may occur and this tape easily jams in the pinch-

rollers and the capstans.

TAPE

REVERSE

MODE

EN14-25.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:50 PM25

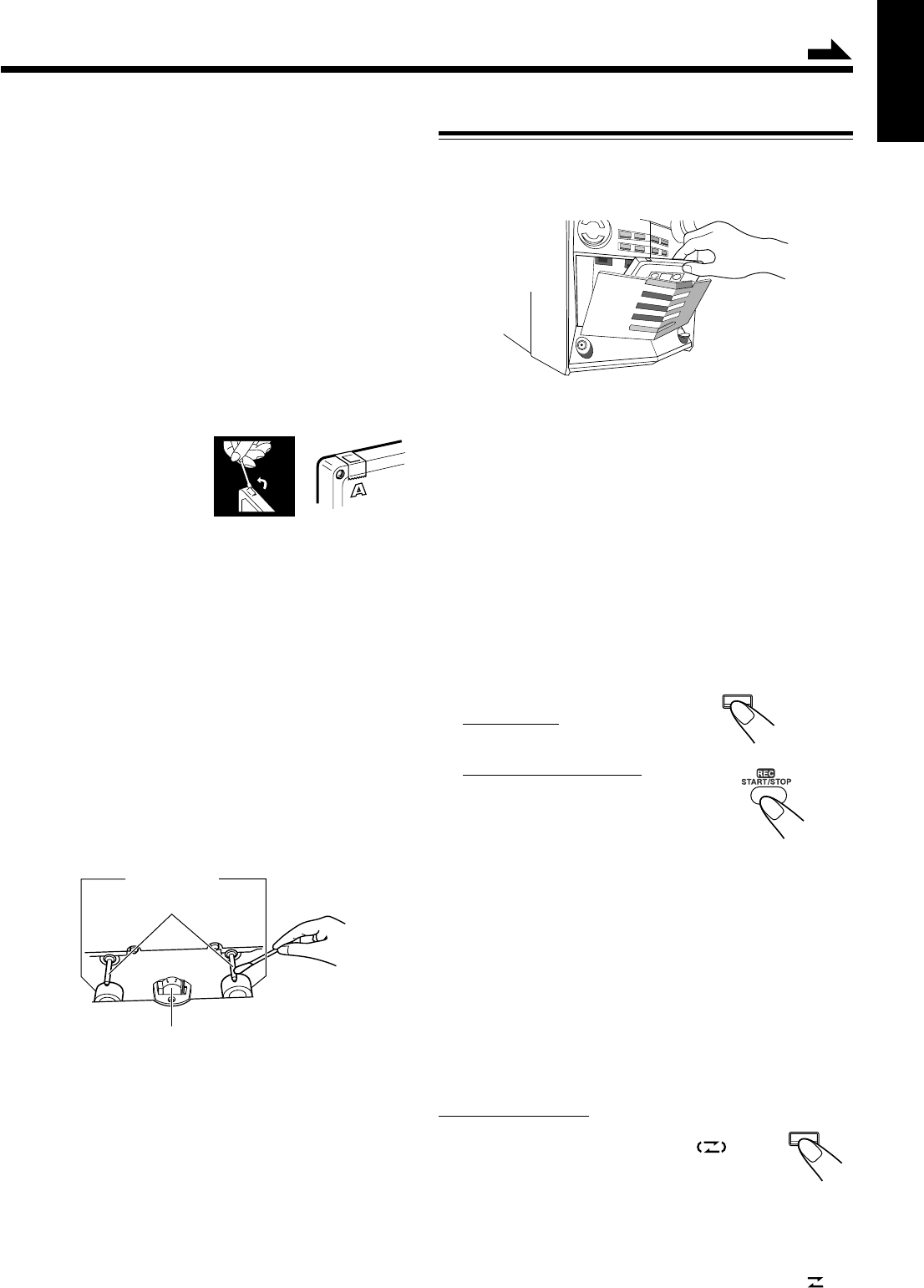

– 26 –

English

Recording

Recording on a Tape

Press 0 EJECT and insert a recordable cassette

with the exposed part of the tape down.

Close the cassette holder gently.

• If you want to record on both sides of a tape, see “To

record on both sides—Reverse Mode.”

Check the tape direction of the cassette deck.

• If the tape direction is not correct, press TAPE 2 3 twice

then 7 to change the tape direction.

Start playing the source—FM, AM, CD player

or auxiliary equipment connected to AUX jacks.

• When the source is the CD player, you can also use the

button on the remote control. Direct Recording—(see

page 27), and Auto Edit Recording (only for audio

CDs)—(see page 27).

Start recording.

On the unit:

Press REC START/STOP.

On the remote control:

Press and hold REC START/

STOP for more than 1 second.

The REC (recording) lamp flashes when

recording starts, and the tape direction indicator (3 or 2)

starts flashing slowly.

• If no cassette is inserted, “NO TAPE” appears on the

display. If a protected tape is inserted, “NO REC”

appears on the display.

To stop recording immediately, press REC START/STOP

on the unit or 7 (or press and hold REC START/STOP on

the remote control for more than 1 second).

To remove the cassette, press 0 EJECT to open the cassette

holder while the tape is not running.

To record on both sides—Reverse Mode

On the unit ONLY:

Press REVERSE MODE so that the Reverse Mode

indicator lights up on the display like— .

• When using the Reverse Mode for recording,

start recording in the forward (3) direction first.

Otherwise, recording will stop when only one side (reverse)

of the tape is recorded.

To cancel Reverse Mode, press the button again so that the

Reverse Mode indicator lights up on the display like— .

IMPORTANT:

•It may be unlawful to record or play back copyrighted

material without the consent of the copyright owner.

• The recording level is automatically set correctly, so it is

not affected by the VOLUME, the ACTIVE BASS EX. (For

CA-HXZ7V), SUBWOOFER LEVEL (For CA-HXZ9V),

and the SOUND MODE controls. Thus, during recording

you can adjust the sound you are actually listening to

without affecting the recording level.

• If there are excessive noise or static in the recording you

have made, the unit may be too close to a TV. Increase the

distance between the TV and the unit.

• You can use type I tape for recording.

To protect your recording

Cassettes have two small tabs

on the back to protect from

unexpected erasure or re-

recording.

To protect your recording,

remove these tabs.

To re-record on a protected tape, cover the holes with

adhesive tape.

To keep the best recording and playback sound

quality

If the heads, capstans, and pinch rollers of the cassette deck

become dirty, the following will occur:

• Impaired sound quality

• Discontinuous sound

• Fading

• Incomplete erasure

• Difficulty in recording

To clean the heads, capstans, and pinch rollers

Use a cotton swab moistened with alcohol.

To demagnetize the heads

Turn off the unit, and use a head demagnetizer (available at

electronics and audio shops).

Heads

Capstans

Pinch rollers

REC START

/ STOP

REVERSE

MODE

Continued

EN26-33.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 9:44 AM26

– 27 –

English

Synchronized Recording

By using Synchronized Recording methods, you can start and

stop both disc play and tape recording at the same time.

7 Direct Recording

Everything on the disc goes onto the tape in the order on the

disc, or according to the order you have made for Program

Play.

On the unit ONLY:

Press 0 EJECT and insert a recordable cassette

with the exposed part of the tape down.

Load a disc.

Select a disc.

For audio CDs:

Press the corresponding disc number

(CD1, CD2, or CD3) button where a

disc is loaded in step

, then press 7.

For MP3 discs:

You can select a track to start recording

with.

1) Press the corresponding disc number

(CD1, CD2, or CD3) button where a

disc is loaded in step

2) Turn 4 / ¢ to select the group, then press CD 3¥8

SELECT.

3) Turn 4 / ¢ to select the track.

REVERSE

MODE

CD3

CD2

CD1

CD REC

START

Press CD REC START.

“CD REC” appears on the display and the

REC (recording) lamp flashes when

recording starts.

The cassette deck starts recording while the

CD player starts playing.

When the recording is done, “CD REC FINISHED”

appears scrolling on the display, and the REC (recording)

lamp turns off. Both the cassette deck and the CD player

stop automatically.

To stop recording, press 7 to create a 4-second

blank portion on the recording tape. (Remember,

a 4-second blank is important when using Music

Scan—see page 25.)

To record on both sides—Reverse Mode

On the unit ONLY:

Press REVERSE MODE so that the Reverse Mode

indicator lights up on the display like— .

• When using the Reverse Mode for Direct

Recording, start recording in the forward (3)

direction first. When the tape reaches its end while

recording a song in the forward direction (3), the last song

will be re-recorded at the beginning of the reverse side (2).

If you start recording on the reverse side (2) first,

recording will stop when only one side (reverse) of the tape

is recorded.

To cancel Reverse Mode, press the button again so that the

Reverse Mode indicator lights up on the display like— .

CD3

CD2

CD1

SELECT

EN26-33.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 9:45 AM27

– 28 –

English

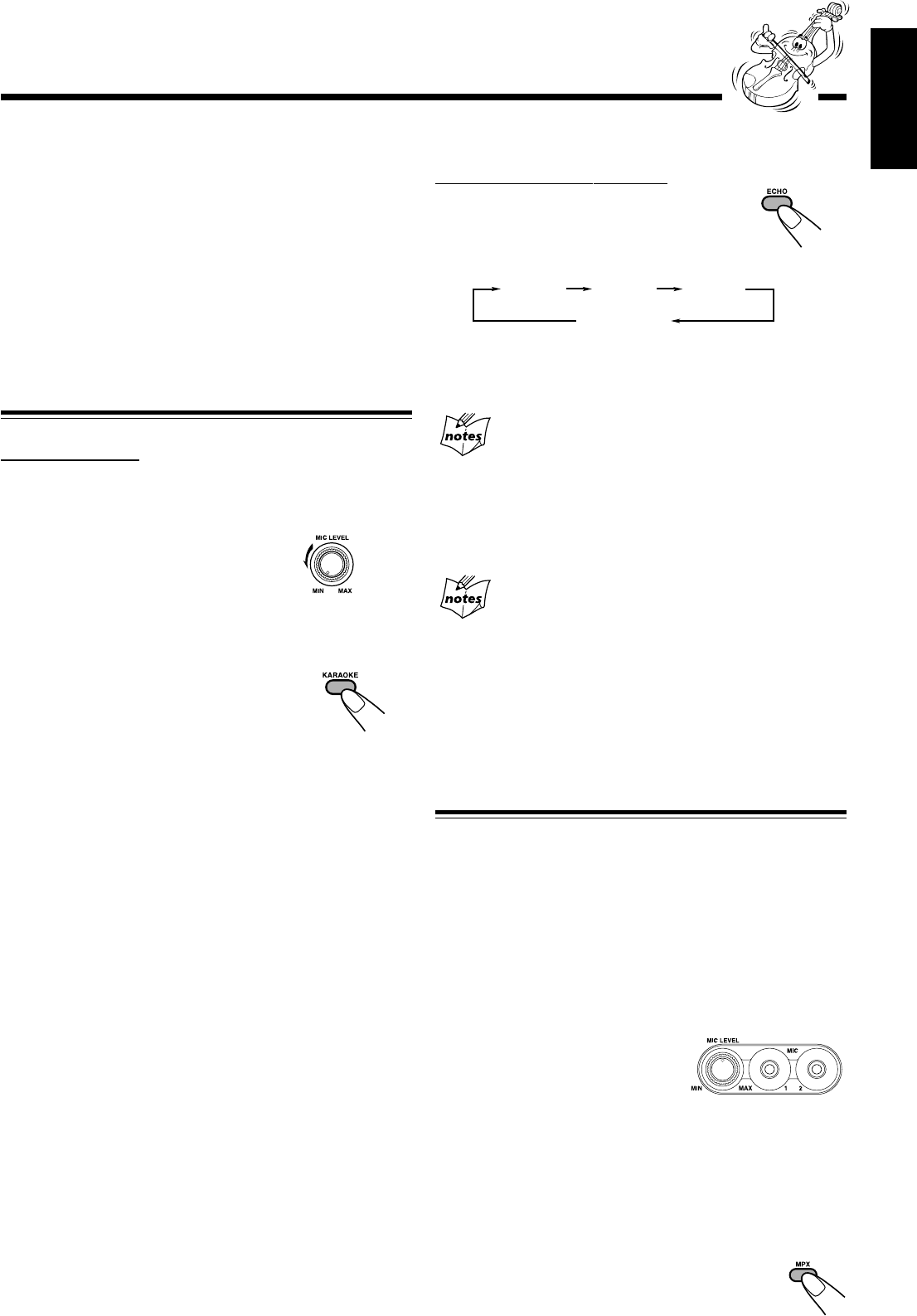

Using the Microphones

You can enjoy singing along (Karaoke) and microphone

mixing by using two microphones.

• MIC LEVEL adjustment is valid for both microphones

connected to MIC 1 and MIC 2 jacks.

IMPORTANT:

•Always set MIC LEVEL to MIN when connecting or

disconnecting the microphone.

• When you do not use the microphone, keep the microphones

unconnected.

Singing Along—Karaoke

7 Vocal Masking

Vocal Masking reduces the lead vocal of the playing source,

and allows you to replace it by singing into the microphones

as the music plays.

Turn MIC LEVEL to MIN.

Connect the microphone(s) (not supplied) by

plugging it into MIC 1 and/or MIC 2 jack(s).

Press KARAOKE on the remote

control.

“KARAOKE” appears for 2 seconds and

KARAOKE indicator lights up and remains lit.

Start playing the source—disc, tape or other

connected component.

Adjust MIC LEVEL and the volume level as

you sing into the microphone(s).

• By pressing REC START/STOP, you can record your

singing along if you want. (For more details, see page 26.)

To cancel Vocal Masking, press KARAOKE on the remote

control again.

• “OFF” appears for 2 seconds and the KARAOKE indicator

goes off. Normal stereo play back resumes.

To apply an echo to your voice

On the remote control ONLY:

Press ECHO so that the ECHO

indicator lights up on the display.

• Each time you press the button, the echo

level changes as follows:

As the number increases, a stronger echo effect applies to

your voice.

If howling or squealing (feedback) occurs while using

the microphone(s)

Take the following actions to prevent these noises.

• Adjust MIC LEVEL and the volume level.

• Avoid pointing the microphone(s) towards the speakers.

• When two microphones are connected, turn off the ON/OFF

switch on the unused microphone.

If you use the following sources as the playing source

for Karaoke (Vocal Masking), you cannot get the

satisfactory results

• Radio programs—a radio signal is not as reliable as the signals

coming from a tape or a disc.

• Monaural sources.

• Poorly dubbed tapes.

• Sources recorded with duets, strong echo, a chorus, or only a few

instruments.

Singing Along with Multiplex Karaoke Discs

(MPX)

If the source you are going to play is a multiplex karaoke

disc, you can use the Multiplex sound function via the

buttons on the unit.

What is Multiplex Sound?

On a multiplex karaoke disc, the instrumental parts are

recorded on the left channel. With this system, you can

replace the vocal part with your voice through the

microphone.

Rotate the MIC LEVEL

and VOLUME to MIN.

Connect the microphone (not supplied) into

the MIC 1 and/or MIC 2 jack on the front

panel.

Play the source — CD.

Press MPX on the remote control to

select the output sound.

See page 29.

ECHO 1

ECHO OFF

(Canceled)

ECHO 2 ECHO 3

EN26-33.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:52 PM28

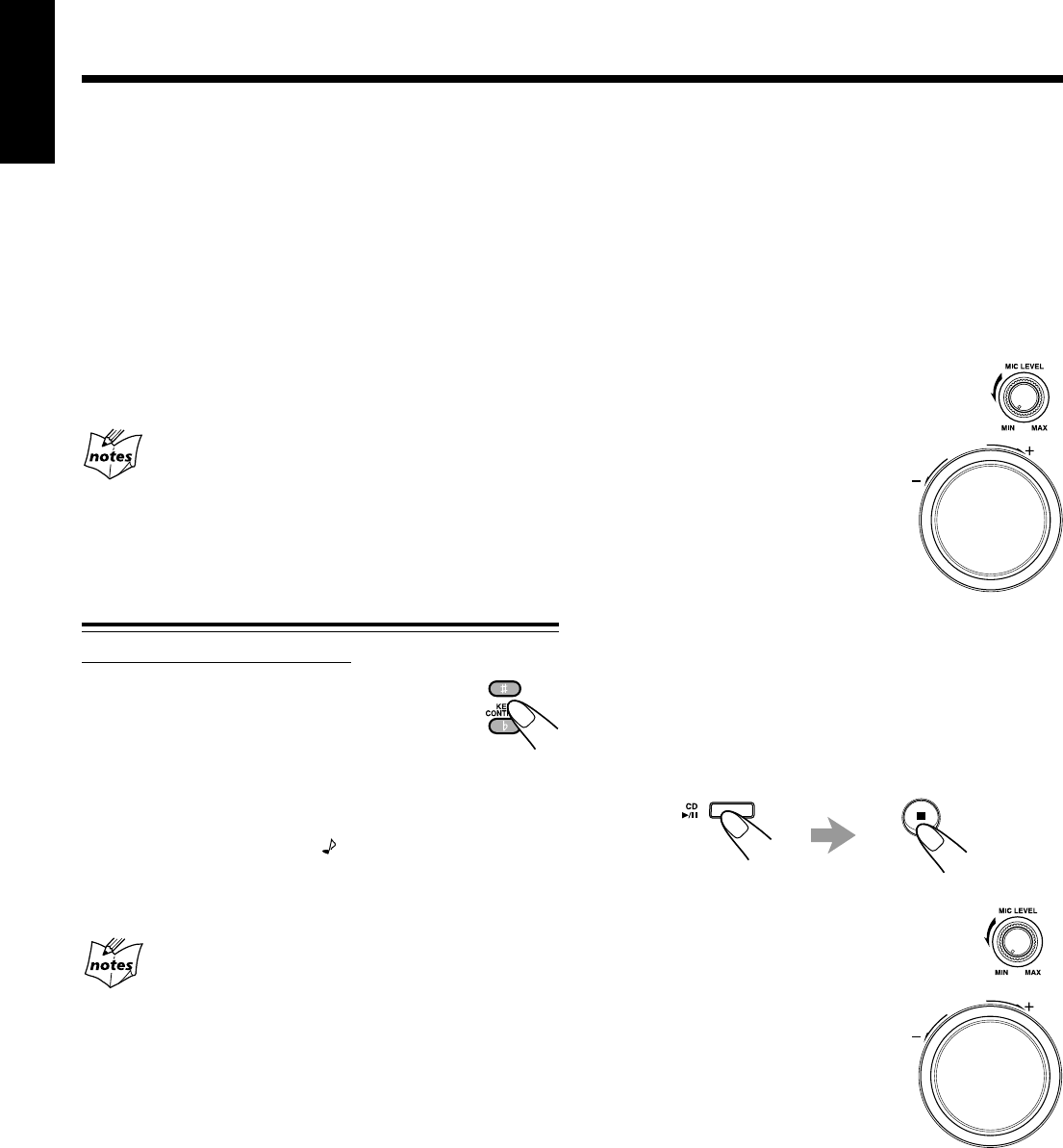

– 29 –

English

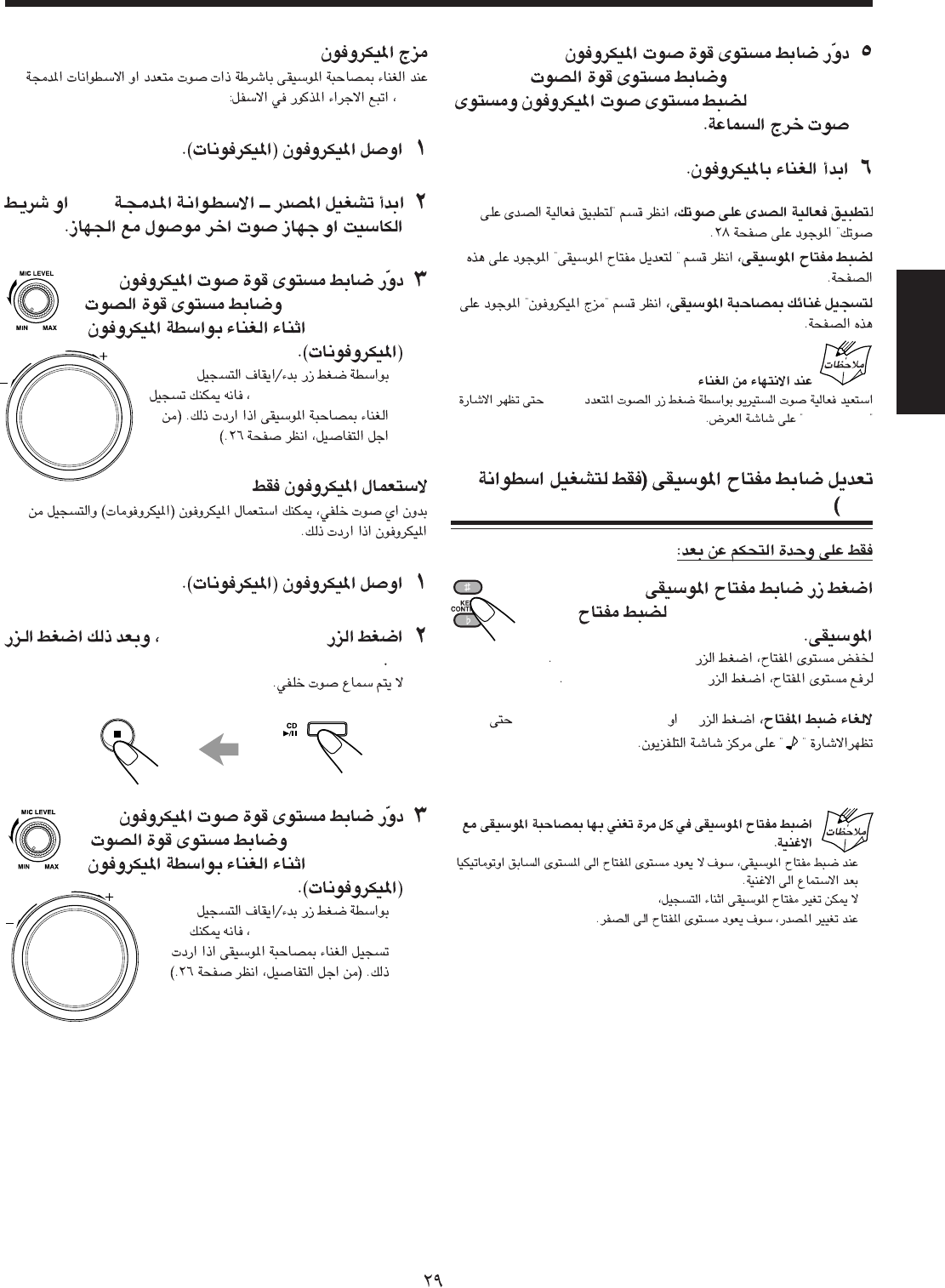

Rotate MIC LEVEL and VOLUME to adjust

the microphone level and the speaker output

level.

Sing into the microphone.

To apply echo to your voice, see “To apply an echo to your

voice” on page 28.

To adjust the music key, see “Adjusting the Music Key

Control” on this page.

To record your singing along, see “Microphone Mixing” on

this page.

When finished singing

Restore the stereo effect by pressing MPX until “NORMAL”

appears on the display.

Adjust the Music Key Control (for CD play

only)

On the remote control ONLY:

Press KEY CONTROL I /i to adjust the

music key.

To lower the key, press KEY CONTROL I.

To raise the key, press KEY CONTROL i.

To cancel the key adjustment, press

KEY CONTROL I or i until “ ” appears at the center on

the TV screen.

Adjust the music key each time you sing along to a

song

• Once the music key is adjusted, the key level will not return to the

previous level automatically after playing a song.

• The music key cannot be changed while recording.

• Once the source is changed, the key level returns to 0.

Microphone mixing

When you sing along with multiplex tapes or CDs, follow the

procedure below:

Connect the microphone(s).

Start playing the source — CD, tape or other

connected component.

Adjust MIC LEVEL and VOLUME

as you sing into the microphone(s).

• By pressing REC START/STOP, you

can record your singing along if you

want. (For more details, see page

26.)

To use microphone only

Without any background sound, you can

use your microphone(s) and record it if you want.

Connect the microphone(s).

Press CD 3/8 SELECT, then 7.

No background sound will be heard.

Adjust MIC LEVEL and VOLUME

as you sing into the microphone(s).

• By pressing REC START/STOP, you can

record your singing along if you

want. (For more details, see page

26.)

SELECT

EN26-33.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:52 PM29

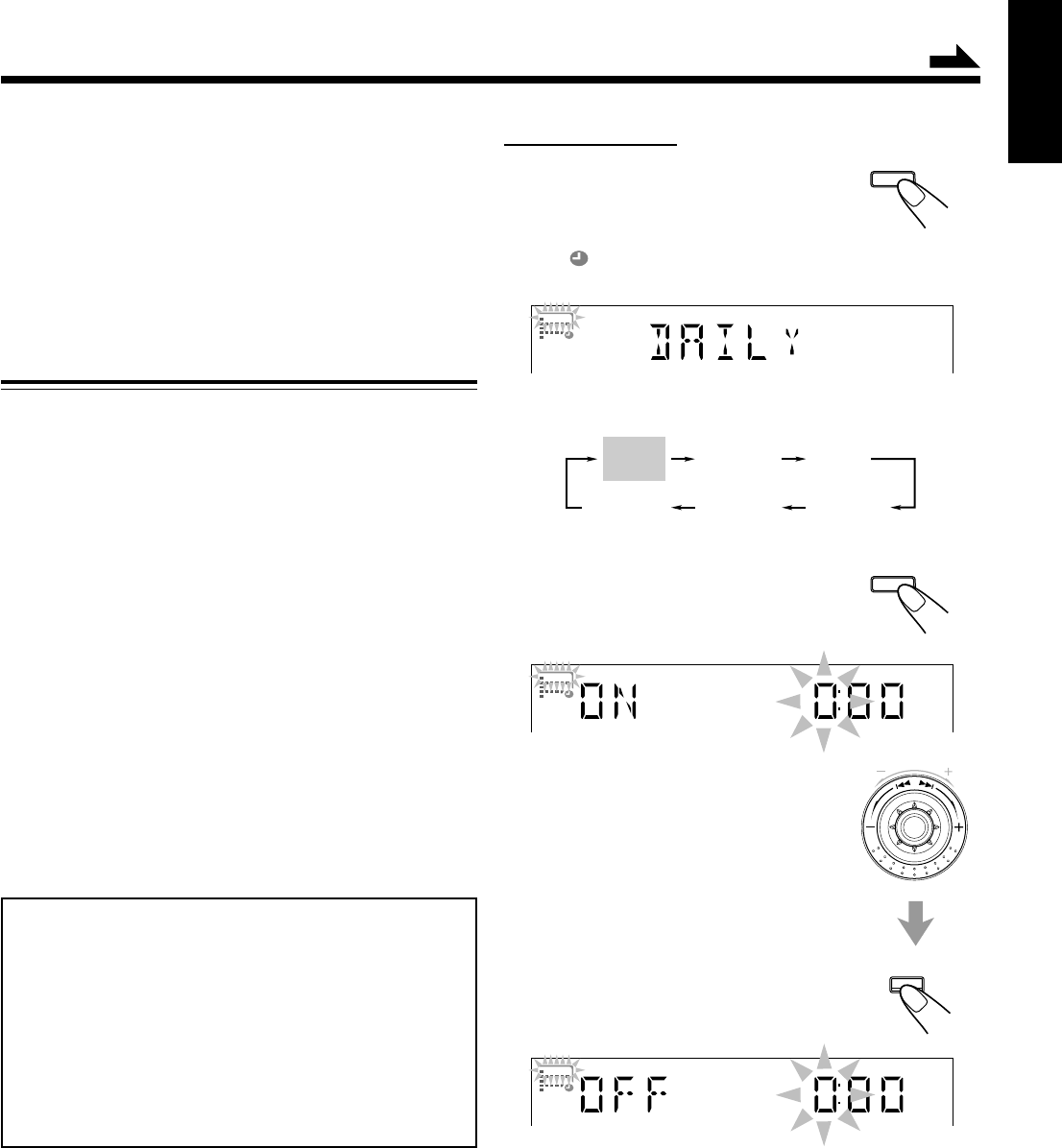

– 30 –

English

Using the Timers

There are three timers available—DAILY (Daily Timer), REC

(Recording Timer), and SLEEP (Sleep Timer).

You can set the timers whether the unit is on or off; however,

if Ecology Mode is activated, you cannot set the timers while

the unit is off.

Before using the timers, set the clock built in the unit. (See

page 10.)

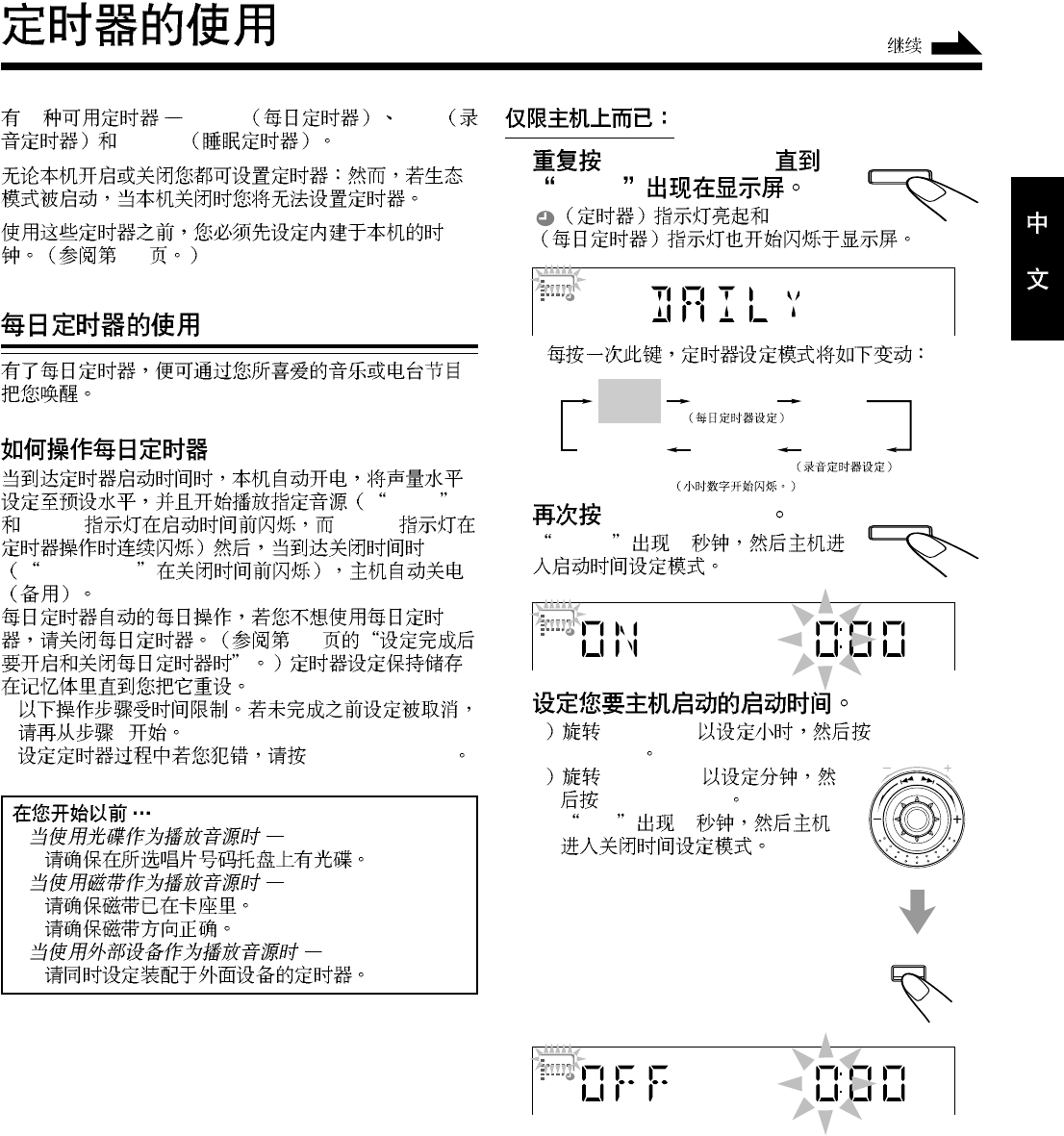

Using Daily Timer

With Daily Timer, you can be wake up with your favorite

music or radio program.

How Daily Timer actually works

The unit automatically turns on, sets the volume level to the

preset level, and starts playing the specified source when the

on-time comes. (“DAILY” and the DAILY indicator flash just

before the on-time, and the DAILY indicator continues

flashing while the timer is operating.) Then, when the off-

time comes (“DAILY OFF” flashes just before the off-time),

the unit automatically turns off (on standby).

The Daily Timer works everyday automatically. If you do not

want to use the Daily Timer, turn it off. (See “To turn on or

off Daily Timer after its setting is done” on page 31.) The

timer setting remains in memory until you change it.

• There is a time limit in doing the following steps. If the setting

is canceled before you finish, start from step

again.

• To correct a misentry while setting the timer, press

CANCEL/DEMO.

Before you start...

•When using a disc as the source to play—

– Make sure that a disc is on the selected disc tray.

•When using a tape as the source to play—

– Make sure that a tape is in the cassette deck.

– Make sure that the tape direction is correct.

•When using the external component as the source to

play—

–Set the timer equipped on the external component at

the same time.

On the unit ONLY:

Press CLOCK/TIMER

repeatedly until “DAILY”

appears on the display.

The (Timer) indicator lights up and the DAILY (Daily

Timer) indicator also starts flashing on the display.

• Each time you press the button, the timer setting modes

change as follows:

Press CLOCK/TIMER again.

“TIMER” appears for 2 seconds, then the

unit enters on-time setting mode.

Set the on-time you want the

unit to turn on at.

1) Turn 4 / ¢ to set the hour, then

press SET/DISPLAY.

2) Turn 4 / ¢ to set the minute,

then press SET/DISPLAY.

“SET” appears for 1 second, then

the unit enters off-time setting mode.

CLOCK

/ TIMER

CLOCK

/ TIMER

SET /

DISPLAY

DAILY

Canceled

TIMER

(Daily Timer setting)

TIMER

(Recording Timer setting)

REC

Clock

setting

(The hour digits start flashing.)

DAILY

Continued

EN26-33.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:52 PM30

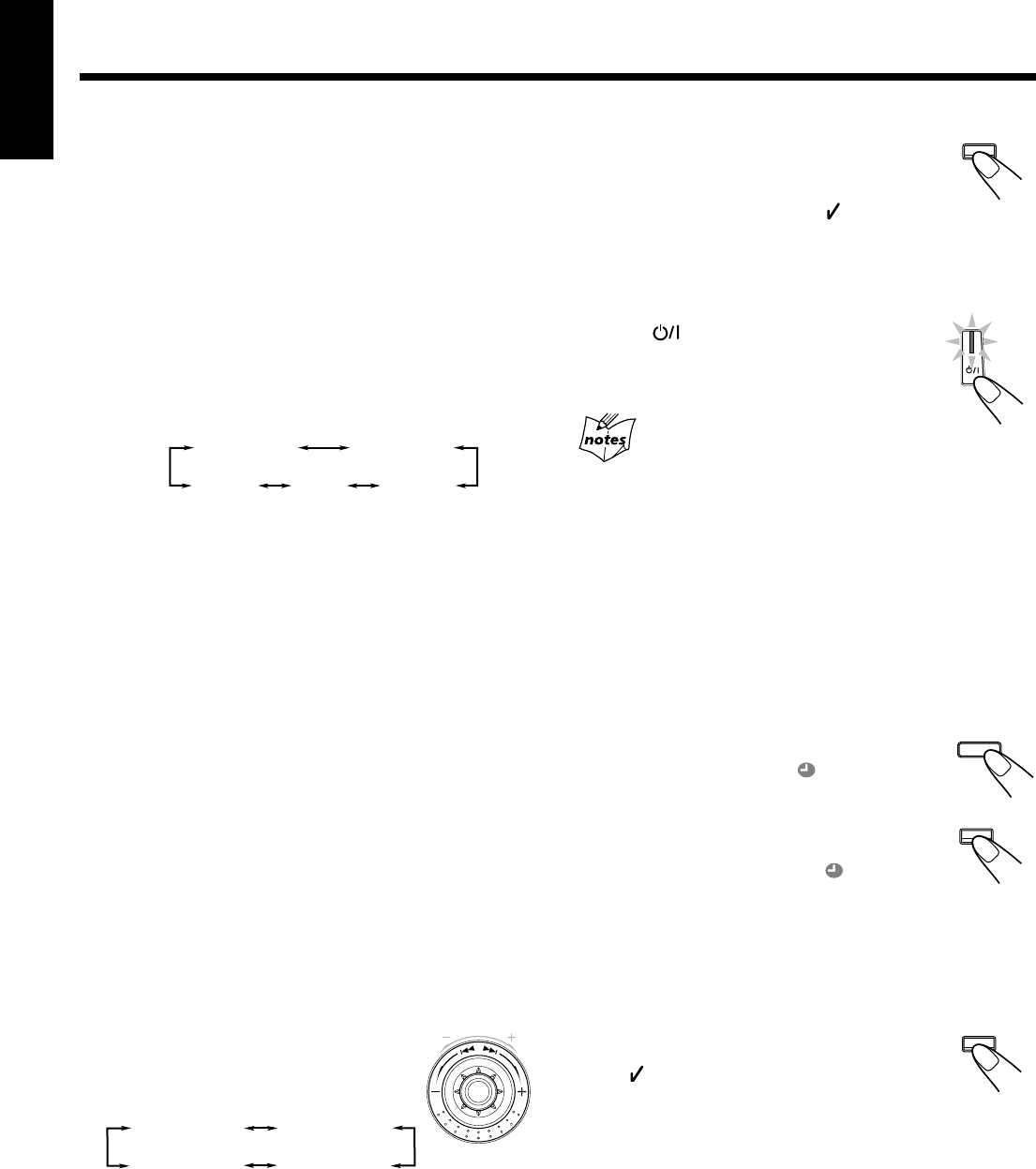

– 31 –

English

Set the off-time you want the unit to turn off

(on standby) at.

1) Turn 4 / ¢ to set the hour, then press

SET/DISPLAY.

2) Turn 4 / ¢ to set the minute, then press

SET/DISPLAY.

“SET” appears for 1 second, then the unit enters

source selecting mode.

Turn 4 / ¢ to select the source to play,

then press SET/DISPLAY.

“SET” appears for 1 second.

• The source changes as follows:

TUNER FM: tunes in to a specified preset FM station.

= Go to step 6.

TUNER AM: tunes in to a specified preset AM station.

= Go to step 6.

1 CD-- 1: plays from a specified track of a specified

disc. = Go to step 6.

TAPE: plays a tape in the cassette deck.

= Go to step 7.

AUX IN: plays an external source. = Go to step 7.

When selecting “TUNER FM” or “TUNER AM”

Turn 4 / ¢ to select the preset station number, then

press SET/DISPLAY.

The unit enters volume setting mode.

When selecting “1 CD-- 1”

1) Turn 4 / ¢ to select the disc number, then press

SET/DISPLAY.

“SET” appears for 1 second.

2) Turn 4 / ¢ to set the track number, then press

SET/DISPLAY.

“SET” appears for 1 second, then the unit enters

volume setting mode.

Turn 4 / ¢ to set the

volume level.

• The volume level changes as follows:

• If you select “VOLUME – –,” the volume is set to the

last level when the unit has been turned off.

Press SET/DISPLAY to complete

the Daily Timer setting.

The DAILY (Daily Timer) indicator stops

flashing and remains lit. “OK ” appears on

the display for 2 seconds.

The settings you have done are shown on the

display in sequence for your confirmation.

Press to turn off the unit (on

standby) if you have set the Daily

Timer with the unit turned on.

• If the unit is turned on before the on-time comes

Daily Timer does not work.

• Even if you unplug the AC power cord or if a power failure

occurs

Once you set the timer, the timer setting may remain stored in

memory in a few days. In this case, check whether the timer

setting still remains or not.

To turn on or off Daily Timer after its setting is done

1Press CLOCK/TIMER repeatedly until “DAILY”

appears on the display.

The DAILY (Daily Timer) indicator starts

flashing on the display and (Timer)

indicator remains lit.

2To turn off the Daily Timer, press

CANCEL/DEMO.

The DAILY (Daily Timer) and (Timer)

indicators go off from the display (“DAILY

OFF” appears for a while).

The Daily Timer is canceled, but the setting for the Daily

Timer remains in memory.

To turn on the Daily Timer, press

SET/DISPLAY.

“OK ” appears on the display for 2 seconds.

The settings you have done are shown on the

display in sequence for your confirmation.

1 CD

-- 1

TAPEAUX IN

TUNER FM TUNER AM

CLOCK

/ TIMER

CANCEL / DEMO

SET /

DISPLAY

SET /

DISPLAY

VOLUME 10VOLUME 15

VOLUME – – VOLUME 5

EN26-33.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:52 PM31

– 32 –

English

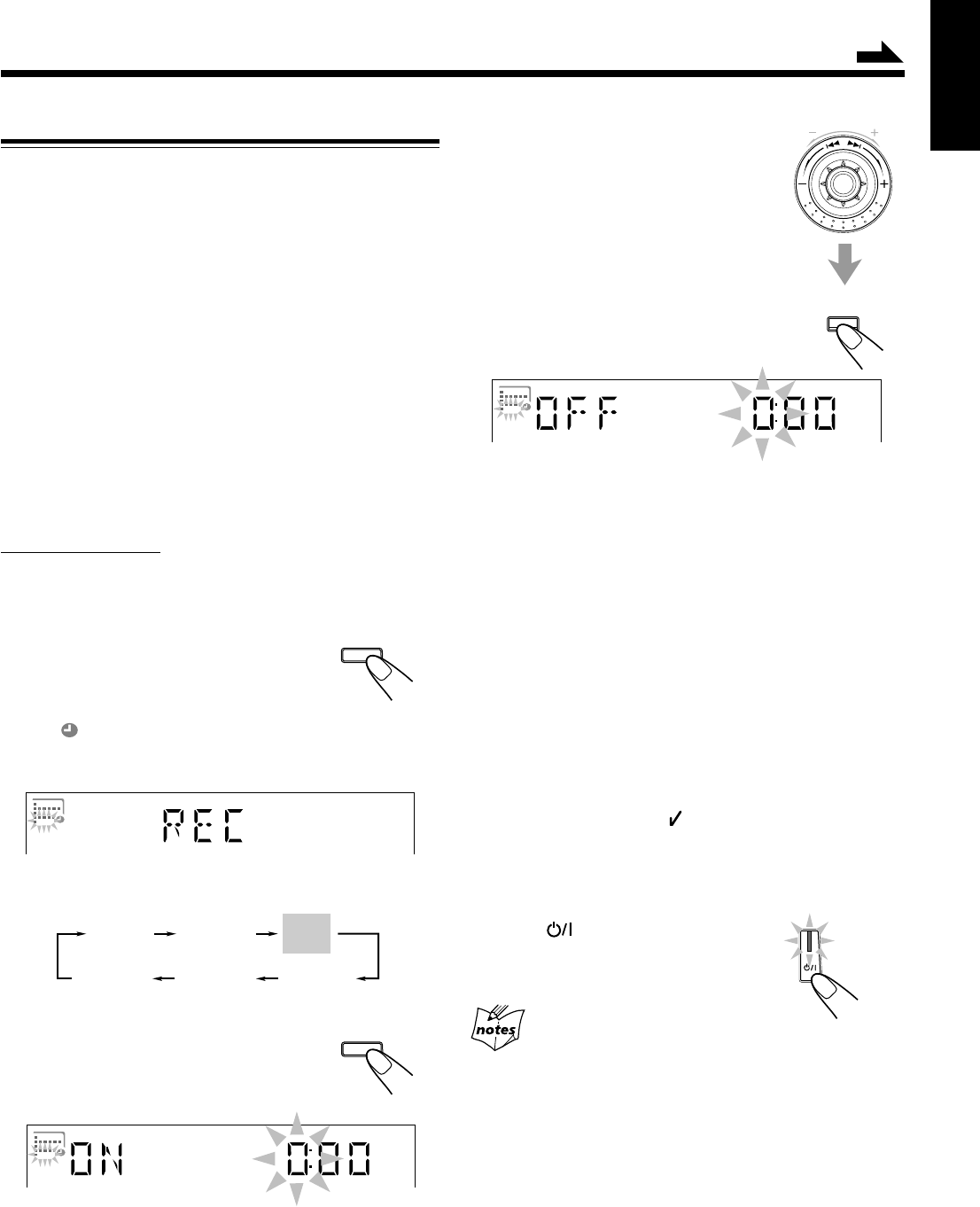

Set the on-time you want the

unit to turn on at.

1) Turn 4 / ¢ to set the hour, then

press SET/DISPLAY.

2) Turn 4 / ¢ to set the minute,

then press SET/DISPLAY.

“SET” appears for 1 second, then

the unit enters off-time setting mode.

Set the off-time you want the unit to turn off

(on standby) at.

1) Turn 4 / ¢ to set the hour, then press

SET/DISPLAY.

2) Turn 4 / ¢ to set the minute, then press

SET/DISPLAY.

“SET” appears for 1 second, then the unit enters preset

station selecting mode.

Select the preset station.

1) Turn 4 / ¢ to select the band (“TUNER FM” or

“TUNER AM”), then press SET/DISPLAY.

2) Turn 4 / ¢ to select a preset channel number,

then press SET/DISPLAY.

The REC (Recording Timer) indicator stops flashing

and remains lit. “OK ” appears on the display for

2 seconds.

The settings you have done are shown on the display

in sequence for your confirmation.

Press to turn off the unit

(on standby) if necessary.

• If you want to listen to another source while recording

Press REC START/STOP or 7 to stop recording. Without

stopping it, you cannot change the source.

• Even if you unplug the AC power cord or if a power failure

occurs

Once you set the timer, the timer setting may remain stored in

memory for a few days. In this case, check whether the timer

setting still remains or not.

DAILY

Canceled

TIMER

(Daily Timer setting)

TIMER

(Recording Timer setting)

REC

Clock

setting

(The hour digits start flashing.)

Using Recording Timer

With Recording Timer, you can make a tape of a radio

broadcast automatically.

How Recording Timer actually works

The unit automatically turns on, tunes in to the specified

station, sets the volume level to “VOLUME MIN,” and starts

recording when the on-time comes (“REC” and the REC

indicator flash just before the on-time, and the REC indicator

continues flashing while the timer is operating). Then, when

the off-time comes (“REC OFF” flashes just before the off-

time), the unit automatically turns off (on standby).

The timer setting remains in memory until you change it.

• There is a time limit in doing the following steps. If the setting

is canceled before you finish, start from step

again.

• To correct a misentry while setting the timer, press

CANCEL/DEMO.

On the unit ONLY:

Insert a recordable cassette with the exposed

part of the tape down.

Press CLOCK/TIMER

repeatedly until “REC”

appears on the display.

The (Timer) indicator lights up and the REC

(Recording Timer) indicator also starts flashing on the

display.

• Each time you press the button, the timer setting modes

change as follows:

Press CLOCK/TIMER again.

“TIMER” appears for 2 seconds, then the

unit enters on-time setting mode.

CLOCK

/ TIMER

CLOCK

/ TIMER

SET /

DISPLAY

REC

Continued

EN26-33.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:53 PM32

– 33 –

English

SLEEP 10 SLEEP 60SLEEP 30SLEEP 20

Canceled SLEEP 120 SLEEP 90

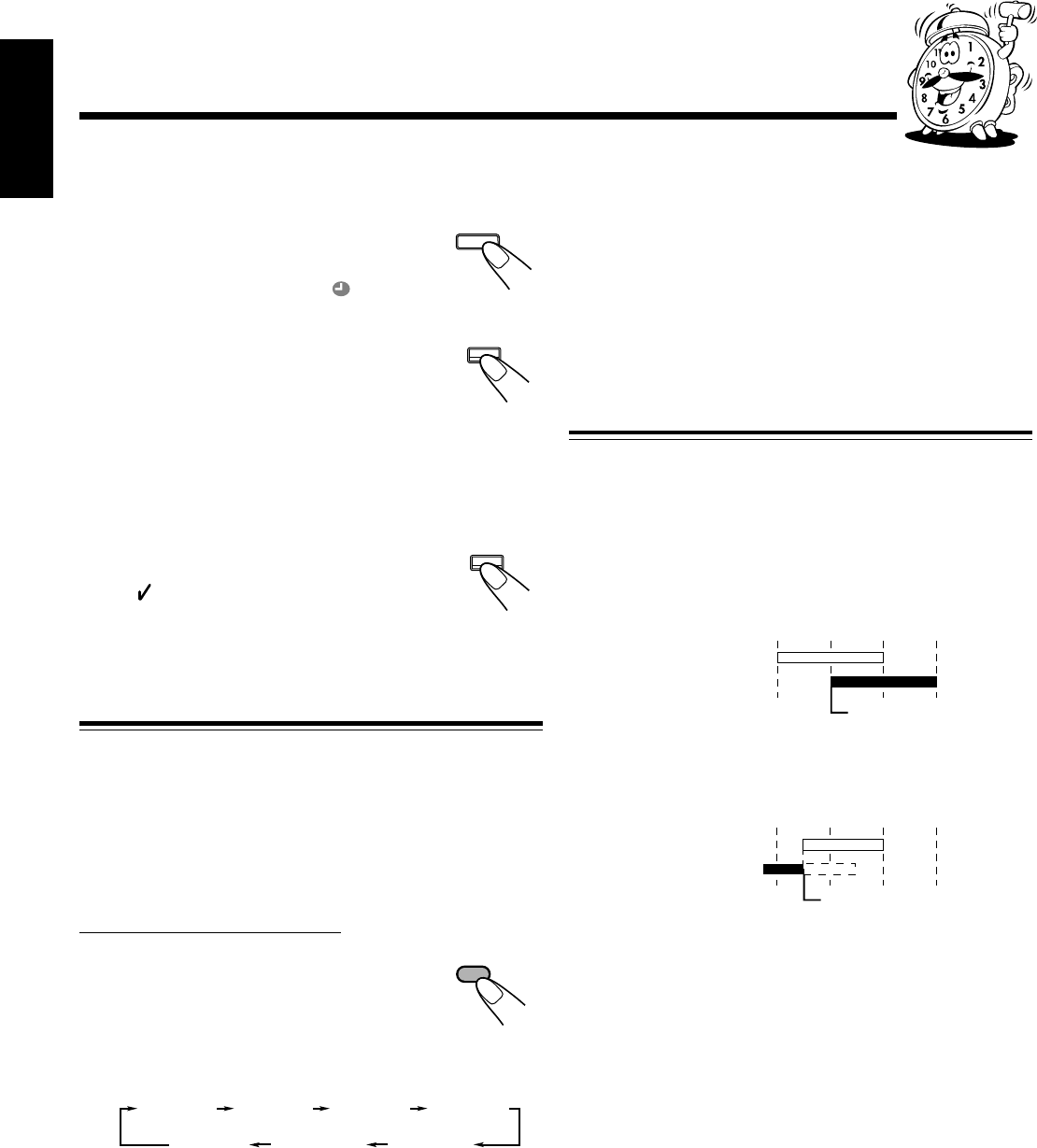

To turn on or off Recording Timer after its setting

is done

1Press CLOCK/TIMER repeatedly until

“REC” appears on the display.

The REC (Recording Timer) indicator starts

flashing on the display and the (Timer)

indicator remains lit.

2To turn off the Recording Timer, press

CANCEL/DEMO.

The REC (Recording Timer) indicator goes

off from the display (“REC OFF” appears on

the display for 2 seconds).

The Recording Timer is canceled, but the setting for the

Recording Timer remains in memory.

To turn on the Recording Timer, press

SET/DISPLAY.

“OK ” appears on the display for 2 seconds.

The settings you have done are shown on the

display in sequence for your confirmation.

Using Sleep Timer

With Sleep Timer, you can fall asleep to music. You can set

Sleep Timer only while the unit is turned on.

How Sleep Timer actually works

The unit automatically turns off after the specified time

length passes.

On the remote control ONLY:

Press SLEEP.

The time length until the shut-off time

appears and the SLEEP indicator starts

flashing on the display.

• Each time you press the button, the time length changes

as follows:

• If the built-in clock has not been set, “CLOCK ADJUST”

appears on the display.

Wait for about 5 seconds after specifying the

time length.

The SLEEP indicator stops flashing and remains lit.

To check the remaining time until the shut-off time, press

SLEEP once so that the remaining time (minute) until the

shut-off time appears for about 5 seconds.

To change the shut-off time, press SLEEP repeatedly until

the desired time length appears on the display.

To cancel the setting, press SLEEP repeatedly so that the

SLEEP indicator goes off.

• Sleep Timer is also canceled when you turn off the unit.

Timer Priority

Since each timer can be set separately, you may wonder what

happens if the settings for these timers overlap.

Below are some examples.

Recording Timer has priority over Daily Timer and Sleep Timer.

• If Daily Timer is set to come on while Recording Timer is

operating, Daily Timer will not come on at all.

• If Recording Timer is set to come on while Sleep Timer is

operating, Sleep Timer will be canceled.

Recording Timer

Sleep Timer

Recording Timer

Daily Timer

6:00 6:30 7:00 7:30

does not work.

CLOCK

/ TIMER

CANCEL / DEMO

SET /

DISPLAY

SLEEP

21:00 21:30 22:00 22:30

canceled.

EN26-33.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:53 PM33

– 34 –

English

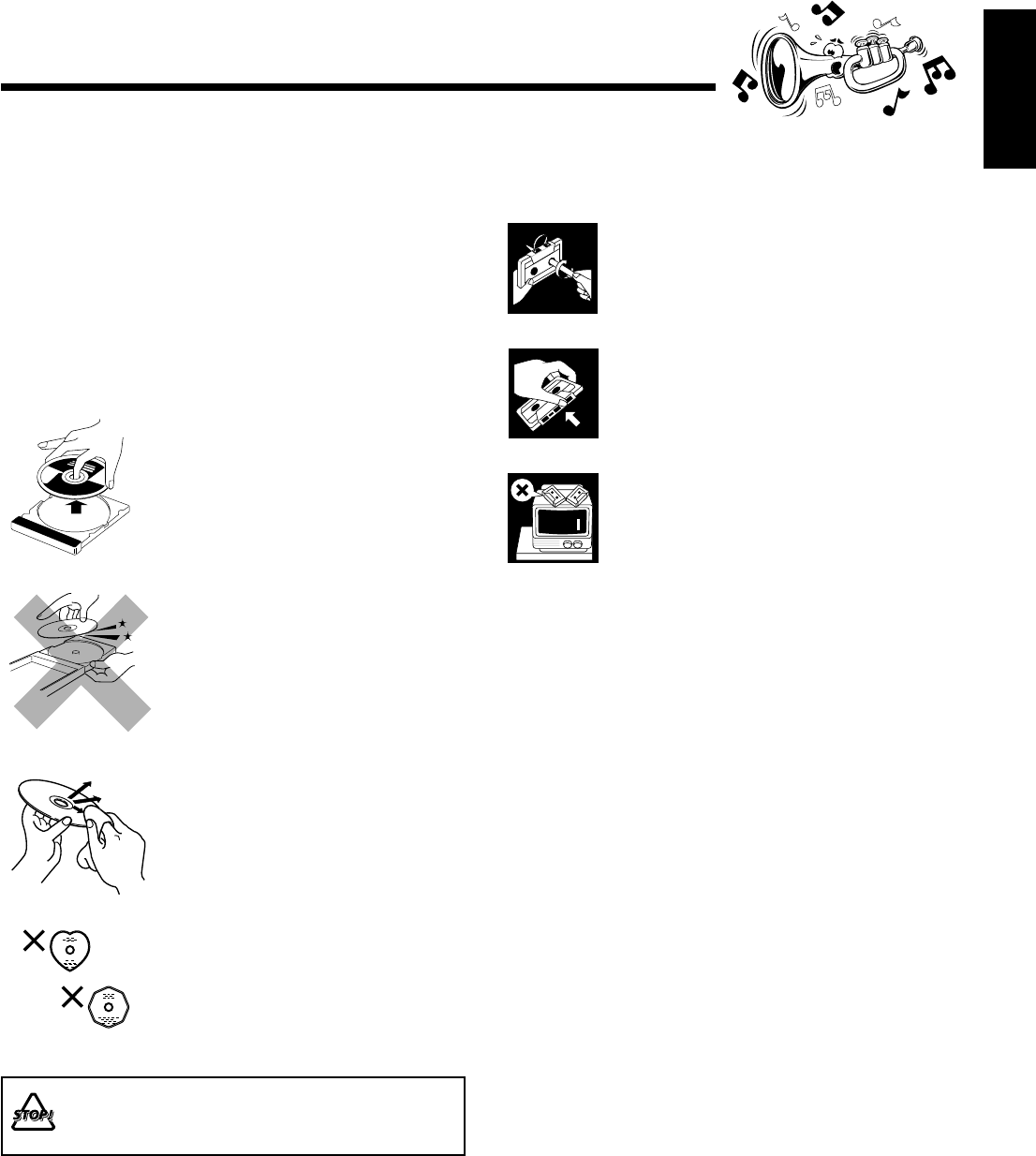

Maintenance

To get the best performance of the unit, keep your discs, tapes, and mechanism clean.

Handling cassette tapes

• If the tape is loose in its cassette, take

up the slack by inserting a pencil in one

of the reels and rotating.

• If the tape is loose, it may get stretched,

cut, or caught in the cassette.

• Be careful not to touch the tape surface.

• Avoid the following places to store the

tape:

— In dusty places

— In direct sunlight or heat

— In moist areas

— Near a magnet

Cleaning the unit

• Stains on the unit

Should be wiped off with a soft cloth. If the unit is heavily

stained, wipe it with a cloth soaked in water diluted neutral

detergent and wrung well, then wipe clean with a dry cloth.

• Since the unit may deteriorate in quality, become

damaged or get its paint peeled off, be careful about the

following.

— DO NOT wipe it with a hard cloth.

— DO NOT wipe it strong.

— DO NOT wipe it with thinner or benzine.

— DO NOT apply any volatile substance such as

insecticides to it.

— DO NOT allow any rubber or plastic to remain in

contact with it for a long time.

General Notes

In general, you will have the best performance by keeping

your discs and the mechanism clean.

• Store discs in their cases, and keep them in cabinets or on

shelves.

• Keep the unit’s disc trays closed when not in use.

Handling discs • Remove the disc from its case by

holding it at the edge while pressing

the center hole lightly.

• Do not touch the shiny surface of the

disc, or bend the disc.

• Put the disc back in its case after use

to prevent warping.

• Be careful not to scratch the surface

of the disc when placing it back in its

case.

• Avoid exposure to direct sunlight,

temperature extremes, and moisture.

To clean the disc

Wipe the disc with a soft cloth in a

straight line from center to edge.

Continued use of irregular shape discs

(heart-shape, octagonal, etc.) can

damage the unit.

DO NOT use any solvent—such as conventional

record cleaner, spray, thinner, or benzine—to clean

the disc.

EN34-36.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:53 PM34

– 35 –

English

If you are having a problem with your unit, check this list for a possible solution before calling for service.

If you cannot solve the problem from the hints given here, or the unit has been physically damaged, call a qualified person,

such as your dealer, for service.

Troubleshooting

Cause

The button other than CANCEL/DEMO

is pressed to cancel the demonstration

temporarily.

Connections are incorrect or loose.

The built-in microprocessor may

malfunction due to external electrical

interference.

• The path between the remote control

and the remote sensor on the unit is

blocked.

• The batteries are exhausted.

Vocal Masking is activated.

• Antennas are disconnected.

• The AM loop antenna is too close to

the unit.

• The FM antenna is not properly

extended and positioned.

The disc is scratched or dirty.

• The AC power cord is not plugged in.

• Trays are locked.

The disc is placed upside down.

• No MP3 files are recorded on the disc.

• MP3 files do not have the file

extension—.MP3, .Mp3, .mP3, or

.mp3 in their file names.

• MP3 files are not recorded in the

format compliant with ISO 9660

Level 1 or Level 2.

The readout time varies with the

complexity of the recording

configuration.

Power supply from the AC power cord

has been cut off while the tape was

running.

Small tabs on the back of the cassette

are removed.

Action

Press CANCEL/DEMO on the unit.

(See page 8.)

Check all connections and make

corrections. (See pages 6 to 8.)

Unplug the AC power cord and then

plug it back in.

• Remove the obstruction.

• Replace the batteries.

Cancel the Vocal Masking. (See page 28.)

• Reconnect the antennas correctly and

securely.

• Change the position and direction of

the AM loop antenna.

• Extend the FM antenna at the best

position.

Clean or replace the disc. (See page 34.)

• Plug the AC power cord.

• Unlock the trays. (See page 20.)

Place the disc with the label side up.

Replace the disc.

Do not use too many hierarchies and

directories when recording. Also, do

not record any other types of audio

tracks together with MP3 files.

(See page 15.)

Turn on the unit.

Cover the holes with adhesive tape.

(See page 26.)

Symptom

Unable to cancel the demonstration.

No sound is heard.

Operations are disabled.

Unable to operate the unit from the

remote control.

Stereo effect is lost.

Hard to listen to broadcasts

because of noise.

The disc sound is discontinuous.

The disc tray does not open or

close.

The disc does not play.

The disc readout time is too long.

The cassette holders cannot be

opened.

Impossible to record.

GENERAL

TUNERAUDIO CD

TAPEREC MP3 DISC

EN34-36.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:53 PM35

– 36 –

English

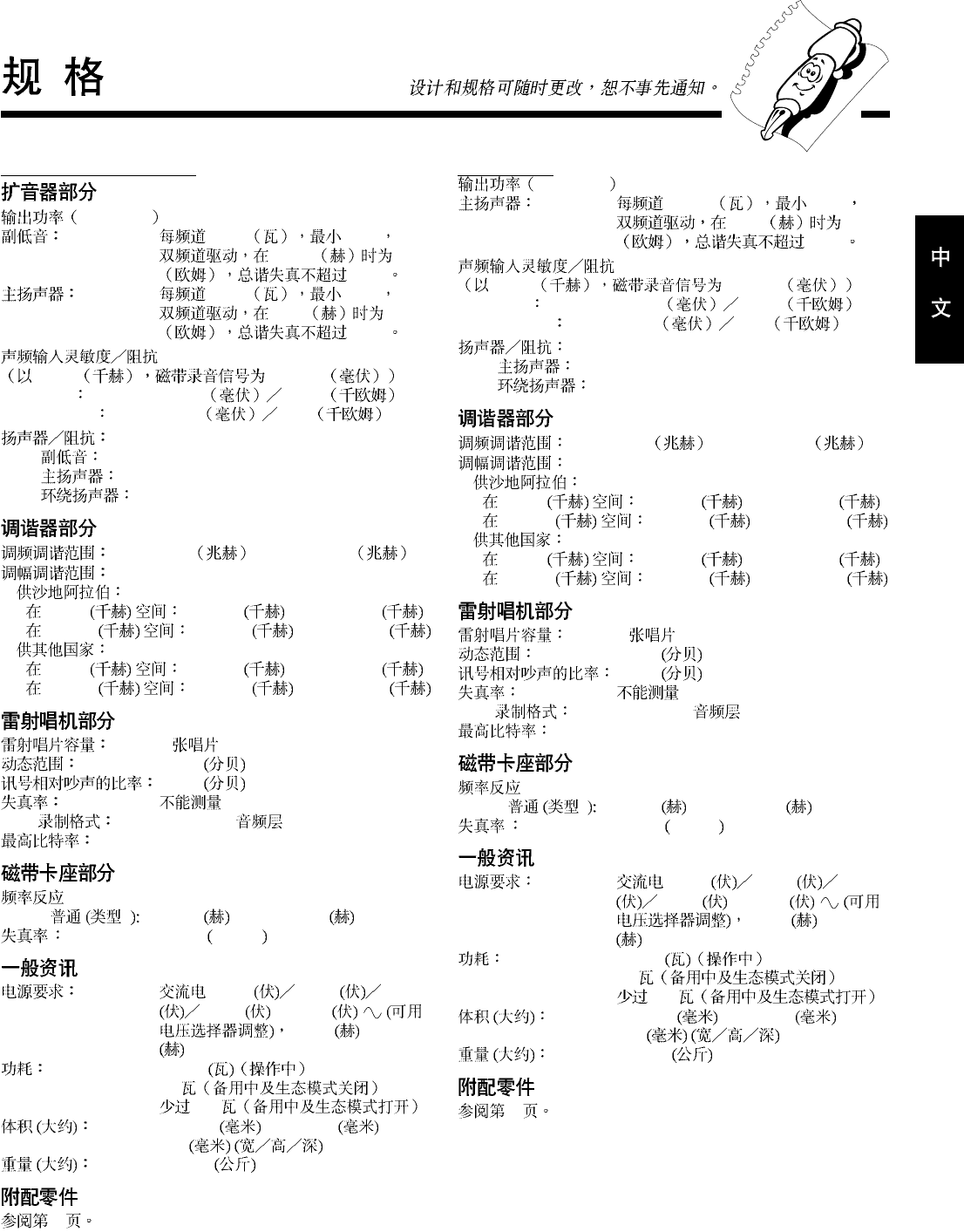

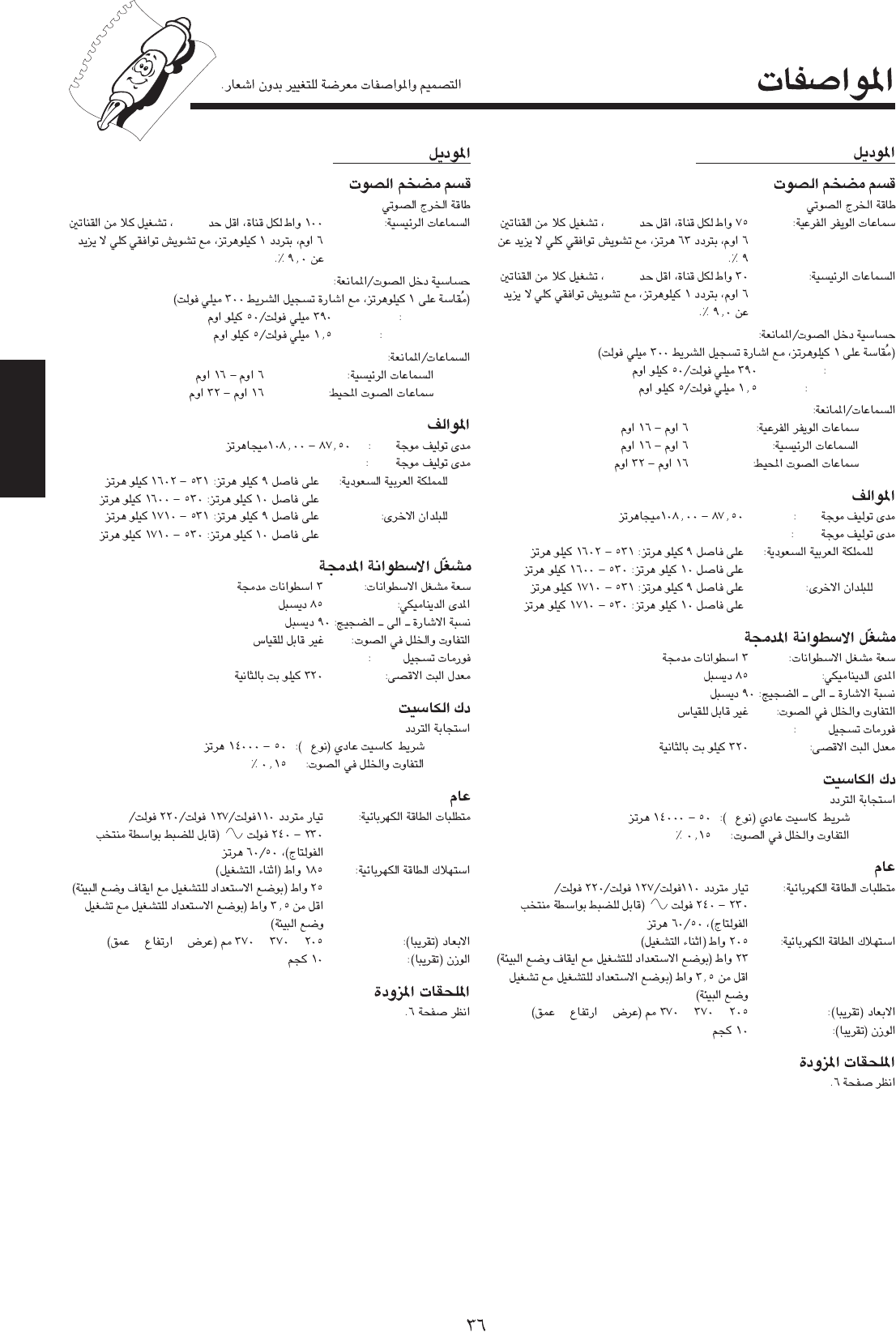

Specifications

CA-HXZ7V

Amplifier section

Output Power (IEC 268-3)

MAIN SPEAKERS: 100 W per channel, min. RMS, both

channels driven into 6 Ω at 1 kHz with no

more than 0.9% total harmonic distortion.

Audio input sensitivity/Impedance:

(Measured at 1 kHz, with tape recording signal 300 mV)

AUX: 390 mV/50 kΩ

ΜΙΧ 1/2: 1.5 mV/5 kΩ

Speakers/Impedance:

MAIN SPEAKERS: 6 Ω – 16 Ω

SURROUND SPEAKERS: 16 Ω – 32 Ω

Tuner

FM tuning range: 87.50 MHz – 108.00 MHz

AM tuning range:

For Saudi Arabia At 9 kHz intervals: 531 kHz – 1 602 kHz

At 10 kHz intervals: 530 kHz – 1 600 kHz

For other countries: At 9 kHz intervals: 531 kHz – 1 710 kHz

At 10 kHz intervals: 530 kHz – 1 710 kHz

CD player

CD capacity: 3 CDs

Dynamic range: 85 dB

Signal-to-noise ratio: 90 dB

Wow and flutter: Immeasurable

MP3 recording format: MPEG 1/2 Audio Layer 3

Max. Bit rate: 320 kbps

Cassette deck

Frequency response

Normal (type I): 50 Hz – 14 000 Hz

Wow and flutter: 0.15% (WRMS)

General

Power requirement: AC 110 V / AC 127 V / AC 220 V /

AC 230 V – AC 240 V (adjustable with

the voltage selector), 50 Hz / 60 Hz

Power consumption: 185 W (in operation)

25 W (on standby with Ecology Mode off)

Less than 3.5 W (on standby with Ecology

Mode on)

Dimensions (approx.): 205 mm × 370 mm × 370 mm (W/H/D)

Mass (approx.): 10.0 kg

Supplied accessories

See page 6.

CA-HXZ9V/CA-HZ98V

Amplifier section

Output Power (IEC 268-3)

SUBWOOFERS: 75 W per channel, min. RMS, both

channels driven into 6 Ω at 63 Hz with no

more than 0.9% total harmonic distortion.

MAIN SPEAKERS: 30 W per channel, min. RMS, both

channels driven into 6 Ω at 1 kHz with no

more than 0.9% total harmonic distortion.

Audio input sensitivity/Impedance:

(Measured at 1 kHz, with tape recording signal 300 mV)

AUX: 390 mV/50 kΩ

ΜΙΧ 1/2: 1.5 mV/5 kΩ

Speakers/Impedance:

SUBWOOFERS: 6 Ω – 16 Ω

MAIN SPEAKERS: 6 Ω – 16 Ω

SURROUND SPEAKERS: 16 Ω – 32 Ω

Tuner

FM tuning range: 87.50 MHz – 108.00 MHz

AM tuning range:

For Saudi Arabia At 9 kHz intervals: 531 kHz – 1 602 kHz

At 10 kHz intervals: 530 kHz – 1 600 kHz

For other countries: At 9 kHz intervals: 531 kHz – 1 710 kHz

At 10 kHz intervals: 530 kHz – 1 710 kHz

CD player

CD capacity: 3 CDs

Dynamic range: 85 dB

Signal-to-noise ratio: 90 dB

Wow and flutter: Immeasurable

MP3 recording format: MPEG 1/2 Audio Layer 3

Max. Bit rate: 320 kbps

Cassette deck

Frequency response

Normal (type I): 50 Hz – 14 000 Hz

Wow and flutter: 0.15% (WRMS)

General

Power requirement: AC 110 V / AC 127 V / AC 220 V /

AC 230 V – AC 240 V (adjustable with

the voltage selector), 50 Hz / 60 Hz

Power consumption: 205 W (in operation)

23 W (on standby with Ecology Mode off)

Less than 3.5 W (on standby with Ecology

Mode on)

Dimensions (approx.): 205 mm × 370 mm × 370 mm (W/H/D)

Mass (approx.): 10.0 kg

Supplied accessories

See page 6.

Design and specifications are subject to change without notice.

EN34-36.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 4:53 PM36

– 1 –

•

9 — 12

•

• 5°C

35°C

•

JVC

•

PBC

CD-ROM DVD CD-G

CD-I

COMPACT

DIGITAL VIDEO

COMPACT

DIGITAL AUDIO

CH01-08.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:31 PM1

– 2 –

TURBO 11

AM 12

FM AM 13

MP3 14

PAL MULTI NTSC 21

PBC 22

PBC 23

727

OK ........................................... 28

728

OK MPX 28

CH01-08.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 10:28 AM2

– 3 –

CA-HXZ9V/CA-HXZ98V

CA-HXZ7V

CH01-08.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:32 PM3

– 4 –

2912 31 32

3ECO 9

6FM/AM 913

7TAPE 2 3 921 26

8AUX 9

9SOUND TURBO 10 26 – 29

ÅSOUND TURBO 11

CA-HXZ7V

ACTIVE BASS EX. 11

CA-HXZ9V/98V SUBWOOFER 11

ÇREC 26 – 27 32

ÎSEA 11

• ROCK POP CLASSIC

‰11

• DANCE HALL STADIUM

Ï14

• 1 2 3

qSOUND MODE 9

wVCD NUMBER PRESET +/–

+/– 13

4 / ¢

10 12 17 – 19 22 24 – 25 27 30 – 32

CA-HXZ7V ACTIVE BASS EX. LEVEL + / –

CA-HXZ9V/98V SUBWOOFER LEVEL + / –

8 10 12 – 13 18 – 19 24 30 – 33

• CANCEL/DEMO SET/DISPLAY

tREVERSE MODE 25 – 27

y25 – 27

uPHONES 10

i0CD1 CD2 CD3

14 16 – 17 20 – 21 25 – 27

CD1 CD2 CD3 16 – 19 21 – 23 27

TITLE GROUP TRACK

;CD 3/8 SELECT

917 – 19 21 – 23 27 29

aTUNING + / – 13

¡12 17 25

712 17 – 25 28 – 29

sVOLUME + / – 10 25

d18 20

• REPEAT CD PLAY MODE

fMIC LEVEL 28 – 29

MIC 1 MIC 2 28

g10 26 – 27 30 – 33

• REC START/STOP CD REC START

CLOCK/TIMER

h 0 EJECT 25 – 27

• DAILY SLEEP

REC

•

6PRGM

71 – 16

8RANDOM

pMP3

6 11

wPBC

• MONO ST

•2 3

tKARAOKE ECHO

CH01-08.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:32 PM4

– 5 –

113 17 – 18 22 24

2VIDEO INTRO 24

3ON SCREEN 23

4PREV. 4 1

13 17 19 21 22 24

717 – 19 21 – 26 29

NEXT ¢ ¡

13 19 21 – 22 24

5STILL 23 25 28

6CD1 CD2 CD3 16 – 19

718 – 20

• REPEAT RANDOM PROGRAM

8MPX 24 28

9SOUND TURBO 11

pSOUND MODE 11

CA-HXZ7V ACTIVE BASS EX. LEVEL

CA-HXZ9V/98V SUBWOOFER LEVEL + / –

wKEY CONTROL i I 29

eSTANDBY/ON 9

rSLEEP 33

tAUX 926

yFM/AM 926

uFM MODE 13

iHIGHLIGHT 24

oRETURN 22

;PBC 22 23

aSELECT CD 3¥8 9 17 – 19 22

sPROGRAM CANCEL 19

dREC START/STOP 26 29

fTAPE 2 3 9 25 – 26

gECHO 28

KARAOKE 28

hBEEP ON/OFF 8 9

jVOLUME + / – 10

kFADE MUTING 10

COMPACT

DIGITAL VIDEO

SELECT

CH01-08.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:32 PM5

– 6 –

•AM 1

•FM 1

• 1

• 2

• 1

— R6(SUM-3)/AA(15F) —

+ – + –

1 FM FM 75 Ω

COAXIAL

2 FM

FM FM

IEC DIN 45325

75 Ω

R6(SUM-3)/AA(15F)

•

FM 75

COAXIAL

LOOP

AM EXT

ANTENNA

FM 75

COAXIAL

LOOP

AM EXT

ANTENNA

CH01-08.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:32 PM6

– 7 –

2 AM AM

LOOP

3 AM

AM EXT

FM AM

•

2– –

•

CA-HXZ7V CA-HXZ7V

COAXIAL

ANTENNA

AM LOOP

FM 75

AM EXT

LEFTRIGHT

MAIN

SPEAKERS

SUBWOOFERS

CAUTION: SPEAKER IMPEDANCE

6 16

CA-HXZ9V/

CA-HXZ98V

CA-HXZ9V/

CA-HXZ98V

CA-HXZ9V/

CA-HXZ98V

CA-HXZ9V/

CA-HXZ98V

CH01-08.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:32 PM7

– 8 –

SURROUND SPEAKERS

• RIGHT

• LEFT

•

AUX

•

CANCEL/DEMO

DEMO OFF

• BEEP ON/OFF

CANCEL/DEMO 2

CANCEL/DEMO DEMO START

CANCEL / DEMO

AUX

RIGHT LEFT

BEEP

ON/OFF

CH01-08.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:32 PM8

– 9 –

STANDBY/ON

•

“0:00” 13

BEEP ON/OFF

•BEEP

ON BEEP OFF

ECO

BEEP

ON/OFF

•

ECO

ECO 2

ECO

NORMAL

•ECO NORMAL

ECO

FM AM

FM/AM 13 CD 3¥8 SELECT 16

– 20 TAPE 2 3 25

AUX

FM/AM

CD 3 8 SELECT TAPE 2 3 AUX

BEEP OFF BEEP ON

FM / AM

TAPE

SELECT

AUX

CH09-13.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:34 PM9

– 10 –

FADE

MUTING

VOLUME

32 VOLUME MIN VOLUME 1 –

VOLUME 30 VOLUME MAX

VOLUME + / –

–

VOLUME +

VOLUME –

PHONES

FADE MUTING

“VOLUME MIN”

0:00

CLOCK/TIMER

4/¢

SET/DISPLAY

CANCEL/DEMO

4/¢ SET/

DISPLAY

SET/DISPLAY

•

CLOCK/TIMER

•

“0:00”

CLOCK

/ TIMER

SET /

DISPLAY

CANCEL / DEMO

DAILY TIMER

TIMER

REC

Clock

setting

CH09-13.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:35 PM10

– 11 –

6 3

3 SEA — — 3

SOUND

MODE SOUND

MODE

• DANCE

•USER1 USER2 USER3

OFF

DANCE

HALL

STADIUM

SEA

ROCK

POP

CLASSIC

USER 1/2/3

—

OFF

* SEA

DANCE

OFF

HALL STADIUM ROCK

POP

CLASSICUSER 1USER 2

USER 3

CA-HXZ7V

4 LEVEL 0 LEVEL 1

LEVEL 2 LEVEL 3 LEVEL 4

ACTIVE BASS LEVEL +

ACTIVE BASS LEVEL –

• LEVEL 1 LEVEL 4 MAX LEVEL ACTIVE

BASS EX. LEVEL 0 MIN LEVEL

CA-HXZ9V/CA-HXZ98V

4 LEVEL 0 LEVEL

1LEVEL 2 LEVEL 3 LEVEL 4

SUBWOOFER LEVEL +

SUBWOOFER LEVEL –

• LEVEL 1 LEVEL 4

SUBWOOFER LEVEL 4

TURBO

SOUND TURBO

SOUND

MODE

SUBWOOFER

LEVEL

R E C CLASSIC

CD1 READY

STADIUM

P O P

CD2 READY

H A L L

SOUND TURBOR O C K

D A N C E CD3 READY

SUBWOOFER

ACTIVE BASS EX.

LEVEL

R E C CLASSIC

CD1 READY

STADIUM

P O P

CD2 READY

H A L L

SOUND TURBOR O C K

D A N C E CD3 READY

ACTIVE BASS EX.

R E C CLA

SOUND TURBOR O

SUBWOOFER

R E C CLA

SOUND TURBOR O

ACTIVE BASS EX.

CA-HXZ7V CA-HXZ9V/

CA-HXZ98V

CH09-13.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:35 PM11

– 12 –

SEA

SEA 5

LOW1 LOW2 MID HIGH1 HIGH2

USER 1 USER 2 USER 3

•

• SEA

DANCE HALL STADIUM 11

SET/DISPLAY

SEA

14 / ¢

LOW1 LOW2 MID HIGH1

HIGH2

2)1 ¡

–3 +3

3) 1 2

SET/DISPLAY

SET /

DISPLAY

4 ¢

USER 1 USER 2

USER 3

SEA

SET/DISPLAY

SEA

USER 1 USER 2 USER 3

AM 9 kHz

10 kHz

AM AM

•AM 9

kHz 10 kHz

7 2

SET /

DISPLAY

SET /

DISPLAY

CH09-13.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:35 PM12

– 13 –

FM AM

FM/AM

FM AM

• FM

TUNING + TUNING

– 1

NEXT ¢ ¡

PREV 4 1

•ST

TUNING + TUNING –

NEXT ¢ ¡ / PREV 4 1

TUNING + TUNING –

NEXT ¢ ¡ / PREV 4 1

FM MODE MONO

FM MODE

MONO

30 FM 15 AM

•

SET/DISPLAY

PRESET + / –

SET/DISPLAY

1 3

•

FM/AM

FM AM

• FM

PRESET + / –

5 5

15 +10

25 +10

+10 5

30 +10

+10 10

FM MODE

SET /

DISPLAY

SET /

DISPLAY

FM / AM

CH09-13.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:36 PM13

– 14 –

•CD

• CD-R

• CD-RW

• MP3 MP3 CD-R CD-RW

CD-R CD-RW

•CD MP3 CD-

R CD-RW

•CD-R CD-RW

• CD-RW CD-RW

•

–CD

CD1 READY CD2 READY CD3

READY CD

–0CD1

CD2 CD3 CD

•

–

CD NO DISC 1 NO

DISC 2 NO DISC 3

•

MP3

CD MP3

MP3

MP3 1 MPEG-1 3

MP3 1:10

128 kbps* MP3

CD-R CD-RW 10

kbps 1000

128 kbps

MP3

255 64

MP3

• MP3 CD-R CD-RW

• MP3 ISO 9660 1 2

•

• MP3 .MP3

.Mp3 .mP3 .mp3

• MP3

CH14-25.CA-HXZ7/9V[US,UN,UX]/1 28/1/03, 10:57 AM14

– 15 –

MP3

ISO 9660

MP3

MP3 CD-R

CD-RW

• MP3 MP3

MP3

• MP3

MP3

CH14-25.CA-HXZ7/9V[US,UN,UX]/1 28/1/03, 10:57 AM15

– 16 –

CD1 CD2 CD3

•8 cm

41 3

CD3

CD2

CD1

• MP3

CD1 CD2 CD3

7 MP3

CD1

CD2 CD3

* 10

CD3

CD2

CD1

TRACK

1 2 3 4

5 6 7 8

910 11 12

13 14 15 16

TITLE

1 2 3 4

5 6 7 8

910 11 12

13 14 15 16

1 2 3 4

5 6 7 8

910 11 12

13 14 15 16

CD 16

TRACK

1 2 3 4

5 6 7 8

910 11 12

13 14 15 16

CH14-25.CA-HXZ7/9V[US,UN,UX]/1 28/1/03, 10:57 AM16

– 17 –

14 / ¢ PREV. 4

1/ NEXT ¢ ¡

CD 3/8 SELECT

24 / ¢

PREV. 4 1 / NEXT ¢

CD 3/8

SELECT

** 10

3 *

• CD1 CD1 ]CD2 ]CD3

• CD2 CD2 ]CD3 ]CD1

• CD3 CD3 ]CD1 ]CD2

NO DISC 1 NO DISC 2 NO

DISC 3

GROUP TRACK

CD 3/8 SELECT

MP3

4 / ¢ PREV.

4 1 / NEXT ¢ ¡

•4 PREV. 4 1

•¢ NEXT ¢ ¡

1 ¡

4 1 / ¢ ¡

•1 PREV. 4 1

•¡ NEXT ¢ ¡

5 5

15 +10 5

20 +10

32 +10

132 +10

SELECT

1 2 3 4

5 6 7 8

910 11 12

13 14 15 16

CH14-25.CA-HXZ7/9V[US,UN,UX]/1 28/1/03, 10:58 AM17

– 18 –

4 / ¢

SET/DISPLAY

•17

•

3 4

CD 3/8 SELECT

• MP3 MP3

CD PLAY MODE

PRGM

PROGRAM

• 51 CD FULL

•NO DISC 1 NO

DISC 2 NO DISC 3 2

•

CD3

CD2

CD1

PRGM

SET /

DISPLAY

SELECT

• 20

REPEAT REPEAT 1 REPEAT

ALL

•

CD 3/8 SELECT 7

CD PLAY MODE CD

PROGRAM

•

PROGRAM

CD PROGRAM

• PRGM

CD1

CD2 CD3

CD PLAY

MODE

PROGRAM

CD PROGRAM CD RANDOM

PRGM

CH14-25.CA-HXZ7/9V[US,UN,UX]/1 28/1/03, 10:58 AM18

– 19 –

• 20

REPEAT REPEAT1 REPEAT

ALL

CD1 CD2 CD3 7

CD PLAY MODE

CD RANDOM

•

RANDOM CD RANDOM

• RANDOM

CD 3/8 SELECT

4 / ¢

NEXT ¢ ¡

4 / ¢ PREV.

CD PLAY

MODE RANDOM

RANDOM

CD PLAY

MODE

RANDOM

SELECT

CD PROGRAM CD RANDOM

1 2 3 4

5 6 7 8

910 11 12

CD3

CD2

CD1

PREV. 4 1 NEXT ¢

•PREV. 4 1

•NEXT ¢ ¡

CANCEL/DEMO

PROGRAM CANCEL

•

3 4

7CD

PROGRAM

CANCEL

CANCEL / DEMO

CH14-25.CA-HXZ7/9V[US,UN,UX]/1 28/1/03, 10:58 AM19

– 20 –

•CD

7 0

LOCKED

UNLOCKED

LOCKED

REPEAT

REPEAT ALL REPEAT 1DISC

REPEAT 1

TRACK

5 6 7 8

910 11 12

13 14 15 16

REPEAT

•

MP3

REPEAT ALL

REPEAT 1DISC

REPEAT 1

REPEAT

•REPEAT 1DISC

•REPEAT ALL

GROUP TRACK

CH14-25.CA-HXZ7/9V[US,UN,UX]/1 28/1/03, 10:58 AM20

– 21 –

PAL MULTI NTSC

PAL

CD1 CD2 CD3 2

CD3 ............NTSC

CD2 ............

MULTI NTSC/

PAL

CD1 ............PAL

• PAL MULTI NTSC

PAL

• MULTI NTSC

•

0CD1 CD2

CD3

•8 cm

1 0

1 - 3

STOP PBC

VCD PBC

CD 3/8 SELECT CD

1-3

CD 3/8 SELECT CD 1-3

CH14-25.CA-HXZ7/9V[US,UN,UX]/1 28/1/03, 10:58 AM21

– 22 –

PBC

¢+

4–

CD 3/8SELECT

VCD NUMBER +, –

NEXT ¢ ¡

PREV. 4 1

(SELECT) CD 3/8

RETURN

PBC

TOC VCD PBC

SELECT

• PBC CD1 CD2 CD3

VCD NUMBER +

VCD NUMBER –

SELECT

¢ 4 SELECT CD 3/8

RETURN

CD STOP PBC

PBC

•

•4PREV /

¢NEXT

•

• RETURN

•7

CH14-25.CA-HXZ7/9V[US,UN,UX]/1 28/1/03, 10:58 AM22

– 23 –

• OK

PBC

PBC PBC

CD 3/8 SELECT CD

1-3

PBC PBC

CD 3/8 SELECT PBC

PBC

• PBC PBC

• PBC

• PBC OFF PBC

CD 3/8 SELECT

2 PBC PBC

3 1.1

PBC

STILL

CD 3/8 SELECT

ON SCREEN

CD3

CD2

CD1

ON SCREEN

7 PBC

PBC PBC

1-3

D3 01/20 2:31

CD3

CD2

CD1

CH14-25.CA-HXZ7/9V[US,UN,UX]/1 28/1/03, 10:59 AM23

– 24 –

V.INTRO

9 7

“NEXT ¢ ¡ “PREV. 4

1 9

PBC

9 9 7

CD 1-

HIGHLIGHT

9 7 1

NEXT ¢ ¡

• 9

•

• HIGHLIGHT

MPX

Lch MONO Rch MONO Lch MONO

Rch MONO

Lch MONO

Rch MONO

NORMAL

Lch MONONORMAL Rch MONO

CD3

CD2

CD1

CH14-25.CA-HXZ7/9V[US,UN,UX]/1 28/1/03, 10:59 AM24

– 25 –

0EJECT

TAPE 2 3

3 2

•REVERSE

•NO TAPE

1 ¡ PREV. 4 1 NEXT

¢ ¡ 3 2

0 EJECT

REVERSE MODE

1 ¡

PREV. 4 1 / NEXT ¢

1 ¡

PREV. 4 1 / NEXT ¢

•

C-120

TAPE

REVERSE

MODE

CH14-25.CA-HXZ7/9V[US,UN,UX]/1 28/1/03, 10:59 AM25

– 26 –

0 EJECT

•

• TAPE 2 3 7

AUX AM FM CD

• CD 27 27

REC START/STOP

REC START/STOP 1

REC

3 2

•NO TAPE

NO REC

REC START/STOP

7 REC START/STOP 1

0 EJECT

REVERSE MODE

•

• VOLUME

ACTIVE BASS EX. CA-HXZ7V

SUBWOOFER LEVEL CA-HXZ9V SOUND

MODE

•

• I

•

REC START

/ STOP

REVERSE

MODE

CH26-33.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 9:48 AM26

– 27 –



 !

 !"#$%&'( )*+,-./01234

 !

7= !

 !"#$%&'()*

 !"#

=0 EJECT  !"#$%&'()*+



 !"

 !"#

 !=

 !"#$%&!"

 !CD1CD2  CD3 !

=7

 MP3 

 !"#$%&'()

1 !"=

 !"#$%&!

 !"CD1CD2  CD3



2 =4 / ¢= !"#$%& CD 3/8

SELECT

3 =4 / ¢= !"#

REVERSE

MODE

CD3

CD2

CD1

CD REC

START

 CD REC START

 !"#$CD REC !"#$

 REC !"#$%&

=CD  !"#$%&'!"(



 !"#$CD REC FINISHED !"#$

 !REC !"#$%&'()*=CD 

 !"#$

 !"#$=7  4-  !"#

 !"#$%&'()*+,-. 4- 

 !"#$%& 25 

 !"#$%&'()*+

 !"#

 REVERSE MODE  !"#$%&'

 !"#$=

• !"#$%&'()*+,-.()

 !3 !"#$%&'()

3 !"#$%&'()*+,-./0123

2 !"

 !"#$%&'()*2 !"#$%&

 !"#$%#$&'()*

 !"#$%& !"#$%&'()*+

 !"#$%=

CD3

CD2

CD1

SELECT

CH26-33.CA-HXZ7/9V[US,UN,UX]/1 4/4/03, 2:02 PM27

– 28 –

• MIC LEVEL MIC 1 MIC 2

• MIC LEVEL

MIN

•

MIC LEVEL MIN

MIC 1

MIC 2

KARAOKE

KARAOKE 2 KARAOKE

MIC LEVEL

• REC START/STOP

KARAOKE

•OFF 2 KARAOKE

ECHO ECHO

• MIC LEVEL

•

MPX

MIC LEVEL

VOLUME MIN

MIC 1

MIC 2

MPX

ECHO 1

ECHO OFF

ECHO 2 ECHO 3

CH26-33.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:44 PM28

– 29 –

MIC LEVEL VOLUME

MPX NORMAL

KEY CONTROL I i

KEY CONTROL I

KEY CONTROL i

KEY CONTROL I i

•

• 0

MIC

LEVEL VOLUME

• REC START/STOP

CD 3/8 SELECT 7

MIC LEVEL

VOLUME

• REC START/STOP

SELECT

CH26-33.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:44 PM29

– 30 –

3 DAILY REC

SLEEP

DAILY

DAILY DAILY

DAILY OFF

•

• CANCEL/DEMO

•–

–

•–

CLOCK/TIMER

DAILY DAILY

•

CLOCK/TIMER

TIMER 2

14 / ¢ SET/

DISPLAY

24/ ¢

SET/DISPLAY

SET 1

CLOCK

/ TIMER

CLOCK

/ TIMER

SET /

DISPLAY

DAILY

Canceled

TIMER

REC

Clock

setting

DAILY

CH26-33.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:45 PM30

– 31 –

14 / ¢ SET/

DISPLAY

24/ ¢ SET/

DISPLAY

SET 1

4/¢

SET/DISPLAY

SET 1

•

TUNER FM

= 6

TUNER AM

= 6

1 CD-- 1

= 6

TAPE

= 7

AUX IN = 7

TUNER FM TUNER AM

4 ¢

SET/DISPLAY

1 CD– – 1

14 / ¢ SET/

DISPLAY

SET 1

24/ ¢ SET/

DISPLAY

SET 1

4/¢

•

•VOLUME – –

SET/DISPLAY

DAILY

OK 2

•

1 CLOCK/TIMER DAILY

DAILY

2 CANCEL/

DEMO

DAILY DAILY OFF

SET/DISPLAY

OK 2

1 CD

-- 1

TAPEAUX IN

TUNER FM TUNER AM

CLOCK

/ TIMER

CANCEL / DEMO

SET /

DISPLAY

SET /

DISPLAY

VOLUME 10VOLUME 15

VOLUME – –VOLUME 5

CH26-33.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:45 PM31

– 32 –

14 / ¢

SET/DISPLAY

SET 1

24/ ¢

SET/DISPLAY

SET 1

14 / ¢ SET/

DISPLAY

24/ ¢ SET/

DISPLAY

SET 1

14 / ¢TUNER FM

TUNER AM SET/DISPLAY

24/ ¢

SET/DISPLAY

REC

OK 2

• REC START/STOP 7

•

DAILY

Canceled

TIMER

REC

Clock

setting

REC REC

REC VOL

MIN REC

OFF

•

• CANCEL/DEMO

CLOCK/TIMER REC

REC

•

CLOCK/TIMER

TIMER 2

CLOCK

/ TIMER

CLOCK

/ TIMER

SET /

DISPLAY

REC

CH26-33.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:45 PM32

– 33 –

SLEEP 10 SLEEP 60SLEEP 30SLEEP 20

SLEEP 120 SLEEP 90

1 CLOCK/TIMER REC

REC

2 CANCEL/DEMO

RECREC OFF 2

SET/DISPLAY

OK 2

SLEEP SLEEP

•

•CLOCK ADJUST

SLEEP

•

6:00 6:30 7:00 7:30

CLOCK

/ TIMER

CANCEL / DEMO

SET /

DISPLAY

SLEEP

21:00 21:30 22:00 22:30

CH26-33.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:45 PM33

– 34 –

•

—

•

—

•

CH34-36.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:46 PM34

– 35 –

CANCEL/DEMO

•

•AM

•FM

•

• MP3

.MP3 .Mp3 .mP3 .mp3

• MP3 ISO 9660

1 2

CANCEL/DEMO

6 8

•

• AM

• FM

•

• 20

MP3 15

MP3

CH34-36.CA-HXZ7/9V[US,UN,UX]/1 22/1/03, 5:46 PM35

– 36 –

CA-HXZ7V

IEC 268-3 100 W RMS

1 Hz 6 Ω

0.9%

1 kHz 300 mV

AUX 390 mV 50 kΩ

MIX 1/2 1.5 mV 5 kΩ

6 Ω – 16 Ω

16 Ω – 32 Ω

87.50 MHz – 108.00 MHz

9 kHz 531 kHz – 1 602 kHz

10 kHz 530 kHz – 1 600 kHz

9 kHz 531 kHz – 1 710 kHz

10 kHz 530 kHz – 1 710 kHz

85 dB

90 dB

MP3 MPEG 1/2 3

320 kbps

I 50 Hz — 14 000 Hz

0.15% WRMS

110 V 127 V 220 V

230 V – 240 V

50 Hz / 60 Hz

185 W

25 3.5

185 mm ×370 mm ×370

10.0 kg

CA-HXZ9V/CA-HZ98V

IEC 268-3 75 W RMS

63 Hz 6 Ω

0.9%

30 W RMS

1 Hz 6 Ω

0.9%

1 kHz 300 mV

AUX 390 mV 50 kΩ

MIX 1/2 1.5 mV 5 kΩ

6 Ω – 16 Ω

16 Ω – 32 Ω

87.50 MHz – 108.00 MHz

9 kHz 531 kHz – 1 602 kHz

10 kHz 530 kHz – 1 600 kHz

9 kHz 531 kHz – 1 710 kHz

10 kHz 530 kHz – 1 710 kHz

85 dB

90 dB

MP3 MPEG 1/2 3

320 kbps

I 50 Hz — 14 000 Hz

0.15% WRMS

110 V 127 V 220 V

230 V – 240 V

50 Hz / 60 Hz

205 W

23 3.5

205 mm ×370 mm ×370

10.0 kg

CH34-36.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 9:52 AM36

wÐdŽwÐdŽ

wÐdŽ

•

"" •

•

JVC

•

AC •

CD PBC

CD-ROMDVD CD-GCD-I

COMPACT

DIGITAL VIDEO

COMPACT

DIGITAL AUDIO

– –

AR01-08.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:28 pm1

wÐdŽwÐdŽ

wÐdŽ

TURBO

FMAM

MP3

(PAL, MULTI, NTSC)

CDPBC

PBC CDPBC

CD CD

(MPX) CD

– –

AR01-08.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:28 pm2

wÐdŽwÐdŽ

wÐdŽ

CA-HXZ9V/HXZ98V

CA-HXZ7V

– –

AR01-08.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:28 pm3

wÐdŽwÐdŽ

wÐdŽ

STANDBY

ECO

FM/AM

PLAY 2 3

AUX

SOUND TURBO

ÅSOUND TURBO

ıCA-HXZ7V

ACTIVE BASS EX.

CA-HXZ9V/98V

SUBWOOFER

ÇREC

ÎSEA •ROCKPOP CLASSIC

‰

•DANCEHALL STADIUM

ÏCD •CD1 READYCD2 READYCD3 READY SOUND MODE

VCD NUMBER PRESET + / -

4 / ¢

CA-HXZ7V

ACTIVE BASS EX. LEVEL + /

CA-HXZ9V/98V

SUBWOOFER LEVEL + /

•CANCEL/DEMO SET/DISPLAY

REVERSE MODE

PHONES ( )

TITLE GROUP TRACK

0CD1CD2CD3

CD1CD2CD3

3/8 SELECTCD

TUNING + /

1 / ¡

VOLUME + /

•REPEATCD PLAY MODE MIC LEVEL MIC 1MIC 2

•REC START/STOP

CD REC STARTCLOCK/TIMER

•DAILYSLEEP REC

TITLE

GROUP

TRACK

•

PRGM

RANDOM

(ALL/1/DISC

MP3

PBC

•MONOST

• 2 3

KARAOKEECHO

– –

AR01-08.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:29 pm4

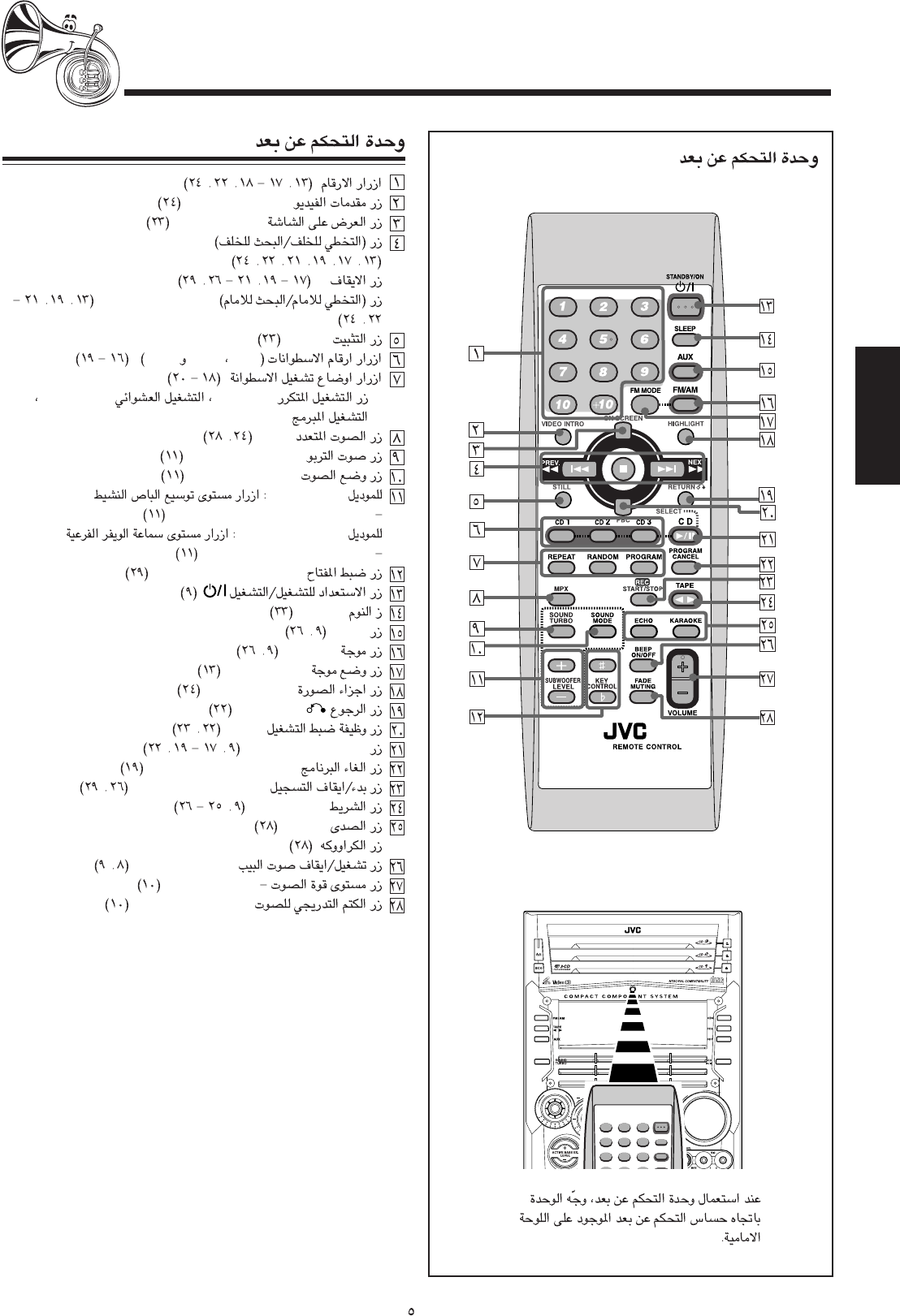

wÐdŽwÐdŽ

wÐdŽ

VIDEO INTRO

ON SCREEN

PREV. 4 (1)

NEXT ¢ (¡)

STILL

CD1CD2CD3

•REPEATRANDOM PROGRAM

MPX

SOUND TURBO

SOUND MODE

CA-HXZ7V

ACTIVE BASS EX. LEVEL + /

CA-HXZ9V/98V

SUBWOOFER LEVEL + /

i, I

KEY CONTROL

SLEEP

AUX

FM/AM

FM MODE

HIGHLIGHT

RETURN

PBC

SELECT CD 3¥8

PROGRAM CANCEL

REC START/STOP

TAPE 2 3

ECHO

BEEP ON/OFF

VOLUME + /

FADE MUTING

COMPACT

DIGITAL VIDEO

SELECT

– –

AR01-08.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:29 pm5

wÐdŽwÐdŽ

wÐdŽ

•AM •FM •

•

•AC •

R6P (SUM-3) / AA(15F)

FMFM FM 75 Ω COAXIAL

)IECDIN 45325(

R6(SUM-3)/AA(15F)

•

FM 75

COAXIAL

LOOP

AM EXT

ANTENNA

FM 75

COAXIAL

LOOP

AM EXT

ANTENNA

– –

AR01-08.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:29 pm6

wÐdŽwÐdŽ

wÐdŽ

AMAM LOOP

AM EXT

FMAM •

•

CA-HXZ7V

CA-HXZ9V/CA-HXZ98

COAXIAL

ANTENNA

AM LOOP

FM 75

AM EXT

LEFTRIGHT

MAIN

SPEAKERS

SUBWOOFERS

CAUTION: SPEAKER IMPEDANCE

6 16

CA-HXZ9V/CA-HXZ98

CA-HXZ9V/

CA-HXZ98V

– –

CA-HXZ9V/

CA-HXZ98V

CA-HXZ7V

AR01-08.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:29 pm7

wÐdŽwÐdŽ

wÐdŽ

SURROUND SPEAKERS

•RIGHT •LEFT

•

AUX

•

ACAC

CANCEL/DEMO

"DEMO OFF"

•

BEEP ON/OFF

CANCEL/DEMO

"DEMO START"

CANCEL / DEMO

AUX

RIGHT LEFT

BEEP

ON/OFF

– –

AR01-08.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:29 pm8

wÐdŽwÐdŽ

wÐdŽ

STANDBY/ON

•

ACAC

"0:00"

BEEP ON/OFF

•"BEEP ON" "BEEP OFF"

ECO

BEEP

ON/OFF

•

ECO ECO

ECO NORMAL

•ECONORMAL

ECO

FM/AMFM/AM

CD 3¥8 SELECT

TAPE 2 3

AUX

FM/AMCD 3/8 SELECT TAPE 2 3AUX

BEEP OFF BEEP ON

FM / AM

TAPE

SELECT

AUX

– –

AR09-13.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:31 pm9

wÐdŽwÐdŽ

wÐdŽ

FADE

MUTING

VOLUME

32VOLUME MIN1VOLUME-30VOLUME VOLUME MAX

VOLUME +/

VOLUME +

VOLUME -

)

(PHONES

FADE MUTING

"VOLUME MIN"

CLOCK/TIMER

4 / ¢

SET/DISPLAY

CANCEL/DEMO

4 / ¢

SET/DISPLAY

SET/DISPLAY •

CLOCK/TIMER

•

0:00

CLOCK

/ TIMER

SET /

DISPLAY

CANCEL / DEMO

DAILY TIMER

TIMER

REC

Clock

setting

– –

AR09-13.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:31 pm10

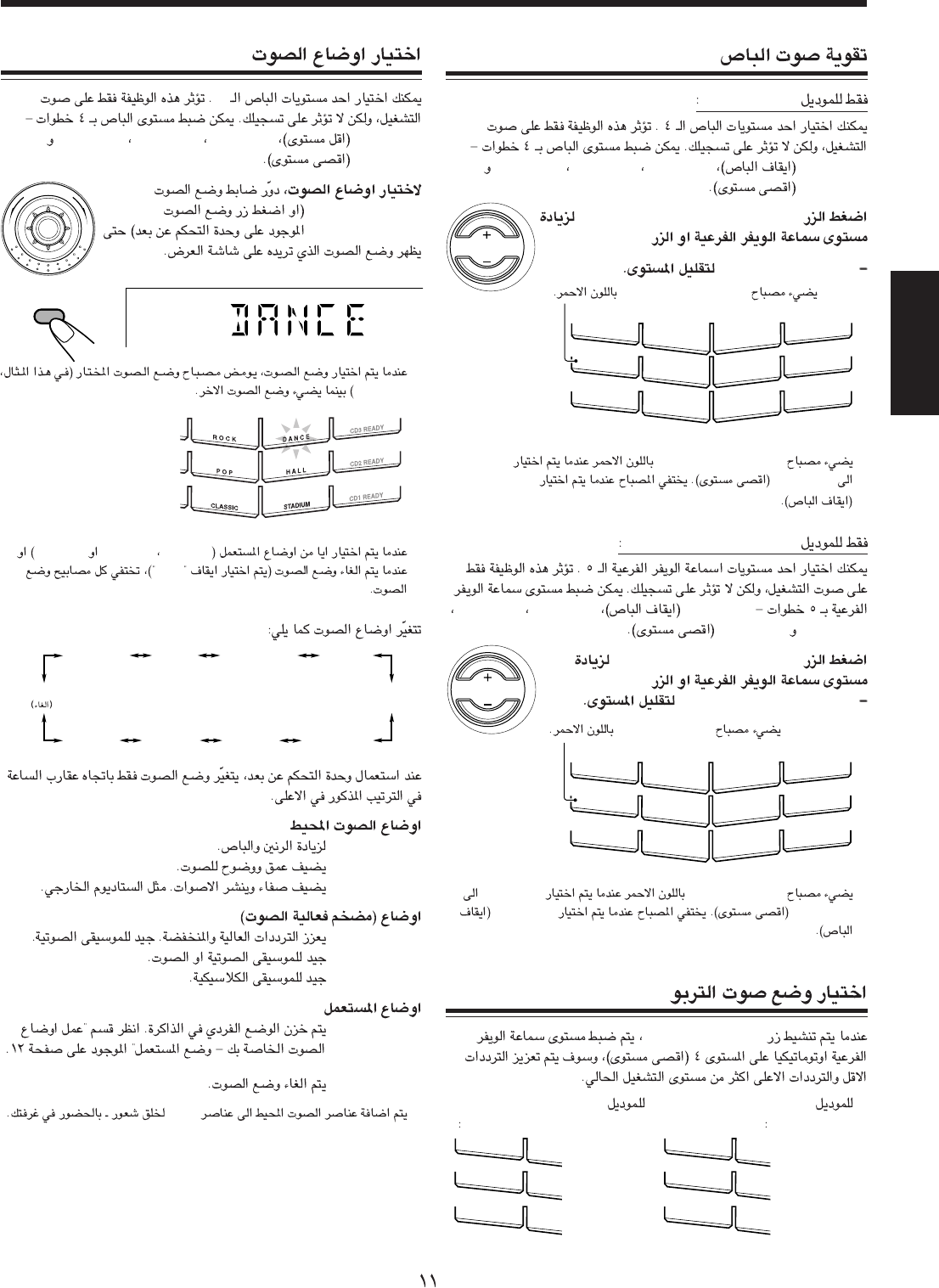

wÐdŽwÐdŽ

wÐdŽ

LEVEL 0LEVEL 1LEVEL 2LEVEL 3 LEVEL 4

SOUND MODE

•

DANCE

•USER 1USER 2USER 3

OFF

*:DANCE

:HALL

:STADIUM

SEA :ROCK

:POP

:CLASSIC

:USER 1/2/3

:OFF

*SEA

DANCE

OFF

HALL STADIUM ROCK

POP

CLASSICUSER 1USER 2

USER 3

CA-HXZ7V

LEVEL 0LEVEL 1LEVEL 2LEVEL 3 LEVEL 4

ACTIVE BASS EX. LEVEL +

BASS EX. LEVEL

•ACTIVE BASS EX.LEVEL 1

LEVEL 4LEVEL 0

CA-HXZ9V/HXZ98V

LEVEL 0LEVEL 1LEVEL 2 LEVEL 3LEVEL 4

SUBWOOFER LEVEL +

SUBWOOFER LEVEL

•SUBWOOFERLEVEL 1

LEVEL 4LEVEL 0

TURBO

SOUND TURBO

SOUND

MODE

SUBWOOFER

LEVEL

R E C CLASSIC

CD1 READY

STADIUM

P O P

CD2 READY

H A L L

SOUND TURBOR O C K

D A N C E CD3 READY

SUBWOOFER

ACTIVE BASS EX.

LEVEL

R E C CLASSIC

CD1 READY

STADIUM

P O P

CD2 READY

H A L L

SOUND TURBOR O C K

D A N C E CD3 READY

ACTIVE BASS EX.

R E C CLA

SOUND TURBO R O

SUBWOOFER

R E C CLA

SOUND TURBO R O

ACTIVE BASS EX.

CA-HXZ7VCA-HXZ9V/CA-HXZ98V

– –

AR09-13.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:31 pm11

wÐdŽwÐdŽ

wÐdŽ

SEA SEALOW1LOW2 MIDHIGH1HIGH2 USER 1USER 2USER 3 •

•

SEADANCEHALL STADIUM

SET/DISPLAY

SEA

4 / ¢

LOW1LOW2MIDHIGH1 HIGH2

1¡

SET/DISPLAY

SET /

DISPLAY

4 / ¢

USER 1USER 2 USER 3

SEA

SET/DISPLAY

SEA

USER 1USER 2USER 3

AMAM

•AM

SET /

DISPLAY

SET /

DISPLAY

– –

AR09-13.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:32 pm12

wÐdŽwÐdŽ

wÐdŽ

FMAM

FM/AM

FMAM •FM AM

TUNING +

TUNING

NEXT ¢ (¡)

PREV. 4 (1)

•ST

TUNING + TUNING -PREV. 4 (1)/NEXT ¢ (¡)

TUNING +TUNING -

NEXT ¢ (¡)/PREV. 4 (1)

FM MODE MONO

FMAM

•

SET/DISPLAY

PRESET + /

SET/DISPLAY

•

FM/AM

FMAM

•FMAM

PRESET + /

+10 5

+10+10 5

+10+10 10

FM MODE

SET /

DISPLAY

SET /

DISPLAY

FM / AM

– –

AR09-13.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:32 pm13

wÐdŽwÐdŽ

wÐdŽ

•CDCD •CD-RCD •CD-RWCD •MP3MP3CD-RCD-RW

CD-RCD-RW

CD-RCD CD-RWCD

•CD-RCD-RW CDMP3

•CD-RCD-RW

•CD-RW

CD-RWCD

•

CD1 READYCD2 READY CD3 READY

CD1CD2CD3

•

NO DISC 1 NO DISC 2NO DISC 3

•

MP3 CDMP3

MP3

MP3"Audio Layer 3MPEG-1Motion Picture Experts Group 1"MP3

*( MP3CD-RCD-RW

MP3

MP3 •MP3CD-RCD-RW

•MP3ISO 9660

•

•MP3

.MP3.Mp3.mP3.mp3

•MP3

– –

AR14-25.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:34 pm14

wÐdŽwÐdŽ

wÐdŽ

MP3

MP3 PC

ISO 9660

MP3

MP3CD-R CD-RW

•MP3)(

MP3MP3

•

MP3MP3

*MP3

MP3

– –

AR14-25.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:34 pm15

wÐdŽwÐdŽ

wÐdŽ

CD1CD2CD3

•CD

CD3

CD2

CD1

•MP3

7CD

CD1 CD2CD3

7MP3

CD1CD2CD3

CD3

CD2

CD1

TRACK

1 2 3 4

5 6 7 8

910 11 12

13 14 15 16

TITLE

1 2 3 4

5 6 7 8

910 11 12

13 14 15 16

1 2 3 4

5 6 7 8

910 11 12

13 14 15 16

– –

TRACK

1 2 3 4

5 6 7 8

910 11 12

13 14 15 16

AR14-25.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:34 pm16

wÐdŽwÐdŽ

wÐdŽ

4 / ¢PREV. 4 (1)/ NEXT ¢ (¡)

CD 3¥8 SELECT

4 / ¢

PREV. 4 (1)/NEXT ¢ (¡)

CD 3¥8

•CD1CD3 } CD2 } CD1 •CD2CD1 } CD3 } CD2 •CD3CD2 } CD1 } CD3 *

NO DISC 1NO DISC 2 NO DISC 3

GROUP TRACK

CD 3¥8 SELECT

MP3

4 / ¢PREV. 4 (1)/ NEXT ¢ (¡)

•4PREV. 4 (1)

•¢NEXT ¢ (¡)

¡¢ (¡) / 4 (1)

•1PREV. 4 (1)

•¡NEXT ¢ (¡)

+105 +1010 +10 2

+10 2

SELECT

1 2 3 4

5 6 7 8

910 11 12

13 14 15 16

– –

AR14-25.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:35 pm17

wÐdŽwÐdŽ

wÐdŽ

4 / ¢

SET/DISPLAY

•

CD 3¥8 SELECT

•MP3 MP3

CD PLAY MODE PRGM PROGRAM

•CD FULL

•NO DISC 1

NO DISC 2NO DISC 3

•

CD3

CD2

CD1

PRGM

SET /

DISPLAY

SELECT

•

REPEAT

REPEAT 1REPEAT ALL •

•CD CD 3¥8 SELECT7

CD PLAY MODE

CD PROGRAM

•

PROGRAM

CD PROGRAM

•PRGM

CD1 CD2CD3

CD PLAY

MODE

PROGRAM

CD PROGRAM CD RANDOM

PRGM

– –

AR14-25.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:35 pm18

wÐdŽwÐdŽ

wÐdŽ

•

REPEAT

REPEAT 1REPEAR ALL

CD1CD2 CD3

CD PLAY MODE

CD RANDOM

•

RANDOM

CD RANDOM

•RANDOM

CD 3¥8 SELECT

4 / ¢

NEXT ¢ (¡)

4 / ¢

PREV. 4 (1)

CD PLAY MODE RANDOM RANDOM

CD PLAY

MODE

RANDOM

SELECT

CD PROGRAM CD RANDOM

1 2 3 4

5 6 7 8

910 11 12

CD3

CD2

CD1

4 (1)PREV. NEXT ¢ (¡)•PREV. 4 (1)

•NEXT ¢ (¡)

CANCEL/DEMO

PROGRAM CANCEL

•

CD PROGRAM •

PROGRAM

CANCEL

CANCEL / DEMO

– –

AR14-25.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:35 pm19

wÐdŽwÐdŽ

wÐdŽ

•CD

LOCKED

UNLOCKED

LOCKED

REPEAT

REPEAT ALL REPEAT 1DISC

REPEAT 1

TRACK

5 6 7 8

910 11 12

13 14 15 16

REPEAT

•

MP3

REPEAT ALL

REPEAT 1DISC

1REPEAT

REPEAT

•REPEAT 1DISC

•REPEAT ALL

GROUP TRACK

– –

AR14-25.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:36 pm20

wÐdŽwÐdŽ

wÐdŽ

(PAL, MULTI, NTSC)

VCD

PAL

CD1CD2CD3

CD3NTSC CD2

NTSC/PAL

CD1PAL

•NTSCMULTI

PAL

•NTSCMULTI

•

0CD1CD2 CD3CD

•CD

CDCD

CDPBC VCD PBCSTOPPBC CD

CDPBC

CD 3/8 SELECTCD CD1-3

Compu Play

CD 3/8 SELECTCD1-3

| |

– –

AR14-25.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:36 pm21

wÐdŽwÐdŽ

wÐdŽ

CD PBC

(PBC)

¢ +

CD 3/8 SELECT

VCD NUMBER +,

NEXT ¢ (¡)

PREV. 4 (1)

(

SELECT

) CD 3/8

RETURN

PBC

(TOC)PBC

VCD PBC

CD 3/8 SELECTCD •PBC CD1CD2CD3

VCD NUMBER +

VCD NUMBER

SELECT CD

3/8

VCD

¢4

SELECT CD

3/8

RETURN

PBC

CD STOP

– –

PBC

CD PBC

•

¢ NEXT/4 PREV

•

•RETURN

•7

RET

AR14-25.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:36 pm22

wÐdŽwÐdŽ

wÐdŽ

CD PBC

CDPBC

CD 3/8 SELECT CD 1-3

CD 1-3

PBCPBC CD 3/8 SELECTVCD PBC

PBC •PBCCD

PBC

•PBC

•PBC OFF

PBC ONCD

VCD7

CD 3/8 SELECT

PBC

VCD1.1

CDs PBC

STILL

CD 3/8 SELECT

ON SCREEN

CD3

CD2

CD1

ON SCREEN

CD CD

PBCCD PBCPBC CDPBC

CD1-3

D3 01/20 2:31

CD3

CD2

CD1

– –

AR14-25.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:36 pm23

wÐdŽwÐdŽ

wÐdŽ

VIDEO INTRO

NEXT ¢ (¡)

PREV. 4 (1)

CD PBC

1-3CD

HIGHLIGHT

NEXT ¢ (¡)

•

MPX

Lch MONORch MONO Lch MONORch MONO

Lch MONO

Rch MONO

NORMAL

Lch MONONORMAL Rch MONO

CD3

CD2

CD1

– –

AR14-25.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:36 pm24

wÐdŽwÐdŽ

wÐdŽ

0 EJECT

TAPE 2 3

2 3

•REVERSE

•NO TAPE

1NEXT ¢ (¡)/PREV. 4 (1)

0 EJECT

REVERSE MODE

¡1

NEXT ¢(¡)/PREV. 4 (1)

¡1

NEXT ¢(¡)/PREV. 4 (1)

•

C-120

TAPE

REVERSE

MODE

– –

AR14-25.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:36 pm25

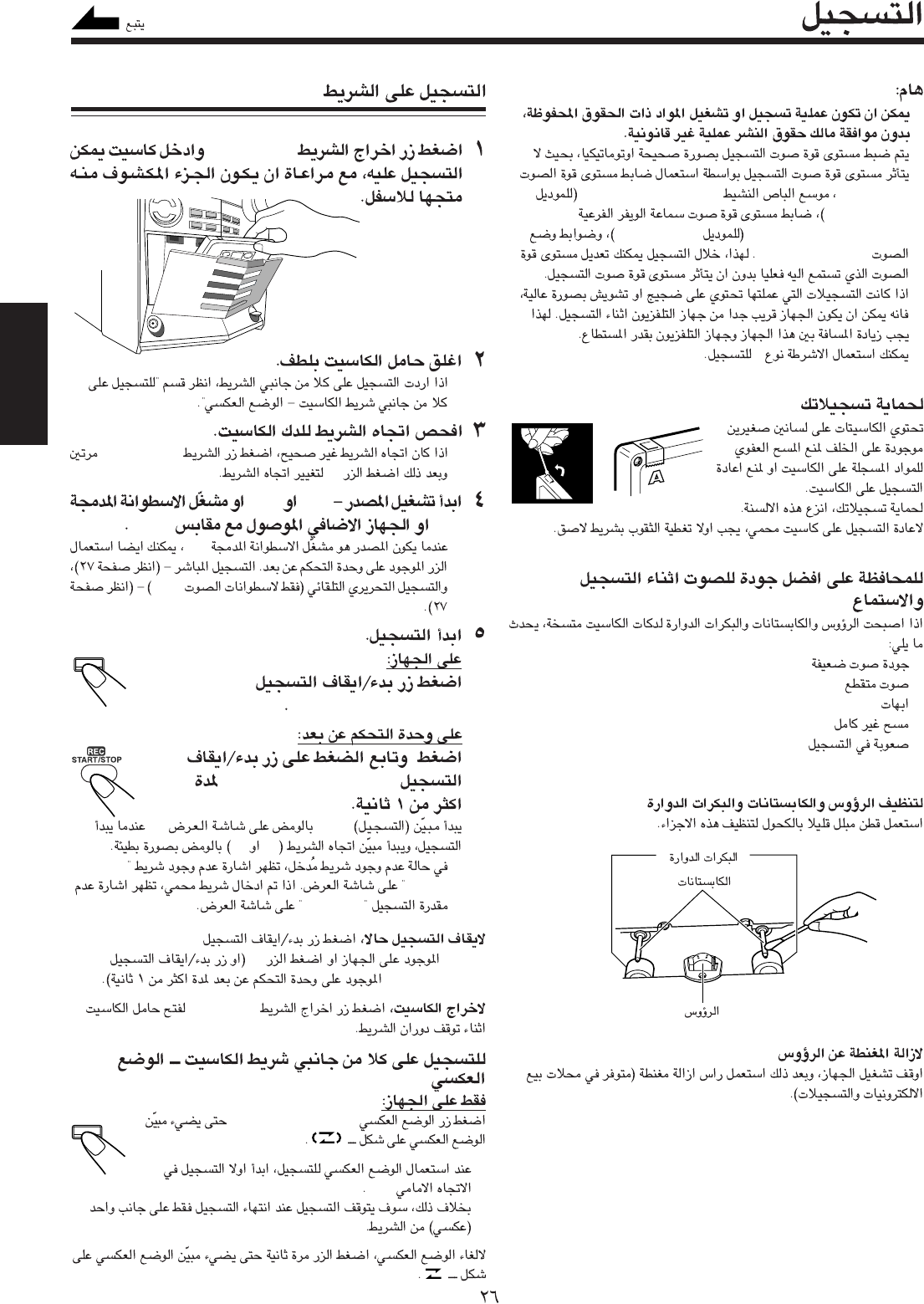

wÐdŽwÐdŽ

wÐdŽ

0 EJECT

•

•TAPE 2 3

FMAM CDAUX •CD

CDs

REC START/STOP

REC

•NO TAPE

NO REC

REC START/ STOP7REC START/STOP

0 EJECT

REVERSE MODE

•

(3)

•

VOLUMEACTIVE BASS EX. CA-HXZ7V

SUBWOOFER LEVELCA-HXZ9V SOUND MODE

•

•I

•

REC START

/ STOP

REVERSE

MODE

– –

AR26-33.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:39 pm26

wÐdŽwÐdŽ

wÐdŽ

0 EJECT

CD1CD2

CD3

MP3

CD1CD2

CD3

4 / ¢

CD 3¥8 SELECT

4 / ¢

REVERSE

MODE

CD3

CD2

CD1

CD REC

START

CD REC START

CD REC

REC

CD REC FINISHED

RECCD

REVERSE MODE

•

(3)

(2)

– –

CD3

CD2

CD1

SELECT

AR26-33.CA-HXZ7/9V[US,UN,UX]/1 4/4/03, 2:04 PM27

wÐdŽwÐdŽ

wÐdŽ

•MIC LEVEL

1MIC2MIC

•MIC LEVEL MIN •

MIC LEVELMIN

1MIC2MIC

KARAOKE

MIC LEVEL

•REC START/STOP

KARAOKE

•OFF KARAOKE

ECHO ECHO •

•MIC LEVEL

•

•ON/OFF

•

(MPX)

MIC LEVEL

VOLUME

MIN

1MIC2MIC

MPX

ECHO 1

ECHO OFF

ECHO 2 ECHO 3

– –

AR26-33.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:39 pm28

wÐdŽwÐdŽ

wÐdŽ

MIC LEVEL

VOLUME

MPX

NORMAL

I/iKEY CONTROL

IKEY CONTROL

i KEY CONTROL

iI KEY CONTROL

•

CDs

MIC LEVEL

VOLUME

•

REC START/STOP

CD 3/8 SELECT

MIC LEVEL

VOLUME

•

REC START/STOP

– –

SELECT

AR26-33.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:39 pm29

wÐdŽwÐdŽ

wÐdŽ

DAILY RECSLEEP

DAILYDAILY

DAILY

DAILY OFF

•

•CANCEL/DEMO

•

TIMERCLOCK

DAILY

•

TIMERCLOCK

TIMER

4 / ¢

SET/DISPLAY

4 / ¢

SET/DISPLAY

SET

CLOCK

/ TIMER

CLOCK

/ TIMER

SET /

DISPLAY

DAILY TIMER

TIMER

REC

Clock

setting

DAILY

– –

AR26-33.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:39 pm30

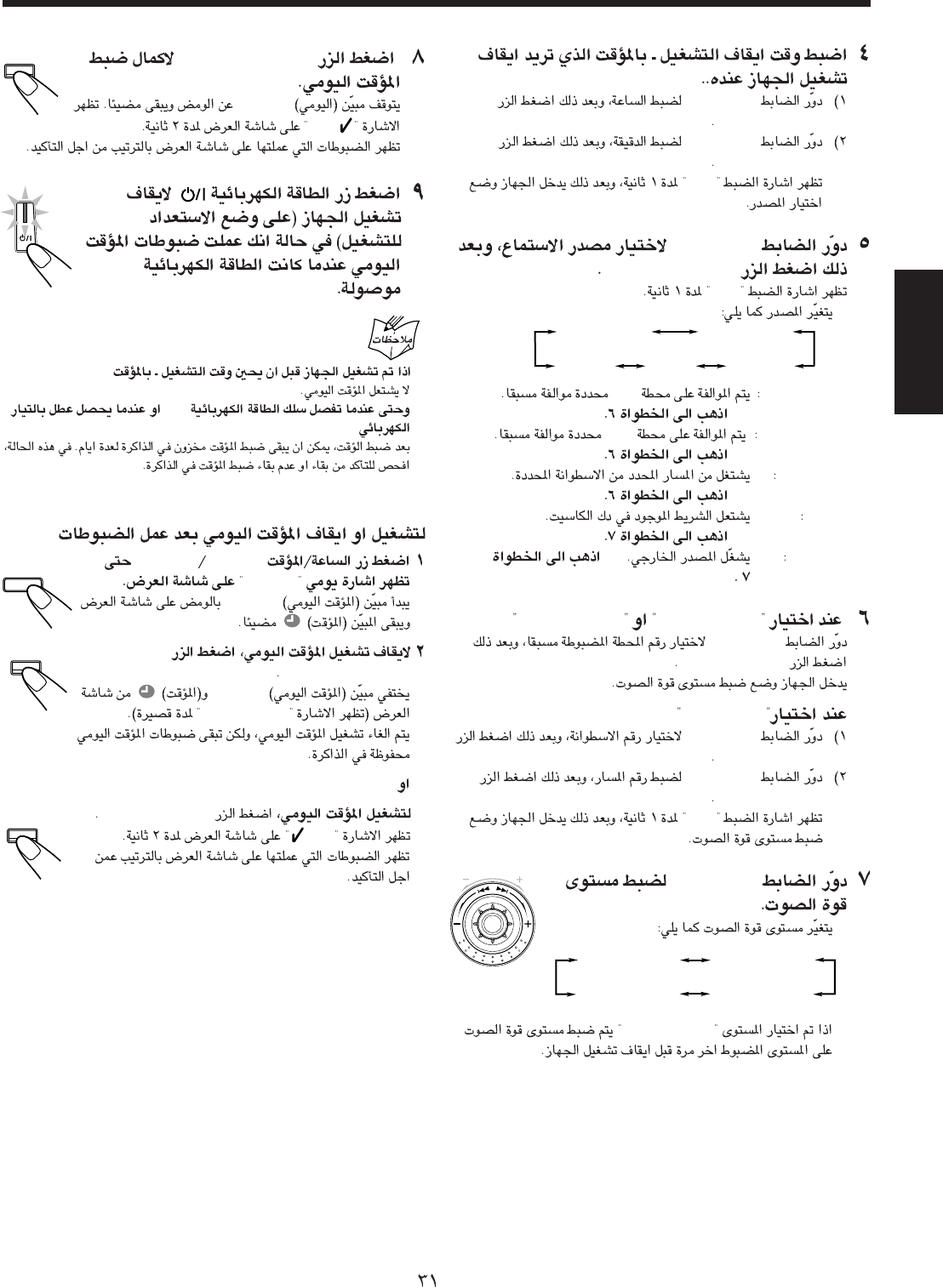

wÐdŽwÐdŽ

wÐdŽ

4 / ¢

SET/DISPLAY

4 / ¢

SET/DISPLAY

SET

4 / ¢

SET/DISPLAY

SET •

TUNER FMFM

TUNER AMAM

1 CD - - 1

TAPE

INAUX+

TUNER FMTUNER AM

4 / ¢

SET/DISPLAY

1 CD - - 1

4 / ¢

SET/DISPLAY

4 / ¢

SET/DISPLAY

SET

4 / ¢

•

•VOLUME - -

SET/DISPLAY

DAILY

•

•AC

TIMERCLOCK DAILY

DAILY

CANCEL/DEMO

DAILY

DAILY OFF

SET/DISPLAY

1 CD

-- 1

TAPEAUX IN

TUNER FM TUNER AM

CLOCK

/ TIMER

CANCEL / DEMO

SET /

DISPLAY

SET /

DISPLAY

VOLUME 10VOLUME 15

VOLUME – – VOLUME 5

– –

AR26-33.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:40 pm31

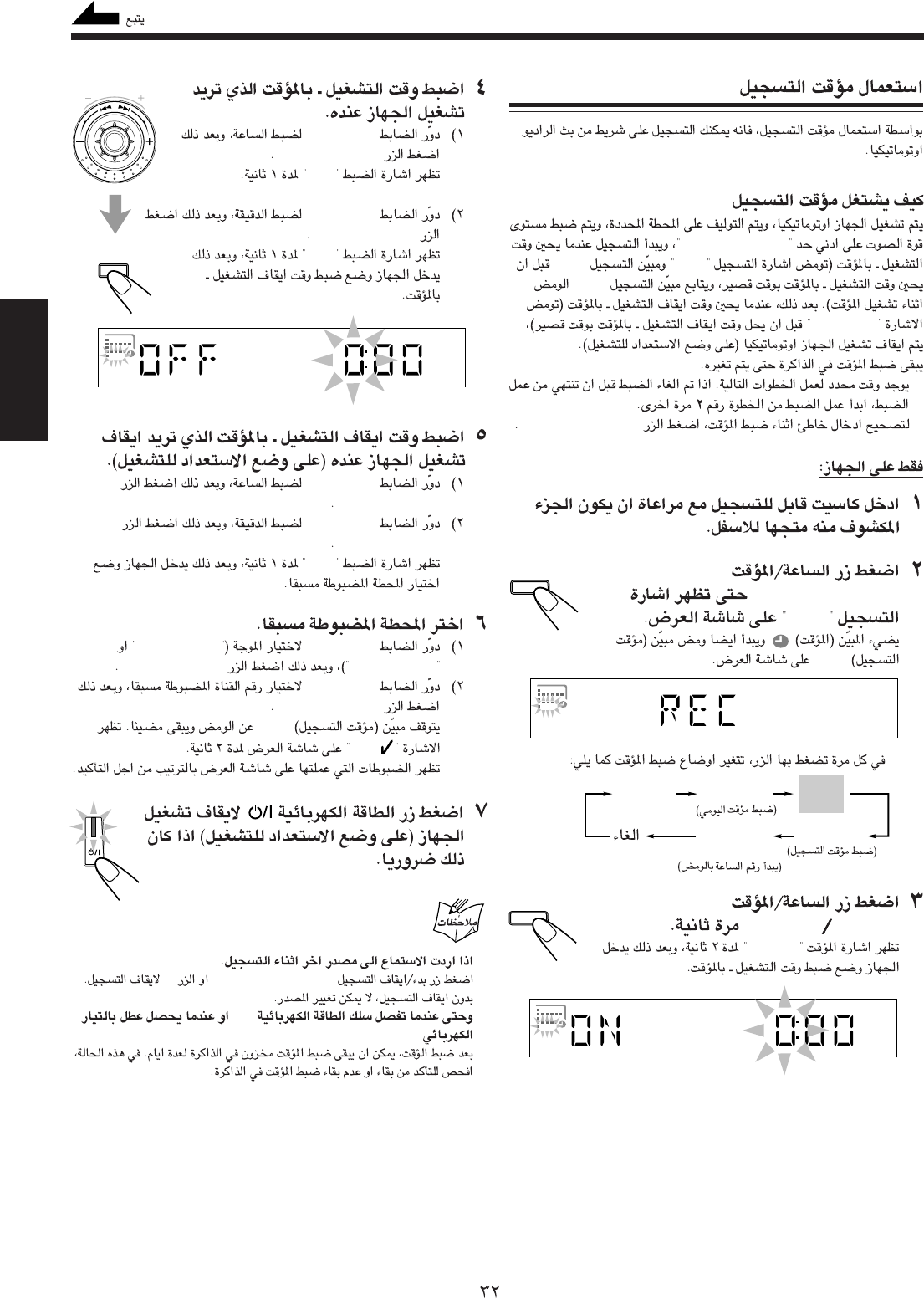

wÐdŽwÐdŽ

wÐdŽ

4 / ¢

SET/DISPLAY

SET

4 / ¢

SET/DISPLAY

SET

4 / ¢

SET/DISPLAY

4 / ¢

SET/DISPLAY

SET

4 / ¢TUNER FM TUNER AMSET/DISPLAY

4 / ¢

SET/DISPLAY

REC

•

REC START/STOP7

•AC

DAILY TIMER

TIMER

REC

Clock

setting

VOLUME MIN

RECREC

REC

REC OFF

•

•CANCEL/DEMO

TIMER/CLOCK

REC

•

TIMERCLOCK

TIMER

CLOCK

/ TIMER

CLOCK

/ TIMER

SET /

DISPLAY

REC

– –

AR26-33.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:40 pm32

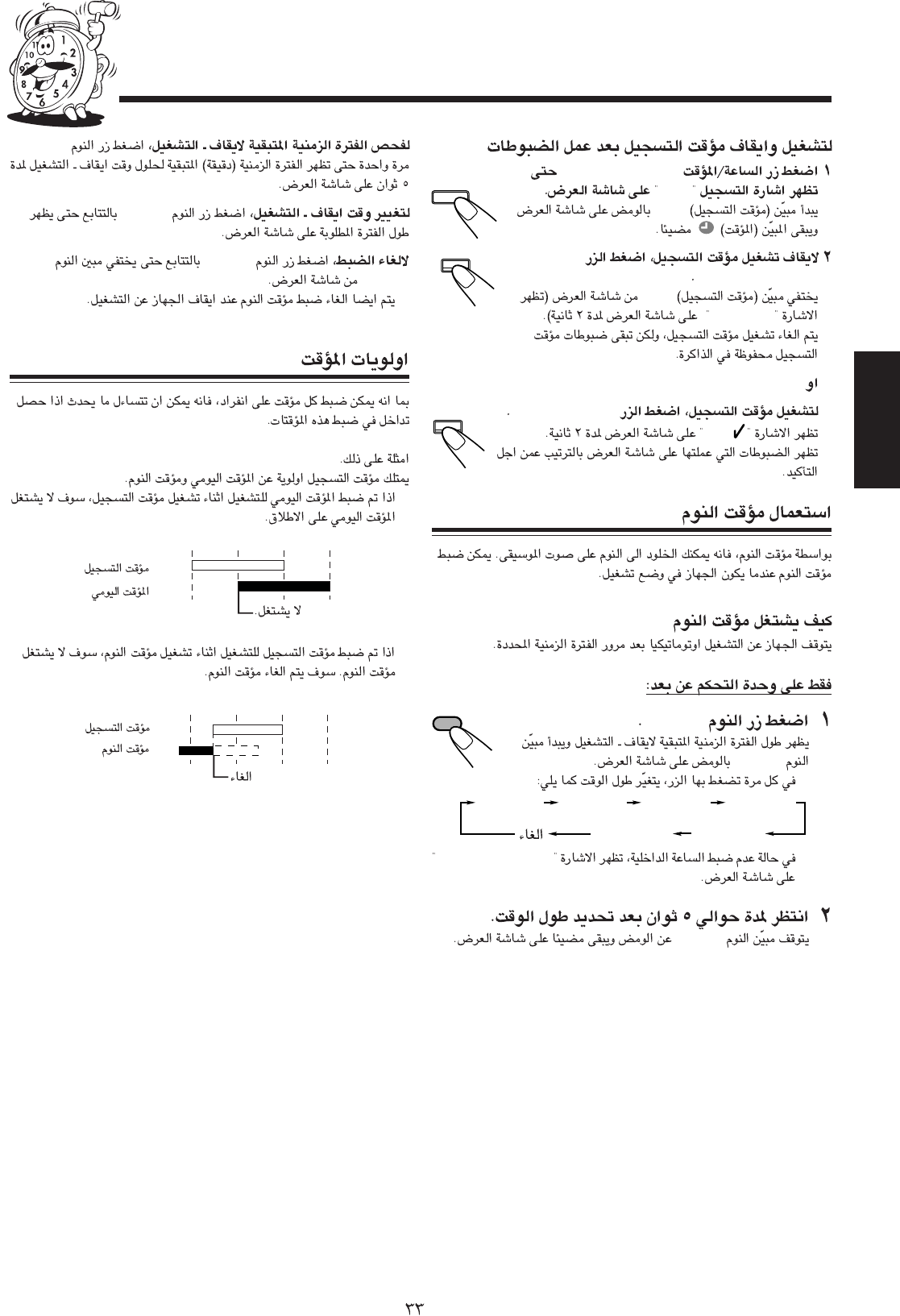

wÐdŽwÐdŽ

wÐdŽ

SLEEP 10 SLEEP 60SLEEP 30SLEEP 20

SLEEP 120 SLEEP 90

TIMER/CLOCK

REC

CANCEL/DEMO

REC REC OFF

SET/DISPLAY

SLEEP

SLEEP •

•CLOCK ADJUST

SLEEP

SLEEP SLEEP

•

6:00 6:30 7:00 7:30

CLOCK

/ TIMER

CANCEL / DEMO

SET /

DISPLAY

SLEEP

21:00 21:30 22:00 22:30

– –

AR26-33.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:40 pm33

wÐdŽwÐdŽ

wÐdŽ

•

– –

AR34-36.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:48 pm34

wÐdŽwÐdŽ

wÐdŽ

CANCEL/DEMO

•

•AM

•FM

•AC

•

•MP3

•MP3.MP3.Mp3 .mP3.mp3

•MP3

ISO 9660

CANCEL/DEMO

•

•AM

•FM

•AC

•

MP3

– –

AR34-36.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:48 pm35

wÐdŽwÐdŽ

wÐdŽ

CA-HXZ7V

(IEC 268-3)

RMS

AUX

MIX 1/2

CDs

MP3MPEG 1/2 Audio Layer 3

(WRMS)

××××

CA-HXZ9V/HZ98V

(IEC 268-3)

RMS

AUX

MIX 1/2

CDs

MP3MPEG 1/2 Audio Layer 3

(WRMS)

××××

– –

AR34-36.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 12:48 pm36

0203JALFLEJEM

EN, CS, AR

VICTOR COMPANY OF JAPAN, LIMITED

Mains (AC) Line Instruction (not applicable for Europe, U.S.A., Canada,

Australia, and U.K.)

IMPORTANT for mains (AC) line

BEFORE PLUGGING IN, do check that your mains (AC)

line voltage corresponds with the position of the voltage

selector switch provided on the outside of this equipment and,

if different, reset the voltage selector switch, to prevent from

damage or risk of fire/electric shock.

Cover.CA-HXZ7/9V[US,UN,UX]/1 23/1/03, 10:56 AM2

JVC CA HXZ7V HXZ9V/98V/7V User Manual HXZ7V, HXZ98V, HXZ9V GVT0096 003A

CA-HXZ98V CA-HXZ98V, CA-HXZ9V GVT0096-003A English, Simplified Chinese, Arabic,

CA-HXZ9V CA-HXZ9V GVT0096-003A English, Simplified Chinese, Arabic,

Navigation menu

Versions of this User Manual:

Views

Navigation
