ENGLISH

ไทย

B5A-1361-00 [M]

KD-X341BT

DIGITAL MEDIA RECEIVER

INSTRUCTION MANUAL

ตัวรับสื่อดิจิตอล

คู่มือการใช้งาน

JS_JVC_KD-X341BT_M_C_00.indd 1JS_JVC_KD-X341BT_M_C_00.indd 1 8/23/2016 3:24:36 PM8/23/2016 3:24:36 PM

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

2ENGLISH

CONTENTS BEFORE USE

IMPORTANT

•

To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe

Warning and Caution in this manual.

•

Please keep the manual in a safe and accessible place for future reference.

WARNING

•

Do not operate any function that takes your attention away from safe driving.

•

Do not ingest the battery, Chemical Burn Hazard

The remote control supplied with this product contains a coin/button cell battery.

If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Caution

Volume setting:

•

Adjust the volume so that you can hear sounds outside the car to prevent accidents.

•

Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

•

Avoid using the external device if it might hinder safe driving.

•

Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.

•

Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.

Remote control (RM-RK52):

•

Do not leave the remote control in hot places such as on the dashboard.

•

The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.

•

The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

BEFORE USE 2

BASICS 3

GETTING STARTED 4

1 Cancel the demonstration

2 Set the clock and date

3 Set the basic settings

RADIO 5

USB/iPod/ANDROID 7

Pandora® 9

(Applicable for Australia or New Zealand

models only)

BLUETOOTH® 10

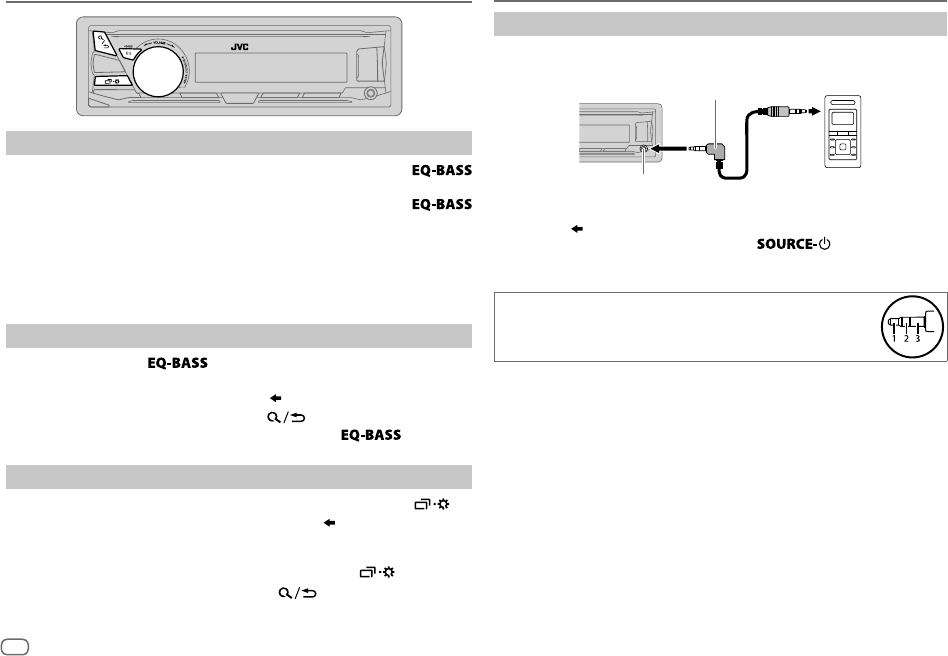

AUX 17

AUDIO SETTINGS 17

DISPLAY SETTINGS 22

REFERENCES 23

Maintenance

More information

TROUBLESHOOTING 25

SPECIFICATIONS 27

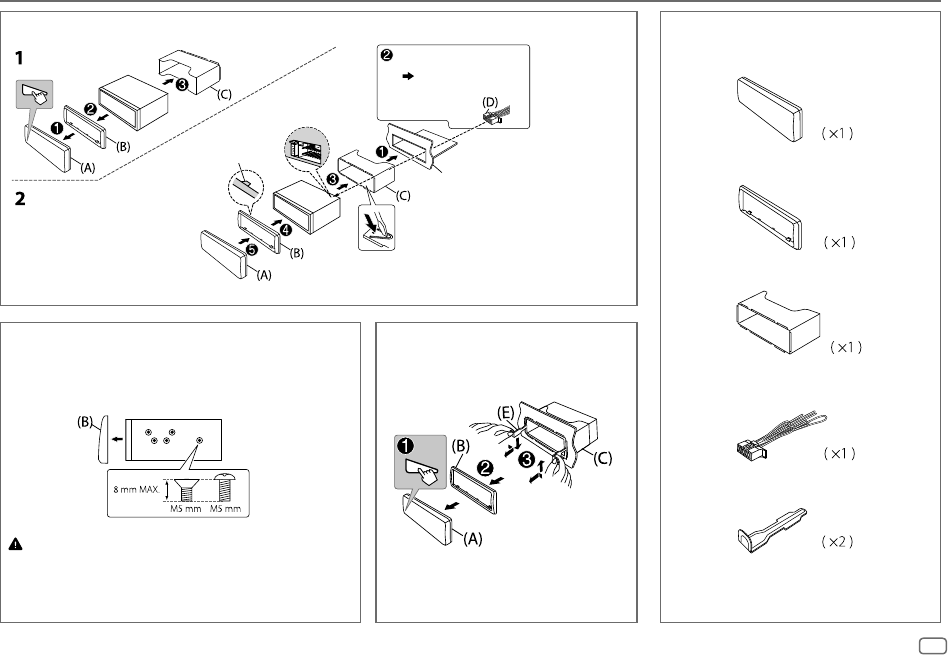

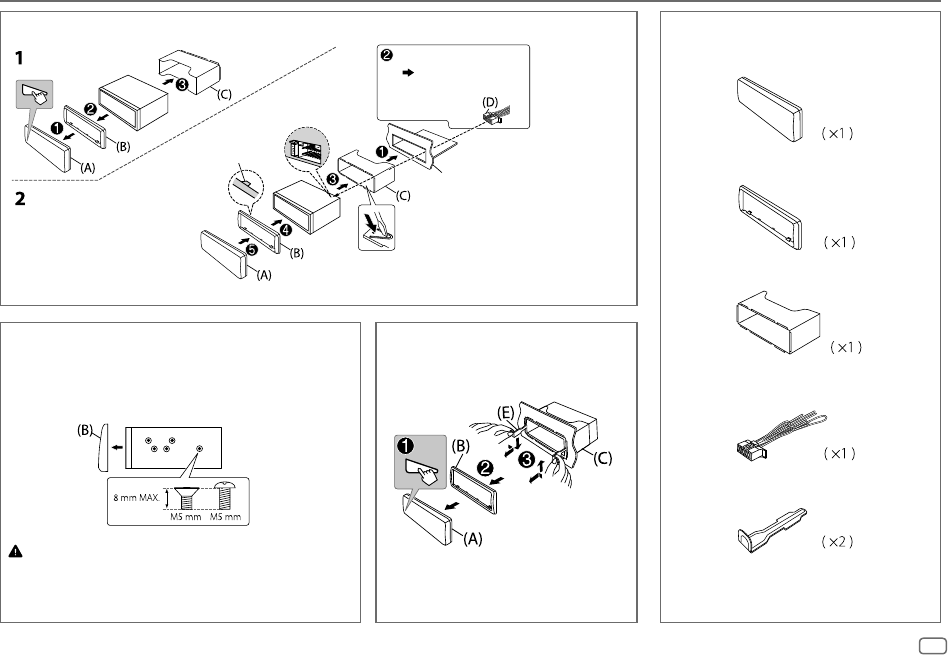

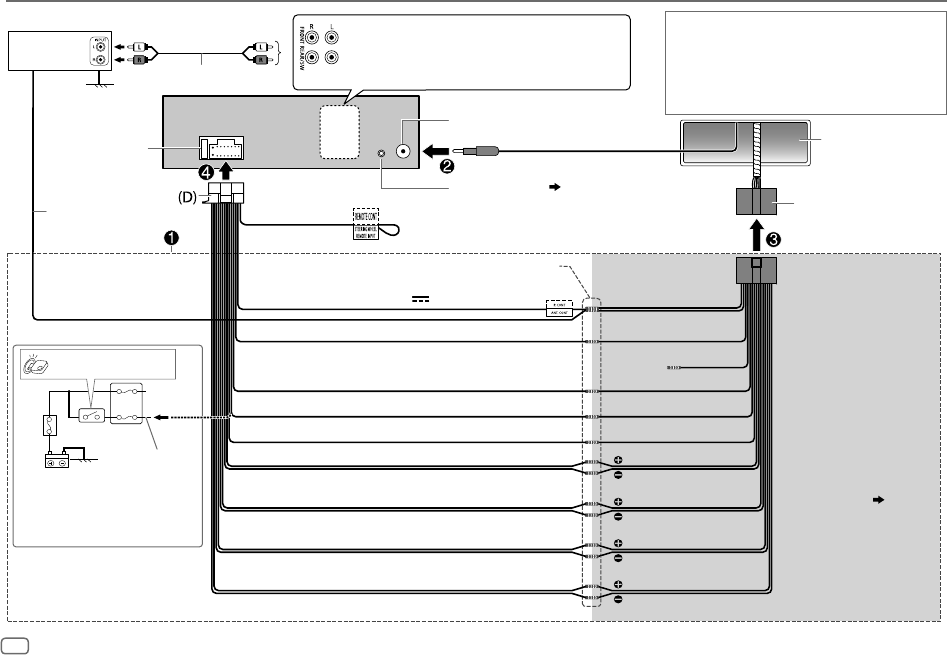

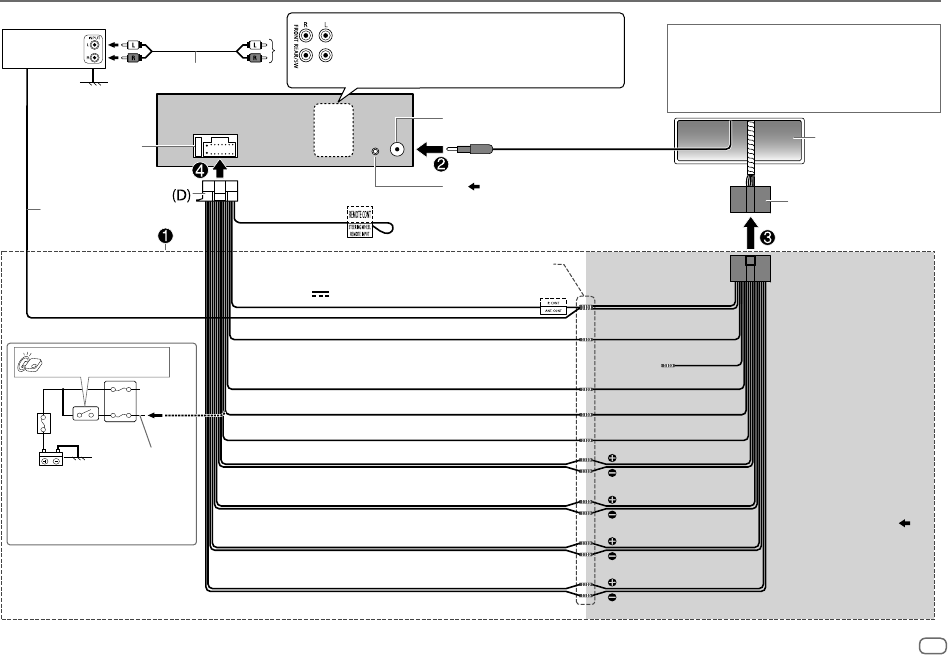

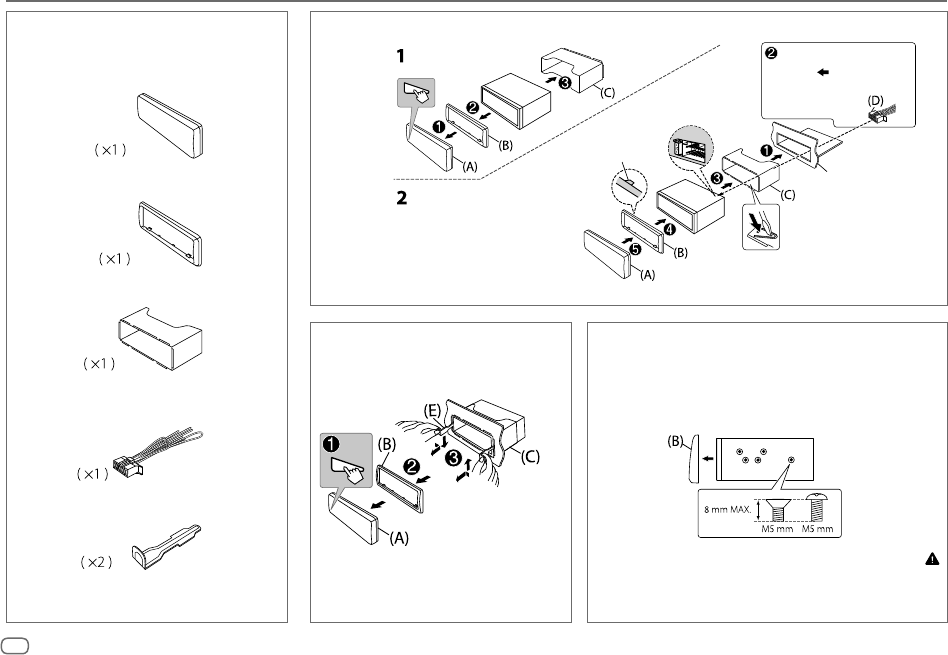

INSTALLATION/

CONNECTION 28 How to read this manual

•

Operations are explained mainly using buttons on the faceplate.

•

English indications are used for the purpose of explanation. You can select the display language from the menu.

( 5)

•

[XX]

indicates the selected items.

•

( XX)

indicates references are available on the stated page.

JS_JVC_KD-X341BT_M_EN_2.indd 2JS_JVC_KD-X341BT_M_EN_2.indd 2 9/8/2016 12:19:39 PM9/8/2016 12:19:39 PM

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

ENGLISH

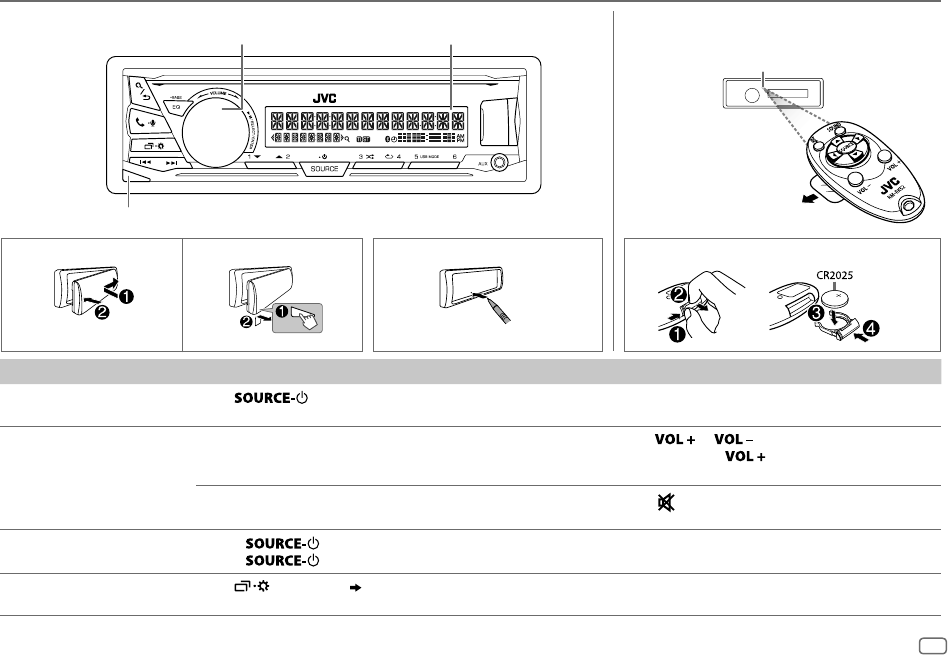

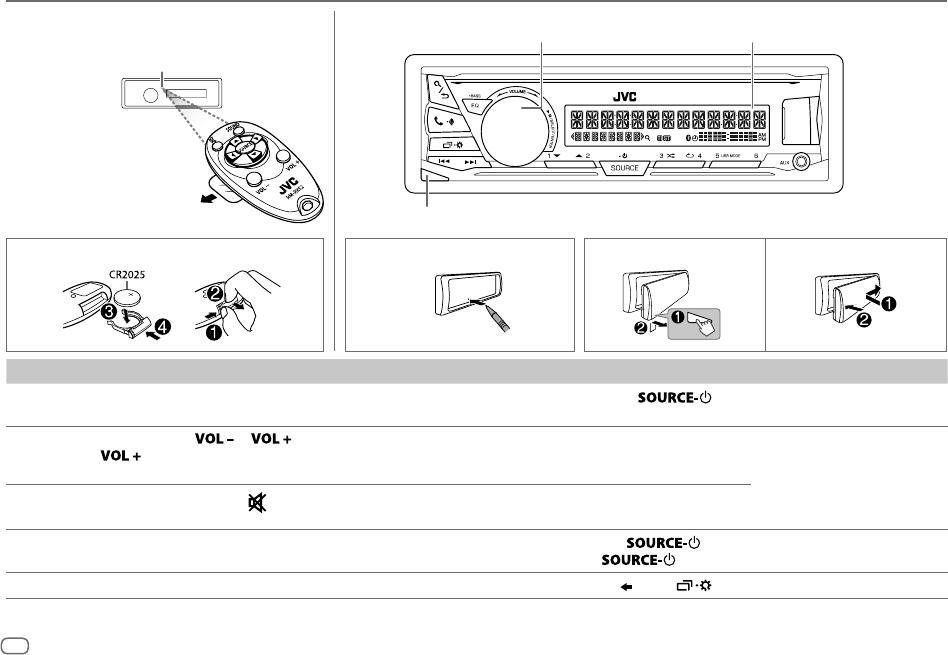

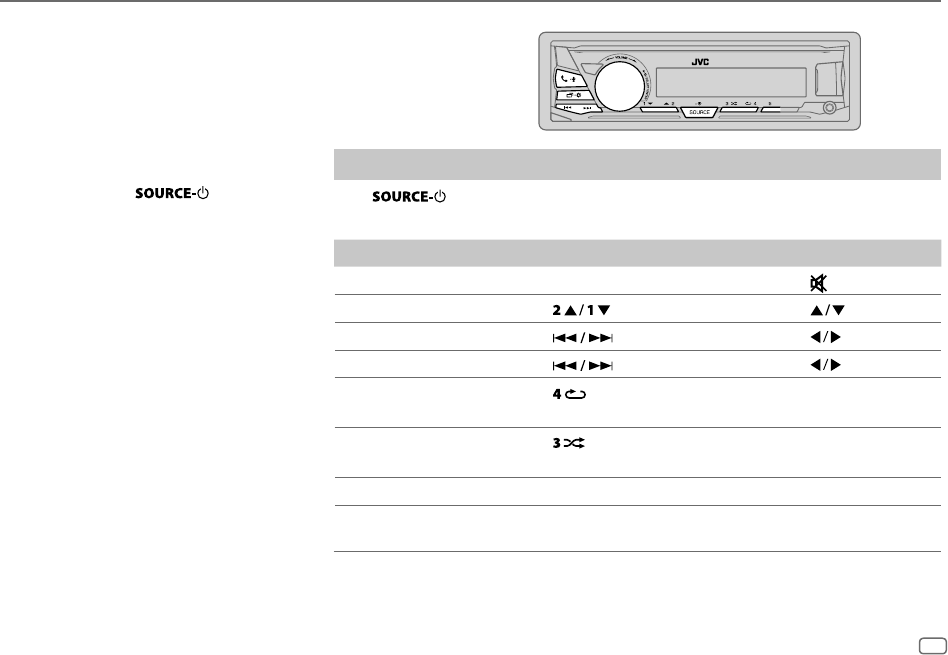

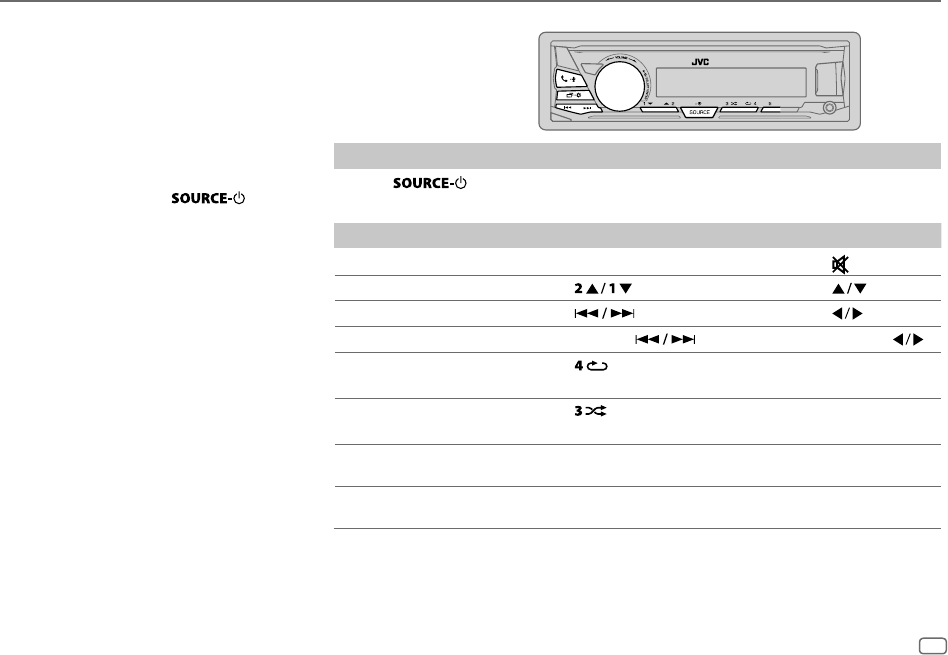

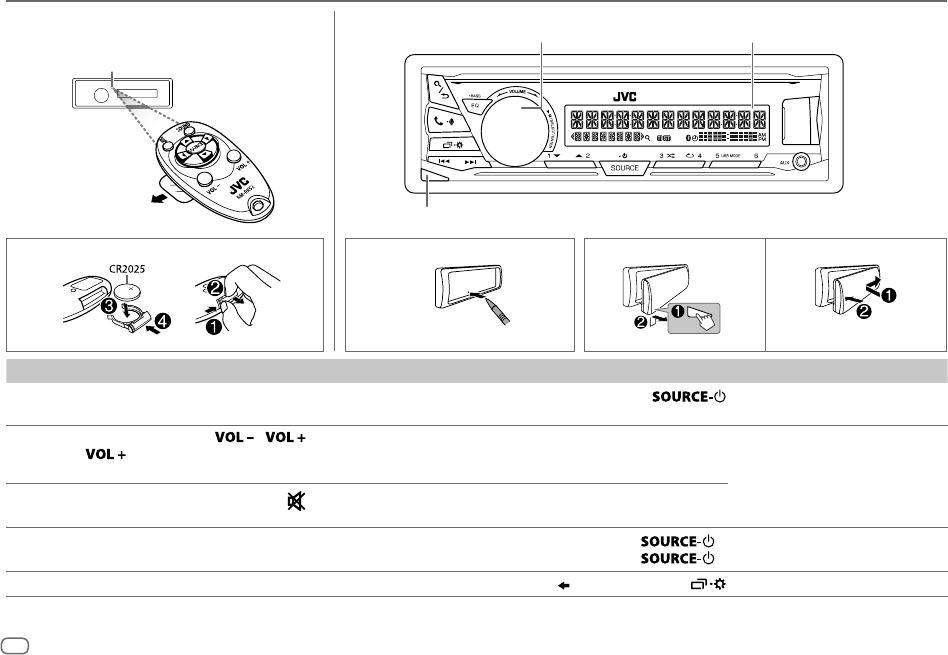

BASICS

How to resetDetach

Faceplate

Volume knob

Detach button

Display window

Attach

To On the faceplate On the remote control

Turn on the power Press .

• Press and hold to turn off the power. ( Not available )

Adjust the volume Turn the volume knob. Press or .

• Press and hold to continuously increase

the volume to 15.

Press the volume knob to mute the sound or pause playback.

• Press again to cancel.

Press to mute the sound or pause playback.

• Press again to cancel.

Select a source • Press repeatedly.

• Press , then turn the volume knob within 2 seconds.

Press SOURCE repeatedly.

Change the display

information

Press repeatedly.

( 24)

( Not available )

Remote control (RM-RK52)

How to replace the battery

Pull out the insulation

sheet when using for

the first time.

Remote sensor

(Do not expose to bright sunlight.)

JS_JVC_KD-X341BT_M_EN_2.indd 3JS_JVC_KD-X341BT_M_EN_2.indd 3 9/8/2016 12:19:40 PM9/8/2016 12:19:40 PM

ENGLISH

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

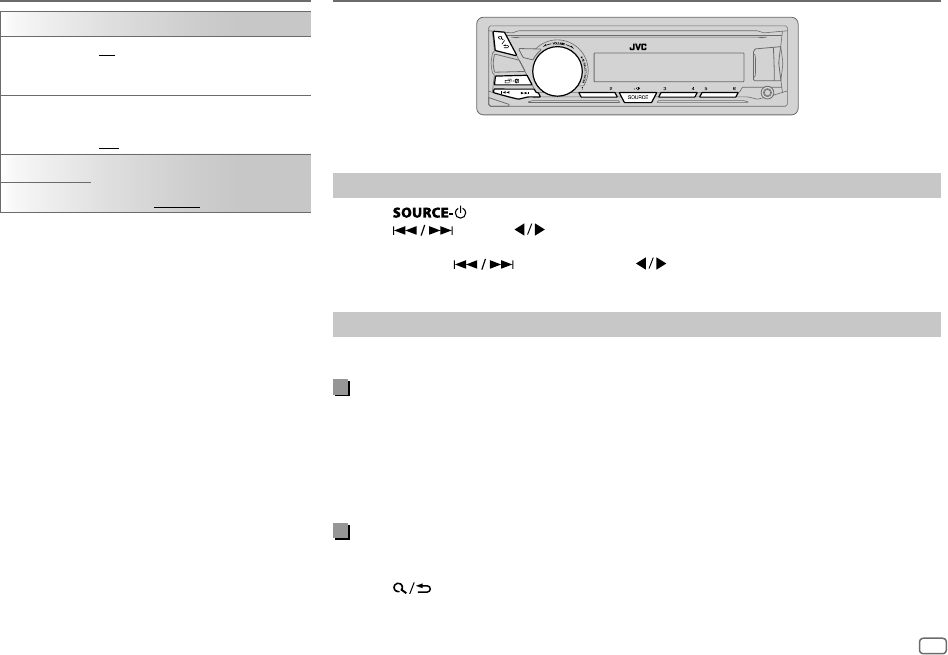

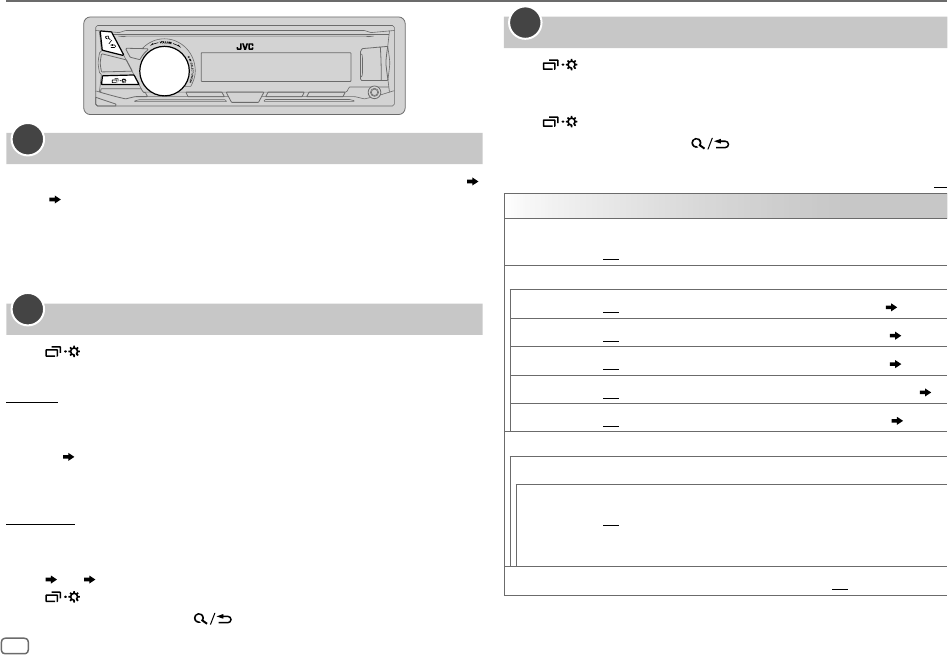

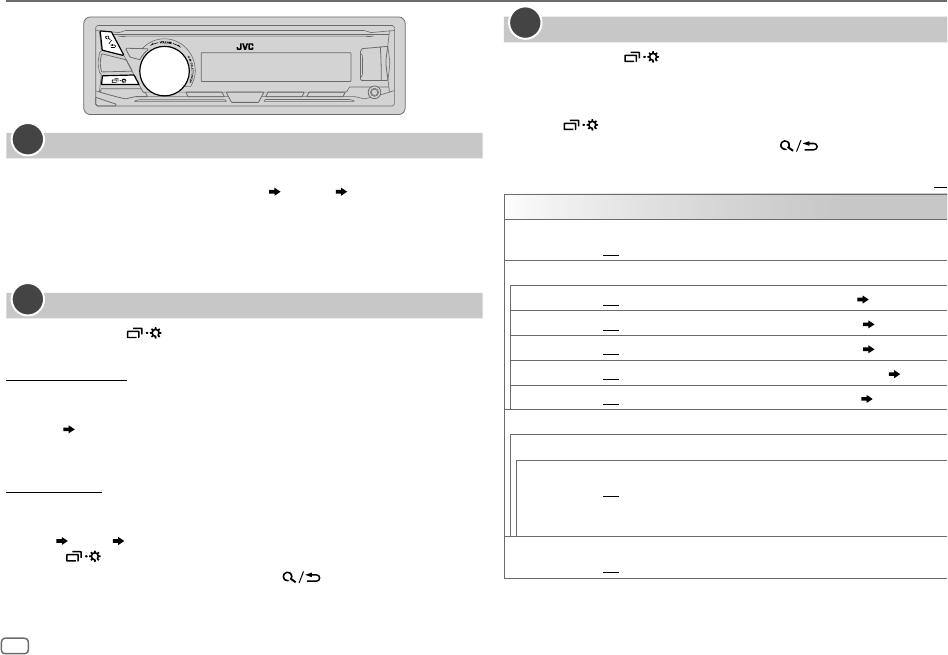

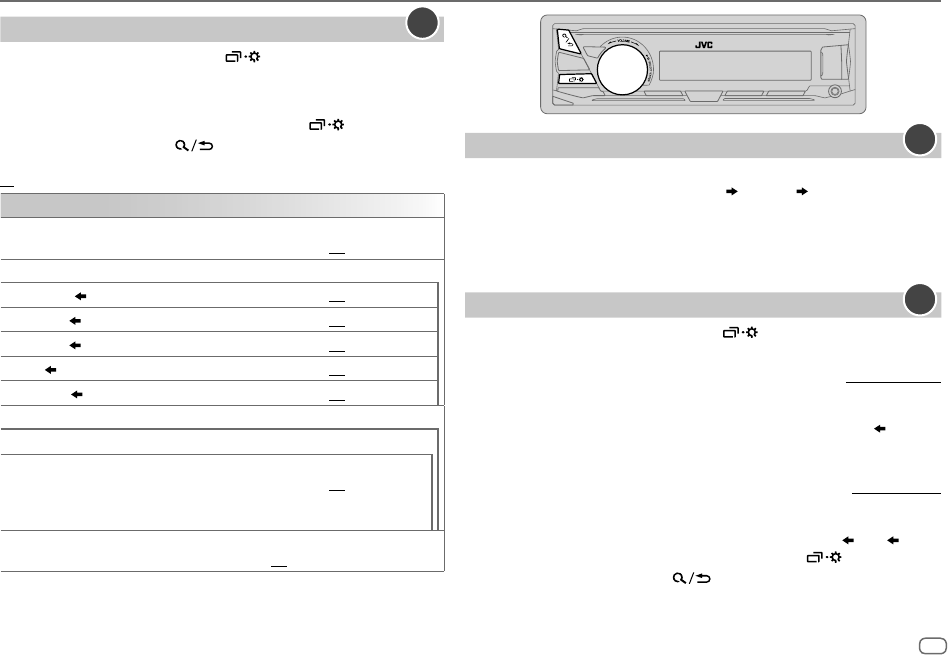

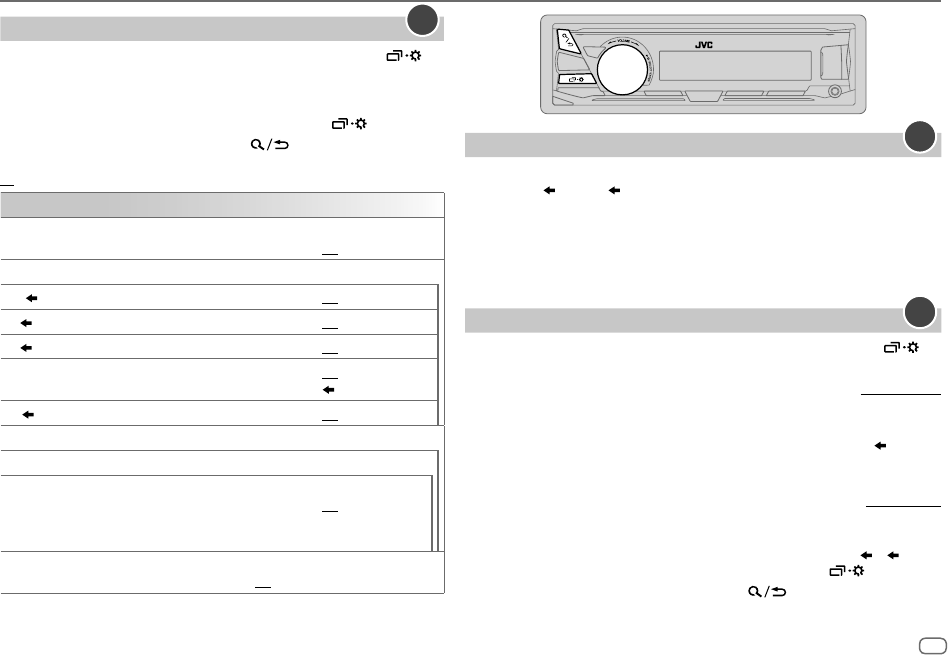

GETTING STARTED

Cancel the demonstration

When you turn on the power for the first time (or

[FACTORY RESET]

is set to

[YES]

), the display shows: “CANCEL DEMO” “PRESS” “VOLUME KNOB”

1 Press the volume knob.

[YES]

is selected for the initial setup.

2 Press the volume knob again.

“DEMO OFF” appears.

Set the clock and date

1 Press and hold .

2 Turn the volume knob to select

[CLOCK]

, then press the knob.

To adjust the clock

3 Turn the volume knob to select

[CLOCK ADJUST]

, then press the knob.

4 Turn the volume knob to make the settings, then press the knob.

Hour Minute

5 Turn the volume knob to select

[CLOCK FORMAT]

, then press the knob.

6 Turn the volume knob to select

[12H]

[24H]

, then press the knob.

To set the date

7 Turn the volume knob to select

[DATE SET]

, then press the knob.

8 Turn the volume knob to make the settings, then press the knob.

Day Month Year

9 Press to exit.

To return to the previous setting item, press .

Set the basic settings

1 Press and hold .

2 Turn the volume knob to select an item (see the following table),

then press the knob.

3 Repeat step 2 until the desired item is selected or activated.

4 Press to exit.

To return to the previous setting item, press .

Default:

SYSTEM

KEY BEEP

(Not applicable when 3-way crossover is selected.)

:Activates the keypress tone.;

OFF

:Deactivates.

SOURCE SELECT

AM SRC

:Enables AM in source selection.;

OFF

:Disables.

( 5)

SW1 SRC

:Enables SW1 in source selection.;

OFF

:Disables.

( 5)

SW2 SRC

:Enables SW2 in source selection.;

OFF

:Disables.

( 5)

PANDORA SRC

:Enables PANDORA in source selection.;

OFF

:Disables.

( 9)

BUILT-IN AUX

:Enables AUX in source selection.;

OFF

:Disables.

( 17)

F/W UPDATE

UPDATE SYSTEM

F/W UP xxxx YES

:Starts upgrading the firmware.;

:Cancels (upgrading is not activated).

For details on how to update the firmware, see:

<http://www.jvc.net/cs/car/>.

FACTORY RESET YES

:Resets the settings to default (except the stored station).;

:Cancels.

Not displayed when the corresponding source is selected.

JS_JVC_KD-X341BT_M_EN_2.indd 4JS_JVC_KD-X341BT_M_EN_2.indd 4 9/8/2016 12:19:45 PM9/8/2016 12:19:45 PM

ENGLISH 5

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

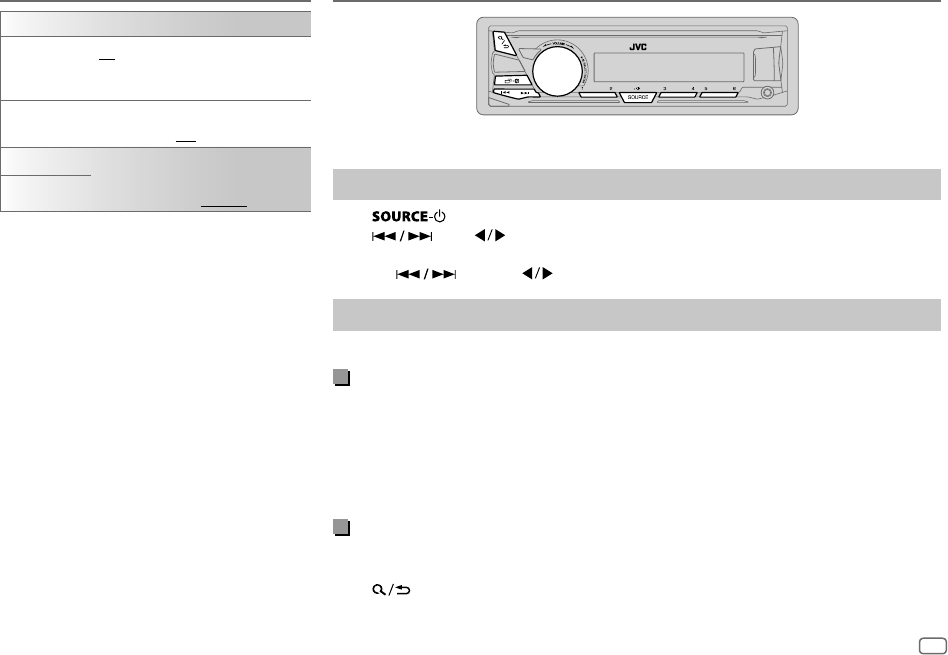

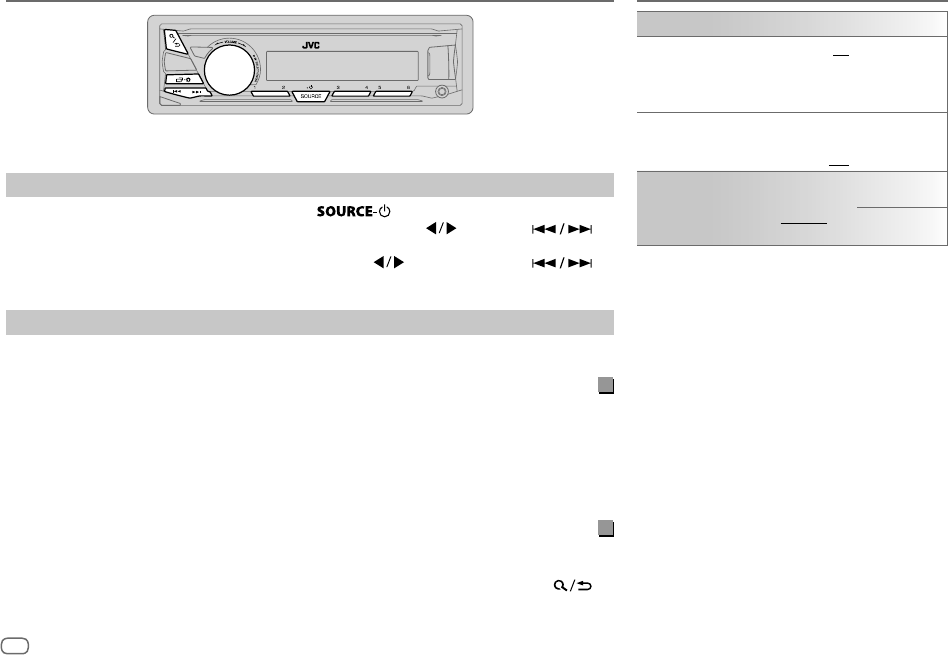

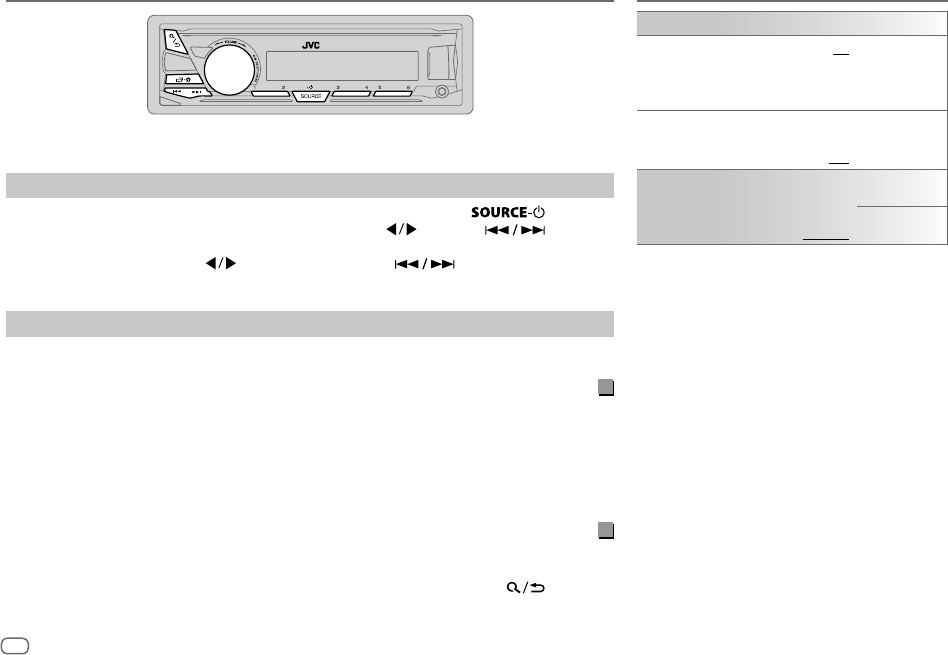

GETTING STARTED RADIO

“ST” lights up when receiving an FM stereo broadcast with sufficient signal strength.

Search for a station

1 Press repeatedly to select FM, AM, SW1 or SW2.

2 Press (or press on the remote control) to search for a station automatically.

(or)

Press and hold (or press and hold on the remote control) until “M” flashes,

then press repeatedly to search for a station manually.

Settings in memory

You can store up to 18 stations for FM and 6 stations for AM/SW1/SW2.

Store a station

While listening to a station....

Press and hold one of the number buttons (1 to 6).

(or)

1 Press and hold the volume knob until “PRESETMODE” flashes.

2 Turn the volume knob to select a preset number, then press the knob.

The preset number flashes and “MEMORY” appears.

Select a stored station

Press one of the number buttons (1to6).

(or)

1 Press .

2 Turn the volume knob to select a preset number, then press the knob.

CLOCK

TIME SYNC ON

:The clock time is automatically set

using the Clock Time (CT) data in FM Radio

Data System signal.;

OFF

:Cancels.

CLOCK DISPLAY ON

:The clock time is shown on the

display even when the unit is turned off.;

OFF

:Cancels.

ENGLISH

Select the display language for menu and

music information if applicable.

By default,

ENGLISH

is selected.

ESPANOL

JS_JVC_KD-X341BT_M_EN_2.indd 5JS_JVC_KD-X341BT_M_EN_2.indd 5 9/8/2016 12:19:50 PM9/8/2016 12:19:50 PM

ENGLISH

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

Other settings

1 Press and hold .

2 Turn the volume knob to select an item

(

see the following table

)

then press the knob.

3 Repeat step 2 until the desired item is selected/activated or follow

the instructions stated on the selected item.

4 Press to exit.

To return to the previous setting item, press .

Default:

TUNER SETTING

RADIO TIMER

Turns on the radio at a specific time regardless of the current source.

ONCE

DAILY

WEEKLY

OFF

:Select how often the timer will be turned

on.

SW1

SW2

:Select the band.

(for FM)/

(for AM/SW1/SW2):Select the preset station.

Set the activation day

and time.

“

” lights up when complete.

Radio Timer will not activate for the following cases.

•

The unit is turned off.

•

[OFF]

is selected for

[AM SRC]

[SW1 SRC]

[SW2 SRC]

[SOURCE SELECT]

after Radio Timer for AM/SW1/SW2 is selected.

( 4)

SSM SSM 01–06

SSM 07–12

SSM 13–18

: Automatically presets up to 18

stations for FM. “SSM” stops flashing when the first 6 stations are stored.

Select

SSM 07–12

SSM 13–18

to store the following 12 stations.

LOCAL SEEK ON

:Searches only AM/SW1/SW2 stations with good reception.;

OFF

:Cancels.

•

Settings made are applicable only to the selected source/station. Once you

change the source/station, you need to make the settings again.

RADIO

IF BAND AUTO

:Increases the tuner selectivity to reduce interference noises from

adjacent FM stations. (Stereo effect may be lost.);

WIDE

:Subjects to

interference noises from adjacent FM stations, but sound quality will not be

degraded and the stereo effect will remain.

MONO SET ON

:Improves the FM reception, but the stereo effect will be lost.;

OFF

:Cancels.

NEWS SET

:The unit will temporarily switch to News Programme if available.;

OFF

:Cancels.

REGIONAL

: Switches to another station only in the specific region using the “AF”

control.;

OFF

:Cancels.

AF SET

: Automatically searches for another station broadcasting the same

program in the same Radio Data System network with better reception

when the current reception is poor.;

OFF

: Cancels.

: Allows the unit to temporarily switch to Traffic Information if available

(“TI” lights up). ;

OFF

:Cancels.

PTY SEARCH

Select a PTY code (see below).

If there is a station broadcasting a program of the same PTY code as you

have selected, that station is tuned in.

Selectable only when

[ONCE]

[WEEKLY]

is selected in step

Only for FM source.

PTY code

NEWS

AFFAIRS

INFO

SPORT

EDUCATE

DRAMA

CULTURE

SCIENCE

VARIED

POP

(music),

ROCK M

(music),

EASY M

(music),

LIGHT M

(music),

CLASSICS

OTHER

(music),

WEATHER

FINANCE

CHILDREN

SOCIAL

RELIGION

PHONE IN

TRAVEL

LEISURE

JAZZ

COUNTRY

NATION M

(music),

OLDIES

FOLK M

(music),

DOCUMENT

JS_JVC_KD-X341BT_M_EN_2.indd 6JS_JVC_KD-X341BT_M_EN_2.indd 6 9/8/2016 12:19:52 PM9/8/2016 12:19:52 PM

ENGLISH 7

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

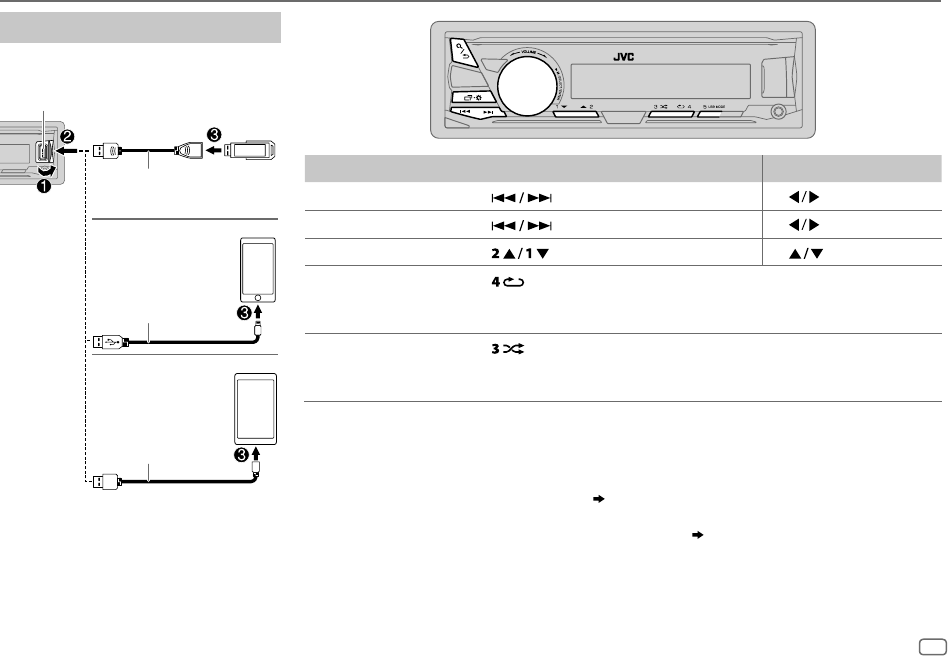

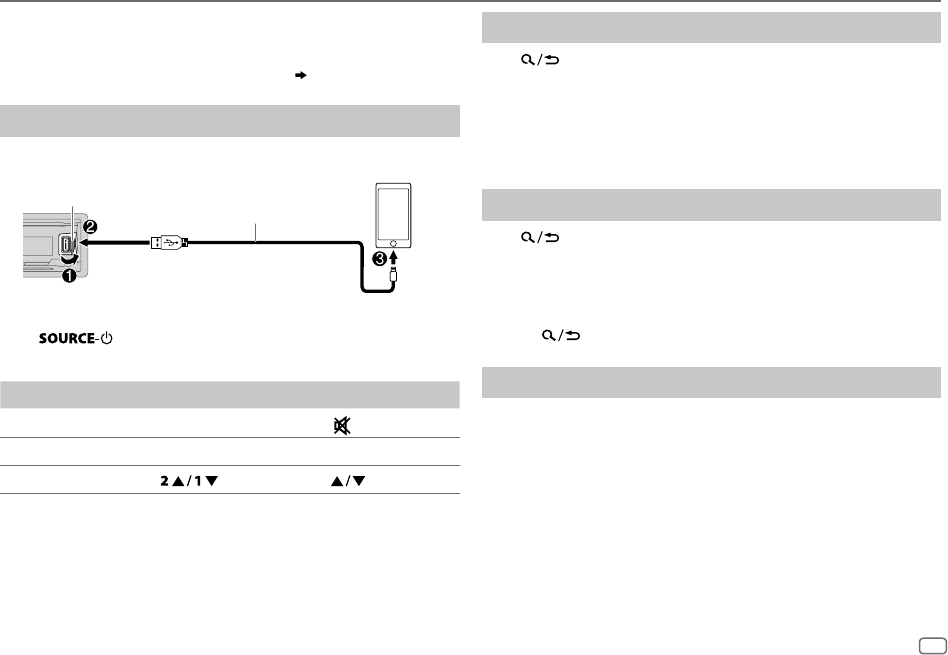

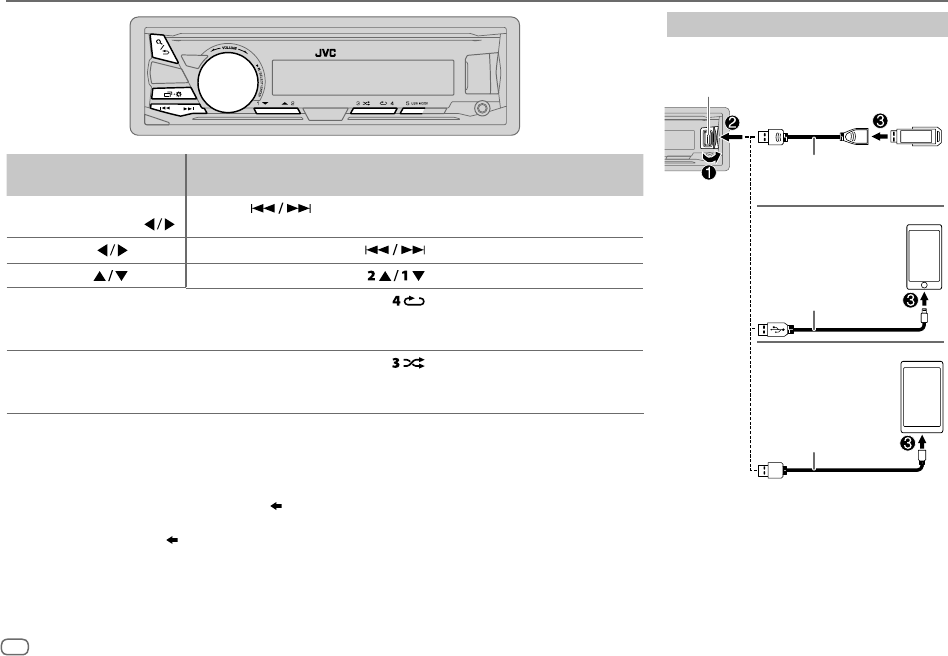

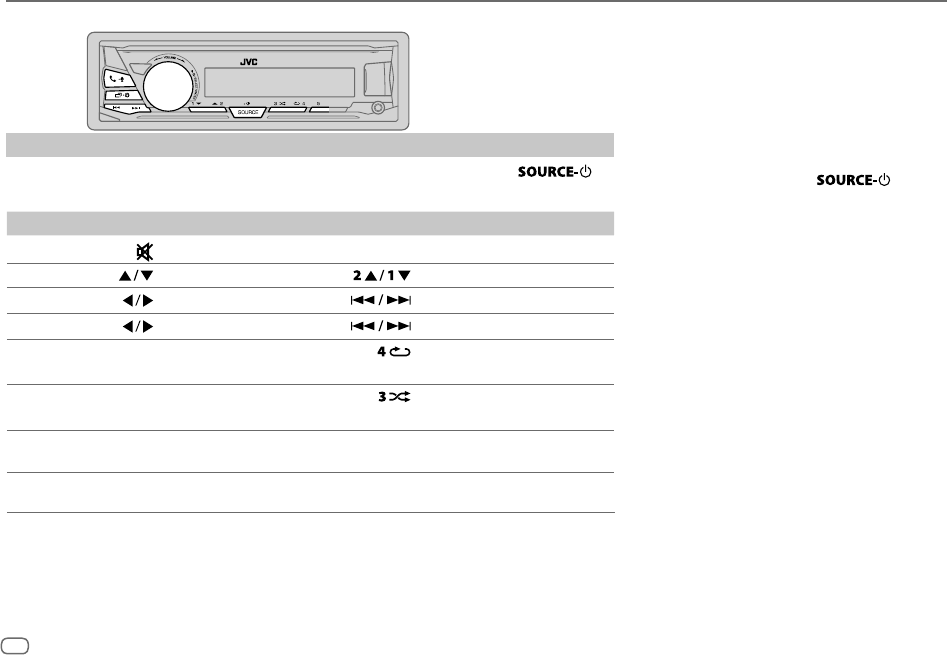

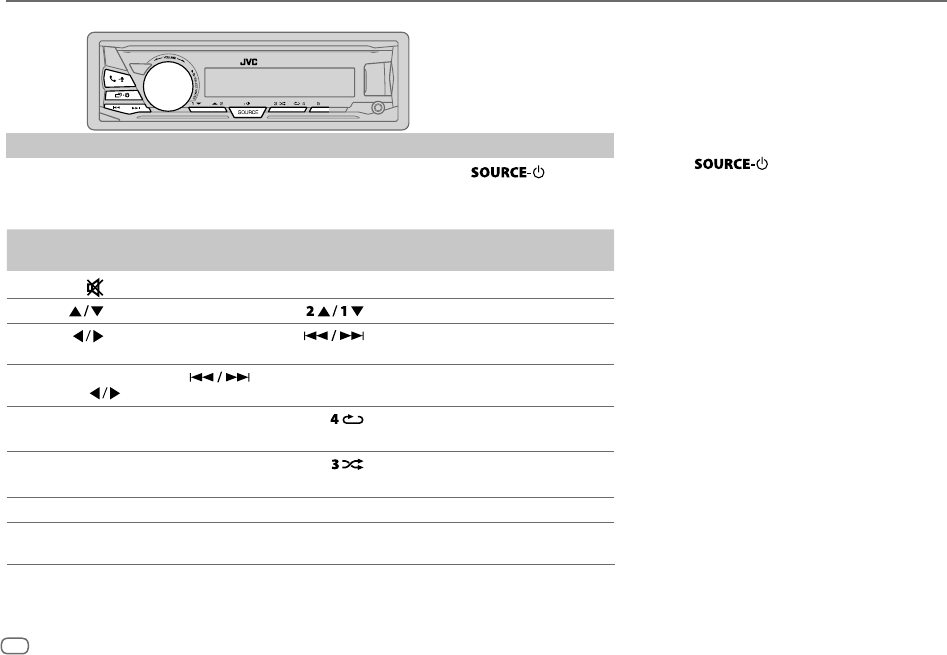

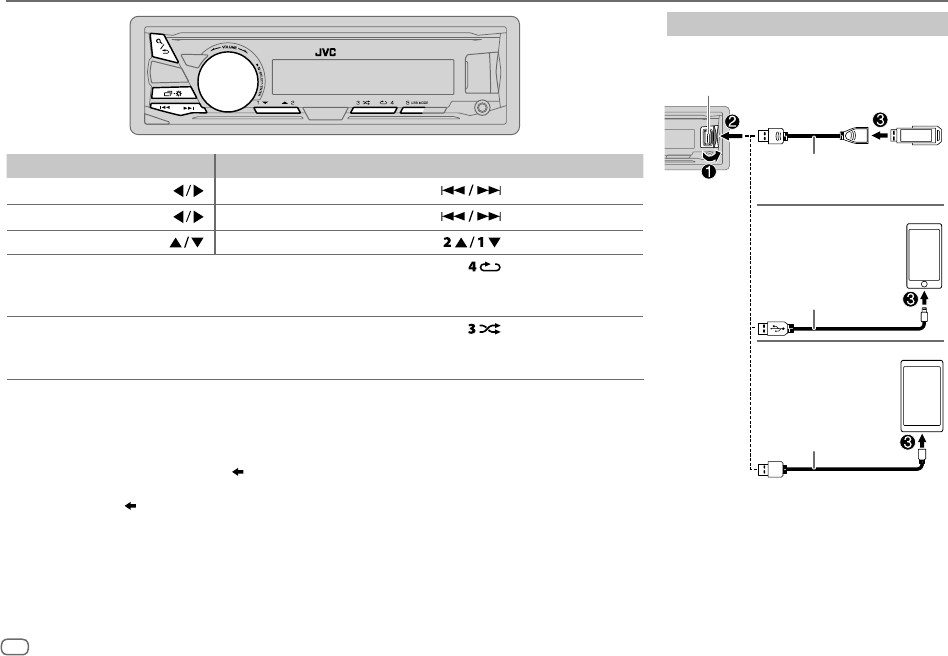

USB/iPod/ANDROID

To On the faceplate On the remote control

Reverse/Fast-forward*3Press and hold . Press and hold .

Select a file Press .Press .

Select a folder*4Press . Press .

Repeat play*5Press repeatedly.

TRACK REPEAT

FOLDER REPEAT

ALL REPEAT

: MP3/WMA/AAC/WAV/FLAC file

ONE REPEAT

ALL REPEAT

REPEAT OFF

: iPod or ANDROID

Random play*5Press repeatedly.

FOLDER RANDOM

ALL RANDOM

RANDOM OFF

: MP3/WMA/AAC/WAV/FLAC file

SONG RANDOM

ALL RANDOM

RANDOM OFF

: iPod or ANDROID

Do not leave the cable inside the car when not using.

When connecting an Android device, “Press [VIEW] to install JVC MUSIC PLAY APP” is shown. Follow the instructions to install the

application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting. For

more information, visit <http://www.jvc.net/cs/car/>.

For ANDROID: Applicable only when

[AUTO MODE]

is selected.

( 8)

Only for MP3/WMA/AAC/WAV/FLAC files. This does not work for iPod/ANDROID.

For iPod/ANDROID: Applicable only when

[HEAD MODE]

[AUTO MODE]

is selected.

( 8)

Start playback

The source changes automatically and

playback starts.

USB input terminal

USB 2.0 cable

(commercially available)

Micro USB 2.0 cable

(commercially available)

USB

ANDROID*2

iPod/iPhone

Accessory of the

iPod/iPhone

JS_JVC_KD-X341BT_M_EN_2.indd 7JS_JVC_KD-X341BT_M_EN_2.indd 7 9/8/2016 12:19:54 PM9/8/2016 12:19:54 PM

ENGLISH

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

Select control mode

While in iPodUSB source, press repeatedly.

HEAD MODE

: Control iPod from this unit.

IPHONE MODE

: Control iPod using the iPod itself. However, you can still

play/pause or file skip from this unit.

While in ANDROID source, press repeatedly.

AUTO MODE

: Control Android device from this unit via JVC MUSIC PLAY

application installed in the Android device.

AUDIO MODE

: Control Android device using the Android device itself via

other media player applications installed in the Android

device. However, you can still play/pause or file skip from

this unit.

Select music drive

While in USB source, press repeatedly.

Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage

Class).

• Selected drive of a multiple drives device.

Settings to use JVC Remote application

JVC Remote application is designed to control the JVC car receiver’s

operations from the iPhone/iPod (via USB input terminal).

Preparation:

Install the latest version of JVC Remote application on your device before

connecting. For more information, visit <http://www.jvc.net/cs/car/>.

You can make the settings in the same way as connection via Bluetooth.

( 16)

Select a file from a folder/list

For iPod/ANDROID, applicable only when

[HEAD MODE]

[AUTO MODE]

selected.

1 Press .

2 Turn the volume knob to select a folder/list, then press the knob.

3 Turn the volume knob to select a file, then press the knob.

Quick search

(applicable only for USB and ANDROID source)

If you have many files, you can search through them quickly.

Turn the volume knob quickly to browse through the list quickly.

Alphabet search

(applicable only for iPod USB and ANDROID source)

You can search for a file according to the first character.

For iPodUSB source

Press or turn the volume knob quickly to select the

desired character (A to Z, 0to9, OTHERS).

• Select “OTHERS” if the first character is other than AtoZ, 0to9.

For ANDROID source

1 Press to enter character search.

2 Turn the volume knob to select the desired character.

^A^ : Upper case letters (A to Z)

_A_ : Lower case letters (a to z)

-0- : Numbers (0 to 9)

-OTHERS- : Character other than AtoZ, 0to9

3 Press the volume knob to start searching.

• To return to the previous setting item, press .

• To cancel, press and hold .

USB/iPod/ANDROID

JS_JVC_KD-X341BT_M_EN_2.indd 8JS_JVC_KD-X341BT_M_EN_2.indd 8 9/8/2016 12:19:58 PM9/8/2016 12:19:58 PM

ENGLISH 9

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

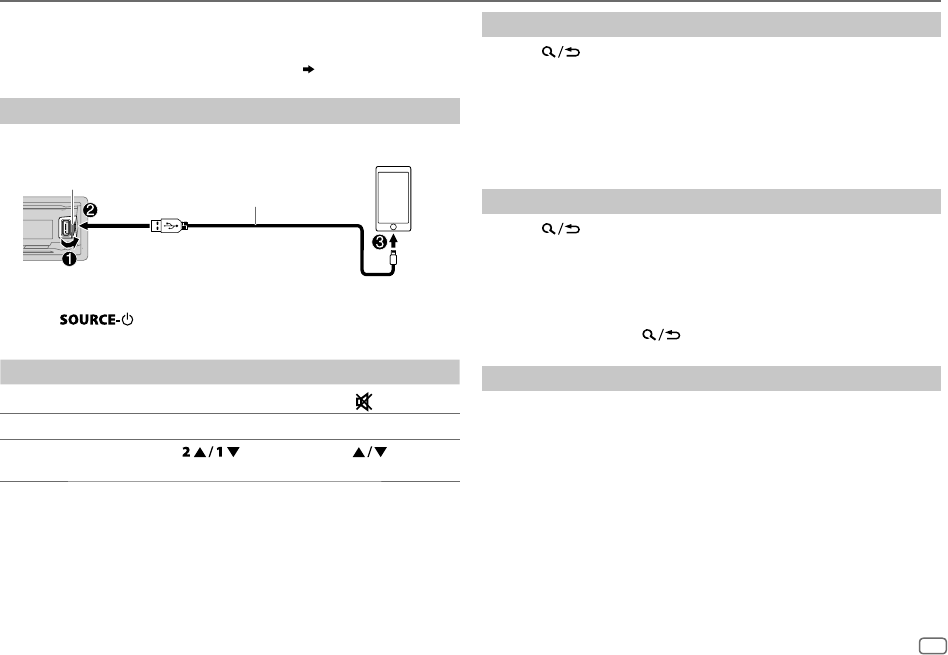

Pandora®

(Applicable for Australia or New Zealand models only)

Preparation:

Install the latest version of the Pandora application on your device

(iPhone/iPod touch), then create an account and log in to Pandora.

• Select

[ON]

for

[PANDORA SRC]

[SOURCE SELECT]

( 4)

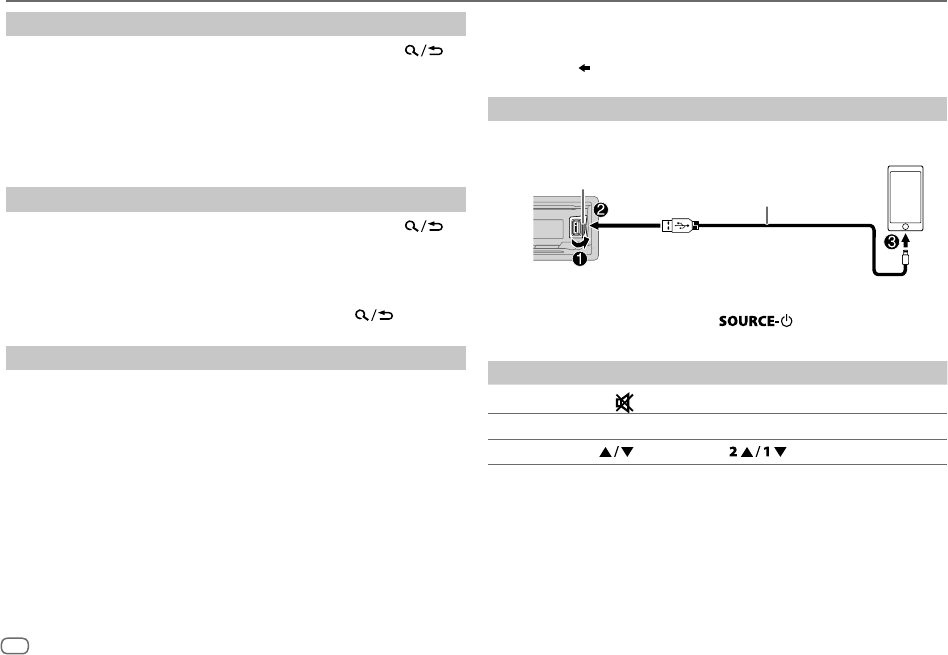

Start listening

1 Open the Pandora application on your device.

2 Connect your device to the USB input terminal.

3 Press repeatedly to select PANDORA.

Broadcast starts automatically.

To On the faceplate On the remote control

Playback/pause Press the volume knob. Press .

Skip a track Press T. Press I.

Thumbs up or

thumbs down*2

Press . Press .

Do not leave the cable inside the car when not using.

If thumbs down is selected, the current track is skipped.

Create and store a new station

1 Press .

2 Turn the volume knob to select

[NEW STATION]

, then press the knob.

3 Turn the volume knob to select

[FROM TRACK]

[FROM ARTIST]

, then

press the knob.

A new station is created based on the current song or artist.

4 Press and hold one of the number buttons (3, 4, 5 or 6) to store.

To select a stored station: Press one of the number buttons (3, 4, 5 or 6).

Search for a registered station

1 Press .

2 Turn the volume knob to select an item, then press the knob.

[BY DATE]

: According to the registered date

[A-Z]

: By alphabetical order

3 Turn the volume knob to select the desired station, then press the

knob.

To cancel, press and hold .

Bookmark current song information

Press and hold the volume knob.

“BOOKMARKED” appears and the information is stored to your device.

• The bookmark is available on your Pandora account but not on this

unit.

USB input terminal

Accessory of the iPod/iPhone

JS_JVC_KD-X341BT_M_EN_2.indd 9JS_JVC_KD-X341BT_M_EN_2.indd 9 9/8/2016 12:20:01 PM9/8/2016 12:20:01 PM

ENGLISH

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

BLUETOOTH®

BLUETOOTH — Connection

Supported Bluetooth profiles

– Hands-Free Profile (HFP)

– Advanced Audio Distribution Profile (A2DP)

– Audio/Video Remote Control Profile (AVRCP)

– Serial Port Profile (SPP)

– Phonebook Access Profile (PBAP)

Supported Bluetooth codecs

– Sub Band Codec (SBC)

– Advanced Audio Coding (AAC)

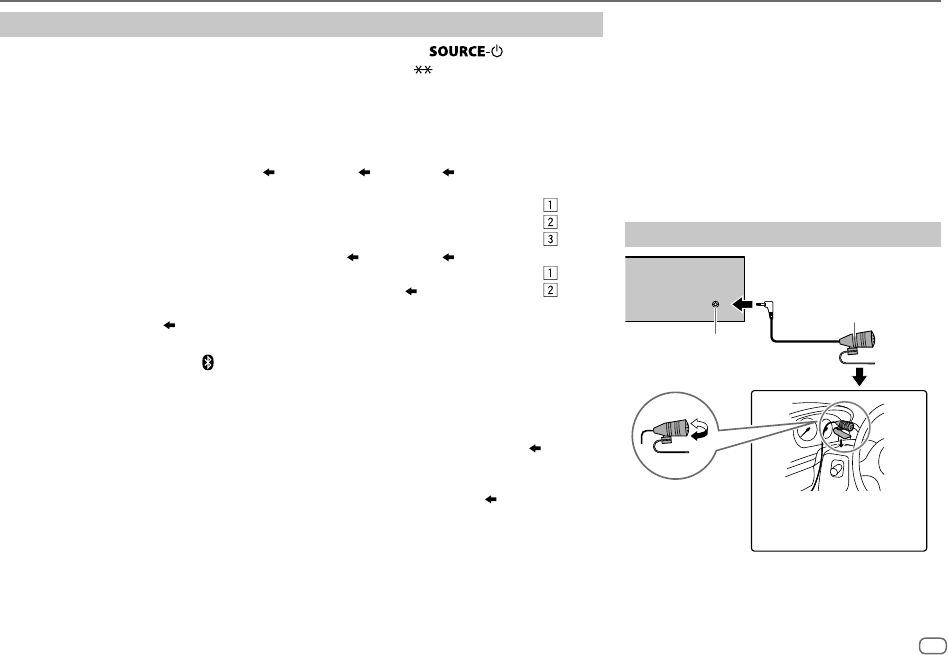

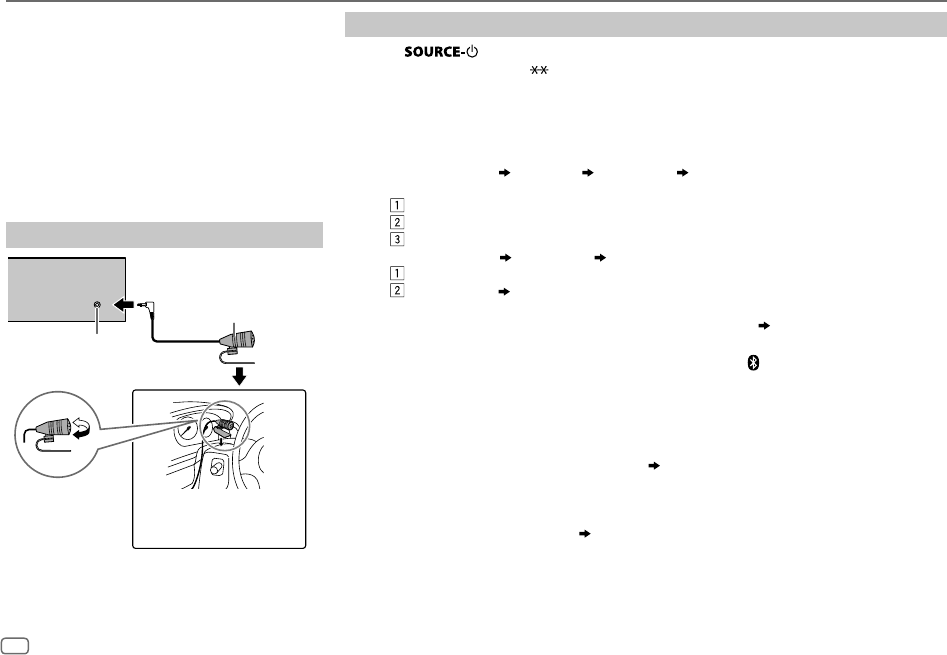

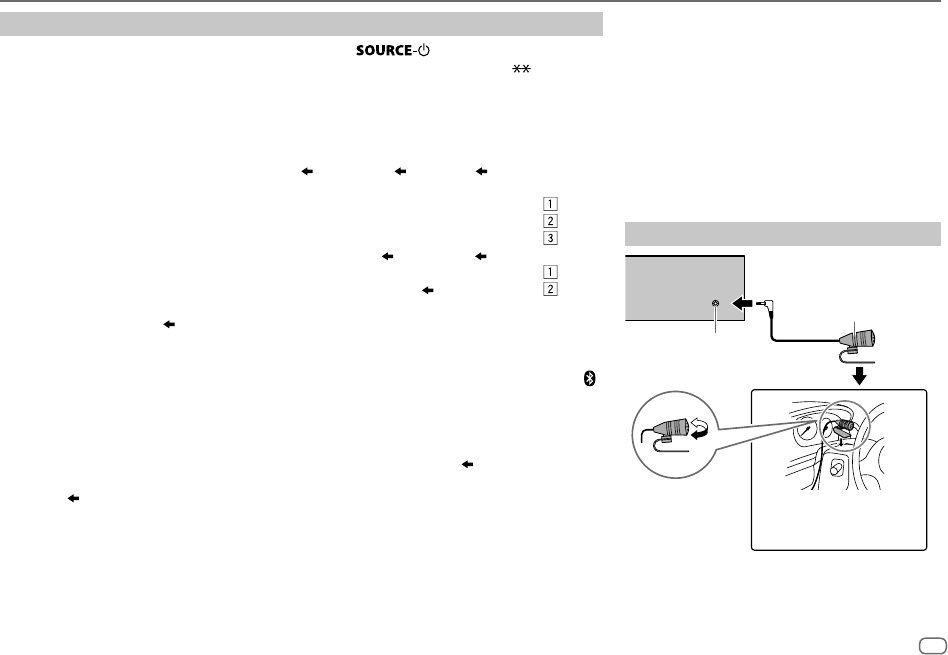

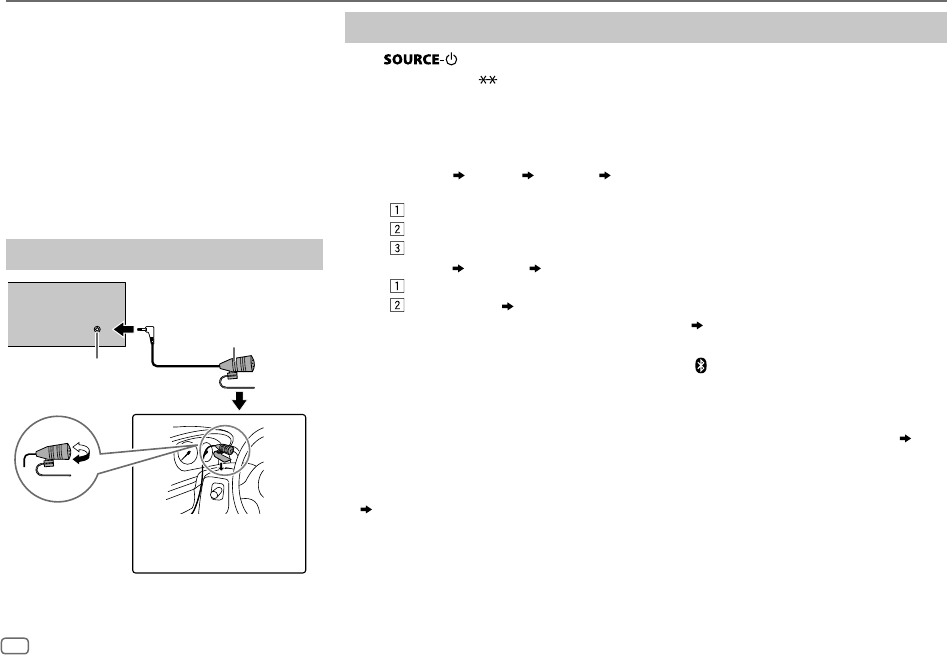

Connect the microphone

Adjust the microphone

angle Secure using cord clamps

(not supplied) if necessary.

Microphone (supplied)

Rear panel

Microphone input jack

Pair and connect a Bluetooth device for the first time

1 Press to turn on the unit.

2 Search and select “KD-X3 BT” on the Bluetooth device.

“BTPAIRING” flashes on the display.

• For some Bluetooth devices, you may need to enter the Personal Identification Number

(PIN) code immediately after searching.

3 Perform (A) or (B) depending on what appears on the display.

For some Bluetooth devices, pairing sequence may vary from the steps described below.

(A) “[Device Name]” “XXXXXX” “VOL–YES” “BACK–NO”

“XXXXXX” is a 6-digit passkey randomly generated during each pairing.

Ensure that the passkeys appear on the unit and Bluetooth device are the same.

Press the volume knob to confirm the passkey.

Operate the Bluetooth device to confirm the passkey.

(B) “[Device Name]” “VOL–YES” “BACK–NO”

Press the volume knob to start pairing.

• If “PAIRING” “PIN 0000” scrolls on the display, enter the PIN code “0000” into the

Bluetooth device.

You can change to a desired PIN code before pairing.

( 14)

• If only “PAIRING” appears, operate the Bluetooth device to confirm pairing.

“PAIRING COMPLETED” appears when pairing is completed and “ ” will light up when the

Bluetooth connection is established.

• This unit supports Secure Simple Pairing (SSP).

• Up to five devices can be registered (paired) in total.

• Once the pairing is completed, the Bluetooth device will remain registered in the unit even if

you reset the unit. To delete the paired device,

[DEVICE DELETE]

• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at

any time.

However, while in BT AUDIO source, you can connect to five Bluetooth audio devices and

switch between these five devices.

( 15)

• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the

device to the unit manually.

• Refer to the instruction manual of the Bluetooth device for more information.

JS_JVC_KD-X341BT_M_EN_2.indd 10JS_JVC_KD-X341BT_M_EN_2.indd 10 9/8/2016 12:20:03 PM9/8/2016 12:20:03 PM

ENGLISH 11

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

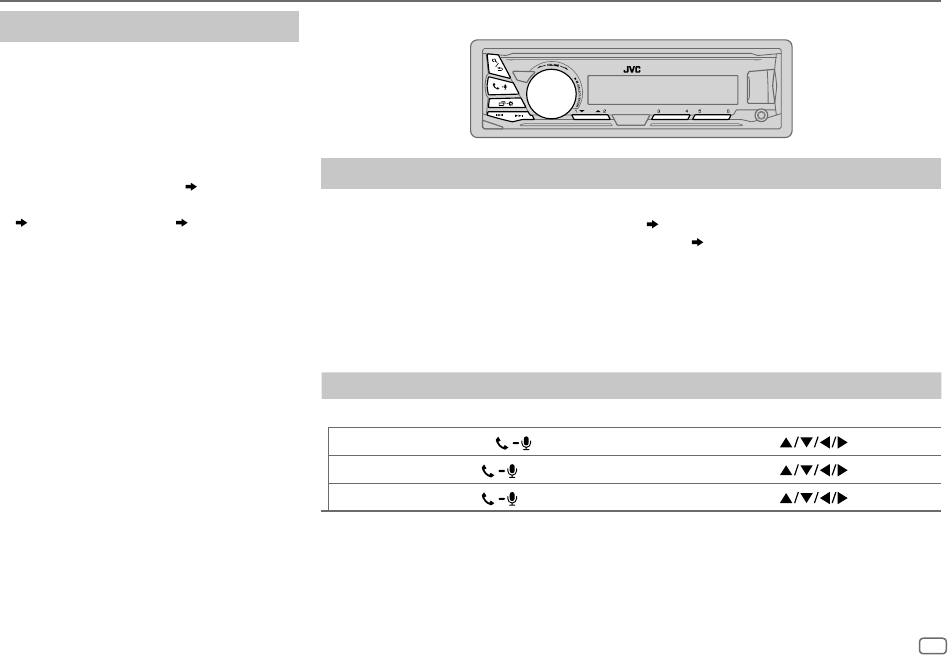

Auto Pairing

When you connect the iPhone/iPod touch/

Android device to the USB input terminal,

pairing request (via Bluetooth) is automatically

activated.

Press the volume knob to pair once you have

confirmed the device name.

Automatic pairing request is activated only if:

– Bluetooth function of the connected devcie is

turned on.

–

[AUTO PAIRING]

is set to

[ON]

( 14)

– JVC MUSIC PLAY application is installed on

the Android device

( 7)

and

[AUTO MODE]

selected

( 8)

BLUETOOTH — Mobile phone

Receive a call

When there is an incoming call:

• The buttons will blink in the blinking pattern you have selected in

[RING ILLUMI]

( 12)

• The unit answers the call automatically if

[AUTO ANSWER]

is set to a selected time.

( 12)

During a call:

• The buttons stop blinking.

• If you turn off the unit or detach the faceplate, the Bluetooth connection is disconnected.

The following operations may differ or not available depending on the connected phone.

To On the faceplate On the remote control

First incoming call...

Answer a call Press or the volume knob. Press .

Reject a call Press and hold or the volume knob. Press and hold .

End a call Press and hold or the volume knob. Press and hold .

BLUETOOTH®

JS_JVC_KD-X341BT_M_EN_2.indd 11JS_JVC_KD-X341BT_M_EN_2.indd 11 9/8/2016 12:20:08 PM9/8/2016 12:20:08 PM

ENGLISH

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

To On the faceplate On the remote control

While talking on the first incoming call...

Answer another incoming

call and hold the current

call

Press or the

volume knob. ( Not available )

Reject another incoming

call

Press and hold or

the volume knob. ( Not available )

While having two active calls...

End current call and

activate held call

Press and hold or

the volume knob.

Press and hold

Swap between the current

call and held call

Press .( Not available )

Adjust the phone volume*1

[00]

[35]

(Default:

[15]

)

Turn the volume knob

during a call. ( Not available )

Switch between hands-free

and private talk modes*2

Press during a call. ( Not available )

This adjustment will not affect the volume of the other sources.

Operations may vary according to the connected Bluetooth device.

Improve the voice quality

While talking on the phone....

1 Press and hold .

2 Turn the volume knob to select an item

(

see the following table

)

, then press

the knob.

3 Repeat step 2 until the desired item is selected or activated.

4 Press to exit.

To return to the previous setting item, press .

Default:

MIC GAIN LEVEL –10

to

LEVEL +10

(

LEVEL –04

):The sensitivity of the

microphone increases as the number increased.

NR LEVEL LEVEL –05

to

LEVEL +05

(

LEVEL 00

):Adjust the noise

reduction level until the least noise is being heard during a

phone conversation.

ECHO CANCEL LEVEL –05

to

LEVEL +05

(

LEVEL 00

):Adjust the echo

cancellation delay time until the least echo is being heard

during a phone conversation.

Make the settings for receiving a call

1 Press to enter Bluetooth mode.

2 Turn the volume knob to select an item (see the following

table), then press the knob.

3 Repeat step 2 until the desired item is selected or

activated.

To return to the previous setting item, press .

Default:

SETTINGS

AUTO ANSWER 01 SEC

to

30 SEC

:The unit answers incoming call automatically

in the selected time (in seconds).;

OFF

:Cancels.

RING ILLUMI BLINK 01

to

BLINK 05

(

BLINK 02

): Selects the blinking

pattern for the buttons as notification when there is an

incoming call.;

OFF

:Cancels.

BLUETOOTH®

JS_JVC_KD-X341BT_M_EN_2.indd 12JS_JVC_KD-X341BT_M_EN_2.indd 12 9/8/2016 12:20:11 PM9/8/2016 12:20:11 PM

ENGLISH 13

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

Make a call

You can make a call from the call history, phonebook, or dialing the number. Call by

voice is also possible if your mobile phone has the feature.

1 Press to enter Bluetooth mode.

“(First device name)” appears.

• If two Bluetooth phones are connected, press again to switch to another

phone.

“(Second device name)” appears.

2 Turn the volume knob to select an item (see the following table), then press the

knob.

3 Repeat step 2 until the desired item is selected/activated or follow the instructions

stated on the selected item.

To return to the previous setting item, press .

RECENT CALL

(Applicable only if the phone supports PBAP.)

Press the volume knob to select a name or a phone number.

• “<” indicates call received, “>“ indicates call made, “M” indicates call missed.

• “NO HISTORY” appears if there is no recorded call history or call number.

Press the volume knob to call.

PHONEBOOK

(Applicable only if the phone supports PBAP.)

Press to select the desired letter (A to Z, 0to9, and OTHERS).

• “OTHERS” appears if the first character is other than Ato Z, 0 to 9.

Turn the volume knob to select a name, then press the knob.

Turn the volume knob to select a phone number, then press the knob to call.

•

The phonebook of the connected phone is automatically transferred to the unit when pairing.

•

This unit can display only non-accent letters. (Accent letters such as “Ú” is showns as “U”.)

DIAL NUMBER

Turn the volume knob to select a number (0 to 9) or character ( , #, +).

Press to move the entry position.

Repeat steps

and

until you finish entering the phone number.

Press the volume knob to call.

VOICE

Speak the name of the contact you want to call or the voice command to control the phone

functions. (

Make a call using voice recognition

)

BLUETOOTH®

Make a call using voice recognition

1 Press and hold to activate the connected

phone.

2 Speak the name of the contact you want to call or

the voice command to control the phone functions.

• Supported Voice Recognition features vary for each

phone. Refer to the instruction manual of the connected

phone for details.

• This unit also supports the intelligent personal assistant

function of iPhone.

Settings in memory

Store a contact in memory

You can store up to 6 contacts into the number buttons

(1 to 6).

1 Press to enter Bluetooth mode.

2 Turn the volume knob to select

[RECENT CALL]

[PHONEBOOK]

[DIAL NUMBER]

, then press the knob.

3 Turn the volume knob to select a contact or enter a

phone number.

If a contact is selected, press the volume knob to show

the phone number.

4 Press and hold one of the number buttons (1 to 6).

“MEMORY P(selected preset number)” appears when

the contact is stored.

To erase a contact from the preset memory, select

[DIAL NUMBER]

in step 2 and store a blank number.

Make a call from memory

1 Press to enter Bluetooth mode.

2 Press one of the number buttons (1 to 6).

3 Press the volume knob to call.

“NO PRESET” appears if there is no contact stored.

JS_JVC_KD-X341BT_M_EN_2.indd 13JS_JVC_KD-X341BT_M_EN_2.indd 13 9/8/2016 12:20:14 PM9/8/2016 12:20:14 PM

ENGLISH

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

Bluetooth mode settings

1 Press and hold .

2 Turn the volume knob to select an item

(

see the following table

)

, then press the knob.

3 Repeat step 2 until the desired item is selected/activated or follow the instructions

stated on the selected item.

4 Press to exit.

To return to the previous setting item, press .

Default:

BT MODE

PHONE SELECT

Selects the phone or audio device to connect or disconnect.

“” appears in front of the device name when connected.

“” appears in front of the current playback audio device.

AUDIO SELECT

DEVICE DELETE

Turn the volume knob to select a device to delete, then press the knob.

Turn the volume knob to select

[YES]

[NO]

, then press the knob.

PIN CODE EDIT

(0000)

Changes the PIN code (up to 6 digits).

Turn the volume knob to select a number.

Press to move the entry position.

Repeat steps

and

until you finish entering the PIN code.

Press the volume knob to confirm.

RECONNECT ON

:The unit automatically reconnect when the last connected Bluetooth device is within range.;

OFF

:Cancels.

AUTO PAIRING ON

:The unit automatically pair supported Bluetooth device (iPhone/iPod touch/Android device)

when it is connected through USB input terminal.Depending on the operating system of the

connected device, this function may not work. ;

OFF

:Cancels.

INITIALIZE YES

:Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.).;

:Cancels.

INFORMATION MY



NAME

: Displays the unit name (“KD-X3 BT”).;



ADDRESS

: Shows address of this unit.

You can only connect a maximum of two Bluetooth phones and one Bluetooth audio device at any time.

BLUETOOTH®

Bluetooth compatibility check mode

You can check the connectivity of the supported

profile between the Bluetooth device and the unit.

• Make sure there is no Bluetooth device paired.

1 Press and hold .

“BLUETOOTH” “CHECK MODE” appears.

“SEARCH NOW USING PHONE” “PIN IS 0000”

scrolls on the display.

2 Search and select “KD-X3 BT” on the Bluetooth

device within 3minutes.

3 Perform (A), (B) or (C) depending on what

appears on the display.

(A) “PAIRING” “XXXXXX” (6-digit passkey):

Ensure that the same passkey appears on the

unit and Bluetooth device, then operate the

Bluetooth device to confirm the passkey.

(B) “PAIRING” “PIN IS 0000”: Enter “0000” on

the Bluetooth device.

confirm pairing.

After pairing is successful, “PAIRING OK” “[Device

Name]” appears and Bluetooth compatibility check

starts.

If “CONNECT NOW USING PHONE” appears, operate

the Bluetooth device to allow phonebook access to

continue.

“TESTING” flashes on the display.

JS_JVC_KD-X341BT_M_EN_2.indd 14JS_JVC_KD-X341BT_M_EN_2.indd 14 9/8/2016 12:20:15 PM9/8/2016 12:20:15 PM

ENGLISH 15

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

The connectivity result flashes on the display.

“PAIRING OK” and/or “HANDS-FREEOK”*1 and/

or “AUD.STREAMOK”*2 and/or “PBAP OK”*3 :

Compatible

Compatible with Hands-Free Profile (HFP)

Compatible with Advanced Audio Distribution Profile (A2DP)

Compatible with Phonebook Access profile (PBAP)

After 30 seconds, “PAIRING DELETED” appears to

indicate that pairing has been deleted, and the

unit exits check mode.

• To cancel, press and hold to turn off

the power, then turn on the power again.

BLUETOOTH®

BLUETOOTH — Audio

Audio player via Bluetooth

1 Press repeatedly to select BTAUDIO (or press SOURCE on the remote control).

2 Operate the Bluetooth audio player to start playback.

To On the faceplate On the remote control

Playback/pause Press the volume knob. Press .

Select group or folder Press . Press .

Reverse skip/Forward skip Press .Press .

Reverse/Fast-forward Press and hold .Press and hold .

Repeat play Press repeatedly.

TRACK REPEAT

ALL REPEAT

REPEAT OFF

( Not available )

Random play Press repeatedly.

GROUP RANDOM

ALL RANDOM

RANDOM OFF

( Not available )

Select a file from a folder/list Refer to “Select a file from a folder/list”

on page 8. ( Not available )

Switch between connected

Bluetooth audio devices

Press 5.*( Not available )

Pressing the “Play” key on the connected device itself also causes switching of sound output from the device.

Operations and display indications may differ according to their availability on the connected

device.

While in BT AUDIO source, you

can connect to five Bluetooth

audio devices and switch

between these five devices.

JS_JVC_KD-X341BT_M_EN_2A.indd 15JS_JVC_KD-X341BT_M_EN_2A.indd 15 9/22/2016 1:31:00 PM9/22/2016 1:31:00 PM

ENGLISH

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

STATUS

Shows the status of the selected device.

IOS CONNECTED

: You are able to use the application using the iPhone/iPod

connected via Bluetooth or USB input terminal.

IOS NOT CONNECTED

: No IOS device is connected to use the application.

ANDROID CONNECTED

: You are able to use the application using the Android

smartphone connected via Bluetooth.

ANDROID NOT CONNECTED

: No Android device is connected to use the

application.

Listen to iPhone/iPod via Bluetooth

You can listen to the songs on the iPhone/iPod via Bluetooth on this unit.

Press repeatedly to select iPodBT.

• You can operate the iPod/iPhone in the same way as iPod/iPhone via

USB input terminal.

( 7)

• If you plug in an iPhone/iPod to the USB input terminal while listening

to iPodBT source, the source automatically change to iPodUSB.

Press to select iPodBT if the device is still connected via

Bluetooth.

Internet radio via Bluetooth

You can listen to Pandora on iPhone/iPod touch/Android device via

Bluetooth on this unit.

• Make sure the USB input terminal is not connected to any device.

Listen to Pandora

(Applicable for Australia or New Zealand models only)

Preparation:

Select

[ON]

for

[PANDORA SRC]

[SOURCE SELECT]

( 4)

1 Open the Pandora application on your device.

2 Connect your device via Bluetooth connection.

( 10)

3 Press repeatedly to select PANDORA (for iPhone/iPod)

or PANDORA BT (for Android device).

The source switches and broadcast starts automatically.

• You can operate Pandora in the same way as Pandora via USB input

terminal.

( 9)

BLUETOOTH®

Settings to use JVC Remote application

JVC Remote application is designed to control the JVC car receiver’s

operations from the iPhone/iPod (via Bluetooth or via USB input terminal)

or Android smartphone (via Bluetooth).

Preparation:

Install the latest version of JVC Remote application on your device before

connecting. For more information, visit <http://www.jvc.net/cs/car/>.

1 Press and hold .

2 Turn the volume knob to select an item

(

see the following table

)

then press the knob.

3 Repeat step 2 until the desired item is selected or activated.

4 Press to exit.

To return to the previous setting item, press .

Default:

REMOTE APP

SELECT

Select the device (IOS or ANDROID) to use the application.

IOS YES

:Selects iPhone/iPod to use the application via Bluetooth or connected

via USB input terminal.;

:Cancels.

If IOS is selected, select iPod BT source (or iPod USB if your iPhone/iPod is

connected via USB input terminal) to activate the application.

•

The connectivity of the application will be interrupted or disconnected if:

– You change from iPod BT source to any playback source connected via

the USB input terminal.

– You change from iPod USB source to iPod BT source.

ANDROID YES

:Selects Android smartphone to use the application via Bluetooth.;

:Cancels.

ANDROID LIST

:Selects the Android smartphone to use from the list.

Displayed only when

[ANDROID]

[SELECT]

is set to

[YES]

JS_JVC_KD-X341BT_M_EN_2.indd 16JS_JVC_KD-X341BT_M_EN_2.indd 16 9/8/2016 12:20:23 PM9/8/2016 12:20:23 PM

ENGLISH 17

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

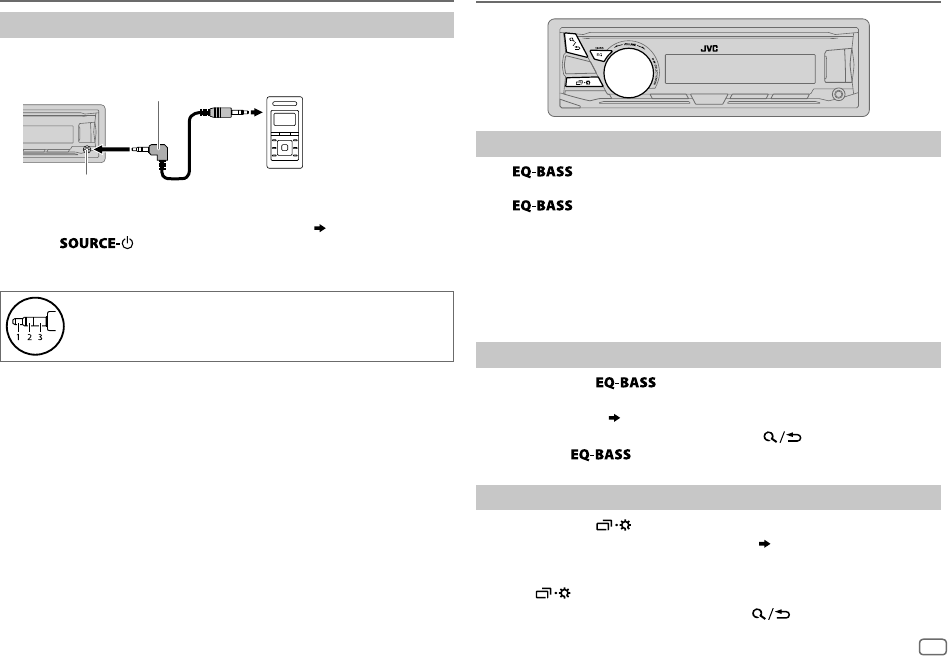

AUDIO SETTINGS

Select a preset equalizer

Press repeatedly.

(or)

Press , then turn the volume knob within 5seconds.

Preset equalizer

FLAT

(default),

DRVN 3

DRVN 2

DRVN 1

HARD ROCK

HIP HOP

JAZZ

POP

R&B

USER

CLASSICAL

• Drive equalizer (

DRVN 3

DRVN 2

DRVN 1

) boosts specific frequencies in the

audio signal to reduce the noise heard from outside the car or running

noise of the tyres.

Store your own sound settings

1 Press and hold to enter EASY EQ setting.

2 Turn the volume knob to select an item, then press the knob.

Refer to

[EASY EQ] ( 18)

for setting and the result is stored to

[USER]

• To return to the previous setting item, press .

• To exit, press .

Other settings

1 Press and hold .

2 Turn the volume knob to select an item

( 18)

, then press the knob.

3 Repeat step 2 until the desired item is selected/activated or follow

the instructions stated on the selected item.

4 Press to exit.

To return to the previous setting item, press .

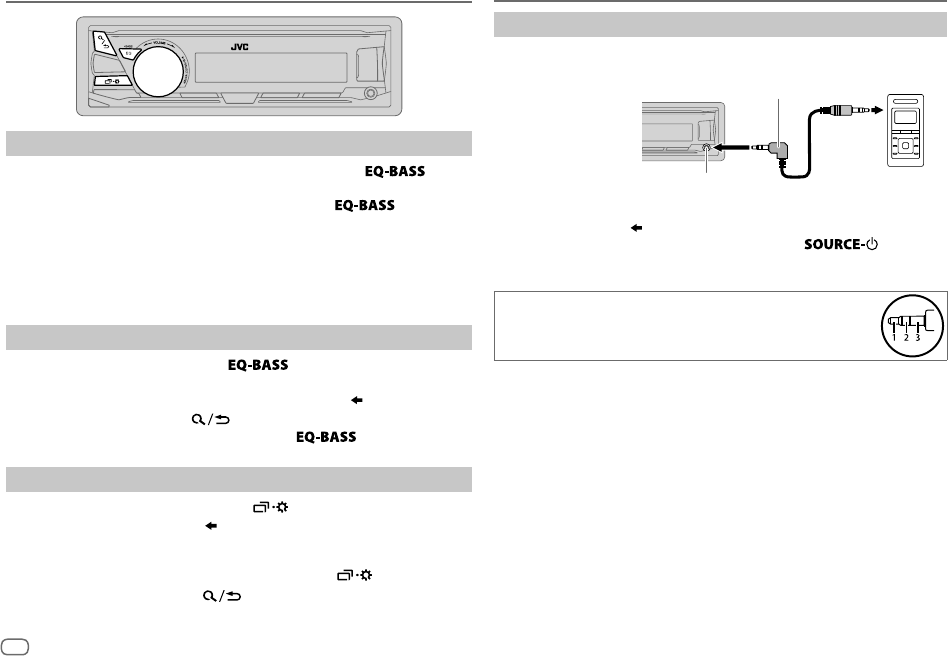

Use a portable audio player

1 Connect a portable audio player (commercially available).

2 Select

[ON]

for

[BUILT-IN AUX]

[SOURCE SELECT]

( 4)

3 Press repeatedly to select AUX.

4 Turn on the portable audio player and start playback.

Use a 3-core plug head stereo mini plug for optimum audio

output.

3.5mm stereo mini plug with “L” shaped connector

(commercially available)

Portable audio player

Auxiliary input jack

AUX

JS_JVC_KD-X341BT_M_EN_2.indd 17JS_JVC_KD-X341BT_M_EN_2.indd 17 9/8/2016 12:20:26 PM9/8/2016 12:20:26 PM

ENGLISH

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

AUDIO SETTINGS

Default:

EQ SETTING

PRESET EQ

Select a preset equalizer suitable to the music genre.

•

Select

[USER]

to use the settings made in

[EASY EQ]

[PRO EQ]

FLAT

DRVN 3

DRVN 2

DRVN 1

HARD ROCK

HIP HOP

JAZZ

POP

R&B

USER

CLASSICAL

EASY EQ

Adjust your own sound settings.

•

The settings are stored to

[USER]

•

The settings made may affect the current settings of

[PRO EQ]

SUB.W SP

*1*2:

to

+06

(Default:

SUB.W

*1*3:

–50

to

+10

BASS

LVL–09

to

LVL+09

LVL 00

MID

LVL–09

to

LVL+09

LVL 00

TRE

LVL–09

to

LVL+09

LVL 00

)

PRO EQ

Adjust your own sound settings.

•

The settings are stored to

[USER]

•

The settings made may affect the current settings of

[EASY EQ]

62.5HZ

LEVEL –09

to

LEVEL +09

(

LEVEL 00

): Adjusts the level to memorize for each source.

(Before making an adjustment, select the source you want to adjust.)

:Turns on the extended bass.;

OFF

:Cancels.

100HZ

160HZ

250HZ

400HZ

630HZ

1KHZ

1.6KHZ

2.5KHZ

4KHZ

6.3KHZ

10KHZ

16kHZ

LEVEL –09

to

LEVEL +09

(

LEVEL 00

Adjusts the level to memorize for each source.

(Before making an adjustment, select the source you want to adjust.)

Q FACTOR 1.35

1.50

2.00

:Adjust the quality factor.

AUDIO CONTROL

BASS BOOST LEVEL +01

to

LEVEL +05

: Selects your preferred bass boost level.;

OFF

:Cancels.

LOUDNESS LEVEL 01

LEVEL 02

:Boosts low or high frequencies to produce a well-

balanced sound at low volume.;

OFF

:Cancels

SUB.W LEVEL

SPK-OUT

(Not applicable when 3-way crossover is selected.)

SUB.W 00

to

SUB.W +06

(

SUB.W +03

):Adjusts the

output level of the subwoofer connected via speaker

lead.

( 30)

PRE-OUT

SUB.W –50

to

SUB.W +10

(

SUB.W 00

):Adjusts the

output level of the subwoofer connected to the lineout

terminals (REAR/SW) through an external amplifier.

( 30)

SUBWOOFER

SET

: Turns on the subwoofer output.;

OFF

:Cancels.

FADER

(Not applicable when 3-way crossover is selected.)

POSITION R15

to

POSITION F15

(

POSITION 00

):Adjusts the front

and rear speaker output balance.

BALANCE

POSITION L15

to

POSITION R15

(

POSITION 00

):Adjusts the left and

right speaker output balance.

VOLUME



ADJUST LEVEL –15

to

LEVEL +06

(

LEVEL 00

):Preset the initial volume level

of each source (compared to the FM volume level). Before adjustment,

select the source you want to adjust.

AMP



GAIN LOW



POWER

:Limits the maximum volume level to 25. (Select if

the maximum power of each speaker is less than 50W to prevent

damaging the speakers.);

HIGH POWER

:The maximum volume level

is 35.

Displayed only when

[SUBWOOFER SET]

is set to

[ON]

For 2-way crossover: Displayed only when

[SPK/PRE OUT]

is set to

[SUB.W/SUB.W]

( 19)

For 2-way crossover: Displayed only when

[SPK/PRE OUT]

is set to

[REAR/SUB.W]

[SUB.W/SUB.W]

( 19)

This adjustment will not affect the subwoofer output.

JS_JVC_KD-X341BT_M_EN_2A.indd 18JS_JVC_KD-X341BT_M_EN_2A.indd 18 9/26/2016 10:44:21 AM9/26/2016 10:44:21 AM

ENGLISH 19

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

AUDIO SETTINGS

SPK/PRE



OUT

(Not applicable when 3-way crossover is selected.)

Depending on the speaker connection method, select the appropriate

setting to get the desired output. (

Speaker output settings

)

SPEAKER SIZE

Depending on the crossover type you have selected (

[X ' OVER TYPE]

2-way crossover or 3-way crossover setting items will be shown.

(

Crossover settings

)

By default, 2-way crossover type is selected.

X ' OVER

DTA SETTINGS

For settings,

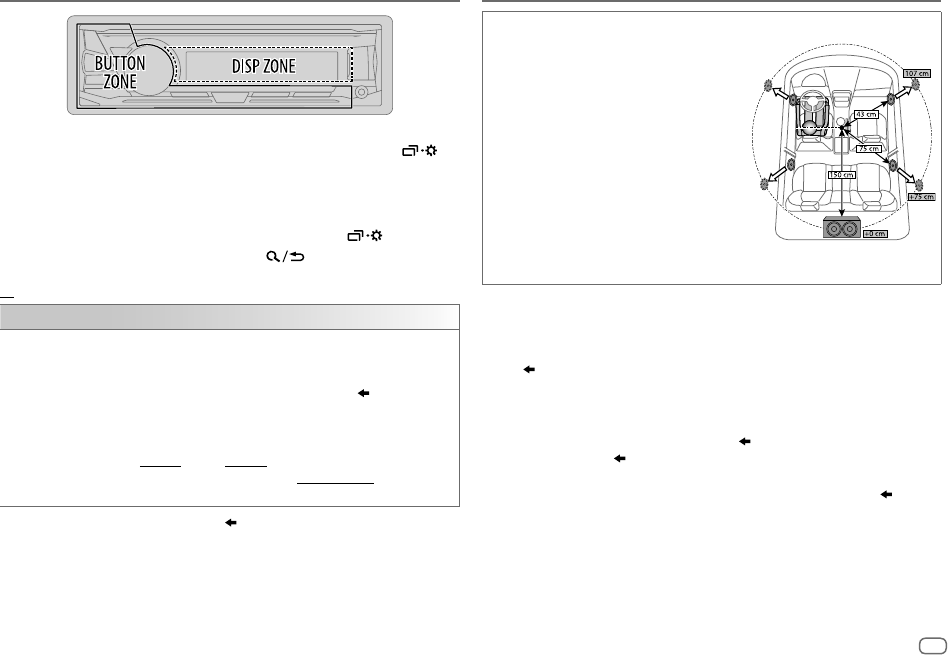

Digital Time Alignment settings

CAR SETTINGS

X ' OVER TYPE Caution

: Adjust the volume before changing the

[X ' OVER TYPE]

to avoid

the sudden increase or decrease of the output level.

2-WAY

(Displayed only when

[3-WAY]

is selected)

YES

:Selects two way crossover type.;

:Cancels.

3-WAY

(Displayed only when

[2-WAY]

is selected)

YES

:Selects three way crossover type.;

:Cancels.

SOUND EFFECT

SPACE ENHANCE

(Not applicable for TUNER source.)

SMALL/MEDIUM/LARGE

: Virtually enhances the sound space.;

OFF

:Cancels.

SND RESPONSE LEVEL1

LEVEL2

LEVEL3

: Virtually makes the sound more realistic.;

OFF

:Cancels.

SOUND LIFT LOW

MIDDLE

HIGH

: Virtually adjust the sound position heard from the

speakers.;

OFF

:Cancels.

VOL LINK EQ ON

:Boosts the frequency to reduce the noise heard from outside the car or

running noise of the tyres.;

OFF

:Cancels.

K2 TECHNOLOGY

(Not applicable for TUNER source and AUX source.)

:Improve the sound quality of compressed music.;

OFF

:Cancels.

Speaker output settings

[SPK/PRE OUT]

(Applicable only if [X ' OVER TYPE] is set to [2-WAY])

Select the output setting for the speakers

[SPK/PRE OUT]

, based on the

speaker connection method.

Connection via lineout terminals

For connections through an external amplifier.

( 30)

Setting on

[SPK/PRE OUT]

Audio signal through lineout terminal

FRONT REAR/SW

REAR/REAR

Front speakers output Rear speakers output

REAR/SUB.W

(default) Front speakers output Subwoofer output

SUB.W/SUB.W

Front speakers output Subwoofer output

Connection via speaker leads

For connections without using an external amplifier. However, with this

settings you can also enjoy the subwoofer output.

( 30)

Setting on

[SPK/PRE OUT]

Audio signal through rear speaker lead

L (left) R (right)

REAR/REAR

Rear speakers output Rear speakers output

REAR/SUB.W

Rear speakers output Rear speakers output

SUB.W/SUB.W

Subwoofer output (Mute)

[SUB.W/SUB.W]

is selected:

–

[120HZ]

is selected in

[SUBWOOFER LPF]

and

[THROUGH]

is not available.

–

[POSITION R02]

is selected in

[FADER]

and selectable range is

[POSITION R15]

to

[POSITION 00]

JS_JVC_KD-X341BT_M_EN_2.indd 19JS_JVC_KD-X341BT_M_EN_2.indd 19 9/8/2016 12:20:32 PM9/8/2016 12:20:32 PM

ENGLISH

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

AUDIO SETTINGS

2-way crossover setting items

SPEAKER SIZE

FRONT SIZE 8CM/10CM/12CM/13CM/16CM/17CM/18CM

4×6

5×7

6×8

6×9

7×10

TWEETER SMALL

MIDDLE

LARGE

NONE

(not connected)

REAR

8CM/10CM/12CM/13CM/16CM/17CM/18CM

4×6

5×7

6×8

6×9

7×10

NONE

(not connected)

SUBWOOFER

*2*3

16CM/20CM/25CM/30CM/38CM OVER

NONE

(not connected)

X ' OVER

TWEETER FRQ 1KHZ

1.6KHZ

2.5KHZ

4KHZ

5KHZ

6.3KHZ

8KHZ

10KHZ

12.5KHZ

GAIN LEFT –08DB

00DB

GAIN RIGHT –08DB

00DB

FRONT HPF F-HPF FRQ 30HZ

40HZ

50HZ

60HZ

70HZ

80HZ

90HZ

100HZ

120HZ

150HZ

180HZ

220HZ

250HZ

THROUGH

F-HPF SLOPE –06DB

–12DB

–18DB

–24DB

F-HPF GAIN –08DB

00DB

REAR HPF

R-HPF FRQ 30HZ

40HZ

50HZ

60HZ

70HZ

80HZ

90HZ

100HZ

120HZ

150HZ

180HZ

220HZ

250HZ

THROUGH

R-HPF SLOPE –06DB

–12DB

–18DB

–24DB

R-HPF GAIN –08DB

00DB

SUBWOOFER

LPF

*2*3

SW LPF FRQ 30HZ

40HZ

50HZ

60HZ

70HZ

80HZ

90HZ

100HZ

120HZ

150HZ

180HZ

220HZ

250HZ

THROUGH

SW LPF SLOPE –06DB

–12DB

–18DB

–24DB

SW LPF PHASE REVERSE

(180°)/

NORMAL

(0°)

SW LPF GAIN –08DB

00DB

( 21)

Crossover settings

Below are the available setting items for 2-way crossover and 3-way

crossover.

Caution

Select a crossover type according to how the speakers are connected.

( 30)

If you select a wrong type:

• The speakers may damage.

• The output sound level may be extremely high or low.

SPEAKER SIZE

Selects according to the connected speaker size for optimum

performance.

•

The frequency and slope settings are automatically set for the

crossover of the selected speaker.

•

When 2-way crossover is selected, if

[NONE]

is selected for

[TWEETER]

[FRONT]

[REAR]

and

[SUBWOOFER]

for

[SPEAKER SIZE]

, the

[X ‘ OVER]

setting

of the selected speaker is not available.

•

When 3-way crossover is selected, if

[NONE]

is selected for

[WOOFER]

[SPEAKER SIZE]

, the

[X ‘ OVER]

setting of

[WOOFER]

is not available.

X ‘ OVER

(crossover)

• [FRQ]

[F-HPF FRQ]

[R-HPF FRQ]

[SW LPF FRQ]

[HPF FRQ]

[LPF FRQ]

: Adjusts

the crossover frequency for the selected speakers (high pass filter or

low pass filter).

[THROUGH]

is selected, all signals are sent to the selected speakers.

• [SLOPE]

[F-HPF SLOPE]

[R-HPF SLOPE]

[SW LPF SLOPE]

[HPF SLOPE]

[LPF SLOPE]:

Adjusts the crossover slope.

Selectable only if a setting other than

[THROUGH]

is selected for the

crossover frequency.

• [SW LPF PHASE]

[PHASE]:

Selects the phase of the speaker output to be

in line with the other speaker output.

•

[GAIN LEFT]

[GAIN RIGHT]

[F-HPF GAIN]

[R-HPF GAIN]

[SW LPF GAIN]

[GAIN]

Adjusts the output volume of the selected speaker.

JS_JVC_KD-X341BT_M_EN_2.indd 20JS_JVC_KD-X341BT_M_EN_2.indd 20 9/8/2016 12:20:34 PM9/8/2016 12:20:34 PM

ENGLISH 21

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

AUDIO SETTINGS

3-way crossover setting items

SPEAKER SIZE

TWEETER SMALL/MIDDLE/LARGE

MID RANGE 8CM/10CM/12CM/13CM/16CM/17CM/18CM

4×6

5×7

6×8

6×9

WOOFER

16CM/20CM/25CM/30CM/38CM OVER

NONE

(not connected)

X ' OVER

TWEETER HPF FRQ 1KHZ

1.6KHZ

2.5KHZ

4KHZ

5KHZ

6.3KHZ

8KHZ

10KHZ

12.5KHZ

SLOPE –06DB

–12DB

PHASE REVERSE

(180°)/

NORMAL

(0°)

GAIN –08DB

00DB

MID RANGE HPF FRQ 30HZ

40HZ

50HZ

60HZ

70HZ

80HZ

90HZ

100HZ

120HZ

150HZ

180HZ

220HZ

250HZ

THROUGH

HPF SLOPE –06DB

–12DB

LPF FRQ 1KHZ

1.6KHZ

2.5KHZ

4KHZ

5KHZ

6.3KHZ

8KHZ

10KHZ

12.5KHZ

THROUGH

LPF SLOPE –06DB

–12DB

PHASE REVERSE

(180°)/

NORMAL

(0°)

GAIN –08DB

00DB

WOOFER

LPF FRQ 30HZ

40HZ

50HZ

60HZ

70HZ

80HZ

90HZ

100HZ

120HZ

150HZ

180HZ

220HZ

250HZ

THROUGH

SLOPE –06DB

–12DB

PHASE REVERSE

(180°)/

NORMAL

(0°)

GAIN –08DB

00DB

Displayed only when

[SPK/PRE OUT]

is set to

[REAR/REAR]

[REAR/SUB.W]

( 19)

Displayed only when

[SPK/PRE OUT]

is set to

[REAR/SUB.W]

[SUB.W/SUB.W]

( 19)

Displayed only when

[SUBWOOFER SET]

is set to

[ON]

( 18)

Digital Time Alignment settings

Digital Time Alignment sets the delay time of the speaker output to

create a more suitable environment for your vehicle.

• For more information,

Determining the value for [DISTANCE] and

[GAIN] of [DTA SETTINGS]

DTA SETTINGS

POSITION

Selects your listening position (reference point).

ALL

:Not compensating;

FRONT RIGHT:

Front right seat;

FRONT LEFT

:Front left seat;

FRONT ALL

:Front seat

•

[FRONT ALL]

is displayed only when

[X ' OVER TYPE]

is set

[2-WAY]

( 19)

DISTANCE

0CM

610CM

:Fine adjust the distance to compensate.

GAIN

–8DB

0DB

:Fine adjust the output volume of the selected

speaker.

DTA RESET YES

:Resets the settings (

[DISTANCE]

and

[GAIN]

) of the

selected

[POSITION]

to default.;

:Cancels.

CAR SETTINGS

Identify your car type and rear speaker location in order to

make the adjustment for

[DTA SETTINGS]

CAR TYPE COMPACT

FULL SIZE CAR

WAGON

MINIVAN

SUV

MINIVAN(LONG)

:Selects the type of vehicle.;

OFF:

Not

compensating.

R-SP LOCATION

Selects the location of the rear speakers in your vehicle to

calculate the furthest distance from the listening position

selected (reference point).

•

DOOR

REAR DECK

:Selectable only when

[CAR TYPE]

is selected as

[OFF]

[COMPACT]

[FULL SIZE CAR]

[WAGON]

[SUV]

•

2ND ROW

3RD ROW

:Selectable only when

[CAR TYPE]

selected as

[MINIVAN]

[MINIVAN(LONG)]

( 22)

JS_JVC_KD-X341BT_M_EN_2.indd 21JS_JVC_KD-X341BT_M_EN_2.indd 21 9/8/2016 12:20:35 PM9/8/2016 12:20:35 PM

ENGLISH

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

AUDIO SETTINGS

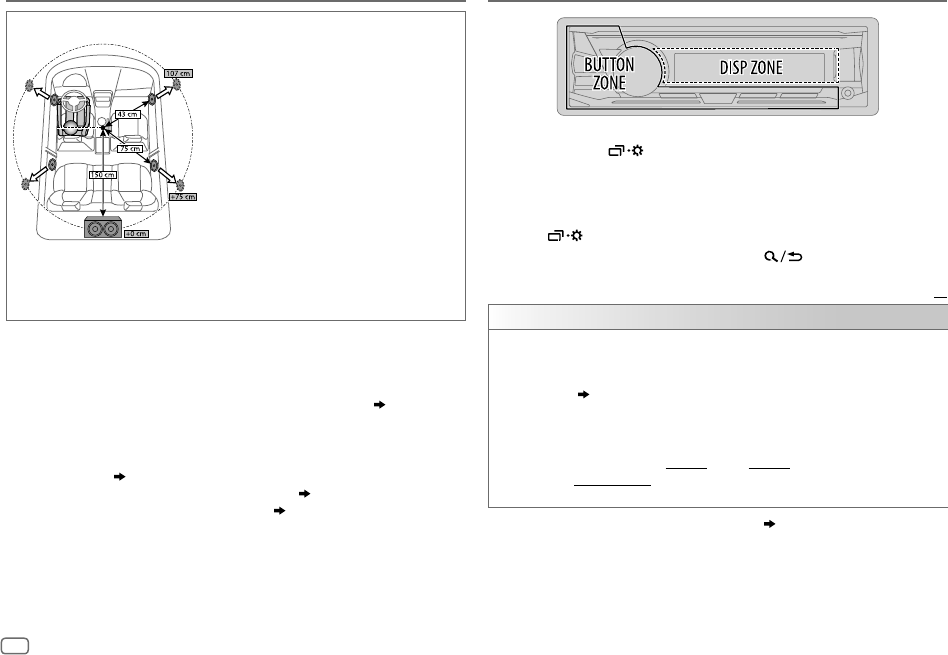

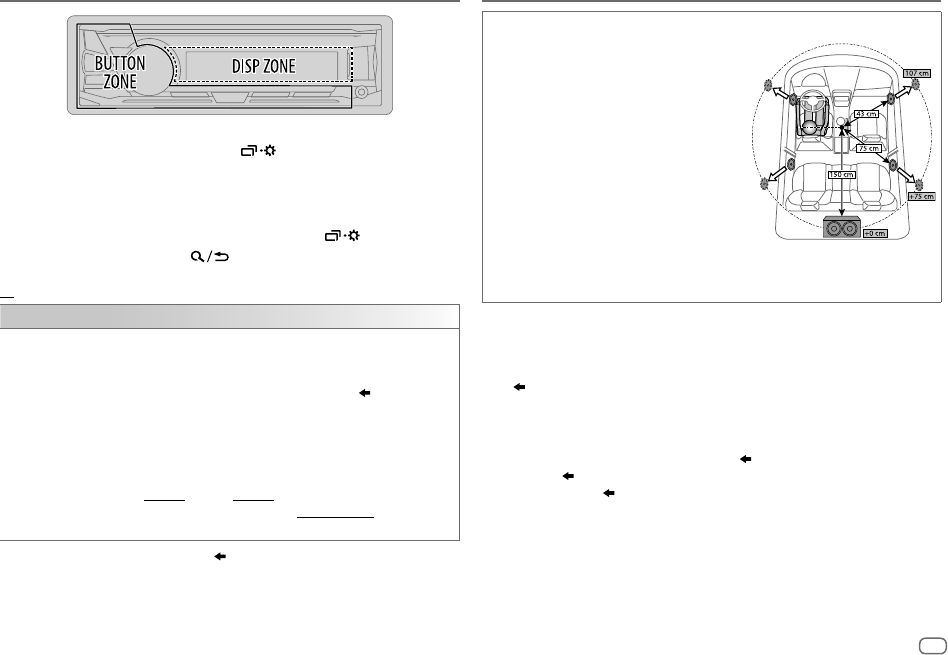

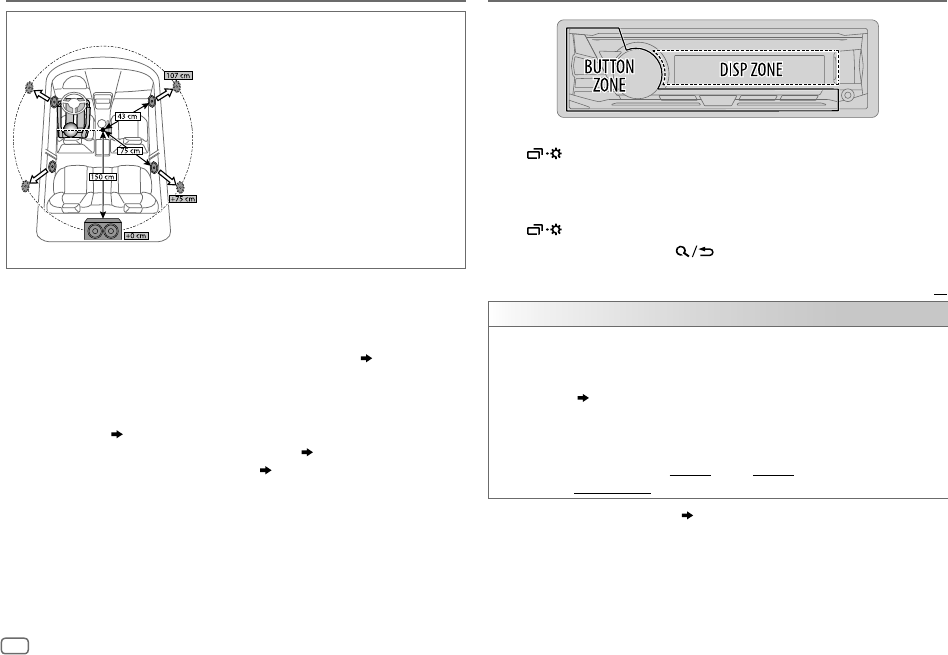

Determining the value for [DISTANCE] and [GAIN] of [DTA SETTINGS]

If you specify the distance from the center of the

currently set listening position to every speaker,

the delay time will be automatically computed

and set.

Determine the center of the currently set

listening position as the reference point.

Measure the distances from the reference

point to the speakers.

Calculate the differences between the

distance of the furthest speaker (rear

speaker) and other speakers.

Set the

[DISTANCE]

calculated in step

for

individual speakers.

Adjust

[GAIN]

for individual speakers.

Example: When

[FRONT ALL]

is selected as the

listening position

Before making an adjustment, select the speaker:

When 2-way crossover is selected:

FRONT LEFT

FRONT RIGHT

REAR LEFT

REAR RIGHT

SUBWOOFER:

[REAR LEFT]

[REAR RIGHT]

and

[SUBWOOFER]

is selectable only if a setting other than

[NONE]

is selected for

[REAR]

and

[SUBWOOFER]

[SPEAKER SIZE]

( 20)

When 3-way crossover is selected:

TWEETER LEFT

TWEETER RIGHT

MID LEFT

MID RIGHT

WOOFER:

[WOOFER]

is selectable only if a setting other than

[NONE]

is selected for

[WOOFER]

[SPEAKER SIZE]

( 21)

Displayed only when

[X ' OVER TYPE]

is set to

[2-WAY]

( 19)

and if a setting other than

[NONE]

is selected for [

REAR

] of

[SPEAKER SIZE]

( 20)

1 Press and hold .

2 Turn the volume knob to select an item (see the following table),

then press the knob.

3 Repeat step 2 until the desired item is selected/activated or follow

the instructions stated on the selected item.

4 Press to exit.

To return to the previous setting item, press .

Default:

DISPLAY

DIMMER

Dim the illumination.

OFF

:Dimmer is turned off. Brightness changes to

[DAY]

setting.

:Dimmer is turned on. Brightness changes to

[NIGHT]

setting.

(



[BRIGHTNESS]

)

DIMMER TIME

:Set the dimmer on and off time.

Turn the volume knob to adjust the

[ON]

time, then press the knob.

Turn the volume knob to adjust the

[OFF]

time, then press the knob.

(Default:

[ON]

PM6:00

;

[OFF]

AM6:00

)

DIMMER AUTO

:Dimmer turns on and off automatically when you turn off or

on the car headlights.

The illumination control wire connection is required.

( 30)

DISPLAY SETTINGS

JS_JVC_KD-X341BT_M_EN_2.indd 22JS_JVC_KD-X341BT_M_EN_2.indd 22 9/8/2016 12:20:37 PM9/8/2016 12:20:37 PM

ENGLISH 23

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

DISPLAY SETTINGS

BRIGHTNESS

Set the brightness for day and night separately.

DAY

NIGHT

:Select day or night.

Select a zone.

( 22)

LEVEL 00

LEVEL 31

Set the brightness level.

(Default:

DAY

:

LEVEL 31

;

NIGHT

:

LEVEL 15

)

TEXT SCROLL

SCROLL ONCE

:Scrolls the display information once.;

SCROLL AUTO

:Repeats scrolling at 5-second intervals.;

SCROLL OFF

:Cancels.

Some characters or symbols will not be shown correctly (or will be blanked).

Maintenance

Cleaning the unit

Wipe off dirt on the faceplate with a dry silicone or soft cloth.

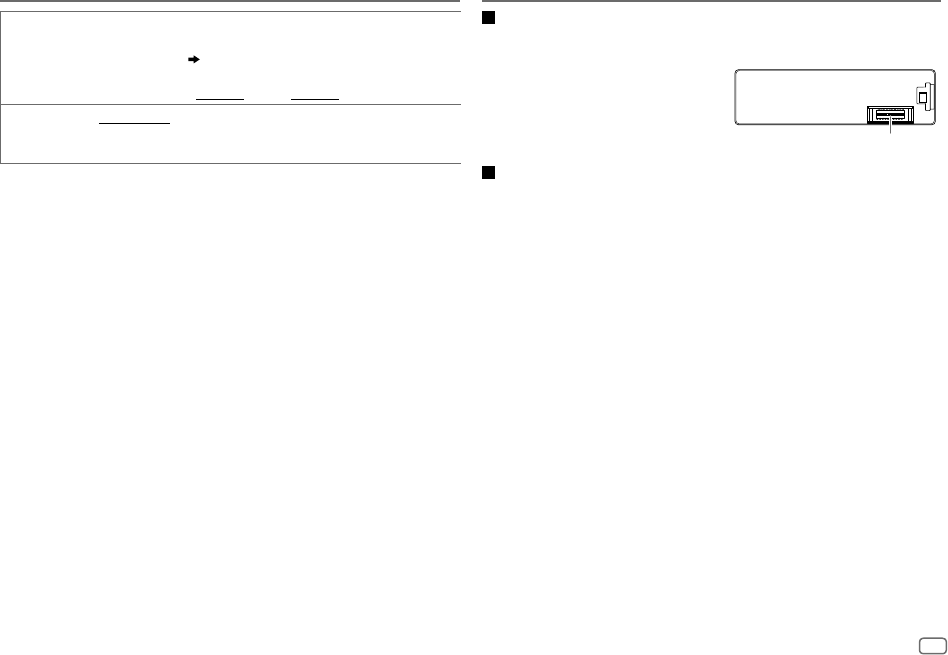

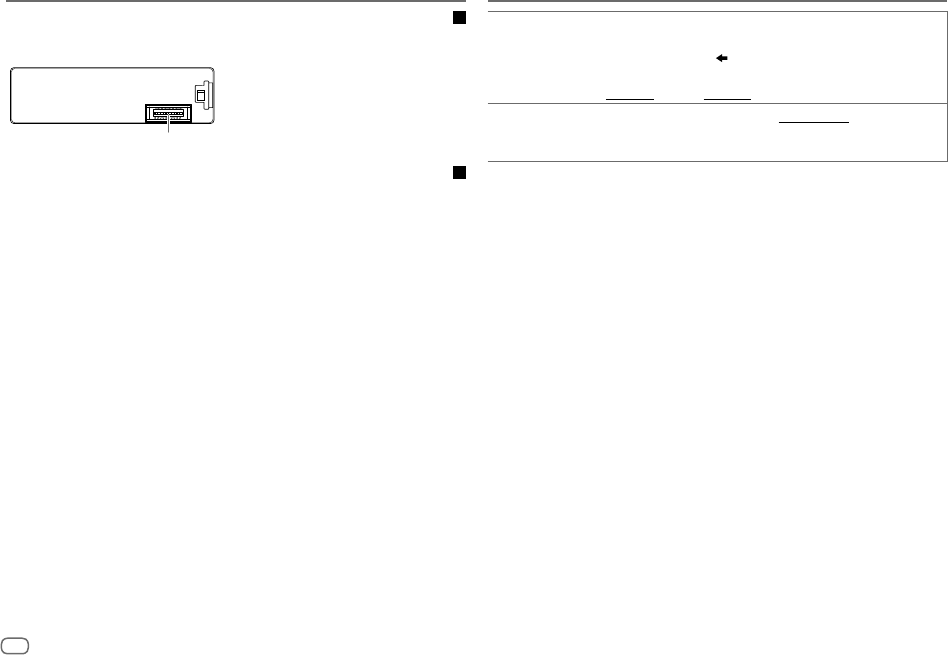

Cleaning the connector

Detach the faceplate and clean the connector

gently with a cotton swab, being careful not to

damage the connector.

More information

For: – Latest firmware updates and latest compatible item list

– JVC original application

– Any other latest information

Visit <http://www.jvc.net/cs/car/>.

Playable files

•

For detailed information and notes about the playable audio files, visit

<http://www.jvc.net/cs/car/>.

•

Playable audio file: MP3 (.mp3), WMA (.wma), AAC (.aac), WAV (.wav), FLAC (.flac)

•

Playable USB device file system: FAT12, FAT16, FAT32

Even when audio files comply with the standards listed above, playback may be impossible

depending on the types or conditions of media or device.

The AAC (.m4a) file in a USB device encoded by iTunes cannot be played on this unit.

About USB devices

•

You cannot connect a USB device via a USB hub.

•

Connecting a cable whose total length is longer than 5m may result in abnormal playback.

•

This unit cannot recognize a USB device whose rating is other than 5V and exceeds 1.5A.

About iPod/iPhone

•

Via USB input terminal:

Made for

– iPod touch (5th and 6th generation)

– iPod nano (7th generation)

– iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE

REFERENCES

Connector (on the reverse

side of the faceplate)

JS_JVC_KD-X341BT_M_EN_2.indd 23JS_JVC_KD-X341BT_M_EN_2.indd 23 9/8/2016 12:20:41 PM9/8/2016 12:20:41 PM

ENGLISH

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

REFERENCES

•

Via Bluetooth:

Made for

– iPod touch (5th and 6th generation)

– iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE

• It is not possible to browse video files on the “Videos” menu in

[HEAD MODE]

• The song order displayed on the selection menu of this unit may differ from that of the

iPod/iPhone.

•

Depending on the version of the operating system of the iPod/iPhone, some functions

may not operate on this unit.

About Android device

•

This unit supports Android OS 4.1 and above.

•

Some Android devices (with OS4.1 and above) may not fully support Android Open

Accessory (AOA)2.0.

•

If the Android device supports both mass storage class device and AOA2.0, this unit

always playback via AOA2.0 as priority.

About Pandora

•

Pandora is only available in certain countries.

For more information, visit <http://www.pandora.com/legal>.

•

Because Pandora is a third-party service, the specifications are subject to change

without prior notice. Accordingly, compatibility may be impaired, or some or all of the

services may become unavailable.

•

Some functions of Pandora cannot be operated from this unit.

•

For issues using the application, please contact Pandora at

pandora-support@pandora.com.

About Bluetooth

•

Depending on the Bluetooth version of the device, some Bluetooth devices may not be

able to connect to this unit.

•

This unit may not work with some Bluetooth devices.

•

Signal conditions vary, depending on the surroundings.

Change the display information

Each time you press , the display information changes.

•

If the information is unavailable or not recorded, “NO TEXT”, “NO NAME”, or other information (eg.

station name) appears.

Source name Display information

Frequency (Date/Clock) Frequency (Date/Clock) with music synchronisation

(back to the beginning)

(For FM Radio Data System stations only)

Station name (PS)/Program type (PTY) (Date/Clock) Radiotext (Date/Clock)

Radiotext+ (Radio text+) Song title (Artist) Song title (Date/Clock)

Frequency (Date/Clock) Station name (PS)/Program type (PTY) (Date/Clock)

with music synchronisation

(back to the beginning)

USB (For MP3/WMA/AAC/WAV/FLAC files)

Song title (Artist) Song title (Album name) Song title (Date/Clock)

File name (Folder name) File name (Date/Clock) Playing time

(Date/Clock) Song title (Artist) with music synchronisation

(backtothebeginning)

iPod USB/

iPod BT

ANDROID

When

[HEAD MODE]

[AUTO MODE]

is selected

( 8)

Song title (Artist) Song title (Album name) Song title (Date/Clock)

Playing time (Date/Clock) Song title (Artist) with music synchronisation

(backtothebeginning)

PANDORA/

PANDORA BT

Station name (Date/Clock) Shared/Radio (Date/Clock) Song title (Artist)

Song title (Album name) Song title (Date/Clock) Playing time (Date/

Clock) Station name (Date/Clock) with music synchronisation

(back to the

beginning)

AUX

AUX (Date/Clock) AUX (Date/Clock) with music synchronisation

(back to

the beginning)

BT AUDIO

Song title (Artist) Song title (Album name) Song title (Date/Clock)

Playing time (Date/Clock) Song title (Artist) with music synchronisation

(back to the beginning)

The brightness of the illumination changes and synchronises with the music.

JS_JVC_KD-X341BT_M_EN_2.indd 24JS_JVC_KD-X341BT_M_EN_2.indd 24 9/8/2016 12:20:41 PM9/8/2016 12:20:41 PM

ENGLISH 25

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

TROUBLESHOOTING

Symptom Remedy

General

Sound cannot be heard.

•

Adjust the volume to the optimum level.

•

Check the cords and connections.

“MISWIRING CHECK

WIRING THEN PWR ON”

appears.

Turn the power off, then check to be sure the terminals

of the speaker wires are insulated properly. Turn the

power on again.

“PROTECTING SEND

SERVICE” appears.

Send the unit to the nearest service center.

Source cannot be selected.

Check the

[SOURCE SELECT]

setting.

( 4)

Radio

•

Radio reception is poor.

•

Static noise while

listening to the radio.

Connect the antenna firmly.

USB/iPod

Playback order is not as

intended.

The playback order is determined by the file name

Elapsed playing time is not

correct.

This depends on the recording process earlier.

“NOT SUPPORT” appears

and file skips.

Check whether the file is a playable format.

( 23)

“READING” keeps flashing.

•

Do not use too many hierarchical levels and folders.

•

Reattach the USB device.

“UNSUPPORTED DEVICE”

appears.

•

Check whether the connected device is compatible with

this unit and ensure the file systems are in supported

formats.

( 23

24)

•

Reattach the device.

“UNRESPONSIVE DEVICE”

appears.

Make sure the device is not malfunction and reattach

the device.

“USB HUB IS NOT

SUPPORTED” appears.

This unit cannot support a USB device connected via a

USB hub.

Symptom Remedy

USB/iPod

“CANNOT PLAY” appears.

Connect a USB device that contains playable audio files.

The iPod/iPhone does not

turn on or does not work

•

Check the connection between this unit and iPod/

iPhone.

•

Detach and reset the iPod/iPhone using hard reset.

“LOADING” appears when

you enter search mode by

pressing .

This unit is still preparing the iPod/iPhone music list. It

may take some time to load, try again later.

Correct characters are not

displayed.

•

This unit can only display uppercase letters, numbers,

and a limited number of symbols.

•

Depending on the display language you have selected

( 5)

, some characters may not be displayed correctly.

ANDROID

•

Sound cannot be heard

during playback.

•

Sound output only from

the Android device.

•

Reconnect the Android device.

•

If in [

AUDIO MODE

], launch any media player

application on the Android device and start playback.

•

If in [

AUDIO MODE

], relaunch the current media player

application or use another media player application.

•

Restart the Android device.

•

If this does not solve the problem, the connected Android

device is unable to route the audio signal to unit.

( 24)

Cannot playback at

[

AUTO MODE

•

Make sure JVC MUSIC PLAY APP is installed on the

Android device.

( 7)

•

Reconnect the Android device and select the appropriate

control mode.

( 8)

•

If this does not solve the problem, the connected Android

device does not support [

AUTO MODE

( 24)

“NO DEVICE” or “READING”

keeps flashing.

•

Switch off the developer options on the Android device.

•

Reconnect the Android device.

•

If this does not solve the problem, the connected Android

device does not support [

AUTO MODE

( 24)

JS_JVC_KD-X341BT_M_EN_2.indd 25JS_JVC_KD-X341BT_M_EN_2.indd 25 9/8/2016 12:20:55 PM9/8/2016 12:20:55 PM

ENGLISH

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

TROUBLESHOOTING

Symptom Remedy

Bluetooth®

Echo or noise occurs.

•

Adjust the microphone unit’s position.

( 10)

•

Check the

[ECHO CANCEL]

setting.

( 12)

Phone sound quality

is poor

•

Reduce the distance between the unit and the Bluetooth

device.

•

Move the car to a place where you can get a better signal

reception.

Sound is being

interrupted or skipped

during playback of a

Bluetooth audio player.

•

Reduce the distance between the unit and the Bluetooth

audio player.

•

Turn off, then turn on the unit and try to connect again.

•

Other Bluetooth devices might be trying to connect to the

unit.

The connected Bluetooth

audio player cannot be

controlled.

•

Check whether the connected Bluetooth audio player

supports Audio/Video Remote Control Profile (AVRCP).

(Refer to the instructions of your audio player.)

•

Disconnect and connect the Bluetooth player again.

“PLEASE WAIT”

The unit is preparing to use the Bluetooth function. If the

message does not disappear, turn off and turn on the unit,

then connect the device again.

“NOT SUPPORT”

The connected phone does not support Voice Recognition

feature.

“ERROR”

Try the operation again. If “ERROR” appears again, check if

the device supports the function you have tried.

“H/W ERROR”

Reset the unit and try the operation again. If “H/W ERROR”

appears again, consult your nearest service center.

If you still have troubles, reset the unit.

( 3)

Symptom Remedy

ANDROID

Playback is intermittent or

sound skips.

Turn off the power saving mode on the Android device.

“CANNOT PLAY”

•

Make sure Android device contains playable audio files.

•

Reconnect the Android device.

•

Restart the Android device.

Pandora

“ADDERROR”

New station creation is unsuccessful.

“CHKDEVICE”

Check the Pandora application on your device.

“NOSKIPS”

The skip limit has been reached.

“NOSTATIONS”

No stations are found.

“STATIONLMT”

The number of registered stations has reached its limit.

Retry after deleting unnecessary stations from your

device.

“UPGRADEAPP”

Make sure you have installed the latest version of the

Pandora application on your device.

“CONNECT ERR”

Communication is unstable.

“RATING ERR”

Registration of thumbs up/thumbs down has failed due

to insufficient network connectivity.

“THUMBS N/A”

Registration of thumbs up/thumbs down is not allowed.

“LICENSE ERR”

You try to access from a country which Pandora is not

deliverable.

Bluetooth®

No Bluetooth device is

detected..

•

Search from the Bluetooth device again.

•

Reset the unit.

( 3)

Pairing cannot be made.

•

Make sure you have entered the same PIN code to both

the unit and Bluetooth device.

•

Delete pairing information from both the unit and the

Bluetooth device, then perform pairing again.

( 10)

JS_JVC_KD-X341BT_M_EN_2.indd 26JS_JVC_KD-X341BT_M_EN_2.indd 26 9/8/2016 12:20:59 PM9/8/2016 12:20:59 PM

ENGLISH 27

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

SPECIFICATIONS

Tuner

FM Frequency Range 87.5MHz — 108.0MHz (50kHz step)

Usable Sensitivity (S/N=26dB) 8.2dBf (0.71μV/75Ω)

Quieting Sensitivity

(DINS/N=46dB)

17.2dBf (2.0μV/75Ω)

Frequency Response (±3dB) 30Hz — 15kHz

Signal-to-Noise Ratio (MONO) 64dB

Stereo Separation (1kHz) 40dB

AM Frequency Range Band 1 (AM): 531kHz — 1602kHz

(9kHz step)

Band 2 (SW1): 2940kHz — 7735kHz

(5kHz step)

Band 3 (SW2): 9500kHz — 10135kHz /

11580kHz — 18135kHz

(5kHz step)

Usable Sensitivity (S/N=20dB) AM: 29dBμ (28.2μV)

SW: 30dBμ (32μV)

USB

USB Standard USB1.1, USB2.0 (Full speed)

Compatible Devices Mass storage class

File System FAT12/16/32

Maximum Supply Current DC5V 1.5A

D/A Converter 24 Bit

Frequency Response (±1dB) 20Hz — 20kHz

Signal-to-Noise Ratio (1kHz) 105dB

Dynamic Range 90dB

Channel Separation 85dB

MP3 Decode Compliant with MPEG-1/2 Audio Layer-3

WMA Decode Compliant with Windows Media Audio

AAC Decode AAC-LC “.aac” files

WAV Decode RIFF waveform Audio Format (Linear PCM only)

FLAC Decode FLAC files, up to 24 bit/48 kHz

Auxiliary

Frequency Response (±3dB) 20Hz—20kHz

Input Maximum Voltage 1000mV

Input Impedance 30kΩ

JS_JVC_KD-X341BT_M_EN_2.indd 27JS_JVC_KD-X341BT_M_EN_2.indd 27 9/8/2016 12:21:01 PM9/8/2016 12:21:01 PM

ENGLISH

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

SPECIFICATIONS

Bluetooth

Version Bluetooth 3.0

Frequency Range 2.402 GHz — 2.480 GHz

Output Power +4 dBm (MAX), 0 dBm (AVE) Power Class 2

Maximum Communication Range Line of sight approx. 10 m (32.8 ft)

Pairing SSP (Secure Simple Pairing)

Profile HFP1.6 (Hands-Free Profile)

A2DP (Advanced Audio Distribution Profile)

AVRCP1.5 (Audio/Video Remote Control Profile)

PBAP (Phonebook Access Profile)

SPP (Serial Port Profile)

Audio

Maximum Output Power 50W×4 or

50W×2 + 50W×1 (Subwoofer = 4Ω)

Full Bandwidth Power

(at less than 1% THD)

22W×4

Speaker Impedance 4Ω—8Ω

Preout Level/Load (USB) 4000mV/10kΩ load

Preout Impedance ≤600Ω

General

Operating Voltage

(10.5V—16V allowable)

14.4V

Maximum Current Consumption 10A

Operating Temperature Range –10°C — +60°C

Installation Size (W×H×D) 182mm×53mm×114mm

Net Weight (includes Trimplate,

Mounting Sleeve)

0.6k

Subject to change without notice.

INSTALLATION/CONNECTION

Warning

•

The unit can only be used with a 12V DC power supply, negative ground.

•

Disconnect the battery’s negative terminal before wiring and mounting.

•

Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire

(black) to prevent a short circuit.

•

Insulate unconnected wires with vinyl tape to prevent a short circuit.

•

Be sure to ground this unit to the car’s chassis again after installation.

Caution

•

For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer.

•

Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during

and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.

•

Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect

them in parallel.

•

Connect speakers with a maximum power of more than 50W. If the maximum power of

the speakers is lower than 50W, change the

[AMP GAIN]

setting to avoid damaging the

speakers.

( 18)

•

Mount the unit at an angle of less than 30º.

•

If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red)

to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned

on and off by the ignition key.

•

Keep all cables away from heat dissipate metal parts.

•

After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are

working properly.

•

If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old

fuse with one that has the same rating.

Basic procedure

Remove the key from the ignition switch, then disconnect the terminal of the car

battery.

Connect the wires properly.

See Wiring connection.

( 30)

Install the unit to your car.

See Installing the unit (in-dash mounting).

( 29)

Connect the terminal of the car battery.

Press to turn on the power.

Detach the faceplate and reset the unit.

( 3)

JS_JVC_KD-X341BT_M_EN_2.indd 28JS_JVC_KD-X341BT_M_EN_2.indd 28 9/8/2016 12:21:01 PM9/8/2016 12:21:01 PM

ENGLISH 29

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

INSTALLATION/CONNECTION

How to remove the unit

When installing without the mounting sleeve

Remove the mounting sleeve and trim plate from the unit.

Align the holes in the unit (on both sides) with the

vehicle mounting bracket and secure the unit with screws

(commercially available).

Use only the specified screws. Using wrong screws might damage

the unit.

Installing the unit (in-dash mounting)

Do the required wiring.

( 30)

Bend the appropriate tabs to

hold the sleeve firmly in place.

Hook on the top side

Orientate the trim

plate as illustrated

before fitting.

Dashboard of

your car

Part list for installation

(A)

Faceplate

(C)

Mounting sleeve

(B)

Trim plate

(D)

Wiring harness

(E)

Extraction key

JS_JVC_KD-X341BT_M_EN_2.indd 29JS_JVC_KD-X341BT_M_EN_2.indd 29 9/8/2016 12:21:04 PM9/8/2016 12:21:04 PM

ENGLISH

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

INSTALLATION/CONNECTION

Microphone input jack

( 10)

Firmly connect the ground

wire of the amplifier to

the car’s chassis to avoid

damaging the unit.

You can also connect a

subwoofer speaker directly

using this lead without

an external subwoofer

amplifier. For setting,

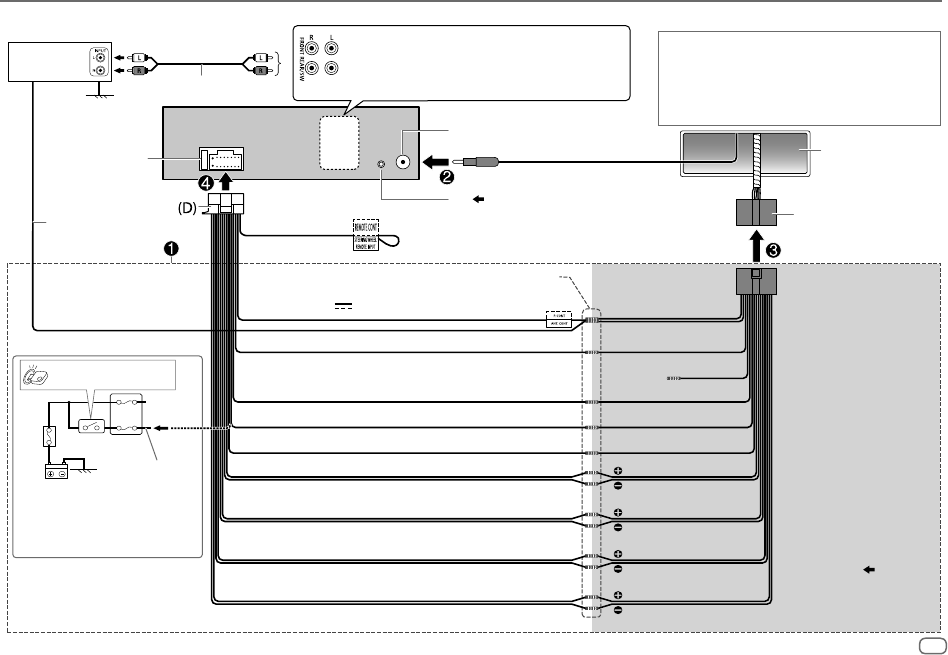

Wiring connection

Car fuse block

Ignition switch

Blue/white: To amplifier

Blue: To power antenna

Make this connection if your vehicle

factory wiring harness does not

have “12V ignition switch” wire.

Separate red wire

Signal cord (not supplied)

Remote wire

(not supplied)

Fuse (10A)

Antenna terminal

Factory wiring

harness (vehicle)

Vehicle

dashboard

Black: Ground

White: Front speaker/For 3-way crossover: Mid range speaker (left)

White/black

Gray: Front speaker/For 3-way crossover: Mid range speaker (right)

Gray/black

Green: Rear speaker

/For 3-way crossover: Tweeter (left)

Green/black

Purple: Rear speaker/For 3-way crossover: Tweeter (right)

Purple/black

Join the same color wires together.

Red: Ignition 12V

Orange/white: Illumination

Blue/white: Remote (12V 350mA)

Light blue/yellow To the steering wheel

remote control adapter

JVC Amplifier

Custom wiring harness

(separately purchased)

Recommended connection

IMPORTANT

We recommend installing the unit with a

commercially available custom wiring harness specific

for your car and leave this job to professionals for your

safety. Consult your car audio dealer.

(Not used) Brown

Yellow: Battery 12V

Front/Rear/Subwoofer output

For 3-way crossover: Mid Range/Woofer output

JS_JVC_KD-X341BT_M_EN_2.indd 30JS_JVC_KD-X341BT_M_EN_2.indd 30 9/8/2016 12:21:05 PM9/8/2016 12:21:05 PM

ENGLISH 31

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to

connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to

meet Apple performance standards. Apple is not responsible for the operation of this device or its

compliance with safety and regulatory standards. Please note that the use of this accessory with iPod

or iPhone may affect wireless performance.

• iPhone, iPod, iPod classic, iPod nano, iPod touch and iTunes are trademarks of Apple Inc., registered

in the U.S. and other countries.

• Lightning is a trademark of Apple Inc.

• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of

Pandora Media, Inc., used with permission.

• Android is trademark of Google Inc.

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any

use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names

are those of their respective owners.

libFLAC

Redistribution and use in source and binary forms, with or without modification, are permitted provided

that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the

following disclaimer.

- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and

the following disclaimer in the documentation and/or other materials provided with the distribution.

- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to

endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY

EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL

THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,

EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF

SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)

HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,

OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS

SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

JS_JVC_KD-X341BT_M_EN_2.indd 31JS_JVC_KD-X341BT_M_EN_2.indd 31 9/8/2016 12:21:06 PM9/8/2016 12:21:06 PM

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

2

 



•   

•    



•     

•    

 /

 /      2   



  

    



 :

•      

•      

:

•     

•    

•  (  )   

 (RM-RK52):

•     

•        

•       

 2

 3

 4

1  

2 

3 

  5

USB/iPod/ANDROID 7

Pandora® 9

(  

)

BLUETOOTH® 10

AUX 17

  17

 22

 23





 25

 27

/ 28 

•    

•  

( 5)

•

[XX]

  

•

( XX)



JS_JVC_KD-X341BT_M_TH.indd 2JS_JVC_KD-X341BT_M_TH.indd 2 9/26/2016 9:18:15 AM9/26/2016 9:18:15 AM

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)







  







  

  

•  (  )

     

•    15

   

•      

•  

 •  

•     2   SOURCE 

   

( 24)

(  )

 (RM-RK52)

 



 ( )

JS_JVC_KD-X341BT_M_TH.indd 3JS_JVC_KD-X341BT_M_TH.indd 3 9/26/2016 9:18:17 AM9/26/2016 9:18:17 AM



Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)



 

 (

[FACTORY RESET]



[YES]

) : “CANCEL DEMO”

“PRESS” “VOLUME KNOB”

1 

  



[YES]



2 

  

 “DEMO OFF” 



1  

2 

  

[CLOCK]



 



3 

  

[CLOCK ADJUST]



 

4 

   

 

 

5 

  

[CLOCK FORMAT]



 

6 

  

[12H]



[24H]



 



7 

  

[DATE SET]



 

8 

   

 

  

9  

   



1  

2 

    () 

 

3  2   

4  

   

:

SYSTEM

KEY BEEP

( 3 )

:   ;

OFF

: 

SOURCE SELECT

AM SRC

:  AM  ;

OFF

: 

( 5)

SW1 SRC

:  SW1  ;

OFF

: 

( 5)

SW2 SRC

:  SW2  ;

OFF

: 

( 5)

PANDORA SRC

:  PANDORA  ;

OFF

: 

( 9)

BUILT-IN AUX

:  AUX  ;

OFF

: 

( 17)

F/W UPDATE

UPDATE SYSTEM

F/W UP xxxx YES

:  ;

:  ()

    :

<http://www.jvc.net/cs/car/>

FACTORY RESET YES

:  ( ) ;

: 

* 

JS_JVC_KD-X341BT_M_TH.indd 4JS_JVC_KD-X341BT_M_TH.indd 4 9/26/2016 9:18:18 AM9/26/2016 9:18:18 AM

 5

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

  

 FM   “ST” 



1   FM, AM, SW1  SW2

2  ( ) 

()

 ( )  “M”    

 

 18  FM  6  AM/SW1/SW2



 ...



  (1  6)

()

1 

   “PRESET MODE” 

2 

    

 

  “MEMORY” 



   (1  6)

()

1 

2 

    

 

CLOCK

TIME SYNC ON

:  

 (CT)   FM ;

OFF

: 

CLOCK DISPLAY ON

: 

 ;

OFF

: 

ENGLISH





 

ENGLISH

ESPANOL

JS_JVC_KD-X341BT_M_TH.indd 5JS_JVC_KD-X341BT_M_TH.indd 5 9/26/2016 9:18:19 AM9/26/2016 9:18:19 AM



Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)



1  

2 

   

(



)



 

3  2 /  

 

4  

   

:

TUNER SETTING

RADIO TIMER

  

ONCE

DAILY

WEEKLY

OFF

: 

SW1

SW2

: 



( FM)/



( AM/SW1/SW2): 



4 *1

“M” 

- 

• 

• 

[OFF]



[AM SRC]

[SW1 SRC]

[SW2 SRC]



[SOURCE SELECT]

-  AM/SW1/SW2 



( 4)

SSM SSM 01–06

SSM 07–12

SSM 13–18

:  

 18  FM “SSM”   6  

SSM 07–12

SSM 13–18

 12 

LOCAL SEEK ON

:  AM/SW1/SW2  ;

OFF

: 

• /  /

 

 

IF BAND AUTO

:   FM

  ( ) ;

WIDE

:   

FM       

MONO SET ON

:  FM    ;

OFF

: 

NEWS SET

:   ;

OFF

: 

REGIONAL

:      “AF” ;

OFF

: 

AF SET

:    

   ;

OFF

: 

:   (

“TI” ) ;

OFF

: 

PTY SEARCH

*2 PTY ()

   PTY   





[ONCE]



[WEEKLY]



  FM 

 PTY

NEWS

AFFAIRS

INFO

SPORT

EDUCATE

DRAMA

CULTURE

SCIENCE

VARIED

POP

(),

ROCK M

(),

EASY M

(),

LIGHT M

(),

CLASSICS

OTHER M

(),

WEATHER

FINANCE

CHILDREN

SOCIAL

RELIGION

PHONE IN

TRAVEL

LEISURE

JAZZ

COUNTRY

NATION M

(),

OLDIES

FOLK M

(),

DOCUMENT

JS_JVC_KD-X341BT_M_TH.indd 6JS_JVC_KD-X341BT_M_TH.indd 6 9/26/2016 9:18:19 AM9/26/2016 9:18:19 AM

 7

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

USB/iPod/ANDROID

  

 / *3   

  

*4 

*5 

TRACK REPEAT

FOLDER REPEAT

ALL REPEAT

:  MP3/WMA/AAC/WAV/FLAC

ONE REPEAT

ALL REPEAT

REPEAT OFF

: iPod  ANDROID

*5 

FOLDER RANDOM

ALL RANDOM

RANDOM OFF

:  MP3/WMA/AAC/WAV/FLAC

SONG RANDOM

ALL RANDOM

RANDOM OFF

: iPod  ANDROID

  

   “Press [VIEW] to install JVC MUSIC PLAY APP” 

   JVC MUSIC PLAY     

 <http://www.jvc.net/cs/car/>

 ANDROID: 

[AUTO MODE]



( 8)

 MP3/WMA/AAC/WAV/FLAC   iPod/ANDROID

 iPod/ANDROID: 

[HEAD MODE]

[AUTO MODE]



( 8)



   

 USB

 USB 2.0*1

( )

  USB 2.0*1

( )

USB

ANDROID*2

iPod/iPhone



iPod/iPhone*1

JS_JVC_KD-X341BT_M_TH.indd 7JS_JVC_KD-X341BT_M_TH.indd 7 9/26/2016 9:18:19 AM9/26/2016 9:18:19 AM



Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)



  iPod USB 

  

HEAD MODE

:  iPod 

IPHONE MODE

 iPod  iPod    / 

  ANDROID 

  

AUTO MODE

:  Android  JVC MUSIC PLAY 

 Android

AUDIO MODE

:  Android   Android  

 Android   / 





  USB 

  

 

•    ()

•   

 JVC Remote

JVC Remote   JVC  iPhone/iPod (

 USB )

 :

 JVC Remote    

<http://www.jvc.net/cs/car/>

  Bluetooth

( 16)

/ 

 iPod/ANDROID 

[HEAD MODE]

[AUTO MODE]



1 

2 

  /  

 

3 

   

 

 (

USB



ANDROID

)

   

 

      

 (

iPod USB



ANDROID

)



 iPod USB



  

   

(A  Z, 0  9, OTHERS)

•  “OTHERS”  A  Z, 0  9

 ANDROID

1  

2   

^A^ :  (A  Z)

_A_ :  (a  z)

-0- :  (0  9)

-OTHERS- :  A  Z, 0  9

3 

  

•    

•   

USB/iPod/ANDROID

JS_JVC_KD-X341BT_M_TH.indd 8JS_JVC_KD-X341BT_M_TH.indd 8 9/26/2016 9:18:20 AM9/26/2016 9:18:20 AM

 9

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

Pandora

(  )

 :

 Pandora  (iPhone/iPod touch) 

  Pandora

• 

[ON]



[PANDORA SRC]



[SOURCE SELECT]

( 4)



1   Pandora 

2  USB

3   PANDORA

 

  

/  

   

  T I

*2 

  

 



1 

2 

  

[NEW STATION]



 

3 

  

[FROM TRACK]



[FROM ARTIST]



 

 

4    (3, 4, 5  6) 

:    (3, 4, 5  6)

 

1 

2 

    

 

[BY DATE]

:  

[A-Z]

: 

3 

   

 

   





  

“BOOKMARKED”  

•   Pandora 

 USB  iPod/iPhone*1

JS_JVC_KD-X341BT_M_TH.indd 9JS_JVC_KD-X341BT_M_TH.indd 9 9/26/2016 9:18:20 AM9/26/2016 9:18:20 AM



Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

BLUETOOTH

BLUETOOTH — 

 Bluetooth 

– Hands-Free Profile (HFP)

– Advanced Audio Distribution Profile (A2DP)

– Audio/Video Remote Control Profile (AVRCP)

– Serial Port Profile (SPP)

– Phonebook Access Profile (PBAP)

 Bluetooth 

–   (SBC)

–   (AAC)



   

() 

 ()



 

 Bluetooth 

1   

2  “KD-X3 BT”  Bluetooth

“BT PAIRING” 

•  Bluetooth     (PIN) 

3  (A)  (B)   

 Bluetooth    

(A) “[]” “XXXXXX” “VOL – YES” “BACK – NO”

“XXXXXX”  6  

 Bluetooth  

    

 Bluetooth   

(B) “[]” “VOL – YES” “BACK – NO”

  

•  “PAIRING” “PIN 0000”     PIN “0000”  Bluetooth

  PIN 

( 14)

•  “PAIRING”  Bluetooth   

 “PAIRING COMPLETED”   “ ”  Bluetooth

•  Secure Simple Pairing (SSP)

•   () 

•   Bluetooth     

[DEVICE DELETE]

•   Bluetooth  Bluetooth 

 BT AUDIO   Bluetooth  

( 15)

•  Bluetooth     

•  Bluetooth

JS_JVC_KD-X341BT_M_TH.indd 10JS_JVC_KD-X341BT_M_TH.indd 10 9/26/2016 9:18:21 AM9/26/2016 9:18:21 AM

 11

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)



 iPhone/iPod touch/   USB

 ( Bluetooth)  



    

:

–  Bluetooth 

–

[AUTO PAIRING]



[ON]

( 14)

–  JVC MUSIC PLAY   Android

( 7)



[AUTO MODE]

( 8)

BLUETOOTH — 



  :

• 

[RING ILLUMI]

( 12)

•   

[AUTO ANSWER]



( 12)

:

•  

•  Bluetooth  

  

  

  ...

 

  

   

     

  

    

BLUETOOTH

JS_JVC_KD-X341BT_M_TH.indd 11JS_JVC_KD-X341BT_M_TH.indd 11 9/26/2016 9:18:22 AM9/26/2016 9:18:22 AM



Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

  

  ...

    

  

   (  )

   

  

 (  )

 ...

   

  



 

   (  )

 *1

[00]



[35]

(:

[15]

)



  

 (  )



*2

  (  )

 

   Bluetooth

 

....

1  

2 

   

(



)



 

3  2   

4  

   

:

MIC GAIN LEVEL –10



LEVEL +10

(

LEVEL –04

): 



NR LEVEL LEVEL –05



LEVEL +05

(

LEVEL 00

):  

   

ECHO CANCEL LEVEL –05



LEVEL +05

(

LEVEL 00

):  

    



1 

   Bluetooth

2 

    () 

 

3  2   

   

:

SETTINGS

AUTO ANSWER 01 SEC



30 SEC

:     

 () ;

OFF

: 

RING ILLUMI BLINK 01



BLINK 05

(

BLINK 02

): 

   ;

OFF

: 

BLUETOOTH

JS_JVC_KD-X341BT_M_TH.indd 12JS_JVC_KD-X341BT_M_TH.indd 12 9/26/2016 9:18:23 AM9/26/2016 9:18:23 AM

 13

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)



       



1 

   Bluetooth

“()” 

•  Bluetooth   

“()” 

2 

    () 

 

3  2 /   

   

RECENT CALL

( PBAP )

1   

• “<”   “>”   “M”  

•  “NO HISTORY”  

2  

PHONEBOOK

( PBAP )

1   (A  Z, 0  9,  OTHERS)

•  “OTHERS”   A  Z, 0  9

2   

3    

•  

•    (   “Ú” 

 “U”)

DIAL NUMBER

1   (0  9)  ( , #, +)

2   

 1  2   

3  

VOICE

  

(

  )

BLUETOOTH

  

1  

2   



•  

    

•     iPhone 

 

 

  6    (1  6)

1 

   Bluetooth

2 

  

[RECENT CALL]

[PHONEBOOK]



[DIAL NUMBER]



 

3 

    

   

4 

  (1  6)

“MEMORY P ( )” 

 

  

[DIAL NUMBER]

 2  

 

1 

   Bluetooth

2    (1  6)

3 

  

 “NO PRESET”  

JS_JVC_KD-X341BT_M_TH.indd 13JS_JVC_KD-X341BT_M_TH.indd 13 9/26/2016 9:18:23 AM9/26/2016 9:18:23 AM



Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

 Bluetooth

1  

2 

   

(



)



 

4  

   

:

BT MODE

PHONE SELECT

* 

“ ” 

“ ”  

AUDIO SELECT

DEVICE DELETE

1    

2  

[YES]



[NO]



PIN CODE EDIT

(0000)

  PIN ( 6 )

1  

2   

 1  2   PIN 

3    

RECONNECT ON

:   Bluetooth    ;

OFF

: 

AUTO PAIRING ON

:  Bluetooth  ( iPhone/iPod touch/ )  

 USB    ;

OFF

: 

INITIALIZE YES

:  Bluetooth  (   

) ;

: 

INFORMATION MY BT NAME

:  (“KD-X3 BT”) ;

MY ADDRESS

:  

*  Bluetooth   Bluetooth 

BLUETOOTH

 Bluetooth



Bluetooth 

•  Bluetooth 

1  

“BLUETOOTH” “CHECK MODE”  “SEARCH

NOW USING PHONE” “PIN IS 0000”  

2  “KD-X3 BT”  Bluetooth  

3 

3  (A), (B)  (C)  

(A) “PAIRING” “XXXXXX” ( 6 ): 

 

Bluetooth  Bluetooth   

(B) “PAIRING” “PIN IS 0000”:   “0000” 

Bluetooth

  “PAIRING OK” “[]”  

 Bluetooth 

 “CONNECT NOW USING PHONE”  

Bluetooth 

“TESTING” 

JS_JVC_KD-X341BT_M_TH.indd 14JS_JVC_KD-X341BT_M_TH.indd 14 9/26/2016 9:18:24 AM9/26/2016 9:18:24 AM

 15

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)



“PAIRING OK” / “HANDS-FREE OK”*1 / “AUD.

STREAM OK”*2 / “PBAP OK”*3 : 

 Hands-Free Profile (HFP)

 Advanced Audio Distribution Profile (A2DP)

 Phonebook Access Profile (PBAP)

 30   “PAIRING DELETED” 

 



•     



BLUETOOTH

BLUETOOTH —  

  Bluetooth

1    BT AUDIO ( SOURCE )

2   Bluetooth 

  

/  

   

  

 / 

 /    

 

TRACK REPEAT

ALL REPEAT

REPEAT OFF

(  )

 

GROUP RANDOM

ALL RANDOM

RANDOM OFF

(  )

/   “/ ”  8(  )

  Bluetooth

 

 5*(  )

*  “Play”   

 

 BT AUDIO 

  Bluetooth 

 

JS_JVC_KD-X341BT_M_TH.indd 15JS_JVC_KD-X341BT_M_TH.indd 15 9/26/2016 9:18:25 AM9/26/2016 9:18:25 AM



Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

STATUS



IOS CONNECTED

:  iPhone/iPod 

Bluetooth  USB

IOS NOT CONNECTED

:  IOS 

ANDROID CONNECTED

:  Android 

 Bluetooth

ANDROID NOT CONNECTED

:  Android 



 iPhone/iPod   Bluetooth

 iPhone/iPod  Bluetooth 

  iPod BT

•  iPod/iPhone   iPod/iPhone  USB

( 7)

•   iPhone/iPod  USB  iPod BT 

  iPod USB    iPod BT  

 Bluetooth

  Bluetooth

 Pandora  iPhone/iPod touch/ Android  Bluetooth 

•  USB  

 Pandora (  )

 :



[ON]



[PANDORA SRC]



[SOURCE SELECT]

( 4)

1   Pandora 

2  Bluetooth

( 10)

3     PANDORA ( iPhone/iPod)  PANDORA BT

( Android)

  

•  Pandora   Pandora  USB

( 9)

BLUETOOTH

 JVC Remote

JVC Remote   JVC  iPhone/iPod

( Bluetooth   USB )  Android ( Bluetooth)

 :

<http://www.jvc.net/cs/car/>

1  

2 

   

(



)



 

3  2   

4  

   

:

REMOTE APP

SELECT

 (IOS  ANDROID) 

IOS YES

:  iPhone/iPod  Bluetooth 

 Bluetooth ;

: 

 IOS  iPod BT ( iPod USB  iPhone/iPod 

 USB) 

•  :

–   iPod BT 

 USB

–   iPod USB  iPod BT

ANDROID YES

:  Android  Bluetooth ;

: 

ANDROID LIST

*:  Android   

* 

[ANDROID]



[SELECT]



[YES]

JS_JVC_KD-X341BT_M_TH.indd 16JS_JVC_KD-X341BT_M_TH.indd 16 9/26/2016 9:18:25 AM9/26/2016 9:18:25 AM

 17

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

 



 

()

 

    5 

:

FLAT

(),

DRVN 3

DRVN 2

DRVN 1

HARD ROCK

HIP HOP

JAZZ

POP

R&B

USER

CLASSICAL

•  (

DRVN 3

DRVN 2

DRVN 1

)   

   

 

1   EASY EQ

2 

    

 



[EASY EQ] ( 18)



[USER]

•    

•  



1  

2 

   

( 18)



 

 

4  

   

 

1   ( )

2 

[ON]



[BUILT-IN AUX]



[SOURCE SELECT]

( 4)

3   AUX

4    

 3    

 3.5 .   “L”

( )

 

 AUX

AUX

JS_JVC_KD-X341BT_M_TH.indd 17JS_JVC_KD-X341BT_M_TH.indd 17 9/26/2016 9:18:26 AM9/26/2016 9:18:26 AM



Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

 

:

EQ SETTING

PRESET EQ



• 

[USER]



[EASY EQ]



[PRO EQ]

FLAT

DRVN 3

DRVN 2

DRVN 1

HARD ROCK

HIP HOP

JAZZ

POP

R&B

USER

CLASSICAL

EASY EQ

 

• 

[USER]

• 

[PRO EQ]

SUB.W SP

*1*2:



+06

(:

SUB.W

*1*3:

–50



+10 00

BASS

LVL–09



LVL+09 LVL 00

MID

LVL–09



LVL+09 LVL 00

TRE

LVL–09



LVL+09 LVL 00

)

PRO EQ

 

• 

[USER]

• 

[EASY EQ]

62.5HZ

LEVEL –09



LEVEL +09

(

LEVEL 00

):  (

)

:   ;

OFF

: 

100HZ

160HZ

250HZ

400HZ

630HZ

1KHZ

1.6KHZ

2.5KHZ

4KHZ

6.3KHZ

10KHZ

16KHZ

LEVEL –09



LEVEL +09

(

LEVEL 00



( )

Q FACTOR 1.35

1.50

2.00

: 

AUDIO CONTROL

BASS BOOST LEVEL +01



LEVEL +05

:   ;

OFF

: 

LOUDNESS LEVEL 01

LEVEL 02

:  

 ;

OFF

: 

SUB.W LEVEL

SPK-OUT

*2( 3 )

SUB.W 00



SUB.W +06

(

SUB.W +03

): 

 

( 30)

PRE-OUT

SUB.W –50



SUB.W +10

(

SUB.W 00

): 

 (REAR/SW) 

 

( 30)

SUBWOOFER

SET

:  ;

OFF

: 

FADER

( 3 )

POSITION R15



POSITION F15

(

POSITION 00

): 



BALANCE

POSITION L15



POSITION R15

(

POSITION 00

): 

 

VOLUME ADJUST LEVEL –15



LEVEL +06

(

LEVEL 00

):  

 (    FM)  



AMP GAIN LOW POWER

:   25 (  

 50 W   ) ;

HIGH POWER

:   35



[SUBWOOFER SET]



[ON]



 2 : 

[SPK/PRE OUT]



[SUB.W/SUB.W]



( 19)

 2 : 

[SPK/PRE OUT]



[REAR/SUB.W]



[SUB.W/SUB.W]



( 19)

  

JS_JVC_KD-X341BT_M_TH.indd 18JS_JVC_KD-X341BT_M_TH.indd 18 9/26/2016 9:18:27 AM9/26/2016 9:18:27 AM

 19

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

 

SPK/PRE OUT

( 3 )

  

 (

 )

SPEAKER SIZE

  (

[X ' OVER TYPE]

)  

 2   3  (

)

 2 

X ' OVER

DTA SETTINGS

,

, 

Digital Time Alignment

CAR SETTINGS

X ' OVER TYPE

:   

[X ' OVER TYPE]

 

 

2-WAY

(

[3-WAY]

)

YES

:  ;

: 

3-WAY

(

[2-WAY]

)

YES

:  ;

: 

SOUND EFFECT

SPACE ENHANCE

( TUNER)

SMALL/MEDIUM/LARGE

:   ;

OFF

: 

SND RESPONSE LEVEL1

LEVEL2

LEVEL3

:   ;

OFF

: 

SOUND LIFT LOW

MIDDLE

HIGH

:    ;

OFF

: 

VOL LINK EQ ON

:      ;

OFF

: 

K2 TECHNOLOGY

( TUNER  AUX)

:   ;

OFF

: 

 

[SPK/PRE OUT]

( [X ' OVER TYPE]  [2-WAY])



[SPK/PRE OUT]



  

  

( 30)



[SPK/PRE OUT]

  

FRONT REAR/SW

REAR/REAR

  

REAR/SUB.W

() 

SUB.W/SUB.W

 

 

       

 

( 30)



[SPK/PRE OUT]

  

L ( )R ()

REAR/REAR

   

REAR/SUB.W

   

SUB.W/SUB.W

 ( )



[SUB.W/SUB.W]

– 

[120HZ]



[SUBWOOFER LPF]



[THROUGH]



– 

[POSITION R02]



[FADER]



[POSITION R15]



[POSITION 00]

JS_JVC_KD-X341BT_M_TH.indd 19JS_JVC_KD-X341BT_M_TH.indd 19 9/26/2016 9:18:27 AM9/26/2016 9:18:27 AM



Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

 

  2 

SPEAKER SIZE

FRONT SIZE 8CM/10CM/12CM/13CM/16CM/17CM/18CM

4×6

5×7

6×8

6×9

7×10

TWEETER SMALL

MIDDLE

LARGE

NONE

()

REAR

8CM/10CM/12CM/13CM/16CM/17CM/18CM

4×6

5×7

6×8

6×9

7×10

NONE

()

SUBWOOFER

*2*3

16CM/20CM/25CM/30CM/38CM OVER

NONE

()

X ' OVER

TWEETER FRQ 1KHZ

1.6KHZ

2.5KHZ

4KHZ

5KHZ

6.3KHZ

8KHZ

10KHZ

12.5KHZ

GAIN LEFT –08DB



00DB

GAIN RIGHT –08DB



00DB

FRONT HPF F-HPF FRQ 30HZ

40HZ

50HZ

60HZ

70HZ

80HZ

90HZ

100HZ

120HZ

150HZ

180HZ

220HZ

250HZ

THROUGH

F-HPF SLOPE –06DB

–12DB

–18DB

–24DB

F-HPF GAIN –08DB



00DB

REAR HPF

R-HPF FRQ 30HZ

40HZ

50HZ

60HZ

70HZ

80HZ

90HZ

100HZ

120HZ

150HZ

180HZ

220HZ

250HZ

THROUGH

R-HPF SLOPE –06DB

–12DB

–18DB

–24DB

R-HPF GAIN –08DB



00DB

SUBWOOFER

LPF

*2*3

SW LPF FRQ 30HZ

40HZ

50HZ

60HZ

70HZ

80HZ

90HZ

100HZ

120HZ

150HZ

180HZ

220HZ

250HZ

THROUGH

SW LPF SLOPE –06DB

–12DB

–18DB

–24DB

SW LPF PHASE REVERSE

(180°)/

NORMAL

(0°)

SW LPF GAIN –08DB



00DB

*1, *2, *3:

( 21)



  2  3 





( 30)

:

• 

•  

SPEAKER SIZE



•

 

•

 2  

[NONE]



[TWEETER]



[FRONT]

[REAR]



[SUBWOOFER]



[SPEAKER SIZE]



[X ‘ OVER]





•

 3  

[NONE]



[WOOFER]



[SPEAKER SIZE]



[X ‘ OVER]



[WOOFER]



X ‘ OVER ()

• [FRQ]

[F-HPF FRQ]

[R-HPF FRQ]

[SW LPF FRQ]

[HPF FRQ]

[LPF FRQ]

: 

 ()



[THROUGH]

 

• [SLOPE]

[F-HPF SLOPE]

[R-HPF SLOPE]

[SW LPF SLOPE]

[HPF SLOPE]

[LPF SLOPE]





[THROUGH]



• [SW LPF PHASE]

[PHASE]





•

[GAIN LEFT]

[GAIN RIGHT]

[F-HPF GAIN]

[R-HPF GAIN]

[SW LPF GAIN]

[GAIN]



 

JS_JVC_KD-X341BT_M_TH.indd 20JS_JVC_KD-X341BT_M_TH.indd 20 9/26/2016 9:18:28 AM9/26/2016 9:18:28 AM

 21

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

 

  3 

SPEAKER SIZE

TWEETER SMALL/MIDDLE/LARGE

MID RANGE 8CM/10CM/12CM/13CM/16CM/17CM/18CM

4×6

5×7

6×8

6×9

WOOFER

16CM/20CM/25CM/30CM/38CM OVER

NONE

()

X ' OVER

TWEETER HPF FRQ 1KHZ

1.6KHZ

2.5KHZ

4KHZ

5KHZ

6.3KHZ

8KHZ

10KHZ

12.5KHZ

SLOPE –06DB

–12DB

PHASE REVERSE

(180°)/

NORMAL

(0°)

GAIN –08DB



00DB

MID RANGE HPF FRQ 30HZ

40HZ

50HZ

60HZ

70HZ

80HZ

90HZ

100HZ

120HZ

150HZ

180HZ

220HZ

250HZ

THROUGH

HPF SLOPE –06DB

–12DB

LPF FRQ 1KHZ

1.6KHZ

2.5KHZ

4KHZ

5KHZ

6.3KHZ

8KHZ

10KHZ

12.5KHZ

THROUGH

LPF SLOPE –06DB

–12DB

PHASE REVERSE

(180°)/

NORMAL

(0°)

GAIN –08DB



00DB

WOOFER

LPF FRQ 30HZ

40HZ

50HZ

60HZ

70HZ

80HZ

90HZ

100HZ

120HZ

150HZ

180HZ

220HZ

250HZ

THROUGH

SLOPE –06DB

–12DB

PHASE REVERSE

(180°)/

NORMAL

(0°)

GAIN –08DB



00DB



[SPK/PRE OUT]



[REAR/REAR]



[REAR/SUB.W]



( 19)



[SPK/PRE OUT]



[REAR/SUB.W]



[SUB.W/SUB.W]



( 19)



[SUBWOOFER SET]



[ON]



( 18)

 Digital Time Alignment

Digital Time Alignment   



•    ,

, 

[DISTANCE]



[GAIN]



[DTA SETTINGS]

DTA SETTINGS

POSITION

 ()

ALL

:  ;

FRONT RIGHT:

 ;

FRONT LEFT

:  ;

FRONT ALL

: 

•

[FRONT ALL]



[X ' OVER TYPE]





[2-WAY]

( 19)

DISTANCE

0CM



610CM

:     

GAIN

–8DB



0DB

:    

DTA RESET YES

:  (

[DISTANCE]



[GAIN]

) 

[POSITION]



 ;

: 

CAR SETTINGS





[DTA SETTINGS]

CAR TYPE COMPACT

FULL SIZE CAR

WAGON

MINIVAN

SUV

MINIVAN(LONG)

:   ;

OFF:



R-SP LOCATION

*2 

 ()

•

DOOR

REAR DECK

: 

[CAR TYPE]



[OFF]

[COMPACT]

[FULL SIZE CAR]

[WAGON]



[SUV]

•

2ND ROW

3RD ROW

: 

[CAR TYPE]



[MINIVAN]



[MINIVAN(LONG)]

*1, *2:

( 22)

JS_JVC_KD-X341BT_M_TH.indd 21JS_JVC_KD-X341BT_M_TH.indd 21 9/26/2016 9:18:28 AM9/26/2016 9:18:28 AM



Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

 

 [DISTANCE]  [GAIN]  [DTA SETTINGS]

  

 



1  



2   

3    

 ()  

4 

[DISTANCE]



3 

5 

[GAIN]



  

[FRONT ALL]



 :

 2 :

FRONT LEFT

FRONT RIGHT

REAR LEFT

REAR RIGHT

SUBWOOFER:

[REAR LEFT]

[REAR RIGHT]



[SUBWOOFER]



[NONE]



[REAR]



[SUBWOOFER]



[SPEAKER SIZE]

( 20)

 3 :

TWEETER LEFT

TWEETER RIGHT

MID LEFT

MID RIGHT

WOOFER:

[WOOFER]



[NONE]



[WOOFER]



[SPEAKER SIZE]

( 21)



[X ' OVER TYPE]



[2-WAY]

( 19)



[NONE]



[REAR]



[SPEAKER SIZE]

( 20)

1  

2 

    () 

 

 

4  

   

:

DISPLAY

DIMMER



OFF

:   

[DAY]

:   

[NIGHT]

(

[BRIGHTNESS]

)

DIMMER TIME

: 

1  

[ON]



2  

[OFF]



(:

[ON]

PM6:00

;

[OFF]

AM6:00

)

DIMMER AUTO

:  *1

 

( 30)



JS_JVC_KD-X341BT_M_TH.indd 22JS_JVC_KD-X341BT_M_TH.indd 22 9/26/2016 9:18:29 AM9/26/2016 9:18:29 AM

 23

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)



BRIGHTNESS

 

DAY

NIGHT

: 

2 

( 22)

LEVEL 00



LEVEL 31

: 

(:

DAY

LEVEL 31

;

NIGHT

LEVEL 15

)

TEXT SCROLL

SCROLL ONCE

:  ;

SCROLL AUTO

:  5  ;

SCROLL OFF

: 

 ()





  



   

     



: –  

–  JVC

– 

 <http://www.jvc.net/cs/car/>



•       <http://www.jvc.net/cs/car/>

•  : MP3 (.mp3), WMA (.wma), AAC (.aac), WAV (.wav), FLAC (.flac)

•  USB : FAT12, FAT16, FAT32

     



 AAC (.m4a)  USB  iTunes  

  USB

•  USB  USB

•    5 

•  USB  5   1.5 A

  iPod/iPhone

•  USB:

Made for

– iPod touch (5th  6th generation)

– iPod nano (7th generation)

– iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE



 ()

JS_JVC_KD-X341BT_M_TH.indd 23JS_JVC_KD-X341BT_M_TH.indd 23 9/26/2016 9:18:30 AM9/26/2016 9:18:30 AM



Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)



•  Bluetooth:

Made for

– iPod touch (5th  6th generation)

– iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE

•   “Videos” 

[HEAD MODE]



•  iPod/iPhone

•   iPod/iPhone

  Android

•  Android OS 4.1 

•   ( OS 4.1 )  Android Open Accessory

(AOA) 2.0 

•   AOA 2.0 

AOA 2.0 

  Pandora

• Pandora 

   <http://www.pandora.com/legal>

•  Pandora    

  

•  Pandora 

•   Pandora  pandora-support@pandora.com

  Bluetooth

•  Bluetooth    Bluetooth 



•  Bluetooth 

•   

 

  

•   “NO TEXT”, “NO NAME”  ( )





 (/)  (/) *

()

(  FM )

 (PS)/ (PTY) (/)  

(/)  + ( +)  ()

 (/)  (/)  (PS)/

(PTY) (/) * ()

USB ( MP3/WMA/AAC/WAV/FLAC)

 ()  ()  (/) 

()  (/)  (/)  ()

* ()

iPod USB/

iPod BT



ANDROID



[HEAD MODE]

[AUTO MODE]

( 8)

 ()  ()  (/) 

(/)  () * ()

PANDORA/

PANDORA BT

 (/)  /  (/)  ()

 ()  (/)  (/) 

(/) * ()

AUX

AUX (/) AUX (/) * ()

BT AUDIO

(/)  () * ()

*   

JS_JVC_KD-X341BT_M_TH.indd 24JS_JVC_KD-X341BT_M_TH.indd 24 9/26/2016 9:18:30 AM9/26/2016 9:18:30 AM

 25

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)



 



   •   

•  

 “MISWIRING

CHECK WIRING THEN

PWR ON” 

  

  

 “PROTECTING

SEND SERVICE” 

  

 

[SOURCE SELECT]

( 4)

 

•  

•   

 

USB/iPod











 

 “NOT SUPPORT”





( 23)

 “READING”  •  

•  USB 

 “UNSUPPORTED

DEVICE” 

•  



( 23

24)

• 

 “UNRESPONSIVE

DEVICE” 

 



 “USB HUB IS NOT

SUPPORTED” 

 USB  USB

 

USB/iPod

 “CANNOT PLAY”



 USB   

 iPod/iPhone 



•  iPod/iPhone

•  iPod/iPhone  

“LOADING” 

 

    iPod/iPhone 

  

 •   

  

• 

( 5)





ANDROID

•   

•  

 

•  

•   [

AUDIO MODE

] 

 

•   [

AUDIO MODE

] 



•  

•   

  

( 24)



[

AUTO MODE

]

•  JVC MUSIC PLAY APP 

 

( 7)

•  



( 8)

•   

 [

AUTO MODE

]

( 24)

 “NO DEVICE” 

“READING” 

•  

•  

•   

 [

AUTO MODE

]

( 24)

JS_JVC_KD-X341BT_M_TH.indd 25JS_JVC_KD-X341BT_M_TH.indd 25 9/26/2016 9:18:33 AM9/26/2016 9:18:33 AM



Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)



 

Bluetooth®

   • 

( 10)

• 

[ECHO CANCEL]

( 12)

 



•   Bluetooth

•  

    



  Bluetooth

•    Bluetooth

•  

•  Bluetooth     



  Bluetooth  

•   Bluetooth  

Audio/Video Remote Control Profile (AVRCP)  (

 )

•  Bluetooth 

“PLEASE WAIT”   Bluetooth 

  

“NOT SUPPORT”  

 

“ERROR”   “ERROR”  

   

“H/W ERROR”    “H/W ERROR” 

    

 

( 3)

 

ANDROID

     

“CANNOT PLAY” •   

•  

•  

Pandora

“ADD ERROR” 

“CHK DEVICE”  Pandora 

“NO SKIPS” 

“NO STATIONS” 

“STATION LMT”   



“UPGRADE APP” 

 Pandora 

“CONNECT ERR”  

“RATING ERR”  /

  

“THUMBS N/A”  /

“LICENSE ERR”  Pandora 

Bluetooth®

 Bluetooth •  Bluetooth 

• 

( 3)

 •   PIN  

 Bluetooth

•  Bluetooth 



( 10)

JS_JVC_KD-X341BT_M_TH.indd 26JS_JVC_KD-X341BT_M_TH.indd 26 9/26/2016 9:18:34 AM9/26/2016 9:18:34 AM

 27

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)



Tuner

FM  87.5 MHz — 108.0 MHz ( 50 kHz)

 (S/N = 26 dB) 8.2 dBf (0.71 V/75 Ω)

 

(DIN S/N = 46 dB)

17.2 dBf (2.0 V/75 Ω)

 (±3 dB) 30 Hz — 15 kHz

 

 (MONO)

64 dB

   (1 kHz) 40 dB

AM   1 (AM): 531 kHz — 1 602 kHz

( 9 kHz)

 2 (SW1): 2 940 kHz — 7 735 kHz

( 5 kHz)

 3 (SW2): 9 500 kHz — 10 135 kHz /

11 580 kHz — 18 135 kHz

( 5 kHz)

 (S/N = 20 dB) AM: 29 dB (28.2 V)

SW: 30 dB (32 V)

USB

 USB USB 1.1, USB 2.0 ()

  

(Mass storage class)

 FAT12/16/32

  DC 5 V 1.5 A

 D/A 24 

 (±1 dB) 20 Hz — 20 kHz

 

(1 kHz)

105 dB

 90 dB

  85 dB

 MP3  MPEG-1/2 Audio Layer-3

 WMA  Windows Media Audio

 AAC  AAC-LC “.aac”

 WAV   RIFF (PCM )

 FLAC  FLAC,  24 /48 kHz



 (±3 dB) 20 Hz — 20 kHz

  1 000 mV

 30 k

JS_JVC_KD-X341BT_M_TH.indd 27JS_JVC_KD-X341BT_M_TH.indd 27 9/26/2016 9:18:35 AM9/26/2016 9:18:35 AM



Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)



Bluetooth

Bluetooth 3.0

 2.402 GHz — 2.480 GHz

 +4 dBm (), 0 dBm (AVE) Power Class 2

  10  (32.8 ft)

SSP (Secure Simple Pairing)

 HFP1.6 (Hands-Free Profile)

A2DP (Advanced Audio Distribution Profile)

AVRCP1.5 (Audio/Video Remote Control Profile)

PBAP (Phonebook Access Profile)

SPP (Serial Port Profile)

 

 50 W × 4 

50 W × 2 + 50 W × 1 ( = 4 )

 (  1 % THD) 22 W × 4

 4  — 8 

/ (USB)  4 000 mV/10 k

 ≤ 600 



 (  10.5 V — 16 V) 14.4 V

 10 A

 –10°C — +60°C

 ( ×  × ) 182 . × 53 . × 114 .

 ( ) 0.6 

  

/



•   DC 12 V 

•  

•    ()   ()    () 

 

•    

• 



•       

  

•    

    

•     () 

•  50 W  50 W 

 

[AMP GAIN]

 

( 18)

•    30º

•       () 

   DC 12 V 

•   

•        

•      





1   

2  

 

( 30)

3 

 ( )

( 29)

4  

5   

6 

( 3)

JS_JVC_KD-X341BT_M_TH.indd 28JS_JVC_KD-X341BT_M_TH.indd 28 9/26/2016 9:18:35 AM9/26/2016 9:18:35 AM

 29

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

/



  

1  

2  ()   

( )

  

 ( )

 

( 30)



 

 



 

 



 

(A)



(C)

 

(B)



(D)

 

(E)

 

JS_JVC_KD-X341BT_M_TH.indd 29JS_JVC_KD-X341BT_M_TH.indd 29 9/26/2016 9:18:36 AM9/26/2016 9:18:36 AM



Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

/

 

( 10)

  



 

 

  

  

 



 





/:   

:  

  

   

“ 12 V”

  

  ()

 

()

 (10 A)

 

 

( )



 

:  

: / 3 :  ( )

/

: / 3 :  ()

/

 : *2/ 3 :     ( )

 /*2

: / 3 :     ()

/

   

:  12 V

/: 

/:  (12 V 350 mA)

/  

  

 

 JVC*1

 

( )





  

   

   

  

()

:  12 V

 //

 3 : / 

JS_JVC_KD-X341BT_M_TH.indd 30JS_JVC_KD-X341BT_M_TH.indd 30 9/26/2016 9:18:36 AM9/26/2016 9:18:36 AM

 31

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to

connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to

meet Apple performance standards. Apple is not responsible for the operation of this device or its

compliance with safety and regulatory standards. Please note that the use of this accessory with iPod

or iPhone may affect wireless performance.

• iPhone, iPod, iPod classic, iPod nano, iPod touch and iTunes are trademarks of Apple Inc., registered in

the U.S. and other countries.
