KW-M25BT

MONITOR WITH RECEIVER

INSTRUCTION MANUAL

B5A-3197-00b (E)© 2019 JVC KENWOOD Corporation

Model name indication position

See “Removing the trim plate” (P.22)

Trim plate

!B5A-3197-00_KWM.indb 1 2019/06/11 16:42

2

Before use

Before use ....................................................................................2

How to read this manual .......................................................................................2

Precautions ....................................................................................................................2

Getting Started ..........................................................................3

Clock settings ............................................................................................................... 4

Touch panel adjustment ....................................................................................... 4

Basics .............................................................................................5

Functions of the Buttons on the Front Panel .......................................... 5

Common operations ...............................................................................................5

HOME screen descriptions ..................................................................................6

Source control screen descriptions ............................................................... 6

List screen .......................................................................................................................6

USB .................................................................................................7

Preparation .....................................................................................................................7

Playback operations ................................................................................................. 7

iPod/iPhone ................................................................................9

Preparation .....................................................................................................................9

Playback operations ................................................................................................. 9

Mirroring ....................................................................................11

Preparation ................................................................................................................... 11

Mirroring operations..............................................................................................11

Tuner ............................................................................................12

Tuner Basic Operation.......................................................................................... 12

Presetting stations ................................................................................................. 12

FM RDS features ....................................................................................................... 12

Tuner Setup ................................................................................................................. 13

External Components ...........................................................14

Using external audio/video players ............................................................ 14

Rear view camera ....................................................................................................14

Bluetooth smartphone .........................................................15

Register your smartphone to the unit ...................................................... 15

Receive a phone call ............................................................................................. 15

Make a phone call ................................................................................................... 16

Playing Bluetooth Audio Device ....................................................................17

Delete the registered Bluetooth device ...................................................17

Controlling Audio ...................................................................18

Controlling General Audio ................................................................................ 18

Equalizer Control ..................................................................................................... 18

Subwoofer settings ............................................................................................... 18

Remote control ........................................................................19

Functions of the Remote control Buttons .............................................. 19

Installation ................................................................................ 20

Before Installation ................................................................................................... 20

Installing the unit .................................................................................................... 21

About this Unit ........................................................................ 25

More information ....................................................................................................25

Troubleshooting ...................................................................................................... 25

Copyrights ................................................................................................................... 26

Specifications ............................................................................................................ 28

Precautions

#WARNING

Ñ To prevent injury or fire, take the

following precautions

• To prevent a short circuit, never put or leave any

metallic objects (such as coins or metal tools) inside

the unit.

• Do not watch or fix your eyes on the unit’s display

when you are driving for any extended period.

• If you experience problems during installation,

consult your JVC dealer.

Ñ Precautions on using this unit

• When you purchase optional accessories, check

with your JVC dealer to make sure that they work

with your model and in your area.

• The Radio Data System or Radio Broadcast Data

System feature won’t work where the service is not

supported by any broadcasting station.

Ñ Protecting the monitor

• To protect the monitor from damage, do not

operate the monitor using a ballpoint pen or similar

tool with the sharp tip.

Ñ Cleaning the Unit

If the front panel of this unit is stained, wipe it with

a dry soft cloth such as a silicon cloth. If the front

panel is stained badly, wipe the stain off with a cloth

moistened with neutral cleaner, then wipe it again

with a clean soft dry cloth.

! CAUTION

• Applaying spray cleaner directly to the unit may affect

its mechanical parts. Wiping the front panel with a

hard cloth or using a volatile liquid such as thinner

or alcohol may scratch the surface or erase screened

print.

Ñ How to reset your unit

If the unit or the connected unit fails to operate

properly, reset the unit.

Reset button

Contents

How to read this manual

• The panels shown in this guide are examples used to

provide clear explanations of the operations. For this

reason, they may be different from the actual panels.

• In operation procedures, bracket shape indicates the

key or button you should control.

< >: indicates the name of panel buttons.

[ ]: indicates the name of touch keys.

!B5A-3197-00_KWM.indb 2 2019/06/11 16:42

3

English |

Continued on the next page...

Getting Started

1 Turn the ignition key of your car to ACC.

The unit is turned on.

2 Press the < > button.

3 Touch [Settings].

4 Touch the corresponding key and set the value.

Audio

Sound Effect

Displays the Equalizer screen. (P.18)

Beep

Activates or deactivates the key-touch tone.

“ON” (Default), “OFF”

Loudness

Sets the amounts of boost of low and high tones.

“ON”, “OFF” (Default)

Subwoofer

Displays the Subwoofer screen. (P.18)

Display

Panel Adjust

Adjust the sensing position of touch panel. See

“Touch panel adjustment” (P.4).

Aspect

Select the screen mode.

“16:9” (Default), “4:3 Pan Scan”

Tuner

Displays the Tuner Settings screen. (P.13)

General

Language

Select the language used for the control screen and

setting items. Default is “English”.

1) Touch [Language].

2) Select the desired language.

* You can change the page to display more items

by pressing [ ]/ [ ].

BT Auto Connection

The unit automatically reconnect when the last

connected Bluetooth device is within range.

“ON” (Default), “OFF”

Clock Setting

Adjust the clock time. (P.4).

Default

Touch [Default] to set all the settings to the initial

default settings.

5 Touch [6].

!B5A-3197-00_KWM.indb 3 2019/06/11 16:42

4

Getting Started

Clock settings

Ñ Synchronizing the clock time with FM RDS

Activate [RDS Clock Sync]. See “Tuner Setup”

(P.13).

Ñ Adjusting the clock manually

✎NOTE

• Deactivate [RDS Clock Sync] before adjusting the

clock. See “Tuner Setup” (P.13).

1 Press the < > button.

2 Touch [Settings].

3 Touch [General].

4 Touch [Clock Setting].

Clock screen appears.

5 Selects time format.

[12] / [24] (Default)

6 Touch [R] or [S] to set the clock time.

• If you have selected [12] as the time format, touch

[AM] or [PM] before setting the clock time.

7 Touch [6].

Touch panel adjustment

1 Press the < > button.

2 Touch [Settings].

3 Touch [Display].

4 Touch [Panel Adjust].

5 Follow the instruction on the screen and touch

the center of each +.

• To cancel the touch panel adjustment, touch

[Cancel].

• If the touch position is deviated, [OK] is not

displayed. Retry from the beginning.

6 Touch [OK].

!B5A-3197-00_KWM.indb 4 2019/06/11 16:42

5

English |

Basics

Continued on the next page...

Basics

Functions of the Buttons on the Front

Panel

1

2

3

4

5

6

1Remote Sensor

• Receives the remote control signal.

2 (HOME)

• Displays the HOME screen. (P.6)

• Pressing for 1 second turns the power off.

• When the power off, turns the power on.

3EQ

• Displays the Equalizer screen.* (P.18)

* During video file playback, you can set only the

preset equalizer curve.

* The Equalizer screen is not displayed during

picture file playback or on the list screen or

SETUP screen etc,

4+ , – (Volume)

• Adjusts volume. The volume will go up until 20

when you keep pressing [ + ].

5 (MUTE, Display off)

• Mutes/restores the sound.

• Pressing for 1 second turns the screen off.

When the screen is off, touch the display to turn

on the screen.

6Reset

• If the unit or the connected unit fails to operate

properly, the unit returns to factory settings when

this button is pressed.

Common operations

Ñ Turning on the power

1 Press the < > button.

Ñ Turning off the power

1 Press and hold the < > button.

Ñ Adjusting the volume

1 Press the <+> or <–> button.

✎NOTE

• The volume will go up until 20 when you keep

pressing [ + ].

Ñ Mutes the sound

1 Press the < > button.

⿠To restore the sound, touch the button again, or

adjust the volume.

Ñ Turn off the screen

1 Press and hold the < > button.

⿠To turn on the screen, touch the display.

!B5A-3197-00_KWM.indb 5 2019/06/11 16:42

6

Basics

Continued on the next page...

HOME screen descriptions

1 Press the < > button.

HOME screen appears.

2

5

3

6

4

7

1

1Clock display

Touch to displays the Clock screen.

2Switches to the radio broadcast. (P.12)

3[USB]

Plays files on a USB device. (P.7)

[iPod]

Plays an iPod/iPhone. (P.9)

• When iPod/iPhone is connected.

[Mirroring]

Displays the Mirroring screen.(P.11)

• When android device with “Mirroring OA for JVC”

application installed is connected.

4Switches to an external component connected to

the AV-IN input terminal. (P.14)

5Displays the Hands Free screen. (P.16)

6Plays a Bluetooth audio player. (P.17)

7Displays the SETUP screen. (P.3)

Source control screen descriptions

You can perform source playback operations on the

source control screen.

1

4

3

2

5

1Clock display

Touch to displays the Clock screen.

2Source name

3• appears when the Bluetooth smartphone is

connected. *

• appears when the Bluetooth audio player is

connected. *

• appears when the mute function is active.

(P.5)

4[DIM]

Select dimmer mode. Dim 1, Dim 2, Not dim

5Returns to previous screen.

List screen

There are some common function keys in the list

screens of most sources.

1 You can change the page to display more items

by pressing [ ]/ [ ].

!B5A-3197-00_KWM.indb 6 2019/06/11 16:42

7

English |

USB

Continued on the next page...Continued on the next page...

USB

Preparation

Ñ Connecting a USB device

1 Remove the cap of the USB terminal.

2 Connect the USB device with the USB cable.

The unit reads the device and playback starts.

Ñ To disconnect the USB device

1 Press the < > button.

2 Touch a source other than [USB].

3 Detach the USB device.

Ñ Usable USB device

This unit can play MPEG1/ MPEG2/ MPEG4/ H.264/

MKV/ WMV/ MP3/WMA/ AAC/ WAV/ FLAC/ JPEG/ BMP/

PNG files stored in a USB mass storage class device.

(P.25)

• File system: FAT16/ FAT32

• This unit can recognize a total of 9 999 files and 320

folders (a maximum of 9 999 files per folder).

• The maximum number of characters:

– Folder names : 24 characters

– File names : 24 characters

– Tag : 30 characters

✎NOTE

• When the USB device is connected to this unit, it can

be charged through the USB cable.

• Install the USB device in the place where it will not

affect safe driving.

• You cannot connect a USB device via a USB hub and

Multi Card Reader.

• Take backups of the audio files used with this unit.

The files may be erased depending on the operating

conditions of the USB device.

We shall have no compensation for any damage

arising from any erased data.

• No USB device comes with this unit. You need to

purchase a commercially available USB device.

• Cap the USB terminal whenever not using.

Playback operations

Ñ Control the music you are listening to on

the source control screen

1

6

3

2

5

4

1The jacket of the currently playing file is displayed.

2##:##:## : Song time

Play time bar : For confirmation of current playing

position

3[L] : Plays or pauses.

[E] [F] : Searches the previous/next content.

Touch and hold to fast forward or fast backward.

Touch [L] to resumes normal play.

[] : Selects Repeat playback mode.

Lights off (Default): Repeats all files in the USB

device.

: Repeats the current file.

FO : Repeats all files in the current folder.

[] : Selects Random playback mode.

: Randomly plays all files.

Lights off (Default): Normal playback.

4Displays the information of the current file.

Only a file name is displayed if there is no tag

information.

5Searches file. (P.8)

6D, etc. : Playback status

: Repeat playback mode indicator

: Random playback mode indicator

!B5A-3197-00_KWM.indb 7 2019/06/11 16:42

8

USB

Ñ Playing videos and pictures

1 When the operation buttons are not displayed on

the screen, touch the display.

3

2

1

2

4

5

1D, etc. : Playback status

: Repeat playback mode indicator

: Random playback mode indicator

##:##:## : Song time (Video file only)

Play time bar : For confirmation of current playing

position (Video file only)

2To switch the operation buttons.

3[] : You can adjust image quality in video screen.

[Brightness]: Adjusts the brightness. (00 to 12)

[Contrast]: Adjusts the contrast. (00 to 12)

[Tint]: Adjusts the tint. (00 to 12)

[Color]: Adjusts the color. (00 to 12)

[Reset]: To clear the adjustment.

[] : Select the zoom ratio.

“Off”, “x2”, “x3”, “x4”, “x5”, “1/2”, “1/3”, “1/4”

[3] [2] [ < ] [ > ] : Scrolls the screen.

4The operation buttons disappear when 4 is

touched or when no operation is done for about

10 seconds.

5Displays the File List screen.* (P.8)

* Stops the currently playing file.

Ñ Selecting a track in a list (Searches file)

1 Touch [ ].

2 Select whether you search by audio files [ ],

video files [ ] or picture files [ ].

3 Touch [Y] to moves to the upper hierarchy.

4 Touch the desired folder.

When you touch a folder its contents are displayed.

5 Touch desired item from the content list.

Playback starts.

✎NOTE

• When file types are switched, the Random/Repeat

playback setting is cancelled.

!B5A-3197-00_KWM.indb 8 2019/06/11 16:42

9

English |

iPod/iPhone

Continued on the next page...

iPod/iPhone

Preparation

Ñ Connecting iPod/iPhone

• For Lightning connector models: Use USB

Audio cable for iPod/iPhone—KS-U62 (optional

accessory).

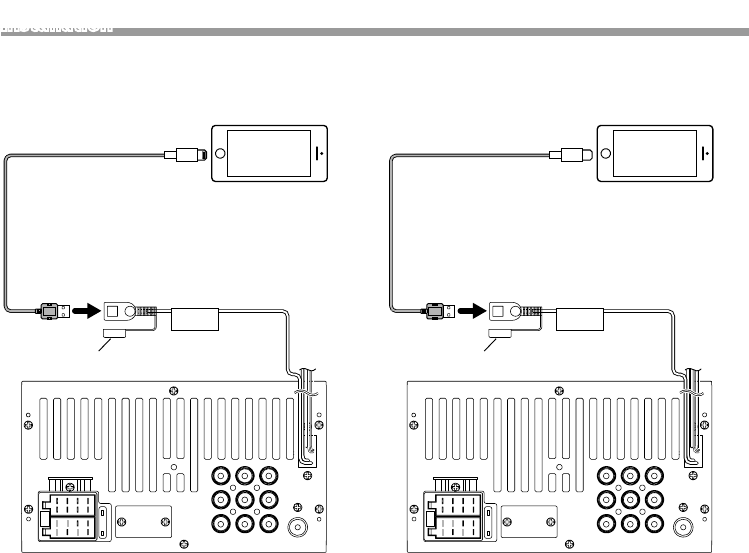

• For details about connecting iPod/iPhone, see page

24 .

1 Remove the cap of the USB terminal.

2 Connect the iPod/iPhone.

The unit reads the device and playback starts.

Ñ To disconnect the iPod/iPhone

1 Press the < > button.

2 Touch a source other than [iPod].

3 Detach the iPod/iPhone.

Ñ Connectable iPod/iPhone

The following models can be connected to this unit.

Made for

iPhone XS Max

iPhone XS

iPhone XR

iPhone X

iPhone 8 Plus

iPhone 8

iPhone 7 Plus

iPhone 7

iPhone SE

iPhone 6s Plus

iPhone 6s

iPhone 6 Plus

iPhone 6

iPhone 5s

✎NOTE

• If you start playback after connecting the iPod, the

music that has been played by the iPod is played first.

• Cap the USB terminal whenever not using.

Playback operations

Ñ Control the music you are listening to on

the source control screen

1

6

3

2

5

4

1Artwork (Shown if the track contains artwork)

2##:##:## : Song time

Play time bar : For confirmation of current playing

position

3L : Plays or pauses.

[E] [F] : Searches the previous/next content.

Touch and hold to fast forward or fast backward.

[] : Selects Repeat playback mode.

Lights off: Repeat off

: Functions the same as Repeat All.

1 : Functions the same as Repeat One.

[] : Selects Random playback mode.

: Functions the same as Shuffle Songs.

Lights off: Random off

4Displays the information of the current file.

5Searches content. (P.10)

6D, etc. : Playback status

: Repeat playback mode indicator

: Random playback mode indicator

!B5A-3197-00_KWM.indb 9 2019/06/11 16:42

10

iPod/iPhone

Ñ Selecting a content in a list

1 Touch [ ].

2 Touch desired item.

When you touch a category its contents are

displayed.

3 Touch desired item from the content list.

Playback starts.

• Touch [6] to moves to the upper hierarchy.

✎NOTE

• The source control screen appears when you touch

[6] at the top hierarchy.

!B5A-3197-00_KWM.indb 10 2019/06/11 16:42

11

English |

Mirroring

Continued on the next page...

Mirroring

Preparation

Pair your smartphone with the unit via Bluetooth.

See Register your smartphone to the unit (P.15)

and Connect the Bluetooth device.

Ñ Compatible Android smartphone

• Android version 7.0 or later

• Bluetooth support

✎NOTE

• This unit may not work for some Android smartphone’s.

Ñ Connecting Android smartphone

• For details about connecting Android smartphone,

see page 24 .

1 Download Mirroring App from Google Play.

Install the latest version of the Mirroring application

“Mirroring OA for JVC” on your Android.

2 Remove the cap of the USB terminal.

3 Connect the Android smartphone.

4 Launch Mirroring App on your Android

Smartphone.

Touch “OK” to start Mirroring App.

Touch “Start now” to start capturing your Android

screen.

5 Start to enjoy Mirroring.

Ñ To disconnect the Android smartphone

1 Press the <8MENU> button.

2 Touch a source other than [Mirroring].

3 Detach the Android smartphone.

Mirroring operations

Ñ Mirroring Operation

1 Touch [Mirroring].

• You can display the same screen of the Android

device on the monitor of the unit.

Ñ To turn off the Mirroring

1 Press the < > button.

• HOME screen appears.

!B5A-3197-00_KWM.indb 11 2019/06/11 16:42

12

Tuner

Tuner Basic Operation

1 Press the < > button.

2 Touch [Tuner].

Ñ Source control screen

4

1

3

2

5

1Displays the information of the current station:

PS name, Frequency, PTY Genre, Indicator Items

[<<] [>>] : Touch to the next frequency manually.

2Recalls the memorized station.

When touched for 2 seconds, stores the current

receiving station in memory.

3[E] [F] : Tunes in a station with good

reception automatically. *1

[TA] : Sets the traffic information mode.

“ON”, “OFF” (Default) *2 (P.12)

[PTY] :

Select the available Program Type

.

*2

(P.12)

*1 If “AF” is set to ON on the Tuner screen, only RDS

stations are received. (P.13)

*2 FM only

4[1] : Presets stations automatically. (P.12)

5[FM] : Switches the FM band.

“FM1”, “FM2”, “FM3”

[AM] : Switches the AM band.

“AM1”, “AM2”

Presetting stations

Ñ Storing stations in the memory

You can preset 18 stations for FM and 12 stations for

AM.

1 Touch [FM] or [AM] to select the band.

2 Touch [1].

The local stations with the strongest signals are

found and stored automatically.

• If “AF” is set to “ON” on the Tuner screen, only RDS

stations are stored in the memory. (P.13)

Ñ Manual memory

You can store the current receiving station in

memory.

1 Tune in to a station you want to preset.

2 Touch and hold [#] (#:1-6) in which you want to

store the station.

Ñ Recalling the preset station

1 Touch [#] (#:1-6).

✎NOTE

• Only frequencies are registered as preset stations.

Information about RDS stations is not registered.

FM RDS features

Ñ Search by program type

1 Touch [PTY].

2 Select a program type from the list.

PTY Search starts.

Ñ Traffic Information

1 Touch [TA].

Switches to the traffic information automatically

when the traffic bulletin starts. (TA indicator lights

up.)

“ON”, “OFF” (Default)

• If “AF” is set to “ON” on the Tuner screen, the station is

switched to the RDS station. (P.13)

When the traffic bulletin starts

The Traffic Information screen appears automatically.

!B5A-3197-00_KWM.indb 12 2019/06/11 16:42

13

English |

Tuner

Continued on the next page...

Tuner Setup

Ñ Function menu

1 Press the < > button.

2 Touch [Settings].

3 Touch [Tuner].

4 Set each item as follows.

Stereo

Determines whether to receive stereo broadcasts

in the stereo mode or monaural mode (the MONO

indicator lights up).

“ON” (Default), “OFF”

Local

Tunes in only to the stations with sufficient signal

strength. (LOC indicator lights up.)

“ON”, “OFF” (Default)

RDS Clock Sync

Synchronizing the Radio Data System station time

data and this unit’s clock.

“ON” (Default), “OFF”

AF

When station reception is poor, automatically switches

to the station that is broadcasting the same program

over the same Radio Data System network.

“ON” (Default), “OFF”

5 Touch [6].

!B5A-3197-00_KWM.indb 13 2019/06/11 16:42

14

External ComponentsExternal Components

Using external audio/video players

Ñ Starting playback

1 Connect an external component to the AV-IN

input terminal. (P.23)

2 Press the < > button.

3 Touch [AV-IN].

4 Turn on the connected component and start

playing the source.

Ñ For Video playback

1 When the operation buttons are not displayed on

the screen, touch the display.

1

The operation buttons disappear when 1 is

touched or when no operation is done for about 5

seconds.

✎NOTE

• When the picture from the rear view camera is

displayed on the AV-IN screen, the picture output

from the Visual Output terminal disappears.

Rear view camera

To use a rear view camera, the REVERSE lead

connection is required. For connecting a rear view

camera. (P.23)

Ñ Displaying the picture from the rear view

camera

The rear view screen is displayed when you shift the

gear to the reverse (R) position.

• To erase the caution message, touch the screen.

!B5A-3197-00_KWM.indb 14 2019/06/11 16:42

15

English |

Bluetooth smartphone

Continued on the next page...

Bluetooth smartphone

Ñ About the Bluetooth smartphone and

Bluetooth audio player

This unit conforms to the following Bluetooth

specifications:

Version

Bluetooth Ver.2.1 + EDR

Profile

Smartphone/ Cell-phone:

HFP (V1.6) (Hands Free Profile)

PBAP (V1.1.1) (Phonebook Access Profile)

Audio player:

A2DP (V1.2) (Advanced Audio Distribution Profile)

AVRCP (V1.3) (Audio/Video Remote Control Profile)

Sound codec

SBC

Ñ About mobile phones compatible with

Phone book Access Profile (PBAP)

If your mobile phone supports PBAP, you can display

the following items on the touch panel screen when

the mobile phone is connected.

• Phone book (up to 1000 entries)

• Dialed calls, received calls, and missed calls (up to 20

entries in total)

Register your smartphone to the unit

You can use your Bluetooth smartphone when paired

to this unit.

You can register up to 5 Bluetooth devices.

• You can pair the device and the unit using SSP (Secure

Simple Pairing) which only requires confirmation.

• One device can be connected at a time.

• When you register a new Bluetooth device, disconnect

the Bluetooth device currently connected and then

register the new device.

• A new device cannot be registered if there are 5

registered Bluetooth units. Delete unnecessary

registration. (P.17)

1 Turn on the Bluetooth function on your

smartphone/cell-phone.

2 Search the unit from your smartphone/cell-phone.

If a PIN code is required, enter the PIN code (“0000”).

• appears when the Bluetooth smartphone is

connected.

• appears when the Bluetooth audio player is

connected.

Ñ Disconnecting the device

• Turn off the Bluetooth function from your

smartphone/cell-phone.

• Turn off the ignition switch.

Receive a phone call

1 Touch [Û].

• [Ý] : Reject an incoming call.

Ñ Operations during a call

[Ý]Ending a call

You can send tones by touching desired keys

on the screen.

• Touch [ ] to close the window.

Switches the speaking voice output between

cell-phone and speaker.

⿠Adjust the receiver volume

Press the <+> or <–> button.

!B5A-3197-00_KWM.indb 15 2019/06/11 16:42

16

Bluetooth smartphone

Make a phone call

1 Press the < > button.

2 Touch [Phone].

3 See the table below for each operation method.

• [ ] : Disconnects the Bluetooth smartphone.

• [ ] : Closes the screen for sending tones while

talking.

• [ ] : Displays the screen for deleting the

previously registered Bluetooth devices.

(P.17)

Call by entering a phone number

1) Touch [ ].

2) Enter a phone number with number keys.

3) Touch [Û].

Make a call

• Touch [W] to delete the last entry.

Call using call records

1) Touch [ ] (Incoming Calls), [ ] (Outgoing

Calls), [ ] (Missed Calls).

2) Select the phone number from the list.

Make a call

Call using the phonebook

1) Touch [ ].

2) Select the name from the list.

Make a call

• [ ] : Updates the phonebook. Touch this

button after you have made a change to

the phonebook of your cell-phone.

Call by voice

You can make a voice call using the voice recognition

function of the Bluetooth smartphone.

1) Touch [ ].

2) Touch [ ].

3) Say the name registered in the Bluetooth

smartphone.

• Touch [ ] to cancel voice dialing.

!B5A-3197-00_KWM.indb 16 2019/06/11 16:42

17

English |

Bluetooth smartphone

Continued on the next page...

Playing Bluetooth Audio Device

1 Press the < > button.

2 Touch [BT Audio].

Ñ Source control screen

2

1

3

1[L] : Plays or pauses.

[E] [F] : Searches the previous/next content.

2Displays the information of the current file.

Only a file name and a folder name are displayed if

there is no tag information.

3D, etc. : Playback status

: Repeat playback mode indicator *

: Random playback mode indicator *

* The settings on the Bluetooth audio device are

displayed.

✎NOTE

• Operations and display indications may differ

according to their availability on the connected

device.

Delete the registered Bluetooth

device

1 Press the < > button.

2 Touch [Phone].

3 Touch [ ].

4 Touch the device name.

5 Touch [ ].

!B5A-3197-00_KWM.indb 17 2019/06/11 16:42

18

Controlling Audio

Controlling General Audio

1 Press the < > button.

2 Touch [Settings].

3 Touch [Audio].

4 Touch [Sound Effect].

5 Touch [ ].

6 Set each item as follows.

Fader

[] [ ]

Adjust the front and rear volume balance.

12 (front) to -12 (rear)

Balance

[] [ ]

Adjust the left and right volume balance.

12 (right) to -12 (left)

[Reset] To clear the adjustment.

Ñ Loudness

1 Press the < > button.

2 Touch [Settings].

3 Touch [Audio].

4 Touch [Loudness].

Sets the amounts of boost of low and high tones.

“ON”, “OFF” (Default)

Equalizer Control

1 Press the < > button.

2 Touch [Settings].

3 Touch [Audio].

4 Touch [Sound Effect].

5 Set each item as follows.

1

3

2

1You can select frequency bar and adjust its level.

(-7 to +7)

• The adjustments are stored and “User” is activated.

2To recall the preset equalizer curve.

3The “User” preset and the current EQ curve returns

to flat.

Subwoofer settings

1 Press the < > button.

2 Touch [Settings].

3 Touch [Audio].

4 Touch [Subwoofer].

5 Set each item as follows.

Frequency

[80Hz], [120Hz],

[160Hz], [OFF]

Low Pass Filter adjustment. /

[OFF]: Turns off the subwoofer

output. (Default OFF)

Volume

[–], [+]

Adjusts the subwoofer level. 0 to 12

(Default 6)

Controlling Audio

!B5A-3197-00_KWM.indb 18 2019/06/11 16:42

19

English |

Remote control

Continued on the next page...

Remote control

This unit can be operated using the remote control.

The remote control RM-RK258 (optional accessory)

can be used.

! WARNING

• Do not ingest the battery, Chemical Burn Hazard

The remote control supplied with this product

contains a coin / button cell battery. If the coin/button

cell battery is swallowed, it can cause severe internal

burns in just 2 hours and can lead to death.

Keep new and used batteries away from children.

If the battery compartment does not close securely,

stop using the product and keep it away from

children.

If you think batteries might have been swallowed or

placed inside any part of the body, seek immediate

medical attention.

! CAUTION

• Put the remote control in a place where it will

not move during braking or other operations. A

dangerous situation could result, if the remote control

falls down and gets wedged under the pedals while

driving.

• Do not leave the battery near fire or under direct

sunlight. A fire, explosion or excessive heat generation

may result.

• Do not recharge, short, break up or heat the battery

or place it in an open fire. Such actions may cause the

battery to leak fluid. If spilled fluid comes in contact

with your eyes or on clothing, immediately rinse with

water and consult a physician.

Ñ Removing the battery sheet

Pull the battery sheet out from the remote controller

to activate the battery.

Ñ Changing the battery of the remote

controller

CR2025 (+side)

• Use a commercially available button battery (CR2025).

• Insert the battery with the + and – poles aligned

properly.

–If the effectiveness of the remote controller

decreases, replace the battery.

Functions of the Remote control

Buttons

• Aim the remote control directly at the remote sensor

on the faceplate.

• DO NOT expose the remote sensor to bright light

(direct sunlight or artificial lighting).

SRC Switches to the source to be played.

VOL + – Adjusts the volume.

ATT Mutes/restores the sound

DISP Not used.

FM/R

AM/S

Selects the folder to be played.

During tuner source, select FM/ AM band

to be received.

E 2

F 3

Selects the track or file to be played.

During tuner source, switches to broadcast

stations received by the unit.

ANGLE Not used.

ÛWhen a call comes in, answers the call.

DIRECT Not used.

ASPECT Not used.

Numeric

Keypad

Not used.

CLR Clears the telephone number input on the

Phone screen.

ENT Not used.

!B5A-3197-00_KWM.indb 19 2019/06/11 16:42

20

InstallationInstallation

Before Installation

Before installation of this unit, please note the

following precautions.

#WARNINGS

• If you connect the ignition wire (red) and the battery

wire (yellow) to the car chassis (ground), you may

cause a short circuit, that in turn may start a fire.

Always connect those wires to the power source

running through the fuse box.

• Do not cut out the fuse from the ignition wire (red)

and the battery wire (yellow). The power supply must

be connected to the wires via the fuse.

#CAUTION

• Install this unit in the console of your vehicle.

Do not touch the metal part of this unit during and

shortly after the use of the unit. Metal part such as the

heat sink and enclosure become hot.

✎NOTE

• Mounting and wiring this product requires skills and

experience. For best safety, leave the mounting and

wiring work to professionals.

• Make sure to ground the unit to a negative 12V DC

power supply.

• Do not install the unit in a spot exposed to direct

sunlight or excessive heat or humidity. Also avoid

places with too much dust or the possibility of water

splashing.

• Do not use your own screws. Use only the screws

provided. If you use the wrong screws, you could

damage the unit.

• If the power is not turned ON (“There is an error in

the speaker wiring. Please check the connections.” is

displayed), the speaker wire may have a short-circuit or

touched the chassis of the vehicle and the protection

function may have been activated. Therefore, the

speaker wire should be checked.

• If your car’s ignition does not have an ACC position,

connect the ignition wires to a power source that

can be turned on and off with the ignition key. If you

connect the ignition wire to a power source with a

constant voltage supply, such as with battery wires,

the battery may be drained.

• If the console has a lid, make sure to install the unit so

that the front panel will not hit the lid when closing

and opening.

• If the fuse blows, first make sure the wires aren’t

touching to cause a short circuit, then replace the old

fuse with one with the same rating.

• Insulate unconnected wires with vinyl tape or other

similar material. To prevent a short circuit, do not

remove the caps on the ends of the unconnected

wires or the terminals.

• Secure the wires with cable clamps and wrap vinyl

tape around the wires that comes into contact with

metal parts to protect the wires and to prevent short

circuit.

• Connect the speaker wires correctly to the terminals

to which they correspond. The unit may be damaged

or fail to work if you share the ¤ wires or ground

them to any metal part in the car.

• When only two speakers are being connected to

the system, connect the connectors either to both

the front output terminals or to both the rear output

terminals (do not mix front and rear). For example,

if you connect the ¢ connector of the left speaker

to a front output terminal, do not connect the ¤

connector to a rear output terminal.

• After the unit is installed, check whether the brake

lamps, blinkers, wipers, etc. on the car are working

properly.

• Mount the unit so that the mounting angle is 30° or

less.

• Do not press hard on the panel surface when installing

the unit to the vehicle. Otherwise scars, damage, or

failure may result.

• Reception may drop if there are metal objects near

the Bluetooth antenna.

Bluetooth antenna unit

Ñ Supplied accessories for installation

1

x1

2

x2

3

x1

4 (3 m)

x1

5(2 m)

x1

!B5A-3197-00_KWM.indb 20 2019/06/11 16:42

21

English |

Installation

Continued on the next page...

Ñ Installation procedure

1) To prevent a short circuit, remove the key from

the ignition and disconnect the ¤ terminal of the

battery.

2) Make the proper input and output wire connections

for each unit.

3) Connect the wire on the wiring harness.

4) Take Connector B on the wiring harness and connect

it to the speaker connector in your vehicle.

5) Take Connector A on the wiring harness and connect

it to the external power connector on your vehicle.

6) Connect the wiring harness connector to the unit.

7) Install the unit in your car.

8) Reconnect the ¤ terminal of the battery.

9) Press the reset button.

Installing the unit

Ñ Non-Japanese cars

Bend the tabs of the

mounting sleeve with

a screwdriver or similar

utensil and attach it in

place.

✎NOTE

• Make sure that the unit is installed securely in place. If

the unit is unstable, it may malfunction (eg, the sound

may skip).

Ñ Trim plate

1) Attach accessory 1 to the unit.

1

Ñ Microphone unit

1) Check the installation position of the microphone

(accessory 4).

2) Clean the installation surface.

3) Remove the separator of the microphone (accessory

4), and stick the microphone to the place shown

below.

4) Wire the microphone cable up to the unit with it

secured at several positions using tape or other

desired method.

5) Adjust the direction of the microphone (accessory 4)

to the driver.

4

Fix a cable with a commercial item of tape.

✎NOTE

• Swap the clips if necessary.

!B5A-3197-00_KWM.indb 21 2019/06/11 16:42

22

Installation

Ñ Removing the trim plate

1) Use the extraction key (accessory 3) to lever out the

four tabs (two on the left part, two on the right part).

3

2) Pull the trim plate forward.

Ñ Removing the unit

1) Remove the trim plate by referring to step 1 in

“Removing the trim plate”.

2) Insert the extraction key (accessory 2) deeply into

the slot as shown. (The protrusion at the tip of the

extraction key must face toward the unit.)

2

3) With the inserted extraction key secured, insert the

other extraction key into the slot.

2

4) Pull out the unit halfway.

✎NOTE

• Be careful to avoid injury from the catch pins on the

extraction key.

5) Pull the unit all the way out with your hands, being

careful not to drop it.

!B5A-3197-00_KWM.indb 22 2019/06/11 16:42

23

English |

Installation

Continued on the next page...

FRONTREARAV-IN

LLL

RRR

VOUT

ANT

CAMV

15A

5V=1A

MIC

SUB

WOOFER

PARKING

BRAKE

REVERSE

GEAR

SIGNAL

STEERING

WHEEL

REMOTE

CONTROL

2 4 6 8

1 3 5 7

2 4 6 8

1 3 5 7

Connect to the

vehicle’s parking

brake detection

switch harness.

For best safety, be

sure to connect the

parking sensor.

Light Green

(Parking sensor wire)

Accessory 5 Extension cable

Purple/White

(Reverse sensor wire)

Accessory 4:

Bluetooth Microphone

To steering remote

To use the steering wheel remote control

feature, you need an exclusive remote

adapter (not supplied) matched to your car.

Connect to vehicle’s reverse lamp harness

when using the optional rear view camera.

Light Blue/Yellow

(Steering remote control wire)

Fuse (15A)

Ñ Wiring harness connector function guide

Pin Color and function

A-4 Yellow Battery

A-5 Blue/White[3] Power Control

A-7 Red Ignition (ACC)

A-8 Black Earth (Ground) Connection

B-1/ B-2 Purple (+) / Purple/Black (–) Rear Right

B-3/ B-4 Gray (+) / Gray/Black (–) Front Right

B-5/ B-6 White (+) / White/Black (–) Front Left

B-7/ B-8 Green (+) / Green/Black (–) Rear Left

• Speaker Impedance: 4-8 Ω

! CAUTION

Before you connect the commercially available ISO

connectors to the unit, check the following condition:

• Make sure that the pin assignment of the connector

matches with the JVC unit.

• Take extra notice of the power wire.

• In case battery wire and ignition wire are not

corresponding then change them accordingly.

• In case the car does not have an ignition wire, use a

commercially available interface.

Ñ Connecting wires to terminals

Subwoofer Preout

Cap

Cap

FM/AM antenna input

FM/AM antenna

Connector A

Connector B

USB device[2]

USB terminal[1] (0.8 m)

[1] USB maximum power supply current : DC 5 V = 1 A

[2] Sold separately

[3] Max. 300mA, 12V

ISO Connector Rear Audio Preout

(Left; White, Right; Red)

AV-IN audio input

(Left; White, Right; Red)

Front Audio Preout

(Left; White, Right; Red)

Visual Output (Yellow)

Rear view camera input (Yellow)

AV-IN visual input (Yellow)

!B5A-3197-00_KWM.indb 23 2019/06/11 16:42

24

Installation

FRONTREARAV-IN

LLL

RRR

VOUT

ANT

CAMV

15A

5V=1A

KS-U62 (0.8m)[3]

iPod/iPhone[2]

Lightning connector

[1] iPod/iPhone maximum power supply current :

DC 5 V = 1 A

[2] Sold separately

[3] Optional accessory

Ñ Connecting an iPod/iPhone

Cap

USB terminal[1] (0.8 m)

Not used

FRONTREARAV-IN

LLL

RRR

VOUT

ANT

CAMV

15A

5V=1A

Micro USB to USB cable

Android smartphone[2]

[1] Android maximum power supply current :

DC 5 V = 1 A

[2] Sold separately

Ñ Connecting an Android smartphone

Cap

USB terminal[1] (0.8 m)

!B5A-3197-00_KWM.indb 24 2019/06/11 16:42

25

English |

About this Unit

Continued on the next page...

More information

Ñ Playable Audio files

Audio

format

Bit rate Sampling frequency

MP3 (.mp3) 16 – 320kbps,

VBR

16 – 48 kHz

WMA (.wma) 16 – 320kbps 16 – 48 kHz

AAC-LC (.m4a) 16 – 320kbps 16 – 48 kHz

WAV (.wav) – 16 – 192 kHz

FLAC (.flac) – 16 – 192 kHz

• This unit can show ID3 Tag Version 1.0/1.1/2.2/2.3/2.4

(for MP3).

• The maximum number of characters:

–Tag : 30 characters

✎NOTE

• WMA and AAC of which is covered with DRM cannot

be played.

• Although the audio files are complied with the

standards listed above, the play may be impossible

depending on the types or conditions of media or

device.

Ñ Acceptable Video files

Video

format

Video codec Audio codec

MPEG-1

(.mpg, .mpeg)

MPEG-1 MPEG Audio

Layer 2

MPEG-2

(.mpg, .mpeg)

MPEG-2 MPEG Audio

Layer 2

MPEG-4

(.mp4, .avi)

MPEG-4 MP3, AAC-LC (2ch)

H.264

(.mp4, mkv,

avi, .flv, .f4v)

H.264 MP3, AAC

MKV (.mkv) H.264 / MPEG-4 AVC,

MPEG4, WMV (VC1)

MP3, AAC, WMA,

Vorbis, FLAC

WMV (.wmv) WMV (VC1) WMA

Ñ Acceptable Picture files

• JPEG (.jpg)

32 x 32 to 16,241 x 15,225 (JPEG) or 5,847 x 5,481

(Progressive JPEG)

– It may take time to display the file.

– Lossless JPEG files cannot be played.

• BMP (.bmp)

32 x 32 to 9,873 x 9,873 resolution

– It may take time to display the file.

• PNG (.png)

32 x 32 to 8,192 x 7,680

– It may take time to display the file.

Troubleshooting

What appears to be trouble is not always serious.

Check the following points before calling a service

center.

• For operations with the external components, refer

also to the instructions supplied with the adapters

used for the connections (as well as the instructions

supplied with the external components).

Ñ General

No sound comes out of the speakers.

• Adjust the volume to the optimum level.

• Check the cords and connections.

The unit does not work at all.

• Reset the unit. (P.2)

The remote controller does not work.

• Replace the battery.

Ñ USB

While playing a track, sound is sometimes

interrupted.

• The tracks are not properly copied into the USB device.

Copy the tracks again, and try again.

Ñ iPod/iPhone

No sound comes out of the speakers.

• Disconnect the iPod/iPhone, then connect it again.

• Select another source, then reselect “iPod”.

The iPod/iPhone does not turn on or does not

work.

• Check the connecting cable and its connection.

• Update the firmware version of iPod/iPhone.

• Charge the battery of iPod/iPhone.

• Reset the iPod/iPhone.

Sound is distorted.

• Deactivate the equalizer either on this unit or the

iPod/iPhone.

A lot of noise is generated.

• Turn off (uncheck) “VoiceOver” on the iPod/iPhone.

For details, visit <http://www.apple.com>.

Ñ Tuner

Automatic presetting does not work.

• Store stations manually. (P.12)

Static noise while listening to the radio.

• Connect the antenna firmly.

About this Unit

!B5A-3197-00_KWM.indb 25 2019/06/11 16:42

26

About this Unit

Ñ AV-IN

No picture appears on the screen.

• Turn on the video component if it is not on.

• Connect the video component correctly.

Ñ Bluetooth

Phone sound quality is poor.

• Reduce the distance between the unit and the

Bluetooth mobile phone.

• Move the car to a place where you can get a better

signal reception.

The sound is interrupted or skipped while using a

Bluetooth audio player.

• Reduce the distance between the unit and the

Bluetooth audio player.

• Turn off, then turn on the unit. (When the sound is not

yet restored) connect the player again.

The connected audio player cannot be controlled.

• Check whether the connected audio player supports

AVRCP (Audio/Video Remote Control Profile).

The Bluetooth device does not detect the unit.

• Search from the Bluetooth device again.

The unit does not pair with the Bluetooth device.

• Turn off, then turn on the Bluetooth device.

• Disconnect the Bluetooth device currently connected

and then register the new device. (P.15)

Copyrights

• The Bluetooth word mark and logos are registered trademarks

owned by the Bluetooth SIG, Inc. and any use of such marks by

JVC KENWOOD Corporation is under license. Other trademarks

and trade names are those of their respective owners.

• Use of the Made for Apple badge means that an accessory has

been designed to connect specifically to the Apple product(s)

identified in the badge, and has been certified by the

developer to meet Apple performance standards. Apple is not

responsible for the operation of this device or its compliance

with safety and regulatory standards. Please note that the use

of this accessory with an Apple product may affect wireless

performance.

• Apple, iPhone, iPod, and Lightning are trademarks of Apple

Inc., registered in the U.S. and other countries.

• The “AAC” logo is a trademark of Dolby Laboratories.

• Microsoft and Windows Media are either registered

trademarks or trademarks of Microsoft Corporation in the

United States and/or other countries.

• Android is a trademark of Google LLC.

• THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL

PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND

NON-COMMERCIAL USE OF A CONSUMER FOR (¡) ENCODING

VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD

(“MPEG-4 VIDEO”) AND/OR (¡¡) DECODING MPEG-4 VIDEO THAT

WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL

AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED

FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE

MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE

IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION

INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL

AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED

FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM

• THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL

PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND

NON-COMMERCIAL USE OF A CONSUMER FOR (¡) ENCODING

VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD

(“MPEG-4 VIDEO”) AND/OR (¡¡) DECODING MPEG-4 VIDEO THAT

WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL

AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED

FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE

MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE

IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION

INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL

AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED

FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM

• THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT

PORTFOLIO LICENSE FOR THE PERSONAL AND NON-

COMMERCIAL USE OF A CONSUMER TO ( i ) ENCODE VIDEO

IN COMPLIANCE WITH THE VC-1 STANDARD (“VC-1 VIDEO”)

AND/OR ( ii ) DECODE VC-1 VIDEO THAT WAS ENCODED

BY A CONSUMER ENGAGED IN A PERSONAL AND NON-

COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A

VIDEO PROVIDER LICENSED TO PROVIDE VC-1 VIDEO. NO

LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER

USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM

MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

!B5A-3197-00_KWM.indb 26 2019/06/11 16:42

27

English |

About this Unit

Continued on the next page...

• libFLAC

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation

Redistribution and use in source and binary forms, with

or without modification, are permitted provided that the

following conditions are met:

– Redistributions of source code must retain the above

copyright notice, this list of conditions and the following

disclaimer.

– Redistributions in binary form must reproduce the above

copyright notice, this list of conditions and the following

disclaimer in the documentation and/or other materials

provided with the distribution.

– Neither the name of the Xiph.org Foundation nor the

names of its contributors may be used to endorse or

promote products derived from this software without

specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS

AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED

WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR

A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT

SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR

ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR

SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS

INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF

LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY

WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED

OF THE POSSIBILITY OF SUCH DAMAGE.

!B5A-3197-00_KWM.indb 27 2019/06/11 16:42

28

About this Unit

Specifications

Ñ Monitor section

Picture Size

: 6.75 inches (diagonal) wide

: 151.8 mm (W) × 79.7 mm (H)

Display System

: Transparent TN LCD panel

Drive System

: TFT active matrix system

Number of Pixels

: 1,152,000 (800H x 480V x RGB)

Effective Pixels

: 99.99 %

Pixel Arrangement

: RGB striped arrangement

Back Lighting

: LED

Ñ USB interface section

USB Standard

: USB 2.0 High Speed

File System

: FAT 16/ 32

Maximum Power Supply Current

: DC 5 V 1 A

D/A Converter

: 24 Bit

Audio Decoder

: MP3/ WMA/ WAV/ AAC/ FLAC

Video Decoder

: MPEG1/ MPEG2/ MPEG4/ H.264/ MKV/ WMV

Frequency Response

• 192 kHz : 20 – 20,000 Hz

• 96 kHz : 20 – 20,000 Hz

• 48 kHz : 20 – 20,000 Hz

• 44.1 kHz : 20 – 20,000 Hz

Ñ Bluetooth section

Technology

: Bluetooth Ver.2.1 + EDR

Frequency

: 2.402 – 2.480 GHz

Output Power

: +4 dBm (MAX), Power Class2

Maximum Communication range

: Line of sight approx. 10m (32.8 ft)

Audio Codec

SBC

Profile (Multi Profile support)

• HFP (Hands Free Profile)

• A2DP (Advanced Audio Distribution Profile)

• AVRCP (Audio/Video Remote Control Profile)

• PBAP (Phonebook Access Profile)

Ñ FM tuner section

Frequency Range (step)

: 87.5 MHz – 108.0 MHz (50 kHz)

Usable Sensitivity

: 12.2 dBf

: 1.1 μV/75 Ω, S/N : 30 dB

Frequency Response

: 30 Hz – 14 kHz

S/N Ratio (dB)

: 55 dB (MONO)

Selectivity (± 400 kHz)

: Over 70 dB

Stereo Separation

: 37 dB (1 kHz)

Ñ AM tuner section

Frequency Range (step)

: 531 – 1611 kHz (9 kHz)

Usable Sensitivity

: 29 μV

Ñ Video section

Color System of External Video Input

: NTSC /PAL

External Video Input Level (RCA jacks)

: 1.0 Vp-p/ 75 Ω

External Audio Max Input Level (RCA jacks)

: 1.8 V/ 10 kΩ

Video Output Level (RCA jacks)

: 1.0 Vp-p/ 75 Ω

NOTE

• Although the effective pixels for the liquid crystal

panel is given as 99.99% or more, 0.01% of pixels

may not light or may light incorrectly.

• Specifications subject to change without notice.

!B5A-3197-00_KWM.indb 28 2019/06/11 16:42

29

English |

Continued on the next page...

About this Unit

Ñ Audio section

Maximum Power (Front & Rear)

: 50 W × 4

Full Bandwidth Power (Front & Rear)

Full Bandwidth Power (at less than 1% THD)

: 21 W × 4

Preout Level (V)

: 2 V/ 10 kΩ

Preout Impedance

: ≤ 600 Ω

Speaker Impedance

: 4 – 8 Ω

Equalizer

: 7 Band

Band

Frequency: 62.5/ 160/ 400/ 1k/ 2.5k/ 6.3k/ 16k Hz

Level: -7 – +7 (-7 dB – +7 dB)

LPF

Frequency: 80/ 120/ 160 Hz/ Off

Ñ General

Operating Voltage

: 12 V DC car battery

Installation Dimensions (W × H × D)

: 182 × 112 × 75 mm

Main Unit Installation size (W × H × D)

: 178 × 100 × 75 mm (w/o sleeve)

Weight

: 1.1 kg

(Including Mounting Sleeve and Trim plate)

Ñ Information on Disposal of Old Electrical

and Electronic Equipment and Batteries

(applicable for EU countries that have

adopted separate waste collection

systems)

Products and batteries with the symbol (crossed-out

wheeled bin) cannot be disposed as household waste.

Old electrical and electronic equipment and batteries

should be recycled at a facility capable of handling

these items and their waste byproducts.

Contact your local authority for details in locating a

recycle facility nearest to you.

Proper recycling and waste disposal will help conserve

resources whilst preventing detrimental effects on our

health and the environment.

Notice: The sign “Pb” below the symbol for batteries

indicates that this battery contains lead.

For Israel

Ñ ינורטקלאו ילמשח דויצ לש הפשאל הכלשה רבדב עדימ

תכרעמב תושמתשמש תונידמל יטנוולר( תוללוס ןכו ןשי

.)תדרפומ הפשא ףוסיא

X םע הפשא חפ( ןומיסה םע תוללוסו םירצומ ךילשהל ןתינ אל

.הליגר תיתיב הפשאכ )וילע

ןקתמב תוללוס ןכו ןשי ינורטקלאו ילמשח דויצ רזחמל שי

.םהלש יאוולה ירצותבו הלאכ םיטירפב לפטל לגוסמה

ןקתמ תודוא םיטרפ תלבקל תימוקמה תושרה םע רשק ורצ

ורזעי םיתואנ הפשאל הכלשהו רוזחימ .םכילא בורקה רוזחימה

לעו ונתואירב לע תוילילש תועפשה עונמלו םיבאשמ רמשל

.הביבסה

ןייצמ תוללוס רובע ןומיסל תחתמש Pb ןומיסה :בל ומיש

.תרפוע הליכמ הללוסהש

!B5A-3197-00_KWM.indb 29 2019/06/11 16:42

Declaration of Conformity with regard to the RE Directive 2014/53/EU

Declaration of Conformity with regard to the RoHS Directive 2011/65/EU

Manufacturer:

JVC KENWOOD Corporation

3-12, Moriyacho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0022, JAPAN

EU Representative:

JVCKENWOOD Europe B.V.

Amsterdamseweg 37, 1422 AC UITHOORN, THE

NETHERLANDS

!B5A-3197-00_KWM.indb 30 2019/06/11 16:42

English

Hereby, JVC KENWOOD declares that the radio equipment KW-M25BT is in

compliance with Directive 2014/53/EU. The full text of the EU declaration of

conformity is available at the following internet address:

Français

Par la présente, JVC KENWOOD déclare que l’équipement radio KW-M25BT est

conforme à la directive 2014/53/UE. L’intégralité de la déclaration de conformité

UE est disponible à l’adresse Internet suivante :

Deutsch

Hiermit erklärt JVC KENWOOD, dass das Funkgerät KW-M25BT der Richtlinie

2014/53/EU entspricht. Der volle Text der EU-Konformitätserklärung steht unter

der folgenden Internetadresse zur Verfügung:

Nederlands

Hierbij verklaart JVC KENWOOD dat de radioapparatuur KW-M25BT in

overeenstemming is met Richtlijn 2014/53/EU. De volledige tekst van de EU-

verklaring van overeenstemming is te vinden op het volgende internetadres:

Italiano

Con la presente, JVC KENWOOD dichiara che l’apparecchio radio KW-M25BT

è conforme alla Direttiva 2014/53/UE. Il testo integrale della dichiarazione di

conformità UE è disponibile al seguente indirizzo internet:

Español

Por la presente, JVC KENWOOD declara que el equipo de radio KW-M25BT

cumple la Directiva 2014/53/EU. El texto completo de la declaración de

conformidad con la UE está disponible en la siguiente dirección de internet:

Português

Deste modo, a JVC KENWOOD declara que o equipamento de rádio KW-M25BT

está em conformidade com a Diretiva 2014/53/UE. O texto integral da declaração

de conformidade da UE está disponível no seguinte endereço de internet:

Polska

Niniejszym, JVC KENWOOD deklaruje, że sprzęt radiowy KW-M25BT jest zgodny

z dyrektywą 2014/53/UE. Pełny tekst deklaracji zgodności EU jest dostępny pod

adresem:

Český

Společnost JVC KENWOOD tímto prohlašuje, že rádiové zařízení KW-M25BT

splňuje podmínky směrnice 2014/53/EU. Plný text EU prohlášení o shodě je

dostupný na následující internetové adrese:

Magyar

JVC KENWOOD ezennel kijelenti, hogy a KW-M25BT rádióberendezés megfelel a

2014/53/EU irányelvnek. Az EU konformitási nyilatkozat teljes szövege az alábbi

weboldalon érhető el:

Hrvatski

JVC KENWOOD ovim izjavljuje da je radio oprema KW-M25BT u skladu s

Direktivom 2014/53/EU. Cjeloviti tekst deklaracije Europske unije o usklađenosti

dostupan je na sljedećoj internet adresi:

Svenska

Härmed försäkrar JVC KENWOOD att radioutrustningen KW-M25BT är i enlighet

med direktiv 2014/53 / EU. Den fullständiga texten av EU-försäkran om

överensstämmelse finns på följande Internetadress :

Suomi

JVC KENWOOD julistaa täten, että radiolaite KW-M25BT on direktiivin 2014/53/

EU mukainen. EU-vaatimustenmukaisuusvakuutus löytyy kokonaisuudessaan

seuraavasta internet-osoitteesta:

Slovensko

S tem JVC KENWOOD izjavlja, da je radijska oprema KW-M25BT v skladu z

Direktivo 2014/53/EU. Celotno besedilo direktive EU o skladnosti je dostopno na

tem spletnem naslovu:

Slovensky

Spoločnosť JVC KENWOOD týmto vyhlasuje, že rádiové zariadenie KW-M25BT

vyhovuje smernici 2014/53/EÚ. Celý text EÚ vyhlásenia o zhode nájdete na

nasledovnej internetovej adrese:

Dansk

Herved erklærer JVC KENWOOD, at radioudstyret KW-M25BT

er i overensstemmelse med Direktiv 2014/53/EU. EU-

overensstemmelseserklæringens fulde ordlyd er tilgængelig på følgende

internetadresse:

Norsk

JVC KENWOOD erklærer herved at radioutstyret KW-M25BT er i samsvar med

Direktiv 2014/53/EU. Den fullstendige teksten til EU-konformitetserklæringen er

tilgjengelig på følgende internettaddresse:

Ελληνικά

Με το παρόν, η JVC KENWOOD δηλώνει ότι ο ραδιοεξοπλισμός KW-M25BT

συμμορφώνεται με την Οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης

συμμόρφωσης της ΕΕ είναι διαθέσιμο στην ακόλουθη διεύθυνση στο διαδίκτυο:

Eesti

Käesolevaga JVC KENWOOD kinnitab, et KW-M25BT raadiovarustus on

vastavuses direktiiviga 2014/53/EL. ELi vastavusdeklaratsiooni terviktekst on

kättesaadav järgmisel internetiaadressil:

Latviešu

JVC KENWOOD ar šo deklarē, ka radio aparatūra KW-M25BT atbilst direktīvas

2014/53/ES prasībām. Pilns ES atbilstības deklarācijas teksts ir pieejams šādā

tīmekļa adresē:

Lietuviškai

Šiuo JVC KENWOOD pažymi, kad radijo įranga KW-M25BT atitinka 2014/53/EB

direktyvos reikalavimus. Visą EB direktyvos atitikties deklaracijos tekstą galite

rasti šiuo internetiniu adresu:

Malti

B’dan, JVC KENWOOD jiddikjara li t-tagħmir tar-radju KW-M25BT huwa konformi

mad-Direttiva 2014/53/UE. It-test kollu tad-dikjarazzjoni ta’ konformità huwa

disponibbli fl-indirizz intranet li ġej:

Українська

Таким чином, компанія JVC KENWOOD заявляє, що радіообладнання

KW-M25BT відповідає Директиві 2014/53/EU. Повний текст декларації про

відповідність ЄС можна знайти в Інтернеті за такою адресою:

Türkçe

Burada, JVC KENWOOD KW-M25BT radyo ekipmanının 2014/53/AB Direktifine

uygun olduğunu bildirir. AB uyumluluk deklarasyonunun tam metni aşağıdaki

internet adresinde mevcuttur.

Русский

JVC KENWOOD настоящим заявляет, что радиооборудование KW-M25BT

соответствует Директиве 2014/53/EU. Полный текст декларации

соответствия ЕС доступен по следующему адресу в сети Интернет:

Limba română

Prin prezenta, JVC KENWOOD declară că echipamentul radio KW-M25BT este

în conformitate cu Directiva 2014/53/UE. Textul integral al declarației de

conformitate UE este disponibil la urmatoarea adresă de internet:

Български език

С настоящото JVC KENWOOD декларира, че радиооборудването на

KW-M25BT е в съответствие с Директива 2014/53/ЕС. Пълният текст на ЕС

декларацията за съответствие е достъпен на следния интернет адрес:

URL: http://www.jvc.net/cs/car/eudoc/

!B5A-3197-00_KWM.indb 31 2019/06/11 16:42

!B5A-3197-00_KWM.indb 32 2019/06/11 16:42
