COMPACT COMPONENT SYSTEM

NX-T10

—Consists of CA-NXT10, SP-NXT10F, and SP-NXT10W

INSTRUCTIONS

LVT2022-003A

[B]

EN_NX-T10[B].indb 1EN_NX-T10[B].indb 1 09.9.15 8:32:15 AM09.9.15 8:32:15 AM

G-1

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover or cabinet. There are

no user serviceable parts inside the unit; leave all servicing to

qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation

when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE

THE UNIT.

CAUTION

• Do not block the ventilation openings or holes.

(If the ventilation openings or holes are blocked by a

newspaper or cloth, etc., the heat may not be able to get

out.)

• Do not place any naked flame sources, such as lighted

candles, on the apparatus.

• When discarding batteries, environmental problems must

be considered and local rules or laws governing the disposal

of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping

or splashing and that no objects filled with liquids, such as

vases, shall be placed on the apparatus.

CAUTION

Excessive sound pressure from earphones or headphones can

cause hearing loss.

CAUTION:

Battery shall not be exposed to excessive heat such as

sunshine, fire, or the like.

Dear Customer,

This apparatus is in conformance with the valid European

directives and standards regarding electromagnetic

compatibility and electrical safety.

European representative of Victor Company of Japan, Limited is:

JVC Technical Services Europe GmbH

Postfach 10 05 04

61145 Friedberg

Germany

Warnings, Cautions and Others

IMPORTANT for the U.K.

DO NOT cut off the mains plug from this equipment. If the

plug fitted is not suitable for the power points in your home

or the cable is too short to reach a power point, then obtain

an appropriate safety approved extension lead or consult

your dealer.

BE SURE to replace the fuse only with an identical approved

type, as originally fitted.

If nonetheless the mains plug is cut off ensure to remove the

fuse and dispose of the plug immediately, to avoid a possible

shock hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then

follow the instructions given below:

IMPORTANT:

DO NOT make any connection to the terminal which is

marked with the letter E or by the safety earth symbol or

coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in

accordance with the following code:

Blue: Neutral

Brown: Live

As these colours may not correspond with the coloured

markings identifying the terminals in your plug proceed as

follows:

The wire which is coloured blue must be connected to the

terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the

terminal which is marked with the letter L or coloured red.

IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.

CAUTION

The button in any position does not disconnect the mains

line.

Disconnect the mains plug of SP-NXT10W (subwoofer) to shut

the power off completely (the lamp on CA-NXT10 and

POWER ON/STANDBY lamp on SP-NXT10W go off).

The MAINS plug or an appliance coupler is used as the

disconnect device, the disconnect device shall remain readily

operable.

• When the System is on standby, the and POWER ON/

STANDBY lamps light red.

• When the System is turned on, the and POWER ON/

STANDBY lamps light blue.

The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

COMP

ACT COMPONENT SYSTEM

MODEL NO. CA-NXT10

Victor Company of Japan, Limited

B/E/EN/EV 7111-081500100

SERIAL NO.:

MADE IN CHINA

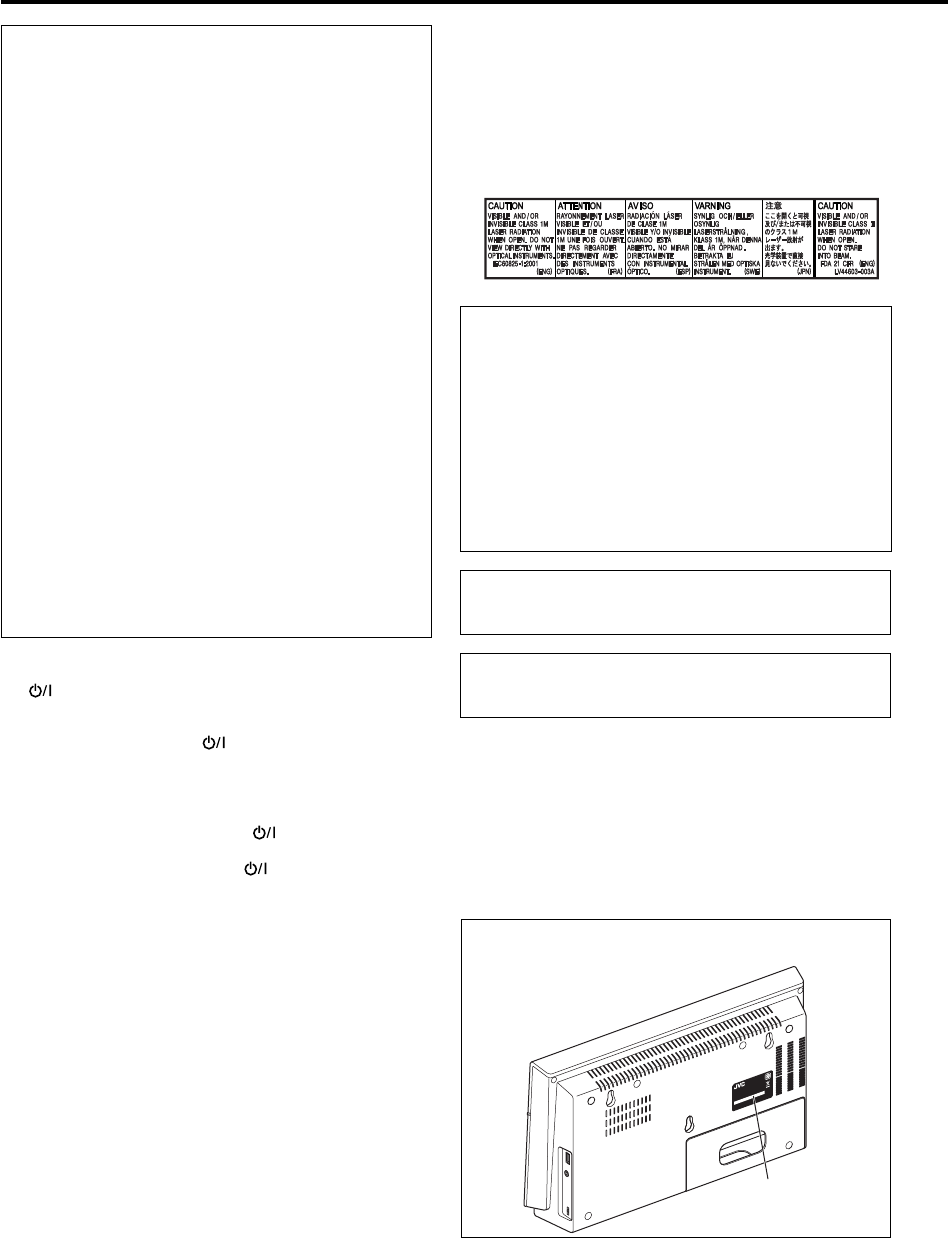

Rating label

Rating label is placed on the exterior of CA-NXT10 as

illustrated below.

EN_NX-T10[B].indb 1EN_NX-T10[B].indb 1 09.9.15 8:32:19 AM09.9.15 8:32:19 AM

G-2

Information for Users on Disposal of Old Equipment and Batteries

Products

Battery

Notice:

The sign Pb below the

symbol for batteries

indicates that this battery

contains lead.

[European Union]

These symbols indicate that the electrical and electronic equipment and the battery with this symbol

should not be disposed of as general household waste at its end-of-life. Instead, the products should

be handed over to the applicable collection points for the recycling of electrical and electronic

equipment as well as batteries for proper treatment, recovery and recycling in accordance with your

national legislation and the Directive 2002/96/EC and 2006/66/EC.

By disposing of these products correctly, you will help to conserve natural resources and will help to

prevent potential negative effects on the environment and human health which could otherwise be

caused by inappropriate waste handling of these products.

For more information about collection points and recycling of these products, please contact your

local municipal office, your household waste disposal service or the shop where you purchased the

product.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national

legislation.

[Business users]

If you wish to dispose of this product, please visit our web page http://www.jvc.eu/ to obtain

information about the take-back of the product.

[Other Countries outside the European Union]

These symbols are only valid in the European Union.

If you wish to dispose of these items, please do so in accordance with applicable national legislation or

other rules in your country for the treatment of old electrical and electronic equipment and batteries.

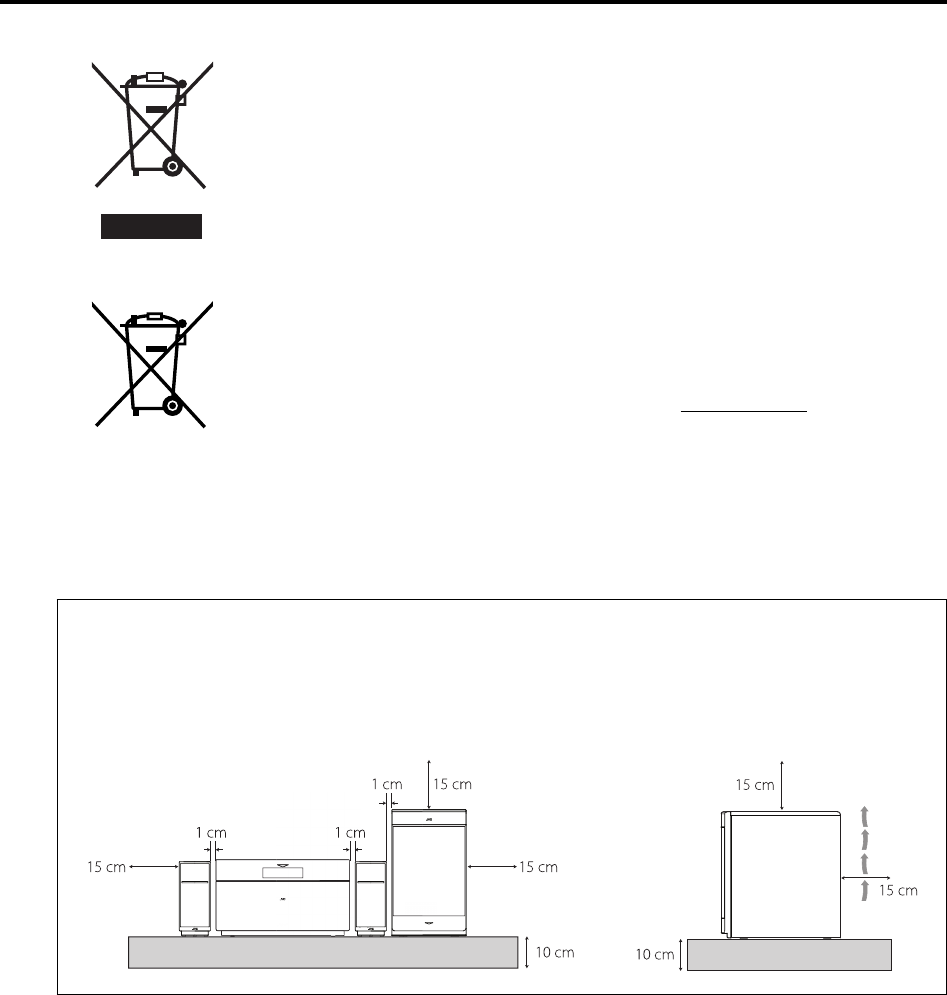

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1. Front: No obstructions and open spacing.

2. Sides/Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or

more.

Front view Side view

CA-NXT10SP-NXT10F SP-NXT10F SP-NXT10W SP-NXT10W

EN_NX-T10[B].indb 2EN_NX-T10[B].indb 2 09.9.15 8:32:20 AM09.9.15 8:32:20 AM

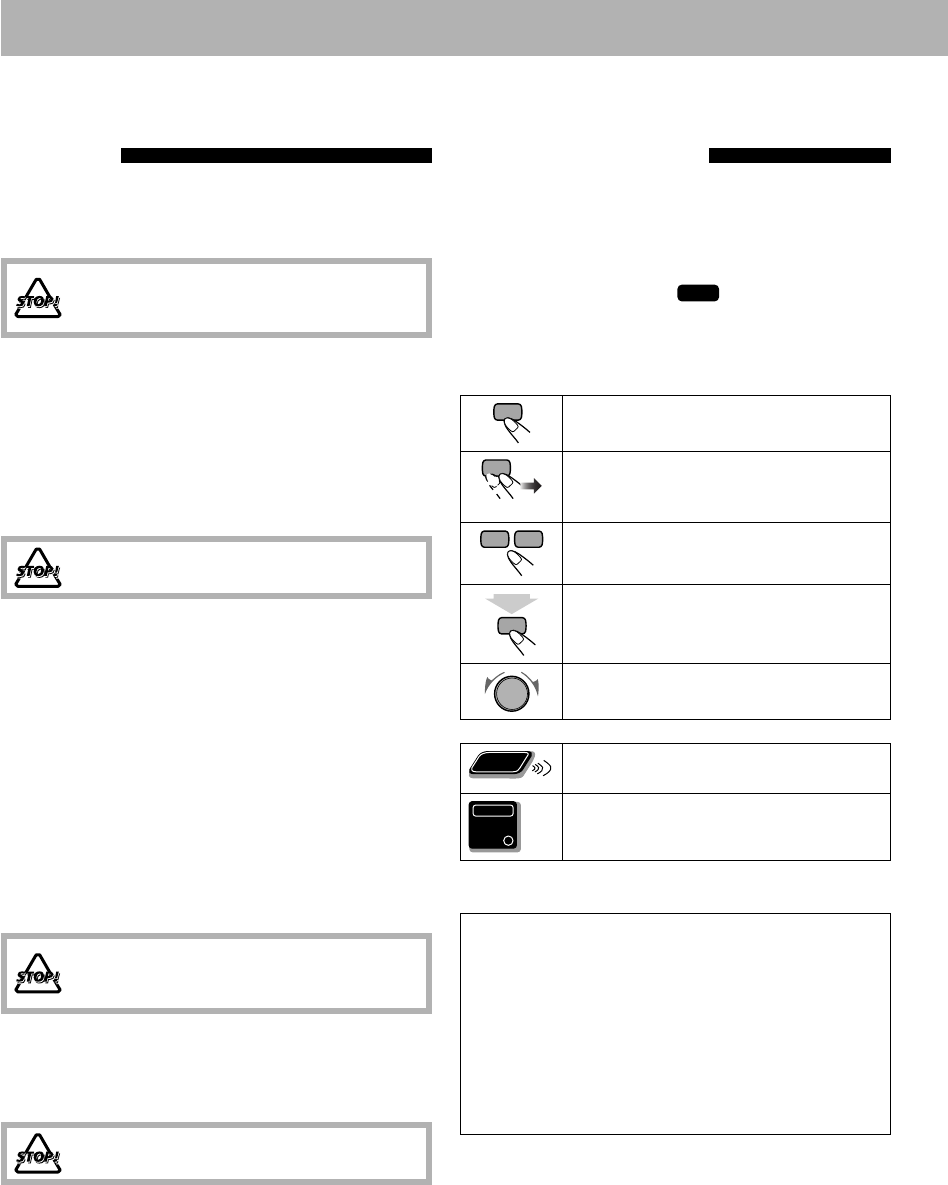

How to Read This Manual

• Button and control operations are explained in the table

below.

• Some related tips and notes are explained later in

the sections “Learning More about This System”

and “Troubleshooting,” but not in the same section

explaining the operations (

INFO

indicates that the

content has some information).

• English indications are used for the explanation of the

on-screen indications on the TV. You can select the

indication language from the Setup menu. See page 40.

Indicates that you press the button briefly.

Indicates that you press the button briefly

and repeatedly until the option you want

is selected.

Indicates that you press one of the buttons.

sec.

Indicates that you press and hold the

button for a specified period.

Indicates that you turn the control in the

specified direction(s).

Remote

ONLY

Indicates that this operation is only

possible using the remote control.

Main Unit

ONLY

Indicates that this operation is only

possible using the main unit.

Introduction

Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete

understanding and to obtain the best possible performance from the System.

Precautions

Installation

• Install the System in a location with adequate ventilation

to prevent internal heat build-up in the System.

DO NOT install the System in a location near

heat sources, or in a place subject to direct

sunlight, excessive dust or vibration.

• Install in a place which is level, dry and neither too hot

nor too cold—between 5°C and 35°C.

• Leave sufficient distance between the System and the TV.

• Keep the speakers away from the TV to avoid

interference with the TV.

Power sources

• When unplugging the System from the wall outlet, always

pull on the plug, not the power cord.

DO NOT handle the power cord with wet

hands.

Moisture condensation

Moisture may condense on the lens inside the System in the

following cases:

• After starting to heat the room

• In a damp room

• If the System is brought directly from a cold to a warm

place.

Should this occur, the System may malfunction. In this

case, leave the System turned on for a few hours until the

moisture evaporates, unplug the power cord, then plug it

in again.

Internal heat

• Make sure there is good ventilation around the System.

Poor ventilation could overheat and damage the System.

DO NOT block the ventilation openings or

holes. If they are blocked by a newspaper or

cloth, etc., the heat may not be able to get out.

Others

Should any metallic object or liquid fall into the System,

unplug the power cord and consult your dealer before

operating any further.

DO NOT disassemble the System since there

are no user serviceable parts inside.

• If you are not going to operate the System for an

extended period of time, unplug the power cord from the

wall outlet.

If anything goes wrong, unplug the power cord and consult

your dealer.

Supplied accessories

Check to be sure that you have all the following items.

• FM antenna (×1)

• Composite video cord (×1)

• System cable (×1)

• Remote control (×1)

• Batteries (×2)

• Stand (×1)

If any items are missing, consult your dealer

immediately.

EN_NX-T10[B].indb 1EN_NX-T10[B].indb 1 09.9.15 8:32:21 AM09.9.15 8:32:21 AM

Introduction ............................................................ 1

Precautions ........................................................................... 1

How to Read This Manual ................................................. 1

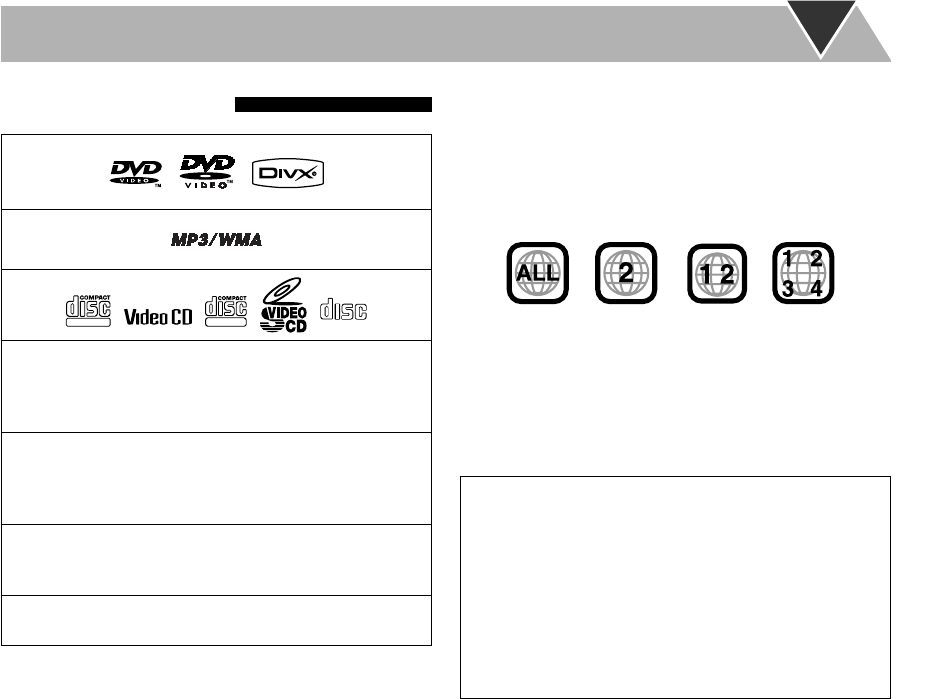

Playable Disc/File Types ..................................................... 3

Preparations ........................................................... 4

Placing the Main Unit Vertically or Horizontally .......... 4

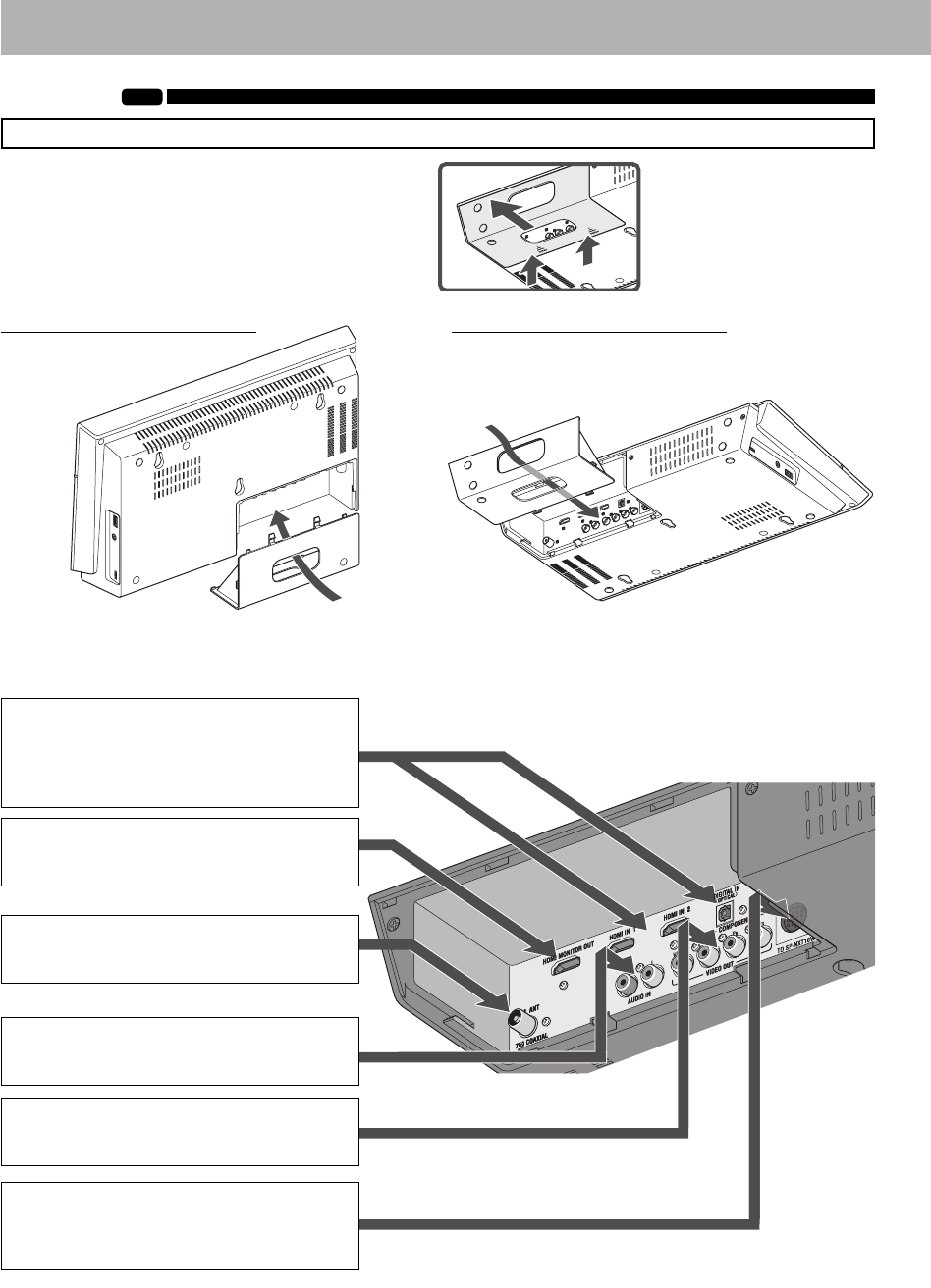

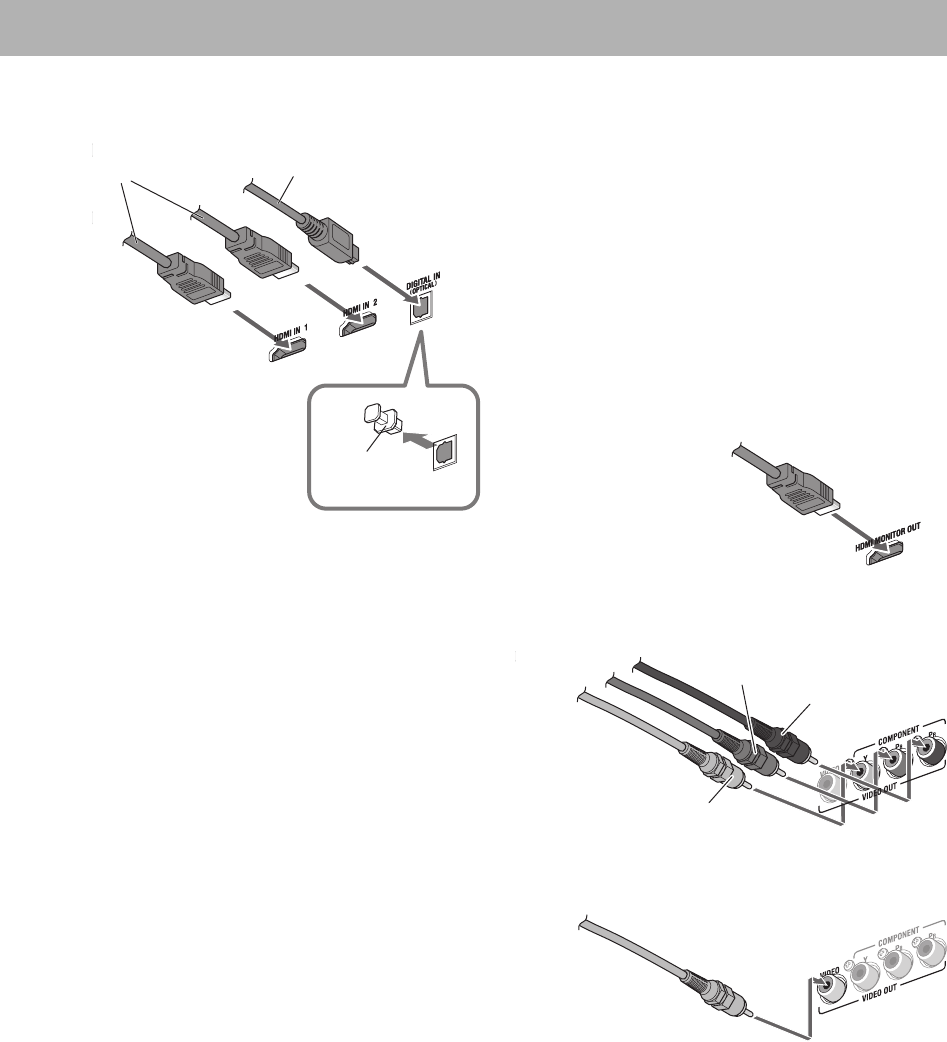

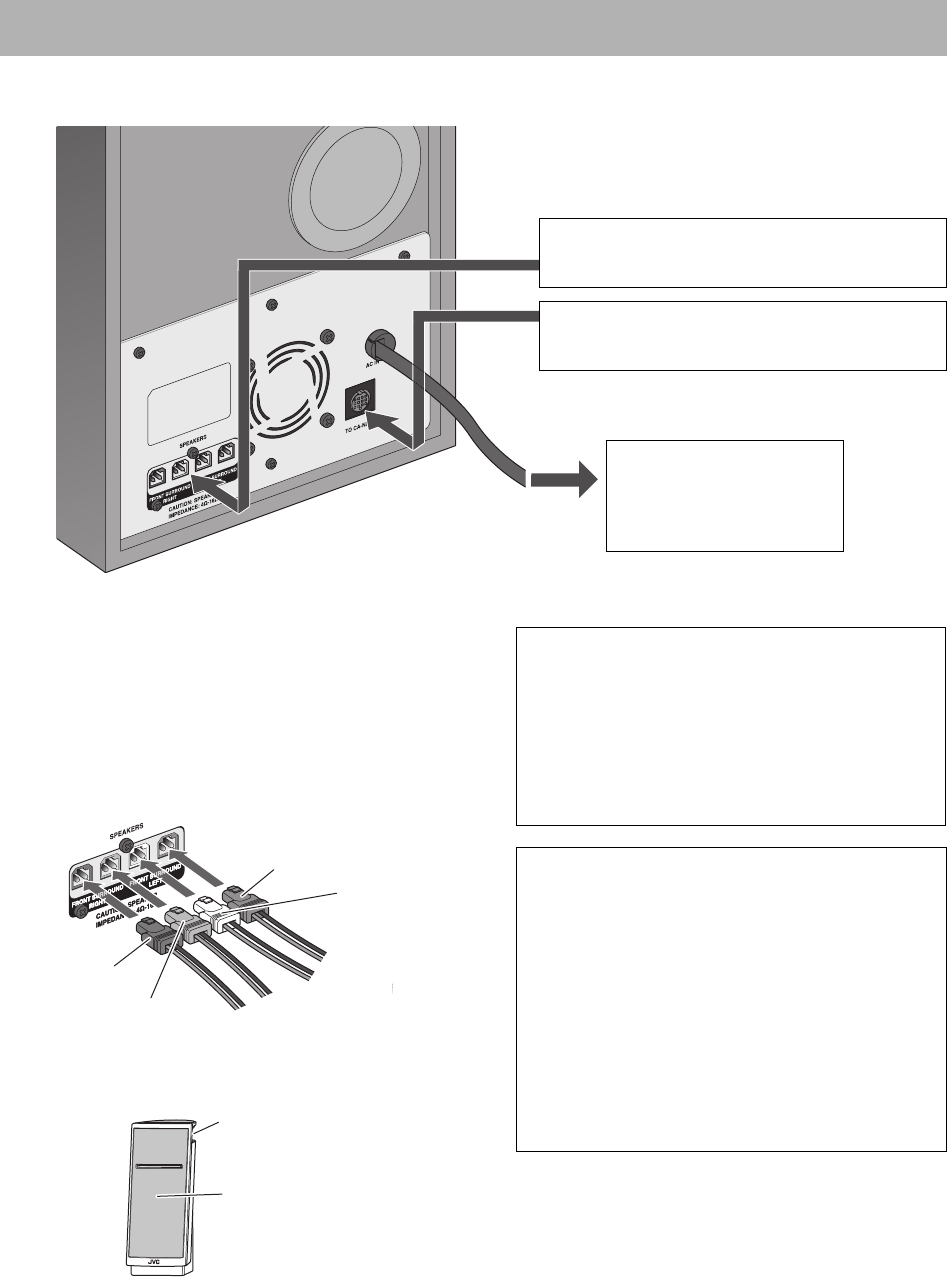

Connections ......................................................................... 5

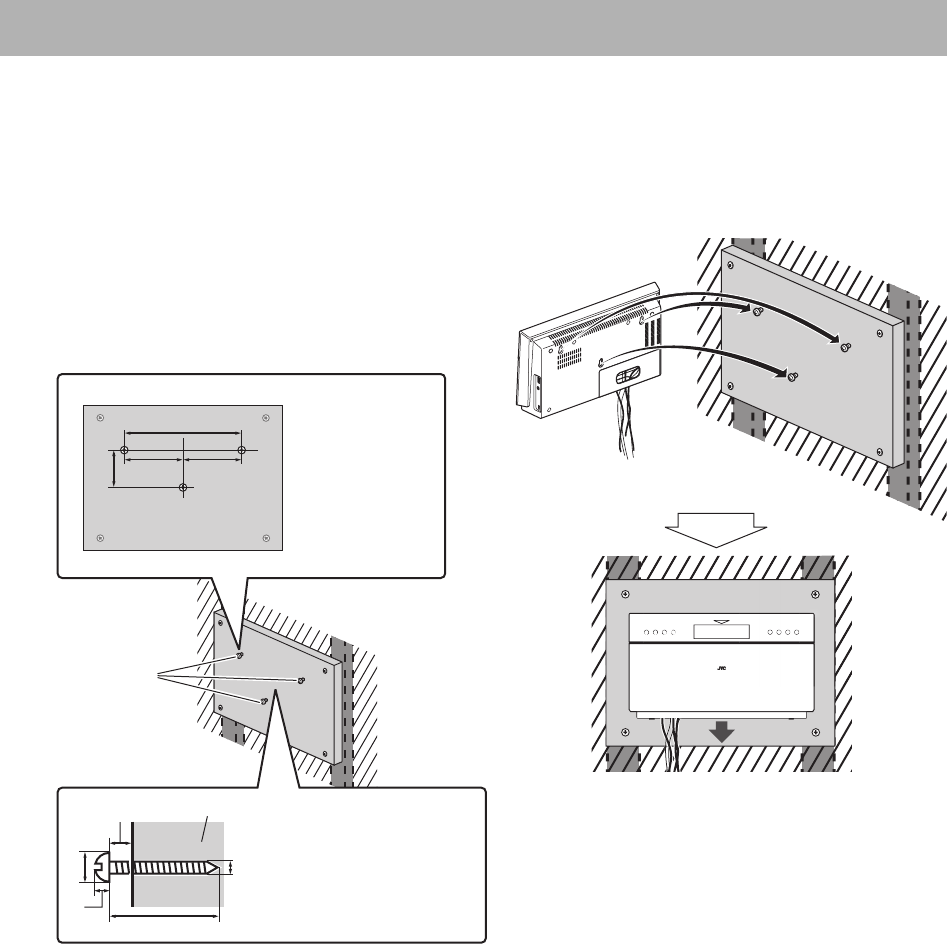

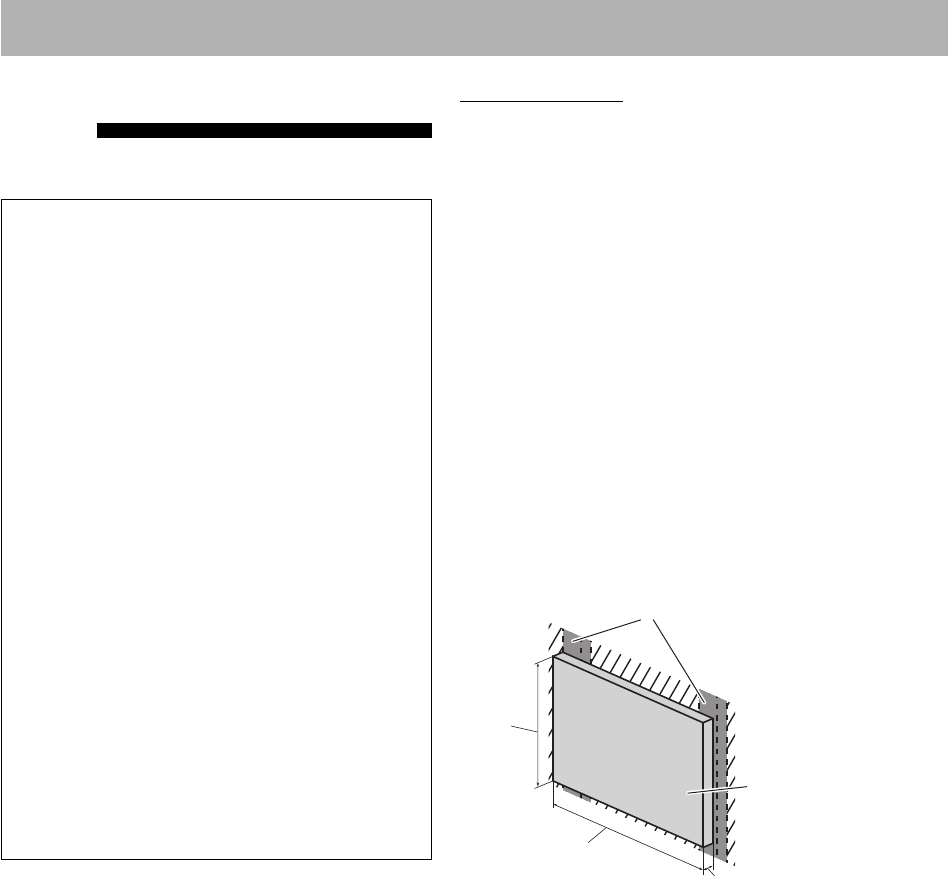

When Installing the Main Unit on a Wall ....................... 11

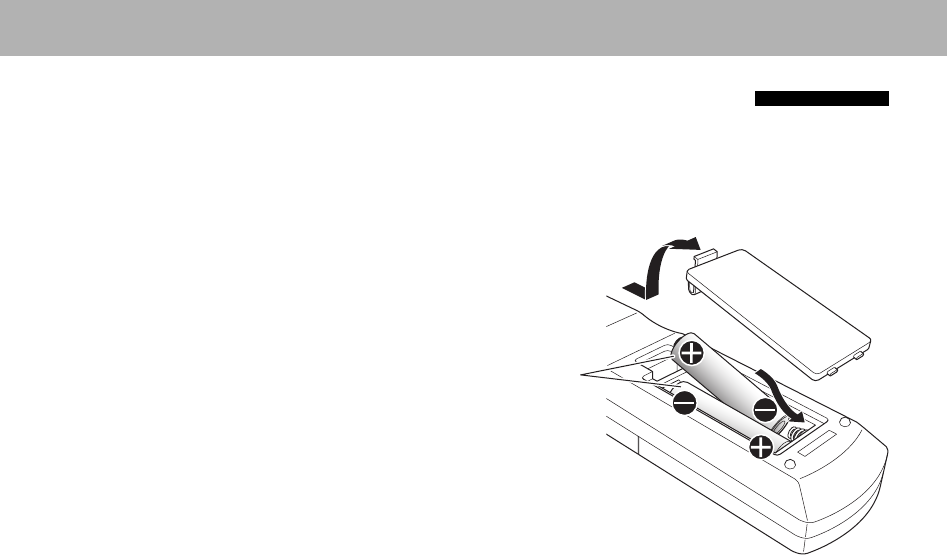

Preparing the Remote Control .......................................... 13

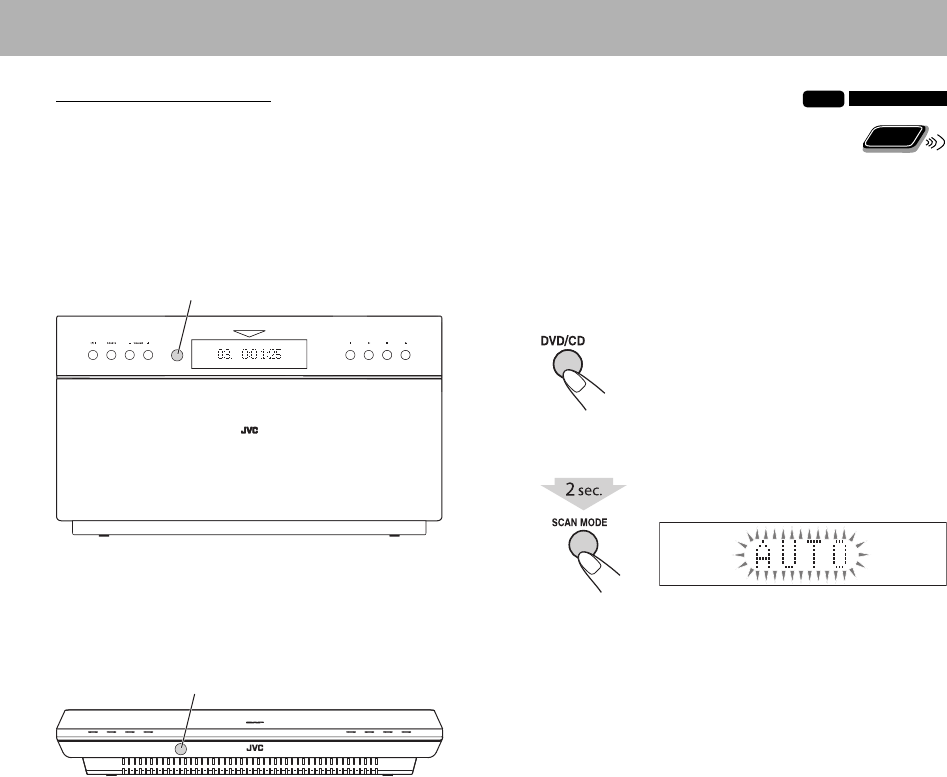

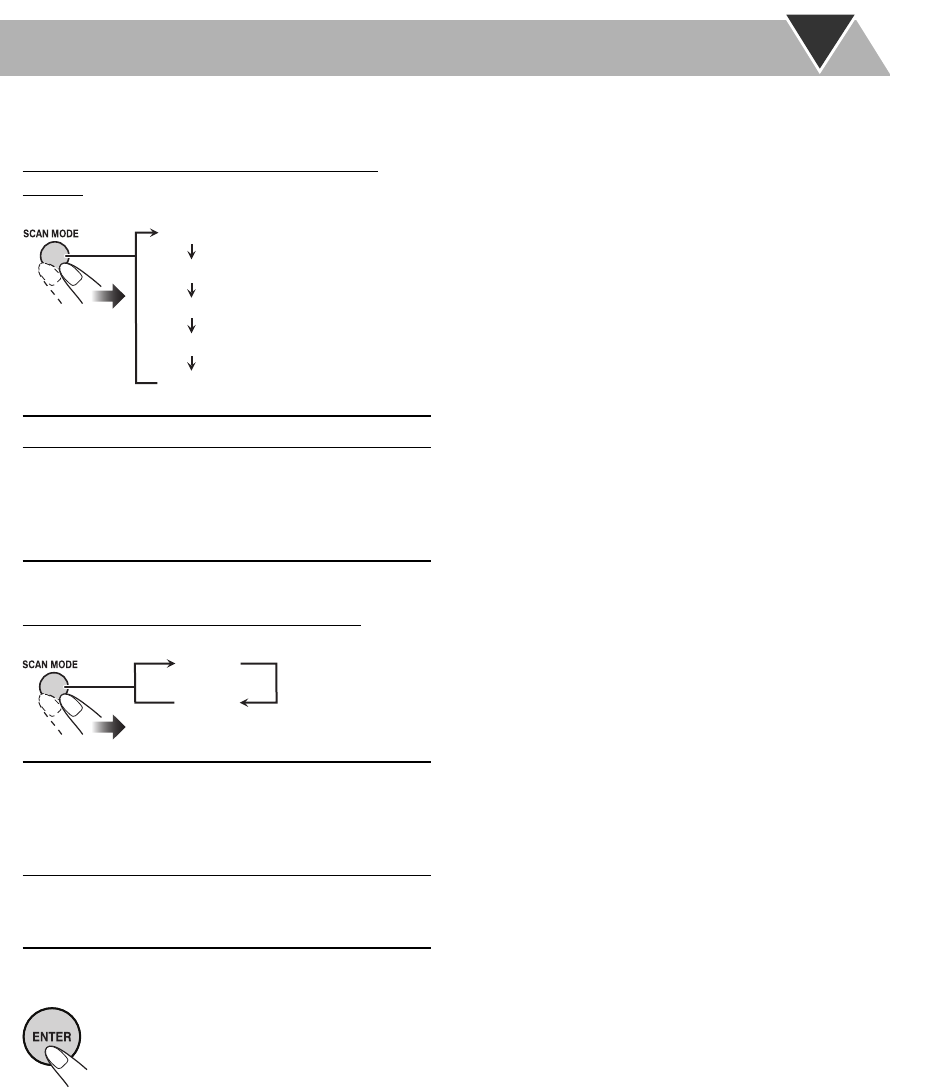

Changing the Scanning Mode ........................................... 14

Display Indicators .................................................... 16

Daily Operations—Playback .................................... 17

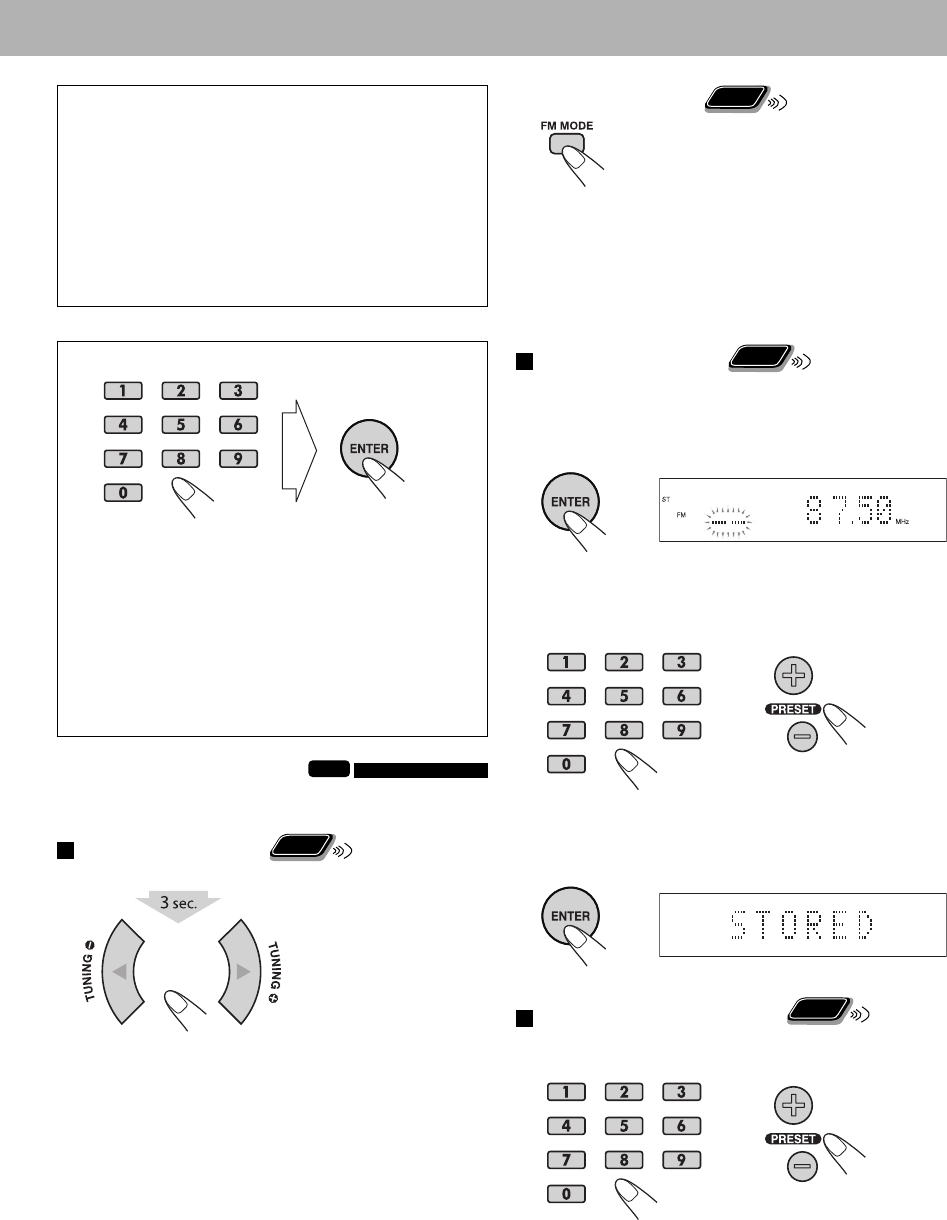

Listening to the FM Radio .................................................. 18

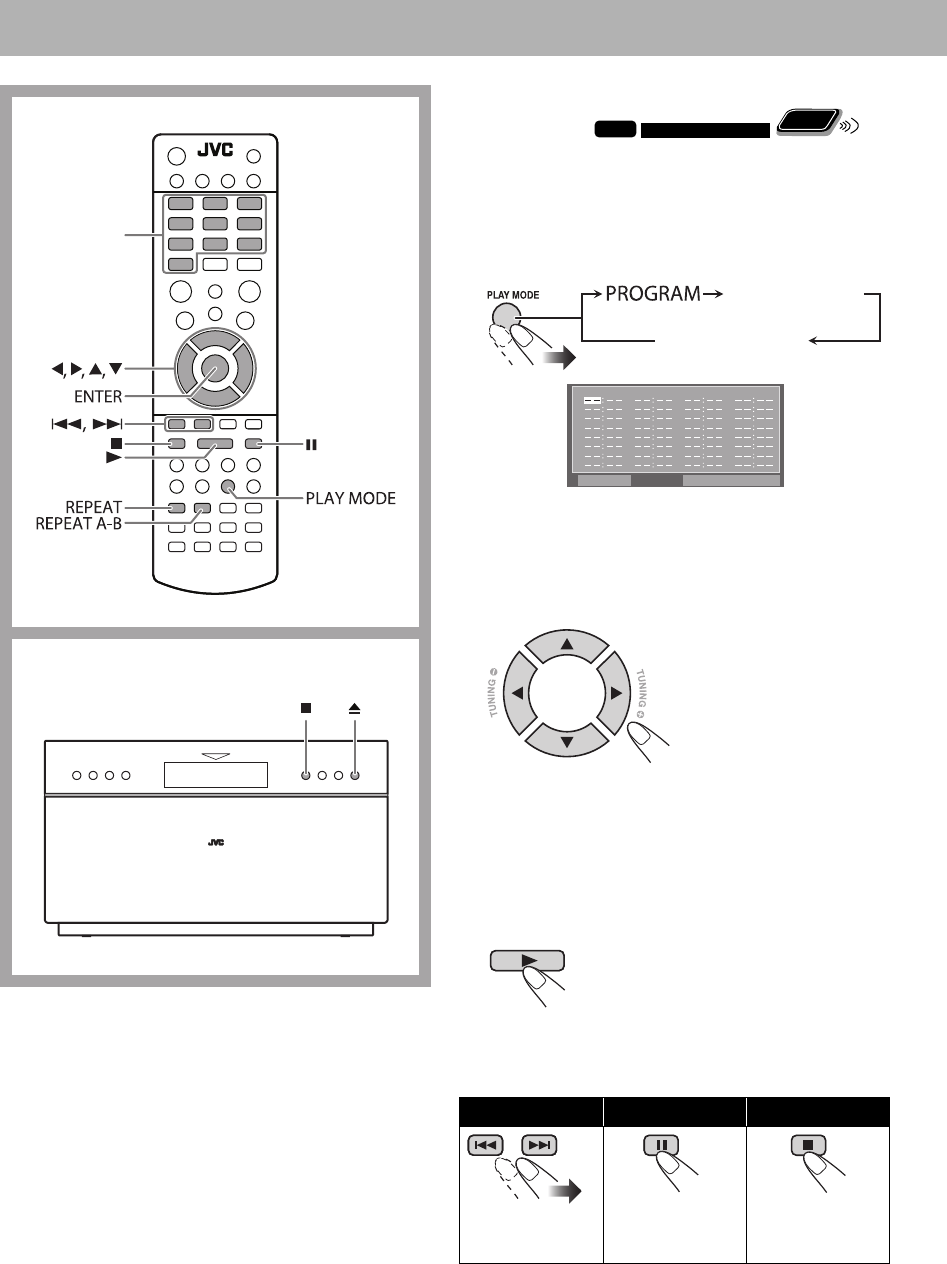

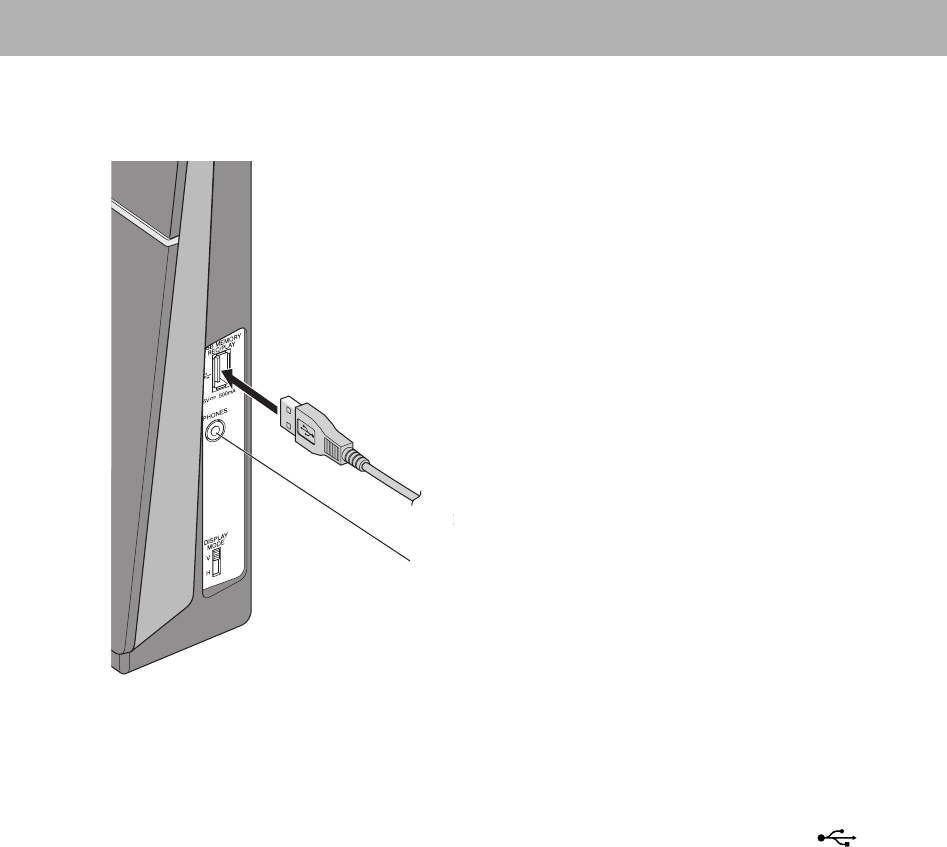

Playing Back a Disc/USB Mass Storage Class Device ..... 19

Playing Back Other Equipment ......................................... 21

Daily Operations—Sound & Other Adjustments ......... 22

Turning Off the Sound in a Moment ............................... 22

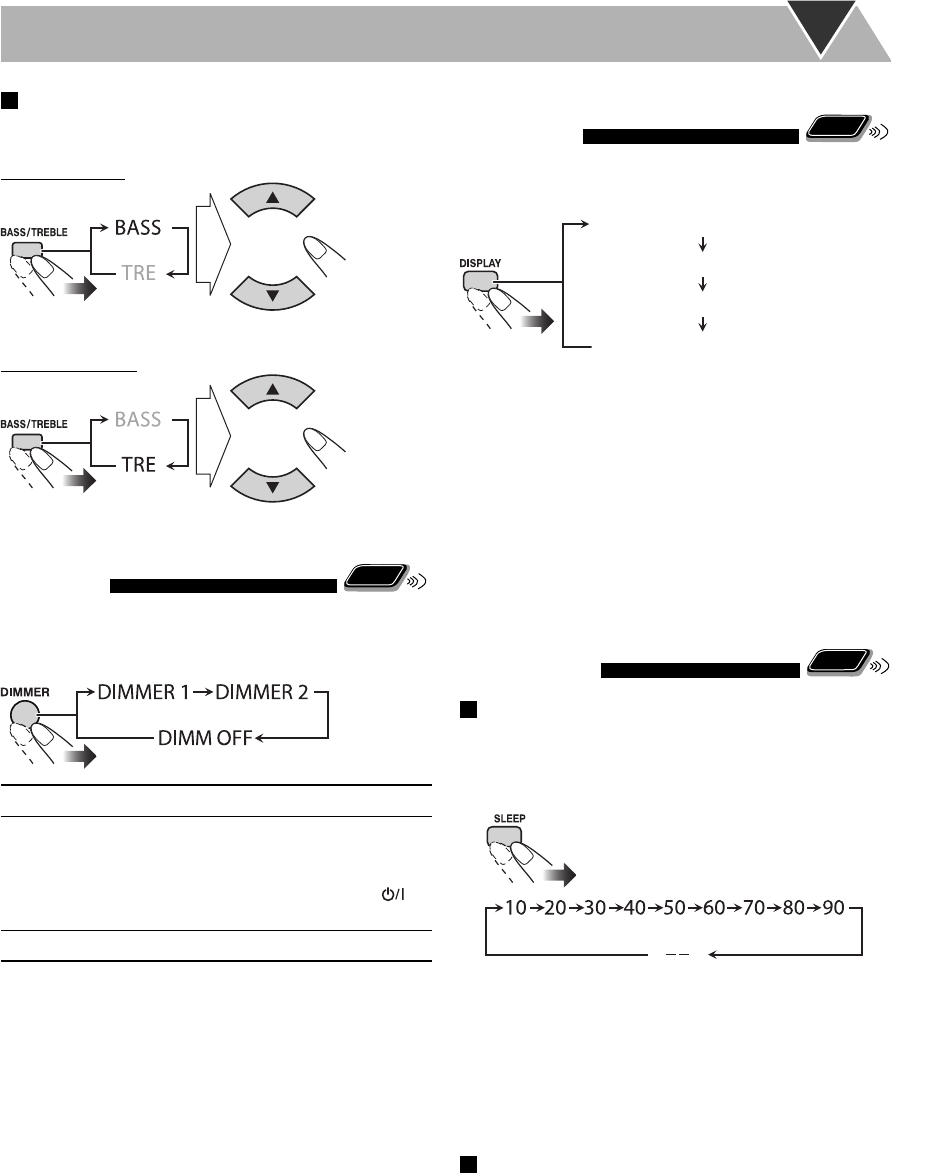

Adjusting the Sound ........................................................... 22

Changing the Display Brightness ...................................... 23

Changing the Display Information ................................... 23

Turning Off the Power Automatically ............................. 23

Advanced Radio Operations ...................................... 24

Receiving FM Stations with Radio Data System ............. 24

Searching for a Program by PTY Codes ........................... 25

Unique Video Disc/File Operations ............................ 26

Selecting the Audio Track .................................................. 26

Selecting the Subtitle Language ......................................... 27

Selecting the View Angle .................................................... 27

Special Effect Playback ........................................................ 28

Advanced Disc/File Playback Operations .................... 29

Programming the Playing Order—Program Play ........... 29

Playing at Random—Random Play .................................. 30

Playing Repeatedly .............................................................. 30

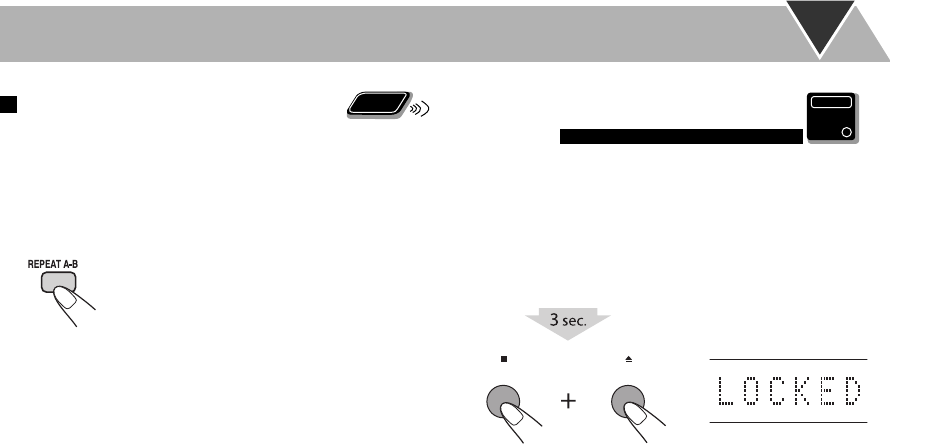

Prohibiting Disc Ejection—Child Lock ............................ 31

Recording Operations .............................................. 32

Recording from a Disc ........................................................ 33

On-Screen Operations .............................................. 34

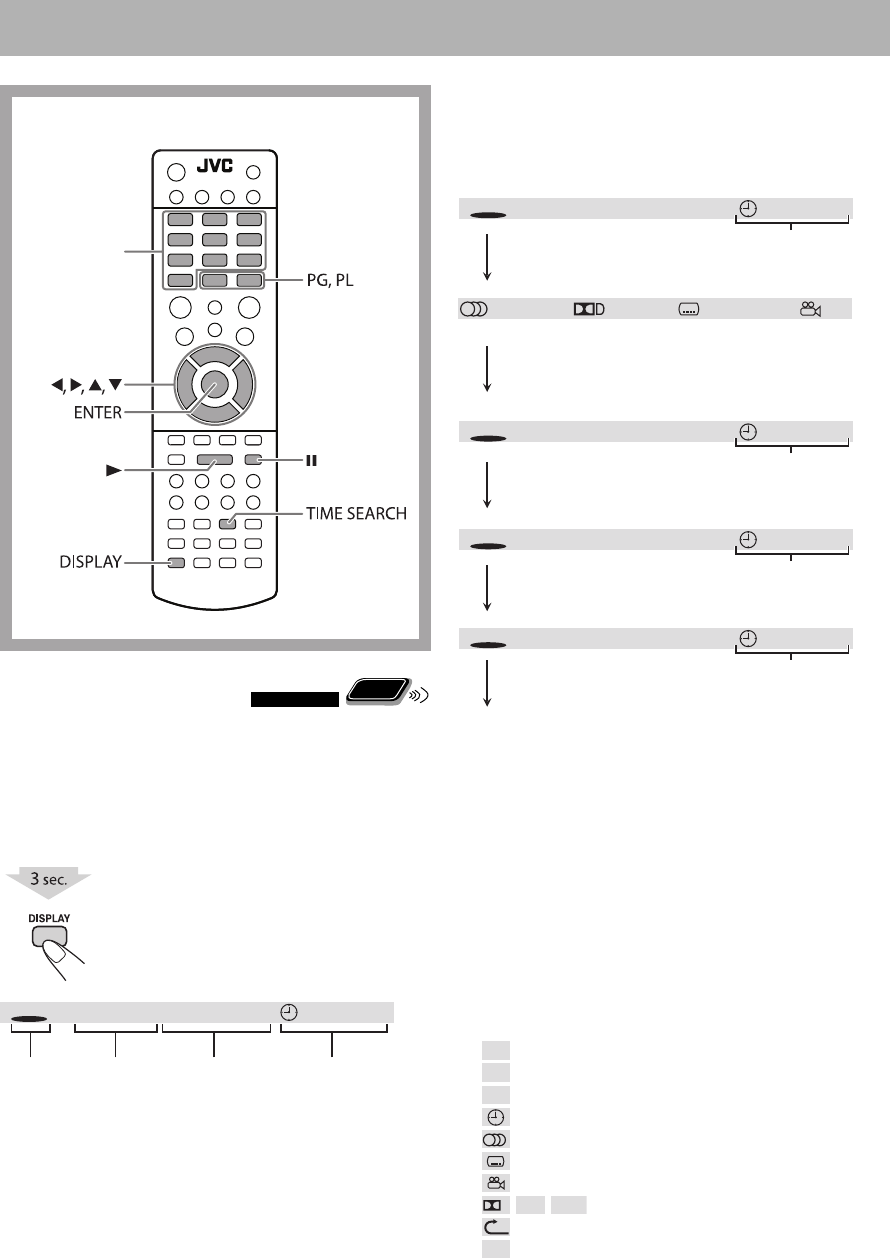

On-Screen Bar Operations ................................................. 34

Control Screen Operations ................................................ 36

Setup Menu Operations ............................................ 39

Setting Up Playback of Discs/USB Devices/HDMI

Devices .............................................................................. 39

Setting Up the Sound and HDMI Functions ................... 41

Additional Information ............................................ 43

Learning More about This System ................................... 43

Maintenance ......................................................................... 45

Troubleshooting .................................................................. 46

Display Messages for Recording Operations ................... 48

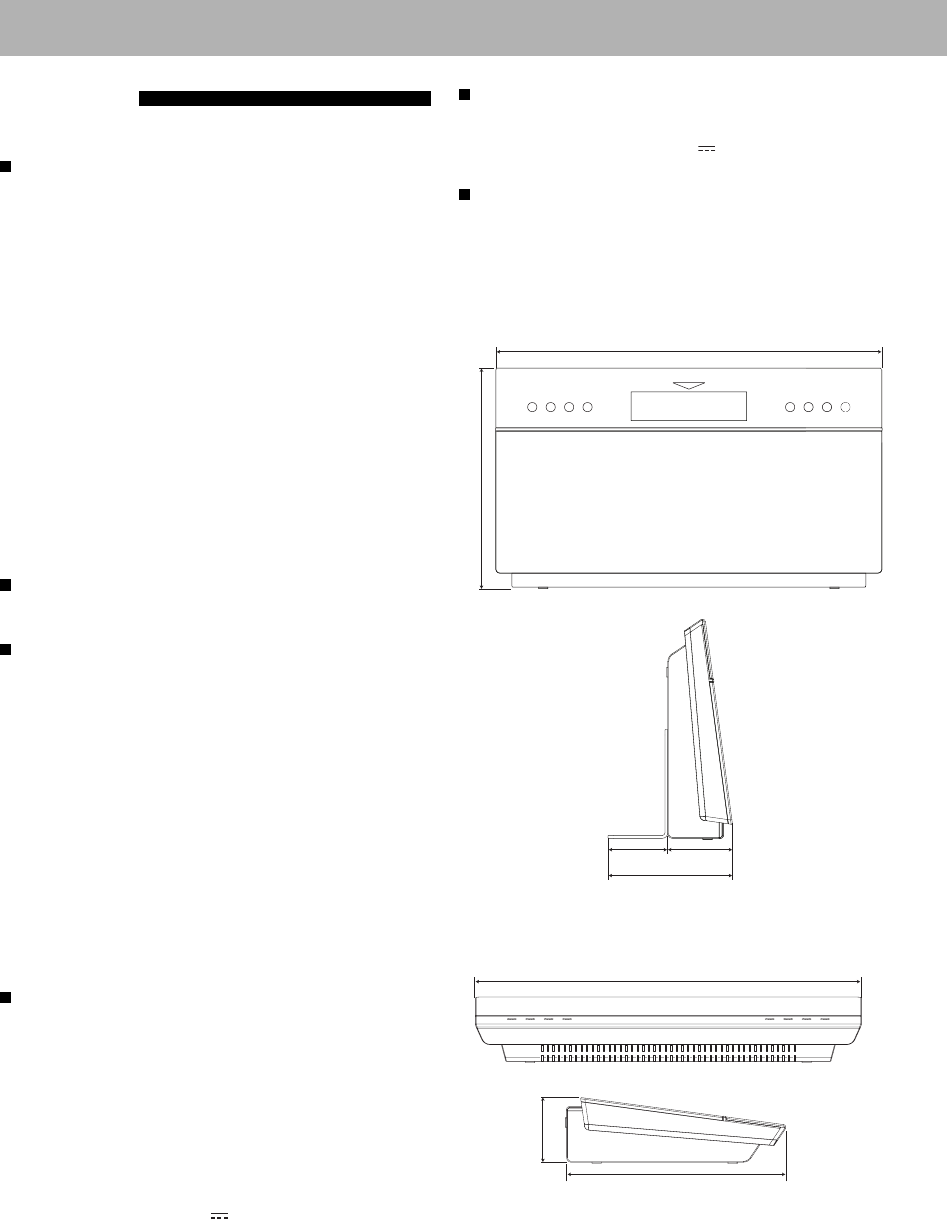

Specifications ....................................................................... 49

Parts Index ............................................................. 52

Contents

EN_NX-T10[B].indb 2EN_NX-T10[B].indb 2 09.9.15 8:32:23 AM09.9.15 8:32:23 AM

Playable Disc/File Types

DIGITAL VIDEO

SUPER VIDEO

COMPACT

DIGITAL AUDIO

• CD-R/-RW: Recorded in the Audio CD, Video CD,

and SVCD formats. MP3, WMA, JPEG, MPEG-1,

MPEG-2, and DivX files written in accordance with the

“ISO 9660” format can also be played.

• DVD-R/-RW: Recorded in the DVD Video format and

DVD Video Recording (VR) format.

MP3, WMA, JPEG, MPEG-1, MPEG-2, and DivX files

written in the UDF-Bridge format can also be played.

• +R/+RW: Recorded in the DVD Video format. MP3,

WMA, JPEG, MPEG-1, MPEG-2, and DivX files

written in the UDF-Bridge format can also be played.

• USB mass storage class device: MP3, WMA, JPEG,

MPEG-1, MPEG-2, and DivX* files.

In addition to the above discs/files, this System can play

back audio data recorded on CD-Extra.

• The following discs cannot be played back:

– DVD-RAM, CD-I (CD-I Ready), CD-ROM, and Photo

Playing back these discs will generate noise and damage

the speakers.

– 8 cm disc

An 8 cm disc cannot be played back with this System.

• CD Text and DVD Text can be played, but Text

information will not be shown on the display.

• In this manual, “file” and “track” are used

interchangeably.

• It is possible to play back finalized +R/+RW (DVD Video

format only) discs. DVD indicator lights on the TV

screen when a +R/+RW disc is loaded.

• “DVD Logo” is a trademark of DVD Format/Logo

Licensing Corporation.

• This System can play back Everio files (see page 44)

recorded on DVD, CD*, and USB mass storage class

device*.

* Only when the maximum bit rate is less than 2 Mbps.

About color system

This System can play back discs recorded in both PAL and

NTSC video format. When you play back an NTSC disc,

the NTSC video signal is converted into the PAL video

signal and emitted.

Note on Region Code

DVD players and DVDs have their own Region Code

numbers. This System can play back only DVDs with

Region Code numbers including “2.”

• “WRONG REGION” appears on the TV if DVD with

another Region Code is loaded.

Ex.:

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with

the “Compact Disc Digital Audio” standard. Therefore,

the use of the Non-DVD side of a DualDisc in this product

may not be recommended.

IMPORTANT: Before playing a disc/file, make sure of the

following...

• Turn on the TV and select an appropriate input mode

on the TV to view the pictures or on-screen displays.

• For disc/file playback, you can change the initial setting

to your preference. See “Setup Menu Operations” on

page 39.

If “INVALID KEY” appears on the TV screen when

you press a button, the disc/file cannot perform the

operation you have tried to do.

EN_NX-T10[B].indb 3EN_NX-T10[B].indb 3 09.9.15 8:32:24 AM09.9.15 8:32:24 AM

When placing the main unit horizontally

Set the DISPLAY MODE switch to “H” (horizontal).

Preparations

When placing the main unit vertically

Set the DISPLAY MODE switch to “V” (vertical) and

attach the supplied stand to the main unit (see page 9).

• When installing the main unit on a wall (see page 11),

also set the DISPLAY MODE switch to “V.”

• When placing the main unit vertically, attach the

supplied stand firmly to the back of the main unit after

connections have been completed (see page 9).

Placing the Main Unit Vertically or Horizontally

You can place the main unit either vertically or horizontally. Set the DISPLAY MODE switch according to the way the

main unit is placed.

• The position of the remote sensor also changes according to the setting of the DISPLAY MODE switch (see page 14).

This manual explains operations using

the illustrations of the main unit placed

vertically as examples.

Buttons and operations when the main

unit is placed horizontally are the same

as when it is placed vertically.

Buttons and display indications with the DISPLAY

MODE switch set to “V”

Buttons and display indications with the DISPLAY

MODE switch set to “H”

EN_NX-T10[B].indb 4EN_NX-T10[B].indb 4 09.9.15 8:32:26 AM09.9.15 8:32:26 AM

Connections

INFO

Do not connect the power cord until all other connections have been made.

Detach the connector cover from the main unit and

connect the cords by passing them through the hole of

the connector cover.

• Attach the connector cover again to the main unit after connections has been completed.

Rear panel of the main unit

~ HDMI IN 1/HDMI IN 2/DIGITAL IN

(OPTICAL)

From the output of a Blu-ray device or a

Digital Set Top Box

See page 6.

@ TO SP-NXT10W

From the subwoofer (with the supplied

system cable)

See page 7.

Ÿ VIDEO OUT

From the input of a TV/monitor

See page 6.

Ÿ HDMI MONITOR OUT

From the input of a TV/monitor

See page 6.

When placing the main unit horizontally

Also use the same hole as illustrated below when installing

the main unit on a wall (see page 11).

! FM. ANT

From the FM antenna

See page 7.

⁄ AUDIO IN

From the output of an analog audio device

See page 7.

How to detach the connector

cover

Cords

When placing the main unit vertically

EN_NX-T10[B].indb 5EN_NX-T10[B].indb 5 09.9.15 8:32:27 AM09.9.15 8:32:27 AM

Ÿ TV/monitor

Connect an HDMI cable, a component video cord, or a

composite video cord.

• To select progressive scanning mode (see page 14), use

the HDMI MONITOR OUT terminal or COMPONENT

jacks.

When connecting your TV

Connect your TV directly to the System. Connecting the

System to a TV via other device, such as a VCR or an

HDD/DVD recorder, may interfere with your viewing.

Connecting an integrated TV/VCR system to the System

may also interfere with your viewing.

• When connecting a TV with an HDMI cable or a

component video cord, select the appropriate video signal

output according to the TV. See pages 14 and 15.

• When you use an HDMI cable, make appropriate settings

in the Setup menu (see pages 39 – 42).

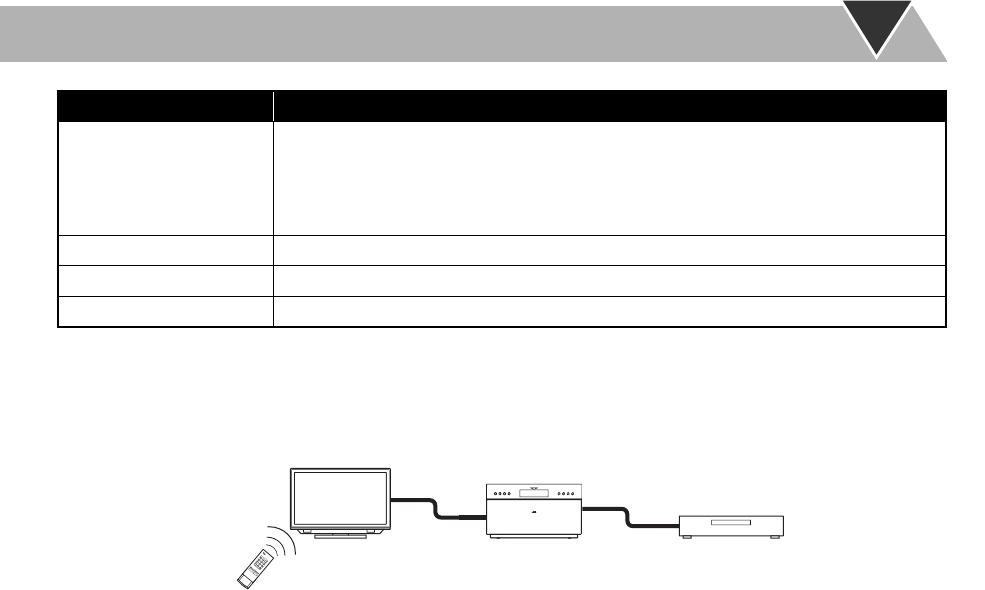

• This System is compatible with some basic functions of

HDMI CEC. For details, see page 42.

• Playback sound may be interrupted when operating the

TV connected with the HDMI cable.

~ Blu-ray device or Digital Set Top Box

* Connect the digital audio output to the DIGITAL IN

(OPTICAL) terminal when the device does not emit audio

signals from its HDMI output.

When connecting a Blu-ray device or a Digital Set Top Box

• When connecting with an HDMI cable, use the HDMI

cable of less than 2 m.

• Scanning mode setting of the System (see page 14) does

not affect the video signals of the HDMI MONITOR

OUT terminal coming from the HDMI IN 1 and 2

terminals.

• When connecting the digital audio output of the device

to the DIGITAL IN (OPTICAL) terminal, make sure of

the following:

– Set the digital audio output setting of the device

properly. For details, refer to the manual of the device.

Following signals can be reproduced on the System:

Dolby Digital, DTS Digital Surround, Linear PCM

• For the audio signals coming from the HDMI IN 1 and 2

terminals, you can choose whether to emit the signals to

the TV through the HDMI MONITOR OUT terminal or

reproduce the sound on the System. For details, see page

41.

HDMI cable (not supplied)

Use an HDMI cable of less than

2 m.

• Connect the HDMI cable

straight not to cause damage

to the HDMI terminal.

Component video cord

(not supplied)

Red

Blue

Green

Composite video cord

(supplied)

Optical digital cord*

(not supplied)

HDMI cable

(not supplied)

Protective

cap

• Connect the HDMI cable straight

not to cause damage to the

HDMI terminal.

EN_NX-T10[B].indb 6EN_NX-T10[B].indb 6 09.9.15 8:32:28 AM09.9.15 8:32:28 AM

! FM antenna

Extend it so that you can obtain the best reception.

For better FM reception

Disconnect the supplied FM antenna, and connect to an

outdoor FM antenna using a 75 Ω wire with coaxial type

connector (IEC or DIN45325).

This System cannot receive the AM (LW/MW) band.

⁄ Analog audio device

FM antenna (supplied)

FM outdoor antenna

(not supplied)

Audio cord (not supplied)

Red

White

@ System cable

Connect the system cable with the arrow side facing up.

After connections on the rear of the main unit have been

completed, connect speakers and the system cable to the

subwoofer. See pages 8 and 9.

System cable (supplied)

From the subwoofer

Arrow

EN_NX-T10[B].indb 7EN_NX-T10[B].indb 7 09.9.15 8:32:29 AM09.9.15 8:32:29 AM

Rear panel of the subwoofer

¤ SPEAKERS

From the speakers

See below.

‹ To a wall outlet

Plug in the power cord

only after all connections

have been completed.

See page 9.

# TO CA-NXT10

From the main unit

See page 9.

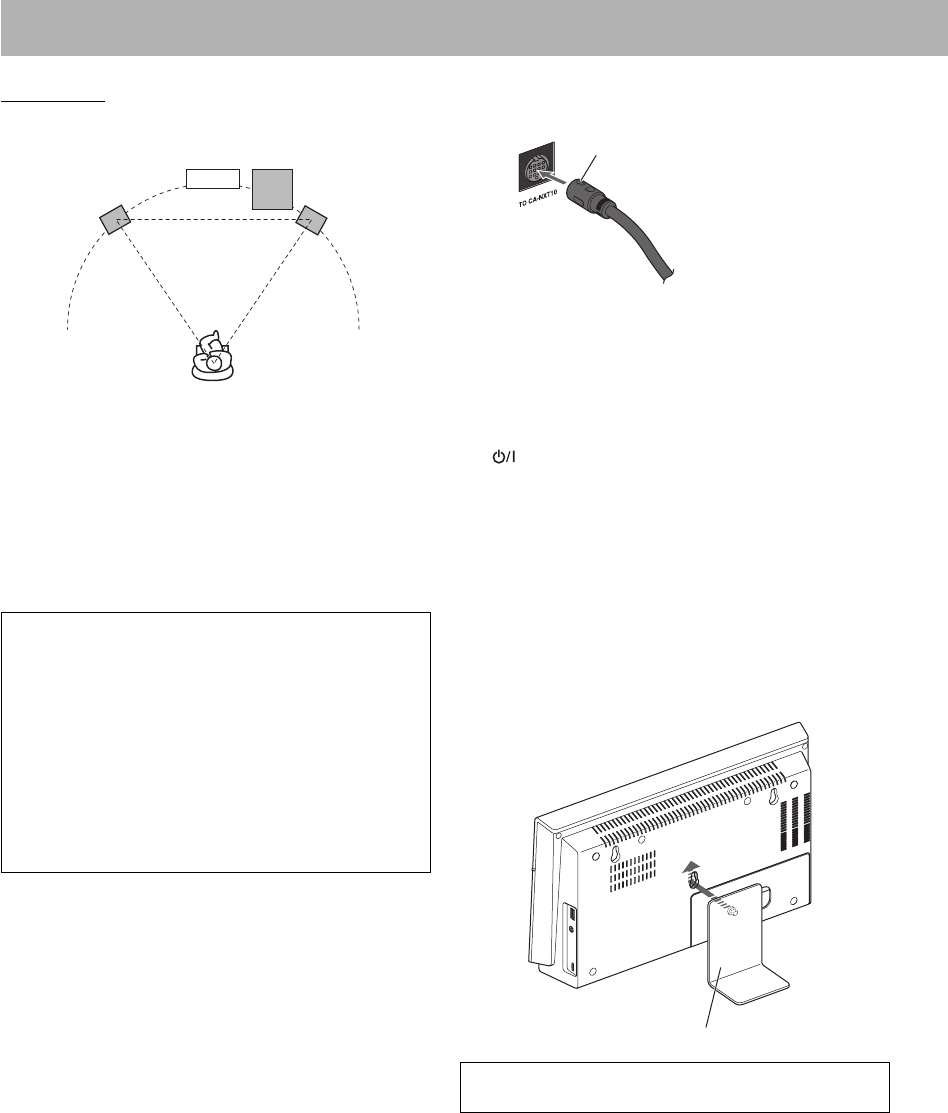

¤ Speakers

Connect the speakers to the subwoofer by connecting the

colored connectors to the same color terminals on the rear

of the subwoofer.

Red

Blue

White

Gray From the right

speaker

From the left

speaker

Speaker unit for the surround channel

(on the top)

Speaker unit for the front channel (on

the front)

CAUTION:

• The supplied speakers are manufactured exclusively

for use with the NX-T10 System. Do not connect

the supplied speakers to any devices other than the

subwoofer of the System (SP-NXT10W). Doing so may

damage the speakers.

• Do not connect external speakers together with the

supplied speakers. The change in impedance may

damage the System.

IMPORTANT

• Improper speaker cable connection reduces the stereo

effect and sound quality.

• The supplied left/right speakers are magnetically

shielded, but color irregularity may occur on the TV.

To prevent color irregularity, set up the speakers

following the instructions below. (The subwoofer is not

magnetically shielded.)

1 Turn off the main power of the TV before setting up

the speakers.

2 Place the speakers enough distance from the TV so

that they do not cause color irregularity on the TV.

3 Wait for approximately 30 minutes before turning on

the main power of the TV again.

Continued on the next page

EN_NX-T10[B].indb 8EN_NX-T10[B].indb 8 09.9.15 8:32:30 AM09.9.15 8:32:30 AM

Speaker layout

This System is designed to provide virtual surround sound

by positioning the 3 speakers in front.

Omni-Directional Speakers provides a wide sound field

and realistic acoustic ambience.

• When it is difficult to place the speakers as illustrated

above, you can adjust the output level of the speakers to

have a better sound effect. See page 42.

CAUTION:

When installing the left and right speakers on a wall:

• When installing the speakers on a wall, be sure to have

the speakers installed by qualified personnel.

• DO NOT install the speakers on the wall by yourself

to avoid unexpected damage from them falling off the

wall due to incorrect installation or weakness in wall

structure.

• Care must be taken in selecting a location for speaker

installation on a wall. Injury to personnel or damage

to devices may result if the installed speakers interfere

with daily activities.

# System cable

Connect the system cable with the arrow side facing up.

‹ Power cord

Connect the power cord of the subwoofer after other

connections have been completed.

The lamp on the main unit and the POWER ON/

STANDBY lamp on the subwoofer light red.

To attach the supplied stand to the main unit

When placing the main unit vertically, make sure to attach

the supplied stand to the main unit. Attach the supplied

stand firmly to the back of the main unit after connections

have been completed.

CAUTION:

Detach the stand before carrying the main unit.

System cable (supplied)

Main unit

Subwoofer

Right speakerLeft speaker

Stand (supplied)

Arrow

From the main unit

EN_NX-T10[B].indb 9EN_NX-T10[B].indb 9 09.9.15 8:32:31 AM09.9.15 8:32:31 AM

Side panel of the main unit

From a USB mass storage class device

When connecting a USB mass storage class device

• When connecting with a USB cable, use the USB 2.0 cable whose length is less than 1 m.

• You can connect a USB mass storage class device such as a USB flash memory device, hard disk drive, multimedia card

reader, etc. to this System.

• You cannot connect a computer or JVC Everio camcorder to the USB MEMORY REC/PLAY terminal ( ) of the

System.

• Electrostatic shock at connecting a USB device may cause abnormal playback of the device. In this case, disconnect the

USB device then reset this System and the USB device.

See page 18.

EN_NX-T10[B].indb 10EN_NX-T10[B].indb 10 09.9.15 8:32:32 AM09.9.15 8:32:32 AM

Example of attachment

The procedure below is an example of how to attach the

main unit to a wall.

It does not make any guarantee for safety while using the

main unit on the wall. Take into account such factors as the

material, strength, and the status of the wall as well as the

reinforcing material, and the possible changes that will take

place over time.

• You need to connect the cords to the main unit before

attaching it to the wall.

• DO NOT plug the power cord into an AC outlet before

installing the main unit on the wall.

1 Select the place (wooden wall) where the main unit is

to be attached.

Avoid a plywood or plasterboard wall.

2 For reinforcement purposes, prepare the wooden

board which will be used to install the main unit on

the wall.

Before proceeding, check the position of the supports

inside the wall.

Use a sturdy board sized as below:

When Installing the Main Unit

on a Wall

You can install the main unit on a wall.

CAUTION:

• Be sure to have the main unit installed by qualified

personnel.

• DO NOT install the main unit on the wall by yourself

to avoid unexpected damage from them falling off the

wall due to incorrect installation or weakness in wall

structure.

• Care must be taken in selecting a location for

installation on a wall. Injury to personnel or damage to

devices may result if the main unit installed on a wall

interfere with daily activities.

• The main unit weighs approximately 2.3 kg. Sufficient

care must be required when installing the main unit

on a wall to prevent any accidents caused by the main

unit’s falling off.

• Before installing the main unit on a wall, check the wall

(or other related aspects) to install, and verify whether

the strength of the wall will be sufficient to support the

weight of the main unit.

• Do not install the main unit to a plywood or

plasterboard wall. The main unit will fall and sustain

damage as a result.

• The screws needed for attachment are not supplied.

Use screws which are compatible with the strength and

material of the pillar or wall.

• When installing the main unit, the screws must

be secured tightly in all three locations. Failure in

installing the main unit to the wall using all three holes

on the back of the main unit makes for an unstable

installation and it constitutes a safety hazard as the

main unit may fall down.

Board

Supports inside the wall

A (Height): Higher than the main unit

B (Width): Wider than the distance between the two

supports inside the wall

C (Thickness): 9 mm to 15 mm

EN_NX-T10[B].indb 11EN_NX-T10[B].indb 11 09.9.15 8:32:32 AM09.9.15 8:32:32 AM

5 Hook the main unit onto the mounted screws and

slide the main unit down.

Make sure that the main unit is installed securely.

• Adjust the screws if the main unit is not installed

securely.

Continued on the next page

3 Attach the board to the wall.

Anchor the board securely in at least four places to the

supports inside the wall.

The diameter of the screws must be more than 4 mm

and their length must be 3 times the thickness of the

board mounted on the wall (also take the thickness of

the wall into account).

4 Mount three screws (not supplied) to the board which

has been attached on the wall.

Attach the screws to the board as illustrated below.

Slide down.

Screws (not

supplied)

D: 240 mm

E: 78 mm

F: 120 mm

Board

G: Keep the space of 6 to 7 mm.

H: 10.5 to 12 mm

I: Within 3.5 mm

J: 12 to 19 mm (According to

the thickness of the board)

K: 5 mm

EN_NX-T10[B].indb 12EN_NX-T10[B].indb 12 09.9.15 8:32:33 AM09.9.15 8:32:33 AM

• Do not place anything on top of the main unit. Doing so

may cause the main unit to fall down, and cause injury to

the persons around.

• Do not climb onto the main unit or hang from it. Doing

so may damage the main unit and/or cause injury to the

person.

Take care specially when there are small children at the

home.

• Avoid sandwiching the cords between the main unit and

wall. This may upset the balance of the main unit and

cause the main unit to fall down.

• Make sure that the connected cords will not interfere

with daily activities and that the users will not be caught

in the cords.

• Do not pull the connected cords with excessive force.

• Check regularly that none of the screws are loose.

• In the event that the main unit has fallen, turn off the

power, disconnect the power cord from the AC outlet.

Then, contact your dealer for an inspection and repairs.

Using the main unit in this state may cause a fire or

electrical shock.

• Do not place valuables (breakables) underneath the

location where the main unit is installed. They will be

damaged if the main unit should fall.

• JVC bears no responsibility for any accidents or damage

resulting from inadequate assembly or mounting,

insufficient strength of attachment, misuse or abuse, or

natural disasters.

Preparing the Remote Control

Insert the battery into the remote control by matching the

polarity (+ and –) correctly.

• If the range or effectiveness of the remote control

decreases, replace both batteries.

R03/LR03/AAA

EN_NX-T10[B].indb 13EN_NX-T10[B].indb 13 09.9.15 8:32:34 AM09.9.15 8:32:34 AM

When using the remote control

Point the top of the remote control towards the remote

sensor as directly as possible. If you operate it from a

diagonal position, the operating range (approx. 5 m) may

be shorter.

When placing the main unit vertically (with the DISPLAY MODE

switch set to “V”)

When placing the main unit horizontally (with the DISPLAY

MODE switch set to “H”)

Remote sensor

Changing the Scanning Mode

INFO

Select the video signal output according to

the type of your TV after connecting the main

unit to the TV.

• Turn on the System before setting the scanning mode.

See page 17.

• There is no need to make this setting when you connect

the TV with a composite video cord.

1 Select DVD/CD as the source.

2 Enter the scanning mode setting.

• Finish the following process while the setting item is

flashing.

Remote

ONLY

Ex.: When the TV is connected to the HDMI

MONITOR OUT terminal

Continued on the next page

EN_NX-T10[B].indb 14EN_NX-T10[B].indb 14 09.9.15 8:32:35 AM09.9.15 8:32:35 AM

3 Select the scanning mode.

When connecting the TV to the HDMI MONITOR OUT

terminal

AUTO Normally select this.

576P

720P

1080I

1080P

Select a scanning mode when it is

needed.

• Available settings vary according

to the available resolutions of the

connected TV.

When connecting the TV to the COMPONENT jacks

576P Select this when connecting the TV

compatible with the progressive

scanning to the COMPONENT jacks.

Progressive scanning delivers a high

quality picture.

576I Select this when connecting the TV

that does not support the progressive

scanning.

4 Store the setting.

576P

576I

AUTO

576P

720P

1080P

1080I

EN_NX-T10[B].indb 15EN_NX-T10[B].indb 15 09.9.15 8:32:35 AM09.9.15 8:32:35 AM

Display Indicators

The indications on the display tell you a lot of things while you are operating the System.

Before operating the System, be familiar with when and how the indicators light on the display.

p REC (recording) indicator

• Flashes when recording starts and remains lit while

recording.

q USB indicator

• Lights in the following cases:

– When “USB” is selected as the source and a USB

mass storage class device is connected.

– When recording to a USB mass storage class device.

w PROGRESSIVE (progressive) indicator

• Lights when the progressive scanning mode is

selected.

e HD (High Definition) indicator

• Lights when a High Definition (720p/1080i/1080p)

video signal is emitted from the HDMI MONITOR

OUT terminal.

r Main display

• While listening to FM: band (or preset number) and

station frequency appear.

• While “HDMI 1,” “HDMI 2,” “DGTL (DIGITAL) IN,”

or “AUDIO IN” is selected as the source: the current

source name appears.

• While playing a disc or file: current status appears.

1 FM reception indicators

• ST (stereo): lights while an FM stereo station with

sufficient signal strength is tuned in.

• MONO (monaural): lights while receiving an FM

station in monaural.

2 Digital audio signal format indicators

3 HDMI indicator

• Lights when an HDMI video signal is output.

4 FM indicator

• Lights when FM is selected as the source.

5 CHAP. (chapter) indicator

• Lights to indicate the chapter number.

6 TRK (track) indicator

• Lights to indicate the track number.

7 PG (program) indicator

• Lights when an Original Program on DVD-VR is

played.

8 PL (Play List) indicator

• Lights when a Play List on DVD-VR is played.

9 Playback mode indicators

• PRG: lights when Program Play is activated.

• RND: lights when Random Play is activated.

• Repeat Mode indicators:

– : lights when One Track/File/Chapter Repeat is

activated.

– : lights when One Group/Title/Original

Program/Play List Repeat is activated.

– : lights when All Track/File/Title/Original

Program Repeat is activated.

– : lights when A-B Repeat is activated.

EN_NX-T10[B].indb 16EN_NX-T10[B].indb 16 09.9.15 8:32:36 AM09.9.15 8:32:36 AM

Daily Operations—Playback

In this manual, operations using the remote control

are mainly explained; however, you can use the buttons

and controls on the main unit if they have the same (or

similar) name and marks.

1 Turn on the power.

The lamp on the main unit lights blue.

• The POWER ON/STANDBY lamp on the

subwoofer also lights blue.

• Instead of pressing , the System is turned on by

pressing one of the following buttons:

– DVD/CD, HDMI 1/2, INPUT, FM, SOURCE, 3,

2 Select the source.

From the Remote control

• For disc: Press DVD/CD. See page 19.

• For FM: Press FM. See page 18.

• For HDMI 1/2: Press HDMI 1/2 repeatedly to select

“HDMI 1” or “HDMI 2.” See page 21.

• For USB/DIGITAL IN/AUDIO IN:

Press INPUT repeatedly to select “USB,” “DGTL

IN,” or “AUDIO IN.” See pages 19 and 21.

On the Main unit

Pressing SOURCE repeatedly changes the source as

follows:

• You can change the display information by pressing

DISPLAY. For details, see page 23.

3 Adjust the volume.

You can adjust the volume level from “VOL MIN”

(level 0) to “VOL MAX” (level 60).

To turn off (standby) the System

The lamp on the main unit lights red.

• The POWER ON/STANDBY lamp on

the subwoofer also lights red.

• A small amount of power is always

consumed even while on standby.

DO NOT turn off (standby) the System

with the volume set at an extremely high

level; otherwise, the sudden blast of sound

may damage your hearing, speakers and/or

headphones when you turn on the System or

start playback.

Remote control

Number

buttons

Main unit

EN_NX-T10[B].indb 17EN_NX-T10[B].indb 17 09.9.15 8:32:37 AM09.9.15 8:32:37 AM

For private listening

Connect a pair of headphones to the PHONES jack

on the main unit (see page 10). The sound will no

longer come out of the speakers. Be sure to turn down

the volume before connecting or putting on the

headphones.

• Disconnecting the headphones will activate the

speakers again.

• The surround effect is automatically deactivated while

connecting a pair of headphones.

How to select a number

Press the number buttons to enter the number, then

press ENTER.

Some items are automatically selected without pressing

ENTER.

Examples:

To select number 7, press 7, then ENTER.

To select number 14, press 1, 4, then ENTER.

To select number 78, press 7, 8, then ENTER.

To select number 104, press 1, 0, 4, then ENTER.

Listening to the FM Radio

INFO

• This System cannot receive the AM (LW/MW) band.

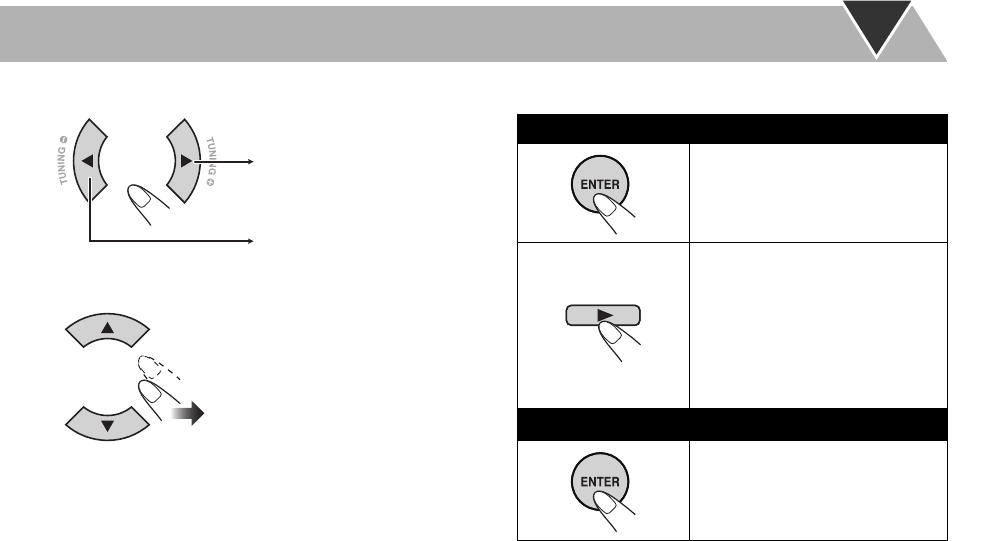

To tune in to a station

Remote

ONLY

While FM is selected...

Frequency starts changing on the display.

When a station (frequency) with sufficient signal strength

is tuned in, the frequency stops changing.

• When you repeatedly press the button, the frequency

changes step by step.

To manually stop the search, press either button.

If the FM reception is poor

Remote

ONLY

The MONO (monaural) indicator lights on the display.

Reception will improve though stereo effect is lost—

Monaural reception.

To restore the stereo effect, press the button again. The ST

(stereo) indicator lights on the display when an FM stereo

broadcast with sufficient signal strength is received.

To preset the stations

Remote

ONLY

You can preset 30 FM stations.

1 Tune in to a station you want to preset.

2 Activate the preset number entry mode.

• Finish the following process while the preset number

is flashing.

3 Select a preset number for the station you store.

• To select a number with the number buttons, see

“How to select a number” on the left column.

4 Store the station.

To tune in to a preset station

Remote

ONLY

While FM is selected...

Select the preset number for the station you stored.

• To select a number with the number buttons, see

“How to select a number” on the left column.

EN_NX-T10[B].indb 18EN_NX-T10[B].indb 18 09.9.15 8:32:38 AM09.9.15 8:32:38 AM

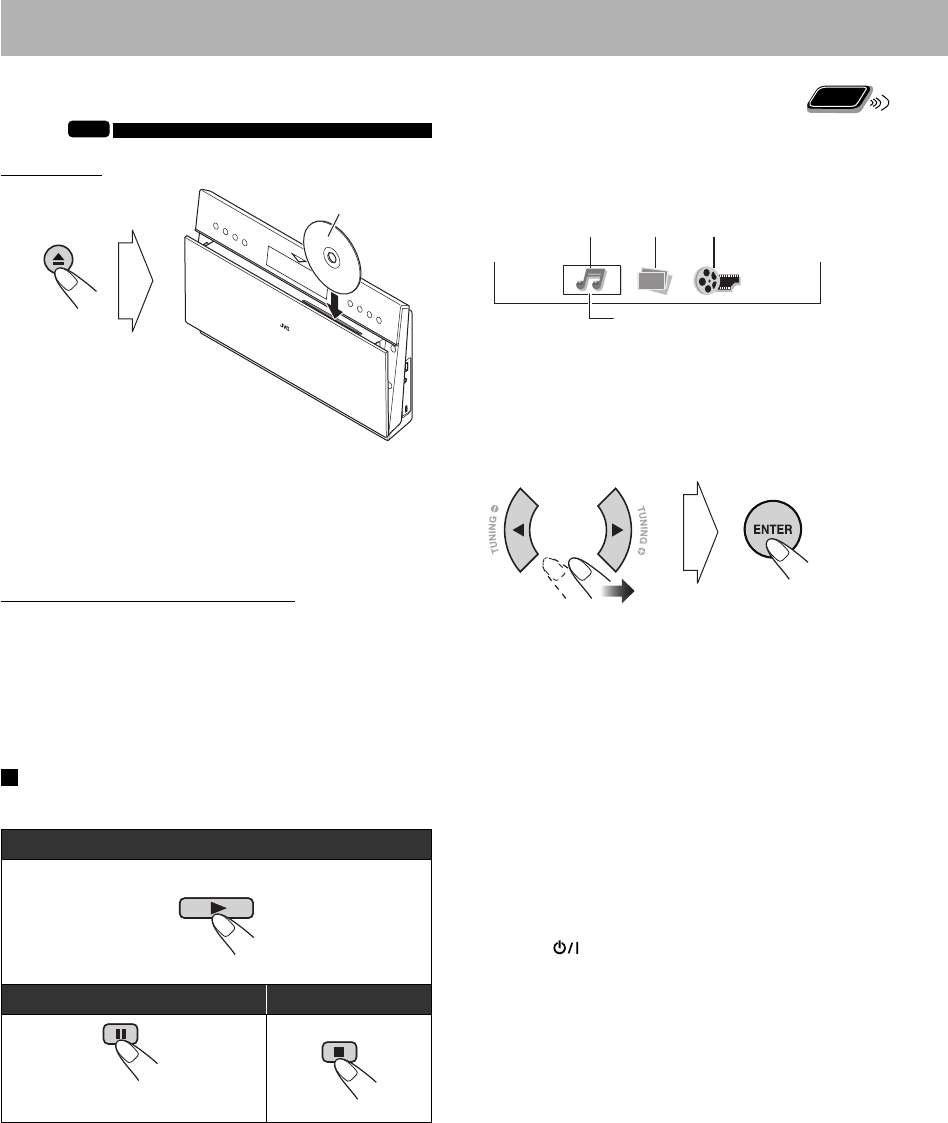

Playing Back a Disc/USB Mass Storage Class

Device

INFO

To insert a disc

The disc player panel is automatically closed and the

System starts reading the disc.

To close the disc player panel manually, press 0.

• For some discs, playback automatically starts after the

System finishes reading the disc.

To connect a USB mass storage class device

• For connecting a USB mass storage class device, see page

10.

• Always set the volume level to the minimum when

connecting or disconnecting a USB mass storage class

device.

• To disconnect a USB mass storage class device safely,

turn off the System before disconnecting the device.

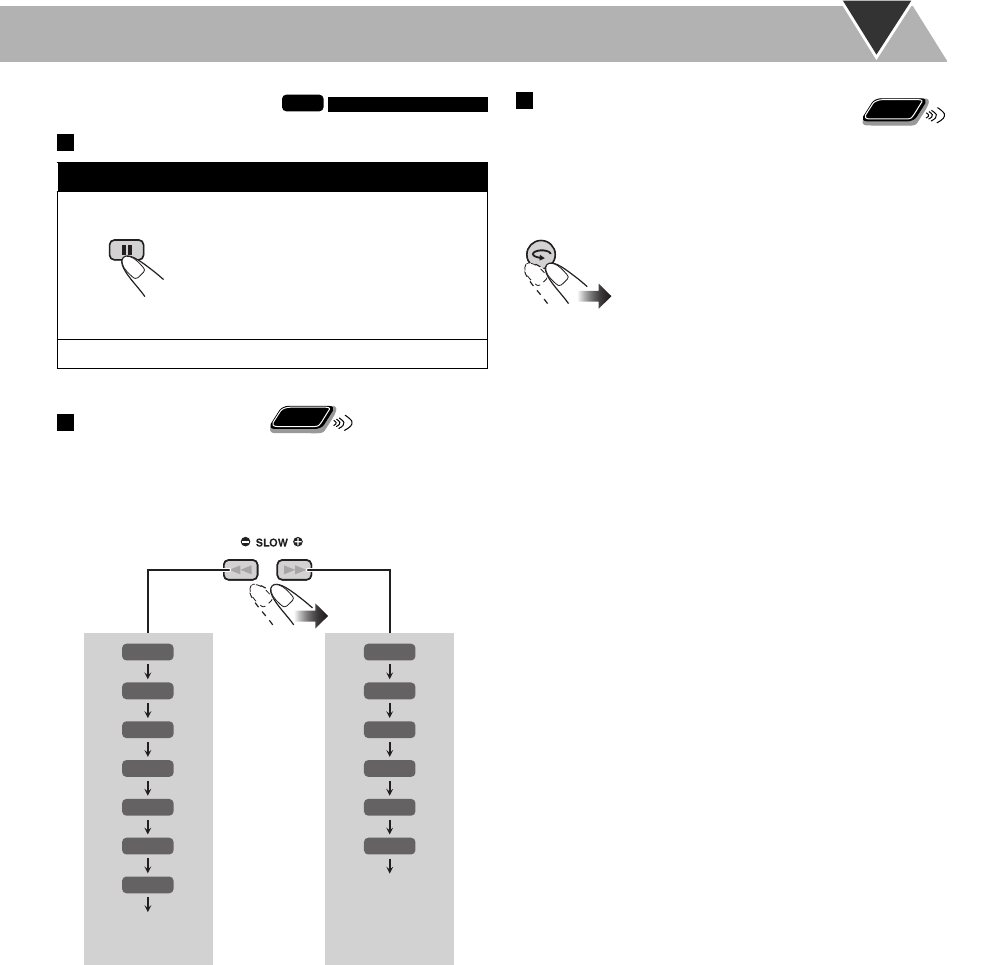

To play back a disc/USB mass storage class device

While DVD/CD or USB is selected...

To start:

To pause: To stop:

To release, press 3.

If different types of playable files (audio/still

picture/moving picture) are recorded

Select a file type on the control screen (on the TV).

• For still/moving picture files, it appears while playback is

stopped. For details, see page 37.

Control screen appears on the TV.

1 Audio

2 Still picture

3 Moving picture

2 Select a file type.

When the sound of DVD Video or DVD-VR is not loud enough

DVD sound is sometimes recorded at a lower level than

other discs and sources. You can set the increase level for

the currently loaded DVD (without changing the volume

level). To set the increase level, see page 41.

Resume play

The System can store the stop point of playback. When you

start playback again by pressing 3, playback starts from the

position where you have stopped.

To stop completely, press 7 twice.

• The following operations also erase the memory of the

stop point:

– Pressing 0 to open the disc player panel

– Pressing to turn on the System when the System is

turned off (standby).

Label side

123

Remote

ONLY

Current file type to play

EN_NX-T10[B].indb 19EN_NX-T10[B].indb 19 09.9.15 8:32:40 AM09.9.15 8:32:40 AM

To select a folder/group

Remote

ONLY

You can select a folder/group by using the control screen.

For details, see page 37.

To select a chapter/track/file

Remote

ONLY

• For VCD/SVCD, cancel PBC (see page 21).

While playing...

• When you press 4 for the

first time, you will go back to the

beginning of the current chapter/

track/file.

• You can also select the position to play by using the on-

screen bar. For details, see page 35.

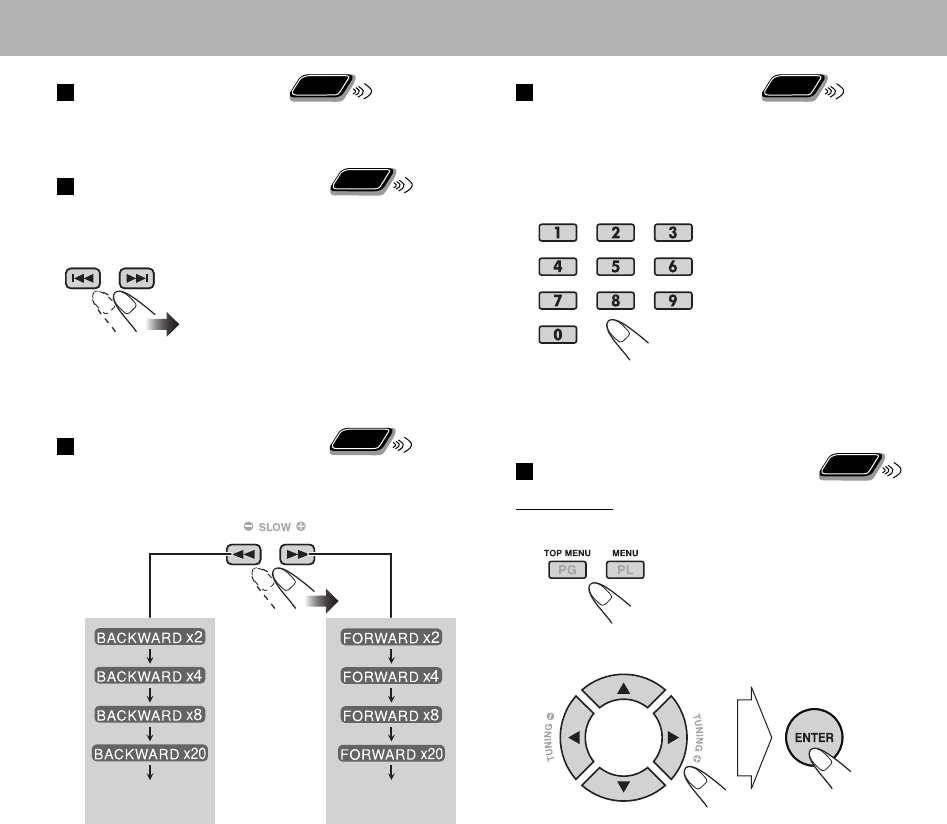

To locate a particular portion

Remote

ONLY

• This does not function for JPEG files.

While playing...

• For MP3/WMA/MPEG-1/MPEG-2/DivX files, the search

speed and indications on the TV are different from those

above.

• No sound comes out if searching is carried out while

showing the moving picture.

To return to normal playback, press 3.

• You can also select the position to play by using the on-

screen bar. For details, see page 35.

To locate an item directly

Remote

ONLY

You can select a title/chapter/track/file directly and start

playback.

• For DVD Video, you can select a title before starting

playback, while you can select a chapter after starting

playback.

• To select a number, see

“How to select a number” on

page 18.

• You can also select the position to play by using the on-

screen bar. For details, see page 35.

To play back using the disc menu

Remote

ONLY

For DVD Video

1 Show the disc menu.

2 Select an item on the disc menu.

• For some discs, you can also select items by entering

the number using the number buttons.

Continued on the next page

Returns to

normal playback

Returns to

normal playback

EN_NX-T10[B].indb 20EN_NX-T10[B].indb 20 09.9.15 8:32:41 AM09.9.15 8:32:41 AM

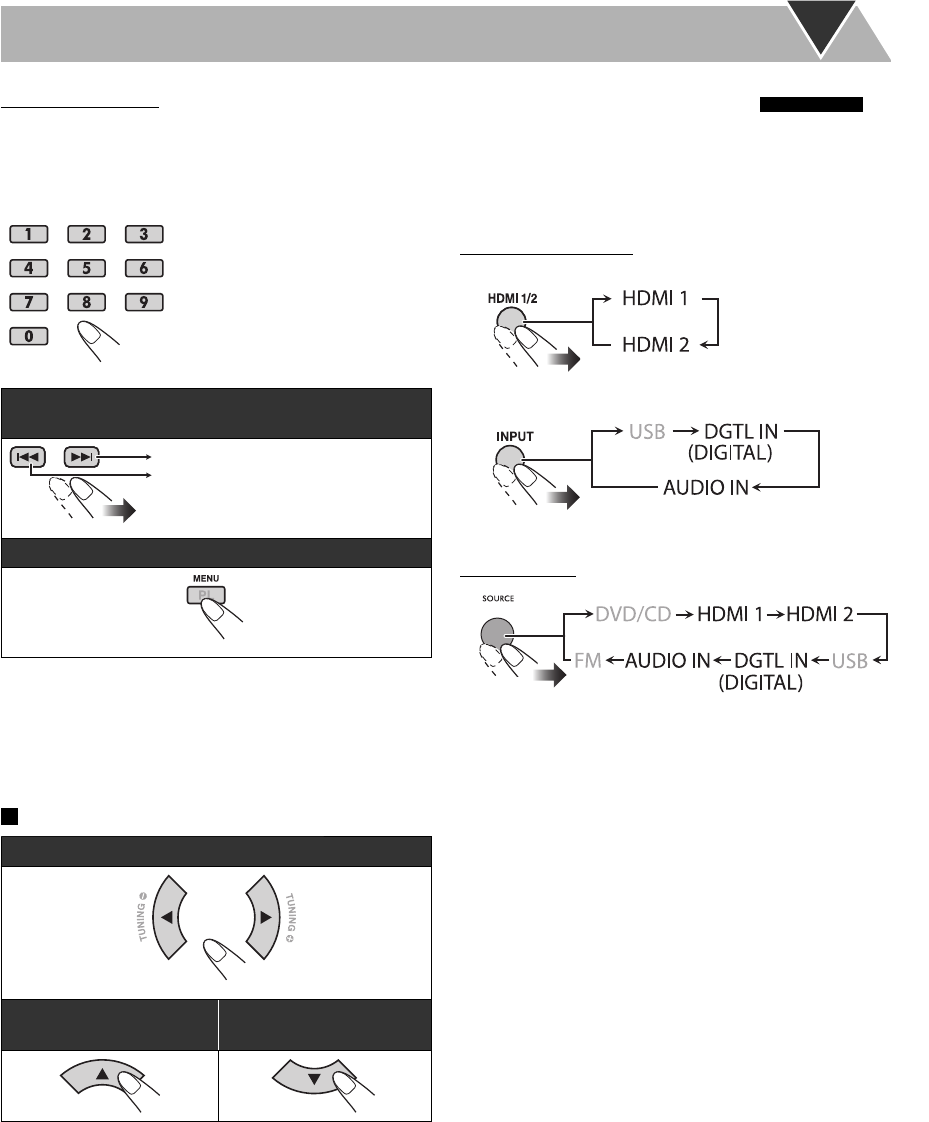

Playing Back Other Equipment

You can listen to other equipment connected to the System.

• Make sure to turn down the volume on the System to

minimum level before starting playback.

• For connecting other equipment, see pages 5 – 7.

From the Remote control

For a device connected to HDMI IN 1/HDMI IN 2

For a device connected to AUDIO IN/DIGITAL IN

On the Main unit

• With the HDMI CEC function, you can operate other

devices through the HDMI connection. For details about

the HDMI CEC function, see page 42.

For SVCD/VCD with PBC

When a disc menu appears on the TV, select an item on the

menu. Playback of the selected item starts.

• While playing a disc with PBC, “PBC” appears on the on-

screen bar (see page 34).

• To select a number, see “How

to select a number” on page 18.

To move to the next or previous page of the current

menu:

To show the menu during playback:

To cancel PBC, select a track to play by using the on-screen

bar. For details about the on-screen bar operation, see page

35.

To activate PBC again, press MENU to show the menu.

To rotate a JPEG file

To rotate the file by 90 degree:

To reflect the file

vertically:

To reflect the file

horizontally:

Moves to the next page.

Moves to the previous page.

EN_NX-T10[B].indb 21EN_NX-T10[B].indb 21 09.9.15 8:32:42 AM09.9.15 8:32:42 AM

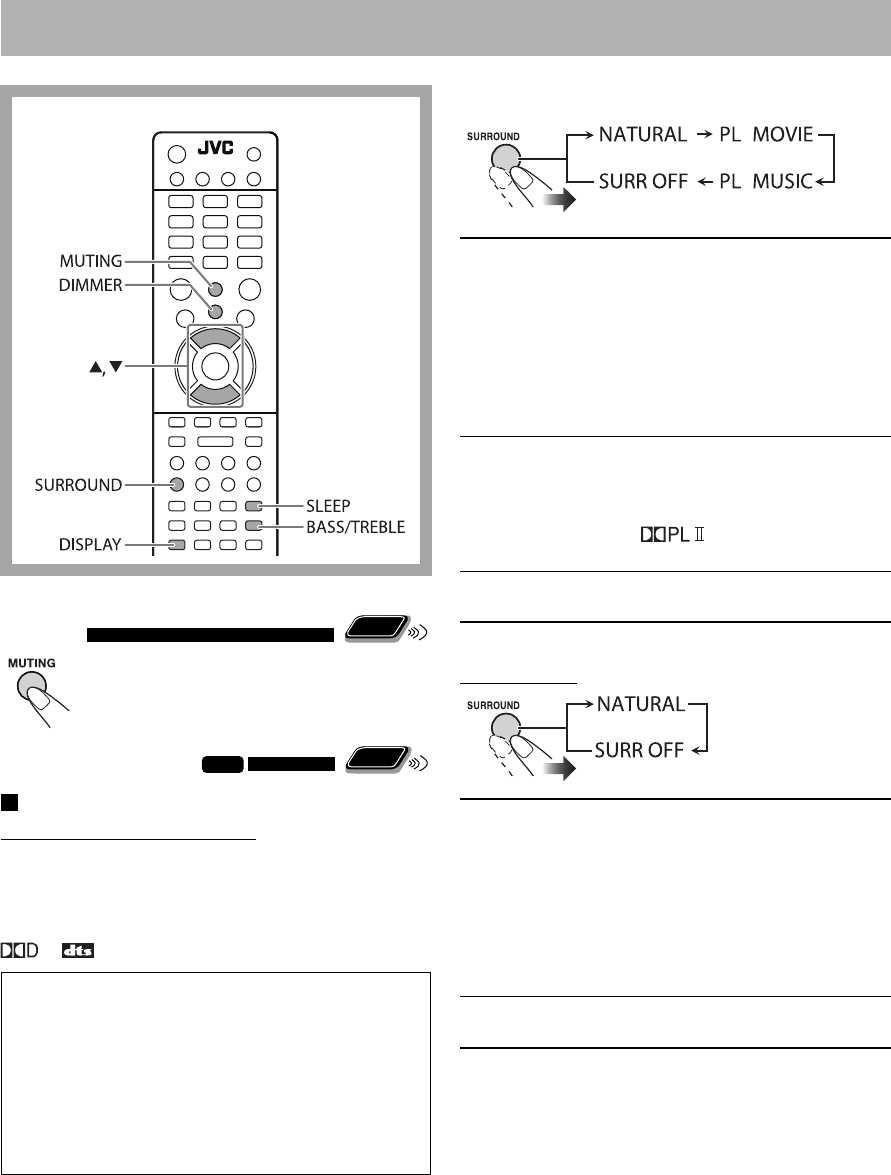

For other audio signals than 5.1 channels

NATURAL The System reproduces the sound as follows:

• Left channel sound: From the speaker

units on the top and front of the left

speaker

• Right channel sound: From the speaker

units on the top and front of the right

speaker

Dolby Pro Logic II is deactivated when this

mode is selected.

PL MOVIE

PL MUSIC

Dolby Pro Logic II Movie (PL MOVIE) or

Dolby Pro Logic II Music (PL MUSIC) is

activated.

• When “PL MOVIE” or “PL MUSIC” is

selected, indicator lights on the

display.

SURR OFF Stereo sound is reproduced from the speaker

units on the front of the speakers.

For FM/AUDIO IN

NATURAL The System reproduces the sound as follows:

• Left channel sound: From the speaker

units on the top and front of the left

speaker

• Right channel sound: From the speaker

units on the top and front of the right

speaker

Dolby Pro Logic II is deactivated when this

mode is selected.

SURR OFF Stereo sound is reproduced from the speaker

units on the front of the speakers.

Subwoofer is always activated to reproduce the bass sound.

Daily Operations—Sound & Other Adjustments

Turning Off the Sound in a

Moment

Remote

ONLY

To restore the volume, press again, or

adjust the volume level.

Adjusting the Sound

INFO

Remote

ONLY

To activate the surround mode

For Disc/USB/HDMI 1/HDMI 2/DGTL IN

For a 5.1 channel digital audio signal (Dolby Digital or DTS

Digital Surround)

The surround mode appropriate for the audio signal is

automatically activated.

or indicator lights on the display.

When the System reproduces a 5.1 channel digital audio

signal, each channel is reproduced as follows:

• Front channels: Reproduced from the speaker units on

the front of the speakers.

• Center channel: Reproduced from the speaker units

on the front of the speakers, half from the left speaker

and half from the right speaker.

• Surround channels: Reproduced from the speaker

units on the top of the speakers.

If you press SURROUND to set the surround mode to

“SURR OFF,” the audio signal is down-mixed into 2

channels and reproduced only from the speaker units on

the front of the speakers.

Remote control

EN_NX-T10[B].indb 22EN_NX-T10[B].indb 22 09.9.15 8:32:43 AM09.9.15 8:32:43 AM

To adjust the tone

You can adjust the bass and treble level from –10 to +10 (by

2 step).

To adjust the bass

To adjust the treble

Changing the Display

Brightness

Remote

ONLY

You can dim the display.

While the System is turned on...

DIMMER 1 The display and illumination dim.

DIMMER 2 The display and illumination are dimmer

than “DIMMER 1.”

• When playing a DVD Video/DVD-VR, all

illuminations except the display and

lamp are turned off.

DIMM OFF Cancels the dimmer function.

Changing the Display

Information

Remote

ONLY

You can change the display information of Disc/File

playback.

*1 Current picture (file) number for JPEG files

*2 Each time you press and hold DISPLAY for more than 3

seconds, you can change the time indication on the display

and on-screen bar. For details, see page 34.

*3 For CD/SVCD/VCD: Track number

For MP3/WMA/JPEG/MPEG-1/MPEG-2/DivX files:

Group and file number

For DVD Video/DVD-VR: Title and chapter number

Turning Off the Power

Automatically

Remote

ONLY

Sleep Timer

You can set the shut-off time so that you can go to bed

without turning off the System yourself.

1 Specify the time (in minutes).

2 Wait until the set time disappears.

To check the time remaining until the shut-off time,

press SLEEP once.

• If you press the button repeatedly, you can change the

shut-off time.

Auto Standby

While DVD/CD or USB is selected...

The System turns off (standby) automatically if no

operation is done for about 30 minutes after playback is

stopped.

(Canceled)

Elapsed playing time*1*2

Source

Disc/file type

Title and chapter

number*3

(Canceled)

EN_NX-T10[B].indb 23EN_NX-T10[B].indb 23 09.9.15 8:32:45 AM09.9.15 8:32:45 AM

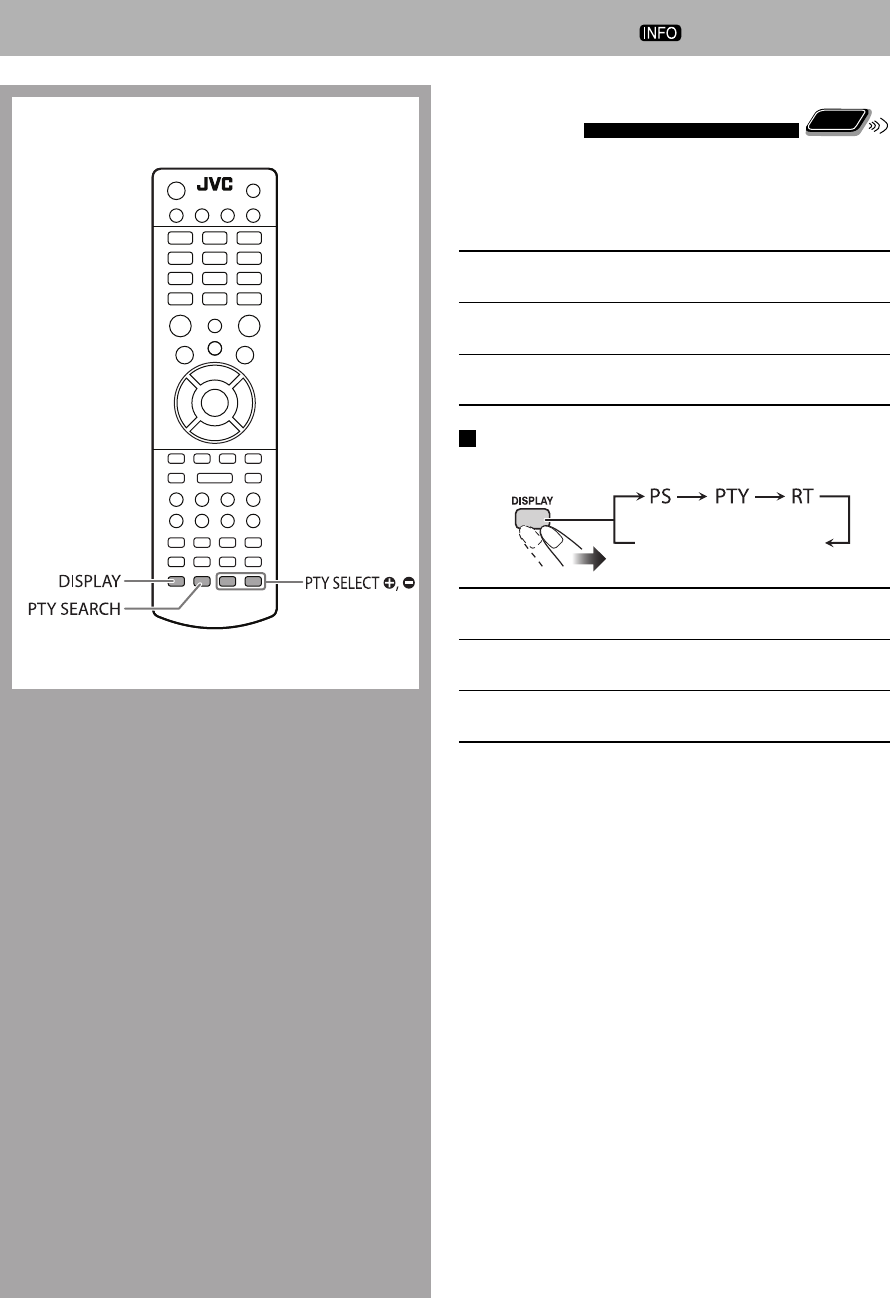

Advanced Radio Operations

Remote control

Receiving FM Stations with Radio

Data System

Remote

ONLY

Radio Data System allows FM stations to send an additional

signal along with their regular program signals.

This System can receive the following types of Radio Data

System signals.

PS (Program

Service)

Shows commonly known station

names.

PTY (Program

Type)

Shows types of broadcast programs.

RT (Radio Text) Shows text messages the station

sends.

To show the Radio Data System information

While listening to an FM station...

PS Station names are displayed. “NO PS” will appear

if no signal is sent.

PTY The broadcast program type is displayed. “NO

PTY” will appear if no signal is sent.

RT Text messages the station sends are displayed.

“NO RT” will appear if no signal is sent.

Frequency

(Non-Radio Data System signal)

EN_NX-T10[B].indb 24EN_NX-T10[B].indb 24 09.9.15 8:32:46 AM09.9.15 8:32:46 AM

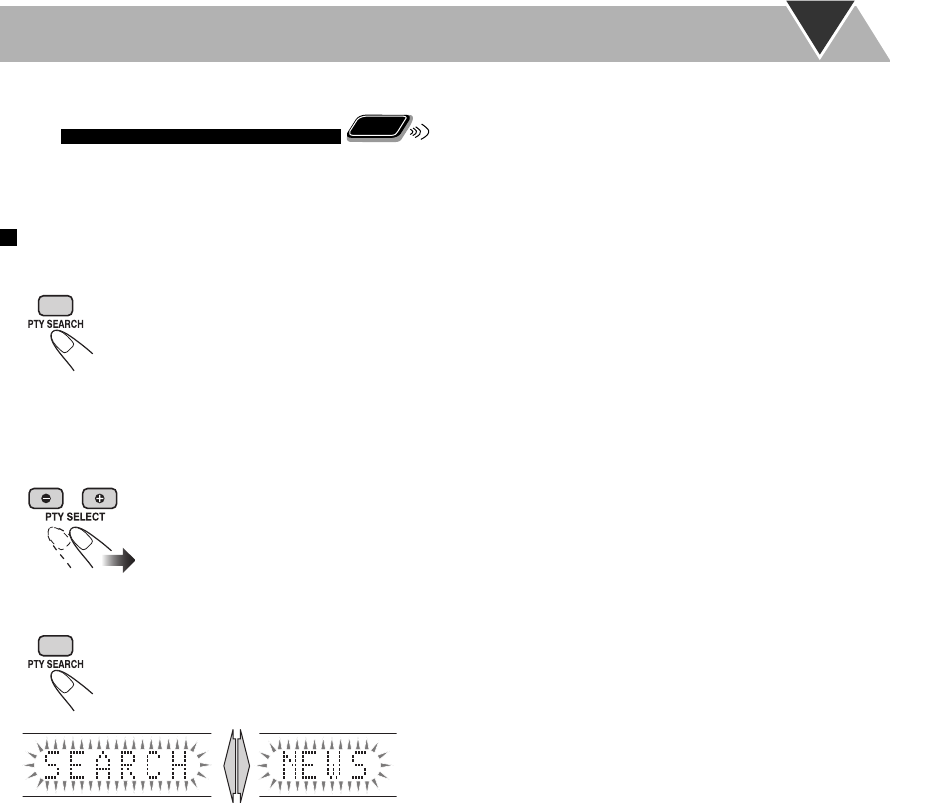

Searching for a Program by PTY

Codes

Remote

ONLY

You can locate a particular kind of program from the preset

channels (see page 18) by specifying the PTY codes.

To search for a program using the PTY codes

1 While listening to an FM station...

A PTY code appears on the display.

2 Select a PTY code you want.

3 Start searching.

The System searches for 30 preset FM stations, stops

when it finds the one you have selected, and tunes in to

that station.

• If no program is found, “NO FOUND” appears on the

display.

• To stop searching any time during search, press any

button.

To continue searching after it stops on an unwanted station

While the indications on the display are flashing, press PTY

SEARCH again.

Ex.: When “NEWS” is selected

EN_NX-T10[B].indb 25EN_NX-T10[B].indb 25 09.9.15 8:32:46 AM09.9.15 8:32:46 AM

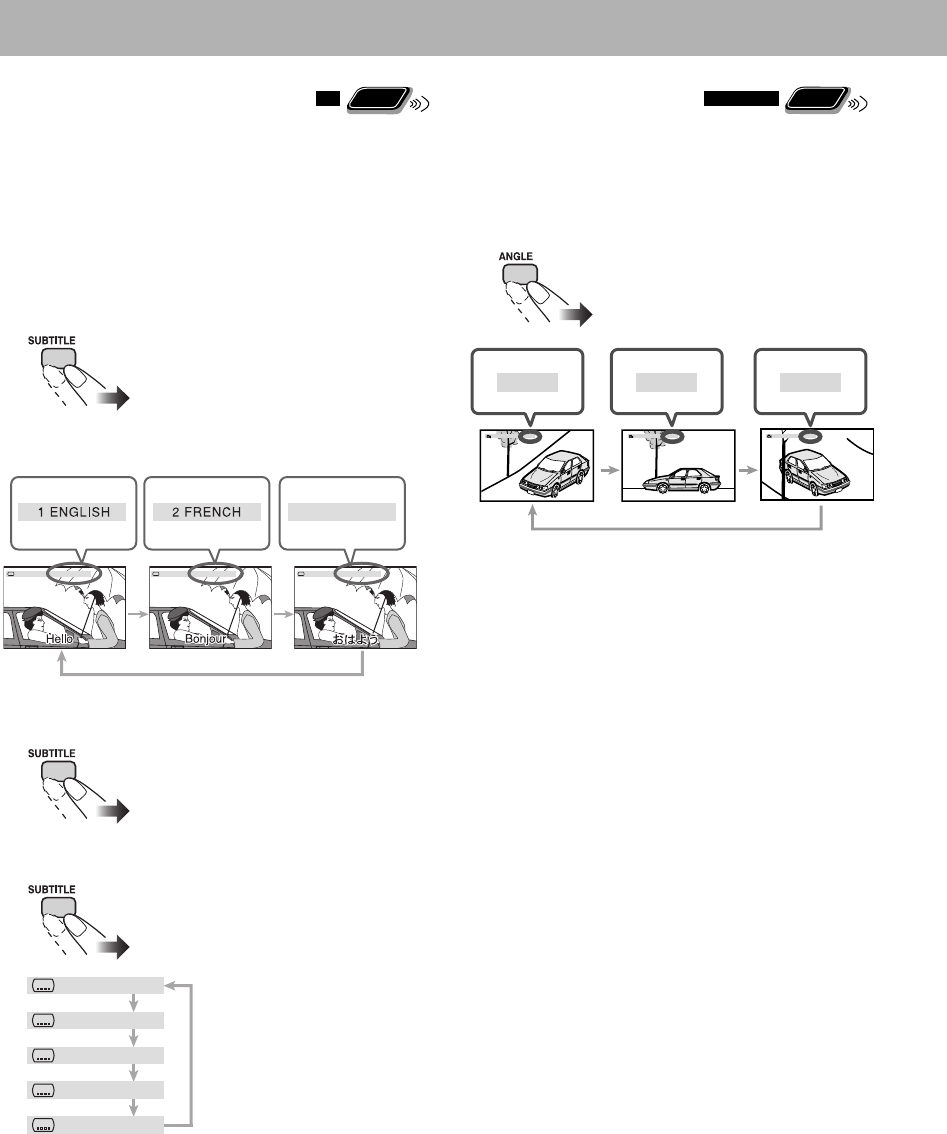

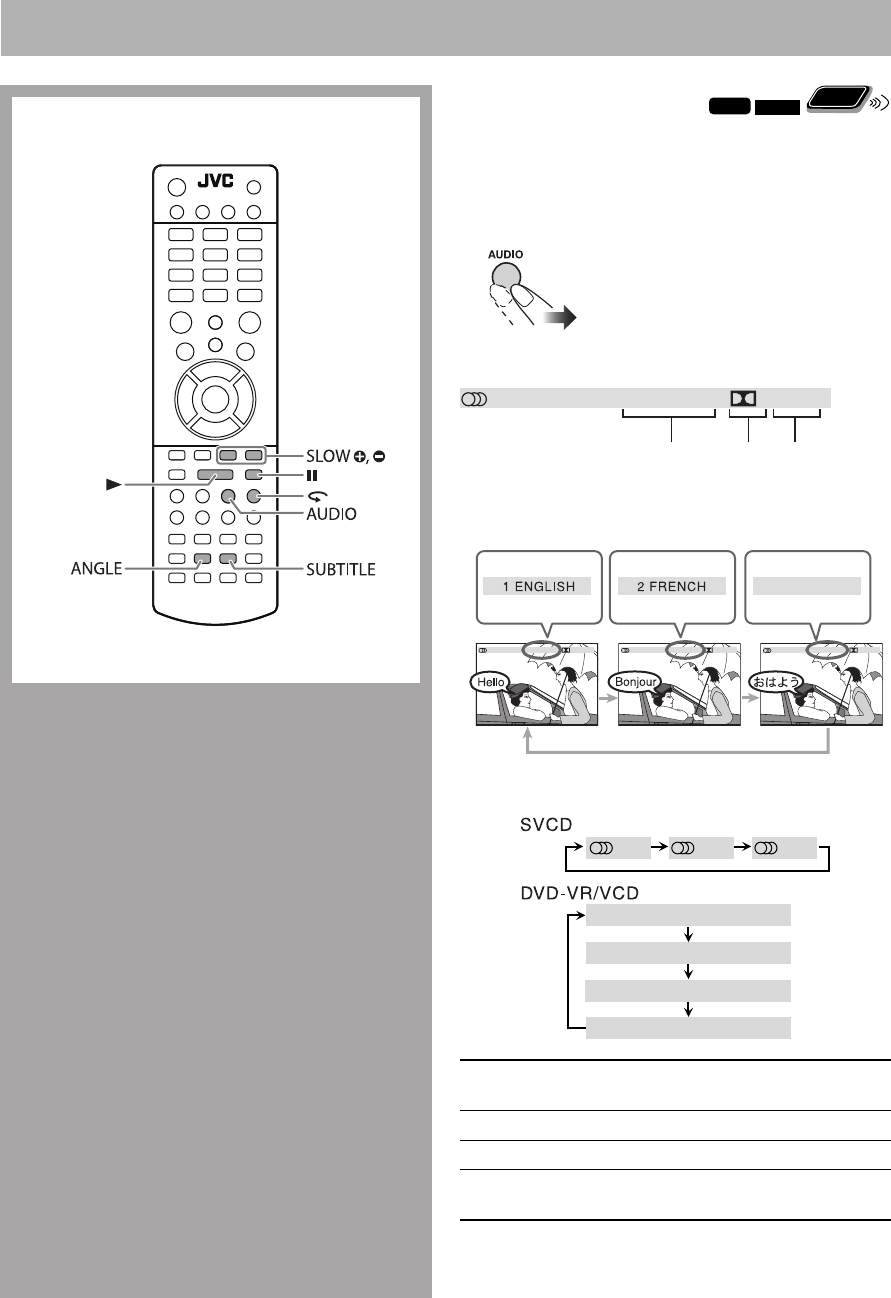

Unique Video Disc/File Operations

Remote control Selecting the Audio Track

INFO

Remote

ONLY

For DVD Video: While playing back a chapter/file

containing several audio languages, you can select the

language to listen to.

For DVD-VR/SVCD/VCD: While playing back a track,

you can select the audio channel to listen to.

While playing a DVD Video...

Ex.:

1 Language

2 Audio format

3 Channel

While playing a DVD-VR or SVCD/VCD...

STEREO To listen to normal stereo

(2-channel) playback.

MONO L To listen to the left audio channel.

MONO R To listen to the right audio channel.

MIX MONO To listen to monaural sound the left

and right sounds are mixed.

• SVCD can have 4 audio channels. SVCD usually uses

these 4 channels to record two 2-channel recordings

(STEREO).

: : :

[ [ [ 3 JAPANESE

[1 ENGLISH ]

D 5.1CH [2 FRENCH ]

D 5.1CH [3 JAPANESE ]

D 5.1CH

:[1]:[

2]:[

CHANNEL:[MONO L]

CHANNEL:[MIX MONO]

CHANNEL:[MONO R]

CHANNEL:[STEREO]

123

[ 1 ENGLISH ]

D 5.1CH

EN_NX-T10[B].indb 26EN_NX-T10[B].indb 26 09.9.15 8:32:47 AM09.9.15 8:32:47 AM

Selecting the View Angle

Remote

ONLY

For DVD Video only: While playing back a chapter

containing multi-view angles, you can view the same scene

from different angles.

While playing a DVD Video...

Selecting the Subtitle Language

Remote

ONLY

For DVD Video: While playing back a chapter/file

containing subtitles in different languages, you can select

the subtitle language to display on the TV.

For DVD-VR: While playing, you can turn the subtitles on

or off.

For SVCD: While playing, you can select the subtitles even

if no subtitles are recorded on the disc.

While playing a DVD Video...

Ex.:

While playing a DVD-VR...

While playing an SVCD...

[] [] [ 3 JAPANESE ]

: [ 1 ENGLISH ]: [ 2 FRENCH ]: [ 3 JAPANESE ]

:[ OFF ]

:[ 1 ]

:[ 2 ]

:[ 3 ]

:[ 4 ]

[ 1/3 ]:[ 2/3 ]:[ 3/3 ]:

[ 1/3 ][ 2/3 ][ 3/3 ]

EN_NX-T10[B].indb 27EN_NX-T10[B].indb 27 09.9.15 8:32:48 AM09.9.15 8:32:48 AM

Special Effect Playback

INFO

Still picture playback

To display the still picture:

To resume normal playback, press 3.

Slow-motion playback

Remote

ONLY

• This function is used only while playing DVD Video/

DVD-VR/SVCD/VCD.

While pausing....

* Only available for DVD Video.

To resume normal playback, press 3.

SB 1/2

SB 1/3

SB 1/4

SB 1/5

SB 1/7

SB 1/8

SB 1/6

SF 1/2

SF 1/3

SF 1/4

SF 1/5

SF 1/7

SF 1/6

Forward

slow motion

starts.

Reverse slow

motion*

starts.

Returns to

normal playback

Returns to

normal playback

To replay the previous scenes

(One-Touch Replay)

• This function is only used while playing DVD Video/

DVD-VR.

While playing....

The playback position moves back about

10 seconds before the current position

(only within the same title for DVD

Video).

Remote

ONLY

While playing...

EN_NX-T10[B].indb 28EN_NX-T10[B].indb 28 09.9.15 8:32:48 AM09.9.15 8:32:48 AM

Advanced Disc/File Playback Operations

Remote control

Number

buttons

Programming the Playing Order—

Program Play

INFO

Remote

ONLY

You can arrange the playing order of the chapters/tracks/

files (up to 32) before you start playback.

• Program Play cannot be used for DVD-VR and JPEG/

MPEG-1/MPEG-2/DivX files.

1 Before starting playback, activate Program Play.

• To exit from the program menu screen and quit

Program Play, press 7.

2 Select chapters/tracks/files you want for Program

Play.

Select a chapter or track/file number.

• To select a number, input a number directly with the

number buttons (see page 18).

• To erase the entire program, select “CLEAR” on the

program menu screen, then press ENTER.

3 Repeat step 2 until you complete your program.

4 Start playback.

Playback starts in the order you have

programmed.

• You can also start playback by

selecting “PLAY” on the program

menu screen and then pressing

ENTER.

To skip: To pause: To stop:

To release, press

Pressing 7

deactivates

Program Play.

Main unit

PROGRAM PLAY CLEAR

On the TV (Ex. DVD)

(Canceled)

RANDOM:[ON]

RANDOM:[OFF]

EN_NX-T10[B].indb 29EN_NX-T10[B].indb 29 09.9.15 8:32:49 AM09.9.15 8:32:49 AM

Playing at Random—

Random Play

Remote

ONLY

You can play all chapters or tracks at random.

• Random Play cannot be used for DVD-VR and JPEG/

MPEG-1/MPEG-2/DivX files.

1 Before starting playback, activate Random Play.

2 Start playback.

Playback starts in random order.

• For some discs/files, playback automatically starts

without pressing 3.

To skip a chapter/

track:

To pause: To stop:

To release, press

To exit Random Play

Before or after playback...

• Pressing TIME SEARCH also cancels Random Play.

RANDOM:[ON]

RANDOM:[OFF]

(Canceled)

Playing Repeatedly

INFO

Remote

ONLY

For DVD Video

While playing...

For CD/SVCD/VCD

While playing (without PBC for SVCD/VCD)...

For DVD-VR

While playing an Original Program...

While playing a Play List...

For MP3/WMA/JPEG/MPEG-1/MPEG-2/DivX files

While playing...

CHAPTER Repeats the current chapter.

TITLE Repeats the current title.

REP 1 Repeats the current track/file.

REP GROUP Repeats the current folder/group.

REP PG Repeats the current Original Program.

REP PL Repeats the current Play List.

REP ALL Repeats all the contents or programmed

tracks/files.

• Repeat Play will be canceled when you stop playback.

RANDOM:[ON]

RANDOM:[OFF]

(Canceled)

EN_NX-T10[B].indb 30EN_NX-T10[B].indb 30 09.9.15 8:32:50 AM09.9.15 8:32:50 AM

A-B Repeat

You can repeat playback of a desired portion by specifying

the beginning (point A) and the ending (point B).

• A-B Repeat cannot be used for JPEG files and some

DVDs.

1 While playing, select the start point (A).

2 Select the end point (B).

Press REPEAT A-B again.

• You can search for the end point using the ¡

button.

To cancel A-B Repeat, press REPEAT A-B again.

• A-B Repeat will also be canceled when you stop playback

or skip the chapter or track.

Prohibiting Disc Ejection—

Child Lock

Main Unit

ONLY

You can lock the disc ejection so that no one can eject the

loaded disc.

While the System is turned on and the disc player panel

is closed...

To cancel the prohibition, repeat the same procedure.

“UNLOCKED” appears on the display.

Remote

ONLY

EN_NX-T10[B].indb 31EN_NX-T10[B].indb 31 09.9.15 8:32:51 AM09.9.15 8:32:51 AM

Before You Start Recording

• It should be noted that it may be unlawful to re-

record pre-recorded tapes, records, or discs without

the consent of the owner of copyright in the sound or

video recording, broadcast or cable program and in any

literary, dramatic, musical, or artistic work embodied

therein.

• The recording level is not affected by the volume.

• Surround mode effect, tone adjustment, and the speaker

level settings (see pages 22, 23, and 42) do not affect

recordings.

• Random Play and Repeat Mode are canceled during

recording mode.

• You can record up to 99 tracks per group to the USB

device.

• Tracks which are recorded to the USB device will be

converted into MP3 format.

• You cannot start recording into a USB device while

“READING” is shown on the display.

• You cannot record tracks in the root group as much as

into other groups. This is not a malfunction. It depends

on the USB device used.

• Do not disconnect a USB device while playing/recording.

It may cause malfunction.

About SCMS (Serial Copy Management System)

The System uses the Serial Copy Management System

which allows only first-generation digital copies to be made

of premastered software such as regular CDs.

If you try to record from a duplicated CD-R or CD-RW

into the USB device, “SCMS VLT (violation)” appears on

the display.

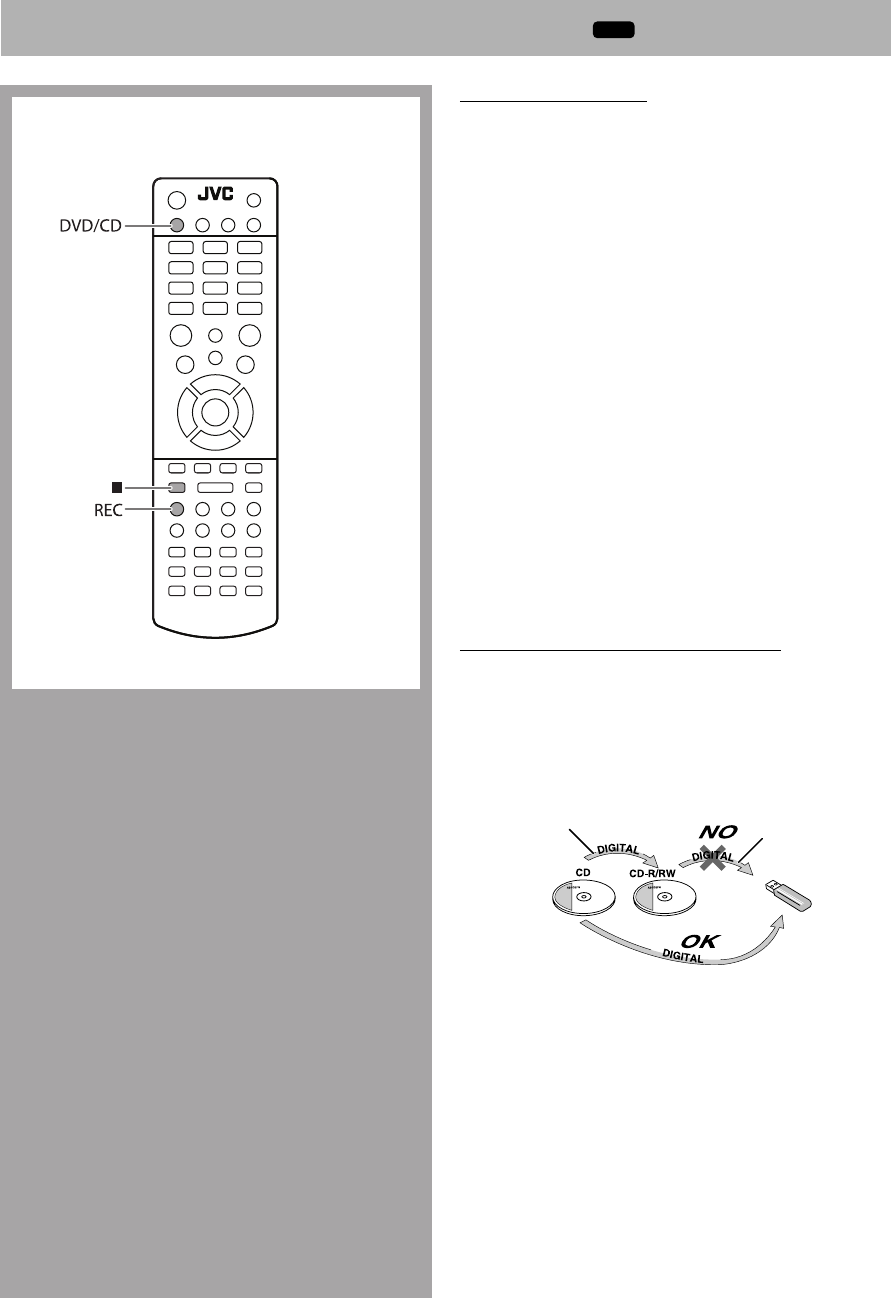

Recording Operations

INFO

Remote control

1st generation 2nd generation

EN_NX-T10[B].indb 32EN_NX-T10[B].indb 32 09.9.15 8:32:52 AM09.9.15 8:32:52 AM

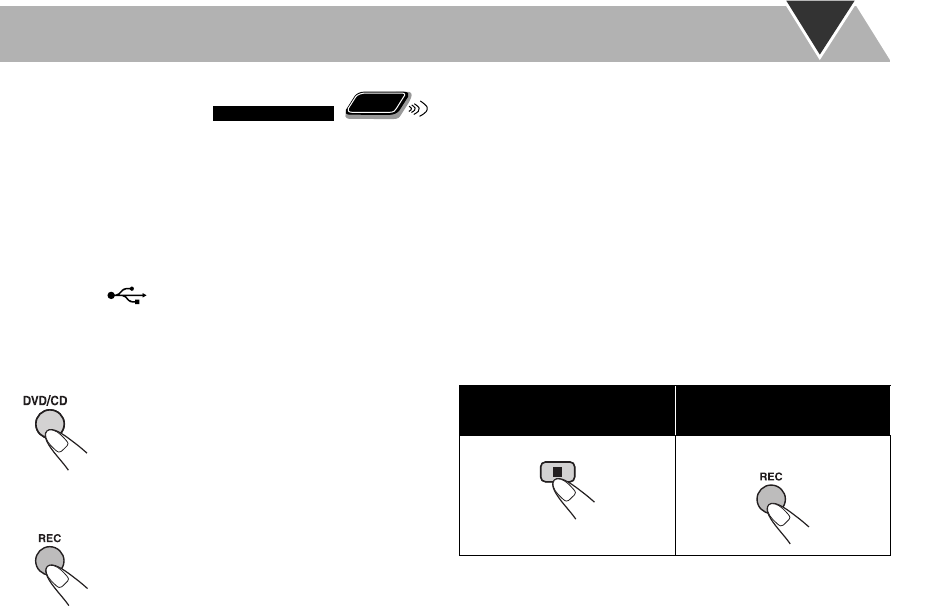

Recording from a Disc

Remote

ONLY

You can record tracks in digital recording from a CD onto

the USB device.

• Do not vibrate the System while recording tracks. It may

damage the recorded tracks.

Before recording....

• Connect a recordable USB device to the USB MEMORY

REC/PLAY ( ) terminal. (See also page 10.)

• Turn on the TV and change the input of the TV to the

one the System is connected.

1 Select DVD/CD as the source.

2 Start recording.

• The System will automatically create the new group as

“JVC_A01.” If “JVC_A01” already exists or the number

of tracks recorded for one group is more than 99 tracks,

“JVC_A02,” “JVC_A03,” and so on will be created.

• You cannot change the source while recording.

• The tracks are recorded in the normal order even if

Program Play is activated.

• Some messages may appear on the display when

recording. For details about the messages on the display

for recording operations, see page 48.

• Playback sound may be interrupted when operating the

TV connected with the HDMI cable. However, recording

is not affected by the interruption.

To stop recording

manually:

To record the playing

track (1 track):

During play or pause...

EN_NX-T10[B].indb 33EN_NX-T10[B].indb 33 09.9.15 8:32:53 AM09.9.15 8:32:53 AM

On-Screen Bar Operations

Remote

ONLY

You can check the source information (disc/USB mass

storage class device) and playback status in the on-screen

bar.

To display the on-screen bar

Ex.: For DVD Video

1 Disc/source

2 Current title number/Total title number

3 Current chapter number/Total chapter number of the

current title

4 Time indication

To change the indication of the on-screen bar

Each time you press and hold DISPLAY for more than 3

seconds, the on-screen bar changes as follows:

Ex.: For DVD Video

* It does not appear when an MP3/WMA/JPEG/MPEG-1/

MPEG-2/DivX files is played back.

• For Audio CD, the on-screen bar automatically appears

on the TV when playback is started.

• The time indication on the display of the main unit also

changes according to the time indication on the on-

screen bar.

• The indication on the on-screen bar differs depending on

the type of disc/file.

The following information is displayed on the on-screen

bar. Items displayed depend on the types of disc or file.

TT Title

CH Chapter

TRK

Track

Time indication

Audio language

Subtitle language

Angle

DTS

LPCM

Audio format

Repeat mode

PBC

Playing back a disc with PBC

On-Screen Operations

Remote control

Number

buttons

12 3 4

DVD CH 3/61/7 00:00:41

DVD CH 3/61/7 0– 0:04:14

DVD CH 3/61/7 0– 0:44:14

DVD CH 3/61/7 01:14:41

Elapsed playing time of the

current chapter/track/file

1 / 3 ENG 1 / 3 ENG OFF5.1CH

When a DVD Video/DVD-VR is played back, the

current chapter information appears on the on-

screen bar. The information differs depending

on the disc.

Remaining playing time

of the current chapter/

track/file

Total playing time of

the title/disc*

Total remaining playing

time of the title/disc*

On-screen bar disappears.

EN_NX-T10[B].indb 34EN_NX-T10[B].indb 34 09.9.15 8:32:53 AM09.9.15 8:32:53 AM

3 Enter the number.

When entering the elapsed playback time

You can specify the time in hours/minutes/seconds.

4 Confirm your entry.

The System starts playing from the

selected position.

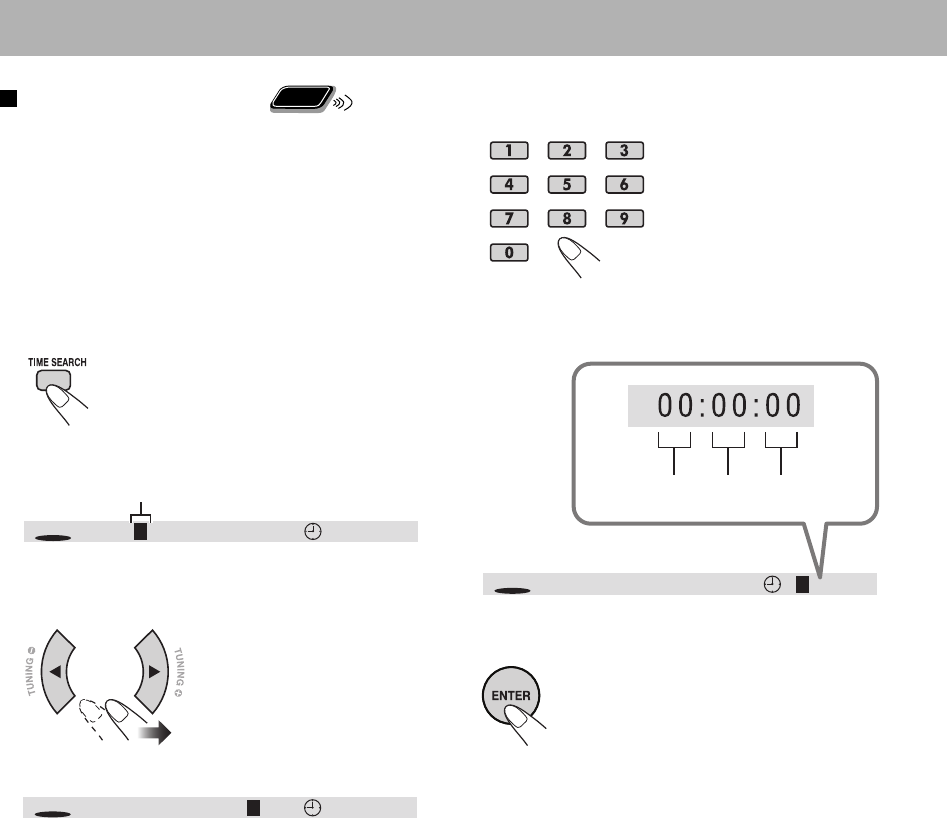

To select the position to play

Remote

ONLY

Using the on-screen bar, you can select the title/chapter/

track to play. You can also select a particular point by

specifying the elapsed playback time from the beginning

using the on-screen bar.

• This function is not available during Program Play and

Random Play.

1 While playing, display the on-screen bar.

• You can also select the position to play before starting

playback.

Ex.: When a DVD Video is played

2 Move the highlight to the position you want to specify.

Highlighted

DVD CH 001/006 00:00:4101/07

DVD CH 001/006 01/0700:00:41

DVD CH 001/00601/07 00:00:41

SecondsMinutesHours

EN_NX-T10[B].indb 35EN_NX-T10[B].indb 35 09.9.15 8:32:55 AM09.9.15 8:32:55 AM

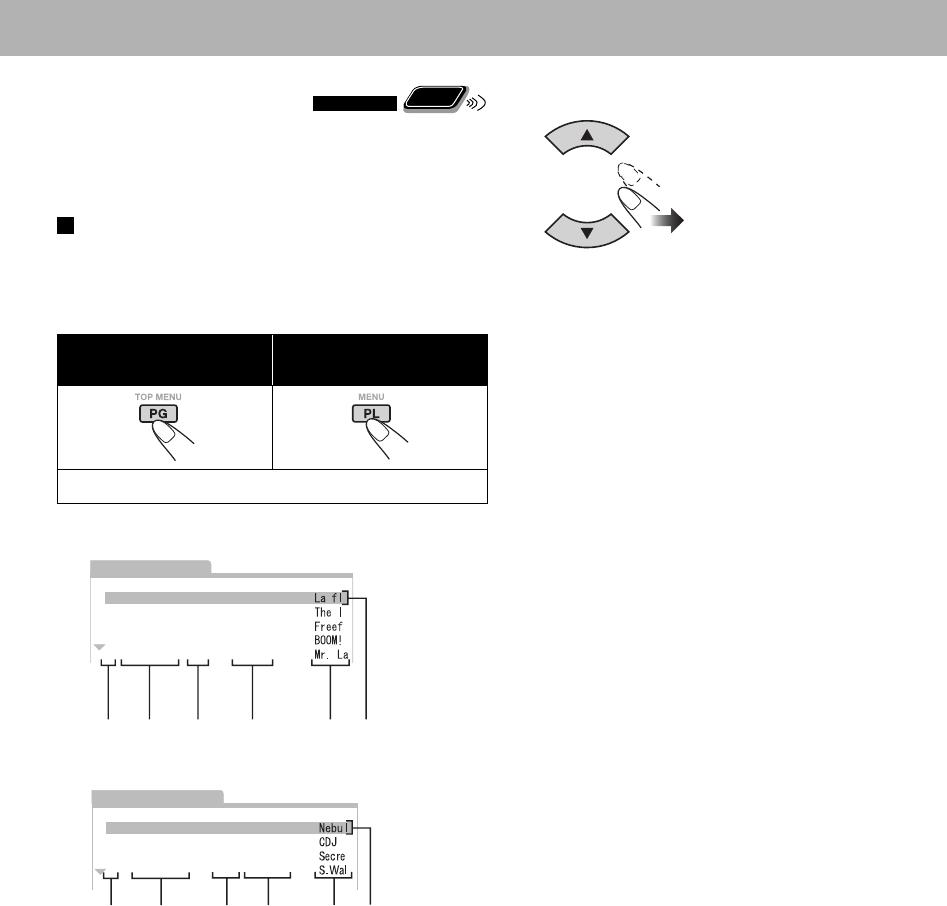

Control Screen Operations

Remote

ONLY

You can search for and play the desired items through the

control screen for DVD-VR and MP3/WMA/JPEG/MPEG-

1/MPEG-2/DivX files.

Control screen for DVD-VR

The control screen is superimposed onto the TV screen

when you call up Original Program (PG) or Play List (PL).

To select playback type

To display the Original

Programs:

To display the Play Lists:

To remove the list, press the same button again.

Ex.: When Original Program is selected.

Ex.: When Play List is selected.

1 Listed number

2 Recording/creating date

3 Recording channels

4 Start time of recording

5 Title

6 Highlight bar (current selection)

7 Chapters included

8 Playback time

To select an item in the list and start playback

• If you move the highlight bar, the selected item starts

playback automatically.

NO CH TIME TITLE

1 2009/12/03 12:15:00L

2 2009/12/09 23:05:00

3 2009/12/18 08:17:00

4 2009/12/20 07:47:00

5 2009/12/25 19:38:00

DATE

ORIGINAL PROGRAM

12 3 4 56

NO Chap Length TITLE

1 2009/12/03 2 00:23:24

2 2009/12/15 4 01:04:39

3 2009/12/24 13 00:41:26

4 2009/12/27 17 00:09:08

PLAY LIST

DATE

67812 5

EN_NX-T10[B].indb 36EN_NX-T10[B].indb 36 09.9.15 8:32:56 AM09.9.15 8:32:56 AM

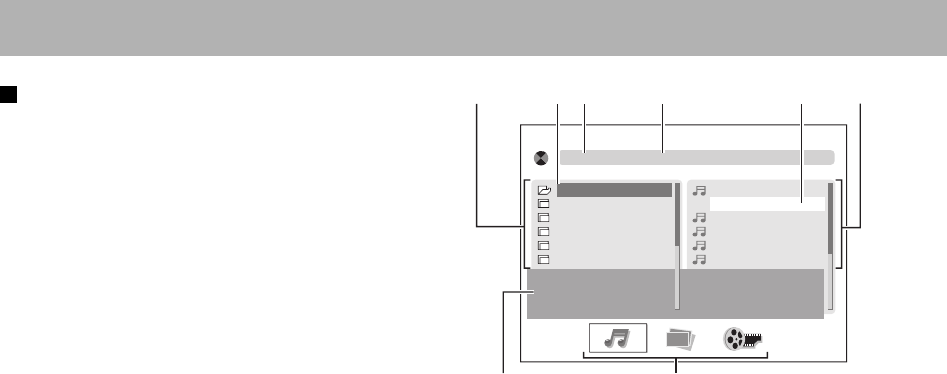

Control screen for MP3/WMA/JPEG/MPEG-1/

MPEG-2/DivX files

The control screen appears on the TV when the System

detects MP3/WMA/JPEG/MPEG-1/MPEG-2/DivX files on

the loaded disc or connected USB mass storage class device.

• For JPEG/MPEG-1/MPEG-2/DivX, it appears when

playback is stopped.

• Items displayed on the screen depend on the type of the

file.

1 Folder/group list

2 Current folder/group

3 Current file/track

4 File/track list

5 File/track information

6 File type

• If different types of playable files (audio/still picture/

moving picture) are recorded on a disc or USB mass

storage class device, select a file type to play (see also

page 19).

[Summer]Rain. mp3

01.Cloudy

02.Rain

03.Fair

01.Summer

02.Spring

03.Fall

04.Winter

05.__________

__________

06.

04.Fog

05.Hail

06.indian summer

07.Shower

08.Snow

09.Thunder

ALBUM :

SONG :

Summer

Rain

ARTIST : ------

133

22 4

EN_NX-T10[B].indb 37EN_NX-T10[B].indb 37 09.9.15 8:32:57 AM09.9.15 8:32:57 AM

To move the highlight bar between group list and file list

To select an item in the list

Move the highlight bar to the desired

item.

Moves the bar to the file list.

Moves the bar to the group list.

To start playback

For JPEG:

The selected file (still picture) is

displayed until you change it.

Slide-show playback starts. Each

file (still picture) is shown on the

screen for about 3 seconds, then

changes one after another.

• To display the current still

picture, press 8.

For the other files:

Playback starts with the selected

track.

• Pressing 3 also starts playback.

EN_NX-T10[B].indb 38EN_NX-T10[B].indb 38 09.9.15 8:32:57 AM09.9.15 8:32:57 AM

Remote control Setting Up Playback of Discs/

USB Devices/HDMI Devices

Remote

ONLY

You can change the settings of playback of discs/USB mass

storage class device/HDMI devices connected to HDMI IN

1 or 2 with the Setup menu on the TV.

• The Setup menu can be used only when “DVD/CD,”

“USB,” “HDMI 1,” or “HDMI 2” is selected as the source.

1 Press SET UP.

The Setup menu appears on the TV and playback is

paused.

2 Press 3 (or 2) to select the menu.

3 Press ∞ (or 5) to move to select the item.

4 Press ENTER.

5 Press ∞ (or 5) to select the options, then press

ENTER.

To exit from the Setup menu

Press SET UP.

Menu Item Contents

SCREEN SAVER You can set the SCREEN SAVER function (ON or OFF). If no operation is done

for about 3 minutes, the TV screen becomes dark.

TV TYPE

16:9 4:3 LB

4:3 PS

You can select the monitor type to match your TV when you play back pictures

recorded for wide-screen televisions.

4:3 PS (Pan Scan conversion): For a conventional (4:3) TV. The picture is zoomed

in to fill the screen vertically and the left and right sides of the picture are cut off.

4:3 LB (Letter Box conversion): For a conventional (4:3) TV. Displays a wide-

screen picture to fit the width of the TV screen keeping the aspect ratio.

16:9 (Wide-screen television): Select this when the aspect ratio of your wide-

screen TV is 16:9.

PASSWORD You can prohibit operations used for changing the RATING setup. Enter a four-

digit password. We recommend that you write your password here for your

reminder.

Password: &&&&

If you forget your password, you can release it by entering 0000.

RATING You can set playable rating level with the System.

EXIT SETUP Exits from the Setup menu.

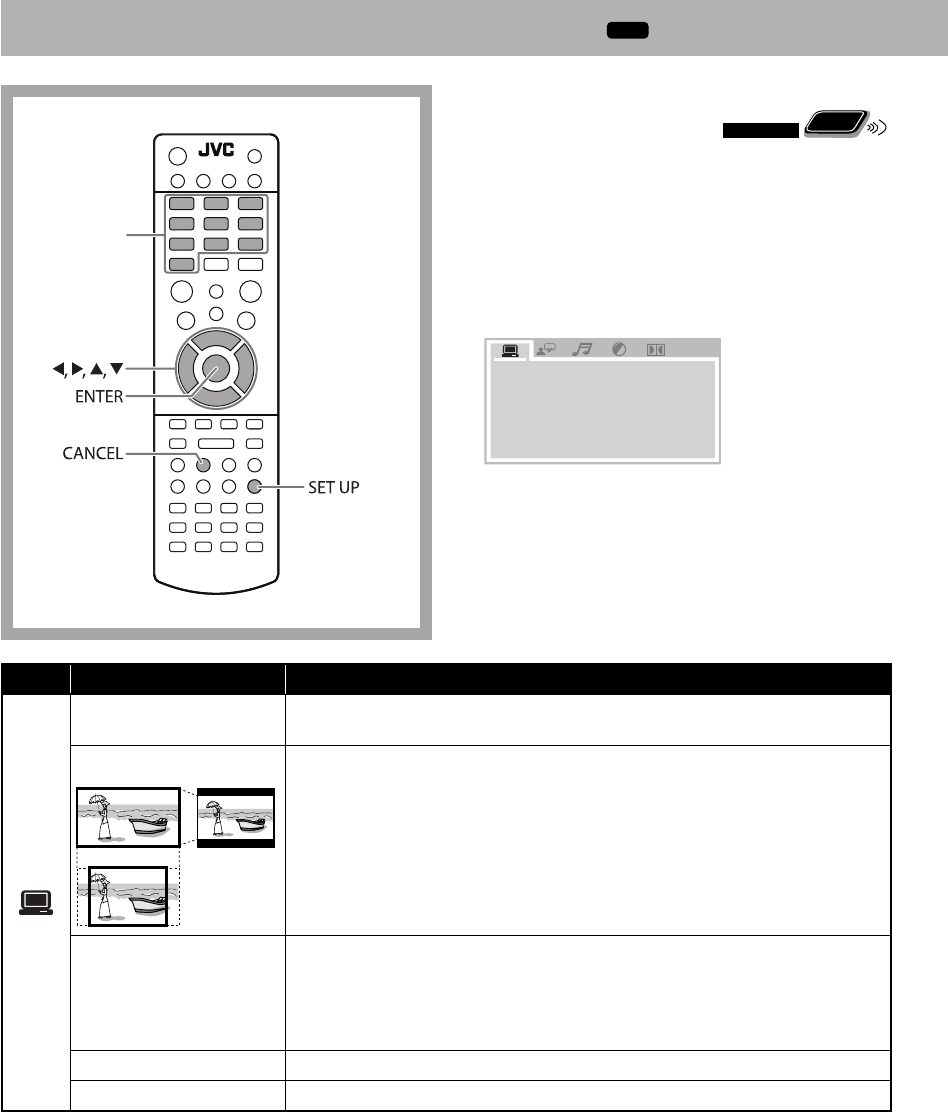

Setup Menu Operations

INFO

TV TYPE

PASSWORD

RATING

EXIT SETUP

SCREEN SAVER

Number

buttons

EN_NX-T10[B].indb 39EN_NX-T10[B].indb 39 09.9.15 8:32:58 AM09.9.15 8:32:58 AM

Menu Item Contents

OSD LANGUAGE You can select the on-screen language.

“ENGLISH,” “GERMAN,” “SPANISH,”

“FRENCH”

• For “SUBTITLE LANG,” you can

deactivate the subtitle by selecting

“OFF.”

AUDIO LANG You can select the initial audio language

for DVD Video.

SUBTITLE LANG You can select the initial subtitle

language for DVD Video.

MENU LANG You can select the initial menu language

for DVD Video.

DIVX [R] VOD The System has its own Registration Code.

If necessary, you can confirm it.

Once you have played back a DivX file in which the Registration Code is recorded,

the System’s Registration Code is overwritten for copyright protection.

HDMI AUDIO You can select the audio signal type emitted from the HDMI MONITOR OUT

terminal.

AUTO: Normally select this. The System automatically emits the appropriate

audio signal according to the TV connected to the HDMI MONITOR OUT

terminal.

PCM: Select this if no sound is reproduced on the TV with the “AUTO” setting.

The System converts the audio signal into PCM and emits the signal from the

HDMI MONITOR OUT terminal.

BRIGHTNESS You can adjust the brightness. (0 to 12)

CONTRAST You can adjust the contrast. (0 to 12)

HUE You can adjust the hue. (–6 to +6)

SATURATION You can adjust the color depth. (0 to 12)

SHARPNESS You can adjust the sharpness. (0 to 8)

DYNAMIC RANGE You can select the Dynamic Range Compression (DRC) for night-time listening.

DRC reduces the difference between normal voices and the sound (such as the

sound of explosion).

The effect of DRC is as follows.

FULL 6/8 4/8 2/8 (High Low)

When “OFF” is selected, the effect is not available.

DUAL MONO You can select the playback sound (channel) you want to listen to while playing

digital software recorded (or broadcasted) in Dual Mono mode, which includes

two monaural channels separately.

EN_NX-T10[B].indb 40EN_NX-T10[B].indb 40 09.9.15 8:32:59 AM09.9.15 8:32:59 AM

Setting Up the Sound and

HDMI Functions

Remote

ONLY

You can change the settings of sound and HDMI functions

with the menu on the display.

1 Press and hold SET UP until the menu is shown on the

display.

2 Press ∞ (or 5) to select the item to set, then press

ENTER.

3 Press ∞ (or 5) to select the setting.

4 Press ENTER.

5 Repeat step 2 – 4 to set up other items.

Item Contents

AUDIOOUT You can select whether or not the audio signal from the HDMI MONITOR OUT terminal

is emitted.

TV: The audio signal is emitted from the HDMI MONITOR OUT terminal. The sound

from the System is muted.

• The System emits the audio signal according to the setting of “HDMI AUDIO” in the

Setup menu (see page 40).

AMP: The audio signal is not emitted from the HDMI MONITOR OUT terminal. The

System reproduces the sound.

HDMI CEC You can select the usage for the HDMI CEC function. (Refer also to page 42.)

ON 1: Normally select this for using the HDMI CEC function.

ON 2: Select this if you do not want to have the System automatically turned on/off

by turning on/off the TV or external HDMI CEC compatible devices. All other available

HDMI CEC functions operate the same as when “ON 1” is selected.

OFF: Deactivates the HDMI CEC function.

DVICOLOR You can select the settings for the picture appearance (image quality, color intensity and

black fading) on the TV connected to the HDMI MONITOR OUT terminal.

STANDARD: Normally select this.

ENHANCE: The System automatically adjusts the picture appearance.

DVDLEVEL DVD sound is sometimes recorded at a lower level than other discs and sources. You can

set the increase level for the currently loaded DVD, so you do not have to adjust the volume

when you change the source.

• This only functions for DVD Video and DVD-VR.

NORMAL: Original recording level.

MEDIUM: Output level is increased (less than “HIGH”).

HIGH: Output level is increased (more than “MEDIUM”).

To exit from the menu

Press CANCEL.

• The menu for settings of sound and HDMI functions

goes off if any operation is not performed for about 5

seconds.

EN_NX-T10[B].indb 41EN_NX-T10[B].indb 41 09.9.15 8:33:00 AM09.9.15 8:33:00 AM

Item Contents

LIP SYNC You can adjust the synchronization timing of video and audio signals if the timing of the

motions and the sound does not seem correctly synchronized.

20ms/40ms/60ms/80ms/100ms/120ms/140ms/160ms/180ms: As the number of the

setting increases, the synchronization timing of audio signals is delayed.

OFF: Deactivates this function.

SUBLEVEL You can adjust the output level of the subwoofer. (–6 dB to +6 dB)

LS/RSLVL You can adjust the output level of the surround channels. (–6 dB to +6 dB)

LR LEVEL You can adjust the output level of the front channels. (–6 dB to +6 dB)

Basic operations of HDMI CEC

Consumer Electronics Control (CEC) is the controlling signals optionally employed for the High-Definition Multimedia

Interface (HDMI) standard. When devices equipped with CEC are connected, each device can control the others.

The System is compatible with some basic functions of HDMI CEC.

Following operations are available:

• The TV automatically turns on and changes the input to the one the System is connected in the following cases:

– When you select “DVD/CD” or “USB” as the source on the System

– When you start playback on the HDMI device connected to the System

• When you select the System as the source of the TV, the System automatically turns on.

• When you select “HDMI 1” or “HDMI 2” on the System, the HDMI device connected to the System automatically turns

on and start playback.

• When you turn off the TV, the System automatically turns off. (This function works when “ON 1” is selected for “HDMI

CEC” setting. See page 41.)

• When you select the menu screen language of the TV, the same language is automatically selected on the System after the

System is turned off and turned on again. (The selectable languages are limited to those supported by the System.)

• As long as the connected TV is compatible, you can use the operations of the TV to start playback and operate other

functions on the System.

Note:

• This function is available only when the source is set to “DVD/CD,” “HDMI 1,” “HDMI 2,” or “USB.”

• This function is available when “ON 1” or “ON 2” is selected for the “HDMI CEC” setting (see page 41).

• For details about the CEC function, refer to the operation manuals of the connected CEC devices.

• If the power cord is not connected to an AC outlet, the CEC function does not work, even when the System is connected

to CEC devices.

• Not all HDMI devices are compatible with CEC. If the System is connected to non-CEC compatible devices, these devices

cannot be controlled using the CEC function.

• The CEC function may not work with some CEC devices.

• The CEC function may not work depending on the settings or status of the System.

• When connecting the System to a TV with an HDMI cable for the first time after purchase, confirm that “JVC” (the

initial screen) appears.

• When you disconnect the HDMI cable and connect it again, confirm that “JVC” appears.

• If the CEC function does not work properly, select “OFF” for the “HDMI CEC” setting, and then select “ON 1” or “ON 2”

again (see page 41).

TV compatible with HDMI CEC

HDMI cable (not

supplied)

HDMI device

compatible with HDMI

CEC

The System (Main unit)

HDMI cable (not

supplied)

EN_NX-T10[B].indb 42EN_NX-T10[B].indb 42 09.9.15 8:33:01 AM09.9.15 8:33:01 AM

Additional Information

Learning More about This System

Preparations (see pages 4 to 15)

Connections:

• Make sure the antenna conductors do not touch any

other terminals, connecting cords or the power cord.

Also, keep the antennas away from metallic parts of the

System, connecting cords, and the power cord. These

could cause poor reception.

• The speakers are magnetically shielded to avoid color

distortions on TVs. However, if not installed properly,

it may cause color distortions. So, pay attention to the

following when installing the speakers.

– When placing the speakers near a TV set, turn off the

TV’s main power switch or unplug it before installing

the speakers.

Then wait at least 30 minutes before turning on the

TV’s main power switch again.

– Some TVs may still be affected even though you have

followed the above instructions. If this happens, move

the speakers away from the TV.

Changing the Scanning Mode:

• Do not change the scanning mode to progressive in the

following cases:

– When your TV does not support the progressive video

input.

– When you have not connected your TV to the System

using an HDMI cable or a component video cord.

Daily Operations—Playback (see pages 17 to 21)

Listening to the FM Radio:

• If you store a new station into an occupied preset

number, the previously stored station in that number will

be erased.

• When you unplug the power cord or if a power failure

occurs, the preset stations will be erased in a few days. If

this happens, preset the stations again.

Playing Back a Disc/USB Mass Storage Class Device:

JVC bears no responsibility for any loss of data in the

USB mass storage class device while using this System.

• When you change the source to “DVD/CD” or “USB,” it

may take a while to activate the source.

• While the System is reading a disc, the source may not

change to “USB” properly. In this case, press 7, then

reselect “USB” as the source.

• On some discs, the actual operations may be different

from what are explained in this manual due to the

programming and disc structure; such differences are not

malfunctions of this System.

• The System recognizes up to 999 tracks (files) and 130

groups per disc/USB mass storage class device.

– If any unplayable files are included in a folder, those

files are also counted in the total file number.

– Playable files which do not belong to any groups are

handled as GROUP 1.

• For playback of files in the USB mass storage class

device...

– When connecting a USB mass storage class device, refer

also to its manual.

– Connect one USB mass storage class device to the

System at a time. Do not use a USB hub.

– You cannot charge any USB mass storage class device

through the USB MEMORY REC/PLAY ( )

terminal.

– While playing back a file in a USB mass storage class

device, do not disconnect the device. It may cause

malfunction on both the System and the device.

– This System is compatible with USB 2.0 Full Speed.

– You cannot play back a file larger than 2 Gigabytes.

– When playing a file of a large transfer rate, frames or

sounds may be dropped during playback.

– This System cannot recognize a USB mass storage class

device whose rating is other than 5 V and exceeds 500

mA.

– This System may not play back some USB mass storage

class devices and does not support DRM (Digital Rights

Management).

– It will take some time to start up a digital audio player

whose contents are larger than 1 Gigabyte.

– Electrostatic shock at connecting a USB device may

cause abnormal playback of the device. In this case,

disconnect the USB device, unplug the power cord and

plug it back in to reset the System, then connect the

USB device again.

• For DVD-VR playback...

– This System can play only a disc of UDF-Bridge format.

– For details about DVD-VR format and Play List, refer

to the manual of the recording equipment.

• For MP3/WMA playback...

– MP3/WMA discs require a longer readout time than

regular CDs. (It depends on the complexity of the

group/file configuration.)

– Some MP3/WMA files cannot be played back and will

be skipped. This results from their recording processes

and conditions.

– This System can play only a disc of ISO 9660 Level 1 or

Level 2.

– This System can play back MP3/WMA files with the

extension code <.mp3> or <.wma> (regardless of the

letter case—upper/lower).

– It is recommended that you make each MP3/WMA

files as following conditions:

– At a sample rate of 44.1 kHz and at a data transfer

rate of 128 kbps. This System cannot play back files

made at a bit rate of less than 64 kbps.

EN_NX-T10[B].indb 43EN_NX-T10[B].indb 43 09.9.15 8:33:03 AM09.9.15 8:33:03 AM

• For JPEG files playback...

– It is recommended that you record a file at 640 x 480

resolution. (If a file has been recorded at a resolution

of more than 640 x 480, it will take a long time to be

shown.)

– This System can play back JPEG files with the extension

code <.jpg> or <.jpeg> (regardless of the letter case—

upper/lower).

– This System may not play back JPEG files properly if

they are recorded from a device other than a digital

camera.

• For MPEG-1/MPEG-2 playback...

– This System can play back MPEG-1/MPEG-2 files with

the extension code <.mpg>, <.mpeg>, or <.mod>*.

* <.mod> is an extension code used for the MPEG-2 files

recorded by JVC Everio camcorders. The MPEG-2 files

with the <.mod> extension code cannot be played back

if HD format is used or its maximum bit rate is more

than 2 Mbps.

– The stream format should conform to MPEG system/

program stream.

– 720 x 576 pixels (25 fps) / 720 x 480 pixels (30 fps) is

recommended for the highest resolution.

– This System also supports the resolutions of 352 x 576 /

480 x 576 / 352 x 288 pixels (25 fps) and 352 x 480 / 480

x 480 / 352 x 240 pixels (30 fps).

– The file format should be MP@ML (Main Profile at

Main Level)/SP@ML (Simple Profile at Main Level)/

MP@LL (Main Profile at Low Level).

– Audio streams should conform to MPEG-1 Audio

Layer-2 or MPEG-2 Audio Layer-2.

• For DivX playback...

– This System can play only a disc of UDF-Bridge format.

“Multi-border” is not supported.

– The System supports all versions of DivX® video

(including DivX® 6).

– The System supports DivX files whose resolution is 720

x 480 pixels or less (30 fps), and 720 x 576 pixels or less

(25 fps).

– Audio stream should conform to Dolby Digital,

MPEG-1 Audio Layer-2 or MPEG Audio Layer-3

(MP3).

– This System can play back DivX files with the extension

code <.divx> <.div> <.avi> (regardless of the letter

case—upper/lower).

– The System does not support GMC (Global Motion

Compression).

– The file encoded in the interlaced scanning mode may

not be played back correctly.

Daily Operations—Sound & Other Adjustments

(see pages 22 and 23)

Adjusting the Sound:

• When using the headphones:

– The bass/treble adjustment affects the sound through

the headphones.

– The surroound mode is deactivated.

Advanced Radio Operations (see pages 24 and

25)

• If you want to know more about Radio Data System, visit

«http://www.rds.org.uk».

Unique Video Disc/File Operations (see pages 26

to 28)

Selecting the Audio Track:

• On some discs/files, you cannot change audio language

during playback.

Special Effect Playback:

• During slow-motion playback, no sound will be emitted.

Advanced Disc/File Playback Operations (see

pages 29 to 31)

Programming the Playing Order—Program Play:

• While programming steps...

Your entry will be ignored if you have tried to program

an item number that does not exist (for example,

selecting track 14 on a disc that only has 12 tracks).

Playing Repeatedly:

• A-B Repeat is available only within the same title/original

program/track.

EN_NX-T10[B].indb 44EN_NX-T10[B].indb 44 09.9.15 8:33:05 AM09.9.15 8:33:05 AM

Setup Menu Operations (see pages 39 to 42)

General:

• If the upper and lower parts of the menu are cut off,

adjust the picture size control of the TV.

menu—TV TYPE:

• Even if “4:3 PS” is selected, the screen size may become

4:3 letter box while playing a disc/file. This depends on

how the discs are recorded.

• When you select “16:9” for a picture whose aspect ratio

is 4:3, the picture changes slightly due to the process of

converting the picture width.

menu:

• When the language you have selected for “MENU

LANG,” “AUDIO LANG,” or “SUBTITLE LANG” is

not recorded, the original language is used as the initial

language.

Maintenance

To get the best performance of the System, keep your discs

and mechanism clean.

Handling Discs

• Remove the disc from its case by holding it at the edge

while pressing the center hole lightly.

• Do not touch the shiny surface of the disc, or bend the

disc.

• Put the disc back in its case after use to prevent warping.

• Be careful not to scratch the surface of the disc when

placing it back in its case.

• Avoid exposure to direct sunlight, extreme temperature,

and moisture.

To clean the disc:

Wipe the disc with a soft cloth in a straight line from center

to edge.

Cleaning the System

• Stains should be wiped off with a soft cloth. If the System

is heavily stained, wipe it with a cloth soaked in water-

diluted neutral detergent and wrung well, then wipe clean

with a dry cloth.

• Since the System may deteriorate in quality, become

damaged or get its paint peeled off, be careful about the

following:

– DO NOT wipe it with a hard cloth.

– DO NOT wipe it forcefully.

– DO NOT wipe it with thinner or benzine.

– DO NOT apply any volatile substance such as

insecticides to it.

– DO NOT allow any rubber or plastic to remain in

contact for a long time.

EN_NX-T10[B].indb 45EN_NX-T10[B].indb 45 09.9.15 8:33:06 AM09.9.15 8:33:06 AM

Troubleshooting

General

Adjustments or settings are suddenly canceled before you

finish.

] There is a time limit. Repeat the procedure again.

Operations are disabled.

] The built-in microprocessor may malfunction due to

external electrical interference. Unplug the power cord

and then plug it back in.

Unable to operate the System from the remote control.

] The path between the remote control and the remote

sensor on the System is blocked.

] The batteries are exhausted.

No sound is heard.

] Speaker connections are incorrect or loose.

] Headphones are connected.

No picture is displayed on the TV screen, the picture is

blurred, or the picture is divided into two parts.

] The video cord connections are incorrect or loose.

] The System is connected to a TV which does not

support progressive video input.

] Incorrect scanning mode is selected (see pages 14 and

15).

] When you unplug the power cord and plug it back

again, the scanning mode may change back to the initial

setting (see pages 14 and 15).

The left and right edges of the picture are missing on the

screen.

] Select “4:3 LB” for “TV TYPE” (see page 39).

The picture is distorted.

] A device, such as a VCR or an HDD/DVD recorder, is

connected between the main unit and the TV. Connect

the main unit directly to the TV (see page 6).

The screen size is improper.

] The monitor type setting is not appropriate. Select the

monitor type suitable for your TV (see page 39).

] The screen size setting of the TV is improper.

The TV screen is dark.

] The screen saver setting is activated. Press any button

(see page 39).

FM Radio Operations

Hard to hear broadcasts because of noise.

] Antenna connections are incorrect or loose.

] The FM antenna is not properly extended and

positioned.

Disc/USB Mass Storage Class Device Playback

Operations

The disc cannot be played back.

] You have inserted a disc whose Region Code does not

include “2.” (“WRONG REGION” appears on the TV.)

] The disc is placed upside down. Place the disc with the

label side facing front or facing up.

ID3 Tag on an MP3 file cannot be shown.

] There are two types of ID3 Tag—Version 1 and Version

2. This System can only show ID3 Tag Version 1.

Groups and tracks are not played back as you expect.

] The playing order is determined when the groups

and tracks were recorded. It depends on the writing

application.

MP3, WMA, JPEG, MPEG-1, MPEG-2, or DivX files are

not played back.

] The disc or the USB mass storage class device may

contain different types of files (ex. MP3/WMA/JPEG).

In this case, you can only play back the files selected on

the control screen (see page 19).

] You have changed the file type setting after the System

read the disc or the USB mass storage class device. In

this case, reload the disc or disconnect the USB mass

storage class device and connect it again.

Continued on the next page

EN_NX-T10[B].indb 46EN_NX-T10[B].indb 46 09.9.15 8:33:07 AM09.9.15 8:33:07 AM

The disc sound is discontinuous.

] The disc is scratched or dirty.

Audio language is different from the one you have

selected as the initial audio language.

] Some DVDs are programmed to always use the original

language initially. If this happens, press AUDIO after

starting playback (see page 26).

No subtitle appears on the display though you have

selected the initial subtitle language.

] Some DVDs are programmed not to display any subtitle

initially. If this happens, press SUBTITLE after starting

play back (see page 27).

The disc player panel does not open or close.

] The power cord is not plugged in.

] Child Lock is in use. “LOCKED” appears on the display

(see page 31).

Recording Operations

Unable to record into the USB device.

] The capacity of the USB device is full.

] You have recorded 99 tracks or 100 groups on the USB

mass storage class device.

] The USB device is write-protected.

] The USB device you connected is incompatible to this

System.

HDMI Operations

No picture/sound is produced via the HDMI MONITOR

OUT terminal.

] A disc/file recorded in a format incompatible with the

System/TV is played back. Confirm the playable disc/file

types (see page 3).

] The connected TV is not compatible with HDCP.

Connect a TV compatible with HDCP.

] The System fails to recognize the TV connected to the

HDMI MONITOR OUT terminal. Disconnect the

HDMI cable and connect it again.

] An HDMI cable longer than 2 m is used. Use an HDMI

cable of 2 m or shorter to assure stable operation and

picture quality.

The picture is distorted when the TV is connected to the

HDMI MONITOR OUT terminal.

] The proportion of the picture is not appropriate.

Connect the TV to the VIDEO OUT jacks and set the

scanning mode setting properly (see pages 14 and 15).

The HDMI CEC function does not work.

] The connected TV is not compatible with the HDMI

CEC function. Refer to the operation manual of the TV.

] “OFF” is selected for the “HDMI CEC” setting. Select

“ON 1” or “ON 2” for the “HDMI CEC” setting (see

page 41).

When you disconnect the HDMI cable and connect it

again, the HDMI CEC function does not work properly.

] The previous connection setting is stored on the System.

Select “OFF” for the “HDMI CEC” setting, and then

select “ON 1” or “ON 2” again (see page 41).

EN_NX-T10[B].indb 47EN_NX-T10[B].indb 47 09.9.15 8:33:08 AM09.9.15 8:33:08 AM

Display Messages for Recording Operations

NO USB

• No USB device is connected or the connected USB device

is not compatible with this System.

FILEFULL

• The USB memory has exceeded the maximum number of

files it can support.

• The USB device is write-protected.

SCMS VLT (violation)

• You have tried to copy from a duplicated disc to the USB

device.

USBERROR

• A reading or a writing error occurred during playback or

recording.

EN_NX-T10[B].indb 48EN_NX-T10[B].indb 48 09.9.15 8:33:10 AM09.9.15 8:33:10 AM

HDMI

Video resolution: 576p, 720p, 1080i, 1080p

Output power:

(HDMI MONITOR OUT)

DC 5 V 55 mA

General

Mass (approx.): 2.3 kg (without the stand)

Dimensions (approx.):

• Placed vertically

1: 240 mm 2: 420 mm 3: 64 mm 4: 70 mm

5: 134 mm

• Placed horizontally

6: 420 mm 7: 70 mm 8: 240 mm

Specifications

Main unit—CA-NXT10

Input/output

HDMI input: HDMI IN 1, HDMI IN 2

HDMI output: HDMI MONITOR OUT

USB terminal: USB MEMORY REC/PLAY

Analog audio

input:

AUDIO IN

500 mV/50 kΩ

Digital audio input: DIGITAL IN (OPTICAL)

–21 dBm to –15 dBm

(660 nm ±30 nm)

Analog video

output:

VIDEO OUT:

Color system: PAL

– VIDEO:

Composite video, 1 V(p-p)/75 Ω

– COMPONENT:

Component video (interlaced/

progressive)

(Y): 1 V(p-p)/75 Ω

(PB/PR): 0.7 V(p-p)/75 Ω

Tuner

FM tuning range: 87.50 MHz – 108.00 MHz

Disc player

Playable disc: • DVD Video/CD/VCD/SVCD

• CD-R/CD-RW (CD/SVCD/VCD/

MP3/WMA/JPEG/MPEG-1/

MPEG-2/DivX format)

• DVD-R/-RW (DVD Video/DVD-

VR/MP3/WMA/JPEG/MPEG-1/

MPEG-2/DivX format)

• +R/+RW (DVD Video/MP3/

WMA/JPEG/MPEG-1/MPEG-2/

DivX format)

Dynamic range: 80 dB

Horizontal

resolution:

500 lines

Wow and flutter: Immeasurable

USB

Playable files: MP3/WMA/JPEG/MPEG-1/MPEG-

2/DivX format

CD recording

format:

MP3

USB specification: Compatible with USB 2.0 Full Speed

Compatible device: Mass storage class

Compatible

system:

FAT16, FAT32

Bus power supply: DC 5 V 500 mA

EN_NX-T10[B].indb 49EN_NX-T10[B].indb 49 09.9.15 8:33:10 AM09.9.15 8:33:10 AM

Supplied Accessories

See page 1.

Design and specifications are subject to change without

notice.

Subwoofer—SP-NXT10W

Output power

Front:

Surround:

Subwoofer:

160 W (80 W + 80 W) at 4 Ω (10%

THD)

160 W (80 W + 80 W) at 4 Ω (10%

THD)

200 W at 6 Ω (10% THD)

Speaker: Bass reflex type

16 cm cone x 1

Power handling

capacity:

200 W

Frequency range: 42 Hz – 150 Hz

Sound pressure

level:

75 dB/W • m

Power

requirements:

AC 230 V , 50 Hz

Power

consumption:

80 W (at operation of the System)

0.85 W (at standby)

Mass (approx.): 10 kg

Dimensions

(approx.) :

231 mm × 393 mm × 370.5 mm

(W/H/D)

Speakers—SP-NXT10F

Speaker: 1 way bass reflex type (magnetically

shielded)

Front: 8 cm cone x 1

Surround: 5.5 cm cone x 1

Impedance: 4 Ω

Power handling

capacity:

Front: 80 W

Surround: 80 W

Frequency range: Front: 80 Hz – 20 kHz

Surround: 125 Hz – 20 kHz

Sound pressure

level:

Front: 80 dB/W • m

Surround: 71 dB/W • m

Mass (approx.): 1.3 kg each

Dimensions

(approx.) :

100 mm × 240 mm × 128 mm

(W/H/D)

EN_NX-T10[B].indb 50EN_NX-T10[B].indb 50 09.9.15 8:33:11 AM09.9.15 8:33:11 AM

• Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic”, and the double-D symbol are

trademarks of Dolby Laboratories.

• Manufactured under license under U.S. Patent numbers:

5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 and

other U.S. and worldwide patents issued and pending.

DTS and DTS Digital Surround are registered trademarks

and the DTS logos and Symbol are trademarks of DTS,

• DivX® is a registered trademark of DivX, Inc., and is used

under license.

• ABOUT DIVX VIDEO: DivX® is a digital video format

created by DivX, Inc. This is an official DivX Certified or

DivX Ultra Certified device that plays DivX video.

• ABOUT DIVX VIDEO-ON-DEMAND: This DivX®

Certified device must be registered in order to play

DivX Video-on-Demand (VOD) content. First generate

the DivX VOD registration code for your device and

submit it during the registration process. [Important:

DivX VOD content is protected by a DivX DRM (Digital

Rights Management) system that restricts playback to

registered DivX Certified devices. If you try to play DivX

VOD content not authorized for your device, the message

“Authorization Error” will be displayed and your content

will not play.] Learn more at www.divx.com/vod.

• Plays DivX® video

• Microsoft and Windows Media are either registered

trademarks or trademarks of Microsoft Corporation in

the United States and/or other countries.

• This product incorporates copyright protection

technology that is protected by U.S. patents and other

intellectual property rights. Use of this copyright

protection technology must be authorized by

Macrovision, and is intended for home and other

limited viewing uses only unless otherwise authorized

by Macrovision. Reverse engineering or disassembly is

prohibited.

• “CONSUMERS SHOULD NOTE THAT NOT ALL

HIGH DEFINITION TELEVISION SETS ARE FULLY

COMPATIBLE WITH THIS PRODUCT AND MAY

CAUSE ARTIFACTS TO BE DISPLAYED IN THE

PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE

SCAN PICTURE PROBLEMS, IT IS RECOMMENDED

THAT THE USER SWITCH THE CONNECTION

TO THE ‘STANDARD DEFINITION’ OUTPUT. IF

THERE ARE QUESTIONS REGARDING OUR TV

SET COMPATIBILITY WITH THIS MODEL 525p

AND 625p DVD PLAYER, PLEASE CONTACT OUR

CUSTOMER SERVICE CENTER.”

• HDMI, the HDMI logo and High-Definition Multimedia

Interface are trademarks or registered trademarks of

HDMI Licensing LLC.

• HDCP is the abbreviation of “High-bandwidth Digital

Content Protection,” and is the high-reliable copy control

technology licensed by Digital Content Protection, LLC.

EN_NX-T10[B].indb 51EN_NX-T10[B].indb 51 09.9.15 8:33:12 AM09.9.15 8:33:12 AM

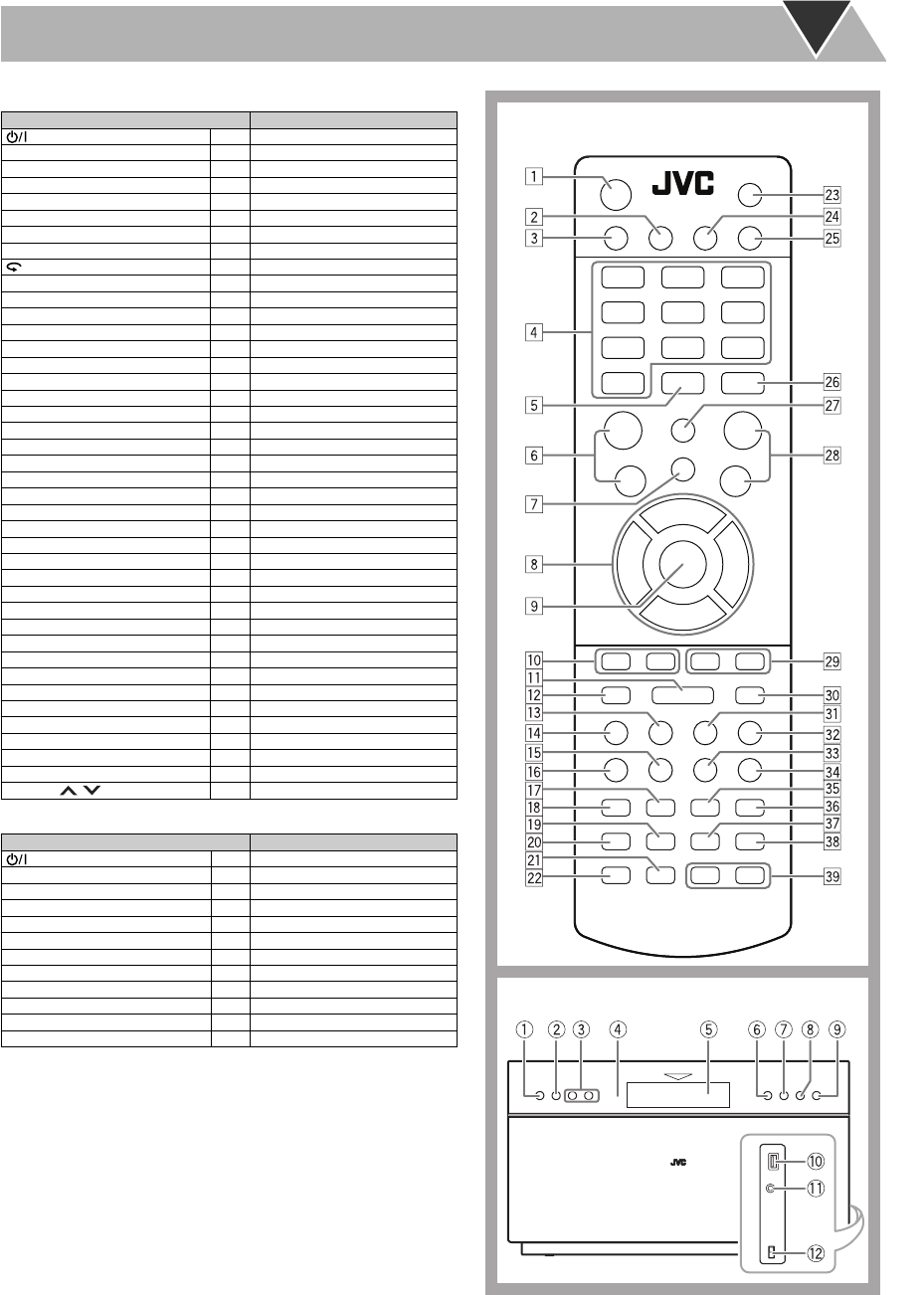

Parts Index

Remote control

Main unit

Remote control

Name Page

117

3q17, 19, 29, 30, 38

8/19, 28 – 30, 38

7w19, 29, 30, 33

1, ¡l20

4, ¢p20, 21, 29, 30

5, ∞, 2, 3819 – 21, 23, 29, 35, 36, 38, 39, 41

ENTER 918, 20, 29, 35, 38, 39, 41

(One Touch Replay) x28

0d17, 19

ANGLE o27

AUDIO z26

BASS/TREBLE ,23

CANCEL e41

DISPLAY s23, 24, 34

DVD/CD 317, 33

DIMMER 723

FM g17

FM MODE ;18

HDMI 1/2 217, 21

INPUT f17, 21

MENU/PL h20, 21, 36

MUTING j22

Number buttons 418, 20, 21, 35, 39

PLAY MODE c29, 30

PRESET +, – 618

PTY SELECT 9, (.25

PTY SEARCH a25

REC r33

REPEAT i30

REPEAT A-B u31

SCAN MODE t14, 15

SET UP v39, 41

SLEEP n23

SLOW 9, (l28

SUBTITLE m27

SURROUND y22

TIME SEARCH b34, 35

TOP MENU/PG 520, 36

TUNING 9, (818

VOLUME , k17

Main unit

Name Page

117

3717, 19

8819, 28, 38

7619, 31

0917, 19, 31

Display 516

DISPLAY MODE switch =4

PHONES jack -10, 18

Remote sensor 414

SOURCE 217, 21

USB MEMORY REC/PLAY terminal 010

VOLUME +, – 317

EN_NX-T10[B].indb 52EN_NX-T10[B].indb 52 09.9.15 8:33:14 AM09.9.15 8:33:14 AM

SAFETY INSTRUCTIONS

“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT”

This equipment has been designed and manufactured to meet international safety standards but, like any electrical

equipment, care must be taken if you are to obtain the best results and safety is to be assured.

Do read the operating instructions before you attempt to use the equipment.

Do ensure that all electrical connections (including the mains plug, extension leads and interconnections between

pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and

withdraw the mains plug when making or changing connections.

Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

Do be careful with glass panels or doors on equipment.

DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any

way—switch off, withdraw the mains plug and consult your dealer.

DON’T remove any fixed cover as this may expose dangerous voltages.

DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for

unattended operation or has a standby mode.

Switch off using the switch on the equipment and make sure that your family know how to do this.

Special arrangements may need to be made for infirm or handicapped people.

DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic

safety. It is illegal to watch television whilst driving.

DON’T listen to headphones at high volume as such use can permanently damage your hearing.

DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings.

Overheating will cause damage and shorten the life of the equipment.

DON’T use makeshift stands and NEVER fix legs with wood screws—to ensure complete safety always fit the

manufacturer’s approved stand or legs with the fixings provided according to the instructions.

DON’T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL

– NEVER let anyone, especially children, push anything into holes, slots or any other opening in the case—this

could result in a fatal electrical shock.

– NEVER guess or take chances with electrical equipment of any kind—it is better to be safe than sorry!

NX-T10

COMPACT COMPONENT SYSTEM

EN_NX-T10[B].indb 1EN_NX-T10[B].indb 1 09.9.15 8:33:16 AM09.9.15 8:33:16 AM

JVC NX T10B T10 User Manual LVT2022 003A

Navigation menu

Versions of this User Manual:

Views

Navigation
