JVC UX GD6MUB GD6S/UX GD6M User Manual GD6MUB, GD6SA GVT0149 014A
UX-GD6SA UX-GD6SA GVT0149-014A English,
User Manual: JVC UX-GD6MUB UX-GD6MUB, UX-GD6SA English,
Open the PDF directly: View PDF
.
Page Count: 48
MICRO COMPONENT SYSTEM
UX-GD6S
—Consists of CA-UXGD6S and SP-UXGD6S
UX-GD6M
—Consists of CA-UXGD6M and SP-UXGD6M
INSTRUCTIONS
GVT0149-014A
[A, UB]
SUPER VIDEO
UX-GD6S UX-GD6M
Cover[A].fm Page 1 Wednesday, March 23, 2005 10:01 AM
G-1
Warnings, Cautions and Others
CAUTION— (STANDBY/ON) button!
Disconnect the mains plug to shut the power off completely
(all lamps and indications go off). The (STANDBY/ON)
button in any position does not disconnect the mains line.
•When the unit is on standby, the STANDBY/ON lamp lights in
red.
•When the unit is turned on, the STANDBY/ON lamp lights in
green.
The power can be remote controlled.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2.
CAUTION:
Do not open the top cover. There are no user
serviceable parts inside the unit; leave all servicing to
qualified service personnel.
3.
CAUTION:
Visible and invisible laser radiation when open
and interlock failed or defeated. Avoid direct exposure to
beam.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED
INSIDE THE UNIT.
CAUTION
• Do not block the ventilation openings or holes.
(If the ventilation openings or holes are blocked by a
newspaper or cloth, etc., the heat may not be able to get
out.)
• Do not place any naked flame sources, such as lighted
candles, on the apparatus.
• When discarding batteries, environmental problems must
be considered and local rules or laws governing the
disposal of these batteries must be followed strictly.
•Do not expose this apparatus to rain, moisture, dripping or
splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.

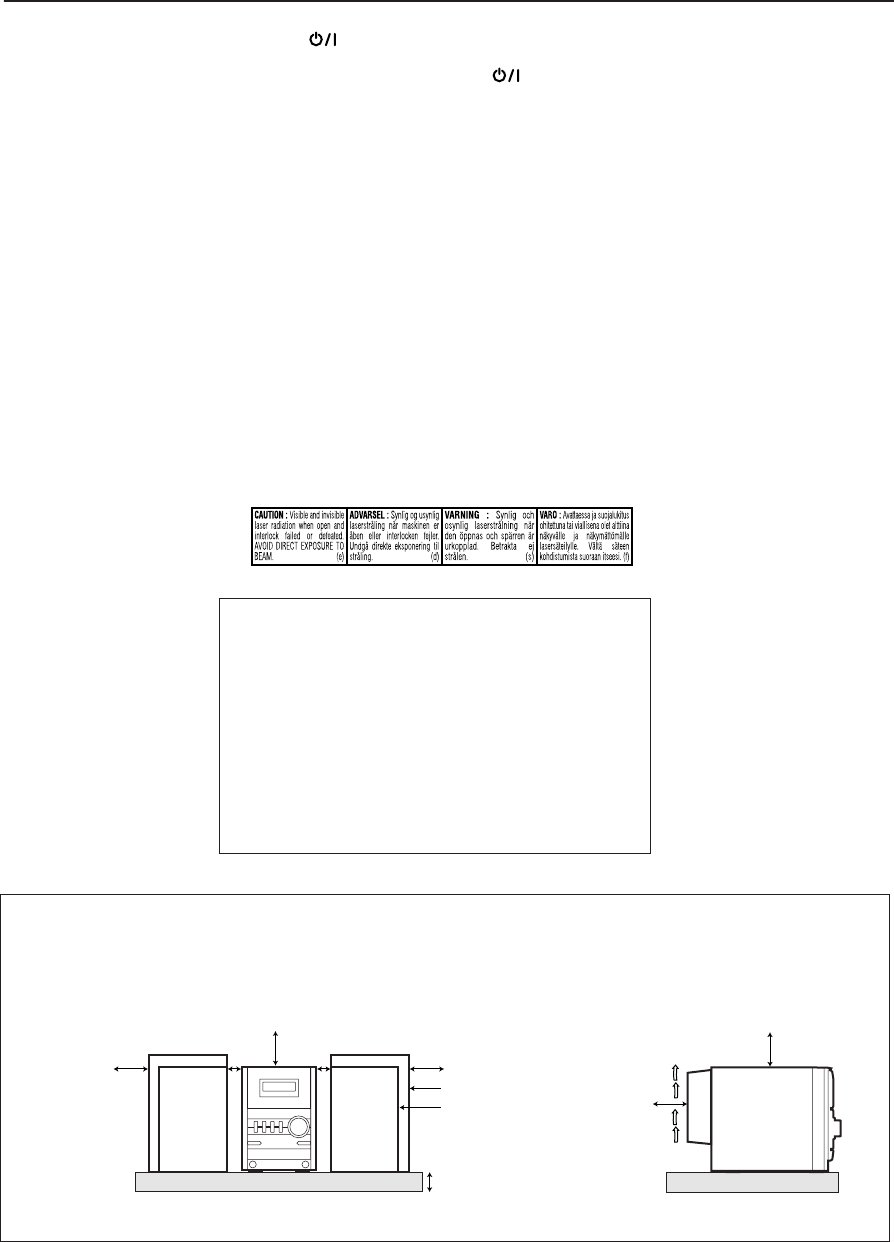

Caution: Proper Ventilation
To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:
1. Front: No obstructions and open spacing.
2. Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.
3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm
or more.
10 cm
15 cm
1 cm
15 cm
15 cm 1 cm
15 cm
15 cm
Front view Side view
SP-UXGD6S
SP-UXGD6M
CA-UXGD6S
CA-UXGD6M
SP-UXGD6S
SP-UXGD6M
CA-UXGD6S
CA-UXGD6M
SP-UXGD6S
SP-UXGD6M
Safty[A].fm Page 1 Wednesday, March 23, 2005 10:01 AM
1
Precautions
Installation
•Install the System in a location with adequate ventilation to
prevent internal heat buildup in the System.
•Install in a place which is level, dry and neither too hot nor
too cold—between 5°C and 35°C.
• Leave sufficient distance between the System and the TV.
•Keep the speakers away from the TV to avoid interference
with TV.
Power sources
•When unplugging the System from the wall outlet, always
pull on the plug, not the AC power cord.
Moisture condensation
Moisture may condense on the lenses inside the System in
the following cases:
• After starting to heat the room
• In a damp room
• If the System is brought directly from a cold to a warm
place.
Should this occur, the System may malfunction. In this case,
leave the System turned on for a few hours until the moisture
evaporates, unplug the AC power cord, then plug it in again.
Internal heat
• Make sure there is good ventilation around the unit. Poor
ventilation could overheat and damage the unit.
Others
• Should any metallic object or liquid fall into the System,
unplug the AC power cord and consult your dealer before
operating any further.
•If you are not going to operate the System for an extended
period of time, unplug the AC power cord from the wall
outlet.
If anything goes wrong, unplug the AC power cord and
consult your dealer.
Contents
Connections ..............................................................3

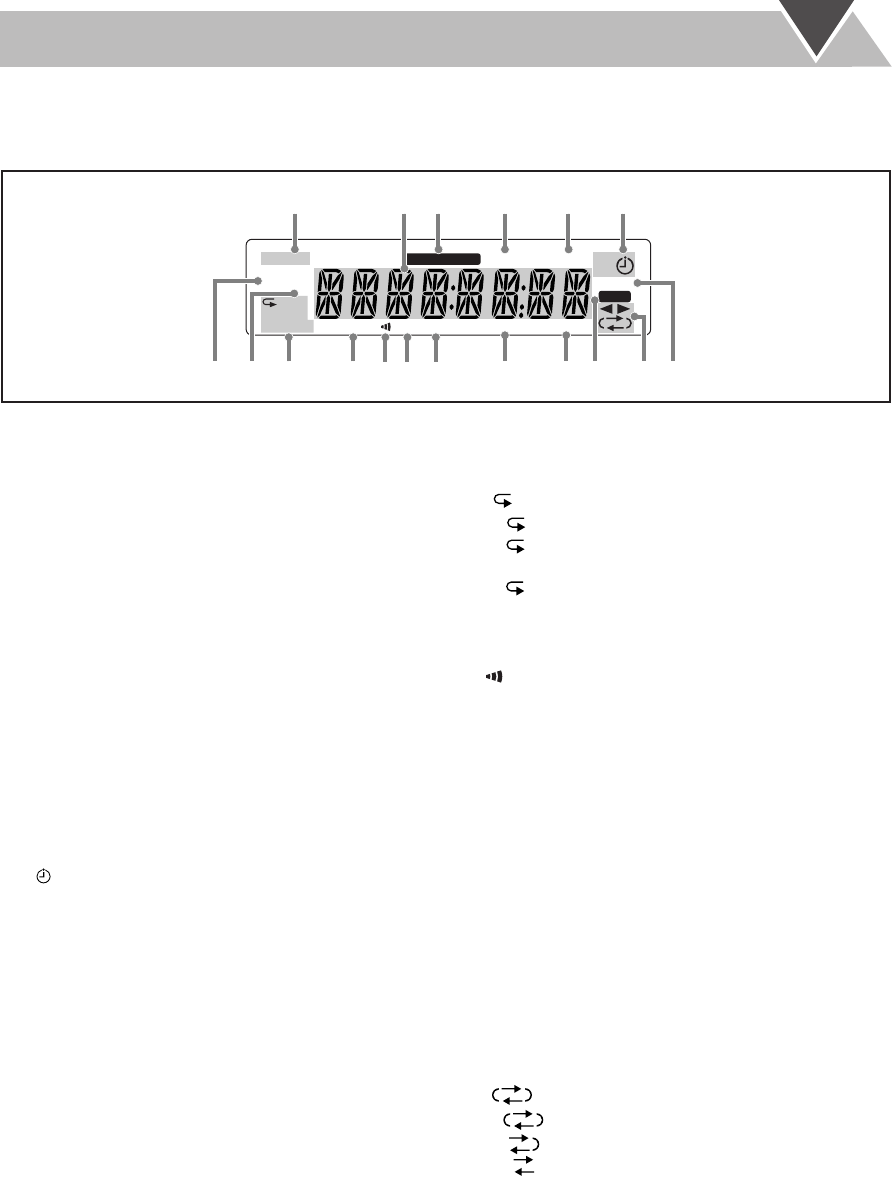

Display Indicators....................................................6
Daily Operations—Playback ..................................7
Daily Operations—Sound & Other Adjustments
.....12
Adjusting the Volume ....................................................... 12
Adjusting the Sound.......................................................... 12
Creating 3-dimentional Sound Field—3D Phonic ............ 13
Presetting Automatic DVD Video Sound
Increase Level ............................................................... 13
Changing the Scanning Mode .......................................... 13
Changing the Display Brightness...................................... 14
Changing the Picture Tone................................................ 14
Adjusting the Audio Input Level ...................................... 14
Setting the Clock............................................................... 15
Turning Off the Power Automatically .............................. 15
Unique DVD/VCD Operations .............................16
Selecting the Audio Track................................................. 16
Selecting the Subtitle Language........................................ 17
Selecting the View Angle ................................................. 17
Selecting the Browsable Still Pictures .............................. 17
Playing Back Bonus Group............................................... 17
Making Dialogues Clear—Clear Voice ............................ 18
Special Effect Playback .................................................... 18
Advanced Disc Operations....................................19
Programming the Playing Order—Program Play ............. 19
Playing at Random—Random Play .................................. 20
Playing Repeatedly ........................................................... 21
Prohibiting Disc Ejection—Child Lock............................ 21
On-Screen Disc Operations...................................22
Advanced Tape Operations ..................................28
Recording on a Tape ......................................................... 28
Synchronized Disc Recording........................................... 29
Enjoying Karaoke..................................................30
Singing Along (Karaoke) .................................................. 30
Microphone Mixing .......................................................... 31
Timer Operations...................................................32
Setup Menu Operations ........................................34
Additional Information .........................................36
Operating JVC’s TVs Using the Remote Control............. 42
Specifications .................................................................... 43
Parts Index ............................................................44
DO NOT install the System in a location near
heat sources, or in a place subject to direct
sunlight, excessive dust or vibration.
DO NOT handle the AC power cord with wet
hands.
DO NOT block the ventilation openings or
holes. If they are blocked by a newspaper or
cloth, etc., the heat may not be able to get out.
DO NOT disassemble the System since there
are no user serviceable parts inside.
Introduction
UX-GD6[A].book Page 1 Wednesday, March 23, 2005 10:01 AM
2
Playable Disc Types
In addition to the above discs, this system can play back
audio data recorded on CD Text, CD-G (CD Graphics), and
CD-Extra.
• The following discs cannot be played back:
DVD+R, DVD+RW, CD-I (CD-I Ready), CD-ROM,
Photo CD, etc.
Playing back these discs will generate noise and damage
the speakers.
•In this manual, “file” and “track” are interchangeably used
for MP3/JPEG operations.
About color system
This System accommodates the NTSC and PAL system and
can play back discs recorded in either the NTSC or the PAL
system.
• To change the color system, see page 4.
Note on Region Code
DVD players and DVDs have their own Region Code
numbers. This System can play back only DVDs with an
appropriate Region Code number.
• For details, see “Specifications” on page 43.
(For Oceanian countries)
Audio formats
The System can play back the following digital audio formats.
•
LPCM
(Linear PCM),
DIGITAL
(Dolby Digital),
DTS
(Digital Theater Systems),
MLP
(Meridian Lossless
Packing)
When playing a multi-channel encoded DVDs, the System
properly converts these multi-channel signals into 2 channels,
and emits the downmixed sound from the speakers.
•
To enjoy the powerful sound of these multi-channel
encoded DVDs,
connect a proper decoder or an amplifier
with a proper built-in decoder to the DVD OPTICAL
DIGITAL OUT terminal on the rear.
How to Read This Manual
•Button and control operations are explained as listed in the
table below.
•
Some related tips and notes are explained later in the
sections “Learning More about This System” and
“Troubleshooting,” but not in the same section
explaining the operations ( indicates that the
content has some information).
“DVD Logo” is a trademark of DVD Format/Logo
Licensing Corporation registered in the US, Japan and other
countries.
Caution for DualDisc playback
The Non-DVD side of a “DualDisc” does not comply with
the “Compact Disc Digital Audio” standard. Therefore, the
use of Non-DVD side of a DualDisc on this product may not
be recommended.
• CD-R/RW: Recorded in the Audio CD, Video CD,
SVCD, MP3, and JPEG formats.
• DVD-R: Recorded in the DVD Video format.
• DVD-RW/RAM: Recorded in the DVD Video
Recording (VR) format.
EX.:
INFO
DIGITAL VIDEO
SUPER VIDEO
COMPACT
DIGITAL AUDIO
IMPORTANT: Before playing a disc, make sure of
the following...
•Turn on the TV and select an appropriate input mode on
the TV to view the pictures or on-screen displays.
•For disc playback, you can change the initial setting to
your preference. See “Setup Menu Operations” on
page 34.
If “ ” appears on the TV screen when you press a
button,
the disc cannot accept the operation you have
tried to do.
Indicates that you press the button
briefly.
Indicates that you press the button
briefly and
repeatedly
until an option you want is
selected.
Indicates that you press one of the buttons.
Indicates that you
press and hold
the button
for a specified period.
Indicates that you turn the control toward the
specified direction(s).
Indicates that this operation is only possible
using the remote control.
Indicates that this operation is only possible
using the main unit.
INFO
2
sec.
Remote
ONLY
Main Unit
ONLY
UX-GD6[A].book Page 2 Wednesday, March 23, 2005 10:01 AM
3

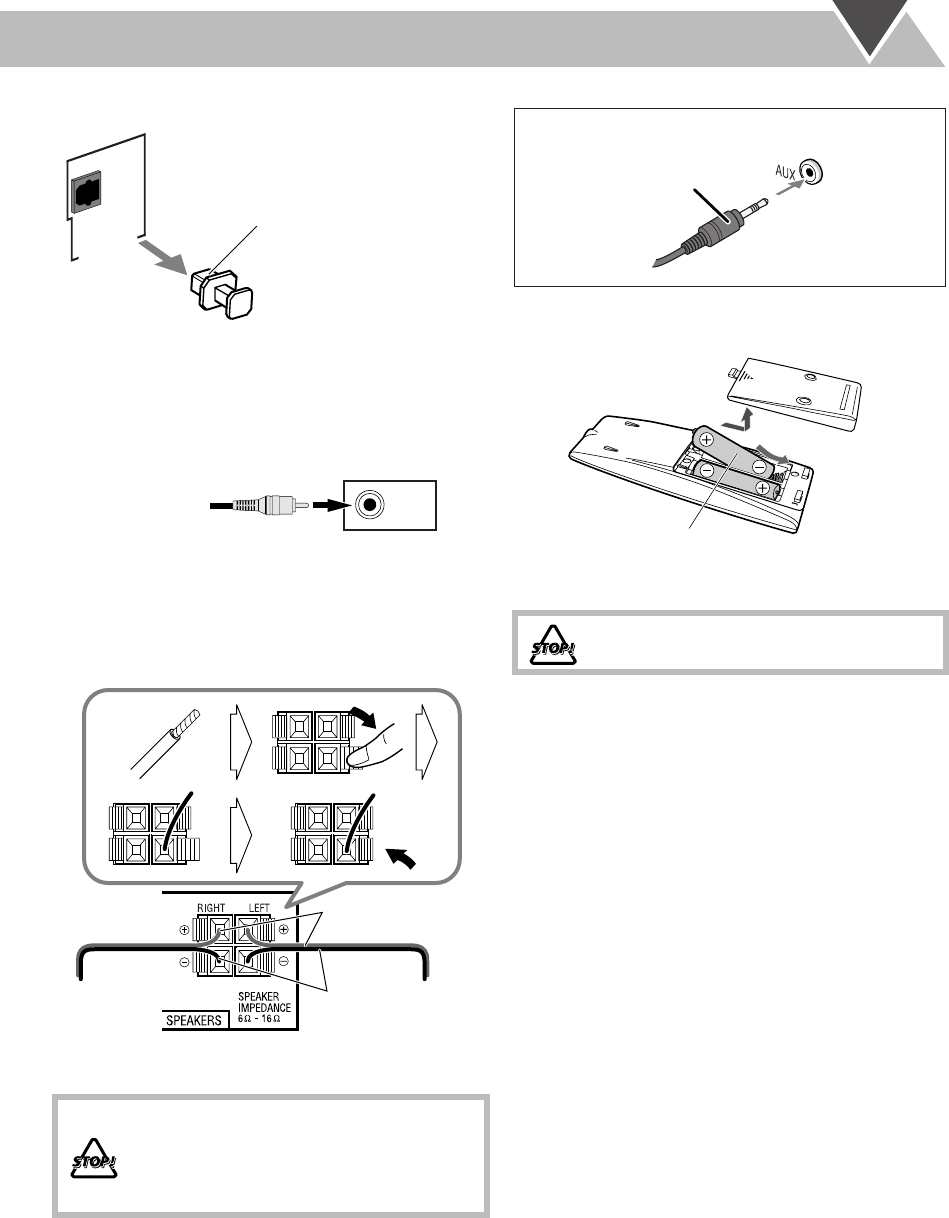

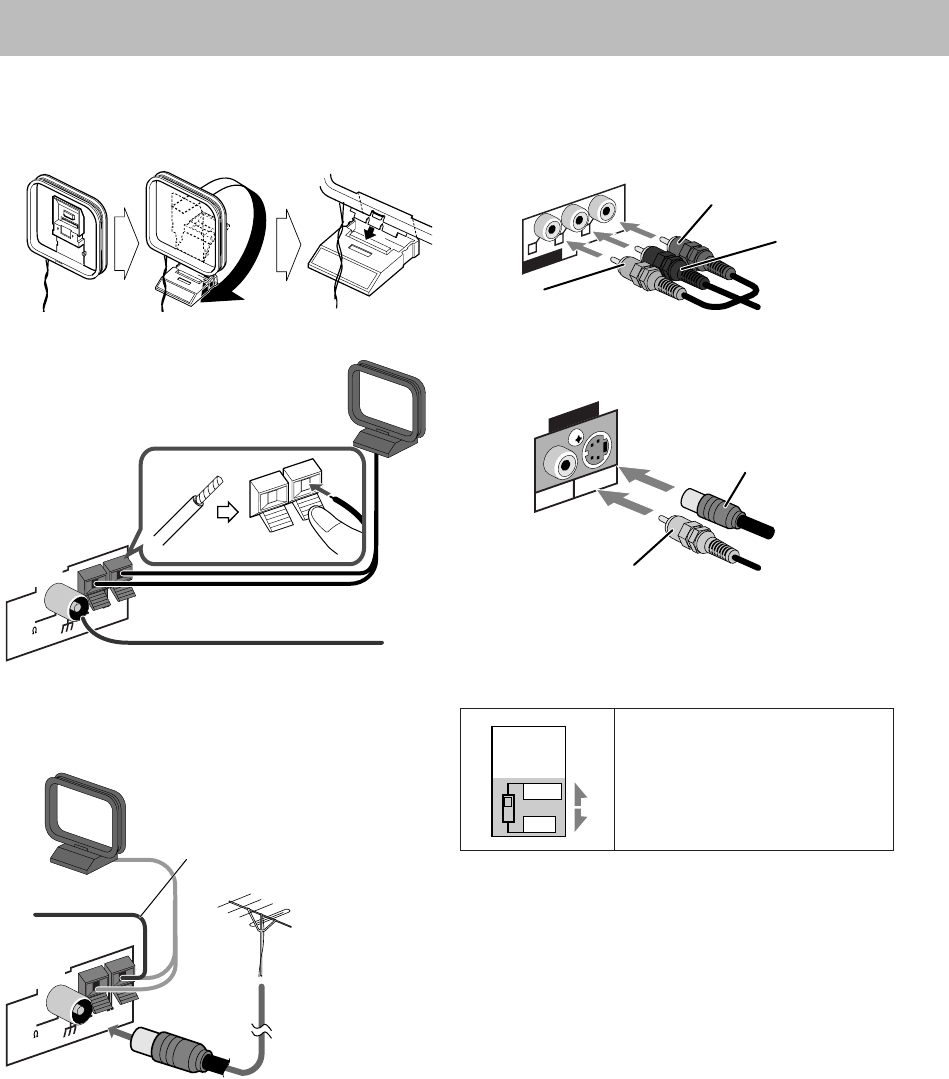

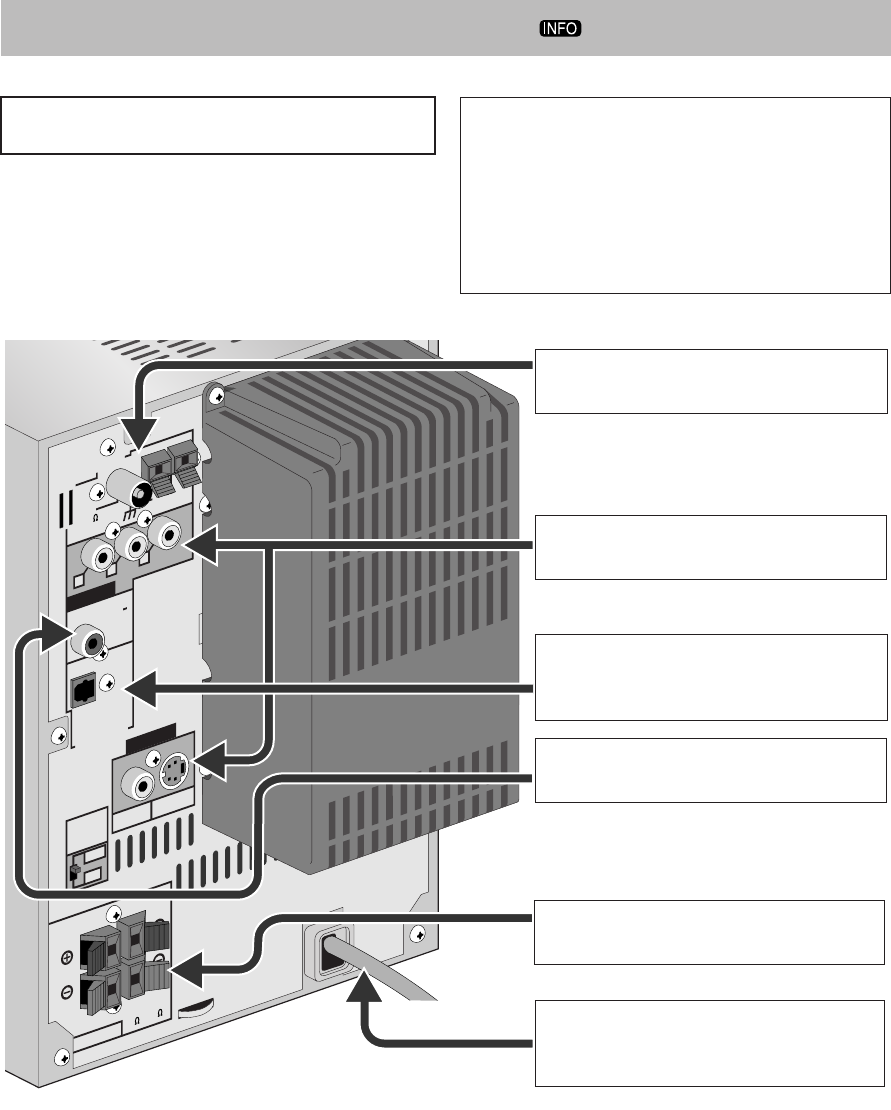

Connections
•Connect VIDEO OUT/COMPONENT directly to the video
input of your TV. Connecting VIDEO OUT/COMPONENT
to a TV via a VCR may interfere with your viewing when
playing back a copy-protected disc. Your viewing may be
interfered when connecting VIDEO OUT/COMPONENT
to an integrated TV/VCR system.
Do not connect the AC power cord until all other
connections have been made.
Supplied accessories
Check to be sure that you have all the following items.
• FM antenna (x1)
• AM loop antenna (x1)
• Composite video cord (x1)
• Remote control (x1)
• Batteries (x2)
If any item is missing, consult your dealer immediately.
ANTENNA
SUB
WOOFER
OUT
DVD OPTICAL
DIGITAL OUT
SPEAKERS
COMPONENT
VIDEO OUT
FM
(75 )
COAXIAL
AM
LOOP
Y
RIGHT
SPEAKER
IMPEDANCE
6
–
16
LEFT
P
B
P
R
AM
EXT
PCM
/
STREAM
NTSC
VIDEO
OUT
SELECT
PAL
VIDEO S-VIDEO
~ From AM/FM antenna
See page 4.
! From the digital input of digital audio
component such as CD recorder
See page 5.
Ÿ From the input of TV/monitor
See page 4.
@ From the speakers
See page 5.
⁄ From the powered subwoofer
See page 5.
¤ From a wall outlet
Plug the AC power cord only after all
connections are complete.
UX-GD6[A].book Page 3 Wednesday, March 23, 2005 10:01 AM
4
~
AM/FM antenna
To assemble the AM loop antenna
To connect AM/FM antenna
For better AM/FM reception
• Disconnect the supplied FM antenna, and connect to an
outdoor FM antenna using a 75
Ω
wire with coaxial type
connector (IEC or DIN45325).
Ÿ
TV/monitor
Connect the COMPONENT, S-VIDEO, or VIDEO jacks
which you want to use.
•To select progressive scanning mode (see page 13), use
COMPONENT jacks.
Selecting the Video Output Selector
You can select the video output to match it to the color
system of your TV.
ANTENNA
FM
(75 )
COAXIAL
AM
LOOP AM
EXT
Extend it so that you can obtain the best
reception.
AM loop antenna (supplied)
FM antenna (supplied)
ANTENNA
FM
(75 )
COAXIAL
AM
LOOP AM
EXT
AM loop antenna (supplied)
Keep it connected.
Vinyl-covered wire (not supplied)
Extend it horizontally.
FM outdoor antenna
(not supplied)
NTSC:
For an NTSC TV.
PAL:
For a PAL TV.
• When using a multi-color system
TV, either position will work.
COMPONENT
YP
B
P
R
Green
Blue
Red
Component video cord
(not supplied)
VIDEO OUT
VIDEO S-VIDEO
Composite video cord
(supplied)
S-video cord
(not supplied)
VIDEO
OUT
SELECT
PAL
NTSC
UX-GD6[A].book Page 4 Wednesday, March 23, 2005 10:01 AM
5
!
Digital audio component
• Set “DIGITAL AUDIO OUTPUT” in the “AUDIO” menu
correctly according to the connected digital audio
equipment (see page 35). If setting is incorrect, loud noise
may be generated causing damage to the speakers.
⁄
To connect the powered subwoofer
@
Speakers
• When connecting the speaker cords, match the polarity of
the speaker terminals: red color to (+) and black color to (–).
Preparing the remote control
• Dispose of batteries in the proper manner, according to
federal, state, and local regulations.
When using the remote control
Point the top of the remote control toward the remote sensor
as directly as possible. If you operate it from a diagonal
position, the operating range (approx. 5 m) may be shorter.
•DO NOT connect more than one speaker to
each terminal.
• DO NOT push or pull the speakers as this
will damage the foot spacers at the bottom
of the speakers.
DVD OPTICAL
DIGITAL OUT
PCM
/
STREAM
Protective cap
SUB-
WOOFER
OUT
From the powered
subwoofer
(not supplied)
From right
speaker From left
speaker
Red
Black
When connecting auxiliary equipment (AUX)
DO NOT recharge, short, disassemble or
heat the battery or dispose of it in a fire.
Stereo mini plug
(not supplied)
R6(SUM-3)/AA(15F)
UX-GD6[A].book Page 5 Wednesday, March 23, 2005 10:01 AM
6
Display Indicators
The indications on the display teach you a lot of things while you are operating the System.
Before operating the System, be familiar with when and how the indicator illuminates on the display.
1
FM reception indicators
• MONO: lights while receiving an FM stereo station in
monaural.
• ST (stereo): lights while an FM stereo station with
sufficient signal strength is tuned in.
2
Main display
• While listening to radio: Band (or preset number) and
station frequency appear.
• While selecting “AUX”: “AUX” appears.
• While playing a disc: Current status appears.
• While playing a tape: “TAPE” appears.
3
SOUND TURBO indicator
• Lights when Sound Turbo II is activated.
4
AHB PRO indicator
• Lights when Active Hyper Bass Pro is activated.
5
A(auto). STANDBY indicator
• Lights when Auto Standby is activated.
• Flashes when disc playback stops with Auto Standby
activated.
6
Timer indicators
•: lights when Daily Timer stands by or is being preset.
• 1/2/3: lights when a Daily Timer (1, 2, or 3) stands by;
flashes while being preset or working.
•REC: lights when the Recording Timer stands by; flashes
while being preset or working.
7
MP3 indicator
• Lights when an MP3 track is detected.
8
PG/PL indicators
• PG: lights when a DVD-VR formatted disc is called up.
• PL: lights when Play List recorded on the DVD-VR
formatted disc is called up.
9
Disc operation indicators
• RANDOM: lights when Random Play is activated.
•PROGRAM: lights when Program Play is activated.
•
(repeat)1
ALL:
–: lights when Disc Repeat is activated.
–: lights when One Track/Chapter/Step repeat is
activated.
–: lights when any Repeat other than the above is
activated.
p
3D PHONIC indicator
• Lights when 3D Phonic is activated.
q
(Clear Voice) indicator
• Lights when Clear Voice is activated.
w
B.S.P. (Browsable Still Picture) indicator
•Lights when
Browsable
Still Pictures are detected while
playing a DVD Audio.
e
BONUS indicator
• Lights when
a DVD Audio with a bonus group is
detected
.
r
PROGRESSIVE indicator
• Lights when the progressive scanning mode is selected.
t
RESUME indicator
•Lights when Resume is activated (see page 35).
y
REC indicator
• Lights while recording.
u
Tape operation indicators
•
2
3
(tape direction):
– Lights to indicate the current tape running direction.
– Flashes slowly during playback and recording.
– Flashes quickly while rewinding a tape.
• (reverse mode):
–: tape play continues endlessly.
–: tape automatically reverses once.
–: tape play stops at the end of one side.
i
SLEEP
indicator
• Lights when the Sleep Timer is activated.
MONO
MP3
1ALL
PL
PG
RANDOM
PROGRAM
3DPHONIC B.S.P. BONUS RESUME
PROGRESSIVE
ST
AHB PRO
A.STANDBY 1 2 3
SOUNDTURBO
SLEEP
REC
REC
13245 6
w
qe rt yp97 8 iu
ALL
1
UX-GD6[A].book Page 6 Wednesday, March 23, 2005 10:01 AM
7

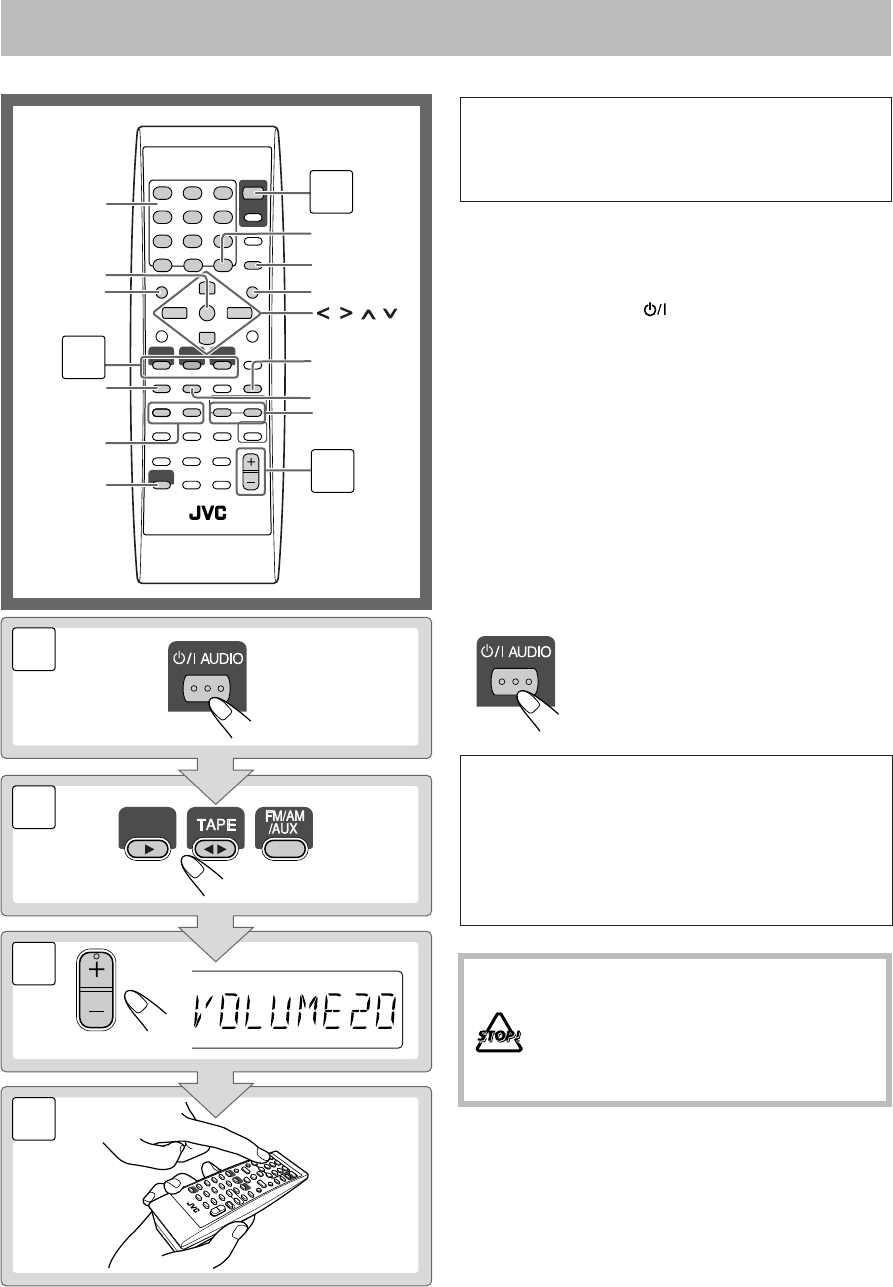

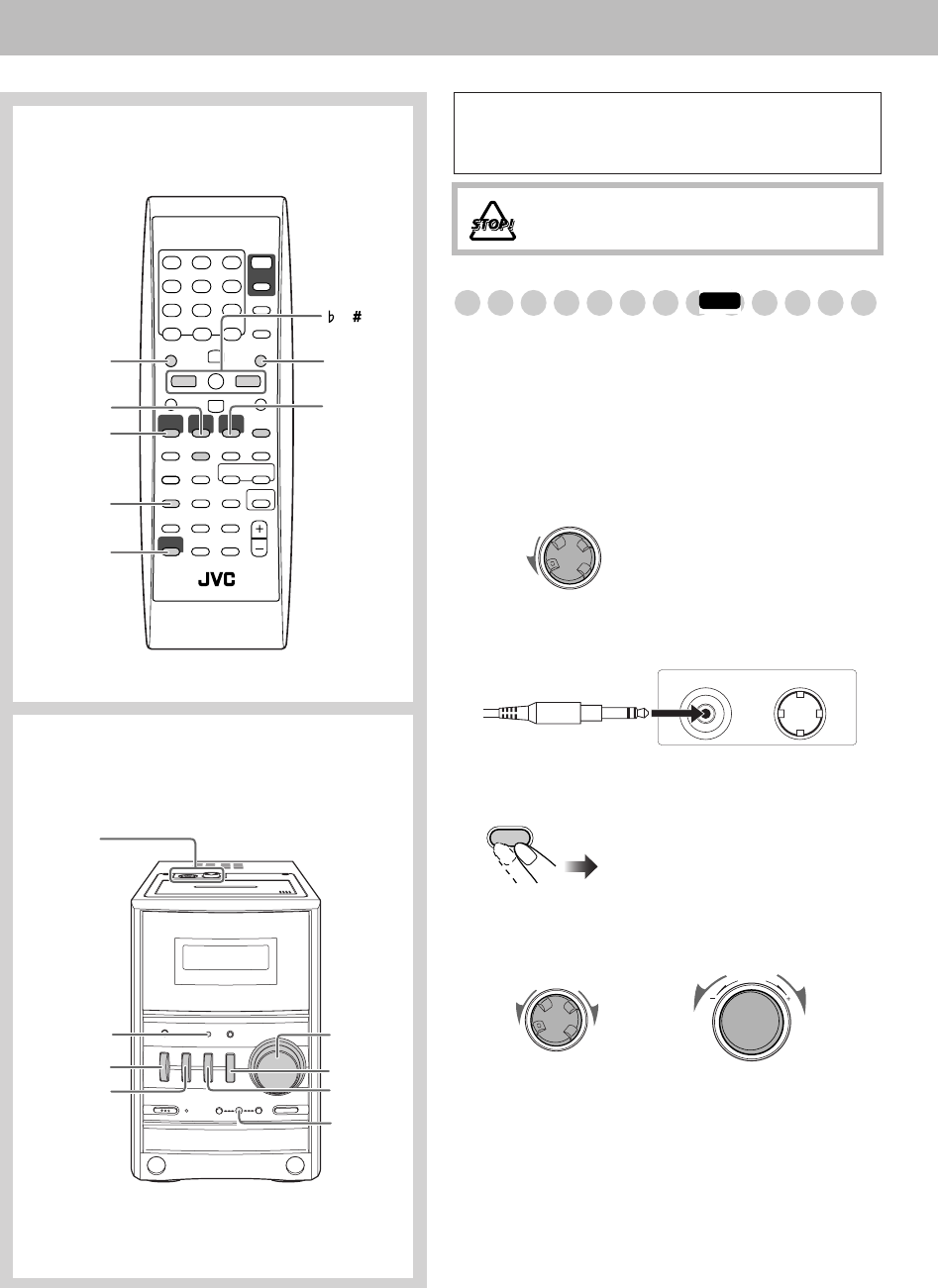

Daily Operations
—Playback
1
Turn on the power.
The STANDBY/ON lamp on the main unit lights in
green.
• Without pressing AUDIO, the System turns on
by pressing one of the source buttons in the next step.
2
Select the source.
Playback automatically starts if the selected source is
ready.
• If you select “AUX,” start playback source on the
external component.
3
Adjust the volume.
4
Operate the target source as explained
later.
To turn off (stand by) the unit
2
1
VOLUME
TV VOLUME
3
4
DVD/CD
1
3
GROUP/TITLE SKIP
FM/PLAY MODE
4/¢
1/¡
SET
10 keys
87
SHIFT
,, ,
2
ENTER
MENU/PL
RETURN
TOP MENU/PG
In this manual, the operation using the remote control
is mainly explained; however, you can use the buttons
and controls on the main unit if they have the same (or
similar) name and marks.
The STANDBY/ON lamp on the main unit
lights in red.
•A small amount of power is always
consumed even while on standby.
For private listening
Connect a pair of headphones to the PHONES jack on the
main unit. The sound will no longer come out of the
speakers.
Be sure to turn down the volume before
connecting or putting the headphones.
• Disconnecting the headphones will activate the
speakers again.
DO NOT turn off (stand by) the System with
the volume set to an extremely high level;
otherwise, the sudden blast of sound can
damage your hearing, speakers and/or
headphones when you turn on the System or
start playback.
UX-GD6[A].book Page 7 Wednesday, March 23, 2005 10:01 AM
8

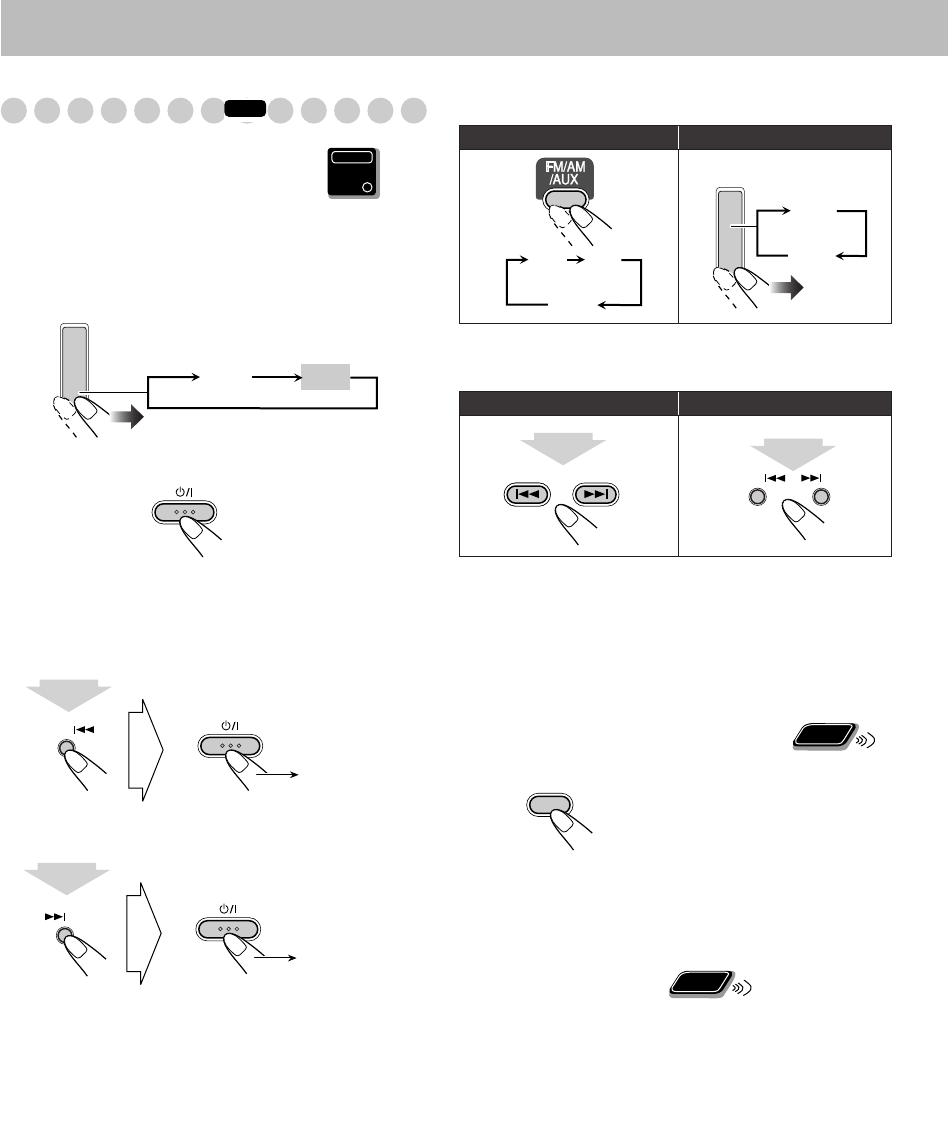

Listening to the Radio
To set the AM tuner interval spacing
Before operating the tuner, it is required to select the
appropriate AM space interval used for your area.
1
Select the AM band.
2
Turn off the power.
3
Select the appropriate AM space interval for your
area.
•You can only use the button and the control on the front
panel.
To select the band (FM or AM)
To tune in to a station
While FM or AM is selected...
Frequency starts changing on the display.
When a station (frequency) with sufficient signal strength is
tuned in, the frequency stops changing.
• When you repeatedly press the button, the frequency
changes step by step.
To stop searching manually,
press either button.
If the received FM station is hard to listen
The MONO indicator lights on the display. Reception will
improve though stereo effect is lost—Monaural reception.
To restore the stereo effect,
press the button again (the
MONO indicator goes off).
To preset the stations
You can preset 30 FM and 15 AM stations.
1
Tune in to a station you want to preset.
•You can also store the monaural reception mode for FM
preset stations if selected.
INFO
Main Unit
ONLY
FM/AM
FM AM
DOWN
AM 9KHZ
(9 kHz interval)
UP
AM 10KHZ
(10 kHz interval)
While holding...
While holding...
Remote control: Main unit:
Remote control: Main unit:
FM AM
AUX
FM/AM
FM
AM
GROUP/TITLE SKIP
2 sec. 2 sec.
DOWN UP
Remote
ONLY
REV.MODE
FM/PLAY MODE
Remote
ONLY
UX-GD6[A].book Page 8 Wednesday, March 23, 2005 10:01 AM

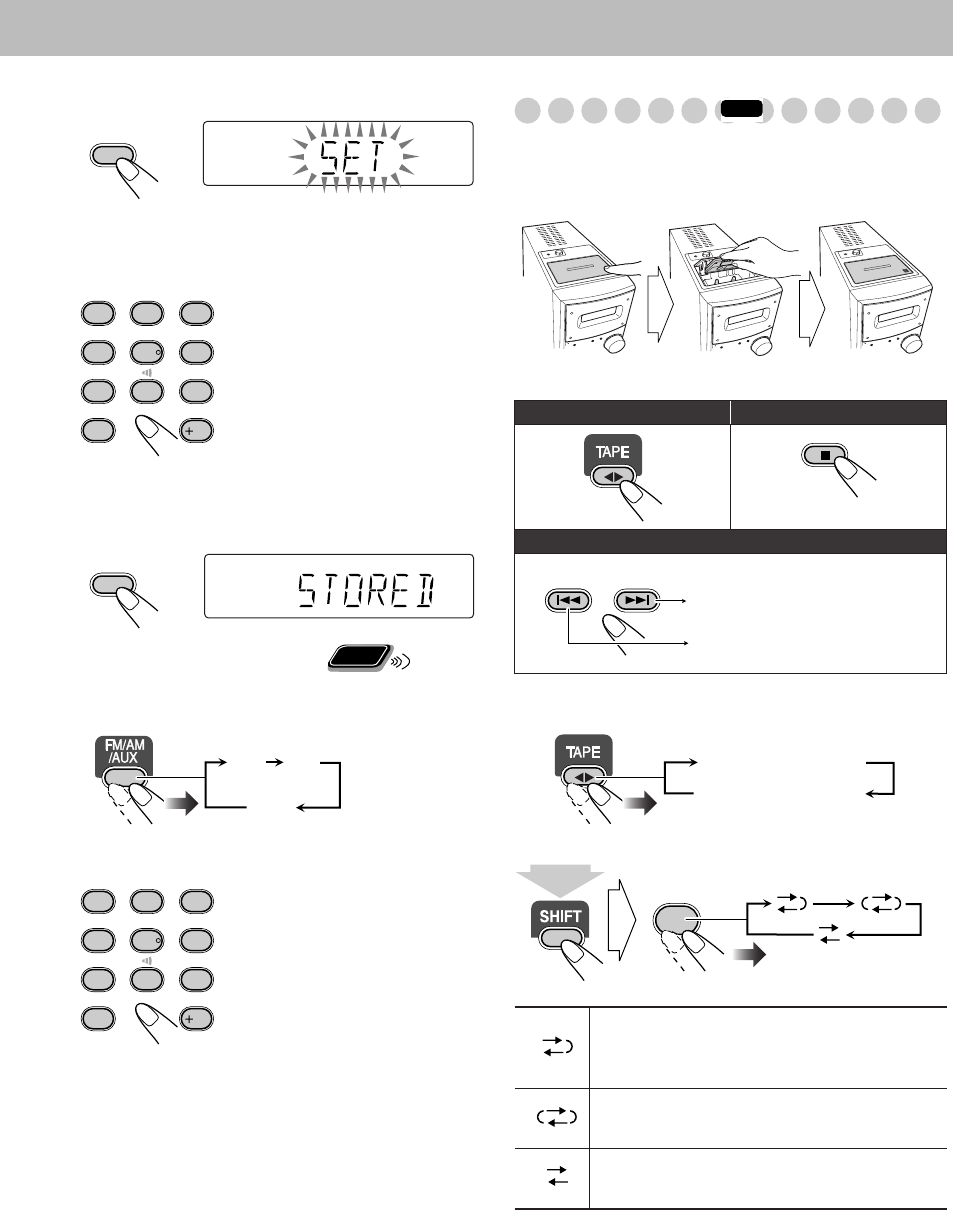

9
2
Activate the preset number entry mode.
•Finish the following process while the indication on the
display is flashing.
3
Select a preset number for the station you store.
• You can also use the ¡
or 1
button.
4
Store the station.
To tune in to a preset station
1
Select the band (FM or AM).
2
Select a preset number for the station you store.
Playing Back a Tape
To insert a tape
You can play back type I tapes.
To change the tape running direction
To reverse the tape automatically
Examples:
To select preset number 5, press
5.
To select preset number 15, press
+10, then 5.
To select preset number 30, press
+10, +10, then 10.
• You can also use the ¡
or
1
button.
SET
CANCEL
DIMMER
A.STANDBY
SLEEP
VFP
3D PHONIC
DVD LEVEL
PAG E
RETURN
SCAN MODE
1
4
7
10
2
5
8
3
6
9
10
SET
CANCEL
Remote
ONLY
FM AM
AUX
DIMMER
A.STANDBY
SLEEP
VFP
3D PHONIC
DVD LEVEL
PAG E
RETURN
SCAN MODE
1
4
7
10
2
5
8
3
6
9
10
To start: To stop:
To rewind tape:
Tape is played from the forward side to the
reverse side. When the reverse side is played
back, playback stops.
Tape is automatically reversed, and playback
repeats until you stop it.
Tape will not be reversed. When the current
side of the tape reaches its end, playback stops.
INFO
Push Insert Close
With the tape side facing outside
GROUP/TITLE SKIP
Rewind the tape to the right.
Rewind the tape to the left.
3 (forward play)
2 (reverse play)
REV. MODE
FM/PLAY MODE
(at the same time)
UX-GD6[A].book Page 9 Wednesday, March 23, 2005 10:01 AM
10
Playing Back a Disc
Before operating a disc, be familiar how a disc is recorded.
• DVD Video comprises of “
Titles
” which includes
“
Chapters
,” DVD Audio/MP3/JPEG comprise of
“
Groups
” which includes “
Tracks
,” and CD/SVCD/VCD
comprise of only “
Tracks
.”
•For MP3/JPEG playback, see also page 25.

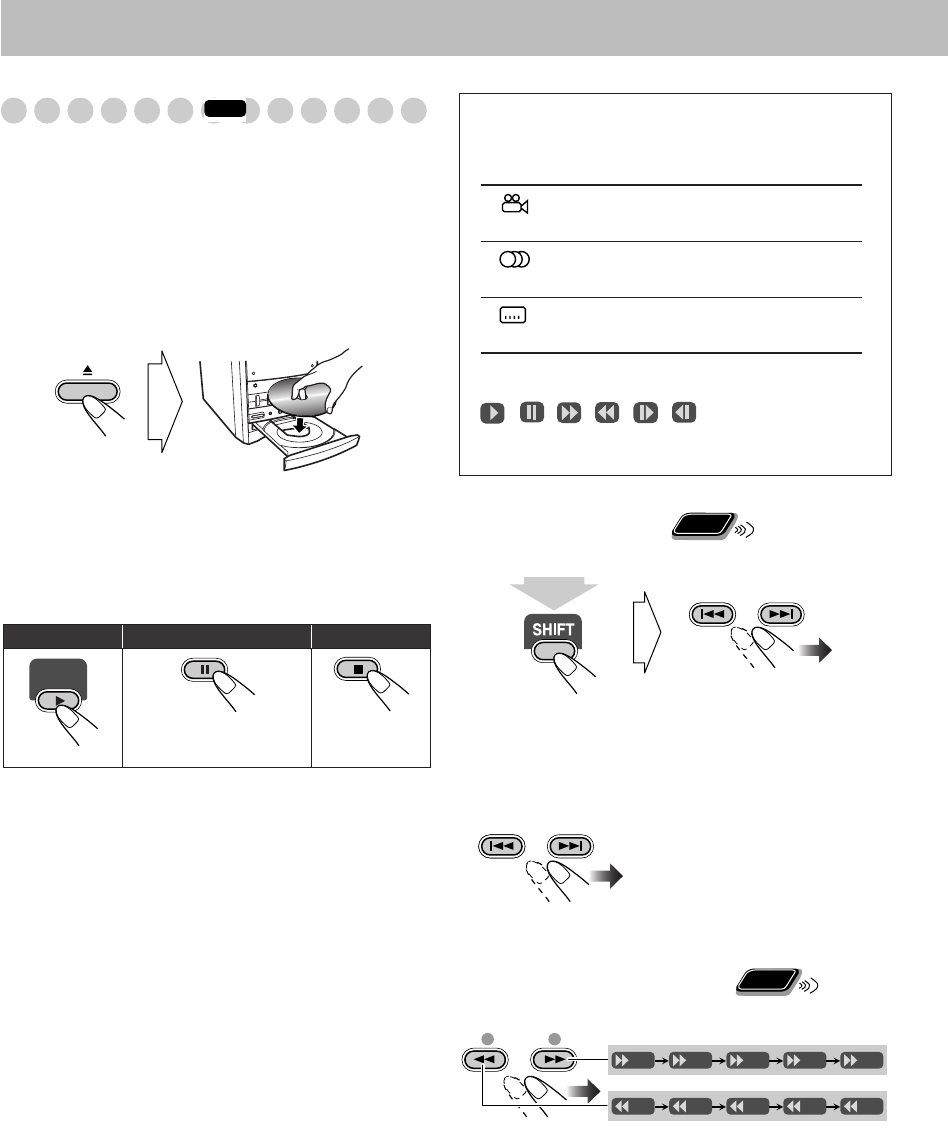

To insert a disc
You can insert a disc while playing another source.
•When using an 8 cm disc, place it on the inner circle of the
disc tray.
To close the disc tray,
press 0
again.
• If you press DVD/CD 3
, disc tray closes automatically
and playback starts (depending on how the disc is
programmed internally).
•
While playing DVD/SVCD/VCD/MP3:
This System can
store the stop point, and when you start playback again by
pressing DVD/CD 3
(even while on standby), it starts
from the position where you have stopped—Resume Play.
(“RESUME” appears on the display when you stop
playback.)
To stop completely while Resume is activated,
press 7
twice. (To cancel Resume, see “RESUME” on page 35.)
•When operating the System, the on-screen guide icon (see
the following table) appears on the TV.
To select a title/group
While playing a disc...
• Group name appears for MP3 discs.
To select a chapter/track
While playing a disc...
To locate a particular portion
While playing a disc...
•Search speed changes as illustrated above except for MP3
discs. For MP3 discs, search speed and the indications on
the monitor are different.
• No sound comes out if searching is carried out while
showing the moving picture.
To return to normal playback,
press DVD/CD 3
.
To start: To pause: To stop:
To release, press
DVD/CD 3
.
INFO
DVD/CD
On-screen guide icons
• During DVD Video playback, the following icons may
appear on the TV:
At the beginning of a scene containing multi-
angle views.
At the beginning of a scene containing multi-
audio sounds.
At the beginning of a scene containing multi-
subtitles.
• The following icons will be also shown on the TV to
indicate your current operation.
, , , , ,
• To deactivate the on-screen guide icons, see “ON
SCREEN GUIDE” on page 35.
• First time you press 4
, you
can go back to the beginning of
the current chapter/track.
Remote
ONLY
GROUP/TITLE SKIP
(at the same time)
GROUP/TITLE SKIP
Remote
ONLY
SLOW
+
–
x2 x5
x10 x20 x60
x2 x5
x10 x20 x60
UX-GD6[A].book Page 10 Wednesday, March 23, 2005 10:01 AM
11
To locate an item directly
You can select a title/chapter/track directly and start
playback.
• For DVD Video, you can select
a title before starting
playback
, while you can select
a chapter after starting
playback
.
To play back using the disc menu
7
For DVD Video/DVD Audio:
1
Show the disc menu.
2
Select an item on the disc menu.
•With some discs, you can also select items by entering the
number using the 10 keys.
7
For SVCD/VCD with PBC:
While playing a disc with PBC, “PBC” appears on the
display.
When disc menu appears on the TV, select an item on the
menu. Playback of the selected item starts.
To cancel PBC
Playback starts with the selected track.
To reactivate PBC,
press 7
(twice if Resume is turned
“ON”), then press DVD/CD 3
.
Examples:
To select number 5, press 5.
To select number 15, press +10,
then 5.
To select number 30, press +10,
+10, then 10.
Remote
ONLY
DIMMER
A.STANDBY
SLEEP
VFP
3D PHONIC
DVD LEVEL
PAG E
RETURN
SCAN MODE
1
4
7
10
2
5
8
3
6
9
10
Remote
ONLY
TOP MENU/PG MENU/PL
KARAOKE ECHO
TV CH
ENTER
TV CH
Examples:
To select number 5, press 5.
To select number 15, press +10,
then 5.
To select number 30, press +10,
+10, then 10.
To move to the next or previous page of the current
menu:
To return to the previous menu:
DIMMER
A.STANDBY
SLEEP
VFP
3D PHONIC
DVD LEVEL
PAG E
RETURN
SCAN MODE
1
4
7
10
2
5
8
3
6
9
10
GROUP/TITLE SKIP
Moves to the next page.
Moves to the previous page.
RETURN
10
(at the same time)
DIMMER
A.STANDBY
SLEEP
VFP
3D PHONIC
DVD LEVEL
PAG E
RETURN
SCAN MODE
1
4
7
10
2
5
8
3
6
9
10
Stop playback. Select a track.
UX-GD6[A].book Page 11 Wednesday, March 23, 2005 10:01 AM
12
Daily Operations
—Sound & Other Adjustments

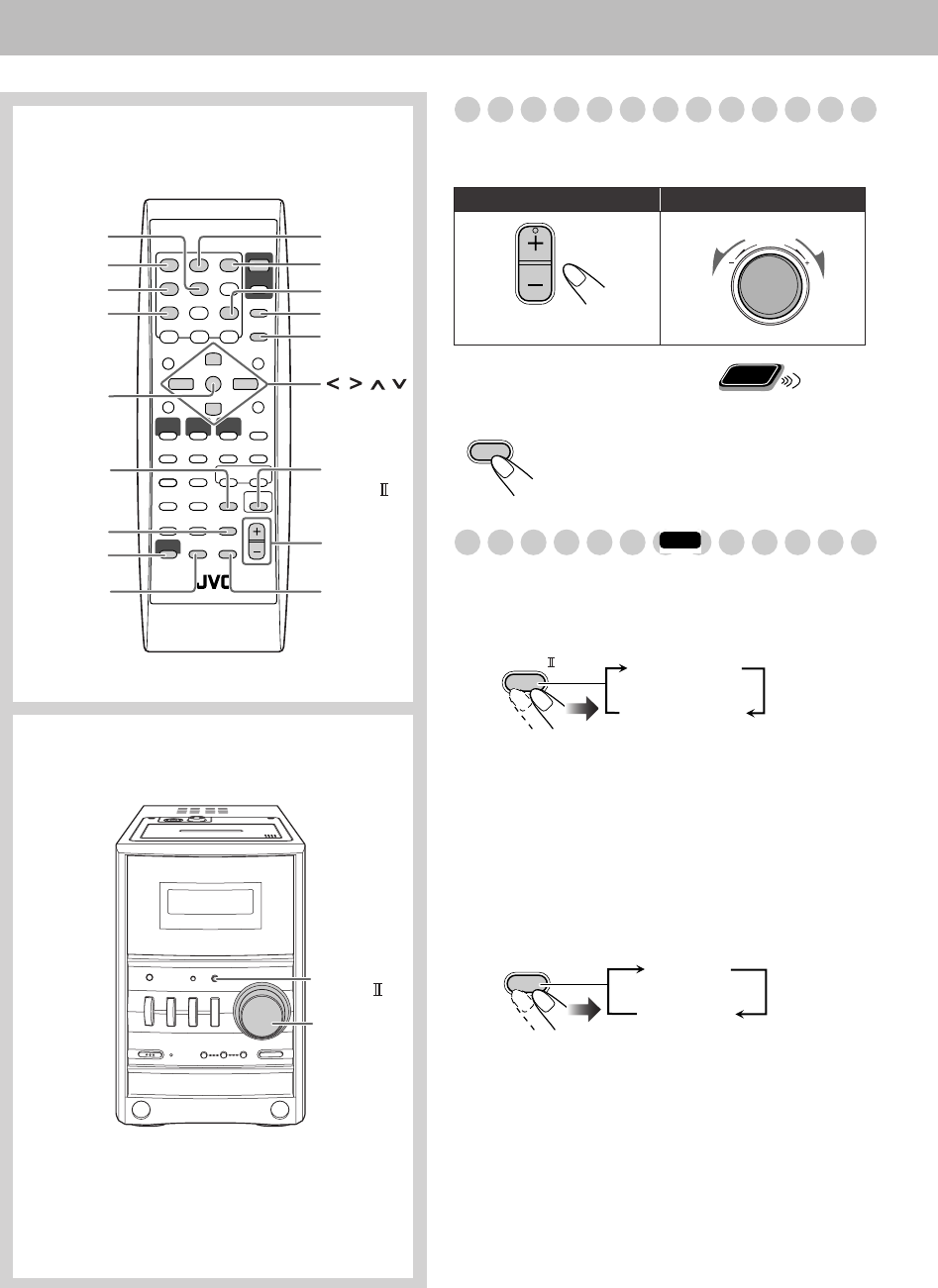

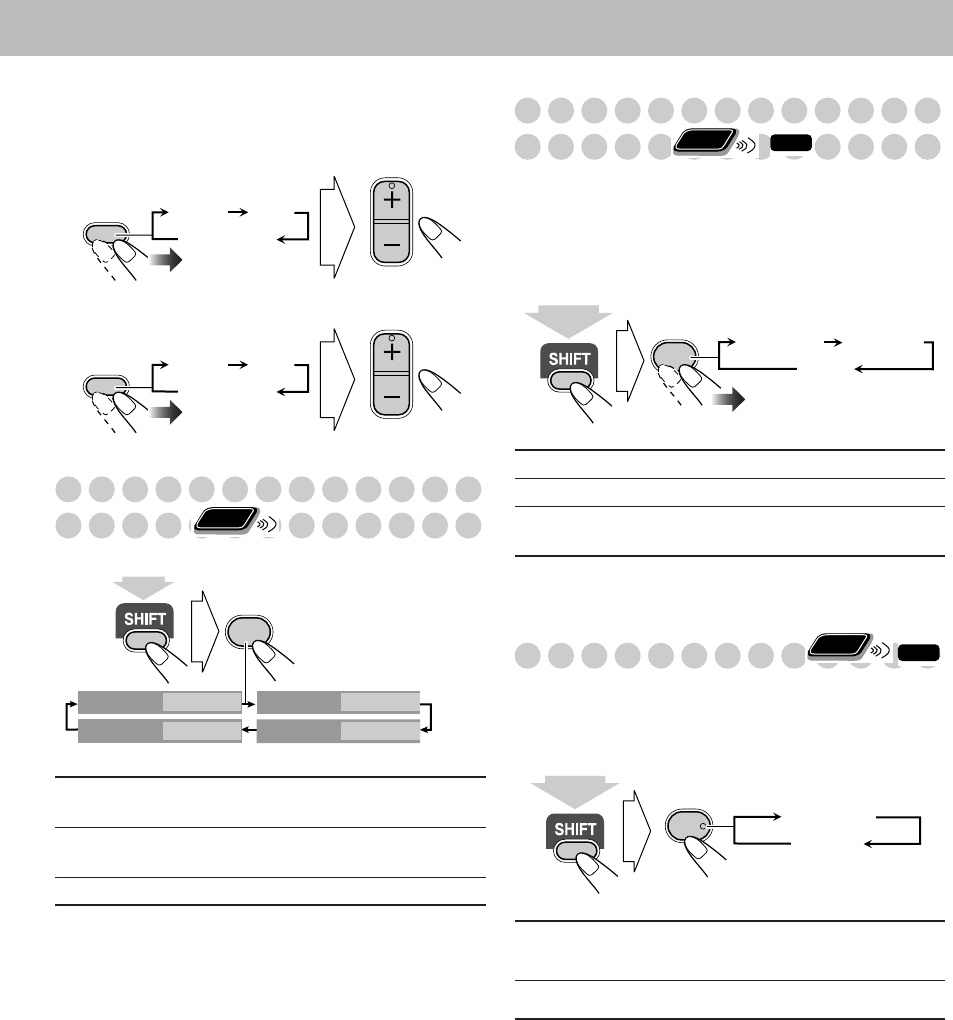

Adjusting the Volume
You can adjust the volume level from level 0 (VOL MIN) to
level 40 (VOL MAX).
To drop the volume in a moment
Adjusting the Sound
To reinforce the heavy sound
This boosts the low and high frequency sound—Sound
Turbo II.
• When Sound Turbo II is turned on, AHB Pro is
automatically turned on, and cannot be turned off.
(AHB PRO indicator does not lights even though the
function is turned on.)
To reinforce the bass sound
The richness and fullness of the bass sound is clearly
maintained regardless of how you set the volume—Active
Hyper Bass Pro.
SOUND
TURBO
VOLUME
+/–
A.STANDBY
SLEEP
SET
ENTER
DISPLAY
CLOCK/
TIMER
BASS/TREBLE
VFP
DVD LEVEL
DIMMER
SCAN MODE
SHIFT
FADE
MUTING
,, ,
3D PHONIC
AHB PRO
VOLUME +/–
SOUND
TURBO
Remote control
Main unit
Remote control: Main unit:
To restore the volume,
press again, or
adjust the volume level.
VOLUME
TV VOLUME
VOLUME
Remote
ONLY
FADE
MUTING
INFO
SOUND
TURBO
TURBO ON
TURBO OFF
AHB PRO
AHB ON
AHB OFF
UX-GD6[A].book Page 12 Wednesday, March 23, 2005 10:01 AM
13

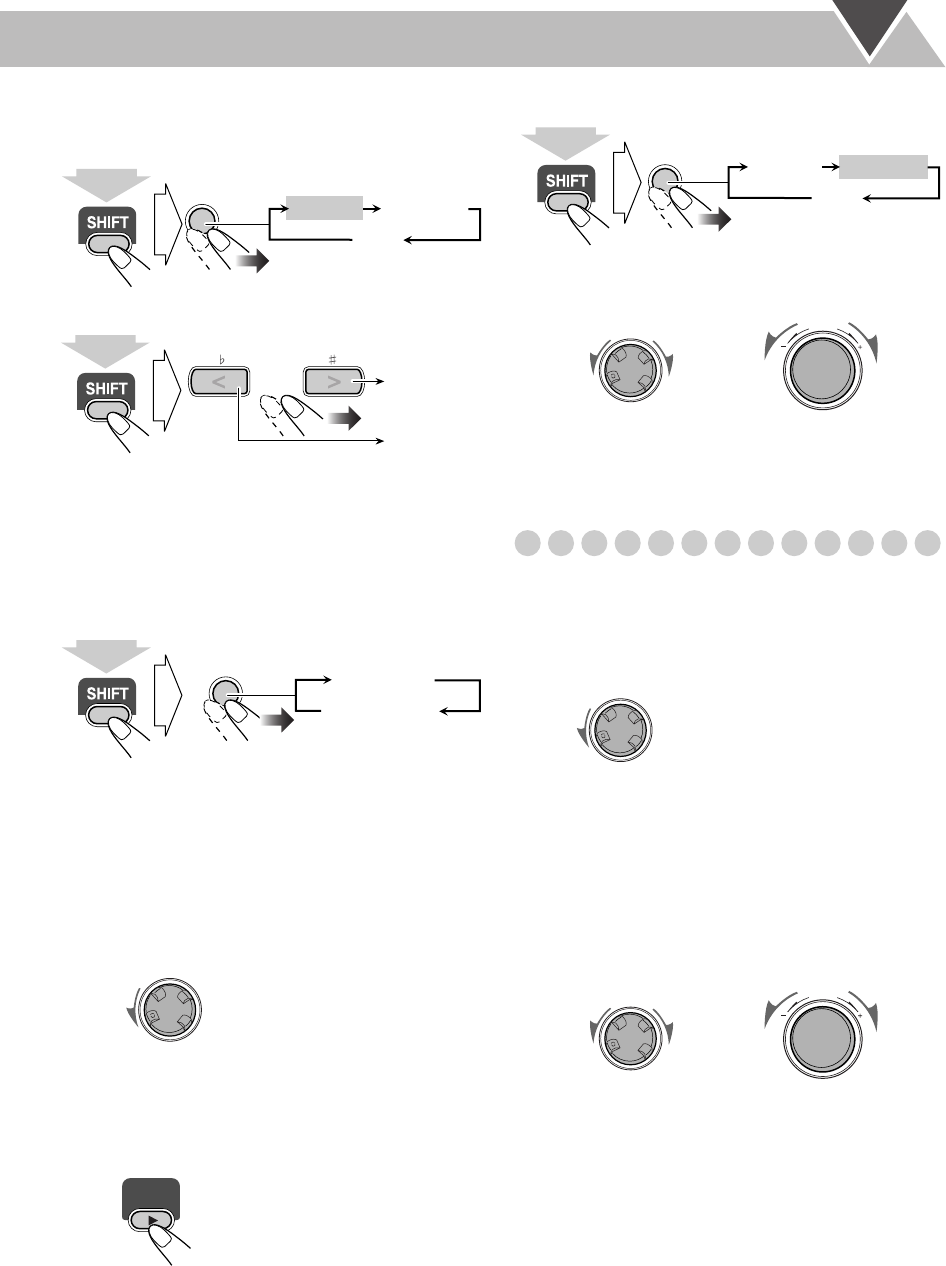

To adjust the tone
You can adjust the bass and treble level from –3 to +3.
To adjust the bass
To adjust the treble
Creating 3-dimentional Sound Field
—3D Phonic
While playing a disc...
• The selected mode can only be shown on the TV.
Presetting Automatic DVD Video Sound
Increase Level
The DVD Video sound is sometimes recorded at a lower
level than for other discs and sources. You can set the
increase level for the currently loaded DVD Video, so you
do not have to adjust the volume when you change the
source.
• This also functions for DVD-VR formatted discs.
• Once the current DVD is ejected, this setting is canceled
and set automatically to “NORMAL.”
Changing the Scanning Mode
This System supports progressive scanning.
• If you connect a progressive TV through the
COMPONENT jacks, you can enjoy a high quality picture
from the built-in DVD player by selecting “PROGRE.”
ACTION
Suitable for action movies and sports
programs.
DRAMA
Creates natural and warm sound. Enjoy
movies in a relaxed mood.
THEATER
Enjoy sound effects like in a major theater.
BASS/
TREBLE
BASS TRE
Canceled
VOLUME
TV VOLUME
BASS/
TREBLE
BASS TRE
Canceled
VOLUME
TV VOLUME
Remote
ONLY
7
3D PHONIC
3D PHONIC ACTION 3D PHONIC DRAMA
3D PHONIC THEATER
3D PHONIC OFF
(at the same time)
NORMAL
Original recording level.
MIDDLE
Output level is increased (less than “HIGH”).
HIGH
Output level is increased (more than
“MIDDLE”).
PROGRE
Progressive scanning. For a progressive TV.
• The PROGRESSIVE indicator lights.
INTER
Interlaced scanning. For a conventional TV.
Remote
ONLY
INFO
DVD LEVEL
9
NORMAL MIDDLE
HIGH
(at the same time)
Remote
ONLY
INFO
SCAN MODE
5
PROGRE
INTER
(at the same time)
UX-GD6[A].book Page 13 Wednesday, March 23, 2005 10:01 AM
14

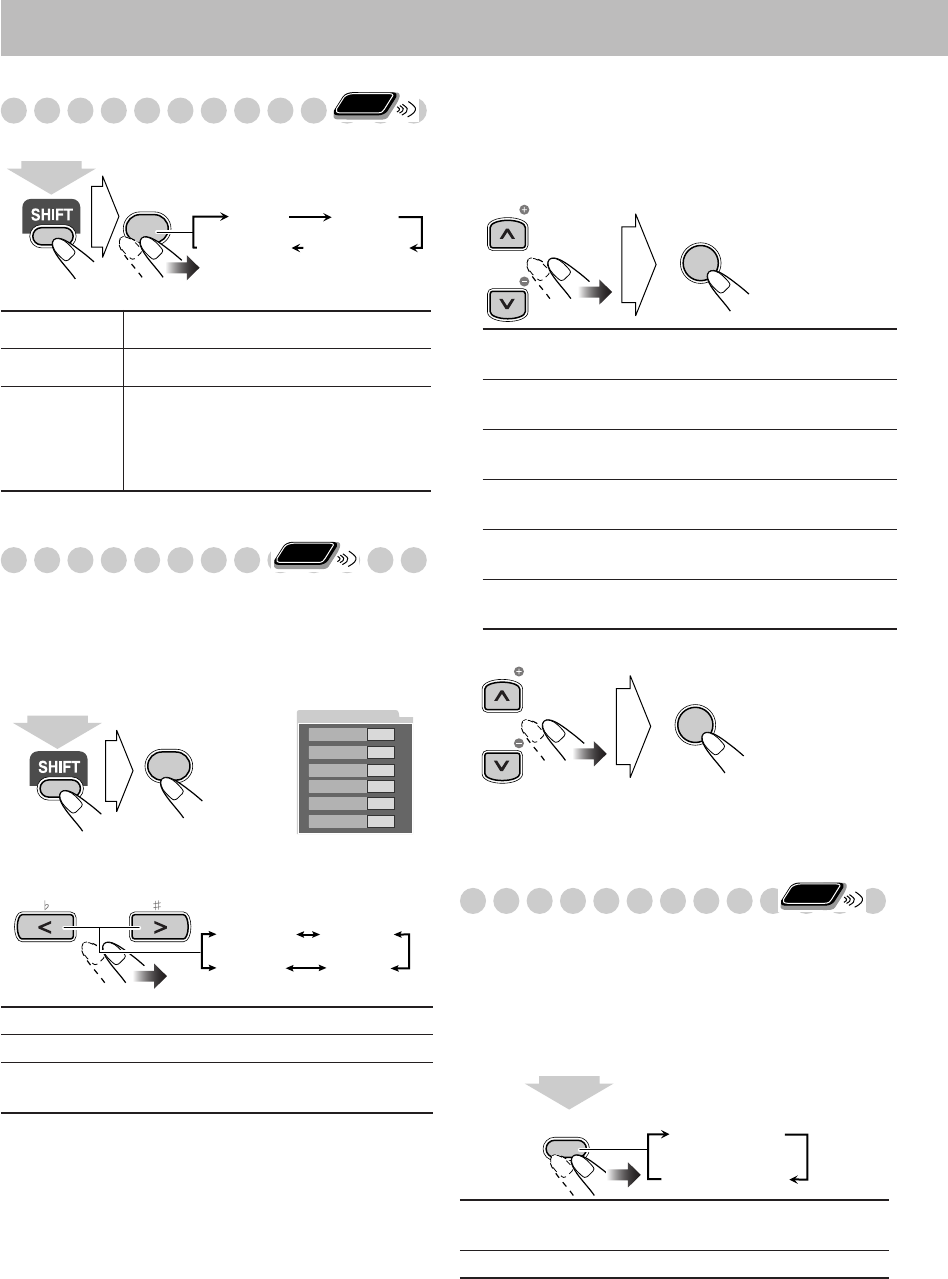

Changing the Display Brightness
You can dim the display window.
* “AUTO DIM” does not work for CD/MP3.
Changing the Picture Tone
• While showing a playback picture on the TV, you can
select the preset picture tone, or adjust it and store your
own taste.
To select a preset picture tone
1
While playing, display VFP setting screen.
2
Select a preset picture tone.
To erase the screen,
press VFP again while holding SHIFT.
To adjust the picture tone
1
Select “USER1” or “USER2.”
• Follow steps
1
and
2
explained on the left column.
2
Select a parameter you want to adjust.
3
Adjust the parameter.
4
Repeat steps
2
to
3
to adjust other parameters.
To erase the screen,
press VFP again while holding SHIFT.
Adjusting the Audio Input Level
If the sound from the component connected to the
AUX jack is too loud or is not loud enough when changing
from another source to “AUX,” you can change the audio
input level through the AUX jack (without changing the
volume level).
While the “AUX” is selected as a source...
DIM1
Dims the display.
DIM2
Erases the display illumination.
AUTO DIM
Erases the display illumination when
disc playback starts.*
• The display illuminates when
playback stops.
NORMAL
Normally select this.
CINEMA
Suitable for a movie source.
USER1/USER2
You can adjust parameters and can
store the settings.
Remote
ONLY
1
DIMMER
DIM1 DIM2
AUTO DIM
DIM OFF
(Canceled)
(at the same time)
Remote
ONLY
VFP
4
0
NORMAL
GAMMA
BRIGHTNESS
CONTRAST
SATURATION
TINT
SHARPNESS
0
0
0
0
0
(at the same time) On the TV
NORMAL CINEMA
USER2 USER1
GAMMA
Adjust if the neutral color is bright or
dark (–3 to +3).
BRIGHTNESS
Adjust if the entire picture is bright or
dark (–8 to +8).
CONTRAST
Adjust if the far and near positions
are unnatural (–7 to +7).
SATURATION
Adjust if the picture is whitish or
blackish (–7 to +7).
TINT
Adjust if the human skin color is
unnatural (–7 to +7).
SHARPNESS
Adjust if the picture is indistinct
(–8 to +8).
AUX LVL1
Select this when the sound is too loud (initial
setting).
AUX LVL2
Select this when the sound is not loud enough.
ENTER
TV CH
TV CH
ENTER
TV CH
TV CH
Remote
ONLY
AUX LVL1
AUX LVL2
SET
CANCEL
2 sec.
UX-GD6[A].book Page 14 Wednesday, March 23, 2005 10:01 AM
15

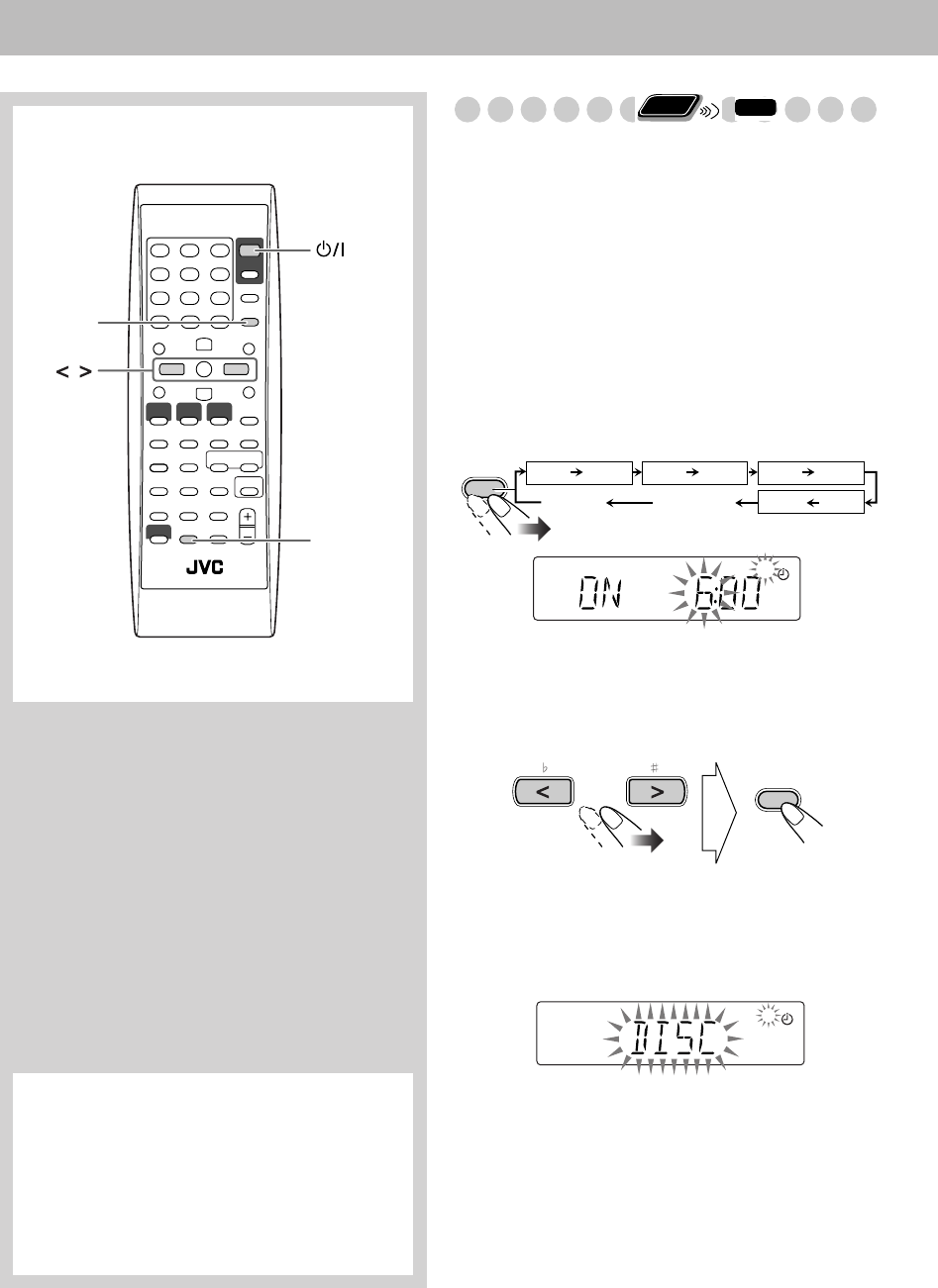

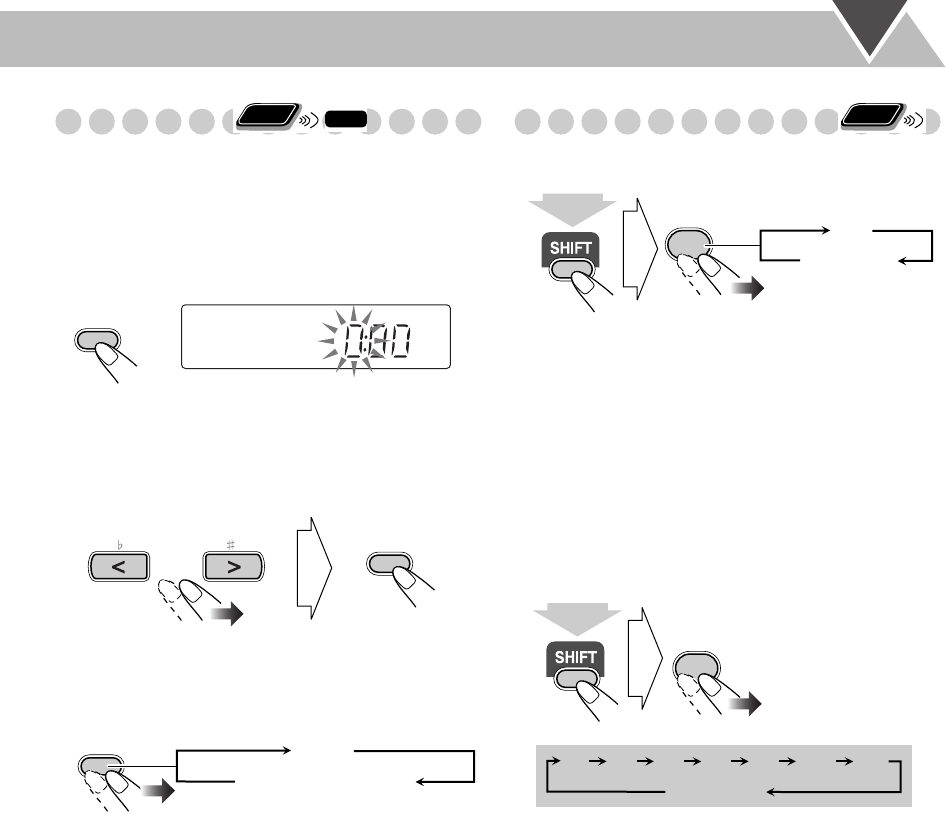

Setting the Clock
Without setting the built-in clock, you cannot use Timers
(see page 32) and Sleep Timer.
• To correct a misentry during the process, press CANCEL
(while holding SHIFT) or CLOCK/TIMER. You can
return to the previous step.
1
Activate the clock setting mode.
•If you have already adjusted the clock before, press the
button repeatedly until the clock setting mode is
selected.
2
Set the time.
• Adjust the hour, then the minute.
Now the built-in clock starts working.
To check the current clock time during play
• While playing a DVD and MP3, you cannot check the
clock time (other disc information appears).
Turning Off the Power Automatically
Auto Standby
When Auto Standby is in use, the A.STANDBY indicator
lights on the display.
When disc play stops, the A.STANDBY indicator starts
flashing. If no operation is done for about 3 minutes while
the indicator is flashing, the System turns off (stands by)
automatically.
Sleep Timer
You can set the shut-off time so that you can go to bed
without turning it off yourself.
1
Specify the time (in minutes).
2
Wait until the set time goes off.
To check the time remaining until the shut-off time,
press
SLEEP while holding SHIFT.
•If you press the button repeatedly, you can change the shut-
off time.
Remote
ONLY
INFO
CLOCK/
TIMER
CANCEL
SET
TV/VIDEO
DISPLAY
Clock
Source information
Remote
ONLY
A.STANDBY
3
On
Canceled
(at the same time)
SLEEP
2
10 20 30 60 90 120
Canceled
150
(at the same time)
UX-GD6[A].book Page 15 Wednesday, March 23, 2005 10:01 AM
16
Unique DVD/VCD Operations

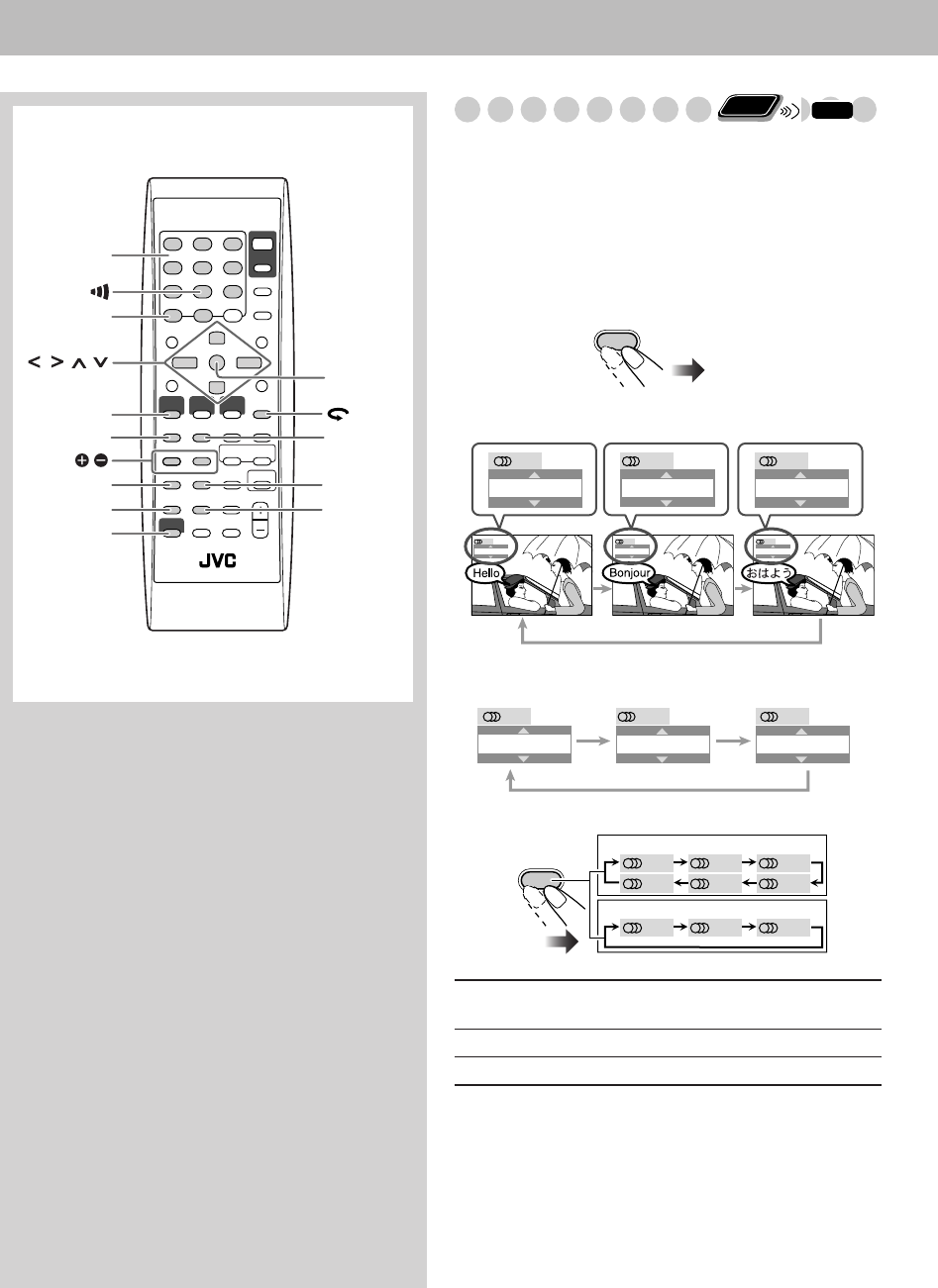

Selecting the Audio Track
For DVD Video:
While playing back a chapter containing
audio languages, you can select the language to listen to.
For DVD Audio:
While playing back a track containing
audio channels, you can select the audio channel to listen to.
For DVD-VR and Karaoke SVCD/VCD:
When playing
back a track, you can select the audio channel to play.
•You can also select the audio track using the on-screen bar
(see page 22).
While playing a DVD Video...
While playing a DVD Audio...
While playing a DVD-VR, or Karaoke SVCD/VCD...
•SVCD can have 4 audio channels. Karaoke SVCD usually
uses these 4 channels to record two 2-channel recordings
(ST1/ST2).
ANGLE
ENTER
SLOW /
10 keys
AUDIO
ZOOM
87
SUBTITLE
SHIFT
PAGE
DVD/CD 3
,, ,
Remote control
ST1/ST2
ST
To listen to normal stereo (2 channel)
playback.
L1/L2/L
To listen to the left audio channel.
R1/R2/R
To listen to the right audio channel.
Remote
ONLY
INFO
AUDIO
ENGLISH
1/3 3/3
FRENCH
2/3
JAPANESE
ENGLISH
1/3
FRENCH
2/3
JAPANESE
3/3
Ex.:
1
1/3
2
2/3
3
3/3
Ex.:
AUDIO
ST1 ST2 L1
R2 L2 R1
ST L R
SVCD
DVD-VR/VCD
UX-GD6[A].book Page 16 Wednesday, March 23, 2005 10:01 AM
17

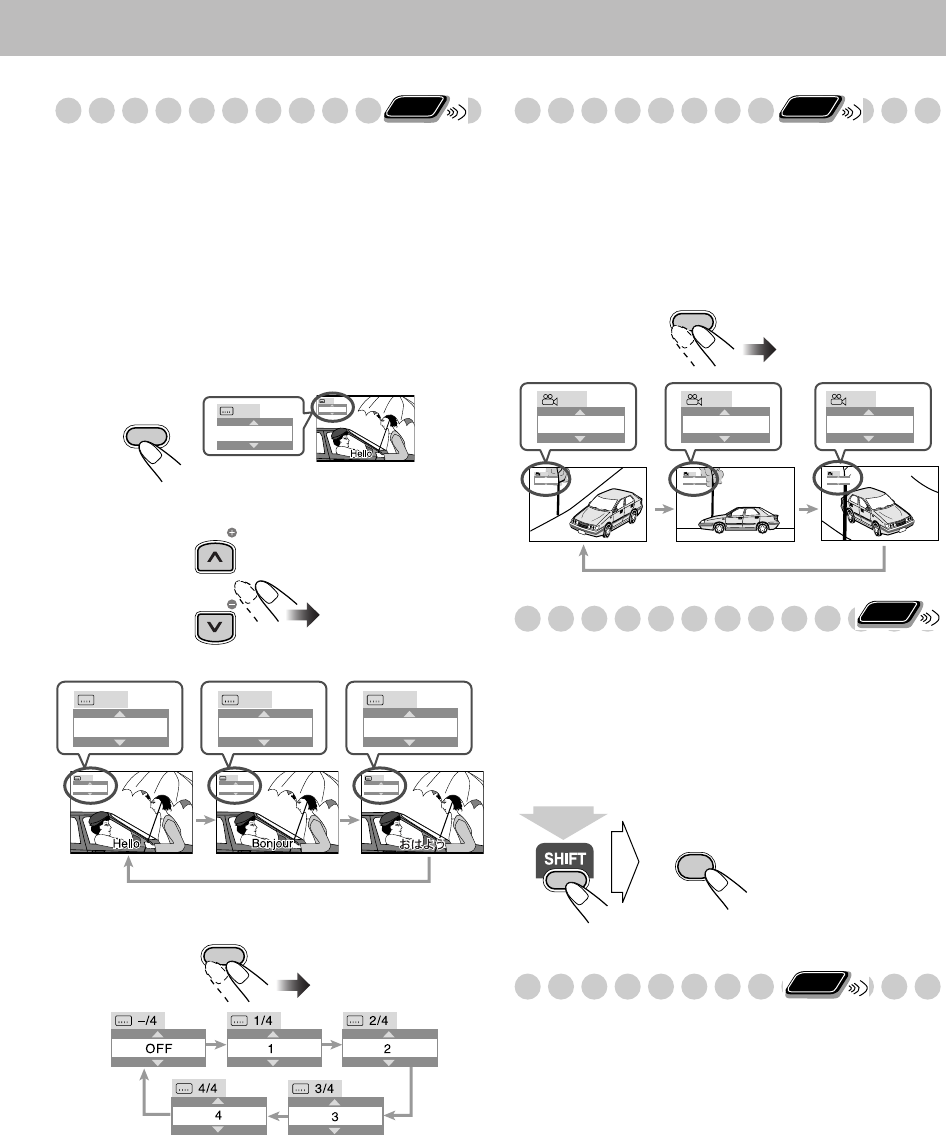

Selecting the Subtitle Language
For DVD Video:
While playing back a chapter containing
subtitles in different languages, you can select the subtitle
language to display on the TV.
For SVCD:
While playing, you can select the subtitles even
if no subtitles are recorded on the disc.
• You can also select the subtitle language using the on-
screen bar (see page 22).
While playing a DVD Video...
1
2
While playing an SVCD video...
Selecting the View Angle
For DVD Video only:
While playing back a chapter
containing multi-view angles, you can view the same scene
from different angles.
• You can also select the multi-view angles using the on-
screen bar (see page 22).
While playing...
Selecting the Browsable Still Pictures
For DVD Audio only:
While playing back a track linked to
browsable still pictures (B.S.P.), you can select the still
picture (turn the page) to be shown on the TV screen.
•If a track is linked to browsable still pictures (B.S.P.), they
are usually shown in turn automatically during playback.
• You can also select the page using the on-screen bar (see
page 22).
Playing Back Bonus Group
For DVD Audio only:
Some DVD Audios have a special
group called “bonus group” whose contents are not open to
the public.
•To play back a bonus group, you have to enter the specific
“key number” (a kind of password) for the bonus group.
The way of getting the key number depends on the disc.
1
Select the bonus group.
• The bonus group is usually recorded as the last group
(for example, if a disc contains 4 groups including a
bonus group, “group 4” is the bonus group).
•For how to select the group, see “To select a title/group”
on page 10.
Remote
ONLY
SUBTITLE
ENGLISH
1/3
ENGLISH
1/3
1/3 3/3
2/3
FRENCH JAPANESEENGLISH
1/3 2/3
JAPANESE
3/3
ENGLISH FRENCH JAPANESE
TV CH
TV CH
Ex.:
SUBTITLE
Each time you press
the button, the still
picture changes one
after another (if
available).
Remote
ONLY
1
1/3
2
2/3
3
3/3
1
1/3
2
2/3
3
3/3
ANGLE
Ex.:
Remote
ONLY
PAG E
10
(at the same time)
Remote
ONLY
UX-GD6[A].book Page 17 Wednesday, March 23, 2005 10:01 AM
18

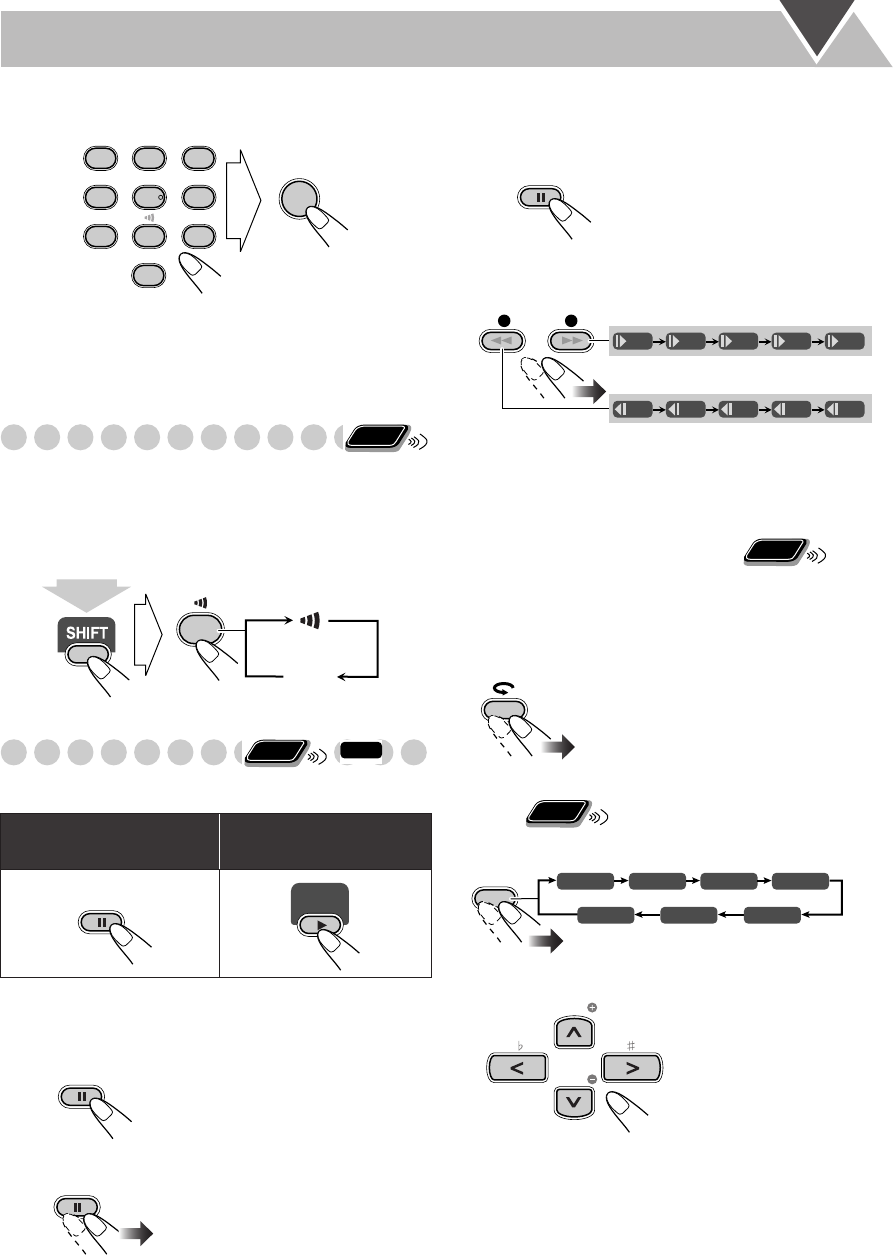

2
Enter the key number.
3
Follow the interactive instructions shown on the
screen.
To cancel the key number entry,
press 7
.
Making Dialogues Clear—Clear Voice
When you play back a disc, you can use this function—Clear
Voice. You can make the singer’s voices or dialogues of the
movie clear.
• This function only works for center-channel encoded
multi-channel disc, and when 3D Phonic is activated.
Special Effect Playback
Still picture playback
Frame-by-frame playback
1
While playing...
2
Advance the still picture frame by frame.
To resume normal playback,
press DVD/CD 3
.
Slow-motion playback
1
While playing...
2
Select slow motion speed.
*Only available for DVD-Video.
To resume normal playback,
press DVD/CD 3
.
To replay the previous scenes
(One-Touch Replay)
• This function is only used while playing DVD Video/
DVD-VR.
While playing back...
Zoom
1
While playing back...
2
Move the zoomed-in position.
To cancel Zoom,
press ZOOM repeatedly until “ZOOM
OFF” appears on the TV.
To start still picture play-
back:
To resume normal
playback:
While playing...
Still picture playback starts.
0
ENTER
DIMMER
A.STANDBY
SLEEP
VFP
3D PHONIC
DVD LEVEL
SCAN MODE
1
4
7
2
5
8
3
6
9
Remote
ONLY
8
(On)
Off
(at the same time)
Remote
ONLY
INFO
DVD/CD
Still picture playback starts.
The playback position moves
back about 10 seconds before the
current position (only within the
same title).
SLOW
+
–
1/32 1/16 1/8 1/4 1/2
1/32 1/16 1/8 1/4 1/2
Reverse slow motion*starts.
Forward slow motion starts.
Remote
ONLY
Remote
ONLY
ZOOM 1 ZOOM 2 ZOOM 3 ZOOM 4
ZOOM 5ZOOM 6
ZOOM OFF
ZOOM
TV CH
TV CH
UX-GD6[A].book Page 18 Wednesday, March 23, 2005 10:01 AM
19
Advanced Disc Operations

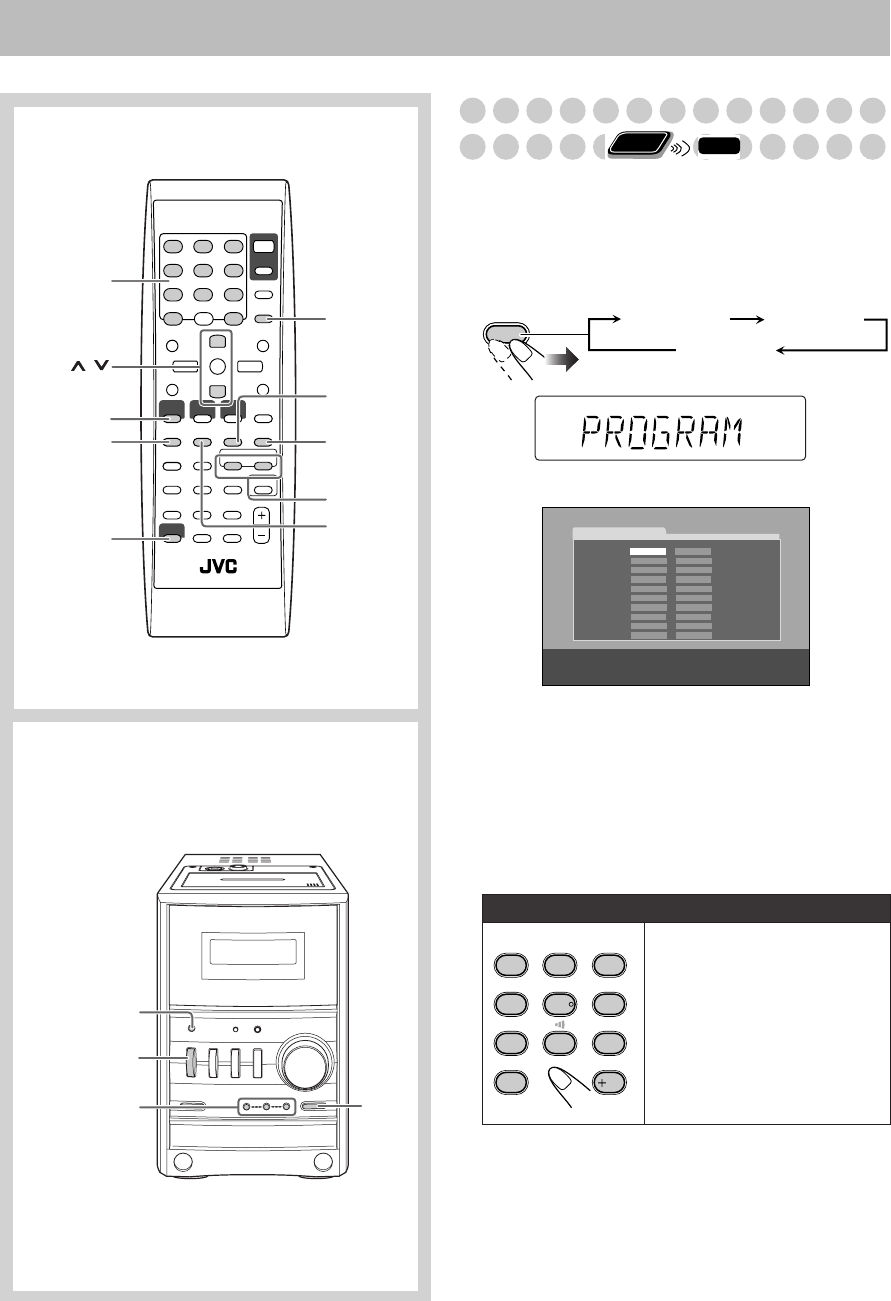

Programming the Playing Order—
Program Play
You can arrange the playing order of the chapters or tracks
(up to 99) before you start playback.
• Program play cannot be used for DVD-VR/JPEG discs.
1
Before starting playback, activate Program Play.
2
Select chapters or tracks you want for Program Play.
• For DVD Video/DVD Audio/MP3:
1
Select a title or group number.
2
Select a chapter or track number.
3
Repeat the above steps 1
and 2
.
• For SVCD/VCD/CD:
1
Select tracks.
4
, 7,
¢
DVD/CD #
0
8
8
7
SHIFT
10 keys
CANCEL
REPEAT
DVD/CD 3
FM/PLAY
MODE
4
/
¢
REPEAT A-B
,
Remote control
Main unit
To enter the numbers directly:
Examples:
To enter number 5, press 5.
To enter number 15, press +10,
then 5.
To enter number 30, press +10,
+10, then 10.
Remote
ONLY
INFO
REV.MODE
FM/PLAY MODE
PROGRAM RANDOM
Canceled
PROGRAM
USE NUMERIC KEYS TO PROGRAM TRACKS.
USE CANCEL TO DELETE THE PROGRAM.
PROGRAM
No Group/Title Track/Chapter
1
2
3
4
5
6
7
8
9
10
On the display
On the TV
DIMMER
A.STANDBY
SLEEP
VFP
3D PHONIC
DVD LEVEL
PAG E
RETURN
SCAN MODE
1
4
7
10
2
5
8
3
6
9
10
UX-GD6[A].book Page 19 Wednesday, March 23, 2005 10:01 AM
20
3
Start playback.
To check the programmed contents
Before or after playback...
• You can also use 4
or ¢
to check the programmed
contents.
To modify the program
Before or after playback...
To exit from Program Play
Before or after playback...
Playing at Random—Random Play
You can play all chapters or tracks at random.
• Random Play cannot be used for DVD-VR and some
DVDs.
1
Before starting playback, activate Random Play.
2
Start playback.
To exit from Random Play
Before or after playback...
Playback starts in the order you
have programmed.
To skip a step: To pause: To stop:
To release, press
DVD/CD 3
.
To erase the last step:
To erase the entire
program:
To add steps in the
program:
Repeat step
2
.
DVD/CD
GROUP/TITLE SKIP
TV CH
TV CH
In the programmed order.
In the reverse order.
CANCEL
SET
(at the same time)
REV. MODE
FM/PLAY MODE
PROGRAM RANDOM
Canceled
Playback starts in random order.
Random Play ends when the
entire disc has been played.
To skip a chapter/
track:
To pause: To stop:
To release, press
DVD/CD 3
.
Remote
ONLY
REV. MODE
FM/PLAY MODE
PROGRAM RANDOM
Canceled
RANDOM
DVD/CD
REV. MODE
FM/PLAY MODE
PROGRAM RANDOM
Canceled
UX-GD6[A].book Page 20 Wednesday, March 23, 2005 10:01 AM
21

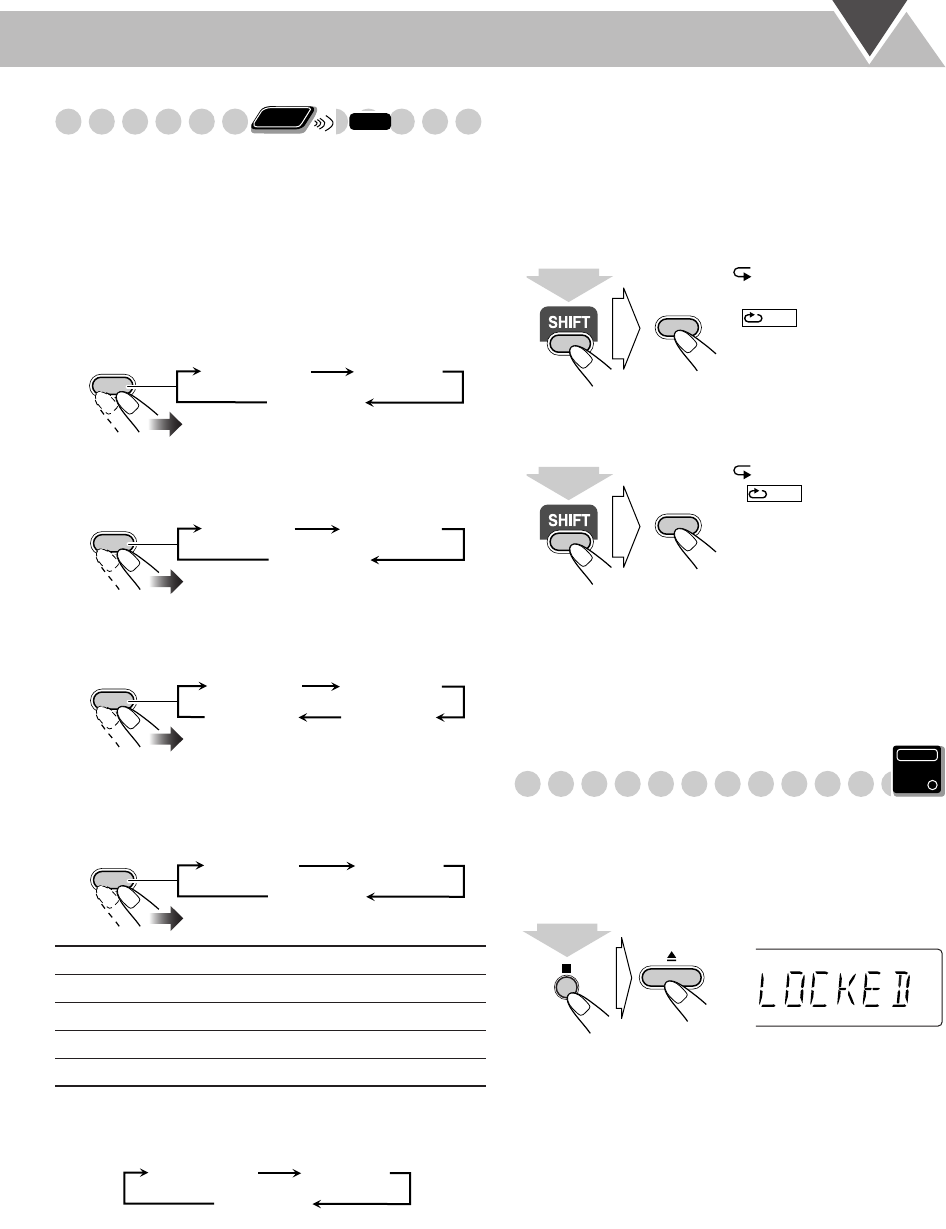

Playing Repeatedly
•You can also select the repeat mode using the on-screen bar
(see pages 23 and 24).
• For JPEG/DVD-VR discs, see page 27.
Repeat Play
You can repeat playback.
• For DVD Video:
While playing...
• For DVD Audio:
While playing or before playback...
• For MP3:
While playing or before playback...
• For CD/SVCD/VCD:
While playing (without PBC for SVCD/VCD) or before
playback...
*During Program Play and Random Play, “REP STEP”
appears instead of these indications, and repeat modes
change as follows for all the discs.
A-B Repeat
You can repeat playback of a desired portion by specifying
the beginning (point A) and the ending (point B).
• A-B Repeat cannot be used for MP3 and for some DVDs.
1
While playing (without PBC for SVCD/VCD), select
the start point (A).
2
Select the end point (B).
To cancel A-B Repeat,
press REPEAT A-B again while
holding SHIFT.
• A-B Repeat will also be canceled when you stop play or
skip the chapter or track.
Prohibiting Disc Ejection—Child Lock
You can lock the disc tray so that no one can eject the loaded
disc.
• This is possible while the System is on standby.
While the disc tray is closed...
To cancel the prohibition,
repeat the same procedure.
“UNLOCKED” appears on the display.
REP CHAP
* Repeats the current chapter.
REP TTL
Repeats the current title.
REP TRK
* Repeats the current track.
REP GRP
Repeats the current group.
REP ALL
Repeats the disc or program.
Remote
ONLY
INFO
REPEAT
REP OFF
(Canceled)
REP CHAP REP TTL
REPEAT A-B
*
REPEAT
REP OFF
(Canceled)
REP TRK REP GRP
REPEAT A-B
*
REPEAT
REP OFF
(Canceled)
REP TRK REP GRP
REP ALL
REPEAT A-B
*
REPEAT
REP OFF
(Canceled)
REP TRK REP ALL
REPEAT A-B
*
REP OFF
(Canceled)
REP STEP REP ALL
starts flashing on the
display.
• appears on the TV
if the TV is turned on.
stops flashing.
• appears on the
TV.
•You can search for the end
point using the ¡
button.
REPEAT
REPEAT A-B
(at the same time)
A-
REPEAT
REPEAT A-B
(at the same time)
A-B
Main Unit
ONLY
(at the same time)
UX-GD6[A].book Page 21 Wednesday, March 23, 2005 10:01 AM
22

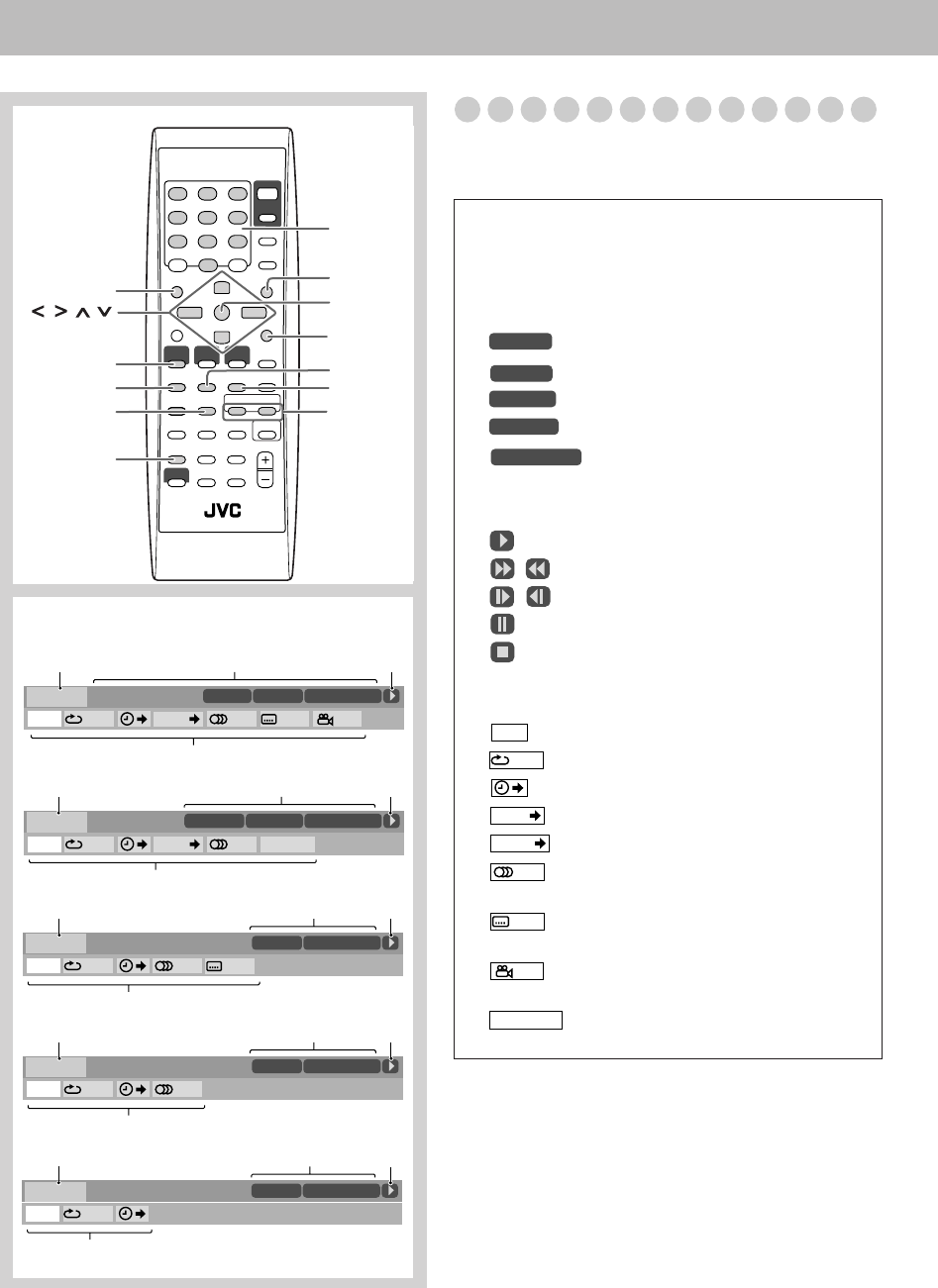

On-Screen Disc Operations
On-screen Bar Information
You can check the disc information (except for MP3/JPEG
disc) and use some functions through the on-screen bar.
2
OFF
1/3 1/3 1/3
TIME
4
TITLE
14
TOTAL
1:25:58
CHAP
23
DVD-VIDEO TITLE 2
TIME OFF CHAP. 1/31/ 3 1/1
TIME 0:00:58
CHAP 3
Dolby D
3/2.1ch
13
ENTER
10 keys
MENU/PL
REPEAT
¡
DVD/CD 3
ZOOM
TOP MENU/PG
ON SCREEN
,, ,
8
7
4
/
¢
Remote control
On-screen bars
OFF 1/ 3
TIME
TRACK
DVD-AUDIO GROUP 14 TIME 0:00:58
TRACK 23
1/ 3
PAGE
2
4
13
LPCM
2/0.0ch
2
OFF
1/3 1/3 1/3
TIME
4
TITLE
14
TOTAL
1:25:58
CHAP
23
SVCD
TIME OFF ST1
TRACK 3
13
1/3
-/ 4
TIME 0:00:58
2
OFF
1/3 1/3 1/3
TIME
4
TITLE
14
TOTAL
1:25:58
CHAP
23
CD
TIME OFF
TRACK 3
13
TIME 0:00:58
DVD Video
DVD Audio
SVCD
2
OFF
1/3 1/3 1/3
TIME
4
TITLE
14
TOTAL
1:25:58
CHAP
23
VCD
TIME OFF ST
TRACK 3
13
TIME 0:00:58
VCD
CD
1
Disc type
2
Playback information
Indication Meanings
Dolby D Audio format
3/2.1ch Channel number
Current title
Current chapter
Current group
Current track
Time indications
3
Operation modes
Indication Meanings
Playback
/ Forward/Reverse search
/ Forward/Reverse slow-motion
Pause
Stop
4
Function icons (on the pull-down menu)
Indication Meanings
Select to change the time indication.
Select to repeat playback.
Select for time search.
Select for chapter search.
Select for track search.
Select to change the audio language or
channel (see also page 16).
Select to change subtitle language
(see also page 17).
Select to change the view angle (see
also page 17).
Select to change the page (see also
page 17).
TITLE
2
CHAP
3
GROUP 1
TRACK
14
TOTAL
1:25:58
TIME
OFF
CHAP.
TRACK
1/3
1/3
1/3
PAGE 1 / 5
UX-GD6[A].book Page 22 Wednesday, March 23, 2005 10:01 AM
23

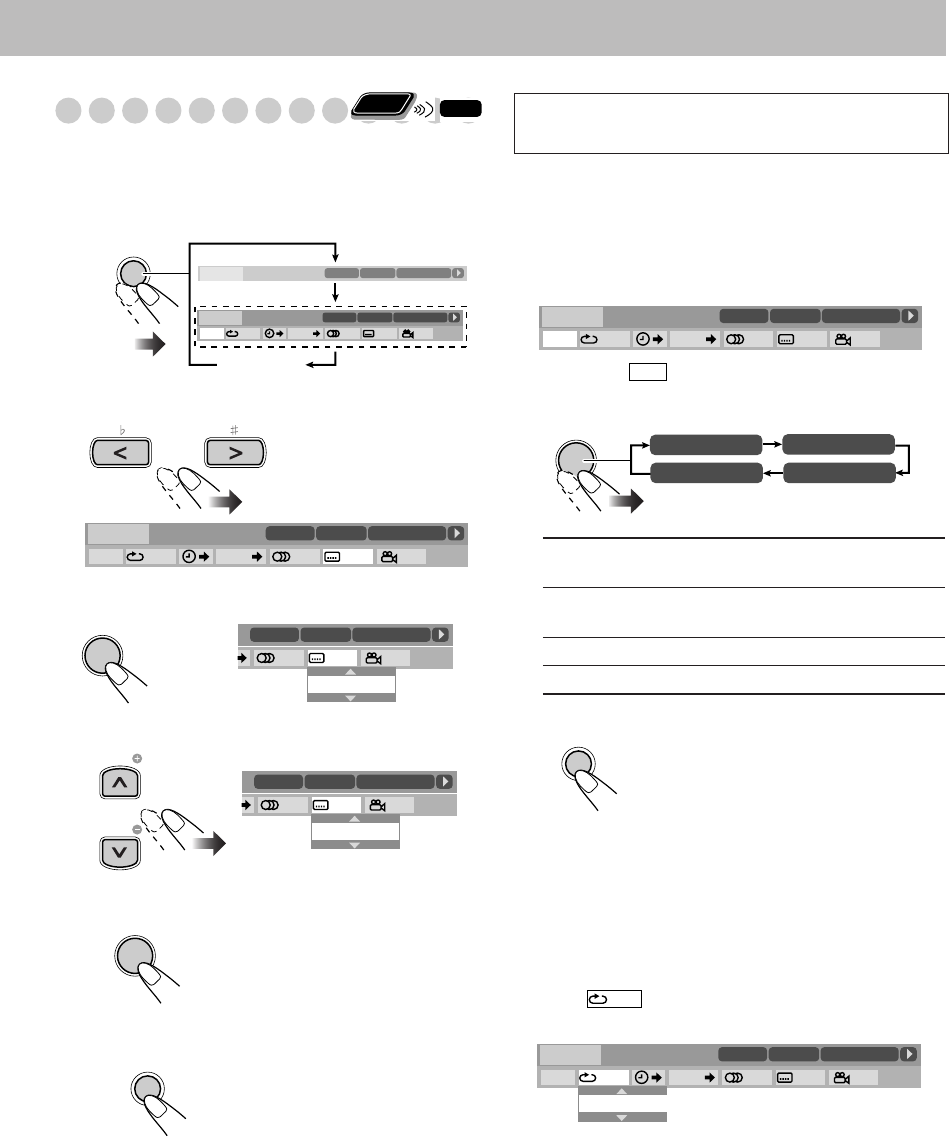

Operations Using the On-screen Bar
Ex.: Selecting a subtitle (French) for DVD Video
While a disc is selected as the source...
1
Display the entire on-screen bar.
2
Select (highlight) the item you want.
3
Display the pop-up window.
4
Select the desired option in the pop-up window.
5
Finish the setting.
To erase the on-screen bar
To change the time information
You can change the time information in the on-screen bar
and the display window on the main unit.
1While playing, display the on-screen bar with the pull-
down menu.
2 Make sure is selected (highlighted).
3 Change the time indication.
To erase the on-screen bar
Repeat Play
• See also page 21.
1 While playing a disc (without PBC for SVCD/VCD),
display the entire on-screen bar.
• Repeat Play can be selected before starting playback,
except for DVD Video/DVD-VR.
2Select .
3 Display the pop-up window.
Pop-up window goes off.
Remote
ONLY
INFO
ON SCREEN
Goes off
OFF
1/3 1/3 1/3
TIME
TITLE
14
TOTAL
1:25:58
CHAP
23
DVD-VIDEO TITLE 2
TIME OFF CHAP. 1/31/ 3 1/1
TIME 0:00:58
CHAP 3
Dolby D
3/2.1ch
DVD-VIDEO TITLE 2 TIME 0:00:58
CHAP 3
Dolby D
3/2.1ch
OFF
1/3 1/3 1/3
TIME
TITLE
14
TOTAL
1:25:58
CHAP
23
DVD-VIDEO TITLE 2
TIME OFF CHAP. 1/31/ 3 1/1
TIME 0:00:58
CHAP 3
Dolby D
3/2.1ch
ENTER
1/3 1/3 1/3
TOTAL
1:25:58
CHAP
23
TITLE 2
1/31/ 3 1/1
TOTAL 1:01:58
CHAP 3
ENGLISH
TV CH
TV CH
1/3 1/3 1/3
T
ITLE
14
TOTAL
1:25:58
CHAP
23
TITLE 2
1/32/ 3 1/1
TOTAL 1:01:58
CHAP 3
FRENCH
ENTER
ON SCREEN
For detailed operations of the following functions, see
also “Operations Using the On-screen Bar” on the left.
TIME
Elapsed playing time of the current
chapter/track.
REM
Remaining time of the current chapter/
track.
TOTAL
Elapsed disc time.
T.REM
Remaining disc time.
OFF
1/3 1/3 1/3
TIME
TITLE
14
TOTAL
1:25:58
CHAP
23
DVD-VIDEO TITLE 2
TIME OFF CHAP. 1/31/ 3 1/1
TIME 0:00:58
CHAP 3
Dolby D
3/2.1ch
TIME
ENTER
TOTAL 1:01:58T.REM 0:35:24
REM 0:11:23
TIME 0:00:58
ON SCREEN
OFF
OFF
1/3 1/3 1/3
TIME
TITLE
14
TOTAL
1:25:58
CHAP
23
DVD-VIDEO TITLE 2
TIME OFF CHAP. 1/31/ 3 1/1
TOTAL 1:01:58
CHAP 3
OFF
Dolby D
3/2.1ch
UX-GD6[A].book Page 23 Wednesday, March 23, 2005 10:01 AM
24

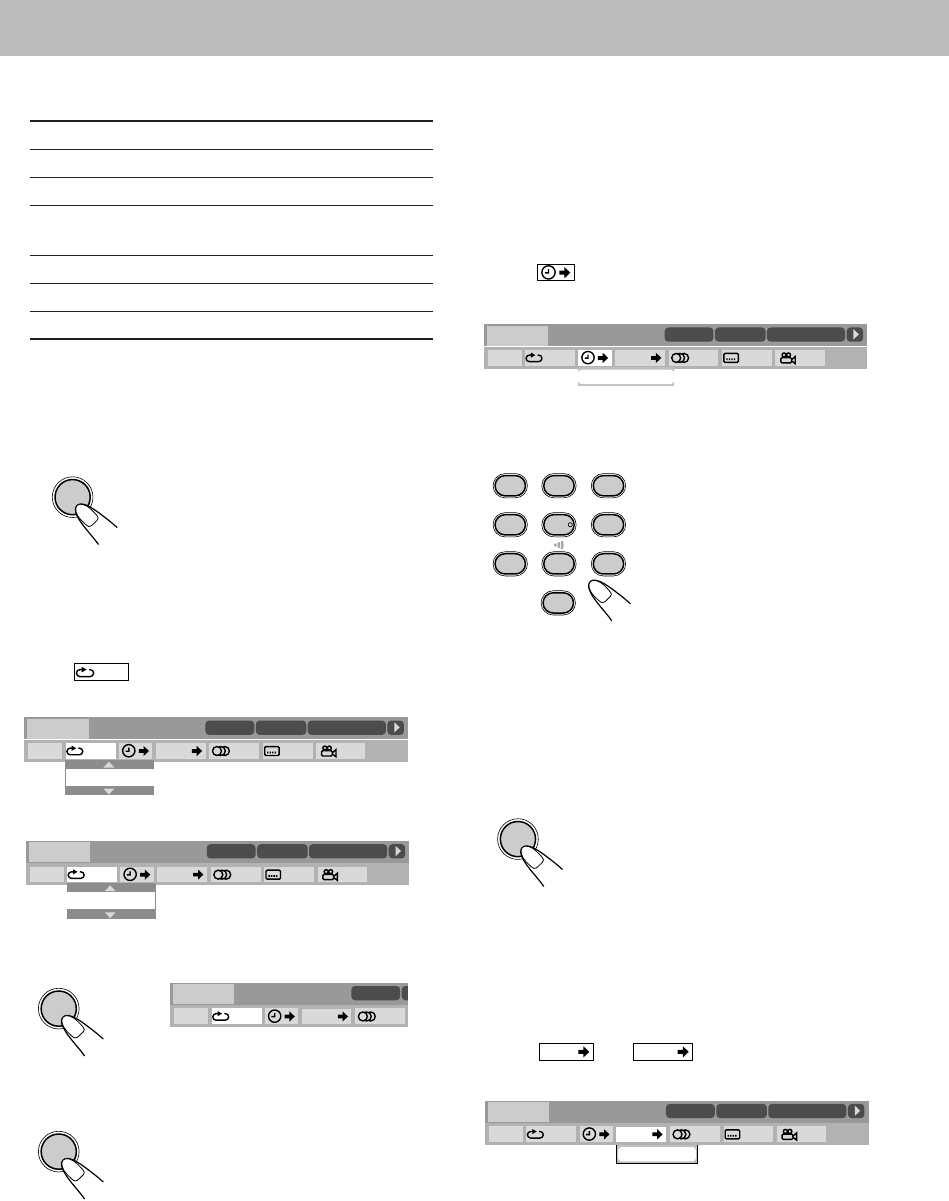

4 Select the repeat mode you want.
* While playing a DVD-VR disc, “PG” appears, and
while playing a Program list, “PL” appears.
** During Program Play and Random Play, “STEP”
appears.
5 Finish the setting.
A-B Repeat
• See also page 21.
1 While playing, display the entire on-screen bar.
2Select .
3 Display the pop-up window.
4 Select “A-B.”
5 Select the start point (A).
6 Select the end point (B).
To cancel A-B Repeat,
repeat steps
1
to
3
, and select “OFF”
in step
4
.
Time Search
You can move to a particular point by specifying the elapsed
playing time from the beginning.
1While playing (without PBC for SVCD/VCD), display
the entire on-screen bar.
• Time Search can be used before starting playback,
except for DVD Video/DVD-VR.
2Select .
3 Display the pop-up window.
4 Enter the time.
You can specify the time in hours/minutes/seconds.
• It is always required to enter the hour digit (even “0”
hour), but it is not required to enter trailing zeros (the
last two digits in the examples above).
•
To correct a misentry,
press Cursor
<
to erase the last
entry.
5 Finish the setting.
Chapter/Track Search
You can search for the chapter (DVD Video/DVD-VR) or
track (DVD Audio) number to play.
1 While playing, display the entire on-screen bar.
2 Select
or
.
3 Display the pop-up window.
A-B
Repeats a desired portion (see below).
TITLE*
Repeats the current title.
GROUP
Repeats the current group.
ALL
Repeats the disc (except for DVD) or
program.
CHAPTER
** Repeats the current chapter.
TRACK
** Repeats the current track.
OFF
Cancels Repeat Play.
A-B Repeat starts. The selected
portion plays repeatedly.
• Before pressing ENTER, you can
search for the end point using the
¡
button.
ENTER
OFF
OFF
1/3 1/3 1/3
TIME
TITLE
14
TOTAL
1:25:58
CHAP
23
DVD-VIDEO TITLE 2
TIME OFF CHAP. 1/31/ 3 1/1
TOTAL 1:01:58
CHAP 3
OFF
Dolby D
3/2.1ch
OFF
1/3 1/3 1/3
TIME
TITLE
14
TOTAL
1:25:58
CHAP
23
DVD-VIDEO TITLE 2
TIME OFF CHAP. 1/31/ 3 1/1
TOTAL 1:01:58
CHAP 3
A–B
Dolby D
3/2.1ch
ENTER
1/3
TIME
TITLE
14
C
H
DVD-VIDEO TITLE 2
TIME A- CHAP. 1/3
C
Dolby D
3/2.1ch
ENTER
Examples:
To move to a point of 1
(hours): 02 (minutes): 00
(seconds), press 1, 0, 2, 0, then
0.
To move to a point of 54
(minutes): 00 (seconds), press
0, 5, 4, 0, then 0.
The System starts playing the disc
from the selected playing time.
OFF
1/3 1/3 1/3
TIME
TITLE
14
TOTAL
1:25:58
CHAP
23
DVD-VIDEO TITLE 2
TIME OFF CHAP. 1/31/ 3 1/1
TIME 0:00:58
CHAP 3
TIME _ : _ _ : _ _
Dolby D
3/2.1ch
0
DIMMER
A.STANDBY
SLEEP
VFP
3D PHONIC
DVD LEVEL
SCAN MODE
1
4
7
2
5
8
3
6
9
ENTER
CHAP.
TRACK
CHAPTER _
1/3 1/3 1/3
TIME
TITLE
14
TOTAL
1:25:58
CHAP
23
DVD-VIDEO TITLE 2
TIME OFF CHAP. 1/31/ 3 1/1
TOTAL 1:01:58
CHAP 3
Dolby D
3/2.1ch
UX-GD6[A].book Page 24 Wednesday, March 23, 2005 10:01 AM
25
4 Enter the desired chapter/track number.
•
To correct a misentry,
press the 10 keys until the
desired number shown in the pop-up window.
5 Finish the setting.
Browsable Still Pictures
For DVD Audio only:
While playing back a track linked to
browsable still pictures (B.S.P.), you can select the still
picture (turn the page) to be shown on the TV.
•If a track is linked to browsable still pictures (B.S.P.), they
are usually shown in turn automatically during playback.
1 While playing a DVD Audio, display the entire on-
screen bar.
2Select .
3 Display the pop-up window.
4 Select a still picture you want.
5 Finish the setting.
Operations on
t
he
Control
Screen
You can search for and play the desired items through the
control screen.
Control screen for MP3/JPEG disc
The control screen automatically appears on the TV screen
when you load an MP3 or a JPEG disc.
Examples:
To select chapter/track 5, press
5.
To select chapter/track 15,
press 1, then 5.
To select chapter/track 30,
press 3, then 0.
The System starts playing the
searched chapter or track.
0
DIMMER
A.STANDBY
SLEEP
VFP
3D PHONIC
DVD LEVEL
SCAN MODE
1
4
7
2
5
8
3
6
9
ENTER
PAGE 1 / 5
OFF 1/ 3
TIME
TRACK
DVD-AUDIO GROUP 14 TIME 0:00:58
TRACK 23
1/ 5
PAGE
1
LPCM
2/0.0ch
OFF 1/ 3
TIME
TRACK
DVD-AUDIO GROUP 14 TIME 0:00:58
TRACK 23
3/ 5
PAGE
3
LPCM
2/0.0ch
ENTER
Ex.: When the MP3 disc is loaded.
1
Current group number/total group number
2
Current group
3
Group list
4
Track information (ID3 Tag Version 1.0: only for
MP3)
5
Current track
6
Repeat Play setting
7
Elapsed playing time of the current track
(only for MP3)
8
Operation mode icon
9
Current track number/total number of tracks in the
current group (total number of tracks on the loaded
disc)
0
Highlight bar
-
Track list
• If files of different types (MP3 and JPEG) are
recorded on a disc, select the file type to play (see
page 34).
Remote
ONLY
INFO
Group : 2 / 3
TIME : 00:00:14REPEAT TRACK
Track : 6 / 14 (Total 41)
Spring
Summer
Fall
Winter
Track Information
Cloudy.mp3
Fair.mp3
Fog.mp3
Hail.mp3
Indian summer.mp3
Rain.mp3
Shower.mp3
Snow.mp3
Thunder.mp3
Typhoon.mp3
Wind.mp3
Winter sky.mp3
Title
Rain
Artist
Album
1
2
5
4
8
7
6
9
0
-
3
UX-GD6[A].book Page 25 Wednesday, March 23, 2005 10:01 AM
26
Control screen for DVD-RW/RAM in DVD-VR
format
The control screen is superimposed on the TV screen when
you call up Program List (PG) or Play List (PL).
To select playback type
To move the highlight bar between group list and track
list (for MP3/JPEG):
To select an item in the list:
To start playback
• Once you start playing back a JPEG track, the control
screen goes off.
•To cancel slide-show, and display the current still picture,
press 8
.
To select the Program
List:
To select the Play List:
To erase the list, press the same button again.
Ex.: When Program List is selected.
Ex.: When Play List is selected.
1
Listed number
2
Recording date
3
Recording channels
4
Recording time
5
Title
6
Highlight bar (current selection)
7
Chapters included
8
Playback time
TOP MENU/PG
KARAOK
E
MENU/PL
ECHO
ORIGINAL PROGRAM
No Date Ch Time Title
1 03/12/04 12:15L
L
L
L
L
L
2 09/12/04 23:05
3 18/12/04 08:17
4 20/12/04 07:47
5 25/12/04 19:38 Mr. Lawrence
Satisfy U
La fleur
The last struggle
free flyer
BOOM!
6 28/12/04 14:20
12 3 4 5 6
PLAY LIST
No Date Chap Length Title
1 03/12/04 002 0:23:24 Nebula G.
CDJ
Secret Garden
S. Walker
2 15/12/04 004 1:04:39
3 24/12/04 013 0:41:26
4 27/12/04 017 0:09:08
67 81 2
Move the highlight bar to a desired
item.
• If you move the highlight bar
while playing back an MP3 disc,
the selected track starts playback
automatically.
For JPEG:
The selected track (still picture)
is displayed until you change it.
Slide-show playback starts.
Each track (still picture) is
shown on the screen for about 3
seconds, then changes one after
another.
For the other discs:
Playback starts with the selected
track.
•Pressing DVD/CD 3
also starts
playback.
Moves the bar to the track
list.
Moves the bar to the group
list.
TV CH
TV CH
ENTER
DVD/CD
ENTER
UX-GD6[A].book Page 26 Wednesday, March 23, 2005 10:01 AM
27

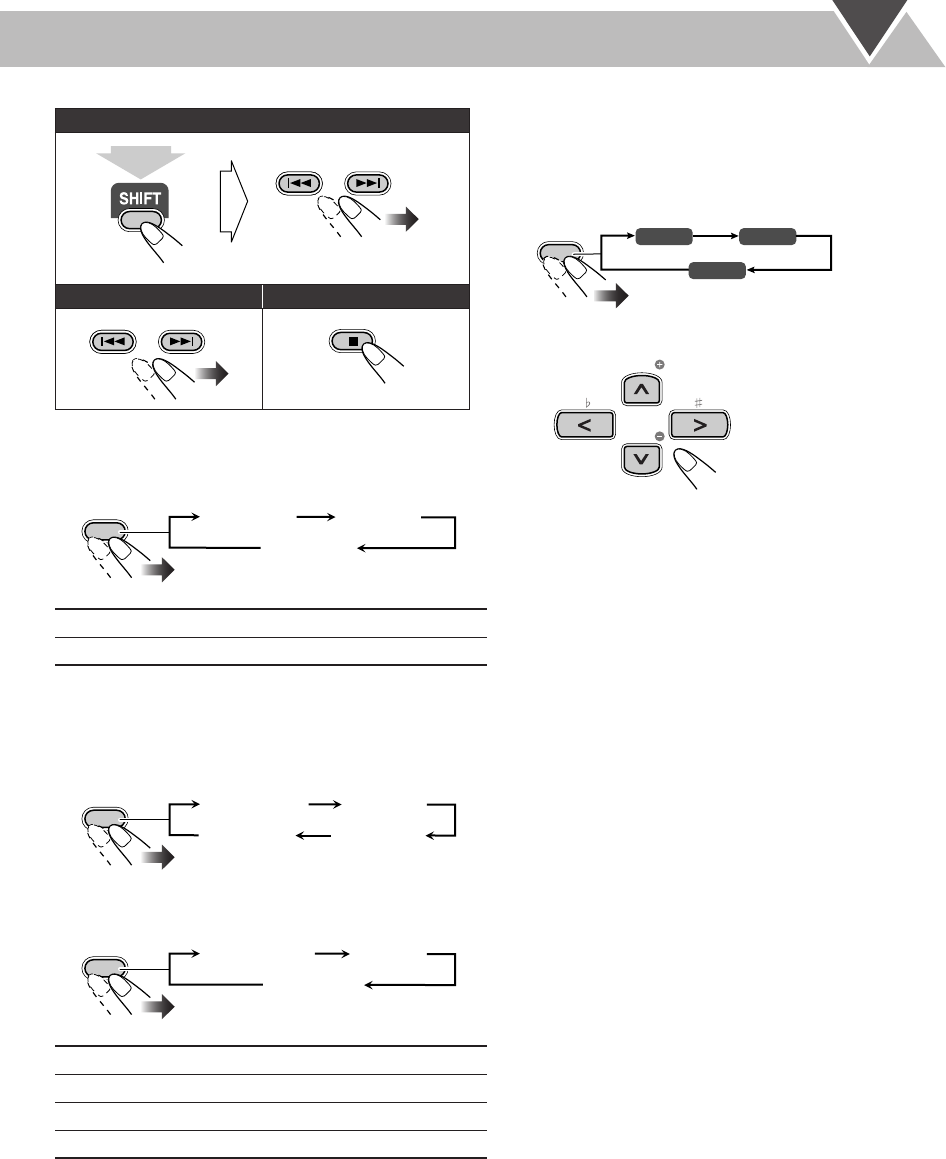

To repeat slide-show for JPEG
While playing or before playback...
• For Repeat Play of the other disc types, see page 21.
To repeat playback for DVD-VR
While playing an original program...
While playing a Program List...
To zoom in the still picture (for JPEG)
• You cannot zoom in the still picture during slide-show.
1
While playing back a still picture...
• During slide-show, press 8
to display the still picture,
then...
2
Move the zoomed-in position.
To cancel Zoom,
press ZOOM repeatedly until “ZOOM
OFF” appears on the TV.
To select a group (for MP3/JPEG):
To skip a track: To stop playback:
REP GRP
Repeats the current group.
REP ALL
Repeats the disc.
REP CHAP
Repeats the current chapter.
REP PG
Repeats the current program.
REP PL
Repeats the current Program List.
REP ALL
Repeats all programs.
GROUP/TITLE SKIP
(at the same time)
GROUP/TITLE SKIP
REPEAT
REP OFF
(Canceled)
REP GRP REP ALL
REPEAT A-B
REPEAT
REP OFF
REP CHAP REP PG
REP ALL
REPEAT A-B
(Canceled)
REPEAT
REP OFF
REP CHAP REP PL
REPEAT A-B
(Canceled)
ZOOM 1 ZOOM 2
ZOOM OFF
ZOOM
TV CH
TV CH
UX-GD6[A].book Page 27 Wednesday, March 23, 2005 10:01 AM
28
Advanced Tape Operations
Recording on a Tape
You can use type I tapes for recording.
• To play a tape, see page 9.
1
Insert a recordable cassette.
2
Check the tape running direction and Reverse Mode
settings on the display.
To change the direction
To change the Reverse mode if necessary
REC
7
DVD/CD
#
PUSH OPEN 0
TAPE @ #
AUX
FM/AM
Remote control
Main unit
SHIFT
REV. MODE
TAPE 2 3
7
DVD/CD
3
FM/AM
/AUX
IMPORTANT
It may be unlawful to record or play back copyrighted
material without the consent of the copyright owner.
()
To record on both sides.
•When using Reverse Mode, start
recording in the forward (3
) direction.
To record on only one side.
INFO
With the tape side facing outside
Push Insert Close
Tape direction
indicator
Reverse mode indicator
Current source
3 (forward)
2 (reverse)
REV. MODE
FM/PLAY MODE
(at the same time)
UX-GD6[A].book Page 28 Wednesday, March 23, 2005 10:01 AM
29

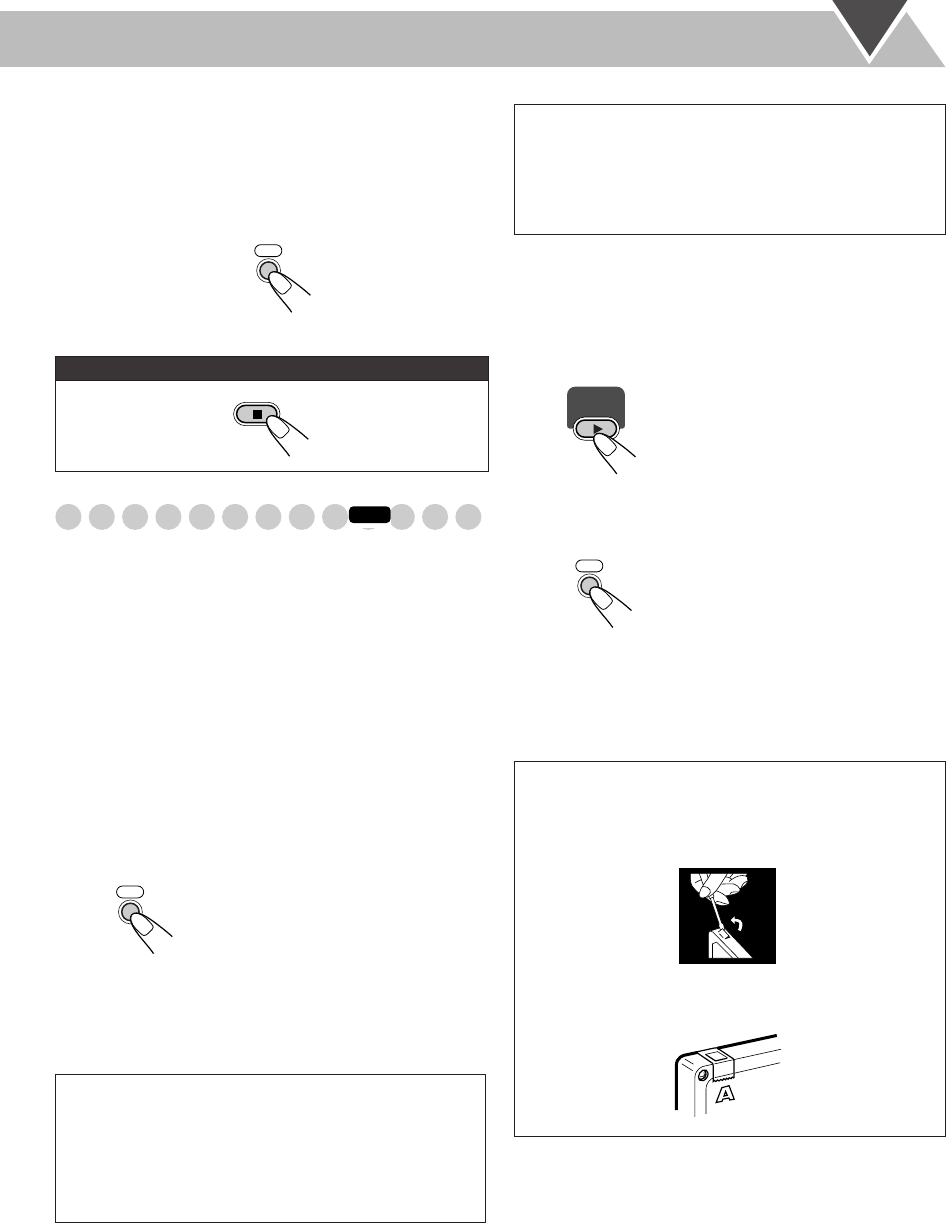

3
Select and start playing the source—“FM,” “AM,”
“DVD/CD,” or “AUX.”
•When recording a disc, you can also use “Synchronized
Disc Recording” (see below).
4
Start recording.
Synchronized Disc Recording
You can start and stop both disc play and tape recording at
the same time.
To record the entire disc
1
Load a disc and insert a recordable cassette.
•If the current playing source is not the disc player, press
DVD/CD 3
, then 7
.
2
Check the tape running direction and Reverse Mode
settings on the display.
• See step
2
of “Recording on a Tape” on page 28.
3
Start recording.
•When either disc play* or recording ends, both disc player
and the cassette deck stop at the same time.
* For DVD Video: When a title is finished playing.
To record only your favorite track
You can specify tracks to be recorded on the tape while
listening to a disc (except for DVD Video/DVD-VR).
1
Start playing a disc.
2
While a track you want to record on the tape is
playing...
3
Repeat steps
2
and
3
to record other tracks you want.
• You can exchange the discs if necessary.
To stop recording:
On the main unit
The System automatically
creates 4-second blanks between
the tunes recorded on the tapes.
To record a “Live” disc
It will not be desirable to put 4-second blank portions
between the tunes recorded on the tape.
To record the entire disc without any interruption
recorded, pause the disc play (press DVD/CD 3
, then 8
)
before pressing REC.
REC
On the main unit
INFO
REC
To record Program Play or Random Play
1Select Program Play (and make a program) or Random
Play, but do not start playback.
2 Press REC to start recording.
• When disc play stops, recording stops automatically.
The disc player returns to the
beginning of that track and the
track is recorded on the tape.
After recording the track, the
disc player and cassette deck
automatically stop.
To protect your recording
Cassettes have two small tabs on the back to protect
from unexpected erasure or re-recording.
To protect your recording,
remove these tabs.
To re-record on a protected tape,
cover the holes with
adhesive tape.
DVD/CD
REC
On the main unit
UX-GD6[A].book Page 29 Wednesday, March 23, 2005 10:01 AM
30
Enjoying Karaoke
Singing Along (Karaoke)
You can enjoy singing along (Karaoke) while playing a disc.
To sing along using the Karaoke discs
You can enjoy Karaoke using the Karaoke disc (except
Karaoke CD).
• By pressing REC, you can record your singing-along.
1
Turn MIC VOLUME to MIN.
2
Connect the microphone (not supplied) to the MIC
jack.
3
Insert and start playing a Karaoke disc.
4
Select an audio track.
•For details, see “Selecting the Audio Track” on page 16.
5
Sing into the microphone.
6
Adjust the MIC VOLUME and VOLUME.
SHIFT
KARAOKE
AUDIO
TAPE 2 3
DVD/CD
3
ECHO
FM/AM
/AUX
/
VOLUME
MIC jack
MIC VOLUME
REC
7
DVD/CD
#
TAPE @ #
AUX
FM/AM
Remote control
Main unit
IMPORTANT
Always set MIC VOLUME to MIN when connecting or
disconnecting the microphone.
DO NOT keep the microphone connected
while they are not in use.
INFO
VOLUME
MAXMIN
VOLUMEMIC
MAXMIN
AUDIO
VOLUME
MAXMIN
VOLUME
UX-GD6[A].book Page 30 Wednesday, March 23, 2005 10:01 AM
31
To adjust the Key (disc playback only)
1
Activate Key Control.
2
Adjust the Key
• Key Control cannot be activated for DVD Audio/DVD-
VR.
To deactivate Key Control,
press KARAOKE (while
holding SHIFT) to select “OFF.”
To apply echo to your voice
To sing along using the stereo discs
—Vocal Cancel
You can enjoy Karaoke while playing a stereo disc.
Vocal Cancel reduces the lead vocal of any disc except DVD
Audio and DVD-VR.
1
Turn MIC VOLUME to MIN.
2
Connect the microphone (not supplied) to the MIC
jack.
3
Insert and start playing a stereo disc.
4
Activate Vocal Cancel.
5
Sing into the microphone.
6
Adjust the MIC VOLUME and VOLUME.
• You can apply echo to your voice.
To deactivate Vocal Cancel,
select “OFF” in step
4
.
Microphone Mixing
You can enjoy microphone mixing while playing any source.
• By pressing REC, you can record your singing-along
(except when the playing source is “TAPE”).
1
Turn MIC VOLUME to MIN.
2
Connect the microphone (not supplied) to the MIC
jack.
3
Start playing the source—“FM,” “AM,” “DVD/CD,”
“TAPE,” or “AUX.”
4
Sing into the microphone.
5
Adjust the MIC VOLUME and VOLUME.
•You can apply echo to your voice. While playing a disc,
you can also adjust Key Control and apply echo.
To use the microphone only,
select “AUX” in step
3
, but do
not start playback.
TOP MENU/PG
KARAOKE
KEYCON
V-CANCEL
OFF
(Canceled)
(at the same time)
To raise the
key.
To lower the
key.
(at the same time)
MENU/PL
ECHO
ECHO ON
ECHO OFF
(Canceled)
(at the same time)
VOLUME
MAXMIN
DVD/CD
TOP MENU/PG
KARAOKE
KEYCON
V-CANCEL
OFF
(Canceled)
(at the same time)
VOLUME
MAXMIN
VOLUME
VOLUME
MAXMIN
VOLUME
MAXMIN
VOLUME
UX-GD6[A].book Page 31 Wednesday, March 23, 2005 10:01 AM
32

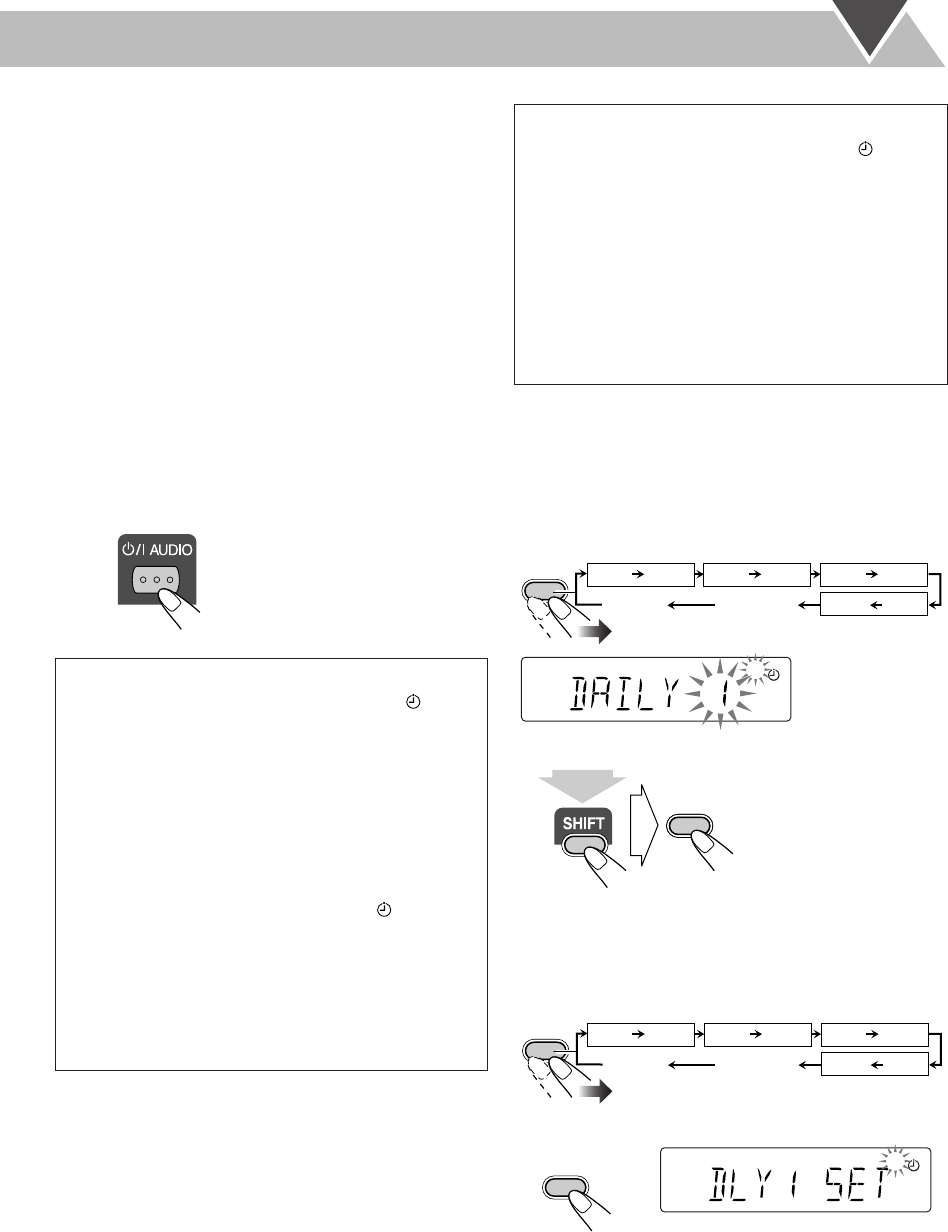

Timer Operations
Setting the Timer
Using Daily Timer, you can wake up with your favorite
song. On the other hand, with Recording Timer, you can
make a tape of a radio broadcast automatically.
• You can store three Daily Timer settings and one
Recording Timer setting; however, you can activate only
one of Daily Timers and Recording Timer at the same time.
• To exit from the timer setting, press CLOCK/TIMER as
required.
•To correct a misentry during the process, press CANCEL.
You can return to the previous step.
1
Select one of the timer setting modes you want to set—
Daily 1 ON time, Daily 2 ON time, Daily 3 ON time, or
Recording Timer ON time.
2
Make the timer setting as you want.
Repeat the following operations until you finish setting in
the following order—
For Daily Timers:
1
Set the hour then the minute for on-time.
2
Set the hour then the minute for off-time.
3
Select the playback source—“TUNER FM,”
“TUNER AM,” “TAPE,” “DISC,” or “AUX.”
4
For “TUNER FM” and “TUNER AM”: Select a
preset channel.
For “DISC”: Select the title/group number (GR),
then the chapter/track number (TR).
AUDIO
CLOCK/
TIMER
CANCEL
SET
,
Remote control
* Daily Timer initial settings when shipped from the
factory
• DAILY 1:ON Time (6:00)/OFF Time (8:00)/
Source (TUNER FM 1)/Volume level (– –)
• DAILY 2:ON Time (12:00)/OFF Time (14:00)/
Source (TUNER FM 1)/Volume level (– –)
• DAILY 3:ON Time (18:00)/OFF Time (20:00)/
Source (TUNER FM 1)/Volume level (– –)
Remote
ONLY
INFO
CLOCK/
TIMER
DAILY 1*
ON (Time) ON (Time) ON (Time)
ON (Time)
DAILY 2
*
DAILY 3
*
REC TMR
Clock setting
(see page 15)
Canceled
Daily 1 Timer Daily 2 Timer Daily 3 Timer
Recording Timer
1
Ex. When Daily Timer 1 setting mode is selected
CANCEL
SET
1
UX-GD6[A].book Page 32 Wednesday, March 23, 2005 10:01 AM
33
5
Select the volume level.
• You can select the volume level (“1” to “40” and
“VOL – –”).
If you select “VOL – –,” the volume is set to the last
level when the unit has been turned off.
Once settings are complete, the Timer setting information
appears in sequence.
For Recording Timer:
1
Set the hour then the minute for on-time.
2
Set the hour then the minute for off-time.
3
Select the playback source—“TUNER FM,”
“TUNER AM,” or “AUX.”
4
For “TUNER FM” and “TUNER AM”: Select a
preset channel.
Once settings are complete, the Timer setting information
appears in sequence.
3
Turn off the unit (on standby) if you have set the timer
with the System turned on.
To turn off the Timer after its setting is done
Since Daily Timer is activated at the same time everyday,
you may need to cancel it on some particular days.
• Recording Timer can also be canceled temporarily.
1 Select the Timer you want to cancel.
2 Turn off the selected Timer.
To turn on the Timer
1 Select the Timer (DAILY 1/2/3, and REC TMR) you
want to activate.
2 Activate the selected Timer.
3 Wait until the indication goes off.
How Daily Timer actually works
Once the Daily Timer has been set, the timer ( )
indicator and timer number indicator (1/2/3) are lit on the
display. Daily Timer is activated at the same time
everyday until the timer is turned off manually (see the
next column) or another timer is activated.
When the on-time comes
The System turns on, starts playing the specified source
(except “AUX”), and sets the volume level to the preset
level.
•While Daily Timer is working, the timer ( ) indicator
and timer number indicator (1/2/3) flash on the display.
When the off-time comes
The System stops playback, and turns off (stands by)
automatically.
• The timer setting remains in memory until you change
it.
How Recording Timer actually works
When Recording Timer has been set, Timer ( )
indicator and the REC indicator are lit on the display.
Recording Timer works only once.
When the on-time comes
The System turns on, tunes in to the specified station or
changes the source to “AUX”, and starts recording.
When the off-time comes
The System stops recording, and turns off (stands by).
• The timer setting remains in memory until you change
it.
1
CLOCK/
TIMER
DAILY 1
ON (Time) ON (Time) ON (Time)
ON (Time)
DAILY 2 DAILY 3
REC TMR
Clock setting
(see page 15)
Canceled
Daily 1 Timer Daily 2 Timer Daily 3 Timer
Recording Timer
Ex.To cancel Daily
Timer 1
(at the same time)
CANCEL
SET
CLOCK/
TIMER
DAILY 1
ON (Time) ON (Time) ON (Time)
ON (Time)
DAILY 2 DAILY 3
REC TMR
Clock setting
(see page 15)
Canceled
Daily 1 Timer Daily 2 Timer Daily 3 Timer
Recording Timer
SET
CANCEL
1
Ex. When Daily Timer 1 (DAILY 1) is
activated
UX-GD6[A].book Page 33 Wednesday, March 23, 2005 10:01 AM
34

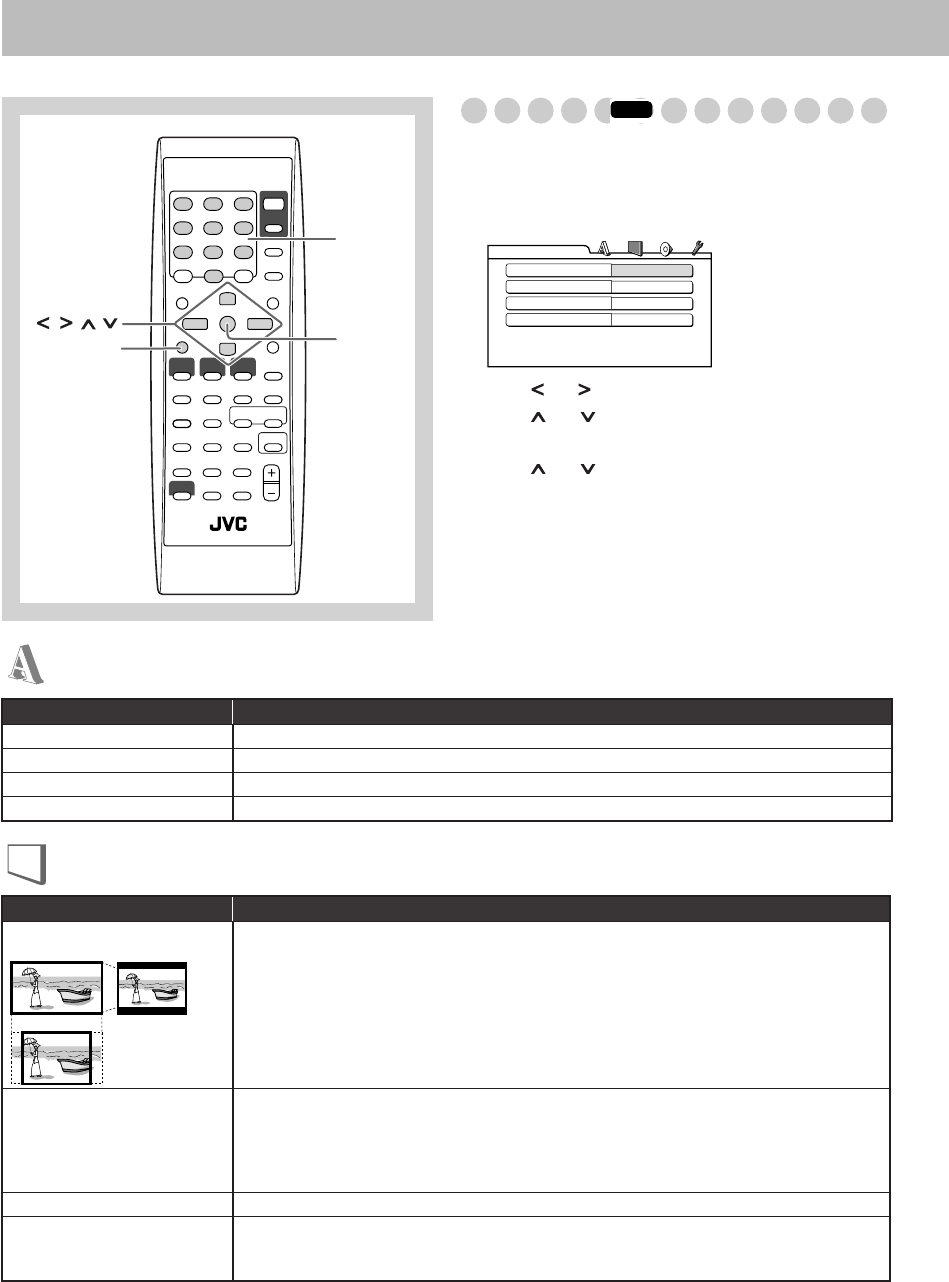

Setup Menu Operations
Initial settings
Some items in the menus cannot be changed during
playback.
1
Press SET UP.
2
Press (
or
)to select the menu.
3
Press (
or
)
to move to select the item.
4
Press ENTER.
5
Press (
or
)
to select the options, then press
ENTER.
• For settings of the LANGUAGE menu, see also
“Language Code List” on page 41.
To erase a preference display
Press SET UP.
ENTER
10 keys
SET UP
,, ,
Remote Control
INFO
MENU LANGUAGE ENGLISH
AUDIO LANGUAGE ENGLISH
SUBTITLE ENGLISH
ON SCREEN LANGUAGE ENGLISH
LANGUAGE
Item Contents
MENU LANGUAGE
You can select the initial menu language of DVD Video.
AUDIO LANGUAGE
You can select the initial audio language of DVD Video.
SUBTITLE
You can select the initial subtitle language of DVD Video.
ON SCREEN LANGUAGE
You can select “ENGLISH,” “CHINESE,” or “SPANISH” as the on-screen language.
LANGUAGE menu
PICTURE menu
Item Contents
MONITOR TYPE
You can select the monitor type to match your TV when you play back DVD Video discs recorded for
wide-screen televisions.
16:9 [MULTI] (Wide television screen):
For a wide-screen (16:9) TV.
4:3 [MULTI] LB (Letter box conversion):
For a conventional (4:3) TV. Displays a wide-screen
picture to fit the width of the TV screen keeping the aspect ratio.
4:3 [MULTI] PS (Pan Scan conversion):
For a conventional (4:3) TV. The picture is zoomed up for
filling the screen vertically and the left and right sides of the picture are cut off.
• For multi-color system TVs, select the [MULTI] option.
PICTURE SOURCE
You can obtain optimal picture quality by selecting the source type of the disc contents.
AUTO:
Normally, select this option. The System recognizes the picture type (film or video source) of
the current disc according to the disc information.
FILM:
For a film source disc.
VIDEO:
For a video source disc.
SCREEN SAVER
You can set the screen saver function to
ON
or
OFF.
FILE TYPE
You can select the file type to play.
AUDIO:
To play MP3 files.
STILL PICTURE:
To play JPEG files.
16:9 4:3 LB
4:3 PS
UX-GD6[A].book Page 34 Wednesday, March 23, 2005 10:01 AM
35
AUDIO menu
Item Contents
DIGITAL AUDIO OUTPUT
Set this item correctly when using the DVD OPTICAL DIGITAL OUT terminal on the rear.
PCM ONLY:
When connecting to audio equipment which can decode only linear PCM signals.
DOLBY DIGITAL/PCM:
When connecting to a Dolby Digital decoder or an amplifier with a built-
in Dolby Digital decoder.
STREAM/PCM:
When connecting to a DTS decoder or an amplifier with a built-in DTS decoder.
DOWN MIX
This setting is effective for digital audio output if “DIGITAL AUDIO OUTPUT” is set to “PCM
ONLY.”
DOLBY SURROUND:
Select this when connecting to a surround decoder.
STEREO:
Select this when connecting to a stereo receiver, MD player, TV, etc.
D.RANGE COMPRESSION
Set this item to listen to DVD Video recorded in Dolby Digital format at low or middle volume.
AUTO:
You can enjoy powerful playback sound.
ON:
Select this if the sound level of DVD Video is lower than the one of TV program to make the
sound at a lower volume clear.
OTHERS menu
Item Contents
RESUME
You can select the Resume.
ON:
The System resumes playback from the position where playback has been stopped if the disc is
still in the disc tray.
OFF:
Resume is deactivated.
ON SCREEN GUIDE
Activate (
ON
) or deactivate (
OFF
) the on-screen guide.
UX-GD6[A].book Page 35 Wednesday, March 23, 2005 10:01 AM
36
Additional Information
Learning More about This System
Introduction
(see pages 1 to 2)
Playable Disc Types:
•If you play back an NTSC disc with this setting set to “PAL,”
you can watch the playback pictures (the disc will be
reproduced using “PAL 60” format), but the TV screen may
roll over upward and downward rapidly.
• If you play back a PAL disc with this setting set to “NTSC,”
you can watch the playback pictures, but the following
symptoms may occur:
– The items on the disc menu will be blurred, and be shown
slightly shifted when highlighted.
– The aspect ratio of the picture may differ from the original
aspect ratio.
– The picture movement is not smooth.
Connections
(see pages 3 to 5)
• Make sure the antenna conductors do not touch any other
terminals, connecting cords and power cord. Also, keep the
antennas away from metallic parts of the System,
connecting cords, and the AC power cord. This could cause
poor reception.
• Use only speakers with the same speaker impedance as
indicated by the speaker terminals on the rear of the System.
• The speakers are magnetically shielded to avoid color
distortions on TVs. However, if not installed properly, it
may cause color distortions. So, pay attention to the
following when installing the speakers.
– When placing the speakers near a TV set, turn off the
TV’s main power switch or unplug it before installing the
speakers.
Then wait at least 30 minutes before turning on the TV’s
main power switch again.
– Some TVs may still be affected even though you have
followed the above instruction. If this happens, move the
speakers away from the TV.
Daily Operations—Playback
(see pages 7 to 11)
Listening to the Radio:
•If you store a new station into an occupied preset number,
the previously stored station in that number will be erased.
•When you unplug the AC power cord or if a power failure
occurs, the preset stations will be erased in a few days. If
this happens, preset the stations again.
Playing Back a Tape:
•It is not recommended to use the C-120 or longer tapes. These
tapes easily jams in the pinch rollers and the capstans, and may
cause characteristic deterioration.
Playing Back a Disc:
•On some DVD, SVCD, or VCD discs, the actual operations
may be different from what is explained in this manual, due
to the programming and disc structure; such differences are
not a malfunction of this System.
• Some DVD Audios prohibit downmix. When you play
back such a disc, “LR ONLY” appears on the display and
the System plays back the left front and right front signals.
• When playing back a DVD Audio disc recorded in MLP
(Meridian Lossless Packing; a lossless audio compression
system that can completely recreate the PCM signal), the
signals are recognized as the linear PCM signals, however,
no indicator lights up on the display.
• For MP3 playback...
–MP3 discs are required a longer readout time than regular
CDs. (It depends on the complexity of the group/file
configuration.)
– Some MP3 files cannot be played back and will be
skipped. This results from their recording processes and
conditions.
–When making MP3 discs, use ISO 9660 Level 1 or Level
2 for the disc format.
–This System can play back MP3 files with the extension
code <.mp3> (regardless of the letter case—upper/
lower).
– It is recommended that you make each MP3 file at a
sampling rate of 44.1 kHz and at bit rate of 128 kbps.
This System cannot play back files made at bit rate of less
than 64 kbps.
UX-GD6[A].book Page 36 Wednesday, March 23, 2005 10:01 AM
37
Daily Operations—Sound & Other Adjustments
(see pages 12 to 15)
Adjusting the Sound:
• This function also affects the sound through the
headphones.
Presetting Automatic DVD Video Sound Increase Level:
• This also functions for DVD-VR formatted discs.
Changing the Scanning Mode:
•You cannot change the scanning mode to progressive in the
following cases:
– When your TV does not support the progressive video
input.
– When you have not connected your TV to the system
using a component video cord.
Setting the Clock:
• “0:00” will flash on the display until you set the clock.
•The clock may gain or lose 1 to 2 minutes per month. If this
happens, reset the clock.
Unique DVD/VCD Operations
(see pages 16 to 18)
Selecting the Audio Track:
•On some DVD Videos, you cannot change audio languages
while playing back.
Special Effect Playback:
• During slow-motion playback, no sound will be
reproduced.
• While zoomed in, the picture may look coarse.
Advanced Disc Operations
(see pages 19 to 21)
Programming the Playing Order—Program Play:
• While programming steps...
Your entry will be ignored if you have tried to program an
item number that does not exist on the disc (for example,
selecting track 14 on a disc that only has 12 tracks).
Playing Repeatedly:
•A-B Repeat can be used within the same title while playing
a DVD Video, and within the same track for the other discs.
On-Screen Disc Operations
(see pages 22 to 27)
Operations Using the On-screen Bar:
• For DVD-RW/RAM in the VR format, “PG” or “PL”
appears instead of “TITLE” on the on-screen bar.
Operations on the Control Screen:
• For JPEG files playback...
– It is recommended that you record a file at 640 x 480
resolution. (If a file has been recorded at a resolution of
more than 640 x 480, it will take a long time to be
shown.)
– This System can play only baseline JPEG files*.
Progressive JPEG files* or lossless JPEG files* cannot
be played.
* Baseline JPEG format: Used for digital cameras,
web, etc.
Progressive JPEG format: Used for web.
Lossless JPEG format: An old type and rarely used
now.
• This System can play back JPEG files with the extension
code <.jpg> or <.jpeg> (regardless of the letter case—
upper/lower).
•This System may not play back JPEG files properly if they
are recorded on the devices other than digital still camera.
• During slide-show playback, zoom cannot be operated.
• For DVD-VR playback...
– When making a disc, use the UDF-Bridge format.
–For details about DVD-VR format and play list, refer to
the manual of the recording equipment.
– If you use a DVD-RAM with a cartridge, take the disc
out of the cartridge before inserting.
–You cannot use reverse slow motion, Program Play, and
Random Play.
UX-GD6[A].book Page 37 Wednesday, March 23, 2005 10:01 AM
38
Advanced Tape Operations
(see pages 28 to 29)
Recording on a Tape:
• The recording level is automatically set correctly. Thus, you
can adjust the sound you are actually listening to without
affecting the recording level.
•There is leader tape which cannot be recorded onto at the start
and end of cassette tapes. Thus, when recording CDs or radio
broadcasts, wind the leader tape first to ensure that the
recording will be made without any music part lost.
• If you start recording with no cassette inserted, “NO REC”
appears on the display. If a protected tape has been inserted,
“NO REC” appears.
•When using Reverse Mode for recording, start recording in the
forward (3
) direction first; otherwise, recording will stop
when only one side (reverse) of the tape is recorded.
• You can also change Reverse Mode setting ( and )
after starting recording.
•You cannot open or close the disc tray while recording a disc.
Synchronized Disc Recording:
• When the tape reaches its end in the forward direction (3
)
during recording with Reverse Mode set to , the last tune
will be re-recorded at the beginning of the reverse side.
Enjoying Karaoke
(see pages 30 to 31)
Singing Along (Karaoke):
•Karaoke mode setting (Key Control and Vocal Cancel) can be
used only when the source is disc player (DVD/CD).
• Karaoke mode setting is automatically canceled when the
source is changed.
• Karaoke mode setting is also applied to the optical digital
output signals.
• When Vocal Cancel is activated, 3D Phonic will be canceled
temporarily.
• On some music disc, Vocal Cancel does not provide the
correct effect.
Timer Operations
(see pages 32 to 33)
Setting the Timer:
•When using an external component—“AUX” for the playback
source, set the timer built in the component at the same time.
• Before turning off the power, do not forget to prepare the
required materials—a disc or tape for playback and a
recordable tape for recording.
• If you do not specify the preset station or track number
correctly while setting a timer, the currently selected
station or the first track will be played when timer is
activated.
•When you unplug the AC power cord or if a power failure
occurs, the timer will be canceled. You need to set the
clock first, then the timer again.
• If you set DVD Video as the source, Daily Timer will not
work correctly.
Timer Priority:
•If you set the Sleep Timer after Daily Timer starts playing
the selected source, Daily Timer is canceled.
• If you set the Sleep Timer after Recording Timer starts
recording, Recording Timer is canceled, but recording
continues until Sleep Timer shuts off the power.
Setup Menu Operations
(see pages 34 to 35)
General:
•If the upper and lower parts of the menu are cut off, adjust
the picture size control of the TV.
LANGUAGE menu:
• When the language you have selected for MENU
LANGUAGE, AUDIO LANGUAGE, or SUBTITLE is
not recorded on a disc, the original language is used as the
initial language.
PICTURE menu—MONITOR TYPE:
•Even if “4:3 [MULTI] PS” is selected, the screen size may
become 4:3 letter box while playing a disc. This depends
on how the discs are recorded.
• When you select “16:9 [MULTI]” for a picture whose
aspect ratio is 4:3, the picture slightly changes due to the
process for converting the picture width.
OTHERS menu—ON SCREEN GUIDE:
• The setup menu and on-screen bar will be displayed (and
recorded) even though this function is set to “OFF.”
Subtitles and the information for zoom-in always appear on
the display regardless of this setting.
UX-GD6[A].book Page 38 Wednesday, March 23, 2005 10:01 AM
39
Maintenance
To get the best performance of the System, keep your discs,
tapes, and mechanism clean.
Handling discs
• Remove the disc from its case by holding it at the edge
while pressing the center hole lightly.
•Do not touch the shiny surface of the disc, or bend the disc.
• Put the disc back in its case after use to prevent warping.
• Be careful not to scratch the surface of the disc when
placing it back in its case.
• Avoid exposure to direct sunlight, temperature extremes,
and moisture.
To clean the disc:
Wipe the disc with a soft cloth in a straight line from center
to edge.
Handling cassette tapes
•If the tape is loose in its cassette, take up the slack by inserting
a pencil in one of the reels and rotate it.
–If the tape is loose, it may get stretched, cut, or caught in the
cassette.
• Be careful not to touch the tape surface.
•Avoid the following places to store the tape—in dusty places,
in direct sunlight or heat, in moist areas, on a TV or speaker,
or near a magnet.
To keep the best recording and playback sound quality:
•Use a cotton swab moistened with alcohol to clean the heads,
capstans, and pinch rollers.
• Use a head demagnetizer (available at electronics and audio
shops) to demagnetize the heads (when the System turned off).
Cleaning the System
•Stains should be wiped off with a soft cloth. If the System
is heavily stained, wipe it with a cloth soaked in water-
diluted neutral detergent and wrung well, then wipe clean
with a dry cloth.
• Since the System may deteriorate in quality, become
damaged or get its paint peeled off, be careful about the
following:
– DO NOT wipe it with a hard cloth.
– DO NOT wipe it strong.
– DO NOT wipe it with thinner or benzine.
– DO NOT apply any volatile substance such as
insecticides to it.
–DO NOT allow any rubber or plastic to remain in contact
for a long time.

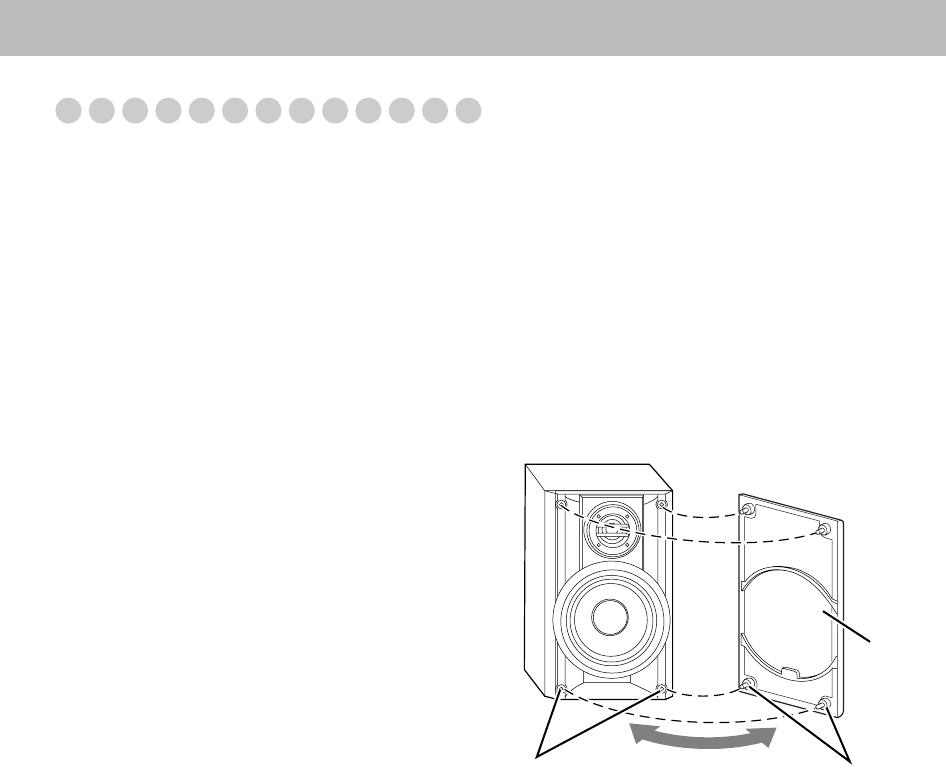

To remove the speaker grilles
(Illustration above is of UX-GD6S)
Holes
Speaker
grille
Projection
UX-GD6[A].book Page 39 Wednesday, March 23, 2005 10:01 AM
40
Troubleshooting
General:
Adjustments or settings are suddenly canceled before
you finish.
]
There is a time limit. Repeat procedure again.
Operations are disabled.
]
The built-in microprocessor may malfunction due to
external electrical interference.
Unplug the AC power
cord and then plug it back in.
Unable to operate the System from the remote control.
]
The path between the remote control and the remote
sensor on the System is blocked.
]
The batteries are exhausted.
No sound is heard.
]
Speaker connections are incorrect or loose.
]
Headphones are connected.
No picture appears on the screen.
]
The video cord connections are incorrect or loose.
No picture is displayed on the TV screen, the picture is
blurred, or the picture is divided into two parts.
]
The System is connected to a TV which does not support
progressive video input.
]
Incorrect color system is selected (see page 4).
The left and right edges of the picture are missing on the
screen.
]
Select “4:3 LB” for “MONITOR TYPE” (see page 34).
Radio Operations:
Hard to listen to broadcasts because of noise.
]
Antennas connections are incorrect or loose.
]
The AM loop antenna is too close to the System.
]
The FM antenna is not properly extended and positioned.
Disc Operations:
The disc does not play.
]
You have inserted a disc whose Region Code is not
correct. (“REGION ERR” appears on the display.)
]
The disc is placed upside down. Place the disc with the
label side up.
ID3 Tag on an MP3 disc cannot be shown.
]
There are two types of ID3 Tag—Version 1 and Version 2.
This System can only show ID3 Tag Version 1.
Groups and tracks are not played back as you expect.
]
The playing order is determined when the disc was
recorded. It depends on the writing application.
MP3 or JPEG files are not played back.
]
The inserted disc may include both type of tracks (MP3
files and JPEG files). In this case, you can only play back
the files selected by the “FILE TYPE” setting (see
page 34).
]
You have changed the “FILE TYPE” setting after you
inserted a disc. In this case, reload the disc.
“NO AUDIO” appears.
]
This System cannot play back illegally produced DVD
Audio discs.
“LR ONLY” appears.
]
Some DVD Audio discs prohibit downmixed output.
When you play back such a disc, this System plays back
the left front and right front signals only.
The disc sound is discontinuous.
]
The disc is scratched or dirty.
No subtitle appears on the display though you have
selected the initial subtitle language.
]
Some DVDs are programmed to always display no
subtitle initially. If this happens, press SUBTITLE after
starting play (see page 17).
Audio language is different from the one you have
selected as the initial audio language.
]
Some DVDs are programmed to always use the original
language initially. If this happens, press AUDIO after
starting play (see page 16).
The disc tray does not open or close.
]
The AC power cord is not plugged in.
]
Child Lock is in use. “LOCKED” appears in the display
window (see page 21).
Tape Operations:
The cassette holder cannot be opened.
]
Power supply from the AC power cord has been cut off
while the tape was running. Turn on the System.
Recordings:
Impossible to record.
]
Small tabs on the back of the cassette are removed. Cover
the holes with adhesive tape.
Timer Operations:
Daily Timer does not work.
]
The System has been turned on when the on-time comes.
Timer starts working only when the System is turned off.
Daily Timer does not start playback.
]
The disc loaded is a DVD video. Change the disc.
]
Title/group number and chapter/track number are not
entered while setting the Daily Timer. Do not skip these
steps when you want to play a disc using Daily Timer.
UX-GD6[A].book Page 40 Wednesday, March 23, 2005 10:01 AM
41
Language Code List
AA
Afar
AB
Abkhazian
AF
Afrikaans
AM
Ameharic
AR
Arabic
AS
Assamese
AY
Aymara
AZ
Azerbaijani
BA
Bashkir
BE
Byelorussian
BG
Bulgarian
BH
Bihari
BI
Bislama
BN
Bengali, Bangla
BO
Tibetan
BR
Breton
CA
Catalan
CO
Corsican
CS
Czech
CY
Welsh
DA
Danish
DZ
Bhutani
EL
Greek
EO
Esperanto
ET
Estonian
EU
Basque
FA
Persian
FI
Finnish
FJ
Fiji
FO
Faroese
FY
Frisian
GA
Irish
GD
Scots Gaelic
GL
Galician
GN
Guarani
GU
Gujarati
HA
Hausa
HI
Hindi
HR
Croatian
HU
Hungarian
HY
Armenian
IA
Interlingua
IE
Interlingue
IK
Inupiak
IN
Indonesian
IS
Icelandic
IW
Hebrew
JI
Yiddish
JW
Javanese
KA
Georgian
KK
Kazakh
KL
Greenlandic
KM
Cambodian
KN
Kannada
KO
Korean (KOR)
KS
Kashmiri
KU
Kurdish
KY
Kirghiz
LA
Latin
LN
Lingala
LO
Laothian
LT
Lithuanian
LV
Latvian, Lettish
MG
Malagasy
MI
Maori
MK
Macedonian
ML
Malayalam
MN
Mongolian
MO
Moldavian
MR
Marathi
MS
Malay (MAY)
MT
Maltese
MY
Burmese
NA
Nauru
NE
Nepali
NL Dutch
NO Norwegian
OC Occitan
OM (Afan) Oromo
OR Oriya
PA Panjabi
PL Polish
PS Pashto, Pushto
PT Portuguese
QU Quechua
RM Rhaeto-Romance
RN Kirundi
RO Rumanian
RU Russian
RW Kinyarwanda
SA Sanskrit
SD Sindhi
SG Sangho
SH Serbo-Croatian
SI Singhalese
SK Slovak
SL Slovenian
SM Samoan
SN Shona
SO Somali
SQ Albanian
SR Serbian
SS Siswati
ST Sesotho
SU Sundanese
SV Swedish
SW Swahili
TA Tamil
TE Telugu
TG Tajik
TH Thai
TI Tigrinya
TK Turkmen
TL Tagalog
TN Setswana
TO Tonga
TR Turkish
TS Tsonga
TT Tatar
TW Twi
UK Ukrainian
UR Urdu
UZ Uzbek
VI Vietnamese
VO Volapuk
WO Wolof
XH Xhosa
YO Yoruba
ZU Zulu
UX-GD6[A].book Page 41 Wednesday, March 23, 2005 10:01 AM
42
OPTICAL DIGITAL OUTPUT Signals
*
1
While playing some DVDs, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the DVD OPTICAL
DIGITAL OUT terminal if the discs are not copy-protected.
*
2
While playing some DVD Audio discs, digital signals may not be emitted through the DVD OPTICAL DIGITAL OUT terminal if the
discs are processed with CPPM (Content Protection for Prerecorded Media).
Operating JVC’s TVs Using the Remote Control
You can use the remote control to operate JVC’s TVs.
While holding SHIFT, press...
DIGITAL AUDIO
OUTPUT Output Signals
Playback disc STREAM/PCM DOLBY DIGITAL/PCM PCM ONLY
DVD Video
with 48 kHz, 16/20/24 bit Linear PCM
48 kHz, 16 bit Linear PCM*
1
with 96 kHz, Linear PCM 48 kHz, 16 bit Linear PCM
with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM
with DTS DTS bitstream 48 kHz, 16 bit Linear PCM
DVD Audio
*
2
with 48/96/192 kHz, 16/20/24 bit
Linear PCM 48 kHz, 16 bit Linear PCM
with 44.1/88.2/176.4 kHz,
16/20/24 bit Linear PCM 44.1 kHz, 16 bit Linear PCM
with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM
with DTS DTS bitstream 48 kHz, 16 bit Linear PCM
DVD-RW/RAM/ROM in DVD-VR
format
with 48 kHz, 16/20/24 bit Linear PCM
48 kHz, 16 bit Linear PCM*
1
with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM
SVCD, VCD, CD
44.1 kHz, 16 bit Linear PCM/48 kHz, 16 bit Linear PCM
CD with DTS
DTS bitstream 44.1 kHz, 16 bit Linear PCM
MP3 disc
32/44.1/48 kHz, 16 bit Linear PCM
TV/VIDEO
TV
SHIFT
TV VOLUME
+/–
TV CH /
Remote control
TV
Turn on/off TV.
TV CH /
Change the channels.
TV VOLUME +/–
Adjust the volume.
TV/VIDEO
Change the input mode.
UX-GD6[A].book Page 42 Wednesday, March 23, 2005 10:01 AM
43
Specifications
Amplifier section
CA-UXGD6S (for UX-GD6S)/CA-UXGD6M (for UX-GD6M)
Output Power:
100 W (50 W + 50 W) at 6
Ω
(10% THD)
Audio Input AUX: 400 mV/50 k
Ω
(at “AUX LVL1”)
200 mV/50 k
Ω
(at “AUX LVL2”)
Digital output: DVD OPTICAL DIGITAL OUT:
–21 dBm to –15 dBm (660 nm ±30 nm)
Video output:
Color system: NTSC or PAL (interlaced/progressive)
VIDEO (composite): 1 V(p-p)/75
Ω
S-VIDEO: Y (luminance) 1 V(p-p)/75
Ω
C (chrominance, burst)
NTSC 0.286 V(p-p)/75
Ω
PAL 0.3 V(p-p)/75
Ω
COMPONENT: (Y) 1 V(p-p)/75
Ω
(P
B
/P
R
) 0.7 V(p-p)/75
Ω
Speaker impedance: 6
Ω
– 16
Ω
Tuner section
FM tuning range: 87.50 MHz – 108.00 MHz
AM (MW) tuning range:
531 kHz – 1 710 kHz (at 9 kHz intervals)
530 kHz – 1 710 kHz (at 10 kHz intervals)
Tape section
Frequency response: 60 Hz – 14 000 Hz
Wow and flutter: 0.15 % (WRMS)
Disc player section
Region codes:
Hong Kong: 3
Oceanian countries: 4
Playable disc:
DVD Video/DVD Audio
CD/VCD/SVCD
CD-R/CD-RW (CD/SVCD/VCD/MP3/
JPEG format)
DVD-R (DVD Video format)
DVD-RW/DVD-ROM/DVD-RAM (DVD-
VR format)
Dynamic range: 80 dB
Horizontal resolution: 500 lines
Wow and flutter: Immeasurable
General
Power requirement:
For Hong Kong: AC 220 V , 50 Hz
For Oceanian countries: AC 240 V , 50 Hz
Power consumption: 95 W (at operation)
1.5 W (on standby)
Dimensions (approx.): 170 mm x 240 mm x 361 mm
(W/H/D)
Mass (approx.): 5.6 kg
Speakers
SP-UXGD6S (for UX-GD6S)
Speaker units: Tweeter: 4 cm cone x 1
Woofer: 13.5 cm cone x 1
Impedance: 6
Ω
Dimensions (approx.): 165 mm x 283.5 mm x 249 mm
(W/H/D)
Mass (approx.): 2.8 kg each
SP-UXGD6M (for UX-GD6M)
Speaker units: Tweeter: 4 cm cone x 1
Woofer: 12 cm cone x 1
Impedance: 6
Ω
Dimensions (approx.): 145 mm x 240 mm x 201 mm
(W/H/D)
Mass (approx.): 2.2 kg each
Supplied Accessories
See page 3.
• Manufactured under license from Dolby Laboratories. “Dolby”,
“Pro Logic”, “MLP lossless”, and the double-D symbol are
trademarks of Dolby Laboratories.
• “DTS” and “DTS 2.0+ Digital Out” are trademarks of Digital
Theater Systems, Inc.
• This product incorporates copyright protection technology that is
protected by U.S. patents and other intellectual property rights.
Use of this copyright protection technology must be authorized by
Macrovision, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
“CONSUMERS SHOULD NOTE THAT NOT ALL HIGH
DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE
WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE
DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625
PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS
RECOMMENDED THAT THE USER SWITCH THE
CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT.
IF THERE ARE QUESTIONS REGARDING OUR TV SET
COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD
PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE
CENTER.”
Spec_A.fm Page 43 Wednesday, March 30, 2005 2:48 PM
44

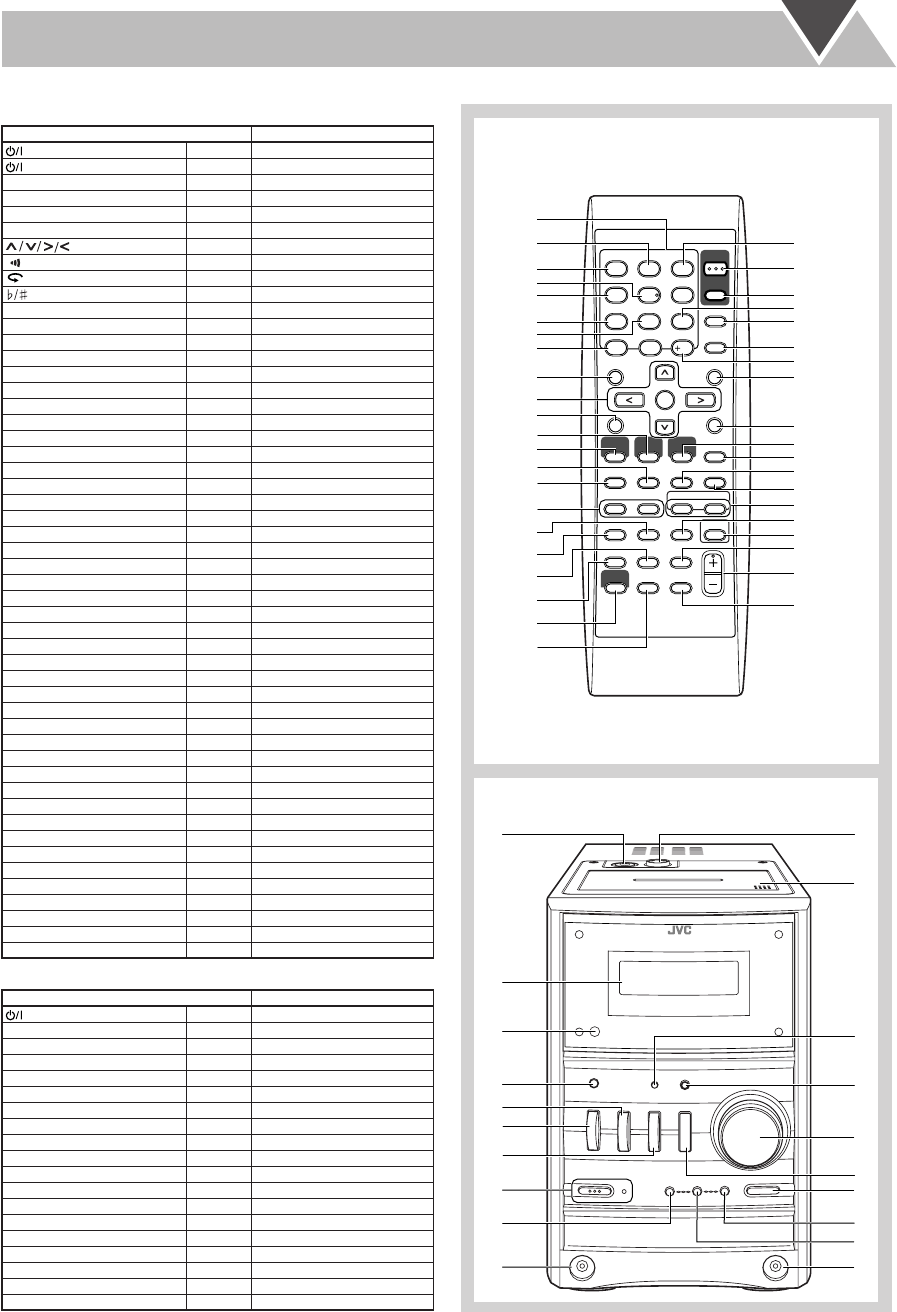

Parts Index
Remote control
Main unit
Button Page
AUDIO
f
7
TV
g
42
77
77
r
10, 11, 18, 20, 27
¡¡
¡¡
/ 11
11
y
9, 10
¢¢
¢¢
/ 44
44
n
8, 9, 11, 20, 27
88
88
t
10, 18, 20, 26
/ ENTER
p
11, 18, 23, 32, 34
(Clear Voice)
7
18
(One-Touch Replay)
c
18
p
31
10 keys
1
9, 11, 18, 19, 24, 25
3D PHONIC
6
13
AHB PRO
m
12
ANGLE
o
17
AUDIO
i
16
A.STANDBY
d
15
BASS/TREBLE
.
13
CANCEL
k
20, 32
CLOCK/TIMER
s
15, 32
DIMMER
3
14
DISPLAY
j
15
DVD LEVEL
h
13
DVD/CD 33
33
e
7, 10, 26
ECHO
/
31
FADE MUTING
Q
12
FM/PLAY MODE
b
8, 19, 20
FM/AM/AUX
x
8
GROUP/TITLE SKIP
n
10
KARAOKE
9
31
MENU/PL
/
11, 26
ON SCREEN
z
23
PAGE
8
17
REPEAT
v
21
REPEAT A-B
v
21
RETURN
l
11
SCAN MODE
4
13
SET
k
9, 15
SET UP
q
34
SHIFT
a
10, 11, 13, 14, 15, 17
SLEEP
2
15
SLOW 99
99
/((
((
y
18
SOUND TURBO II
,
12
SUBTITLE
u
17
TAPE 22
22 33
33
w
9
TOP MENU/PG
9
11, 26
TV CH 99
99 /((
((
p
42
TV VOLUME + /–
P
42
TV/VIDEO
j
42
VFP
5
14
VOLUME + /–
P
7, 13
ZOOM
;
18, 27
Button Page
& STANDBY/ON lamp
8
7
77
77
^
10, 21
88
88
4
10, 18, 20, 26
00
00
$
10, 21
Cassette holder
=
9
AUX
#
7
AUX jack
&
5
Display
2
6
FM/AM
7
8
DVD/CD ##
##
6
7, 10, 26
MIC jack
1
30
MIC VOLUME
-
30
TAPE @@
@@##
##
5
9
PHONES
0
7
REC
~
28, 29
Remote sensor
3
5
SOUND TURBO II
!
12
UP ¢¢
¢¢ /DOWN 44
44
9%
8, 10, 20
VOLUME + /–
@
12
Remote control
Main unit
1
4
7
10 0
2
5
8
3
6
9
10
1
2
3
4
5
6
7
8
9
p
q
w
e
t
r
y
u
i
o
;
a
s
d
f
g
h
j
k
l
/
z
x
c
v
b
n
m
,
.
P
Q
2
1
4
5
6
7
8
9
0
~
!
-
@
=
#
$
%
^
&
3
This remote control can also operate JVC’s TVs
(see page 42).
UX-GD6[A].book Page 44 Wednesday, March 23, 2005 10:01 AM
MEMO
MEMO.fm Page 2 W ednesday,January 21,2004 6:03 PM
EN
© 2005 Victor Company of Japan, Limited
UX-GD6S/UX-GD6M MICRO COMPONENT SYSTEM
0405AIMMDWJEM
Cover[A].fm Page 2 Wednesday, March 23, 2005 10:19 AM
