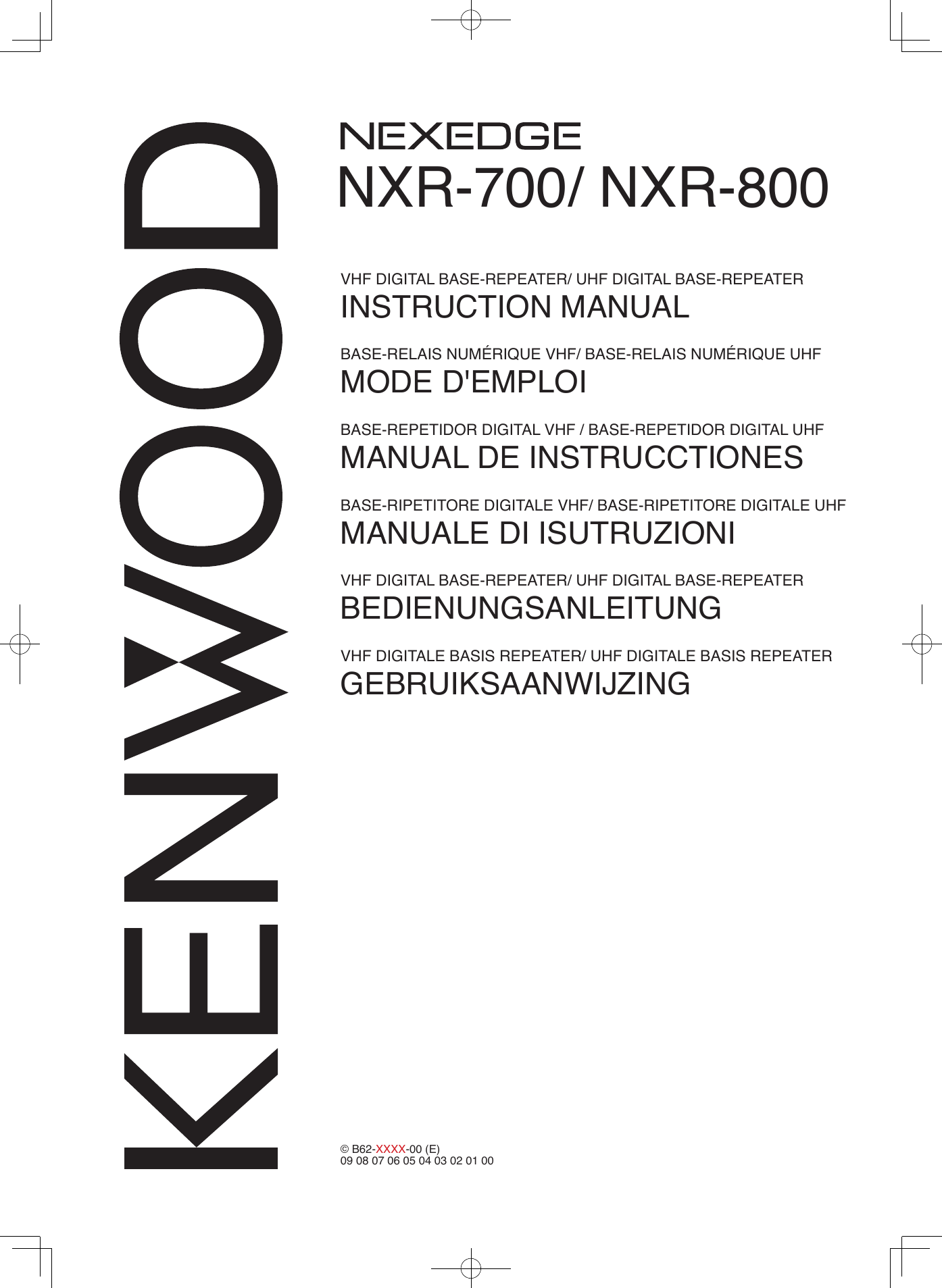

NXR-700/ NXR-800© B62-XXXX-00 (E)09 08 07 06 05 04 03 02 01 00VHF DIGITAL BASE-REPEATER/ UHF DIGITAL BASE-REPEATERINSTRUCTION MANUALBASE-RELAIS NUMÉRIQUE VHF/ BASE-RELAIS NUMÉRIQUE UHFMODE D'EMPLOIBASE-REPETIDOR DIGITAL VHF / BASE-REPETIDOR DIGITAL UHFMANUAL DE INSTRUCCTIONESBASE-RIPETITORE DIGITALE VHF/ BASE-RIPETITORE DIGITALE UHFMANUALE DI ISUTRUZIONI VHF DIGITAL BASE-REPEATER/ UHF DIGITAL BASE-REPEATERBEDIENUNGSANLEITUNGVHF DIGITALE BASIS REPEATER/ UHF DIGITALE BASIS REPEATERGEBRUIKSAANWIJZING

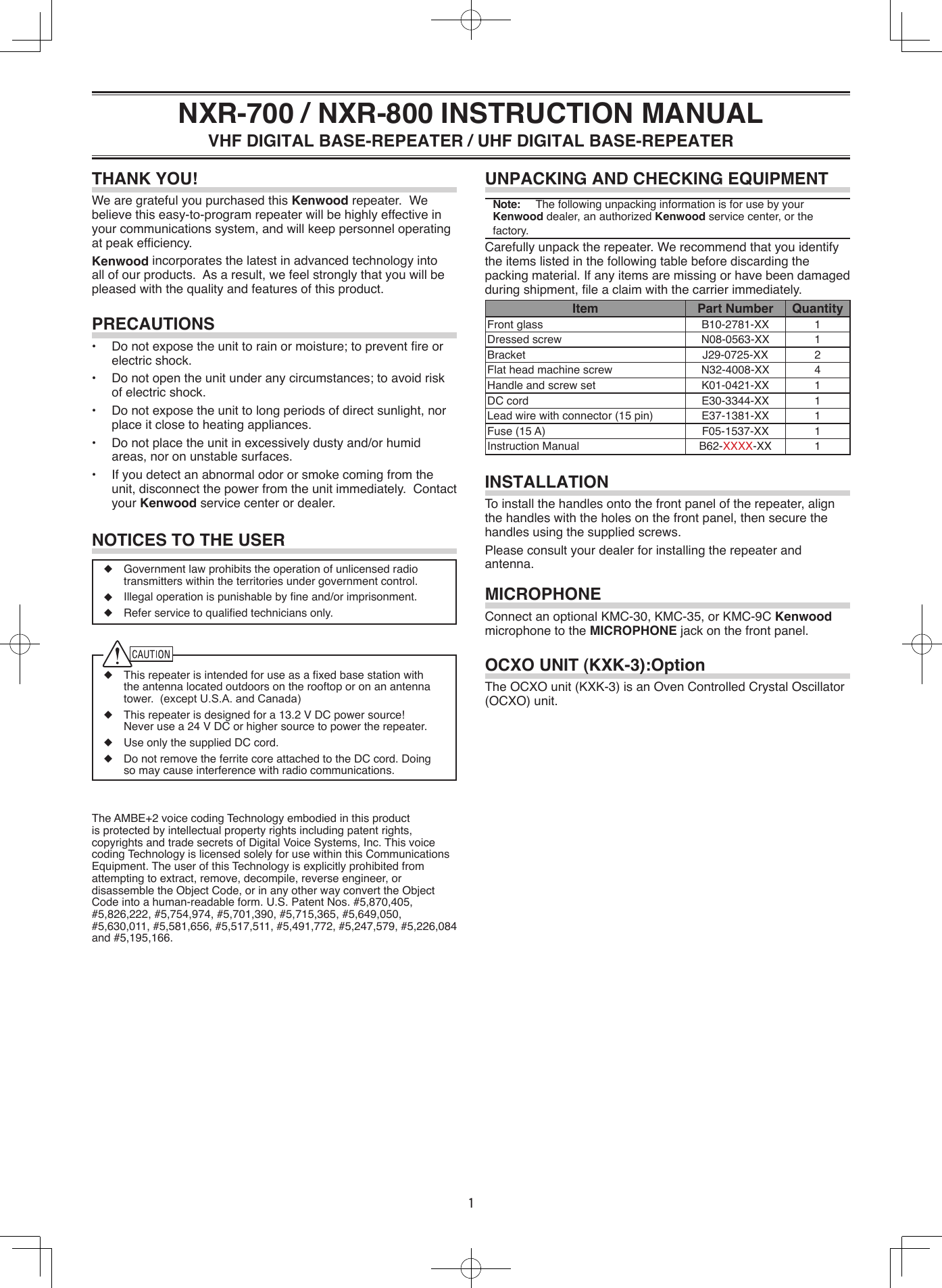

UNPACKING AND CHECKING EQUIPMENTNote: The following unpacking information is for use by your Kenwood dealer, an authorized Kenwood service center, or the factory.Carefully unpack the repeater. We recommend that you identify the items listed in the following table before discarding the packing material. If any items are missing or have been damaged during shipment, le a claim with the carrier immediately.Item Part Number QuantityFront glass B10-2781-XX 1Dressed screw N08-0563-XX 1Bracket J29-0725-XX 2Flat head machine screw N32-4008-XX 4Handle and screw set K01-0421-XX 1DC cord E30-3344-XX 1Lead wire with connector (15 pin) E37-1381-XX 1Fuse (15 A) F05-1537-XX 1Instruction Manual B62-XXXX-XX 1INSTALLATIONTo install the handles onto the front panel of the repeater, align the handles with the holes on the front panel, then secure the handles using the supplied screws.Please consult your dealer for installing the repeater and antenna.MICROPHONEConnect an optional KMC-30, KMC-35, or KMC-9C Kenwood microphone to the MICROPHONE jack on the front panel.OCXO UNIT (KXK-3):OptionThe OCXO unit (KXK-3) is an Oven Controlled Crystal Oscillator (OCXO) unit.NOTICES TO THE USER◆ Government law prohibits the operation of unlicensed radio transmitters within the territories under government control.◆ Illegal operation is punishable by ne and/or imprisonment.◆ Refer service to qualied technicians only.◆ This repeater is intended for use as a xed base station with the antenna located outdoors on the rooftop or on an antenna tower. (except U.S.A. and Canada)◆ This repeater is designed for a 13.2 V DC power source! Never use a 24 V DC or higher source to power the repeater. ◆ Use only the supplied DC cord.◆ Do not remove the ferrite core attached to the DC cord. Doing so may cause interference with radio communications.The AMBE+2 voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to extract, remove, decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Patent Nos. #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166.THANK YOU!We are grateful you purchased this Kenwood repeater. We believe this easy-to-program repeater will be highly effective in your communications system, and will keep personnel operating at peak efciency.Kenwood incorporates the latest in advanced technology into all of our products. As a result, we feel strongly that you will be pleased with the quality and features of this product.PRECAUTIONS• Do not expose the unit to rain or moisture; to prevent re or electric shock.• Do not open the unit under any circumstances; to avoid risk of electric shock.• Do not expose the unit to long periods of direct sunlight, nor place it close to heating appliances.• Do not place the unit in excessively dusty and/or humid areas, nor on unstable surfaces.• If you detect an abnormal odor or smoke coming from the unit, disconnect the power from the unit immediately. Contact your Kenwood service center or dealer.NXR-700 / NXR-800 INSTRUCTION MANUALVHF DIGITAL BASE-REPEATER / UHF DIGITAL BASE-REPEATER

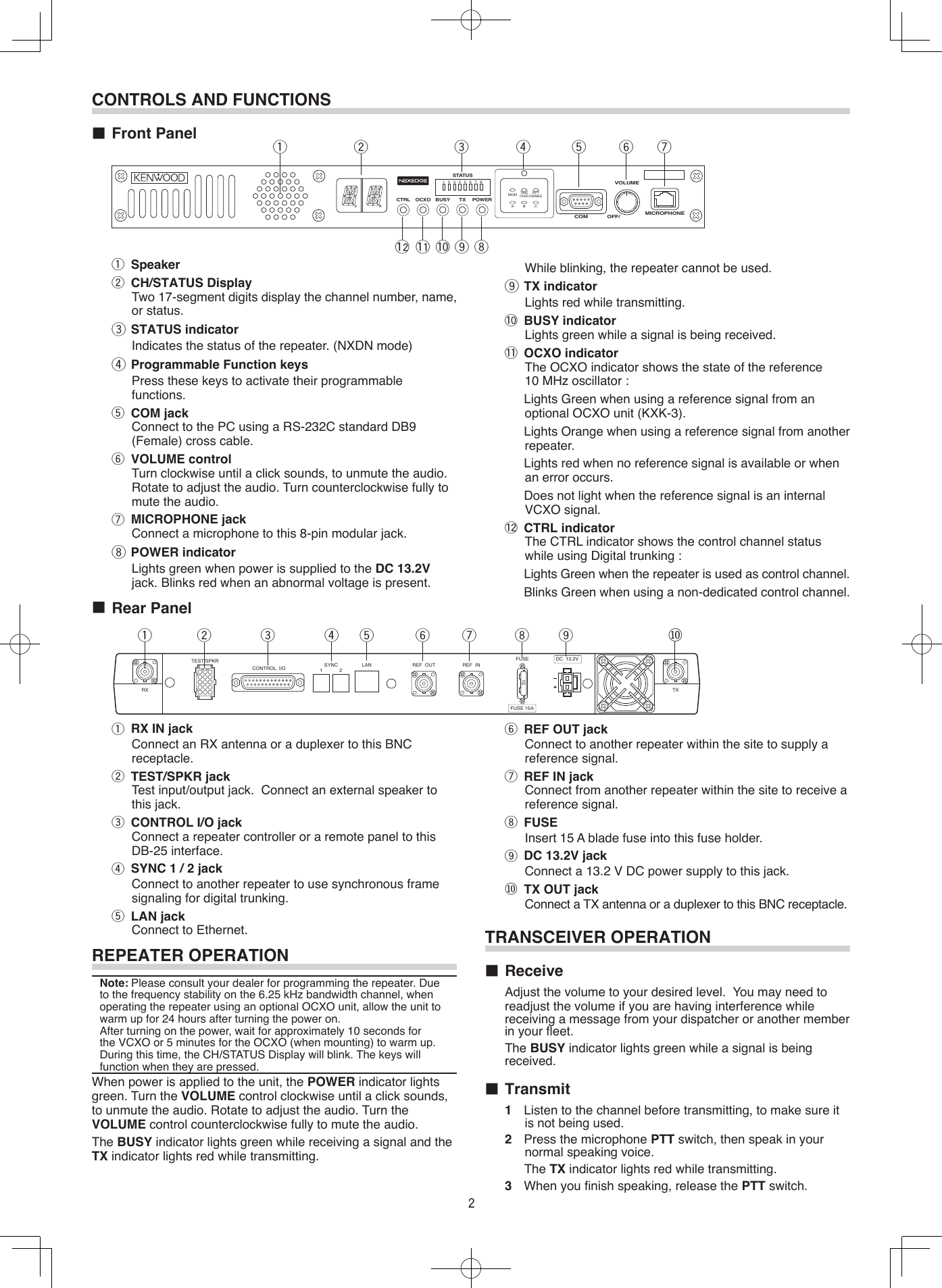

REPEATER OPERATIONNote: Please consult your dealer for programming the repeater. Due to the frequency stability on the 6.25 kHz bandwidth channel, when operating the repeater using an optional OCXO unit, allow the unit to warm up for 24 hours after turning the power on. After turning on the power, wait for approximately 10 seconds for the VCXO or 5 minutes for the OCXO (when mounting) to warm up. During this time, the CH/STATUS Display will blink. The keys will function when they are pressed.When power is applied to the unit, the POWER indicator lights green. Turn the VOLUME control clockwise until a click sounds, to unmute the audio. Rotate to adjust the audio. Turn the VOLUME control counterclockwise fully to mute the audio.The BUSY indicator lights green while receiving a signal and the TX indicator lights red while transmitting.■ Rear Panelq RX IN jack Connect an RX antenna or a duplexer to this BNC receptacle.w TEST/SPKR jack Test input/output jack. Connect an external speaker to this jack.e CONTROL I/O jack Connect a repeater controller or a remote panel to this DB-25 interface.r SYNC 1 / 2 jack Connect to another repeater to use synchronous frame signaling for digital trunking.t LAN jack Connect to Ethernet.CONTROLS AND FUNCTIONS■ Front Panel qw r t y uioeqwrt y ueMICROPHONEVOLUMECOM OFF/POWERCTRL OCXO BUSY TX1 2MONTAKEOVERRPTDISABLEA B C3 4 5 6 7 8STATUSTEST/SPKRRX TXCONTROL I/O SYNC1 2 LAN REF OUT REF INFUSE15DC 13.2VFUSE 15Ay REF OUT jack Connect to another repeater within the site to supply a reference signal.u REF IN jack Connect from another repeater within the site to receive a reference signal.i FUSE Insert 15 A blade fuse into this fuse holder.o DC 13.2V jack Connect a 13.2 V DC power supply to this jack.⑩ TX OUT jack Connect a TX antenna or a duplexer to this BNC receptacle.io⑩TRANSCEIVER OPERATION■ Receive Adjust the volume to your desired level. You may need to readjust the volume if you are having interference while receiving a message from your dispatcher or another member in your eet. The BUSY indicator lights green while a signal is being received.■ Transmit1 Listen to the channel before transmitting, to make sure it is not being used.2 Press the microphone PTT switch, then speak in your normal speaking voice.The TX indicator lights red while transmitting.3 When you nish speaking, release the PTT switch.!0!1!2q Speakerw CH/STATUS Display Two 17-segment digits display the channel number, name, or status.e STATUS indicator Indicates the status of the repeater. (NXDN mode)r Programmable Function keys Press these keys to activate their programmable functions.t COM jack Connect to the PC using a RS-232C standard DB9 (Female) cross cable.y VOLUME control Turn clockwise until a click sounds, to unmute the audio. Rotate to adjust the audio. Turn counterclockwise fully to mute the audio.u MICROPHONE jack Connect a microphone to this 8-pin modular jack.i POWER indicator Lights green when power is supplied to the DC 13.2V jack. Blinks red when an abnormal voltage is present. While blinking, the repeater cannot be used.o TX indicator Lights red while transmitting.!0 BUSY indicator Lights green while a signal is being received.!1 OCXO indicator The OCXO indicator shows the state of the reference 10 MHz oscillator : Lights Green when using a reference signal from an optional OCXO unit (KXK-3). Lights Orange when using a reference signal from another repeater. Lights red when no reference signal is available or when an error occurs. Does not light when the reference signal is an internal VCXO signal.!2 CTRL indicator The CTRL indicator shows the control channel status while using Digital trunking : Lights Green when the repeater is used as control channel. Blinks Green when using a non-dedicated control channel.

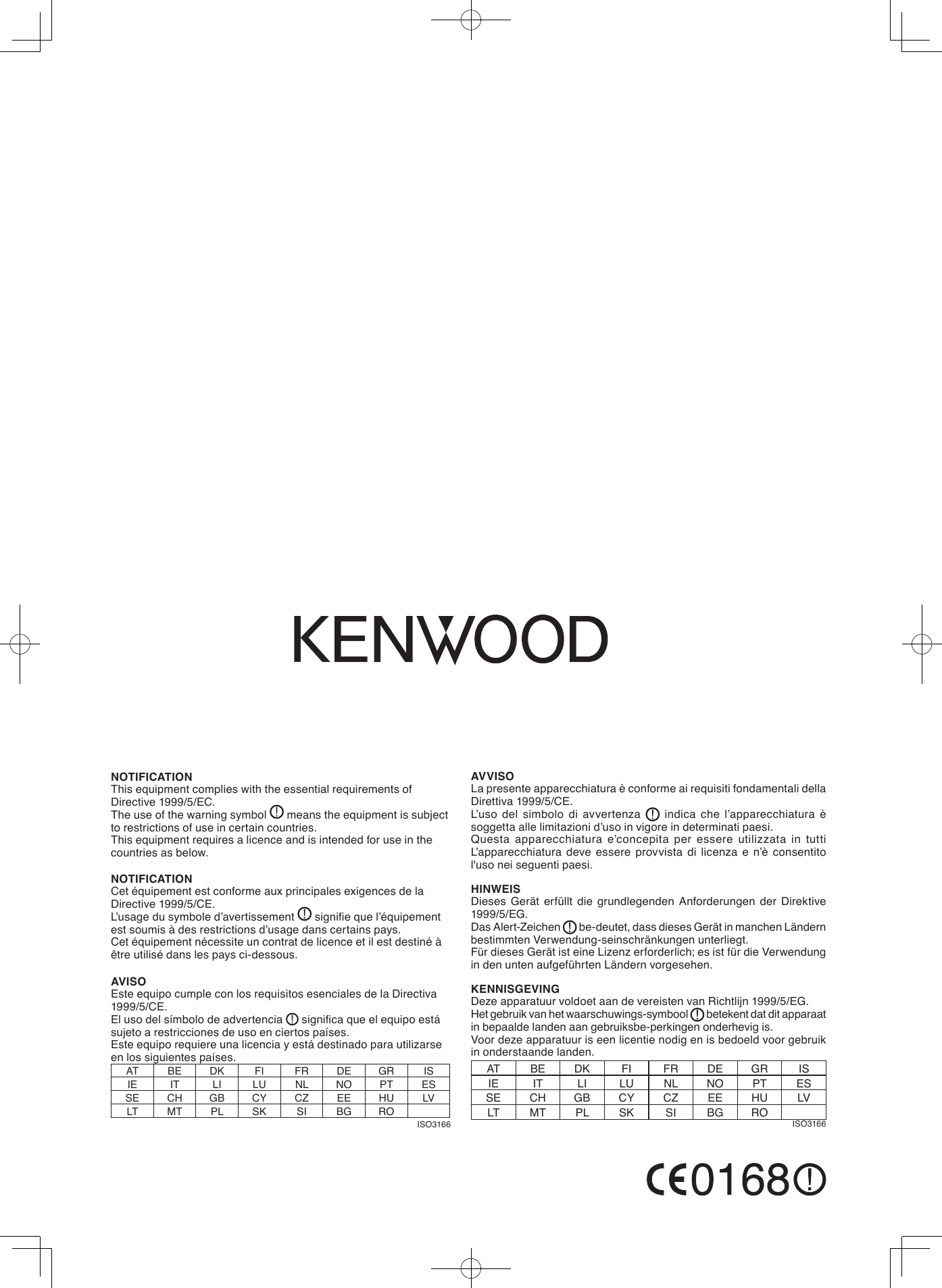

AVISOEste equipo cumple con los requisitos esenciales de la Directiva 1999/5/CE.El uso del símbolo de advertencia signica que el equipo está sujeto a restricciones de uso en ciertos países.Este equipo requiere una licencia y está destinado para utilizarse en los siguientes países.AT BE DK FI FR DE GR ISIE IT LI LU NL NO PT ESSE CH GB CY CZ EE HU LVLT MT PL SK SI BG ROISO3166NOTIFICATIONThis equipment complies with the essential requirements of Directive 1999/5/EC.The use of the warning symbol means the equipment is subject to restrictions of use in certain countries.This equipment requires a licence and is intended for use in the countries as below.NOTIFICATIONCet équipement est conforme aux principales exigences de la Directive 1999/5/CE.L’usage du symbole d’avertissement signie que l’équipement est soumis à des restrictions d’usage dans certains pays.Cet équipement nécessite un contrat de licence et il est destiné à être utilisé dans les pays ci-dessous. AVVISOLa presente apparecchiatura è conforme ai requisiti fondamentali della Direttiva 1999/5/CE.L’uso del simbolo di avvertenza indica che l’apparecchiatura è soggetta alle limitazioni d’uso in vigore in determinati paesi.Questa apparecchiatura e’concepita per essere utilizzata in tutti L’apparecchiatura deve essere provvista di licenza e n’è consentito l'uso nei seguenti paesi.HINWEISDieses Gerät erfüllt die grundlegenden Anforderungen der Direktive 1999/5/EG.Das Alert-Zeichen be-deutet, dass dieses Gerät in manchen Ländern bestimmten Verwendung-seinschränkungen unterliegt.Für dieses Gerät ist eine Lizenz erforderlich; es ist für die Verwendung in den unten aufgeführten Ländern vorgesehen.KENNISGEVINGDeze apparatuur voldoet aan de vereisten van Richtlijn 1999/5/EG.Het gebruik van het waarschuwings-symbool betekent dat dit apparaat in bepaalde landen aan gebruiksbe-perkingen onderhevig is.Voor deze apparatuur is een licentie nodig en is bedoeld voor gebruik in onderstaande landen.AT BE DK FI FR DE GR ISIE IT LI LU NL NO PT ESSE CH GB CY CZ EE HU LVLT MT PL SK SI BG RO ISO3166

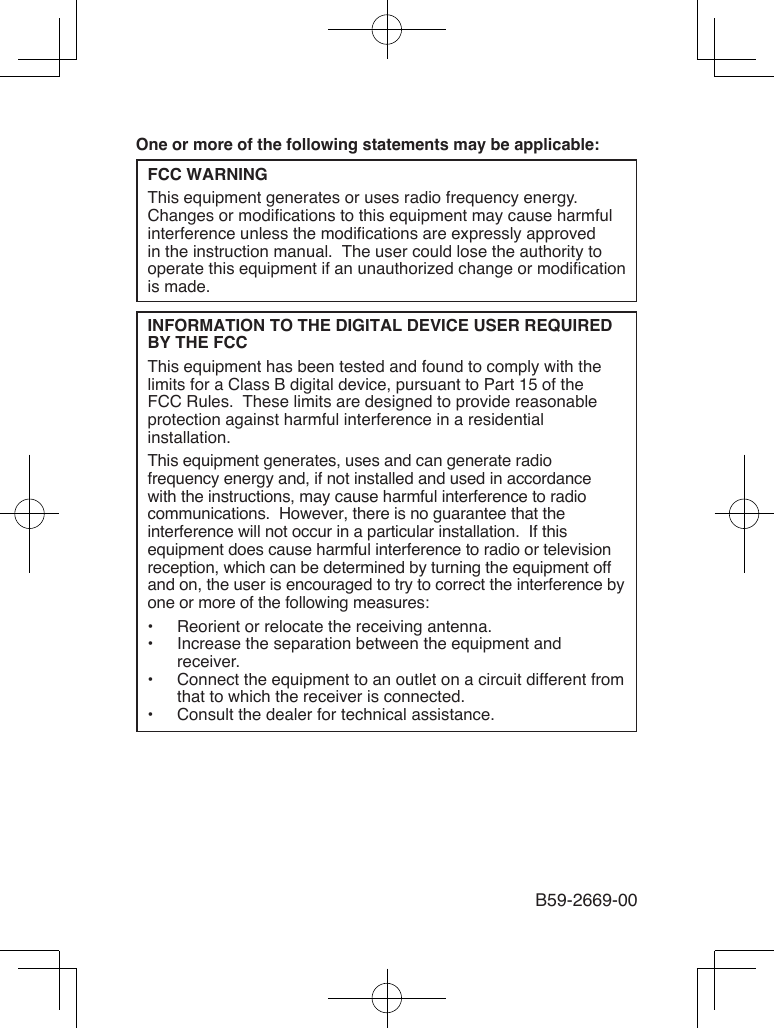

B59-2669-00One or more of the following statements may be applicable:FCC WARNINGThis equipment generates or uses radio frequency energy. Changes or modications to this equipment may cause harmful interference unless the modications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modication is made.INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCCThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer for technical assistance.

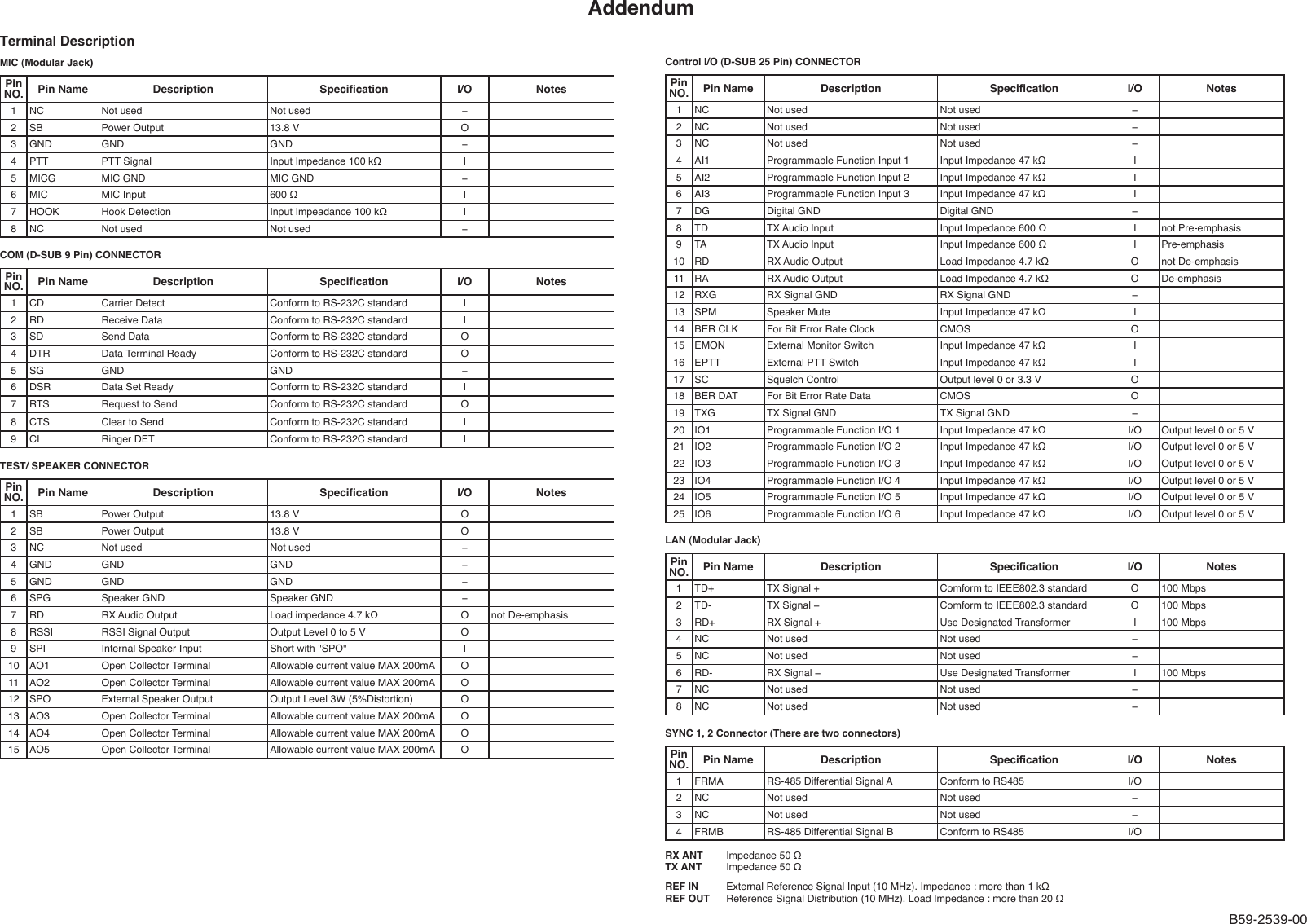

AddendumTerminal DescriptionMIC (Modular Jack)PinNO. Pin Name Description Specification I/O Notes1 NC Not used Not used −2 SB Power Output 13.8 V O3 GND GND GND −4 PTT PTT Signal Input Impedance 100 kΩ I5 MICG MIC GND MIC GND −6 MIC MIC Input 600 Ω I7 HOOK Hook Detection Input Impeadance 100 kΩ I8 NC Not used Not used −COM (D-SUB 9 Pin) CONNECTORPinNO. Pin Name Description Specification I/O Notes1 CD Carrier Detect Conform to RS-232C standard I2 RD Receive Data Conform to RS-232C standard I3 SD Send Data Conform to RS-232C standard O4 DTR Data Terminal Ready Conform to RS-232C standard O5 SG GND GND −6 DSR Data Set Ready Conform to RS-232C standard I7 RTS Request to Send Conform to RS-232C standard O8 CTS Clear to Send Conform to RS-232C standard I9 CI Ringer DET Conform to RS-232C standard ITEST/ SPEAKER CONNECTORPinNO. Pin Name Description Specification I/O Notes1 SB Power Output 13.8 V O2 SB Power Output 13.8 V O3 NC Not used Not used −4 GND GND GND −5 GND GND GND −6 SPG Speaker GND Speaker GND −7 RD RX Audio Output Load impedance 4.7 kΩ O not De-emphasis8 RSSI RSSI Signal Output Output Level 0 to 5 V O9 SPI Internal Speaker Input Short with "SPO" I10 AO1 Open Collector Terminal Allowable current value MAX 200mA O11 AO2 Open Collector Terminal Allowable current value MAX 200mA O12 SPO External Speaker Output Output Level 3W (5%Distortion) O13 AO3 Open Collector Terminal Allowable current value MAX 200mA O14 AO4 Open Collector Terminal Allowable current value MAX 200mA O15 AO5 Open Collector Terminal Allowable current value MAX 200mA OControl I/O (D-SUB 25 Pin) CONNECTORPinNO. Pin Name Description Specification I/O Notes1 NC Not used Not used −2 NC Not used Not used −3 NC Not used Not used −4 AI1 Programmable Function Input 1 Input Impedance 47 kΩ I5 AI2 Programmable Function Input 2 Input Impedance 47 kΩ I6 AI3 Programmable Function Input 3 Input Impedance 47 kΩ I7 DG Digital GND Digital GND −8 TD TX Audio Input Input Impedance 600 Ω I not Pre-emphasis9 TA TX Audio Input Input Impedance 600 Ω I Pre-emphasis10 RD RX Audio Output Load Impedance 4.7 kΩ O not De-emphasis11 RA RX Audio Output Load Impedance 4.7 kΩ O De-emphasis12 RXG RX Signal GND RX Signal GND −13 SPM Speaker Mute Input Impedance 47 kΩ I14 BER CLK For Bit Error Rate Clock CMOS O15 EMON External Monitor Switch Input Impedance 47 kΩ I16 EPTT External PTT Switch Input Impedance 47 kΩ I17 SC Squelch Control Output level 0 or 3.3 V O18 BER DAT For Bit Error Rate Data CMOS O19 TXG TX Signal GND TX Signal GND −20 IO1 Programmable Function I/O 1 Input Impedance 47 kΩ I/O Output level 0 or 5 V21 IO2 Programmable Function I/O 2 Input Impedance 47 kΩ I/O Output level 0 or 5 V22 IO3 Programmable Function I/O 3 Input Impedance 47 kΩ I/O Output level 0 or 5 V23 IO4 Programmable Function I/O 4 Input Impedance 47 kΩ I/O Output level 0 or 5 V24 IO5 Programmable Function I/O 5 Input Impedance 47 kΩ I/O Output level 0 or 5 V25 IO6 Programmable Function I/O 6 Input Impedance 47 kΩ I/O Output level 0 or 5 VLAN (Modular Jack)PinNO. Pin Name Description Specification I/O Notes1 TD+ TX Signal + Comform to IEEE802.3 standard O 100 Mbps2 TD- TX Signal − Comform to IEEE802.3 standard O 100 Mbps3 RD+ RX Signal + Use Designated Transformer I 100 Mbps4 NC Not used Not used −5 NC Not used Not used −6 RD- RX Signal − Use Designated Transformer I 100 Mbps7 NC Not used Not used −8 NC Not used Not used −SYNC 1, 2 Connector (There are two connectors)PinNO. Pin Name Description Specification I/O Notes1 FRMA RS-485 Differential Signal A Conform to RS485 I/O2 NC Not used Not used −3 NC Not used Not used −4 FRMB RS-485 Differential Signal B Conform to RS485 I/ORX ANT Impedance 50 ΩTX ANT Impedance 50 ΩREF IN External Reference Signal Input (10 MHz). Impedance : more than 1 kΩREF OUT Reference Signal Distribution (10 MHz). Load Impedance : more than 20 ΩB59-2539-00

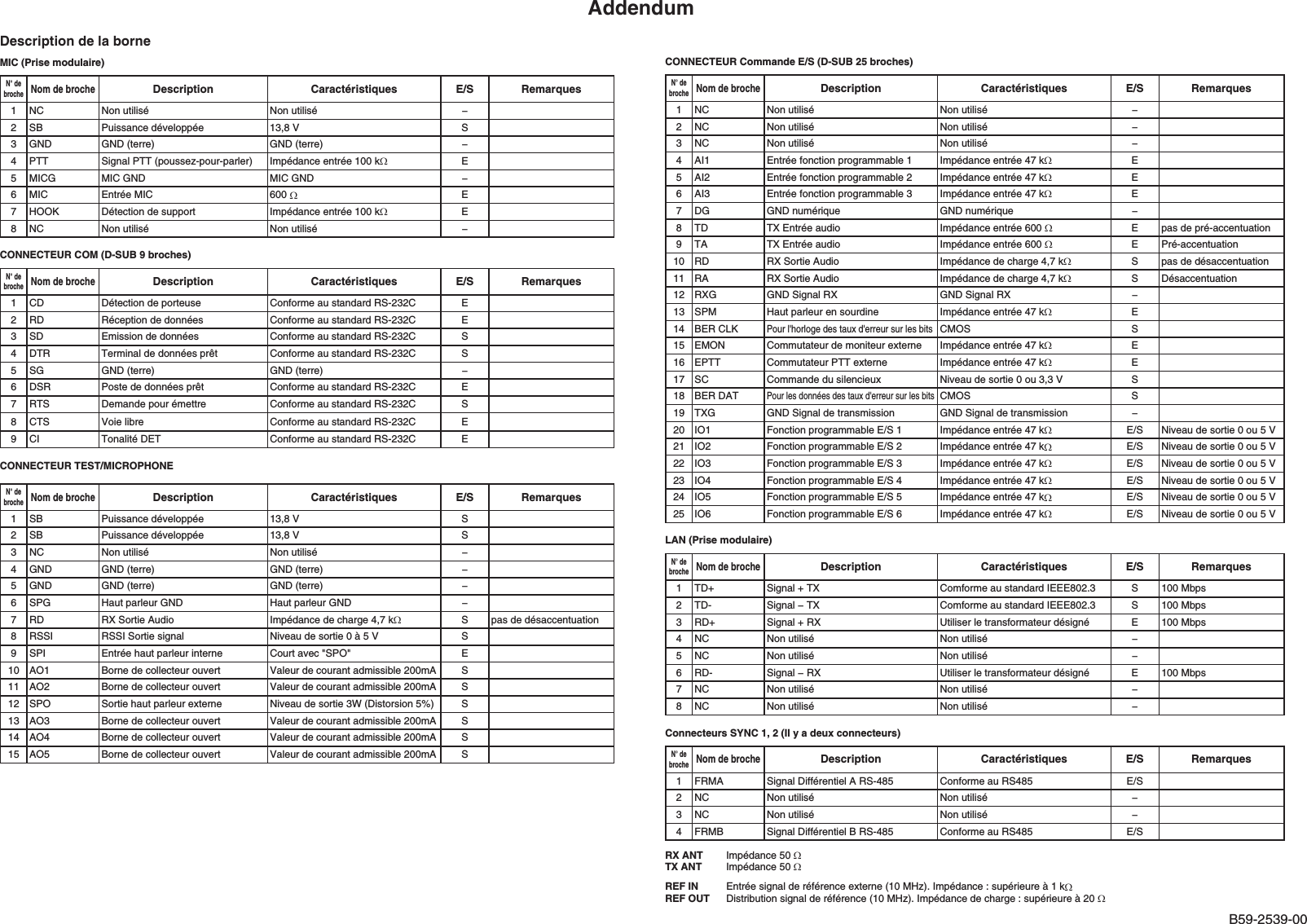

AddendumDescription de la borneMIC (Prise modulaire)N° de brocheNom de brocheDescription Caractéristiques E/S Remarques1 NC Non utilisé Non utilisé −2 SB Puissance développée 13,8 V S3 GND GND (terre) GND (terre) −4 PTT Signal PTT (poussez-pour-parler) Impédance entrée 100 kΩE5 MICG MIC GND MIC GND −6 MIC Entrée MIC 600 ΩE7 HOOK Détection de support Impédance entrée 100 kΩE8 NC Non utilisé Non utilisé −CONNECTEUR COM (D-SUB 9 broches)N° de brocheNom de brocheDescription Caractéristiques E/S Remarques1 CD Détection de porteuse Conforme au standard RS-232C E2 RD Réception de données Conforme au standard RS-232C E3 SD Emission de données Conforme au standard RS-232C S4 DTR Terminal de données prêt Conforme au standard RS-232C S5 SG GND (terre) GND (terre) −6 DSR Poste de données prêt Conforme au standard RS-232C E7 RTS Demande pour émettre Conforme au standard RS-232C S8 CTS Voie libre Conforme au standard RS-232C E9 CI Tonalité DET Conforme au standard RS-232C ECONNECTEUR TEST/MICROPHONEN° de brocheNom de brocheDescription Caractéristiques E/S Remarques1 SB Puissance développée 13,8 V S2 SB Puissance développée 13,8 V S3 NC Non utilisé Non utilisé −4 GND GND (terre) GND (terre) −5 GND GND (terre) GND (terre) −6 SPG Haut parleur GND Haut parleur GND −7 RD RX Sortie Audio Impédance de charge 4,7 kΩS pas de désaccentuation8 RSSI RSSI Sortie signal Niveau de sortie 0 à 5 V S9 SPI Entrée haut parleur interne Court avec "SPO" E10 AO1 Borne de collecteur ouvert Valeur de courant admissible 200mA S11 AO2 Borne de collecteur ouvert Valeur de courant admissible 200mA S12 SPO Sortie haut parleur externe Niveau de sortie 3W (Distorsion 5%) S13 AO3 Borne de collecteur ouvert Valeur de courant admissible 200mA S14 AO4 Borne de collecteur ouvert Valeur de courant admissible 200mA S15 AO5 Borne de collecteur ouvert Valeur de courant admissible 200mA SCONNECTEUR Commande E/S (D-SUB 25 broches)N° de brocheNom de brocheDescription Caractéristiques E/S Remarques1 NC Non utilisé Non utilisé −2 NC Non utilisé Non utilisé −3 NC Non utilisé Non utilisé −4 AI1 Entrée fonction programmable 1 Impédance entrée 47 kΩE5 AI2 Entrée fonction programmable 2 Impédance entrée 47 kΩE6 AI3 Entrée fonction programmable 3 Impédance entrée 47 kΩE7 DG GND numérique GND numérique −8 TD TX Entrée audio Impédance entrée 600 ΩE pas de pré-accentuation9 TA TX Entrée audio Impédance entrée 600 ΩE Pré-accentuation10 RD RX Sortie Audio Impédance de charge 4,7 kΩS pas de désaccentuation11 RA RX Sortie Audio Impédance de charge 4,7 kΩS Désaccentuation12 RXG GND Signal RX GND Signal RX −13 SPM Haut parleur en sourdine Impédance entrée 47 kΩE14 BER CLKPour l'horloge des taux d'erreur sur les bits CMOS S15 EMON Commutateur de moniteur externe Impédance entrée 47 kΩE16 EPTT Commutateur PTT externe Impédance entrée 47 kΩE17 SC Commande du silencieux Niveau de sortie 0 ou 3,3 V S18 BER DATPour les données des taux d'erreur sur les bitsCMOS S19 TXG GND Signal de transmission GND Signal de transmission −20 IO1 Fonction programmable E/S 1 Impédance entrée 47 kΩE/S Niveau de sortie 0 ou 5 V21 IO2 Fonction programmable E/S 2 Impédance entrée 47 kΩE/S Niveau de sortie 0 ou 5 V22 IO3 Fonction programmable E/S 3 Impédance entrée 47 kΩE/S Niveau de sortie 0 ou 5 V23 IO4 Fonction programmable E/S 4 Impédance entrée 47 kΩE/S Niveau de sortie 0 ou 5 V24 IO5 Fonction programmable E/S 5 Impédance entrée 47 kΩE/S Niveau de sortie 0 ou 5 V25 IO6 Fonction programmable E/S 6 Impédance entrée 47 kΩE/S Niveau de sortie 0 ou 5 VLAN (Prise modulaire)N° de brocheNom de brocheDescription Caractéristiques E/S Remarques1 TD+ Signal + TX Comforme au standard IEEE802.3 S 100 Mbps2 TD- Signal − TX Comforme au standard IEEE802.3 S 100 Mbps3 RD+ Signal + RX Utiliser le transformateur désigné E 100 Mbps4 NC Non utilisé Non utilisé −5 NC Non utilisé Non utilisé −6 RD- Signal − RX Utiliser le transformateur désigné E 100 Mbps7 NC Non utilisé Non utilisé −8 NC Non utilisé Non utilisé −Connecteurs SYNC 1, 2 (Il y a deux connecteurs)N° de brocheNom de brocheDescription Caractéristiques E/S Remarques1 FRMA Signal Différentiel A RS-485 Conforme au RS485 E/S2 NC Non utilisé Non utilisé −3 NC Non utilisé Non utilisé −4 FRMB Signal Différentiel B RS-485 Conforme au RS485 E/SRX ANT Impédance 50 ΩTX ANT Impédance 50 ΩREF IN Entrée signal de référence externe (10 MHz). Impédance : supérieure à 1 kΩREF OUT Distribution signal de référence (10 MHz). Impédance de charge : supérieure à 20 ΩB59-2539-00B59-2539-00_NXR-700-800_French.iA AB59-2539-00_NXR-700-800_French.iA A 2008/02/21 10:18:292008/02/21 10:18:29

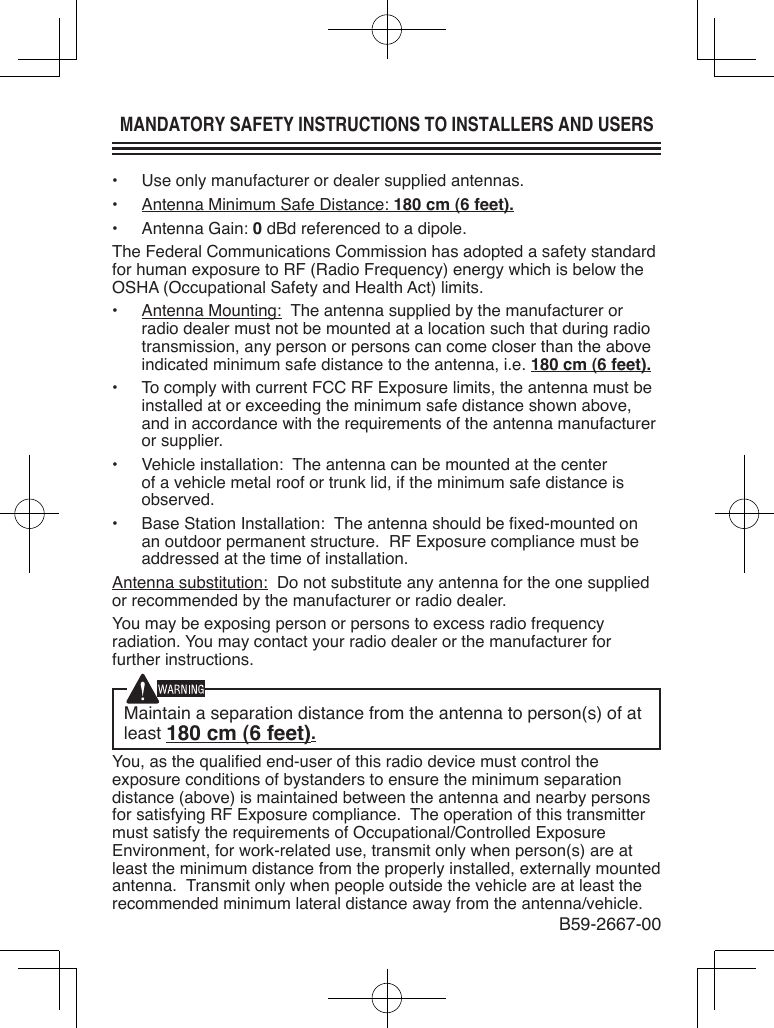

MANDATORY SAFETY INSTRUCTIONS TO INSTALLERS AND USERS• Use only manufacturer or dealer supplied antennas.• Antenna Minimum Safe Distance: 180 cm (6 feet).• Antenna Gain: 0 dBd referenced to a dipole.The Federal Communications Commission has adopted a safety standard for human exposure to RF (Radio Frequency) energy which is below the OSHA (Occupational Safety and Health Act) limits.• Antenna Mounting: The antenna supplied by the manufacturer or radio dealer must not be mounted at a location such that during radio transmission, any person or persons can come closer than the above indicated minimum safe distance to the antenna, i.e. 180 cm (6 feet).• To comply with current FCC RF Exposure limits, the antenna must be installed at or exceeding the minimum safe distance shown above, and in accordance with the requirements of the antenna manufacturer or supplier.• Vehicle installation: The antenna can be mounted at the center of a vehicle metal roof or trunk lid, if the minimum safe distance is observed.• Base Station Installation: The antenna should be xed-mounted on an outdoor permanent structure. RF Exposure compliance must be addressed at the time of installation.Antenna substitution: Do not substitute any antenna for the one supplied or recommended by the manufacturer or radio dealer.You may be exposing person or persons to excess radio frequency radiation. You may contact your radio dealer or the manufacturer for further instructions.Maintain a separation distance from the antenna to person(s) of at least 180 cm (6 feet).You, as the qualied end-user of this radio device must control the exposure conditions of bystanders to ensure the minimum separation distance (above) is maintained between the antenna and nearby persons for satisfying RF Exposure compliance. The operation of this transmitter must satisfy the requirements of Occupational/Controlled Exposure Environment, for work-related use, transmit only when person(s) are at least the minimum distance from the properly installed, externally mounted antenna. Transmit only when people outside the vehicle are at least the recommended minimum lateral distance away from the antenna/vehicle.B59-2667-00
