JVC KENWOOD 701312 User Manual IOM701312A

JVC KENWOOD Corporation IOM701312A

Exhibit A Users manual

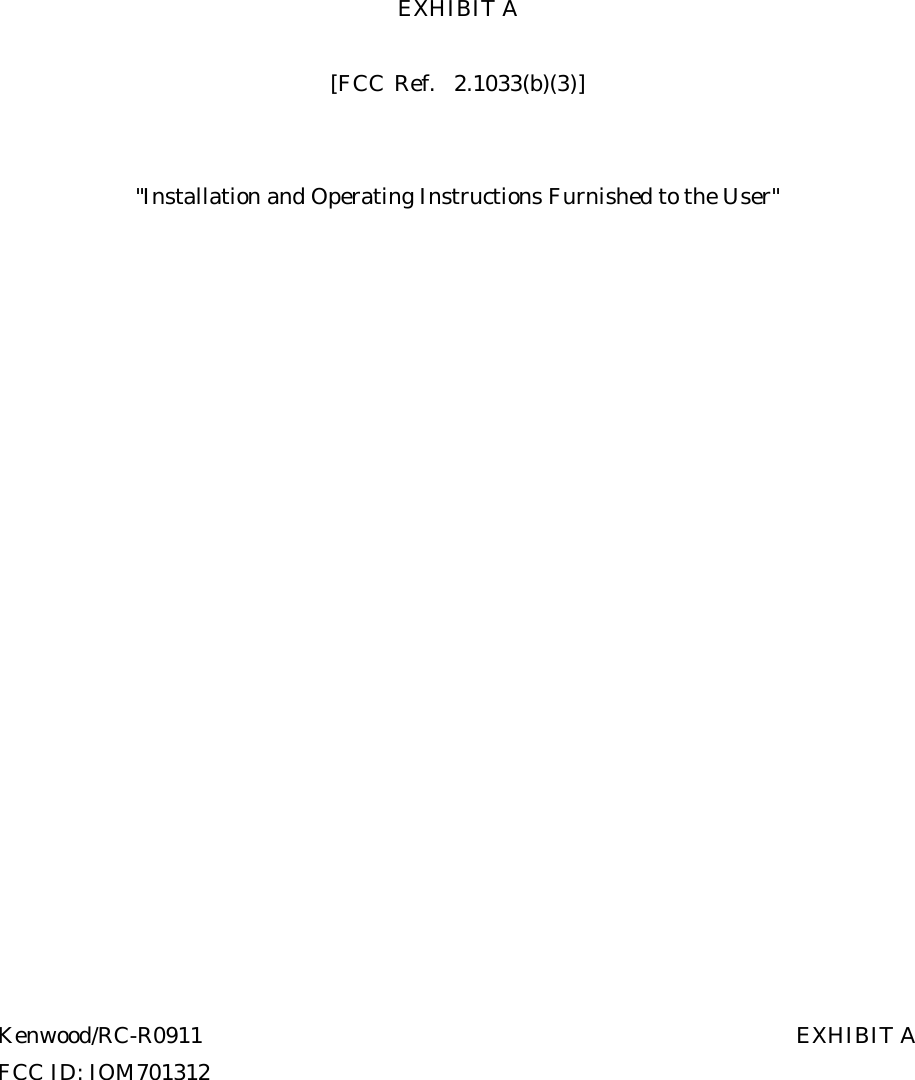

Kenwood/RC-R0911 EXHIBIT AFCC ID: IOM701312EXHIBIT A[FCC Ref. 2.1033(b)(3)]"Installation and Operating Instructions Furnished to the User"

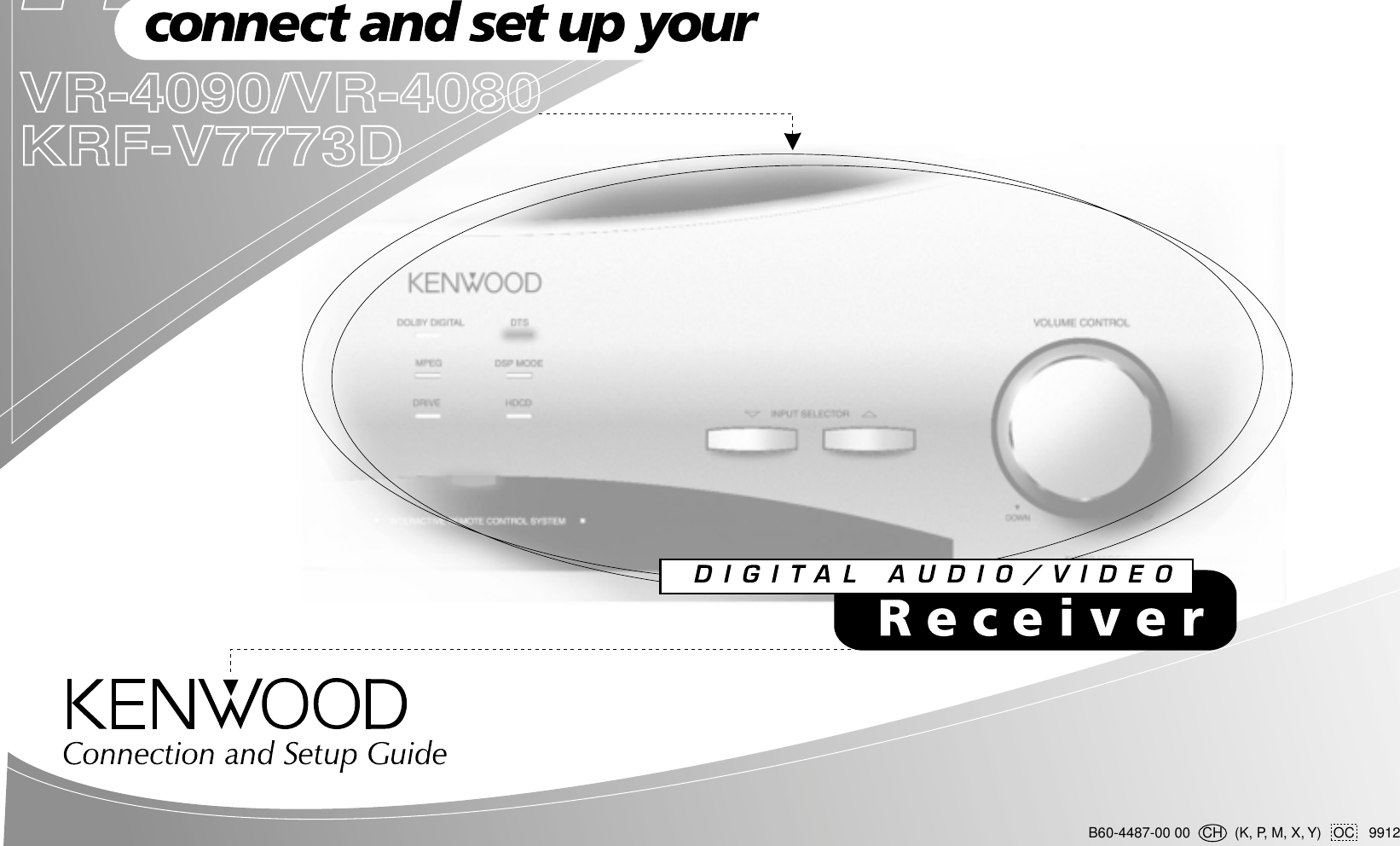

B60-4487-00 00 CH (K, P, M, X, Y) OC 9912VR-4090/VR-4080KRF-V7773D

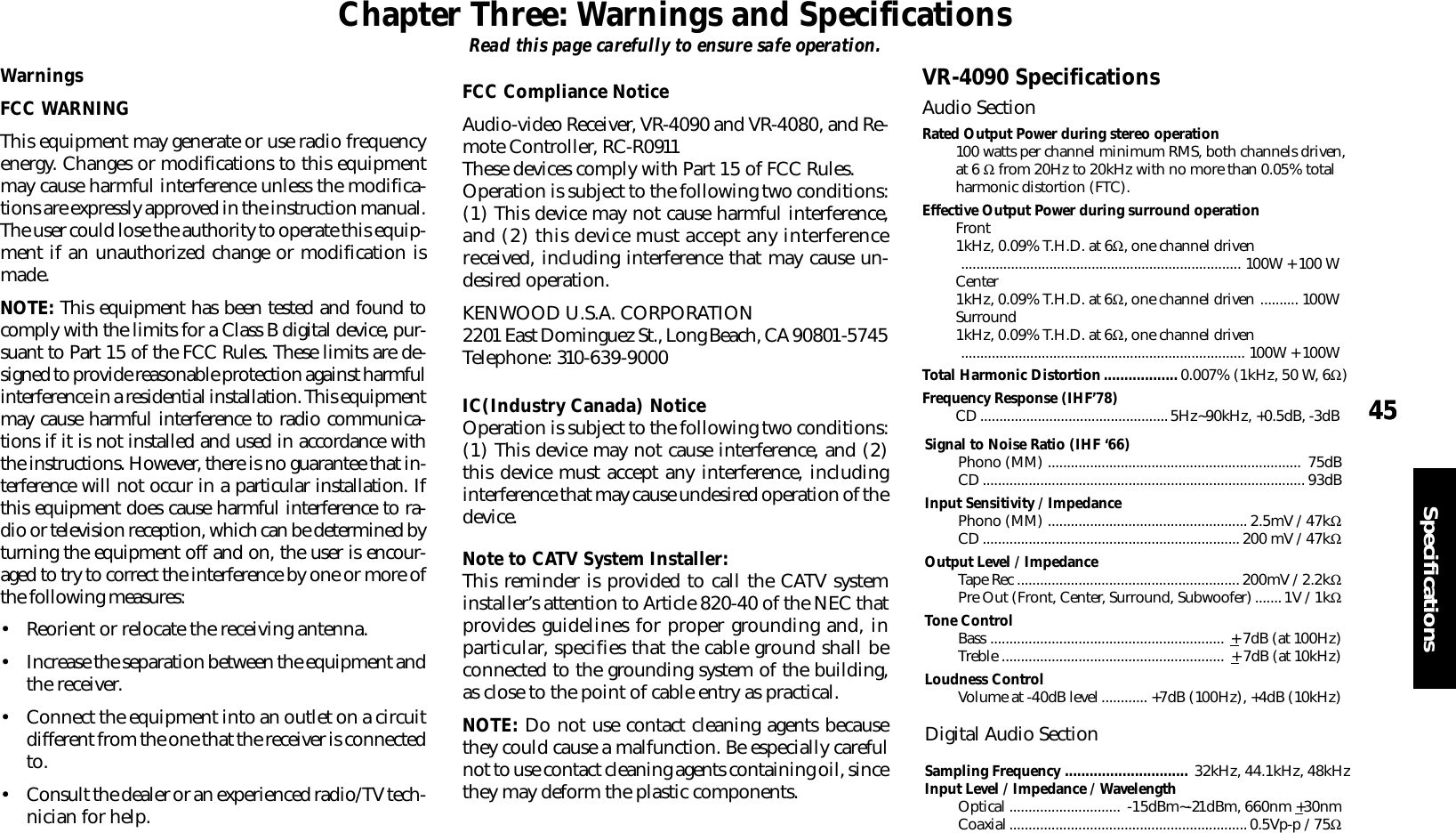

4545SpecificationsChapter Three : Warnings and SpecificationsVR-4090/VR-4080KRF-V7773DSignal to Noise Ratio (IHF ‘66)Phono (MM) .................................................................. 75dBCD....................................................................................93dBInput Sensitivity / ImpedancePhono (MM) .................................................... 2.5mV / 47kΩCD...................................................................200 mV / 47kΩOutput Level / ImpedanceTape Rec .......................................................... 200mV / 2.2kΩPre Out (Front, Center, Surround, Subwoofer).......1V / 1kΩTone ControlBass ............................................................. + 7dB (at 100Hz)Treble .......................................................... + 7dB (at 10kHz)Loudness ControlVolume at -40dB level............ +7dB (100Hz), +4dB (10kHz)Digital Audio SectionSampling Frequency .............................. 32kHz, 44.1kHz, 48kHzInput Level / Impedance / WavelengthOptical ............................. -15dBm~-21dBm, 660nm +30nmCoaxial..............................................................0.5Vp-p / 75ΩChapter Three: Warnings and SpecificationsRead this page carefully to ensure safe operation. VR-4090 SpecificationsAudio SectionRated Output Power during stereo operation100 watts per channel minimum RMS, both channels driven,at 6 Ω from 20Hz to 20kHz with no more than 0.05% totalharmonic distortion (FTC).Effective Output Power during surround operationFront1kHz, 0.09% T.H.D. at 6Ω, one channel driven......................................................................... 100W + 100 WCenter1kHz, 0.09% T.H.D. at 6Ω, one channel driven .......... 100WSurround1kHz, 0.09% T.H.D. at 6Ω, one channel driven.......................................................................... 100W + 100WTotal Harmonic Distortion..................0.007% (1kHz, 50 W, 6Ω)Frequency Response (IHF’78)CD.................................................5Hz~90kHz, +0.5dB, -3dBWarningsFCC WARNINGThis equipment may generate or use radio frequencyenergy. Changes or modifications to this equipmentmay cause harmful interference unless the modifica-tions are expressly approved in the instruction manual.The user could lose the authority to operate this equip-ment if an unauthorized change or modification ismade.NOTE: This equipment has been tested and found tocomply with the limits for a Class B digital device, pur-suant to Part 15 of the FCC Rules. These limits are de-signed to provide reasonable protection against harmfulinterference in a residential installation. This equipmentmay cause harmful interference to radio communica-tions if it is not installed and used in accordance withthe instructions. However, there is no guarantee that in-terference will not occur in a particular installation. Ifthis equipment does cause harmful interference to ra-dio or television reception, which can be determined byturning the equipment off and on, the user is encour-aged to try to correct the interference by one or more ofthe following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment andthe receiver.• Connect the equipment into an outlet on a circuitdifferent from the one that the receiver is connectedto.• Consult the dealer or an experienced radio/TV tech-nician for help.FCC Compliance NoticeAudio-video Receiver, VR-4090 and VR-4080, and Re-mote Controller, RC-R0911These devices comply with Part 15 of FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference,and (2) this device must accept any interferencereceived, including interference that may cause un-desired operation.KENWOOD U.S.A. CORPORATION2201 East Dominguez St., Long Beach, CA 90801-5745Telephone: 310-639-9000IC(Industry Canada) NoticeOperation is subject to the following two conditions:(1) This device may not cause interference, and (2)this device must accept any interference, includinginterference that may cause undesired operation of thedevice.Note to CATV System Installer:This reminder is provided to call the CATV systeminstaller’s attention to Article 820-40 of the NEC thatprovides guidelines for proper grounding and, inparticular, specifies that the cable ground shall beconnected to the grounding system of the building,as close to the point of cable entry as practical.NOTE: Do not use contact cleaning agents becausethey could cause a malfunction. Be especially carefulnot to use contact cleaning agents containing oil, sincethey may deform the plastic components.
