JA-80K-US “Oasis”  Control panel installation manual     This manual is valid for control panel JA-80K version KE60108 (printed on internal circuit board). The control panel can be configured by a PC running ComLink software - version 80 or higher.
Installation manual: Oasis security system JA-80K   - 2 -   MKE55800  Contents:   1. CONTROL PANEL ARCHITECTURE ................................................... 3 1.1.  OPTIONAL SYSTEM CONFIGURATIONS................................................ 4 2. INSTALLATION ..................................................................................... 4 2.1.  POWER INLET.................................................................................. 4 3. CONTROL PANEL MEMORY UNIT...................................................... 4 4. CONTROL PANEL CONNECTORS AND TERMINALS ...................... 4 5. WIRED KEYPAD CONNECTION .......................................................... 5 6. BACK-UP BATTERY ............................................................................. 5 7. POWERING-UP THE CONTROL PANEL FOR THE FIRST TIME....... 6 7.1.  WIRELESS KEYPAD ENROLLMENT...................................................... 6 8. LANGUAGE SELECTION OF THE KEYPAD....................................... 6 9. RESETTING THE CONTROL PANEL .................................................. 6 10. CLOSING THE CONTROL PANEL COVER .................................... 6 11. ENROLLING WIRELESS DEVICES................................................. 6 11.1.  INSTALLING WIRELESS DEVICES......................................................... 6 11.2.  ENROLLING WIRELESS DEVICES TO THE CONTROL PANEL.................... 6 11.3.  TESTING ENROLLED DEVICES............................................................ 7 11.4.  MEASURING SIGNAL STRENGTH......................................................... 7 11.5.  ERASING ENROLLED DEVICES............................................................ 7 11.6.  ENROLLING THE CONTROL PANEL TO UC AND AC MODULES................ 7 12. CONTROL PANEL PROGRAMMING .............................................. 8 12.1.  CONTROL PANEL PROGRAMMING SEQUENCES.................................... 8 12.2.  EXIT DELAY TIME............................................................................ 10 12.3.  ENTRANCE DELAY TIME................................................................... 10 12.4.  ALARM DURATION TIME................................................................... 11 12.5.  PGX AND PGY FUNCTIONS............................................................ 11 12.6.  CHANGING TELEPHONE NUMBERS IN MAINTENANCE MODE................. 11 12.7.  RADIO INTERFERENCE INDICATION................................................... 11 12.8.  RADIO COMMUNICATIONS SUPERVISION........................................... 11 12.9.  RESET ENABLED.......................................................................... 11 12.10.  ENROLLMENT TO A SUB CONTROL PANEL FOR SETTING (ARMING) CONTROL  11 12.11.  MASTER CODE RESET................................................................ 12 12.12.  CONTROL PANEL ENROLLMENT TO UC OR AC MODULES OR TO A SUB CONTROL PANEL  12 12.13.  SETTING (ARMING) WITHOUT AN ACCESS CODE........................... 12 12.14.  TRIGGERED-DETECTOR INDICATION............................................ 12 12.15.  CONFIRMATION OF INTRUDER ALARMS........................................ 12 12.16.  EXIT DELAY BEEPS..................................................................... 12 12.17.  EXIT DELAY BEEPS WHILE PARTIALLY SETTING (ARMING)............... 13 12.18.  ENTRANCE DELAY BEEPS........................................................... 13 12.19.  SETTING (ARMING) CONFIRMATION BY WIRED-SIREN CHIRP........... 13 12.20.  SIRENS ALWAYS SOUND DURING AUDIBLE ALARMS....................... 13 12.21.  WIRELESS SIREN ALARM ENABLED (IW AND EW)......................... 13 12.22.  AUTO-BYPASS USER APPROVAL VIA THE  KEY............................... 13 12.23.  FINAL-DOOR DETECTORS........................................................... 13 12.24.  PARTIAL SETTING (ARMING) OR SYSTEM SPLITTING...................... 14 12.25.  AUTOMATIC SUMMER TIME (DAYLIGHT SAVING TIME)..................... 14 12.26.  TAMPER ALARM IN RESPONSE TO AN INCREASE IN THE NUMBER OF TRIGGERED TAMPER SENSORS................................................................................ 14 12.27.  OPERATING THE PG OUTPUTS USING 8 AND 9 ............................. 14 12.28.  PERMANENT ALARM STATUS DISPLAY FOR A SET SYSTEM............. 14 12.29.  TAMPER ALARM IF UNSET........................................................... 15 12.30.  ENGINEER RESET...................................................................... 15 12.31.  RECORDING PG OUTPUT ACTIVATION TO MEMORY....................... 15 12.32.  ANNUAL CHECK NOTIFICATION.................................................... 15 12.33.  ONLY SINGLE ALARM INDICATION................................................ 15 12.34.  SETTING (ARMING) BY SERVICE CODE......................................... 15 12.35.  AUDIBLE PANIC ALARM............................................................... 15 12.36.  HIGHER CONTROL-PANEL RECEIVER-SENSITIVITY......................... 15 12.37.  ACCESS BY CODE PLUS CARD..................................................... 16 12.38.  AUDIBLE 24 HOUR INTRUDER ALARM........................................... 16 12.39.  SERVICE MODE ONLY WITH SERVICE CODE AND MASTER CODE...... 16 12.40.  DEVICE REACTIONS AND SECTION ASSIGNMENT........................... 16 12.41.  CODE/CARD REACTIONS AND SECTION ASSIGNMENT.................... 17 12.42.  ENROLLMENT BY KEYING IN PRODUCTION CODES......................... 17 12.43.  AUTOMATIC SETTING/UNSETTING SCHEDULE............................... 17 12.44.  CHANGING THE SERVICE CODE................................................... 17 12.45.  GO TO MAINTENANCE MODE....................................................... 17 12.46.  SETTING THE INTERNAL CLOCK................................................... 17 12.47.  EDITING KEYPAD TEXT............................................................... 18 13. OPERATING THE SYSTEM ........................................................... 18 13.1.  THE SYSTEM KEYPAD..................................................................... 18 13.1.1. Keypad indicators: ............................................................. 18 13.1.2. LCD display........................................................................ 18 13.1.3. Keypad display sleep-mode .............................................. 18 13.1.4. Keys ................................................................................... 18 13.1.5. Functions beginning with the  key ..................................... 19 13.2.  PROGRAMMING ACCESS CODES AND CARDS..................................... 19 13.2.1. Programming access codes and cards ............................. 19 13.3.  SETTING AND UNSETTING (ARMING/DISARMING) THE SYSTEM............ 20 13.4.  MAINTENANCE MODE..................................................................... 20 13.4.1. Displaying which user/card positions are occupied ...........20 13.4.2. Bypassing devices ..............................................................20 13.4.3. Protecting a car near the system........................................20 14. OPERATING AND PROGRAMMING THE SYSTEM  BY PC.........21 15. BASIC GUIDANCE FOR INSTALLERS..........................................21 16. TROUBLE-SHOOTING ....................................................................22 17. CONTROL PANEL TECHNICAL SPECIFICATIONS .....................22
Installation manual: Oasis security system JA-80K   - 3 -   MKE55800  System  installation  shall  only  be  undertaken  by  qualified technicians holding a training certificate issued by an authorized distributor. The manufacturer cannot be held responsible for any damage  or  consequences  related  to  the  improper  or  incorrect use of this product.  1.  Control panel architecture  •  The control panel has 50 addresses (01 to 50), meaning that up  to  50  wireless  devices  can  be  enrolled  i.e.  detectors, keypads, keyfobs, sirens etc.  •  When  triggered,  a  detector  sends  a  so-called  natural  signal which  dictates  what  the  reaction  of  the  control  panel  should be.   E.g. the natural  signal of a door contact or PIR  detector can  be  an  instant  or delayed  alarm  which  is  selectable  by  a DIP  switch  inside  the  detector. A  keyfob,  for instance,  sends signals for set (arm), unset (disarm) and panic.   o  The control panel is factory-set to perform natural reactions according  to  the  signals  sent  from  wireless  devices.  By programming  the  addresses  of  the  devices  in  the  control panel, it is possible to define how the control panel reacts to individual wireless devices. E.g. a door detector assigned to address  15  could  trigger  a  panic  reaction,  and  a  keyfob button using address 24 could cause a fire reaction etc. •  Wireless  devices  can  be  assigned  to  3  sections:  A,B  or  C. Assignments  to  sections  either  have  an  effect  when  partial setting  is  used  e.g.  only  A  is  set,  AB  is  set,  or  ABC  is  set (which,  for  example,  would  be  suitable  for  homes  where  A could mean afternoon setting, AB night setting and ABC total setting),  or  if  the  system  was  split  into  two  independent partitions  A  and  B,  with  a  common  section  C.  In  the  second case,  each  A  or  B  section  can  be  set  individually,  and  C  is automatically set when both A and B have been set by users. This would be suitable for two independent families in a single house, or two companies in one building.   •  There are two hard-wired inputs with programmable functions assigned to addresses 01 and 02. If these two inputs are not used,  the  two  addresses  can  be  used  to  enroll  wireless devices.   Hard-wired  inputs  are  also  provided  by  some wireless  devices,  such  as  keypads,  door  detectors,  and  PIR movement detectors.  •  The  control  panel  has  two  alarm  outputs:  IW  =  internal (indoor)  warning  and  EW  =  external  (outdoor)  warning.  Both these signals are also available as wireless signals. •  There  are  two  programmable  outputs  in  the  control  panel, PGX  and  PGY  whose  functions  can  be  configured.  The  PG outputs  are  not  only  available  as  physical  control-panel terminals, but also  as radio signals for the control of  UC  and AC receiver outputs. •  The system can be operated by user codes or user cards. The system  can  recognise  up  to  50  different  users.  The  system can  also  be  operated  by  wireless  keyfobs,  and  if  the  control panel is equipped with a suitable communicator it can also be remotely controlled by mobile phone or the Internet. •  It is possible to program different reactions to access codes or access  cards  and  if  the  system  is  split,  it  is  possible  to program which part of the building is accessible by a particular code or card. Each of the possible 50 users can have his own 4-digit access code and/or access card. Setting (arming) and unsetting  (disarming)  is  possible  by  card  or  code,  and  if  a higher  security  level  is  needed  it  is  possible  to  make  it compulsory to confirm the validity of a card by code entry. • Programming the system is possible by Oasis keypads such as  the wireless JA-80F or the hard-wired JA-80E, and also by computers  running  ComLink  software.  Further  options  offer programming by mobile phone or the Internet. •  There is a power supply in the control panel and space for a 12V,  1.3 to 2.6 Ah back-up battery.  •  To  connect  a  hard-wired  keypad  or  a  computer,  the  control panel is equipped with a digital bus provided by terminals and RJ connectors.  •  The  control  panel  can  be  equipped  with  an  optional communicator  to  provide  external  communications  to  the system.  The  JA-80Y  GSM/GPRS  communicator  or  JA80-V LAN  and  phone  line  communicator  both  allow  data  to  be CommunicatorMain board TransformerBack-up batteryMains terminal Digital bus connectorGSM antennatamper switchSIM cardLEDsAntenna
Installation manual: Oasis security system JA-80K   - 4 -   MKE55800  sent  to  alarm  receiving  centres  (central  monitoring  stations). They can notify the user using SMS reports and allow remote control and programming of the system by mobile phone and the  Internet.  Another  option  is  the  JA-80X  communicator which  reports  alarms  via  a  traditional  phone  line  using  voice messages.  Note:  The  Oasis  JA-80  system  has  three  modes:  operating mode,  maintenance  mode  and  service  mode.  Operating mode  is  for  the  day-to-day  use  of  the  system  by  all  authorised users,  e.g.  setting/unsetting  (arming/disarming).  Maintenance mode is for the holder of the master code (system administrator) to  have  limited  programming  of  the  system,  e.g.  changing codes/cards,  bypassing  and  is  inaccessible  to  all  other  users.  Service  mode is  only  for installers  and  is used  to program and control all aspects of the system.  1.1. Optional system configurations In  the  European  Union  region,  follow  the  valid  standards  and rules,  especially  series  EN-501-xx.  The  Oasis  control  panel complies with grade 2.   The control panel must have one of the following configurations as a minimum:  •  At least two non-backup-battery sirens  (JA-80L or SA-105) + communicator class ATS2 (JA-80Y, JA-80V or JA-80X) •  At least one backup-battery siren (JA-80A or OS-360/365/300) +  communicator class ATS2 (JA-80Y, JA-80V or JA-80X)  •  No siren + communicator class ATS3 (JA-80Y or JA-80V)  Note: the above-recommended configurations are based on the EU  standard EN-50131-1  valid  at  the  time  of  issuing  this manual.    2.  Installation The  control  panel  can  be  attached  to  the  wall  using  3  screws. The drilling template is on the last page of this manual.   •  Because  the  control  panel  communicates  via  radio,  it should  not  be  installed  near  any  large  metal  objects capable of shielding radio communication. •  Route cables (power supplies, telephone leads etc.) inside the control panel before tightly screwing in the screws.  2.1. Power inlet The control-panel power cable should only be installed by a person holding a sufficient electro-technical qualification.     Mains fuse T 200 mA  The  control  panel  power  supply  is  double-insulated  (safety class 2) and does not incorporate a protective earth wire.  •  A  double-insulated  power  cable  should  be  used  with  a minimum  cross-sectional  area  of  0.75  to  1.5  mm2.  The power  cable  should  be  connected  to  a  switched  mains supply fused to 10 Amps. •  In  the  control  panel,  connect  the  cable  to  the  power terminals equipped with a fuse of type T200mA/250V.  • Fix  the  cable  firmly  to  the  cable  holder  in  the  control panel making sure that the wire ends are properly secured and connected in the terminals.  01COM02NCNOEW-CIWPGXPGYGNDAB+UAC 20Vantenna connectorRESETCommunicatorconnectorWiring plugDigital bus1A  +Ufuse for Terminals for  transformer outputRadiomodulememory socket   3.  Control panel memory unit The control  panel memory unit  plugs into  its  own socket. If, for example, the control panel was damaged, the memory unit could be unplugged and then plugged into another control panel circuit board  of  the  same  type  to  transfer  and  preserve  the  settings including enrolled detectors, access  codes and cards. The new control panel thereby becomes an exact copy of the former one (a clone). Notes: •  There are no communicator settings in this memory unit •  Do not connect or disconnect the memory unit while the control panel is powered. •  Although  the  memory  unit  is  well-protected,  in  cases  of  severe damage  to  the  control  panel  there  is  a  risk  that  memory  contents could be corrupted. It is therefore highly recommended to back-up the settings in a PC using Comlink software.  4.  Control panel connectors and terminals Antenna  connector  –  This  is  used  to  connect  either  to  an internal  antenna  or  to  external  antennas  such  as  the  AN-80  or AN-81. Reset link (normally open) – Used to reset the control panel by shorting  the link  only while powering  up the  control  panel. This link can also be used to enter control panel enrollment mode by briefly shorting the link while the control panel is powered. Digital  bus connector  – for  connecting a  JA-80E keypad  or  a PC running Comlink software with a JA-80T interface cable. The same digital bus  connector is present on the bottom right hand corner of the plastic housing. Additionally, the same connections are available on the GND, A, B, +U terminals.
Installation manual: Oasis security system JA-80K   - 5 -   MKE55800  Communicator  connector  –  allows  the  connection  of  an optional communicator to the main board. Internal wiring connector – connects the internal wiring in the control panel housing.  Terminals: AC 20V  the transformer output is connected here. 01, GND, 02 are hard-wired inputs for the control panel.  •  The reactions to triggering these inputs are determined by the settings  of  addresses  01  and  02.  The  factory-set  natural reaction  for  these  hard-wired  inputs  is  a  delayed  alarm  in section C.  •  Terminals  01  and  02  use  resistors  in  connected  double balanced  loops  to  sense  loop  stand-by,  activation  or tampering as follows:  o  Connected to GND via a 1 kΩΩΩΩ resistor = untriggered input  o  Connected to GND via 2 to 6 kΩΩΩΩ = triggered input,  o  Connected to GND via less then 700ΩΩΩΩ or more then 6 kΩΩΩΩ = tamper signal  o  Stand-by (untriggered) input zone must have 1 kΩΩΩΩ   o  Up  to  five  normally-closed  door/window  contacts  can  be connected  in  series  to  enable  one  hard-wired  input  to  be used  for  multiple  contacts  with  each  contact  having  a  1kΩΩΩΩ resistor in parallel (see the diagram below). o  Multiple  normally-closed  tamper  contacts  should  be connected  in  series  without  any  parallel  resistors.  The number  of    tamper  contacts  is  unlimited  and  can  be combined with trigger contacts having parallel resistors (see the diagram below). o  For wiring examples, see the below diagram.      o  If  you enroll a wireless device to address 01 or 02,  the corresponding input terminal will be disabled. o  If you do not use an input terminal and you do not enroll a wireless  device  to  its  address,  then  the  terminal  must  be connected to the GND terminal via a 1 kΩΩΩΩ  resistor. NC – normally closed contact for the external warning relay. NO - normally open contact for the external warning relay. EWC  –  common  contact  for  the  external  warning  relay  max. relay contact rating: 1A/60V. The control panel also transmits the external warning relay signal via radio for wireless sirens.   IW  –  internal  warning  (siren)  output.  This  output  is  grounded during an internal alarm. A standard siren can be wired between terminals +U and IW (max. 0.5A). The IW output status is also transmitted by radio for the IW siren. The  main  difference  between  internal  and  external  warning is  during the entrance delay period. If any instant detectors are triggered during the  entrance  delay  period,  e.g.  a  child  running  straight  to  the  living room,  only  an  internal  warning  will  be  triggered  and  an  external warning will only follow if the entrance delay has been exceeded.     PGX,  PGY  –  are  a  pair  of  terminals  providing  programmable outputs.  If  an  output  is  activated  it  switches  to  GND  with  a maximum load of 0.1A/12V. The factory-default setting of PGX is the function ON/OFF which can be operated from the keypad by the instruction ∗81 / ∗80 or using keys  ). The factory-default function  of  PGY  is  that  it  will  be  activated  if  any  section  of  the system is  set.   The  status of PG outputs is also  transmitted by radio for AC and UC output modules. GND – common ground connection A,B – digital bus data +U  –  back-up  power  supply  (10  to  14V),  1A  fuse.  Max. continuous  load  0.4  A  (max.  intermittent  load  1  A,  for  15 minutes, once an hour). If the 1A fuse is blown, the control panel will indicate power supply fault.  5.  Wired keypad connection  GND A B U+IN+UBAGNDGNDcontrol and programmingkeypad  JA-80Emodular connectioncable The control panel can be operated and programmed by JA-80F  wireless  keypads  and/or  a  JA-80E  hard-wired  keypad.  A hard-wired keypad can be connected to the control panel either by  flat  telephone  cable  (max.  length  10  metres)  using  RJ connectors,  or  via  twisted-pair  cable  (max.  length  100  metres) connected to the digital bus terminals (GND, A, B, +U). We  recommend  only  having  a  single  JA-80E  hard-wired keypad in the system.  6.  Back-up battery  It is possible to use a Jablotron-brand 12V back-up battery in the  control  panel  with  capacities  of  1.3Ah  or  2.6no  Ah.  The capacity to use depends on the total power consumption of the system and the desired back-up period.   Euro-standard EN 50131-1 specifies a 12 hour minimum back-up  time  for  grade  2  systems.  The  standby  consumption  of  all system devices is shown in table 1. Table 1-  standby consumption of system devices  •  With a 1.3Ah back-up battery 12 hours of back-up time can be realised if current  consumption  does  not  exceed 85mA.  With 2.2Ah  batteries 150mA should  not  be  exceeded  to  achieve  the  same.  This  only  takes 80% of the battery capacity into account as  20% has to be reserved for battery aging effects. •  The average back-up battery lifetime is up to 5 years after which it must be  replaced.  The  back-up  battery  is  automatically  charged  and  its condition is monitored by the system. If the system is being run on only the  back-up  battery  a  technical  alarm  occurs  when  the  battery  is nearly  discharged.  If  the  voltage  gets  too  low  the  battery  will  be Device  mA  Note Control panel JA-80K  50  No communicator Keypad JA-80E  30   Keypad JA-80H (N)  60  Including a WJ-80 interface  Communicator JA-80Y  35   Communicator JA-80V  30   Wireless devices are not powered from the control panel.

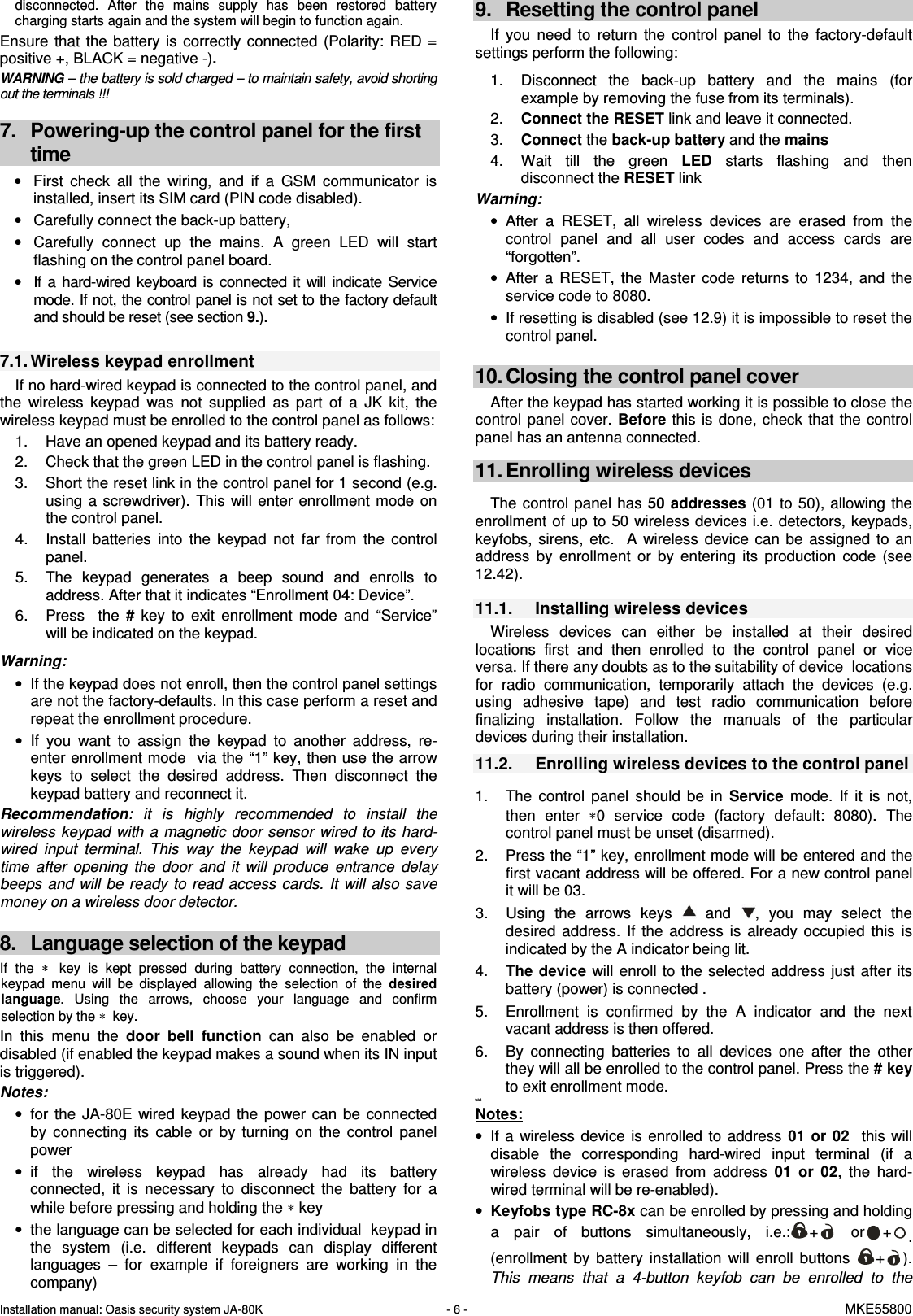

Installation manual: Oasis security system JA-80K   - 6 -   MKE55800  disconnected.  After  the  mains  supply  has  been  restored  battery charging starts again and the system will begin to function again. Ensure  that  the battery  is  correctly  connected  (Polarity:  RED  = positive +, BLACK = negative -). WARNING – the battery is sold charged – to maintain safety, avoid shorting out the terminals !!!  7.  Powering-up the control panel for the first time •  First  check  all  the  wiring,  and  if  a  GSM  communicator  is installed, insert its SIM card (PIN code disabled).  •  Carefully connect the back-up battery, •  Carefully  connect  up  the  mains.  A  green  LED  will  start flashing on the control panel board. •  If a  hard-wired  keyboard is  connected it  will  indicate  Service mode. If not, the control panel is not set to the factory default and should be reset (see section 9.).  7.1. Wireless keypad enrollment If no hard-wired keypad is connected to the control panel, and the  wireless  keypad  was  not  supplied  as  part  of  a  JK  kit,  the  wireless keypad must be enrolled to the control panel as follows:   1.  Have an opened keypad and its battery ready. 2.  Check that the green LED in the control panel is flashing.  3.  Short the reset link in the control panel for 1 second (e.g. using  a screwdriver).  This will  enter enrollment  mode  on the control panel. 4.  Install  batteries  into  the  keypad  not  far  from  the  control panel. 5.  The  keypad  generates  a  beep  sound  and  enrolls  to address. After that it indicates “Enrollment 04: Device”. 6.  Press    the  #  key  to  exit  enrollment  mode  and  “Service” will be indicated on the keypad.  Warning: •  If the keypad does not enroll, then the control panel settings are not the factory-defaults. In this case perform a reset and repeat the enrollment procedure. •  If  you  want  to  assign  the  keypad  to  another  address,  re-enter enrollment mode  via the “1” key, then use the arrow keys  to  select  the  desired  address.  Then  disconnect  the keypad battery and reconnect it. Recommendation:  it  is  highly  recommended  to  install  the wireless keypad with a  magnetic door sensor  wired to its hard-wired  input  terminal.  This  way  the  keypad  will  wake  up  every time  after  opening  the  door  and  it  will  produce  entrance  delay beeps and will be  ready to  read access  cards. It  will also save money on a wireless door detector.   8.  Language selection of the keypad If  the ∗   key  is  kept  pressed  during  battery  connection,  the  internal keypad  menu  will  be  displayed  allowing  the  selection  of  the desired language.  Using  the  arrows,  choose  your  language  and  confirm selection by the ∗  key. In  this  menu  the  door  bell  function  can  also  be  enabled  or disabled (if enabled the keypad makes a sound when its IN input is triggered). Notes: •  for  the  JA-80E  wired  keypad  the  power  can  be  connected by  connecting  its  cable  or  by  turning  on  the  control  panel power  •  if  the  wireless  keypad  has  already  had  its  battery connected,  it  is  necessary  to  disconnect  the  battery  for  a while before pressing and holding the ∗ key •  the language can be selected for each individual  keypad in the  system  (i.e.  different  keypads  can  display  different languages  –  for  example  if  foreigners  are  working  in  the company) 9.  Resetting the control panel If  you  need  to  return  the  control  panel  to  the  factory-default settings perform the following:    1.  Disconnect  the  back-up  battery  and  the  mains  (for example by removing the fuse from its terminals). 2.  Connect the RESET link and leave it connected. 3.  Connect the back-up battery and the mains 4.  Wait  till  the  green  LED  starts  flashing  and  then disconnect the RESET link  Warning: •  After  a  RESET,  all  wireless  devices  are  erased  from  the control  panel  and  all  user  codes  and  access  cards  are “forgotten”. •  After  a  RESET,  the  Master  code  returns  to  1234,  and  the service code to 8080. •  If resetting is disabled (see 12.9) it is impossible to reset the control panel.  10. Closing the control panel cover After the keypad has started working it is possible to close the control  panel cover. Before this  is done, check  that  the control panel has an antenna connected.  11. Enrolling wireless devices  The control panel has  50 addresses (01 to 50),  allowing  the enrollment of up to 50 wireless devices i.e. detectors, keypads, keyfobs,  sirens,  etc.    A  wireless  device  can  be  assigned  to  an address  by  enrollment  or  by  entering  its  production  code  (see 12.42).   11.1.  Installing wireless devices Wireless  devices  can  either  be  installed  at  their  desired locations  first  and  then  enrolled  to  the  control  panel  or  vice versa. If there any doubts as to the suitability of device  locations for  radio  communication,  temporarily  attach  the  devices  (e.g. using  adhesive  tape)  and  test  radio  communication  before finalizing  installation.  Follow  the  manuals  of  the  particular devices during their installation. 11.2.  Enrolling wireless devices to the control panel  1.  The  control  panel  should  be  in  Service  mode.  If  it  is  not, then  enter  ∗0  service  code  (factory  default:  8080).  The control panel must be unset (disarmed). 2.  Press the “1” key, enrollment mode will be entered and the first vacant address will be offered. For a new control panel it will be 03. 3.  Using  the  arrows  keys    and  ,  you  may  select  the desired  address.  If  the  address  is  already  occupied this  is indicated by the A indicator being lit. 4.  The device  will enroll to  the selected  address just after  its battery (power) is connected . 5.  Enrollment  is  confirmed  by  the  A  indicator  and  the  next vacant address is then offered.  6.  By  connecting  batteries  to  all  devices  one  after  the  other they will all be enrolled to the control panel. Press the # key to exit enrollment mode. teké  Notes: •  If a  wireless  device  is  enrolled  to  address  01 or  02    this  will disable  the  corresponding  hard-wired  input  terminal  (if  a wireless  device  is  erased  from  address  01  or  02,  the  hard-wired terminal will be re-enabled).  • Keyfobs type RC-8x can be enrolled by pressing and holding a  pair  of  buttons  simultaneously,  i.e.: +   or + . (enrollment  by  battery  installation  will  enroll  buttons  + ). This  means  that  a  4-button  keyfob  can  be  enrolled  to  the

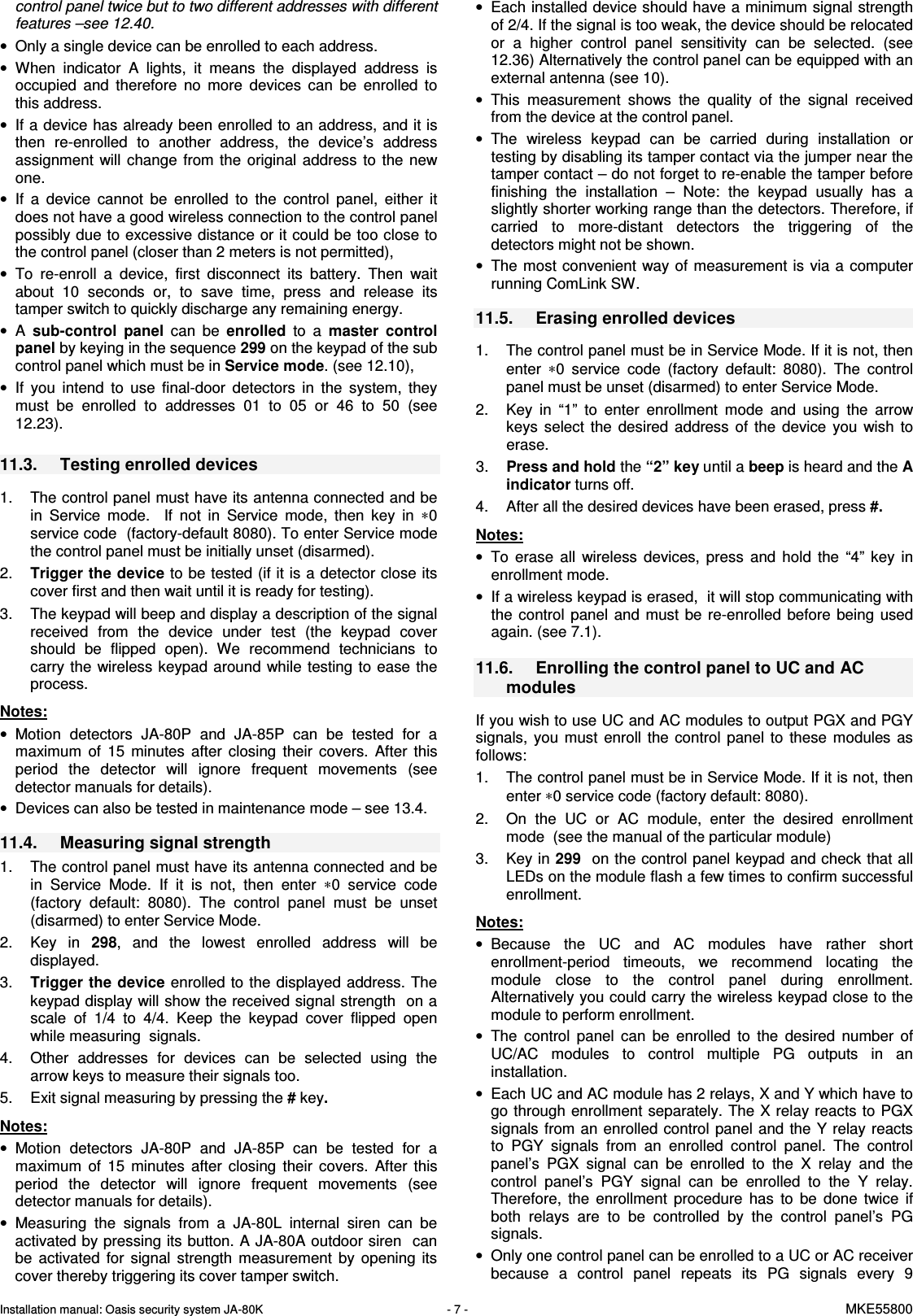

Installation manual: Oasis security system JA-80K   - 7 -   MKE55800  control panel twice but to two different addresses with different features –see 12.40.  •  Only a single device can be enrolled to each address. •  When  indicator  A  lights,  it  means  the  displayed  address  is occupied  and  therefore  no  more  devices  can  be  enrolled  to this address.  •  If a device has already been enrolled to an address, and it is then  re-enrolled  to  another  address,  the  device’s  address assignment  will  change  from the  original  address  to  the  new one. •  If  a  device  cannot  be  enrolled  to  the  control  panel,  either  it does not have a good wireless connection to the control panel possibly due to excessive distance or it could be too close to the control panel (closer than 2 meters is not permitted),  •  To  re-enroll  a  device,  first  disconnect  its  battery.  Then  wait about  10  seconds  or,  to  save  time,  press  and  release  its tamper switch to quickly discharge any remaining energy. •  A  sub-control  panel  can  be  enrolled  to  a  master  control panel by keying in the sequence 299 on the keypad of the sub control panel which must be in Service mode. (see 12.10), •  If  you  intend  to  use  final-door  detectors  in  the  system,  they must  be  enrolled  to  addresses  01  to  05  or  46  to  50  (see 12.23).    11.3.  Testing enrolled devices  1.  The control panel must have its antenna connected and be in  Service  mode.    If  not  in  Service  mode,  then  key  in  ∗0 service code  (factory-default 8080). To enter Service mode the control panel must be initially unset (disarmed). 2.  Trigger the device to be tested (if it is a detector close its cover first and then wait until it is ready for testing). 3.  The keypad will beep and display a description of the signal received  from  the  device  under  test  (the  keypad  cover should  be  flipped  open).  We  recommend  technicians  to carry the  wireless keypad around  while testing to  ease  the process.  Notes: •  Motion  detectors  JA-80P  and  JA-85P  can  be  tested  for  a maximum  of  15  minutes  after  closing  their  covers.  After  this period  the  detector  will  ignore  frequent  movements  (see detector manuals for details). •  Devices can also be tested in maintenance mode – see 13.4.  11.4.  Measuring signal strength  1.  The control panel must have its antenna connected and be in  Service  Mode.  If  it  is  not,  then  enter  ∗0  service  code (factory  default:  8080).  The  control  panel  must  be  unset (disarmed) to enter Service Mode.  2.  Key  in  298,  and  the  lowest  enrolled  address  will  be displayed.  3.  Trigger the device enrolled to the displayed address. The keypad display will show the received signal strength  on a scale  of  1/4  to  4/4.  Keep  the  keypad  cover  flipped  open while measuring  signals. 4.  Other  addresses  for  devices  can  be  selected  using  the arrow keys to measure their signals too.  5.  Exit signal measuring by pressing the # key.   Notes: •  Motion  detectors  JA-80P  and  JA-85P  can  be  tested  for  a maximum  of  15  minutes  after  closing  their  covers.  After  this period  the  detector  will  ignore  frequent  movements  (see detector manuals for details). •  Measuring  the  signals  from  a  JA-80L  internal  siren  can  be activated by pressing its button. A JA-80A outdoor siren  can be  activated  for  signal  strength  measurement  by  opening  its cover thereby triggering its cover tamper switch.  •  Each installed device should have a minimum signal strength of 2/4. If the signal is too weak, the device should be relocated or  a  higher  control  panel  sensitivity  can  be  selected.  (see 12.36) Alternatively the control panel can be equipped with an external antenna (see 10). •  This  measurement  shows  the  quality  of  the  signal  received from the device at the control panel. •  The  wireless  keypad  can  be  carried  during  installation  or testing by disabling its tamper contact via the jumper near the tamper contact – do not forget to re-enable the tamper before finishing  the  installation  –  Note:  the  keypad  usually  has  a slightly shorter working range than the detectors. Therefore, if carried  to  more-distant  detectors  the  triggering  of  the detectors might not be shown. •  The most convenient  way of measurement is via a  computer running ComLink SW.  11.5.  Erasing enrolled devices   1.  The control panel must be in Service Mode. If it is not, then enter  ∗0  service  code  (factory  default:  8080).  The  control panel must be unset (disarmed) to enter Service Mode. 2.  Key  in  “1”  to  enter  enrollment  mode  and  using  the  arrow keys  select  the  desired  address  of  the  device  you  wish  to erase. 3.  Press and hold the “2” key until a beep is heard and the A indicator turns off. 4.  After all the desired devices have been erased, press #.    Notes: •  To  erase  all  wireless  devices,  press  and  hold  the  “4”  key  in enrollment mode.  •  If a wireless keypad is erased,  it will stop communicating with the  control  panel  and  must  be  re-enrolled  before  being  used again. (see 7.1).    11.6.  Enrolling the control panel to UC and AC modules  If you wish to use UC and AC modules to output PGX and PGY signals,  you  must  enroll  the  control  panel  to  these  modules  as follows:  1.  The control panel must be in Service Mode. If it is not, then enter ∗0 service code (factory default: 8080). 2.  On  the  UC  or  AC  module,  enter  the  desired  enrollment mode  (see the manual of the particular module) 3.  Key in 299  on the control panel keypad and check that all LEDs on the module flash a few times to confirm successful enrollment.  Notes: •  Because  the  UC  and  AC  modules  have  rather  short enrollment-period  timeouts,  we  recommend  locating  the module  close  to  the  control  panel  during  enrollment. Alternatively you could carry the wireless keypad close to the module to perform enrollment. •  The  control  panel  can  be  enrolled  to  the  desired  number  of UC/AC  modules  to  control  multiple  PG  outputs  in  an installation. •  Each UC and AC module has 2 relays, X and Y which have to go through enrollment separately. The X relay reacts to PGX signals from an enrolled control panel and the  Y relay  reacts to  PGY  signals  from  an  enrolled  control  panel.  The  control panel’s  PGX  signal  can  be  enrolled  to  the  X  relay  and  the control  panel’s  PGY  signal  can  be  enrolled  to  the  Y  relay. Therefore,  the  enrollment  procedure  has  to  be  done  twice  if both  relays  are  to  be  controlled  by  the  control  panel’s  PG signals. •  Only one control panel can be enrolled to a UC or AC receiver because  a  control  panel  repeats  its  PG  signals  every  9
Installation manual: Oasis security system JA-80K   - 8 -   MKE55800  minutes so it is impossible to combine multiple control panels in one UC or AC receiver.    12. Control panel programming  The most convenient way to program the system is to use a PC running Comlink software. The system can however also be programmed by keying in the sequences in section 12.1.  •  The  system  should  be  in  Service  mode  (if  not,  enter  the following  with  the  system  unset:  “∗0  Service  code”  –  the  factory default is 8080)  •  Enter  the  appropriate  programming  sequences  –  see  the following description (an unfinished sequence can be escaped from by pressing the # key),   • To exit Service Mode press the # key.  12.1.  Control panel programming sequences  Function  Sequence  Options Factory default Notes Entering enrollment mode  One wireless device (detector, keypad, key fob, siren or sub control panel) can be enrolled to each address from 01 to 50. The system offers vacant addresses one by one, if all addresses are occupied no devices can be enrolled. A device enrolled to address 01 or 02 disables the corresponding hard-wired input 01 or 02.  In addition to enrollment mode, devices can also be enrolled by keying in their production codes (see 12.42). 1 Keys:  up/down arrows = address scrolling  holding 2= erases the displayed address holding 4 = erases all addresses # = exiting enrollment mode      nothing • devices enroll by connecting their power (battery), keyfobs also by pressing & holding a pair of their buttons  • an occupied address is indicated by the A indicator being lit • enrolling a device to a new address will move it there Exit delay time  20x x = 1 to 9 (x10 s =10 to 90 s)  30s Entrance delay time  21x x = 1 to 9 (x 5 s = 5 to 45 s)  20s if a final door detector is used, then x is multiplied by 30s instead (i.e. from 30 to 270s) Alarm duration time  22x x = 1 to 8 (min.), 9=15min   4 min.  0=10s (for testing) PGX function  23x   7 on/off (∗80/∗81) PGY function  24x x in an unsplit system: 0 - whole system set (ABC)  = PG on 1 - any system part set = PG on 2 - AB set (not C) = PG on 3 - Fire alarm = PG on 4 - Panic alarm = PG on 5 - Any alarm = PG on 6 - AC dropout = PG on 7 - PG on/off (by ∗80 /∗81 for PGX and   ∗90/∗91 for PGY) 8 – Single 2 s pulse (keys ∗8=X, ∗9=Y) 1 any system part set x in a split system 0 - alarm A = PG on 1 - alarm B = PG on 2 - entrance delay A = = PG on 3 - entrance delay B = PG on 4 - A set = X on, B set = Y on 5 - A panic = X on, B panic = Y on 6 - Fire = X on, AC dropout = Y on. 7 - PG on/off (by ∗80 /∗81for PGX and   ∗90/∗91 for PGY) 8 – Single 2 s pulse (keys ∗8=X, ∗9=Y) Enablement  of  telephone  number  changes  in maintenance mode 25x 251 = YES      250 = NO NO  see communicator Radio interference indication   26x 261 = YES      260 = NO NO  30s or longer Radio communication supervision  27x 271 = YES      270 = NO NO   RESET enabled  28x 281 = YES      280 = NO YES   Master  control  panel  enrollment  to  a  sub  control panel for setting (arming) control 290 The sequence triggers enrollment. (Un)setting the master control panel will (un)set the sub control p. The sub c. panel must be in enrollment mode. Master code reset  291 Returns master code to 1234 It has no effect on other codes and it is recorded in the control panel memory Measuring signal strength   298 Activates measurement arrow keys scroll addresses, # halts measurement. Enrolling  the  control  panel  to  UC,  AC  or  a  sub control panel 299 The sequence triggers enrollment. see 12.10  Setting (arming) without an access code  30x 301 = YES      300 = NO YES  by keying: A, B, ABC, ∗1, ∗2, ∗3, ∗4 Triggered detector indication by text on the keypad display 31x 311 = YES      310 = NO YES  allows the display of open windows & doors,  to view details press ? Confirmation of intruder alarms In  this  mode,  the  triggering  of  an  intruder  detector  in  a  set (armed)  section  will  only  be  recorded  to  the  memory  as  an unconfirmed alarm and if then followed by the activation of any 32x 321 = YES      320 = NO  NO  An alarm can be confirmed by any other intruder detector in any section which

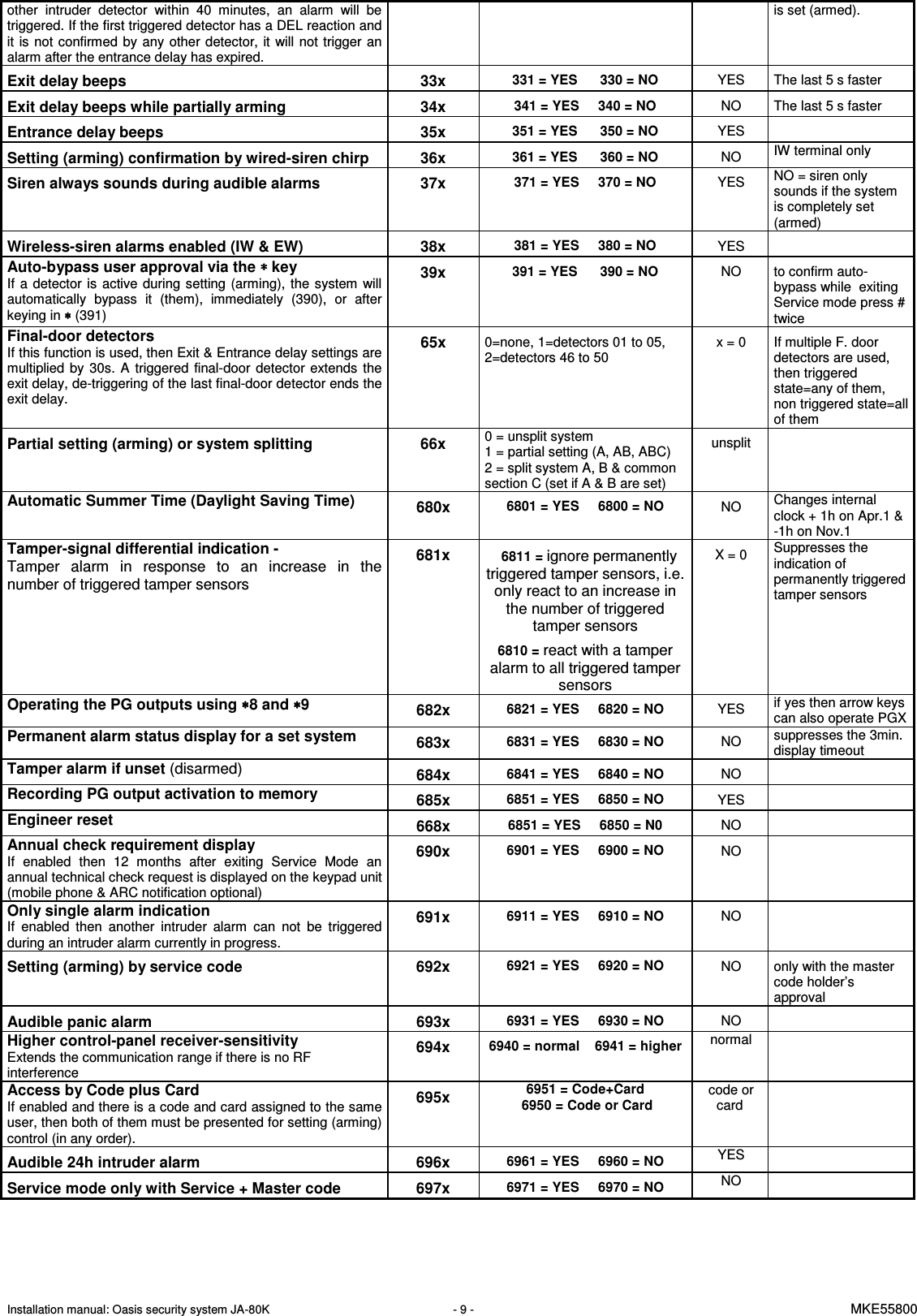

Installation manual: Oasis security system JA-80K   - 9 -   MKE55800  other  intruder  detector  within  40  minutes,  an  alarm  will  be triggered. If the first triggered detector has a DEL reaction and it  is  not  confirmed  by  any  other  detector,  it  will  not trigger  an alarm after the entrance delay has expired. is set (armed).  Exit delay beeps  33x 331 = YES      330 = NO YES  The last 5 s faster Exit delay beeps while partially arming  34x 341 = YES     340 = NO NO  The last 5 s faster Entrance delay beeps  35x 351 = YES      350 = NO YES   Setting (arming) confirmation by wired-siren chirp  36x 361 = YES      360 = NO NO  IW terminal only Siren always sounds during audible alarms   37x 371 = YES     370 = NO YES  NO = siren only sounds if the system is completely set (armed) Wireless-siren alarms enabled (IW & EW)  38x 381 = YES     380 = NO YES   Auto-bypass user approval via the ∗ ∗ ∗ ∗ key If  a  detector  is  active  during  setting  (arming),  the  system  will automatically  bypass  it  (them),  immediately  (390),  or  after keying in ∗∗∗∗ (391) 39x 391 = YES      390 = NO NO  to confirm auto-bypass while  exiting Service mode press # twice Final-door detectors If this function is used, then Exit & Entrance delay settings are multiplied  by  30s.  A  triggered  final-door  detector  extends  the exit delay, de-triggering of the last final-door detector ends the exit delay.   65x 0=none, 1=detectors 01 to 05, 2=detectors 46 to 50  x = 0  If multiple F. door detectors are used, then triggered state=any of them, non triggered state=all of them Partial setting (arming) or system splitting  66x 0 = unsplit system 1 = partial setting (A, AB, ABC) 2 = split system A, B & common section C (set if A & B are set) unsplit   Automatic Summer Time (Daylight Saving Time)  680x 6801 = YES     6800 = NO NO  Changes internal clock + 1h on Apr.1 & -1h on Nov.1 Tamper-signal differential indication - Tamper  alarm  in  response  to  an  increase  in  the number of triggered tamper sensors 681x   6811 = ignore permanently triggered tamper sensors, i.e. only react to an increase in the number of triggered tamper sensors  6810 = react with a tamper alarm to all triggered tamper sensors X = 0  Suppresses the  indication of permanently triggered tamper sensors  Operating the PG outputs using ∗∗∗∗8 and ∗∗∗∗9  682x 6821 = YES     6820 = NO YES  if yes then arrow keys can also operate PGX Permanent alarm status display for a set system  683x 6831 = YES     6830 = NO NO  suppresses the 3min. display timeout Tamper alarm if unset (disarmed) 684x 6841 = YES     6840 = NO NO   Recording PG output activation to memory  685x 6851 = YES     6850 = NO YES   Engineer reset  668x 6851 = YES     6850 = N0 NO  Annual check requirement display If  enabled  then  12  months  after  exiting  Service  Mode  an annual technical check request is displayed on the keypad unit (mobile phone & ARC notification optional) 690x 6901 = YES     6900 = NO NO   Only single alarm indication If  enabled  then  another  intruder  alarm  can  not  be  triggered during an intruder alarm currently in progress. 691x 6911 = YES     6910 = NO NO   Setting (arming) by service code  692x 6921 = YES     6920 = NO NO  only with the master code holder’s  approval  Audible panic alarm  693x 6931 = YES     6930 = NO NO   Higher control-panel receiver-sensitivity Extends the communication range if there is no RF interference  694x 6940 = normal    6941 = higher normal   Access by Code plus Card  If enabled and there is a code and card assigned to the same user, then both of them must be presented for setting (arming) control (in any order). 695x 6951 = Code+Card      6950 = Code or Card code or card  Audible 24h intruder alarm 696x 6961 = YES     6960 = NO YES   Service mode only with Service + Master code  697x 6971 = YES     6970 = NO NO

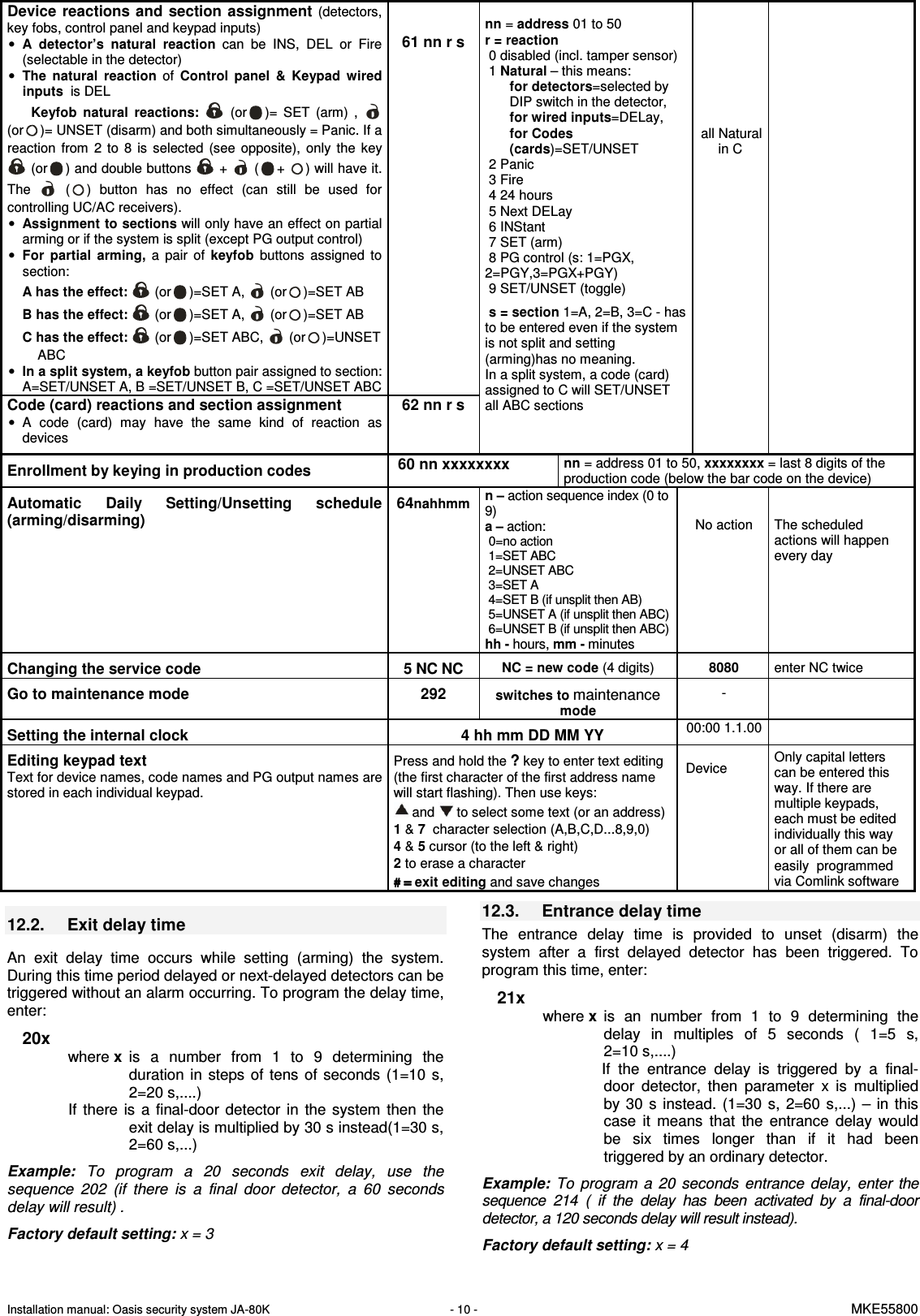

Installation manual: Oasis security system JA-80K   - 10 -   MKE55800  Device reactions and  section assignment (detectors, key fobs, control panel and keypad inputs) • A  detector’s  natural  reaction  can  be  INS,  DEL  or  Fire (selectable in the detector) • The  natural  reaction  of Control  panel  &  Keypad  wired inputs  is DEL Keyfob  natural  reactions:   (or )=  SET  (arm)  ,   (or )= UNSET (disarm) and both simultaneously = Panic. If a reaction  from  2  to  8  is  selected  (see  opposite),  only  the  key  (or ) and double buttons   +   ( + ) will have it. The    ( )  button  has  no  effect  (can  still  be  used  for controlling UC/AC receivers). • Assignment to sections will only have an effect on partial arming or if the system is split (except PG output control)   • For  partial  arming, a pair  of keyfob  buttons  assigned  to section: A has the effect:   (or )=SET A,   (or )=SET AB  B has the effect:   (or )=SET A,   (or )=SET AB C has the effect:   (or )=SET ABC,   (or )=UNSET ABC • In a split system, a keyfob button pair assigned to section: A=SET/UNSET A, B =SET/UNSET B, C =SET/UNSET ABC   61 nn r s Code (card) reactions and section assignment •  A  code  (card)  may  have  the  same  kind  of  reaction  as devices 62 nn r s  nn = address 01 to 50  r = reaction  0 disabled (incl. tamper sensor)  1 Natural – this means: for detectors=selected by DIP switch in the detector,  for wired inputs=DELay, for Codes (cards)=SET/UNSET  2 Panic  3 Fire  4 24 hours  5 Next DELay  6 INStant  7 SET (arm)  8 PG control (s: 1=PGX,         2=PGY,3=PGX+PGY)  9 SET/UNSET (toggle)    s = section 1=A, 2=B, 3=C - has to be entered even if the system is not split and setting (arming)has no meaning.  In a split system, a code (card) assigned to C will SET/UNSET all ABC sections          all Natural in C       Enrollment by keying in production codes   60 nn xxxxxxxx nn = address 01 to 50, xxxxxxxx = last 8 digits of the production code (below the bar code on the device)  Automatic  Daily  Setting/Unsetting  schedule (arming/disarming) 64nahhmm n – action sequence index (0 to 9)  a – action:  0=no action  1=SET ABC  2=UNSET ABC  3=SET A  4=SET B (if unsplit then AB)  5=UNSET A (if unsplit then ABC)  6=UNSET B (if unsplit then ABC) hh - hours, mm - minutes  No action  The scheduled actions will happen every day Changing the service code  5 NC NC NC = new code (4 digits)  8080 enter NC twice  Go to maintenance mode  292 switches to maintenance mode -   Setting the internal clock  4 hh mm DD MM YY 00:00 1.1.00  Editing keypad text Text for device names, code names and PG output names are stored in each individual keypad.   Press and hold the ? key to enter text editing (the first character of the first address name will start flashing). Then use keys:  and   to select some text (or an address)  1 & 7  character selection (A,B,C,D...8,9,0) 4 & 5 cursor (to the left & right) 2 to erase a character # = # = # = # = exit editing and save changes  Device  Only capital letters can be entered this way. If there are multiple keypads, each must be edited individually this way or all of them can be easily  programmed via Comlink software    12.2.  Exit delay time    An  exit  delay  time  occurs  while  setting  (arming)  the  system. During this time period delayed or next-delayed detectors can be triggered without an alarm occurring. To program the delay time, enter:  20x where x  is  a  number  from  1  to  9  determining  the duration  in  steps  of tens  of  seconds  (1=10  s, 2=20 s,....) If  there  is  a  final-door  detector  in  the  system  then  the exit delay is multiplied by 30 s instead(1=30 s, 2=60 s,...)    Example:  To  program  a  20  seconds  exit  delay,  use  the sequence  202  (if  there  is  a  final  door  detector,  a  60  seconds delay will result) .   Factory default setting: x = 3  12.3.  Entrance delay time   The  entrance  delay  time  is  provided  to  unset  (disarm)  the system  after  a  first  delayed  detector  has  been  triggered.  To program this time, enter:  21x where x  is  an  number  from  1  to  9  determining  the delay  in  multiples  of  5  seconds  (  1=5  s,       2=10 s,....) If  the  entrance  delay  is  triggered  by  a  final-door  detector,  then  parameter  x  is  multiplied by  30  s  instead.  (1=30  s,  2=60  s,...)  –  in  this case  it  means  that  the  entrance  delay  would be  six  times  longer  than  if  it  had  been triggered by an ordinary detector.    Example:  To  program  a  20  seconds  entrance  delay,  enter the sequence  214  (  if  the  delay  has  been  activated  by  a  final-door detector, a 120 seconds delay will result instead).  Factory default setting: x = 4

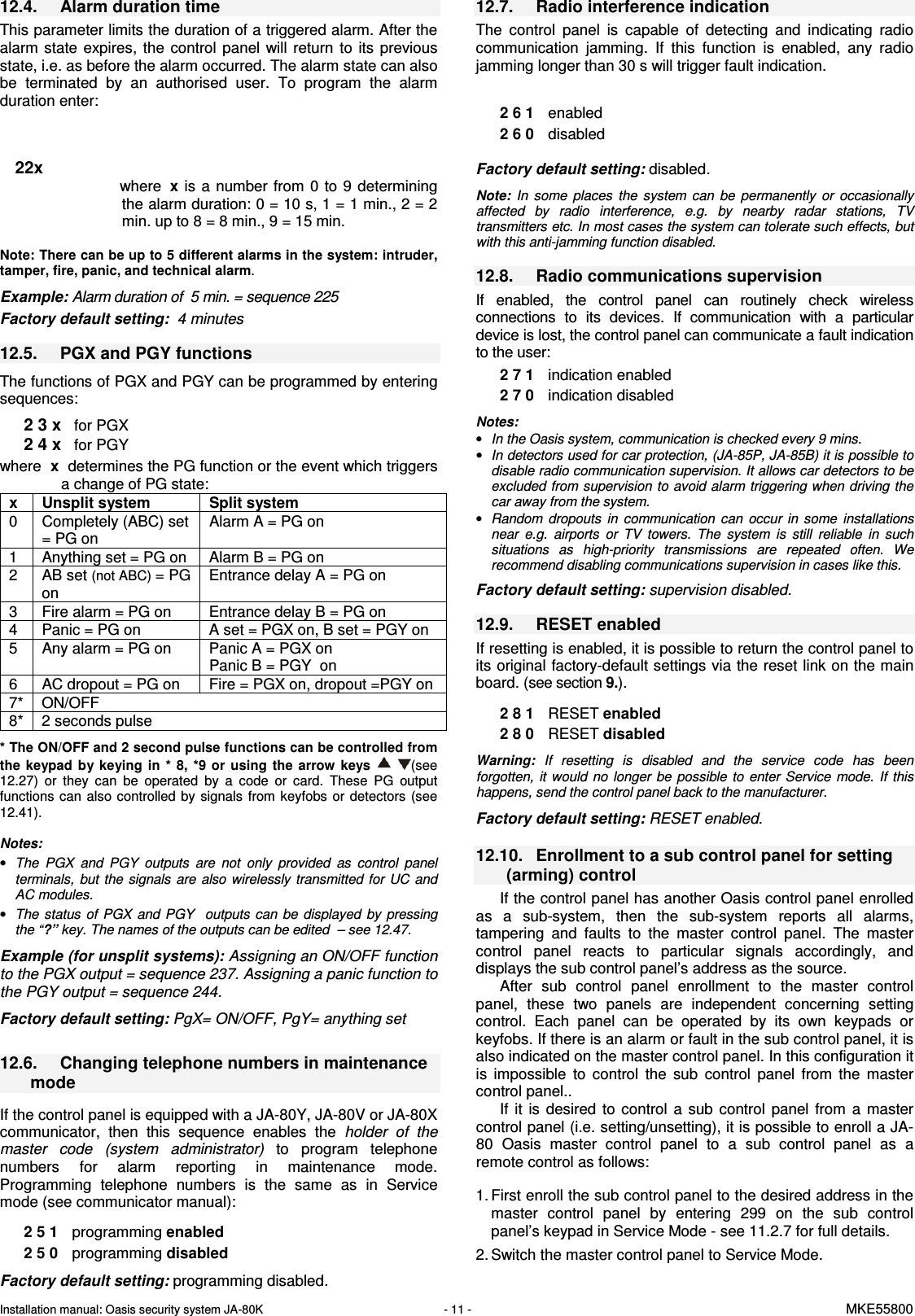

Installation manual: Oasis security system JA-80K   - 11 -   MKE55800  12.4.  Alarm duration time This parameter limits the duration of a triggered alarm. After the alarm  state  expires,  the  control panel will  return  to  its  previous state, i.e. as before the alarm occurred. The alarm state can also be  terminated  by  an  authorised  user.  To  program  the  alarm duration enter:       22x where  x  is a number  from 0  to  9 determining the alarm duration: 0 = 10 s, 1 = 1 min., 2 = 2 min. up to 8 = 8 min., 9 = 15 min.    Note: There can be up to 5 different alarms in the system: intruder, tamper, fire, panic, and technical alarm.     Example: Alarm duration of  5 min. = sequence 225  Factory default setting:  4 minutes  12.5.  PGX and PGY functions    The functions of PGX and PGY can be programmed by entering sequences:   2 3 x   for PGX 2 4 x   for PGY  where  x  determines the PG function or the event which triggers a change of PG state:  x  Unsplit system  Split system 0  Completely (ABC) set = PG on Alarm A = PG on 1  Anything set = PG on  Alarm B = PG on 2  AB set (not ABC) = PG on Entrance delay A = PG on 3  Fire alarm = PG on  Entrance delay B = PG on 4  Panic = PG on  A set = PGX on, B set = PGY on 5  Any alarm = PG on  Panic A = PGX on Panic B = PGY  on 6  AC dropout = PG on  Fire = PGX on, dropout =PGY on  7*  ON/OFF   8*  2 seconds pulse    * The ON/OFF and 2 second pulse functions can be controlled from the  keypad  by keying  in  *  8,  *9 or  using  the  arrow  keys    (see 12.27)  or  they  can  be  operated  by  a  code  or  card.  These  PG  output functions can  also controlled  by  signals  from  keyfobs  or  detectors  (see 12.41).     Notes:  • The  PGX  and  PGY  outputs  are  not  only  provided  as  control  panel terminals,  but the  signals  are  also  wirelessly transmitted for  UC  and AC modules. • The status  of  PGX  and  PGY    outputs  can  be  displayed by  pressing the “?” key. The names of the outputs can be edited  – see 12.47.  Example (for unsplit systems): Assigning an ON/OFF function to the PGX output = sequence 237. Assigning a panic function to the PGY output = sequence 244.  Factory default setting: PgX= ON/OFF, PgY= anything set  12.6.  Changing telephone numbers in maintenance mode  If the control panel is equipped with a JA-80Y, JA-80V or JA-80X communicator,  then  this  sequence  enables  the  holder  of  the master  code  (system  administrator)  to  program  telephone numbers  for  alarm  reporting  in  maintenance  mode. Programming  telephone  numbers  is  the  same  as  in  Service mode (see communicator manual):  2 5 1  programming enabled 2 5 0  programming disabled  Factory default setting: programming disabled.  12.7.  Radio interference indication The  control  panel  is  capable  of  detecting  and  indicating  radio communication  jamming.  If  this  function  is  enabled,  any  radio jamming longer than 30 s will trigger fault indication.   2 6 1  enabled 2 6 0  disabled   Factory default setting: disabled.  Note:  In  some  places  the  system  can  be  permanently  or  occasionally  affected  by  radio  interference,  e.g.  by  nearby  radar  stations,  TV transmitters etc. In most cases the system can tolerate such effects, but with this anti-jamming function disabled.   12.8.  Radio communications supervision If  enabled,  the  control  panel  can  routinely  check  wireless connections  to  its  devices.  If  communication  with  a  particular device is lost, the control panel can communicate a fault indication to the user:   2 7 1  indication enabled 2 7 0  indication disabled   Notes:  • In the Oasis system, communication is checked every 9 mins. • In detectors used for car protection, (JA-85P, JA-85B) it is possible to disable radio communication supervision. It allows car detectors to be excluded from supervision to avoid alarm triggering when driving the car away from the system. • Random  dropouts  in  communication  can  occur  in  some  installations near  e.g.  airports  or  TV  towers.  The  system  is  still  reliable  in  such situations  as  high-priority  transmissions  are  repeated  often.  We recommend disabling communications supervision in cases like this.  Factory default setting: supervision disabled.  12.9.  RESET enabled If resetting is enabled, it is possible to return the control panel to its original factory-default settings via the reset link on the main board. (see section 9.).  2 8 1  RESET enabled 2 8 0  RESET disabled   Warning:  If  resetting  is  disabled  and  the  service  code  has  been forgotten,  it  would  no longer be possible to  enter  Service  mode.  If this happens, send the control panel back to the manufacturer.  Factory default setting: RESET enabled.  12.10.  Enrollment to a sub control panel for setting (arming) control   If the control panel has another Oasis control panel enrolled as  a  sub-system,  then  the  sub-system  reports  all  alarms, tampering  and  faults  to  the  master  control  panel.  The  master control  panel  reacts  to  particular  signals  accordingly,  and displays the sub control panel’s address as the source.  After  sub  control  panel  enrollment  to  the  master  control panel,  these  two  panels  are  independent  concerning  setting control.  Each  panel  can  be  operated  by  its  own  keypads  or keyfobs. If there is an alarm or fault in the sub control panel, it is also indicated on the master control panel. In this configuration it is  impossible  to  control  the  sub  control  panel  from  the  master control panel.. If  it  is  desired  to control  a  sub  control  panel  from  a  master control panel (i.e. setting/unsetting), it is possible to enroll a JA-80  Oasis  master  control  panel  to  a  sub  control  panel  as  a remote control as follows:  1. First enroll the sub control panel to the desired address in the master  control  panel  by  entering  299  on  the  sub  control panel’s keypad in Service Mode - see 11.2.7 for full details. 2. Switch the master control panel to Service Mode.

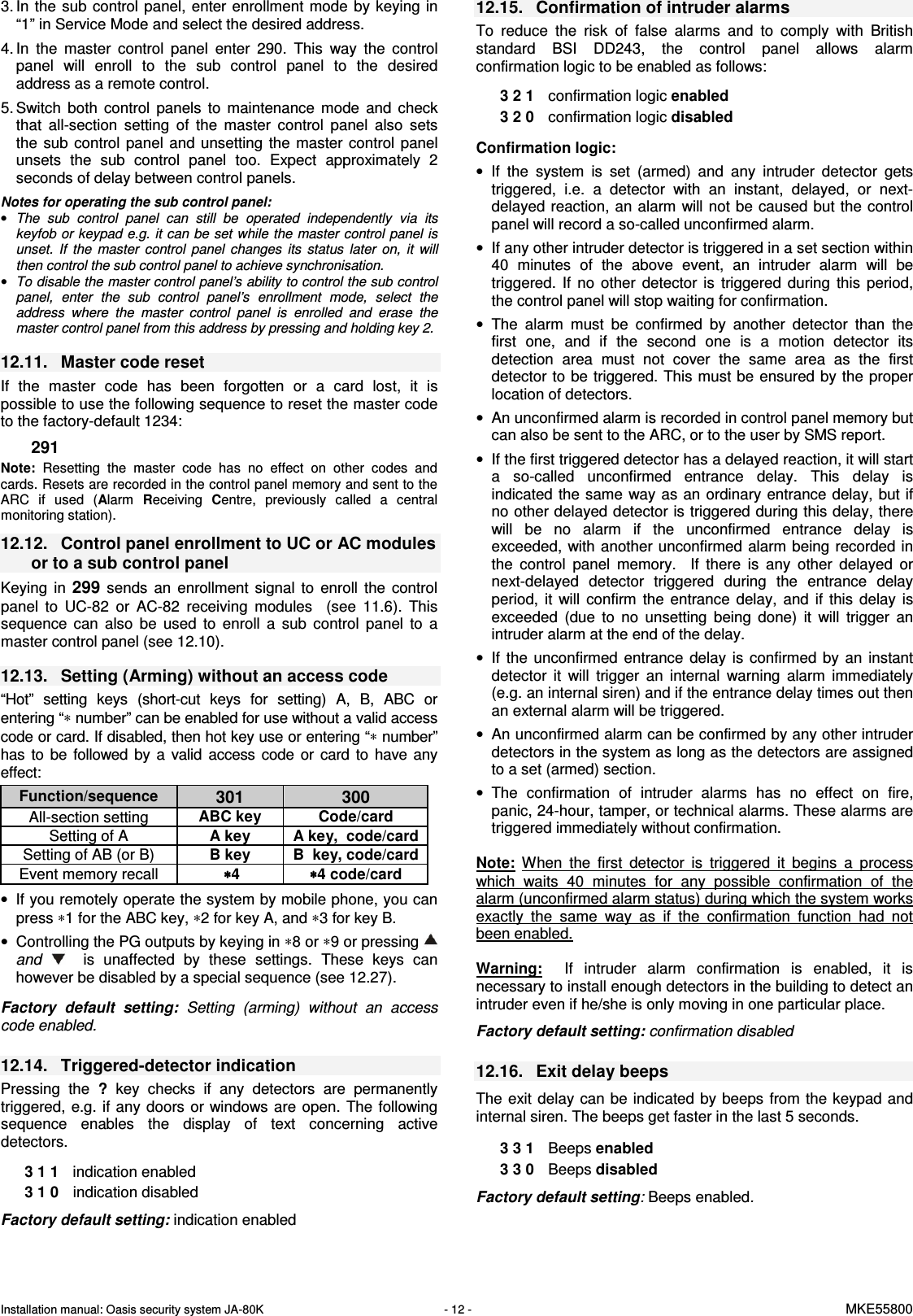

Installation manual: Oasis security system JA-80K   - 12 -   MKE55800  3. In the  sub  control panel,  enter enrollment  mode by  keying in “1” in Service Mode and select the desired address. 4. In  the  master  control  panel  enter  290.  This  way  the  control panel  will  enroll  to  the  sub  control  panel  to  the  desired address as a remote control.  5. Switch  both  control  panels  to  maintenance  mode  and  check that  all-section  setting  of  the  master  control  panel  also  sets the  sub  control  panel  and unsetting  the  master  control panel unsets  the  sub  control  panel  too.  Expect  approximately  2 seconds of delay between control panels.  Notes for operating the sub control panel: • The  sub  control  panel  can  still  be  operated  independently  via  its keyfob or keypad e.g.  it can be set while  the master control panel is unset.  If  the  master  control  panel  changes  its  status  later  on,  it  will then control the sub control panel to achieve synchronisation. • To disable the master control panel’s ability to control the sub control panel,  enter  the  sub  control  panel’s  enrollment  mode,  select  the address  where  the  master  control  panel  is  enrolled  and  erase  the master control panel from this address by pressing and holding key 2.   12.11.  Master code reset If  the  master  code  has  been  forgotten  or  a  card  lost,  it  is possible to use the following sequence to reset the master code to the factory-default 1234:   291  Note:  Resetting  the  master  code  has  no  effect  on  other  codes  and cards. Resets are recorded in the control panel memory and sent to the ARC  if  used  (Alarm Receiving Centre,  previously  called  a  central monitoring station).   12.12.  Control panel enrollment to UC or AC modules or to a sub control panel  Keying  in 299  sends  an  enrollment  signal  to  enroll  the  control panel  to  UC-82  or  AC-82  receiving  modules    (see  11.6).  This sequence  can  also  be  used  to  enroll  a  sub  control  panel  to  a master control panel (see 12.10).   12.13.  Setting (Arming) without an access code   “Hot”  setting  keys  (short-cut  keys  for  setting)  A,  B,  ABC  or entering “∗ number” can be enabled for use without a valid access code or card. If disabled, then hot key use or entering “∗ number” has  to  be  followed  by  a  valid  access  code  or  card  to  have any effect:   Function/sequence 301  300 All-section setting  ABC key  Code/card Setting of A  A key  A key,  code/card Setting of AB (or B)  B key  B  key, code/card Event memory recall   ∗ ∗ ∗ ∗4  ∗∗∗∗4 code/card •  If you remotely operate the system by mobile phone, you can press ∗1 for the ABC key, ∗2 for key A, and ∗3 for key B. •  Controlling the PG outputs by keying in ∗8 or ∗9 or pressing   and      is  unaffected  by  these  settings.  These  keys  can however be disabled by a special sequence (see 12.27).  Factory  default  setting:  Setting  (arming)  without  an  access code enabled.   12.14.  Triggered-detector indication Pressing  the  ?  key checks  if  any  detectors  are  permanently triggered,  e.g.  if any doors  or windows are open. The following sequence  enables  the  display  of  text  concerning  active detectors.      3 1 1  indication enabled 3 1 0   indication disabled  Factory default setting: indication enabled 12.15.  Confirmation of intruder alarms To  reduce  the  risk  of  false  alarms  and  to  comply  with  British standard  BSI  DD243,  the  control  panel  allows  alarm confirmation logic to be enabled as follows:    3 2 1  confirmation logic enabled 3 2 0   confirmation logic disabled  Confirmation logic: •  If  the  system  is  set  (armed)  and  any  intruder  detector  gets triggered,  i.e.  a  detector  with  an  instant,  delayed,  or  next-delayed reaction, an  alarm will not be caused but the control panel will record a so-called unconfirmed alarm. •  If any other intruder detector is triggered in a set section within 40  minutes  of  the  above  event,  an  intruder  alarm  will  be triggered.  If  no  other  detector  is  triggered  during  this  period, the control panel will stop waiting for confirmation. •  The  alarm  must  be  confirmed  by  another  detector  than  the first  one,  and  if  the  second  one  is  a  motion  detector  its detection  area  must  not  cover  the  same  area  as  the  first detector to be triggered. This must be ensured by the proper location of detectors. •  An unconfirmed alarm is recorded in control panel memory but can also be sent to the ARC, or to the user by SMS report. •  If the first triggered detector has a delayed reaction, it will start a  so-called  unconfirmed  entrance  delay.  This  delay  is indicated  the same  way as an ordinary entrance delay, but if no other delayed detector is triggered during this delay, there will  be  no  alarm  if  the  unconfirmed  entrance  delay  is exceeded,  with  another unconfirmed alarm  being recorded in the  control  panel  memory.    If  there  is  any  other  delayed  or next-delayed  detector  triggered  during  the  entrance  delay period,  it  will  confirm  the  entrance  delay,  and  if  this  delay  is exceeded  (due  to  no  unsetting  being  done)  it  will  trigger  an intruder alarm at the end of the delay.  •  If  the  unconfirmed  entrance  delay  is  confirmed  by  an  instant detector  it  will  trigger  an  internal  warning  alarm  immediately (e.g. an internal siren) and if the entrance delay times out then an external alarm will be triggered. •  An unconfirmed alarm can be confirmed by any other intruder detectors in the system as long as the detectors are assigned to a set (armed) section. •  The  confirmation  of  intruder  alarms  has  no  effect  on  fire, panic, 24-hour, tamper, or technical alarms. These alarms are triggered immediately without confirmation.  Note:  When  the  first  detector  is  triggered  it  begins  a  process which  waits  40  minutes  for  any  possible  confirmation  of  the alarm (unconfirmed alarm status) during which the system works exactly  the  same  way  as  if  the  confirmation  function  had  not been enabled.      Warning:    If  intruder  alarm  confirmation  is  enabled,  it  is necessary to install enough detectors in the building to detect an intruder even if he/she is only moving in one particular place.  Factory default setting: confirmation disabled  12.16.  Exit delay beeps  The exit delay  can  be indicated by  beeps  from the keypad and internal siren. The beeps get faster in the last 5 seconds.  3 3 1  Beeps enabled 3 3 0  Beeps disabled  Factory default setting: Beeps enabled.

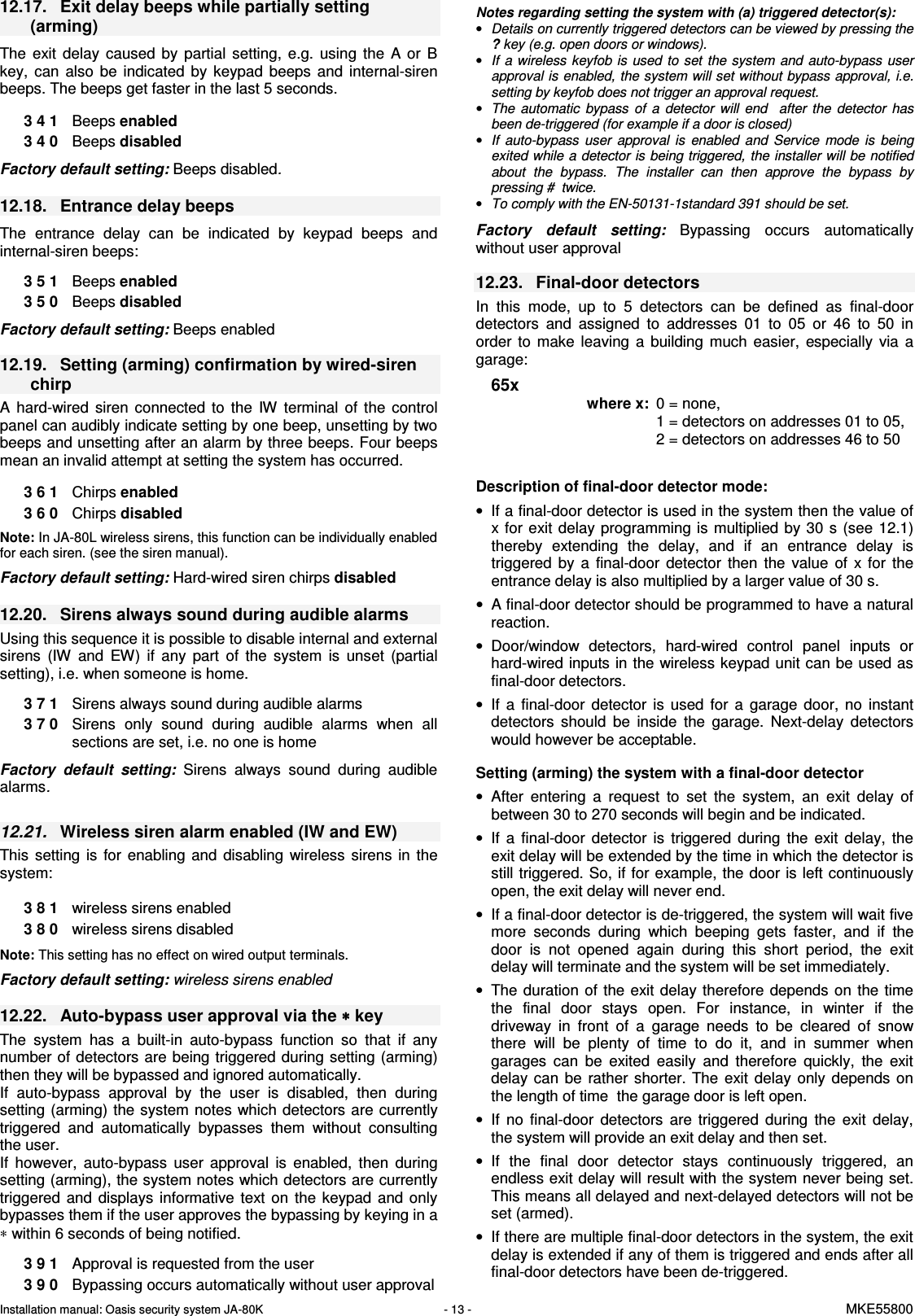

Installation manual: Oasis security system JA-80K   - 13 -   MKE55800  12.17.  Exit delay beeps while partially setting (arming)  The  exit  delay  caused  by  partial  setting,  e.g.  using  the  A  or  B key,  can  also  be  indicated  by  keypad  beeps  and  internal-siren beeps. The beeps get faster in the last 5 seconds.  3 4 1  Beeps enabled 3 4 0  Beeps disabled  Factory default setting: Beeps disabled.  12.18.  Entrance delay beeps  The  entrance  delay  can  be  indicated  by  keypad  beeps  and internal-siren beeps:  3 5 1  Beeps enabled 3 5 0  Beeps disabled   Factory default setting: Beeps enabled  12.19.  Setting (arming) confirmation by wired-siren chirp A  hard-wired  siren  connected  to  the  IW  terminal  of  the  control panel can audibly indicate setting by one beep, unsetting by two beeps and unsetting after an alarm by three beeps. Four beeps mean an invalid attempt at setting the system has occurred.   3 6 1  Chirps enabled 3 6 0  Chirps disabled   Note: In JA-80L wireless sirens, this function can be individually enabled for each siren. (see the siren manual).  Factory default setting: Hard-wired siren chirps disabled  12.20.  Sirens always sound during audible alarms Using this sequence it is possible to disable internal and external sirens  (IW  and  EW)  if  any  part  of  the  system  is  unset  (partial setting), i.e. when someone is home.  3 7 1  Sirens always sound during audible alarms 3 7 0  Sirens  only  sound  during  audible  alarms  when  all sections are set, i.e. no one is home  Factory  default  setting:  Sirens  always  sound  during  audible alarms.  12.21.  Wireless siren alarm enabled (IW and EW) This  setting  is  for  enabling  and  disabling  wireless  sirens  in  the system:    3 8 1  wireless sirens enabled 3 8 0  wireless sirens disabled  Note: This setting has no effect on wired output terminals.  Factory default setting: wireless sirens enabled  12.22.  Auto-bypass user approval via the ∗∗∗∗ key   The  system  has  a  built-in  auto-bypass  function  so  that  if  any number of detectors are being triggered during  setting (arming) then they will be bypassed and ignored automatically. If  auto-bypass  approval  by  the  user  is  disabled,  then  during setting (arming) the system notes which detectors are currently triggered  and  automatically  bypasses  them  without  consulting the user.  If  however,  auto-bypass  user  approval  is  enabled,  then  during setting (arming), the system notes which detectors are currently triggered  and  displays  informative  text on  the  keypad  and  only bypasses them if the user approves the bypassing by keying in a ∗ within 6 seconds of being notified.  3 9 1  Approval is requested from the user 3 9 0  Bypassing occurs automatically without user approval  Notes regarding setting the system with (a) triggered detector(s): • Details on currently triggered detectors can be viewed by pressing the ? key (e.g. open doors or windows). • If  a wireless keyfob is used to set the system and auto-bypass  user approval is enabled, the system will set without bypass approval, i.e. setting by keyfob does not trigger an approval request.  • The  automatic  bypass  of  a  detector  will  end    after  the  detector  has been de-triggered (for example if a door is closed) • If  auto-bypass  user  approval  is  enabled  and  Service  mode  is  being exited while a detector is being triggered, the installer will be notified about  the  bypass.  The  installer  can  then  approve  the  bypass  by pressing #  twice. • To comply with the EN-50131-1standard 391 should be set.  Factory  default  setting: Bypassing  occurs  automatically without user approval  12.23.  Final-door detectors   In  this  mode,  up  to  5  detectors  can  be  defined  as  final-door detectors  and  assigned  to  addresses  01  to  05  or  46  to  50  in order  to  make  leaving  a  building  much  easier,  especially  via  a garage:   65x  where x:  0 = none,  1 = detectors on addresses 01 to 05, 2 = detectors on addresses 46 to 50    Description of final-door detector mode: •  If a final-door detector is used in the system then the value of x for exit delay programming is  multiplied by  30 s  (see 12.1) thereby  extending  the  delay,  and  if  an  entrance  delay  is triggered  by  a  final-door  detector  then  the  value  of  x  for  the entrance delay is also multiplied by a larger value of 30 s. •  A final-door detector should be programmed to have a natural reaction.  •  Door/window  detectors,  hard-wired  control  panel  inputs  or hard-wired inputs in the wireless keypad unit can be used as final-door detectors. •  If  a  final-door  detector  is  used  for  a  garage  door,  no  instant detectors  should  be  inside  the  garage.  Next-delay  detectors would however be acceptable.  Setting (arming) the system with a final-door detector •  After  entering  a  request  to  set  the  system,  an  exit  delay  of between 30 to 270 seconds will begin and be indicated.  •  If  a  final-door  detector  is  triggered  during  the  exit  delay,  the exit delay will be extended by the time in which the detector is still triggered. So, if for example, the door is left continuously open, the exit delay will never end. •  If a final-door detector is de-triggered, the system will wait five more  seconds  during  which  beeping  gets  faster,  and  if  the door  is  not  opened  again  during  this  short  period,  the  exit delay will terminate and the system will be set immediately. •  The duration  of the exit delay therefore depends  on the time the  final  door  stays  open.  For  instance,  in  winter  if  the driveway  in  front  of  a  garage  needs  to  be  cleared  of  snow there  will  be  plenty  of  time  to  do  it,  and  in  summer  when garages  can  be  exited  easily  and  therefore  quickly,  the  exit delay  can  be  rather  shorter.  The  exit  delay  only  depends  on the length of time  the garage door is left open. •  If  no  final-door  detectors  are  triggered  during  the  exit  delay, the system will provide an exit delay and then set.  •  If  the  final  door  detector  stays  continuously  triggered,  an endless exit delay will result with the system never being set. This means all delayed and next-delayed detectors will not be set (armed). •  If there are multiple final-door detectors in the system, the exit delay is extended if any of them is triggered and ends after all final-door detectors have been de-triggered.

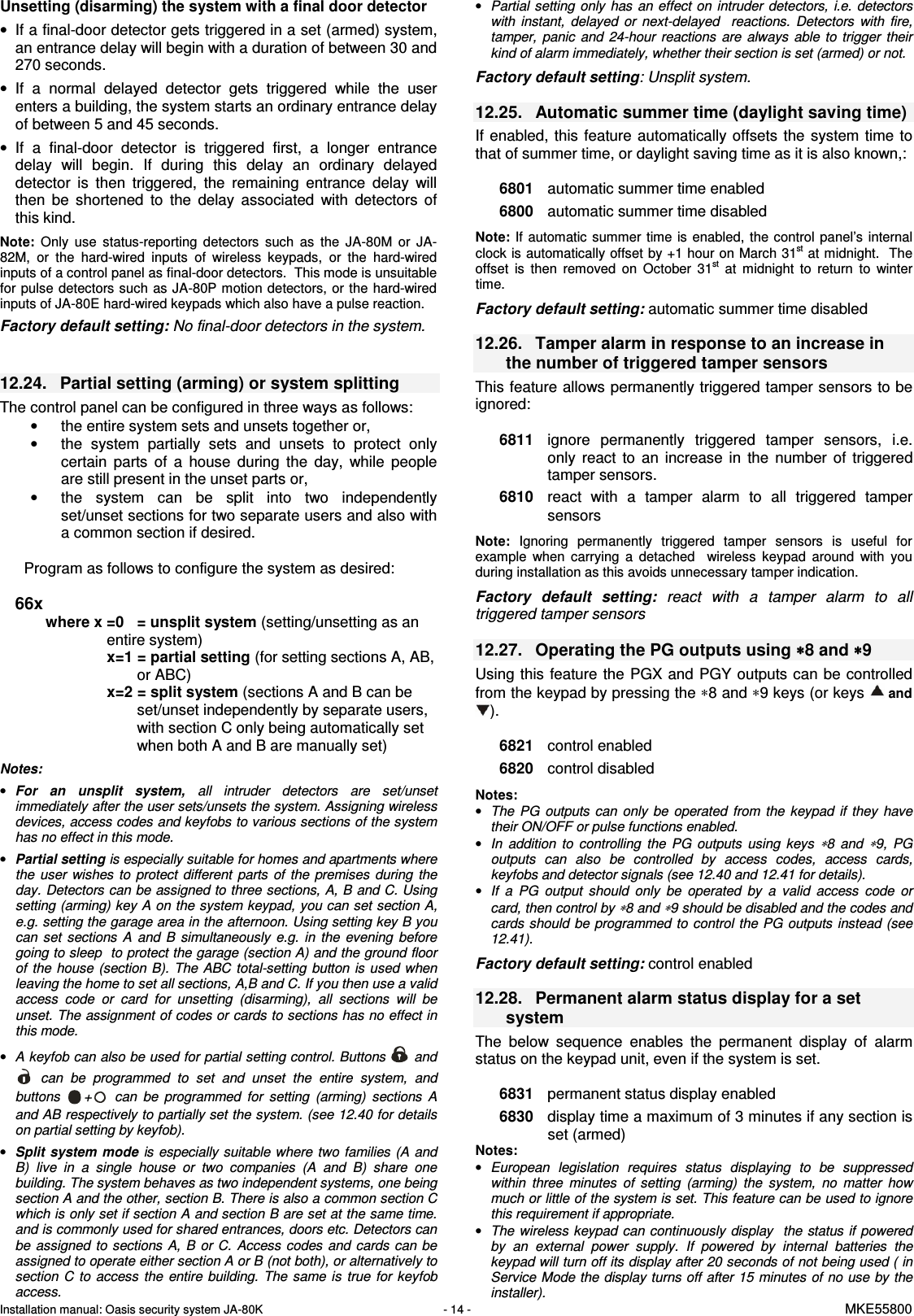

Installation manual: Oasis security system JA-80K   - 14 -   MKE55800  Unsetting (disarming) the system with a final door detector •  If a final-door detector gets triggered in a set (armed) system, an entrance delay will begin with a duration of between 30 and 270 seconds. •  If  a  normal  delayed  detector  gets  triggered  while  the  user enters a building, the system starts an ordinary entrance delay of between 5 and 45 seconds.  •  If  a  final-door  detector  is  triggered  first,  a  longer  entrance delay  will  begin.  If  during  this  delay  an  ordinary  delayed detector  is  then  triggered,  the  remaining  entrance  delay  will then  be  shortened  to  the  delay  associated  with  detectors  of this kind.  Note: Only  use  status-reporting  detectors  such  as  the  JA-80M  or  JA-82M,  or  the  hard-wired  inputs  of  wireless  keypads,  or  the  hard-wired inputs of a control panel as final-door detectors.  This mode is unsuitable for pulse detectors such as JA-80P motion detectors,  or the hard-wired inputs of JA-80E hard-wired keypads which also have a pulse reaction. Factory default setting: No final-door detectors in the system.   12.24.  Partial setting (arming) or system splitting   The control panel can be configured in three ways as follows: •  the entire system sets and unsets together or, •  the  system  partially  sets  and  unsets  to  protect  only certain  parts  of  a  house  during  the  day,  while  people are still present in the unset parts or, •  the  system  can  be  split  into  two  independently set/unset sections for two separate users and also with a common section if desired.  Program as follows to configure the system as desired:  66x where x =0  = unsplit system (setting/unsetting as an entire system)   x=1 = partial setting (for setting sections A, AB, or ABC) x=2 = split system (sections A and B can be set/unset independently by separate users, with section C only being automatically set when both A and B are manually set)  Notes: • For  an  unsplit  system,  all  intruder  detectors  are  set/unset immediately after the user sets/unsets the system. Assigning wireless devices, access codes and keyfobs to various sections of the system has no effect in this mode. • Partial setting is especially suitable for homes and apartments where the  user  wishes to  protect  different  parts  of  the  premises  during  the day. Detectors can be assigned to three sections, A, B and C. Using setting (arming) key A on the system keypad, you can set section A, e.g. setting the garage area in the afternoon. Using setting key B you can  set  sections  A  and  B  simultaneously  e.g.  in  the  evening  before going to sleep  to protect the garage (section A) and the ground floor of  the  house (section B). The ABC  total-setting  button is used when leaving the home to set all sections, A,B and C. If you then use a valid access  code  or  card  for  unsetting  (disarming),  all  sections  will  be unset. The assignment of codes or cards to sections has no effect in this mode.   • A keyfob can also be used for partial setting control. Buttons   and   can  be  programmed  to  set  and  unset  the  entire  system,  and buttons  +   can  be  programmed  for  setting  (arming)  sections  A and AB respectively to partially set the system. (see 12.40 for details on partial setting by keyfob). • Split system mode is especially suitable where two families (A  and B)  live  in  a  single  house  or  two  companies  (A  and  B)  share  one building. The system behaves as two independent systems, one being section A and the other, section B. There is also a common section C which is only set if section A and section B are set at the same time. and is commonly used for shared entrances, doors etc. Detectors can be assigned  to  sections  A,  B  or C.  Access  codes  and  cards  can  be assigned to operate either section A or B (not both), or alternatively to section  C  to  access  the  entire  building. The  same  is  true for  keyfob access. • Partial setting  only  has an effect on  intruder detectors, i.e. detectors with  instant,  delayed  or  next-delayed    reactions.  Detectors  with  fire, tamper,  panic  and  24-hour  reactions  are  always  able  to  trigger  their kind of alarm immediately, whether their section is set (armed) or not.  Factory default setting: Unsplit system.  12.25.  Automatic summer time (daylight saving time) If enabled, this  feature automatically  offsets the  system time  to that of summer time, or daylight saving time as it is also known,:    6801  automatic summer time enabled 6800  automatic summer time disabled  Note: If automatic summer  time is enabled, the control  panel’s  internal clock is automatically offset by +1 hour on March 31st at midnight.  The offset  is  then  removed  on  October  31st  at  midnight  to  return  to  winter time.  Factory default setting: automatic summer time disabled   12.26.  Tamper alarm in response to an increase in the number of triggered tamper sensors This feature allows permanently triggered tamper sensors to be ignored:   6811  ignore  permanently  triggered  tamper  sensors,  i.e. only  react  to  an  increase  in  the  number  of  triggered tamper sensors. 6810  react  with  a  tamper  alarm  to  all  triggered  tamper sensors  Note: Ignoring  permanently  triggered  tamper  sensors  is  useful  for example  when  carrying  a  detached    wireless  keypad  around  with  you during installation as this avoids unnecessary tamper indication.   Factory  default  setting:  react  with  a  tamper  alarm  to  all triggered tamper sensors  12.27.  Operating the PG outputs using ∗∗∗∗8 and ∗∗∗∗9 Using this  feature  the PGX and PGY outputs can be controlled from the keypad by pressing the ∗8 and ∗9 keys (or keys  and ).   6821  control enabled 6820  control disabled   Notes:  • The  PG  outputs can  only  be  operated  from  the  keypad if  they  have their ON/OFF or pulse functions enabled. • In  addition  to  controlling  the  PG  outputs  using  keys ∗8  and ∗9,  PG outputs  can  also  be  controlled  by  access  codes,  access  cards, keyfobs and detector signals (see 12.40 and 12.41 for details). • If  a  PG  output  should  only  be  operated  by  a  valid  access  code  or card, then control by ∗8 and ∗9 should be disabled and the codes and cards should be programmed to control the PG outputs  instead (see 12.41).  Factory default setting: control enabled  12.28.  Permanent alarm status display for a set system The  below  sequence  enables  the  permanent  display  of  alarm status on the keypad unit, even if the system is set.   6831  permanent status display enabled 6830  display time a maximum of 3 minutes if any section is set (armed) Notes:  • European  legislation  requires  status  displaying  to  be  suppressed within  three  minutes  of  setting  (arming)  the  system,  no  matter  how much or little of the system is set. This feature can be used to ignore this requirement if appropriate. • The wireless keypad can continuously  display  the  status  if powered by  an  external  power  supply.  If  powered  by  internal  batteries  the keypad will turn off its display after 20 seconds of not being used ( in Service Mode the display turns off after 15 minutes of no use by the installer).

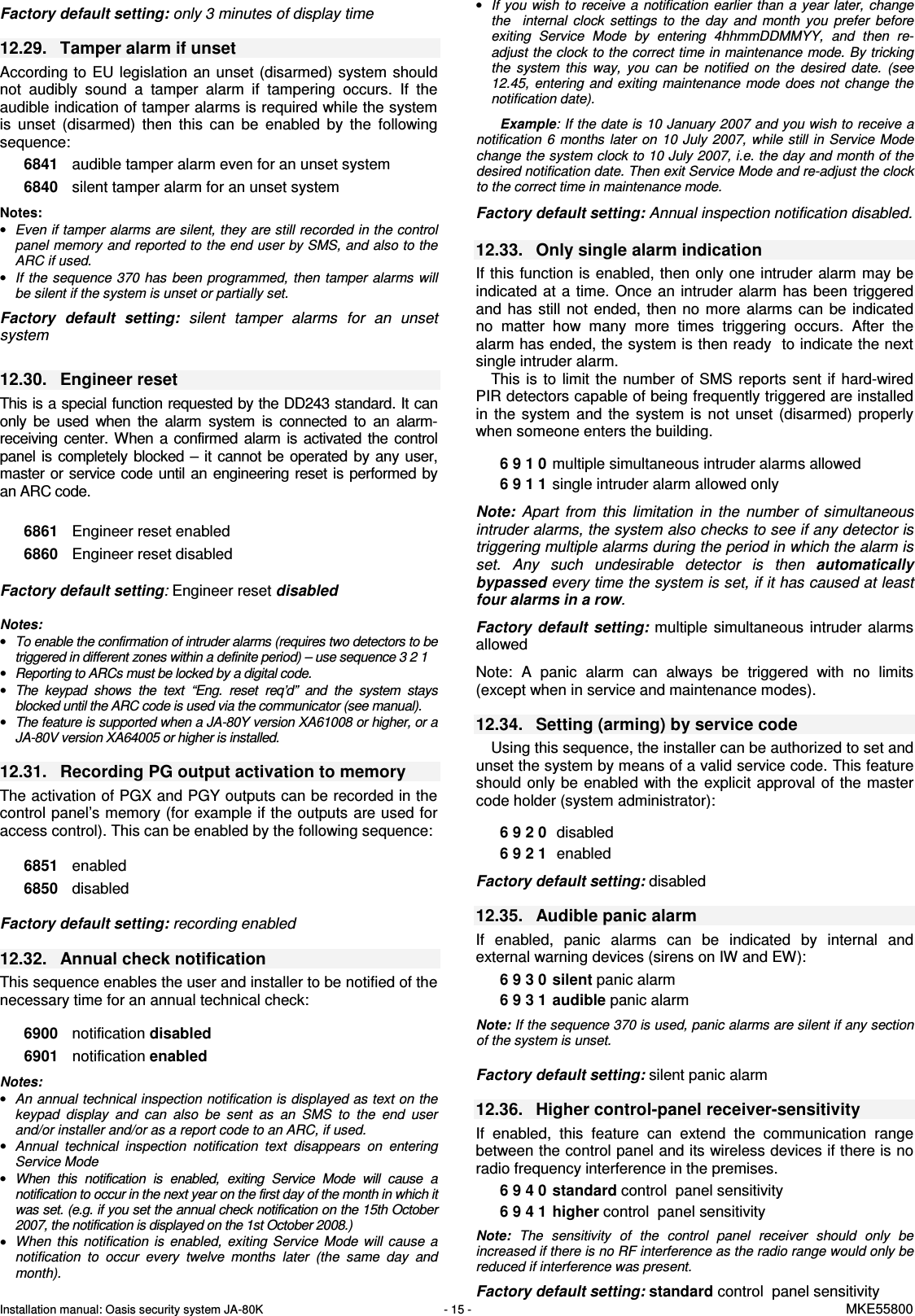

Installation manual: Oasis security system JA-80K   - 15 -   MKE55800   Factory default setting: only 3 minutes of display time  12.29.  Tamper alarm if unset According to  EU legislation  an  unset (disarmed) system should not  audibly  sound  a  tamper  alarm  if  tampering  occurs.  If  the audible indication of tamper alarms is required while the system is  unset  (disarmed)  then  this  can  be  enabled  by  the  following sequence:  6841  audible tamper alarm even for an unset system 6840  silent tamper alarm for an unset system   Notes:  • Even if tamper alarms are silent, they are still recorded in the control panel memory and reported to the end user by SMS, and also to the ARC if used. • If  the sequence 370  has  been programmed, then  tamper alarms will be silent if the system is unset or partially set.  Factory  default  setting:  silent  tamper  alarms  for  an  unset system  12.30.  Engineer reset This is a special function requested by the DD243 standard. It can only  be  used  when  the  alarm  system  is  connected  to  an  alarm-receiving  center. When  a  confirmed alarm  is  activated  the  control panel  is  completely blocked – it  cannot  be  operated  by  any  user, master or  service code until an engineering reset is performed by an ARC code.    6861  Engineer reset enabled 6860  Engineer reset disabled  Factory default setting: Engineer reset disabled  Notes:  • To enable the confirmation of intruder alarms (requires two detectors to be triggered in different zones within a definite period) – use sequence 3 2 1  • Reporting to ARCs must be locked by a digital code. • The  keypad  shows  the  text  “Eng.  reset  req’d”  and  the  system  stays blocked until the ARC code is used via the communicator (see manual). • The feature is supported when a JA-80Y version XA61008 or higher, or a JA-80V version XA64005 or higher is installed.  12.31.  Recording PG output activation to memory The activation of PGX and PGY outputs can be recorded in the control panel’s memory (for example if the outputs are used for access control). This can be enabled by the following sequence:     6851  enabled 6850  disabled    Factory default setting: recording enabled  12.32.  Annual check notification This sequence enables the user and installer to be notified of the necessary time for an annual technical check:  6900  notification disabled 6901  notification enabled  Notes:  • An annual technical inspection notification is displayed as text on the keypad  display  and  can  also  be  sent  as  an  SMS  to  the  end  user and/or installer and/or as a report code to an ARC, if used. • Annual  technical  inspection  notification  text  disappears  on  entering Service Mode • When  this  notification  is  enabled,  exiting  Service  Mode  will  cause  a notification to occur in the next year on the first day of the month in which it was set. (e.g. if you set the annual check notification on the 15th October 2007, the notification is displayed on the 1st October 2008.) • When  this  notification  is  enabled,  exiting  Service  Mode  will  cause  a notification  to  occur  every  twelve  months  later  (the  same  day  and month). • If  you wish  to  receive a  notification  earlier  than  a  year later, change the    internal  clock  settings  to  the  day  and  month  you  prefer  before exiting  Service  Mode  by  entering  4hhmmDDMMYY,  and  then  re-adjust the clock to the correct time in maintenance mode. By tricking the  system  this  way,  you  can  be  notified  on  the  desired  date.  (see 12.45,  entering  and  exiting  maintenance  mode  does  not  change  the notification date).  Example: If the date is 10 January 2007 and you wish to receive a notification  6  months  later  on  10  July  2007,  while  still  in Service Mode  change the system clock to 10 July 2007, i.e. the day and month of the desired notification date. Then exit Service Mode and re-adjust the clock to the correct time in maintenance mode.  Factory default setting: Annual inspection notification disabled.   12.33.  Only single alarm indication    If this function is enabled, then only one intruder alarm may be indicated  at a time. Once  an intruder  alarm has  been triggered and  has  still  not  ended,  then  no  more alarms can  be  indicated no  matter  how  many  more  times  triggering  occurs.  After  the alarm has ended, the system is then ready  to indicate the next single intruder alarm. This  is  to  limit the  number  of SMS  reports  sent  if  hard-wired PIR detectors capable of being frequently triggered are installed in  the  system  and  the  system  is  not  unset  (disarmed)  properly when someone enters the building.  6 9 1 0  multiple simultaneous intruder alarms allowed   6 9 1 1  single intruder alarm allowed only   Note:  Apart  from  this  limitation  in  the  number  of  simultaneous intruder alarms, the system also checks to see if any detector is triggering multiple alarms during the period in which the alarm is set.  Any  such  undesirable  detector  is  then  automatically bypassed every time the system is set, if it has caused at least  four alarms in a row.  Factory  default  setting: multiple  simultaneous  intruder  alarms allowed  Note:  A  panic  alarm  can  always  be  triggered  with  no  limits (except when in service and maintenance modes).  12.34.  Setting (arming) by service code      Using this sequence, the installer can be authorized to set and unset the system by means of a valid service code. This feature should  only  be enabled  with  the  explicit approval  of the master code holder (system administrator):    6 9 2 0   disabled 6 9 2 1   enabled  Factory default setting: disabled  12.35.  Audible panic alarm   If  enabled,  panic  alarms  can  be  indicated  by  internal  and external warning devices (sirens on IW and EW):     6 9 3 0  silent panic alarm  6 9 3 1  audible panic alarm  Note: If the sequence 370 is used, panic alarms are silent if any section of the system is unset.  Factory default setting: silent panic alarm  12.36.  Higher control-panel receiver-sensitivity If  enabled,  this  feature  can  extend  the  communication  range between the control panel and its wireless devices if there is no radio frequency interference in the premises.     6 9 4 0  standard control  panel sensitivity  6 9 4 1  higher control  panel sensitivity  Note:  The  sensitivity  of  the  control  panel  receiver  should  only  be increased if there is no RF interference as the radio range would only be reduced if interference was present.   Factory default setting: standard control  panel sensitivity

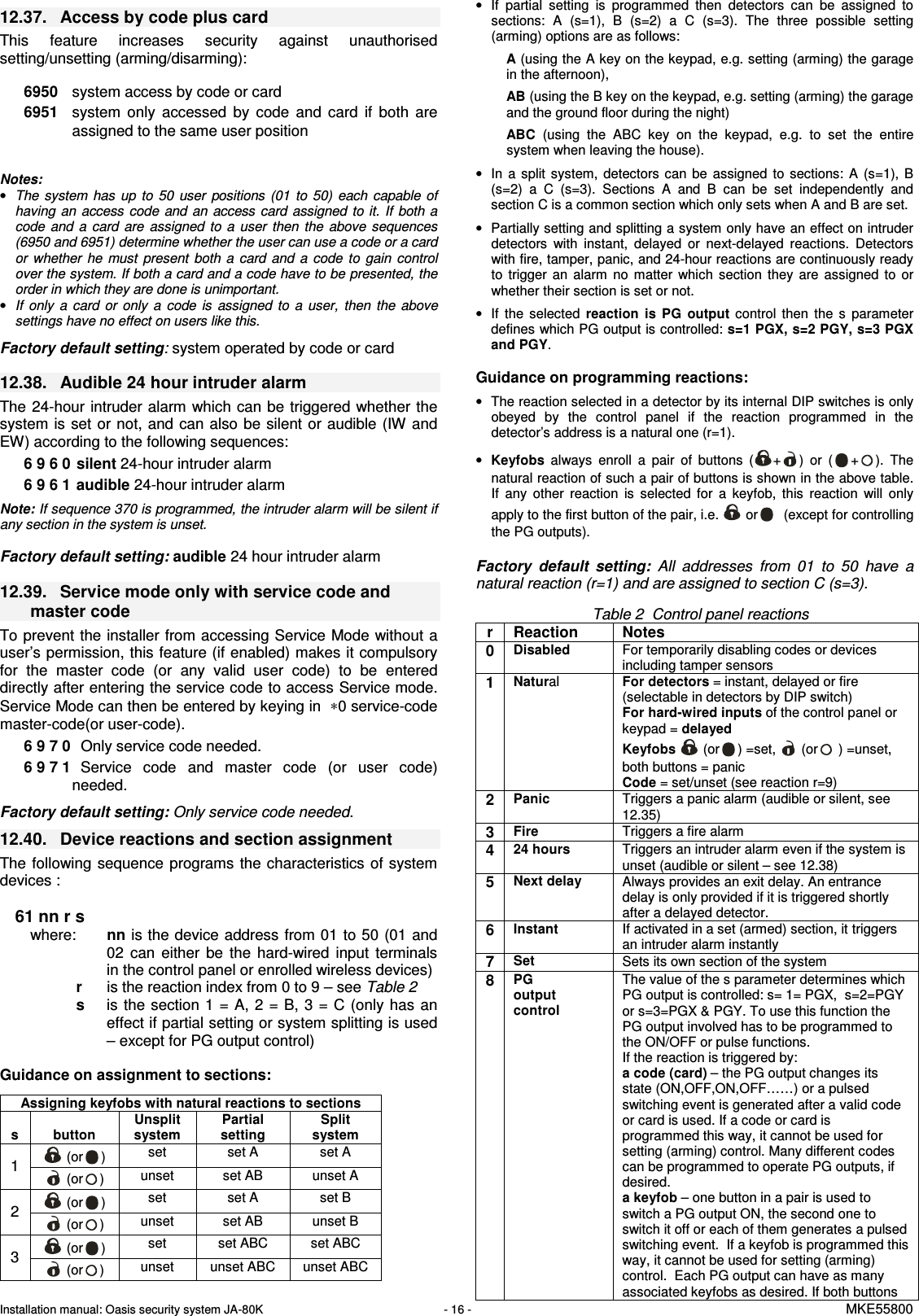

Installation manual: Oasis security system JA-80K   - 16 -   MKE55800   12.37.  Access by code plus card This  feature  increases  security  against  unauthorised setting/unsetting (arming/disarming):    6950  system access by code or card 6951  system  only  accessed  by  code  and  card  if  both  are assigned to the same user position   Notes: • The  system  has  up  to  50  user  positions  (01  to  50)  each  capable of having  an  access  code  and  an  access card assigned to it.  If  both  a code  and  a  card  are  assigned  to  a  user  then  the  above  sequences (6950 and 6951) determine whether the user can use a code or a card or  whether  he  must  present  both  a  card  and  a  code  to  gain  control over the system. If both a card and a code have to be presented, the order in which they are done is unimportant. • If  only  a  card  or  only  a  code  is  assigned  to  a  user,  then  the  above settings have no effect on users like this.  Factory default setting: system operated by code or card  12.38.  Audible 24 hour intruder alarm   The 24-hour  intruder alarm which can be triggered whether the system is  set  or not, and can also  be  silent or audible (IW and EW) according to the following sequences:     6 9 6 0  silent 24-hour intruder alarm 6 9 6 1  audible 24-hour intruder alarm  Note: If sequence 370 is programmed, the intruder alarm will be silent if any section in the system is unset.   Factory default setting: audible 24 hour intruder alarm  12.39.  Service mode only with service code and master code To prevent the installer from accessing Service Mode without a user’s permission, this feature (if enabled) makes it compulsory for  the  master  code  (or  any  valid  user  code)  to  be  entered directly after entering the service code to access Service mode. Service Mode can then be entered by keying in  ∗0 service-code master-code(or user-code). 6 9 7 0   Only service code needed. 6 9 7 1   Service  code  and  master  code  (or  user  code) needed.  Factory default setting: Only service code needed. 12.40.  Device reactions and section assignment   The following  sequence programs  the characteristics of system devices :   61 nn r s where:  nn is the device address from 01 to 50 (01 and 02  can  either  be  the  hard-wired  input  terminals in the control panel or enrolled wireless devices)  r  is the reaction index from 0 to 9 – see Table 2  s   is the  section 1 =  A, 2  =  B, 3  =  C (only  has an effect if partial setting or system splitting is used – except for PG output control)     Guidance on assignment to sections:  Assigning keyfobs with natural reactions to sections   s  button Unsplit system Partial setting Split system  (or )  set  set A  set A 1  (or )  unset  set AB  unset A  (or )  set  set A  set B 2  (or )  unset  set AB  unset B  (or )  set  set ABC  set ABC 3  (or )  unset  unset ABC  unset ABC •  If  partial  setting  is  programmed  then  detectors  can  be  assigned  to sections:  A  (s=1),  B  (s=2)  a  C  (s=3).  The  three  possible  setting (arming) options are as follows: A (using the A key on the keypad, e.g. setting (arming) the garage in the afternoon), AB (using the B key on the keypad, e.g. setting (arming) the garage and the ground floor during the night) ABC (using  the  ABC  key  on  the  keypad,  e.g.  to  set  the  entire system when leaving the house). •  In  a  split  system,  detectors  can  be  assigned  to  sections:  A  (s=1),  B (s=2)  a  C  (s=3).  Sections  A  and  B  can  be  set  independently  and section C is a common section which only sets when A and B are set.  •  Partially setting and splitting a system only have an effect on intruder detectors  with  instant,  delayed  or  next-delayed  reactions.  Detectors with fire, tamper, panic, and 24-hour reactions are continuously ready to  trigger  an  alarm  no  matter  which  section  they  are  assigned  to  or whether their section is set or not. •  If  the  selected reaction  is  PG  output  control  then  the  s  parameter defines which PG output is controlled: s=1 PGX, s=2 PGY, s=3 PGX and PGY.  Guidance on programming reactions: •  The reaction selected in a detector by its internal DIP switches is only obeyed  by  the  control  panel  if  the  reaction  programmed  in  the detector’s address is a natural one (r=1).  • Keyfobs always  enroll  a  pair  of  buttons  ( + )  or  ( + ).  The natural reaction of such a pair of buttons is shown in the above table. If  any  other  reaction  is  selected  for  a  keyfob,  this  reaction  will  only apply to the first button of the pair, i.e.   or   (except for controlling the PG outputs).    Factory  default  setting:  All  addresses  from  01  to  50  have  a natural reaction (r=1) and are assigned to section C (s=3).  Table 2  Control panel reactions r  Reaction   Notes 0 Disabled For temporarily disabling codes or devices including tamper sensors 1 Natural For detectors = instant, delayed or fire (selectable in detectors by DIP switch) For hard-wired inputs of the control panel or keypad = delayed Keyfobs   (or ) =set,   (or  ) =unset, both buttons = panic  Code = set/unset (see reaction r=9) 2 Panic Triggers a panic alarm (audible or silent, see 12.35) 3 Fire Triggers a fire alarm 4 24 hours Triggers an intruder alarm even if the system is unset (audible or silent – see 12.38) 5 Next delay Always provides an exit delay. An entrance delay is only provided if it is triggered shortly after a delayed detector. 6 Instant If activated in a set (armed) section, it triggers an intruder alarm instantly 7 Set Sets its own section of the system 8 PG output control The value of the s parameter determines which PG output is controlled: s= 1= PGX,  s=2=PGY or s=3=PGX & PGY. To use this function the PG output involved has to be programmed to the ON/OFF or pulse functions. If the reaction is triggered by: a code (card) – the PG output changes its state (ON,OFF,ON,OFF……) or a pulsed switching event is generated after a valid code or card is used. If a code or card is programmed this way, it cannot be used for setting (arming) control. Many different codes can be programmed to operate PG outputs, if desired. a keyfob – one button in a pair is used to switch a PG output ON, the second one to switch it off or each of them generates a pulsed switching event.  If a keyfob is programmed this way, it cannot be used for setting (arming) control.  Each PG output can have as many associated keyfobs as desired. If both buttons
Installation manual: Oasis security system JA-80K   - 17 -   MKE55800  of the remote control are pressed simultaneously, they will trigger a panic alarm a detector – the PG output copies the status of the detector or it generates a pulsed switching event when the detector is triggered. The detector also effects the control panel which responds with a natural reaction. Only one detector should be programmed to a PG output ON/OFF reaction and should not be combined with keyfob or keypad control as the detector repeats its status every 9 minutes and it would override the signal from the keypad or keyfob. 9 Set/unset Toggles the system status SET,UNSET,SET,UNSET etc  12.41.  Code/card reactions and section assignment   The following sequence programs the features of access codes or cards:   62 nn r s where:  nn is the user position from 01 to 50   r  is the reaction index from 0 to 9 – see Table 2  s   is the  section 1 =  A, 2  =  B, 3  =  C (only  has an effect  in  a  split  system  –  except  for  the  PG output control reaction)      Guidance on assigning codes or cards to sections: • In  partial  setting (arming)  mode assigning codes  or  cards  to  sections has no effect (except for the PG output control reaction). If anything in the system is set and a card/code is used, the system will then be unset, and if all sections are unset then the whole system will be set by a card/code. Partial  setting  keys  A  and  B  on  the  keypad  can  be  programmed  to  be followed by a valid access code if required (see 12.13). • For a split system, a code assigned to section: A controls section A  B controls section B C controls section A, B and C. •  If  the  system  is  not  split  then  the  assignment  of  codes/cards  to sections  has  no  effect,  but  the  s  parameter  must  be  entered  in  the programming section. Enter s=3 if splitting is not desired.   Guidance on code/card reactions: •  If  a  code/card  has  a  natural  reaction,  i.e.  r=1,  then  its  reaction  is set,unset,set etc. (the same as reaction r=9 in table 2). •  A code/card can also have an alarm reaction designated to it, similar to detectors.  Factory  default setting: all  codes/cards  from 01  to  50 have  a natural reaction (set/unset) and are assigned to section C.  12.42.  Enrollment by keying in production codes This sequence allow the enrollment of devices by keying in their production codes:  60 nn xx..x where: nn  is the address of the device from 01 to 50   xx...x   is the production code of the device (the last eight digits of the bar code, see the label on the PCB inside the device)    Notes: •  If  the  address  nn  is  already  occupied,  the  current  device  will  be erased, and the new device will then be enrolled instead. •  If  a  device  with  production  code  xx…x  has  already  been  enrolled  to another address in the past, and if the device is now enrolled to a new address, then  it  will  be moved to the  new address,  releasing the  old address. •  If  you  enter  nn  =  01  or  02,  the  device  will  enroll  instead  of  the corresponding  hard-wired  input  in  the  control  panel  (the  terminal  will be disabled). •  If  eight  zeros  are  entered  as  a  production  code,  the  device  already assigned to the address nn  will be erased   12.43.  Automatic setting/unsetting schedule This  can  be  used  to  program  an  automatic  sequence  of  daily setting/unsetting  events.  Up  to  10  daily  events  can  be programmed. Events will occur every day of the week:   64 n a hh mm where:     n   is the event number from  0 to 9       a   is the type of event from 0 to 6 (see the following table)   hh  hours (time of event)   mm  minutes (time of event) Erase the automatic schedule setting by :  64 n 0   *   the same event in an unsplit system ** only possible if partial setting (arming) is programmed (see 12.24)  Notes:  •  The  automatic  setting/unsetting  event  schedule  can  also  be programmed in maintenance mode.  •  If automatic event scheduling is not used for setting/unsetting control and  the  system  is  not  split,  then  it can  be  programmed  as  a  daily timer to switch equipment connected to the PGY output on and off at the desired daily times. To do this, split the system (see 12.24) but do not  enroll  any  detectors  to  section  B  (keeping  this  section  empty). Then program the PGY output to be triggered by the setting (arming) of  section  B  (see  12.5)  and  program  the  automatic  daily  event schedule  (with  a=4)  to  set/unset the empty  section  B which  will  then switch the PGY output on and off at the required times every day.  Factory default setting: All automatic events switched off.  12.44.  Changing the service code.   To change the service code enter:  5 NC NC where: NC = new code (4 digits), the new code has to be entered twice   Example-  the  code  1276  can  be  programmed  by  entering:    5  1276  1276  Factory default setting: 8080  12.45.  Go to maintenance mode By  entering  292  while  in  Service  Mode  the  system  switches  to maintenance  mode.  In  maintenance  mode  it  is  possible  to program  the  devices  to  be  bypassed  and  to  adjust  the  control panel internal clock (see 13.4).    12.46.  Setting the internal clock   The control panel has a built in real-time clock which is used to time-stamp  all  recorded  events  in  the  control  panel  memory. Adjust the clock after installation by entering:   4 hh mm DD MM YY  where:   hh   is the time in hours (00 to 23) mm   is the time in minutes (00 to 59) DD  is the day (01 to 31) a  Unsplit system  Split system 0  No event  No event 1  Set all (ABC)  Set all (ABC) 2  Unset all (ABC) *  Unset all (ABC) 3  Set A**  Set A 4  Set AB**  Set B 5  Unset all (ABC) *  Unset A 6  Unset all (ABC) *  Unset B

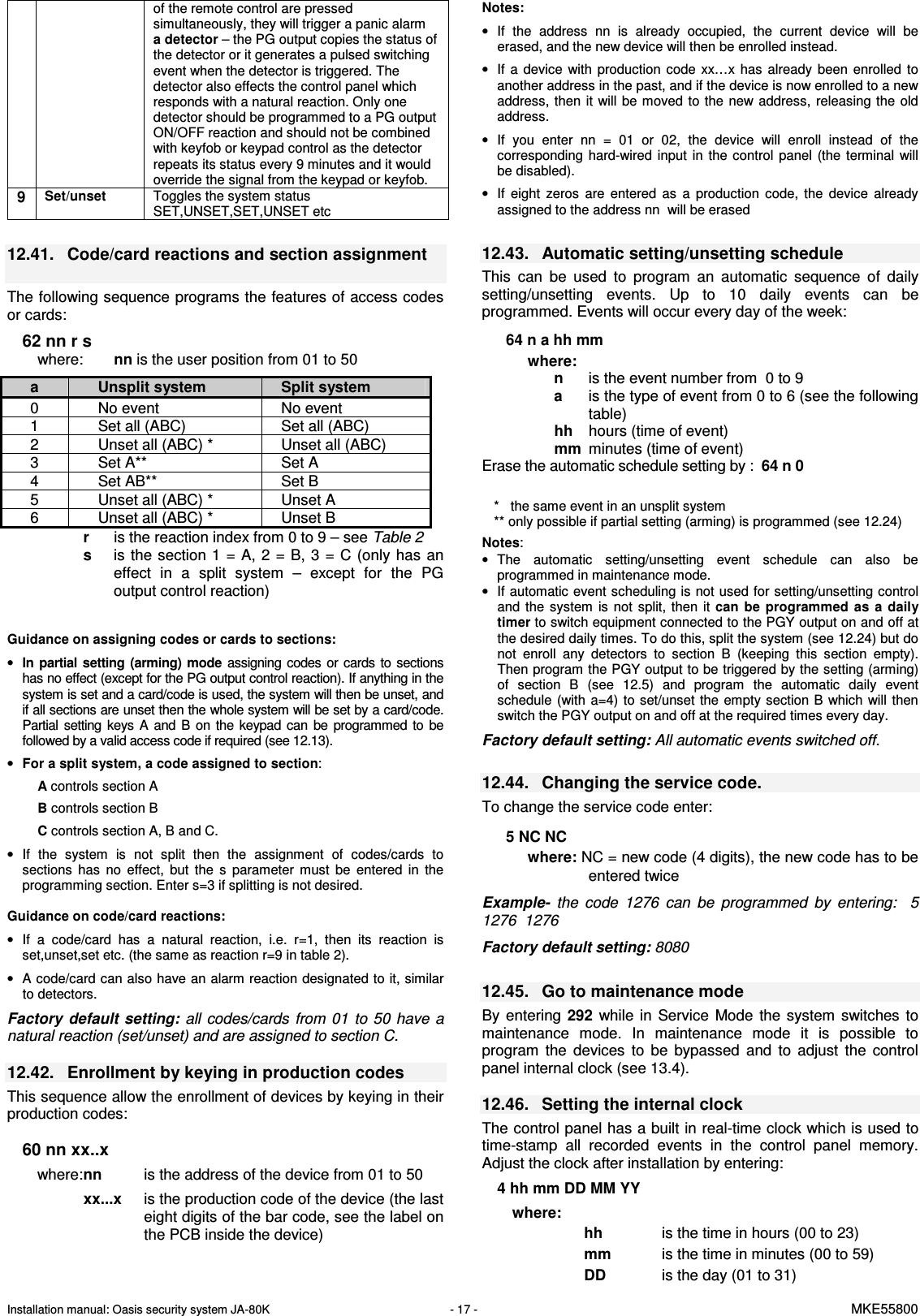

Installation manual: Oasis security system JA-80K   - 18 -   MKE55800  MM   is the month (01 to 12) YY   is the year (00 to 99)  Note: The internal clock can also be adjusted in maintenance mode.   Example: On 30 June 2012 at 17:15 enter:  4 17 15 30 06 12  After the control panel is powered up, the clock is set to  00 00 01 01 00.  12.47.  Editing keypad text   The names of devices  and programmable  outputs as displayed on the keypad unit can be edited as follows:  •  Pressing and holding the ? key (in service mode) enters text editing mode and the name of the device enrolled to address 01  is  then  displayed  with  a  flashing  cursor  on  the  first  text character. •  Key functions:  and   text scrolling (see table)   1 and 7  character-selection (A,B,C,D.......8,9,0) 4 and 5  cursor control (left/right) 2  delete selected character ####    exit editing (& save changes)     List of editable text: text   Description 01: to 50: Devices Names of devices in addresses 01 to 50 Control panel Name of control panel (e.g. displayed if its cover is opened) Keypad Name of hard-wired keypad Communicator Name of the communicator in the control panel Master code Name of the master code 01: to 50: Code Names of user codes  ARC Code Names of ARC code Service code Name of the service code PGX  and PGY Names of programmable outputs OASIS JA-80 The default text displayed in operating mode if no other text needs to be displayed. If erased then nothing will be displayed.  Notes: •  Only capital letters can be entered. •  The length of text is limited to the length of the display. •  The  text  is  only  stored  in  the  keypad  used  for  editing  (different keypads in the system can show different text if desired). •  Text  is  stored  in  the  non-volatile  memory  of  keypads,  so  power disconnection will not erase any stored text. •  Convenient  text  editing  is  possible  using  a  PC  running  Comlink software. •  Besides device names, keypads also use so-called internal text such as “service”, “maintenance mode” etc, and this text can also be edited via  Comlink  software  by  selecting  “Settings”  on  the  menu  and  then “keypad text”.  •  After  editing  keypad  text  using  Comlink  software,  all  keypads (including wireless ones) must be connected to the digital bus to save the  changes  to  the  keypad units  by  clicking  on  the  OK  button  in  the software.  Factory default setting: in addresses 01 to 50 there is the text “Device”.  Other  default  text:  “Control  panel”,  “Keypad”, “Communicator”,  “Master  code”,  users  01  to  50  “Code”,”ARC Code”, “Service code”, “PGX”, “PGY” and “OASIS JA-80”.  13. Operating the system  The Oasis system can be operated locally using a keypad or a keyfob and it can also be operated remotely by mobile phone or the Internet (if equipped with a suitable communicator).  13.1.  The system keypad Indoor keypads  model JA-80F  (wireless) or JA-80E (wired) can be used to operate and program the system. Both keypad types provide the same functionality:   13.1.1.  Keypad indicators: ABC  setting (arming) status of  sections – if all  sections are set then all these indicators (A B & C) are lit.   flashing = alarm, with the simultaneous display of alarm details on the LCD, e.g.:      Alarm  03: Kitchen constantly lit = fault – details are displayed by pressing the “?” key    power.  Constantly  lit  =  mains  ok.  Flashing  =  no  mains, control panel powered by back-up battery only.  13.1.2.  LCD display The  1st  line  displays  the  status:  triggered  detector,  Service mode  etc.  In  standby  mode,  it  shows  the  text  “OASIS  JA-80” (editable, see 12.47). The 2nd line displays the name of a device.(e.g. 01: Main Door etc.). The text can be edited, see 12.47.  Displaying the status of detectors and programmable outputs:  Details on permanently triggered detectors (e.g. open windows) and the status of the PGX and PGY outputs can be displayed by pressing the ? key.  13.1.3.  Keypad display sleep-mode In  operating  mode,  the  wireless  keypad  unit  displays  the system status for 20 seconds (if  battery-powered) after  the last interaction with a user, and then goes into sleep mode. Pressing any key, triggering the keypad input or opening the keypad’s flip cover re-activates the display.   13.1.4.  Keys  0–9  digital code entry ∗∗∗∗   function sequences #   escape ABC  hot key for setting the entire system (all sections A, B & C)  A  hot key for setting section A (e.g. afternoon partial setting of the garage)
Installation manual: Oasis security system JA-80K   - 19 -   MKE55800  B in an unsplit system: hot key for setting sections A and B (e.g. partial night-setting of the garage and the ground floor). in a split system: hot key for setting section B (C is only set if both sections A and B are set)   ?  Display of triggered detectors (e.g. open windows), fault details and PGX / PGY status.          turning on the PGX output from the keypad  (the same effect as ∗81)     turning off the PGX output from the keypad (the same effect as ∗80)  Notes: •  The A and B keys only have a function if partial setting or splitting are enabled. •  The keys   and  only control the PGX output if they have been programmed for it,  see 12.5.  13.1.5.  Functions beginning with the  ∗ ∗ ∗ ∗ key The following functions are available to the user via the keypad: ∗∗∗∗1  sets the entire system (the same as key ABC)* ∗∗∗∗2  sets section A (the same as key A)* ∗∗∗∗3  sets A and B, or just B (the same as key B)* ∗∗∗∗4  event memory recall (key 4 scrolls backwards) – the control panel records max. 255 of the latest events ∗∗∗∗5  new Master Code/Card (∗5 MC NC NC) ∗∗∗∗6  access code/card programming (∗6 MC nn NC) ∗∗∗∗7  for operation while under duress (should be entered before the access code to secretly signal distress) ∗∗∗∗8  PGX control (ON/OFF = ∗81/∗80 or enter ∗8 to trigger if a pulsed switching reaction is programmed)* ∗∗∗∗9  PGY control (ON/OFF = ∗91/∗90 or enter ∗9 to trigger if a pulsed switching reaction is programmed)* ∗∗∗∗0  To enter Service Mode (∗0 SC – factory default 8080) or to enter maintenance mode (∗0 MC – factory default 1234)  The ∗ functions allow the system to be operated from a mobile phone keypad (if the control panel is equipped with the relevant communicator).   13.2.  Programming access codes and cards  The  system  can  be  controlled  by  4-digit  codes  or  by  access cards,  of  the  types  PC-01  and  PC-02  (EM  UNIQUE  125kHz standard).  •  The control panel has 1 service, 1 master and 50 user codes.   •  Only a numerical code can be used as a service code (factory default 8080) – see the control panel programming section. • The master code can be a numerical code (factory default 1234) or an access card. Using this master code/card, other users’ codes and cards can be programmed or erased. The master code/card is usually used by the system administrator. •  Each user from 01 to 50 can have a numerical code, or a card, or both (factory default: all user codes and cards from 01 to 50 are erased). •  If a user has both a code and a card, then it is possible to program whether both a code and card must be presented to the system for system access, or whether only one of them is required (see 12.37). •  The system does not allow the same code or card to be programmed to multiple users. (if it is desired to move a code/card to another user, the card/code has to be erased from its current user first).  •  It is possible to display which code/card positions are already occupied in maintenance mode (see 13.4.1). •  The most convenient way to program codes and cards is by using a PC running Comlink software. •  The control panel allows a maximum of 10 unsuccessful attempts in a row to enter a valid code or card. If exceeded, a tamper alarm starts.  13.2.1.  Programming access codes and cards Abbreviation  Name   Number  Sequence  Notes SC  Service   1  5 NC NC •  Only programmable in Service Mode. • NC = new code (must be entered twice) – a card cannot be used. •  Factory-default service code: 8080 •  This code can be changed but not erased. • Example: 5 4567 4567 MC  Master   1  ∗∗∗∗5 MC NC NC •  Only programmable if the system is totally unset (disarmed) • MC = master code or card (factory default 1234)  • NC = new code or card entry – a numerical code has to be entered twice, but a card only presented once •  Either a code or a card can be programmed as a master code (to have both is impossible). •  The Master Code can be changed but not erased. •  The Master Code’s reaction is set/unset and it is assigned to all sections. •  To reset the Master Code to the factory default 1234, enter 291 in Service Mode (this will only affect the Master Code). •  To make handing over the system to the end user easier, we recommend programming the system card (provided with the control panel) to the master code. • Example:  ∗5 1234 and then presenting the card to the keypad’s RFID reader UC  User   50  ∗∗∗∗6 MC nn NC •  Only programmable if the system is totally unset  • MC = Master Code or card.  • nn = user code or card position from 01 to 50. • NC = new code or card entry.  •  Factory default: all user codes and cards are erased. •  Each user position can have both a card and a code programmed to it (by using the sequence ∗6 MC nn NC twice) •  Each user code can have its own reaction programmed by an installer in Service Mode, and with a split system, codes can be assigned to different sections.  •  Example: ∗6 1234 12 4345 (code 4345 will be programmed to user position 12)   To erase codes/cards enter: ∗∗∗∗6 MC nn 0000 erases the code and the card in user position nn. ∗∗∗∗6 MC 00 UC erases the code UC (or card UC) if programmed to any user position.   ∗∗∗∗6 MC 00 0000 erases all user codes and cards in user positions 01 to 50.

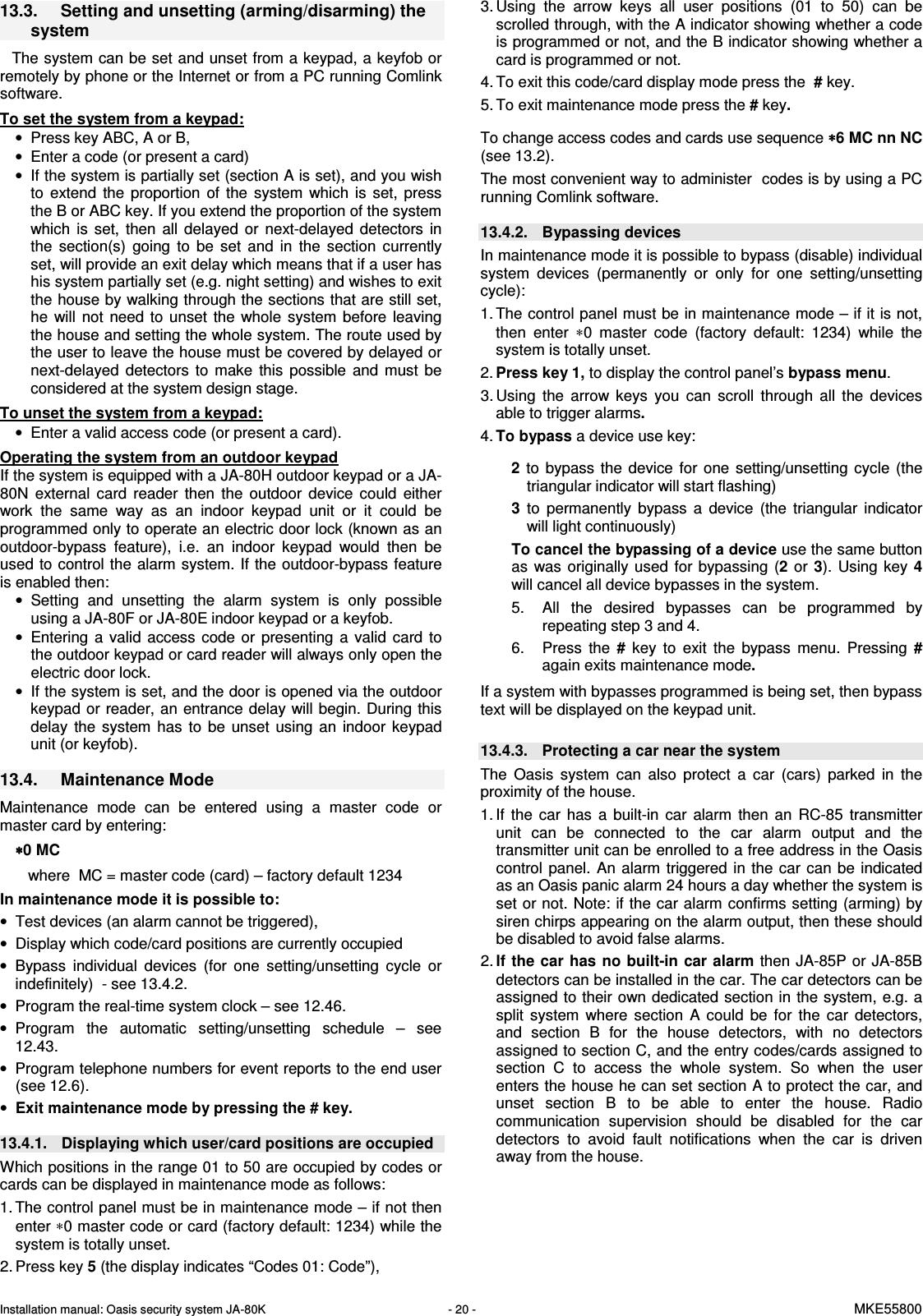

Installation manual: Oasis security system JA-80K   - 20 -   MKE55800   13.3.  Setting and unsetting (arming/disarming) the system  The system can be set and unset from a keypad, a keyfob or remotely by phone or the Internet or from a PC running Comlink software.  To set the system from a keypad: •  Press key ABC, A or B,  •  Enter a code (or present a card) •  If the system is partially set (section A is set), and you wish to  extend  the  proportion  of  the  system  which  is  set,  press the B or ABC key. If you extend the proportion of the system which  is  set,  then  all  delayed  or  next-delayed  detectors  in the  section(s)  going  to  be  set  and  in  the  section  currently set, will provide an exit delay which means that if a user has his system partially set (e.g. night setting) and wishes to exit the house by walking through the sections that are still set, he  will  not  need  to  unset  the  whole  system  before  leaving the house and setting the whole system. The route used by the user to leave the house must be covered by delayed or next-delayed  detectors  to  make  this  possible  and  must  be considered at the system design stage.  To unset the system from a keypad: •  Enter a valid access code (or present a card).  Operating the system from an outdoor keypad If the system is equipped with a JA-80H outdoor keypad or a JA-80N  external  card  reader  then  the  outdoor  device  could  either work  the  same  way  as  an  indoor  keypad  unit  or  it  could  be programmed only to operate an electric door lock (known as an outdoor-bypass  feature),  i.e.  an  indoor  keypad  would  then  be used to control the alarm system. If the outdoor-bypass feature is enabled then: •  Setting  and  unsetting  the  alarm  system  is  only  possible using a JA-80F or JA-80E indoor keypad or a keyfob. •  Entering  a  valid  access  code  or  presenting  a  valid  card  to the outdoor keypad or card reader will always only open the electric door lock. •  If the system is set, and the door is opened via the outdoor keypad or reader, an entrance delay will begin. During this delay  the  system  has  to  be  unset  using  an  indoor  keypad unit (or keyfob).  13.4.  Maintenance Mode  Maintenance  mode  can  be  entered  using  a  master  code  or master card by entering: ∗∗∗∗0 MC    where  MC = master code (card) – factory default 1234 In maintenance mode it is possible to: •  Test devices (an alarm cannot be triggered), •  Display which code/card positions are currently occupied •  Bypass  individual  devices  (for  one  setting/unsetting  cycle  or indefinitely)  - see 13.4.2. •  Program the real-time system clock – see 12.46. •  Program  the  automatic  setting/unsetting  schedule  –  see 12.43. •  Program telephone numbers for event reports to the end user (see 12.6). • Exit maintenance mode by pressing the # key.  13.4.1.  Displaying which user/card positions are occupied Which positions in the range 01 to 50 are occupied by codes or cards can be displayed in maintenance mode as follows: 1. The control panel must be in maintenance mode – if not then enter ∗0 master code or card (factory default: 1234) while the system is totally unset. 2. Press key 5 (the display indicates “Codes 01: Code”), 3. Using  the  arrow  keys  all  user  positions  (01  to  50)  can  be scrolled through, with the A indicator showing whether a code is programmed or not, and the B indicator showing whether a card is programmed or not. 4. To exit this code/card display mode press the  # key. 5. To exit maintenance mode press the # key.  To change access codes and cards use sequence ∗∗∗∗6 MC nn NC (see 13.2). The most convenient way to administer  codes is by using a PC running Comlink software.  13.4.2.  Bypassing devices In maintenance mode it is possible to bypass (disable) individual system  devices  (permanently  or  only  for  one  setting/unsetting cycle): 1. The control panel must be in maintenance mode – if it is not, then  enter  ∗0  master  code  (factory  default:  1234)  while  the system is totally unset. 2. Press key 1, to display the control panel’s bypass menu. 3. Using  the  arrow  keys  you  can  scroll  through  all  the  devices able to trigger alarms.   4. To bypass a device use key:   2  to  bypass  the  device  for  one  setting/unsetting  cycle  (the triangular indicator will start flashing) 3  to  permanently  bypass  a  device (the  triangular  indicator will light continuously) To cancel the bypassing of a device use the same button as  was originally used  for bypassing  (2  or  3).  Using  key 4 will cancel all device bypasses in the system. 5.  All  the  desired  bypasses  can  be  programmed  by repeating step 3 and 4. 6.  Press  the  #  key  to  exit  the  bypass  menu.  Pressing  # again exits maintenance mode.  If a system with bypasses programmed is being set, then bypass text will be displayed on the keypad unit.  13.4.3.  Protecting a car near the system The  Oasis  system  can  also  protect  a  car  (cars)  parked  in  the proximity of the house.  1. If  the  car  has  a  built-in  car  alarm  then  an  RC-85  transmitter unit  can  be  connected  to  the  car  alarm  output  and  the transmitter unit can be enrolled to a free address in the Oasis control  panel.  An  alarm  triggered  in  the  car can  be  indicated as an Oasis panic alarm 24 hours a day whether the system is set or not. Note: if the car alarm confirms setting (arming) by siren chirps appearing on the alarm output, then these should be disabled to avoid false alarms. 2. If the car  has no built-in car alarm  then JA-85P  or JA-85B detectors can be installed in the car. The car detectors can be assigned to their own dedicated section in the system, e.g. a split  system  where  section  A  could  be  for  the  car  detectors, and  section  B  for  the  house  detectors,  with  no  detectors assigned to section C, and the entry codes/cards assigned to section  C  to  access  the  whole  system.  So  when  the  user enters the house he can set section A to protect the car, and unset  section  B  to  be  able  to  enter  the  house.  Radio communication  supervision  should  be  disabled  for  the  car detectors  to  avoid  fault  notifications  when  the  car  is  driven away from the house.

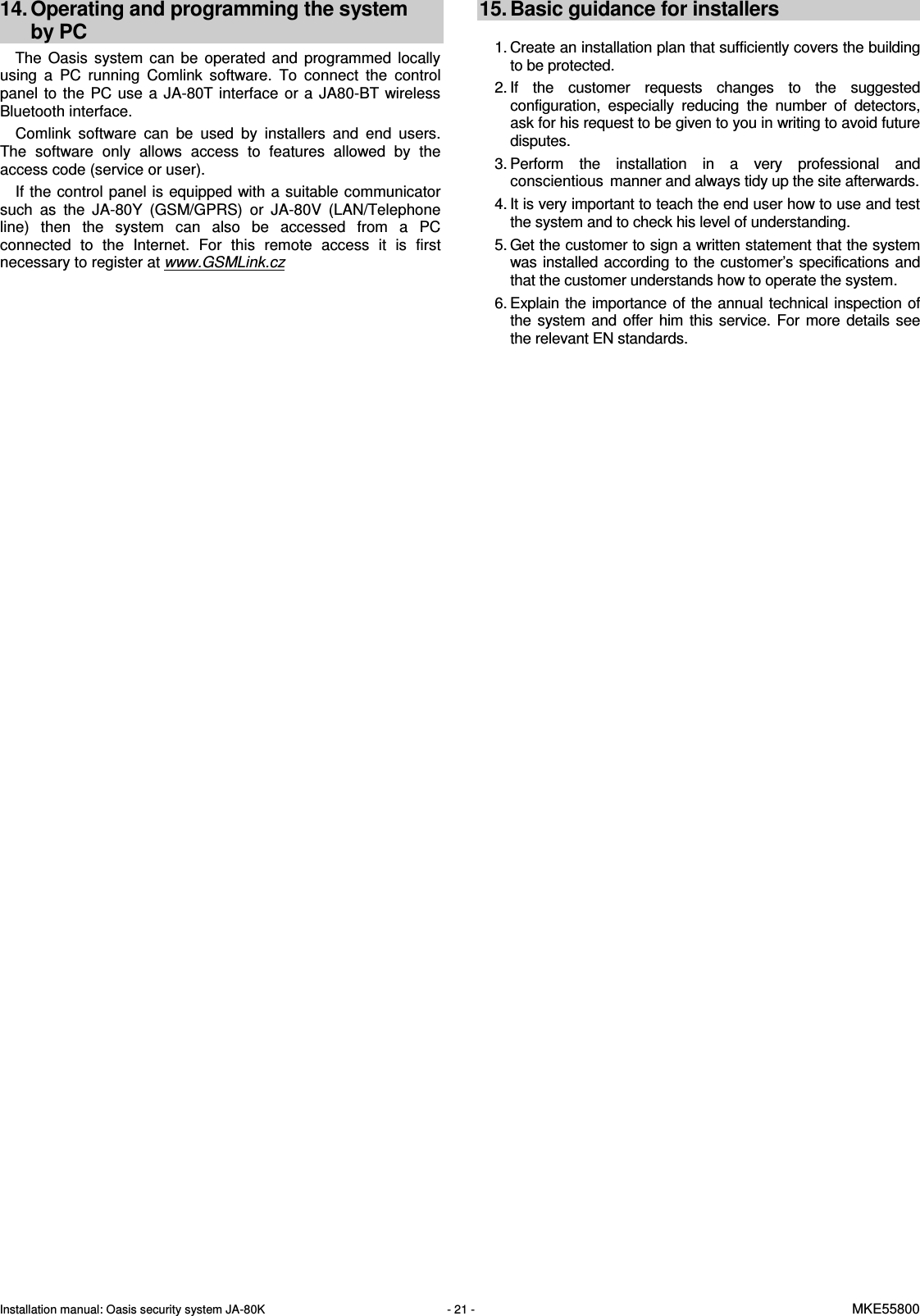

Installation manual: Oasis security system JA-80K   - 21 -   MKE55800    14. Operating and programming the system  by PC The  Oasis  system  can  be  operated  and  programmed  locally using  a  PC  running  Comlink  software.  To  connect  the  control panel  to  the  PC  use  a  JA-80T interface  or  a  JA80-BT  wireless Bluetooth interface.  Comlink  software  can  be  used  by  installers  and  end  users. The  software  only  allows  access  to  features  allowed  by  the access code (service or user). If the control panel is equipped with a suitable communicator such  as  the  JA-80Y  (GSM/GPRS)  or  JA-80V  (LAN/Telephone line)  then  the  system  can  also  be  accessed  from  a  PC connected  to  the  Internet.  For  this  remote  access  it  is  first necessary to register at www.GSMLink.cz    15. Basic guidance for installers  1. Create an installation plan that sufficiently covers the building to be protected. 2. If  the  customer  requests  changes  to  the  suggested configuration,  especially  reducing  the  number  of  detectors, ask for his request to be given to you in writing to avoid future disputes.  3. Perform  the  installation  in  a  very  professional  and conscientious manner and always tidy up the site afterwards. 4. It is very important to teach the end user how to use and test the system and to check his level of understanding.  5. Get the customer to sign a written statement that the system was installed according to the customer’s specifications and that the customer understands how to operate the system. 6. Explain the importance of the annual technical inspection of the  system and offer him this  service. For more  details see the relevant EN standards.

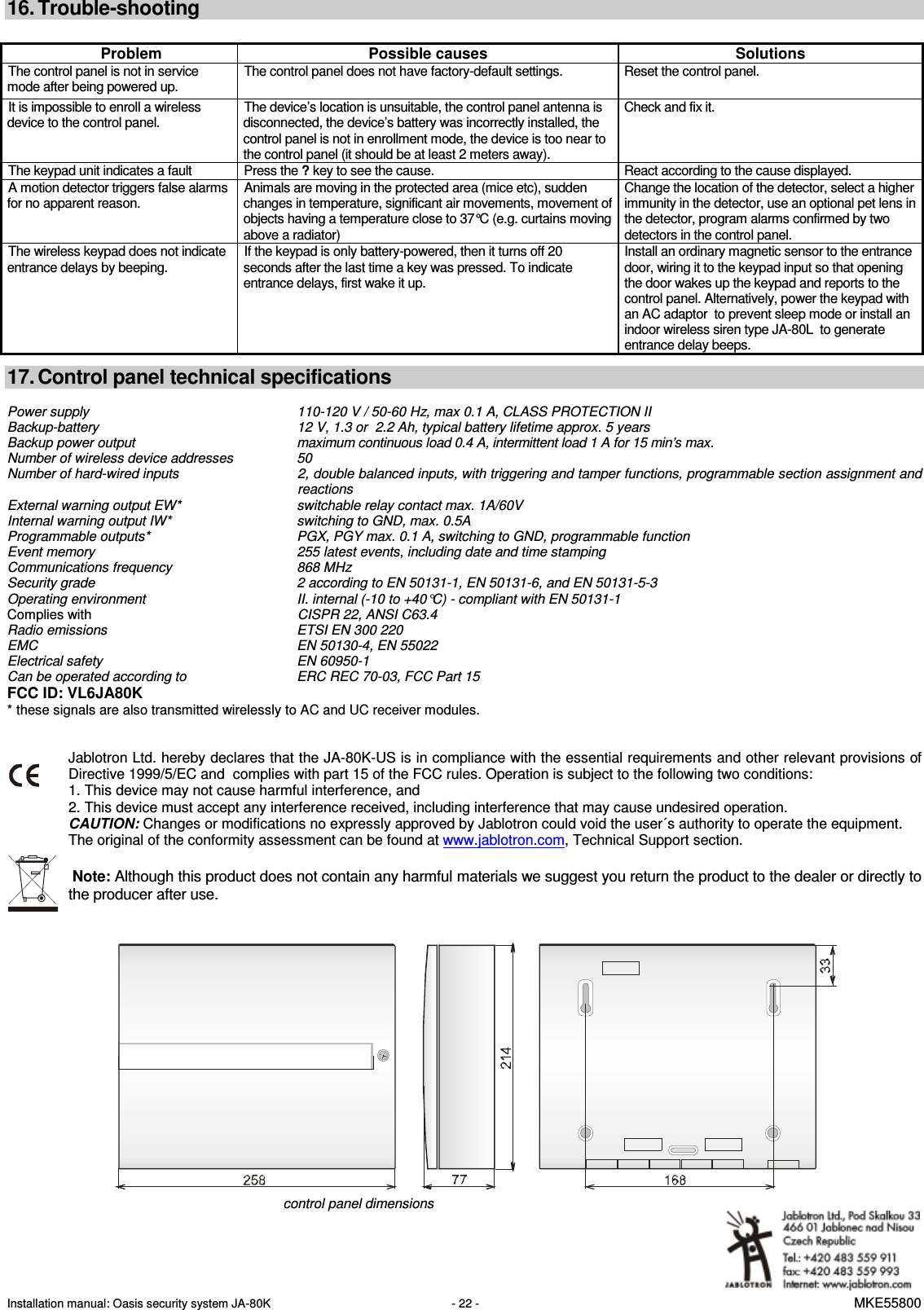

Installation manual: Oasis security system JA-80K   - 22 -   MKE55800  16. Trouble-shooting  Problem  Possible causes  Solutions The control panel is not in service mode after being powered up. The control panel does not have factory-default settings.  Reset the control panel. It is impossible to enroll a wireless device to the control panel. The device’s location is unsuitable, the control panel antenna is disconnected, the device’s battery was incorrectly installed, the control panel is not in enrollment mode, the device is too near to the control panel (it should be at least 2 meters away).  Check and fix it. The keypad unit indicates a fault  Press the ? key to see the cause.  React according to the cause displayed. A motion detector triggers false alarms for no apparent reason. Animals are moving in the protected area (mice etc), sudden changes in temperature, significant air movements, movement of objects having a temperature close to 37°C (e.g. curtains moving above a radiator) Change the location of the detector, select a higher immunity in the detector, use an optional pet lens in the detector, program alarms confirmed by two detectors in the control panel. The wireless keypad does not indicate entrance delays by beeping. If the keypad is only battery-powered, then it turns off 20 seconds after the last time a key was pressed. To indicate entrance delays, first wake it up. Install an ordinary magnetic sensor to the entrance door, wiring it to the keypad input so that opening the door wakes up the keypad and reports to the control panel. Alternatively, power the keypad with an AC adaptor  to prevent sleep mode or install an indoor wireless siren type JA-80L  to generate entrance delay beeps.     17. Control panel technical specifications  Power supply    110-120 V / 50-60 Hz, max 0.1 A, CLASS PROTECTION II Backup-battery  12 V, 1.3 or  2.2 Ah, typical battery lifetime approx. 5 years  Backup power output    maximum continuous load 0.4 A, intermittent load 1 A for 15 min’s max.  Number of wireless device addresses    50 Number of hard-wired inputs   2, double balanced inputs, with triggering and tamper functions, programmable section assignment and reactions External warning output EW*    switchable relay contact max. 1A/60V Internal warning output IW*    switching to GND, max. 0.5A Programmable outputs*    PGX, PGY max. 0.1 A, switching to GND, programmable function Event memory    255 latest events, including date and time stamping Communications frequency    868 MHz Security grade    2 according to EN 50131-1, EN 50131-6, and EN 50131-5-3  Operating environment     II. internal (-10 to +40°C) - compliant with EN 50131-1 Complies with CISPR 22, ANSI C63.4 Radio emissions  ETSI EN 300 220 EMC  EN 50130-4, EN 55022 Electrical safety  EN 60950-1 Can be operated according to  ERC REC 70-03, FCC Part 15 FCC ID: VL6JA80K * these signals are also transmitted wirelessly to AC and UC receiver modules.   Jablotron Ltd. hereby declares that the JA-80K-US is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and  complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications no expressly approved by Jablotron could void the user´s authority to operate the equipment. The original of the conformity assessment can be found at www.jablotron.com, Technical Support section.   Note: Although this product does not contain any harmful materials we suggest you return the product to the dealer or directly to the producer after use.        control panel dimensions
