OPERATING MANUAL

2

JACK LALANNE POWER JUICER

CONTENTS

3Important Safeguards

for the Power Juicer

4Helpful Hints

for the Power Juicer

5Parts List

for the Power Juicer

6Assembly

for the Power Juicer

8Disassembly

for the Power Juicer

9Cleaning Your Power Juicer

10 Troubleshooting

for the Power Juicer

3

JACK LALANNE POWER JUICER

IMPORTANT SAFEGUARDS

READ THESE SAFEGUARDS CAREFULLY

BEFORE USING THIS PRODUCT!

When using the Jack Lalanne Power Juicer, basic safety precautions should

always be followed including the following:

•NOT FOR USE BY CHILDREN! Keep out of the reach of children to avoid injury.

The Power Juicer is not a toy.

•Consult your physician before giving fresh juice to children, especially infants.

•Be sure to turn to OFF position after each use of your Power Juicer

•Make sure the lid is attached properly and securely locked before operating

the Power Juicer.

•Do not unfasten the locking bar during operation.

•To avoid risk of injury keep hands and utensils out of the Power Juicer and away from its sharp

blade during operation.

•Use the pusher, not fingers or utensils, to propel the food into the Power Juicer.

•Should food become lodged in the opening use pusher to push it down. If food remains stuck,

turn the power off, wait until motor stops, Power Juicer shuts down completely, and is

unplugged beforedisassembling the juicer and removing the blocked food.

•Make surethe motor stops completely and the Power Juicer is unplugged from the electrical

outlet before cleaning, putting on or removing parts.

•To protect against risk of electrical shock or injury, never immerse power cord,

plug, or Power Juicer in water, or other liquids.

•If juicer stops due to improper operation or if there is excessive noise, turn power off, wait for

blade to stop spinning, unplug from electrical outlet, disassemble and clean

all components then reassemble Power Juicer.

•Do not use Power Juicer outdoors.

•Do not operate Power Juicer with a damaged cord or plug.

•Do not operate if Power Juicer malfunctions, is dropped or damaged in any manner.

Let a qualified appliance repair person examine and or repair appliance before using.

•To avoid electric shock or serious injury do not use any attachments that were

not recommended or sold by the manufacturer.

•Do not let power cord hang over the edge of table, counter, or let cord touch

hot surfaces such as stoves.

•To reduce the risk of injury, never place blade on base without properly assembling

the Power Juicer.

•The Power Juicer has a polarized plug (one blade is wider than the other). To reduce

the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does

not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.

Do not modify or force the plug in any way.

•The Power Juicer motor will not run if unit is not properly assembled. The motor has a built-in

safety featurethat will not let the power turnon unless the locking bar is locked in place.

4

JACK LALANNE POWER JUICER

HELPFUL HINTS

Obtain the best results from your Jack LaLanne Power Juicer

by following these helpful hints.

•Do not put any fruit or vegetables in your machine until power is turned on.

•Allow unit to run for at least 10 seconds before juicing.

• Do not force food into the juicer. Allow food to pass through slowly and steadily

using the pusher. You do not need to apply pressure unless the juicer starts to

vibrate. Then only a slightly harder push should bring it back to balance.

•Any fruit or vegetable that will fit the chute can be put through whole. The only

time it is necessaryto cut is when something is too large. Then it should be cut

into large enough pieces to fit in the chute. Do not cut pieces too small.

•Remove large pits such as peach, mango, etc. as they will damage the blade

and possibly the unit.

•Cleaning can be made easy by placing a plastic bag inside the pulp collector

container. When you are done juicing, the bag can be lifted out and disposed

of easily leaving the pulp collector easier to clean.

•Let the Power Juicer run for a few minutes before turning off to allow any excess

juice to be extracted from the pulp. Once turned off it is quite normal for the

juicer to spin for a minute or so due to the very fine precision balancing of this

appliance. Wait until Power Juicer it is done spinning before disassembling.

•Do not use bananas or avocados as they do not contain juice and will clog

machine. Add them separately in a blender.

•We do not recommend using overripe fruit as it will leave too much pulp in

the filter and clog the Power Juicer.

•Do not pour liquids into the Power Juicer at any time.

SAVE THESE INSTRUCTIONS

Lip

Pulp Guard

Chute

Locking Bar

5

Receptacle

Juice Spout

Base

Lip

Base

Front of

Machine

(Spout side)

Filter

Receptacle

6

JACK LALANNE POWER JUICER

ASSEMBLY

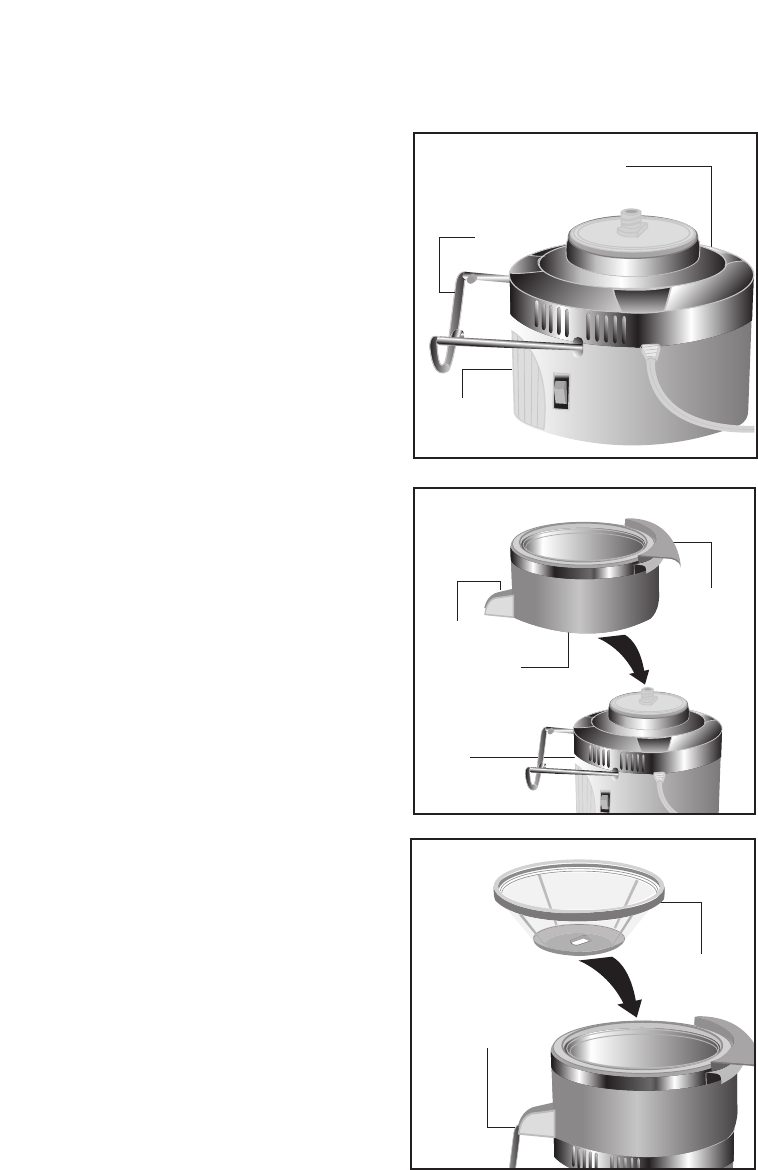

STEP 2:

Place receptacle on the base,

with juicer spout facing direction

of locking bar. Settle receptacle

into alignment.

STEP 3:

Place filter inside receptacle,

matching the opening on

its bottom to the screw peg

connected to the base.

2

3

STEP 1:

Place base on a dry flat surface with

locking bar in down position as shown.

In front of the machine (spout side).

1

Assemble as shown

Locking

Bar

Chute

Lid with built-in

Pulp Guard

Pusher

Receptacle

Lid with built-in

Pulp guard

Blade

7

JACK LALANNE POWER JUICER

ASSEMBLY(CONT.)

STEP 4:

Place blade inside filter, centered

over screw peg. Using orange

crescent tool, place its pegs

into the holes in the blade

and turn clockwise

until tightened.

IMPORTANT: Do not

over tighten as the

screw peg will break.

Remove crescent tool

and set aside.

CAUTION: Do not

leave tool inside juicer.

STEP 5:

Place lid with built-in pulp guardattached

on top of receptacle, making certain it is

snugly aligned with the pulp guard facing

in the opposite direction of the juice spout.

Lock lid into place by lifting locking bar

up until it clicks into grooves located

on both sides of the lid. Make sure

locking bar is in the full upright,

locked position.

IMPORTANT: The unit will not start

until this bar is properly locked in place.

STEP 6:

Insert pusher into chute.

Always use pusher to feed fruits

and vegetables into unit. Push gently,

never force. The blade will do the work.

4

5

6

Filter

Pulp

Collector

Crescent

Tool

Blade

Holes

Blade

Lid with Built-in

Pulp Guard

Locking Bar

8

JACK LALANNE POWER JUICER

DISASSEMBLY

IMPORTANT: Before disassembling the unit make sure you turn the power OFF

and unplug the machine from the electrical outlet.

STEP 2:

Lower the locking bar (silver) into

position as shown.

STEP 3:

Remove lid with pulp guard,

and pulp collector.

3

STEP 1:

Remove pusher from the chute.

1

STEP 4:

Use the crescent tool (orange) to

remove the blade. Place the two pegs

at either end of the crescent tool into

the two holes on the blade, press

down and turncounter-clockwise

to unlock the blade. Remove

blade carefully.

4

2

Pusher

Pulp

Collector

Crescent Tool

Pulp Guard

Base

Receptacle

Filter

9

JACK LALANNE POWER JUICER

DISASSEMBLY (CONT.)

STEP 5:

Remove filter.

STEP 6:

Remove receptacle from base.

56

JACK LALANNE POWER JUICER

CLEANING YOUR

POWER JUICER

•Turn off the power switch and wait until the motor completely stops.

•With dry hands, unplug the power cord from electrical outlet.

•Disassemble the Power Juicer.(See disassembly instructions.)

•Clean all other parts in warm, soapy water. A mild detergent is recommended.

Rinse well and dry thoroughly. All components are dishwasher safe

with the exception of the base. Do not use in European Importor a

Commercial dishwasher.

•Wipe base with a soft damp cloth or sponge. Do not submerge base in water.

Do not spray with water or any other liquid. Base is not dishwasher safe.

•Toclean the filter and blade, hold them under warm running water. Use a

soft-bristled dish washing brush gently to completely clean pulp from filter.

Rinse the filter from the outside under running water.

•Dry components thoroughly then assemble the machine and turn the power

on to spin out any excess water.

•Make sure the Power juicer and parts are completely dry then store in a cool,

dryplace.

10

The motor does not

run after being

switched on.

The motor is running

with loud noise and

shaking.

The motor overheats

causing the power to

automatically shut off

Juice splashes from the

rim of the receptacle.

•Check to see if unit is plugged in.

•Locking bar is not locked in place properly.

•Check if all parts are assembled properly.

•Check if there is any residue left between

blade and receptacle.

•Check that all parts are assembled properly

and in the correct position.

•Juicing overripe fruit may result in too much

pulp and will clog the filter. Turn Power juicer

off and clean the filter.

•The motor needs to warm up for 10 seconds

beforeuse.

•The fruits and vegetables may be soft

or overripe.

•There may be too much pulp in the filter.

Turn machine off and clean the filter.

•Motor stops running due to the built-in

feature, the overheat safety control.

•This is normal.

JACK LALANNE POWER JUICER

TROUBLESHOOTING

Problem Possible Reasons and Solution

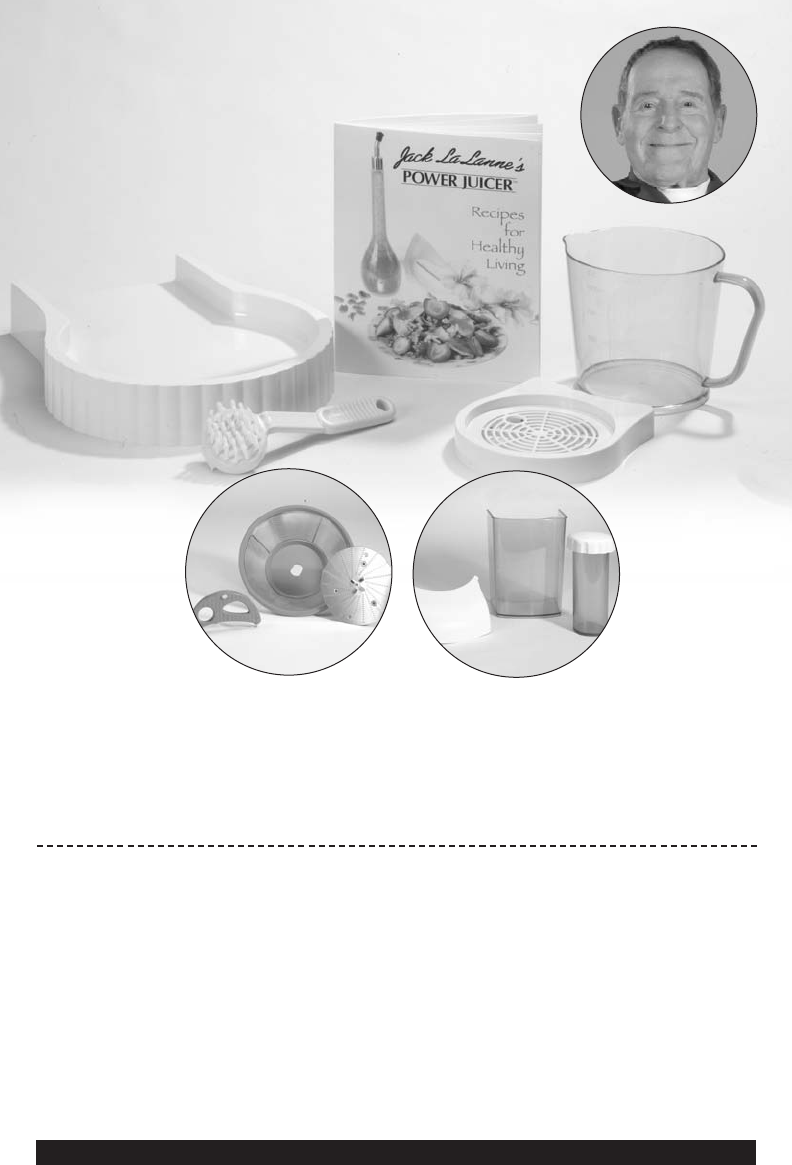

Exciting Offers from
