Janam Technologies XM6X HANDHELD COMPUTER TYPE BARCODE SCANNER User Manual

Janam Technologies LLC HANDHELD COMPUTER TYPE BARCODE SCANNER Users Manual

Users Manual

XM Series
Quick Start Guide
™
Copyright 2009 Janam Technologies LLC. All rights reserved.
XM Series Quick Start Guide
XM Series, Janam and the Janam logo are trademarks of Janam Technologies LLC. Other product and brand
names may be trademarks or registered trademarks of their respective owners.
Janam Technologies LLC assumes no responsibility for any damage or loss resulting from the use of this guide.
Janam Technologies LLC assumes no responsibility for any loss or claims by third parties which may arise through
the use of this product. Janam Technologies LLC assumes no responsibility for any damage or loss caused by
deletion of data as a result of malfunction, dead battery or repairs. To protect against data loss, be sure to make
backup copies (on other media) of all important data.
Follow all usage, charging and maintenance guidelines in the Product User Guide. If you have questions, contact
Janam. For a copy of the Product User Guide, visit the Resource Center at www.janam.com.
Important: Please read the End User License Agreement for this product before using the device or the
accompanying software program(s). Using the device or any part of the software indicates that you accept the
terms of the End User License Agreement.
Content and Additional Resources
To help you get started with your XM Series mobile computer, this guide features:
- Hardware Overview
- Installing and Charging the Battery
- Getting Started
Contents of this guide are subject to change. For the most current version of this guide and additional
product details visit, www.janam.com.
For software updates and information, visit www.microsoft.com.
XM Series Quick Start Guide
Janam Technologies LLC
051209XMminiQSG6
Technology at Work.
®
Page 1
Page 2
www.janam.com
Technology at Work.®

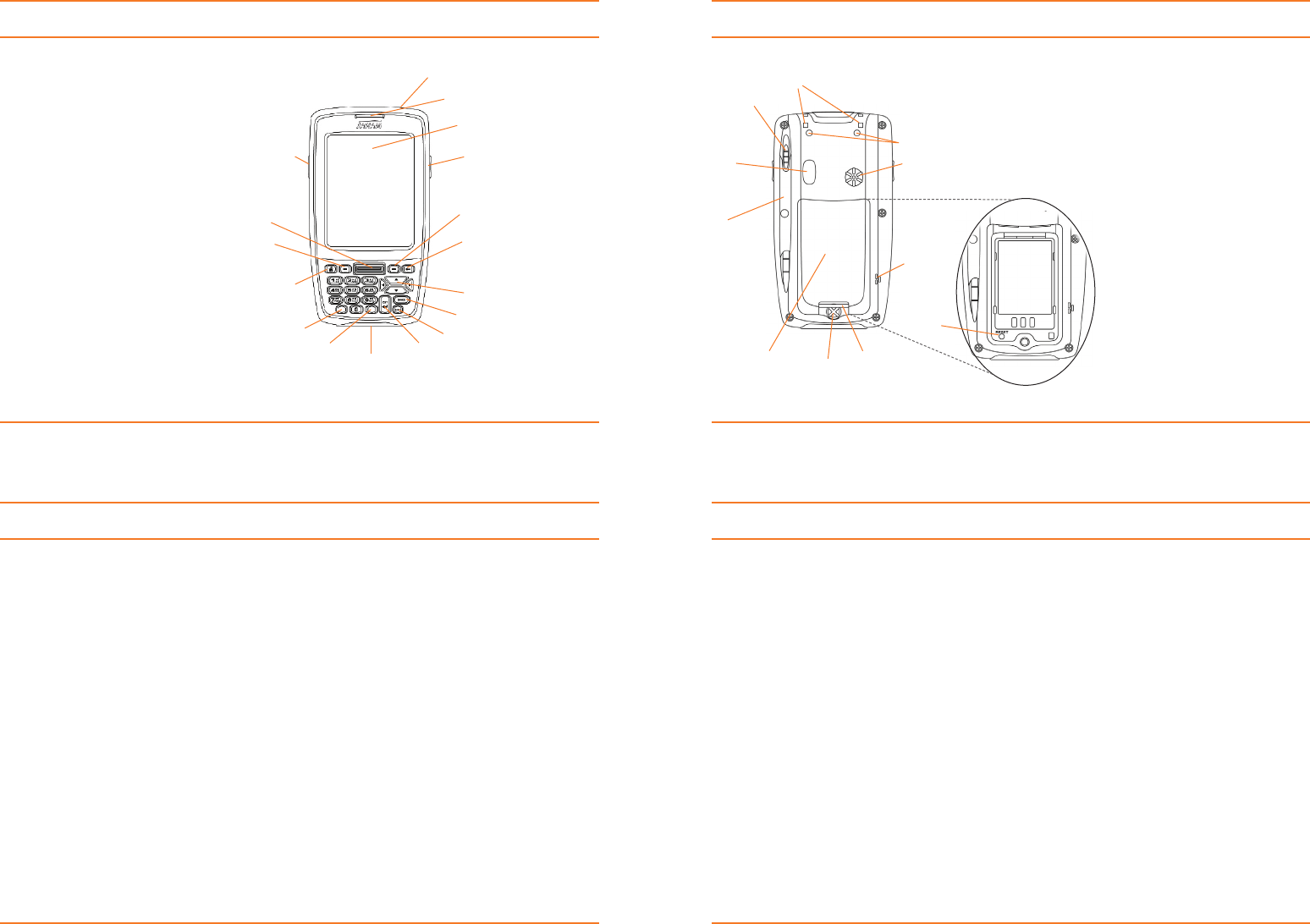

Hardware Overview
Getting Started
Hardware Overview
A. INSTALLING THE BATTERY
1. To access the battery compartment, turn the battery screw counterclockwise to open the latch and
remove battery cover.
2. Position the battery-lift strap, place the Lithium-ion battery and snap into place.
3. Replacethebatterycoverbypositioningthetopprongsrstandslidingcoverintoplace.
Tighten battery screw by turning clockwise.
B. CHARGING THE BATTERY
Important Note: The main battery charges the backup battery in the XM Series unit. Once the main battery is
fully charged, do not remove it from the unit for 24 hours. During this period the device cannot maintain any
user data if the battery is removed.
To charge the battery using the USB Synching/Charging Cable or Serial Synching/Charging Cable:
a. Connect the power supply to the USB or Serial Synching/Charging cable.
b. Connect snap-on end of USB or Serial Synching/Charging cable to bottom of device making sure the
word “TOP” on the connector faces front.
c. Plug in the power supply. Use only easily accessible wall outlets that are easily reached with the length
of supplied power cable.
To charge the battery using the Single-Slot or Four-Slot Cradle:
a. Connect the power supply to the cradle.
b. Connect the line cord to the power supply.
c. Plug in the power supply. Use only easily accessible wall outlets that are easily reached with the length of
supplied power cable.
d. Placethedeviceincradle.TheLEDonthedevicewillilluminatetoconrmconnection(orangeindicates
charging, green indicates fully charged and red indicates fault).
e. The battery is fully charged in approximately 2 hours.
f. Charge a spare battery by placing the battery in the spare battery well with label up and connectors lined up.
Installing and Charging the Battery
A. CALIBRATING THE SCREEN
Thersttimethedeviceisturnedon,theWelcomeUtilityappears.Tosetupthedevice,followthe
on-screen instructions using the stylus to tap the exact center of each target
Note:IfyourXMSeriesdevicecamepre-loadedwithacustomsoftwareapplication,theWelcomeUtility
may not appear.
B. ATTACHING THE HANDSTRAP
Toattachthehandstrap,rstalignthetwoholesinthemetalhandstrapanchoratthetwohandstrapscrew
ports. Then, for each side, place one of the screws provided into a lined up screw hole/screw port and turn
clockwise. Secure both sides before fully tightening down the screws.
Separate velcro to extend the handstrap and feed loose end through the handstrap bar. Fasten velcro
together to close the strap. Fit strap and secure device to user’s hand by adjusting velcro as needed.
Janam Technologies LLC
XM Series Quick Start Guide
Page 4
Page 6
Page 3
Page 5
5
8
9
6
4
7
10
1
2
3
12
11 13
15
16
14
11
1. Power
2. Indicator LED
3. LCD
4. Connector
5. Scan Trigger
6. Right Trigger
7. Left Trigger
8. Navigation
9. Home
10. Enter
11. Programmable
12. Function Shift
13. Backspace
14. Alpha/Numeric Shift
15. Space
16. Shift
7
4
2
3
56
8
9
1
Battery Compartment
1. Battery Door
2. Battery Screw
3. Reset
4. Microphone
5. Speaker
6. IrDAWindow
7. Stylus
8. Stylus Slot
9. Lanyard Connector
10. Handstrap Screw Port
11. Handstrap Bar
10
11
XM Series
Regulatory Information
™
XM Series Regulatory Information
XM Series Regulatory Information
Janam Technologies LLC
062609XMminiREG.5
Technology at Work.®
The CE Mark on the product indicates that the system has been tested to and conforms with the provisions
noted within the 89/336/EEC Electromagnetic Compatibility Directive.
For further information, please contact:
Janam Technologies LLC
100 Crossways Park West, Suite 105
Woodbury, NY 11797
Janam Technologies shall not be liable for use of our product with equipment (i.e., power supplies, personal
computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive.
FCC and Canadian Compliance
XM Series mobile computers meet or exceed all applicable standards and have been manufactured to the highest
level of quality. To see the specic labels associated with RF terminals congurations, visit www.janam.com.
Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance
could void the user authority to operate the equipment.
XM Series Batch Terminal
Regulatory and Safety Approvals
Parameter Specication
U.S.A. FCC Part 15 Subpart B
Canada ICES-003 Issue 4
European Community EN55022:1998+A1: 2000+A2:2003
EN55024:1998+A1: 2000+A2:2003
Australia AS/NZS CISPR 22:2004
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
www.janam.com
Technology at Work.®
Copyright 2009 Janam Technologies LLC. All rights reserved.
XM Series, Janam and the Janam logo are trademarks of Janam Technologies LLC. Other product and brand
names may be trademarks or registered trademarks of their respective owners.
Janam Technologies LLC assumes no responsibility for any damage or loss resulting from the use of this guide.
Janam Technologies LLC assumes no responsibility for any loss or claims by third parties which may arise
through the use of this product. Janam Technologies LLC assumes no responsibility for any damage or loss
caused by deletion of data as a result of malfunction, dead battery or repairs. Be sure to make backup copies of
all important data on other media to protect against data loss.
Follow all usage, charging and maintenance guidelines in the Product User Guide. If you have questions, contact
Janam. For a copy of the Product User Guide, visit the online Resource Center at www.janam.com.
Important: Please read the End User License Agreement with this product before using the device or
accompanying software program(s). Using the device or any part of the software indicates that you accept the
terms of the End User License Agreement.
For additional product information, visit www.janam.com or call +1.877.JANAM.99
Page 1
Page 2
RF, Regulatory and Safety Approvals
Parameter Specication
R&TTE EN 300 328 v1.6.1 (2004-11)
EN 301 489-1 v1.6.1 (2005-09)
EN 301 489-17 v1.2.1 (2002-08)
EN 300 440-2 v1.1.2 (2004-07)
EN 300 440-1 v1.3.1 (2001-09)
EN 301 489-3 v1.4.1 (2002-08)
EN 60950-1:2001+A11
EN 50371:2002
Australia AS/NZS CISPR 22:2004
Hereby, Janam Technologies LLC declares that this product is in compliance with the essential requirements and other
relevant provisions of Directive, 1999/5/EC. The equipment is intended for use throughout the European Community.
Care and Cleaning of Terminals
When needed, clean the image engine window and the LCD display with a clean, non-abrasive, lint-free cloth.
The terminal can be cleaned with a damp cloth.
Waste Electrical and Electronic Equipment Information
This product has required the extraction and use of natural resources for its production. It may contain hazardous
substances that could impact health and the environment, if not properly disposed.
In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the
natural resources, we encourage you to use the appropriate take-back systems for product disposal. Those systems
will reuse or recycle most of the materials of the product you are disposing in a sound way.
The crossed-out wheeled bin symbol informs you that the product should not be disposed of along with municipal
waste and indicates that you should use the appropriate separate take-back systems for product disposal.
If you need more information on the collection, reuse and recycling systems, please contact your local region waste
administration. You may also contact your supplier for more information on the environmental performances of this product.
Janam Technologies LLC
XM Series Regulatory Information
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
If necessary, the user should consult the dealer or an experienced radio/television technician for additional
suggestions. The user may nd the following booklet helpful: “Something about Interference.” This is available
at FCC local regional ofces. Our company is not responsible for any radio or television interference caused by
unauthorized modications of this equipment or the substitution or attachment of connective cables and equipment
other than those specied by our company. The correction is the responsibility of the user. Use only shielded data
cables with this system.
This device and its antenna must not be co-located or operating in conjunction with any other antenna or
transmitter. To maintain compliance with the FCC RF exposure guidelines for body-worn operation, do not use
accessories that contain metallic components other than specied by the manufacturer.
This Class B digital apparatus complies with the Canadian ICES-003.
Cet appareil numerique de la Class B est conforme à la norm NMB-003 du Canada.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the device.
L’utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes : (1) il ne doit pas produire de
brouillage, et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce
brouillage est susceptible de compromettre le fonctionnement du dispositif.
To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows
to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.
Battery Warning
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS
Battery Safety Guidelines
Use only Janam batteries and recharge batteries using only Janam approved charging accessories. Observe the
following guidelines for safe use of Li-Ion batteries:
1. Do not expose the battery to excessive heat or cold. Do not short-circuit. It may explode.
2. To avoid risk of re, burn or damage to your battery, do not allow a metal object to touch battery contacts.
3. Do not disassemble the battery. There are no user serviceable parts inside.
4. If battery leakage is observed, avoid any contact with affected area and properly dispose of the battery.
5. If you come in contact with battery leakage, rinse exposed area with soap and water. If it contacts the eye,
ush the eye with water for 15 minutes and seek medical attention.
6. When discarding a battery, contact your local waste disposal provider to understand local restrictions for
disposal or recycling of batteries.
Battery Charger Safety Guidelines
1. Do not use the equipment in or near areas in which sparks are likely or possible.
2. Do not let equipment’s metal contacts and electrical sockets come in contact with metal objects.
3. For indoor use only. Do not expose the equipment to rain or any liquids.
4. Do not use or store the equipment in direct sunlight or in areas that are prone to get hot such as in a parked
vehicle, near a heat duct or close to other heat sources.
5. Keep equipment’s metal contacts and electrical sockets free from debris that could obstruct charging or could
cause a short circuit.
This Class B digital apparatus complies with the Canadian ICES-003.
Cet appareil numerique de la Class B est conforme à la norm NMB-003 du Canada.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the device.
L’utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes : (1) il ne doit pas produire de
brouillage, et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce
brouillage est susceptible de compromettre le fonctionnement du dispositif.
XM Series RF Terminals with 802.11b/g and/or Bluetooth
RF, Regulatory and Safety Approvals
Parameter Specication
RF Approvals
U.S.A. FCC Part 15 Subpart C and Subpart B
Canada RSS-210
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 4
Page 6
Page 3
Page 5

Navigation menu
