Japan Radio 875S35J-A Mobile Radio User Manual Operator s Manual

Japan Radio Co Ltd. Mobile Radio Operator s Manual

Users Manual

Operator’s Manual
H-7YCPD0002-0 EDITION 1
Feb/09
JRC

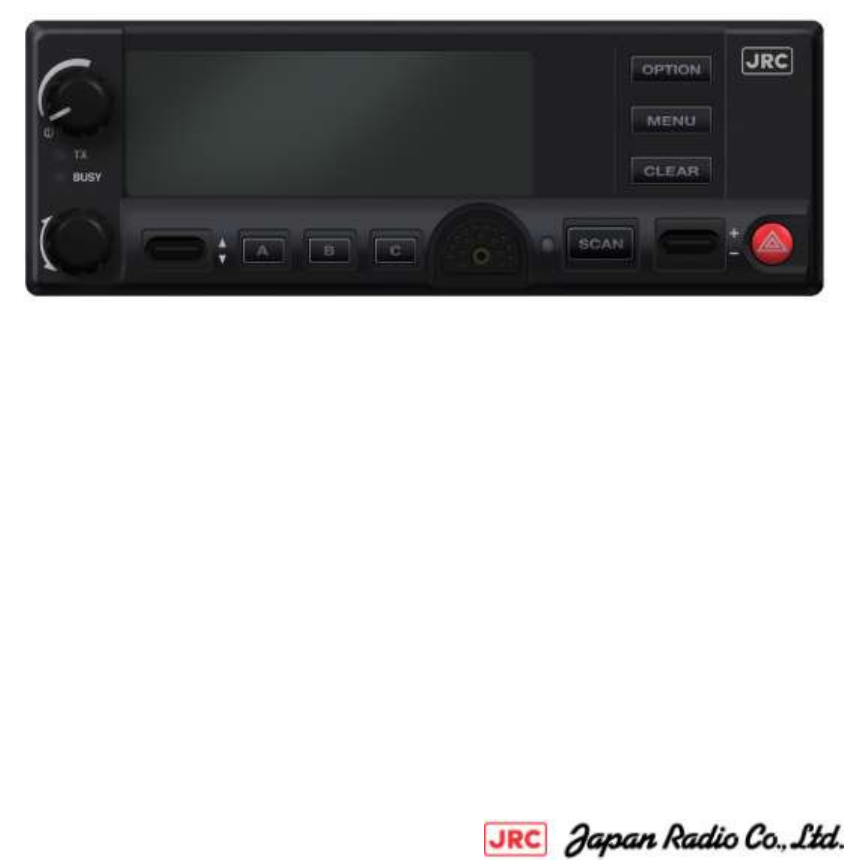

JHM-875S35J
Digital Mobile Radio
H-7YCPD0002-0 EDITION 1
2
MANUAL REVISION HISTORY
REV
DATE
REASON FOR CHANGE
-
Nov/08
Initial Release.
JRC Technical Publications would particularly appreciate feedback on any errors found in this
document and suggestions on how the document could be improved. Submit your comments and
suggestions to:
JRC or fax your comments to: +XX-XXX-XX-XXXX
Japan Radio Co.,Ltd.
or e-mail us at: http://www.jrc.co.jp
1-1, Shimorenjaku 5 Chome,
Mitaka-shi, Tokyo 181-8510, Japan
CREDITS
This device is made under license under one or more of the following US patents: 4,590,473;
4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497;
5,164,986; 5,185,795.
The voice coding technology embodied in this product is protected by intellectual property rights
including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of
this technology is explicitly prohibited from attempting to decompile, reverse engineer, or
disassemble the Object Code, or in any other way convert the Object Code into human-readable
form.OpenSky are registered trademarks of M/A-COM. ProVoice is a trademark of M/A-COM
All other brand and product names are trademarks, registered trademarks or service marks of
their respective holders.
NOTICE!
This product conforms to the European Union WEEE Directive 2002/96/EC. Do not dispose
of this product in a public landfill. Take it to a recycling center at the end of its life.
This manual covers JRC products manufactured and sold by JRC.
Repairs to this equipment should be made only by an authorized service technician or facility
designated by the supplier. Any repairs, alterations or substitutions of recommended parts made
by the user to this equipment not approved by the manufacturer could void the user's authority to
operate the equipment in addition to the manufacturer's warranty.
This manual is published by JRC, without any warranty. Improvements and changes to this
manual necessitated by typographical errors, inaccuracies of current information, or improvements
to programs and/or equipment, may be made by JRC, at any time and without notice. Such
changes will be incorporated into new editions of this manual. No part of this manual may be
reproduced or transmitted in any form or by any means, electronic or mechanical, including
photocopying and recording, for any purpose, without the express written permission of JRC.
Copyright© 2008, JRC. All rights reserved.
H-7YCPD0002-0 EDITION 1
3
TABLE OF CONTENTS
Page
1 SAFETY SYMBOL CONVENTION .................................................................................................... 9
2 RF ENERGY EXPOSURE INFORMATION ................................................................................... 11
2.1 RF ENERGY EXPOSURE AWARENESS, CONTROL INFORMATION, AND OPERATION
INSTRUCTIONS FOR FCC OCCUPATIONAL USE REQUIREMENTS .............................. 11
2.1.1 Federal Communications Commission Regulations ...................................................... 12
2.2 COMPLIANCE WITH RF EXPOSURE STANDARDS ........................................................... 12
2.2.1 Mobile Antennas (Vehicle Installations) ....................................................................... 13
2.2.2 Approved Accessories ................................................................................................... 13
2.2.3 Contact Information ....................................................................................................... 14
3 OPERATION SAFETY RECOMMENDATIONS ............................................................................ 15
3.1 TRANSMITTER HAZARDS ..................................................................................................... 15
3.2 SAFE DRIVING RECOMMENDATIONS ................................................................................ 16
4 OPERATING RULES AND REGULATIONS .................................................................................. 17
4.1 OPERATING TIPS ..................................................................................................................... 18
5 PRODUCT DESCRIPTION ................................................................................................................ 19
5.1 REMOTE CONTROL HEAD OPERATION ............................................................................. 20
6 CHANGE OPERATING MODE ........................................................................................................ 21
6.1 CHANGE FROM OTP MODE ................................................................................................... 21
6.2 CHANGE TO OTP MODE......................................................................................................... 21
7 OPENSKY OPERATION .................................................................................................................... 23

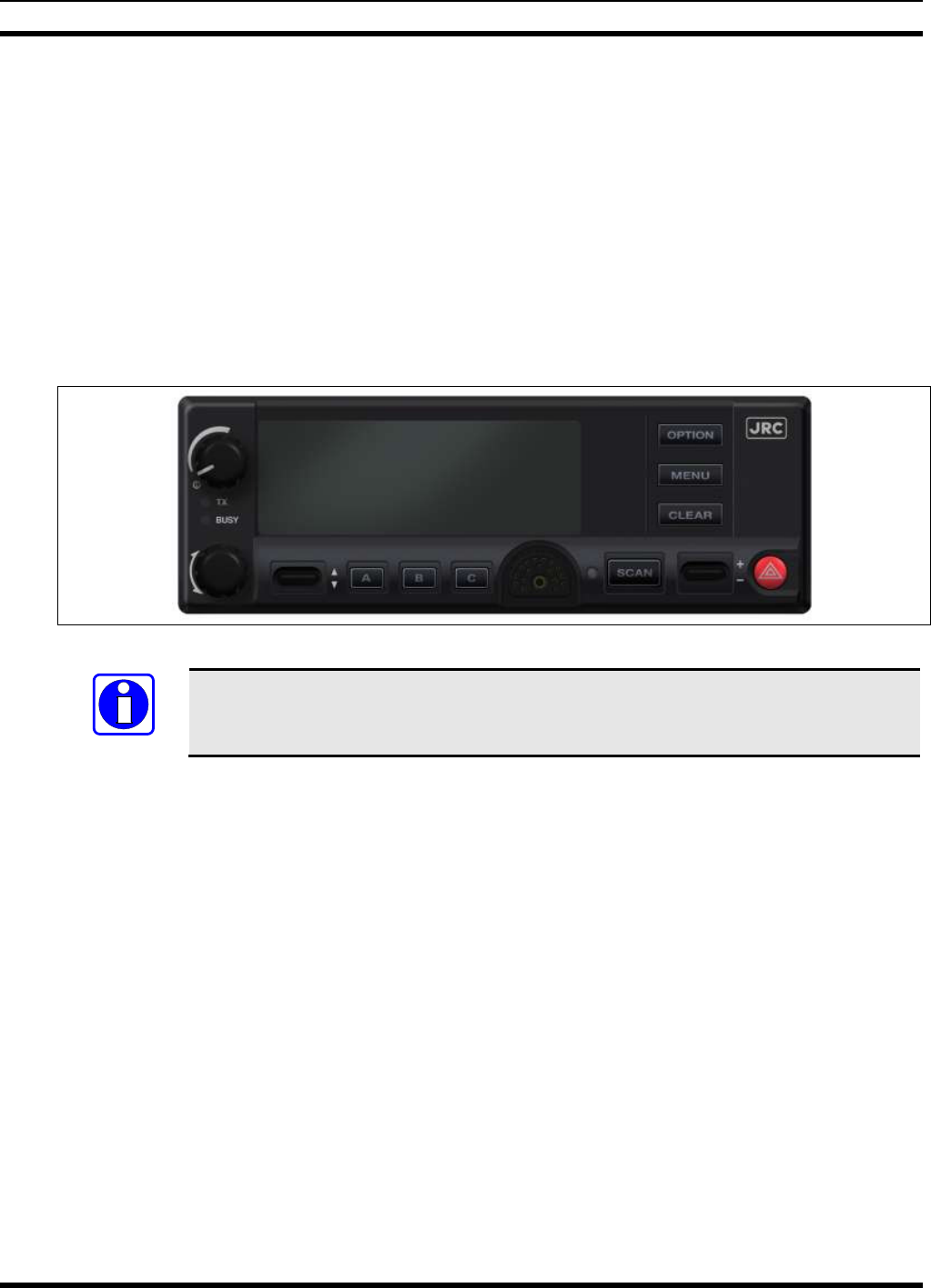

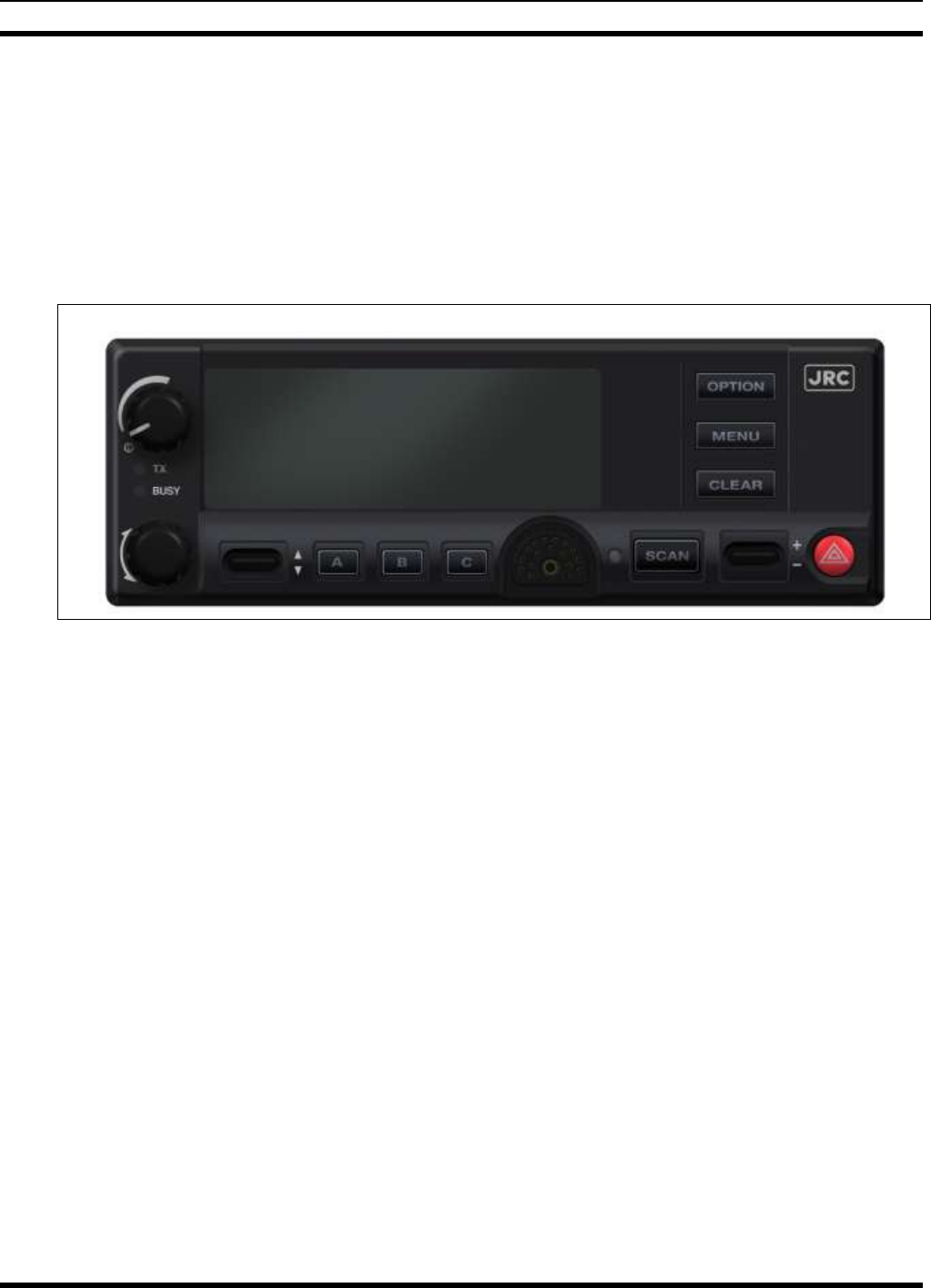

7.1 NCE-5341 FRONT PANEL COMPONENTS............................................................................ 23
7.2 POWER UP AND VOLUME CONTROL ................................................................................. 25
7.2.1 Power Up ....................................................................................................................... 25
7.2.2 Volume Control ............................................................................................................. 25
7.3 SELF-TEST ................................................................................................................................. 25
7.4 LOGIN TO THE NETWORK .................................................................................................... 25
7.5 LOG OFF THE NETWORK....................................................................................................... 26
7.6 TURNING THE RADIO OFF .................................................................................................... 26
7.7 MENU DISPLAY AND CONTROL AREA .............................................................................. 26

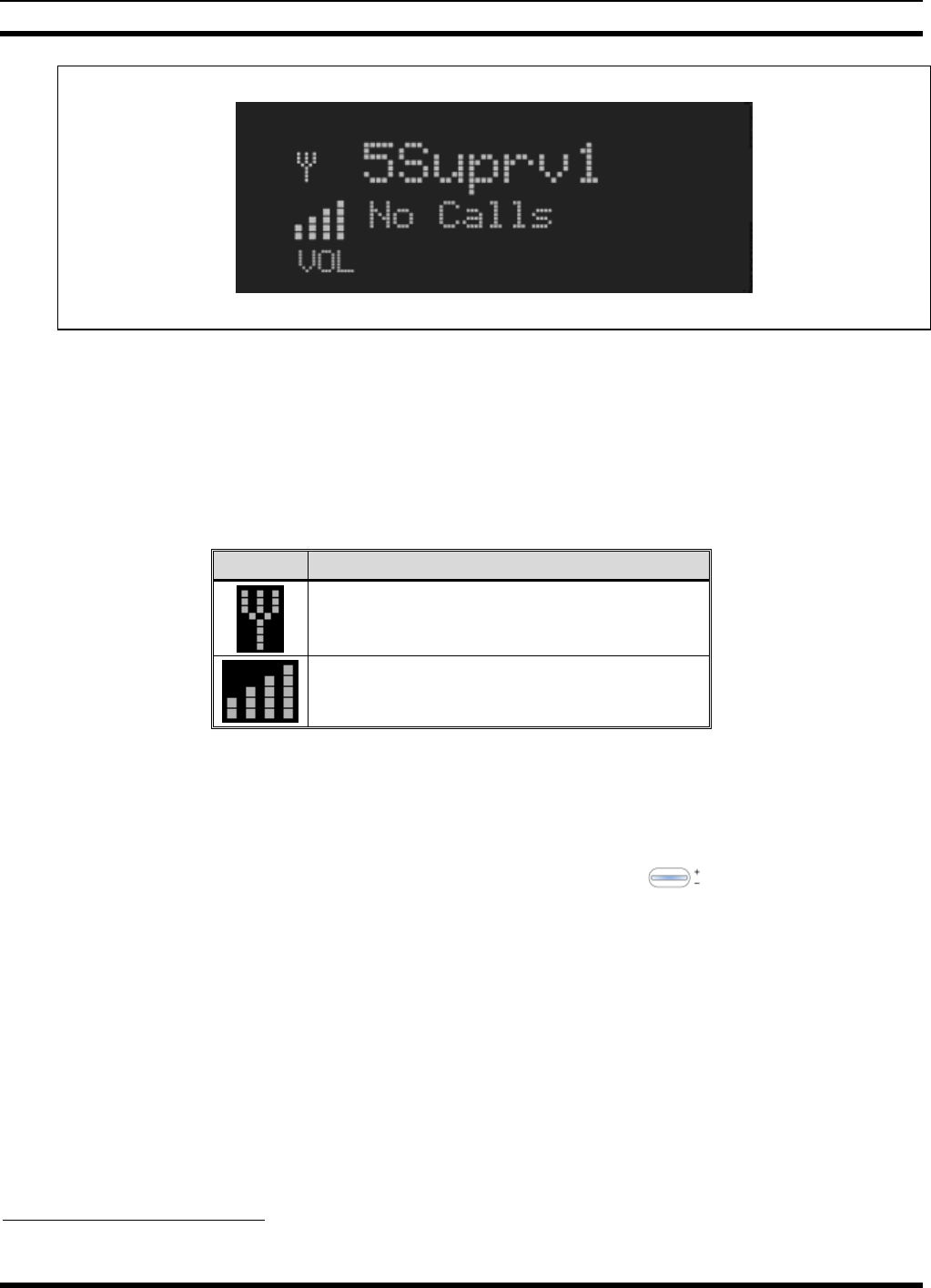

7.8 RADIO STATUS ICONS ........................................................................................................... 27
7.9 DWELL DISPLAY ..................................................................................................................... 27

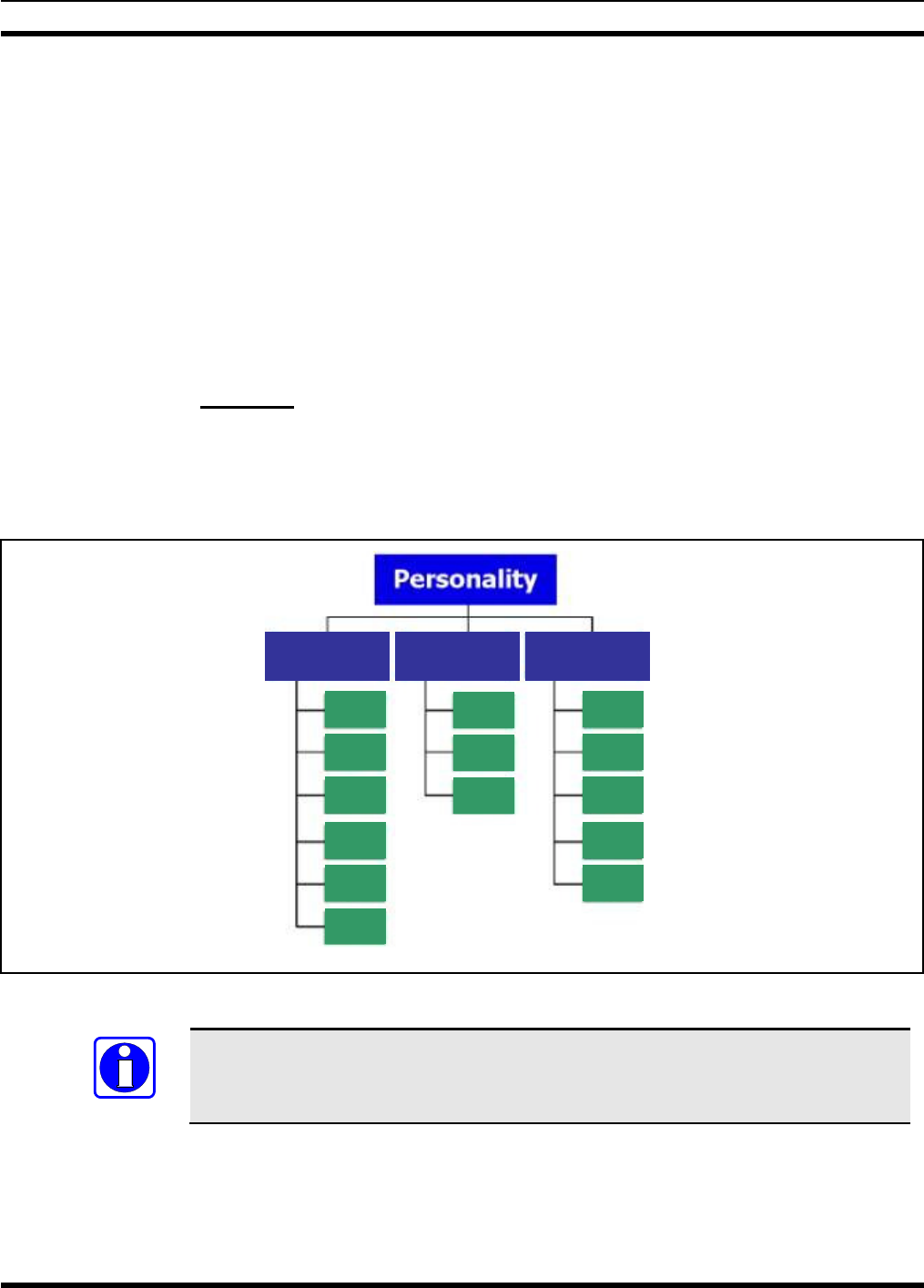

7.10 PERSONALITY ......................................................................................................................... 28
7.10.1 Profiles ........................................................................................................................... 28
7.10.2 Talk Groups ................................................................................................................... 29
7.11 ALERT TONES .......................................................................................................................... 30
7.12 BASIC MENU STRUCTURE .................................................................................................... 31
7.13 CHANGING THE ACTIVE PROFILE ...................................................................................... 33
7.14 CHECKING OR CHANGING THE SELECTED TALK GROUP............................................ 33
7.15 ADJUSTING DISPLAY AND BUTTON BACKLIGHT BRIGHTNESS ................................. 34
7.16 STEALTH MODE ...................................................................................................................... 34
7.16.1 Enabling Stealth Mode .................................................................................................. 34
7.16.2 Disabling Stealth Mode ................................................................................................. 34
7.17 ADJUSTING SIDE TONE AUDIO LEVEL .............................................................................. 35
H-7YCPD0002-0 EDITION 1
4
TABLE OF CONTENTS
Page
7.18 CHANGE OPERATING MODE ................................................................................................ 35
7.19 RECEIVING AND TRANSMITTING VOICE CALLS ............................................................ 36
7.19.1 Receiving a Voice Call .................................................................................................. 36
7.19.2 Transmitting a Voice Call .............................................................................................. 36
7.20 ADJUSTING AUDIO TREBLE LEVEL ................................................................................... 37
7.21 INTERCOM MODE ................................................................................................................... 38
7.22 TALK GROUP LOCK OUT ....................................................................................................... 38
7.22.1 Lock Out a Talk Group .................................................................................................. 39
7.22.2 Unlock a Talk Group ..................................................................................................... 39
7.23 SCANNING ................................................................................................................................ 40
7.23.1 Checking or Changing Active Scan Mode .................................................................... 40
7.23.2 Scanning Priority ........................................................................................................... 41
7.24 MAKING SELECTIVE CALLS ................................................................................................ 41
7.24.1 Speed Dialing a Selective Call ...................................................................................... 42
7.24.2 Receiving a Selective Call ............................................................................................. 42
7.24.3 Terminating a Selective Call ......................................................................................... 42
7.25 SELECTIVE ALERT .................................................................................................................. 43
7.25.1 Sending Selective Alert Messages ................................................................................. 43
7.25.2 Receiving Messages....................................................................................................... 44
7.25.3 Defining Pre-Programmed Messages ............................................................................ 44
7.26 EMERGENCY COMMUNICATIONS ...................................................................................... 45
7.26.1 Declaring an Emergency Call or Alert .......................................................................... 45
7.26.2 Silent Emergency ........................................................................................................... 46
7.26.3 Clearing an Emergency Call or Alert ............................................................................ 46
7.26.4 Receiving an Emergency Call ....................................................................................... 47
7.26.5 Dismissing an Emergency Call ...................................................................................... 47
7.27 ENCRYPTION ........................................................................................................................... 48
7.27.1 Automatic Encryption .................................................................................................... 48
7.28 PRESET BUTTONS ................................................................................................................... 48
7.29 DYNAMIC REGROUPING ....................................................................................................... 49
7.30 GPS COORDINATES ................................................................................................................ 49
8 P25/CONVENTIONAL COMMON OPERATION .......................................................................... 51
8.1 NCE-5341 FRONT PANEL COMPONENTS ............................................................................ 51
8.1.1 Primary Functions (Quick Access) ................................................................................ 53
8.2 TURNING THE RADIO ON ...................................................................................................... 53
8.3 SELECTION MODE RULES ..................................................................................................... 53
8.4 FEATURE ENCRYPTION DISPLAY ....................................................................................... 55
8.4.1 Serial Number ROM (12 Hex Digits) ............................................................................ 55
8.4.2 Feature Encryption Data Stream .................................................................................... 55
8.4.3 Features Enabled ............................................................................................................ 56
8.5 SYSTEM/GROUP/CHANNEL SELECTION ............................................................................ 58
8.5.1 System Selection ............................................................................................................ 58
8.5.2 Group and Channel Selection ........................................................................................ 58
8.6 LAST SYSTEM/GROUP/CHANNEL RECALL ....................................................................... 59
8.7 DIGITAL VOICE OPERATION (PROVOICE) ........................................................................ 59
8.7.1 Voice Modes .................................................................................................................. 59
H-7YCPD0002-0 EDITION 1
5
TABLE OF CONTENTS
Page
8.7.2 Clear Modes ................................................................................................................... 59
8.7.3 ProVoice Digital Mode .................................................................................................. 60
8.7.4 ProVoice Private Mode ................................................................................................. 61
8.7.5 Private Operation ........................................................................................................... 62
8.7.6 Conventional Operation ................................................................................................. 63
8.8 MACRO KEY OPERATION ..................................................................................................... 63
9 CONVENTIONAL OPERATION ...................................................................................................... 65
9.1 RADIO STATUS ICONS ........................................................................................................... 65
9.2 MESSAGES ................................................................................................................................ 66
9.3 ALERT TONES .......................................................................................................................... 68
9.4 MENU ......................................................................................................................................... 69
9.5 RECEIVING A CALL ................................................................................................................ 73
9.6 SENDING A CALL .................................................................................................................... 73
9.7 EMERGENCY OPERATION .................................................................................................... 74
9.7.1 Using 5-Tone Signaling to Declare an Emergency ....................................................... 74
9.7.2 Tone Encode Transmission............................................................................................ 75
9.8 SCANNING CONVENTIONAL CHANNELS ......................................................................... 75
9.8.1 Adding Channels to a Scan List..................................................................................... 76
9.8.2 Deleting Channels From A Scan List ............................................................................ 76
9.8.3 Nuisance Delete ............................................................................................................. 76
9.9 TURNING SCAN ON ................................................................................................................ 77
9.10 TURNING SCAN OFF ............................................................................................................... 77
9.11 SQUELCH ADJUST .................................................................................................................. 77
9.11.1 Menu Selection .............................................................................................................. 78
9.11.2 Pre-Programmed Keypad Key ....................................................................................... 78
9.12 TYPE 99 DECODE ..................................................................................................................... 79
9.12.1 Menu Selection .............................................................................................................. 79
9.12.2 Pre-Programmed Keypad Key ....................................................................................... 79
9.13 DIRECT MODE OPERATION .................................................................................................. 80
10 P25 CONVENTIONAL OPERATION ............................................................................................... 81
10.1 RADIO STATUS ICONS ........................................................................................................... 81
10.2 MESSAGES ................................................................................................................................ 82
10.3 ALERT TONES .......................................................................................................................... 85
10.4 MENU ......................................................................................................................................... 86
10.5 GROUP CALLS IN P25 MODE ................................................................................................ 90
10.5.1 Transmitting a Group Call ............................................................................................. 90
10.5.2 Receiving a Group Call ................................................................................................. 90
10.6 INDIVIDUAL CALLS IN P25 MODE ...................................................................................... 91
10.6.1 Transmitting an Individual Call ..................................................................................... 91
10.6.2 Receiving an Individual Call ......................................................................................... 91
10.7 EMERGENCY GROUP CALLS IN P25 MODE ....................................................................... 92
10.7.1 Declaring an Emergency Group Call ............................................................................. 92
10.7.2 Receiving an Emergency Group Call ............................................................................ 92
11 BASIC TROUBLESHOOTING .......................................................................................................... 93
H-7YCPD0002-0 EDITION 1
6
TABLE OF CONTENTS
Page
12 TECHNICAL ASSISTANCE .............................................................................................................. 95
13 KEYPAD REMAPPING ...................................................................................................................... 97
14 RADIO SETUP ..................................................................................................................................... 99
H-7YCPD0002-0 EDITION 1
7
TABLE OF CONTENTS
Page
FIGURES
Figure 7-1: Scan Model ........................................................................................................................... 23
Figure 7-2: Typical Display ..................................................................................................................... 27
Figure 7-3: Personality Structure Example ............................................................................................. 28
Figure 8-1: Scan Model ........................................................................................................................... 51
Figure 9-1: Typical Display ..................................................................................................................... 65
Figure 10-1: Typical Display ................................................................................................................... 81
TABLES
Table 2-1: Rated Power and Recommended Minimum Safe Lateral Distance (Vehicle
Installations) .......................................................................................................................... 13
Table 7-1: Front Panel Default Controls and Functions .......................................................................... 24
Table 7-2: Icons and Descriptions ........................................................................................................... 27
Table 7-3: JHM-875S35J OpenSky Mode Alert Tones .......................................................................... 30
Table 7-4: Basic Menu Structure ............................................................................................................. 31
Table 7-5: Scan Modes ............................................................................................................................ 40
Table 7-6: Status of Selective Alert ......................................................................................................... 44
Table 8-1: Front Panel Default Controls and Functions .......................................................................... 52
Table 8-2: Available Feature Numbers ................................................................................................... 57
Table 8-3: Transmit/Receive Mode Compatibility for ProVoice Operation .......................................... 59
Table 8-4: Current Cryptographic Key Display ...................................................................................... 61
Table 9-1: Icons and Descriptions ........................................................................................................... 65
Table 9-2: Display Messages ................................................................................................................... 66
Table 9-3: JHM-875S35J Alert Tones..................................................................................................... 68
Table 9-4: Menu Item Information .......................................................................................................... 70
Table 10-1: Icons and Descriptions ......................................................................................................... 81
Table 10-2: Display Messages ................................................................................................................. 82
Table 10-3: JHM-875S35J Alert Tones................................................................................................... 85
Table 10-4: Menu Item Information ........................................................................................................ 87
Table 11-1: Basic Troubleshooting ......................................................................................................... 93
H-7YCPD0002-0 EDITION 1
8
H-7YCPD0002-0 EDITION 1
9
1 SAFETY SYMBOL CONVENTION
The following conventions are used throughout this manual to alert the user to general
safety precautions that must be observed during all phases of operation, service, and repair
of this product. Failure to comply with these precautions or with specific warnings
elsewhere in this manual violates safety standards of design, manufacture, and intended
use of the product. JRC assumes no liability for the customer‟s failure to comply with these
standards.
WARNING
The WARNING symbol calls attention to a procedure, practice, or the like,
which, if not correctly performed or adhered to, could result in personal
injury. Do not proceed beyond a WARNING symbol until the conditions
identified are fully understood or met.
CAUTION
The CAUTION symbol calls attention to an operating procedure, practice, or
the like, which, if not performed correctly or adhered to, could result in a
risk of danger, damage to the equipment, or severely degrade the equipment
performance.
NOTE
The NOTE symbol calls attention to supplemental information, which may
improve system performance or clarify a process or procedure.
The ESD symbol calls attention to procedures, practices, or the like, which
could expose equipment to the effects of Electro-Static Discharge. Proper
precautions must be taken to prevent ESD when handling circuit modules.
H-7YCPD0002-0 EDITION 1
10
H-7YCPD0002-0 EDITION 1
11
2 RF ENERGY EXPOSURE INFORMATION
2.1 RF ENERGY EXPOSURE AWARENESS, CONTROL
INFORMATION, AND OPERATION INSTRUCTIONS FOR FCC
OCCUPATIONAL USE REQUIREMENTS
Before using your mobile two-way radio, read this important RF energy awareness and
control information and operational instructions to ensure compliance with the FCC‟s RF
exposure guidelines.
NOTE
This radio is intended for use in occupational/controlled conditions, where
users have full knowledge of their exposure and can exercise control over their
exposure to meet FCC limits. This radio device is NOT authorized for general
population, consumer, or any other use.
CAUTION
Changes or modifications not expressly approved by JRC could void the user's
authority to operate the equipment.
This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to
provide communications between two or more users over a distance. It uses RF energy or
radio waves to send and receive calls. RF energy is one form of electromagnetic energy.
Other forms include, but are not limited to, electric power, sunlight, and x-rays. RF energy,
however, should not be confused with these other forms of electromagnetic energy, which,
when used improperly, can cause biological damage. Very high levels of x-rays, for example,
can damage tissues and genetic material.
Experts in science, engineering, medicine, health, and industry work with organizations to
develop standards for exposure to RF energy. These standards provide recommended levels
of RF exposure for both workers and the general public. These recommended RF exposure
levels include substantial margins of protection. All two-way radios marketed in North
America are designed, manufactured, and tested to ensure they meet government
established RF exposure levels. In addition, manufacturers also recommend specific
operating instructions to users of two-way radios. These instructions are important because
they inform users about RF energy exposure and provide simple procedures on how to
control it. Please refer to the following websites for more information on what RF energy
exposure is and how to control your exposure to assure compliance with established RF
exposure limits.
http://www.fcc.gov/oet/rfsafety/rf-faqs.html
http://www.osha.gov./SLTC/radiofrequencyradiation/index.html
H-7YCPD0002-0 EDITION 1
12
2.1.1 Federal Communications Commission Regulations
Your JRC JHM-875S35J mobile two-way radio is designed and tested to comply with the
FCC RF energy exposure limits for mobile two-way radios before it can be marketed in the
United States. When two-way radios are used as a consequence of employment, the FCC
requires users to be fully aware of and able to control their exposure to meet occupational
requirements. Exposure awareness can be facilitated by the use of a label directing users to
specific user awareness information. Your JRC JHM-875S35J two-way radio has an RF
exposure product label. Also, your JHM-875S35J Installation and Operator‟s Manuals
include information and operating instructions required to control your RF exposure and to
satisfy compliance requirements.
2.2 COMPLIANCE WITH RF EXPOSURE STANDARDS
Your JRC JHM-875S35J mobile two-way radio is designed and tested to comply with a
number of national and international standards and guidelines (listed below) regarding
human exposure to RF electromagnetic energy. This radio complies with the IEEE and
ICNIRP exposure limits for occupational/controlled RF exposure environment at duty
factors of up to 50% talk-50% listen and is authorized by the FCC for occupational use. In
terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio
antenna radiates measurable RF energy only while it is transmitting (talking), not when it
is receiving (listening) or in standby mode.
Your JRC JHM-875S35J mobile two-way radio complies with the following RF energy
exposure standards and guidelines:
United States Federal Communications Commission (FCC), Code of Federal
Regulations; 47 CFR §§ 2 sub-part J.
American National Standards Institute (ANSI)/Institute of Electrical and Electronic
Engineers (IEEE) C95.1-1992.
Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999.
CAUTION
Table 2-1 lists the recommended minimum lateral distance for a controlled
environment and for unaware bystanders in an uncontrolled environment,
from transmitting types of antennas (i.e., monopoles over a ground plane, or
dipoles) at rated radio power for mobile radios installed in a vehicle.
Transmit only when unaware bystanders are at least the uncontrolled
recommended minimum lateral distance away from the transmitting
antenna.
H-7YCPD0002-0 EDITION 1
13
2.2.1 Mobile Antennas (Vehicle Installations)
Table 2-1: Rated Power and Recommended Minimum Safe Lateral Distance (Vehicle Installations)
MOBILE RADIO
FREQUENCY
SPLIT
ANTENNA P/N
DESCRIPTION
RECOMMENDED SAFE MINIMUM
LATERAL DISTANCE FROM
TRANSMITTING ANTENNA
CONTROLLED
(cm)
UNCONTROLLED
(cm)
700/800 MHz
WH-900A(3/4)-09
Grounded capacitor
3λ/4 whip antenna, Magnet,
Roof top
109
226
700/800 MHz
GB-900B-09
Grounded capacitor
λ/4 whip antenna, Garter,
Roof side
57
127
700/800 MHz
GB-900A-09
Grounded capacitor
λ/4 whip antenna, Garter,
Roof side
57
127
700/800 MHz
MCA(3/4)EL
Grounded capacitor
λ/4 whip antenna
109
226
700/800 MHz
HSB-900B-1-09
Grounded capacitor
λ/4 whip antenna, Stick-on,
Roof top
109
226
700/800 MHz
HMG-900B-09
Grounded capacitor
3λ/4 whip antenna, Magnet,
Roof top
109
226
700/800 MHz
GB-900A-09
Grounded capacitor
λ/4 whip antenna, Magnet,
Roof top
109
226
Install the radio‟s antenna (refer to Table 2-1 for applicable antenna part numbers) in the
center of the vehicle‟s roof. These mobile antenna installation guidelines are limited to
metal body motor vehicles or vehicles with appropriate ground planes. The antenna
installation should additionally be in accordance with the following:
The requirements of the antenna manufacturer/supplier included with the antenna.
Instructions in the JHM-875S35J Radio Installation Manual, including minimum
antenna cable lengths.
The installation manual providing specific information of how to install the antennas to
facilitate recommended operating distances to all potentially exposed persons.
Use only the JRC approved/supplied antenna(s) or approved replacement antenna.
Unauthorized antennas, modifications, or attachments could damage the radio and may
violate FCC regulations.
2.2.2 Approved Accessories
This radio has been tested and meets the FCC RF guidelines when used with the JRC
accessories supplied or designated for use with this product. Use of other accessories may
not ensure compliance with the FCC‟s RF exposure guidelines, and may violate FCC
regulations.
H-7YCPD0002-0 EDITION 1
14
For a list of JRC approved accessories refer to the product manuals, JRC‟s Products and
Services Catalog, or contact JRC at +XX-XXX-XX-XXXX.
2.2.3 Contact Information
For additional information on exposure requirements or other information, contact JRC at
+XX-XXX-XX-XXXX or at http://www.jrc.co.jp.
H-7YCPD0002-0 EDITION 1
15
3 OPERATION SAFETY RECOMMENDATIONS
3.1 TRANSMITTER HAZARDS
WARNING
The operator of any mobile radio should be aware of certain hazards
common to the operation of vehicular radio transmitters. A list of several
possible hazards is given:
Explosive Atmospheres – Just as it is dangerous to fuel a vehicle with the motor
running, similar hazards exist when operating a mobile radio. Be sure to turn the radio
off while fueling a vehicle. Do not carry containers of fuel in the trunk of a vehicle if the
radio is mounted in the trunk.
Areas with potentially explosive atmosphere are often, but not always, clearly marked.
Turn OFF your radio when in any area with a potentially explosive atmosphere. It is
rare, but not impossible that the radio or its accessories could generate sparks.
Interference to Vehicular Electronics Systems – Electronic fuel injection systems,
electronic anti-skid braking systems, electronic cruise control systems, etc., are typical
electronic systems that can malfunction due to the lack of protection from radio
frequency energy present when transmitting. If the vehicle contains such equipment,
consult the dealer and enlist their aid in determining the expected performance of
electronic circuits when the radio is transmitting.
Electric Blasting Caps – To prevent accidental detonation of electric blasting caps, DO
NOT use two-way radios within 1000 feet of blasting operations. Always obey the “Turn
off Two-Way Radios” signs posted where electric blasting caps are being used. (OSHA
Standard: 1926-900)
Liquefied Petroleum (LP) Gas Powered Vehicles – Mobile radio installations in vehicles
powered by liquefied petroleum gas with the LP gas container in the trunk or other
sealed-off space within the interior of the vehicle must conform to the National Fire
Protection Association standard NFPA 58 requiring:
The LP gas container and its fittings.
Outside filling connections shall be used for the LP gas container.
The LP gas container shall be vented to the outside of the vehicle.
H-7YCPD0002-0 EDITION 1
16
3.2 SAFE DRIVING RECOMMENDATIONS
(Recommended by AAA)
Read the literature on the safe operation of the radio.
Keep both hands on the steering wheel and the microphone in its hanger whenever the
vehicle is in motion.
Place calls only when the vehicle is stopped.
When talking from a moving vehicle is unavoidable, drive in the slower lane. Keep
conversations brief.
If a conversation requires taking notes or complex thought, stop the vehicle in a safe
place and continue the call.
Whenever using a mobile radio, exercise caution.
H-7YCPD0002-0 EDITION 1
17
4 OPERATING RULES AND REGULATIONS
Two-way FM radio systems must be operated in accordance with the rules and regulations
of the local, regional, or national government.
In the United States, the JHM-875S35J mobile radio must be operated in accordance with
the rules and regulations of the Federal Communications Commission (FCC). As an
operator of two-way radio equipment, you must be thoroughly familiar with the rules that
apply to your particular type of radio operation. Following these rules helps eliminate
confusion, assures the most efficient use of the existing radio channels, and results in a
smoothly functioning radio network.
When using your two-way radio, remember these rules:
It is a violation of FCC rules to interrupt any distress or emergency message. As your
radio operates in much the same way as a telephone “party line,” always listen to make
sure that the channel is clear before transmitting. Emergency calls have priority over
all other messages. If someone is sending an emergency message – such as reporting a
fire or asking for help in an accident –
KEEP OFF THE AIR!
The use of profane or obscene language is prohibited by Federal law.
It is against the law to send false call letters or false distress or emergency messages.
The FCC requires that you keep conversations brief and confine them to business. To
save time, use coded messages whenever possible.
Using your radio to send personal messages (except in an emergency) is a violation of
FCC rules. You may send only those messages that are essential for the operation of
your business.
It is against Federal law to repeat or otherwise make known anything you overhear on
your radio. Conversations between others sharing your channel must be regarded as
confidential.
The FCC requires that you identify yourself at certain specific times by means of your
call letters. Refer to the rules that apply to your particular type of operation for the
proper procedure.
No changes or adjustments shall be made to the equipment except by an authorized or
certified electronics technician.
NOTE
Under U.S. law, operation of an unlicensed radio transmitter within the
jurisdiction of the United States may be punishable by a fine of up to
$10,000, imprisonment for up to two (2) years, or both.
H-7YCPD0002-0 EDITION 1
18
4.1 OPERATING TIPS
The following conditions tend to reduce the effective range of two-way radios and should be
avoided whenever possible:
Operating the radio in areas of low terrain, or while under power lines or bridges.
Obstructions such as mountains and buildings.
In areas where transmission or reception is poor, some improvement can be obtained by
moving a few yards in another direction or moving to a higher elevation.
H-7YCPD0002-0 EDITION 1
19
5 PRODUCT DESCRIPTION
The JHM-875S35J mobile is a state-of-the-art radio that operates seamlessly between the
800 MHz frequency band and the 700 MHz frequency band. The JHM-875S35J is designed
to meet the critical communications demands of public service users and complies with
MIL-STD-810F specifications.
The JHM-875S35J is capable of supporting multiple operating modes, including OpenSky
digital operation, P25 digital conventional mode, and conventional analog mode.
The JHM-875S35J uses Time Division Multiple Access (TDMA) technology in the OpenSky
mode to allow multiple users to share a single RF channel. In addition, a single RF channel
can support simultaneous digital voice and data communications.
The JHM-875S35J provides integrated voice and data services. Voice operation is provided
using a microphone and speaker included in the radio installation kit. For data transfers,
the JHM-875S35J is constructed with an industry-standard RS-232 interface serial port for
connecting an optional laptop PC.
A PC, not included with the JHM-875S35J, provides network connectivity through the
standard serial (DCE-type) interface.
The JHM-875S35J has an integrated Global Positioning System (GPS) receiver. This allows
the JHM-875S35J to fully support the Automatic Vehicular Locator (AVL) for fleet
management and dispatch applications.
The OpenSky JHM-875S35J benefits from a flexible, software-based digital radio design.
Features and user profiles are software-defined and can be reprogrammed over the air. The
optional over-the-air programming feature allows communication protocols to be changed
easily and added at any time.
H-7YCPD0002-0 EDITION 1
20
5.1 REMOTE CONTROL HEAD OPERATION
For remote mount installations configured with a NCE-5341 control head, all normal radio
operations and interfaces can be handled via the control head connected to the radio unit by
a single twisted-pair connection routed through a vehicle. Up to six control units may be
attached to a trunk mount radio. Each control head provides a serial access point for data
and any one (only one at a time) can be connected to a data device such as a personal
computer.
Where multiple control heads are connected or where a dash-mount radio is installed with
additional remote control heads, the following features are available from each position:
Outgoing voice calls can be initiated. Any control head can initiate a call but only one
can talk at a time. All other connected control heads will hear both sides of the
conversation.
Incoming and outgoing audio can be heard. Outgoing audio is not broadcast at the
source position.
Independent audio control is available.
Radio settings such as talk group, scan mode etc., can be controlled. Any connected
control head can override the radio settings of other connected control heads.
Comfort settings, such as volume and display brightness that are applicable to the
individual control head can be adjusted and cannot be overridden by other control heads.
An optional intercom function is available between control units. Audio will be
broadcast to ALL connected control heads.
H-7YCPD0002-0 EDITION 1
21

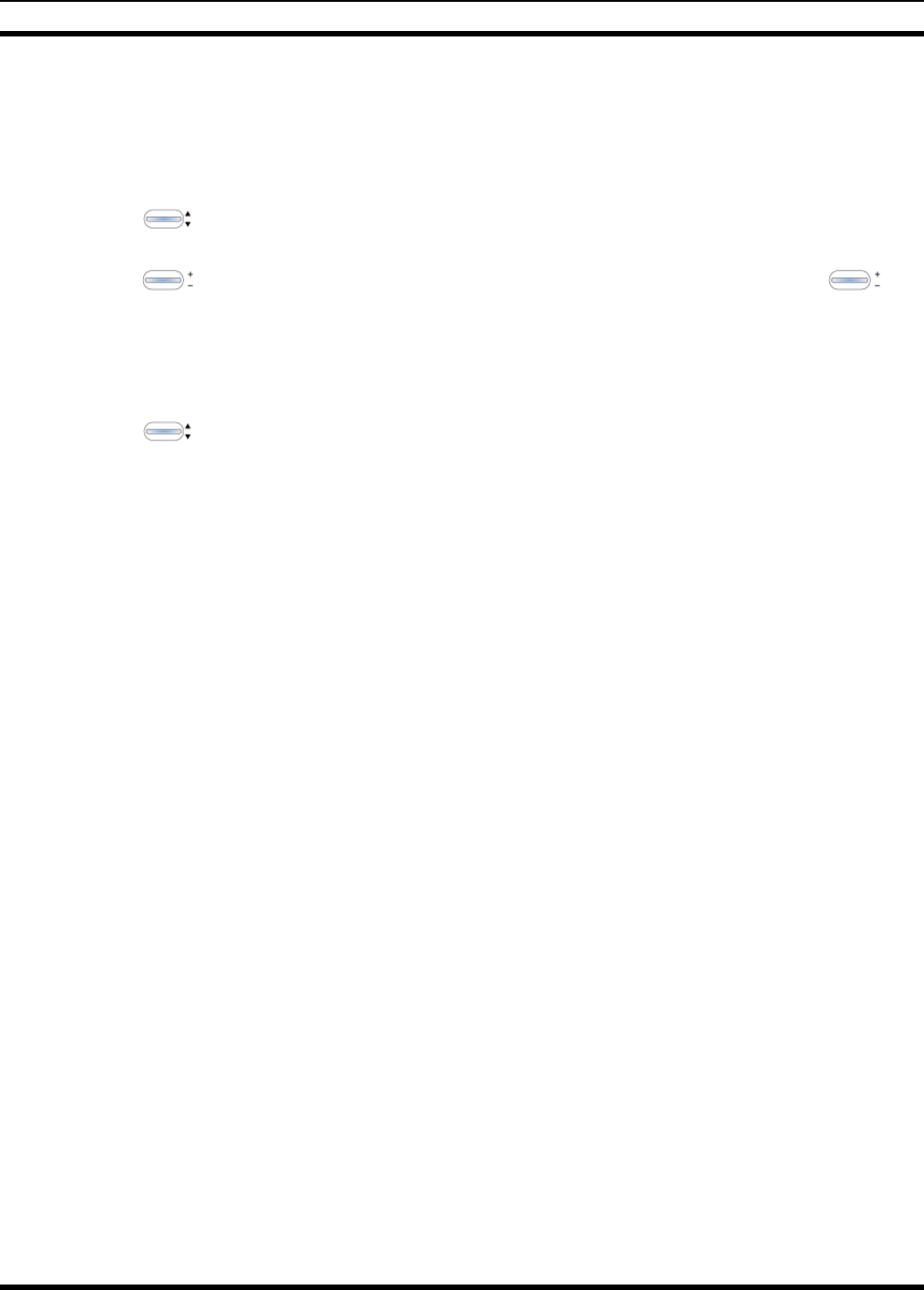

6 CHANGE OPERATING MODE
6.1 CHANGE FROM OTP MODE
To change from OTP operating mode to P25, or Conventional:
1. Use to cycle through the menu until the “Mode Menu” appears in the bottom line
of the display.
2. Use to choose an available mode. Press MENU and confirm (Y/N) with and
press MENU again.
3. Press the MENU button to confirm.
6.2 CHANGE TO OTP MODE
1. Use to scroll through available systems until OpenSky is displayed.
2. The radio transitions to OTP mode.
H-7YCPD0002-0 EDITION 1
22
H-7YCPD0002-0 EDITION 1
23
7 OPENSKY OPERATION
7.1 NCE-5341 FRONT PANEL COMPONENTS
The front panel of the control head includes a dot matrix display, controls for menu
navigation, an emergency button, three pre-set buttons, a Power On-Off/Volume Control
knob, and a microphone connector. Table 7-1 lists all default front panel controls and their
functions.
Figure 7-1: Front Panel
The buttons on the front panel are backlit for operation in a low ambient light level such as
nighttime operation. Some buttons also flash to provide feedback of various operating
conditions.
In addition, the front panel contains a light-level sensor that samples ambient light levels
for automatic display and button backlight brightness adjustments. In other words, it
automatically brightens the display and backlights when higher external light levels exist
and it automatically dims the display and backlights during lower external light levels.
H-7YCPD0002-0 EDITION 1
24
Table 7-1: Front Panel Default Controls and Functions
PART
FUNCTION
Power On-
Off/Volume
Control knob
Turn knob clockwise to power on the radio and increase volume.
Turn counter-clockwise to decrease volume and power off the radio.
Mic
Connection
Connection for hand-held, hands-free, speaker-mic, or headset.
If enabled through programming, the emergency button sends an
emergency alert and opens voice communication on the currently
selected talk group or the default emergency talk group (depending upon
how the system is defined).
Ambient Light
Sensor
Radio automatically adjusts the display and button backlight brightness
level based on ambient light. Do not block this sensor.
or
While in the dwell display, scrolls through available talk groups.
Scrolls through selections within the active menu (available talk groups,
pre-programmed speed dial numbers, canned alert messages, etc.).
Scrolls through available menu items.
OPTION
CLEAR
MENU
Press to activate the current selection. In some cases, this is not
necessary as the last selection will automatically activate after a short
period.

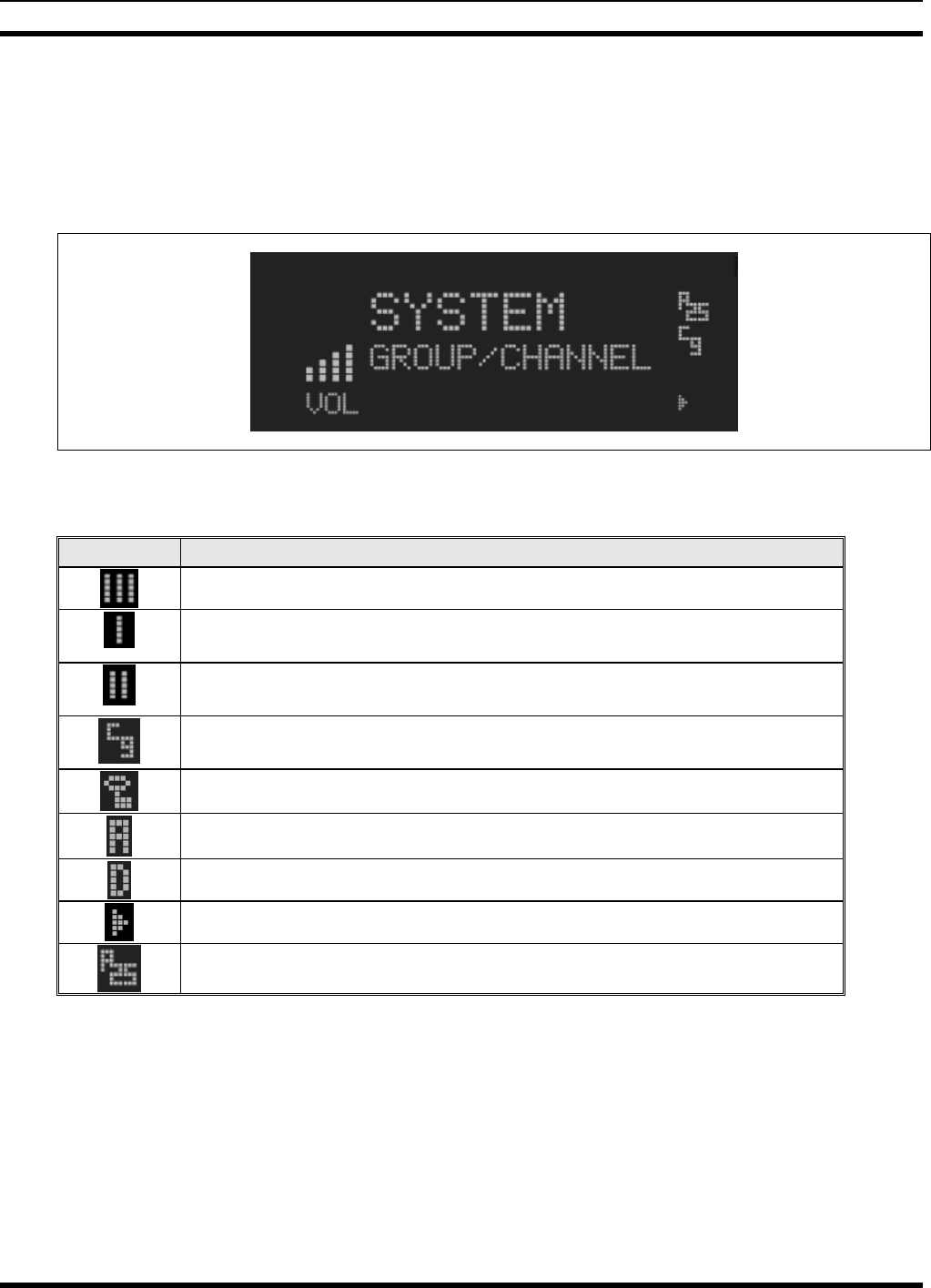

Display Area
Menu selections and messages.
Network Connectivity icon.
Current Volume Level icon.
Volume represented numerically within the display (0 = Muted, 40 =
Loudest).
User may select which one of several dwell displays the radio uses.
Pre-Set
Buttons
A, B, & C
These buttons are used to store and recall user-selectable parameters
such as scan mode, selected profile, selected talk group, and priority talk
group. Different parameters can be stored at each of the three different
pre-set buttons.
Preset button C can be configured via programming to reboot the radio
into a particular application mode. Contact your system administrator to
determine if this feature is enabled in your radio.
SCAN
Not functional in OpenSky systems.
H-7YCPD0002-0 EDITION 1
25
7.2 POWER UP AND VOLUME CONTROL
7.2.1 Power Up
1. Rotate the Power On-Off/Volume Control knob clockwise to power on the radio. The
display will illuminate when the radio powers up.
2. Wait for the power-up sequence to complete, which takes approximately ten (10)
seconds.
During this time, if enabled for auto registration, the radio is provisioned with a
customized user personality designed for the user‟s specific needs by the OpenSky
network administrator.
3. When provisioning is complete, the radio will display the Dwell Display.
If User Login is required, the bottom line of the Dwell Display will flash the message
“Pls Login.”
7.2.2 Volume Control
Turn the Power On-Off/Volume Control knob clockwise to increase the volume and counter-
clockwise to decrease the volume.
7.3 SELF-TEST
After power-up, the JHM-875S35J radio undergoes a multi-function automatic registration
procedure. As many as sixteen (16) possible radio profiles are downloaded to the radio from
the network in response to the User‟s ID.
7.4 LOGIN TO THE NETWORK
Login occurs either automatically (auto registration) if the radio has a valid registration or,
if enabled and authorized for encryption (Section 7.27), requires a User ID and password.
The User ID may be remembered from the previous log-in. (Refer to Section 0 for further
details regarding log-off commands.) The password will be established before the radio is
put into operation. Contact the local OpenSky network administrator for more information.
NOTE
If necessary, contact radio system administration personnel for log-in
assistance and/or radio-specific log-in instructions.
H-7YCPD0002-0 EDITION 1
26
7.5 LOG OFF THE NETWORK
Log-off is automatically performed when powering down the radio.
If a user is logged in using encryption features, it is necessary to log-off when encryption is
no longer required.
7.6 TURNING THE RADIO OFF
To turn the radio off, rotate the Power On-Off/Volume Control knob counter-clockwise. In
multiple control head installations, turning off the last powered-up control head will also
automatically turn off the radio.
Several user-selected radio settings (i.e., scan mode, pre-set buttons, and side tone levels)
are maintained for the next operational session. At the next radio power-up, maintained
settings will automatically restore, along with the network personality settings. In multiple
control head installations, settings are maintained for each control head position.
NOTE
If power is abruptly disconnected from the radio prior to executing the
correct turn-off procedure, user-selected radio settings and last-tuned
channel information will be lost. This can extend the time required for the
radio to register with the network upon the subsequent power-up.
7.7 MENU DISPLAY AND CONTROL AREA
Following power-up, the radio display shows the default talk group (Figure 7-2). Pressing
up or down with changes the display to the next available menu. In many cases, the
dwell display automatically re-appears after no menu buttons are pressed for a short period
of time (between 10 and 30 seconds). For some menus such as the GPS and User ID menus,
this does not occur until the user presses a front panel button.
When the dwell display is active, it will change dynamically to reflect the current profile,
received talk group/caller ID (when available), or channel (when enabled).
The radio‟s display is highly interactive. It responds in the top and bottom text lines as the
user presses the menu buttons ( , and MENU) to scroll through the menu loop
and the entries for each menu. Table 7-4 outlines the basic menu structure.
H-7YCPD0002-0 EDITION 1
27

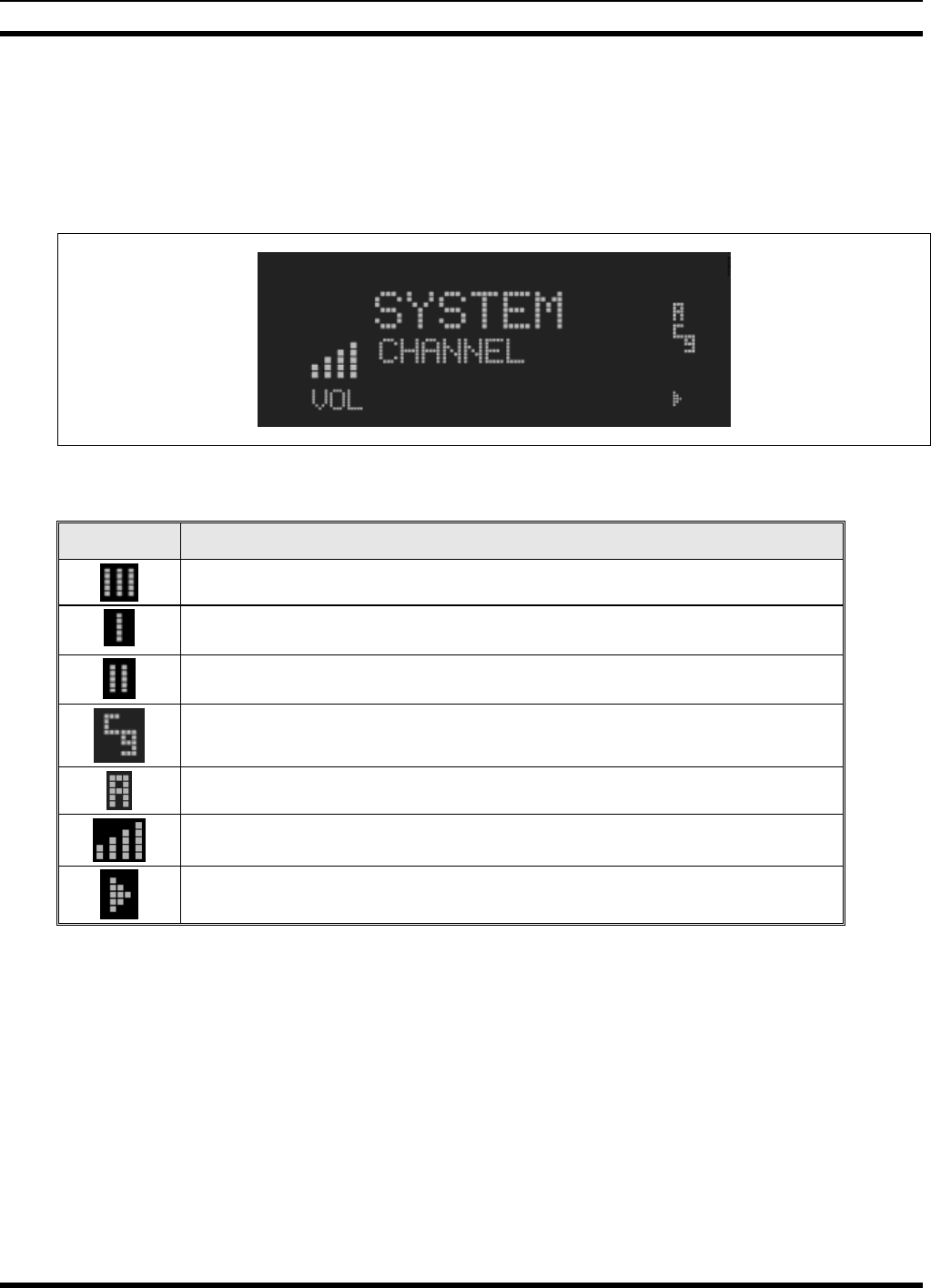

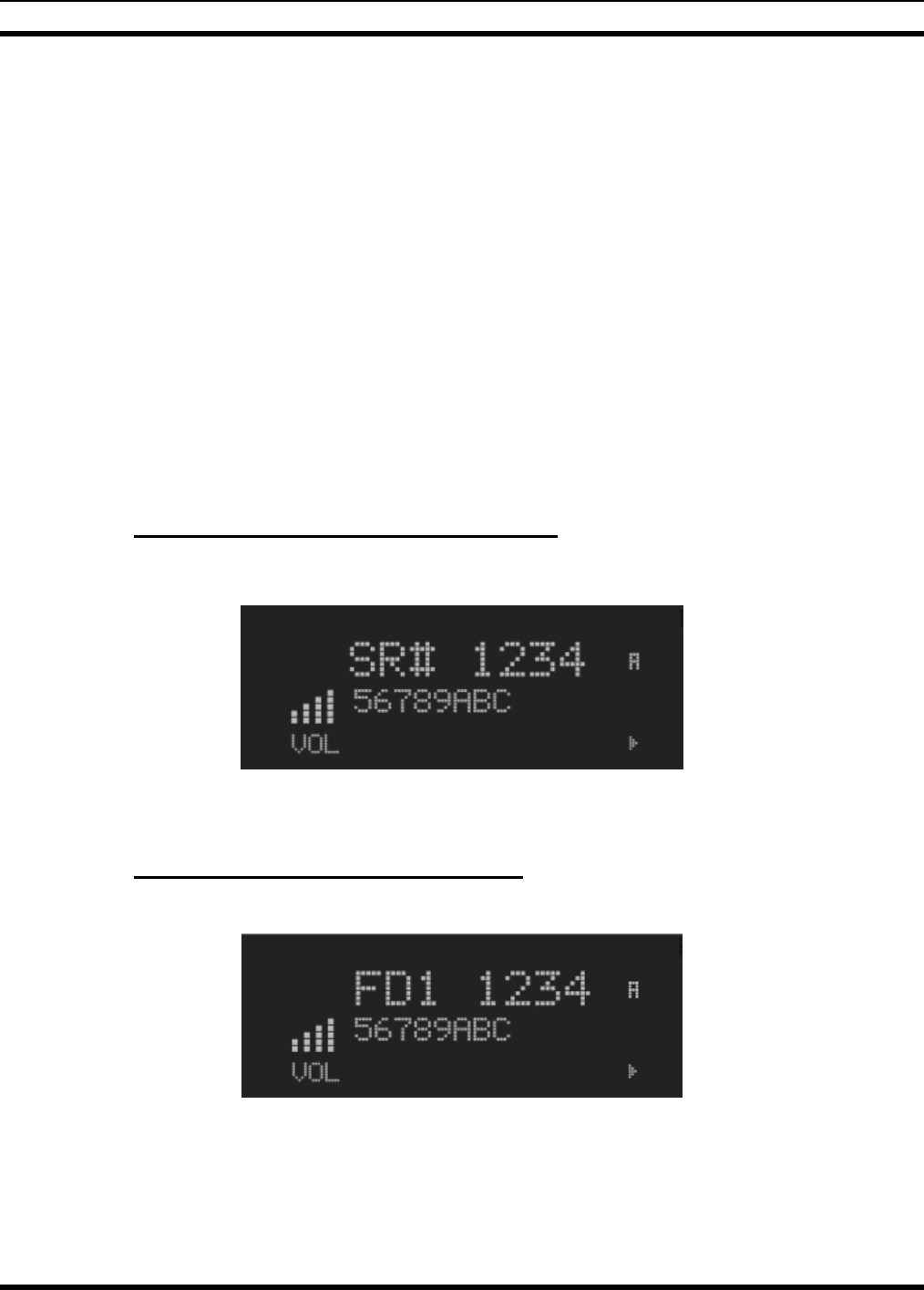

Figure 7-2: Typical Display
7.8 RADIO STATUS ICONS
Status Icons indicate the various operating characteristics of the radio. The icons show
operating modes and conditions (see Table 7-2). The location of icons on the display may
vary depending on configuration.
Table 7-2: Icons and Descriptions
ICON
DESCRIPTION
Indicates data registration.
Volume bars – indicates relative volume
level.
7.9 DWELL DISPLAY
When not engaged in menu selection, the first two lines of the display default to the user-
defined display, known as the “dwell display.” The top line indicates the currently selected
talk group. The second line will display the currently selected profile, caller ID/alias 1,
received talk group, and current channel name. Press the ramp control to scroll
through and view one of these second line options.
1 Alias is a logical ID name such as “J_Smith.” The name corresponds to a user ID such as 003-542-0001.
H-7YCPD0002-0 EDITION 1
28
7.10 PERSONALITY
As illustrated in Figure 7-3, a personality defines the profiles and talk groups available to
the user. It is the structuring of a collection of profiles and privileges established by the
OpenSky network administrator to provide the user with a comprehensive set of profiles to
communicate effectively with the necessary talk groups or individuals.
Personalities are stored on the network and downloaded over-the-air to the radio. This
process is called “provisioning.” Provisioning occurs at radio power-up and at user log-in.
Each personality can contain up to sixteen (16) profiles and each profile can contain up to
sixteen talk groups.
7.10.1 Profiles
As stated above, each profile can contain up to sixteen (16) talk groups. A profile also
defines the radio‟s emergency behavior. All transmissions are made on the selected talk
group (displayed on the top line of the dwell display). The user can change the selected talk
group to any of the other talk groups within the profile.
TG a
TG b
TG c
TG x
TG y
TG z
TG d
TG e
TG f
TG a
TG d
TG g
TG h
TG i
TG = Talk Group
Profile 1
Profile 2
Profile 3
Figure 7-3: Personality Structure Example
NOTE
If Global Profile is enabled by the system administrator, the number of
available talk groups to scan doubles.
H-7YCPD0002-0 EDITION 1
29
7.10.2 Talk Groups
A talk group represents a set of users that regularly need to communicate with one another.
There can be any number of authorized users assigned to a talk group. Talk groups are
established and organized by the OpenSky network administrator. An OpenSky talk group
is similar to a channel within a conventional FM radio system.
H-7YCPD0002-0 EDITION 1
30
7.11 ALERT TONES
The JHM-875S35J radio also provides audible Alert Tones or “beeps” to indicate the various
operating conditions (see Table 7-3).
Table 7-3: JHM-875S35J OpenSky Mode Alert Tones
NAME
TONE
DESCRIPTION
Call Queued
one low tone/two high
tones
Call queued for processing.
Call Denied
three short beeps
Radio is out of coverage area or requested talk
group is active.
Grant (or Go-Ahead)
single short beep
Sounded when resources become available for a
call request placed in the queue (if enabled) upon
channel access.
If the radio roams to another site while
transmitting, then it will auto rekey and begin
transmitting on that tower. It gives a second
grant tone to let the user know they have
roamed.
Call Removed
single long low-pitched
tone
Notifies the user access to the channel has been
lost (out of coverage area or pre-empted by
higher-priority call)
Selective Alert
Received
four short tones
Only played once to indicate a selective alert has
been received.
Emergency Alert
Tone
three long tones
Sounds when an emergency alert is declared
Emergency Cleared
Tone
one long low-pitched tone
Sounds when an emergency is cleared
Selective Call Ring
Tone
a ringing tone similar to
a telephone
Ringing is repeated every four seconds until the
call is accepted or rejected by the radio being
called or until the network drops the call if
unanswered after one minute
PSTN Ring Tones
a single medium-pitch
repeating tone
Two ring tone - one generated by the radio when
there is an incoming telephone call or an outgoing
telephone call attempt is waiting for the
telephone interconnect gateway equipment to
dial the Public Switched Telephone Network
(PSTN). The second ring tone sounds when the
gateway equipment has dialed the number.
Roam Tone
Two short tones, one
high-pitched and one
low-pitched
Sounds when the radio transitions from one
radio base station site to another.
Out of Range Tone
three brief tones
If enabled via programming, sounds at a
programmable interval while the radio is in a
state of persistent deactivation.
H-7YCPD0002-0 EDITION 1
31
7.12 BASIC MENU STRUCTURE
Table 7-4 illustrates the basic JHM-875S35J OpenSky menu structure. Menu items will
vary depending upon system programming, radio hardware, and optional configurations.
All menus except the dwell display menu can be turned off by network administration
personnel.
Table 7-4: Basic Menu Structure
Menu Name
Radio Displays
(top and bottom lines)
Usage Notes
To/From Dwell
Display
Engineering Display
(Menu may not be
available per
programming.)
registration, RF sync
and transceiver status
codes
Displays radio system connection data. For
engineering use.
bit-error rates
and RSSI data
Silent Emergency
OFF/ON
Use to toggle Silent Emergency OFF/ON.
“SilentEmerg”
Operating Mode
(e.g., OTP, etc.)
available modes
Use to choose an available mode. Press
MENU and confirm (Y/N) with and press
MENU again.
“Mode Menu”
GPS Fix
current latitude and
longitude
Radio‟s current GPS latitude and longitude
position scrolls across top line of the display.
Applies to GPS-equipped radios only.
“GPS Fix”
User ID
User ID # of user
currently logged in
User‟s identification/name scrolls across top line of
the display (if programmed).
“User ID”
IP Address
Radio‟s IP address
Radio‟s Internet Protocol (IP) address scrolls across
top line of the display.
“IP Address”
Station Identification
station‟s call sign
Station‟s identification/name scrolls across top line
of the display (if programmed).
“Station ID”
Stealth Mode
“OFF”
Use to enable. Press any button to disable.
“StealthMenu”
Treble Level
“LOW”, “MEDIUM”,
“MEDHIGH”, “HIGH”
Use to choose speaker/headset treble level.
Press Select to return to dwell display.
“Treble Menu”
H-7YCPD0002-0 EDITION 1
32
Menu Name
Radio Displays
(top and bottom lines)
Usage Notes
Display Brightness
“<< >>”
Use to dim or brighten. Press MENU to
return to dwell display.
“Bright Menu”
Side Tone Level
“OFF”, “LOW”,
“MED”, “HIGH”
Use to choose side tone level. Press MENU to
return to dwell display.
“Side Menu”
Intercom
“ON” or “OFF”
Use to turn intercom on and off. Press
MENU to return to dwell display.
“INTERCOM”
Selected Channel
(Menu may not be
available per radio
programming)
selected channel
Displays the current channel. Press MENU to
return to dwell display.
“ChannelMenu”
Scan Mode
current scan mode
Use to turn scan on and off. Press MENU to
return to dwell display.
“ScnModeMenu”
Talk group
Lock Out
talk group “<”
Use to choose a talk group for
locking/unlocking. Press MENU to toggle “<” on
(locked out) and off.
“LockOutMenu”
Priority 1
Talk group
current priority talk
group
Use to choose new priority talk group. Press
MENU to return to dwell display.
“Priority2”
Priority 2
Talk group
current priority talk
group
Use to choose new priority talk group. Press
MENU to return to dwell display.
“Priority1”
Emergency Dismiss
alert received
Use to choose emergency talk group. Press
MENU to dismiss.
“EmgDismiss”
Alerts Received
time/sender‟s name/
alias/message text
“No alerts” or alert message text scrolls in display.
Use to view messages.
“AlertsRcvd”
or oldest message
Alert Destination
current speed dial #
Use to choose a speed-dial number. Press
MENU to go to “AlertMsg” menu. Scroll through
canned messages with . Press MENU to send
message and return to dwell display.
“AlertDest”
Speed Dial
current speed dial #
Use to choose a speed-dial number. Press
MENU, then use to select canned message.
“SpeedDial”
H-7YCPD0002-0 EDITION 1
33
Menu Name
Radio Displays
(top and bottom lines)
Usage Notes
Profile Selection
currently active profile
Use to choose an available profile. Press
MENU to return to dwell display.
“ProfileMenu”
Talk group Selection
selected talk group
Use to choose a talk group in current profile.
Press MENU to return to dwell display.
“TalkGrpMenu”
Dwell Display
Selected talk group
Use to scroll top line through talk groups.
Press MENU to change bottom line option.
(bottom line option)
Use , CLEAR, or OPTION to scroll through menus.
NOTE
Menus will vary depending upon system programming, radio hardware, and
optional configurations.
7.13 CHANGING THE ACTIVE PROFILE
The radio can store up to sixteen (16) standard profiles, one of which is the currently active
profile. To change the currently active profile:
1. Scroll through the menu with until “ProfileMenu” is displayed.
2. Use to scroll through the list of available profiles.
3. Profile becomes active when selected for longer than 2 seconds, when the MENU is
pressed, or when the menu is changed using .
7.14 CHECKING OR CHANGING THE SELECTED TALK GROUP
Each profile stored in the radio can have up to sixteen (16) talk groups. One talk group
within the currently active profile is set as the “selected talk group.” For the radio user, the
selected talk group is typically the focus of most voice transmissions and receptions. There
are two ways to change the selected talk group:
First Method:
1. Use to scroll through the menu until “TalkGrpMenu” appears on the bottom line
of the display. The currently selected talk group appears in the top line of the display.
2. Use to scroll through the available list of talk groups in the active profile. This list
is determined by the OpenSky network administrator.
Second Method:
From the dwell display, use the talk group selection knob or to scroll through the
available list of talk groups in the active profile.
H-7YCPD0002-0 EDITION 1
34
7.15 ADJUSTING DISPLAY AND BUTTON BACKLIGHT
BRIGHTNESS
The radio uses a light sensor on the front panel to automatically adjust display brightness
and button backlight brightness to ambient light conditions. The display and backlights
automatically brighten at higher external light levels and automatically dim at lower
external light levels. However, the “Bright Menu” gives the user some manual brightness
control as follows:
1. Using , scroll through the menu until “Bright Menu” appears.
2. Use to increase or decrease brightness. Display and button backlight brightness
will immediately dim or brighten.
7.16 STEALTH MODE
For some users, it is important to be able to turn off the radio‟s display lights, button
backlighting, volume and side tones, but not the radio traffic. For example, in covert
operations, lights and sounds could inadvertently expose an otherwise unobservable radio
user. For this purpose, the radio has a Stealth feature that disables the radio display light,
indicator light and audible side tones.
When stealth mode is on, the radio continues to scan the programmed list of talk groups
and the user can key-up on the selected talk group.
7.16.1 Enabling Stealth Mode
1. Using , scroll through the menu until “StealthMenu” appears.
2. To immediately turn stealth mode on, press (+) or (-) with .
3. To turn stealth mode off, press any button on the radio‟s front panel.
7.16.2 Disabling Stealth Mode
Pressing any radio button other than the mic‟s PTT button or the emergency button on
front panel will immediately turn stealth mode off. For example, pressing the MENU
button on the front panel will turn stealth mode off.
WARNING
With stealth mode on, pressing any radio button (other than the mic‟s PTT
button or the emergency button) on front panel will immediately turn stealth
mode off.
H-7YCPD0002-0 EDITION 1
35
7.17 ADJUSTING SIDE TONE AUDIO LEVEL
The radio sounds confirming tones called “side tones” when its buttons are pressed. Most
users find this audible confirmation helpful when navigating the menus. Side tone audio
level can be adjusted or turned completely off using the “Side Menu.”
For covert operations, it may be necessary to turn off side tones. For safety‟s sake, turning
off the radio during covert operations is not recommended.
To temporarily disable the side tones that could expose the user‟s presence and position,
use the menu buttons to access the “Side Menu” and select “Off” from the menu choices.
If the radio is operating properly but side tones are not heard when the menu buttons are
pressed, the side tones are probably turned off. To turn them back on, access the “Side
Tone” menu and select a setting other than “off.”
Use the following procedure set side tone level:
1. Use to cycle through the menu until the “Side Menu” appears in the bottom line of
the display.
2. Use to change to the desired level (Off, Low, Medium, and High). To turn side
tones completely off, use the “Off” setting.
7.18 CHANGE OPERATING MODE
4. Use to cycle through the menu until the “Mode Menu” appears in the bottom line
of the display.
5. Use to choose an available mode. Press MENU and confirm (Y/N) with and
press MENU again.
H-7YCPD0002-0 EDITION 1
36
7.19 RECEIVING AND TRANSMITTING VOICE CALLS
As soon as the radio completes the startup/log-on/provision/self-test sequence and registers
on the OpenSky network, voice calls from talk groups in the active profile will be audible.
7.19.1 Receiving a Voice Call
No action is required to receive a voice call. The display responds to incoming voice calls as
follows:
When the dwell display is set to received talk group and the scan mode is Normal or
Fixed:
a. If the received talk group matches the selected talk group, then the alias (if
available) or user id of the incoming caller is displayed.
b. If the received talk group does not match the selected talk group, then the received
talk group name is displayed
When the dwell display is set to received talk group and the scan mode is None:
a. If the received talk group matches the selected talk group, then the alias (if
available) or the user id of the incoming caller is displayed.
b. If the received talk group does not match the selected talk group, then None is
displayed.
When the dwell display is not set to received talk group, then there is no display
indication of an incoming call.
Refer to Section 7.23 for detailed information on talk group scanning. Refer to Section 7.27
for detailed information regarding sending and receiving encrypted calls.
7.19.2 Transmitting a Voice Call
Transmit a voice call as follows:
1. Turn the radio on.
2. If required, log-in to the network using a user ID and password (see Section 7.4).
3. Select the desired talk group for transmitting on.
4. Press and hold the Push-to-Talk (PTT) button on the hand-held microphone, pause for a
moment, and then speak normally. For maximum clarity, hold the microphone
approximately 1 ½ inches from the mouth and do not shout or whisper into it. If the call
is queued by the network, wait for the grant tone to sound before speaking.
5. Release the PTT button when finished speaking.
Refer to Section 7.27 for detailed information regarding sending and receiving encrypted
calls.
H-7YCPD0002-0 EDITION 1
37
7.20 ADJUSTING AUDIO TREBLE LEVEL
The tone of received signals can be adjusted using the radio‟s “Treble Menu” as follows:
1. Use to scroll through the menu until “Treble Menu” appears. The radio‟s current
treble level setting indicates in the top line of the display. There are four levels
available: low, medium, medium-high and high.
2. Use to increase or decrease.
3. Press the MENU button or wait a few seconds to return to the Dwell Display.
H-7YCPD0002-0 EDITION 1
38
7.21 INTERCOM MODE
The optional intercom mode gives users at multiple control heads connected to the same
radio the ability to communicate with each other without transmitting over-the-air. Turn
intercom mode on and off using the “INTERCOM” menu as follows:
1. Use to cycle through the available menu items until “INTERCOM” appears in the
display.
2. Use to toggle between “On” and “Off.”
When intercom mode is turned on:
Incoming voice calls will override intercom communications for the duration of the voice
call. The radio and associated control heads will remain in intercom mode and intercom
communications will resume when the voice call ends.
“TG: INTERCOM” appears in the control head‟s display when talking on the intercom.
This indicates microphone audio is not sent out on the selected talk group; rather, it
remains localized between the radio control positions (i.e., the control heads connected
to the mobile radio).
If a call exists on the currently selected talk group when a PTT button is pressed at one
of the control heads, “TG: in use” appears in the display to indicate intercom mic audio
cannot preempt the call on the talk group.
CAUTION
A user at a radio with only one control head/front panel can turn intercom
mode on. In this case, pressing the microphone‟s PTT button will not send
microphone audio anywhere.
7.22 TALK GROUP LOCK OUT
There are two ways of focusing voice communications by suppressing calls from talk groups
in the currently active profile:
1. No Scan. By turning scan off (selecting “No Scan” via the “ScnModeMenu”), only the
selected talk group is audible.
2. Lock Out. By locking out selected talk groups, the “chatter” of the locked-out talk groups
cannot be heard. This focuses the user‟s scanning resources to calls only on desired talk
groups.
Talk group lock out is a scan-related feature. With lock out, one or more talk groups in the
active profile can be temporarily disabled from being scanned. Calls are not received on
locked-out talk groups. Lock out settings are not retained between profile changes or when
the radio is power cycled.
NOTE
Lock out is a listening (receive) function and only blocks received calls on
locked out talk groups. Lock out does not affect transmit capability. The
above methods do not apply to recent emergency lock outs.
Only talk groups in the active profile can be locked out, since they are the only talk groups
whose voice calls can be heard on the radio.
H-7YCPD0002-0 EDITION 1
39
NOTE
P1 and P2 talk groups cannot be locked out.
The default emergency and emergency-capable talk groups can be locked out if they are
NOT in an emergency state. If a talk group is locked out and is subsequently changed to the
currently selected talk group, it will automatically be unlocked by the radio so the user can
hear calls on the talk group. The radio may be configured so all talk groups are
automatically locked out by default. In this case, they must be manually unlocked, if
desired.
7.22.1 Lock Out a Talk Group
1. Use to scroll through the menu until “LockOutMenu” appears in the bottom line
of the display. The name of a talk group in the currently active profile will appear in the
top line.
2. Use to scroll through the list of talk groups, if any, until the desired talk group for
lock out appears in the top line of the display.
3. Press the MENU button to lockout the displayed talk group. A less than symbol (<)
appears next to the talk group‟s name.
4. Repeat steps 2 and 3, as needed, to lockout additional talk groups.
The dwell display will re-appear a few seconds after button presses end.
While scrolling through talk groups in the active profile, the only talk groups that appear in
the “LockOutMenu” are those in the active profile.
7.22.2 Unlock a Talk Group
1. Use to scroll through the menu until “LockOutMenu” appears in the bottom line
of the display. The name of a talk group in the currently active profile will appear in the
top line.
2. Use to scroll through the list of talk groups, if any, until the talk group desired for
unlocking appears in the top line of the display. A less-than symbol (“<”) appears next to
the name of a talk group that is currently locked out.
3. Press the MENU button to unlock the talk group. The less-than symbol (“<”) next to the
name of the talk group disappears. The dwell display appears as soon as the radio
acknowledges the selection.
NOTE
Changing the active profile removes any lockouts you have made.
Turning off the radio removes any lockouts you have made.
H-7YCPD0002-0 EDITION 1
40
7.23 SCANNING
Three scanning modes are available for the radio, but only one can be active at any time.
Changing the scanning mode changes the way the radio scans voice calls for all of profiles
in the radio personality, no matter which profile is or becomes active.
As described in Table 7-5, the choice of scanning mode changes the span of communications
with all the talk groups in the radio‟s profiles, but does not affect interaction with the talk
groups.
Table 7-5: Scan Modes
SCAN
MODE
EXPLANATION
No Scan
Eliminates distractions.
Full communications (transmit and receive) on selected talk group.
No calls received from other talk groups.
Normal
(Default)
The user can scan all talk groups in the active profile that are not locked out
as long as there is demand on the site.
Priority (P1 and P2) groups are user selectable.
Receive calls from more than one talk group, if available from the current
site.
Allows dragging of the selected talk group, P1, P2, and default emergency
talk groups to the site on which the radio is registered. (If other calls are
available at the site, they also can be heard but they will not be actively
dragged.)
The default emergency talk group, as well as any emergency-enabled talk
groups, is only dragged if it is in emergency mode.
Fixed
Functions the same as Normal Scan Mode except the priority groups are fixed
to the selected profile‟s pre-defined P1 and P2 groups (configured via the
UAS). In this mode, P1 and P2 groups CANNOT be locked out.
7.23.1 Checking or Changing Active Scan Mode
The currently active scan mode does not appear in the dwell display. To check it, access
“ScnModeMenu” and observe it in the top line of the display. To change the active scan
mode:
1. Use to scroll through the menus until “ScnModeMenu” appears in the display.
2. Use to scroll through the scan options until the desired mode appears. See Table
7-5.
H-7YCPD0002-0 EDITION 1
41
7.23.2 Scanning Priority
The following lists the scanning priority order (from highest to lowest):
1. Selected talk group in emergency state.
2. Default emergency group in emergency state.
3. Selected talk group.
4. Emergency capable group in emergency state
5. Priority 1 talk group.
6. Priority 2 talk group.
7. Other (non-priority)
7.23.2.1 Changing Scanning Priority
Follow this procedure to set talk groups in the current profile as the Priority 1 or Priority 2
talk group:
1. Use to scroll through the menu until “Priority1” or “Priority2” appears in the
bottom line of the display (Priority1 group has higher priority than the Priorty2 group.
The talk group currently set as the priority talk group appears in the top line of the
display.
2. Use to select a new priority talk group.
3. Press the MENU button to set the newly selected talk group as the priority talk group.
7.24 MAKING SELECTIVE CALLS
Selective calling is a feature that allows two radio units to obtain and utilize an
independent voice path for a private call. Radios can be configured to both initiate and
receive selective calls or to only receive selective calls.
In the OpenSky system, a source radio can be configured to initiate selective calls through a
pre-programmed list in memory. This method uses the “speed dial list” set up by the
OpenSky network administrator and provisioned as part of the registration process.
NOTE
Selective calls are terminated if an emergency is declared. The network
limits selective calls to ten (10) minutes maximum.
H-7YCPD0002-0 EDITION 1
42
7.24.1 Speed Dialing a Selective Call
NOTE
Speed dial numbers are defined and provisioned by the OpenSky network
administrator and cannot be manually entered into the radio by the user.
Contact the administrator if changes to the speed dial list are required.
1. Scroll through the Menu options using until “SpeedDial” appears in the bottom
line of the display.
2. Using , scroll through the pre-programmed speed-dial numbers until the desired
number appears in the display.
3. Press and release the PTT button to ring the other user.
a. The ring tone is sounded.
b. If the other user accepts the call, the called user‟s alias will appear in the initiating
caller‟s display. The two are now in a private call until one ends the call, the call is
terminated due to an initiated emergency, or the maximum time limit of ten (10)
minutes is reached.
4. To end the call, press (-) using .
7.24.2 Receiving a Selective Call
When someone calls in from another radio using the selective call function, a ring sounds in
the speaker and/or headset. Press up or down using or any number key to accept an
incoming Selective Call. Press the microphone‟s PTT button when speaking (transmitting)
to the caller.
Press (-) using to reject an incoming Selective Call.
A selective call will be interrupted if an emergency is declared on a monitored talk group.
7.24.3 Terminating a Selective Call
Press (-) using to terminate an incoming Selective Call.
H-7YCPD0002-0 EDITION 1
43
7.25 SELECTIVE ALERT
Selective alert messaging is an OTP feature allowing one of up to eight (8) pre-programmed
text messages (refer to Section 7.25.3) to be sent from one radio to another. The user
specifies a destination radio‟s User ID, selects one of the pre-programmed text messages,
and then transmits it to the destination radio. The message delivery system adds time-of-
day information and forwards the message to the destination (receiving) radio. The sending
radio receives a brief message noting the status of the transmission. Refer to Table 7-6 for a
list of possible status messages.
The first few characters of a message are part of the message text entered when the
message is programmed. This programming is performed by the system or network
administration personnel.
Messages successfully received by the destination radio are stored until deleted or until it is
power cycled.
7.25.1 Sending Selective Alert Messages
The destination radio‟s User ID can be selected via the menu.
1. Using , scroll through the menu until “AlertDest” (Alert Destination) appears in
the bottom line of the display. The current speed dial number scrolls on the top line.
2. Use to change to a different speed-dial number.
3. When the desired speed-dial number appears, press the MENU button to activate the
selection.
4. Choose and send the message.
Choosing and Sending the Message
After specifying the destination radio‟s User ID (Section 7.25.1), the radio automatically
allows you to choose a message. The current message scrolls across the top line of the
display. To choose a message:
1. Scroll through the message list using . The next available message in the list is
displayed. Pause between each arrow button press to observe the entire message as it
scrolls across the top line of the display.
2. To select and send the displayed message, press the Select button.
3. The status of the sent message will be momentarily displayed (Table 7-6).
H-7YCPD0002-0 EDITION 1
44
Table 7-6: Status of Selective Alert
STATUS MESSAGE
DEFINITION
Delivering
Select Alert message transmit attempt
Busy
Too busy – Try again
Dest Down
Receiving radio not logged on – Not
registered
Not Reg
Transmitting radio not logged on – Not
registered
Delivered
Transmission complete
Unreachable
No response
Partial
Transmission interrupted
7.25.2 Receiving Messages
When a selective alert message is received by a radio, a four-beep tone (one low, two high,
and one low) is heard and “NewAlert” flashes until the new message is read. Up to eight (8)
received messages are stored. If another message is received, the first (oldest) message is
automatically deleted to make room for new incoming messages.
Displaying Received Messages
1. Using , scroll through the menu until “AlertsRecvd” (Alerts Received) appears in
the bottom line of the display. “No alerts” or the last received (newest) message appears
in the display. It is preceded by the time the message was received, and the sender‟s
name/alias.
2. View other received messages using .
3. To delete the message currently being viewed, press the MENU button.
Deleting Received Messages
To delete a received message:
1. Display the message.
2. Delete the message by pressing the MENU button.
3. Confirm the deletion by pressing the MENU button again.
7.25.3 Defining Pre-Programmed Messages
All selective alert messages are pre-defined by the radio system‟s maintenance personnel.
These messages are sometimes referred to as “canned” messages. Custom selective alert
messages cannot be created by the radio user. The entire selective alert message, including
the abbreviation, can include up to 99 text characters.
H-7YCPD0002-0 EDITION 1
45
7.26 EMERGENCY COMMUNICATIONS
The JHM-875S35J mobile radio can transmit both emergency voice calls and emergency
alerts over the entire network. OpenSky handles emergency calls and alerts with the
highest priority.
For critical voice communications, an emergency call can be raised on the default talk group
or the currently selected talk group by “declaring” an emergency on the talk group. The
exact talk group is determined by the currently active profile. After successfully declaring
an emergency on a talk group, the declaring radio‟s microphone remains “hot” for a
predetermined amount of time. In other words, the radio transmits audio for a period of
time even when the microphone‟s PTT button is not pressed. An emergency talk group is
provided greater priority and infinite hang-time by the radio system‟s infrastructure. Hang-
time is the maximum duration of quiet time between transmissions on the talk group before
the infrastructure assets are automatically taken away. Because an emergency call is
handled on a talk group, it is received by all radios and consoles monitoring the talk group.
An emergency alert is a data message sent by the radio to the MIS console (or any console
capable of receiving it). It identifies the radio declaring the emergency, and the radio‟s
location (if the radio is equipped with a GPS receiver). Voice audio is not automatically
transmitted during the emergency if the administrator configures the radio for alert
notification only.
7.26.1 Declaring an Emergency Call or Alert
To declare an emergency call or emergency alert, press and release the orange Emergency
button. This button is located just to the right of the CLEAR button; see Figure 7-1 on page
17. The emergency is raised after the Emergency Raise Delay (default is one second).
The OpenSky network administrator determines if the Emergency button is used to
declare an emergency call or if it is used to declare an emergency alert. This is based
upon the radio‟s currently active profile.
The OpenSky network administrator also determines if the emergency is declared on
the currently selected talk group or a “default” emergency talk group. Again, this is
based upon the radio‟s currently active profile. A talk group upon which an emergency is
declared on is considered an “emergency talk group.”
Upon successful emergency declaration:
An emergency tone will sound in the radio‟s speaker/headset if the radio is not in
stealth mode.
At the declaring radio, the Emergency button flashes red if the radio is not in stealth
mode. The administrator can configure the radio to automatically transmit upon
successful emergency declaration, at which point the MENU button will flash red.
However, the MENU button flashing red is not a requirement for successful
emergency declaration.
H-7YCPD0002-0 EDITION 1
46
On the declaring radio during an emergency call declaration, the talk group that the
emergency is declared on is temporarily displayed and then the word
“EMERGENCY” flashes on the second line of the display.
For an emergency alert declaration, “EMERG ALERT” appears in the bottom line of
the display.
For an emergency call declaration, other radio users and/or dispatchers at consoles
will hear the emergency signal, a distinctive 3-tone burst. They will also hear audio
from the declaring radio‟s “hot” microphone, if any.
For an emergency alert declaration, only dispatchers at consoles will hear the
emergency signal and, if any, audio from the declaring radio‟s “hot” microphone.
For an emergency call, the declaring radio‟s microphone remains “hot” for a
predetermined amount of time. In other words, the radio transmits audio for a
period of time even when the microphone‟s PTT button is not pressed. Audio is
transmitted over the emergency talk group. When the microphone is “hot” for this
initial period (typically ten seconds), simply speak into it for voice transmission.
If an emergency declaration is not successful, the radio will periodically re-attempt until it
is successful. During this retry period, the radio will flash “EMERG PEND” on the bottom
line of the display. It will display “EMERG RETRY” for each attempt.
7.26.2 Silent Emergency
When this feature is enabled and an emergency call or alert is declared by pressing the
emergency button, the radio will not play a tone and will display an abbreviated emergency
message (default is EBA). This feature is enabled or disabled via programming or via the
menu.
NOTE
If the Silent Emergency feature is enabled or disabled via programming, the
setting will survive power cycle. Enable/Disable selection via the menu will
NOT survive power cycle and the enable/disable state will revert to the
programmed setting at power up.
7.26.3 Clearing an Emergency Call or Alert
NOTE
Check with the system administrator to ensure that the radio is programmed
to allow an emergency to be cleared.
If enabled via programming, clear an emergency by:
1. Pressing and holding the CLEAR button and simultaneously pressing the emergency
button.
2. After the Emergency Cleared Tone sounds, release both buttons.
NOTE
If the radio is in stealth mode, clearing the emergency will take the radio out of
stealth mode.
H-7YCPD0002-0 EDITION 1
47
7.26.4 Receiving an Emergency Call
Upon receiving an emergency call declared by another radio:
An emergency tone sounds in the radio‟s speaker/headset (three short high-pitched
beeps).
“EMERGENCY” flashes in the display if the radio is not in stealth mode.
On receiving radios with the emergency talk group selected, the alias of the sending
party is displayed for 5 seconds during the open-mic period, then the word “Emergency”
flashes on the second line of the display and continues until the emergency state ends.
If scan mode is set to “No Scan” and the emergency was declared on the selected talk
group, audio on the emergency talk group is heard in the speaker/headset. See page 30
for additional information on “No Scan” operation.
If scan mode is set to “No Scan” and the emergency was declared on a talk group other
than the selected talk group, the emergency talk group (identified by an “*”) must be
selected before audio on it is heard in the speaker/headset.
If scan mode is set to “Normal” and the emergency was declared on the selected talk
group, the selected/emergency talk group‟s name remains in the top line of the display.
Audio on the emergency talk group is heard in the speaker/headset.
If scan mode is set to “Normal” and the emergency was declared on a talk group other
than the selected talk group, the emergency talk group‟s name appears in the bottom
line of the display. Audio on the emergency talk group is heard in the speaker/headset.
The declaring radio's alias appears in the bottom line of the display when the
emergency talk group is selected.
An emergency call can be dismissed as described in the following section.
NOTE
A radio declaring an emergency on a talk group has a “hot” mic time period
of typically ten (10) seconds just after it declares the emergency. This time
period may be adjusted by system or network administration personnel on a
per radio basis.
7.26.5 Dismissing an Emergency Call
NOTE
An emergency is dismissed for a configurable amount of time only (default = 5
minutes).
To ignore an emergency call declared by another radio user:
1. Press until “EmgDismiss” appears in the display.
2. Press until the talk group in the emergency state appears, as indicated by an
asterisk (*) following the talk group‟s name.
3. Press the MENU button.
H-7YCPD0002-0 EDITION 1
48
NOTE
The emergency dismiss timer is cleared when the emergency is cleared.
7.27 ENCRYPTION
In the OpenSky network, both data and voice use a 128-bit or 256-bit key encryption
standard published by the Federal Information Processing Service (FIPS), called Advanced
Encryption Standard (AES). AES is approved by the U.S. Department of Commerce for
encryption of classified materials.
When encryption is enabled on the network, data is encrypted from the MDIS to the Mobile
End System (MES) (e.g., JHM-875S35J mobile radio). This form of encryption provides air-
link security.
Voice encryption is handled automatically. Automatic encryption is initiated through the
Unified Administration Server (UAS) for a specific talk group and requires nothing from
the user.
7.27.1 Automatic Encryption
For automatic encryption, a network administrator will select the talk group to be
encrypted at the interface to the UAS. Once the talk groups have been selected and
identified as secure, credentials for key generation are generated automatically by the
system and provisioned to authorized users. This process requires that authorized users
login to the network and be authenticated. Encryption keys require no manual handling
and are never sent “in the clear” over any network interface or air-link.
If a user is engaged in a call on a talk group encrypted at the network administrator level,
“Secure Call” will appear in the bottom line of the dwell display if the user is logged in to
that talk group.
If a secure call is in progress elsewhere and the user has not logged in, the bottom of the
dwell display will alternate between “No Access” and the alias of the radio that is currently
engaged in the secure call.
7.28 PRESET BUTTONS
The front panel contains three buttons labeled A, B, and C. By holding one of these buttons
down for approximately three (3) seconds, the following current information is saved to the
function of that button:
Selected talk group
Selected profile
Selected priority talk group
Lockouts
Scan mode
Intercom mode
H-7YCPD0002-0 EDITION 1
49
Presets are saved and restored to/from non-volatile memory. Changing the User ID (login in
as a different user) will clear the presets since they are stored on a per-user basis.
Changing control heads will not recall presets for the previous control head.
NOTE
Preset button C can be configured via programming to reboot the radio into
a particular application mode. Contact your system administrator to
determine if this feature is enabled in your radio.
7.29 DYNAMIC REGROUPING
Dynamic regrouping requires that the network administrator determine which radio users
should be formed into an impromptu talk group to respond to particular emergency
conditions.
The administrator will edit the personalities of the affected radios to include an emergency
profile and then page the affected radios to re-register with the network to receive their
edited personalities.
In response, affected radios automatically re-register to receive their edited personalities.
During re-registration, subscriber equipment will default to the emergency profile selected
by the administrator.
7.30 GPS COORDINATES
The radio‟s current latitude and longitude coordinates may be displayed using the “GPS”
menu. The following procedure assumes a GPS antenna is connected to the radio and it is
receiving adequate signals from GPS satellites:
1. Press until the “GPS” menu appears in the bottom line of the display. Current
GPS coordinate latitude and longitude data continuously scrolls in the top line of the
display in a degrees:minutes:seconds format.
2. Use to change to another menu.
NOTE
If the internal GPS receiver‟s data is expired (30 minutes or more) or
unavailable, the radio uses the serving base station‟s coordinates [GPS (Site)
is displayed]. The GPS Menu will also indicate if the data is aged (2 minutes
or more) [GPS (Aged) is displayed]
H-7YCPD0002-0 EDITION 1
50
H-7YCPD0002-0 EDITION 1
51
8 P25/CONVENTIONAL COMMON OPERATION
8.1 NCE-5341 FRONT PANEL COMPONENTS
The front panel of the control head includes a dot matrix display, controls for menu
navigation, an emergency button, three pre-set buttons, a Power On-Off/Volume Control
knob, and a microphone connector.
Table 8-1 lists all default front panel controls and their functions. All functions and controls
of the Scan radio operate the same as the corresponding functions and controls on the
System radio.
Figure 8-1: Front Panel
NOTE
Button function may vary depending upon system programming, radio
hardware, and optional configurations. Complete the table in Section 13 if
the keys have been remapped to provide new functions.
H-7YCPD0002-0 EDITION 1
52
Table 8-1: Front Panel Default Controls and Functions
PART
FUNCTION
Power On-
Off/Volume
Control knob
Turn knob clockwise to power on the radio and increase volume.
Turn counter-clockwise to decrease volume and power off the radio.
Mic
Connection
Connection for hand-held, hands-free, speaker-mic, or headset.
The Emergency button declares an emergency if enabled through
programming.
Ambient Light
Sensor
Radio automatically adjusts the display and button backlight brightness
level based on ambient light. Do not block this sensor.
This rotary switch selects the systems or groups/channels, depending
upon programming.
This rocker type button is used to display the current SCAN status for a
group/channel and then add or delete the group/channel from the system
scan list.
Pressing the add/delete button twice while the radio is actively receiving
or three times when the radio is not receiving selects the last scanned
channel (Last Scanned Channel Recall).
The primary function of this rocker type button is to scroll through the
System list or the Group/Channel list depending upon programming.
The secondary function is to increment or decrement items within a list
(phone list for example).
OPTION
Toggle a PC programmable feature ON and OFF.
CLEAR
In Conventional mode, pressing this button unmutes the receiver so
activity on the selected channel can be monitored. When pressed and
held for approximately 3 seconds, this button toggles conventional
channel decoding (Channel Guard, Digital Channel Guard, T99) ON and
OFF if programmed for the selected channel.
MENU
Primary function - access the menu list. This is a list of additional
features that are not available directly from the keypad.
Secondary function - activate a selected item within a list, similar to an
enter key.
SCAN
Primary function - toggle scan operation on and OFF.
Secondary function - toggle the keypad buttons between their primary
function and their secondary function.
Pre-Set
buttons
(A, B, & C)
Used to store and recall user-selectable parameters.
H-7YCPD0002-0 EDITION 1
53
8.1.1 Primary Functions (Quick Access)
The secondary function of the SCAN button is to toggle the keypad buttons between their
primary function and their secondary function. When the secondary keypad is active, the
SCAN button can be used to toggle the keypad buttons back to their primary function.
PRIMARY is displayed when the SCAN button is used to toggle the keypad keys back to
their primary functions. This provides quick access to the primary functions of the keypad.
This is a programmable feature of the SCAN button only. Careful consideration should be
given to possible operational conflicts before enabling this feature.
Several keys on the Scan version have a secondary function. The MENU key is the
SELECT secondary function with the CLEAR key remaining the same for the secondary
function.
8.2 TURNING THE RADIO ON
Rotate the POWER ON-OFF/VOLUME knob clockwise, out of detent to turn the radio on. A
short beep (if enabled through programming) indicates the radio is ready for operation. The
display indicates, if programmed, the last selected system name on line 1 and the last
selected group or channel name on line 2.
8.3 SELECTION MODE RULES
Many operations require selection from a list such as system, group or phone number. This
selection process is handled in the same manner for all lists. The ramp control,
MENU, and the CLEAR button are used during the selection process. The following
example systems list is used to explain the process:
NOTE
The hook switch functions the same as the CLEAR key in menu modes.
H-7YCPD0002-0 EDITION 1
54
SYSTEM
1
NORTH
2
SOUTH
3
EAST
4
WEST
After entering a selection mode, the following generic display format will appear:
X X X X X X X X
Y Y Y = Z Z Z
Line 1 shows the currently selected item name (XXXXXXXX) from the list. Line 2 indicates
the list (YYY) that the selection is to be made from and the number of the selected item
(ZZZ) within the list. (In some cases the information on lines 1 and 2 will be exchanged.)
Enter the system selection mode by using the ramp control. If SYSTEM 2 is the
current selection, the display appears as follows:
S O U T H
S Y S = 2
Line 1 contains the current system name, SOUTH; and line 2, SYS = 2, indicates that
selection is from the system list and it is the second system within the list.
A new system from the list is selected by using the ramp control or by directly
entering the system number with the numeric keys. The ramp control scrolls through
the list in increasing and decreasing order. In the previous example, pressing up with the
ramp control selects the EAST system as shown in the next display.
E A S T
S Y S = 3
The radio can be programmed to wrap around from one end of a list to the other end or to
stop at the ends.
H-7YCPD0002-0 EDITION 1
55
8.4 FEATURE ENCRYPTION DISPLAY
Feature Encryption Display is available through the menu function and, if programmed,
appears in the menu as “FEATURES.” This data indicates current features programmed
into the radio as well as information required to add features to the radio.
Once the feature has been accessed, all normal menu functions work. The user can scroll up
or down through all of the entries.
Feature Encryption Display provides the ability to view, in the order displayed, the
following:
Serial number ROM data - serial number of the ROM
Feature encryption data stream - used to enable features
Number Fields - defines limits
Features enabled - displays bit fields of enabled features
8.4.1 Serial Number ROM (12 Hex Digits)
Example:
When the user wants to enable a feature in his radio, he will need to call JRC. They will
ask for the ROM serial number. The serial number shown here is for example only.
8.4.2 Feature Encryption Data Stream
Example:
These data streams define the features the user has enabled in his radio and are required
by JRC to enable other features. The data streams shown here are for example only.
Note:
There are three displays: FD1, FD2, and FD3. All three are required.
H-7YCPD0002-0 EDITION 1
56

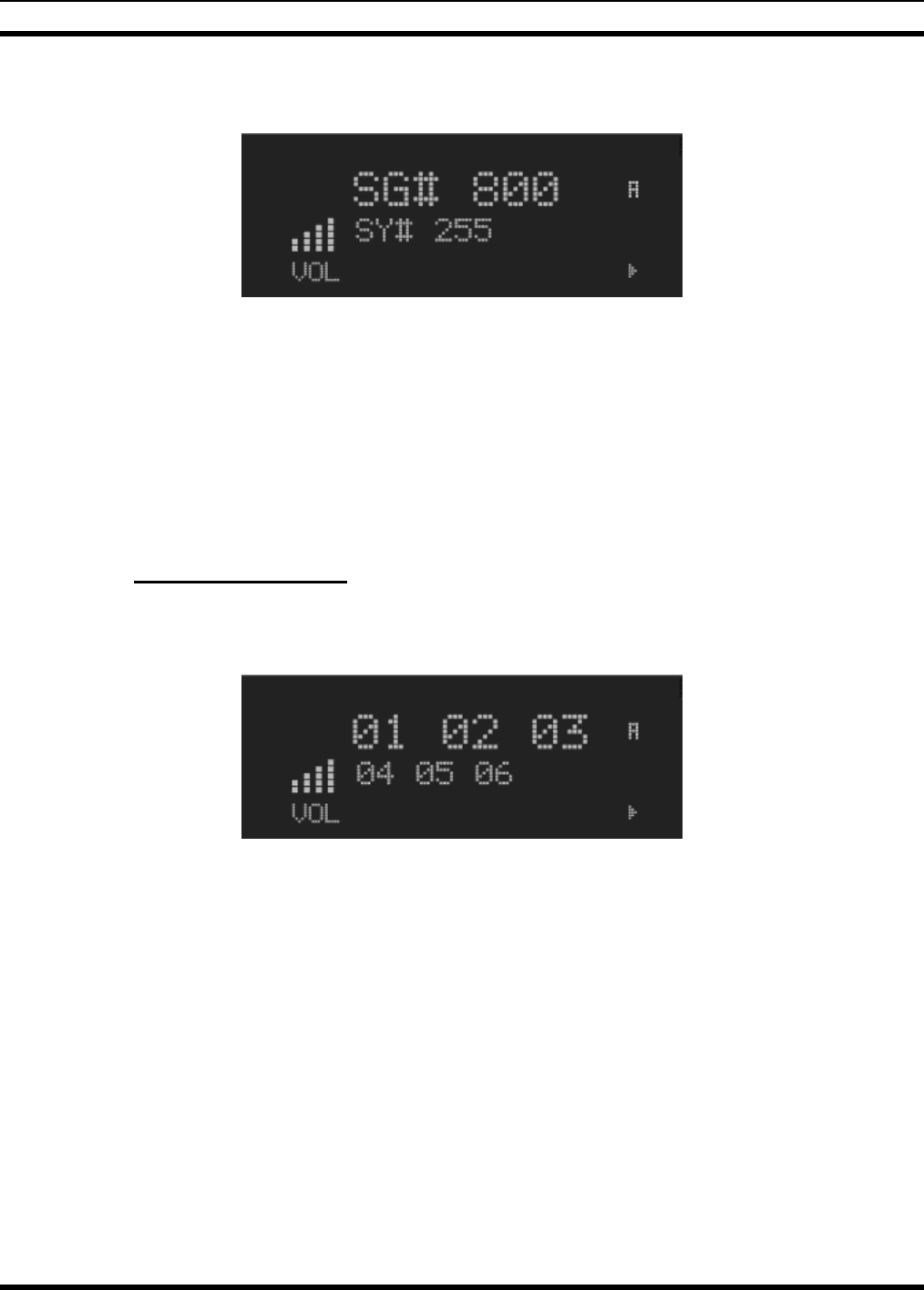

Number Fields
Example:
These number fields show the set limits of the of the user's radio as:
SG# XXX - Maximum number of system/groups combination available
SY# XXX - Maximum trunked system limit
CH# XXX - Maximum number of conventional channels available
The user needs to know the limits of his radio before attempting to enable other features.
The numbers shown here are for example only.
8.4.3 Features Enabled
These numbers indicate which features are enabled.
Example:
Table 8-2 lists possible features available in the user's radio.
H-7YCPD0002-0 EDITION 1
57
Table 8-2: Available Feature Numbers
FEATURE
NUMBER
POSSIBLE FEATURES
STANDARD OR
OPTIONAL
01
Conventional Priority Scan
Standard
07
Dynamic Regroup
Standard
09
Type 99 Encode
Standard
10
Conventional Emergency
Standard
12
Aegis™ Digital Voice Encryption
Optional
14
DES Encryption
Optional
16
Mobile Data
Optional
23
Narrowband
Standard
29
ProVoice™
Optional
32
FIPS-140-2
Optional
33
P25 Common Air Interface
Optional
34
Direct Frequency Entry
Optional
38
Radio TextLink
Optional
H-7YCPD0002-0 EDITION 1
58
8.5 SYSTEM/GROUP/CHANNEL SELECTION
In the following description of SYSTEM/GROUP/CHANNEL SELECTION, the term group
is used for both group and channel.
The JHM-875S35J SYSTEM/GROUP/CHANNEL knob and the ramp control are
programmable for maximum flexibility. If the SYSTEM/GROUP/CHANNEL knob is
assigned to select groups, then the ramp control is assigned to select systems. If the
SYSTEM/GROUP/CHANNEL knob is assigned to select systems, then the ramp
control is assigned to select groups. System, group, and channel selection is the primary
function for these controls.
8.5.1 System Selection
Several methods, some of which depend on programming, can be used to select a new
system. These procedures are presumed to be starting from the normal receive display.
METHOD 1:
If system selection is programmed to the SYSTEM/GROUP/CHANNEL
knob, select a system by turning the SYSTEM/GROUP/CHANNEL knob to
the desired system position. The display registers the new system name on
line 1. If the wrap option is OFF and the knob is moved to a position greater
than the number of programmed systems, the highest programmed system
will remain selected.
METHOD 2:
If system selection is programmed as the primary function of the ramp
control, select a system by pressing up or down to scroll through the system
list. The display registers the new system name on line 1.
8.5.2 Group and Channel Selection
Several methods, some of which depend on programming, can be used to select a new group
or channel. These procedures assume starting from the normal receive display.
METHOD 1:
If group selection is programmed to the SYSTEM/GROUP/CHANNEL
knob, select a group by turning the SYSTEM/GROUP/CHANNEL knob to
the desired group. The display registers the new group name on line 2. If
the wrap option is OFF and the knob is moved to a position greater than
the number of programmed groups, the highest programmed group will
remain selected.
METHOD 2:
If group selection is programmed as the primary function of the
ramp control, select a group by pressing up or down, to scroll through the
group list. The display registers the new group name on line 2.
H-7YCPD0002-0 EDITION 1
59
8.6 LAST SYSTEM/GROUP/CHANNEL RECALL
This feature, enabled through programming, allows the user to recall the last selected
system/group after an emergency or home function or system/group key function. For
example, if the Home button (pre-programmed) is pressed, the radio will go to the
designated Home system/group or channel. If the Home button is pressed again, the radio
returns to the previous system/group or channel. At this time, the user can toggle between
the Home system/group or channel and the previous system/group or channel. The
operation is the same for the SG1-SG5 buttons.
8.7 DIGITAL VOICE OPERATION (PROVOICE)
8.7.1 Voice Modes
Each system (trunked or conventional) in the radio is programmed for no digital voice
operation (analog only) or digital voice format ProVoice. ProVoice programmed systems
have three (3) different voice modes: clear (analog), digital, and private. The voice modes
are programmed on a per-group basis within each trunked system and on a per-channel
basis within each conventional system. A radio must be equipped with the encrypt/decrypt
option before it will operate in private mode.
NOTE
Current ProVoice Conventional operation is for talk-around mode only.
Table 8-3: Transmit/Receive Mode Compatibility for ProVoice Operation
GROUP/CHANNEL
PROGRAMMING
(TRANSMIT)
CLEAR
RECEIVE
DIGITAL
RECEIVE
PRIVATE
RECEIVE
CLEAR
Yes
No
No
DIGITAL
Yes
Yes
No
PRIVATE
Yes
No
Yes
8.7.2 Clear Modes
In Clear Mode, the radio transmits and receives only clear (analog) voice signals. These
analog signals are non-digitized and non-encrypted. Clear Mode transmissions can easily be
monitored by unauthorized persons. Groups or channels programmed for clear operation
cannot transmit or receive unencrypted digital or private messages.
H-7YCPD0002-0 EDITION 1
60
8.7.3 ProVoice Digital Mode
ProVoice digital mode allows the radio to transmit and receive digitized voice signals. These
digital signals provide improved weak signal performance and they cannot be easily
monitored with a standard receiver. Groups and channels programmed for ProVoice digital
operation transmit only digital signals. Private calls cannot be received or transmitted
when the radio is in ProVoice digital mode because the radio does not know the
cryptographic key used.
Message trunked group calls and individual calls will be answered back in the mode they
were received, assuming the call or hang time is still active. Individual, all and emergency
calls will be transmitted clear if digital mode is disabled or inoperative.
If receiving an analog message trunked call, the radio will respond in analog mode
during the hang time on the working channel.
If receiving an analog I-Call, the radio will respond in analog mode during the hang
time.
When using the "WHC" feature to respond to an I-Call (after the hang time has expired),
the call will be transmitted in the mode defined by the system mode as programmed for
the current system if the ID being called is not in the I-Call list. If the ID is in the I-Call
list, then the call will be transmitted as defined by the I-Call mode programmed in the
list for that ID.
ERROR Messages
If any of the following error messages are displayed, the radio was either programmed
incorrectly or needs servicing:
DSP ERR
ERR=xxxx
DSP ERR
DIGV ERR
Power Up Only
If the ProVoice circuit board is not responding, correctly, one of the following error
messages will be displayed and the radio needs servicing:
HARDWARE
ERR= 3X
3X will be a number between 30 and 38
H-7YCPD0002-0 EDITION 1
61
8.7.4 ProVoice Private Mode
ProVoice private mode allows the radio to transmit encrypted messages and receive clear or
private transmissions. The radio will transmit private if the group/channel is programmed
for private operation and forced operation is pre-programmed.
If the radio was pre-programmed for auto-select, the radio will transmit in the following
modes;
If Private mode is enabled, transmissions are always in private mode.
If Private mode is disabled and a private call is received, the Reply transmission will be
in Private mode if the transmission is made during the scan hangtime. If the reply
transmission occurs after the scan hangtime, the transmission will be in Clear mode.
When operating on a group or channel programmed for private mode, all transmissions will
be private transmissions and the radio will receive clear and private signals. If the selected
group or channel is programmed for auto-select capability, the mode can be toggled between
private and clear with the OPTION button. Radios programmed for forced private operation
do not allow a change of the transmit mode; therefore, the OPTION has no effect.
8.7.4.1 Displaying the Currently Used Cryptographic Key Number
To display the cryptographic key currently in use for either the system encryption key (for
special call such as individual, phone, all, agency or fleet) or the group/channel key (for
group or conventional calls), perform the following procedure (Not Available on
Conventional radios):
1. Press the MENU button.
2. Use to select DISP KEY. Then press the MENU button.
3. Then use to toggle between displaying the system key or the group/channel key.
Table 8-4: Current Cryptographic Key Display
ENCRYPTION KEY
DISPLAYED
MESSAGE DISPLAYED
System
"SYS KEY"
"KEY = 1"
Group/Channel
"GRP KEY"/"CHN KEY"
"KEY = 2"/KEY = 2"
H-7YCPD0002-0 EDITION 1
62
8.7.4.2 Key Zero
All cryptographic keys can be zeroed (erased from radio memory) by pressing the CLEAR
and while still pressing this button, press and hold the OPTION. Press both buttons for 2
seconds. A series of warning beeps will begin at the start of this 2-second period and then
switch to a solid tone after the keys have been zeroed. The display will indicate KEY ZERO.
If the cryptographic key(s) are zeroed, one or more keys must be transferred from the Key
Loader into the radio before private communications can continue. (Refer to Key Manager
TQS3416 Administration and Software Release Notes for further information.)
8.7.5 Private Operation
8.7.5.1 Receiving an Encrypted Call
When receiving, the radio automatically switches between clear or private operation. If the
transmission being received is an encrypted transmission, it will be decrypted, the receiver
will unsquelch and the message will be heard in the speaker. The selected group or channel
must be programmed for private operation and the correct cryptographic key must be
loaded into the radio for this to occur.
8.7.5.2 Transmitting an Encrypted Call
1. Select the desired group or channel.
2. Place the radio in private mode by pressing the OPTION.
If the last state of the radio was private mode, the private mode will be enabled on
power up. In addition, the private mode will be enabled if forced operation has been
programmed in the radio
If a group or channel is not programmed for private mode operation, PVT DIS will be
displayed if an attempt is made to enable private transmit mode. It is not possible to
operate on this group/channel in private mode.
If the radio is programmed for forced private transmit operation, FRCD PVT will be
displayed if an attempt is made to disable private transmit mode. It is not possible to
transmit on this group/channel in clear mode.
If the radio does not have the correct encryption key loaded, NO KEY # will be displayed
and the call will not be transmitted.
3. Continue with standard transmission procedures. A private mode access tone will be
heard when the PTT button is pressed.
H-7YCPD0002-0 EDITION 1
63
8.7.5.3 Scanned Group Calls
Receiving a scanned group call is the same as receiving a selected group call. During the
scan hang time, if the radio was programmed for auto-select, it will transmit back in the
same mode it received the call. For example, if a clear group is entered in the scan list, it
will only receive clear calls. If the same group was available in private and entered in the
scan list, it can receive clear and private calls, provided auto-select was programmed in the
radio. The user can select transmitting on the scanned or selected group. If a group is
entered in the scan list more than once in different modes (clear, digital, private), only the
first occurrence of the group will be used.
8.7.6 Conventional Operation
8.7.6.1 Outside Address
The same outside address (works similar to Channel Guard operation) must be
programmed in the transmitting and receiving radios when ProVoice digital or private
operation is enabled. If address is not correct, the radios will not communicate.
8.7.6.2 Channel Guard
Channel Guard encode is transmitted on analog clear channels only. Channel Guard decode
will operate on either a clear or private channel. The exception is when G-STAR signaling is
used (see G-STAR paragraph).
8.7.6.3 G-STAR
When G-STAR is programmed on a private channel, the radio will transmit G-STAR in
clear mode and then switch to private for the voice portion of the call. If G-STAR is sent
with Channel Guard, then both are sent in clear mode and the radio switches to private
mode. Emergency G-STAR data burst is transmitted in clear mode.
8.8 MACRO KEY OPERATION
Macro key operation permits the user to accomplish a series of keystrokes with a single
"macro" keystroke. Up to ten (10) macro keys can be defined, each capable of executing up
to twenty (20) keystrokes, to any pushbutton input (i.e., keypad keys, buttons, etc.). Each
macro key can be pre-programmed to activate when pressed or when released.
A macro key can also be pre-programmed to change the keystroke sequence the next time
the macro key is activated.
For detail operation and assignment of macro keys, contact your communications
supervisor or administrator.
H-7YCPD0002-0 EDITION 1
64
H-7YCPD0002-0 EDITION 1
65
9 CONVENTIONAL OPERATION
9.1 RADIO STATUS ICONS
Status icons are indicators that show the various operating characteristics of the radio.
The icons appear on the first line of the display.
Figure 9-1: Typical Display
Table 9-1: Icons and Descriptions
ICON
DESCRIPTION
Indicates selected group or channel is in scan list.
Indicates selected group or channel is programmed as Priority 1 in
scan list.
Indicates selected group or channel is programmed as Priority 2 in
scan list.
Indicates a conventional channel enabled with Channel Guard
Function.
Indicates the current channel is set up as an analog channel.
Volume bars – indicates relative volume level.
Scan mode enabled.
H-7YCPD0002-0 EDITION 1
66
9.2 MESSAGES
During radio operation, various messages are displayed on either line 1 or line 2. Typical
messages include control channel status information, such as system busy or call denied, or
messages associated with the radio's operation, (i.e. volume adjust). These messages are
described as follows:
Table 9-2: Display Messages
MESSAGE
NAME
DESCRIPTION
TALKAR
ND
Talk-around
Indicates the radio is operating on conventional channels in
talk-around mode (no repeater).
VOL=31
Volume Level
Indicates the current volume level. The volume level
display ranges from OFF (silent) to 31 (loudest).
UNKNOW
N
Caller's ID Not
Received
Indicates that an individual call is being received, but the
caller's ID was not received.
T99 ON
Type 99
Decode ON
Indicates the Type 99 Decode feature is enabled.
T99 OFF
Type 99
Decode OFF
Indicates the Type 99 Decode feature is disabled.
PA ON
Public Address
ON
Indicates that the public address function of the radio is
enabled.
PA OFF
Public Address
OFF
Momentary (2 seconds) indicates that public address
function of the radio was disabled.
ALRM ON
External
Alarm Enabled
Indicates that the external alarm function of the radio is
enabled.
ALRM
OFF
External
Alarm
Disabled
Momentary (2 seconds) indicates that the external alarm
function of the radio was disabled.
NO KEY #
Encryption
Key Missing
Flashing indicator indicates that no encryption key or an
incorrect encryption key is programmed into the radio.
BCKL=1-6
Backlight
Indicates the display intensity and keypad backlight level.
GR
Group ID
Indicates that the call is a group call and is followed by the
GID of the caller.
MENU
Displayed when the menu key is pressed and remains
displayed in line 1 until a menu item is selected.
SYS=1-64
System = 1 - 64
The system number for the current base station of the
system displayed in line 1. It is displayed in line 2 of the
display. Press the system key to obtain this display.
SEL PHN
Select Phone
After pressing the PHN key, selecting an entry from the
phone list by typing the entry number will display this
message on Line 1.
H-7YCPD0002-0 EDITION 1
67
MESSAGE
NAME
DESCRIPTION
Ggg-v.vv
Code Group
and
Revision
Number
This is code group and revision number that is displayed in
line 2 when the menu item “REVISION” is selected. The „gg‟
is the group number of the software. The first „v‟ is the
hardware version and „vv‟ is the revision of the software.
NO
ENTRY
Indicates that there is no data stored in one of the
programmable items in either the phone list or individual
call list. The user programmable items are items 1 through
10 in each list.
INV SYS
Invalid System
Displayed when the current system is an invalid type.
CHN=1-99
Channel = 1 -
99
Displayed on line 1 of the display. This is a conventional
channel index displayed when the group key is pressed.
FIX LIST
Fixed List
The Priority scan list is fixed and cannot be changed using
the add or delete keys.
FIXED P1
Fixed Priority
1
The Priority 1 scan channel is fixed and cannot be changed
using the add or delete keys.
(c) 2004
Displayed in line 2 when the message „JRC‟ is displayed in
line 1 while displaying different items under the menu
when “REVISION” is selected by the operator.
EM
Emergency
Indicates an emergency has been declared by the LID that
follows the display, “EM.” An example of this is “EM
01201.”
*INDV*
Individual Call
Displayed in line 2 of the display when an individual call is
in progress (trunked and T99 modes only).
*GROUP*
Group Call
Indicates a group call is in progress and is displayed on line
1 of the display (trunked and T99 modes only).
SPKR ON
External
Speaker ON
Displayed when the external speaker is enabled.
SPKR
OFF
External
Speaker OFF
Displayed when the external speaker is disabled.
BANK=1-
8
The bank of keys that are going to be loaded when the
keyloader loads encryption keys. This is only valid for
radios that support VGS, VGE, or DES encryption. It is
displayed on line 2 of the display when the encryption
keyloader is connected.
KEY
LOAD
Displayed on line 1 of the display when the encryption
keyloader is connected.
KEY
ZERO
Displayed on line 2 of the display when the reset and option
buttons are pressed simultaneously for approximately two
seconds. The encryption keys are zeroed.
H-7YCPD0002-0 EDITION 1
68
MESSAGE
NAME
DESCRIPTION
SYS KEY
System Key
Displayed on line 1 of the display in the display key mode of
the menu. It is followed in the second line with a key
number “KEY = <1..7>”.
KEY=1-7
Displayed on line 2 of the display in the display key mode of
the menu for conventional systems when the “SYS KEY” or
“CHN KEY” is displayed in line 1 and for trunked systems
when the “SYS KEY” or “GRP KEY” is displayed in line 1.
PRIMARY
Displayed on line 1 of the display when the primary keys
are enabled.
PRS
NAME
Personality
Name
Displayed on line 1 of the display under the revision
selection of the menu. The personality name is displayed on
line 2 at the same time.
JRC
Displayed on line 1 of the display under the revision
selection of the menu. The copyright year is shown in line 2
of display at the same time “(c) 2007.”
9.3 ALERT TONES
The JHM-875S35J mobile radio also provides audible alert tones or “beeps” to indicate the
various operating conditions. These alert tones can be enabled or disabled through
programming.
Table 9-3: JHM-875S35J Alert Tones
NAME
TONE
DESCRIPTION
Call Originate
A short mid-pitched
tone.
Sounds after keying the radio (Push-To-Talk
button is pressed). Indicates the radio has been
assigned a working channel
Carrier Control
Timer
Five short high-pitched
warning tones followed
by a long low-pitched
tone.
Sounds if the programmed time for continuous
transmission is exceeded. The transmitter will
shut down shortly after the alert, interrupting
communications. Release and re-key the PTT
button to maintain communications. This will
reset the carrier control timer and turn the
transmitter back on.
Key Press Alert
A short tone.
Indicates a key has been pressed. A short low-
pitched tone indicates no action was taken
because the key is not active in the current mode.
H-7YCPD0002-0 EDITION 1
69
9.4 MENU
The menu function accesses features that are not available directly from the keypad. The
order and specific number of menu items available is configurable through programming.
Upon radio power up, the menu item at the beginning of the menu list will always be
displayed first. Subsequent access to the menu function will return the last menu item that
was shown in the display. To enter the menu mode, press MENU. The ramp control,
MENU, and CLEAR are used during the selection process. All of the selection mode rules
previously detailed apply to the menu item selection process with the exception of direct
access. The radio will continue to receive and transmit normally while in the menu function.
A new item is displayed by using the ramp control to scroll through the list in
increasing and decreasing order. The displayed menu item is made active by pressing
MENU.
After entering the menu selection mode, the following generic display format will appear.
M E N U
Y Y Y Y Y Y Y Y
Line 1 indicates the radio is in the menu selection mode. Line 2 indicates the menu item
(YYYYYYYY) that is to be viewed or changed (some menu items provide radio information
and do not have changeable parameters).
An example of the menu item selection process and menu item parameter change is
detailed below for the contrast menu item.
1. Press MENU to enter the menu mode.
2. Press the ramp control until the display shows:
M E N U
CONTRAST
3. Press MENU. The contrast menu item is activated and the display will be similar to the
following:
CNTRST = X
Y Y Y Y Y Y Y Y
Line 1 shows the active menu item and its current parameter setting (XXX). Line 2
shows the currently selected system or group name (YYYYYYYY).
4. The menu item's parameter setting shown in the display can now be changed by using
the ramp control to scroll through the list of parameter values. Once the desired
setting is reached, press MENU to store the value and return to the normal display. For
menu items that display radio information, use to scroll through a list of
informational displays. The menu items are listed in Table 9-4.
H-7YCPD0002-0 EDITION 1
70
Table 9-4: Menu Item Information
FEATURE
DISPLAY
PARAMETER
SETTINGS
COMMENT
Contrast Adjust
Menu Item:
CONTRAST
Once selected:
CNTRST=
1, 2, 3, 4, 5, 6, 7, 8
Selects the Contrast level.
Radio Revision
Information
Menu item:
REVISION
Informational
displays only
(see radio); no user
selectable settings.
Selects the information display to
view.
Phone Call
Menu item:
PHN CALL
Once selected:
See Telephone
Interconnect
Call Section
Allows access to the Phone Call
Feature.
External Alarm
Menu Item:
EXTALARM
Once Selected:
EXTALARM
ON, OFF
EXTALARM replaces the system
name on the display as long as
the external alarm feature is
enabled.
Public
Address
Menu item:
PUB ADDR
Once selected:
PA ON or
PA OFF
ON, OFF
Public Address is toggled ON and
OFF.
External Speaker
Menu item:
EXT SPKR
Once selected:
SPKR ON or
SPKR OFF
ON, OFF
External Speaker is toggled ON
and OFF.
Encryption Key
Loading
Menu item:
KEYLOAD
Once selected:
KEY LOAD
BANK = N
Up to 8 banks of 7
keys
Enables the radio to accept the
loading of encryption keys.
Display Current
Encryption
Key(s)
Menu item: DISP
KEY
Once selected:
SYS KEY, GRP
KEY or CHN
KEY and KEY =
N
Displays current encryption key
number.
H-7YCPD0002-0 EDITION 1
71
FEATURE
DISPLAY
PARAMETER
SETTINGS
COMMENT
Front Panel
Squelch Adjust
Menu item:
SQUELCH
Once selected:
SQLCH=xx
1-16
Allows setting of squelch.
Scan
Menu item:
SCAN
ON, OFF
Toggles scan function ON or OFF.
Scan Add
Menu item:
SCAN ADD
Once selected:
Proper scan icon
displayed.
S, 2 or 1
Adds group or channel to scan
list.
Scan Delete
Menu item:
SCAN DEL
Once selected:
Scan icon goes
out.
Deletes group or channel from
scan list.
Scan Add/Delete
Menu item:
SCAN A/D
When selected:
Toggles through
scan selections
Toggle sequence
S, 2, 1, S, ...
Changes present group or
channel to next scan choice in
scan list.
Last Scanned
Channel Recall
Menu Item:
SCAN ADD
Press twice when
actively
receiving; three
times when not
receiving. Scan
icon displayed.
Changes the selected channel to
the last scanned channel.
Home channel
selection
Menu item:
HOME
Once selected:
Home group or
channel
displayed.
Changes to the group or channel
defined for Home function.
System select
Menu item: SYS
SEL
Once selected:
SYS = n
1-64 = (n)umber of
desired system
Displays the system selected.
External alarm
#2
Menu item:
EXTALRM2
ON, OFF
Toggles external alarm #2 feature
ON or OFF.
H-7YCPD0002-0 EDITION 1
72
FEATURE
DISPLAY
PARAMETER
SETTINGS
COMMENT
System selection
Menu item:
SYSGRP 1
Menu item:
SYSGRP 2
Menu item:
SYSGRP 3
Menu item:
SYSGRP 4
Menu item:
SYSGRP 5
Changes to the System &
Group/Channel programmed for
SYSGRP 1-5.
Mute
Menu item:
MUTE
ON, OFF
Toggles the mute function ON or
OFF to control the audio output
from the selected radio.
Mute #1
Menu item:
MUTE 1
ON, OFF
Toggles the mute 1 function ON
or OFF on radio #1.
Mute #2
Menu item:
MUTE 2
ON, OFF
Toggles the mute 2 function ON
or OFF on radio #2.
Multiple radio
operation
Menu item:
RADIO
ON, OFF
Toggles the currently selected
radio.
Radio selection
Menu item:
RADIO 1
ON, OFF
Changes to radio #1.
Menu item:
RADIO 2
ON, OFF
Changes to radio #2.
Talkaround
feature
Menu item:
TALKARND
Once selected:
TALKARND on
line 1
ON, OFF
Toggles talkaround ON or OFF
(transmit frequency changed to
receive frequency).
Channel
selection
Menu item: CHN
SEL
Once selected:
CHN = n
1-99 = (n)umber of
desired channel
Displays the conventional
channel selected.
Feature
Encryption
Display
Menu Item:
FEATURES
Once selected:
See Feature
Encryption
Display section
Informational
displays only; no
user selectable
settings
Indicates current features
program- med into the radio as
well as certain information
required to add features to the
radio (refer to the Table of
Contents for Feature Encryption
Display.
Type 99 Decode
Enable
Menu Item: T99
ENAB
Once selected:
T99 ON or T99
OFF
ON, OFF
Type 99 Decode is toggled ON
and OFF.
H-7YCPD0002-0 EDITION 1
73
FEATURE
DISPLAY
PARAMETER
SETTINGS
COMMENT
System Scan
Enable
Menu Item: SYS
SCAN
Once selected:
SYSC ON or
SYSC OFF
ON, OFF
System Scan features like
ProScan are toggled ON and
OFF.
9.5 RECEIVING A CALL
1. Turn the radio on by rotating the POWER ON-OFF/VOLUME knob clockwise (out of
detent). A short alert signal (if enabled through programming) indicates the radio is
ready to use.
2. Adjust the POWER ON-OFF/VOLUME knob to the desired volume level.
3. Select the desired conventional system and channel. The display indicates the current
conventional system and channel names.
4. The radio is now ready to receive calls.
5. When the radio receives a call (and the correct encoding is decoded, if programmed and
enabled), it unmutes on the channel and the BSY indicator comes on.
9.6 SENDING A CALL
1. Turn ON the radio and set the POWER ON-OFF/VOLUME knob to the desired volume
level. Select the desired conventional system and channel.
2. Ensure that the channel is not busy by pressing the CLEAR button to briefly disable
any channel decoding and unmute the receiver or observe the unlit BSY indicator. If the
Channel Busy Lockout feature is programmed for the selected channel, the radio will
not transmit when the channel is busy.
3. Press and hold the PTT button. The TX indicator will turn on and a short beep sounds
(if programmed) indicating that communication can begin.
4. Hold the microphone approximately three inches from the mouth and speak in a normal
voice.
5. Release the PTT button when the transmission is complete and listen for a reply.
H-7YCPD0002-0 EDITION 1
74
9.7 EMERGENCY OPERATION
If enabled, G-STAR emergency signaling can be transmitted when operating in the
conventional mode. This G-STAR signaling will transmit 5 times with a delay between each
transmission. To send an emergency call on the selected conventional system and channel
(or on an optionally pre-programmed conventional emergency system and channel), proceed
as follows:
Press and hold the red Emergency button for approximately one second (this time is
programmable and, therefore, could be longer or shorter; check with the system
administrator). The radio turns on the TX indicator and proceeds to transmit the pre-
programmed G-STAR emergency signaling sequence.
G-STAR is programmed to transmit in one of the following methods:
METHOD 1:
G-STAR is transmitted on the selected channel. If the channel is changed the
emergency signaling will continue to be transmitted on the newly selected
channel.
METHOD 2:
Same as METHOD 1 but the radio will lock on to the currently selected
channel. Any attempts to change the system or channel will be disabled.
METHOD 3:
G-STAR is transmitted on a pre-programmed conventional emergency system
and channel regardless of the selected channel. In this case the selected
channel is available for voice transmission and the radio will periodically
change to the pre-programmed emergency system and channel to send the
emergency signaling and then change back to the selected channel.
METHOD 4:
Same as METHOD 3 but the radio will lock on to the pre-programmed
emergency system and channel. Any attempts to change the system or
channel will be disabled.
The emergency state can be cleared by turning the radio OFF and then back ON.
9.7.1 Using 5-Tone Signaling to Declare an Emergency
If 5-Tone signaling is defined for emergency declaration in place of G-STAR emergency
signaling, a pre-programmed tone sequence will be transmitted instead of the G-STAR
sequence. This emergency declaration functions as the G-STAR emergency in all other
respects.
H-7YCPD0002-0 EDITION 1
75
9.7.2 Tone Encode Transmission
In conventional mode, two keys can be defined to be tone encode triggers. If either one of
the pre-programmed tone encode triggers is pressed, a pre-programmed tone sequence will
be transmitted on the current system and channel. (See Section 9.7 if the emergency key is
used.) The TX indicator will light during tone transmission and a beep will sound at the end
of the transmission. If enabled, audible side tones will be heard in the radio speaker as well.
If PTT is pre-programmed as one of the triggers, the microphone will become active for
voice communication after the tone sequence is complete.
Tone encode will be transmitted with Channel Guard if one is defined, and tones are always
transmitted in clear voice mode, even if the channel is set for digital or private (see VOICE
MODES). Digital or private voice transmission will resume normally after the tone
transmission.
9.8 SCANNING CONVENTIONAL CHANNELS
Channels, which have been previously added to the scan list on a per system basis, can be
scanned. The selected channel is scanned (if enabled through programming) whether or not
it is in the scan list. Each conventional system's channel scan list is retained in memory
when the radio is turned OFF.
The scan rate will vary depending upon the number of channels in the scan list and
whether or not the radio is programmed to scan for channels with decoding enabled. Fewer
channels will result in a faster scan rate. If programmed for dual-priority scan operation,
the priority-one, priority-two and the remaining scan list channels are scanned. Once a
signal is detected and the correct encoded squelch signal is decoded (if programmed), the
radio receives the message and displays the received scan channel. At the same time,
scanning continues on the priority-one and priority-two channels. If a priority-one or
priority-two channel carrier, regardless of encoded squelch decoding, is detected while a
non-priority channel is being received, the display name is updated and the received
channel is switched to the priority channel. Scanning of the priority-one channel will
continue if a message is being received on the priority-two channel.
While receiving a call on a non-priority or a priority two channel, the radio periodically
checks the priority one and two channels. If Scan with Channel Guard is enabled, the radio
will use Channel Guard to decide whether to unmute on a priority channel. The radio will
stop, on squelch detection, on a priority channel. In normal operation, the radio will unmute
only on detecting the correct Channel Guard; otherwise, it will remain muted until the
priority channel call and hang time have ended. An optional feature allows the radio to
continue scanning upon the detection of the wrong Channel Guard on a priority channel.
The user can then select the rate at which this channel is scanned until the call ends.
H-7YCPD0002-0 EDITION 1
76
9.8.1 Adding Channels to a Scan List
1. With scan operation turned OFF, select the desired channel to add to the selected
conventional system channel scan list.
2. Press (+) or (-) with to display the current scan status on line 1 of the display for a
time-out period.
3. While current scan status is displayed, press (+) to add the channel to the scan list.
is displayed. This sets the selected channel for non-priority scanning.
4. Press (+) again to set the channel for Priority 2 (P2) scanning and is displayed.
5. A third press of (+) sets the channel for Priority 1 (P1) scanning and is displayed on
line 1. If the P1 or P2 channels are already set and a new channel is then assigned as
the P1 or P2 channel, the previously assigned priority channel will change to non-
priority scanning. The priority setting selection sequence is set and stops at P1,
therefore the channel must be deleted from the scan list by pressing (-) before the
channel is set to a previous priority setting. Any channel that is in a system's channel
scan list will show , , or when it is the selected channel.

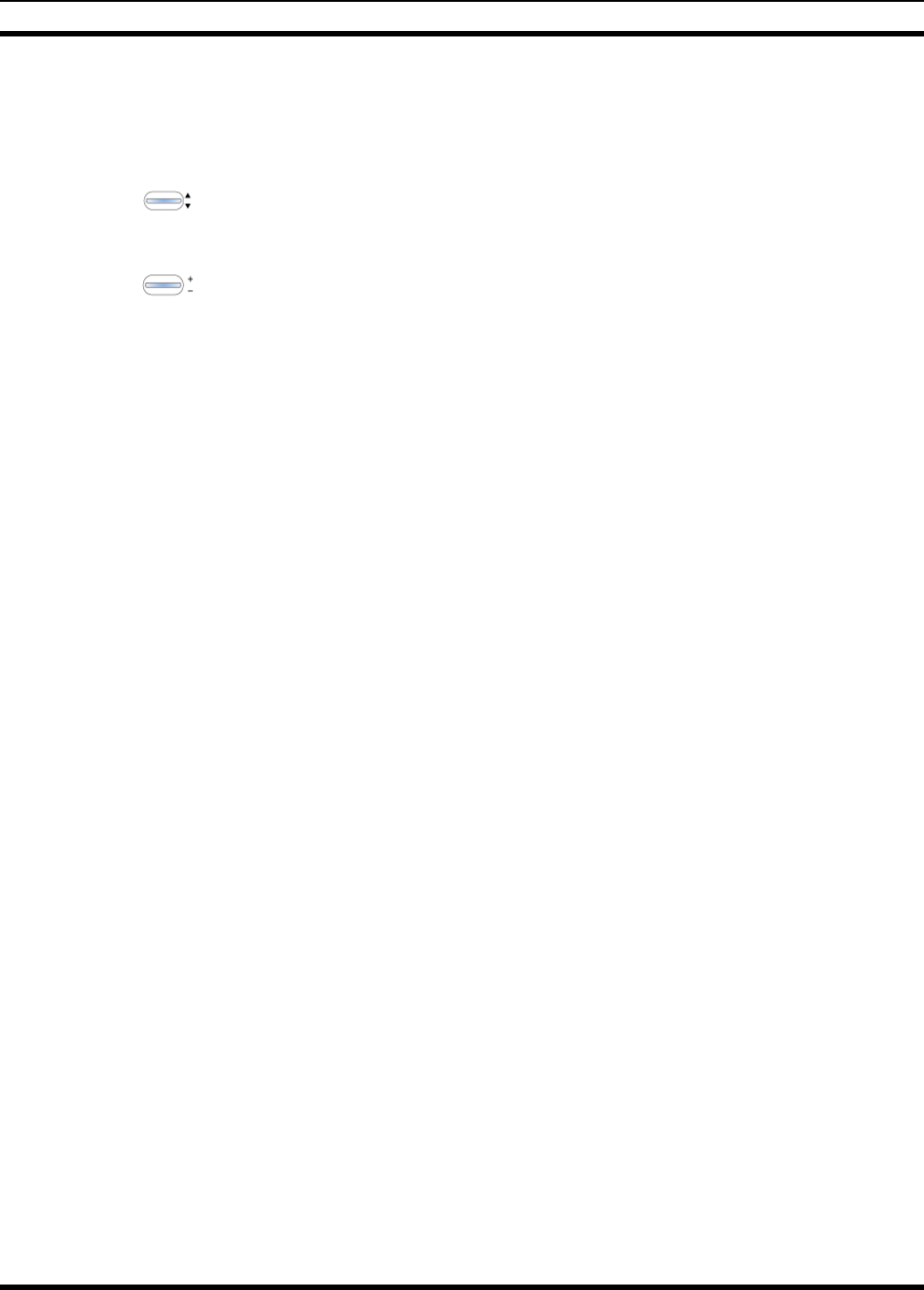

9.8.2 Deleting Channels From A Scan List
1. With scan operation turned OFF select the desired channel to delete from the selected
conventional system's channel scan list.
2. Press (+) or (-) with . The current status is displayed for a time-out period. Press -
with to delete the channel from the scan list. , , or will turn OFF.
9.8.3 Nuisance Delete
A channel can also be deleted from the scan list, if it is not the currently selected channel,
by pressing down with twice during scan operation while the radio is displaying the
unwanted channel. The channel will be deleted from the conventional system's channel
scan list in the same manner as if done using the steps above. Deletions done in this
manner will not remain deleted if the radio is turned OFF and then back ON.
H-7YCPD0002-0 EDITION 1
77
9.9 TURNING SCAN ON
1. Toggle the scan operation ON by pressing SCAN. The SCAN indicator will turn ON
when the radio is scanning.
NOTE
Scanning will stop while the microphone is off-hook if the hook switch feature
is enabled through programming.
2. When a channel on the scan list receives a channel assignment, the radio unmutes on
the assigned channel, BSY indicator comes ON and the received scan channel is
displayed.
The radio will continue scanning if a new channel is selected when scan is ON.
Pressing the PTT button when scan is ON will cause the radio to transmit on the
displayed channel or to the currently selected channel depending on programming.
Pressing (+) with when scan is ON causes the radio to recall the scanned
channel that was last received. This channel is recalled for a period equal to the scan
hang time.
9.10 TURNING SCAN OFF
Toggle the scan operation OFF by pressing SCAN. The radio will resume operation on the
selected channel.
9.11 SQUELCH ADJUST
In the conventional mode of operation, the squelch can be re-adjusted in the MENU
selection mode or from a front panel key on the keypad that has been pre-programmed. A
default value of 9, or any user level between 1 and 16, can be selected using programming
software. The user can change this setting either of two ways from the front panel keys.
NOTE
A value of 16 requires a strong signal to open squelch, a value of 2 requires a
very weak signal to open squelch, and a value of 1 is open squelch.
NOTE
When the squelch adjust feature is activated, Channel Guard, T99 decode,
and Scan are disabled. When the squelch adjust feature is exited, Channel
Guard, T99 decode, and Scan are restored to their previous states.
H-7YCPD0002-0 EDITION 1
78
9.11.1 Menu Selection
1. Press the MENU key and then use the RAMP control to scroll through the
selections until SQUELCH is displayed. Then press MENU (select) again.
2. The display will show SQLCH=xx, where "xx" is the value between 1 and 16.
3. Use the RAMP control to scroll through the values. Then press the MENU (select)
key to save the new value after the display time-out (2 seconds). The displayed value
will be selected and saved.
4. If the MENU or CLEAR key is pressed before the time-out, the menu feature will exit
and the squelch level will not be updated. The original value will be restored.
9.11.2 Pre-Programmed Keypad Key
1. Press the pre-programmed key and the display will indicate SQLCH=xx, where "xx" is
the value between 1 and 16.
2. Use the RAMP control to scroll through the values. Then press MENU to save the
new value or wait for the display time-out (2 seconds). The displayed value will be
selected and saved.
3. If the CLEAR key is pressed before the time-out, the squelch level will not be updated
and the original value will be restored.
H-7YCPD0002-0 EDITION 1
79
9.12 TYPE 99 DECODE
If the Type 99 Decode Option has been pre-programmed, individual selective calling is
possible. The radio can now decode individual, group or supergroup paging calls. Two sets
of Type 99 paging codes must be pre-programmed into the radio. When the radio decodes an
appropriate Type 99 code sequence, an alert tone and visual indicator is provided to the
user. The receiver then operates as a noise squelched unit until Type 99 is reset. Type 99
decode continues to operate during this noise squelched period. The appropriate Type 99
alert tone will sound again if it detects a valid two-tone sequence.
Type 99 operation can be reset manually or automatically (pre-programmed). Manual reset
is achieved by briefly pressing CLEAR, if programmed. Automatic reset, if enabled, occurs
after a 30 second interval following the most recent decode of a Type 99 tone sequence.
Hook switch (pre-programmed) can also enable or disable Type 99 decode. The pre-
programmed key light will blink when Type 99 is disabled by the hook switch.
Type 99 decode will continue to be active while the radio's CLEAR button is pressed. This
allows the user to monitor calls and still be alerted when a call is directed to the user.
While the user continues to press CLEAR, the user will hear both calls and all Type 99 tone
signals. If CLEAR is pressed for longer than two (2) seconds, Type 99 decode will either be
disabled or re-enabled depending upon its present state.
To check the Type 99 enable status, press the Scan Add/Delete ramp control. The
current status of Type 99 decode will be displayed for a time-out period.
If a Horn Alert Option is installed and enabled with the Type 99 Decode Option, the radio
can beep the vehicle horn when a Type 99 call is received. This option permits alerting
persons out of the vehicle when a call is received.
NOTE
Type 99 is automatically disabled when Scan is enabled.
9.12.1 Menu Selection
Press MENU and then use the ramp control to scroll through the selections until T99
ENAB is displayed. Then press MENU to toggle the Type 99 decode state. The T99 ON or
T99 OFF display message is displayed for two seconds to show the new state.
9.12.2 Pre-Programmed Keypad Key
Press the pre-programmed key and the T99 ON or T99 OFF display message is displayed
for two seconds to show the new state.
H-7YCPD0002-0 EDITION 1
80
9.13 DIRECT MODE OPERATION
The direct mode (or talk-around) provides short range, line of sight communications. One of
the buttons on the control unit must be pre-programmed for this feature to function.
1. Make sure the radio is ON and then select the desired conventional system and channel.
2. Press the pre-programmed button to toggle the talk-around function ON.
3. Ensure that the channel is not busy by pressing the CLEAR to briefly disable any
channel decoding and unmute the receiver or observe the unlit BSY indicator. If the
Channel Busy Lockout feature is programmed for the selected channel, the radio will
not transmit when the channel is busy.
4. Press and hold the PTT button. The TX indicator will light and a short beep sounds (if
pre-programmed) indicating that communication can begin.
5. Release the PTT button when the transmission is complete and listen for a reply.
6. When the communications is completed, press the pre-programmed button to toggle the
talk-around function OFF.
H-7YCPD0002-0 EDITION 1
81
10 P25 CONVENTIONAL OPERATION
10.1 RADIO STATUS ICONS
Status icons are indicators that show the various operating characteristics of the radio.
The icons appear on the first line of the display.
Figure 10-1: Typical Display
Table 10-1: Icons and Descriptions
ICON
DESCRIPTION
Indicates selected group or channel is in scan list.
Indicates selected group or channel is programmed as Priority 1 in
scan list.
Indicates selected group or channel is programmed as Priority 2 in
scan list.
Indicates a conventional channel enabled with Channel Guard
Function.
Transmitting or receiving in encrypted mode.
Indicates the current channel is set up as an analog channel.
Indicates the current channel is set up as a ProVoice channel.
Scan mode enabled.
Indicates the current channel is set up as a Project 25 (P25) channel.
H-7YCPD0002-0 EDITION 1
82
10.2 MESSAGES
During radio operation, various messages are displayed on either line 1 or line 2. Typical
messages include control channel status information, such as system busy or call denied, or
messages associated with the radio's operation, (i.e. volume adjust). These messages are
described as follows:
Table 10-2: Display Messages
MESSAGE
NAME
DESCRIPTION
TALKAR
ND
Talk-around
Indicates the radio is operating on conventional channels in
talk-around mode (no repeater).
VOL=31
Volume Level
Indicates the current volume level. The volume level
display ranges from OFF (silent) to 31 (loudest).
UNKNOW
N
Caller's ID Not
Received
Indicates that an individual call is being received, but the
caller's ID was not received.
T99 ON
Type 99
Decode ON
Indicates the Type 99 Decode feature is enabled.
T99 OFF
Type 99
Decode OFF
Indicates the Type 99 Decode feature is disabled.
PA ON
Public Address
ON
Indicates that the public address function of the radio is
enabled.
PA OFF
Public Address
OFF
Momentary (2 seconds) indicates that public address
function of the radio was disabled.
ALRM ON
External
Alarm Enabled
Indicates that the external alarm function of the radio is
enabled.
ALRM
OFF
External
Alarm
Disabled
Momentary (2 seconds) indicates that the external alarm
function of the radio was disabled.
PVT DIS
Private Mode
Disabled
Indicates that private mode is disabled or no encryption key
has been programmed for the selected group/channel or
special call.
FRCD
PVT
Forced Private
Operation
Indicates that forced private operation has been pre-
programmed into radio.
NO KEY #
Encryption
Key Missing
Flashing indicator indicates that no encryption key or an
incorrect encryption key is programmed into the radio.
BCKL=1-6
Backlight
Indicates the display intensity and keypad backlight level.
GR
Group ID
Indicates that the call is a group call and is followed by the
GID of the caller.
H-7YCPD0002-0 EDITION 1
83
MESSAGE
NAME
DESCRIPTION
WHC=1
Who Has
Called
This display indicates the number from the
Who Has Called
list. Individual calls received but not responded to are
stored in a
Who Has Called
list. This list is accessible by
pressing the # key and then the INDV key after the
Individual call has timed out or the Clear button is pressed.
This display is on line 2 and the LID of the caller is
displayed on the top line. Currently the list is not
implemented and the display will always be WHC=1.
PHONE
Phone Call
Displayed when a phone call is received from the site. It is
displayed in line 1 of the display. Line 2 of the display will
contain the display *INDV* when line 1 contains this
message. The radio interprets a received phone call as an
individual call.
MENU
Displayed when the menu key is pressed and remains
displayed in line 1 until a menu item is selected.
SYS=1-64
System = 1 - 64
The system number for the current base station of the
system displayed in line 1. It is displayed in line 2 of the
display. Press the system key to obtain this display.
INDV=1-
99
Individual = 1 -
99
Indicates which item in the individual call list is being
displayed. It is displayed in line 2 of the display. The name
or ID of the item in the list is displayed in line 1 of the
display.
PHN=1-99
Phone = 1 - 99
Indicates which item in the phone list is being displayed. It
is displayed in line 2 of the display. Line 1 of the display
will be the last 3 characters of the list item contents.
SEL PHN
Select Phone
After pressing the PHN key, selecting an entry from the
phone list by typing the entry number will display this
message on Line 1.
Ggg-v.vv
Code Group
and
Revision
Number
This is code group and revision number that is displayed in
line 2 when the menu item “REVISION” is selected. The „gg‟
is the group number of the software. The first „v‟ is the
hardware version and „vv‟ is the revision of the software.
*PHONE*
Phone Call
Displayed when an initiated phone call is in progress. This
is displayed on line 2 of the display.
NO
ENTRY
Indicates that there is no data stored in one of the
programmable items in either the phone list or individual
call list. The user programmable items are items 1 through
10 in each list.
INV SYS
Invalid System
Displayed when the current system is an invalid type.
CHN=1-99
Channel = 1 -
99
Displayed on line 1 of the display. This is a conventional
channel index displayed when the group key is pressed.
H-7YCPD0002-0 EDITION 1
84
MESSAGE
NAME
DESCRIPTION
FIX LIST
Fixed List
The Priority scan list is fixed and cannot be changed using
the add or delete keys.
FIXED P1
Fixed Priority
1
The Priority 1 scan channel is fixed and cannot be changed
using the add or delete keys.
(c) 2004
Displayed in line 2 when the message „JRC‟ is displayed in
line 1 while displaying different items under the menu
when “REVISION” is selected by the operator.
EM
Emergency
Indicates an emergency has been declared by the LID that
follows the display, “EM.” An example of this is “EM
01201.”
*INDV*
Individual Call
Displayed in line 2 of the display when an individual call is
in progress (trunked and T99 modes only).
*GROUP*
Group Call
Indicates a group call is in progress and is displayed on line
1 of the display (trunked and T99 modes only).
SPKR ON
External
Speaker ON
Displayed when the external speaker is enabled.
SPKR
OFF
External
Speaker OFF
Displayed when the external speaker is disabled.
BANK=1-
8
The bank of keys that are going to be loaded when the
keyloader loads encryption keys. This is only valid for
radios that support VGS, VGE, or DES encryption. It is
displayed on line 2 of the display when the encryption
keyloader is connected.
KEY
LOAD
Displayed on line 1 of the display when the encryption
keyloader is connected.
KEY
ZERO
Displayed on line 2 of the display when the reset and option
buttons are pressed simultaneously for approximately two
seconds. The encryption keys are zeroed.
SYS KEY
System Key
Displayed on line 1 of the display in the display key mode of
the menu. It is followed in the second line with a key
number “KEY = <1..7>”.
KEY=1-7
Displayed on line 2 of the display in the display key mode of
the menu for conventional systems when the “SYS KEY” or
“CHN KEY” is displayed in line 1 and for trunked systems
when the “SYS KEY” or “GRP KEY” is displayed in line 1.
PRIMARY
Displayed on line 1 of the display when the primary keys
are enabled.
PRS
NAME
Personality
Name
Displayed on line 1 of the display under the revision
selection of the menu. The personality name is displayed on
line 2 at the same time.
H-7YCPD0002-0 EDITION 1
85
MESSAGE
NAME
DESCRIPTION
JRC
Displayed on line 1 of the display under the revision
selection of the menu. The copyright year is shown in line 2
of display at the same time “(c) 2007.”
10.3 ALERT TONES
The JHM-875S35J mobile radio also provides audible alert tones or “beeps” to indicate the
various operating conditions. These alert tones can be enabled or disabled through
programming.
Table 10-3: JHM-875S35J Alert Tones
NAME
TONE
DESCRIPTION
Call Originate
A short mid-pitched
tone.
Sounds after keying the radio (Push-To-Talk
button is pressed). Indicates the radio has been
assigned a working channel
Carrier Control
Timer
Five short high-pitched
warning tones followed
by a long low-pitched
tone.
Sounds if the programmed time for continuous
transmission is exceeded. The transmitter will
shut down shortly after the alert, interrupting
communications. Release and re-key the PTT
button to maintain communications. This will
reset the carrier control timer and turn the
transmitter back on.
Key Press Alert
A short tone.
Indicates a key has been pressed. A short low-
pitched tone indicates no action was taken
because the key is not active in the current mode.
H-7YCPD0002-0 EDITION 1
86
10.4 MENU
The menu function accesses features that are not available directly from the keypad. The
order and specific number of menu items available is configurable through programming.
Upon radio power up, the menu item at the beginning of the menu list will always be
displayed first. Subsequent access to the menu function will return the last menu item that
was shown in the display. To enter the menu mode, press MENU. The ramp control,
MENU, and CLEAR are used during the selection process. All of the selection mode rules
previously detailed apply to the menu item selection process with the exception of direct
access. The radio will continue to receive and transmit normally while in the menu function.
A new item is displayed by using the ramp control to scroll through the list in
increasing and decreasing order. The displayed menu item is made active by pressing
MENU.
After entering the menu selection mode, the following generic display format will appear.
M E N U
Y Y Y Y Y Y Y Y
Line 1 indicates the radio is in the menu selection mode. Line 2 indicates the menu item
(YYYYYYYY) that is to be viewed or changed (some menu items provide radio information
and do not have changeable parameters).
An example of the menu item selection process and menu item parameter change is
detailed below for the contrast menu item.
1. Press MENU to enter the menu mode.
2. Press the ramp control until the display shows:
M E N U
CONTRAST
3. Press MENU. The contrast menu item is activated and the display will be similar to the
following:
CNTRST = X
Y Y Y Y Y Y Y Y
Line 1 shows the active menu item and its current parameter setting (XXX). Line 2
shows the currently selected system or group name (YYYYYYYY).
4. The menu item's parameter setting shown in the display can now be changed by using
the ramp control to scroll through the list of parameter values. Once the desired
setting is reached, press MENU to store the value and return to the normal display. For
menu items that display radio information, use to scroll through a list of
informational displays. The menu items are listed in Table 10-4 Menu Item Information.
H-7YCPD0002-0 EDITION 1
87
Table 10-4: Menu Item Information
FEATURE
DISPLAY
PARAMETER
SETTINGS
COMMENT
Contrast Adjust
Menu Item:
CONTRAST
Once selected:
CNTRST=
1, 2, 3, 4, 5, 6, 7, 8
Selects the Contrast level.
Radio Revision
Information
Menu item:
REVISION
Informational
displays only (see
radio); no user
selectable settings.
Selects the information display
to view.
Phone Call
Menu item:
PHN CALL
Once selected:
See Telephone
Interconnect
Call Section
Allows access to the Phone Call
Feature.
External Alarm
Menu Item:
EXTALARM
Once Selected:
EXTALARM
ON, OFF
EXTALARM replaces the
system name on the display as
long as the external alarm
feature is enabled.
Public Address
Menu item:
PUB ADDR
Once selected:
PA ON or
PA OFF
ON, OFF
Public Address is toggled ON
and OFF.
External Speaker
Menu item:
EXT SPKR
Once selected:
SPKR ON or
SPKR OFF
ON, OFF
External Speaker is toggled ON
and OFF.
Encryption Key
Loading
Menu item:
KEYLOAD
Once selected:
KEY LOAD
BANK = N
Up to 8 banks of 7
keys
Enables the radio to accept the
loading of encryption keys.
Display Current
Encryption
Key(s)
Menu item: DISP
KEY
Once selected:
SYS KEY, GRP
KEY or CHN
KEY and KEY =
N
Displays current encryption key
number.
Scan
Menu item:
SCAN
ON, OFF
Toggles scan function ON or
OFF.
H-7YCPD0002-0 EDITION 1
88
FEATURE
DISPLAY
PARAMETER
SETTINGS
COMMENT
Private Mode
Menu Item:
PRIVATE
Once selected:
PVT or key light.
ON, OFF
Toggles private function ON or
OFF.
Front Panel
Squelch Adjust
Menu Item:
SQUELCH
Once selected:
SQLCH=xx
1-16
Allows setting of squelch.
Scan Add
Menu item:
SCAN ADD
Once selected:
Proper scan icon
displayed.
S, 2 or 1
Adds group or channel to scan
list.
Scan Delete
Menu item:
SCAN DEL
Once selected:
Scan icon goes
out.
Deletes channel from scan list.
Scan Add/Delete
Menu item:
SCAN A/D
When selected:
Toggles through
scan selections
Toggle sequence
S, 2, 1, S, ...
Changes present group or
channel to next scan choice in
scan list.
Last Scanned
Channel Recall
Menu Item:
SCAN ADD
Press twice when
actively
receiving; three
times when not
receiving. Scan
icon displayed.
Changes the selected channel to
the last scanned channel.
Home channel
selection
Menu item:
HOME
Once selected:
Home group or
channel
displayed.
Changes to the group or channel
defined for Home function.
System select
Menu item: SYS
SEL
Once selected:
SYS = n
1-64 = (n)umber of
desired system
Displays the system selected.
External alarm
#2
Menu item:
EXTALRM2
ON, OFF
Toggles external alarm #2
feature ON or OFF.
H-7YCPD0002-0 EDITION 1
89
FEATURE
DISPLAY
PARAMETER
SETTINGS
COMMENT
System and
Channel
selection
Menu item:
SYSGRP 1
Menu item:
SYSGRP 2
Menu item:
SYSGRP 3
Menu item:
SYSGRP 4
Menu item:
SYSGRP 5
Changes to the System &
Channel programmed for
SYSGRP 1-5.
Mute
Menu item:
MUTE
ON, OFF
Toggles the mute function ON
or OFF to control the audio
output from the selected radio.
Mute #1
Menu item:
MUTE 1
ON, OFF
Toggles the mute 1 function ON
or OFF on radio #1.
Mute #2
Menu item:
MUTE 2
ON, OFF
Toggles the mute 2 function ON
or OFF on radio #2.
Multiple radio
operation
Menu item:
RADIO
ON, OFF
Toggles the currently selected
radio.
Radio selection
Menu item:
RADIO 1
ON, OFF
Changes to radio #1.
Menu item:
RADIO 2
ON, OFF
Changes to radio #2.
Talkaround
feature
Menu item:
TALKARND
Once selected:
TALKARND on
line 1
ON, OFF
Toggles talkaround ON or OFF
(transmit frequency changed to
receive frequency).
Feature
Encryption
Display
Menu Item:
FEATURES
Once selected:
See Feature
Encryption
Display section
Informational
displays only; no
user selectable
settings
Indicates current features
program- med into the radio as
well as certain information
required to add features to the
radio (refer to the Table of
Contents for Feature
Encryption Display.
System Scan
Enable
Menu Item: SYS
SCAN
Once selected:
SYSC ON or
SYSC OFF
ON, OFF
System Scan features like
ProScan are toggled ON and
OFF.
H-7YCPD0002-0 EDITION 1
90
FEATURE
DISPLAY
PARAMETER
SETTINGS
COMMENT
Type 99 Decode
Enable
Menu Item: T99
ENAB
Once selected:
T99 ON or T99
OFF
ON, OFF
Type 99 Decode is toggled ON
and OFF.
10.5 GROUP CALLS IN P25 MODE
10.5.1 Transmitting a Group Call
1. Select the desired P25 system.
2. Select the Talk Group/Conventional Channel. (Selected simultaneously using either the
system/group/channel knob or the group key.)
3. Press and hold the PTT.
4. When a grant tone is received (if enabled through programming), speak into the
microphone.
5. Release PTT and wait for response.
10.5.2 Receiving a Group Call
The radio will unmute according to the squelch mode defined in the radio personality
(monitor, normal, selective).
1. Select the desired P25 system and Talk Group/Channel or turn scan on and make sure
the desired channel is in the scan list.
2. When the radio receives a P25 call, the radio will unmute and the channel name will
appear in the display.
3. Press the PTT button to respond.
H-7YCPD0002-0 EDITION 1
91
10.6 INDIVIDUAL CALLS IN P25 MODE
10.6.1 Transmitting an Individual Call
1. Select the desired P25 system.
2. Select the radio unit to call (callee source ID) from the pre-programmed individual call
list or enter the ID number on the radio keypad.
3. Press and hold the PTT.
4. When grant tone is received (if enabled through programming) speak into the
microphone.
5. Release the PTT.
10.6.2 Receiving an Individual Call
The radio will unmute according to the squelch mode defined in the radio personality
(monitor, normal, selective).
1. Select the desired P25 system and Talk Group/Channel or turn scan on and make sure
the desired channel is in the scan list.
2. When the radio receives a P25 call, the radio will unmute and the ID of the transmitting
radio will appear in the display.
3. Press the PTT button to respond.
Unanswered calls will appear in the Who Has Called (WHC) list.
H-7YCPD0002-0 EDITION 1
92
10.7 EMERGENCY GROUP CALLS IN P25 MODE
NOTE
There is no method available for a system-wide Emergency clear. An emergency
group call must be cleared on each individual radio.
10.7.1 Declaring an Emergency Group Call
1. Select the desired P25 system and Talk Group/Channel.
2. Press the red emergency button on the top of the radio. The radio will broadcast a short
emergency transmission with the emergency bit set. “TXEMER” will appear in the
display of the transmitting radio.
3. To send a voice message, press the PTT and speak into the microphone.
4. To clear an emergency from the transmitting radio, perform one of the following steps:
a. Change systems.
b. Change channels (if not prohibited by programming).
c. Cycle power by turning radio off and then back on.
d. Press the Clear and Emergency buttons simultaneously, providing the Clear
Emergency option is enabled in the Supervisory Options in the personality.
10.7.2 Receiving an Emergency Group Call
1. Select the desired P25 System and Talk Group/Channel.
2. When the radio detects an incoming Emergency Group Call, the radio will sound an
alert tone and “RXEMER” will appear in the display.
3. Voice or emergency transmissions will be heard at the receiving radio.
4. To clear an emergency from the receiving radio, perform one of the following steps:
a. Change systems.
b. Change channels (if not prohibited by programming).
c. Cycle power by turning radio off and then back on.
d. Press the Clear and Emergency buttons simultaneously, providing the Clear
Emergency option is enabled in the Supervisory Options in the personality.
H-7YCPD0002-0 EDITION 1
93
11 BASIC TROUBLESHOOTING
If the radio is not operating properly, check Table 11-1 for likely causes. For additional
assistance, contact a qualified service technician.
Table 11-1: Basic Troubleshooting
SYMPTOM
CAUSE
SOLUTION
Radio will not turn
on.
No power.
Test the connection to the vehicle
power supply.
Radio will not turn
off.
If in multiple control head
configuration, one of the
attached control heads is
still powered up.
Power off all control heads.
Radio will not
register or does not
receive provisioning
data.
Bad logon credentials.
Check logon and password.
No audio.
Speaker volume is muted.
Increase the volume level.
Poor audio.
Transmitting or receiving in
a poor coverage area or
subject to interference.
Check network connectivity and
move to a better coverage area if
possible. Report the area without
coverage to an authorized network
technician.
Poor display
visibility.
Ambient Light Sensor is
obstructed.
Clear the obstruction and give the
sensor a clear path to ambient light.
No network
connectivity icon in
display.
Radio is out-of-range or
cannot connect with the
OpenSky network.
Base station network
connection has failed.
Return to coverage area if possible
and wait for condition to clear.
Use single-site trunking or switch to
an alternate channel.
Radio will not
transmit.
Radio may be out of coverage
area or may be overheated.
Return to coverage area if possible. If
overheated, let radio cool before
retrying transmission. Report this
failure to an authorized technician.
“Warning: No
MRU” Message.
Radio control head is unable
to communicate with mobile
radio unit (radio
transceiver).
Have the radio connections checked
by an authorized technician.
Control head
randomly changes
display.
In multiple control head
configurations, another user
is operating the radio from
another control head.
None
Encrypted calls
cannot be made.
Not authorized to use.
Contact system administrator to
request encryption privileges.
H-7YCPD0002-0 EDITION 1
94
SYMPTOM
CAUSE
SOLUTION
Screen displays:
UNAUTH3
The radio network ID has
not been added to the
network.
Contact system administrator.
Screen displays:
NOAUTHV
Radio authentication of the
VNIC failed.
Contact system administrator.
Screen displays:
NOAUTHM
VNIC authentication of the
radio failed.
Contact system administrator.
Screen displays:
NOSUPRT
The voice authentication
security policy is set to only
allow authenticated users.
Contact system administrator.
Encrypted calls
cannot be made.
User not logged in.
Log in.
H-7YCPD0002-0 EDITION 1
95
12 TECHNICAL ASSISTANCE
The Technical Assistance Center's (TAC) resources are available to help with overall
system operation, maintenance, upgrades and product support. TAC is the point of contact
when answers are needed to technical questions.
Product specialists, with detailed knowledge of product operation, maintenance and repair
provide technical support via a toll-free (in North American) telephone number. Support is
also available through mail, fax and e-mail.
For more information about technical assistance services, contact your sales representative,
or call the Technical Assistance Center at:
North America: +XX-XXX-XX-XXXX
International: +XX-XXX-XX-XXXX
Fax: +XX-XXX-XX-XXXX
E-mail: http://www.jrc.co.jp
H-7YCPD0002-0 EDITION 1
96
H-7YCPD0002-0 EDITION 1
97
13 KEYPAD REMAPPING
If the keys have been remapped to provide new functions, fill in the following template for future
reference.
Button
Function
Button
Function
Emergency
1
Preset A
2
Preset B
3
Preset C
4
Rocker •
5
Rocker ••
6
Rocker +
7
Rocker -
8
MENU
9
OPT/OPTION
*
CLR/CLEAR
0
SCAN
#
H-7YCPD0002-0 EDITION 1
98
H-7YCPD0002-0 EDITION 1
99
14 RADIO SETUP
RADIO TYPE:
FREQUENCY BAND:
OPERATOR'S NAME:
EMERGENCY GROUP:
SYSTEM NUMBER
SYSTEM NAME
TRK/CNV
GRP/CHN NUMBER
GRP/CHN NAME
USE
H-7YCPD0002-0 EDITION 1
100
SYSTEM NUMBER
SYSTEM NAME
TRK/CNV
GRP/CHN NUMBER
GRP/CHN NAME
USE
H-7YCPD0002-0 EDITION 1
101
SYSTEM NUMBER
SYSTEM NAME
TRK/CNV
GRP/CHN NUMBER
GRP/CHN NAME
USE
H-7YCPD0002-0 EDITION 1
102
SYSTEM NUMBER
SYSTEM NAME
TRK/CNV
GRP/CHN NUMBER
GRP/CHN NAME
USE
H-7YCPD0002-0 EDITION 1
103
INDEX
[A]
Adjusting Audio Treble Level ............................... 44
Adjusting Display and Button Backlight Brightness
............................................................................... 41
Adjusting Side Tone Audio Level ......................... 42
ALERT TONES….…………….…..……36, 95, 112
[B]
Basic Menu Structure ............................................. 37
[C]
Change operating mode ................................... 27, 42
Changing Scanning Priority ................................... 48
Changing the Active Profile ................................... 39
Checking or Changing Active Scan Mode ............. 47
Checking or Changing the Selected Talk Group ... 39
Clearing an Emergency Call or Alert ..................... 53
[D]
Declaring an Emergency Call or Alert ................... 52
Declaring an Emergency Group Call ................... 119
DIRECT MODE OPERATION ........................... 107
Disabling Stealth Mode .......................................... 41
Dismissing an Emergency Call .............................. 54
Dwell Display ........................................................ 33
[E]
EMERGENCY OPERATION ............................. 101
Enabling Stealth Mode ........................................... 41
[F]
FRONT PANEL COMPONENTS................... 29, 58
[G]
Group and Channel Selection ................................ 65
[I]
INTERCOM MODE .............................................. 45
[L]
Lock Out a Talk Group .......................................... 46
Log off the Network ............................................... 32
LogIn to the Network ............................................. 31
[M]
Menu Display and Control Area ............................ 32
[P]
PERSONALITY .................................................... 34
Power Up ................................................................ 31
[R]
RADIO STATUS ICONS .............. 4, 33, 71, 92, 108
RECEIVING A CALL ......................................... 100
Receiving a Group Call ........................................ 117
Receiving a Selective Call ..................................... 49
Receiving a Voice Call........................................... 43
Receiving an Emergency Call ................................ 54
Receiving an Emergency Group Call ................... 119
Receiving an Encrypted Call .................................. 69
Receiving an Individual Call ................................ 118
Receiving Messages ............................................... 51
REMOTE CONTROL HEAD OPERATION .... 4, 26
[S]
SCANNING CONVENTIONAL CHANNELS .. 102
SELF-TEST ........................................................... 31
SENDING A CALL ............................................. 100
Sending Selective Alert Messages ......................... 50
SQUELCH ADJUST ........................................... 104
System Selection .................................................... 65
[T]
Terminating a Selective Call .................................. 49
Transmitting a Group Call ................................... 117
Transmitting a Voice Call ...................................... 43
Transmitting an Encrypted Call ............................. 69
Transmitting an Individual Call ........................... 118
TURNING SCAN OFF ........................................ 104
TURNING SCAN ON ......................................... 104
Turning the Radio Off ............................................ 32
TYPE 99 DECODE.............................................. 106
[U]
Unlock a Talk Group .............................................. 46
[V]
Volume Control ...................................................... 31
H-7YCPD0002-0 EDITION 1
