Module integration manual

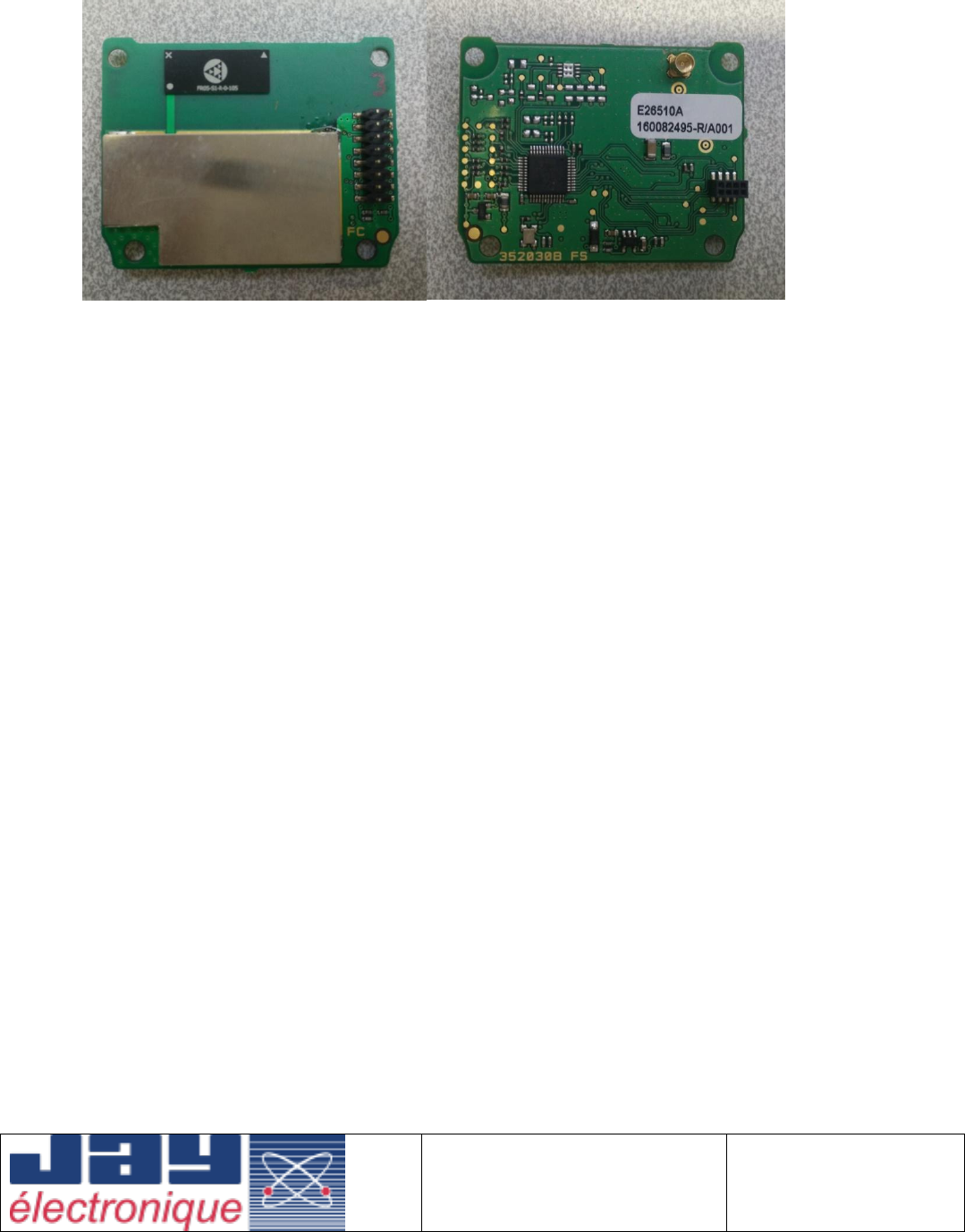

Product Description
The RF module with the FCCID number OQMSB is a compact high performance module for 25 kHz
narrow band 2-FSK operation with embedded proprietary protocol.
The modules are completely shielded and certified for operation under the US radio regulations
for license-free use.
Applications
Remote controlled machines
Cranes
Features
Smallest in the world (50 x 39 x 0.7 mm)
25 kHz narrow band multi-channel operation
Very low current consumption
Addressing and Error check
No external components
Easy to use data interface
Wide supply voltage range, 2.8 – 5.5 V
Conforms with FCC CFR 47 part 15
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016
Quick Reference Data
Parameter
Jay RF Module
Units
Frequency band
911.8 – 918.2
MHz
Number of channels
64
Channel bandwidth
25
kHz
Data rate
4.8
kbits/s
Max output power (typ.)
-8
dBm
Sensitivity
-114
dBm
Supply voltage
2.8 – 5.5
Volts
Current consumption, RX
31
mA
Current consumption, TX
37
mA
* Programmable. Maximum allowed radiated power under FCC CFR 47, part 15 is -1 dBm ERP.
Typical Application Circuit
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016
Pin Description
Pin no
Pin name
Description
1
EN_PA
PA enable input, active high
2
PWRF2
Not used
3
RTS_TXEN_RADIO
Not used
4
CTS/RXTX/RXEN_RADIO
UART Clear to Send
5
VAccu
Supply voltage input
6
GND
System ground
7
SPI_uc_SCK/ON_OFF
SPI Clock
8
SPI_uc_MISO
SPI MISO
9
SPI_uc_MOSI
SPI MOSI
10
RESET_RADIO
Reset
11
SEL_FILLE
Not used
12
SPI_uc_NSS/CONFIG_RADIO
SPI Chip Select
13
RSSI_RADIO
Not used
14
DATA_RX
UART RX Data
15
DATA_TX
UART TX Data
16
GND
System ground
17
RF
RF I/O connection to antenna
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016

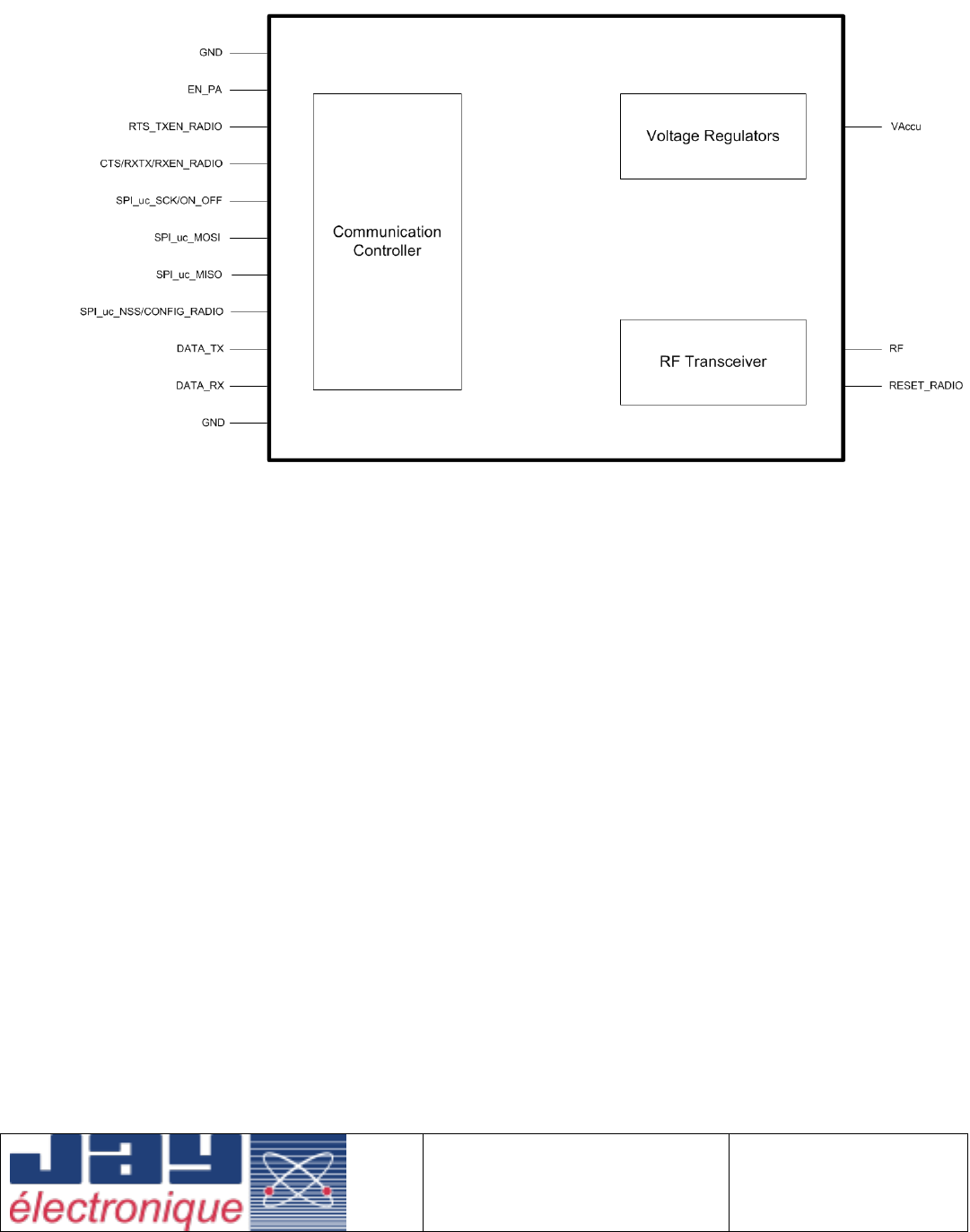

Block Diagram
The module contains a communication controller with embedded proprietary protocol software, a
narrow band high performance RF transceiver and three internal voltage regulators.
The communication controller handles the radio packet protocol. Data to be sent by the host is
received at the DATA_RX pin and buffered in the communication controller. The data packet is
then assembled with preamble, synchronization word and data with CRC check sum before it is
transmitted on RF.
The asynchronous UART interface consists of DATA_TX, DATA_RX and CTS/RXTX/RXEN_RADIO
signals and it is used for hardware handshake flow control.
The RF transceiver modulates the data to be transmitted on RF frequency, and demodulates data
that are received. Narrow band technology is used to enhance sensitivity and selectivity.
The supply voltage is connected to the VAccu pin. The module contains three internal voltage
regulators and can therefore operate over a wide supply voltage range.
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016
FCC
The OEM integrators are responsible for ensuring that the end-user has no manual instructions to remove or
install module.
The module is limited to OEM installation ONLY
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
These following instructions/statements shall be reported on the User Manual:
Any changes or modifications to this equipment not expressly approved by JAY electronique may cause,
harmful interference and void the FCC authorization to operate this equipment
This equipment complies with FCC’s radiation exposure limits set forth for an uncontrolled environment under
the following conditions:
1. This equipment should be installed and operated such that a minimum separation distance of
20cm is maintained between the radiator (antenna) and user’s/nearby person’s body at all
times.
2. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The RF module has been certified for mobile and fixed applications. If the module will be used for portable
application the device must undergo SAR testing and the following instructions shall be reported on the User
Manual.
The separate approval is required for all other operating configurations, including portable
configurations with respect to Part 2.1093 and different antenna configurations.
If SAR measurement is not required:
This portable equipment with it’s antenna complies with FCC’s radiation exposure limits set forth
for an uncontrolled environment. To maintain compliance, follow the instructions below :
1. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
2. Avoid direct contact to the antenna, or keep contact to a minimum while using this equipment.
If SAR measurement is required:
This portable equipment with it’s antenna complies with FCC’s radiation exposure limits set forth
for an uncontrolled environment. This equipment has shown compliance with FCC’s Specific
Absorption Rate (SAR) limits. To maintain compliance, follow the instructions below :
1. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016

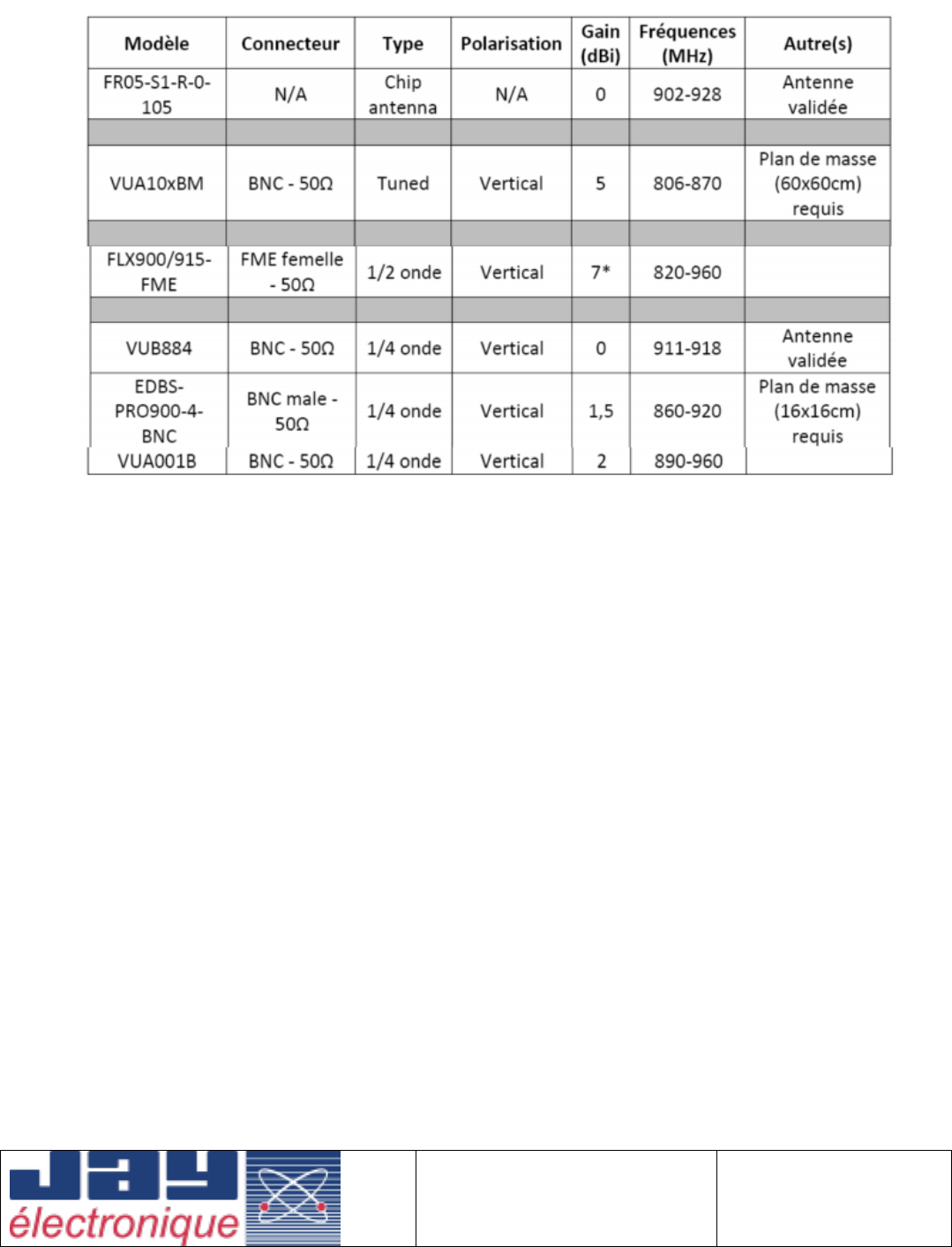

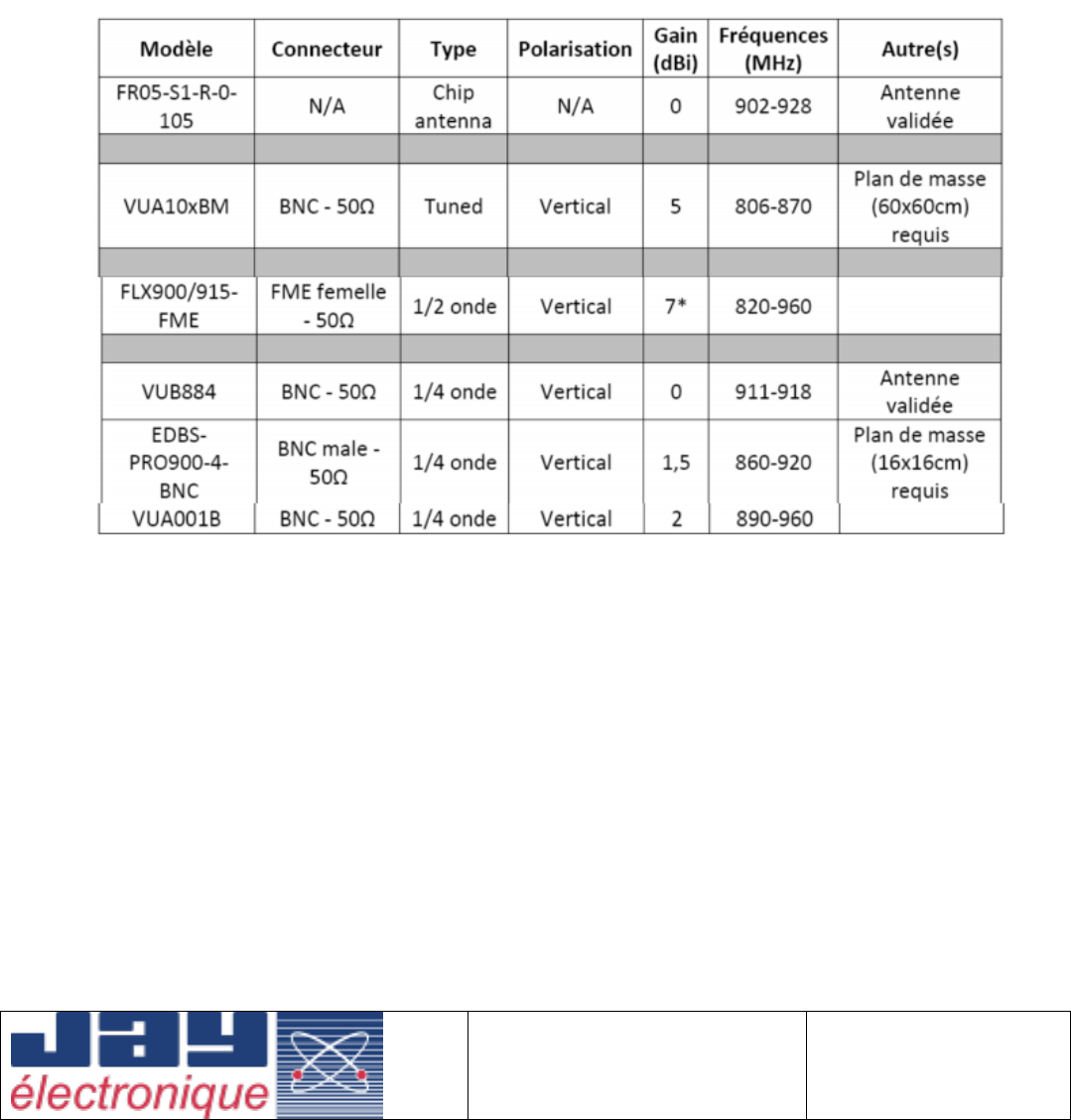

Authorized antennas:
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016

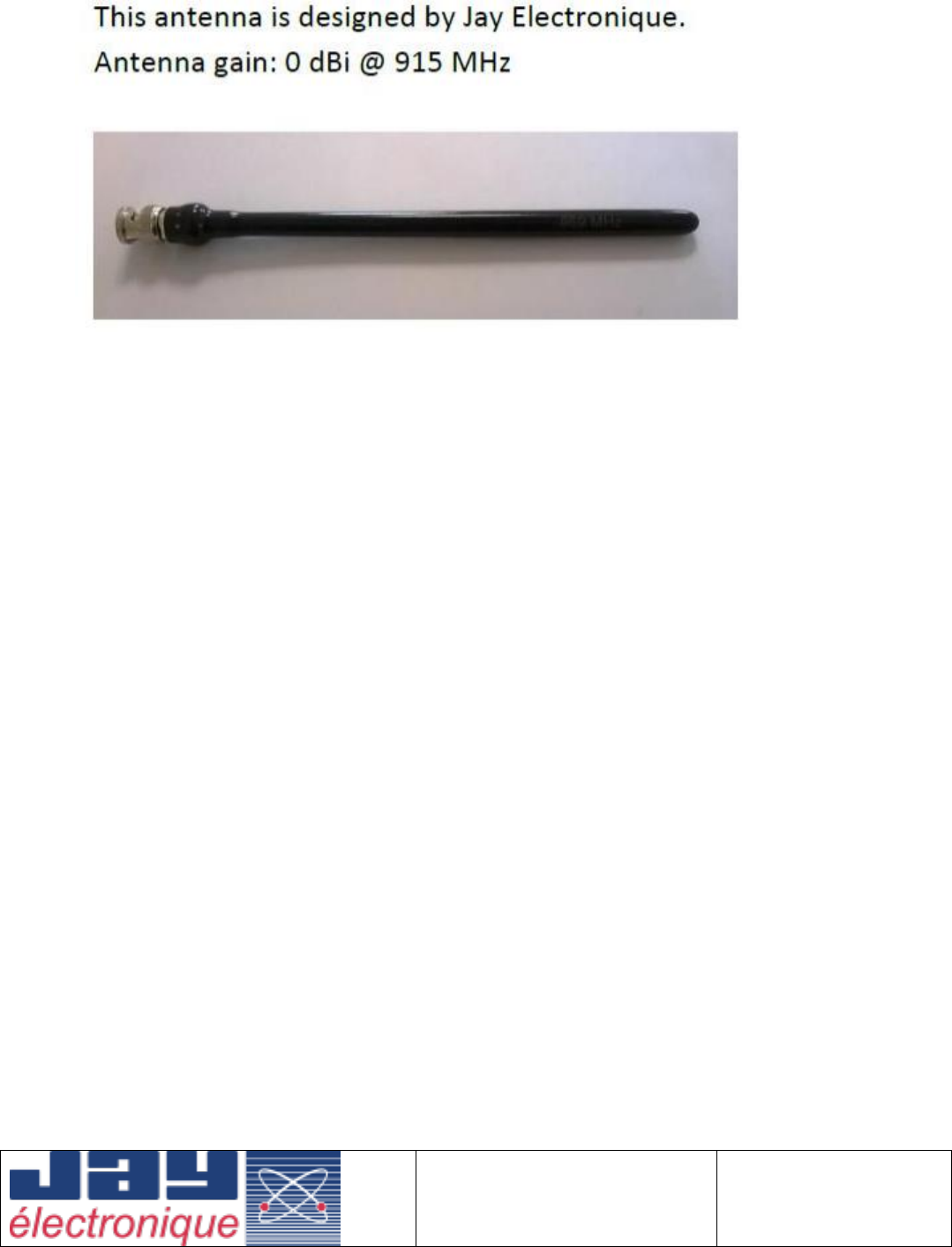

Antenna FR05-S1-R-0-105
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016

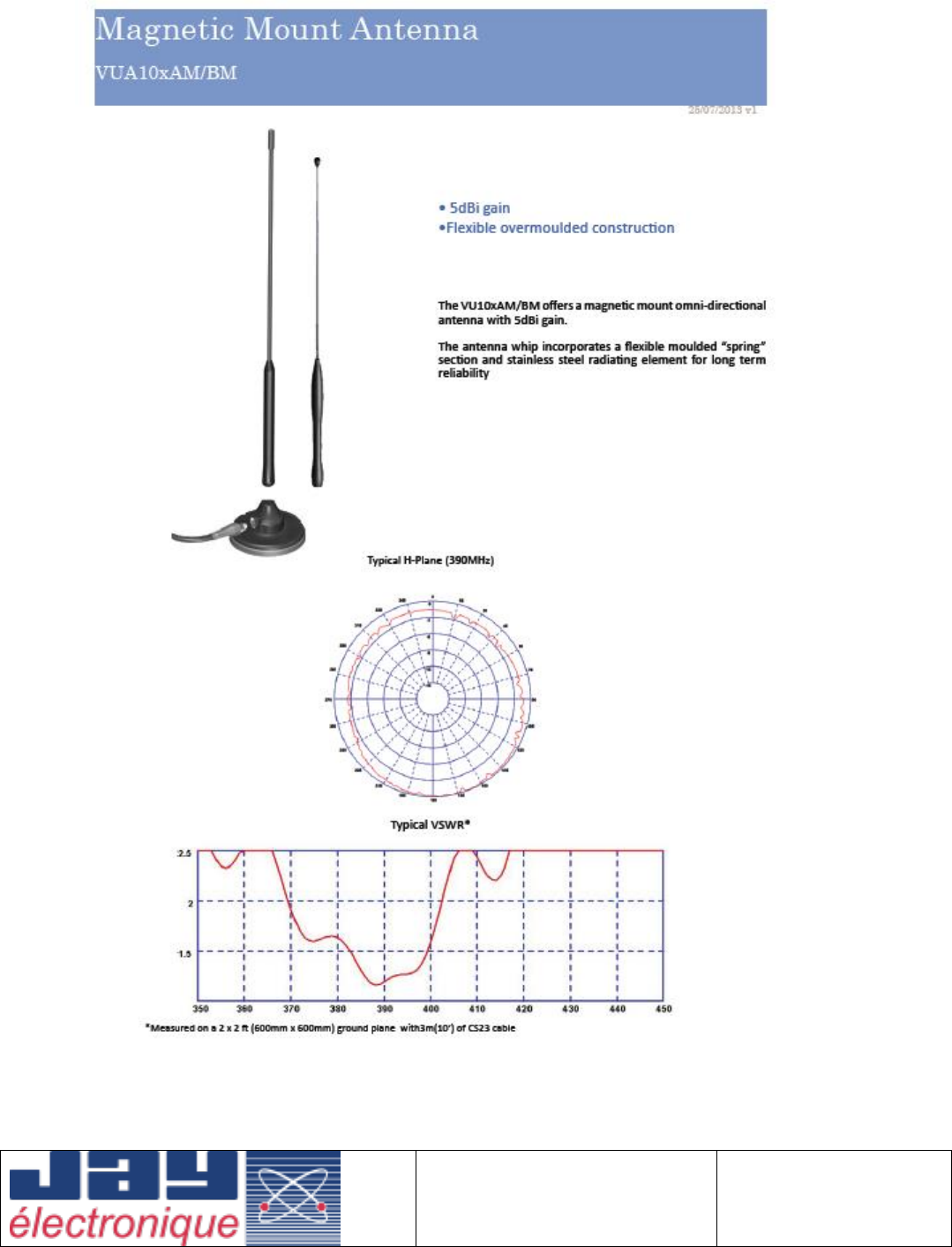

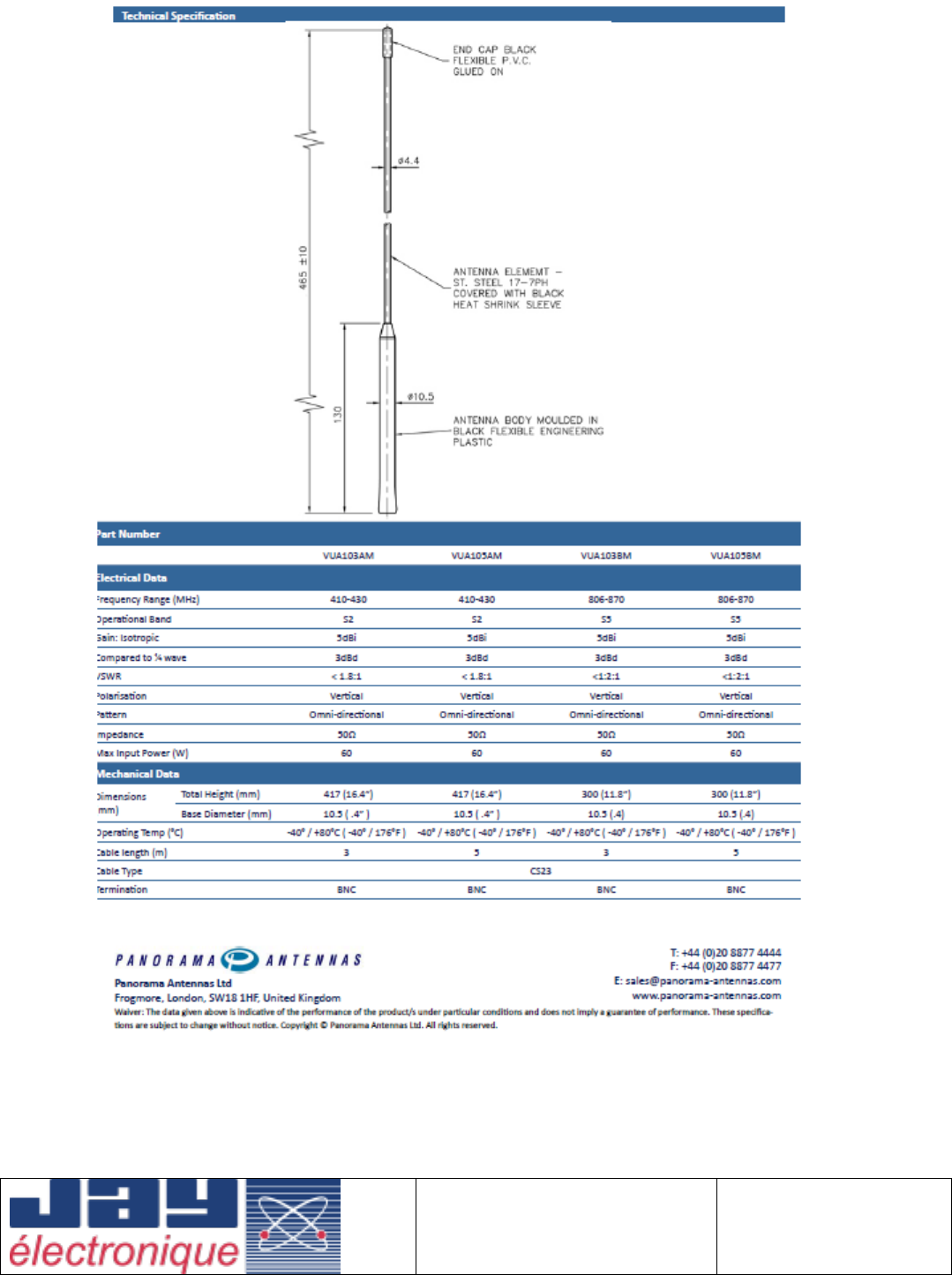

VUA10xBM
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016

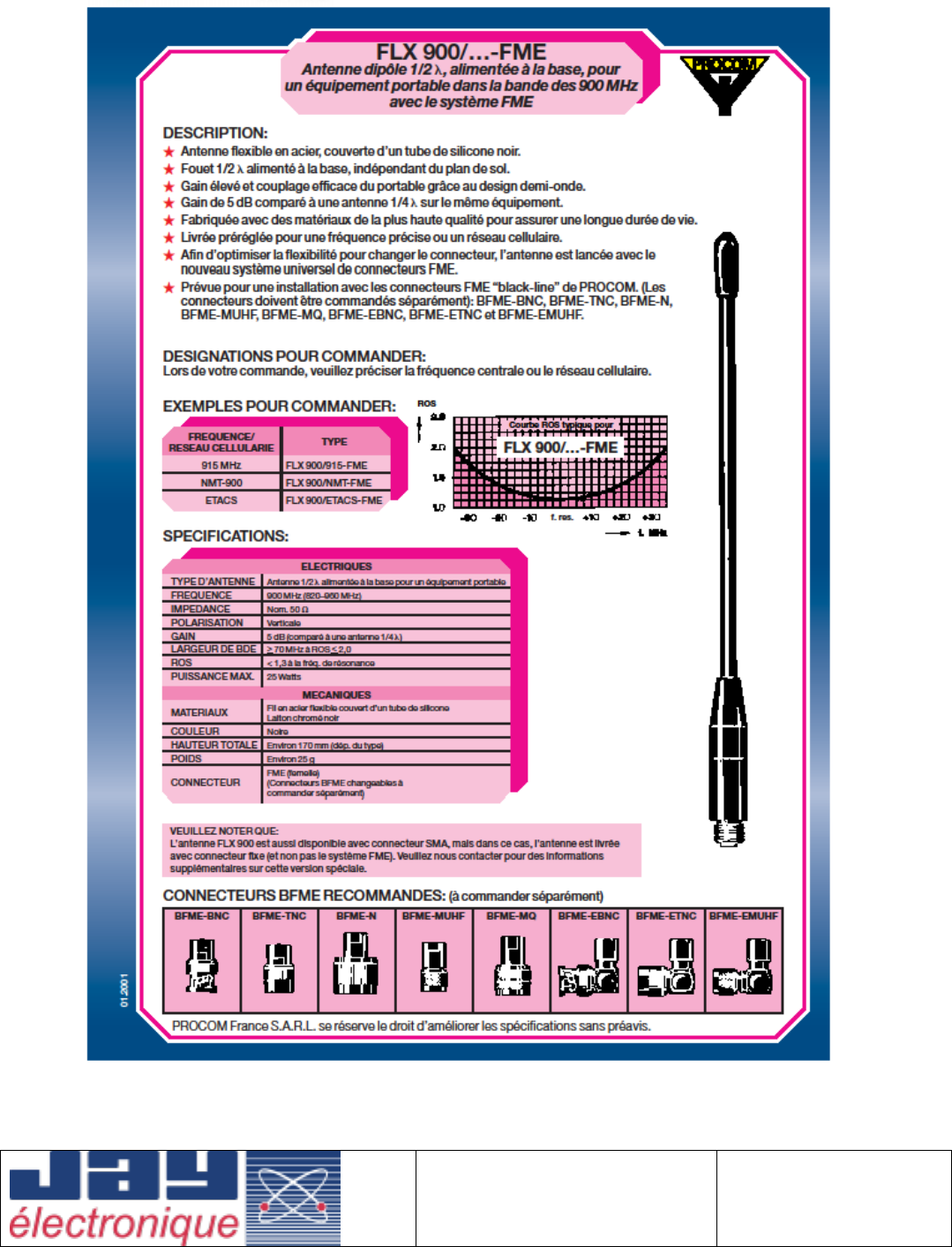

FLX900/915-FME
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016
VUB884
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016
EBDS-PRO900-4-BNC
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016

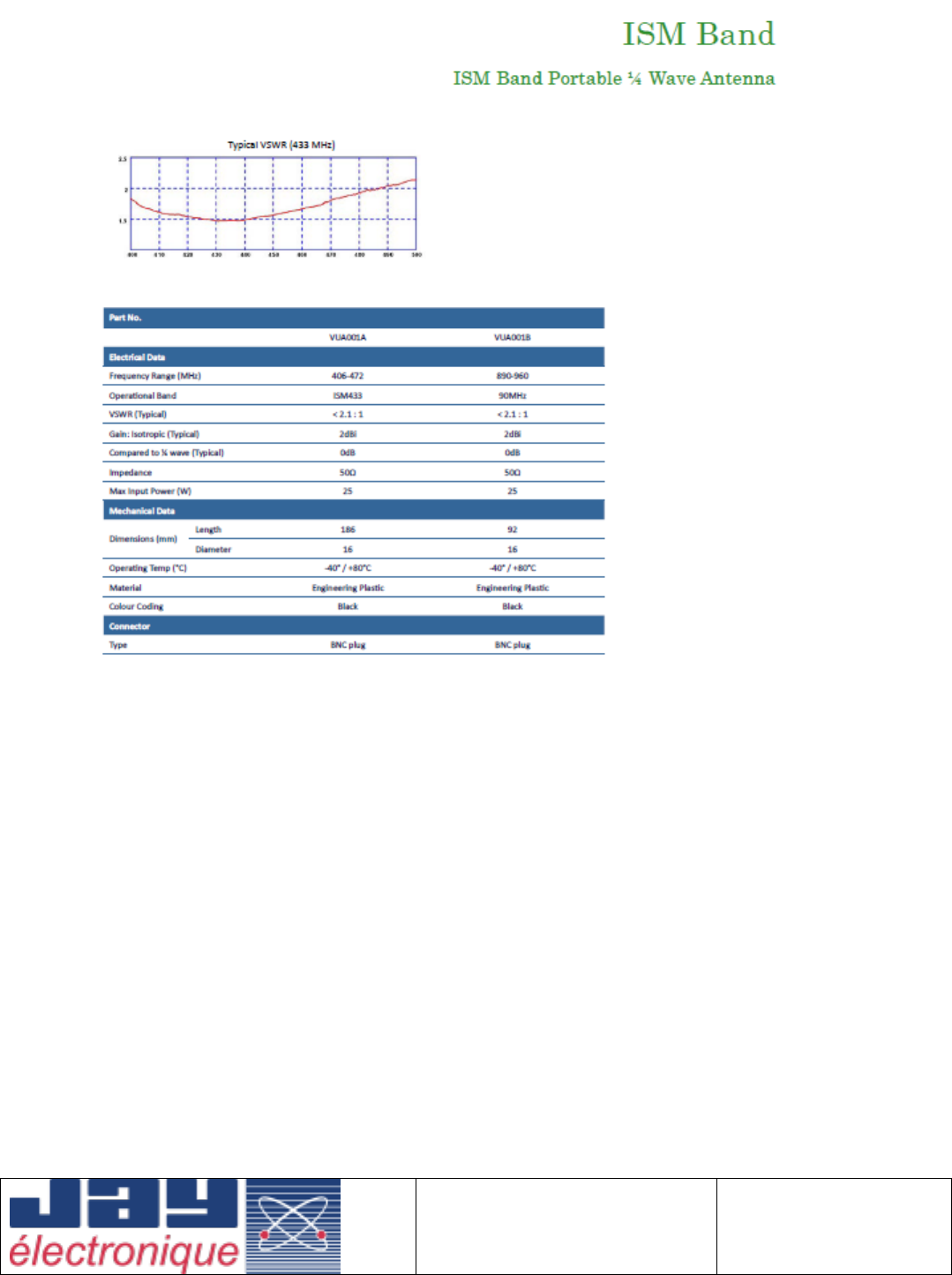

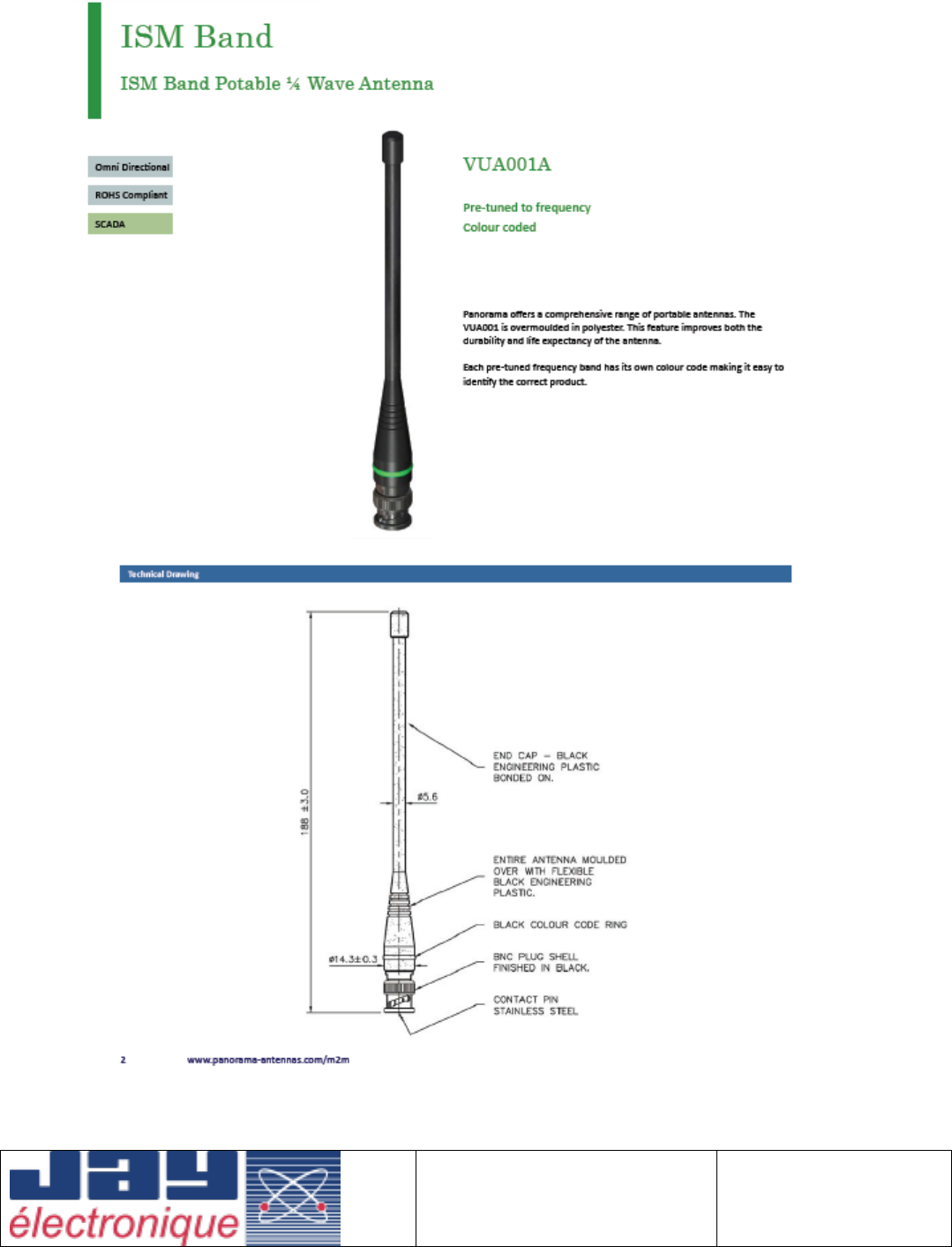

VUA001B
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016

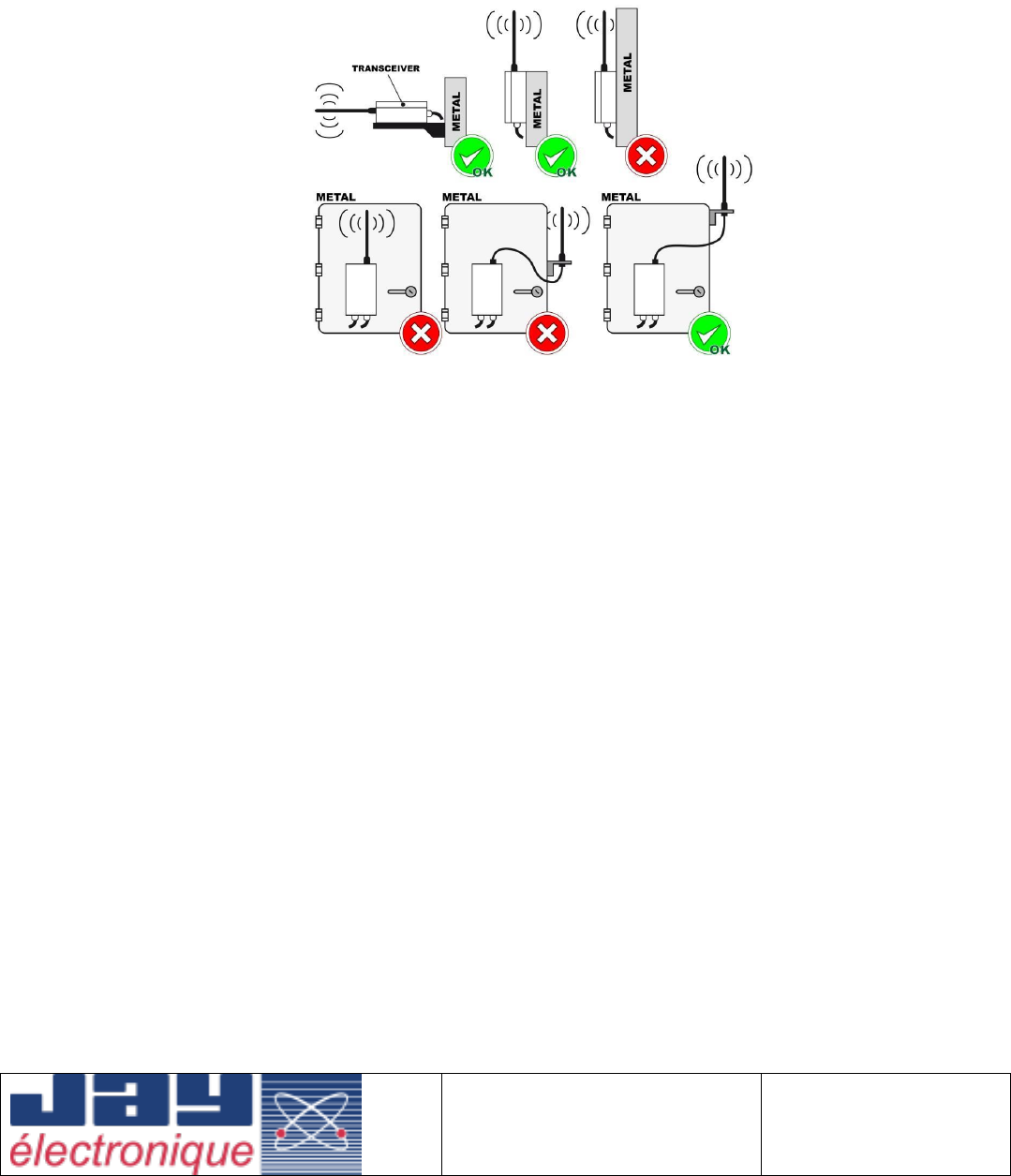

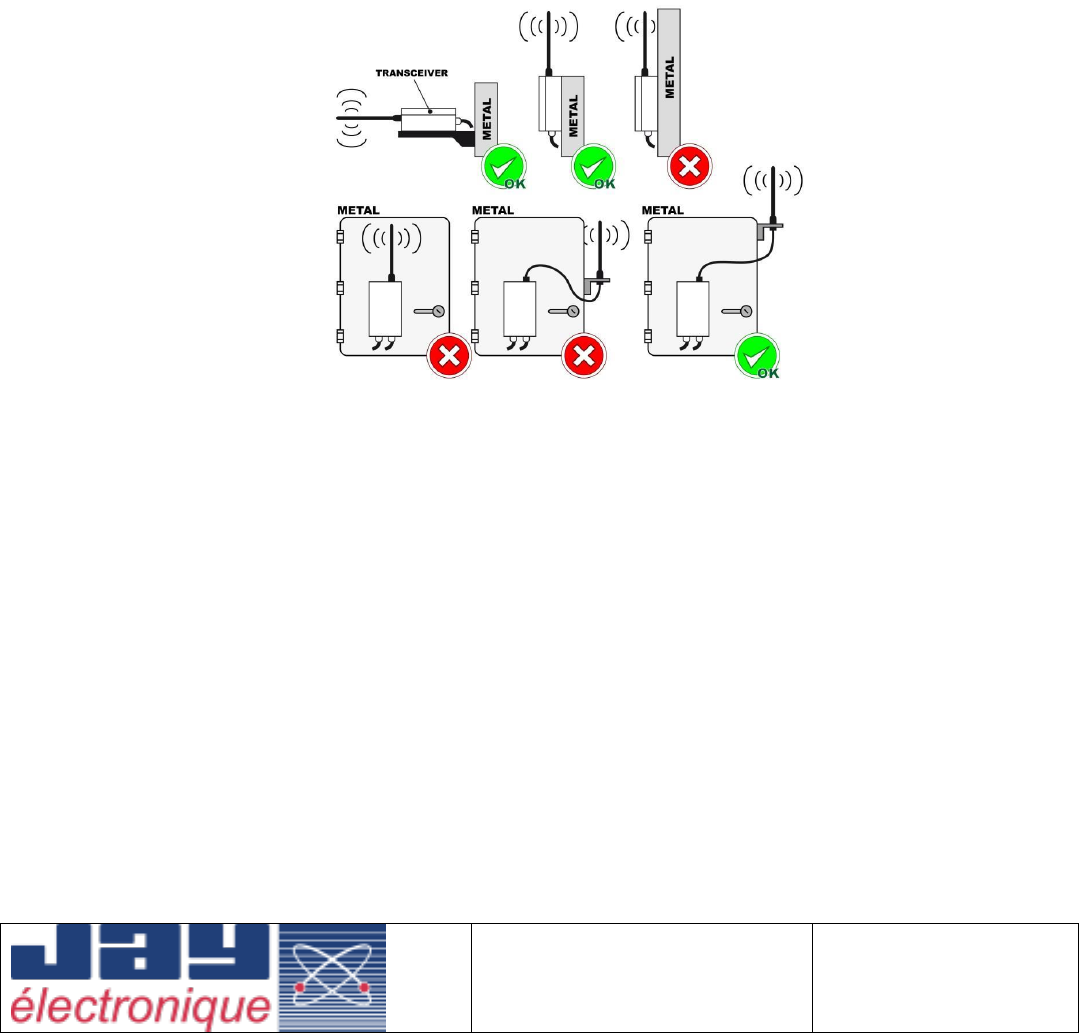

Antenna installation requirements:
The external antenna must be installed at a distance from the class 3 cables and power components (power
supply, motor, variable speed drives …) while remaining in an area which is favourable to radio reception.
It must be located at a certain height.
No metal object which could form a screen should be located in front of the external antenna (risk of
communication cut-out).
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016
Moreover, the host equipment must be labelled as follows:
Contains Transmitter Module FCC ID : OQMSB or Contains FCC ID : OQMSB
“This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.”
(When the device is so small or for such use that it is not practicable to place the statement specified above on
it, the information required shall be placed in a prominent location in the instruction manual or pamphlet
supplied to the user or, alternatively, shall be placed on the container in which the device is marketed.)
User Manual shall include the following instructions/statements:
For class A Equipment
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
For class B Equipment
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help
Warning:
This modular is used exclusively by Jay Electronique.
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016
IC
The OEM integrators are responsible for ensuring that the end-user has no manual instructions to remove or
install module.
These following instructions/statements shall be reported on the User Manual:
This equipment complies with RSS102’s radiation exposure limits set forth for an uncontrolled environment
under the following conditions:
1. This equipment should be installed and operated such that a minimum separation distance of
20cm is maintained between the radiator (antenna) and user’s/nearby person’s body at all
times.
2. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Cet équipement est conforme aux limites d’expositions de la CNR102 applicables pour un
environnement non contrôlé aux conditions suivantes:
1. Cet équipement devra être installé et fonctionner de telle manière qu’une distance minimale
de séparation de 20 cm soit maintenue entre la partie rayonnante (l’antenne) et l’utilisateur /
les personnes à proximité à tout moment.
2 Cet émetteur ne doit pas être co-localisé ou opérer en conjonction avec toute autre antenne
ou émetteur.
The RF module has been certified for mobile and fixed applications. If the module will be used for portable
application the device must undergo SAR testing and the following instructions shall be reported on the User
Manual:
Le module RF a été certifié pour les applications mobiles et fixes. Si le module est utilisé pour une application
portable, l'appareil doit subir un test DAS et les instructions suivantes doivent être consignées dans le manuel
de l'utilisateur:
If SAR measurement is not required:
This portable equipment with it’s antenna complies with RSS102’s radiation exposure limits set
forth for an uncontrolled environment. To maintain compliance, follow the instructions below :
1. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
2. Avoid direct contact to the antenna, or keep contact to a minimum while using this equipment.
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016
Si la mesure de DAS n’est pas requise:
Cet équipement portable avec ses antennes est conforme aux limites d’expositions de la
CNR102 applicables pour un environnement non contrôlé. Pour maintenir la conformité suivez les
instructions ci-dessous:
1 Cet émetteur ne doit pas être co-localisé ou opérer en conjonction avec toute autre antenne
ou émetteur.
2 Évitez tout contact direct avec l'antenne ou gardez le contact au minimum pendant l'utilisation
de cet équipement.
If SAR measurement is required:
This portable equipment with it’s antenna complies with RSS102’s radiation exposure limits set
forth for an uncontrolled environment. This equipment has shown compliance with RSS102’s
Specific Absorption Rate (SAR) limits. To maintain compliance, follow the instructions below :
1. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Si la mesure de DAS est requise:
Cet équipement portable avec ses antennes est conforme aux limites d’expositions de la
CNR102 applicables pour un environnement non contrôlé. Cet équipement a démontré la
conformité aux limites de Débit d’Absorption Spécifique (DAS). Pour maintenir la conformité
suivez les instructions ci-dessous:
1 Cet émetteur ne doit pas être co-localisé ou opérer en conjonction avec toute autre antenne
ou émetteur.
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016
This radio transmitter (IC: 3393A-SB) has been approved by Industry Canada to operate with the antenna
types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having
a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio (IC : 3393A-SB) a été approuvé par Industrie Canada pour fonctionner avec les
types d'antenne énumérés ci-dessous et ayant un gain admissible maximal. Les types d'antenne non inclus
dans cette liste, et dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour
l'exploitation de l'émetteur.
Authorized antennas / Antennes autorisées :
The characteristic of antennas are listed in previous paragraphs.
Les caractéristiques des antennes sont décrites dans les paragraphes précédents.
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016
Antenna installation requirements / Exigences d’installation des antennes :
The external antenna must be installed at a distance from the class 3 cables and power components (power
supply, motor, variable speed drives …) while remaining in an area which is favourable to radio reception.
It must be located at a certain height.
No metal object which could form a screen should be located in front of the external antenna (risk of
communication cut-out).
L’antenne devra être éloignée des câbles de classe 3 et éléments de puissance (alimentation, moteur,
variateurs...) tout en restant dans une zone favorable à la réception et à l’émission radio.
Le Transceiver doit être idéalement situé en hauteur, au-dessus de l’opérateur manipulant le module
opérateur, l’antenne dirigée vers le bas.
Il ne devra y avoir entre l’opérateur et l’antenne aucune masse métallique pouvant faire écran (risque de
coupures de communication).
T940-HOM-004-Module
integration
manual_Rev4.docx
Date:
November 21, 2016
This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference; and
2. This device must accept any interference received, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
1. L’appareil ne doit pas produire de brouillage ;
2. l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Moreover, the host equipment must be labelled as follows:
Contains Transmitter Module IC : 3393A-SB or Contains IC : 3393A-SB
