ACTERNA TEST & MEASUREMENT SOLUTIONS

WEBSITE: www.jdsu.com/fiberoptictest

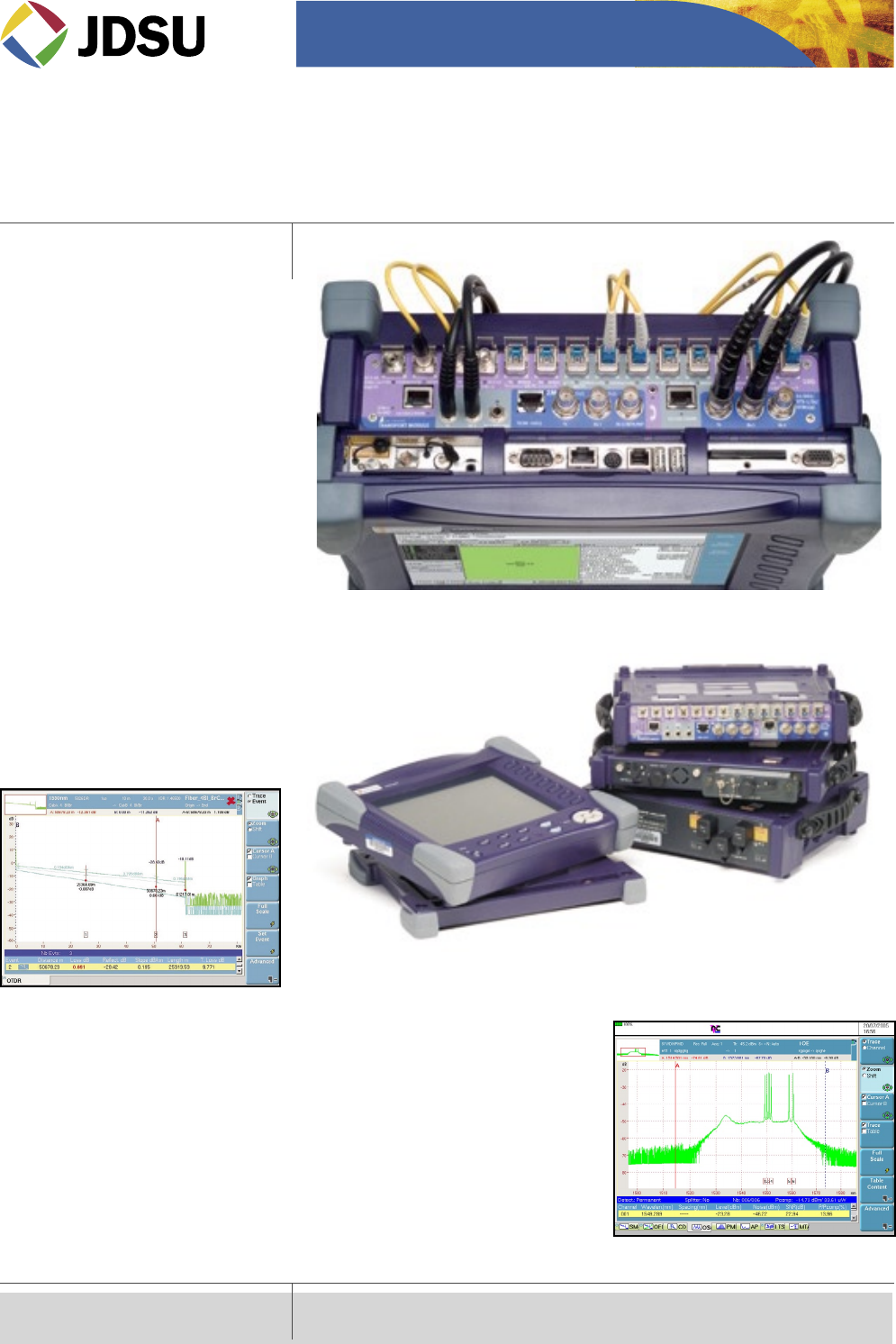

Transport Module

• All in one module for

Full PDH/T-Carrier & SDH/SONET test-

ing up to 10 Gb/s

Ethernet testing 10/100/1GigE/

10GigE LAN & WAN up to the IP layer

Dispersion Modules

• PMD – Polarization Mode Dispersion

• CD – Chromatic Dispersion

MTS-8000 Portable Optical Network Tester

All your optical network testing needs covered in a single platform

The power of one, performing

the work of many

A powerful unit

• Flexible scalable platform

• Industry-leading size and weight, e.g. plat-

form + transport module < 7 kg

• Interchangeable modules

• Generates test results in seconds

• Fully automatic testing

• Combination of several tests

• Remotely controlled (via Ethernet, Fiber)

Fiber Characterization Testing

• Optical Time Domain Reflectometer

(OTDR)

• Chromatic Dispersion (CD)

• Polarization Mode Dispersion (PMD)

• Attenuation Profile (AP)

• Loss testing

CWDM/DWDM Testing

• OSA with frequency range from 1250 nm to

1650 nm

• DWDM parameters OSNR, optical channel

power, wavelength deviation

• Application for EDFA and DFB testing

• Channel isolation for BER analysis

• Single or dual port analyzer

Amplified DWDM system analysis

Pass/Fail OTDR analysis

OTDR Module

• More than 20 OTDR modules

• Combined wavelengths MM: 850/1300

SM: 1310/1383/1550/1625 nm

• Dynamic range 30 dB up to 50 dB

MTS-8000 Tester

2

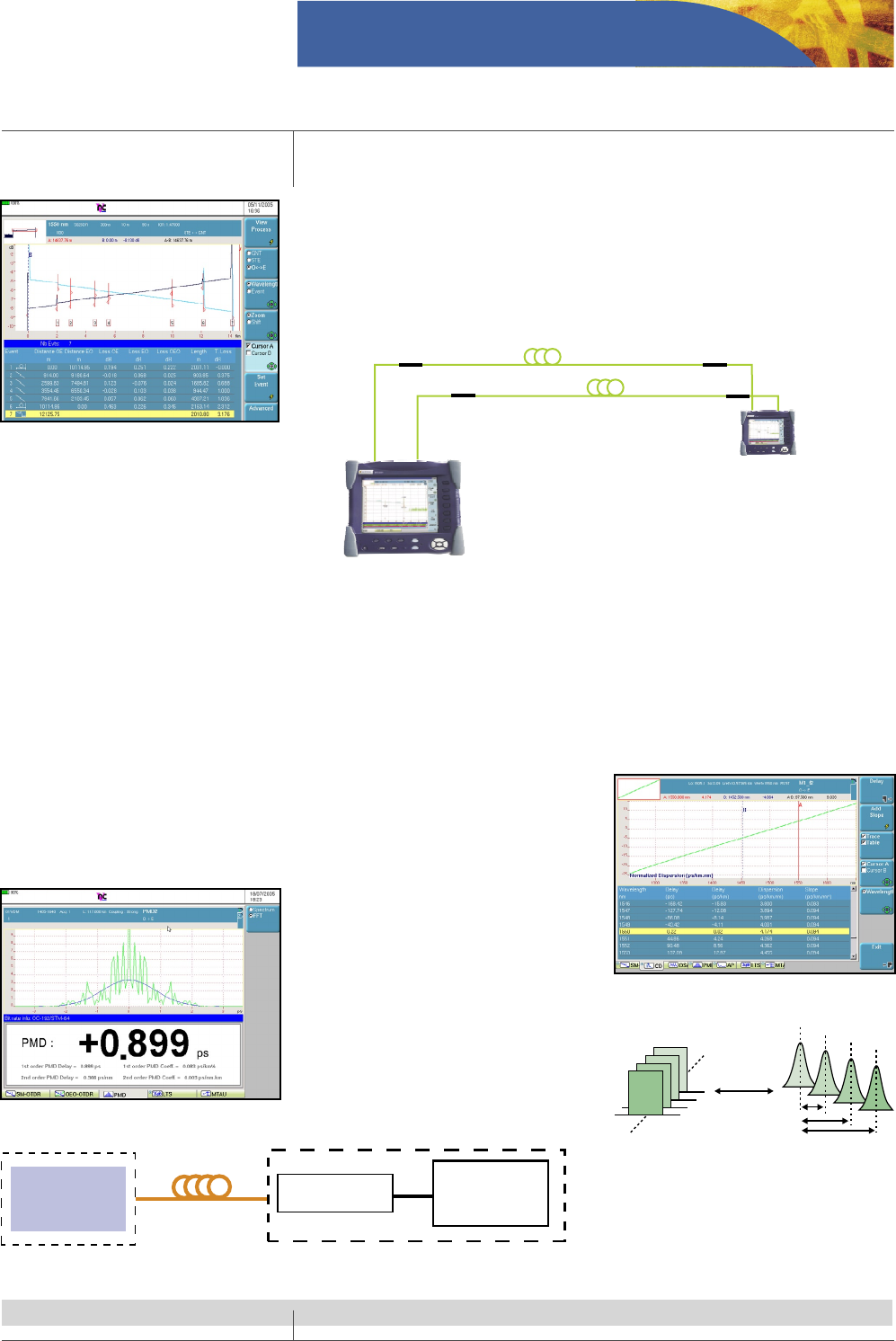

Automatic bi-directional

measurement function

• Automate the acquisition process

• Check fiber continuity

• File transfer through the fiber

• True splice loss with both end analysis

• Optical talkset option needed

Bi-directional OTDR analysis





1

1

1

1

1

2

3

4

Pulse delay method complies with TIA/EIA FOTP-168

DUT

Polarized

Broadband

Source

Analyzer OSA

PMD test results with Pass/Fail analysis

Local

Remote

MTS-8000 00286

UHD 1310/1550/1625 nm

MTS-8000 00439

UHD 1310/1550/1625 nm

Tested fiber

Data

PC software solution for report generation

OFS-100 Results Analysis

• OTDR, CD, PMD, AP, and OSA results

analysis

• Batch processing capability via automation

process

• Pass/Fail function

• Customized printouts

OFS-200 FiberCable Acceptance

Report Generation

• Complete fiber characterization reporting

capability including bi-directional OTDR,

CD, PMD, AP, IL and ORL results

• Advanced OTDR evaluation for loop back

and mid-point management

• Powerful report preview

• Direct access keys for easy process and

efficiency

Single menu for chromatic dispersion trace and table

display

Fiber Characterization

CD Module

• Pulse delay method complies with TIA/EIA

FOTP-168

• Fast single-end measurement with sectional

analysis capability

• CD analyzer and four-wavelength OTDR

(1310/1480/1550/1625 nm) with one module

Physical Fiber Testing

Key features OTDR

• Fast data acquisition enables VHD plug-in

to reach 40 dB aer 10 s with a maximum

performance up to 45 dB

• Highest dynamic range with 50 dB at

1550 nm, UHD module

• New VLR module with outstanding dead

zone of 0.8 m EDZ and 4 m ADZ, 43 dB

dynamic

• Fastest scan speed at 0.1 s in real-time mode

• Up to 128000 acquisition points with sam-

pling resolution down to 4 cm

Built-in Optical Talkset

• Data transfer capability: file exchange or

remote control

• Used also for fully automatic bi-directional

measurements

• OTS-55 handheld for far end communica-

tion

PMD Module

• Fixed analyzer method standardized by

ITU-T, IEC and TIA/EIA

• Fast measurement time – from just

6 seconds

• Measure through multiple EDFAs

MTS-8000 Tester

3

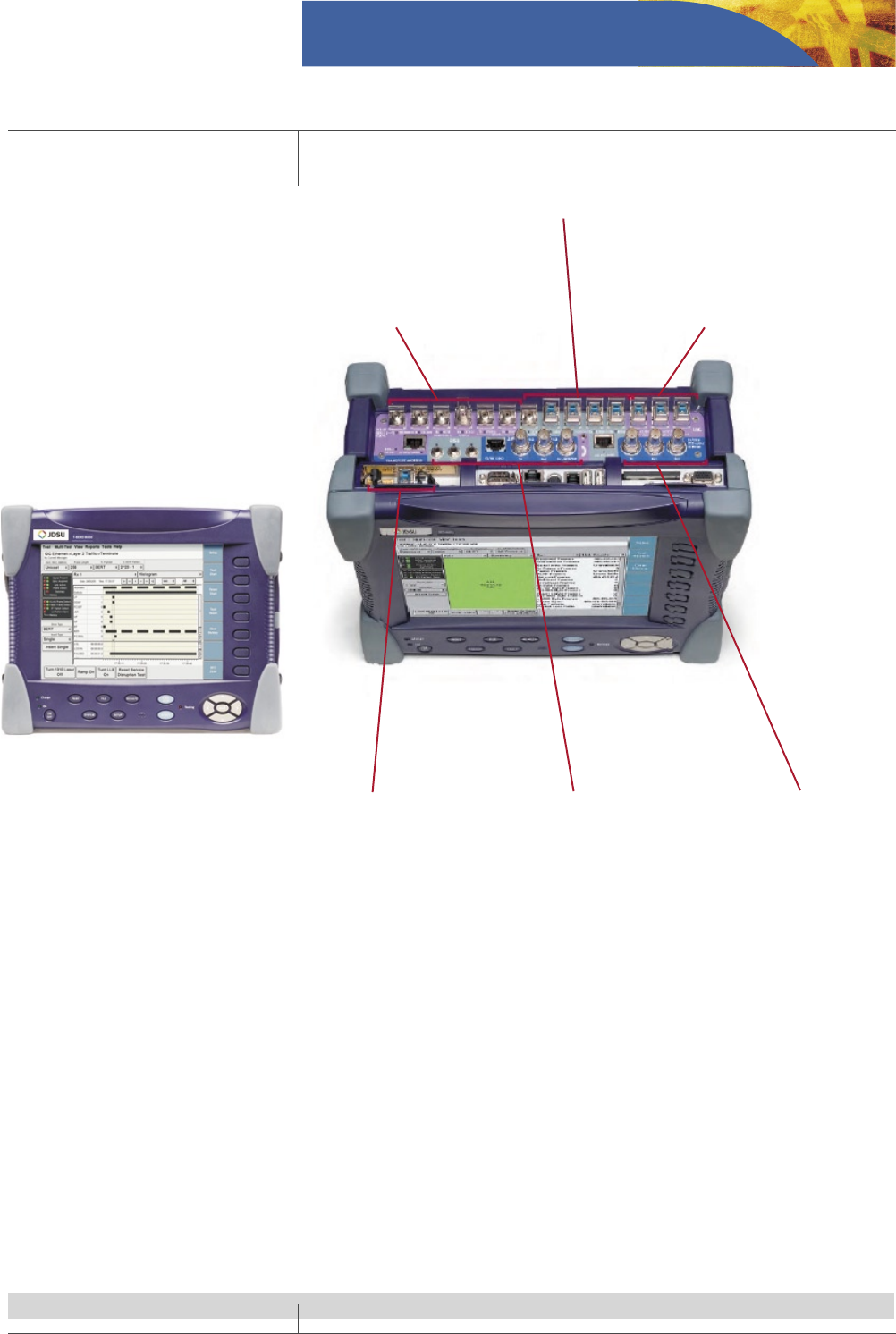

Transport Confi guration

Primary Port Bank

• 2.5 Gb/s, 622 Mb/s, and 155 Mb/s SDH/SONET

Tx/RX (1310 nm, 1550 nm)

• 10/100/1000 Mb/s Ethernet

• 1 GigE Tx/Rx (850 nm, 1310 nm, 1550 nm)

Secondary Port Bank

• 10/100/1000 Mb/s Ethernet

• 1 GigE Tx/Rx (850 nm, 1310 nm, 1550 nm)

10 Gb/s Port Bank

• 10 Gb/s SDH/SONET (1310 nm, 1550 nm)

• 10 GigE LAN & WAN (850 nm, 1310 nm, 1550 nm)

Optical Connection Check Interfaces

• High accuracy power meter

• Continuous wave power source

• Visual fault locator

Port Bank #4

• T1 and E1 balanced and

unbalanced Tx/Rx

Port Bank #5

• E3, DS3, STS-1, E4 Tx/Rx

• STM-1 (e) Tx/Rx

Transport Module

• Contained in one 5 cm module

– PDH / T-carrier interfaces include

DS1, E1, E3, DS3, E4, STS-1 and STM-1e

– SDH/SONET interfaces (1310 nm, 1550 nm) include

155 Mb/s, 622 Mb/s, 2.5 Gb/s, 10 Gb/s

– Ethernet interfaces (850 nm, 1310 nm and 1550 nm)

include

10/100/1000 Mb/s electrical and 1 GigE Optical

– 10 GigE LAN + WAN

• Only 2.5 kg fully populated, total weight < 7 kg

• Fully scalable to meet your current and future needs

• Optical and electrical signal level measurements

• Up to 2.5 hours at 10 Gb/s rates with one battery

(2 batteries possible)

• Field exchangeable connectors for all standard connector

types

• SDH/SONET testing

– Mixed payload generation and analysis

– Concatenated signals

– Automatic Protection Switching (APS)

– Overhead byte manipulation and analysis

– Round Trip Delay (RTD)

• Ethernet testing

– Single and dual port Ethernet confi guration

– Testing on Layer 1, 2 and 3 (IP)

– VLAN support

– Constant, burst and ramp traffi c generation

– Traffi c fi lter capabilities

– Automated RFC2544 testing

– Loop-up /loop-down of far end device

All statements, technical information and recommendations related to the products herein are based upon in-

formation believed to be reliable or accurate. However, the accuracy or completeness thereof is not guaranteed,

and no responsibility is assumed for any inaccuracies. e user assumes all risks and liability whatsoever in con-

nection with the use of a product or its applications. JDSU reserves the right to change at any time without notice

the design, specifications, function, fit or form of its products described herein, including withdrawal at any time

of a product offered for sale herein. JDSU makes no representations that the products herein are free from any

intellectual property claims of others. Please contact JDSU for more information. JDSU and the JDSU logo are

trademarks of JDS Uniphase Corporation. Other trademarks are the property of their respective holders.

© 2006 JDS Uniphase Corporation. All rights reserved.

Test & Measurement Regional Sales

NORTH AMERICA

TOLL FREE: 1 866 228 3762

FAX: +1 301 353 9216

LATIN AMERICA

TEL:+55 11 5503 3800

FAX:+55 11 5505 1598

ASIA PACIFIC

TEL:+852 2892 0990

FAX:+852 2892 0770

EMEA

TEL:+49 7121 86 2222

FAX:+49 7121 86 1222

WEBSITE:

www.jdsu.com/fiberoptictest

MTS-8000 Tester

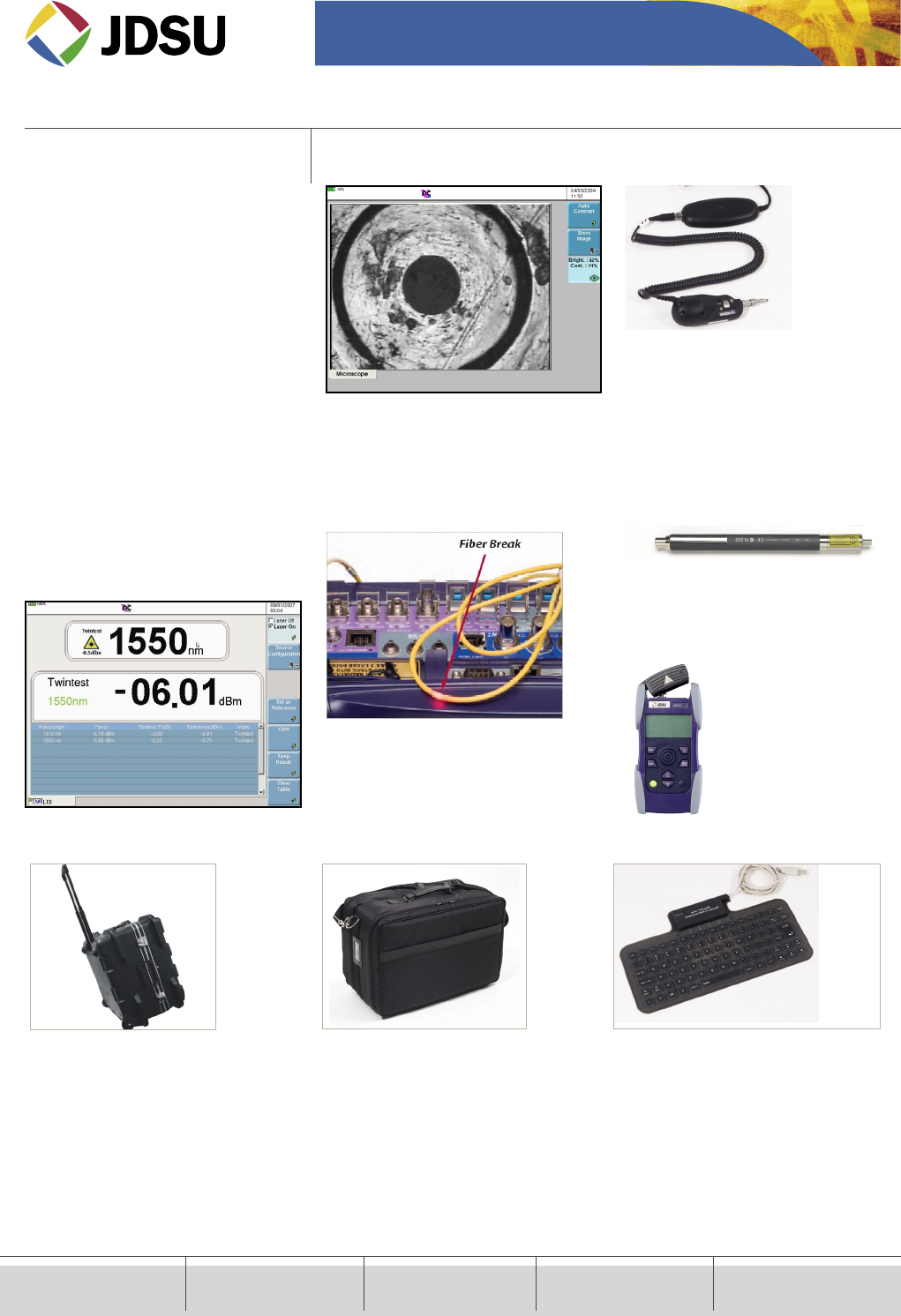

EFSCOPE250, EFSCOPE400: Optical video inspection probe

Accessories

E80HCase5: Hard carrying case for

single module configuration

E80SCase3: Soft carrying case for

single module platform

E80keyB: USB keyboard

Connector Inspection Scope

• Fiber Connector Inspection Connectors

• Patch panel inspection

• 250 or 400 magnification

• Uses MTS-8000 large screen (10.4”)

• Comparison with 3 other images on the same

screen

Alternatively

OVF-1 ball pen-sized separate visual fault

locator

Built-in 635 nm Visual Fault Locator

• Universal push/pull for all 2.5/1.25 mm

connector types

Insertion Loss Measurements

• Power meter integrated in MTS-8000

mainframe

• Multi-wavelength laser source with CW or

modulated signals

• Easy loss measurements of a jumper or

patch cord OTS-55 SMART Optical Talkset

• ≥ 45 dB dynamic range

• Wavelength of operation: 1550 nm
