Jetlun RD77762 ZigBee Temperature Humidity Sensor User Manual RD77762UG 1 1

Jetlun (Shenzhen) Corporation ZigBee Temperature Humidity Sensor RD77762UG 1 1

Users Manual

UserGuide
rev1.0
Temperature&HumiditySensor
UserGuide(RD77762)
88PARKGROVEDRIVE|SOSANFRANCISCO|CA|94080|USA
T:+18664982703|F:+16503601977
Jetlun Corporation
Temperature & Humidity Sensor User Guide rev 1.1 2

DOC#: UG-RD77762-1.0
© 2009-2010 Jetlun Corporation. All rights reserved.
Notice: No part of this publication may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including photocopying and recording, or stored in a database
or retrieval system for any purpose without the express written permission of Jetlun Corporation.
Jetlun Corporation reserves the right to make changes to this user’s guide at any time without
notice and assumes no responsibility for its use. Jetlun products and services can only be
ordered under the terms and conditions of Jetlun Corporation's applicable agreements. All of the
features described in this user’s guide may not be currently available. Refer to the most recent
product announcement for information about feature and product availability.
This user’s guide contains the most current information available at the time of publication.
When new and/ or revised information becomes available, this entire user’s guide is updated
and distributed to all registered users.
Trademarks, Product Names, and Service Names
Jetlun, the stylized J logo, and the Jetlun logo are either trademarks or registered trademarks of
Jetlun Corporation. All other product or service names are property of their respective owners.
http://www.jetlun.com
Jetlun Corporation
Temperature & Humidity Sensor User Guide rev 1.1 3

DOC#: UG-RD77762-1.0
Table of Contents
1.0ABOUT THIS GUIDE ............................................................................................................ 4
1.1BECOMING FAMILIAR WITH THIS USER GUIDE........................................................................ 4
1.1.1 Quick Reference............................................................................................................ 4
1.1.2 Icon Descriptions........................................................................................................... 4
1.2GETTING ADDITIONAL HELP ................................................................................................. 4
1.3SENDING FEEDBACK REGARDING THIS DOCUMENTATION...................................................... 4
2.0 PRODUCT OVERVIEW ....................................................................................................... 5
2.1PACKAGE CONTENTS ........................................................................................................... 5
2.2IMPORTANT SAFETY INFORMATION....................................................................................... 5
2.3FRONT PANEL...................................................................................................................... 5
2.3 SIDE PANEL ............................................................................................................................ 6
3.0INSTALLING THE JETLUN TEMPERATURE & HUMIDITY SENSOR.............................. 7
3.1 INSTALL THE TEMPERATURE & HUMIDITY SENSOR............................................................... 7
3.1.1 To Join the Network .......................................................................................................7
3.1.2 To Leave the network..................................................................................................... 7
4.0 TROUBLESHOOTING .............................................................................................................8
5.0 TECHNICAL SPECIFICATIONS ....................................................................................... 10
List of Figures
Figure 1: Front Panel of the Temperature & Humidity Sensor....................................................... 6
Figure 2: Side Panel of the applicne module ................................................................................. 6
List of Tables
Table 1: Where to find information in this User Guide ................................................................... 4
Table 2: Icon descriptions............................................................................................................... 4
Table 3: Front Panel LED Description............................................................................................6
Table 4: Back Panel of the Temperature & Humidity Sensor Description..................................... 6
Jetlun Corporation
Temperature & Humidity Sensor User Guide rev 1.1 4

DOC#: UG-RD77762-1.0
1.0 ABOUT THIS GUIDE
1.1 Becoming familiar with this User Guide
1.1.1 Quick Reference
The Jetlun Temperature & Humidity Sensor (RD77762) User Guide describes the
following:
Table 1: Where to find information in this User Guide
Planning and Installing the Jetlun Temperature &
Humidity Sensor Chapter 2 and 3
1.1.2 Icon Descriptions
While reading through the User Guide, you may see various icons that call attention to
specific items. Below is a description of these icons:
Table 2: Icon descriptions
NOTE: This mark indicates that there is a note of interest and is
something that you should pay attention to while using the
product.
IMPORTANT: This mark identifies an indication that you should
watch for, or reiterates something that you should always keep
in mind.
WARNING: This exclamation point indicates that there is a
caution or warning and may be something that could damage
your property or project.
1.2 Getting Additional Help
To get information or assistance for problems that you encounter, please contact Jetlun
Technical Support by emailing support@jetlun.com.
Please always include with all inquiries the following information:
• Product name, model number, part number (if applicable) and serial number
• A description of the devices connected to your Gateway or a system configuration
• The circumstances surrounding the error or failure
• A detailed description of the problem and what has been done to try to resolve it
1.3 Sending Feedback regarding this Documentation
We welcome your feedback on Jetlun Gateway documentation. This includes feedback
on the structure, content, accuracy, or completeness of our documents, and any other
comments you may have. Please send your comments to docs@jetlun.com.
Jetlun Corporation
Temperature & Humidity Sensor User Guide rev 1.1 5

DOC#: UG-RD77762-1.0
2.0 PRODUCT OVERVIEW
Thank you for choosing the JIM Temperature & Humidity Sensor (RD77762). The
Temperature & Humidity Sensor is a ZigBee® sensor designed to monitor the current
temperature and humidity of the ambient environment. When used in conjunction with
the Jetlun Gateway, temperature and humidity can be reported to you on a regular basis.
You can even configure email or SMS alerts to be sent to you if the temperature or
humidity reaches certain set points.
The JIM Temperature & Humidity Sensor has the following features:
• ZigBee Wireless enabled
• Reports temperature in Fahrenheit or Celsius
• Low battery indicator
2.1 Package Contents
When you first open the box, please check and confirm that the following items are all
included:
• 1x Temperature & Humidity Sensor RD77762
• 1x Quick Installation Guide
• 1x Warranty Guide
Contact the retailer where you made your purchase if any of these parts are incorrect,
missing or damaged. Keep the carton, including the original packaging materials in case
you need to return the unit for repair.
2.2 Important Safety Information
Please read all documentation and retain documentation for future reference. Follow all
warnings, alerts and instructions.
Important:
• DO NOT Use the RD77762 near water
• DO NOT Place the RD77762 near any heat source such as radiators, heaters,
stoves, or other apparatus that produce heat
• DO NOT Open the device housing or alter the product in any way
• DO NOT Dispose of electrical appliances as unsorted municipal waste. Contact
your local government for information regarding separate collection facilities
2.3 Front Panel
Jetlun Corporation
Temperature & Humidity Sensor User Guide rev 1.1 6

DOC#: UG-RD77762-1.0

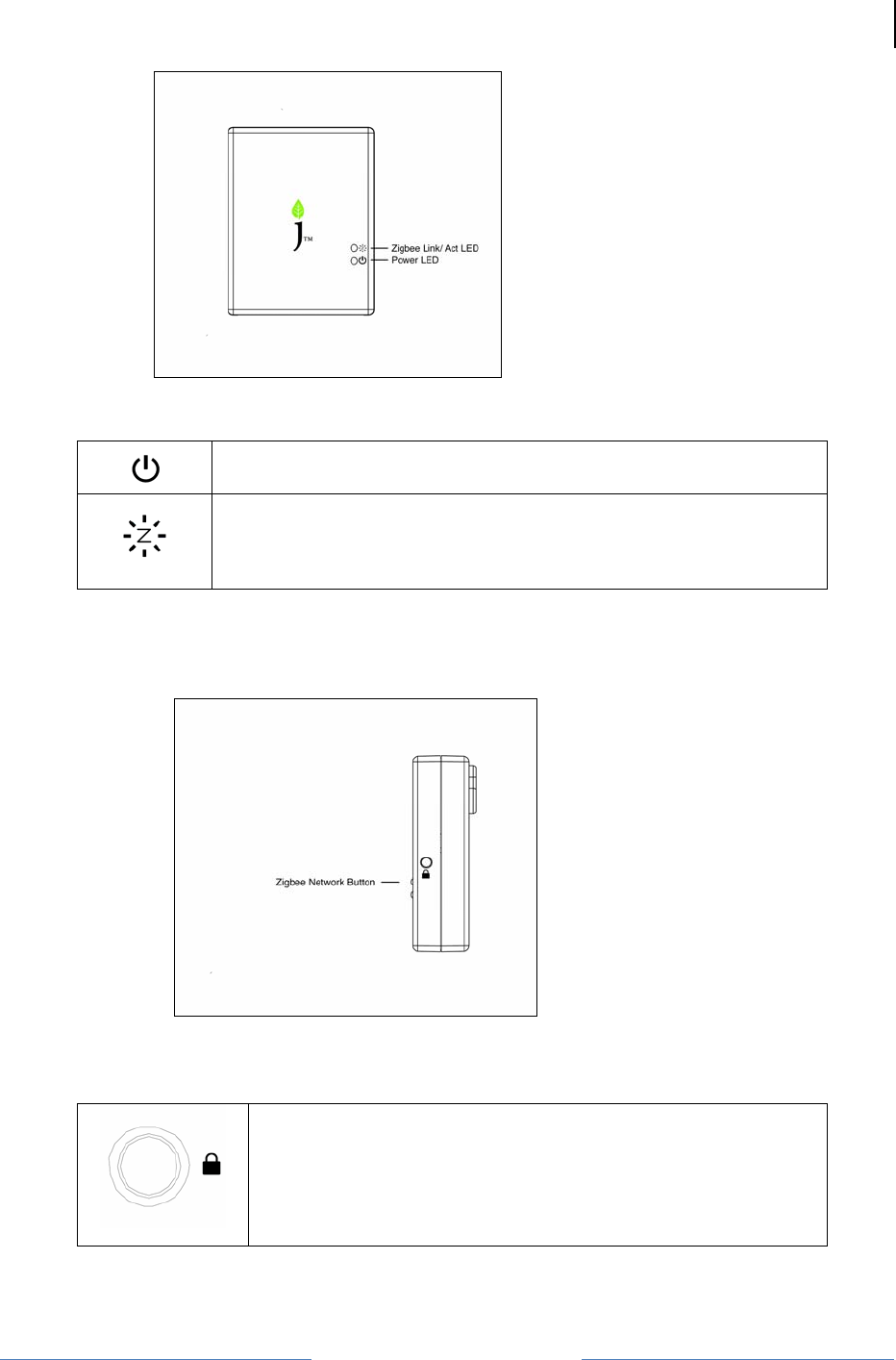

Figure 1: Front Panel of the Temperature & Humidity Sensor
Table 3: Front Panel LED Description
The Power LED lights up RED when the battery volume is low.
The Zigbee ACT LED blinks green when the temperature and
humidity senseor receives/sends the data.
The Zigbee ACT LED is solid green for 300 seconds when the
temperature and humidity sensor joins the zigbee network.
2.4 Side Panel
Figure 2: Side Panel of the applicne module
Table 4: Back Panel of the Temperature & Humidity Sensor Description
The Zigbee Network button is applied for the Temperature &
Humidity Sensor to join or leave the network.
Press the Zigbee Network button once to join the network if
the sensor is not in the network.
To remove the sensor from the network, press the Zigbee
Network button once to leave the network.
Jetlun Corporation
Temperature & Humidity Sensor User Guide rev 1.1 7

DOC#: UG-RD77762-1.0
3.0 INSTALLING THE JETLUN TEMPERATURE & HUMIDITY SENSOR
Follow these quick steps to install your Jetlun Temperature & Humidity Sensor.
3.1 Install the Temperature & Humidity Sensor
3.1.1 To Join the Network
 STEP 1: Press and release the Zigbee network button for 3-5 seconds and then
release the button. The Zigbee ACT LED should be blinking.
 STEP 2: The Temperature & Humidity Sensor will join the network within 1 minute.
The Zigbee ACT LED should be solid green for 300 seconds.
NOTE: If the Temperature & Humidity Sensor fails to join the
ZigBee network, please enter the Gateway utility web interface and
check the following items:
1. The Zigbee network is formed.
2. The Zigbee network allows the Zigbee device to join the
network.
3. Retry Step 1
3.1.2 To Leave the network
 STEP 1: Press and hold the Zigbee network button for 8-10 seconds and then
release the button. The ACT LED is blinking for about 3 seconds and then
it is off.
 STEP 2: The Temperature & Humidity Sensor has left the network successfully
when the ACT LED is off.
Jetlun Corporation
Temperature & Humidity Sensor User Guide rev 1.1 8

DOC#: UG-RD77762-1.0
4.0 TROUBLESHOOTING
Q. The Temperature & Humidity Sensor fails to join the Zigbee network?
A: Check the configuration of the Gateway or RD75613 and assure that the network is formed.
Then refer to section 3.1.1 (To join the network) of the manual and follow all steps to retry join
the network
Q. The Power LED is solid red or blinking red?
A: The Red LED indicates low battery. Simply change out the old batteries with new ones and
LED should automatically revert to green.
Change out battery procesure:
 STEP 1: Screw out the screw in the bottom panel using screwdriver
 STEP 2: Open the bottom panel.
 STEP 3: Use the new battery instead the old one
 STEP 4: Close the bottom panel and screw the screw.

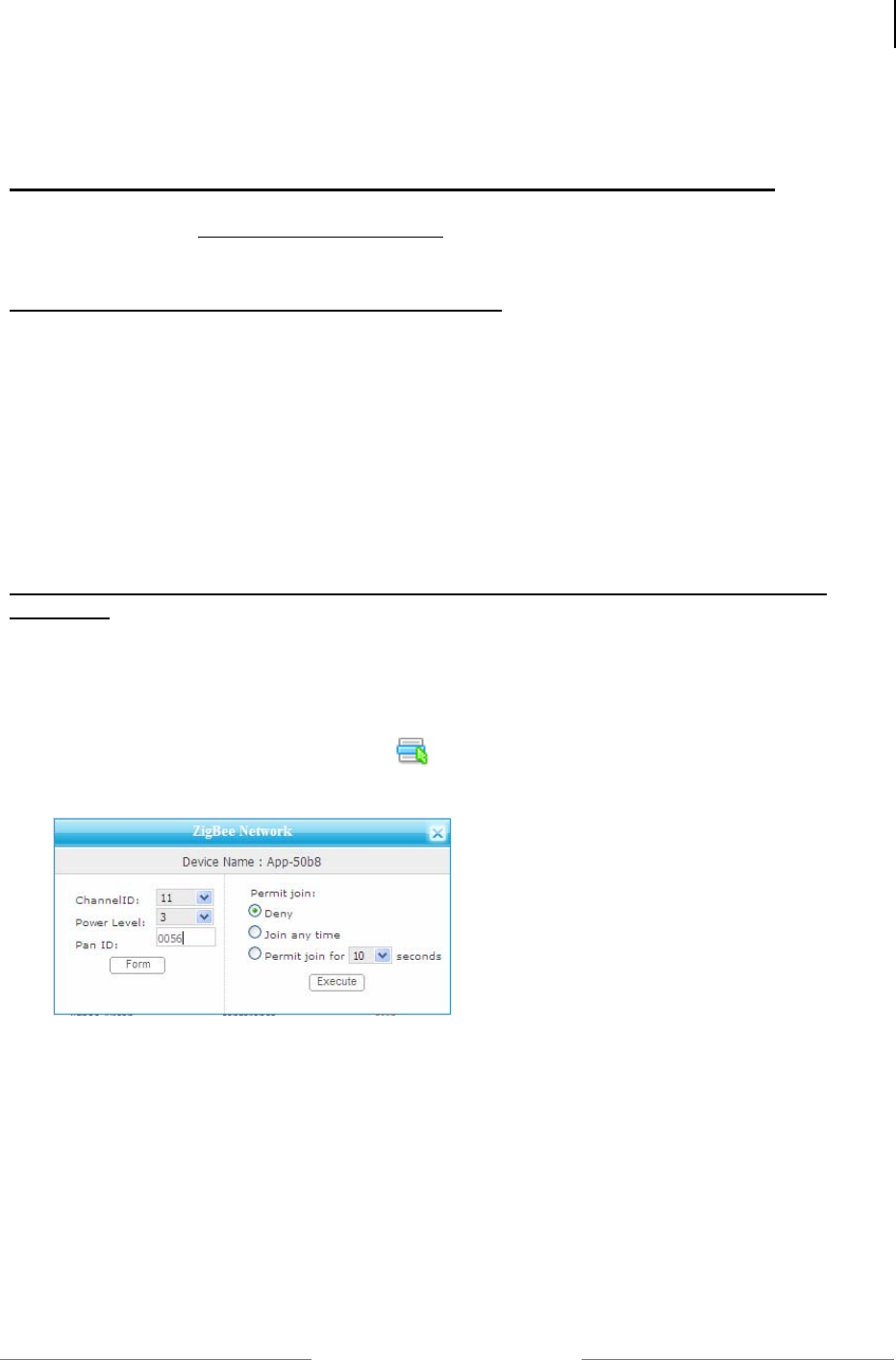

Q: Join the Temperature & Humidity sensor to the Gateway Zigbee network through
RD75613?
A: The procedure is following:
 STEP 1: Form the Zigbee Network through the RD75613.
1. Enter the Gateway utility web Home Area Network > Control interface
2. Select the RD75613 (Appliance module) whose Zigbee network the temperature &
humidity sensor will join and click the button
3. Enter the Zigbee network button, and enter the Chanel ID, Power Level and Pan ID. (If the
Zigbee network is formed, you can directly jump to item 5.)
Channel ID is digit from 11 to 26
Power Lever is digit from 1 to 3
Pan ID must be 4 bits Hex
4. Click the Form button. When the network is formed, the name of Form button is changed to
“Leave”.
5. Select the Permit join choice and click Execute button.
Explain of permit join choices:
Deny: No sensors can join the network
Join any time: All sensors can zigbee network at any time.
Jetlun Corporation
Temperature & Humidity Sensor User Guide rev 1.1 9

DOC#: UG-RD77762-1.0
Permit join for XX seconds: Sensors can join the network within XX seconds.
NOTE: Permit join setting should be reset when the appliance
module is rebooting.
 STEP 2: Temperature & Humidity sensor joins the network
1. Press and release the Zigbee network button for 3-5 seconds and then release the button.
The Zigbee ACT LED should be blinking.
2. The Temperature & Humidity Sensor will join the network within 1 minute. The Zigbee ACT
LED should be solid green for 300 seconds
NOTE: If the Temperature & Humidity Sensor fails to join the
ZigBee network, please enter the Gateway utility web home area
network > Control > Zigbee network interface (Refer the Step 1)
and check the following items:
1. The Zigbee network is formed.
2. The Zigbee network allows the Zigbee device to join the
network.
3. Retry Step 2
 STEP 3: Temperature & Humidity sensor leaves the network
1. Press and release the Zigbee network button for 8-10 seconds and then release the
button. The ACT LED is blinking for about 3 seconds and then it is off.
2. The Temperature & Humidity Sensor has left the network successfully when the ACT LED
is off.
Jetlun Corporation
Temperature & Humidity Sensor User Guide rev 1.1 10

DOC#: UG-RD77762-1.0
5.0 TECHNICAL SPECIFICATIONS
Part Number RD77762
Product Name Jetlun Zigbee Temperature and Humidity Sensor
Standard Compliance Zigbee Smart Energy or Home Automation Profile
IEEE 802.15.4 for Zigbee
Frequency Band Zigbee: 2.4 GHz
Transport Mode Zigbee: Up to 200 kbps
Range Zigbee: Up to 100 ft (30 m)
LEDs Power,Zigbee Act/Link/Security LED
Temperature Measurement
Range -40°C to +100°C (-40°F to +212°F)
Temperature Measurement
Accuracy +/-0.5°C+/- 0.3°C@25°C (+/- 0.4°F)
Temperature Measurement
Resolution 0.1°C (0.1°F)
Humidity Measurement
Range 10% to 95%
Humidity Measurement
Resolution +/- 1%
Humidity Accuracy 25°C: +/- 2%
Operating Temp -40ºF to 212ºF (-40ºC to 100ºC)
Operating Humidity 10 to 85% non-condensing
Storage Temp -40ºF to 248ºF (-40ºC to 120ºC)
Storage Humidity 0 to 80% non-condensing
Dimensions 72 x 55 x 20.5mm (L x W x H)
Weight 0.084 kg (0.185 lbs)
Operating Voltage 3.6V battery
Safety and EMI FCC/C-Tick/CE
Zigbee SE/HA certification
WEEE RoHS Compliant
Glossary
Zigbee is a low-speed, low powered 802.15.4 wireless mesh standard established by the Zigbee Alliance.
The Zigbee Alliance is a non-profit Standard organization made up 300+ companies driving
development of ZigBee wireless technology. For more information, visit www.zigbee.org. Zigbee is the
only wirleess technology standard that has been listed under NIST as 1 of the 13 Smart Grid
interoperability standards. For more information about NIST, please visit www.nist.gov.......6, 10, 11, 12
z FCC Notices
1. The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate
the equipment.
2. This device complies with Part 15 of the FCC Rules. (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
3. This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
a minimum distance of 20 centimeters between the radiator and your body.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Jetlun Corporation
88 Parkgrove Drive
So San Francisco CA 94080 USA
www.jetlun.com
sales@jetlun.com
support@jetlun.com
1-866-498-2703

Navigation menu
