JiangSu HuiTong Group JSHT-SB-2K13 RF4CE Sensor Module User Manual

JiangSu HuiTong Group Co.,Ltd RF4CE Sensor Module

user manual

Record of modification
Version Date DESCRIPTION Remarks
0.0 2012.06.05 Draft
0.1 2012.07.10 Add also the spacer+double sided adhesive
0.2 2012.07.30 Add mechanical and specification for spacer + adhesive
0.3 2012.08.06 Update the adhesive from “one” to “two” for Page 10
0.4 2012.08.08 Add HuiTong’s type number YKJ2081-R01CKD
0.5 2012.08.15
Update spacer drawing
Add HuiTong’s type number YKJ2081-R01SKD
Add EMC standards (CEANATELCNCFCC)
YKJ2081-R01
2／14
Version:V0.5
受 控
HUITONG
1． 适用范围 Scope
本技术说明适用于 2013 TPV
F240 液晶电视 RF4CE 控制板。
This
document
defines
the
functional
requirement
and
technical
performance
specifications for 2K13
RF4CE Module across all the projects. For Platform
The
2K13
across
Module
has
the
following
functions:
•
RF4CE
1
11
SSB
micon ADC input
Application Circuit
RF4CE
antenna
18
2． 外观形状 Appearance and structure
根据设计图纸。According to designing drawing
3． 使用材料 Components and materials
根据设计要求。According to designing Specification
The module complies with ROHS and Philips Banned Substances. Must
obey
RoHS and PVC&BFR Free. Plastic
material
fulfills
UL-V0
or
real
V1
classification.
Refer
to
XTP-0063/04
for
the
BG
CD flammability
policy.
4． 连接器接口 Connector Pin Description
拟制
审核
批准
标记 数量 更改单号 签名 日期
Connector 1C21
8pin Mo Description
PIN 1 +3.3V
PIN 2 NG
PIN 3 IR-IRQ-RXD-RF4CE
PIN 4 GND
PIN 5 RXD-RF4CE
PIN 6 GND
PIN 7 TXD-RF4CE
PIN 8 RESETn
YKJ2081-R01
3／14
Version:V0.5
受 控
HUITONG
5．电气特性 Electrical performances
项目 Item 条件 Condition 规格 Specification 数量
Qty
Operating
voltage
工作电压
Normal operating
该设备正常工作 DC 3.3V±5%
+3V3 DC supply Ripple and Voltage drop/rise
sustainability
The module should be sustainable to a
power su pply ripple of (0 ~330 m Vp-
p) , frequency range of 0Hz ~
250KHz. All fu nctions w ork
normally, no fu nctional di sruption
noticable
Pollution ripple from LE to +3V3 DC supply
line in Operation mode ≤50mVp-p
5-1
Ripple (+3.3V)
'Pollution ripple from LE to +3V3 DC supply
line in Standby mode ≤50mVp-p
5
5-2
Operating
current
消耗电流
Constant voltage DC 3.3V
恒定电压 直流 3.3V 3.3V : max 50mA 5
5-3
quiescent
current
静态电流
3.3V DC typ <3.2mA 5
Co-existance with Wifi and Wireless
Router
PER< 10% @ 70dB pathloss
Tested with Wifi and Wireless
Router in a shield room
RF4CE Control distance*
≥ 14 meter (tbc)
Tested with reference RF4CE
remote Controller, the TV shall be
well functioning without
noticeable delay for at least 14
meters away from TV regardless
RC firing
5-4
RF4CE
Test with sensor board and RF4CE RC
(measured on 2425MHZ ch15, 2450MHz
ch20, 2475MHz ch25):
Monitor received packets on the
sensor board from RC at 10 meter
distance:
Max 70dB pathloss (= free-air
pathloss, 60dB + combined
antenna losses in RC+sensor board
<10dB) with max 10%PER
5
5-5
Resistance
Test on PCB
UN-D1235
线路板绝缘电阻
Megaohmmeter,
1KV DC, 50 - 100mm apart
Resistance must exceeded 50M
ohms
≥ 50MΩ
5
拟制
审核
批准
标记 数量 更改单号 签名 日期
YKJ2081-R01
4／14
Version:V0.5
受 控
HUITONG
5-6
Power cycling
On/Off test
通断
300,000 cycles On/Off with 1 sec per
cycle. Supply voltage of module set at
nominal.
额定电压下,300000 次通\断,1 秒1 次
No electrical and functionality
failures.
无电性能损坏
5
5-7
MTBF
(Mean Time
Between Failure)
寿命
Rating voltage DC5.0V/3.3V
额定电压 直流 5.0V /3.3V 100ppm = 10 000 000hr 5
5-8
Cold Test at -
10degC
IEC68-2- 1,
UAN- D636
低温测试
Set the cold chamber to -10°C and place
the product in the chamber for 15hrs.
Then, switch on the product under -10°C
for 1hr with min, max and nominal supply
voltages, i.e, 4.75V/3.14V、5.0V/3.3V
and 5.25V/3.46V.
-10℃存储 15 小时后，在-10℃用三种电压
4.75V/3.14V,5.0V/3.3V,5.25V/3.46V 接通 1小时
No electrical and functionality
failures.
无电性能损坏
5
5-9
Thermal
cyclic
热循环试验
Thermal cyclic between -20°C and +85°C
with 5°C/min transition and 30 minutes
dwell time (stopped after 8 cycles)
Monitoring output voltage from LE in
operating mode.
Remark: operational tested
No false triggering or malfunction,
to be tested on Module level
无错误的触发及电性能损坏
5
5-10
Electric
Discharge
Test to
IEC61000-4-2
静电测试
Air discharge:
±(4 to 15)KV in steps of 1KV;
25 ±5 degrees, < 50%RH, 2KV to 8KV in
steps of 1KV, 10x discharge +ve & -ve.
Interval 1 sec min. between discharges.
Both "ON" & "Standby" mode.
No electrical arcing.
No functional default or parts
damaged.
无飞弧放电现象
无任何功能或零部件的损坏
5
5-11
EM immunity
and radiation
EM 抗干扰和辐
射
According to
Emission-EN55013,
Immunity-EN55020,
Mains Harmonic-EN61000-3-2/3,
EMF-EN62311,
Radiated P-EN300328 1.7.1,
EMC-EN301489-1/17
CE (including Russia).
ANATEL(Brazil)
CNC (Argentina)
FCC (Uruguay and Paraguay)
No functional default and
noninterference with other
equipment.
In order to guarantee EMI
system level compliance, the
reference value for modules is to
comply with 6dB margin (QP).
无任何功能的损坏，不干扰其他设
备
5
5-12
Safety
安全性
According to IEC/EN60065 and
Burs or sharp edges must be rem oved in
order to av oid inj uries during handling of
the products. Plastic material fulfills UL-
V0 or real V1 clas sification. Refer to
XTP-0063/04 for the BG CD flammability
policy.
Fulfill international standard
符合标准 5
拟制
审核
批准
标记 数量 更改单号 签名 日期
YKJ2081-R01
5／14
Version:V0.5
受 控
HUITONG
6．机械性能 Mechanical Performance test
项目 Item 条件 Condition 规格 Specification 数量
Qty
6-1
Thermal
Cyclic +
Vibration
test
热振动
1. T1 = +85°C, T2 = -20°C
Temp. change rate: ± 3°C per minute
25 cycles, period time: 50 min ± 10 min
2. Follow by Chassis Vibration test
(non operational, fix to table)
Frequency: 10 - 55 - 10 Hz
No. of cycles: 6
Amplitude: 0.35mm (0-P)
Direction: X, Y, Z
Test duration: 30 min per direction
3. Repeat pt. (1) and (2). Total: 2 cycles
Remark: non-operational tested
No functional failure or
mechanical damages on the
products is allowed
产品无功能和机械性能的损坏
5
6-2 Shock Test
冲击
Module Unpack Test Pulse shape: half
sine Pulse duration: 11 msec
No. of shocks: 3 per direction
No. of direction: 6
Peak acceleration: 80g, 11 msec
Remark: non-operational tested
No functional failure or
mechanical damages on the
products is allowed
产品无功能和机械性能的损坏
5
6-3
10g Bump
Test
连续冲击
Non operational, fix to table
10g, 16ms, 1000 times,
No. of direction: 1
1 - 3 bump / sec
Remark: non-operational tested
No functional failure or
mechanical damages on the
products is allowed
产品无功能和机械性能的损坏
5
拟制
审核
批准
标记 数量 更改单号 签名 日期
YKJ2081-R01
6／14
Version:V0.5
受 控
HUITONG
7．环境性能 Environmental test
项目 Item 条件 Condition 规格 Specification 数量
Qty
7-1
Interference
Test
抗干扰测试
Check that function is not affected by the
respective wireless signal at less than 5
meter from module in all direction:
1. Infra-Red transmission from Remote
Control
2. Personal Computer controlling the
router (Wi-Fi) link.
Real-time spectrum analyzer , Personal
Computer, Wi-Fi Router, TV Remote
Controller.
No interference to the
expected function of the
key.
5
7-2
Temperature
Cycle Storage
Test acc. To
IEC68-2-14 Nb
高低温循环
Place the product in the temperature and
humidity chamber. And set chamber as
follows:
Every cycle last for 6hrs with 3hrs at
-25℃ & 3hrs at +70℃.Repeat the test
for 5 cycles.
3小时-25℃，3小时 70℃，5 次循环
Remark: non-operational tested
No functional failure is
allowed after 1hrs recovery
at ambient temperature.
常温恢复 1小时后无功能损坏
5
7-3
High
Temperature
Storage Test
acc. To
IEC89-2-2 Ba
高温
Set the heat chamber to 70℃ and place
the functional product in the chamber for
96 hrs.
在+70℃环境下放置 96 小时
Remark: non-operational tested
No functional failure is
allowed after 1 hrs recovery
at ambient temperature.
常温恢复 1小时后无功能损坏
5
7-4
Cyclic
Humidity
潮湿循环
40 °C. 93%RH for 12 hrs; 25 °C.
98%RH for 12 hrs (Check Module 1
hr/day). Nominal supply voltage.
Duration: 21 days.
No water vapour
condensation, corrosion on
PCBA. According to XTW-
0053. No major defect,
malfunction & data
corruption.
5
7-5
Cyclic
Environment
/ Stress Test
环境循环/应
力测试
24hrs On/Off switching cycle (4-1-4-1-
4-1-4-5); 55 °C 40%RH for 14hrs (day),
then +5 °C 85%RH for 10hrs (night).
Nominal supply voltage.
No major failure as in
XTW-0053, no data
corruption & hardware
failure.
5
拟制
审核
批准
标记 数量 更改单号 签名 日期
YKJ2081-R01
7／14
Version:V0.5
受 控
HUITONG
7-6
Low
Temperature
Storage Test
acc. To
IEC68-2-
1 Ab
低温
Set the cold chamber to –25℃ and
place the functional product in the
chamber for 96 hrs.
在–25℃环境下放置 96 小时
Remark: non-operational tested
No functional failure is
allowed after 1 hrs
recovery at ambient
temperature.
常温恢复 1小时后无功能损
坏
5
7-7
Overstress Test
21 days
( WI DV0003-
EE-T1-W01)
21
天超载试验
Put the model in the temperature and
humidity chamber. Set the chamber to
70°C and 95%RH for 21days. Then, do
ON/OFF testing inside chamber for 4hrs
ON and 1hr OFF
在+70℃(95% RH) 环境下放置 21 天， 循
环的接通电源 4小时，断开电源 1小时。
No electrical and
functionality failures
无电性能损坏
Note: Inspection of
discoloured PCB, cracked
of affected solder joints
and components need to be
done after the test.
5
7-8
Packed
Transportation
Test: Vibration
Test
包装振动
Frequency: 10-55Hz ( 3min.each )
Accelation:14.7m/s2
Amplitude:0.2-19.8mm
Vibrated
Direction
Up to
down
Right
to left
Front to
back
Test time 2h 2h 2h
振动数：10-55Hz（每次 3分钟）
加速度：14.7m/s2
振幅：0.2-19.8mm
振动方向 上下 左右 前后
振动时间 2h 2h 2h
No functional failure or
mechanical damages on
the products is allowed
产品无功能和机械性能的损
坏，
外观无磨损、划痕。

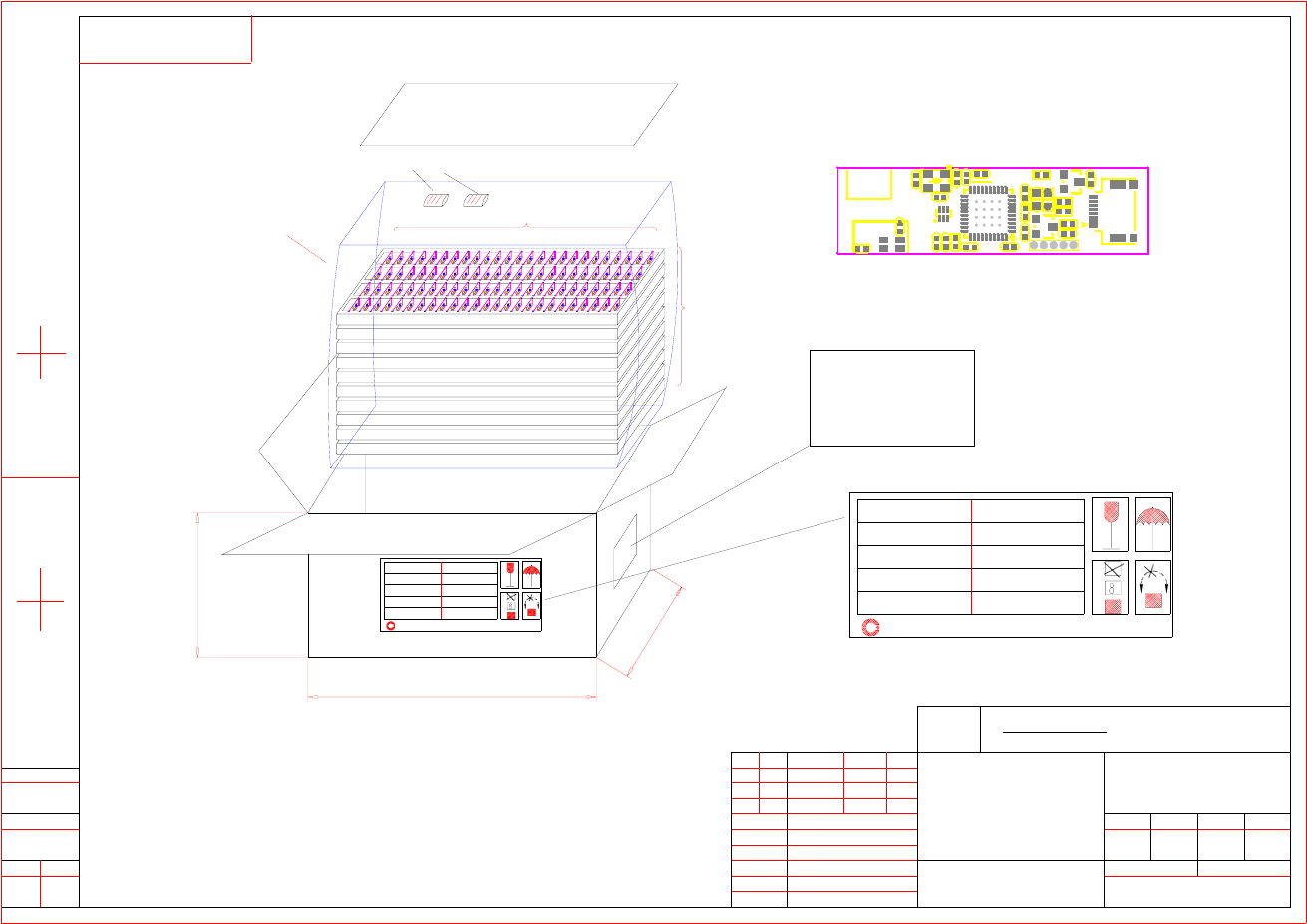

1
7-9
Packed
Transportation
Test: Drop Test
包装跌落
Place the functional products in the
packaging box and drop the box from a
height of 60 cm to the ground. The test
is performed in 3 axis,1 corner
and 1 edge.
产品装在包装箱里从 60cm 的高度跌落，3
个轴向，一个角，一条边。
No functional failure or
mechanical damages on
the products is allowed
包装箱无破损，产品无功能
和机械性能的损坏
1
8．温度范围 Temperature range
保存温度 Storage temperature range -25℃~70℃，40%～95%RH
使用温度 working temperature range -10℃~60℃，40%～95%RH
拟制
审核
批准
标记 数量 更改单号 签名 日期
YKJ2081-R01
8／14
Version:V0.5
受 控
HUITONG
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body. This transmitter must not
be co-located or operating in conjunction with any other antenna or transmitter.
This device is intended only for OEM integrators under the following conditions:
1. The antenna must be installed such that 20 cm is maintained between the antenna
and users, and
2. The transmitter module may not be co-located with any other transmitter or
antenna.
Declaration the Restriction of this Limited Module Approval:
According to FCC Part 15 Subpart C Section 15.212, the radio elements of the
modular transmitter must have their own shielding. However, due to the modular
assembled inner TV set, it needn’t install its RF shielding, this module is granted as a
Limited Modular Approval. When this Module is installed into the end product, a
Class II Permissive Change or a New FCC ID submission may be required to ensure
the full compliance of FCC relevant requirements.
End Product Labelling
The final end product must be labelled in a visible area with the following" Contains
FCC ID: PUWJSHT-SB-2K13 ". The FCC part 15.19 statement below has to also be
available on the label: This device complies with Part 15 of FCC rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Manual Information to the End User
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the end
product which integrates this module.

Navigation menu
