Jiangmen Dascom Computer Peripherals TD11400 Dot Matrix Printer User Manual

Jiangmen Dascom Computer Peripherals Co.,Ltd. Dot Matrix Printer Users Manual

Users Manual

Tally Dascom 1140

Important Safety Instructions (English)

Read the following instructions thoroughly before starting up your printer.

• Never carry out maintenance or repair work yourself. Always contact a qualified service technician.

• Keep this Operator’s Manual in a place which is easily accessible at all times.

• Place the printer on a solid and even base so that it cannot fall.

• Never place the printer in the vicinity of inflammable gas or explosive substances.

• Ensure the printer is connected to a socket with the correct mains voltage.

• Always disconnect the printer from the mains before opening the device to perform maintenance work or

remedy errors.

• Do not expose the printer to high temperatures, direct sunlight or dust.

• Keep all liquids away from the printer.

• Protect the printer from shock, impact and vibration.

Make sure that the printer and computer are switched off before connecting the data cable.

• The print head will become very hot during printing; avoid contact with the print head after printing has

finished.

• Do not perform any operation or action in any way other than those provided in this manual. When in

doubt, contact your dealer or your customer support.

The device and mains-socket must all times be easily accessible.

Tally Dascom 1140

Wichtige Sicherheitshinweise (German)

Lesen Sie bitte diese Sicherheitshinweise durch, bevor sie den Drucker in Betrieb nehmen.

• Führen Sie Wartungsarbeiten und Reparaturen keinesfalls selbst aus, sondern verständigen Sie immer

einen qualifizierten Servicetechniker.

• Bewahren Sie diese Dokumentation an einem jederzeit zugänglichen Ort auf.

• Den Drucker auf stabilem und ebenem Untergrund so aufstellen, dass er nicht zu Boden fallen kann.

• Stellen Sie den Drucker keinesfalls in der Nähe von leicht entzündlichen Gasen oder explosiven Stoffen

auf.

• Den Drucker nur an eine Steckdose mit der richtigen Spannung anschließen.

• Wenn Sie den Drucker vom Netz trennen wollen, den Drucker ausschalten und immer den Netzstecker

an der Steckdose ziehen.

• Den Drucker weder hohen Temperaturen noch direktem Sonnenlicht und Staub aussetzen.

• Keine Flüssigkeiten mit dem Drucker in Berührung bringen.

• Den Drucker keinen Erschütterungen, Stößen oder Vibrationen aussetzen.

• Sicherstellen, dass der Drucker und der Computer ausgeschaltet sind, bevor das Datenkabel

angeschlossen wird.

• Der Druckkopf wird während des Druckens heiß. Vor dem Berühren deshalb einige Zeit abkühlen

lassen.

• Weichen Sie bei der Bedienung des Druckers nicht von den Anweisungen in der Dokumentation ab.

Bei Unklarheiten wenden Sie sich bitte an Ihren Händler oder Ihren Kundendienst.

• Maschinenlärminformations – Verordnung – 3.GPSGV, der höchste Schalldruckpegel beträgt 70 dB(A)

oder weniger gemäß EN ISO 7779.

Das Gerät und die Netzsteckdose müssen jeder Zeit leicht zugänglich sein.

Tally Dascom 1140

Consignes importantes de sécurité (French)

Lire attentivement les instructions suivantes avant de mettre l’imprimante en service.

• Ne jamais effectuer soi-même les travaux d’entretien et de réparations. Contacter toujours un

dépanneur qualifié.

• Placer l’imprimante sur un support stable de façon à ce qu’elle ne puisse pas tomber.

• Ne jamais placer l’imprimante à proximité de sources de gaz aisément inflammables ou de substances

explosives.

• Ne connecter l’imprimante à une prise que lorsque la tension est correcte.

• Pour déconnecter l’imprimante de l’alimentation principale, mettre l’imprimante hors tension et toujours

débrancher le connecteur secteur de la prise murale.

• Ne pas exposer l’imprimante à des températures élevées, à la lumière directe du soleil ou à la poussière.

• Ne pas mettre l’imprimante en contact avec des liquides.

• Ne pas exposer l’imprimante à des chocs, impacts ou vibrations.

• S’assurer que l’imprimante et l’ordinateur sont hors tension avant de connecter le câble de données.

• La tête d’impression est brûlante pendant l’impression. C’est pourquoi laissez-la refroidir quelques

instants avant d’y toucher.

• N'exécutez aucune opération ni action d'une autre manière que celle indiquée dans ce manuel. En cas

de doute, veuillez contacter votre distributeur ou service après-vente.

Le dispositif et la prise principale doivent toujours être accessibles facilement.

III

Tally Dascom 1140

Indicazioni di sicurezza importanti (Italian)

Prima di mettere in funzione la stampante, leggere attentamente le seguenti indicazioni.

• Non eseguire mai da sé gli interventi di manutenzione e riparazione, ma rivolgersi sempre a un tecnico di

assistenza qualificato.

• Conservare le presenti istruzioni per l’uso in un luogo sempre accessibile.

• Collocare la stampante su una superficie stabile, per evitare che cada a terra.

• Non collocare la stampante in prossimità di gas facilmente infiammabili o di sostanze esplosive.

• Collegare la stampante a una presa di corrente con tensione adeguata.

• Per scollegare la stampante dalla rete di alimentazione, spegnere la stampante e disinserire sempre il

connettore di rete dalla presa.

• Non esporre la stampante ad elevate temperature né alla luce solare diretta e alla polvere.

• Evitare il contatto della stampante con liquidi.

• Non esporre la stampante a colpi, scosse o vibrazioni.

• Verificare che la stampante e il computer siano spenti prima di collegare il cavo di trasmissione dati.

• Durante la stampa, la testina si surriscal-da notevolmente. Prima di toccarla, se necessario opportuno

quindi lasciarla raffreddare qualche istante.

• Non eseguire alcuna operazione o azione se non nella maniera descritta nel presente manuale. In caso

di dubbio, contattare il rivenditore o dalla società incaricata dell’assistenza.

Il dispositivo e la presa di corrente devono essere sempre facilmente accessibili.

Tally Dascom 1140

Instrucciones de seguridad importantes (Spanish)

Lea las siguientes instrucciones con esmero antes de poner la impresora en servicio.

• Nunca lleve a cabo trabajos de mantenimiento o reparación Ud. mismo, sino consulte a un técnico de

servicio calificado.

• Guarde las presentes instrucciones de servicio en un lugar de fácil acceso en cualquier momento.

• Ponga la impresora sobre un base estable de manera que no pueda caer al suelo.

• Nunca coloque la impresora en la vecindad de gases de fácil inflamabilidad o sunstancias explosivas.

• Asegure conectar la impresora sólo a un enchufe con un voltaje correcto.

• Cuando quiera desconectar la impresora de la red, apague la impresora y siempre tire la clavija de

alimentación del enchufe.

• No exponga la impresora a temperaturas altas, a la luz solar directa y al polvo.

• No ponga la impresora en contacto con fluidos.

• Nunca exponga la impresora a sacudidas, choques o vibraciones.

• Asegúrese de que la impresora y el ordenador estén apagdos antes de conectar el cable de datos.

• La cabeza de impresión se pone muy caliente durante la impresión. Por lo tanto, deje enfriarlo algún

tiempo antes de tocarla.

• No permita que se realice cualquier operación o acción de una forma diferente a lo que se señala en el

manual. En caso de duda, póngase en contacto con su comerciante o con su servicio post-venta.

El dispositivo y la toma de corriente deben estar ubicados de forma que sea fácil acceder a ellos.

Tally Dascom 1140

Правила по технике безопасности. (Russian)

Прочитайте, пожалуйста, инструкцию по технике безопасности перед включением в работу принтера.

• Не выполняйте технические работы и ремонт техники самостоятельно, но сообщайте о

неисправностях квалифицированным сервисным техникам.

• Данная инструкция должна быть всегда доступна каждому пользователю.

• Установите принтер на ровном и стабильном месте так, чтобы он не смог упасть на пол.

• Ни в коем случае не ставьте принтер вблизи легко воспламеняющихся газов и взрывчатых веществ.

• Включайте принтер в розетку только с соответствующим напряжением.

• Если Вы хотите отключить принтер от напряжения, сначала выключите принтер сам и затем

выньте штекер из розетки.

• Берегите принтер от нагревания, от попадания на него прямых солнечных лучей и пыли.

• Не допускайте попадания жидкости на принтер.

• Нельзя подвергать принтер тряске, ударам и вибрации.

• Убедитесь, что принтер и компьютер выключены, только после этого соедините принтер с

компьютером.

• Печатающая головка нагревается во время работы принтера. Поэтому подождите какое-то время,

прежде чем дотронуться до нее.

• Пользуйтесь принтером так, как это написано в документации. Если у Вас возникают неясности,

обращайтесь с вопросами к Вашим продавцам или в сервисный центр.

Устройство и розетка должны быть всегда легко доступна.

Tally Dascom 1140

Instruções Importantes sobre Segurança (Portuguese)

Leia as instruções de segurança antes de usar a impressora.

• Consulte sempre um técnico qualificado para executar uma reparação .

• Coloque a impressora sobre uma base sólida e nivelada, para que ela não sofra quedas.

• Jamais instale a impressora nas proximidades de lugares onde haja gás inflamável ou substâncias

explosivas.

• Assegure-se de conectar a impressora à tomada elétrica com a voltagem apro-priada.

• Quando desligar a impressora da rede, desligue sempre a impressora e retire o cabo da tomada.

• Não exponha a impressora a temperaturas altas ou luz solar direta.

• Não aproxime substâncias líquidas da impressora.

• Proteja a impressora de choques, impactos e vibrações.

• Desligue a impressora e o computador antes de conectar o cabo da rede.

• A cabeça da impressora pode ficar muito quente . Portanto, espere algum tempo antes de tocá-la.

• Não faça nenhuma operação ou ação além das recomendadas neste manual. Em caso de dúvida,

contate seu revendedor ou companhia de serviço.

A impressora e a tomada devem ser facilmente em todos os momentos acessíveis.

VII

Tally Dascom 1140

Önemli Güvenlik Talimatları (Turkish)

Lütfen, yazıcıyı işletime geçirmeden önce bu güvenlik talimatlarını bütünüyle dikkatle okuyun.

• Bakım ve tamir çalışmalarını kesinlikle ve hiçbir surette kendi başınıza yapmayın; her zaman kalifiyebir

uzman servis-teknisyenine haber verin.

• Yazıcıyı, üzerinden yere düşmesi mümkün olmayacak sabit ve düz bir zemine yerleştirin.

• Yazıcıyı kesinlikle ve hiçbir surette kolayca yanabilecek gaz veya patlayıcı maddeler içeren nesnelerin

yakınına koymayın.

• Yazıcı akım kablosunu sadece doğru gerilime sahip bir prize takın.

• Yazıcıyı şebeke ağından ayırmak istediğinizde, yazıcıyı kapatın ve ağ-fişini her zaman prizden çıkartın.

• Yazıcıyı ne yüksek ısılı ne de doğrudan güneş ışığına ve toza mâruz kalan mekânlarda bulundurun.

• Yazıcı hiçbir sıvı maddeyle temasta olmamalıdır.

• Yazıcı hiçbir sarsıntıya, darbeye veya titreşime mâruz kalmamalıdır.

• Veri kablosu bağlanmadan önce hem yazıcının hem de bilgisayarın kapalıolduklarından emin olmalısınız.

• Yazıcının başı basma esnasında yüksek ısıya ulaşıyor. Bu yüzden lütfen dokunmadan önce kısa süre

soğumasını bekleyin.

• Yazıcının işletimi ve kullanımında bu dokümantasyondaki talimatların hiç dışına çıkmayın. Sorunlu

görünen hususlarda lütfen imâlatçınıza veya müşteri hizmetleri servisinize başvurun.

Cihaz ve elektrik prizinin her zaman kolayca erişilebilir olması gerekir.

VIII

Tally Dascom 1140

TRADEMARK ACKNOWLEDGEMENTS

“IBM” is a trademark of International Business Machines Corporation.

“EPSON” is a trademark of Epson America Incorporated.

“DEC” is a trademark of Digital Equipment Corporation.

“Centronics” is a trademark of Centronics Data Computer Corporation.

“DOS” is a trademark of Microsoft Corporation.

“SAP” is a trademark of SAP AG.

“Windows”, “Windows 7”,”Windows 8”, “Windows 95”, “Windows 98“, “Windows NT”, “Windows

2000”, “Windows 2003/2008/2013 Server”, “Windows XP” and “Windows Vista” are trademarks

of Microsoft Corporation.

All other product names and company names appearing in this manual are the registered

trademarks or trademarks of the individual companies.

Tally Dascom 1140

TABLE OF CONTENTS

1 Unpacking Guide ......................................................................................................................................... 1

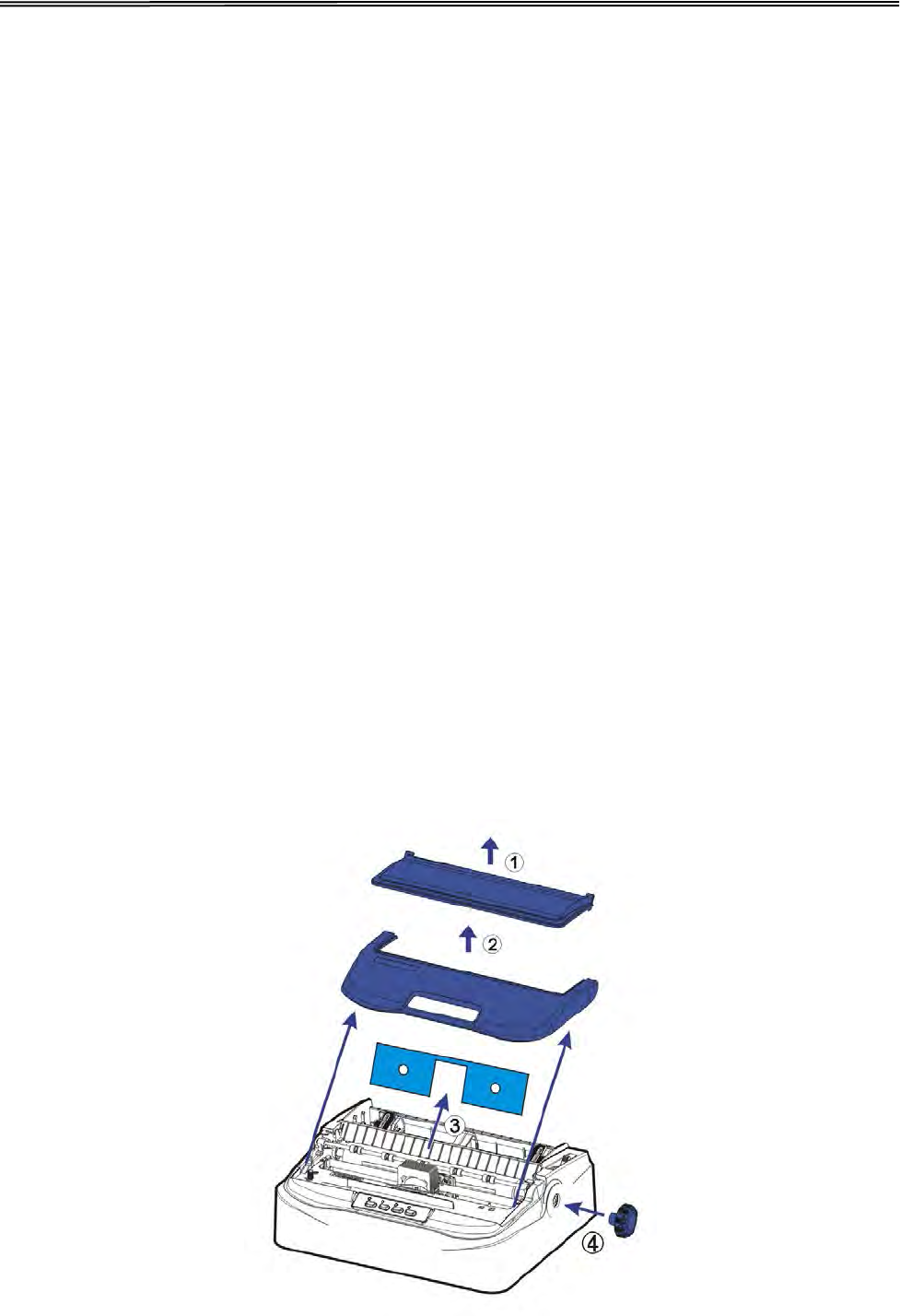

1.1 Unpacking the Printer ........................................................................................................................................ 1

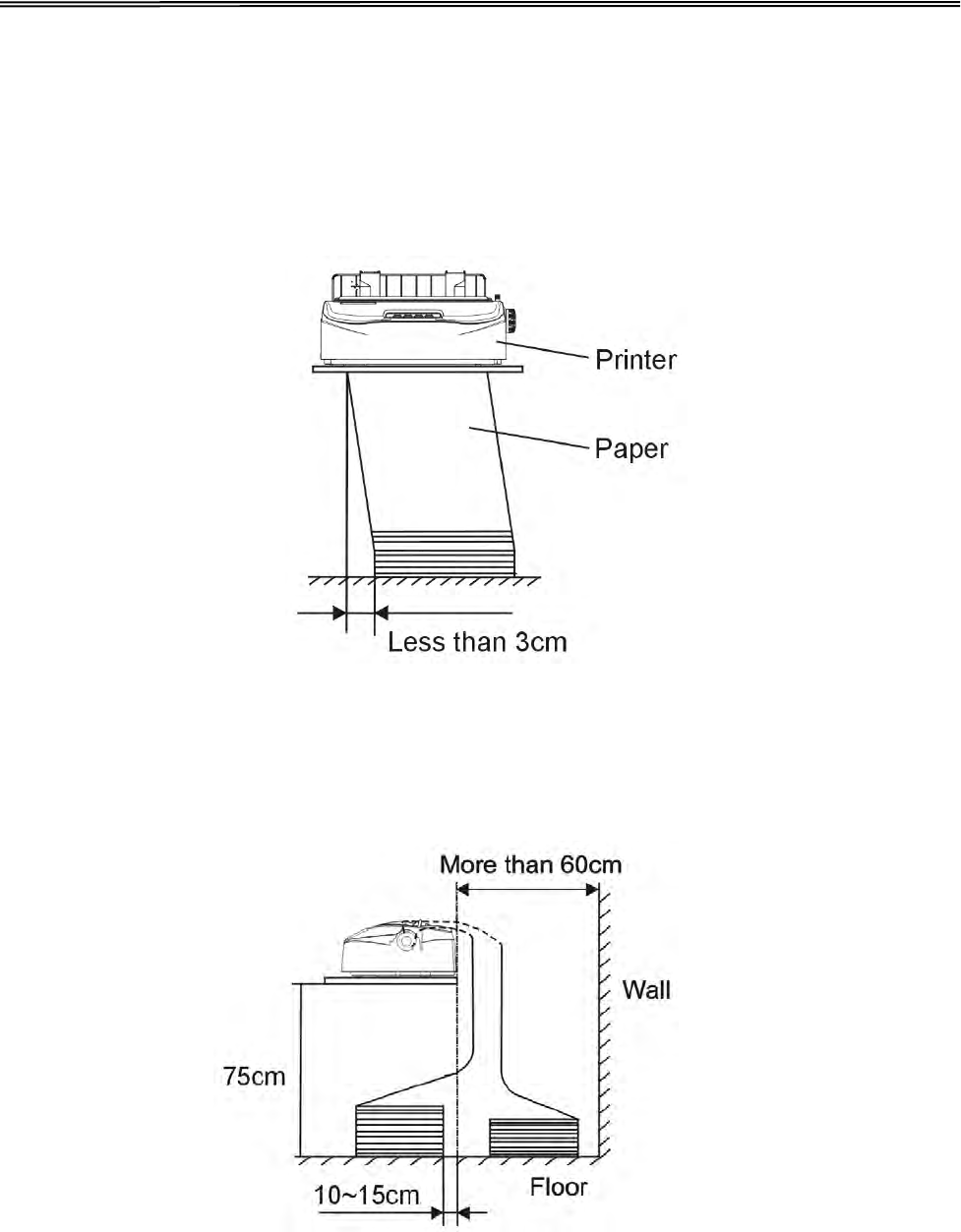

1.2 Placing the Printer .............................................................................................................................................. 2

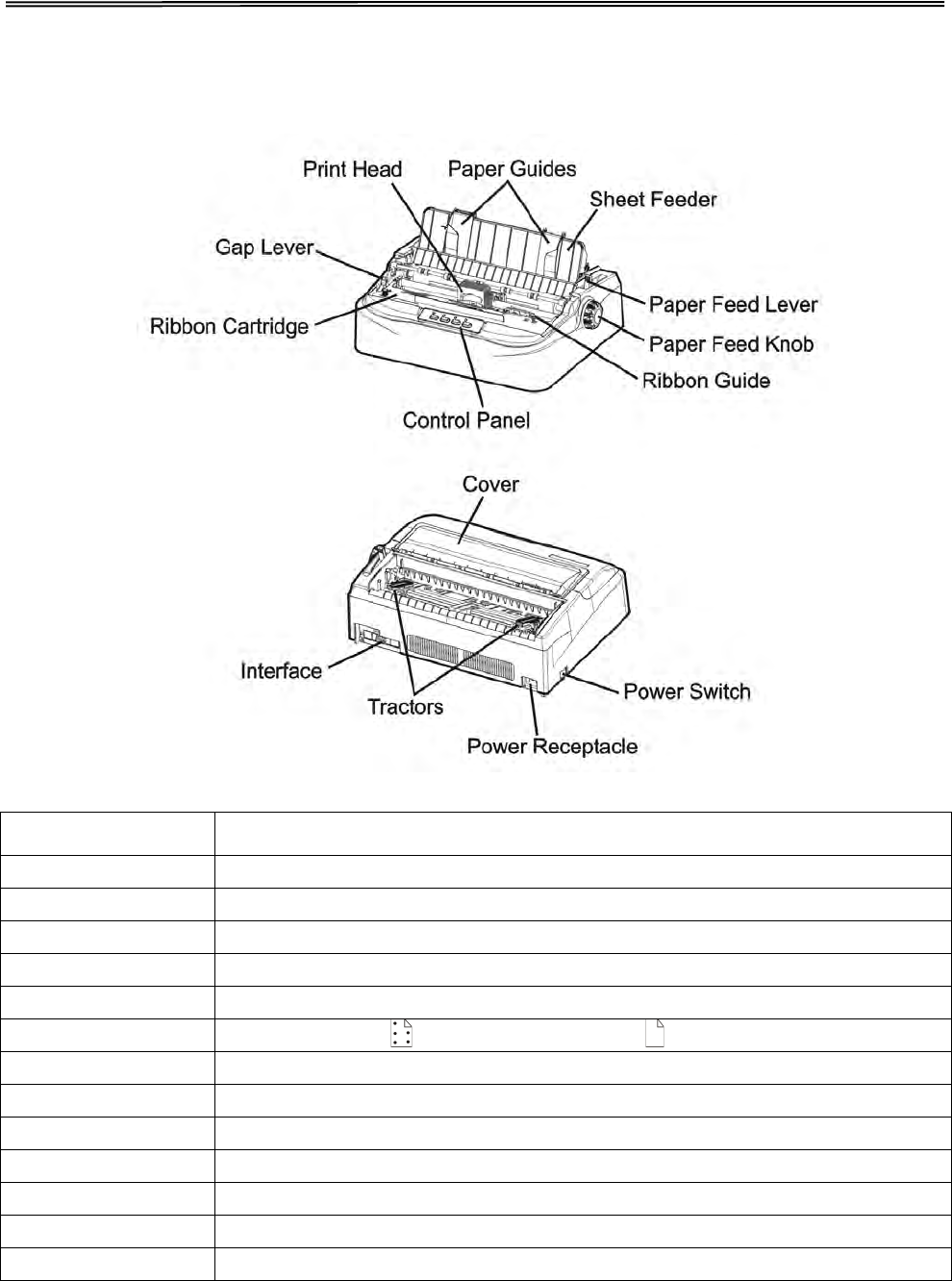

1.3 Printer Components ........................................................................................................................................... 3

2 Setting Up Printer ........................................................................................................................................ 4

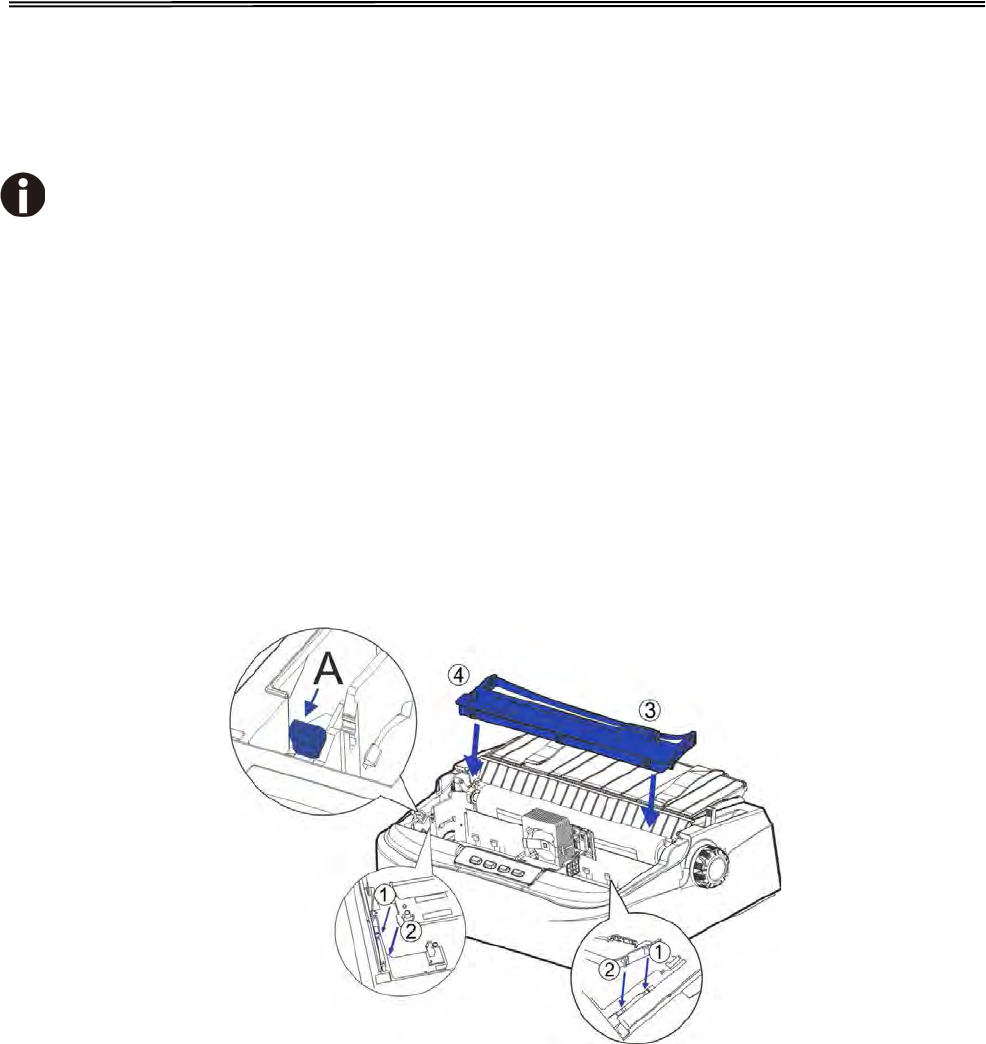

2.1 Install Ribbon ...................................................................................................................................................... 4

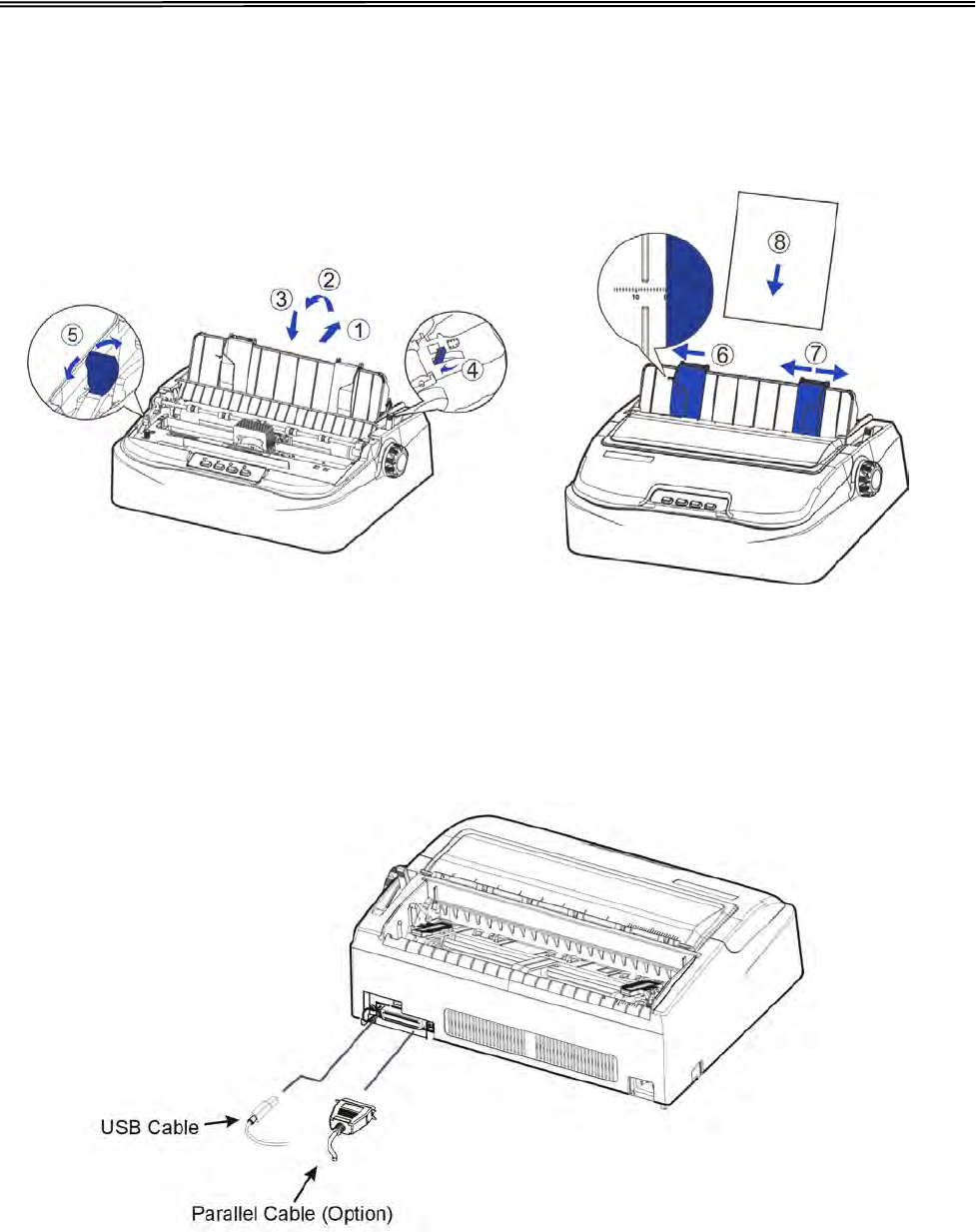

2.2 Install the Single Sheet Feeder ........................................................................................................................ 5

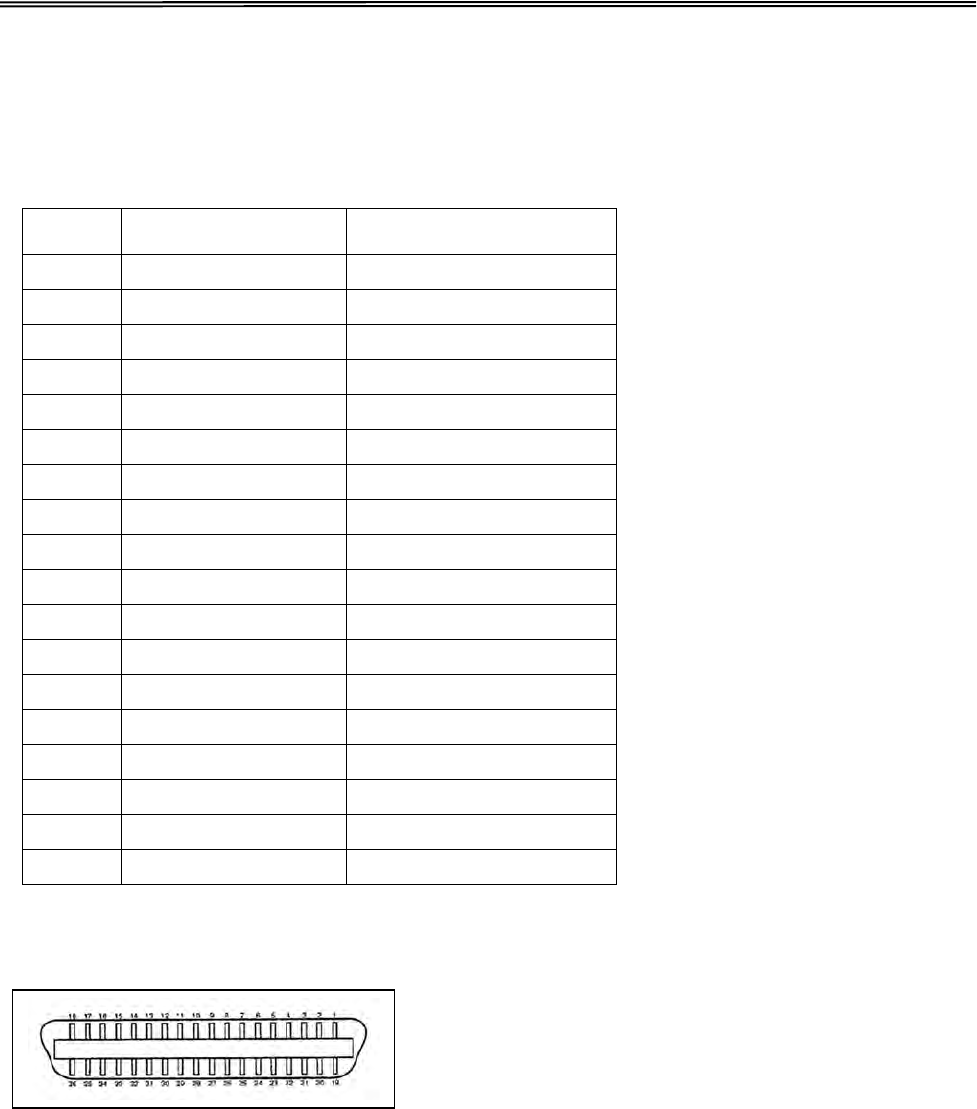

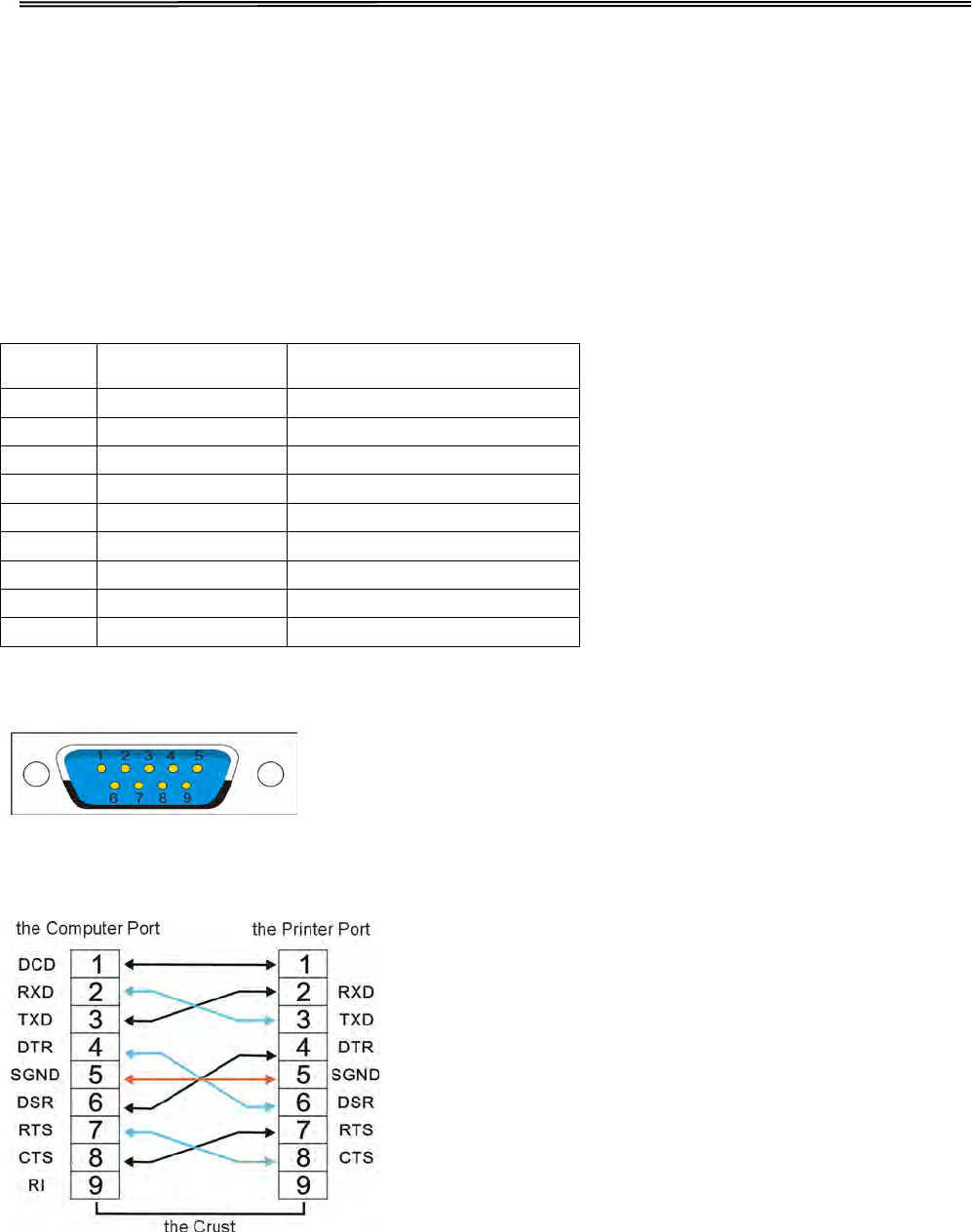

2.3 Connecting the Interface Cable ........................................................................................................................ 5

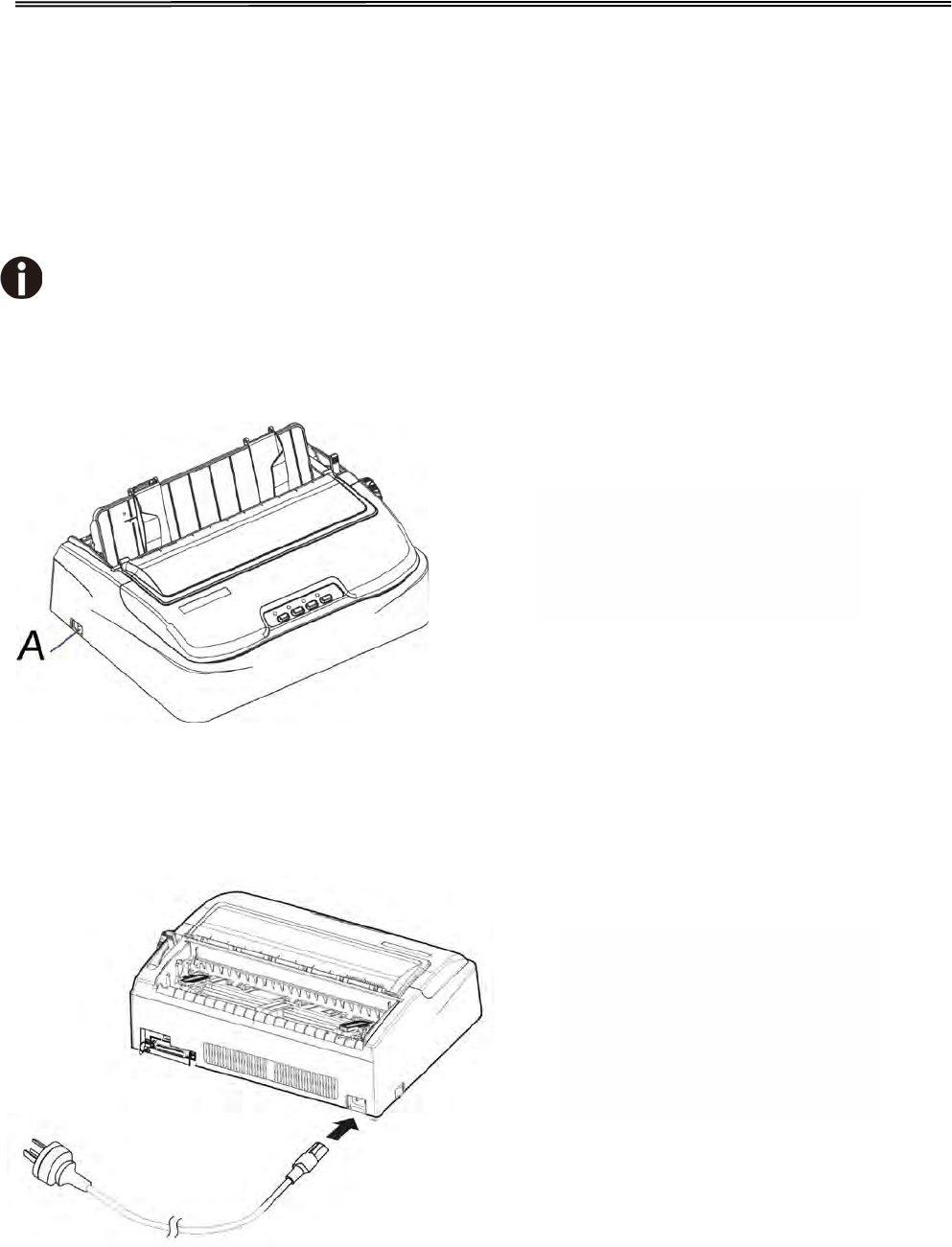

2.4 Connecting the Mains Power ............................................................................................................................ 6

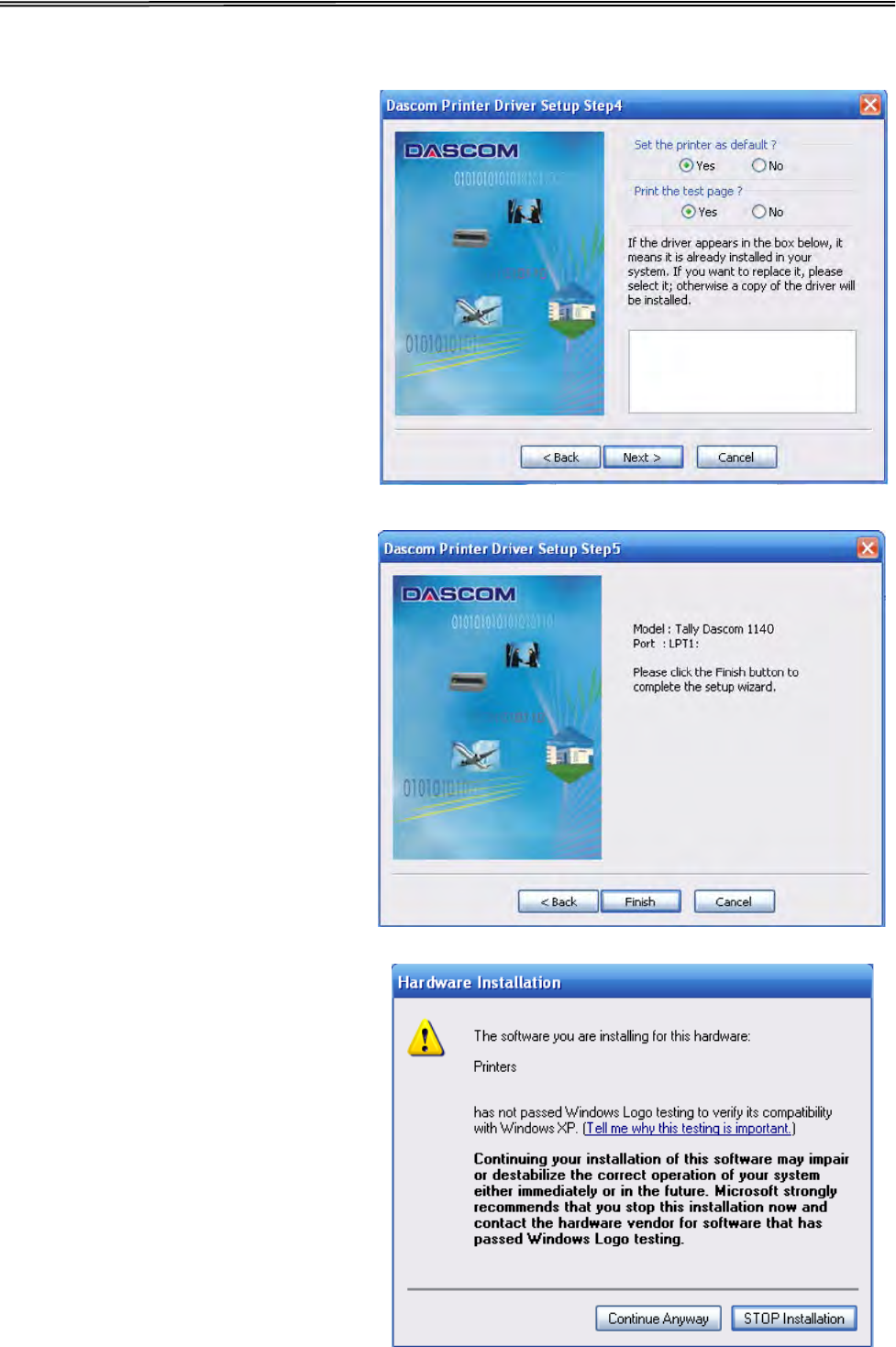

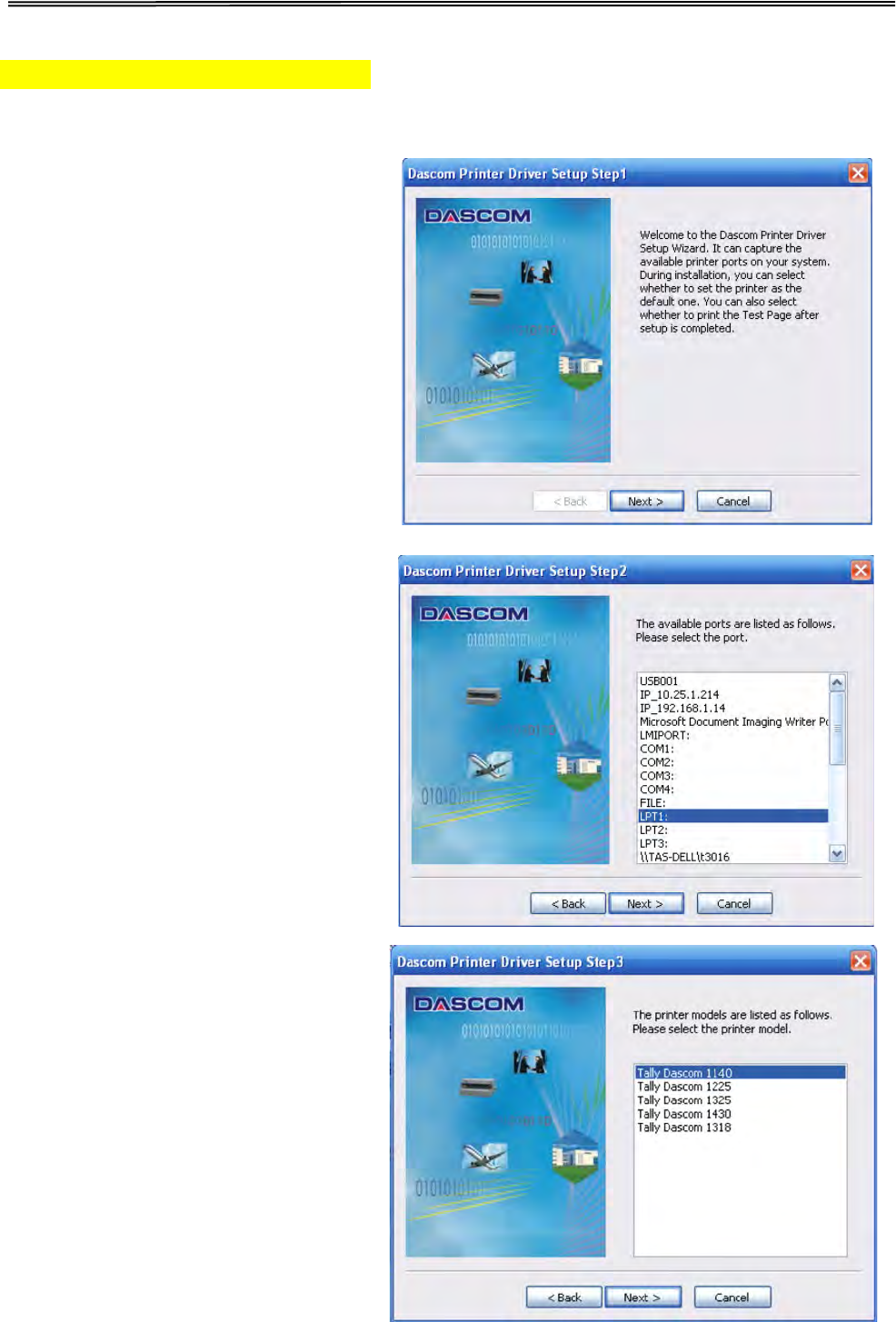

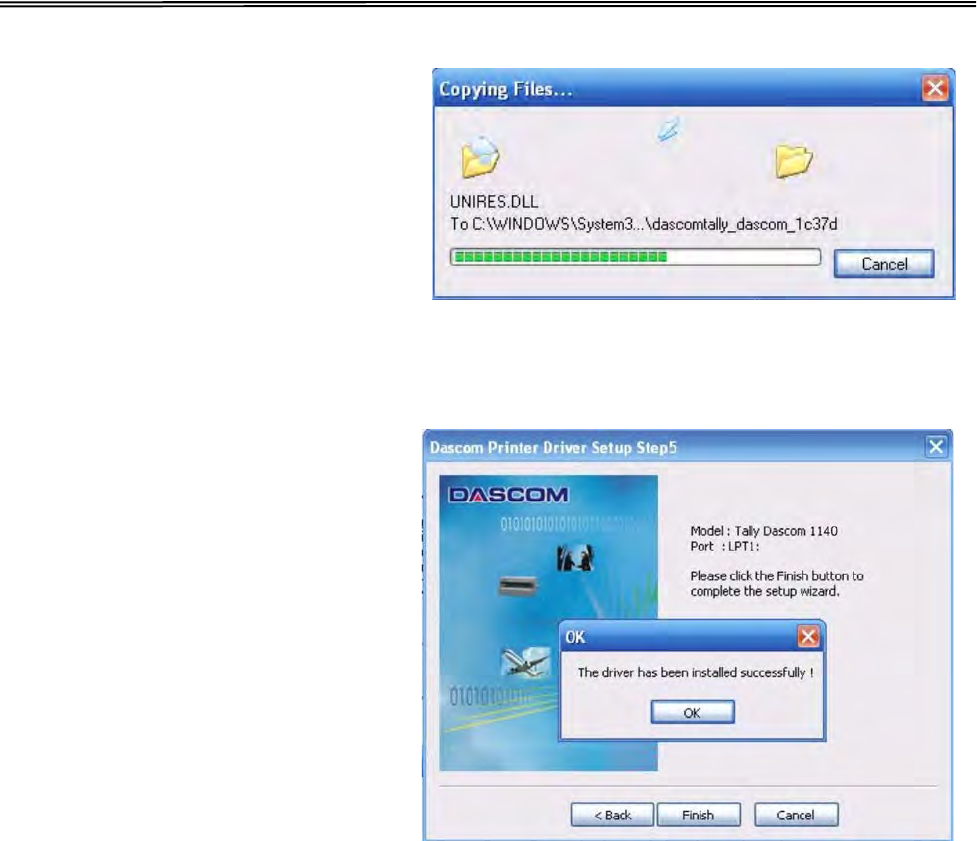

2.5 Installing the Windows Driver ........................................................................................................................... 7

3 Paper Installation Guide ........................................................................................................................... 10

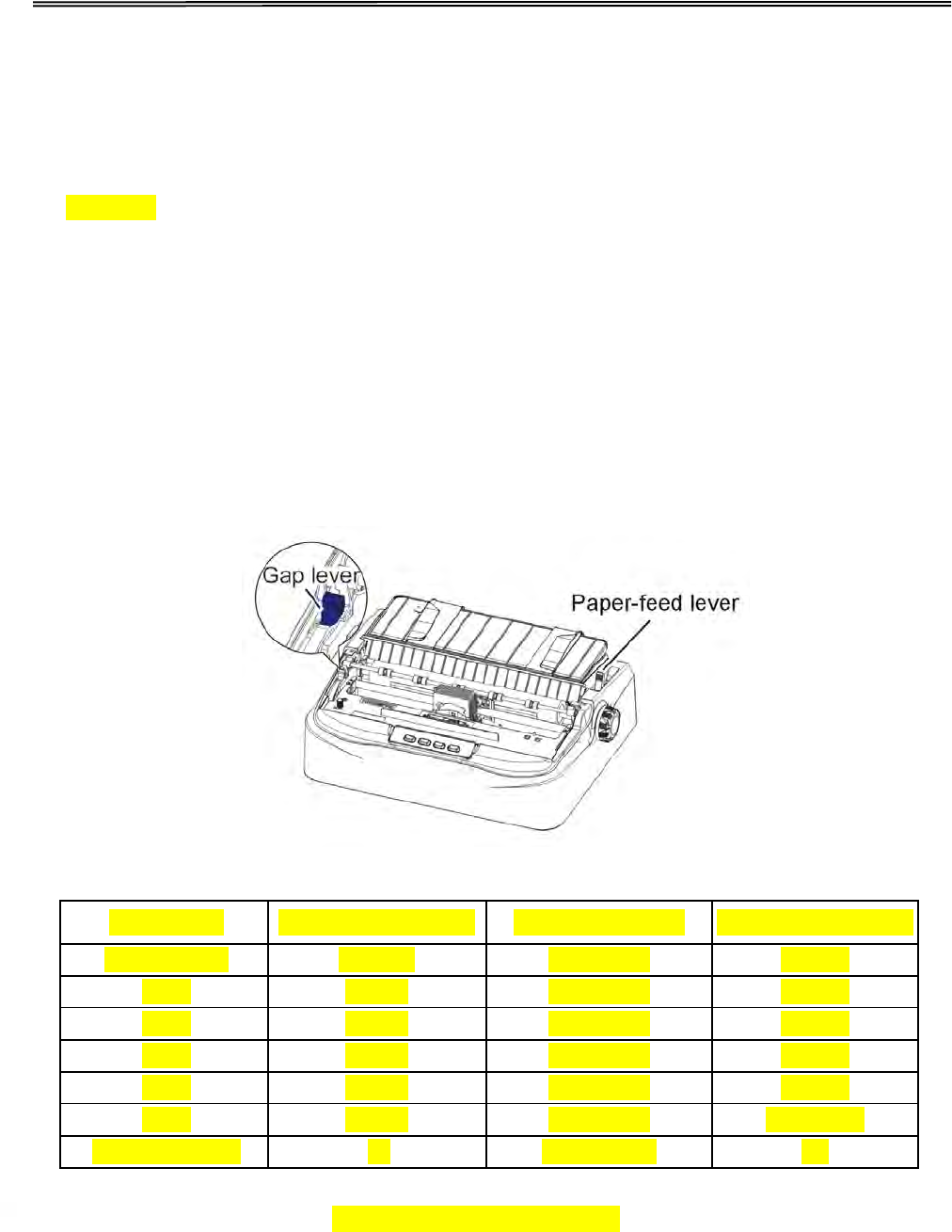

3.1 Adjusting the Print Gap Lever ......................................................................................................................... 10

3.2 Friction Feed Handling .................................................................................................................................... 11

3.3 Tractor Feed Handling ..................................................................................................................................... 11

3.4 Continuous Paper Placement ......................................................................................................................... 12

4 Control Panel Operation ........................................................................................................................... 13

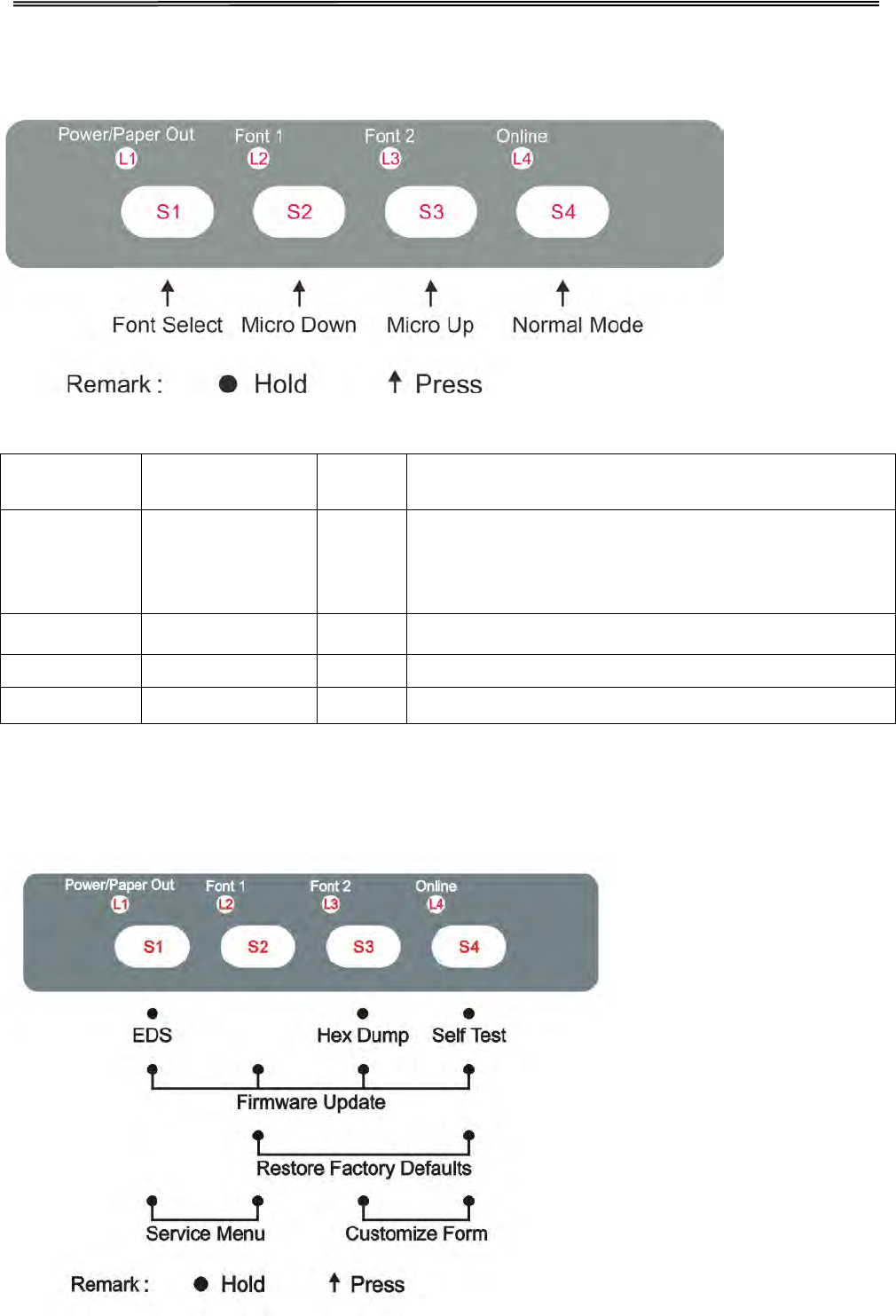

4.1 LED Indicators .................................................................................................................................................. 13

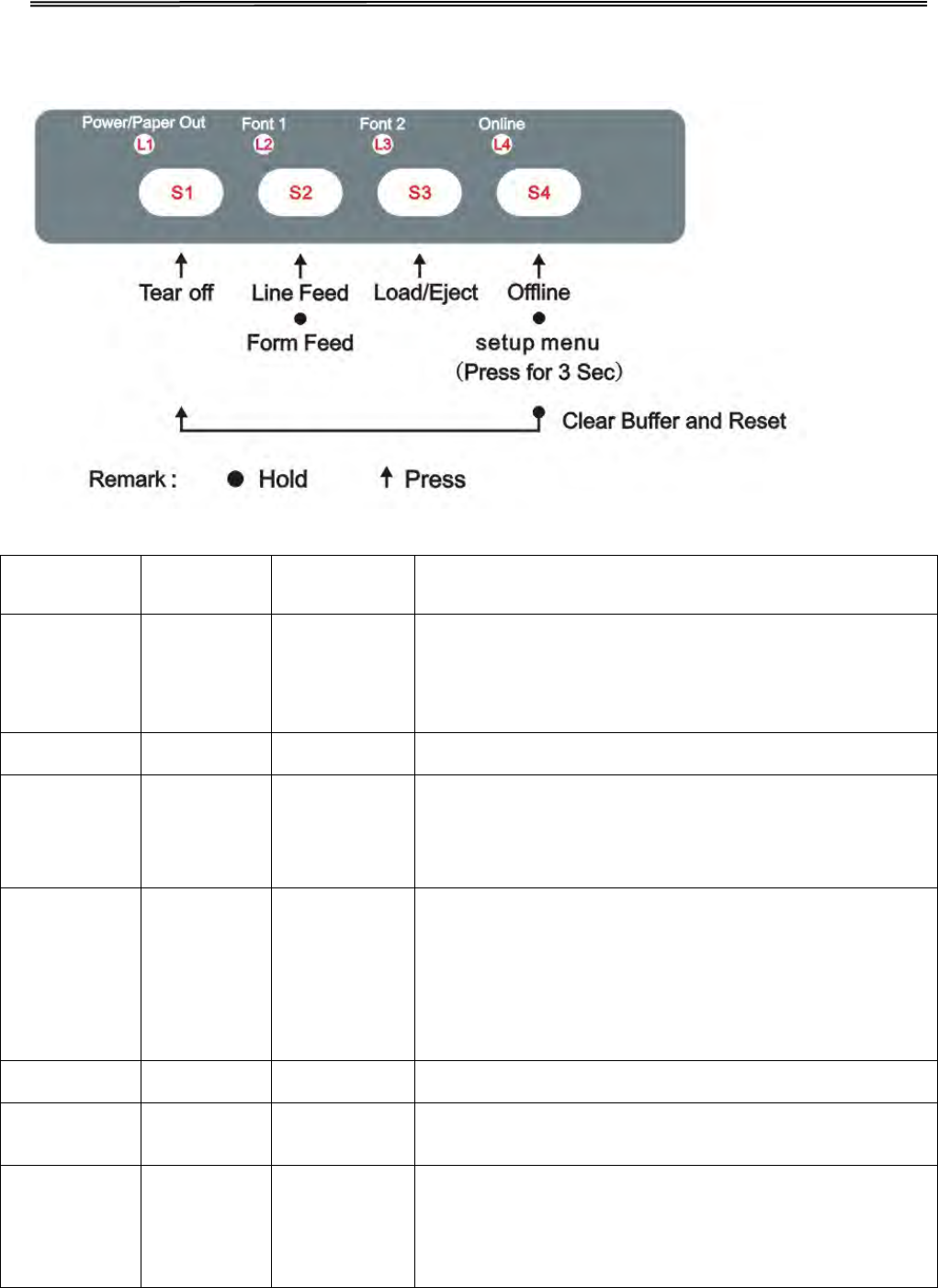

4.2 Control Panel Keys .......................................................................................................................................... 14

4.3 Panel Operation ................................................................................................................................................ 15

4.4 Online State ....................................................................................................................................................... 16

4.5 Setup State ........................................................................................................................................................ 17

4.6 Power-On State ................................................................................................................................................ 17

5 Printer Setting Changes ............................................................................................................................ 19

5.1 System Setup .................................................................................................................................................... 19

5.2 Paper Setup ...................................................................................................................................................... 20

5.3 Interface Setup .................................................................................................................................................. 22

5.4 Character Setup ................................................................................................................................................ 22

5.5 Other Setup ....................................................................................................................................................... 23

5.5.1 German (Deutsch)................................................................................................................................... 23

5.5.2 Russian (Россия) .................................................................................................................................... 25

5.5.3 Italian (Italiano) ........................................................................................................................................ 26

5.5.4 French (Français) .................................................................................................................................... 28

5.5.5 Spanish (Español) ................................................................................................................................... 30

5.5.6 Turkish (Türkce) ...................................................................................................................................... 31

5.5.7 Portuguese ............................................................................................................................................... 33

5.7 Bidirectional Alignment .................................................................................................................................... 37

5.8 Restore Factory Default................................................................................................................................... 38

6 Customized Form ...................................................................................................................................... 39

6.1 Customize Cut Sheet Form Length ............................................................................................................... 39

6.2 Customize Cut Sheet TOF .............................................................................................................................. 41

6.3 Customize Cut Sheet Bottom Margin ............................................................................................................ 41

Tally Dascom 1140

6.4 Customize Cut Sheet Left Margin .................................................................................................................. 42

6.5 Customize Fanfold Page Formatting Parameters ....................................................................................... 42

7 Maintenance ............................................................................................................................................... 43

7.1 Cleaning ............................................................................................................................................................. 43

7.2 Cleaning and Vacuuming the Printer ............................................................................................................. 43

7.3 Cleaning the Paper Rollers ............................................................................................................................. 44

8 Troubleshooting ........................................................................................................................................ 45

8.1 Print Quality Problems and Solutions ............................................................................................................ 45

8.2 Paper Handling Problems and Solutions ...................................................................................................... 46

8.3 Operating Problems and Solutions ................................................................................................................ 47

8.4 Printer Failures .................................................................................................................................................. 47

8.5 Error Indications on LEDs ............................................................................................................................... 48

8.6 Diagnostic Functions ........................................................................................................................................ 48

8.7 Firmware Update .............................................................................................................................................. 49

9 General Specifications .............................................................................................................................. 52

10 Interfaces .................................................................................................................................................. 55

10.1 Parallel Interface ............................................................................................................................................ 55

10.2 USB Interface .................................................................................................................................................. 56

11 Character sets & Code Pages ................................................................................................................ 58

11.1 Character Sets ................................................................................................................................................ 58

11.2 Code Page Commands ................................................................................................................................. 63

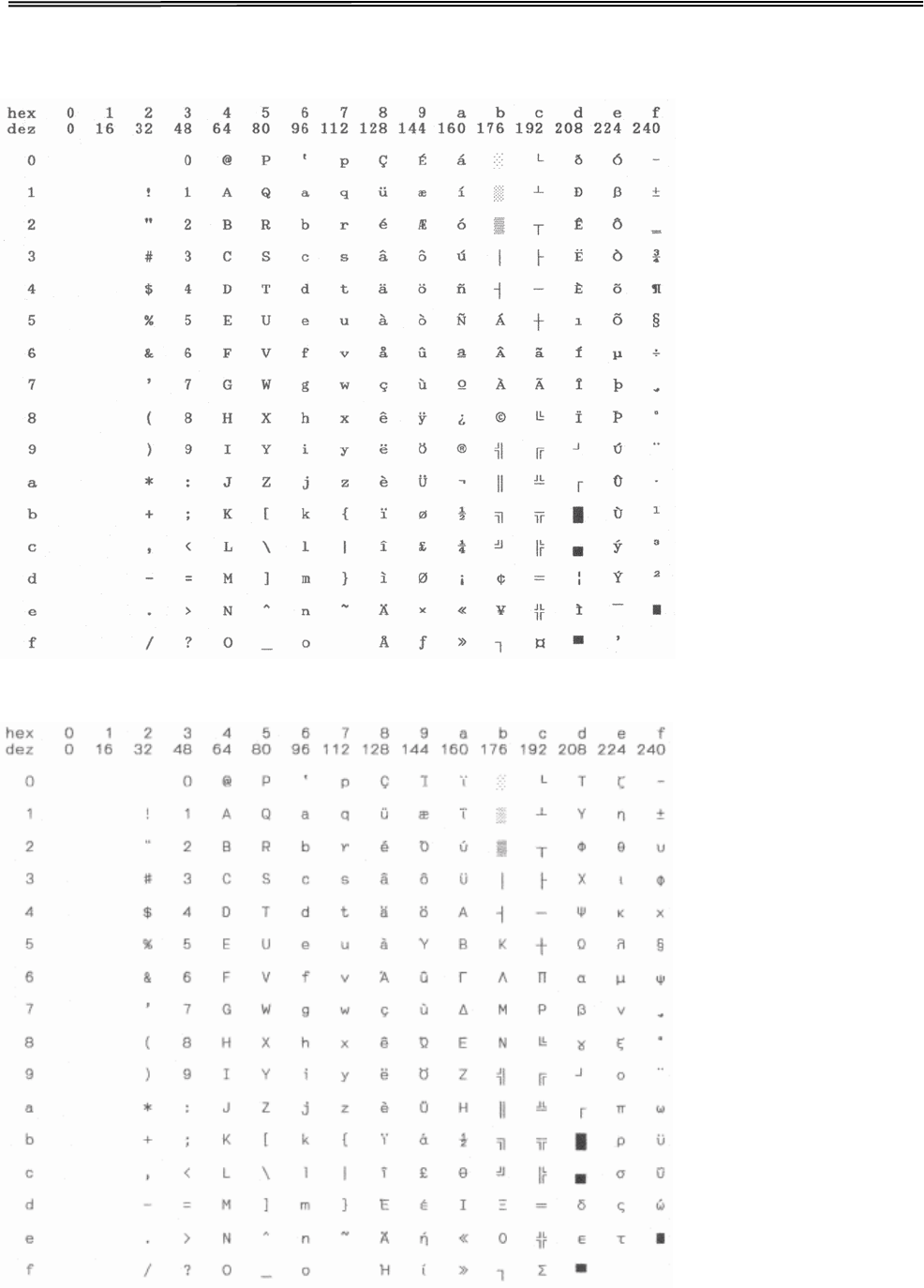

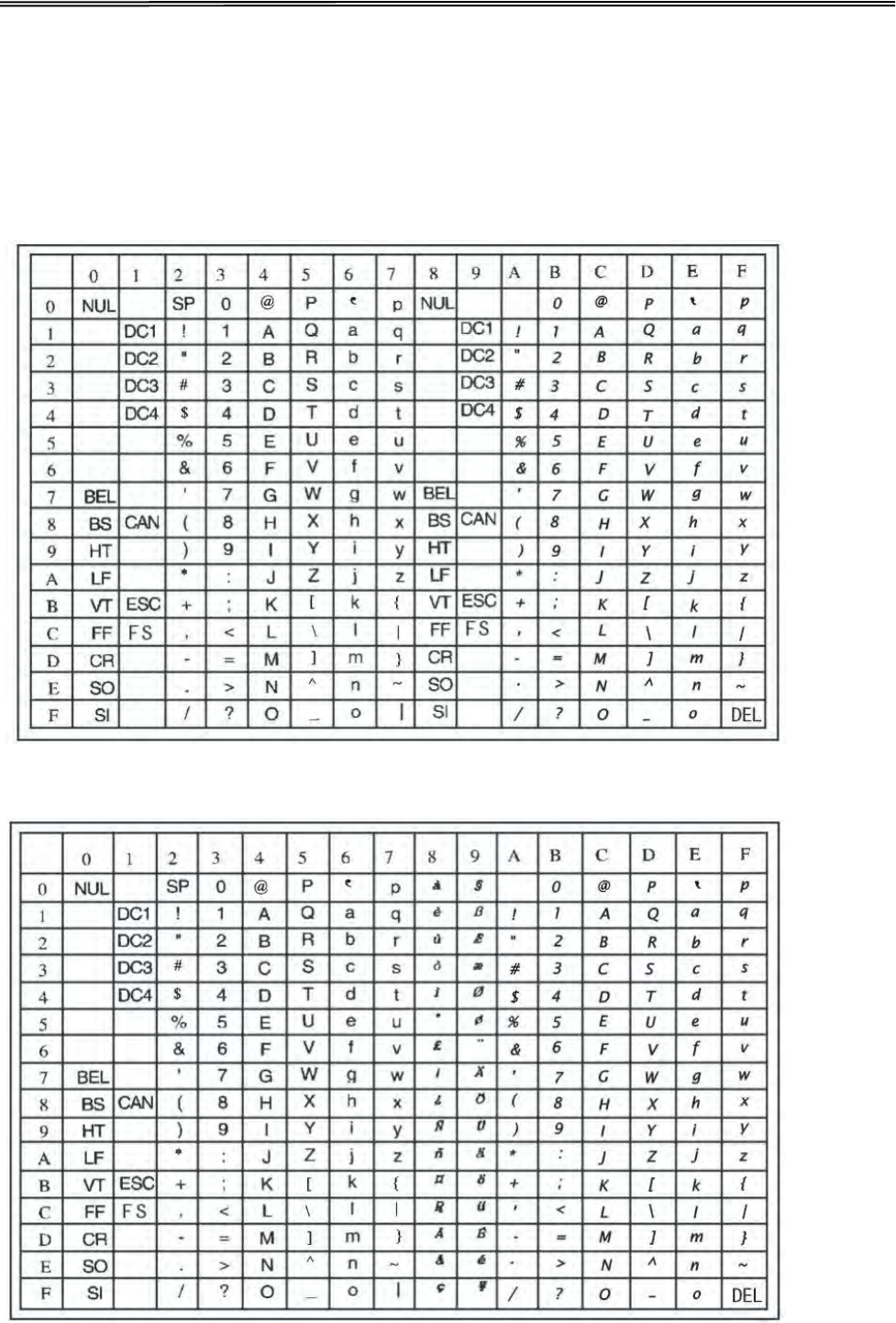

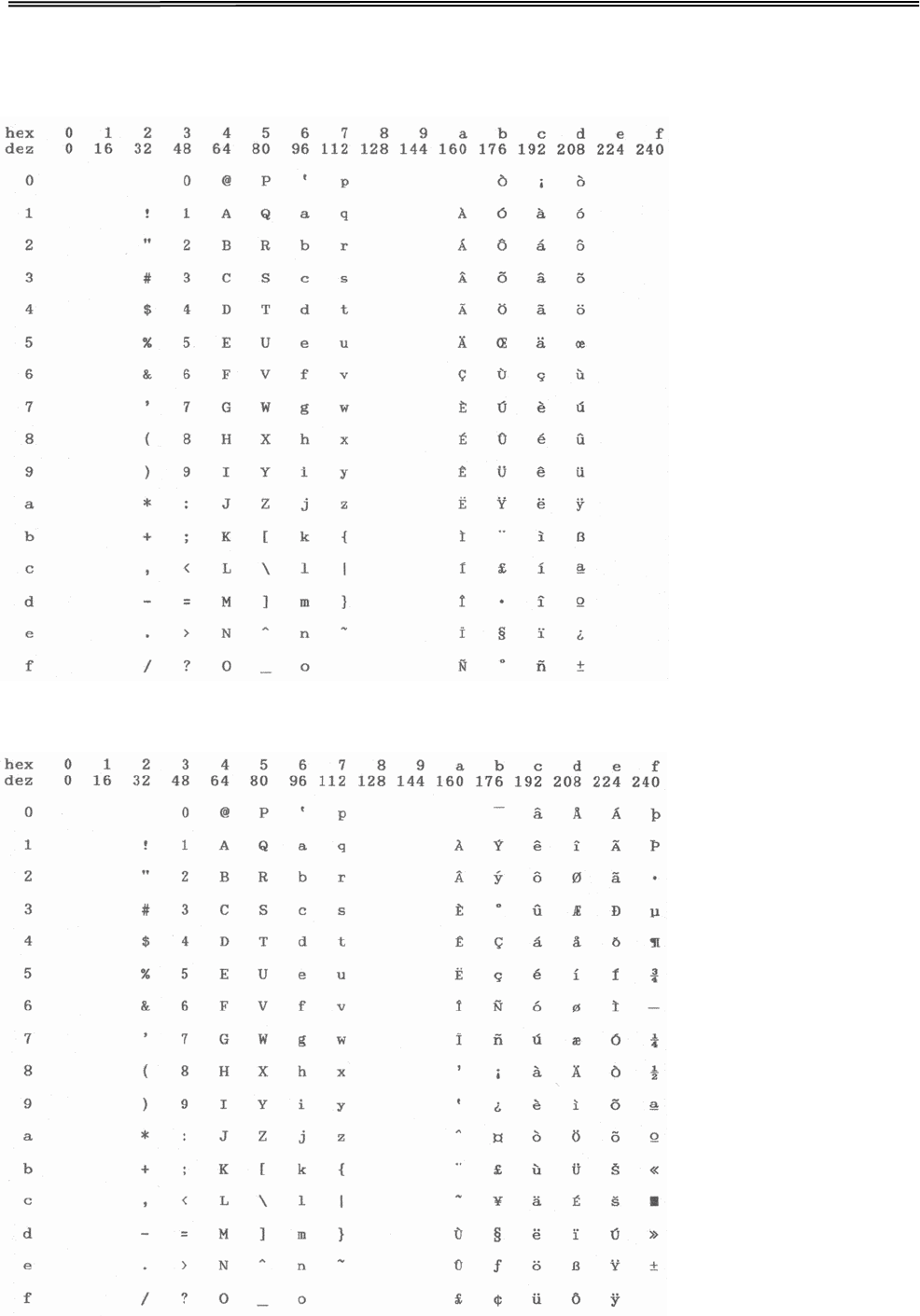

11.3 Code Page Tables .......................................................................................................................................... 65

12 Control Codes Summary ........................................................................................................................ 89

12.1 Epson Emulation Command List .................................................................................................................. 89

12.2 IBM Emulation Command List ...................................................................................................................... 91

FCC STATEMENT ......................................................................................................................................... 93

Tally Dascom 1140

Symbols used Important information is highlighted in this manual by

two symbols.

CAUTION highlights information which must be

observed in order to prevent injuries to user and

damage to the printer.

NOTE highlights general or additional information

about a specific topic.

III

Tally Dascom 1140

1 Unpacking Guide

1.1 Unpacking the Printer

1. Place your packaged printer on a solid base.

2. Make sure that the “Up” symbols point in the correct direction.

3. Open the packaging, lift the printer out of the cardboard box and remove the remaining

packaging material.

4. Check the printer for any visible transport damage and missing items. If you find any

transport damage or if any accessories are missing, please contact your dealer. The

following items should be included:

o Printer

o Paper feed knob

o Sheet feeder

o Power cord

o Ribbon cartridge

o CD-ROM

o Installation Guide

Remove the packaging materials from the printer as follows:

1-2. Open and remove the top covers of the printer.

3. Remove the shipping cardboard from around the print head.

4. Install the paper feed knob.

Tally Dascom 1140

1.2 Placing the Printer

Place the printer on a solid, flat, stable surface; ensuring that the printer is positioned in such

a way that it cannot move, and that there is easy access to the control panel and paper input

devices. Also ensure that there is enough space for sufficient ventilation and for the printed

output.

When selecting the printer location, observe the following additional instructions:

1. Never place the printer near to any flammable gas or explosive substances.

2. Do not expose the printer to direct sunlight. If you cannot avoid placing the printer near

a window, protect it from the sunlight with a curtain.

3. When connecting a computer to the printer, make sure the maximum recommended

cable length is not exceeded.

4. Ensure sufficient distance between the printer and any heating devices/radiators.

5. Avoidexposing the printer to extreme temperature or air humidity fluctuations. Avoid

exposureto dusty environments.

6. It is recommended the printer is installed in a position which reduces noise exposure to

the work place during printing.

7. The socket-outlet shall be installed near the equipment and shall be easily accessible.

Tally Dascom 1140

1.3 Printer Components

Component Function

Gap Lever

Adjusts the print gap lever according to the thickness of paper.

Paper Guides

Adjusts positioning of single sheet paper.

Print Head

9-pin printing mechanism

Cover

Protects print head and other components inside, and reduce noise.

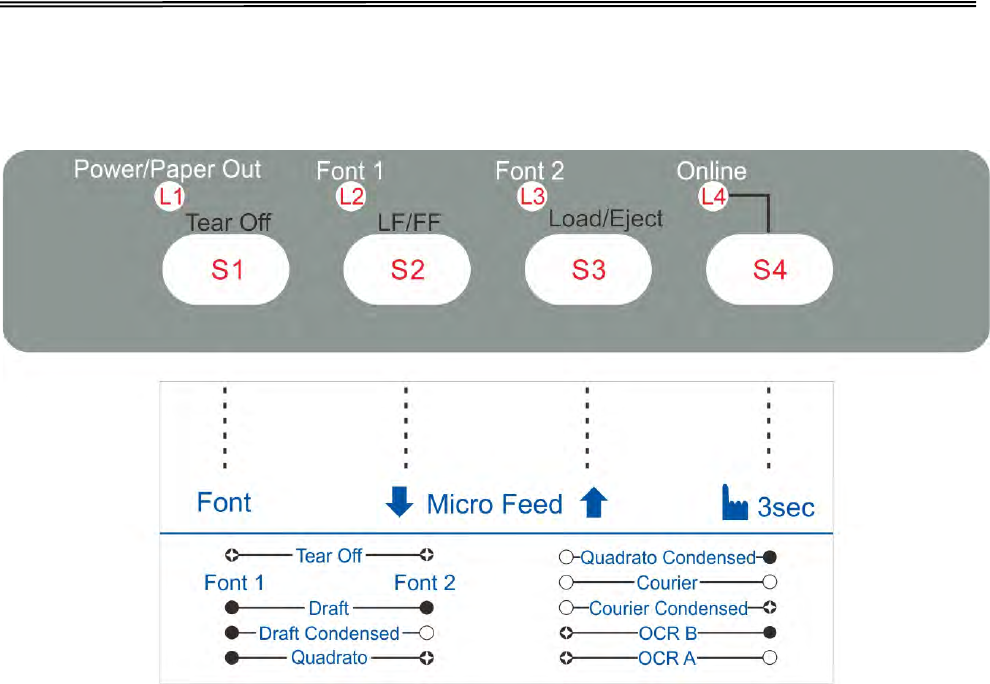

Control Panel

Shows printer status, for printer setup.

Paper Feed Lever

Two positions: = continuous forms; = single sheet paper

Paper Feed Knob

Manual feed or vertical positioning of paper.

Power Switch

Power printer ON or OFF

Ribbon Cartridge

Install ribbon in the printer.

Ribbon Guide

For guiding ribbon installation on print head.

Tractors

For feeding and adjustment of continuous forms.

Power Receptacle

Connects power cord to the printer.

Interface

Connects interface cables from the host.

Tally Dascom 1140

2 Setting Up Printer

2.1 Install Ribbon

Switch printer off during ribbon installation.

1. Ensure the power to the printer is off and the print gap lever “A” is set to the furthest

open position. Move the carriage to the centre of the print platen.

2. Install the recess positions ①-② on the ribbon cassette into the printer mounting.

3. Press the ribbon frame ③ onto the print head.

4. Turn the ribbon knob ④ in clockwise direction until the ribbon fabric is taut. Move the

carriage left and right to ensure the carriage and ribbon fabric can move smoothly.

5. Ensure the print gap lever “A” is set to the original position.

6. Close the printer’s cover. When printer is in operation, ensure the printer’s cover is

closed to keep the noise level to a minimum.

Notes on Ribbon Cartridge Removal:

1. Eject any paper loaded in the printer.

2. Turn off the printer power.

3. Open and remove the cover.

4. Set the gap lever to the most open position labeled “RIBBON”.

5. Move the carriage to the middle. Be careful not to touch the print head if printing had just

been performed, as the print head may be hot.

6. Remove the ribbon frame from the print head.

7. Use fingers to take hold of the handle on the ribbon cartridge firmly, and lift the cartridge

upwards to unlatch it. Some force may be needed to unlatch the cartridge.

Tally Dascom 1140

2.2 Install the Single Sheet Feeder

Install the single sheet feeder into the rear of the printer.

2.3 Connecting the Interface Cable

The 36-pin Centronics parallel and USB ports are located at the rear of the printer. IMPORTANT:

Make sure the printer and the computer are switched off before connecting or disconnecting the

interface cable to prevent electrical damage to the interface ports.

Tally Dascom 1140

Make sure that the power

swith “A”, located to the right

side of the printer, is in the

“ O”(off) position.

Connect the power cord to

the power inlet of the printer.

Connect the power cord plug

to a mains socket. Switch on

the printer.

2.4 Connecting the Mains Power

Checking the printer voltage

Make sure that the device has been set according to your country’s power supply voltage. To

do this, check the ratingplate at the back of the printer. Contact your dealer if the setting is

incorrect.

Never switch on the printer if the voltage setting is incorrect; this may result in

electrical damage to the printer.

Tally Dascom 1140

2.5 Installing the Windows Driver

(Windows 2000 / XP / Vista / 7 / 8 / 8.1 and 2003 / 2008 / 2012 / 2012R2 Server)

1. Your printer CDROM comes with

Windows drivers. Go to the Drivers

folder and run the Installer

“DriverSetup.exe”. You will see the

screen on the right. Click “Next” to

continue.

2. A list of ports available on your

system will be displayed as shown

on the right. Choose the desired

port to use. Click “Next” to

continue.

3. Select the desired printer model as

shown on the right. Click “Next” to

continue.

Tally Dascom 1140

4. Here you can choose whether to

set the driver as the system

default driver, and whether you

want to print the Test Page after

installation is completed. If the

driver had been installed before,

it would be listed in the white box

on the right. Select the listed

driver (if any) if you want to

replace it; otherwise a copy of

the driver will be installed. Click

“Next” to continue.

5. Click “Finish” to start the

installation process.

6. If the driver is not yet Microsoft

Certified, the message on the

right would appear. Click

“Continue Anyway”. (As we

continue to expand our product

portfolio, not all of our drivers

may be certified yet. Please

check our

websitewww.dascom.com for the

latest certified drivers.)

Tally Dascom 1140

7. Installation in progress.

8. After installation is completed

successfully, you will see the

message on the right.

Tally Dascom 1140

3 Paper Installation Guide

The printer can handle either single sheets or continuous forms. Single sheets, also called cut

sheets, include envelopes and non-continuous, multipart forms. Continuous forms include

labels and multipart forms fed into the printer using the forms tractors. The printer is able to

print 1~5 plies multipart paper.

Do not load paper that has been folded or is damaged, wrinkled, or curled.

3.1 Adjusting the Print Gap Lever

The print gap lever is on the left side of the printer inside the top cover. Take care to adjust the

print gap lever to a suitable position whenever you change the number of copies being printed.

Using the wrong print gap may cause print head damage or paper jams.

Paper type Weight (g/m2) / ply Thickness (mm) Gap lever position

Single sheet

52~100

0.06~0.12

1P~2P

3-ply

40~52

0.12~0.14

3P~4P

4-ply

40~52

0.17~0.22

4P~5P

5-ply

40~52

0.23~0.27

5P~6P

6-ply

40~52

0.28~0.33

6P~7P

7-ply

40~52

0.34~0.45

Above 7P

Change ribbon

---

Above 0.58

There are 2 paper feed modes: friction feed and tractor feed.

Tally Dascom 1140

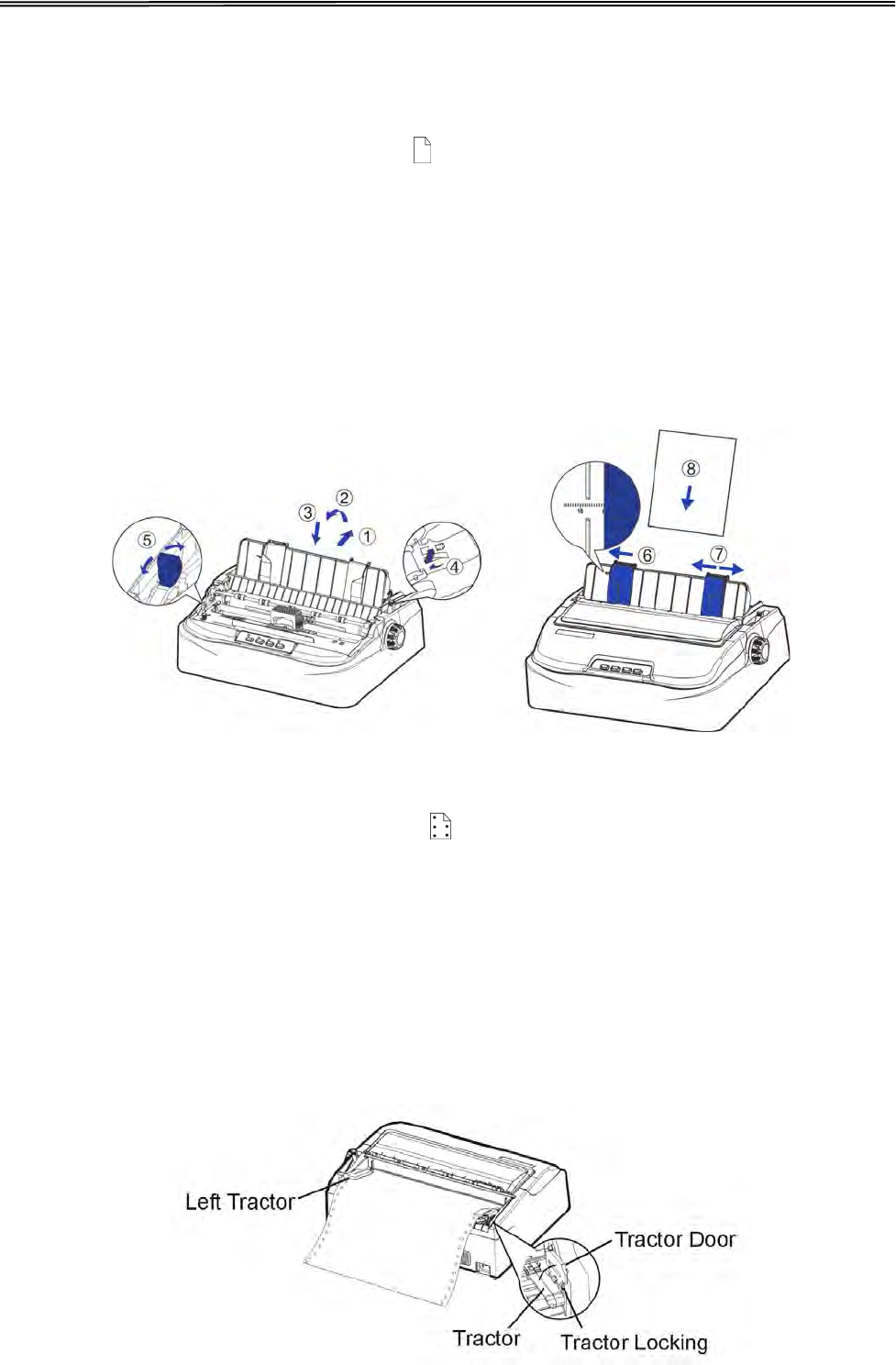

3.2 Friction Feed Handling

1. Raise the single sheet feeder until it locks into its mounting.

2. Move the paper-feed lever forward to “ ” for friction feed mode.

3. Adjust the print gap lever if necessary.

4. Align the left paper guide with the mark on the left of the single sheet feeder.

5. Adjust the right paper guide to the width of the paper used.

6. Insert a sheet of paper. Make sure that the bottom edge of the paper engages snugly with

the platen.

7. The paper should advance automatically to the print position. The printer is now ready to

print in the online state.

3.3 Tractor Feed Handling

1. Move the paper-feed lever backward to “ ” for continuous paper position.

2. Adjust the print gap lever if necessary.

3. Raise the tractor doors and fit the first 3 paper holes onto the left tractor pins. Close the

left tractor door. In the same way, install the paper on the right tractor.

4. Adjust the right tractor to the width of the paper until the paper is flat. Do not stretch the

paper too taut. Push the right lock lever down to secure the right tractor in place.

5. Press the【Load/Eject】key to load the paper to the starting print position. The printer is

now ready to print in the online state.

Tally Dascom 1140

3.4 Continuous Paper Placement

1. Place the printer on a solid base. The minimum suitable height of the solid base is 75

cm.

2. Left and right positioning: The direction of continuous paper should be parallel with the

paper guide. The tolerance should be less than 3 cm.

3. Front and back positioning: The distance between the rear of printer and the wall should

be more than 60cm. To avoid paper jam, the distance between the continuous paper and

the edge of desk should be 10~15 cm.

Tally Dascom 1140

4 Control Panel Operation

There are 4 switches S1~S4 and 4 LEDs L1~L4. The meaning and application of each switch

and LED are described below:

4.1 LED Indicators

“Power/Paper Out” LED:

On: Power on

Flashing: Paper out

Flashing + buzzer: Paper jam

“Font 1 and Font 2”LED:

Flashing together: Indicates continuous paper is at tear-off position; otherwise it indicates the

selected font.

“Online” LED:

On: The printer is in online state and ready to receive data from the computer.

Off: The printer is in offline state and cannot receive data.

Tally Dascom 1140

4.2 Control Panel Keys

“Tear Off” Key:

When online, this key will move any loaded continuous paper to the tear-off position. When in

setup state, this key is used to select the desired font.

“LF/FF” Key:

Pressing this key will feed paper one line forward. By holding down this key, the printer will

initially feed a few lines, then perform a form feed (continuous paper mode) or eject the form

(single sheet mode).

“Load/Eject” Key:

When paper is loaded, pressing this key will eject the paper (single sheet mode) or park the

paper (continuous paper mode). When paper is not loaded, pressing this key will load the

paper to the starting print position.

“Online” Key:

This key switches the printer between online and offline states. Printing is stopped when the

printer is switched to offline state. When printer is switched to online state again, printing will

resume.

Table 4.1

Font Selection Label L2 State L3 State

Tear Off Blink Blink

Draft Off Off

Draft Condensed Off On

Quadrato

Off

Blink

Quadrato Condensed

Off

Courier On On

Courier Condensed On Blink

OCR B Blink Off

OCR A Blink On

Table 4.2

Switch Label

Tear off

LF/FF

Load/Eject

Online

Tally Dascom 1140

Table 4.3

LED Function

Power/Paper Out

Font1

Font2

Online

4.3 Panel Operation

There are 3 states of operation: Online, Setup and Power On.

In the Online state, the keys provide the following functions: Go to Tear Off position, Line

Feed/Form Feed, Load/Eject, Clear Buffer and switch to offline state for accessing to Setup

state.

In the Setup state, the keys provide font selection, and micro feed paper.

To enter the Power On state, the user holds down a key or a combination of keys while

powering up the printer. This state provides the following functions: Hex-dump, Main Menu

setup, print Main Menu, Adjust Factory Defaults, Customize Form, restore factory defaults,

and firmware update.

The followings describe the 3 states in details.

Legend:

[A] = press and hold switch A

{B} = press and then release switch B

[A]+ {B} = press switch B while holding A

Tally Dascom 1140

4.4 Online State

Function

Name

Switch

Operation

LED Function Description

Tear Off {S1} L2, L3 flash

This is valid for tractor mode only. It feeds the form

to the tear-off position. After tearing off the form,

printing starts on the next TOF by pressing any key

or receiving print data from the host.

LF {S2}

Feeds one line with every press of S2

FF [S2] -

Pressing this key will feed paper one line forward.

By holding down this key, the printer will initially feed

a few lines, then perform a form feed (continuous

paper mode) or eject the form (single sheet mode).

Load/Eject {S3} -

● Load: Automatically loads the paper (according to

path selection) when no paper is on the platen.

●

Eject: For rear tractor, it retracts the form from the

platen to allow users to install cut sheets. (NOTE:

Users have to toggle the path

selection lever.) For

cut sheets, it ejects the form on the platen.

Online {S4}

Toggles between Online and Offline states.

Setup State [S4] L4 Hold the S4 key for 3 seconds. Toggles to 3s Setup

state. Indicated by flashing L4.

Clear Buffer

and Reset [S4]+{S1} --

● Clears the print buffer. Beeps once upon

completion.

● Pressing S1 longer initializes the printer to

default settings.Beeps 3 times upon completion.

Tally Dascom 1140

4.5 Setup State

Function

Name

Switch

Operation

LED Function Description

Online state {S4} L4

Toggling to the Online state will cause the printer

to go into a ready-to-print state. Any changes

made in Setup state will be saved permanently.

Lighting up L4 indicates the Online state.

Micro UP {S3}

Press S3 to micro feed paper up.

Micro Down

{S2}

Press S2 to micro feed paper down.

Font Select

{S1}

L2, L3

Refer to Table 4.1 for details.

4.6 Power-On State

Tally Dascom 1140

Function

Name

Switch

Operation

LED Function Description

Hex Dump [S3] -

Beeps once to indicate going into hex dump mode:

● Prints data from host in hexadecimal

representation.

● Pressing S4 suspends the printing.

● When the hex dump has finished, pressing S4

forces the printing of the last line of data, as any

line termination control code from host has no

function.

● Switch off the power to terminate the hex dump.

Menu Setup

/ EDS [S1]

Allows for Main Menu setting changes. Please read

the instructions printed on how to change settings

when this mode is activated. (EDS: Electronic DIP

Switch)

Self Test /

Status Page

[S4]

Prints the printer settings and self-test pattern.

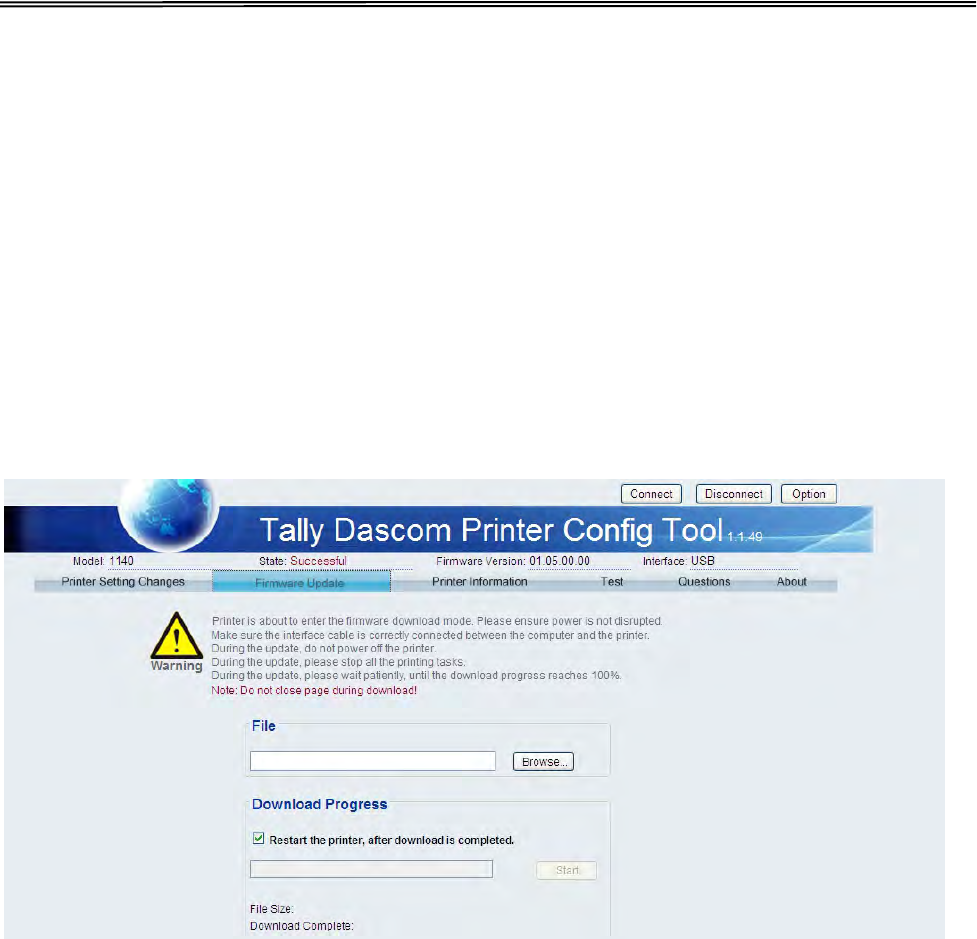

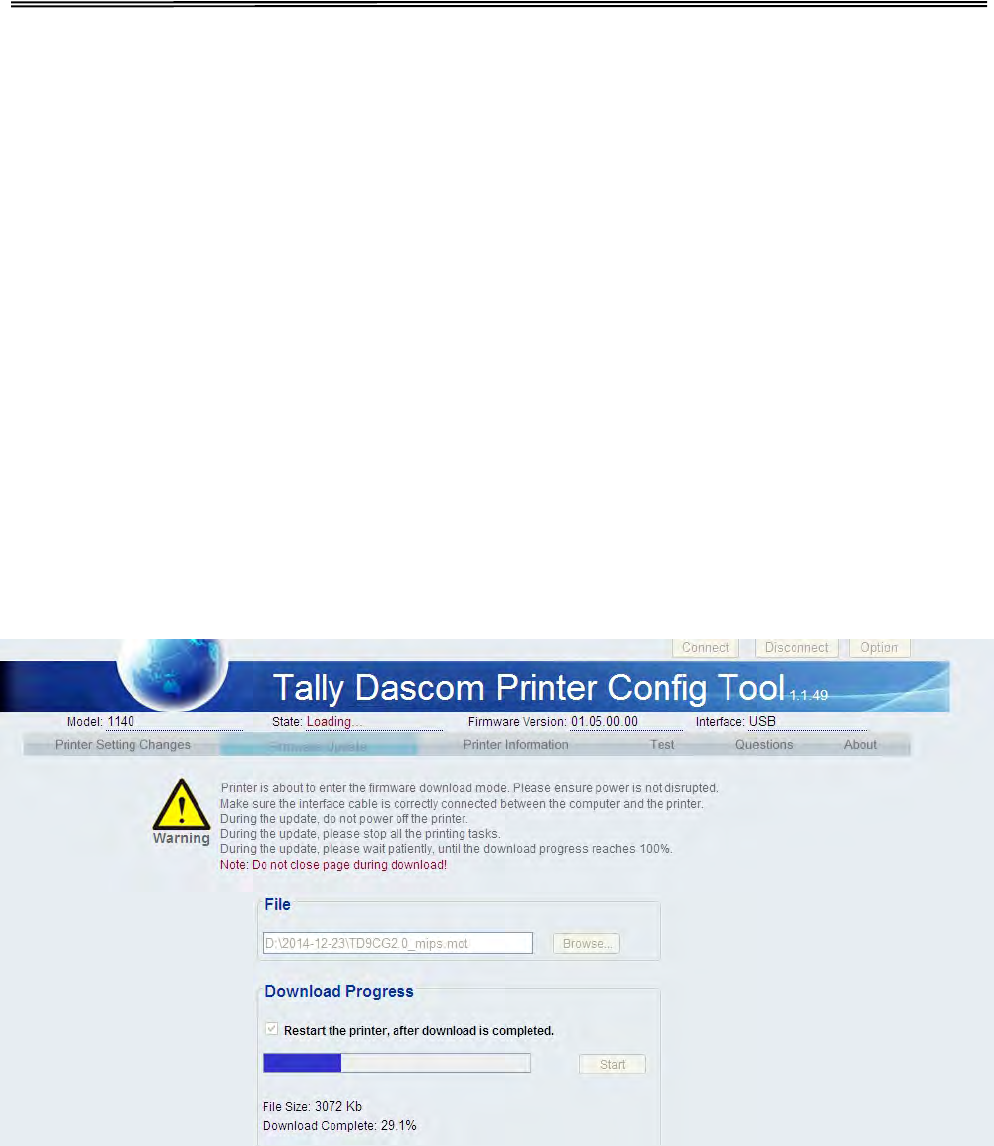

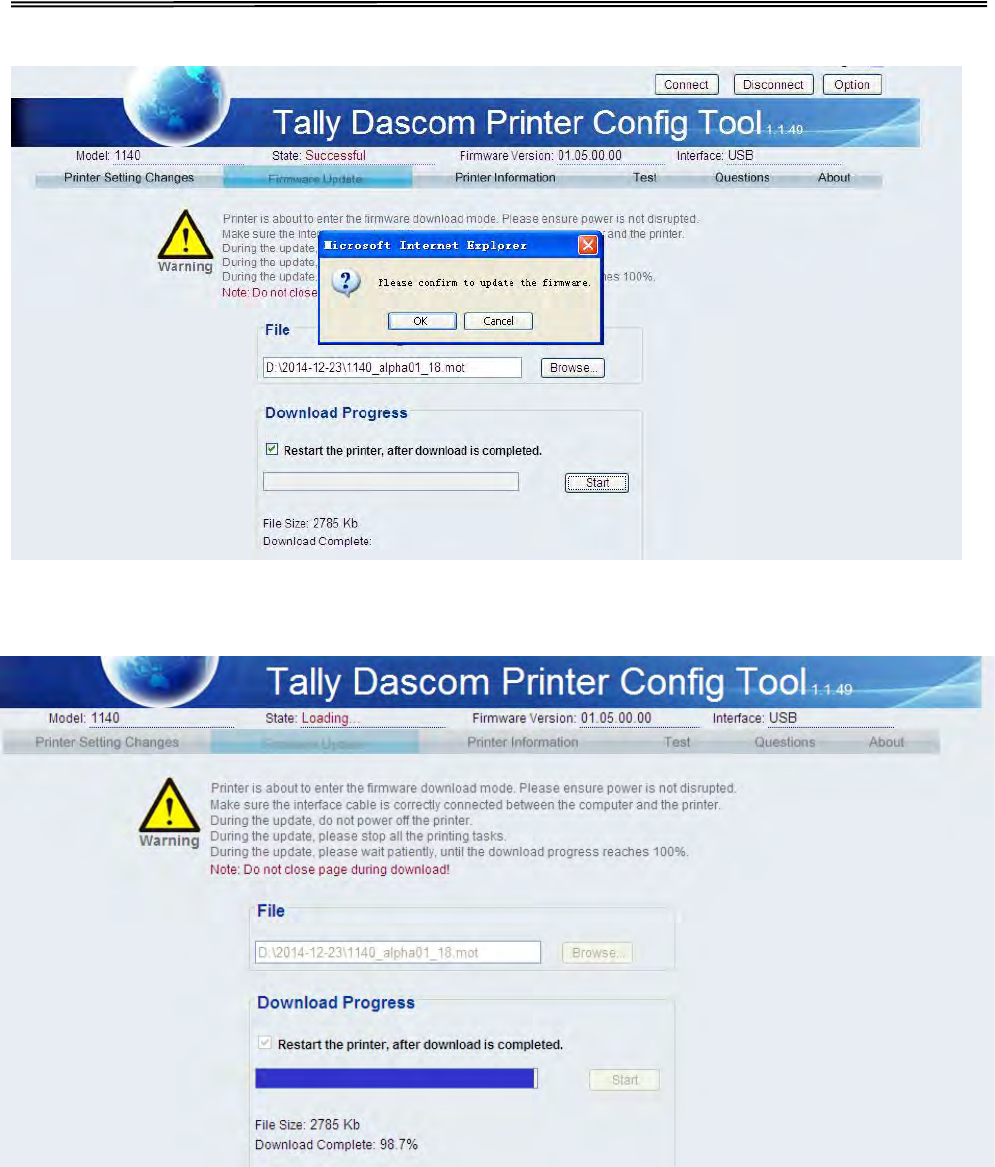

Firmware

Update

[S1]+[S2]+[S3]

+ [S4]

L3, L4

● Alternate flashing of L3 and L4 indicates ready

for firmware update from host.

● When new firmware is being received: L3 and L4

flash together,while L1 and L2 LEDs are

constantly on.

When downloading is completed, the carriage

returns to home position. Printer initializes normally.

Restore

Factory

Defaults

[S2] + [S4]

Restore all settings to factory defaults.

The carriage initializes and the printer beeps once

after restoration.

Service

Menu [S1] + [S2]

Release the keys till the carriage moves to the left

side and the beeper beeps twice. Changes of TOF,

tear-off position (fanfold only) are not recovered by

Restore Factory Defaults.

Not recommend the users change the settings by

this function.

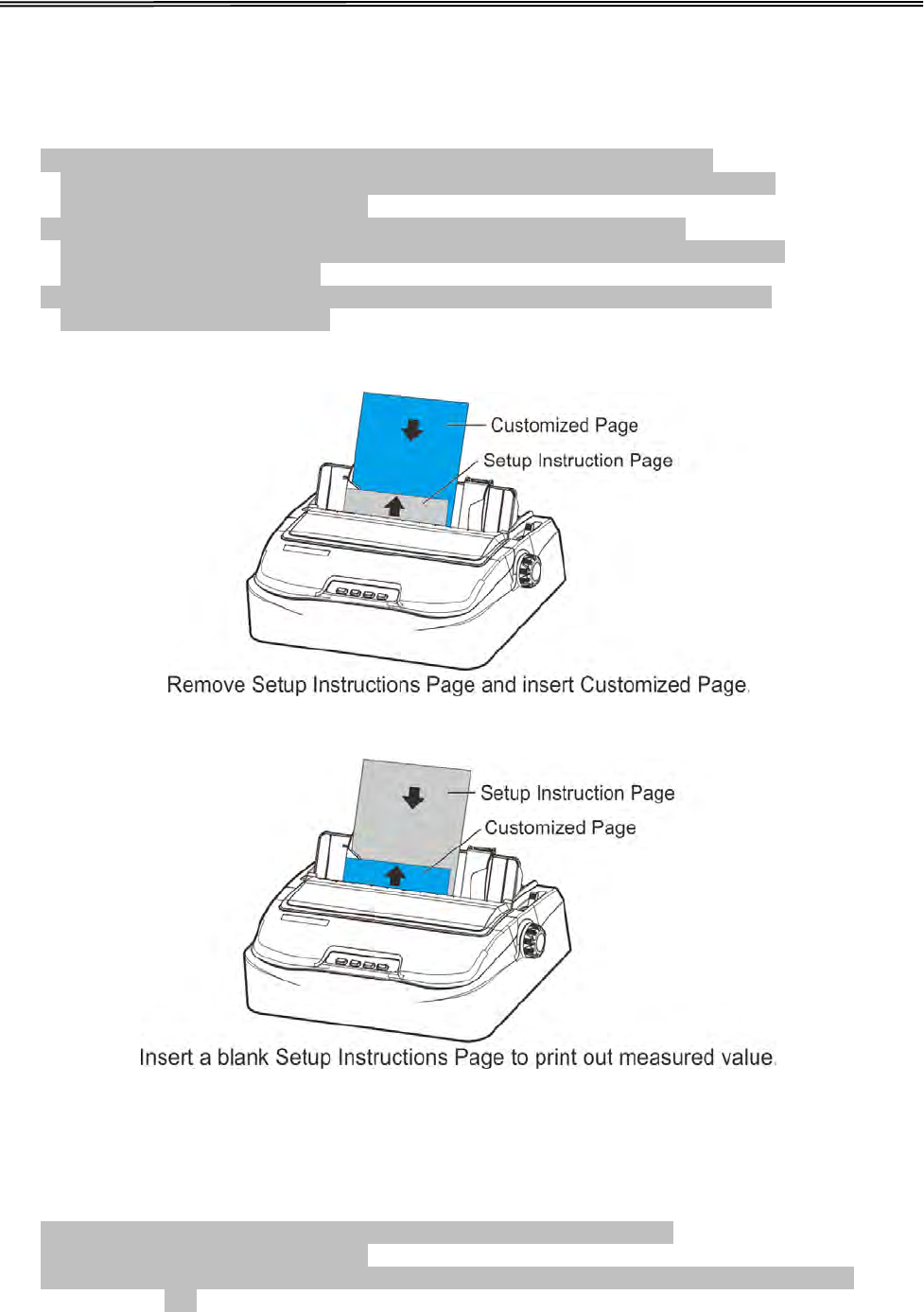

Customize

Form

[S3] + [S4]

To customize the margins and tear-off position,

please refer Chapter 6 for details.

Tally Dascom 1140

5 Printer Setting Changes

In order to meet specific print requirements, the printer configurations may be changed as

follows: Hold down the Load/Eject key while powering on the printer and then release the key

when the print head starts to move. The printer will enter Main Menu setup state. Follow the

instructions printed on how to make setting changes. When a new setting is saved, it is

retained after the printer has been powered off.

The Printer Settings menu contains 8 sub-menus: System Setup, Paper Setup, Interface

Setup, Charater Setup, Other Setup, Bi-directional Aligment, BlackMark Mode,Restore

Facotry Defaults.

5.1 System Setup

System setup Valid Settings Function

Language

English,Deutsch, Poccия,

Italiano,Français,Español,

Türkçe, Portuguese

Allows user to select one of the following

languages: English, German, Russian, Italian,

French, Spanish and Turkish, Portuguese

Emulation ESC/P2, IBM 2380+

Selects the printer emulation. This should be the

same as the host printer driver.

Auto CR

(ESC/P2) No, Yes

Yes: LF = LF+CR; No: LF = LF

(Applies to ESC/P2 emulation only)

Auto CR(IBM) No, Yes

Yes: LF = LF+CR; No: LF = LF

(Applies to IBM emulation only)

Auto LF

No, Yes

Yes: CR = CR+LF; No: CR = CR

Print Dir Bi-Dir, Uni-Dir

Bi-Dir: Graphics and text are printed in both

directions, resulting in faster printing speed.

Uni-

Dir: Graphics and text are printed from left to

right, resulting in higher precision.

Zero 0, Ø

0: No-slashed Zero 0.

Ø: Slashed Zero Ø.

Graphic Speed Normal, Fast

Selects different print quality and print speed for

graphic.

Change Pin#1: No, 1, 2, 3, 4, 5, 6, 7, 8, 9

Defines the first broken / worn out pin. This pin

will be substituted by an adjacent pin in the

second pass printing.

No: Not to substitution of the worn out pin.

Change Pin #2 No, 1, 2, 3, 4, 5, 6, 7, 8, 9

Defines the first broken / worn out pin. This pin

will be substituted by an adjacent pin in the

second pass printing.

No: Not to substitution of the worn out pin.

Impact Normal, Heavy

Normal: The print speed is faster causing head

hot easily and the impact force is weaker.

Heavy: The print speed is reduced, resulting

better thermal performance and copy capability.

Tally Dascom 1140

5.2 Paper Setup

Paper Setup Valid Settings Function

Single FormLen

2.5, 11/4, 3, 3.5, 11/3, 4, 5,

5.5, 6, 7, 8, 9, 10, 11, 12,

14, A4, B4, Define

Sets the page length for single paper

Single Top

0, 1/6, 1/4, 1/3, 1/2, 2/3,

3/4, 1, Define

Defines the separation in inches from the top

edge of a single paper to the first print line.

Single Bottom 0, 1/6, 1/4, 1/3, 1/2, 2/3,

3/4, 1, Define

Defines the separation in inches from the

bottom edge of a single paper to the last print

line.

Single Left Mrg

(1.00mm)

-7, -6, -5, -4, -3, -2, -1, 0,

1, 2, 3, 4, 5, 6, 7, Define

Compensation value added to Single Left

Mrg.

Single Top

Mrg (0.01”)

-7, -6, -5, -4, -3, -2, -1, 0,1,

2, 3, 4, 5, 6, 7 Compensation value added to Single Top.

Auto Load Disable, 0.5sec, 1sec,

1.5sec, 2sec

Defines the settling time before a single sheet

is loaded.

Disable: Press the【Load/Eject】key

manually to load a single sheet.

Fanfold FormLen

2.5, 11/4, 3, 3.5, 11/3, 4, 5,

5.5, 6, 7, 8, 9, 10, 11, 12,

14, A4, B4, Define

Sets the Page Length for fanfold.

Fanfold Top 0, 1/6, 1/4, 1/3, 1/2, 2/3,

3/4, 1, Define

Defines the separation in inches from the top

edge of a fanfold to the first print line.

Fanfold Bottom 0, 1/6, 1/4, 1/3, 1/2, 2/3,

3/4, 1, Define

Define the separation in inches from the

bottom edge of a fanfold to the last print line.

Fanfold Left Mrg

(1.00mm)

-7, -6, -5, -4, -3, -2, -1, 0,

1, 2, 3, 4, 5, 6, 7, Define

Compensation value added to Fanfold Left

Mrg.

Fanfold Top Mrg

(0.01”)

-7, -6, -5, -4, -3, -2, -1, 0,

1, 2, 3, 4, 5, 6, 7

Compensation value added to Fanfold Top.

Skip No, Yes

Skips printing on perforation area.

Only valid to fanfold.

Yes: Blank lines between 2 pages.

No: No blank lines between 2 pages.

Tally Dascom 1140

Paper Setup Valid Settings Function

Tear Auto, Manual, View,

Auto @ FF

Auto: No incoming print data in 1~2 seconds after

printing completed, the printer advances the form to

the tear-off position. When the printer receives new

print data, the form is ejected to the top-of-form.

Manual: After the completion of a print job, press a

panel key to advance the paper to the tear-off

position.

View: No incoming print data in 1~2 seconds after

printing completed causes the printer to advance the

paper by 2 lines. Printing resumes 2 lines below the

torn edge.

Auto @FF: a formfeed command is necessary to auto

feed the form to tear position.

Buzzer No, Yes

No: Buzzer does not sound if out of paper.

Yes: Buzzer sounds if out of paper.

BlackMark No, Yes

No: Disables black mark sensor.

Yes: Enables black mark sensor.

When “Yes” and online, pressing the Load/Eject key

advances the paper to the tear-off position.

BlackMark commands: (also see section 5.6)

• 1D 0C:

Feeds paper to the print position designated by the

black mark. Advance the paper to the tear-off

position after printing.

• 1C 28 4C 03 00 42 m:

m = 0: feeds paper to the print position designated

by the black mark.

m = 1: feeds paper to the black mark tear-off

position.

Pressure lever Invalid,Standard,

Speed

The pressure lever presses the paper against the

print platen during printing, but it is released for paper

Invalid: If you uninstall the lever or want to disable the

function, set this setting to “invalid”.

Standard: Release the lever for paper loading and

lower the lever to press the paper against the platen

during printing.

Speed: When the paper is in tear-

off position, after the

printer received printing data, the printer will judge

whether tear-off was implemented first. If tear-off was

implemented and printing position is in lever area,

then the printer will press the lever; If tear-off was not

implemented, the printer will not press the lever.

Tally Dascom 1140

5.3 Interface Setup

Interface setup Valid Settings Function

PnP

No, Yes

No: Disables plug and play for USB

Yes: Enables plug and play.

USB ID

No, Yes

No: Disbles USB ID.

Yes: Enables USB ID

5.4 Character Setup

Character setup Valid Settings Function

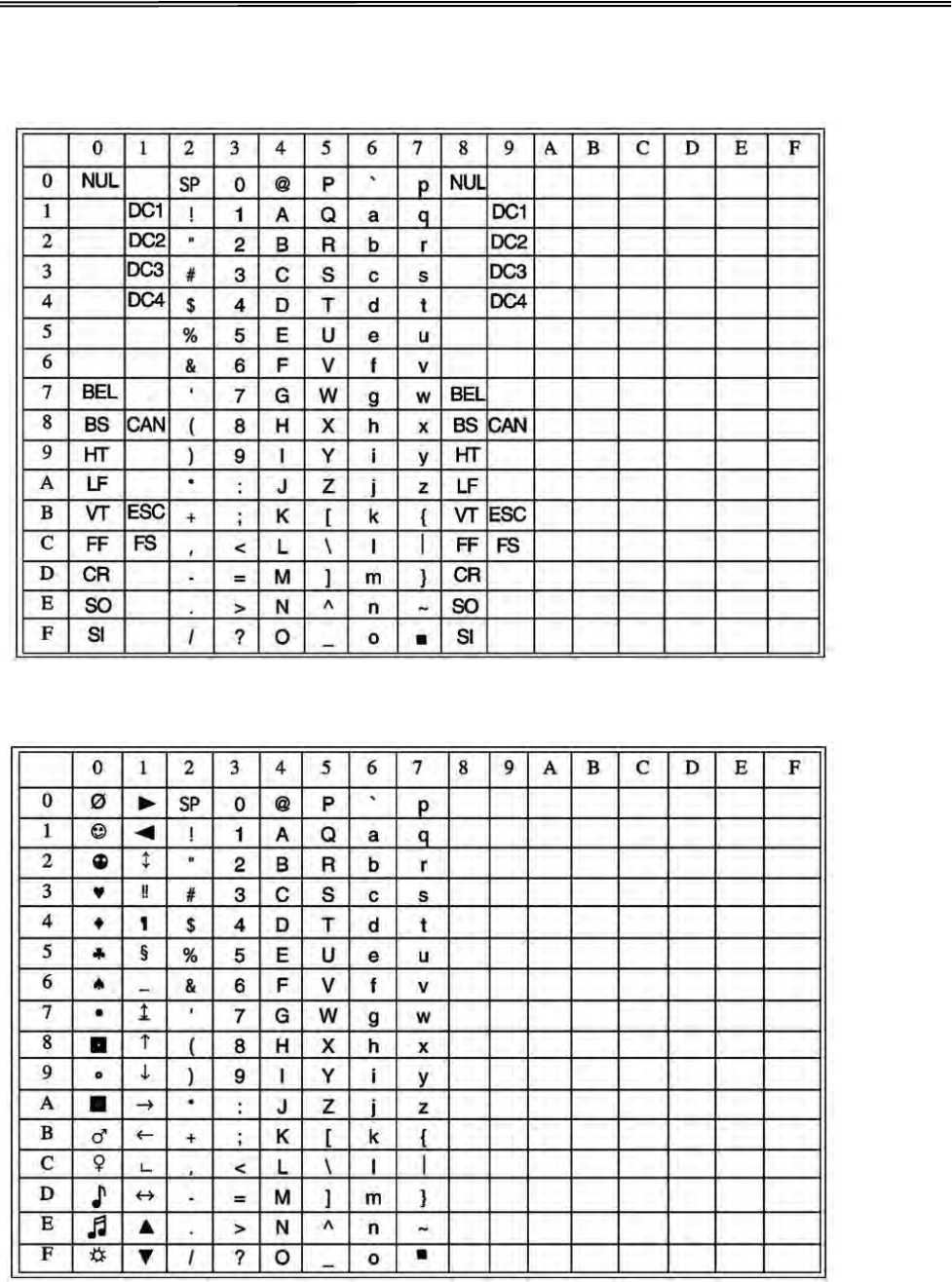

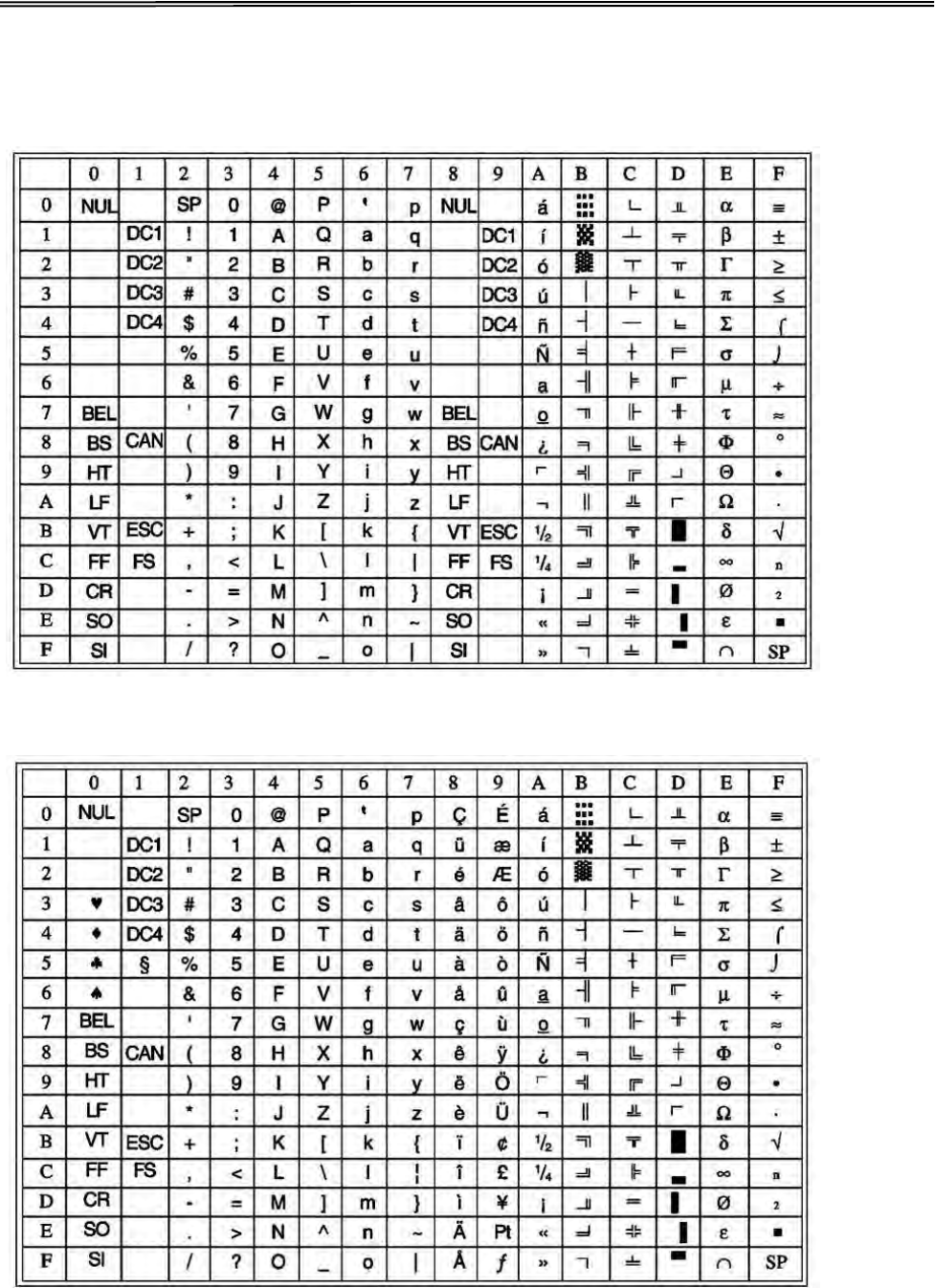

Character Table

Italic, Graphic

Italic: Selects standard character

sets. Please refer to UG for details.

Graphic: Selects IBM character sets.

Please refer to UG for details.

Character Group

Group 1, Group 2

The interpretation of ASCII codes

between 0x80~0x9F:

Group 1: as control codes.

Group 1: as printable characters.

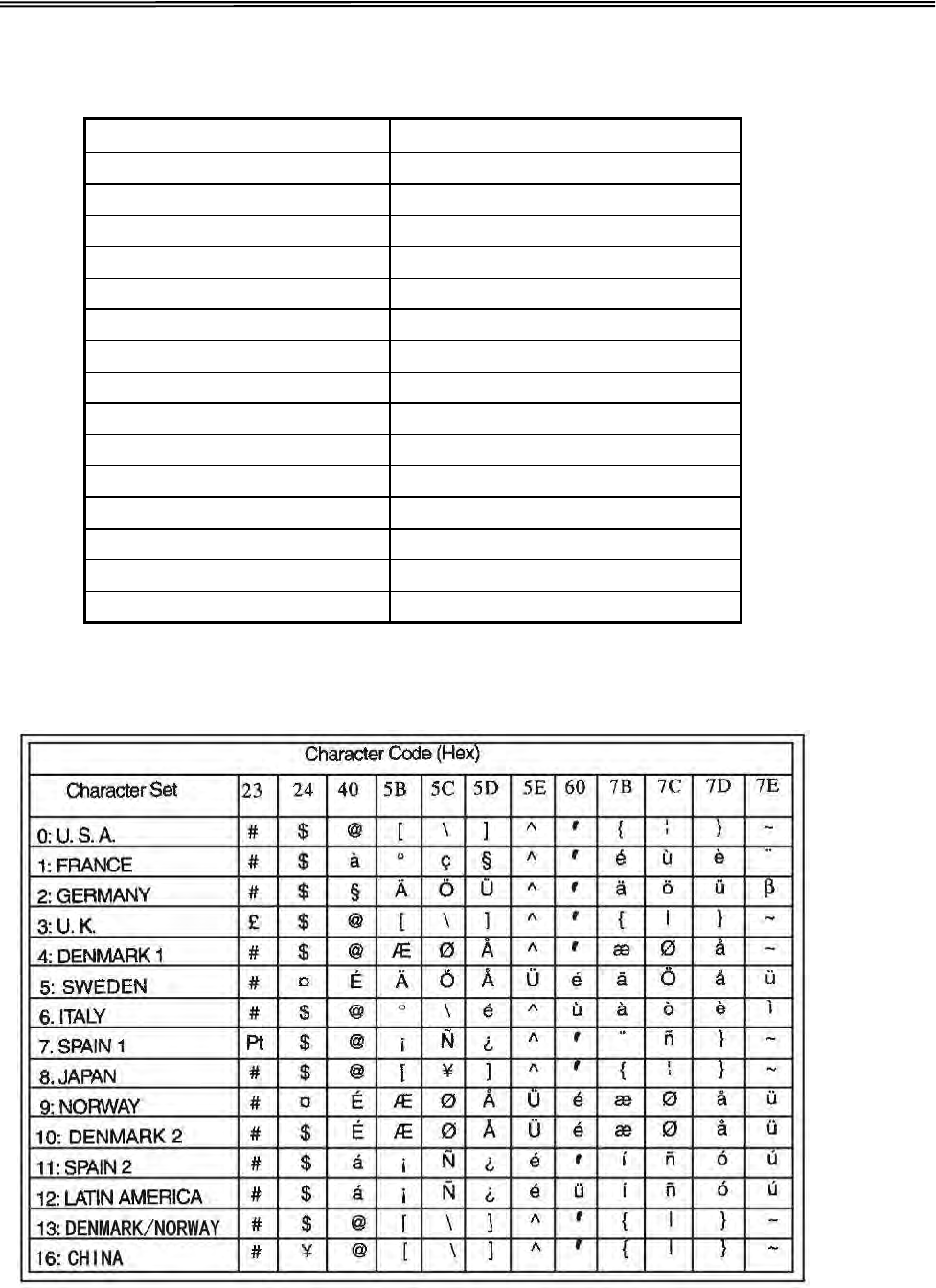

Int'l Char Set

USA, France, Germany, UK,

DenmarkI, Sweden, Italy, SpainI,

Japan, Norway, DenmarkII,

Spain II, LatinAm, Denmark,

China

International character set selections

Font

Draft,DraftCond,Quadrato,Quadr

atoCond,Courier,CourierCond,O

CR B,OCR A

Selects the font.

Pitch(cpi) 10, 12, 15, 17, 20, PS

Controls the characters per inch

setting.

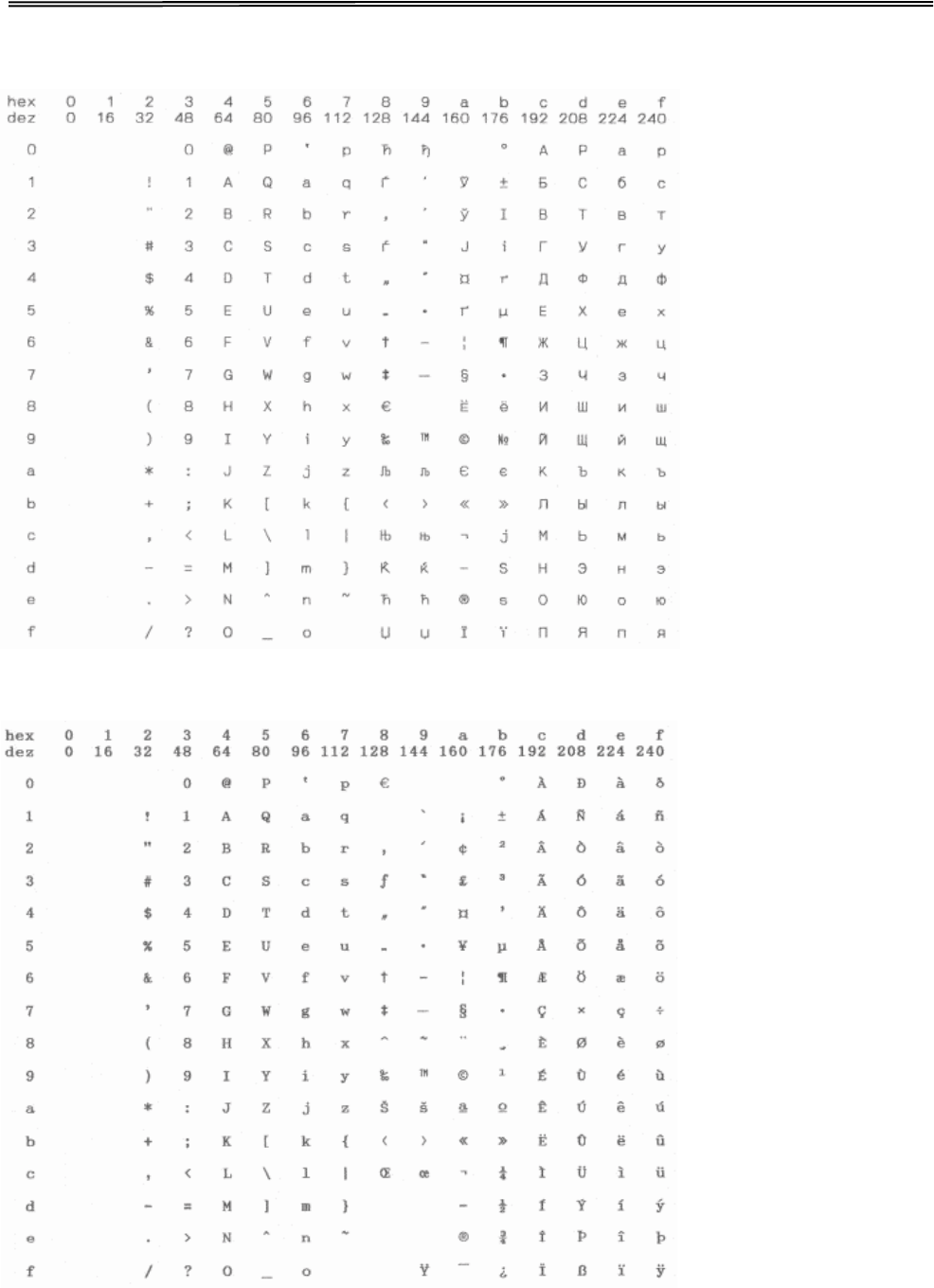

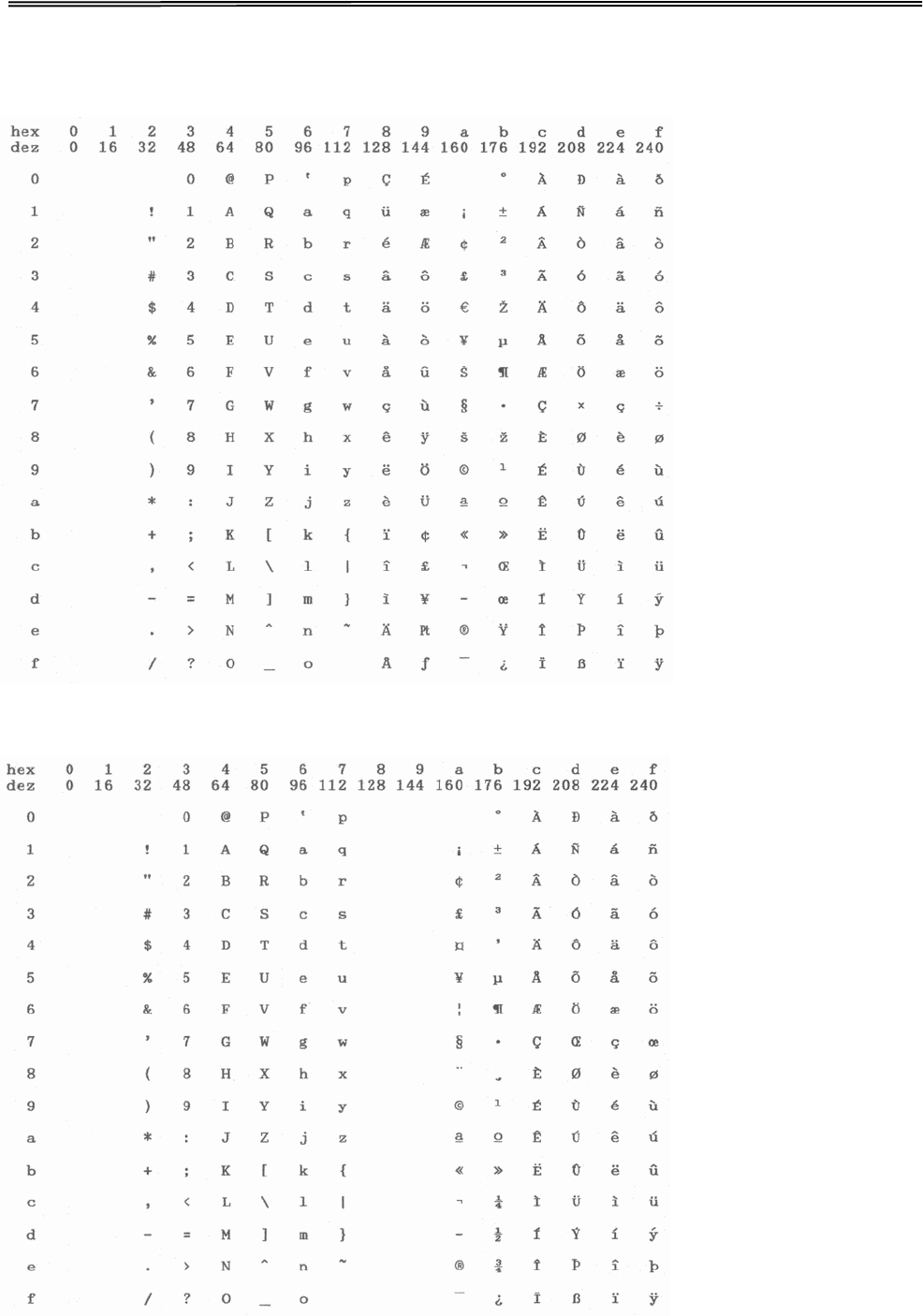

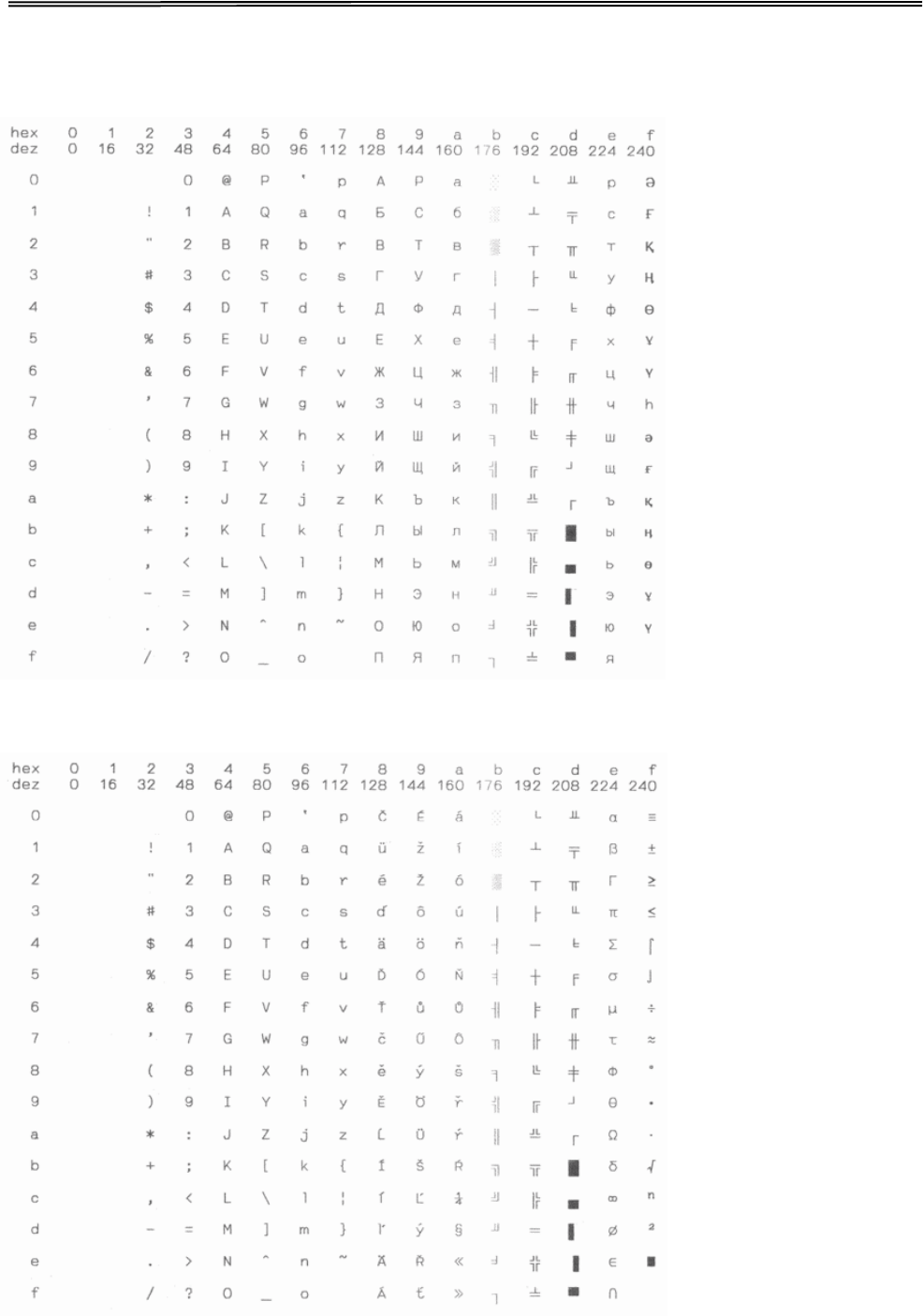

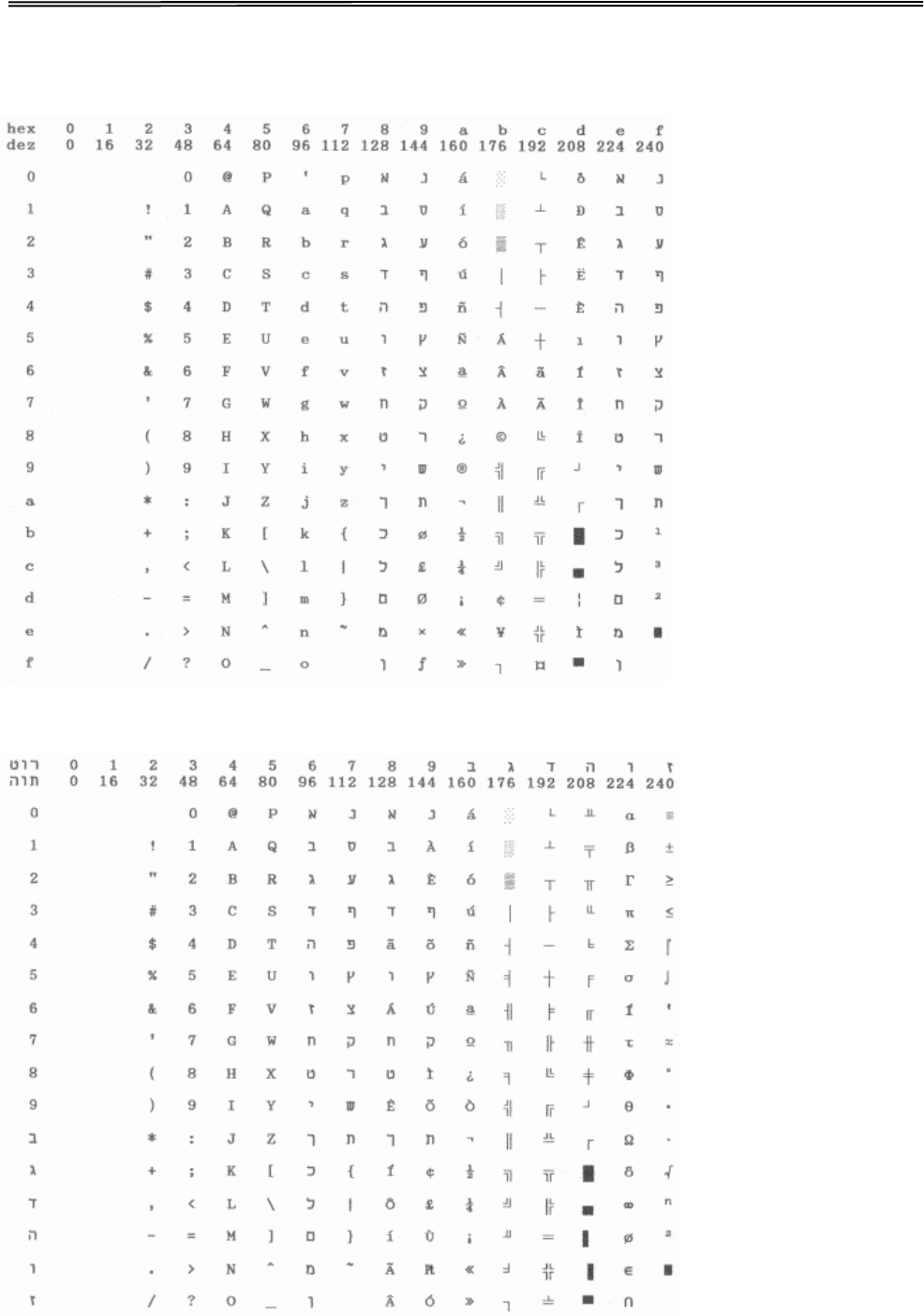

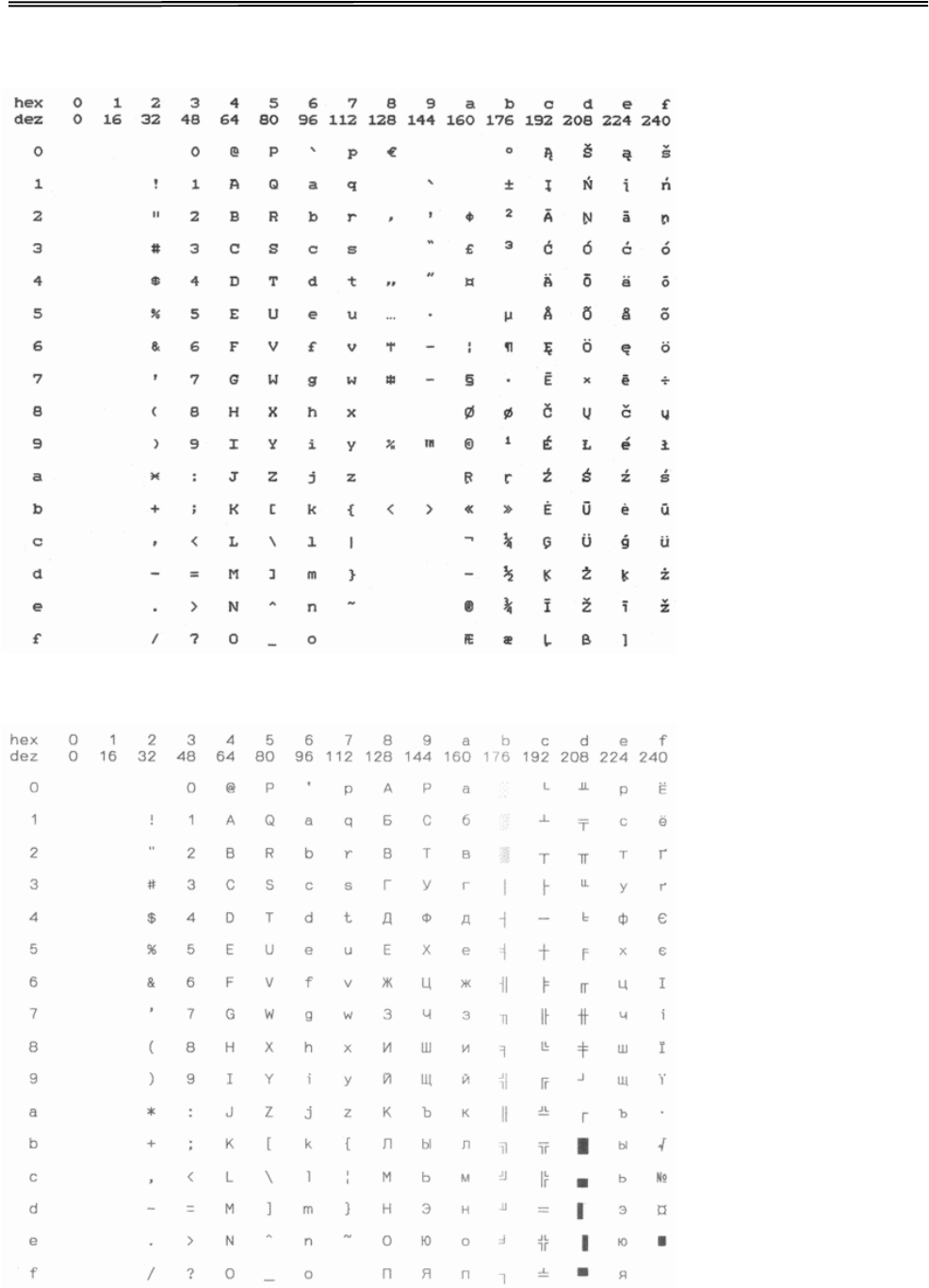

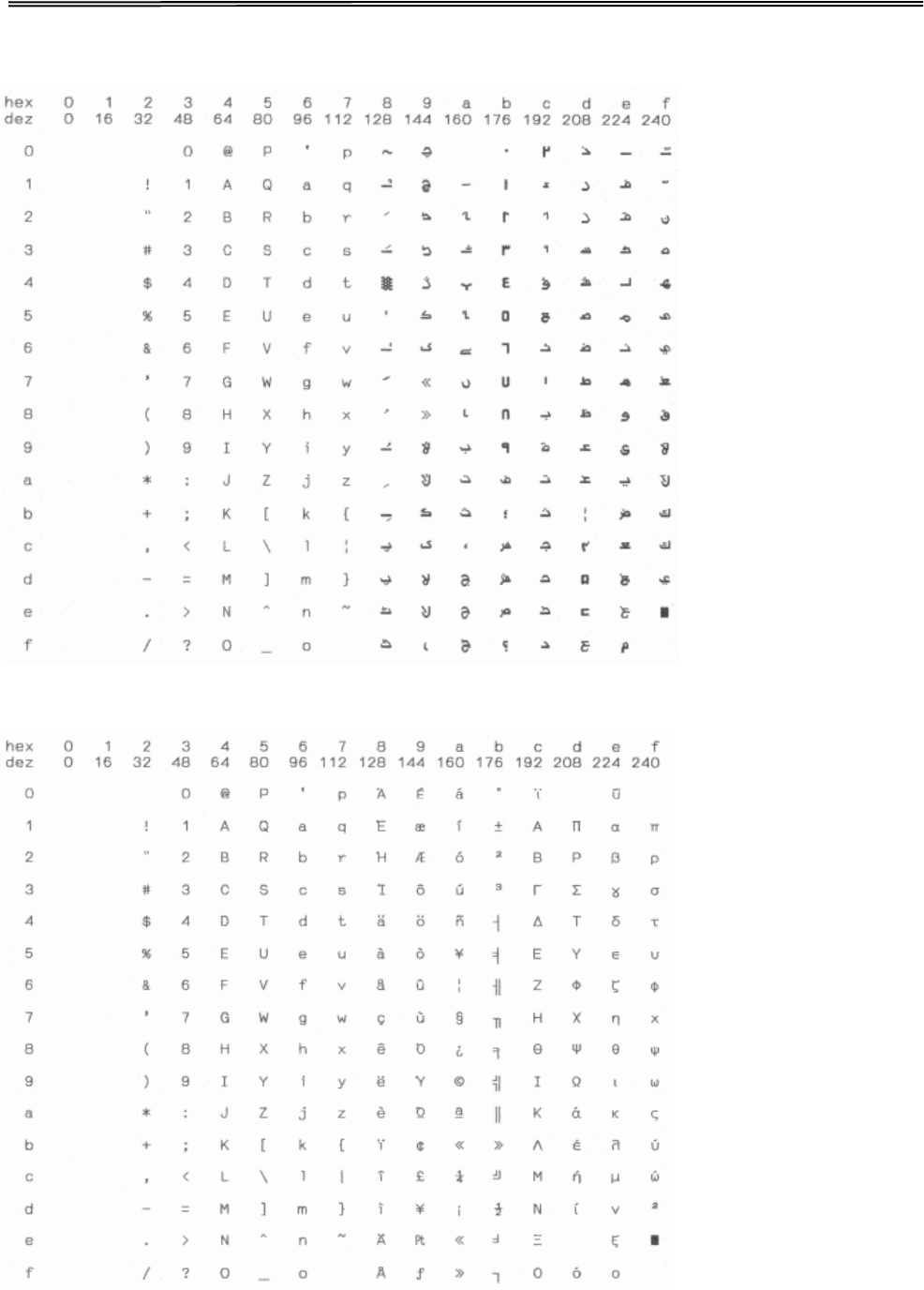

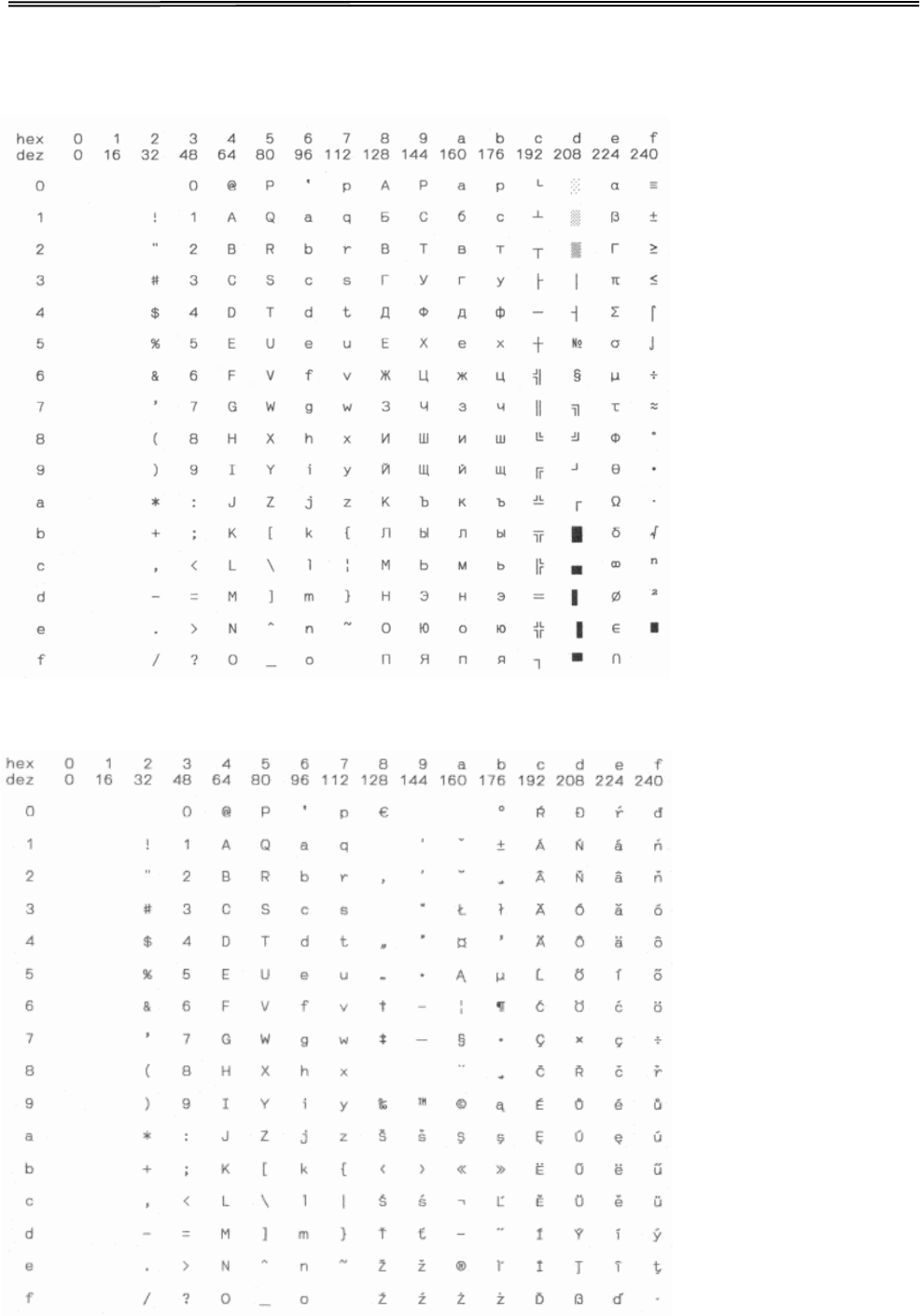

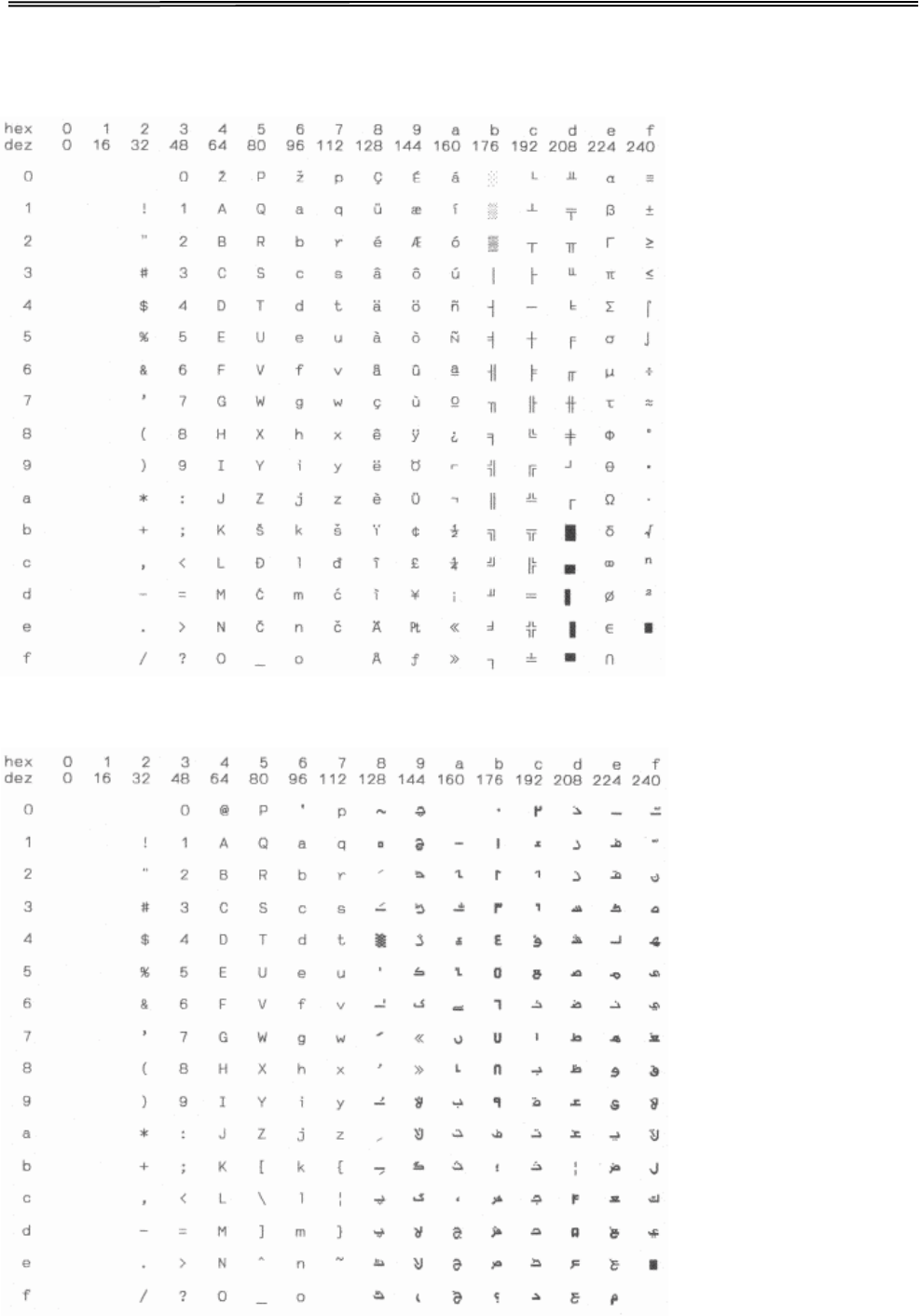

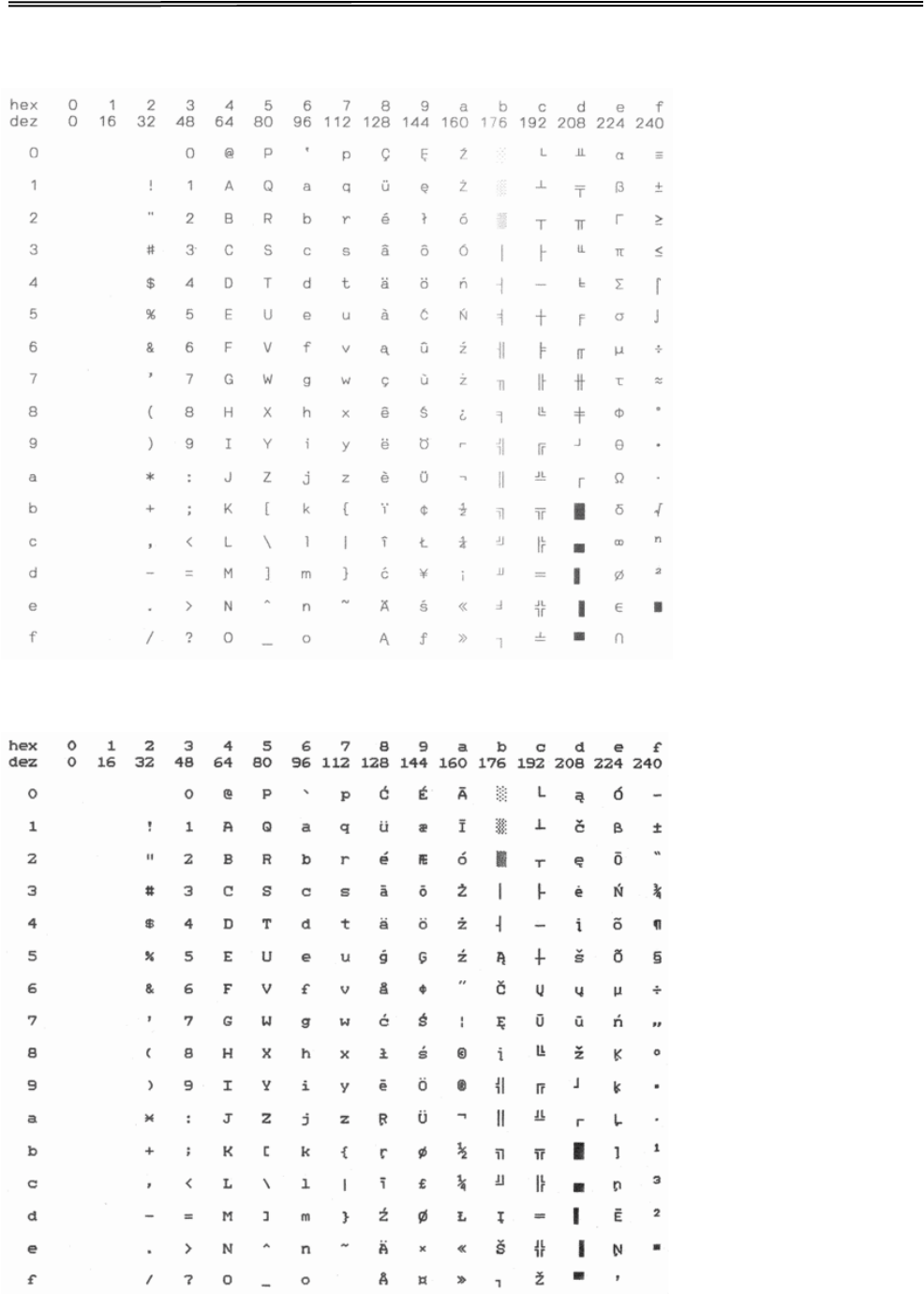

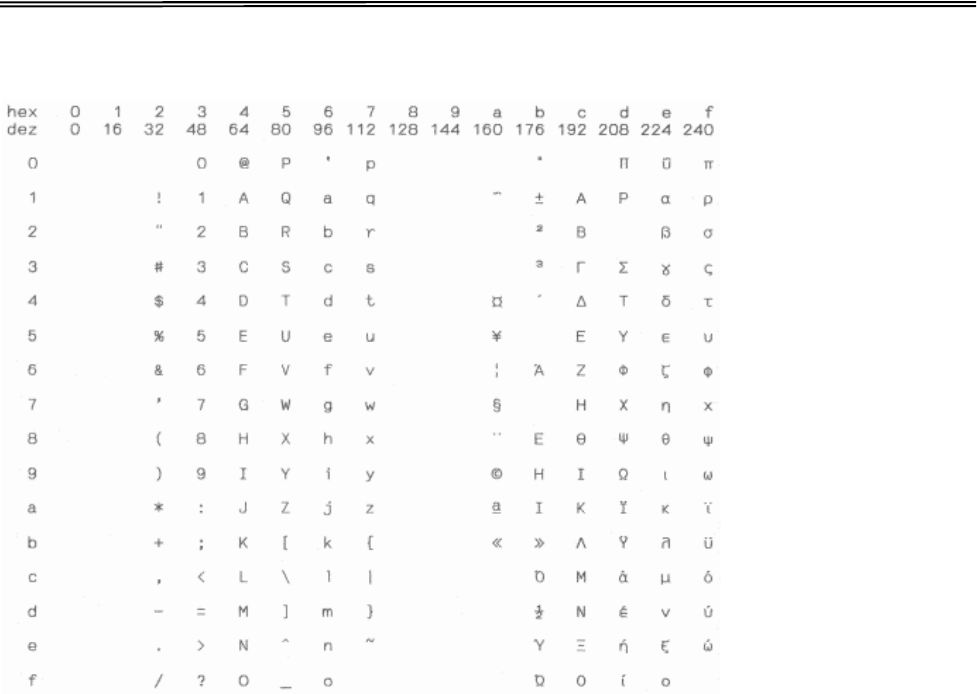

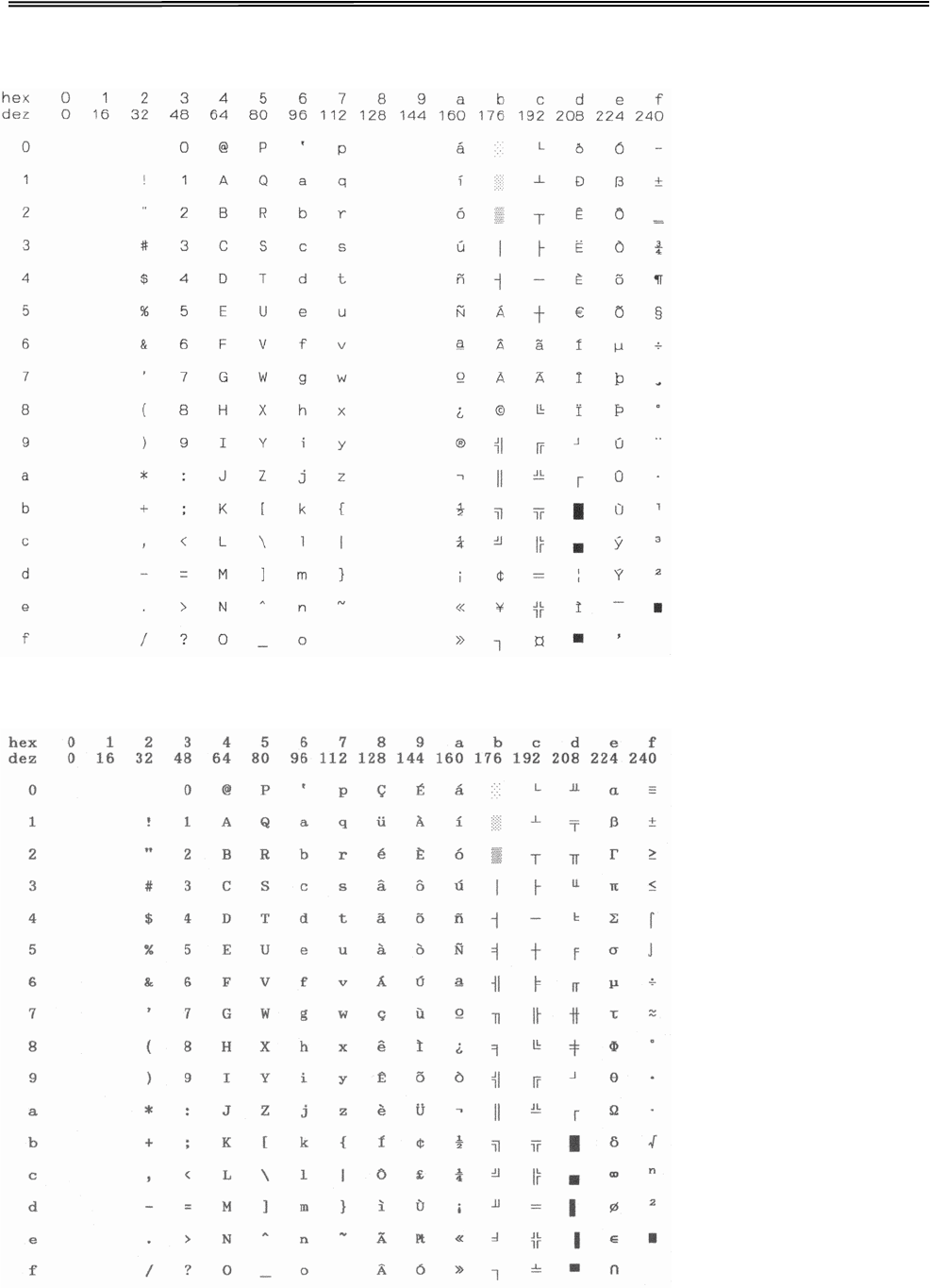

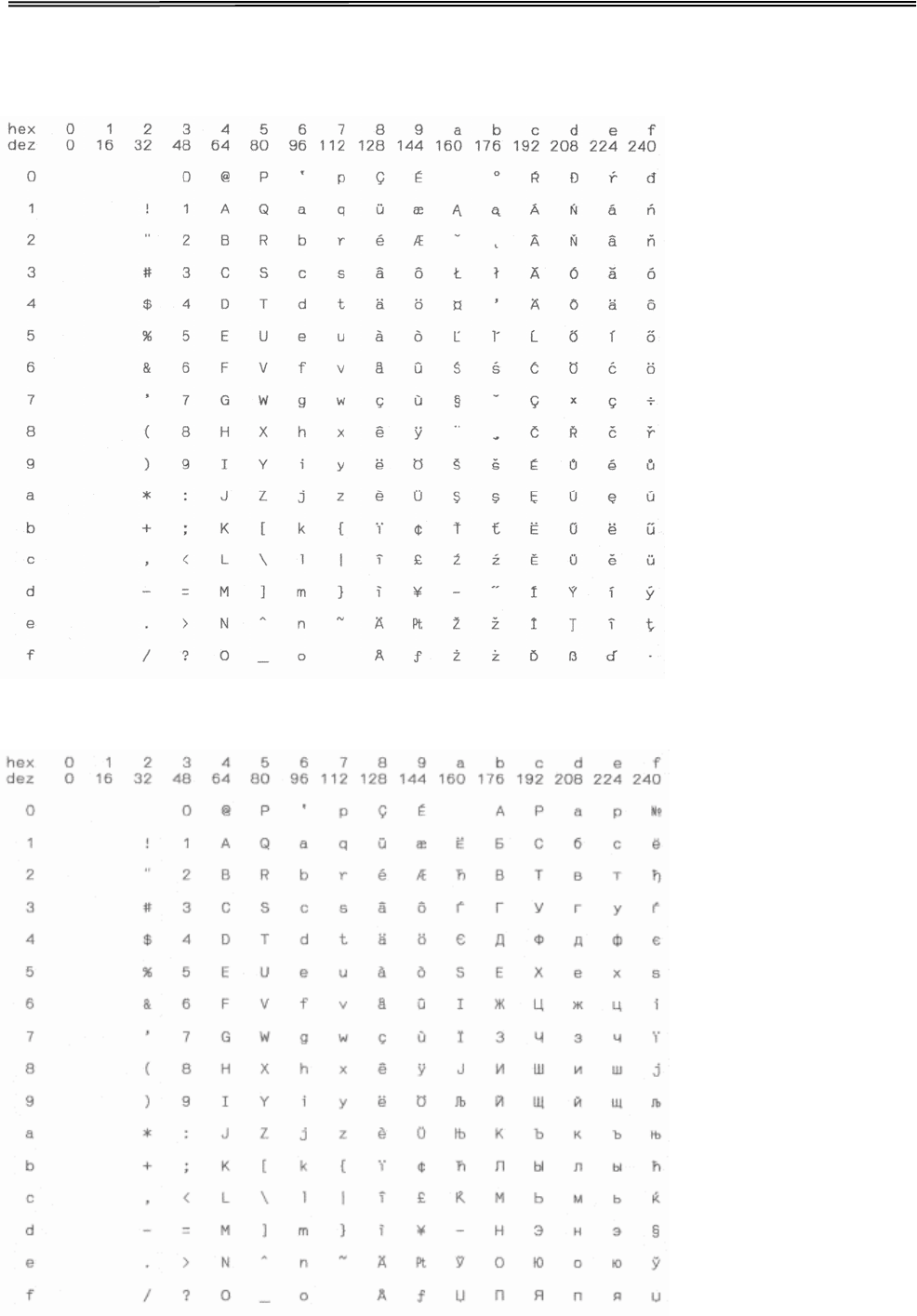

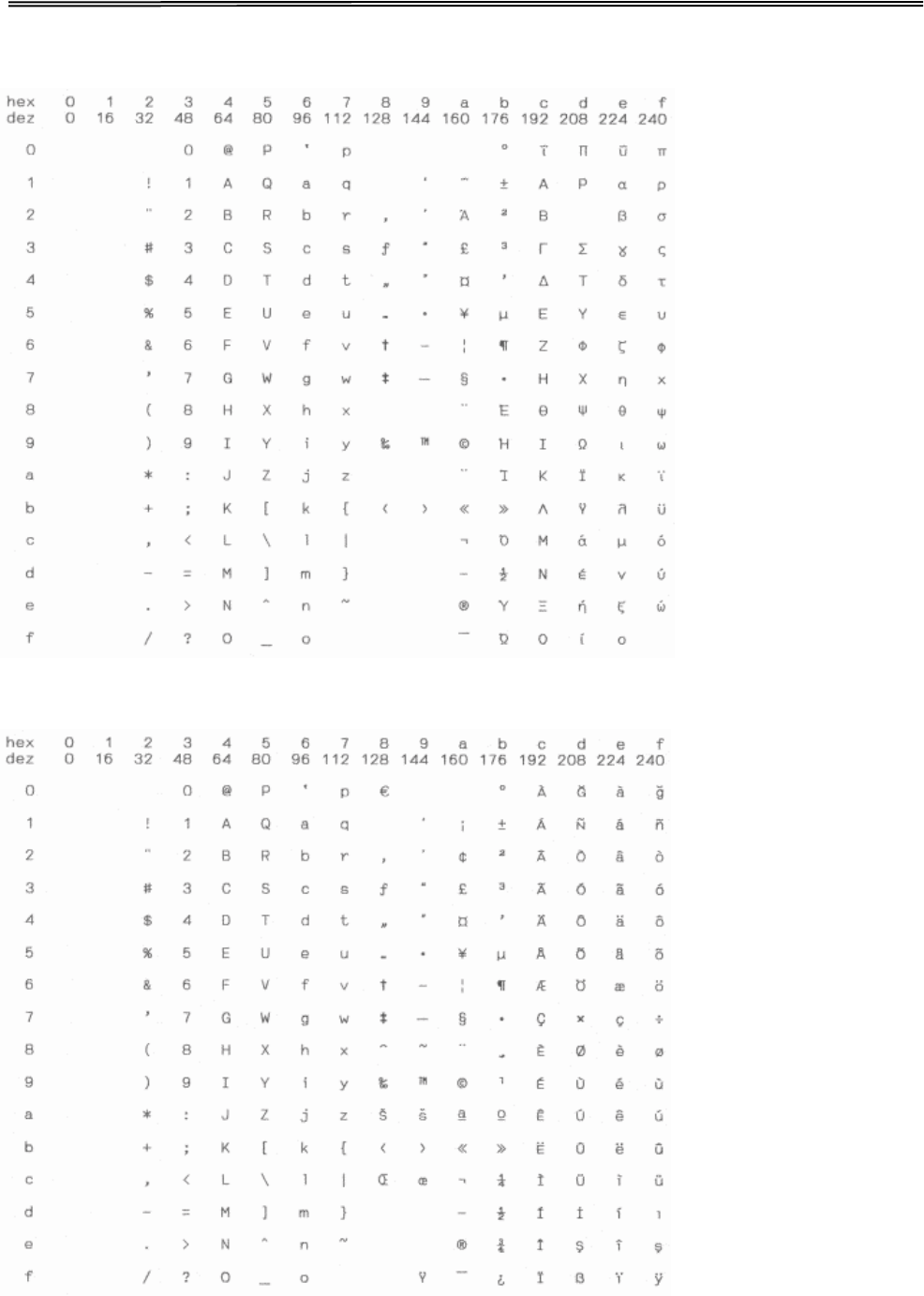

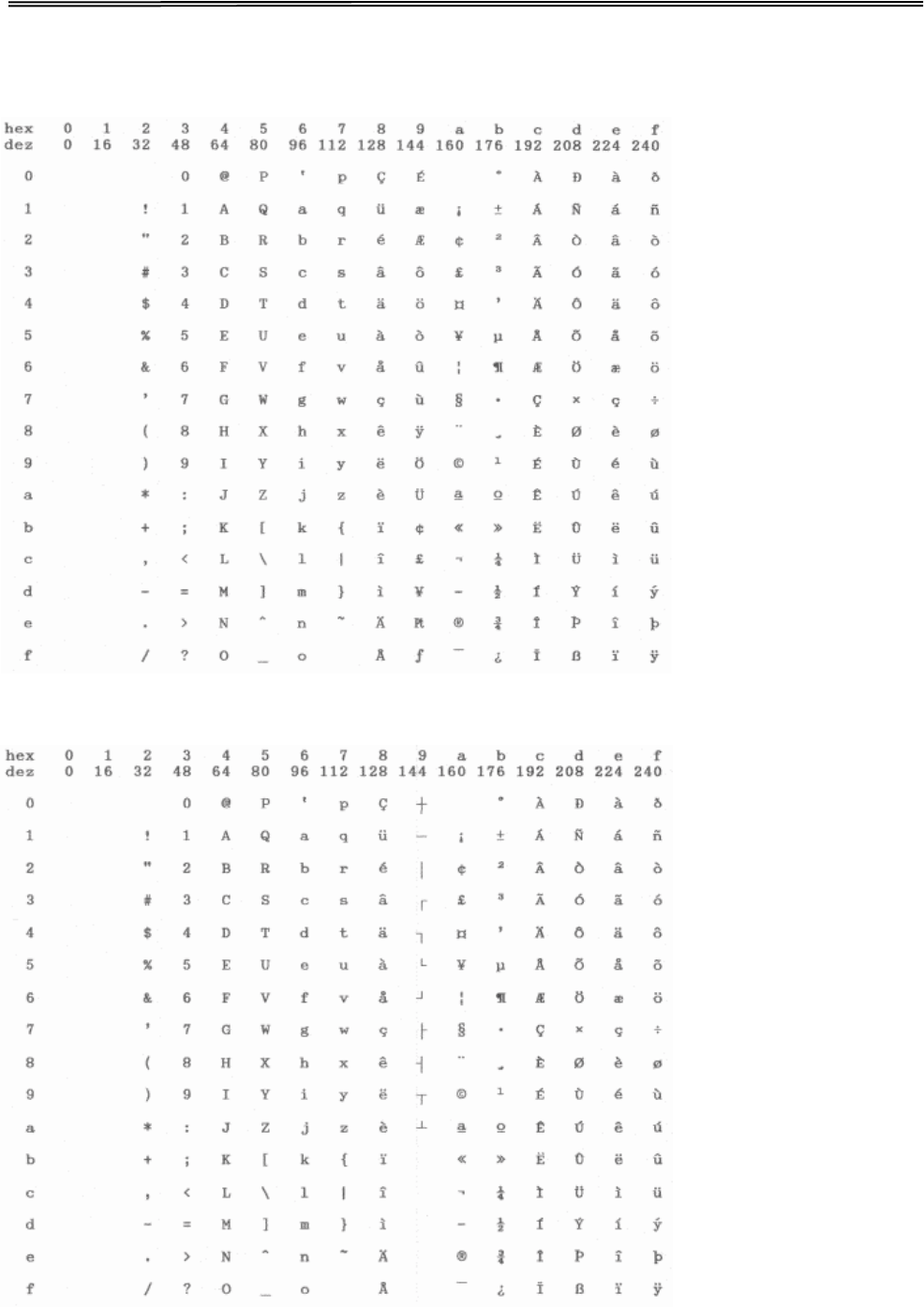

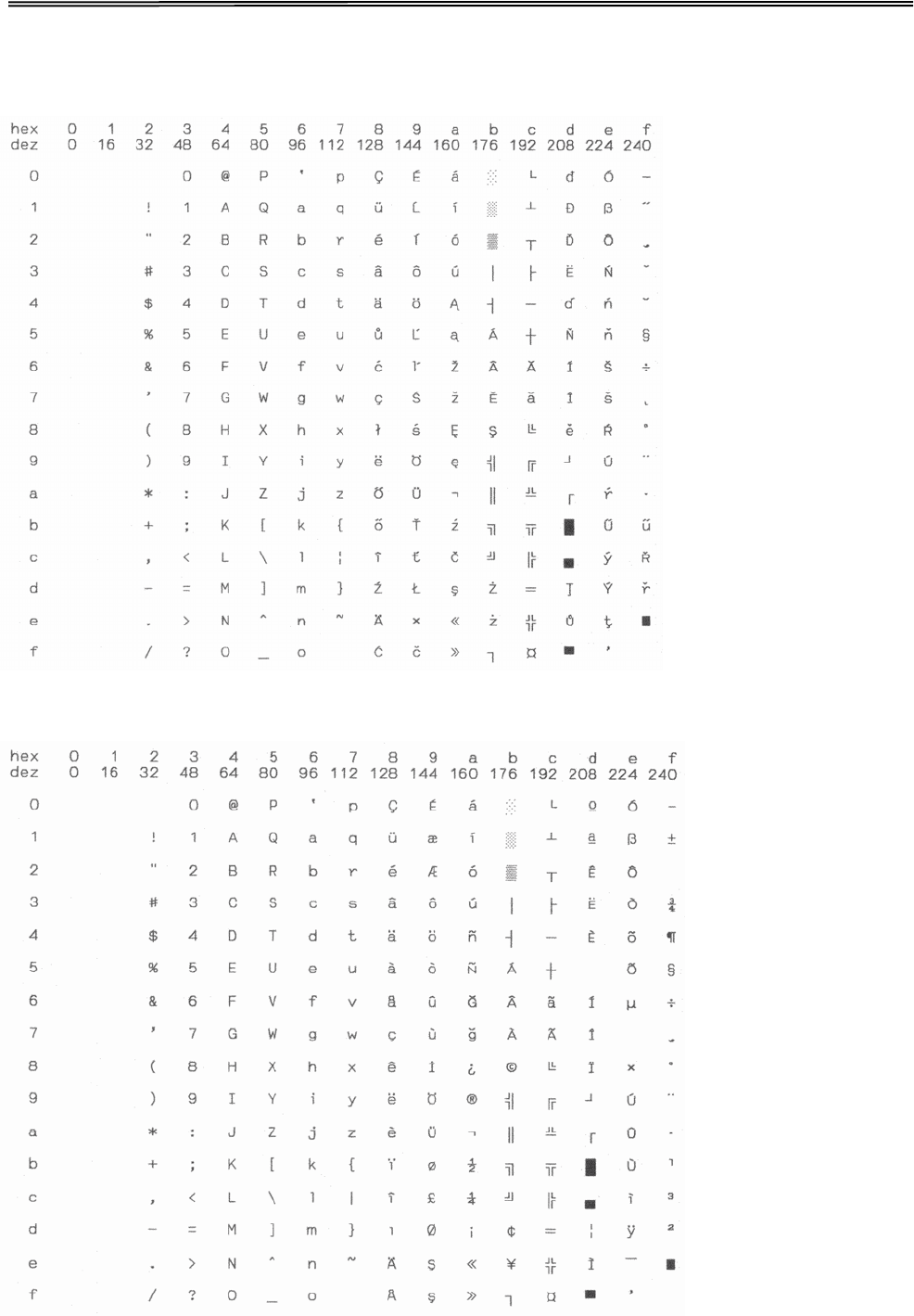

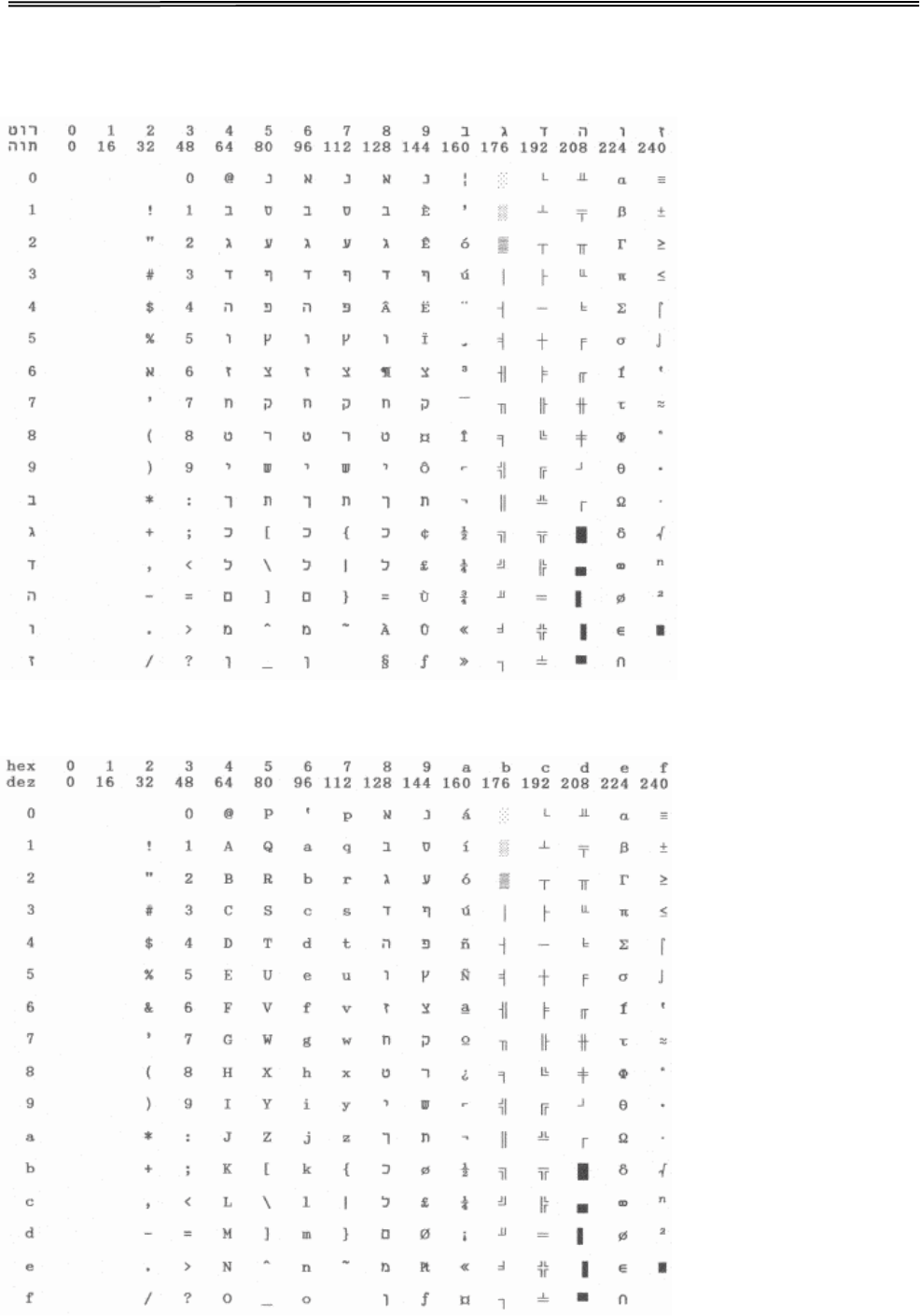

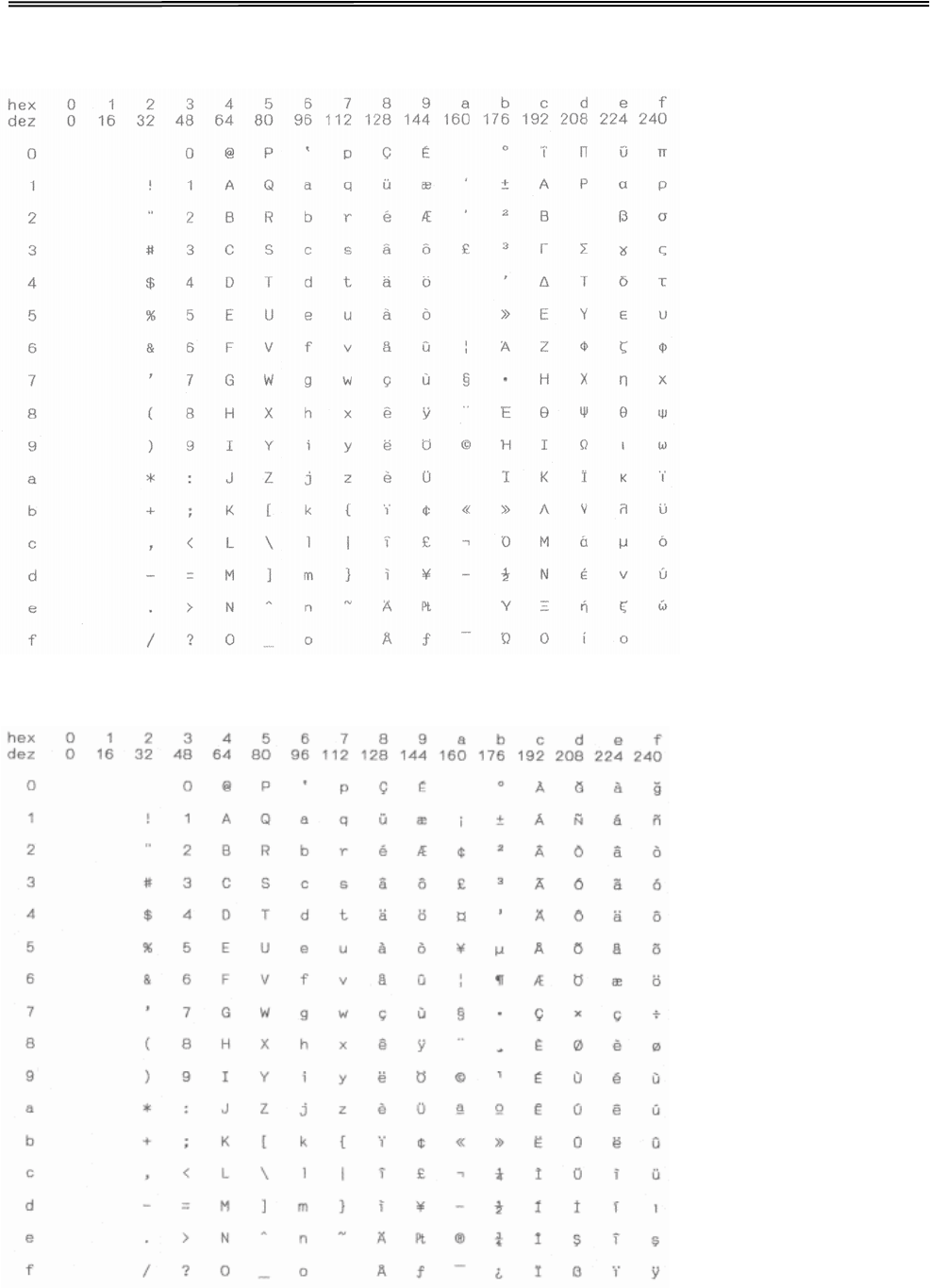

Code Page

CP 437, CP 737, CP 850, CP

851, CP 852, CP 857, CP 858,

CP 860, CP 861, CP 863, CP

1252, CP 1253, CP 1254, 8859-

1, 8859-1 (SAP), 8859-2, 8859-

5, 8859-7, 8859-9, 8859-15,

Kamenicky , Mazovia, 866

Bulgaria, CP 1250, CP 1251.

BRASCII, Abicomp, CP 865, CP

866, CRO-ASCII

Code page selections

HS-Draft No, Yes

On: Prints High Speed Draft when

Draft font is selected.

Tally Dascom 1140

5.5 Other Setup

Other setup Valid Settings Function

Form Length Ctrl

No, Yes

No: Form length commands are invalid in

neither of the emulation.

Yes: Form

length commands are valid in either

of the emulations.

PrintSpeed Ctrl

No, Yes

No: Print speed commands are invalid in

neither of the emulation.

Yes: Print speed commands are valid in either

of the emulations.

Pitch Ctrl

No, Yes

No:

Ignores CPI commands

Yes:CPI commands are valid

Font Ctrl

No, Yes

No: Ignores font select commands

Yes: font select commands are valid

Uni-Dir Ctrl

No, Yes

No: Uni-Direction print commands are invalid

in neither of the emulation.

Yes: Uni-Direction print commands are valid in

either of the emulations.

5.5.1 German (Deutsch)

System Setup Gültige Werte

Sprache

English,Deutsch,Poccия,Italiano,Français,Español,

Türkçe,Portuguese

Emulation

ESC/P2, IBM 2380+

Auto CR (ESC/P2)

Nein, Ja

Auto CR (IBM)

Nein, Ja

Auto LF

Nein ,Ja

Druck Dir

Bi-Dir, Uni-Dir

Null

0,Ø

Graphikgeschw.

Normal, Schnell

Ersetze 1.Nadel

No, 1, 2, 3, 4, 5, 6, 7, 8, 9

Ersetze 2.Nadel

No, 1, 2, 3, 4, 5, 6, 7, 8, 9

Impact Mode

Normal, Stark

Tally Dascom 1140

Papier Setup Gültige Werte

Einzel Länge

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4, B4,

Definiert

Einzel Ob Rand

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definiert

Einzel Unt Rand

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definiert

Einzel Li Rand

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Definiert

Einzel Ob Rand Fein

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Auto Laden

Ung

ltig, 0.5sec, 1sec, 1.5sec, 2sec

Endlos Form Länge

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4, B4,

Definiert

Endlos Ob Rand

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definiert

Endlos Unt Rand

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definiert

Endlo Li Rand

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Definiert

Endlos Ob Rand Fein

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Perforationssprung

Nein ,Ja

Abreissen

Auto, Manuell, Kurz,Auto@FF

Summer

Nein ,Ja

Black Mark

Nein ,Ja

Pressure lever

Invalid, Standard,Speed

Schnittstellen Setup Gültige Werte

PnP

Nein ,Ja

USB ID

Nein ,Ja

Zeicheneinstellung Gültige Werte

Zeichentabelle

Italic, Graphik

PC-Zeichensatz

Gruppe 1, Gruppe 2

Land

USA, Frankreich, Deutschland, UK, Dänemark I, Schweden,

Italien, Spanien I, Japan, Norway, Dänemark II, Spanien II, Lat-

Amerika, Dänemark/Norwegen, China

Font

Draft,DraftCond,Quadrato,QuadratoCond,Courier,CourierCond,OC

R B,OCR A

Laufweite(cpi)

10, 12, 15, 17, 20, PS

Zeichensatz

CP 437,CP 737…

HS-Draft

Nein, Ja

Tally Dascom 1140

Formularlänge Strg

Nein, Ja

Geschwindigkeit Strg

Nein, Ja

Laufweite Strg

Nein, Ja

Font Strg

Nein, Ja

Uni-dir Strg

Nein,Ja

5.5.2 Russian (Россия)

Системные установки Valid Settings

Яэык

English,Deutsch,Poccия,Italiano,Français,Español,

Türkçe,Portuguese

Эмуляция

ESC/P2, IBM 2380+

Авто CR( ESC/P2)

Нет,Да,

Авто CR (IBM)

Нет,Да,

Авто LF

Нет,Да

направлениe пeчaти

Однонаправ, Двунаправ

Ноль

0,Ø

Скнпнсть oечатк

Hopмaльнo, быстро

Заменa1.иглы

No, 1, 2, 3, 4, 5, 6, 7, 8, 9

Заменa 2 иглы

No, 1, 2, 3, 4, 5, 6, 7, 8, 9

воздействия

Нормaльно

сильно

Настройка бумаги Valid Settings

Длина отдельн. листов

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4,

B4, определен

Верх.поле oтд. лист

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, определен

нижн. поле отд.лист

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, определен

Слевa отстyл лист

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, определен

Верх отс.л.тонко

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Автозагрузка

недейств, 0.5sec, 1sec, 1.5sec, 2sec

Длина непрер.бумаги

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4,

B4, определен

Верх.поле непр. бум

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, определен

нижн. поле непр бум

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, определен

Слевa отстyл нeпpep

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, определен

Верх отс.тонко нeпp

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Пропуск перфорации

Нет,Да

Отрыв бумаги

Авто, ручной, короткий,Auto@FF

Звук

Нет,Да

черной метки

Нет,Да

Pressure lever

Invalid,Standard,Speed

Tally Dascom 1140

Установки интерфейса Valid Settings

PnP

Нет,Да

USB ID

Нет,Да

Настройка символов Valid Settings

Таблица знаков

Курсив

Графика

Группа символов

Группа I, группа II

Набор знаков

USA, France, Germany, UK, Дания-I, Sweden, Italy, Spain-I,

Japan, Норвегия, Дания II, Spain II, Латинская Америка,

Дания/Норвегия, Китай

Font

Draft

DraftCond,Quadrato,QuadratoCond,Courier,CourierCond,

OCR B,OCR A

знаков/дюйм (cpi)

10, 12, 15, 17, 20, PS

Кодовая таблица

CP437, CP737…

Высокaя скорость

Нет, Да

Другие настройки Valid Settings

длинa формyляp Ctrl

Нет, Да

скорости Ctrl

Нет, Да

Шaг Ctrl

Нет, Да

ШpиФт Ctrl

Нет, Да

однонаправленной Ctrl

Нет,Да

5.5.3 Italian (Italiano)

Setup sistema Impostazioni Valide

Linguaggio

English,Deutsch,Poccия,Italiano,Français,Español,Türkçe,

Portuguese

Emulazione

ESC/P2, IBM 2380+

Auto CR (ESC/P2)

No, Si

Auto CR (IBM)

No, Si

Auto LF

No,Si

Direz.Stampa

Bi-Dir, Uni-Dir

Zero

0,Ø

Veloc. Grafica

Normale, Veloce

Primo ago rotto

No, 1, 2, 3, 4, 5, 6, 7, 8, 9

Secondo ago rotto

No, 1, 2, 3, 4, 5, 6, 7, 8, 9

Modo Impatto

Normale, Pesante

Tally Dascom 1140

Imposta carta Impostazioni Valide

Lunghezza Foglio

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4,

B4, Definito

Margine Sup. Foglio

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definito

Margine Infer. Foglio

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definito

Regola foglio a SX

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Definito

Regola Sup.Foglio

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Autocaricamento

Non valid, 0.5sec, 1sec, 1.5sec, 2sec

Lungh. Mod. Continuo

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4,

B4, Definito

Margine Superiore

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definito

Mar. Inf. Continuo

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definito

Regola a SX continuo

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Definito

Regola Sup.continuo

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Salto Perforazione

No,Si

Strappo

Auto STP, STP manuale, STP corto,Auto@FF

Cicalino

No, Si

Segno nero riferim

No,Si

Pressure lever

Invalid,Standard,Speed

Setup IF Impostazioni Valide

PnP

No, Si

ID USB

No,Si

Imposta caratteri Impostazioni Valide

Tabella Caratteri

Italico, Grafica

Gruppo Carattere

Groupo 1, Groupo 2

Set Carat. Int.

USA,Francia, Germania, Regno Unito, Danimarca I, Svezia,

Italia, Spagna I, Giappone, Norvegia, Danimarca II, Spagna II,

Sudamerica, Danimarca/Norvegia, Porcellana

Font

Draft

DraftCond,Quadrato,QuadratoCond,Courier,CourierCond,

OCR B,OCR A

Spaziatura(cpi)

10, 12, 15,17, 20,PS

Code Page

CP437, CP737…

Tally Dascom 1140

HS-Bozza

No, Si

Altri Setup Impostazioni Valide

Comando lunghezza

No, Si

Comando velocità

No, Si

Comando Spaziatura

No, Si

Comando Fonte

No, Si

Comando stampa mono

No,Si

5.5.4 French (Français)

Réglage papier Paramètres Valides

Feuille LongPage

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4,

B4, Définie

Bord Sup.Feuille

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Définie

Bord Inf.Feuille

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Définie

Marge Gauche Feuille

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Définie

Marge Haute Feuille

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Chargem. Autom

Non, 0.5sec, 1sec, 1.5sec, 2sec

Listing Longpage

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4,

B4, Définie

Setup Système Paramètres Valides

Language

English,Deutsch,Poccия,Italiano,Français,Español,

Türkçe,Portuguese

Emulation

ESC/P2, IBM 2380+

RC-Auto (ESC/P2)

Non, Oui

RC-Auto (IBM)

Non, Oui

SL-Auto

Non,Oui

Dir Impr

Bidir, Unidir

Zéro

0,Ø

Vitesse graphiq.

Normal, Rapide

Changer aiguille 1

Non, 1, 2, 3, 4, 5, 6, 7, 8, 9

Changer aiguille 2

Non, 1, 2, 3, 4, 5, 6, 7, 8, 9

Mode Impact

Normal, Fort

Tally Dascom 1140

Listing Bord Sup.

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Définie

Listing Bord infér

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Définie

Listing Marge Gauche

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Définie

Listing Marge Haute

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Saut perforation

Non,Oui,

Réglage papier Paramètres Valides

Coupe

Auto,Manuelle,Courte,Auto@FF

Alarma

Non, Oui

Mode Repère Noir

Non,Oui

Pressure lever

Invalid,Standard,Speed

Config Interface Paramètres Valides

PnP

Non, Oui

USB ID

Non ,Oui

Parametrage cartere Valid Settings

Table caractere

Italique, Graphique

Groupe Caractères

Groupe 1, Groupe 2

Pays

USA, France, Allemagne, Royaume-Uni, Denmark I, Suède,

Italie, Espagne, Japon, Norvège, Denmark II, Espagne II,

Ameriquelat, Denmark/Norvège, Chine

Font

Draft

DraftCond,Quadrato,QuadratoCond,Courier,CourierCond,O

CR B,OCR A

Espacement(cpi)

10, 12, 15, 17, 20, PS

Code Page

CP437, CP737…

HS-Draft

Non, Oui

Autre réglage Paramètres Valides

Ctrl LongPage

Non, Oui

Ctrl Vitesse Impr.

Non, Oui

Ctrl Espacement

Non, Oui

Ctrl Fonte

Non, Oui

Ctrl Impr. Uni-Dir

Non ,Oui

Tally Dascom 1140

5.5.5 Spanish (Español)

Ajustes Sistema Ajustes validos

Lenguage

English,Deutsch,Poccия,Italiano,Français,Español,

Türkçe,Portuguese

Emulación

ESC/P2, IBM 2380+

Auto CR (ESC/P2)

No, Si

Auto CR (IBM)

No, Si

Auto LF

No,Si

ModoImpresión

Bi-Dir, Uni-Dir

Cero con barra

0,Ø

Imp.Grafica

Normal, Rápido

Sust.1er pin roto

Non, 1, 2, 3, 4, 5, 6, 7, 8, 9

Sust.2do pin roto

Non, 1, 2, 3, 4, 5, 6, 7, 8, 9

Modo de Impacto

Normal, Fuerte

Config. Papel Ajustes validos

Tam. Hojas Sueltas

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4, B4,

Definido

Margen Sup. Hoja S.

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definido

Margen Inf. Hoja S

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definido

Marg. Izq. Hoja S.

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Definido

Marg. Sup. Hoja S.

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Auto Carga

Inválido, 0.5sec, 1sec, 1.5sec, 2sec

Tam.Papel Continuo

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4, B4,

Definido

Mar.Sup. Pap. Con

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definido

Mar. Inf. Pap.Cont.

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definido

Marg. Iz. Pap. Cont.

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Definido

Marg. Sup. Pap. Cont.

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Salto perforación

No,Si

Corte

Automático, Manual, Corto,Auto@FF

Tally Dascom 1140

Alarma

No, Si

Modo Marca Negra

No,Si

Pressure lever

Invalid,Standard,speed

Conf. Interface Ajustes validos

PnP

No, Si

ID USB

No,Si

Menú Carácter Ajustes validos

Tabla de Caracteres

Italic, Grafica

Grupo de Caracteres

Grupo 1, Grupo 2

Juego Carácter Int.

USA, Francia, Alemania, Reino Unido, Dinamarca I, Suecia,

Italia, España, Japón, Noruega, Dinamarca II, España II,

AméricaLat, Dinamarca, China

Tamaño Letra(cpi)

10, 12, 15, 17, 20, PS

Font

Draft,DraftCond,Quadrato,QuadratoCond,Courier,CourierCon

d,OCR B,OCR A

Tabla Carácter

CP437, CP737…

Alta Velocidad

No, Si

Config. Otros Ajustes validos

Cmd. Long. de Hoja

No, Si

Cmd. Vel. Impresión

No, Si

Cmd. Tamaño Letra

No, Si

Cmd.Fuente

No, Si

Cmd. Imp. Uni-dir

No,Si

5.5.6 Turkish (Türkce)

Sistem Ayari

Valid Settings

Lisan

English,Deutsch,Poccия,Italiano,Français,Español,

Türkçe,Portuguese

Emülation

ESC/P2, IBM 2380+

Otom. Satırbaşı (ESC/P2)

Hayır, Evet

Otom. Satırbaşı (IBM)

Hayır, Evet

Otom. Satır besleme

Hayır,Evet

Yazdırma yönü

Ÿki-Yöne Tek-Yöne

Sıfır Sayısı

0,Ø

Grafik Hızı

Normal, Hızı

Tally Dascom 1140

Arızalı 1. iğne yed

Hayır, 1, 2, 3, 4, 5, 6, 7, 8, 9

Arızalı 2. iğne yed

Hayır, 1, 2, 3, 4, 5, 6, 7, 8, 9

Vuruş modu

Normal, Güçlü

Kağıt Ayarı Geçerli ölçüler

Tek kağıt uzunluğu

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4,

B4, Oto.Tanım.

Tek-kağıt Üst boşluğu

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Oto.Tanım.

Tek-kağıt Altkenar

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Oto.Tanım.

Tek-kağıt Sol ayar

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Oto.Tanım.

Tek-kağıt Üst ayar

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Otom. Yükleme

Geçersiz, 0.5sec, 1sec, 1.5sec, 2sec

Sürekli Kağıt Uzunluğu

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4,

B4, Oto.Tanım.

Sürekli Üst Marj

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Oto.Tanım.

Sür. Form Kğt Alt

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Oto.Tanım.

Sür Form Kğt Sol

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Oto.Tanım.

Sür Form Kğt Üst

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Delik atlama

Hayır, Evet

Kağıt Kesme

Oto.kesim,Elle kesim ,kisa kesim, Auto@FF

ikaz

Hayır, Evet

Siyah Çizgi algı

Hayır, Evet

Pressure lever

Invalid,Standard,Speed

Arabirim Ayarı Geçerli ölçüler

PnP

Hayır, Evet

USB ID

Hayır,Evet

Karakter ayarı Geçerli ölçüler

Karakter tablosu

ÿtalik, Grafik

Karakter Grubu

Grup 1, Grup 2

Karakter setleri

Amerika, Fransa, Almanya, İngiltere, Danimarka I, İsveç,

İtalya, İspanya, Japonya, Norveç, Danimarka II, İspanya II, Ltn

Amerika, Danimarka, Çin

Font

Draft,DraftCond,Quadrato,QuadratoCond,Courier,CourierCon

Tally Dascom 1140

d,OCR B,OCR A

Karakter Sıklığı (cpi)

10, 12, 15, 17, 20, PS

Kod Sayfası

CP437, CP737..

Yük.Hız-Taslak

Hayır, Evet

Diğer Ayarlar Geçerli ölçüler

Kğt Uzunluk Komutu

Hayır, Evet

Baskı Hızı Komutu

Hayır ,Evet

Karak.Aralık Kont.

Hayır ,Evet

YazıTipi Komutu

Hayır ,Evet

Tek yön bask Komutu

Hayır,Evet

5.5.7 Portuguese

Config. Sistema Valid Settings

Linguagem

English,Deutsch,Poccия,Italiano,Français,Español,

Türkçe,Portuguese

Emulação

ESC/P2, IBM 2380+

Auto CR(ESC/P2)

Não, Sim

Auto CR(IBM)

Não, Sim

Auto LF

Não, Sim

Direção Imp.

Bi-Dir, Uni-Dir

Zero

0,Ø

Imp.Grafica

Normal,Rápido

Substituiço Pino 1

No, 1, 2, 3, 4, 5, 6, 7, 8, 9

Substituiço Pino 2

No, 1, 2, 3, 4, 5, 6, 7, 8, 9

Modo de Impacto

Normal, Forte

Config. Papel Valid Settings

Tam.Folha Solta

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4,

B4, Definido

Margem Topo Folha

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definido

Margem Inf. Folha

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definido

Margem Esq.Folha

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Definido

Tally Dascom 1140

Margem Dir.Folha

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Carreg.Auto

Desativo, 0.5sec, 1sec, 1.5sec, 2sec

Tam.Form.Cont.

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4,

B4, Definido

Mar.Topo Form.Cont.

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definido

Mar.Inf. Form.Cont.

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definido

Mar.Esq. Form.Cont.

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Definido

Marg.Topo Form.Cont.

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Salte perfuração

Não, Sim

Corte

Automático, Manual, Curto,Auto@FF

Cigarra

Não, Sim

Modo Marca Preta

Não, Sim

Pressure lever

Invalid,Standard,Speed

Confi.Interface Valid Settings

PnP

Não, Sim

ID USB

Não, Sim

Config. Caráter Valid Settings

Tabela de carateres

Italic, Graphic

Grupo de carateres

Group 1, Group 2

Conj.carateres Int.

EUA, França, Alemanha, Reino Unido, Dinamarca, Suécia,

Itália, Espanha, Japão, Noruega, Dinamarca II, Espanha II,

América Lat, Dinamarca, China

Font

Draft,DraftCond,Quadrato,QuadratoCond,Courier,CourierCon

d,OCR B,OCR A

Passo(cpi)

10, 12, 15, 17, 20, PS

Página de Código

CP437, CP737..

Alta Velocidad

Não, Sim

Config. Outros Valid Settings

Cmd.Tam.de Folha

Não, Sim

Cmd.Vel.Impresso

Não, Sim

Cmd.Passo

Não, Sim

Cmd.Fonte

Não, Sim

Cmd.Imp.Uni-dir

Não, Sim

Tally Dascom 1140

5.6 Black Mark Parameters

This printer uses tractors to load fanfold forms with pre-printed black marks.

The printer requires 3 parameters to print on paper with black marks:

1. Horizontal offset of black mark from the edge of page (called Black Mark Physical

Horizontal Position); later on, this value facilitates the printer to locate its scanner

preparing for identifying the black marks.

2. Vertical offset of the first print line from the black mark (called Distance Offset From

Black Mark To Print Position); later on, the print makes use of this value to print the first

line relative to the black mark.

3. Vertical offset of the tear-off edge from the black mark (called Distance Offset From

Black Mark To Tear Position); this value informs the printer the tear-off position of the

page.

Not to skip or change the order of setting the above 3 parameters.

The procedures to set the parameters:

1. Hold down the Tear key while powering on the printer and then release the key when

the print head starts to move. After loading paper, the printer prompts the Printer

Settings

Printer Settings

[TEAR]=Back, [LF]=Next, [LOAD/EJECT]=OK, [ONLINE]=Exit,

[ONLINE]+[LOAD/EJECT]=Save and restart the printer.

System Setup

2. Press the Next or Back keys to scroll forward or backward the sub-menus till the printer

shows:

BlackMark Mode

3. Press OK to go into the BlackMark menu. The printer prompts:

[Black Mark Adjustment Mode]

[TEAR]= Back, [LF]= Next, [LOAD/EJECT]=OK, [ONLINE]=Exit,

[ONLINE]+[LOAD/EJECT]= Save and restart the printer.

Black Mark Physical Horizontal Position

Press any key to eject the paper, and load paper with black mark in the Fanfold

Path.

4. The last prompt above advises you to press any key to unload the dialog form. Then

load a fanfold form with black mark.

Tally Dascom 1140

5. Ensure to place the lever at position. Then press the Load/Eject key to load the black

marked form. The top edge of the form will then align with the printer’s tear-off blade.

Press Next or Back until you see the black mark marginally exposed out of the tear-off

blade. Then press OK to allow the printer to scan the horizontal offset of the black mark

relative to the left edge of the page. (Meanwhile, the vertical position of the black mark

is measured and recorded.)

When the printer fails to scan the horizontal offset, it prompts you to repeat the above

procedures. If scanning is successful, it prompts:

Successfully setup black mark parameters.

Distance Offset From Black Mark To Print Position

6. The last prompt above invites you to set the next parameter --- vertical offset of the first

print line from the black mark. Like other setting dialogs, you have options:

1) to bypass this setting (by pressing Next or Back), (WARNING: Not to skip or change

the order in Black Mark Setting.)

2) to accept the invitation (by pressing OK),

3) to leave the subsequent settings (by press Exit), or

4) to terminate the session and save modified parameter(s) (by pressing Save and

Restart).

7. When you respond with “OK” to set the vertical offset, the printer prompts you to reload

a black marked fanfold form:

Press any key to eject the paper, and load paper with black mark in the Fanfold

Path.

The top edge of the form will then align with the printer’s tear-off blade. Press Next or

Back to feed or reverse-feed the paper till the desired first print line position is reached.

(With the above measured vertical position, the printer will convert the net paper feeding

to the TOF relative to the black mark.) Press OK to confirm the vertical offset. Then the

print prompts the invitation for setting the tear-off position relative to the black mark:

Successfully setup black mark parameters.

Distance Offset From Black Mark To Tear Position

8. When you respond with OK to set the tear-off position, the printer prompts you to reload

a black marked fanfold form:

Press any key to eject the paper,and load paper with black mark in the Fanfold

Path.

The printer reloads the form. By default the form stops 5.5 inches away from the

printer’s tear-off blade. Press Next or Back to feed or reverse-feed the paper till the

desired tear-off position is reached. (With the above measured vertical position, the

printer will convert the net paper feeding to the tear-off position relative to the black

mark.) Press OK to confirm the tear-off offset relative to the black mark. Finally, press

Save and Restart to save new settings and terminate the session.

Tally Dascom 1140

5.7 Bidirectional Alignment

When wiggling vertical grids appears in tabular reports, you should adjust the Bidirectional

Alignment. The procedures to adjust bi-directional alignment across adjacent line grids:

1. Hold down the Tear key while powering on the printer and then release the key when

the print head starts to move. After loading paper, the printer prompts the Printer

Settings.

Printer Settings

[TEAR]=Back, [LF]=Next, [LOAD/EJECT]=OK, [ONLINE]=Exit,

[ONLINE]+[LOAD/EJECT]=Save and restart the printer.

System Setup

2. Press the Next or Back keys to scroll forward or backward the sub-menus till the printer

shows:

Bi-directional Alignment

3. Press OK to go into the Bi-directional Test menu. The printer prompts:

[Bi-direction Alignment]

[TEAR]=-1, [LF]=+1, [LOAD/EJECT]=OK, [ONLINE]=Back,

[ONLINE]+[LOAD/EJECT]=Save and restart the printer

| | | | | | | | | | | | | | |

4. Every press on “+1” or “-1” shifts the second line to the right or left, respectively, relative

to the top line by 1 fine step. After pressing “+1” twice and then “OK”, the printer

prompts:

| | | | | | | | | | | | | | |

5. Repeat the adjustment till two grid lines align satisfactory as “|”. Press “OK” again. The

printer asks if you want to save the correction:

Save the parameter settings ([LOAD/EJECT] or [ONLINE] = OK, [LF] = Next)?

Yes

At this stage, you have the options to save or give up the correction by pressing OK or Next,

respectively. If you respond with OK, an asterisk “*” appends to “Yes” to confirm saving

change.If you intend to give up the correction by pressing Next, the printer prompts a “No”

Then a confirmative response of OK appends an asterisk “*” to the “No” prompt.

The printer then exits the Bi-directional Test and proceeds with the next setup menu.

Tally Dascom 1140

5.8 Restore Factory Default

The procedures to restore factory default settings:

1. Hold down the Tear key while powering on the printer and then release the key when

the print head starts to move. After loading paper, the printer prompts the Printer

Settings

Printer Settings

[TEAR]=Back, [LF]=Next, [LOAD/EJECT]=OK, [ONLINE]=Exit,

[ONLINE]+[LOAD/EJECT]=Save and restart the printer.

System Setup

2. Press the Next or Back keys to scroll forward or backward the sub-menus till the printer

shows:

Restore Factory Defaults

3. Press OK to go into restore factory default dialog. The printer prompts:

[Restore Factory Defaults]

Restore factory settings ([LOAD/EJECT]=OK, [ONLINE]=Exit)?

Yes

4. At this stage you have the option of OK to restore default setting or Exit to discard the

restoration.

5. If input OK, the printer prints an asterisk “*” appending the “Yes” and prompts

successful restoration:

Restore factory settings successfully

6. The printer beeps once to indicate successful restoration.

Tally Dascom 1140

6 Customized Form

This printer allows the customization on the form length, Load/Eject, bottom margin and left

margin for single sheets and fanfold. Restore Factory Defaults can recover these default

values.

Selecting the Define value(s) in section 5.2 (Paper Setup menu) allows the printer to take up the

customized page formatting value(s).

The parameter setting procedures involve:

1. The printer prompts the dialogs and you follow the prompts.

2. Before every measurement or change, the print instructs you to unload the conversation

form from the printer.

3. With the exception of measuring the form length for cut sheets, always set the lever to

the tractors position .

4. For form length measurement, insert the customized form from the proper paper path.

The other six settings are actually done on general fanfold forms --- not the actual

customized form. Fanfold paper gives direct visual results on the TOF, bottom and left

margins even though cut sheets will be used in actual applicati

6.1 Customize Cut Sheet Form Length

1. Hold down both the Online and TOF keys while powering on the printer and then

release the keys when the carriage initializes and beeps once. After loading a form the

printer prompts:

Customize Form

[TEAR]=Back, [LF]=Next, [LOAD/EJECT]=OK, [ONLINE]=Exit,

[ONLINE]+[LOAD/EJECT]=Save and restart the printer.

Single sheet

2. Press “OK” to start customizing all or part of 4 parameters for single sheet. The printer

prompts:

[Single sheet]

Form Length

Tally Dascom 1140

3. You may skip to other customized settings by pressing “Next” or “Back”. Once you

press “OK” to continue with form length measurement, the printer prompts:

1.Press any key to clear the Setup Instructions Page from the printer. Insert

the Customized Page into the corresponding paper path. Press [LOAD/EJECT] to

load and measure the page length.

2.The printer rolls over the entire Customized Page to measure its length.

After measurement, press [LOAD/EJECT] to load a blank Setup Instructions Page

to report the measured value.

3. Press [LOAD/EJECT] to save the measured value.Repeat the above steps if the

printed value is dissatisfactory.

illustrations for above step 1 and step 2.

4. Follow the given prompt to unload the conversation form. Load the customized form to

allow the printer to scan the page length. After the measurement, load another

conversation form to let the printer print out the measured length.

The measured form length is: 11.0Inch, approximately equal to 279mm,

accuracy of plus or minus 0.1 inches.

The measured value has been saved. Remeasure ( [LOAD/EJECT]=OK, [ONLINE] =Exit)?

Yes

Tally Dascom 1140

5. At this stage:

If Load/Eject is pressed, an asterisk “*” is appended to “Yes” and you should repeat the

procedures for form length measurement as mentioned. Or,

If you input “Exit”, the printer saves the measurement value and proceeds with the next

customized setting.

6.2 Customize Cut Sheet TOF

1. After you follow through all the steps in 6.1 or you input “Next” in step 3 in 6.1, the

printer prompts:

Top Margin

2. You may skip to other customized settings by pressing “Next” or “Back”. Once you

press “OK” to continue with customization of cut sheet TOF, the printer prompts:

Press any key to eject current page, load paper in the Fanfold paper path, and then

proceed as follows:

[TEAR] = -(1/72) inch, [LF] = +(1/72) inch, [LOAD/EJECT] = OK, [ONLINE] = Exit,

[ONLINE] + [LOAD/EJECT] = Save and restart the printer.

3. Follow the given prompt to unload the conversation form. Ensure the lever is at

position. Then press the Load/Eject key to load fanfold paper from tractors. The top

edge of the form initially aligns with the printer’s tear-off blade. You may input +/- 1/72”

to adjust the TOF position. When you get the desirable TOF, press OK or Exit. The

printer prompts the customized TOF value:

The defined position is: 4.2 mm.

Save the parameter settings ([LOAD/EJECT] or [ONLINE]=OK, [LF]=Next)?

Yes

4. At this stage:

If Load/Eject is pressed, an asterisk “*” is appended to “Yes” and you should repeat the

procedures for form length measurement as mentioned. Or,

If you input “Exit”, the printer saves the measurement value and proceeds with the next

customized setting.

6.3 Customize Cut Sheet Bottom Margin

1. After you follow through all the steps in 6.2 or you input “Next” twice in step 3 in 6.1, the

printer prompts:

Bottom Margin

2. The remaining operations are nearly the same as described in section 6.2. The only

difference is to input +/- 1/72” till you get the desirable bottom margin.

Tally Dascom 1140

6.4 Customize Cut Sheet Left Margin

1. After you follow through all the steps in 6.3 or you input “Next” three times in step 3 in

6.1, the printer prompts:

Left Margin

2. The remaining operations are nearly the same as described in section 6.2. The only

difference is to input +/- 1/72” till you get the desirable left margin.

6.5 Customize Fanfold Page Formatting Parameters

The customizations of the form length, TOF, bottom and left margins for fanfold are exactly

the same as describe. All you need is to bypass the Single Sheet menu under Customize

Form. Follow step 1 in section 6.1:

Customize Form

[[TEAR]=Back, [LF]=Next, [LOAD/EJECT]=OK, [ONLINE]=Exit,

[ONLINE]+[LOAD/EJECT]=Save and restart the printer.

Single sheet

Then hit “Next” instead to get into the fanfold parameter menus:

[Tractor Paper]

Form Length

Refer section 6.1 to 6.4 for details on customizing the form length, TOF, bottom margin, and

left margin for fanfold.

Tally Dascom 1140

7 Maintenance

Your printer requires very little care. Occasional cleaning and replacement of the ribbon

cartridge are all that is required. Cleaning is recommended approximately every 6 months

or 300 hours of operation, whichever is sooner. Lubrication of the printer is not usually

necessary. If the print head carriage does not move smoothly back and forth, clean the

printer in the manner described in this chapter. If the problem continues, contact your dealer

to determine whether lubrication may be necessary.

Switch printer off and unplug the power cord from the main before doing any

maintenance work.

7.1 Cleaning

The housing and the top cover of the printer help protect it against dust, dirt, and other

contaminants. However, paper produces small particles that accumulate inside the printer.

This section explains how to clean and vacuum the printer and how to clean the paper bail

rollers. It is easier to clean the printer when the cover is open.

7.2 Cleaning and Vacuuming the Printer

If the print head carriage does not move smoothly back and forth or paper particles have

accumulated in the printer, clean the printer.

To clean and vacuum the printer:

1. Remove any paper from the printer. Make sure that the power is off, and then

disconnect the printer power cord.

2. Using a soft vacuum brush, vacuum the exterior of the printer. Also vacuum the cut

sheet edge.

3. Use a soft, damp cloth to wipe the exterior of the printer, including the cover. A mild

detergent may be used. Do not use solvents, kerosene, or abrasive cleaning materials

that may damage the printer.

4. Open the cover of the printer and remove the ribbon cartridge. Using a soft vacuum

brush, gently vacuum the platen, the print head carriage and shaft, and surrounding

areas. You can easily slide the print head to the left or right when the power is off. Be

careful not to press too hard on the flat head cable that extends from the print head

carriage.

5. Re-install the ribbon cartridge.

6. Remove the single sheet feeder and clean the form tractors and the surrounding areas.

7. Re-install the single sheet feeder.

Tally Dascom 1140

7.3 Cleaning the Paper Rollers

Clean the platen and paper bail rollers occasionally or when stains or smudges appear on

the paper. Use a mild detergent as appropriate. Do not use alcohol to clean the platen or

the rollers. Alcohol may cause the rubber to harden.

To clean the rollers and the platen:

1. Apply a small amount of water to a soft cloth. Avoid spilling liquid inside the printer.

2. Place the cloth against the platen and manually rotate the paper feed knob.

3. Repeat this procedure for each roller.

4. To dry the platen, place a dry cloth against the platen and the rollers and manually

rotate the paper feed knob.

Tally Dascom 1140

8 Troubleshooting

Your printer is extremely reliable, but occasionally problems may occur. This chapter provides

information on some of the common problems you may encounter and how you may solve

them. If you encounter problems that you cannot resolve, contact your dealer or service

partner for assistance.

8.1 Print Quality Problems and Solutions

Problem

Solution

Printing is too light or too

dark.



Make sure that the ribbon cartridge is properly installed

and that the ribbon feeds smoothly.

 Replace the ribbon if necessary.

 Make sure that the print gap lever is set for the thickness

of your paper.

Smears and stains appear on

the page.

 Make sure that the print gap lever is set for the thickness

of your paper.

 Check for ribbon wear. Replace the ribbon if necessary.



Check whether the tip of the print head is dirty. Clean the

head with a soft cloth if necessary.

 The print head may need to be replaced.

Printing is erratic or the wrong

characters are printed. Many

“?” or unexpected characters

are printed.



Make sure that the interface cable is securely connected

to both the printer and computer.



Make sure that the printer driver selected in your software

is the same as the emulation selected on the printer.

 Check the length of the interface cable. (Maximum

Parallel & USB: 2 meters, Serial: 15 meters)



Try another interface cable.

The page is blank.  Make sure that the ribbon cartridge is properly installed.

 Make sure the gap lever is set correctly.

Printing is vertically

misaligned (jagged).

Use the printer's vertical alignment function to check the

vertical print alignment. If necessary, adjust the print

alignment

The top margin is wrong.



Check the application top margin setting.

 Adjust the Top Margin setting in Page Setup menu if

necessary.

Lines are double spaced

instead of single spaced.



Change the Auto LF setting in the System Setup menu to

No.

The printer overprints on the

same line.



Change the Auto CR setting in the System Setup menu

to No.

The next print line starts

where the previous line ended

instead of at the left margin.

 Change the Auto CR setting in the System Setup menu

to Yes.

Tally Dascom 1140

8.2 Paper Handling Problems and Solutions

Problem Solution

Paper cannot be loaded or

fed.

 Make sure that the paper select lever located on the top

right of the printer is set correctly. Move the lever to the

front for single sheets or to the rear for continuous

forms.

 Make sure that the paper covers the paper-out sensor.

Paper jams while loading.

 Turn off the printer and remove the jammed paper.

Remove any obstructions from the paper path.

 Make sure that the Print Gap lever is set for the

thickness of your paper.

 Make sure that the paper is not folded, creased, or torn.

 Make sure that the left and right tractors are set so that

the continuous forms are stretched taut.

Paper jams while printing.



Turn off the printer and remove the jammed paper.

Remove any obstructions from the paper path.

 Make sure that the Print Gap lever is set for the

thickness of your paper.

 For continuous forms, make sure that the incoming and

outgoing paper stacks are correctly placed. Paper

should feed straight.

Paper slips off the forms

tractors or the perforated

holes of the paper tear during

printing.

Make sure that the forms tractors are positioned correctly

for the width of your paper and that the perforated holes of

the paper fit directly over the tractor pins.

Tally Dascom 1140

8.3 Operating Problems and Solutions

Problem Solution

The power does not turn

on.



Check whether the mains voltage is correct.

 Make sure that the power cord is securely connected to

both the printer and the mains power outlet.

 Make sure that the power outlet is functional. If not so, use

other outlet.

 Turn the power off. Wait a minute and then turn the printer

on again. If the printer still has no power, contact your

dealer.

The printer is on but it will

not print.



Make sure that the Online indicator is lit.

 If you use the interface cable, make sure it is securely

connected to both the printer and the computer.

 Make sure paper is loaded.

 Run the printer Status Page. If printing executes normally,

the problem is caused by: the interface, the computer,

incorrect printer settings, or incorrect software settings.

 Make sure that the printer driver selected in your software

is the same as the emulation selected on the printer.

Paper select lever error

If paper is loaded and the paper select lever is moved to the

incorrect position, the printer turns offline, and the buzzer

sounds continuously. Switch the paper select lever back to its

correct position.

8.4 Printer Failures

A user cannot generally resolve a problem involving defective printer hardware. Power off

and on again the printer to recover any fatal error. If the problem cannot be resolved, contact

your dealer or service partner.

Tally Dascom 1140

8.5 Error Indications on LEDs

Error Description Power LED Font1 LED Font2 LED Online

LED Buzzer Sound

Printhead too hot

Flashing

No change

Flashing

None

Paper path

switching trouble

Flashing No change No change Flashing Continuous

Paper jam

Flashing

No change

Once

Paper End

Flashing

No change

Off

Once

Carriage initial

position

Off Off Flashing Flashing Continuous

Raster reading

trouble

Off Off Flashing Flashing Continuous

Paper sensor

failure

Flashing No change No change Off Once

Paper width

trouble

Flashing No change No change Off None

Print head

thermal sensor

failure

Off Off Off Flashing None

8.6 Diagnostic Functions

The printer diagnostic functions are Self-Test page, hex-dump mode and print alignment

adjustment.

 Self-Test page: Tells you whether the printer hardware is functioning correctly. If the printer

hardware is functional, any problems you are having are probably caused by incorrect

printer settings, incorrect software settings, the interface, or the computer.

 HEX-DUMP MODE: Allows you to determine whether the computer is sending the correct

commands to the printer, and whether the printer is executing the commands correctly.

This function is useful to programmers or others who understand how to interpret hex

dumps.

PRINTING ALIGNMENT ADJUSTMENT: Allows you to check and, if necessary, correct the

printer’s vertical line print alignment in bi-directional mode.

For details on using these functions, please refer to chapters 4 and 5.

Tally Dascom 1140

8.7 Firmware Update

Sometimes it is necessary update the firmware to solve a problem. The latest firmware file

may be obtained from your dealer or downloaded from our website www.dascom.com. Before

updating firmware, it is strongly recommended to print the Main Menu page to keep a record

of the old settings.

Note: Firmware update should only be performed by an authorized service person. We

disclaim any responsibility for any damage caused if it is performed by any other person.

To load new firmware, proceed as follows:

1. Switch off the printer. Connect your PC to the USB port on the printer.

2. Link Configuration Tool and then click “Firmware Update” as shown in below picture:

3. Click “Browse” to choose program file and character set, then Click “Start” ,following

message is prompted. Click “OK”.

Tally Dascom 1140

4. Enter download process and it is shown as below picture. In this process, L1 and L2 are

on; And L3 and L4 are blinking.

Tally Dascom 1140

5. When download is completed, the carriage returns to home position. Printer initializes

normally.

Tally Dascom 1140

9 General Specifications

Printing method

Serial impact dot matrix

Printing direction

Bi-Directional logic seeking character, graphics

Bi-Directional or Uni-Directional selection

Print Speed

Pitch

10 CPI

12 CPI

15 CPI

NLQ

75/240H

90/240H

75/360H

Draft

300/120H

360/120H

---

HS Draft(CPS/DPI)

400/90H

---

Font Matrix

Pitch NLQ Draft HS Draft(Matrix/DPI)

10 CPI 24H*18V/240 12H*9V/120 9H*9V/90

12 CPI 20H*18V/240 10H*9V/120 ---

15 CPI 24H*18V/360 --- ---

Print Head Number of pins: 9 pins

Pin diameter: 0.3 mm

Life: 300 million strokes/pin @ Draft mode

Graphics

8-bit mode: 8V x 60H, 72H,80H, 90H, 120H, 144H,240H (DPI)

Paper Feed Speed

Continuous feed: 4.0 IPS (inches per second)

Resolution

240x 144 DPI maximum

Printable Columns

Characters per line (CPL)

10 CPI: 80 CPL

12 CPI: 96 CPL

15 CPI: 120 CPL

17.1 CPI: 136 CPL

20 CPI: 160 CPL

Built-In Fonts

Bitmap Fonts:

1.Draft 10, 12, 15, 17.1CPI,

2. Quadrato 10, 12, 15, 17.1, 20CPI,Proportional

3. Courier 10, 12, 15, 17.1, 20CPI, Proportional

4. HS-draft 10CPI

5. OCR-A

6. OCR-B

Barcodes

1. EAN-13

2. EAN-8

3. Interleaved 2 of 5

4. UPC-A

5. UPC-E

6. Code 39

7. Code 128

8. POSTNET

Tally Dascom 1140

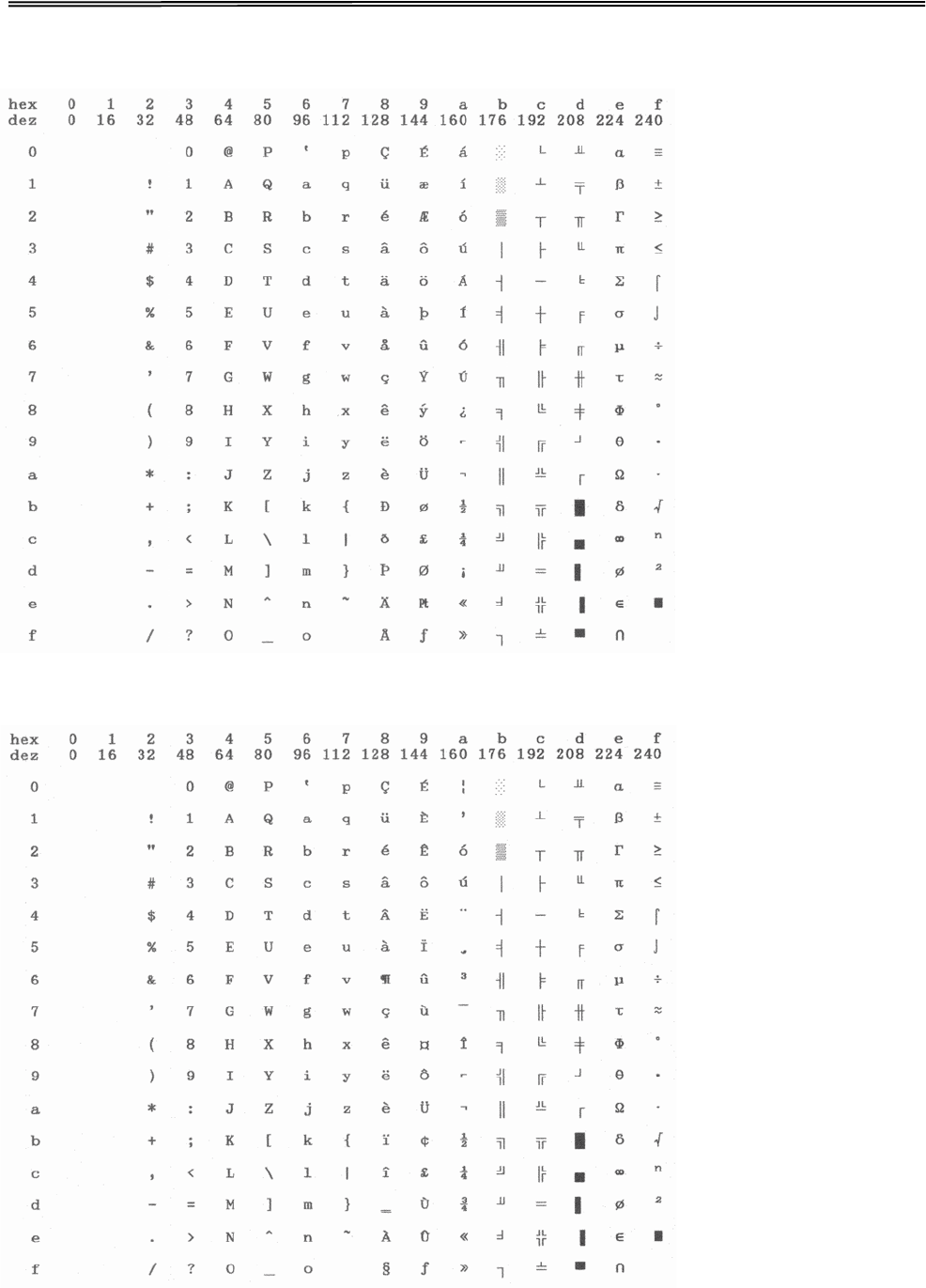

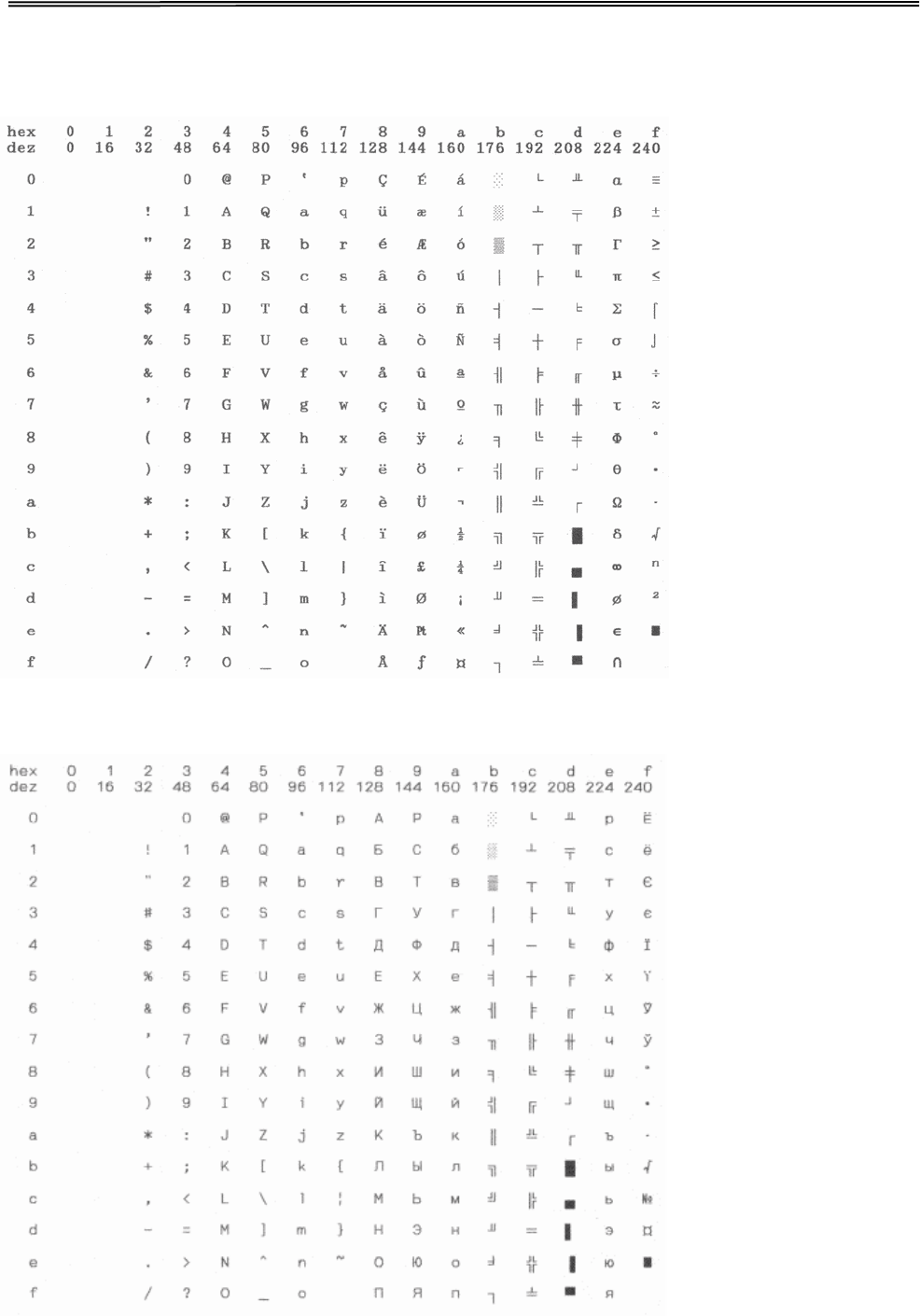

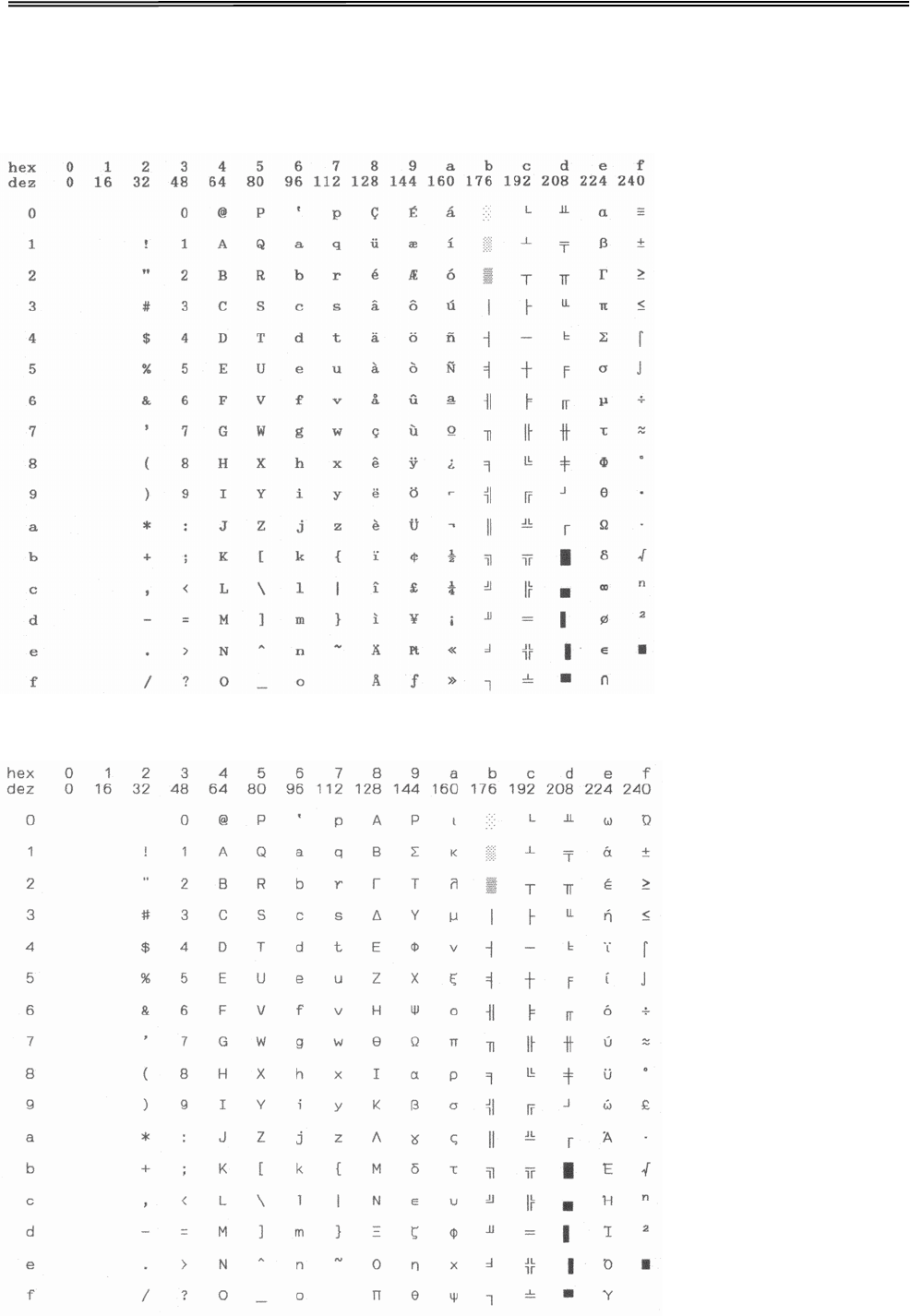

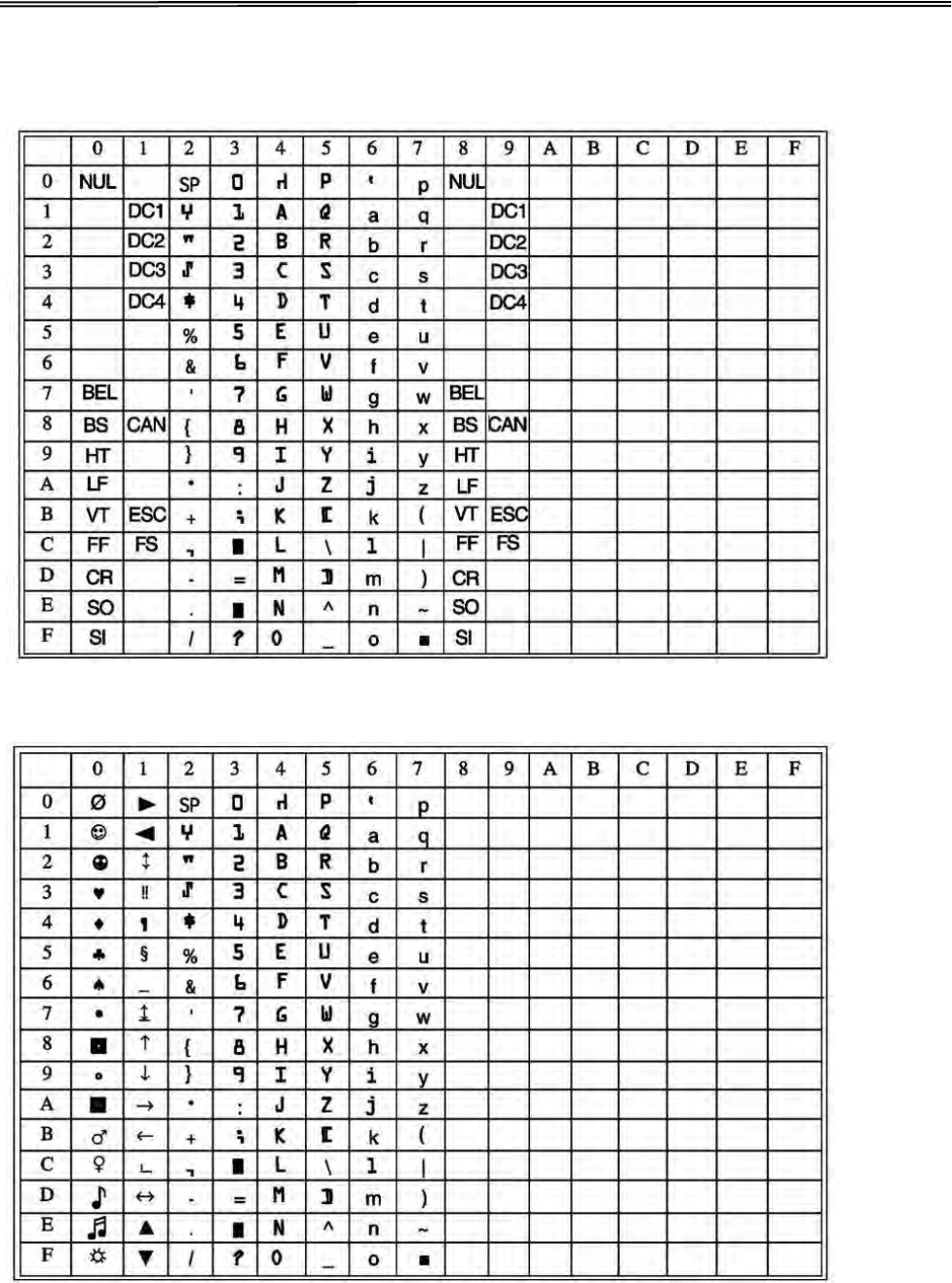

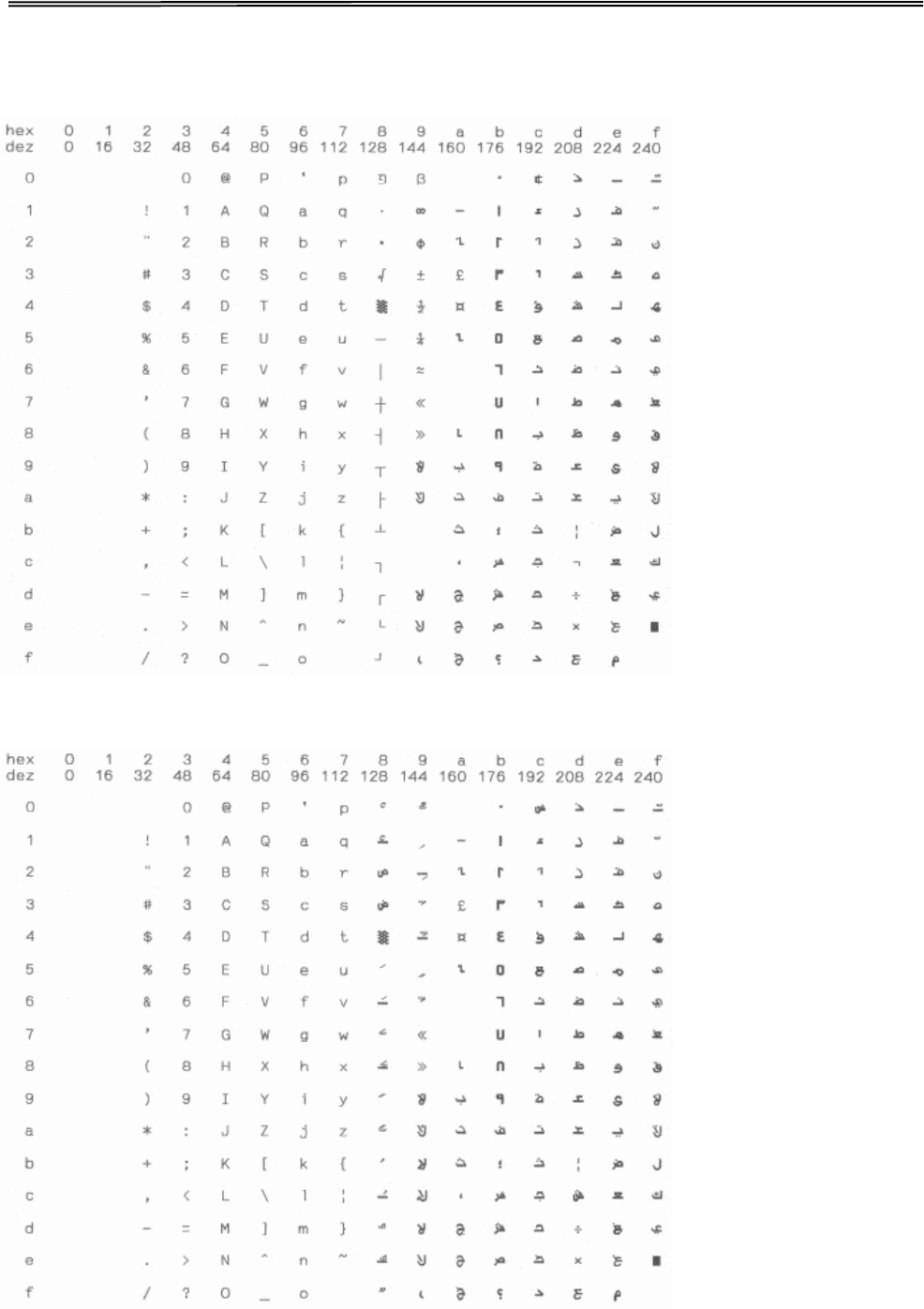

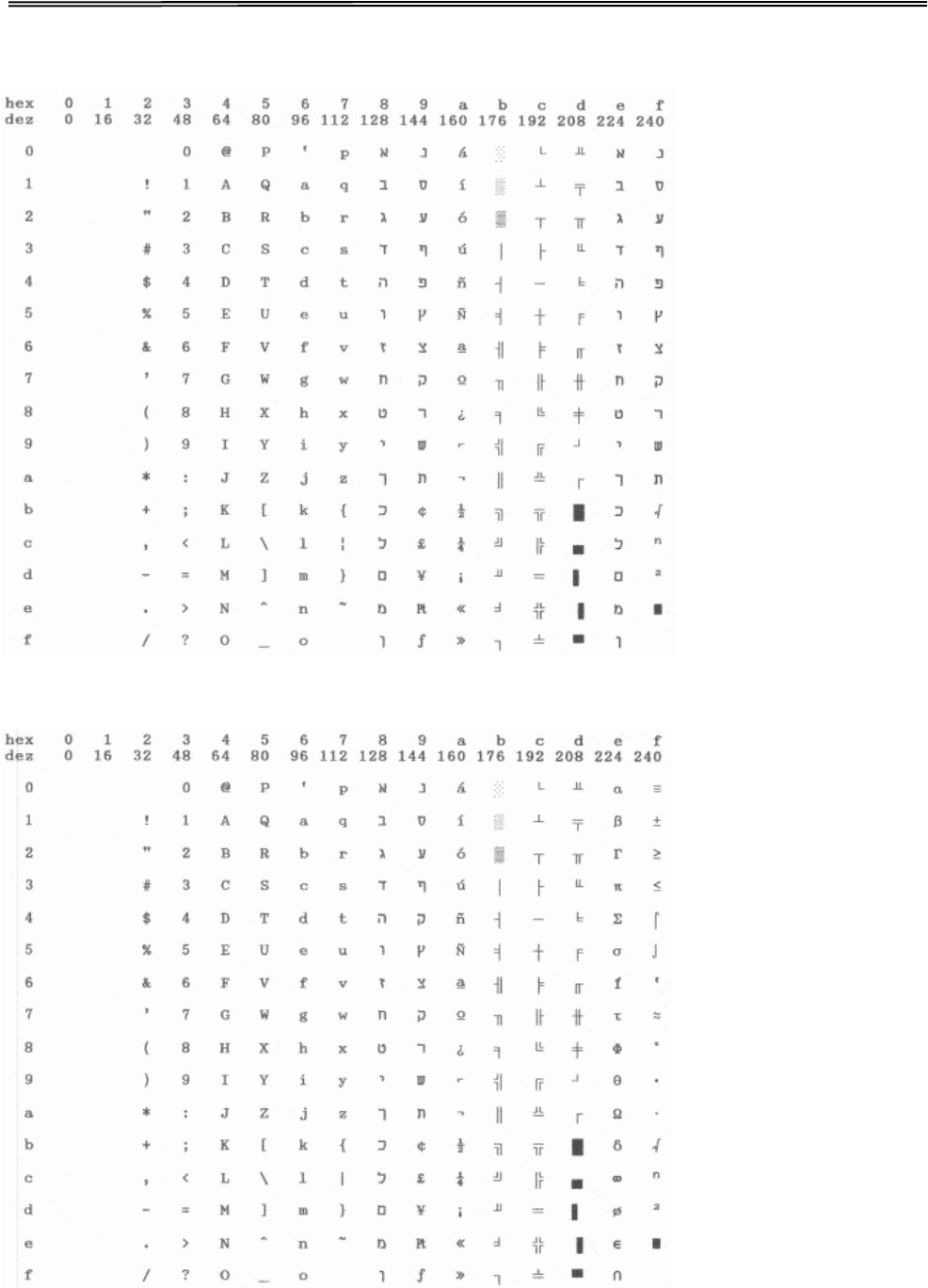

Code Pages

CP 437, CP 737, CP 850, CP 851, CP 852, CP 857, CP 858, CP 860,

CP 861, CP 863, CP 1252, CP 1253, CP 1254, 8859-1, 8859-1 (SAP),

8859-2, 8859-5, 8859-7, 8859-9, 8859-15, Kamenicky , Mazovia,

866 Bulgaria, CP 1250, CP 1251, BRASCII, Abicomp, CP 865, CP 866,

CRO-ASCII

International

Character Sets USA, France, Germany, UK, Denmark I, Sweden, Italy, Spain I, Japan,

Norway, Denmark II, Spain II, Latin America, Danmark/ Norway, China

Line Spacing

1/6", 1/8", n/72", n/216"

Paper

Specifications

Cut Sheet

Fanfold Paper

Single ply

Multi-part

Width:95mm~267mm

(3.75"~10.5")

Length:114.3mm~363.2mm

(4.5"~14.3")

Width: 95mm~267mm (3.75"~10.5")

Length: 114.3mm~558.8mm (4.5"~22.0”)

Weight: 52~100g/㎡

Thickness:

0.065~0.14mm

(0.0026"~0.0055”)

Weight: 52~100 g/㎡

Thickness:

0.065~0.14mm

(0.0026"~0.0055")

Weight: 40~56g/㎡

Thickness: 0.52 mm max

(0.0204” max)

Paper Handling

Feeding method: Friction/Push tractor/Roll paper

Paper path: Cut sheets: Rear in and top out

Fanfold: Rear in and top out

Copy

Capability

Original + 3 copies

Emulation

ESC/P2, IBM 2380+

Ribbon

Type

Cartridge; Monochrome

Ribbon

Life

10 million characters (rolling Draft 10 CPI)

Input Data Buffer

Up to 256KB

Windows

Drivers

Windows Server 2000/2003/2008

Windows Vista

Windows XP

Windows 98

Windows 7

Windows 8.1

Server 2012

Interface

Standard: USB

Options: Parallel, Ethernet, WiFi(IEEE802.11 b, IEEE802.11 g,

IEEE802.11 n), Blue-tooth 30 EDR Compliant, and serial

Operation

Panel

Switches: 4 pcs

LED indicators: 4 pcs

Tally Dascom 1140

Noise

Level

less than 55 dB

Ambient

Conditions

Temperature Operating : +5 to +35 °C

Stand-by : -20 to + 55°C

Humidity Operating : 10 to 80% RH ( No condensation)

Stand-by : 5 to 85% RH

Dimensions

369 mm (width) × 283.3 mm (depth) × 130 mm (height)

Weight

approx. 5.5 kg

Power

Supply

Unit type : Switching mode power supply

Power cord : Detachable

Voltage rating : AC 120V~230V, 50Hz to 60Hz

Stand by : Less than1.3W

Power

consumption

34 W (Test pattern is specified in standard ISO/IEC 10561.)

MTTR

< 20 minutes

MTBF

10 mil lines (Except print head), Mean time between failure: 10,000

Certification CE, UL, FCC, ES, ISTA, RoHS, WEEE, REACH, ChemVerbotsV,

Microsoft Certified for Windows 7, Windows 8.1,Server 2012

Tally Dascom 1140

10 Interfaces

10.1 Parallel Interface

Parallel Interface Pin Assignment

Pin Signal Name Signal Transmission

STROBE¯¯¯¯¯¯

Printer



Computer

2~9

DATA

Printer



Computer

ACK¯¯¯

Printer



Computer

BUSY

Printer



Computer

Printer



Computer

SELECT

Printer



Computer

AFXT¯¯¯¯

Printer



Computer

Unused

GND

Printer



Computer

F-GND

Printer



Computer

+5V

Printer



Computer

19~30

GND

Printer



Computer

INIT¯¯¯¯

Printer



Computer

FAULT¯¯¯¯¯

Printer



Computer

GND

Printer



Computer

Unused

FUSE

Printer



Computer

SLCTIN¯¯¯¯¯¯

Printer



Computer

Parallel Interface Connector Diagram

Note: Any external devices connected to the parallel port should not draw current exceeding

200 mA from pin 18; otherwise it may affect the printer operation.

Tally Dascom 1140

10.2 USB Interface

The USB interface conforms to the Universal Serial Bus 2.0 Specifications. It supports the

Full Speed mode at 12 Mbps. It uses the “B” type USB connector.

10.3Serial interface

Serial interface pin assignment

Serial interface connector diagram

Serial interface wiring diagram

Pin Signal name Description

RXD

Receive data

TXD

Send data

DTR

Data terminal ready

SGND

Signal ground

DSR

Data set ready

RTS

Request to send

CTS

Clear to send

Tally Dascom 1140

Note:

1. The serial cable length should not exceed 15 meters.

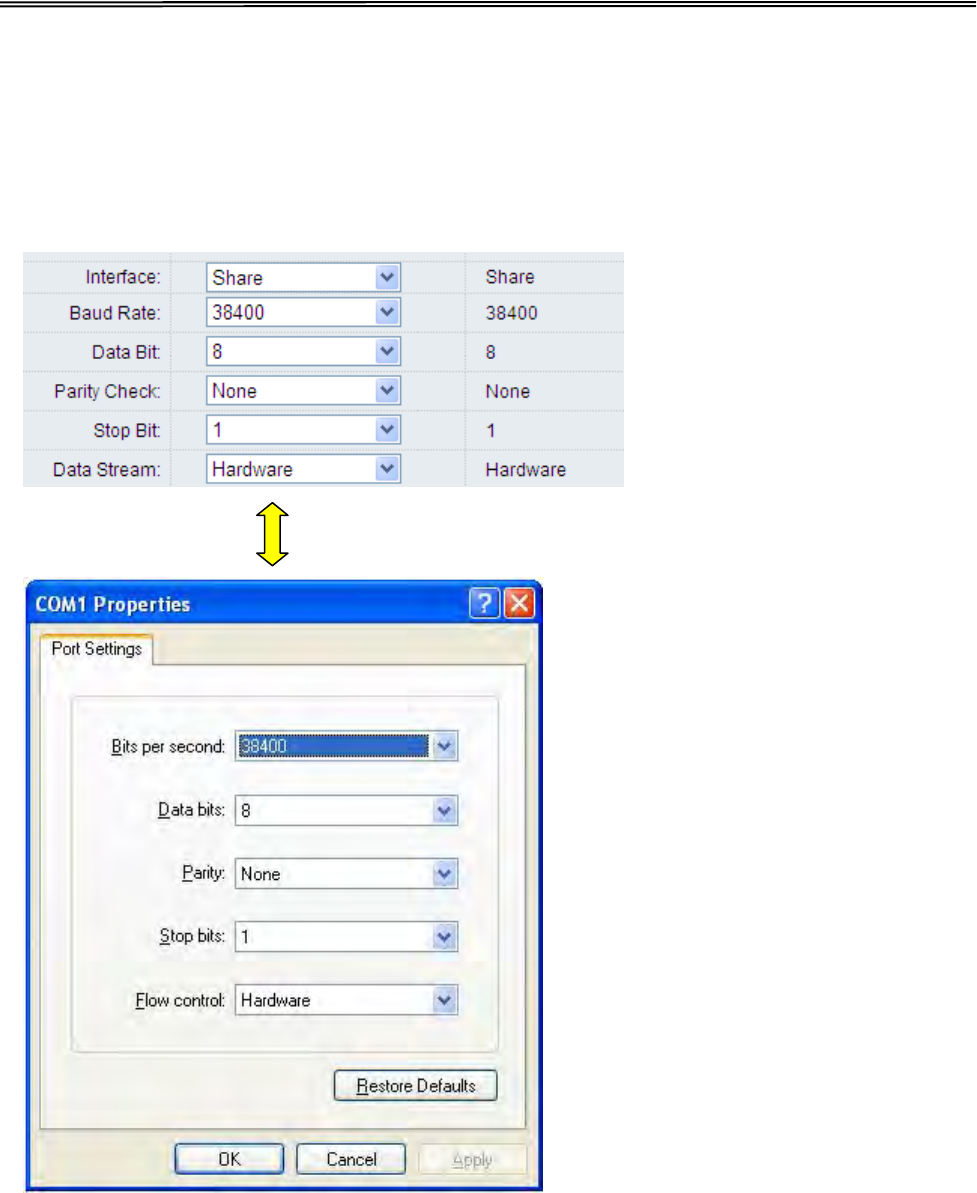

2. Make sure the “Interface Setup” selects serial interface and the settings are the same

as PC communication port settings. Shown as below:

Tally Dascom 1140

11 Character sets & Code Pages

11.1 Character Sets

Standard character set 1

Standard character set 2

Tally Dascom 1140

IBM character set 1

IBM character set 2

Tally Dascom 1140

OCR-A character set 1

OCR-A character set 2

Tally Dascom 1140

OCR-B character set 1

OCR-B character set 2

Tally Dascom 1140

International Character Set Commands

Country

Basic Command

USA

<ESC>“R”CHR

＄

(0)

FRANCE

<ESC>“R”CHR

＄

(1)

GERMANY

<ESC>“R”CHR

＄

(2)

<ESC>“R”CHR

＄

(3)

DENMARK 1

<ESC>“R”CHR

＄

(4)

SWEDEN

<ESC>“R”CHR

＄

(5)

ITALY

<ESC>“R”CHR

＄

(6)

SPAIN 1

<ESC>“R”CHR

＄

(7)

JAPAN

<ESC>“R”CHR

＄

(8)

NORWAY

<ESC>“R”CHR

＄

(9)

DENMARK 2

<ESC>“R”CHR

＄

(10)

SPAIN 2

<ESC>“R”CHR

＄

(11)

LATINAMERICA

<ESC>“R”CHR

＄

(12)

DENMARK/NORWAY

<ESC>“R”CHR

＄

(13)

CHINA

<ESC>“R”CHR

＄

(16)

International character sets

Tally Dascom 1140

11.2 Code Page Commands

Code Page ESC R Parameter

CRO-ASCII

Arabic Farsi

Arabic Urdu

Greek DEC

Greek ELOT 928

CP437 Latin US

CP737 Greek

CP850 Latin 1

CP851 Greek

CP852 Latin 2

CP857 Turkish

CP858 (IBM with €)

CP860 Portugal

CP861 Icelandic

CP863 French Canada

CP864 Arabic

CP864 Arab. Extended

CP865 Nordic

CP866 Cyrillic

CP866 Bulgaria

Siemens Turkish

DEC Turkish

CP1250 Win Latin 2

CP1251 Win Cyrillic

CP1252 Win Latin 1

CP1253 Win Greek

CP1254 Win Turkish

8859-1 Latin 1

8859-1 Latin 1 (SAP)

8859-2 Latin 2

8859-5 Cyrillic

8859-7 Greek

Tally Dascom 1140

Code Page ESC R Parameter

8859-9 Turkish

8859-15 Latin 9 (Euro)

BRASCII

Abicomp

Roman 8

Coax/Twinax(Hebrew)

New-437 (Hebrew)

New-DIG 850 (Hebr.)

Old-Code 860 (Hebr.)

Flarro 863 (Hebrew)

Table 865 (Hebrew)

CP775 Baltic

CP1257 Baltic

Mazovia (Poland)

Kamenicky (Czech)

CP866 Ukraine

CP866 Kazakhstan

Tally Dascom 1140

11.3 Code Page Tables

CP 437 (US)

CP 737 Greek

Tally Dascom 1140

CP 850 (Multilingual)

CP 851

Tally Dascom 1140

CP 852 (Eastern Europe)

CP 857 (Turkish)

Tally Dascom 1140

CP 858

CP 860 (Portugal)

Tally Dascom 1140

CP 861 (Iceland)

CP 863 (French-Canadian)

Tally Dascom 1140

CP 864 Arabic

CP 864 Arabic Extended

Tally Dascom 1140

CP 865 (Norway)

CP 866 (Cyrillic)

Tally Dascom 1140

CP 866 Bulgaria

CP 1250 Win Latin 2

Tally Dascom 1140

CP 1251 Win Cyrillic

CP 1252 Win Latin 1

Tally Dascom 1140

CP 1253 Win Greek

CP 1254 Win Turkish

Tally Dascom 1140

8859-1 Latin 1

8859-1 Latin 1 (SAP)

Tally Dascom 1140

ISO 8859-2 (ISO Latin 2)

ISO 8859-5 Cyrillic

Tally Dascom 1140

ISO 8859-7 (Latin/Greek)

ISO 8859-9 (Turkish)

Tally Dascom 1140

ISO 8859-15 Euro (Code Page 923)

BRASCII

Tally Dascom 1140

Abicomp

Roman 8

Tally Dascom 1140

Coax/Twinax (Hebrew)

New-437 (Hebrew)

Tally Dascom 1140

New-Dig 850 (Hebrew)

Old-Code 860 (Hebrew)

Tally Dascom 1140

Flarro 863 (Hebrew)

865 Hebrew

Tally Dascom 1140

CP 1257

866 Ukraine

Tally Dascom 1140

866 Kazakhstan

Kamenicky

Tally Dascom 1140

Mazovia

CP 775

Tally Dascom 1140

CRO-ASCII

Arabic Farsi

Tally Dascom 1140

Arabic Urdu

Greek DEC

Tally Dascom 1140

Greek ELOT 928

Tally Dascom 1140

12 Control Codes Summary

12.1 Epson Emulation Command List

Command Function

BEL

Beeper

Backspace

Horizontal Tab

Line Feed

Vertical Tab

Form Feed

Carriage Return

Double-Wide Printing 1 Line

Select Condensed Mode

DC2

Cancel Condensed Mode

DC4

Cancel Double-Wide Printing 1 Line

CAN

Cancel Line

ESC SO

Double-Wide Printing 1 Line

ESC SI

Select Condensed Mode

ESC SP

Set Inter Character Space

ESC !

Master Select

ESC #

Cancel MSB Control

ESC $

Set absolute horizontal print position

ESC %

Select user-defined set

ESC &

Define user-defined characters

ESC ( -

Select line/score

ESC ( B

Bar code setup and print

ESC ( C

Set page length in define unit

ESC ( G

Select graphics mode

ESC ( U

Set unit

ESC ( V

Set absolute vertical print position

ESC ( ^

Print data as characters

ESC ( c

Set page format

ESC ( t

Assign character table

ESC ( v

Set relative vertical print position

ESC *

Select bit image

ESC +

Select n/360” Line Spacing

ESC -

Auto Underscore

ESC .

Print raster graphics

ESC 0

Select 1/8” Line Spacing

ESC 2

Select 1/6” Line Spacing

ESC 3

Set Graphics Line Spacing (n/180”)

ESC 4

Select Italic Mode

ESC 5

Cancel Italic Mode

ESC 6

Enable Printable Characters

ESC 7

Enable Upper Control Codes

ESC :

Copy ROM to RAM

Tally Dascom 1140

Command Function

ESC <

Select Unidirectional Mode 1 Line

ESC =

Set MSB to 0

ESC >

Set MSB to 1

ESC ?

Reassign Graphics Mode

ESC @

Initialize Printer

ESC A

Set n/60” Line Spacing

ESC B

Set Vertical Tabs

ESC C

Set Page Length in Lines

ESC C 0

Set Page Length in Inches

ESC D

Set horizontal tabs

ESC E

Select Emphasized Mode

ESC F

Cancel Emphasized Mode

ESC G

Select Double-strike Mode

ESC H

Cancel Double-strike Mode

ESC J

Advance print position

ESC K

Select 60-dpi graphics

ESC L

Select 120-dpi graphics

ESC M

Select 12 cpi

ESC N

Set bottom margin

ESC O

Cancel bottom margin

ESC P

Select 10 cpi

ESC Q

Set right margin

ESC R

Select an international character set and code page

ESC S

Select Subscript or Superscript Printing

ESC T

Cancel Subscript or Superscript Printing

ESC U

Turn unidirectional mode on/off

ESC W

Turn Double-wide Mode On/Off

ESC Y

Select 120-dpi, double-speed graphics

ESC Z

Select 240-dpi graphics

ESC \

Set relative horizontal print position

ESC c

Set horizontal motion index(HMI)

ESC g

Select 15 cpi

ESC k

Select Typestyle Family

ESC l

Set left margin

ESC p

Turn Proportional Mode On/Off

ESC q

Select Character Style

ESC t

Select character table

ESC w

Turn Double-high Mode On/Off

ESC x

Select Letter Quality or Draft

ESC y

Select draft/super draft

ESC Y

Select High-speed Double-density Graphics Mode

DEL

Delete Character

Tally Dascom 1140

12.2 IBM Emulation Command List

Command

Function

Backspace

Horizontal tab

Carriage return

ESC BS

Backspace

ESC HT

Horizontal tab

ESC CR

Carriage return

ESC D

Set horizontal tabs

ESC X

Set horizontal margins

ESC d

Relative mode inline forward

Line feed

Vertical tab

Form feed

ESC LF

Line feed

ESC VT

Vertical tab

ESC FF

Form feed

ESC 0

Select 1/8” line spacing

ESC 1

Select 7/72” line spacing

ESC 2

Start text line spacing

ESC 3

Set graphics line spacing

ESC 4

Set top of form

ESC 5

Automatic line feed

ESC A

Set text line spacing

ESC B

Set vertical tabs

ESC C

Set form length in lines

ESC C NUL

Set form length in inches

ESC J

Graphics variable line spacing

ESC N

Set automatic perforation skip

ESC O

Cancel automatic perforation skip

ESC [ \

Set vertical units

ESC ]

Reverse line feed

Double-wide printing by line

Condensed printing

DC2

Select 10 cpi

DC4

Cancel double-wide printing by line

ESC SO

Double-wide printing by line

ESC SI

Condensed printing

ESC DC2

Select 10 cpi

ESC DC4

Cancel double-wide printing by line

ESC -

Continuous underscore

ESC :

Select 12 cpi

ESC E

Select emphasized mode

ESC F

Cancel emphasized mode

ESC G

Select double strike mode

Tally Dascom 1140

Command

Function

ESC H

Cancel double strike mode

ESC I

Set print mode

ESC P

Proportional space mode

ESC S

Start subscript or superscript printing

ESC T

Cancel subscript or superscript printing

ESC W

Continuous double-wide printing

ESC [ -

Score select

ESC [ @

Set presentation highlight

ESC [ I

Set font global

ESC [ d

Set print quality

ESC _

Continuous over score

ESC 6

Select character set 2

ESC 7

Select character set 1

ESC =

Character font image download

ESC [ T

Set code page

ESC \

Print continuously from all character chart

ESC ^

Print single character from all character chart

ESC K

Normal density bit image graphics

ESC L

Dual density bit image graphics

ESC Y

Dual density bit image graphics

ESC Z

High density bit image graphics

ESC [ g

High resolution graphics

ESC [ f

Setup barcode parameter

ESC [ p

Set barcode data

DEL

Beeper

DC1

Select printer

DC3

Deselect printer

CAN

Cancel Data

ESC BEL

Beeper

ESC DC1

Select printer

ESC DC3

Deselect printer

ESC CAN

Cancel Data

ESC Q

Deselect printer

ESC R

Set all tabs to power on settings

ESC U

Set print direction

ESC [ K

Set initial condition

ESC j

Stop printing

ESC *

Select graphics mode

ESC 3(AGM)

Set graphics line spacing(n/180")

ESC A(AGM)

Set text line spacing(n/60")

ESC J(AGM)

Graphics variable line spacing(n/180")

Tally Dascom 1140

FCC STATEMENT

Changes or modifications not expressly approved by the responsible for compliance could

void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.
