user manual
T
ally Dascom 2610
67
6.3.20 Password
The Password page allows the user to set a password which would limit access to certain
configuration and action links in WebPanel. The maximum number of characters for the
password is 7. The default password is no password at all (“null“). However, “adm” is also
acceptable as the default password to be compatible with the TallyCom IIF-4 and external
TallyCom pocket NICs (Options), which use this as the default password. If this or no
password at all (“null“) is set as the password, all of the web pages are accessible by
everyone. If any other password is set, the first time a user accesses a password protected
page, a window will open asking for verification with user and password information. Once
the password has been successfully recognized, all password protected pages will be
available. Once the password is recognized, a timer is set, based on the Password Timer
value set in the General web page. If there is inactivity in the browser which lasts beyond the
timer time, the password will have to be reentered to access the protected pages.

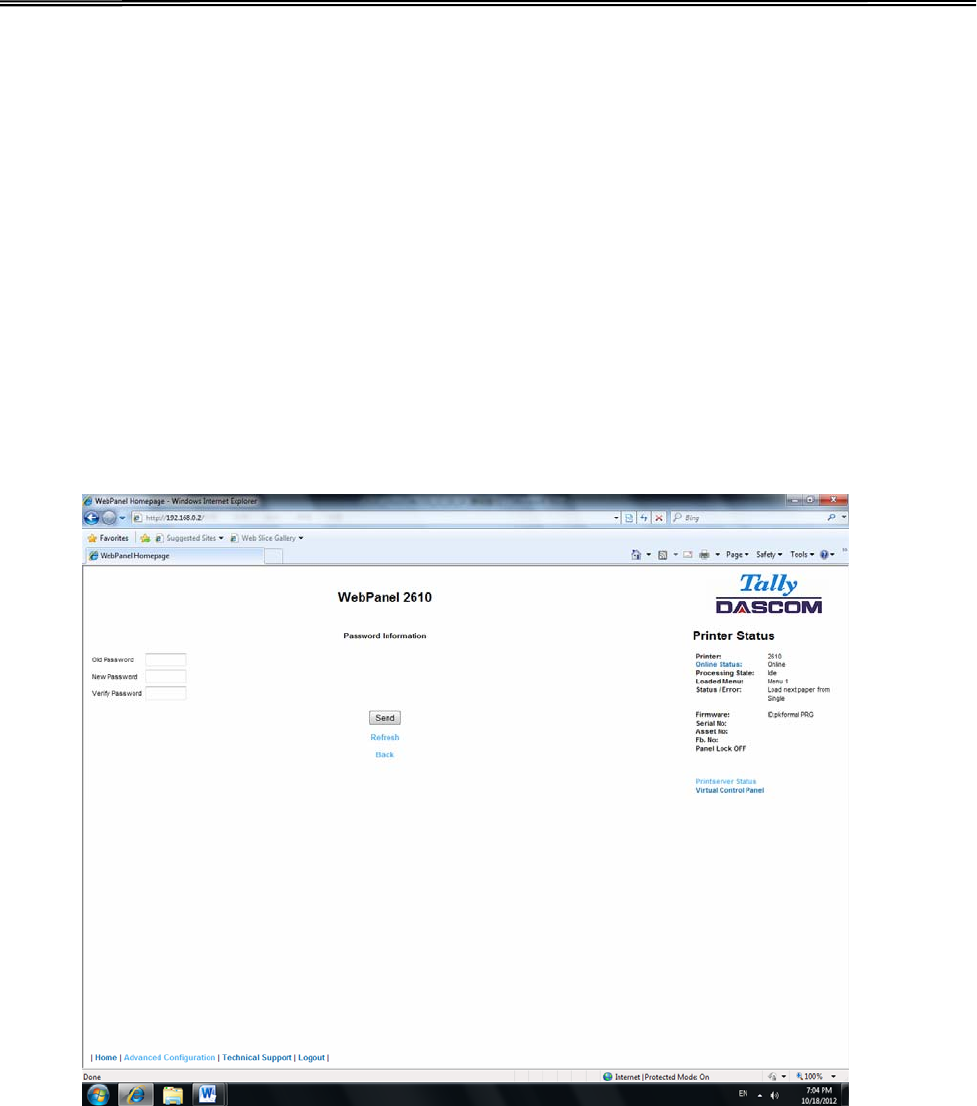

The password page looks like this:
6.3.21 User Name
The default user name is “adm” and cannot be changed.
6.3.22 Resetting Password
In order to reset password the printer needs to be defaulted. See “Loading Default”.
T
ally Dascom 2610
68

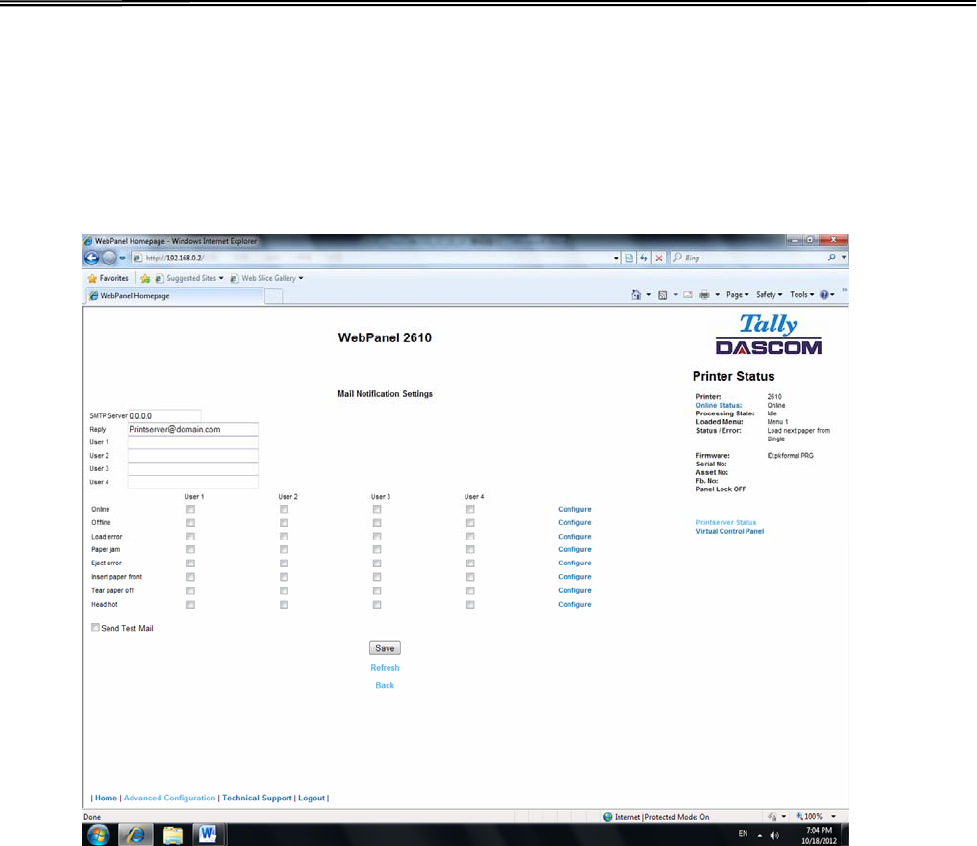

6.3.23 Email Notification
With the email notification link the user will be able to set up and receive email notices for
error and status conditions of the printer. Up to 4 email addresses can be set.
The page looks like this:
The user must set up the SMTP Mail Server as well as one or more users. The Reply
address can be left as is unless there is reason to have to mail to the Reply address.
To activate the mail notification:
Select which notifications are to be sent out.
Click on the check box(es) on the right of the desired notification(s) for the particular
user(s).
Confirm your settings by clicking the Send button.
There is also a test mail option which sends a test email to “User 1” and is activated by
checking the box and clicking on the “Save” button.
T
ally Dascom 2610
69

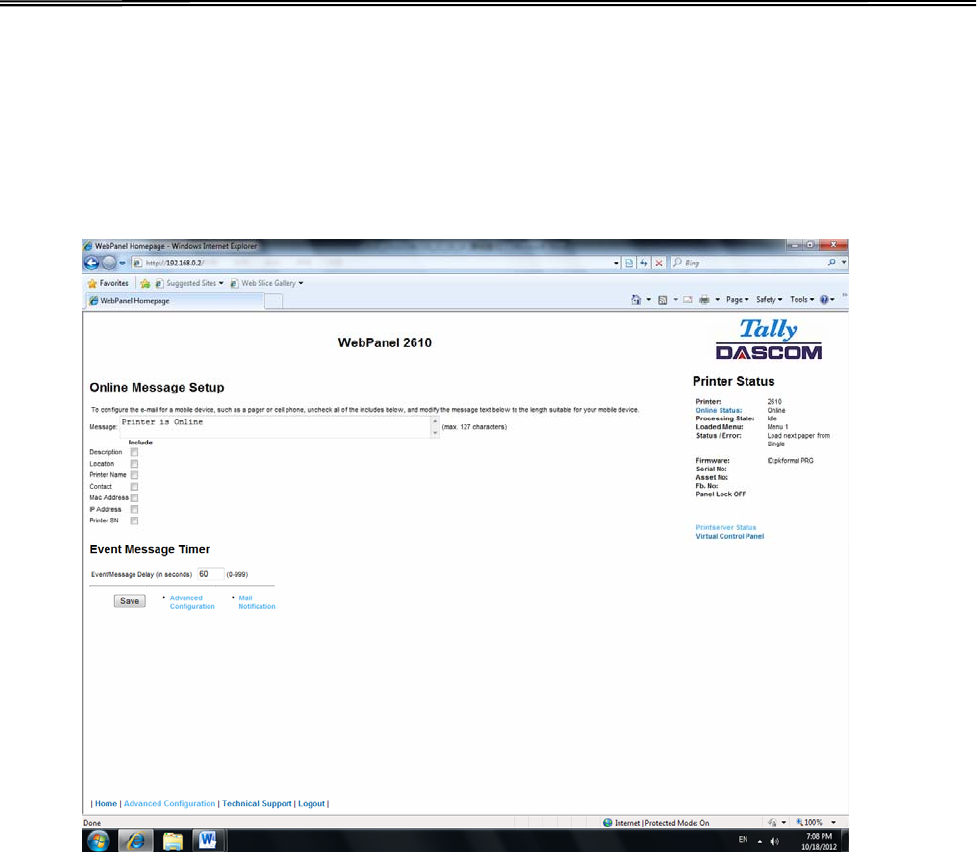

The “Configure” link at the end of each line of notification options allows the user to set
up the message information for the email as well as selecting other pertinent information
to be added to the email. In addition, the timer can be set which determines when the
email notification is sent out.
The page looks like this:
In this example, the Online message is set to “Printer is Online”, and information on
Description, Location, and Printer Name will be added to the email. In this example, the event
timer is set for 10 seconds after the event occurs and will be sent only once, unless the printer
is rebooted or the state changes. If the timer is set to 0, no email message will be sent,
regardless of whether the user box has been selected. Selecting the “Save” button will set
these values.
T
ally Dascom 2610
70
6.3.24 Logical Printers
The logical printers page will add text or commands to the beginning and ending of print jobs.
This is done by pre and post strings, defined in each of the logical printers. For entering
binary data in these strings, the backslash character is used followed by 2 hexadecimal
digits.
Examples of this are \1b for an escape character, \0a for linefeed and \\ for backslash.

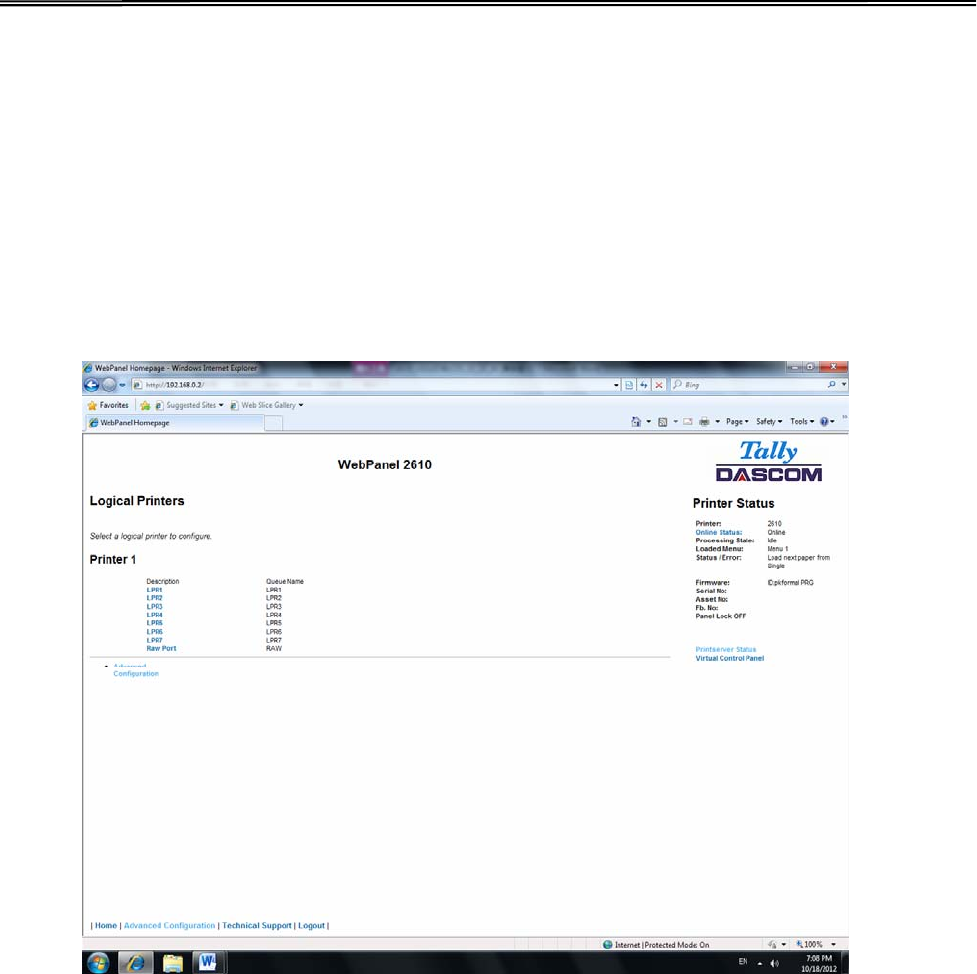

Selecting the Logical Printers link gives the following page which lists seven possible logical
printers plus Raw Port, which is port 9100:
T
ally Dascom 2610
71

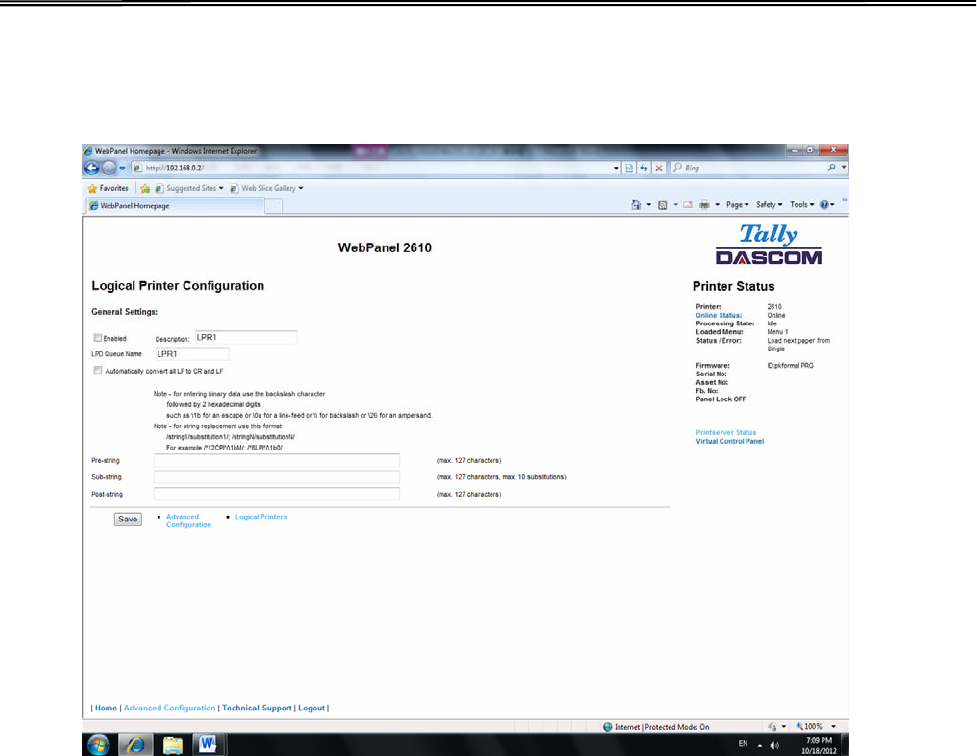

When selecting one of the logical printers under the Description column, the following page is
displayed:
In this example if the Enable checkbox is checked, the pre-string of “Beginning to print job”
followed by a CR/LF will print at the beginning of every job sent to this LPR Queue. At the
end of the print job, the message “End of job” with a formfeed will print. Unchecking the
Enablecheckbox will not send the pre or post strings. The LPD Queue Name is the name of
the print queue that comes from the host. The Description can be changed by the user and
does not have to match the LPD Queue Name.
6.3.25 String Replacement Example Plain Text
Original Text / New Text
String Replacement Example Commands /\1B[8419t/\1B[4196t/
Control codes are entered with a back slash “\”.
In this example the Formlength of A4 (8419”/720) represented by “1B[8419t” is being
replaced by the string “1B[4196t” (4196”/720) which results in A5.
Multiple strings are separated by a semicolon “;”.
T
ally Dascom 2610
72
6.3.25 Logout of TallyCom
The Logout link disconnects the browser session from the printer. Clicking on the “Home”
link reestablishes the connection.

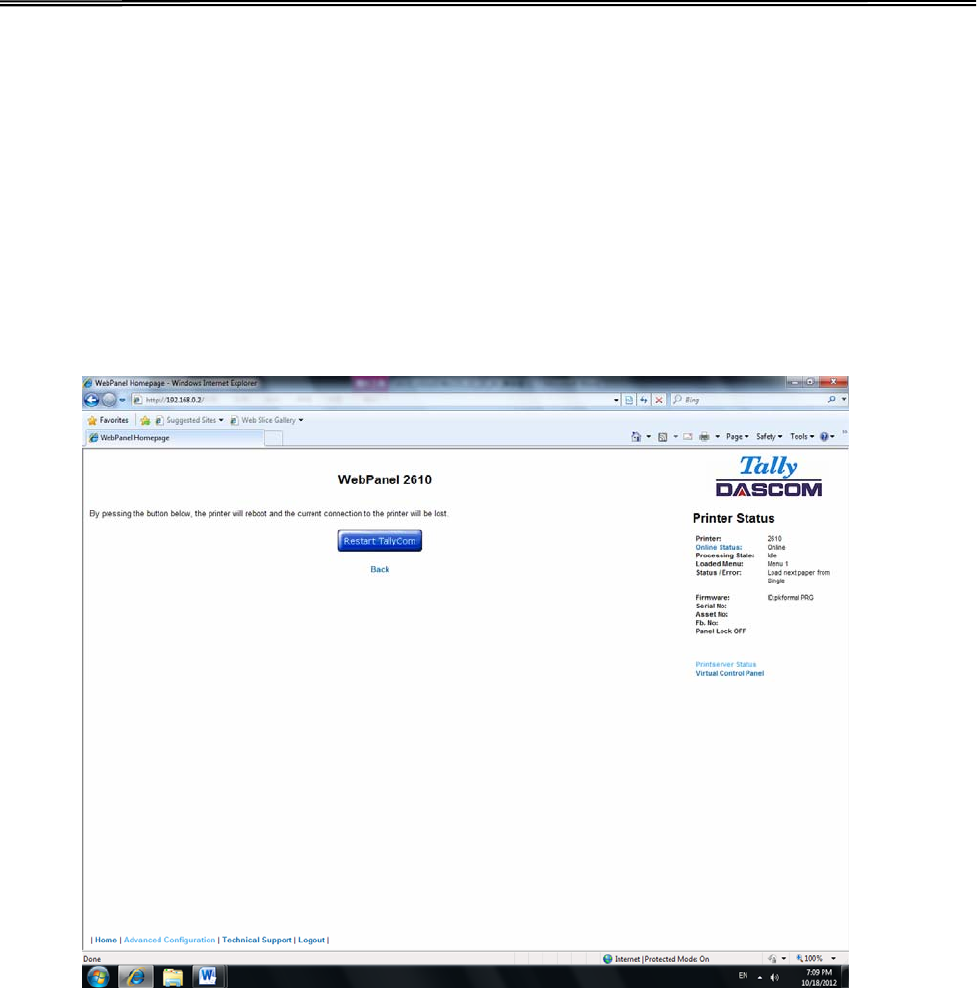

6.3.26 Restart TallyCom
Selecting this link will reboot the printer and disconnect the current printer connection. It is
used to reset certain TCP/IP variables that were set in the General and TCP/IP pages. Once
TallyCom has restarted, those new setting will take effect. When this link is selected, the
follow page is displayed, giving the user the option to continue or not.
T
ally Dascom 2610
73
6.3.27 Virtual Control Panel
The Virtual Control Panel link is in the Printer Status area of the web page. This control
panel is a visual representation of the actual control panel on the printer. It allows the user to
remotely read and set panel information as if they were standing at the control panel. The
functionality of the virtual panel is identical to the physical LCD panel.
Before using the virtual panel, it is important to configure the browser to allow popup
windows from the printer, otherwise the panel will not display. Once the browser is
configured, the page will look similar to this:
The Virtual Control Panel will be the active window. This window will show the current error
state and display the contents of the printer’s LCD display. Selecting the buttons on the
display will behave the same as if selecting the buttons on the printer itself. The LCD
information on the virtual panel refreshes every 15 seconds. The physical panel, virtual panel
and Online Status in the Printer Status are all active, so there may be some synchronization
delay issues if a user presses a button on the physical printer or the Online Status in the
Printer Status area. The Panel Lock feature affects the virtual panel in the same way as the
physical panel. The only functional difference between the physical and virtual panel is that in
the virtual panel, the LF/FF option will always do a FF.
To close the virtual panel, click on the X in the upper right of the window.
1) This feature needs the browser to allow pop ups.
2) The LED version unit does not support this function.
T
ally Dascom 2610
74
7 Addendum

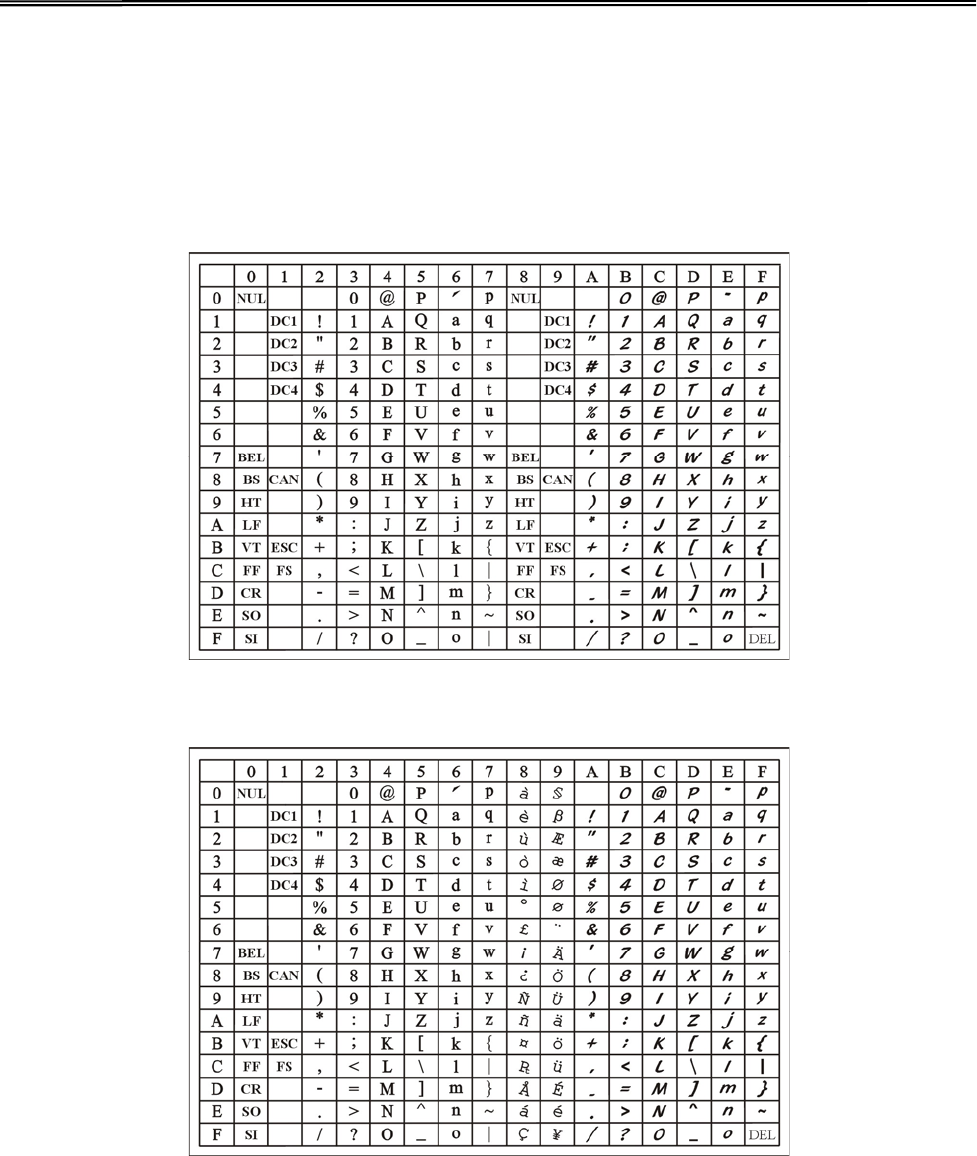

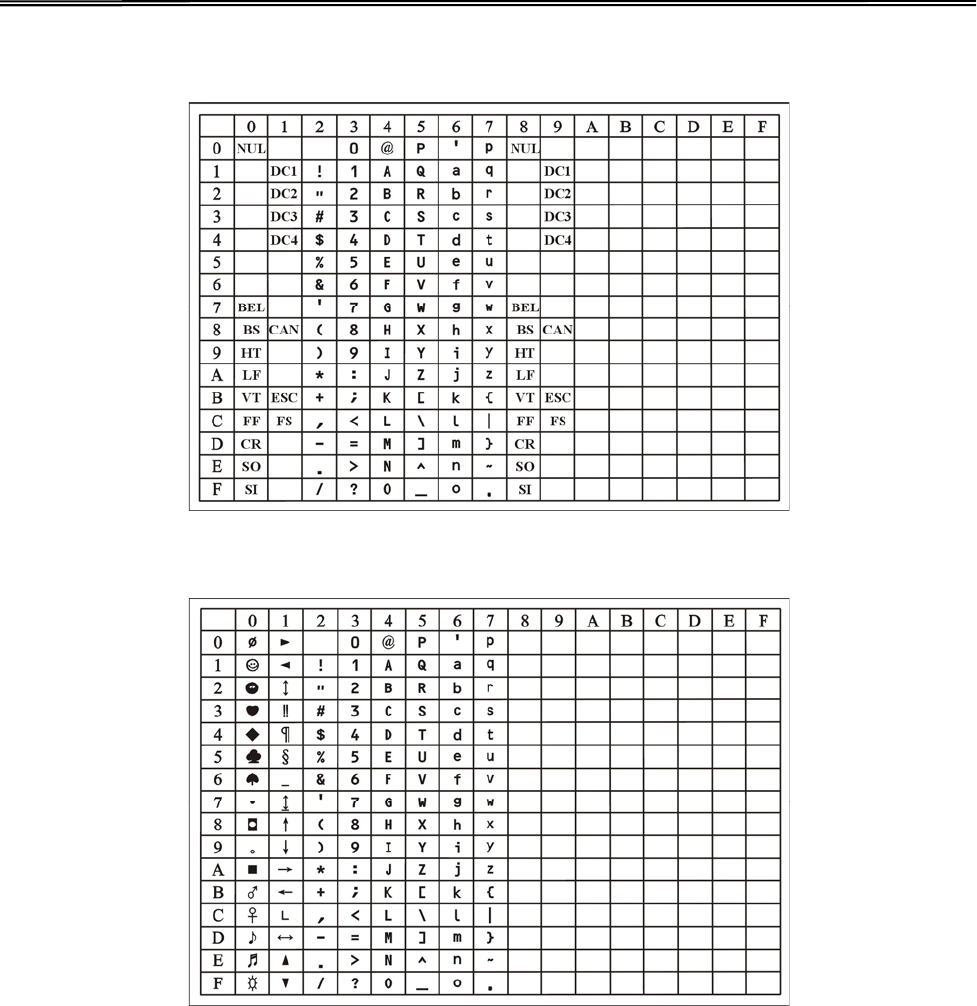

7.1 Character Set

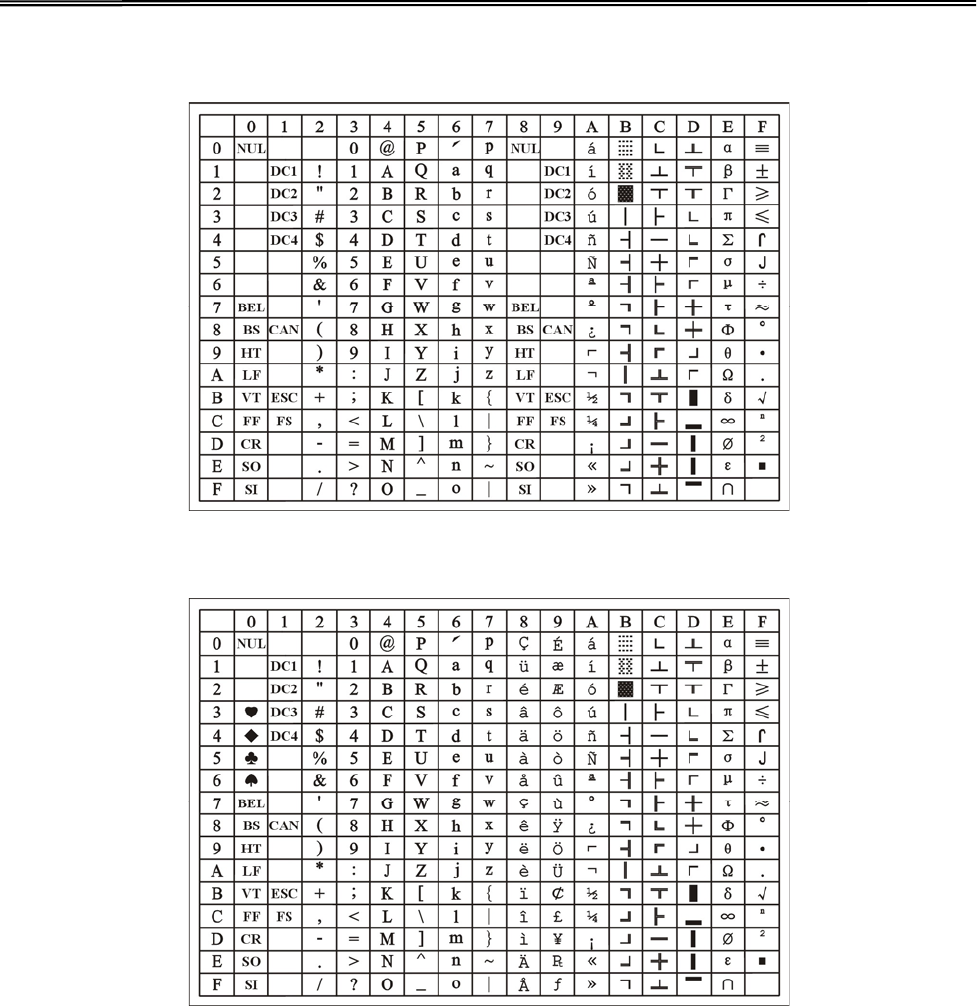

standard character set 1
standard character set 2
T
ally Dascom 2610
75
IBM character set 1
IBM character set 2
T
ally Dascom 2610
76

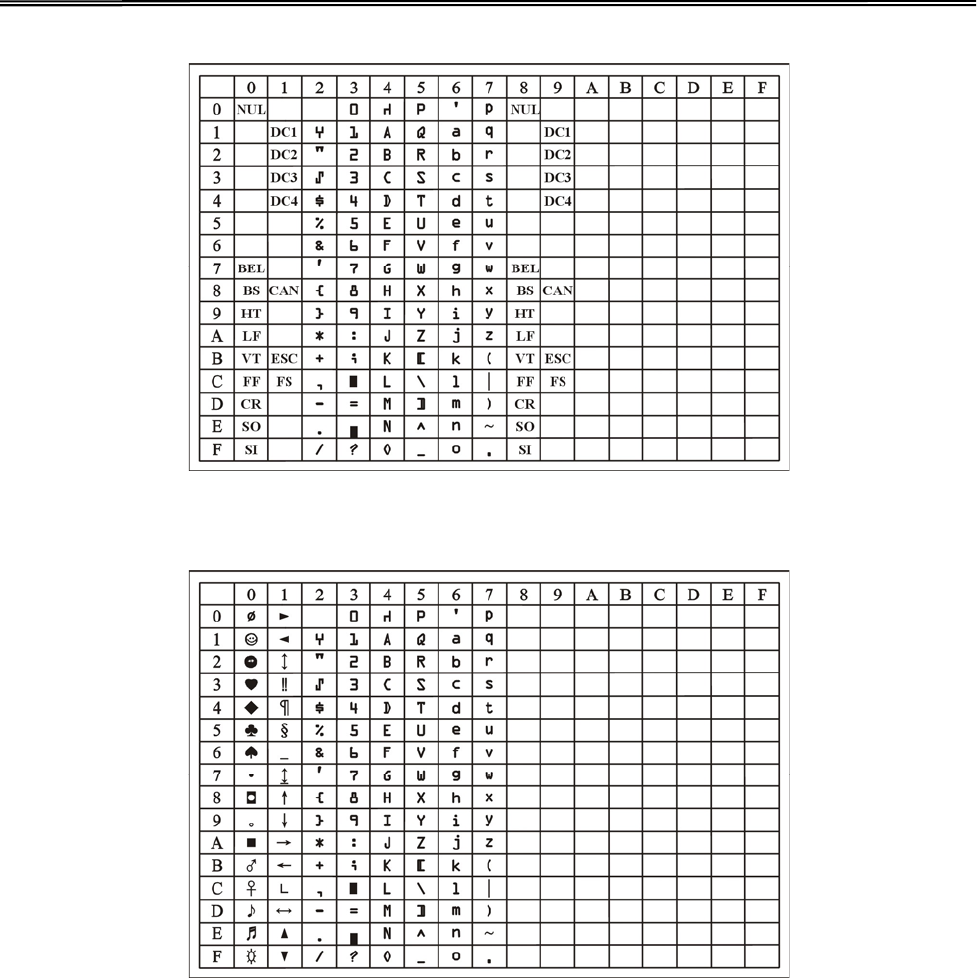

OCR-A character set 2
T
ally Dascom 2610
77
OCR-B character set 1
OCR-B character set 2
T
ally Dascom 2610
78

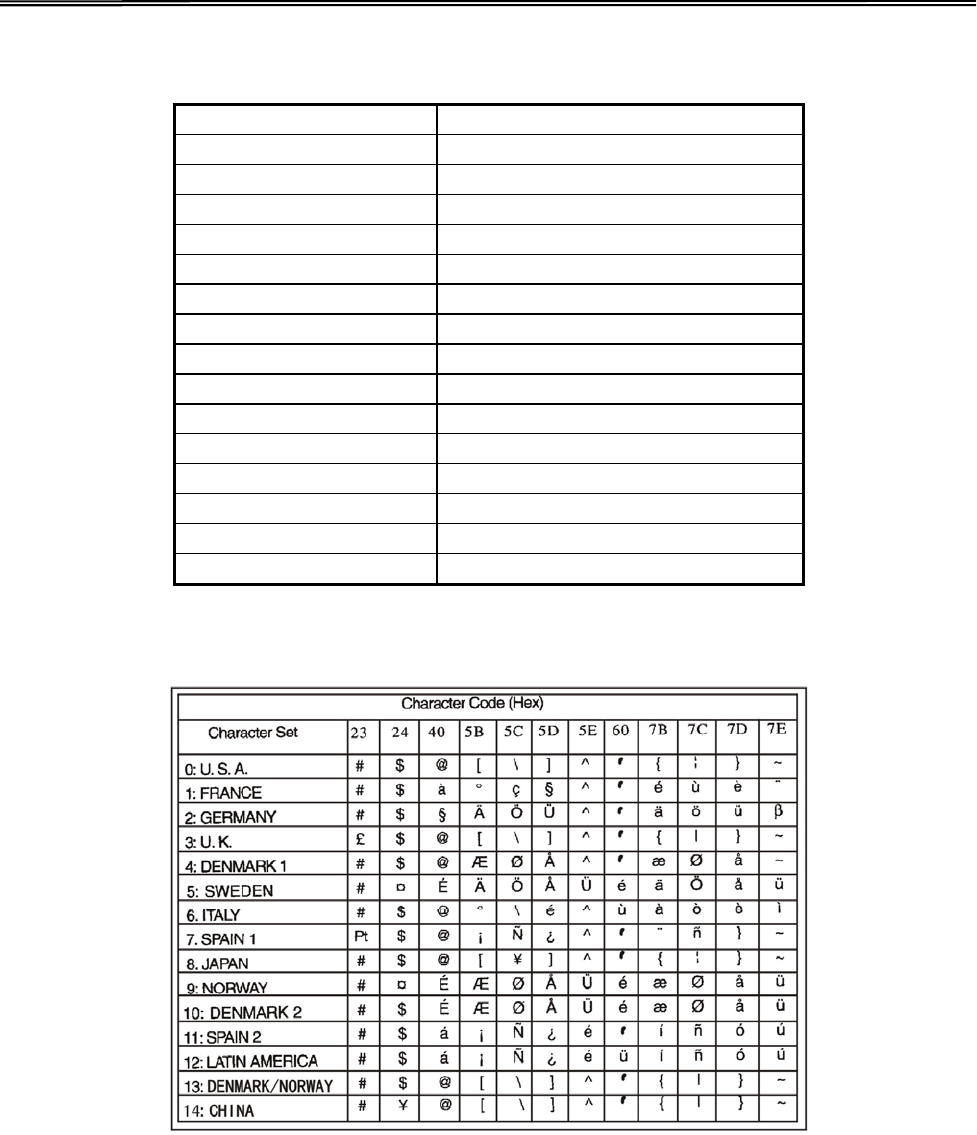

International Character Set Commands
Country Basic Command
USA ＜ESC＞“R”CHR＄（0）
FRANCE ＜ESC＞“R”CHR＄（1）
GERMANY ＜ESC＞“R”CHR＄（2）
UK ＜ESC＞“R”CHR＄（3）
DENMARK 1 ＜ESC＞“R”CHR＄（4）
SWEDEN ＜ESC＞“R”CHR＄（5）
ITALY ＜ESC＞“R”CHR＄（6）
SPAIN 1 ＜ESC＞“R”CHR＄（7）
JAPAN ＜ESC＞“R”CHR＄（8）
NORWAY ＜ESC＞“R”CHR＄（9）
DENMARK 2 ＜ESC＞“R”CHR＄（10）
SPAIN 2 ＜ESC＞“R”CHR＄（11）
LATINAMERICA ＜ESC＞“R”CHR＄（12）
DENMARK/NORWAY ＜ESC＞“R”CHR＄（13）
CHINA ＜ESC＞“R”CHR＄（16）
International character sets：
T
ally Dascom 2610
79
7.2 Control Codes Summary
The following table shows sequences marked by a √ if they are available in the various
emulations. The MTPL sequences can be used within all emulation modes. The corresponding
sequences are marked by a *.
If you want to learn more about control codes, we recommendto download
the Programmer’s Application Manual from our internet support pages.
MTPLIBM
XL24
IBM
AGM
Epson
LQ-2550
Epson
LQ-2170
Code
Function
√
√
√
√
<BEL>Signal tone
√
√
√
√
√
<BS>Control character BS (Backspace)
√
√
<CAN>Deleting a data line
√
√
√
√
√
<CR>Control character CR (Carriage return)
√
<CSI>Start character for MTPL sequences, corr. ESC [
√
√
<DC1>Selecting the printer
√
√
<DC2>Condensed printing OFF (set by <Sl> or <ESC><Sl>)
√
√
<DC3>Deselecting the printer
√
√
<DC4>Double-wide printing OFF (set by <SO> or <ESC><SO>)
√
√
*
√
√
<DEL>Delete line. Epson: Delete last character
√
√
√
√
√
<ESC>Start character for programming sequence
√
√
√
√
<ESC>!<n>Print mode selection
√
√
√
<ESC>#Bit 8 = unchanged
√
√
<ESC>$<n1><n2>Perform absolute horizontal step
√
√
<ESC>%<0><0>Select ROM character generator
√
√
<ESC>%<1><0>Select download generator
√
*
*
*
*
<ESC>%1<n1><n2>Graphics print with 180 dpi/HQ
√
*
*
*
*
<ESC>%2<n1><n2>Graphics print with 360 dpi/HQ
√
*
*
*
*
<ESC>%3<n1> <n2>Graphics print with 60 dpi
√
*
*
*
*
<ESC>%4<n1> <n2>Graphics print with 120 dpi
√
*
*
*
*
<ESC>%5<n1> <n2>Graphics print with 80 dpi
√
*
*
*
*
<ESC>%7<n1> <n2>Graphics print with 240 dpi
√
*
*
*
*
<ESC>%8<n1> <n2>Graphics print with 72 dpi
√
*
*
*
*
<ESC>%9<n1><n2>Graphics print with 90 dpi
√
√
<ESC>&<s><x><y>..Define download character
√
*
*
*
*
<ESC>(&Character set ISO 8859-2
√
*
*
*
*
<ESC>(*Character set ISO 8859-5
√
*
*
*
*
<ESC>(+Character set ISO 8859-1 SAP
T
ally Dascom 2610
80
MTPLIBM
XL24
IBM
AGM
Epson
LQ-2550
Epson
LQ-2170
Code
Function
√
*
*
*
*
<ESC>(.Character set ISO 8859-9
√
*
*
*
*
<ESC>(/Character set ISO 8859-15
√
*
*
*
*
<ESC>(<Character set Cro ASCII
√
<ESC>(cDefining the page format
√
<ESC>(vRelative vertical printing position
√
<ESC>(tAssigning a character table
√
*
*
*
*
<ESC>(mCharacter set BRASCII
√
*
*
*
*
<ESC>(nCharacter set Abicomp
√
*
*
*
*
<ESC>(pWindows character set 1250 (Latin2)
√
*
*
*
*
<ESC>(qWindows character set 1251 (Cyrillic)
√
*
*
*
*
<ESC>(rWindows character set 1252 (Latin1)
√
*
*
*
*
<ESC>(tWindows character set 1254 (Turkish)
√
*
*
*
*
<ESC>(`Character set Norwegian
√
<ESC>(^<n1><n2><d1><dn
>
Print data as characters
√
*
*
*
*
<ESC>(ACharacter set UK-ASCII
√
*
*
*
*
<ESC>(BCharacter set US-ASCII
√
<ESC>(B<n1>-<n8> Barcode Setup and print
√
<ESC>(CDefining the page length
√
*
*
*
*
<ESC>(MI>FAssign character set G0
√
<ESC>(GSelecting graphics mode
√
*
*
*
*
<ESC>(HCharacter set Swedish-Finnish
√
*
*
*
*
<ESC>(KCharacter set German
√
*
*
*
*
<ESC>(LCharacter set Portuguese
√
*
*
*
*
<ESC>(RCharacter set French
√
<ESC>(USetting positioning units in n/3600 inch
√
<ESC>(VAbsolute vertical printing position
√
*
*
*
*
<ESC>(YCharacter set Italian
√
*
*
*
*
<ESC>(ZCharacter set Spanish
√
*
*
*
*
<ESC>)MI>FAssign character set G1
√
√
√
<ESC>*<0><n1> <n2>Set graphics print to 60 dpi
√
√
√
<ESC>*<1><n1> <n2>Set graphics print to 120 dpi
√
√
√
<ESC>*<2><n1> <n2>Set graphics print to 120 dpi
√
√
√
<ESC>*<3><n1> <n2>Set graphics print to 240 dpi
√
√
√
<ESC>*<32><n1> <n2>Set graphics print to 60 dpi
√
√
√
<ESC>*<33><n1> <n2>Set graphics print to 120 dpi
√
√
√
<ESC>*<38><n1> <n2>Set graphics print to 90 dpi
√
√
√
<ESC>*<39><n1> <n2>Set graphics print to 180 dpi
T
ally Dascom 2610
81
MTPLIBM
XL24
IBM
AGM
Epson
LQ-2550
Epson
LQ-2170
Code
Function
√
√
√
<ESC>*<4><n1> <n2> Set graphics print to 80 dpi
√
√
√
<ESC>*<40><n1> <n2> Set graphics print to 360 dpi
√
*
*
*
*
<ESC>*MI>FAssign character set G2
√
√
√
<ESC>-<n>Underlining ON/OFF
√
<ESC>/<m>Select vertical tab channels
√
<ESC>.Printing raster graphics
√
√
<ESC>:Condensed printing 12 cpi ON
√
√
<ESC>:<0><n><m>Copy ROM character set
√
√
<ESC><Unidirectional printing for 1 line
√
√
<ESC>=Set bit 8 = 0
√
√
<ESC>=<C1><C2>...Load font/character set
√
√
<ESC>>Set bit 8 = 1
√
√
<ESC>?<s><n>Reload a graphics mode
√
√
<ESC>@Initialize printer
√
*
*
*
*
<ESC>[MTPL start character for programming
se
q
uence
√
*
*
*
*
<ESC>[:yRight justification and centering OFF
√
*
*
*
*
<ESC>[=zBold ON
√
*
*
*
*
<ESC>[>zBold OFF
√
*
*
*
*
<ESC>[?1~MTPL command set
√
*
*
*
*
<ESC>[?10~Barcode interpretation OFF
√
*
*
*
*
<ESC>[?11~Start barcode interpretation
√
*
*
*
*
<ESC>[?4~MTPL + IBM Proprinter-24 command set
√
*
*
*
*
<ESC>[?50hSelecting character sets with 256 characters
√
*
*
*
*
<ESC>[?50lSelecting character sets with 94 characters
√
*
*
*
<ESC>[?51hProportional fonts automatic NLQ and LQ
√
*
*
*
<ESC>[?51lProportional fonts in draft mode possible
√
*
*
*
*
<ESC>[?52hFont selection (ESC[10...19m]) possible only
for
NLQ
and
LQ
√
*
*
*
*
<ESC>[?52lFont selection (ESC[10...19m]) Draft
√
*
*
*
*
<ESC>[?53hExtended character set
√
*
*
*
*
<ESC>[?53lStandard character set
√
*
*
*
*
<ESC>[?6~MTPL + EPSON LQ-2550 command set
√
****
<ESC>[?8~ MTPL + EPSON LQ-2170 command set
√
*
*
*
*
<ESC>[?7hLine overrun = CR + LF
T
ally Dascom 2610
82
MTPLIBM
XL24
IBM
AGM
Epson
LQ-2550
Epson
LQ-2170
Code
Function
√
*
*
*
*
<ESC>[?7lLine overrun = Truncating data outside of the printing area
√
*
*
*
*
<ESC>[?<n>~Change emulation
√
√
<ESC>[@<n1> <n2>... Set double height
√
√
<ESC>[\<n1> <n2>...Change vertical base units
√
*
*
*
*
<ESC>[0;;n{Select single sheet operation
√
*
*
*
*
<ESC>[0;0rClear top and bottom margin
√
*
*
*
*
<ESC>[0;0sClear left and right margin
√
*
*
*
*
<ESC>[0gClear horizontal tab at the current print head position
√
*
*
*
*
<ESC>[0mClear all selected fonts
√
*
*
*
*
<ESC>[0mReset color (reserved)
√
*
*
*
*
<ESC>[0 SP IMeasuring unit decipoint
√
*
*
*
*
<ESC>[0 SP KSet horizontal pitch to 10 cpi
√
*
*
*
*
<ESC>[0 SP LSet vertical spacing to 6 lpi
√
*
*
*
*
<ESC>[0 SP XLQ print quality
√
*
*
*
*
<ESC>[0wSet 5 cpi
√
*
*
*
*
<ESC>[0ySelecting Draft printing quality
√
*
*
*
*
<ESC>[0zSuperscript ON
√
*
*
*
*
<ESC>[10mFont 0 Default: Draft
√
*
*
*
*
<ESC>[10yRight and center adjustment OFF
√
*
*
*
*
<ESC>[10zMicroscript ON
√
*
*
*
*
<ESC>[11eSet PUM (absolute measuring unit) to OFF
√
*
*
*
*
<ESC>[11hSet PUM (absolute measuring unit) to ON
√
*
*
*
*
<ESC>[11mFont 1 Default: Courier NLQ
√
*
*
*
*
<ESC>[11wSet 20 cpi
√
*
*
*
*
<ESC>[11ySelect print quality HS-Draft
√
*
*
*
*
<ESC>[12mFont 2 Default: Courier LQ
√
*
*
*
*
<ESC>[12 SP KSet horizontal pitch to 12 cpi
√
*
*
*
*
<ESC>[12wSet horizontal pitch to 10 cpi
√
*
*
*
*
<ESC>[12ySelect print quality LQ
√
*
*
*
*
<ESC>[12zDouble height ON (top portion)
√
*
*
*
*
<ESC>[13mFont 3 Default: Sans Serif NLQ
√
*
*
*
*
<ESC>[13ySelect print quality LQ
√
*
*
*
*
<ESC>[13zDouble height ON (lower portion)
√
*
*
*
*
<ESC>[14mFont 4 Default: Sans Serif LQ
√
*
*
*
*
<ESC>[15mFont 5 Default: Roman LQ
√
*
*
*
*
<ESC>[15 SP KSet horizontal pitch to 15 cpi
T
ally Dascom 2610
83
MTPLIBM
XL24
IBM
AGM
Epson
LQ-2550
Epson
LQ-2170
Code
Function
√
*
*
*
*
<ESC>[16mFont 6 Default: Script LQ
√
*
*
*
*
<ESC>[17mFont 7 Default: Prestige LQ
√
*
*
*
*
<ESC>[18mFont 8 Default: OCR-B LQ
√
*
*
*
*
<ESC>[19mFont 9 Default: OCR-A LQ
√
*
*
*
*
<ESC>[1 gClear vertical tab at current position
<ESC> [ 1 SP kPrintout in Royal Mail customer barcode
√
*
*
*
*
<ESC>[1 SP LSet vertical spacing to 4 lpi
√
*
*
*
*
<ESC>[1 SP pInitiate US Postnet Barcode
√
*
*
*
*
<ESC>[1 SP XPrint quality NLQ
√
*
*
*
*
<ESC>[1wSet 6 cpi
√
*
*
*
*
<ESC>[1yPrint quality NLQ
√
*
*
*
*
<ESC>[1zSubscript ON
√
*
*
*
*
<ESC>[21{ASF-1: Select feeder front
√
*
*
*
*
<ESC>[22{ASF-2: Select feeder rear
√
*
*
*
*
<ESC>[21mDouble underlining
√
*
*
*
*
<ESC>[23mItalics OFF
√
*
*
*
*
<ESC>[24mUnderline OFF
√
*
*
*
*
<ESC>[26mProportional font ON
√
*
*
*
*
<ESC>[2gClear all horizontal tabs in the current line
√
*
*
*
*
<ESC>[2JPrint page
√
*
*
*
*
<ESC>[2 SP lMeasuring unit decipoint
√
*
*
*
*
<ESC> [ 2 SP kPrintout in Kix barcode
√
*
*
*
*
<ESC>[2 SP LSet vertical spacing to 3 lpi
√
*
*
*
*
<ESC>[2 SP XPrint quality Draft
√
*
*
*
*
<ESC>[2wSet 7.5 cpi
√
*
*
*
*
<ESC>[2yProportional font ON
√
*
*
*
*
<ESC>[2zDouble height OFF
√
*
*
*
*
<ESC>[2zSuperscript, subscript and microscript OFF
√
*
*
*
*
<ESC>[30mBlack
√
*
*
*
*
<ESC>[<n>mColor; n = 31…36
√
*
*
*
*
<ESC>[3gClear all horizontal tabs
√
*
*
*
*
<ESC>[3mItalics ON
√
*
*
*
*
<ESC>[3 SP LSet vertical spacing to 12 lpi
√
*
*
*
*
<ESC>[3wSet 8.6 cpi
√
*
*
*
*
<ESC>[3zLine density 6 lpi (= line spacing 1/6 inch)
√
*
*
*
*
<ESC>[4gClear all vertical tabs
T
ally Dascom 2610
84
MTPLIBM
XL24
IBM
AGM
Epson
LQ-2550
Epson
LQ-2170
Code
Function
√
*
*
*
*
<ESC>[4mUnderline ON
√
*
*
*
*
<ESC>[4 SP LSet vertical spacing to 8 lpi
√
*
*
*
*
<ESC>[4wSet 10 cpi
√
*
*
*
*
<ESC>[4ySelecting NLQ printing quality at 10 cpi
√
*
*
*
*
<ESC>[4zLine density 8 lpi (= line spacing 1/8 inch)
√
*
*
*
*
<ESC>[5{Select fanfold paper mode tractor 1
√
*
*
*
*
<ESC>[6{Select fanfold paper mode tractor 2
√
*
*
*
*
<ESC>[50mProportional font OFF
√
*
*
*
*
<ESC>[50{Page at print position
√
*
*
*
*
<ESC>[51{Page at tear off position (perforation)
√
*
*
*
*
<ESC>[52{Page at view position
√
*
*
*
*
<ESC>[53mOverlining ON
√
*
*
*
*
<ESC>[55mOverlining OFF
√
*
*
*
*
<ESC>[5nRequest status report
√
*
*
*
*
<ESC>[5wSet 12 cpi
√
*
*
*
*
<ESC>[5yNLQ with 12 cpi
√
*
*
*
*
<ESC>[5zGraphics normal
√
*
*
*
*
<ESC>[6~Initialize the printer
√
*
*
*
*
<ESC>[6 SP KSet horizontal pitch to 6 cpi
√
*
*
*
*
<ESC>[6wSet 15 cpi
√
*
*
*
*
<ESC>[6zGraphics inverted
√
*
*
*
*
<ESC>[7wSet 17.1 cpi
√
*
*
*
*
<ESC>[7yProportional font OFF
√
*
*
*
*
<ESC>[7zBit 8 = unchanged
√
*
*
*
*
<ESC>[8wReset double stroke
√
*
*
*
*
<ESC>[8yRight justification ON
√
*
*
*
*
<ESC>[8zSet bit 8 = 0
√
*
*
*
*
<ESC>[9 SP LSet vertical spacing to 2 lpi
√
*
*
*
*
<ESC>[9wSet double stroke
√
*
*
*
*
<ESC>[9yCentering ON
√
*
*
*
*
<ESC>[9zSet bit 8 = 1
√
<ESC>[g<n1> <n2><0> Set graphics print to 60 dpi
√
<ESC>[g<n1> <n2><1> Set graphics print to 120 dpi
√
<ESC>[g<n1> <n2><11> Set graphics print to 180 dpi
√
<ESC>[g<n1> <n2><12
>
Set graphics print to 360 dpi
T
ally Dascom 2610
85
MTPLIBM
XL24
IBM
AGM
Epson
LQ-2550
Epson
LQ-2170
Code
Function
√
<ESC>[g<n1> <n2><2> Set graphics print to 120 dpi
√
<ESC>[g<n1> <n2><3> Set graphics print to 240 dpi
√
<ESC>[g<n1> <n2><8> Set graphics print to 60 dpi
√
<ESC>[g<n1> <n2><9> Set graphics print to 120 dpi
√
√
<ESC>[jPosition paper back 1/180"
√
*
*
*
*
<ESC>[<n1> <n2>fSet absolute horizontal and vertical position
√
*
*
*
*
<ESC>[<n>+wInterface holding time n = 1 - 30 s
√
*
*
*
*
<ESC>[<n>+xHead position horizontal in n/720", also paper load pos.
√
*
*
*
*
<ESC>[<n>SP qLoad menu
√
*
*
*
*
<ESC>[<n1>...<n5>+v Paper handling options
√
*
*
*
*
<ESC>[<n1>...<n16>SP Print transparent characters
√
*
*
*
*
<ESC>[<n1> <n2>fSet absolute horizontal and vertical position
√
*
*
*
*
<ESC>[<n1> <n2>SP 0 Change character size
√
*
*
*
*
<ESC>[<n1> <n2>SP D Select font
√
*
*
*
*
<ESC>[<n1> <n2>SP G Set character/line spacing
√
*
*
*
*
<ESC>[<n1> <n2>rSet top and bottom margin
√
*
*
*
*
<ESC>[<n1> <n2>sSet left and right margin
√
*
*
*
*
<ESC>[<n> aSet relative horizontal position
√
*
*
*
*
<ESC>[<n> dSet absolute vertical position
√
*
*
*
*
<ESC>[<n> eSet relative vertical position
√
*
*
*
*
<ESC>[<n> jRelative horizontal position back (to the left)
√
*
*
*
*
<ESC>[<n> kRelative vertical position back (to the top)
√
*
*
*
*
<ESC>[<n> pSet HMI
√
*
*
*
*
<ESC>[<n> qSet horizontal step
√
*
*
*
*
<ESC>[<n> SP \Set additional spaces
√
*
*
*
*
<ESC>[<n> SP CSelect character size
√
*
*
*
*
<ESC>[<n> SP fSet reduced spacing
√
*
*
*
*
<ESC>[<n> SP gSet character spacing
√
*
*
*
*
<ESC>[<n> SP hLine spacing
√
*
*
*
*
<ESC>[<n> SP sTransmits the “n” character as an ASCII character (n= 0–255)
√
*
*
*
*
<ESC>[<n> SP UBeginning of line (default value)
√
*
*
*
*
<ESC>[<n> SP VEnd of line (default value)
√
*
*
*
*
<ESC>[<n> tSet form length in lines
√
*
*
*
*
<ESC>[<n> uSet horizontal tab
T
ally Dascom 2610
86
MTPLIBM
XL24
IBM
AGM
Epson
LQ-2550
Epson
LQ-2170
Code
Function
√
*
*
*
*
<ESC>[<n> vSet vertical tab
√
√
<ESC>[\<n1><n2>Perform relative horizontal step
√
<ESC>\<n1>;<n2>Transparent mode for the characters following
√
<ESC>^Transparent mode for the character following
√
<ESC>_<n>Overline ON/OFF
√
√
√
√
<ESC>0Set line feed to 1/8 inch
√
<ESC>1Set line feed to 7/72 inch
√
√
√
√
<ESC>2Set line feed to 1/6 inch
√
<ESC>2Set line feed to n/72 inch
√
√
√
<ESC>3<n>Set line feed to n/180 inch
√
<ESC>3>n>Set line feed to n/216 inch
√
√
<ESC>4Italics ON
√
√
<ESC>4Set beginning of form
√
√
<ESC>5Italics OFF
√
√
<ESC>5<n>Autom. line feed ON/OFF
√
√
<ESC>6Print ASCII codes dec. 129 to dec. 159
√
√
<ESC>6PC character set 2 (expanded)
√
√
<ESC>7Suppress ASCII codes 129 to 159
√
√
<ESC>7PC character set 1 (standard)
√
<ESC>a<n>Select orientation
√
√
√
<ESC>A<n>Line spacing n/60 inch
√
<ESC>A<n>Prepare line spacing n/72 inch
√
<ESC>b<m><0>Clear all tabs
√
<ESC>b<m><n><0>Set vertical tabs in channels
√
√
√
√
<ESC>B<0>Clear all vertical tabs
√
√
<ESC>B<n1>...<n16><0
>
Set vertical tabs
√
√
<ESC>B<n1>...<n64><0
>
Set vertical tabs
√
<ESC>cReset to initialization status
√
<ESC>cSetting the horizontal motion index (HMI)
√
√
√
√
<ESC>C<0><n>Set form length in inches
√
√
√
√
<ESC>C<n>Set form length in lines
√
√
√
<ESC>d<n1> <n2>Perform relative horizontal step
√
√
√
√
<ESC>D<0>Clear all horizontal tabs
√
√
√
√
<ESC>D<n1>...<n32><0
>
Set horizontal tabs
√
√
<ESC><DC2>Condensed printing OFF
√
√
<ESC><DC4>Double-wide printing OFF (set with <SO> or <ESC><SO>)
T
ally Dascom 2610
87
MTPLIBM
XL24
IBM
AGM
Epson
LQ-2550
Epson
LQ-2170
Code
Function
√
√
√
√
<ESC><SO>Double-wide printing ON
√
√
<ESC><SP><n>Set character spacing
√
√
<ESC>t<n>Select character set
√
√
√
√
<ESC>TSuperscript or subscript OFF
√
√
√
√
<ESC>U<n>Unidirectional print ON/OFF
√
√
<ESC>UnUnidirectional print ON/OFF
√
√
√
√
<ESC>W<n>Continuous double width ON/OFF
√
√
<ESC>w<n>Double height print ON/OFF
√
√
<ESC>x<n>Set print quality (PQ)
√
√
<ESC>x<0>sets Draft or HS-Draft
√
√
<ESC>x<1>sets LQ or NLQ
√
<ESC>XFont selection according to pitch and points
√
√
<ESC>X<n><m>Set left and right margin
√
√
√
√
<ESC>Y<n1> <n2>Set graphics print to 120 dpi
√
√
√
√
<ESC>Z<n1> <n2>Set graphics print to 240 dpi
√
*
*
*
*
<ESC>+FAssign character set G3
√
*
*
*
*
<ESC>|Character generator LS3R
√
*
*
*
*
<ESC>}Character generator LS2R
√
*
*
*
*
<ESC>~Character generator LS1R
√
√
√
√
√
<FF>Form feed
√
√
√
√
√
<HT>Horizontal tab jump
√
<HTS>Set tab stop at actual horizontal position
√
<IND>Line feed without CR
√
√
√
√
√
<LF>Line feed
√
<NEL>Line feed with CR
√
<PLD>Half step line feed
√
<PLU>Half step line feed back
√
<RI>Line feed without CR back
√
√
√
√
<SI>Condensed printing of 17.1 cpi ON
√
<SI>Switching the character generator (SS 3)
√
√
√
√
<SO>Double-wide printing ON
√
<SO>Switching the character generator (SS 2)
√
√
√
√
√
<VT>Vertical tab jump
√
<VTS>Set tab stop at current vertical position
T
ally Dascom 2610
88
7.2.1 PJL commands
These PJL commands can be used with internal Ethernet interface as well as with external
TallyCom III Pocket interface.
This functionality may be activated via the parameter Jobcntl in the Advanced Menu.
Sequence Brief description
"ESC"%-12345X@PJL Universal Exit Language (UEL)
@PJL ECHO ECHO command
@PJL EOJ
@
PJL EOJ NAME=
EOJ (End of Job) commands
@PJL INFO STATUS INFO (Information Request) command
@PJL INFO CONFIG INFO of the printer configuration
@PJL INFO VARIABLES INFO of variables which can be set by
@PJL INFO MEMORY INFO about the memory of the printer
@PJL USTATUS DEVICE = ON
@PJL USTATUS DEVICE = OFF
@PJL USTATUS DEVICE =
VERBOSE
@PJL USTATUS JOB = ON
@PJL USTATUS JOB = OFF
@
PJL USTATUS PAGE = ON
USTATUS (unsolicited status)
commands
@PJL JOB NAME =
@PJL JOB FILE =
@PJL JOB START =
@PJL JOB END =
@PJL JOB COPY =
JOB (Start of Job) commands
@PJL ENTER LANGUAGE Exit PJL and start normal parser
@PJL INFO USTATUS List each type of unsolicited status
@PJL USTATUS TIMED Enables timed unsolicited status
7.2.2 Barcode
Even the standard version of your printer has the possibility of using up to 23 different
MTPL barcode types.
Barcode mode can be accessed within every emulation. The user can
decide whether barcode is activated permanently or activated depending
on the situation by means of an escape sequence.
The printer prints small barcode in 240 dpi and wider barcodes in 120 dpi.
T
ally Dascom 2610
89
7.2.3 List of available MTPL barcodes
Type Barcode Type Barcode
A* 2/5 Matrix (default) N UPC A (with HRI)
B* 2/5 Industrial O UPC A (without HRI)
C* 2/5 Interleaved P UPC E (with HRI)
D* Code 11 Q UPC E (without HRI)
E* BCD Matrix R* Delta Distance (IBM)
F* Code 39 S Code 128
G* Codabar T EAN 128
H EAN 8 (with HRI) 1) US-Postnet
I EAN 8 (without HRI) 1) KIX Barcode
K EAN 13 (with HRI) 1)
Royal Mail Customer
Barcode
L EAN 13 (without HRI) 1)
USPS Intelligent Mail
Barcode
M* MSI/modified PLESSEY
*These barcodes may be printed out horizontal and vertical, the unmarked only
horizontal.
1) See description on following pages.
The barcode types K, L, N, O may be expanded by using Add-On Barcodes:
Add-On 2 and Add-On 5.
The information to be printed is transmitted in a “bracket” (DC4) A control
sequence (Header) defines the parameters of the used barcode once (e.g. type,
ratio, etc.). If no header is defined, the informaton in the “bracket” will be printed
in Code 2/5 Matrix.
Please note that within the Barcode environment the barcode commands have
priority in case of conflicts with the emulation.
Additional information is provided in the Barcode Programmer’s
Application Manual on this CD-ROM.
7.2.4 US Postnet barcode
Postnet is a special US-American type of barcode. Is printed in character size. Numeric
values from 0 to 9 are printable.
After activating this barcode type, numeric characters from 0 (hex. 30) to 9 (hex. 39) are
interpreted as barcode figures. All other characters terminate the Barcode mode.
Exception: the TAB function (hex. 09) is allowed within Barcode mode. The Postnet
sequence is accessible in every emulation.
The character (e.g. CR = carriage return, hex. 0D), which terminates the
barcode is not printed or carried out. US Postnet barcode does not require
a barcode bracket.
Example:
ASCII ESC [ 1 SP P 1 2 3 4 5 CR
HEX 1B 5B 31 20 70 31 32 33 34 35 0D
The numbers 1 to 5 are printed as Postnet stripes.
T
ally Dascom 2610
90
7.2.5 Royal Mail Customer barcode
The Royal Mail Customer barcode is a special Mail type barcode. It is printed in character size.
Numeric values from 0 to 9 and alpha- numeric values from A to Z are printable. After
activating this barcode type, numeric characters from 0 (hex.30) to 9 (hex. 39) and
alphanumeric values from A (hex. 41) to Z (hex. 5A) are interpreted as barcode figures. Lower
cases from a (hex. 61) to z (hex. 7a) are automatically converted to capital characters. Control
characters from hex. 0 (dec. 0) to hex.1F (dec. 31) terminates this barcode mode. All other
characters are ignored. Exception: the TAB function (hex. 09) is allowed within Barcode mode.
The Royal Mail Customer sequence is accessible in MTPL emulation. The printer prints
barcode in LQ.
The character (e.g. CR = carriage return, hex. 0D), which terminates the barcode
is not printed or carried out.
Royal mail customer barcode does not required barcode bracket.
Example
:
ASCII ESC [ 1 SP k S O 3 6 X Y 1 A CR
HEX 1B 5B 31 20 6B 53 4F 33 36 58 59 31 41 0D
The characters “SO36XY1A” are printed as Royal Mail Customer stripes.
7.2.6 KIX barcode
The KIX barcode prints numeric values from 0 to 9 and alpha-numeric values from A to Z
as barcode characters.
After activating this barcode type, numeric characters from 0 (hex. 30) to 9 (hex. 39) and
alphanumeric values from A(hex. 41) to Z (hex. 5A) are interpreted as barcode figures. Lower
cases from a (hex. 61) to z (hex. 7a) are automatically converted to capital characters. Control
characters from hex. 0 (dec. 0) to hex.1F (dec. 31) terminates this barcode mode. All other
characters are ignored. Exception: the TAB function (hex. 09) is allowed within Barcode mode.
The KIX sequence is accessible in MTPL emulation. The printer prints barcode in LQ.
The character (e.g. CR = carriage return, hex. 0D), which terminates the barcode
is not printed or carried out. KIX barcode does not require a barcode bracket.
Example
:
ASCII ESC [ 2 k S O 3 6 X Y 1 A CR
HEX 1B 5B 31 6B 53 4F 33 36 58 59 31 41 0D
The characters “SO36XY1A” are printed as KIX stripes.
7.2.7 USPS Intelligent Mail barcode
The USPS Intelligent Mail barcode is a 4-state barcode which works in MTPL, IBM and Epson
emulation. 4-state barcode data must be converted into only 0, 1, 2 or 3. Each number
represents one of the four possible bars. Tabs (Hex 09) and spaces can separate either the
bars or the barcodes horizontal, but every other character below Hex 20 will terminate
barcode mode.
You can enter the barcode mode with the sequence ESC [ ? 11 ~, the sequence ESC [ 10 ~
exits the barcode mode.
Example
:
ASCII ESC [ 9 SP K <data>
HEX 1B 5B 39 02 6B <data>
T
ally Dascom 2610
91
7.2.8 LC printing
Certain professional applications may require unusually Large character sizes. Therefore your
printer has the possibility of scaling standard size characters up to factor 99 by means of
control sequences (LCP*).
The Header sequence defines the parameters (e.g. height) once. This definition remains
until the printer is switched off. The printable LCP* information is transmitted in an LCP
“bracket” (SI).
The following character sets (with national characters) are available.
ID 232440 5B 5C 5D 5E 60 7B 7C7D7E
US ASCII01
#
$
@
[
\
]
? `
{
|
}
¯
GERMAN02
#
$
§ Ä *
Ü ? `
ä *
ü
ß
The character sets are selected via the following LCP sequence ESC ”P“ ”L“ ”S“ n ESC ”\“. The
value of n may range between 01 and 02 (as ASCII characters) – see ID column in the above
table.
To select e.g. the German character set, you must use the following data set:
ASCIIESC PLS01ESC \
HEX1B
50
4C
53
30
31
1B
5C
DEC27
80
76
83
48
49*
27
92
The printout of LCP characters can be selected in all of the emulations.
Prerequisite: Printer must be in Barcode mode.
Note that this printer supports some scalable fonts in the LQ-2170 emulation if a
compatible driver is used.
T
ally Dascom 2610
92
7.2.9 List of additional control Codes
You can use both the ESC sequences and the control codes
Se
q
uences Control codes Function
<ESC>[?10~
<ESC>[?11~
<ESC> PSC 0 <ESC> \
<ESC> PSC 1 <ESC> \
<ESC> PLS <n> <ESC> \
<ESC>[<n><SP>s
<ESC>[20<SP>s
<ESC>[16<SP>s
<ESC>[25<SP>s
<ESC>[15<SP>s
<ESC>[26<SP>s
<ESC>[1 SP p
<ESC>[1 SP k
<ESC>[2 SP k
<ESC>[9 SP k
—
—
—
—
—
—
<DC4>
<DLE>
<EM>
<SI>
<SUB>
—
—
—
—
Barcode Off
Barcode On
Unsecured mode
Secured mode LCP
character set
Sends a character as ASCII
character;
n > 0–255 decimal
Barcode bracket
Start code LCP Header
Termination code Header
LCP bracket
Start code Barcode-Header
US-Postnet Barcode
Royal Mail Customer Bar-
code
Kix-Barcode
USPS Intelligent Mail Bar-
code
Header Function
<DLE> [!] nn EM LCP header
[ ] = optional
nn = factor
<SUB> [F] a [nn][;xyz][;p] EM Barcode header
[ ] = optional
a = Barcode type
p = 0: Barcode horizontal
p = 9: Barcode vertical
Additional information is provided in the Barcode Programmer’s Application
Manual on this CD-ROM.
T
ally Dascom 2610
93
7.3 Interfaces Specifications
Your matrix printer offers connectivity via a parallel interface, USB and Ethernet interface.
Serial I/O RS232C interface is an option. This appendix informs you about the parallel
Interface, USB, Ethernet interface and optional serial interface RS232C, and describes the
communication between your computer and the printer.
These interfaces are linked to form a called shared interface. Your printer can be configured to
use only one interface or three alternately. When only one interface is used, it is monitored by
the printer. If the printer is configured to use three interfaces simultaneously it monitors all
interfaces for incoming data. As soon as the printer recognizes a signal, it switches to the
respective interface and sends the BUSY signal to the other interface. After finishing the data
transmission, the printer remains switched to the interface for a certain period of time (30
seconds). When this time has elapsed, the controller again enables all interfaces and the
sequence described restarts. If incoming data is on the other interface and the current print
position is not “Top of Form”, a form feed is carried out.
T
ally Dascom 2610
94
7.3.1 Parallel I/O IEEE 1284
The bidirectional parallel interface offers the “nibble” mode of IEEE1284 interface. This
enables installation in accordance with Windows “Plug & Play”.
The standard parallel interface is able to transfer data at a speed of max. 30, 000 bytes per
second. When the receiving buffer is full, the data input is blocked until the data buffer is
empty.

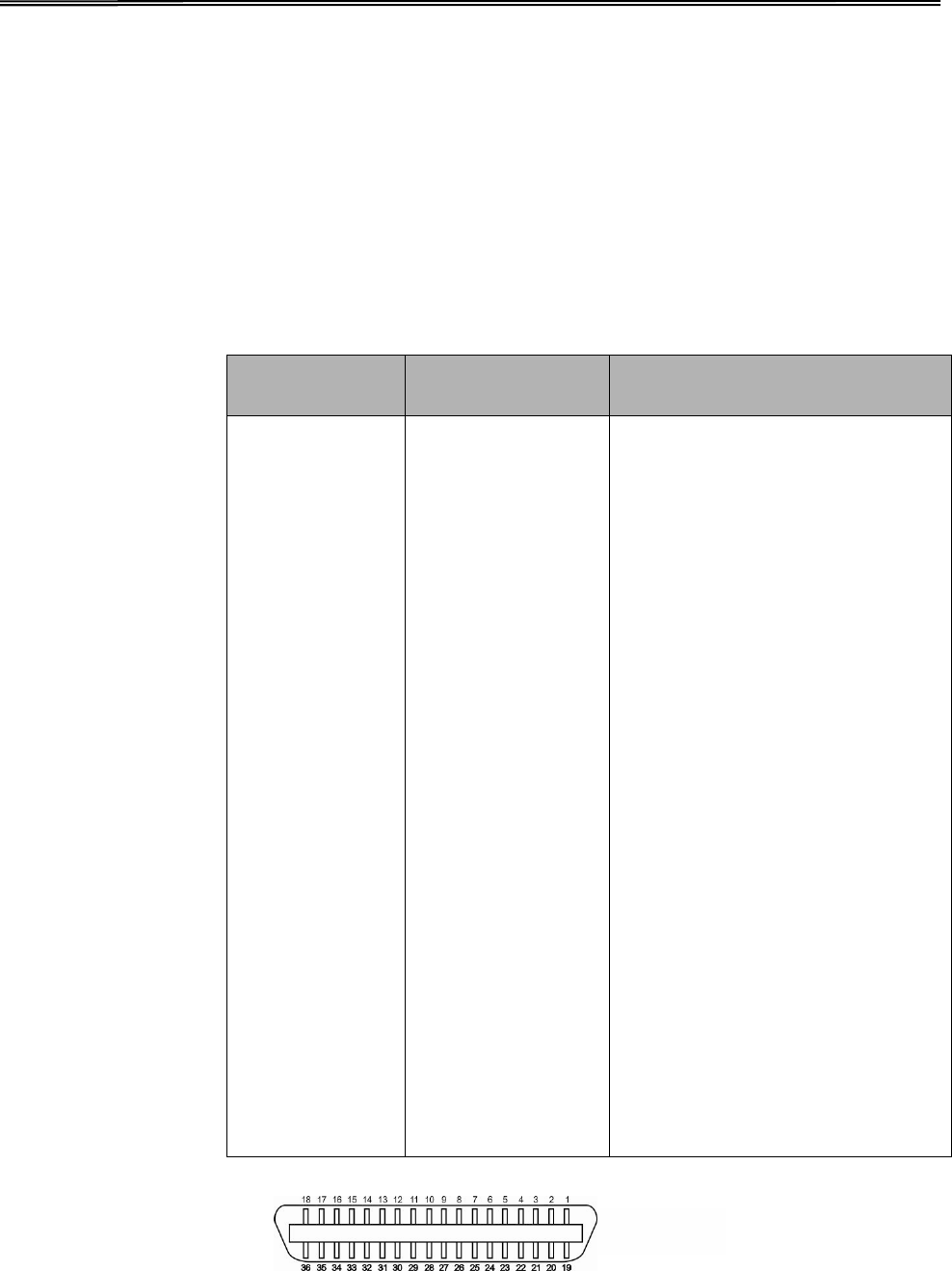

Connector assignment
Connector no. Direction
Printer–PC
Signal
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19–30
31
32
33
34–35
36
←
←
←
←
←
←
←
←
←
→
↔
↔
↔
↔
一
一
一
一
←
↔
一
←
STROBE (active low)
DATA 1
DATA 2
DATA 3
DATA 4
DATA 5
DATA 6
DATA 7
DATA 8
ACK (active low)
BUSY
PAPER EMPTY (PE)
SELECT
AUTO FEED (active low)
not used
SIGNAL GROUND
CHASSIS GROUND
5 V (Imax = 500 mA)
SIGNAL GROUND INIT
(active low) ERROR
(active low) SIGNAL
GROUND not used
SELECT IN
Transmission length: max. 2,0 m
T
ally Dascom 2610
95
7.3.2 Ethernet I/O 10/100 Mulitprotocol
The Ethernet interface enables the printer to connect to local area networks. It's attributes are:
Hardware
LAN/Ethernet: RJ45, Ethernet 100BaseTX with 100
Mbps
(IEEE802.3u), 10Base-T with 10 Mbps
(IEEE802.3)
Speed: 100 Mbps / Full Duplex
Supported operating
Systems
Windows XP, Windows Server 2003, Windows 2000,
Windows NT, Windows 7, Windows Vista,Windows Server
2008, Windows Server 2013, Windows 8
Linux
Unix
Sun
Solaris
Supported Protocols
SNMP
SMTP
TCP/IP
FTP
Ipr / Ipd Port 9100
Designation of IP
Address
DHCP
BOOTP
Static (manually via the printer’s control panel)
ConfigurationHTTP
TCP/IP
Status
SNMP
TCP/IP
SMTP
PING
Management
Web Panel
HP Web Jet Admin
E-Mail notification with SMTP
Pre-string, Post-String, String Replacement
SetupSetup via the printer’s control
panel
Web Panel
(HTTP/HTML)
Ethernet TCP/IP
When using your printer in a local network with Ethernet connections and the TCP/IP
protocol, you have to assign address information.
Address information for the Ethernet Port can only be made available by your
network administrator, who has the necessary rights to install Printers on the
network and/or make any changes.
T
ally Dascom 2610
96
Example of a Printer connected to a computer in an Network
◆ The assumed address space corresponds to the TCP/IP address, class C, 192.168.1.xxx.
◆ The subnet mask to be used is 255.255.255.0.
◆ The address of the router, or gateway, is 0.0.0.0, if not available.
Example of several devices in an Ethernet
7.3.3 USB 2.0 I/O – Full Speed
The USB interface conforms to the Universal Serial Bus 2.0 Specifications. It supports the Full
Speed mode at12 Mbps. It uses the “B” type USB connector.
T
ally Dascom 2610
97

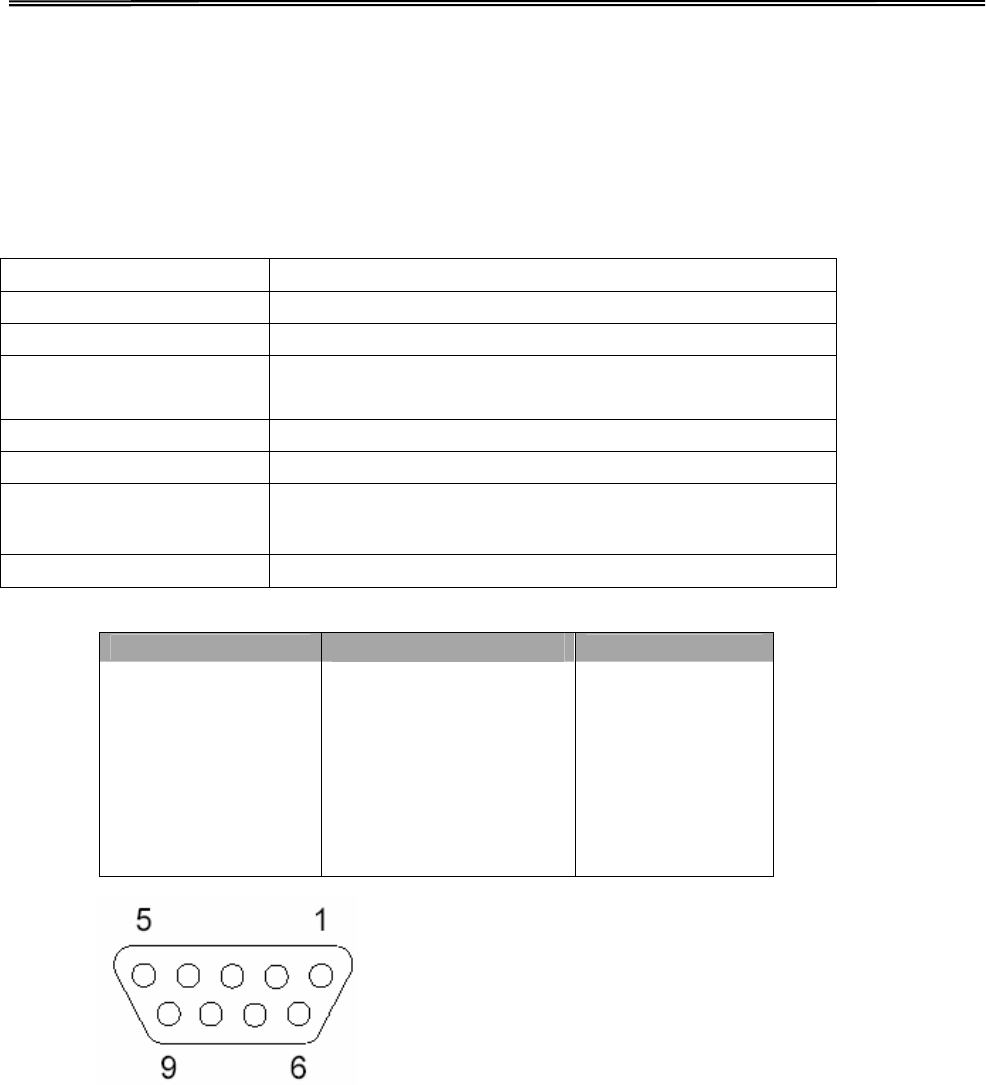

7.3.4 Optional Serial Interface RS232C
Your printer’s serial interface supports the RS232C specification. The signals are received
and transmitted by a 9 pin connector.
Basically 3 lines are enough for exchanging information between computer and printer (one
receive line, one send line, one line for common grounding).
Type RS232C interface
Synchronization Asynchronous
Transmission rate 600 Baud to 19200 Baud
Signal status OFF (log.1) -3 V to -15 V
ON (log. 0) +3 V to +15 V
Connection cable up to 15 m length
Interface connections ITT Cannon connector, series DB-9 S
Transmission protocol XON/XOFF, ENQ/STX, READY/ BUSY,
Robust XON/XOFF, ETX/ ACK, ACK/NAK
Capacity of data buffer 512Byte min. 256KByte max
Connector assignment
Connector no.Direction Printer–PC Signal
3→TxD
4→DTR
2←RxD
6←DSR
7→RTS
8←CTS
5SignalGroundSG
ShieldFrameGroundFG
T
ally Dascom 2610
98
1) The serial cable length must not exceed 15 meters.

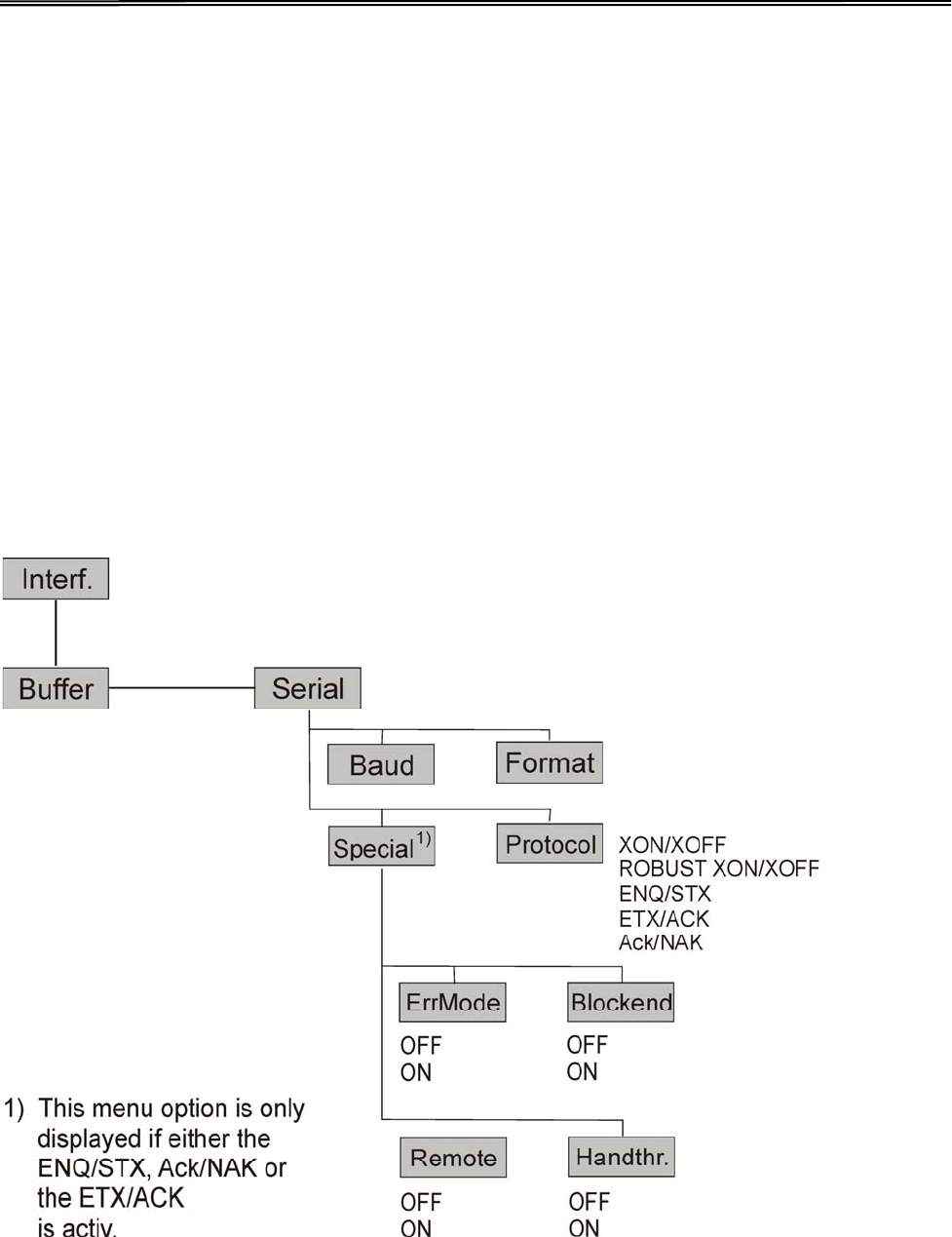

2) Make sure the “Interface Setup” selects serial interface and the settings are the
same as PC communication port settings. See example below:
T
ally Dascom 2610
99
Interface cable (serial interface)
The cables used must be shielded. The cable shield must be connected to the connector
shield on both ends.
PC/AT（9 Pin） Printer（9 Pin）
RxD 2 3 TxD
TxD 3 2 RxD
CTS 8 4 DTR/RDY
SG 5 5 SG
DSR 6
DTR 4
PC/AT（25 Pin） Printer（9 Pin）
FG 1 FG
TxD 2 2 RxD
RxD 3 3 TxD
CTS 5 4DTR/RDY
SG 7 5 SG
DSR 6
DTR 20
It depends on the menu setting whether DTR or RDY (Ready) is active at Pin 4.
◆ Input signals
Signal Function
CTS
DSR
RxD
Clear to Send
Data Set Ready
Receive Data
◆ Output signals
Signal Function
DTR
RTS
READY
TxD
Data Terminal Ready
Request to Send
Ready to receive data
Tra nsm i t Da t a
PC/AT（25 Pin） Printer（9 Pin）
PC/AT（9 Pin） Printer（9 Pin）
T
ally Dascom 2610
100
Protocols
◆ Memory mode XON/XOFF
The received characters are stored in a FIFO buffer (first in/first out).
The characters are processed in this buffer.
The buffer capacity can be adjusted from 0 to 128 Kb.
If the buffer is full, the interface signals NOT READY (signal acknowledgement: Level 1, -12 V)
and XOFF (hex. 13, dec. 19). This results in stopping the data transmission. When the FIFO
buffer is empty again, the interface signals READY (level 0, +12 V) and XON (hex.11, dec. 17).
Data transmission can be continued.
In addition, the READY signal is influenced by the status of the printer (On/Off Line). If the
printer assumes an undefined state, the interface also signals NOT READY and XOFF.
◆ Memory mode Robust XON/XOFF
Robust XON/XOFF is similar to XON/XOFF. However, the state of the printer (XON or XOFF)
is also periodically transmitted via the TxD line in the case of Robust XON/XOFF.
◆ Extended menu functions with the ENQ/STX and ETX/ACK protocols selected
protocol
T
ally Dascom 2610
101
◆ ENQ/STX protocol
In addition to this XON/XOFF message, the possibility exists of requesting a status byte from
the printer using the ENQ code (hex. 05, dec. 5). The STX code (hex 02, dec. 2) is used to
clear any error messages (parity error, buffer overflow).
Status byte Bit 0-1 BUSY
Bit 1-1 Off Line
Bit 2-0 Pa
p
e
r
end
Bit 3-1
A
lwa
y
s1
Bit 4-1 Cove
r
o
p
en
Bit 5-1 Buffer overflow
Bit 6-1 Pa
r
it
y
o
r
frame erro
r
Bit 7-0
A
lwa
y
s0
STX (hex02):
ENQ (hex05):
XON/XOF:
HandThr.= ON:
HandThr.= OFF:
Clears any previous parity or framing error as well as any buffer overflow
error.
The current printer status is sent to the host.
This protocol is automatically used for data flow control and printer status
handling.
The STX and ENQ characters are not filtered out of the data stream and
control the interface in addition.
The STX and ENQ are filtered out of the data stream and handled immediately
by the interface.
◆ ETX/ACK protocol
ETX (hex03):
XON/XOFF:
ACK (hex06):
HandThr.=ON:
HandThr. =OFF:
Acknowledgement informing the host that further data may be transmitted.
This protocol is used in addition to data flow control and printer status
handling.
Block end character.
An ETX is not acknowledged by ACK before all previously arrived data have
been printed.
When the printer receives an ETX, it returns an ACK to the host. Any
previously sent data or blocks may still be present in the printer buffer.
◆ ACK/NAK protocol
The ACK/NAK Protocol is a so called block Protocol.
Normally the Blocks are starting with the Block Start Character (STX, dec 02, hex 02) and end
with a Block End Character (ETX, dec 03, hex 03).
As soon as a Block is received by the printer it acknowledges it with the Acknowledge
Character (ACK, dec 06, hex 06).
If there is an Error in the transmission a Not-Acknowledge-Character (NAK, dec 21, hex 15) is
being sent back. As a block end character other codes are possible.
One can check the printer condition/status; During the transmission of graphic data or
download character per se problems can come up within the block mode as in this data block
end characters can be transmitted as normal graphic or other data.
T
ally Dascom 2610
102
8 Options and accessories
The following options can be ordered for your printer.
8.1 Options
Tractor Unit 2600
Tractor Unit 2600
Tractor Unit 2610
Tractor Unit 2610
NamePart no.
Second Tractor for push and pull position (rear,
top and front installable). 99993
Serial Interface 2600/2610
Serial Interface 2600/2610 modules are available.
NamePart no.
Serial Interface RS232C, 9pin female 99994
NamePart no.
Second Tractor for push and pull position (rear
,
top and front installable). 99992
T
ally Dascom 2610
103
8.2 Consumables
Ribbon Cassettes
Ribbon Cassette are available in the following versions.
NamePart no.
Ribbon cassette monochrome black for narrow
Model 99061
Ribbon cassette monochrome black for wide
Model 99071
Refill Kits
Refill Kits are available in the following versions.
NamePart no.
Refill Kit monochrome black fabric for narrow
model, on demand 99002
Refill Kit monochrome black fabric for wide
model, on demand 99072
8.3 Accessories
Programming manuals
The following programming manuals are available. You can download the manuals from
our internet page.
NamePart no.
Programmer’s application manual MTPL (in English)379 298
Programmer’s application manual Barcode (in English) 379 300
Programmer’s application manual Epson (in English)379 302
T
ally Dascom 2610
104
9 General Specifications
9.1 Printer Specifications
Print System Mono-chrome serial impact dot matrix
Print Technology Uni-/bi-directional logic seeking for text and graphics
Print Head
Number of pins: 24 pins (2 x 12; staggered)
Firing frequency: Normal mode: 2 kHz
Pin diameter: 0.25 mm
Distance between pins: horizontal 1/20 inch, vertical 1/90 inch
Life: 500 million strokes/pin @ Draft mode
Print Speed
Pitch HS Draft Draft NLQ LQ in CPS
(characters per second)
10 CPI 500 333 222 111
12 CPI 500 400 267 133
15 CPI *) 500 500 333 167
15 CPI 500 500 167 167
17.1 CPI 286 285 190 190
20 CPI 333 333 222 222
17.1 CPI **) 571 --- --- ---
20 CPI **) 680 --- --- ---
Character Pitch 5 / 6 / 7.5 / 8.6 / 10 / 12 / 15 / 17.1 / 20 CPI (characters per inch)
Print attributes in
all character
pitches
Double width / italics / right justification / shadowed / auto centered / double height
/ bold / proportionally spaced / underlined / overlined / superscript / subscript;
Scalable with special LQ-2170 fonts
Character Size Height: 3.32 mm (inclusive descenders)
Width: max. 2.43 mm
Font Matrix
Pitch HS Draft Draft NLQ LQ (Matrix/DPI)
10 CPI 24x8/80H 24x12/120H 24x18/180H 24x36/360H
12 CPI 24x8/96H 24x10/120H 24x15/180H 24x30/360H
15 CPI *) 16x8/120H 16x8/120H 16x12/180H 16x24/360H
15 CPI 24x8/120H 24x8/120H 24x18+6/360H 24x18+6/360H
17.1 CPI 24x12+2/240H 24x12+2/240H 24x18+3/360H 24x18+3/360H
20 CPI 24x10+2/240H 24x12+2/240H 24x15+3/360H 24x15+3/360H
17.1 CPI **) 24x06+1/240H --- --- ---
20 CPI **) 24x05+1/240H --- --- ---
Paper Feed
Feed speed: 5 ips (tractor and friction)
Feed first line (6lpi): 43 ms
View / Tear position: 5 ips
Reverse motion: up to max form length of 14 inches
*) Only with ESC/P (sub-/superscript, 15 CPI) and MTPL Micro-script
**) Reduced matrix, selectable by menu, named Ultra-Draft
T
ally Dascom 2610
105
Tab Speed 50 ips
Graphic Densities Horizontal: 60 / 72 / 80 / 90 / 120 / 180 / 240 / 360 DPI (dot per inch)
Vertical: 90 / 180 / 360 DPI
Print width
Narrow version Wide version
10 CPI: 80 CPL 136 CPL (characters per line)
12 CPI: 96 CPL 163 CPL
15 CPI: 120 CPL 204 CPL
17.1 CPI: 137 CPL 233 CPL
20 CPI: 160 CPL 272 CPL
Fonts,
resident
Print qualities:
Ultra-Draft, HS-Draft and Draft in Data Print Quality,
NLQ same as LQ with reduced matrix,
LQ Roman, Roman PS, Sans Serif, Sans Serif PS, Courier, Courier (IBM®)
Courier PS (IBM®), OCR A, OCR B, Prestige, Script, Orator,
Gothic, Souvenir
DLL Character Sets in EPSON® and IBM® format
Barcodes,
resident
Selectable via programming:
Code 2/5 Industrial
Code 2/5 Interleaved
Code 39
Code EAN-8 with HRI (human readable index)
Code EAN-8 without HRI
Code EAN-13 with HRI
Code EAN-13 without HRI
Code UPC-A with HRI
Code UPC-A without HRI
Code UPC-E with HRI
Code UPC-E without HRI
Code 128 EAN (also called EAN-128)
Code 128
U.S. Postnet (fix format, non-scalable)
KIX Barcode
Royal Mail Customer Barcode
USPS Intelligent Mail Barcode
Emulation MTPL, EPSON® ESC P/2 (LQ2170), EPSON® ESC P (LQ 2550), IBM® PP XL 24e
Code Pages and
National Character
Sets
See the list at the end of the Printer Specifications where Fonts, Code pages and
available pitch sizes are given by corresponding relationships.
Line Spacing 2 LPI / 3 LPI / 4 LPI / 6 LPI / 8 LPI / 12 LPI / 1/72" / 1/180" / 1/360 inches
Paper Handling
Feeding method: Friction (Single) and Tractor (FF-front / FF-rear / FF-pull)
Path selection: By selection lever located at the right device side
Paper path: Cut sheets: Front in, front or top out
T
ally Dascom 2610
106
Fanfold paper: Front or rear in, top out
For details enter the Paper Specifications – 9.3 below
Ribbon Type
Ribbon Cartridge, monochrome;
Wide version: 470 x 93 x 39mm max, (WxDxH), fabric: 13mm height
Narrow version: 330 x 93 x 39mm max, (WxDxH), fabric: 13mm height
Ribbon Life Wide version: 8 million characters (rolling Draft 10 CPI)
Narrow version: 6 million characters (rolling Draft 10 CPI)
Windows Drivers
Windows Server 2000 / 2003 / 2008 / 2012
Windows 7 and Windows 8 (for 32 and 64bit versions)
Î covers Windows XP, Windows 2000 and Windows Vista.
Interfaces
Ethernet 10/100MHz
Parallel (Bi-directional IEEE-1284 nibble mode)
USB 2.0 (Full Speed 12 MHz, B type connector)
For details enter the Interface Specifications – 7.3 above
Input Data Buffer Up to 256KB
Operation Panel LED version: 4 keys and 5 indicator LEDs
LCD version: 6 keys and LCD with 2 lines x 16 characters
Self test
Menu setting print out
Rolling ASCⅡ80 or 136
Hex-Dump
Noise Level Sound pressure level = ≤ 55 dB(A) in LQ
Environmental
Conditions
Temperature Operating: +10 to +35°C.
Storage: - 5 to +45°C
Transport: - 40 to +70°C
Humidity Operating: 16 to 73% RH (No condensation)
Storage: 5 to 95% RH (No condensation)
Transport: 5 to 95% RH (No condensation)
Dimensions Wide version: 600 mm (W) x 267 mm (D) x 202 mm (H)
Narrow version: 458 mm (W) x 267 mm (D) x 202 mm (H)
Weight Wide version: 10.62 kg
Narrow version: 8.1 kg
Power Supply
Unit type: Autosensing wide range power supply
Power cord: Detachable
Voltage rating: AC 100 to 240V / 47Hz to 63Hz
Nominal power: 30W
ESD: Comply with IEC801-2;
Contact discharge: 4kV
Air discharge: 8kV
Fuse T6.3AH/250V
MTTR < 15 minutes
Continuous Throughput: 422 p/h in Draft mode according IEC 10561:1999 (ECMA 132)
T
ally Dascom 2610
107
operation MTBF: 15000 hours @ 25% duty cycle
Certifications CE, UL, FCC, Energy Star,
T
ally Dascom 2610
108
9.2 Non-Scalable Fonts, Code Pages and National Character Sets
ID for ESC R/ESC (
High Speed Draft
Draft
Roman
Sans Serif
Courier (incl. Courier
IBM
)
OCR-B
OCR-A
Prestige
Script
Orator
Gothic
Souvenir
ISO USA 42 X X X X X X X X X X X X
ISO UK 41 X X X X X X X X X X X X
ISO France 52 X X X X X X X X X X X X
ISO Germany 4B X X X X X X X X X X X X
ISO Italy 59 X X X X X X X X X X X X
ISO Sweden 48 X X X X X X X X X X X X
ISO Norway 60 X X X X X X X X X X X X
ISO Spain 5A X X X X X X X X X X X X
ISO Portugal 4C X X X X X X X X X X X X
Epson USA 00 X X X X X X X X X X X X
Epson France 01 X X X X X X X X X X X X
Epson Germany 02 X X X X X X X X X X X X
Epson UK 03 X X X X X X X X X X X X
Epson Denmark I 04 X X X X X X X X X X X X
Epson Sweden 05 X X X X X X X X X X X X
Epson Italy 06 X X X X X X X X X X X X
Epson Spain I 07 X X X X X X X X X X X X
Epson Japan 08 X X X X X X X X X X X X
Epson Norway 09 X X X X X X X X X X X X
Epson Denmark II 0A X X X X X X X X X X X X
Epson Spain II 0B X X X X X X X X X X X X
Epson Latin America 0C X X X X X X X X X X X X
Epson Korea 0D X X X X X X X X X X X X
Epson Legal 40 X X X X X X X X X X X X
CRO-ASCII 3C X X - X X - - - - - - -
Arabic Farsi 96 - - *1 *1 *1 *1 - - - - - -
Arabic Urdu 97 - - *1 *1 *1 *1 - - - - - -
Greek DEC 46 X X - X- - - - - - - -
ELOT 928 (Greek) 6C X X - X - - - - - - - -
CP437 Latin US 80 X X X X X X X X X X X X
CP737 Greek 93 X X - X- - - - - - - -
CP775 Baltic A6 X X - X X - - - - - - -
CP850 Latin 1 82 X X X X X X X X X X X X
CP851 Greek 88 X X - X - - - - - - - -
CP852 Latin 2 87 X X - X X - - - - - - -
CP857 Turkish 8D X X - X X - - - - - - -
CP858 (IBM with €) 9E X X X X X X X X X X X X
CP860 Portugal 84 X X X X X X X X X X X X
CP861 Icelandic 94 X X X X X X X - - - - -
CP863 French Canada 85 X X X X X X X X X X X X
CP864 Arabic 8C - - *1 *1 *1 *1 - - - - - -
CP864 Arab. Extended 95 - - *1 *1 *1 *1 - - - - - -
T
ally Dascom 2610
109
ID for ESC R/ESC (
High Speed Draft
Draft
Roman
Sans Serif
Courier (incl. Courier
IBM
)
OCR-B
OCR-A
Prestige
Script
Orator
Gothic
Souvenir
CP865 Nordic 86 X X X X X X X X X X X X
CP866 Cyrillic 8E X X - X X - - - - - - -
CP866 Bulgaria 9D X X - X X - - - - - - -
CP866 Ukraine 8F X X - X X - - - - - - -
CP866 Kazakhstan 90 X X - X X - - - - - - -
Siemens Turkish 9B X X - X X - - - - - - -
DEC Turkish 9C X X - X X - - - - - - -
CP1250 Win Latin 2 70 X X - X X - - - - - - -
CP1251 Win Cyrillic 71 X X - X X - - - - - - -
CP1252 Win Latin 1 72 X X X X X X X - - - - -
CP1253 Win Greek 73 X X - X- - - - - - - -
CP1254 Win Turkish 74 X X - X X - - - - - - -
CP1256 Arabic 76 - - *1 *1 *1 *1 - - - - - -
CP1257 Baltic 77 X X - X X - - - - - - -
8859-1 Latin 1 25 X X X X X X X X X X X X
8859-1 Latin 1 (SAP) 2B X X X X X X X X X - - -
8859-2 Latin 2 26 X X - X X - - - - - - -
8859-5 Cyrillic 2A X X - X X - - - - - - -
8859-6 Arabic 24 - - *1 *1 *1 *1 - - - - - -
8859-7 Greek 2D X X - X- - - - - - - -
8859-9 Turkish 2E X X - X X - - - - - - -
8859-15 Latin 9 (Euro) 2F X X X X X X X X X - - -
BRASCII 6D X X X X X X X - - - - -
Abicomp 6E X X X X X X X - - - - -
Roman 8 4D X X X X X X X - - - - -
Coax/Twinax(Hebrew) 4F X X X X *2 - - *3 *4 - - -
New-437 (Hebrew) 81 X X X X *2 - - *3 *4 - - -
New-DIG 850 (Hebr.) 83 X X X X *2 - - *3 *4 - - -
Old-Code 860 (Hebr.) 98 X X X X *2 - - *3 *4 - - -
Flarro 863 (Hebrew) 99 X X X X *2 - - *3 *4 - - -
Table 865 (Hebrew) 9A X X X X *2 - - *3 *4 - - -
Mazovia (Poland) 92 X X - X X - - - - - - -
Kamenicky (Czech) 91 X X - X X - - - - - - -
*1: only in 10 and 12 cpi, *2 : same as Sans Serif, *3 : same as Roman, *4 : only in 10 cpi
T
ally Dascom 2610
111
9.3.2 Front Feed / Manual Insertion – Narrow and wide versions
Usable figures of print area (dimensions in mm (inches))
Narrow model Wide model
Pos Title min max min max
A paper width, 76
(3”)
278
(11”)
76
(3”)
420
(16.5”)
B printable line length 203.2
(8”)
345.44
(13.6”)
C Max left paper guide position to first
printable character
38
(1.4”)
38
(1.4”)
D Max right paper guide position to first
printable character
38
(1.4”)
38
(1.4”)
E top margin 1) 0
(0/72”)
77.6
(220/72”)
0
(0/72”)0
77.6
(220/72”)
E top margin, default setting 1) 4.23
(12/72”)
4.23
(12/72”)
F form length 148
(5.8”)
420
(16.5”)
148
(5.8”)
420
(16,5”)
G bottom margin 0 0 0 0
H left margin, default setting “0” 1) 0 198.1
(78/10”)
0 340.4
(134/10”)
I right margin, default setting “80” 1)
or “136/10”
2 203.2
(80/10”)
2 345.44
(136/10”)
reverse paper feed
(front ejection)
420
(16.5”)
420
(16,5”)
Paper Weights
Narrow and wide
Single Part Forms 60 – 120g/m²
Number of copies 1 + 5
Multi Part Forms – original sheet 45 – 65g/m²
Multi Part Forms – copy sheets 45 – 56g/m²
Maximum thickness 0.50mm
1)Figurevariablesettingviainterfaceorpanel
T
ally Dascom 2610
112
10 Maintenance
Your printer requires very little care. Occasional cleaning and replacement of the ribbon
cartridge are all that is required. Cleaning is recommended approximately every 6 months or
300 hours of operation, whichever is sooner. Lubrication of the printer is not usually necessary.
If the print head carriage does not move smoothly back and forth, clean the printer in the
manner described in this chapter. If the problem continues, contact your dealer.
Switch printer off and unplug the power cord from the mains before doing any
maintenance work.
10.1 Cleaning
The housing and the top cover of the printer help protect it against dust, dirt, and other
contaminants. However, paper produces small particles that accumulate inside the printer.
This section explains how to clean and vacuum the printer and how to clean the paper bail
rollers. It is easier to clean the printer when the cover is open.
10.1.1 Cleaning and Vacuuming the Printer
If the print head carriage does not move smoothly back and forth or paper particles have
accumulated in the printer, clean the printer.
To clean and vacuum the printer:
1) Remove any paper from the printer. Make sure that the power is off, and then disconnect
the printer power cord.
2) Using a soft vacuum brush, vacuum the exterior of the printer. Also vacuum the cut sheet
edge.
3) Use a soft, damp cloth to wipe the exterior of the printer, including the cover. A mild
detergent may be used. Do not use solvents, kerosene, or abrasive cleaning materials that
may damage the printer.
4) Open the cover of the printer and remove the ribbon cartridge. Using a soft vacuum brush,
gently vacuum the platen, the print head carriage and shaft, and surrounding areas. You
can easily slide the print head to the left or right when the power is off. Be careful not to
press too hard on the flat head cable that extends from the print head carriage.
5) Re-install the ribbon cartridge.
10.1.2 Cleaning the Paper Rollers
Clean the platen and paper bail rollers occasionally or when stains or smudges appear on the
paper. Use a mild detergent as appropriate. Do not use alcohol to clean the platen or the
rollers. Alcohol may cause the rubber to harden.
To clean the rollers and the platen:
1) Apply a small amount of water to a soft cloth. Avoid spilling liquid inside the printer.
2) Place the cloth against the platen and manually rotate the hand wheel.
3) Repeat this procedure for each roller.
4) To dry the platen, place a dry cloth against the platen and the rollers and manually rotate
the paper feed knob.
T
ally Dascom 2610
113
10.2 Troubleshooting
Your printer is extremely reliable, but occasionally problems may occur. This chapter provides
information on some of the common problems you may encounter and how you may solve
them. If you encounter problems that you cannot resolve, contact your dealer or service
partner for assistance.
10.2.1 Print Quality Problems and Solutions
Problem Solution
Printing is too light or too
dark.
• Make sure that the ribbon cartridge is properly
installed and that the ribbon feeds smoothly.
• Replace the ribbon if necessary.
• Make sure that the print gap lever is set for the
thickness of your paper.
Smears and stains appear
on the page.
• Make sure that the print gap lever is set for the
thickness of your paper.
• Check for ribbon wear. Replace the ribbon if
necessary.
• Check whether the tip of the print head is dirty. Clean
the head with a soft cloth if necessary.
• The print head may need to be replaced.
Printing is erratic or the
wrong characters are
printed. Many “?” or
unexpected characters are
printed.
• Make sure that the interface cable is securely
connected to both the printer and computer.
• Make sure that the printer driver selected in your
software is the same as the emulation selected on the
printer.
• Check the length of the interface cable. (Maximum
Parallel & USB: 2 meters, Serial: 15 meters)
• Try another interface cable.
The page is blank.
• Make sure that the ribbon cartridge is properly
installed.
• Make sure the gap lever is set correctly.
The top margin is wrong.
• Check the application top margin setting.
• Adjust the Top Margin setting in Page Setup menu if
necessary.
Lines are double spaced
instead of single spaced.
• Change the Auto LF setting in the System Setup
menu to No.
The printer overprints on the
same line.
• Change the Auto CR setting in the System Setup
menu to No.
The next print line starts
where the previous line
ended instead of at the left
margin.
• Change the Auto CR setting in the System Setup
menu to Yes.
T
ally Dascom 2610
114
10.2.2 Paper Handling Problems and Solutions
Problem Solution
Paper cannot be loaded or
fed.
• Make sure that the paper select lever located on the
top right of the printer is set correctly.
Paper jams while loading.
• Turn off the printer and remove the jammed paper.
Remove any obstructions from the paper path.
• Make sure that the Print Gap lever is set for the
thickness of your paper.
• Make sure that the paper is not folded, creased, or
torn.
• Make sure that the left and right tractors are set so
that the continuous forms are stretched tightly.
Paper jams while printing.
• Turn off the printer and remove the jammed paper.
Remove any obstructions from the paper path.
• Make sure that the Print Gap lever is set for the
thickness of your paper.
• For continuous forms, make sure that the incoming
and outgoing paper stacks are correctly placed. Paper
should feed straight.
Paper slips off the forms
tractors or the perforated
holes of the paper tear
during printing.
• Make sure that the forms tractors are positioned
correctly for the width of your paper and that the
perforated holes of the paper fit directly over the tractor
pins.
10.2.3 Operating Problems and Solutions
Problem Solution
The power does not turn on.
• Check whether the mains voltage is correct.
• Make sure that the power cord is securely connected
to both the printer and the mains power outlet.
• Make sure that the power outlet is functional. If not ,
use other outlet.
• Turn the power off. Wait a minute and then turn the
printer on again. If the printer still has no power, contact
your dealer.
The printer is on but it will not
print.
• Make sure that the Online indicator is lit.
• If you use the interface cable, make sure it is securely
connected to both the printer and the computer.
• Make sure paper is loaded.
• Run the printer Status Page. If printing executes
normally, the problem is caused by: the interface, the
computer, incorrect printer settings, or incorrect
software settings.
• Make sure that the printer driver selected in your
software is the same as the emulation selected on the
printer.
Paper select lever error
• If paper is loaded and the paper select lever is moved
to the incorrect position, the printer turns offline, and
the buzzer sounds continuously. Switch the paper
select lever back to its correct position.
DASCOM REPRESENTATIVES
GERMANY
DASCOM Europe GmbH
Heuweg 3
D-89079 Ulm
De
utsc
h
l
a
nd
Tel.: +49 (0) 731 2075 0
Fax: +49 (0) 731 2075 100
www.dascom.com
SINGAPORE (ASIA PACIFIC)
DASCOM AP Pte Ltd
21 Bukit Batok Crescent
#29-81,WCEGA Tower
Singapore
658065
Phone: +65 6760 8833
Fax: +65 6760 1066
www.dascom.com
FRANCE
DASCOM Europe GmbH
117
Avenue
Victor Hugo
92100
Boulogne-Billancourt
France
Phone: +33 (1) 73 02 51 98
www.dascom.com
UNITED
KINGDOM
DASCOM GB Ltd
Hart House,Priestley Road
,
Basingstoke, Hampshire
RG24 9PU, England
Phone: +44 (0) 1256 481481
Fax: +44 (0) 1256 481400
www.dascom.com
AMERICAS
DASCOM
Americas
Corporation
421 W. Main Street,
Waynesboro,
VA 22980, USA
Phone:+1
(877)
434 1377
www.dascom.com
RUSSIA
and CIS
DASCOM EuropeGmbH
Representation
Moscow
Leninsky
Prospekt
95a, Office 322
119313 Moscow, Russian Federation
Phone: +7 (495) 984 70 65
Fax: +7 (495) 984 56 42
www.dascom.com
“All
rights
reserved. Translations, reprinting
or
copying
by any means of this
manual
complete or in part or in any
different form requires
our
explicit
approval.
We
reserve
the
right
to make changes to this
manual
w
i
th
ou
t
notice. All care has been taken to ensure accuracy of
information contained
in this
manual. However,
we
cannot accept
responsibility for
any errors or damages
resulting
from errors or
inaccuracies
of
information
herein.”
©
2012 DASCOM
Part No: 21.511.532.5670R
