Jiangmen Dascom Computer Peripherals TD5130P Dot Matrix Printer User Manual UG 5130T preliminary tv04

Jiangmen Dascom Computer Peripherals Co.,Ltd. Dot Matrix Printer UG 5130T preliminary tv04

user manual

T
ally Dascom 5130P
I
Important
Safety
Instructions
(English)
Read the
following instructions thoroughly
before
starting
up
your
printer.
•
Never carry
out
maintenance or repair
work
yourself. A
l
way
s contact a
qualified service tec
hn
i
cian
.
•
Keep this
Operator’s Manual
in a place which is easily accessible at
all
times.
•
Place the
printer
on a solid and even base so that it cannot
fall.
•
Never
place the
printer
in the
vicinity
of
inflammable
gas
or explosive
substances.
•
Ensure the
printer
is connected to a socket with the correct mains voltage.
•
Always
disconnect
the
printer
from the mains before
opening
the
device
to
perform maintenance
work or
remedy
errors.
•
Do not expose the
printer
to high
temperatures,
direct
sunlight
or dust.
•
Keep
all liquids
away from the printer.
•
Protect the
printer
from shock, impact and
vibration.
•
Make sure that the
printer
and
computer
are switched off before
connecting
the data cable.
•
The
print
head will become very hot
during printing; avoid
contact with the print head after
printing
has
finished.
•
Do not
perform
any
operation
or action
in
any way other than those
provided
in this
manual.
When in
doubt, contact your
dealer
or your customer support.
T
ally Dascom 5130P
II
W
i
c
h
tige
Sicherheitshinweise
(German)
Lesen Sie bitte diese
Sicherheitshinweise
durch,
bevor
sie den
Drucker
in Betrieb
nehme
n
.
•
Führen
Sie
Wartungsarbeiten
und
Reparaturen keinesfalls
selbst aus,
sondern verständigen
Sie
immer einen
qualifizierten
Ser
v
i
cetec
hn
i
k
er
.
•
Bewahren
Sie diese
Dokumentation
an einem
jederzeit zugänglichen
Ort auf.
•
Den
Drucker
auf
stabilem
und ebenem
Untergrund
so
aufstellen,
dass
er
nicht zu Boden
fallen
kann.
•
Stellen Sie den
Drucker ke
i
nesf
a
ll
s in
der
Nähe von leicht
entzündlichen
Gasen oder
explosiven
Stoffen auf.
•
Den
Drucker
nur an eine Steckdose mit der
richtigen Spannung
anschließen.
•
Wenn Sie den
Drucker
vom Netz trennen w
o
ll
en,
den
Drucker ausschalten
und immer den
Netzstecker
an der Steckdose ziehen.
•
Den
Drucker weder hohen Temperaturen
noch direktem
Sonnenlicht
und Staub aussetzen.
•
Keine
Flüssigkeiten
mit dem
Drucker
in
Berührung
bringen.
•
Den
Drucker ke
i
nen
Erschütterungen,
Stößen
oder Vibrationen
aussetzen.
•
Sicherstellen,
dass
der Drucker
und der
Computer ausgeschaltet
sind,
bevor
das Datenkabel
an
ge
sc
h
l
ossen
wird.
•
Der
Druckkopf
wird während
des Druckens heiß.
Vor
dem
Berühren
deshalb einige Zeit abkühlen
lassen.
•
Weichen Sie bei
der Bedienung
des Druckers nicht von den
An
we
i
s
unge
n
in
der Dokumentation
ab.
Be
i
Unklarheiten
wenden Sie sich bitte an Ihren
Händler
oder Ihren Kundendienst.
T
ally Dascom 5130P
III
Consignes importantes
de sécurité (French)
Lire
attentivement
les
instructions suivantes
avant de mettre
l’imprimante
en
service.
•
Ne
jamais effectuer soi-même
les
travaux d’entretien
et de
réparations.
Contacter
toujours
un
dépanneur
qualifié.
•
Placer
l’imprimante sur
un
support
stable de façon à ce qu’elle ne puisse pas tomber.
•
Ne
jamais
placer
l’imprimante
à
proximité
de sources de gaz aisément
inflammables
ou de
su bstanc es e
xp
l
os
iv
es.
•
Ne
connecter l’imprimante
à une
prise
que
lorsque la
tension est
correcte.
•
Pour
déconnecter l’imprimante
de
l’alimentation principale,
mettre
l’imprimante hors
tension et
toujours débrancher
le
connecteur secteur
de
la
prise murale.
•
Ne pas exposer
l’imprimante
à des
températures
élevées, à
la lumière
directe du soleil ou à
la
poussière.
•
Ne pas mettre
l’imprimante
en contact avec des
liquides.
•
Ne pas
exposer l’imprimante
à des chocs, impacts ou
vibrations.
•
S’assurer
que
l’imprimante
et
l’ordinateur
sont hors tension avant de connecter
l
e câble de données.
•
La tête
d’impression
est
brûlante pendant l’impression.
C’est
pourquoi laissez-la refroidir
quelques
instants avant d’y toucher.
•
N'exécutez aucune
opération
ni action d'une autre
manière
que celle
indiquée
dans ce manuel.En
cas de doute, veuillez
contacter
votre
distributeur
ou
service
après-vente.
T
ally Dascom 5130P
IV
Indicazioni
di sicurezza
importanti
(Italian)
Prima
di mettere in
funzione la stampante,
l
egge
re
attentamente
le seguenti indicazioni.
Non eseguire mai da sé
gli
inter venti di
manutenzione
e
riparazione,
ma
rivolgersi
sempre a un tecnico di
assistenza qualificato.
•
Conservare
le presenti
istruzioni per
l’uso in un
luogo
sempre accessibile.
•
Collocare la stampante
su una
superficie
stabile,
per evitare
che cada a
terra.
•
Non
collocare la stampante
in
prossimità
di gas
facilmente infiammabili
o di sostanze esplosive.
•
Collegare la stampante
a una
presa
di
corrente
con tensione adeguata.
•
Per scollegare la stampante dalla
rete di
alimentazione,
spegnere
la stampante
e
disinserire
sempre
il
connettore
di rete dalla
presa.
•
Non
esporre la stampante
ad elevate
temperature
né
alla
luce solare diretta e
alla
polvere.
•
Evitare
il
contatto
della stampante
con
liquidi.
•
Non
esporre la stampante
a colpi, scosse o
vibrazioni.
•
Verificare
che
la stampante
e
il computer
siano spenti primadi
collegare il
cavo di
trasmissione
dati.
•
Durante
la
stampa,
la
testina si
surriscal-da notevolmente. Prima di toccarla,
se necessarioopportuno
quindi lasciarla raffreddare qualche
istante.
•
Non eseguire
alcuna operazione
o azione se non
nella maniera
descritta nel presente
manuale.
In
caso di
dubbio, contattare il rivenditore
o
dalla
società
incaricata d
e
ll
’assiste
nza.
T
ally Dascom 5130P
V
Instrucciones
de
seguridad importantes
(Spanish)
Lea las
siguientes instrucciones
con esmero antes de
poner la impresora
en
servicio.
Nunca lleve a cabo
trabajos
de
mantenimiento
o
reparación
Ud. mismo, sino consulte a un técnico de
servicio
calificado.
•
Guarde las
presentes
instrucciones
de
servicio
en un
lugar
de fácil acceso en
cualquier
momento.
•
Ponga
la impresora
sobre un base estable de
manera
que no pueda
caer al
suelo.
•
Nunca coloque
la impresora
en
la vecindad
de gases de fácil
inflamabilidad
o
sunstancias
explosivas.
•
Asegure conectar
la impresora
sólo a un enchufe con un voltaje
correcto.
•
Cuando quiera desconectar la impresora
de
la
red,
apague la impresora
y
siempre
tire
la clavija
de
alimentación
del enchufe.
•
No
exponga la impresora
a
temperaturas
altas, a
la
luz
solar
directa y
al
polvo.
•
No ponga
la impresora
en contacto con fluidos.
•
Nunca
exponga la impresora
a
sa
cu
d
i
das
, choques o
vibraciones.
•
Asegúrese de que
la impresora
y el
ordenador
estén
apagdos
antes de conectar el cable de datos.
•
La cabeza de
impresión
se pone muy caliente
durante la impresión. Por
lo tanto, deje
enfriarlo
algún
tiempo antes de tocarla.
•
No
permita
que se realice
cualquier operación
o acción de una forma diferente a lo que se señala en
el
manual.
En caso de duda,
póngase
en contacto con su
comerciante
o con su
servicio
post-venta.
T
ally Dascom 5130P
VI
Правила по технике безопасности. (Russian)
Прочитайте, пожалуйста, инструкцию по технике безопасности перед включением в работу принтера.
•
Не выполняйте технические работы и ремонт техники самостоятельно, но сообщайте о
неисправностях квалифицированным сервисным техникам.
•
Данная инструкция должна быть всегда доступна каждому пользователю.
•
Установите принтер на ровном и стабильном месте так, чтобы он не смог упасть на пол.
•
Ни в коем случае не ставьте принтер вблизи легко воспламеняющихся газов и взрывчатых
веществ.
•
Включайте принтер в розетку только с соответствующим напряжением.
•
Если Вы хотите отключить принтер от напряжения, сначала выключите принтер сам и затем
выньте штекер из розетки.
•
Берегите принтер от нагревания, от попадания на него прямых солнечных лучей и пыли.
•
Не допускайте попадания жидкости на принтер.
•
Нельзя подвергать принтер тряске, ударам и вибрации.
•
Убедитесь, что принтер и компьютер выключены, только после этого соедините принтер с
компьютером.
•
Печатающая головка нагревается во время работы принтера. Поэтому подождите какое-то
время, прежде чем дотронуться до нее.
•
Пользуйтесь принтером так, как это написано в документации. Если у Вас возникают неясности,
обращайтесь с вопросами к Вашим продавцам или в сервисный центр.
T
ally Dascom 5130P
VII
Instruções
Importantes
sobre
Segurança
(Portuguese)
Le
i
a
as
instruções
de
segurança
antes de usar a impressora.
•
Consulte sempre um técnico
qualificado
para executar uma
reparação
.
•
Coloque a
impressora sobre
uma base
sólida
e
nivelada,
para que ela não sofra quedas.
•
Jamais instale
a
impressora
nas
proximidades
de
lugares
onde
haja
gás
inflamável
ou substâncias
explosivas.
•
Assegure-se
de conectar a
impressora
à
tomada
elétrica com a
voltagem apro-priada.
•
Quando desligar
a
impressora
da rede,
desligue
sempre a
impressora
e retire o cabo da tomada.
•
Não
exponha
a
impressora
a
temperaturas
altas ou luz
solar
direta.
•
Não
aproxime
sub
st
ân
c
i
a
s
líquidas
da impressora.
•
Proteja
a
impressora
de choques,
impactos
e
vibrações.
•
Desligue a
impressora
e o
computador
antes de
conectar
o cabo da rede.
•
A cabeça da
impressora
pode ficar muito quente .
Portanto,
espere
algum
tempo antes de tocá-la.
•
Não faça
nenhuma operação
ou ação
além
das
recomendadas
neste
manual.
Em caso de dúvida,
contate seu
revendedor
ou
companhia
de
serviço.
T
ally Dascom 5130P
VIII
Önemli
Güvenlik Talimatları (Turkish)
Lütfen,
yazıcıyı
i
ş
letim
e
geçirmeden
önce bu
güvenlik talimatlarını bütünüyle
dikkatle okuyun.
•
Ba
k
ı
m
ve
tamir çalı
ş
malarını kesinlikle
ve
hiçbir
surette kendi
ba
ş
ınıza yapmayın; her
zaman kalifiye
bir
uzman se
r
v
i
s
-teknisy
enin
e
haber verin.
•
Yazıcıyı, üzerinden
yere düşmesi
mümkün olmayacak
sabit ve düz bir zemine yerleştirin.
•
Yazıcıyı kesinlikle
ve
hiçbir
surette
kolayca yanabilecek
gaz veya
patlayıcı maddeler içeren
nesnelerin
yakınına koymayın.
•
Yazıcı akım
kablosunu
sadece
do
ğ
ru gerilime
sahip bir prize takın.
•
Yazıcıyı
şebeke
a
ğ
ından ayırmak
is
te
d
i
ğ
i
n
i
z
de,
yazıcıyı kapatın
ve
a
ğ
-fi
ş
ini
her zaman
prizden
çıkartın.
•
Yazıcıyı
ne yüksek
ısılı
ne de
do
ğ
rudan
güneş
ı
ş
ı
ğ
ına
ve toza
mâruz
kalan
mekânlarda bulundurun.
•
Yazıcı
hiçbir sıvı maddeyle
temasta
olmamalıdır.
•
Yazıcı hiçbir sarsıntıya, darbeye
veya t
i
tre
ş
ime
mâruz
kalmamalıdır.
•
Veri kablosu ba
ğ
lanmadan
önce hem
yazıcının
hem de
bilgisayarın
kapalı
olduklarından
emin
olmalısınız.
•
Yazıcının ba
ş
ı
basma
esnasında
yüksek
ısıya ula
ş
ıyor.
Bu yüzden lütfen
dokunmadan
önce kısa süre
so
ğ
umasını
bekleyin.
•
Yazıcının i
ş
letimi
ve
kullanımında
bu
dokümantasyondaki talimatların
hiç
dı
ş
ına çıkmayın.
Sorunlu
görünen hususlarda
lütfen
imâlatçınıza
veya
mü
ş
teri hizmetleri se
r
v
i
s
iniz
e başvurun.
T
ally Dascom 5130P
IX
TRADEMARK
ACKNOWLEDGEMENTS
“IBM” is a
trademark
of
International Bu
s
i
ness
Machines
Corporation.
“EPSON”
is
a
trademark
of Epson
America
Incorporated.
“DEC”
is
a
trademark
of Digital
Equipment Corporation.
“Centronics”
is a
trademark
of
Centronics
Data
Computer Corporation.
“DOS” is a
trademark
of Microsoft Corporation.
“SAP” is a
trademark
of SAP AG.
“Windows”, “Windows 7”, “Windows 95”, “Windows 98“, “Windows NT”, “Windows 2000”, “Windows
2003/2008 Server”, “Windows XP” and “Windows Vista” are
trademarks
of Microsoft Corporation.
All
other product
names and
company
names
appearing
in this
manual
are the
registered trademarks or
trademarks
of the
individual
companies.
T
ally Dascom 5130P
X
T
ally Dascom 5130P
XI
TABLE
OF CONTENTS
1 UNPACKING GUIDE
........................................................................................................................................ 1
PREPARE THE PRINTER ......................................................................................................................................... 2
TRACTOR
I
NSTALLATION
........................................................................................................................................
3
P
LACING
THE PRINTER .......................................................................................................................................... 5
PRINTER
C
OMPONENTS
........................................................................................................................................
6
2 SETTING
UP
PRINTER
.................................................................................................................................... 7
INSTALL RIBBON .................................................................................................................................................. 7
C
ONNECTING
THE INTERFACE CABLE .................................................................................................................... 10
C
ONNECTING
THE MAINS POWER ........................................................................................................................ 11

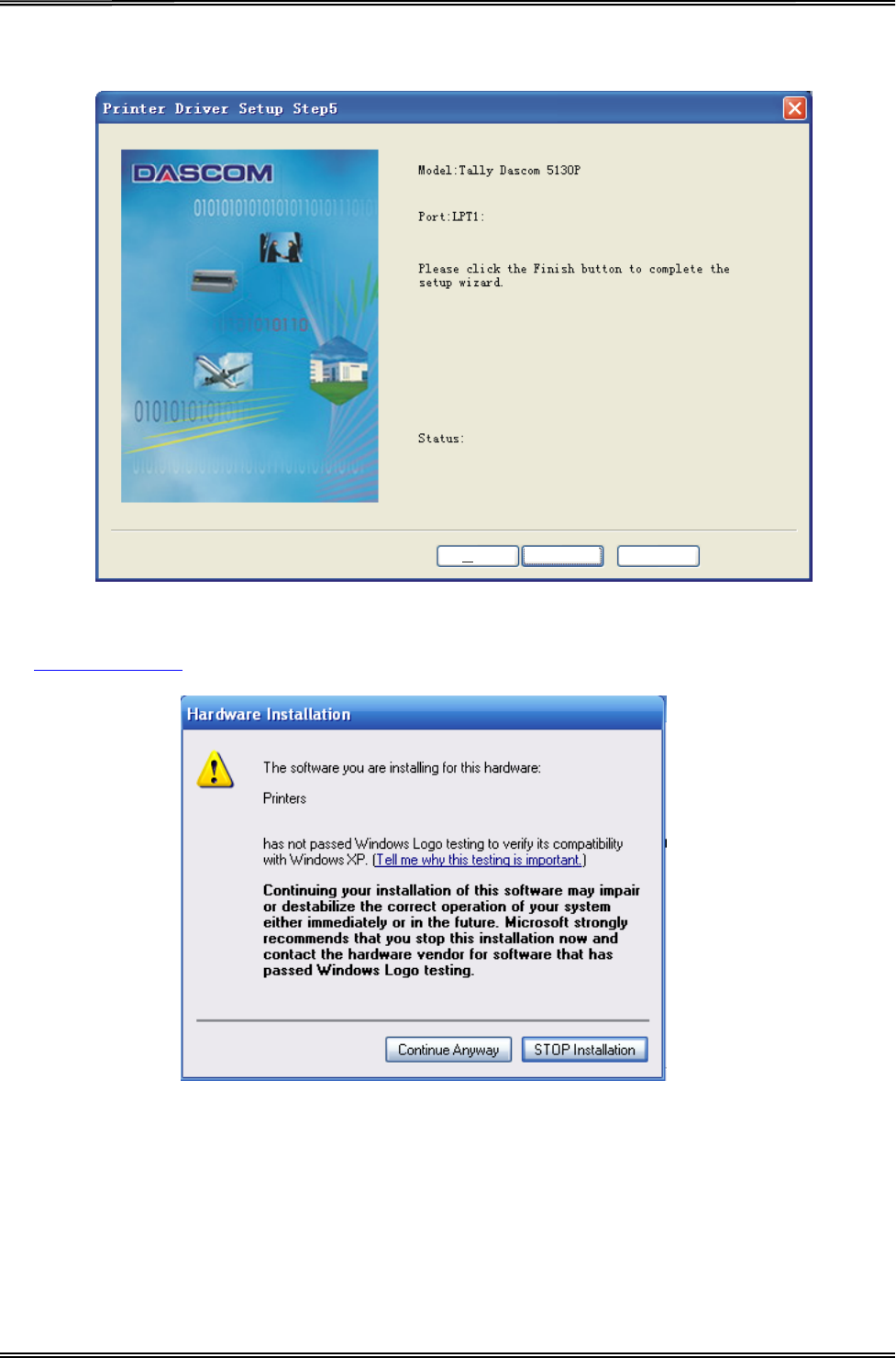

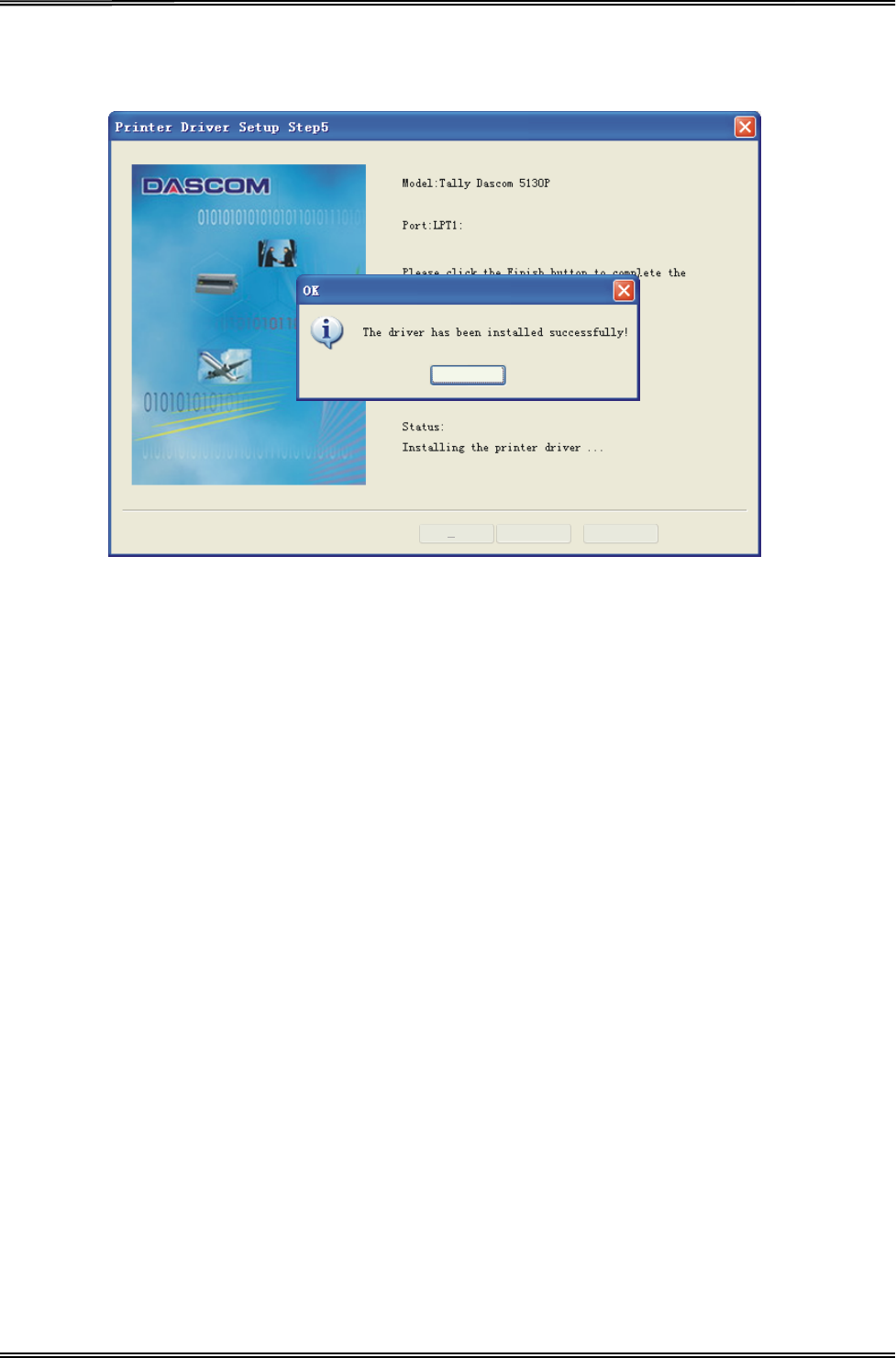

I
NSTALLING
THE WINDOWS DRIVER ...................................................................................................................... 12
3 PAPER INSTALLATION GUIDE
.....................................................................................................................
16

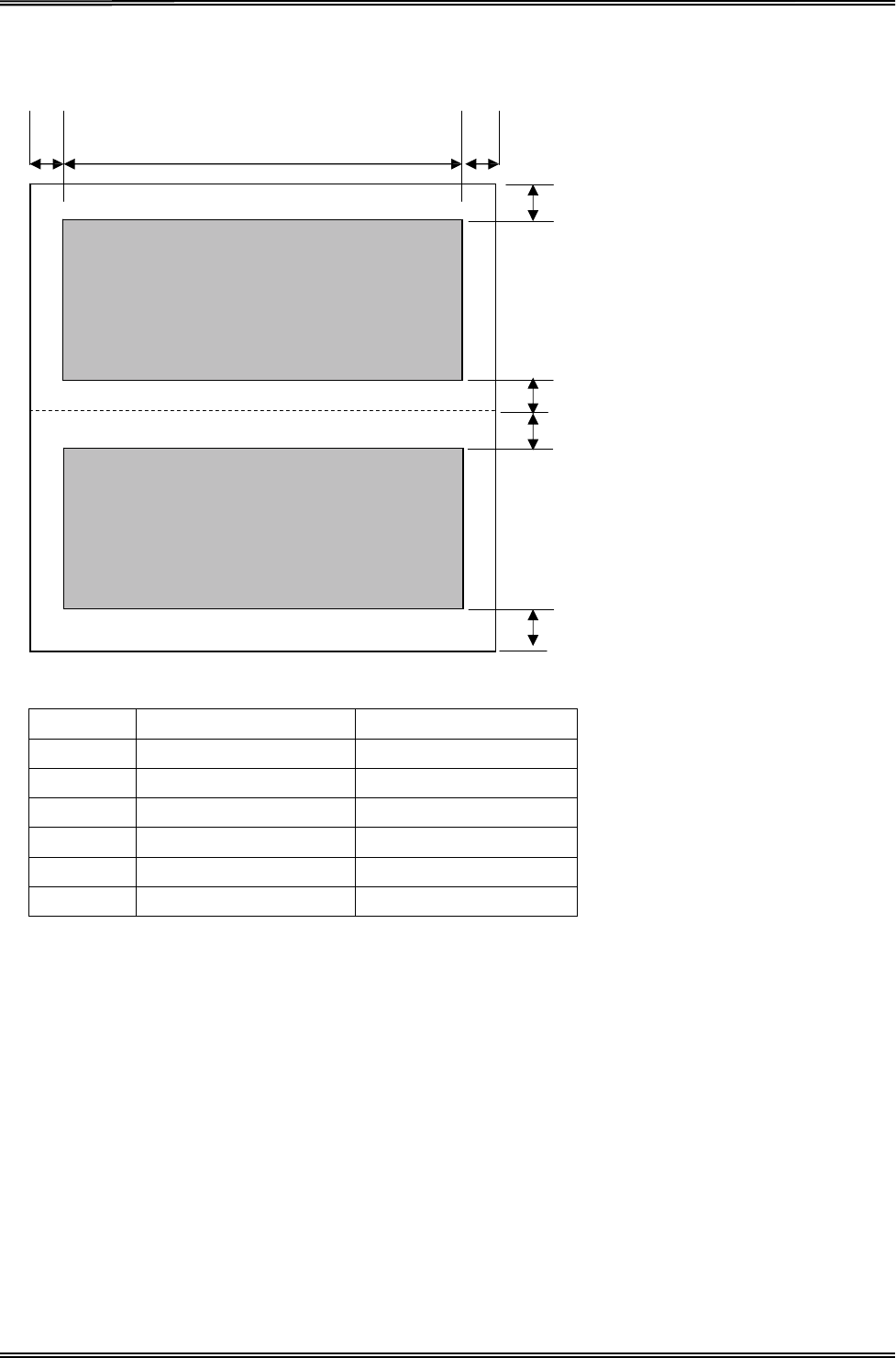

PAPER AND PRINTABLE AREA
S
PECIFICATION
........................................................................................................ 16

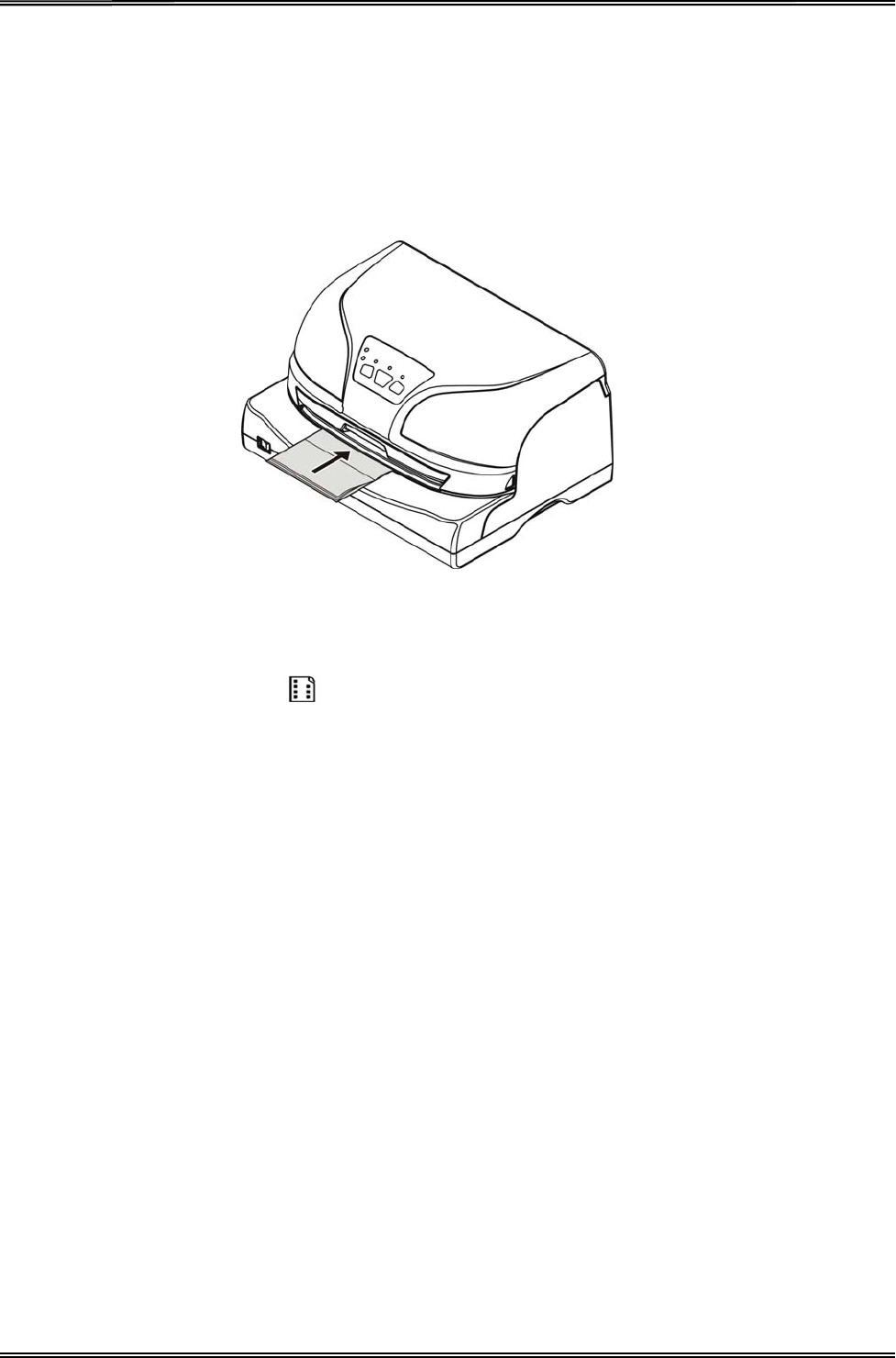

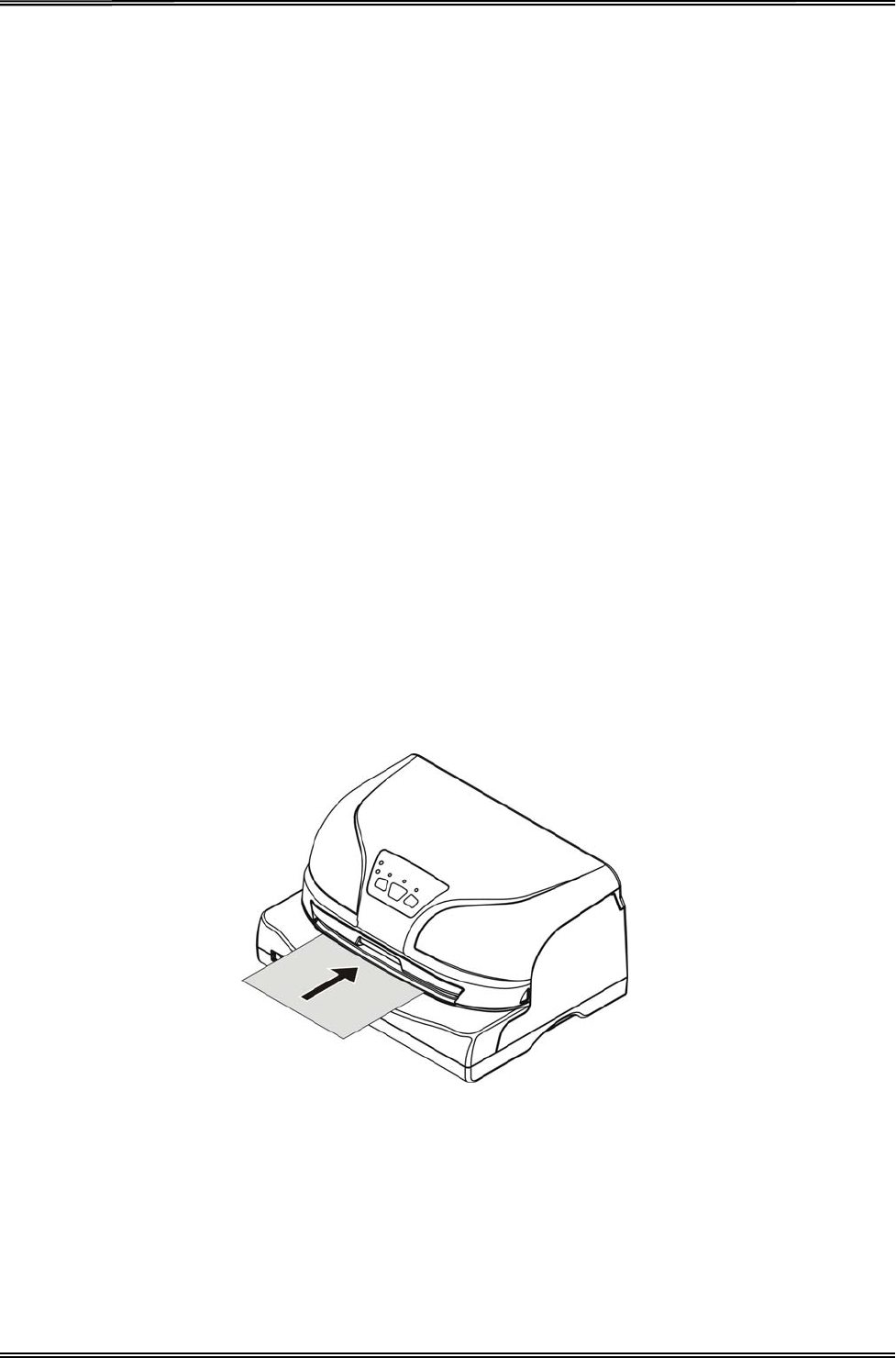

I
NSERTING
A CUT
S
HEET
..................................................................................................................................... 19
I
NSERTING
A
P
ASSBOOK
......................................................................................................................................
20
TRACTOR FEED
H
ANDLING
.................................................................................................................................. 20
4 CONTROL PANEL OPERATION
.................................................................................................................... 21
O
PERATING
....................................................................................................................................................... 21

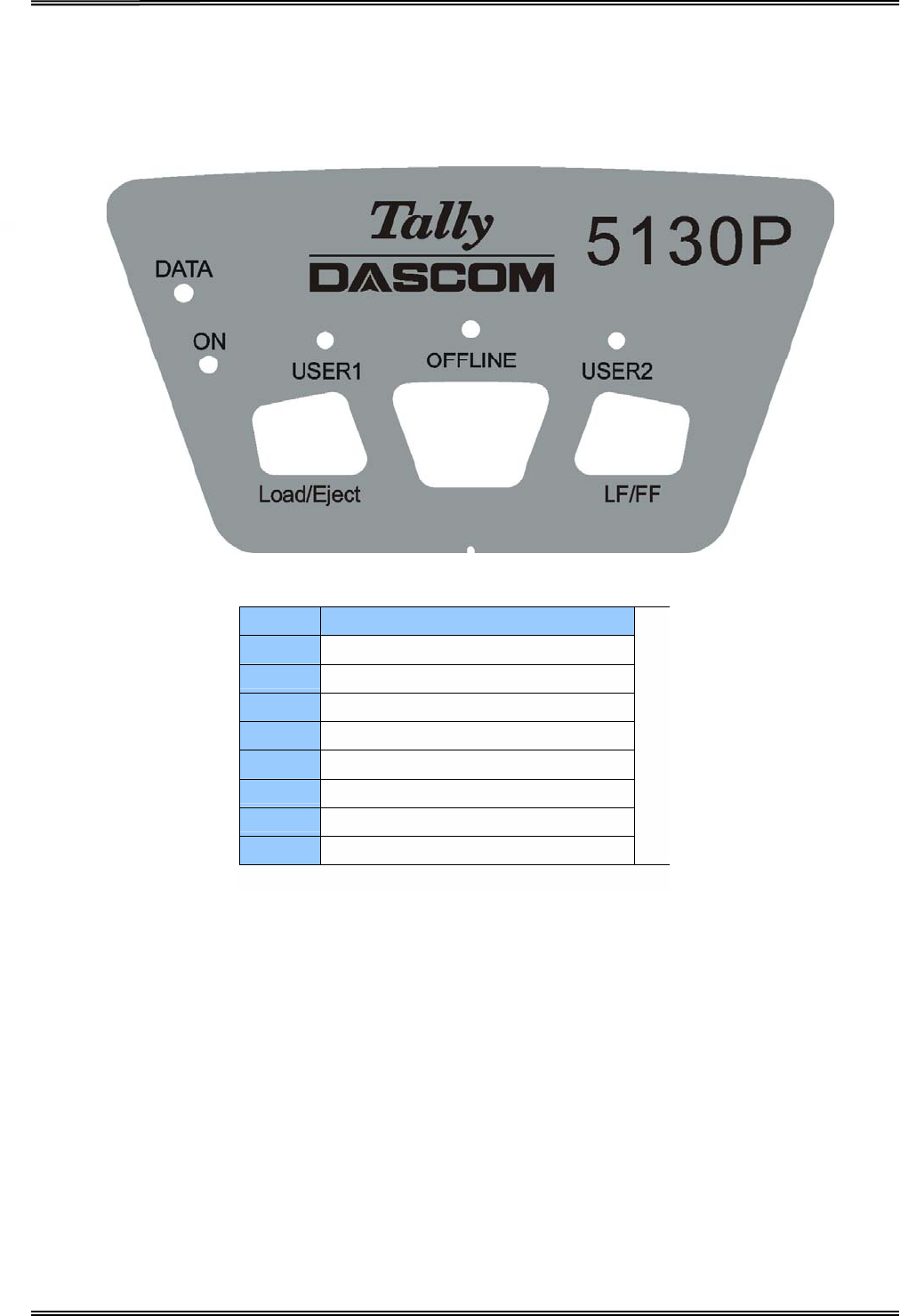

LED AND SWITCH
S
TATUS
.................................................................................................................................. 22
FAILURE
I
NDICATIONS
......................................................................................................................................... 24
POWER ON
F
UNCTIONS
..................................................................................................................................... 25
HEX DUMP ....................................................................................................................................................... 26
SETUP MENU .................................................................................................................................................... 27
CHANGE
C
ONFIGURATIONS
................................................................................................................................. 28
MENU
C
ONFIGURATION
(S
AMPLE
)
....................................................................................................................... 29
5 DEFAULT SETTINGS
.....................................................................................................................................
30
SYSTEM
S
ETUP
.................................................................................................................................................. 30
INTERFACE SETUP .............................................................................................................................................. 30
CHARACTER
S
ETUP
............................................................................................................................................ 30
EMULATION SETUP ............................................................................................................................................ 32
RESTORE FACTORY DEFAULT ............................................................................................................................... 32
6 MAINTENANCE
............................................................................................................................................. 33
C
LEANING
......................................................................................................................................................... 33
CLEANING AND
V
ACUUMING
THE PRINTER............................................................................................................. 33
7 TROUBLESHOOTING
.................................................................................................................................... 34
PRINT QUALITY PROBLEMS AND
S
OLUTIONS
........................................................................................................ 34
PAPER HANDLING PROBLEMS AND
S
OLUTIONS
..................................................................................................... 35
OPERATING PROBLEMS AND
S
OLUTIONS
.............................................................................................................. 35
T
ally Dascom 5130P
XII
ERROR
I
NDICATIONS
ON LEDS ............................................................................................................................ 36
D
IAGNOSTIC
FUNCTIONS .................................................................................................................................... 37
FIRMWARE UPDATE ........................................................................................................................................... 38
8 SPECIFICATION
............................................................................................................................................. 39
9 INTERFACES
.................................................................................................................................................. 44
PARALLEL INTERFACE ......................................................................................................................................... 44
USB INTERFACE ................................................................................................................................................ 44
SERIAL INTERFACE ............................................................................................................................................. 44
10 CHARACTER
SETS &
CODE PAGES
.......................................................................................................... 45
CHARACTER SETS .............................................................................................................................................. 45
I
NTERNATIONAL
CHARACTER
SETS
........................................................................................................................ 47
I
NTERNATIONAL
CHARACTER SET
C
OMMANDS
...................................................................................................... 47

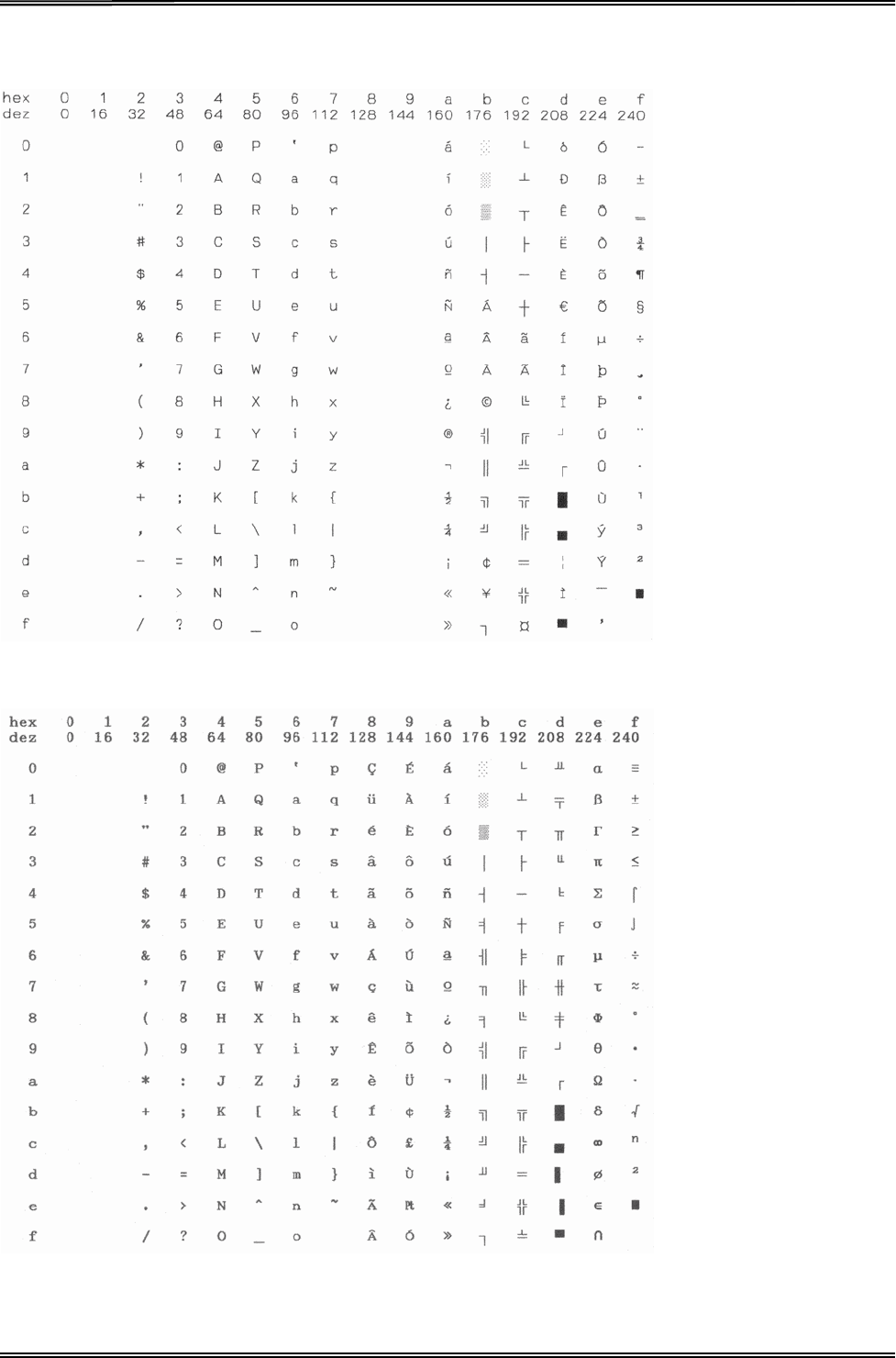

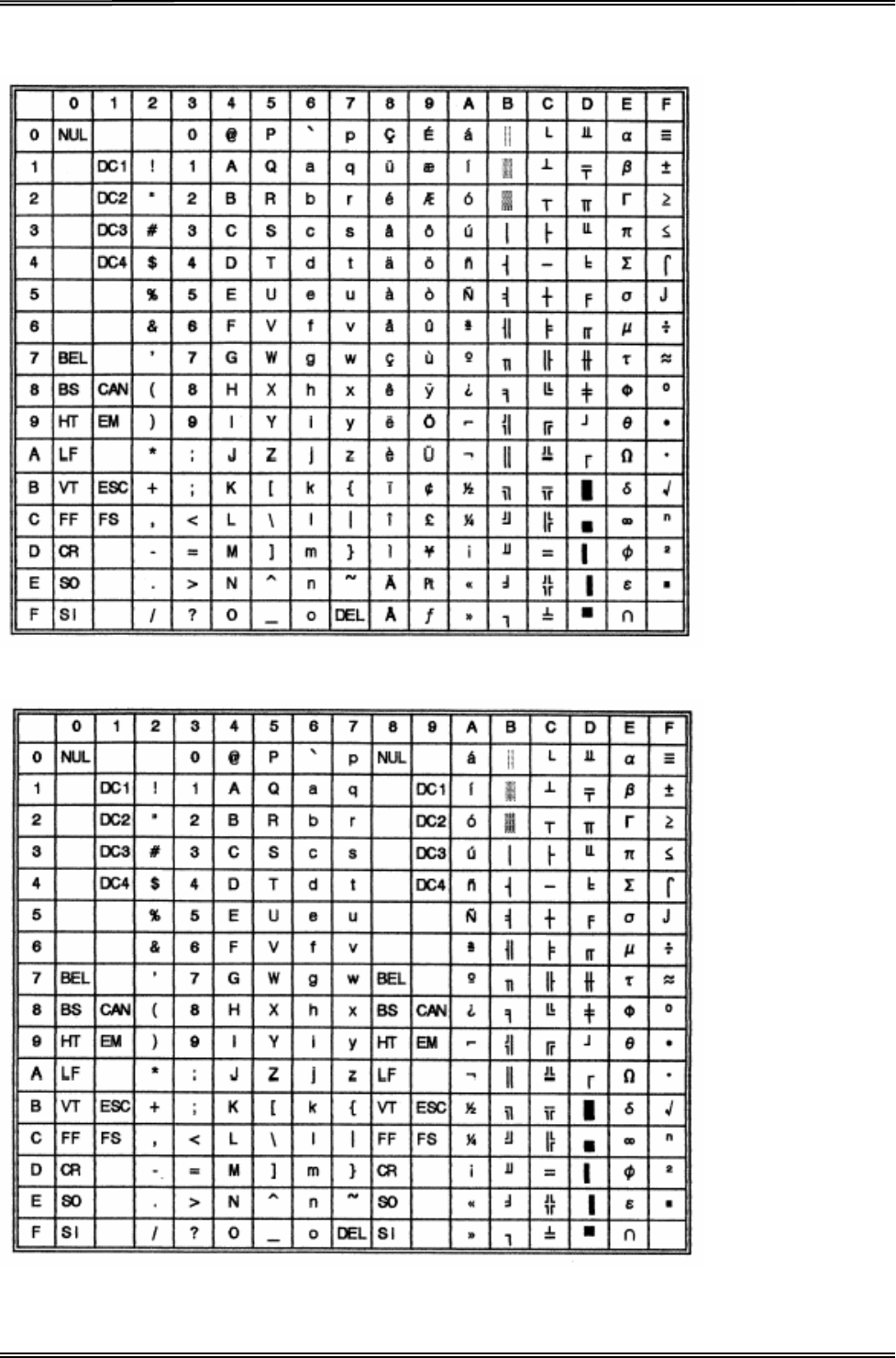

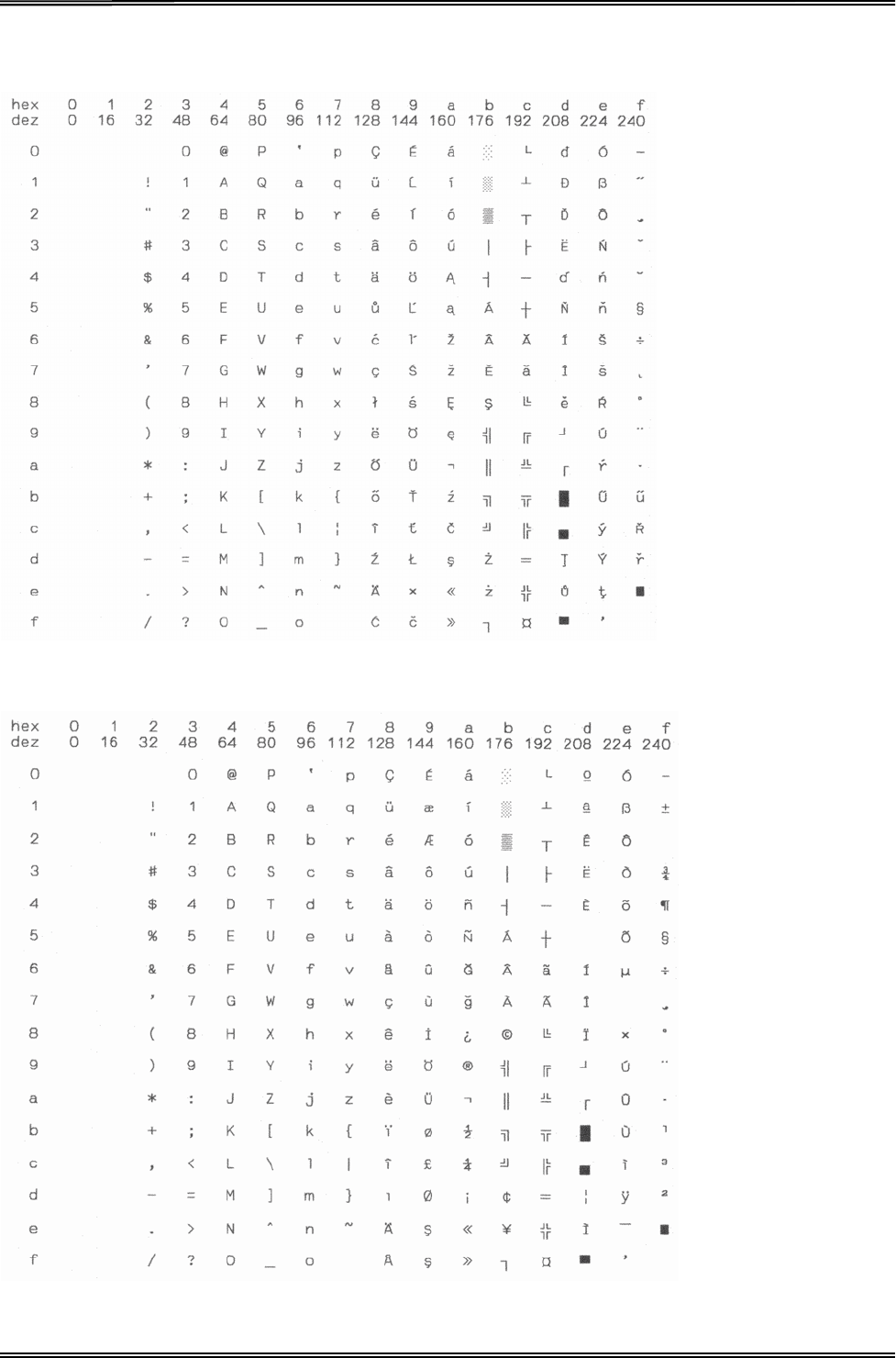

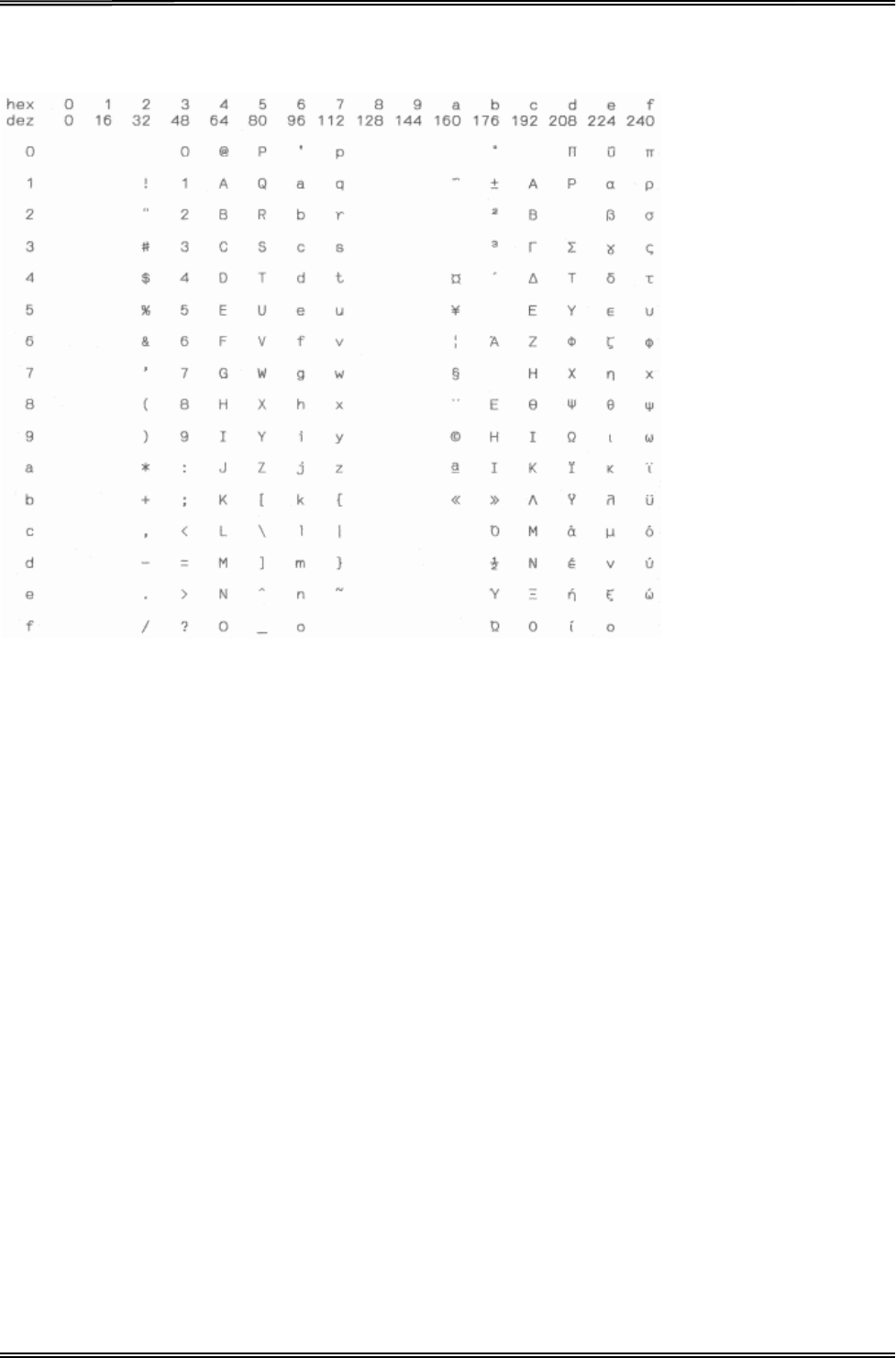

C
HARACTER
T
ABLES
........................................................................................................................................... 48
CODE PAGE
C
OMMANDS
.................................................................................................................................... 50

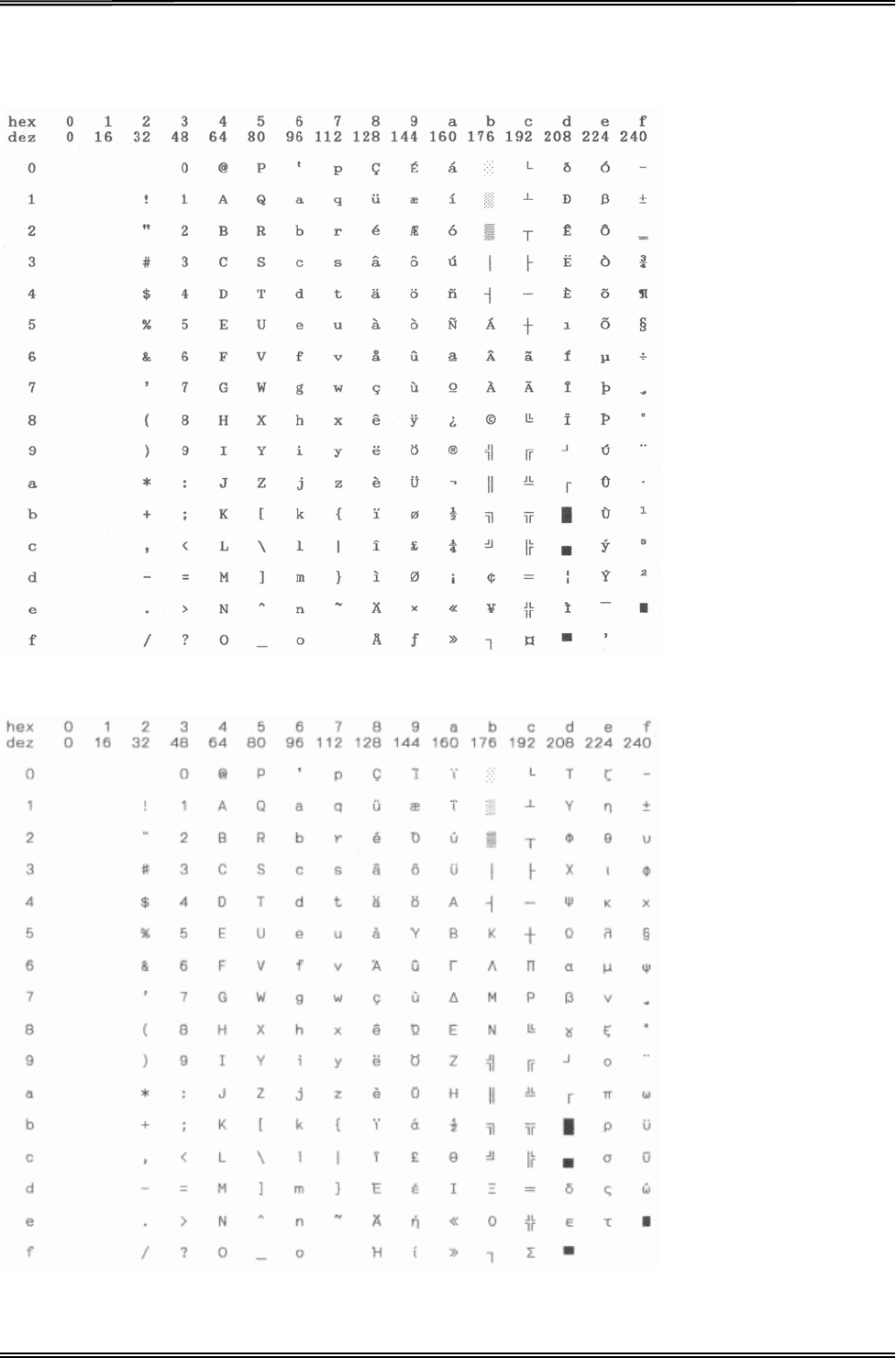

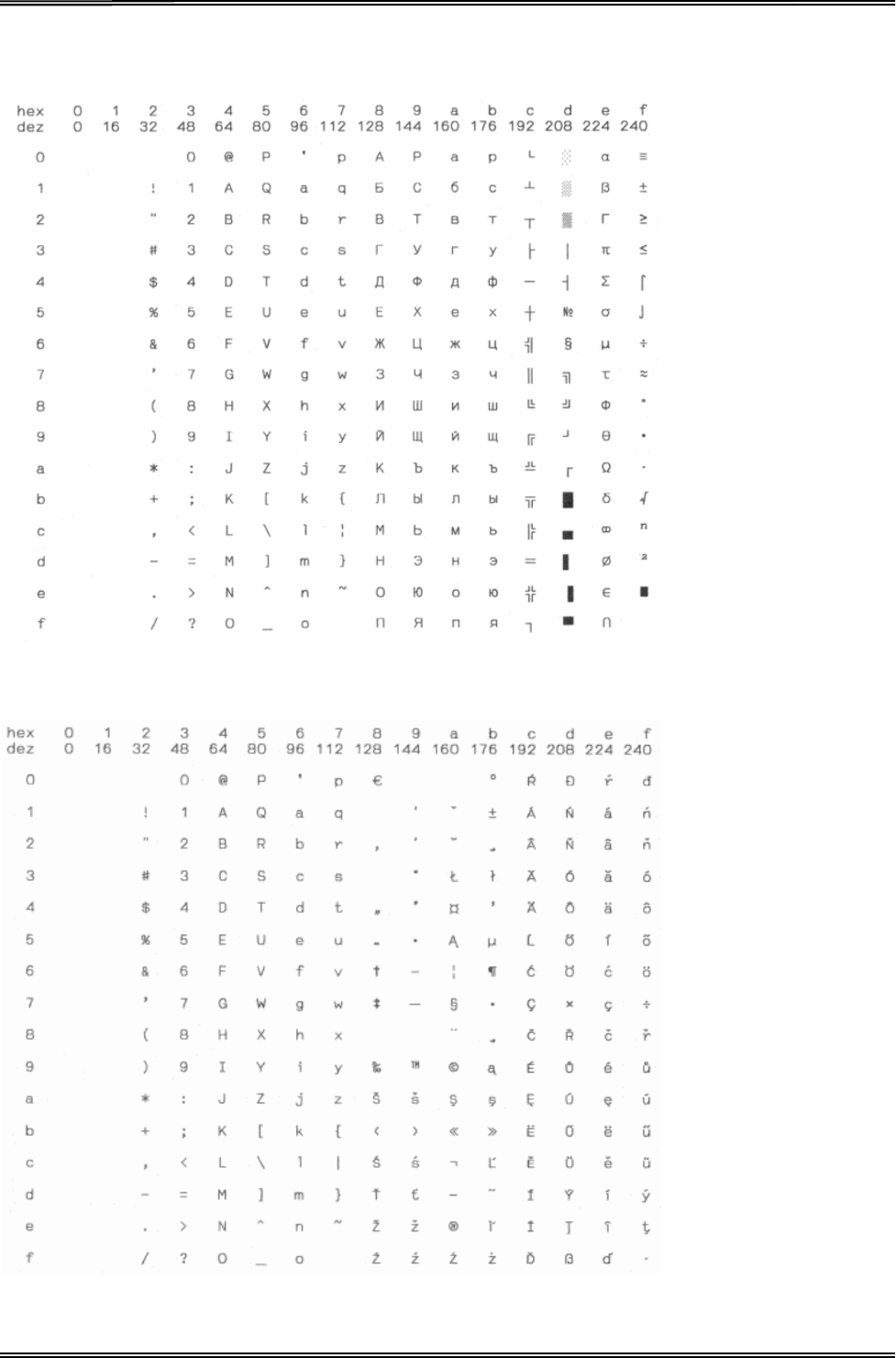

CODE PAGE TABLES ........................................................................................................................................... 52
11 CONTROL CODES SUMMARY
................................................................................................................... 76
EPSON EMULATION COMMAND LIST.... ................ ............... ................ ................ ................ ............... ................ .. 76
IBM EMULATION COMMAND
L
IST
....................................................................................................................... 78
T
ally Dascom 5130P
1
1
Unpacking Guide
•
Place your packaged
printer
on a solid base.
•
Make sure that the “Up”
symbols
point in the correct direction.
•
Open the
packaging,
lift the
printer
out of the
cardboard
box and remove the
remaining
packaging
material.
•
Check the
printer for
any
visible transport damage
and
missing
items. If you find any transport
damage or
if any
accesso
r
i
es are missing, please contact
your dealer.

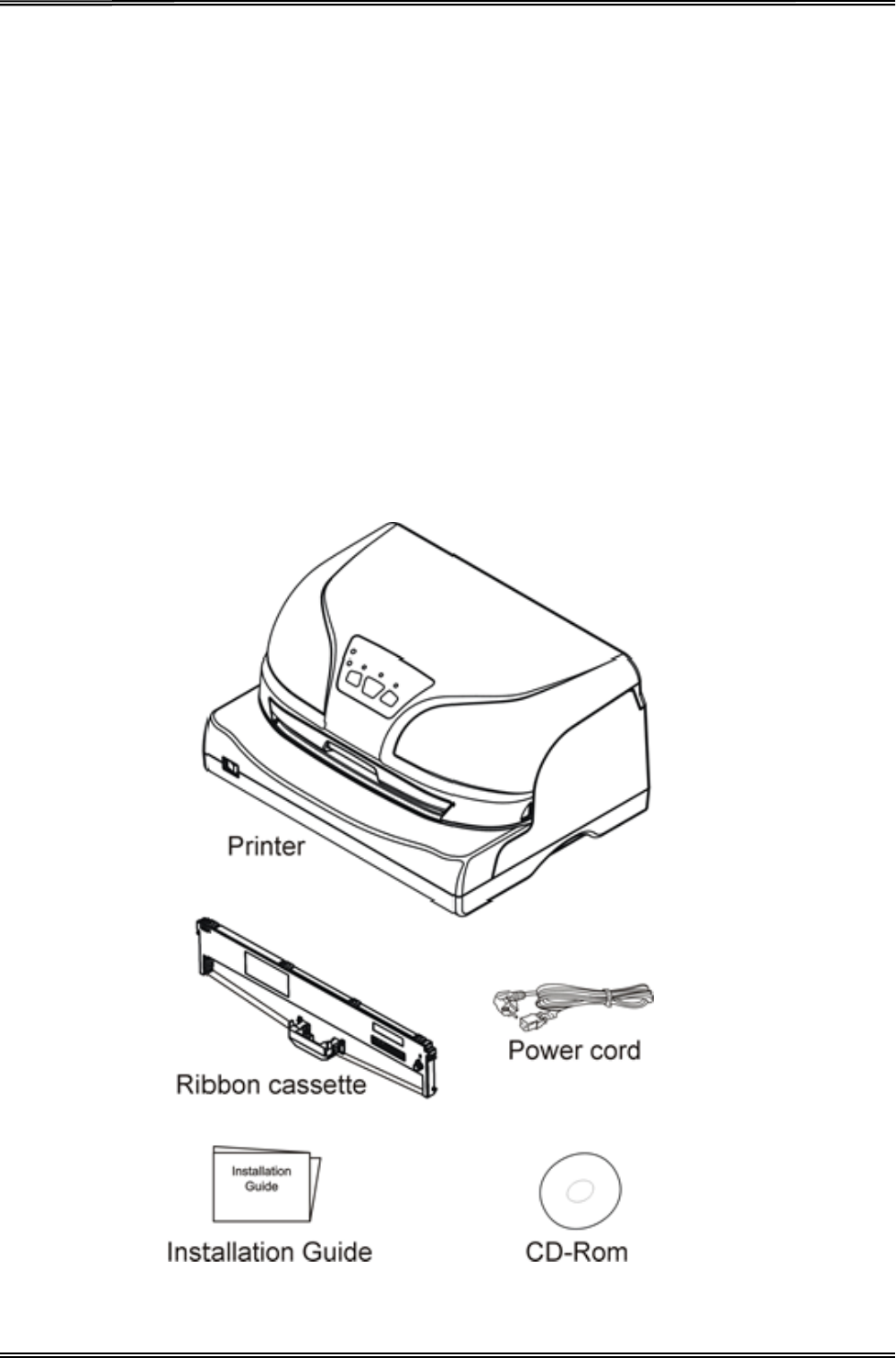

The
following
items
should
be
included:
o Printer
o
Tractor pair
a
sse
m
b
l
y
(for
Tractor
version)
o
Power
cord
o Ribbon cartridge
o CD-ROM
o
Installation
Guide
T
ally Dascom 5130P
2

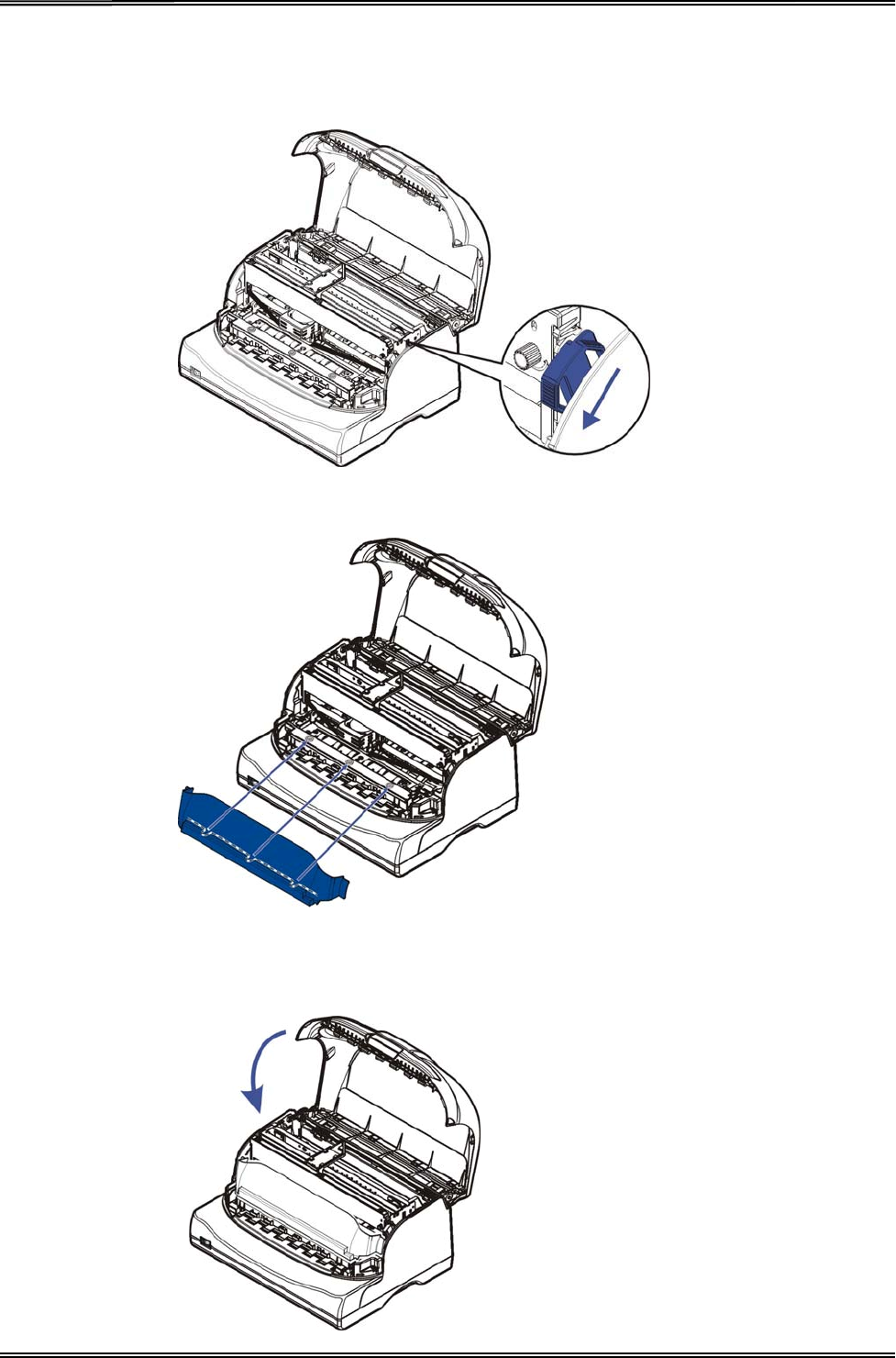

Prepare the Printer
Remove the
packaging materials
from the
printer
as follows:
1-2: Remove
all
the
visible
tape from the outside of the printer.
3: Open the
printer
front cover.
4: Remove the
transparent
cover.
5: Remove the cable ties from the left and right ends of the
carriage
shaft.
6: Remove the
shipping cardboard
from
around
the
print
head.
7-13: Remove the
shipping
foams from
around
the chassis.
14:
Install
back the
transparent
cover.
15: Remove the
shipping cardboard
from the
printer
rear.
16: Install the tractor
pair
as
se
m
b
l
y
(for
Tractor
version).
T
ally Dascom 5130P
3
Tractor Pair Installation
If you want to use
continuous fanfold
paper, you have to
install
the
tractor pair assembly.
Before
installing
the
tractor pair
a
sse
m
b
l
y
, the
printer
rear
cover
must be removed first. Below
instructions
show how to
install
and remove both the
printer
rear cover and
tractor pair
assembly.

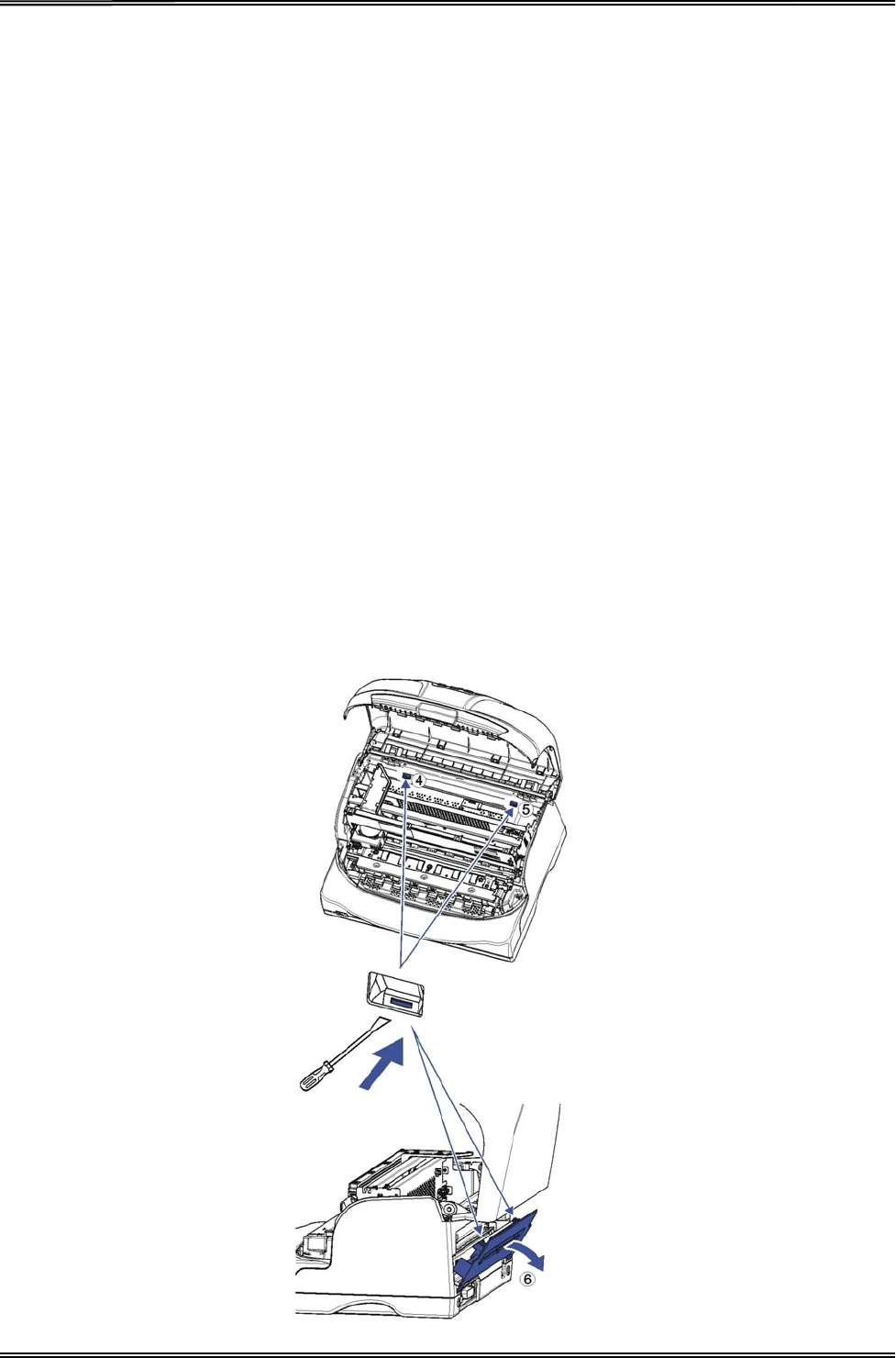

Removing
and
installing
the
printer
rear cover:
1. Ensure
there
is no
loaded paper
in the
printer.
Switch off the
printer.
2. Open the
printer
top cover, move the
print
head with care to the left. Attention: The print head could be
very hot if
printing
had just been
performed,
so be careful when
touching
the
print
head.
3. Use a flathead screwdriver or
similar
tool to insert into the latches at “4” and “5”, apply downward
pressure to release the lock. Remove the rear cover “6” from the back of the
printer.
Close the
printer
top
cover.
4.
Installing
the
printer
rear cover is the reverse of the
removal
process. First,
align
the latches of the rear
cover
at the back of the
printer.
Next, use your thumbs to press the rear
cover steadily
and
firmly
towards
the
printer.
The “4” and “5” latches
should
snap on. When the
installation
is done
correctly,
the rear
cover
should
be flat against the back of the
printer.
T
ally Dascom 5130P
4

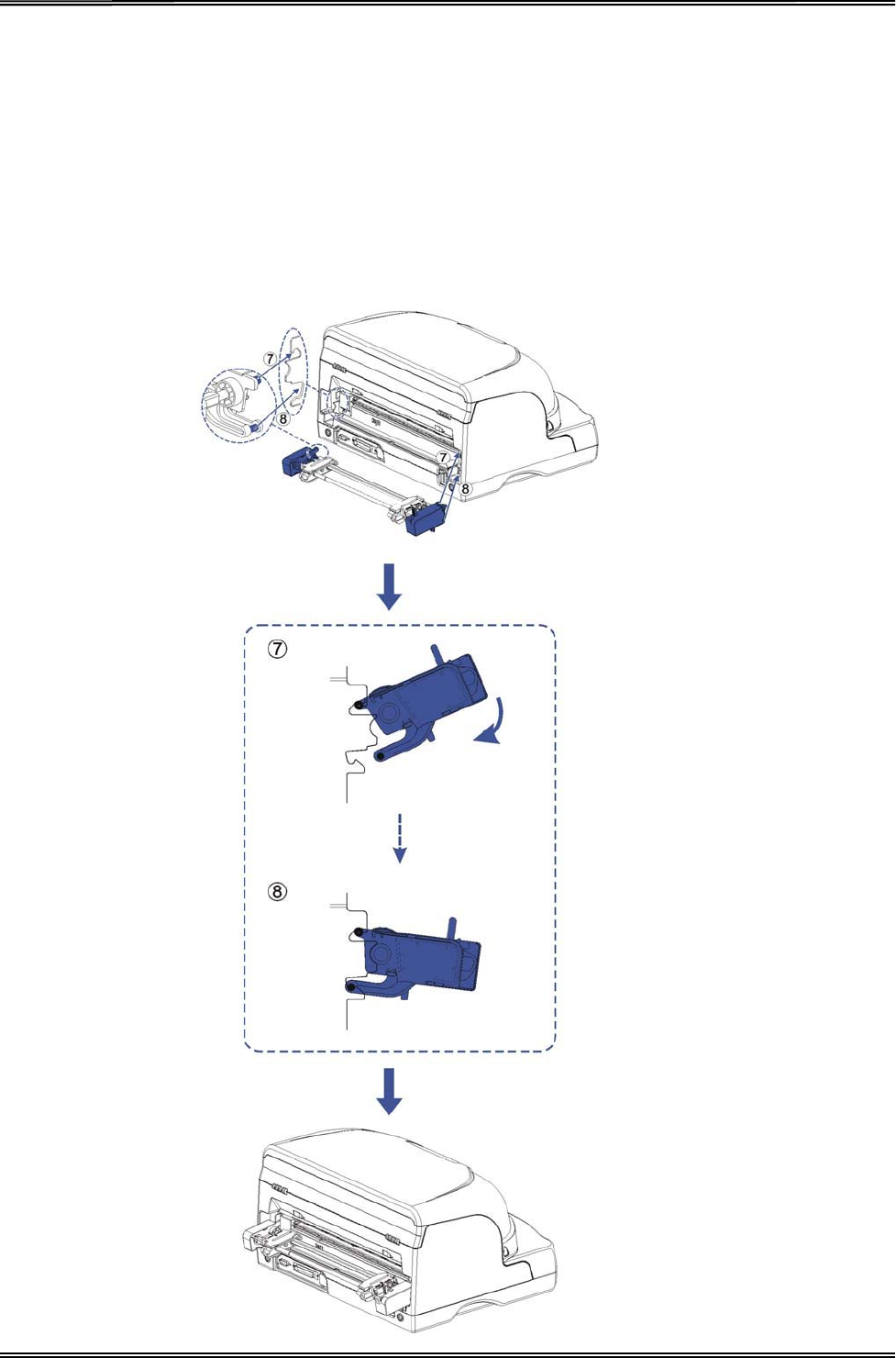

Installing
and
removing
the
tractor
pair assembly:
1. To
install,
first
insert
the
upper cylindrical fingers
at both ends of the
tractor assembly
into the
m
et
a
l
frame
at the back of the printer (see picture “7”). Tilt the
tractor
assembly
downwards,
and use your index
fingers to push the
lower cylindrical
fingers at both ends
slightly
upwards until they are mounted at the
bottom of the
printer
metal frame (see picture “8”).
2. To remove, use
your fingers
to grip both ends of the
tractor
assemb
l
y,
tilt up and pull to release it from the
printer
m
et
a
l
frame.
T
ally Dascom 5130P
5
Placing
the
Printer
Place the
printer
on a solid, flat, stable surface; ensuring that the printer
is positioned
in such a way that it
cannot move, and that there is easy access to the control panel and
paper
input
devices.
Also ensure that
there
is enough space for sufficient
ventilation
and
for
the
printed
output.
When selecting the
printer location,
observe the
following additional instructions:
•
Never
place the
printer
near to any
flammable
gas or
explosive
substances.
•
Do not expose the
printer
to direct
sunlight.
If you cannot
avoid placing
the
printer
near a window, protect
it from the
sunlight
with a curtain.
•
When
connecting
a
computer
to the
printer,
make sure the
maximum recommended
cable length is not
exceeded.
•
Ensure sufficient distance between the
printer
and any
heating devices/radiators.
•
Avoid
exposing
the
printer
to extreme
temperature or air humidity fluctuations.
Avoidexposureto dusty
environments.
•
It is
recommended
the
printer
is
installed
in a
position
which reduces noise
exposure
to the work place
during
printing.
T
ally Dascom 5130P
6

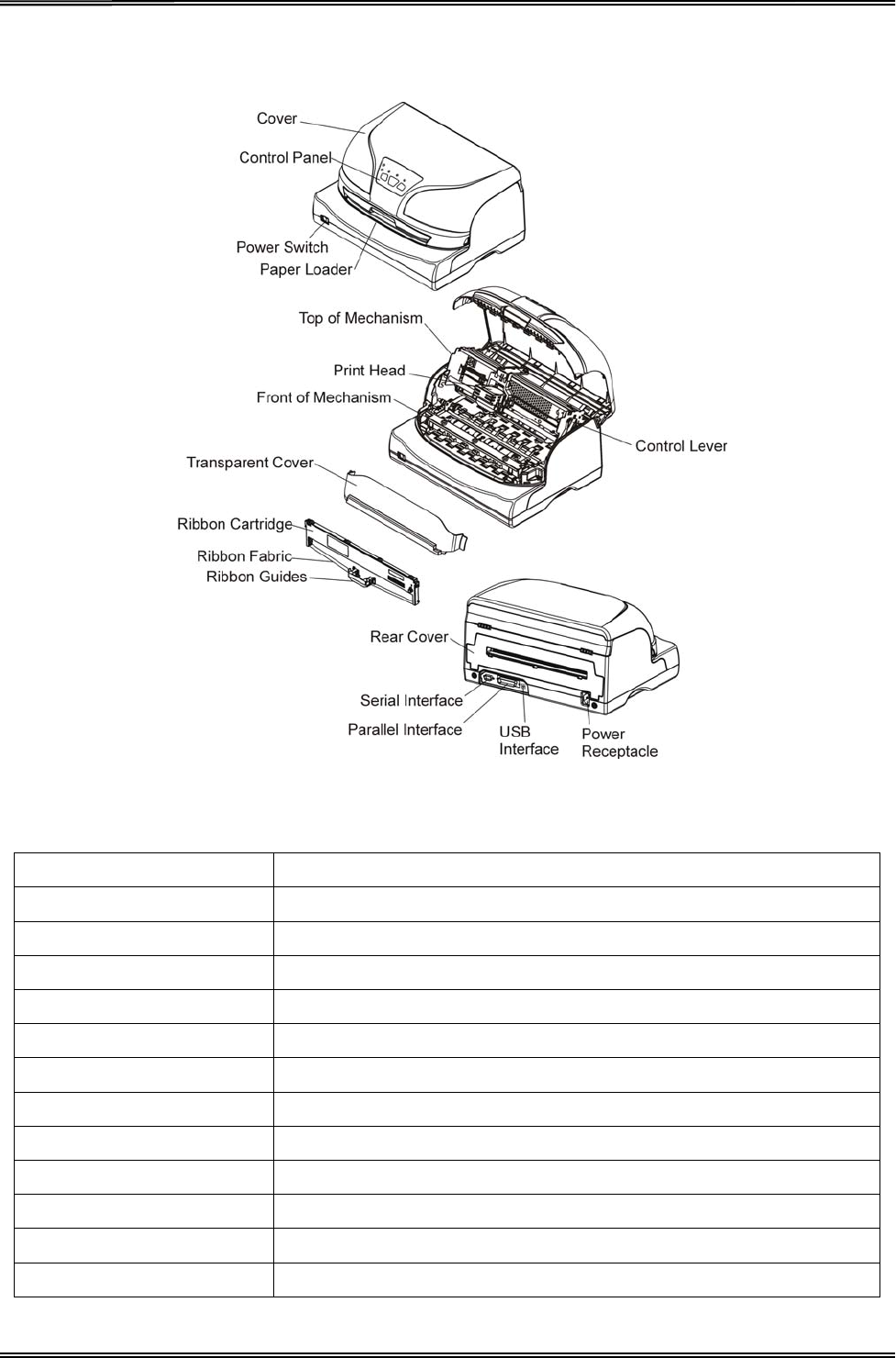

Printer
Components
Component Function
Control Lever
Lift up the top of
mechanism
to
install
or remove
ribbon
Paper Loader
Paper
feed path
for
single sheet and passbook.
Print Head 24-pin
printing
mechanism
Cover
Protects print head and
other components
inside, and reduces noise.
Control
panel Shows
printer
status, and for
printer
setup
Power switch
Power printer
ON or OFF
Ribbon cartridge
Contains
the ink to print on the media
Ribbon guides
For guiding ribbon installation
on
print
head
Power
receptacle Connects
power
cord to the
printer
Serial
interface Connects
serial
interface cable from the host
Parallel
interface Connects
parallel
interface cable from the host
USB interface Connects USB interface cable from the host
T
ally Dascom 5130P
7
2 Setting Up
Printer
Install Ribbon
1. Ensure the power to the
printer is
off.
2. Press the recesses of both sides to open the cover. Remove the
transparent
cover.
3. Push the
control
lever to lift up the top of
mechanism,
and make sure the
control lever
is set to the latched
position.
4. Move the print head to the
center
of the carriage.
T
ally Dascom 5130P
8

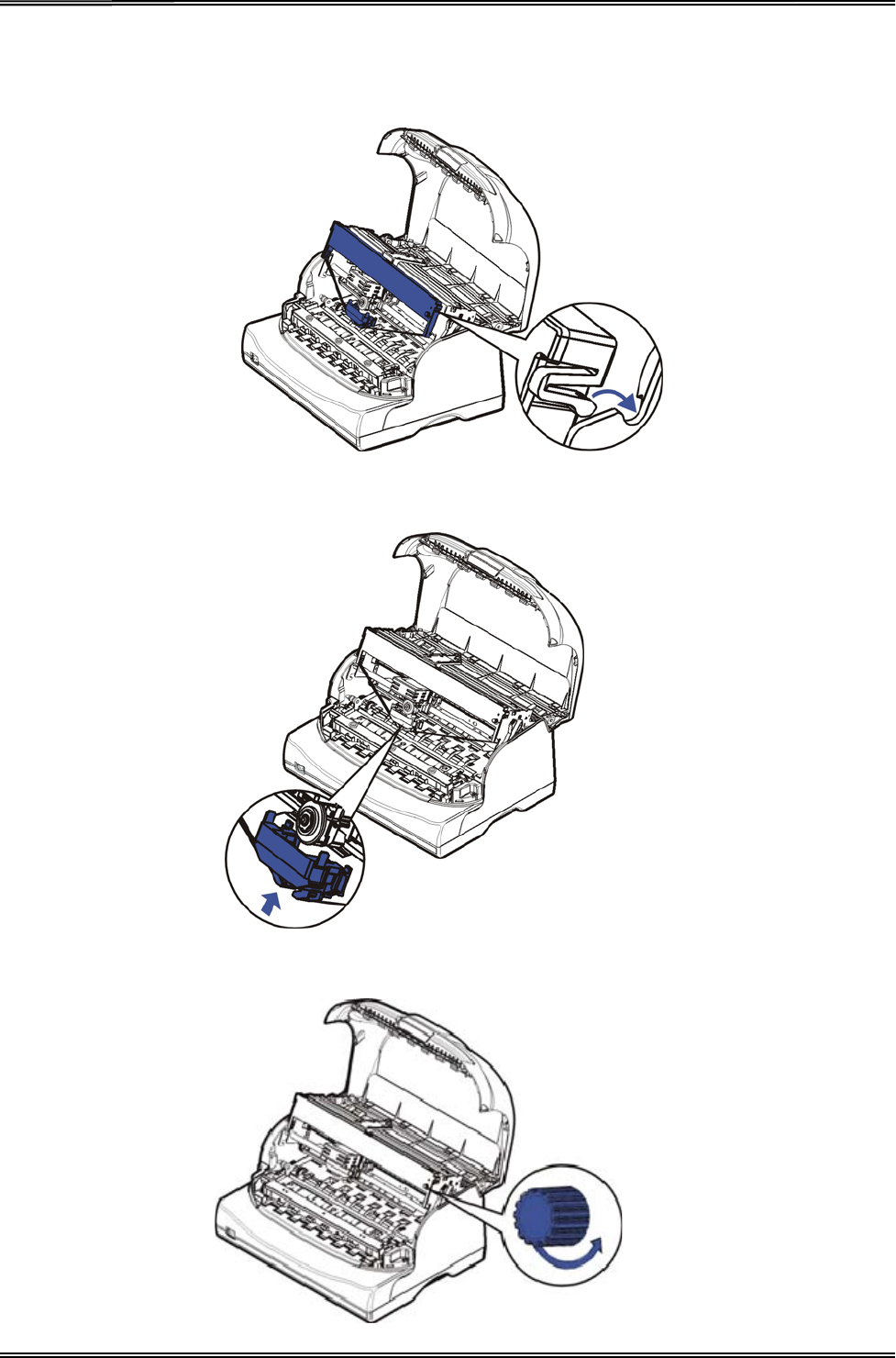

5.
Install
the recess
positions
on the
ribbon cartridge
into the
printer mounting,
and push both sides of the
ribbon cartridge
to ensure they click into position.
6.
Press
the
ribbon
guides onto the
print
head from
underneath
until they click into position.
7. Turn the
ribbon
knob until the
ribbon fabric is
taut. Move the
carriage
left and right to ensure the
carriage
and
ribbon
fabric can move smoothly.
T
ally Dascom 5130P
9
8.
Pull
down the
control lever
to set the top of
mechanism
to its
original position,
and make sure the control
lever
is fully
l
a
tc
hed.
9.
Install
back the
transparent cover
to reduce noise.
10. Close
the cover
carefully.
When the
printer
is in
operation,
ensure the cover
is
closed to keep the dust
away and
minimize
the
no
i
se level. Open the cover
only
for
cleaning, clear paper
jam
or
ribbon
replacement.
T
ally Dascom 5130P
Notes on Ribbon
Cartridge Removal:
1. Eject any
paper loaded
in the
printer.
2. Turn off the
printer power.
3. Open the front
cover.
4. Move the
carriage
to the
middle.
Be careful not to touch the
print
head if
printing
had just been
performed,
as the
print
head may be hot.
5. Remove the blue
ribbon
guides from the print head.
6. Use fingers to take hold of the
ribbon cartridge firmly,
and pull the
cartridge
towards you to
unlatch
it.
7. Remove the
ribbon
fabric from the
print
head
carefully w
i
thou
t
entangling
it.

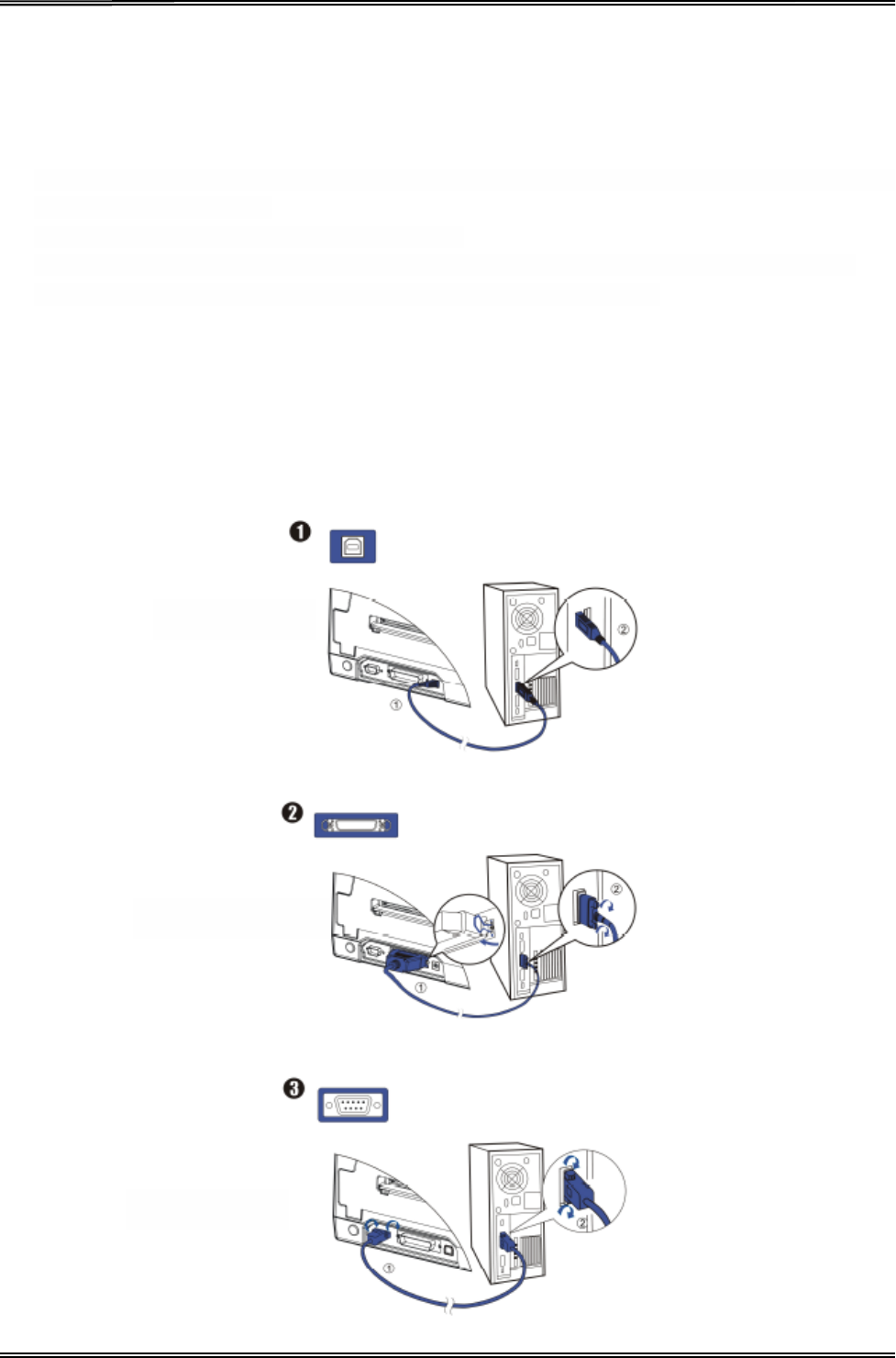

Connecting
the Interface Cable
The
parallel, serial
and USB interface ports are located at the rear of the printer. Choose the interface which
suits your system. IMPORTANT: Make sure the
printer
and the
computer
are switched off before connecting
or
disconnecting
the interface cable to prevent
electrical damage
to the interface ports.
USB
Interface
Parallel Interface
Serial Interface
10
T
ally Dascom 5130P
11
Connecting
the Mains
Power
Checking the
printer
voltage
Make sure that the device has been set
according
to
your
country’s power supply voltage. To do this, check
the ratingplate at the back of the
printer.
Contact your
dealer
if the setting is incorrect.
Never switch
on the
printer if
the
voltage setting
is
incorrect;
this may
result
in
electrical
damage
to the printer.
1. Make sure the
printer
and the
computer
are powered off.

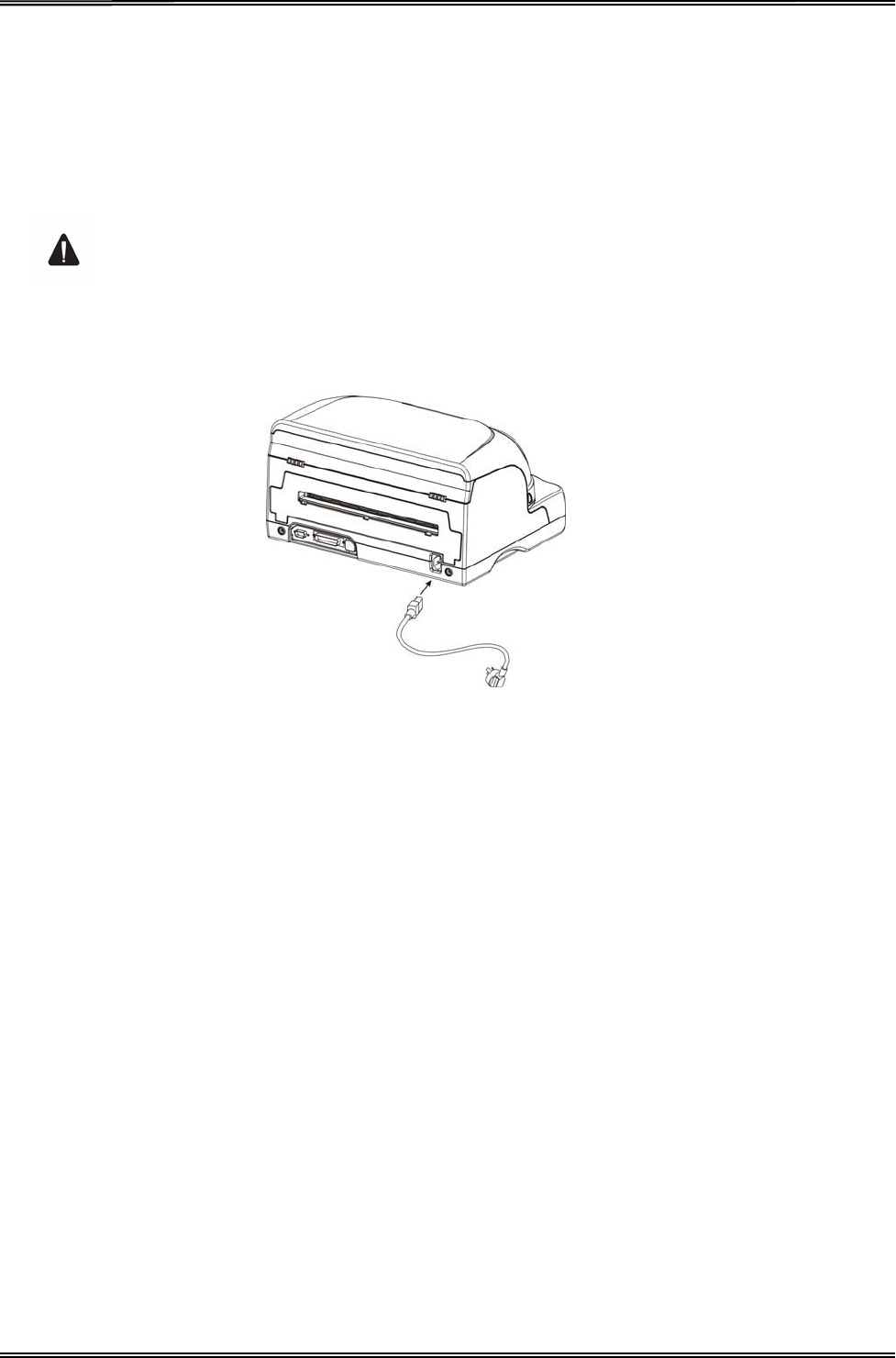

2. Connect the
power
cord to the
power
receptacle at the back of the
printer,
as shown as below. Ensure the
power
cord
is
securely connected. Connect the
power
cord plug to a mains socket.
3. Press the power switch to the “I”
position
to
power
on the
printer.
Upon
power-on, all
the five LEDs light
up
briefly.
After
initialization,
only the “ON” LED
should
light up.
4. Press the power switch to the “O”
position
if you wish to switch off the
printer.
NOTE:
•
After switching
off the
printer,
wait at
l
e
a
st 5 seconds before
switching
on
again.
Otherwise, it may cause
damage
to the printer.
•
Disconnect the power cord if the
printer
is not used for a long time.
T
ally Dascom 5130P
12
Installing
the
W
i
ndo
ws
Driver
(Compatible w
i
th
W
i
ndo
ws 2000/2003/2008
Server/XP/Vista/7)

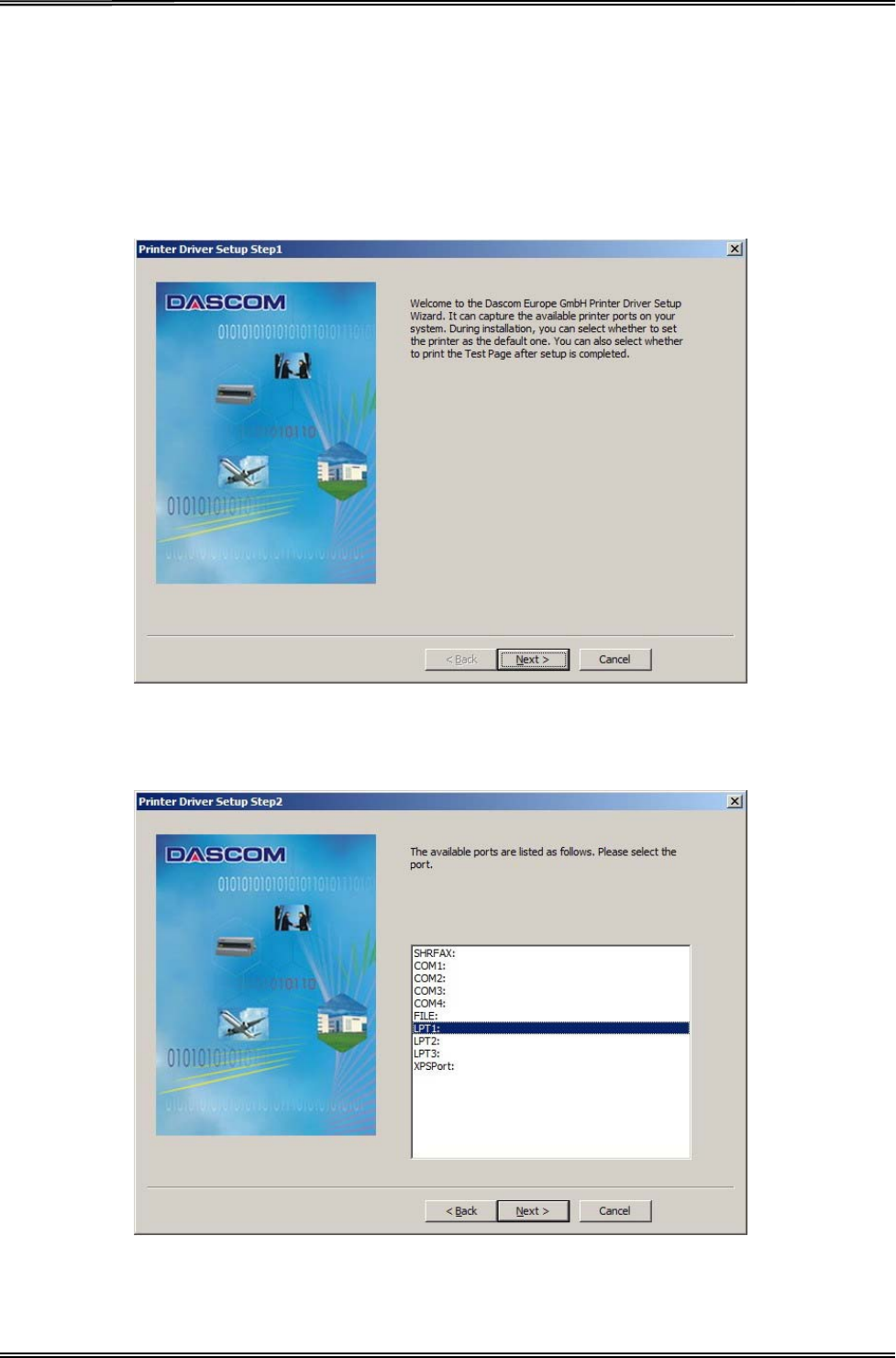

1. Your printer CDROM comes w
i
th
W
i
ndo
ws
drivers.
Go to the Drivers
folder
and
run
the
Installer
“DriverSetup.exe”.
You
will
see the screen below. Click “Next” to continue.
2. A list of ports
available
on your system
will
be
displayed
as shown below. Choose the desired port to use.
Click “Next” to continue.
T
ally Dascom 5130P
13
3. Select the desired
printer
model as shown below. Click “Next” to continue.
Cancel
Next>
<ackB
4. Here you can choose whether to set the
driver
as the system
de
f
au
l
t
driver,
and
whether
you want to
print
the Test Page
after installation
is
completed.
If the
driver
had been
installed
before, it would be listed
in
the
white box below. Select the listed
driver
(if any)
if
you want to replace
i
t;
other
w
i
se a copy of the
driver will
be
installed.
Click “Next” to continue.
T
ally Dascom 5130P
14
5. Click “Finish” to start the
installation
process.
Cancel
<ackBFinish
6. If you encounter the message below, click “Continue Anyway”. Please check our website
www.dascom.com for
the latest certified drivers.
T
ally Dascom 5130P
15
7. After
installation
is
completed successfully,
you
will
see the message below.
OK
Cancel
<ackBFinish
T
ally Dascom 5130P
16
3 Paper
Installation
Guide
Paper and
Printable
Area Specifications
The
printer
can
handle following
forms:
1）Cut sheet papers and slips
2）Passbooks
3
）
Multipart
carbon papers up to 1+3 copies
4)
Continuous fanfold paper (for Tractor
version)
Cut sheet

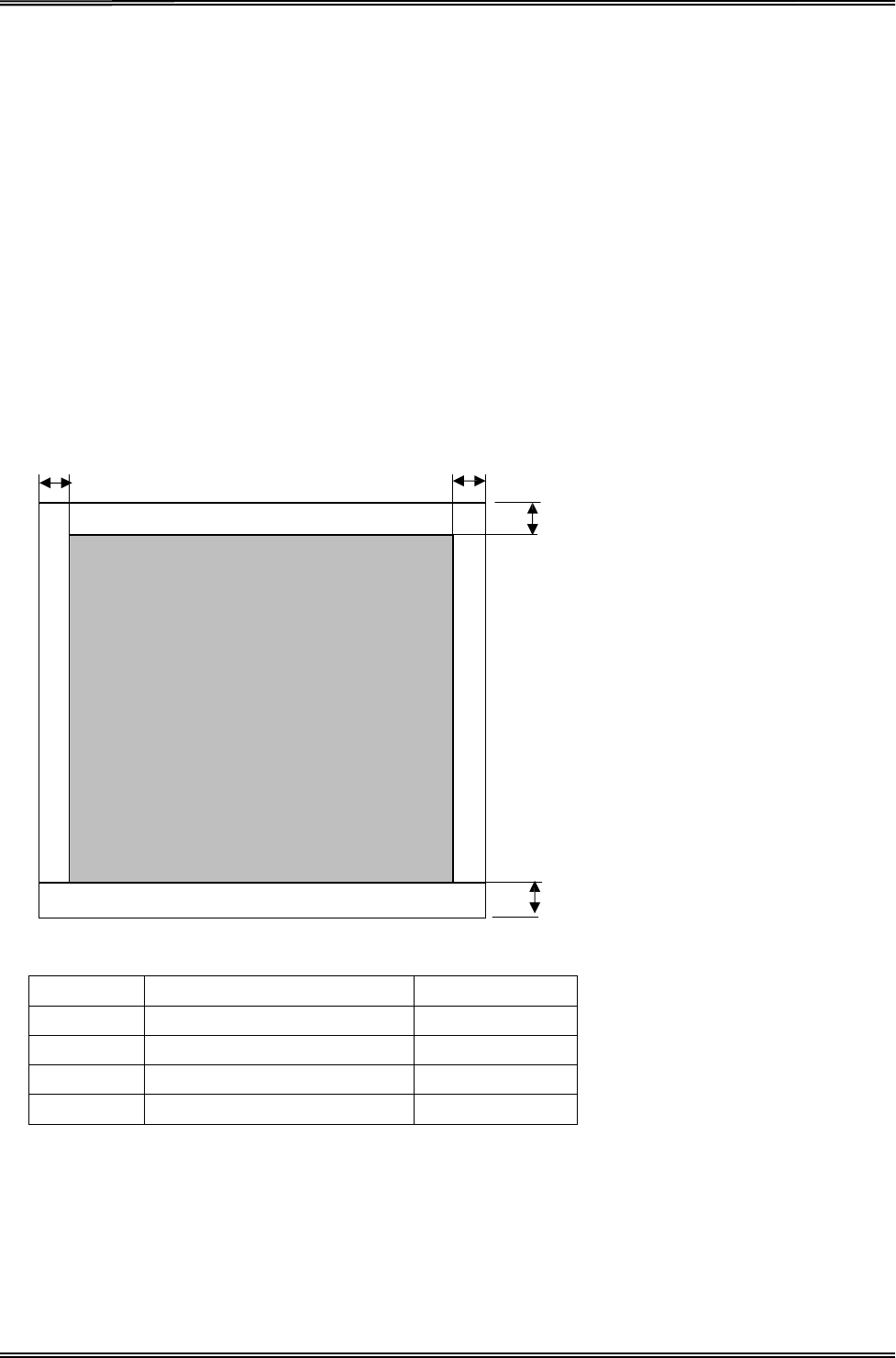

F B
A
Printable area
E
Printable
area of cut sheet
Position
Dimension Definition
A 4.23 mm +2/-0 mm Top margin
B 3.12 mm +2/-1 mm Right margin
E 5 mm +2/-0 mm Bottom margin
F 3.12 mm +2/-1 mm Left
margin
T
ally Dascom 5130P
17
Passbook with horizontal
seam
F G B
A
Printable area
C
D
Printable area
E
Printable
area of
passbook w
i
th
horizontal
seam
Position
Dimension Definition
A 5 mm +2/-0 mm Top margin
B 5 mm +2/-1 mm Right margin
C 5 mm +2/-0 mm Center margin
D 5 mm +2/-0 mm Center margin
E 5 mm +2/-0 mm Bottom margin
F 5 mm +2/-1 mm Left
margin
T
ally Dascom 5130P
18

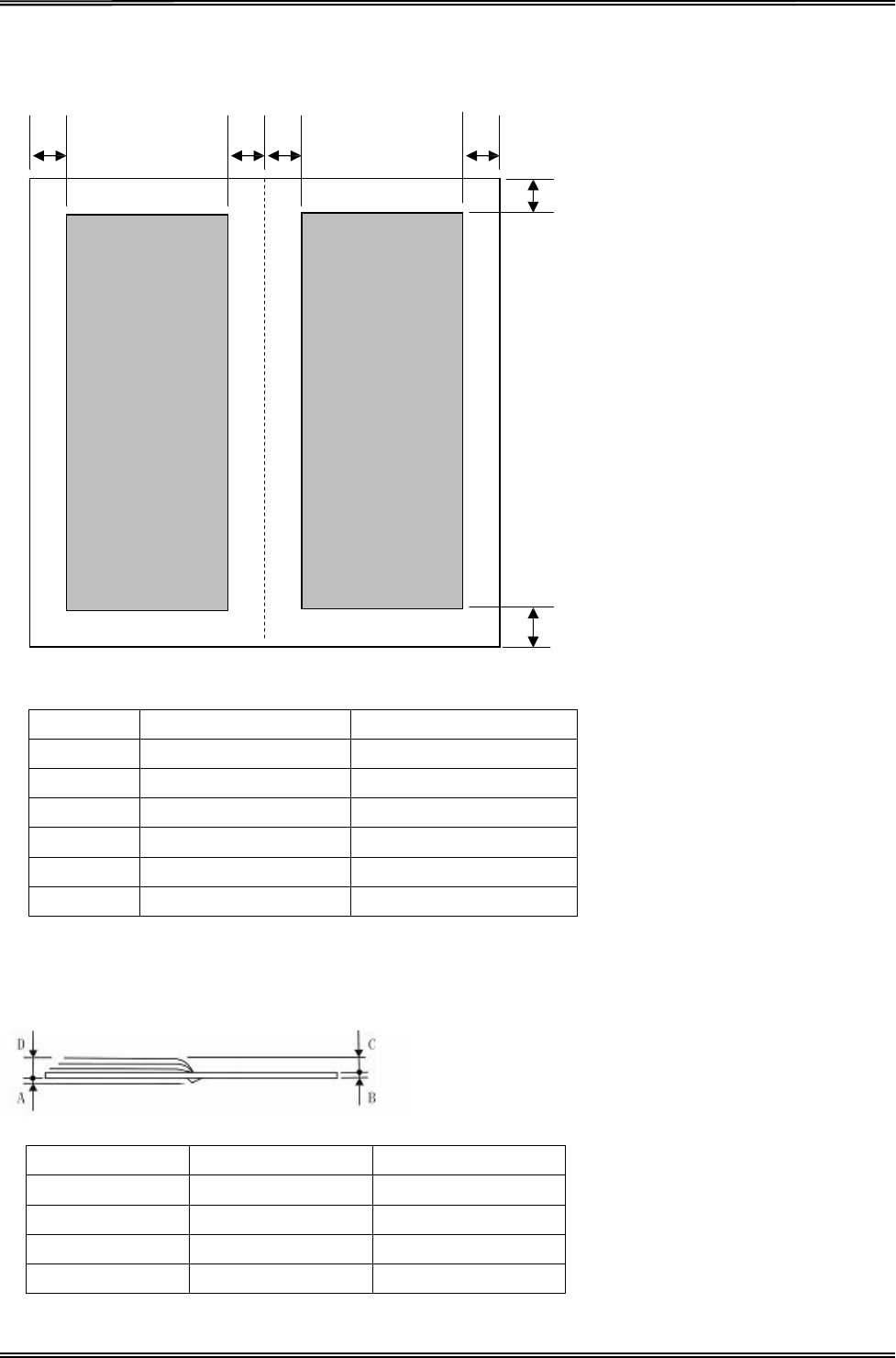

Passbook with vertical
seam
F D C B
A
Printable area Printable area
E
Printable
area of
passbook w
i
th
vertical
seam
Position
Dimension Definition
A 5 mm +2/-0 mm Top margin
B 5 mm +2/-1 mm Right margin
C 5.2mm +2/-0 mm Center margin
D 5.2mm +2/-0 mm Center margin
E 5 mm +2/-0 mm Bottom margin
F 5 mm +2/-1 mm Left
margin
Passbook thickness
Position
Dimension Definition
A Max 0.5
Cover
page height
B 0.2-0.5
Cover
page thickness
C Max 1.4 Step
D Max 2.8 Passbook thickness
T
ally Dascom 5130P
19
Note:
（1）Make sure the
cover
is closed when
operating
the
printer,
as
there
is a
cover
open detect sensor.
（2）Do not
load
media that
is
curled
or
folded.
（3）Do not use media that attaches any metal, such as staple.
（4）Do not
load passbook
that is
damaged, wrinkled
or w
i
th
loose centre seam.
（5）Do not use
passbook
that has sticky glue.
（6）Do not use
passbook
in which the
inner
pages are
smaller
than
cover
pages.
（
7
）
Print
on the
inner
pages of the passbook
only.
Do not
print
on the
cover
pages.
（8）Flatten the
passbook
before
printing for better
reliability.
Inserting
a cut sheet
1.
Power
on the
printer.
After
initialization,
only the “ON” LED
should remain
on.
2. W
i
th
printableside facing up, insert a
paper
into the
paper
loader until the edge of the
paper
engages
snugly w
i
th
the platen. The
paper should
advance
automatically
to the print position. Now the
printer
is
ready to
print
as shown in the
following
figure.
When using a cut sheet, the paper eject
direction
can be selected in the
configuration
setting. There are two
directions:
front and rear.
T
ally Dascom 5130P
20
Inserting
a passbook
1.
Power
on the
printer.
After
initialization,
only the “ON” LED
should remain
on.
2. While
pressing
the center seam and w
i
th
printable
side facing up, insert a passbook into the
paper
loader
until the edge of the passbook engages snugly w
i
th
the platen. The passbook should advance
automatically
to the print
position.
Now the
printer is
ready to
print
as shown below.
Tractor
Feed
Handling (for Tractor
version)
1. Move the
paper-feed lever
to “ ”
for continuous paper
position.
2. Raise the tractor
doors
and fit the first 3
paper
holes onto the left
tractor
pins. Close the left
tractor
door. In
the same way,
install
the
paper
on the
right
tractor.
3. Adjust the right tractor to the w
i
d
t
h
of the
paper
until the
paper
is flat. Do not stretch the
paper
too taut.
Push the right lock
lever
down to
secure
the
right tractor
in place.
4. Press t
h
e【
Lo
ad
/E
j
ect】ke
y
to load the
paper
to the
starting
print
position.
The
printer is
now ready to
print
in the
online
state.
T
ally Dascom 5130P
21
4
Control
Panel
Operation (Tractor
version)
Labeling
L1 DATA
L2 ON
L3 Shared with S1 top label
L4 Shared with S2 top label
L5 Shared with S3 top label
S1 Top: USER1; Bottom: Load/Eject
S2 Top: OFFLINE; Bottom: -
S3 Top: USER2; Bottom: LF/FF
On the control
panel
are:
Three keys: USER1, OFFLINE and USER2
Five LEDs: DATA, ON, USER1, OFFLINE and USER2.
ON LED
colour
is
green
while the others are orange.
The
meaning
and
application
of each key and LED are
described
below.
T
ally Dascom 5130P
22
Operating State
Upon power-on, L1~L5 turn on briefly. After initialization, only L2 remains ON. In the Operating State, the
LED indications and switch functions vary with Online/Offline modes and emulations.
LEDs and Switches
ON OFF BLINK
L1
Data in buffer
Buffer empty
Data being received from host
L2 Power on Power off Paper in tear position
L4 Offline Online ---
L3 User 1 selected User 1 not selected Paper still detected after eject
L5 User 2 selected User 2 not selected ---
OFFLINE Toggles online / offline
T
ally Dascom 5130P
23
USER1 Online mode
Single sheet path selected:
- If paper is loaded from the front, pressing this key will eject the paper. Paper eject
direction depends on configuration setting.
- If paper is loaded from the Tractors, pressing this key will not have any effect.
- If paper is not loaded, pressing this key will not have any effect (since paper from
the front will auto-load).
Tractors path selected:
- If paper is loaded from the Tractors, pressing this key will park the paper.
- If paper is not loaded, pressing this key will load paper from the Tractors.
- If paper is loaded from the front, pressing this key will not have any effect.
Offline mode
Single sheet path selected:
- If paper is loaded from the front, pressing this key will not have any effect.
- If paper is loaded from the Tractors, pressing this key will not have any effect.
- If paper is not loaded, pressing this key will not have any effect (since paper from
the front will auto-load).
Tractors path selected:
- If paper is loaded from the Tractors, pressing this key will present paper to the tear
position. L2 will blink.
- If Tractors paper is in tear position, pressing this key will move paper back to print
position. L2 will be on.
- If paper is loaded from the front, pressing this key will not have any effect.
- If paper is not loaded, pressing this key will have no effect.
T
ally Dascom 5130P
24
USER2 Online Mode
Single sheet path selected:
- If paper is loaded from the front, pressing and releasing this key will feed paper
one line forward. If key is pressed down for more than 1 sec, printer will eject
the paper. Paper eject direction depends on configuration setting.
- If paper is loaded from the Tractors, pressing this key will not have any effect.
- If paper is not loaded, pressing this key will not have any effect.
Tractors path selected:
- When paper is loaded from the Tractors, pressing and releasing this key will
feed paper one line forward. If key is pressed down for more than 1 sec, the
printer will perform a form feed.
- When paper is not loaded, pressing this key will not have any effect.
Offline Mode
Single sheet path selected:
- Pressing this key will not have any effect.
Tractors path selected:
- If paper is loaded from the Tractors, pressing this key will park the paper.
- If paper is loaded from the front, pressing this key will have no effect.
- If paper is not loaded, pressing this key will have no effect.
Self-Diagnostics and Failure Indications
At power-on besides a general reset, the printer runs self-diagnostics to check the conditions of critical
components. Upon the successful completion of the self-diagnostics, the printer switches to the online state
with at least L2 and L4 = ON for all emulations.
Failures Beep L1 L2 L3 L4 L5
No power / Power supply failure --- OFF OFF OFF OFF OFF
PE (Paper Error) 1 OFF ON OFF BLINK OFF
Paper jam 1 BLINK BLINK BLINK OFF OFF
Head overheat --- OFF ON OFF BLINK OFF
Hex Dump --- ON ON ON BLINK ON
For other combinations
please contact your
dealer or Technical Service.
T
ally Dascom 5130P
25
Power-On Functions with Cover Open
USER1 OFFLINE USER2 Utilities Remarks
X X
BOOT or Firmware
Upgrade
L1&L2 blink alternatively.
X
Self Test Print Font- and Codepage test page
X Self Test Endless running ASCII TREE
X Self Test Configuration test page with menu
settings
X* Suspend cover open
detection
*Press OFFLINE after power on. The
printer resets and goes online.
Firmware Update
With the cover open, hold USER1 and OFFLINE at power-on to activate the Firmware Upgrade process. In
DOS mode, type COPY /B firmware-file LPT1: [Enter] to transfer new firmware to the printer. It takes a few
minutes for completion. Then the printer resets and goes to online.
Power-On Functions with Cover Closed
USER1 OFFLINE USER2 Utilities Remarks
X
Self Test
Print Font- and Codepage test page
X
Self Test
Endless running ASCII TREE
X
Self Test
Configuration test page with menu
settings
X X
Setup
● Language selection
See Fig 2 for Setup dialogs orientation.
In native languages.
T
ally Dascom 5130P
26
● Enable/Skip listing of
current settings
● System Setup
● I/F Setup
● ESC/P2 Emulation
● IBM X24 Emulation
● Restore Factory
Defaults
X X Hex-Dump

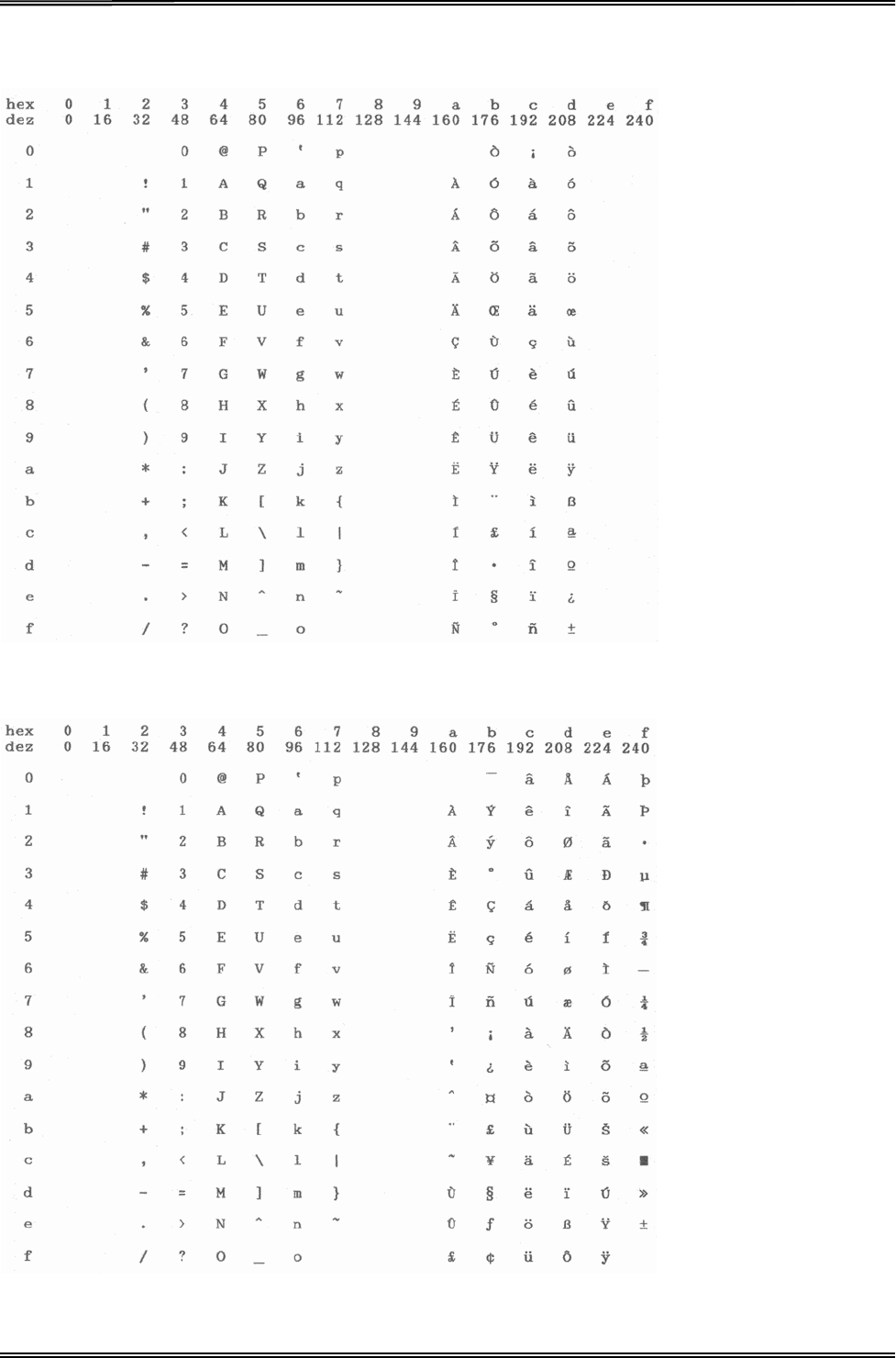

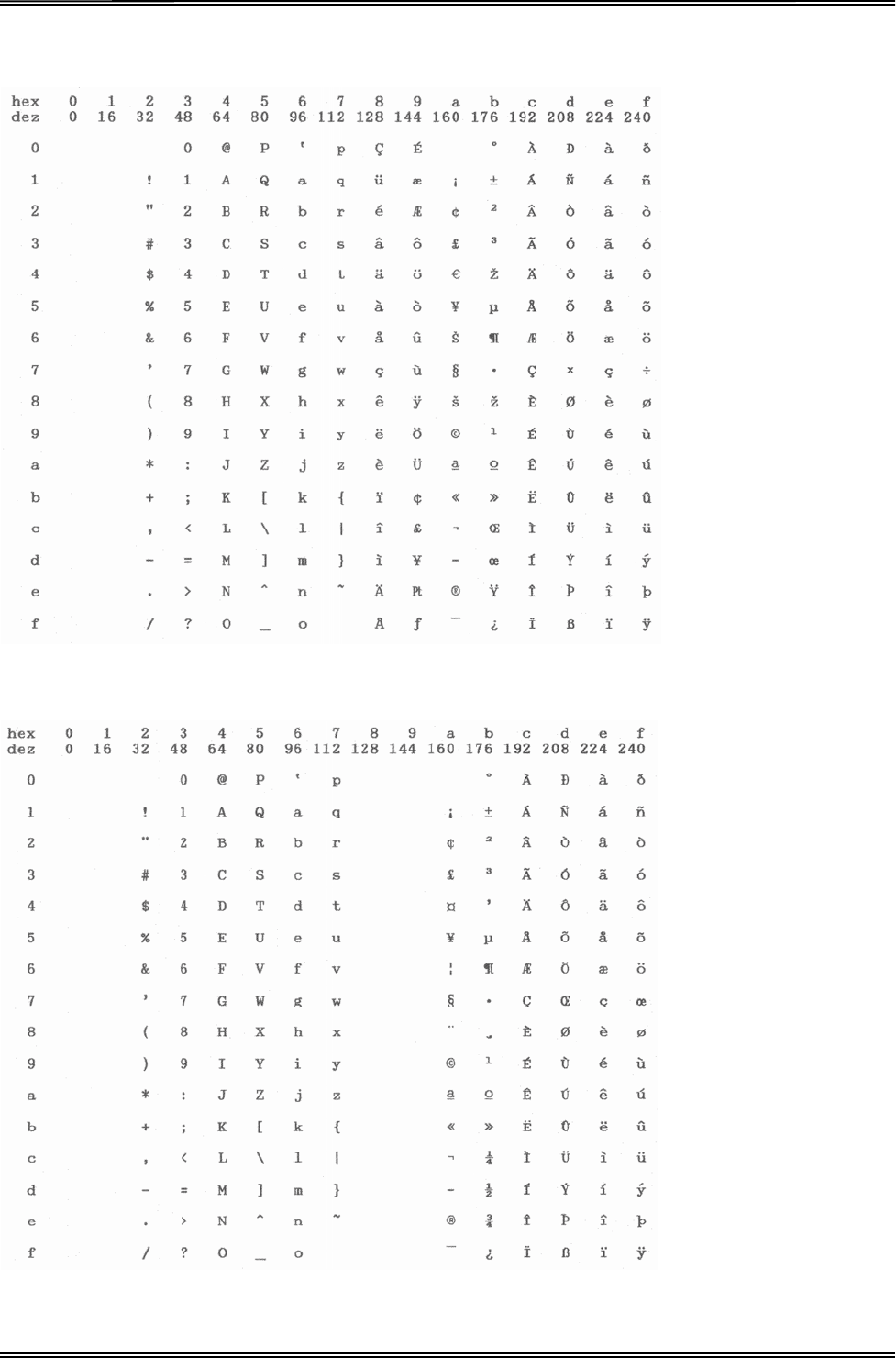

Self-Test (Font and Codepage Test Page)
With the cover closed, hold USER1 at power-on till the printer resets to activate the Self-Test. Single
mode: Load an A4 to start the self-print.
Tractors mode: Paper will auto load and start print.
The format of Self-Test follows 1xxx format :Print Font- and/or Codepage test page
Self-Test (Endless Running ASCII Tree)
With the cover closed, hold OFFLINE at power-on till the printer resets to activate the Self-Test. Load an
A4 to start the self-print.
Single mode: Load an A4 to start the self-print.
Tractors mode: Paper will auto load and start print.
The format of Self-Test follows 1xxx format: Endless running ASCII (tree form)
Self-Test (Configuration with Menu Settings)
With the cover closed, hold USER2 at power-on till the printer resets to activate the Self-Test.
Single mode: Load an A4 to start the self-print.
Tractors mode: Paper will auto load and start print.
L1 and L2 light up.
The format of Self-Test follows 1xxx format: Logo, model, FW+CG versions, head integrity, and current
configurations
Hex Dump
1) With the cover closed, hold USER1 and OFFLINE at power-on. L2 is on; L3 and L5 are blinking. The
printer resets and turns off L3 and L5 to indicate the activation of Hex Dump.
2) Hex Dump format is same as 1xxx.
3) Terminate Hex Dump by switching off the printer.
T
ally Dascom 5130P
27
Setup Menu
With the cover closed, holding USER1 and USER2 at power-on brings up the Setup Menu. The printer resets
and L1~L2=ON and waits for paper insertion.
All printed dialogs in the Setup Menu are viewed in up-right orientation as in Fig. 2. [NOTE: 1xxx dialog is up
side down when viewed by users.]
Rear of printer
English Deutsch
…
Setup dialog
Fig.2---Setup dialogs in up-right orientation viewed by operators.
Language Selection
(This feature is not supported in all models)
1) List out all languages in native characters and underline the tentative language. Assign USER1=OK and
USER2=Next. Fig. 3 illustrates the operation of language selection.
2) Advance the page for preview and wait for key press. Retract the paper for printing.
3) Each pressing of USER2 repeats 1~2.
4) Once the language is selected, subsequent dialogs are prompted in the selected language.
All subsequent dialogs in selected language.
Aktuelle Konfiguration? [USER1]=OK [USER2]= Weiter
English Deutsch Рос с и я.. [USER1]=OK [USER2]=Next
English Deutsch Ро с с и я .. [USER1]=OK [USER2]=Next
Dialog starts from this line. Key assignment in native language.
Enable/Skip Listing Current Configurations
The termination of language selection immediately prompts the “Print current configurations?” This allows or
skips the listing of current configurations before going into parameters setting. USER1 prints the listing and
USER2 skips the listing.
Contents of the listing: Current configurations for Menu1 and Menu2.
T
ally Dascom 5130P
28
Configuration Profiles
The termination of Listing Current Configuration brings the Edit Profile menu.
Successive pressing of USER2 scrolls out remaining choices, highlighted in brown.
Edit Profile: Menu1 Menu2 Restore Factory Defaults [USER1]=OK [USER2]=Next
NOTE: Menu1 and Menu2 cannot assign the same I/F.
Menu1=Profile for USER1; Menu=Profile for USER2.
How to Change Current Configurations
The configuration (emulation, I/F and so on) for each profile is carried out in a Q&A session with the below
keys assignment. The same key assignment applies universally to the offspring of individual menu.
Keys for Setup
[USER1]=OK [USER2]=Next [OFFLINE]=Exit
“OK” implies accepting the latest printed item (a menu selection or a parameter)
“Next” requests for printing next item
“Exit” immediately leaves the current menu or parameter setting
In parameters menus, the press of OFFLINE prompts: Save setting? OK
Press USER1 to save the settings collectively with a beep.
Press of USER2 appends a “NO” to the “OK”; then press USER1 to exit without saving.
T
ally Dascom 5130P
29

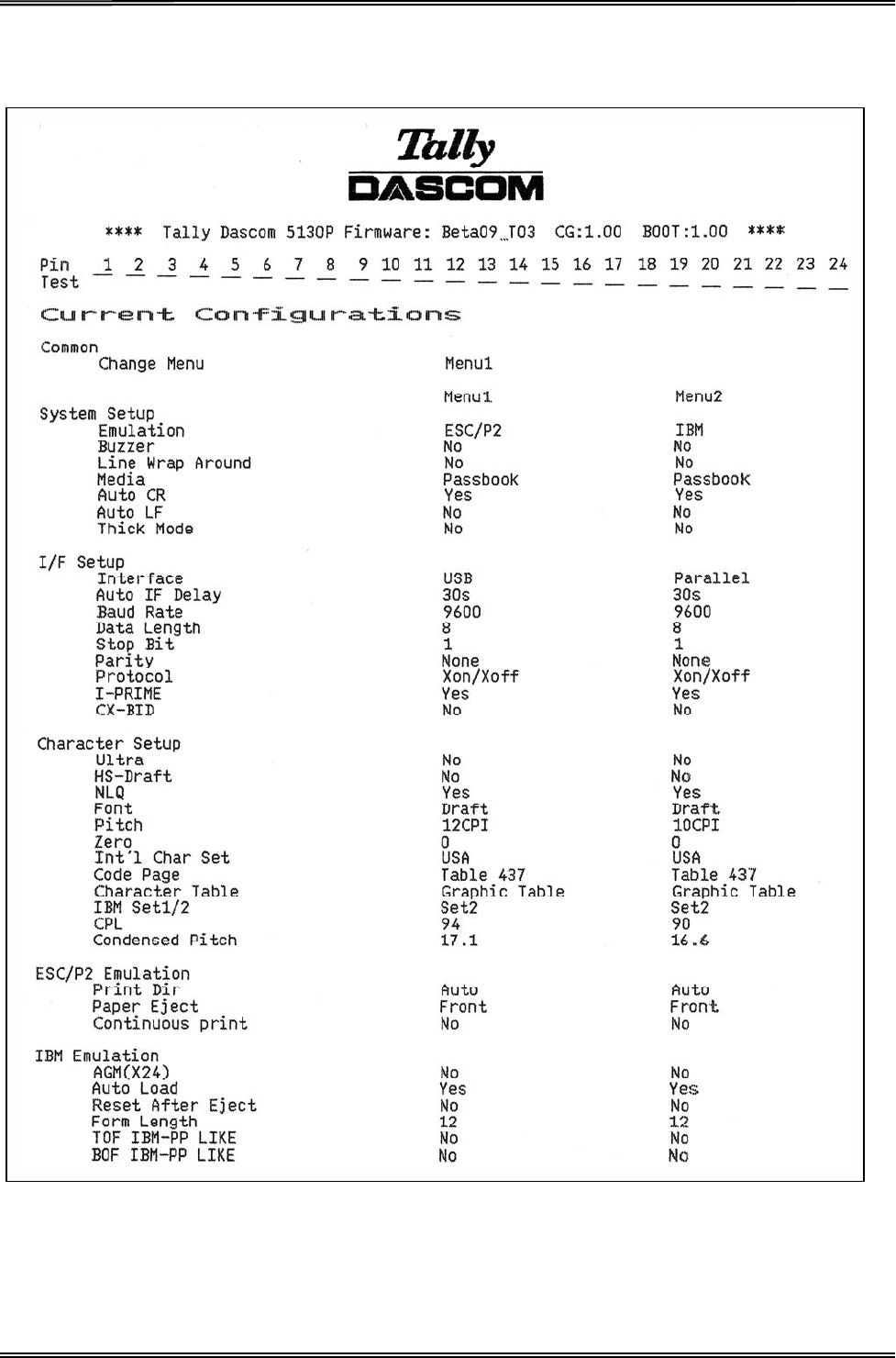

Configuration Menu (Sample)
T
ally Dascom 5130P
30
5 Default Settings
System Setup
System
Setup
Valid Setting Menu1（Default） Menu2
（Default）
Emulation Epson, IBM Epson IBM
Buzzer Yes, No, PE off No No
Line Wrap
Around
Yes, No, No No
Media Passbook, Multi-part, Thin Form Passbook Passbook
Auto CR Yes, No, No No
Auto LF Yes, No, No No
Thick Mode Yes, No No No
Note1: Passbook: normal impact strength for PB/Slip.
Multi-part=stronger impact. Thin Form=Slow feeding to avoid paper crumble.
I/F Setup
I/F Setup Valid Setting Menu1
（Default）
Menu2
（Default）
Interface Parallel, Serial, USB USB Parallel
Auto I/F
Delay
10s, 30s 30s 30s
Baud Rate 38400, 19200, 9600, 4800,2400,
1200
9600 9600
Data Length 8, 7 8 8
Parity None, Odd, Even None None
Protocol DTR, XON/XOFF XON/XOFF XON/XOFF
I-PRIME Yes, No Yes Yes
Character Setup
Character
Setup Valid Setting Menu1
（Default）
Menu2
（Default）
Ultra Yes, No No No
HS-draft Yes, No No No
NLQ Yes, No Yes Yes
Font Draft, Bank draft, Roman, Sans Serif,
Courier, Prestige, Script, OCR B, OCR A,
Orator, Gothic, Souvenir
Draft Draft
Pitch (cpi) 10*, 12*, 15, 16.6, 17.1,20,24,PS 12CPI 10CPI
Zero 0, Ø 0 0
Int’l Char USA, France, Germany, UK, Denmark, USA USA
T
ally Dascom 5130P
31
Set Sweden, Italy, Spain, Japan, Norway,
Denmark II, Spain II, Latin AM, Korea, Legal
Code

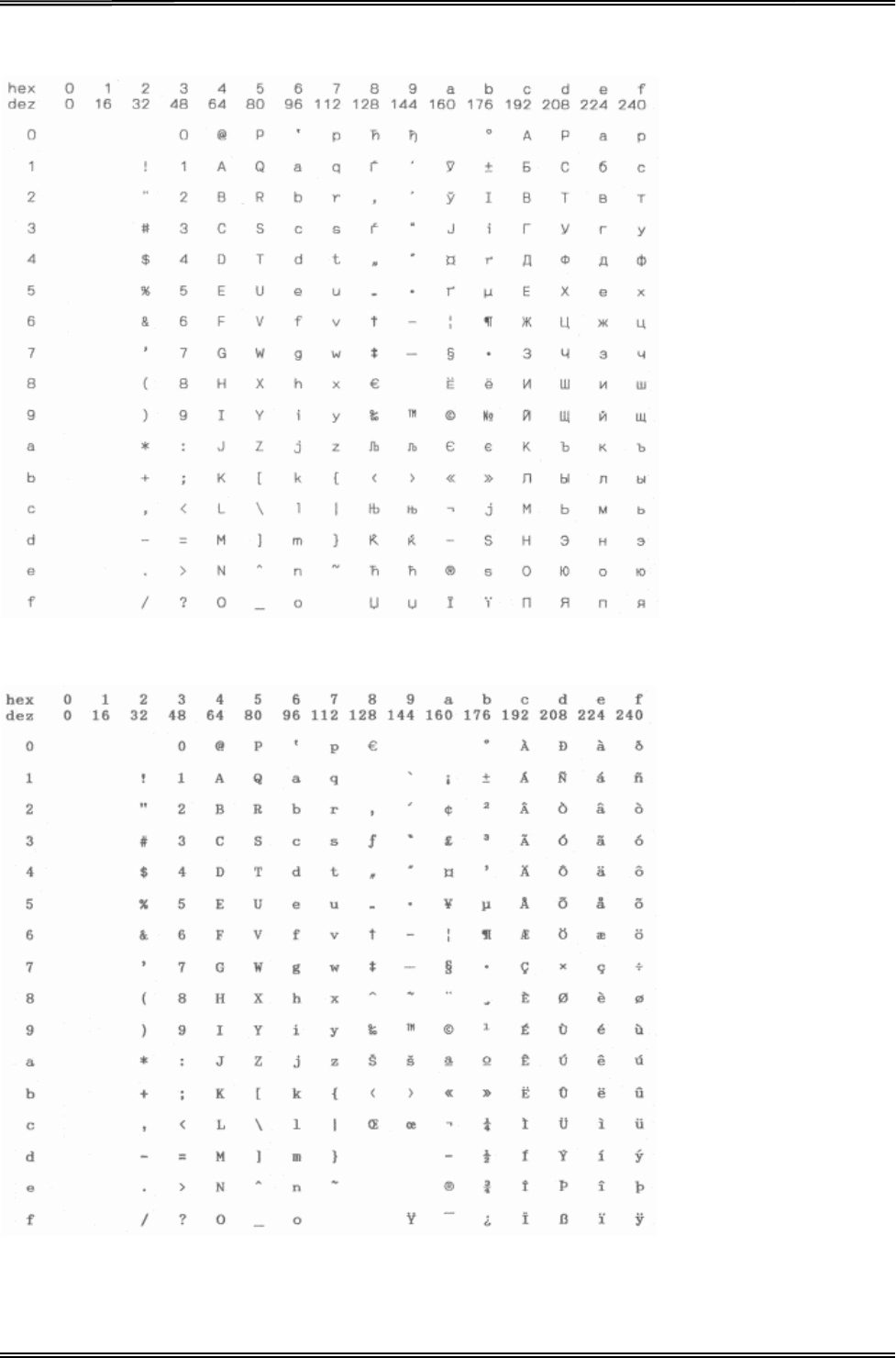

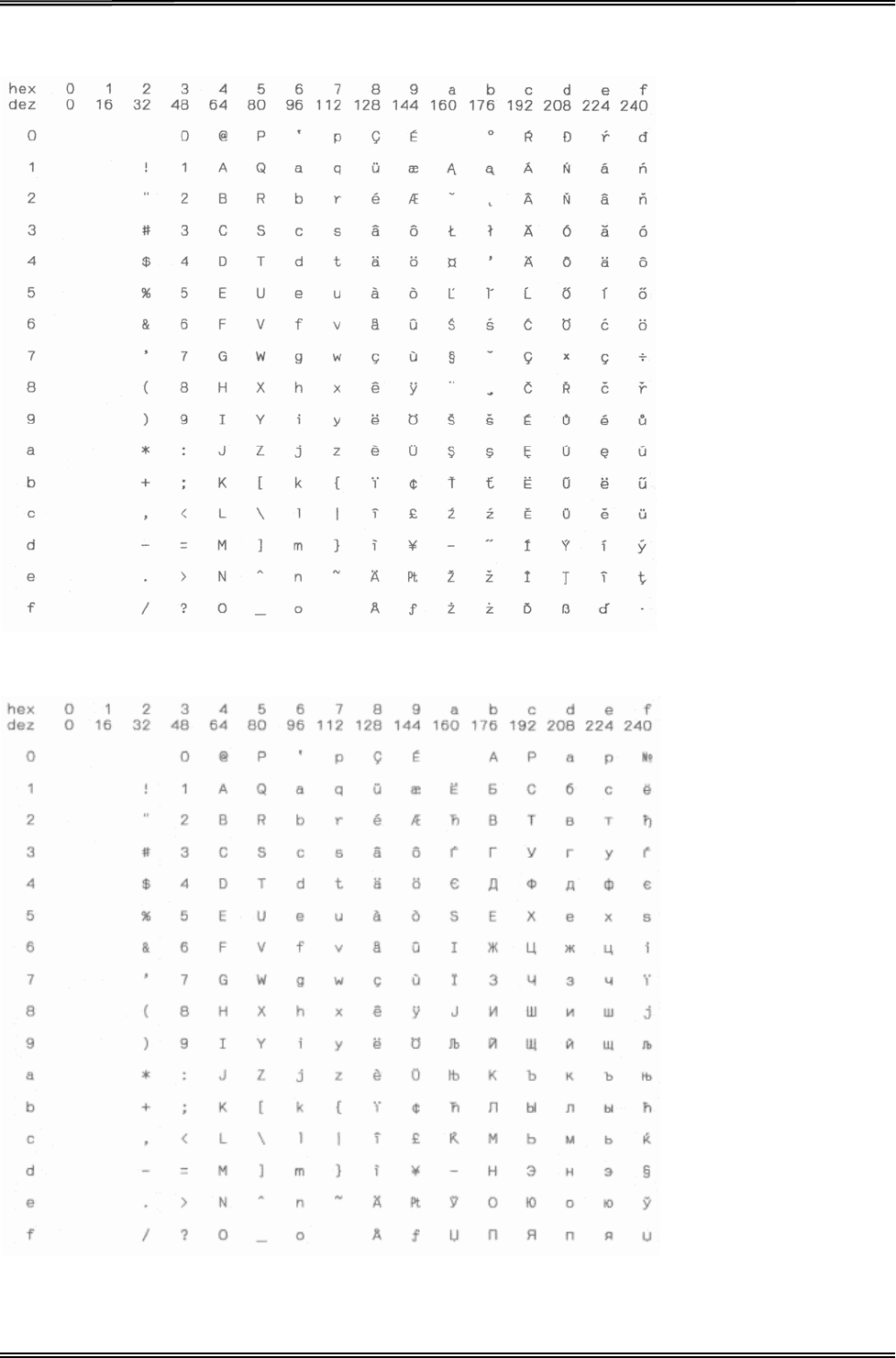

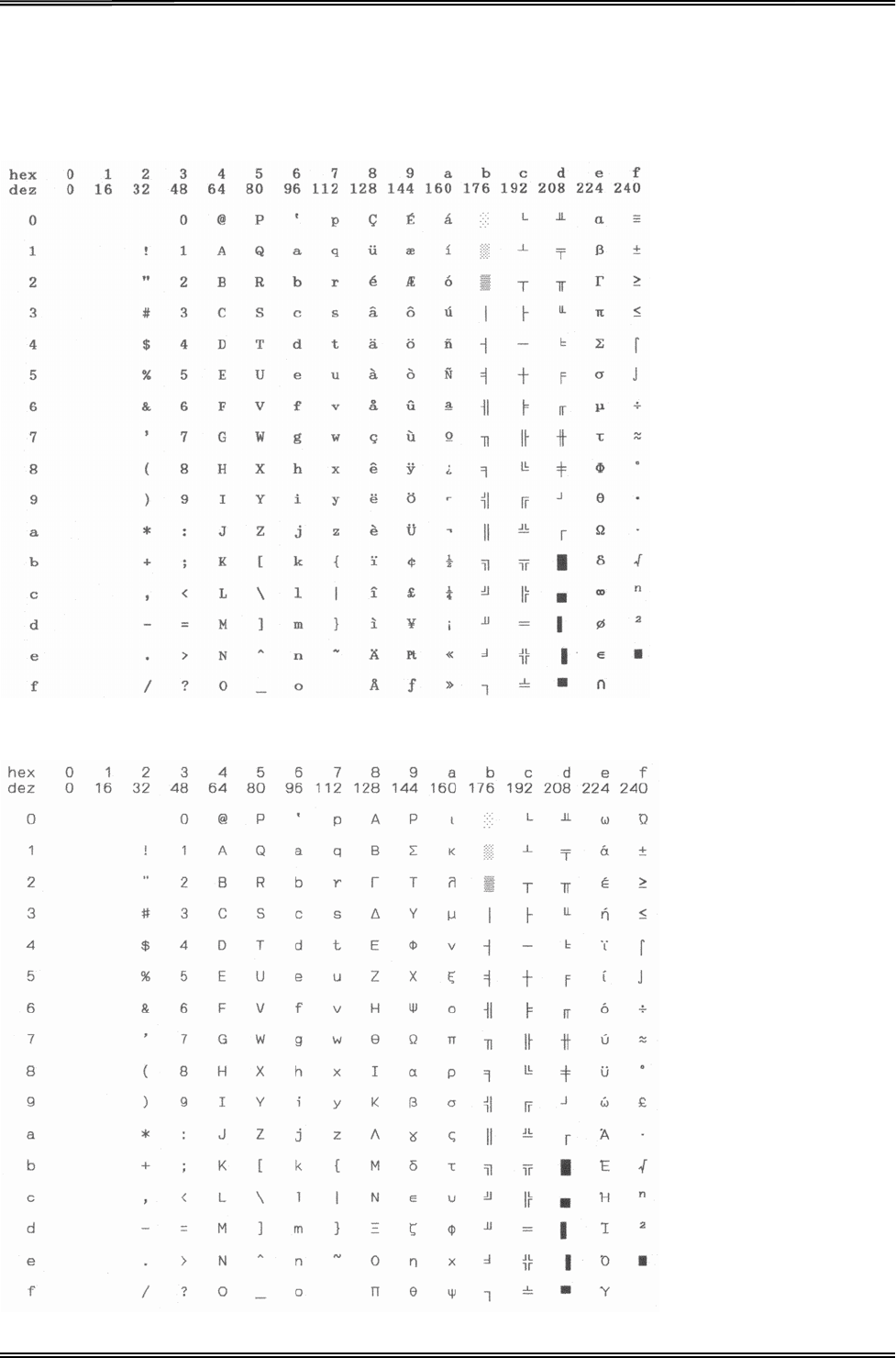

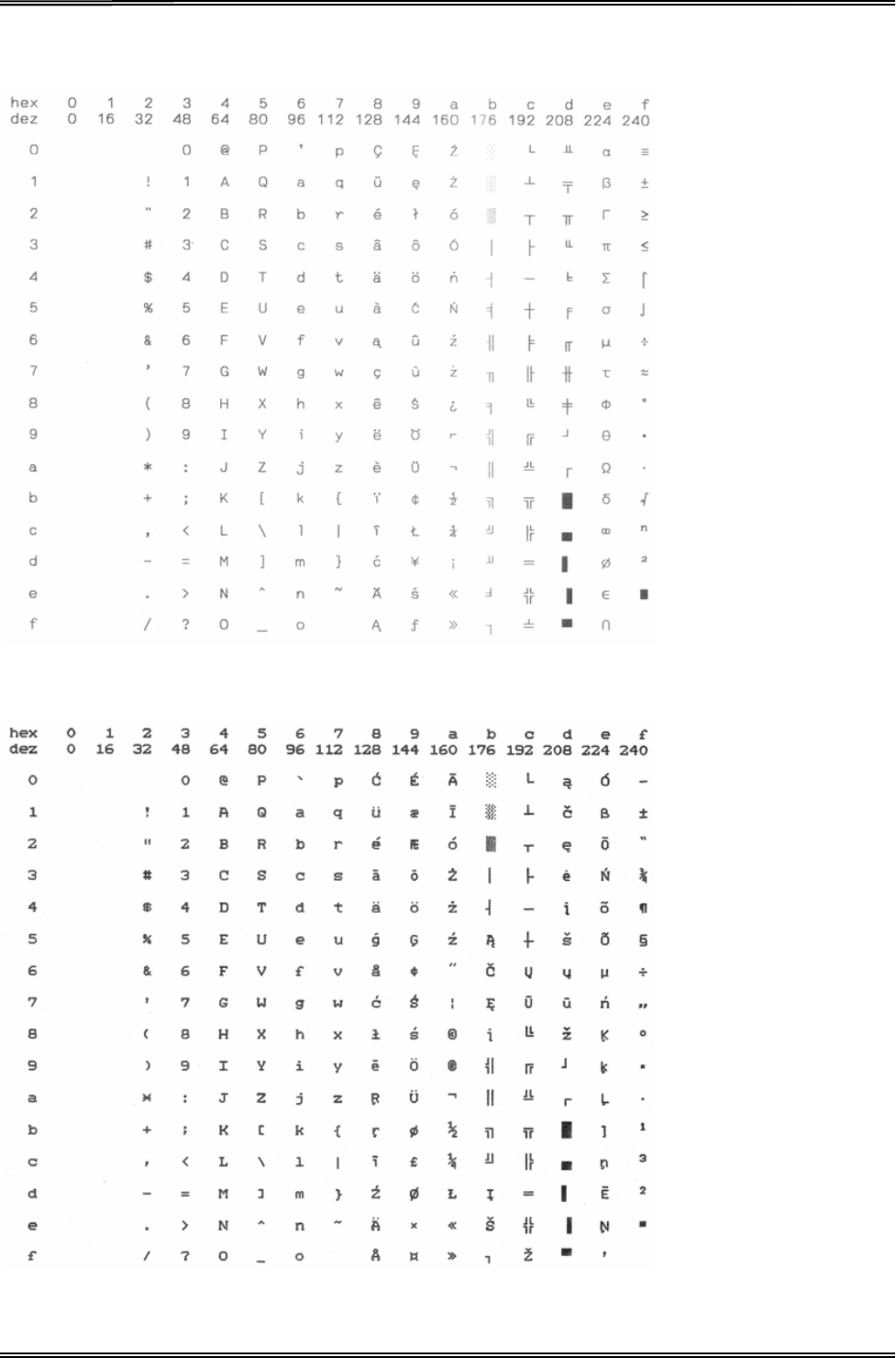

Page Table 437、New-437、Table 737、775 Baltic、
Table 850、New-Dig 850、Table 851、Table
852、Table 857、Table 858、Table 860、
Old-Code 860、Table 861、Table 863、Flarro
863、Table 864、864 Extended、Farsi、Urdo、
Table 865、865 Hebrew、Table 866、866
Bulgaria 、 866 Ukraine 、 866 Kazakhst 、
Kamenicky、Mazovia、Siemens Turk、DEC
Turkish 、 Table 1250 、 Table 1251 、 Table
1252、Table 1253、Table 1254、Table 1257、
ISO 8859-1、ISO 8859-1 SAP、ISO 8859-2、
ISO 8859-5、ISO 8859-7、ISO 8859-9、ISO
8859-15、ELOT 928、BRASCII、Abicomp、
Roman 8、US ASCII、UK ASCII、French、
German 、 Italian 、 Swedish 、 Norwegian 、
Spanish 、 Portuguese 、 Greek DEC 、
Cro-
A
SCII、Coax/
T
wina
Table 437 Table 437

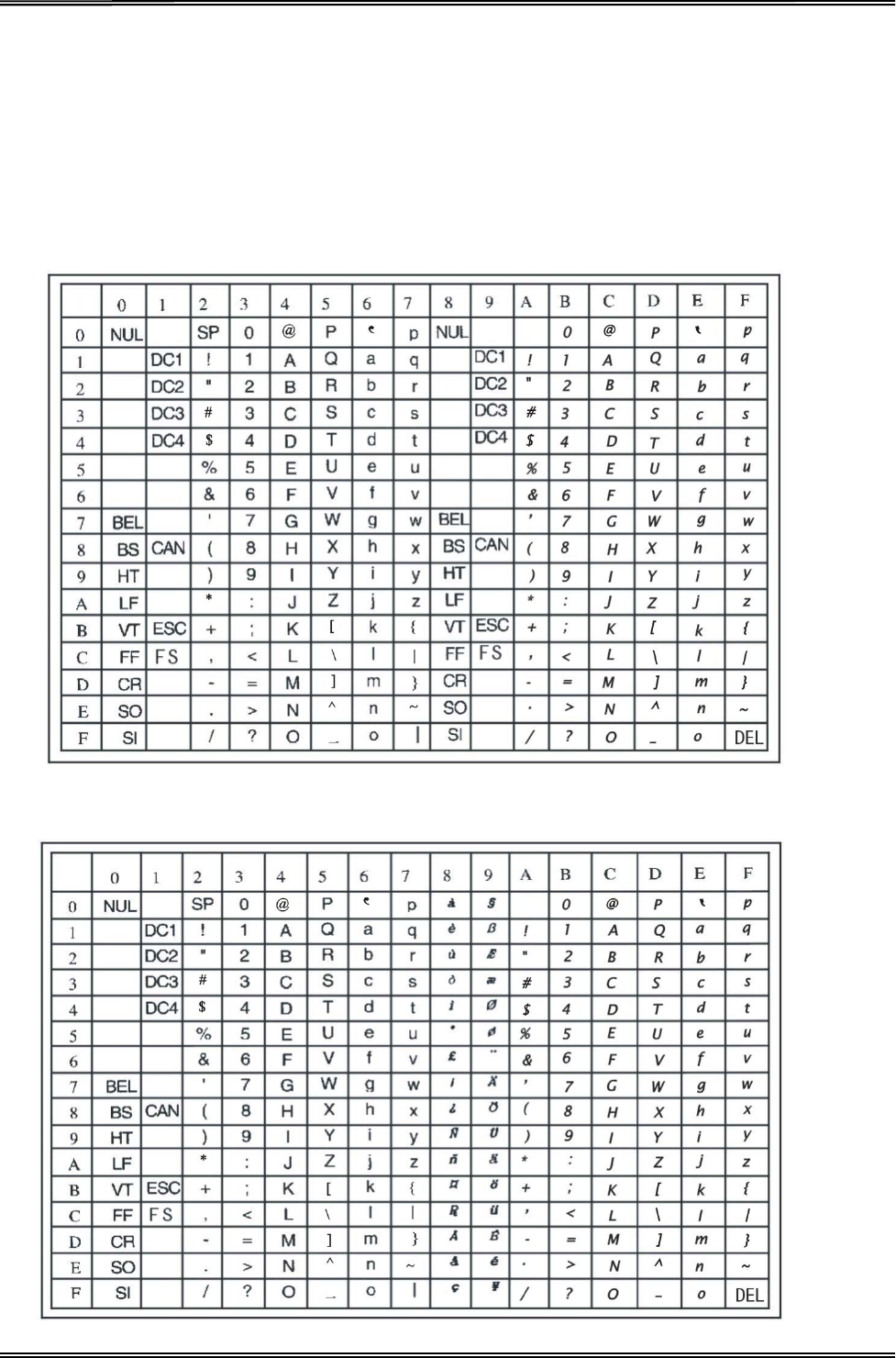

Character
Table
Graphic, Italic Graphic
Table
Graphic
Table
IBM Set
1/2
Set 1, Set 2 Set 2 Set 2
CPL 94, 90, 80 94 94
Condensed
Pitch
16.6, 17.1 17.1 16.6
T
ally Dascom 5130P
32
ESC/P2 Emulation
ESC/P2 Emulation Valid Setting Menu1
（Default）
Menu2（Default）
Print Dir Auto,Uni-Dir,Bi-Dir Auto Auto
Paper Eject Front,Rear Front Front
Continuous print Yes,No NO NO
IBM Emulation
System Setup Valid Setting Menu1
（Default）
Menu2（Default）
AGM（X24） No，Yes No No
Auto Load Yes，No No Yes
Reset After Eject Yes, No No No
Form Length 12，11 12 12
TOF IBM-PP LIKE No，Yes No No
BOF IBM-PP LIKE No，Yes No No
Restore Factory Defaults
1. Press User
1
+
2
and
Power
ON the
printer
2. Insert Cut Sheet
paper
3. Press User
2
4. Press User
2
two t
i
m
es
5. Press User
1
two t
i
m
es
6.
Power
Cycle the
printer
T
ally Dascom 5130P
33
6 Maintenance
Your
printer
requires very
little
care.
Occasional cleaning
and
replacement
of the
ribbon cartridge
are
all
that is
required. Cleaning
is
recommended approximately every
6 months or 300 hours of
operation, whichever
is
sooner. Lubrication
of the
printer
is not
usually
necessary. If the print head
carriage
does not move smoothly
back and forth, clean the
printer
in the manner
described
in this chapter. If the
problem
continues, contact
your dealer
to
determine
whether
lubrication
may be necessary.
Switch
printer
off and
unplug
the
power
cord from
the mains before
doing
any
maintenance
work.
Cleaning
The
housing
and the top
cover
of the
printer
help
protect
it
against
dust, dirt, and
other
contaminants.
However, paper
produces
small
particles
that
accumulate
inside the
printer.
This section
explains
how to clean
and
vacuum
the
printer
and how to clean the
paper bail rollers.
It is easier to clean the
printer
when the
cover
is open.
Cleaning
and
Vacuuming
the Printer
If the
print
head
carriage
does not move
smoothly
back and forth
or
paper
particles
have
accumulated
in the
printer,
clean the
printer.
To clean and
vacuum
the
printer:
1. Remove any
paper
from the
printer.
Make sure that the power is off, and then disconnect the printer
power cord.
2. Using a soft
vacuum
brush,
vacuum
the
exterior
of the
printer. Also vacuum
the cut sheet edge.
3. Use a soft, damp cloth to wipe the
exterior
of the
printer, including
the cover. A mild detergent may be
used. Do not use solvents, kerosene, or abrasive cleaning materials that may damage the printer.
4. Open the
cover
of the
printer
and remove the
ribbon cartridge.
Using a soft
vacuum
brush, gently vacuum
the platen, the print head
carriage
and shaft, and
surrounding areas.
You can easily slide the print head to
the left or right when the
power is
off. Be careful not to
press
too hard on the flat head cable that extends
from the
print
head
carriage.
5.
Re-install
the
ribbon
cartridge.
T
ally Dascom 5130P
34
7
Troubleshooting
Your
printer is extremely reliable,
but
occasionally problems
may occur. This
chapter provides information
on
some of the
common problems
you may
encounter
and how you may solve them. If you
encounter problems
that you cannot resolve, contact your
dealer
or se
r
v
i
ce
partner for
assistance.
Print
Quality Problems
and
Solutions
Problem
Solution
Printing is
too light or too dark.
•
Make sure that the
ribbon cartridge
is
properly installed
and that
the
ribbon
feeds smoothly.
•
Replace the
ribbon
if necessary.
Smears and stains
appear
on the
page.
•
Check for
ribbon
wear. Replace the
ribbon
if necessary.
•
Check whether the tip of the
print
head is dirty. Clean the head
with a soft cloth if
necessary.
•
The
print
head may need to be replaced.
Printing is
erratic or the
wrong
characters
are
printed.
Many “?”
or
unexpected characters
are
printed.
•
Make sure that the interface cable is securely connected to both
the
printer
and
computer.
•
Make sure that the
printer driver
selected in your software is the
same as the
emulation
selected on the printer.
•
Check the
length
of the
i
n
te
rface
cable.
(Maximum Parallel
&
USB: 2
meters)
•
Try
another
interface cable.
The page
is blank.
•
Make sure that the
ribbon cartridge
is
properly
installed.
•
Make sure the gap
lever is
set
correctly.
Printing is vertically
misaligned
(jagged).
Use the
printer's vertical alignment function
to check the vertical
print
alignment.
If necessary, adjust the print alignment.
The top
margin
is wrong.
•
Check the
application
top
margin
setting.
•
Adjust the Top
Margin
setting in Page Setup menu if necessary.
Lines are
double
spaced instead of
single spaced.
Change the Auto LF setting in the System Setup menu to No.
The
printer overprints
on the same
line.
Change the Auto CR setting in the System Setup menu to No.
The next print line starts where
the
previous line
ended instead of
at the left margin.
Change the Auto CR setting in the System Setup menu to Yes.
T
ally Dascom 5130P
35
Paper
Handling Problems
and Solutions
Problem
Solution
Paper
cannot be
loaded or
fed.
•
Make sure that the
paper
select
lever
located on the top right of
the
printer is
set
correctly.
Move the
lever
to the
front for
single
sheets or to the rear for
continuous
forms.
•
Make sure that the
paper
covers the
paper-out
sensor.
Paper jams while loading.
•
Turn off the
printer
and remove the
jammed
paper. Remove any
obstructions
from the
paper
path.
•
Make sure that the
paper
is not folded, creased, or torn.
•
Make sure that the left and right
tractors
are set so that the
continuous
forms are stretched taut.
Paper jams while printing.
•
Turn off the
printer
and remove the
jammed
paper. Remove any
obstructions
from the
paper
path.
•
For continuous
forms, make sure that the
incoming
and
outgoing paper
stacks are
correctly
placed.
Paper should
feed
straight.
Paper
slips off the forms
tractors
or the
perforated
holes of the
paper
tear
during printing.
Make sure that the forms
tractors are positioned correctly for
the
width of your
paper
and that the
perforated
holes of the
paper
fit
directly
over
the tractor pins.
Operating Problems
and Solutions
Problem
Solution
The power does not turn on.
•
Check whether the mains
voltage
is correct.
•
Make sure that the
power
cord is securely connected to both
the
printer
and the
mains
power outlet.
•
Make sure that the
power
outlet
is functional.
If not so, use
other
outlet.
•
Turn the power off. Wait a
m
i
nut
e and then turn the
printer
on
again.
If the
printer
still has no power, contact your dealer.
The
printer is
on but it will not
print.
•
Make sure that the Offline
indicator is
out.
•
If you use the interface cable, make sure it
is
securely
connected to both the
printer
and the
computer.
•
Make sure
paper is
loaded.
•
Run the
printer
Status Page. If
printing
executes
normally,
the
problem
is caused by: the
i
n
te
rf
ace,
the
computer,
incorrect
printer
settings, or
incorrect software
settings.
•
Make sure that the
printer driver
selected in your software is the
same as the
emulation
selected on the printer.
T
ally Dascom 5130P
36
Paper
select
lever error
If
paper
is
loaded
and the
paper
select
lever
is moved to the
incorrect position,
the
printer
turns offline, and the buzzer sounds
continuously.
Switch the
paper
select
lever
back to its
correct
position.
Printer Failures
A user cannot
generally
resolve a
problem involving
defective
printer hardware.
Power off and on
again
the
printer
to
recover
any fatal error. If the
problem
cannot be resolved,contact
your dealer or service partner.
Error
Indications
on LEDs
Error Description
Operation
Status
Paper
Out
LED
Online
LED
Tear
Off
LED
Buzzer
Sound
Paper
jammed Suspend Flash Off Flash Once
Friction
feed
/Tractor
feed Suspend Flash Flash No change Continuously
Print
head hot
Normal
No change Flash No change
--
Carriage initial
position Stop Flash Off Off Once
EEPROM Normal Off Flash Flash Once
Print
head cold Suspend Flash Flash No change
--
ROM
error
Stop Flash Flash Flash Once
T
ally Dascom 5130P
37
Diagnostic
Functions
The
printer diagnostic
functions are Self-Test page,
hex-dump
mode and
print alignment
adjustment.
•
Self-Test page: Tells you
whether
the
printer hardware
is
functioning correctly.
If the
printer
hardware
is
functional,
any
problems
you are
having
are
probably
caused by
i
n
co
rr
ect
printer
settings, incorrect
software settings, the interface, or the computer.
•
HEX-DUMP MODE: Allows you to
determine whether
the
computer is sending
the correct commands
to the
printer,
and
whether
the
printer
is
exe
c
u
t
i
ng
the
commands correctly.
This
function is
useful to
programmers
or others who
understand
how to
interpret
hex dumps.
•
PRINTING
ALIGNMENT ADJUSTMENT:
Allows you to check and, if necessary, correct the
printer’s
vertical
line print
alignment
in
bi-directional
mode.
For details on using these
functions,
please
refer
to chapters 4 and 5.
T
ally Dascom 5130P
38
Firmware
Update
Sometimes
it is necessary update the
firmware
to solve a
problem.
The latest firmware file may be
obtained
from
your dealer
or
downloaded
from
our
web
s
i
te
www.dascom.com.
Before
upgrading firmware,
it is
strongly recommended
to print the Main Menu page to keep a record of the old settings.
Note:
Firmware
update
should
only be
performed
by an
authorized
service person. We
disclaim
any
responsibility
for any
damage
caused
if
it is
performed
by any other person.
To load new firmware, please
proceed
the
following
steps:
1. Open the cover
2. Press User
1
+
Offline
and
Power
ON the printer.
3. L1 and L2 are
blinking alternatively.
4. COPY /B <filename>.mot PRN
Note: Do not interrupt the downloading process to prevent possible flash memory corruption.
5. When
downloading
is completed, the
carriage
returns to home
position. Printer initializes
normally.
T
ally Dascom 5130P
39
8 Specification
Print
System
Monochrome serial
impact dot matrix
Print
Technology
Uni-/bi-directional
logic seeking for text and graphics
Print
Speed
Pitch HS
Draft*
Draft HS-LQ
(
C
PS/
DPI
)
10 CPI 400 CPS 300 CPS 200 CPS 100 CPS
12 CPI 360 CPS 240 CPS 120 CPS
15 CPI
17.1 CPI
20 CPI
*limited print w
i
dth
of 8.4inch
Font Matrix
Pitch HS
Draft
Draft HS-LQ (Matrix/DPI)
10 CPI 8x8/80H 12x24/120H 18x24/180H 36x24/360H
12 CPI 10x24/120H 15x24/180H 30x24/360H
15 CPI 8x16/120H 24x12/180H 24x16/360H
17.1 CPI 10.5x24/180H 21x24/360H
20 CPI 9x24/360H 18x24/360H
Proportional
Nx24/360H Nx24/360H
Print
Head
Number
of pins: 24 pins
Firing
frequency:
Normal
mode: 1800 Hz
Pin
d
i
a
m
ete
r
: 0.25 mm
Life: 400
million
strokes/pin
@
Draft mode
Graphics
Horizontal:
1/60, 1/72, 1/80, 1/90, 1/120, 1/180, 1/216, 1/360
Vertical:
1/180, 1/360
Paper
Feed Speed Form Feed: 18 IPS (Inches per
second)
Continuous
FormFeed: 15 IPS (inches
per
second)
Resolution
360 x 360 DPI maximum
Printable
Columns
Characters
per inch (CPI);
Characters
per line (CPL)
Tractor: Friction:
10 CPI: 82 CPL 10 CPI: 94 CPL
12 CPI: 94 CPL 12 CPI: 112 CPL
15 CPI: 123 CPL 15 CPI: 141 CPL
17.1 CPI: 140 CPL 17.1 CPI: 161 CPL
20 CPI: 164 CPL 20 CPI: 188 CPL
24 CPI: 225 CPL
T
ally Dascom 5130P
40
Built-In
Fonts
Bitmap Fonts:
Draft 10, 12, 15, 17.1, 20, 24 CPI
Roman 10, 12, 15, 17.1, 20 CPI,
Proportional
OCR-B 10 CPI in NLQ and LQ; 12, 17.1, 20 CPI,
Proportional
OCR-A 10 CPI in NLQ and LQ, 12, 17.1, 20 CPI,
Proportional
Courier,Gothic,
SanSerif,
Prestige elite, Script,
Orator,
bold
all
in NLQ and LQ
style and 10, 12, 15, 17.1, 20 CPI,
Proportional
Barcodes
(via
programming)
1. EAN-13
2. EAN-8
3.
Interleaved
2 of 5
4. UPC-A
5. UPC-E
6. Code 39
7. Code 128
8. POSTNET
9. Codabar
10.
Industrial
2 of 5
Code
Pages
1. CP 437
2. CP 737
3. CP 850
4. CP 851
5. CP 852
6. CP 857
7. CP 858
8. CP 860
9. CP 861
10. CP 863
11. CP 864
12. CP 864 Extended
13. CP 865
14. CP 866
Cyrillic
15. CP 866 Bulgaria
16. CP 1250
17. CP 1251
18. CP 1252
19. CP 1253
T
ally Dascom 5130P
41
Code Pages
20. CP 1254
21. 8859-1
22. 8859-1 (SAP)
23. 8859-2
24. 8859-5
25. 8859-7
26. 8859-9
27. 8859-15
28. BRASCII
29. Abicomp
30. Roman8
31.
Coax/Twinax
32.
Ne
w
-
437
33.
New-Dig
850
34.
Old-Code
860
35.
Flarro
863
36. 865
Hebrew
37. CP 1257
38. 866 Ukraine
39. 866 Kazakhstan
40. Kamenicky
41.
Mazovia
42.
Siemens
Turk .
43. DEC Turkish
44. CP 775 B
a
l
t
ic
45. CRO-ASCII
46.
Arabic Farsi
47.
Arabic
Urdu
48. Greek DEC
49. Greek ELOT 928
T
ally Dascom 5130P
42
International

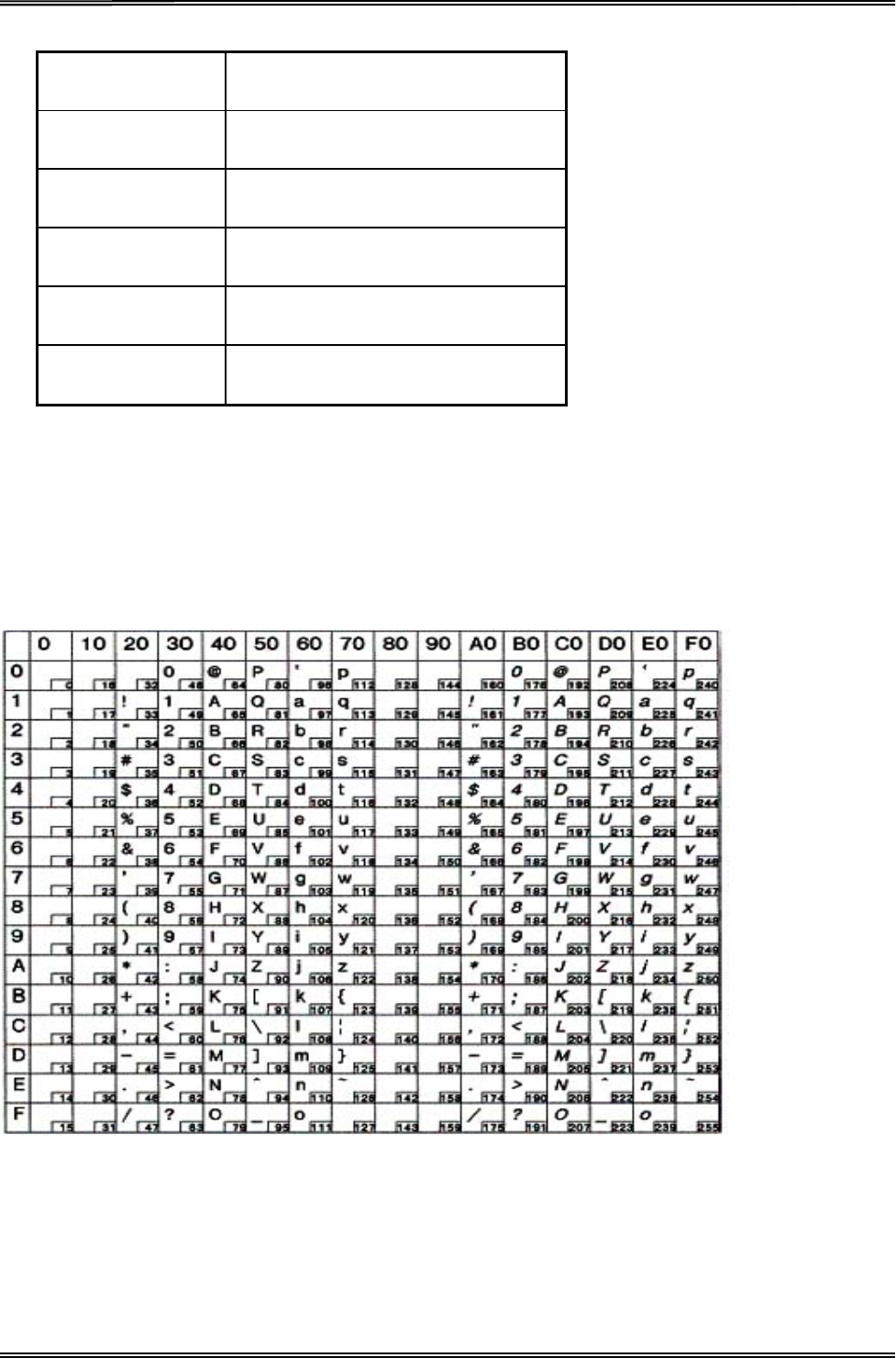

Character
Sets
1. USA
2. France
3. Germany
4. UK
5. Denmark I
6. Sweden
7.
Italy
8.
Spain
I
9. Japan
10. Norway
11. Denmark II
12.
Spain
II
13. Latin America
14. Korea
15.
Legal
Cut Sheet
Width:
60 – 245 mm
Length: 67 – 363.2 mm
Weigth:
52 – 157 g/m²
Thickness: 0.0. – 0.12 mm
Continuous
Form
Width:
101.6 – 241.3 mm
Length: 139.7 mm and above
Weight:
64 – 100 g/mm²
Thickness: 0.06 – 0.35 mm
Paper
Specifications
Bankbook
W
i
dth:
105 – 241 mm
Length:
67 – 363.2 mm
Weight:
95 – 116 g/m²
T
h
i
c
kne
ss:
0.06
–
2.8
mm
(P:
6.0 mm)
Paper
Handling
Feeding method:
Friction
and
Tractor
Paper
path: Cut sheets, Bankbook:
Front
in, front
or
rear out
Continuous
Forms: Rear in, front out
Copy
Capability
Original
+ 4 copies
Emulation
ESC/P2, IBM X24
Ribbon
Ty p e
Cartridge;
Monochrome
Ribbon Life
4
million characters @
10 CPI Draft
Input Data Buffer
96 KB
T
ally Dascom 5130P
43
Windows Drivers
Windows
Server
2000/2003/2008
Windows Vista
Windows XP
Windows 98
Windows 7
Interface
Parallel (Bi-directional
IEEE-1284
nibble
mode)
RS232C
(9-pin
Sub-D male IF)
USB 2.0 (B type connector)
Operation
Panel
Switches: 3 pcs
LED
indicators:
5 pcs
Noise
Level
Less then < 55 dBA, Draft Mode (ISO7779
pattern)
Ambient
Conditions
Temperature Operating:
+5 to +40 °C.
Stand-by:
-
20 to +60 °C
Humidity
Operating:
10 to 90%RH
(No
condensation)
Stand-by: 5 to 95%RH
(No
co
nde
nsation)
Dimensions
384 mm (W) x 313 mm (D) x 203 mm (H)
Weight
9 kg
Power
Supply
Power
cord: Detachable
Voltage
rating: AC 230V (180V~264V), 50Hz to 60Hz
AC 110V/120V, 60Hz (factory option)
Stand by: 7 W
ESD:
Comply
with IEC801-2
Contact
discharge:
4kV
Air discharge: 8kV
Certification
CE, UL, FCC, ES, ISTA, RoHS, WEEE, REACH, ChemVerbotsV,
T
ally Dascom 5130P
44
9 Interfaces
Parallel
Interface
Parallel
Interface Pin Assignment
Pin
Signal
Name
Signal
Transmission
1 STROBE,¯¯¯¯¯¯
Printer
I
Computer
2~9 D
A
T
A
Printer
I
Computer
10
A
C
K,¯¯¯
Printer
J
Computer
11
BUS
Y
Printer
J
Computer
12 PE
Printer
J
Computer
13
SELECT
Printer
J
Computer
14
AFXT
,¯¯¯¯
Printer
I
Computer
15
U
n
used
U
n
used
16
GN
D
Printer
Q
Computer
17 F
-
GN
D
Printer
Q
Computer
18
+5V
Printer
J
Computer
19~30
GN
D
Printer
Q
Computer
31
IN
I
T
,¯¯¯¯
Printer
I
Computer
32 FAULT,¯¯¯¯¯
Printer
J
Computer
33
GN
D
Printer
Q
Computer
34
U
n
used
U
n
used
35
FUSE
Printer
J
Computer
36 SLCTIN,¯¯¯¯¯¯
Printer
I
Computer
Parallel
Interface
Connector
Diagram
Note: Any
external devices
connected to the
parallel
port
should
not draw
current exceeding
200 mA from pin
18;
otherwise
it may affect the
printer operation.
USB Interface
The USB
i
n
te
rf
ace
conforms
to the
Universal Serial
Bus 2.0
Spe
c
i
f
ication
s. It
supports
the
Full
Speed mode at
12 Mbps. It uses the “B” type USB connector.
Serial
Interface
RS232C
(9-pin
Sub-D male Interface)
T
ally Dascom 5130P
45
10
Character
sets & Code Pages

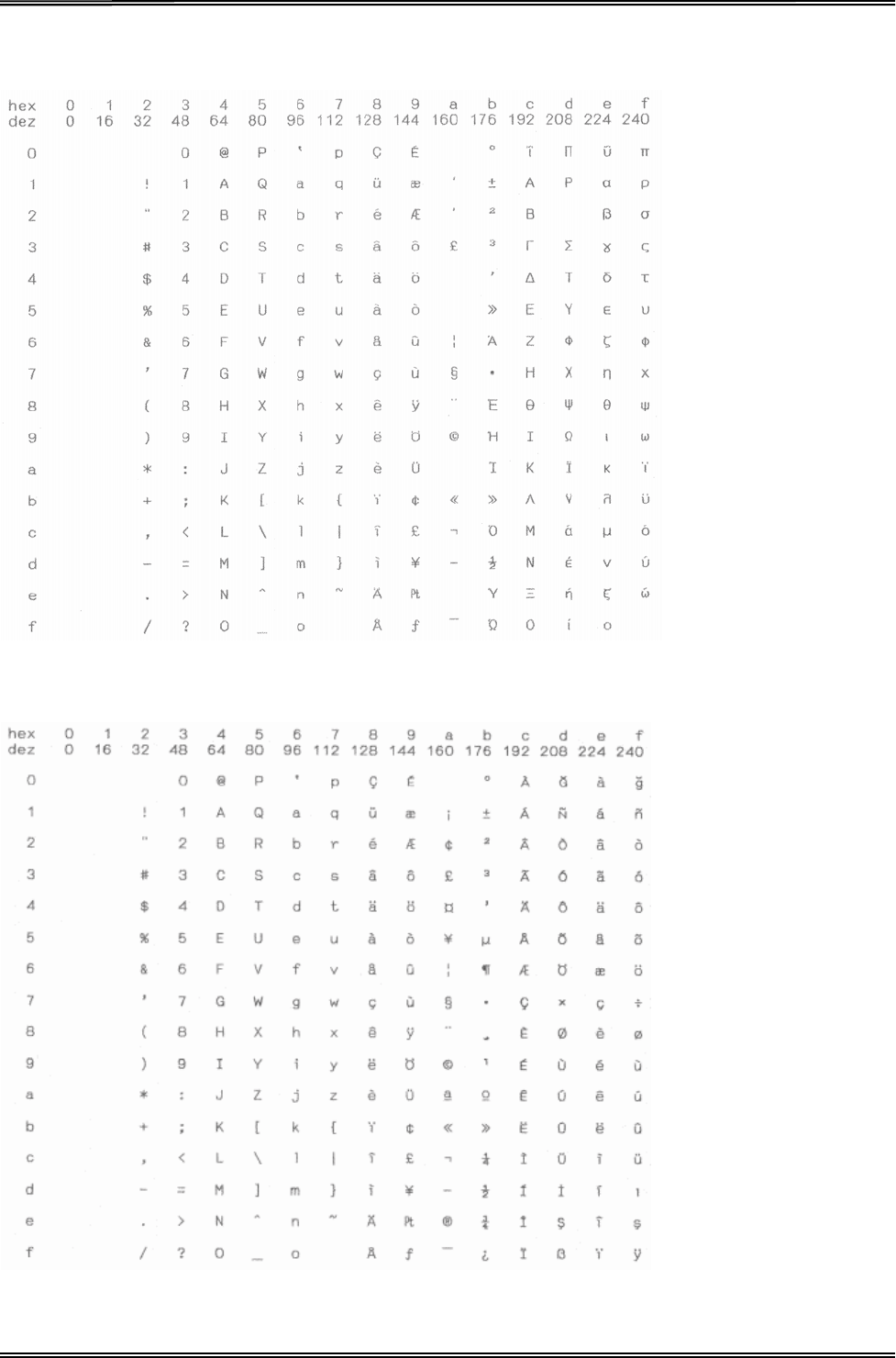

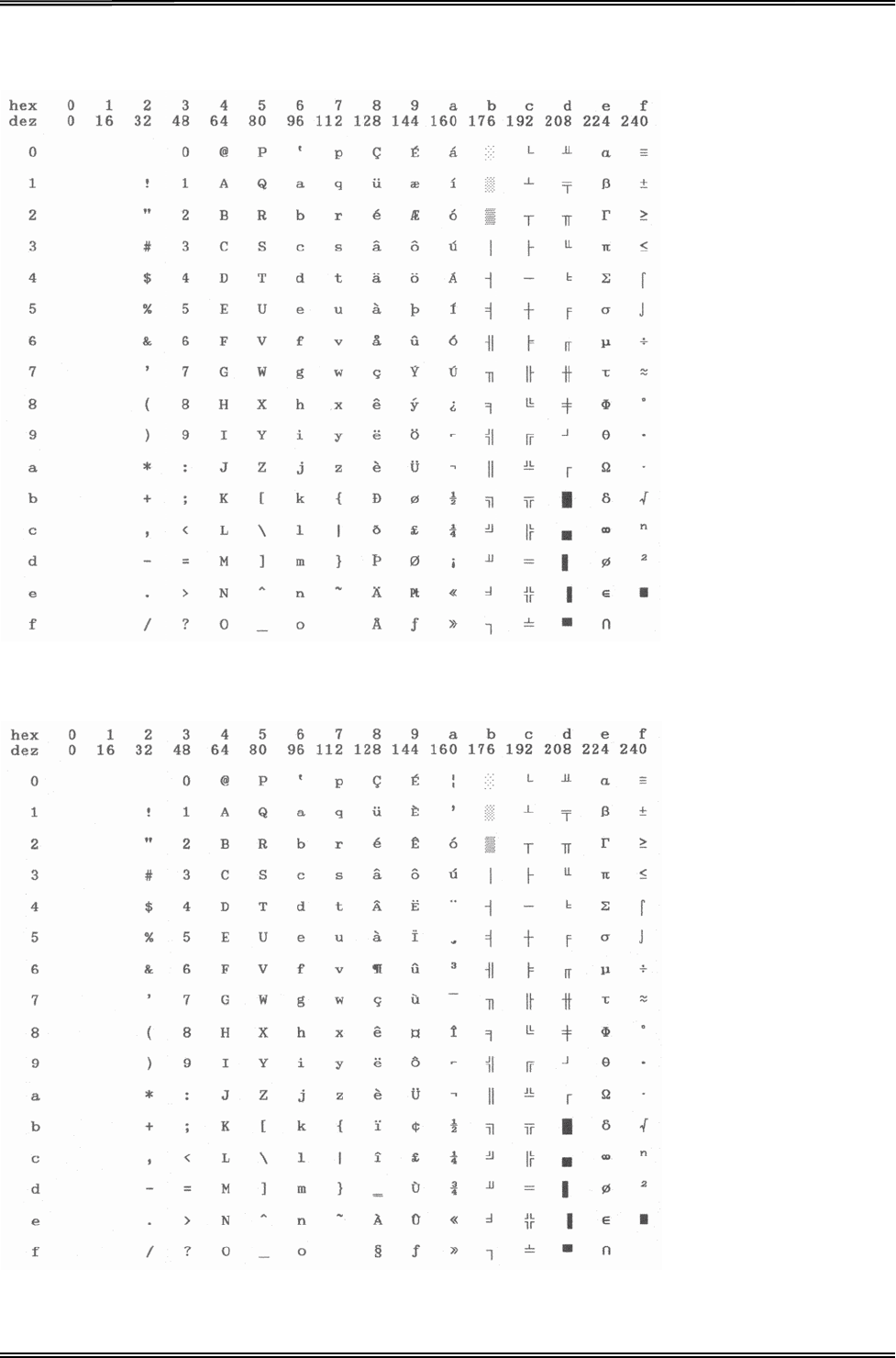

Character
Sets
Standard Character
Set 1
Standard Character
Set 2
T
ally Dascom 5130P
46

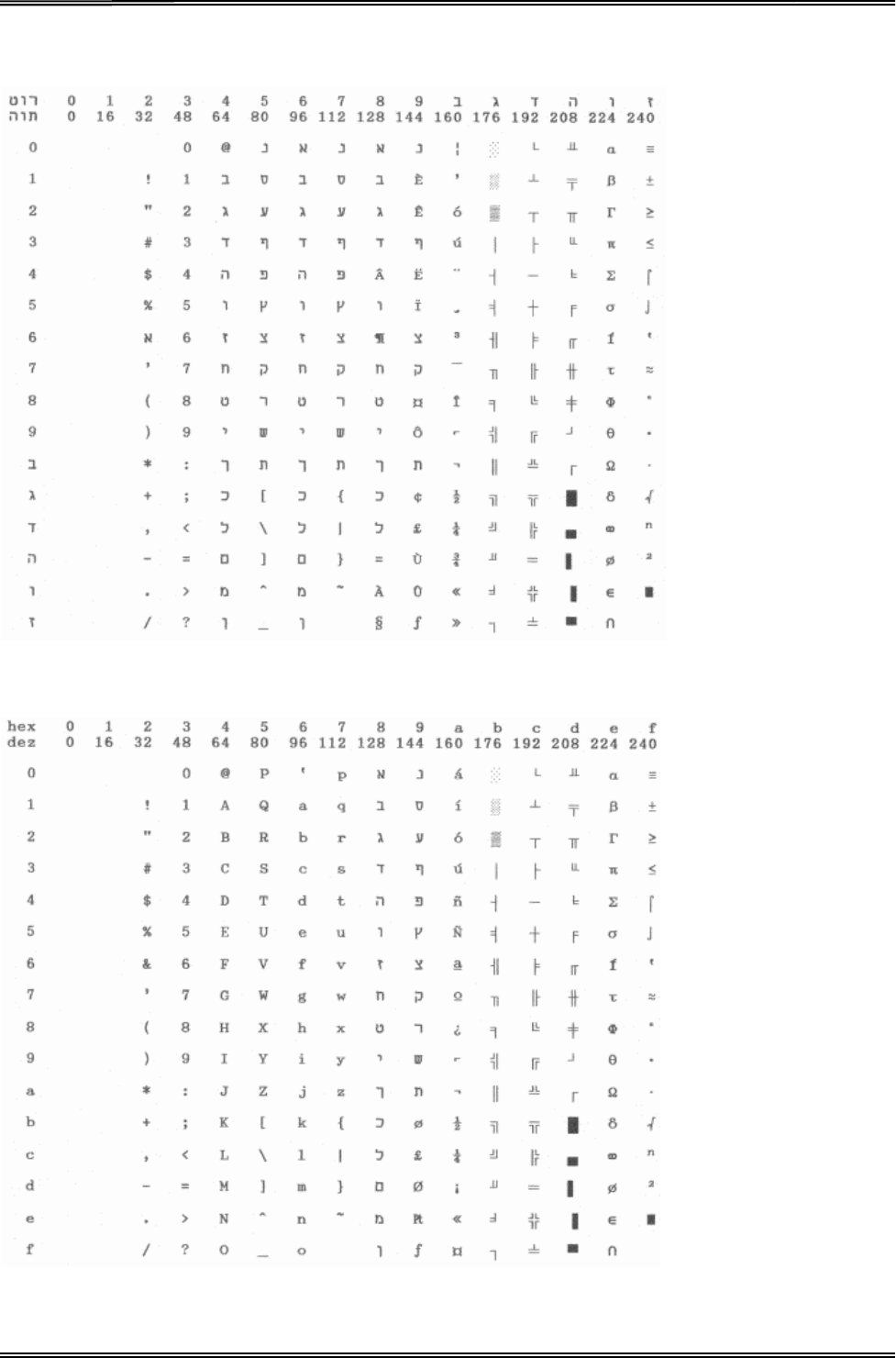

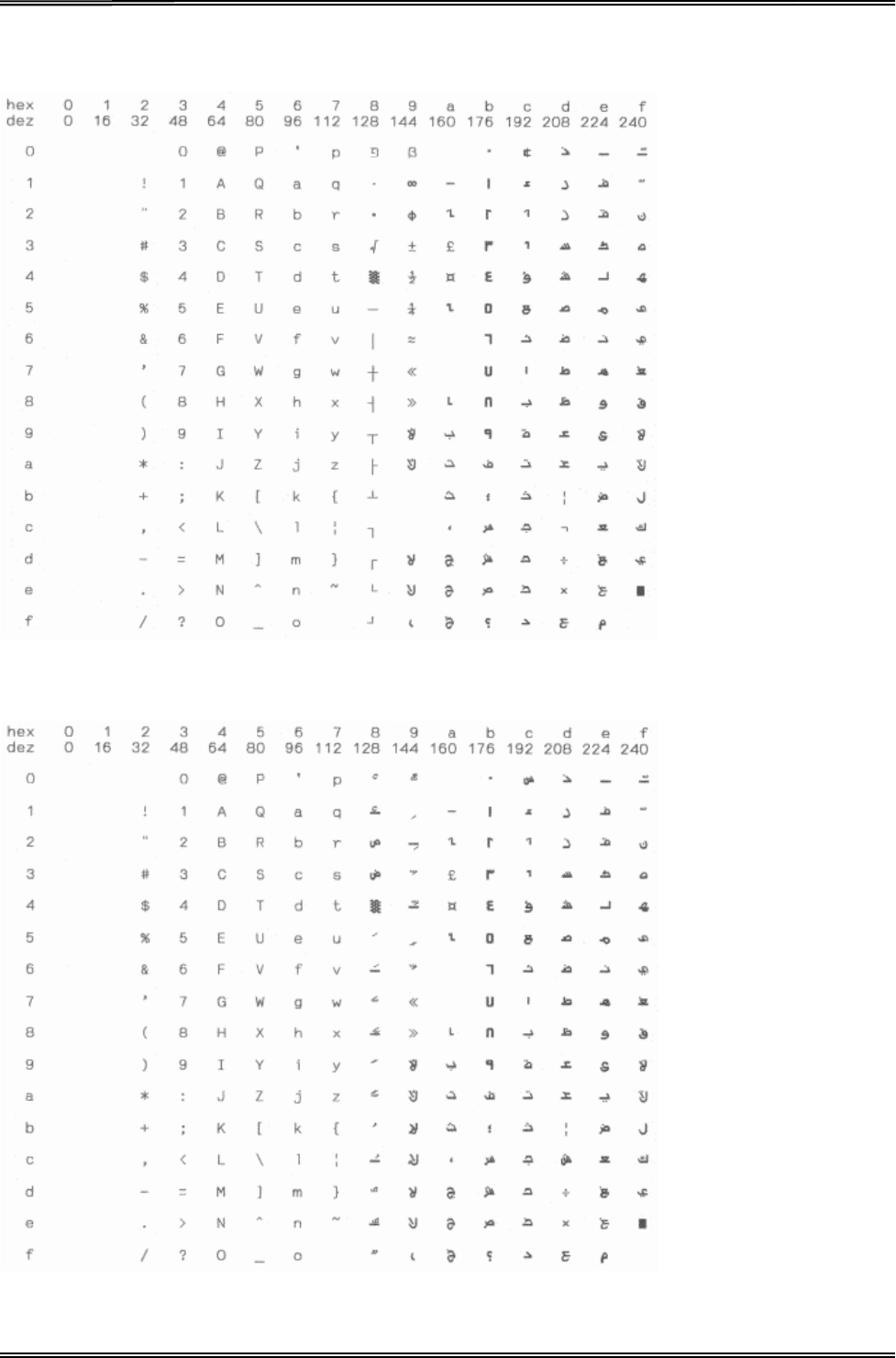

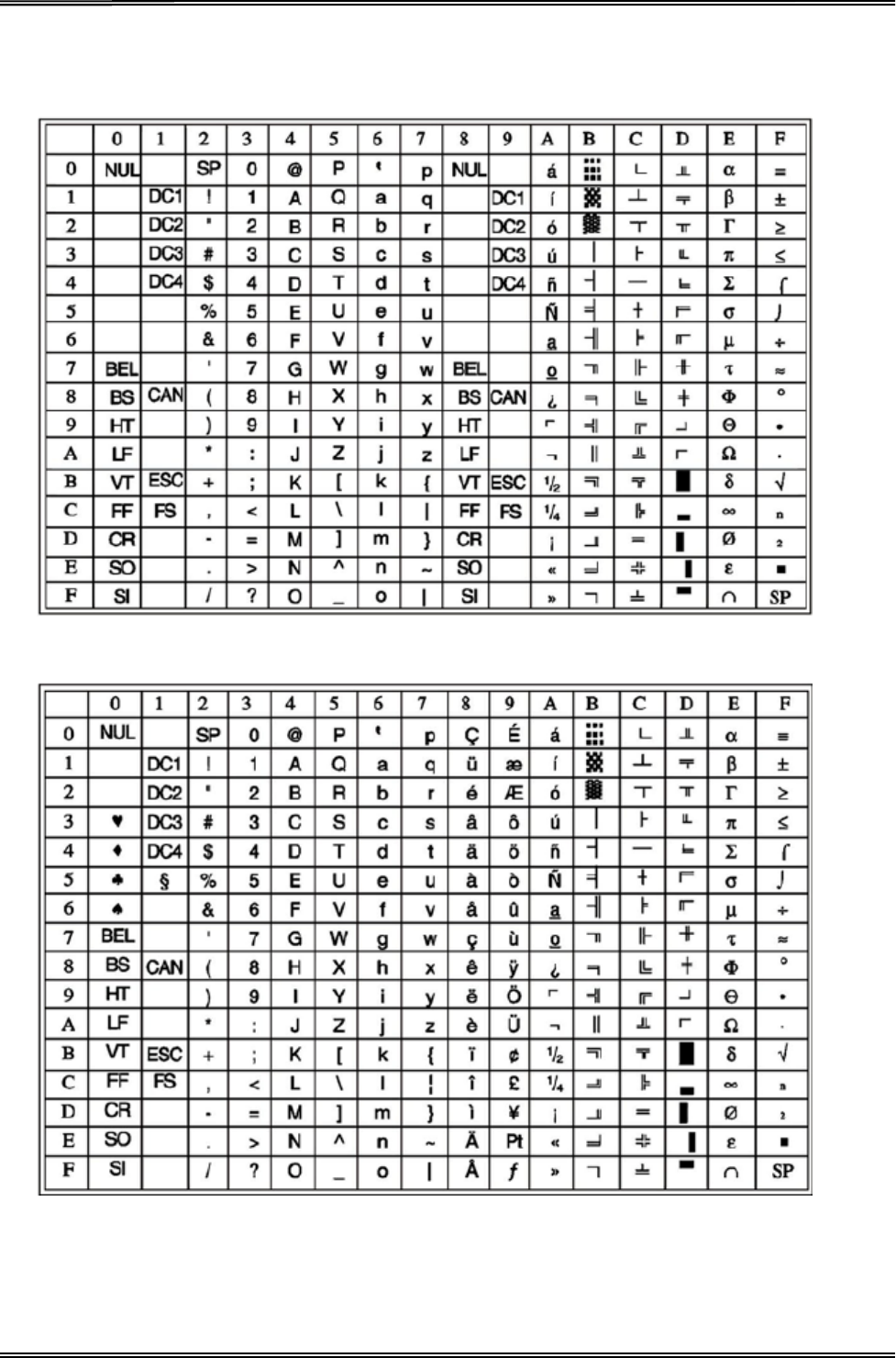

IBM
Character
Set 1
IBM
Character
Set 2
T
ally Dascom 5130P
47
International character
sets
International Character
Set Commands
Country
Command
USA
＜ESC＞“R”CHR＄（0）
F
r
an
ce ＜ESC＞“R”CHR＄（1）
Germany ＜ESC＞“R”CHR＄（2）
UK
＜ESC＞“R”CHR＄（3）
Denmark1 ＜ESC＞“R”CHR＄（4）
Sweden ＜ESC＞“R”CHR＄（5）
It
aly
＜ESC＞“R”CHR＄（6）
Spai
n1
＜ESC＞“R”CHR＄（7）
Japan
＜ESC＞“R”CHR＄（8）
T
ally Dascom 5130P
48
Norway ＜ESC＞“R”CHR＄（9）
Denmark2 ＜ESC＞“R”CHR＄（10）
Spai
n2
＜ESC＞“R”CHR＄（11）
Lat America ＜ESC＞“R”CHR＄（12）
Ko
r
e
a
＜ESC＞“R”CHR＄（13）
Le
ga
l
＜ESC＞“R”CHR＄（64）
Character
Tables
Italic
T
ally Dascom 5130P
49
Graphic
1
Graphic
2
T
ally Dascom 5130P
50
Code Page Commands
Code
Page ESC R Parameter
CRO-ASCII 3C
Arabic
Farsi 96
Arabic
Urdu 97
Greek
DEC 46
Greek
ELOT
928
6C
CP437 Latin
US 80
CP737
Greek 93
CP850 Latin 1
82
CP851
Greek 88
CP852 Latin 2
87
CP857
Turkish 8D
CP858
(IBM with €) 9E
CP860
Portugal 84
CP861 Icelandic
94
CP863 French
Canada 85
CP864 Arabic
8C
CP864 Arab.
Extended 95
CP865 Nordic
86
CP866 Cyrillic
8E
CP866
Bulgaria 9D
Siemens
Turkish 9B
DEC
Turkish 9C
CP1250
Win
Latin 2
70
CP1251
Win
Cyrillic
71
CP1252
Win
Latin 1
72
CP1253
Win
Greek
73
CP1254
Win Turkish 74
8859-1 Latin 1
25
8859-1 Latin 1
(SAP) 2B
8859-2 Latin 2
26
8859-5 Cyrillic
2A
8859-7 Greek
2D
8859-9
Turkish 2E
8859-15 Latin 9
(Euro) 2F
BRASCII 6D
Abicomp
6E
Roman 8
4D
T
ally Dascom 5130P
51
Coax/Twinax(Hebrew) 4F
New-437
(Hebrew) 81
New-DIG 850
(Hebr.) 83
Old-Code 860
(Hebr.) 98
Flarro 863
(Hebrew) 99
Table 865
(Hebrew)
9A
CP775
Baltic
A6
CP1257 Baltic
77
Mazovia
(Poland) 92
Kamenicky (Czech)
91
CP866
Ukraine 8F
CP866
Kazakhstan 90
T
ally Dascom 5130P
52
Code Page Tables
CP 437 (US)
CP 737 Greek
T
ally Dascom 5130P
53
CP 850 (Multilingual)
CP 851
T
ally Dascom 5130P
54
CP 852 (Eastern Europe)
CP 857
(Turkish)
T
ally Dascom 5130P
55
CP 858
CP 860 (Portugal)
T
ally Dascom 5130P
56
CP 861 (Iceland)
CP 863 (French-Canadian)
T
ally Dascom 5130P
57
CP 864 Arabic
CP 864
Arabic
Extended
T
ally Dascom 5130P
58

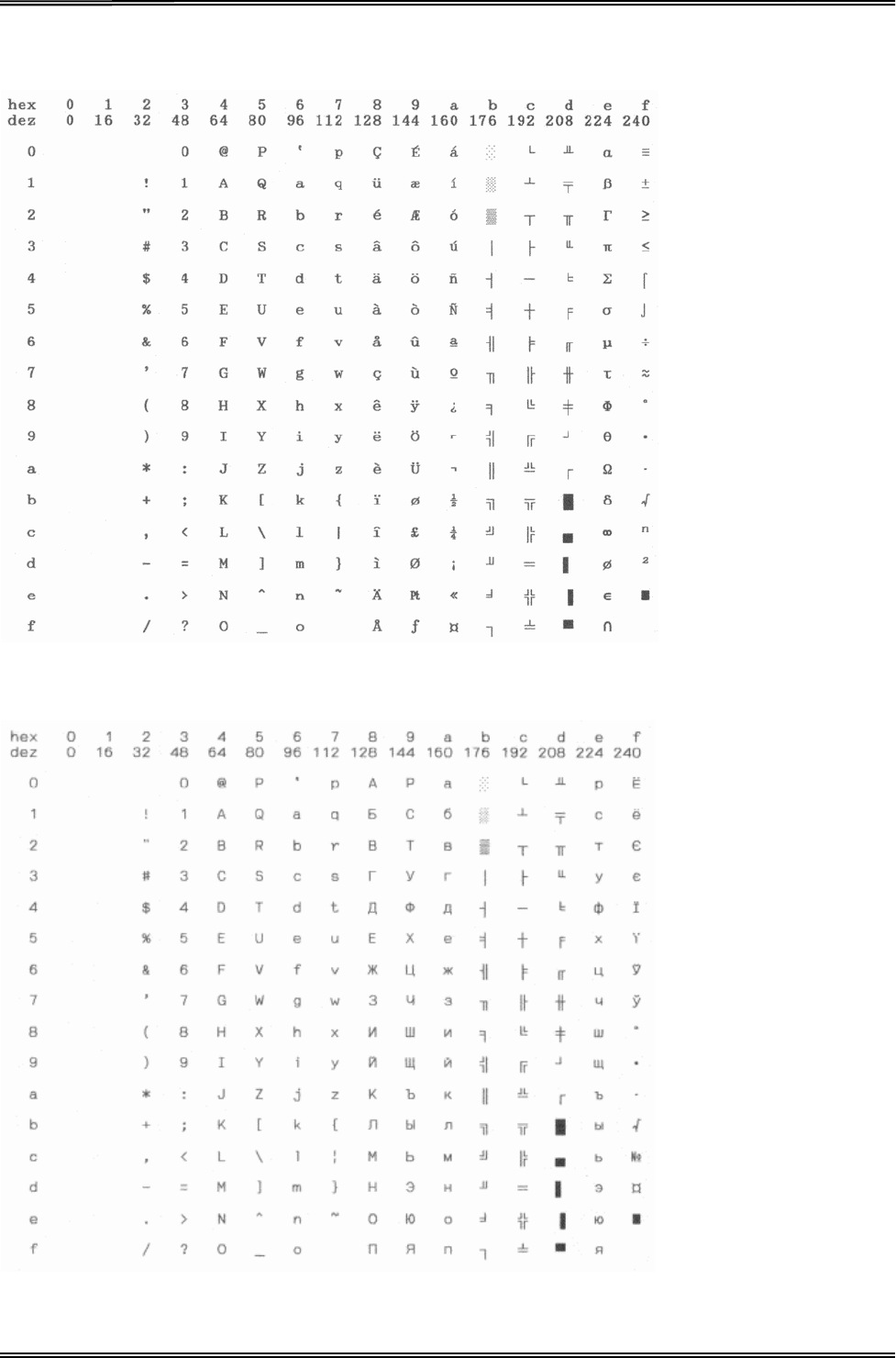

CP 865 (Norway)
CP 866
(Cyrillic)
T
ally Dascom 5130P
59

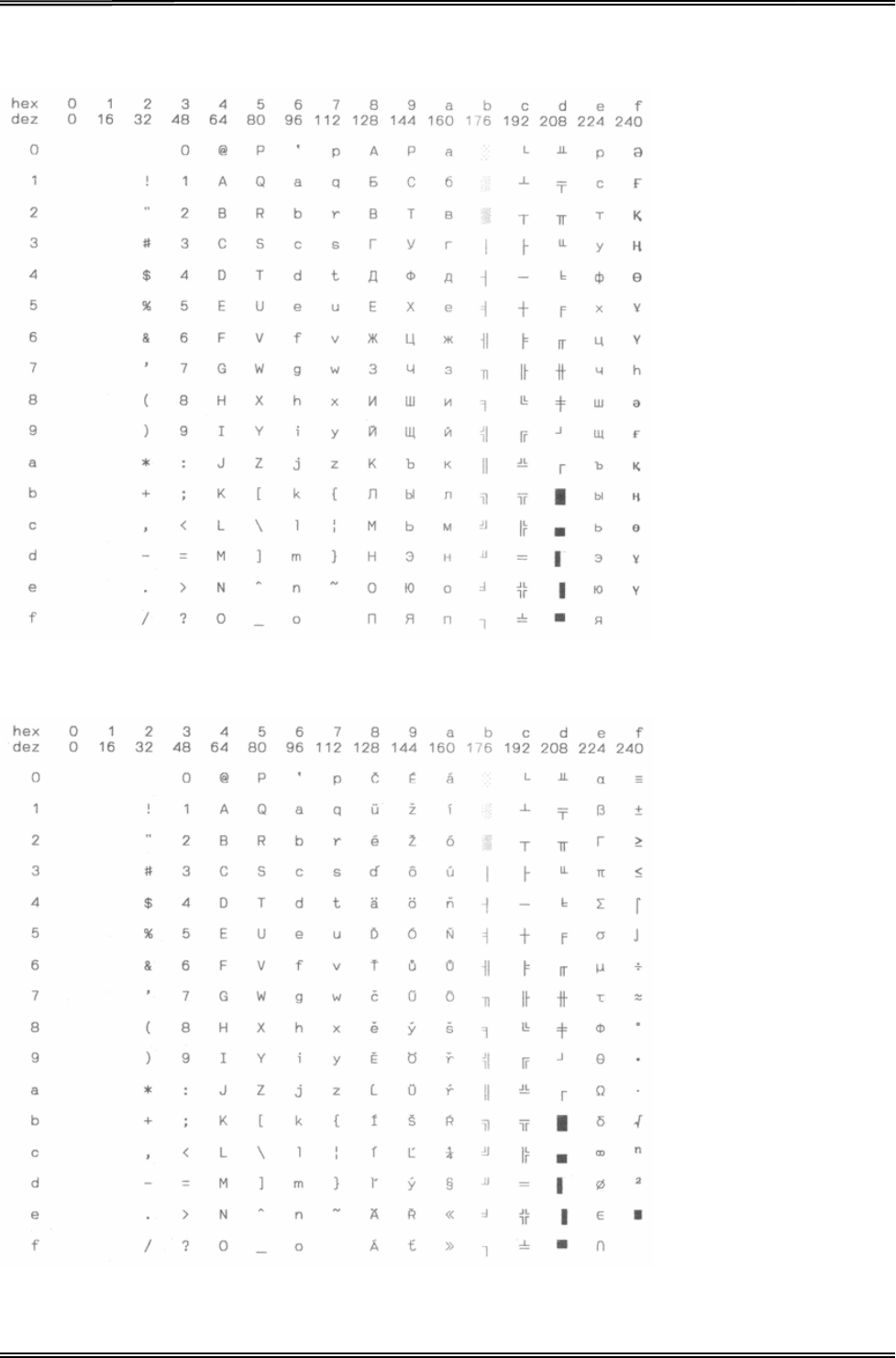

CP 866 Bulgaria
CP 1250 W
i
n
Latin 2
T
ally Dascom 5130P
60
CP 1251 W
i
n
Cyrillic
CP 1252 W
i
n
Latin 1
T
ally Dascom 5130P
61
CP 1253 W
i
n
Greek
CP 1254 W
i
n
Turkish
T
ally Dascom 5130P
62

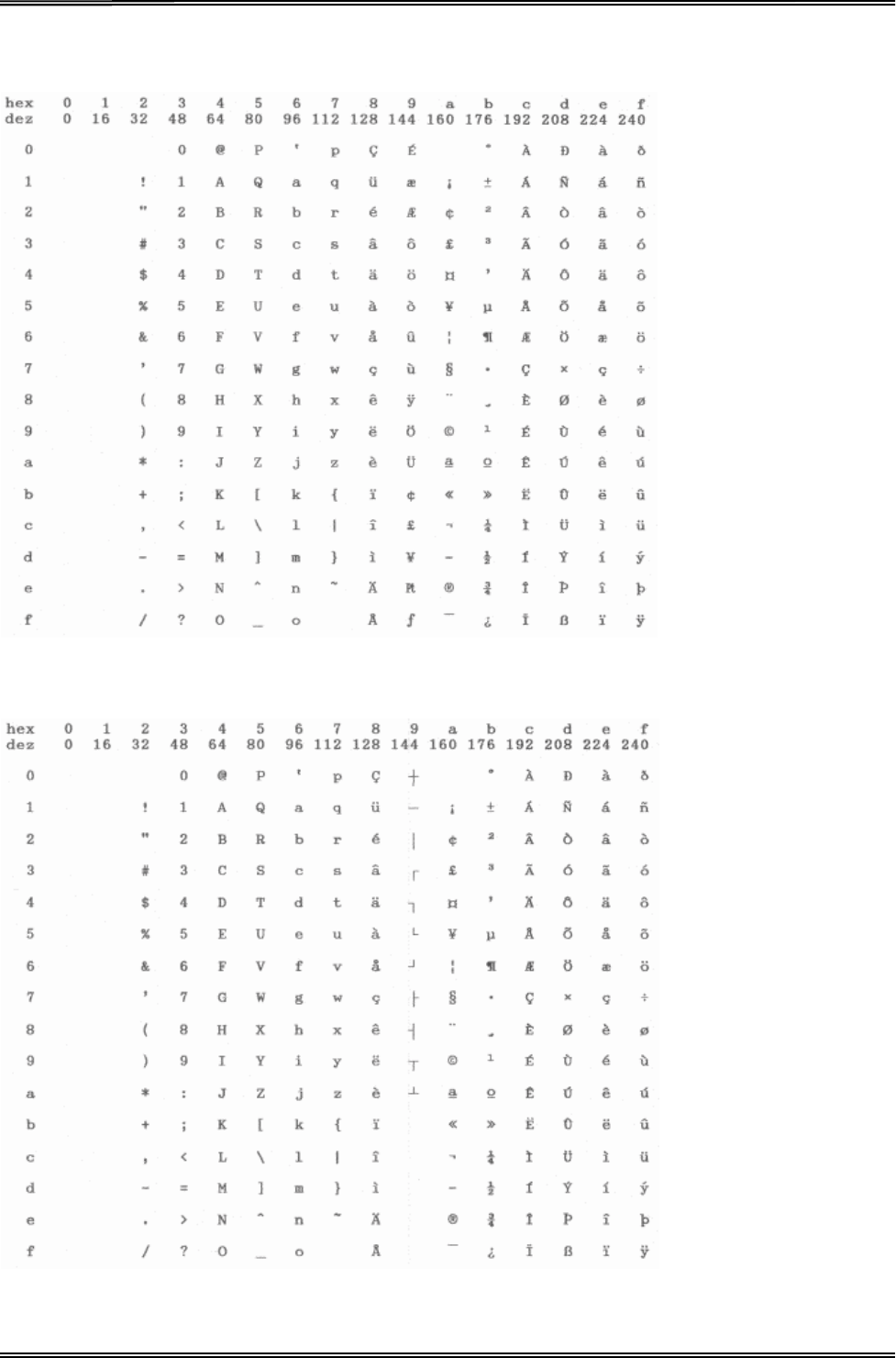

8859-1 Latin 1
8859-1 Latin 1 (SAP)
T
ally Dascom 5130P
63
ISO 8859-2 (ISO Latin 2)
ISO 8859-5
Cyrillic
T
ally Dascom 5130P
64
ISO 8859-7 (Latin/Greek)
ISO 8859-9
(Turkish)
T
ally Dascom 5130P
65
ISO 8859-15 Euro (Code Page 923)
BRASCII
T
ally Dascom 5130P
66
Abicomp
Roman 8
T
ally Dascom 5130P
67
Coax/Twinax (Hebrew)
Ne
w
-
437 (Hebrew)
T
ally Dascom 5130P
68
New-Dig
850 (Hebrew)
Old-Code
860 (Hebrew)
T
ally Dascom 5130P
69
Flarro
863 (Hebrew)
865 Hebrew
T
ally Dascom 5130P
70
CP 1257
866 Ukraine
T
ally Dascom 5130P
71
866 Kazakhstan
Kamenicky
T
ally Dascom 5130P
72
Mazovia
CP 775
T
ally Dascom 5130P
73
CRO-ASCII
Arabic
Farsi
T
ally Dascom 5130P
74
Arabic
Urdu
Greek DEC
T
ally Dascom 5130P
75
Greek ELOT 928
T
ally Dascom 5130P
76
11
Control
Codes Summary
Epson
Emulation Command
List
Command Sequence
Function
BEL
Beeper
BS Backspace
HT Tab
horizontally
LF L
i
n
e feed
VT Tab
vertically
FF
Form
feed
CR
Carriage return
SO Select
double-width printing
(one line)
SI Select condensed mode
DC1
Online
DC2 Cancel condensed mode
DC3 Off
li
n
e
DC4 Cancel
double-wide mode(one
line)
CAN C
an
ce
l
line
DEL De
l
ete
character
ESC SO Select
double-width printing
(one line)
ESC SI Select condensed mode
ESC SP n Set
intercharacter
space
ESC EM n NA
ESC ! n
Print
mode setup
ESC
( -
n1 n2 m d1 d2 Choose
character
lineation
ESC $ n1 n2 Select
absolute horizontal
print position
ESC
|
n Set
l
eft
margin
ESC % n Select
user-defined
set
ESC & Define
user-defined
set
ESC
(
^ n m d1 d2…
Print
data
in character sty
l
e
ESC
(G
NUL d
S
e
l
ect
graphics
mode
ESC * m n1 n2… Select image mode
ESC . c v h m nL nH d1 d2…
Print raster
graphics
ESC + n Select
n/36
0″
li
ne
spacing
ESC – n
Underline
on/off
ESC / n Select
vertical orientation
channel
ESC
(
C NUL n m Set page
length
ESC
(
c NUL nt mt nb mb Page setup
ESC
(
U NUL n Set
unit
ESC 0 Set 1/8″
li
n
e
spacing
ESC 2 Set 1/6″
li
n
e
spacing
ESC 3 n Set
n/1
80″
li
n
e
spacing
ESC 4 Set
Italic
ESC 5 C
an
ce
l
Italic
ESC 6 Enable
printable
characters
ESC 7 Enable upper
control
characters
T
ally Dascom 5130P
77
ESC : Copy ROM to RAM
ESC ＜
Unidirectional
mode(1 line)
ESC > Set MSB to 1
ESC = Set MSB to 0
ESC # C
an
ce
l
MSB
control
ESC ？n m Reassign
graphics
mode
ESC
@
Initialize printer
ESC ＼n1 n2 Set
relative horizontal
print position
ESC A n Set
n/60
″
li
n
e
spacing
ESC B…NUL
Se
t/
ca
nc
e
l
vertical
tabs
ESC C n Set page
length in lines
ESC D…NUL
Se
t/
ca
nc
e
l
horizontal
tabs
ESC E
S
e
l
ect
Bold
ESC F C
an
ce
l
Bold
ESC G Select
double-strike
mode
ESC H C
an
ce
l
double-strike
mode
ESC J n
Perform
tactic
n/
180″
li
ne
feed
ESC K n1 n2 … Select 8 pins
single-density
graphics
ESC L n1 n2 … Select 8 pins
double–density
graphics
ESC M Select ELITE（12CPI）
ESC N n Set bottom
margin
ESC O Cancel bottom margin
ESC P Select PICA（10CPI）
ESC Q n Set
right margin
ESC R n
International character
set
ESC S n Select
superscri
p
t/su
b
sc
r
i
p
t
ESC T C
an
ce
l
s
up
e
r
sc
r
i
p
t/s
ub
sc
r
i
p
t
ESC U n Select
unidirectional/bidirectional printing
mode
ESC
(
V NUL n m
S
e
l
ect
ab
s
o
l
u
te
vertical print position
ESC W n Turn
Do
uble-
w
i
de
mode on/off
ESC
X
n1 n2 Select font by pitch and point
ESC Y n1 n2 … Select 8 pins, high speed ,double –density graphics
ESC Z n1 n2 … Select 8 pins, high speed
fourfold
–density graphics
ESC a n
S
e
l
ect
justification
ESC b n Select
vertical orientation
channel
ESC c n m Set
horizontal intercharacter
space
ESC g
S
e
l
ect 15CPI
ESC
j
n Perform reverse n/180″line feed
ESC k n Select typeface
ESC p n Turn
proportional
mode on/off
ESC q n Select
character
style
ESC
r
n
S
e
l
ect
printing colour
ESC t n
S
e
l
ect
character table
ESC (t nL nH d1 d2 d3 Assign
character
table
ESC
(
v NUL n m Set
relative vertical
print position
ESC w n Turn
double-high
mode on/off
ESC x n
S
e
l
ect
print quality
ESC( B n1 n2 k m s v1 v2 c Barcode
print
T
ally Dascom 5130P
78
IBM
Emulation Command
List
Command Sequence
Function
BEL
Beeper
BS Backspace
HT Tab
horizontally
LF L
i
n
e feed
VT Tab
vertically
FF
Form
feed
CR
Enter
SO Select
double-wide
mode
SI Select condensed mode
DC1
Online
DC2
S
e
l
ect 10CPI
DC3 Off
li
n
e
DC4 Cancel
double-wide mode(one
line)
CAN C
an
ce
l
buffer
ESC BEL Beeper
ESC BS Backspace
ESC HT Tab
horizontally
ESC CR
Enter
ESC LF L
i
n
e feed
ESC SO Select
double-wide
mode
ESC SI Select condensed mode
ESC DC1
Online
ESC DC2
S
e
l
ect 10CPI
ESC DC3 Off
li
n
e
ESC DC4 Cancel
double-wide mode(one
line)
ESC CAN C
an
ce
l
buffer
ESC FF
Form
feed
ESC EM n
Automatically
Feed Paper mode
ESC : Set 12CPI
ESC VT Tab vertically
ESC 0 Select 1/8″
li
n
e
spacing
ESC 1 S el ec t 7/72 ″
li
n
e
spacing
ESC 2 Select
1/6
″
line spacing or
activate ESC A n command
ESC 3 n Select n/216″or 1/180″
li
n
e
spacing
ESC 4 Set top
margin
ESC 5 n
Automatic
Line Feed
ESC 6
S
e
l
ect
character
set 2
ESC 7
S
e
l
ect
character
set 1
ESC = NA
ESC \
Print continuously from all character
chart
ESC ^
Print single character
from
all character
chart
ESC A n Select
n/72
″
or
n/60
″
li
n
e
spacing
ESC B n
S
e
l
ect Tab
vertically
ESC C n Set page length in lines
T
ally Dascom 5130P
79
ESC C NUL n Set page length in inches
ESC D
S
e
l
ect Tab
horizontally
ESC E
S
e
l
ect
bold
ESC F C
an
ce
l
bold
ESC G Select
double-strike
mode
ESC H C
an
ce
l
double-strike
mode
ESC I n Select
printing
mode
ESC J n
Perform
n/180″or
n/2
16″s
i
ng
l
e
line
feed
ESC K n1 n2 V1 V2 …Vn
Normal d
e
n
s
i
t
y
graphics
ESC L n1 n2 V1 V2 …Vn
Dual-Density
Bit Image
Graphics
(Half Speed)
ESC N n Select bottom margin
ESC O C
an
ce
l
bottom
margin
ESC P n Set
proportional
intercharacter
ESC Q n Off
li
n
e
ESC R C
l
e
a
r
tab
ESC S n Select
superscript/subscript
ESC T Cancel superscript/subscript
ESC U n Select
bidirectional printing
on/off
ESC W n Select
double-wide printing
mode(continuous)
ESC
X
n m Set
l
eft and
right margin
ESC Y n1 n2 V1 V2 …Vn Select
double -density
graphics
ESC Z n1 n2 V1 V2 …Vn Select
fourfold -density graphics
ESC
[-
n1 n2 m1 m2
S
e
l
ect
line
ESC
[@
n1 n2 m1 m2 m3 m4 Select
printing
mode
ESC [I n1 n2 Hf Ls Hs Lf Sm NUL Hc Lc Select font and pitch
ESC
[
K n1 n2 init id para1 para2 …paran Set
initialization
condition
ESC
[
T n1 n2 n3 n4 Hc Lc Set code page
ESC
[\
Set
vertical unit
ESC
[d
S
e
l
ect
printing quality
ESC [f n1 n2 k m s v1 v2c Set
barcode
parameters
ESC [g n1 n2 m Select
high-density graphics printing
ESC [p n1 n2 Set
barcode
data
ESC
]
Feed
paper
in reverse direction
ESC_ n
Print upper-line
ESC- n
Print
underline
ESC d n m Move the
current printing
position
ESC
j
Stop
printing
ESC
r
n
S
e
l
ect
printing colour
ESC * m Select
graphic
mode
If you need more
details regarding
the
emulation commands,
please contact us.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
Consult the dealer or an experienced radio/TV technician for help
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
a. This device may not cause harmful interference.
b. This device must accept any interference received, including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
connected.
Re-orientate or relocate the receiving antenna.
DASCOM REPRESENTATIVES
GERMANY
DASCOM Europe GmbH
Heuweg 3
D-89079 Ulm
De
utsc
h
l
and
Tel.: +49 (0) 731 2075 0
Fax: +49 (0) 731 2075 100
www.dascom.com
UNITED
KINGDOM
DASCOM GB Ltd
ViewPoint, Basing
View,
Basingstoke, Hampshire
RG21 4RG, England
Phone: +44 (0) 1256 481481
Fax: +44 (0) 1256 481400
www.dascom.com
RUSSIA
and CIS
DASCOM Europe GmbH
Representation
Moscow
Leninsky
Prospekt
95a, Office 322
119313 Moscow, Russian Federation
Phone: +7 (495) 984 70 65
Fax: +7 (495) 984 56 42
www.dascom.com
SINGAPORE (ASIA PACIFIC)
DASCOM AP Pte Ltd
63
Hillview
Avenue
#08-22, Lam Soon
Industrial Building
Singapore
669569
Phone: +65 6760 8833
Fax: +65 6760 1066
www.dascom.com.sg
AMERICAS
DASCOM
Americas
Corporation
421 W. Main Street,
Waynesboro,
VA 22980, USA
Phone:+1
(877)
434 13 77
www.dascom.com
FRANCE
DASCOM Europe GmbH
117
Avenue
Victor Hugo
92100
Boulogne-Billancourt
France
Phone: +33 (1) 73 02 51 98
www.dascom.com
CEE
DASCOM Europe GmbH
Europaring
F15 301
2345
Brunn
a. G.
Austria
Phone: +43 (1) 236 01 70 10
www.dascom.com
“All
rights
reserved. Translations, reprinting
or
copying
by any means of this
manual
complete or in part
or in any different form requires
our
explicit
approval.
We
reserve
the
right
to make changes to this
manual
w
i
th
ou
t notice. All care has been taken to ensure accuracy of
information contained
in this
manual. However,
we cannot accept
responsibility for
any errors or damages
resulting
from errors or
inaccuracies
of
information
herein.”
©
