Jimi Electronic JH08 Wireless Home Monitor User Manual

Shenzhen Jimi Electronic Co., Ltd. Wireless Home Monitor

User manual

       JH08 Wireless Home Monitor User Manual  (Version: V0.2)                       Prior to use, please read this manual thoroughly to ensure fast and effective installation. Final appearance, color and accessories are subject to change without notice.

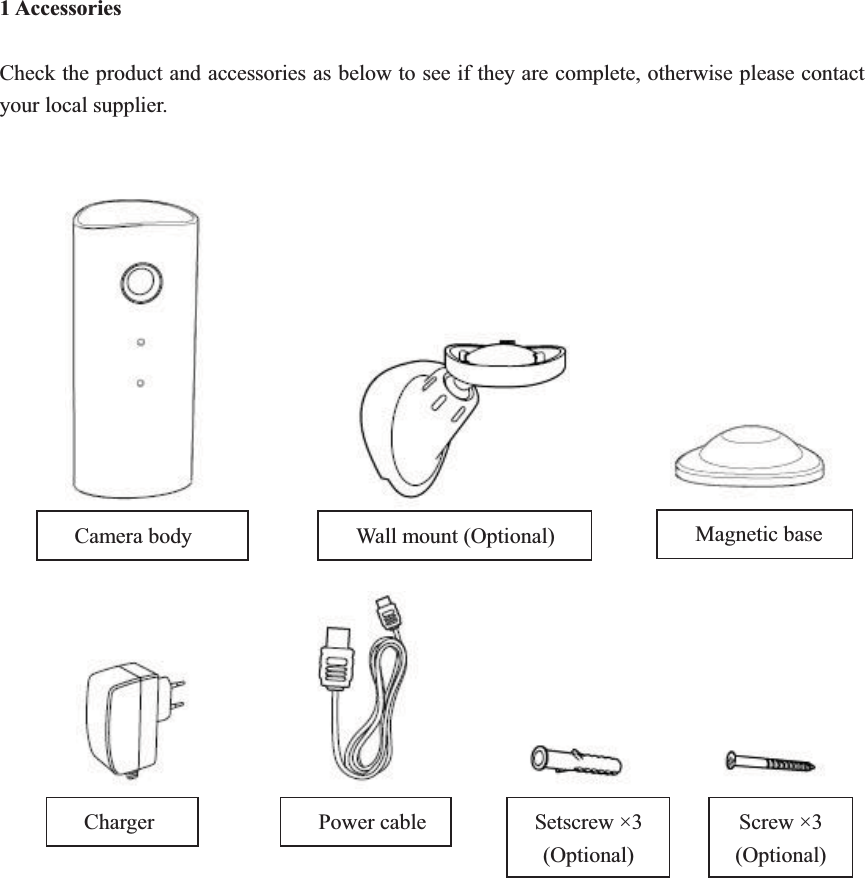

1 Accessories  Check the product and accessories as below to see if they are complete, otherwise please contact your local supplier.             Camera body   Wall mount (Optional) Magnetic base Screw ×3 (Optional) Setscrew ×3 (Optional) Power cable Charger

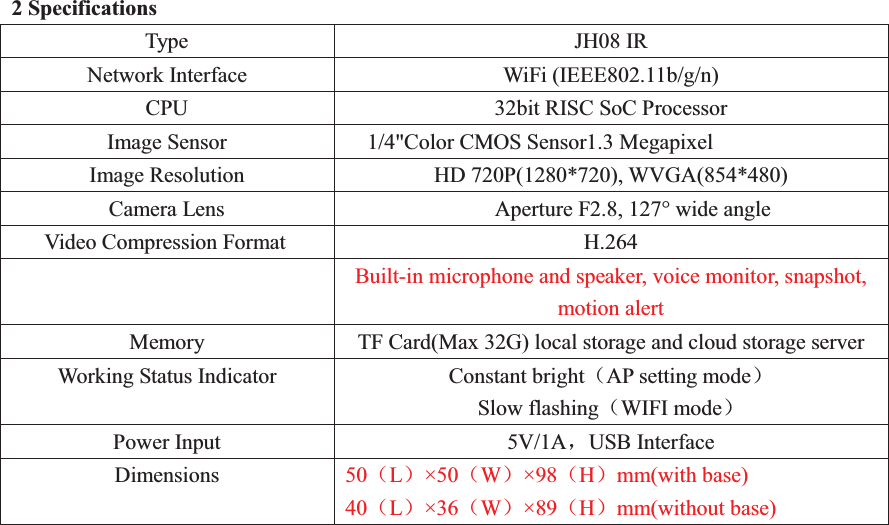

2 Specifications Type JH08 IR Network Interface WiFi (IEEE802.11b/g/n) CPU 32bit RISC SoC Processor Image Sensor 1/4"Color CMOS Sensor1.3 Megapixel Image Resolution HD 720P(1280*720), WVGA(854*480)   Camera Lens   Aperture F2.8, 127° wide angle Video Compression Format H.264   Built-in microphone and speaker, voice monitor, snapshot, motion alert Memory TF Card(Max 32G) local storage and cloud storage server Working Status Indicator Constant bright˄AP setting mode˅  Slow flashing˄WIFI mode˅ Power Input 5V/1AˈUSB Interface Dimensions 50˄L˅×50˄W˅×98˄H˅mm(with base) 40˄L˅×36˄W˅×89˄H˅mm(without base)
3 Structure   ķ  Camera ĸ  LED indicator Ĺ  Mic ĺ  Magnetic base Ļ  Power input ļ  Speaker Ľ   Micro SD slot  3.2 LED indicator status  Status Meaning Blue constant on AP setting mode Blue flashing slow WIFI connection normal

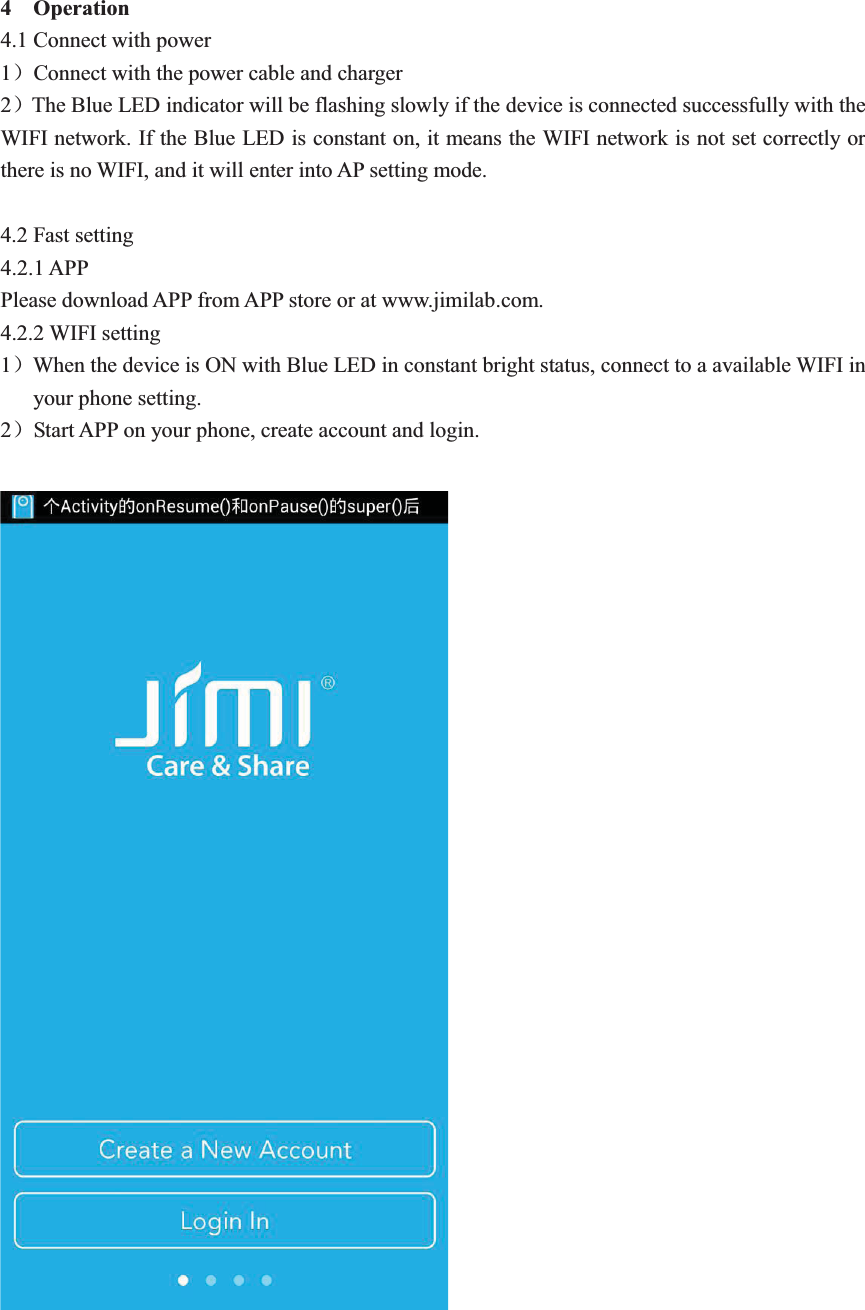

4  Operation 4.1 Connect with power 1˅Connect with the power cable and charger 2˅The Blue LED indicator will be flashing slowly if the device is connected successfully with the WIFI network. If the Blue LED is constant on, it means the WIFI network is not set correctly or there is no WIFI, and it will enter into AP setting mode.    4.2 Fast setting 4.2.1 APP Please download APP from APP store or at www.jimilab.com.   4.2.2 WIFI setting 1˅When the device is ON with Blue LED in constant bright status, connect to a available WIFI in your phone setting.   2˅Start APP on your phone, create account and login.

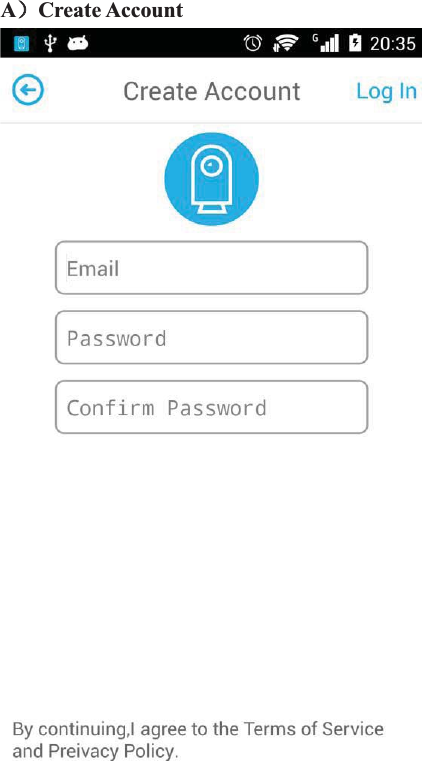

A˅˅Create Account

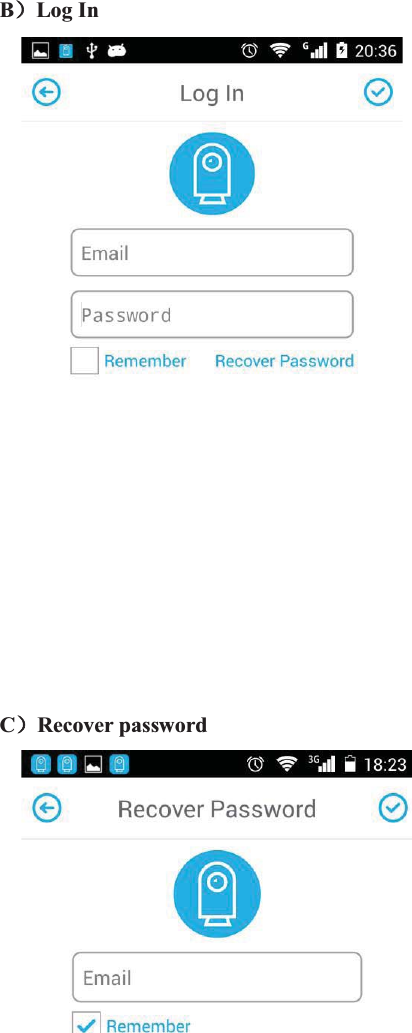

B˅˅Log In     C˅Recover password

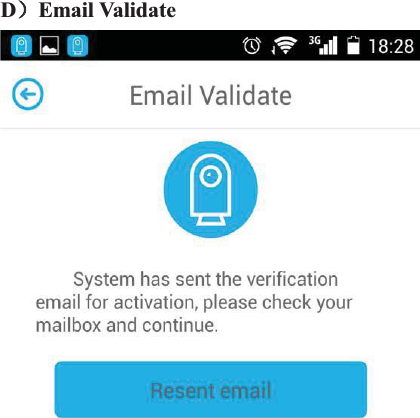

D˅˅Email Validate

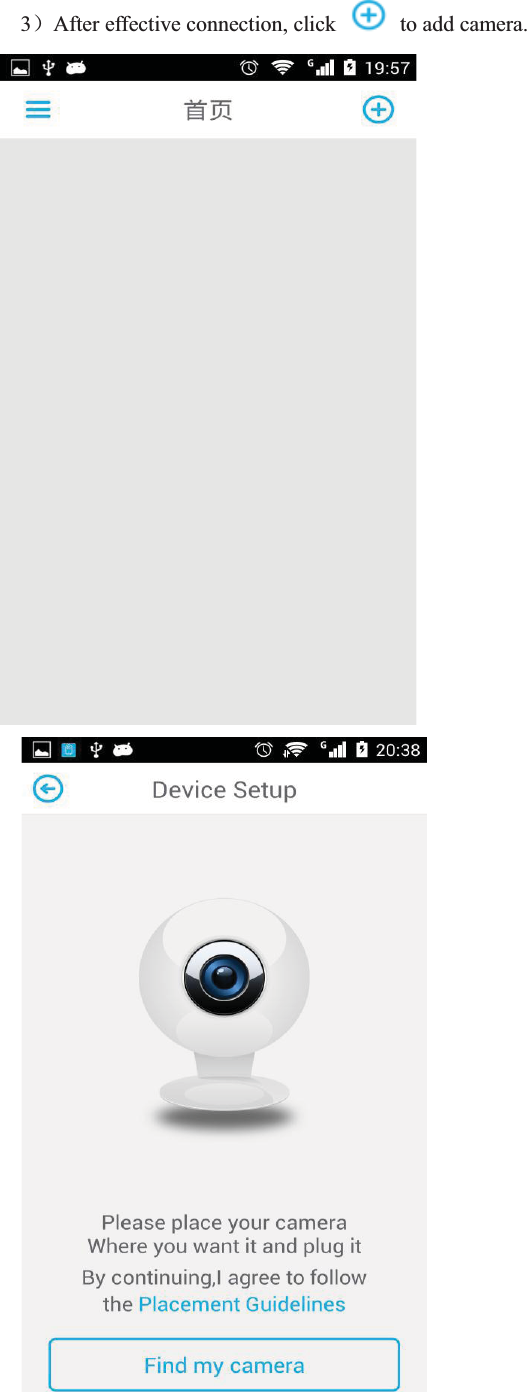

3˅After effective connection, click    to add camera.

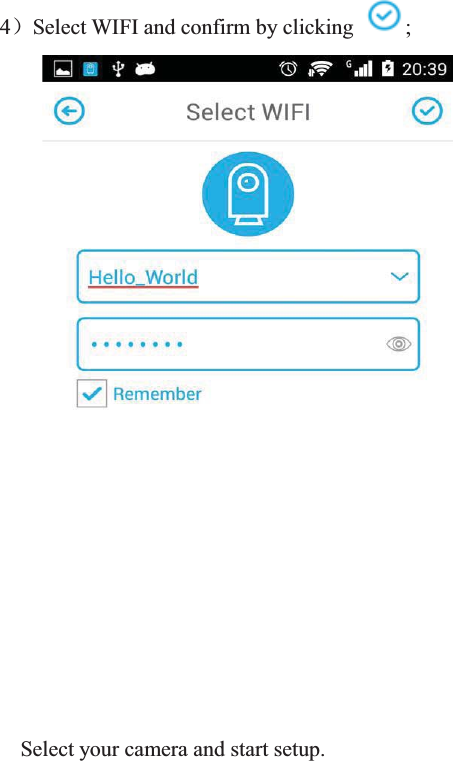

4˅Select WIFI and confirm by clicking  ;      Select your camera and start setup.

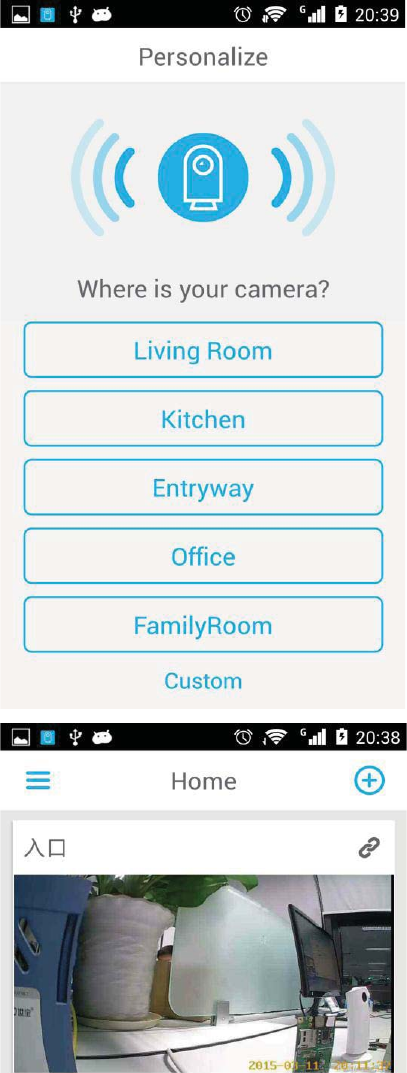

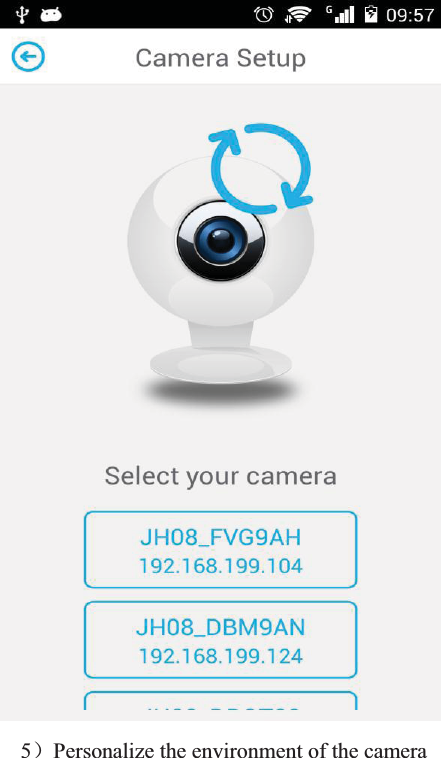

 5˅Personalize the environment of the camera
 
6˅Click camera to enter Live-monitor;   Press and hold    to talk to the camera;   Click    to turn ON/OFF voice monitor;   Click    to take a snapshot;   Click   to take video manully;   Click  to check alerting report, video and snapshot;   Double click the screen or click   to switch screen orientation. 
7˅Press and hold the screen to delete the target camera. Unbinding the camera will ask for account and password information and restore to AP mode again.

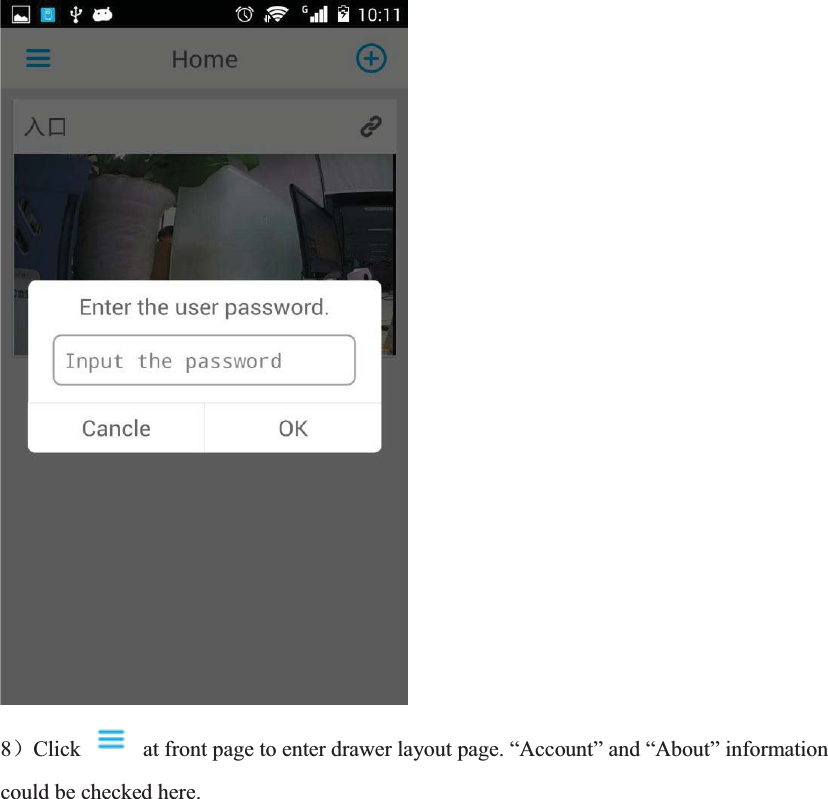

 8˅Click    at front page to enter drawer layout page. “Account” and “About” information could be checked here.

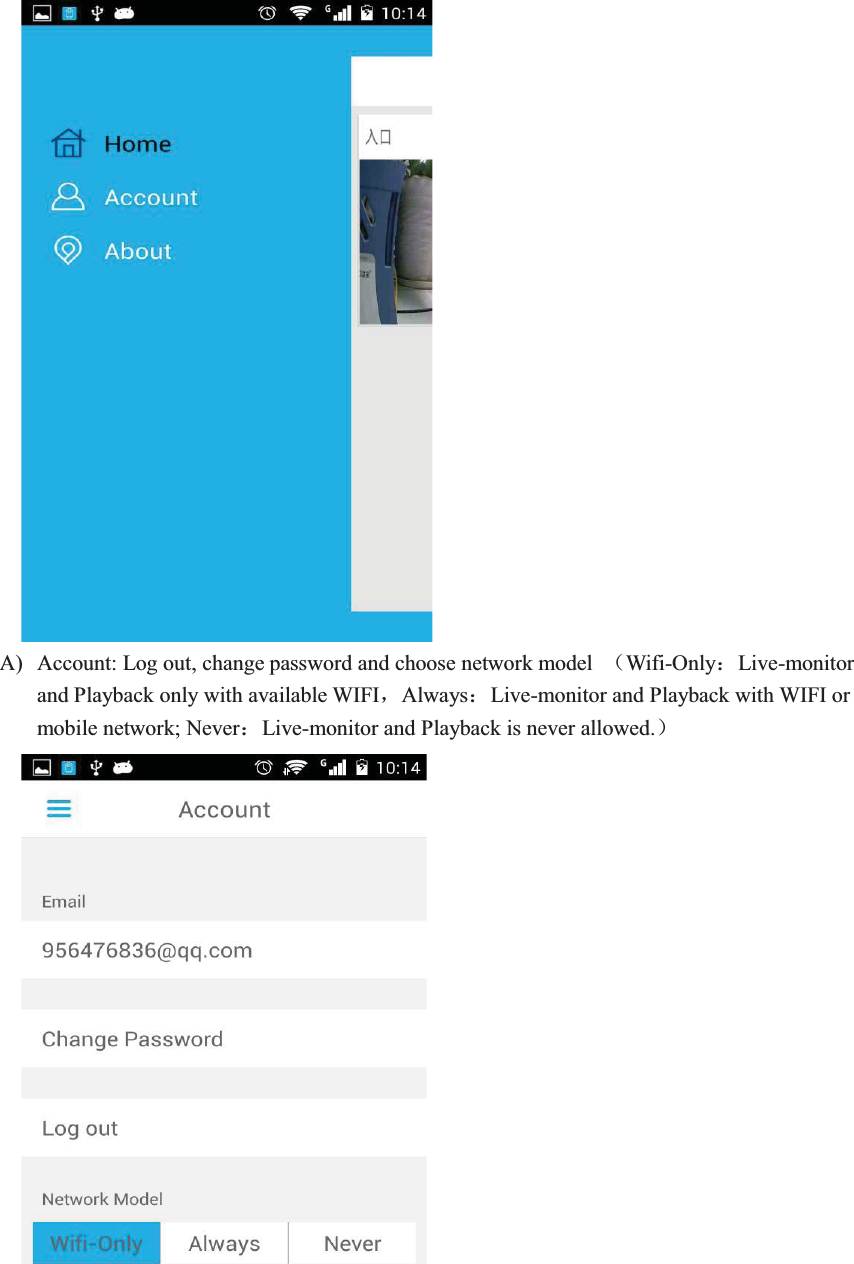

     A) Account: Log out, change password and choose network model  ˄Wifi-Only˖Live-monitor and Playback only with available WIFIˈAlways˖Live-monitor and Playback with WIFI or mobile network; Never˖Live-monitor and Playback is never allowed.˅

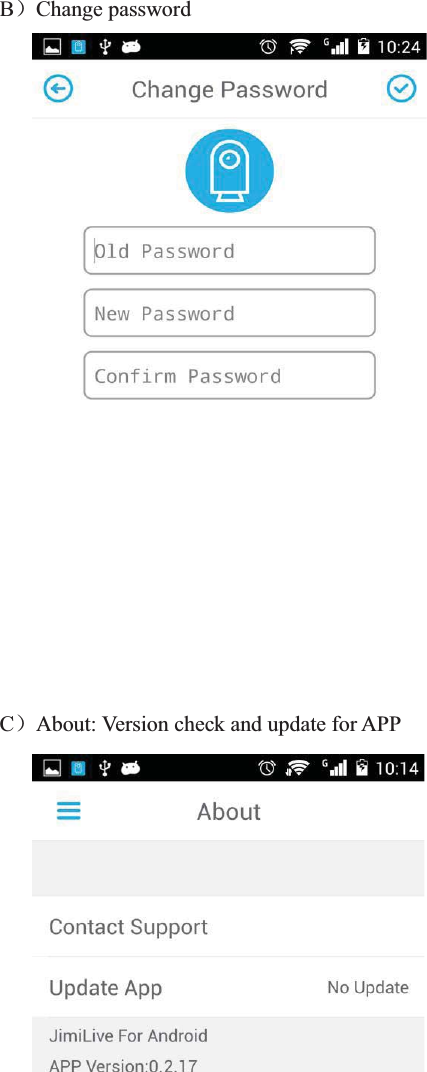

B˅Change password      C˅About: Version check and update for APP

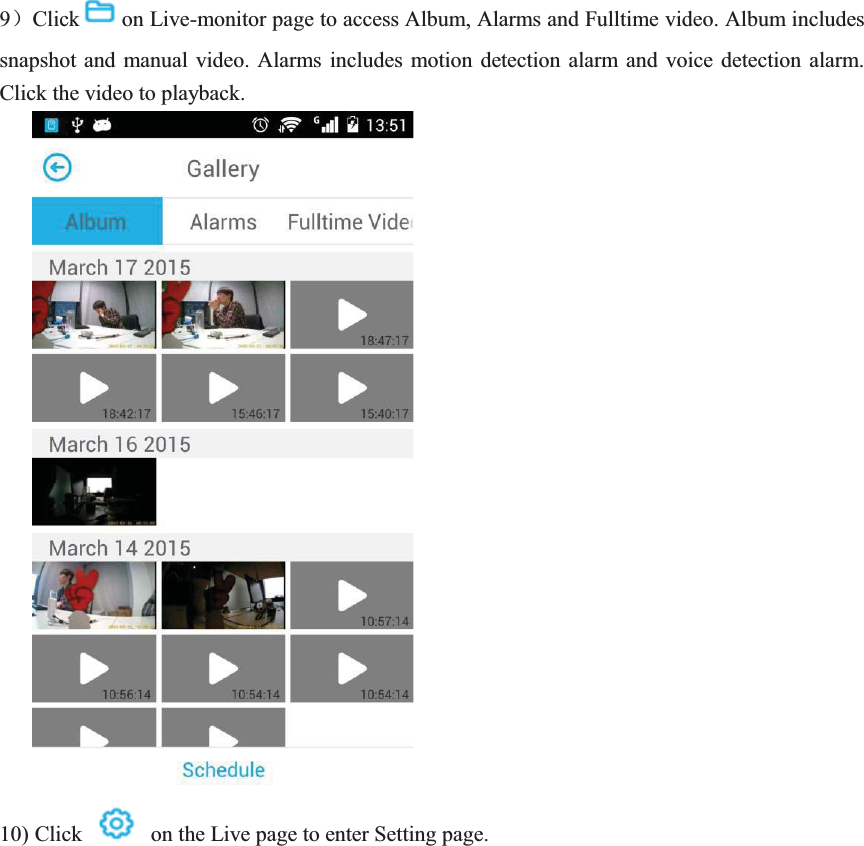

      9˅Click on Live-monitor page to access Album, Alarms and Fulltime video. Album includes snapshot and manual video. Alarms includes motion detection alarm and voice detection alarm. Click the video to playback.          10) Click    on the Live page to enter Setting page.
          A˅Camera setting

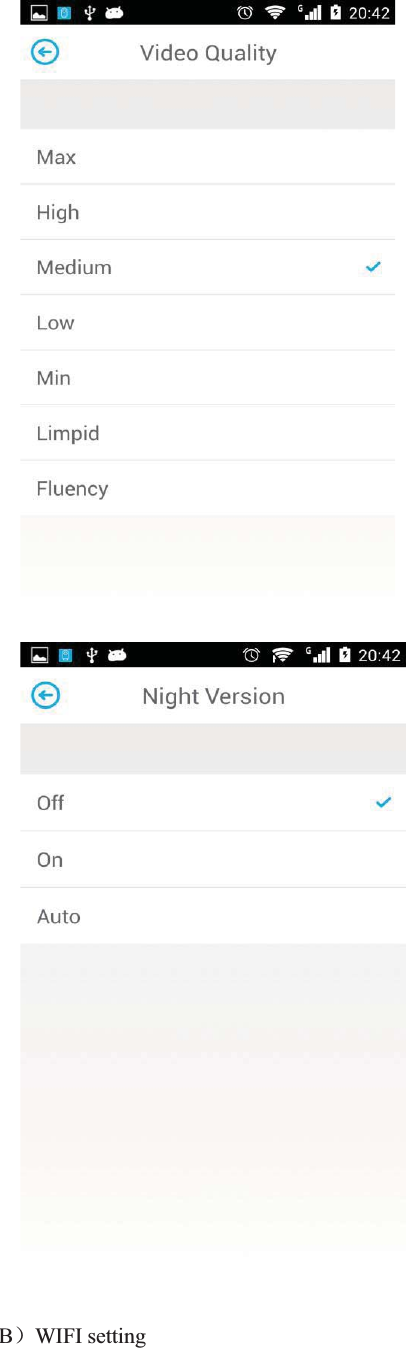

         B˅WIFI setting

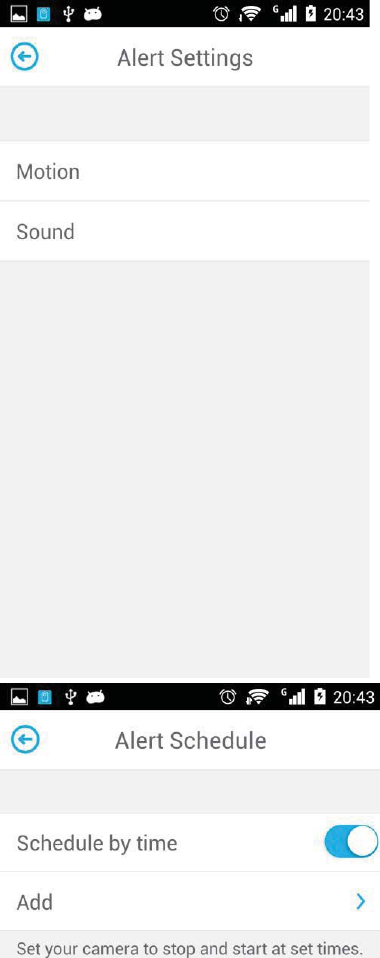

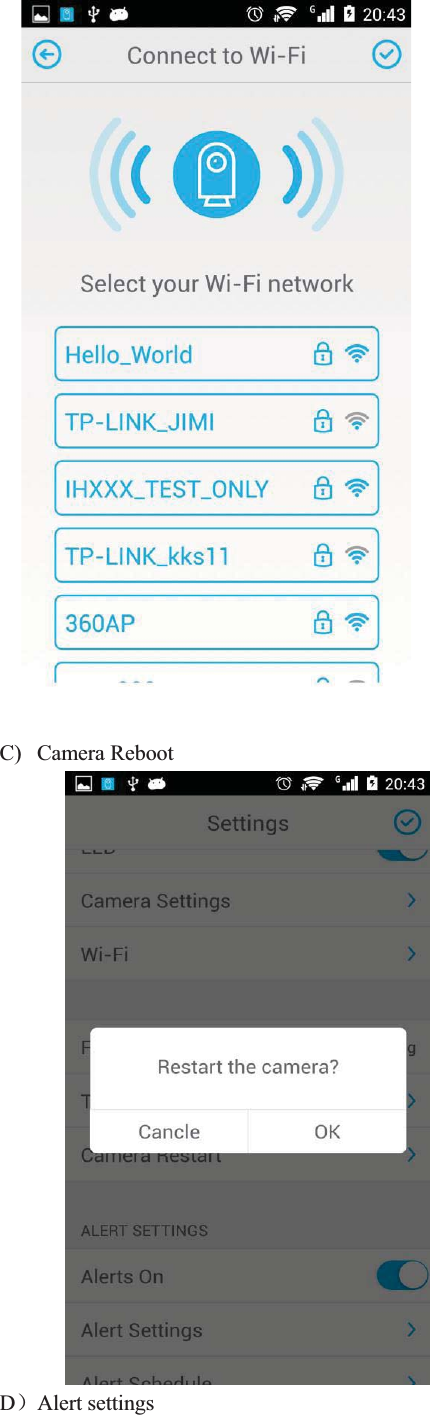

     C) Camera Reboot     D˅Alert settings

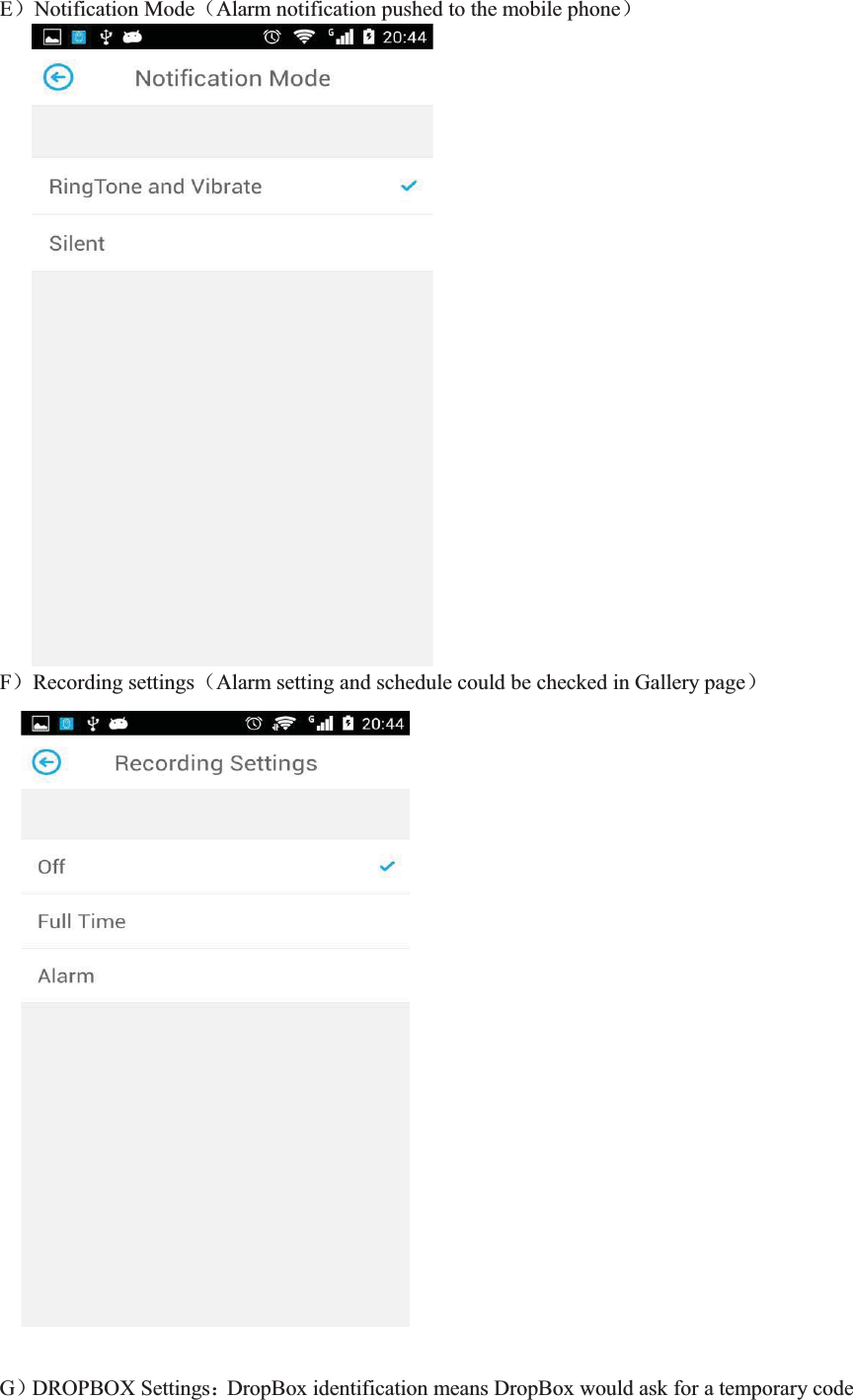

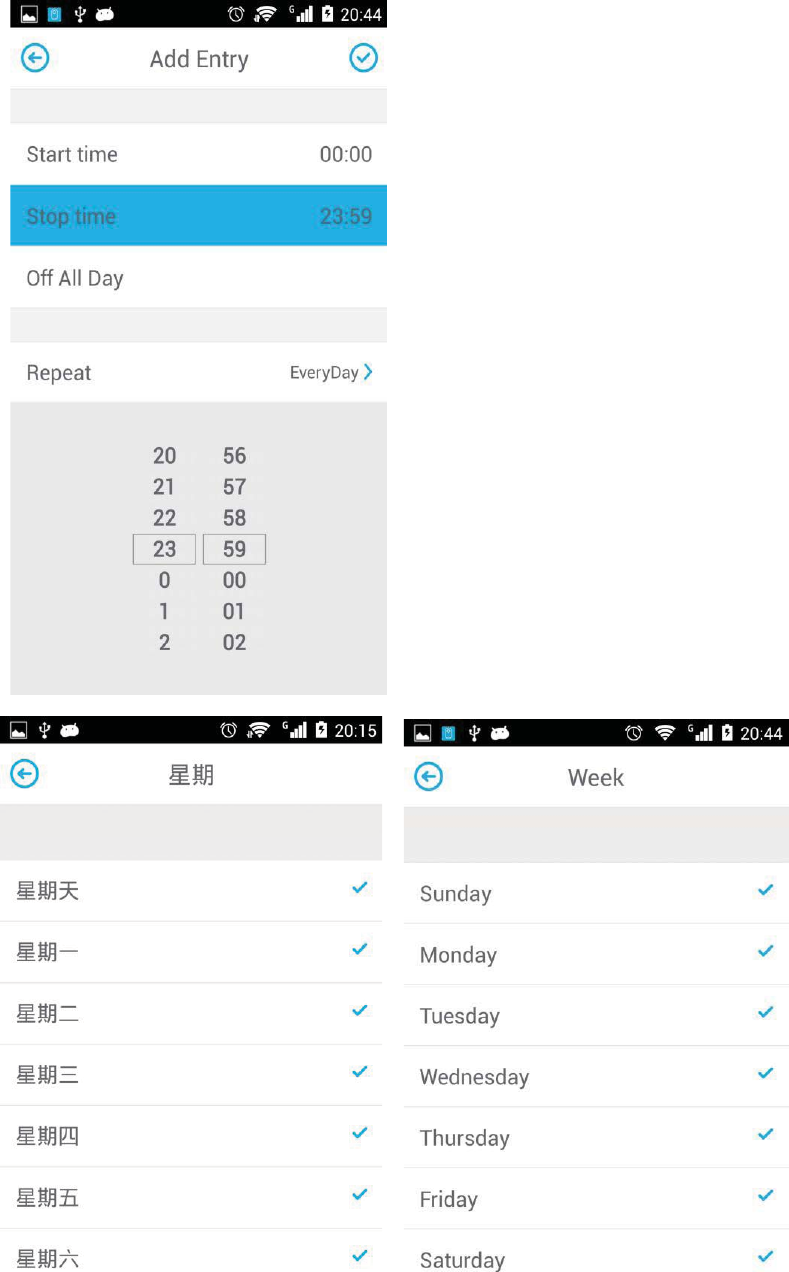

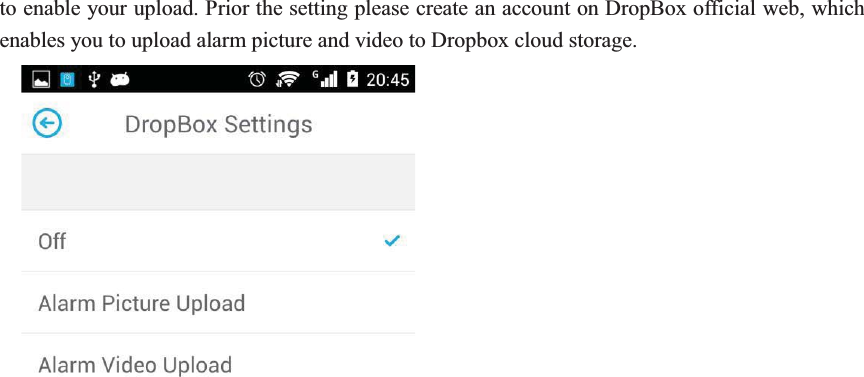

E˅Notification Mode˄Alarm notification pushed to the mobile phone˅      F˅Recording settings˄Alarm setting and schedule could be checked in Gallery page˅      G˅DROPBOX Settings˖DropBox identification means DropBox would ask for a temporary code
to enable your upload. Prior the setting please create an account on DropBox official web, which enables you to upload alarm picture and video to Dropbox cloud storage.

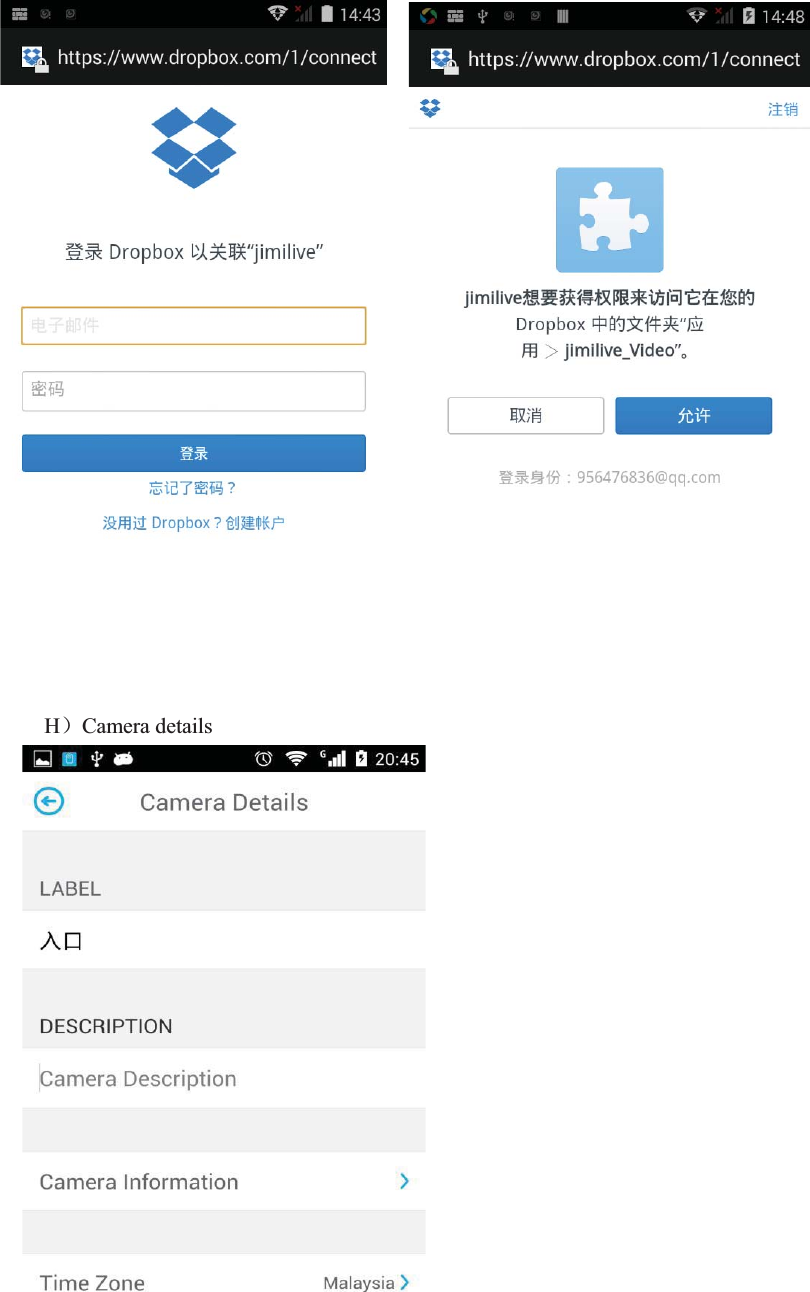

    H˅Camera details

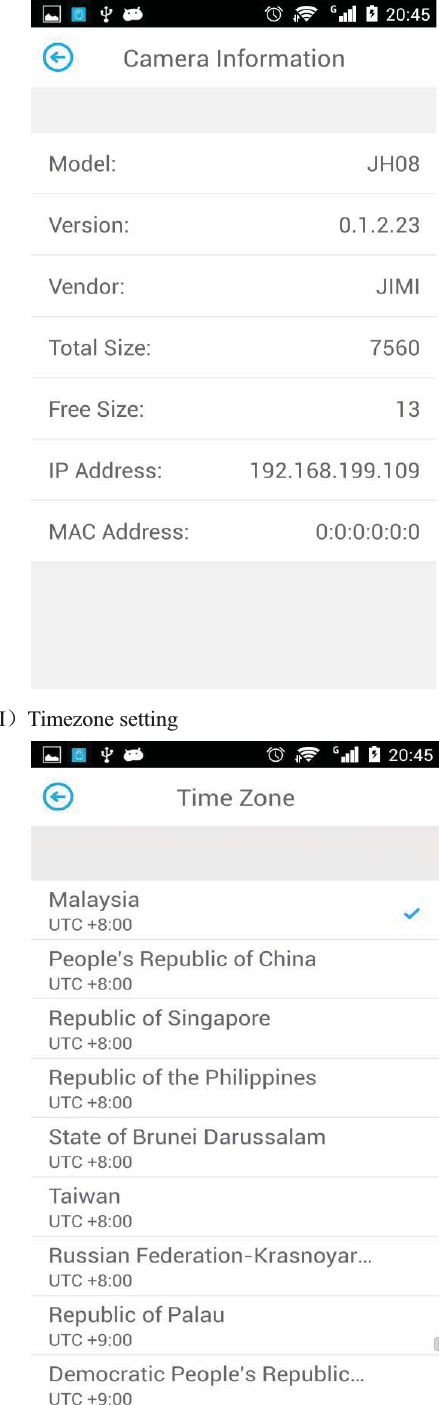

     I˅Timezone setting

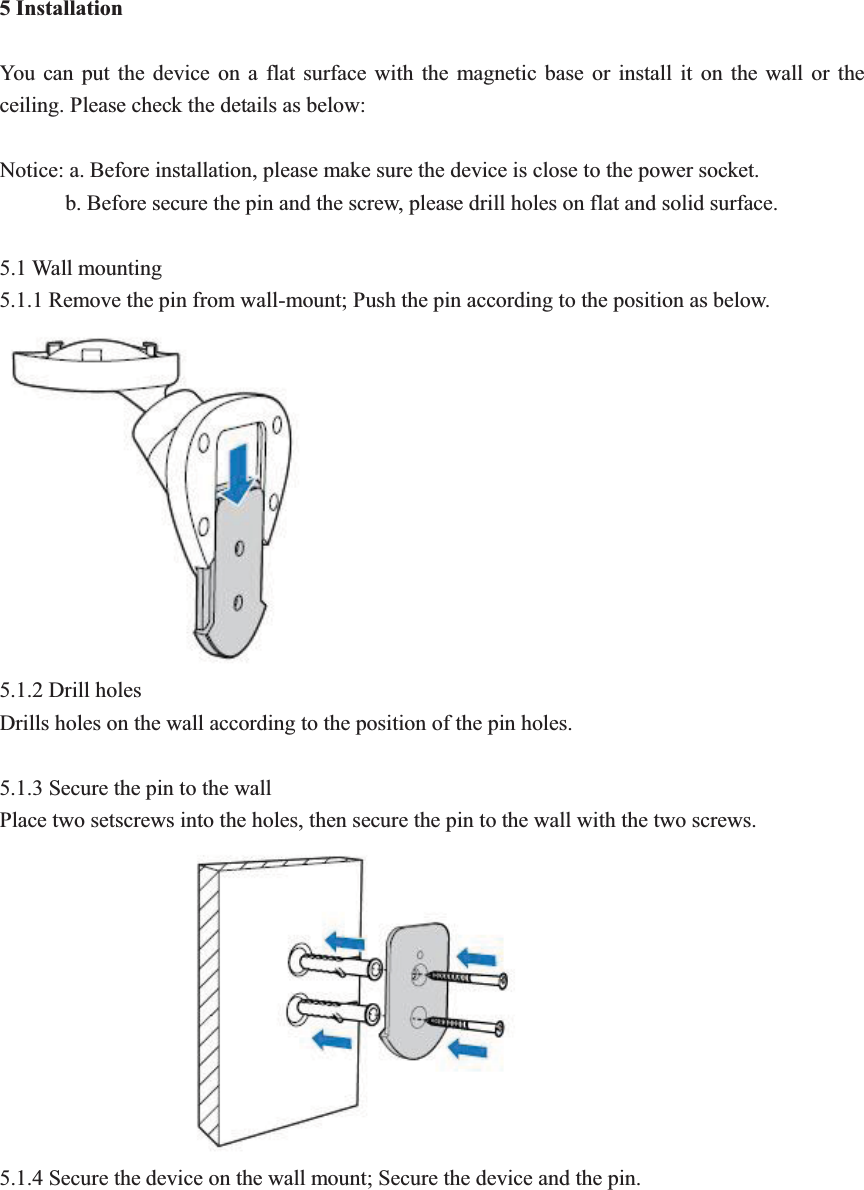

5 Installation  You can put the device on a flat surface with the magnetic base or install it on the wall or the ceiling. Please check the details as below:    Notice: a. Before installation, please make sure the device is close to the power socket.         b. Before secure the pin and the screw, please drill holes on flat and solid surface.    5.1 Wall mounting 5.1.1 Remove the pin from wall-mount; Push the pin according to the position as below.   5.1.2 Drill holes Drills holes on the wall according to the position of the pin holes.    5.1.3 Secure the pin to the wall Place two setscrews into the holes, then secure the pin to the wall with the two screws.   5.1.4 Secure the device on the wall mount; Secure the device and the pin.

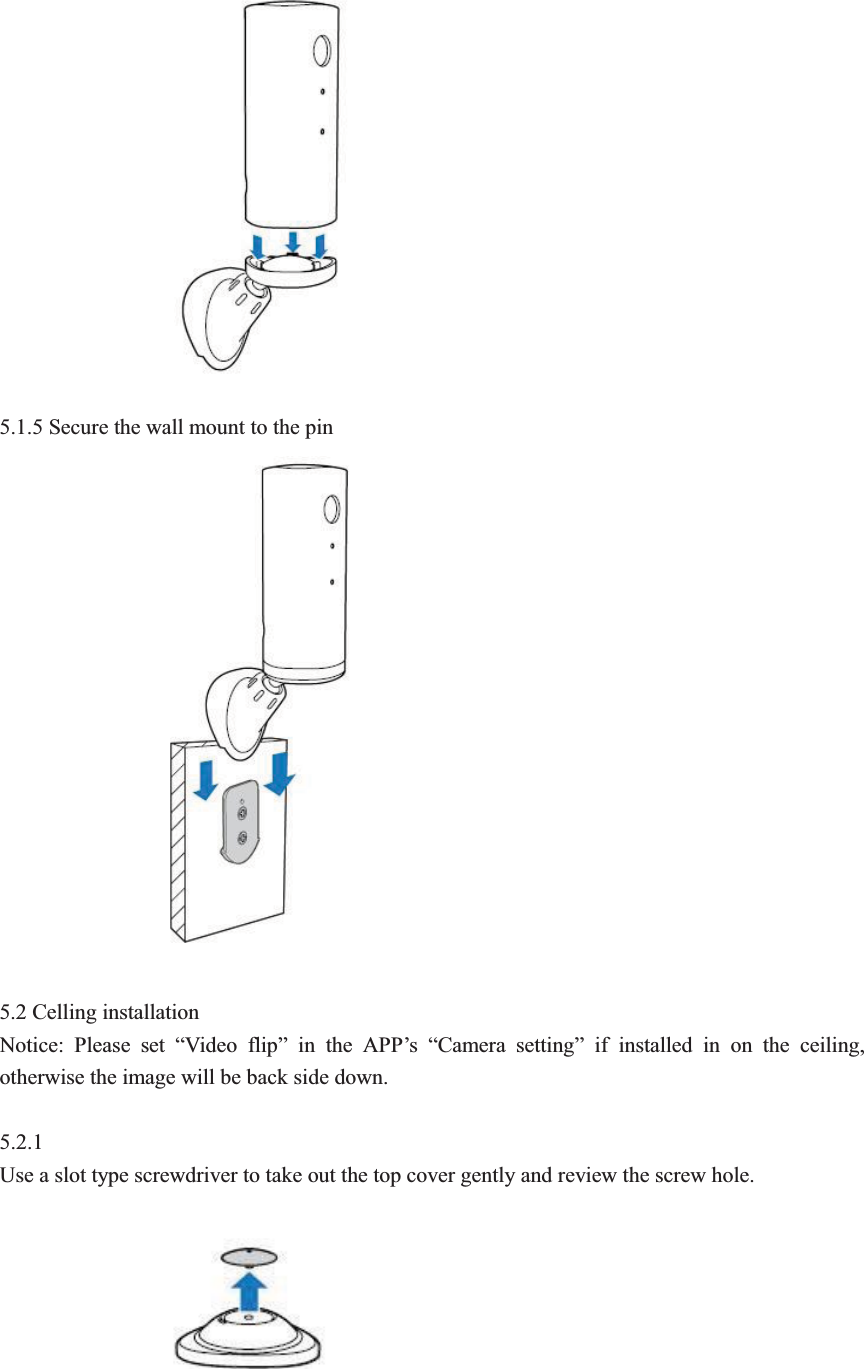

 5.1.5 Secure the wall mount to the pin  5.2 Celling installation   Notice: Please set “Video flip” in the APP’s  “Camera setting” if installed in on the ceiling, otherwise the image will be back side down.  5.2.1 Use a slot type screwdriver to take out the top cover gently and review the screw hole.   
5.2.2 Drill holes on the ceiling according to position of the magnetic base.    5.2.3 Secure the magnetic base onto the ceiling Use one setscrew and one screw to secure the magnetic base to the ceiling.    5.2.4 Press back the circle top cover  5.2.5 Place the device onto the magnetic base, and then adjust the angle to a proper position. 

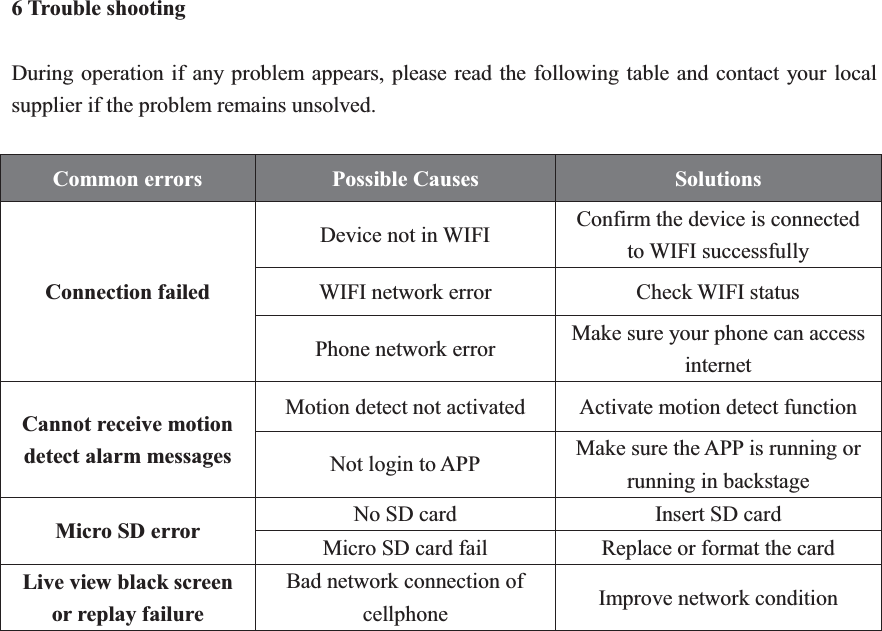

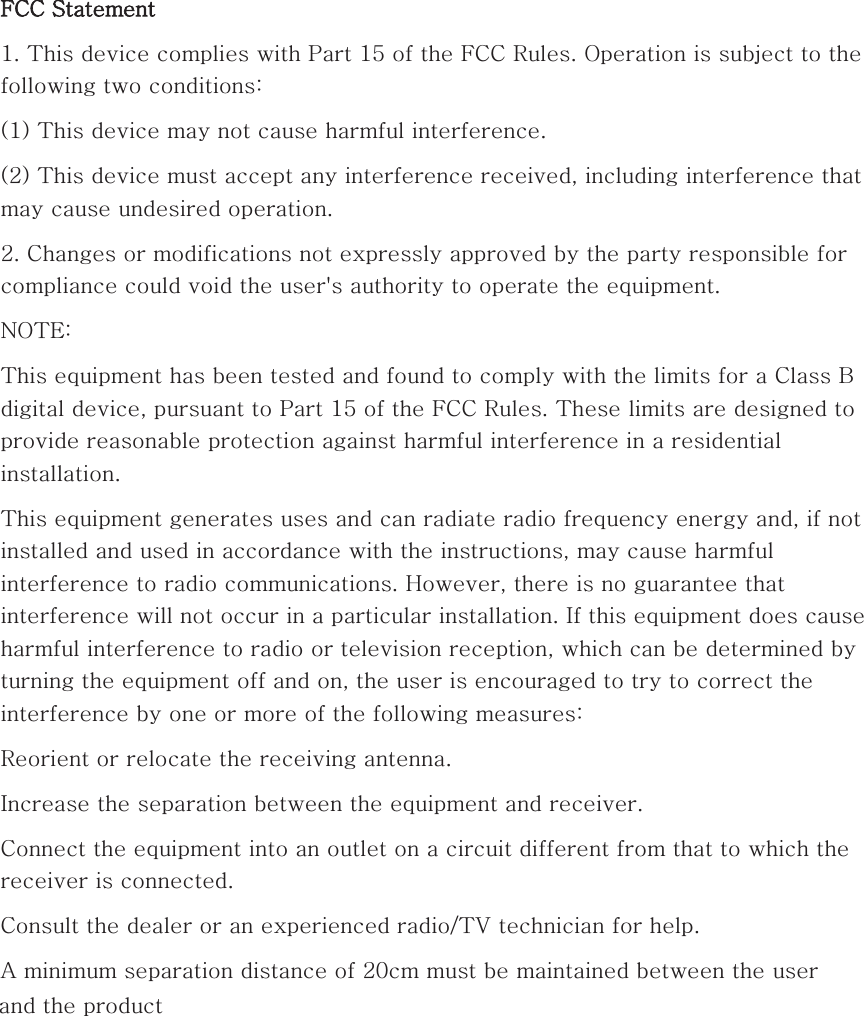

6 Trouble shooting  During operation if any problem appears, please read the following table and contact your local supplier if the problem remains unsolved.    Common errors Possible Causes  Solutions Connection failed Device not in WIFI Confirm the device is connected to WIFI successfully WIFI network error  Check WIFI status Phone network error Make sure your phone can access internet Cannot receive motion detect alarm messages Motion detect not activated Activate motion detect function Not login to APP Make sure the APP is running or running in backstage Micro SD error No SD card Insert SD card Micro SD card fail Replace or format the card Live view black screen or replay failure Bad network connection of cellphone Improve network condition
