Jonter Digital M63F BLUETOOTH SPEAKER User Manual

Shenzhen Jonter Digital Co., Ltd BLUETOOTH SPEAKER

User Manual

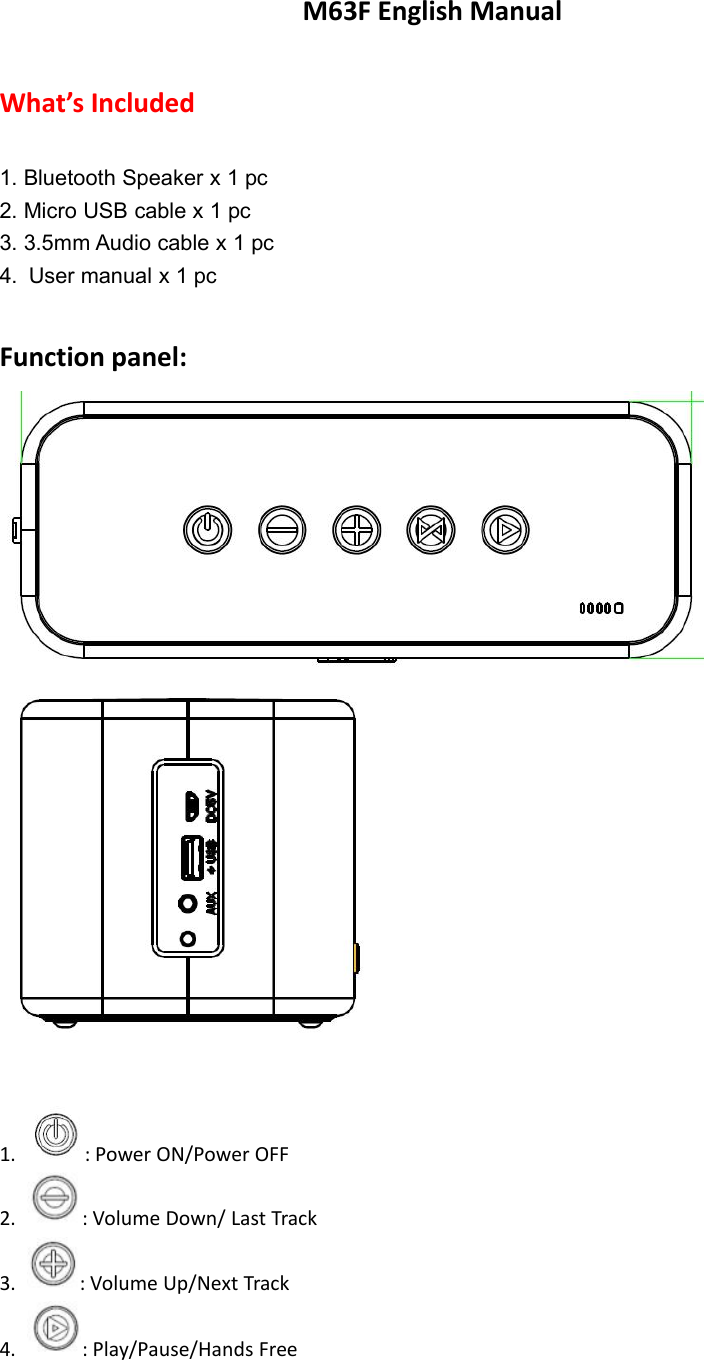

M63F English ManualWhat’s Included1. Bluetooth Speaker x 1 pc2. Micro USB cable x 1 pc3. 3.5mm Audio cable x 1 pc4. User manual x 1 pcFunction panel:1. : Power ON/Power OFF2. : Volume Down/ Last Track3. : Volume Up/Next Track4. : Play/Pause/Hands Free

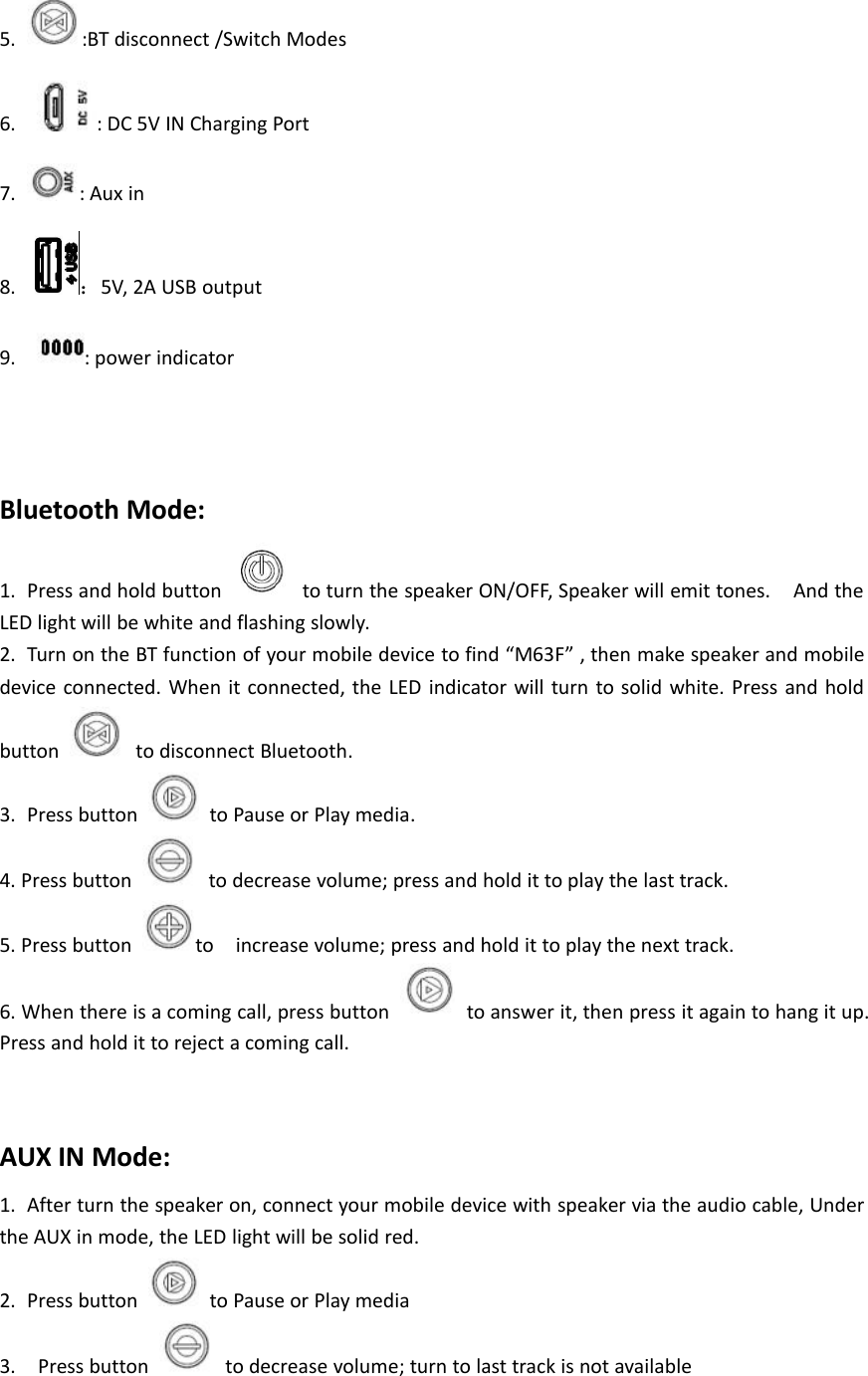

5. :BT disconnect /Switch Modes6. : DC 5V IN Charging Port7. : Aux in8. ：5V, 2A USB output9. : power indicatorBluetooth Mode:1. Press and hold button to turn the speaker ON/OFF, Speaker will emit tones. And theLED light will be white and flashing slowly.2. Turn on the BT function of your mobile device to find “M63F” , then make speaker and mobiledevice connected. When it connected, the LED indicator will turn to solid white. Press and holdbutton to disconnect Bluetooth.3. Press button to Pause or Play media.4. Press button to decrease volume; press and hold it to play the last track.5. Press button to increase volume; press and hold it to play the next track.6. When there is a coming call, press button to answer it, then press it again to hang it up.Press and hold it to reject a coming call.AUX IN Mode:1. After turn the speaker on, connect your mobile device with speaker via the audio cable, Underthe AUX in mode, the LED light will be solid red.2. Press button to Pause or Play media3. Press button to decrease volume; turn to last track is not available

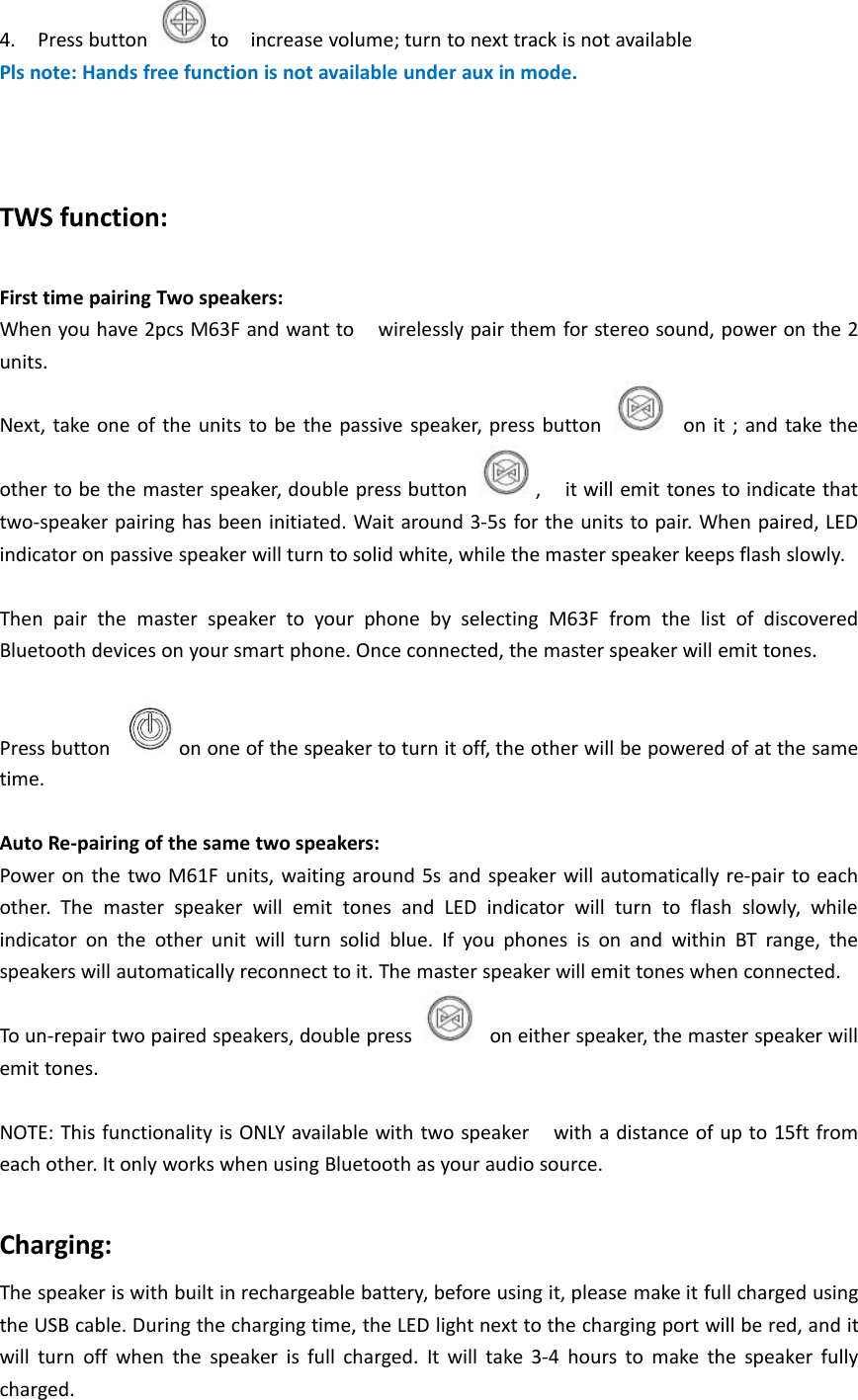

4. Press button to increase volume; turn to next track is not availablePls note: Hands free function is not available under aux in mode.TWS function:First time pairing Two speakers:When you have 2pcs M63F and want to wirelessly pair them for stereo sound, power on the 2units.Next, take one of the units to be the passive speaker, press button on it ; and take theother to be the master speaker, double press button , it will emit tones to indicate thattwo-speaker pairing has been initiated. Wait around 3-5s for the units to pair. When paired, LEDindicator on passive speaker will turn to solid white, while the master speaker keeps flash slowly.Then pair the master speaker to your phone by selecting M63F from the list of discoveredBluetooth devices on your smart phone. Once connected, the master speaker will emit tones.Press button on one of the speaker to turn it off, the other will be powered of at the sametime.Auto Re-pairing of the same two speakers:Power on the two M61F units, waiting around 5s and speaker will automatically re-pair to eachother. The master speaker will emit tones and LED indicator will turn to flash slowly, whileindicator on the other unit will turn solid blue. If you phones is on and within BT range, thespeakers will automatically reconnect to it. The master speaker will emit tones when connected.To un-repair two paired speakers, double press on either speaker, the master speaker willemit tones.NOTE: This functionality is ONLY available with two speaker with a distance of up to 15ft fromeach other. It only works when using Bluetooth as your audio source.Charging:The speaker is with built in rechargeable battery, before using it, please make it full charged usingthe USB cable. During the charging time, the LED light next to the charging port will be red, and itwill turn off when the speaker is full charged. It will take 3-4 hours to make the speaker fullycharged.

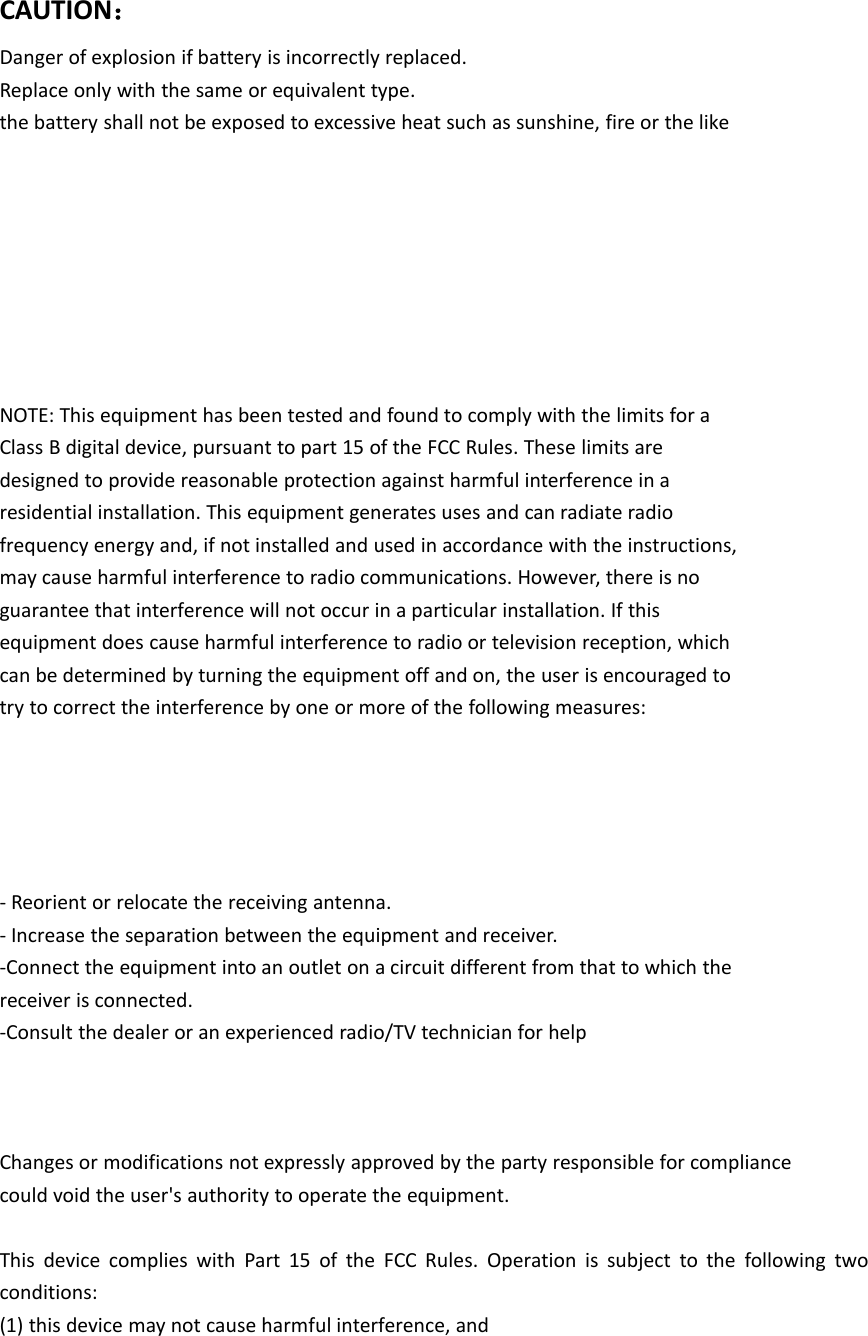

CAUTION：Danger of explosion if battery is incorrectly replaced.Replace only with the same or equivalent type.the battery shall not be exposed to excessive heat such as sunshine, fire or the likeNOTE: This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation. This equipment generates uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If thisequipment does cause harmful interference to radio or television reception, whichcan be determined by turning the equipment off and on, the user is encouraged totry to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.-Consult the dealer or an experienced radio/TV technician for helpChanges or modifications not expressly approved by the party responsible for compliancecould void the user's authority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions:(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that maycause undesired operation.
