Jotron AS TRONTR20GMDSS Tron TR20 GMDSS User Manual Users manual
Jotron AS Tron TR20 GMDSS Users manual
Users manual
Users Manual
Handheld VHF Radios
your safety – our concern
JOTRON Electronics a.s
P.O.Box 54, NO-3280 Tjodalyng, Norway
Tel: +47 33 13 97 00, Fax: +47 33 12 67 80
www.jotron.com
www.los-grafisk.no – O.nr.: 223601
TRON TR20 GMDSS
TRON TR20 PLUS
The information in this book has been carefully checked and is believed to
be accurate. However, no responsibility is assumed for inaccuracies.
CAUTION!
This equipment contains CMOS integrated circuits. Observe handling
precautions to avoid static discharges which may damage these devices.
JOTRON electronics a.s reserves the right to make changes without
further notice to any products or modules described herein to improve
reliability, function or design. JOTRON electronic a.s does not assume any
liability arising out of the application or use of the described product.
The equipment complies with the
following Directives:
R&TTE 1999/5/EC
EMC 89/336/EEC
LVD 73/23/EEC
Harmonized Standards applied in order to
verify compliance with the Directive(s):
ETS 300 225: 1998
EN 300 828: 1998
EN 301 178-1: 2000
EN 301 178-2: 2000
EN 60950: 1992
CE 0434 ! (TR20 PLUS)
EC Declaration of Conform, available at www.jotron.com
CHANGES RECORD NO. CHAPTER VERSION
NEW MANUAL EM3829 – A
NEW MANUAL EM3877 – B
NEW MANUAL EM3957 – C
REVISION HISTORY
TABLE OF CONTENTS
General Information
and procedures.....................3–8
1 Tron TR20 General..................9
1.1 Introduction .............................9
1.2 Features....................................9
1.3 Licensing ...............................10
1.4 Getting started .......................10
2 Operation ...............................11
2.1 Controls .................................11
2.2 Auxiliary connector...............12
2.3 Antenna..................................12
2.4 Basic operation ......................12
2.5 Practical use,
VHF transmission range........14
3 Battery ...................................15
3.1 Battery removal
and replacement.....................15
3.2 Primary battery......................16
3.2.1 Description.............................16
3.2.2 When to change battery.........16
3.2.3 Special care............................16
3.3 Secondary Battery
and Charger............................17
3.3.1 Using the NiMH battery........17
3.3.2 Charging the battery ..............18
3.4 Notes on charging..................19
4 Configuring the Tron TR20...21
4.1 Standard screen......................21
4.2 Function keys.........................22
4.3 Main menu.............................24
4.3.1 Contrast..................................24
4.3.2 Single / DW / TW..................25
4.3.3 Personal Channels
(TR20 PLUS only).....................................28
4.3.4 Scanning (TR20 PLUS only)..........28
4.3.5 Backlight................................29
4.3.6 Key tone.................................29
4.3.7 Info.........................................30
4.3.8 Battery ...................................30
4.3.9 Select international, US or
canadian channel sets (TR20 PLUS only)
5 Menu Flowchart.....................31
6 Maintenance...........................32
6.1 How to take care of your
Tron TR20..............................32
6.2 Regular test procedure...........32
6.3 Cleaning of dirt and oil .........32
7 Troubleshooting.....................33
7.1 Service and Warranty ............33
7.2 Guide to troubleshooting.......34
8 Specifications ........................35
9 Spare parts and Accessories ..36
10 Maritime VHF Channels .......37
Marine Agent list ..................39
GLOSSARY
COSPAS
Cosmicheskaya Sistyema Poiska Avariynich Sudov
(Space System for the Search of Vessels in Distress)
SARSAT
Search and Rescue Satellite-Aided Tracking System
EPIRB Emergency Position Indicating Radio Beacon
LUT Local User Terminal (Ground Station)
MCC Mission Control Center
RCC Rescue Coordination Center
km kilometer
MHz Mega-Hertz (106Hertz)
GPS Global Position System
BATTERY SAFETY DATA SHEET
(Form:EEC directive 91/155)
(2) SAFETY ADVICE
S2 Keep out of reach from children.
S8 Keep container dry.
S26 In case of contact with eyes,rinse immediately with
plenty of water and seek medical advice.
S43 In case of fire,use D type extinguishers.Never use water.
S45 In case of accident or if you feel unwell,seek medical
advice immedately (show the label where possible).
(3) FIRST AID MEASURES
In case of contact of cell contents with eyes,flush immediately with water for 15 min.
With skin,wash with plenty of water and take off contaminated clothes.If inhalation,
remove from exposure,give oxygen,seek medical advice.
(4) FIRE-FIGHTING MEASURES
Extinguishing media
Suitable: Type D fire extinguishers
Not to be used: Water - CO2- Halon,dry chemical or foam extingiushers
Special exposure hazards
Generation of chlorine, sulfur dioxide,disulfur dichloride during
thermal decomposition.
Special protective equipment
Use protective working boots,rubber apron and safety glasses with side shields.
Instructions for keeping the Radio Log and the radio operators
obligation according to national and international regulation.
1. The radio log shall be kept in accordance with requirements in the Radio Regulations,
SOLAS Convention, national regulations regarding radio installations and the STCW
Convention (STCW 95 including the STCW Code) including relevant regulation regar-
ding watchkeeping on board passenger- and cargo ships.
2. Unauthorized transmissions and incidents of harmful interference should, if possible,
be identified, recorded in the radio log and brought to the attention of the
Administration in compliance with the Radio Regulations, together with an appropriate
extract from the radio log. (STCW Code B-VIII/2 No. 32).
Test of radio equipment and reserve source og energy.
Weekly:
GMDSS handheld VHF transceivers to be tested without using the mandatory required
emergency batteries.
DATE N/T/B SIGN INSP
N=NEW EPIRB INSTALLED,T=TEST, B=NEW BATTERY
TEST AND MAINTENANCE RECORD
DISTRESS PROCEDURE FOR MARITIME VHF
START USE CHANNEL 16,FULL POWER
DISTRESS MAYDAY MAYDAY MAYDAY
CALL THIS IS
The call sign,or other identification of the vessel in
distress,spoken 3 times
DISTRESS MAYDAY
MESSAGE The name,or other identification of the vessel
in distress
• THE POSITION OF THE VESSEL
• THE NATURE OF DISTRESS
• THE KIND OF ASSISTANCE REQUIRED
• OTHER USEFUL INFORMATION
Write down the distress message.Speak slowly and distinctly.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
Æ
Ø
Å
ALFA
BRAVO
CHARLIE
DELTA
ECHO
FOXTROT
GOLF
HOTEL
INDIA
JULIETT
KILO
LIMA
MIKE
NOVEMBER
OSCAR
PAPA
QUEBEC
ROMEO
SIERRA
TANGO
UNIFORM
VICTOR
WHISKEY
X-RAY
YANKEE
ZULU
ÆGIR
ØRNULF
ÅGOT
9
1 GENERAL
1.1 INTRODUCTION
The JOTRON Tron TR20 comes in two versions, Tron TR20 GMDSS and Tron TR20
PLUS. Tron TR20 GMDSS is specially designed for GMDSS applications. It con-
firms to ETS 300 225 standard and is waterproof to IP67. The housing is made from
glassreinforced polycarbonate in a highly visible colour.
Tron TR20 PLUS is designed for commercial and leisure use and conforms to the
EN 301 178 standard. This version is equipped with connectors for use of external
headset and/or microphone. IP rating on this version is IP54. The housing is made in
the same material as the Tron TR20 GMDSS, but the colour is dark grey as opposed
to the orange GMDSS version.
1.2 FEATURES
Watertight
Tron TR20 GMDSS is watertight to a depth of 1 metre (IP67).
Tron TR20 PLUS is spray proof (IP 54).
Rugged design
Tron TR20 is made to resist a drop from 1 metre onto a hard surface. It is also
resistant to seawater, oil and sunlight.
Handling
Tron TR20 is made for easy operation, with a brief operating instruction printed on the rear.
It is possible to fully operate Tron TR20 with one hand, even when wearing gloves. Both
display and keys have integrated backlighting to ease operation in low light conditions.
Housing
Tron TR20 is of small size (62mm x 160mm x 41mm), and has no sharp edges to
damage raft or clothing. Belt clip is standard, wrist strap (standard for GMDSS) and
carrier case are available options.
10
Low power consumption
Tron TR20 has low power consumption and with transmit, receive and standby
ratio of 1: 1: 8 the battery lifetime is exceeding 8 hours with Lithium battery.
Graphical display
Tron TR20 is equipped with a high contrast graphical display with built
in backlight for clear indication of the radios settings.
Service
Handheld VHF service is available through the Jotron worldwide service network.
See details on www.jotron.com.
1.3 LICENSING
Prior to use please check your national requirements for the operators of VHF
radios and also that your radio will conform to local regulations before use.
Regulations for VHF radios may vary from country to country.
1.4 GETTING STARTED
Congratulation on your JOTRON Tron TR20 purchase.
To ensure this unit gives trouble free performance from the outset, please adhere
to the following safeguards; Read this User manual fully to familiarise yourself
with the equipments functions and facilities.
Connect the antenna before use and charge the battery fully before connecting
to the equipment.
Follow this manuals menu selection and set the battery option being used on the
equipment to ensure the battery state indicator gives a true reading.
Follow the menu selection and set the squelch such that the background noise just
disappears when in receive mode.
2 OPERATION
2.1 CONTROLS

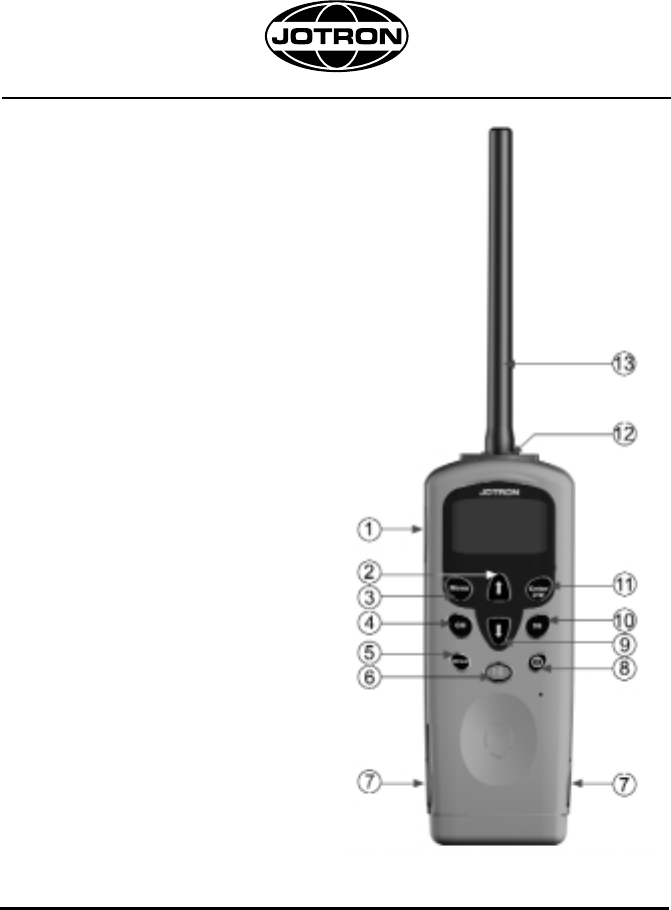

Fig. 2.1 shows the location of different
controls and facilities of the Tron TR20:
1 - PTT (Push To Talk)
2 - Up
3 - Menu
4 - Channel
Scan (TRON TR20 PLUS only)
5 - High / Low power
6 - Channel 16
7 - Battery release
8 - ON / OFF
9 - Down
10 - Squelch
11 - Enter DW/TW
12 - Auxiliary connector
(TRON TR20 PLUS only)
13 - Antenna Fig. 2.1
11
2.2 AUXILIARY CONNECTOR
The auxiliary connector on the Tron TR20 PLUS enables the user
to connect an external microphone or headset.
1- Mic ground
2- Mic
3- Speaker
4- Speaker ground
2.3 ANTENNA
The antenna for Tron TR20 is fitted with a standard SMA connector.
A remote antenna can be connected for fixed applications.
2.4 BASIC OPERATION
On/Off
Press this key (8) to switch on or off.
To switch off, the key must be pressed for approx. 2 seconds.
This is to prevent accidental power off.
Transmit
Press the PTT key (1) to transmit.

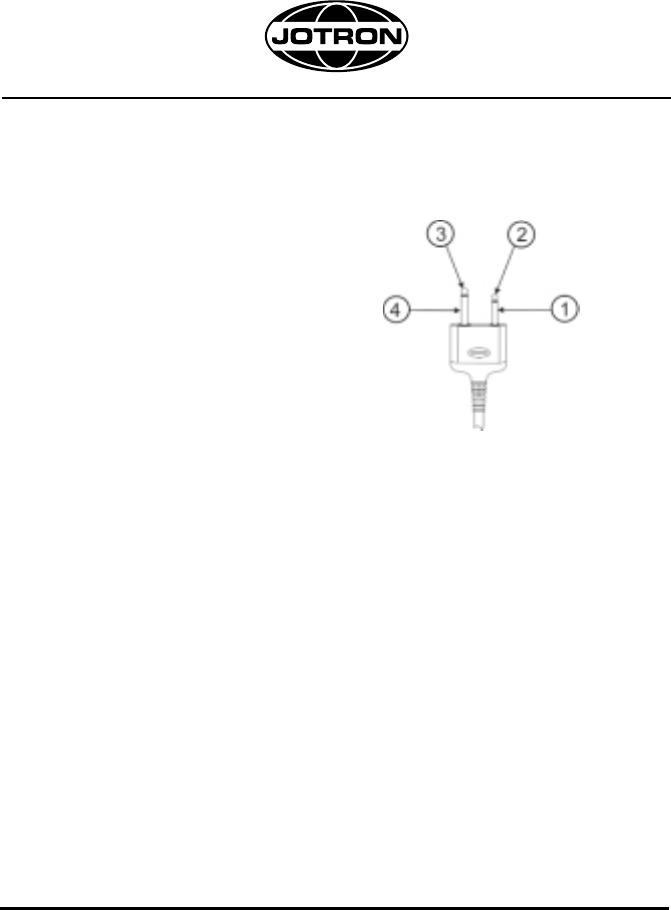

Fig. 2: Drawing of
auxiliary connector
12
Adjusting the volume
To adjust the volume, press the Up (2) or Down (9) key. Unless any other function is
selected, the Up and Down keys will always function as the volume control. To return
to volume adjustment from channel or squelch adjustment, press the «Enter» (11) key.
Squelch adjustment
To adjust the squelch, press the SQ (10) key and use the arrow keys to adjust the
threshold. When finished, press the enter key to return to default menu (volume).
There is also a time out which automatically returns the radio to the default menu
after approx 10 seconds.
Channel select
To select a different channel, press the CH (4) key and use the arrow keys to select
the required channel. To default menu, press «Enter» (11). Please refer to section
8 for complete docs on channel setup.
Pressing the red channel 16 (6) key will make the radio switch directly to channel 16.
Key lock
To prevent accidental operation of the keypad, the unit is equipped with a key lock. To
enable the key lock, press «Menu» (3) and «Up» (2) simultaneously
and hold for 1 sec.
The same sequence will unlock the keys. When the key lock is activated a key symbol
is seen on the display.
The «PTT» and «16» key will function even if the key lock is enabled.
13
14
2.5 PRACTICAL USE, VHF TRANSMISSION RANGE
The range of VHF communications is limited to «line of sight», because the VHF
radio waves are travelling in straight lines. A higher position of the transceiver will
then increase the coverage. This applies both to the receiving and transmitting end.

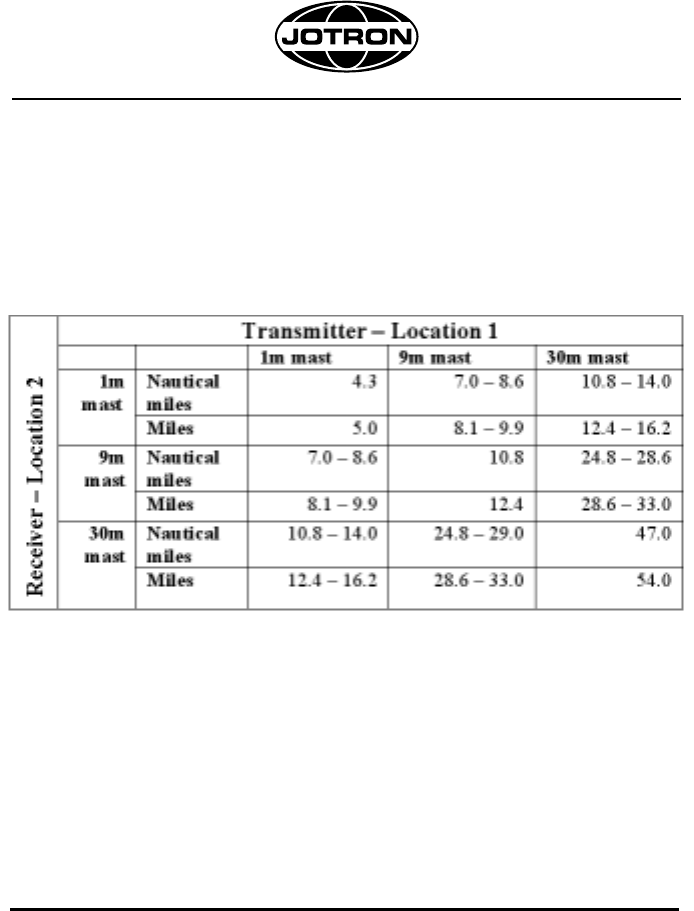

Some figures are indicated in the table below:
Table 2.1
1 Nautical mile = 1852 Meters = 1.1508 Miles
1 Statute mile = 1.609 Kilometres
This indicates that with a handheld VHF, used at sea level, the range will be approx
8 Km (5 Miles). The range will increase if the height above sea level increases, and
also if the other user in the other end is at a higher level
140 mm
15
3 BATTERY
3.1 BATTERY REMOVAL AND REPLACEMENT
To release the battery, press both battery release clips and gently pull the battery
away from the radio.
To replace the battery, slide the battery into position, and make sure the battery
clips fully engage.
Note! The radio is not watertight without the battery in place!

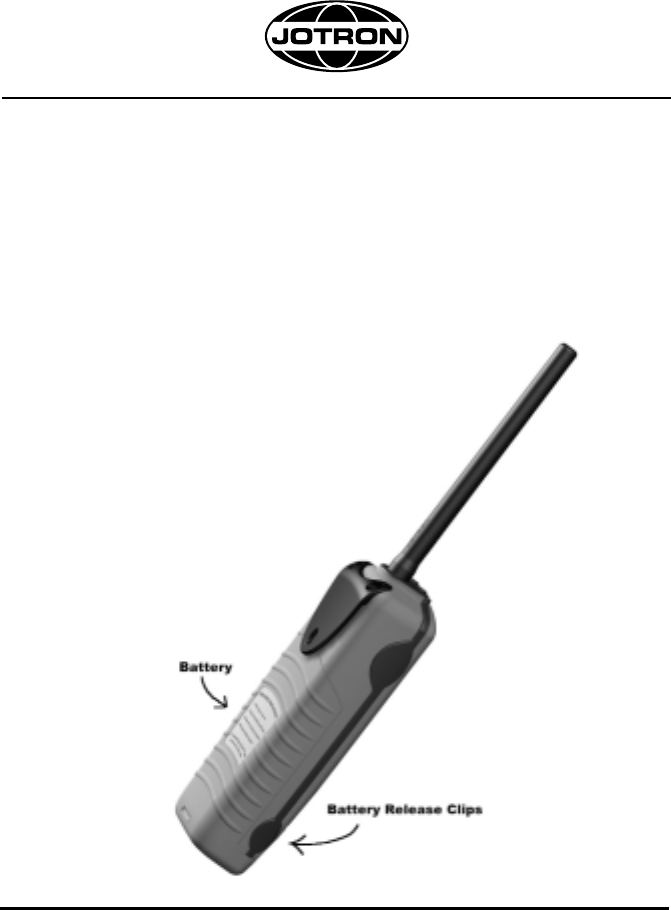

Fig. 3
16
3.2 PRIMARY BATTERY
3.2.1 DESCRIPTION
The primary battery unit is a 7.2V / 2200mAh lithium battery. This unit
is specially designed for GMDSS emergency use to preserve a long shelf-
and operating-life.
This battery cannot be recharged.
Type no. of battery: 80060
Colour: Orange
3.2.2 WHEN TO CHANGE BATTERY
Replace the lithium battery before expiry date. The lithium battery pack has a
shelf life of 5 years. If Tron TR20 is indicating low voltage during normal use,
the lithium battery will have to be replaced. Please refer to section 3.1 for battery
replacement.
To prevent the possibility of being in an emergency situation with a Tron TR20
equipped with a used battery, we strongly recommend storing an extra battery,
in lifeboats and rafts. Store this battery without breaking the sealing.
3.2.3 SPECIAL CARE
The primary battery is of a high-energy lithium type, and some precautions must
be taken. Do not heat above 70°C, recharge, crush, disassemble or incinerate. This
may result in fire, explosion and severe burn hazard.
Do not throw used batteries overboard, but return them to your local dealer.
17
3.3 SECONDARY BATTERY AND CHARGER
3.3.1 USING THE NIMH BATTERY
Tron TR20 can be delivered with a rechargeable NiMH battery. This battery
has a capacity of 7.2V / 1500mAh. The battery is supplied uncharged and must
be charged before use.
Type no. of battery: 80059
Colour: Dark grey
After recharging the battery, it can be used in the same way as the primary battery
unit. The battery condition indicator on the main display shows the approximate
status of the battery’s charging condition, and will indicate when it is time for
recharging.

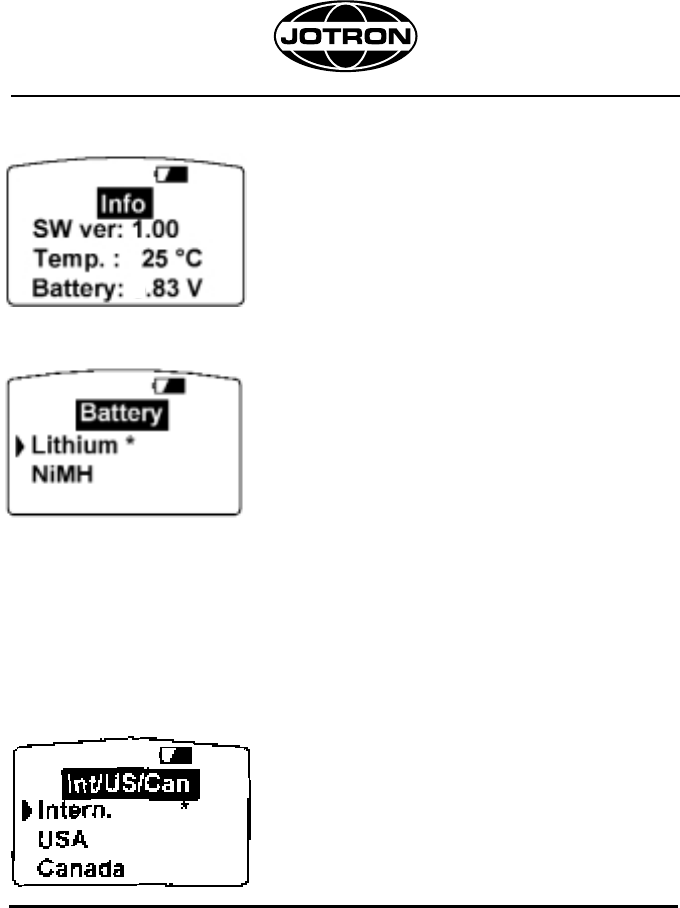

For correct battery status indication, ensure that the type of battery in use must be
selected. See chap. 4.3.8
Please refer to section 3.1 for battery replacement.
3.3.2 CHARGING THE BATTERY

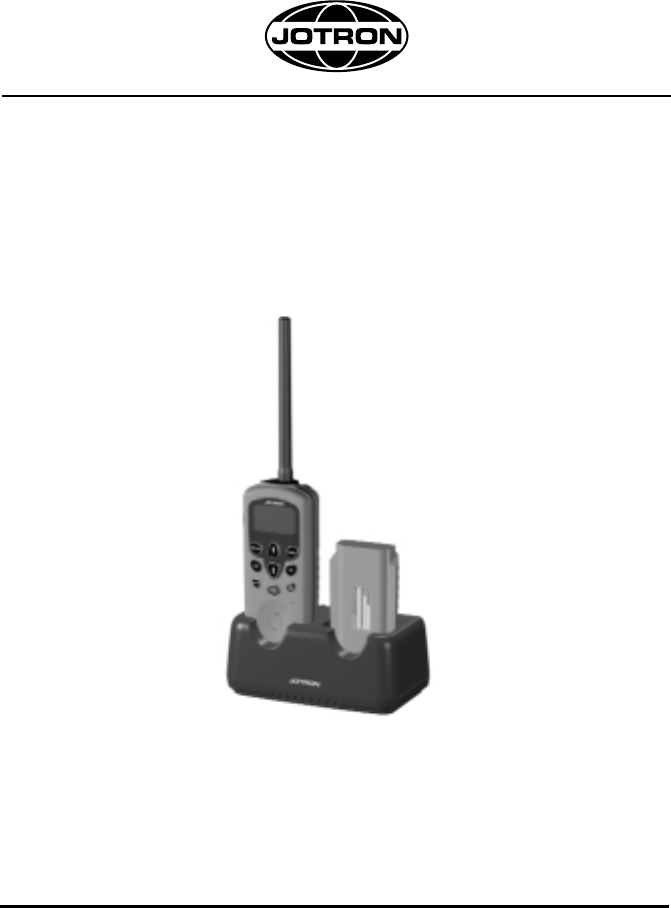

The charger RCH-20 is a dual slot quick charger. The charger will accept a complete
radio or the battery alone (see fig 4). If two batteries are present, the charger will
automatically start fast charging the second battery when the first battery is fully
charged. The first battery will then be trickle charged to keep it fully charged.
The charger will charge a fully discharged battery in approx. 3.5 hours.
Fig. 4
The charger operates from 12 – 24VDC or from 115 / 230VAC using
an appropriate adapter. See section 9, Spare parts and accessories.
When using DC supply, the DC cable (80084) should be used. The connector
is a standard 5.5mm AC adaptor type.
18
19
To prevent problems with wrong polarity the RCH-20 is designed
to be independent of the power supply polarity.
The charger has two LED indicators, one for each battery. They have the following
functions:
Flashing orange - No battery detected
Flashing red - Battery detected, trickle charging
Continuous red - Fast charging
Continuous green- Battery fully charged
3.4 NOTES ON CHARGING
The battery pack, 80059, is of NiMH type. To get the most out of your battery
pack, a few precautions should be taken.
• Always charge the battery to full charge when charging.
• All rechargeable batteries lose charge while stored. The rate is dependent on the
temperature. When stored at 25°C a fully charged battery will have more than 50%
capacity after a few months, while at 45°C it might be down at 50% after approx
one month.
• Although it is possible to charge the battery while the Tron TR20 is switched on
it is recommended to charge with the radio switched off. Otherwise the current
consumption of the radio may confuse the charger to terminate before full charge
is reached.
20
• If the battery has been totally discharged (below the Tron TR20 switch
off threshold), or stored for a long time, the charger may terminate before full
charge is reached.
In this case do as follows:
• Insert the battery and charge for a few minutes.
• Discharge the battery by inserting it into the radio, and press PTT a few times.
• Start charging.
• Never short-circuit, solder, reverse charge, crush, disassemble or incinerate.
This may result in fire, explosion and severe burn hazard.
• Avoid charging under 0°C or over 40°C.
21
4 CONFIGURING THE TRON TR20
The operation of Tron TR20 is based on function keys and menus. The display
indicates the chosen function by an arrow. To return to standard screen after opera-
ting the function keys, press «Enter»(11). To return to standard screen after ente-
ring the menus, press «Menu»(3).
4.1 STANDARD SCREEN

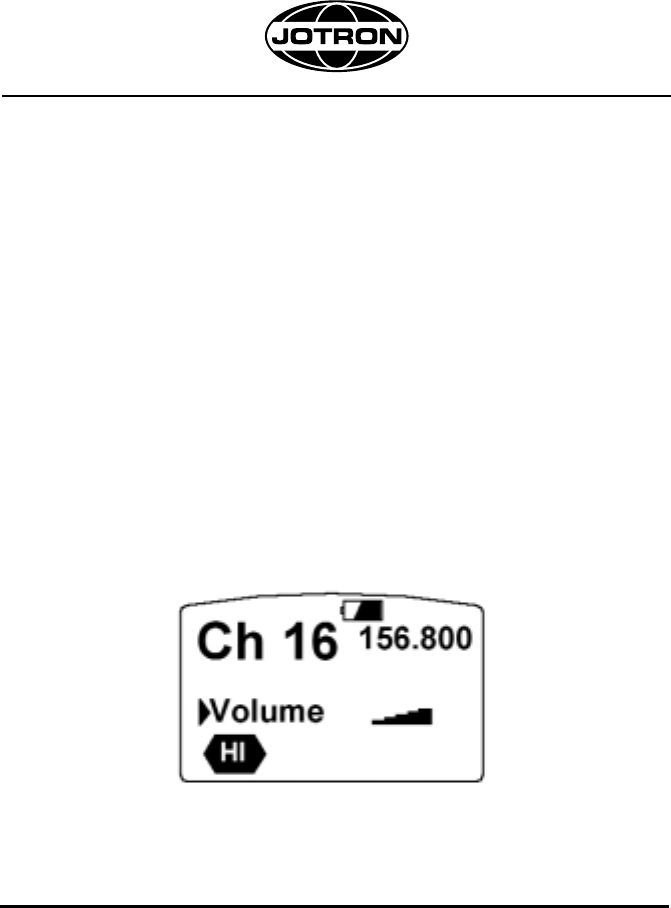

This is the standard/default screen for the Tron TR20. The display returns to this
mode after a break of more than 10 sec.
In this mode the arrow buttons (2&9) adjusts the volume and the display gives
a graphical volume indication.
The selected channel is indicated with channel number and frequency. The
condition of the battery is indicated graphically at the top of the display and the
symbol «HI» indicates that the transmitter is set to high output power.
22
4.2 FUNCTION KEYS
Channel selection - CH
To select the working channel, press the
button «CH»(4). The channel is selected by
p pressing the arrow buttons (2&9).
Squelch - SQ
To adjust the squelch level, press the button
«SQ»(10). The level is adjusted by pressing
the arrow buttons (2&9), and the display
gives a graphical indication of the level.
High and low output - Hi/Lo
The «Hi/Lo»(5) button select between high
and low output. When high output is select
ed «HI» is indicated on the display. When
low output is selected there is no indication
on the display.
23
Channel 16
By pressing the red “16”(6) key, the Tron TR20 will enter channel 16. When on
channel 16, PTT will function even if the key lock is enabled.
TX Channel 16
Default display on Tron TR20 during
transmit.
RX Channel 16
When the Tron TR20 receive a signal the
symbol «RX» is indicated in the display
24
4.3 MAIN MENU
When the «Menu»(3) key is pressed the
operator has access to the main menu.
The menu will scroll when pressing the arrow
keys (2&9). When the arrow is pointing at the
required parameter, press enter (11) to select.
Press “Menu”(3) to return to the standard
screen.

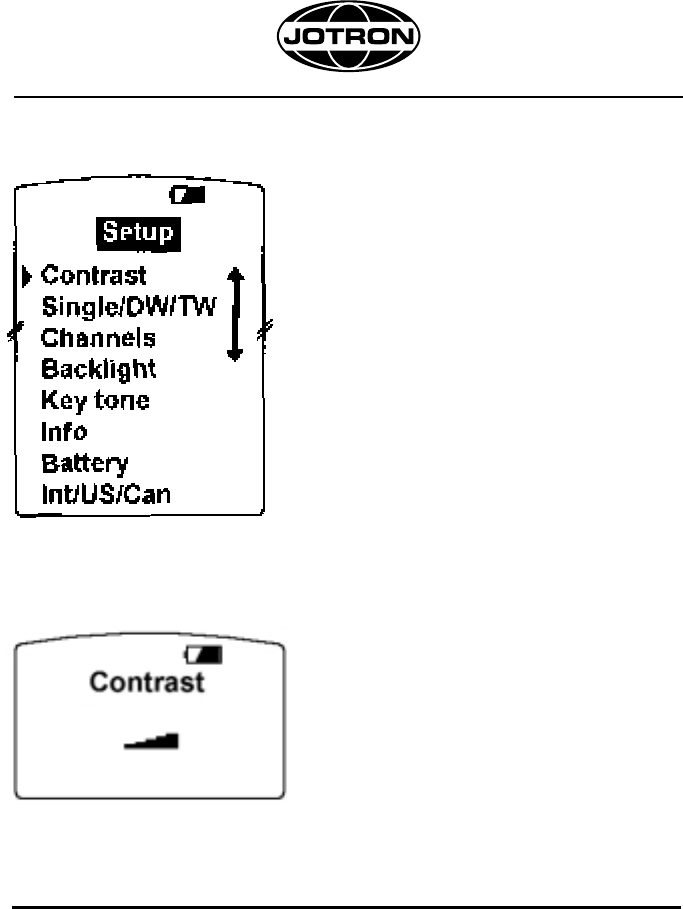

4.3.1 CONTRAST
The contrast is adjusted by pressing the arrow
buttons (2&9). The display gives a graphical
indication of the level.
25
4.3.2 SINGLE / DW / TW
This feature enables Tron TR20 to check for signals at one, two or three
channelsimultaneously. Single means normal operation at one channel
(the working channel).
Dual Watch (DW) means that the radio is listening at the working channel and
at channel 16 simultaneously.
Triple Watch (TW) means that the radio is listening at the working channel,
at channel 16 and at a third user selectable channel simultaneously.
SETUP OF DW
Press the Menu (3) Key and select Single/DW/TW
Use the arrow keys (2&9) to move the
cursor to DW, and press Enter (11).
Press Menu (3) to return to the main
display.

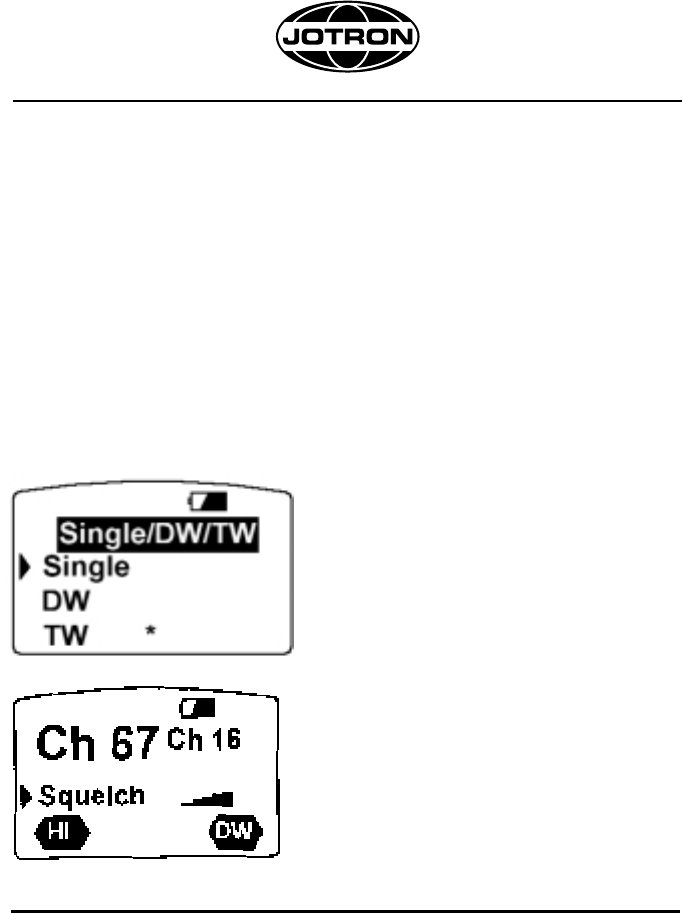

The working channel will then be
displayed with large figures in the left
part of the display, and channel 16 in the
right part of the display.
26
The working channel can be changed at any time by pressing the «CH» (4) key
and using the arrow keys (2&9) to select channel and then “Enter” (11) to confirm
(ref 4.2).
SETUP OF TW

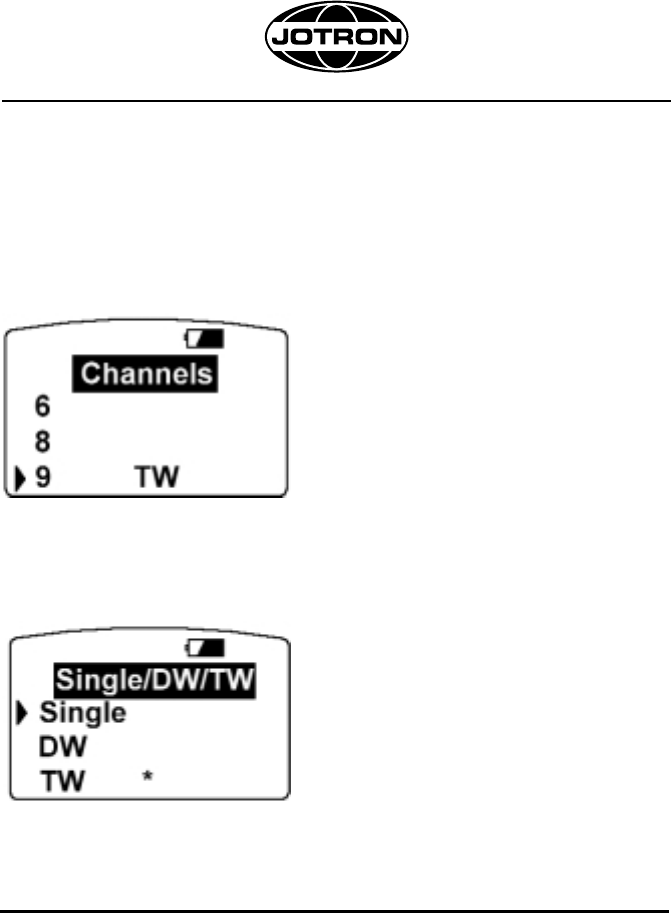

First we have to select the third watch channel.

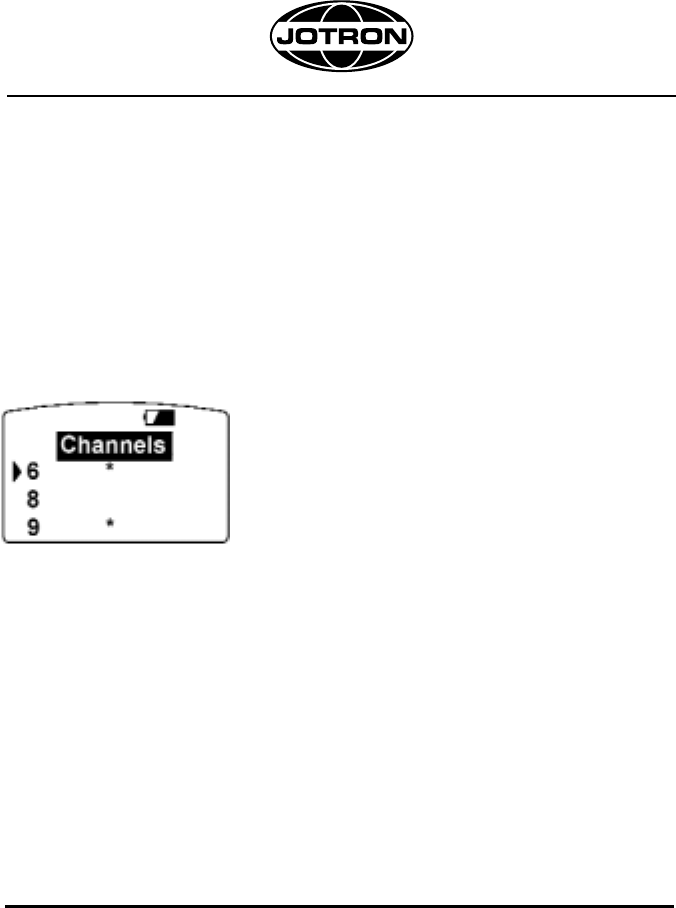

Press the Menu (3) Key and select Channels.
Use the arrow keys (2&9) to move the
cursor to the wanted channel and press
«Enter» (11) for one second to select.
TW will then be displayed next to the
selected channel. Press «Menu» (3)
to return to the main display.
Press the Menu (3) Key and select Single/DW/TW
Use the arrow keys (2&9) to move the
cursor to TW, and press Enter (11).
Press Menu (3) to return to the main
display.
27

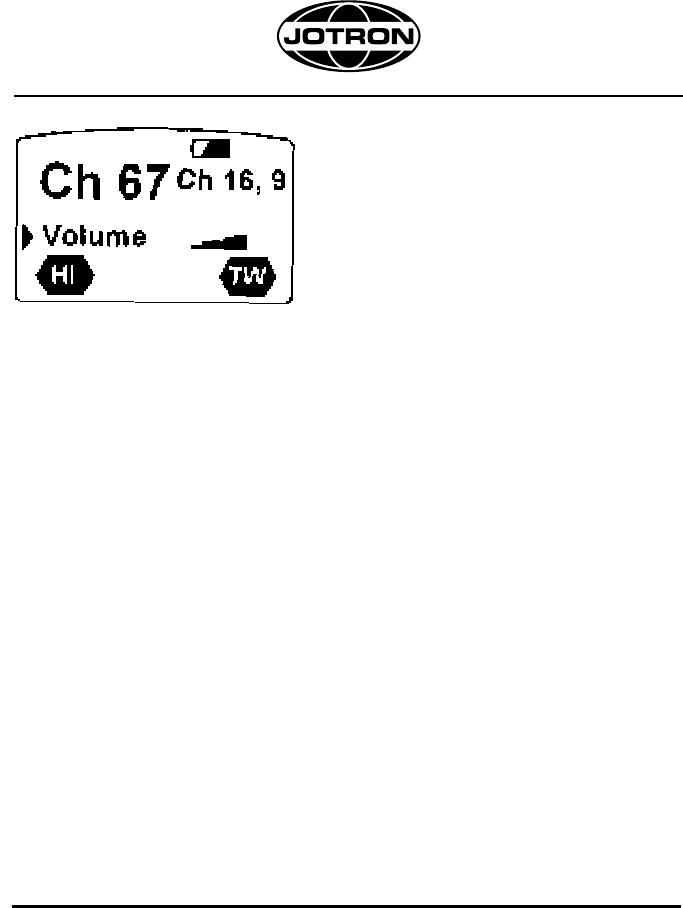

The working channel will then be displayed
with large figures in the left part of the
display, channel 16 and the third watch
channel in the right part of the display.
TW will then be indicated in the lower right corner of the display.
The working channel can be changed at any time by pressing the «CH» (4) key
and using the arrow keys (2&9) to select channel and then «Enter» (11)
to confirm (ref 4.2).
Switching DW/TW on and off.
When double or triple watch is selected, DW or TW is turned on and off by pressing
the «Enter» (11) key. When activated, «DW» or «TW› is indicated in the display.
When the Tron TR20 is in DW or TW and receives a signal, the channel number
being received will be displayed on the left side of the display. If the «Enter» (11)
key is pressed while receiving a signal, the Tron TR20 will switch to single watch
and be able to transmit at the same channel.
To return to the original DW/TW setup, press «Enter»(11) again.
Note!
The radio is not able to transmit when it is set to double or triple watch.
To transmit, DW/TW has to be turned off by pressing the «Enter»(11) key.
However, if channel 16 is selected it is always possible to transmit, regardless
of the DW/TW setting.
4.3.3 PERSONAL CHANNELS (TR20 PLUS ONLY)
Under this menu item it is possible to select personal channels. If any personal channels are
selected, a «P» is indicated in the upper right corner of the display. Using the «CH» (4) and
the arrow keys (2&9) will then scroll trough only the personal channels. If no personal
channels are selected, all channels can be selected via the «CH» key.
How to deselect personal channels:
Use arrow keys (2&9) to move to the selected channel that are marked with an aste-
risk. Press “ENTER” to deselect channel. Deselecting of CH16 is only possible when
all personal channels are deselected.
To select personal channels, enter the channel menu
and use the arrow keys (2&9) to select channels.
Pressing «Enter» (11) will select them as personal
channels. Any number of channels can be selected.
When finished, press the «Menu» key (3).
Note! Personal channel selection is not available
on the Tron TR20 GMDSS version.
4.3.4 SCANNING (TR20 PLUS ONLY)
Scanning of channels will be initiated by pressing the “CH” button for more than 1 second.
If personal channels are selected (look for “P” in upper right corner of the display) they are
the only channels that will be scanned. Otherwise all channels will be scanned.
The scanning function can be stopped in two ways. Pressing the “CH” bottom stop the
scanning and return to your working channel. Pressing the “Enter” bottom stop the
scanning at the previous channel.
NOTE!
The “PTT” bottom are disabled during scanning. Scanning must be stopped before the
radio can transmit. The receiver power consumption is doubled during scanning.
28
4.3.5 BACKLIGHT

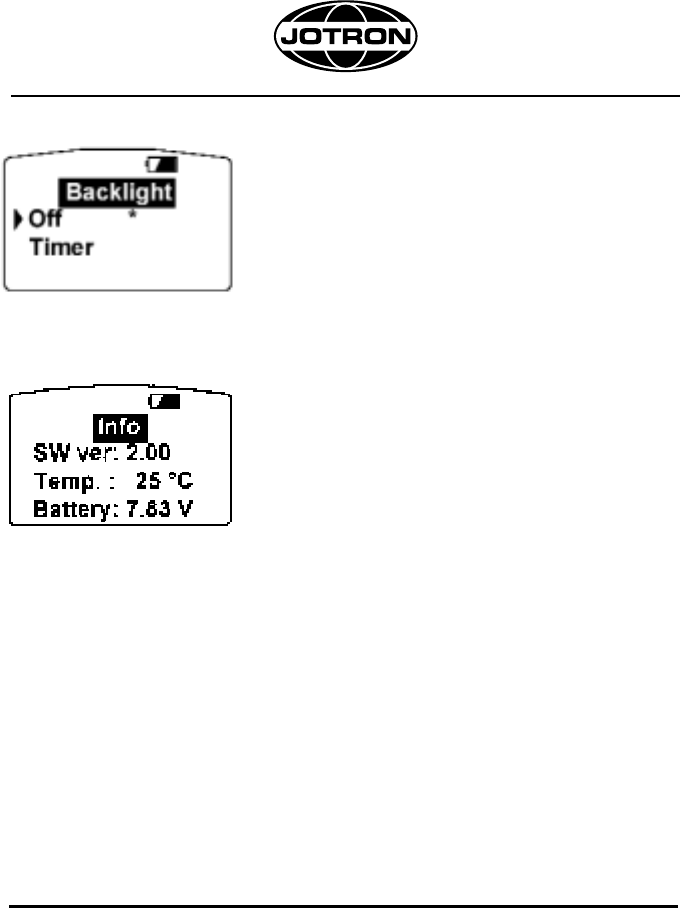

Under this menu it is possible to switch the
backlight on or off.
Note! On Tron TR20 GMDSS it is not possible
to select «Off».
4.3.6 KEY TONE
Under this menu item the key tone (beep)
can be selected between high pitch, low pitch
or switched off.
29
30
4.3.7 INFO
Information on software version,
temperature and battery status.
4.3.8 BATTERY
To ensure correct battery status indication, the type
of battery in use must be selected.
4.3.9 SELECT INTERNATIONAL, US OR CANADIAN CHANNEL SETS
(TR20 PLUS ONLY)
There are three different channel sets incorporated in the Tron TR20 Plus. Those are the Inter-
national with 35 duplex and 19 simplex channels, the US with 12 duplex and 39 simplex chan-
nels and Canada with 19 duplex and 38 simplex channels (See chapter 10 for complete listing).
Press the Menu (3) and select "Int/US/Can"
Use the arrow keys (2 & 9) to move to the wanted channel
set, and press Enter (11). If the International channel set is
selected, there is no indication on the display. If the USA
channel set is selected, a "US" is written in the right upper
corner of the display. If the Canadian channels set is selec-
ted, "CA" is written in the right upper corner of the display.
7
31

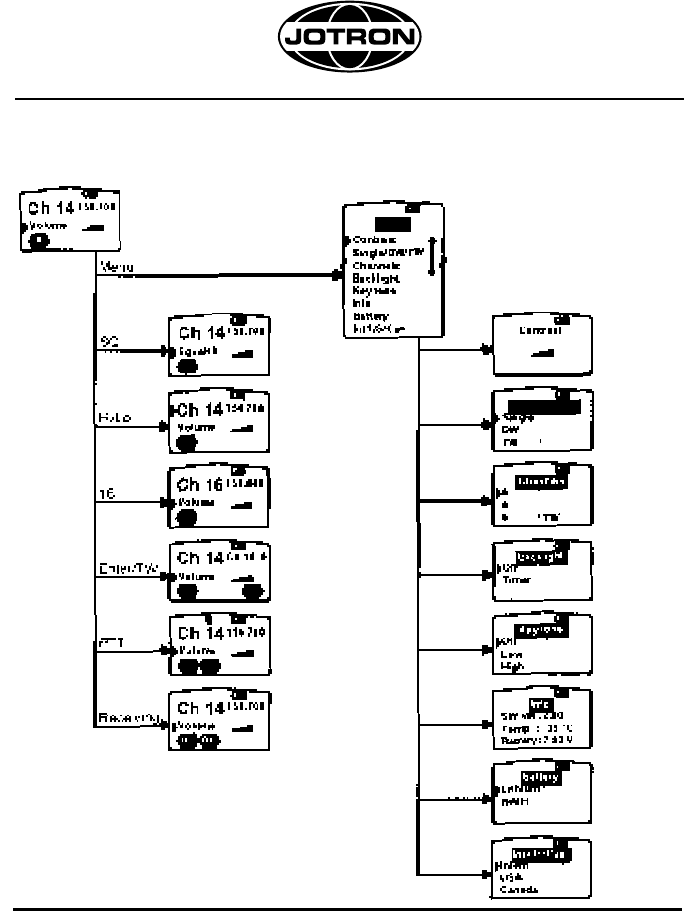

5 MENU FLOWCHART
32
6.2 REGULAR TEST PROCEDURE
It is important to perform regular testing to ensure proper operation in case of a distress
situation. If Tron TR20 is used regularly, perform test every month. When Tron TR20 is
stored in a lifeboat or raft, perform test at least once a year. In order to avoid using a sea-
led lithium battery, we recommend keeping one battery available for this purpose.
Regular test procedure:
Step Item Description
1 Housing Check the housing for mechanical defects and
and keys check that all keys are in good working order.
2 Battery Check the battery status indicator and charge or
change battery if needed.
3 Transmit Check that the Tx indicator is visible when
transmitting. The Tx indicator indicates that carrier
is produced at the antenna output.
4 Communications Communicate with another radio-telephone to
test test receive and transmit functions.
6.3 CLEANING OF DIRT AND OIL
To clean away oil and dirt from the radio, use ordinary dish-soap and water.
The water temperature can be up to 45°C. Finish of by rinsing with fresh water.
6 MAINTENANCE
6.1 HOW TO TAKE CARE OF YOUR TRON TR20
Tron TR20 is constructed to endure the rough maritime environment. Still the life is depen-
dent on taking care of the equipment. It is a good practice to regularly inspect and test the
equipment to detect error symptoms and prevent more serious problems.
To keep in mind during inspection:
• If Tron TR20 has been immersed into seawater, it is good practice to clean it in fresh water.
• Inspect battery connection pins, the gasket and the locking/release device.
• Inspect the housing for defects, which can affect the water sealing.
7 TROUBLESHOOTING
7.1 SERVICE AND WARRANTY
Your radio should seldom require service or repair.
The unit is guaranteed for 1 year from date of retail sale.
Before shipping Tron TR20 for repair, please check the fundamental procedures
on operation and battery condition.
If repair is necessary please contact the nearest JOTRON agent.
IMPORTANT!
The Tron TR20 is a sealed waterproof radio and there are no user serviceable parts
inside. It must never be opened, except by authorised JOTRON agents.
Unauthorised disassembly will invalidate the warranty.
See the next chapter for failure diagnosis. This may be of help when discussing
problems with a JOTRON agent.
140 mm
33
34
7.2 GUIDE TO TROUBLESHOOTING
Troubleshooting steps:
Problem Possible causes Possible solutions
No indication on display Battery is discharged. Charge or change battery
package.
You know there is a signal a) Squelch is muting. a) Adjust squelch to 0.
coming, but Tron TR20
is not responding. b) Failure in receiver. b) An authorised agent must
service the unit.
Tx indicator is on during Use of wrong channel Use same channel number
transmitting but com- number. as partner station.
munication is impossible.
E1 is indicated on the Frequency synthe-sizer a) Try a reset by switching
display. is out of lock. power OFF.
b) Failure in frequency synthe-
sizer. An authorised agent
must service the unit.
Tx indicator is not responding a) DW or TW enabled a) Switch DW/TW off
during transmitting, and/ or b) An authorised agent
E2 is displayed b) Failure in transmitter. must service the unit.
Can't change to a) personal channels a) Press "Menu-> Channels"
desired channel is selected and deselect the marked channels.
(TR20 PLUS) b) Not programmed
channel from factory or
agent.
b) Your sales representative can
program custom channels wanted,
if allowed by the local authorities.
Battery indicator only 30% after Battery indicator set to Change to correct battery type.
full re-charge lithium, when NiMH battery See chap. 4.3.8
is in use.
IMPORTANT! Deslect all, but CH16 and
then deselct CH16 as the last channel. This
is because selction of CH16 is always done
when you select one or more channels in
this menu.
35
8 SPECIFICATIONS
General
Frequency range: 154 – 163 MHz
Channel spacing: 25kHz (12.5kHz optional)
Operating temperature range: –20 to +55°C.
Battery life: > 8 hours (Lithium battery,
2W power output, 10-10-80)
> 7 hours (1500mAh NiMH battery,
5W power output, 5-5-90)
Antenna connector: SMA
Microphone connector: 2.5mm jack (Tron TR20 PLUS)
Headset connector: 3.5mm jack (Tron TR20 PLUS)
AF output power internal: >200mW.
AF output power external: >100mW.
Size: 62mm wide x 160mm height x 41mm depth
Weight: Approx. 420g with NiMH battery
Approx. 350g with Lithium battery
Receiver
Maximum usable sensitivity: < 1µV for 20dB SINAD
Adjacent channel rejection: > 70dB
Blocking: > 90dB
Spurious response: > 70dB
Harmonic distortion: < 5%
Intermodulation rejection: > 68dB
Transmitter
RF output power: 1W (Lo) / 5 W (Hi) Tron TR20 PLUS
1W (Lo) / 2 W (Hi) Tron TR20 GMDSS
Harmonics and spurious: < 0.25µW
Frequency error: < ±1.5kHz
Adjacent channel power: < -70dBc
Charger
Dual slot fast charger with trickle charging.
Operates on 12 –24 DC, or 115/230VAC with external mains adapter.
Wall and table mountable.
Size: 155mm wide x 69mm height x 83mm depth
Weight: Approx. 300g
36
9 SPARE PARTS AND ACCESSORIES
P/N Description
• 99930 Tron TR-20 GMDSS, transceiver only
• 99900 Tron TR-20 PLUS, transceiver only
• 80060 Lithium battery, not rechargeable.
• 80059 NiMH 7.2V, 1500mAh rechargeable battery pack
• 99920 Dual slot fast charger for 80059 batteries.
• 80080 Mains adapter for 99920 EURO style
• 80081 Mains adapter for 99920 UK style
• 80082 Mains adapter for 99920 US style
• 80084 DC cable for 99920 (12 – 24 VDC operation)
• 99880 Spare antenna
• 80083 Wrist strap
• 80085 Fist Microphone
• 80364 Carrier case
10 MARITIME VHF CHANNELS
37
Channel TX Int. RX USA RX CAN RX GMDSS
Designators channels
60 156.025 160.625 156.025 160.625
1 156.050 160.650 156.050 160.650
61 156.075 160.675 156.075 156.075
2 156.100 160.700 156.100 160.700
62 156.125 160.725 156.125 156.125
3 156.150 160.750 156.150 160.750
63 156.175 160.775 156.175 160.775
4 156.200 160.800 156.200 156.200
64 156.225 160.825 156.225 160.825
5 156.250 160.850 156.250 156.250
65 156.275 160.875 156.275 156.275
6 156.300 156.300 156.300 156.300 *
66 156.325 160.925 156.325 156.325
7 156.350 160.950 156.350 156.350
67 156.375 156.375 156.375 156.375 *
8 156.400 156.400 156.400 156.400 *
68 156.425 156.425 156.425 156.425 *
9 156.450 156.450 156.450 156.450 *
69 156.475 156.475 156.475 156.475 *
10 156.500 156.500 156.500 156.500 *
70 - - - - DSC
11 156.550 156.550 156.550 156.550 *
71 156.575 156.575 156.575 156.575 *
12 156.600 156.600 156.600 156.600 *
72 156.625 156.625 156.625 156.625 *
13 156.650 156.650 156.650 156.650 *
73 156.675 156.675 156.675 156.675 *
14 156.700 156.700 156.700 156.700 *
74 156.725 156.725 156.725 156.725 *
15 156.750 156.750 156.750 156.750 *
75 - 156.775 156.775
16 156.800 156.800 156.800 156.800 *
76 - 156.825 156.825
M 157.850 157.850 -
M2 161.425 161.425 -
38
The Jotron agent can insert additionally 20 national channels.
Channel TX Int. RX USA RX CAN RX GMDSS
Designators channels
17 156.850 156.850 156.850 156.850 *
77 156.875 156.875 156.875 156.875 *
18 156.900 161.500 156.900 156.900
78 156.925 161.525 156.925 156.925
19 156.950 161.550 156.950 156.950
79 156.975 161.575 156.975 156.975
20 157.000 161.600 161.600 161.600
80 157.025 161.625 157.025 157.025
21 157.050 161.650 157.050 161.650
81 157.075 161.675 157.075 157.075
22 157.100 161.700 157.100 157.100
82 157.125 161.725 157.125 157.125
23 157.150 161.750 157.150 161.750
83 157.175 161.775 157.175 161.775
24 157.200 161.800 161.800 161.800
84 157.225 161.825 161.825 161.825
25 157.250 161.850 161.850 161.850
85 157.275 161.875 161.875 161.875
26 157.300 161.900 161.900 161.900
86 157.325 161.925 161.925 161.925
27 157.350 161.950 161.950 161.950
87 157.375 161.975 161.975 161.975
28 157.400 162.000 162.000 162.000
88 157.425 162.025 157.425 162.025
29 - - 157.450
WX01 - - 162.550
WX02 - - 162.400
WX03 - - 162.475
WX04 - - 162.425
WX05 - - 162.450
WX06 - - 162.500
WX07 - - 162.525
39
Antilles Netherland
*Zenitel Carribbean N.V.
Willemstad, Curacao
Tel +599 9 461 2577
Fax +599 9 461 2723
curacao@zenitel.biz
www.zenitel.biz
Argentina
*Industrial & Naval Group (ING)
Buenos Aires
Tel +54 11 4609 0007
Fax +54 11 4609 0008
info@ingsa.com.ar
www.ingsa.com.ar
Argentina
Signal S.A.
Buenos Aires
Tel +54 11 4251 1167
Fax +54 11 4251 1506
signals@infovia.com.ar
Australia
Rubin Group Pty Ltd
New South Wales
Tel +612 9439 2333
Fax +612 9439 2278
marine@rubin.com.au
www.rubin.com.au
Belgium
*Radio Holland Belgium N.V.
Antwerpen
Tel +32 3 320 99 60
Fax +32 3 320 99 61
info@radioholland.be
www.radioholland.be
Belgium
Radio Holland Belgium N.V.
Zeebrugge
Tel +32 50 55 98 55
Fax +32 50 55 98 56
info@radioholland.be
www.radioholland.be
Brazil
*Metalock do Brasil Ltda
Santos
Tel +55 13 3222 4686
Fax +55 13 3222 4088
santos@metalock.com.br
www.metalock.com.br
Brazil
Belga Marine Electronica Ltd
Rio De Janeiro
Tel +55 21 22537171
Fax +55 21 22335806
belga@belgamarine.com.br
Bulgaria
*Elconsult Ltd.
Varna
Tel +359 52 234 493
Fax +359 52 600 999
elconsult@bulstar.net
Canada
*Atlantic Electronics Limited
Dartmouth, N.S.
Tel +1 902 468 3628
Fax +1 902 468 6646
sales@ael.ca
www.ael.ca
Canada
*Radio Holland (Canada) Ltd.
Vancouver, B.C.
Tel +1 604 293 2900
Fax +1 604 293 2930
rhvancouver@radioholland.ca
Canada
Marine Industriel System Inc.
Quebec
Tel +1 418 692 5005
Fax +1 418 692 1800
Canada
Navcom Marine Inc.
Montreal
Tel +1 450 466 6638
Fax +1 450 466 8829
Canada
Scantech Inc.
Quèbec
Tel +1 472 653 1772
Fax +1 418 652 1258
Canada
Ship's Electronic Services
Nova Scotia
Tel +1 902 861 3022
fax +1 902 860 2547
Chile
*Electronica Holanda Ltda.
Talcahuano
Tel +56 41 541925
Fax +56 41 920117
holanda@entelchile.net
Chile
*Electronic Marine Limitada
Valparaiso
Tel +56 32 22 00 50
fax +56 32 59 31 35
em-mac@entelchile.net
Chile
*Equipos Industriales S.A.C.I.
Santiago
Tel +56 2 634 1232
Fax +56 2 635 4498
eindus@tmm.cl
www.equipos.cl
Chile
Transcontainer S.A.
Valparaiso
Tel +56 32 258061
Fax +56 32 213904
China
*Ningbo Huaying Electronics Co.,
Ltd.
Ningbo
Tel +86 574 87323025
Fax +86 574 87323156
nbsafe@mail.nbptt.zj.cn
China
Fujian Shipping Co.
Fuzhou
Tel +86 591 325990
Fax +86 591 3259716
China
Jason
Shanghai
Tel +86 21 6586 9212
Fax +86 21 6586 0231
China
Radio Holland Hong Kong Co. Ltd.
Shanghai
Tel +86 21 6322 9845
Fax +86 21 6322 9899
radio@uninet.com.cn
www.radiohollandchina.com
Colombia
*ITEC Electronica Maritime Ltda.
Cartagena
Tel +57 5 6633909
Fax +57 5 6633643
itec@ctgred.net.co
www.iteccolombia.com
Croatia
*Belam
Rijeka
Tel +385 5167 2248
Fax +385 5167 2179
belam@ri.tel.hr
Croatia
A.B.E. Inzenjering
Rijeka
Tel +385 51 211 828
Fax +385 51 211 818
abe-inzinjering@ri.tel.hr
DISTRIBUTORS & SERVICE AGENTS OCTOBER 2002. Please look at www.jotron.com for latest update.
* = main agents & distributors
40
Cuba
*Naval & Industrial S.A.
Habana
Tel +53 7 617803
Fax +53 7 617416
navind@transnet.cu
Cyprus
Tototheo Trading Limited
Limassol
Tel +357 25 569 155
Fax +357 25 567 033
totos@tototheo.com.cy
Denmark
*Uni-Safe Electronics AS
København S
Tel +45 325 81615
Fax +45 325 81330
www.unielec.dk
Denmark
Danish Radio & Marine Electronics
Sorø
Tel +45 578 35002
Fax +45 578 31500
danishradio@hotmail.com
Denmark
FLS. Frederikshavn
Frederikshavn
Tel +45 992 22547
Fax +45 992 22550
flsradio@post11.tele.dk
Denmark
Kelvin Hughes A/S
Århus
Tel +45 861 12888
Fax +45 861 12726
service@kelvinhughes.dk
Denmark
Maritek Marine Electronics
Strandby Vends.
Tel +45 984 81250
Fax +45 984 82066
maritek@maritek.dk
Denmark
MT EL-PRO Skibselektronik
Esbjerg
Tel +45 751 23455
Fax +45 751 38408
bjk@monthor.dk
Denmark
Navicom Marine
Svenstrup
Tel +45 983 80047
Fax +45 983 80047
navicom@image.dk
Denmark
Pentagon Electric
Hjortshøj
Tel +45 862 23053
Fax +45 862 29229
mail@pentagon-electric.dk
Denmark
Semco Maritime
Odense S
Tel +45 656 83300
Fax +45 656 83563
lrh@maritime.semco.dk
Denmark
Stella Marine
Frederiksværk
Tel +45 47761213
Fax +45 47761215
stellamarine@get2net.dk
Egypt
*Suez Electronics Free Zone Sae
Alexandria
Tel +20 3 4806899
Fax +20 3 4804196
suezelec@alexnet.com.eg
Equador
*VG Electronica
Guayaquil
Tel +593 4 231 4710
Fax +593 4 256 6400
Manager@vgelectronica.com
www.vgelectronica.com
Estonia
*AS RSTA
Tallinn
Tel +372 6 605850
Fax +372 6605715
rsta@rsta.com
www.rsta.com
Faroe Islands
Gummibådstjenesten
Torshavn
Tel + 298 314913
Fax + 298 310656
gbt@gbt.fo
Finland
*AT-Marine Oy
Vantaa
Tel +358 9 54942600
Fax +358 9 54942700
sales@atmarine.fi
www.atmarine.fi
France
Electronic Equipment (Main office)
Montivilliers
Tel +33 2 32 79 29 60
Fax +33 2 35 20 82 75
France
Electronic Equipment
Marseille
Tel +33 49 1699024
Fax +33 49 1699112
Germany
*Nera GmbH
Hamburg
Tel +49 40 682770
Fax +49 40 68 277 135
Nera.HH@nera.no
Germany
Lammers Schiffselektronik GmbH
Leer
Tel +49 491 66500
Fax +49 491 66831
lseleer@t-online.de
Germany
Telcom Electronics Trade GmbH
Hamburg
Tel +49 40 656 8960
Fax +49 40 656 89777
telcom@telcom-germany.de
www.TELCOM-Germany.de
Germany
Ing.-Büro Querin GmbH
Dollern
Tel +49 4163 811631
Fax +49 4163 811633
www.querin-shipsupply.com
Gibraltar
Sandvik Marine Group
New Harbour
Tel +350 79003
Fax +350 46419
sandvik@gibnet.gi
www.sandvikmarine.com
Greece
*ELINE-A.J.Karageorgis Marine
Hellinico
Tel +30 210 96 46 174/75
Fax +30 210 96 46 178
eline@eline.com.gr
www.eline.com.gr
Greece
*SRH Marine Electronics S.A.
Piraeus
Tel +30 210 411 02 60
Fax +30 210 417 77 84
a.vezyri@srhmar.gr
www.srhmar.com
Greece
Fastnet Radio Ltd
Nea Smyrni - Athens
Tel +30 10 9356516
Fax +30 10 9357088
fastnet@acci.gr
41
Greece
Hellenic Radio Services S.A.
Piraeus
Tel +30 10 41 81 218
Fax +30 10 42 82 883
hrsos@otenet.gr
Greenland
Brand-og redningsmateriel
Godthåb
Tel +299 321336
Fax +299 943140
LarsK@securitas.gl
Greenland
O.S. Electronik
Nuuk
Tel +299 23536
Fax +299 22779
os.electronic@greennet.gl
Hong Kong
*Radio Holland Hong Kong Co. Ltd.
Kwai Chung, NT
Tel +852 2423 9007
Fax +852 2480 5898
rhbvhk@netvigator.com
www.radiohollandhongkong.com
Iceland
*Radiomidun Ltd.
Reykjavik
Tel +354 511 1010
Fax +354 511 1020
office@radiomidun.is
India
*Elektronik Lab
Mumbai
Tel +91 22 24715115
Fax +91 22 24710444
gmelab@boms3.vsnl.net.in
India
Elektronik Lab
Chennai (Madras)
Tel +91 44 24342839
Fax +91 44 24325264
navtek@vsnl.com
India
Elektronik Lab
Port Blair
Tel +91 31 29232308
Fax +91 31 29230896
Ireland
Navcom Electronics Ltd.
Cork
Tel +353 214 354 334
Fax +353 214 354 431
navcom@eircom.net
Ireland
Union Chandlery Ltd.
Cork
Tel +353 21271643
Fax +353 21273426
Italy
*Compagnia Generale Telemar
Roma
Tel +39 063 221800
Fax +39 063 240148
Italy
*Telecom Italia S.p.A.
Roma
Tel +39 06 36881
Fax +39 06 6540 0100 www.tele-
comitalia.it
Italy
Compagnia Generale Telemar
Genova
Tel +39 010 592641
Fax +39 010 5704026
Italy
Compagnia Generale Telemar
Napoli
Tel +39 081 5525901
Fax +39 081 5514601
Italy
Compagnia Generale Telemar
Venezia
Tel +39 041 5227351
Fax +39 041 5210689
Italy
Telecom Italia S.p.A.
Augusta (Sicily)
Tel +39 093 170275
Fax +39 093 1991277
Italy
Telecom Italia S.p.A.
Bari
Tel +39 080 5084602
Fax +39 080 5722303
Italy
Telecom Italia S.p.A.
Genova
Tel +39 010 5973320
Fax +39 010 265097
Italy
Telecom Italia S.p.A.
Napoli
Tel +39 081 7225268
Fax +39 081 7225333
Italy
Telecom Italia S.p.A.
Palermo
Tel +39 091 7508269
fax +39 091 7508270
Italy
Telecom Italia S.p.A.
Taranto
Tel +39 099 4527813
Fax +39 099 4594296
Italy
Telecom Italia S.p.A.
Trieste
Tel +39 040 7788945
Fax +39 040 308375
Italy
Telecom Italia S.p.A.
Venezia
Tel +39 041 5224758
Fax +39 041 5230931
Israel
*Haifa Marine Electronics Ltd
Haifa
Tel +972 48665091
Fax +972 48664982
beldar@netvision.net.il
Japan
*Kaigai Gijyutsu K.K.
Yokohama
Tel +81 45 664 7318
Fax +81 45 664 7320
cs@kgkjp.com
Japan
Kaigai Gijyutsu K.K.
Kobe
Tel +81 78 331 2705
Fax +81 78 331 2703
No E-mail
Korea
*Hanshin Electronics Industrial Co.
Pusan
Tel +82 51412 5551
Fax +82 51412 6660
hsmail@hanshin-elec.com
Korea
*Sky Radio Co. Ltd.
Pusan
Tel +82 51 417 9500
Fax +82 51 415 1400
skyradio@kornet.net
Korea
Jaeun Corporation
Pusan
Tel +82 51 465 8999
Fax +82 51 465 8515
jaeun@jaeun.co.kr
www.jaeun.co.kr
Korea
Total Enterprise Co., Ltd.
Busan
Tel +82 51 405 5333
Fax +82 51 405 2992
totalrdo@kornet.net
42
Kuwait
*Navigator Center
Darwaza
Tel +965 246 0974
Fax +965 246 0975
apvdn@ncc.moc.kw
Latvia
*Hanza Elektronika Sia
Riga
Tel +371 7020450
Fax +371 7325352
hanzael@hanzael.lv
www.hanzael.lv
Latvia
*Reids
Riga
Tel +371 780 1159
Fax +371 780 1158
Latvia
*Riga Shipping
Riga
Tel +371 750 0422
Fax +371 786 0243
riga@shipping.lv
www.shipping.lv
Lithuania
*UAB Laivu Radijo Serviso Biuras
Klaipeda
Tel +370 46 304030
Fax +370 46 342475
service@rsb.lt
www.geomoras.com
Lithuania
UAB Laivo Radijas
Klaipeda
Tel +370 46 312528
Fax +370 46 218053
lrdo@takas.lt
Malaysia
*Radii Electronics Sdn. Bhd.
Klang, Selangor Darul Ehsan
Tel +603 33712214
Fax +603 33712893
radii@po.jaring.my
Malta
Medcomms Ltd.
Gzira
Tel +356 335521
Fax +356 310820
admin@medcomms.com.mt
Mexico
*Nautica S.A. De C.V.
Mexico D.F.
Tel +52 5 651 9740
Fax +52 5 651 2825
nautica@prodigy.net.mx
www.nautica.com.mx
Mexico
Radio Holland Mexico
Veracruz
Tel +52 229 318664
Fax +52 229 310947
rhveracruz@ver.megared.net.mx
Morocco
*Soremar
Casablanca
Tel +212 22 405050
Fax +212 22 248252
soremar@soremar.co.ma
Netherlands
*Radio Holland Marine BV
Rotterdam
Tel +31 10 4283 344
Fax +31 10 4281 498
rhmarine@rhm.nl
www.rhmarine.nl
Netherlands
*Northrop Grumman
Sperry Marine B.V.
Vlaardingen
Tel +31 10 4451 600
Fax +31 10 4346 102
www.litton-marine.com
Netherlands
*Sailtron B.V.
Houten
Tel +31 30 2 840 850
Fax +31 30 2 937 642
sailtron@sailtron.com
Netherlands
Radio Holland Marine BV
Delfzijl
Tel +31 596 633999
Fax +31 596 617995
Netherlands
Radio Holland Marine BV
Den Helder
Tel +31 223 61 20 98
Fax +31 223 61 53 17
Netherlands
Radio Holland Marine BV
Ijmuiden
Tel +31 255 530844
Fax +31 255 515303
Netherlands
Radio Holland Marine BV
Vlissingen
Tel +31 118 471655
New Zealand
Crystal Electronics Ltd.
Penrose, Auckland
Tel +64 9 579 3726
Fax +64 9 525 2687
sales@crystal.co.nz
www.crystal.co.nz
Nigeria
*OC International Limited
Port Harcourt
Tel + 234 84 23 6508
Fax +234 84 23 8822
ocinternational@phca.linkserve.com
Norway
*Arne Bjørnvold
Sandnessjøen
Tel +47 75 04 02 18
Fax +47 75 04 06 40
abjoernv@online.no
Norway
*Arne Wahl Olsen A/S
Rørvik
Tel +47 74 36 09 90
Fax +47 74 36 09 91
rorvik@navy.no
Norway
*Ballstad Radioservice
Ballstad
Tel +47 76 05 44 00
Fax +47 76 05 44 05
trond-o@online.no
Norway
*Brommeland Elektronikk A/S
Haugesund
Tel +47 52 70 32 52
Fax +47 52 71 39 23
skips@brommeland.no
Norway
*AS Elektrisk Mandal
Mandal
Tel +47 38 26 78 10
Fax +47 38 26 78 11
Norway
*Emil Langva A/S
Ålesund
Tel +47 70 10 14 40
Fax +47 70 12 95 96
a.c.langva@emil-langva.no
www.emil-langva.no
Norway
*Florvaag Elektronikk A/S
Ålesund
Tel +47 70 14 76 06
Fax +47 70 14 76 12
florvaa@online.no
www.florvaag.no
Norway
*Furuno Norge A/S
Ålesund
Tel +47 70 10 29 50
Fax +47 70 12 70 21
furuno@furuno.no
www.furuno.no
43
Norway
*Harstad Elektronikk AS
Harstad
Tel +47 77 04 02 00
Fax +47 77 04 02 01
post@harstad-elektronikk.no
Norway
*IMES a/s
Tromsø
Tel +47 77 66 46 00
Fax +47 77 66 46 50
imes@imes.no
www.imes.no
Norway
* J.M. Hansen A/S
Tromsø
Tel +47 77 66 55 00
Fax +47 77 66 55 46
tromso@navy.no
Norway
*Johnsen & Co.
Stokmarknes
Tel +47 76 11 75 50
Fax +47 76 11 75 59
stokmarknes@navy.no
Norway
*Kvinnherad Elektro
Rosendal
Tel +47 53 48 28 00
Fax +47 53 48 28 20
el@kvinnherad-elektro.no
Norway
*Landor Larsen Elektronikk A/S
Stavanger
Tel +47 51 89 44 44
Fax +47 51 89 54 64
landor@o2i.net
www.landorlarsen.no
Norway
*Måløy Radioforretning A/S
Måløy
Tel +47 57 85 26 00
Fax +47 57 85 26 01
radiofor@online.no
Norway
*Neratek as
Oslo
Tel +47 22 76 31 10
Fax +47 22 76 31 11
post@neratek.no
Norway
*Nordkontakt AS
Bodø
Tel +47 75 55 05 00
Fax +47 75 54 88 51
firmapost@nordkontakt.no
www.nordkontakt.no
Norway
*NSI Svein Hatvik AS
Bergen
Tel +47 55 21 22 00
Fax +47 55 21 22 01
Norway
*Sandvik Marine Group
Tjøme (Tønsberg)
Tel +47 33 30 27 80
Fax +47 33 30 27 91
post@osandvik.com
www.sandvikmarine.com
Norway
*O. Øverland AS
Molde
Tel +47 71 20 24 00
Fax +47 71 25 12 14
post@overland.no
www.overland.no
Norway
*Oddstøl Elektronikk A/S
Kristiansund N
Tel +47 71 56 69 30
Fax +47 71 56 69 34
kristiansund@navy.no
www.oddstol.no
Norway
*Radioservice
Båtsfjord
Tel +47 78 98 57 00
Fax +47 78 98 57 20
radioservice@online.no
Norway
*Ramek
Bodø
Tel +47 75 50 21 50
Fax +47 75 50 21 70
bodo@navy.no
Norway
*Sigurd Solberg
Florø
Tel +47 57 75 13 00
Fax +47 57 75 13 10
skips.service@sigsol.no
Norway
*Skanti Radio A/S
Oslo
Tel +47 23 33 80 00
Fax +47 23 33 80 01
post@skantiradio.no
www.skantiradio.no
Norway
*Sletten Electronics A/S
Ålesund
Tel +47 70 10 13 90
Fax +47 70 10 13 99
sletten@navy.no
Norway
*Sveggen Elektromek A/S
Averøy
Tel +47 71 56 67 15
Fax +47 71 56 67 20
j.kristiansen@elmarin.no
Norway
*Total Elektronikk AS
Bodø
Tel +47 75 54 88 88
Fax +47 75 54 88 99
post@total-elektronikk.no
www.total-elektronikk.no
Norway
*Ulstein Elektro A.S
Ulsteinvik
Tel +47 70 01 38 50
Fax +47 70 01 38 70
rolf-petter.almli@ulsteinelektro.com
www.ulsteinelektro.com
Norway
*Unitech Ship Service AS
Porsgrunn
Tel +47 35 56 41 19
Fax +47 35 56 26 13
uni@uss.no
www.uss.no
Norway
*Vico A/S
Avaldsnes
Tel +47 52 84 66 00
Fax +47 52 84 66 01
vico@vico.no
Norway
*Westronic AS
Laksevåg
Tel +47 55 34 49 90
Fax +47 55 34 48 90
mail@westronic.no
www.westronic.no
Panama
*Global Marine Electronic
Panama City
Tel +507 2328190
Fax +5072328169
service@globmarel.com
www.globmarel.com
Panama
*Hi Tek Marine, S.A.
Panama City
Tel +507 229 2488
Fax +507 261 5780
hitek@sinfo.net
Panama
Servitronic, S.A.
Panamá
Tel +507 261 9703
Fax +507 261 9800
aabreu@sinfo.net
Philippines
*Delnet International
Intramuros, Manila
Tel +63 2 522 3947
Fax +63 2 527 6019
delnet@skyinet.net
Poland
*PBP ENAMOR Sp. z o.o.
Gdynia
Tel +48 58 69 01 700
Fax +48 58 69 01 701
enamor@enamor.com.pl
www.enamor.com.pl
Poland
EPA Ltd.
Gdynia
Tel +48 58 622 30 95
Fax +48 58 622 53 68
gdynia@epa.com.pl
Poland
EPA Ltd.
Szczecin
Tel +48 91 487 48 85
Fax +48 91 487 50 14
epa@epa.com.pl
www.epa.com.pl
Portugal
*Sema Electronicas S.A.
Lisboa
Tel +35 121 397 6087
Fax +35 121 390 3739
semalis@mail.esoterica.pt
Portugal
Nautiradar LDA
Lisbon
Tel +351 21 393 1880
Fax +351 21 393 1889
nautiradar@mail.telepac.pt
Portugal
Sema Electronics S.A.
Gafanha da Nazare
Tel +35 234 366 945
Fax +35 234 366 945
semaave@mail.esoterica.pt
Portugal
Sema Electronics S.A.
Matosinhos
Tel +35 229 380 033
Fax +35 229 380 150
semamat@mail.esoterica.pt
Reunion
*Unimar
Le Port
Tel +262 2 62 42 09 45
Fax +262 2 62 43 32 50
unimar.pelloux@wanadoo.fr
Romania
Bams Maritime S.R.L.
Constanta
Tel +40 41 601 822
Fax +40 41 613 517
SMTP.bams.maritime@seanet.ro
Russia
*Era-Service Co. Ltd.
Murmansk
Tel +7 8152 45 13 58
Fax +7 8152 28 66 33
eraserv@an.ru
www.eraservice.ru
Russia
*Norwegian Partners Marine A.S
Vladivostok
Tel +4232 460506
Fax +4232 460506
npm@fastmail.vladivostok.ru
Russia
*Rosmar Ltd.
St.Petersburg
Tel +7812 9658559
Fax +7812 1459644
rosmar@spb.cityline.ru
www.rosmar.ru
Russia
Amur Shipping Company
Khabarovsk
Tel +7 4212 398 203
Fax +7 4212 398 632
Russia
Arctic Shipping
Tiksi
Tel +7 41167 52155
Fax +7 41167 52155
Telegraf@arsco.sakha.ru
Russia
BOF Co. Ltd.
Novorossiysk
Tel +7 8617 61 06 01
Fax +7 8617 61 06 01
bof@nvrsk.ru
Russia
Bossco
Vostochnyy
Tel +7 4266 60809
Fax +7 4266 60809
bossco@vrangel.ru
Russia
Briz - Marine Co. Ltd.
Murmansk
Tel +47 789 10832
Fax +7 8152 451633
Arefiev@bm.murmansk.ru
Russia
Dalryba-PSRZ
Vladivostok
Tel +7 4232 272616
Fax +7 4232 277956
radpsrz@mail.ru
Russia
Eltrans Ltd.
Novorossiysk
Tel +7 8617 24 06 50
Fax +7 8617 24 06 50
eltrs@marsat-south.ru
Russia
Fesco Base Radiocommunication
Dept. Vladivostok
Tel +7 4232 496044
Fax +7 4232 496108
Russia
Gerkon Service
Nakhodka
Tel +7 4266 57576
Fax +7 266 29662
gerkon@online.nakhodka.ru
Russia
JSC "Naviteam"
Vyborg
Tel +7 81278 33116
Fax +7 81278 33116
naviteam@vyborg.ru
Russia
JSC "Vedushiy"
Rostov
Tel +7 8632 442148
Fax +7 8632 442148
vedushiy@aaanet.ru
Russia
KB Vector
Taganrog
Tel +7 8634 44 48 08
Fax +7 8634 33 39 00
Russia
Marine Bridge & Navigation
Systems (MNS)
St.Petersburg
Tel +7 812 320 38 40
Fax +7 812 320 38 48
www.mns.spb.ru
Russia
Morsvyazservis
Khabarovsk
Tel +7 42137 20821
Fax +7 42137 22585
Russia
Norfes
Nakhodka
Tel +7 504 91 52125
Fax +7 266 44964
VTS.NHDK@nhk.infosys.ru
44
Russia
Norfes
Vladivostok
Tel +7 4232 521910
Fax +7 4232 521900
mic@norfes.ru
Russia
Northern River Shipping Lines
Arkhangelsk
Tel +7 8182 41 11 71
Fax +7 8182 41 11 06
nrrad@nrsl.ru
Russia
Novoship Ship Service Centre
Novorossiysk
Tel +7 8617 60 12 02
Fax +7 8617 25 45 33
novsc@novoship.ru
Russia
Omega-5
Vrangel, Primorskiy
Tel +7 4266 60775
Fax +7 4266 60775
omega5@nhk.infosys.ru
Russia
Orient-Electric
Vladivostok
Tel +7 4232 436407
Fax +7 4232 436413
electric@fastmail.vladivostok.ru
Russia
Preobrazhenskay Base of Trawl
Fleet
Preobrazhenie
Tel +7 42377 94307
Fax +7 42377 91284
Russia
Primorsk Shipping Corporation
Nakhodka
Tel +7 4266 42504
Fax +7 4266 94552
klishin@prisco.ru
Russia
Sudoremkomplekt
Kamchatka
Tel +7 4266 42504
Fax +7 4266 94552
klishin@prisco.ru
Russia
The Astrakhan Centre of Comm.
Astrakhan
Tel +7 8512 26 20 50
Fax +7 8512 22 99 41
era@bignet.ru
Saudi Arabia
*Marine Equipment & Services Est.
Jeddah
Tel +966 2 6360112
Fax +966 2637 4128
baboudsaftmarine@naseej.com.sa
Saudi Arabia
*Key Communications Development
Dammam
Tel +966 3 847 3411
Fax +966 3 847 3423
kcddamam@saudionline.com.sa
Singapore
*Radio Holland Singapore Pte. Ltd.
Singapore
Tel +65 8622218
Fax +65 8622430
info@radioholland.com.sg
www.radiohollandsingapore.com
Singapore
*Jason Electronics (Pte) Ltd
Singapore
Tel +65 6 872 0211
Fax +65 6 872 1800
marketing@jason.com.sg
www.jason.com.sg
Singapore
*Reson-Telenav Electronics Pte.
Ltd. Singapore
Tel +65 6872 0863
Fax +65 6872 1334
telenav@mbox2.singnet.com.sg
www.telenav.com
Singapore
*SAAB Marine Electronics
Singapore Pte
Singapore
Tel +65 863 2222
Fax +65 863 2383
service@saabmarine.com.sg
www.saabmarine.com
South Africa
*Radio Holland South Africa
Durban
Tel +27 31 2055309
Fax +27 31 2055541
service@rhdbn.co.za
www.radioholland.co.za
South Africa
Radio Holland South Africa
Cape Town
Tel +27 21511 0864
Fax +27 21511 7577
service@rhcpt.co.za
www.radioholland.co.za
Spain
*Aage Hempel Marine Electronics
Algeciras
Tel +34 956 573 276
Fax +34 956602088
service@aagehempel.com
Spain
*CRAME S.A.
Madrid
Tel +34 91 658 65 08
Fax +34 91 658 65 09
crame@crame.es
www.crame.es
Spain
CRAME, S.A.
Barcelona
Tel +34 93 319 20 02
Fax +34 93 268 46 10
barcelona@crame.es
Spain
CRAME, S.A.
Bilbao
Tel + 34 94 438 8565
Fax + 34 94 438 8702
Spain
CRAME, S.A.
Gijon
Tel +34 985 36 90 45
Fax +34 985 33 85 02
gijon@crame.es
Spain
CRAME, S.A.
Santander
Tel +34 942 22 73 53
Fax +34 942 22 75 54
santander@crame.es
Spain
CRAME, S.A.
Santa Eugenia de Ribeira
Tel +34 981 871429
Fax +34 981 875296
riveira@crame.es
St. Lucia
Regis Electronics (St Lucia) Ltd.
Castries
Tel +1758 4520205
Fax +1758 4520206
stlucia@regiselectronics.com
Sweden
* C A Clase AB
Gøteborg
Tel +46 31 64 72 00
Fax +46 31 53 46 37
info@caclase.se
www.caclase.se
45
Sweden
AME AB
Billdal
Tel +46 31 913102
Fax +46 31 913104
sales@amemarine.com
Sweden
Stockholms Fartygselektriska AB
Stockholm
Tel +46 8 54175557
Fax +46 8 54175557
stockholms.fartygsel@mailbox.se
Sweden
Storm & Co AB
Göteborg
Tel +46 31 513510
Fax +46 31 519378
stormco@swipnet.se
Sweden
Vingtor Marine AB
Askim
Tel +46 31 680450
Fax +46 31 683660
Sweden
Västkustens Elmarin AB
Västra Frölunda
Tel +46 31 7697500
Fax +46 31 7697501
peraxel@vastelmarin.se
Taiwan
*Dragon & Elephant Enterprises Co
Kaohsiung
Tel +886 7 227 2887
Fax +886 7 227 2950
dragon43@ms8.hinet.net
www.dragon-sat-phone.com.tw
Taiwan
*Reson Electronics Int'l Inc.
Kaohsiung
Tel +886 7 815 0036
Fax +886 7 815 1438
reson000@ms16.hinet.net
Thailand
*Natee Corporation (1993) Co.
Bangkok
Tel +662 703 5544
Fax +662 703 5525
info@marinethai.net
Turkey
*Elektro-Deniz Co. Ltd.
Tuzla Istanbul
Tel +90 216 3927729
Fax +90 216 3927733
edel@elektrodeniz.com
Ukraine
*ELCOM Ltd.
Mariupol
Tel +38 629 378 035
Fax +38 050 594 83 85
elcom@mariupol.net
Ukraine
*Transas Ukraine
Nikolaev
Tel +380 512 50 71 16
Fax +380 512 50 71 17
tru@transasua.com
U A E
*Radio-Holland B.V. Middle East
Sharjah
Tel +971 6 5691007
Fax +971 6 5690083
sales@rhme.co.ae
www.rhme.co.ae
U A E
Saab Marine Middle-East
Sharjah
Tel +971 6 557 0740
Fax +971 6 557 0741
saabme@emirates.net.ae
www.saab.tankradar.com
United Kingdom
*Jotron (UK) Ltd.
Cramlington, Northumberland
Tel +44 1670 712000
Fax +44 1670 590265
sales@jotron.co.uk
United Kingdom
Alexian Electronics Marine Ltd.
Edinburgh
Tel +44 131 5542591
Fax +44 131 5550373
United Kingdom
AND Electronic Ltd.
Aberdeen
Tel +44 870 444 9682
Fax +44 870 444 9680
service@andmss.net
www.and-group.com
United Kingdom
AND Electronic Ltd.
Tilbury, Essex
Tel +44 870 444 9682
Fax +44 870 444 9680
service@andmss.net
www.and-group.com
United Kingdom
Broadgate Ltd
Almondsbury, Bristol
Tel +44 1454 618585
Fax +44 1454 617310
United Kingdom
Charity & Taylor Ltd
Lowestoft, Suffolk
Tel +44 1502 581529
Fax +44 1502 588463
United Kingdom
Joss Skelton Limited
Belfast, Northern Ireland
Tel +28 9074 0555
Fax +28 9074 0666
joss.skelton@virgin.net
United Kingdom
Marconi International Co Ltd
Aberdeen
Tel +44 1224 585334
Fax +44 1224 575975
United Kingdom
Marconi International Co Ltd
Falmouth, Cornwall
Tel +44 1326 312855
Fax +44 1326 211337
United Kingdom
Marconi International Co Ltd
Hull
Tel +44 1245 353221
Fax +44 1245 275689
United Kingdom
Marconi International Co Ltd
Birkenhead, Liverpool
Tel +44 151 647 6222
Fax +44 151 647 3374
United Kingdom
Marconi International Co Ltd
Newcastle upon Tyne
Tel +44 191 2327381
Fax +44 191 2331943
United Kingdom
Marconi International Co Ltd
Milford Haven, Pembrokeshire
Tel +44 1646 697954
Fax +44 1646 697954
United Kingdom
Marconi International Co Ltd
Silvertown, London
Tel +44 20 7 5114391
Fax +44 20 7 5114483
United Kingdom
Marconi International Co Ltd
Southampton, Hants
Tel +44 23 80 224767
Fax +44 23 80 333644
United Kingdom
Marconi International Co Ltd
Lowestoft, Suffolk
Tel +44 1502 572365
Fax +44 1502 508955
46
United Kingdom
Marine Electronic Supplies
Southampton, Hants
Tel +44 2380 663316
Fax +44 2380 663241
United Kingdom
Mark Electronics
Lymington, Hants
Tel +44 1590 671144
Fax +44 1590 679517
United Kingdom
Nationwide Marine Hire
Warrington, Cheshire
Tel +44 1925 245788
Fax +44 1925 245788
nationwide.liferaft@virgin.net
United Kingdom
Premium Liferaft Services
Burnham-on-Crouch, Essex
Tel +44 1621 784858
Fax +44 1621 785934
United Kingdom
Radio Electronic Service Ltd
St. Peters Port, Guernsey
Tel +44 1481 728837
Fax +44 1481 7143794
United Kingdom
Ships Electronic Services
Grangemouth, Stirlingshire
Tel +44 1324 666886
Fax +44 1324 666033
United Kingdom
Ships Electronic Services
Jarrow, Tyne & Wear
Tel +44 191 4832236
Fax +44 191 4832331
name?@ships-electronics.com
United Kingdom
Ships Electronoic Services Ltd
Rochester, Kent
Tel +44 1634 295500
Fax +44 1634 295536
United Kingdom
SM Group (Europe) Ltd
Sutton Harbour, Plymouth
Tel +44 1752 66599
Fax +44 1752 222717
United Kingdom
TDC (Aberdeen) Limited
Aberdeen
Tel +44 1224 710077
Fax +44 1224 710077
United Kingdom
T.S.A Communications Limited
Birkenhead, Merseyside
Tel +44 151 6478100
Fax +44 151 6478120
United States
*High Seas Trading Co.
Miami, FL
Tel +1 305 3587455
Fax +1 305 350 6887
hstmiami@aol.com
United States
*Mackay Marine
Houston, TX
Tel +1 713 644 9246
Fax +1 713 645 1174
houston@mackaycomm.com
www.mackaycomm.com
United States
*Radio Holland USA Inc.
Houston, TX
Tel +1 713 378 2100
Fax +1 713 378 2101
rhhoustonsales@radiohollandusa.co
m
www.radiohollandusa.com
United States
Mackay Marine
Edison, NJ
Tel +1 732 225 4089
Fax +1 732 225 4959
edison@mackaymarine.com
www.mackaycomm.com
United States
Mackay Marine
Harahan, LA
Tel +1 504 733 5824
Fax +1 504 734 8535
nola@mackaymarine.com
www.mackaycomm.com
United States
Mackay Marine
Miami, FL
Tel +1 305 591 3399
Fax +1 305 591 1879
miami@mackaycomm.com
www.mackaycomm.com
United States
Mackay Marine
Richmond, CA
Tel +1 510 669 9560
Fax +1 510 669 9562
sf@mackaymarine.com
www.mackaycomm.com
United States
Mackay Marine
Tacomma, WA
Tel +1 253 922 6260
Fax +1 253 922 6619
seattle@mackaymarine.com
www.mackaycomm.com
United States
Mackay Marine
Tampa, FL
Tel +1 813 248 8137
Fax +1 813 267 6082
tampa@mackaymarine.com
www.mackaycomm.com
United States
Mackay Marine
Thunderbolt, GA
Tel +1 912-354-4542
Fax +1 912-356-1249
savannah@mackaymarine.com
www.mackaycomm.com
United States
Mackay Marine
Vancouver, NW
Tel +1 360 573 7991
Fax +1 360 573 5074
portland@mackaymarine.com
www.mackaycomm.com
United States
Radio Holland USA Inc.
Corpus Christi, TX
Tel +1 361 883 5283
Fax +1 361 883 5285
rhcorpuschristi@radiohollandusa.com
www.radiohollandusa.com
United States
Radio Holland USA Inc.
Hollywood, FL
Tel +1 954 920 8400
Fax +1 954 920 8455
rhnmiami@radiohollandusa.com
www.radiohollandusa.com
United States
Radio Holland USA Inc.
Kenilworth, NJ
Tel +1 908 298 9100
Fax +1 908 298 9118
rhnewyork@radiohollandusa.com
www.radiohollandusa.com
United States
Radio Holland USA Inc.
Long Beach, CA
Tel +1 562 535 0039
Fax +1 562 988 0236
rhlongbeach@radiohollandusa.com
www.radiohollandusa.com
47
United States
Radio Holland USA Inc.
Harahan, LA
Tel +1 504 7334024
Fax +1 504 7334027
rhneworleans@radiohollandusa.com
www.radiohollandusa.com
United States
Radio Holland USA Inc.
Seattle, WA
Tel +1 206 768 1601
Fax +1 206 768 1603
rhseattle@radiohollandusa.com
www.radiohollandusa.com
United States
Radio Holland USA Inc.
Chesapeake, VA
Tel +1 757 436 2360
Fax +1 757 436 4809
rhnorfolk@radiohollandusa.com
www.radiohollandusa.com
United States
Radio Holland USA, Inc.
Mobile, AL
Tel +1 334 432 3109
Fax +1 334 433 8223
rhmobile@radiohollandusa.com
www.radiohollandusa.com
Uruguay
*Electromarítima Uruguaya Ltda
Montevideo
Tel +598 2 924 7789
Fax +598 2 924 7138
electrom@internet.com.uy
Venezuela
*Radio Marina de Venezuela S.A.
Maracaibo
Tel +58 261 7987811
Fax +58 261 7982596
rhvmbo@telcel.net.ve
48
