MP-620 Installation Guide
ii
© 2006 Trapeze Networks, Inc. All rights reserved.
Trademarks
Trapeze Networks, the Trapeze Networks logo, the Trapeze Networks flyer icon, Mobility System, Mobility
Exchange, MX, Mobility Point, MP, Mobility System Software, MSS, RingMaster, AAA Integration and
RADIUS Scaling, ActiveScan, AIRS, Bonded Auth, FastRoaming, Granular Transmit Power Setting, GTPS,
GuestPass, Layer 3 Path Preservation, Location Policy Rule, LPR, Mobility Domain, Mobility Profile,
Passport-Free Roaming, SentryScan, Time-of-Day Access, TDA, TAPA, Trapeze Access Point Access
Protocol, Virtual Private Group, VPG, Virtual Service Set, Virtual Site Survey and WebAAA are trademarks
of Trapeze Networks, Inc. Trapeze Networks SafetyNet is a service mark of Trapeze Networks, Inc. All other
products and services are trademarks, registered trademarks, service marks or registered service marks of their
respective owners.
Disclaimer
All statements, specifications, recommendations, and technical information are current or planned as of the
date of the publication of this document. They are reliable as of the time of this writing and are presented
without warranty of any kind, expressed or implied. In an effort to continuously improve the product and add
features, Trapeze Networks reserves the right to change any specifications contained in this document without
prior notice of any kind.
Comments and Feedback
Your feedback on Trapeze documentation is important to us. Send any comments and suggestions to
doc-bugs@trapezenetworks.com.
For the most current version of this document, see www.trapezenetworks.com.
Note. The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user’s authority to operate the equipment.
Trapeze Networks, Inc.
5753 W. Las Positas Blvd.
Pleasanton, CA 94588
Tel: +1 925-474-2200
Fax: +1 925-251-0642
Toll-Free: 877-FLY-TRPZ (877-359-8779)
www.trapezenetworks.com
iii
Customer Service
For general information about Trapeze Networks Mobility System™ products and
services, visit www.trapezenetworks.com. For warranty, license, and support
information, visit the following sites:
●Warranty and software licenses. Current Trapeze Networks warranty and
software licenses are available at www.trapezenetworks.com/services/
warranty.asp.
●Support services. For information about Trapeze support services, visit
www.trapezenetworks.com/services/. Or call 1-866-877-9822 (in the US or
Canada) or +1 925-474-2400 and select option 5.
Contacting the Technical Assistance Center
Contact the Trapeze Networks Technical Assistance Center (TAC) by telephone,
email, or fax. If you have a service contract or are a Trapeze Authorized Partner,
log in to www.trapezenetworks.com/services/sup_programs.asp for more help.
●Within the US and Canada, call 1-866-TRPZTAC (1-866-877-9822).
●Within Europe, call +31 35 64 78 193.
●From locations outside the US and Canada, call +1 925-474-2400.
●In non-emergencies, send email to support@trapezenetworks.com.
●When your case is active, you can fax more information to +1 925-474-2423.
Note. TRAPEZE NETWORKS SELLS AND SERVICES ITS PRODUCTS PRIMARILY
THROUGH ITS AUTHORIZED RESELLERS AND DISTRIBUTORS. If you purchased
your product from an authorized Trapeze reseller or distributor and do not have
a service contract with Trapeze Networks, you must contact your local reseller
or distributor for technical assistance.
Trapeze MP-620 Installation Guide
iv
TAC Response Time
TAC responds to service requests as follows:
Information to Have Available
To expedite your service request, have the following information available when
you call or write to TAC for technical assistance:
●Your company name and address
●Your name, telephone number, cell phone or pager number, and email address
●Name, model, and serial number of the product(s) requiring service
●Software version and release number
●Output of the show tech-support command
●Wireless client information
●License levels for RingMaster™ and Mobility Exchange™ (MX™) products
●Description of the problem and status of the troubleshooting effort
Contact
method Priority Response time
Telephone Emergency One hour
Non-emergency Next business day
Email Non-emergency Next business day
Contents v
Contents
Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
1 Introducing the Trapeze Networks Mobility System . . . . . . . . . . . . . . . . 1
Trapeze Networks Mobility System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety and Advisory Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Text and Syntax Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 MP-620 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Hardware Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Package Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
External Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
External Antenna Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Ethernet Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Power Injector Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Receive Signal Strength Indicator (RSSI) BNC Connector . . . . . . . . . . 12
Grounding Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Wall- and Pole-Mounting Bracket Kits . . . . . . . . . . . . . . . . . . . . . . . . . 12
Lightning Protector for Oudoor Antenna . . . . . . . . . . . . . . . . . . . . . . . . 12
System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3 Installing and Connecting an MP-620 Access Point . . . . . . . . . . . . . . . . 15
Installation Requirements and Recommendations . . . . . . . . . . . . . . . . . . . . 15
RingMaster Network Plan and Work Orders . . . . . . . . . . . . . . . . . . . . . 15
MX Switch Recommendation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Weather Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Ethernet Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
MP Radio Safety Advisories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Radio Frequency Exposure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Trapeze MP-620 Installation Guide
vi
Additional Radio Safety Advisories . . . . . . . . . . . . . . . . . . . . . . . . 18
Installing an MP-620 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Mounting the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Using the Pole-Mounting Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Using the Wall-Mounting Bracket . . . . . . . . . . . . . . . . . . . . . . . . . 21
Connecting External Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Connecting Cables to the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Connecting the Power Injector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Connecting an MP to an MX Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
A MP-620 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
MP-620 Mechanical and Compliance Specifications . . . . . . . . . . . . . . . . . . 30
Federal Communication Commission Interference Statement . . . . . . . . . . . 31
MAC Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Antenna Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
8 dBi Omnidirectional (2.4 GHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
8 dBi Omnidirectional (5 GHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
13.5 dBi 120-Degree Sector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
10 dBi 120-Degree Sector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
18 dBi 18-Degree Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Signal Loss from Lightning Protector and Coaxial Cable . . . . . . . . . . . 41
B Cables and Pinouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Twisted-Pair Cable Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
10/100BASE-TX Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Straight-Through Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Crossover Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
8-Pin DIN Connector Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
8-Pin DIN to RJ-45 Cable Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Introducing the Trapeze Networks Mobility System
1
1
Introducing the Trapeze
Networks Mobility System
This guide shows you how to install a Trapeze Networks™ Mobility Point™
(MP™) access point, model MP-620, in a Trapeze Networks Mobility System™
wireless LAN (WLAN). The MP-620 is suitable for installation outdoors.
Read this guide if you are a network administrator or other person installing MP
access points in a network.
Trapeze Networks Mobility System
The Trapeze Networks Mobility System is an enterprise-class WLAN solution
that seamlessly integrates with an existing wired enterprise network. The Trapeze
system provides secure connectivity to both wireless and wired users in large
environments such as office buildings, hospitals, and university campuses.
The Trapeze Mobility System fulfills the three fundamental requirements of an
enterprise WLAN: it eliminates the distinction between wired and wireless
networks, allows users to work safely from anywhere (secure mobility), and
provides a comprehensive suite of intuitive tools for planning and managing the
network before and after deployment, greatly easing the operational burden on IT
resources.
Trapeze Networks Mobility System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Documentation
Chapter 1
Trapeze MP-620 Installation Guide
2
The Trapeze Networks Mobility System consists of the following components:
●RingMaster tool suite—A full-featured graphical user interface (GUI)
application used to plan, configure, deploy, and manage a WLAN and its
users
●One or more Mobility Exchange™ (MX™) switches—Distributed,
intelligent machines for managing user connectivity, connecting and
powering Mobility Point (MP) access points, and connecting the WLAN to
the wired network backbone
●Multiple Mobility Point™ (MP™) access points—Wireless access points
(APs) that transmit and receive radio frequency (RF) signals to and from
wireless users and connect them to an MX switch
●Mobility System Software™ (MSS™)—The operating system that runs all
MX switches and MP access points in a WLAN, and is accessible through a
command-line interface (CLI), the Web View interface, or the RingMaster
GUI
Documentation
Consult the following documents to plan, install, configure, and manage a Trapeze
Networks Mobility System.
Planning, Configuration, and Deployment
Trapeze RingMaster User’s Guide. Instructions for planning, configuring,
deploying, and managing the entire WLAN with the RingMaster tool suite. Read
this guide to learn how to plan wireless services, how to configure and deploy
Trapeze equipment to provide those services, and how to optimize and manage
your WLAN.
Trapeze RingMaster Reference Manual. Detailed instructions and information for
all RingMaster planning, configuration, and management features.
Documentation
Chapter 1
Introducing the Trapeze Networks Mobility System
3
Installation
●Trapeze Mobility Exchange Hardware Installation Guide. Instructions and
specifications for installing an MX switch
●Trapeze Mobility System Software Quick Start Guide. Instructions for
performing basic setup of secure (802.1X) and guest (WebAAA™) access,
and for configuring a Mobility Domain for roaming
●Trapeze Mobility Point MP-372 Installation Guide. Instructions and
specifications for installing an MP access point and connecting it to an MX
switch
●Trapeze Mobility Point MP-620 Installation Guide (this document).
Instructions and specifications for installing the MP-620 access point and
connecting it to an MX switch
●Trapeze Regulatory Information. Important safety instructions and
compliance information that you must read before installing Trapeze
Networks products
Configuration and Management
●Trapeze RingMaster Reference Manual. Instructions for planning,
configuring, deploying, and managing the entire WLAN with the RingMaster
tool suite
●Trapeze Mobility System Software Configuration Guide. Instructions for
configuring and managing the system through the MSS CLI
●Trapeze Mobility System Software Command Reference. Functional and
alphabetic reference to all MSS commands supported on MX switches and
MP access points
Documentation
Chapter 1
Trapeze MP-620 Installation Guide
4
Safety and Advisory Notices
The following kinds of safety and advisory notices appear in this manual. (For
translations of the warning conventions and of all warnings in this manual, see the
Trapeze Regulatory Information document.)
Caution! This situation or condition can lead to data loss or damage to the
product or other property.
Warning! This situation or condition can cause injury.
Warning! High voltage. This situation or condition can cause injury due to
electric shock.
Warning! Radiation. This situation or condition can cause injury due to
improper handling of fiber-optic equipment.
Note. This information is of special interest.
Documentation
Chapter 1
Introducing the Trapeze Networks Mobility System
5
Text and Syntax Conventions
Trapeze manuals use the following text and syntax conventions:
Convention Use
Monospace text Sets off command syntax or sample commands and
system responses.
Bold text Highlights commands that you enter or items you
select.
Italic text Designates command variables that you replace
with appropriate values, or highlights publication
titles or words requiring special emphasis.
Menu Name > Command Indicates a menu item that you select. For example,
File > New indicates that you select New from the
File menu.
[ ] (square brackets) Enclose optional parameters in command syntax.
{ } (curly brackets) Enclose mandatory parameters in command syntax.
| (vertical bar) Separates mutually exclusive options in command
syntax.
Documentation
Chapter 1
Trapeze MP-620 Installation Guide
6
MP-620 Overview
7
2
MP-620 Overview
A Trapeze Networks Mobility Point (MP) access point model MP-620 provides
IEEE 802.11 wireless access to the network. MP access points are designed for
use with a Trapeze Networks Mobility Exchange (MX) switch. MP access points
require hardware installation only. All configuration for an MP access point takes
place on the MX switch.
Hardware Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
External Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Warning! Installation must be performed by qualified service personnel only.
Read and follow all warning notices and instructions marked on the product or
included in the documentation. Before installing the product, read the Trapeze
Regulatory Information document.
Note. The MP radios are disabled by default and can be enabled only by a
system administrator using the MX switch.
Hardware Overview
Chapter 2
Trapeze MP-620 Installation Guide
8
Hardware Overview
The MP-620 provides wireless access point services for clients in the local LAN
area. It is housed in a weatherproof enclosure for mounting outdoors and includes
its own brackets for attaching to a wall, pole, radio mast, or tower structure. The
unit is powered through its Ethernet cable connection from a power injector
module that is installed indoors.
Radio Characteristics – The IEEE 802.11a and 802.11g standards use a radio
modulation technique known as Orthogonal Frequency Division Multiplexing
(OFDM), and a shared collision domain (CSMA/CA). The 802.11a standard
operates in the 5 GHz Unlicensed National Information Infrastructure (UNII)
band, and the 802.11g standard in the 2.4 GHz band.
IEEE 802.11g includes backward compatibility with the IEEE 802.11b standard.
IEEE 802.11b also operates at 2.4 GHz, but uses Direct Sequence Spread
Spectrum (DSSS) and Complementary Code Keying (CCK) modulation
technology to achieve a communication rate of up to 11 Mbps.
The MP-620 provides a 54 Mbps half-duplex connection for each active channel.
Package Checklist
The MP-620 package includes:
●One MP-620 Mobility Point (MP) access point
●One Category 5 network cable, length 164 ft (50 m)
●One power injector module and power cord
●Outdoor pole-mounting bracket kit
●This User Guide
●Optional: Two N-type RF coaxial cables
●Optional: Outdoor wall-mounting bracket kit
●Optional: Lightning protector for outdoor antenna
Contact Trapeze Networks if there are any incorrect, missing or damaged parts. If
possible, retain the carton, including the original packing materials. Use them
again to repack the product in case there is a need to return it.
External Hardware Features
Chapter 2
MP-620 Overview
9
External Hardware Features
Figure 1 and Figure 2 show the external hardware features of the MP-620.

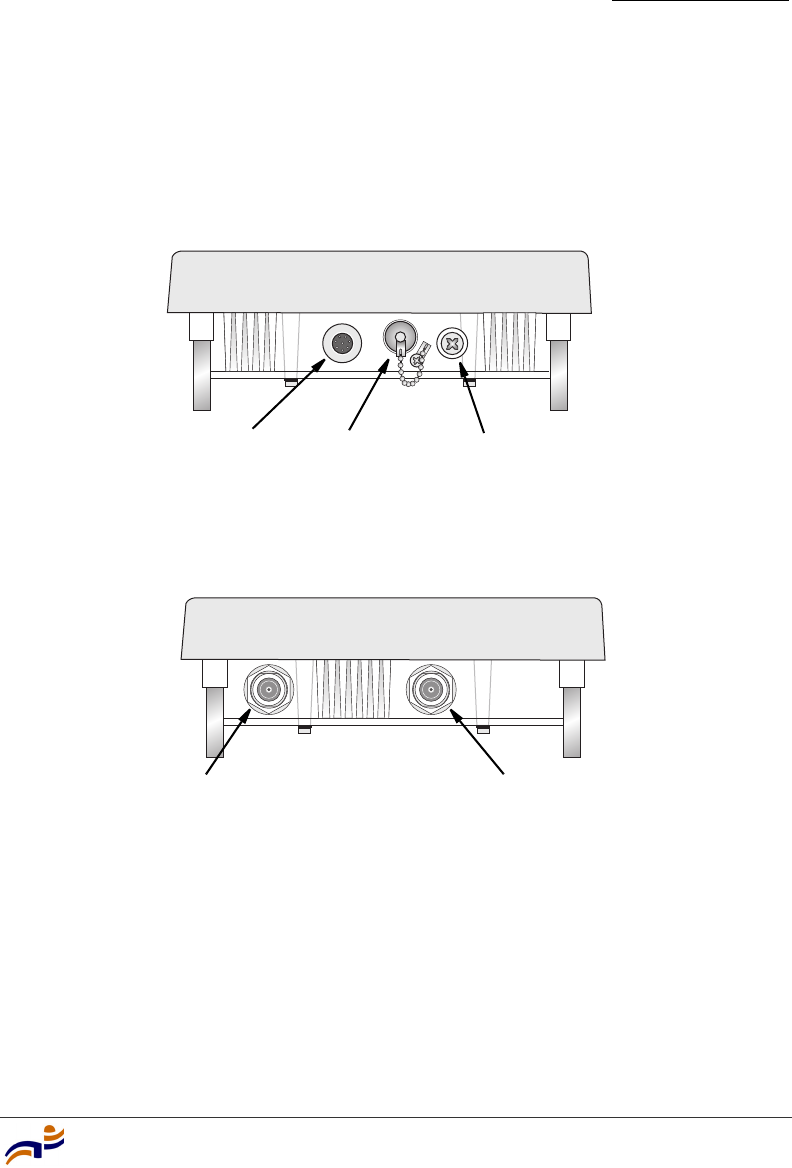

Figure 1. MP Access Point Model MP-620—Bottom View
Figure 2. MP Access Point Model MP-620—Top View
External Antenna Options
The MP-620 unit does not include an integrated antenna, but provides various
external antenna options for both 5 GHz and 2.4 GHz operation. The MP-620 unit
both requires the 2.4 GHz 8 dBi omnidirectional external antenna for 2.4 GHz
operation. The following table summarizes the external antenna options:
Ethernet Port RSSI Connector with
Protective Cap
Grounding Point
Screw
N-Type External
Antenna Connector
(2.4 GHz)
N-Type External
Antenna Connector
(5 GHz)
External Hardware Features
Chapter 2
Trapeze MP-620 Installation Guide
10
External antennas connect to the N-type RF connectors on the MP-620 using the
provided coaxial cables.
Ethernet Port

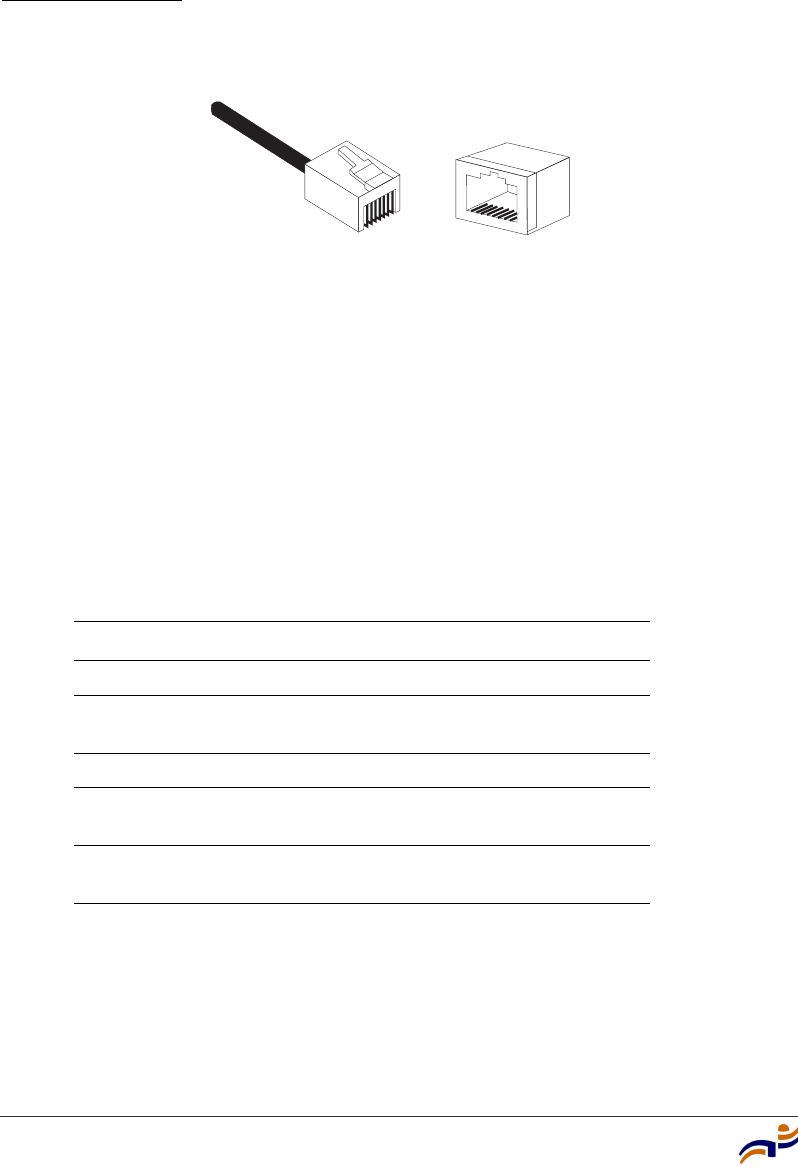

The MP-620 has one 10BASE-T/100BASE-TX 8-pin DIN port that connects to
the power injector module using the included Ethernet cable. The Ethernet port
connection provides power to the MP-620 as well as a data link to the local
network.

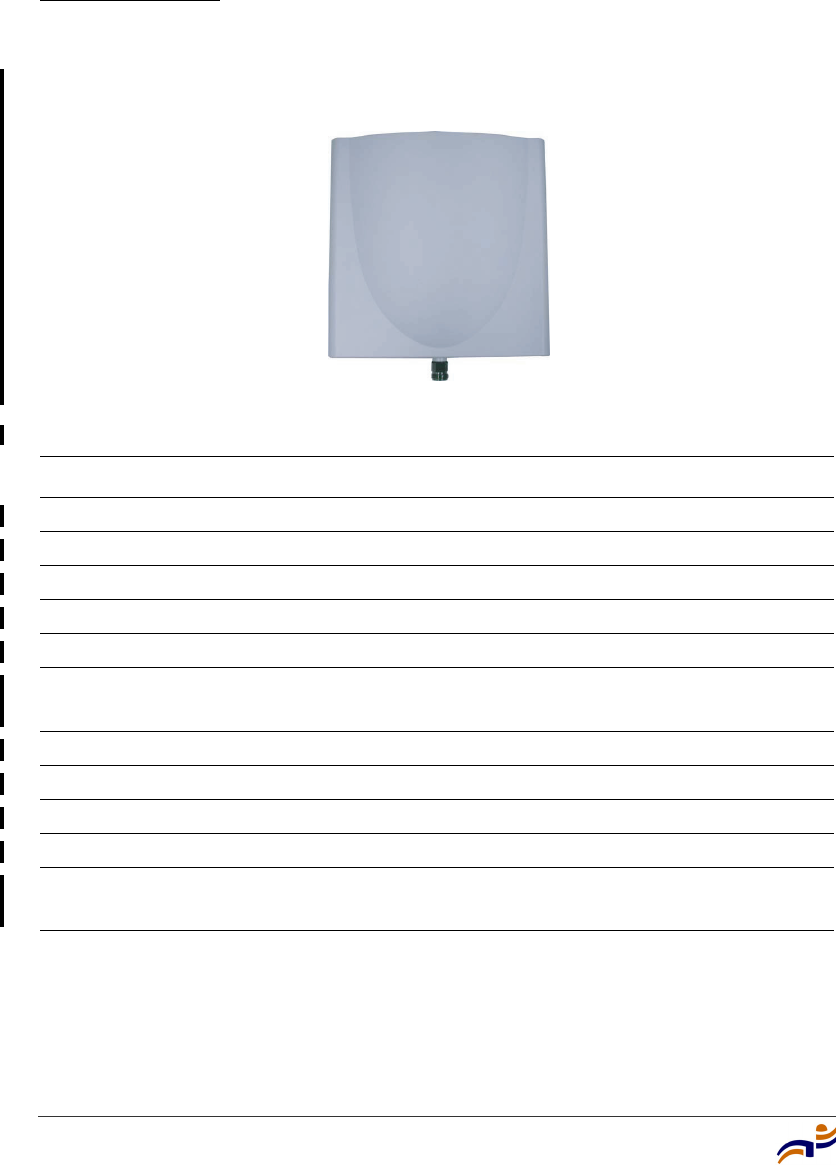

Table 1. External Antenna Options
Antenna Type Gain (dBi) HPBW*
Horizontal
HPBW*
Vertical Polarization
5 GHz
Omnidirectional
8 360 12 Linear,
vertical
5 GHz
120-Degree
Sector
13.5 120 6 Linear,
vertical
5 GHz
18-Degree Panel
18 18 18 Linear,
vertical
2.4 GHz
120-Degree
Sector
10 120 15 Linear,
vertical
2.4 GHz
Omnidirectional
8 360 15 Linear,
vertical
* Half-power beam width in degrees
Note. The power injector module does not support Power over Ethernet (PoE)
based on the IEEE 802.3af standard. The MP-620 must always be powered on
by being connected to the power injector module.
External Hardware Features
Chapter 2
MP-620 Overview
11
Power Injector Module
The MP-620 receives power through its network cable connection using
power-over-Ethernet technology. A power injector module is included in the
MP-620 package and provides two RJ-45 Ethernet ports, one for connecting to the
MP-620 (Output), and the other for connecting to an MX switch or a local LAN
switch (Input).
The Input port uses an MDI (i.e., internal straight-through) pin configuration. You
can therefore use straight-through twisted-pair cable to connect this port to most
network interconnection devices such as a switch or router that provide MDI-X
ports. However, when connecting the access point to a workstation or other device
that does not have MDI-X ports, you must use crossover twisted-pair cable.

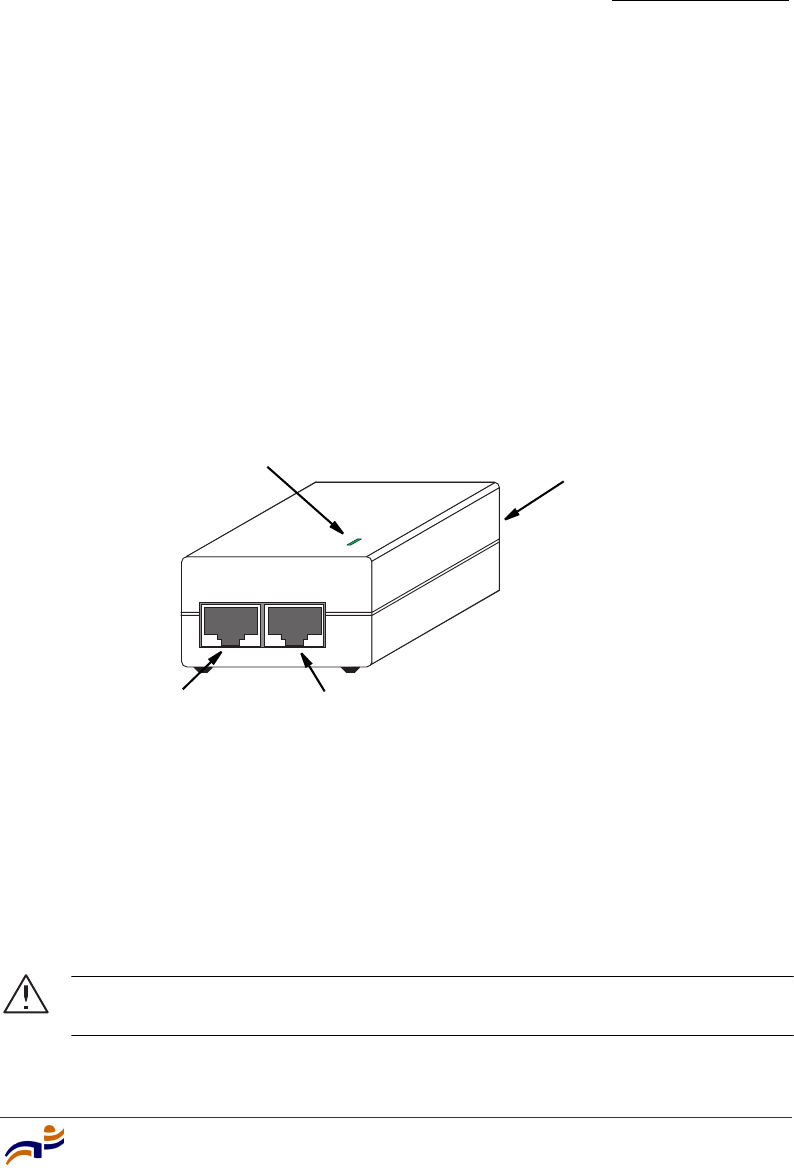

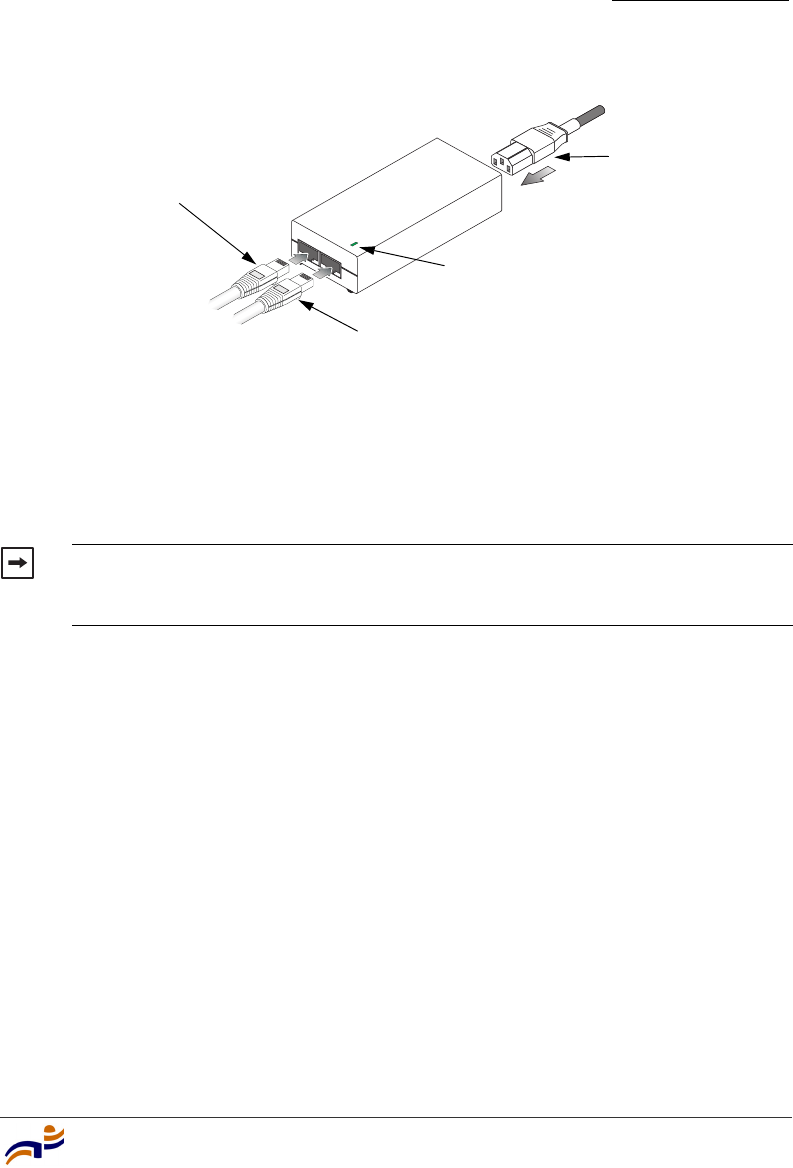

Figure 3. Power Injector Module
The MP-620 does not have a power switch. It is powered on when its Ethernet
port is connected to the power injector module, and the power injector module is
connected to an AC power source. The power injector includes one LED indicator
that turns on when AC power is applied.
The power injector module automatically adjusts to any AC voltage between
100-240 volts at 50 or 60 Hz. No voltage range settings are required.
Warning! The power injector module is designed for indoor use only. Never
mount the power injector outside with MP-620 unit.
Input Output
Ethernet and Power to
MP-620
LED Indicator
AC Power Socket
(Hidden)
Ethernet from
Local Network
System Configuration
Chapter 2
Trapeze MP-620 Installation Guide
12
Receive Signal Strength Indicator (RSSI) BNC
Connector
This connector is unused at this time.
Grounding Point
Even though the MP-620 includes its own built-in lightning protection, it is
important that the unit is properly connected to ground. A grounding screw is
provided for attaching a ground wire to the unit.
Wall- and Pole-Mounting Bracket Kits
The MP-620 includes bracket kits that can be used to mount the unit to a wall,
pole, radio mast, or part of a tower structure.
Lightning Protector for Oudoor Antenna
If you are using the MP-620 with an outdoor antenna, Trapeze Networks
recommends installing an external lightning protector for the antenna.
System Configuration
At each location where an MP-620 unit is installed, it must be connected to the
local network using the power injector module. The following figure illustrates
the system component connections.
Features and Benefits
Chapter 2
MP-620 Overview
13

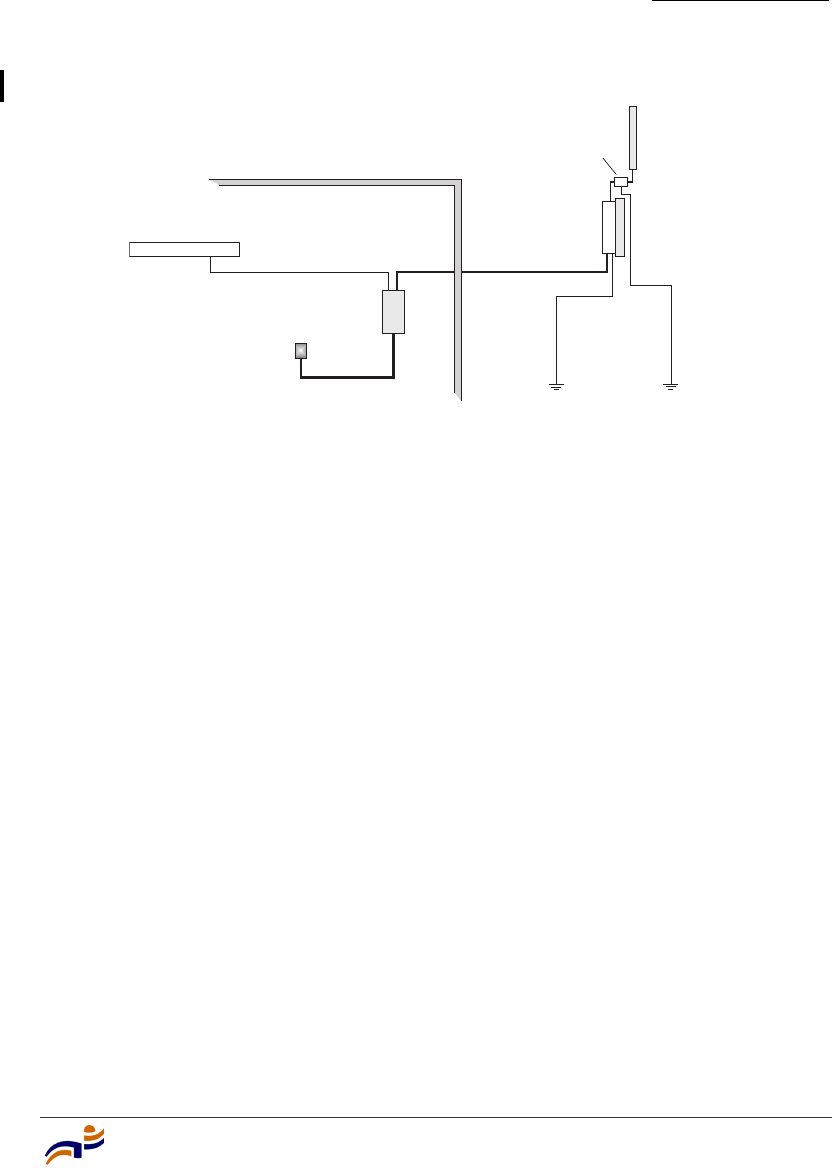

Figure 4. System Component Connections
Features and Benefits
The MP-620 provides the following features and benefits:
●The MP-620 supports access point services for the 5 GHz and 2.4 GHz radios
using various external antenna options
●Maximum data rate up to 108 Mbps on the 802.11a (5 GHz) radio
●Outdoor weatherproof design
●IEEE 802.11a and 802.11b/g compliant
●Local network connection via 10/100 Mbps Ethernet port
●Powered through its Ethernet cable connection to the power injector module
●Includes wall- and pole-mount brackets
●Security through 64/128/152-bit Wired Equivalent Protection (WEP) or
128-bit Advanced Encryption Standard (AES) encryption
●Scans all available channels and selects the best channel and data rate based
on the signal-to-noise ratio
Indoor Outdoor
LAN Switch
AC Power
Power
Injector
MP-620 Unit
Ground Wire
Ethernet Cable Ethernet Cable
External Antenna
RF Coaxial Cable
Lightning
Protector
Features and Benefits
Chapter 2
Trapeze MP-620 Installation Guide
14
Installing and Connecting an MP-620 Access Point
15
3
Installing and Connecting
an MP-620 Access Point
Installation Requirements and
Recommendations
For best results, follow these requirements and recommendations before installing
an MP-620 access point.
RingMaster Network Plan and Work Orders
If you are using RingMaster to plan your Trapeze Networks Mobility System
installation, you might want to create and verify a network plan for the entire
Trapeze network installation and generate an MP work order, before installing MP
access points. A network plan and the MP work orders generated from it provide
the following information about MP access point installation and configuration:
Installation Requirements and Recommendations . . . . . . . . . . . . . . . . . . . . . 15
Installing an MP-620 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Connecting an MP to an MX Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Note. Before installing an MP access point, you might need to generate a
network plan and an MP work order with RingMaster. (See “RingMaster Network
Plan and Work Orders” on page 15.)
Installation Requirements and Recommendations
Chapter 3
Trapeze MP-620 Installation Guide
16
●Number of MP access points required for adequate WLAN capacity in each
coverage area
●Detailed installation location for each MP access point
●Settings for all MP access points in the WLAN
(For information about installing RingMaster, creating and verifying a network
plan, and generating an MP work order, see the Trapeze RingMaster User’s Guide
and Trapeze RingMaster Reference Manual.)
MX Switch Recommendation
Trapeze Networks recommends that you install and configure the MX switch
before installing an MP access point. If the switch is already installed and
configured for the MP access point(s), you can immediately verify the cable
connection(s) when you plug the cable(s) into the MP access point.
(For information about connecting an MP access point to an MX switch port, see
“Connecting an MP to an MX Switch” on page 25.)
Weather Conditions
When planning an MP-620 installation, you must take into account any extreme
weather conditions that are known to affect your location. Consider these factors:
●Temperature — The MP-620 is tested for normal operation in temperatures
from -33°C to 55°C. Operating in temperatures outside of this range may
cause the unit to fail.
●Wind Velocity — The MP-620 can operate in winds up to 90 MPH and
survive higher wind speeds up to 125 MPH. You must consider the known
maximum wind velocity and direction at the site and be sure that any
supporting structure, such as a pole, mast, or tower, is built to withstand this
force.
Caution! MP model MP-620 is designed to receive power only from a
Trapeze-approved power injector. Connecting an MP access point to a Power
over Ethernet (PoE) device that is not approved by Trapeze Networks can
damage the equipment.
Installation Requirements and Recommendations
Chapter 3
Installing and Connecting an MP-620 Access Point
17
●Lightning — The MP-620 includes its own built-in lightning protection.
However, you should make sure that the unit, any supporting structure, and
cables are all properly grounded. Additional protection using lightning rods,
lightning arrestors, or surge suppressors may also be employed.
●Rain — The MP-620 is weatherproofed against rain. Also, prolonged heavy
rain has no significant effect on the radio signal. However, it is recommended
to apply weatherproof sealing tape around the Ethernet port and antenna
connectors for extra protection. If moisture enters a connector, it may cause a
degradation in performance.
●Snow and Ice — Falling snow, like rain, has no significant effect on the radio
signal. However, a build up of snow or ice on antennas may cause a
degradation in performance. In this case, the snow or ice has to be cleared
from the antennas to restore proper operation of the unit.
Ethernet Cabling
When you have determined a suitable location for the MP-620, you must plan a
cable route from the MP-620 outdoors to the power injector module indoors.
Consider these points:
●The Ethernet cable length should never be longer than 100 m (328 ft)
●Determine a building entry point for the cable
●Determine if conduits, bracing, or other structures are required for safety or
protection of the cable
●For lightning protection at the power injector end of the cable, consider using
a lightning arrestor immediately before the cable enters the building
Grounding
It is important that the MP-620 unit, cables, lightning protectors, and any
supporting structures are properly grounded. The MP-620 unit includes a
grounding screw for attaching a ground wire. Be sure that grounding is available
and that it meets local and national electrical codes.
Installation Requirements and Recommendations
Chapter 3
Trapeze MP-620 Installation Guide
18
MP Radio Safety Advisories
When you enable the MP radio(s) as part of MX switch configuration, the radios
are able to receive and transmit radio frequency energy as soon as you connect the
MP access point(s) to the MX switch, either directly or through the network.
Radio Frequency Exposure
Federal Communications Commission (FCC) Docket 96-8 for Spread Spectrum
Transmitters specifies a safety standard for human exposure to radio frequency
electromagnetic energy emitted by FCC-certified equipment. When used with the
proper antennas (shipped in the product), Trapeze Networks MP access point
products meet the uncontrolled environmental limits found in OET-65 and
ANSI C95.1-1991. Proper installation of the MP access point according to the
instructions in this manual will result in user exposure that is below the FCC
recommended limits.
Additional Radio Safety Advisories
For additional radio safety warnings, the Trapeze Regulatory Information
document.
Installing an MP-620
Chapter 3
Installing and Connecting an MP-620 Access Point
19
Installing an MP-620
The MP-620 includes its own bracket kit for mounting the unit to a 1.5 to 2 inch
diameter steel pole or tube. The pole-mounting bracket allows the unit to be
mounted to part of a radio mast or tower structure. The unit also has a
wall-mounting bracket kit that enables it to be fixed to a building wall or roof
when using external antennas.
Hardware installation of the MP-620 involves these steps:
1Mount the unit on a wall, pole, mast, or tower using the mounting bracket.
2Mount external antennas on the same supporting structure as the MP-620 and
connect them to the unit.
3Connect the Ethernet cable and a grounding wire to the unit.
4Connect the power injector to the Ethernet cable, a local LAN switch, and an
AC power source.
Mounting the Unit
You can mount the MP-620 using either the pole-mounting bracket or the
wall-mounting bracket. Use one of the following procedures.
Using the Pole-Mounting Bracket
Perform the following steps to mount the unit to a 1.5 to 2 inch diameter steel pole
or tube using the mounting bracket:
1Always attach the bracket to a pole with the open end of the mounting
grooves facing up.
2Place the U-shaped part of the bracket around the pole and tighten the
securing nut just enough to hold the bracket to the pole. (The bracket may
need to be rotated around the pole during the alignment process.)
Installing an MP-620
Chapter 3
Trapeze MP-620 Installation Guide
20

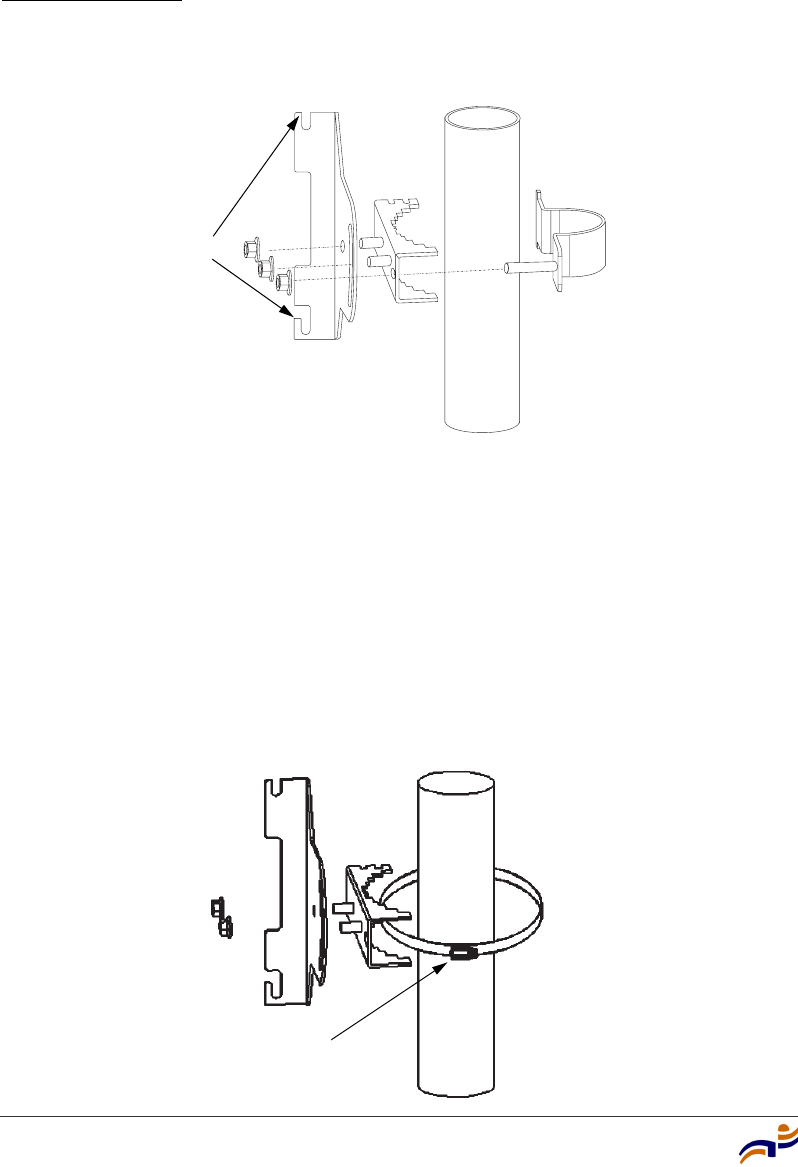

Figure 5. Attaching the Bracket to the Pole
3Use the included nuts to tightly secure the MP-620 to the bracket.
Mounting on Larger Diameter Poles
In addition, there is a method for attaching the pole-mounting bracket to a pole
that is 2 to 5 inches in diameter using an adjustable steel band clamp (not included
in the kit). A steel band clamp up to 0.5 inch (1.27 cm) wide can be threaded
through the main part of the bracket to secure it to a larger diameter pole without
using the U-shaped part of the bracket. This method is illustrated in the following
figure.
Figure 6. Attaching the Bracket Using a Steel Band Clamp
Attach bracket to
pole with mounting
grooves facing up
Steel Band Clamp
Installing an MP-620
Chapter 3
Installing and Connecting an MP-620 Access Point
21
Using the Wall-Mounting Bracket
Perform the following steps to mount the unit to a wall using the wall-mounting
bracket:
1Always attach the bracket to a wall with the open end of the mounting
grooves facing up (see following figure).

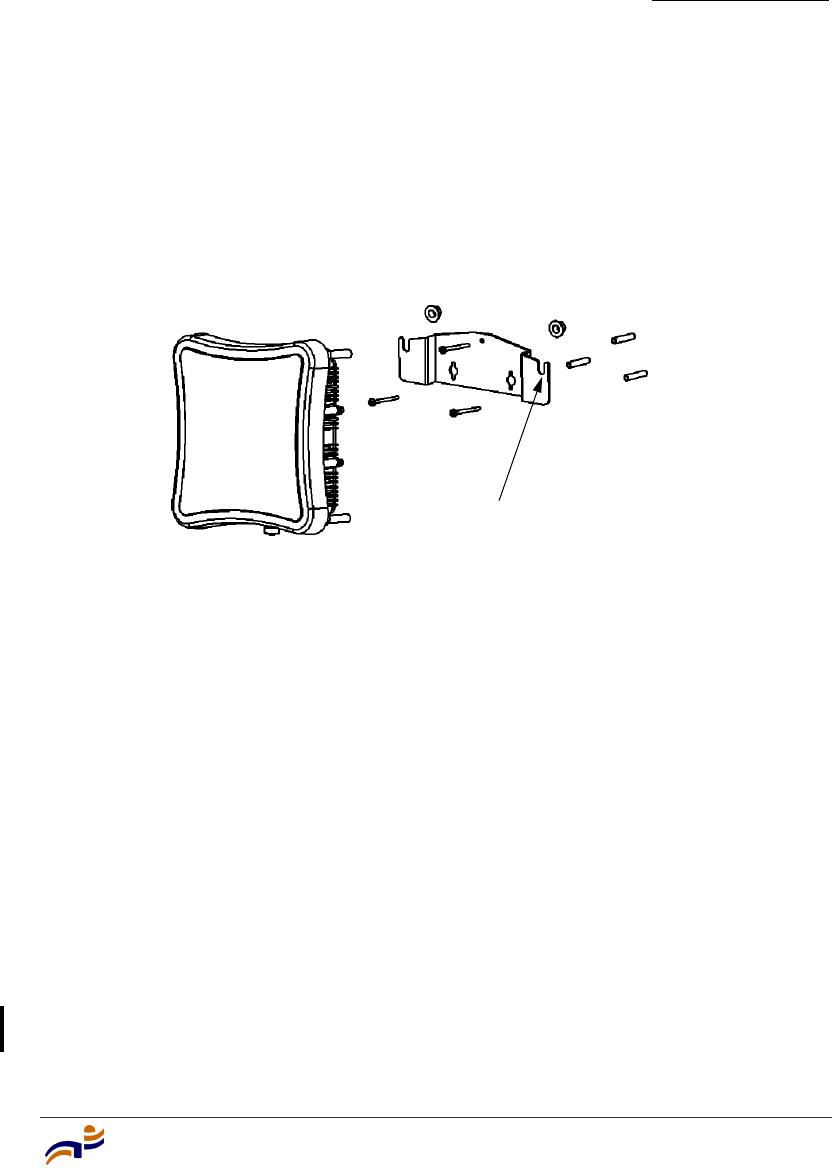

Figure 7. Wall-Mounting Bracket
2Position the bracket in the intended location and mark the position of the three
mounting screw holes.
3Drill three holes in the wall that match the screws and wall plugs included in
the bracket kit, then secure the bracket to the wall.
4Use the included nuts to tightly secure the MP-620 to the bracket.
Connecting External Antennas
When deploying an MP-620 access point, you need to mount external antennas
and connect them to the unit. Typically, access point operation requires a 2.4 GHz
antenna.
Perform these steps:
1Mount the external antenna to the same supporting structure as the MP-620,
within 3 m (10 ft) distance, using the bracket supplied in the antenna package.
2If you are installing the optional lightning protector for an outdoor antenna,
perform the following steps. Otherwise, skip to step 3.
Mounting Grooves
Installing an MP-620
Chapter 3
Trapeze MP-620 Installation Guide
22
aSolder the grounding cable to the grounding nut supplied with the
lightning protector. Trapeze Networks recommends that you use 6-gauge
cable for the grounding cable. The grounding cable must be properly
earthed in order to provide adequate protection.
bAttach the grounding nut, locking washer, and hex nut to the lightning
protector, in the order shown in Figure 8.

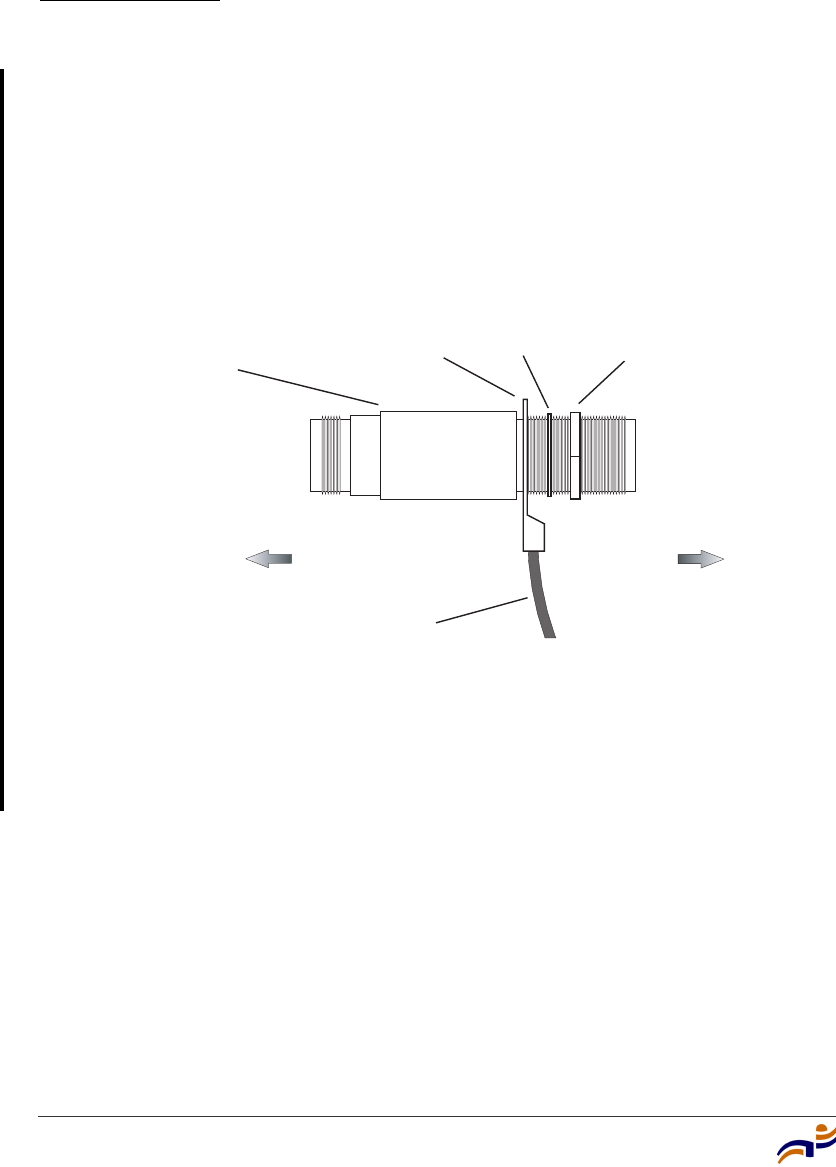

Figure 8. Attaching the Grounding Nut, Locking Washer, and Hex Nut
to the Optional Lightning Protector
cConnect one end of the short RF coaxial cable to the MP-620’s N-type
connector, and connect the other end to the lightning protector.
dConnect one end of the 3m RF coaxial cable to the lightning protector,
and connect the other end to the outdoor antenna. Continue with step 4.
3Connect the antenna to the MP-620’s N-type connector using the RF coaxial
cable provided in the antenna package.
4Apply weatherproofing tape to the antenna connectors to help prevent water
entering the connectors.
To External Antenna
To MP-620
6-gauge
Grounding Cable
Grounding Nut
Locking Washer
Hex Nut
Lightning Protector
Installing an MP-620
Chapter 3
Installing and Connecting an MP-620 Access Point
23

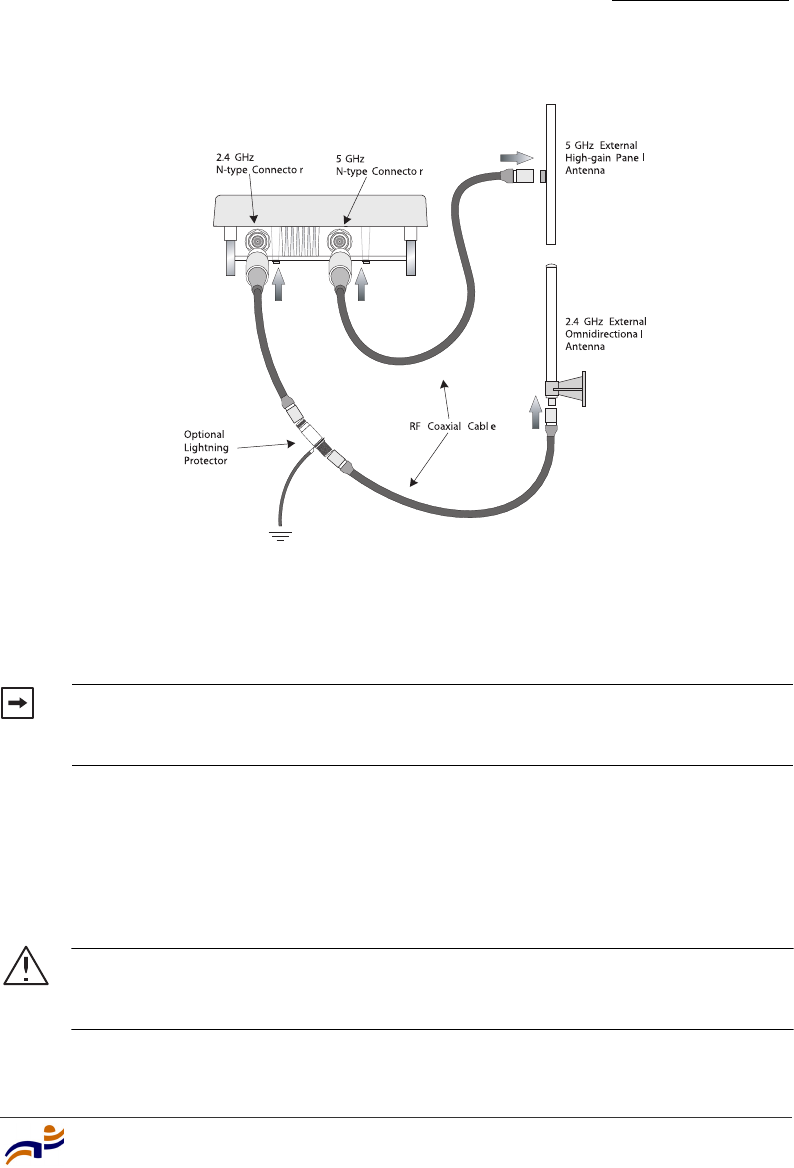

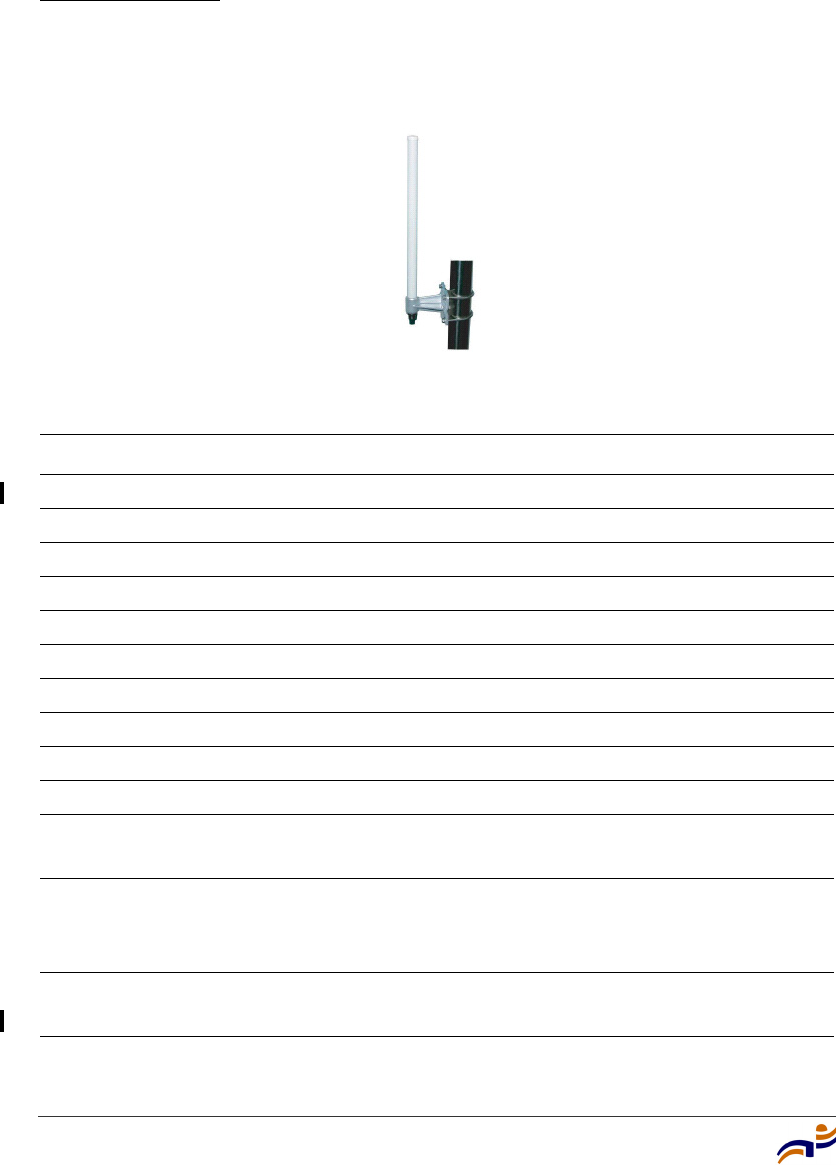

Figure 9. Connecting External Antennas to the MP-620
Connecting Cables to the Unit
1Attach the Ethernet cable to the Ethernet port on the MP-620.
2For extra protection against rain or moisture, apply weatherproofing tape (not
included) around the Ethernet connector.
3Be sure to ground the unit with an appropriate grounding wire (not included)
by attaching it to the grounding screw on the unit.
Note. The Ethernet cable included with the package is 30 m (100 ft) long. To
wire a longer cable (maximum 100 m, 325 ft), use the connector pinout
information in Appendix B.
Caution! Be sure that grounding is available and that it meets local and
national electrical codes. For additional lightning protection, use lightning rods,
lightning arrestors, or surge suppressors.
MP-620
Installing an MP-620
Chapter 3
Trapeze MP-620 Installation Guide
24

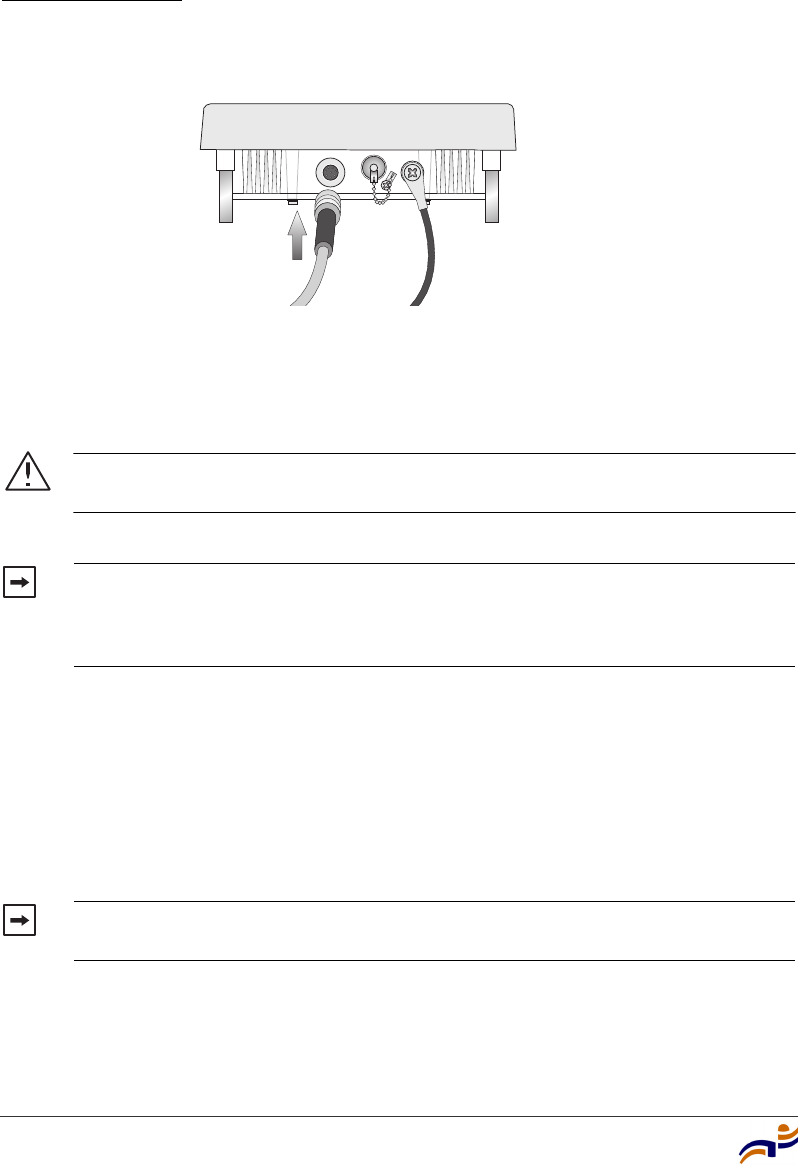

Figure 10. Attaching an Ethernet Cable to the MP-620
Connecting the Power Injector
To connect the MP-620 to a power source:
1Connect the Ethernet cable from the MP-620 to the RJ-45 port labeled
“Output” on the power injector.
2Connect a straight-through unshielded twisted-pair (UTP) cable from a local
LAN switch to the RJ-45 port labeled “Input” on the power injector. Use
Category 5 or better UTP cable for 10/100BASE-TX connections.
Caution! Do not install the power injector outdoors. The unit is for indoor
installation only.
Note. The MP-620’s Ethernet port does not support Power over Ethernet (PoE)
based on the IEEE 802.3af standard. Do not try to power the unit by connecting
it directly to a network switch that provides IEEE 802.3af PoE. Always connect
the unit to the included power injector module.
Note. The RJ-45 port on the power injector is an MDI port. If connecting
directly to a computer for testing the link, use a crossover cable.
Ground Wire
Ethernet Cable
Connecting an MP to an MX Switch
Chapter 3
Installing and Connecting an MP-620 Access Point
25
Figure 11. Connecting Cables to the Power Injector
3Insert the power cable plug directly into the standard AC receptacle on the
power injector.
4Plug the other end of the power cable into a grounded, 3-pin socket, AC
power source.
5Check the LED on top of the power injector to be sure that power is being
supplied to the MP-620 through the Ethernet connection.
Connecting an MP to an MX Switch
You can connect an MP access point directly to an MX switch or indirectly to the
switch through an intermediate Layer 2 or Layer 3 network.
●To connect the MP directly to an MX switch, configure the MX switch port as
an MP access port and use the following procedure to insert the cable into the
MX switch and verify the link.
●To connect the MP indirectly to an MX switch though the network, configure
a Distributed MP connection on the MX switch.
Note. For International use, you may need to change the AC line cord. You
must use a line cord set that has been approved for the receptacle type in your
country.
Input Output
Ethernet cable
from LAN switch
Ethernet cable to
MP-620
AC power
Power LED indicator
Connecting an MP to an MX Switch
Chapter 3
Trapeze MP-620 Installation Guide
26
You can use the CLI or RingMaster to configure an MP access port or Distributed
MP connection. (See the Trapeze Mobility System Software Configuration Guide
or the Trapeze RingMaster User’s Guide.)
Figure 12 shows how to insert a Cat 5 cable into 10/100 Ethernet port on an MX
switch. Refer to this figure as you perform the procedure.

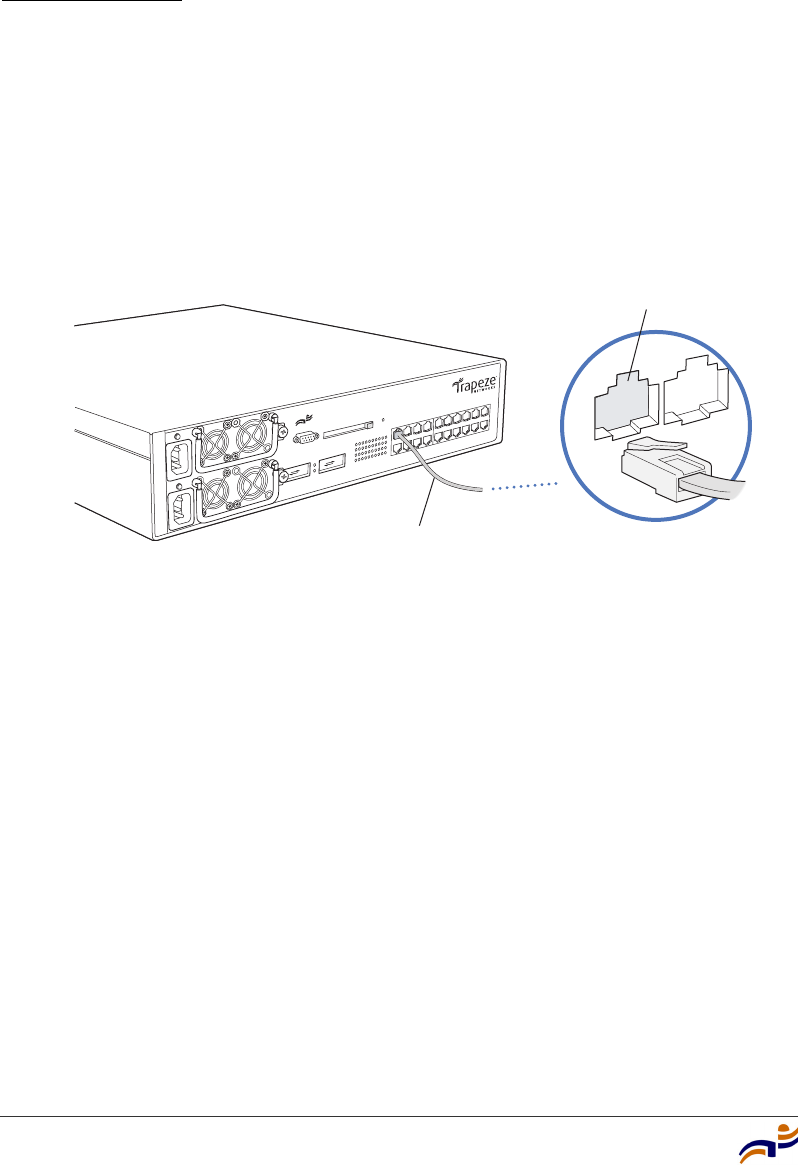

Figure 12. 10/100 Cat 5 Cable Installation
Mobility Exchange
MX-20
Ethernet cable
(Cat 5 cable) MP, switch, server
or other device
840-9502-0058
Ethernet port
Connecting an MP to an MX Switch
Chapter 3
Installing and Connecting an MP-620 Access Point
27
1Insert a Cat 5 cable with a standard RJ-45 connector as shown in Figure 12.
For connection to an MP access point, use a straight-through cable.
2When the link is activated, observe the MP LED for the port on the MX
switch:
MX Switch’s MP LED Meaning
Solid green For an MP access point’s active link, all the
following are true:
• MP access point has booted.
• MP access point has received a valid
configuration from the MX switch.
• Management link with an MP access point is
operational.
• At least one radio is enabled or is in sentry
mode.
For an MP access point’s secondary link, the
link is present.
Alternating green and
amber
MP access point is booting with an image
received from the MX switch. After the access
point boots and receives its configuration, this
LED appearance persists until a radio is enabled
or is placed in sentry mode.
Solid amber PoE is on.
Blinking amber MP is unresponsive or there is a PoE problem.
Unlit PoE is off.
Note. An MX switch’s 10/100 Ethernet ports are configured as wired network
ports by default. You or the system administrator must change the port type for
an MX port directly connected to an MP to activate the link. (See the Trapeze
Mobility Exchange Installation and Basic Configuration Guide.)
Connecting an MP to an MX Switch
Chapter 3
Trapeze MP-620 Installation Guide
28
MP-620 Technical Specifications
29
A
MP-620 Technical Specifications
This appendix lists the technical specifications for the Trapeze Networks MP-620
access point. Table 2 lists the mechanical and compliance specifications. (For
detailed compliance information, see the Trapeze Regulatory Information
document.) Table 3 lists the MAC address allocation scheme. The remaining
tables list the specifications and link budgets for the external antennas.
(For specifications for the MX switch, see the Trapeze Mobility Exchange
Installation and Basic Configuration Guide.)
Note. This Listed Accessory is designed and approved to be used only with
Trapeze Networks Mobility Exchange (MX) models MX-20, MX-8, MX-216, and
MXR-2. (The MX-200 and MX-400 switches do not directly connect to the MP.)
Note. The MP radios are disabled by default and can be enabled only by the
system administrator using the RingMaster management application or the MX
switch’s command-line interface (CLI).
Note. The radio frequency band, operating channels, and transmit power
depend on the country of operation specified by the system administrator using
RingMaster or the MX switch’s CLI.
MP-620 Mechanical and Compliance Specifications
Appendix A
Trapeze MP-620 Installation Guide
30
MP-620 Mechanical and Compliance
Specifications
Table 2 lists the mechanical and compliance specifications for the MP-620.
Table 2. MP-620 Mechanical and Compliance Specifications
Specification Description
Maximum Channels
(Outdoor)
Based on the country of operation specified by the system
administrator
Data Rates 802.11a:
6, 9, 12, 18, 24, 36, 48, 54 Mbps per channel
802.11g:
6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps per channel
802.11b:
1, 2, 5.5, 11 Mbps per channel
Maximum Clients 64 for the radio interface set to access point mode
Modulation Types 802.11a: BPSK, QPSK, 16-QAM, 64-QAM
802.11g: CCK, BPSK, QPSK, OFDM
802.11b: CCK, BPSK, QPSK
Network Configuration Access Point Mode:
Infrastructure
Operating Frequency 802.11a:
5.15 GHz to 5.825 GHz based on country regulations
802.11b/g:
2.4 GHz to 2.4835 GHz based on country regulations
Power Injector Input: 100-240 VAC, 47-63 Hz, 1.5 A
Output: 48 VDC, 1.2 A
Physical Size 19.8 x 19.8 x 6.33 cm (7.8 x 7.8 x 2.49 in)
Weight 4.8 kg (10.58 lbs)
Temperature Operating: -33 to 55 °C (-27.4 to 131 °F)
Storage: -40 to 80 °C (-40 to 176 °F)
Federal Communication Commission Interference Statement
Appendix A
MP-620 Technical Specifications
31
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
Humidity 5% to 95% (non-condensing)
EMC Compliance (Class B) FCC Class B (US)
RTTED 1999/5/EC
DGT (Taiwan)
Radio Signal Certification FCC Part 15 15.407(b) (5 GHz)
FCC Part 15.247 (2.4 GHz)
IC RSS-210
EN 300.328, EN 302.893
EN 300 826, EN 301.489-1, EN 301.489-17
ETSI 300.328; ETS 300 826 (802.11b)
Safety UL/cUL60950-1, IEC60950-1 (CB), IP68 (NEMA-250 6P)
Standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX,
IEEE 802.11a, b, g
Table 2. MP-620 Mechanical and Compliance Specifications
Specification Description
Federal Communication Commission Interference Statement
Appendix A
Trapeze MP-620 Installation Guide
32
●Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor
environment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is
firmware-limited to channels 1 through 11.
MAC Addresses
Appendix A
MP-620 Technical Specifications
33
MAC Addresses
Each MP-620 is assigned a unique block of 64 MAC addresses. Each radio has 32
MAC addresses and can therefore support up to 32 SSIDs, with one MAC address
assigned to each SSID as its BSSID.
An MP’s MAC address block is listed on a label on the back of the MP. If the MP
is already deployed and running on the network, you can display the MAC
address assignments by using the show {ap | dap} status command.
All MAC addresses on an MP are assigned based on the MP’s base MAC address,
as described in Table 3.
Table 3. MAC Address Allocations on MP-620
MP base MAC
Address
• The MP has a base MAC address. All the other addresses are
assigned based on this address.
Ethernet Port
MAC Addresses
• The Ethernet port equals the MP base MAC address.
802.11a Radio
and SSID MAC
Addresses
• The 802.11a radio equals the MP base MAC address + 1.
• The BSSIDs for the SSIDs configured on the 802.11a radio end
in odd numbers. The first BSSID is equal to the MP’s base
MAC address + 1. The next BSSID is equal to the MP’s base
MAC address + 3, and so on.
802.11b/g Radio
and SSID MAC
Addresses
• The 802.11b/g radio equals the MP base MAC address.
• The BSSIDs for the SSIDs configured on the 802.11b/g radio
end in even numbers. The first BSSID is equal to the MP’s base
MAC address. The next BSSID is equal to the MP’s base MAC
address + 2, and so on.
Antenna Specifications
Appendix A
Trapeze MP-620 Installation Guide
34
Antenna Specifications

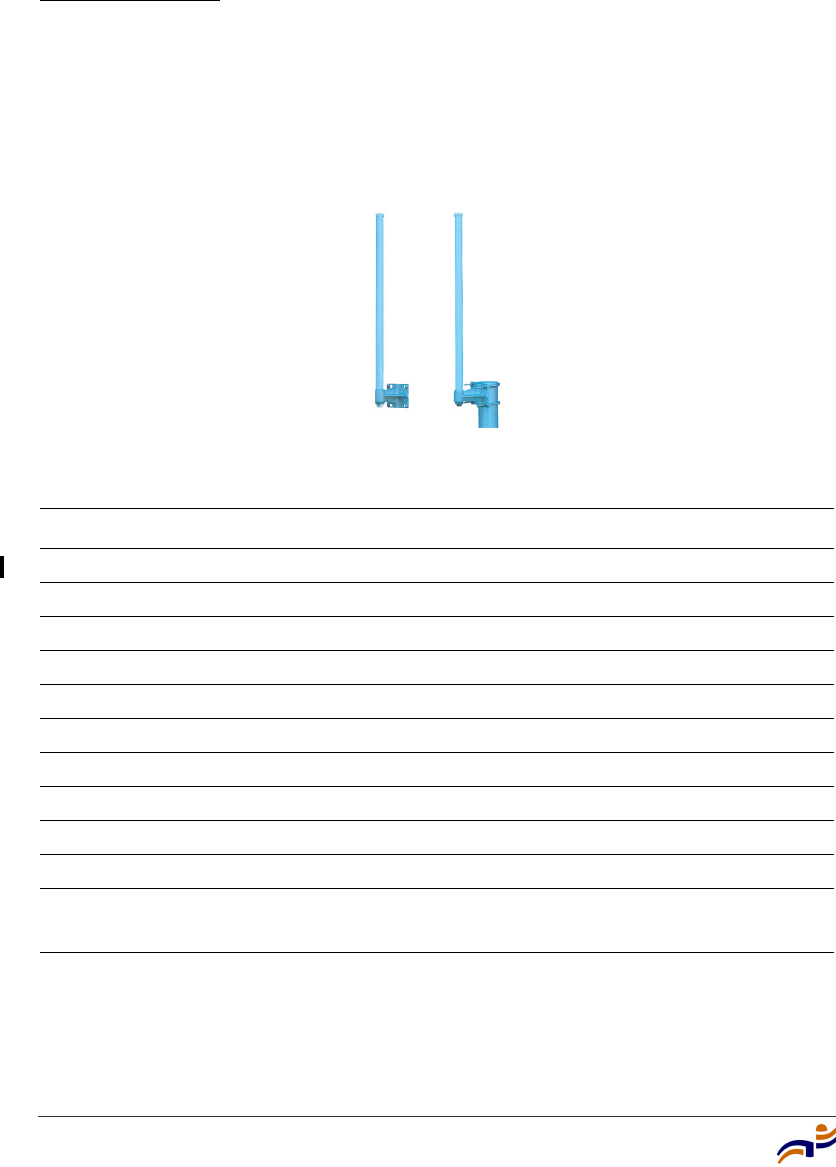

8 dBi Omnidirectional (2.4 GHz)
Table 4. 8 dBi Omnidirectional (2.4 GHz) Antenna Specifications
Specification Description
Model Number ANT-1360-OUT
Frequency Range 2.400 - 2.500 GHz
Gain 8 dBi
VSWR 2.0 : 1 max
Polarization Linear, vertical
HPBW Horizontal: 360°
Downtilt 0°
Power Handling 50 W (cw)
Impedance 50 Ohms
Connector N type, male
Radome Material: Fiber glass
Color: Gray-white
Antenna Specifications
Appendix A
MP-620 Technical Specifications
35
Environmental Survival Wind Speed: 216 km/hr
Temperature: -40 °C to 80 °C
Humidity: 95% @ 25 °C
Mechanical Dimensions: 58 x 2.1 cm (diameter) (22.8 x 0.82 in)
Weight: 200 g (0.44 lbs)
Table 4. 8 dBi Omnidirectional (2.4 GHz) Antenna Specifications
Specification Description
Antenna Specifications
Appendix A
Trapeze MP-620 Installation Guide
36
8 dBi Omnidirectional (5 GHz)
Table 5. 8 dBi Omnidirectional (5 GHz) Antenna Specifications
Specification Description
Model Number ANT-5360-OUT
Frequency Range 5.725 - 5.875 GHz
Gain 8 dBi
VSWR 2.0 : 1 max
Polarization Linear, vertical
HPBW Horizontal: 360°
Downtilt 0°
Power Handling 5 W (cw)
Impedance 50 Ohms
Connector N type, female
Radome Material: Fiber glass
Color: Gray-white
Environmental Survival Wind Speed: 216 km/hr
Temperature: -40 °C to 80 °C
Humidity: 95% @ 25 °C
Mechanical Dimensions: 32.5 x 2.2 cm diameter (12.8 x 8.6 in)
Weight: 1100 g (2.4 lbs)
Antenna Specifications
Appendix A
MP-620 Technical Specifications
37

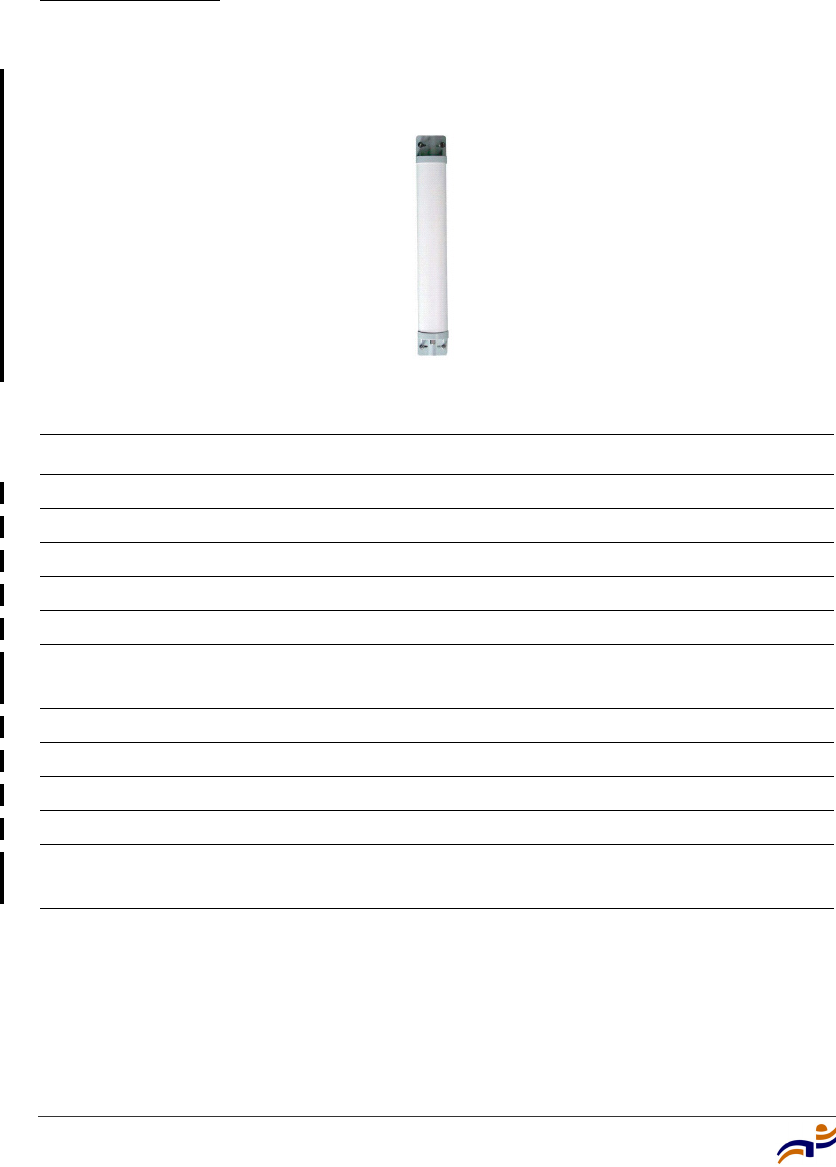

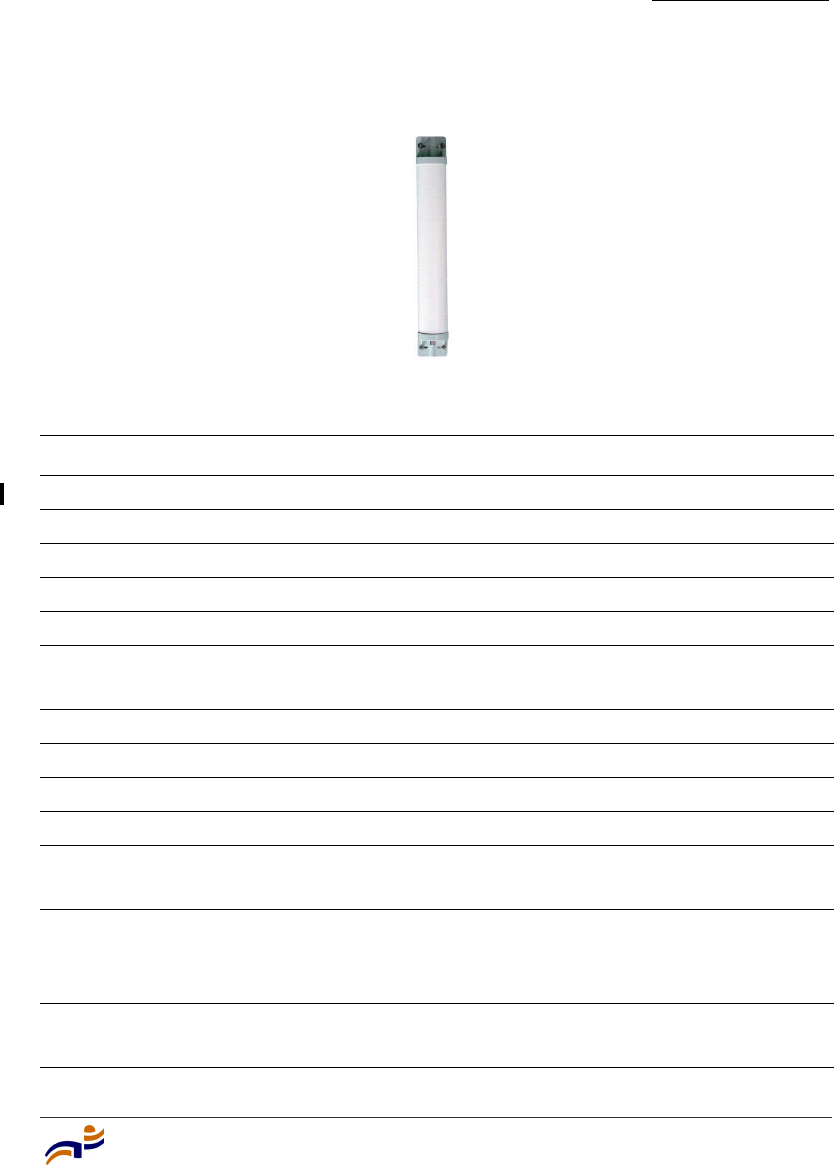

13.5 dBi 120-Degree Sector
Table 6. 13.5 dBi 120-Degree Sector Antenna Specifications
Specification Description
Model Number ANT-5120-OUT
Frequency Range 5.150 - 5.875 GHz
Gain 13.5 dBi
VSWR 2.0 : 1 max
Polarization Linear, vertical
HPBW Horizontal: 120°
Vertical: 6°
Downtilt 0°
Power Handling 5 W (cw)
Impedance 50 Ohms
Connector N type, female
Radome Material: ABS
Color: Gray, white
Environmental Survival Wind Speed: 216 km/hr
Temperature: -40 °C to 80 °C
Humidity: 95% @ 25 °C
Mechanical Dimensions: 62 x 8.8 x 7 cm (24.4 x 3.46 x 2.76 in)
Weight: 590 g (1.3 lbs)
Antenna Specifications
Appendix A
Trapeze MP-620 Installation Guide
38
10 dBi 120-Degree Sector
Table 7. 10 dBi 120-Degree Sector Antenna Specifications
Specification Description
Model Number ANT-1120-OUT
Frequency Range 2.4 - 2.5 GHz
Gain 10 dBi
VSWR 2.0 : 1 max
Polarization Linear, vertical
HPBW Horizontal: 120°
Vertical: 15°
Downtilt 0°
Power Handling 10 W (cw)
Impedance 50 Ohms
Connector N type, female
Radome Material: ABS
Color: Gray, white
Antenna Specifications
Appendix A
MP-620 Technical Specifications
39
Environmental Survival Wind Speed: 216 km/hr
Temperature: -40 °C to 80 °C
Humidity: 95% @ 25 °C
Mechanical Dimensions: 75 x 8.8 x 7 cm (29.5 x 3.46 x 2.76 in)
Weight: 700 g (1.5 lbs)
Table 7. 10 dBi 120-Degree Sector Antenna Specifications
Specification Description
Antenna Specifications
Appendix A
Trapeze MP-620 Installation Guide
40
18 dBi 18-Degree Panel
Table 8. 18 dBi 18-Degree Panel Antenna Specifications
Specification Description
Model Number
Frequency Range 4.9 - 5.875 GHz
Gain 18 dBi
VSWR 2.0 : 1 max
Polarization Linear, vertical
HPBW Horizontal: 18°
Vertical: 18°
Downtilt 0°
Power Handling 5 W (cw)
Impedance 50 Ohms
Connector N type, female
Radome Material: ABS
Color: Gray, white
Antenna Specifications
Appendix A
MP-620 Technical Specifications
41
Signal Loss from Lightning Protector and Coaxial Cable
Environmental Survival Wind Speed: 216 km/hr
Temperature: -40 °C to 80 °C
Humidity: 95% @ 25 °C
Mechanical Dimensions: 21.5 x 20 x 5 cm (8.46 x 7.87 x 1.97 in)
Weight: 825 g (1.82 lbs)
Frequency Loss from
Lightning Protector
Loss from
3m cable
Loss from
1.8m cable
Loss from
0.3m cable
2.4 GHz 0.08 dBi 0.75 dBi 0.59 dBi 0.24 dBi
5.5 GHz 0.25 dBi 1.17 dBi 0.89 dBi 0.37 dBi
Table 8. 18 dBi 18-Degree Panel Antenna Specifications (continued)
Specification Description
Antenna Specifications
Appendix A
Trapeze MP-620 Installation Guide
42
Cables and Pinouts
43
B
Cables and Pinouts
This appendix describes the wiring and pin assignments for the cables and
connectors that can be used with the MP-620.
Twisted-Pair Cable Assignments
For 10/100BASE-TX connections, a twisted-pair cable must have two pairs of
wires. Each wire pair is identified by two different colors. For example, one wire
might be green and the other, green with white stripes. Also, an RJ-45 connector
must be attached to both ends of the cable.
The following figure illustrates how the pins on the RJ-45 connector are
numbered. Be sure to hold the connectors in the same orientation when attaching
the wires to the pins.
Caution! Each wire pair must be attached to the RJ-45 connectors in a
specific orientation.
Caution! DO NOT plug a phone jack connector into a power injector RJ-45
port. Use only twisted-pair cables with RJ-45 connectors that conform with FCC
standards.
Twisted-Pair Cable Assignments
Appendix B
Trapeze MP-620 Installation Guide
44
Figure 13. Pin Numbering on RJ-45 Connector
10/100BASE-TX Pin Assignments
Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for RJ-45
connections: 100-ohm Category 3 or better cable for 10 Mbps connections, or
100-ohm Category 5 or better cable for 100 Mbps connections. Also be sure
that
the length of any twisted-pair connection does not exceed 100 meters (328 feet).
The RJ-45 Input port on the power injector is wired with MDI pinouts. This
means that you must use crossover cables for connections to PCs or servers, and
straight-through cable for connections to switches or hubs. However, when
connecting to devices that support automatic MDI/MDI-X pinout configuration,
you can use either straight-through or crossover cable.
Table 9. 10/100BASE-TX MDI and MDI-X Port Pinouts
Pin MDI-X Signal Name MDI Signal Name
1 Receive Data plus (RD+) Transmit Data plus (TD+)
2 Receive Data minus (RD-) Transmit Data minus
(TD-)
3 Transmit Data plus (TD+) Receive Data plus (RD+)
6 Transmit Data minus (TD-) Receive Data minus
(RD-)
4,5,7,
8
Not used Not used
Note: The “+” and “-” signs represent the polarity of the wires
that make up each wire pair.
1
88
1
Twisted-Pair Cable Assignments
Appendix B
Cables and Pinouts
45
Straight-Through Wiring
Because the 10/100 Mbps Input port on the power injector uses an MDI pin
configuration, you must use “straight-through” cable for network connections to
hubs or switches that only have MDI-X ports. However, if the device to which
you are connecting supports automatic MDI/MDI-X operation, you can use either
“straight-through” or “crossover” cable.

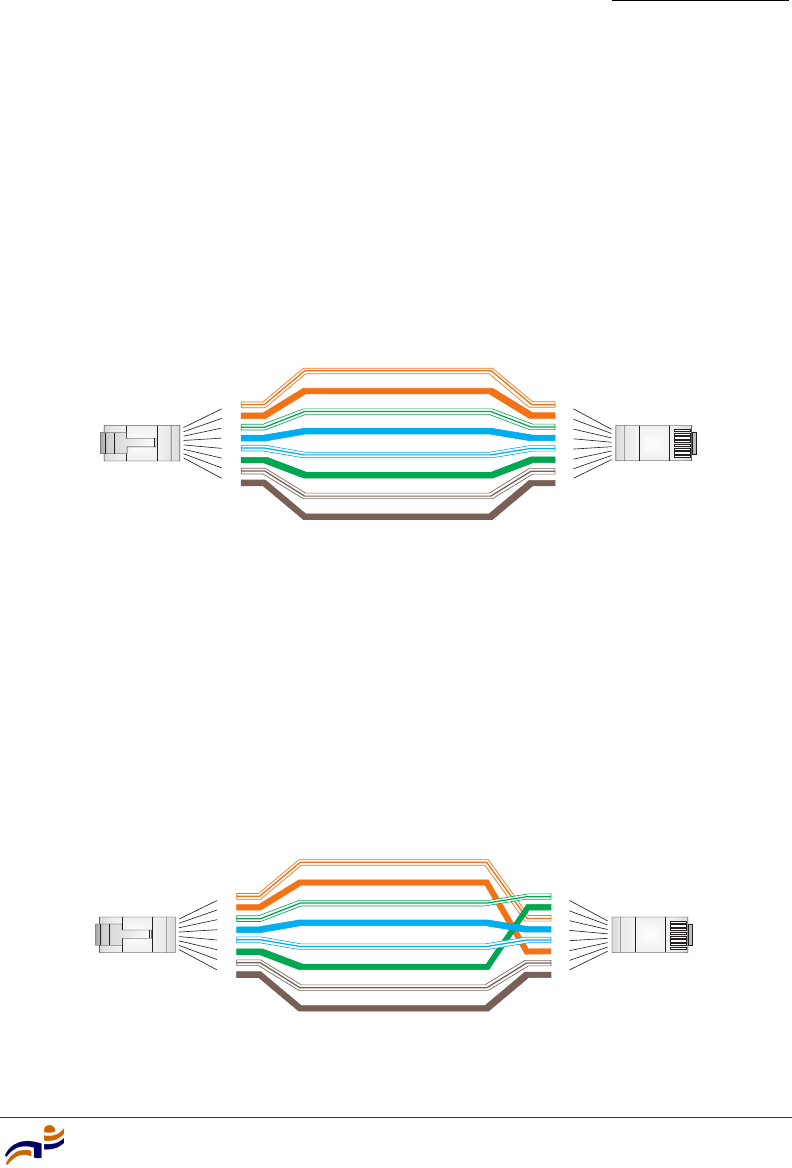

Figure 14. Straight-Through Cable Wiring
Crossover Wiring
Because the 10/100 Mbps port on the power injector uses an MDI pin
configuration, you must use “crossover” cable for network connections to PCs,
servers or other end nodes that only have MDI ports. However, if the device to
which you are connecting supports automatic MDI/MDI-X operation, you can
useeither “straight-through” or “crossover” cable.
Figure 15. Crossover Cable Wiring
White/Orange Stripe
Orange
White/Green Stripe
Green
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
EIA
/
TIA 568B RJ-45 Wiring
S
tandard
10/100BASE-TX Straight-through Cable
End A End B
Blue
White/Blue Stripe
Brown
White/Brown Stripe
White/Orange Stripe
Orange
White/Green Stripe
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
EIA
/
TIA 568B RJ-45 Wiring
S
tandard
10/100BASE-TX Crossover Cable
End A End B
Green
Blue
White/Blue Stripe
Brown
White/Brown Stripe
8-Pin DIN Connector Pinout
Appendix B
Trapeze MP-620 Installation Guide
46
8-Pin DIN Connector Pinout
The Ethernet cable from the power injector connects to an 8-pin DIN connector on
the MP-620. This connector is described in the following figure and table.

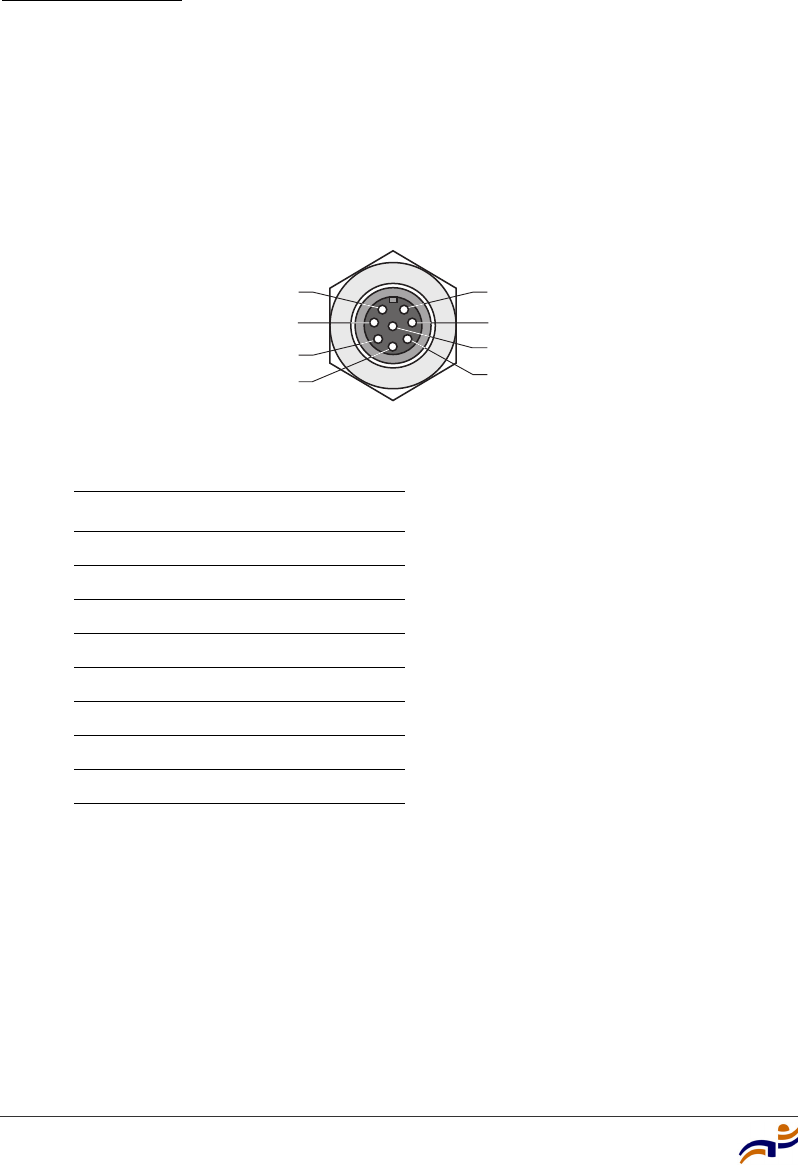

Figure 16. 8-Pin Ethernet DIN Connector
Table 10. 8-Pin DIN Ethernet Port Pinout
Pin Signal Name
1 Transmit Data plus (TD+)
2 Transmit Data minus (TD-)
3 Receive Data plus (RD+)
4 +48 VDC power
5 +48 VDC power
6 Receive Data minus (RD-)
7 Return power
8 Return power
Note: The “+” and “-” signs
represent the polarity of the wires
that make up each wire pair.
1
7
2
3
4
5
8
6
8-Pin DIN Connector Pinout
Appendix B
Cables and Pinouts
47
8-Pin DIN to RJ-45 Cable Wiring
To construct an extended Ethernet cable to connect from the power injector’s
RJ-45 Output port to the MP-620’s 8-pin DIN connector, follow the wiring
diagram below. Use Category 5 or better UTP or STP cable, maximum length 100
m (328 ft), and be sure to connect all four wire pairs.

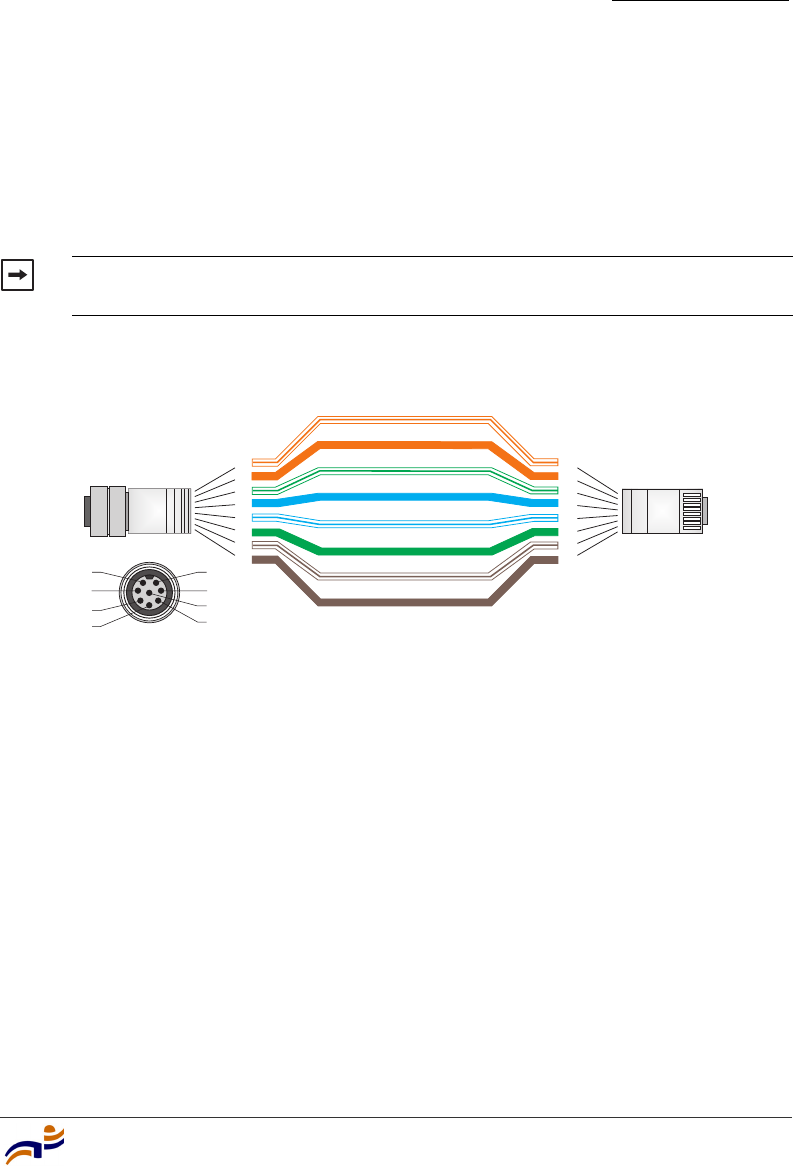

Figure 17. 8-Pin DIN to RJ-45 Cable Wiring
Note. To construct a reliable Ethernet cable, always use the proper tools or
ask a professional cable supplier to construct the cable.
White/Orange Stripe
Orange
White/Green Stripe
Green
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
8-Pin DIN
Female RJ-45
1
7
2
3
4
5
8
6
White/Blue Stripe
White/Brown Stripe
Brown
Blue
8-Pin DIN Female
Front View
8-Pin DIN Connector Pinout
Appendix B
Trapeze MP-620 Installation Guide
48
Index
49
Index
A
access point. See MP (Mobility Point)
activating an MP 25
advisory notices, explanations of 4
C
cable
assignments 43
crossover 45
straight-through 45
channels, maximum 30
clients, maximum 30
connections
LEDs 27
MX (Mobility Exchange) 25
conventions, text and syntax 5
crossover cable 45
CSMA/CA 8
customer service iii
D
data rate, options 30
documentation conventions 5
documentation, product 2
E
Ethernet
connections to an MX switch, instructions
25
LEDs 27
port 10
H
hardware
bottom view 9
features 9
top view 9
I
IEEE 802.11a 8
installation
MP 15, 19
requirements 15
warnings, radio 18
warnings, service 7
IP addresses 33
L
LEDs
MP (on MX) 27
links
LEDs 27
MP 27
M
MAC addresses 33
manuals, product 2
MDI, RJ-45 pin configuration 11
Mobility Exchange. See MX
Mobility Point. See MP
MP (Mobility Point)
description of 7
installation 15, 19
specifications 29
Trapeze MP-620 Installation Guide
50
MX (Mobility Exchange)
connections 25
MP LEDs 27
recommendation 16
N
network plan, RingMaster 15
O
OFDM 8
operating frequency 30
P
package checklist 8
PoE 24
PoE (Power over Ethernet)
use with Trapeze devices only 16
Power over Ethernet See PoE
power supply, specifications 30
product documentation 2
R
radios
default state 7
specifications 29
warnings 18
requirements 15
reset button 11
RingMaster
work order 15
RSSI BNC 12
S
safety notices, explanations of 4
specifications 29
straight-through cable 45
switch. See MX (Mobility Exchange)
syntax conventions 5
T
TAC (Technical Assistance Center) iii
Technical Assistance Center iii
technical specifications 29
technical support iii
Trapeze customer service iii
Trapeze Networks Mobility System 1
W
warnings
installation 7
radio 18
weather conditions 16
work order, RingMaster 15
