Juniper Networks SSG5 Secure Services Gateway 5 User Manual SSG5 HW
Juniper Networks Inc. Secure Services Gateway 5 SSG5 HW
users manual
Juniper Networks, Inc.
1194 North Mathilda Avenue
Sunnyvale, CA 94089
USA
408-745-2000
www.juniper.net
Part Number: 530-015647-01, Revision beta3
Security Products
Secure Services Gateway 5
Hardware Installation and Configuration Guide - Beta3
ScreenOS Version 5.4.0
1-888-314-JTAC
(1-888-314-5822 - toll free in U.S., Canada, and Mexico)
or go to the link to request service
http://www.juniper.net/support/requesting-support.html
ii
Copyright Notice
Copyright © 2006 Juniper Networks, Inc. All rights reserved.
Juniper Networks and the Juniper Networks logo are registered trademarks of Juniper Networks, Inc. in the United States and other countries. All other
trademarks, service marks, registered trademarks, or registered service marks in this document are the property of Juniper Networks or their respective
owners. All specifications are subject to change without notice. Juniper Networks assumes no responsibility for any inaccuracies in this document or for
any obligation to update information in this document. Juniper Networks reserves the right to change, modify, transfer, or otherwise revise this publication
without notice.
FCC Statement
The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. The equipment generates, uses, and can radiate radio-frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense.
The following information is for FCC compliance of Class B devices: The equipment described in this manual generates and may radiate radio-frequency
energy. If it is not installed in accordance with Juniper Network’s installation instructions, it may cause interference with radio and television reception.
This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in part 15 of the FCC
rules. These specifications are designed to provide reasonable protection against such interference in a residential installation. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Consult the dealer or an experienced radio/TV technician for help.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Caution: Changes or modifications to this product could void the user's warranty and authority to operate this device.
Disclaimer
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED
WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED
WARRANTY, CONTACT YOUR JUNIPER NETWORKS REPRESENTATIVE FOR A COPY.
Writer: Carrie Nowocin
Editor: Lisa Eldridge
Table of Contents iii
Table of Contents
About This Guide v
Organization .................................................................................................... v
WebUI Conventions ........................................................................................ vi
CLI Conventions............................................................................................. vii
Obtaining Documentation and Technical Support......................................... viii
Chapter 1 Hardware Overview 1
Port and Power Connectors .............................................................................1
Front Panel ......................................................................................................2
System Status LEDs ...................................................................................2
Port Descriptions .......................................................................................4
Ethernet Ports .....................................................................................4
Console Port .......................................................................................4
AUX Port.............................................................................................5
Back Panel .......................................................................................................5
Power Adapter...........................................................................................5
Radio Transceiver......................................................................................5
Grounding Lug...........................................................................................6
Antennae Types.........................................................................................6
Universal Serial Bus (USB) Host Module.....................................................6
Chapter 2 Installing and Connecting the Device 9
Before You Begin .............................................................................................9
Equipment Rack Installation ..........................................................................10
Equipment Desk Mount Installation ...............................................................10
Connecting Interface Cables to the Device .....................................................11
Chassis Grounding .........................................................................................11
Connecting the Power....................................................................................11
Connecting the Device to a Network ..............................................................12
Connect an SSG 5 Device to an Untrusted Network .................................12
Connecting Ethernet Ports ................................................................12
Connecting Serial (AUX/Console) Ports..............................................12
Connecting the WAN Ports................................................................12
Connecting the Device to an Internal Network or Workstation ................13
Connecting Ethernet Ports ................................................................13
Connecting the Wireless Antennae....................................................13
Chapter 3 Configuring the Device 15
Accessing the Device......................................................................................16
Using a Console Connection ....................................................................16
Using the WebUI .....................................................................................17
Using Telnet ............................................................................................18
iv Table of Contents
SSG 5 Hardware Installation and Configuration Guide
Default Device Settings ..................................................................................19
Basic Device Configuration ............................................................................21
Changing the Root Admin Name and Password ......................................21
Setting the Date and Time .......................................................................22
Bridge Group Interfaces ...........................................................................22
Administrative Access .............................................................................23
Management Services..............................................................................23
Host and Domain Name ..........................................................................23
Default Route...........................................................................................24
Management Interface Address ...............................................................24
Backup Untrust Interface Configuration...................................................24
Wireless Configuration...................................................................................25
Wireless Network Configuration ..............................................................26
Authentication and Encryption..........................................................28
WAN Configuration........................................................................................29
The ISDN Interface ..................................................................................29
The V.92 Modem Interface ......................................................................30
Basic Firewall Protections ..............................................................................30
Verifying External Connectivity......................................................................31
Resetting the Device to Factory Defaults........................................................31
The Reset Pinhole....................................................................................32
Chapter 4 Servicing the Device 33
Tools and Parts Required ...............................................................................33
Memory Upgrade ...........................................................................................33
Appendix A Specifications A-I
SSG 5 Physical Specifications ............................................................................I
Electrical Specification ......................................................................................I
Environmental ..................................................................................................I
Certifications....................................................................................................II
Safety ........................................................................................................II
EMC (Emissions)........................................................................................II
EMC Immunity ..........................................................................................II
European Telecommunications Standards Institute (ETSI) .........................II
Connectors......................................................................................................III
Index........................................................................................................................IX--1
Organization v
About This Guide
The Juniper Networks Secure Services Gateway (SSG) 5 device is an integrated
router and firewall platform that provides Internet Protocol Security (IPSec) Virtual
Private Network (VPN) and firewall services for a branch office or a retail outlet.
Juniper Networks offers six models of the Secure Services Gateway (SSG) 5 device:
SSG 5 Serial
SSG 5 Serial-WLAN
SSG 5 V.92
SSG 5 V.92-WLAN
SSG 5 ISDN
SSG 5 ISDN-WLAN
All of the SSG 5 devices support an auxiliary (AUX) port and a universal storage bus
(USB) host module. The devices also provide protocol conversions between local
area networks (LANs) and wide area networks (WANs), and three of the models
support wireless local area networks (WLANs).
Organization
This manual has the following chapters:
Chapter 1, “Hardware Overview” describes the chassis and components for an
SSG 5 device.
Chapter 2, “Installing and Connecting the Device” describes how to install an SSG 5
device in a standard 19-inch equipment rack and how to connect an SSG 5 device to
your network.
Chapter 3, “Configuring the Device” describes how to configure and manage an
SSG 5 device and how to perform some basic configuration tasks.
Chapter 4, “Servicing the Device” describes service and maintenance procedures
for SSG 5 devices.
SSG 5 Hardware Installation and Configuration Guide
vi WebUI Conventions
WebUI Conventions

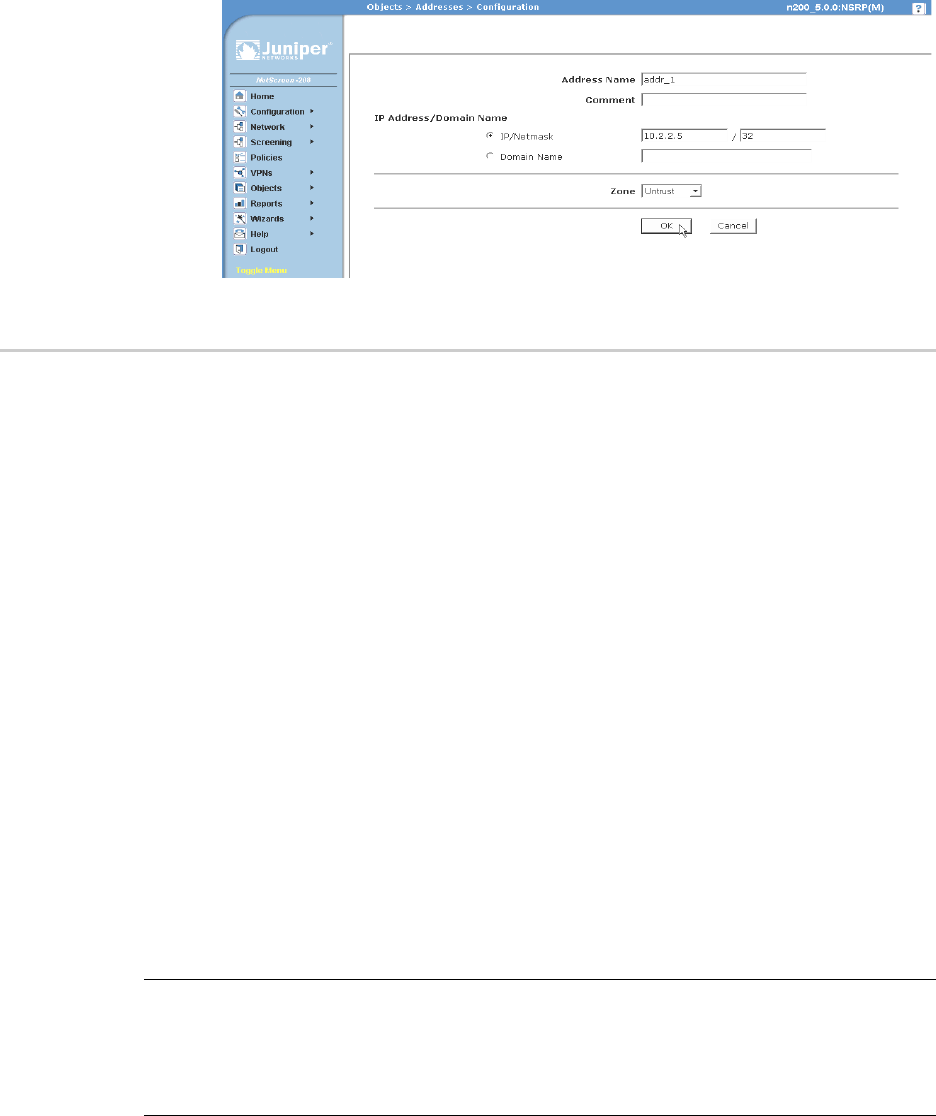

A chevron ( > ) shows the navigational sequence through the WebUI, which you
follow by clicking menu options and links. The following figure shows the following
path to the address configuration dialog box—Objects > Addresses > List > New:
Figure 1: WebUI Navigation
To perform a task with the WebUI, you first navigate to the appropriate dialog box,
where you then define objects and set parameters. The set of instructions for each
task is divided into navigational path and configuration settings:
The next figure lists the path to the address configuration dialog box with the
following sample configuration settings:
Objects > Addresses > List > New: Enter the following, then click OK:
Address Name: addr_1
IP Address/Domain Name:
CLI Conventions vii
About This Guide
IP/Netmask: (select), 10.2.2.5/32
Zone: Untrust
Figure 2: Navigational Path and Configuration Settings
CLI Conventions
The following conventions are used to present the syntax of CLI commands in
examples and in text.
In examples:
Anything inside square brackets [ ] is optional.
Anything inside braces { } is required.
If there is more than one choice, each choice is separated by a pipe ( | ). For
example:
set interface { ethernet1 | ethernet2 | ethernet3 } manage
means “set the management options for the ethernet1, the ethernet2, or the
ethernet3 interface.”
Variables are in italic type:
set admin user name1 password xyz
In text:
Commands are in boldface type.
Variables are in italic type.
NOTE: When entering a keyword, you need to type only enough letters to identify the
word uniquely. For example, typing set adm u kath j12fmt54 is enough to enter
the command set admin user kathleen j12fmt54. Although you can use this
shortcut when entering commands, all the commands documented here are
presented in their entirety.
SSG 5 Hardware Installation and Configuration Guide
viii Obtaining Documentation and Technical Support
Obtaining Documentation and Technical Support
To obtain technical documentation for any Juniper Networks product, visit
www.juniper.net/techpubs/.
For technical support, open a support case using the Case Manager link at
http://www.juniper.net/support/ or call 1-888-314-JTAC (within the United States) or
1-408-745-9500 (outside the United States).
If you find any errors or omissions in this document, please contact us at the email
address below:
techpubs-comments@juniper.net
Port and Power Connectors 1
Chapter 1
Hardware Overview
This chapter provides detailed descriptions of the SSG 5 chassis and components. It
contains the following sections:
“Port and Power Connectors” on this page
“Front Panel” on page 2
“Back Panel” on page 5
Port and Power Connectors
Table 1 shows the ports and power connectors on an SSG 5 device.
SSG 5
V.9 2
STATUS
POWER
CONSOL E
TX / RX
CD
0123 456
TX/RX LINK TX/RX LINK TX/RX LI NK TX/ RX LI NK T X/RX L I NK TX/RX L I NK T X/ RX LI NK
10/100 10/100 10/100 10/100 10/100 10/100 10/100
B /G
WLAN V.92
802.11A
Antenna A
Antenna B
e0/6e0/5e0/4e0/3e0/2e0/1e0/0
ConsoleAUX/ ISDN/V.92
SSG 5 Hardware Installation and Configuration Guide
2Front Panel
Table 1: SSG 5 Port and Power Connectors
Front Panel
This section describes the following elements on the front panel of an SSG 5 device:
System Status LEDs
Port Descriptions
System Status LEDs
The system status LEDs display information about critical device functions. Figure 3
illustrates the position of each status LED on the front of the device. The system
LEDs differ depending on the version of the SSG 5 device.

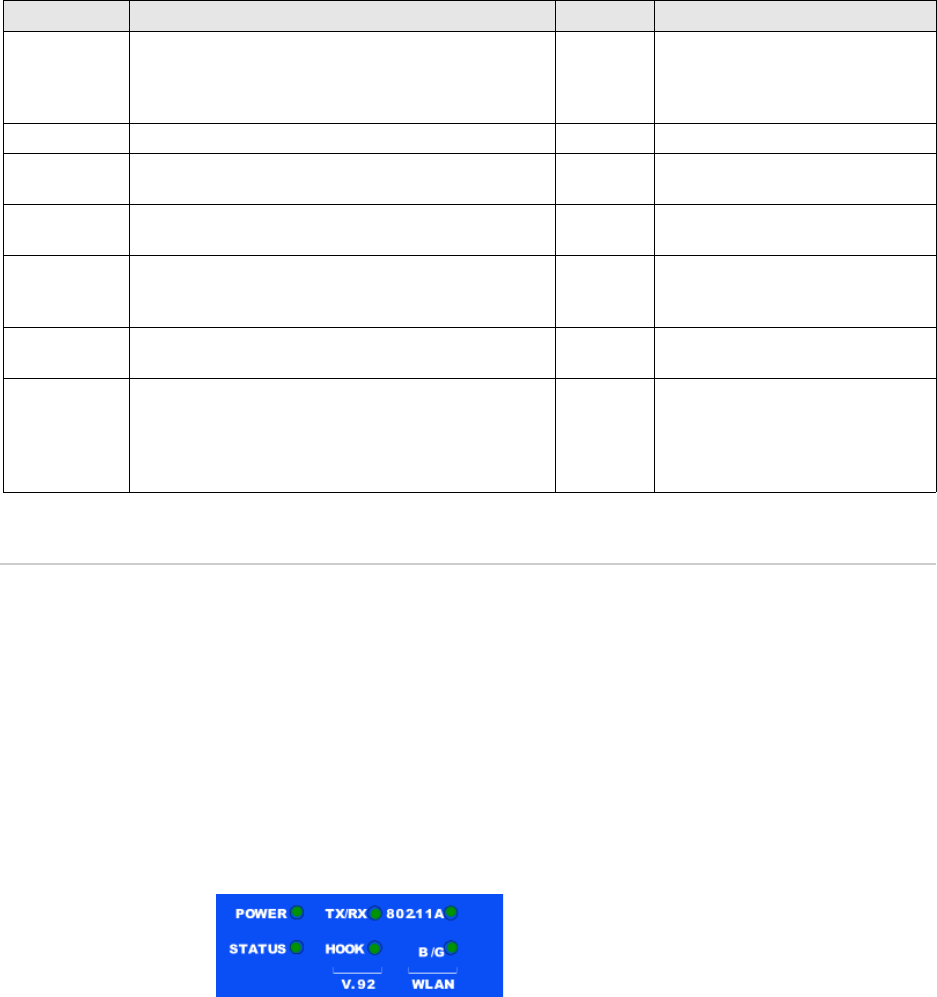

Figure 3: Status LEDs
When the system powers up, the POWER LED changes from off to blinking green
and the STATUS LED changes in the following sequence: red, green, blinking green.
Startup takes approximately 2 minutes to complete. If you want to turn the system
off and on again, we recommend waiting a few seconds between shutting it down
and powering it back up. Table 2 provides the name, color, status, and description of
each system status LED.
Port Description Connector Speed/Protocol
Ports 0/0-0/6 Enables direct connections to workstations or a LAN
connection through a switch or hub. This connection
also allows you to manage the device through a Telnet
session or the WebUI.
RJ-45 10/100 Mbps/ Ethernet
autosensing duplex and auto
MDI/MDIX
USB Enables a 1.1 USB connection with the system. N/A 12M (full speed) or 1.5M (low speed)
Console Enables a serial connection with the system. Used for
launching Command Line Interface (CLI) sessions.
RJ-45 9600 bps/ RS-232C
AUX Enables a backup serial Internet connection through an
external modem.
RJ-45 9600 bps-115 Kbps/ RS-232C
V.92 Modem Enables a primary or backup Internet or untrusted
network connection to an Internet Service Provider
(ISP).
RJ-11 9600 bps — 115 Kbps/ RS-232 Serial
autosensing duplex and polarity
ISDN Enables the ISDN line to be used as the untrust or
backup interface.
RJ-45 B-channels at 64 Kbps
Antenna A & B
(SSG 5-WLAN)
Enables a direct connection to workstations in the
vicinity of a wireless radio connection.
RPSMA 802.11a
802.11b
802.11g
802.11g turbo
Front Panel 3
Table 2: LED Descriptions
Type Name Color State Description
POWER Green On steadily Indicates that the system is receiving power
Off Indicates that the system is not receiving
power
Red On steadily Indicates that the device is not operating
normally
Off Indicates that the device is operating
normally
STATUS Green On steadily Indicates that the system is booting up or
performing diagnostics
Blinking Indicates that the device is operating
normally
Red Blinking Indicates that there was an error detected
ISDN CH B1 Green On steadily Indicates that B-Channel 1 is active
Off Indicates that B-Channel 1 is not active
CH B2 Green On steadily Indicates that B-Channel 2 is active
Off Indicates that B-Channel 2 is not active
V.92 HOOK Green On steadily Indicates that the link is active
Off Indicates that the serial interface is not in
service
TX/RX Green Blinking Indicates that traffic is passing through
Off Indicates that no traffic is passing through
WLAN
802.11A Green On steadily Indicates that a wireless connection is
established but there is no link activity
Green Blinking
slowly
Indicates that a wireless connection is
established. The band rate is proportional to
the link activity
Green Off Indicates that there is no wireless connection
established
B/G Green On steadily Indicates that a wireless connection is
established but there is no link activity
Green Blinking
slowly
Indicates that a wireless connection is
established. The band rate is proportional to
the link activity
Green Off Indicates that there is no wireless connection
established
SSG 5 Hardware Installation and Configuration Guide
4Front Panel
Port Descriptions
This section explains the purpose and function of the following:
“Ethernet Ports” on this page
“Console Port” on page 4
“AUX Port” on page 5
Ethernet Ports
Seven built-in 10/100 Ethernet ports provide LAN connections to hubs, switches,
local servers, and workstations. You can also designate an Ethernet port for
management traffic. The ports are labeled 0/0 — 0/6. See “Default Device Settings”
on page 19 for the default zone bindings for each Ethernet port.
When configuring one of these ports, reference the interface name that
corresponds to the location of the port. From left to right on the front panel, the
interface names for the ports are: ethernet0/0 — ethernet0/6.
Figure 4 displays the location of the LEDs on each Ethernet port.

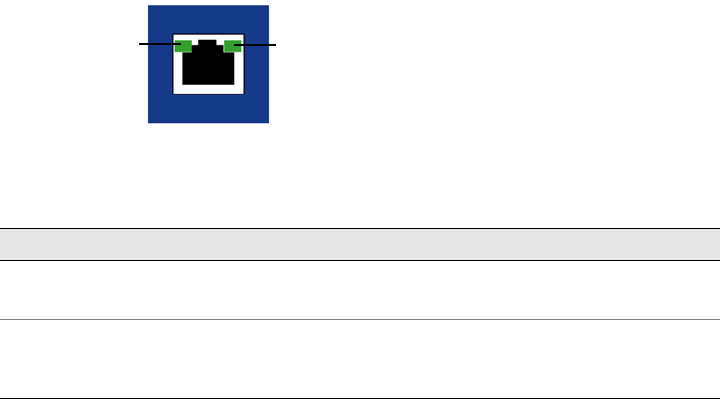

Figure 4: Activity Link LEDs
Table 3 describes the Ethernet port LEDs.
Table 3: Ethernet Port LEDs
Console Port
The Console port is an RJ-45 serial port wired as Data Communications Equipment
(DCE) that can used for local administration. An RJ-45 to DB-9 adapter is supplied.
See “Connectors” on page III for the RJ-45 connector pinouts.
Name Color Status Description
LINK Green On steadily
Off
Port is online
Port is offline
TX/RX Green Blinking
Off
Traffic is passing through. The baudrate is
proportional to the link activity
Port might be on but is not receiving data
LINK
TX/RX
Back Panel 5
AUX Port
The auxiliary (AUX) port is an RJ-45 serial port wired as Data Terminal Equipment
(DTE) that you can connect to a modem to allow remote administration. We do not
recommend using this port for regular remote administration. The AUX port is
typically assigned to be the backup serial interface. The baudrate is adjustable from
9600 bps to 115200 bps and requires hardware flow control.
See “Connectors” on page III for the RJ-45 connector pinouts.
Back Panel
This section describes the back panel of an SSG 5 device:
“Power Adapter” on this page
“Radio Transceiver” on this page
“Grounding Lug” on page 6
“Antennae Types” on page 6
“Universal Serial Bus (USB) Host Module” on page 6

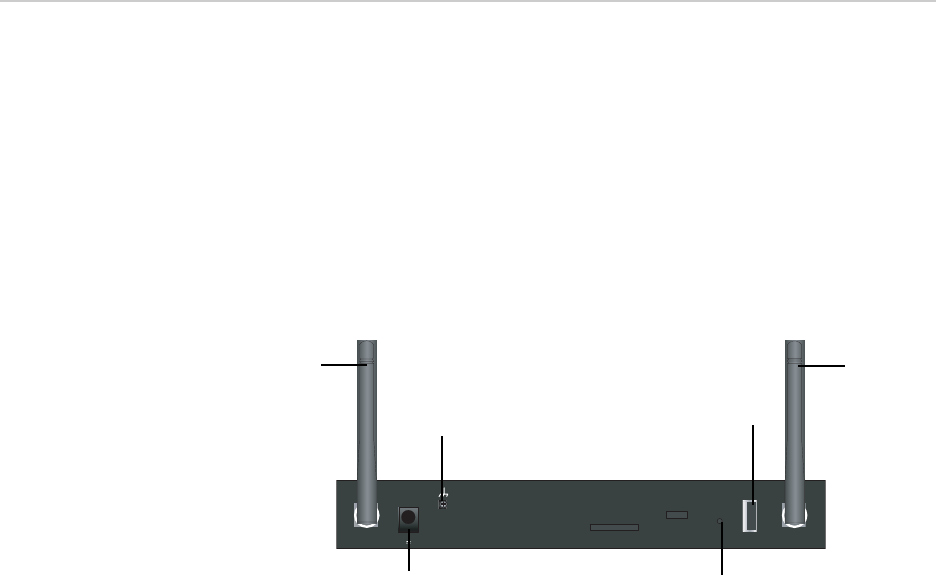

Figure 5: Back Panel of an SSG Device
Power Adapter
The POWER LED on the front panel of a device either glows green or is off. Green
indicates correct function, and off indicates power adapter failure or that the device
is off.
Radio Transceiver
The SSG 5-WLAN devices contain two wireless connectivity radio transceivers,
which support 802.11a/b/g standards. The first transceiver (WLAN 0) uses the 2.4
GHz radio band, which supports the 802.11b standard at 11 Mbps and the 802.11g
at 54 Mbps. The second radio transceiver (WLAN 1) uses the 5 GHz radio band,
which supports the 802.11a standard at 54 Mbps. The two radio bands can work
simultaneously, For information on configuring the wireless radio band, see
“Wireless Configuration” on page 25.
RES ET
DC POWER
LOCK
US B
SD FLASH
B A
5V A4
Power
adapter
USB host
module
grounding
lug
reset
pinhole
Antenna A
Antenna B
SSG 5 Hardware Installation and Configuration Guide
6Back Panel
Grounding Lug
A one-hole grounding lug is provided on the rear of the chassis to connect the
device to earth ground (see Figure 5).
To ground the device before connecting power, you connect a grounding cable to
earth ground and then attach the cable to the lug on the rear of the chassis.
Antennae Types
The SSG 5-WLAN devices support three types of custom-built radio antennae:
Diversity antennae — The diversity antennae provide 2dBi omnidirectional
coverage and a fairly uniform level of signal strength within the area of
coverage and are suitable for most installations. this type of antennae are
shipped with the device.
External omnidirectional antenna — The external antenna provides 2dBi
omnidirectional coverage. Unlike diversity antennae, which function as a pair,
an external antenna operates to eliminate an echo effect that can sometimes
occur from slightly delayed characteristics in signal reception when two are in
use.
External directional antenna — The external directional antenna provides
2dBi unidirectional coverage and is well suited for such places as hallways and
outer walls (with the antenna facing inward).
Universal Serial Bus (USB) Host Module
The slot labeled USB on the back panel of an SSG 5 device implements a host-only
USB 1.1 host module for a USB device adapter or USB flash key, as defined in the
CompactFlash Specification published by the CompactFlash Association. When the
USB storage device, or flash key, is installed and configured, it automatically acts as
a secondary storage device.
The USB host module allows file transfers, such as device configurations, user
certifications, and update version images between an external USB flash key and
the internal flash storage located in the security device. The USB host module
supports USB 2.0 specification at either low-speed (1.5M) or full-speed (12M) file
transfer.
To use a USB flash key to transfer files between the device, perform the following
steps:
1. Insert the USB flash key into the USB host module on the security device.
2. Save the files from the USB flash key to the internal flash storage on the device
with the save { software | config | image-key } from usb filename to flash CLI
command.
3. Before removing the USB flash key, stop the host module with the exec
usb-device stop CLI command.
4. It is now safe to remove the USB flash key.
Back Panel 7
To save files from a USB flash key to the device, use the save { software | config |
image-key } from usb filename to flash CLI command.
If you want to delete a file from the USB flash key, use the delete file path:/filename
CLI command.
If you want to view the saved file information on the USB flash key or internal flash
storage, use the get file info CLI command.
SSG 5 Hardware Installation and Configuration Guide
8Back Panel
Before You Begin 9
Chapter 2
Installing and Connecting the Device
This chapter describes how to install an SSG 5 device in a standard 19-inch
equipment rack and connect cables and power to the device. Topics in this chapter
include:
“Before You Begin” on this page
“Equipment Rack Installation” on page 10
“Equipment Desk Mount Installation” on page 10
“Connecting Interface Cables to the Device” on page 11
“Chassis Grounding” on page 11
“Connecting the Power” on page 11
Before You Begin
The location of the chassis, the layout of the equipment rack, and the security of
your wiring room are crucial for proper system operation.
Observing the following precautions can prevent shutdowns, equipment failures,
and injuries:
Before installation, always check that the power supply is disconnected from
any power source.
Ensure that the room in which you operate the device has adequate air
circulation and that the room temperature does not exceed 104° F (40° C).
NOTE: For safety warnings and instructions, please refer to the Juniper Networks Security
Products Safety Guide. Before working on any equipment, you should be aware of
the hazards involved with electrical circuitry and familiar with standard practices
for preventing accidents.
WARNING: To prevent abuse and intrusion by unauthorized personnel, install an
SSG 5 device in a secure environment.
SSG 5 Hardware Installation and Configuration Guide
10 Equipment Rack Installation
Do not place the device in an equipment rack frame that blocks an intake or
exhaust port. Ensure that enclosed racks have fans and louvered sides.
Correct these hazardous conditions before any installation: moist or wet floors,
leaks, ungrounded or frayed power cables, or missing safety grounds.
Equipment Rack Installation
You can front-mount the SSG 5 device into a standard 19-inch equipment rack. The
device is shipped with mounting brackets installed. You can install two SSG 5
devices per rack.
To front-mount an SSG 5 device, you need a phillips screwdriver (not provided).
To install an SSG 5 device onto a rack:
1. Unscrew the mounting brackets with the phillips screwdriver.
2. Align the bottom of the device with the base holes.
3. Pull the device forward to lock it in the base holes.
4. Screw the mounting brackets to the device and the rack.
5. Place the power supply in the supply holder, then plug the power adapter into
the device.
6. To install a second SSG 5 device, repeat steps 1 through 4, then continue.
7. Place the tray in the rack.
8. Plug in the power supply to the power outlet.
Equipment Desk Mount Installation
To desk-mount an SSG 5 device, you need a phillips screwdriver (not provided).
To install an SSG 5 device onto a desk mount:
1. Attach the desktop stand to the side of the device. We recommend the side
closest to the power adapter.
2. Place the mounted device on the desktop.
3. Plug in the power adapter and connect the power supply to the power outlet.
NOTE: SSG 5-WLAN users with the optional antennae need to remove the existing
antennae, then connect the new antenna through the side hole.
Connecting Interface Cables to the Device 11
Connecting Interface Cables to the Device
To connect interface cables to the device:
1. Have ready a length of the type of cable used by the interface.
2. Insert the cable connector into the cable connector port on the device.
3. Arrange the cable as follows to prevent it from dislodging or developing stress
points:
a. Secure the cable so that it is not supporting its own weight as it hangs to
the floor.
b. Place excess cable out of the way in a neatly coiled loop.
c. Place fasteners on the loop to help maintain its shape.
Chassis Grounding
To meet safety and electromagnetic interference (EMI) requirements, and to ensure
proper operation, the SSG device must be adequately grounded before power is
connected. A one-hole grounding lug is provided on the rear of the chassis to
connect the device to earth ground (see Figure 5 on page 5).
The grounding cable must be American Wire Gauge (AWG) number 14 single-strand
wire cable and must be able to handle up to 6 ampere (A).
To ground the device before connecting power, you connect the grounding cable to
earth ground and then attach the cable to the lug on the rear of the chassis.
Connecting the Power
To connect the power to an SSG 5 device, plug the AC adapter end of the power
cable into an AC power source and the power cord into the power outlet. We
recommend using a surge protector for the power connection.
CAUTION: Before device installation begins, a licensed electrician must attach a
cable lug to the grounding cable that you supply. A cable with an incorrectly
attached lug can damage the device (for example, by causing a short circuit).
SSG 5 Hardware Installation and Configuration Guide
12 Connecting the Device to a Network
Connecting the Device to a Network
The SSG 5 devices provide firewall and general security for networks when it is
placed between internal networks and the untrusted network. This section
describes the physical connections.
Connect an SSG 5 Device to an Untrusted Network
You can connect your SSG 5 device to the untrusted network in one of the following
ways:
Connecting Ethernet Ports
Connecting Serial (AUX/Console) Ports
Connecting the WAN Ports
Connecting Ethernet Ports
To establish a high-speed connection, connect the provided Ethernet cable from the
Ethernet port marked 0/0 on an SSG 5 device to the external router. This Ethernet
port (0/0) is assigned to the ethernet0/0 interface, which is by default bound to the
Untrust security zone. The device autosenses the correct speed, duplex, and
MDI/MDIX settings.
Connecting Serial (AUX/Console) Ports
You can connect to the untrusted network with an RJ-45 straight through serial
cable and external modem.
Connecting the WAN Ports
1. Have ready a length of the type of cable used by the interface.
2. Insert the cable connector into the cable-connector port on the device.
3. Arrange the cable as follows to prevent it from dislodging or developing stress
points:
a. Secure the cable so that it is not supporting its own weight as it hangs to
the floor.
b. Place any excess cable out of the way in a neatly coiled loop.
c. Use fasteners to maintain the shape of the cable loops.
WARNING: Make sure that you do not inadvertently connect the Console, AUX, or
Ethernet ports on the device to the telephone outlet.
Connecting the Device to a Network 13
Connecting the Device to an Internal Network or Workstation
You can connect your local area network (LAN) or workstation using one or both of
the following methods:
“Connecting Ethernet Ports” on page 13
“Connecting the Wireless Antennae” on page 13
Connecting Ethernet Ports
An SSG 5 device contains seven Ethernet ports. You can use one or more of these
ports to connect to LANs through switches or hubs. You can also connect one or all
of the ports directly to workstations, eliminating the need for a hub or switch. You
can use either crossover or straight through cables to connect the Ethernet ports to
other devices.
Connecting the Wireless Antennae
If you are using the wireless interface, you need to connect the provided antennae
on the device. If you have the standard 2dB omnidirectional antennae, use screws to
attach them onto the posts marked A and B at the back of the device. Bend each
antenna at their elbows, making sure not to put pressure on the bulkhead
connectors.
If you are using the optional external antenna, follow the connection instructions
for that antenna.
RESET
DC POWER
LOCK
US B
SD FLASH
B A
5V A4
bulkhead connectorbulkhead connector
Antenna B Antenna A
SSG 5 Hardware Installation and Configuration Guide
14 Connecting the Device to a Network
15
Chapter 3
Configuring the Device
The ScreenOS software is preinstalled on the SSG 5 devices. When the device is
powered on, it is ready to be configured. While the device has a default factory
configuration which allows you to initially connect to the device, you need to
perform further configuration for your specific network requirements.
This chapter describes:
Accessing the Device on page 16
Default Device Settings on page 19
Basic Device Configuration on page 21
Wireless Configuration on page 25
WAN Configuration on page 29
Basic Firewall Protections on page 30
Verifying External Connectivity on page 31
Resetting the Device to Factory Defaults on page 31
NOTE: After you configure an SSG 5 device and verify connectivity through the remote
network, you must register your product at www.juniper.net/support/ so certain
ScreenOS services, such as Deep Inspection Signature Service, can be activated on
the device. After registering your product, use the WebUI to obtain the
subscription for the service. For more information about registering your product
and obtaining subscriptions for specific services, see the Fundamentals volume of
the Concepts & Examples ScreenOS Reference Guide for ScreenOS 5.4.0.
SSG 5 Hardware Installation and Configuration Guide
16 Accessing the Device
Accessing the Device
You can configure and manage an SSG 5 device in several ways:
Console: The Console port on the device allows you to access the device
through a serial cable connected to your workstation or terminal. To configure
the device, you enter ScreenOS Command Line Interface (CLI) commands on
your terminal or in a terminal emulation program on your workstation.
WebUI: The ScreenOS WebUI is a graphical interface available through a Web
browser. To initially use the WebUI, the workstation on which you run the Web
browser must be on the same subnetwork as the device. You can also access
the WebUI through a secure server using secure sockets layer (SSL) using secure
HTTP (S-HTTP).
Telnet/SSH: Telnet and Secure Shell (SSH) are applications that allows you to
access devices through an IP network. To configure the device, you enter
ScreenOS CLI commands in a Telnet session from your workstation. Fore more
information, See the Administration volume of the Concepts & Examples
Reference Guide for ScreenOS 5.4.0.
NetScreen-Security Manager: NetScreen-Security Manager is Juniper Networks’
enterprise-level management application that enables you to control and
manage Juniper Networks firewall/IPSec VPN devices and SSG devices. See the
NetScreen-Security Manager Administrator’s Guide.
Using a Console Connection
To establish a console connection:
1. Plug the female end of the supplied DB-9 adapter into the serial port of your
workstation. (Be sure that the DB-9 is inserted properly and secured.)
2. Plug the male end of the RJ-45 CAT5 serial cable into the Console port on the
SSG 5 device. (Be sure that the other end of the CAT5 cable is inserted properly
and secured in the DB-9 adapter.)
NOTE: Use a serial cable with a male RJ-45 connector to plug into the Console port on the
devices.
Accessing the Device 17
Figure 6: DB-9 Adapter
3. Launch a serial terminal emulation program on your workstation. The required
settings to launch a console session with the devices are as follows.
Baud rate: 9600
Parity: None
Data bits: 8
Stop bit: 1
Flow Control: None
4. If you have not yet changed the default user name and password, enter
netscreen in both the login and password prompts. (Use lowercase letters only.
The login and password fields are both case-sensitive.)
For information on how to configure the device with the CLI commands, see
the Concepts & Examples Reference Guide for ScreenOS 5.4.0.
5. (Optional) By default, the console times out and terminates automatically after
10 minutes of idle time. To remove the timeout, enter set console timeout 0.
Using the WebUI
To use the WebUI, you must initially be on the same subnetwork as the device. To
access the device with the WebUI browser interface:
1. Connect your workstation to the 0/2 - 0/6 port (bgroup0 interface in the Trust
zone) on the device. Ensure that your workstation is configured for DHCP or is
statically configured with an IP address in the 192.168.1.1/24 subnetwork.
2. Launch your browser, enter the IP address for the bgroup0 interface (the default
IP address is 192.168.1.1), then press Enter.
The WebUI application displays the login prompt.
RJ-45 Jack
DB-9
adapter
RJ-45 Plug
SSG 5 Hardware Installation and Configuration Guide
18 Accessing the Device

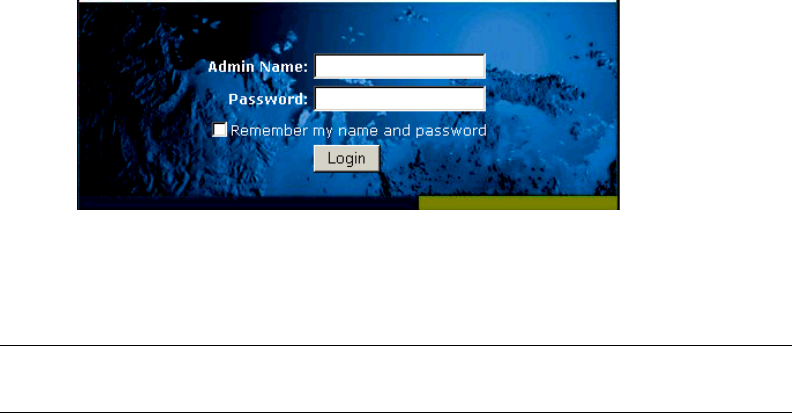

Figure 7: WebUI Login Prompt
3. If you have not yet changed the default user name and password, enter
netscreen in both the login and password prompts. (Use lowercase letters only.
The login and password fields are both case-sensitive.)
Using Telnet
1. Connect your workstation to the 0/2 - 0/6 port (bgroup0 interface in the Trust
zone) on the device. Ensure that your workstation is configured for DHCP or is
statically configured with an IP address in the 192.168.1.1/24 subnetwork.
2. Start a Telnet client application to the IP address for the bgroup0 interface (the
default IP address is 192.168.1.1). For example, enter telnet 192.168.1.1.
The Telnet application displays the login prompt.
3. If you have not yet changed the default user name and password, enter
netscreen in both the login and password prompts. (Use lowercase letters only.
The login and password fields are both case-sensitive.)
4. (Optional) By default, the console times out and terminates automatically after
10 minutes of idle time. To remove the timeout, enter set console timeout 0.
NOTE: If you decide to use the Initial Configuration Wizard to configure your device, see
Using the Initial Configuration Wizard.
Default Device Settings 19
Default Device Settings
This section describes the default settings and operation of an SSG 5 device.
Table 4 describes the default zone bindings for ports on the devices.
Table 4: Default Physical Interface to Zone Bindings
A bridge group, bgroup, is designed to allow network users to switch between
wired/wireless traffic without having to reconfigure or reboot the device. By default,
the ethernet0/2—ethernet0/6 interfaces, labeled as port 0/2—0/6 on the device, are
grouped together as the bgroup0 interface, have the IP address 192.168.1.1/24, and
are bound to the Trust security zone. You can configure up to four bgroups.
If you want to set an Ethernet or wireless interface into a bgroup, you must first
make sure that the Ethernet or wireless interface is in the Null security zone.
Unsetting the Ethernet or wireless interface that is in a bgroup places the interface
in the Null security zone. Once assigned to the Null security zone, the Ethernet
interface can be bound to a security zone and assigned a different IP address.
To unset ethernet0/3 from bgroup0 and assign it to the Trust zone with a static IP
address of 192.168.3.1/24, do the following:
unset interface bgroup0 port ethernet0/3
set interface ethernet0/3 zone trust
set interface ethernet0/3 ip 192.168.3.1/24
save
Port Label Interface Zone
Console N/A N/A
AUX serial0/0 Null
10/100 Fast Ethernet ports:
0/0 ethernet0/0 Untrust
0/1 ethernet0/1 DMZ
bgroup0
0/2
0/3
0/4
0/5
0/6
bgroup0 (default IP address is
192.168.1.1/24)
ethernet0/2
ethernet0/3
ethernet0/4
ethernet0/5
ethernet0/6
Trust
WAN por ts:
ISDN bri0/0 Untrust
V.92 serial0/0 Null
SSG 5 Hardware Installation and Configuration Guide
20 Default Device Settings
Table 5: Wireless and Logical Interface Bindings
You can change the default IP address on the bgroup0 interface to match the
addresses on your LAN and WLAN. For configuring a wireless interface to a bgroup,
see “Wireless Configuration” on page 25.
For addition bgroup information and examples, refer to the Concepts & Examples
ScreenOS Reference Guide.
There are no other default IP addresses configured on other Ethernet or wireless
interfaces on a device; you need to assign IP addresses to the other interfaces,
including the WAN interfaces.
SSG 5-WLAN Interface Zone
Wireless interface
Specifies a wireless interface, which is
configurable to operate on 2.4G and/or
5G radio band.
wireless0/0 (default IP address is
192.168.2.1/24)
Trust
wireless0/1-0/3 Null
Logical Interfaces
Layer2 interface vlan1 specifies the logical interfaces
used for management and VPN traffic
termination while the device is in
Transparent mode.
N/A
Tunnel interfaces tunnel.n specifies a logical tunnel
interface. This interface is for VPN
traffic.
N/A
NOTE: The bgroup interface does not work in transparent mode when it contains a
wireless interface.
Basic Device Configuration 21
Basic Device Configuration
This section describes optional configuration:
“Changing the Root Admin Name and Password” on page 21
“Setting the Date and Time” on page 22
“Bridge Group Interfaces” on page 22
“Administrative Access” on page 23
“Management Services” on page 23
“Host and Domain Name” on page 23
“Default Route” on page 24
“Management Interface Address” on page 24
“Backup Untrust Interface Configuration” on page 24
Changing the Root Admin Name and Password
The root admin user has complete privileges to configure an SSG 5 device. We
recommend that you change the default root admin name (netscreen) and
password (netscreen) immediately.
WebUI
Configuration > Admin > Administrators > Edit (for the netscreen
Administrator Name): Enter the following, then click OK:
Administrator Name:
Old Password:
New Password:
Confirm New Password:
CLI
set admin name name
set admin password pswd_str
save
NOTE: Passwords are not displayed in the WebUI.
SSG 5 Hardware Installation and Configuration Guide
22 Basic Device Configuration
Setting the Date and Time
The time set on an SSG 5 device affects events such as the setup of VPN tunnels.
The easiest way to set the date and time on the device is to use the WebUI to
synchronize the device system clock with the workstation clock.
WebUI
1. Configuration > Date/Time: Click the Sync Clock with Client button.
A pop-up message prompts you to specify if you have enabled the daylight
saving time option on your workstation clock.
2. Click Yes to synchronize the system clock and adjust it according to
daylight saving time or click No to synchronize the system clock without
adjusting for daylight saving time.
You can also use the set clock CLI command in a Telnet or Console session to
manually enter the date and time for the SSG device.
Bridge Group Interfaces
By default, the SSG 5 devices have Ethernet interfaces ethernet0/2—ethernet0/6
grouped together in the Trust security zone. Grouping interfaces sets interfaces in
one subnet. You can unset an interface from a group and assign it to a different
security zone. Interfaces must be in the Null security zone before they can be
assigned to a group. To place a grouped interface in the Null security zone, use the
unset interface interface port interface CLI command.
The SSG 5-WLAN devices allow Ethernet and wireless interfaces to be grouped
under one subnet.
To configure a group with Ethernet and wireless interfaces, do the following:
unset interface bgroup0 port ethernet0/3
unset interface bgroup0 port ethernet0/4
set interface bgroup1 port ethernet0/3
set interface bgroup1 port ethernet0/4
set interface bgroup1 port wireless0/2
set interface bgroup1 zone DMZ
set interface bgroup1 ip 10.0.0.1/24
save
NOTE: Only wireless and Ethernet interfaces can be set in a bridge group.
Basic Device Configuration 23
Administrative Access
By default, anyone in your network can manage a device if they know the login and
password. You can configure the device to be managed only from a specific host on
your network:
WebUI
Configuration > Admin > Permitted IPs: Enter the following, click Add:
IP Address/Netmask: ip_addr/mask
CLI
set admin manager-ip ip_addr/mask
save
Management Services
ScreenOS provides services for configuring and managing the SSG device, such as
SNMP, SSL, and SSH, which you can enable on a per-interface basis.
WebUI
Network > Interfaces > Edit (for eth0/0): Under Management Services, select
or clear the management services you want to use on the interface, then click
Apply.
CLI
set interface eth0/0 manage web
unset interface eth0/0 manage snmp
save
Host and Domain Name
The domain name defines the network or subnetwork that the device belongs to,
while the hostname refers to a specific device. The hostname and domain name
together uniquely identify the device in the network.
WebUI
Network > DNS > Host: Enter the following, then click Apply:
Host Name: name
Domain Name: name
SSG 5 Hardware Installation and Configuration Guide
24 Basic Device Configuration
CLI
set hostname name
set domain name
save
Default Route
The default route is a static route used to direct packets addressed to networks that
are not explicitly listed in the routing table. If a packet arrives at the device with an
address that the device does not have routing information for, the device sends the
packet to the destination specified by the default route.
WebUI
Network > Routing > Routing Entries > New: Enter the following, then click
OK:
Network Address/Netmask: 0.0.0.0/0.0.0.0
Gateway: (select)
Interface: serial1/0 (select)
Gateway IP Address: ip_addr
CLI
set route 0.0.0.0/0 interface serial1/0 gateway ip_addr
save
Management Interface Address
The Trust interface has the default IP address 192.168.1.1/24 and is configured for
management services. If you connect the 0/2—0/6 port on the device to a
workstation, you can configure the device from a workstation in the 192.168.1.1/24
subnetwork using a management service such as Telnet.
You can change the default IP address on the trust interface. For example, you
might want to change the interface to match IP addresses that already exist on your
LAN.
Backup Untrust Interface Configuration
The SSG 5 devices allow you to configure a backup interface for untrust failover. To
set a backup interface for untrust failover, perform the following steps:
1. Set the backup interface in the Null security zone with the unset interface
interface [ port interface ] CLI command.
2. Bind the backup interface to the same security zone as the primary interface
with the set interface interface zone zone_name CLI command.
To set the ethernet0/4 interface as the backup interface to the ethernet0/0 interface,
do either of the following:
NOTE: The primary and backup interfaces must be in the same security zone. One
primary interface has only one backup interface, and one backup interface has
only one primary interface.
Wireless Configuration 25
WebUI
Network > Interfaces > Backup > Enter the following, then click Apply.
Primary: ethernet0/0
Backup: ethernet0/4
Type: track-ip (select)
CLI
unset interface bgroup0 port ethernet0/4
set interface ethernet0/4 zone untrust
set interface ethernet0/0 backup interface ethernet0/4 type track-ip
save
Wireless Configuration
This section provides information for configuring the wireless interface on the
SSG 5-WLAN devices. To use the wireless local area network (WLAN) capabilities on
the device, you must configure at least one Service Set Identifier (SSID) and bind it
to a wireless interface.
Figure 8 shows the default configuration for an SSG 5-WLAN device.
NOTE: If you are operating the SSG 5-WLAN device in a country other than the United
States or Japan, then you must use the set wlan country-code command before a
WLAN connection can be established. This command sets the selectable channel
range and transmit power level.
Add Taiwan, China, Korea, Singapore
SSG 5 Hardware Installation and Configuration Guide
26 Wireless Configuration
Figure 8: Default SSG 5-WLAN Configuration
By default, the wireless0/0 interface is configured with the IP address of
192.168.2.1/24. All wireless clients that need to connect to in the Trust zone must
have an IP address in the wireless subnetwork. You can also configure the device to
automatically assign IP addresses in the 192.168.2.1/24 subnetwork to your devices
with DHCP.
By default, the wireless0/1 - wireless0/3 interfaces are defined as Null and do not
have IP addresses assigned to them. If you want to use any of the other wireless
interfaces, you must configure an IP address for it, assign an SSID to it, and bind it
to a security zone.
For more information about WLANs, refer to “Wireless Interface” in the Concepts
and Examples ScreenOS Reference Guide.
Wireless Network Configuration
Wireless networks consist of names referred to as Service Set Identifiers (SSIDs).
Specifying SSIDs allows you to have multiple wireless networks reside in the same
location without interfering with each other. An SSID name can have a maximum of
32 characters. If a space is part of the SSID name string, then the string must be
enclosed with quotation marks. Once the SSID name is set, more SSID attributes
can be configured.
The SSG 5-WLAN devices allow you to create up to 16 SSIDs, but only 4 of them can
be used simultaneously. You can configure the device to use the 4 SSIDs on either
one of the transceivers or split the use on both. For example, 3 SSIDs assigned to
WLAN 0 and 1 SSID assigned to WLAN 1. Use the set interface wireless_interface
wlan { 0 | 1 | both } CLI command to set the radio transceivers on the SSG 5-WLAN
devices.
To set the SSID name netscreen open, allow the SSID to be open to all users, bind
the SSID to the wireless0/0 interface, and use both radio transceivers, do either of
the following:
SSG 5
V.9 2
STATUS
POWER
CONSOLE
TX /RX
CD
01 2 3 4 5 6
TX/RX LINK TX/RX LINK TX/RX LINK TX/RX L INK TX/RX LINK TX/RX LINK TX/ RX LINK
10/100 10/ 100 10/100 10/100 10/100 10/100 10/100
B/G
WLAN V.92
802.11A
Callouts
Callouts
wireless0/0 interface
(192.168.2.1/24)
Trust Zone
bgroup0 interface
(ethernet0/2—ethernet0/6
console
Untrust Interface
Internet
Wireless Configuration 27
WebUI
Wireless > SSID > New: Enter the following, then click OK:
SSID: netscreen open
Authentication: open
Encryption: none
Wireless Interface Binding: wireless0/0 (select)
CLI
set ssid name “netscreen open”
set ssid “netscreen open” authentication open encryption none
set ssid “netscreen open” interface wireless0/0
set interface wireless0/0 wlan both
set interface wireless0/0 zone trust
save
exec wlan reactivate
You can set an SSID to operate in the same subnet as the wired subnet. This action
allows clients to work in either interface without having to reconnect in another
subnet.
To set up a wireless interface for basic configuration, do the following:
set wlan country-code {code}
set interface wireless_interface ip ip_addr/netmask
set ssid name name_str
set ssid name_str authentication auth_type encryption encryption_type
set ssid name_str key-id number
set ssid name_str interface interface
set interface wireless_interface wlan both
save
exec wlan reactivate
To set an ethernet and wireless interface to the same bridge group interface, do the
following:
set interface bgroup_name port wireless_interface
set interface bgroup_name port ethernet_interface
NOTE: Bgroup_name can be bgroup0—bgroup3.
Ethernet_interface can be ethernet0/0—ethernet0/6.
Wireless_interface can be wireless0/0—wireless0/3.
SSG 5 Hardware Installation and Configuration Guide
28 Wireless Configuration
Authentication and Encryption
The SSG 5-WLAN supports the following authorization and encryption methods:
Once you have set an SSID to the wireless0/0 interface, you can access the device
using the default wireless0/0 interface IP address in the steps provided “Accessing
the Device” on page 16. Refer to the Concepts & Examples ScreenOS Reference Guide
for configuration examples, SSID attributes, and CLI commands relating to wireless
security configurations.
Authentication Encryption
Open Allows any wireless client to access the device
Shared-key WEP shared-key
WPA-PSK AES/TKIP with Pre-shared key
WPA AES/TKIP with key from RADIUS server
WPA2-PSK 802.11i compliant with a pre-shared key
WPA2 802.11i compliant with a RADIUS server
WPA-Auto-PSK Allows WPA and WPA2 type with pre-shared key
WPA-Auto Allows WPA and WPA2 type with RADIUS server
802.1x WEP with key from RADIUS server
WAN Configuration 29
WAN Configuration
This section explains how to configure the WAN interfaces:
“The ISDN Interface” on this page
“The V.92 Modem Interface” on page 30
The ISDN Interface
Integrated Services Digital Network (ISDN) is a set of standards for digital
transmission over different media created by the Consultative Committee for
International Telegraphy and Telephone (CCITT) and International
Telecommunications Union (ITU). As a dial-on-demand service, it has fast call setup
and low latency as well as the ability to carry high-quality voice, data, and video
transmissions. ISDN is also a circuit-switched service that can be used on both
multipoint and point-to-point connections. ISDN provides a service router with a
backup connection for network interfaces.
Some SSG 5 devices support ISDN basic rate interfaces (BRIs). The ISDN interface is
usually configured as the backup interface of the Ethernet interface to access
external networks.
To configure the ISDN interface, do either of the following:
WebUI
Network > Interfaces > Edit (bri0/0): Enter or select the applicable option
value, then click OK.
BRI Mode: Dial Using BRI
Primary Number: 123456
WAN Encapsulation: PPP
PPP Profile: isdnprofile
CLI
set interface bri0/0 dialer-enable
set interface bri0/0 primary-number "123456"
set interface bri0/0 encap ppp
set interface bri0/0 ppp profile isdnprofile
save
For more information on how to configure the ISDN interface, refer to the Concepts
and Examples ScreenOS Reference Guide.
To configure the ISDN interface as the backup interface, see “Backup Untrust
Interface Configuration” on page 24.
SSG 5 Hardware Installation and Configuration Guide
30 Basic Firewall Protections
The V.92 Modem Interface
Some SSG 5 devices provide an internal modem to establish a PPP connection to an
ISP. You can configure the serial interface as a primary or backup interface, which is
used in case of interface failover.
To configure the V.92 interface, do either of the following:
WebUI
Network > Interfaces > Edit (for serial0/0) > Modem: Enter the following,
click OK:
Modem Name: mod1
Init String: AT&FS7=255S32=6
Status: Enable (select)
Inactivity Timeout: 20
CLI
set interface serial0/0 modem idle-time 20
set interface serial0/0 modem settings mod1 init-strings AT&FS7=255S32=6
set interface serial0/0 modem settings mod1 active
For information on how to configure the V.92 modem interface, refer to the
Concepts and Examples ScreenOS Reference Guide.
Basic Firewall Protections
The devices are configured with a default policy that permits workstations in the
Trust zone of your network to access any resource in the Untrust security zone,
while outside computers are not allowed to access or start sessions with your
workstations. You can configure policies that direct the device to permit outside
computers to start specific kinds of sessions with your computers. For information
about creating or modifying policies, refer to the Concepts and Examples ScreenOS
Reference Guide.
The SSG 5 devices provide various detection methods and defense mechanisms to
combat probes and attacks aimed at compromising or harming a network or
network resource:
ScreenOS SCREEN options secure a zone by inspecting, and then allowing or
denying, all connection attempts that require crossing an interface to that zone.
For example, you can apply port scan protection on the Untrust zone to stop a
source from an remote network from trying to identify services to target for
further attacks.
The device applies firewall policies, which can contain content filtering and
intrusion detection and prevention (IDP) components, to the traffic that passes
the SCREEN filters from one zone to another. By default, no traffic is permitted
to pass through the device from one zone to another. To permit traffic to cross
the device from one zone to another, you must create a policy that overrides the
default behavior.
NOTE: The V.92 interface does not work in transparent mode.
Verifying External Connectivity 31
To set ScreenOS SCREEN options for a zone:
WebUI
Screening > Screen: Select the zone to which the options apply. Select the
SCREEN options that you want, then click Apply:
CLI
set zone zone screen option
save
For more information about configuring the network security options available in
ScreenOS, see the Attack Detection and Defense Mechanisms volume in the Concepts
& Examples ScreenOS Reference Guide.
Verifying External Connectivity
To verify that workstations in your network can access resources on the Internet,
start a Web browser from any workstation in the network and enter the following
URL: www.juniper.net.
Resetting the Device to Factory Defaults
If you lose the admin password, you can reset the SSG 5 device to its default
settings. This action destroys any existing configurations but restores access to the
device.
You can restore the device to its default settings in one of the following ways:
Using a Console connection. For further information, see the Administration
chapter in the Administration volume of the Concepts and Examples ScreenOS
Reference Guide.
Using the reset pinhole on the front panel of the device, as described in the
next section.
WARNING: Resetting the device deletes all existing configuration settings and
renders existing firewall and VPN service inoperative.
SSG 5 Hardware Installation and Configuration Guide
32 Resetting the Device to Factory Defaults
The Reset Pinhole
You can reset the device and restore the factory default settings by pressing the
reset pinhole. To perform this operation, you need to either view the device status
LEDs on the front panel or start a Console session as described in Using a Console
Connection on page 16.
To use the reset pinhole to reset and restore the default settings, perform the
following steps:
1. Locate the reset pinhole on the rear panel. Using a thin, firm wire (such as a
paper clip), push the pinhole for four to six seconds and then release.
The STATUS LED blinks red. A message on the Console states that erasure of the
configuration has started and the system sends an SNMP/SYSLOG alert.
2. Wait for one to two seconds.
After the first reset, the STATUS LED blinks green; the device is now waiting for
the second reset. The Console message now states that the device is waiting for
a second confirmation.
3. Push the reset pinhole again for four to six seconds.
The Console message verifies the second reset. The STATUS LED glows red for
one-half second and then returns to the blinking green state.
The device then resets to its original factory settings. When the device resets,
the STATUS LED glows red for one-half second and then glows green. The
Console displays device bootup messages. The system generates SNMP and
SYSLOG alerts to configured SYSLOG or SNMP trap hosts.
After the device has rebooted, the Console displays the login prompt for the
device. The STATUS LED blinks green. The login for username and password is
netscreen.
If you do not follow the complete sequence, the reset process cancels without any
configuration change and the console message states that the erasure of the
configuration is aborted. The STATUS LED returns to blinking green. If the device
did not reset, an SNMP alert is sent to confirm the failure.
Tools and Parts Required 33
Chapter 4
Servicing the Device
This chapter describes service and maintenance procedures for an SSG 5 device. It
contains the following sections:
“Tools and Parts Required” on this page
“Memory Upgrade” on page 33
Tools and Parts Required
To replace a component on an SSG 5 device, you need the following tools and parts:
Electrostatic discharge (ESD) grounding wrist strap
Phillips screwdriver, 1/8-inch
Memory Upgrade
You can upgrade an SSG 5 device with a single 128 MB SIMM DRAM memory
module to a 256 MB module.
To upgrade the memory on an SSG 5 device, perform the following steps:
1. Attach an ESD grounding strap to your bare wrist and connect the strap to the
ESD point on the chassis, or to an outside ESD point if the device is
disconnected from earth ground.
2. Unplug the power adapter from the device. Verify that the POWER LED is off.
3. Use a phillips screwdriver to remove the screws from the top panel of the
chassis. The screws are located at the rear and sides of the panel. Keep the
screws nearby for use when closing the chassis later.
4. Grip the rear edge of the top panel, lift it up, then remove it.
NOTE: For safety warnings and instructions, refer to the Juniper Networks Security
Products Safety Guide. The instructions in the guide warn you about situations that
could cause bodily injury. Before working on any equipment, you should be aware
of the hazards involved with electrical circuitry and be familiar with standard
practices for preventing accidents.
SSG 5 Hardware Installation and Configuration Guide
34 Memory Upgrade
5. Locate the memory module slot.
Figure 9: Memory Module Slots
6. Release the 128 MB SIMM DRAM memory module by pressing your thumbs
downward on the locking tabs on each side of the module so that the tabs
swivel away from it.
7. Grip the long edge of the memory module and slide it out. Set it aside.
8. Insert one of the 256 MB SIMM DRAM memory modules into the slot from
which you just removed the 128 MB SIMM DRAM memory module. Exerting
even pressure with both thumbs upon the upper edge of the module, press the
module downward until the locking tabs click into position.
9. To replace the top panel on the chassis, set the front edge of the top panel into
the groove that runs along the top front edge of the chassis. Then lower the top
panel onto the chassis.
10. Use the phillips screwdriver to tighten the screws you removed earlier, securing
the top panel to the chassis.
Graphic needed.
SSG 5 Physical Specifications I
Appendix A
Specifications
This appendix provides general system specifications for the SSG 5 device.
SSG 5 Physical Specifications
Table 6: SSG 5 Physical Specifications
Electrical Specification
Table 7: SSG 5 Electrical Specifications
Environmental
Table 8: SSG 5 Environmental Tolerance
Description Value
Chassis dimensions 222.5mm X 143.4mm X 35mm. With rubber feet, the system is 40mm (1.6 inches) tall.
(8.8 inches X 5.6 inches X 1.4 inches)
Device weight 960g (2.1 lbs)
Item Specification
DC input voltage 12 V
DC system current rating 3-4 Amps
Description Value
Altitude No performance degradation to 6,600 ft (2,000 m)
Relative humidity Normal operation ensured in relative humidity range of 5% to 90%, noncondensing
Temperature Normal operation ensured in temperature range of 32°F (0°C) to 104°F (40°C)
Non-operating storage temperature in shipping carton: -40°F (-40°C) to 158°F (70°C)
3-4.16Amps
SSG 5 Hardware Installation and Configuration Guide
II Certifications
Certifications
Safety
CAN/CSA-C22.2 No. 60950-1-03/UL 60950-1 Third Edition, Safety of
Information Technology Equipment
EN 60950-1:2001+A11, Safety of Information Technology Equipment
IEC 60950-1:2001 First Edition, Safety of Information Technology Equipment
EMC (Emissions)
FCC Part 15 Class B (USA)
EN 55022 Class B (Europe)
AS 3548 Class B (Australia)
VCCI Class B (Japan)
EMC Immunity
EN 55024
EN-61000-3-2 Power Line Harmonics
EN-61000-3-3 Power Line Harmonics
EN-61000-4-2 ESD
EN-61000-4-3 Radiated Immunity
EN-61000-4-4 EFT
EN-61000-4-5 Surge
EN-61000-4-6 Low Frequency Common Immunity
EN-61000-4-11 Voltage Dips and Sags
European Telecommunications Standards Institute (ETSI)
ETSI EN-3000386-2: Telecommunication Network Equipment. Electromagnetic
Compatibility Requirements; (equipment category -Other than
telecommunication centers)
Connectors III
Connectors
Table 9 lists the RJ-45 connector pinouts for the Console and Modem ports:
Table 9: Console and Modem Port Connector Pinouts
RJ-45 Name I/O Description DB-9
1RTS OutO Request to Send8
2 DTR Out O Data Terminal Ready 6
3TxD O Transmit Data2
4 GND N/A Chassis Ground 5
5 GND N/A Chassis Ground 5
6 RxD 1 Receive Data 3
7 DSR 1 Data Set Ready 4
8 CTS 1 Clear to Send 7
SSG 5 Hardware Installation and Configuration Guide
IV Connectors
Index 1
Index
A
ADSL
connecting the cable 12
connecting the port 12
Annex A 12
Annex B 12
antennae 13
B
backup interface to Untrust zone 24
C
chassis grounding 6
configuration
management services 23
G
grounding 6
I
installation
chassis grounding 6
M
management services 23
R
reset pinhole, using 32
U
Untrust zone, configuring backup interface 24
W
Wireless
antennae 13
using the default interface 13
2Index
SSG 5 Hardware Installation and Configuration Guide
