Junlan Electronic CAW02013 SAMSUNG POWERED WIFI SURROUND SPEAKER User Manual

Shenzhen Junlan Electronic Ltd SAMSUNG POWERED WIFI SURROUND SPEAKER

User Manual

SAMSUNG POWERED
WIFI SURROUND SPEAKER
MODEL:CAW-02013
PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE
OPERATION AND KEEP IT FOR FUTURE REFERENCE

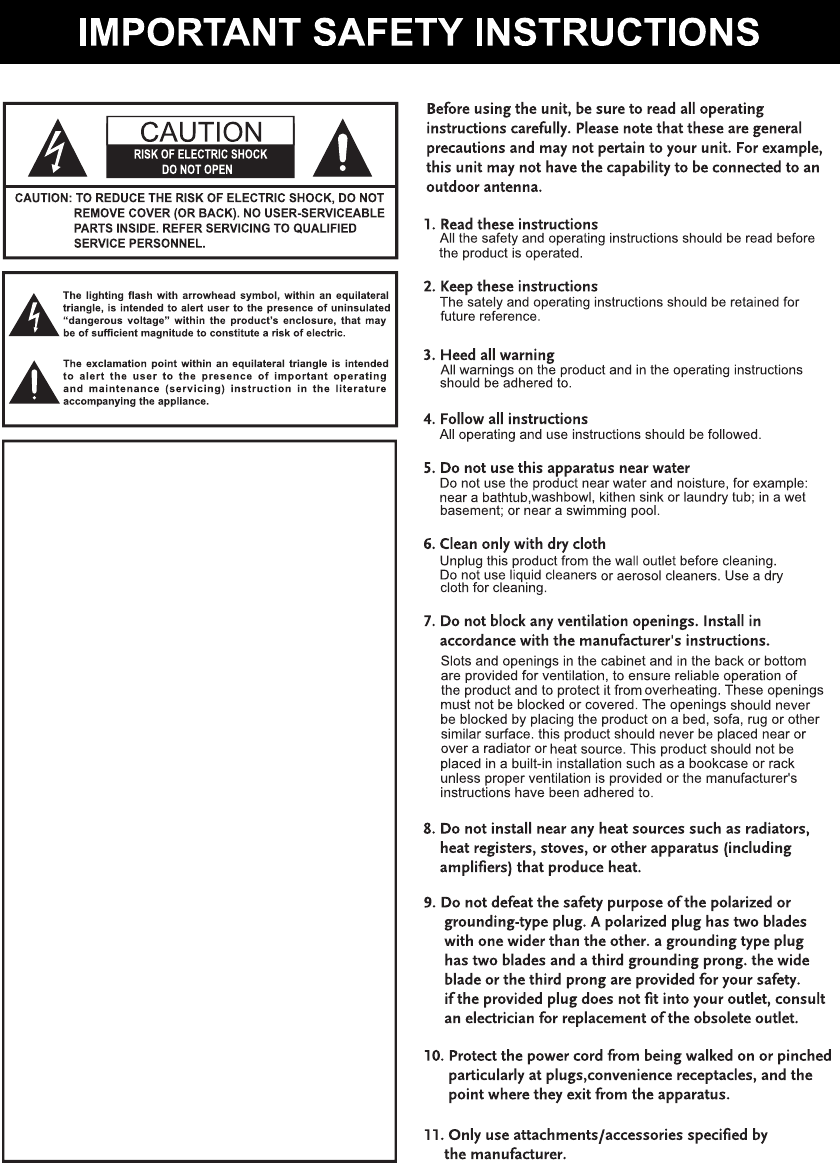

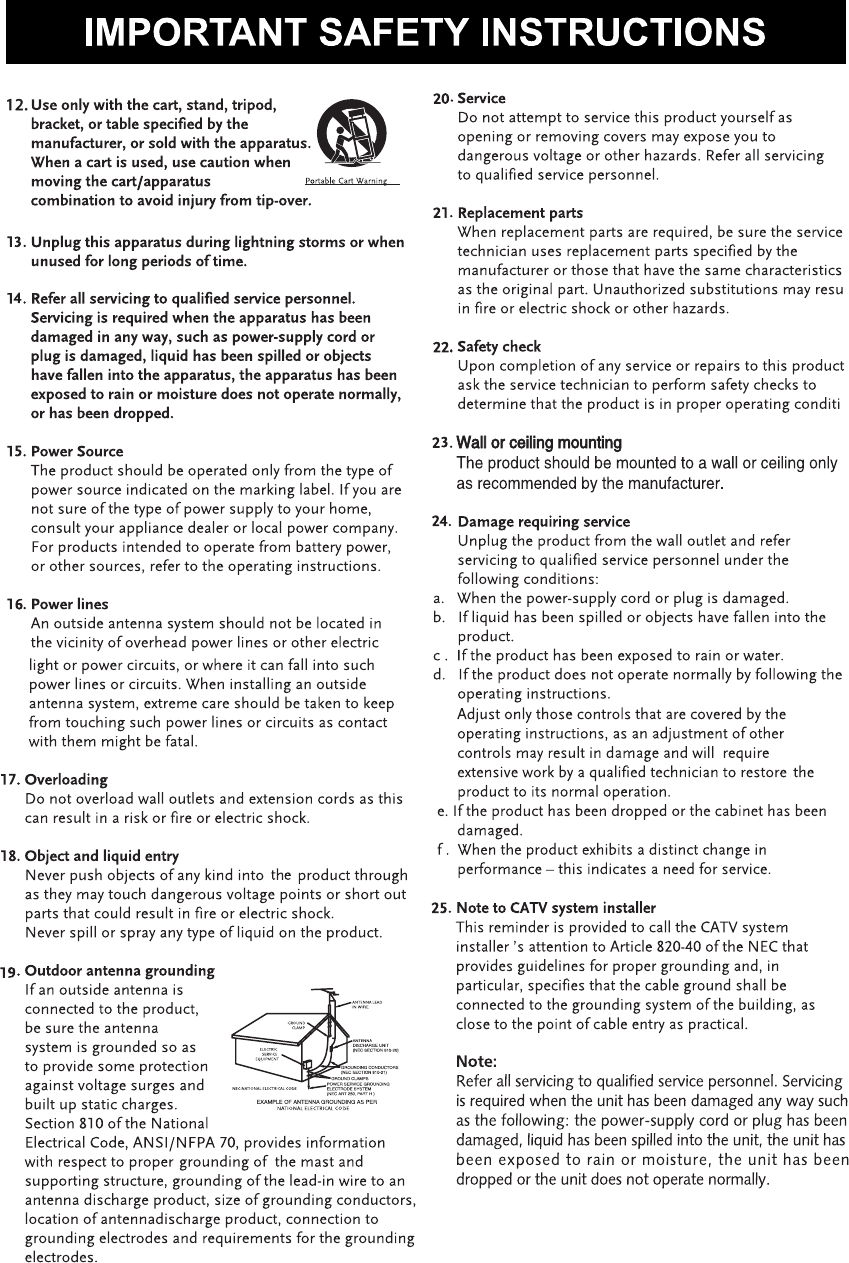

2
WARNING:Changes or modifications to this unit
not expressly approved by the party responsible
for compliance could void the users authority to
operate the equipment.
NOTE: This equipment has been tested and
found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful interference
in a residential installation. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV
technician for help.
FCC Warnings
FCC NOTICE:
To assure continued compliance, follow the attached
installation instructions and use only shielded cables
when connecting to other devices. Modifications not
authorized by the manufacturer may void user’s
authority to operate this device.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated
with minimum distance between 20cm the radiator your body: Use only the supplied antenna.
3
4

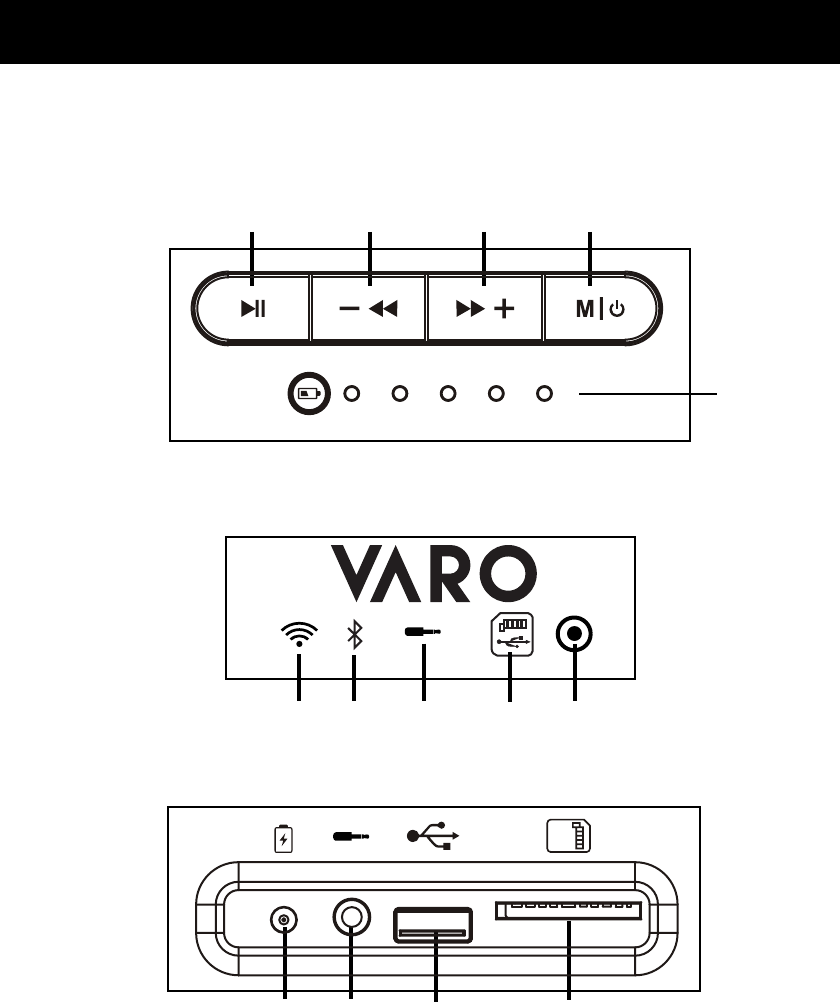

LOCATION OF CONTROLS
TOP VIEW
FRONT VIEW
REAR VIEW
1. Play/Pause (WiFi Pairing) Button
2. Previous (Volume Down) Button
3. Next (Volume Up) Button
4. Mode (Power On/Off) Button
6. WiFi Indicator
7. Bluetooth Indicator
8. AUX IN Indicator
9. SD/USB Indicator
10. OPTICAL Indicator
12. AUX IN Jack
11. DC IN Jack
1 2 3 4
5
6 7 8 9 10
11 12 13 14
MAIN UNIT:
5. Battery Indicator
14. SD Card Slot
13. USB Port
Accessories:
Specification
Power supply...............................................................................................9V 2A
Speakers.................................................................................................................2 X 6W(RMS)
1 X 3.5mm Stereo AUX IN Cable
1 X Instruction Manual
1 X AC/DC Adapter for the main unit (9V, 2A )
1 X Velvet Bag
Running Time..........................................................................around 5 hours(with 50% volume)
Recharging Time..................................................................................................around 4 hours
Bluetooth working range..................................................................32 feet (tested in open area)
WiFi working range...............................................................................................approx. 96 feet
Bluetooth version...................................................................................................................V4.1
5
RECHARGING

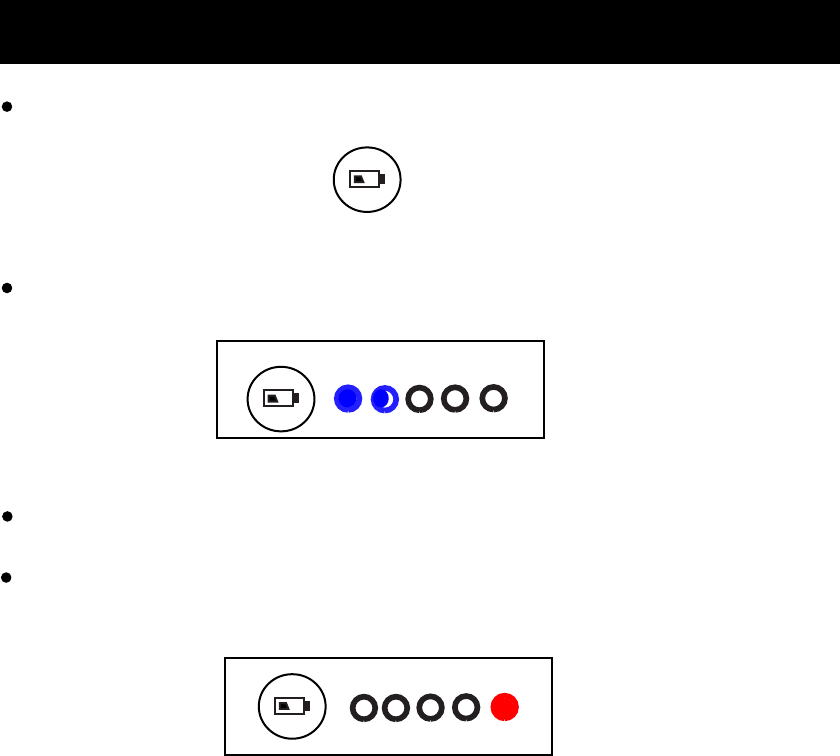

The battery indicator will flash blue during low battery level.
Battery Indicator
Battery Indicator Button
Using the supplied Adapter to recharge through the DC IN jack at the rear of the main unit.
During playing, press the battery indicator button to display the battery level.
Battery Indicator
The red indicator will light up when charging, it will turn blue after fully charged.
6
BLUETOOTH OPERATION
Pairing the speaker with Bluetooth devices (phone or music device)
1. Press and hold the button to turn on the unit.
5. Once paired successfully, Bluetooth indicator will stop blinking and a tone will be heard.
6. If pairing is unsuccessful, turn off the speaker first and then re-pair following above steps.
M
2. Press the button repeatedly to turn to Bluetooth mode, the Bluetooth indicator on
M
front of the unit will light up and blink, and a tone sounds, now it is entering pairing mode.
3. Activate the Bluetooth function on your Bluetooth device (phone or music device). Please
refer to the manufacturer’s instructions of your device.
4. Once you have activated Bluetooth on your device, select the speaker “CAW-02013” from
the list of available Bluetooth devices.
7. Once you have paired the speaker with a device, the speaker will remember this device
and will pair automatically when the device’s Bluetooth is activated and in range.
8. If you want to pair it with a new device, press and hold the button to disconnect the
current pairing.
During playing:
A:Press the or button to skip to previous or next track.
B:Press the button to pause, press again to resume playing.
C:Press and hold the or button to decrease or increase the volume.
NOTE:
During playing, please do not insert the AUX IN cable into the AUX IN Jack, or it will switch
to AUX IN mode, the AUX IN indicator will light up, it will switch to WiFi mode when unplug
7
the AUX IN cable.
2. Press and hold the button to turn on the unit.
M
3. Press the button repeatedly to turn to AUX IN mode, the AUX IN indicator on
M
front of the unit will light up.
~ Insert the other end to the AUX IN jack on the rear of the main unit.

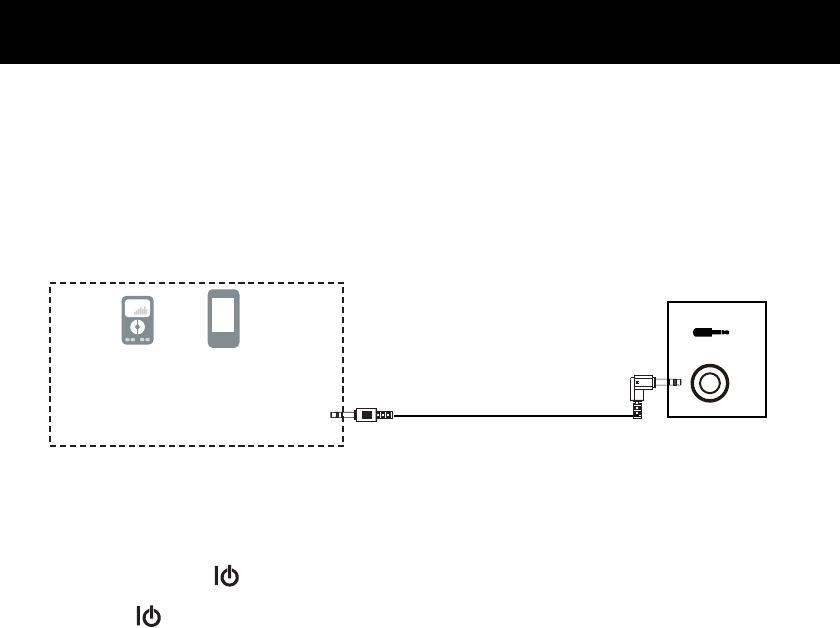

1. Connected the external audio device to the unit by an
~ Insert one end to the Phone; Line Out or AUX Out Jack on the external audio device.
audio connection cable with 3.5mm
stereo mini jacks as:
Mobile Phone
(Audio Connection Cable supplied)
To AUX IN jack on
the rear of the unit
Connect to the Phones; AUX Out;
Line Out Jack of the external devices
(Such like MP3 Player; cell phones;
iPod/iPad ... etc)
AUX IN OPERATION
4. Play music as usual on your external device.
MP3
8
NOTE: It will switch to AUX IN mode when AUX IN cable plugged into the AUX IN jack in
any other modes( such as WiFi, Bluetooth, USB, SD, OPTICAL).
USB/Sd OPERATION
NOTE: Only the USB or SD Card inserted to the unit can the USB/SD mode be selected.
The latter one inserted to the unit will be played first.
USB
Sd

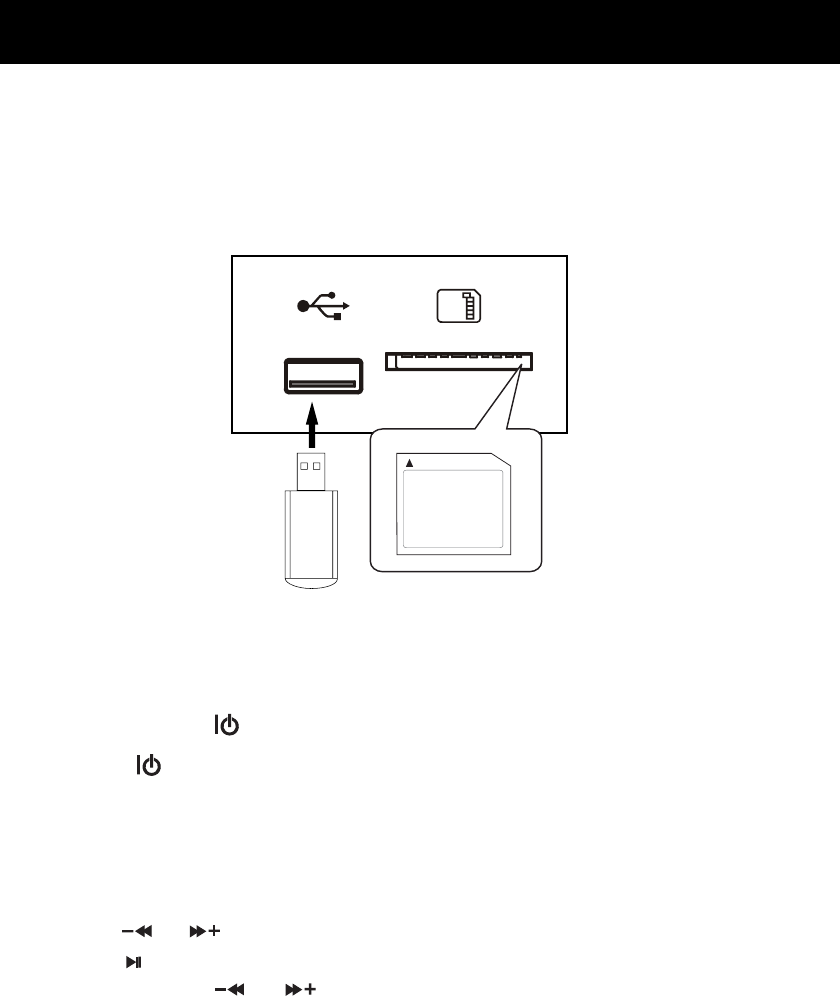

1. Insert the USB device or SD memory card into the USB port/card slot as shown above figure.
2. Press and hold the button to turn on the unit.
M
3. Press the button repeatedly to turn to USB/SD mode, the USB/SD mode indicator on
M
front of the unit will light up.
During playing:
A:Press the or button to skip to previous or next track.
B:Press the button to pause, press again to resume playing.
C:Press and hold the or button to decrease or increase the volume.
4. The unit will automatically play the track after a few seconds.
REAR VIEW OF THE UNIT
9
CONNECTION THROUGH OPTICAL
TV; DVD player; BD player... etc.
4. Power on the connected external player and start playback the Music as usual. Turn on

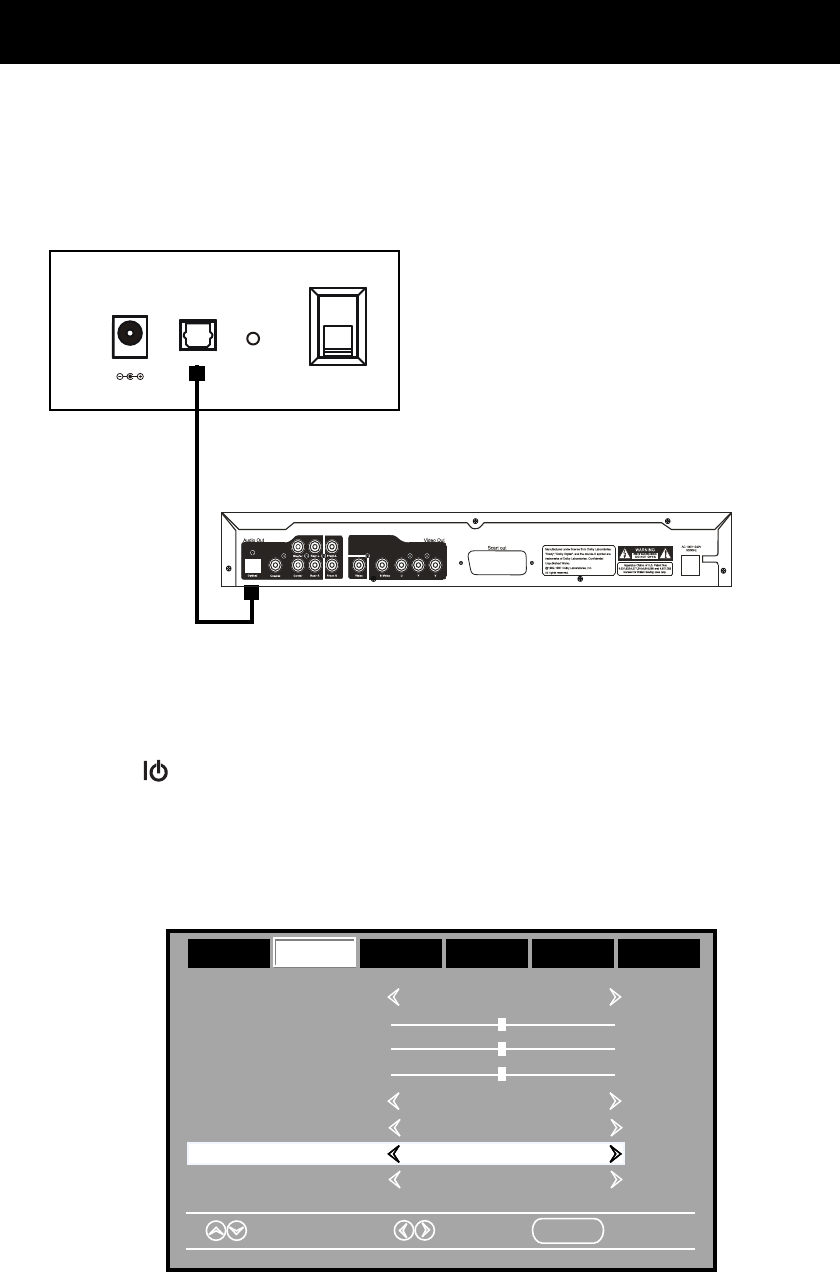

1. Connect the Optical out jack from the external audio Player (such like TV, DVD Player,
BD Player …etc.) to the
(not supplied) as the figure below: ( F or PCM format only )
follows figure:
Bass
Treble
Balance
Select Move MENU Exit
Sound Mode Standard
Surround Off
AVL Off
Audio Language English
Picture Time Setup Lock Off
AudioAudio
Digital Output PCMDigital Output PCM
OPTICAL IN jack on the subwoofer by the optical connection
cable
the digital audio output and set it to PCM (Plus Code Modulation) type similar to the
Optical Connection Cable (not supplied)
OP TIC A L
ON
OFF
PO WER
DC 1 6V
REAR VIEW OF THE SUBWOOFER
3. Press the button repeatedly to turn to optical mode, the OPTICAL IN indicator on
M
front of the unit will light up.
2. Connect the AC/DC adapter to the wall outlet, the power indicator will light up red.
Put the power switch to "ON" position to turn on the subwoofer.
NOTE: The OPTICAL function can only work when the subwoofer installed with the main unit.
10
11
Download and install the App and set the language of mobile phone to English.
Before connecting the mobile phone with the unit, search the
VARO WIFI CONTROLLER from network by the following website:
The App icon will appear like the Fig.1 after successful installation.
Fig. 1
PREPARATION
CONNECT THE PHONE WITH THE UNIT
Activate the WiFi on the phone, search and connect the router (WiFi Source),
Press and hold the button to turn on the unit, the WiFi indicator will light up and blink.
Tap VARO WIFI CONTROLLER icon to activate and it will try to search the devices (Fig.A).
Setup
VARO WIFI CONTROLLER
NOTE:Please make sure that there is no AUX IN cable plugged in AUX IN jack.
M
Android:
http://fir.im/bvaro
iOS:
http://fir.im/varo

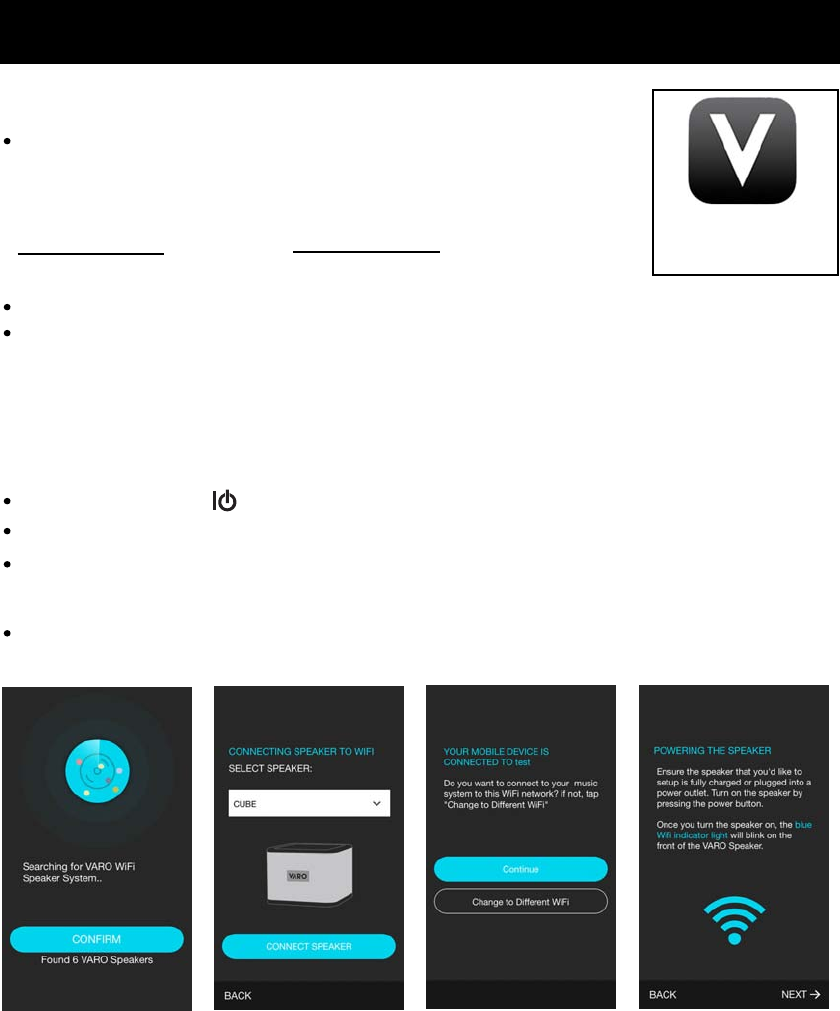

Fig.A Fig.B
Select CUBE on Fig.B and tap CONNECT SPEAKER, tap Continue on Fig.C.
Fig.C Fig.D
Read the tips on Fig.D and tap NEXT.
Setup
NOTE: There will be voice tone sounding during connection procedure like the following:
" Searching for Wifi connection "
" Waiting for Wifi connection "
" Wifi connected "

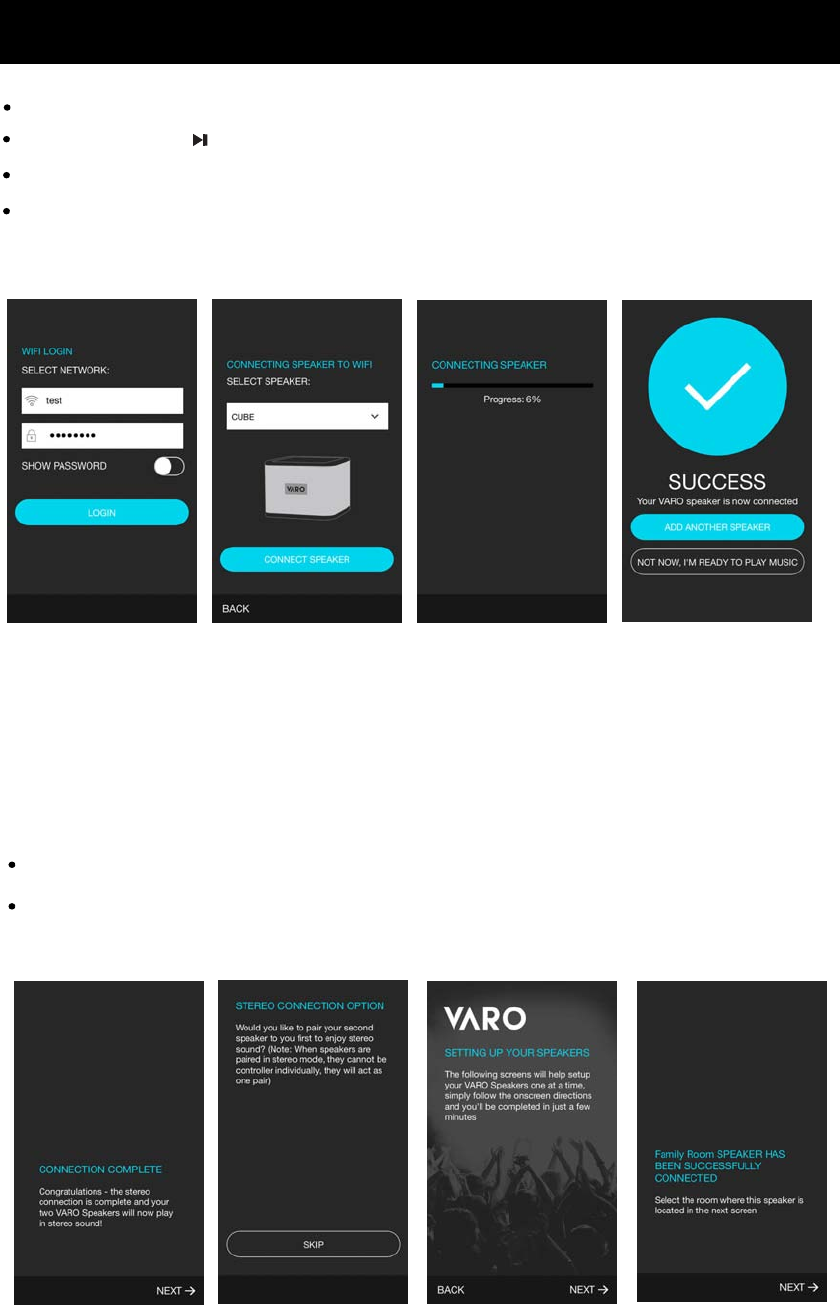

Select the same WiFi (router source) as the phone connected and tap LOGIN on Fig.E.
Fig.E
Press and hold the button on the unit as instructed on Fig.F and tap Next to continue.
Fig.F
Wait unit the progress bar reach 100% as instructed on Fig.G.
Fig.G Fig.H
Select to add another speaker or play music after successful connection as Fig.H.
Using the screen instructions and the voice tone to make connection and operations.
After connection completed, it will give instructions like Fig.I and tap Next to continue.
Fig.I
Read the onscreen instructions on Fig.J, Fig.K, Fig.L and continue.
Fig.J Fig.K Fig.L
12
Setup
Wait unit the progress bar reach 100% as instructed on Fig.G.

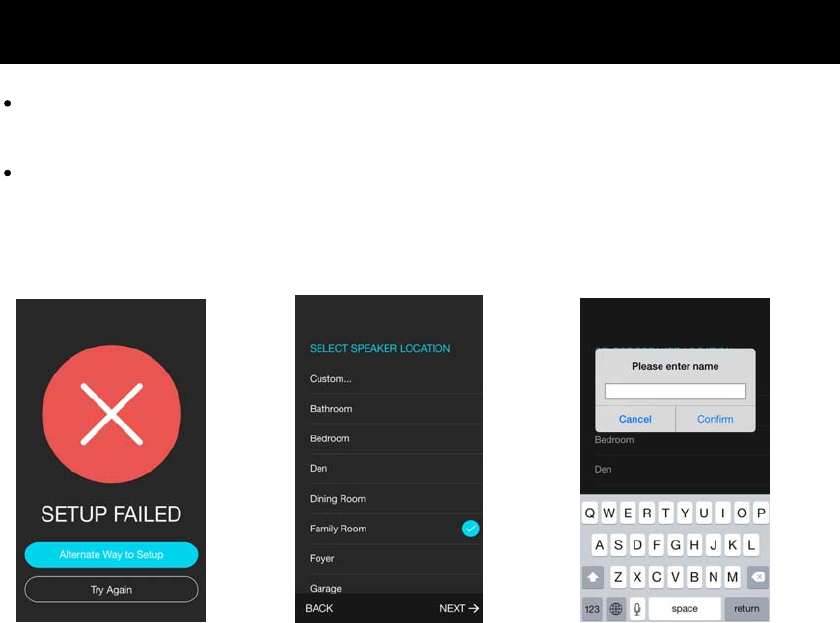

If it displays like Fig.M, tap Try Again to repeate the above stated steps to reconnect.
Fig.M Fig.N
If it does not fail to connect, continue to set the SPEAKER LOCATION, tap Custom...column
on Fig.N to rename the speaker location. Input the name and confirm on Fig.O.
Fig.O
13
Glance at The Function of Each Icon

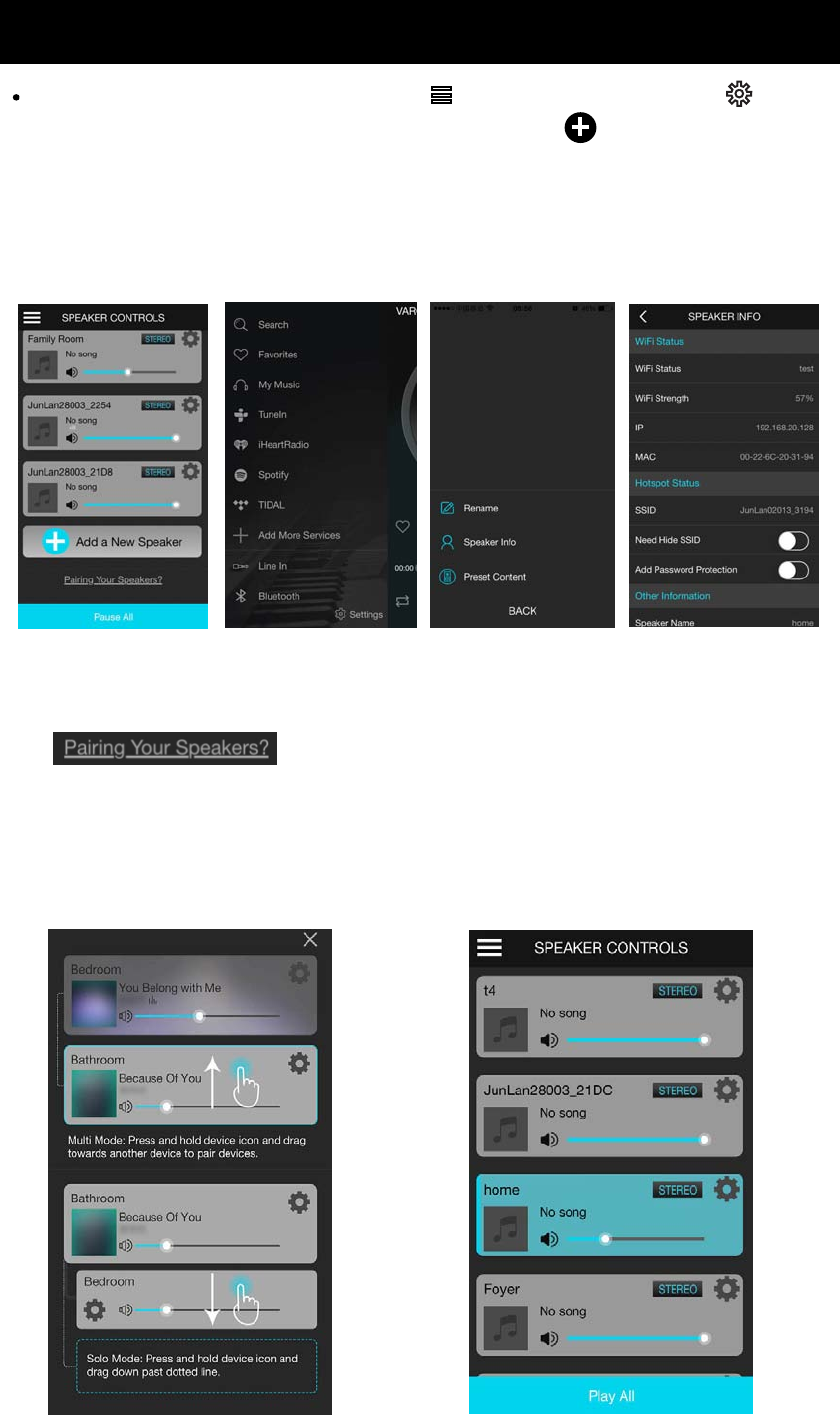

On SPEAKER CONTROLS page (Fig.P), tap to return to home page. Tap to
Fig.P
Rename, browse the Speaker Info and Preset Content. Tap Add a New Speaker to
add more speaker as onscreen instructions. Tap Pause All to pause playing on all speakers,
tap again to resume play all speakers. Tap volume level bar to adjust the volume, tap
Home Page Speaker Info Page
STEREO icon to set to LEFT channel or RIGHT channel.
Tap on SPEAKER CONTROLS page to set solo or multi mode.
as onscreen instructions like Fig.Q.
Fig.Q. Fig.R.
Drag down slowly from the top of the SPEAKER CONTROLS page window until the upward
arrow head appears then release to update the SPEAKER CONTROLS page, if there is
existing connected speaker, it will appear on the SPEAKER CONTROLS page. See Fig.R.
14
15
Guide of Using App Functions
Home Page

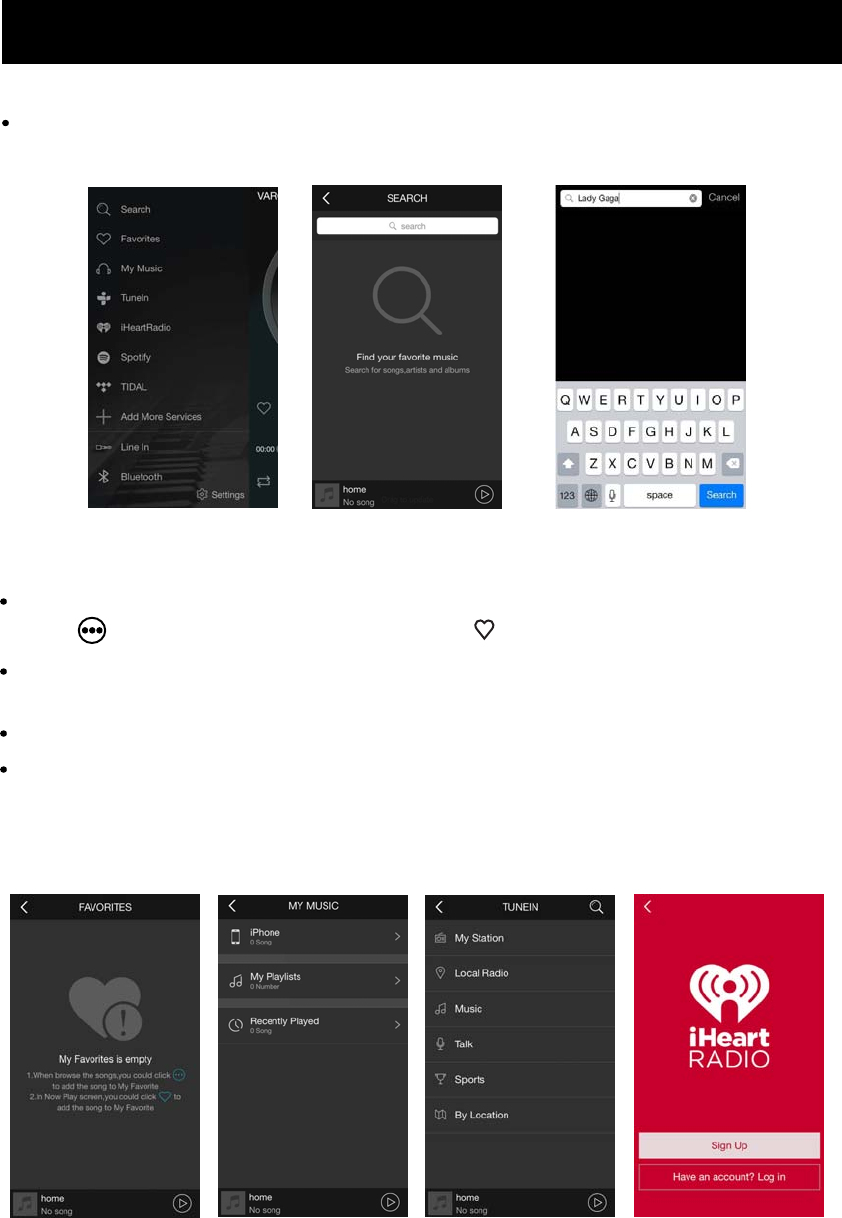

On Home Page, tap Search to search the desired music shown on the below pictures.
On Home Page, tap Favorites to to listen your favorite music, on music playing page,
tap the icon to add songs to My Playlist,
Favorites My Music
On Home Page, tap My Music to listen from native music, My Playlist or Recently
Played music.
TuneIn
On Home Page, tap TuneIn to listen online radio, or other programes.
On Home Page, tap iHeartRadio and sign up to listen iHeart radio.
iHeart
tap the icon to add songs to Favorites.
Guide of Using App Functions
On Home Page, tap Sportify to listen music.
Sportify
On Home Page, tap Add More Services to add the desired online programs platform.
Tap Line in, Bluetooth, USB Devices or Optical to switch function mode on Fig.S.

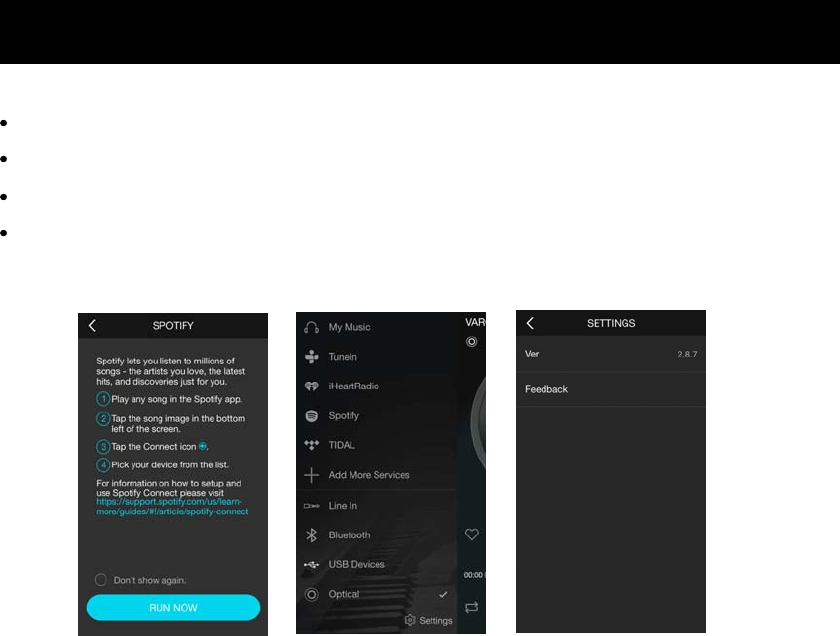

Tap Setings to check the Version and Feedback information on Fig.T.
Fig.S Fig.T
NOTE: Other detail functions like adding, cancel, delete, manage...customize, etc. can be
operated according to the onscreen instructions.
16
FAQ
Q: Can't stream music to the device?
A: Make sure your phone or PAD are in the same Wi-Fi network as your device. If you use 3rd. music APP,
please check if the APP supports Airplay, DLNA or Qplay protocol.
Q: Can the APP system be controlled independently by two different phones/tablets at the same time or can it
only be controlled with one?
A:It can be controlled by different phones / tablets.
Q: Can I play my MP3 music collection on the iphone?
A: Yes. You just have to install the controller app on the iPhone. In the app, you will see an option to play
music on "This iPhone".
Q: What kinds of music format does it support?
A: Most of the format is available. Such as MP3, WMA, AAC (AAC+), Apple lossless, FLAC, APE, etc.
Q:Does it support multi-room playback?
A: Yes. Playback the same song in multiple speakers with minimal latency (less than 5 ms) or different songs
in multiple speakers with one App.
Q: Does the wireless transmission have loss of sound quality?
A:No. You mobile devices or other devices just send control instructions, and the adapter will download songs
metadata, decoding it and then playback in local speaker, so there is no lose of the music quality through
wireless transmission.
Q: Does it support R&L channel?
A: Yes, this is supported. You can find the sign in APP.
17

Navigation menu
