KAB Enterprise TR-020S Remote Controller User Manual x420 TM 110 TR 020S SJTW 14 3 IM Rev 1
Kab Enterprise Co., Ltd. Remote Controller x420 TM 110 TR 020S SJTW 14 3 IM Rev 1
Users Manual
OUTDOOR REMOTE CONTROLLED
COUNTDOWN TIMER
Installation
Receiver
Transmitter
1. Mount or hang the RECEIVER on the wall near a GFCI protected outlet
(125V 60Hz) which the power supply cord of the RECEIVER will plug
into.
2. Plug the cord of the device you wish to control remotely at the bottom of the
RECEIVER.
Helpful Tips
• Once programming activates at dusk in the 2hr, 4hr, 6hr, or 8hr mode, the
program cycle will complete before the timer resets. Headlights, porch lights,
street lamps and other external lighting sources will not interfere with the
active timer program.
• In the dusk-to-dawn mode, temporary light sources like headlights, porch
lights and other external light sources will not interfere with the photocell
function unless the external light source is on for more than 15 minutes. In
that case, the timer will shut off until darkness is restored.
• When set to “ON”, the timer will provide continual power to attached devices
until the timer is switched to “OFF”, or to any of the other operating modes.
Operating Instructions
Receiver & Transmitter opetation modes:
ON: Power is ON to attached devices
Sensor(Dusk - Dawn): power will turn on at dusk and remain on until dawn
2 Hrs: Power will turn on at dusk and remain on for 2 hours
4 Hrs: Power will turn on at dusk and remain on for 4 hours
6 Hrs: Power will turn on at dusk and remain on for 6 hours
8 Hrs: Power will turn on at dusk and remain on for 8 hours
OFF: Power is OFF to attached devices
*Note for Transmitter: Control electrical outlet up to a distance of 100 feet.
*Note The timer has daily repeat after setting, in case of power failure, it will
stop operating when the power goes out. Once power is restored, reset the
desired operating mode as the operating instructions.

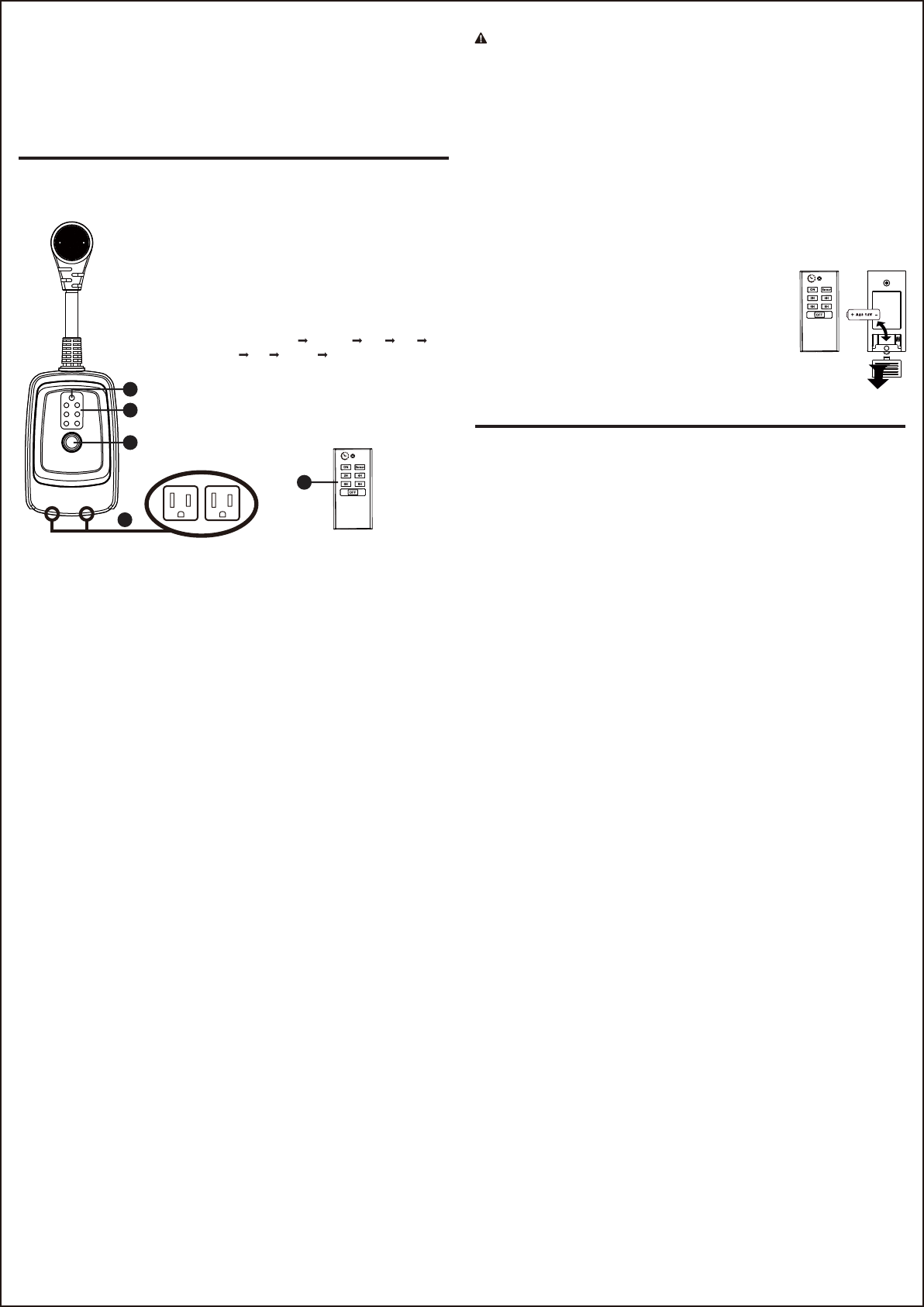

1. Sensor:
Sensor will turn receiver on at dusk
and off at dawn.
2. Operating Mode:
Timer will turn ON, 2, 4, 6, or 8 hours
after dusk.
3. Select button:
To select the function and repeatedly.
Power ON Sensor 2H 4H 6H
8H OFF ON
4. Outlets:
Plug the lights or devices to be
controlled by the timer into one of the
outlets.
5. Transmitter
Printed in China
Button Layout
5
power sensor
2 Hrs 4 Hrs
6 Hrs 8 Hrs
2
1
3
4
Battery Handling and Usage
Keep batteries away from children and pets.
• Follow the battery manufacturer’s safety and usage instructions.
• Insert the battery observing the proper polarity (+/-) as indicated inside
Battery Compartment.
• Remove a spent or discharged battery from the product. Remove the
battery when not using the product for an extended period.
• Never throw batteries into a fire. Do not expose batteries to fire or other
heat sources.
• Dispose or recycle spent / discharged batteries in compliance with all
applicable laws. For detailed information contact your local solid waste
authority.
• Battery contains mercury. Do not put in trash. Recycle or manage as
hazardous waste.
WARNING:
Battery Replacement
1. Remove the Battery Compartment Cover from the
back of the Remote Control by sliding the Cover in
the direction that its trends curve.
2. Remove the spent battery and place a new DC 12V
Type A23 battery into the Battery Compartment
correctly observing the polarity indications (+/-)
inside the Battery Compartment.
3. Replace the Battery Compartment Cover.
SAFETY INFORMATION
DO NOT ATTACH A DEVICE THAT EXCEEDS THE UNIT RATINGS:
125 V ac 60 Hz,
15 A Resistive,
15 A General Use,
1000 W Tungsten,
500 VA Electronic Ballast,
1/2HP. 120 V ac 60 Hz, 8.3 A Ballast
Federal Communications Commission Interference Statement
This equipment has been tested and found to comply with the limits for Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules and Industry Canada
license-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may
cause undesired operation of the device.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
Industry Canada statement:
Cet appareil est conforme à la Partie 15 des règlements de la FCC et aux
normes RSS de l’Industrie du Canada. Son fonctionnement est soumis aux
deux conditions suivantes : (1) cet appareil ne doit pas causer des
interférences nuisibles, et (2) cet appareil doit accepter toute interférence
reçue, y compris les interférences qui peuvent provoquer un fonctionnement
indésirable.
Le fabricant n'est pas responsable des toutes interférences radio ou télévision
causées par des modifications non autorisées apportées à cet appareil. De
telles modifications peuvent empêcher l’utilisateur d’utiliser l'appareil.
Le présent émetteur radio (identifier le dispositif par son numéro de certification
ou son numéro de modèle s'il fait partie du matériel de catégorie II) a été
approuvé par Industrie Canada pour fonctionner avec les types d'antenne
énumérés ci-dessous et ayant un gain admissible maximal. Les types
d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain
maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
CAUTION
• Suitable for use with outdoor appliances.
• For use ONLY with a three conductor GFCI protected outlet.
• Raintight when mounted vertically with receptacles facing downward.
• Do not immerse in water.
• DO NOT EXCEED RATED CAPACITY.
• The device must be mounted in a vertical position with the receptacle facing
downward and with the receptacle at least 2 FT above the ground level.
Size: W-21 x H-29.7/cm
RECEIVER MODEL: TM-110
TRANSMITTTER MODEL: TR-020S
FCC ID: PAGTR-020S
IC: 4494A-TR020S
