KEEN HIGH HOLDING WR780 Wifi E-book User Manual manual
KEEN HIGH HOLDING(HK) LIMITED Wifi E-book manual
User Manual
Wifi Ebook
WR780
User’s Manual
i
TABLE OF CONTENTS
Introduction.............................................................................................................................................................................................1
FCC Warning:..............................................................................................................................................Error! Bookmark not defined.
FCC STATEMENT....................................................................................................................................................................................2
Important Safety Precautions................................................................................................................................................................3
Main Features .........................................................................................................................................................................................4
Controls and Connections.....................................................................................................................................................................5
Getting Started........................................................................................................................................................................................7
Charging...............................................................................................................................................................................................7
Inserting Media.....................................................................................................................................................................................8
Connecting to the PC ...........................................................................................................................................................................8
Turn on/off ............................................................................................................................................................................................9
Lock and Unlock...................................................................................................................................................................................9
Basic icons on the screen ....................................................................................................................................................................9
Home......................................................................................................................................................................................................10
Customizing the Home Screen...........................................................................................................................................................11
Applications Menu..............................................................................................................................................................................13
Using the Keyboard..............................................................................................................................................................................14
Sleep/Wake button .............................................................................................................................................................................15
Making a Wireless Connection ...........................................................................................................................................................15
E-Book Reader......................................................................................................................................................................................16
Reading a book ..................................................................................................................................................................................16
Reading E-Book with background music............................................................................................................................................17
Downloading a book...........................................................................................................................................................................17
Browser .................................................................................................................................................................................................18
Open Browser.....................................................................................................................................................................................18
ii
Setting your home page .....................................................................................................................................................................18
Open a Web Page..............................................................................................................................................................................18
Refresh a Web Page ..........................................................................................................................................................................18
Zoom in and Out of a Webpage .........................................................................................................................................................18
Open a New Browser Window ...........................................................................................................................................................18
Finding Text within a Webpage...........................................................................................................................................................19
Select Links within Webpages............................................................................................................................................................19
Downloading unknown application from the Web ..............................................................................................................................20
Manage Bookmarks ...........................................................................................................................................................................20
Customize Browser Options...............................................................................................................................................................21
E-mail.....................................................................................................................................................................................................21
Open E-mail........................................................................................................................................................................................21
Account Settings ................................................................................................................................................................................22
Reading E-mails.................................................................................................................................................................................22
Photo Browser......................................................................................................................................................................................23
Music .....................................................................................................................................................................................................24
Video Player..........................................................................................................................................................................................25
Alarm Clock...........................................................................................................................................................................................27
Calculator..............................................................................................................................................................................................28
ApkInstaller...........................................................................................................................................................................................28
Explorer.................................................................................................................................................................................................29
Settings .................................................................................................................................................................................................30
Set Date & Time .................................................................................................................................................................................32
Frequently Asked Questions...............................................................................................................................................................33
Specification .........................................................................................................................................................................................34
1
Introduction
Thank you for purchasing this device.
This device enables you to surf the internet via wireless connection with multimedia playback.
This manual contains important safety information and operation instructions, so please read all the instructions carefully before using the device
and keeps it for future reference.
We have done our best to produce a complete and accurate manual; however, we cannot ensure there are no errors
or omissions. We also have no responsibility for damages or loss of data caused by improper operation.
The instruction manual is subject to change for improvement without notice.
Trademarks and trade names used in this user’s manual are owned by their respective companies or organizations.
2
FCC Warning:
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
FCC STATEMENT
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
WARNING: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THE DEVICE. ANY SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
Note: The AC Adapter with one ferrite core and shielding USB cable with one ferrite core are designed for exclusive use with this product.
Don't use others for this product.
3
Contact:
Roy Rayn
Shaghal Ltd. 2231 Colby Ave. L.A., C.A., 90064 U.S.A.
Tel: (310) 966-1133
Fax: (310) 966-1134
www.Ematic.us
E-mail: ematicr@gmail.com
Important Safety Precautions
Always follow these basic safety precautions when using your device. This will reduce the risk of fire, electric shock, product damage and
personal injury.
Warning:
Do not remove the cover or back to reduce the risk of electric shock. There are no user-serviceable parts inside. Refer
servicing to qualified personnel.
Warning:
Do not expose the device to rain or moisture to prevent fire or electric shock hazard.
Do not expose the device to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit.
Keep the device away from direct sunlight and heat source such as radiators or stoves.
Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings should never be blocked
by placing your device on a cushion, sofa or other similar surface.
Do not place the device on unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in possible damage or injury.
Never place heavy or sharp objects on the LCD panel or frame.
Only use the AC adapter included with device. Using any other adapter will void your warranty.
Protect the power cord from being walked on or pinched particularly at plugs, receptacles and the point where the cord attached to the
4
device.
Unplug the power from the outlet when the unit is not in use.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
Warning that excessive sound pressure from earphones and headphones can cause hearing loss.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
Cleaning
Before cleaning the device make sure it is turned off.
Never spray or pour liquid directly onto the screen or plastic casing.
To clean the LCD screen, wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles. If it is still not clean,
apply a small amount of non-ammonia, non-alcohol based glass cleaner on a clean, soft, lint-free cloth to clean the screen.
To clean the plastic casing, use a soft, dry cloth. If it is still not clean, apply a small amount of non-ammonia, non-alcohol based, mildly
non-abrasive detergent on a clean, soft, lint-free cloth to clean the surface.
To clean the frame, use a soft, dry cloth.
Disclaimer:
Authorized Dealer does not recommend the use of any ammonia or alcohol-based cleaners on the LCD screen or plastic casing.
Some chemical cleaners have been reported to damage the screen and/or display case. Authorized Dealer will not be liable for damage resulting
from the use of any ammonia or alcohol-based cleaners.

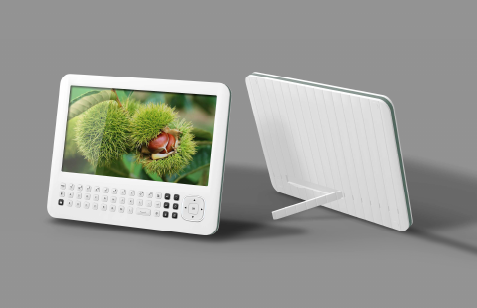

Main Features
7 inch TFT LCD screen,800*480 16:9
5
Full keyboard
OFN (Optical Finger Navigation) mouse and shortcut button
Decorative appearance, good quality
Surf the web via wireless connections
Read and download E-Books
Send and receive E-mails
Listen to music, view pictures and videos
Download, install and play games.
Download, install and use Android Applications.

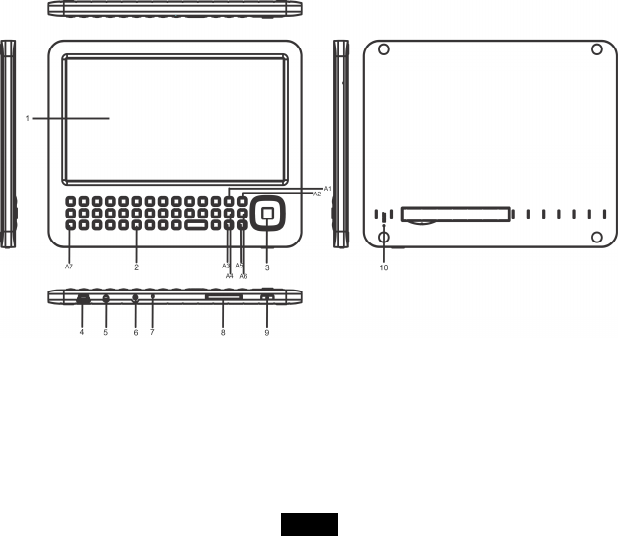

Controls and Connections
6
1. TFT LCD screen
2. Keyboard
3. OFN mouse
4. Mini USB connector
5. Earphone jack
6. DC input socket
7. Charging indicator
A1. Master volume button
A2. Back button, press to return to previous screen
A3. Lock/Unlock the screen
A4. Volume button
A5. Shortcut button
A6. Home button, press to go to Home screen
A7. Move button, press this button and OFN mouse,
7
8. SD card socket
9. Power/lock button
10. Reset hole
then you can drag the music, pictures, files and
applications icon to the certain place.
Getting Started
Charging
Your device comes with a Lithium polymer integrated rechargeable battery.
New batteries are not charged when shipped. Before you start using your device, you need to charge the battery.
Follow the steps below to connect your device to the power outlet and charge the battery.
Plug one end of the AC power adaptor into the power jack on your device.
Plug the other end into a power outlet. The battery icon is changing indicates charging.
Note:
The red charging LED will light up when the battery is charging. Once the battery is fully charged, the charging LED will turn green.
If your device is totally out of battery, it may take a while before you can power up your device. Only plug the charger/adapter into DC port
that the device will be in the charging state.
Battery performance depends on your usage patterns.
Tips to improve battery performance
As the device has a large screen, it will consume a lot of power. To extend battery life, you can consider the following:
Reduce display brightness.
Reduce web search.
Turn off Wi-Fi.
NOTE
8
If not use this machine for a long time, in order to avoid damage caused by battery excessive consumption, please be sure to make a
battery charge and discharge once within one month to prevent battery from running down.
With built in Lithium polymer batteries, it has to be charged regularly. The battery damage caused by excessive consumption of polymer
battery will not be covered by guarantee. If use the charger which is not exclusively equipped for this machine, the problem caused by it
also not be covered by guarantee.
If the device has no quantity of electric charge, you can not connect to the PC to copy files, you should charge first.
Inserting Media
The device supports SD card.
You can operate music, pictures, files and applications on the device through a memory card.
When no SD card inserted, your device will read the internal memory.
Note
: Do not use any force while inserting a memory card.
Connecting to the PC
Files can be transferred directly into the device by using the USB data cable.
Make sure that your computer has been started before you start
Connect the mini plug of the USB cable to the mini USB port on your device and plug the other end into a free USB port to your PC.
The computer system detects “New hardware” and starts to install the driver automatically. Wait for the system to finish the installation.
When it has finished, a new “
Removable Disk
” will be created in “
My Computer
”.
Drag and drop the files on your computer to the “
Removable Disk
”.
To disconnect the USB cable from the computer, double click the
Safely Remove Hardware
icon on the task bar. Click the
USB Mass
Storage Device
, and then click
OK
. Then you can unplug the player safely.
Note: Before connecting to the PC, make sure that you have turned on your device.
9
If the battery runs down, it needs recharging before connecting to PC.
Please do not disconnect the USB cable during loading. It may cause malfunction of the player and the files.
Turn on/off
To turn on the device, press and hold the power button.
To turn off the device, press and hold the power button.
Lock and Unlock
Locking the device manually
Press the
Power
Unlock the device
Press the
Unlock button
Use the OFN mouse to drag
Unlock
from bottom to up
You can also set the master volume level from the lock screen. Drag
Sound
from top to bottom to toggle sound between ON and OFF
modes.

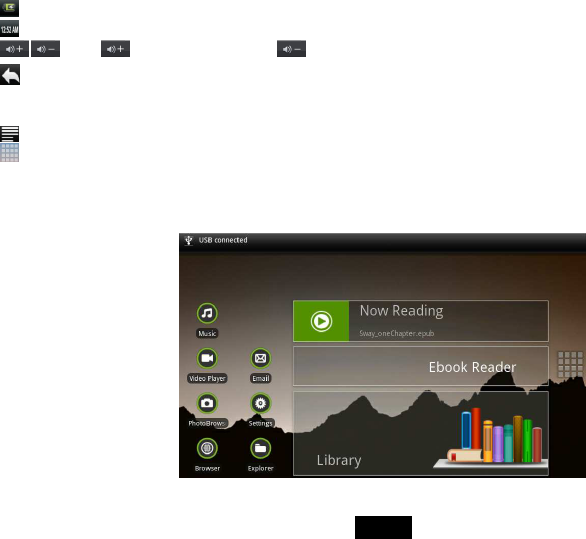

Basic icons on the screen
:
Press to return to the home screen; Press and hold for 1 second to switch between tasks.
: The notification panel shows information about connections, messages and other items.
: Wi-Fi net connection.
10
: Battery status.
: Time display.
/ : press to increase volume; press to decrease volume.
: Press to return to previous screen; Press to exit a dialog box, options menu or notifications panel; Press to cancel an operation; In browser
mode, press and hold to access Favorites and browse history pages.
: Press to open the options list.
:
Application icon, Press to open application menu.
Home
11
The device owns OFN mouse and keyboard, you can use OFN mouse to choose one certain item to enter, and the keyboard make the input more
conveniently.
Press Shortcut button to add your favorite application icon on the home screen, and then you can use it easily.
The device owns strong E-Book reader function and supports different ways to read the E-Book. In the home menu, you can read the E-Book as
below:
Press the
E-Book Reader
, choose the book you want to read;
Press the
Now Reading
, you can continue reading from the previous page you have read, because the device will save your reading history
automatically.
Press the
Library
, choose the book you want to read.
Customizing the Home Screen
Customize the Home screen to suit your preferences.
Add Shortcuts
Use Shortcuts for quick access to applications.
-- On the home screen, press shortcut key on the keyboard or press on the home screen to go to the shortcut window, and then press
Add
to pop up the Add window.
-- Press
Shortcuts
, then press a selection, then follow the prompts to add it to the Home screen:
Applications
,
Bookmark
,
Contact, Music
playlist
,
Settings
Adding Shortcuts from Applications
-- Navigate to a Home screen
-- Press Applications
-- Press an application icon. The shortcut icon is automatically placed on the selected Home screen
Removing Shortcuts
-- Press the Shortcut icon until Application changes into the trash bin , then press the
Move key
and move the OFN mouse to drag the icon
12
into the trash bin, while both the icon and the trash bin turns into red , after that you can release to remove the widget from the home screen.
Add Widgets
Widgets are self-contained application that you can place on the Home screen to enter your favorite features.
Adding Widgets to Home screen
-- - On the home screen, press shortcut key on the keyboard or press on the home screen to go to the shortcut window, then Press
Add
to
pop up the Add window.
-- Press
Widgets
, and then press a widget to add it to a home screen.
Removing Widgets
-- Press the widget icon until Application changes into the trash bin , then press the
Move key
and move the OFN mouse to drag the icon into
the trash bin, while both the icon and the trash bin turns into red after that you can release to remove the widget from the home screen.
Add Folders
On the home screen, press shortcut key on the keyboard or press on the home screen to go to the shortcut window, and then Press
Add
to
pop up the Add window.
-- Press
Folders
, and then Press a selection:
New folder
.
Removing Folders
-- Press and hold the Folder icon until the Application changes into trash bin , then drag the icon into the trash bin, while both the icon and the
trash bin turns into red , after that you can release to remove the widget from the home screen.
Change the Wallpaper
13
Choose a picture to display in the background of the Home screen. You can choose from pre-load wallpaper images.
-- On the home screen, press shortcut key on the keyboard or press on the home screen to go to the shortcut window, and then Press
Add
to pop up the Add window.
-- Choose a source image:
-Pictures: Choose a picture from an installed memory card. Press a picture to select it, and then use the crop tool to resize the picture, if
desired. Press
Save
to save the pictures as wallpaper.
- Live wallpapers: Choose from pre-loaded interactive animated wallpapers. Press a wallpaper to see an example, then Press
Set wallpaper
.
- Wallpapers: Choose from pre-loaded wallpaper images. Press a wallpaper, then Press
Set wallpaper
.
Applications Menu
The Applications menu screen holds all the applications on the device. Applications that you download and install from the web are also added to
the applications screen.
14
You can place the applications on the home screen for quick access to the application.
From a Home screen, press
Applications
icon
.
Select one application icon and hold on it, then you can add it on the home screen.
Using the Keyboard
The keyboard lets you enter text, such as passwords, filenames, E-mail messages, etc. Or you can use the on-screen keyboard when you launch
certain applications.
Each letter appears on the screen when entering texts.
Press
Num
key on the keyboard, then you can input the numbers.
Press
ABC
(character),
⇑
(Capitalized or not),
?123
(number), or
ALT
(symbols) on the keyboard to switch between different input
15
modes.
Long press on the on-screen keyboard to show the accented characters.
Press and hold the word you have typed to activate the following edit text options:
Select all
,
Select text
;
Cut all
,
Copy all
,
Input
method.
Press
Back
key or Press to exit.
Sleep/Wake button
When you are not actively using device
,
you can short press [ ] button to turn off the display and save the battery.
When you turn off the display, You can short press [ ] button or keyboard or OFN to turn on the display.
Making a Wireless Connection
Before you can surf the Internet, send and receive E-mails, download content and other applications, you must join a Wi-Fi network
that is connected to the Internet.
For Wi-Fi networks that are not secured with a PIN code, you can easily connect to them and access the Internet freely. However, for Wi-Fi
networks that are secured with password, you need to have the password to access the Internet.
From the home screen or Application menu, Press
Settings
to enter setting interface. Or on the home screen, press , then select
Settings
on the menu bar.
Press
Settings
>
Wireless & networks
.
Press
Wi-Fi
to turn on wireless connection.
⇑
appears in the Wi-Fi checkbox.
Press
Wi-Fi settings
. Your device will start to scan for the networks within range and display a list of available Wi-Fi networks.
Press the Wi-Fi network that you want your device to be connected with. If the network is not secured with a password, your device will
start to establish a link with it.
16
If it is a secured network, you will be prompted to select the security option (for networks secured with WEP) and enter the wireless
password.
Press on the password field to launch the onscreen keyboard. Enter the password and Press
Connect
.
Your device will start to establish a link to the network. Once a connection established,
—Connected
will appear below the name of the
Wi-Fi network.
Press Home key to return to the home screen, will appear on the status bar of your home screen
.
Note:
This device does not support 802.11n network, make sure network connection is 802.11b/g.
E-Book Reader
This device supports different ways to open the E-Book; users can read the book more conveniently.
You can view and download books through this E-Book Reader application.
Reading a book
From a Home screen or Application menu, Press
E-Book Reader
or
Library
to enter book interface, or press
Now Reading
to go to the
previous page you have read and continue reading.
Press
Bookshelf
to enter book list.
Select a book and Press to enter.
Press the
or
on the OFN mouse to go the previous or next page.
Press to zoom in or zoom out the font size.
Press to open menu bar, then you can
Press
Font Size
to change font size for your desired reading preference: S, M, L, XL, and XXL.
Press
Go To
to jump to the desired page.
Press
Bookmarks
to use bookmarks in the book: Show Bookmarks, Add Bookmarks, Delete Bookmarks.
17
Press
BookInfo
to view book details.
Press
Auto Flip
to set the page turning automatically at a certain time: Manual, 15s, 30s, 60s, 90s, and 120s.
On book list interface, select a book and hold to pop up a window, then you can Press
View
to read or Press
Delete
to delete book.
Reading E-Book with background music
1. In the home menu, press
Music
icon to enter the Music mode.
2. Press to select the desired audio file to start playing the song.
3. Press the icon to go back to the home menu.
4. In the home menu, press
E-Book Reader
or
Library
icon to enter the
E-Book
mode.
5. Press to select the desired E-Book to start reading the book.
Now, you can read your book with background music.
Downloading a book
From a Home screen or Application menu, Press
E-Book Reader
to enter book interface.
Press
Download Books
to download book.
Select a catalog and Press to enter.
Select the desired book, which displays in thumbnails of the covers, and Press to enter.
Press
Download.
Your device begins to download the book in the background. Once the download is completed, you will get a notification, and the book will
appears on the bookshelf.
18
Browser
The device is equipped with a full HTML Browser, which allows you to enter the internet.
Note:
You must join a Wi-Fi network that is connected to the internet before you can surf the web via the browser application.
Open Browser
From a Home screen or Application menu, Press
Browser
.
Setting your home page
By default, the home page is www.google.com
Enter the web address, then press and Press
More
.
Press
Add bookmark
, then you can go to the address more conveniently.
Open a Web Page
In the
Browser
window, enter the web address in the URL field using the onscreen keyboard and Press
Go
.
Note:
As you enter the address, matching web page addresses will appear on the screen. Press an address to go directly to that web page or
continue to enter the web page address.
Refresh a Web Page
On the web page, press .
Press
Refresh.
Zoom in and Out of a Webpage
Press the zoom control icon to zoom in and zoom out.
Open a New Browser Window
You can open multiple browser windows and switch between different web pages.
19
In the Browser window, press
and then press
New Window
.
A new browser window opens and enters the home page.
Switch between browser window
s
In the Browser window, press and then press
Windows
.
Press to select the browser window you wish to display.
Finding Text within a Webpage
When viewing a webpage, press and then Press
More
>
Find on page
.
Enter the text. The matching texts are highlighted on the screen.
Press
or
to go to the previous or next matching text.
Select Links within Webpages
Web page links
Press and hold the link
A pop-up menu opens.
Press to select
Open
,
Open in new window
,
Bookmark link
,
Save link
,
Share link
or
Copy link URL
.
E-mail links
Press and hold the link
A pop-up menu opens
Press to select
Send E-mail
or
Copy
.
If you select
Send E-mail
, the E-mail application will launch automatically.
Enter the recipient and subject using the onscreen keyboard and Press
Next
.
Enter the message and then Press
Send
to send the E-mail,
Save as draft
or
Discard
.
Tip:
If you exit the E-mail application without saving the message you have composed, the message will be automatically saved as draft in
20
the Draft folder of your default E-mail account.
Downloading unknown application from the Web
Before you can download web applications, you must first enable downloading from the
Settings
menu.
Press , and then Press
Settings
> Applications
.
Press
Unknown sources
to enable or disable the downloading of unknown applications.
When enabled,
⇑
appears next to the option.
Note:
Applications downloaded from the web can be from unknown sources. To protect your device and personal data, download
applications only from trusted sources.
View your downloads
In the Browser window, Press and then Press
More
>
Downloads
.
Manage Bookmarks
You can store as many bookmarks as you want on your device.
Bookmark a webpage
In the Browser window, go to the web page you want to bookmark.
Press and then Press
More>Add bookmark
to enter the bookmark name.
Edit the location if needed.
Press
OK
.
Open a bookmark
In the Browser window, press and then Press
Bookmarks
.
The bookmark option opens.
Press to select the bookmark to open it.
21
Customize Browser Options
You can customize the Browser to suit your browsing preferences by setting the display, privacy, and security options. In the Browser window,
press and then Press
More
>
Settings
to modify the following browser settings according to your preference.
Page content settings
Text size
Default zoom
Open pages in overview
Text encoding
Block pop-up windows
Load images
When
⇑
appears next to the option, the setting is enabled. To disable, Press the option again.
E-mail
Use E-mail to view and manage all your E-mail accounts in one application.
Note:
You must join a Wi-Fi network that is connected to the internet before you can surf the web via the browser application.
Open E-mail
From a Home screen or Application menu, Press
E-mail
.
Input your E-mail address and password and Press
Next
.
Press to select your account type: POP3, IMAP or Exchange.
Press
Next
.
Enter the
Account name
(optional) and
Your name
(optional) to be displayed on outgoing messages, and then Press
Done
.
The E-mail application will start to load your messages. It might take a few minutes for the messages to load completely.
Note:
When you have set up an E-mail account, the account will open by default when you open E-mail.
22
If you have set up more than one E-mail account, the E-mail accounts will appear in
Your accounts
list. Press to select the account you wish to
access.
Enter E-mailbox interface, press ,then you can
Refresh: Check for new messages.
Compose: Compose and send E-mail messages.
Folders: View you E-mail folders.
Accounts: View all accounts. To ad a new account, press Menu key or Press to select
Add account
. To delete an E-mail
account, Press and hold the E-mail account that you want to delete, and then Press
Remove account
to delete.
Account settings: Make account settings.
Account Settings
On E-mailbox interface, press Menu key or Press to show the menu bar.
Press
Account settings
, then you can
Account name: Edit your account name
Your name: Edit your name
E-mail check frequency: Never, Every 5 minutes, Every 10 minutes, Every 15minutes, Every 30 minutes, Every hour.
Default account: Set your E-mails will be sent from this account by default.
E-mail notifications: Set notification on the status bar when a new E-mail arrives.
Select ringtone: Set ringtone from the list for the arrival of new E-mails.
Incoming settings: Modify incoming server settings.
Outgoing settings: Modify outcoming server settings.
Reading E-mails
On E-mailbox, select a mail and Press to open.
Reply to E-mail messages, Press
Reply
or
Reply all
.
23
Delete an E-mail message, Press
Delete
.
Press to show the menu bar, then you can
Delete an E-mail message
Forward an E-mail message
Reply E-mail message
Mark E-mail message as unread
Photo Browser
The
Photo Browser
application lets you view photos and images stored in the internal memory or memory card.
From a Home screen or Application menu, Press
Photo Browser
to enter photo mode.
24

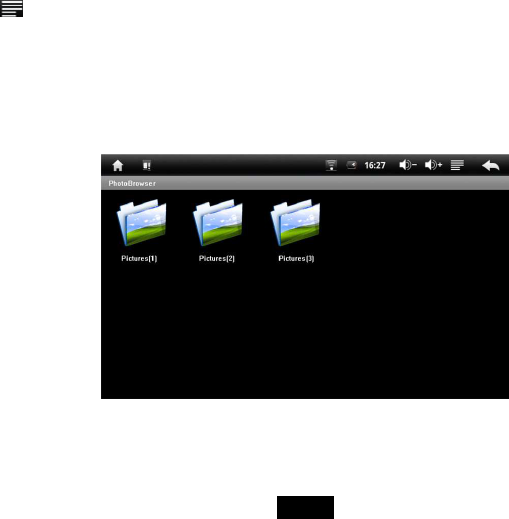

Select a folder and Press to enter the photos are displayed in thumbnails.
Select a photo and Press to view in browsing mode.
On photo thumbnail list, select a photo and hold to pop up a window, then you can
Delete the photo
See photo details
Set the current photo as wallpaper
While viewing a photo, Press the OFN mouse to pop up a tool bar.
Press
or
to view the previous or next photo.
Press repeatedly to zoom in a photo.
Press repeatedly to zoom out a photo.
Press repeatedly to adjust the brightness of the photo.
Press repeatedly to rotate a photo clockwise.
Press repeatedly to rotate a photo counterclockwise.
Press to toggle between the browsing and slideshow mode.
Press to go to the Selections menu to customize the Settings, set photo as wallpaper or Return to the previous screen.
Press to exit, and return to previous screen.
Music
The
Music
application lets you play digital audio files stored in the internal memory or memory card.
From a Home screen or Application menu, Press
Music
to enter music library.
The music is displayed into different categories such as
Albums
,
Artists
,
Songs
and
Playlists
.
Press to select a category and Press a song in the category to start playback.
Press to return to previous screen.
25
On music library interface, select a song and hold to pop up a window, then you can
Play the selected song.
Add to playlist.
Delete the song.
Search song from music library or internet.
While listening to music,
Press to select songs from the list.
Press to turn shuffle on or off.(Shuffle is off when the icon is gray).
Press to cycle through the repeat modes:
Repeat all songs, Repeat current song, Repeat is off.
Press to pause or resume the song playback.
Press to go to previous or next song.
Drag the progressive bar to the desired playing point.
On the playing interface, press , then there will pop up a menu bar.
Press
Library
to go to music library.
Press
Party shuffle
to make Part shuffle on or Party shuffle off.
Press
Add to playlist
to add a playlist.
Press
Delete
to delete the song.
Video Player
The
Video Player
application lets you play video files stored in the internal memory or memory card.
From a Home screen or Application menu, Press
Video Player
to enter video list.
Select and Press a video to start playback.
Press to return to previous screen.
26
On video list, select a video and hold to pop up a window, and then Press
Delete
to delete the video file.
While viewing a video, Press the OFN mouse to pop up a tool bar.
Drag the progressive bar to the desired playing point.
Press to set bookmark
，
then the next time video playing will start from the bookmark.
Press to adjust video brightness.
Press to go to previous or next video.
Press to pause or resume the video playback.
Press repeatedly to change display mode :full screen, original, 16:9, 4:3
Press to return to previous screen.
Press to pop up a selection window, then you can
Delete Bookmark and play from beginning
Delete bookmark
Change play mode: Single, Repeat one, Repeat all, Return
Get a help
Return to previous screen
27
Alarm Clock
From a Home screen or Application menu, Press
Alarm Clock
to enter.
Press the clock to select a clock mode to be displayed on the screen. There are 5 modes, and Press the desired one for your choice.
Press to pop up the menu bar, then you can,
Press Add alarm to add an alarm clock, then to set Time, Ringtone, Vibrate, Repeat and Label.
Press Hide clock or Show clock.
Settings. You can set: Alarm in silent mode, Alarm volume, Snooze duration, Side button behavior.
To delete an alarm clock, hold the selected alarm, and then there will pop up a window, you can Press
Delete alarm
.
Press to exit and return to previous screen.
Note
:
⇑
indicates that the option is activated
.
28
When the alarm rings, Press
Snooze
or
Dismiss
to snooze or dismiss the alarm.
Calculator
You can use the Calculator to perform simply and advanced arithmetical calculations.
From a Home screen or Application menu, Press
Calculator
to enter.
Press on the numbers and mathematical operators to perform simple calculations.
Press to pop up a menu bar, Press
Advanced panel
to access operators such as sin, cos, tan, log etc.
To clear calculation histories, Press
Clear history
.
Press to exit and return to previous screen.
ApkInstaller
From a Home screen or Application menu, Press
ApkInstaller
to enter applications management.
Press
Install
to install the desired application. Find the right path, and Press the application to install.
Press
Manage
to manage all the applications. Press the selected application, a pop up window appears, then you can
Launch into the application
Export the application
Uninstall the application
Cancel the window
Press
Exit
to exit from the application management.
Note
: Applications downloaded from the web can be from unknown sources. To protect your device and personal data, download applications
only from trusted sources. Also, download and install the application matches to your device with Android 2.1 operating system.
29
Explorer
The Explorer application is a free file manager for your device. It allows you to browse files and folders stored on your device and SD card.
From a Home screen or Application menu, Press
Explorer
to enter files management.
Select memory source first: SD card or Internal Memory.
Related function of icons:
Home: Go to the Home interface of the files management.
Level Up: Go to the upper directory.
Multi: Multi choose the folders or files.
Editor: Edit the folder or file.
Back: Backward operation.
Next: Forward operation.
Then select and Press to enter the desired files at the right path.
Select a folder or file and hold to pop up a window, then you can:
Copy: Press
Copy
, then select the desired path, Press Editor >
Paste.
Delete: Press
Delete
, then to delete the selected folder or file.
Move: Press
Move
, then select the desired path, Press Editor >
Paste.
Rename: Press
Rename
, and then input a new name.
To edit multi folders or files at a time,
Press Multi
Select the folders or files
Press Editor, and then edit the folders or files.
30
Settings
The system settings let you customize and configure your device.
From a Home screen or Application menu, Press
Settings
to enter setting interface. Or on the home screen, press , then select
Settings
on the menu bar.
Press the settings items to make the desired configuration.
⇑
indicates that the option is activated.
Press to exit and return to previous screen.
Wireless & networks
Configure your device wireless connections, such as Wi-Fi.
Wi-Fi
Wi-Fi settings
Sound & display
Set the device and notification ring tones, or set screen brightness and screen timeout.
31
Sound settings
Media volume
Notification ringtone
Audible selection
SD card notifications
Display settings
Orientation
Animation
Brightness
Screen timeout
Location & security
Set location and security.
Use wireless networks
Visible passwords
Applications
Manage applications.
Unknown sources: Allow install of non-Market application.
Quick launch: Set keyboard shortcuts to launch applications.
Manage applications: Manage and remove installed applications.
Running services: View and control current running services.
Development: Set options for application development.
Privacy
Restore all settings to the factory default.
SD card & device storage
Show the available storage card memory (when SD card is inserted) or the device internal memory (when no SD card
is inserted).
SD card
Total space
32
Available space
Unmount SD card
Format SD card
Internal flash storage
Available space
Internal device storage
Available space
Language & keyboard
Set the language and keyboard.
Select locale
Android keyboard
Device keyboard
User dictionary
Date & time
Set date and time.
Update Media Library
Update the media library.
Online Help
Get an online help.
About device
View information about your device.
Set Date & Time
From a Home screen or Application menu, Press
Settings
to enter setting interface. Or on the home screen, press , then select
Settings
on the menu bar.
Select
Date &Time
and Press to enter, then you can
Automatic: Use network-provided values
Set date: Press
+
or
–
on each date field to change the Month, Day and Year, then Press
Set
to confirm the date setting.
33
Select time zone
Set time: Press
+
or
–
on each time field to change the Hour and Minute, then Press
Set
to confirm the time setting.
Use 24-hour format or not
Select date format
Frequently Asked Questions
1. My device does not turn on.
Make sure that the power adapter is securely connected
Make sure that you are using the power adapter that was included with your device.
Make sure that the device is turned on.
2. My device does not recognize the memory card.
Make sure that you have inserted a certified memory card.
Make sure that you have inserted the memory card correctly.
With your memory card inserted, power off and reset the device.
3. My device shows a low-battery warning
The device is low on power and needs to be charged before you can use it.
4. I cannot access the web
Check the wireless signal indicator in the status bar at the top of the screen. If there is no signal, you are not connected.
5. The display freezes or does not respond
Press and hold the power button to turn device off and turn it on again.
6. There is no sound coming from the device
Unplug and reconnect the headset. Make sure that the connector is pushed in all the way.
The volume may be deactivated or set too low.
34
Specification
Display
Digital LCD, TFT
Panel size: 7 inches
Screen aspect ratio: 16:9
Resolution: 800*480 pixels
I/O DC in
Power Supply AC Adapter (Input: 100~240V AC, 50~60Hz; Output: DC 5V 2A)
Battery 2100mAh,
Book reading Time >4hrs, Audio playtime>7 hrs, Video playtime >3 hrs, Wi-Fi> 2hrs
Operating system Android 2.1
USB port Mini USB 2.0(high speed) device
Wireless WI-FI 802.11b/g
Supported card SD card
Supported photo format JPEG, BMP, PNG, GIF
Supported audio format Free: WAV, FLAC, APE, OGG vobris
With royalty fee: MP3,WMA,unprotected AAC
Supported video format
Free: XviD(720P@25fps), MPEG4(ASP) (720P@25fps), FLV(720P@25fps), Option (With royalty
fee): wmv(D1@30fps), rmvb(720P@25fps),mpeg4(720P@25fps), H.264(720P@25fps),
Divx(720P@25fps)
Supported eBook format PDF( include Adobe DRM Support) , e-Pub , FB2, TXT,
Storage condition Humidity<90%,-20~60°C
Working condition Humidity <80%,0~45°C
Size L*W*H : (mm) 180*145.8*9.9MM
